联想 ThinkPad E555 笔记本电脑简短评测

Name: Lenovo Thinkpad E555
Brand: Lenovo

变脸。 联想再次为个人和商务用户推出了最新型号的低价ThinkPad E系列设备。相比前代产品它有一些外观上的变化——不过你依然可以得到一块磨砂表面屏幕和高质量的键盘。

Sascha Mölck, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 11/20/2014 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Windows


220 cd/m²	205 cd/m²	187 cd/m²
221 cd/m²	203 cd/m²	201 cd/m²
219 cd/m²	213 cd/m²	215 cd/m²

Distribution of brightness

Lenovo N156B6-L07 tested with X-Rite i1Pro 2

Maximum: 221 cd/m² (Nits) Average: 209.3 cd/m²
Brightness Distribution: 85 %
Center on Battery: 203 cd/m²
Contrast: 312:1 (Black: 0.65 cd/m²)
ΔE Color 11.01 | 0.5-29.43 Ø4.92
ΔE Greyscale 11.57 | 0.5-98 Ø5.2
39% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.91% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.1% sRGB (Argyll 2.2.0 3D)
40.57% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.09

Download ICC File (X-Rite i1Pro 2)

	Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	Fujitsu LifeBook A544 HD Graphics 4600, 4200M, Hitachi Travelstar Z5K500 HTS545050A7E680	HP ProBook 455 G1 H6P57EA Radeon HD 7420G, A4-4300M, Seagate Momentus Thin ST500LT012-1DG142	Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0
Display		2%	-12%	-6%	21%
Display P3 Coverage	40.57	41.5 2%	35.51 -12%	38.48 -5%	49.78 23%
sRGB Coverage	61.1	61.8 1%	53.4 -13%	56.4 -8%	72.4 18%
AdobeRGB 1998 Coverage	41.91	42.93 2%	36.68 -12%	39.83 -5%	51.2 22%
Screen		2%	-4%	14%	-6%
Brightness middle	203	186 -8%	211 4%	218 7%	252 24%
Brightness	209	169 -19%	197 -6%	202 -3%	224 7%
Brightness Distribution	85	85 0%	85 0%	83 -2%	81 -5%
Black Level *	0.65	0.7 -8%	1.06 -63%	0.43 34%	1.46 -125%
Contrast	312	266 -15%	199 -36%	507 63%	173 -45%
Colorchecker dE 2000 *	11.01	7 36%	6.77 39%	10.22 7%	6.22 44%
Greyscale dE 2000 *	11.57	8.1 30%	6.82 41%	10.5 9%	7.52 35%
Gamma	2.09 ^105%	2.27 ^97%	2.66 ^83%	2.59 ^85%	2.4 ^92%
CCT	12849 ^51%		9452 ^69%	12864 ^51%	9598 ^68%
Color Space (Percent of AdobeRGB 1998)	39		33.9 -13%	36.1 -7%	46.3 19%
Total Average (Program / Settings)		2% / 2%	-8% / -6%	4% / 8%	8% / 2%

* ... smaller is better

Cinebench R10 Rendering Multiple CPUs 32Bit

4103

Cinebench R10 Shading 32Bit

3611

Cinebench R10 Rendering Single 32Bit

1287

Cinebench R11.5 CPU Multi 64Bit

1.55 Points

Cinebench R11.5 CPU Single 64Bit

0.56 Points

Cinebench R11.5 OpenGL 64Bit

16.32 fps

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

18.03 fps

Cinebench R15 CPU Multi 64Bit

140 Points

Cinebench R15 CPU Single 64Bit

48 Points

Help

... in comparison

Cinebench R11.5 - CPU Single 64Bit (sort by value)
Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	0.56 Points
Acer Aspire E1-572-34014G50Dnkk HD Graphics 4400, 4010U, Seagate Momentus Thin ST500LT0 12-9WS142	0.76 Points +36%
Acer Extensa 2510-34Z4 HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX	0.79 Points +41%
HP ProBook 455 G1 H6P57EA Radeon HD 7420G, A4-4300M, Seagate Momentus Thin ST500LT012-1DG142	0.68 Points +21%
Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0	0.84 Points +50%
HP ProBook 450-H0V92EA HD Graphics 4000, 3120M, Seagate Momentus Thin ST500LT0 12-9WS142	0.95 Points +70%
Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	1 Points +79%
Lenovo ThinkPad Edge E540 20C60041 HD Graphics 4600, 4000M, Hitachi Travelstar Z7K500 HTS725050A7E630	1.06 Points +89%
Dell Latitude 13 3540 Radeon HD 8850M, 4200U, WDC Scorpio Blue WD7500BPVX-75JC3T0	1.11 Points +98%
Fujitsu LifeBook A544 HD Graphics 4600, 4200M, Hitachi Travelstar Z5K500 HTS545050A7E680	1.35 Points +141%

Cinebench R11.5 - CPU Multi 64Bit (sort by value)
Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	1.55 Points
HP ProBook 455 G1 H6P57EA Radeon HD 7420G, A4-4300M, Seagate Momentus Thin ST500LT012-1DG142	1.03 Points -34%
Lenovo Thinkpad Edge E535-NZR5BGE Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3	1.76 Points +14%
Acer Aspire E1-572-34014G50Dnkk HD Graphics 4400, 4010U, Seagate Momentus Thin ST500LT0 12-9WS142	1.87 Points +21%
Acer Extensa 2510-34Z4 HD Graphics 4400, 4030U, Western Digital Scorpio Blue WD5000LPVX	2.01 Points +30%
Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0	2.19 Points +41%
HP ProBook 450-H0V92EA HD Graphics 4000, 3120M, Seagate Momentus Thin ST500LT0 12-9WS142	2.45 Points +58%
Dell Latitude 13 3540 Radeon HD 8850M, 4200U, WDC Scorpio Blue WD7500BPVX-75JC3T0	2.47 Points +59%
Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	2.49 Points +61%
Lenovo ThinkPad Edge E540 20C60041 HD Graphics 4600, 4000M, Hitachi Travelstar Z7K500 HTS725050A7E630	2.55 Points +65%
Fujitsu LifeBook A544 HD Graphics 4600, 4200M, Hitachi Travelstar Z5K500 HTS545050A7E680	3.27 Points +111%

PCMark 7 Score		2150 points
Help

... in comparison

PCMark 7 - Score (sort by value)
Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	2150 Points
HP ProBook 455 G1 H6P57EA Radeon HD 7420G, A4-4300M, Seagate Momentus Thin ST500LT012-1DG142	1586 Points -26%
Lenovo Thinkpad Edge E535-NZR5BGE Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3	1667 Points -22%
Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0	2025 Points -6%
HP ProBook 450-H0V92EA HD Graphics 4000, 3120M, Seagate Momentus Thin ST500LT0 12-9WS142	2201 Points +2%
Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	2373 Points +10%
Lenovo ThinkPad Edge E540 20C60041 HD Graphics 4600, 4000M, Hitachi Travelstar Z7K500 HTS725050A7E630	2538 Points +18%
Dell Latitude 13 3540 Radeon HD 8850M, 4200U, WDC Scorpio Blue WD7500BPVX-75JC3T0	2627 Points +22%

HD Tune

CrystalDiskMark 3.0

Seagate ST500LM021-1KJ15

Transfer Rate Minimum: 5.8 MB/s

Transfer Rate Maximum: 142.3 MB/s

Transfer Rate Average: 108.5 MB/s

Access Time: 17.6 ms

Burst Rate: 88.3 MB/s

CPU Usage: 5 %

	Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0	Fujitsu LifeBook A544 HD Graphics 4600, 4200M, Hitachi Travelstar Z5K500 HTS545050A7E680	Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
CrystalDiskMark 3.0		-11%	-22%	-30%
Read Seq	141.2	84.8 -40%	106.9 -24%	103.7 -27%
Write Seq	134.1	84 -37%	105.7 -21%	99.9 -26%
Read 512	49.2	36.51 -26%	34.81 -29%	31.9 -35%
Write 512	69.2	49.44 -29%	38.68 -44%	44.71 -35%
Read 4k	0.581	0.54 -7%	0.438 -25%	0.379 -35%
Write 4k	0.961	1.449 51%	0.889 -7%	0.736 -23%
Read 4k QD32	1.191	0.576 -52%	0.976 -18%	0.843 -29%
Write 4k QD32	0.986	1.472 49%	0.911 -8%	0.724 -27%

3DMark 06 Standard Score		4317 points
3DMark Vantage P Result		3011 points
3DMark 11 Performance		964 points
3DMark Ice Storm Standard Score		24924 points
3DMark Cloud Gate Standard Score		2594 points
3DMark Fire Strike Score		527 points
Help

... in comparison

3DMark 11 - 1280x720 Performance (sort by value)
Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	964 Points
HP ProBook 455 G1 H6P57EA Radeon HD 7420G, A4-4300M, Seagate Momentus Thin ST500LT012-1DG142	501 Points -48%
Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	665 Points -31%
Lenovo Thinkpad Edge E535-NZR5BGE Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3	728 Points -24%
Lenovo ThinkPad Edge E540 20C60041 HD Graphics 4600, 4000M, Hitachi Travelstar Z7K500 HTS725050A7E630	828 Points -14%
Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0	1802 Points +87%
Dell Latitude 13 3540 Radeon HD 8850M, 4200U, WDC Scorpio Blue WD7500BPVX-75JC3T0	2589 Points +169%

	low	med.	high
Dirt 3 (2011)	61.5	33.2	24.3
Deus Ex Human Revolution (2011)	42.9		22.3
The Elder Scrolls V: Skyrim (2011)	27.4	18.5	12.9
Anno 2070 (2011)	47	23.1	14.6
Alan Wake (2012)	14.7	8.5
Diablo III (2012)	41.8	27.3	21.8
Dishonored (2012)	27.7	21.4	19.7
Dead Space 3 (2013)	45	21.4	17.5
Tomb Raider (2013)	35.9	18.4	12.9
StarCraft II: Heart of the Swarm (2013)	75.3	28.3	17.6
BioShock Infinite (2013)	31	16.8	13.9
Metro: Last Light (2013)	14.9	11.2	6.9
GRID 2 (2013)	47.6	26.2	19.3
Saints Row IV (2013)	18.5	14.5	7.9
The Bureau: XCOM Declassified (2013)	19.6	11.2	8.6
Total War: Rome II (2013)	27	20.3	17.1
Batman: Arkham Origins (2013)	28	16	10
Battlefield 4 (2013)	16.5	12	9.2
X-Plane 10.25 (2013)	23.6	13.2	5.9
Thief (2014)	9.9	6.8	5.7
Wolfenstein: The New Order (2014)	17.4	13.9
GRID: Autosport (2014)	60.1	24.4
Risen 3: Titan Lords (2014)	21.8	12.8
Fifa 15 (2014)	21.3		17.6
Alien: Isolation (2014)	21.3	14.2
Ryse: Son of Rome (2014)	11	7.2
The Evil Within (2014)	9.4	7.6
F1 2014 (2014)	34	25

	Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	Acer TravelMate P255-MG-54204G50Mnkk Radeon R7 M265, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142	HP ProBook 650-H5G81ET HD Graphics 4600, 4200M, Liteonit LCS-128M6S
Tomb Raider		-10%	113%	65%
1024x768 Low Preset	35.9	33.7 -6%	59.4 65%	64.8 81%
1366x768 Normal Preset AA:FX AF:4x	18.4	17.8 -3%	43.1 134%	32.1 74%
1366x768 High Preset AA:FX AF:8x	12.9	10.2 -21%	30.9 140%	18.2 41%

Noise Level

Idle		34.7 / 34.7 / 34.7 dB(A)
HDD		35.1 dB(A)
DVD		38.8 / dB(A)
Load		36.1 / 37.9 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


33.7 °C	26.4 °C	24.8 °C
33.4 °C	31.2 °C	25.1 °C
30.2 °C	30.6 °C	26.7 °C

Maximum: 33.7 °C
Average: 29.1 °C


25.1 °C	29.6 °C	37.5 °C
25.6 °C	33.7 °C	37.2 °C
25.6 °C	33.3 °C	33 °C

Maximum: 37.5 °C
Average: 31.2 °C

Power Supply (max.) 34.6 °C | Room Temperature 21.9 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 32.4 °C / 90 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 39.2 °C / 103 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 37 °C / 99 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.2 °C / 102.6 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-11.5 °C / -20.7 F).

Power Consumption

Off / Standby	0.2 / 0.3 Watt
Idle	10.9 / 14.3 / 14.9 Watt
Load	34.1 / 41.5 Watt


Key: min: , med: , max: Voltcraft VC 940

Battery Runtime

Idle (without WLAN, min brightness)		6h 44min
WiFi Surfing		3h 58min
Big Buck Bunny H.264 1080p		3h 13min
Load (maximum brightness)		1h 31min

	Lenovo Thinkpad E555 Radeon R5 (Kaveri), A8-7100, Seagate ST500LM021-1KJ15	Lenovo Thinkpad Edge E535-NZR5BGE Radeon HD 7640G, A8-4500M, WDC Scorpio Blue WD7500BPVT-08HXZT3	Lenovo ThinkPad Edge E545-20B2000PGE Radeon HD 8650G + HD 8570M Dual Graphics, A10-5750M, WDC Scorpio Blue WD10JPVX-22JC3T0	Fujitsu LifeBook A544 HD Graphics 4600, 4200M, Hitachi Travelstar Z5K500 HTS545050A7E680	Acer TravelMate P255-M-54204G50Mnss HD Graphics 4400, 4200U, Seagate Momentus Thin ST500LT0 12-9WS142
Battery Runtime		15%	-6%	72%	2%
Reader / Idle	404	506 25%	391 -3%		389 -4%
WiFi	238	288 21%	256 8%	410 72%	309 30%
Load	91	91 0%	70 -23%		72 -21%

联想ThinkPad E555是一款为个人和商务用户设计的简约办公笔记本。它的性能可以满足办公软件和上网浏览的需要。它在运行中不会变得很热，且可以一直保持安静——如果你换掉它很吵的硬盘的话。和前作相似，它的输入设备仍然十分出色。它的接口数量可以通过扩展坞来增加。它的磨砂屏幕很难为它赢得额外的加分，不过在这个价位上算是中规中矩。它的电池续航表现并不出色。

相比它的前代产品，ThinkPad E555有些让人失望，因为它并没有带来任何实际的改进——在有些方面甚至相反。ThinkPad Edge E535和ThinkPad Edge E545都提供了相比E555更强的处理器性能。它的电池尽管容量与之前相当，但续航却变得更短了。

Acer TravelMate P255-M相比这款ThinkPad提供了强大很多的处理器性能，不过也贵出50到100欧元（379到759人民币）。富士通 Lifebook A544在性能上高出这两款笔记本，且提供了在我们进行比较的三款产品中最好的电池续航时间。这款笔记本相比这台ThinkPad贵出约100欧元（759人民币）。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1699 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

Download your licensed rating image as PNG / SVG

Specifications

Lenovo Thinkpad E555

Processor

AMD A8-7100 4 x 1.8 - 3 GHz, Kaveri

Graphics adapter

AMD Radeon R5 (Kaveri), Core: 514 MHz, 14.201.1003.1001

Memory

4 GB

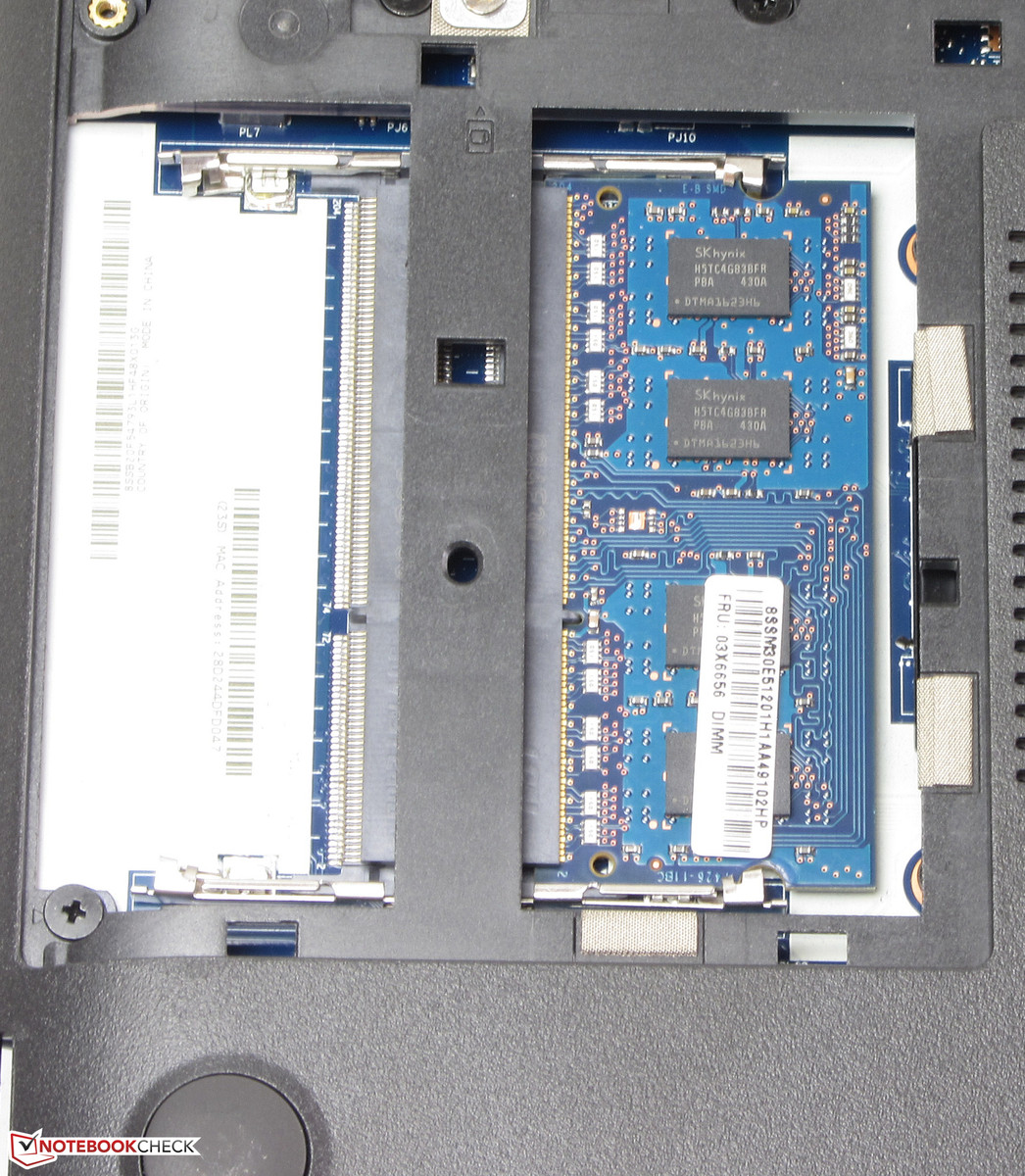

, DDR3, 单通道, 双内存槽 (一个已占用)

Display

15.60 inch 16:9, 1366 x 768 pixel, Lenovo N156B6-L07, TN LED, glossy: no

Mainboard

AMD Bolton

Storage

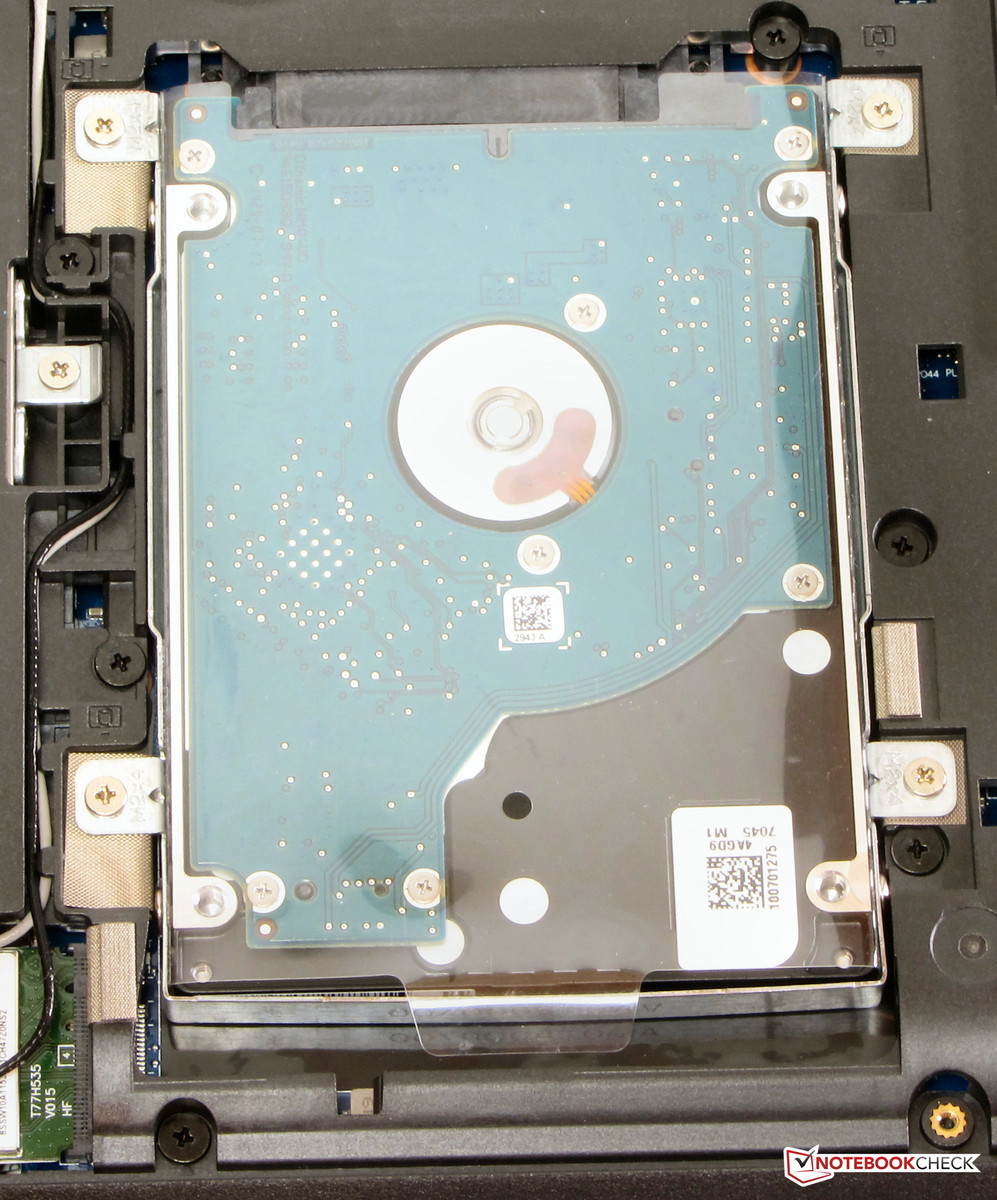

Seagate ST500LM021-1KJ15, 500 GB

, 5400 rpm, 420 GB free

Soundcard

AMD Hudson-2 High Definition Audio Controller

Connections

1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 整合耳机接口, Card Reader: SD, SDHC, SDXC, MMC

Networking

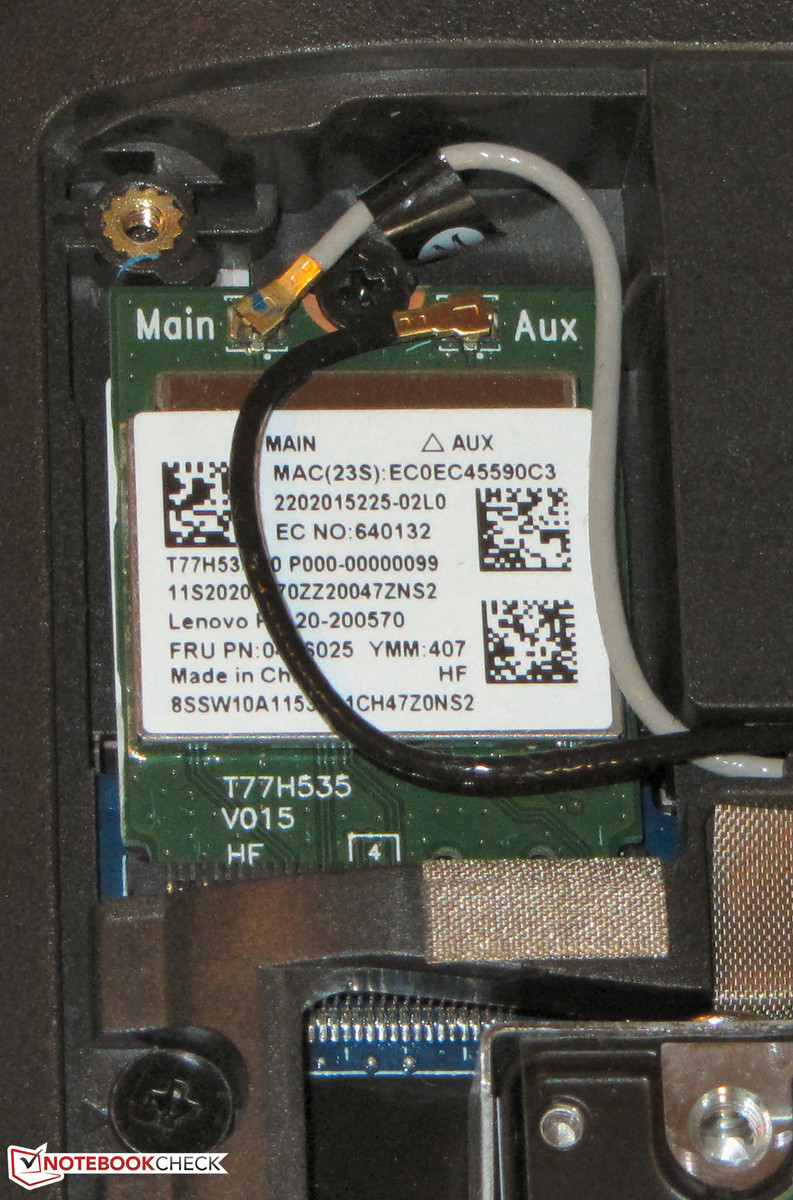

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek RTL8723BE Wireless LAN 802.11n PCI-E NIC (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Optical drive

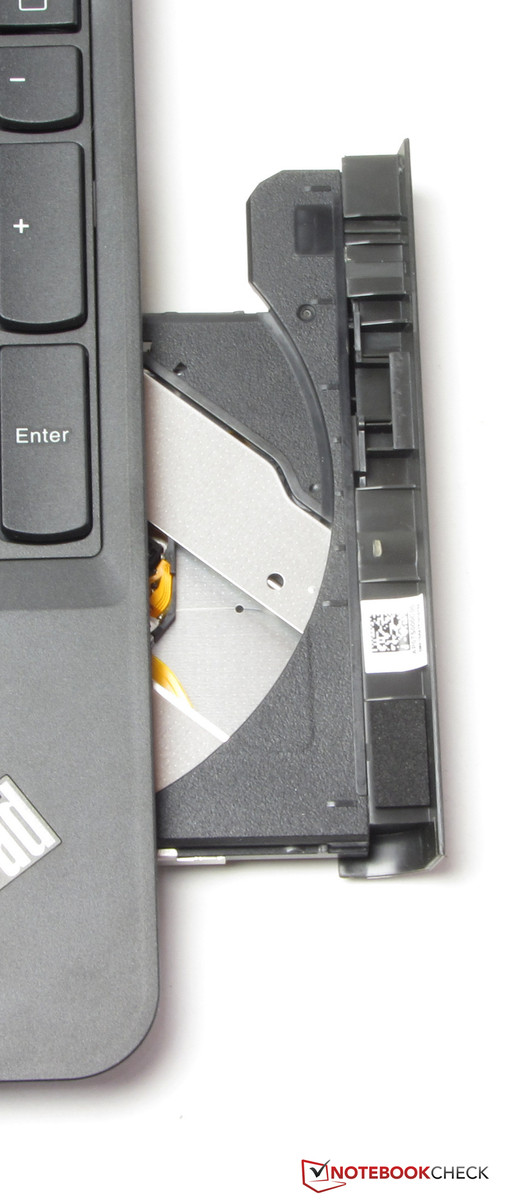

Matshita DVD-RAM UJ8E2 S

Size

height x width x depth (in mm): 27.1 x 377 x 255

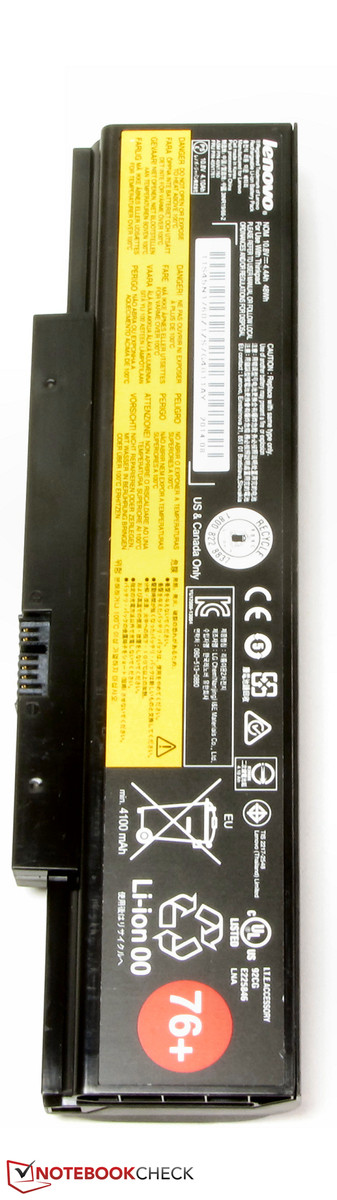

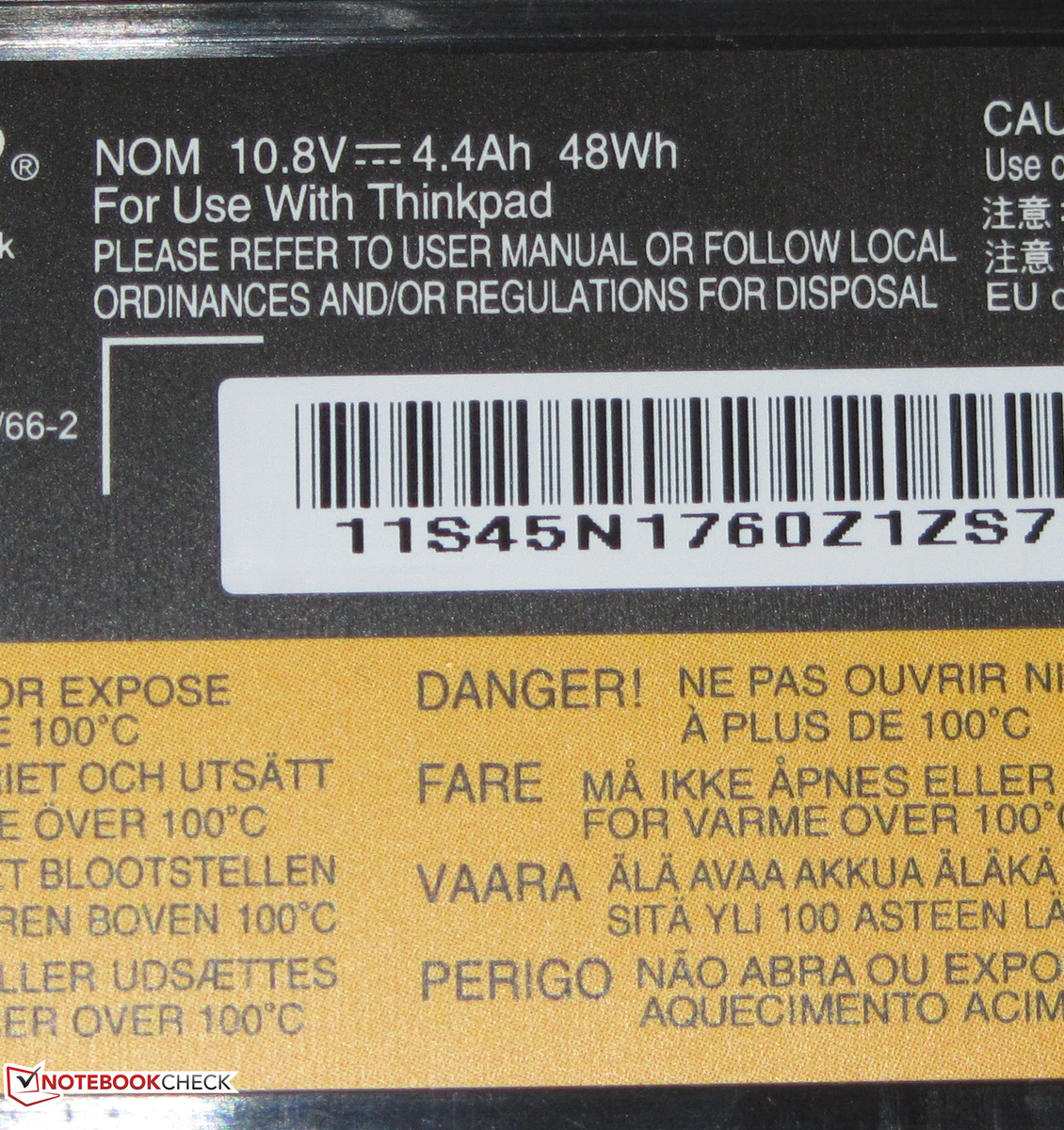

Battery

48 Wh Lithium-Ion, 10.8 V, 4400 mAh

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: 高清摄像头

Additional features

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, Cyberlink PowerDVD 12, MS Office (试用版), Nitro Pro 9

Weight

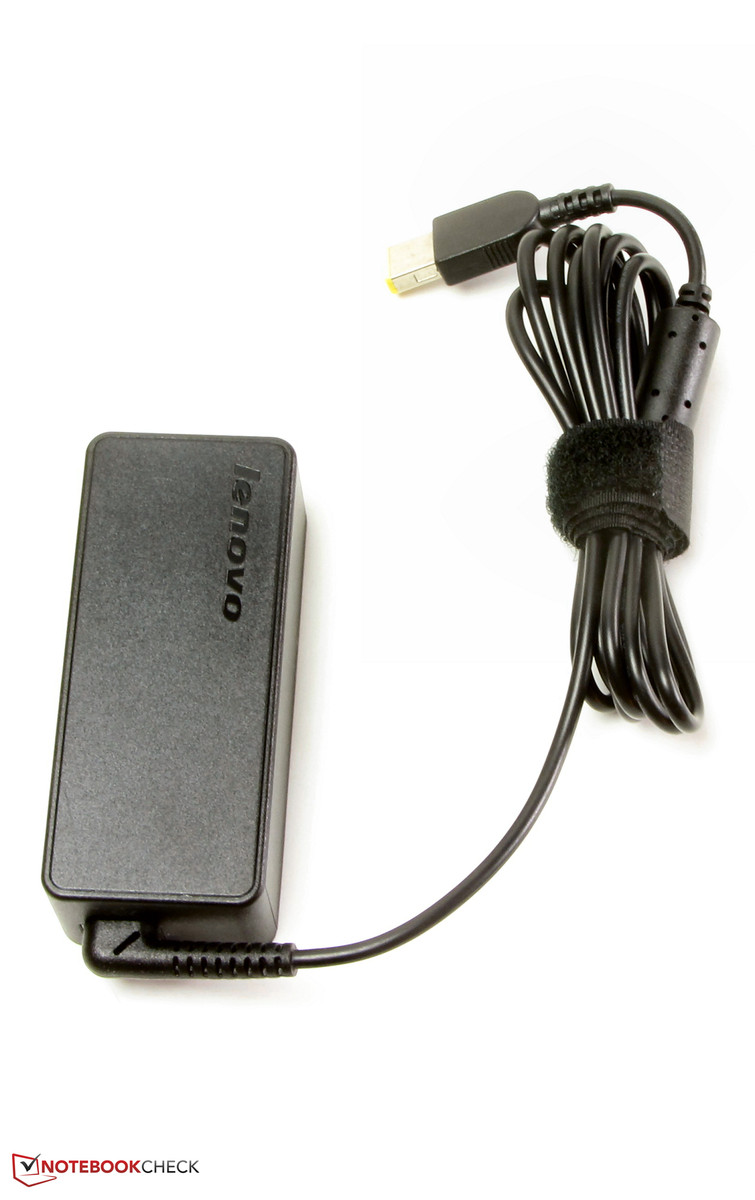

2.4 kg, Power Supply: 247 g

Price

449 Euro

Links

Lenovo homepage

Devices with Same Screen Size and/or Weight

联想 ThinkPad T16 Gen 3 笔记本电脑评测：大屏幕、大电池，但性能一般
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 16.00", 1.968 kg

联想 ThinkPad L16 Gen 1 AMD 笔记本电脑评测：中规中矩的强大硬件
Radeon 680M, Rembrandt (Zen 3+) R7 PRO 7735U, 16.00", 1.942 kg

联想 ThinkPad E16 Gen 2 AMD 笔记本电脑评测：在正确的地方偷工减料（大部分情况下
Radeon 660M, Rembrandt (Zen 3+) R5 7535HS, 16.00", 1.916 kg

联想 ThinkPad T14s 6 代笔记本电脑评测：骁龙 X 精英版带来史诗般的电池续航时间
Adreno X1-85 3.8 TFLOPS, Snapdragon X SD X Elite X1E-78-100, 14.00", 1.21 kg

联想 ThinkPad L14 G5 笔记本电脑评测：经济实惠的 AMD ThinkPad 现在更现代化了
Radeon 660M, Rembrandt (Zen 3+) R5 7535U, 14.00", 1.563 kg

联想 ThinkPad T14 第 5 代英特尔笔记本电脑评测：可升级内存回归 T 系列
Graphics 4-Core, Meteor Lake-U Ultra 7 155U, 14.00", 1.464 kg

联想 ThinkPad T14s 第 5 代笔记本电脑评测：配备英特尔酷睿 Ultra 处理器的高端 T-ThinkPad
Graphics 4-Core, Meteor Lake-U Ultra 5 125U, 14.00", 1.308 kg

Pros

+ 磨砂屏幕

+ 快速7200转硬盘

+ 优质键盘

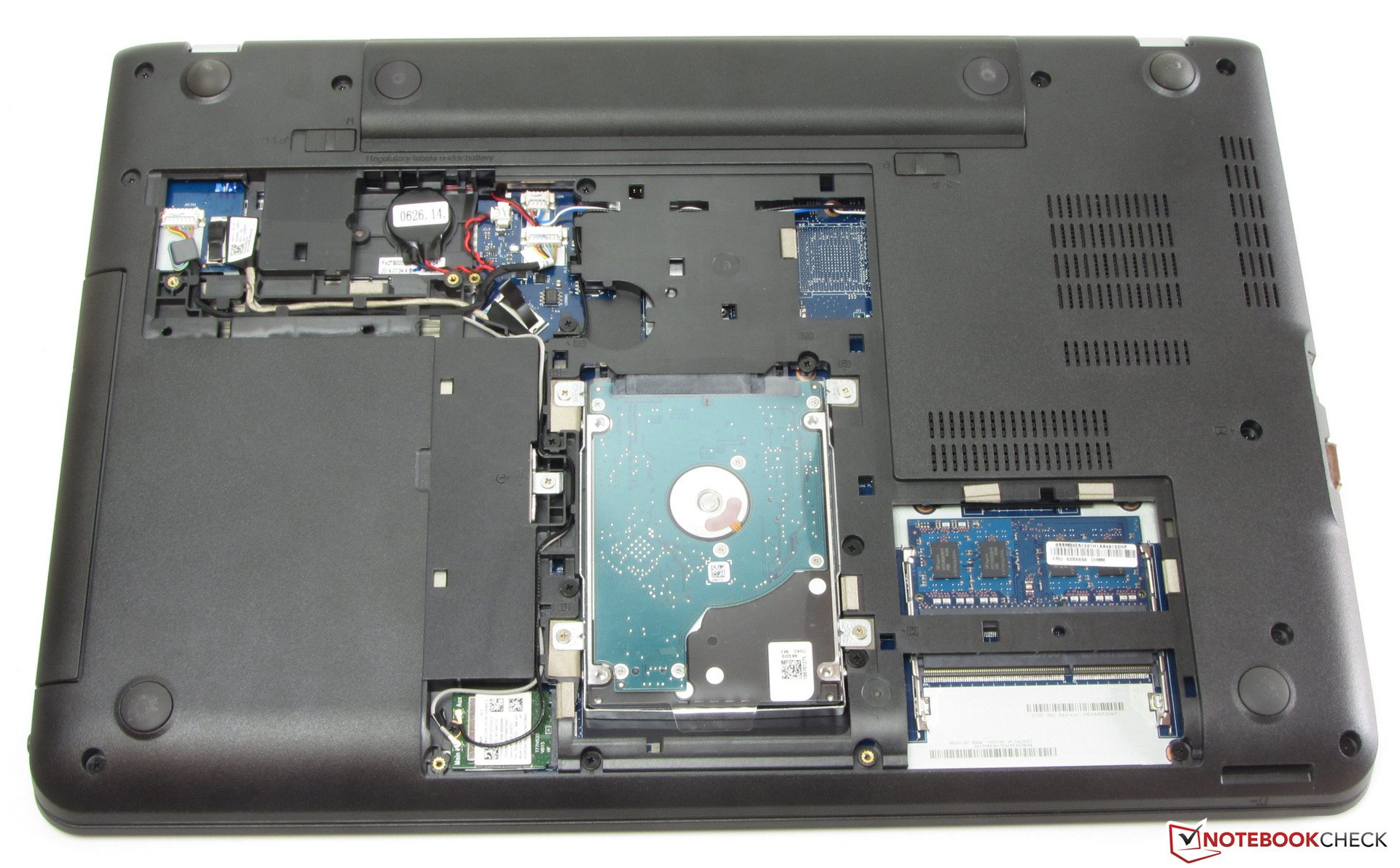

+ 维护窗口

+ 机身几乎不会变烫

Cons

- 硬盘很吵

- 仅12个月质保

Lenovo Thinkpad E555 - 11/05/2014 v4 ^(old)
Sascha Mölck

Chassis

74 / 98 → 76%

Keyboard

85%

Pointing Device

85%

Connectivity

68 / 80 → 85%

Weight

60 / 20-67 → 85%

Battery

81%

Display

74%

Games Performance

54 / 68 → 79%

Application Performance

59 / 92 → 64%

Temperature

88%

Noise

81%

Audio

44%

Camera

40 / 85 → 47%

Average

69%

77%

Office - Weighted Average

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad E555 笔记本电脑简短评测

Sascha Mölck, 2014-11-20 (Update: 2014-11-21)

Specifications

More articles related to this device

Pros

Cons
