联想 ThinkPad Helix 2 平板电脑简短评测

风扇再见。 Core-M让它成为了可能:新一代的ThinkPad Helix 2首次采用了五峰山的设计,但在主要应用中仍然可以提供充足的性能。这款全能的变形本可以满足挑剔的商务用户吗?
Broadwell Business Convertible / 2-in-1 Tablet Ultrabook Windows Touchscreen
301 mm 193 mm 9.6 mm 1.3 kg292 mm 201 mm 9 mm 810 g279.8 mm 176.4 mm 10.75 mm 1.4 kg297 mm 210 mm 1 mm 5.7 g
342
cd/m²
323
cd/m²
334
cd/m²
343
cd/m²
365
cd/m²
322
cd/m²
375
cd/m²
333
cd/m²
343
cd/m²
Distribution of brightness
LG LD116WF1-SPN2 tested with X-Rite i1Pro 2
Maximum: 375 cd/m² (Nits) Average: 342.2 cd/m²
Brightness Distribution: 86 %
Center on Battery: 365 cd/m²
Contrast: 1109:1 (Black: 0.329 cd/m²)
ΔE Color 4.37 | 0.5-29.43 Ø4.92
ΔE Greyscale 2.8 | 0.5-98 Ø5.2
Gamma: 2.3
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
Display
Display P3 Coverage
63.6
46.17
sRGB Coverage
88.8
65.2
AdobeRGB 1998 Coverage
65.6
48
Screen
-15%
-20%
-53%
Brightness middle
365
386
6%
355.3
-3%
331.1
-9%
Brightness
342
357
4%
338
-1%
315
-8%
Brightness Distribution
86
84
-2%
91
6%
70
-19%
Black Level *
0.329
0.4
-22%
0.33
-0%
0.511
-55%
Contrast
1109
965
-13%
1077
-3%
648
-42%
Colorchecker dE 2000 *
4.37
3.71
15%
4.72
-8%
14.29
-227%
Greyscale dE 2000 *
2.8
5.4
-93%
6.53
-133%
3.03
-8%
Gamma
2.3 96%
2.33 94%
2.17 101%
1.96 112%
CCT
6595 99%
6666 98%
6707 97%
6525 100%
Color Space (Percent of AdobeRGB 1998)
59.37
44
Total Average (Program / Settings)
-15% / -15%
-20% / -20%
-53% / -53%

* ... smaller is better

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad Helix 2
1.13 Points
Dell Venue 11 Pro 7140
0.94 Points -17%
Microsoft Surface Pro 3
1.12 Points -1%
Toshiba Portege Z10t-A2111
1.24 Points +10%
Lenovo ThinkPad Helix
1.06 Points -6%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad Helix 2
2.04 Points
Dell Venue 11 Pro 7140
2.01 Points -1%
Microsoft Surface Pro 3
2.77 Points +36%
Toshiba Portege Z10t-A2111
2.15 Points +5%
Lenovo ThinkPad Helix
2.38 Points +17%
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad Helix 2
95 Points
Dell Venue 11 Pro 7140
83 Points -13%
Toshiba Portege Z10t-A2111
107 Points +13%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad Helix 2
184 Points
Dell Venue 11 Pro 7140
190 Points +3%
Toshiba Portege Z10t-A2111
192 Points +4%
X264 HD Benchmark 4.0
Pass 1 (sort by value)
Lenovo ThinkPad Helix 2
91.2 fps
Microsoft Surface Pro 3
75.5 fps -17%
Toshiba Portege Z10t-A2111
72.5 fps -21%
Lenovo ThinkPad Helix
74.8 fps -18%
Pass 2 (sort by value)
Lenovo ThinkPad Helix 2
11.13 fps
Microsoft Surface Pro 3
13.47 fps +21%
Toshiba Portege Z10t-A2111
12.38 fps +11%
Lenovo ThinkPad Helix
13.74 fps +23%

Legend


Lenovo ThinkPad Helix 2 Intel Core M-5Y71, Intel HD Graphics 5300, Toshiba THNSFJ256GDNU 256 GB

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Toshiba Portege Z10t-A2111 Intel Core i7-4610Y, Intel HD Graphics 4200, Samsung PM851 Series MZMTE256HMHP

Lenovo ThinkPad Helix Intel Core i5-3317U, Intel HD Graphics 4000, Intel SSD 525 Series SSDMCEAC180A3L
Cinebench R10 Rendering Multiple CPUs 32Bit
6430
Cinebench R10 Rendering Single 32Bit
3746
Cinebench R10 Shading 32Bit
4911
Cinebench R10 Rendering Single CPUs 64Bit
4985 Points
Cinebench R10 Shading 64Bit
4211 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
8432 Points
Cinebench R11.5 CPU Single 64Bit
1.13 Points
Cinebench R11.5 OpenGL 64Bit
16.64 fps
Cinebench R11.5 CPU Multi 64Bit
2.04 Points
Cinebench R15 OpenGL 64Bit
19.97 fps
Cinebench R15 CPU Multi 64Bit
184 Points
Cinebench R15 CPU Single 64Bit
95 Points
Cinebench R15 Ref. Match 64Bit
98 %
Help
Toshiba THNSFJ256GDNU 256 GB
Transfer Rate Minimum: 161.3 MB/s
Transfer Rate Maximum: 361.2 MB/s
Transfer Rate Average: 263.9 MB/s
Access Time: 0.1 ms
Burst Rate: 141.5 MB/s
CPU Usage: 8.1 %
PCMark 7 - Score (sort by value)
Lenovo ThinkPad Helix 2
4602 Points
Dell Venue 11 Pro 7140
4135 Points -10%
Microsoft Surface Pro 3
5066 Points +10%
Toshiba Portege Z10t-A2111
4973 Points +8%
Lenovo ThinkPad Helix
4669 Points +1%
PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad Helix 2
2690 Points
Dell Venue 11 Pro 7140
2480 Points -8%
Toshiba Portege Z10t-A2111
2282 Points -15%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad Helix 2
3090 Points
Toshiba Portege Z10t-A2111
2400 Points -22%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad Helix 2
3806 Points
Dell Venue 11 Pro 7140
3291 Points -14%
Toshiba Portege Z10t-A2111
3441 Points -10%

Legend


Lenovo ThinkPad Helix 2 Intel Core M-5Y71, Intel HD Graphics 5300, Toshiba THNSFJ256GDNU 256 GB

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Toshiba Portege Z10t-A2111 Intel Core i7-4610Y, Intel HD Graphics 4200, Samsung PM851 Series MZMTE256HMHP

Lenovo ThinkPad Helix Intel Core i5-3317U, Intel HD Graphics 4000, Intel SSD 525 Series SSDMCEAC180A3L
PCMark 7 Score
4602 points
PCMark 8 Home Score Accelerated v2
2690 points
PCMark 8 Creative Score Accelerated v2
3090 points
PCMark 8 Work Score Accelerated v2
3806 points
Help
3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo ThinkPad Helix 2
669 Points
Dell Venue 11 Pro 7140
795 Points +19%
Microsoft Surface Pro 3
791 Points +18%
Toshiba Portege Z10t-A2111
691 Points +3%
Lenovo ThinkPad Helix
527 Points -21%
3DMark
1280x720 Ice Storm Standard Graphics (sort by value)
Lenovo ThinkPad Helix 2
39982 Points
Dell Venue 11 Pro 7140
45841 Points +15%
Toshiba Portege Z10t-A2111
36738 Points -8%
Lenovo ThinkPad Helix
21894 Points -45%
1280x720 Cloud Gate Standard Graphics (sort by value)
Lenovo ThinkPad Helix 2
4363 Points
Dell Venue 11 Pro 7140
4498 Points +3%
Toshiba Portege Z10t-A2111
4734 Points +9%
Lenovo ThinkPad Helix
2871 Points -34%
1920x1080 Fire Strike Graphics (sort by value)
Lenovo ThinkPad Helix 2
496 Points
Dell Venue 11 Pro 7140
509 Points +3%
Toshiba Portege Z10t-A2111
562 Points +13%
Lenovo ThinkPad Helix
403 Points -19%

Legend


Lenovo ThinkPad Helix 2 Intel Core M-5Y71, Intel HD Graphics 5300, Toshiba THNSFJ256GDNU 256 GB

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

Toshiba Portege Z10t-A2111 Intel Core i7-4610Y, Intel HD Graphics 4200, Samsung PM851 Series MZMTE256HMHP

Lenovo ThinkPad Helix Intel Core i5-3317U, Intel HD Graphics 4000, Intel SSD 525 Series SSDMCEAC180A3L
3DMark 06 Standard Score
4686 points
3DMark 11 Performance
753 points
3DMark Ice Storm Standard Score
35119 points
3DMark Cloud Gate Standard Score
3522 points
3DMark Fire Strike Score
450 points
Help
lowmed.highultra
Tomb Raider (2013) 35.9 18.8 12.6
BioShock Infinite (2013) 27.1 15 12.6 3.9
Dota 2 (2013) 50.9 28.6
Fifa 15 (2014) 28.2 21.2
 29.1 °C29.3 °C27.6 °C
 28.4 °C28.3 °C27.9 °C
 30 °C31.3 °C30.2 °C
Maximum: 31.3 °C
Average: 29.1 °C
29.2 °C30 °C29.8 °C
29.7 °C29.5 °C29.2 °C
31.3 °C29.2 °C28.8 °C
Maximum: 31.3 °C
Average: 29.6 °C
Power Supply (max.)  30.8 °C | Room Temperature 20.8 °C | Fluke 62 Max
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 37.5 °C / 99.5 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-9.4 °C / -16.9 F).
Power Consumption
Off / Standbydarklight 0 / 0.4 Watt
Idledarkmidlight 2 / 6 / 6.6 Watt
Load midlight 17.6 / 29.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Extech Power Analyzer 380803
Lenovo ThinkPad Helix 2
35 Wh
Microsoft Surface Pro 3
58 Wh
Dell Venue 11 Pro 7140
42 Wh
Lenovo ThinkPad Helix
70 Wh
Battery Runtime
1%
16%
-10%
Reader / Idle
964
1096
14%
777
-19%
559
-42%
H.264
360
WiFi
396
504
27%
562
42%
438
11%
Load
197
124
-37%
244
24%
200
2%
Battery Runtime
Idle (without WLAN, min brightness)
16h 04min
WiFi Surfing
6h 36min
Big Buck Bunny H.264 1080p
6h 00min
Load (maximum brightness)
3h 17min
Lenovo ThinkPad Helix 2
Lenovo ThinkPad Helix 2

联想最新推出的ThinkPad Helix 2延续了前代产品的平板笔记本整合型设备的理念。这让它难以避免地需要在硬件配置上做出让步,不过归功于新一代的处理器平台,它的整体表现有了很大改观。

节能的Core M-5Y71不仅在散热需求上让人惊喜(它仅需被动散热),同时它优秀的性能也可以满足所有办公和多媒体应用的需要。在功效上的提升对于电池续航来说也是一件好事,它仅凭内置的35Wh电池就可以轻松实现6小时的续航时间。搭配可选的Ultrabook Pro键盘底座它还可以更加持久,不过这会为它增加200欧元的成本(相比我们评测的非专业版键盘),不过相对的你可以得到一块附加电池,指点杆,和可旋转屏幕转轴。

说到这里我们不得不提它最大的问题所在:高昂的售价。我们的测试机型目前售价高达1400欧元,尽管它的部件十分优秀(8GB内存,256GB固态硬盘,LTE模组),性价比仍然不佳。再加上它的机身稳定性和工艺质量很难达到联想声称的“高端”水准,它的售价就让人更难以接受了。不过至少它一如既往的出色ThinkPad键盘可以多少弥补一些缺憾。

最后,我们来看一看它的竞争对手们:潜在的Helix 2消费者可能也会考虑以前提到过的戴尔Venue 11 Pro,和微软Surface Pro 3。戴尔的这款设备在性价比上表现出色,而Surface则或许可以通过做工精良的机身来吸引一些Helix的潜在用户。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

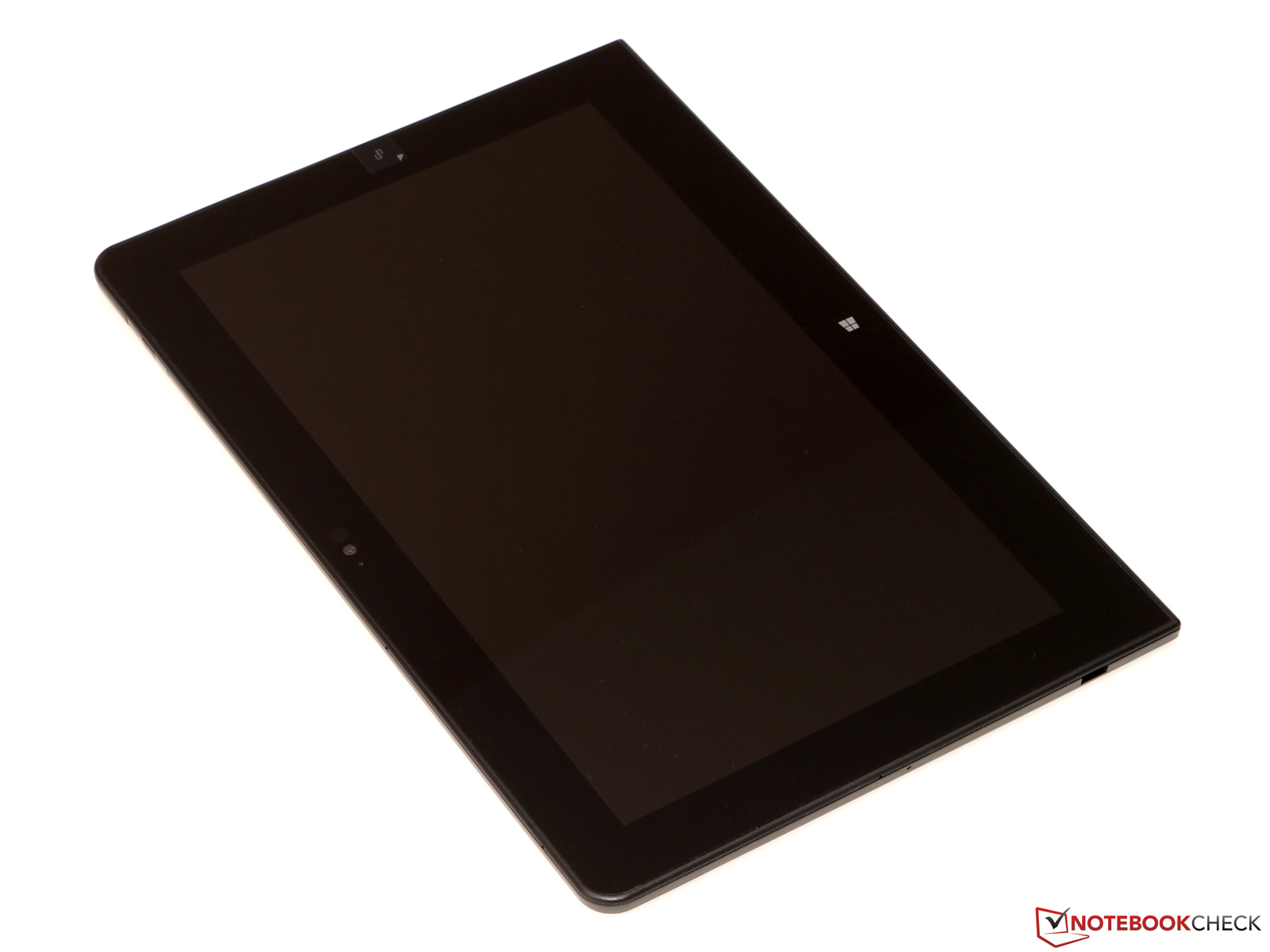

一款平常的平板?
一款平常的平板?
不完全是:...
不完全是:...

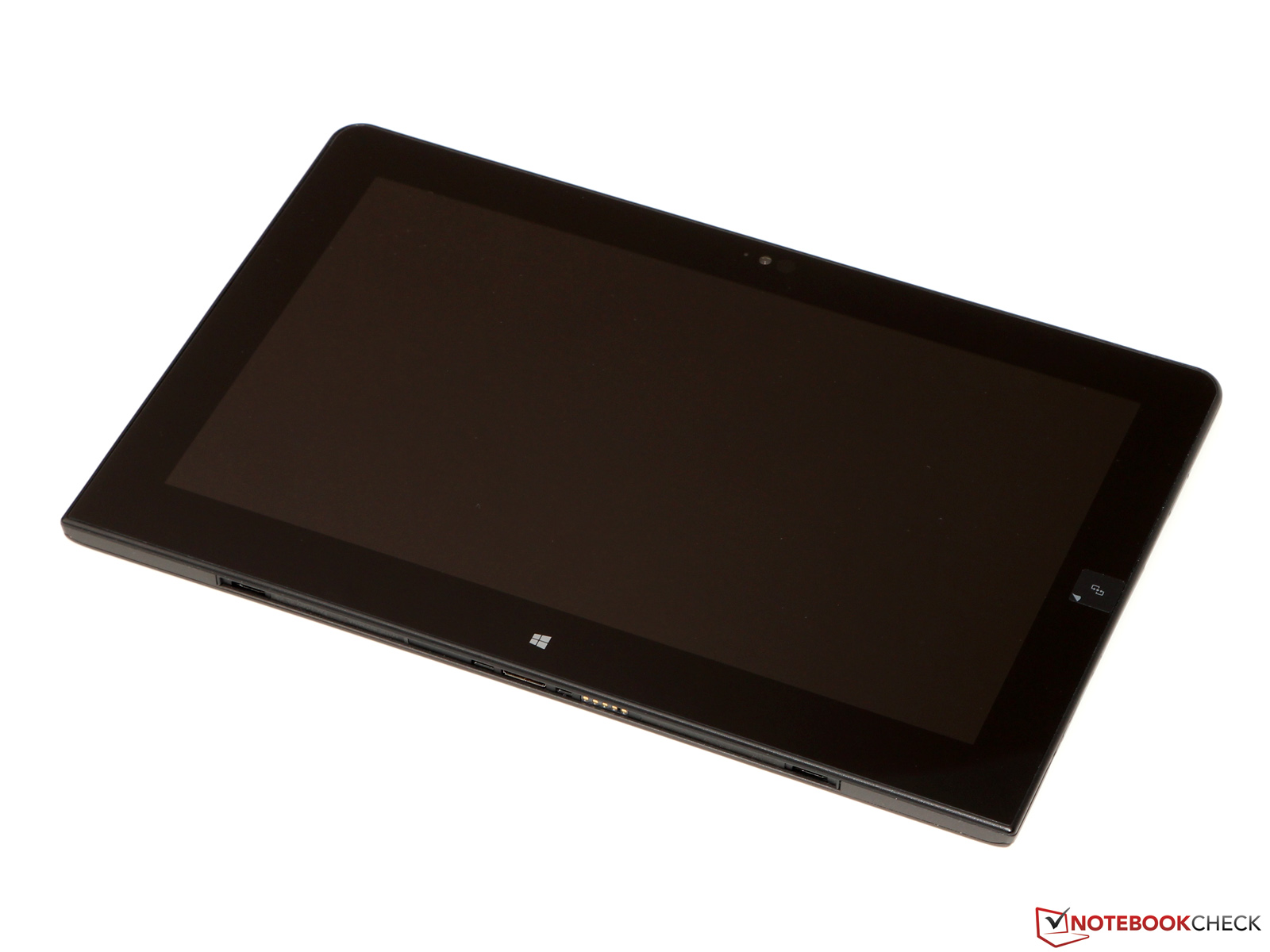

新的联想 ThinkPad Helix 2...
新的联想 ThinkPad Helix 2...
希望不仅仅可以作为...
希望不仅仅可以作为...
上网和浏览视频的设备。
上网和浏览视频的设备。
作为一台名副其实的ThinkPad, ...
作为一台名副其实的ThinkPad, ...
... Helix 2不仅提供了多项安全功能, ...
... Helix 2不仅提供了多项安全功能, ...
... 同时还有优秀的输入设备。
... 同时还有优秀的输入设备。

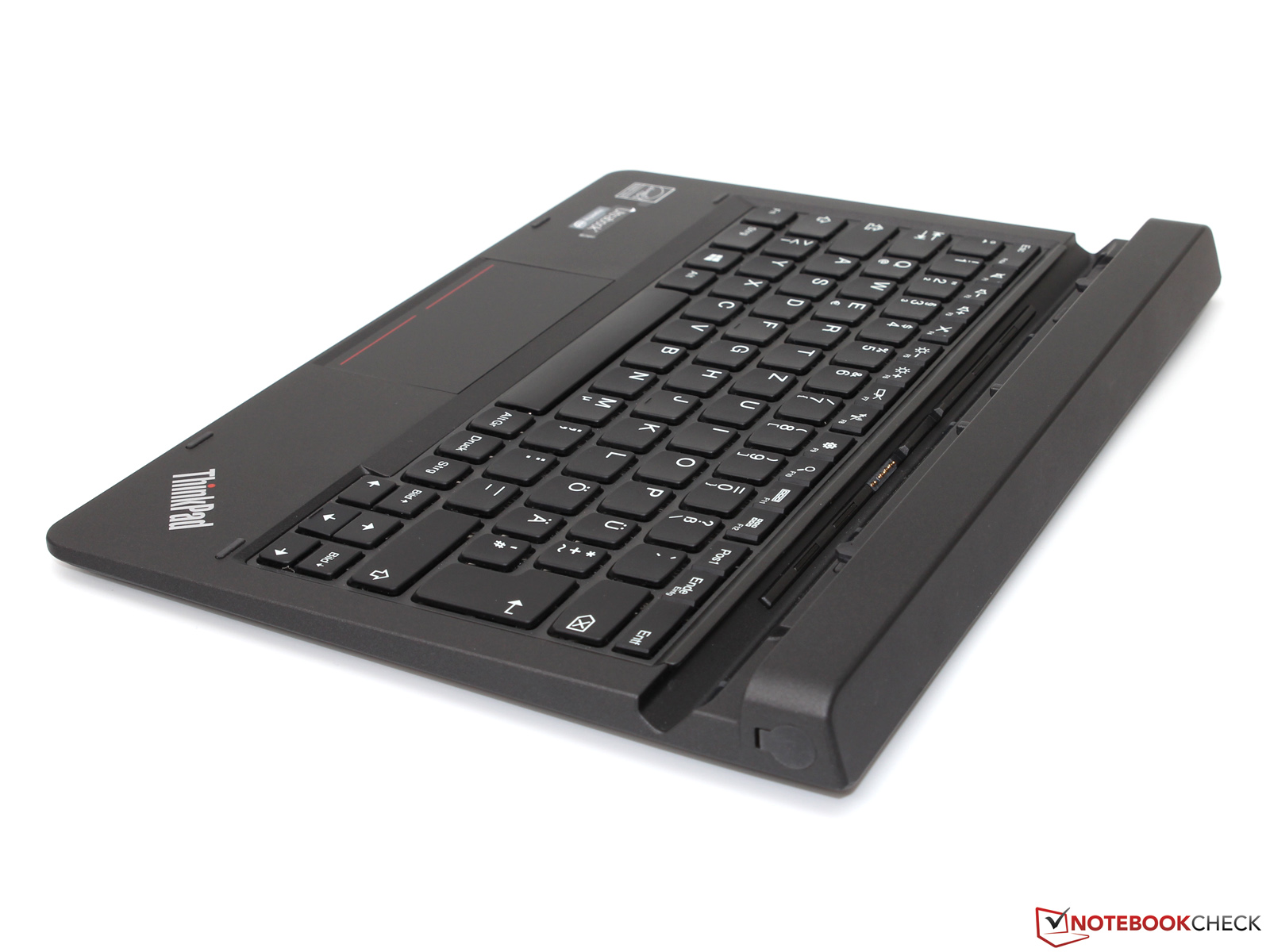

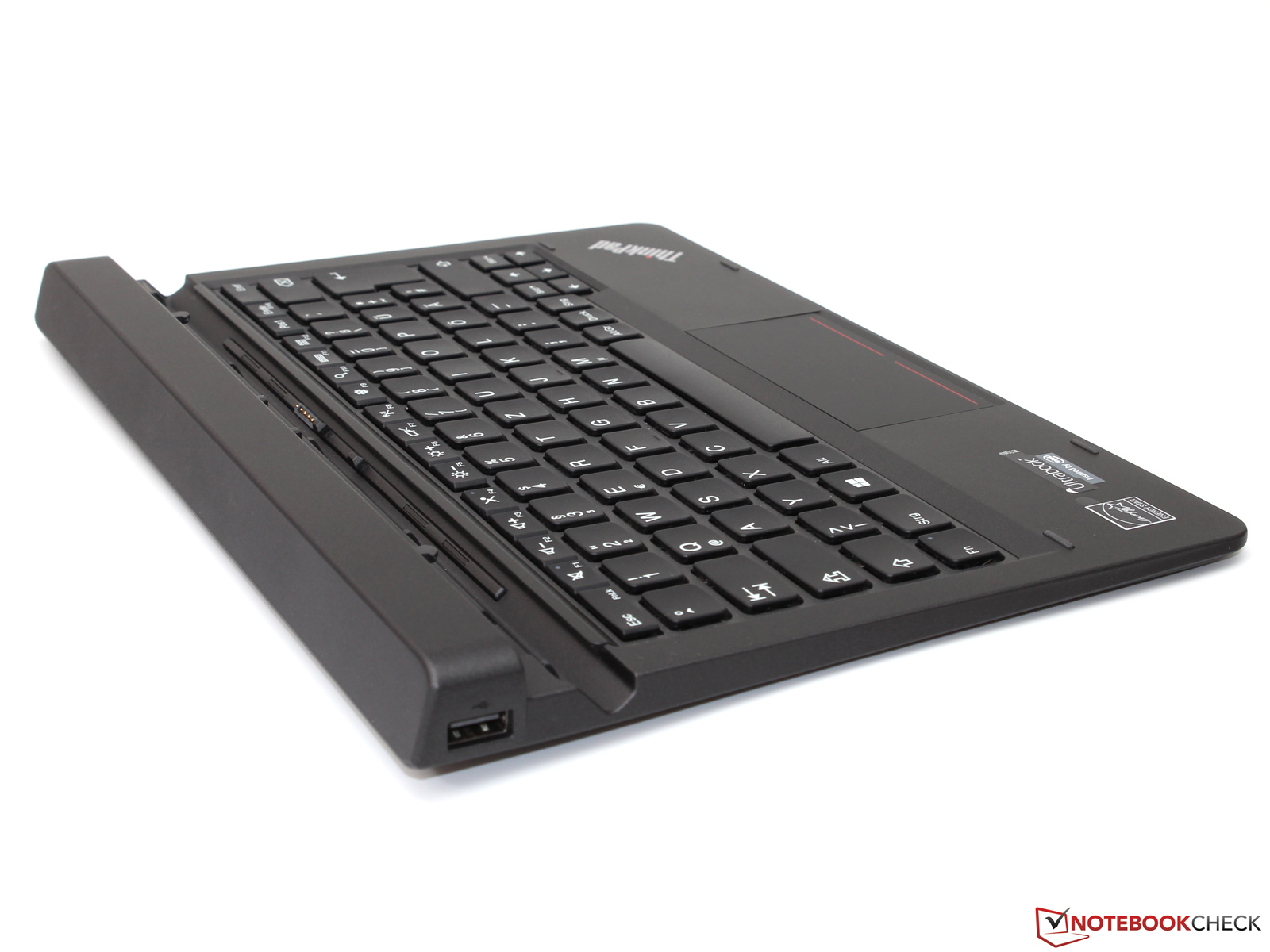

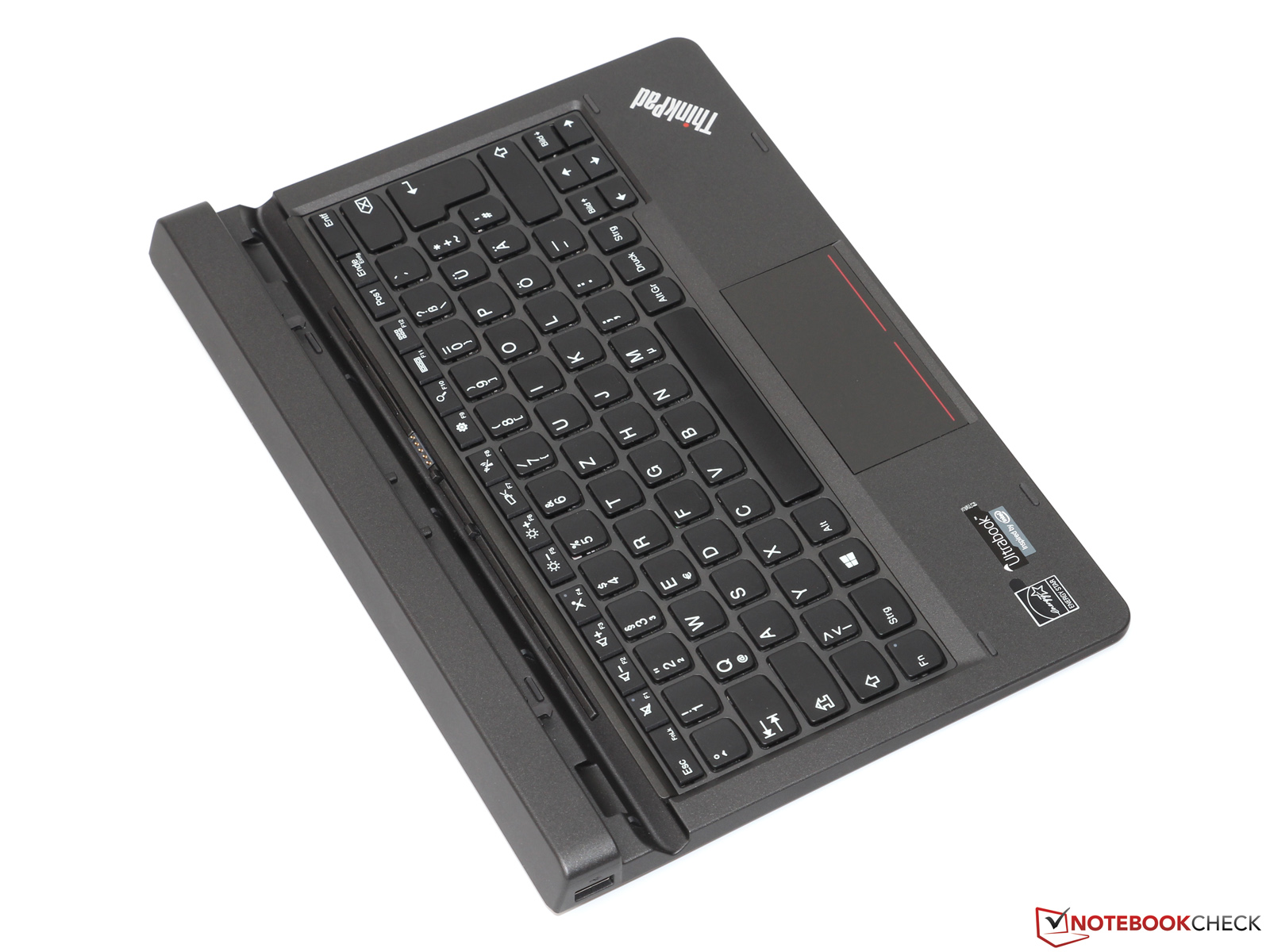

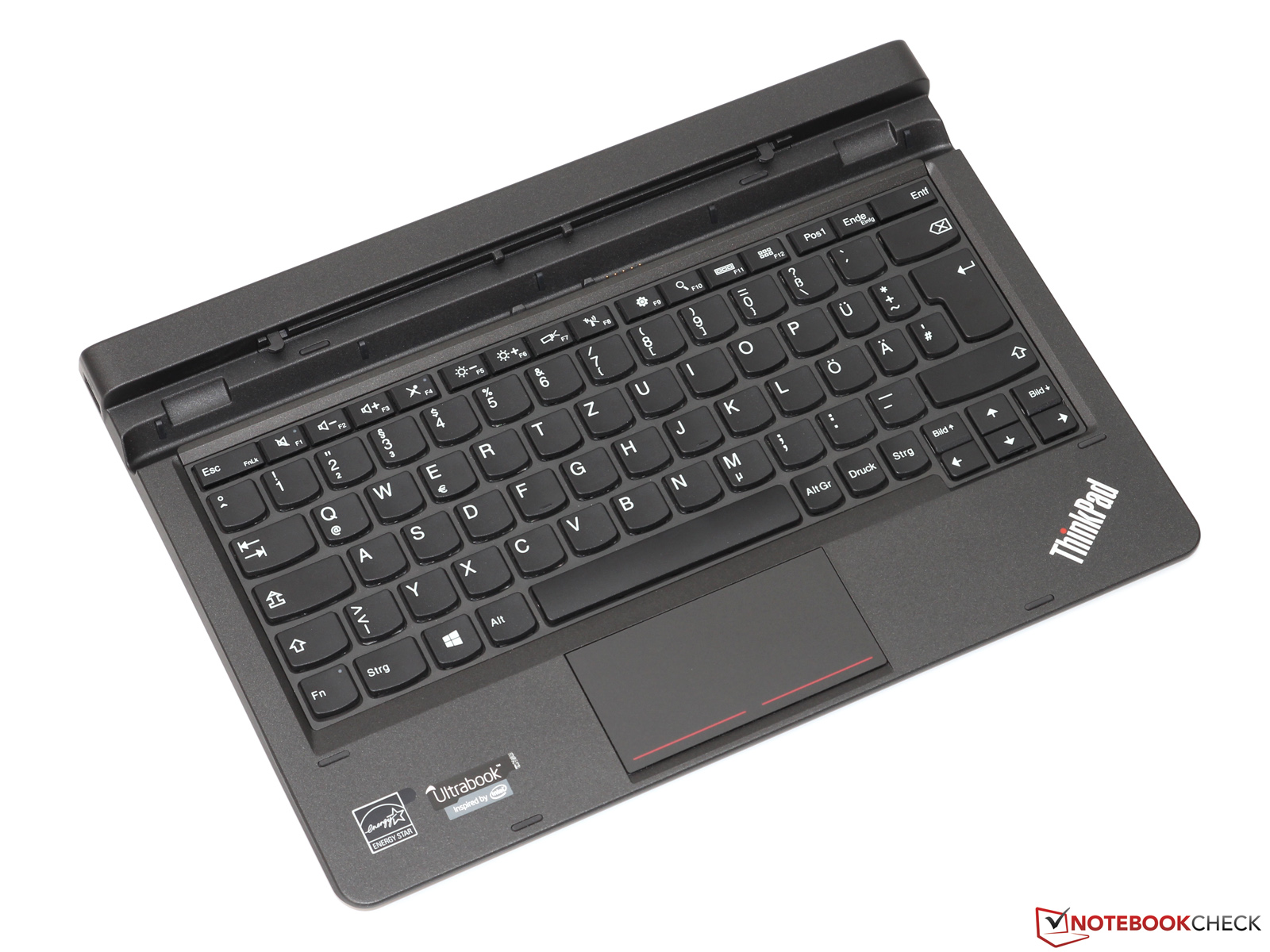

它的键盘让我们十分惊喜, ...
它的键盘让我们十分惊喜, ...
质量可以与标准的ThinkPad键盘相媲美。
质量可以与标准的ThinkPad键盘相媲美。
坚实和准确的压力点...
坚实和准确的压力点...
给用户带来了非常舒适的反馈。
给用户带来了非常舒适的反馈。
遗憾的是:可旋转屏幕转轴...
遗憾的是:可旋转屏幕转轴...
只有更贵的Ultrabook Pro键盘才可以提供。
只有更贵的Ultrabook Pro键盘才可以提供。

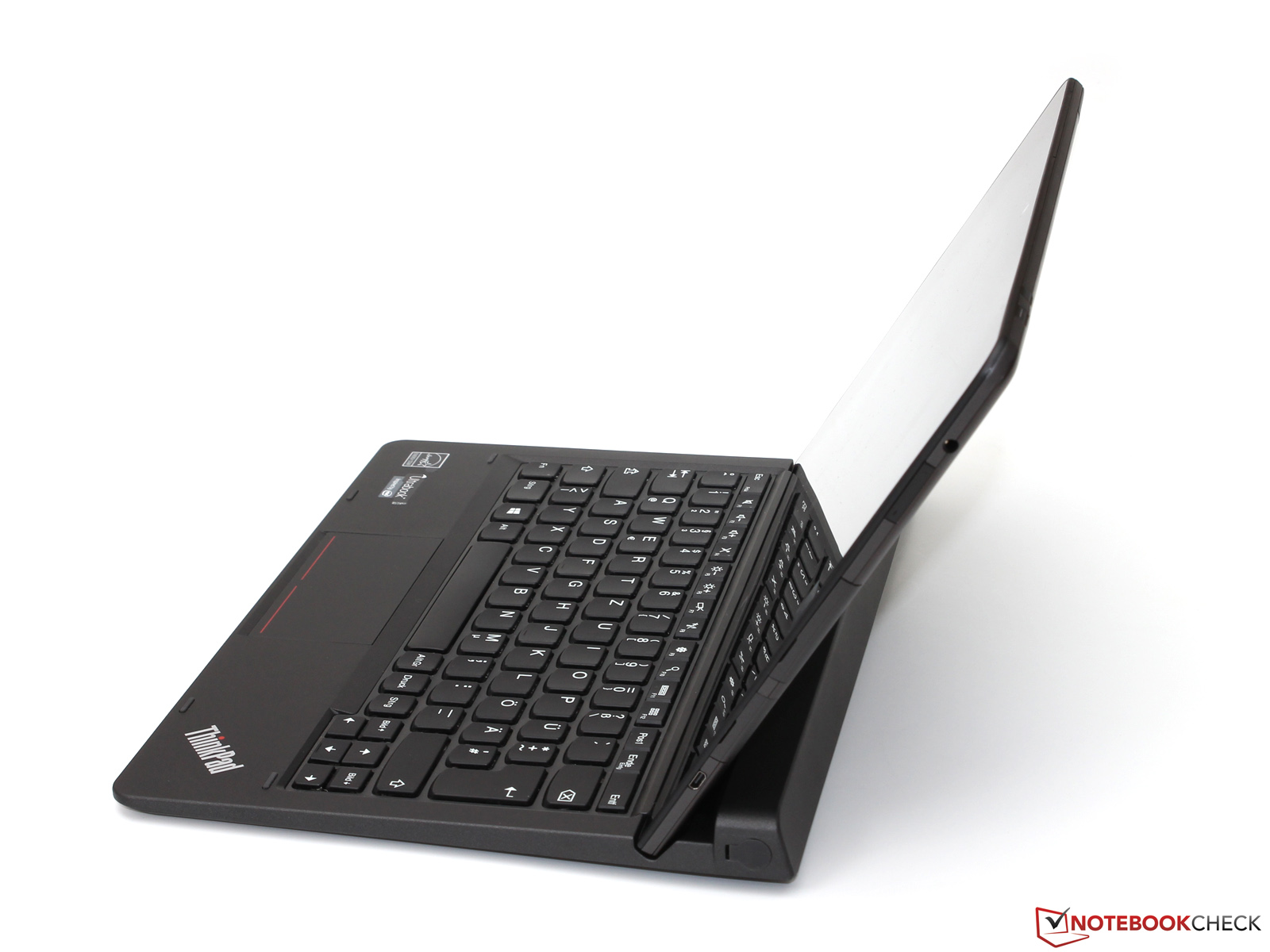

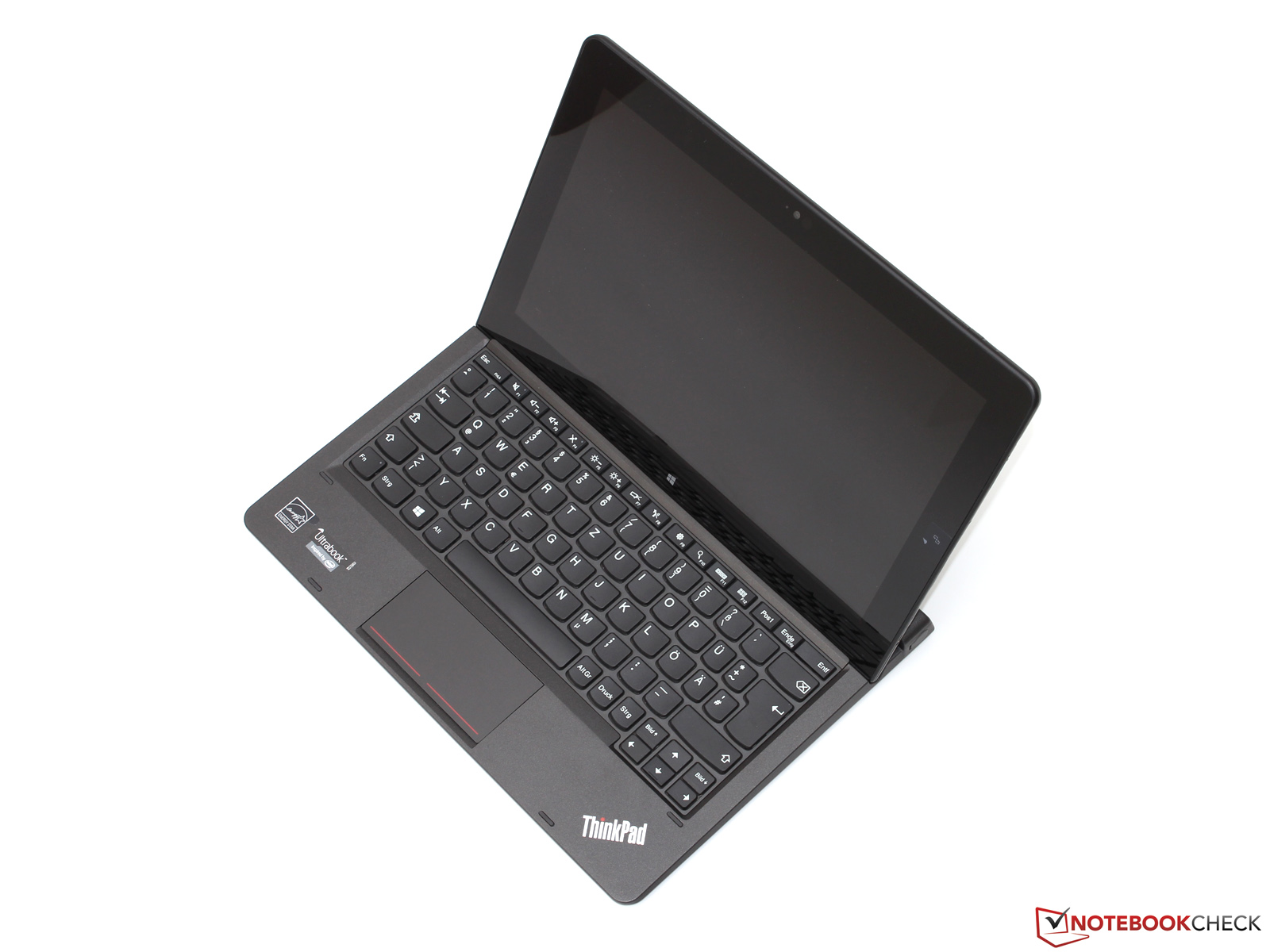

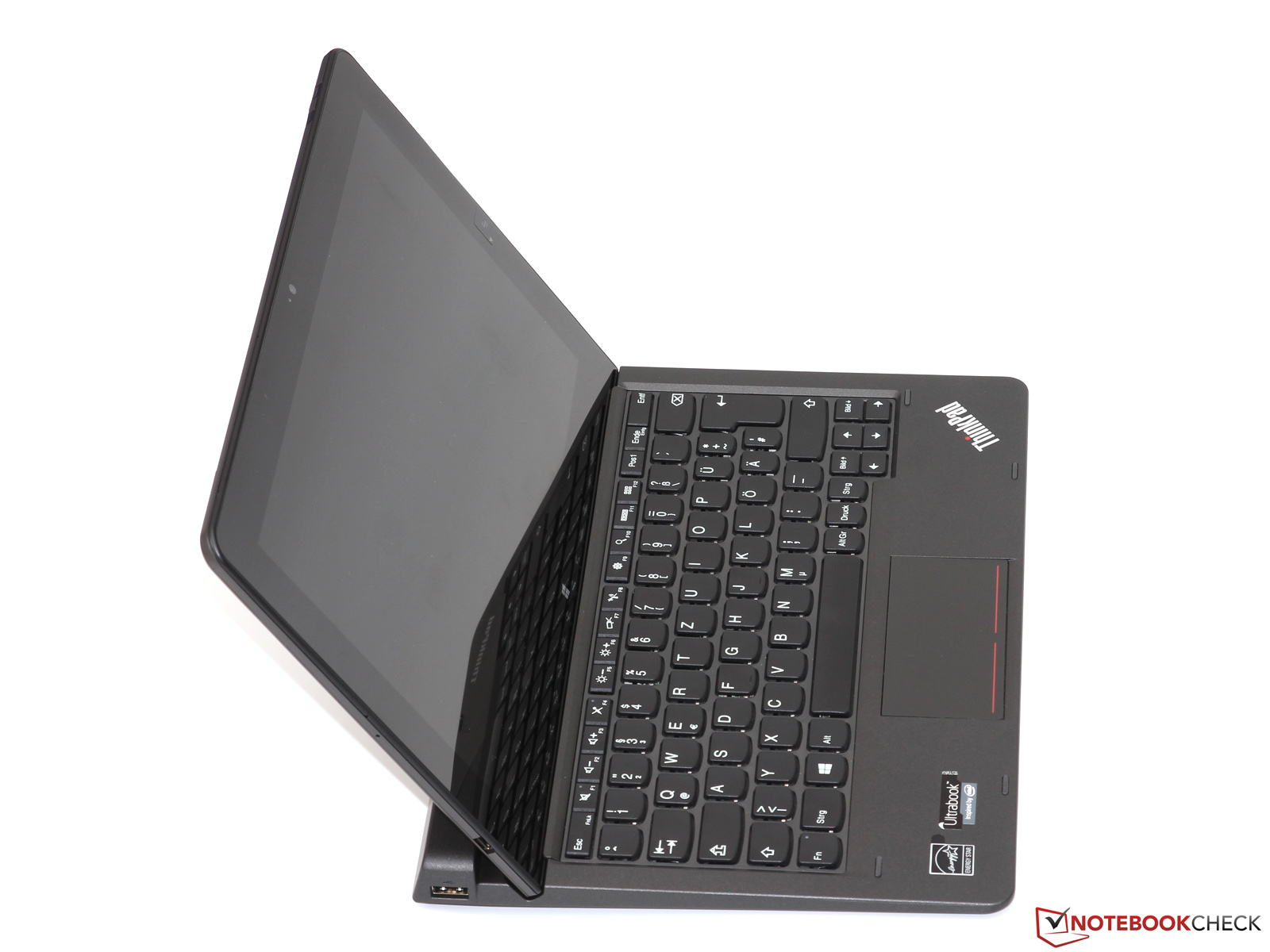

你可以在普通的角度下工作 ...
你可以在普通的角度下工作 ...

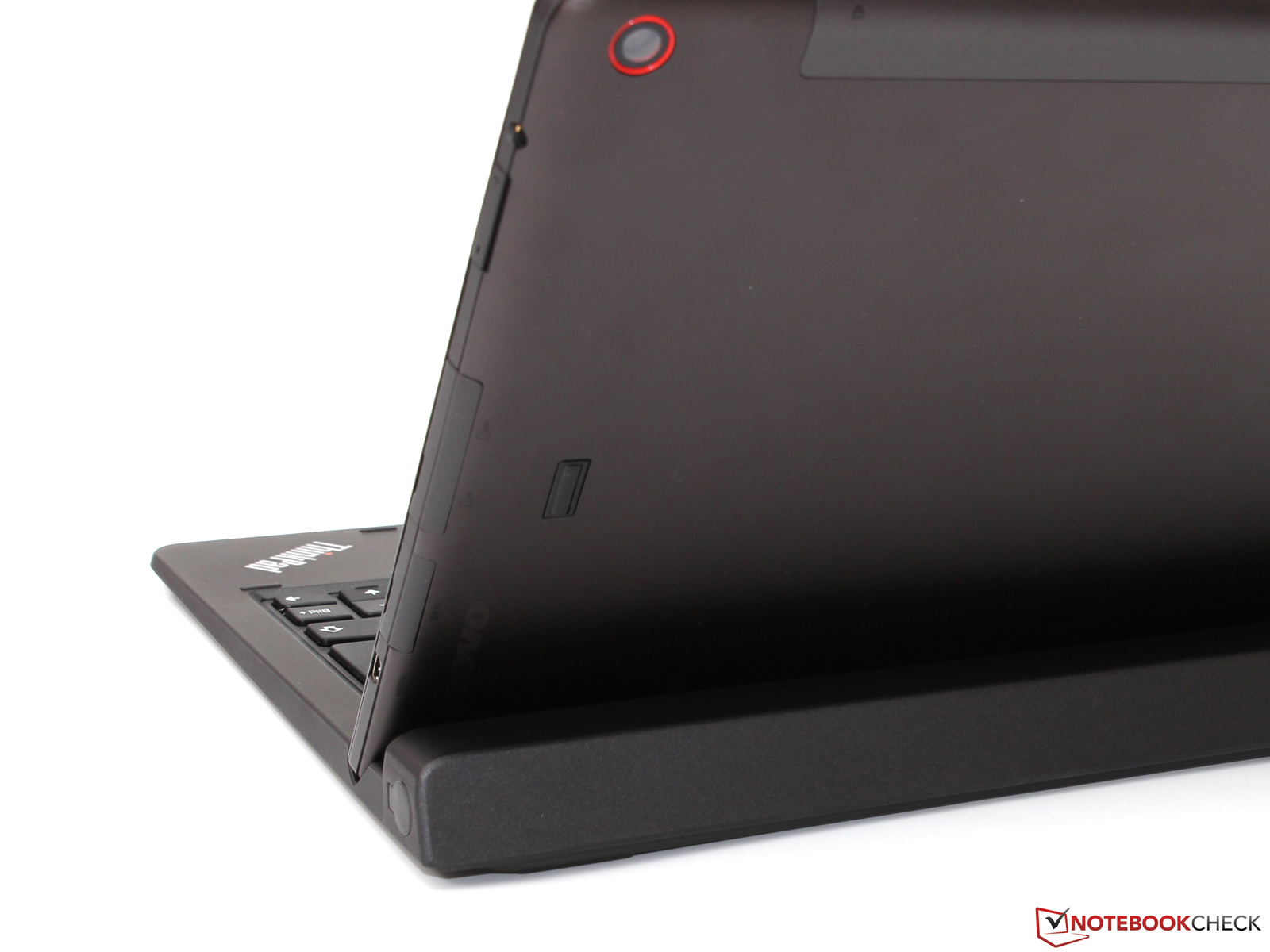

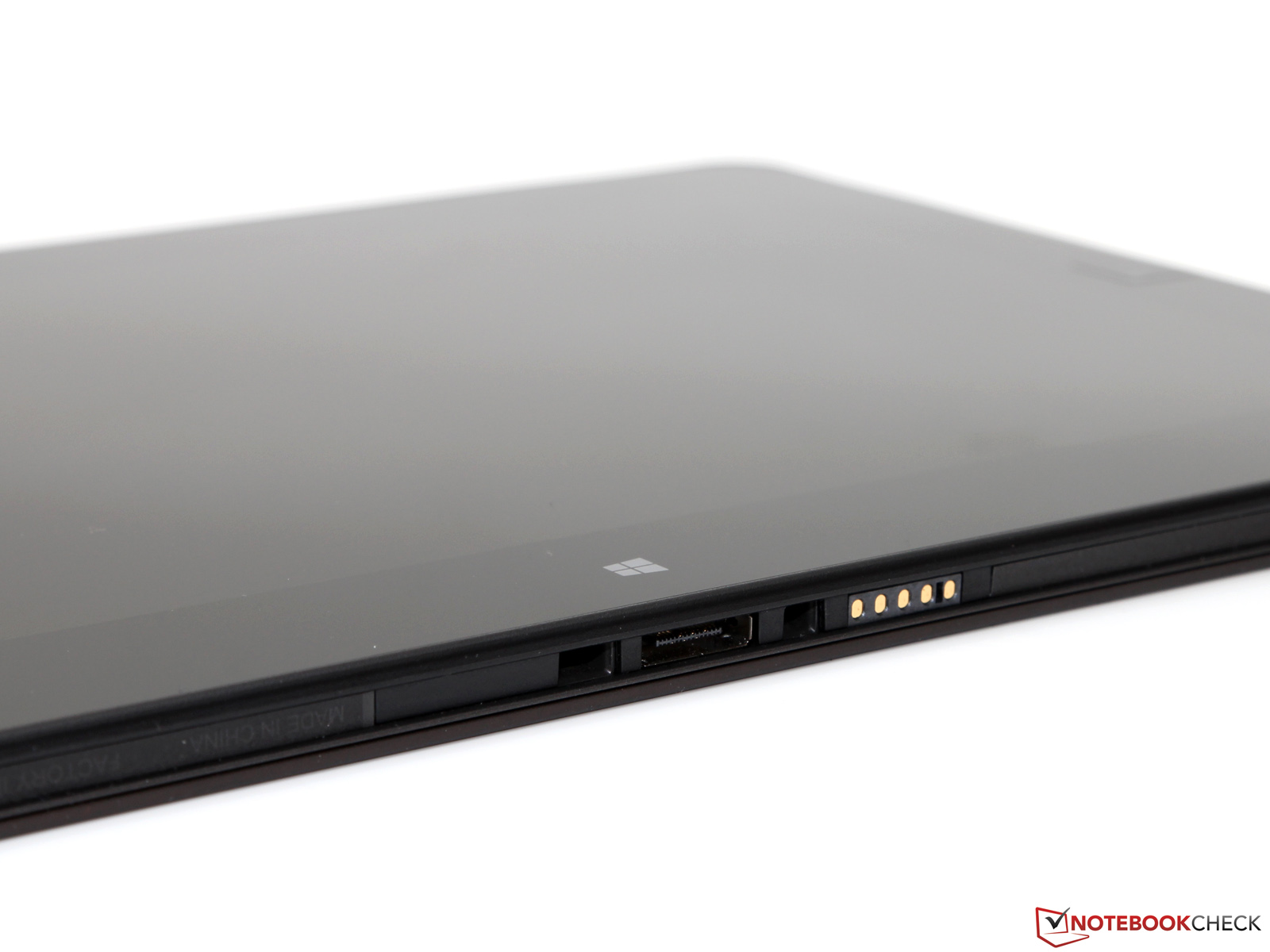

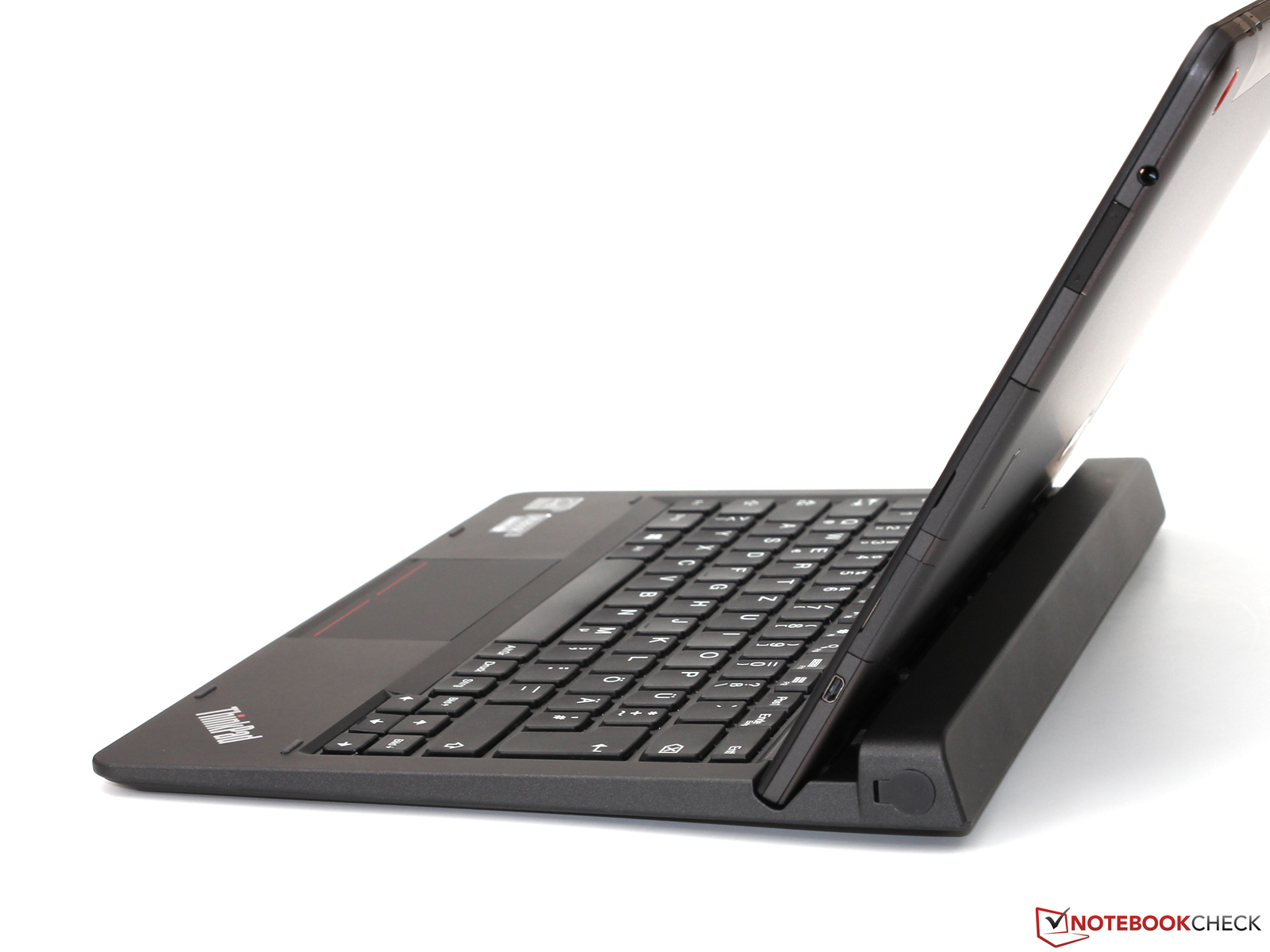

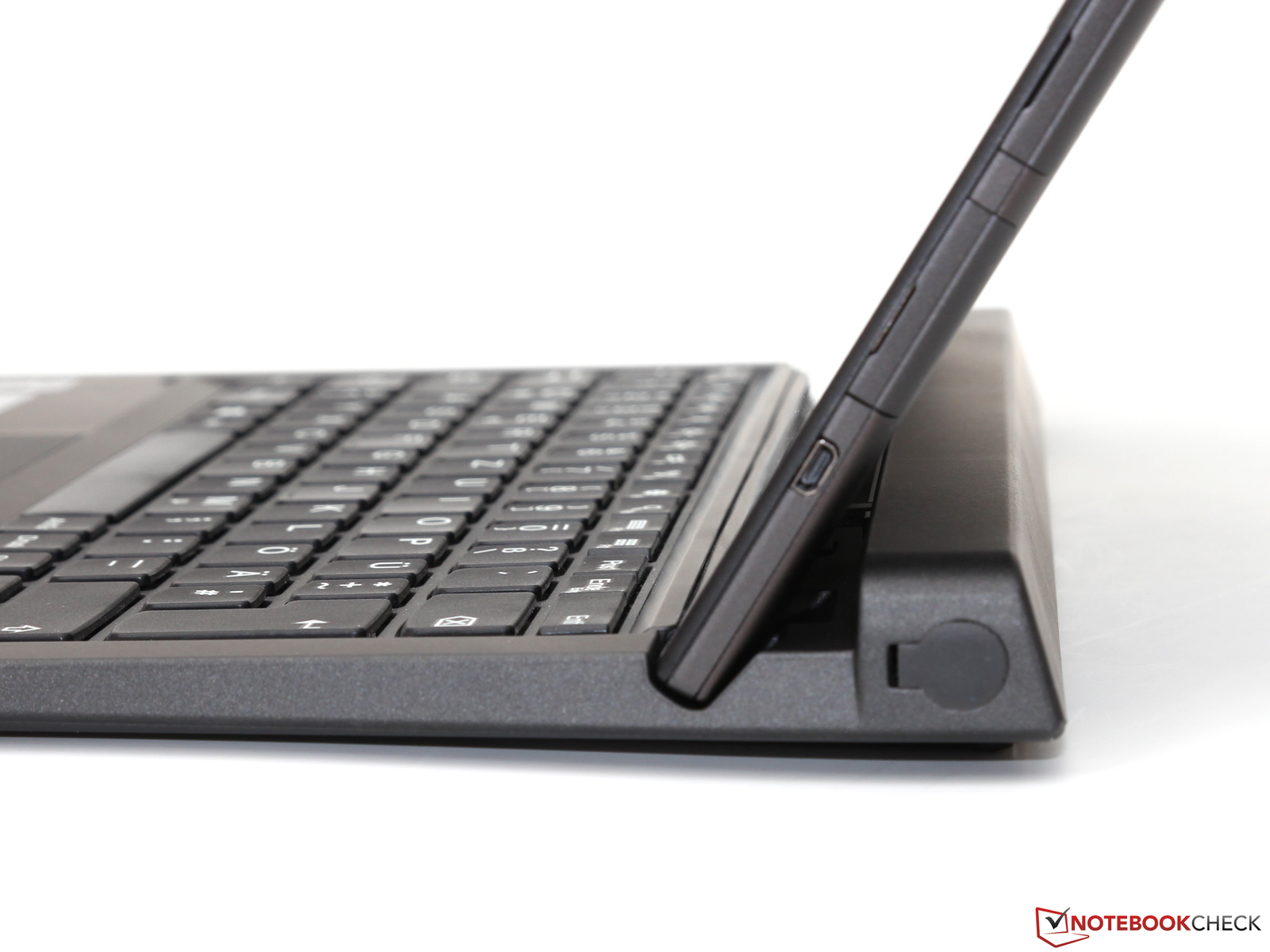

或者将平板...
或者将平板...
置于底座之上。
置于底座之上。

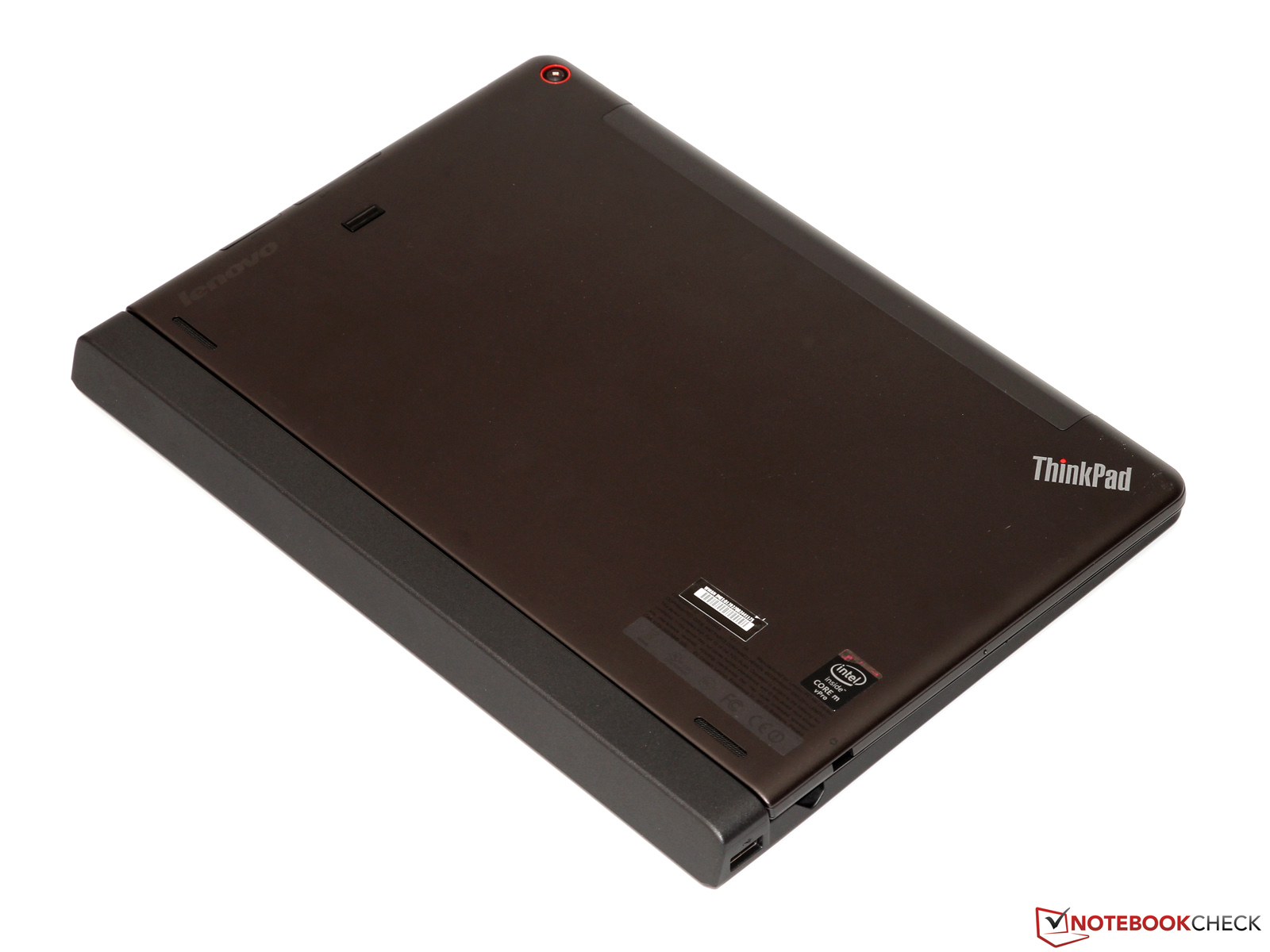

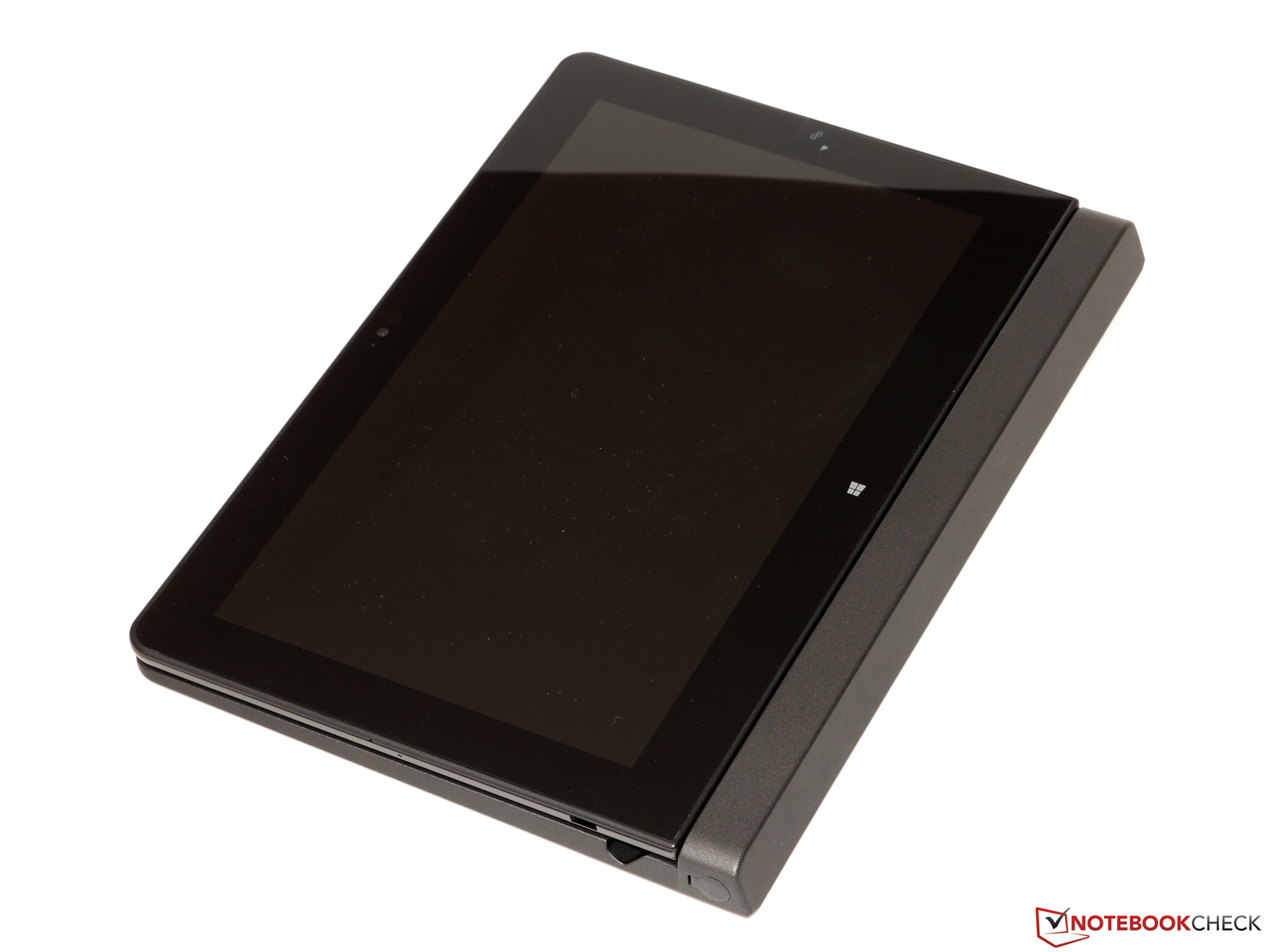

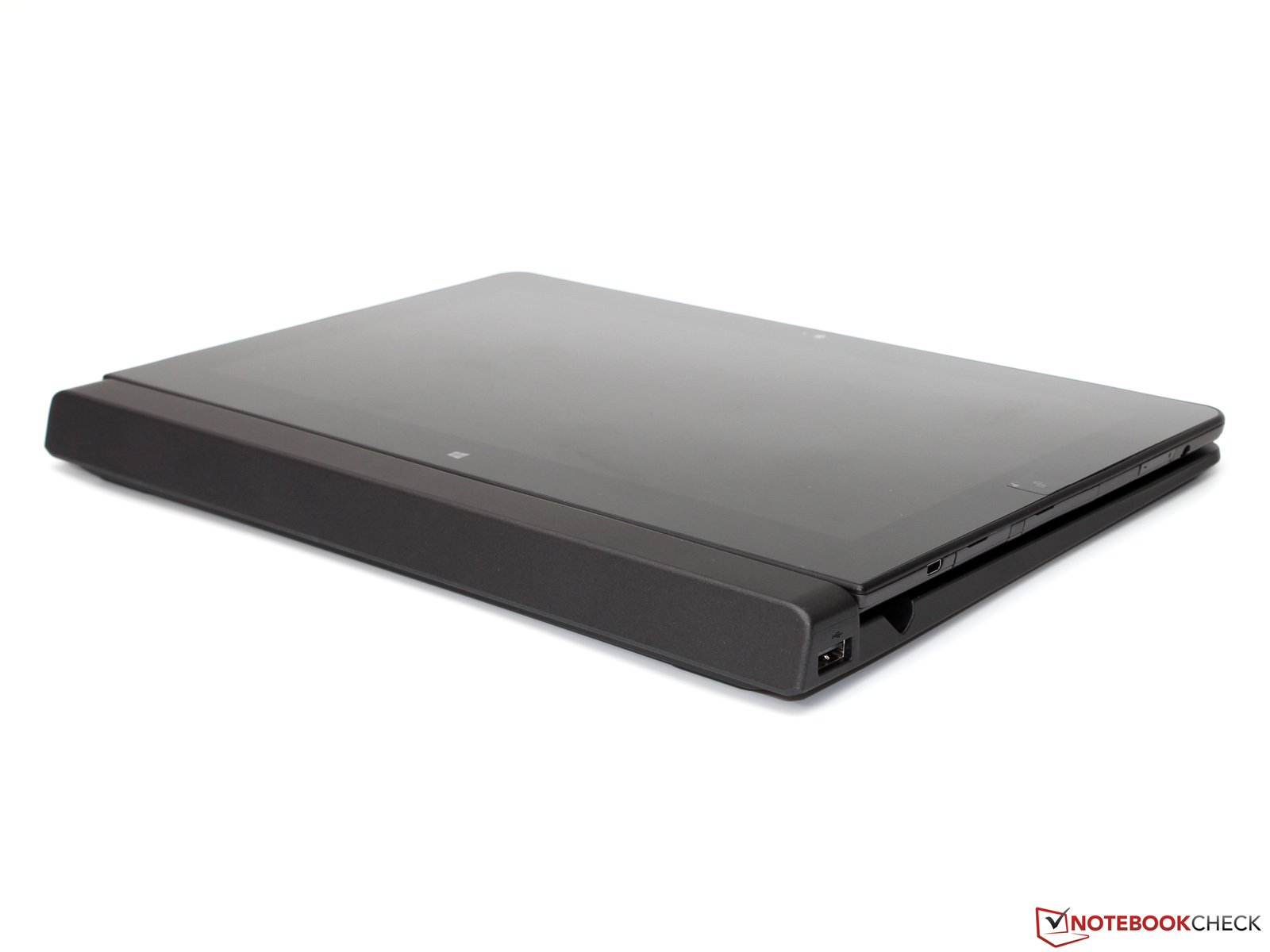

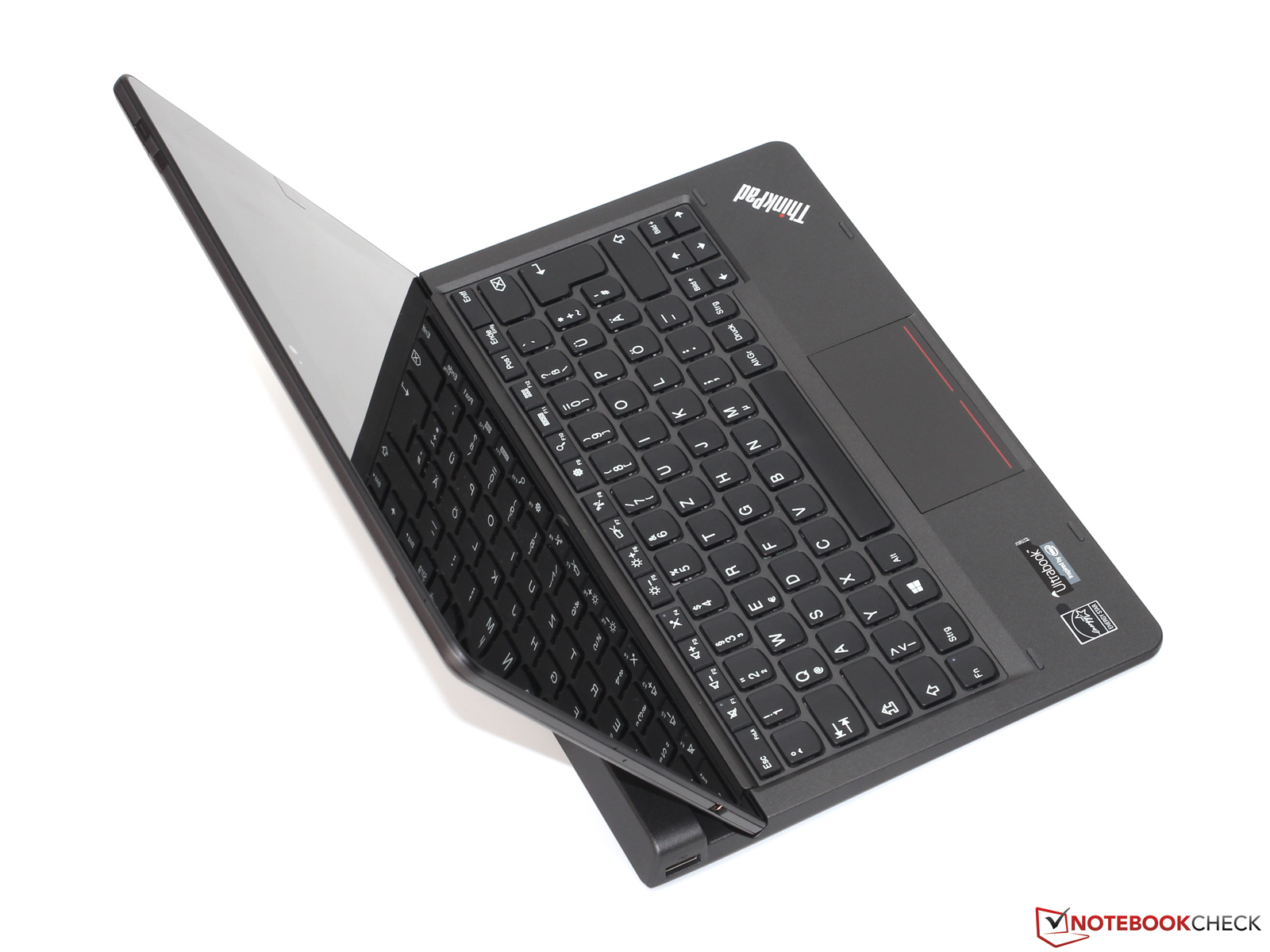

你也可以将屏幕转一圈。
你也可以将屏幕转一圈。
这样可以让Helix更便于携带。
这样可以让Helix更便于携带。

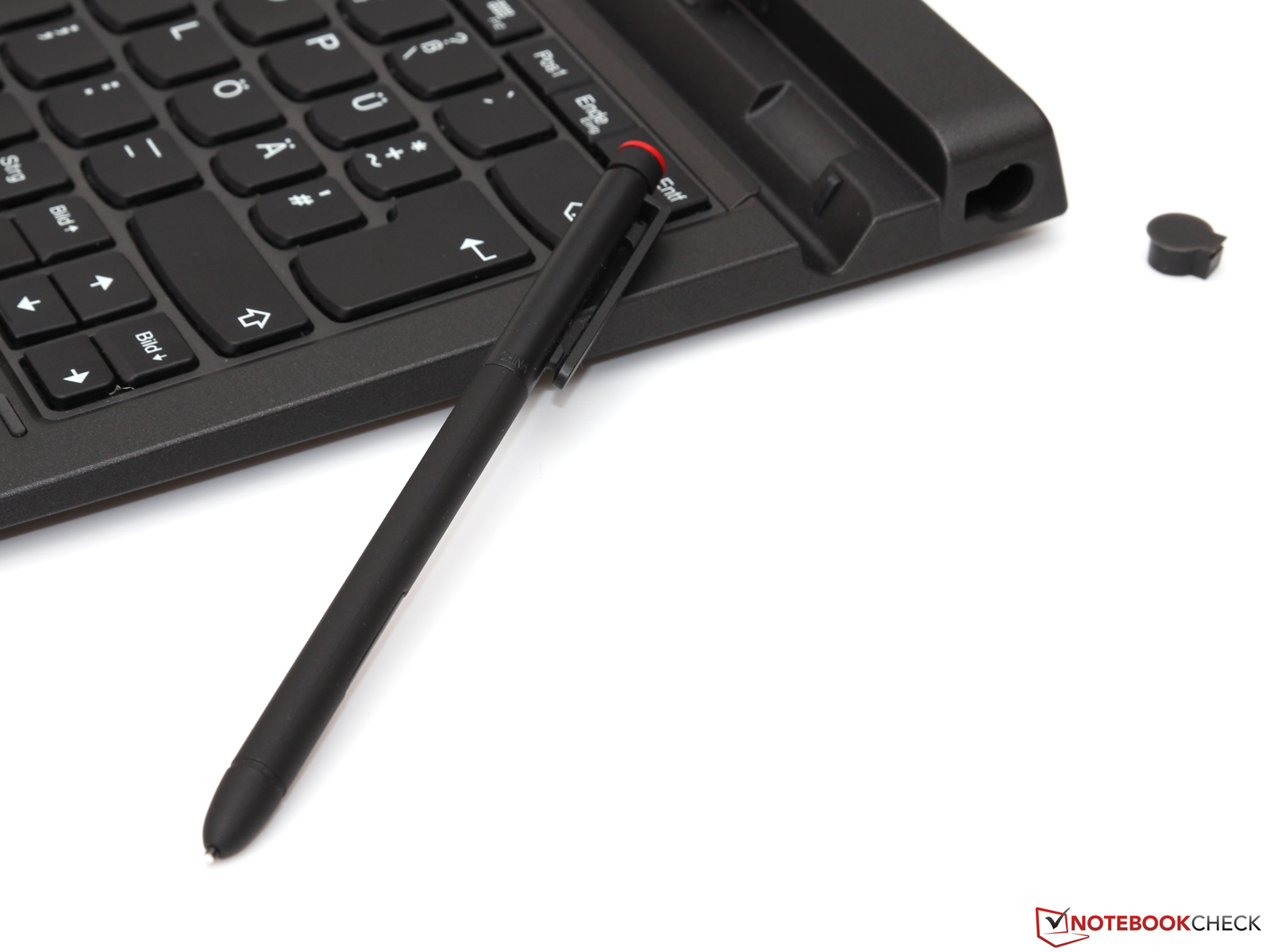

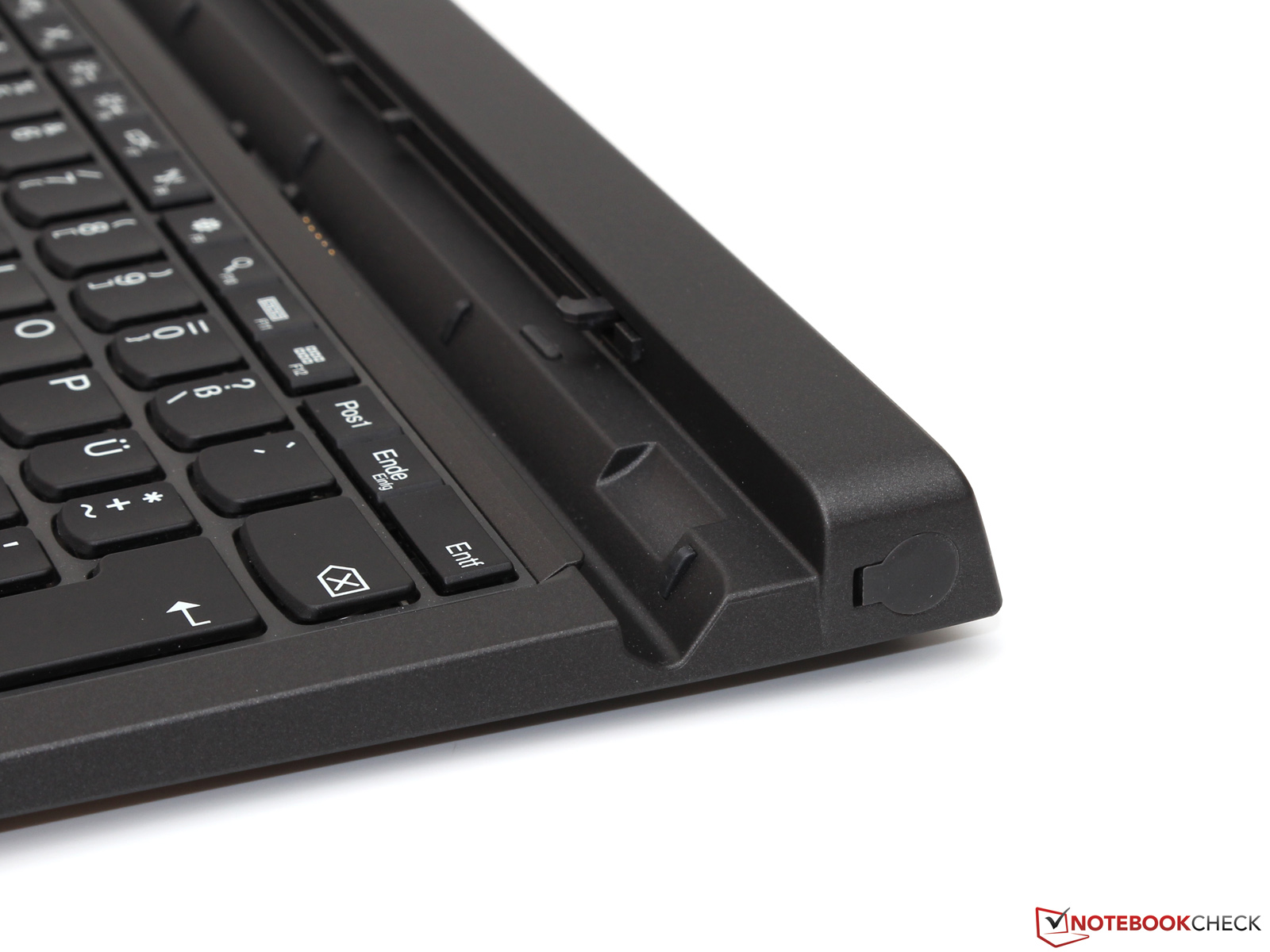

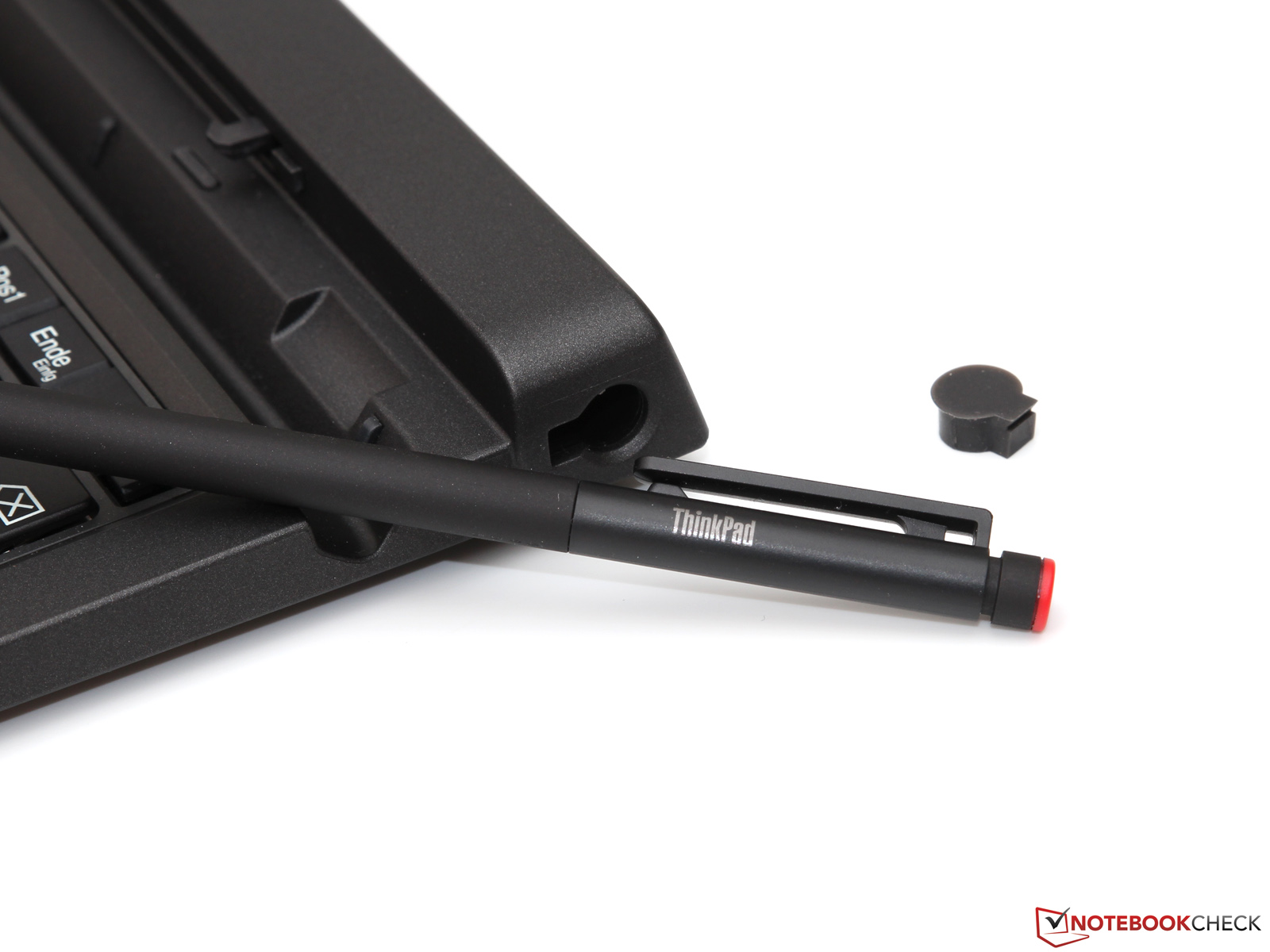

它底座边上的一个小槽...
它底座边上的一个小槽...
可以用来放置附带的手写笔。
可以用来放置附带的手写笔。
它采用了Wacom的手写笔技术。
它采用了Wacom的手写笔技术。
不过它不能 ...
不过它不能 ...
收入平板之中。
收入平板之中。

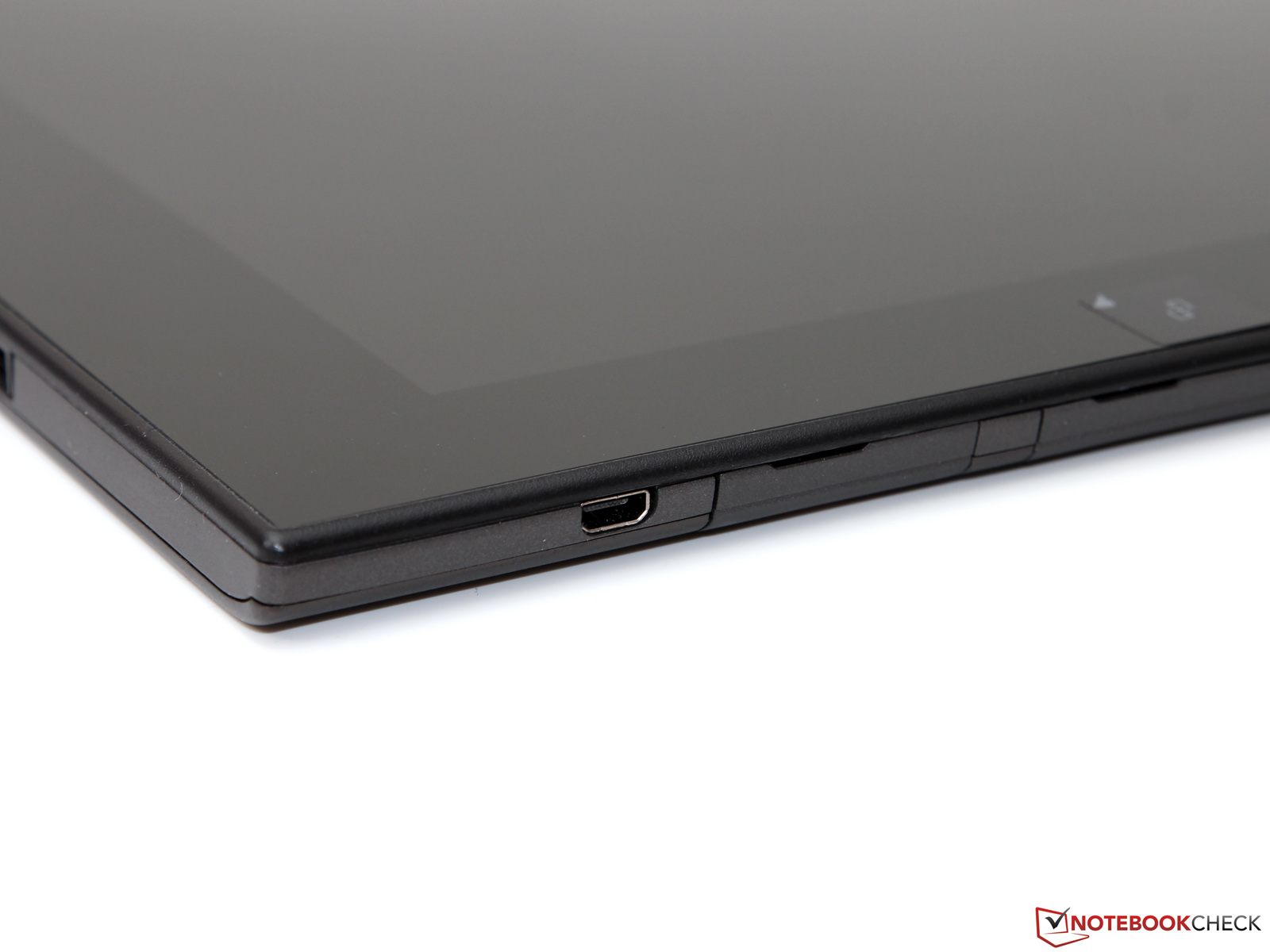

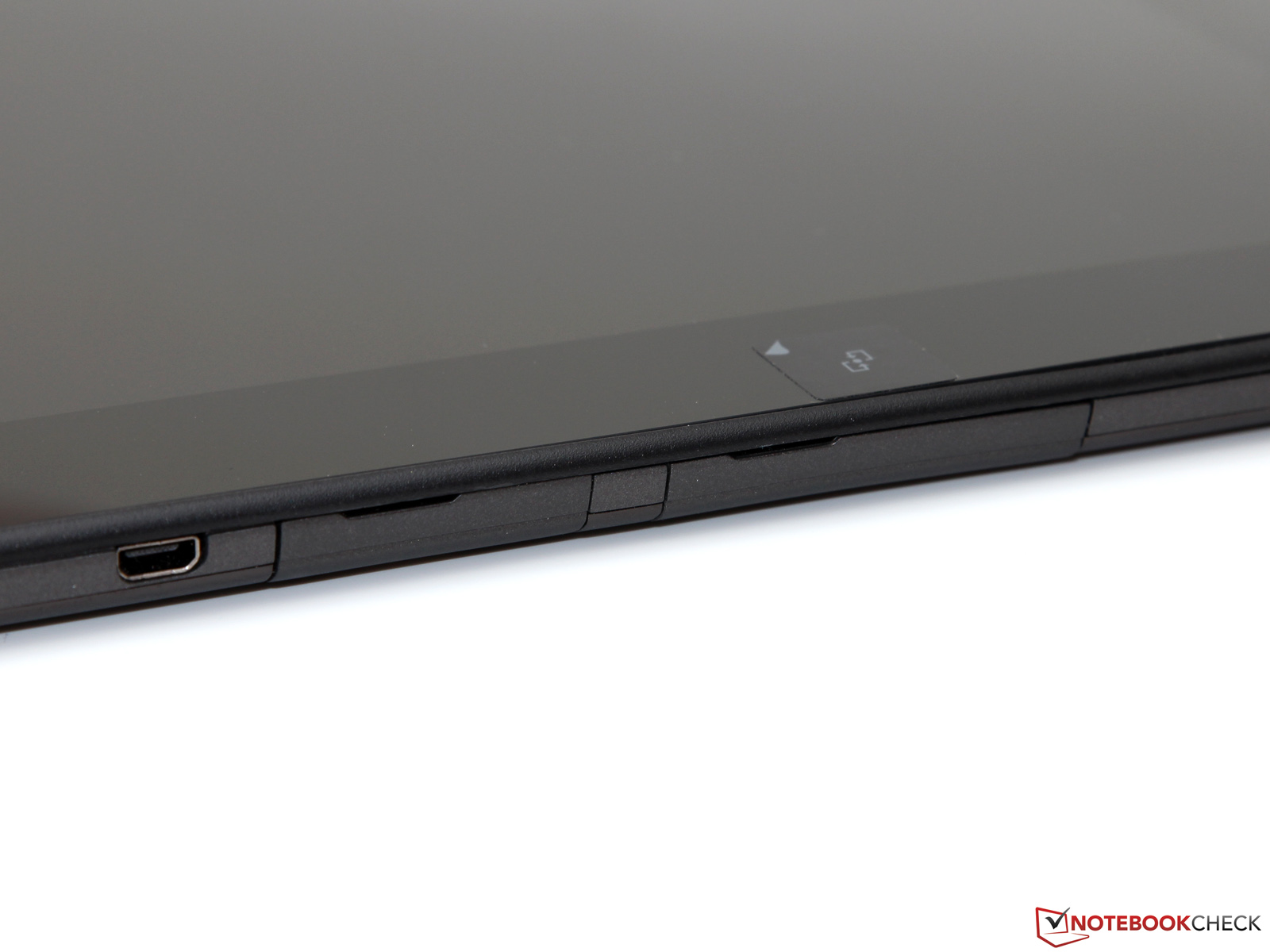

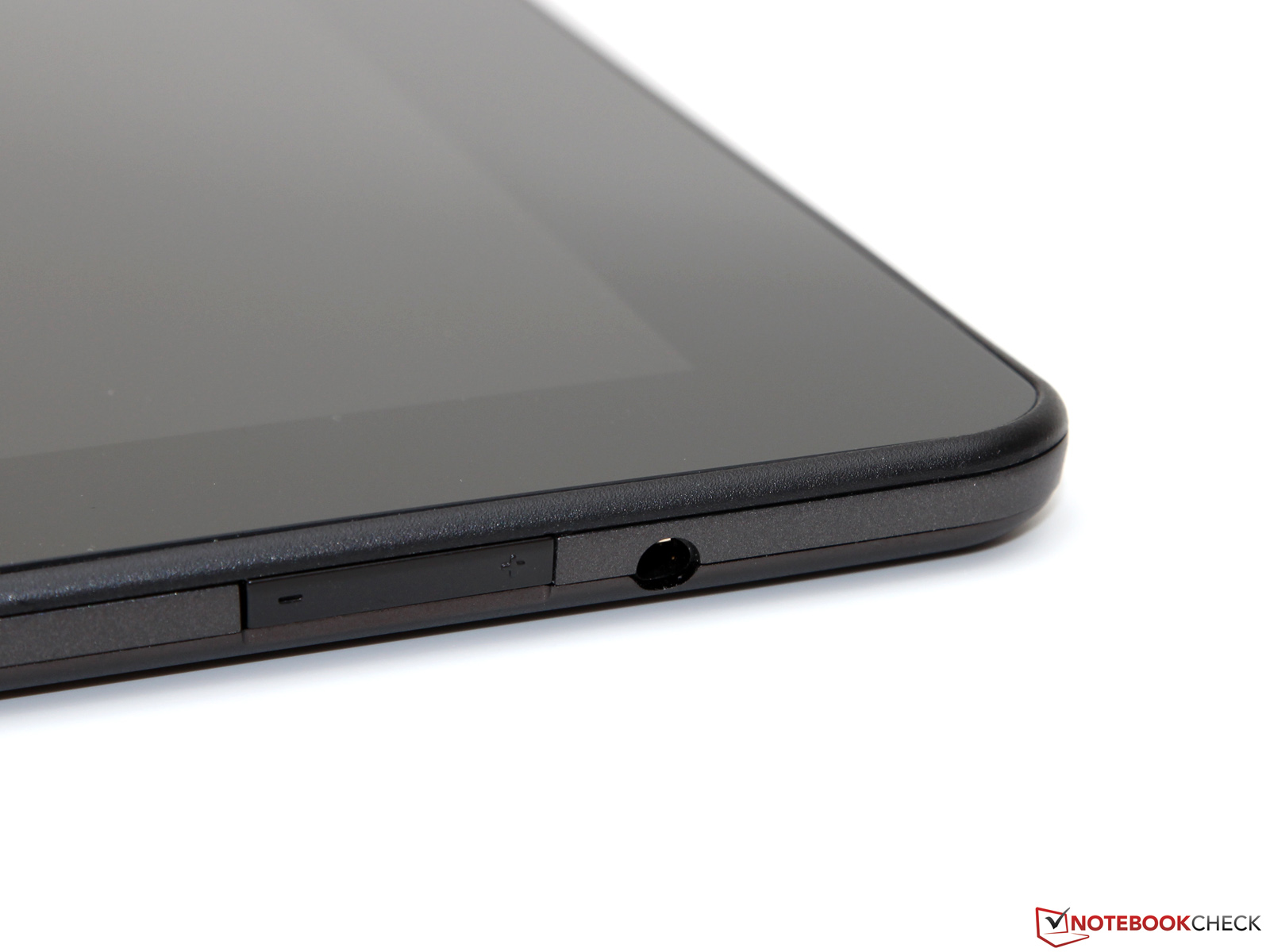

在丰富的接口值周,包括了micro-HDMI接口 ...
在丰富的接口值周,包括了micro-HDMI接口 ...
和一个耳机接口。
和一个耳机接口。

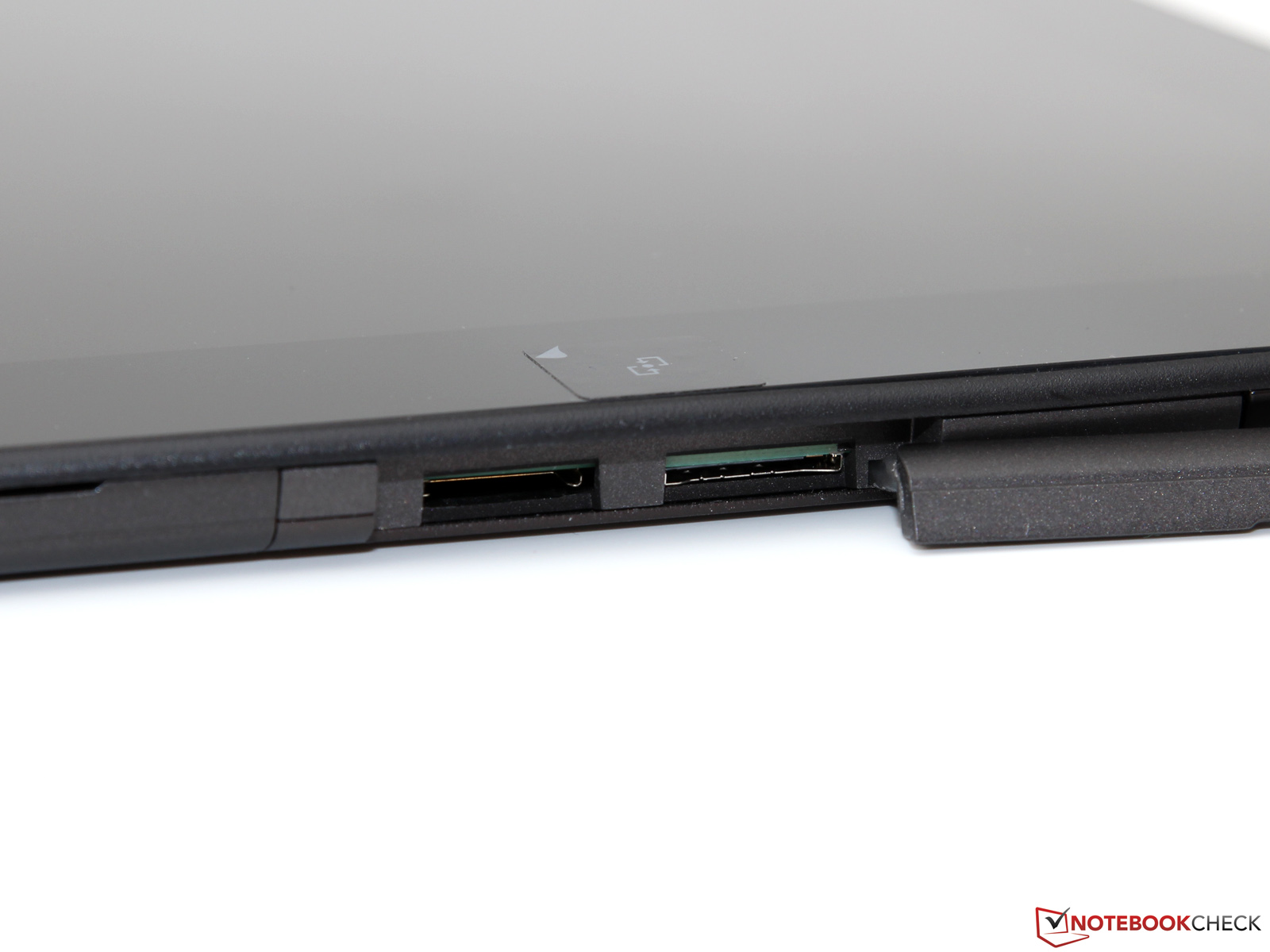

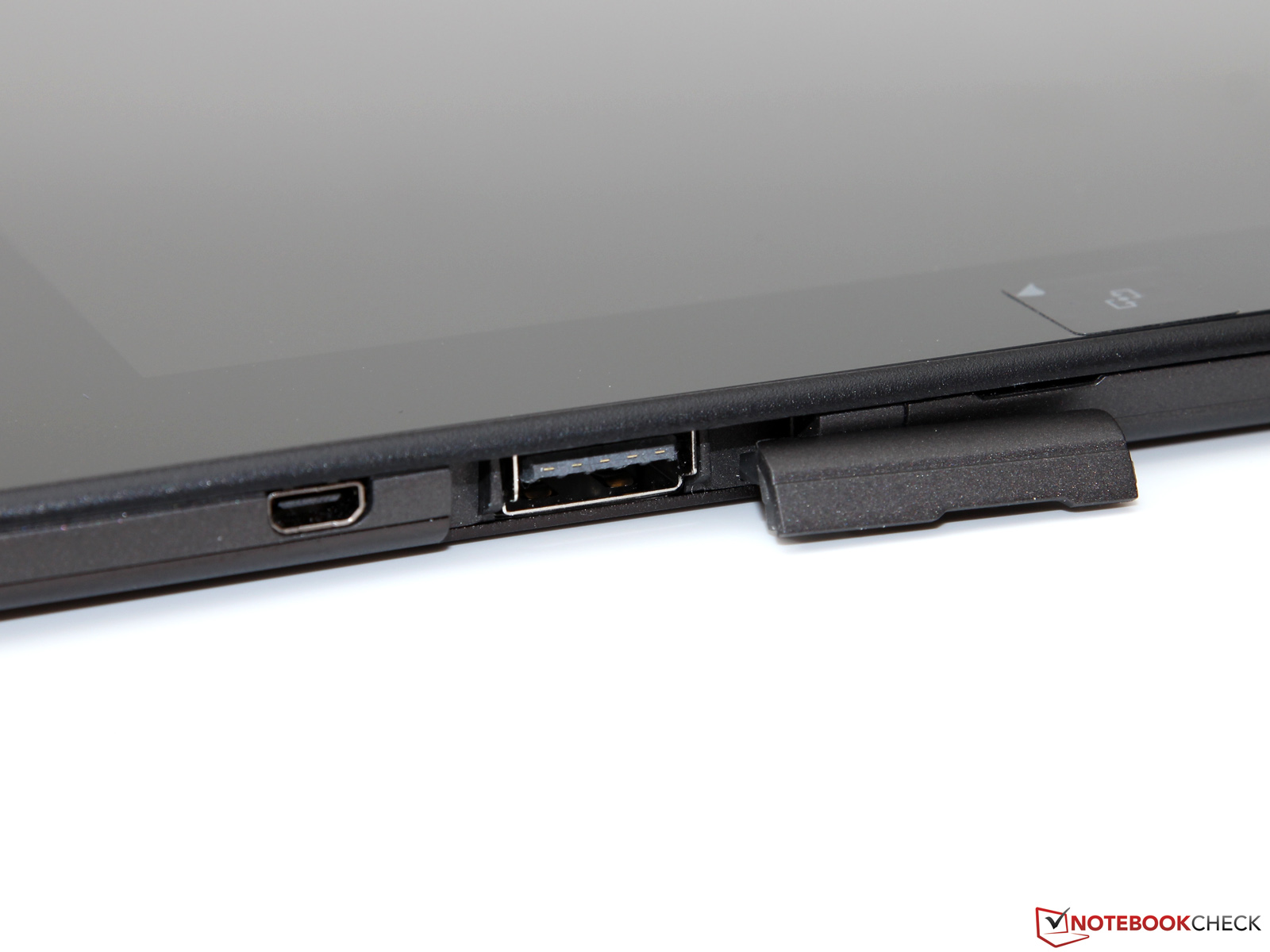

更多的接口在这个保护盖之下...
更多的接口在这个保护盖之下...

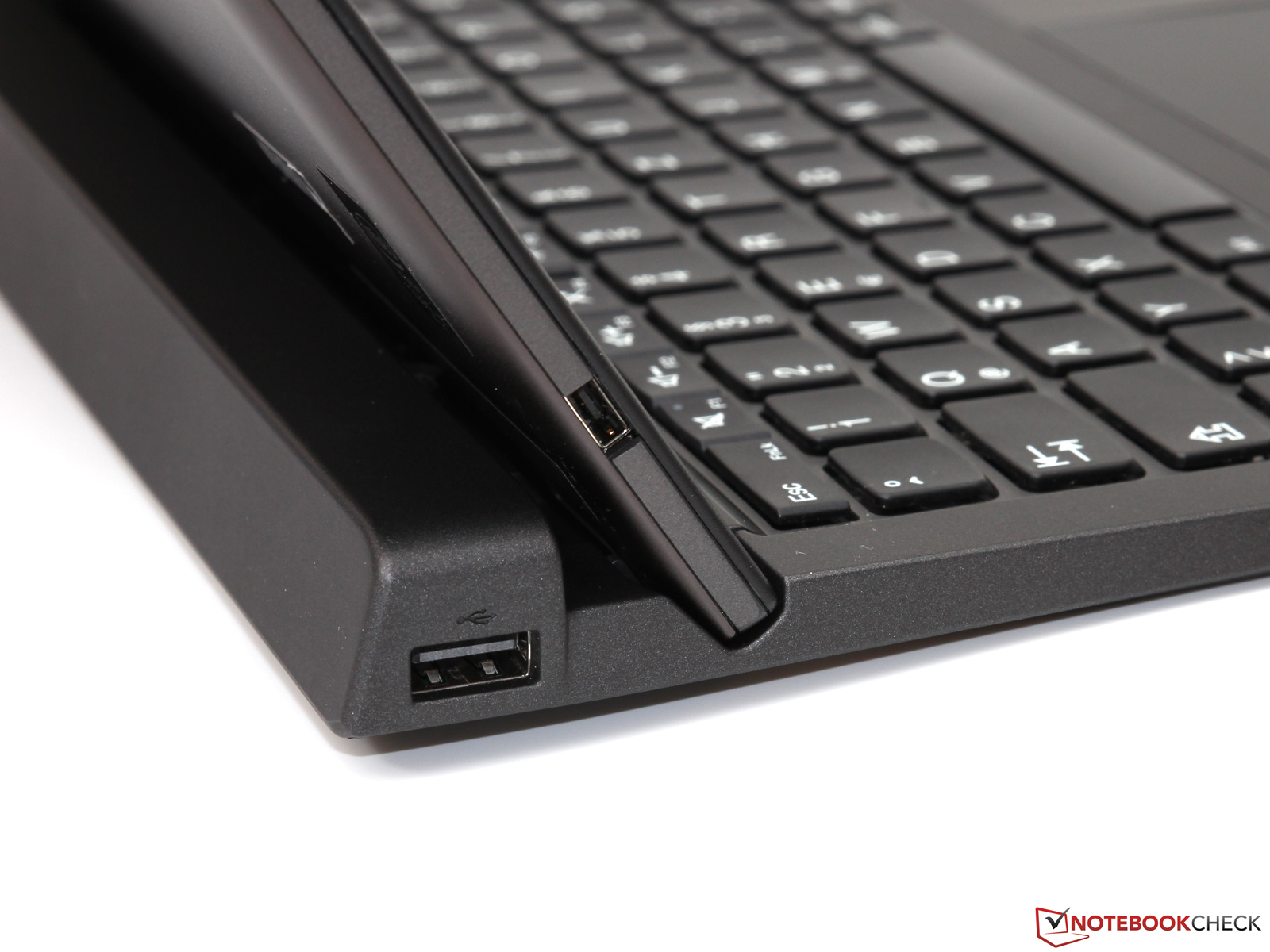

包括一个USB 3.0接口,
包括一个USB 3.0接口,
microSD读卡器和一个SIM卡槽。
microSD读卡器和一个SIM卡槽。

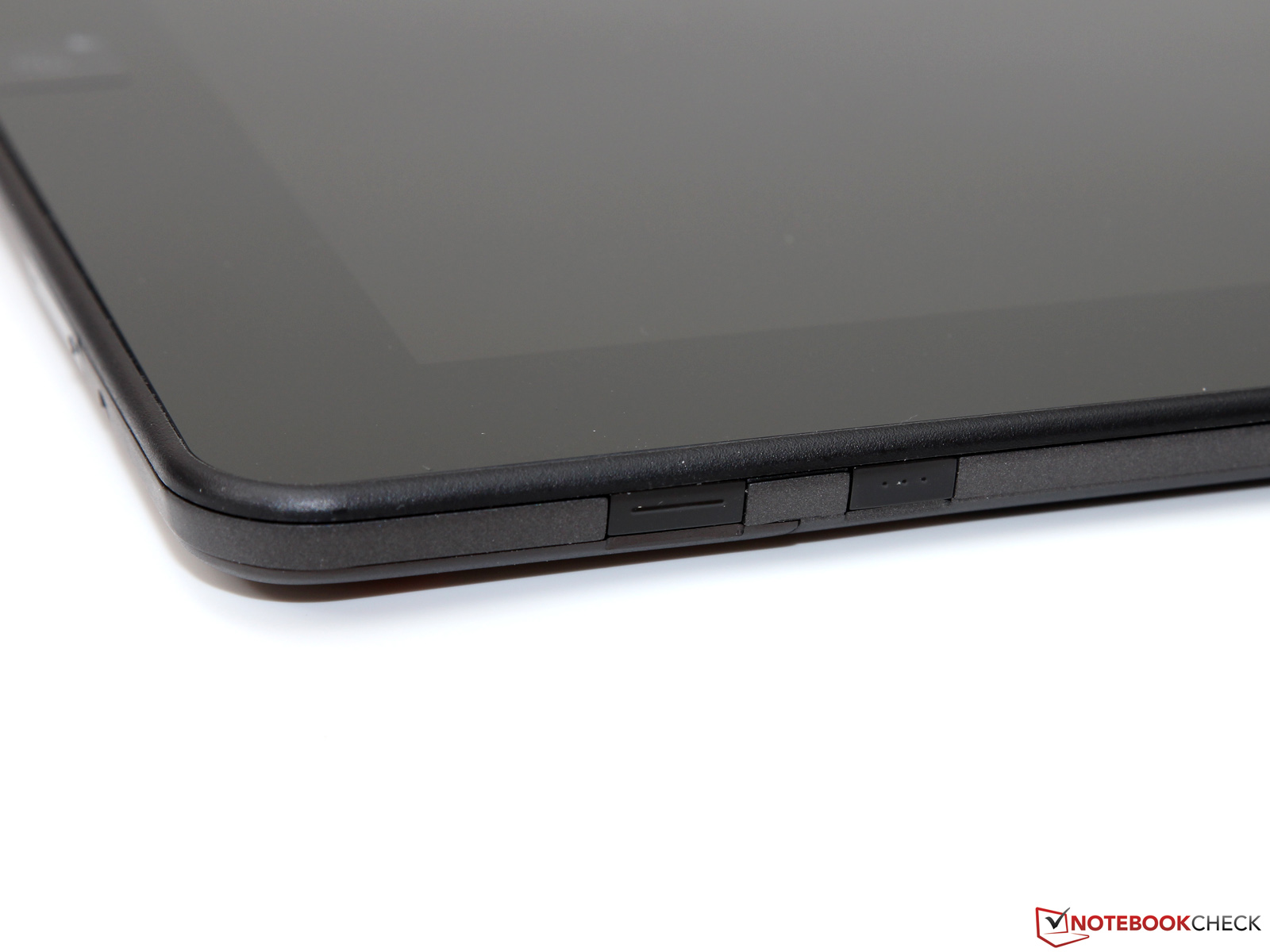

电源键和屏幕旋转锁。
电源键和屏幕旋转锁。

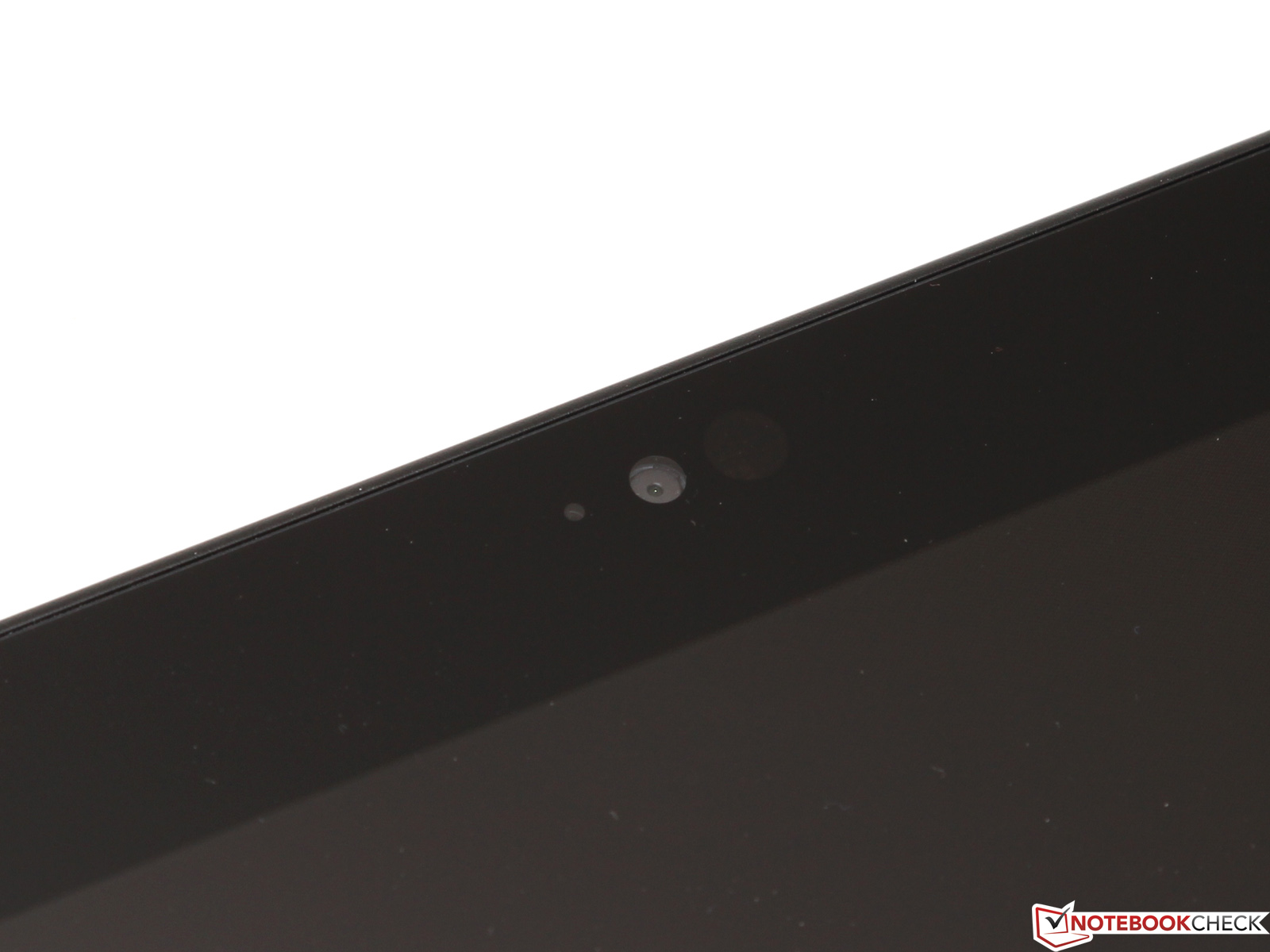

联想为它配备了200万像素的前置摄像头,
联想为它配备了200万像素的前置摄像头,

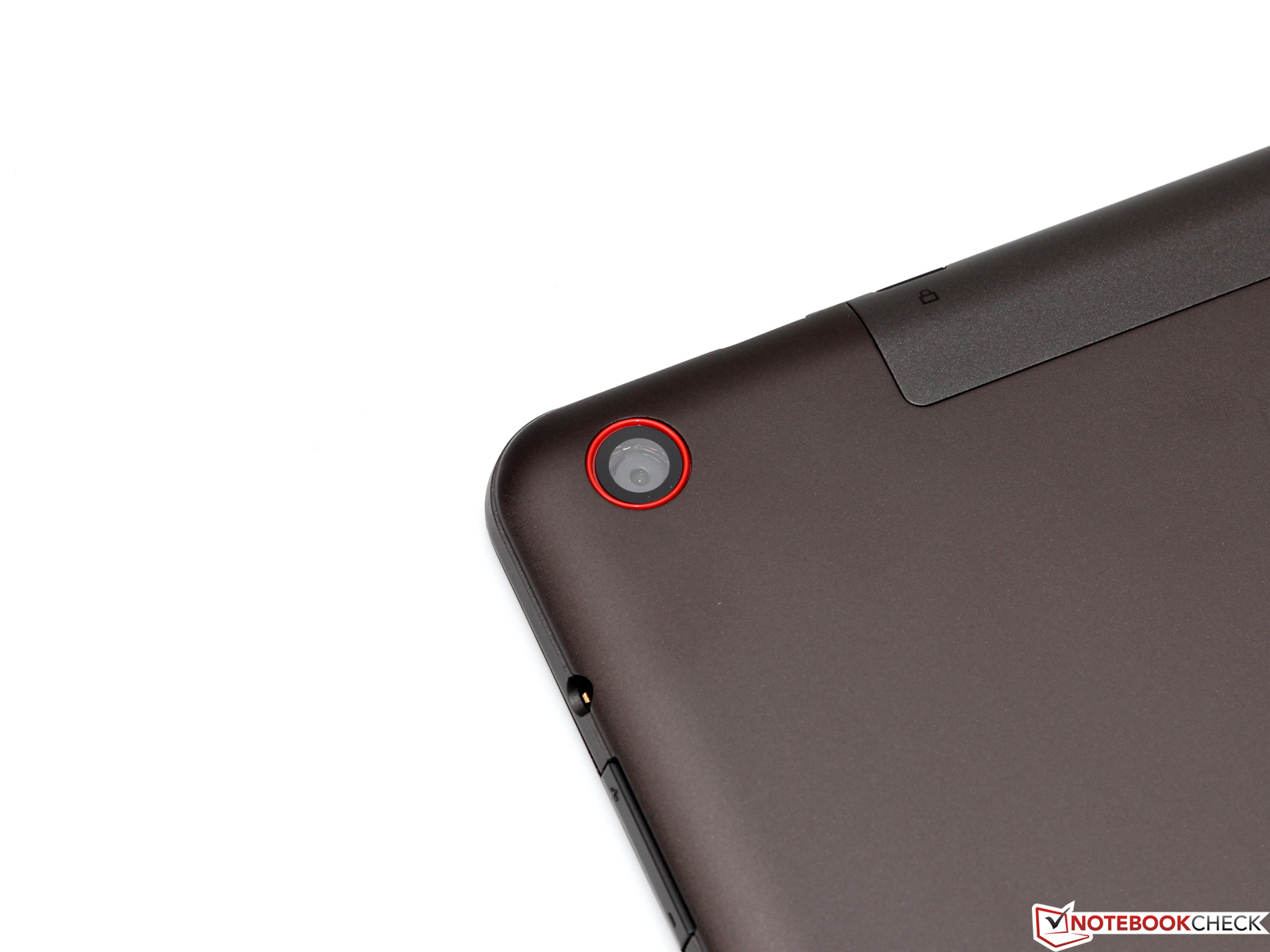

后置相机则可拍摄最大500万像素的照片。
后置相机则可拍摄最大500万像素的照片。

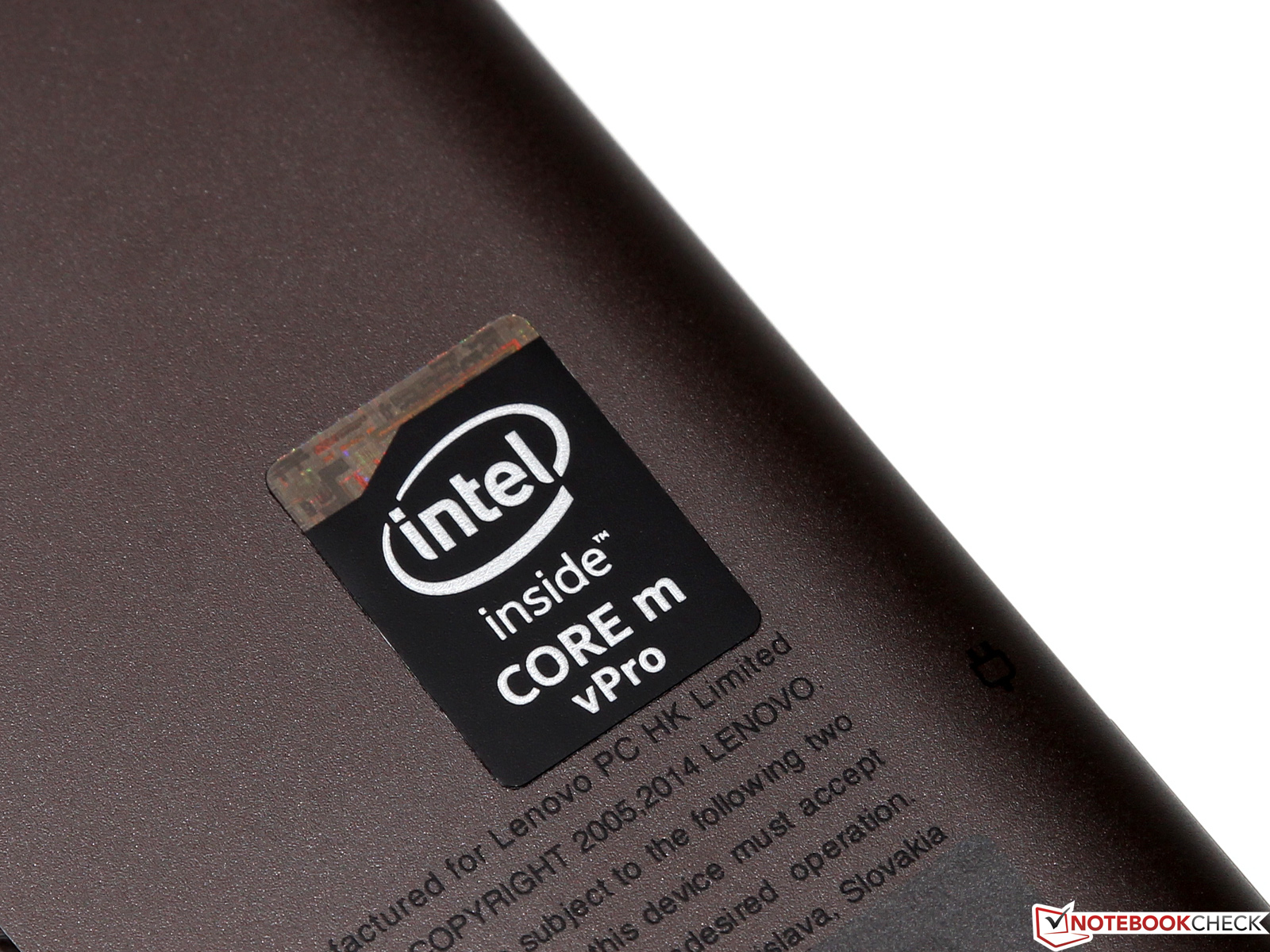

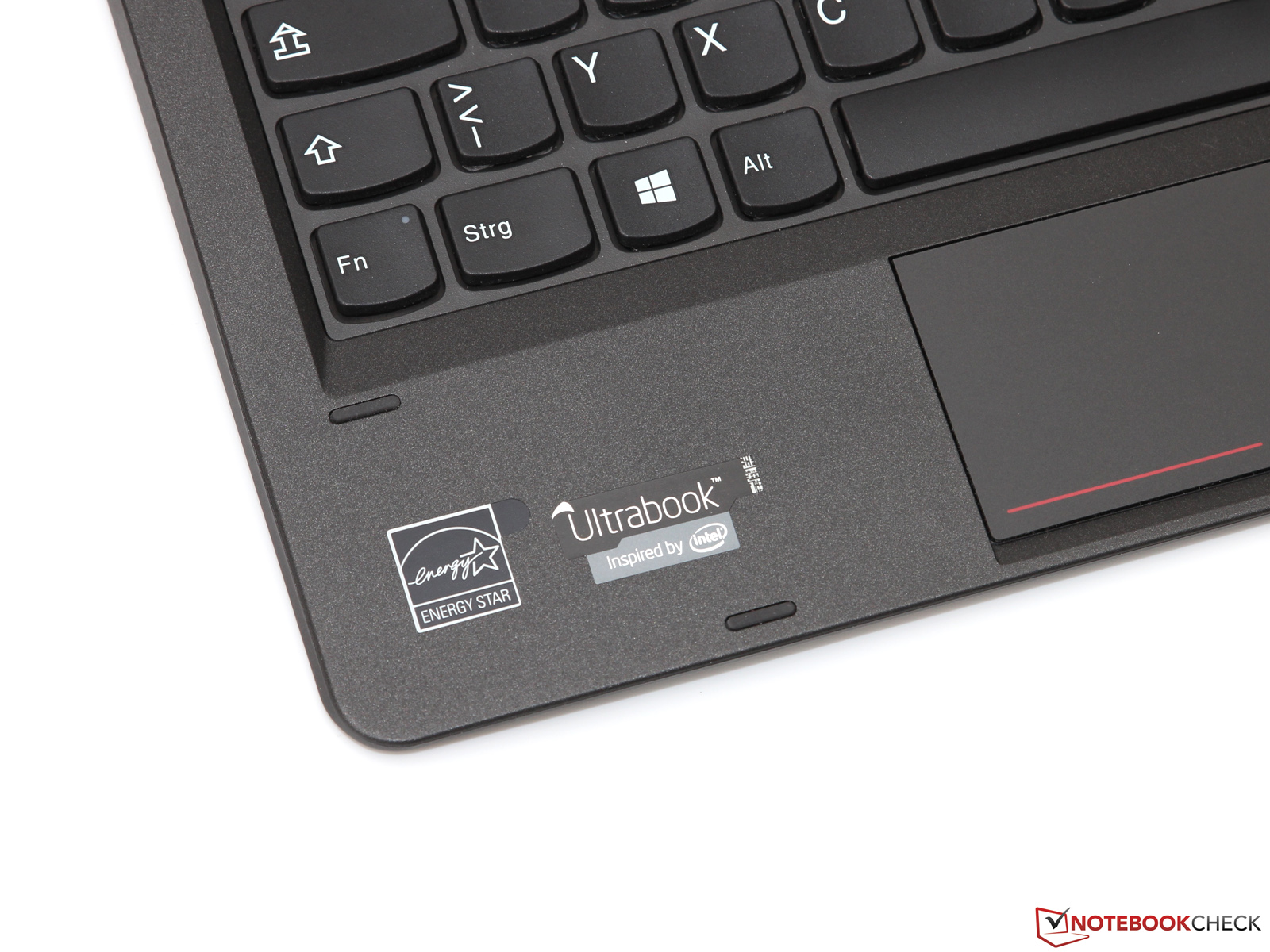

一个小标签...
一个小标签...
证明它采用了Broadwell处理器。
证明它采用了Broadwell处理器。

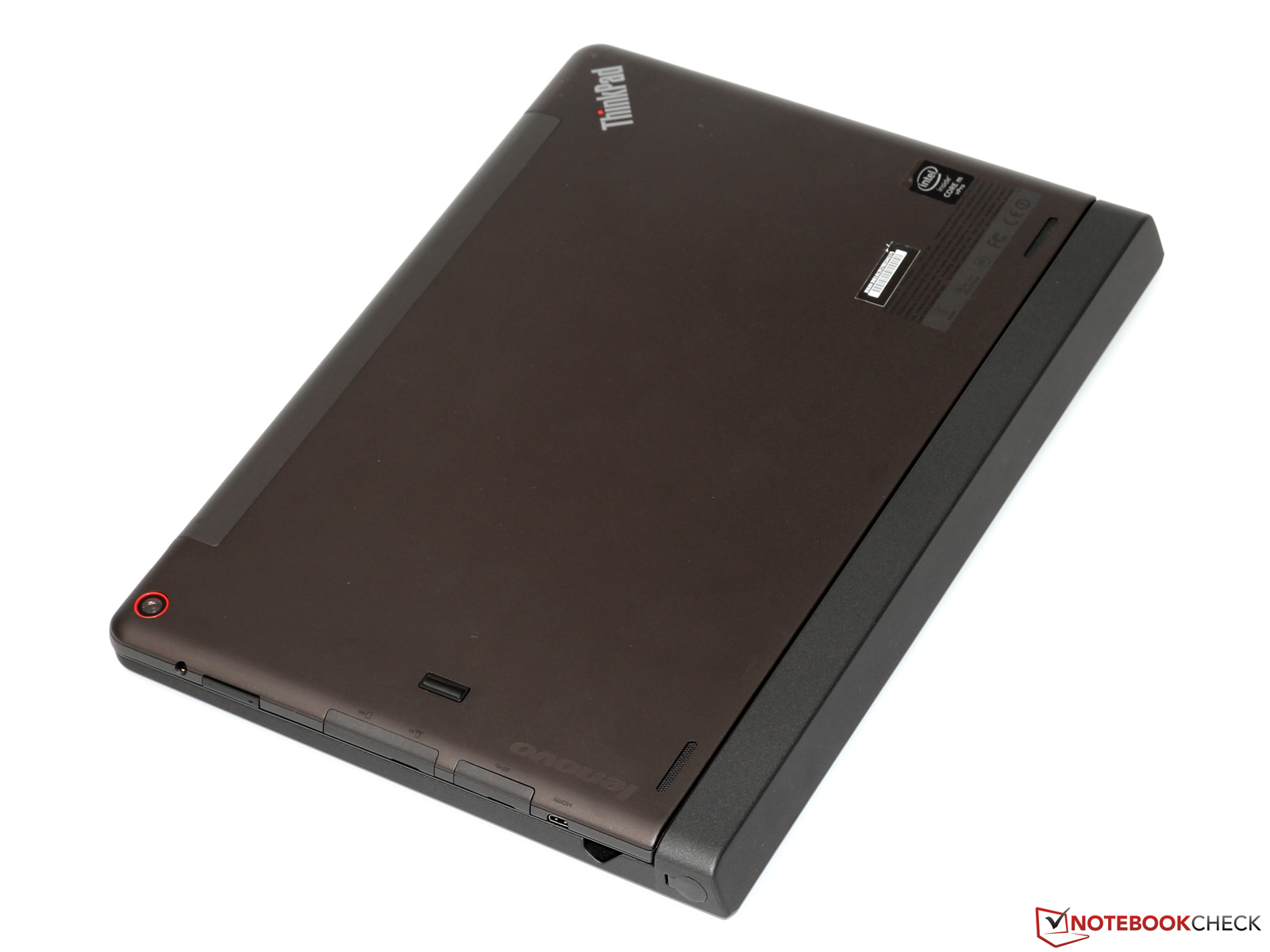

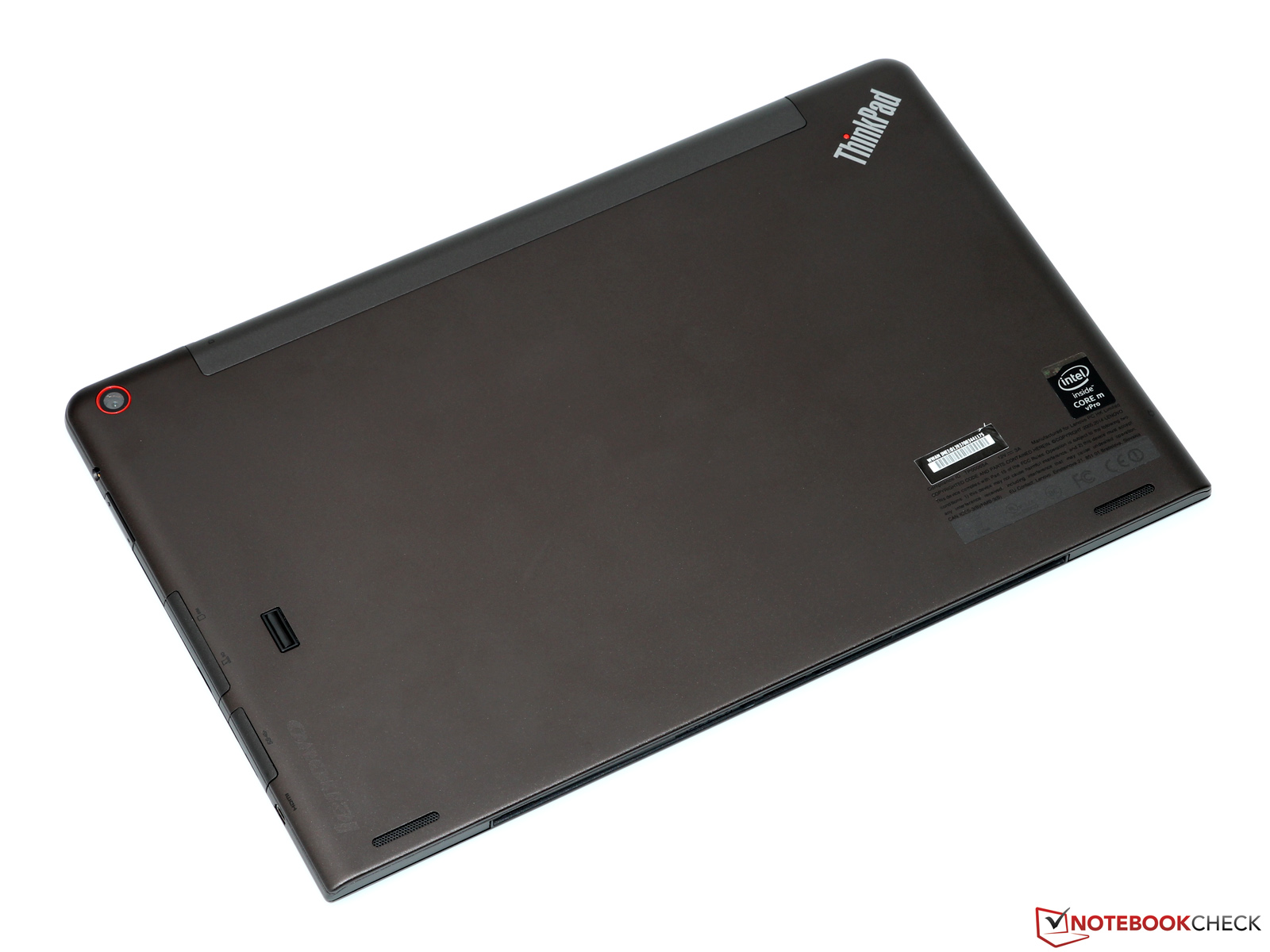

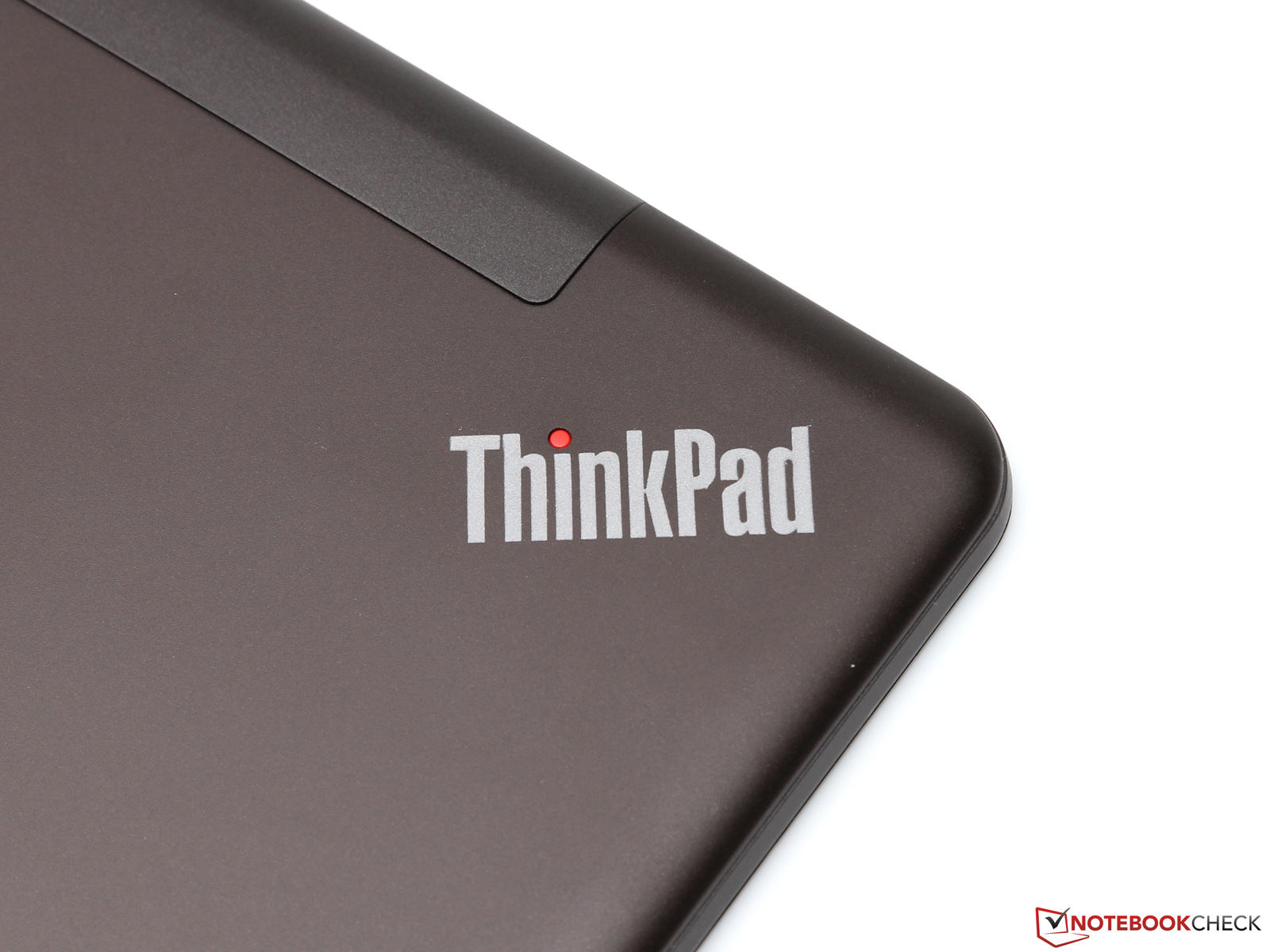

它的机身设计与其他的ThinkPad相似,
它的机身设计与其他的ThinkPad相似,
主要采用了磨砂塑料表面。
主要采用了磨砂塑料表面。

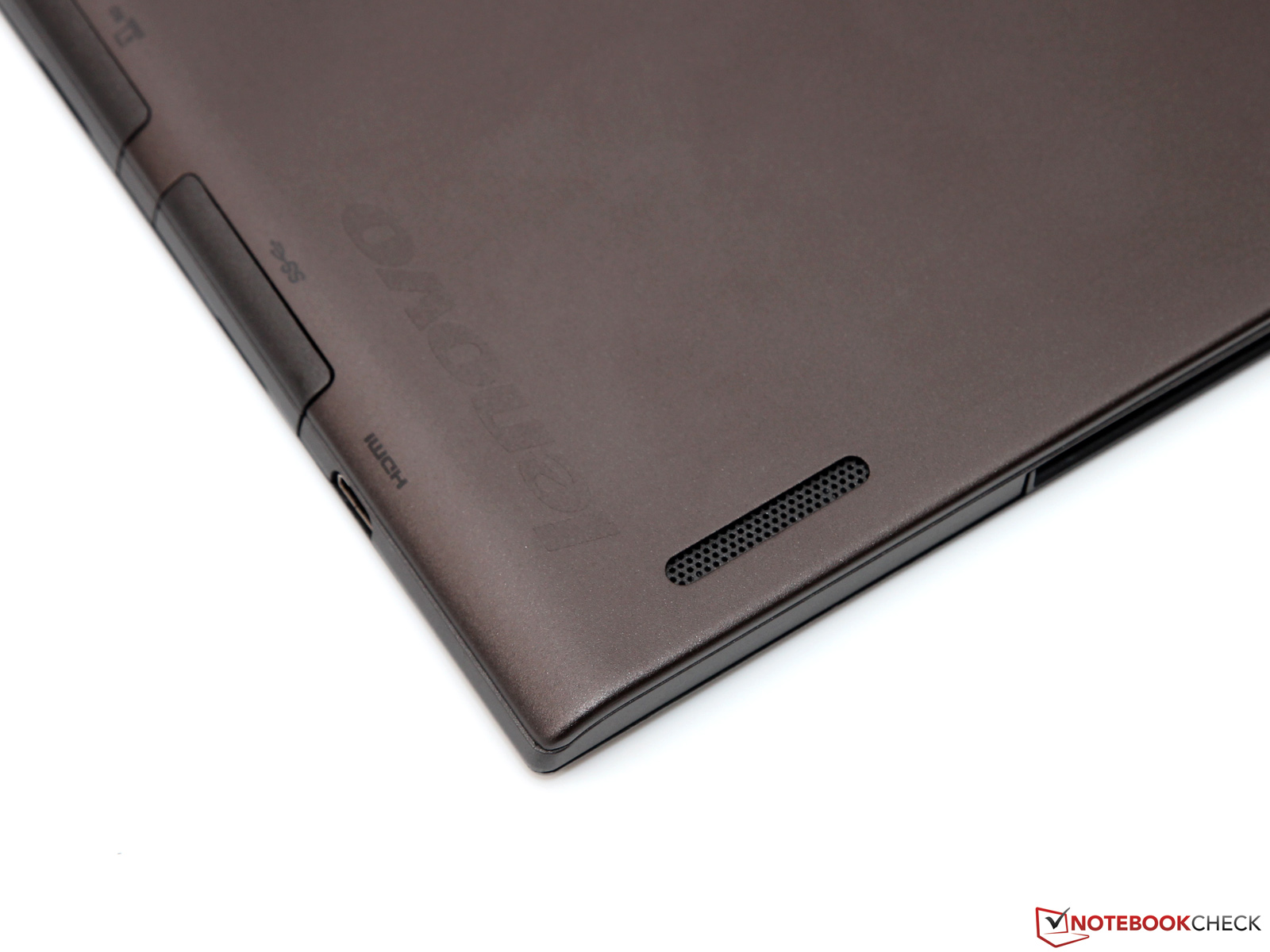

两个立体声扬声器对于平板来说十分强劲。
两个立体声扬声器对于平板来说十分强劲。

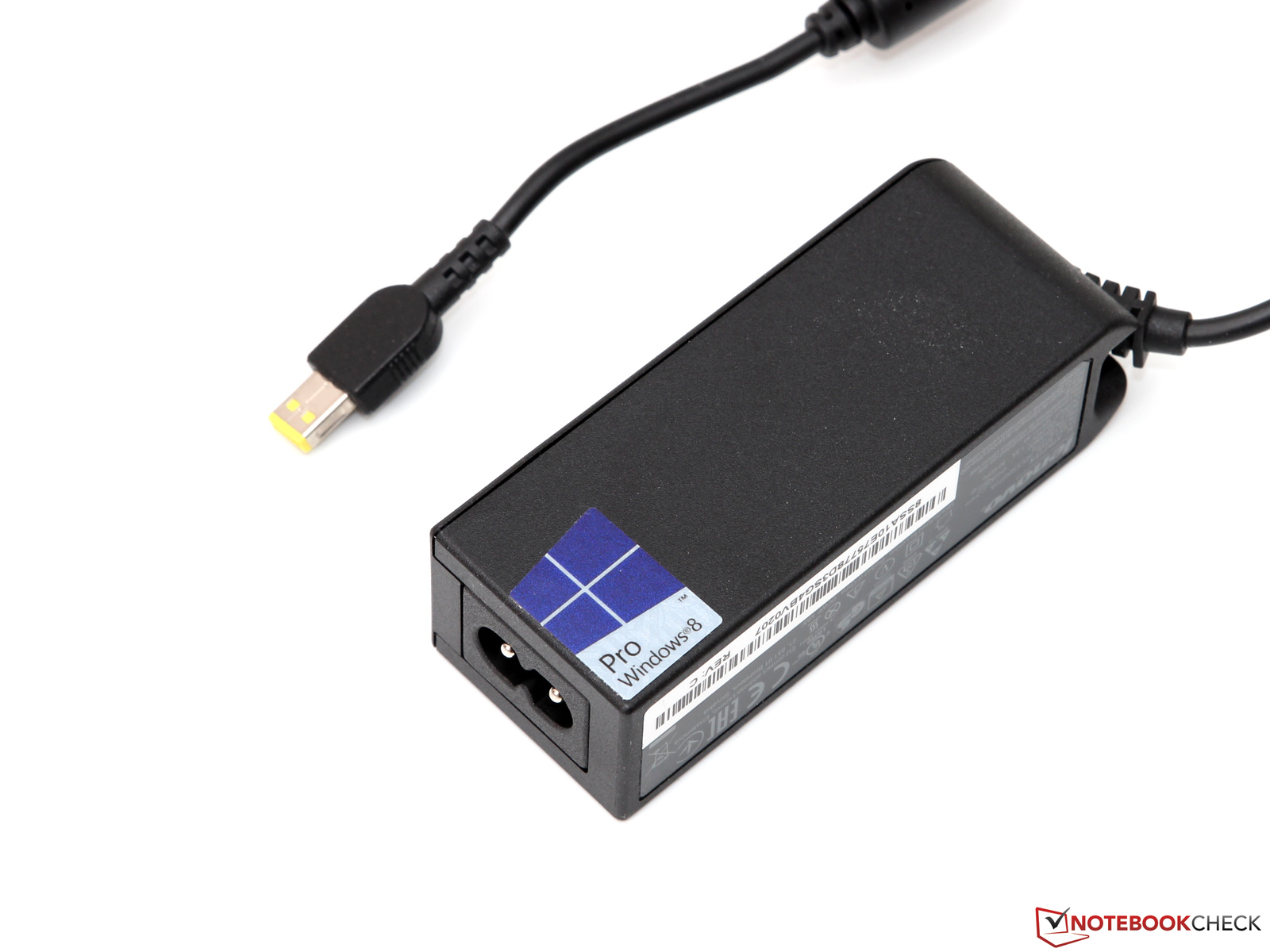

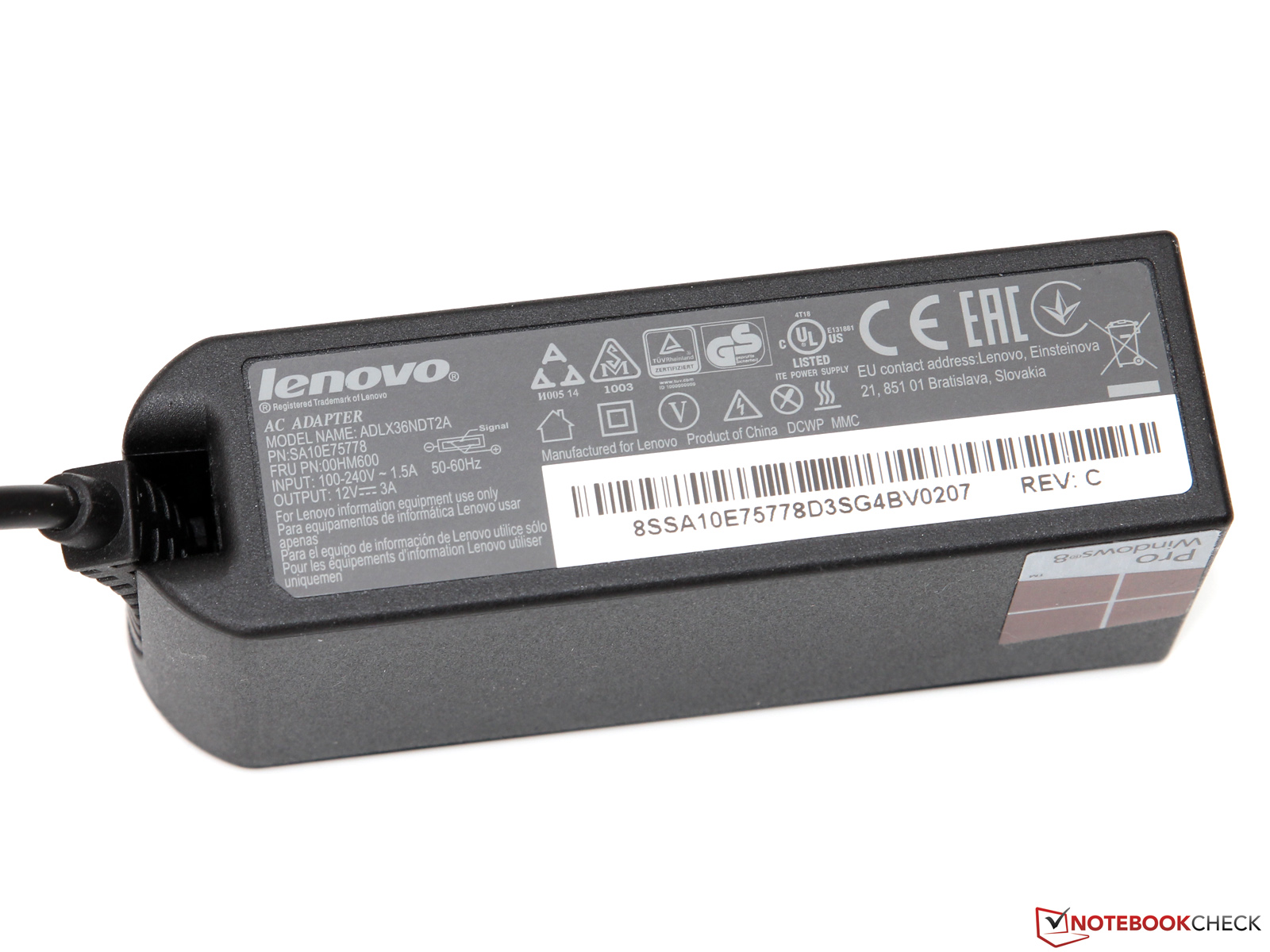

小巧的电源适配器提供了36瓦的功率。
小巧的电源适配器提供了36瓦的功率。
这对于它十分节能的硬件来说绰绰有余。
这对于它十分节能的硬件来说绰绰有余。

Please share our article, every link counts!

Specifications

Lenovo ThinkPad Helix 2 (ThinkPad Helix Series)
Processor
Intel Core M-5Y71 2 x 1.2 - 2.9 GHz, Broadwell
Graphics adapter
Intel HD Graphics 5300, Core: 900 MHz, RAM: 800 MHz, 10.18.10.3947
Memory
8 GB
, 双通道 LPDDR3-1600, 板载, 无法升级
Display
11.60 inch 16:9, 1920 x 1080 pixel, 10点触控, LG LD116WF1-SPN2, IPS 面板, LED 背光, Corning Gorilla Glass, glossy: yes
Mainboard
Intel Broadwell-Y PCH-LP (Premium)
Storage
Toshiba THNSFJ256GDNU 256 GB, 256 GB
, M.2 插槽, 191 GB free
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Docking Station Port, Audio Connections: 3.5毫米整合立体声耳机接口, Card Reader: MicroSD, 1 Fingerprint Reader, Sensors: 环境传感器,加速传感器,磁感仪,指南针,陀螺仪
Networking
Intel Wireless-AC 7265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, Sierra Wireless EM7345 (4G LTE/HSPA/GSM/GPRS/EDGE, GPS, M.2), NFC
Size
height x width x depth (in mm): 9.6 x 301 x 193
Battery
35 Wh Lithium-Polymer, 2 芯
Operating System
Microsoft Windows 8.1 Pro 64 Bit
Camera
Webcam: 200万像素(前置),500万像素(后置) + LED闪光灯
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, 36瓦电源适配器, Wacom 手写笔, Norton Internet Security (试用版), Lenovo Solution Center, 36 Months Warranty
Weight
1.324 kg, Power Supply: 150 g
Price
1370 Euro



Devices from a different Manufacturer and/or with a different CPU

联想 Yoga 3 11 变形本简短评测
HD Graphics 5300, Core M 5Y10c

Devices with the same GPU

东芝 Portege Z20t-B 变形本简短评测
HD Graphics 5300, Core M 5Y71, 12.50", 1.493 kg
华硕 Transformer Book T300 Chi 变形本简短评测
HD Graphics 5300, Core M 5Y71, 12.50", 1.445 kg
Acer Aspire Switch 12 变形本简短评测
HD Graphics 5300, Core M 5Y10c, 12.50", 1.45 kg
戴尔 Latitude 13 7350 变形本简短评测
HD Graphics 5300, Core M 5Y10, 13.30", 1.66 kg
戴尔 Venue 11 Pro 7140 变形本简短评测
HD Graphics 5300, Core M 5Y10a, 10.80", 1.401 kg
惠普 Envy x2 15-c000ng 变形本简短评测
HD Graphics 5300, Core M 5Y10, 15.60", 2.46 kg

Pros

+ 全尺寸USB 3.0
+ LTE 模组
+ 丰富的拓展坞选择
+ 支持手写笔
+ 全尺寸键盘
+ 明亮,高对比度的屏幕
+ 优秀应用程序性能
+ 无风扇
+ 低发热量
+ 三年质保

Cons

- 稳定性和机身质量需要提高
- 触控板较小
- 无升级空间
- 屏幕转轴和额外电池只有在专业版键盘底座中提供了
- 高售价

Lenovo ThinkPad Helix 2 - 02/06/2015 v4 (old)
Till Schönborn

Chassis
81 / 98 → 83%
Keyboard
90%
Pointing Device
84%
Connectivity
62 / 80 → 78%
Weight
71 / 35-78 → 84%
Battery
90%
Display
85%
Games Performance
66 / 68 → 97%
Application Performance
75 / 87 → 86%
Temperature
87%
Noise
100%
Audio
73 / 91 → 80%
Camera
63 / 85 → 74%
Average
79%
84%
Convertible - Weighted Average
> Notebookcheck中文版(NBC中国) > 评测 > 联想 ThinkPad Helix 2 平板电脑简短评测
Till Schönborn, 2015-02-22 (Update: 2024-11- 4)
