联想ThinkPad L15 G2评测。600欧元(约680美元)的办公笔记本电脑

良好的扩展选项。

有了ThinkPad L15 G2,你可以将联想商务笔记本的高品质与经济实惠的硬件结合起来。这就产生了一个强大而坚固的设备,价格不到600欧元(约680美元),在我们的测试中显示了它的能力。
Windows Tiger Lake Thunderbolt ThinkPad Laptop / Notebook

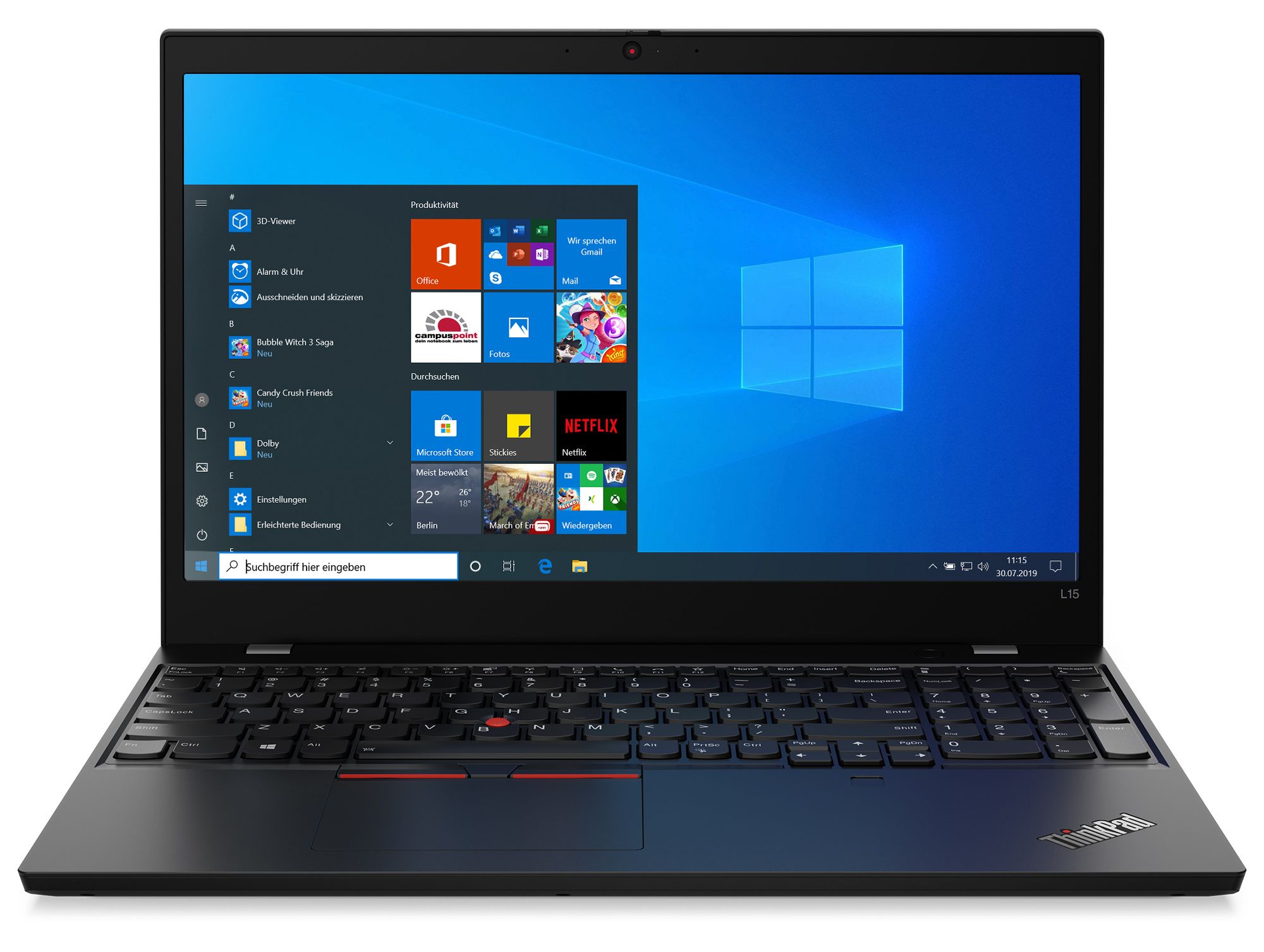

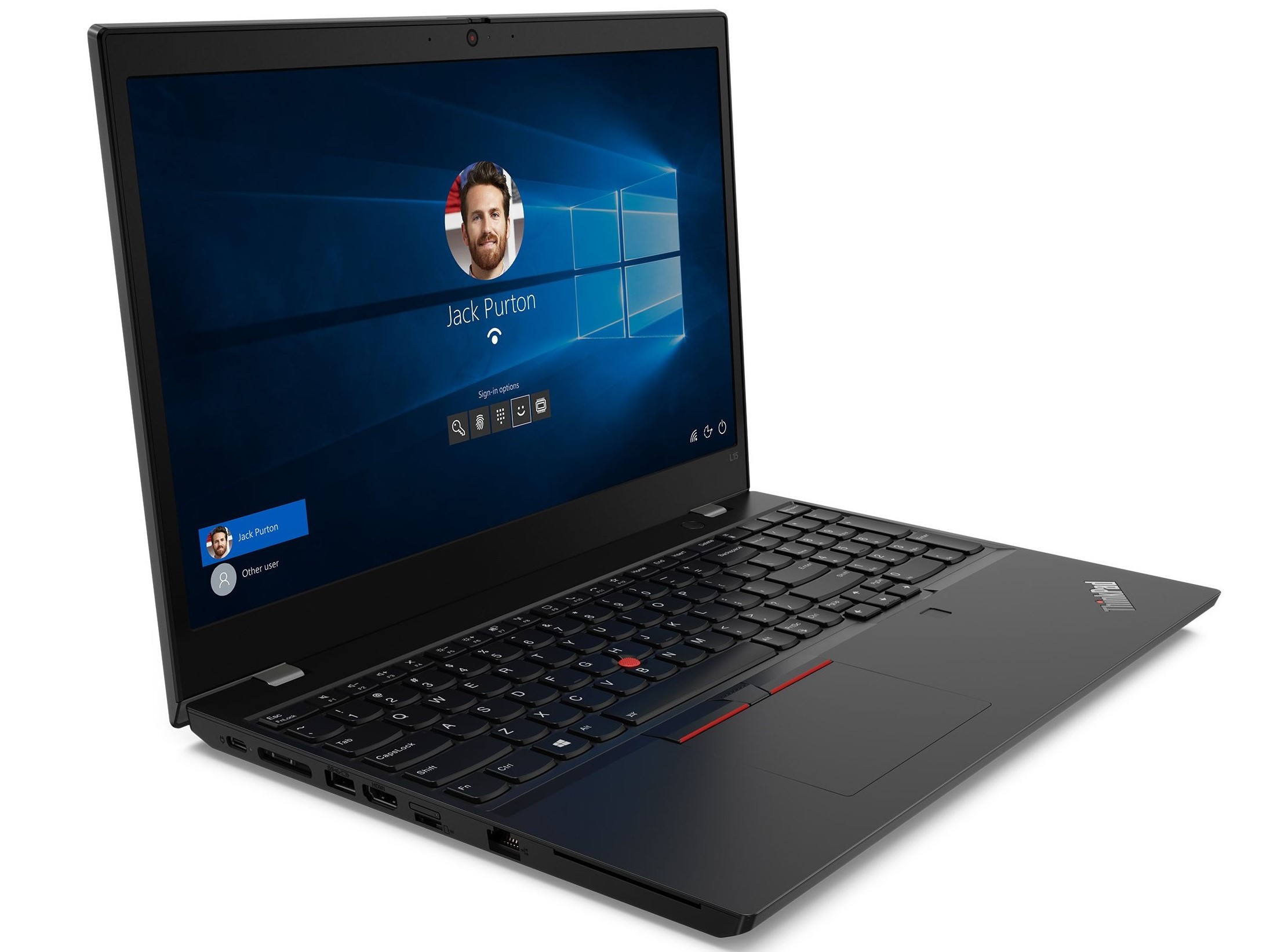

联想ThinkPad L15 G2

就联想的ThinkPad L15 G2而言,我们已经看了一个配备AMD硬件的模型。 配备AMD硬件的型号,我们也已经测试了稍小的14英寸的 联想ThinkPad L14 G2.

现在轮到L15 G2的实惠配置了,它已经可以以大约600欧元(约680美元)的价格出售,配备了 英特尔酷睿i3-1115G4,8GB内存和256GB的SSD。虽然这应该允许它无障碍地运行办公应用程序,但我们不期望有足够的储备来完成更苛刻的任务。

Lenovo ThinkPad L15 G2-20X4S0KU00 (ThinkPad L15 Series)
Processor
Intel Core i3-1115G4 2 x 3 - 4.1 GHz, 25 W PL2 / Short Burst, 8 W PL1 / Sustained, Tiger Lake-UP3
Graphics adapter
Intel UHD Graphics Xe G4 48EUs
Memory
8 GB
, DDR4-3200, 2x SO-DIMM, single-channel
Display
15.60 inch 16:9, 1920 x 1080 pixel, LP156WFC-SPD1, IPS, glossy: no
Mainboard
Intel Tiger Lake-UP3 PCH-LP
Storage
Samsung SSD PM981a MZVLB256HBHQ, 256 GB
, 189 GB free
Soundcard
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: combined audio port, Card Reader: microSD, 1 SmartCard, 1 Fingerprint Reader
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), RealTek Semiconductor RTL8852AE (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 21 x 366 x 250
Battery
45 Wh Lithium-Ion
Charging
fast charging / Quickcharge
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1280x720)
Additional features
Speakers: stereo, Keyboard: 6-row chiclet, 1.5 mm travel, full size w/ numpad, Keyboard Light: yes, Lenovo Commercial Vantage, 36 Months Warranty
Weight
1.855 kg, Power Supply: 374 g
Price
540 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Price
84.6 %
v7 (old)
12 / 2021
Lenovo ThinkPad L15 G2-20X4S0KU00
i3-1115G4, UHD Graphics Xe G4 48EUs
1.9 kg21 mm15.60"1920x1080
85.1 %
v7 (old)
08 / 2021
Lenovo ThinkPad L15 G2 AMD
R5 5600U, Vega 7
1.9 kg21 mm15.60"1920x1080
84.8 %
v7 (old)
11 / 2021
Asus ExpertBook B1 B1500CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs
1.7 kg19.4 mm15.60"1920x1080
78.2 %
v7 (old)
Dell Inspiron 15 5000 5502
i3-1115G4, UHD Graphics Xe G4 48EUs
1.6 kg17.9 mm15.60"1920x1080
82 %
v7 (old)
Samsung Galaxy Book NP750XDA
i5-1135G7, Iris Xe G7 80EUs
1.6 kg16 mm15.60"1920x1080

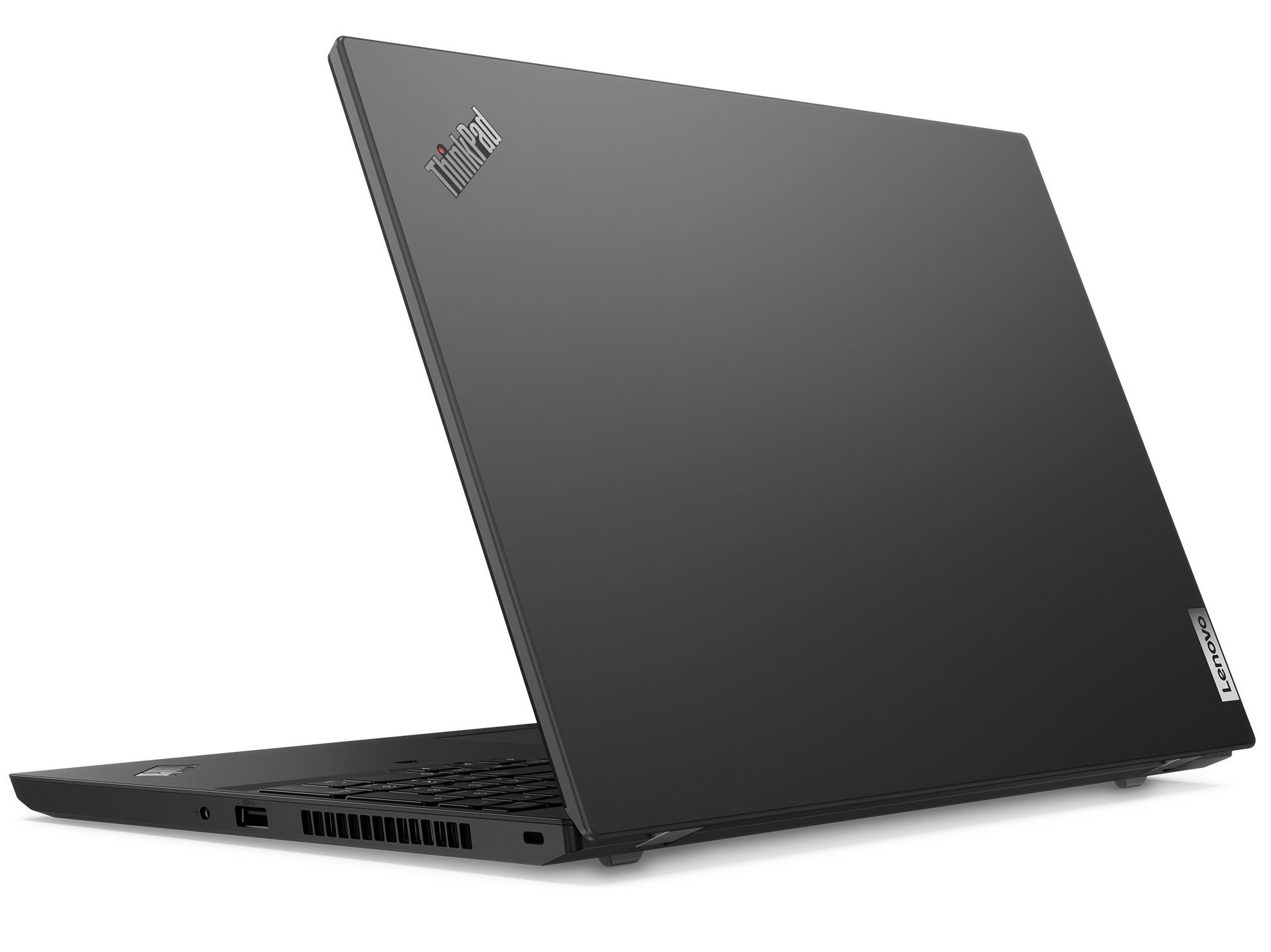

机箱和设备 - 带Thunderbolt 4的ThinkPad L15 G2

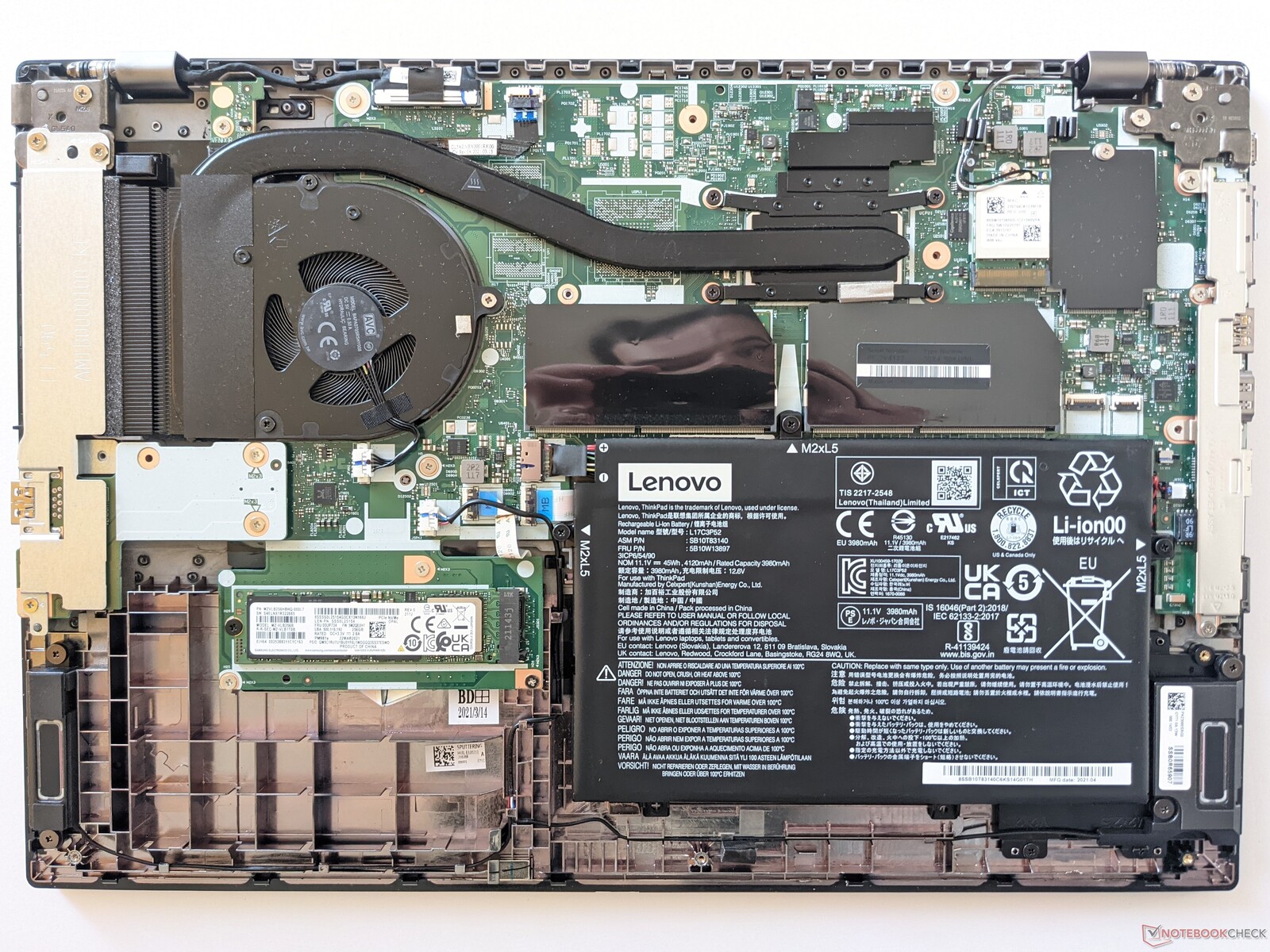

维护
维护

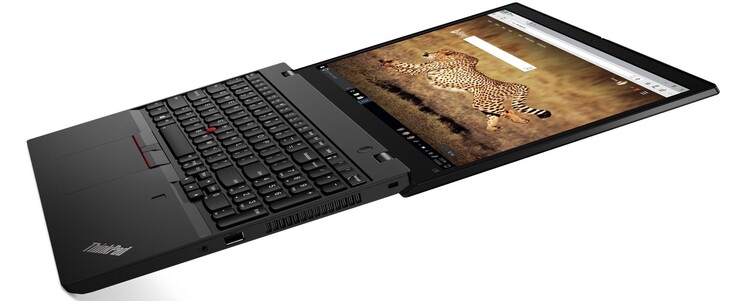

联想ThinkPad L15 G2的外壳由坚固的塑料制成,具有高质量的工艺。盖子非常耐翘,可以打开到180°角。在我们的测试装置中,我们没有发现任何做工上的问题。

由于边框与其他笔记本电脑相比略大,ThinkPad L15 G2的尺寸也略大。1.9公斤(约4.2磅)的重量也相对较高,但L15 G2仍然适合随身携带。

除了可选的LTE和智能卡读卡器外,联想ThinkPad还提供了一个集成到对接端口的雷电4端口。这使你可以在已有的连接方式上增加多种连接方式。

使用我们的AV 60 Pro参考存储卡,L15 G2的microSD读卡器在复制时达到了66.99MB/s的良好速度,在读取数据时达到了86.38MB/s,这使它在我们的测试领域处于领先地位。

另一方面,在使用我们的Netgear Nighthawk AX12参考路由器进行的WLAN测试中,传输时为687 Mbit/s,接收数据时为634 Mbit/s,传输速率相对较低。

网络摄像头的分辨率很低,只有0.9MP,这在目前的笔记本电脑中是很普遍的。图像质量也相应较低,显示模糊的物体边缘和苍白的颜色。

联想ThinkPad L15 G2
联想ThinkPad L15 G2
联想ThinkPad L15 G2
联想ThinkPad L15 G2

Size Comparison

367 mm 250 mm 21 mm 1.9 kg366 mm 250 mm 21 mm 1.9 kg358 mm 236.5 mm 19.4 mm 1.7 kg356.1 mm 234.5 mm 17.9 mm 1.6 kg357 mm 230 mm 16 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

连接设备

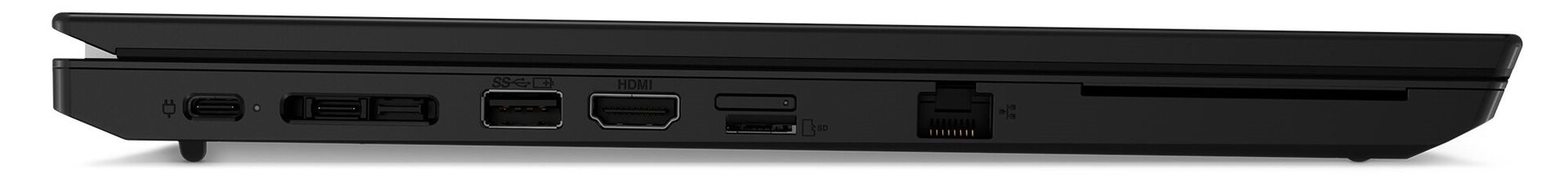

左侧:1个USB-C 3.2 Gen1(电源连接),1个雷电4,对接端口,1个USB-A 3.2 Gen1,HDMI,microSD读卡器,GigabitLAN,智能卡阅读器
左侧:1个USB-C 3.2 Gen1(电源连接),1个雷电4,对接端口,1个USB-A 3.2 Gen1,HDMI,microSD读卡器,GigabitLAN,智能卡阅读器

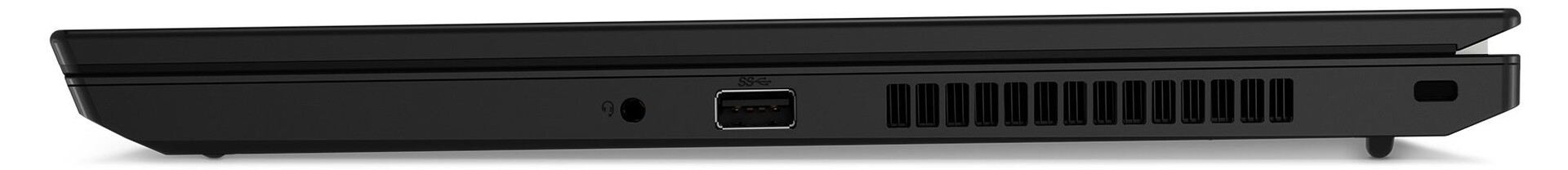

右侧:3.5毫米音频,1个USB-A 3.2 Gen1,Kensington锁
右侧:3.5毫米音频,1个USB-A 3.2 Gen1,Kensington锁
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo ThinkPad L15 G2 AMD
  (AV Pro V60)
75 MB/s +12%
Lenovo ThinkPad L15 G2-20X4S0KU00
  (AV 60 Pro)
67 MB/s
Average of class Office
  (22.7 - 198.5, n=33, last 2 years)
58.1 MB/s -13%
Samsung Galaxy Book NP750XDA
  (AV PRO microSD 128 GB V60)
35 MB/s -48%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
  (AV Pro V60)
25.5 MB/s -62%
Dell Inspiron 15 5000 5502
  (Toshiba Exceria Pro M501 microSDXC 32GB)
19.5 MB/s -71%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad L15 G2-20X4S0KU00
  (AV 60 Pro)
86.4 MB/s
Lenovo ThinkPad L15 G2 AMD
  (AV Pro V60)
85 MB/s -2%
Average of class Office
  (25 - 249, n=30, last 2 years)
73.1 MB/s -15%
Samsung Galaxy Book NP750XDA
  (AV PRO microSD 128 GB V60)
36.5 MB/s -58%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
  (AV Pro V60)
26.9 MB/s -69%
Dell Inspiron 15 5000 5502
  (Toshiba Exceria Pro M501 microSDXC 32GB)
26.29 MB/s -70%
Networking
iperf3 transmit AX12
Samsung Galaxy Book NP750XDA
Intel Wi-Fi 6 AX201
1462 (533min - 1586max) MBit/s +113%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1359 (703min - 1463max) MBit/s +98%
Dell Inspiron 15 5000 5502
Intel Wi-Fi 6 AX201
1224 (586min - 1492max) MBit/s +78%
Average RealTek Semiconductor RTL8852AE
  (424 - 928, n=20)
787 MBit/s +15%
Lenovo ThinkPad L15 G2-20X4S0KU00
RealTek Semiconductor RTL8852AE
687 (59min - 796max) MBit/s
Lenovo ThinkPad L15 G2 AMD
RealTek Semiconductor RTL8852AE
652 (99min - 868max) MBit/s -5%
iperf3 receive AX12
Samsung Galaxy Book NP750XDA
Intel Wi-Fi 6 AX201
1623 (1565min - 1675max) MBit/s +156%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1478 (1347min - 1614max) MBit/s +133%
Dell Inspiron 15 5000 5502
Intel Wi-Fi 6 AX201
1429 (730min - 1491max) MBit/s +125%
Lenovo ThinkPad L15 G2 AMD
RealTek Semiconductor RTL8852AE
855 (749min - 887max) MBit/s +35%
Average RealTek Semiconductor RTL8852AE
  (621 - 877, n=20)
745 MBit/s +18%
Lenovo ThinkPad L15 G2-20X4S0KU00
RealTek Semiconductor RTL8852AE
634 (526min - 682max) MBit/s
050100150200250300350400450500550600650700750Tooltip
Lenovo ThinkPad L15 G2-20X4S0KU00; iperf3 receive AX12; iperf 3.1.3: Ø634 (526-682)
Lenovo ThinkPad L15 G2-20X4S0KU00; iperf3 transmit AX12; iperf 3.1.3: Ø687 (59-796)
ColorChecker
35.5 ∆E
30 ∆E
27.1 ∆E
26.1 ∆E
21.7 ∆E
15.4 ∆E
29.2 ∆E
32.4 ∆E
25.9 ∆E
21.7 ∆E
14.2 ∆E
12 ∆E
20.6 ∆E
21.1 ∆E
25.6 ∆E
10.5 ∆E
19.3 ∆E
14.2 ∆E
2.3 ∆E
11.8 ∆E
16.6 ∆E
16.7 ∆E
8.1 ∆E
0.7 ∆E
ColorChecker Lenovo ThinkPad L15 G2-20X4S0KU00: 19.12 ∆E min: 0.71 - max: 35.5 ∆E

输入设备 - 一个好的联想键盘

联想ThinkPad L15 G2的键盘很适合打长文。压力点很明显,而且布局也没有被恼人的、必须履行双重功能的按键所破坏。此外,还有一个单独的数字块。

作为鼠标的替代品,有一个ClickPad和一个Trackpoint。机器人输入法很适合导航鼠标指针,点击可以通过机械或使用触摸方式可靠地触发。在我们的测试中,指纹识别器对存储的指纹也反应良好。

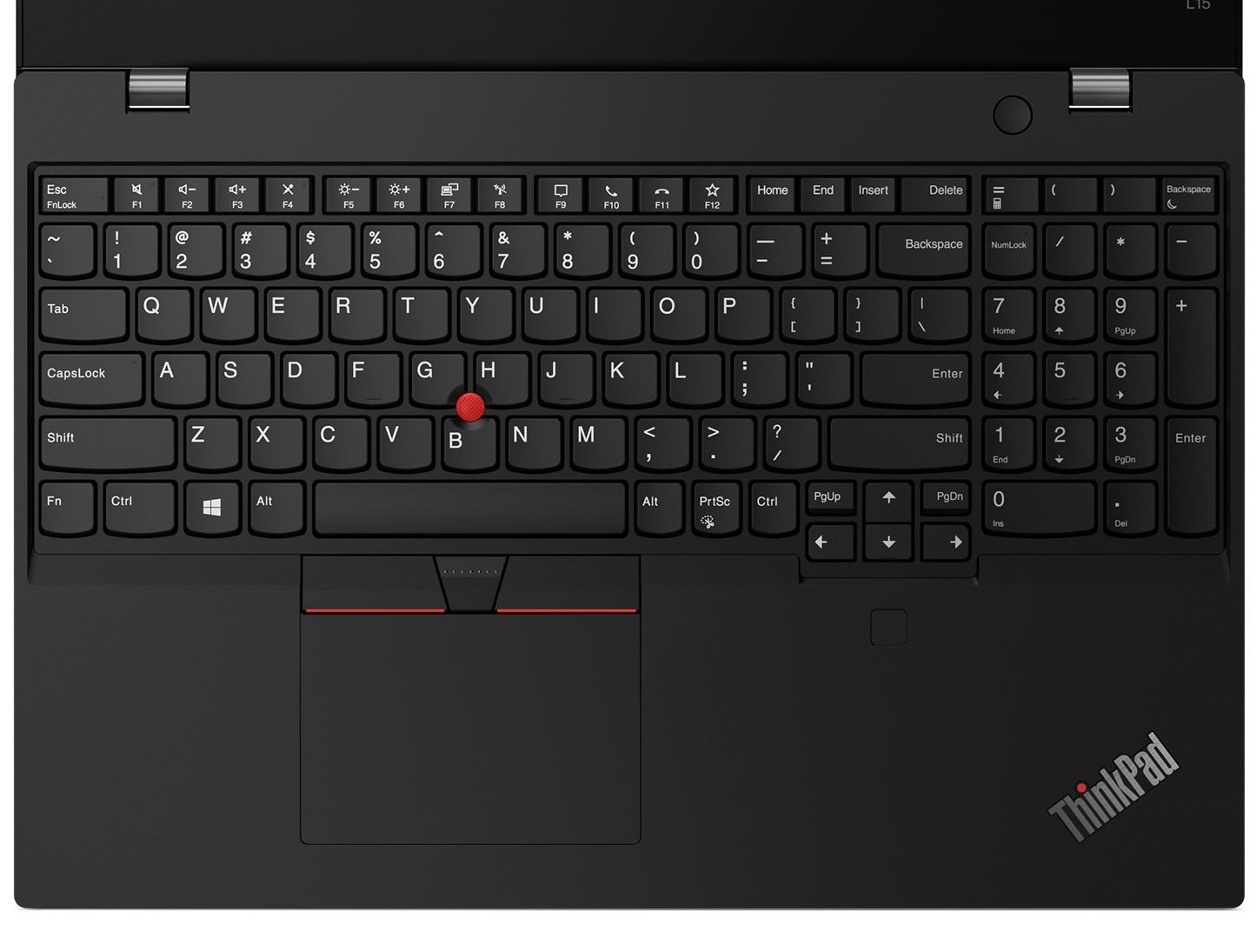

联想ThinkPad L15 G2 - 输入设备
联想ThinkPad L15 G2 - 输入设备

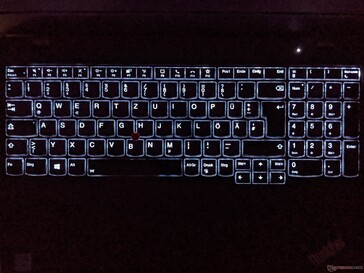

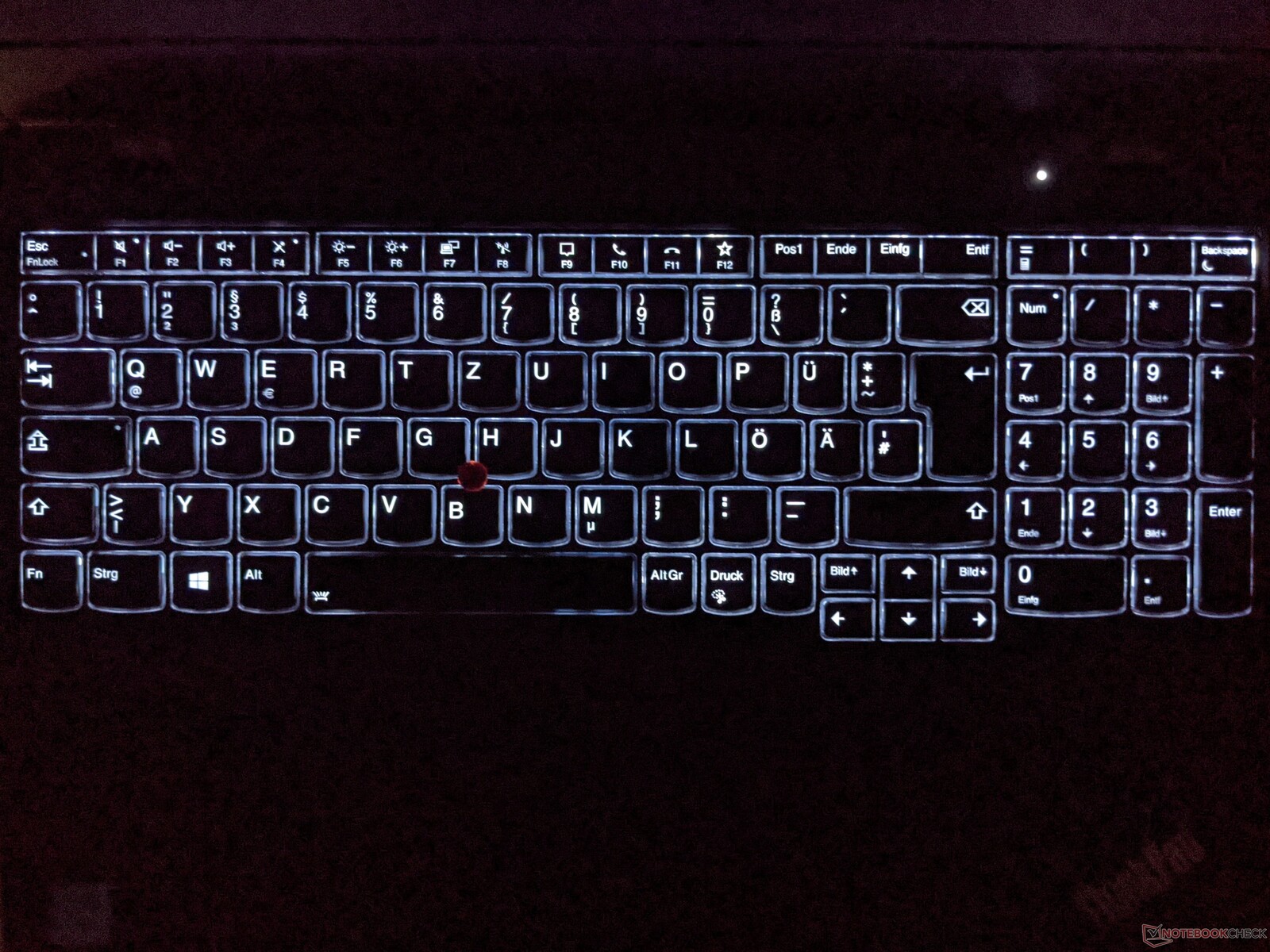

联想ThinkPad L15 G2 - 照度
联想ThinkPad L15 G2 - 照度

显示屏 - 15英寸笔记本电脑的全高清

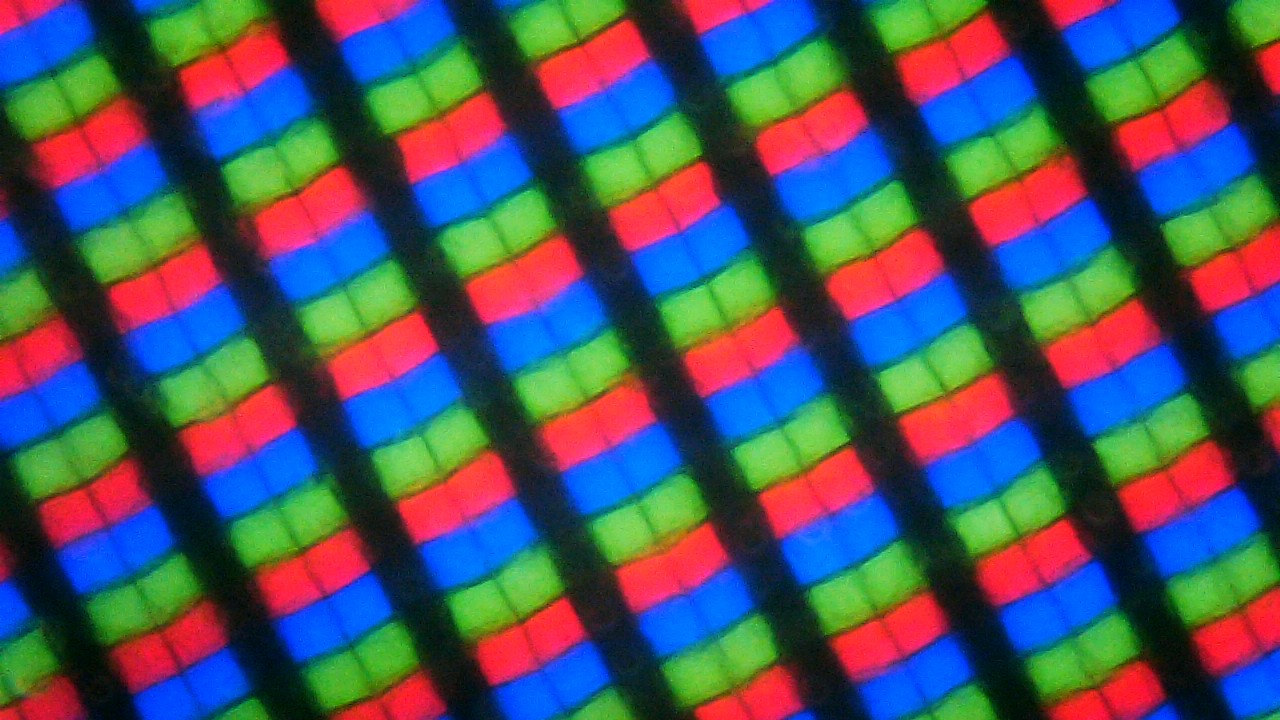

子像素网格
子像素网格

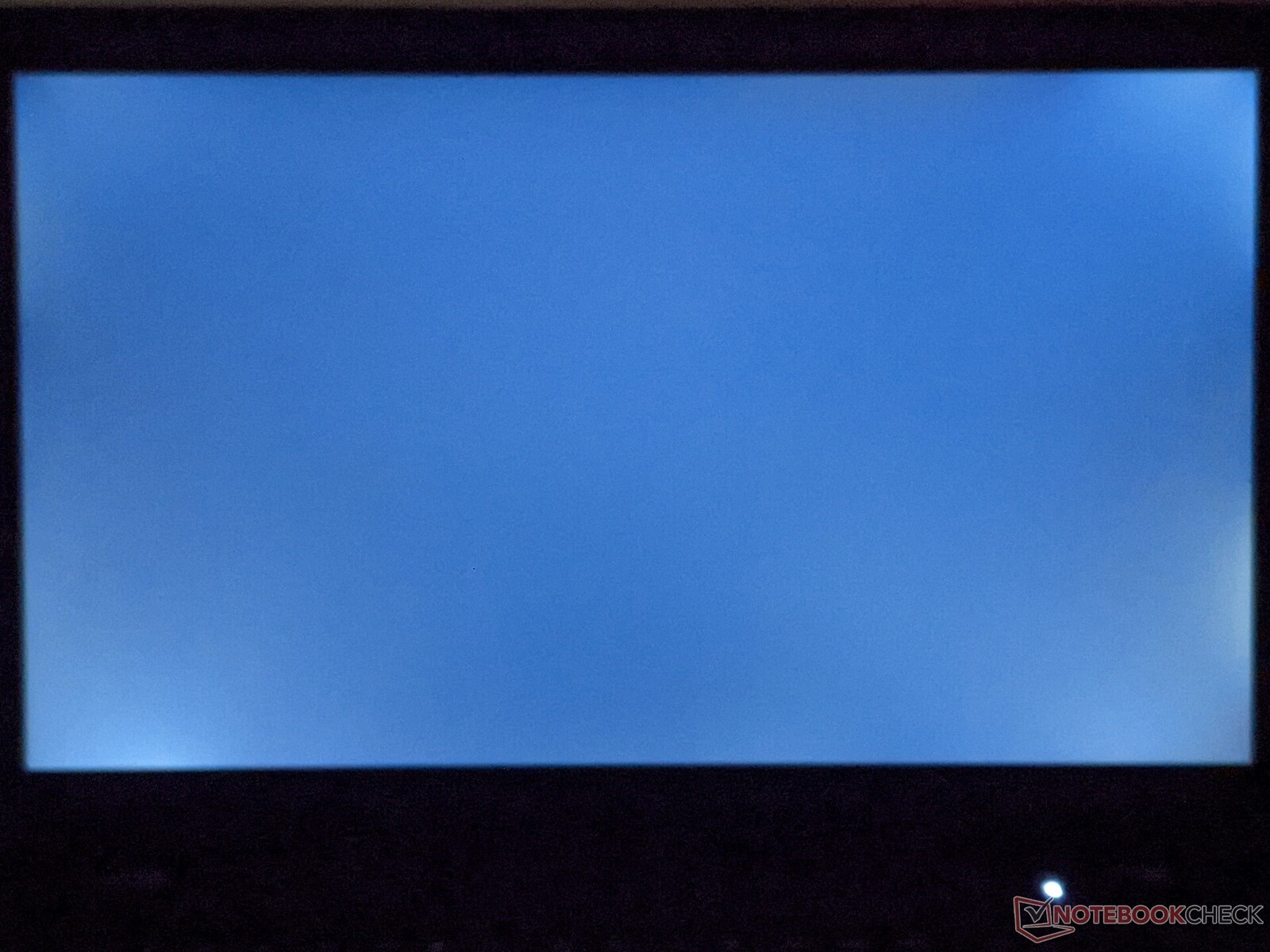

屏幕出血
屏幕出血

ThinkPad L15 G2的显示屏由一块15.6英寸的IPS面板组成,分辨率为1920 x 1080像素。279 cd/m²的最大亮度相对较低,但对于在室内使用完全足够。亮度分布是我们测试领域中最低的,为81%。亮度控制并没有使用任何 PWM因此,眼睛敏感的人不需要担心会遇到任何问题。

除了这里使用的显示屏外,根据数据表,还有带触摸屏和300cd/m²亮度的全高清面板或220cd/m²的高清面板可供选择。

273
cd/m²
285
cd/m²
297
cd/m²
251
cd/m²
279
cd/m²
270
cd/m²
242
cd/m²
261
cd/m²
266
cd/m²
Distribution of brightness
LP156WFC-SPD1 tested with X-Rite i1Pro 2
Maximum: 297 cd/m² (Nits) Average: 269.3 cd/m² Minimum: 3.13 cd/m²
Brightness Distribution: 81 %
Center on Battery: 279 cd/m²
Contrast: 1213:1 (Black: 0.23 cd/m²)
ΔE Color 5.7 | 0.5-29.43 Ø4.92, calibrated: 4.7
ΔE Greyscale 3.5 | 0.5-98 Ø5.2
41.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
59.8% sRGB (Argyll 2.2.0 3D)
39.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.4
Lenovo ThinkPad L15 G2-20X4S0KU00
LP156WFC-SPD1, IPS, 1920x1080, 15.6"
Lenovo ThinkPad L15 G2 AMD
N156HCA-EAB, IPS LED, 1920x1080, 15.6"
Asus ExpertBook B1 B1500CEAE, i5-1135G7
CEC Panda LM156LF-5L06, IPS, 1920x1080, 15.6"
Dell Inspiron 15 5000 5502
BOE NV15N3D, IPS, 1920x1080, 15.6"
Samsung Galaxy Book NP750XDA
CEC PANDA LM156LF5L03, IPS, 1920x1080, 15.6"
Display
10%
4%
-1%
Display P3 Coverage
39.9
43.8
10%
41.6
4%
39.42
-1%
sRGB Coverage
59.8
65.7
10%
62.3
4%
58.7
-2%
AdobeRGB 1998 Coverage
41.2
45.3
10%
43
4%
40.73
-1%
Response Times
-4%
-13%
-22%
24%
Response Time Grey 50% / Grey 80% *
40 ?(21, 19)
40
-0%
44.8 ?(22.8, 22)
-12%
45.6 ?(23.6, 22)
-14%
29 ?(13, 16)
27%
Response Time Black / White *
28 ?(17, 11)
30
-7%
32 ?(17.2, 14.8)
-14%
36.4 ?(20.4, 16)
-30%
22 ?(12, 10)
21%
PWM Frequency
1020 ?(98)
Screen
13%
10%
-5%
-8%
Brightness middle
279
298
7%
304
9%
233.1
-16%
325
16%
Brightness
269
276
3%
285
6%
226
-16%
297
10%
Brightness Distribution
81
86
6%
89
10%
90
11%
86
6%
Black Level *
0.23
0.26
-13%
0.19
17%
0.21
9%
0.445
-93%
Contrast
1213
1146
-6%
1600
32%
1110
-8%
730
-40%
Colorchecker dE 2000 *
5.7
3.7
35%
5.2
9%
5.69
-0%
3.48
39%
Colorchecker dE 2000 max. *
16.4
15
9%
18.5
-13%
20.62
-26%
8.07
51%
Colorchecker dE 2000 calibrated *
4.7
3.5
26%
4.5
4%
5.12
-9%
Greyscale dE 2000 *
3.5
1.7
51%
2.9
17%
3.3
6%
5.27
-51%
Gamma
2.4 92%
2.21 100%
2.14 103%
2.35 94%
2.41 91%
CCT
6860 95%
6588 99%
6639 98%
6749 96%
7769 84%
Color Space (Percent of AdobeRGB 1998)
37.1
44
Color Space (Percent of sRGB)
58
70
Total Average (Program / Settings)
6% / 10%
0% / 6%
-9% / -7%
8% / -1%

* ... smaller is better

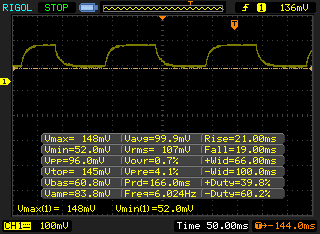

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

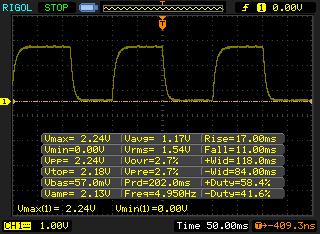

       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 11 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 68 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined↗ 21 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

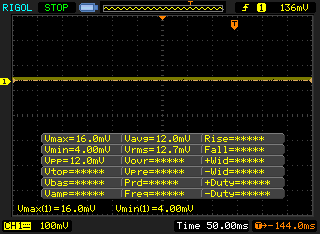

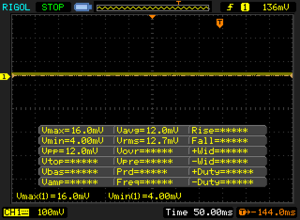

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8734 (minimum: 5 - maximum: 343500) Hz was measured.

我们的测量结果证明,ThinkPad L15 G2具有1213:1的良好对比度,也具有0.23 cd/m²的良好黑值,这足以在我们的测试领域中占据一席之地。在59.8%的sRGB中,色彩空间的覆盖率对于一台经济型笔记本来说也是平均水平,尽管从绝对值来看非常糟糕。

CalMAN的分析也表明,在交付状态下,色彩的再现已经非常平衡。然而,校准仍然可以带来一些改进。你可以在上面的框架中下载相应的ICC文件,在显示器亮度分布图形的右边。

在户外,联想笔记本电脑可以在阴暗的地方轻松使用,但显示亮度不足以在阳光直射下阅读。面板的可视角度非常稳定,即使从非常陡峭的角度也能读到内容,不会失真,也不会出现失真的色彩。

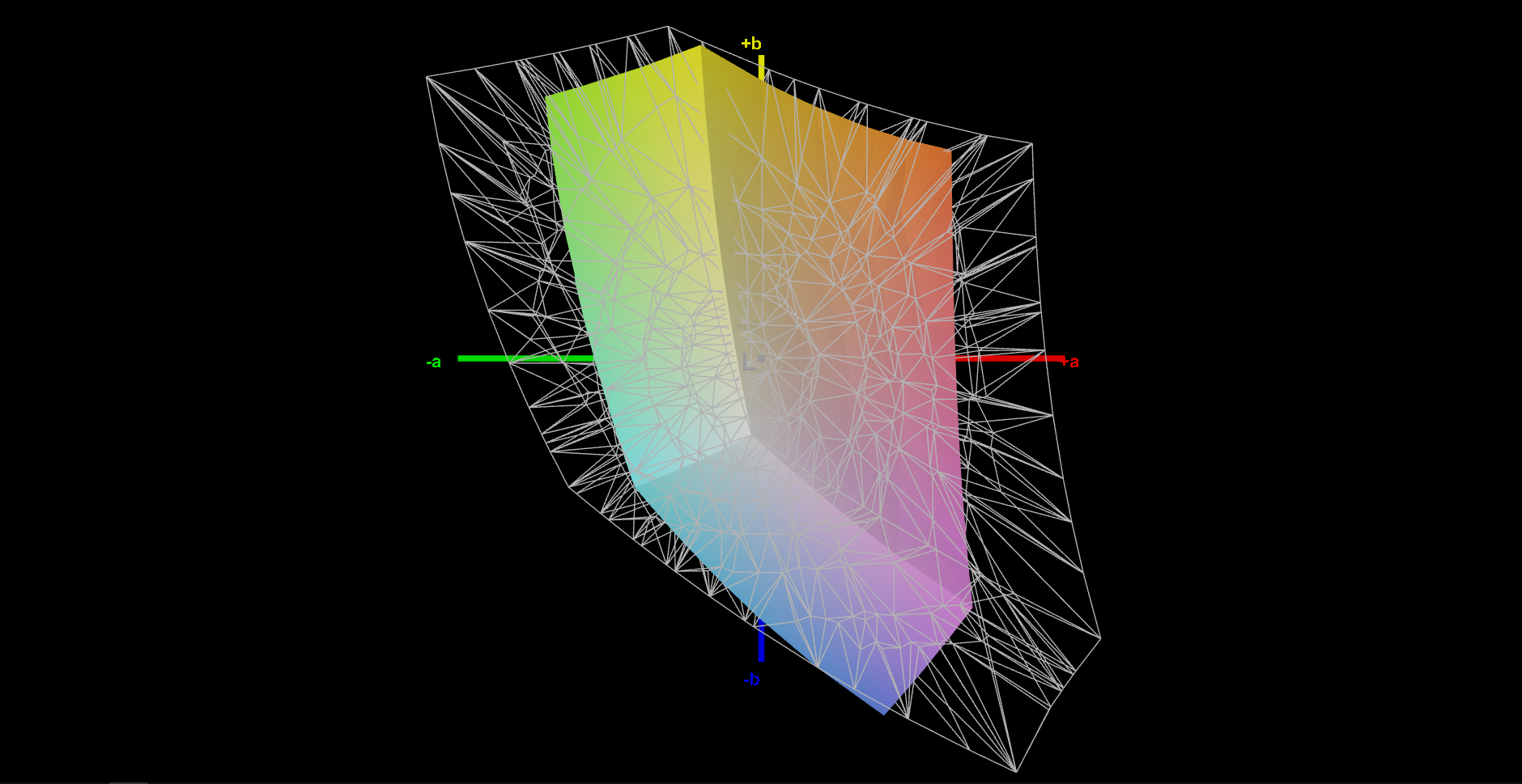

色彩空间覆盖率(sRGB)--59.8%。
色彩空间覆盖率(sRGB)--59.8%。

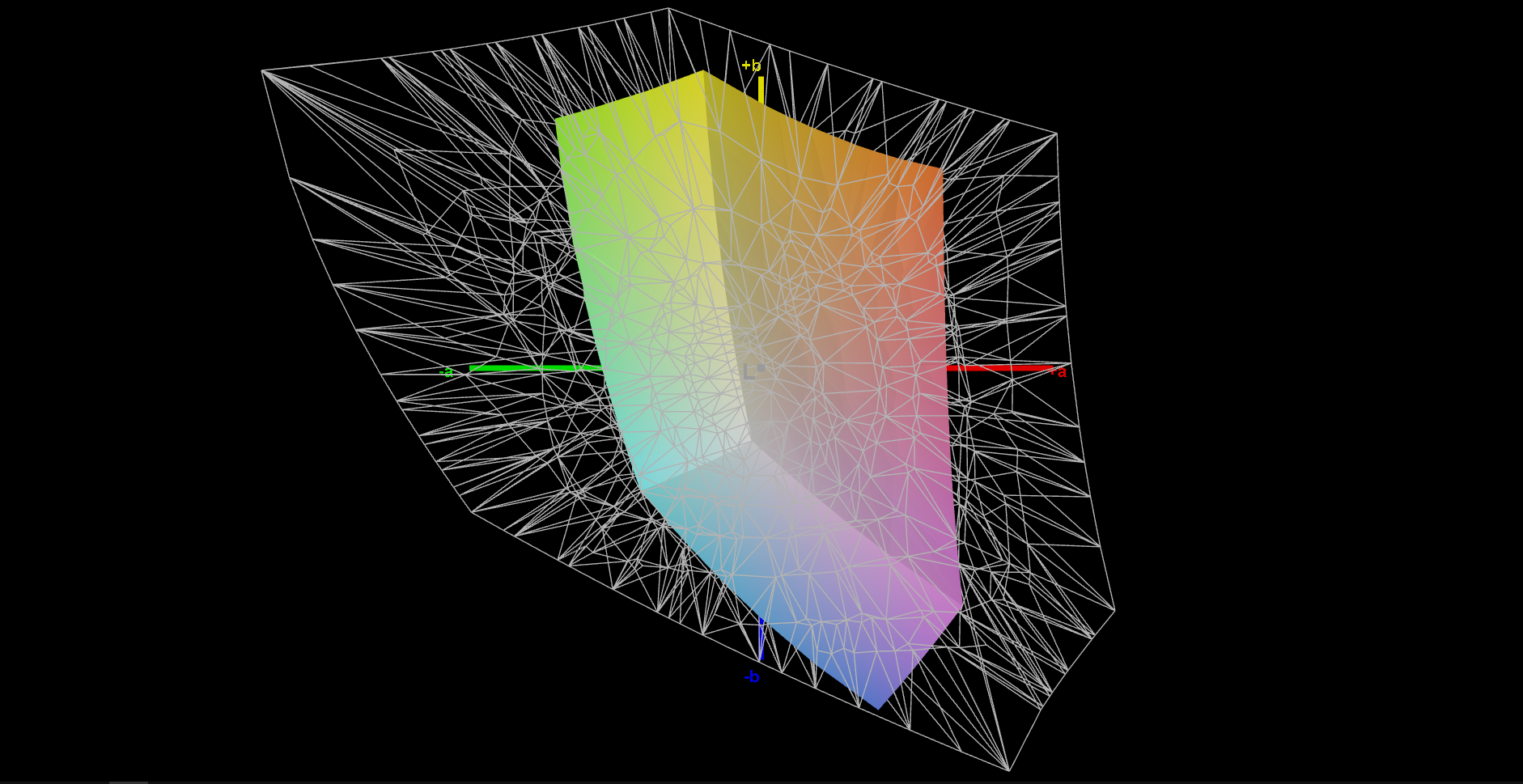

色彩空间覆盖率(AdobeRGB)--41.2%。
色彩空间覆盖率(AdobeRGB)--41.2%。

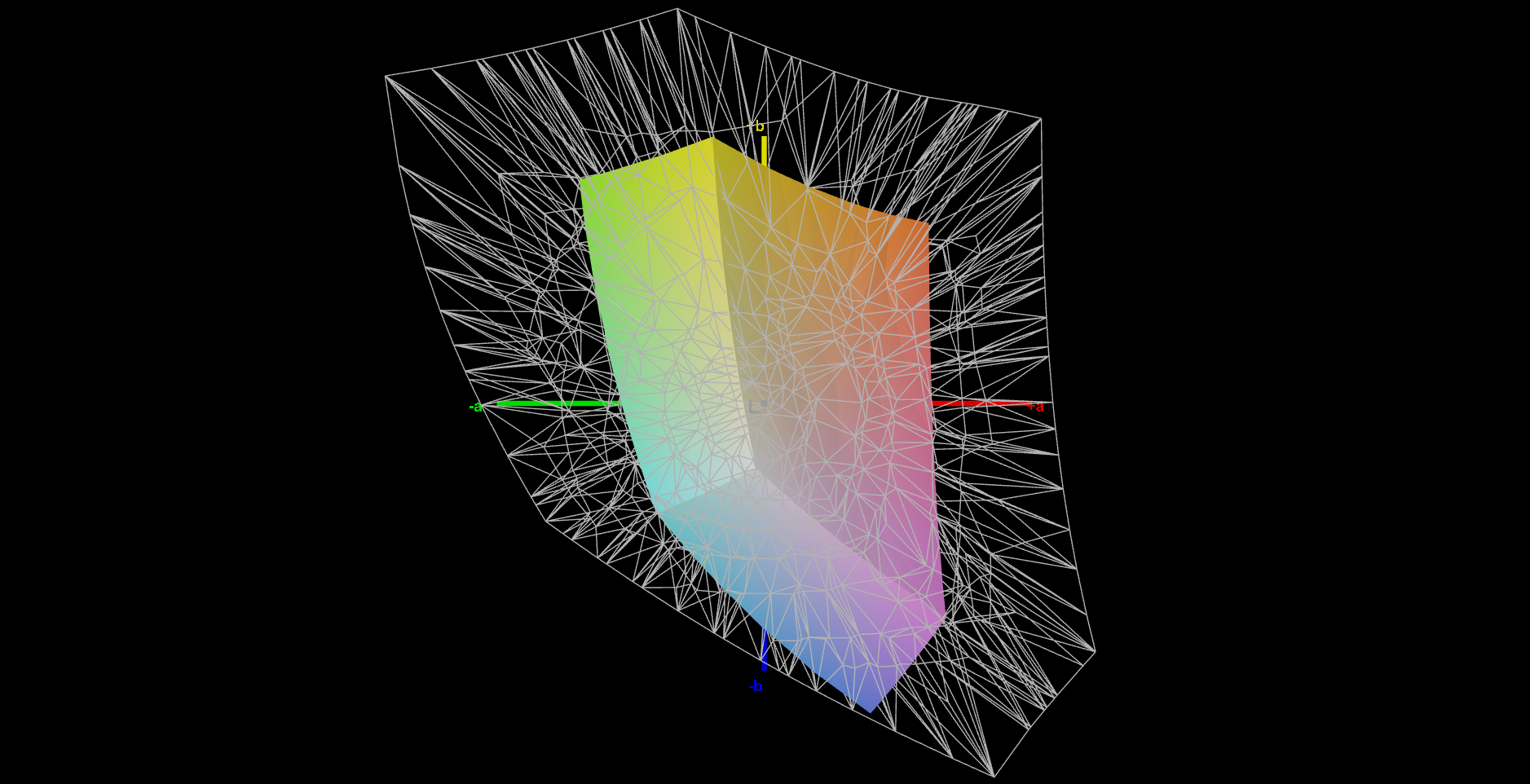

色彩空间覆盖率(P3)--39.9%。
色彩空间覆盖率(P3)--39.9%。

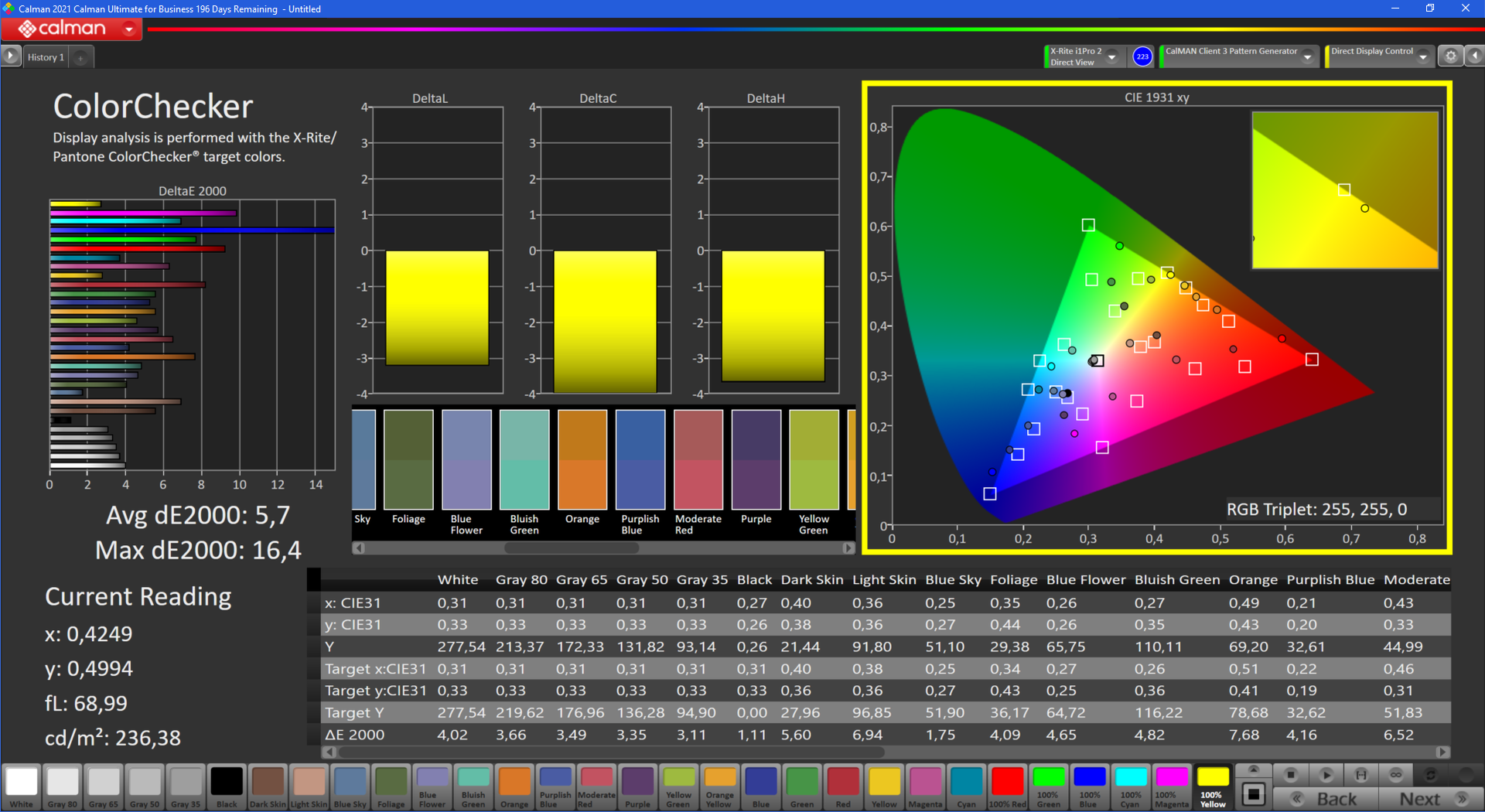

卡尔曼--色彩准确度
卡尔曼--色彩准确度

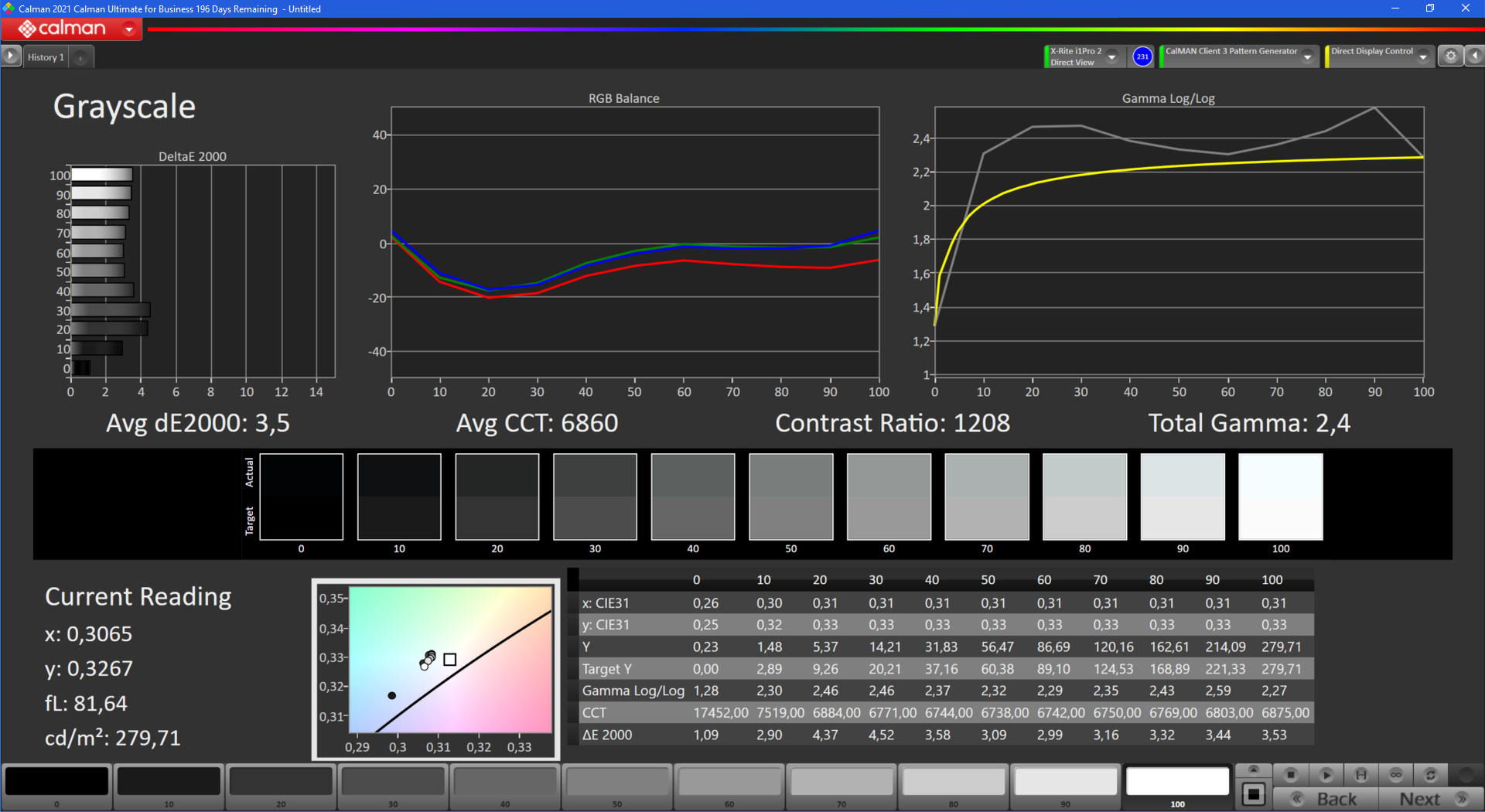

CalMAN - 灰度
CalMAN - 灰度

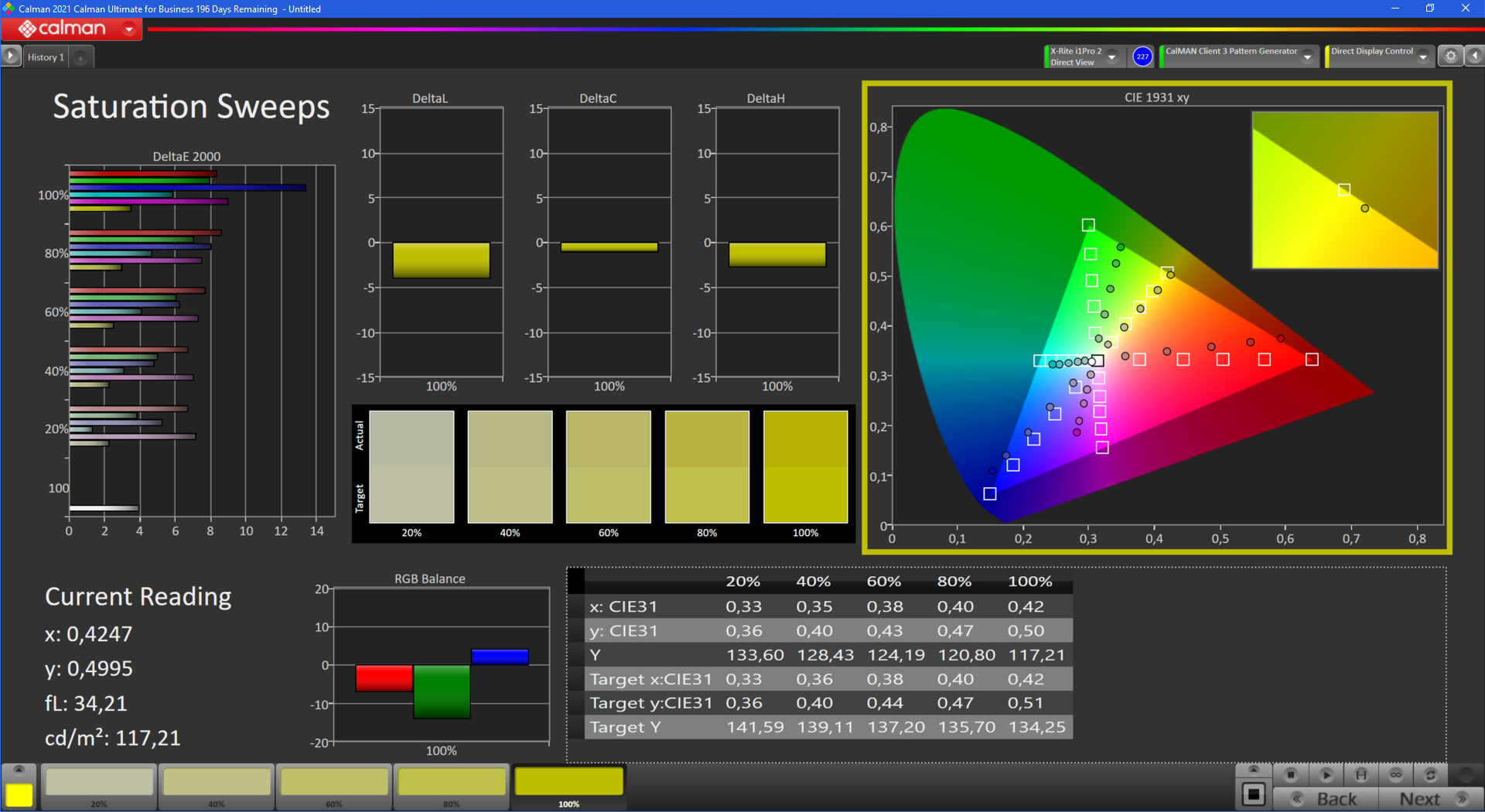

卡尔曼--饱和度
卡尔曼--饱和度
CalMAN - 颜色精度(已校准)
CalMAN - 颜色精度(已校准)

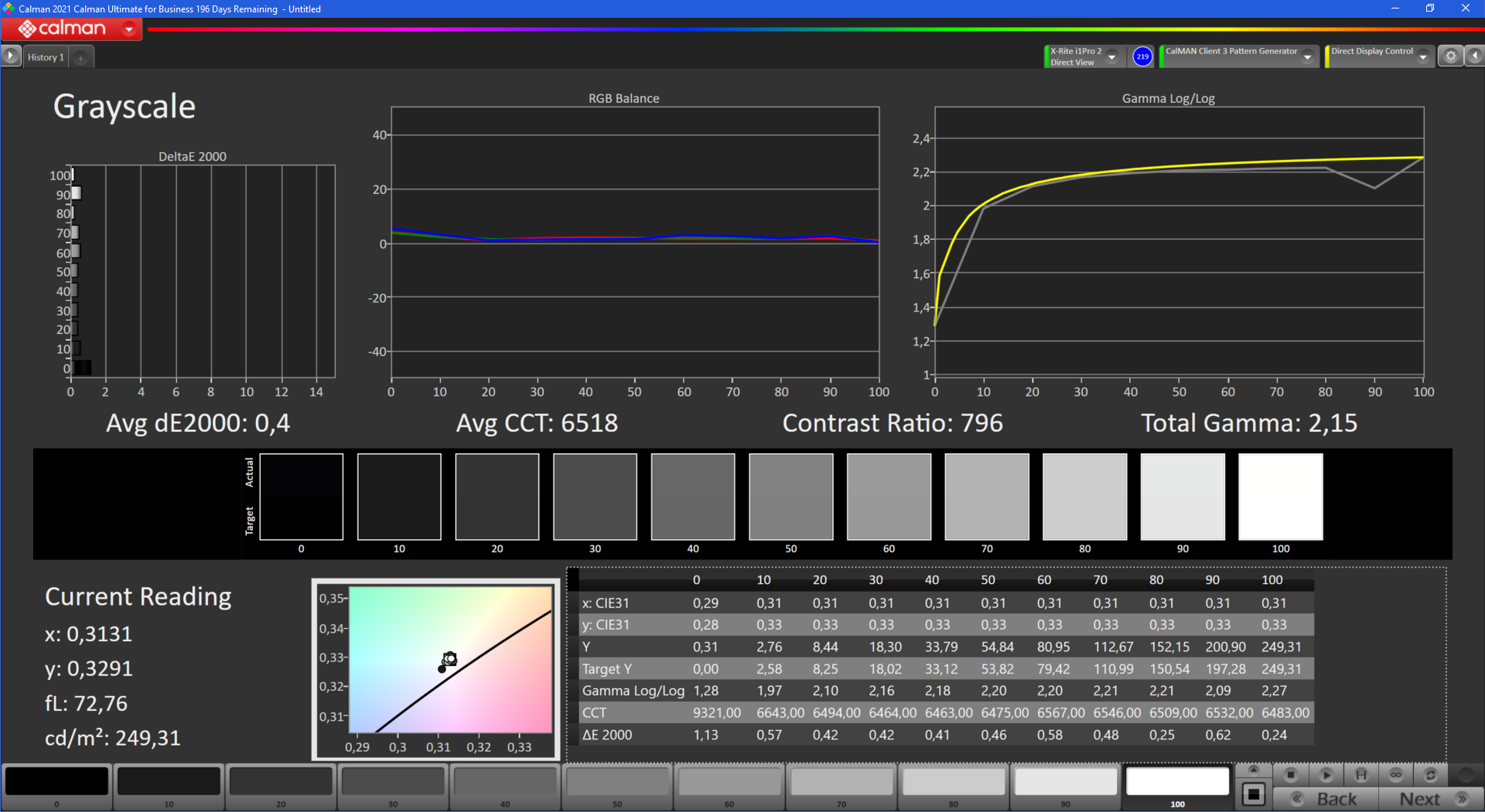

CalMAN - 灰度(校准的)。
CalMAN - 灰度(校准的)。

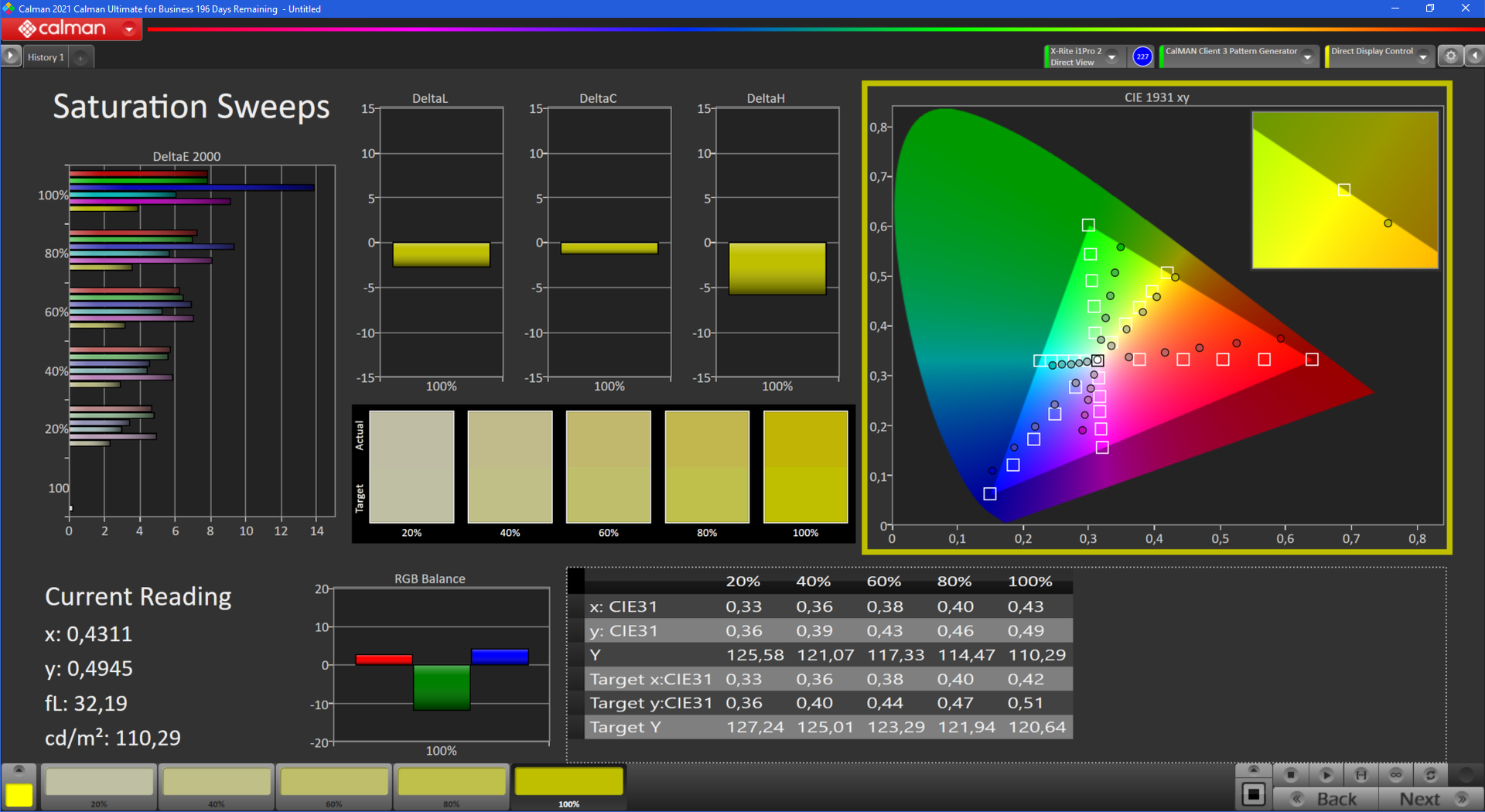

CalMAN - 饱和度(校准的)。
CalMAN - 饱和度(校准的)。

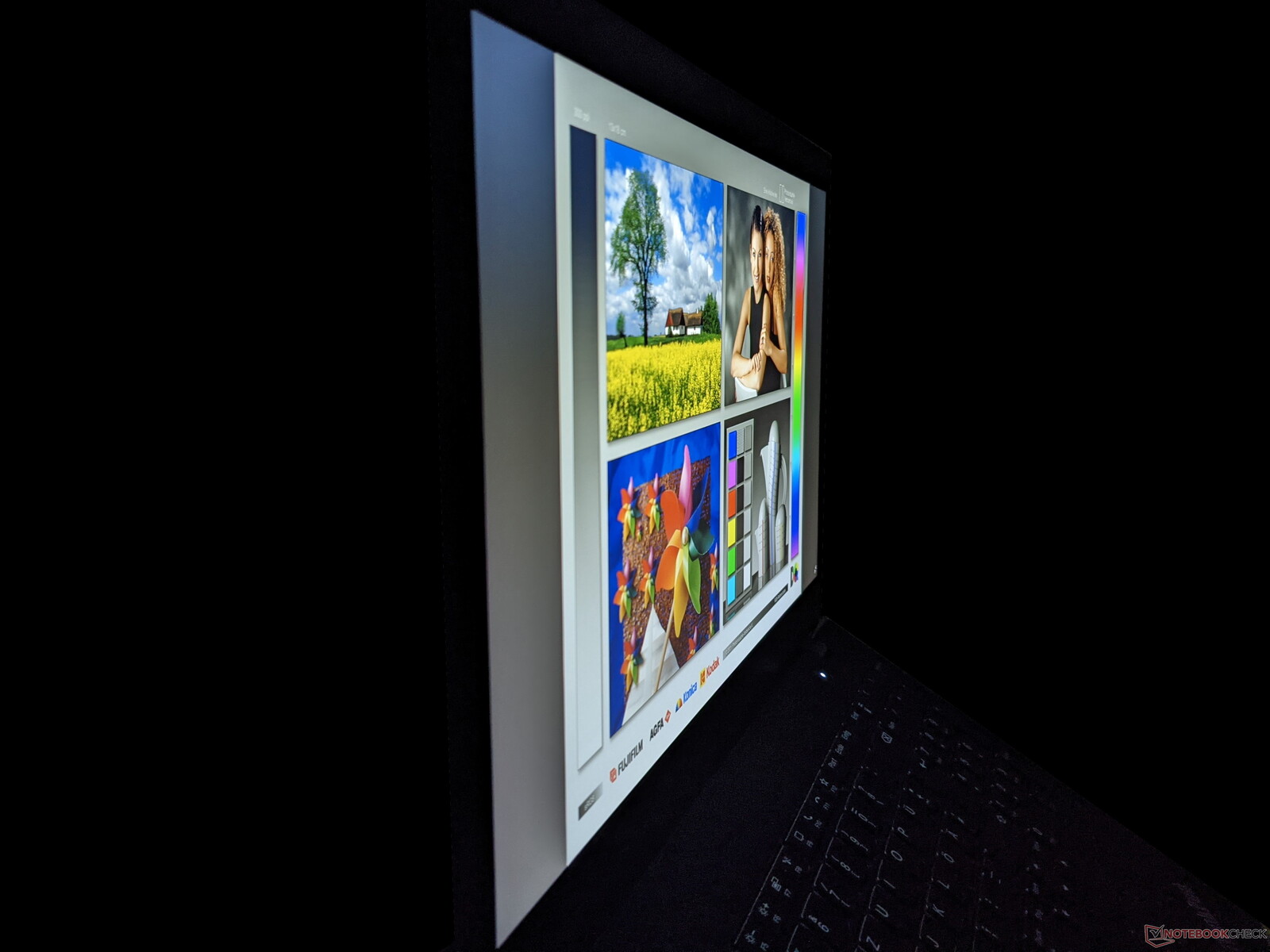

视角稳定性
视角稳定性

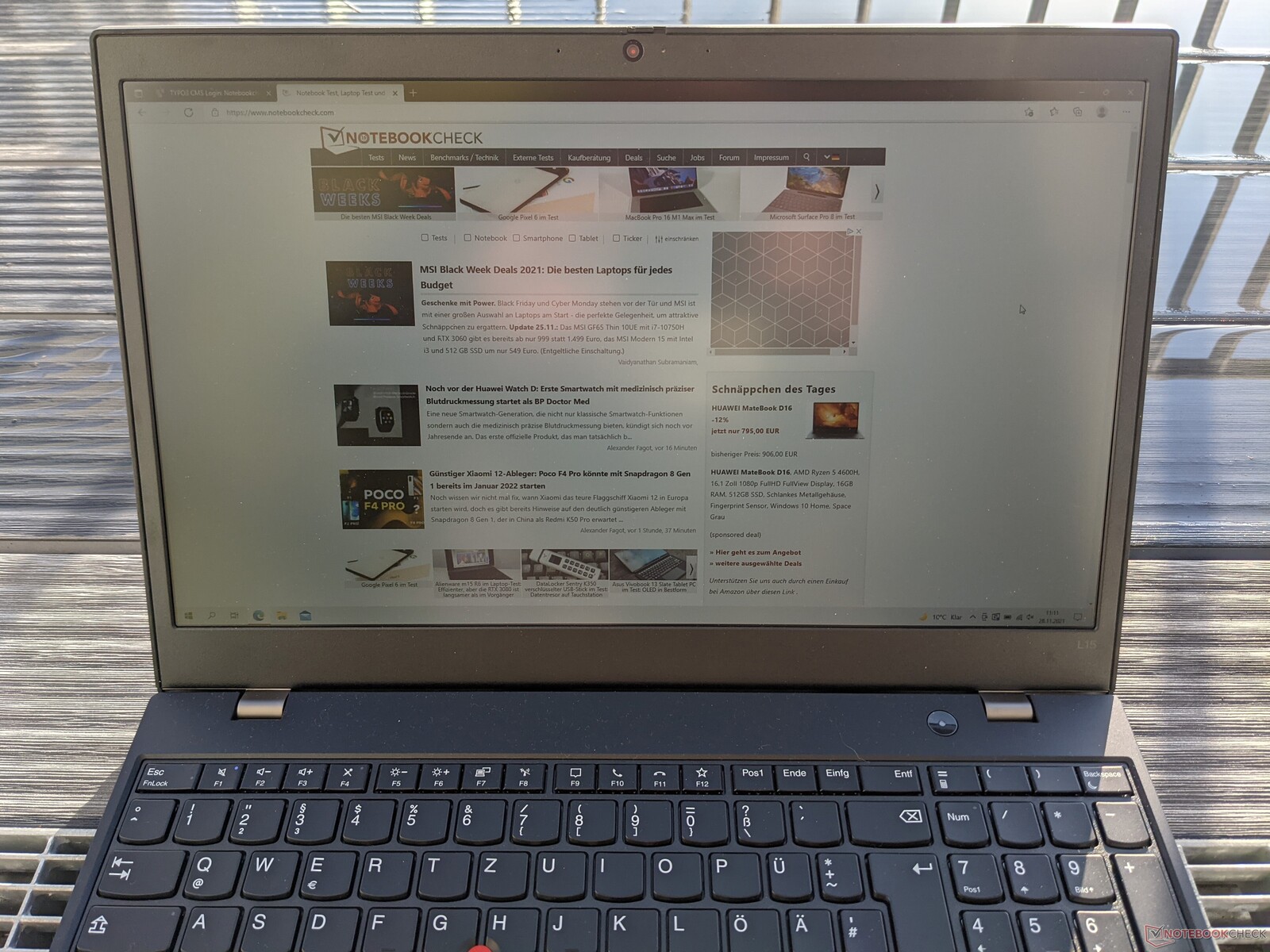

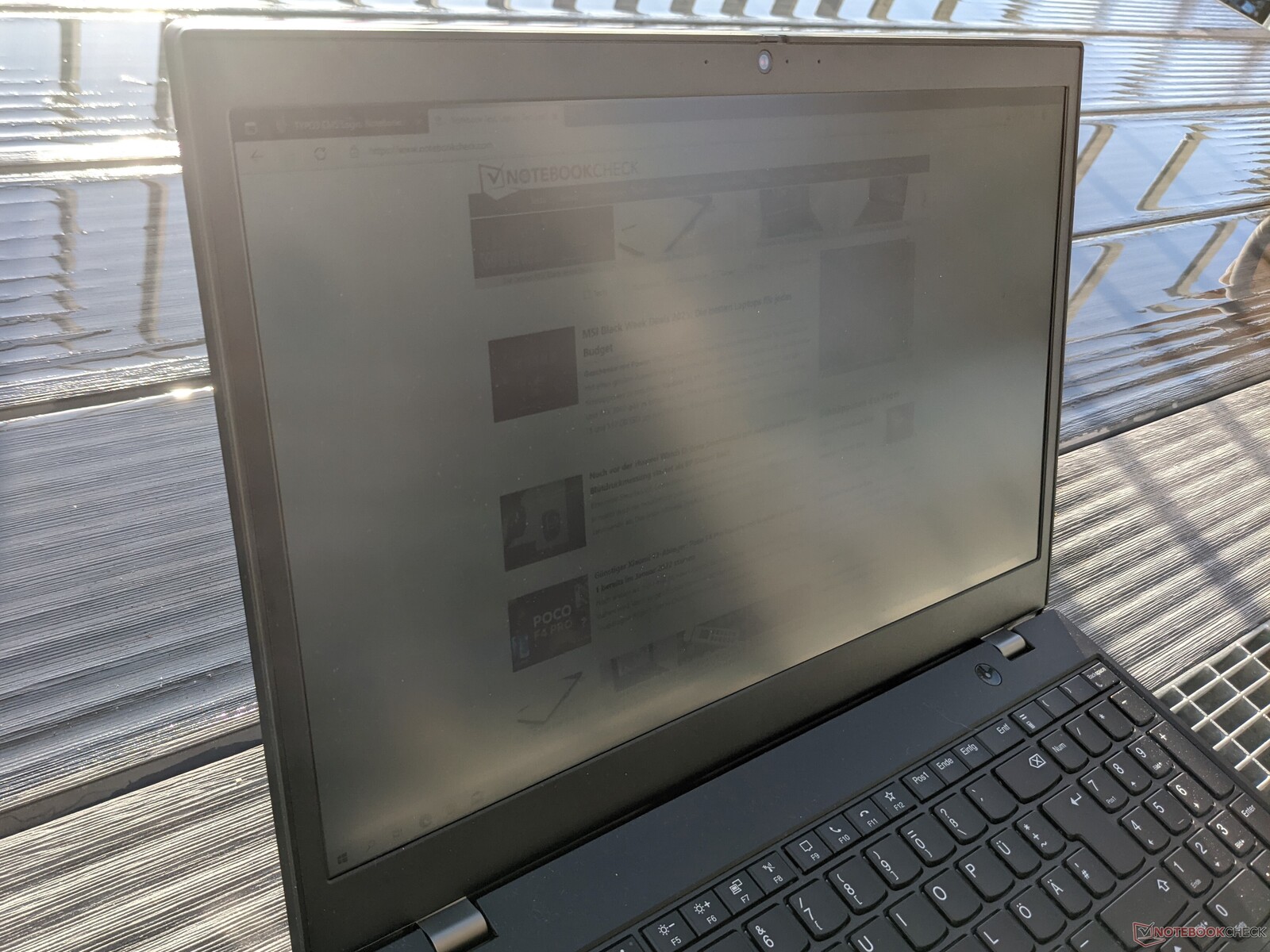

在户外使用ThinkPad L15 G2
在户外使用ThinkPad L15 G2
在户外使用ThinkPad L15 G2
在户外使用ThinkPad L15 G2

性能 - 负载下稳定的性能

联想将L系列的ThinkPads定位为价格低廉的工作设备,配置可变。虽然我们的测试设备配备的是入门级硬件,但也有配备更强大的处理器或更大存储设备的配置。所有这些都可以让你执行各种办公任务,运行对图形性能要求不高的应用程序。

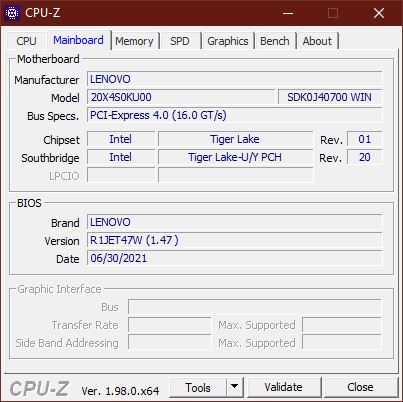

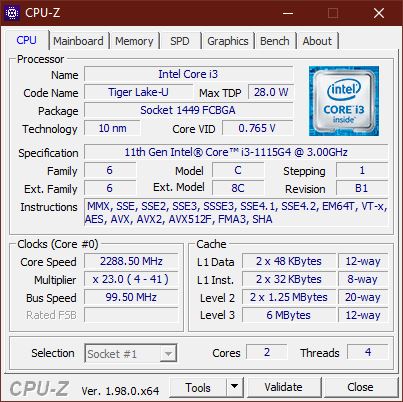

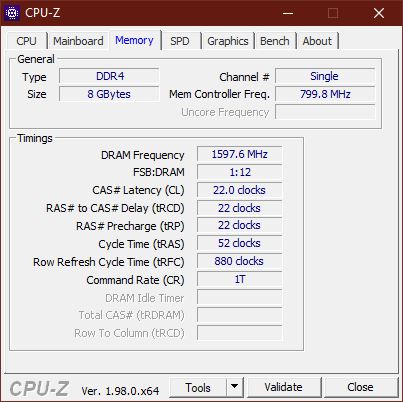

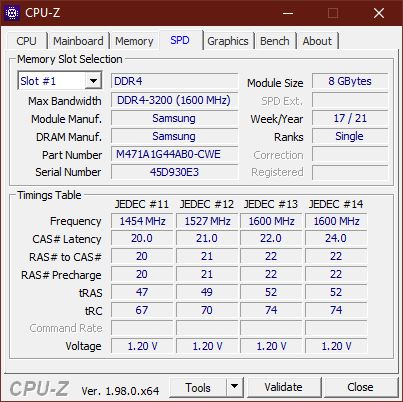

联想ThinkPad L15 G2 - CPUz
CPUz
联想ThinkPad L15 G2 - CPUz
CPUz

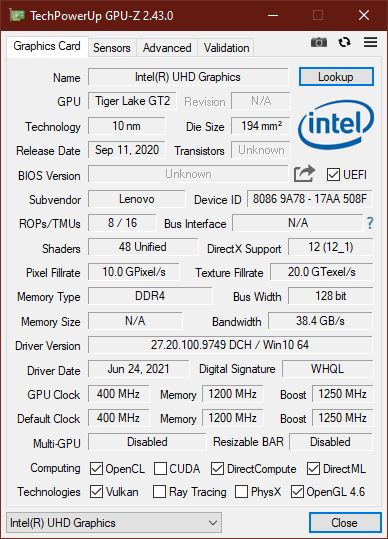

联想ThinkPad L15 G2 - GPUz
GPUz
联想ThinkPad L15 G2 - CPUz
CPUz
联想ThinkPad L15 G2 - CPUz
CPUz

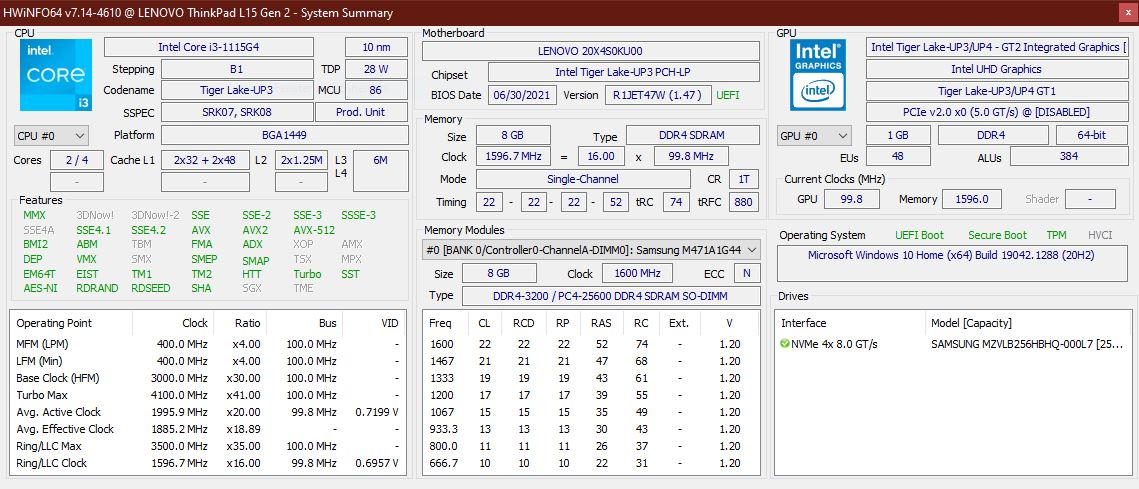

联想ThinkPad L15 G2 - HWInfo
HWInfo



处理器

英特尔酷睿i3-1115G4这里使用的是英特尔Tiger Lake 代的双核处理器。它能够同时运行四个任务,并达到3至4.1GHz的时钟速度。除了冷却系统外,配置的TDP也对实际性能负责。联想在这里配置的短期值为25瓦(PL2),长期值为8瓦(PL1)。

在我们的Cinebench R15恒定负荷测试中, i3-1115G4在我们的Cinebench R15恒定负载测试中,L15 G2中的i3-1115G4也能够在较长的时间内持续保持其性能,并且比相同的处理器,例如在 戴尔Inspiron 15 5502.

Cinebench R15 Multi Constant Load Test

0651301952603253904555205856507157808459109751040110511701235Tooltip
Lenovo ThinkPad L15 G2-20X4S0KU00 Intel Core i3-1115G4: Ø492 (489.28-493.73)
Lenovo ThinkPad L15 G2 AMD AMD Ryzen 5 5600U: Ø1265 (1234.26-1271.74)
Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7: Ø687 (670.58-787.77)
Dell Inspiron 15 5000 5502 Intel Core i3-1115G4: Ø379 (375.47-384.71)
Samsung Galaxy Book NP750XDA Intel Core i5-1135G7: Ø824 (808.51-862.42)

联想ThinkPad L15 G2在大多数单独的学科中取得了略高于平均水平的成绩。在我们的测试领域,它经常能够离开 戴尔 Inspiron 15 5502i3-1115G4但它并没有达到配备i3-1115G4的竞争对手的数值。 英特尔酷睿i5-1135G7.

当使用 "最佳性能 "电源配置文件时,L15 G2在电池运行中也达到了这里显示的性能。另一方面,当你将配置文件调整为 "更好的电池效率 "时,Cinebench R15 Multi得分从494分降至125分。

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Multi Core
Average of class Office
  (1577 - 15743, n=94, last 2 years)
9282 Points +187%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
7582 (7549.33min - 7582.37max) Points +134%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
3610 Points +11%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
3239 Points
Average Intel Core i3-1115G4
  (2725 - 3244, n=6)
3038 Points -6%
Cinebench R23 / Single Core
Average of class Office
  (618 - 1995, n=94, last 2 years)
1562 Points +19%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
1372 Points +5%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
1312 Points
Average Intel Core i3-1115G4
  (1242 - 1319, n=5)
1299 Points -1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
1062 Points -19%
Cinebench R20 / CPU (Multi Core)
Average of class Office
  (590 - 5980, n=94, last 2 years)
3570 Points +185%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
2952 Points +136%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
2105 Points +68%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
1711 Points +37%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
1251 Points
Average Intel Core i3-1115G4
  (961 - 1251, n=6)
1120 Points -10%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
961 Points -23%
Cinebench R20 / CPU (Single Core)
Average of class Office
  (229 - 766, n=94, last 2 years)
601 Points +19%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
536 Points +6%
Average Intel Core i3-1115G4
  (504 - 515, n=6)
507 Points +1%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
504 Points 0%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
504 Points
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
483 Points -4%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
442 Points -12%
Cinebench R15 / CPU Multi 64Bit
Average of class Office
  (246 - 2642, n=95, last 2 years)
1566 Points +217%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
1272 (1234.26min - 1271.74max) Points +157%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
862 (808.51min - 862.42max) Points +74%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
788 (670.58min - 787.77max) Points +60%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
494 (489.28min - 493.73max) Points
Average Intel Core i3-1115G4
  (385 - 507, n=6)
462 Points -6%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
384.7 (375.47min - 384.71max) Points -22%
Cinebench R15 / CPU Single 64Bit
Average of class Office
  (98 - 284, n=94, last 2 years)
230 Points +19%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
223 Points +16%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
200 Points +4%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
195 Points +1%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
194 Points +1%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
193.6 Points 0%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
193 Points
Average Intel Core i3-1115G4
  (137 - 197, n=6)
179.9 Points -7%
Blender / v2.79 BMW27 CPU
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
1188 Seconds * -26%
Average Intel Core i3-1115G4
  (940 - 1188, n=6)
1037 Seconds * -10%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
940 Seconds *
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
667 Seconds * +29%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
602 Seconds * +36%
Average of class Office
  (208 - 1956, n=95, last 2 years)
417 Seconds * +56%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
399 Seconds * +58%
7-Zip 18.03 / 7z b 4
Average of class Office
  (7532 - 65460, n=95, last 2 years)
39012 MIPS +199%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
36424 MIPS +179%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
22772 MIPS +75%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
20432 MIPS +57%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
13046 MIPS
Average Intel Core i3-1115G4
  (11122 - 13422, n=6)
12669 MIPS -3%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
11122 MIPS -15%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Office
  (2972 - 6687, n=95, last 2 years)
5271 MIPS +17%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
5260 MIPS +17%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
4728 MIPS +5%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
4686 MIPS +4%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
4621 MIPS +3%
Average Intel Core i3-1115G4
  (4497 - 4674, n=6)
4586 MIPS +2%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
4497 MIPS
Geekbench 5.5 / Multi-Core
Average of class Office
  (1018 - 11980, n=94, last 2 years)
7630 Points +204%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
5080 Points +102%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
4876 Points +94%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
3861 Points +54%
Average Intel Core i3-1115G4
  (2341 - 2983, n=8)
2628 Points +5%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
2511 Points
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
2427 Points -3%
Geekbench 5.5 / Single-Core
Average of class Office
  (510 - 1995, n=95, last 2 years)
1589 Points +24%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
1405 Points +9%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
1360 Points +6%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
1337 Points +4%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
1328 Points +3%
Average Intel Core i3-1115G4
  (1190 - 1352, n=8)
1296 Points +1%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
1286 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Office
  (1.72 - 18.7, n=93, last 2 years)
10.5 fps +156%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
9.57 fps +133%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
6.15 fps +50%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
5.59 fps +36%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
4.1 fps
Average Intel Core i3-1115G4
  (3.25 - 4.1, n=6)
3.71 fps -10%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
3.25 fps -21%
LibreOffice / 20 Documents To PDF
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
62.8 s * -30%
Average of class Office
  (31.3 - 129.6, n=93, last 2 years)
53.3 s * -10%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
52.9 s * -10%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
51.5 s * -7%
Average Intel Core i3-1115G4
  (40.6 - 62.8, n=7)
49.5 s * -2%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
49.3 s * -2%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
48.3 s *
R Benchmark 2.5 / Overall mean
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4
0.664 sec *
Average Intel Core i3-1115G4
  (0.636 - 0.671, n=7)
0.656 sec * +1%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4
0.655 sec * +1%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7
0.645 sec * +3%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7
0.639 sec * +4%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U
0.551 sec * +17%
Average of class Office
  (0.4244 - 1.135, n=92, last 2 years)
0.544 sec * +18%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
494 Points
Cinebench R15 OpenGL 64Bit
62.6 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
193 Points
Cinebench R20 CPU (Multi Core)
1251 Points
Cinebench R20 CPU (Single Core)
504 Points
Cinebench R23 Single Core
1312 Points
Cinebench R23 Multi Core
3239 Points
Help

系统性能

ThinkPad L15 G2的排名也领先于 戴尔 Inspiron 15 5502在评估系统性能的PCMark 10测试中,ThinkPad L15 G2也领先于戴尔Inspiron 15 5502。总体结果也反映了单项学科的数值。

在我们测试期间的日常操作中,L15 G2始终表现良好,系统和应用程序启动迅速。在测试笔记本电脑时,我们没有遇到任何微的停顿或类似的延迟。

PCMark 10 / Score
Average of class Office
  (2463 - 7344, n=86, last 2 years)
5618 Points +36%
Lenovo ThinkPad L15 G2 AMD
Vega 7, R5 5600U, SK Hynix HFS512 GDE9X081N
5579 Points +35%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
4668 Points +13%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4506 Points +9%
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
  (3898 - 4390, n=6)
4161 Points +1%
Lenovo ThinkPad L15 G2-20X4S0KU00
UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung SSD PM981a MZVLB256HBHQ
4130 Points
Dell Inspiron 15 5000 5502
UHD Graphics Xe G4 48EUs, i3-1115G4, Toshiba BG4 KBG40ZNS128G
3898 Points -6%
PCMark 10 / Essentials
Average of class Office
  (5575 - 20841, n=86, last 2 years)
10136 Points +21%
Lenovo ThinkPad L15 G2 AMD
Vega 7, R5 5600U, SK Hynix HFS512 GDE9X081N
10123 Points +21%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
9224 Points +10%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
8850 Points +6%
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
  (8205 - 9090, n=6)
8604 Points +3%
Lenovo ThinkPad L15 G2-20X4S0KU00
UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung SSD PM981a MZVLB256HBHQ
8385 Points
Dell Inspiron 15 5000 5502
UHD Graphics Xe G4 48EUs, i3-1115G4, Toshiba BG4 KBG40ZNS128G
8248 Points -2%
PCMark 10 / Productivity
Lenovo ThinkPad L15 G2 AMD
Vega 7, R5 5600U, SK Hynix HFS512 GDE9X081N
9291 Points +51%
Average of class Office
  (3041 - 10415, n=86, last 2 years)
7689 Points +25%
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
  (6166 - 6488, n=6)
6287 Points +2%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
6190 Points 0%
Dell Inspiron 15 5000 5502
UHD Graphics Xe G4 48EUs, i3-1115G4, Toshiba BG4 KBG40ZNS128G
6167 Points 0%
Lenovo ThinkPad L15 G2-20X4S0KU00
UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung SSD PM981a MZVLB256HBHQ
6166 Points
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
6151 Points 0%
PCMark 10 / Digital Content Creation
Average of class Office
  (2126 - 9773, n=86, last 2 years)
6335 Points +71%
Lenovo ThinkPad L15 G2 AMD
Vega 7, R5 5600U, SK Hynix HFS512 GDE9X081N
5012 Points +35%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
4866 Points +32%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4533 Points +23%
Lenovo ThinkPad L15 G2-20X4S0KU00
UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung SSD PM981a MZVLB256HBHQ
3699 Points
Average Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
  (3161 - 3895, n=6)
3619 Points -2%
Dell Inspiron 15 5000 5502
UHD Graphics Xe G4 48EUs, i3-1115G4, Toshiba BG4 KBG40ZNS128G
3161 Points -15%
PCMark 10 Score
4130 points
Help

DPC延迟

在用LatencyMon进行的测试中,ThinkPad L15 G2在我们的测试配置中显示出一些略微升高的延迟。这使得它只能在有限的程度上适用于实时应用。

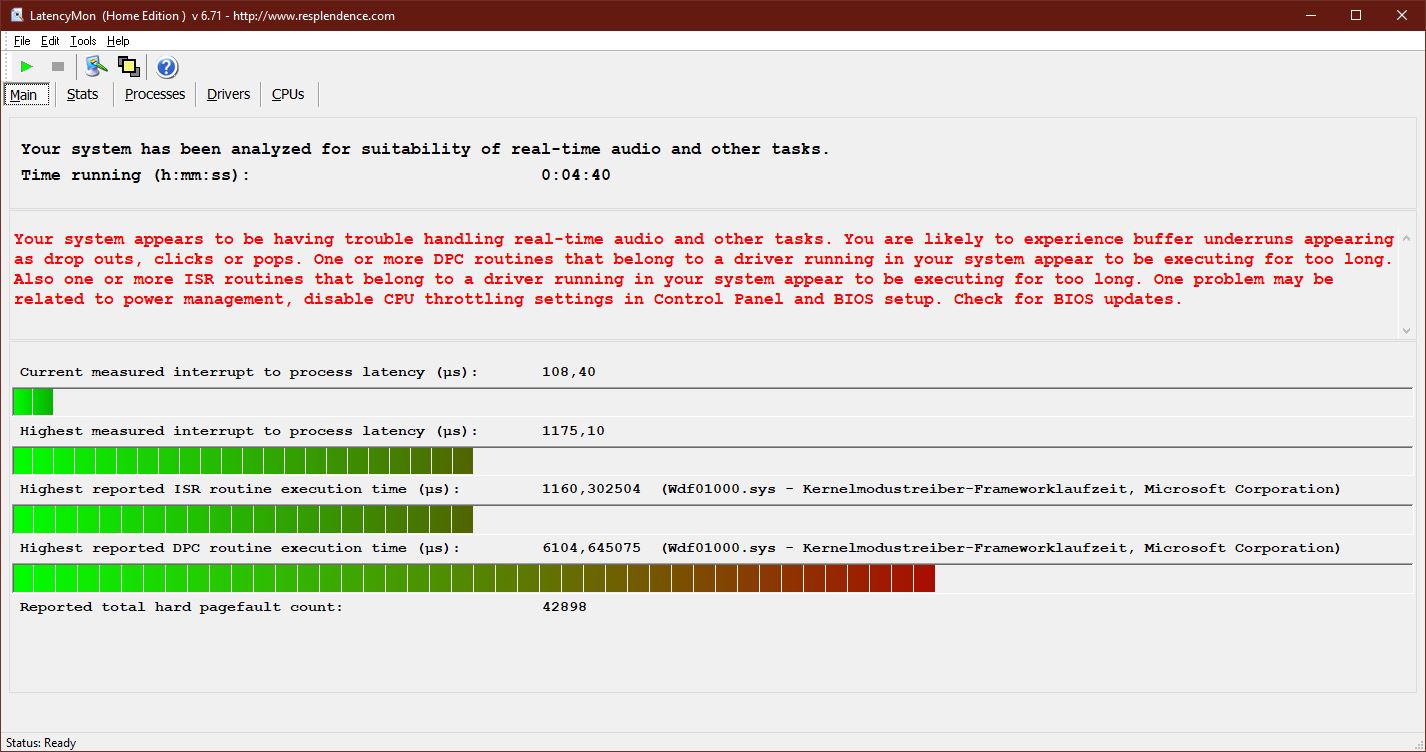

LatencyMon - 统计数据
LatencyMon - 统计数据

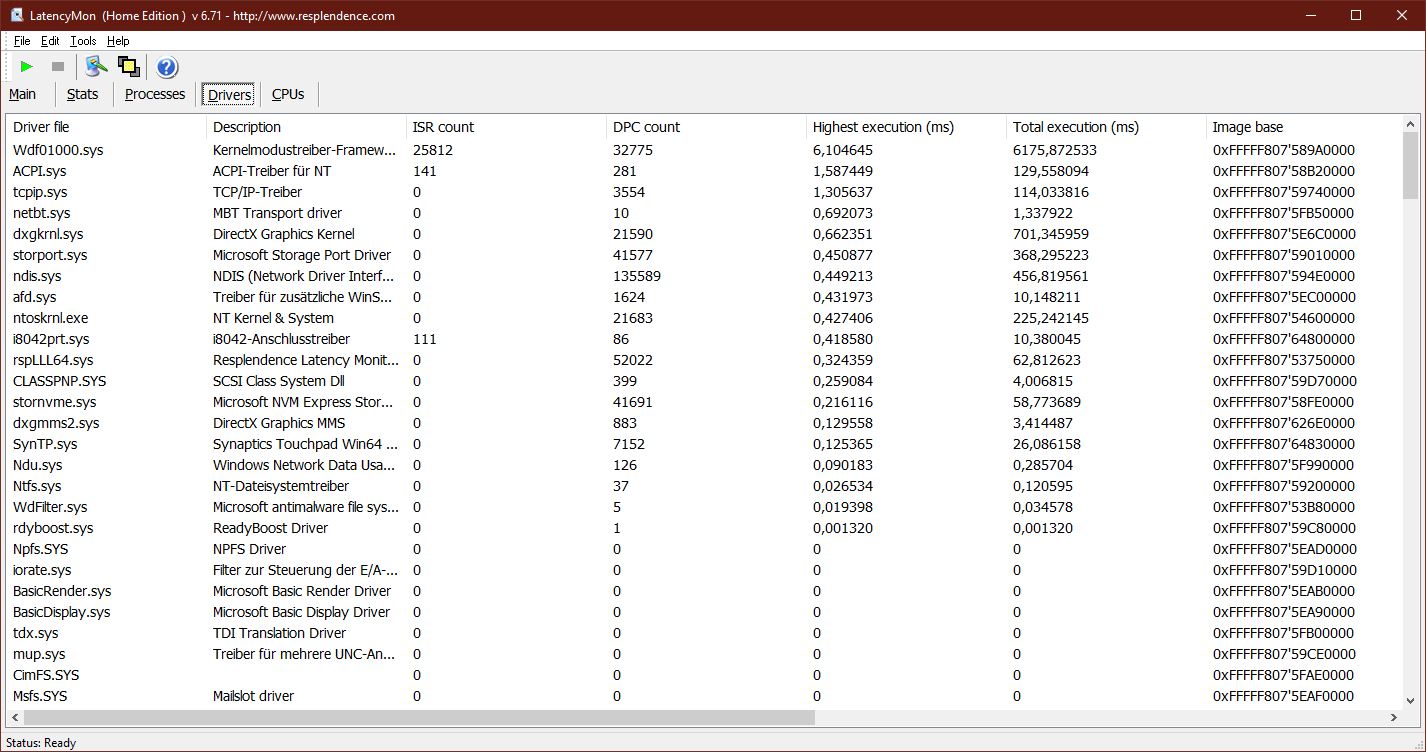

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo ThinkPad L15 G2 AMD
Vega 7, R5 5600U, SK Hynix HFS512 GDE9X081N
2315 μs * -97%
Dell Inspiron 15 5000 5502
UHD Graphics Xe G4 48EUs, i3-1115G4, Toshiba BG4 KBG40ZNS128G
1532 μs * -30%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
1429 μs * -22%
Samsung Galaxy Book NP750XDA
Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512
1267 μs * -8%
Lenovo ThinkPad L15 G2-20X4S0KU00
UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung SSD PM981a MZVLB256HBHQ
1175 μs *

* ... smaller is better

存储解决方案

在我们的测试装置中内置的固态硬盘在我们的存储基准中实现了良好的平均速度,足以在我们的测试领域中占据一席之地。

Lenovo ThinkPad L15 G2-20X4S0KU00
Samsung SSD PM981a MZVLB256HBHQ
Lenovo ThinkPad L15 G2 AMD
SK Hynix HFS512 GDE9X081N
Asus ExpertBook B1 B1500CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
Dell Inspiron 15 5000 5502
Toshiba BG4 KBG40ZNS128G
Samsung Galaxy Book NP750XDA
Lite-On CL1-8D512
Average Samsung SSD PM981a MZVLB256HBHQ

Average of class Office

AS SSD
113%
65%
-94%
-33%
48%
120%
Seq Read
1990
2721
37%
1928
-3%
1142
-43%
1780
-11%
Seq Write
391.3
1329
240%
963
146%
199.8
-49%
843
115%
1486 ?(391 - 2187, n=15)
280%
4K Read
40.67
51.5
27%
48.31
19%
39.5
-3%
24.25
-40%
4K Write
176.9
132.5
-25%
223.3
26%
165.7
-6%
102.2
-42%
129.5 ?(78 - 188.4, n=15)
-27%
4K-64 Read
504
932
85%
1043
107%
461.2
-8%
369
-27%
4K-64 Write
377
1856
392%
1170
210%
203
-46%
717
90%
Access Time Read *
0.067
0.038
43%
0.062
7%
0.124
-85%
0.076
-13%
Access Time Write *
0.022
0.028
-27%
0.051
-132%
0.181
-723%
0.124
-464%
0.04793 ?(0.022 - 0.104, n=15)
-118%
Score Read
744
1256
69%
1284
73%
615
-17%
571
-23%
Score Write
593
2122
258%
1489
151%
389
-34%
904
52%
Score Total
1649
3961
140%
3392
106%
1284
-22%
1726
5%

* ... smaller is better

Samsung SSD PM981a MZVLB256HBHQ
CDM 5/6 Read Seq Q32T1: 3559 MB/s
CDM 5/6 Write Seq Q32T1: 2308 MB/s
CDM 5/6 Read 4K Q32T1: 462.1 MB/s
CDM 5/6 Write 4K Q32T1: 422.8 MB/s
CDM 5 Read Seq: 2094 MB/s
CDM 5 Write Seq: 2153 MB/s
CDM 5/6 Read 4K: 45.71 MB/s
CDM 5/6 Write 4K: 149.5 MB/s

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

018036054072090010801260144016201800198021602340252027002880306032403420Tooltip
Lenovo ThinkPad L15 G2-20X4S0KU00: Ø3529 (2755.87-3549.88)

图形卡

英特尔UHD Graphics Xe G4 48EUs集成在处理器中,负责图像内容的显示。它适合于对图形性能要求不高的应用,如简单的图像处理。

在3DMark基准测试中的结果相对较低,只够在我们的测试领域中排在最后。你可以通过使用第二个RAM模块来提高性能,实现双通道运行。

当充电器断开时,ThinkPad能够保持其图形性能,只要你将电源配置文件设置为提供最佳性能。但即使使用 "更高效 "的电源配置文件,3DMark 11的结果也只是从2,972分略微下降到2,520分。

3DMark 11 - 1280x720 Performance GPU
Average of class Office
  (1468 - 13132, n=89, last 2 years)
6705 Points +126%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
6072 Points +104%
Lenovo ThinkPad L15 G2 AMD
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
4225 Points +42%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3905 Points +31%
Dell Inspiron 15 5000 5502
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
3510 Points +18%
Average Intel UHD Graphics Xe G4 48EUs
  (2156 - 3906, n=11)
3288 Points +11%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
2972 Points
3DMark
1920x1080 Fire Strike Graphics
Average of class Office
  (1089 - 9375, n=90, last 2 years)
4866 Points +171%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4704 Points +162%
Lenovo ThinkPad L15 G2 AMD
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
2495 Points +39%
Average Intel UHD Graphics Xe G4 48EUs
  (1602 - 3131, n=11)
2282 Points +27%
Dell Inspiron 15 5000 5502
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
2250 Points +25%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2039 Points +14%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
1794 Points
1280x720 Cloud Gate Standard Graphics
Average of class Office
  (7982 - 58068, n=65, last 2 years)
26787 Points +113%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
26468 Points +111%
Lenovo ThinkPad L15 G2 AMD
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
18978 Points +51%
Average Intel UHD Graphics Xe G4 48EUs
  (11270 - 21778, n=11)
15421 Points +23%
Dell Inspiron 15 5000 5502
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
14819 Points +18%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
13722 Points +9%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
12548 Points
2560x1440 Time Spy Graphics
Average of class Office
  (313 - 4109, n=90, last 2 years)
1589 Points +141%
Samsung Galaxy Book NP750XDA
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1408 Points +113%
Lenovo ThinkPad L15 G2 AMD
AMD Radeon RX Vega 7, AMD Ryzen 5 5600U
785 Points +19%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
785 Points +19%
Average Intel UHD Graphics Xe G4 48EUs
  (634 - 913, n=9)
763 Points +16%
Dell Inspiron 15 5000 5502
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
723 Points +10%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel UHD Graphics Xe G4 48EUs, Intel Core i3-1115G4
660 Points
3DMark 11 Performance
3031 points
3DMark Cloud Gate Standard Score
9268 points
3DMark Fire Strike Score
1551 points
3DMark Time Spy Score
743 points
Help

游戏性能

Xe G4 48EUs的性能只够用于简单或较老的游戏。这意味着降低细节水平和较低的分辨率设置是必要的,以便在我们测试的游戏中实现流畅的帧率。

你可以在我们的GPU游戏列表中了解在其他游戏中的性能预期

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Office
  (16 - 177, n=75, last 2 years)
79.3 fps +157%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
65 fps +111%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
46.2 (41min - 52max) fps +50%
Average Intel UHD Graphics Xe G4 48EUs
  (20.6 - 62.3, n=11)
41.1 fps +33%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
41 fps +33%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37 fps +20%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
30.8 fps
Dota 2 Reborn - 1280x720 min (0/3) fastest
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
108 (92.1min) fps +42%
Average of class Office
  (36.8 - 161.8, n=96, last 2 years)
105.3 fps +39%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
81.1 (49.7min) fps +7%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
75.9 (60.2min) fps
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
73 (59.1min) fps -4%
Average Intel UHD Graphics Xe G4 48EUs
  (37 - 95.8, n=12)
72.1 fps -5%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
68 (53min) fps -10%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Office
  (13.6 - 128.2, n=95, last 2 years)
43.8 fps +39%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
42.2 fps +34%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
33.7 fps +7%
Average Intel UHD Graphics Xe G4 48EUs
  (21.8 - 42.5, n=11)
32.5 fps +3%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
31.5 fps
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
25.4 fps -19%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
25.2 fps -20%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Office
  (12.1 - 103.1, n=89, last 2 years)
41.7 fps +164%
Samsung Galaxy Book NP750XDA
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
39.7 fps +151%
Lenovo ThinkPad L15 G2 AMD
AMD Ryzen 5 5600U, AMD Radeon RX Vega 7
22.6 fps +43%
Average Intel UHD Graphics Xe G4 48EUs
  (14.6 - 29.3, n=12)
21.9 fps +39%
Dell Inspiron 15 5000 5502
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
19.2 fps +22%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
17.7 fps +12%
Lenovo ThinkPad L15 G2-20X4S0KU00
Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs
15.8 fps
lowmed.highultra
The Witcher 3 (2015) 30.8 21.6 10.4
Dota 2 Reborn (2015) 75.9 36.4 23.3 21.4
Final Fantasy XV Benchmark (2018) 15.8
X-Plane 11.11 (2018) 31.5 23.7 22.3

Emissions and Power Management - An almost silent laptop

噪声排放

ThinkPad L15 G2在日常运行中非常安静,即使在负载下,风扇也需要很长时间才能打开。然后它们会产生均匀的呼啸声,在我们的压力测试情况下,音量会增加到37.86分贝(A)。然而,由于这样的负载在日常操作中几乎不会发生,因此联想笔记本电脑也很适合在安静的环境中使用。

Noise Level

Idle
25.96 / 25.96 / 25.96 dB(A)
Load
25.96 / 37.86 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 25.96 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.830.434.729.228.527.8252732.730.129.426.9273121.622.224.823.521.621.64027.230.132.431.630.227.25023.627.2262322.223.66322.324.32520.621.222.38021.722.7222120.721.710022.324.824.622.120.822.312523.822.825.722.720.523.816020.321.821.820.121.220.32002222.424.420.918.32225027.825.322.819.416.827.831525.524.327.424.82225.54002725.22322.418.92750025.424.421.820.214.525.463026.124.721.820.11226.180028.327.822.119.81228.3100025.723.82217.711.325.7125024.121.919.816.610.824.1160023.921.718.918.112.623.9200021.518.916.715.510.921.5250024.221.118.516.113.624.2315028.524.12118.313.128.5400028.924.72218.913.728.9500026.923.521.417.814.626.9630024.920.81815.813.624.9800022.118.316.315.214.622.11000016.31413.814.713.716.31250016.815.815.517.613.816.81600027.626.626.426.614.427.6SPL37.935.232.630.32637.9N2.92.31.81.40.82.9median 24.9median 23.5median 21.8median 18.9median 13.8median 24.9Delta2.52.72.52.43.12.5hearing rangehide median Fan NoiseLenovo ThinkPad L15 G2-20X4S0KU00

温度

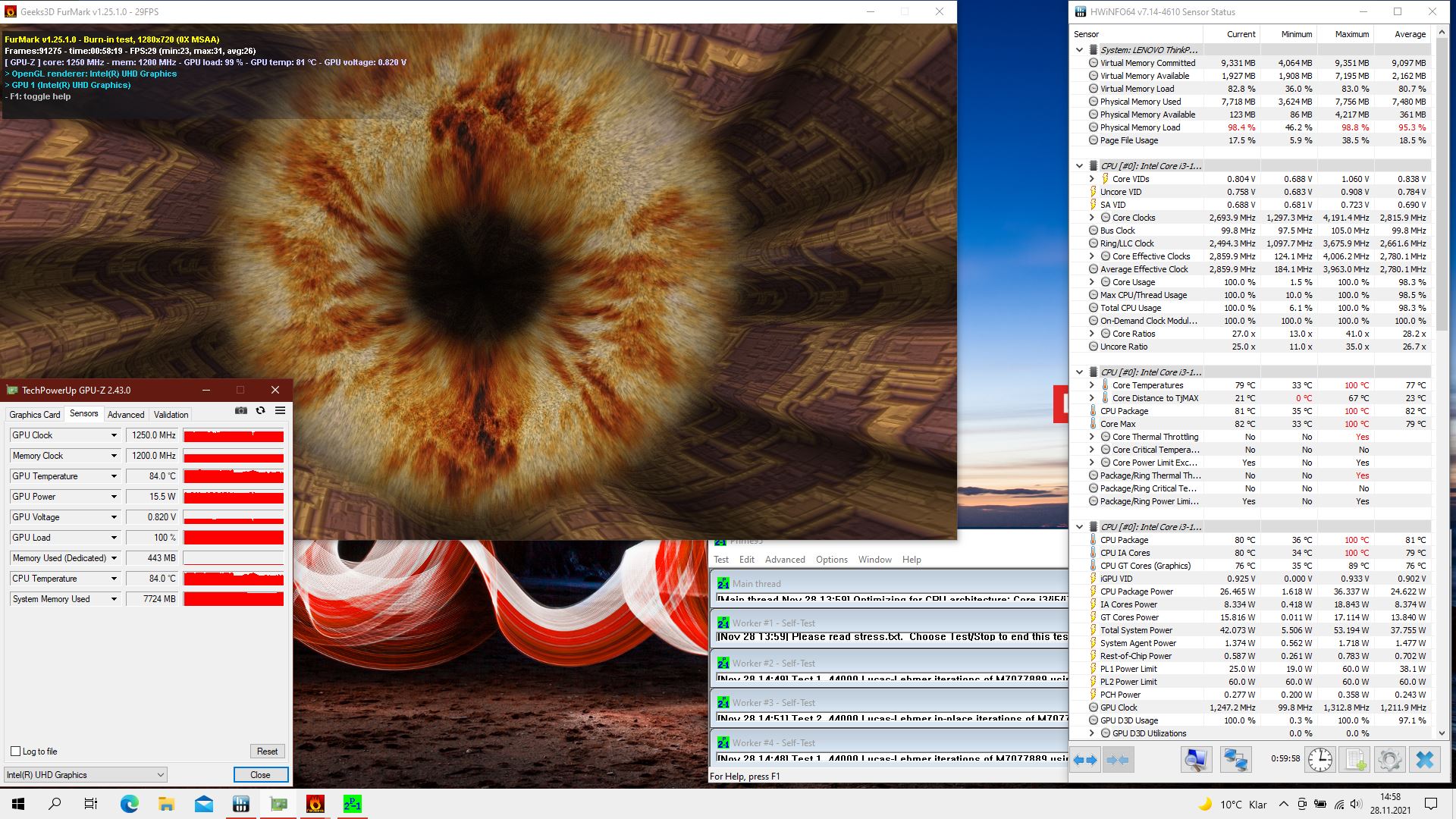

压力测试
压力测试

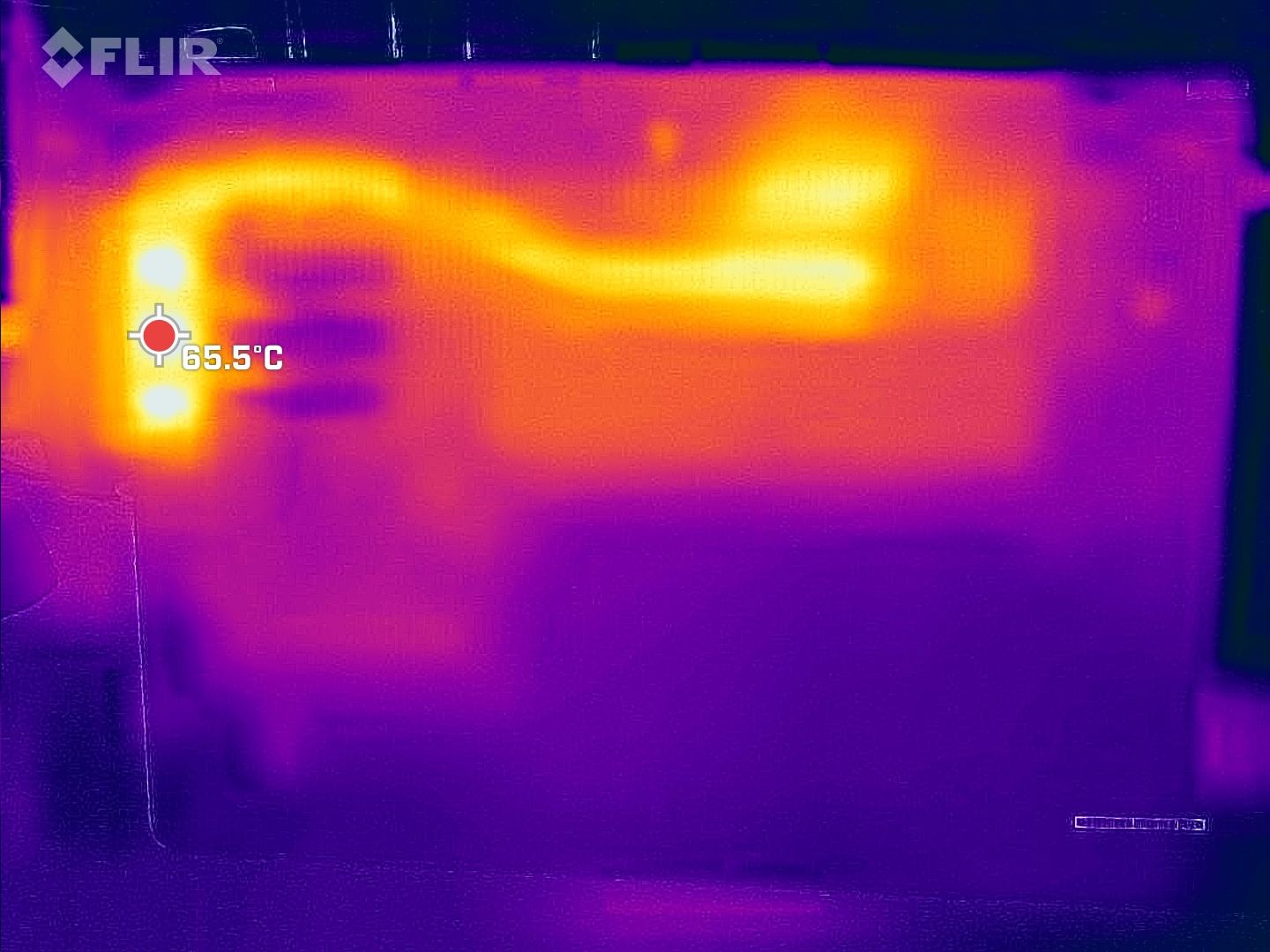

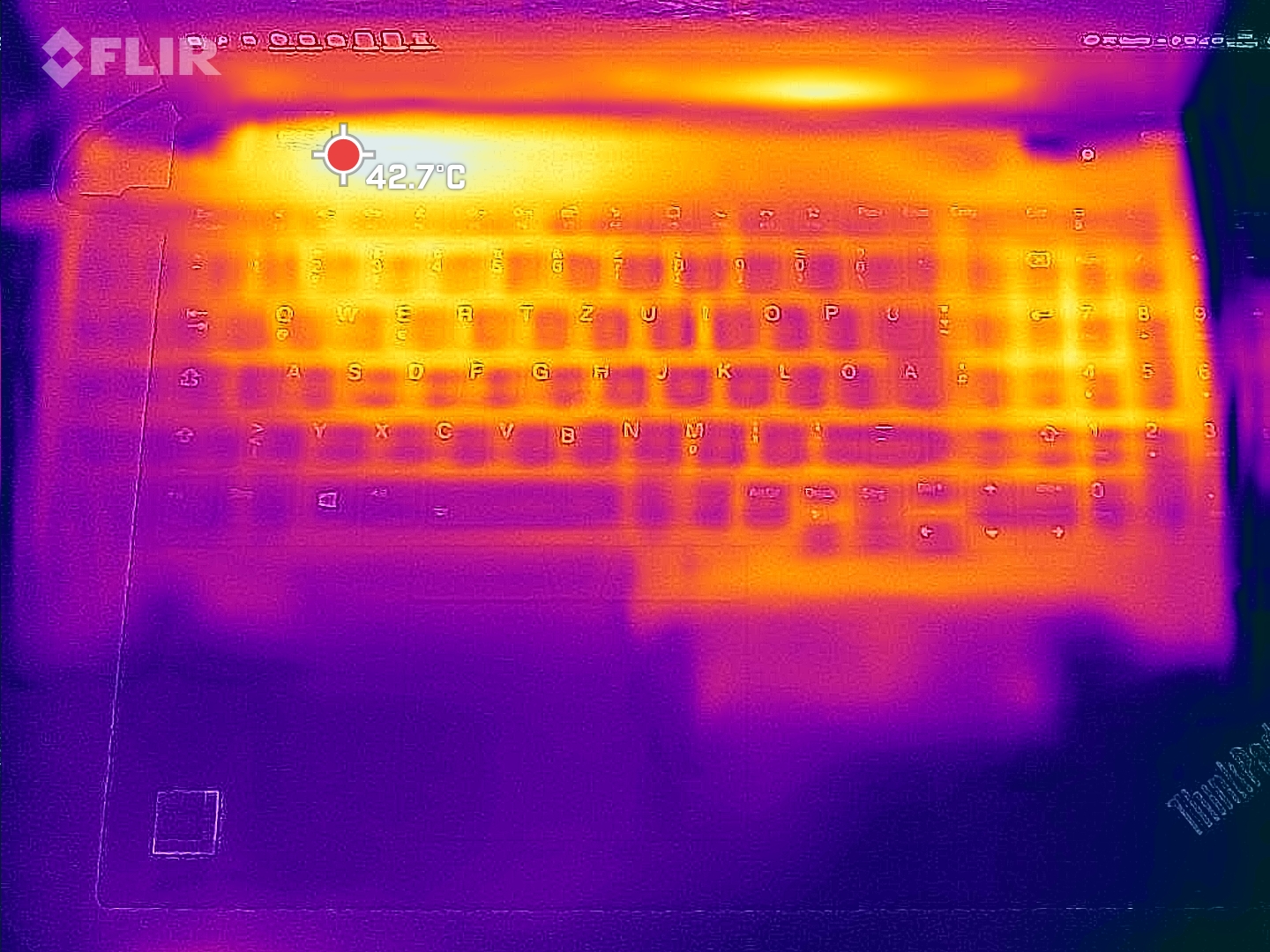

根据我们的测量,L15 G2的表面温度在负载下最高上升到53.1℃(127.6°F)。由于这种情况的责任也可以在我们的压力测试方案的超常负载中找到,所以在日常操作中,你应该不会遇到任何表面发热的问题。

在我们一小时的恒定负载测试中,ThinkPads内部的温度短暂上升到100℃(212°F)。当时,时钟速率下降到3GHz的基本时钟速度以下,但冷却系统很快就能将其稳定在这一数值上,约2.8GHz的速度可以维持到测试结束。因此,你不应该期待由于温度过高而造成的任何限制,即使是在重负荷下。

Max. Load
 35.1 °C44.4 °C37.3 °C
 30.1 °C34.1 °C38.6 °C
 22.2 °C24 °C23.2 °C
Maximum: 44.4 °C
Average: 32.1 °C
50.6 °C50 °C33.3 °C
53.1 °C38.1 °C26 °C
22.7 °C22.6 °C21.1 °C
Maximum: 53.1 °C
Average: 35.3 °C
Power Supply (max.)  33.1 °C | Room Temperature 20 °C | Fluke 62 Max+
(±) The average temperature for the upper side under maximal load is 32.1 °C / 90 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 44.4 °C / 112 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 53.1 °C / 128 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 20.8 °C / 69 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24 °C / 75.2 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+3.7 °C / 6.7 F).
热图-顶部
热图-顶部
热图-底部
热图-底部

发言人

ThinkBook L15 G2的扬声器可以产生相对较低的音量,并提供一个宽广的声谱。这使得它们只适合在非常安静的环境中再现媒体内容,建议使用外部扬声器进行长时间聆听。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2024.128.12525.232.53121.226.54027.830.35022.923.7632125.58015.721.110019.622.81251628.316020.826.620015.937.325018.543.231526.350.940016.453.950013.152.863011.753.480012.956.1100015.456.8125012.159.3160010.662.2200011.162.1250011.255.8315011.557.5400011.956.350001258.4630012.161.2800012.163.31000012.358.41250013.856.41600012.551.5SPL25.871.2N0.827.5median 12.5median 56.1Delta2.17.435.835.530.231.925.929.228.228.924.327.92427.320.627.520.536.418.540.416.343.119.347.215.854.714.160.212.36410.666.312.165.19.968.91070.11066.311.663.610.866.21160.911.557.311.862.212.269.912.367.412.367.812.565.212.865.912.261.223.878.30.543.8median 12.2median 6426.3hearing rangehide median Pink NoiseLenovo ThinkPad L15 G2 AMDAsus ExpertBook B1 B1500CEAE, i5-1135G7
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad L15 G2 AMD audio analysis

(-) | not very loud speakers (71.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.3% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3% away from median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.1% difference to median)
Compared to same class
» 37% of all tested devices in this class were better, 11% similar, 51% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 48% of all tested devices were better, 8% similar, 44% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Asus ExpertBook B1 B1500CEAE, i5-1135G7 audio analysis

(±) | speaker loudness is average but good (78.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(±) | linearity of highs is average (7.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.4% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 3% similar, 88% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 16% of all tested devices were better, 4% similar, 80% worse
» The best had a delta of 4%, average was 25%, worst was 134%

消耗功率

我们的测量结果证明,联想笔记本电脑在空闲情况下的平均功耗为8瓦,在负载情况下高达60.31瓦。然而,这个最大值只在短时间内达到,然后就稳定在30至40瓦之间。

附带的电源的额定功率为65瓦,所以它提供了足够的功率。

Power Consumption
Off / Standbydarklight 0.56 / 1.33 Watt
Idledarkmidlight 4.08 / 8 / 8.89 Watt
Load midlight 25.64 / 60.31 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Power Consumption The Witcher 3 / Stress Test

051015202530354045505560Tooltip
Lenovo ThinkPad L15 G2-20X4S0KU00; Witcher 3 ultra: Ø31.7 (27.1-48.3)
Lenovo ThinkPad L15 G2-20X4S0KU00; 1280x720 Prime95 28.10 and Furmark 1.25: Ø54.9 (43.1-60.3)

Power Consumption with an External Monitor

0510152025303540Tooltip
Lenovo ThinkPad L15 G2-20X4S0KU00; Prime95 V2810 Stress (external Monitor): Ø41.6 (39.7-44.2)
Lenovo ThinkPad L15 G2-20X4S0KU00; Cinebench R15 Multi (external Monitor): Ø39.6 (38.4-41.5)
Lenovo ThinkPad L15 G2-20X4S0KU00; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø27.7 (26.7-30.8)
Lenovo ThinkPad L15 G2-20X4S0KU00; 1920x1080 The Witcher 3 ultra (external Monitor): Ø26 (22.6-38.5)

电池寿命

在我们现实的WLAN测试中,ThinkPad L15 G2能够持续6小时19分钟。就凭这一点,它没有像其他配备类似电池容量的笔记本电脑那样持续时间长。

Battery Runtime - WiFi Websurfing
Samsung Galaxy Book NP750XDA
i5-1135G7, Iris Xe G7 80EUs, 54 Wh
607 min +60%
Average of class Office
  (300 - 1349, n=91, last 2 years)
602 min +59%
Dell Inspiron 15 5000 5502
i3-1115G4, UHD Graphics Xe G4 48EUs, 53 Wh
539 min +42%
Lenovo ThinkPad L15 G2 AMD
R5 5600U, Vega 7, 45 Wh
469 min +24%
Asus ExpertBook B1 B1500CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs, 42 Wh
432 min +14%
Lenovo ThinkPad L15 G2-20X4S0KU00
i3-1115G4, UHD Graphics Xe G4 48EUs, 45 Wh
379 min
Battery Runtime
WiFi Websurfing
6h 19min

Pros

+ 坚固的外壳
+ 良好的维修选择
+ 良好的稳定性能
+ 良好的输入设备

Cons

- 平庸的电池寿命
- 相对较慢的无线网络
- 色彩空间覆盖率相对较低

结论 - 一个良好的价格与稳定的性能相结合

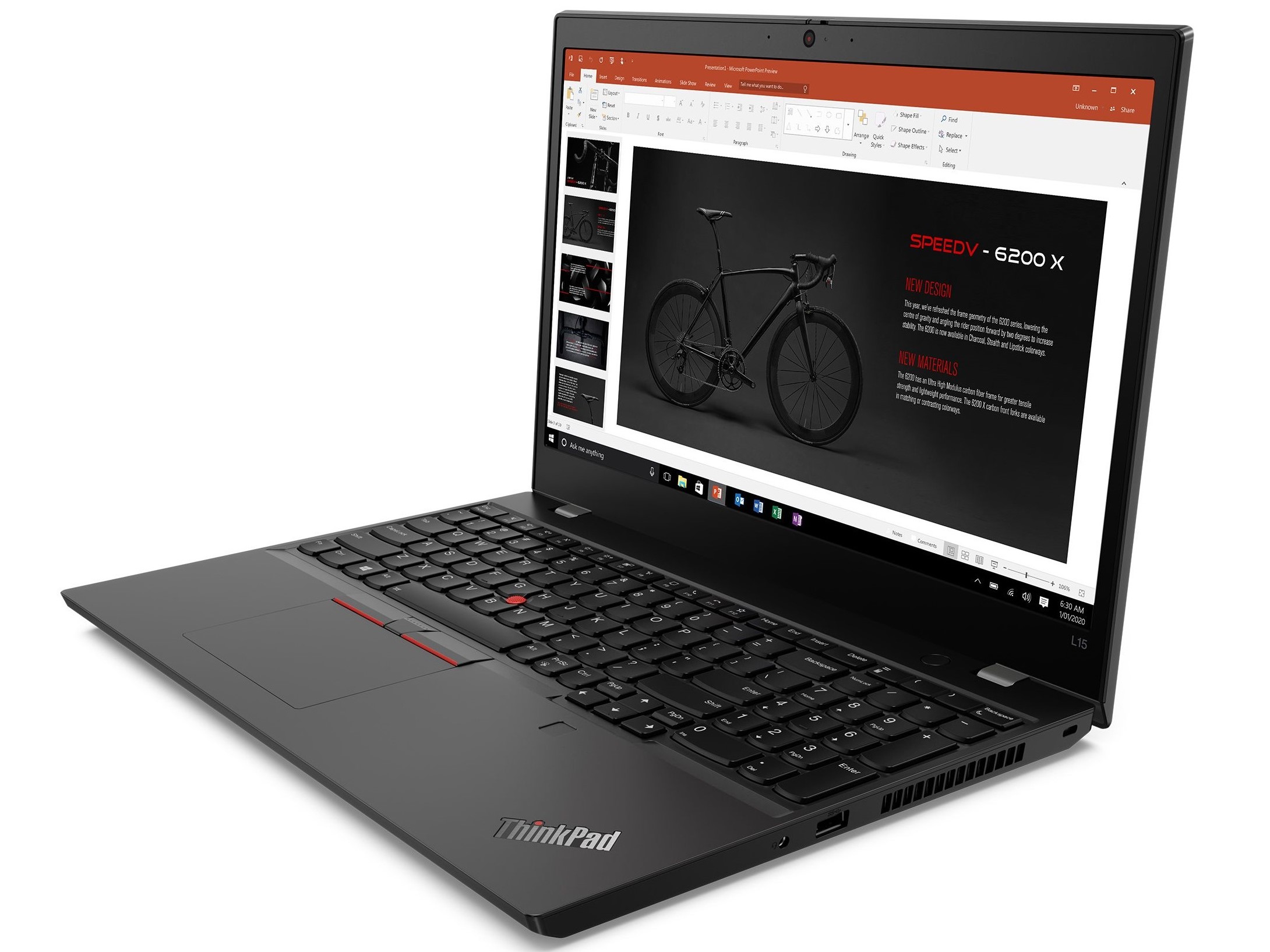

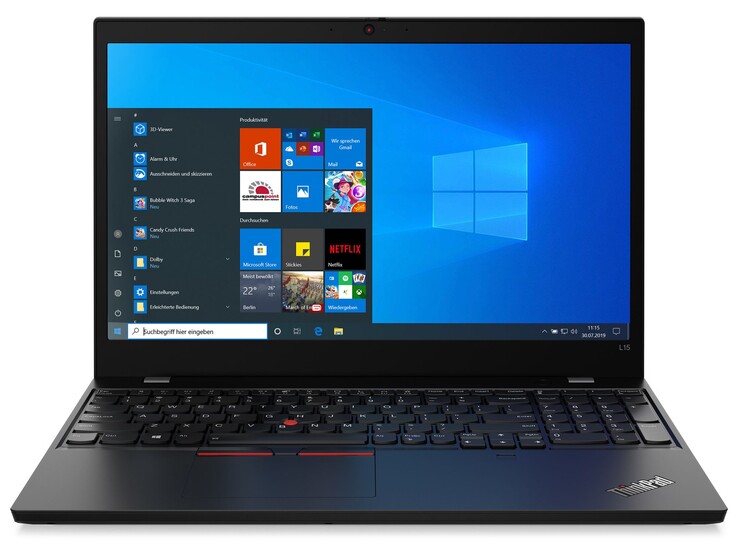

测试联想ThinkBook L15 G2。测试装置由campuspoint提供。
测试联想ThinkBook L15 G2。测试装置由campuspoint提供。

由于其价格合理,联想ThinkPad L15 G2显然可以推荐给所有那些正在寻找用于办公任务的强大笔记本电脑,并且可能以后想升级它。外壳和输入设备的质量非常好,而WLAN和存储性能也与竞争对手处于同一水平。

搭载英特尔CPU的联想ThinkPad L15 G2的平价版提供了非常好的性价比。

联想在存储设备方面确实走了一些弯路。尽管8GB的容量在单通道运行时是足够的,但由于CPU和图形单元之间的共享访问,它变成了有点紧张。在这里,良好的维护选项可以带来一些补救措施,因为它们允许插入第二个RAM模块而没有任何复杂的问题。

与竞争对手相比,如 三星Galaxy Book戴尔 Inspiron 15 5502竞争对手,特别是电池寿命还有待提高,而且扬声器也没有提供最好的质量。然而,这些只是小抱怨,并不妨碍推荐购买。

价格和可用性

而联想ThinkPad L15 G2配备了一个英特尔酷睿i5-1135G7联想的上市价格为629美元目前无法购买。AmazonBestBuy目前的报价为1049美元。

Lenovo ThinkPad L15 G2-20X4S0KU00 - 11/29/2021 v7 (old)
Mike Wobker

Chassis
77 / 98 → 79%
Keyboard
91%
Pointing Device
86%
Connectivity
66 / 80 → 82%
Weight
65 / 20-75 → 81%
Battery
71%
Display
82%
Games Performance
55 / 78 → 70%
Application Performance
89 / 95 → 94%
Temperature
91%
Noise
97%
Audio
63%
Camera
28 / 85 → 33%
Average
74%
85%
Office - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 联想ThinkPad L15 G2评测。600欧元(约680美元)的办公笔记本电脑
Mike Wobker, 2021-12- 2 (Update: 2021-12- 2)
