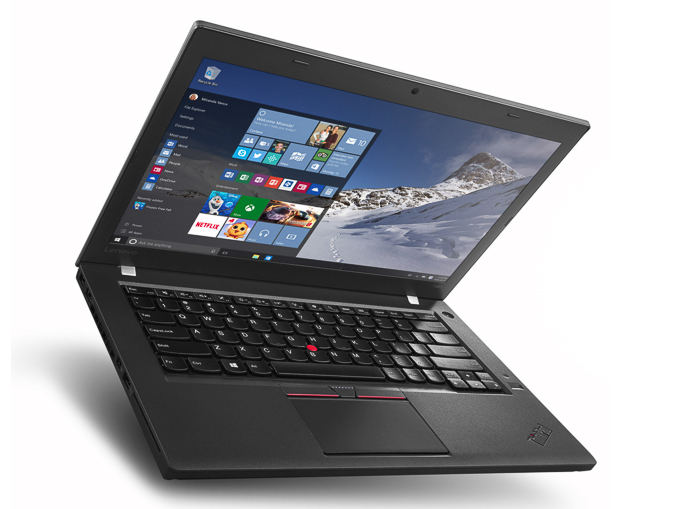

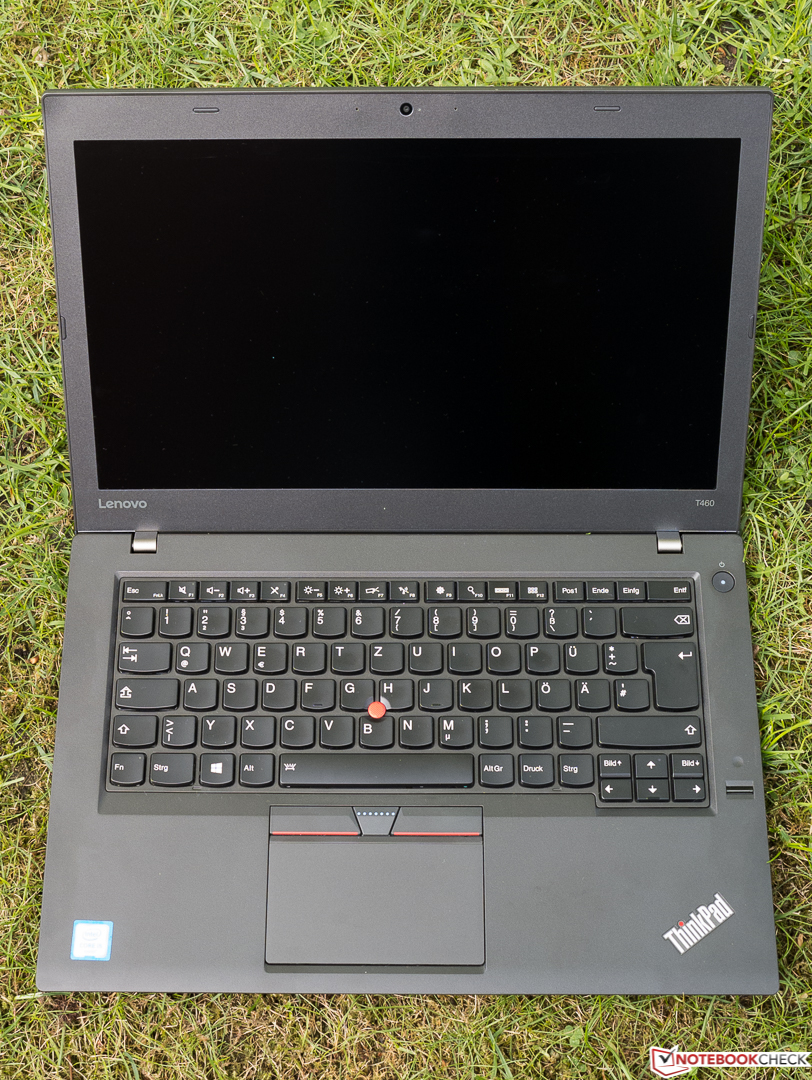

Lenovo ThinkPad T460-20FN003LGE
Processor

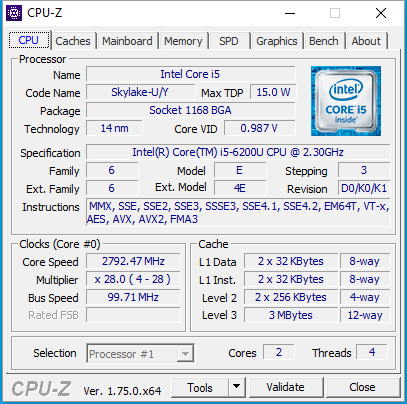

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

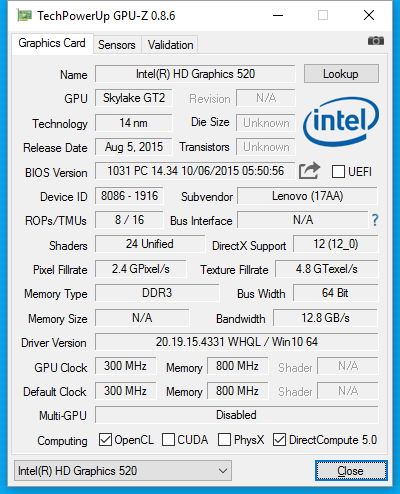

Graphics adapter
Intel HD Graphics 520, Core: 1050 MHz, 共享内存, 20.19.15.4331 WHQL

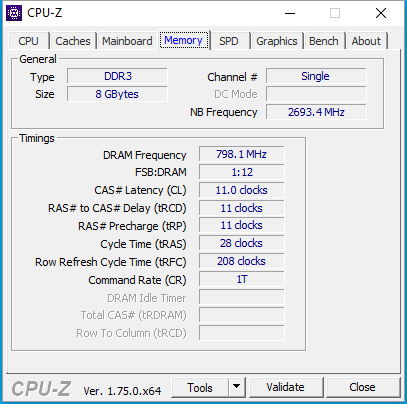

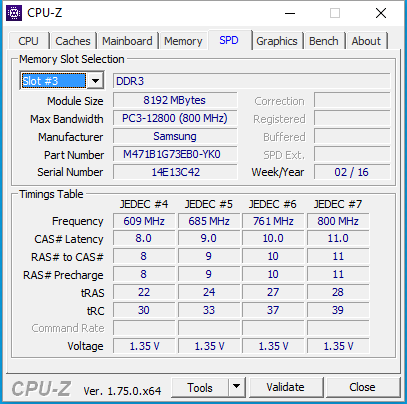

Memory
8 GB
, DDR3L, 1600 MHz, 单通道, 两个内存槽一个已占用
Display

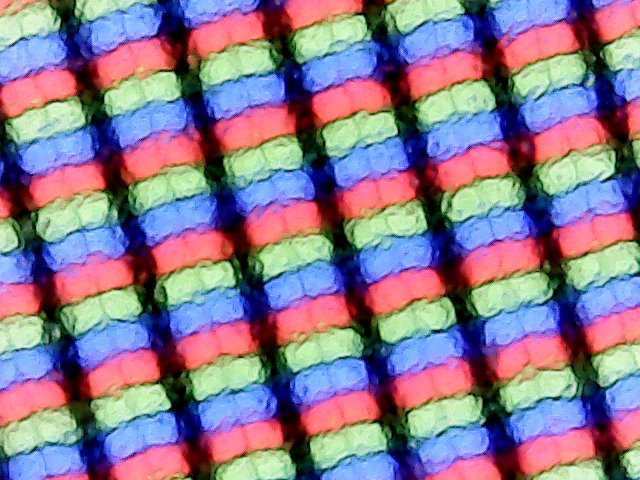

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Lenovo LEN40A9 / N140HCE-EAA, IPS, glossy: no

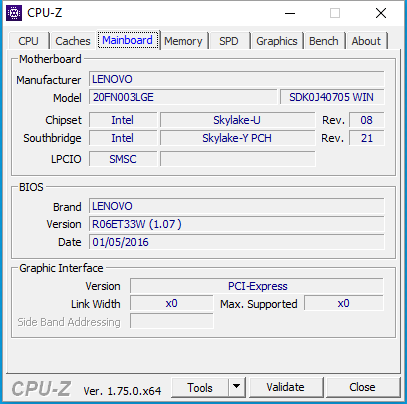

Mainboard
Intel Skylake-U Premium PCH
Storage
Toshiba HG6 THNSFJ256GCSU, 256 GB
Weight
1.73 kg, Power Supply: 174 g
Price
1500 EUR
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
Lenovo LEN40A9 / N140HCE-EAA tested with X-Rite i1Pro 2
Maximum: 230 cd/m² (Nits) Average: 215.9 cd/m² Minimum: 3 cd/m²Brightness Distribution: 85 %
Center on Battery: 230 cd/m²
Contrast: 885:1 (Black: 0.26 cd/m²)
ΔE Color 7.32 | 0.5-29.43 Ø4.93
ΔE Greyscale 6.98 | 0.5-98 Ø5.2

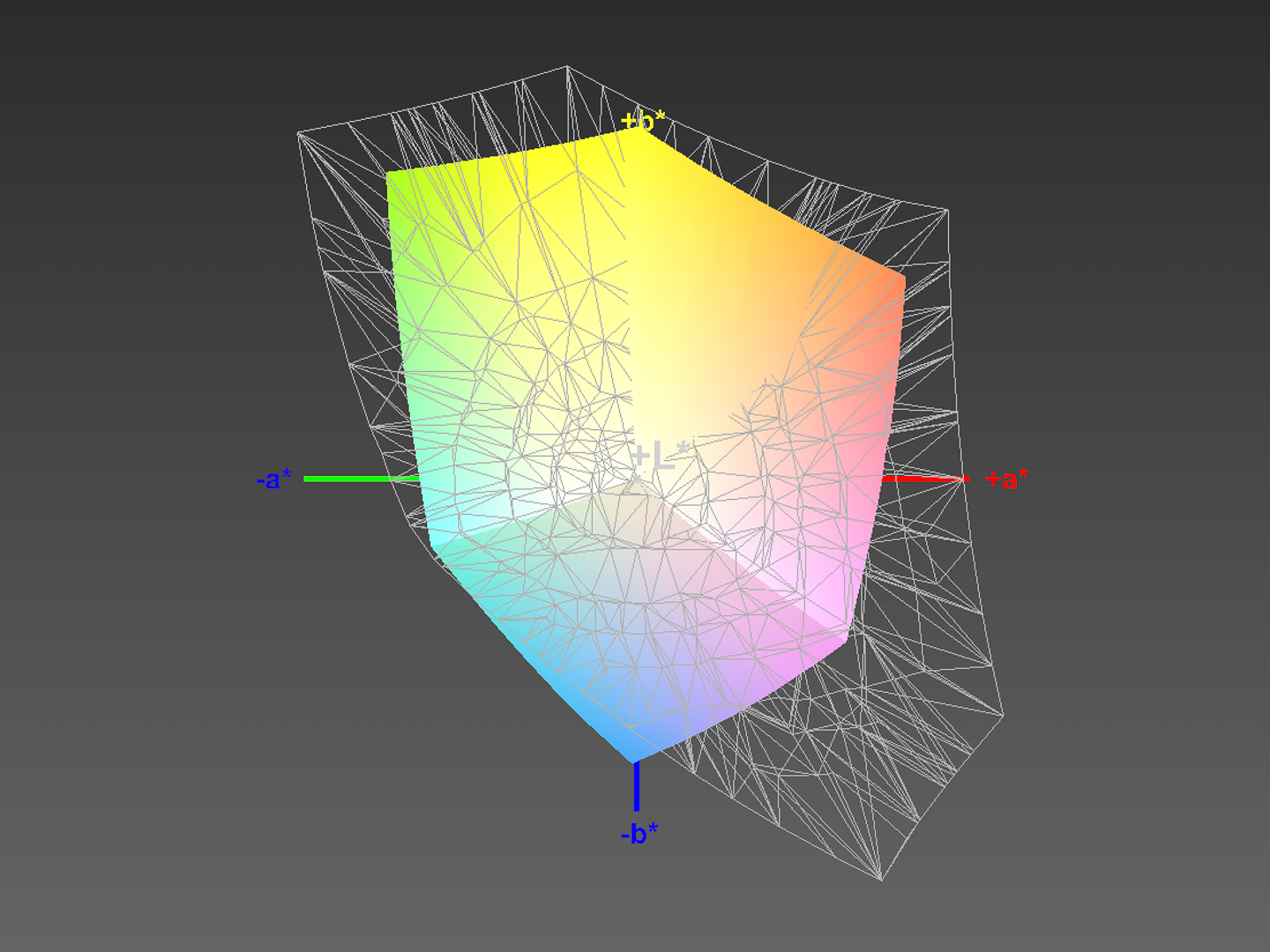

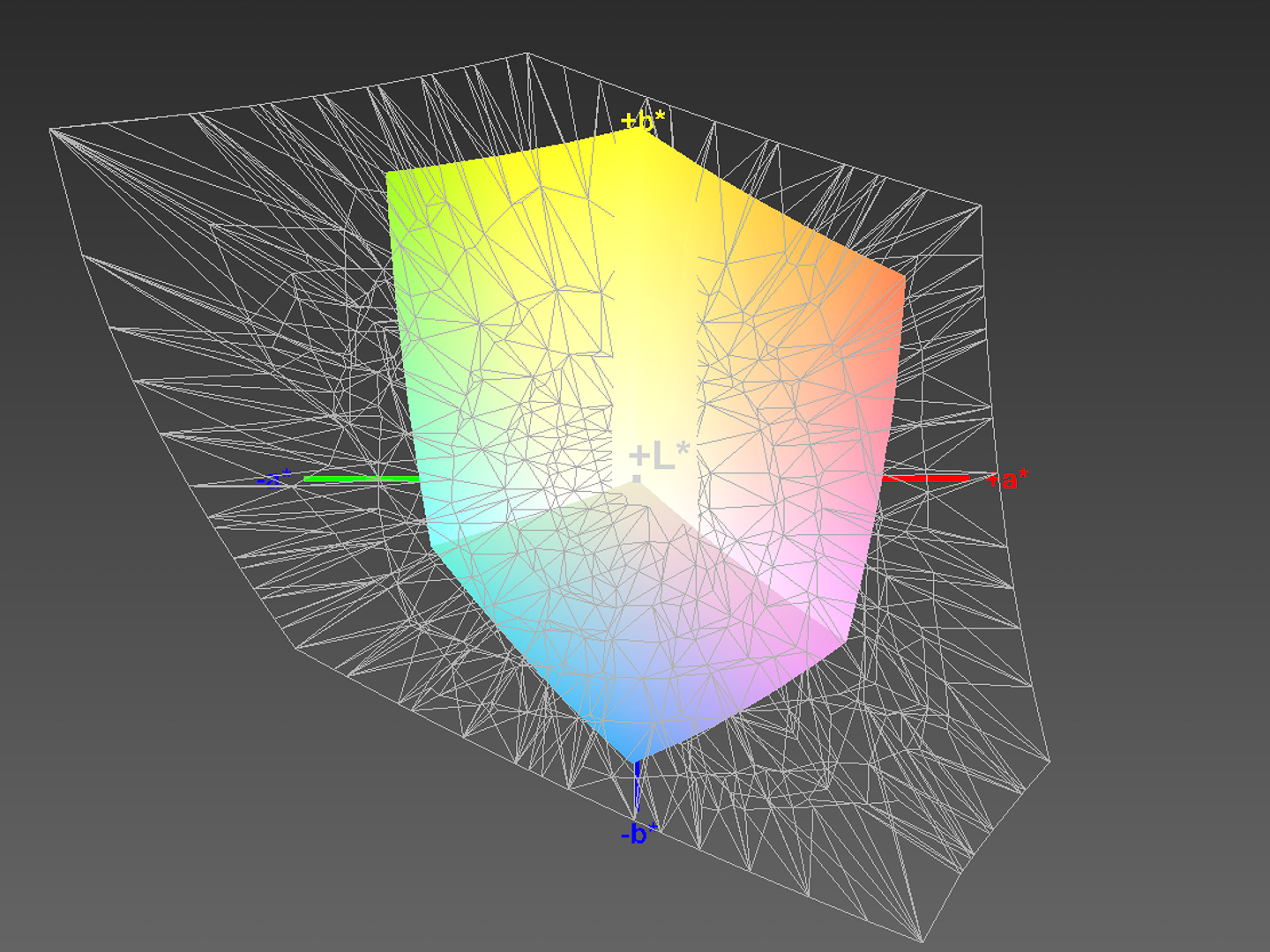

61.55% sRGB (Argyll 1.6.3 3D)
39.97% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
62% sRGB (Argyll 2.2.0 3D)
42.09% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.5
| Lenovo ThinkPad T460-20FN003LGE | HP EliteBook 840 G3 T9X59ET#ABD | Dell Latitude 14 7000 Series E7470 | Lenovo ThinkPad T460s-20F9003SGE | |
|---|---|---|---|---|
| Display | 17% | 58% | -1% | |
| Display P3 Coverage | 42.09 | 48.93 16% | 67.2 60% | 41.65 -1% |
| sRGB Coverage | 62 | 73.7 19% | 95.9 55% | 61.6 -1% |
| AdobeRGB 1998 Coverage | 43.6 | 50.5 16% | 69.3 59% | 43.14 -1% |
| Response Times | -1% | -11% | -9% | |
| Response Time Grey 50% / Grey 80% * | 42.4 ? | 43 ? -1% | 48 ? -13% | 42 ? 1% |
| Response Time Black / White * | 24.8 ? | 25 ? -1% | 27 ? -9% | 29.2 ? -18% |
| PWM Frequency | 204 ? | |||
| Screen | -15% | 46% | 6% | |
| Brightness middle | 230 | 366 59% | 380 65% | 226 -2% |
| Brightness | 216 | 336 56% | 354 64% | 211 -2% |
| Brightness Distribution | 85 | 87 2% | 81 -5% | 89 5% |
| Black Level * | 0.26 | 0.65 -150% | 0.26 -0% | 0.22 15% |
| Contrast | 885 | 563 -36% | 1462 65% | 1027 16% |
| Colorchecker dE 2000 * | 7.32 | 10.26 -40% | 3.11 58% | 6.44 12% |
| Colorchecker dE 2000 max. * | 18.14 | 6.73 63% | 17.18 5% | |
| Greyscale dE 2000 * | 6.98 | 11.51 -65% | 4.35 38% | 5.87 16% |
| Gamma | 2.5 88% | 2.4 92% | 2.37 93% | 2.37 93% |
| CCT | 6683 97% | 12725 51% | 6771 96% | 6856 95% |
| Color Space (Percent of AdobeRGB 1998) | 39.97 | 47 18% | 62 55% | 39.58 -1% |
| Color Space (Percent of sRGB) | 61.55 | 74 20% | 96 56% | 61.15 -1% |
| Total Average (Program / Settings) | 0% /
-6% | 31% /
41% | -1% /
3% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 24.8 ms ... rise ↗ and fall ↘ combined | ↗ 7.6 ms rise | |
| ↘ 17.2 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 54 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 42.4 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise | |
| ↘ 26.4 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 67 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | ||
| PCMark 8 Home Score Accelerated v2 | 2891 points | |
| PCMark 8 Work Score Accelerated v2 | 3956 points | |
Help | ||
| Lenovo ThinkPad T460-20FN003LGE Toshiba HG6 THNSFJ256GCSU | HP EliteBook 840 G3 T9X59ET#ABD Samsung SSD PM851 256 GB MZNTE256HMHP | Dell Latitude 14 7000 Series E7470 Samsung SSD PM851 M.2 2280 256GB | Lenovo ThinkPad T460s-20F9003SGE Samsung CM871 MZ7LF192HCGS | |
|---|---|---|---|---|
| AS SSD | 16% | 21% | -43% | |
| Seq Read | 503 | 505 0% | 495.5 -1% | 471 -6% |
| 4K Read | 19.57 | 25.24 29% | 30.91 58% | 14.18 -28% |
| 4K-64 Read | 347 | 362 4% | 336.1 -3% | 85.4 -75% |
| Score Write | 220 | 286 30% | 283 29% | 84 -62% |
| CrystalDiskMark 3.0 | 13% | 29% | -50% | |
| Read Seq | 458.9 | 497.8 8% | 518 13% | 446.5 -3% |
| Read 4k | 21.7 | 27.02 25% | 36.32 67% | 5.78 -73% |
| Read 4k QD32 | 369.9 | 388.5 5% | 400.9 8% | 94.9 -74% |
| Total Average (Program / Settings) | 15% /
14% | 25% /
24% | -47% /
-46% |
Toshiba HG6 THNSFJ256GCSU
Sequential Read:
458.9 MB/s
Sequential Write:
394.4 MB/s
512K Read:
371.3 MB/s
512K Write:
232.7 MB/s
4K Read:
21.7 MB/s
4K Write:
72.9 MB/s
4K QD32 Read:
369.9 MB/s
4K QD32 Write:
216 MB/s
| 3DMark 11 - 1280x720 Performance GPU | |
| HP EliteBook 840 G3 T9X59ET#ABD | |
| Dell Latitude 14 7000 Series E7470 | |
| Lenovo ThinkPad T460-20FN003LGE | |
| Lenovo ThinkPad T460s-20F9003SGE | |
| 3DMark | |
| 1280x720 Ice Storm Standard Graphics | |
| Dell Latitude 14 7000 Series E7470 | |
| Lenovo ThinkPad T460-20FN003LGE | |
| 1280x720 Cloud Gate Standard Graphics | |
| HP EliteBook 840 G3 T9X59ET#ABD | |
| Dell Latitude 14 7000 Series E7470 | |
| Lenovo ThinkPad T460s-20F9003SGE | |
| Lenovo ThinkPad T460-20FN003LGE | |
| 3DMark 11 Performance | 1263 points | |
| 3DMark Ice Storm Standard Score | 35373 points | |
| 3DMark Cloud Gate Standard Score | 4165 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 29.4 | 17.4 | 14.5 | 4.4 |
| Battlefield 4 (2013) | 27.4 | 19.9 | 11 | |
| The Witcher 3 (2015) | 11 | 6.8 |
| Lenovo ThinkPad T460-20FN003LGE | HP EliteBook 840 G3 T9X59ET#ABD | Dell Latitude 14 7000 Series E7470 | Lenovo ThinkPad T460s-20F9003SGE | |
|---|---|---|---|---|
| Noise | -8% | -2% | 2% | |
| off / environment * | 29 | 31.2 -8% | 31.2 -8% | 29.1 -0% |
| Idle Minimum * | 29 | 31.2 -8% | 31.2 -8% | 29.1 -0% |
| Idle Average * | 29 | 32.1 -11% | 31.2 -8% | 29.1 -0% |
| Idle Maximum * | 29 | 33.1 -14% | 31.2 -8% | 29.1 -0% |
| Load Average * | 34.2 | 36.2 -6% | 31.9 7% | 32.3 6% |
| Load Maximum * | 37.8 | 37.8 -0% | 31.9 16% | 36.6 3% |
* ... smaller is better
Noise Level
| Idle |
| 29 / 29 / 29 dB(A) |
| HDD |
| 0 dB(A) |
| Load |
| 34.2 / 37.8 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  ECM8000 + Voltcraft SL-451 (15 cm distance) environment noise: 29 dB(A) | ||
(±) The average temperature for the upper side under maximal load is 32.4 °C / 90 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 37.3 °C / 99 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 44.3 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.6 °C / 88.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.9 °C / -7 F).
(+) The maximum temperature on the upper side is 37.3 °C / 99 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 44.3 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.6 °C / 88.9 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.9 °C / -7 F).
Power Consumption
| Off / Standby | 0.18 / 0.4 Watt |
| Idle | 3.5 / 6.7 / 7.3 Watt |
| Load |
28.2 / 34.6 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad T460-20FN003LGE 46 Wh | HP EliteBook 840 G3 T9X59ET#ABD 46 Wh | Dell Latitude 14 7000 Series E7470 55 Wh | Lenovo ThinkPad T460s-20F9003SGE 49 Wh | |
|---|---|---|---|---|
| Battery Runtime | 30% | 8% | 10% | |
| Reader / Idle | 953 | 1020 7% | 915 -4% | |
| WiFi v1.3 | 338 | 453 34% | 346 2% | 395 17% |
| Load | 98 | 146 49% | 112 14% | 116 18% |
Pros
+ 可自定义配置

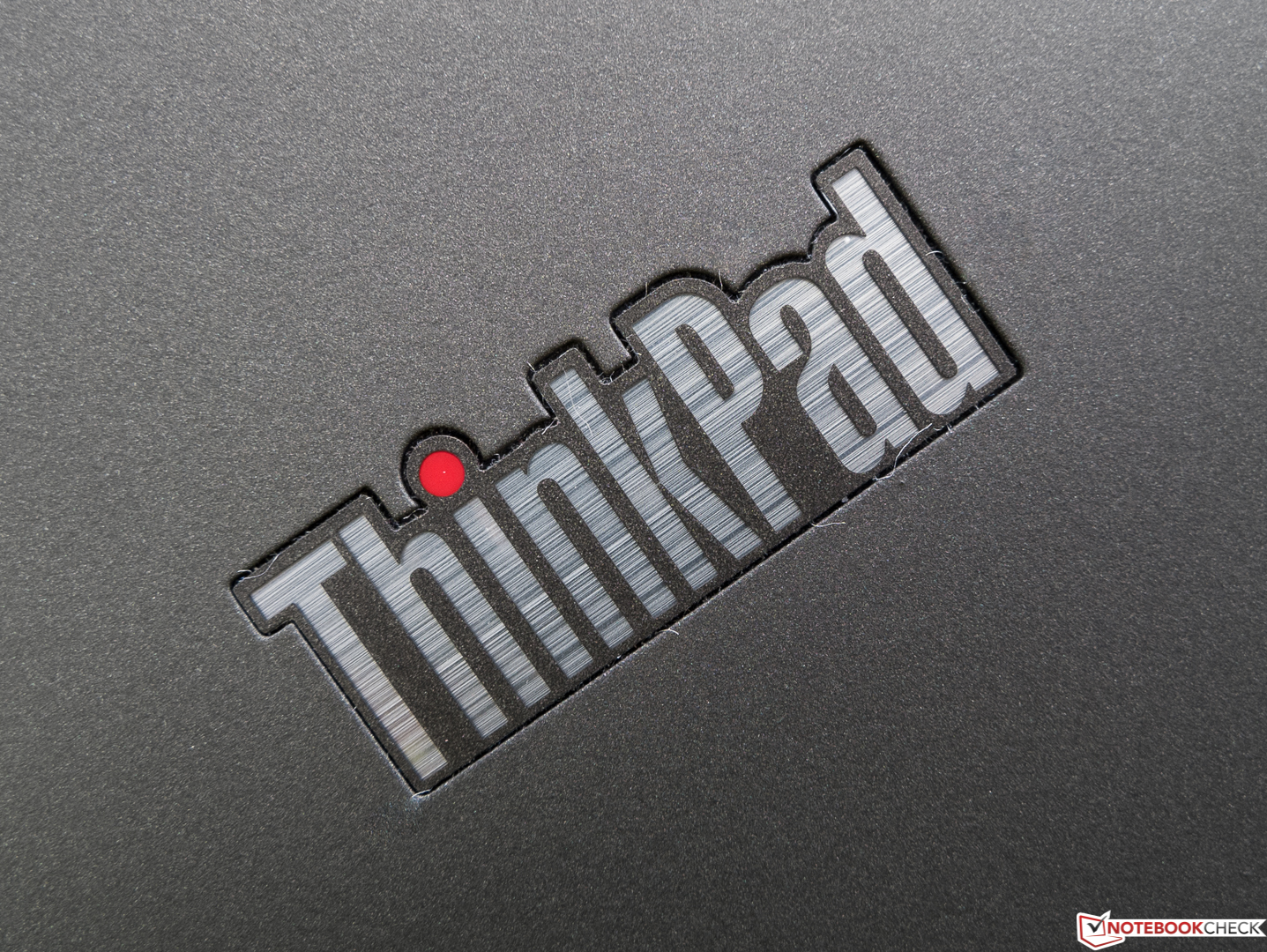

+ 高质感表面材质

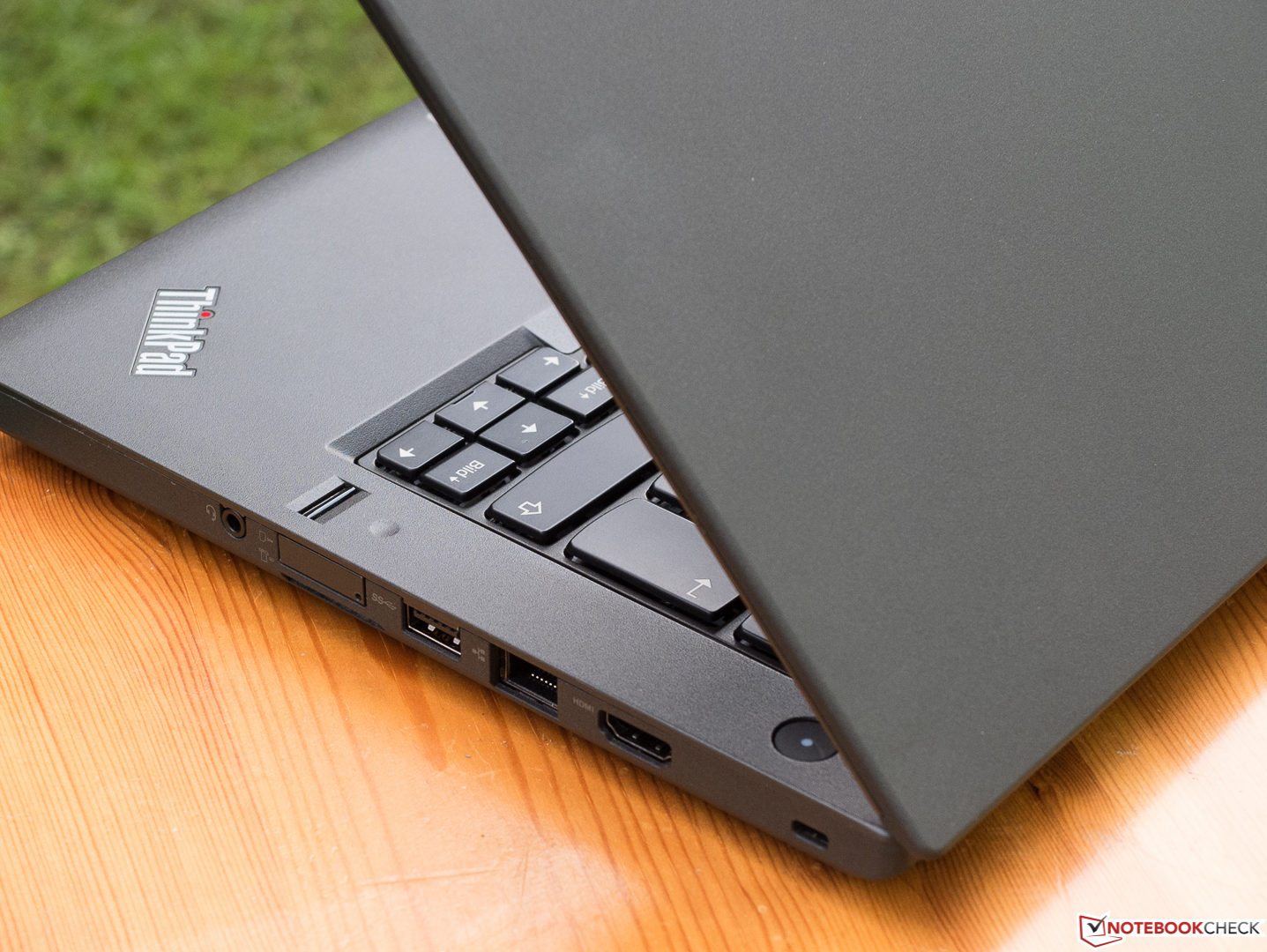

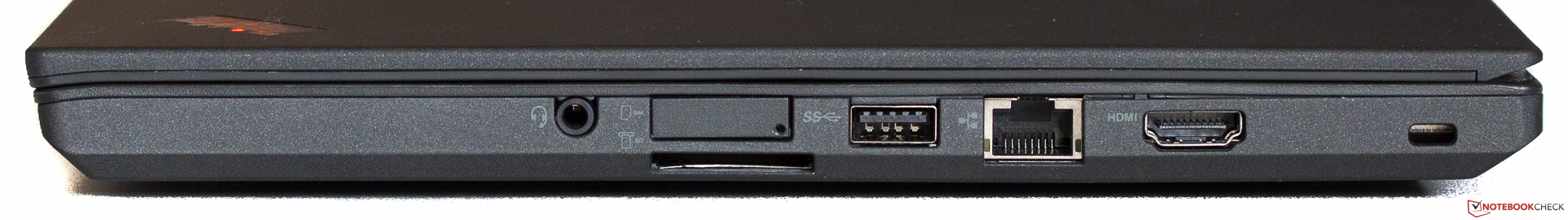

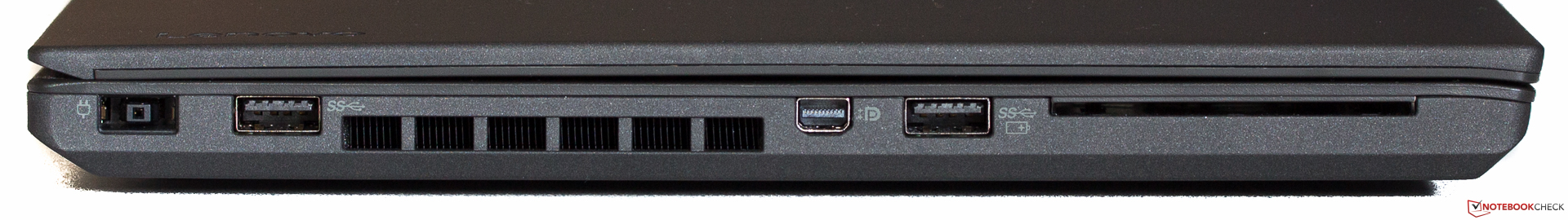

+ 不错的可连接性
+ 拓展坞接口
+ 丰富的安全功能
+ 优秀的无线接收
+ 两块电池，一块可拆卸
+ 无屏幕闪烁
+ 三年上门质保服务

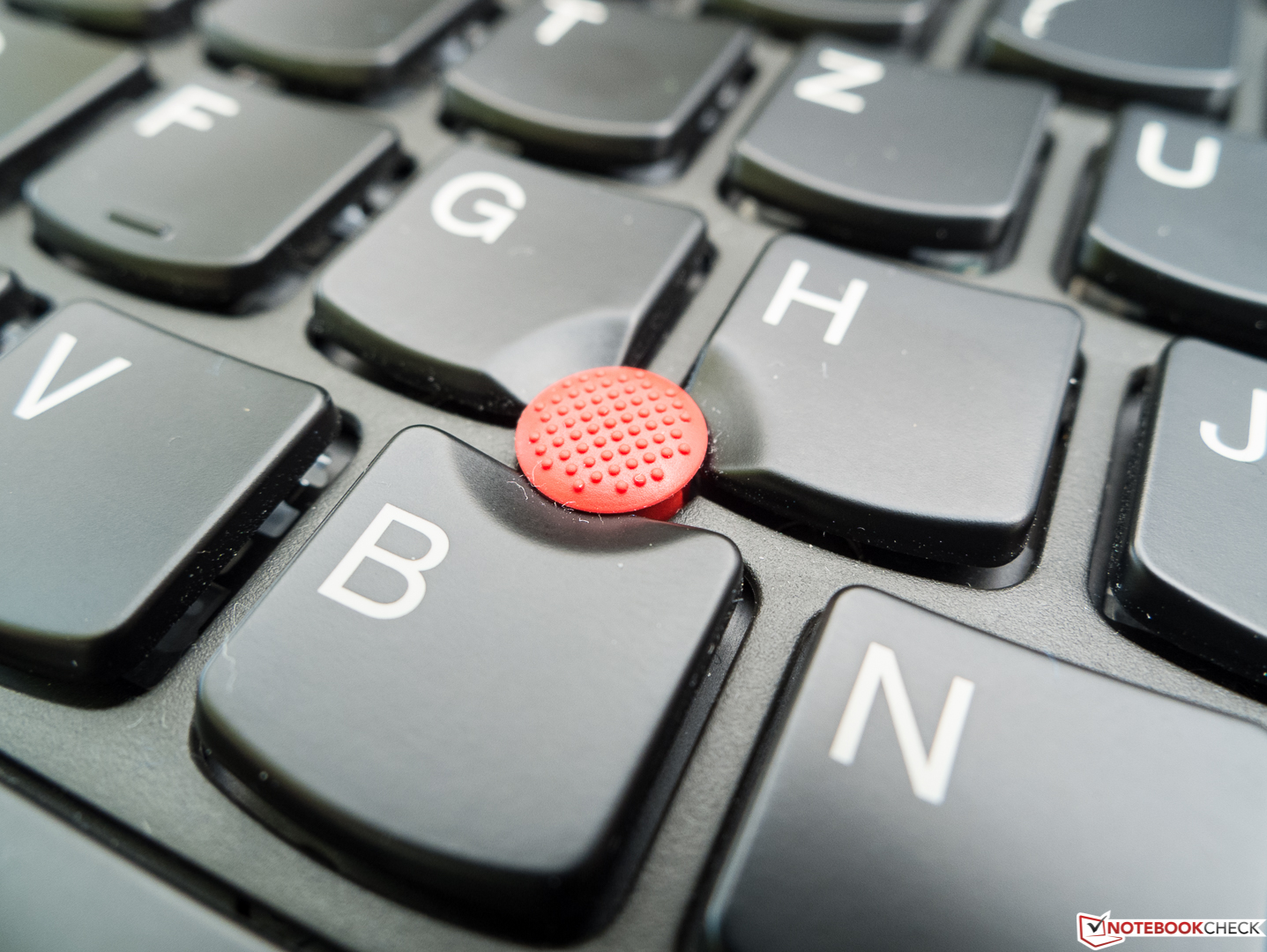

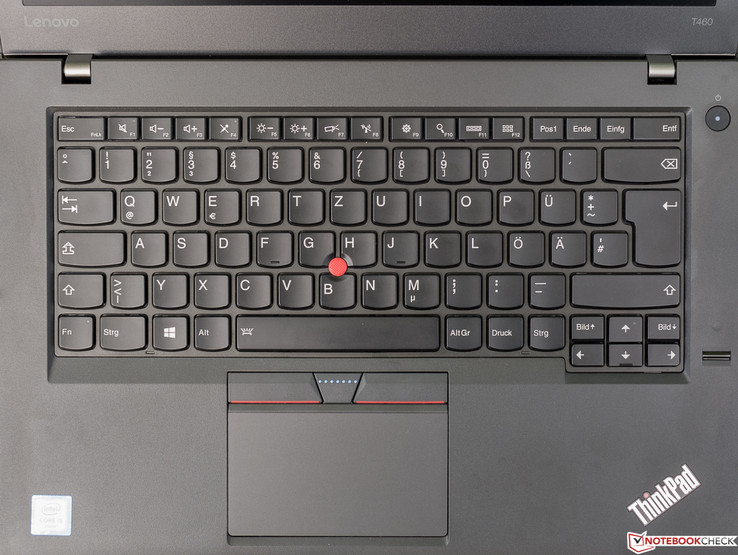

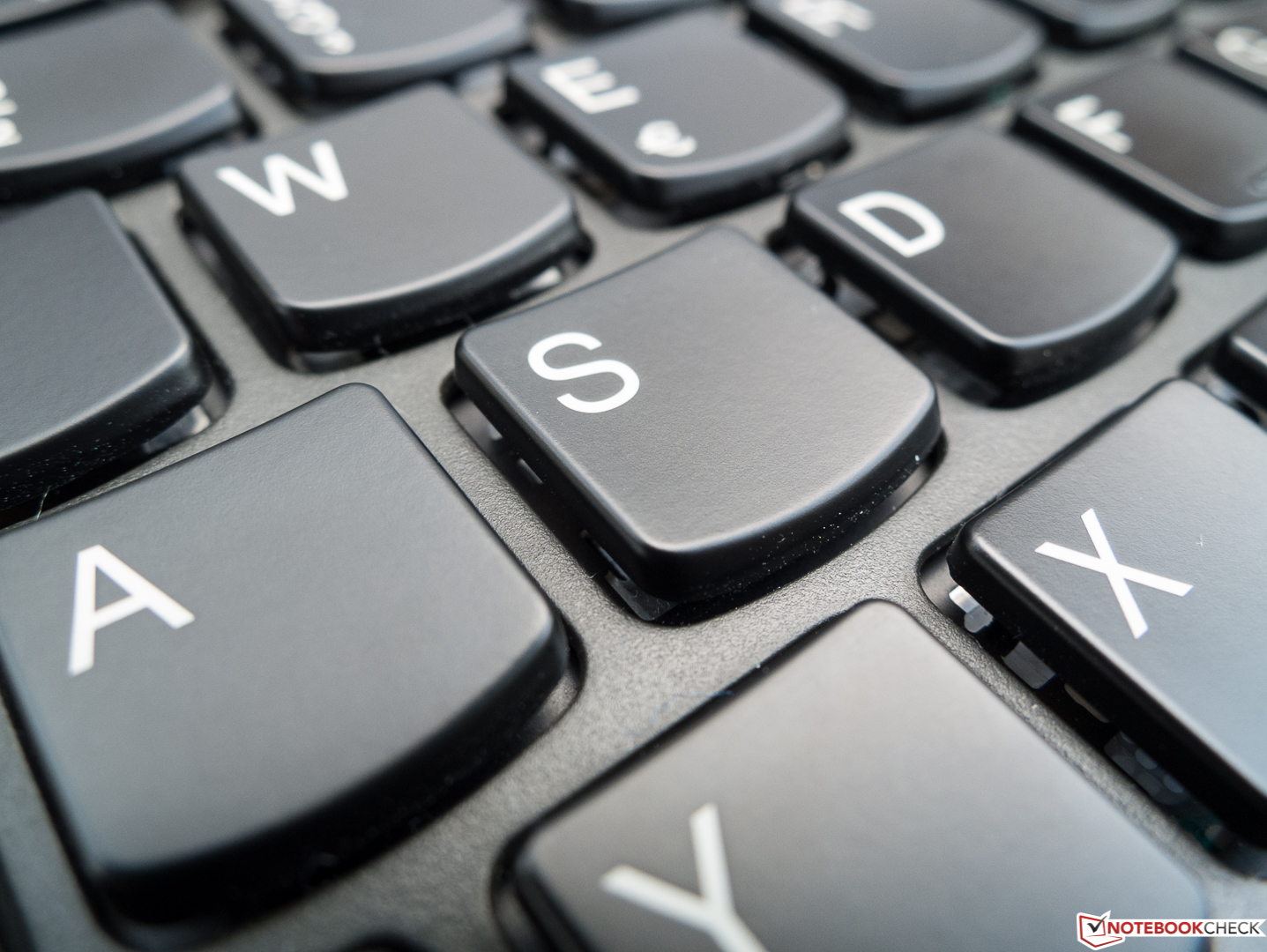

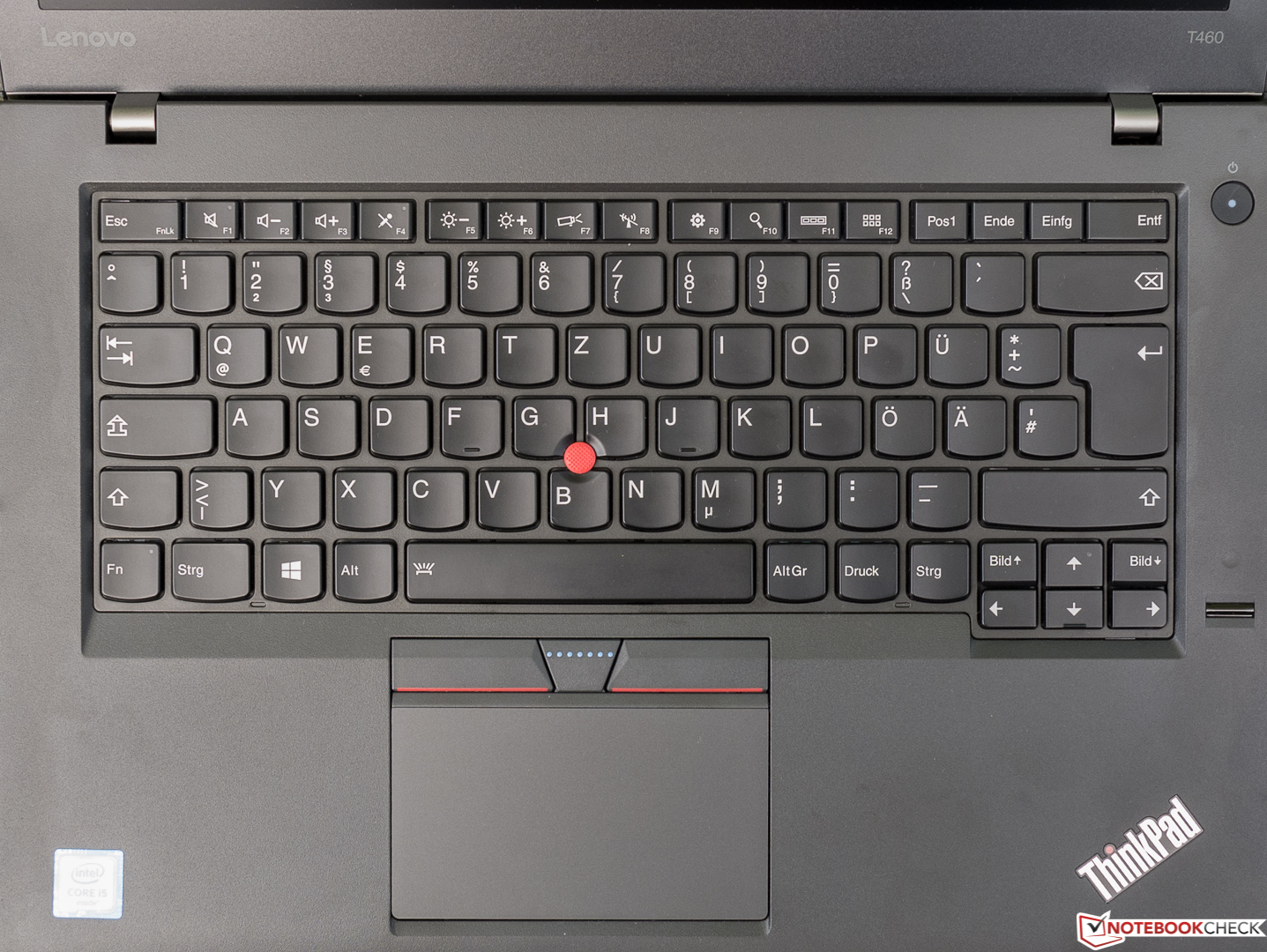

+ 出色的键盘

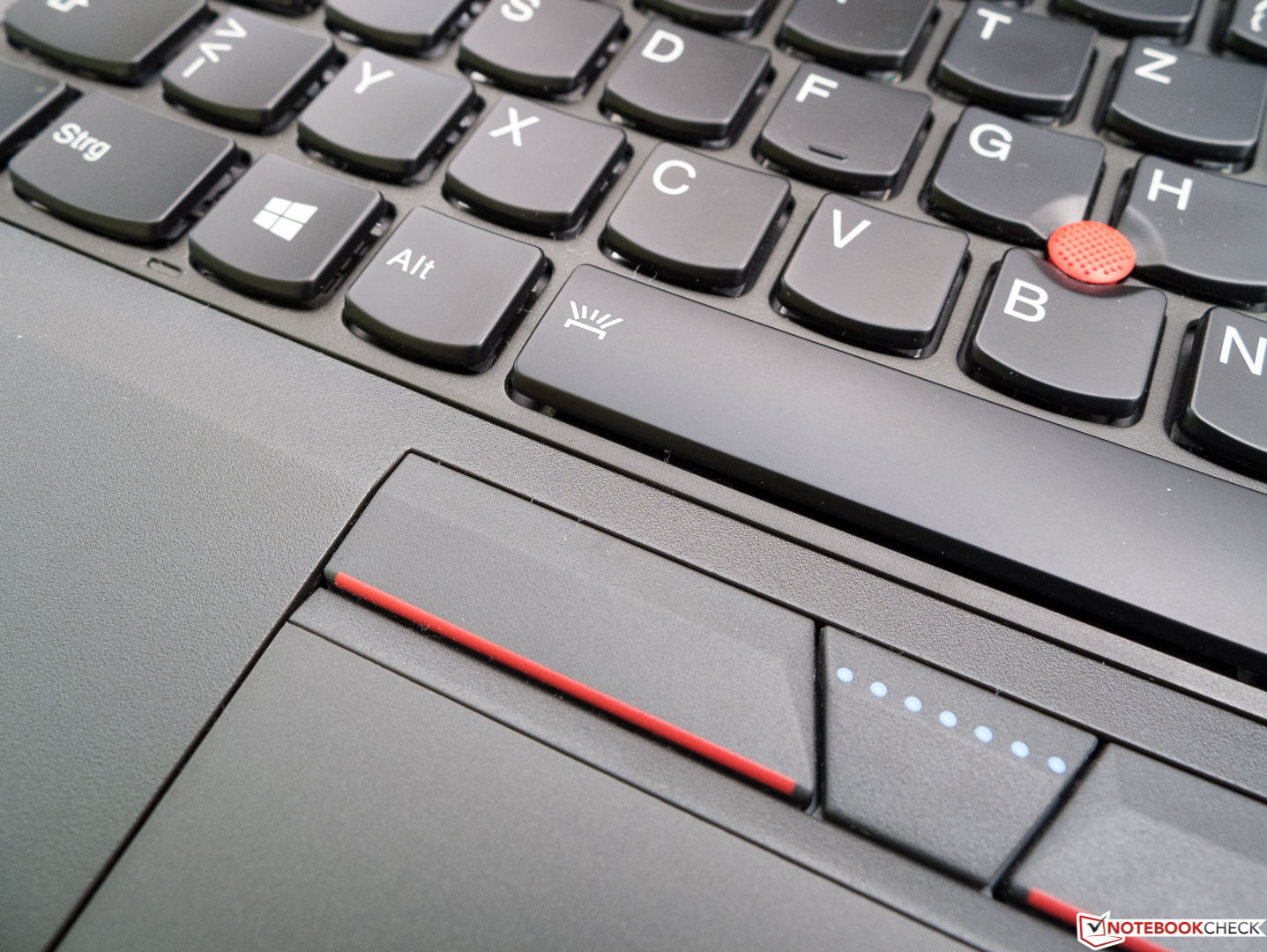

+ 非常优秀的触控板
+ 完美的技术参数
+ 完全发挥Turbo加速潜能
+ 优秀的系统性能
+ 安静，清凉，节能
Cons
- 昂贵
- 左侧不够稳固
- 机身和指点杆按键有工艺缺陷
- 屏幕上盖无法一只手翻开

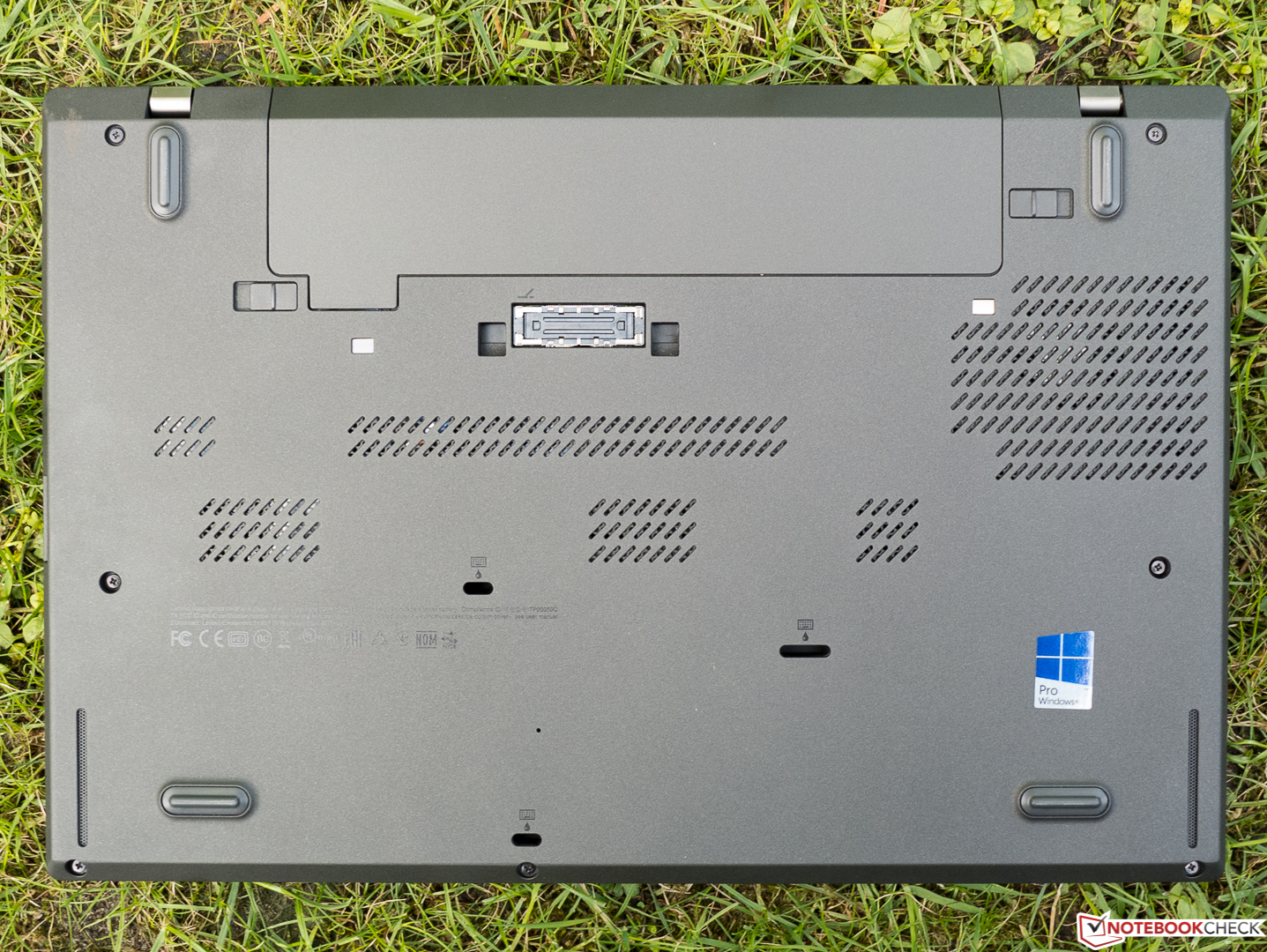

- 维护升级需要拆机
- 不够理想，较暗的IPS屏幕
- 色彩覆盖较低
即使我们假设遇到的工艺品质问题并不是整个生产线的问题，它仍然反映了联想的质检存在漏洞。我们认为这不应该出现在一台售价1500欧元（约11116人民币）的笔记本电脑中。除此之外，我们还希望它可以有和同系列其他产品相仿的稳定性。需要用两只手打开的屏幕上盖可能在长时间使用中变成很烦人的一件事。
ThinkPad的标志性特性则依然是它的优势，如出色的输入设备，完善的安全功能，两块大容量电池，以及高速的性能、迅捷的固态硬盘，都保证了用户流畅舒适的使用体验。
比较中的同类产品至少都得到了87%的分数。惠普EliteBook 840 G3（TN屏幕）略轻略薄，速度也稍快一些，不过它的屏幕较差。得到89%高分的戴尔 Latitude E7470在摄像头上略逊一筹。它更便于维护升级，在输入设备上也可以和测试机相媲美。联想自家的T460s更轻薄，但也更贵，同时搭配了几乎相同的键盘，只是键程略短。除了略微紧张的工作内存，T460存在的问题都和它的IPS屏幕相关。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo ThinkPad T460-20FN003LGE
-
04/28/2016 v5.1 (old)
Sven Kloevekorn
Office - Weighted Average
