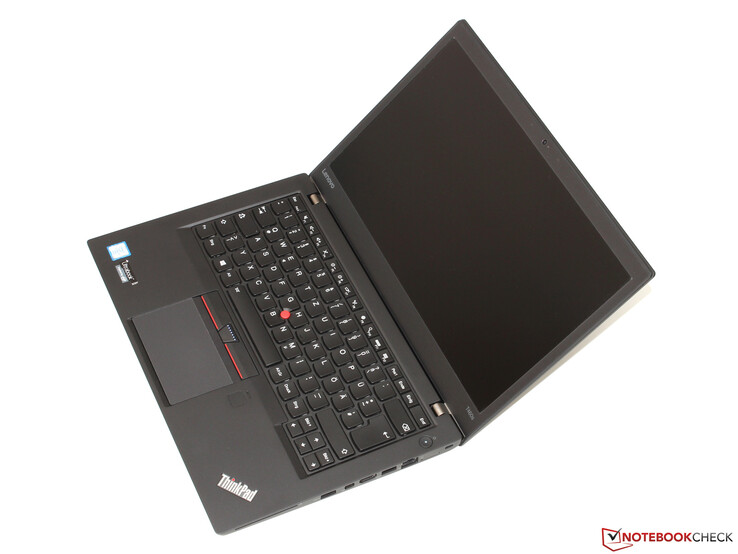

联想 ThinkPad T460s (Core i5, Full HD) 超级本简短评测

Name: Lenovo ThinkPad T460s-20F9003SGE
Brand: Lenovo

低配版也会是个成功吗？ 在高配版的ThinkPad T460s让我们心服口服之后，现在我们有机会测试一下它的入门型号。不过，它的全高清屏幕让期待更高的我们有些失望。

Andreas Osthoff, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 04/09/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Ultrabook Windows

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad T460s-20F9003SGE (ThinkPad T460s Series)

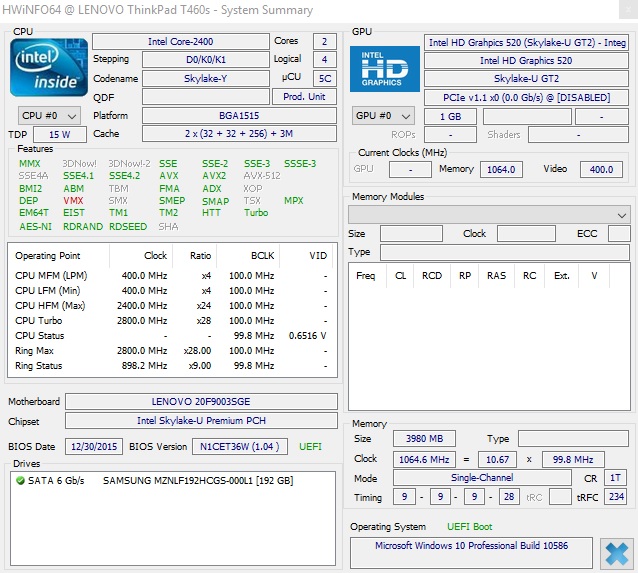

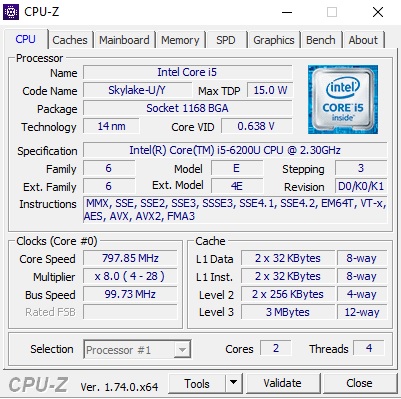

Processor

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

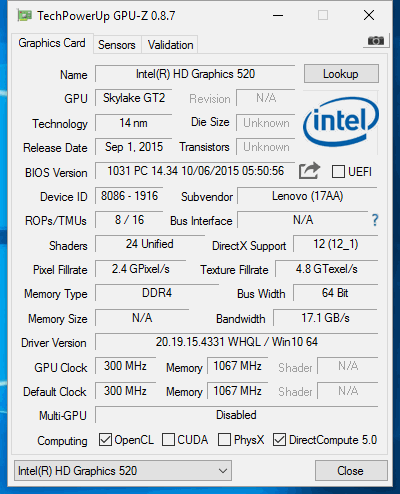

Graphics adapter

Intel HD Graphics 520, Core: 950 MHz, RAM: 1066 MHz, 20.19.15.4331

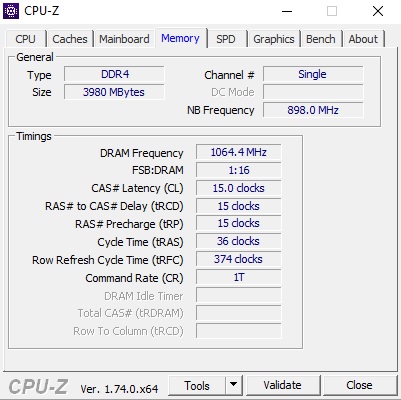

Memory

4 GB

, 单通道, 4 GB DDR4-2133 集成, 一个内存槽一个已占用, 最大支持 20 GB

Display

14.00 inch 16:9, 1920 x 1080 pixel, N140HCE-EAA, LEN40A9, IPS, glossy: no

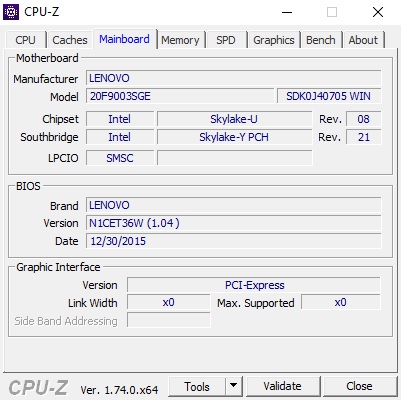

Mainboard

Intel Skylake-U Premium PCH

Storage

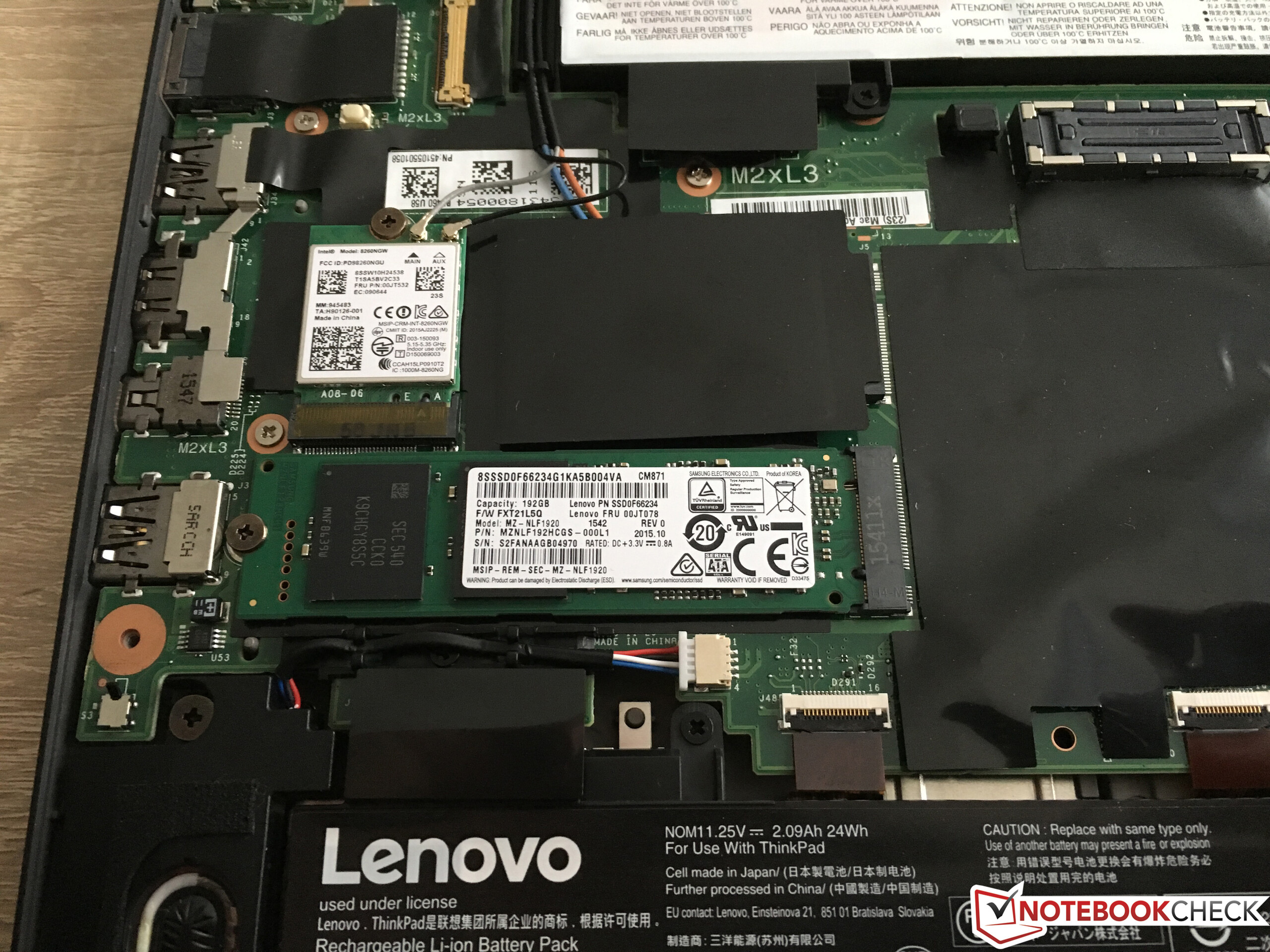

Samsung CM871 MZ7LF192HCGS, 192 GB

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米立体声耳机接口, Card Reader: MMC, SD, SDHC, SDXC, 1 SmartCard, 1 Fingerprint Reader

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 18.8 x 331 x 227

Battery

49 Wh Lithium-Ion, 23 Wh + 26 Wh (均内置)

Operating System

Microsoft Windows 10 Pro 64 Bit

Camera

Webcam: 720p，定焦

Additional features

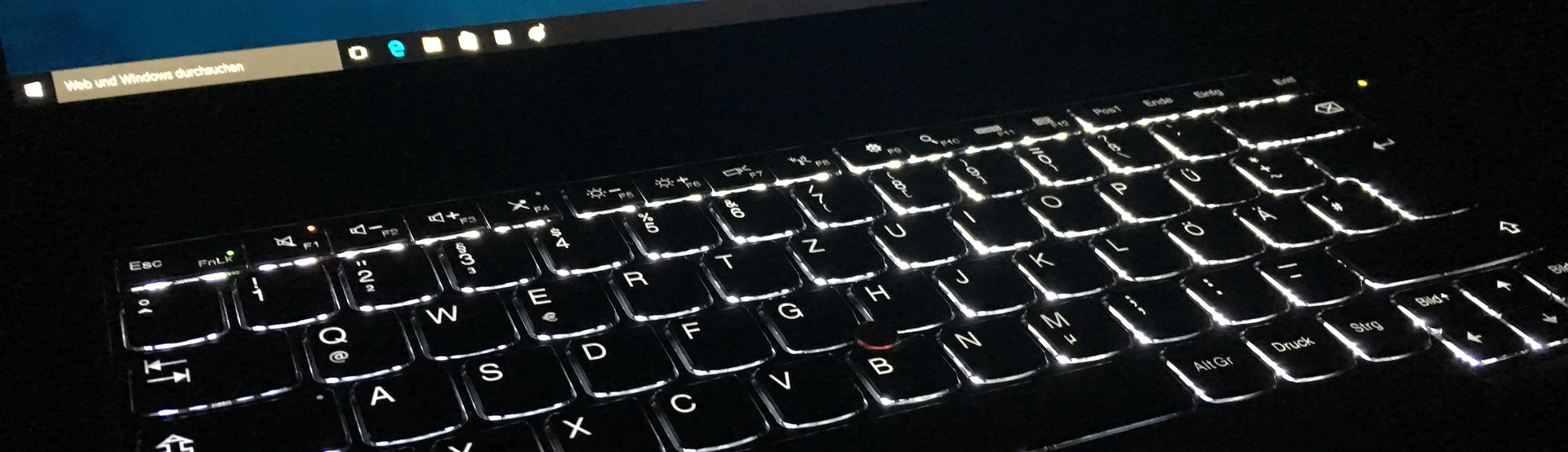

Speakers: 立体声（2x1瓦）, Keyboard: 孤岛式, Keyboard Light: yes, 45瓦电源适配器, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo Companion, 36 Months Warranty

Weight

1.37 kg, Power Supply: 297 g

Price

1400 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications


205 cd/m²	206 cd/m²	207 cd/m²
213 cd/m²	226 cd/m²	222 cd/m²
201 cd/m²	202 cd/m²	219 cd/m²

Distribution of brightness

N140HCE-EAA, LEN40A9 tested with X-Rite i1Pro 2

Maximum: 226 cd/m² (Nits) Average: 211.2 cd/m² Minimum: 2 cd/m²
Brightness Distribution: 89 %
Center on Battery: 222 cd/m²
Contrast: 1027:1 (Black: 0.22 cd/m²)
ΔE Color 6.44 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.87 | 0.5-98 Ø5.2
61.15% sRGB (Argyll 1.6.3 3D)
39.58% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.14% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.6% sRGB (Argyll 2.2.0 3D)
41.65% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad T460s-20F9003SGE 1920x1080, IPS	Lenovo ThinkPad T460s-20FA003GGE 2560x1440, IPS-Panel	Lenovo ThinkPad T450s-20BWS1UT00 1920x1080, IPS-Panel	HP EliteBook 840 G3 T9X59ET#ABD 1920x1080, TN LED	Dell Latitude 14 7000 Series E7470 2560x1440, IPS
Display		62%	45%	18%	59%
Display P3 Coverage	41.65	68.7 65%	64.8 56%	48.93 17%	67.2 61%
sRGB Coverage	61.6	98.1 59%	83.8 36%	73.7 20%	95.9 56%
AdobeRGB 1998 Coverage	43.14	70.4 63%	61.2 42%	50.5 17%	69.3 61%
Response Times		8%		6%	-3%
Response Time Grey 50% / Grey 80% *	42 ?(19.6, 22.4)	35.6 ?(17.2, 18.4) 15%		43 ?(20, 23) -2%	48 ?(15, 33) -14%
Response Time Black / White *	29.2 ?(16, 13.2)	29.2 ?(14.4, 14.8) -0%		25 ?(9, 16) 14%	27 ?(7, 20) 8%
PWM Frequency		220 ?(90)		204 ?(90)
Screen		20%	18%	-26%	40%
Brightness middle	226	257 14%	288 27%	366 62%	380 68%
Brightness	211	248 18%	281 33%	336 59%	354 68%
Brightness Distribution	89	94 6%	94 6%	87 -2%	81 -9%
Black Level *	0.22	0.26 -18%	0.286 -30%	0.65 -195%	0.26 -18%
Contrast	1027	988 -4%	1007 -2%	563 -45%	1462 42%
Colorchecker dE 2000 *	6.44	4.59 29%	4.35 32%	10.26 -59%	3.11 52%
Colorchecker dE 2000 max. *	17.18	9.72 43%			6.73 61%
Greyscale dE 2000 *	5.87	6.38 -9%	3.7 37%	11.51 -96%	4.35 26%
Gamma	2.37 ^93%	2.51 ^88%	2.68 ^82%	2.4 ^92%	2.37 ^93%
CCT	6856 ^95%	6238 ^104%	6076 ^107%	12725 ^51%	6771 ^96%
Color Space (Percent of AdobeRGB 1998)	39.58	65 64%	54.7 38%	47 19%	62 57%
Color Space (Percent of sRGB)	61.15	98 60%		74 21%	96 57%
Total Average (Program / Settings)		30% / 27%	32% / 25%	-1% / -12%	32% / 38%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

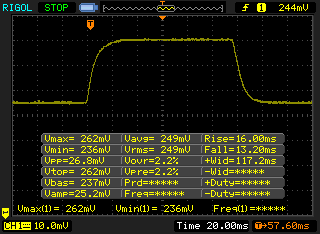

↔ Response Time Black to White
29.2 ms ... rise ↗ and fall ↘ combined	↗ 16 ms rise
29.2 ms ... rise ↗ and fall ↘ combined	↘ 13.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

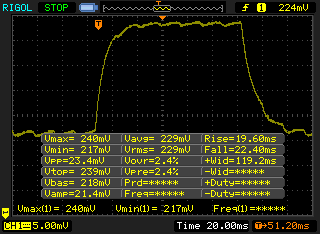

↔ Response Time 50% Grey to 80% Grey
42 ms ... rise ↗ and fall ↘ combined	↗ 19.6 ms rise
42 ms ... rise ↗ and fall ↘ combined	↘ 22.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 64 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5

Cinebench R15
CPU Multi 64Bit
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	347 Points +20%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	334 Points +16%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U	322 Points +12%
Dell Latitude 14 E5470 Intel Core i5-6300U	311 Points +8%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	290 Points +1%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	288 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	255 Points -11%
CPU Single 64Bit
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	142 Points +22%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	141 Points +22%
Dell Latitude 14 E5470 Intel Core i5-6300U	124 Points +7%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U	119 Points +3%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	116 Points
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	113 Points -3%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	111 Points -4%

Cinebench R11.5
CPU Multi 64Bit
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	3.83 Points +20%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	3.58 Points +13%
Dell Latitude 14 E5470 Intel Core i5-6300U	3.44 Points +8%
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	3.23 Points +2%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	3.18 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	2.77 Points -13%
CPU Single 64Bit
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U	1.61 Points +23%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U	1.57 Points +20%
Dell Latitude 14 E5470 Intel Core i5-6300U	1.42 Points +8%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U	1.31 Points
Lenovo ThinkPad T560-20FH001FGE Intel Core i5-6200U	1.29 Points -2%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U	1.28 Points -2%

Cinebench R11.5 CPU Single 64Bit

1.31 Points

Cinebench R11.5 CPU Multi 64Bit

3.18 Points

Cinebench R11.5 OpenGL 64Bit

25.03 fps

Cinebench R15 CPU Single 64Bit

116 Points

Cinebench R15 CPU Multi 64Bit

288 Points

Cinebench R15 OpenGL 64Bit

32.65 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Help

... in comparison

PCMark 8
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	3542 Points +17%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Samsung SSD PM851 M.2 2280 256GB	3344 Points +11%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	3231 Points +7%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	3128 Points +3%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Samsung CM871 MZ7LF192HCGS	3024 Points
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Samsung SSD PM851 M.2 2280 256GB	4543 Points +10%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4442 Points +8%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	4275 Points +4%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Samsung CM871 MZ7LF192HCGS	4121 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	4097 Points -1%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4338 Points +19%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	3945 Points +8%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Samsung CM871 MZ7LF192HCGS	3644 Points

PCMark 8 Home Score Accelerated v2		3024 points
PCMark 8 Creative Score Accelerated v2		3644 points
PCMark 8 Work Score Accelerated v2		4121 points
Help

	Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Samsung CM871 MZ7LF192HCGS	Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, Samsung SSD PM871 MZ7LN256HCHP	Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Samsung SSD PM851 M.2 2280 256GB
AS SSD		614%	241%	63%	179%
Seq Read	471	2039 333%	503 7%	489.6 4%	495.5 5%
Seq Write	163.3	1407 762%	285.2 75%	264.5 62%	283.7 74%
4K Read	14.18	45.41 220%	33.27 135%	22.19 56%	30.91 118%
4K Write	34.38	114.4 233%	84.6 146%	14.61 -58%	85.1 148%
4K-64 Read	85.4	968 1033%	380 345%	210.1 146%	336.1 294%
4K-64 Write	33.4	366 996%	272.3 715%	83.5 150%	170 409%
Score Total	296	2439 724%	1086 267%	546 84%	913 208%

CrystalDiskMark 3.0

AS SSD

Samsung CM871 MZ7LF192HCGS

Sequential Read: 446.5 MB/s

Sequential Write: 171.1 MB/s

512K Read: 259.2 MB/s

512K Write: 167.2 MB/s

4K Read: 5.78 MB/s

4K Write: 35.47 MB/s

4K QD32 Read: 94.9 MB/s

4K QD32 Write: 36.43 MB/s

3DMark 11 Performance		1238 points
3DMark Cloud Gate Standard Score		4397 points
3DMark Fire Strike Score		571 points
Help

... in comparison

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points +100%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	1416 Points +22%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520	1327 Points +15%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520	1264 Points +9%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	1156 Points

3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1627 Points +173%
Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520	935 Points +57%
HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520	800 Points +34%
Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520	744 Points +25%
Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520	597 Points

	low	med.	high
Tomb Raider (2013)	39.3	21.1	13.3
BioShock Infinite (2013)	29.1	17.4	14.5
The Witcher 3 (2015)	11.3

Noise Level

Idle		29.1 / 29.1 / 29.1 dB(A)
Load		32.3 / 36.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: ECM8000 + Voltcraft SL-451 (15 cm distance) environment noise: 29.1 dB(A)

	Lenovo ThinkPad T460s-20F9003SGE HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
Noise		-2%	1%	-9%	-2%
off / environment *	29.1	29.2 -0%		31.2 -7%	31.2 -7%
Idle Minimum *	29.1	29.2 -0%	29.1 -0%	31.2 -7%	31.2 -7%
Idle Average *	29.1	29.2 -0%	29.1 -0%	32.1 -10%	31.2 -7%
Idle Maximum *	29.1	29.2 -0%	29.1 -0%	33.1 -14%	31.2 -7%
Load Average *	32.3	33.7 -4%	33.1 -2%	36.2 -12%	31.9 1%
Load Maximum *	36.6	38.5 -5%	34.3 6%	37.8 -3%	31.9 13%

* ... smaller is better

Max. Load

Idle


33.8 °C	33.4 °C	27.7 °C
41.4 °C	35.4 °C	27 °C
30.8 °C	29 °C	26.2 °C

Maximum: 41.4 °C
Average: 31.6 °C


27.6 °C	31.2 °C	32.6 °C
27.5 °C	41 °C	36.8 °C
27.1 °C	31.3 °C	30.5 °C

Maximum: 41 °C
Average: 31.7 °C

Power Supply (max.) 43.6 °C | Room Temperature 21.2 °C | Fluke 62 Max

(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 41 °C / 106 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.8 °C / 78 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.8 °C / 87.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-3.2 °C / -5.7 F).

Power Consumption

Off / Standby	0.3 / 0.55 Watt
Idle	3.7 / 6.8 / 7.3 Watt
Load	26.3 / 34.6 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad T460s-20F9003SGE 49 Wh, 1920x1080	Lenovo ThinkPad T460s-20FA003GGE 49 Wh, 2560x1440	Lenovo ThinkPad T450s-20BWS1UT00 96 Wh, 1920x1080	HP EliteBook 840 G3 T9X59ET#ABD 46 Wh, 1920x1080	Dell Latitude 14 7000 Series E7470 55 Wh, 2560x1440
Power Consumption		-17%	-24%	-0%	-25%
Idle Minimum *	3.7	3.8 -3%	3.1 16%	3.8 -3%	5.1 -38%
Idle Average *	6.8	7.1 -4%	8.6 -26%	6.3 7%	8.5 -25%
Idle Maximum *	7.3	7.8 -7%	9.6 -32%	6.8 7%	10.1 -38%
Load Average *	26.3	36.3 -38%	35.6 -35%	34.4 -31%	35.2 -34%
Load Maximum *	34.6	46 -33%	49.4 -43%	28.3 18%	31 10%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		15h 15min
WiFi Websurfing		6h 35min
Big Buck Bunny H.264 1080p		8h 54min
Load (maximum brightness)		1h 56min

	Lenovo ThinkPad T460s-20F9003SGE 49 Wh, 1920x1080	Lenovo ThinkPad T460s-20FA003GGE 49 Wh, 2560x1440	Lenovo ThinkPad T450s-20BWS1UT00 96 Wh, 1920x1080	Dell Latitude 14 7000 Series E7470 55 Wh, 2560x1440
Battery Runtime		-24%	83%	-8%
Reader / Idle	915	833 -9%	1857 103%
H.264	534	397 -26%	757 42%
WiFi v1.3	395	340 -14%	648 64%	346 -12%
Load	116	62 -47%	259 123%	112 -3%

Pros

+ 坚固而极为轻盈的机身

+ 精准的屏幕转轴

+ 易用的键盘

+ 高速无线网络

+ 优秀的应用程序性能

+ 低噪音和发热

+ 完备的安全功能

+ 不错的电池续航时间

+ 磨砂IPS屏幕无闪烁

+ 三年质保

+ 优秀的性价比

Cons

- 低屏幕亮度

- 色域覆盖小

- 色彩还原准确度低

- 仅4GB内存

- 有限的可扩展性

- 不支持USB-C

- 充电时间长

In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksbilliger.

联想ThinkPad T460s的入门机型也是十分不错的办公笔记本电脑。支付1400欧元（约10318人民币），你可以得到一台有足够强劲处理器和固态硬盘的快速系统。只是它有限的4GB内存需要升级，同时双通道内存也会提高显卡性能。我们对于它的全高清屏幕就没有那么满意了。联想使用了一块IPS屏幕面板，不过它的亮度没有达到生产商宣传的数值，WQHD版本在其他方面也表现更好。另外一个问题是这个机型可能搭配不同的全高清屏幕面板，它们的性能可能会不同。如果你无法接受屏幕闪烁，我们只好推荐选择WQHD机型了。如果你在联想网站选择配置的话，它现在是一个免费的升级，同时相比全高清屏幕功耗没有高出很多。

联想提高了酷睿i5处理器的热设计功率，不过由于相对较低的频率这没有提高处理器的性能。这只有在显卡也处于负载下才能察觉到。酷睿i7可能更有利于运算量大的程序，不过入门级的T460s在散热和电池续航上表现更让人满意。可能在这两者之间最好的平衡是酷睿i5和WQHD屏幕的搭配。
