联想 ThinkPad T460s (Core i7, WQHD) 超极本简短评测
Lenovo ThinkPad T460s-20FA003GGE (ThinkPad T460s Series)
Processor

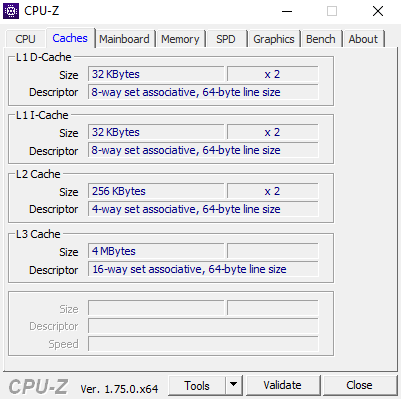

Intel Core i7-6600U 2 x 2.6 - 3.4 GHz, Skylake
Graphics adapter

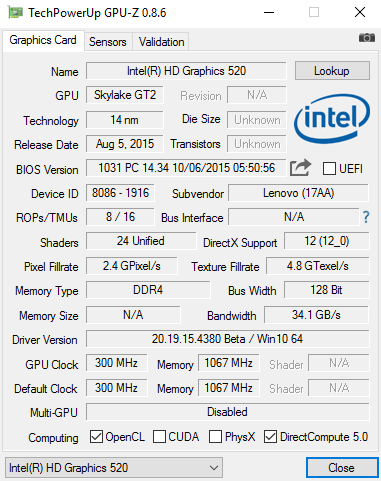

Intel HD Graphics 520, Core: 1050 MHz, RAM: 1066 MHz, 20.19.15.4380

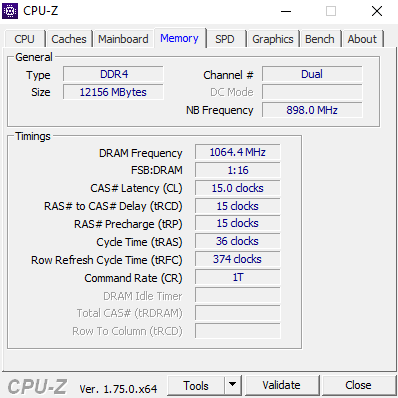

Memory
12 GB

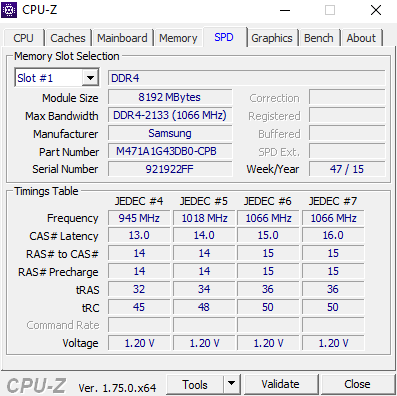

, DDR4-2133, 4 GB 集成 + 1x 8 GB, 一个内存槽，已占用
Display
14.00 inch 16:9, 2560 x 1440 pixel, VVX14T058J02, IPS面板, LED背光, glossy: no

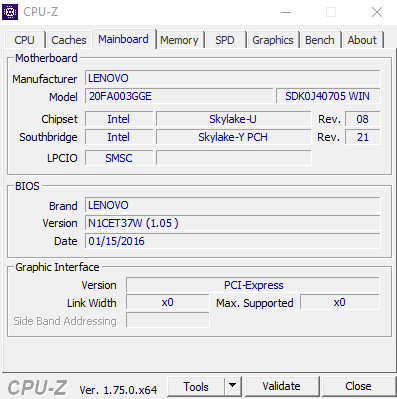

Mainboard
Intel Skylake-U Premium PCH
Storage

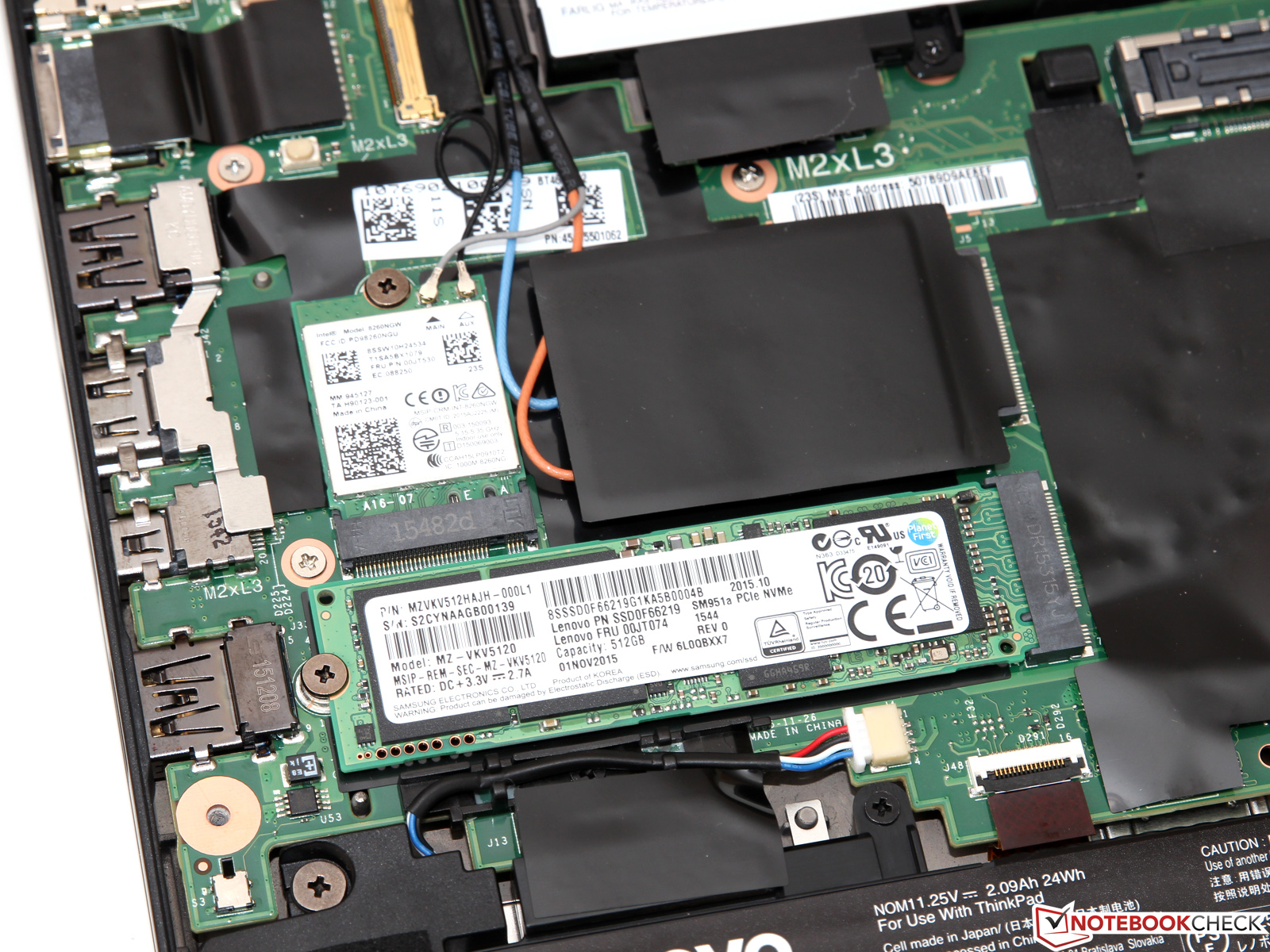

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB
Weight
1.345 kg, Power Supply: 346 g
Price
2350 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 220 Hz | ≤ 90 % brightness setting |  |

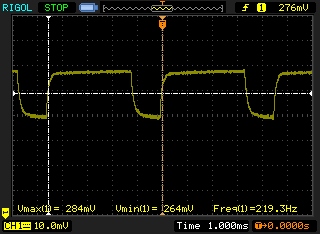

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8719 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| |||||||||||||||||||||||||
VVX14T058J02 tested with X-Rite i1Pro 2
Maximum: 257 cd/m² (Nits) Average: 248.2 cd/m² Minimum: 3 cd/m²Brightness Distribution: 94 %
Center on Battery: 255 cd/m²
Contrast: 988:1 (Black: 0.26 cd/m²)
ΔE Color 4.59 | 0.5-29.43 Ø4.91
ΔE Greyscale 6.38 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.1% sRGB (Argyll 2.2.0 3D)
68.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.51
| Lenovo ThinkPad T460s-20FA003GGE 2.560 x 1.440 IPS-Panel | Lenovo ThinkPad T460s-20F9003SGE 1.920 x 1.080 IPS-Panel | Lenovo ThinkPad T450s-20BWS1UT00 1.920 x 1.080 IPS-Panel | HP EliteBook 840 G3 T9X59ET#ABD 1.920 x 1.080 TN-Panel | Dell Latitude 14 7000 Series E7470 1.920 x 1.080 IPS-Panel | |
|---|---|---|---|---|---|
| Display | -38% | -11% | -27% | -2% | |
| Display P3 Coverage | 68.7 | 41.65 -39% | 64.8 -6% | 48.93 -29% | 67.2 -2% |
| sRGB Coverage | 98.1 | 61.6 -37% | 83.8 -15% | 73.7 -25% | 95.9 -2% |
| AdobeRGB 1998 Coverage | 70.4 | 43.14 -39% | 61.2 -13% | 50.5 -28% | 69.3 -2% |
| Response Times | -9% | -5% | -14% | ||
| Response Time Grey 50% / Grey 80% * | 35.6 ? | 42 ? -18% | 43 ? -21% | 48 ? -35% | |
| Response Time Black / White * | 29.2 ? | 29.2 ? -0% | 25 ? 14% | 27 ? 8% | |
| PWM Frequency | 220 ? | 204 ? -7% | |||
| Screen | -20% | 6% | -42% | 21% | |
| Brightness middle | 257 | 226 -12% | 288 12% | 366 42% | 380 48% |
| Brightness | 248 | 211 -15% | 281 13% | 336 35% | 354 43% |
| Brightness Distribution | 94 | 89 -5% | 94 0% | 87 -7% | 81 -14% |
| Black Level * | 0.26 | 0.22 15% | 0.286 -10% | 0.65 -150% | 0.26 -0% |
| Contrast | 988 | 1027 4% | 1007 2% | 563 -43% | 1462 48% |
| Colorchecker dE 2000 * | 4.59 | 6.44 -40% | 4.35 5% | 10.26 -124% | 3.11 32% |
| Colorchecker dE 2000 max. * | 9.72 | 17.18 -77% | 6.73 31% | ||
| Greyscale dE 2000 * | 6.38 | 5.87 8% | 3.7 42% | 11.51 -80% | 4.35 32% |
| Gamma | 2.51 88% | 2.37 93% | 2.68 82% | 2.4 92% | 2.37 93% |
| CCT | 6238 104% | 6856 95% | 6076 107% | 12725 51% | 6771 96% |
| Color Space (Percent of AdobeRGB 1998) | 65 | 39.58 -39% | 54.7 -16% | 47 -28% | 62 -5% |
| Color Space (Percent of sRGB) | 98 | 61.15 -38% | 74 -24% | 96 -2% | |
| Total Average (Program / Settings) | -22% /
-22% | -3% /
1% | -25% /
-32% | 2% /
12% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

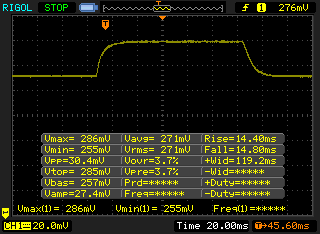

| 29.2 ms ... rise ↗ and fall ↘ combined | ↗ 14.4 ms rise |  |
| ↘ 14.8 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

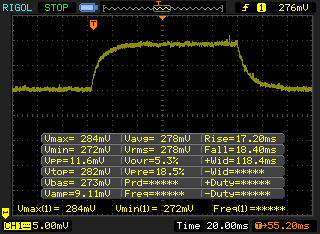

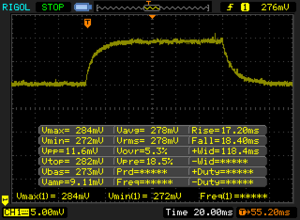

| ↔ Response Time 50% Grey to 80% Grey | ||
| 35.6 ms ... rise ↗ and fall ↘ combined | ↗ 17.2 ms rise |  |
| ↘ 18.4 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 46 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||
| Lenovo ThinkPad T460s-20FA003GGE Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512) | Lenovo ThinkPad T460s-20F9003SGE Samsung CM871 MZ7LF192HCGS | Lenovo ThinkPad T450s-20BWS1UT00 Samsung SSD PM871 MZ7LN256HCHP | Lenovo ThinkPad T450s-20BWS03F00 Intel SSD Pro 2500 Series SSDSC2BF360A5L | Dell Latitude 14 7000 Series E7470 Samsung SSD PM851 M.2 2280 256GB | |
|---|---|---|---|---|---|
| AS SSD | -82% | -50% | -75% | -57% | |
| Seq Read | 2039 | 471 -77% | 503 -75% | 489.6 -76% | 495.5 -76% |
| Seq Write | 1407 | 163.3 -88% | 285.2 -80% | 264.5 -81% | 283.7 -80% |
| 4K Read | 45.41 | 14.18 -69% | 33.27 -27% | 22.19 -51% | 30.91 -32% |
| 4K Write | 114.4 | 34.38 -70% | 84.6 -26% | 14.61 -87% | 85.1 -26% |
| 4K-64 Read | 968 | 85.4 -91% | 380 -61% | 210.1 -78% | 336.1 -65% |
| 4K-64 Write | 366 | 33.4 -91% | 272.3 -26% | 83.5 -77% | 170 -54% |
| Score Total | 2439 | 296 -88% | 1086 -55% | 546 -78% | 913 -63% |
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Transfer Rate Minimum:
1064 MB/s
Transfer Rate Maximum:
1168 MB/s
Transfer Rate Average:
1162 MB/s
Access Time:
0 ms
Burst Rate:
254 MB/s
CPU Usage:
3.9 %
| PCMark 7 - Score | |
| Dell Latitude 14 7000 Series E7470 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Lenovo ThinkPad T460p | |
| PCMark 7 Score | 5190 points | |
| PCMark 8 Home Score Accelerated v2 | 3542 points | |
| PCMark 8 Creative Score Accelerated v2 | 4338 points | |
| PCMark 8 Work Score Accelerated v2 | 4442 points | |
Help | ||
| SPECviewperf 12 | |
| 1900x1060 Catia (catia-04) | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| 1900x1060 Creo (creo-01) | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| 1900x1060 Energy (energy-01) | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| 1900x1060 Maya (maya-04) | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| 1900x1060 Medical (medical-01) | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| 1900x1060 Showcase (showcase-01) | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| 1900x1060 Siemens NX (snx-02) | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| 1900x1060 Solidworks (sw-03) | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| 3DMark 06 Standard Score | 9685 points | |
| 3DMark Vantage P Result | 5859 points | |
| 3DMark 11 Performance | 1600 points | |
| 3DMark Ice Storm Standard Score | 58178 points | |
| 3DMark Cloud Gate Standard Score | 6097 points | |
| 3DMark Fire Strike Score | 863 points | |
Help | ||
| Tomb Raider | |
| 1024x768 Low Preset | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Satellite L50-C-275 | |
| HP EliteBook 745 G3 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP EliteBook 745 G3 | |
| Lenovo ThinkPad X260-20F60041GE | |
| Lenovo ThinkPad T460s-20F9003SGE | |
| 1366x768 Normal Preset AA:FX AF:4x | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Satellite L50-C-275 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| HP EliteBook 745 G3 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| HP EliteBook 745 G3 | |
| Lenovo ThinkPad X260-20F60041GE | |
| Lenovo ThinkPad T460s-20F9003SGE | |
| 1366x768 High Preset AA:FX AF:8x | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Satellite L50-C-275 | |
| HP EliteBook 745 G3 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| HP EliteBook 745 G3 | |
| Lenovo ThinkPad T450s-20BWS03F00 | |
| Lenovo ThinkPad X260-20F60041GE | |
| Lenovo ThinkPad T460s-20F9003SGE | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| Counter-Strike: GO (2012) | 156.3 | 101 | 60.9 | 31.2 |
| Tomb Raider (2013) | 83.1 | 41.1 | 25.7 | 10.9 |
| BioShock Infinite (2013) | 55.7 | 29.8 | 24.5 | 7.3 |
| Battlefield 4 (2013) | 40.4 | 29.6 | 18.8 | 5.9 |
| Sims 4 (2014) | 182.6 | 46.7 | 21.8 | 15.6 |
| Rise of the Tomb Raider (2016) | 14.1 | 9.6 | 5.3 |
| Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520 | Lenovo ThinkPad T460s-20F9003SGE Intel Core i5-6200U, Intel HD Graphics 520 | Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M | Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U, Intel HD Graphics 5500 | HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520 | Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520 | |
|---|---|---|---|---|---|---|
| Noise | 2% | 3% | 2% | -7% | -1% | |
| off / environment * | 29.2 | 29.1 -0% | 31.2 -7% | 31.2 -7% | ||
| Idle Minimum * | 29.2 | 29.1 -0% | 29.1 -0% | 29.1 -0% | 31.2 -7% | 31.2 -7% |
| Idle Average * | 29.2 | 29.1 -0% | 29.1 -0% | 29.1 -0% | 32.1 -10% | 31.2 -7% |
| Idle Maximum * | 29.2 | 29.1 -0% | 29.1 -0% | 29.1 -0% | 33.1 -13% | 31.2 -7% |
| Load Average * | 33.7 | 32.3 4% | 33.1 2% | 34.3 -2% | 36.2 -7% | 31.9 5% |
| Load Maximum * | 38.5 | 36.6 5% | 34.3 11% | 34.8 10% | 37.8 2% | 31.9 17% |
* ... smaller is better
Noise Level
| Idle |
| 29.2 / 29.2 / 29.2 dB(A) |
| Load |
| 33.7 / 38.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  ECM8000 + Voltcraft SL-451 (15 cm distance) environment noise: 29.2 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 31.7 °C / 89 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.3 °C / 86.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-2.7 °C / -4.8 F).
(±) The maximum temperature on the upper side is 40.8 °C / 105 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.3 °C / 86.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-2.7 °C / -4.8 F).
Power Consumption
| Off / Standby | 0.28 / 0.6 Watt |
| Idle | 3.8 / 7.1 / 7.8 Watt |
| Load |
36.3 / 46 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo ThinkPad T460s-20FA003GGE 49 Wh | Lenovo ThinkPad T460s-20F9003SGE 49 Wh | Lenovo ThinkPad T450s-20BWS1UT00 96 Wh | Lenovo ThinkPad T450s-20BWS03F00 48 Wh | |
|---|---|---|---|---|
| Battery Runtime | 37% | 156% | -1% | |
| Reader / Idle | 833 | 915 10% | 1857 123% | 774 -7% |
| H.264 | 397 | 534 35% | 757 91% | 322 -19% |
| WiFi v1.3 | 340 | 395 16% | 648 91% | 276 -19% |
| Load | 62 | 116 87% | 259 318% | 88 42% |
| WiFi | 336 |
Pros
+ 坚固而轻盈的机身

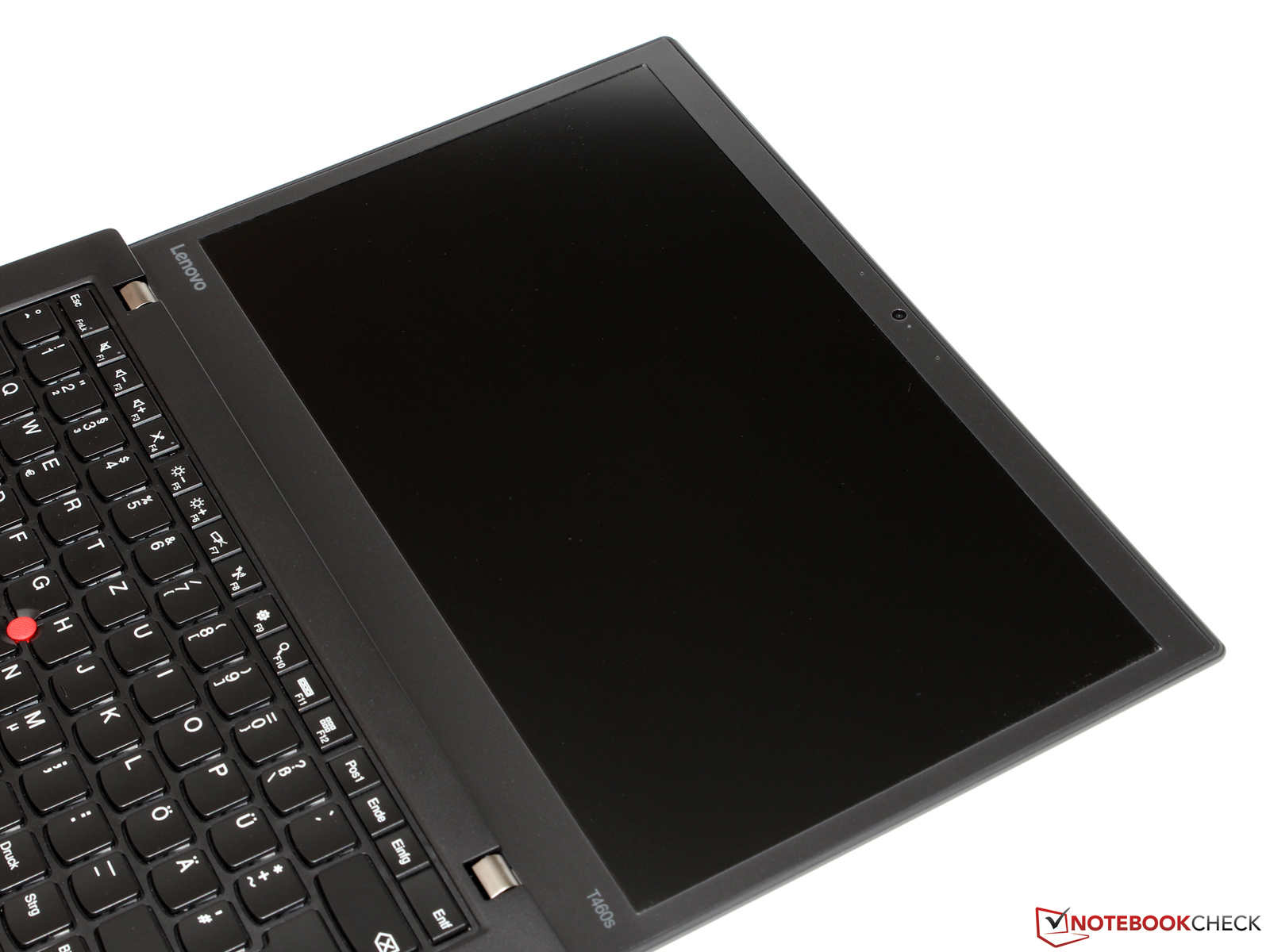

+ 精准的屏幕转轴
+ 易用的键盘
+ 快速的无线网络连接

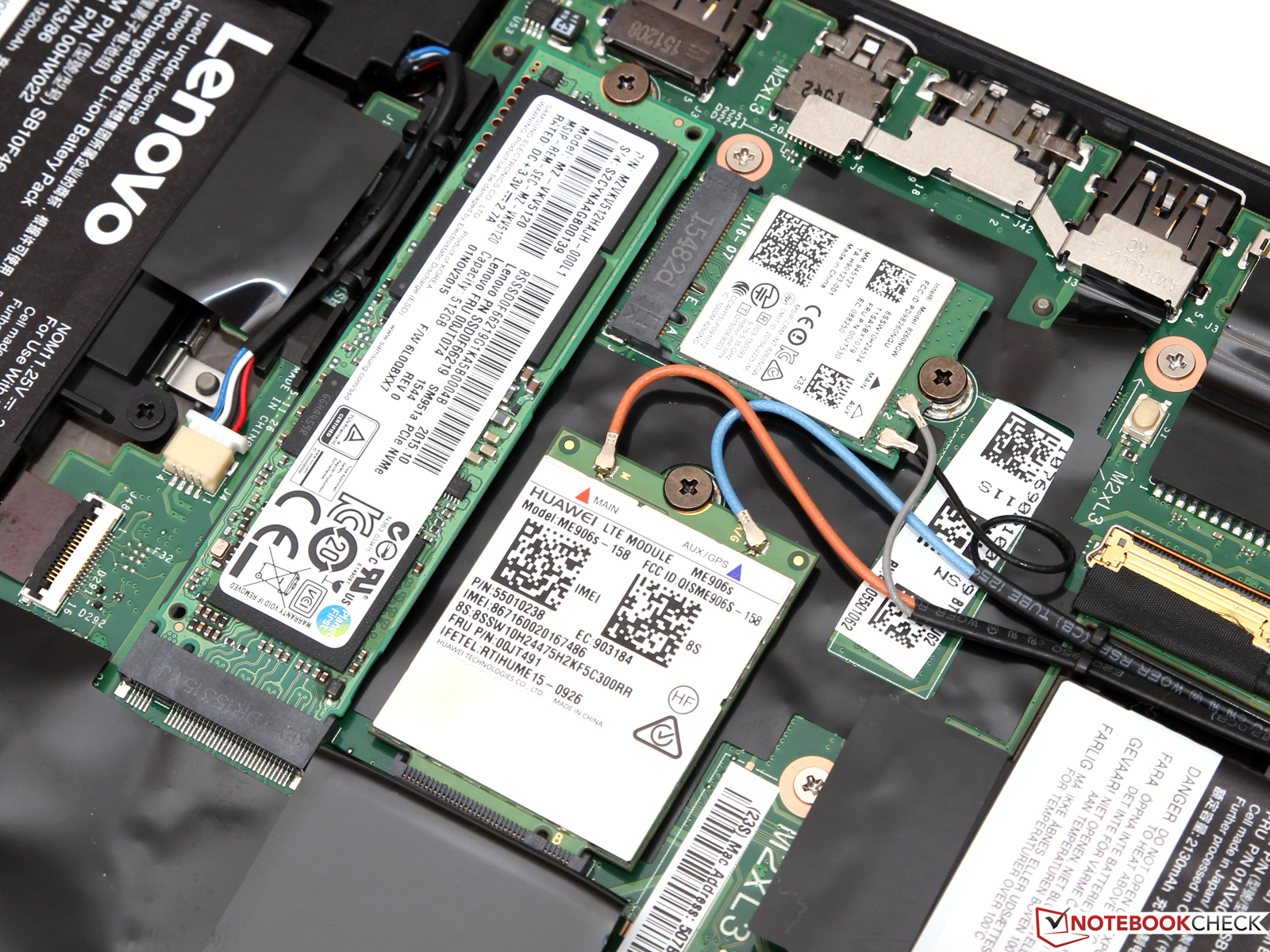

+ 集成LTE模组
+ 高分辨率屏幕，可视角度广
+ 很强的应用程序性能
+ 低噪音和发热
+ 丰富的安全功能
+ 不错的电池续航
+ 3年质保
Cons
- 有限的可扩展性
- 不支持USB-C
- 一般的屏幕亮度
- 售价高
在一周的全方位评测之后，我们可以说ThinkPad T460s绝不是前代T450s的一个无趣Skylake更新，而是我们眼中目前2016年最优秀的商务笔记本电脑之一。
尽管设计几乎没有改变，但是T460s实际上采用了全新的结构，机身更轻更薄。它的机身品质和稳定性可以轻松达到我们对超过1000欧元（约7291人民币）笔记本电脑的最高标准。它的输入设备也是如此：如果你在寻找压力点明确的键盘，它目前几乎无所匹敌。它的触控版／点击触控版可能没有键盘那么出色，不过结合指点杆仍然非常实用。
我们希望再提起一次我们这台高端机型——需要承认它并不便宜——的出色应用程序性能。没有热设计功率的限制，酷睿i7-6600U带来了出乎意料的性能水平，而没有严重影响系统噪音和发热量。结合固态硬盘，它最高可以实现2GB/s的传输速度，加上12GB的DDR4高速内存，它可以轻松应对各种复杂应用程序。集成显卡也可以为一些较老的游戏和较为简单的CAD模型提供不错的帧率。

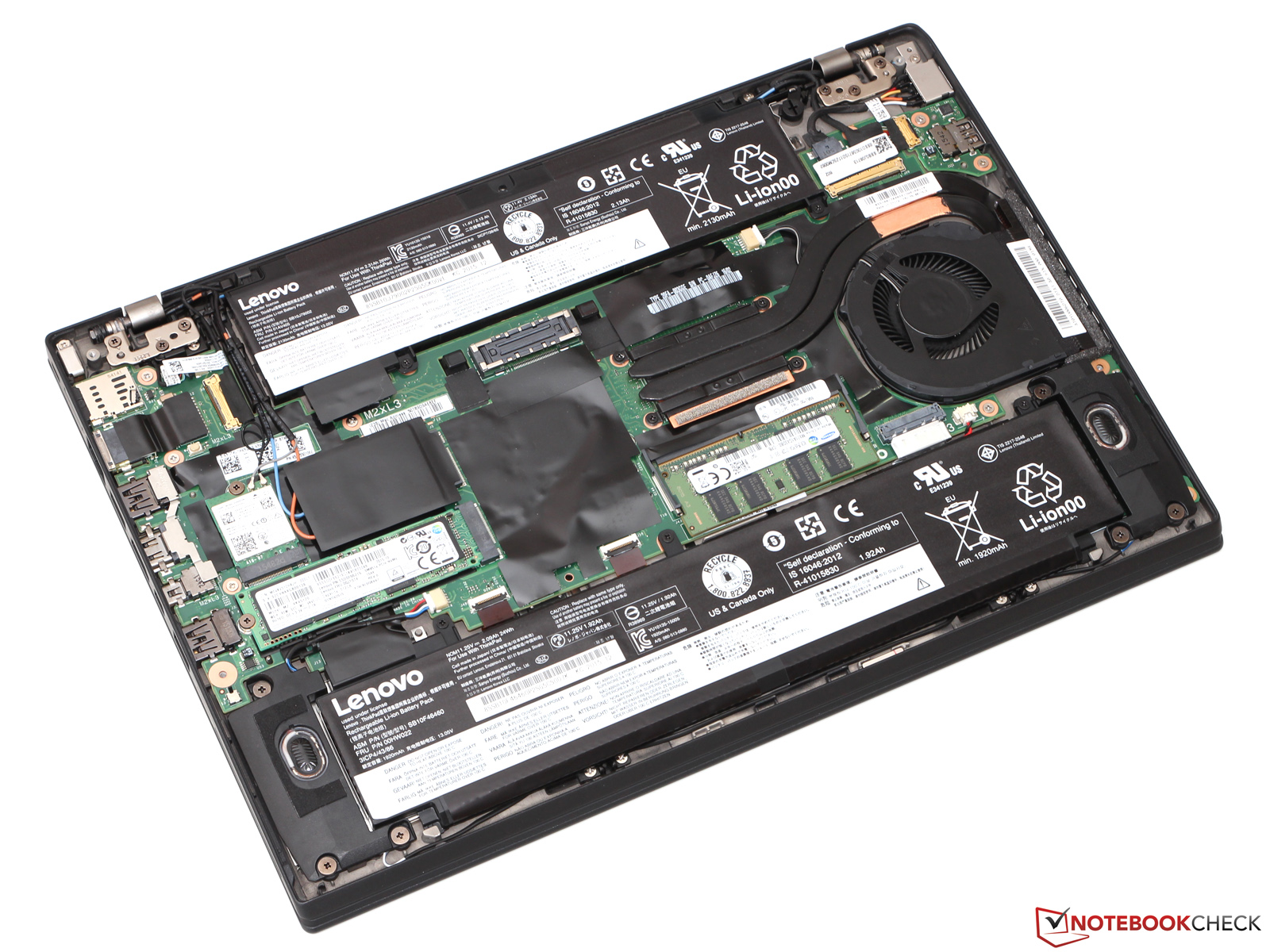

它的一些小缺陷主要在于机身设计上，它没有为2.5寸硬盘或者更大容量电池提供足够的空间。另外，联想也完全可以为它搭配一个最新的USB-C接口，或者更为明亮的屏幕——一些售价实惠的消费笔记本电脑在这方面做的还更好。不过这并不影响它的出色整体表现。如果你参考了惠普和戴尔的同类产品，也可以接受它2350欧元（约17134人民币）的价签，那就没有什么不买它的理由了。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
