联想 ThinkPad Tablet 10 第二代平板电脑简短评测

热流。ThinkPad 10第二代是联想争夺主流商务平板市场的希望。除了与前代产品相同的方便功能,它在性能上也一样有不小的问题。
Windows Tablet Business
Lenovo Thinkpad Tablet 10 2nd Gen (ThinkPad Tablet Series)
Processor

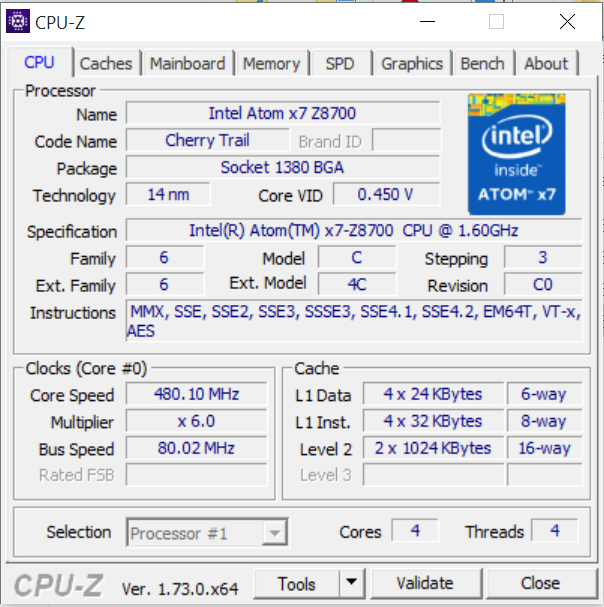

Intel Atom x7-Z8700 4 x 1.6 - 2.4 GHz, Cherry Trail, 4 核, 2 MB 二级缓存
Graphics adapter
Intel HD Graphics (Cherry Trail), Core: 600 MHz, 10.18.15.4248

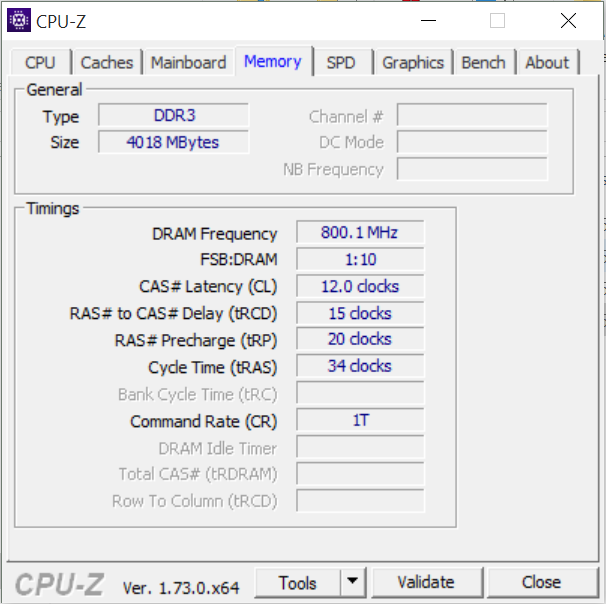

Memory
4 GB
, 双通道, LPDDR3-1066 MHz
Display
10.10 inch 16:10, 1920 x 1200 pixel, 电容式,多点触控, Lenovo LEN4110, IPS, 支持手写笔, Gorilla-Glass, glossy: yes
Storage
SanDisk SEM128, 128 GB
, eMMC
Connections
1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Docking Station Port, Audio Connections: 整合音频插口, Card Reader: microSDHC, 1 Fingerprint Reader, Sensors: 亮度传感器,3D加速传感器,3D位置传感器, NFC
Networking
Bluetooth Bluetooth 4.0
Size
height x width x depth (in mm): 9.1 x 256.5 x 177
Battery
32 Wh Lithium-Polymer, 2芯
Operating System
Microsoft Windows 10 Home 64 Bit
Camera

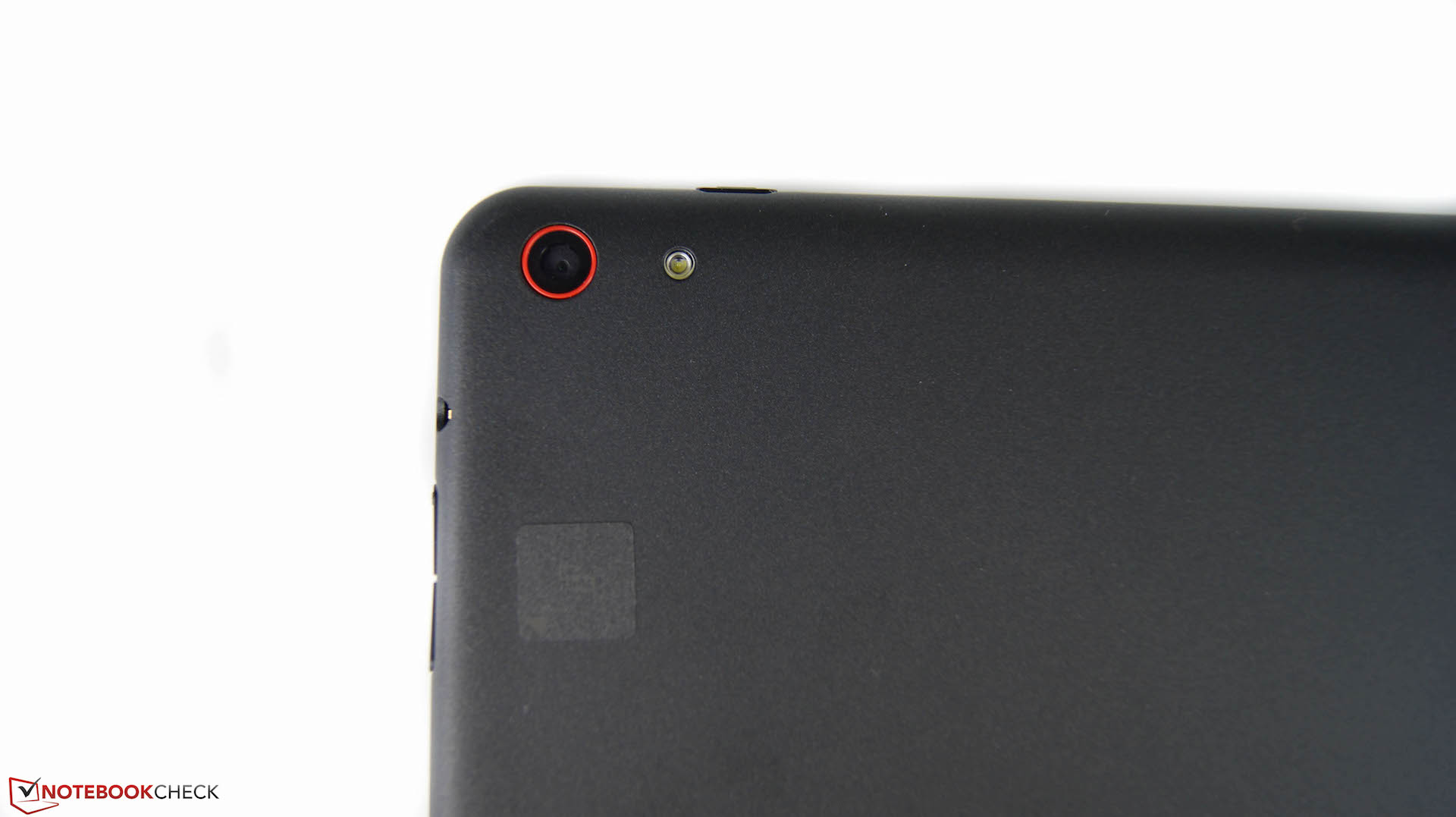

Webcam: 720p
Additional features
ThinkPad手写笔, Lenovo WRITEit, Lenovo REACHit, Lenovo SHAREit, Lenovo Companion, Lenovo Solution Center, Lenovo Settings, 12 Months Warranty
Weight
595 g, Power Supply: 215 g
Price
700 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



279.8 mm 176.4 mm 10.75 mm 1.4 kg263 mm 171 mm 23.6 mm 1.2 kg267 mm 187 mm 8.7 mm 917 g261 mm 178 mm 9.2 mm 680 g256.5 mm 177 mm 9.1 mm 595 g297 mm 210 mm 1 mm 5.7 g

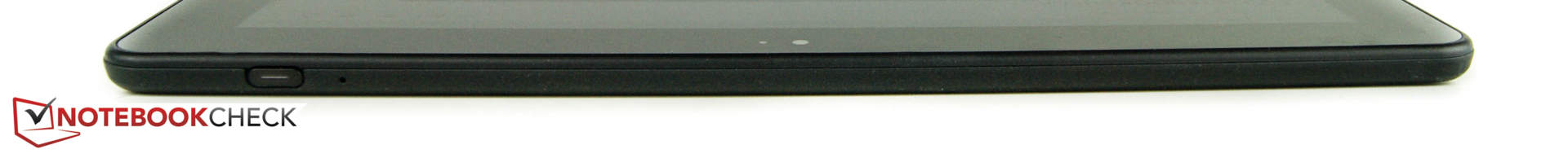

Top: Power button
Top: Power button

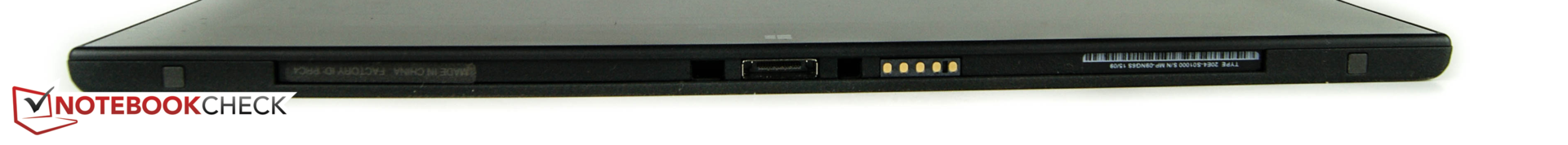

Bottom: Docking port
Bottom: Docking port

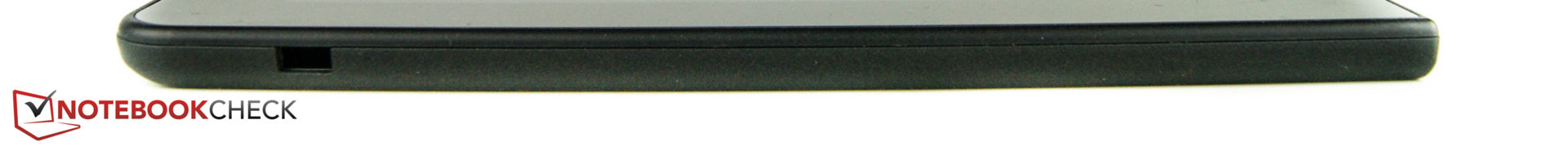

Left side
Left side

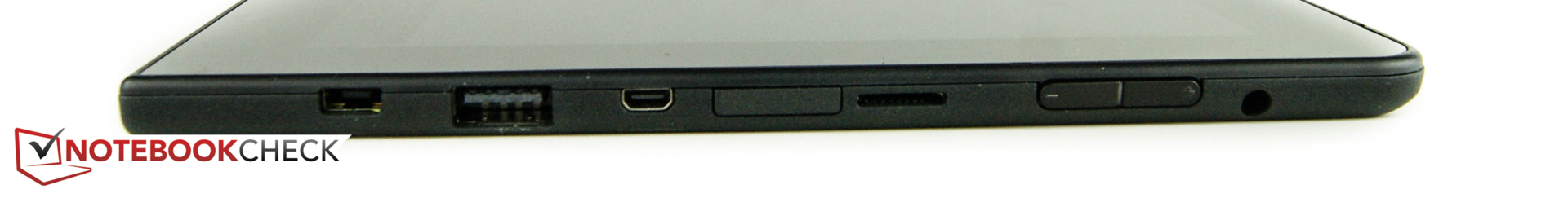

Right side: Power, USB 3.0, HDMI, microSD, volume rocker, combo audio
Right side: Power, USB 3.0, HDMI, microSD, volume rocker, combo audio
344
cd/m²
346
cd/m²
340
cd/m²
340
cd/m²
345
cd/m²
332
cd/m²
326
cd/m²
326
cd/m²
333
cd/m²
Distribution of brightness
Lenovo LEN4110 tested with X-Rite i1Pro 2
Maximum: 346 cd/m² (Nits) Average: 336.9 cd/m²
Brightness Distribution: 94 %
Center on Battery: 341 cd/m²
Contrast: 802:1 (Black: 0.43 cd/m²)
ΔE Color 5.86 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.63 | 0.5-98 Ø5.2
70.1% sRGB (Argyll 1.6.3 3D)
45.7% AdobeRGB 1998 (Argyll 1.6.3 3D)
49.79% AdobeRGB 1998 (Argyll 2.2.0 3D)
70.6% sRGB (Argyll 2.2.0 3D)
48.01% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.33
Lenovo Thinkpad Tablet 10 2nd Gen
HD Graphics (Cherry Trail), Z8700, SanDisk SEM128
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
Lenovo ThinkPad 10
HD Graphics (Bay Trail), Z3795, SanDisk SEM64G
Display
-5%
Display P3 Coverage
48.01
45.89
-4%
sRGB Coverage
70.6
66.6
-6%
AdobeRGB 1998 Coverage
49.79
47.31
-5%
Screen
11%
14%
-10%
Brightness middle
345
386
12%
308
-11%
426.2
24%
Brightness
337
357
6%
298
-12%
388
15%
Brightness Distribution
94
84
-11%
88
-6%
85
-10%
Black Level *
0.43
0.4
7%
0.32
26%
0.844
-96%
Contrast
802
965
20%
963
20%
505
-37%
Colorchecker dE 2000 *
5.86
3.71
37%
4.1
30%
5.17
12%
Greyscale dE 2000 *
5.63
5.4
4%
2.89
49%
4.77
15%
Gamma
2.33 94%
2.33 94%
2.34 94%
2.33 94%
CCT
6533 99%
6666 98%
6546 99%
7700 84%
Color Space (Percent of AdobeRGB 1998)
45.7
43.87
-4%
Color Space (Percent of sRGB)
70.1
Total Average (Program / Settings)
11% / 11%
14% / 14%
-8% / -9%

* ... smaller is better

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
37 Points
HP ElitePad 1000 G2
36 Points -3%
Dell Venue 11 Pro 7140
83 Points +124%
Microsoft Surface 3
38 Points +3%
CPU Multi 64Bit (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
98 Points
HP ElitePad 1000 G2
134 Points +37%
Dell Venue 11 Pro 7140
190 Points +94%
Microsoft Surface 3
134 Points +37%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
0.36 Points
HP ElitePad 1000 G2
0.44 Points +22%
Dell Venue 11 Pro 7140
0.94 Points +161%
Microsoft Surface 3
0.46 Points +28%
Asus Transformer Book T200TA PL
0.4 Points +11%
CPU Multi 64Bit (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
0.72 Points
HP ElitePad 1000 G2
1.64 Points +128%
Dell Venue 11 Pro 7140
2.01 Points +179%
Microsoft Surface 3
1.79 Points +149%
Asus Transformer Book T200TA PL
1.49 Points +107%

Legend


Lenovo Thinkpad Tablet 10 2nd Gen Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), SanDisk SEM128

HP ElitePad 1000 G2 Intel Atom Z3795, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G

Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Asus Transformer Book T200TA PL Intel Atom Z3775, Intel HD Graphics (Bay Trail), Hitachi Travelstar Z5K500 HTS545050A7E680
Cinebench R10 Shading 64Bit
2432 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
2458 Points
Cinebench R10 Rendering Single CPUs 64Bit
1311 Points
Cinebench R10 Shading 32Bit
2388
Cinebench R10 Rendering Multiple CPUs 32Bit
1876
Cinebench R10 Rendering Single 32Bit
1003
Cinebench R11.5 OpenGL 64Bit
4.01 fps
Cinebench R11.5 CPU Multi 64Bit
0.72 Points
Cinebench R11.5 CPU Single 64Bit
0.36 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
15.52 fps
Cinebench R15 CPU Multi 64Bit
98 Points
Cinebench R15 CPU Single 64Bit
37 Points
Help
Lenovo Thinkpad Tablet 10 2nd Gen
HD Graphics (Cherry Trail), Z8700, SanDisk SEM128
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Dell Venue 11 Pro 7140
HD Graphics 5300, 5Y10a, Sandisk X110 M.2 SD6SP1M-128G
Asus Transformer Book T100TAL-DK021P
HD Graphics (Bay Trail), Z3735D, 64 GB eMMC Flash
PCMark 7
Score
1803
2627
46%
3029
68%
4135
129%
PCMark 8
-6%
37%
122%
-20%
Work Score Accelerated v2
1363
3291
141%
1144
-16%
Creative Score Accelerated v2
1455
1208
-17%
949
-35%
Home Score Accelerated v2
1222
1297
6%
1677
37%
2480
103%
1127
-8%
Total Average (Program / Settings)
20% / 12%
53% / 53%
126% / 124%
-20% / -20%
PCMark 7 Score
1803 points
PCMark 8 Home Score Accelerated v2
1222 points
PCMark 8 Creative Score Accelerated v2
1455 points
PCMark 8 Work Score Accelerated v2
1363 points
Help
SanDisk SEM128
Sequential Read: 90.6 MB/s
Sequential Write: 26.27 MB/s
512K Read: 61.7 MB/s
512K Write: 16.99 MB/s
4K Read: 7.547 MB/s
4K Write: 3.527 MB/s
4K QD32 Read: 11.11 MB/s
4K QD32 Write: 4.218 MB/s
3DMark 11 - 1280x720 Performance (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
364 Points
HP ElitePad 1000 G2
233 Points -36%
Dell Venue 11 Pro 7140
883 Points +143%
Microsoft Surface 3
562 Points +54%
Asus Transformer Book T100TAL-DK021P
213 Points -41%
Lenovo ThinkPad 10
207 Points -43%

Legend


Lenovo Thinkpad Tablet 10 2nd Gen Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), SanDisk SEM128

HP ElitePad 1000 G2 Intel Atom Z3795, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

Dell Venue 11 Pro 7140 Intel Core M-5Y10a, Intel HD Graphics 5300, Sandisk X110 M.2 SD6SP1M-128G

Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Asus Transformer Book T100TAL-DK021P Intel Atom Z3735D, Intel HD Graphics (Bay Trail), 64 GB eMMC Flash

Lenovo ThinkPad 10 Intel Atom Z3795, Intel HD Graphics (Bay Trail), SanDisk SEM64G
3DMark 11 Performance
364 points
3DMark Ice Storm Standard Score
5275 points
3DMark Cloud Gate Standard Score
769 points
Help
Tomb Raider
1024x768 Low Preset (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
HD Graphics (Cherry Trail), Z8700, SanDisk SEM128
30.2 fps
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
33.6 fps +11%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo Thinkpad Tablet 10 2nd Gen
HD Graphics (Cherry Trail), Z8700, SanDisk SEM128
13.2 fps
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
14.8 fps +12%
lowmed.highultra
Trackmania Nations Forever (2008) 77.3 18.2 15.5
Anno 2070 (2011) 15.3 13.7 8
Counter-Strike: GO (2012) 14.1 4.8
Tomb Raider (2013) 30.2 13.2 9 3.8
BioShock Infinite (2013) 18 6.4 5.6
Sims 4 (2014) 65.6 9.4 5.5

Noise Level

Idle
/ / dB(A)
Load
/ dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Max. Load
 26 °C28.6 °C39 °C
 27.5 °C31 °C51 °C
 30.5 °C39 °C42.9 °C
Maximum: 51 °C
Average: 35.1 °C
27.4 °C34.6 °C40.4 °C
29 °C32.7 °C55 °C
28 °C34.4 °C43.5 °C
Maximum: 55 °C
Average: 36.1 °C
Power Supply (max.)  37.1 °C | Room Temperature 21.8 °C | Fluke 62 Max
(±) The average temperature for the upper side under maximal load is 35.1 °C / 95 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(-) The maximum temperature on the upper side is 51 °C / 124 F, compared to the average of 33.8 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(-) The bottom heats up to a maximum of 55 °C / 131 F, compared to the average of 33.3 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 30 °C / 86 F.
Power Consumption
Off / Standbydarklight 0 / 0.2 Watt
Idledarkmidlight 2.4 / 5.1 / 6 Watt
Load midlight 14.7 / Watt
 color bar
Key: min: dark, med: mid, max: light        Extech Power Analyzer 380803
Battery Runtime
Idle (without WLAN, min brightness)
14h 26min
WiFi Websurfing
7h 28min
Big Buck Bunny H.264 1080p
9h 05min
Load (maximum brightness)
4h 58min

Pros

+ 机身品质
+ 附赠手写笔
+ 支持手写笔
+ 电池续航

Cons

- 发热量
- 轻度负载下就会出现降频
- 系统性能

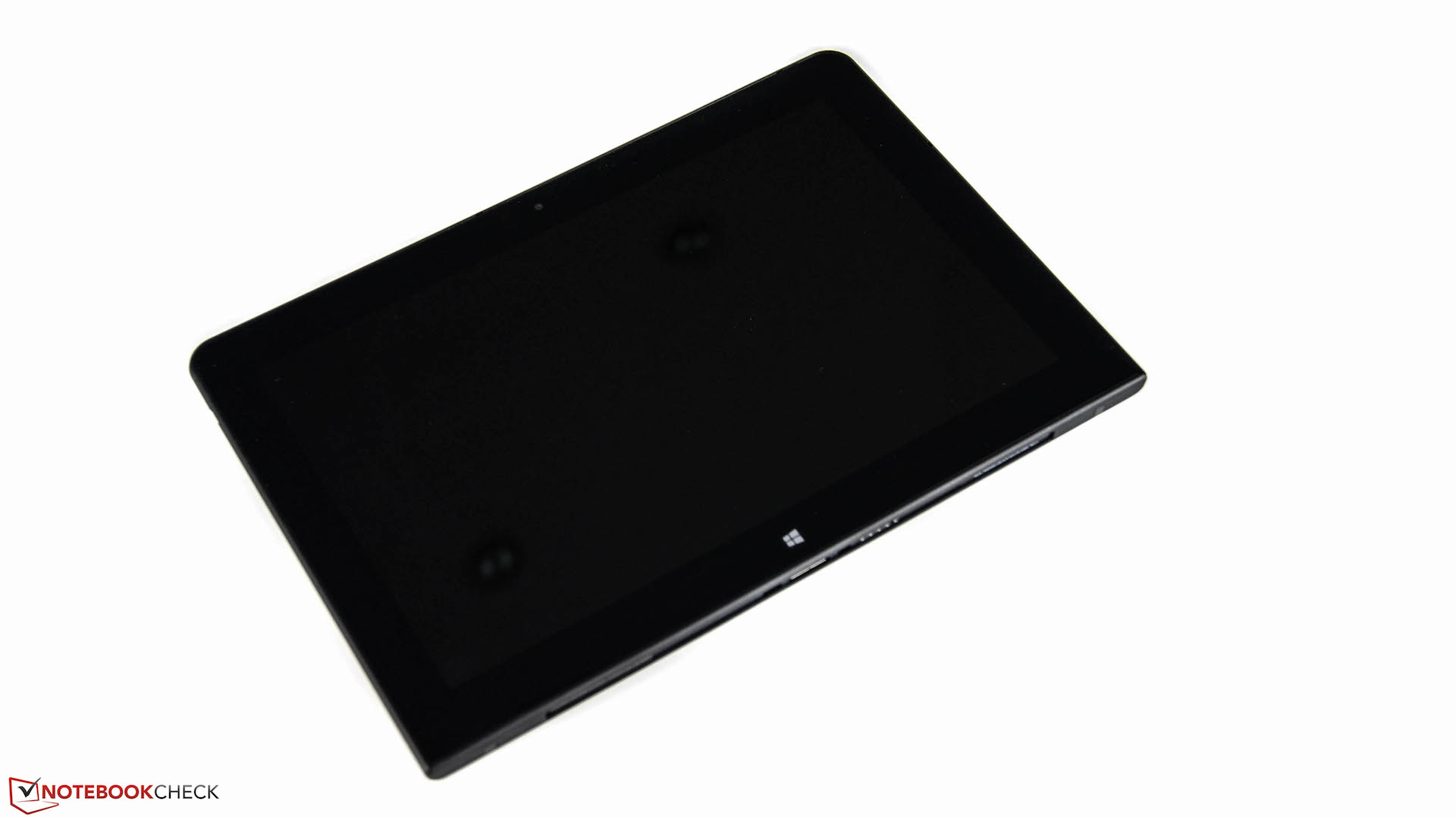

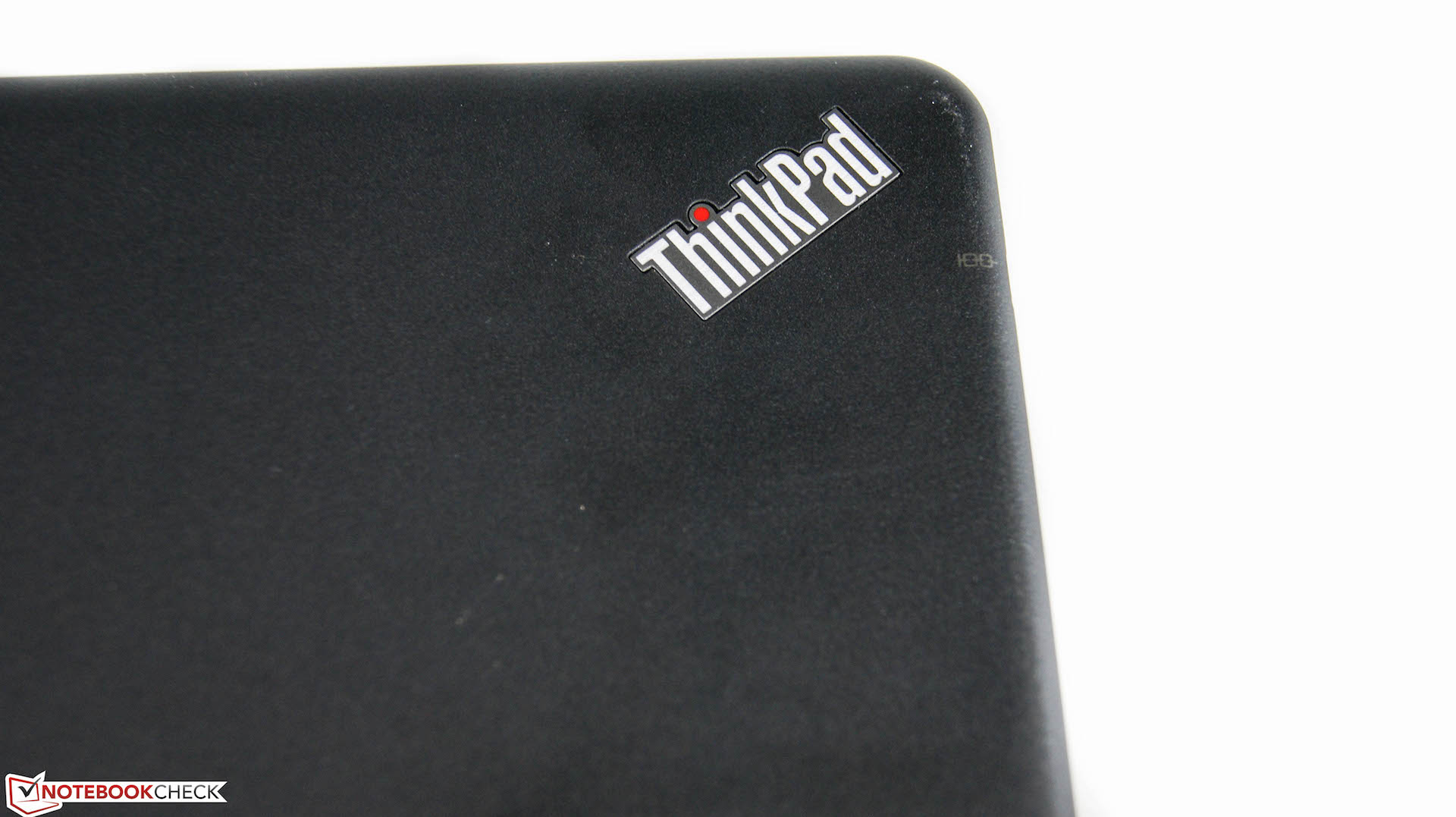

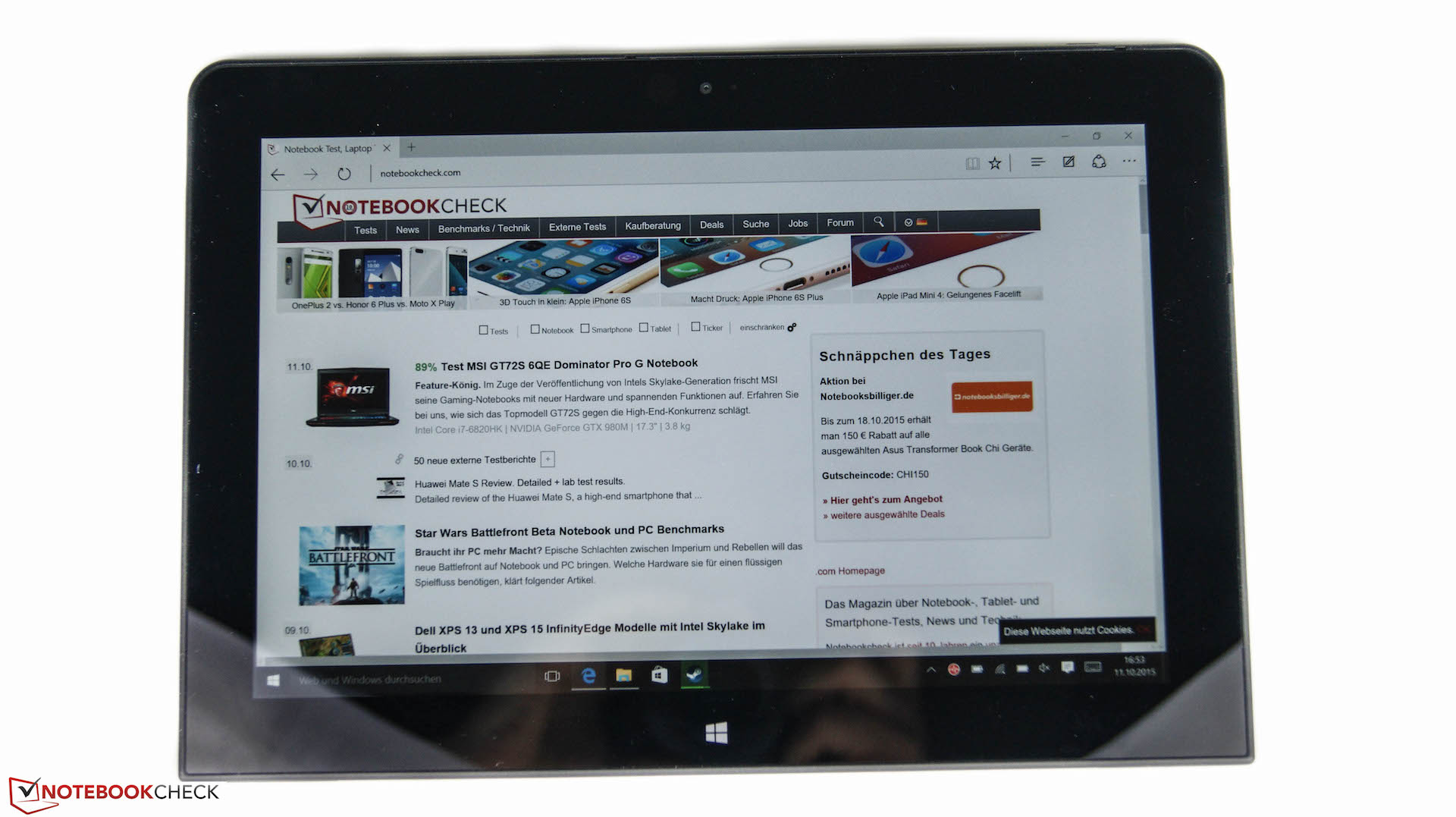

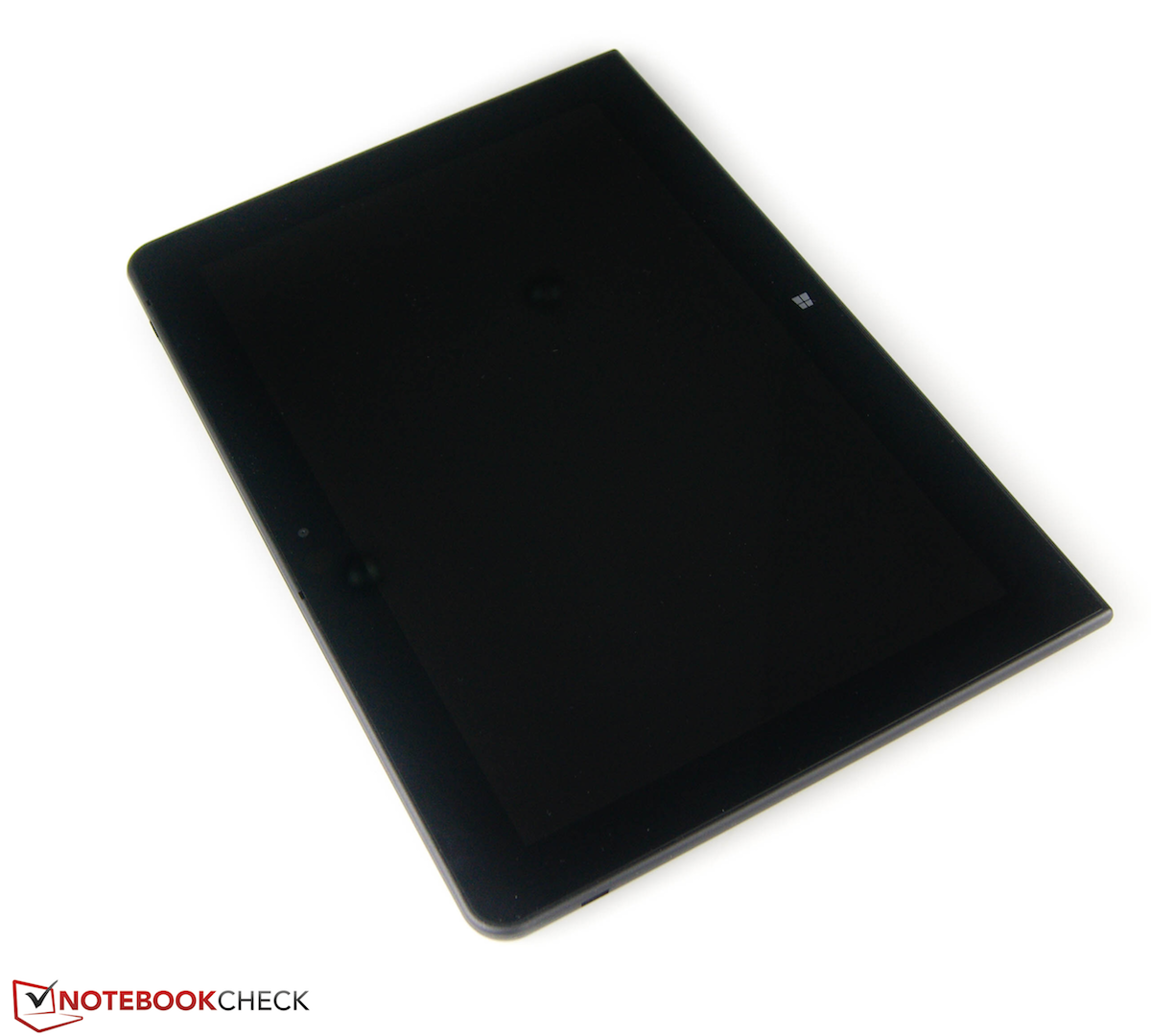

The Lenovo ThinkPad 10 2nd Gen, courtesy of Campuspoint.
The Lenovo ThinkPad 10 2nd Gen, courtesy of Campuspoint.

ThinkPad第二代是联想对主流商务Windows平板的第二次尝试。我们的测试机定价约700欧(约4775人民币),配置表赏心悦目,不过遗憾的是它无法完全发挥这些潜力。不过至少它的工艺品质和设计十分出色。整合的触控屏幕非常实用,而手写笔也可用于长段文字的输入。屏幕的各方面测试结果都处于中上游水平。这台ThinkPad也实现了优秀的电池续航时间,可以满足一整个工作日的需要。它最大的问题在于性能。对于大部分任务它几乎没有余力,多任务处理都会让这台联想ThinkPad 10第二代也会捉襟见肘,这可能是缘起于被动散热设计。这台小平板的核心部件区域会变得非常热。

对于这台联想的全新平板电脑,性能缺陷仍然是最大的问题。在下一代产品中联想能否解决这个问题还有待观望。我们认为这台测试机可以推荐给学生或搭配笔记本电脑作为辅助设备使用。不过,它还无法取代笔记本电脑。

同类的竞争产品非常值得参考。比如售价相近的微软Surface 3在很多方面的得分都更高。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Lenovo Thinkpad Tablet 10 2nd Gen - 10/18/2015 v4 (old)
Nino Ricchizzi

Chassis
79%
Keyboard
67 / 80 → 84%
Pointing Device
86%
Connectivity
55 / 65 → 85%
Weight
82 / 40-88 → 88%
Battery
92%
Display
83%
Games Performance
34 / 68 → 50%
Application Performance
45 / 76 → 59%
Temperature
72%
Noise
100%
Audio
40 / 91 → 44%
Camera
70 / 85 → 82%
Add Points
-1%
Average
65%
79%
Tablet - Weighted Average
