联想ThinkPad X1 Carbon 2018（雾面WQHD，i7）笔记本电脑评测

X1 Carbon最好的屏幕？

我们已经评测了很多款第六代ThinkPad X1 Carbon，现在这款的带有雾面WQHD显示屏的型号。这可能是最折衷的选
Business Kaby Lake Laptop / Notebook Ultrabook Windows
Lenovo ThinkPad X1 Carbon 2018-20KGS5DU00 (ThinkPad X1 Carbon 2018 Series)
Processor
Intel Core i7-8550U 4 x 1.8 - 4 GHz, Kaby Lake Refresh
Graphics adapter
Intel UHD Graphics 620, Core: 1100 MHz
Memory
16 GB
, LPDDR3双通道板载内存
Display
14.00 inch 16:9, 2560 x 1440 pixel 210 PPI, LP140QH2-SPB1, IPS, glossy: no
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Samsung SSD PM981 MZVLB512HAJQ, 512 GB
, 447 GB free
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5mm耳机接口, Card Reader: microSD (UHS-II), 1 Fingerprint Reader, NFC
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, LTE
Size
height x width x depth (in mm): 15.95 x 323.5 x 217.1
Battery
57 Wh Lithium-Polymer, Battery runtime (according to manufacturer): 14.7 h
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p HD, ThinkShutter cover
Additional features
Speakers: 立体声扬声器, Keyboard: Chiclet键盘, Keyboard Light: yes, 65瓦充电器，RJ45网线接口, 36 Months Warranty
Weight
1.13 kg, Power Supply: 356 g
Price
17999 Euro
Links
Lenovo homepage
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



301
cd/m²		298
cd/m²		297
cd/m²
326
cd/m²		316
cd/m²		294
cd/m²
352
cd/m²		315
cd/m²		302
cd/m²
Distribution of brightness
LP140QH2-SPB1 tested with X-Rite i1Pro 2
Maximum: 352 cd/m² (Nits) Average: 311.2 cd/m² Minimum: 10.2 cd/m²
Brightness Distribution: 84 %
Center on Battery: 320 cd/m²
Contrast: 903:1 (Black: 0.35 cd/m²)
ΔE Color 4.5 | 0.5-29.43 Ø4.93, calibrated: 1.6
ΔE Greyscale 7.7 | 0.5-98 Ø5.2
97.9% sRGB (Argyll 1.6.3 3D)
68.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
74.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.9% sRGB (Argyll 2.2.0 3D)
72.7% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.2
Lenovo ThinkPad X1 Carbon 2018-20KGS5DU00
LP140QH2-SPB1, IPS, 2560x1440, 14"		Lenovo ThinkPad X1 Carbon 2018-20KGS03900
B140QAN02.0, IPS, 2560x1440, 14"		Lenovo ThinkPad X1 Carbon 2018-20KGS03800
B140HAN03.1, , 1920x1080, 14"		Lenovo ThinkPad X1 Carbon G6-20KG0025UK
Lenovo LEN40A9 / AUO B140HAK02.3, IPS, 1920x1080, 14"		Lenovo ThinkPad X1 Carbon 2017-20HR006FGE
LEN40AA (LP140QH2-SPB1), IPS, 2560x1440, 14"		Average of class Subnotebook

Screen
43%
9%
24%
9%
41%
Brightness middle
316
578
83%
330
4%
298
-6%
342
8%
451 ?(253 - 1666, n=56, last 2 years)
43%
Brightness
311
533
71%
311
0%
287
-8%
337
8%
Brightness Distribution
84
84
0%
87
4%
91
8%
87
4%
Black Level *
0.35
0.38
-9%
0.21
40%
0.2
43%
0.37
-6%
0.1625 ?(0.01 - 0.56, n=61, last 2 years)
54%
Contrast
903
1521
68%
1571
74%
1490
65%
924
2%
Colorchecker dE 2000 *
4.5
1.9
58%
4.7
-4%
2.19
51%
3.6
20%
2.47 ?(0.88 - 6.97, n=56, last 2 years)
45%
Colorchecker dE 2000 max. *
10.3
3.8
63%
9.3
10%
4.39
57%
7.7
25%
5.3 ?(1.9 - 20.2, n=56, last 2 years)
49%
Colorchecker dE 2000 calibrated *
1.6
0.8
50%
2.4
-50%
1.67
-4%
1.791 ?(0.35 - 5, n=40, last 2 years)
-12%
Greyscale dE 2000 *
7.7
3
61%
4.5
42%
1.97
74%
5.8
25%
2.52 ?(0.7 - 9.9, n=56, last 2 years)
67%
Gamma
2.2 100%
2.14 103%
1.99 111%
2.43 91%
2.2 100%
2.19 100% ?(1.772 - 2.4, n=55, last 2 years)
CCT
6639 98%
6377 102%
6710 97%
6571 99%
6693 97%
6620 98% ?(6034 - 9571, n=55, last 2 years)
Color Space (Percent of AdobeRGB 1998)
68.6
88.8
29%
58.2
-15%
62
-10%
68.8
0%
Color Space (Percent of sRGB)
97.9
100
2%
89.3
-9%
95
-3%
98.5
1%

* ... smaller is better

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

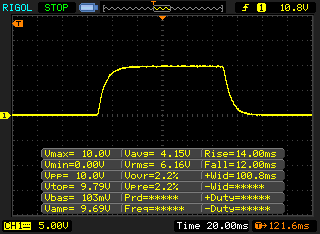

   ↔    Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

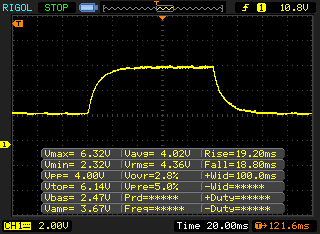

   ↔    Response Time 50% Grey to 80% Grey
38 ms ... rise ↗ and fall ↘ combined↗ 19.2 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 51 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

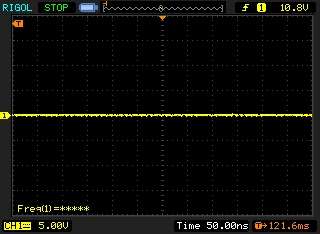

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Battery Runtime
WiFi Websurfing (Edge 42.17134.1.0)
8h 57min
Lenovo ThinkPad X1 Carbon 2018-20KGS5DU00
57 Wh, 2560x1440		Lenovo ThinkPad X1 Carbon 2018-20KGS03900
57 Wh, 2560x1440		Lenovo ThinkPad X1 Carbon 2018-20KGS03800
 Wh, 1920x1080		Lenovo ThinkPad X1 Carbon G6-20KG0025UK
57 Wh, 1920x1080		Lenovo ThinkPad X1 Carbon 2017-20HR006FGE
57 Wh, 2560x1440
Battery Runtime
WiFi v1.3
537
519
-3%
601
12%
621
16%
604
12%

Pros

+ 轻薄，高品质的机身
+ 优秀的雾面WQHD面板
+ 四核处理器性能强
+ 各种现代化接口，包括常规USB-A
+ 良好的系统性能
+ 优秀的键盘
+ 续航时间长
+ 三年保修
+ 高速SD卡读卡器

Cons

- 但只支持microSD而且很难达到理想速度
- 负载下的高表面温度
- 风扇很容易加速并且速度很快
- 没有WWAN
- 可维护性非常有限
- 有线网络连接需要适配器
联想ThinkPad X1 Carbon 笔记本电脑评测. Test unit provided by Campuspoint.
联想ThinkPad X1 Carbon 笔记本电脑评测. Test unit provided by Campuspoint.

我们现在已经测试了联想为当前ThinkPad X1 Carbon提供的所有屏幕版本。与标准的1080p IPS显示屏相比，额外的花销不是太高。由于是亮面屏， WQHD-HDR版本往往更适合多媒体影音娱乐。对于那些主要用于办公室工作以及偶尔在路上使用电脑的人群来说，雾面屏肯定会更好。

对于工作而言，标准的1080p面板不是一个糟糕的选择。是否需要触摸屏取决于您打算如何使用它，但质量基本没有差异（相似的亮度，没有PWM）。可选的雾面WQHD面板给我们留下了良好的印象。亮度不错，显示器具有很大的潜力，并且由于分辨率更高，主观印象略好于1080p显示器。但是续航也因此缩短。

联想ThinkPad X1 Carbon是配备雾面WQHD面板的最佳商务笔记本之一。雾面屏比非常反光的WQHD HDR显示器更适合工作。主观上来说，LG和飞利浦的雾面WQHD面板提供稍好的图像，但另一方面，FHD型号有着更强的续航。

Lenovo ThinkPad X1 Carbon 2018-20KGS5DU00 - 01/20/2019 v6 (old)
Andreas Osthoff

Chassis
92 /  98 → 94%
Keyboard
95%
Pointing Device
91%
Connectivity
73 / 80 → 91%
Weight
73 / 35-78 → 89%
Battery
91%
Display
87%
Games Performance
67 / 68 → 98%
Application Performance
92 / 87 → 100%
Temperature
82 / 91 → 90%
Noise
84%
Audio
77 / 91 → 85%
Camera
50 / 85 → 59%
Average
81%
90%
Subnotebook - Weighted Average
