Magyar联想 ThinkPad X260 (Core i5, WXGA) 笔记本电脑简短评测
Lenovo ThinkPad X260-20F60041GE (ThinkPad X260 Series)
Processor

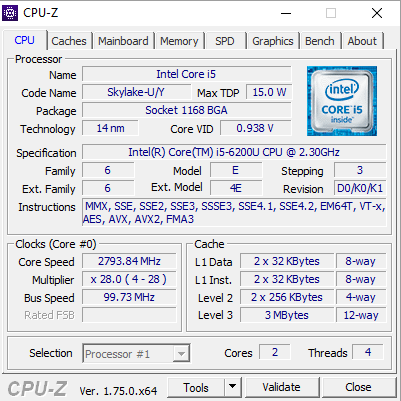

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake, 2 核心, TDP: 15 W

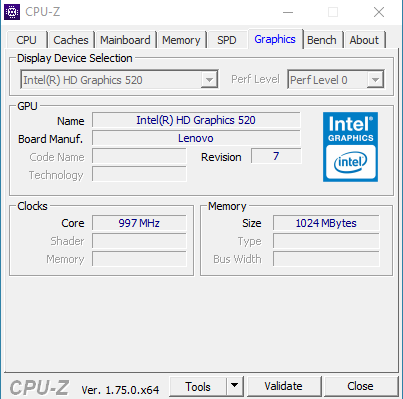

Graphics adapter
Intel HD Graphics 520, Core: 1000 MHz, 20.19.15.4331
Memory
4 GB
, DDR4-2133，一个插槽，已占用
Display
12.50 inch 16:9, 1366 x 768 pixel, LEN40E5 M125NWR3 R0, IPS, glossy: no

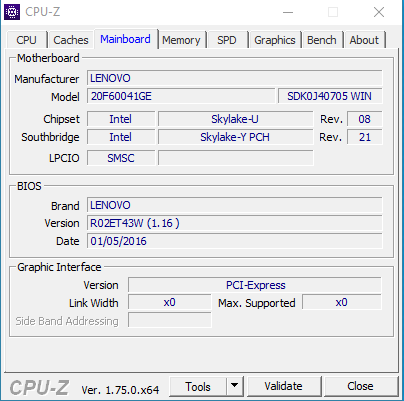

Mainboard
Intel Skylake-U Premium PCH
Storage
Seagate ST500LM000 Solid State Hybrid Drive, 500 GB
, 5400 rpm, 8GB 缓存
Weight
1.505 kg, Power Supply: 290 g
Price
1460 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
LEN40E5 M125NWR3 R0 tested with X-Rite i1Pro 2
Maximum: 262 cd/m² (Nits) Average: 251.1 cd/m² Minimum: 4 cd/m²Brightness Distribution: 88 %
Center on Battery: 264 cd/m²
Contrast: 1008:1 (Black: 0.26 cd/m²)
ΔE Color 3.55 | 0.5-29.43 Ø4.93
ΔE Greyscale 3.36 | 0.5-98 Ø5.2
72.4% sRGB (Calman 2D)
45.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
49.79% AdobeRGB 1998 (Argyll 2.2.0 3D)
72.6% sRGB (Argyll 2.2.0 3D)
48.19% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.39
| Lenovo ThinkPad X260-20F60041GE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive | Dell Latitude 12 E7250 HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP | HP Elitebook 820 G2-J8R58EA HD Graphics 5500, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP | Lenovo ThinkPad X250-20CLS06D00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | |
|---|---|---|---|---|
| Display | -8% | -9% | -8% | |
| Display P3 Coverage | 48.19 | 44.48 -8% | 43.72 -9% | 44.14 -8% |
| sRGB Coverage | 72.6 | 66.2 -9% | 65.3 -10% | 65.8 -9% |
| AdobeRGB 1998 Coverage | 49.79 | 45.96 -8% | 45.24 -9% | 45.71 -8% |
| Response Times | ||||
| Response Time Grey 50% / Grey 80% * | 42.8 ? | |||
| Response Time Black / White * | 27.2 ? | |||
| PWM Frequency | 220 ? | |||
| Screen | -20% | 1% | -2% | |
| Brightness middle | 262 | 360 37% | 300 15% | 397 52% |
| Brightness | 251 | 330 31% | 298 19% | 357 42% |
| Brightness Distribution | 88 | 81 -8% | 83 -6% | 81 -8% |
| Black Level * | 0.26 | 0.53 -104% | 0.33 -27% | 0.44 -69% |
| Contrast | 1008 | 679 -33% | 909 -10% | 902 -11% |
| Colorchecker dE 2000 * | 3.55 | 5.58 -57% | 3.68 -4% | 4.2 -18% |
| Colorchecker dE 2000 max. * | 5.85 | |||
| Greyscale dE 2000 * | 3.36 | 3.98 -18% | 2.47 26% | 3.1 8% |
| Gamma | 2.39 92% | 2.21 100% | 2.4 92% | 2.6 85% |
| CCT | 5985 109% | 6192 105% | 6310 103% | 6246 104% |
| Color Space (Percent of AdobeRGB 1998) | 45.9 | 42.2 -8% | 41.6 -9% | 42 -8% |
| Color Space (Percent of sRGB) | 64.9 | 65.5 | ||
| Total Average (Program / Settings) | -14% /
-17% | -4% /
-2% | -5% /
-3% |
* ... smaller is better
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|

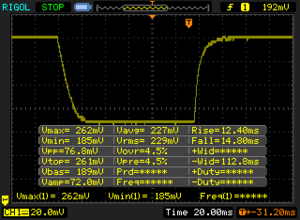

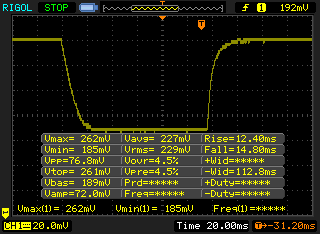

| 27.2 ms ... rise ↗ and fall ↘ combined | ↗ 12.4 ms rise |  |
| ↘ 14.8 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 66 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

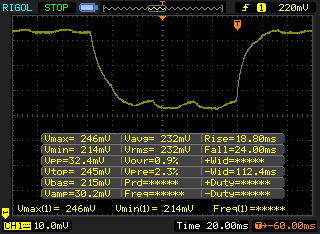

| ↔ Response Time 50% Grey to 80% Grey | ||
| 42.8 ms ... rise ↗ and fall ↘ combined | ↗ 18.8 ms rise |  |
| ↘ 24 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 67 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 220 Hz | ≤ 90 % brightness setting |  |

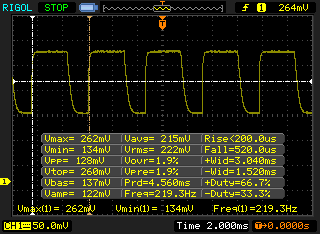

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Lenovo ThinkPad X260-20F60041GE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive | Dell Latitude 12 E7250 HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP | HP Elitebook 820 G2-J8R58EA HD Graphics 5500, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP | Lenovo ThinkPad X250-20CLS06D00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | |
|---|---|---|---|---|
| PCMark 7 | ||||
| Score | 3777 | 4662 23% | 4414 17% | 4609 22% |
| PCMark 8 | -17% | -8% | -3% | |
| Home Score Accelerated v2 | 3262 | 2772 -15% | 2987 -8% | 3148 -3% |
| Creative Score Accelerated v2 | 3735 | 3052 -18% | 3306 -11% | 3458 -7% |
| Work Score Accelerated v2 | 4335 | 4133 -5% | 4345 0% | |
| Total Average (Program / Settings) | 3% /
-3% | 5% /
-2% | 10% /
3% |
| PCMark 7 Score | 3777 points | |
| PCMark 8 Home Score Accelerated v2 | 3262 points | |
| PCMark 8 Creative Score Accelerated v2 | 3735 points | |
| PCMark 8 Work Score Accelerated v2 | 4335 points | |
Help | ||
| Lenovo ThinkPad X260-20F60041GE HD Graphics 520, 6200U, Seagate ST500LM000 Solid State Hybrid Drive | Dell Latitude 12 E7250 HD Graphics 5500, 5300U, Samsung PM851 Series MZMTE256HMHP | HP Elitebook 820 G2-J8R58EA HD Graphics 5500, 5500U, Samsung SSD PM851 256 GB MZ7TE256HMHP | Lenovo ThinkPad X250-20CLS06D00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L | |
|---|---|---|---|---|
| CrystalDiskMark 3.0 | 6400% | 9973% | 3648% | |
| Read Seq | 107.9 | 509 372% | 523 385% | 419.8 289% |
| Write Seq | 110.2 | 244 121% | 268.3 143% | 228.6 107% |
| Read 512 | 36.26 | 428 1080% | 445.6 1129% | 355.2 880% |
| Write 512 | 77.1 | 244 216% | 268.1 248% | 203.3 164% |
| Read 4k | 0.497 | 29 5735% | 29.14 5763% | 27.86 5506% |
| Write 4k | 3.136 | 61 1845% | 136.4 4249% | 15.3 388% |
| Read 4k QD32 | 1.155 | 214 18428% | 384.3 33173% | 163.9 14090% |
| Write 4k QD32 | 0.766 | 180 23399% | 266.5 34691% | 60.2 7759% |
Seagate ST500LM000 Solid State Hybrid Drive
Transfer Rate Minimum:
9 MB/s
Transfer Rate Maximum:
110.7 MB/s
Transfer Rate Average:
83.6 MB/s
Access Time:
18.2 ms
Burst Rate:
144 MB/s
CPU Usage:
7.6 %
| 3DMark 11 - 1280x720 Performance | |
| Dell XPS 13-9350 | |
| Acer Aspire R13 R7-372T | |
| Asus Zenbook UX303UA-FN121T | |
| Lenovo ThinkPad X260-20F60041GE | |
| HP ProBook 440 G3 PL | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| HP Elitebook 820 G2-J8R58EA | |
| Dell Latitude 12 E7250 | |
| 3DMark 11 Performance | 1332 points | |
| 3DMark Ice Storm Standard Score | 45479 points | |
| 3DMark Cloud Gate Standard Score | 4938 points | |
| 3DMark Fire Strike Score | 688 points | |
Help | ||
| Tomb Raider | |
| 1366x768 Normal Preset AA:FX AF:4x | |
| HP Envy 13-d000ng | |
| HP ProBook 430 G3 P5T00ES | |
| Acer Aspire R13 R7-372T | |
| Asus Zenbook UX303UA-FN121T | |
| HP ProBook 440 G3 | |
| Lenovo ThinkPad X260-20F60041GE | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| HP Elitebook 820 G2-J8R58EA | |
| Dell Latitude 12 E7250 | |
| 1366x768 High Preset AA:FX AF:8x | |
| HP ProBook 430 G3 P5T00ES | |
| HP Envy 13-d000ng | |
| Acer Aspire R13 R7-372T | |
| Asus Zenbook UX303UA-FN121T | |
| Lenovo ThinkPad X260-20F60041GE | |
| Dell Latitude 12 E7250 | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| HP ProBook 440 G3 | |
| HP Elitebook 820 G2-J8R58EA | |
| 1024x768 Low Preset | |
| HP Envy 13-d000ng | |
| HP ProBook 430 G3 P5T00ES | |
| Acer Aspire R13 R7-372T | |
| Asus Zenbook UX303UA-FN121T | |
| HP ProBook 440 G3 | |
| Lenovo ThinkPad X260-20F60041GE | |
| Lenovo ThinkPad X250-20CLS06D00 | |
| HP Elitebook 820 G2-J8R58EA | |
| Dell Latitude 12 E7250 | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 48.3 | 25.5 | 16.8 | 9.6 |
| BioShock Infinite (2013) | 33.13 | 20.1 | 16.74 | 5.1 |
| Battlefield 4 (2013) | 34.7 | 24.1 | 14 | 4.1 |
Noise Level
| Idle |
| 29.4 / 29.4 / 29.4 dB(A) |
| HDD |
| 29.6 dB(A) |
| Load |
| 33.2 / 33.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Voltcraft SL-451 + Behringer ECM8000 (15 cm distance) environment noise: 29 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 45.3 °C / 114 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 48.8 °C / 120 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.9 °C / 82.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.4 °C / 0.7 F).
(-) The maximum temperature on the upper side is 45.3 °C / 114 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 48.8 °C / 120 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.9 °C / 82.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.4 °C / 0.7 F).
Power Consumption
| Off / Standby | 0.18 / 0.3 Watt |
| Idle | 3.6 / 5.9 / 6.6 Watt |
| Load |
28.5 / 36.8 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Battery Runtime - WiFi Websurfing | |
| Lenovo ThinkPad X260-20F60041GE | |
| HP Elitebook 820 G2-J8R58EA | |
| Lenovo ThinkPad X250-20CLS06D00 | |
Pros
+ 键盘
+ 可更换电池
+ 坚固的机身
+ 安全功能
Cons
- 机身工艺问题
- 无维护底盖
- 仅支持单通道内存
“特为商务优化”。这是联想描述ThinkPad X260的用词。在很多方面它都十分贴切。从机身开始，它就展示出了优秀的材质和坚固性。满足军用标准的外力防护对专业环境十分实用。尽管它售价高昂，我们还是发现了一些工艺品质问题。在这个价位的笔记本电脑主要为办公用途设计，联想在这方面有充分的经验。除了一些小问题，它的键盘能够满足我们对商务笔记本电脑的期待。不过另一方面它的触控版还需要继续改进。
之后，我们测试了它的IPS屏幕，磨砂的表面和优秀的显示效果让人无话可说。遗憾的是它的分辨率较低，亮度只能算一般。
它的机身内部硬件也十分优秀。很遗憾它只有一个DDR4内存槽，所以你只能用单通道设置。不过整体上它的系统性能可以让人满意。如果你需要更强的性能，那么就必须支付更高的价码换购高配机型了。除了不错的噪音散热控制，它的Power Bridge技术也十分实用。它由两块电池供电，所以你可以在开机时更换电池。

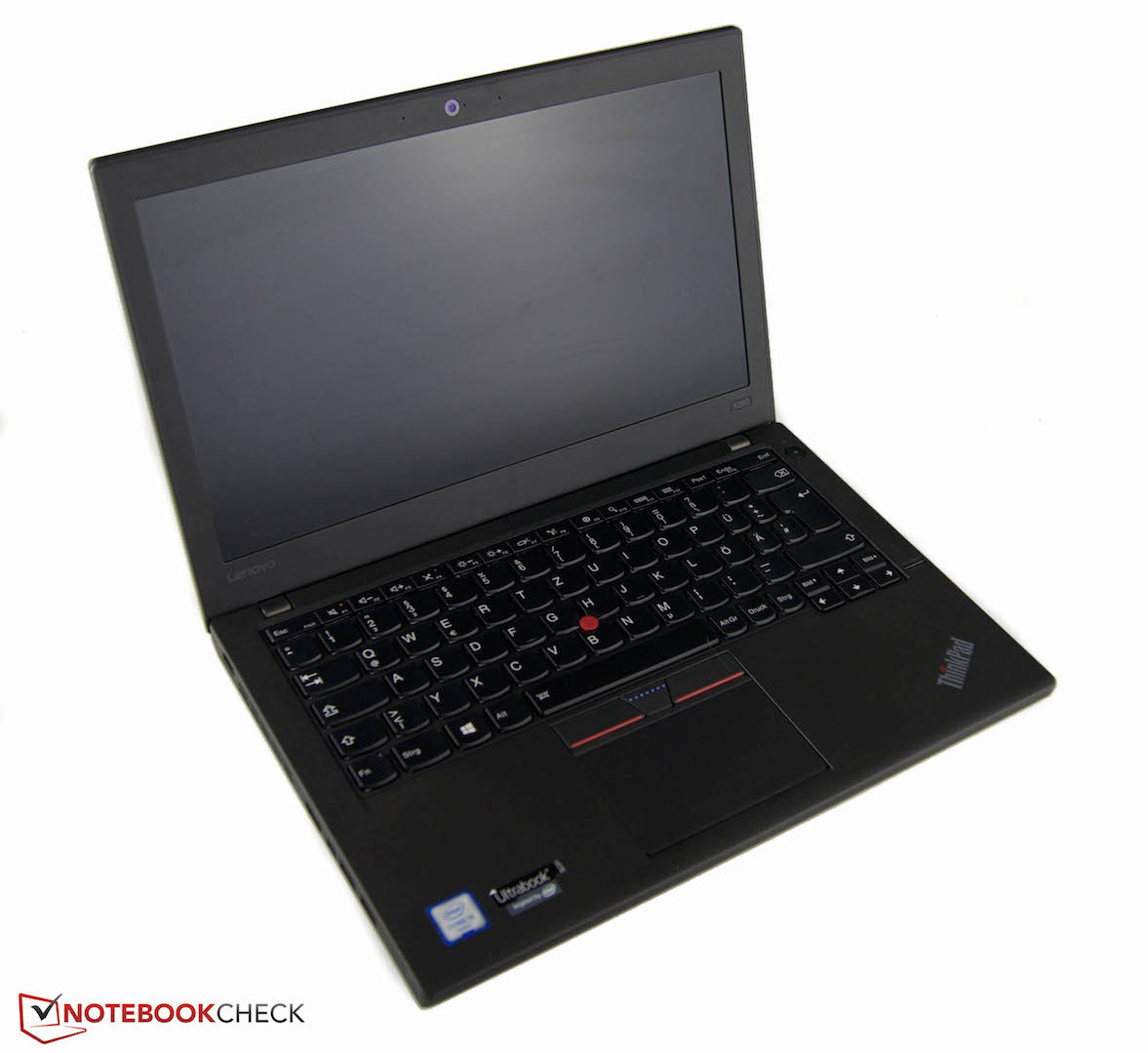

联想为我们带来了一台全面的优秀12.5寸商务笔记本电脑。不过我们的测试机有一些小问题。我们希望等等看它有没有别的机型能够得到更高的评分。
根据个人需要喜好的不同，看一看同类竞争产品也不是个坏主意。例如，戴尔 Latitude 12 E7250搭配了更加明亮的屏幕。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo ThinkPad X260-20F60041GE
-
03/10/2016 v5 (old)
Nino Ricchizzi
