联想 ThinkPad Yoga 460 变形本简短评测

办公瑜伽。联想最近发布了全新的ThinkPad Yoga 460。这台14寸变形本主要面向商务用户。请阅读我们的评测，了解联想这台设备的优势，以及是否可能达到商务市场的高标准。
Business Convertible / 2-in-1 Skylake Touchscreen Windows Ultrabook
Lenovo ThinkPad Yoga 460-20EM000QGE (ThinkPad Yoga 460 Series)
Processor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Graphics adapter
Intel HD Graphics 520, Core: 1000 MHz, 20.19.15.4326
Memory
8 GB
, DDR3, 1600 MHz, 单通道, 一个内存槽一个已占用
Display

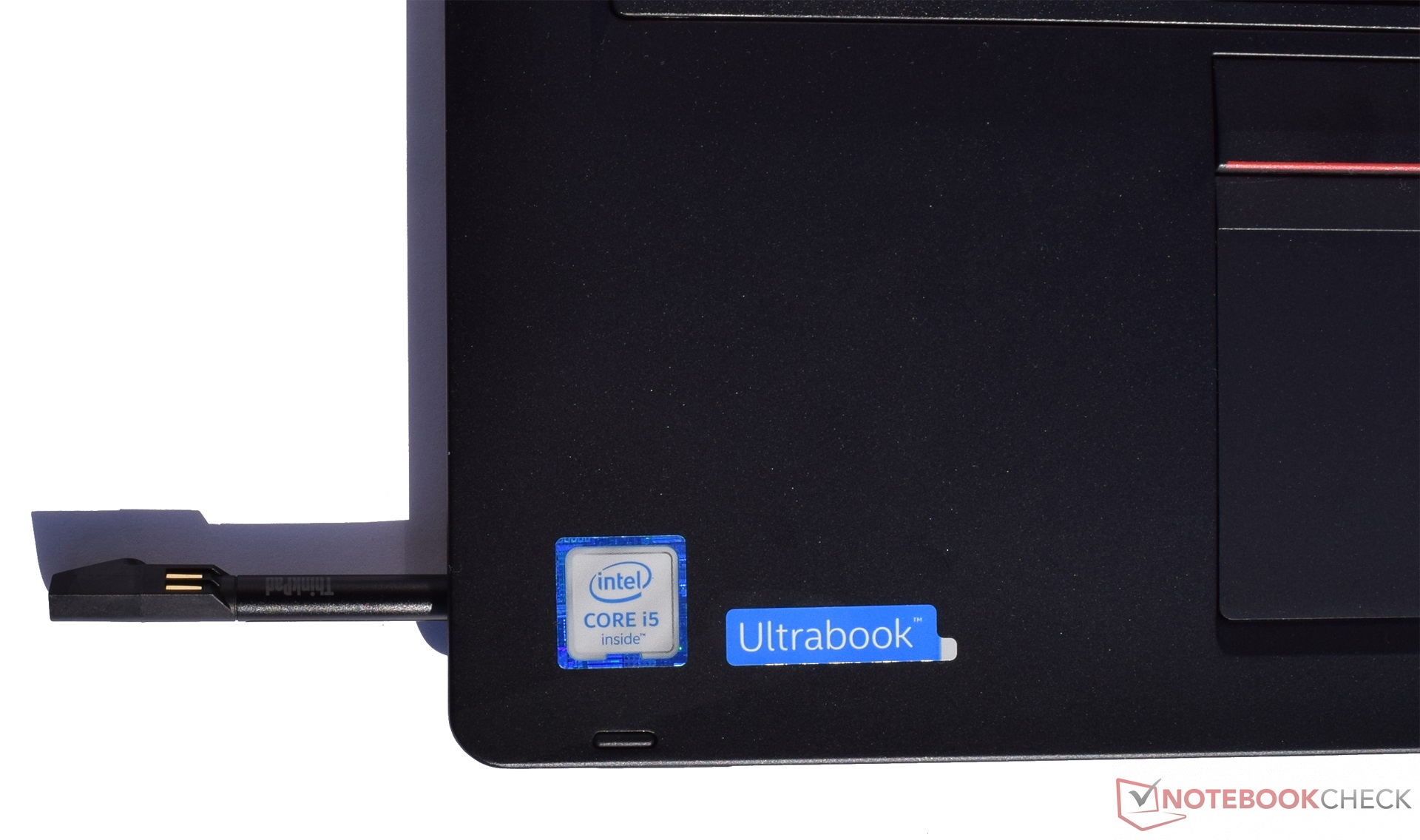

14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, 多点触控, native pen support, NV140FHM-N41, a-Si TFT-LCD, IPS, LED, 262K, 6位, 抗反光, glossy: no
Mainboard
Intel Skylake-U Premium PCH
Storage
Liteonit LCH-256V2S, 256 GB
, 193 GB free
Soundcard
Conexant SmartAudio HD
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 立体声, Card Reader: MMC, SD, SDHC, SDXC, 1 SmartCard, 1 Fingerprint Reader, Brightness Sensor
Networking
Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 19 x 338 x 236
Battery
53 Wh Lithium-Polymer, 根据生产商信息，电池续航最高可达10小时
Operating System
Microsoft Windows 10 Pro 64 Bit

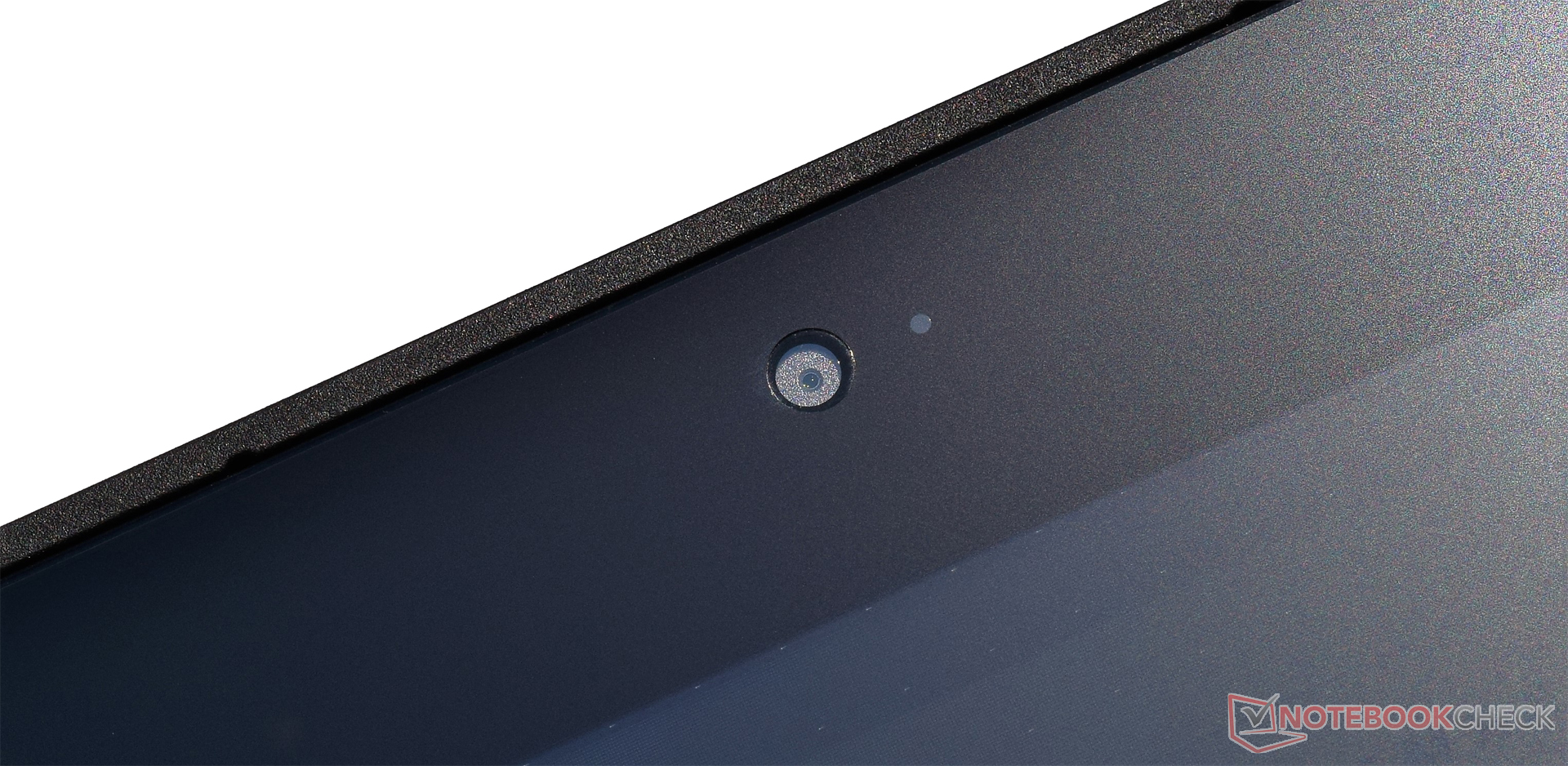

Camera
Webcam: 720p 高清
Additional features

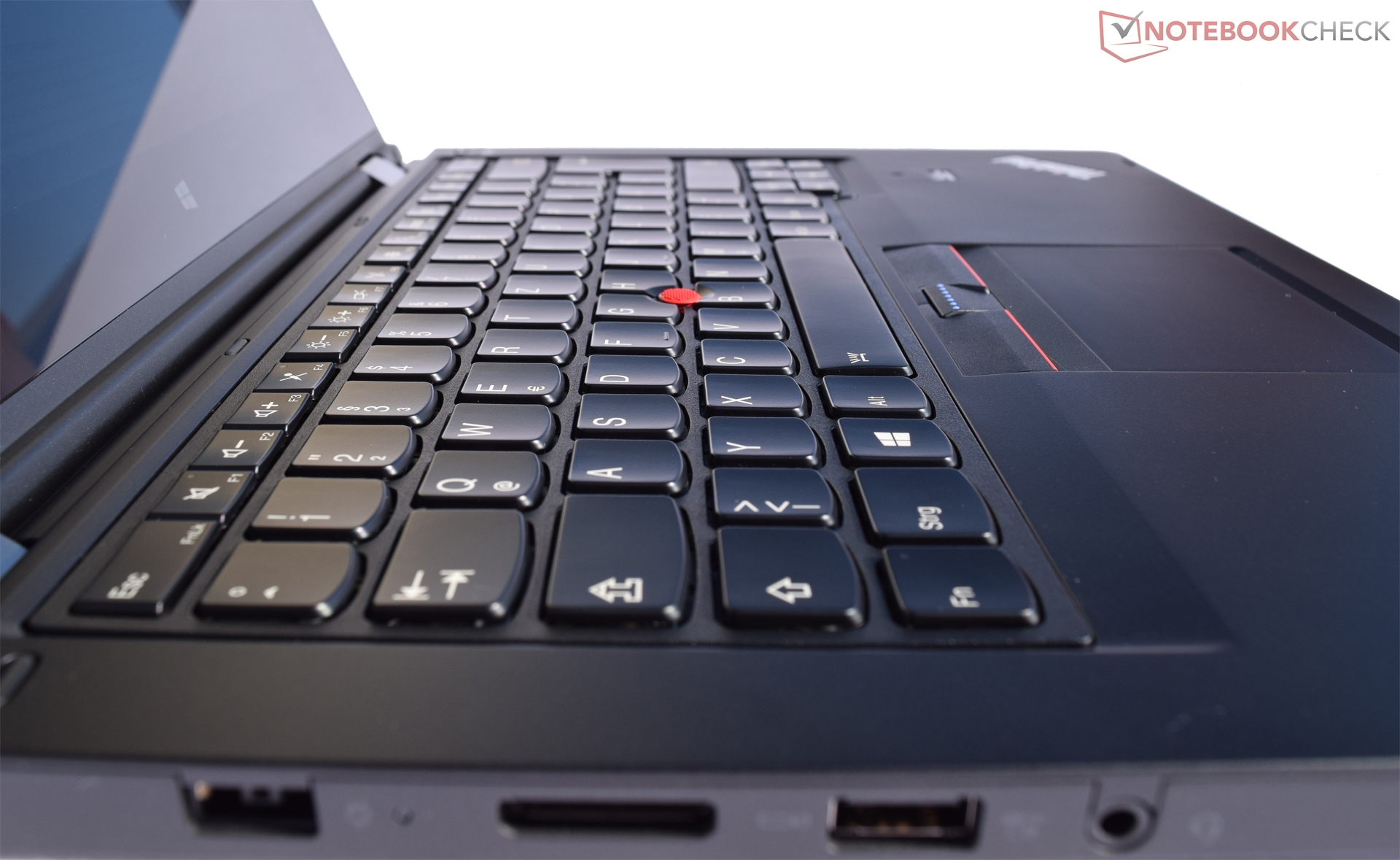

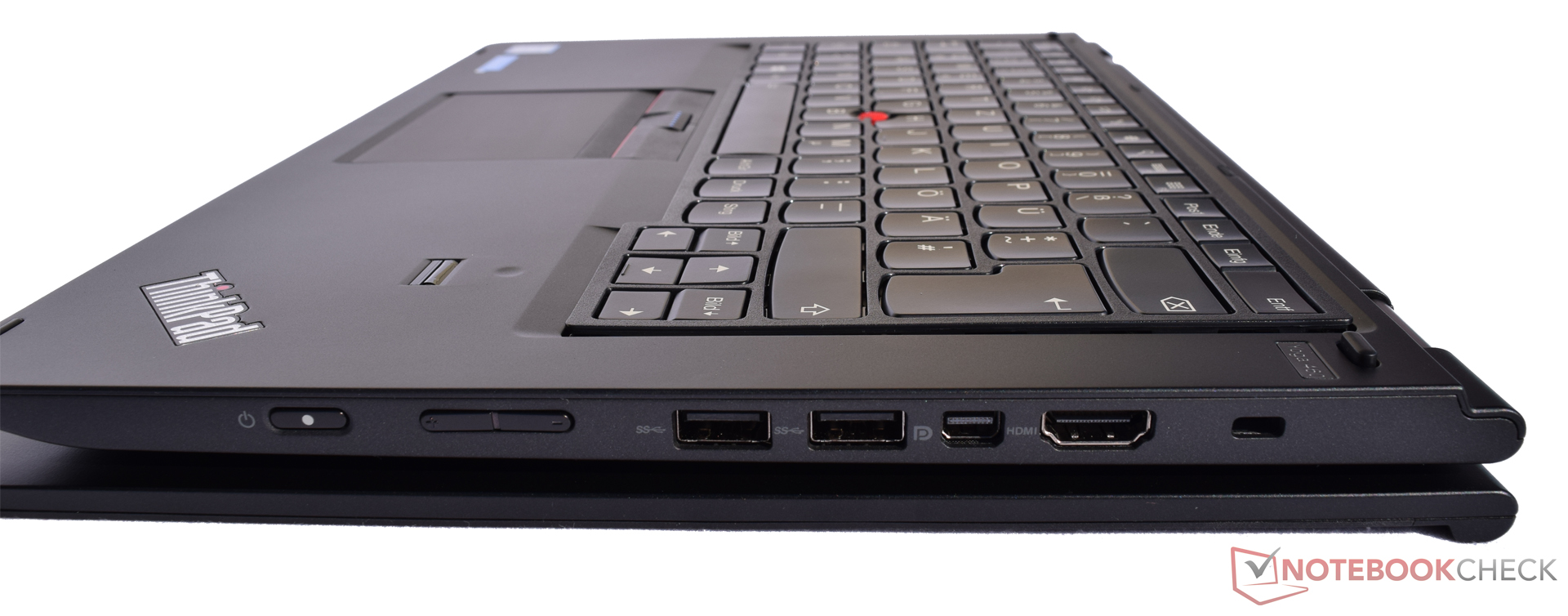

Speakers: 立体声, Keyboard: 孤岛式，搭配自动升起以及锁定, McAfee LifeSafe, Lenovo Solution Center
Weight
1.827 kg, Power Supply: 293 g
Price
1300 Euro
Links
Lenovo homepage
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



248
cd/m²		245
cd/m²		240
cd/m²
239
cd/m²		238
cd/m²		225
cd/m²
256
cd/m²		253
cd/m²		239
cd/m²
Distribution of brightness
NV140FHM-N41 tested with X-Rite i1Pro 2
Maximum: 256 cd/m² (Nits) Average: 242.6 cd/m² Minimum: 3 cd/m²
Brightness Distribution: 88 %
Center on Battery: 238 cd/m²
Contrast: 850:1 (Black: 0.28 cd/m²)
ΔE Color 4.91 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.72 | 0.5-98 Ø5.2
62.85% sRGB (Argyll 1.6.3 3D)
39.81% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.51% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.3% sRGB (Argyll 2.2.0 3D)
42.11% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.54
Lenovo ThinkPad Yoga 460-20EM000QGE
a-Si TFT-LCD, IPS, LED, 1920x1080		Lenovo ThinkPad Yoga 14
IPS, 1920x1080		Lenovo Thinkpad X1 Yoga 20FQ-000QUS
IPS, 2560x1440		Lenovo Yoga 500-14ISK
a-Si TFT-LCD, 1920x1080		Acer Aspire R14 R5-471T-79GQ
IPS, 1920x1080		Acer Aspire R13 R7-372T-746N
IPS, 2560x1440		HP Spectre x360 13-4104ng
IPS, 2560x1440
Display
59%
-2%
-12%
61%
54%
Display P3 Coverage
42.11
68.1
62%
41.31
-2%
36.92
-12%
69.6
65%
66.8
59%
sRGB Coverage
63.3
97.2
54%
61.3
-3%
55.4
-12%
98
55%
92.8
47%
AdobeRGB 1998 Coverage
43.51
70.2
61%
42.75
-2%
38.15
-12%
70.7
62%
67.3
55%
Response Times
-3%
3%
-68%
117%
34%
Response Time Grey 50% / Grey 80% *
33.2 ?(14.8, 18.4)
38 ?(15.2, 22.8)
-14%
36 ?(15, 21)
-8%
80 ?(24, 56)
-141%
36 ?(12, 24)
-8%
24 ?(11, 36)
28%
Response Time Black / White *
31.6 ?(12.8, 18.8)
30.4 ?(6, 24.4)
4%
26 ?(719)
18%
30 ?(9, 31)
5%
30 ?(8, 22)
5%
19 ?(10, 28)
40%
PWM Frequency
220 ?(50)
219 ?(99)
0%
217 ?(90)
-1%
1000 ?(10)
355%
Screen
-6%
-0%
-12%
-4%
37%
16%
Brightness middle
238
286
20%
284.7
20%
234
-2%
215
-10%
320
34%
324
36%
Brightness
243
274
13%
272
12%
209
-14%
203
-16%
308
27%
324
33%
Brightness Distribution
88
90
2%
89
1%
82
-7%
85
-3%
91
3%
90
2%
Black Level *
0.28
0.3
-7%
0.383
-37%
0.22
21%
0.25
11%
0.17
39%
0.34
-21%
Contrast
850
953
12%
743
-13%
1064
25%
860
1%
1882
121%
953
12%
Colorchecker dE 2000 *
4.91
5.62
-14%
5.24
-7%
6.3
-28%
5.04
-3%
3.18
35%
4.36
11%
Colorchecker dE 2000 max. *
10.28
11.22
-9%
15.53
-51%
10.6
-3%
9.91
4%
Greyscale dE 2000 *
3.72
6.19
-66%
7.32
-97%
5.59
-50%
3.3
11%
4.13
-11%
4.62
-24%
Gamma
2.54 87%
2.35 94%
2.22 99%
2.53 87%
2.35 94%
2.03 108%
2.18 101%
CCT
7091 92%
5606 116%
6277 104%
7064 92%
6370 102%
6752 96%
6857 95%
Color Space (Percent of AdobeRGB 1998)
39.81
70.17
76%
39
-2%
35
-12%
65
63%
60
51%
Color Space (Percent of sRGB)
62.85
94.68
51%
55
-12%
98
56%
93
48%
Total Average (Program / Settings)
-6% / -6%
19% / 10%
-4% / -7%
-28% / -14%
72% / 57%
35% / 27%

* ... smaller is better

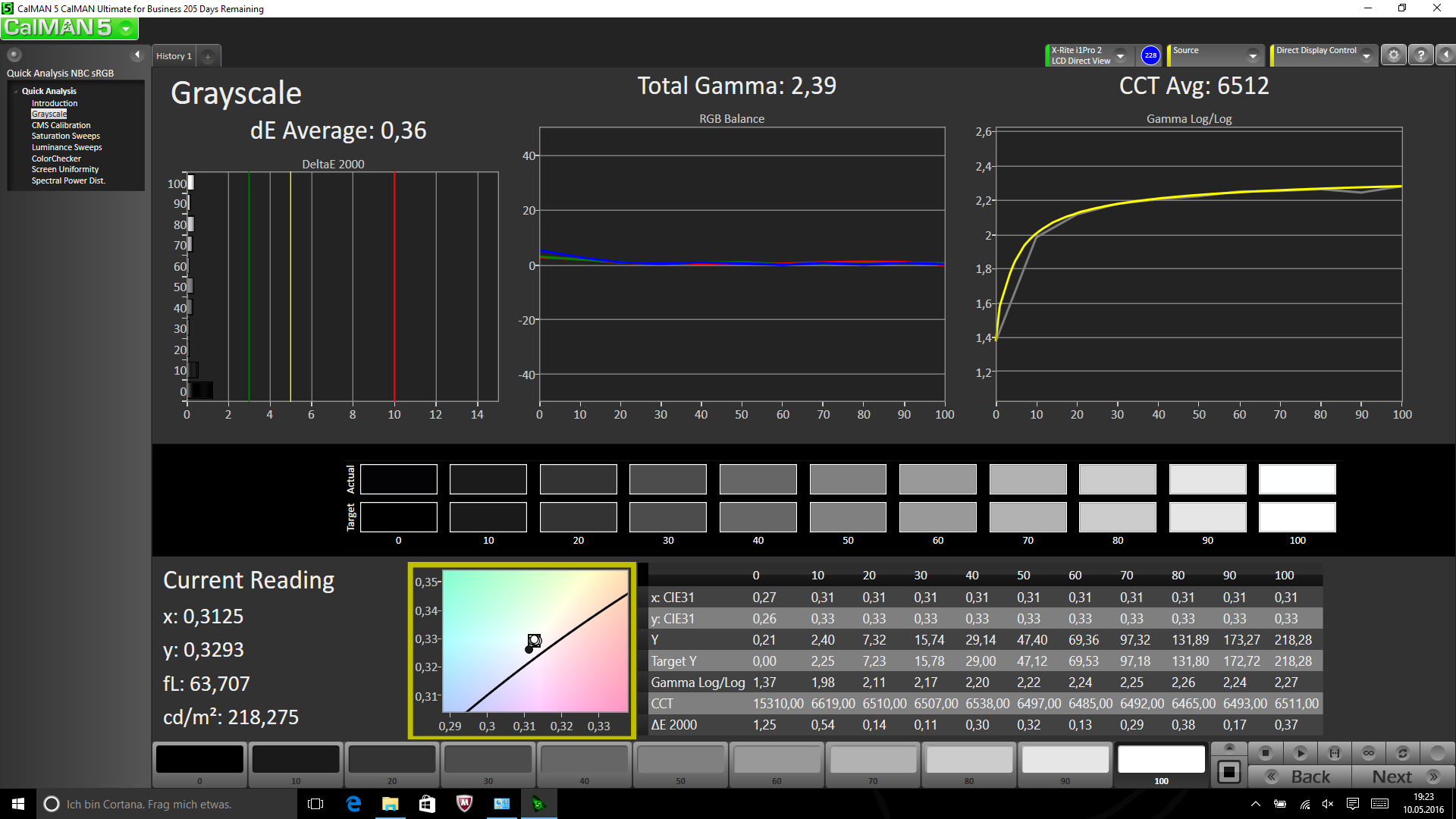

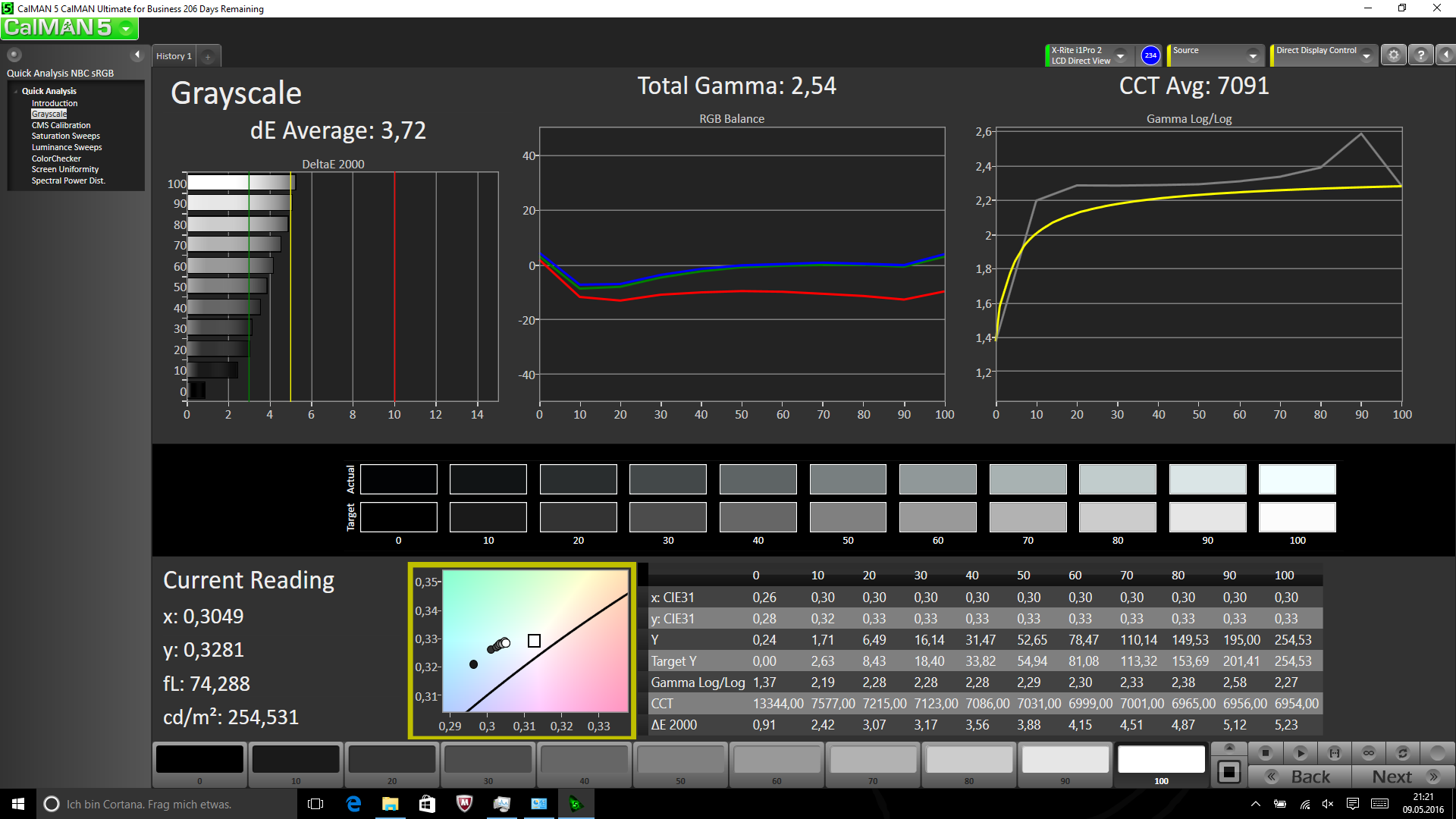

Grayscale (pre-calibration)
Grayscale (pre-calibration)
Grayscale (post-calibration)
Grayscale (post-calibration)

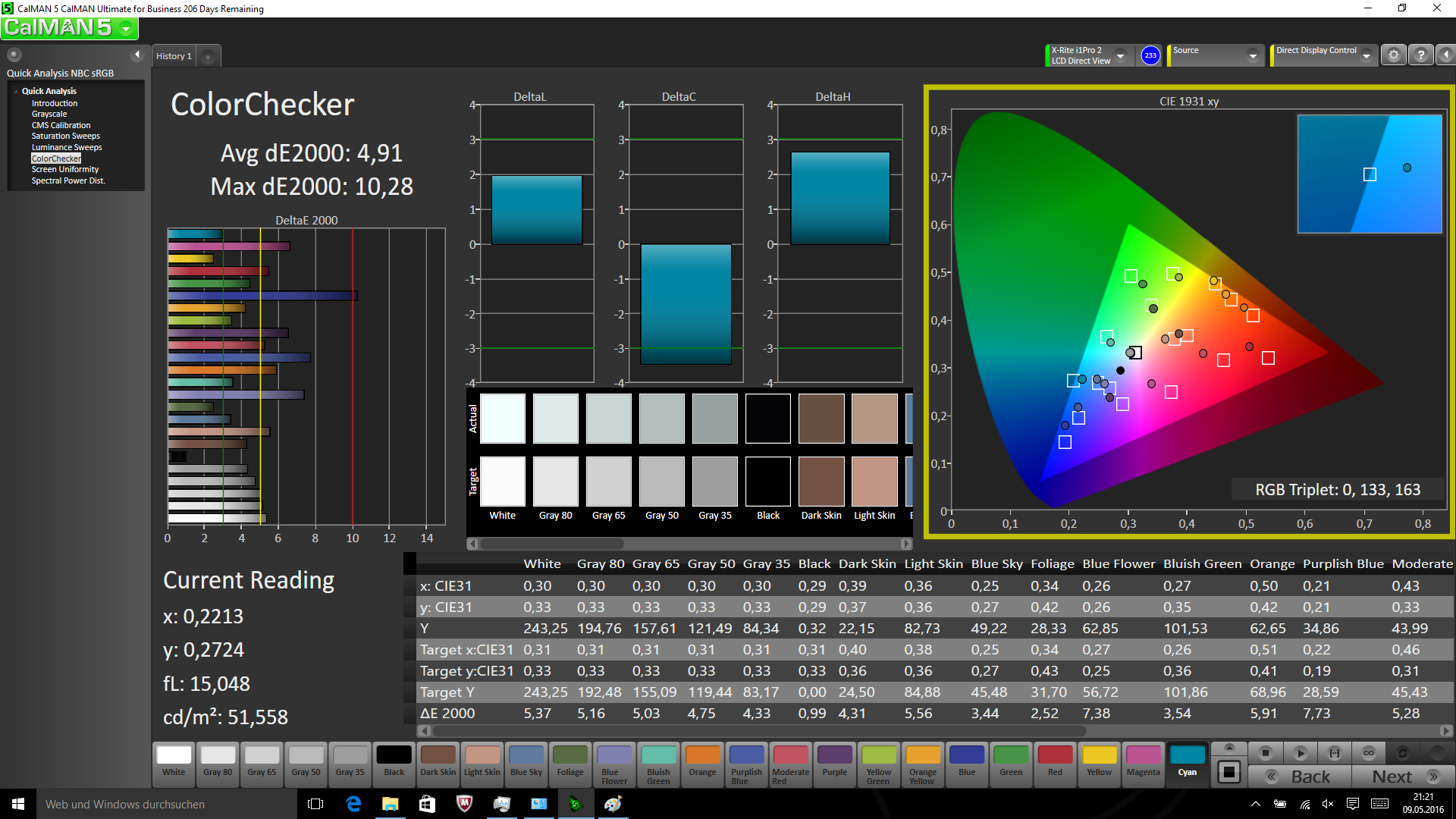

ColorChecker (pre-calibration)
ColorChecker (pre-calibration)

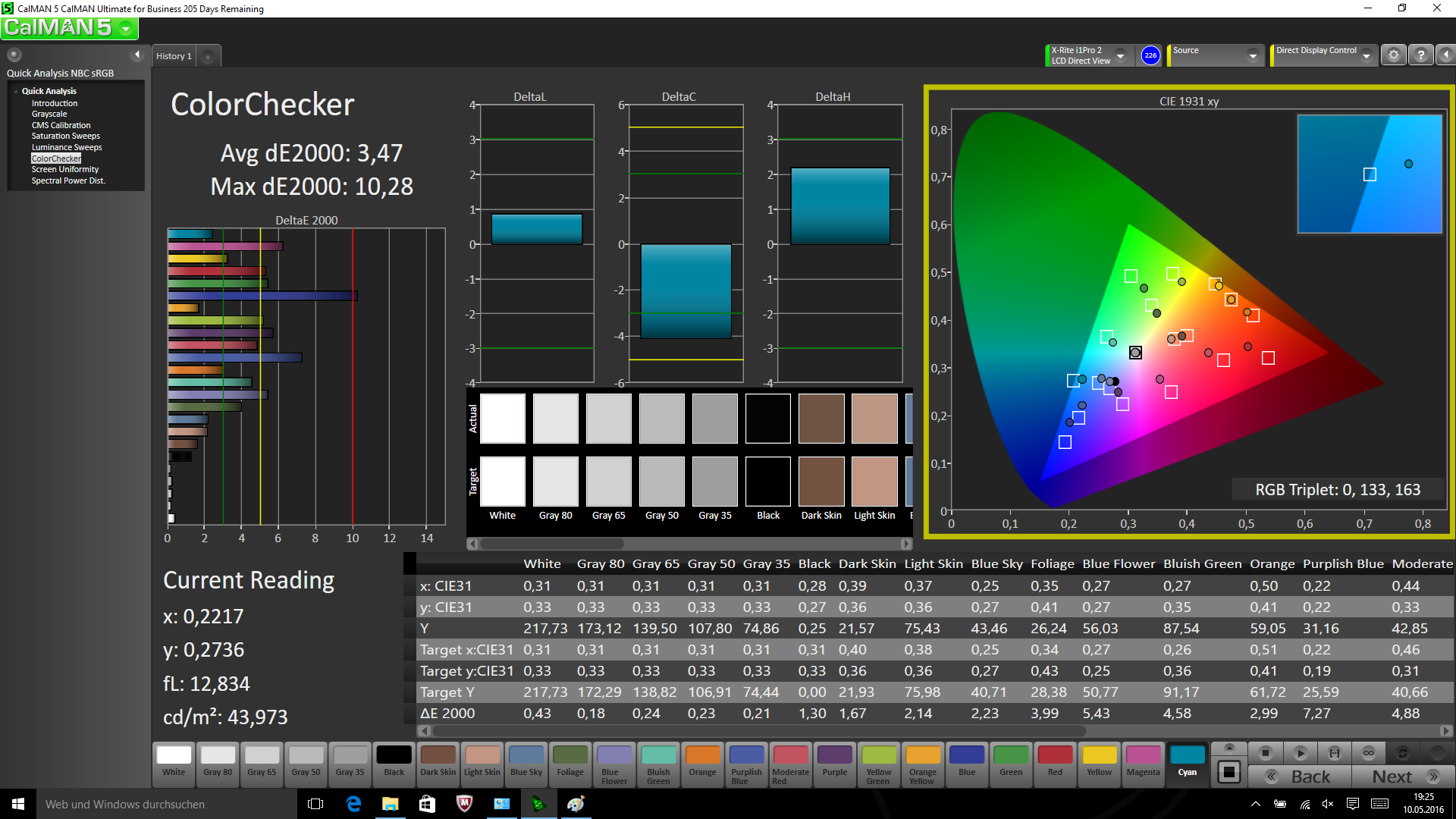

ColorChecker (post-calibration)
ColorChecker (post-calibration)

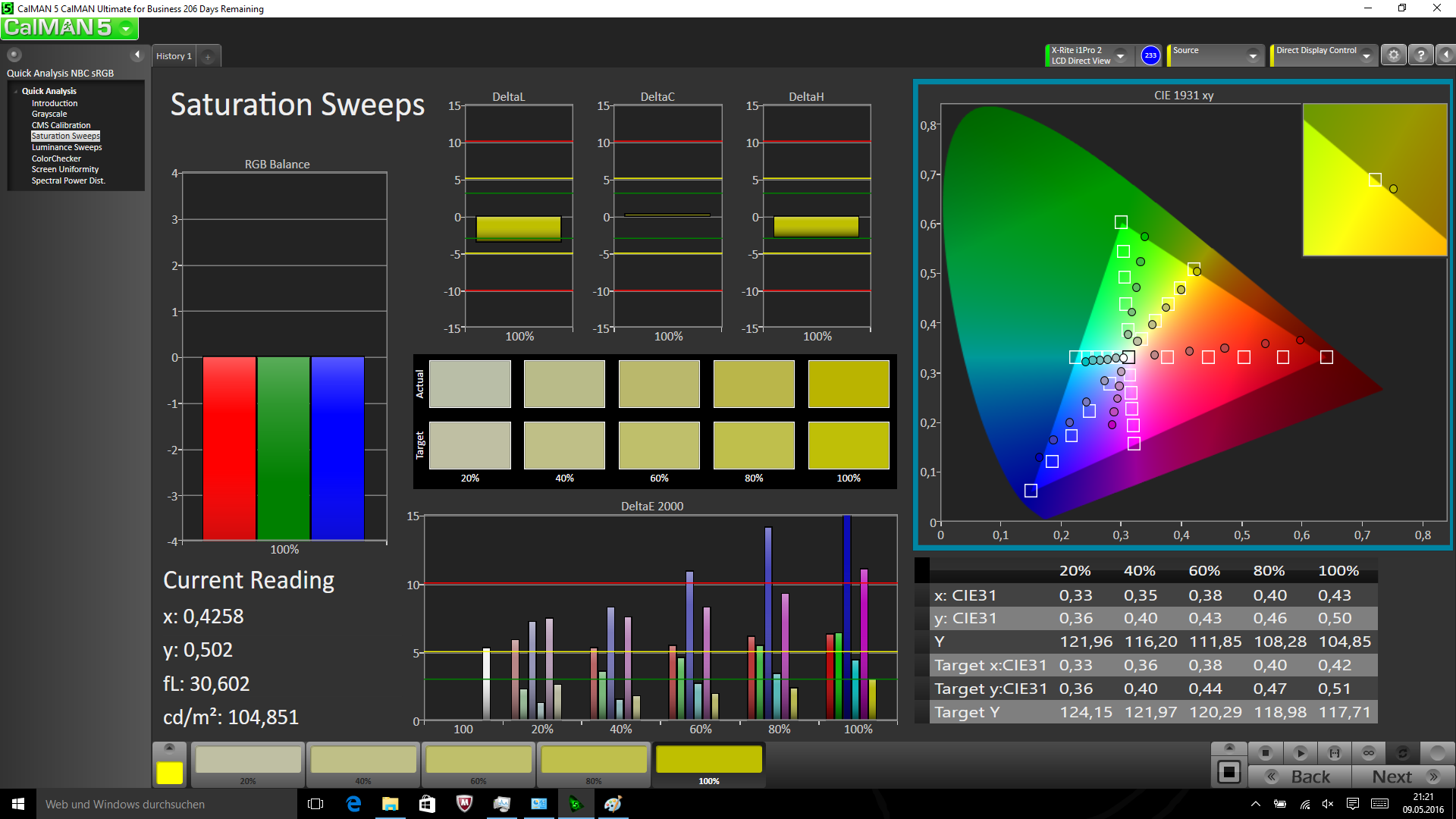

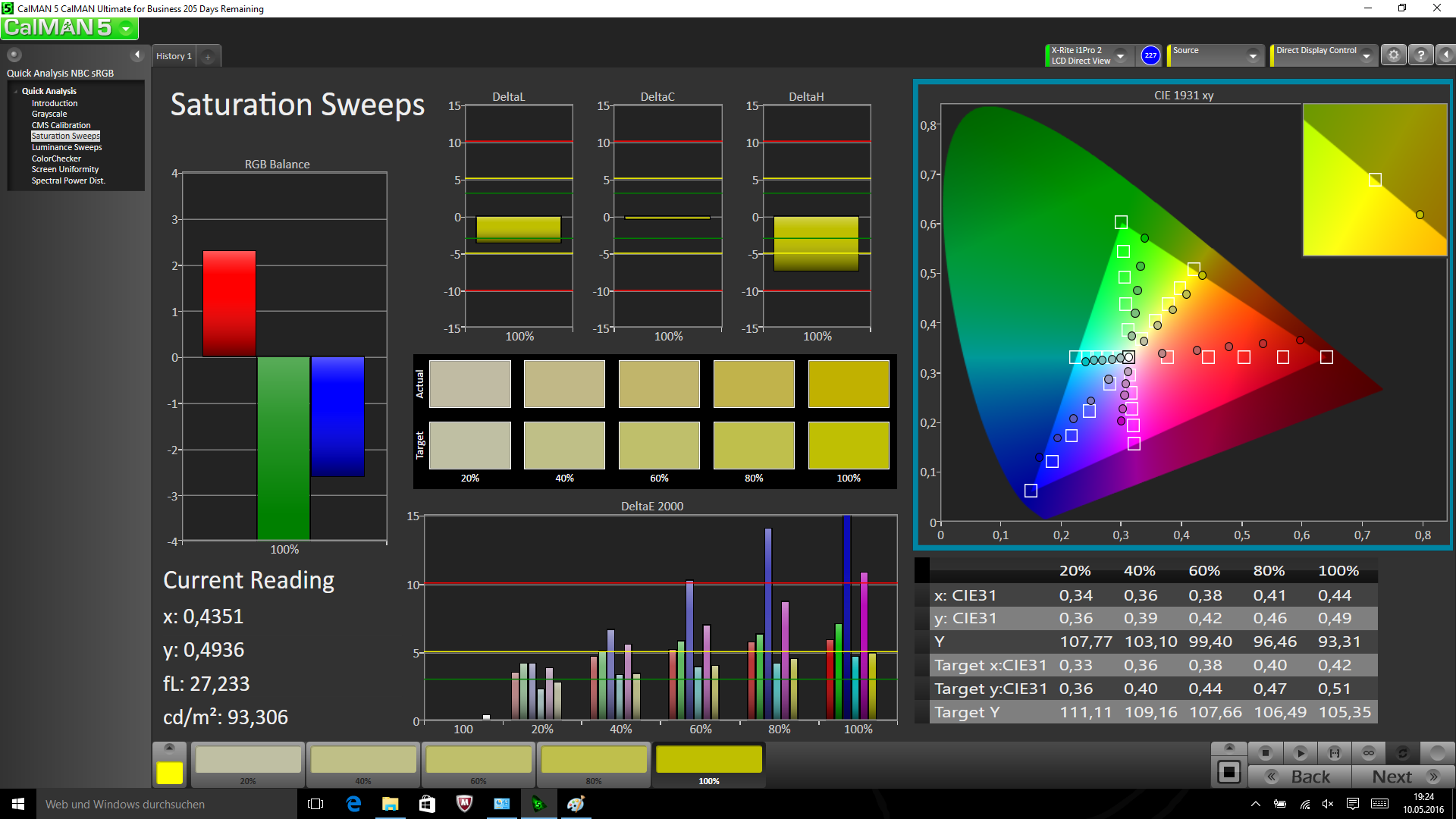

Saturation Sweeps (pre-calibration)
Saturation Sweeps (pre-calibration)
Saturation Sweeps (post-calibration)
Saturation Sweeps (post-calibration)

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

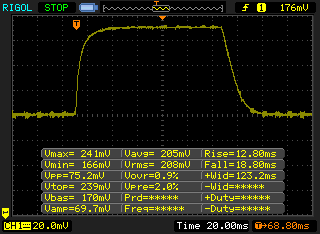

   ↔    Response Time Black to White
31.6 ms ... rise ↗ and fall ↘ combined↗ 12.8 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

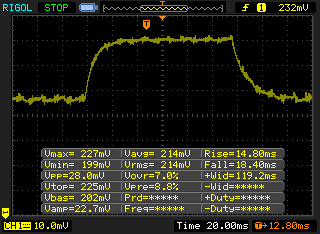

   ↔    Response Time 50% Grey to 80% Grey
33.2 ms ... rise ↗ and fall ↘ combined↗ 14.8 ms rise
↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 41 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.9 ms).

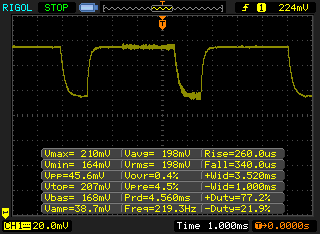

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 220 Hz ≤ 50 % brightness setting

The display backlight flickers at 220 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

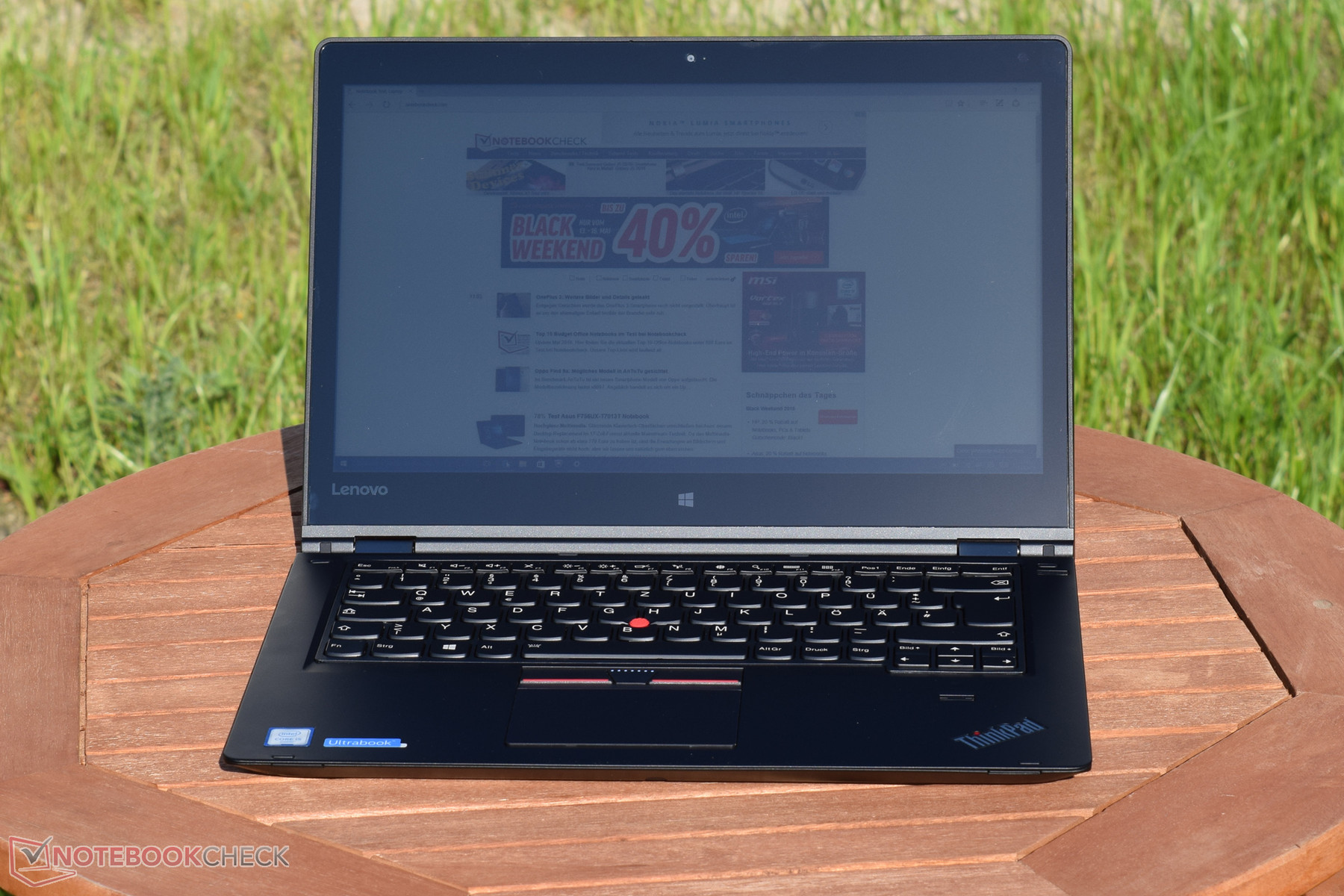

Outdoors in sunlight
Outdoors in sunlight

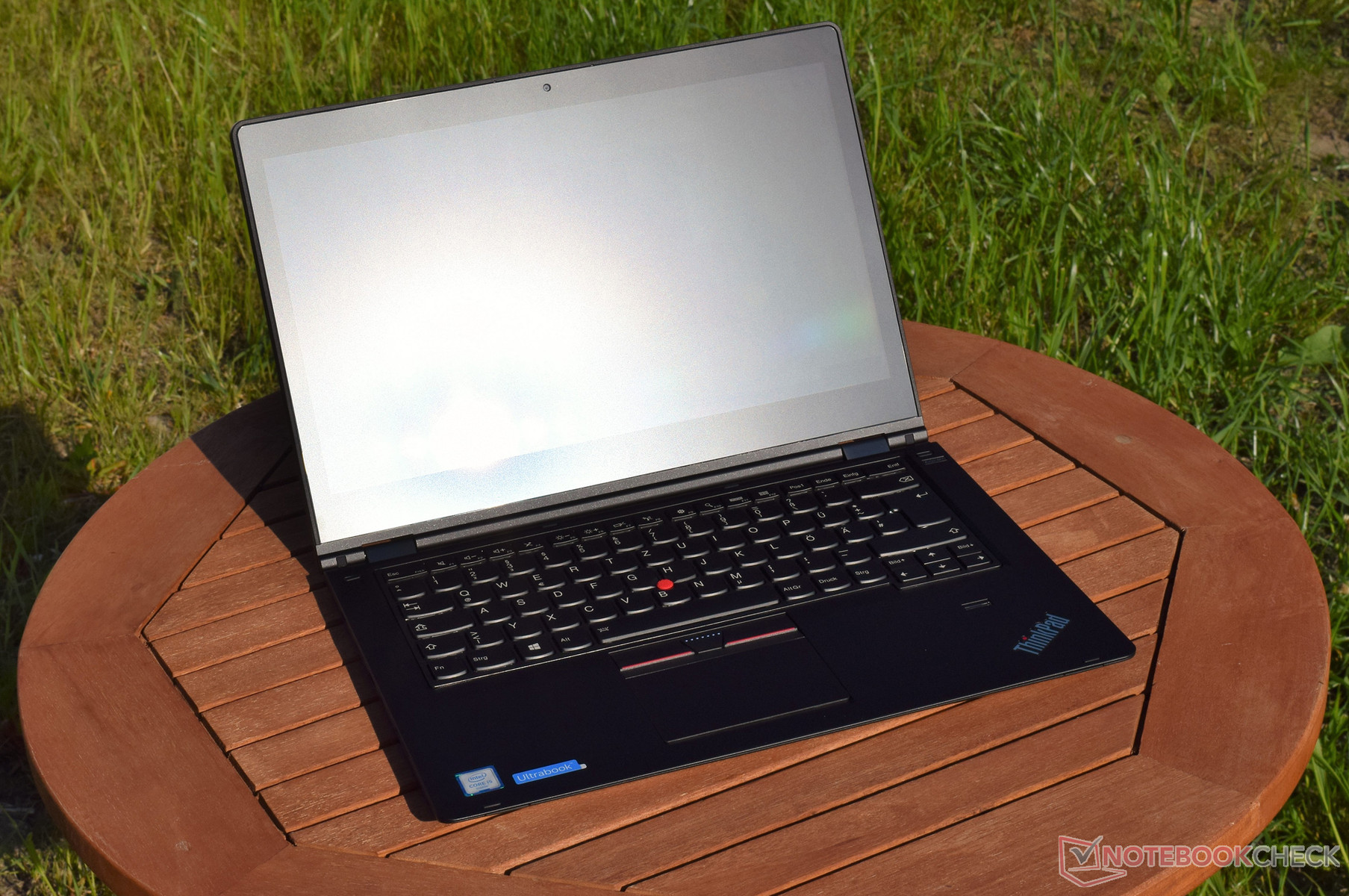

Outdoors in direct sunlight
Outdoors in direct sunlight

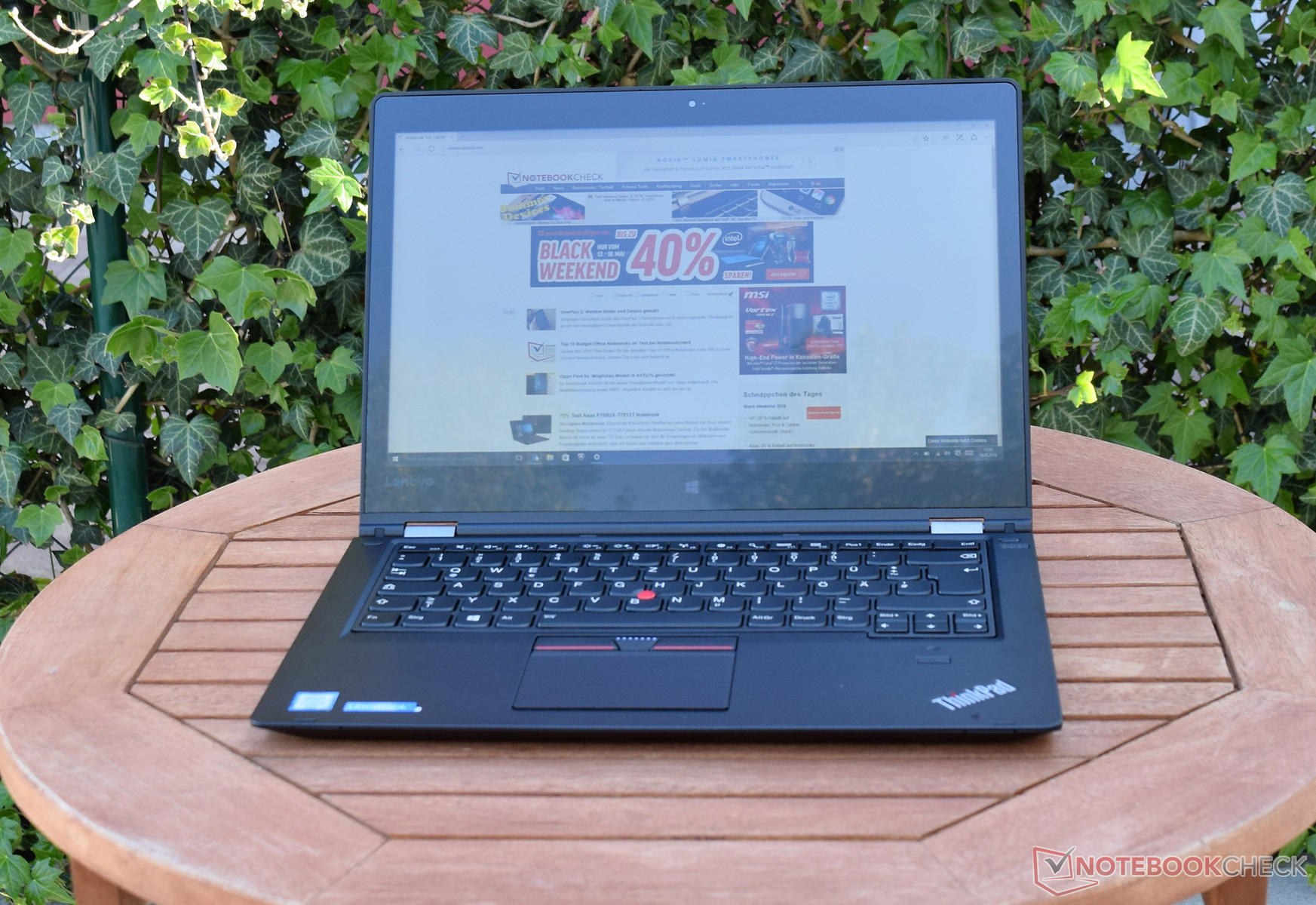

Outdoors in the shade
Outdoors in the shade

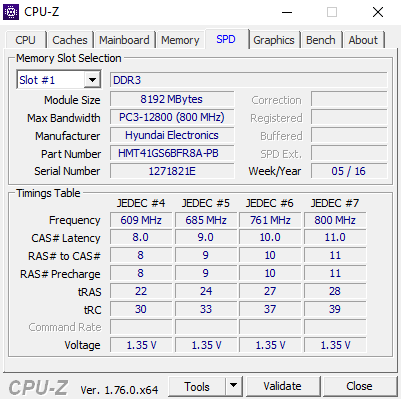

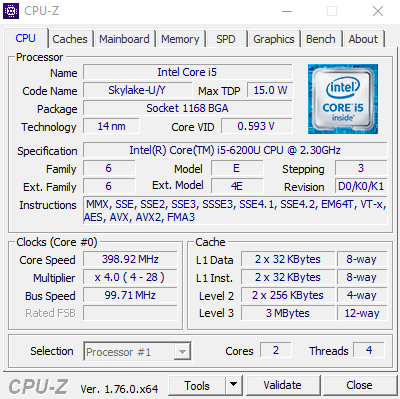

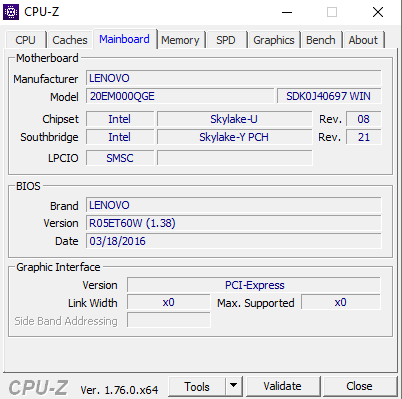

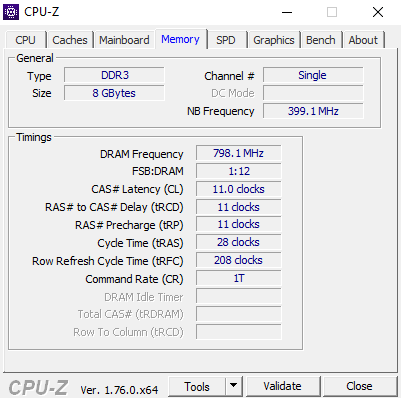

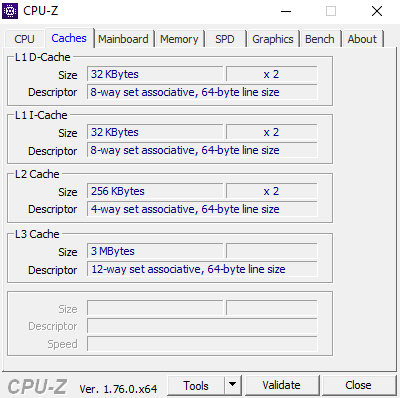

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

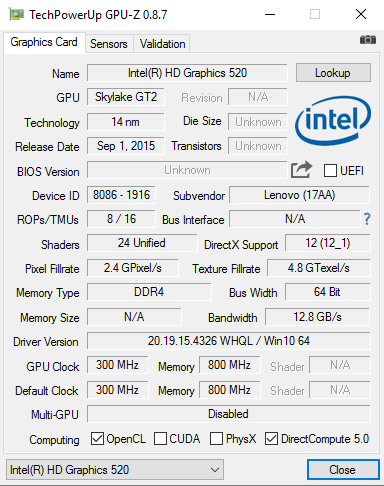

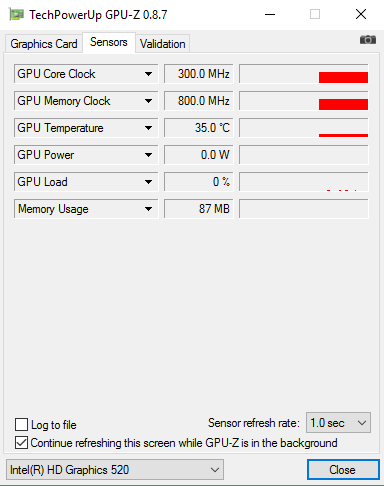

GPU-Z
GPU-Z

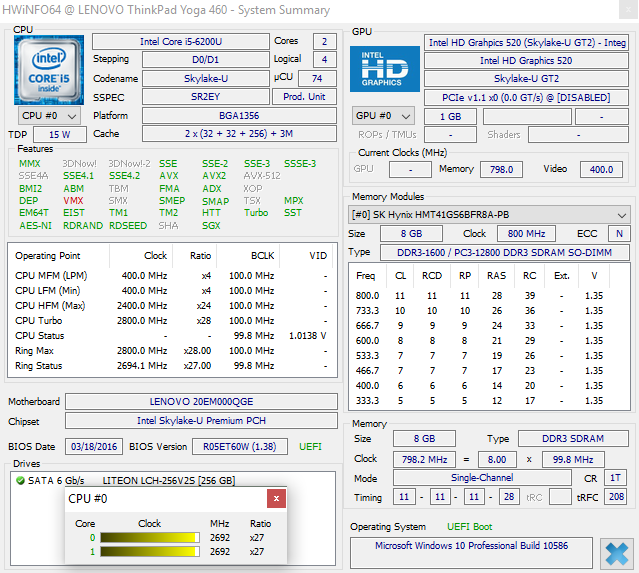

HWiNFO

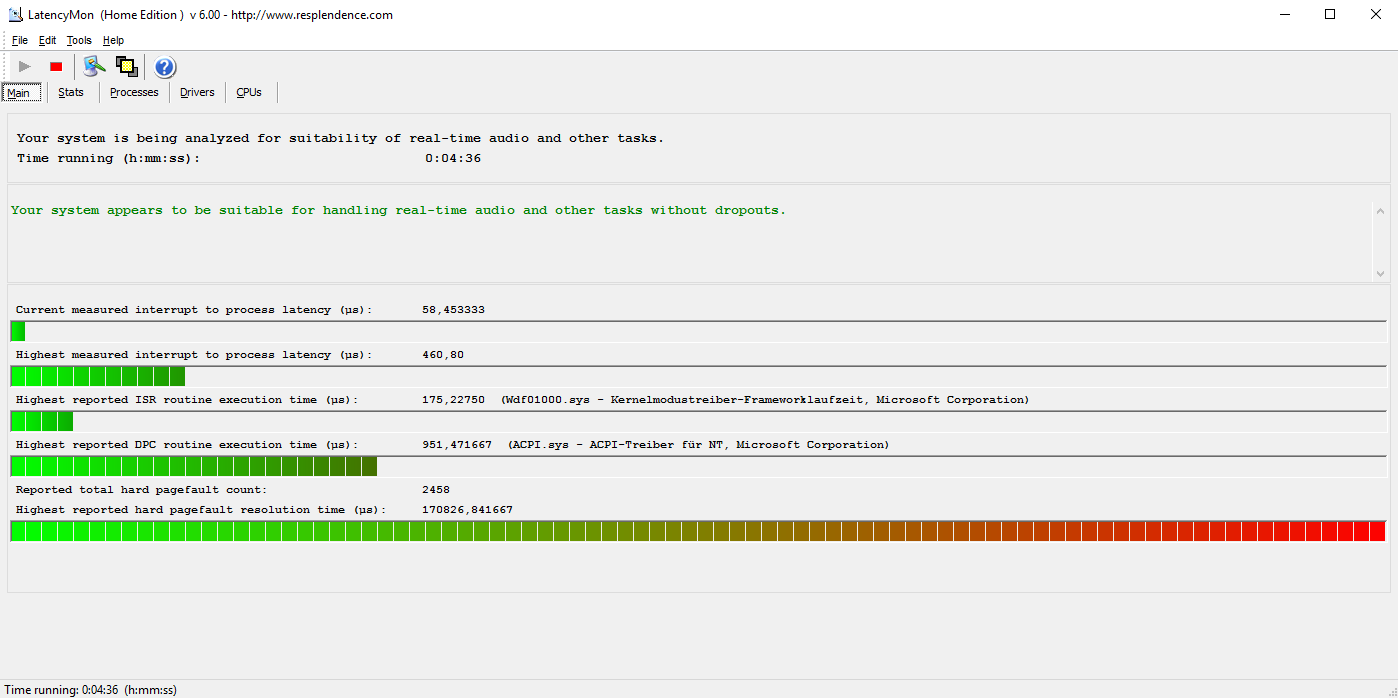

DPC Latency

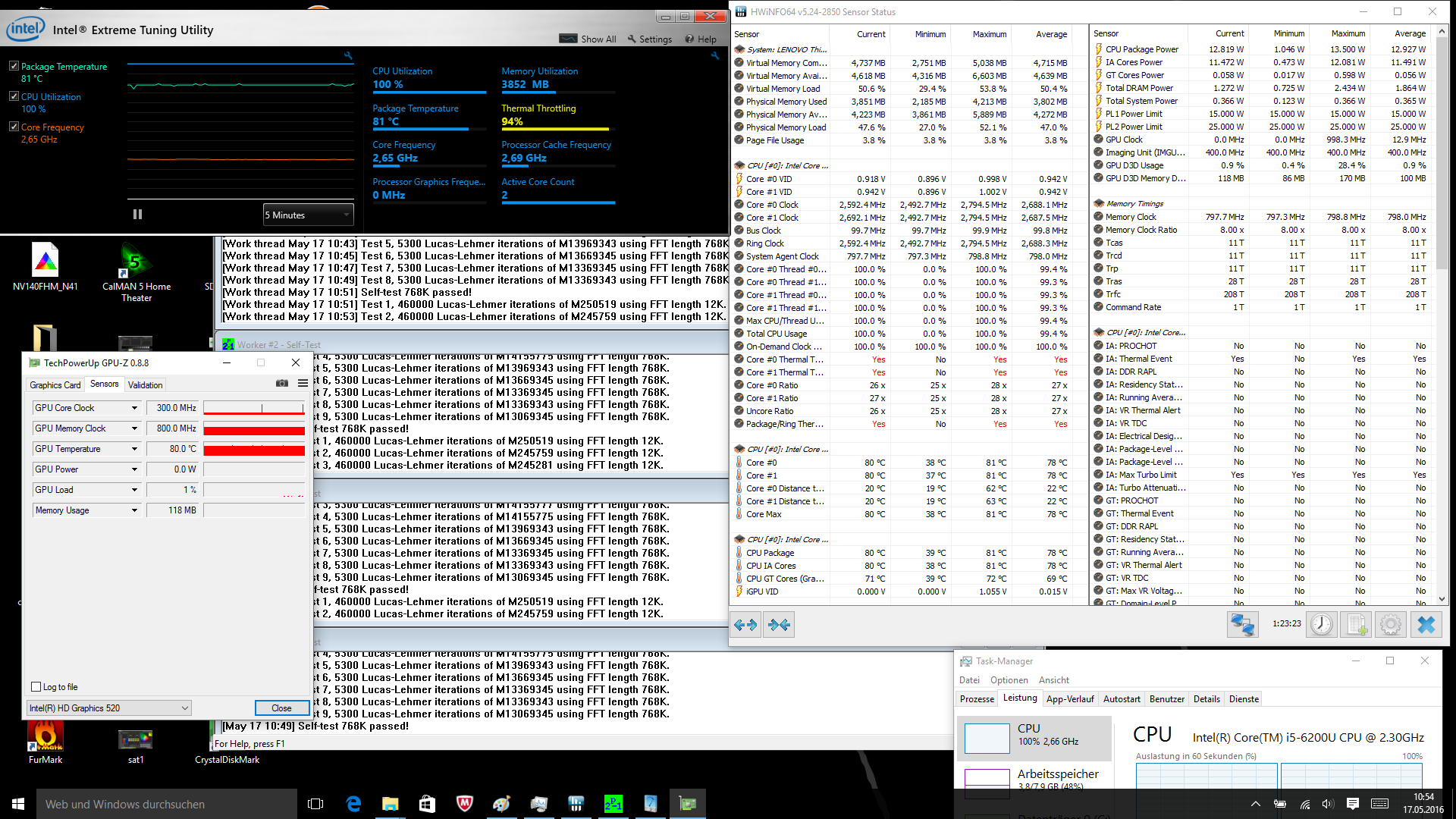

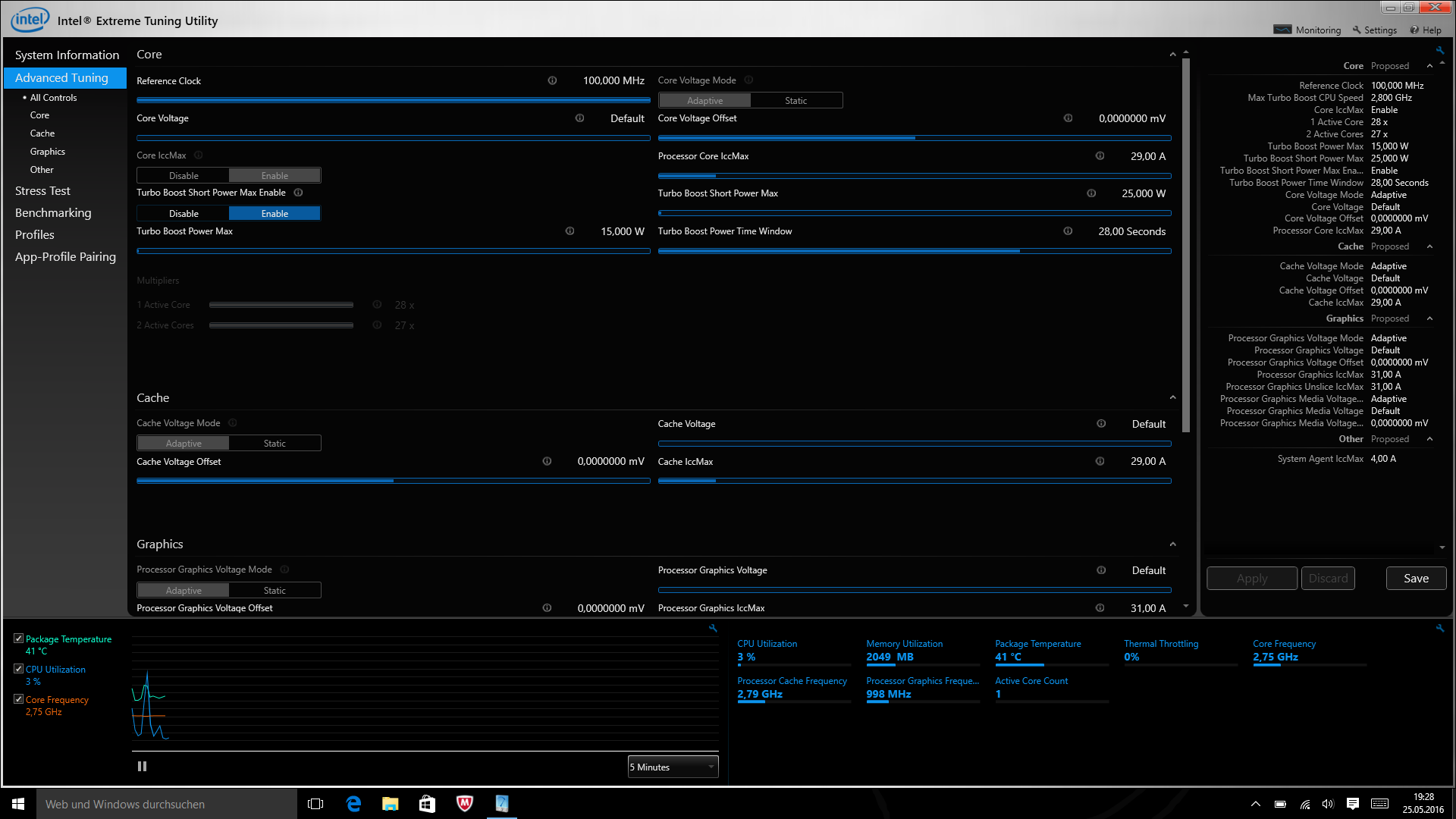

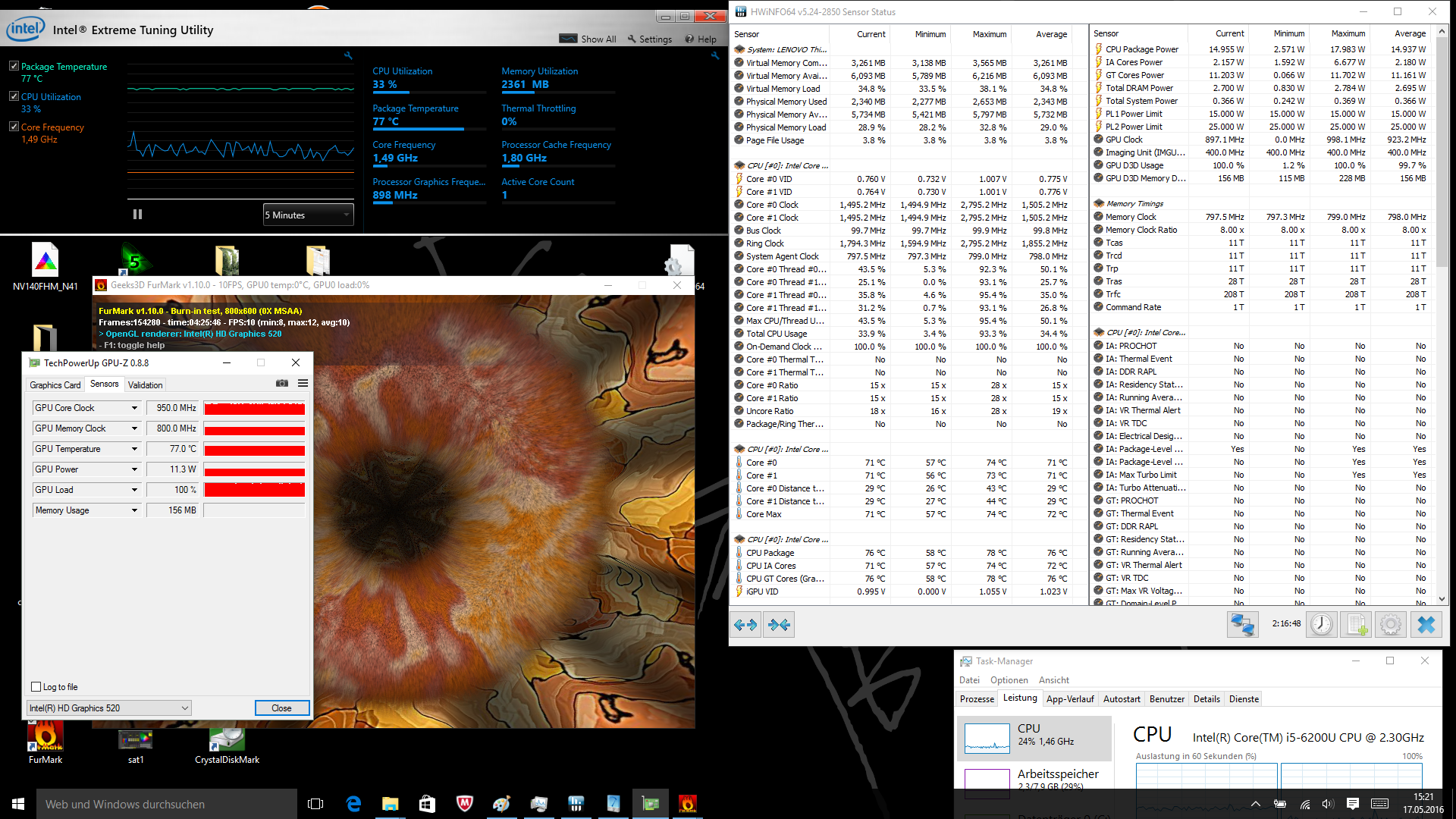

Intel Extreme Tuning Utility

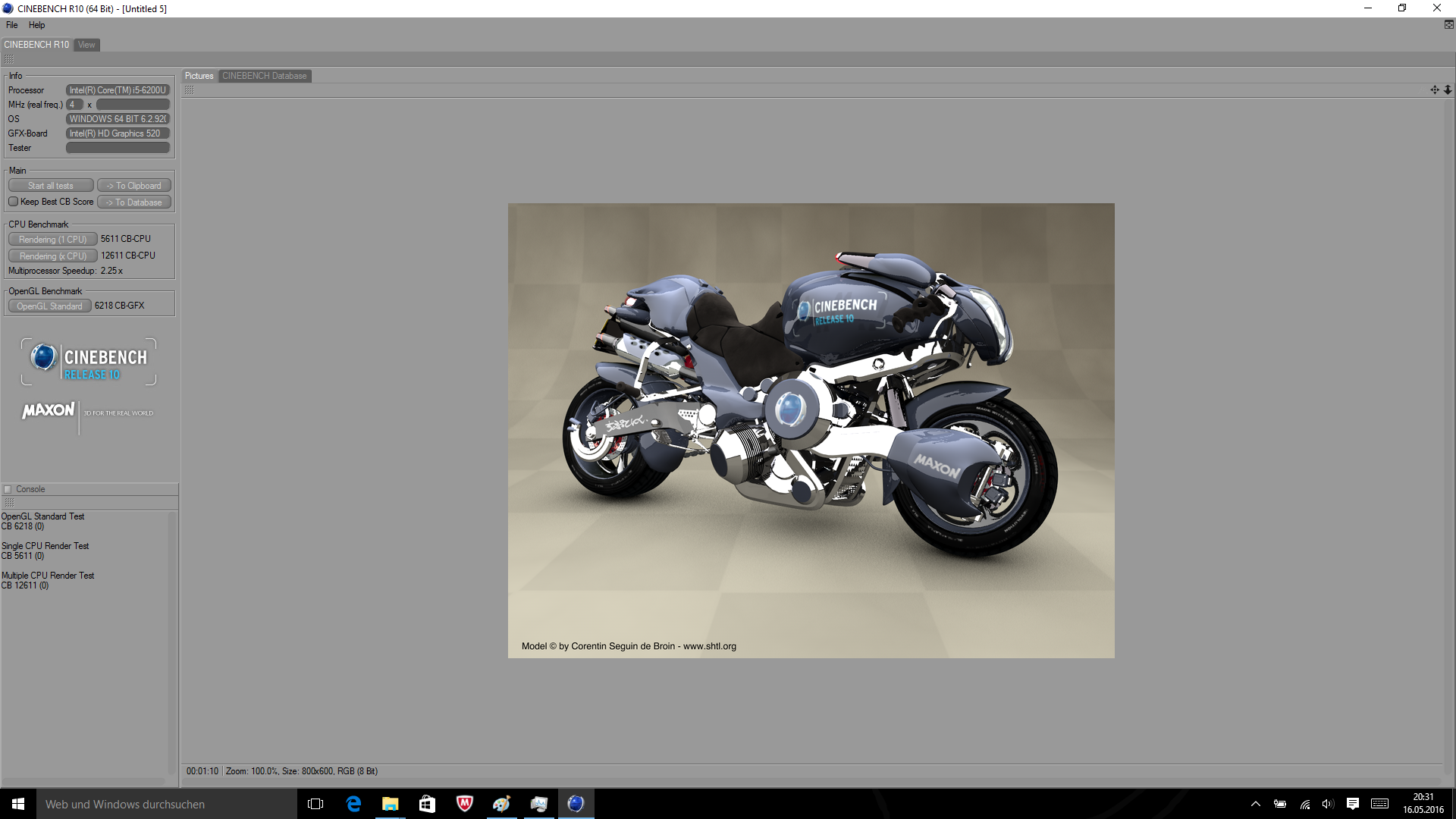

Cinebench R10
Cinebench R10

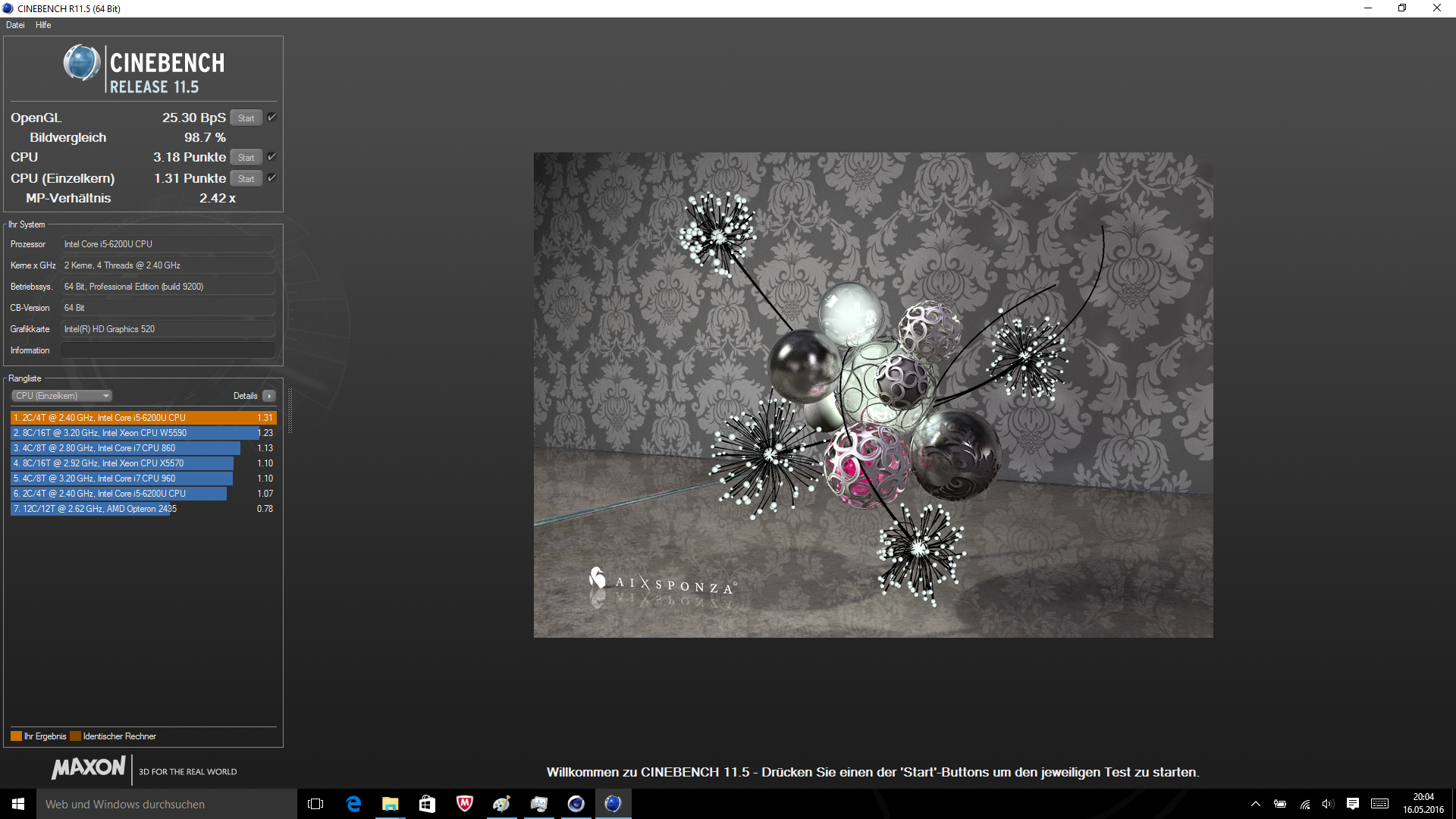

Cinebench R11.5
Cinebench R11.5

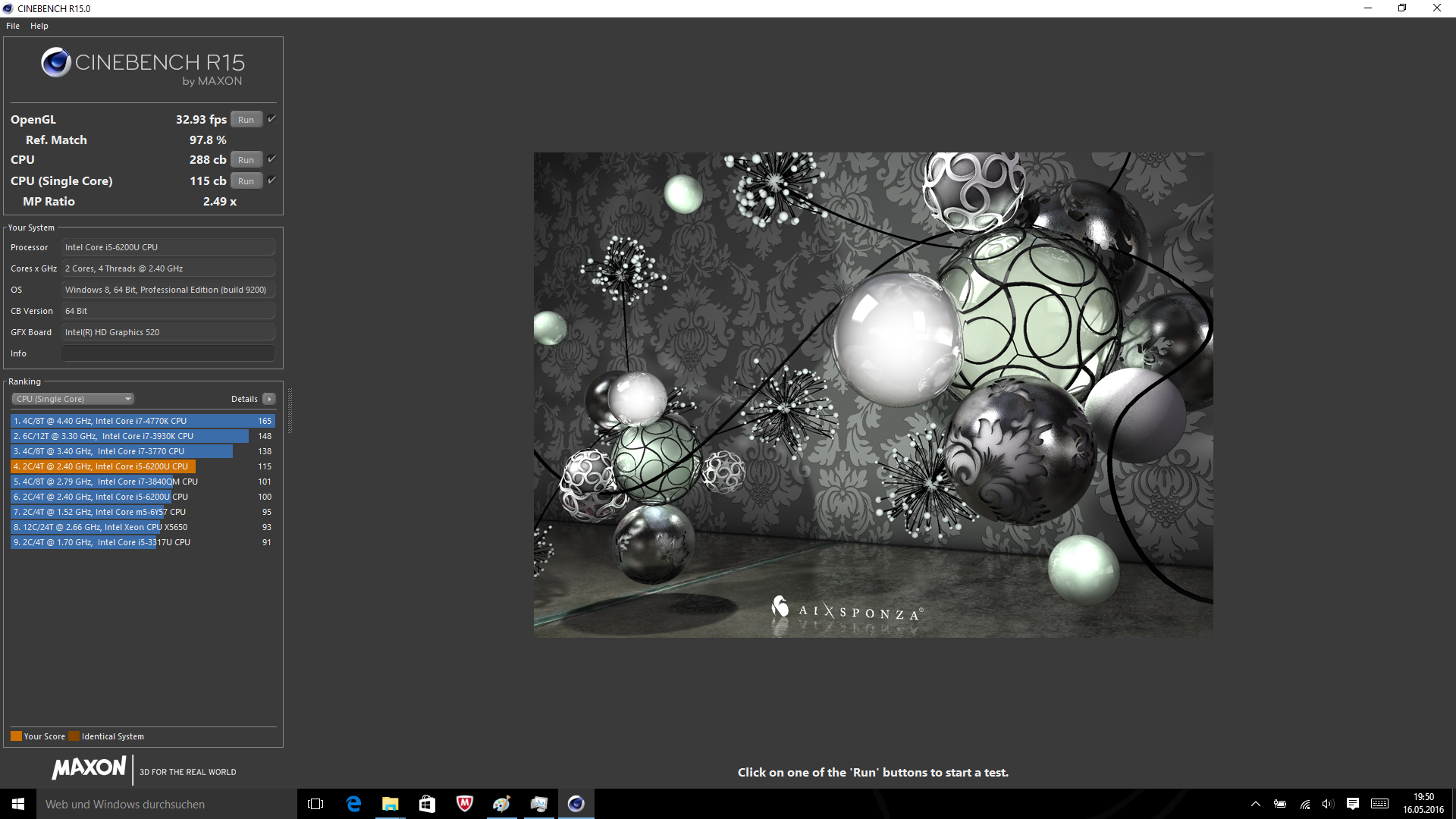

Cinebench R15
Cinebench R15

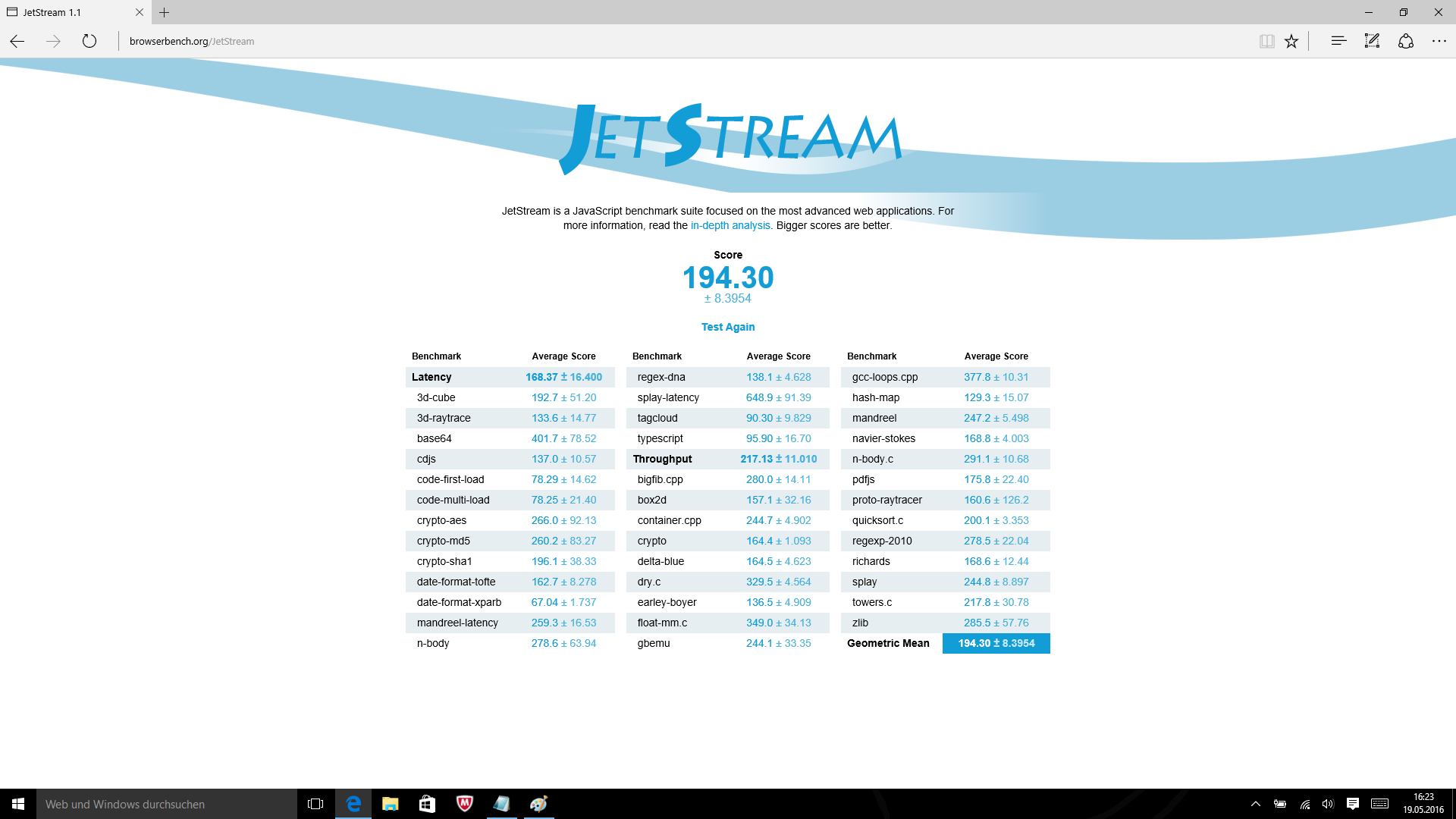

Jetstream 1.1
Jetstream 1.1

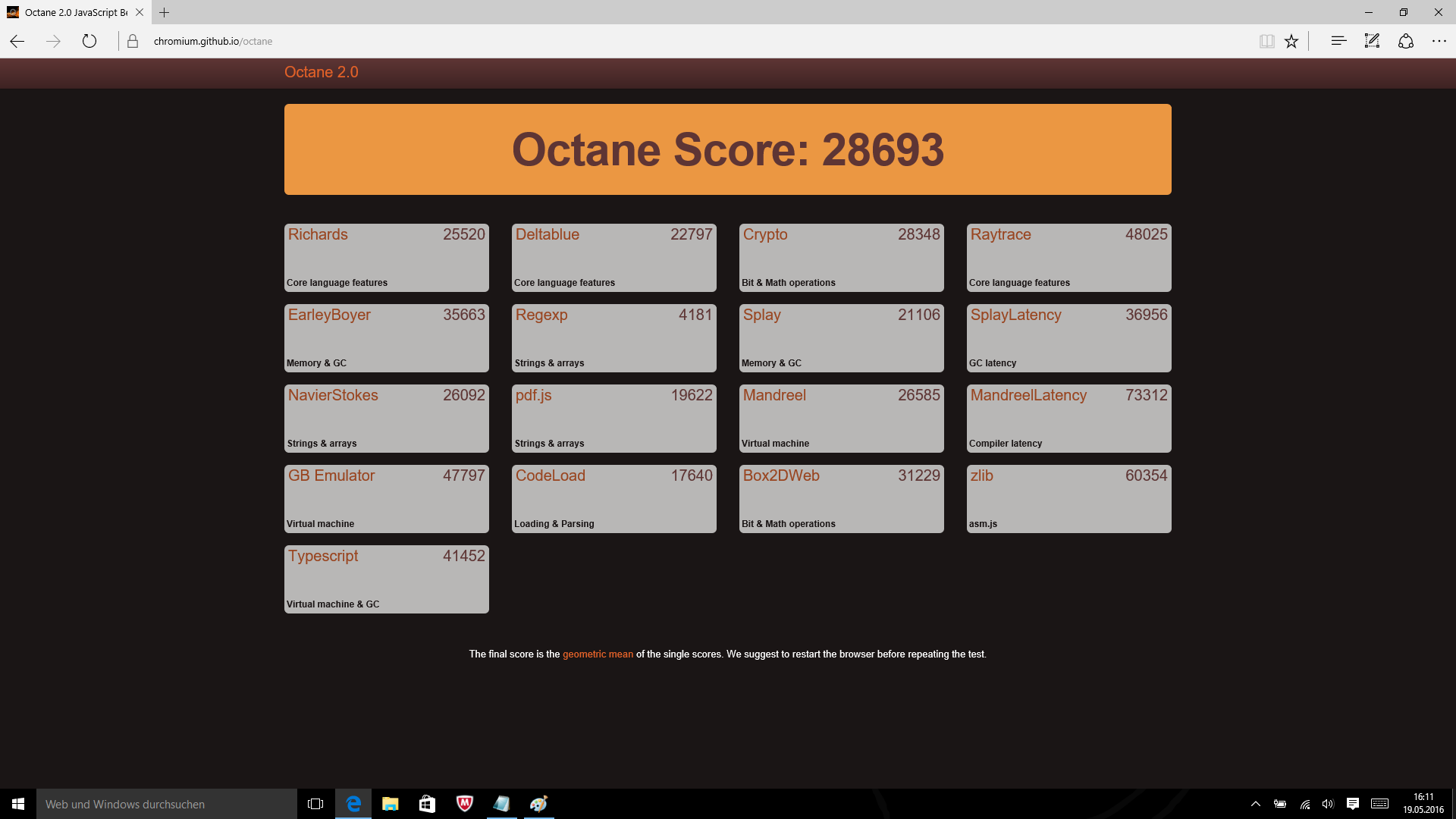

Octane V2
Octane V2
Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | JetStream 1.1 | Octane V2 | Mozilla Kraken 1.1
Cinebench R15
CPU Single 64Bit
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
128 Points +11%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, 2500 MHz
128 Points +11%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
115 Points
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz
113 Points -2%
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, 2400 MHz
110 Points -4%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
104 Points -10%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
100 Points -13%
CPU Multi 64Bit
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
321 Points +11%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
320 Points +11%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, 2500 MHz
307 Points +7%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
288 Points
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz
284 Points -1%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
265 Points -8%
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, 2400 MHz
260 Points -10%
Cinebench R11.5
CPU Single 64Bit
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
1.48 Points +13%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
1.36 Points +4%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
1.31 Points
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz
1.3 Points -1%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
1.15 Points -12%
CPU Multi 64Bit
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
3.57 Points +12%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
3.55 Points +12%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
3.18 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
3.06 Points -4%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz
2.7 Points -15%
Cinebench R10
Rendering Single CPUs 64Bit
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
5611 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
5055 Points -10%
Rendering Multiple CPUs 64Bit
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
12611 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
11770 Points -7%
JetStream 1.1 - Total Score
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
218.6 Points +13%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
213.7 Points +10%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
194.3 Points
Octane V2 - Total Score
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, 2500 MHz
33275 Points +16%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
32707 Points +14%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
31973 Points +11%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
28693 Points
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz
27649 Points -4%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
24932 Points -13%

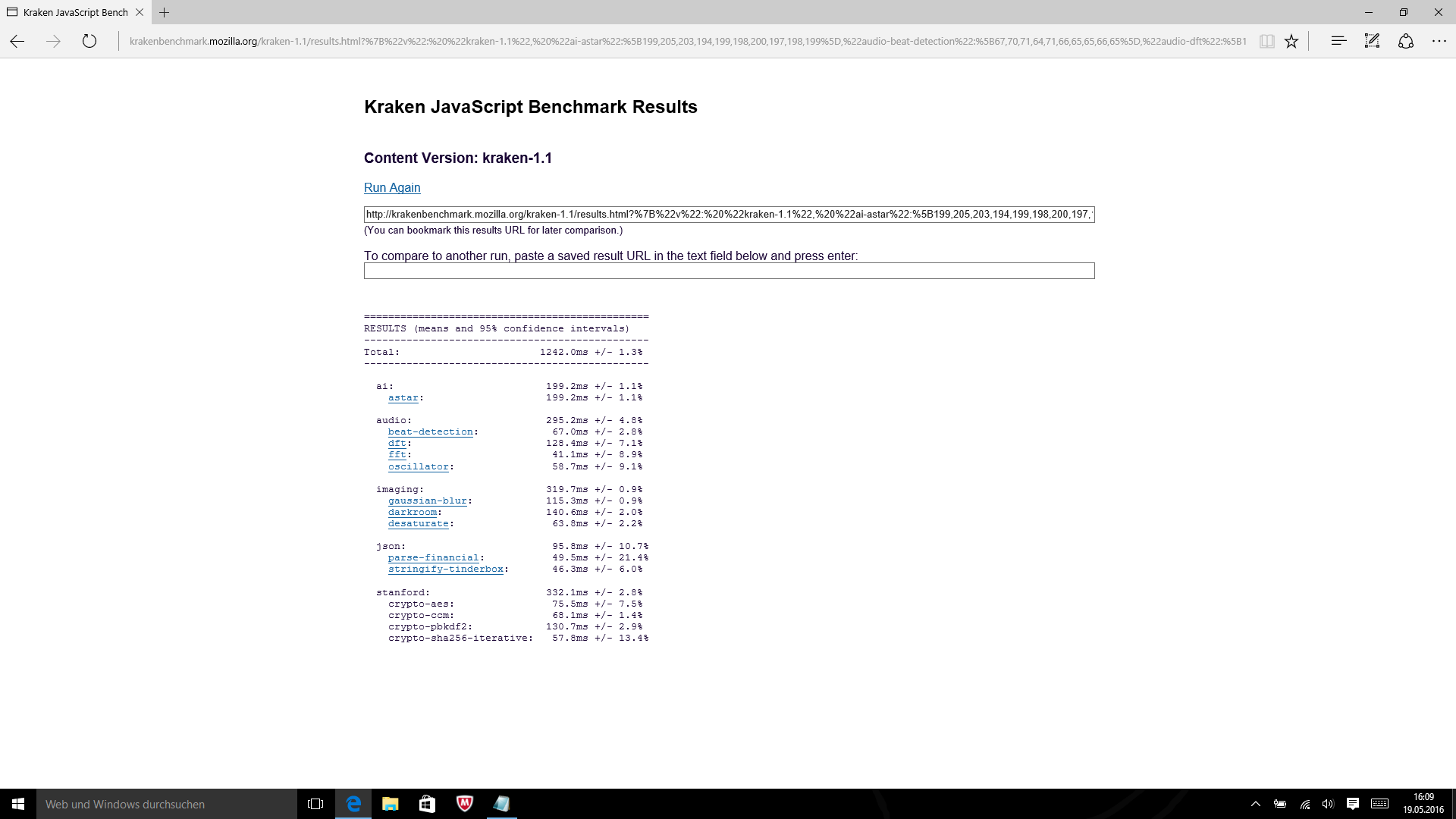

Mozilla Kraken 1.1 - Total
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz
1493 ms * -20%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz
1456 ms * -17%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz
1242 ms *
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz
1136 ms * +9%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz
1123 ms * +10%

* ... smaller is better

Cinebench R10 Shading 32Bit
6146
Cinebench R10 Rendering Multiple CPUs 32Bit
9851
Cinebench R10 Rendering Single 32Bit
4451
Cinebench R10 Shading 64Bit
6218 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
12611 Points
Cinebench R10 Rendering Single CPUs 64Bit
5611 Points
Cinebench R11.5 CPU Multi 64Bit
3.18 Points
Cinebench R11.5 OpenGL 64Bit
25.3 fps
Cinebench R11.5 CPU Single 64Bit
1.31 Points
Cinebench R15 CPU Multi 64Bit
288 Points
Cinebench R15 CPU Single 64Bit
115 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
32.93 fps
Help

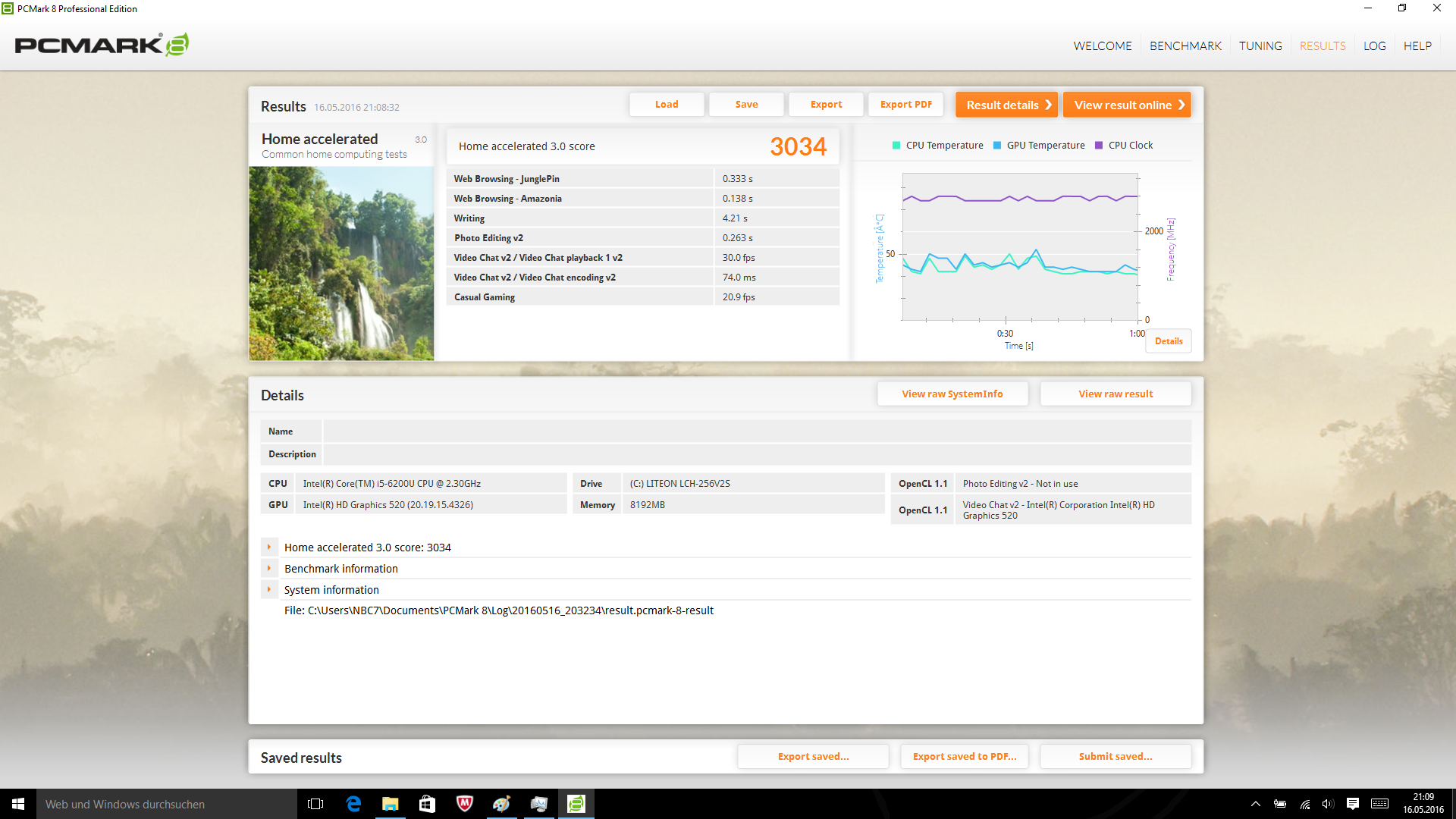

PCMark 8 Home
PCMark 8 Home

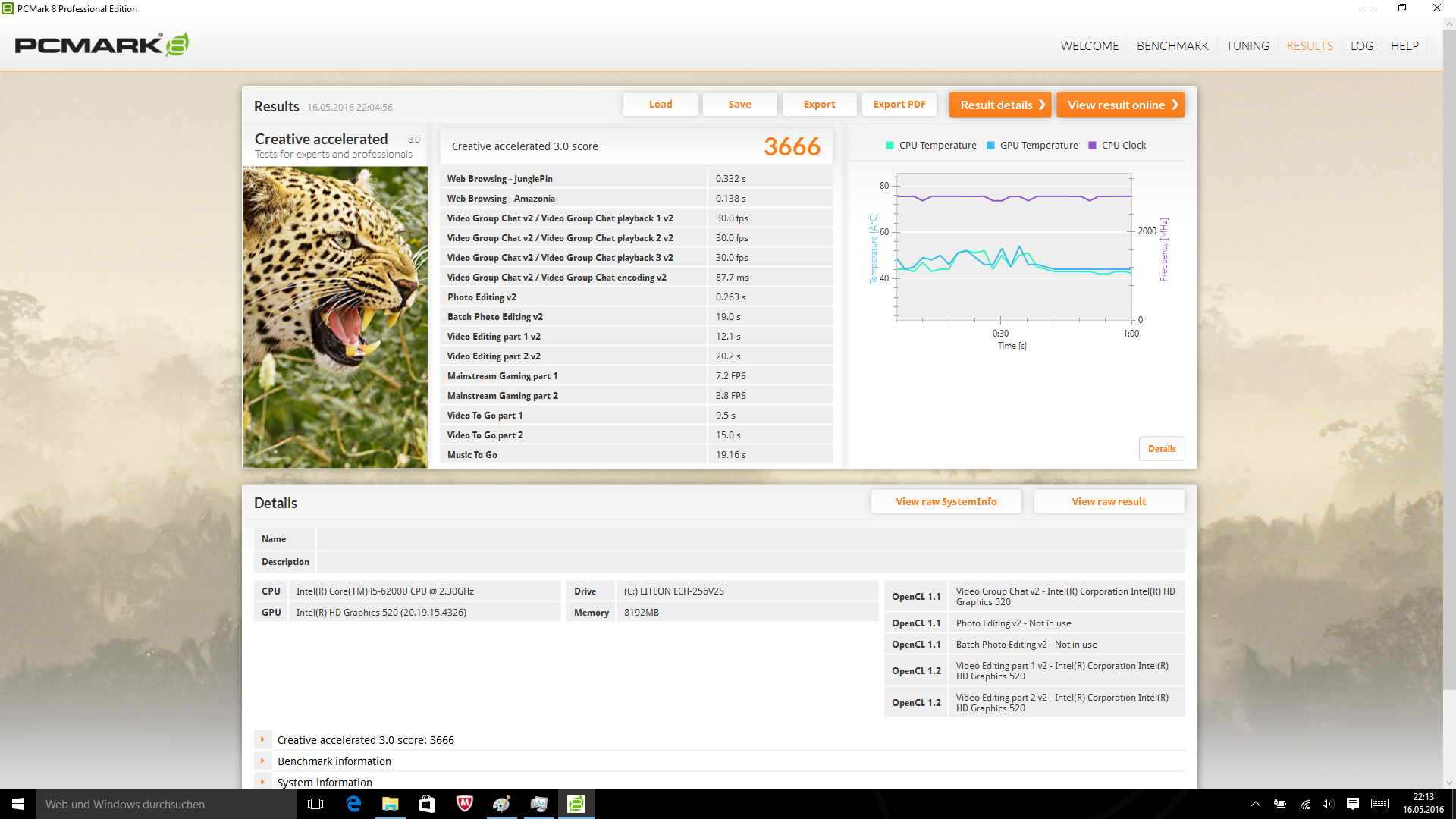

PCMark 8 Creative
PCMark 8 Creative

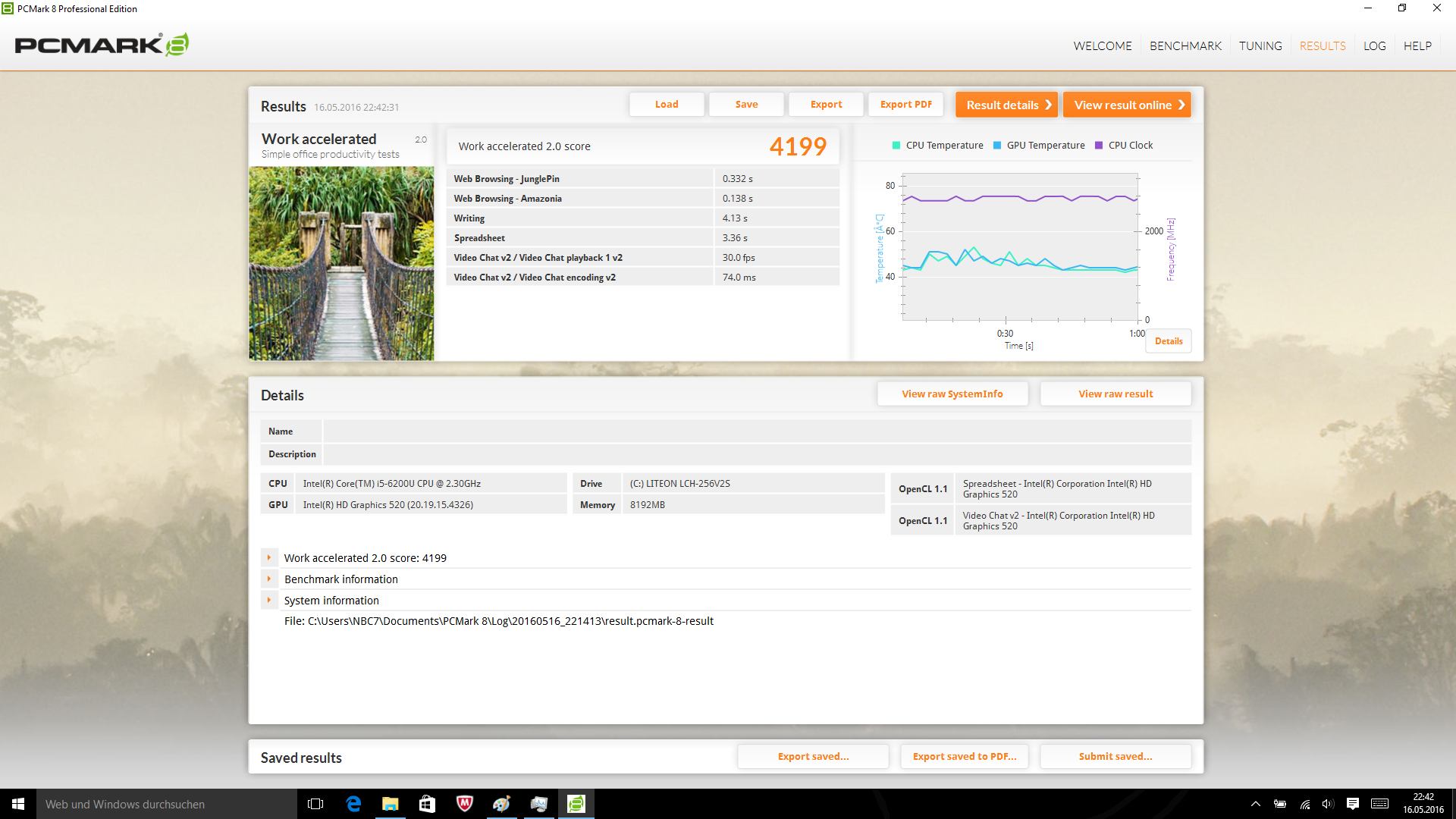

PCMark 8 Work
PCMark 8 Work

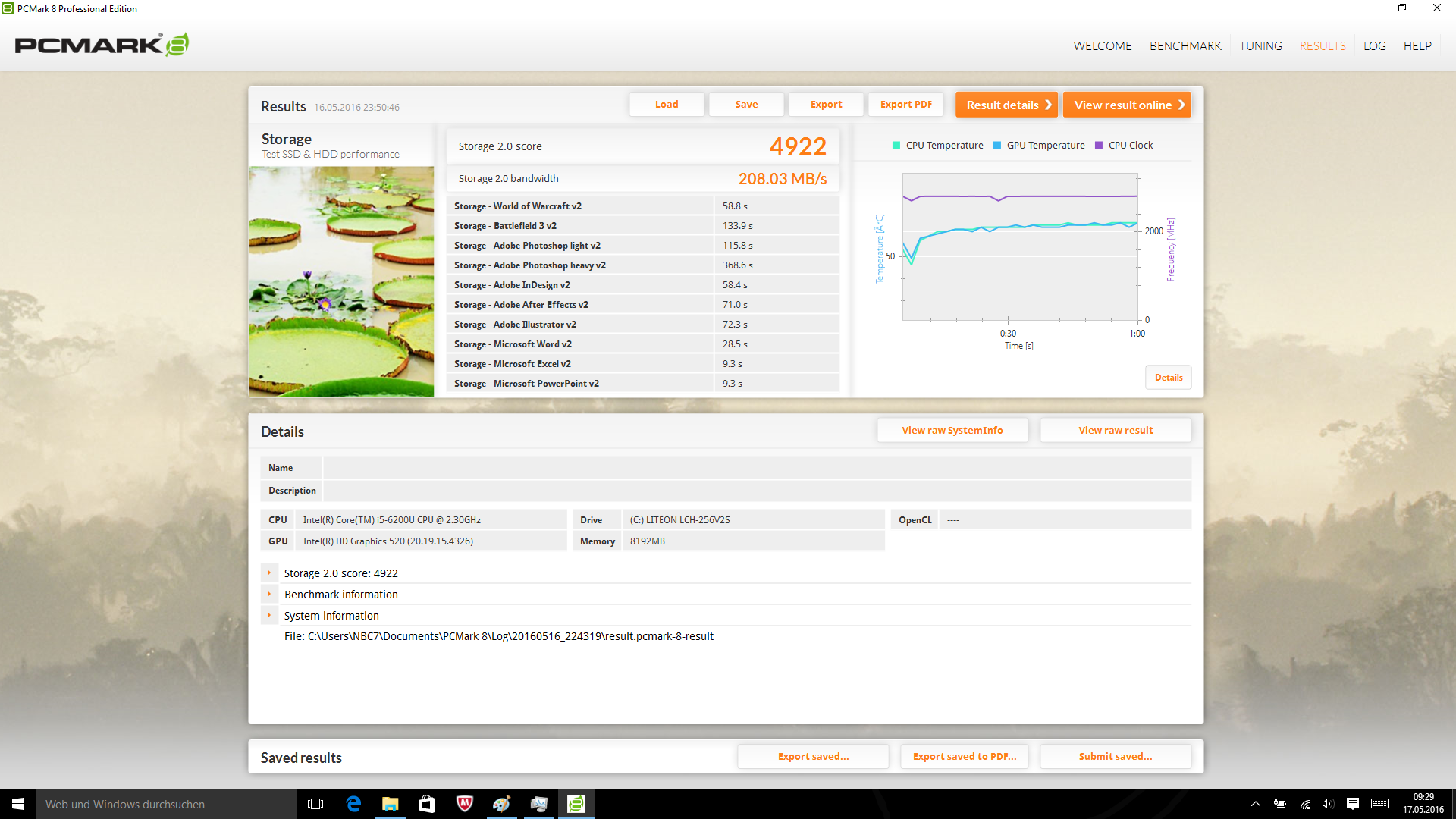

PCMark 8 Storage
PCMark 8 Storage

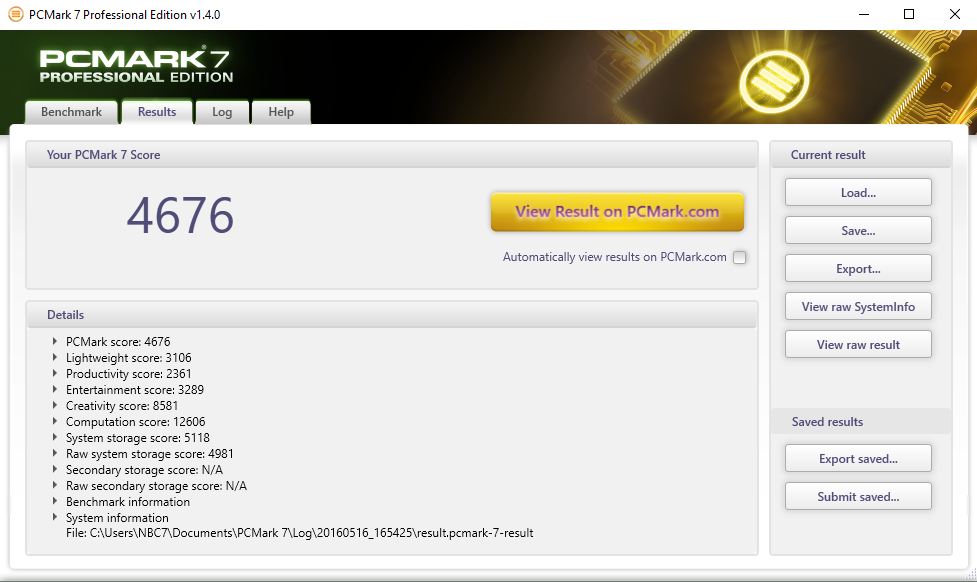

PCMark 7
PCMark 7
PCMark 8 | PCMark 7
PCMark 8
Home Score Accelerated v2
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz,
3392 Points +12%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz, Lite-On CV1-8B256
3161 Points +4%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, 2500 MHz, Samsung SSD PM871 MZNLN512HCJH
3137 Points +3%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz, Liteonit LCH-256V2S
3034 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz, WDC Slim WD10SPCX-24HWST1
2689 Points -11%
Creative Score Accelerated v2
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz,
4092 Points +12%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz, Lite-On CV1-8B256
3987 Points +9%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz, Liteonit LCH-256V2S
3666 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz, WDC Slim WD10SPCX-24HWST1
2956 Points -19%
Work Score Accelerated v2
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, 2500 MHz,
4307 Points +3%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz, Liteonit LCH-256V2S
4199 Points
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, 2500 MHz, Samsung SSD PM871 MZNLN512HCJH
3986 Points -5%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz, Lite-On CV1-8B256
3971 Points -5%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz, WDC Slim WD10SPCX-24HWST1
3585 Points -15%
PCMark 7
Score
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz, Lite-On CV1-8B256
5415 Points +16%
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, 2400 MHz, Samsung SSD PM851 512 GB MZ7TE512HMHP
4967 Points +6%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
4939 Points +6%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
4939 Points +6%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz, Liteonit LCH-256V2S
4676 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz, WDC Slim WD10SPCX-24HWST1
2582 Points -45%
Productivity
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, 2500 MHz, Lite-On CV1-8B256
2652 Points +12%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, 2300 MHz, Liteonit LCH-256V2S
2361 Points
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
2316 Points -2%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
2316 Points -2%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, 2300 MHz, WDC Slim WD10SPCX-24HWST1
820 Points -65%
PCMark 7 Score
4676 points
PCMark 8 Home Score Accelerated v2
3034 points
PCMark 8 Creative Score Accelerated v2
3666 points
PCMark 8 Work Score Accelerated v2
4199 points
Help
CrystalDiskMark 3.0
AS SSD
hddimg
Liteonit LCH-256V2S
Sequential Read: 499.1 MB/s
Sequential Write: 287.9 MB/s
512K Read: 283.9 MB/s
512K Write: 287.3 MB/s
4K Read: 26.38 MB/s
4K Write: 78.6 MB/s
4K QD32 Read: 301 MB/s
4K QD32 Write: 250 MB/s
3DMark | 3DMark 11 | 3DMark 06
3DMark
1280x720 Ice Storm Standard Score
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, HD Graphics 520
57986 Points +51%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520
57060 Points +48%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
51751 Points +35%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
51751 Points +35%
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, GeForce 840M
41030 Points +7%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520
38427 Points
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M
37066 Points -4%
1280x720 Cloud Gate Standard Score
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, HD Graphics 520
6255 Points +37%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520
6139 Points +35%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, HD Graphics 520
5745 Points +26%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
5674 Points +24%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
5674 Points +24%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M
4926 Points +8%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520
4563 Points
1920x1080 Fire Strike Score
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, GeForce 840M
1595 Points +160%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M
1045 Points +70%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520
847 Points +38%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, HD Graphics 520
841 Points +37%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
793 Points +29%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
793 Points +29%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520
614 Points
3DMark 11
1280x720 Performance
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M
1823 Points +41%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520
1596 Points +24%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, HD Graphics 520
1584 Points +23%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, HD Graphics 520
1541 Points +19%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
1448 Points +12%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
1448 Points +12%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520
1290 Points
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, GeForce 840M
0 Points -100%
1280x720 Performance GPU
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M
1748 Points +47%
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520
1415 Points +19%
Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, HD Graphics 520
1411 Points +18%
Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, HD Graphics 520
1374 Points +15%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
1326 Points +11%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
1326 Points +11%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520
1193 Points
Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, GeForce 840M
0 Points -100%
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520
9829 Points +43%
HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
8916 Points +30%
Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M
8808 Points +29%
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520
6850 Points
3DMark 03 Standard
14683 points
3DMark 05 Standard
10120 points
3DMark 06 Standard Score
6850 points
3DMark 11 Performance
1290 points
3DMark Ice Storm Standard Score
38427 points
3DMark Cloud Gate Standard Score
4563 points
3DMark Fire Strike Score
614 points
Help
lowmed.highultra
BioShock Infinite (2013) 29.7 17.7 14.7 4.5
Battlefield 4 (2013) 31.4 23.9 13.4 3.8
Rise of the Tomb Raider (2016) 10.8 8.4 4.1

Noise Level

Idle
28.9 / 28.9 / 28.9 dB(A)
Load
31.1 / 32.5 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm distance)   environment noise: 28.9 dB(A)
Lenovo ThinkPad Yoga 460-20EM000QGE
Intel Core i5-6200U, HD Graphics 520		Lenovo ThinkPad Yoga 14
Intel Core i7-5500U, GeForce 840M		Lenovo Thinkpad X1 Yoga 20FQ-000QUS
Intel Core i7-6500U, HD Graphics 520		Lenovo Yoga 500-14ISK
Intel Core i5-6200U, GeForce 920M		Acer Aspire R14 R5-471T-79GQ
Intel Core i7-6500U, HD Graphics 520		Acer Aspire R13 R7-372T-746N
Intel Core i7-6500U, HD Graphics 520		HP Spectre x360 13-4104ng
Intel Core i5-6200U, HD Graphics 520
Noise
-4%
-4%
-16%
-10%
-13%
-11%
off / environment *
28.9
28.8
-0%
31.3
-8%
31.3
-8%
Idle Minimum *
28.9
29.6
-2%
28.8
-0%
32.8
-13%
31.75
-10%
31.3
-8%
29.6
-2%
Idle Average *
28.9
29.6
-2%
28.8
-0%
32.8
-13%
31.75
-10%
31.3
-8%
29.6
-2%
Idle Maximum *
28.9
29.6
-2%
28.8
-0%
32.8
-13%
31.75
-10%
31.8
-10%
34.6
-20%
Load Average *
31.1
34.2
-10%
35.2
-13%
39.4
-27%
34.8
-12%
39.2
-26%
34.7
-12%
Load Maximum *
32.5
34.5
-6%
35.2
-8%
39.2
-21%
34.8
-7%
39.1
-20%
37.9
-17%

* ... smaller is better

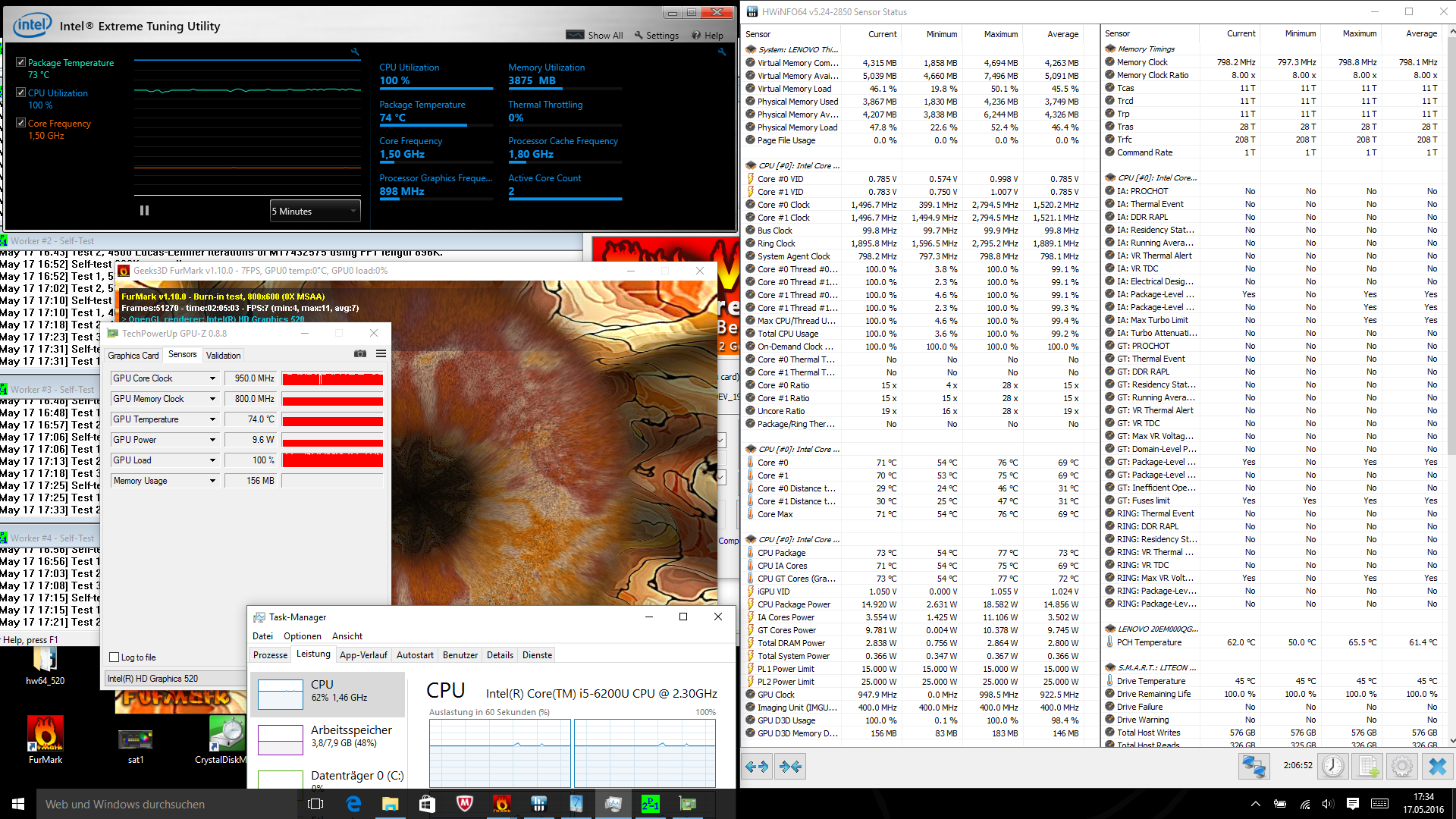

Stress test Prime95 + Furmark
Stress test Prime95 + Furmark
Stress test Furmark only
Stress test Furmark only
Stress test Prime95 only
Stress test Prime95 only
Max. Load
 32.8 °C39.5 °C35.5 °C
 30 °C34.9 °C34.7 °C
 29.4 °C30.4 °C30.8 °C
Maximum: 39.5 °C
Average: 33.1 °C
37.5 °C48.4 °C35.8 °C
35.5 °C38 °C32 °C
33.8 °C33.1 °C31.4 °C
Maximum: 48.4 °C
Average: 36.2 °C
Power Supply (max.)  41 °C | Room Temperature 22.8 °C | Fluke 62 Max
(±) The average temperature for the upper side under maximal load is 33.1 °C / 92 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 39.5 °C / 103 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 48.4 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 30.3 °C / 87 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.8 °C / 87.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-2.7 °C / -4.8 F).
Lenovo ThinkPad Yoga 460-20EM000QGE
HD Graphics 520, 6200U, Liteonit LCH-256V2S		Lenovo ThinkPad Yoga 14
GeForce 840M, 5500U, Samsung SSD PM851 512 GB MZ7TE512HMHP		Lenovo Thinkpad X1 Yoga 20FQ-000QUS
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN512HCJH		Lenovo Yoga 500-14ISK
GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1		Acer Aspire R14 R5-471T-79GQ
HD Graphics 520, 6500U		Acer Aspire R13 R7-372T-746N
HD Graphics 520, 6500U, Lite-On CV1-8B256		HP Spectre x360 13-4104ng
HD Graphics 520, 6200U, Samsung SSD PM851 256 GB MZNTE256HMHP
Power Consumption
-7%
-48%
-45%
-5%
-38%
-3%
Idle Minimum *
3.6
3.1
14%
6.82
-89%
6.6
-83%
4
-11%
6.2
-72%
3.9
-8%
Idle Average *
6.9
7.2
-4%
8.21
-19%
10.6
-54%
6.6
4%
8
-16%
7.4
-7%
Idle Maximum *
7.6
7.7
-1%
17.55
-131%
10.8
-42%
8.6
-13%
11.6
-53%
9.2
-21%
Load Average *
28
36.2
-29%
28.81
-3%
37
-32%
30.5
-9%
40
-43%
28.1
-0%
Load Maximum *
34.2
38.5
-13%
34.07
-0%
39
-14%
32.2
6%
36.6
-7%
27.6
19%

* ... smaller is better

Power Consumption
Off / Standbydarklight 0.35 / 0.52 Watt
Idledarkmidlight 3.6 / 6.9 / 7.6 Watt
Load midlight 28 / 34.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad Yoga 460-20EM000QGE
53 Wh		Lenovo ThinkPad Yoga 14
56 Wh		Lenovo Thinkpad X1 Yoga 20FQ-000QUS
52 Wh		Lenovo Yoga 500-14ISK
30 Wh		Acer Aspire R14 R5-471T-79GQ
50 Wh		Acer Aspire R13 R7-372T-746N
49 Wh		HP Spectre x360 13-4104ng
56 Wh
Battery Runtime
11%
0%
-55%
-2%
-16%
9%
Reader / Idle
674
747
11%
922
37%
317
-53%
669
-1%
H.264
417
393
-6%
WiFi v1.3
458
356
-22%
169
-63%
448
-2%
382
-17%
500
9%
Load
142
120
-15%
73
-49%
85
-40%
WiFi
352
Battery Runtime
Idle (without WLAN, min brightness)
11h 14min
WiFi Websurfing (EDGE: 25.10586.0.0)
7h 38min
Big Buck Bunny H.264 1080p
6h 57min
Load (maximum brightness)
2h 22min

Pros

+ 纤薄且优质的机身
+ 优秀的多点触控IPS屏幕
+ 优秀的系统性能
+ 存储设备采用固态硬盘
+ 不错的输入设备
+ 巧妙的平板模式键盘锁
+ 在高负载下也十分安静
+ 优秀的电池续航时间

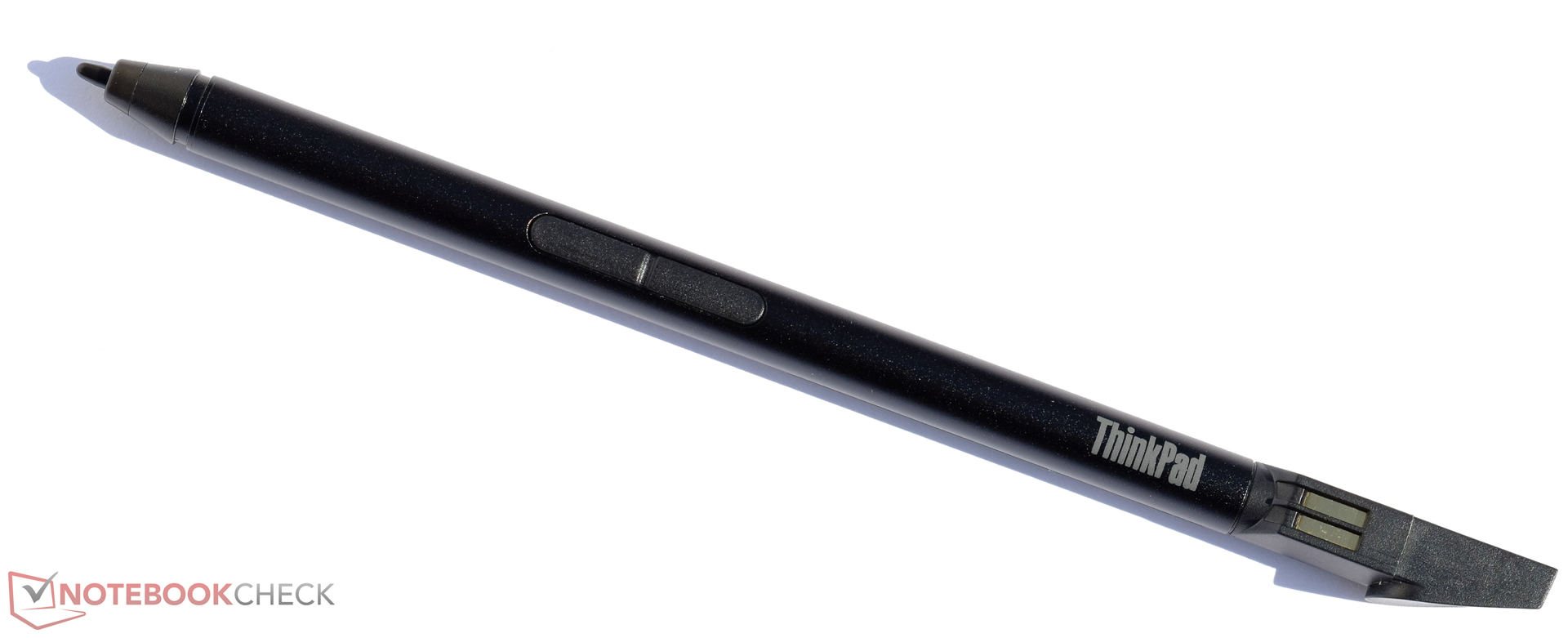

+ 包括手写笔（ThinkPad Pen Pro）

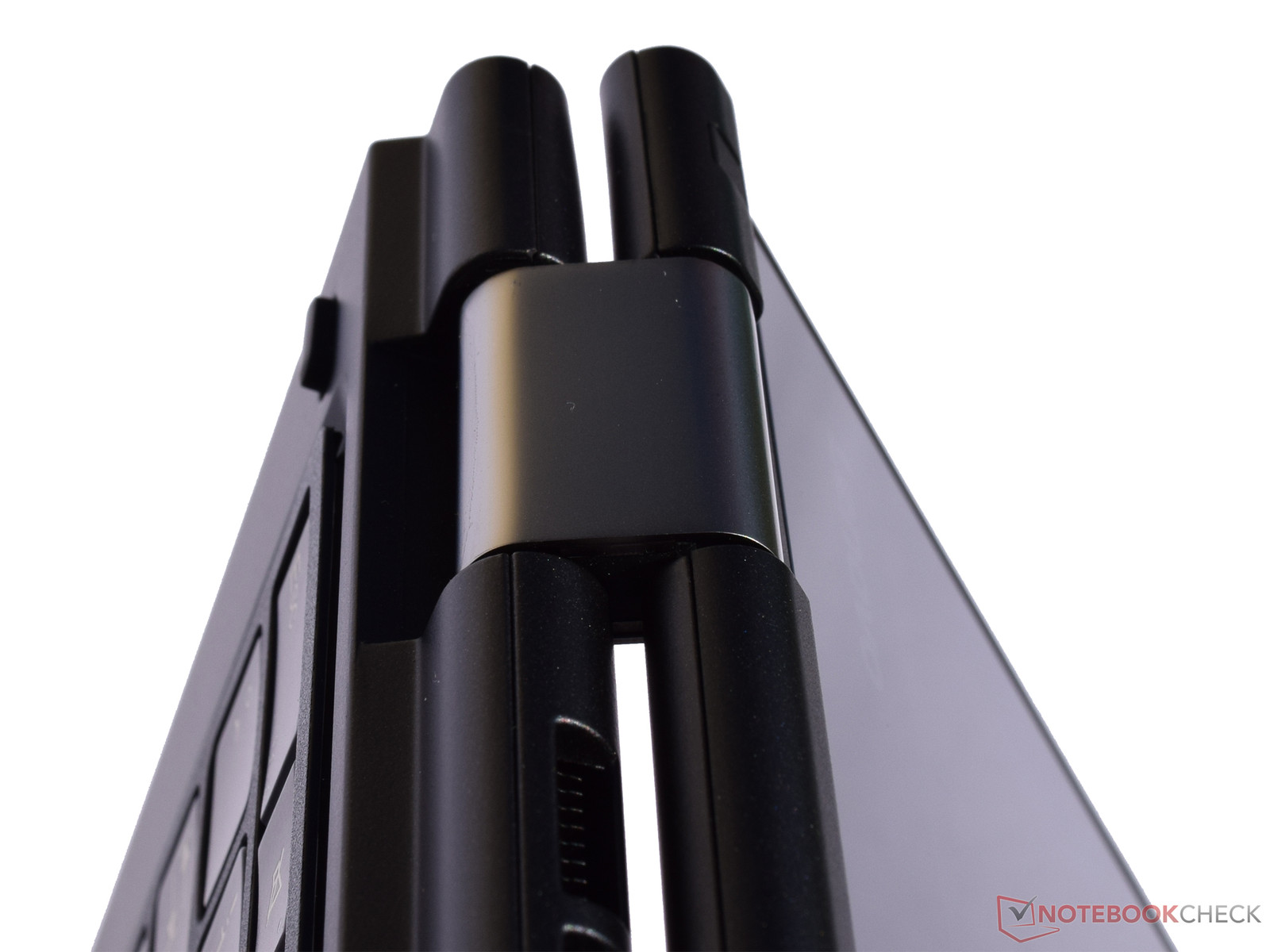

+ 全能的360度转轴

Cons

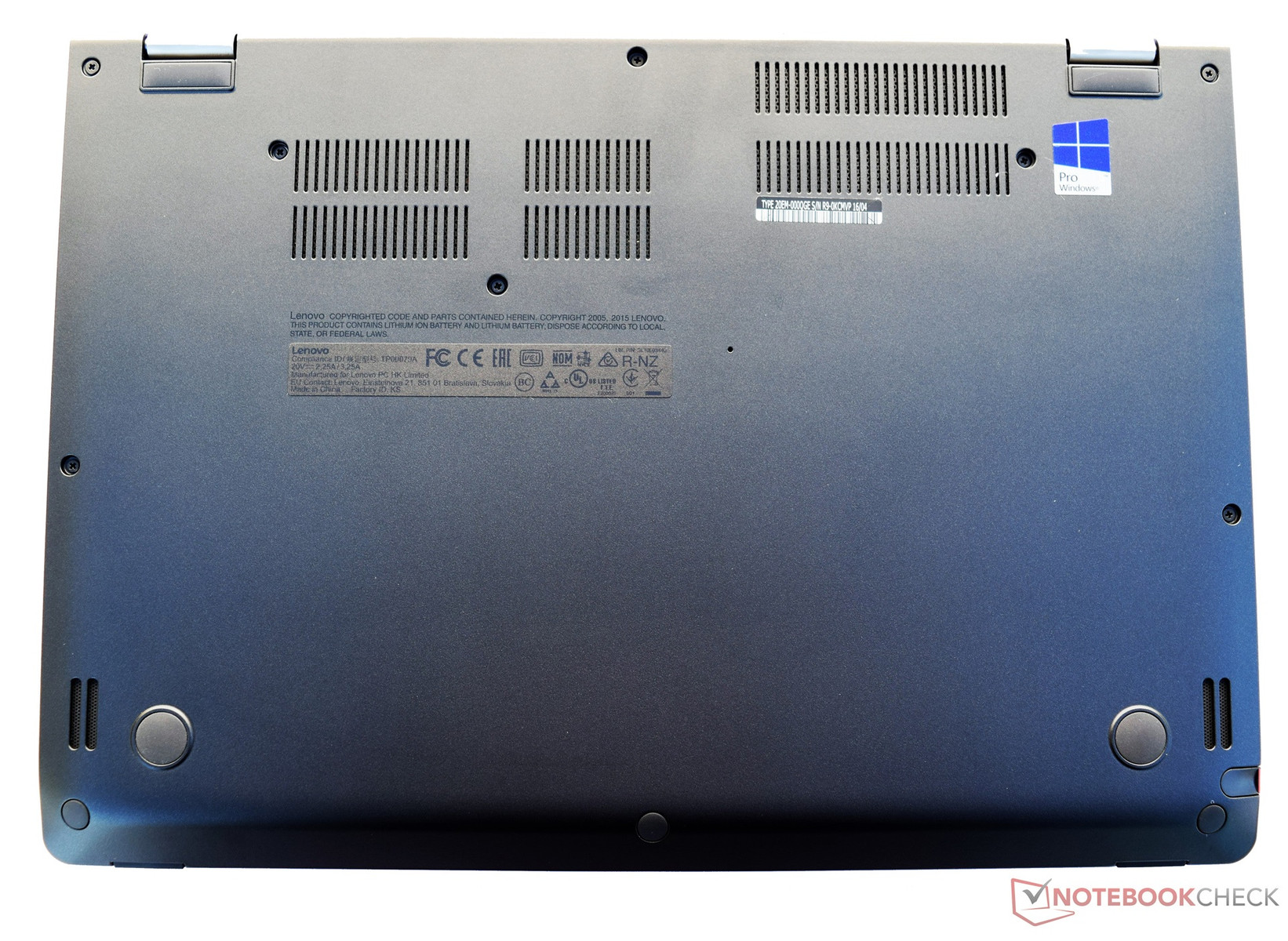

- 无维护底盖，不可拆卸电池
- 一些接口距离过近
- 机身表面容易沾染指纹
- 仅12个月质保
- 高售价

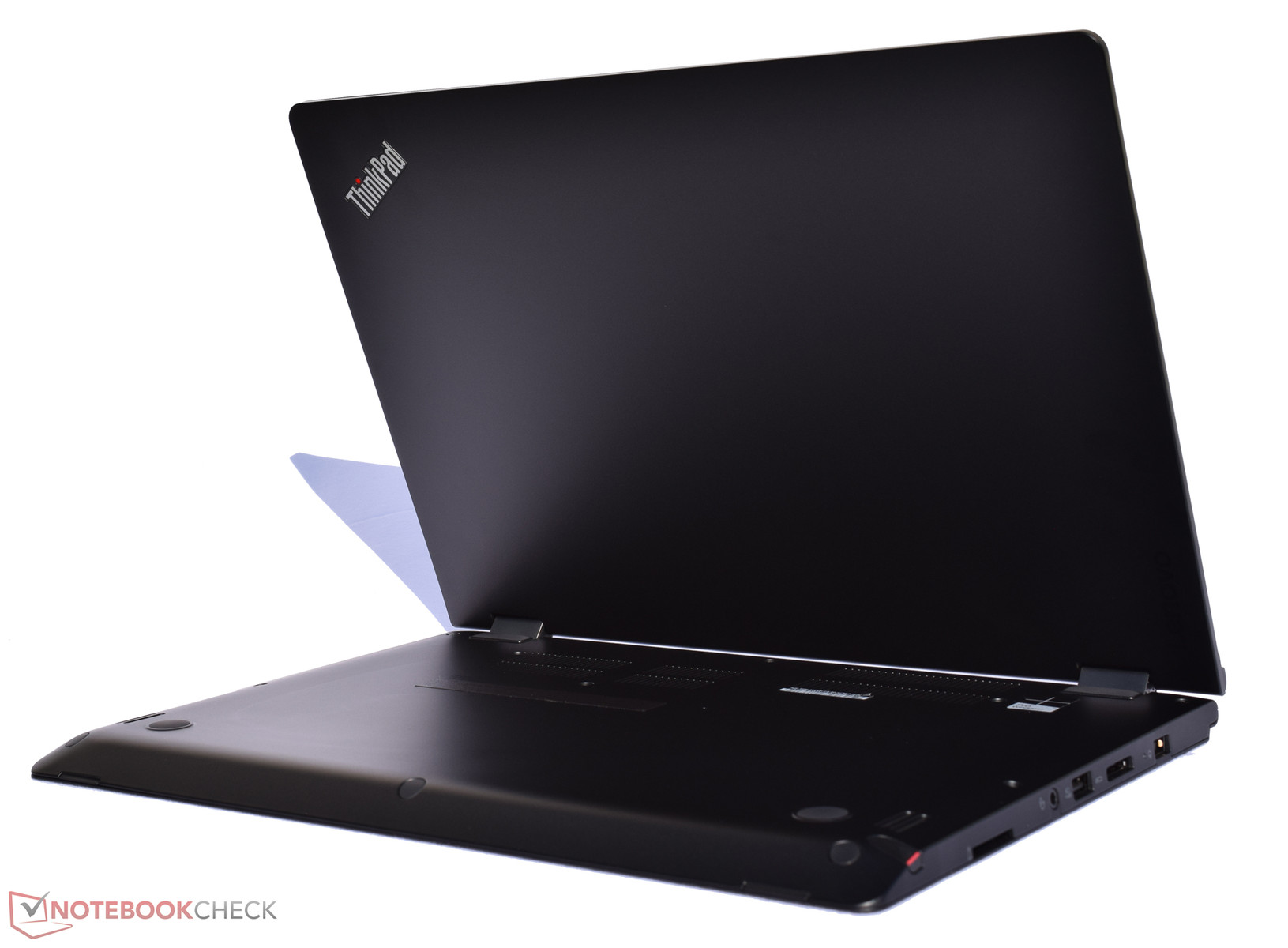

In review: Lenovo ThinkPad Yoga 460. Test model courtesy of Campuspoint.de
In review: Lenovo ThinkPad Yoga 460. Test model courtesy of Campuspoint.de

联想的ThinkPad Yoga 460是一台耐力十足的14寸商务变形本。得力于心的Skylake处理器，它的性能相比Broadwell架构处理器提升了约10%。不过，1300欧元（约9631人民币）的不低售价和2千克的重量让一台变形本可能很难说服消费者选购。

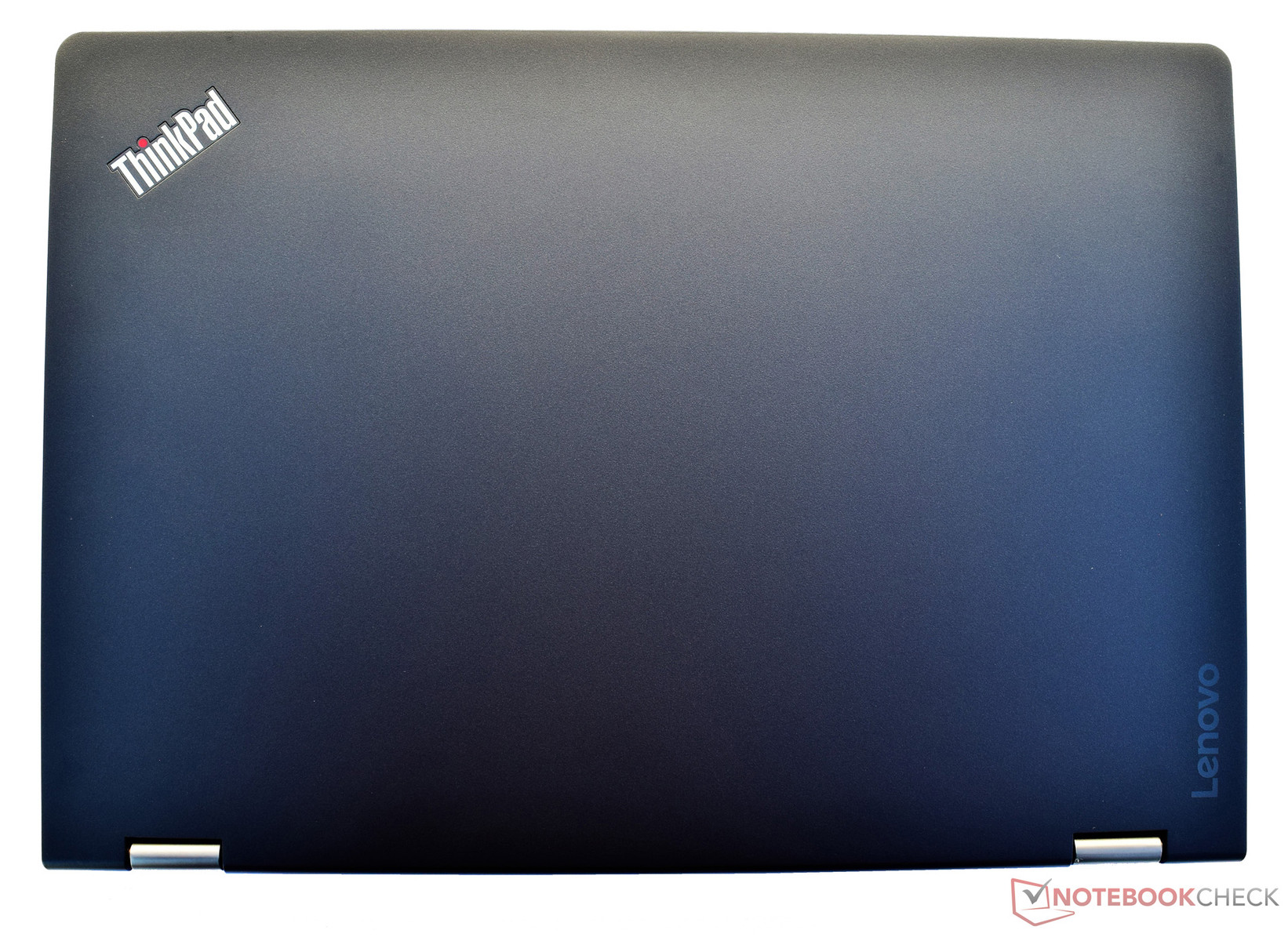

联想ThinkPad Yoga 460的设计与众不同，品质也毫不逊色。

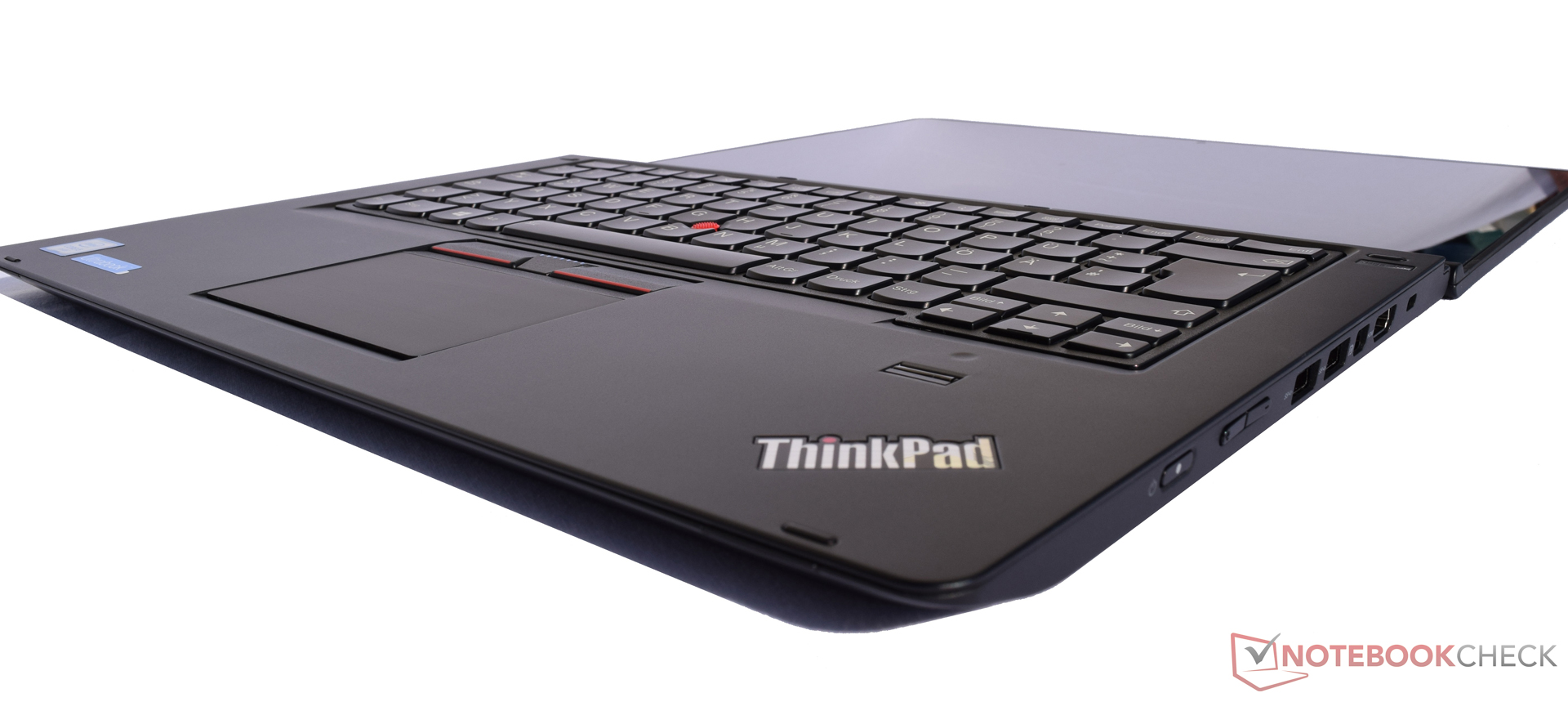

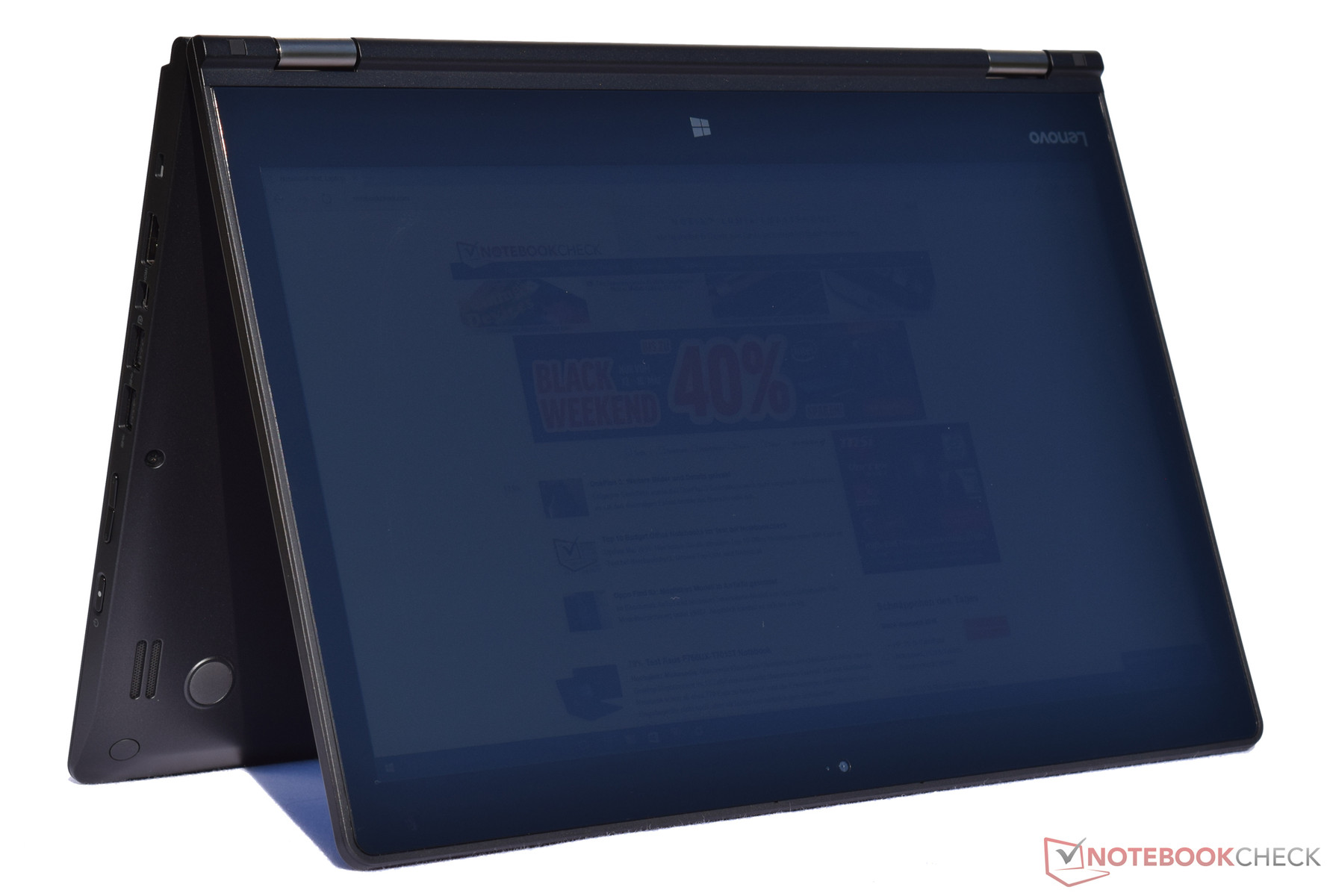

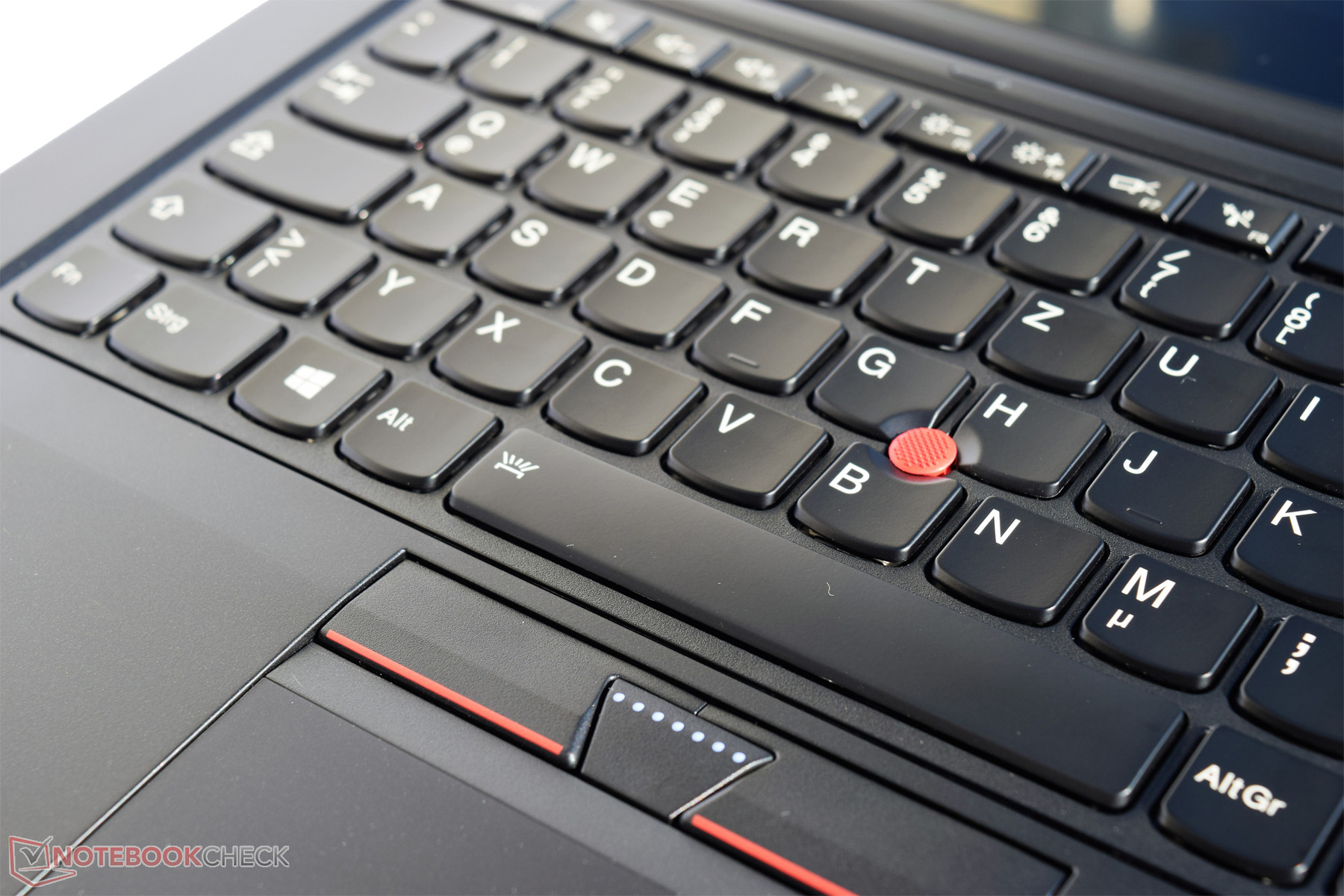

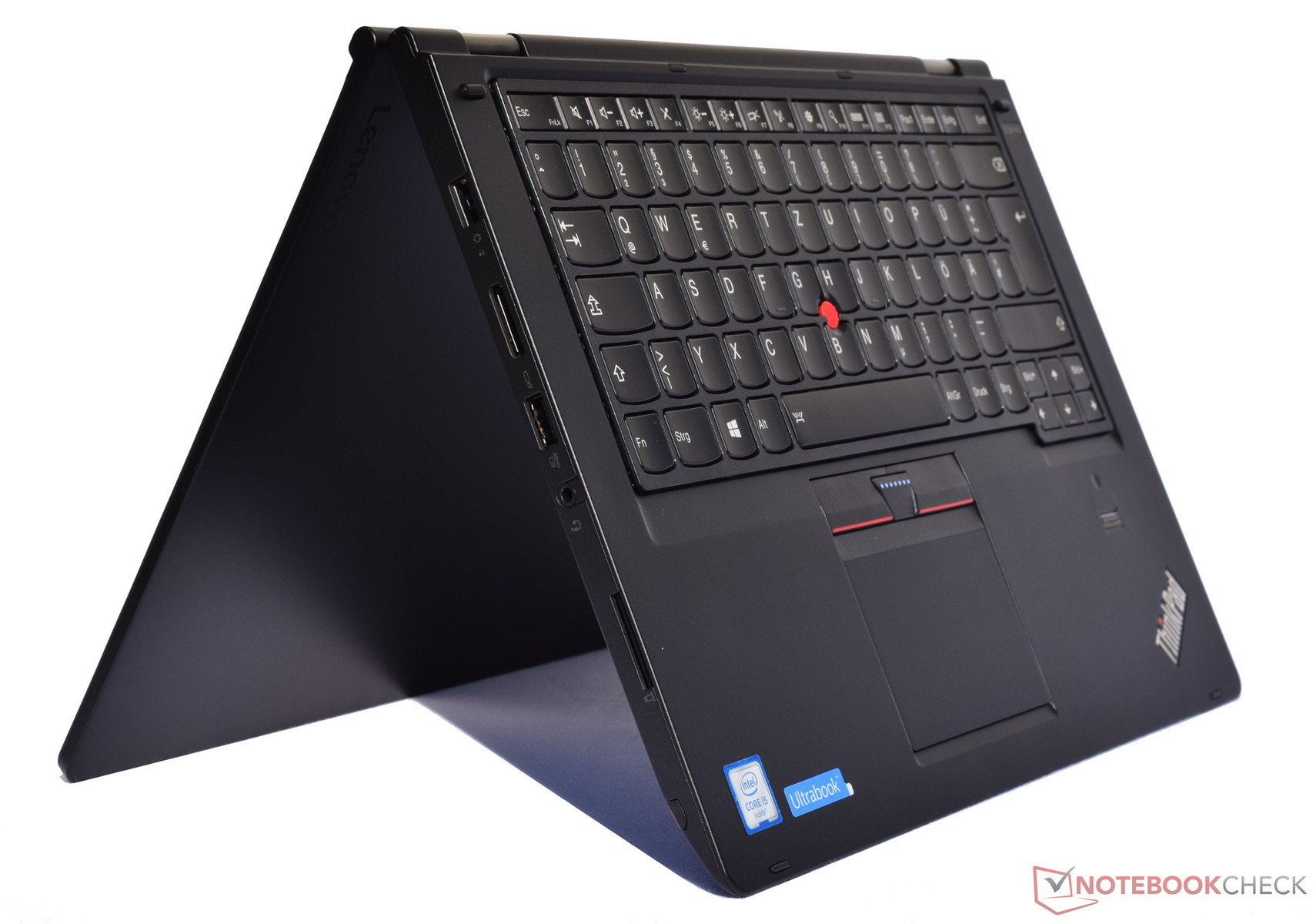

不管怎么说，联想ThinkPad Yoga 460依然瑕不掩瑜。纤薄简洁的机身设计加上高品质工艺让人无可挑剔。这台设备的优秀输入设备，包括指点杆和多点触控屏幕的手写笔（ThinkPad Pen Pro），都让人十分满意。它的键盘采用了巧妙的关闭方式，例如在平板模式时，十分有利于保护键盘不受伤害。它的屏幕绚丽，可视角度宽。屏幕表面材质可以降低室内和户外的反射光线。另一方面，它的最大亮度作为变形本来说还有待提高。不同的使用模式也是联想ThinkPad Yoga 460最吸引人的特点之一，如果用户不需要这个功能的话，那么一台传统的超极本可能是个更好的选择。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Lenovo ThinkPad Yoga 460-20EM000QGE - 05/27/2016 v5.1 (old)
Sebastian Bade

Chassis
87 / 98 → 89%
Keyboard
90%
Pointing Device
87%
Connectivity
66 / 80 → 83%
Weight
65 / 35-78 → 70%
Battery
89%
Display
84%
Games Performance
53 / 68 → 77%
Application Performance
80 / 87 → 92%
Temperature
89%
Noise
97%
Audio
61 / 91 → 67%
Camera
48 / 85 → 56%
Average
77%
83%
Convertible - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad Yoga 460 变形本简短评测
Sebastian Bade, 2016-06-13 (Update: 2016-06-18)
