华硕 Transformer Book Flip TP200SA 变形本简短评测

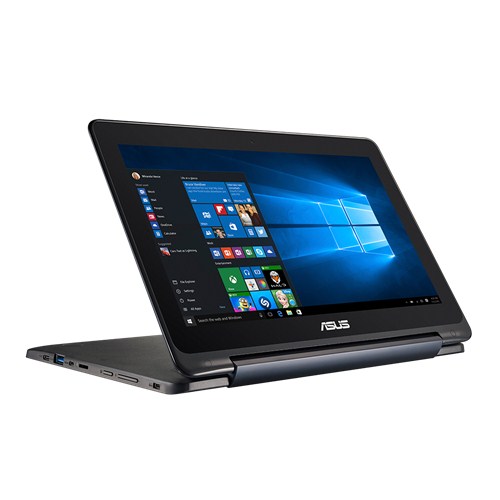

Name: Asus ASUS Transformer Book Flip TP200SA-DH04T
Brand: Asus

高性价比二合一本。 华硕的11.6寸Transformer Book的全新版本在实惠型变形本所需的各个方面都毫不示弱。当然，它的存储空间还可以更大而性能也还可以更强——不过从性价比上来说，这个小个子已经遥遥领先。

Bernie Pechlaner (translated by Yuchen Wang), Published 10/21/2015 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Touchscreen Windows

Download your licensed rating image as PNG / SVG

Asus ASUS Transformer Book Flip TP200SA-DH04T (Transformer Book Series)

Processor

Intel Celeron N3050 2 x 1.6 - 2.2 GHz, Braswell

Graphics adapter

Intel HD Graphics (Braswell), Core: 600 MHz

Memory

4 GB

, DDR3L 1600 MHz

Display

11.60 inch 16:9, 1366 x 768 pixel, 多点触控, InfoVision M116NWR4 R1, IPS, glossy: yes

Storage

64 GB eMMC Flash, 64 GB

Soundcard

Realtek ALC255 @ Intel Cherry Trail / Braswell SoC - HD Audio Controller

Connections

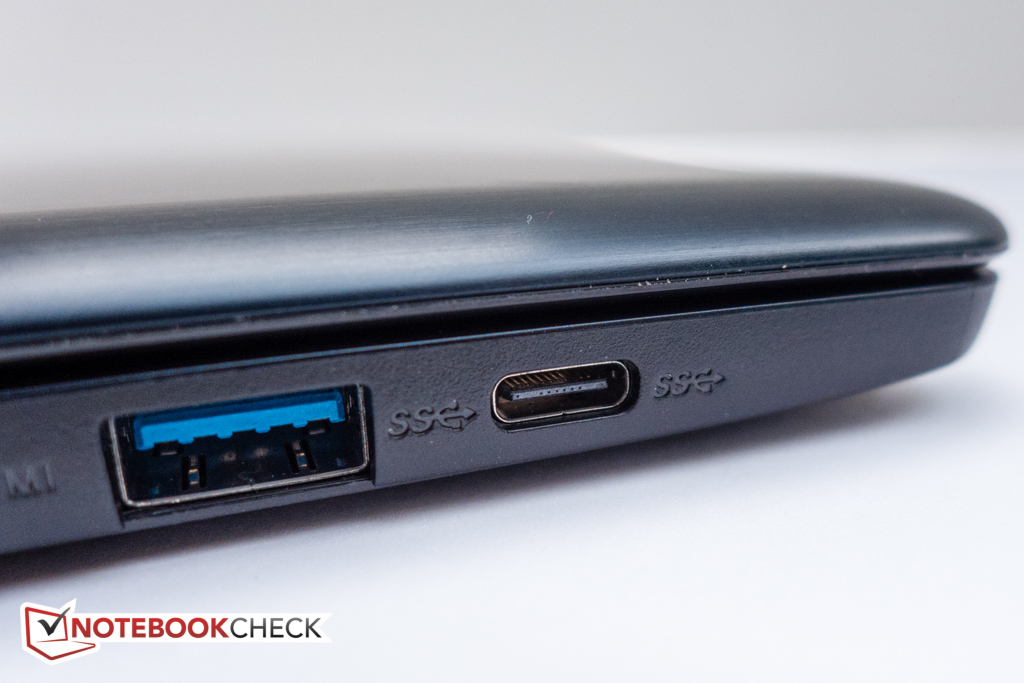

1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Card Reader: Micro SDXC读卡器, Sensors: 位置传感器, 1 x USB 3.1 第一代C型接口

Networking

Qualcomm Atheros QCA9377 Wireless Network Adapter (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)

Size

height x width x depth (in mm): 18.45 x 297 x 201.3

Battery

38 Wh Lithium-Polymer, 5000mAH

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 30万像素

Additional features

Speakers: 立体声, Keyboard: 孤岛式, 12 Months Warranty

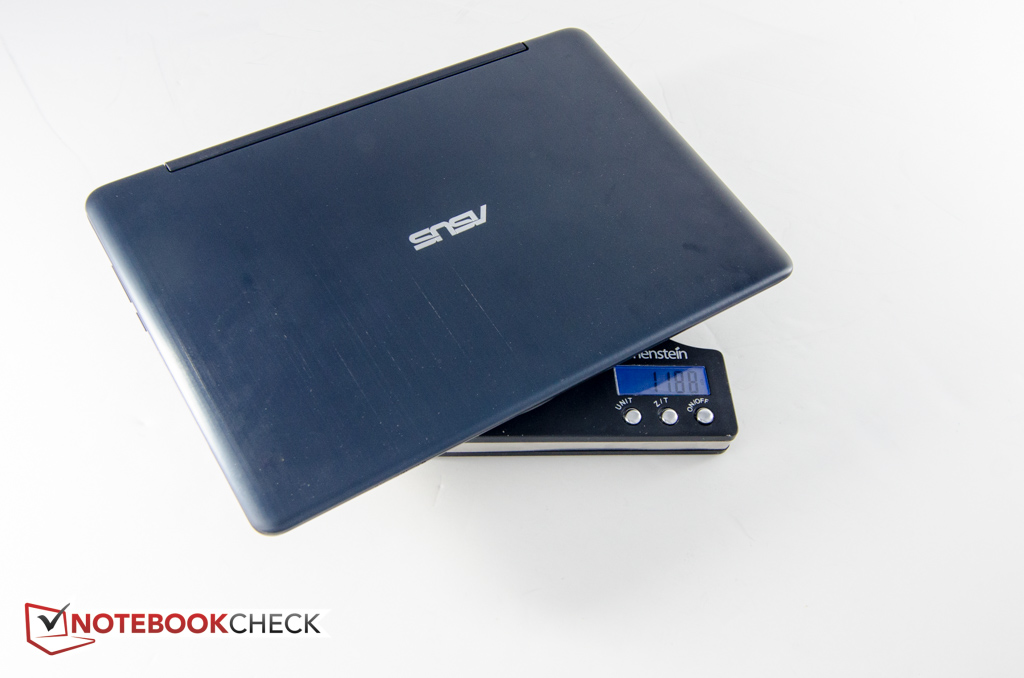

Weight

1.188 kg, Power Supply: 120 g

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

HP Stream 11 X360 Lenovo ThinkPad Yoga 11e 20D9000QGE Acer Aspire R11 R3-131T-C122 Asus ASUS Transformer Book Flip TP200SA-DH04T Lenovo Yoga 3 11 80J8001WGE Toshiba Satellite Radius 11 L10-B-101 DIN A4 ❌


248.8 cd/m²	247.8 cd/m²	240.8 cd/m²
245.5 cd/m²	262.1 cd/m²	245.8 cd/m²
230.3 cd/m²	254 cd/m²	240.2 cd/m²

Distribution of brightness

InfoVision M116NWR4 R1 tested with X-Rite i1Pro 2

Maximum: 262.1 cd/m² (Nits) Average: 246.1 cd/m²
Brightness Distribution: 88 %
Center on Battery: 262.1 cd/m²
Contrast: 871:1 (Black: 0.301 cd/m²)
ΔE Color 3.24 | 0.5-29.43 Ø4.94
ΔE Greyscale 2.34 | 0.5-98 Ø5.2
58.8% sRGB (Argyll 1.6.3 3D)
40.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.14% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.4% sRGB (Argyll 2.2.0 3D)
42.72% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.24

Download ICC File (X-Rite i1Pro 2)

	Asus ASUS Transformer Book Flip TP200SA-DH04T IPS 1366x768	Acer Aspire R11 R3-131T-C122 TN 1366x768	HP Stream 11 X360 TN 1366x768	HP Pavilion 11-n070eg x360 TN 1366x768	Lenovo ThinkPad Yoga 11e 20D9000QGE IPS 1366x768	Lenovo Yoga 3 11 80J8001WGE IPS 1920x1080
Display		-12%				4%
Display P3 Coverage	42.72	37.53 -12%				44.54 4%
sRGB Coverage	64.4	56.4 -12%				65.7 2%
AdobeRGB 1998 Coverage	44.14	38.81 -12%				46.15 5%
Screen		-88%	-116%	-101%	-36%	-33%
Brightness middle	262.1	261 0%	197 -25%	181 -31%	285 9%	290 11%
Brightness	246	248 1%	189 -23%	161 -35%	285 16%	286 16%
Brightness Distribution	88	90 2%	91 3%	83 -6%	88 0%	86 -2%
Black Level *	0.301	0.3 -0%	0.4 -33%	0.37 -23%	0.4 -33%	0.42 -40%
Contrast	871	870 0%	493 -43%	489 -44%	713 -18%	690 -21%
Colorchecker dE 2000 *	3.24	12.64 -290%	11.44 -253%	10.11 -212%	6.39 -97%	6.5 -101%
Greyscale dE 2000 *	2.34	13.75 -488%	12.54 -436%	10.72 -358%	5.41 -131%	6.35 -171%
Gamma	2.24 ^98%	2.88 ^76%	2.45 ^90%	2.7 ^81%	2.76 ^80%	2.44 ^90%
CCT	6855 ^95%	17914 ^36%	14995 ^43%	13522 ^48%	6082 ^107%	7156 ^91%
Color Space (Percent of AdobeRGB 1998)	40.6	36 -11%				42 3%
Color Space (Percent of sRGB)	58.8	57 -3%				65 11%
Total Average (Program / Settings)		-50% / -69%	-116% / -116%	-101% / -101%	-36% / -36%	-15% / -24%

* ... smaller is better

Cinebench R15 | Cinebench R11.5 | Cinebench R10

Cinebench R15
CPU Single 64Bit (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	34 Points
Acer Aspire R11 R3-131T-C122	35 Points +3%
HP Stream 11 X360	37 Points +9%
HP Pavilion 11-n070eg x360	26 Points -24%
Lenovo ThinkPad Yoga 11e 20D9000QGE	33 Points -3%
Lenovo Yoga 3 11 80J8001WGE	57 Points +68%
CPU Multi 64Bit (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	64 Points
Acer Aspire R11 R3-131T-C122	48 Points -25%
HP Stream 11 X360	76 Points +19%
HP Pavilion 11-n070eg x360	46 Points -28%
Lenovo ThinkPad Yoga 11e 20D9000QGE	133 Points +108%
Lenovo Yoga 3 11 80J8001WGE	131 Points +105%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	0.34 Points
Acer Aspire R11 R3-131T-C122	0.38 Points +12%
HP Pavilion 11-n070eg x360	0.29 Points -15%
Lenovo ThinkPad Yoga 11e 20D9000QGE	0.41 Points +21%
Lenovo Yoga 3 11 80J8001WGE	0.66 Points +94%
CPU Multi 64Bit (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	0.8 Points
Acer Aspire R11 R3-131T-C122	0.79 Points -1%
HP Pavilion 11-n070eg x360	0.51 Points -36%
Lenovo ThinkPad Yoga 11e 20D9000QGE	1.57 Points +96%
Lenovo Yoga 3 11 80J8001WGE	1.23 Points +54%

Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	1568 Points
Acer Aspire R11 R3-131T-C122	1577 Points +1%
HP Stream 11 X360	1471 Points -6%
Rendering Multiple CPUs 64Bit (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	2935 Points
Acer Aspire R11 R3-131T-C122	2951 Points +1%
HP Stream 11 X360	2585 Points -12%

Legend

Asus ASUS Transformer Book Flip TP200SA-DH04T Intel Celeron N3050, Intel HD Graphics (Braswell), 64 GB eMMC Flash

Acer Aspire R11 R3-131T-C122 Intel Celeron N3050, Intel HD Graphics (Braswell), HBG3e 32G eMMC

HP Stream 11 X360 Intel Celeron N2840, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

HP Pavilion 11-n070eg x360 Intel Celeron N2820, Intel HD Graphics (Bay Trail), Seagate Momentus Thin ST500LT012-1DG142

Lenovo ThinkPad Yoga 11e 20D9000QGE Intel Celeron N2930, Intel HD Graphics (Bay Trail), Toshiba MQ01ACF050

Lenovo Yoga 3 11 80J8001WGE Intel Core M-5Y10c, Intel HD Graphics 5300, Lite-On IT L8T-128L9G

Cinebench R10 Shading 64Bit

2298 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

2935 Points

Cinebench R10 Rendering Single CPUs 64Bit

1568 Points

Cinebench R11.5 OpenGL 64Bit

9.52 fps

Cinebench R11.5 CPU Multi 64Bit

0.8 Points

Cinebench R11.5 CPU Single 64Bit

0.34 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

12.82 fps

Cinebench R15 CPU Multi 64Bit

64 Points

Cinebench R15 CPU Single 64Bit

34 Points

Help

... in comparison

PCMark 7 - Score (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	2494 Points
Acer Aspire R11 R3-131T-C122	2535 Points +2%
Toshiba Satellite Radius 11 L10-B-101	1723 Points -31%
HP Stream 11 X360	2564 Points +3%
HP Pavilion 11-n070eg x360	1462 Points -41%
Lenovo Yoga 3 11 80J8001WGE	3414 Points +37%

CrystalDiskMark 3.0
Write Seq (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	67.8 MB/s
Acer Aspire R11 R3-131T-C122	42.23 MB/s -38%
Toshiba Satellite Radius 11 L10-B-101	92.4 MB/s +36%
HP Stream 11 X360	55.6 MB/s -18%
HP Pavilion 11-n070eg x360	95 MB/s +40%
Lenovo ThinkPad Yoga 11e 20D9000QGE	120.6 MB/s +78%
Lenovo Yoga 3 11 80J8001WGE	322 MB/s +375%
Read Seq (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	159.3 MB/s
Acer Aspire R11 R3-131T-C122	159.9 MB/s 0%
Toshiba Satellite Radius 11 L10-B-101	94.9 MB/s -40%
HP Stream 11 X360	173.4 MB/s +9%
HP Pavilion 11-n070eg x360	107.8 MB/s -32%
Lenovo ThinkPad Yoga 11e 20D9000QGE	127.7 MB/s -20%
Lenovo Yoga 3 11 80J8001WGE	468.7 MB/s +194%
Write 4k (sort by value)
Asus ASUS Transformer Book Flip TP200SA-DH04T	10.24 MB/s
Acer Aspire R11 R3-131T-C122	8.925 MB/s -13%
Toshiba Satellite Radius 11 L10-B-101	0.679 MB/s -93%
HP Stream 11 X360	4.9 MB/s -52%
HP Pavilion 11-n070eg x360	0.577 MB/s -94%
Lenovo ThinkPad Yoga 11e 20D9000QGE	1.234 MB/s -88%
Lenovo Yoga 3 11 80J8001WGE	34.96 MB/s +241%

3DMark 11 Performance		437 points
3DMark Ice Storm Standard Score		17858 points
3DMark Cloud Gate Standard Score		1516 points
3DMark Fire Strike Score		232 points
Help

... in comparison

	low	med.	high	ultra
Anno 2070 (2011)	30	12.7

Max. Load

Idle


41.4 °C	36.8 °C	28.6 °C
39.2 °C	34.6 °C	28.8 °C
31.8 °C	27.8 °C	26 °C

Maximum: 41.4 °C
Average: 32.8 °C


29 °C	35.2 °C	39.8 °C
28.6 °C	31.2 °C	35.6 °C
26.8 °C	30.4 °C	32 °C

Maximum: 39.8 °C
Average: 32.1 °C

Power Supply (max.) 30.8 °C | Room Temperature 21.5 °C | Raytek Raynger ST

(±) The average temperature for the upper side under maximal load is 32.8 °C / 91 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.8 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.7 °C / -6.6 F).

Battery Runtime

Idle (without WLAN, min brightness)		17h 35min
WiFi Websurfing		8h 43min
Load (maximum brightness)		4h 28min

	Asus ASUS Transformer Book Flip TP200SA-DH04T	Acer Aspire R11 R3-131T-C122	Toshiba Satellite Radius 11 L10-B-101	HP Stream 11 X360	HP Pavilion 11-n070eg x360	Lenovo ThinkPad Yoga 11e 20D9000QGE	Lenovo Yoga 3 11 80J8001WGE
Battery Runtime		30%	-50%	-31%	-55%	-43%	-12%
Reader / Idle	1055		405 -62%	725 -31%	337 -68%		856 -19%
WiFi v1.3	523	680 30%				297 -43%	443 -15%
Load	268		170 -37%		157 -41%		260 -3%
WiFi			232	396	217

Pros

+ IPS屏幕

+ 非常轻盈

+ 电池续航长

+ 不错的人体工程学设计

+ 优秀的扬声器

+ USB 3.1 第一代（C型）接口

Cons

- 屏幕转轴不够坚固

- 仅支持microSDXC存储卡

- 性能一般

- 在一些测试软件运行中遇到困难

- 触控版下边缘偶尔会误操作

In review: Asus Transformer Book Flip TP200SA. Test model provided by Asus U.S.

纤薄轻盈的华硕Transformer Book Flip TP200SA在许多方面都和前代产品Transformer Book 200TA Convertible有所不同。不过有一个没有变的：尽管售价仅350美元，它仍然搭配了一块IPS屏幕。其它的低价二合一变形本采用的TN屏幕与它相差很远。出色的色彩准确度和屏幕亮度在这个价位上都非常优秀。加上一个USB 3.1 C型接口，TP200SA在将来也不会很快落伍。Broadwell架构的赛扬处理器可以满足日常应用的需要，不过当然无法满足大型应用如游戏的需要。它的续航时间超过了生产商的宣称值，而得利于无风扇的设计，Transformer Book Flip完全不会产生噪音。不错的输入设备也让它更加全面。

我们希望华硕可以额外推出TP200SA的高存储空间版本。尽管64GB一开始可能足够了，不过用不了多久就会填满。我们也不知道为什么它无法运行一部分测试软件。这台小巧变形本的性能与相似配置的竞争对手相近，在正常使用中我们也没有遇到任何问题。它的机身底座稳定性也有待提高，不论如何它是一台实惠型产品，我们也无法苛求过多。

在这个价位上，华硕Transformer Book Flip TP200SA很难被击败，绝对是一款值得考虑的产品。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
