华硕 Transformer Book Flip TP300LD-C4031H 变形本简短评测

多媒体多模式。 我们正在测试的华硕Transformer Book Flip TP300L,屏幕尺寸为13.3寸,在时尚的变形本的设计中配备了类似超极本的硬件设备。它有Core i7处理器和8GB的内存,全高清触控屏幕和Nvidia独立显卡,这是一款值得一看的二合一设备。
Haswell Laptop / Notebook Touchscreen Ultrabook Windows
320
cd/m²
328
cd/m²
334
cd/m²
331
cd/m²
345
cd/m²
334
cd/m²
328
cd/m²
333
cd/m²
327
cd/m²
Distribution of brightness
CMN N1233HSE-EB3 tested with X-Rite i1Pro 2
Maximum: 345 cd/m² (Nits) Average: 331.1 cd/m²
Brightness Distribution: 93 %
Center on Battery: 345 cd/m²
Contrast: 734:1 (Black: 0.47 cd/m²)
ΔE Color 4.82 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.97 | 0.5-98 Ø5.2
64% AdobeRGB 1998 (Argyll 1.6.3 3D)
72.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)
74.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
Cinebench R10 Rendering Single CPUs 64Bit
5872 Points
Cinebench R10 Shading 64Bit
7426 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
12113 Points
Cinebench R11.5 OpenGL 64Bit
27.31 fps
Cinebench R11.5 CPU Multi 64Bit
2.98 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
24.93 fps
Cinebench R15 CPU Multi 64Bit
282 Points
Cinebench R15 CPU Single 64Bit
120 Points
Help
PCMark 7 Score
4976 points
Help
SanDisk SD6SB1M128G1002
Transfer Rate Minimum: 391.1 MB/s
Transfer Rate Maximum: 415.9 MB/s
Transfer Rate Average: 407.2 MB/s
Access Time: 0.2 ms
Burst Rate: 74.3 MB/s
CPU Usage: 3.1 %
CrystalDiskMark 3.0 - Write 4k (sort by value)
Asus Transformer Book Flip TP300LD-C4031H
94 MB/s
Lenovo Yoga 2 Pro
74.4 MB/s -21%
Microsoft Surface Pro 3
76.2 MB/s -19%
3DMark 06 Standard Score
6362 points
3DMark 11 Performance
1410 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Asus Transformer Book Flip TP300LD-C4031H
1410 Points
Microsoft Surface Pro 3
877 Points -38%
Lenovo Yoga 2 Pro
897 Points -36%
lowmed.highultra
World of Warcraft (2005) 94 44 41 12
Diablo III (2012) 95 63 51 31

Noise Level

Idle
32 / 32.3 / 32.9 dB(A)
Load
40.7 / 43.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
Max. Load
 32.1 °C42.6 °C40 °C
 28.2 °C39.4 °C42.7 °C
 27.5 °C27.7 °C31.2 °C
Maximum: 42.7 °C
Average: 34.6 °C
36.2 °C45.6 °C29.2 °C
43.3 °C38.1 °C28.1 °C
28.7 °C26.5 °C26.5 °C
Maximum: 45.6 °C
Average: 33.6 °C
Power Supply (max.)  53.7 °C | Room Temperature 24.2 °C | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.7 °C / 109 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.6 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.3 °C / 79 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.2 °C / 88.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.1 °C / -5.6 F).
Power Consumption
Off / Standbydarklight 0 / 0.25 Watt
Idledarkmidlight 3.6 / 7.8 / 8.2 Watt
Load midlight 40.3 / 48.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Battery Runtime
Idle (without WLAN, min brightness)
15h 9min
WiFi Surfing
6h 40min
Big Buck Bunny H.264 1080p
7h 56min
Gaming
1h 30min
Battery Runtime - WiFi (sort by value)
Asus Transformer Book Flip TP300LD-C4031H
400 min
Apple MacBook Pro Retina 13 inch 2013-10
569 min
Lenovo Yoga 2 Pro
335 min

Legend


Asus Transformer Book Flip TP300LD-C4031H Intel Core i7-4510U, NVIDIA GeForce 820M, SanDisk SD6SB1M128G1002

Apple MacBook Pro Retina 13 inch 2013-10 Intel Core i5-4258U, Intel Iris Graphics 5100, Apple SSD SM0256F

Lenovo Yoga 2 Pro Intel Core i5-4200U, Intel HD Graphics 4400, Samsung SSD PM841 MZMTD128HAFV mSATA

华硕Transformer Book Flip TP300L给我们的测试带来了很多乐趣,它在我们的两周测试中并没有给我们带来什么意外的失望。它外观优雅,这款配备Core i7的机型屏幕质量和性能都十分出色。它的键盘十分易用,运行安静且电池续航不错。不过它也有两个需要谨慎考虑的问题,首先是它的重量。1.75千克对于笔记本电脑来说并不算沉,不过市场上有不少性能相当但体重更轻的选择。不过TP300L并不是一台标准的笔记本电脑;它采用了可旋转的触控屏幕和独立显卡。在这一点上只有重量稍轻的联想 Yoga 2 13(1.66千克) 是它的竞争对手。从价格上来看这款华硕笔记本的性价比较高(根据在欧洲市场上的售价比较)。第二点需要考虑的是独立显卡的实际必要性。放弃独显的话图形性能会有所降低,不过Geforce 820M并无法大幅提高游戏体验,它真的值吗?你可能需要参考本地的价格来做决定,不过从欧洲市场的价格来看,从Core i5版本升级到Core i7和820M独显的版本只需要增加100欧元,我们认为这十分值得。

华硕Transformer Book Flip TP300L可能十分适合于愿意多负担500克重量而拥有具备全面功能性的变形本的用户。触控屏幕,站立模式(我们认为非常适合与旅行中和休闲时如在咖啡厅使用)和平板模式,尽管不完全适合用于阅读,不过很适合用于欣赏图片、视频,加上附带的Miracast功能,它还适合用作PowerPoint演示操控使用。

TP300L提供了其他超极本平台产品无法提供的游戏性能,这可能让它不太适合作为便携设备使用,不过让它具备了十分全面的游戏性能。

在具备支持触控,全高清,固态硬盘等配置的笔记本中,并没有很多低价的选择,在性价比方面我们认为TP300L是第一名的有力竞争者,其次还有Yoga 2 Pro ,如果你需要一款更加简洁的产品,可以考虑华硕 Zenbook UX302 当然还有Macbook Pro 13。

这款华硕笔记本可以改进的地方可能首先是键盘背光功能,其次可能放弃HD4400和Geforce 820M的搭配而选择Intel Iris显卡也是不错的想法。不过TP330L依然是现在为止我们评测过的表现最全面的二合一产品之一。

 注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

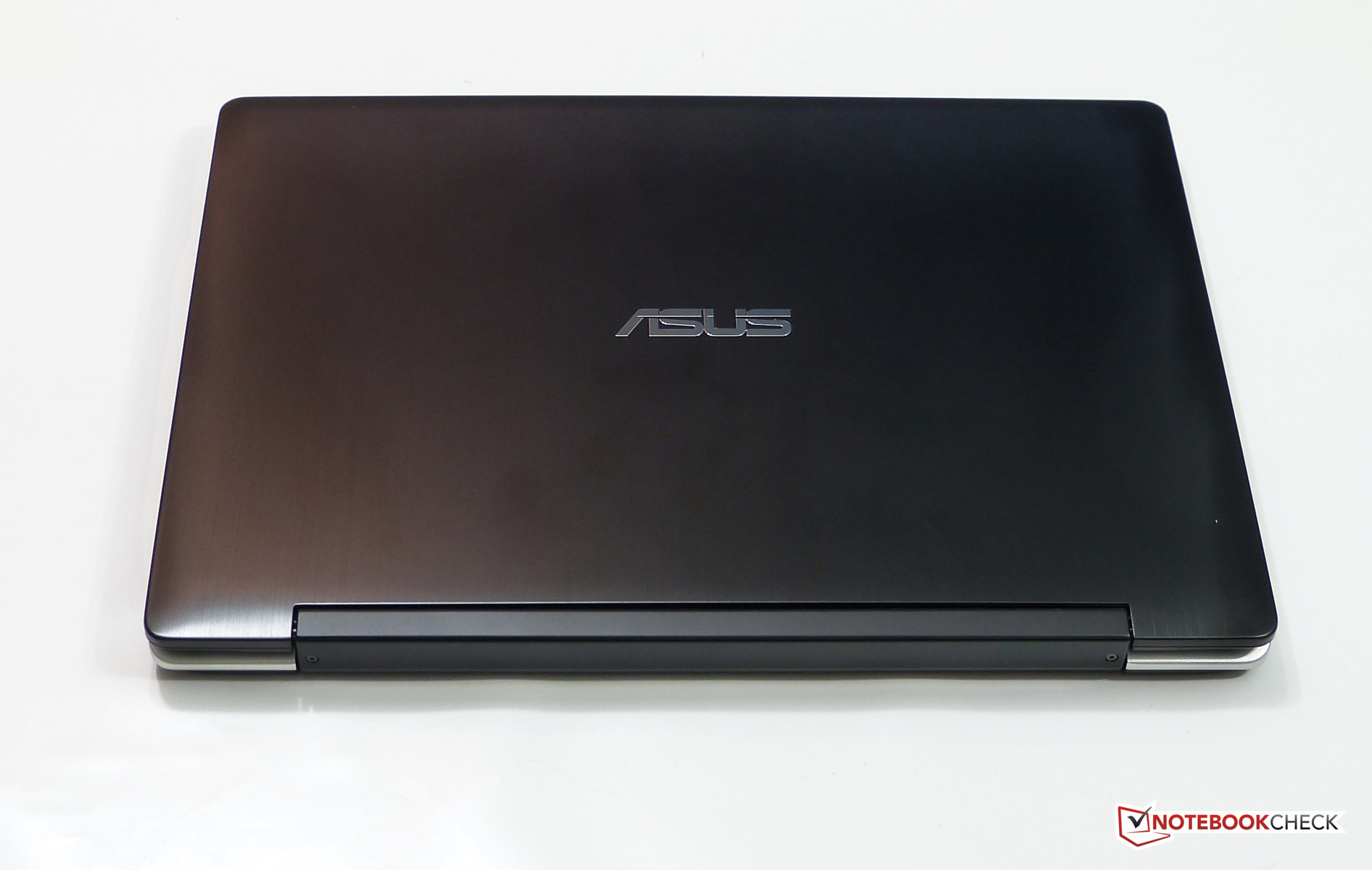

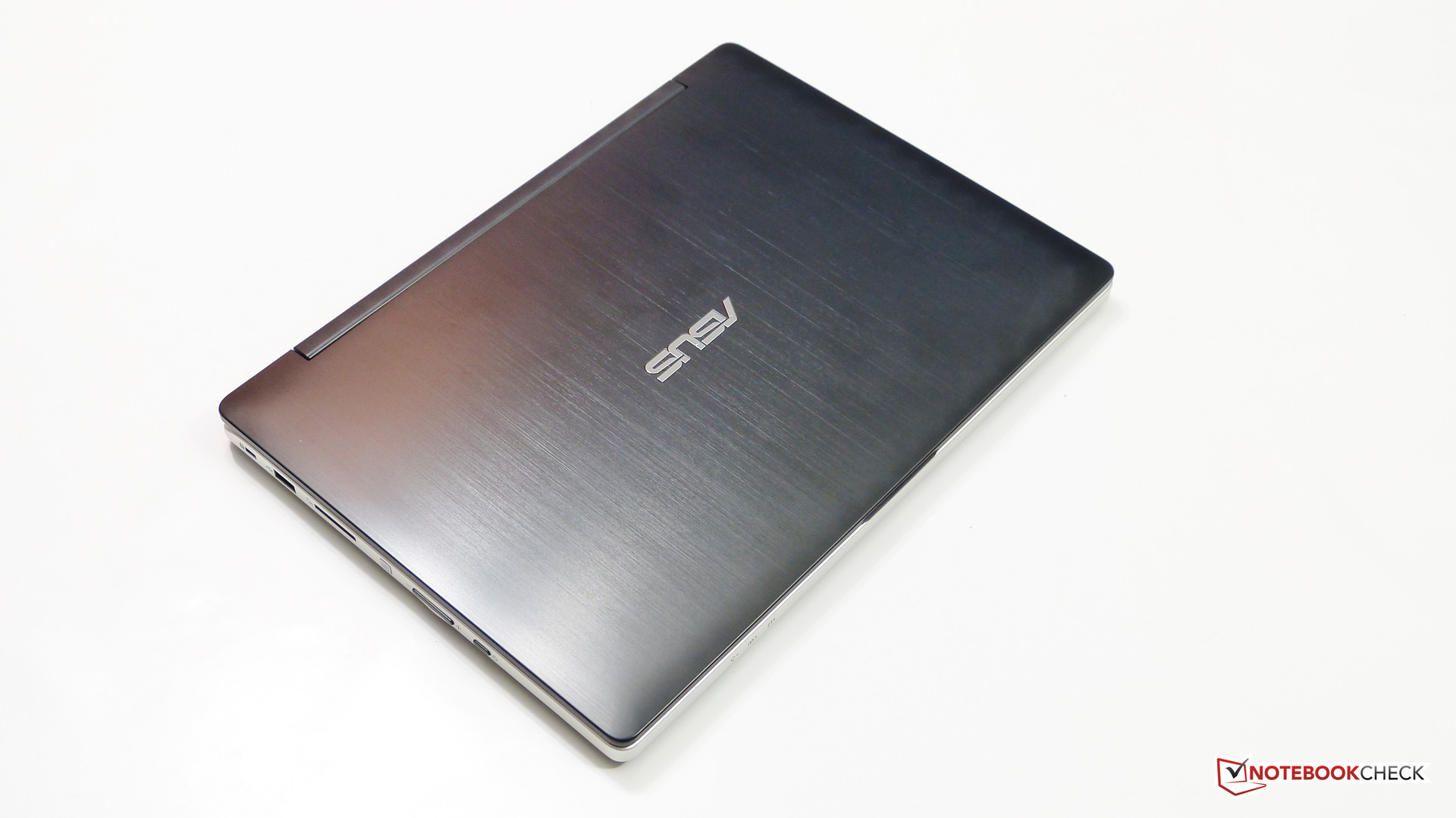

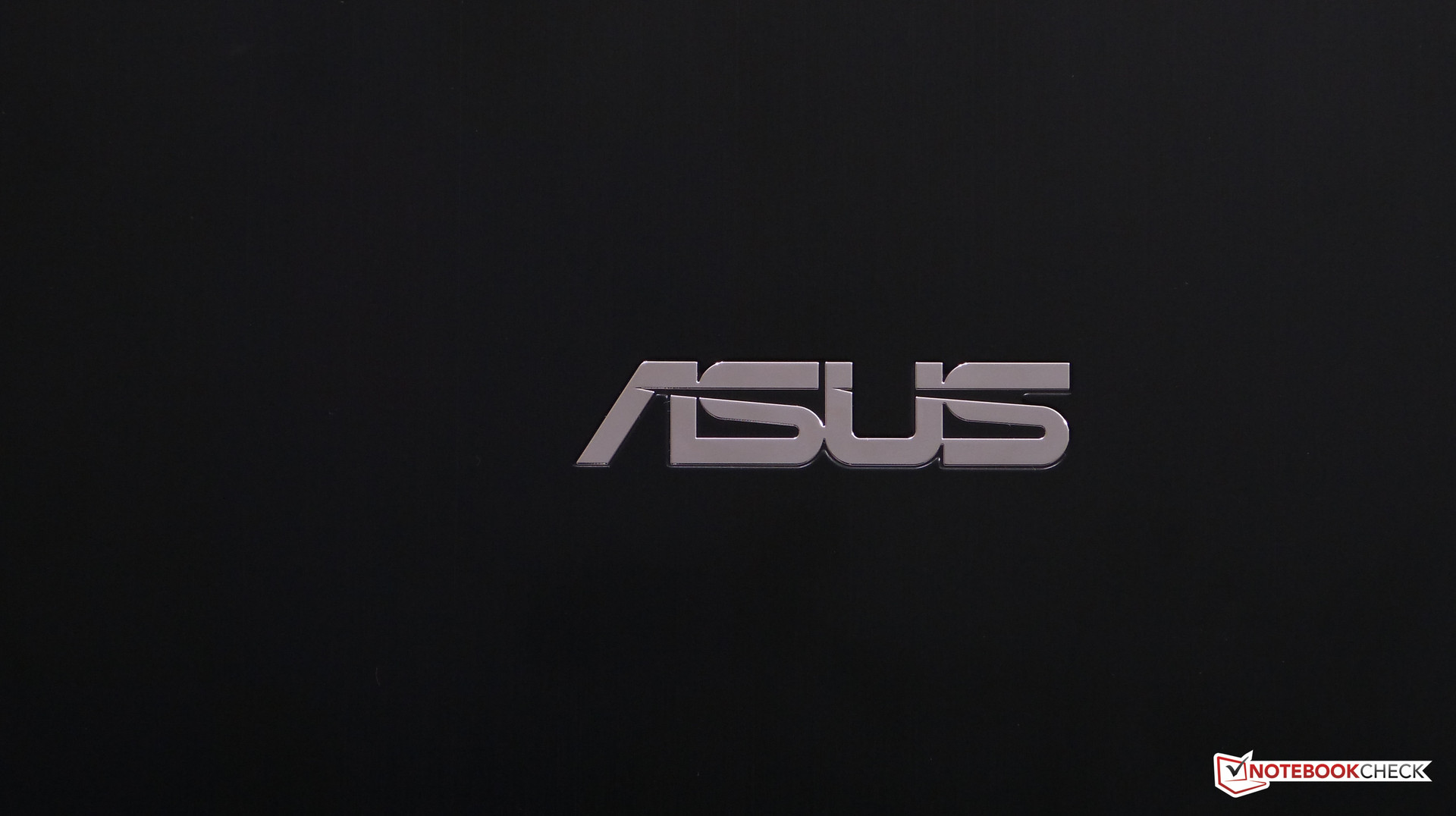

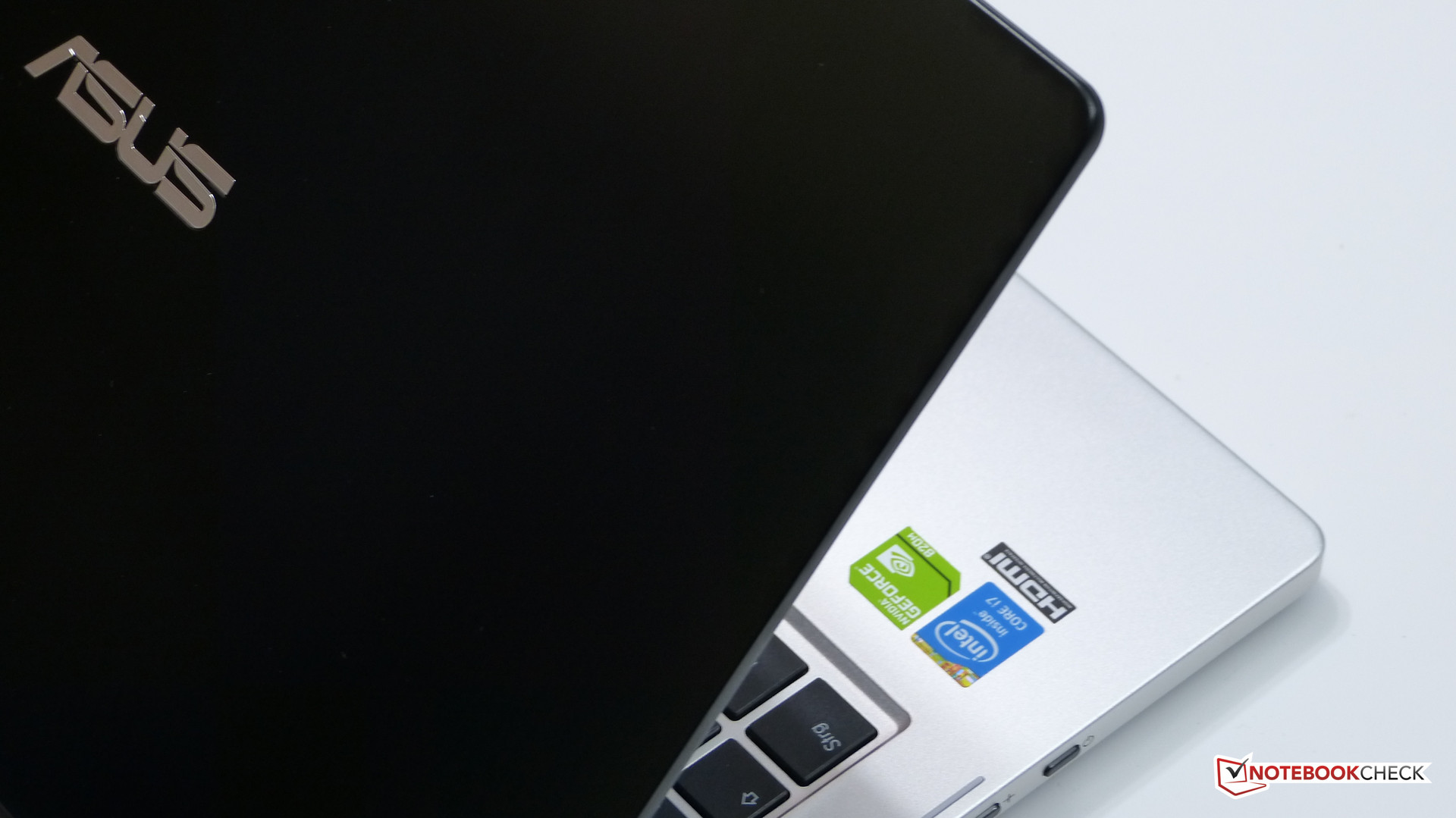

拉丝金属上盖
拉丝金属上盖

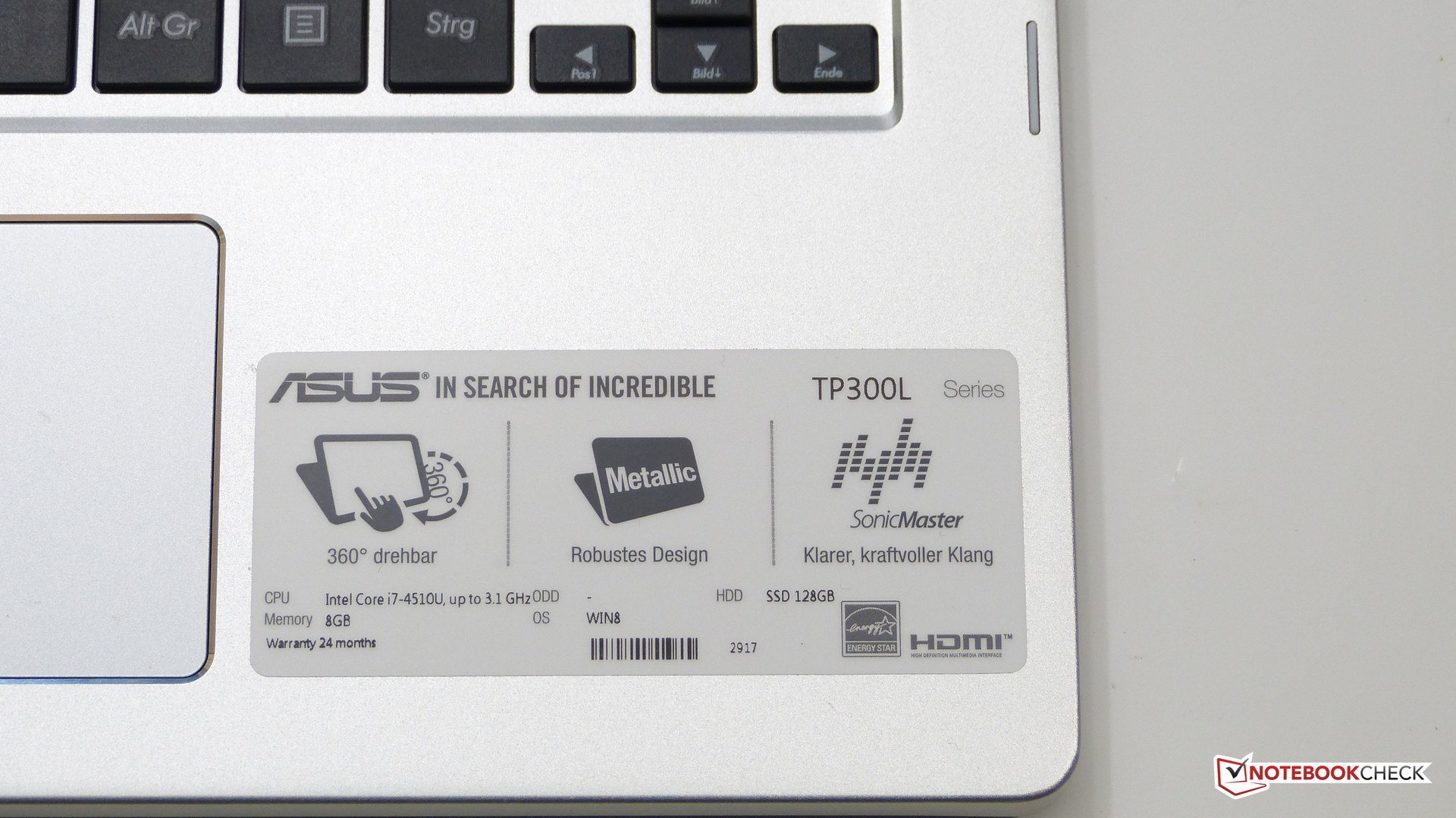

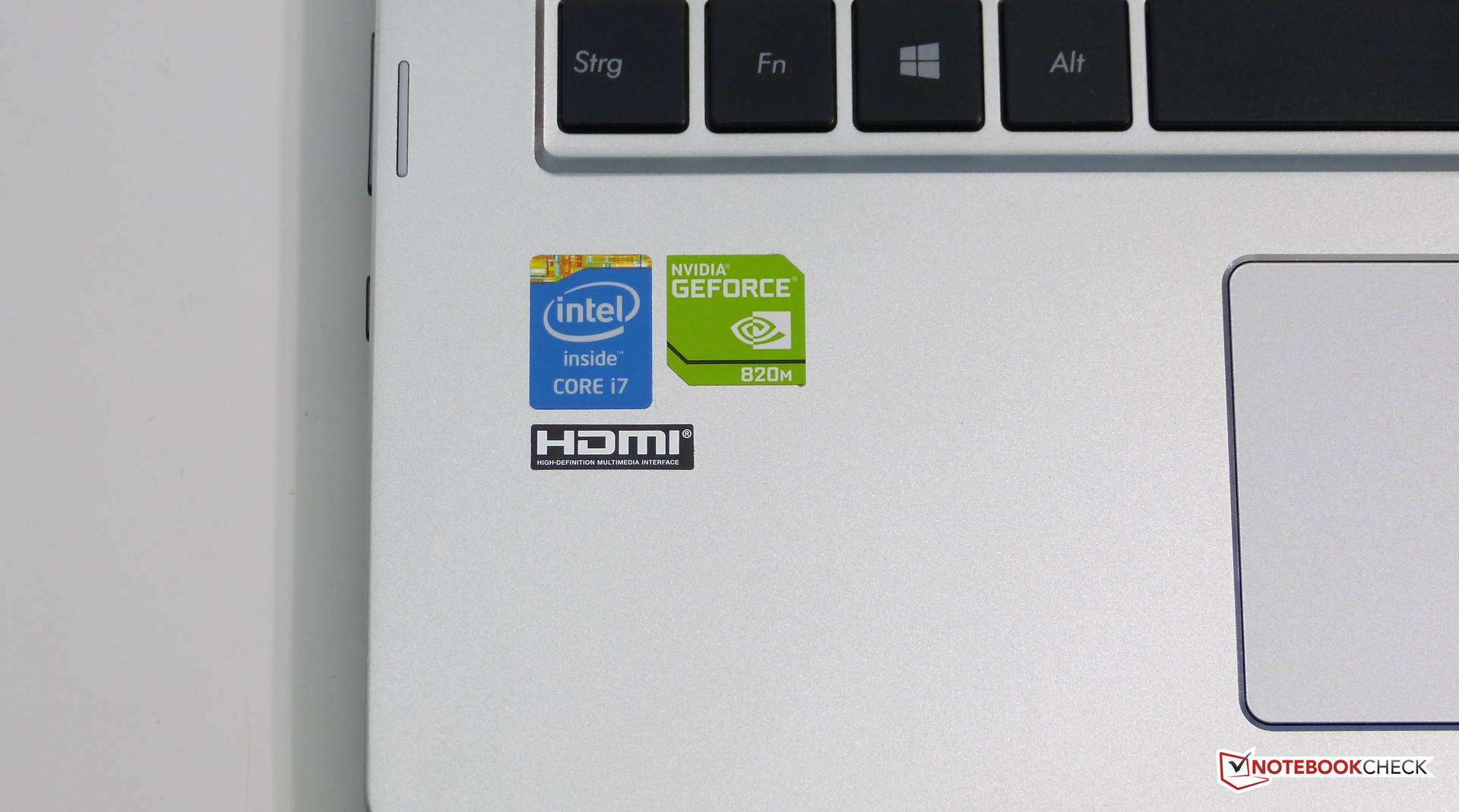

我们的测试机配备了Geforce 820M显卡
我们的测试机配备了Geforce 820M显卡

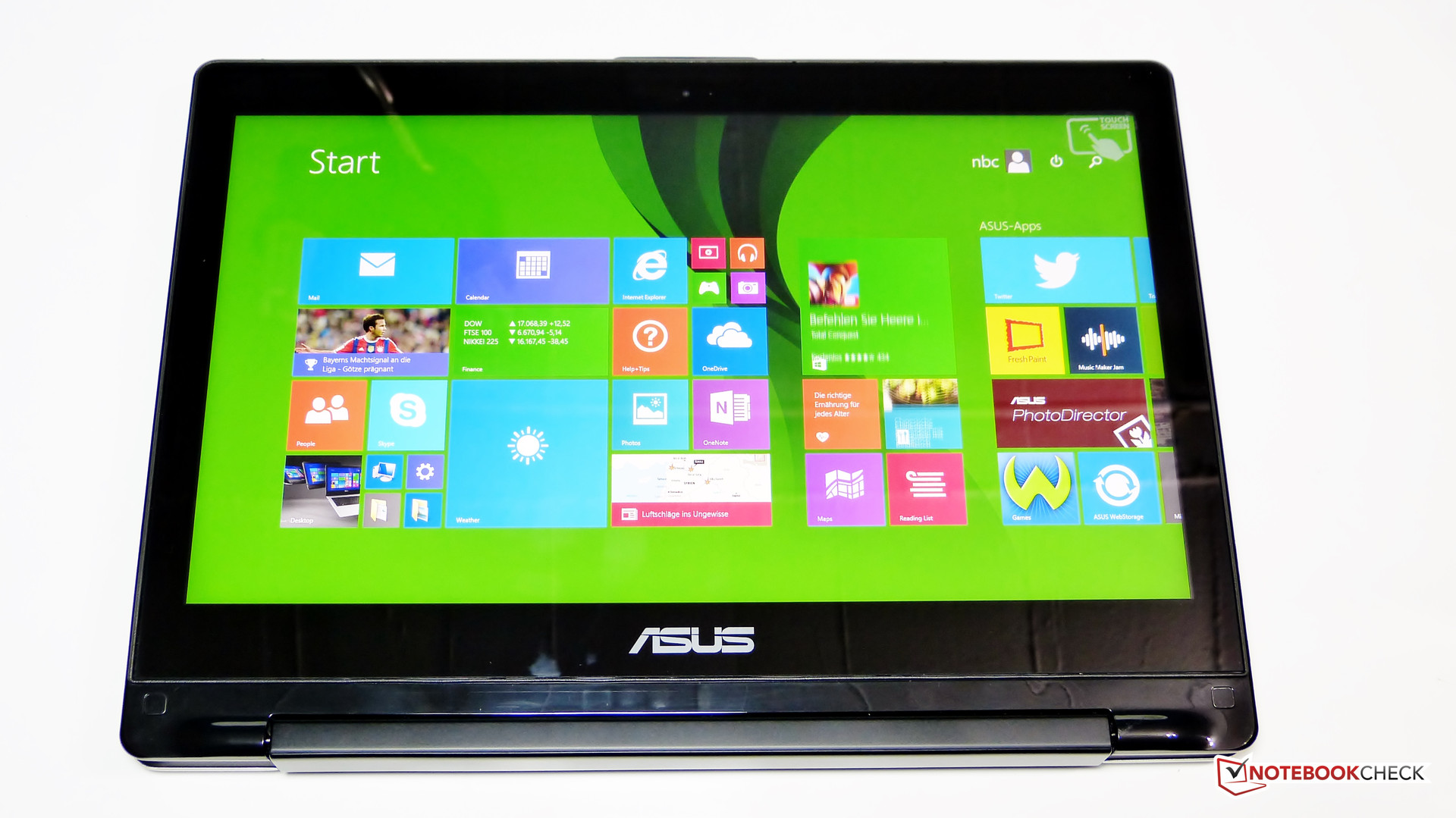

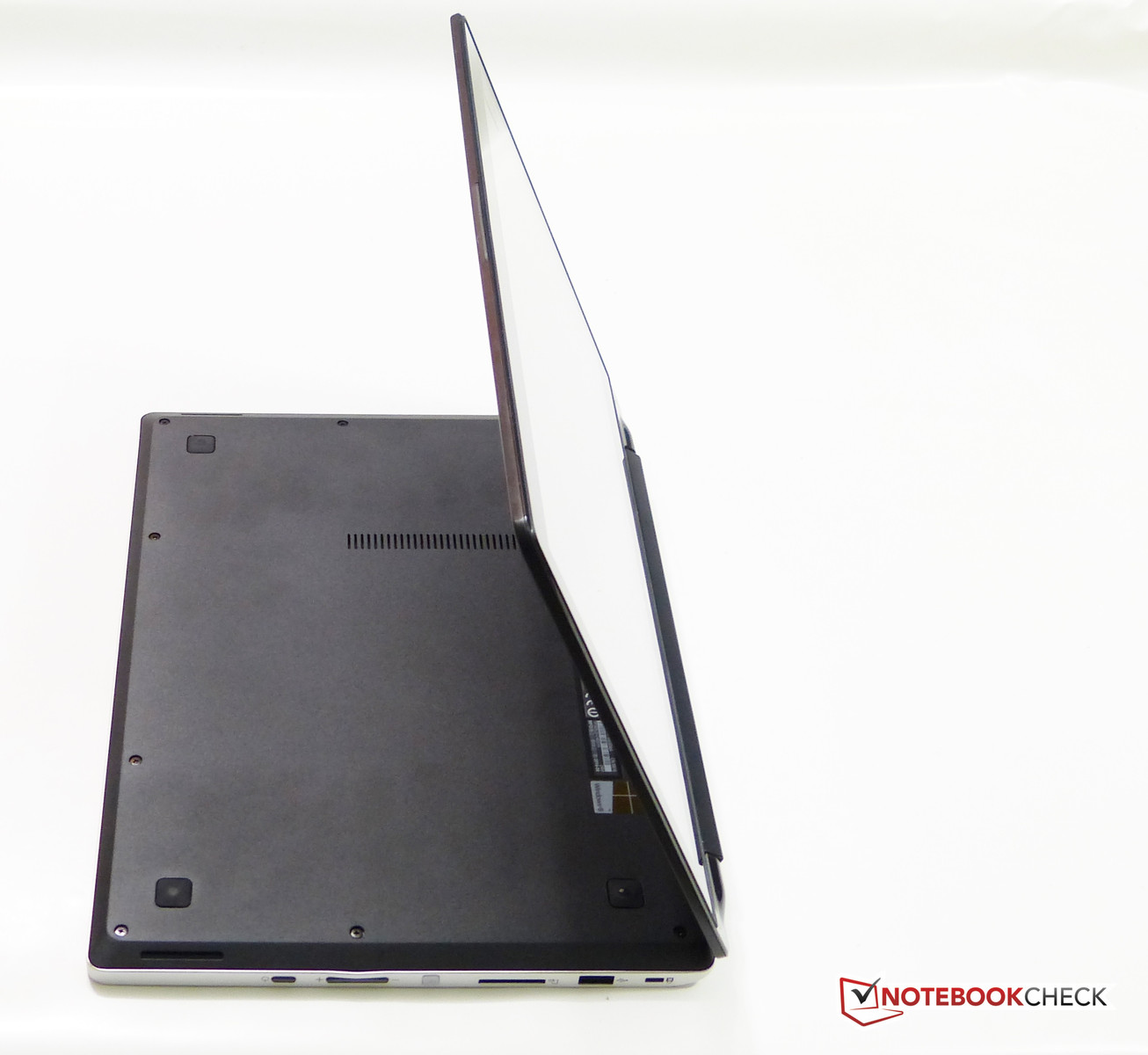

它的体重让它不能算是个休闲平板
它的体重让它不能算是个休闲平板

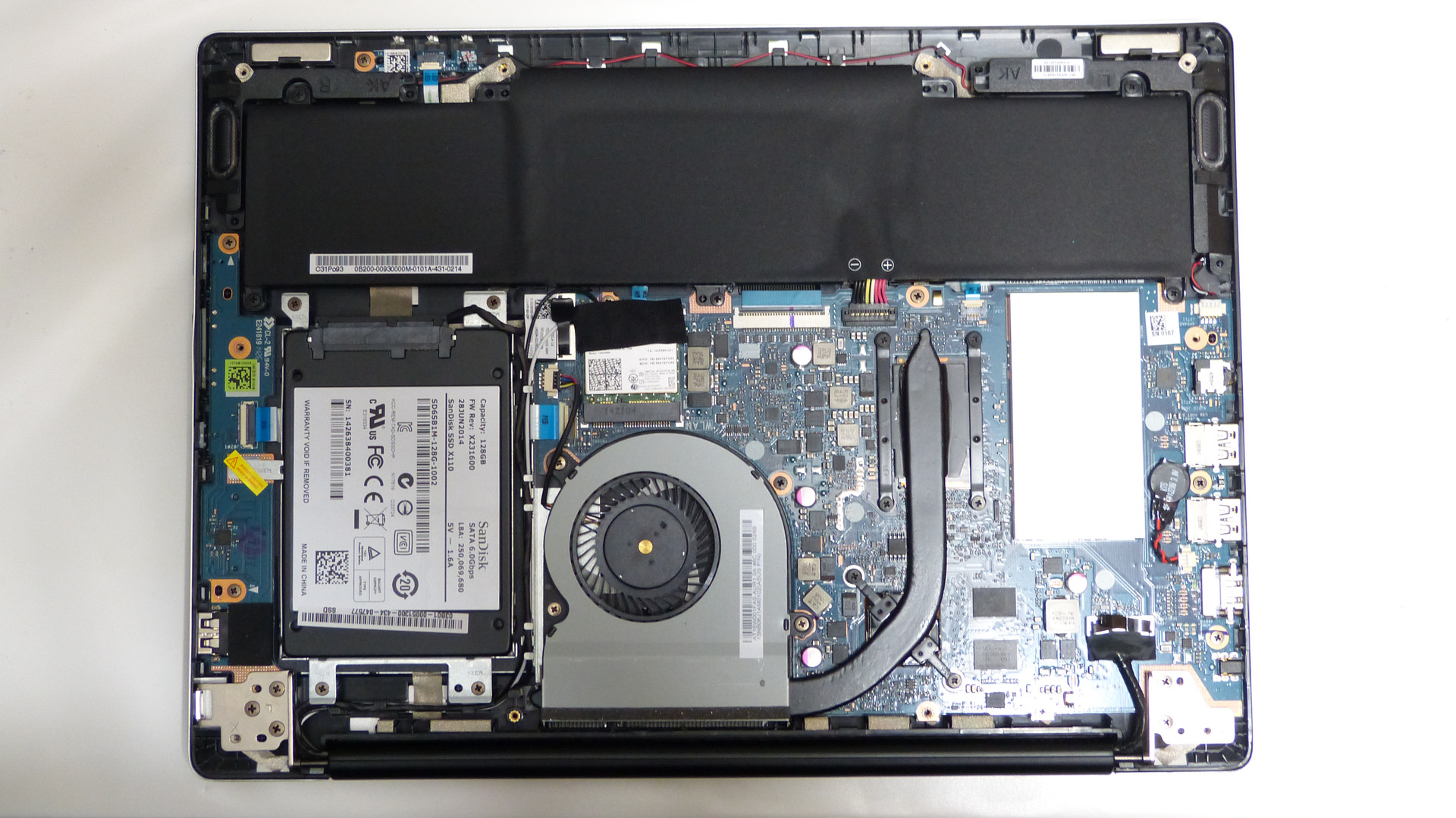

TP300L的机身内部。没有可供升级的内存槽。
TP300L的机身内部。没有可供升级的内存槽。

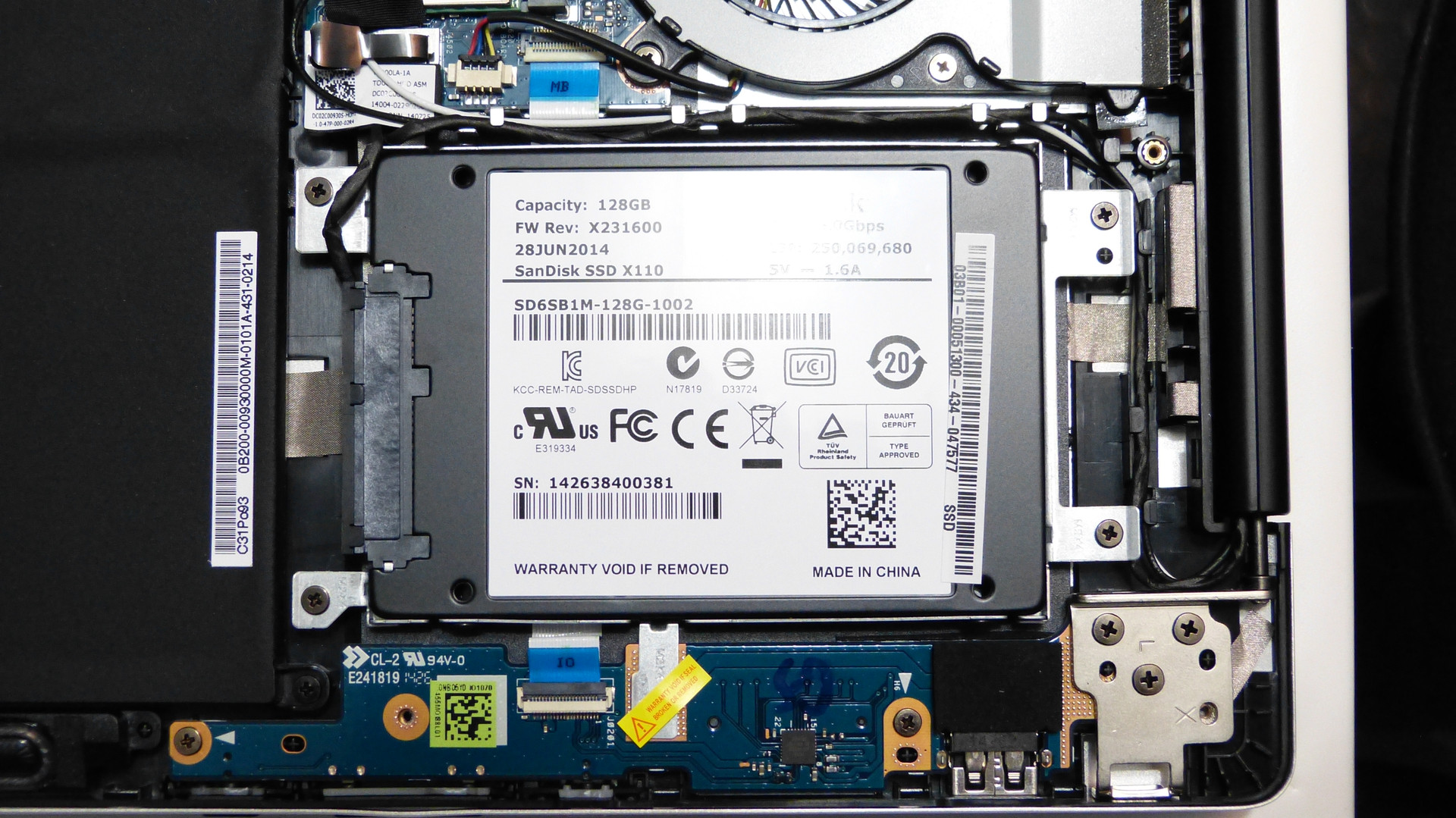

2.5寸的SATA插槽便于维护。
2.5寸的SATA插槽便于维护。

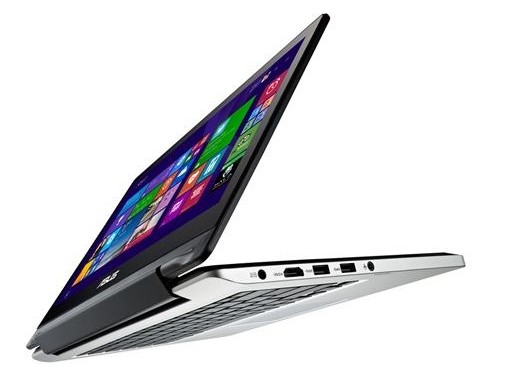

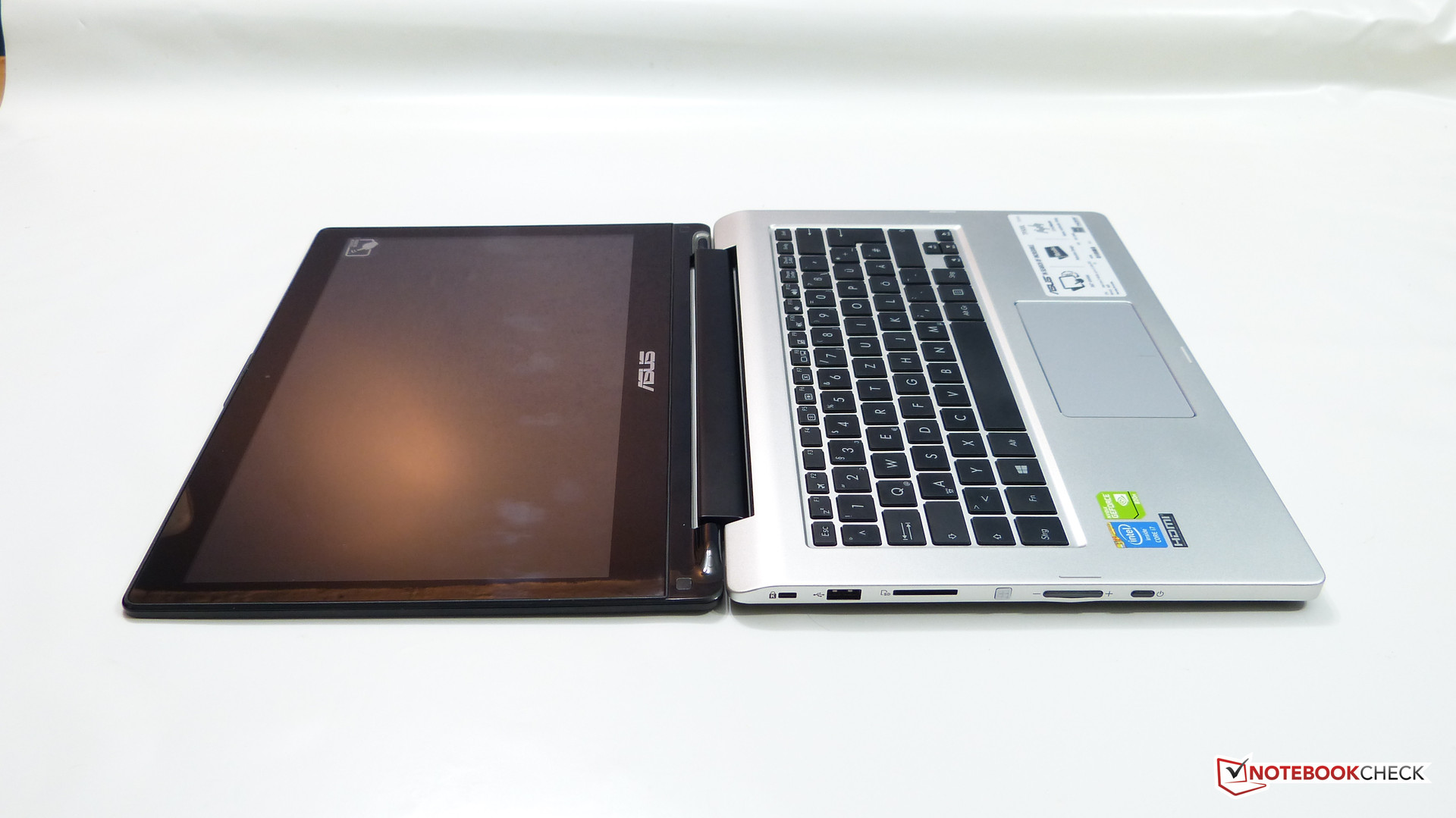

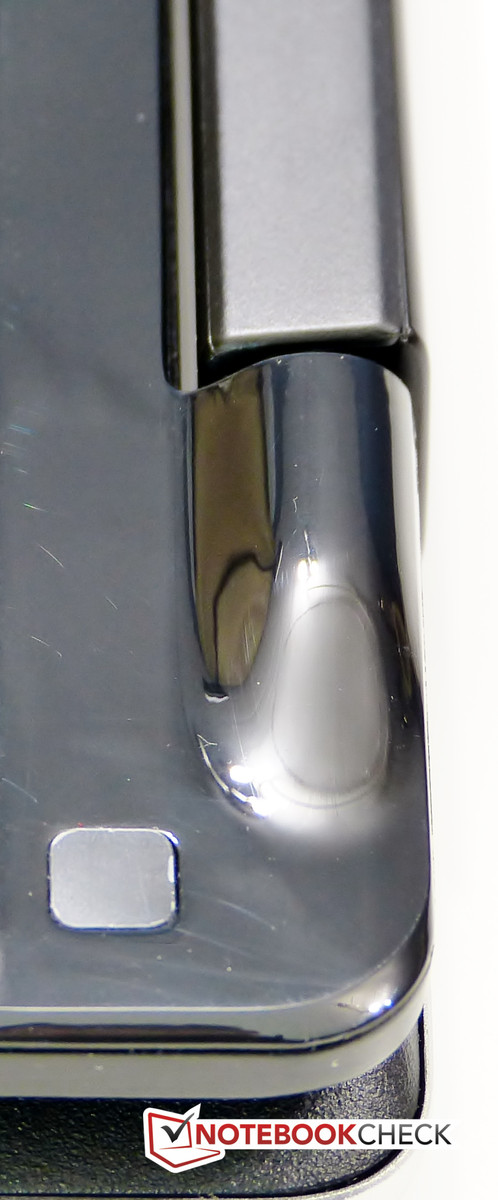

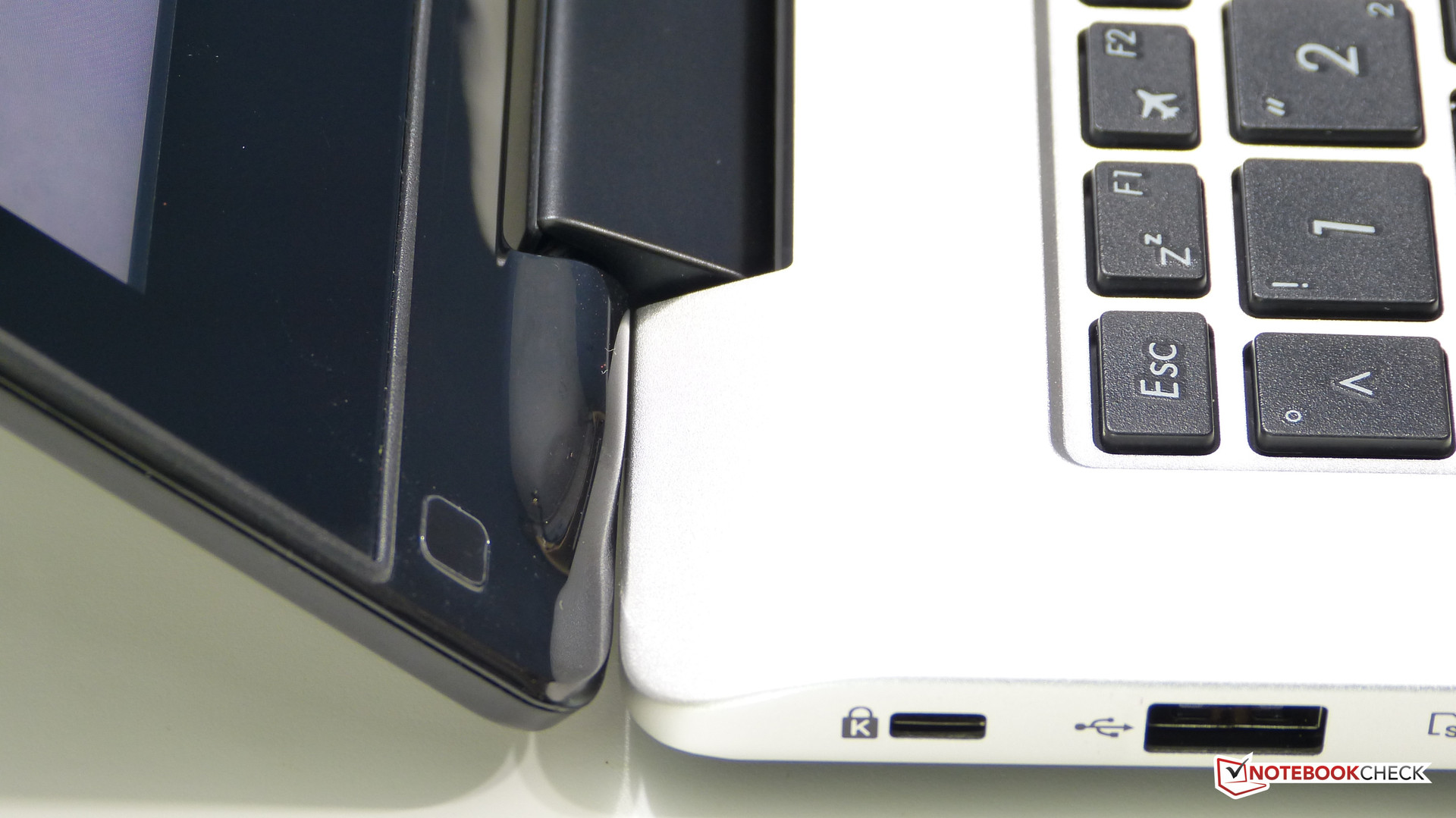

华硕Transformer Book Flip的转轴设计合理,显得很坚固。
华硕Transformer Book Flip的转轴设计合理,显得很坚固。



Please share our article, every link counts!

Specifications

Asus Transformer Book Flip TP300LD-C4031H (Transformer Book Series)
Processor
Intel Core i7-4510U 2 x 2 - 3.1 GHz, Haswell
Graphics adapter
NVIDIA GeForce 820M - 2.1 GB VRAM, Core: 1100 MHz, RAM: 800 MHz, Intel Haswell=MB ULT GT2, 10.18.10.3496, Intel HD 4400
Memory
7.9 GB
, DDR3 SDRAM SK Hynix
Display
13.30 inch 16:9, 1920 x 1080 pixel, 10点触控,电容型, CMN N1233HSE-EB3, IPS, 硬件 ID: CNM1357, glossy: yes
Mainboard
Intel Lynx Point-LP
Storage
SanDisk SD6SB1M128G1002, 128 GB
, SD6SB1M128G1002
Soundcard
Intel Lynx Point-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 HDMI, Card Reader: SD读卡器, Sensors: Invensense 传感器组, 方向传感器
Networking
Intel Dual Band Wireless-N 7260 (a/b/g/n = Wi-Fi 4/), Bluetooth BT 4.0
Size
height x width x depth (in mm): 22 x 326 x 232
Battery
50 Wh Lithium-Polymer, ASUSTeK UX3-44
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 100万像素
Additional features
Speakers: 立体声, Keyboard Light: no, 24 Months Warranty
Weight
1.75 kg, Power Supply: 219 g



Devices with Same Screen Size and/or Weight

高通骁龙 X Plus 8 核分析 - X1P-42-100 更小、更便宜,但效率不高
Adreno X1-45 1.7 TFLOPS, Snapdragon X SD X Plus X1P-42-100, 13.30", 0.874 kg
华硕 ProArt PZ13 评测--配备骁龙 X Plus 的耐用 OLED 可折叠手机
Adreno X1-45 1.7 TFLOPS, Snapdragon X SD X Plus X1P-42-100, 13.30", 0.874 kg
华硕Chromebook Flip CX5回顾。高性能,高价格
Iris Xe G7 96EUs, Alder Lake-M i7-1255U, 15.80", 2.142 kg
GeForce MX450正在落伍。华硕ZenBook Flip 15 Q508U敞篷车评测
GeForce MX450, Lucienne (Zen 2, Ryzen 5000) R7 5700U, 15.60", 1.869 kg

Pros

+ 设计优良
+ 相比超极本更强的图形性能
+ 高质量屏幕
+ 高硬件配置

Cons

- 一般的电池续航
- 相比很多13.3寸笔记本更沉

Asus Transformer Book Flip TP300LD-C4031H - 10/03/2014 v4 (old)
Steve Chippy Paine

Chassis
89 / 98 → 91%
Keyboard
85%
Pointing Device
94%
Connectivity
49 / 80 → 61%
Weight
80 / 35-78 → 100%
Battery
91%
Display
80%
Games Performance
70 / 68 → 100%
Application Performance
85 / 87 → 98%
Temperature
88%
Noise
85%
Audio
64 / 91 → 70%
Camera
58 / 85 → 68%
Average
78%
87%
Convertible - Weighted Average
