宏碁 TravelMate TMX349-G2-M-5625 笔记本电脑简短评测

更新turbo固态硬盘。 宏碁为轻薄的TravelMate更新了Kaby Lake处理器,它拥有一个不太起眼的铝制外壳。它运行速度更快,续航时间长达14小时。512 GB固态硬盘的存储空间很大,速度也非常快。而其他部分,如IPS屏幕,快速处理器,背光键盘和三年保修,宏碁保持了原貌。
Kaby Lake Laptop / Notebook Ultrabook Windows
Acer TravelMate X349-G2 (TravelMate X Series)
Processor
Intel Core i5-7200U 2 x 2.5 - 3.1 GHz, Kaby Lake
Graphics adapter
Intel HD Graphics 620, Core: 400 MHz, RAM: 1050 MHz
Memory
8 GB
, DDR4-2133 SO-DIMM soldered
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, ChiMei CN14C9, IPS, glossy: no
Mainboard
Intel Kaby Lake-Y Premium PCH
Storage
Intel SSD 600p SSDPEKKW512G7, 512 GB
Soundcard
Realtek ALC255 @ Intel Kaby Lake-U/Y - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 0 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Headset, Card Reader: SD, 1 Fingerprint Reader
Networking
Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 18 x 341 x 237
Battery
48.9 Wh, 3220 mAh Lithium-Ion, Battery runtime (according to manufacturer): 10 h
Operating System
Microsoft Windows 10 Home 64 Bit

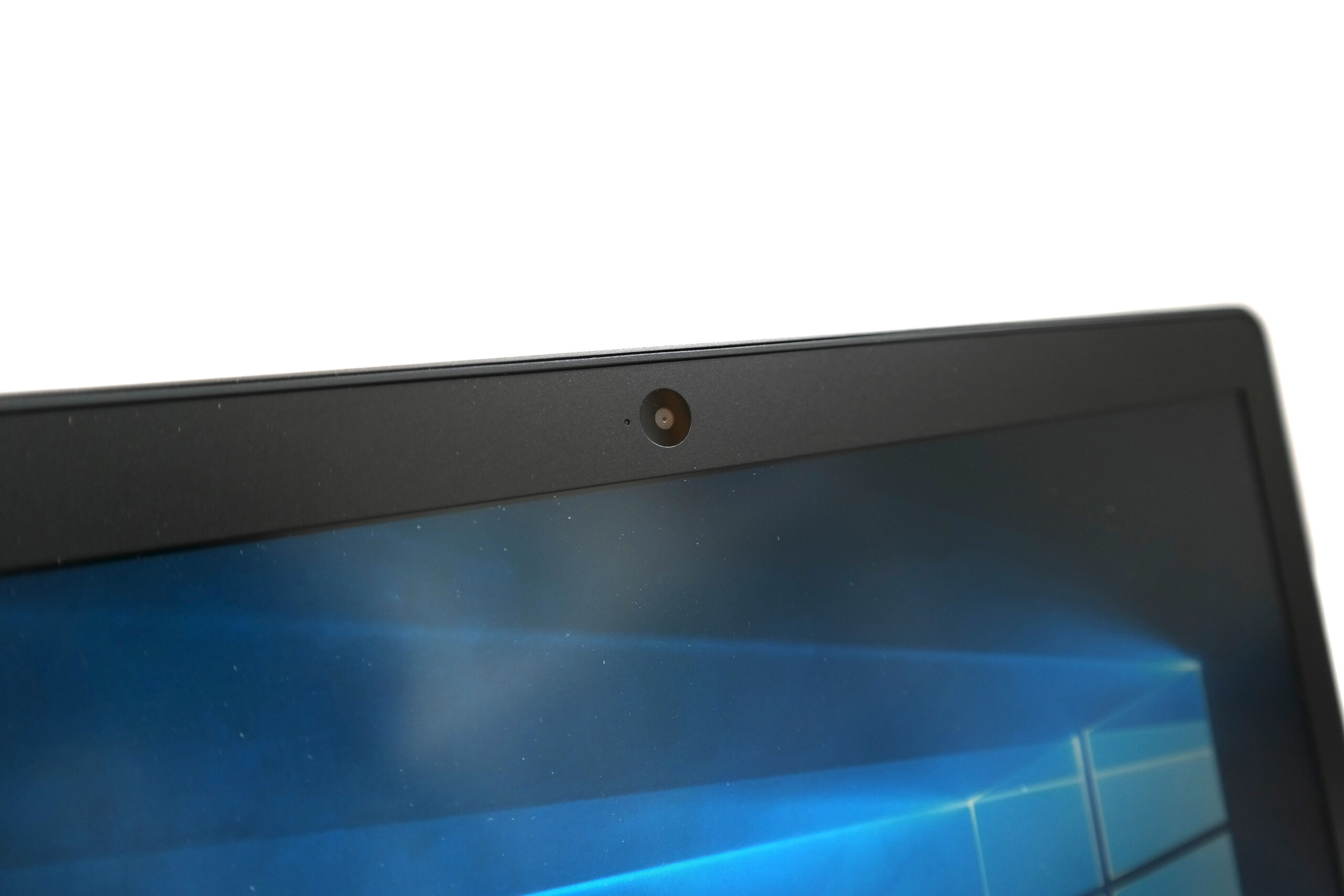

Camera
Webcam: HD webcam
Primary Camera: 1.3 MPix
Additional features
Speakers: Stereo, Keyboard: German keyboard layout, Keyboard Light: yes, 36 Months Warranty
Weight
1.548 kg, Power Supply: 326 g
Price
850 €
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2
Acer TravelMate TMX349-G2

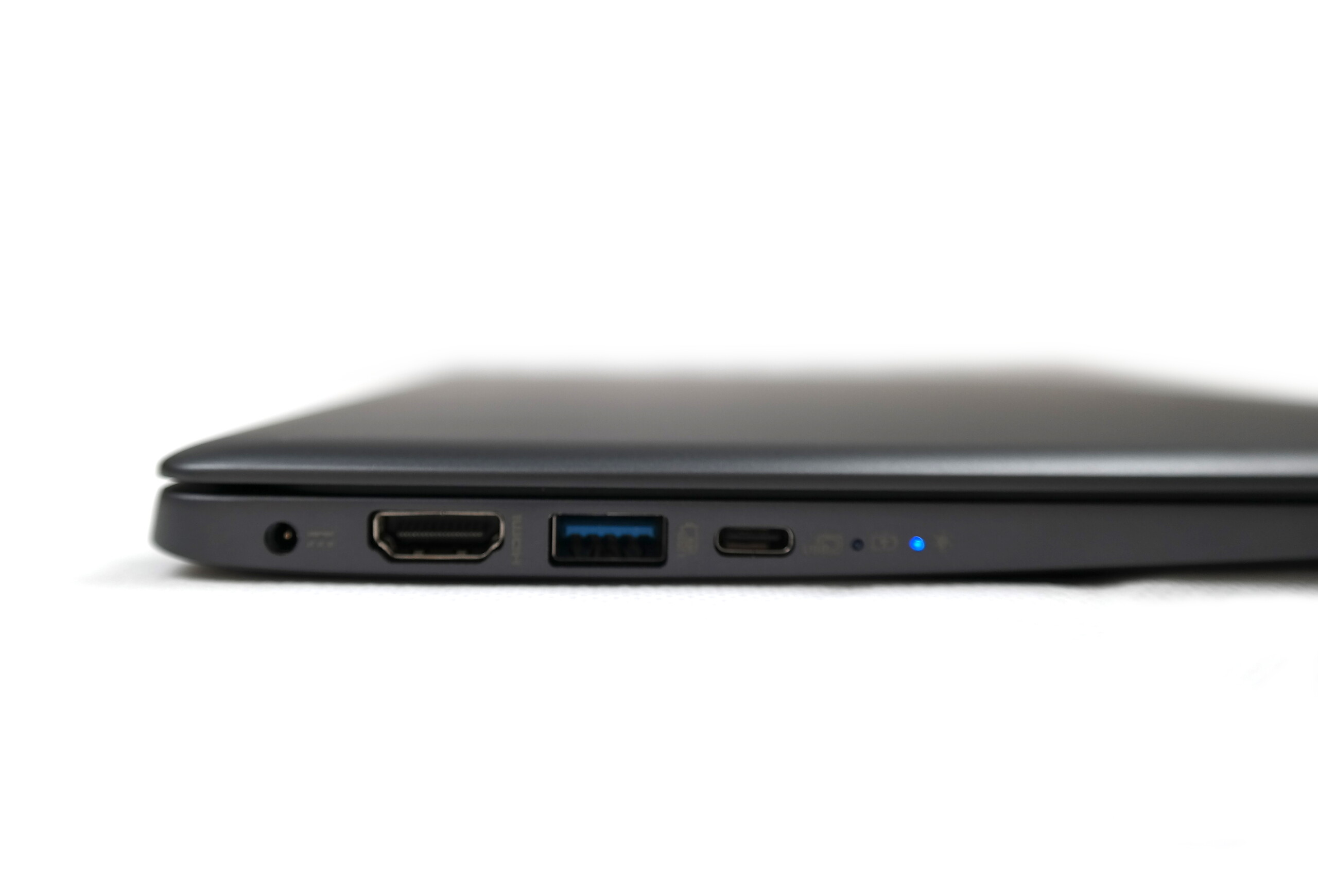

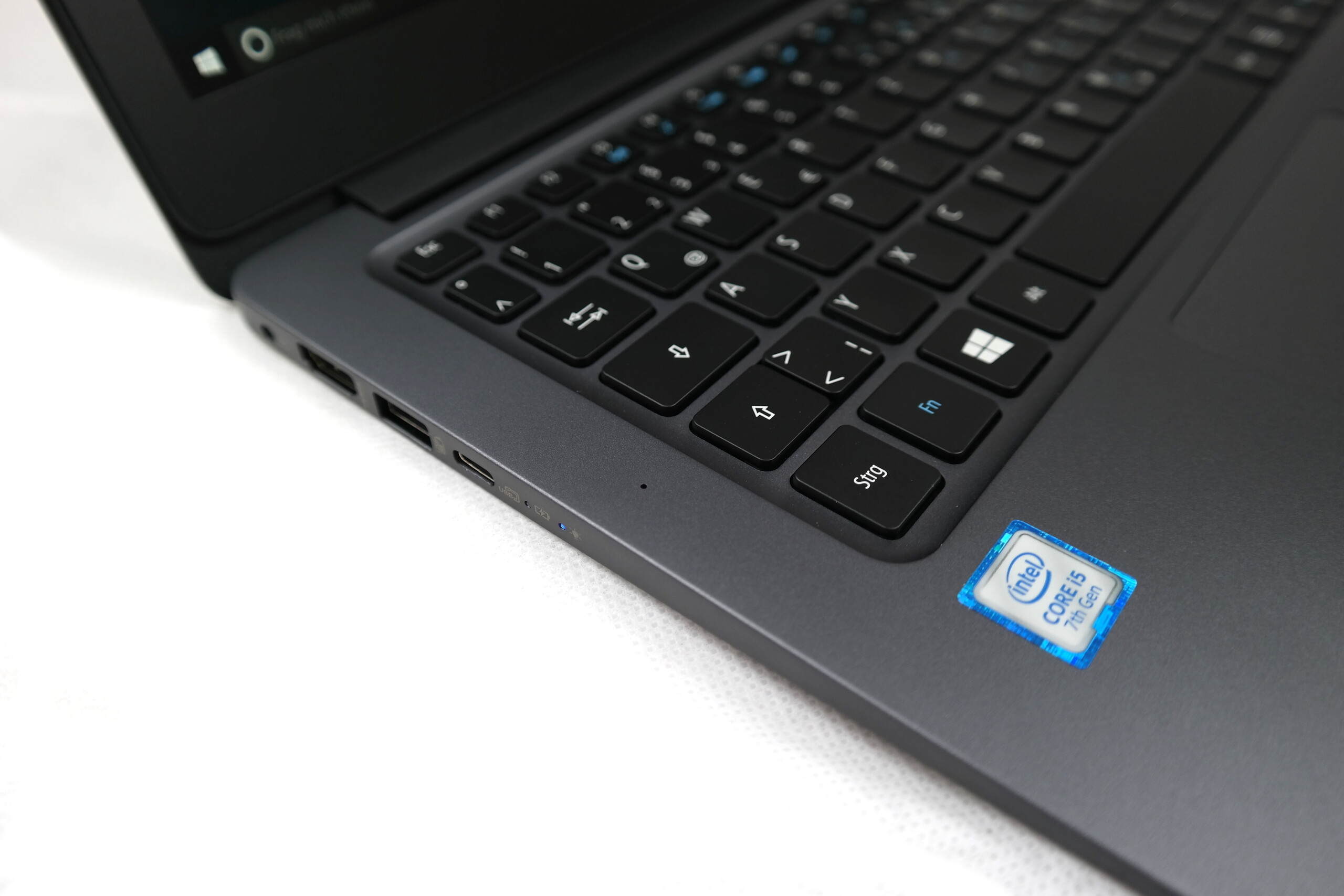

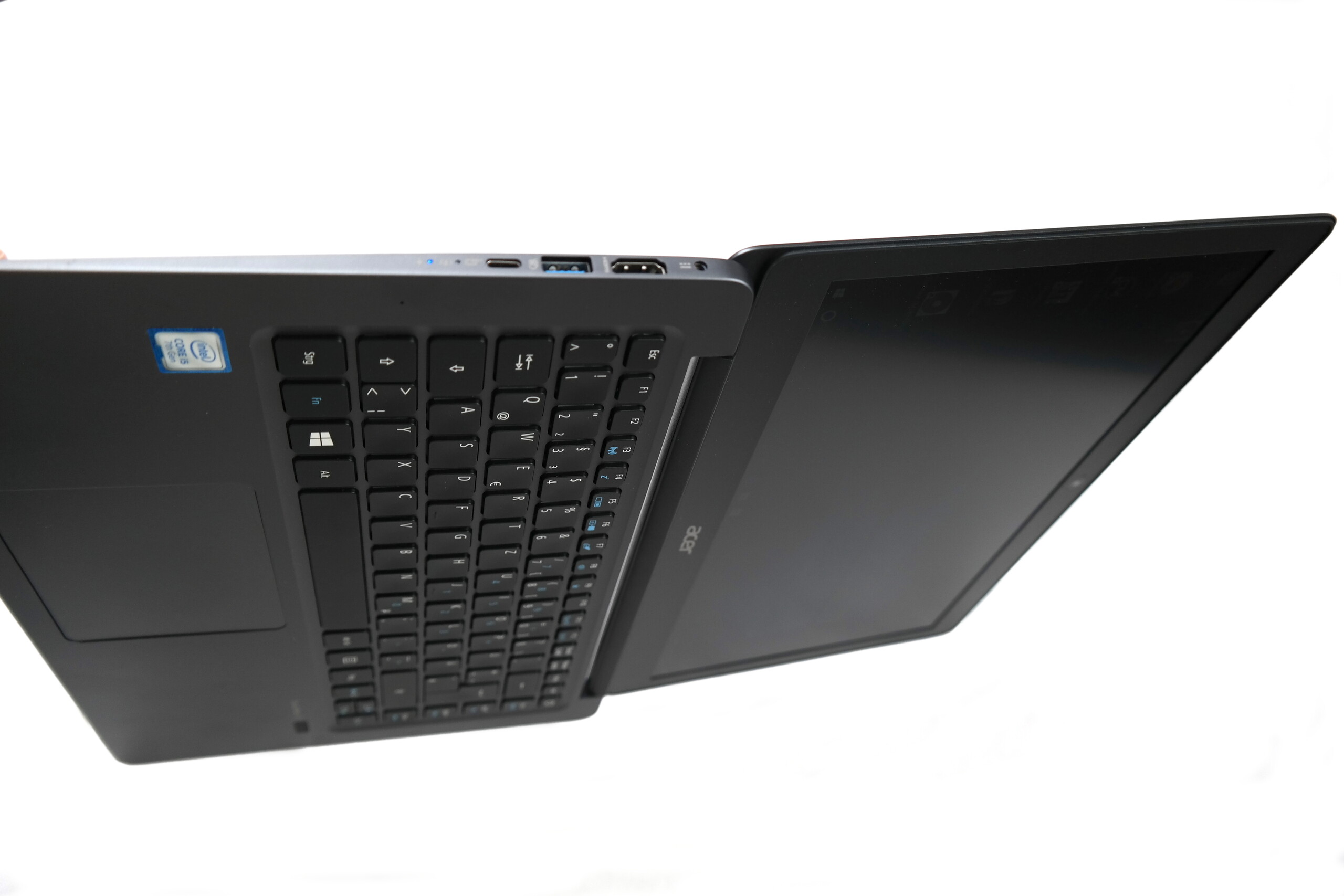

Left side: power connection, HDMI, USB 3.0 (Type-A), USB 3.1 Gen 1 (Type-C)
Left side: power connection, HDMI, USB 3.0 (Type-A), USB 3.1 Gen 1 (Type-C)

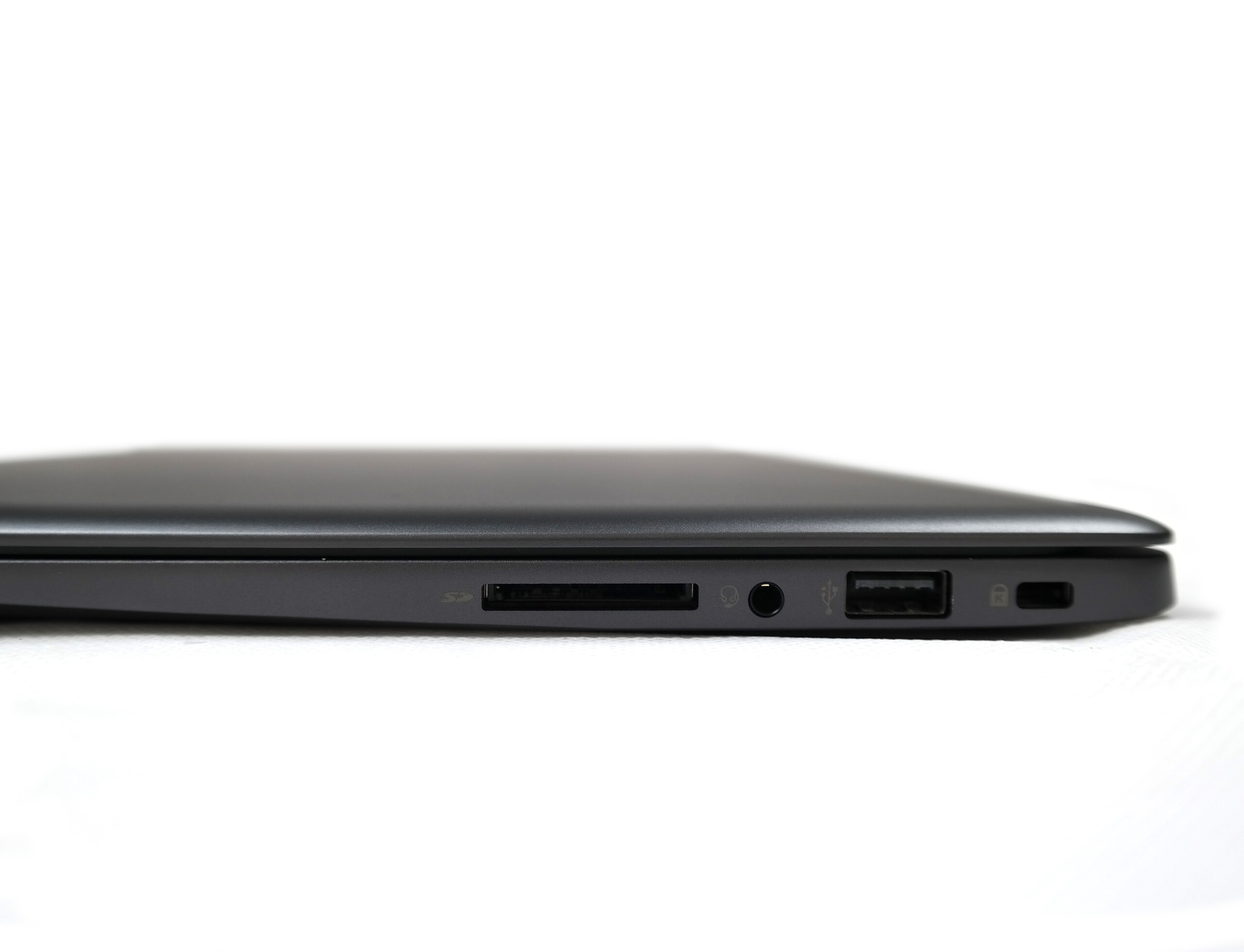

Right side: memory-card reader (SD), combo-audio jack, USB 2.0 (Type-A), cable-lock slot
Right side: memory-card reader (SD), combo-audio jack, USB 2.0 (Type-A), cable-lock slot
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP ProBook 440 G4-Y8B51EA

74.3 MB/s +215%
Lenovo ThinkPad E470-20H2S00400

67.3 MB/s +185%
Lenovo IdeaPad 510S-14ISK

49.5 MB/s +110%
Acer TravelMate X349-G2

23.6 MB/s
Acer TravelMate X3 X349-M-7261

19.1 MB/s -19%
maximum AS SSD Seq Read Test (1GB)
HP ProBook 440 G4-Y8B51EA

85.9 MB/s +233%
Lenovo IdeaPad 510S-14ISK

83.4 MB/s +223%
Lenovo ThinkPad E470-20H2S00400

81 MB/s +214%
Acer TravelMate X3 X349-M-7261

26.1 MB/s +1%
Acer TravelMate X349-G2

25.8 MB/s
Networking
iperf3 transmit AX12
Acer TravelMate X349-G2
Intel Dual Band Wireless-AC 7265
672 MBit/s
Lenovo ThinkPad E470-20H2S00400
Atheros/Qualcomm QCA6174
413 MBit/s -39%
iperf3 receive AX12
Lenovo ThinkPad E470-20H2S00400
Atheros/Qualcomm QCA6174
621 MBit/s +15%
Acer TravelMate X349-G2
Intel Dual Band Wireless-AC 7265
542 MBit/s
255
cd/m²
257
cd/m²
247
cd/m²
267
cd/m²
271
cd/m²
257
cd/m²
256
cd/m²
226
cd/m²
245
cd/m²
Distribution of brightness
ChiMei CN14C9 tested with X-Rite i1Pro 2
Maximum: 271 cd/m² (Nits) Average: 253.4 cd/m² Minimum: 22 cd/m²
Brightness Distribution: 83 %
Center on Battery: 271 cd/m²
Contrast: 774:1 (Black: 0.35 cd/m²)
ΔE Color 5.05 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.3 | 0.5-98 Ø5.2
39% sRGB (Argyll 1.6.3 3D)
42% AdobeRGB 1998 (Argyll 1.6.3 3D)
43.26% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.3% sRGB (Argyll 2.2.0 3D)
41.81% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44
Acer TravelMate X349-G2
ChiMei CN14C9, , 1920x1080, 14"
HP ProBook 440 G4-Y8B51EA
AUO1E3D, , 1920x1080, 14"
Lenovo ThinkPad E470-20H2S00400
N140HCA-EAB, , 1920x1080, 14"
Lenovo IdeaPad 510S-14ISK
NV140FHM-N41, , 1920x1080, 14"
Acer TravelMate X3 X349-M-7261
AU Optronics B140HAN02.1, , 1920x1080, 14"
Display
-10%
-1%
3%
-12%
Display P3 Coverage
41.81
37.6
-10%
41.23
-1%
42.88
3%
36.97
-12%
sRGB Coverage
62.3
56.6
-9%
61.4
-1%
64.1
3%
55.6
-11%
AdobeRGB 1998 Coverage
43.26
38.85
-10%
42.67
-1%
44.3
2%
38.2
-12%
Response Times
12%
5%
-29%
7%
Response Time Grey 50% / Grey 80% *
43 ?(25, 18)
43.2 ?(21.2, 22)
-0%
40.8 ?(22, 18.8)
5%
45 ?(17, 28)
-5%
42 ?(15, 27)
2%
Response Time Black / White *
32 ?(19, 13)
24.4 ?(7.2, 17.2)
24%
30.4 ?(8.4, 22)
5%
26 ?(7, 19)
19%
28 ?(8, 20)
12%
PWM Frequency
25000 ?(20)
50 ?(60)
-100%
Screen
-31%
-6%
14%
12%
Brightness middle
271
216
-20%
244
-10%
257
-5%
230
-15%
Brightness
253
203
-20%
231
-9%
263
4%
226
-11%
Brightness Distribution
83
83
0%
89
7%
90
8%
86
4%
Black Level *
0.35
0.47
-34%
0.37
-6%
0.24
31%
0.2
43%
Contrast
774
460
-41%
659
-15%
1071
38%
1150
49%
Colorchecker dE 2000 *
5.05
8.98
-78%
6.41
-27%
5.44
-8%
5.07
-0%
Colorchecker dE 2000 max. *
11.74
14.07
-20%
13.4
-14%
10.93
7%
10.07
14%
Greyscale dE 2000 *
4.3
9.61
-123%
5.94
-38%
3.95
8%
3.64
15%
Gamma
2.44 90%
2.63 84%
2.28 96%
2.29 96%
2.46 89%
CCT
6726 97%
11265 58%
6101 107%
6896 94%
6521 100%
Color Space (Percent of AdobeRGB 1998)
42
35.9
-15%
39.3
-6%
40
-5%
35
-17%
Color Space (Percent of sRGB)
39
56.7
45%
61.1
57%
64
64%
55
41%
Total Average (Program / Settings)
-10% / -21%
-1% / -4%
-4% / 4%
2% / 7%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

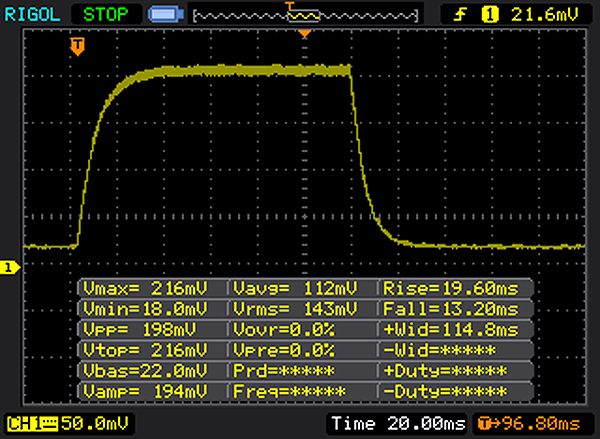

       Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined↗ 19 ms rise
↘ 13 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

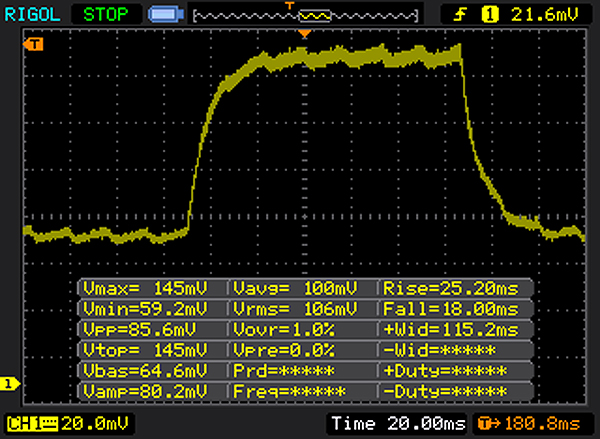

       Response Time 50% Grey to 80% Grey
43 ms ... rise ↗ and fall ↘ combined↗ 25 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 68 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

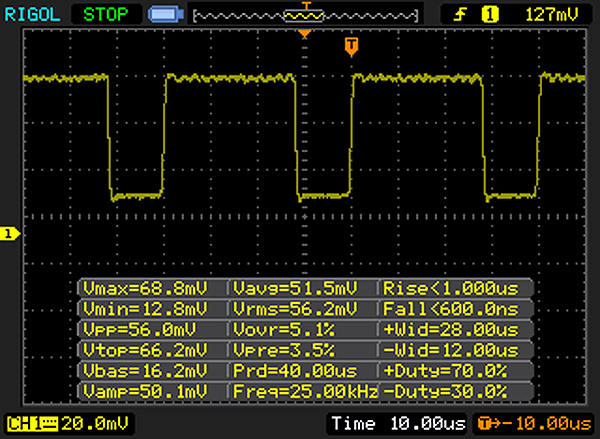

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 25000 Hz ≤ 20 % brightness setting

The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330Tooltip
Cinebench R15 CPU Multi 64 Bit
Cinebench R15
CPU Single 64Bit
HP ProBook 440 G4-Y8B51EA
Intel Core i7-7500U
145 Points +17%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
130 Points +5%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
129 Points +4%
Acer TravelMate X349-G2
Intel Core i5-7200U
124 Points
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U
123 Points -1%
CPU Multi 64Bit
HP ProBook 440 G4-Y8B51EA
Intel Core i7-7500U
335 Points +5%
Lenovo ThinkPad E470-20H2S00400
Intel Core i5-7200U
331 Points +4%
Acer TravelMate X3 X349-M-7261
Intel Core i7-6500U
324 Points +2%
Acer TravelMate X349-G2
Intel Core i5-7200U
318 Points
Lenovo IdeaPad 510S-14ISK
Intel Core i5-6267U
314 Points -1%
PCMark 8
Home Score Accelerated v2
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
3710 Points +1%
Acer TravelMate X349-G2
HD Graphics 620, i5-7200U, Intel SSD 600p SSDPEKKW512G7
3668 Points
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, i7-7500U, SanDisk SD8SNAT256G1002
3614 Points -1%
Lenovo ThinkPad E470-20H2S00400
GeForce 940MX, i5-7200U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
3546 Points -3%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
3545 Points -3%
Work Score Accelerated v2
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, i7-7500U, SanDisk SD8SNAT256G1002
4837 Points +6%
Lenovo ThinkPad E470-20H2S00400
GeForce 940MX, i5-7200U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
4642 Points +1%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
4579 Points 0%
Acer TravelMate X349-G2
HD Graphics 620, i5-7200U, Intel SSD 600p SSDPEKKW512G7
4574 Points
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
4361 Points -5%
PCMark 8 Home Score Accelerated v2
3668 points
PCMark 8 Creative Score Accelerated v2
4531 points
PCMark 8 Work Score Accelerated v2
4574 points
Help
Acer TravelMate X349-G2
Intel SSD 600p SSDPEKKW512G7
HP ProBook 440 G4-Y8B51EA
SanDisk SD8SNAT256G1002
Lenovo ThinkPad E470-20H2S00400
SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
Lenovo IdeaPad 510S-14ISK
Samsung MZYTY256HDHP
Acer TravelMate X3 X349-M-7261
Liteonit CV3-8D512
CrystalDiskMark 3.0
-47%
-37%
-26%
-28%
Read Seq
1818
491.2
-73%
476.5
-74%
510
-72%
484.1
-73%
Write Seq
582
322.2
-45%
458.7
-21%
458.8
-21%
449.8
-23%
Read 512
1134
310.1
-73%
346.4
-69%
399.7
-65%
399.1
-65%
Write 512
586
276
-53%
291.1
-50%
299.3
-49%
355.1
-39%
Read 4k
34.93
19.57
-44%
35.15
1%
35.27
1%
33.44
-4%
Write 4k
133.4
77.8
-42%
78.8
-41%
90.2
-32%
67.5
-49%
Read 4k QD32
373.7
146.3
-61%
276
-26%
397.7
6%
368.5
-1%
Write 4k QD32
210.8
241.4
15%
178.3
-15%
257.3
22%
280.6
33%
Intel SSD 600p SSDPEKKW512G7
Sequential Read: 1818 MB/s
Sequential Write: 582 MB/s
512K Read: 1134 MB/s
512K Write: 586 MB/s
4K Read: 34.93 MB/s
4K Write: 133.4 MB/s
4K QD32 Read: 373.7 MB/s
4K QD32 Write: 210.8 MB/s
3DMark - 1280x720 Cloud Gate Standard Graphics
Lenovo ThinkPad E470-20H2S00400
NVIDIA GeForce 940MX, Intel Core i5-7200U
9501 Points +15%
HP ProBook 440 G4-Y8B51EA
NVIDIA GeForce 930MX, Intel Core i7-7500U
9056 Points +10%
Lenovo IdeaPad 510S-14ISK
Intel Iris Graphics 550, Intel Core i5-6267U
8885 Points +8%
Acer TravelMate X349-G2
Intel HD Graphics 620, Intel Core i5-7200U
8237 Points
Acer TravelMate X3 X349-M-7261
Intel HD Graphics 520, Intel Core i7-6500U
7407 Points -10%
3DMark Ice Storm Standard Score
57937 points
3DMark Cloud Gate Standard Score
6262 points
Help
Rise of the Tomb Raider - 1024x768 Lowest Preset
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, i7-7500U, SanDisk SD8SNAT256G1002
34.9 fps +91%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
23.6 fps +29%
Acer TravelMate X349-G2
HD Graphics 620, i5-7200U, Intel SSD 600p SSDPEKKW512G7
18.3 fps
Battlefield 4 - 1024x768 Low Preset
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, i7-7500U, SanDisk SD8SNAT256G1002
66.6 fps +72%
Lenovo ThinkPad E470-20H2S00400
GeForce 940MX, i5-7200U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
65.8 fps +70%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
59.9 fps +55%
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
43.1 fps +11%
Acer TravelMate X349-G2
HD Graphics 620, i5-7200U, Intel SSD 600p SSDPEKKW512G7
38.7 fps
BioShock Infinite - 1366x768 Medium Preset
Lenovo ThinkPad E470-20H2S00400
GeForce 940MX, i5-7200U, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G)
53.1 fps +72%
HP ProBook 440 G4-Y8B51EA
GeForce 930MX, i7-7500U, SanDisk SD8SNAT256G1002
52.8 fps +71%
Lenovo IdeaPad 510S-14ISK
Iris Graphics 550, 6267U, Samsung MZYTY256HDHP
34 (15.9min - 91.9max) fps +10%
Acer TravelMate X349-G2
HD Graphics 620, i5-7200U, Intel SSD 600p SSDPEKKW512G7
30.8 fps
Acer TravelMate X3 X349-M-7261
HD Graphics 520, 6500U, Liteonit CV3-8D512
28.3 fps -8%
lowmed.highultra
BioShock Infinite (2013) 61 30.8 26.5 7.69
Battlefield 4 (2013) 38.7 25.5 18.4 6.1
Rise of the Tomb Raider (2016) 18.3 12 6 4.4

Noise Level

Idle
30.2 / 30.2 / 30.8 dB(A)
Load
31.6 / 33.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.5 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2037.837.335.736.7392535.534.632.933.734.53131.532.829.731.132.64030.630.23131.131.45032.832.532.129.933.46335.335.137.232.135.98030.829.328.929.830.710029.527.328.629.430.312527.325.826.525.226.716026.624.325.325.227.720026.926.12724.928.125024.421.923.523.228.631524.723.723.922.527.740023.621.722.121.228.650022.820.921.720.731.563021.921.120.419.630.280022.52119.919.230.7100023.121.61918.427.6125021.519.918.617.927.1160021.619.51817.626.2200020.618.817.616.923.7250020.719.517.516.921.8315020.819.117.317.121.1400019.718.417.116.920.1500019.117.416.916.719.4630018.816.917.116.819800018.716.916.816.6191000018.616.616.816.618.81250019.116.61716.418.91600019.21716.916.419SPL33.231.630.830.237.7N21.61.51.42.8median 21.6median 19.9median 18.6median 17.9median 26.7Delta2.72.632.34.634.632.631.130.534.630.731.833.932.230.731.331.634.532.531.328.729.430.730.828.729.531.529.834.329.528.629.628.629.228.627.326.831.127.427.32626.130.925.92625.4252526.125.424.923.724.324.424.923.523.923.723.223.522.722.922.822.822.722.622.123.421.822.620.921.322.721.420.920.220.721.820.220.220.220.22119.620.219.319.12119.119.319.719.226.118.419.719.720.123.518.319.719.419.722.818.619.419.519.323.418.519.518.818.821.618.518.818.81921.518.418.818.919.520.918.818.91919.120.218.8191919.119.6191919.21919.319.119.219.219.119.219.119.219.120.119.218.919.119.322.119.61919.331.631.734.131.231.61.61.62.11.61.6median 19.5median 20.1median 21.8median 19.1median 19.5111.71.51hearing rangehide median Fan NoiseAcer TravelMate X349-G2Acer TravelMate X3 X349-M-7261
Max. Load
 33.6 °C34.1 °C34.5 °C
 30.3 °C33.1 °C °C
 27.1 °C23.8 °C25.5 °C
Maximum: 34.5 °C
Average: 26.9 °C
23.5 °C38.1 °C37.1 °C
28.4 °C33.2 °C32 °C
26.2 °C27.9 °C28.6 °C
Maximum: 38.1 °C
Average: 30.6 °C
Power Supply (max.)  48.8 °C | Room Temperature 20.2 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 26.9 °C / 80 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 34.5 °C / 94 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38.1 °C / 101 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.1 °C / 80.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+1.2 °C / 2.1 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2045.236.745.22544.333.744.33141.731.141.74043.531.143.55043.829.943.86345.332.145.3804629.84610046.129.446.112546.525.246.516048.925.248.920053.324.953.32506023.26031559.722.559.740060.821.260.85006320.7636306819.66880073.119.273.110006618.466125063.217.963.2160059.417.659.4200059.416.959.4250059.716.959.7315065.517.165.5400063.916.963.9500064.116.764.1630055.316.855.3800056.516.656.51000059.316.659.31250060.316.460.31600059.416.459.4SPL76.630.276.6N39.31.439.3median 59.7median 17.9median 59.7Delta4.22.34.235.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAcer TravelMate X349-G2Apple MacBook 12 (Early 2016) 1.1 GHz
Acer TravelMate X349-G2 audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(+) | bass is linear (5.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.6% away from median
(±) | linearity of mids is average (8.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.5% difference to median)
Compared to same class
» 20% of all tested devices in this class were better, 6% similar, 74% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 84% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.4 / 0.6 Watt
Idledarkmidlight 4.1 / 7 / 8.8 Watt
Load midlight 36.6 / 33.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer TravelMate X349-G2
i5-7200U, HD Graphics 620, Intel SSD 600p SSDPEKKW512G7, IPS, 1920x1080, 14"
HP ProBook 440 G4-Y8B51EA
i7-7500U, GeForce 930MX, SanDisk SD8SNAT256G1002, TN, 1920x1080, 14"
Lenovo ThinkPad E470-20H2S00400
i5-7200U, GeForce 940MX, SanDisk X400 SED 256GB, SATA (SD8TB8U-256G), IPS, 1920x1080, 14"
Lenovo IdeaPad 510S-14ISK
6267U, Iris Graphics 550, Samsung MZYTY256HDHP, a-Si TFT-LCD, IPS, LED, 1920x1080, 14"
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, Liteonit CV3-8D512, IPS, 1920x1080, 14"
Power Consumption
-1%
-7%
8%
-2%
Idle Minimum *
4.1
3
27%
2.7
34%
3.9
5%
4.9
-20%
Idle Average *
7
5.4
23%
5.5
21%
7.1
-1%
7.3
-4%
Idle Maximum *
8.8
6.3
28%
6.5
26%
8.8
-0%
9.4
-7%
Load Average *
36.6
37.5
-2%
44.2
-21%
27.6
25%
26
29%
Load Maximum *
33.8
61.1
-81%
65.2
-93%
30.2
11%
36
-7%

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
13h 49min
WiFi Websurfing
7h 36min
Load (maximum brightness)
1h 30min
Acer TravelMate X349-G2
i5-7200U, HD Graphics 620, 48.9 Wh
HP ProBook 440 G4-Y8B51EA
i7-7500U, GeForce 930MX, 48 Wh
Lenovo ThinkPad E470-20H2S00400
i5-7200U, GeForce 940MX, 45 Wh
Lenovo IdeaPad 510S-14ISK
6267U, Iris Graphics 550, 30 Wh
Acer TravelMate X3 X349-M-7261
6500U, HD Graphics 520, 48.9 Wh
Battery Runtime
30%
12%
-9%
-4%
Reader / Idle
829
1083
31%
1043
26%
638
-23%
675
-19%
WiFi v1.3
456
414
-9%
326
-29%
384
-16%
392
-14%
Load
90
151
68%
124
38%
100
11%
109
21%

Pros

+ 哑光IPS屏幕
+ 全高清分辨率
+ 铝制外壳
+ 处理器速度恒定
+ 高速大容量固态硬盘
+ 背光键盘
+ 电池续航长
+ 几乎不发热
+ 三年保修

Cons

- 读卡器速度慢
- 屏幕亮度一般
- 高负荷时,风扇声嘈杂
The Acer TravelMate X349-G2, supplied by: Acer Germany
The Acer TravelMate X349-G2, supplied by: Acer Germany

宏碁TravelMate TMX349是适用于办公人员和学生的中档子笔记本。由于重量轻,电池续航强,它是移动使用的理想选择。屏幕也轻薄,尽管最大亮度可能略高一些。具有8 GB的内存和256 GB的存储空间。与德国不同的是,美国版目前没有512 GB的机型。

对于那些喜欢同时打开多个窗口和浏览器页面的用户,8 GB的内存肯定有助于用户体验。铝合金材质,使得外壳质量好,而且坚固。处理器性能提升,与去年的高端机型的配置大致相同,价格相差200-300欧元(约 220-330美元)。连击Wi-Fi时,电池可以足够一整个工作日所需。哑光屏幕方便户外使用。总体而言,宏碁的这个设备做得很好,价格也有吸引力。

宏碁很好的为新机升级了新型处理器和turbo固态硬盘。

在需要高的处理器负载时,会有一些细节问题,比如说,读卡器性能不稳定或风扇太大声。这些影响了TravelMate的整体的良好观感。

如果你想节省一些钱,不需要同时打开许多浏览器页面,并将所有的照片存储在移动硬盘上,我们会建议您选择较便宜的i3处理器的配置,起步价在600欧元左右(〜660美元)。

如果您正在寻找一款性能优良,机身稳定的机器,以便在未来几年内都能随时随地完成工作。那么您可以选择约780美元的机型(256 GB的固态硬盘)。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Acer TravelMate X349-G2 - 04/28/2017 v6 (old)
Florian Schaar

Chassis
86 /  98 → 88%
Keyboard
85%
Pointing Device
85%
Connectivity
60 / 80 → 75%
Weight
68 / 35-78 → 78%
Battery
90%
Display
84%
Games Performance
56 / 68 → 82%
Application Performance
86 / 87 → 99%
Temperature
95 / 91 → 100%
Noise
90%
Audio
50 / 91 → 55%
Camera
42 / 85 → 49%
Average
75%
85%
Subnotebook - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 宏碁 TravelMate TMX349-G2-M-5625 笔记本电脑简短评测
Florian Schaar, 2017-05-12 (Update: 2017-05-17)
