华为 Y540 智能手机简短评测

Name: Huawei Y540
Brand: Huawei

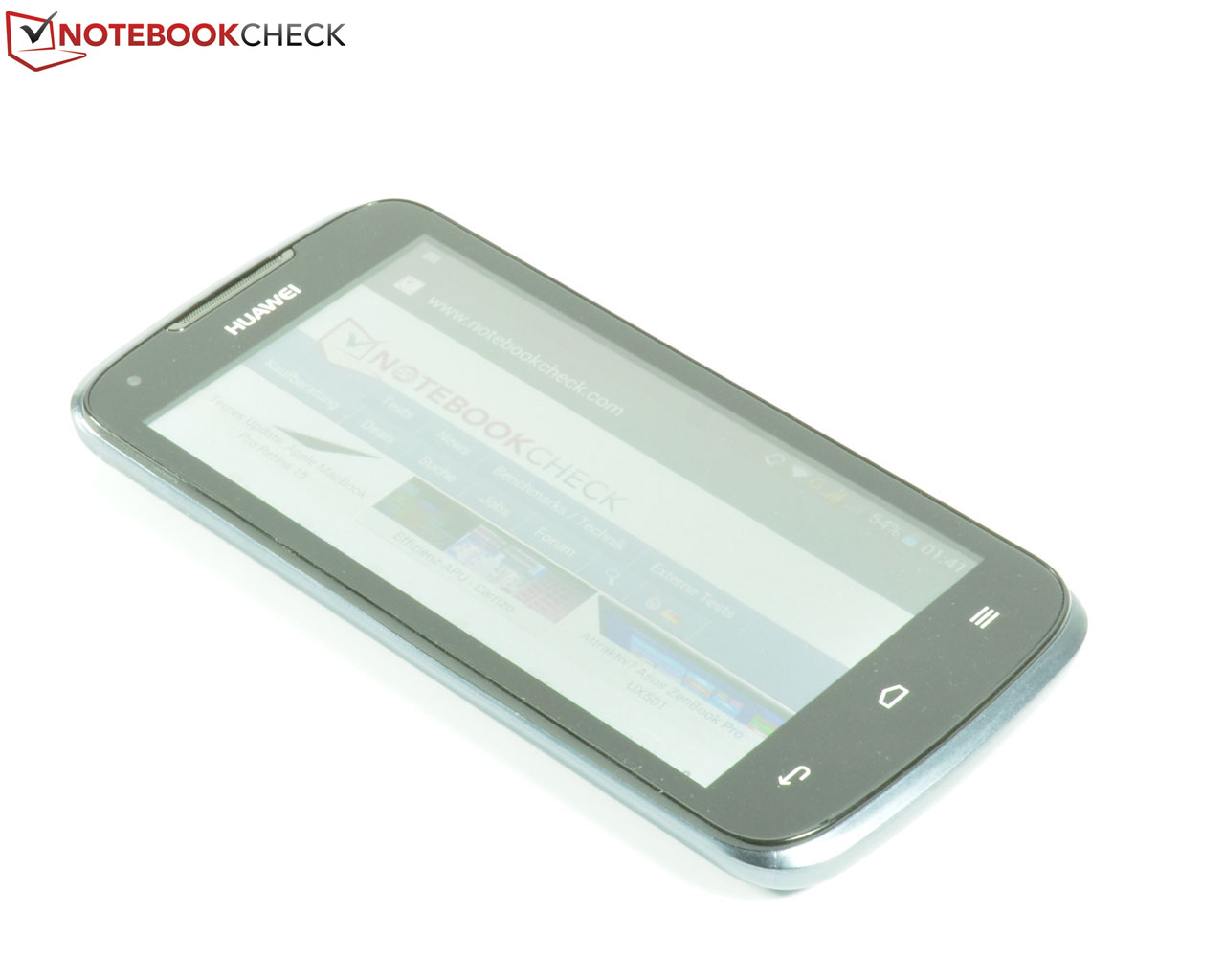

小恐龙。 一块4.5寸分辨率854x480像素的屏幕，一颗孱弱的Mediatek处理器，仅4GB的闪存空间——前代产品Y530的优势现在似乎变成了智能手机刚刚出现时的古董，完全落后于时代。华为的这款入门级设备建议零售价为100欧元。

Michael Moser, ✓ Tanja Hinum (translated by Yuchen Wang), Published 06/23/2015 🇺🇸 🇩🇪 ...

Android ARM Smartphone Touchscreen

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

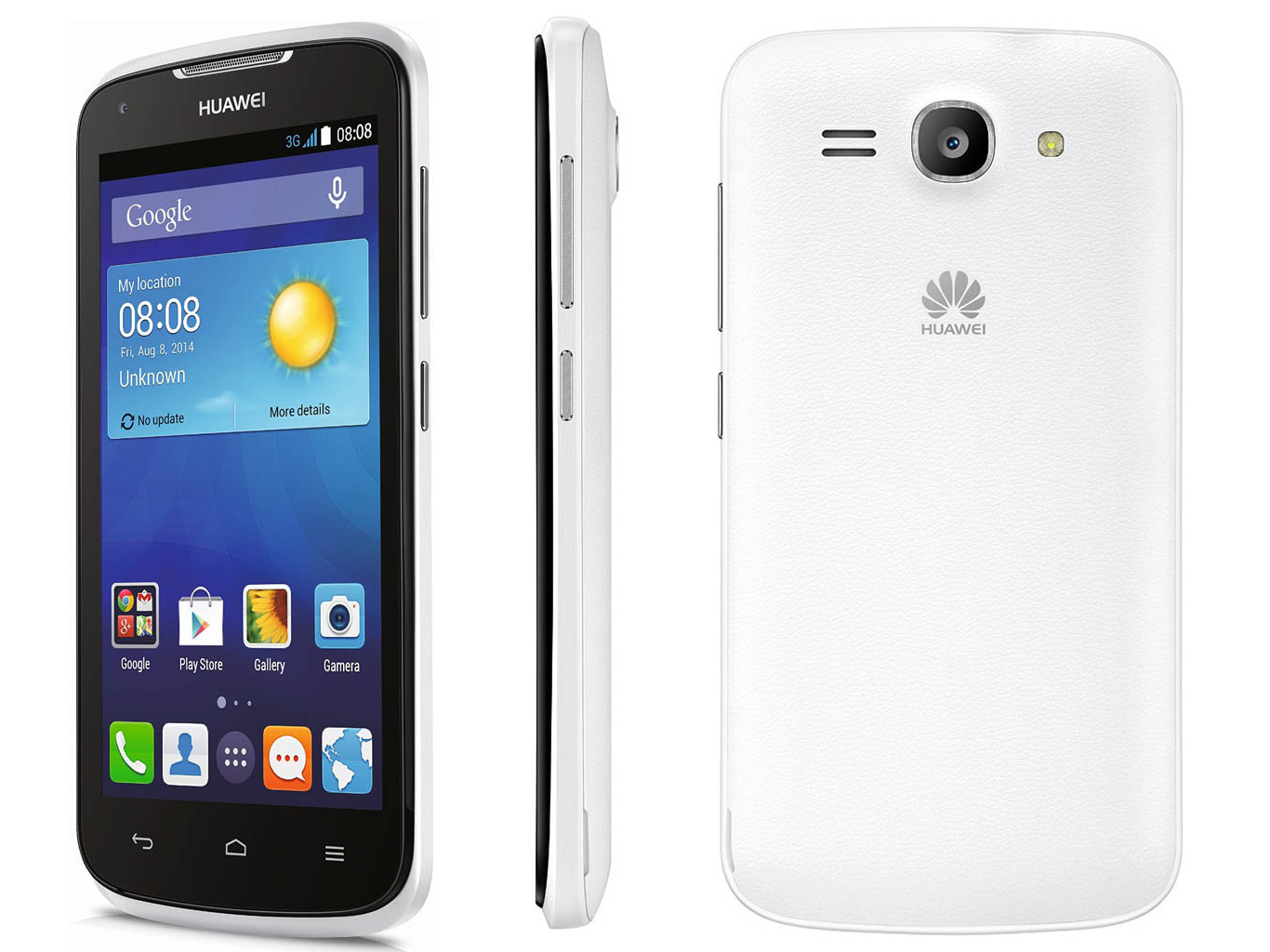

Huawei Y540 (Y5 Series)

Processor

MediaTek MT6572 2 x 1.3 GHz, Cortex-A7

Graphics adapter

ARM Mali-400 MP

Memory

1024 MB

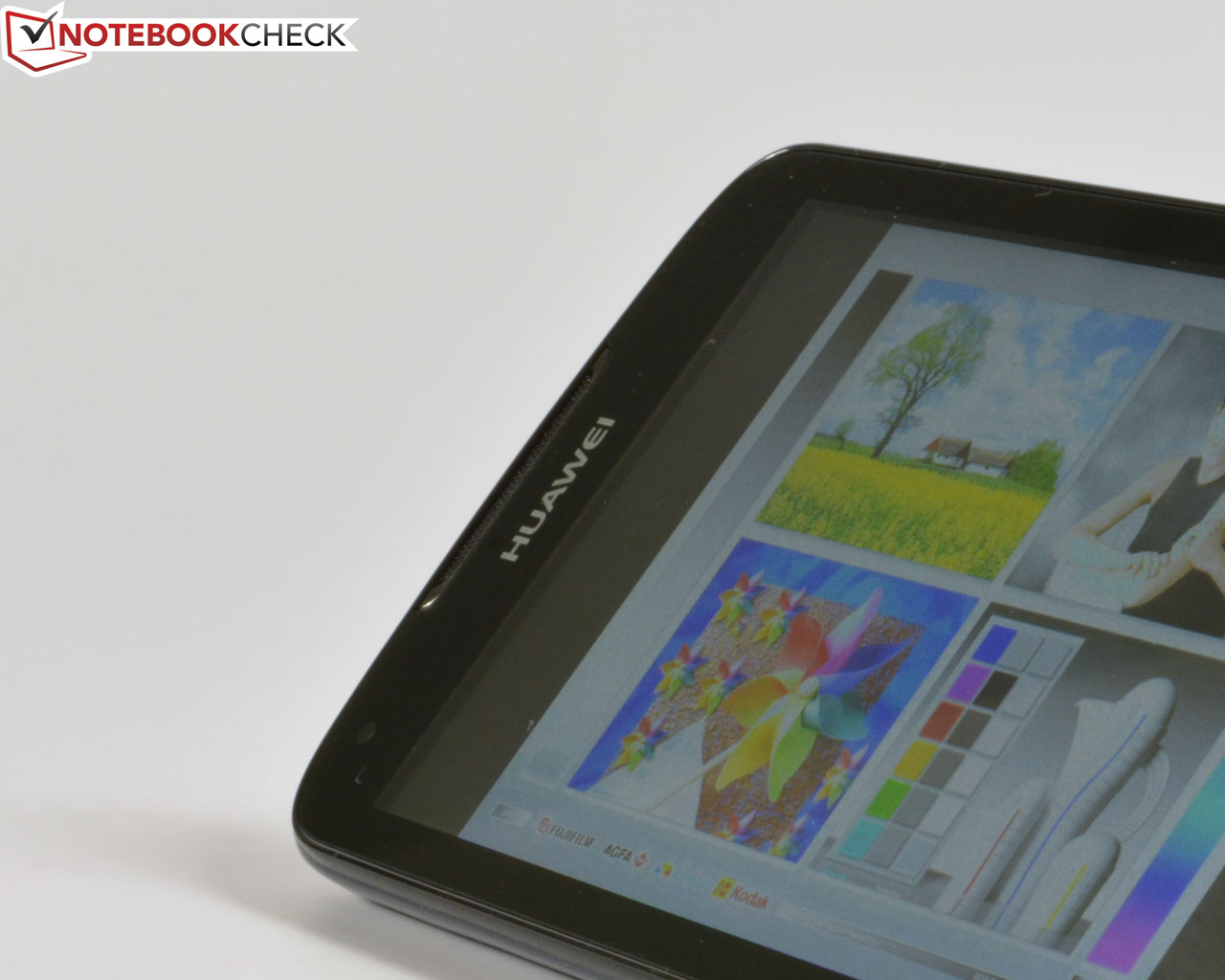

Display

4.50 inch 16:9, 854 x 480 pixel, 电容式, TN LED, glossy: yes

Storage

4 GB Flash, 4 GB

, 2.11 GB free

Connections

1 USB 2.0, Audio Connections: 3.5毫米整合耳机插槽, Card Reader: micro-SD (最大支持64 GB), Sensors: GPS/AGPS，光线传感器，加速传感器，近距传感器, 双SIM

Networking

802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GSM 四频 (850/900/1800/1900 MHz), UMTS 双频 (900/2100 MHz); 网络制式: GPRS, EDGE, HSDPA, HSUPA, HSPA+; 带宽 (下载/上传): 21 MBps / 5.76 MBps (UMTS); 仅SIM 1支持UMTS

Size

height x width x depth (in mm): 10.3 x 134.2 x 67

Battery

6 Wh Lithium-Polymer, 1730 mAh, 3.7 V, Talk time 2G (according to manufacturer): 5 h, Talk time 3G (according to manufacturer): 4 h, Standby 2G (according to manufacturer): 300 h

Operating System

Android 4.4 KitKat

Camera

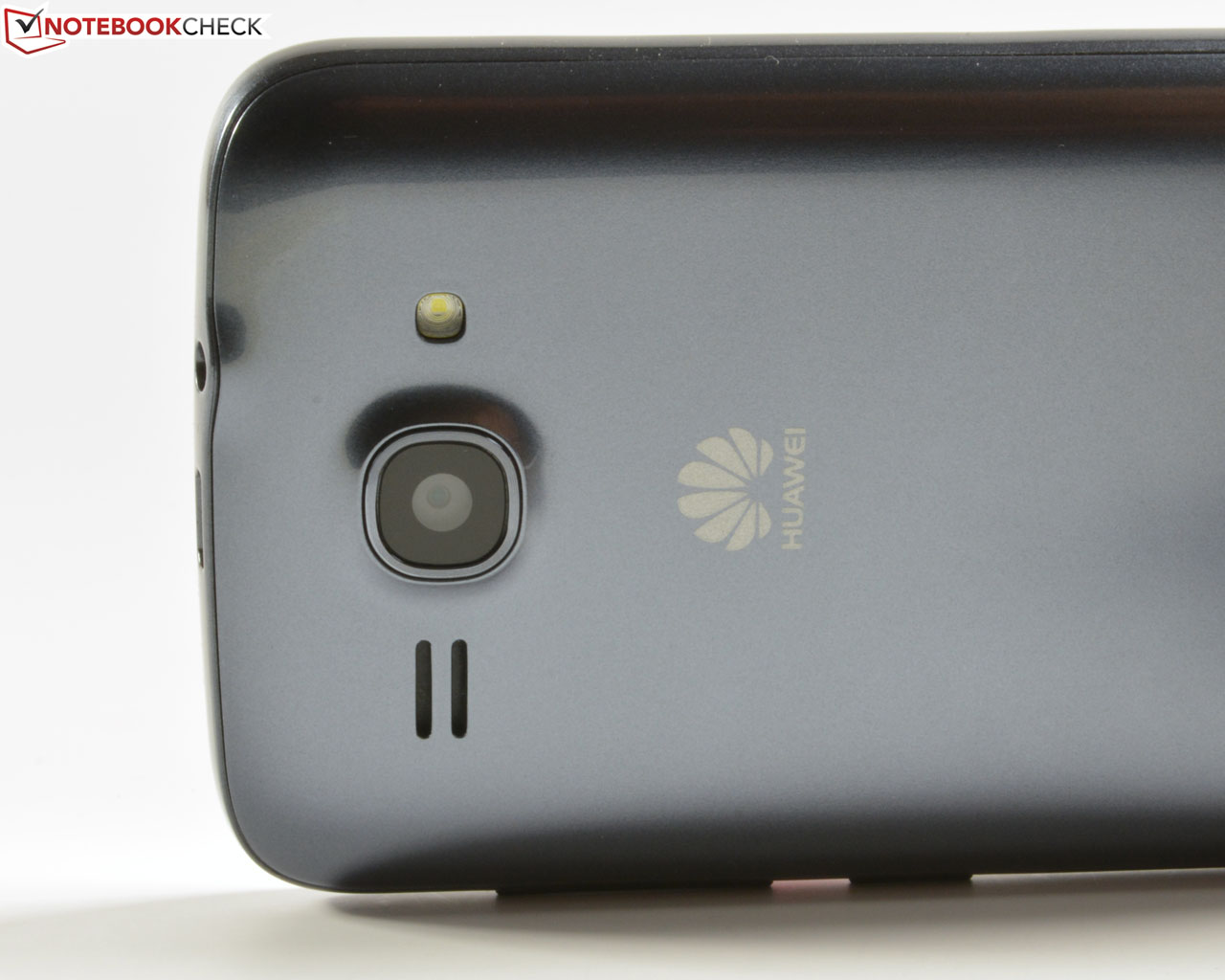

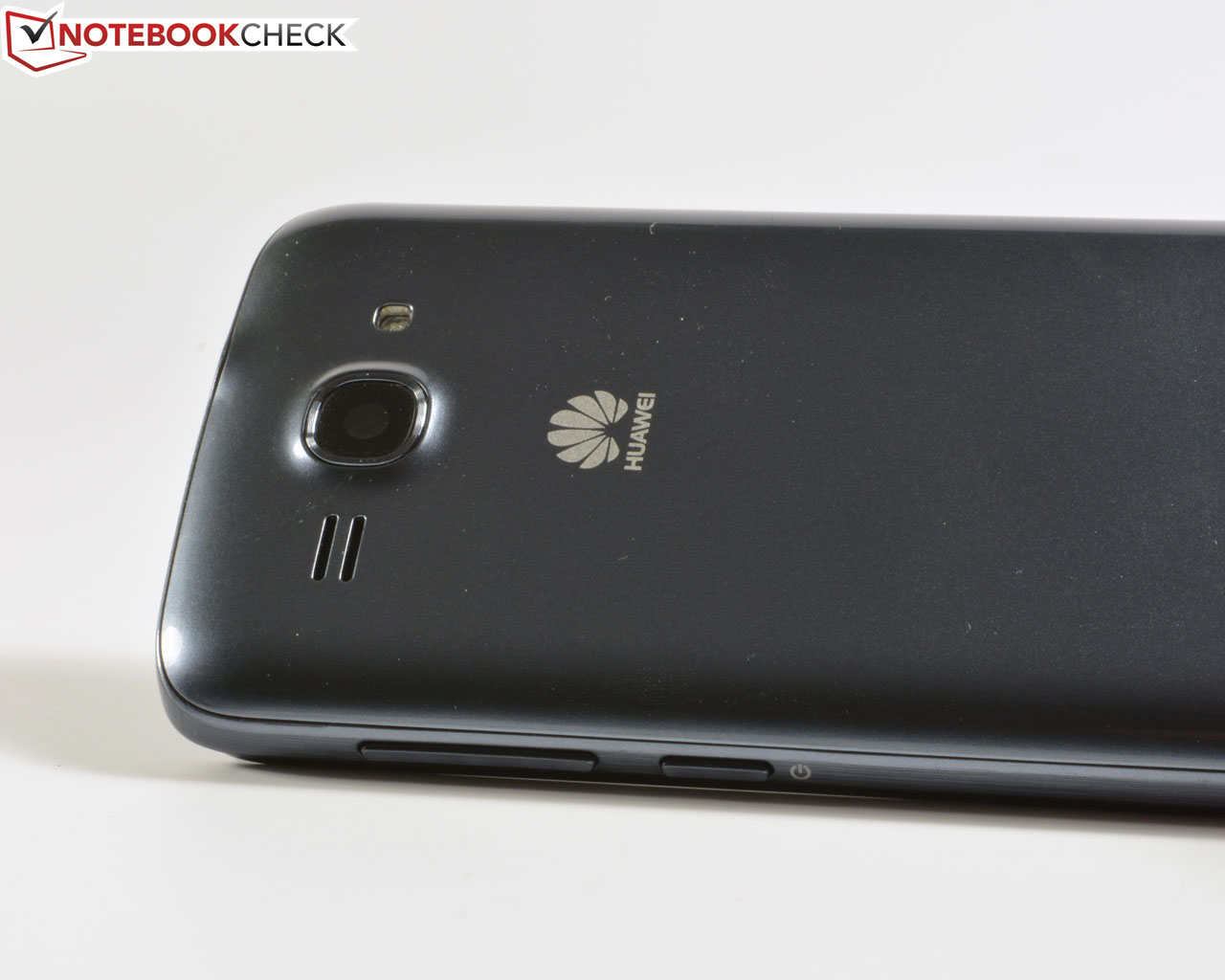

Webcam: 30万像素；主相机：500万像素，LED闪光灯，视频拍摄@720p

Additional features

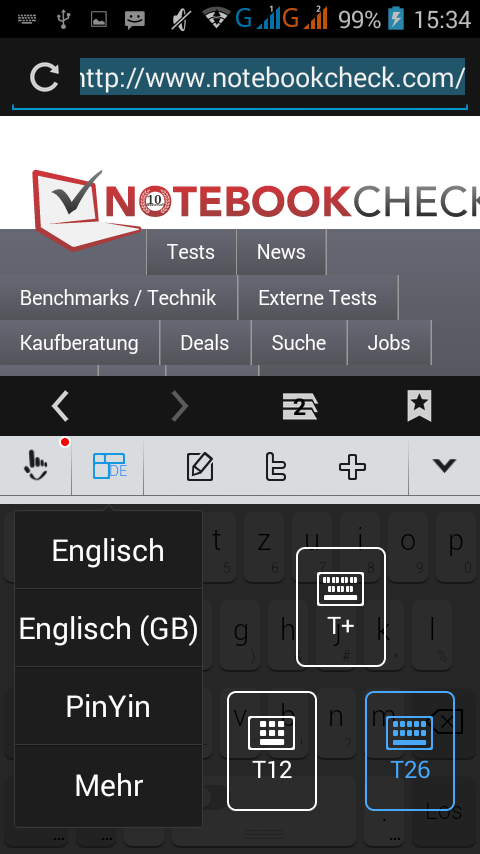

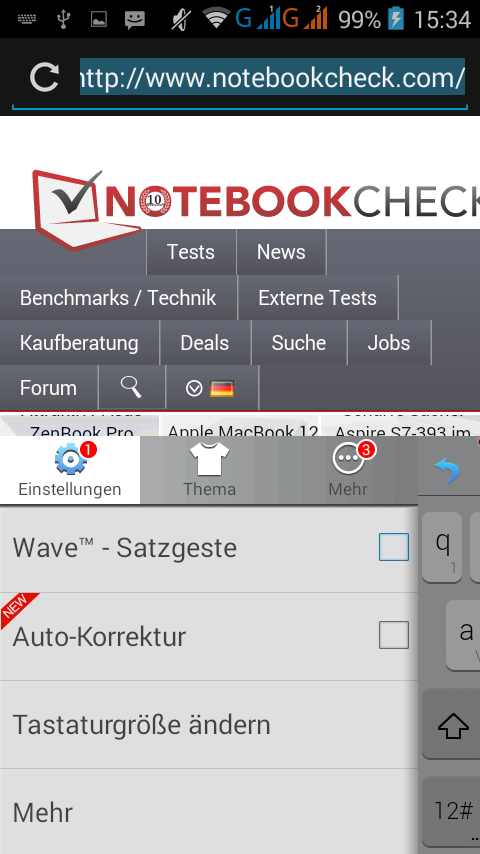

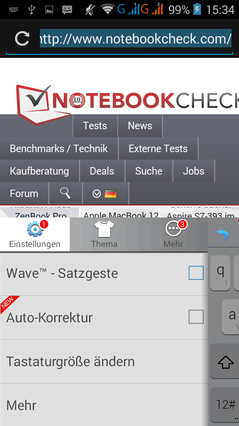

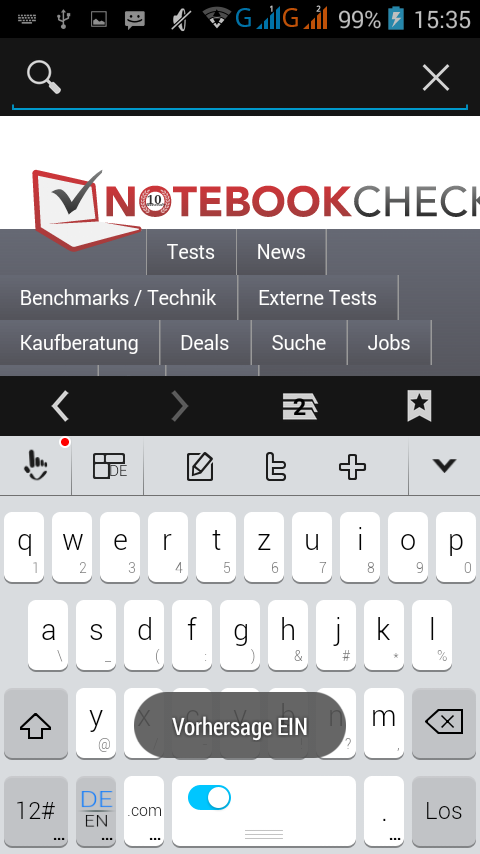

Speakers: 单声道扬声器, Keyboard: 触控, Keyboard Light: yes, 智能手机 (包括电池), 电源适配器, USB数据线, 快速开始说明, EMUI 3.0 lite; 浏览器, 数据备份, 音乐播放器, 谷歌软件包, 12 Months Warranty, DLNA; FM收音机; 音频格式: MP3, MIDI, AMR, AAC, AAC+; 视频格式: 编码MP4, 3GP / 解码MP4, H.264, H.263

Weight

150 g, Power Supply: 78 g

Price

99 Euro

Links

Huawei homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Huawei Y540 Motorola Moto E 2. Gen 2015 LG Leon LGH340N Microsoft Lumia 532 Microsoft Lumia 435 DIN A6 ❌

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

click to load images

click to load images


481 cd/m²	478 cd/m²	426 cd/m²
490 cd/m²	484 cd/m²	413 cd/m²
496 cd/m²	484 cd/m²	422 cd/m²

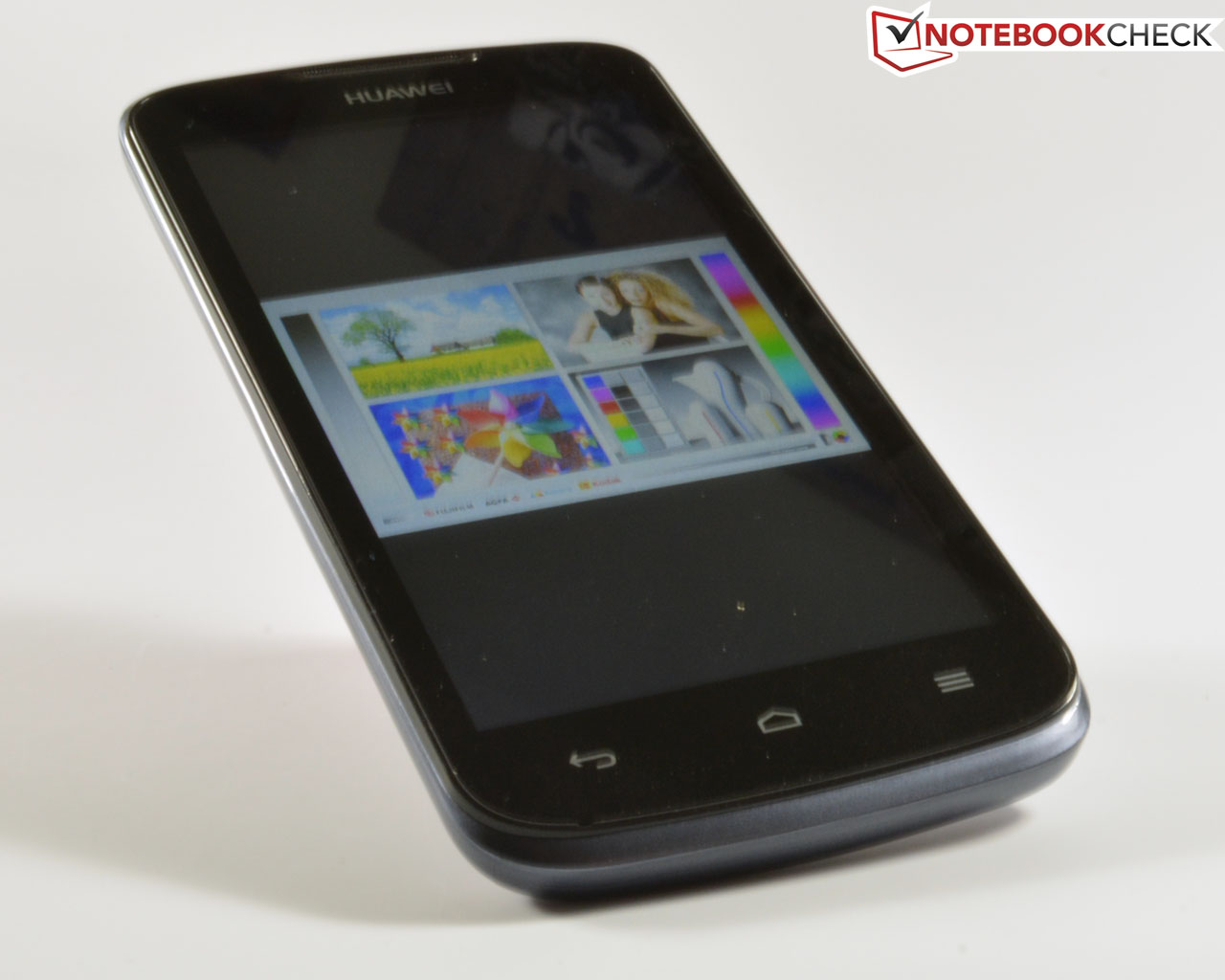

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 496 cd/m² (Nits) Average: 463.8 cd/m²
Brightness Distribution: 83 %
Center on Battery: 484 cd/m²
Contrast: 637:1 (Black: 0.76 cd/m²)
ΔE Color 11.06 | 0.5-29.43 Ø4.93
ΔE Greyscale 11.88 | 0.5-98 Ø5.2
Gamma: 2.33

	Huawei Y540 Mali-400 MP, MT6572, 4 GB Flash	LG Leon LGH340N Adreno 306, 410 MSM8916, 8 GB eMMC Flash	Microsoft Lumia 532 Adreno 302, 200 MSM8212, 8 GB eMMC Flash	Microsoft Lumia 435 Adreno 302, 200 8210, 8 GB eMMC Flash	Motorola Moto E 2. Gen 2015 Adreno 306, 410 MSM8916, 8 GB eMMC Flash
Screen		21%	3%	5%	26%
Brightness middle	484	326 -33%	301 -38%	284 -41%	217 -55%
Brightness	464	323 -30%	302 -35%	282 -39%	204 -56%
Brightness Distribution	83	81 -2%	93 12%	92 11%	55 -34%
Black Level *	0.76	0.36 53%	0.58 24%	0.56 26%	0.15 80%
Contrast	637	906 42%	519 -19%	507 -20%	1447 127%
Colorchecker dE 2000 *	11.06	4.81 57%	6.36 42%	5.64 49%	4.12 63%
Greyscale dE 2000 *	11.88	4.82 59%	7.49 37%	5.69 52%	4.87 59%
Gamma	2.33 ^94%	2.03 ^108%	2.58 ^85%	2.11 ^104%	2.38 ^92%
CCT	12908 ^50%	7288 ^89%	9135 ^71%	7817 ^83%	6019 ^108%

* ... smaller is better

Geekbench 3
32 Bit Single-Core Score (sort by value)
Huawei Y540	325 Points
Motorola Moto E 2. Gen 2015	481 Points +48%
32 Bit Multi-Core Score (sort by value)
Huawei Y540	581 Points
Motorola Moto E 2. Gen 2015	1464 Points +152%

Smartbench 2012 - Productivity Index (sort by value)
Huawei Y540	2401 points
Motorola Moto E 2. Gen 2015	4147 points +73%
LG Leon LGH340N	4266 points +78%

Linpack Android / IOS - Multi Thread (sort by value)
Huawei Y540	149.4 MFLOPS
Microsoft Lumia 532	233.9 MFLOPS +57%
Motorola Moto E 2. Gen 2015	231.7 MFLOPS +55%
LG Leon LGH340N	0 MFLOPS -100%
Microsoft Lumia 435	109.3 MFLOPS -27%

AnTuTu v5 - Total Score (sort by value)
Huawei Y540	12567 Points
Motorola Moto E 2. Gen 2015	22125 Points +76%
LG Leon LGH340N	22186 Points +77%

BaseMark OS II
Overall (sort by value)
Huawei Y540	86 Points
Microsoft Lumia 532	418 Points +386%
Motorola Moto E 2. Gen 2015	515 Points +499%
LG Leon LGH340N	457 Points +431%
Microsoft Lumia 435	338 Points +293%
System (sort by value)
Huawei Y540	564 Points
Microsoft Lumia 532	621 Points +10%
Motorola Moto E 2. Gen 2015	1053 Points +87%
LG Leon LGH340N	1023 Points +81%
Microsoft Lumia 435	369 Points -35%
Memory (sort by value)
Huawei Y540	154 Points
Microsoft Lumia 532	676 Points +339%
Motorola Moto E 2. Gen 2015	369 Points +140%
LG Leon LGH340N	21 Points -86%
Microsoft Lumia 435	550 Points +257%
Graphics (sort by value)
Huawei Y540	69 Points
Microsoft Lumia 532	190 Points +175%
Motorola Moto E 2. Gen 2015	312 Points +352%
LG Leon LGH340N	313 Points +354%
Microsoft Lumia 435	189 Points +174%
Web (sort by value)
Huawei Y540	9 Points
Microsoft Lumia 532	381 Points +4133%
Motorola Moto E 2. Gen 2015	580 Points +6344%
LG Leon LGH340N	625 Points +6844%
Microsoft Lumia 435	340 Points +3678%

3DMark
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Huawei Y540	4320 Points
Motorola Moto E 2. Gen 2015	9440 Points +119%
LG Leon LGH340N	9536 Points +121%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Huawei Y540	1690 Points
Motorola Moto E 2. Gen 2015	3969 Points +135%
LG Leon LGH340N	3993 Points +136%
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Huawei Y540	1954 Points
Motorola Moto E 2. Gen 2015	4556 Points +133%
LG Leon LGH340N	4585 Points +135%
1920x1080 Ice Storm Extreme Physics (sort by value)
Huawei Y540	4138 Points
Motorola Moto E 2. Gen 2015	8548 Points +107%
LG Leon LGH340N	8760 Points +112%
1920x1080 Ice Storm Extreme Graphics (sort by value)
Huawei Y540	980 Points
Motorola Moto E 2. Gen 2015	2091 Points +113%
LG Leon LGH340N	2206 Points +125%
1920x1080 Ice Storm Extreme Score (sort by value)
Huawei Y540	1180 Points
Motorola Moto E 2. Gen 2015	2513 Points +113%
LG Leon LGH340N	2646 Points +124%
1280x720 Ice Storm Standard Physics (sort by value)
Huawei Y540	4134 Points
Motorola Moto E 2. Gen 2015	8718 Points +111%
LG Leon LGH340N	8436 Points +104%
1280x720 Ice Storm Standard Graphics (sort by value)
Huawei Y540	2045 Points
Motorola Moto E 2. Gen 2015	4847 Points +137%
LG Leon LGH340N	4915 Points +140%
1280x720 Ice Storm Standard Score (sort by value)
Huawei Y540	2304 Points
Motorola Moto E 2. Gen 2015	5378 Points +133%
LG Leon LGH340N	5417 Points +135%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Huawei Y540	5.9 fps
Microsoft Lumia 532	9.4 fps +59%
Motorola Moto E 2. Gen 2015	12 fps +103%
LG Leon LGH340N	15 fps +154%
1920x1080 T-Rex Offscreen (sort by value)
Huawei Y540	1.9 fps
Microsoft Lumia 532	3.3 fps +74%
Motorola Moto E 2. Gen 2015	5.3 fps +179%
LG Leon LGH340N	5.3 fps +179%

Legend

Huawei Y540 MediaTek MT6572, ARM Mali-400 MP, 4 GB Flash

Microsoft Lumia 532 Qualcomm Snapdragon 200 MSM8212, Qualcomm Adreno 302, 8 GB eMMC Flash

Motorola Moto E 2. Gen 2015 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 8 GB eMMC Flash

LG Leon LGH340N Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 8 GB eMMC Flash

Microsoft Lumia 435 Qualcomm Snapdragon 200 8210, Qualcomm Adreno 302, 8 GB eMMC Flash

Google V8 Ver. 7 | Sunspider | Vellamo 3.x | Octane V2 | Mozilla Kraken 1.1

Google V8 Ver. 7 - Google V8 Ver. 7 Score (sort by value)
Huawei Y540	1780 Points
Microsoft Lumia 532	1059 Points -41%
Motorola Moto E 2. Gen 2015	2580 Points +45%
LG Leon LGH340N	2882 Points +62%
Microsoft Lumia 435	1119 Points -37%

Sunspider - 1.0 Total Score (sort by value)
Huawei Y540	1704 ms *
Microsoft Lumia 532	1255 ms * +26%
Motorola Moto E 2. Gen 2015	1305 ms * +23%
LG Leon LGH340N	1509 ms * +11%
Microsoft Lumia 435	1322 ms * +22%

Vellamo 3.x
Metal (sort by value)
Huawei Y540	595 Points
Motorola Moto E 2. Gen 2015	772 Points +30%
LG Leon LGH340N	720 Points +21%
Multicore Beta (sort by value)
Huawei Y540	644 Points
Motorola Moto E 2. Gen 2015	1115 Points +73%
LG Leon LGH340N	1164 Points +81%
Browser (sort by value)
Huawei Y540	1326 Points
Motorola Moto E 2. Gen 2015	2005 Points +51%
LG Leon LGH340N	1994 Points +50%

Octane V2 - Total Score (sort by value)
Huawei Y540	1858 Points
Microsoft Lumia 532	1233 Points -34%
Motorola Moto E 2. Gen 2015	2804 Points +51%
LG Leon LGH340N	2901 Points +56%
Microsoft Lumia 435	1166 Points -37%

Mozilla Kraken 1.1 - Total (sort by value)
Huawei Y540	18280 ms *
Microsoft Lumia 532	27089 ms * -48%
Motorola Moto E 2. Gen 2015	14002 ms * +23%
LG Leon LGH340N	13698 ms * +25%
Microsoft Lumia 435	28910 ms * -58%

* ... smaller is better

AndroBench 3-5
Random Write 4KB (sort by value)
Huawei Y540	0.43 MB/s
Motorola Moto E 2. Gen 2015	1.67 MB/s +288%
LG Leon LGH340N	1.08 MB/s +151%
Random Read 4KB (sort by value)
Huawei Y540	12.66 MB/s
Motorola Moto E 2. Gen 2015	12.08 MB/s -5%
LG Leon LGH340N	8.65 MB/s -32%
Sequential Write 256KB (sort by value)
Huawei Y540	11.1 MB/s
Motorola Moto E 2. Gen 2015	20.03 MB/s +80%
LG Leon LGH340N	7.04 MB/s -37%
Sequential Read 256KB (sort by value)
Huawei Y540	79.3 MB/s
Motorola Moto E 2. Gen 2015	100 MB/s +26%
LG Leon LGH340N	97.1 MB/s +22%

Max. Load

Idle


37.1 °C	40.8 °C	41.4 °C
38.2 °C	40.8 °C	41 °C
37.5 °C	38.2 °C	37.8 °C

Maximum: 41.4 °C
Average: 39.2 °C


39.3 °C	39.6 °C	36.1 °C
39.3 °C	37.9 °C	35.8 °C
35.2 °C	35.4 °C	33.3 °C

Maximum: 39.6 °C
Average: 36.9 °C

Power Supply (max.) 34.9 °C | Room Temperature 22.5 °C | Voltcraft IR-260

(-) The average temperature for the upper side under maximal load is 39.2 °C / 103 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 39.6 °C / 103 F, compared to the average of 33.9 °C / 93 F
(±) In idle usage, the average temperature for the upper side is 32.1 °C / 90 F, compared to the device average of 32.8 °C / 91 F.

Battery Runtime

Idle (without WLAN, min brightness)		14h 21min
WiFi Websurfing		6h 37min
Big Buck Bunny H.264 1080p		4h 32min
Load (maximum brightness)		3h 04min

	Huawei Y540 Mali-400 MP, MT6572, 4 GB Flash	Motorola Moto E 2. Gen 2015 Adreno 306, 410 MSM8916, 8 GB eMMC Flash	LG Leon LGH340N Adreno 306, 410 MSM8916, 8 GB eMMC Flash	Microsoft Lumia 435 Adreno 302, 200 8210, 8 GB eMMC Flash	Microsoft Lumia 532 Adreno 302, 200 MSM8212, 8 GB eMMC Flash
Battery Runtime		33%	7%	14%	-25%
H.264	272	360 32%		422 55%
WiFi v1.3	397	506 27%	381 -4%		298 -25%
Load	184	260 41%	215 17%	132 -28%
WiFi			410	376

Pros

+ 明亮大尺寸的屏幕

+ 速度较快的内部存储设备

+ 双SIM卡功能

+ 优秀的电池续航时间

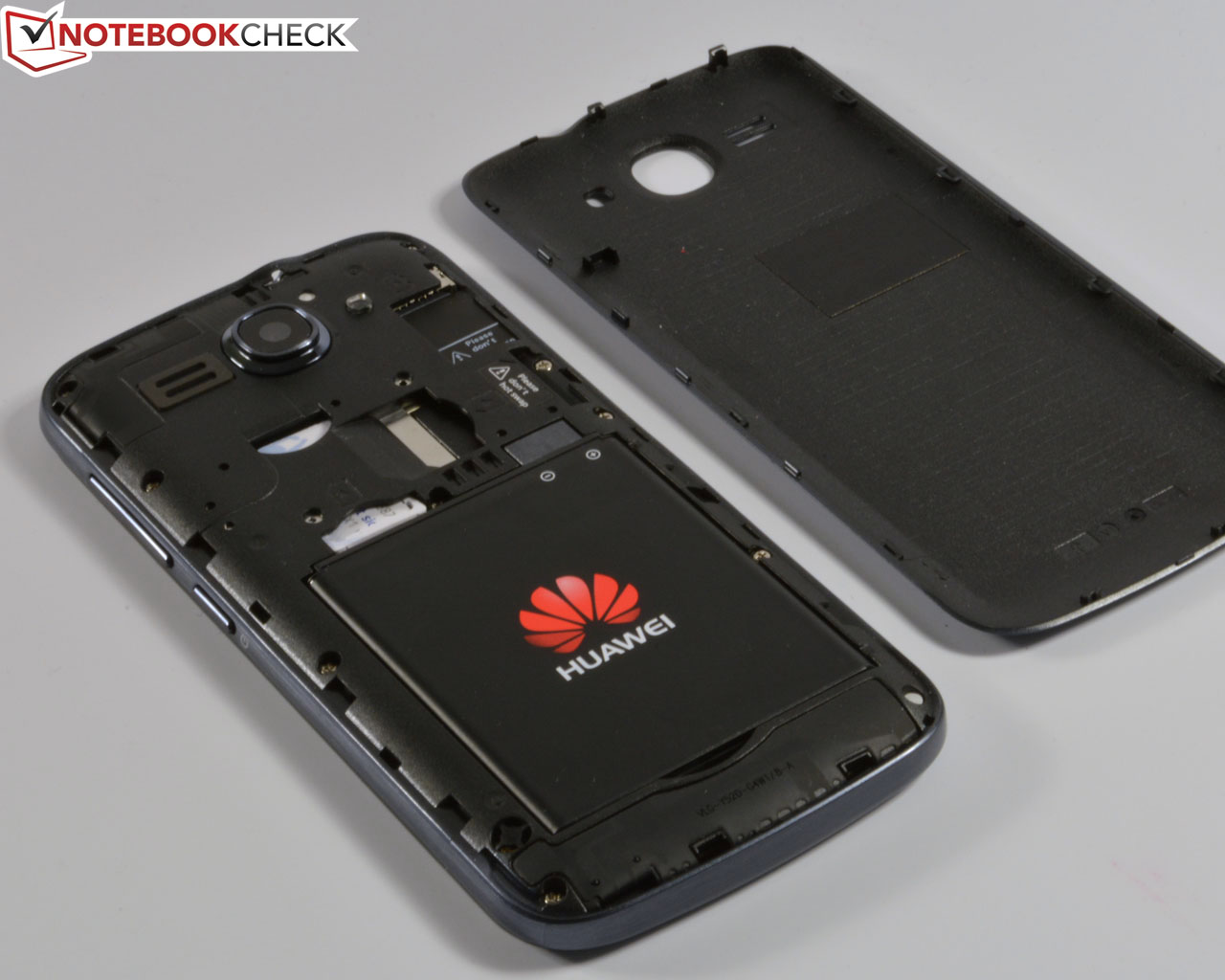

+ 可更换电池

Cons

- 分辨率过低

- 色彩还原较差

- 低于平均水平的性能表现

- 扬声器很差

- 相机拍摄噪点多

In review: Huawei Y540. Review sample courtesy of

平凡是华为Y540的最大特点。尽管它的屏幕没有任何明显缺陷，不过也没有任何可以脱颖而出的亮点。我们的测试机采用了明亮的4.5寸屏幕，售价约100欧元。两个SIM卡槽中的一个支持3G，电池可以更换。尽管它的续航时间很长，但电池重量并不高。它的通讯模组工作正常，毫无问题。

不过它很差的相机和扬声器让我们有些失望。除此之外，并不是所有的应用都可以安装到SD卡中，而内部存储空间又非常小。它也不支持通过USB OTG连接外部设备。虽然我们可以理解在这个价位的设备性能不会带来太大的惊喜，不过在日常使用中它还是有些捉襟见肘。更全面的设备都在这方面做得更好。

其他的生产商为我们带来了更加平衡的设备，因此我们很难向所有用户推荐华为Y540。如果Windows操作系统也可以接受的话，用户也可以考虑参考两款微软Lumia机型之一。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Huawei Y540 - 2015-06-09 06/09/2015 v4 ^(old)
Michael Moser

Chassis

57%

Keyboard

57 / 75 → 76%

Pointing Device

72%

Connectivity

44 / 60 → 73%

Weight

92%

Battery

89%

Display

74%

Games Performance

51 / 63 → 81%

Application Performance

17 / 70 → 24%

Temperature

87%

Noise

100%

Audio

35 / 91 → 38%

Camera

39%

Average

63%

72%

Smartphone - Weighted Average
