联想 Yoga 500-14ISK 笔记本电脑简短评测
Lenovo Yoga 500-14ISK (Yoga 500 Series)
Processor
Intel Core i5-6200U 2 x 2.3 GHz, Skylake
Graphics adapter
NVIDIA GeForce 920M - 2048 MB VRAM, Core: 954 MHz, RAM: 900 MHz, ForceWare 361.75, Intel HD Graphics 520
Memory
4 GB
, DDR3L, 单通道
Display
14.00 inch 16:9, 1920 x 1080 pixel, 10点触控, N140HCE-EAA IPS, a-Si TFT-LCD, glossy: yes
Mainboard
Intel Skylake-U Premium PCH
Storage
WDC Slim WD10SPCX-24HWST1, 1000 GB
, 5400 rpm
Weight
1.782 kg, Power Supply: 352 g
Price
769 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
N140HCE-EAA IPS tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor
Maximum: 234 cd/m² (Nits) Average: 209.1 cd/m²Brightness Distribution: 82 %
Center on Battery: 234 cd/m²
Contrast: 1064:1 (Black: 0.22 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.92
ΔE Greyscale 5.59 | 0.5-98 Ø5.2
39% AdobeRGB 1998 (Argyll 1.6.3 3D)
42.75% AdobeRGB 1998 (Argyll 2.2.0 3D)
61.3% sRGB (Argyll 2.2.0 3D)
41.31% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.53
| Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1 | Toshiba Satellite Radius 14 L40W-C-10Z HD Graphics 5500, 5015U, HGST Travelstar 5K1000 HTS541010A9E680 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w000ng x360 GeForce 930M, 5200U, Hitachi Travelstar Z5K500 HTS545050A7E680 | Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|
| Display | -8% | -5% | -13% | 57% | |
| Display P3 Coverage | 41.31 | 38.01 -8% | 39.36 -5% | 35.87 -13% | 65 57% |
| sRGB Coverage | 61.3 | 57.2 -7% | 59 -4% | 54 -12% | 96.5 57% |
| AdobeRGB 1998 Coverage | 42.75 | 39.28 -8% | 40.68 -5% | 37.06 -13% | 67 57% |
| Response Times | 296% | -42% | |||
| Response Time Grey 50% / Grey 80% * | 36 ? | 38 ? -6% | 46 ? -28% | ||
| Response Time Black / White * | 26 ? | 28 ? -8% | 31.2 ? -20% | ||
| PWM Frequency | 217 ? | 2174 ? 902% | 50 ? -77% | ||
| Screen | -37% | -11% | -61% | 32% | |
| Brightness middle | 234 | 224 -4% | 205 -12% | 183 -22% | 413 76% |
| Brightness | 209 | 209 0% | 206 -1% | 196 -6% | 396 89% |
| Brightness Distribution | 82 | 84 2% | 87 6% | 82 0% | 87 6% |
| Black Level * | 0.22 | 0.37 -68% | 0.28 -27% | 0.51 -132% | 0.36 -64% |
| Contrast | 1064 | 605 -43% | 732 -31% | 359 -66% | 1147 8% |
| Colorchecker dE 2000 * | 6.3 | 10.29 -63% | 6.68 -6% | 12.45 -98% | 3.09 51% |
| Colorchecker dE 2000 max. * | 15.53 | ||||
| Greyscale dE 2000 * | 5.59 | 11.82 -111% | 6.3 -13% | 13.81 -147% | 3.92 30% |
| Gamma | 2.53 87% | 2.56 86% | 2.34 94% | 2.33 94% | 2.3 96% |
| CCT | 7064 92% | 12063 54% | 6996 93% | 16998 38% | 7333 89% |
| Color Space (Percent of AdobeRGB 1998) | 39 | 36 -8% | 37 -5% | 34 -13% | 61 56% |
| Color Space (Percent of sRGB) | 57 | 59 | 54 | 97 | |
| Total Average (Program / Settings) | 84% /
41% | -8% /
-9% | -37% /
-47% | 16% /
21% |
* ... smaller is better

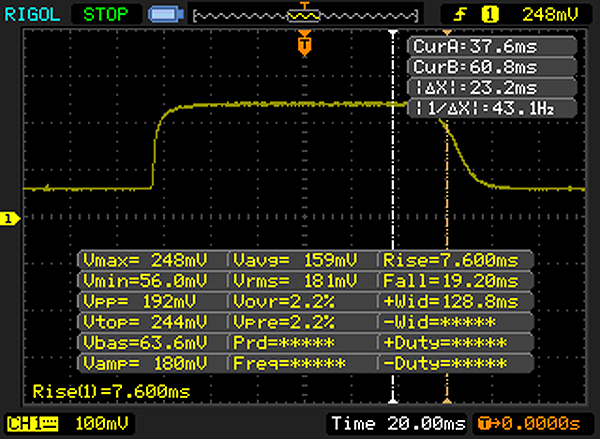

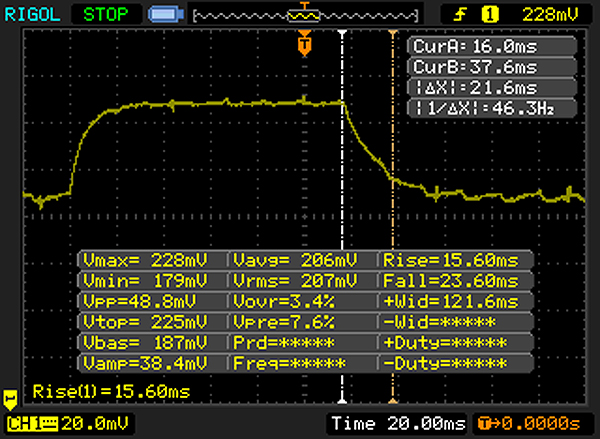

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 26 ms ... rise ↗ and fall ↘ combined | ↗ 719 ms rise |  |
| ↘ ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 36 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 21 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 46 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms). | ||

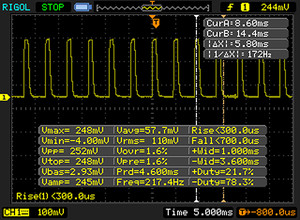

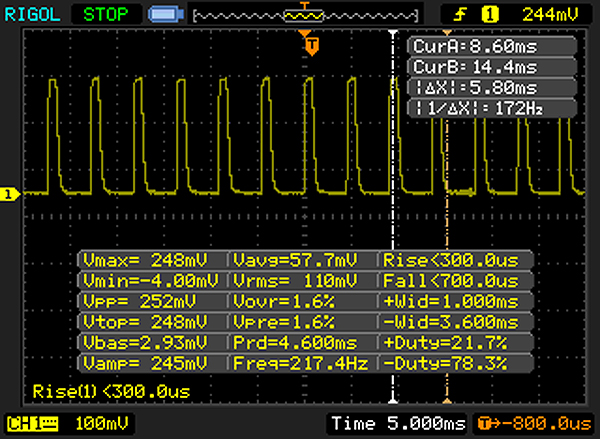

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 217 Hz | ≤ 90 % brightness setting |  |
The display backlight flickers at 217 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 217 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Cinebench R11.5 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| OpenGL 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Lenovo Yoga 500-15IBD | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Cinebench R10 | |
| Rendering Single CPUs 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Shading 64Bit (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Lenovo Yoga 500-15IBD | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Creative Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| Work Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| PCMark 7 - Score (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| PCMark 7 Score | 2582 points | |
| PCMark 8 Home Score Accelerated v2 | 2689 points | |
| PCMark 8 Creative Score Accelerated v2 | 2956 points | |
| PCMark 8 Work Score Accelerated v2 | 3585 points | |
Help | ||
| Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1 | Toshiba Satellite Radius 14 L40W-C-10Z HD Graphics 5500, 5015U, HGST Travelstar 5K1000 HTS541010A9E680 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w000ng x360 GeForce 930M, 5200U, Hitachi Travelstar Z5K500 HTS545050A7E680 | Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|

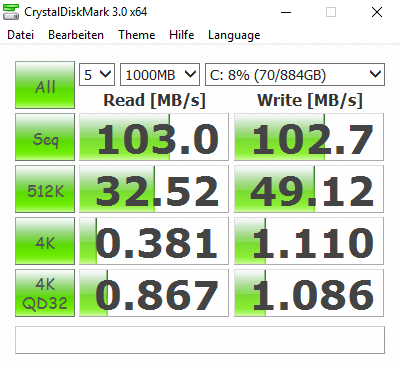

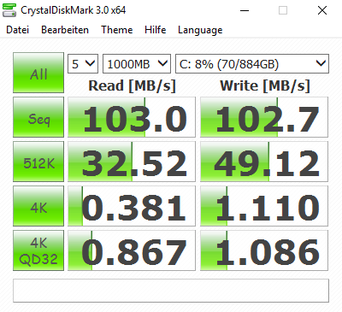

| CrystalDiskMark 3.0 | -9% | 27% | -42% | 9298% | |
| Read Seq | 103 | 97.1 -6% | 114.4 11% | 63.9 -38% | 666 547% |
| Write Seq | 102.7 | 94.9 -8% | 113 10% | 60 -42% | 154.2 50% |
| Read 512 | 32.52 | 32.3 -1% | 41.87 29% | 20.94 -36% | 266.3 719% |
| Write 512 | 49.12 | 37.5 -24% | 59.7 22% | 23.28 -53% | 154.2 214% |
| Read 4k | 0.381 | 0.39 2% | 0.542 42% | 0.241 -37% | 28.51 7383% |
| Write 4k | 1.11 | 0.958 -14% | 1.211 9% | 0.617 -44% | 101.5 9044% |
| Read 4k QD32 | 0.867 | 0.796 -8% | 1.498 73% | 0.471 -46% | 368.3 42380% |
| Write 4k QD32 | 1.086 | 0.952 -12% | 1.281 18% | 0.623 -43% | 153.6 14044% |

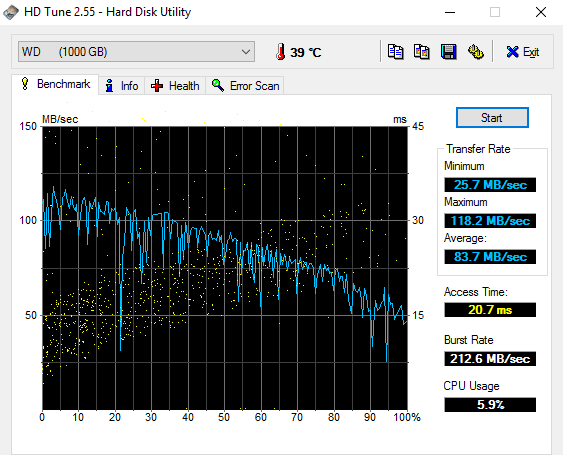

WDC Slim WD10SPCX-24HWST1
Transfer Rate Minimum:
25.7 MB/s
Transfer Rate Maximum:
118.2 MB/s
Transfer Rate Average:
83.7 MB/s
Access Time:
20.7 ms
Burst Rate:
212.6 MB/s
CPU Usage:
5.9 %
| 3DMark | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Cloud Gate Standard Physics (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 3DMark 11 | |
| 1280x720 Performance Combined (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Performance Physics (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Performance GPU (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 1280x720 Performance (sort by value) | |
| Lenovo Yoga 500-14ISK | |
| Toshiba Satellite Radius 14 L40W-C-10Z | |
| HP Envy 15-w000ng x360 | |
| Microsoft Surface Pro 4, Core i5, 128GB | |
| 3DMark 06 Standard Score | 8808 points | |
| 3DMark Vantage P Result | 5518 points | |
| 3DMark 11 Performance | 1823 points | |
| 3DMark Ice Storm Standard Score | 37066 points | |
| 3DMark Cloud Gate Standard Score | 4926 points | |
| 3DMark Fire Strike Score | 1045 points | |
| 3DMark Fire Strike Extreme Score | 507 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| Thief (2014) | 22.9 | 14.1 | 16.9 | 5.9 |
| GRID: Autosport (2014) | 106.6 | 55.3 | 28.12 | 16.2 |
| F1 2014 (2014) | 96 | 71 | 44 | 26 |
Noise Level
| Idle |
| 32.8 / 32.8 / 32.8 dB(A) |
| HDD |
| 33.4 dB(A) |
| Load |
| 39.4 / 39.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm distance) environment noise: 31.3 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 31.6 °C / 89 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.2 °C / 101 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.2 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-2.1 °C / -3.8 F).
(+) The maximum temperature on the upper side is 38.2 °C / 101 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.2 °C / 81 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-2.1 °C / -3.8 F).
| Lenovo Yoga 500-14ISK GeForce 920M, 6200U, WDC Slim WD10SPCX-24HWST1 | Toshiba Satellite Radius 14 L40W-C-10Z HD Graphics 5500, 5015U, HGST Travelstar 5K1000 HTS541010A9E680 | Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | HP Envy 15-w000ng x360 GeForce 930M, 5200U, Hitachi Travelstar Z5K500 HTS545050A7E680 | Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe | |
|---|---|---|---|---|---|
| Power Consumption | 31% | 16% | 26% | 29% | |
| Idle Minimum * | 6.6 | 4.7 29% | 4.2 36% | 3.3 50% | 4.4 33% |
| Idle Average * | 10.6 | 6.9 35% | 7.4 30% | 6 43% | 9 15% |
| Idle Maximum * | 10.8 | 7.2 33% | 8.6 20% | 7.8 28% | 10.7 1% |
| Load Average * | 37 | 26.8 28% | 36.5 1% | 30.3 18% | 19.6 47% |
| Load Maximum * | 39 | 26.6 32% | 42.7 -9% | 42.3 -8% | 19.9 49% |
* ... smaller is better
Power Consumption
| Off / Standby | 0.2 / 0.45 Watt |
| Idle | 6.6 / 10.6 / 10.8 Watt |
| Load |
37 / 39 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Pros
+ 可视角度范围，对比度

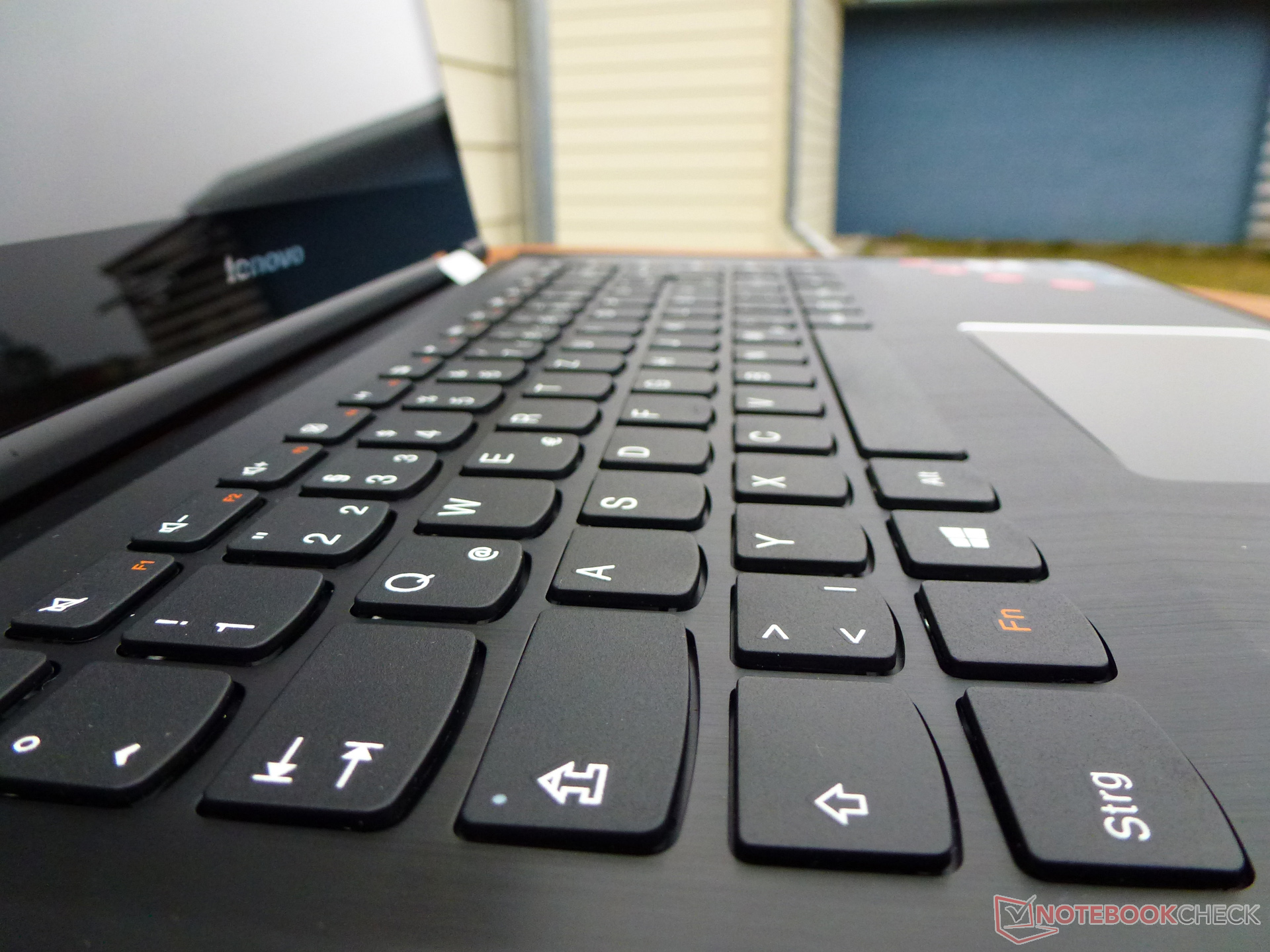

+ 优秀的输入设备
+ 运行安静
+ 压力测试中无降频问题

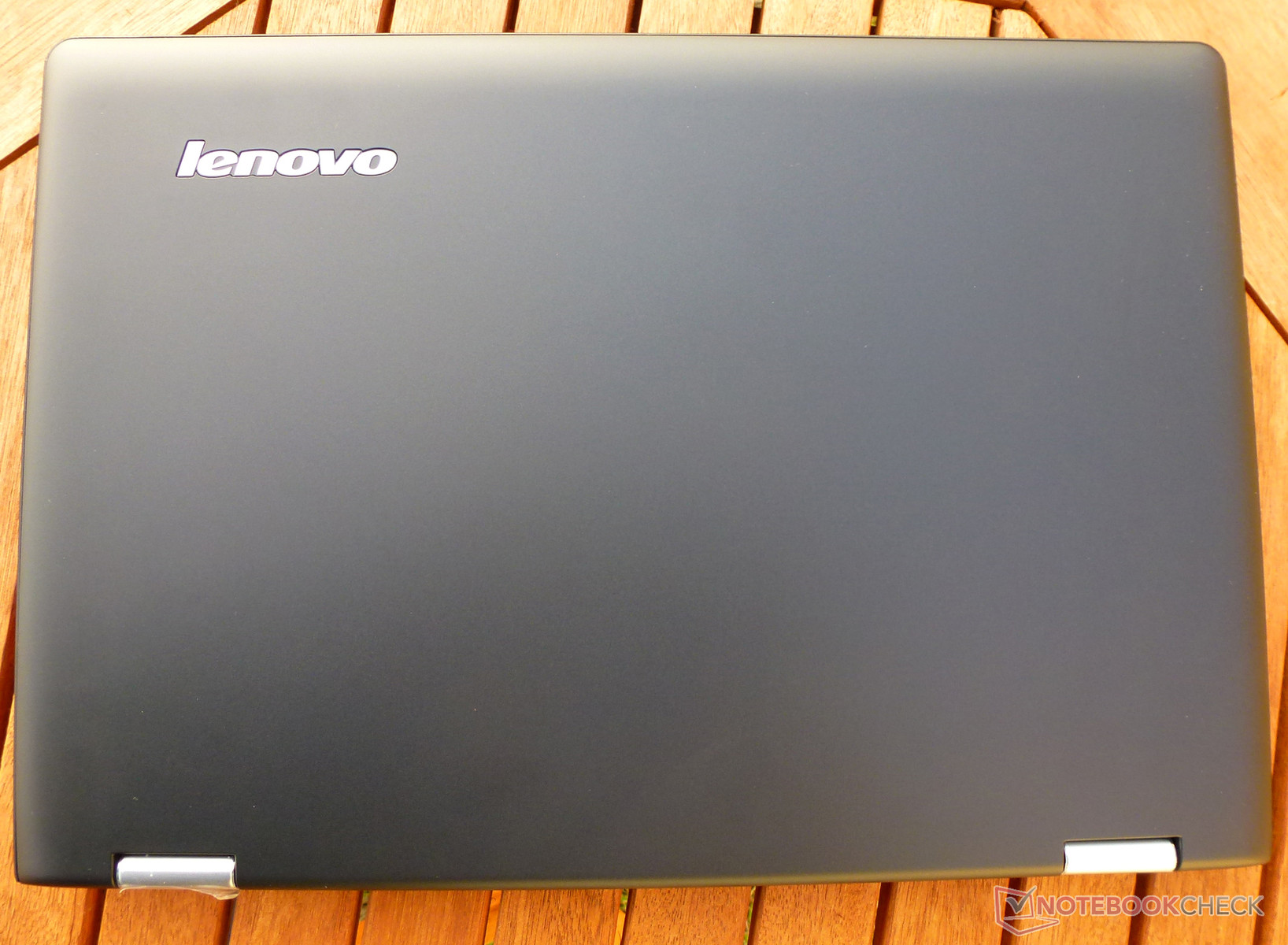

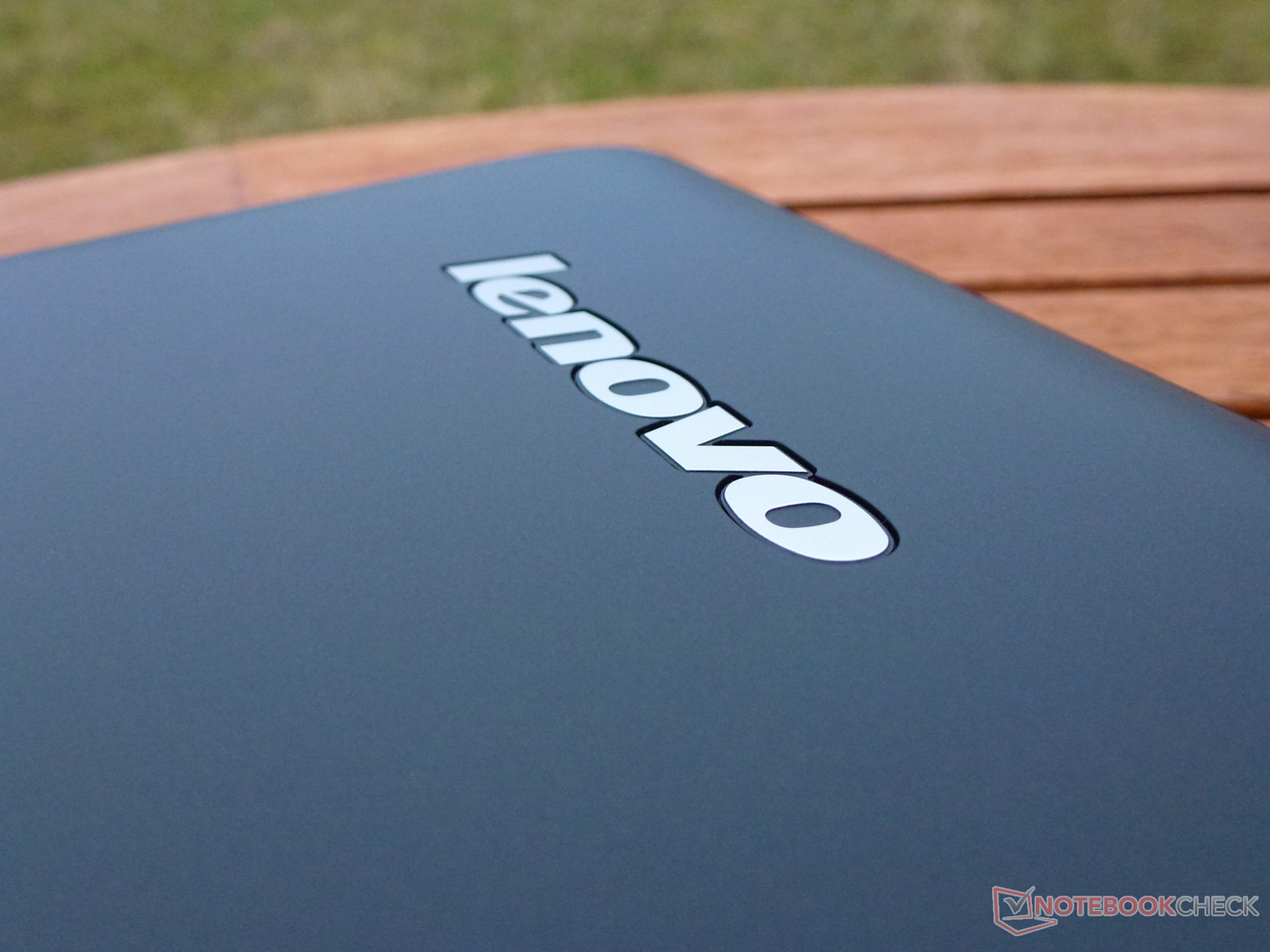

+ 机身工艺
+ 优秀的借口布局

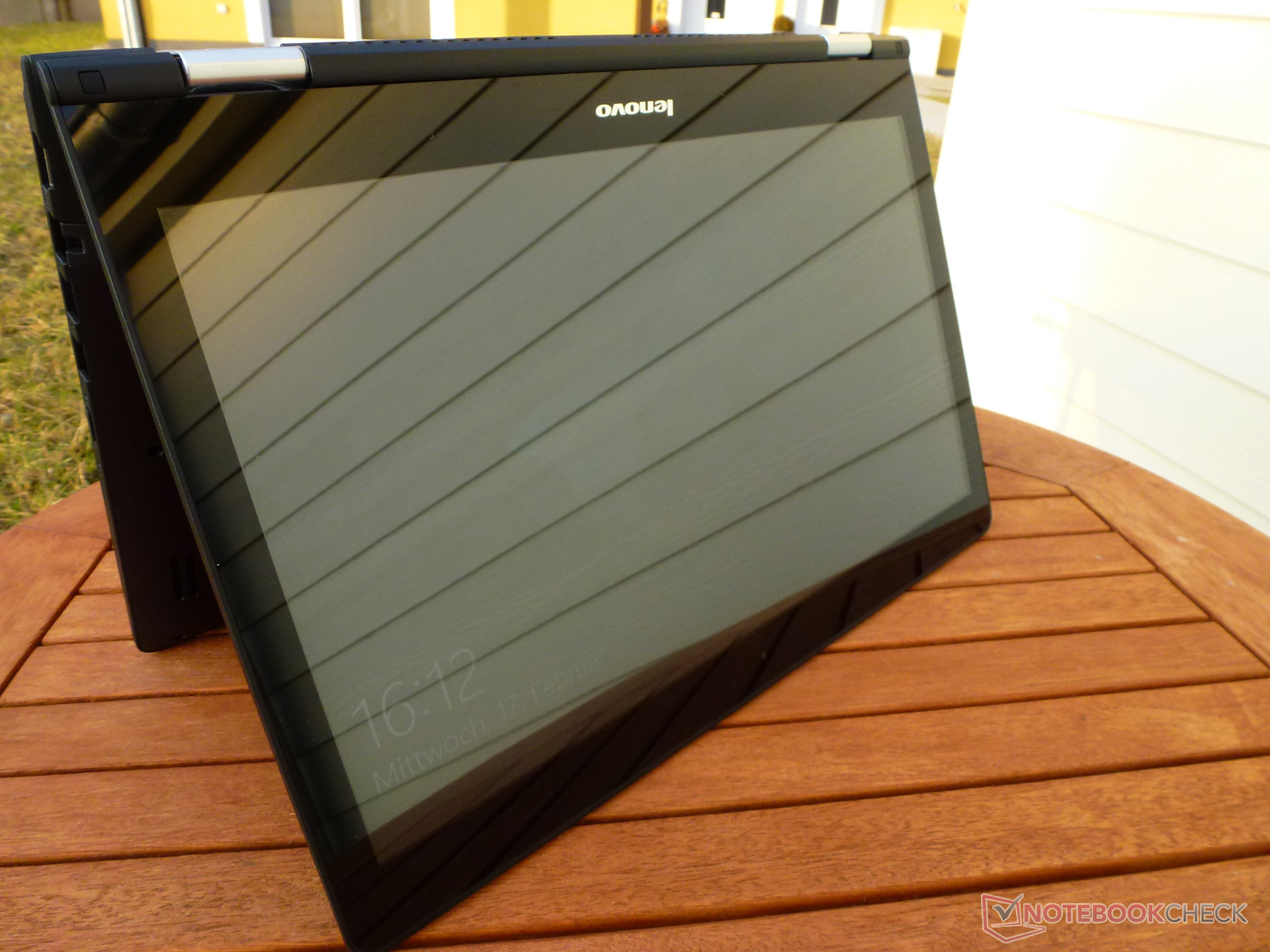

+ 实用的360度转轴
Cons
- 电池续航时间
- 无维护底盖，不可拆卸电池

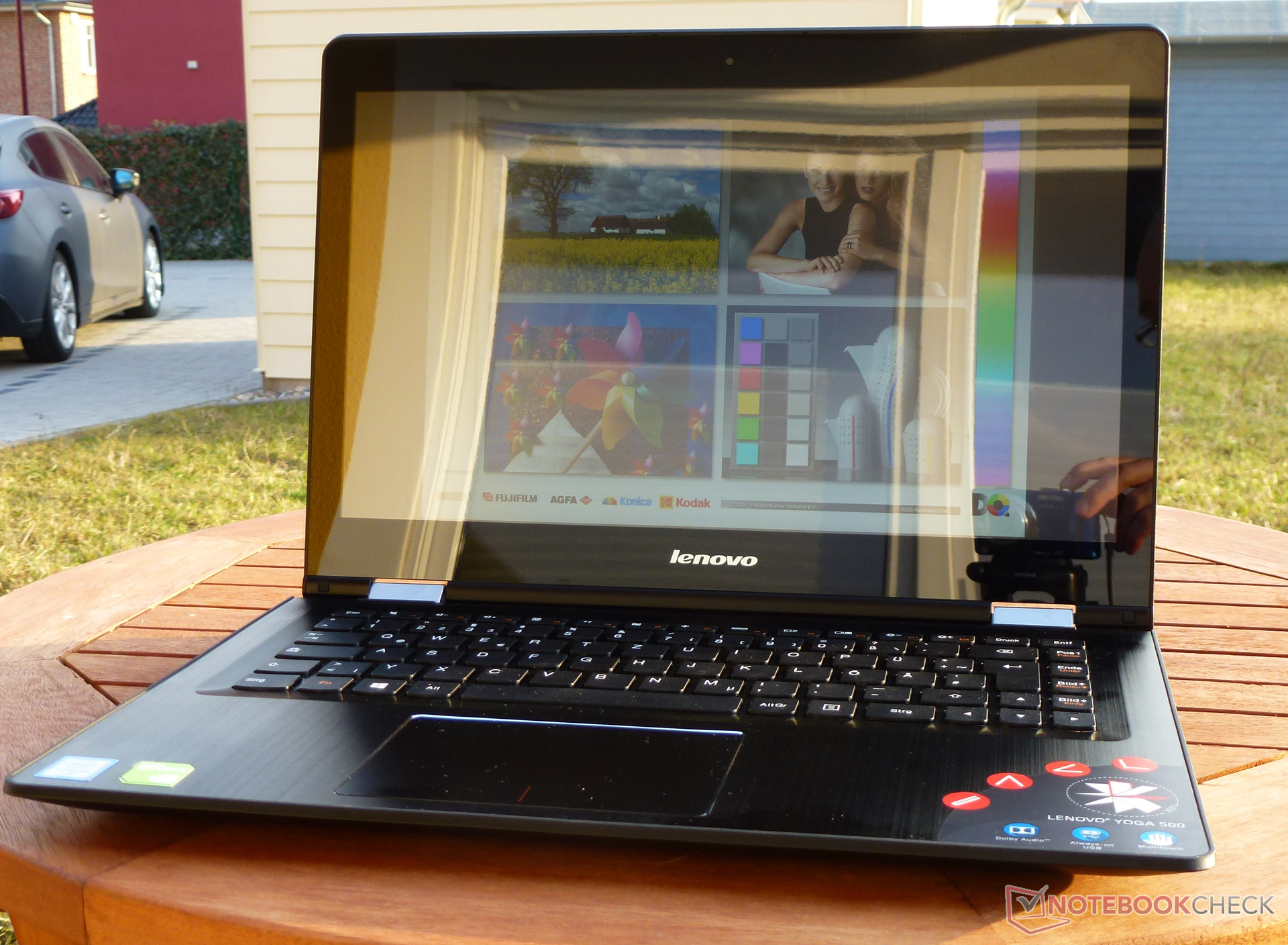

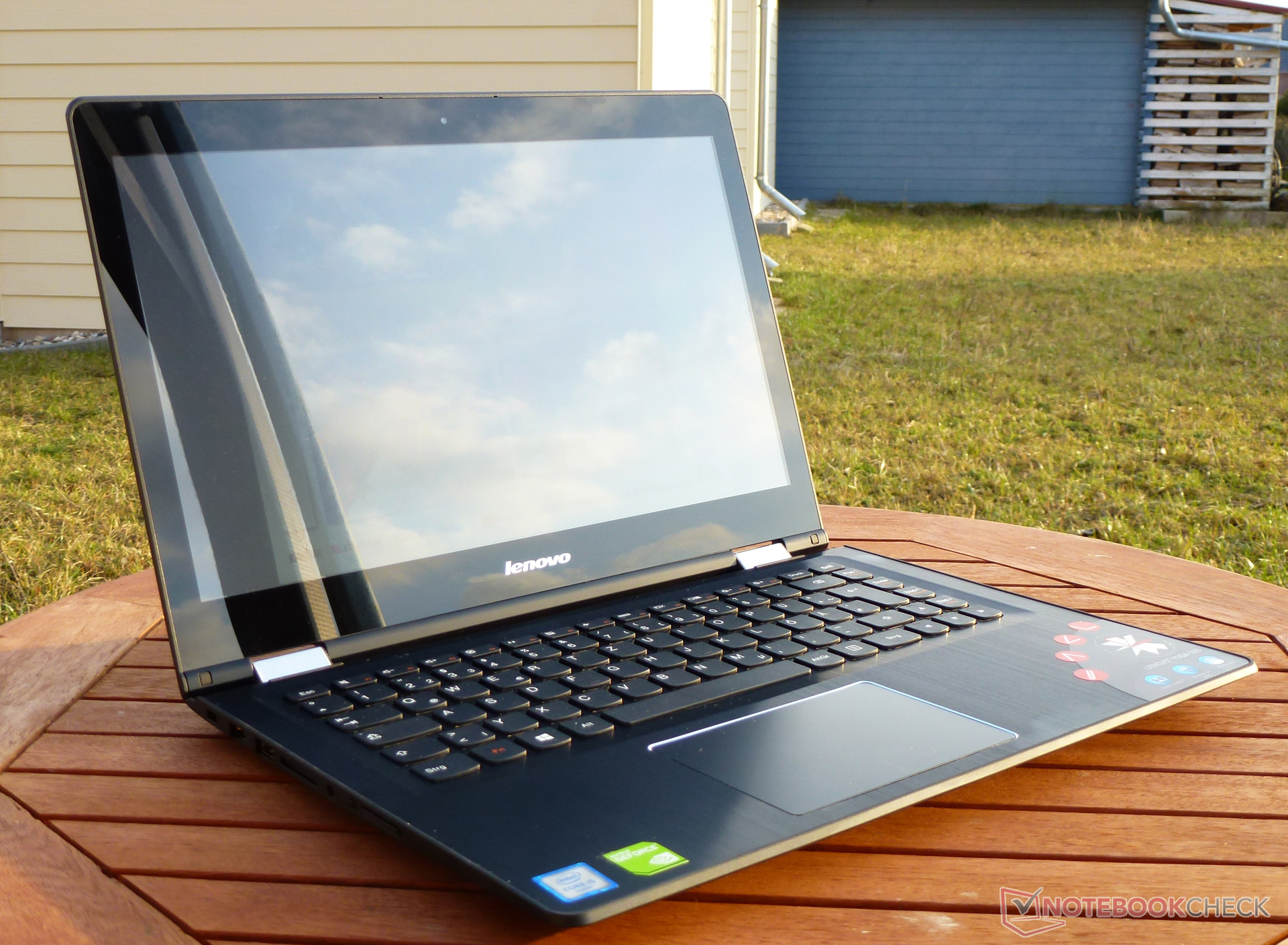

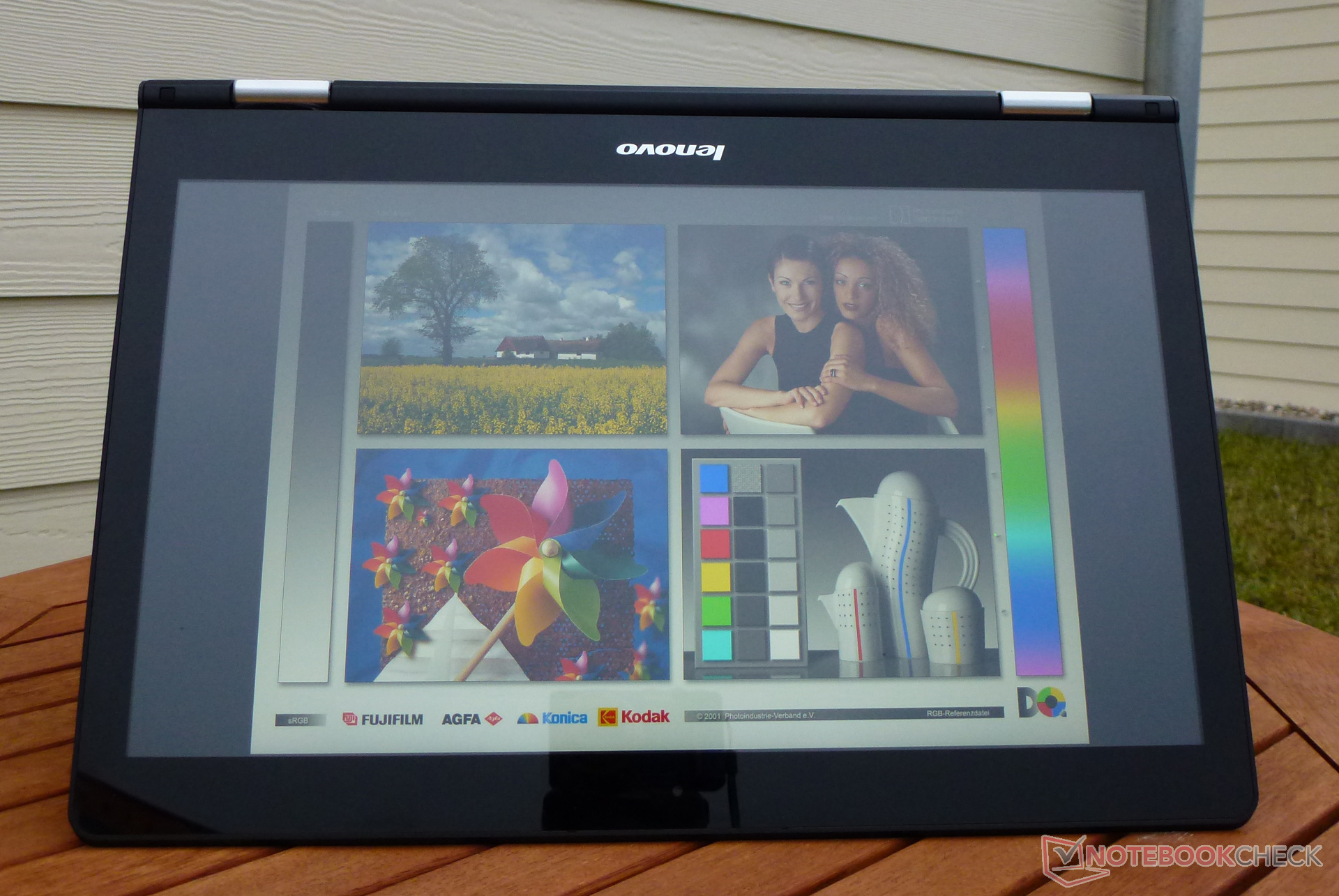

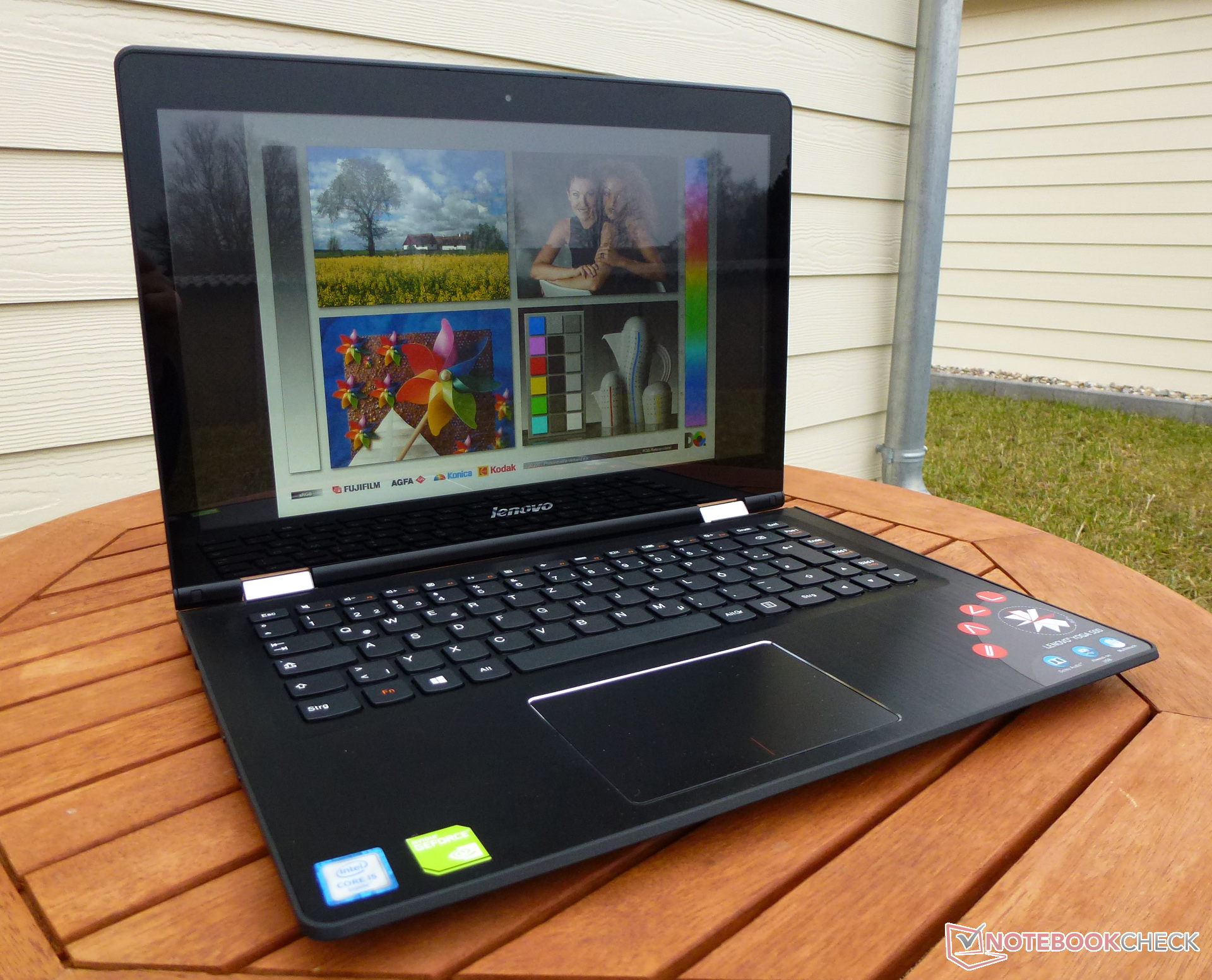

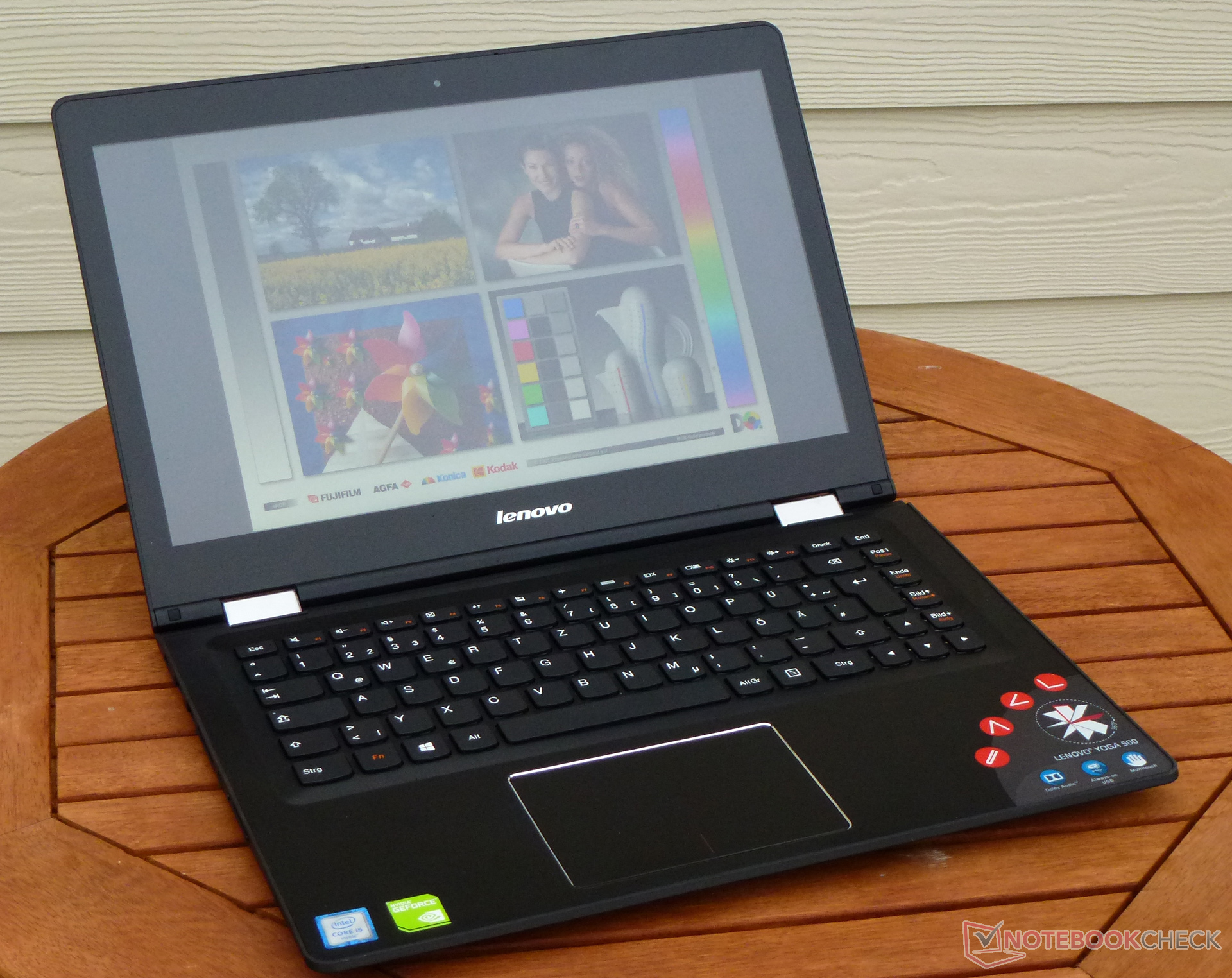

- 日光下几乎无法使用
- 无键盘背光
- 无固态硬盘
联想Yoga 500-14ISK是一款优秀的14寸多用途变形本。如果你正在寻找一款变形本的话，那么你应该知道它会带来的好处。比如，你可以坐在沙发上用平板或站立模式舒适地上网浏览，或是用帐篷模式观看视频。14寸设备相比15寸设备略轻，不过它依然有1.8千克，这是否算太笨重还要看个人的标准。不过如果你打算主要用帐篷模式的话，就需要谨慎考虑一下重量的问题了。联想在许多方面都做得不错。它的材质精良，两个360度转轴也很实用。它的键盘毫无问题，点击触控版和触控屏幕也可以让人满意。另外一个优点是全高清的IPS屏幕。它提供了宽广的可视角度范围，优秀的对比度和黑值水平。这块屏幕唯一的问题在于户外使用，屏幕亮度较低加上反光的表面会在阳光下造成很大不便。
它还有一些值得商榷的地方。我们希望它能够搭配一块固态硬盘，这将会大幅提高它的办公效率。遗憾的是联想只提供了传统硬盘的配置，1TB的存储空间倒是十分充裕。另外一个问题是电池续航，如果你在乎续航时间的话就需要特别小心了，因为它在无线上网测试中3小时的成绩可以说让人十分失望。联想Yoga 500-14ISK搭配Nvidia GeForce 920M的机型售价769欧元（约5608人民币）。这与竞争对手基本持平。它的游戏性能不算出色，游戏玩家应该考虑GTX系列的显卡。目前变形本搭配的最强显卡只是Nvidia GeForce 940M。
如果联想可以为它搭配更大容量的电池和固态硬盘的话，Yoga 500-14ISK应该可以成为一台更加全面的机型。优秀的IPS屏幕，独立显卡和快速处理器并不足以让它称雄。
我们还需要考虑这台联想笔记本电脑是否能和微软 Surface Pro 4竞争的问题。让我们这么说吧：如果你不愿意为一台更轻薄续航更长的平板掏出1250欧元（约9116人民币）的话，这台联想变形本可能会是个不错的替代品。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
