联想 Yoga 500-15IBD 变形本简短评测
80N6008AGE (Yoga 500 Series)
Processor
Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell
Graphics adapter
NVIDIA GeForce 940M - 2048 MB VRAM, Core: 1072 MHz, RAM: 900 MHz, DDR3, ForceWare 345.01, Optimus HD Graphics 5500
Memory
8 GB
, PC3-12800 Samsung
Display
15.60 inch 16:9, 1920 x 1080 pixel, 10点触控, LGDisplay LP156WF4_SPL1, WLED AH-IPS, 700:1, 220 cd/m², a-Si TFT, glossy: yes
Mainboard
Haswell-ULT
Storage
WDC Scorpio Blue WD10JPVX-22JC3T0, 1024 GB
, 5400 rpm, WDC Slim WD10SPCX-24HWST1, 865 GB free
Weight

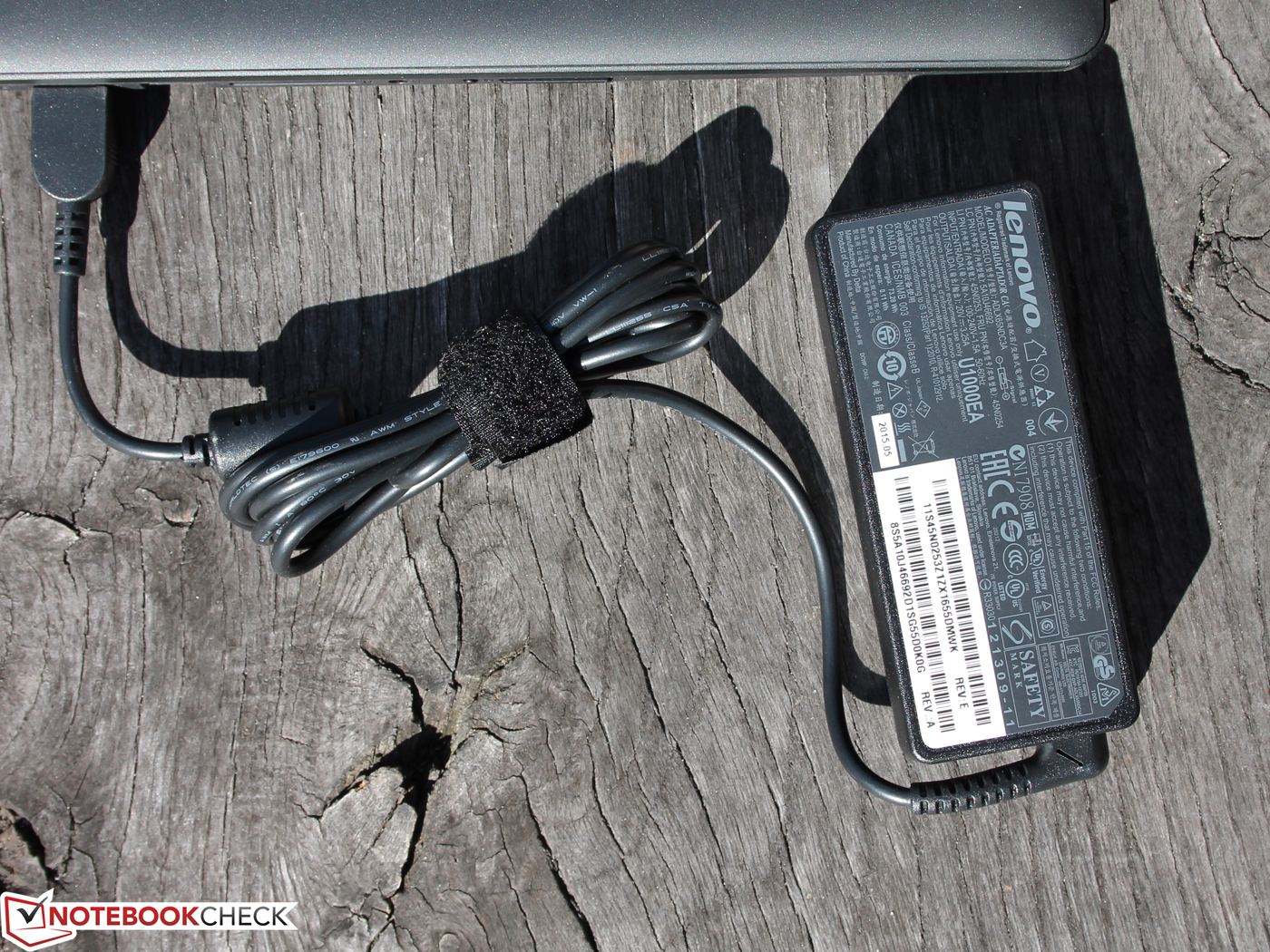

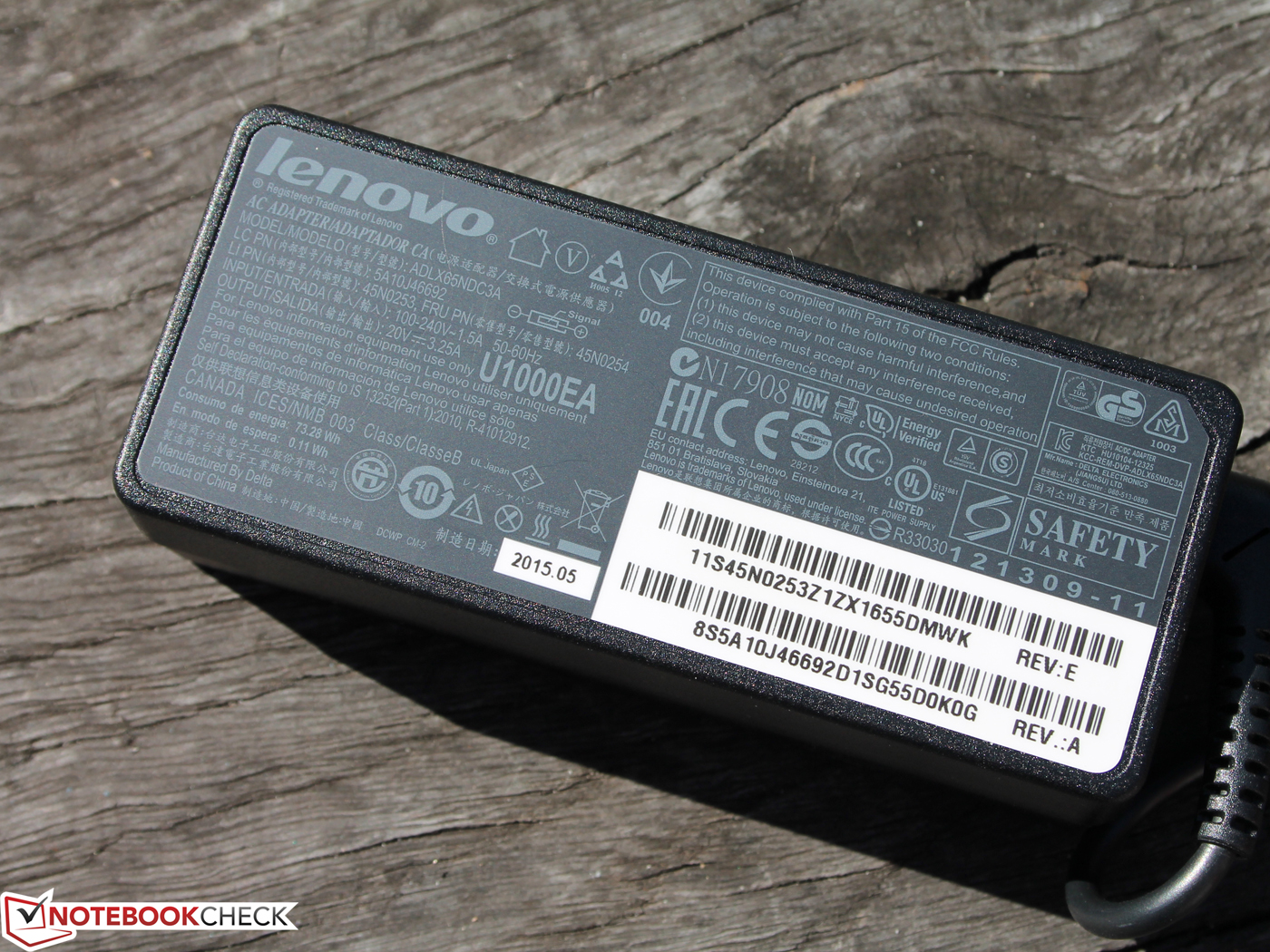

2.148 kg, Power Supply: 335 g
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
LGDisplay LP156WF4_SPL1 tested with X-Rite i1Pro 2
Maximum: 224 cd/m² (Nits) Average: 206.4 cd/m²Brightness Distribution: 87 %
Center on Battery: 167 cd/m²
Contrast: 732:1 (Black: 0.28 cd/m²)
ΔE Color 6.68 | 0.5-29.43 Ø4.91
ΔE Greyscale 6.3 | 0.5-98 Ø5.2
59% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.68% AdobeRGB 1998 (Argyll 2.2.0 3D)
59% sRGB (Argyll 2.2.0 3D)
39.36% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
| Lenovo Yoga 500-15IBD IPS FHD | Lenovo IdeaPad Flex 15 TN HD | Lenovo IdeaPad Flex 2 15 IPS FHD | Asus Transformer Book Flip TP500LN TN FHD | HP Envy 15-u200ng x360 TN FHD | Toshiba Satellite Radius 15 P50W-C-102 IPS FHD | |
|---|---|---|---|---|---|---|
| Display | -4% | -2% | 26% | 51% | ||
| Display P3 Coverage | 39.36 | 37.89 -4% | 38.52 -2% | 49.85 27% | 64.4 64% | |
| sRGB Coverage | 59 | 56.7 -4% | 57.1 -3% | 73.3 24% | 83.2 41% | |
| AdobeRGB 1998 Coverage | 40.68 | 39.17 -4% | 39.94 -2% | 51.7 27% | 60.8 49% | |
| Screen | -16% | -19% | -1% | -45% | 33% | |
| Brightness middle | 205 | 209 2% | 224.2 9% | 154 -25% | 261 27% | 293 43% |
| Brightness | 206 | 203 -1% | 215 4% | 143 -31% | 253 23% | 287 39% |
| Brightness Distribution | 87 | 81 -7% | 84 -3% | 84 -3% | 79 -9% | 91 5% |
| Black Level * | 0.28 | 0.3 -7% | 0.675 -141% | 0.3 -7% | 0.58 -107% | 0.25 11% |
| Contrast | 732 | 697 -5% | 332 -55% | 513 -30% | 450 -39% | 1172 60% |
| Colorchecker dE 2000 * | 6.68 | 9.61 -44% | 5.8 13% | 4.84 28% | 13.09 -96% | 5.4 19% |
| Greyscale dE 2000 * | 6.3 | 10.32 -64% | 5.03 20% | 4.53 28% | 13.34 -112% | 4.33 31% |
| Gamma | 2.34 94% | 2.84 77% | 2.18 101% | 2.22 99% | 3.46 64% | 2.39 92% |
| CCT | 6996 93% | 12804 51% | 7277 89% | 7307 89% | 13202 49% | 6670 97% |
| Color Space (Percent of AdobeRGB 1998) | 37 | 35.8 -3% | 36.19 -2% | 48 30% | 55 49% | |
| Color Space (Percent of sRGB) | 59 | 83 41% | ||||
| Total Average (Program / Settings) | -10% /
-13% | -11% /
-15% | 13% /
6% | -45% /
-45% | 42% /
38% |
* ... smaller is better
| Cinebench R11.5 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| Cinebench R15 | |
| CPU Single 64Bit (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| CPU Multi 64Bit (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| PCMark 7 | |
| Score (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| Lightweight (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Productivity (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Entertainment (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Creativity (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| PCMark 8 | |
| Home Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| Work Score Accelerated v2 (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| Display | |
| Display P3 Coverage (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| sRGB Coverage (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| AdobeRGB 1998 Coverage (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
* ... smaller is better
| PCMark 7 Score | 2558 points | |
| PCMark 8 Home Score Accelerated v2 | 2793 points | |
| PCMark 8 Work Score Accelerated v2 | 3622 points | |
Help | ||
| Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | Lenovo IdeaPad Flex 15 HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0 | Lenovo IdeaPad Flex 2 15 HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive | Asus Transformer Book Flip TP500LN GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | HP Envy 15-u200ng x360 HD Graphics 5500, 5200U, Toshiba MQ02ABF100 | Toshiba Satellite Radius 15 P50W-C-102 HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680 | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | -16% | -15% | -23% | -24% | -23% | |
| Read 4k | 0.542 | 0.427 -21% | 0.494 -9% | 0.4 -26% | 0.406 -25% | 0.432 -20% |
| Read Seq | 114.4 | 102.8 -10% | 99.5 -13% | 109.2 -5% | 106.5 -7% | 95.4 -17% |
| Write Seq | 113 | 102.1 -10% | 101.7 -10% | 106.9 -5% | 90.8 -20% | 97.5 -14% |
| Read 4k QD32 | 1.498 | 1.034 -31% | 1.248 -17% | 0.8 -47% | 0.82 -45% | 0.878 -41% |
| Write 4k QD32 | 1.281 | 1.208 -6% | 0.933 -27% | 0.9 -30% | 0.984 -23% | 0.986 -23% |
WDC Scorpio Blue WD10JPVX-22JC3T0
Transfer Rate Minimum:
7.7 MB/s
Transfer Rate Maximum:
115 MB/s
Transfer Rate Average:
83.9 MB/s
Access Time:
18.7 ms
Burst Rate:
226.4 MB/s
CPU Usage:
100 %
| 3DMark | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| 1280x720 Cloud Gate Standard Graphics (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| 1280x720 Cloud Gate Standard Physics (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| HP Envy 15-u200ng x360 | |
| Display | |
| Display P3 Coverage (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| sRGB Coverage (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| AdobeRGB 1998 Coverage (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
* ... smaller is better
| 3DMark Ice Storm Standard Score | 37883 points | |
| 3DMark Cloud Gate Standard Score | 5932 points | |
| 3DMark Fire Strike Score | 1384 points | |
Help | ||
| low | med. | high | ultra | |
|---|---|---|---|---|
| Evolve (2015) | 33.7 | 24.2 | 13 | 11.4 |
| Battlefield Hardline (2015) | 56 | 40 | 17.5 | |
| Batman: Arkham Knight (2015) | 20 | 17 | 12 | 7 |
| Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | Lenovo IdeaPad Flex 15 HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0 | Lenovo IdeaPad Flex 2 15 HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive | Asus Transformer Book Flip TP500LN GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | HP Envy 15-u200ng x360 HD Graphics 5500, 5200U, Toshiba MQ02ABF100 | Toshiba Satellite Radius 15 P50W-C-102 HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680 | |
|---|---|---|---|---|---|---|
| Noise | 8% | -2% | 5% | -5% | -1% | |
| Idle Minimum * | 31.9 | 30.7 4% | 33.8 -6% | 30.6 4% | 34.7 -9% | 32.9 -3% |
| Idle Average * | 32.3 | 32.1 1% | 33.9 -5% | 30.6 5% | 34.7 -7% | 32.9 -2% |
| Idle Maximum * | 32.7 | 32.1 2% | 34 -4% | 31.8 3% | 34.7 -6% | 32.9 -1% |
| Load Average * | 40.3 | 33.2 18% | 36.6 9% | 37.4 7% | 39.6 2% | 37.1 8% |
| Load Maximum * | 40.6 | 33.7 17% | 42 -3% | 39.1 4% | 43.4 -7% | 43.1 -6% |
* ... smaller is better
Noise Level
| Idle |
| 31.9 / 32.3 / 32.7 dB(A) |
| HDD |
| 32 dB(A) |
| Load |
| 40.3 / 40.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm distance) | ||
| Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | Lenovo IdeaPad Flex 15 HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0 | Lenovo IdeaPad Flex 2 15 HD Graphics 4400, 4210U, Seagate ST500LM000 Solid State Hybrid Drive | Asus Transformer Book Flip TP500LN GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | HP Envy 15-u200ng x360 HD Graphics 5500, 5200U, Toshiba MQ02ABF100 | Toshiba Satellite Radius 15 P50W-C-102 HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680 | |
|---|---|---|---|---|---|---|
| Heat | 3% | -10% | -3% | 20% | -7% | |
| Maximum Upper Side * | 39.9 | 38.6 3% | 38.2 4% | 41.6 -4% | 32.8 18% | 41.6 -4% |
| Maximum Bottom * | 41.5 | 40.5 2% | 41.8 -1% | 46 -11% | 29.7 28% | 45.8 -10% |
| Idle Upper Side * | 28.6 | 26.4 8% | 34 -19% | 28.4 1% | 23.6 17% | 30.7 -7% |
| Idle Bottom * | 30 | 30.5 -2% | 36.6 -22% | 28.7 4% | 25.1 16% | 32 -7% |
* ... smaller is better
(±) The average temperature for the upper side under maximal load is 32.1 °C / 90 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 39.9 °C / 104 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-2 °C / -3.6 F).
(+) The maximum temperature on the upper side is 39.9 °C / 104 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-2 °C / -3.6 F).
| Lenovo Yoga 500-15IBD GeForce 940M, 5200U, WDC Scorpio Blue WD10JPVX-22JC3T0 | Lenovo IdeaPad Flex 15 HD Graphics (Haswell), 3556U, Western Digital Scorpio Blue WD5000LPCX-24C6HT0 | Asus Transformer Book Flip TP500LN GeForce 840M, 4210U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB | HP Envy 15-u200ng x360 HD Graphics 5500, 5200U, Toshiba MQ02ABF100 | Toshiba Satellite Radius 15 P50W-C-102 HD Graphics 5500, 5200U, HGST Travelstar 5K1000 HTS541010A9E680 | |
|---|---|---|---|---|---|
| Power Consumption | 17% | -63% | 1% | 2% | |
| Idle Minimum * | 4.2 | 4.2 -0% | 9.8 -133% | 4.7 -12% | 4.4 -5% |
| Idle Average * | 7.4 | 7.5 -1% | 12.2 -65% | 8.9 -20% | 7.9 -7% |
| Idle Maximum * | 8.6 | 7.5 13% | 12.9 -50% | 9.1 -6% | 9.2 -7% |
| Load Average * | 36.5 | 24.8 32% | 49.2 -35% | 30 18% | 31.5 14% |
| Load Maximum * | 42.7 | 25.3 41% | 55.3 -30% | 31.8 26% | 36.1 15% |
* ... smaller is better
Power Consumption
| Off / Standby | 0.1 / 0.1 Watt |
| Idle | 4.2 / 7.4 / 8.6 Watt |
| Load |
36.5 / 42.7 Watt |

| |
Key:
min: ,
med: ,
max: Voltcraft VC 960 | |
| Battery Runtime | |
| Reader / Idle (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| WiFi v1.3 (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| HP Envy 15-u200ng x360 | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| Load (sort by value) | |
| Lenovo Yoga 500-15IBD | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
| Toshiba Satellite Radius 15 P50W-C-102 | |
| WiFi (sort by value) | |
| Lenovo IdeaPad Flex 15 | |
| Lenovo IdeaPad Flex 2 15 | |
| Asus Transformer Book Flip TP500LN | |
Pros
+ 对比度，可视角度范围
+ 入门级游戏性能
+ 低发热噪音
+ 不错的输入设备
Cons
- 电池续航短

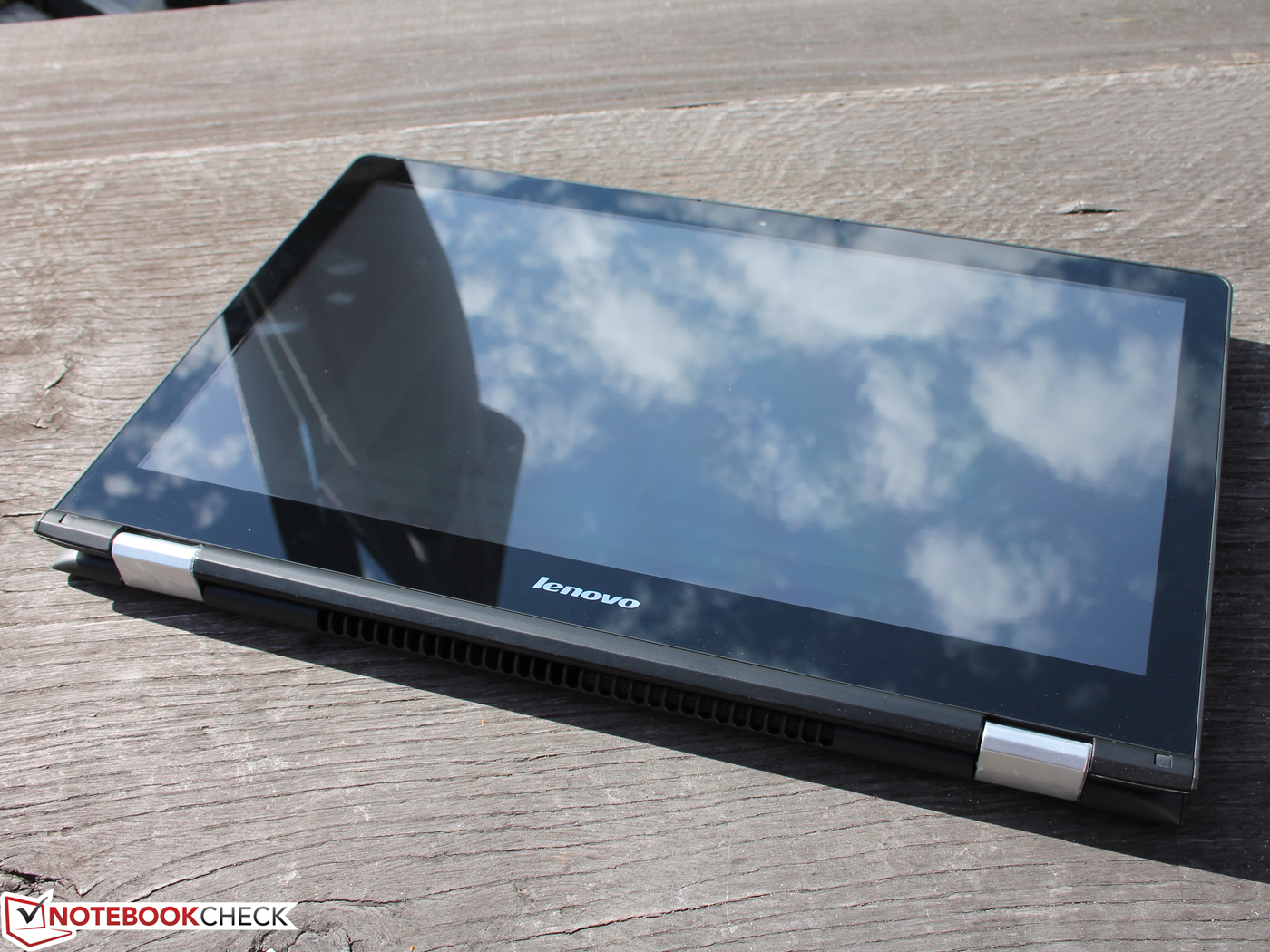

- 重量高，平板电脑模式下实用性差

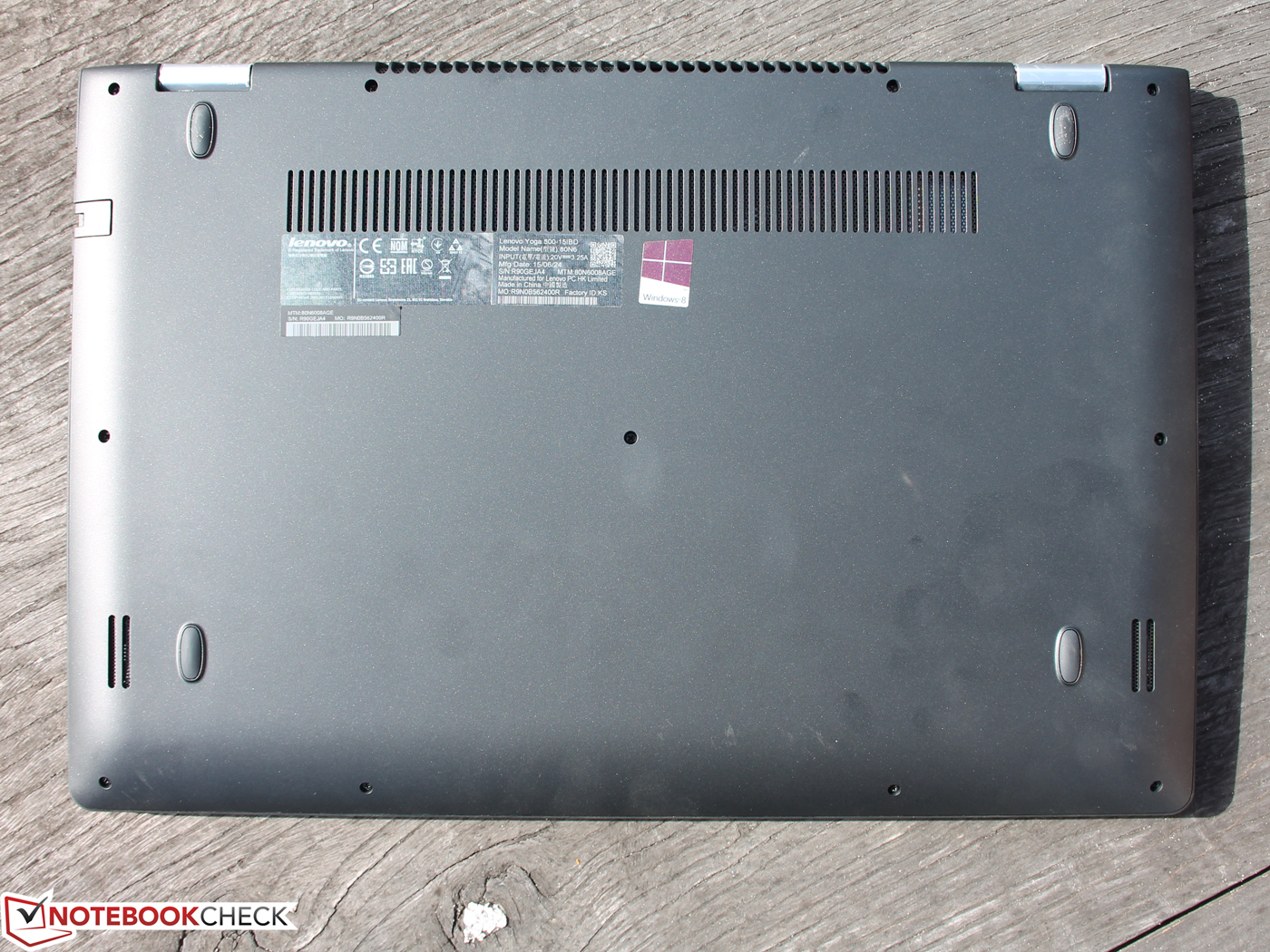

- 无维护底盖，不可拆卸电池
- 屏幕在日光下难以使用
在寻找360度转轴15寸笔记本电脑的用户对它的用途在心中应该已经早有打算。看视频而不需受到键盘的烦扰，坐在沙发上用平板电脑休闲，或将它设置为站立模式用于简报，Yoga 500可以做到所有的这些。而15寸设备的重量（2.15千克）是否影响实用性则要看用户的判断了。联想在很多方面都做得不错——高品质屏幕的高对比度丰富色彩和宽广可视角度给人优秀的第一印象。它的低亮度特别是在电池模式下会造成一些问题。加上镜面屏幕则让它在户外日光下几乎无法使用。

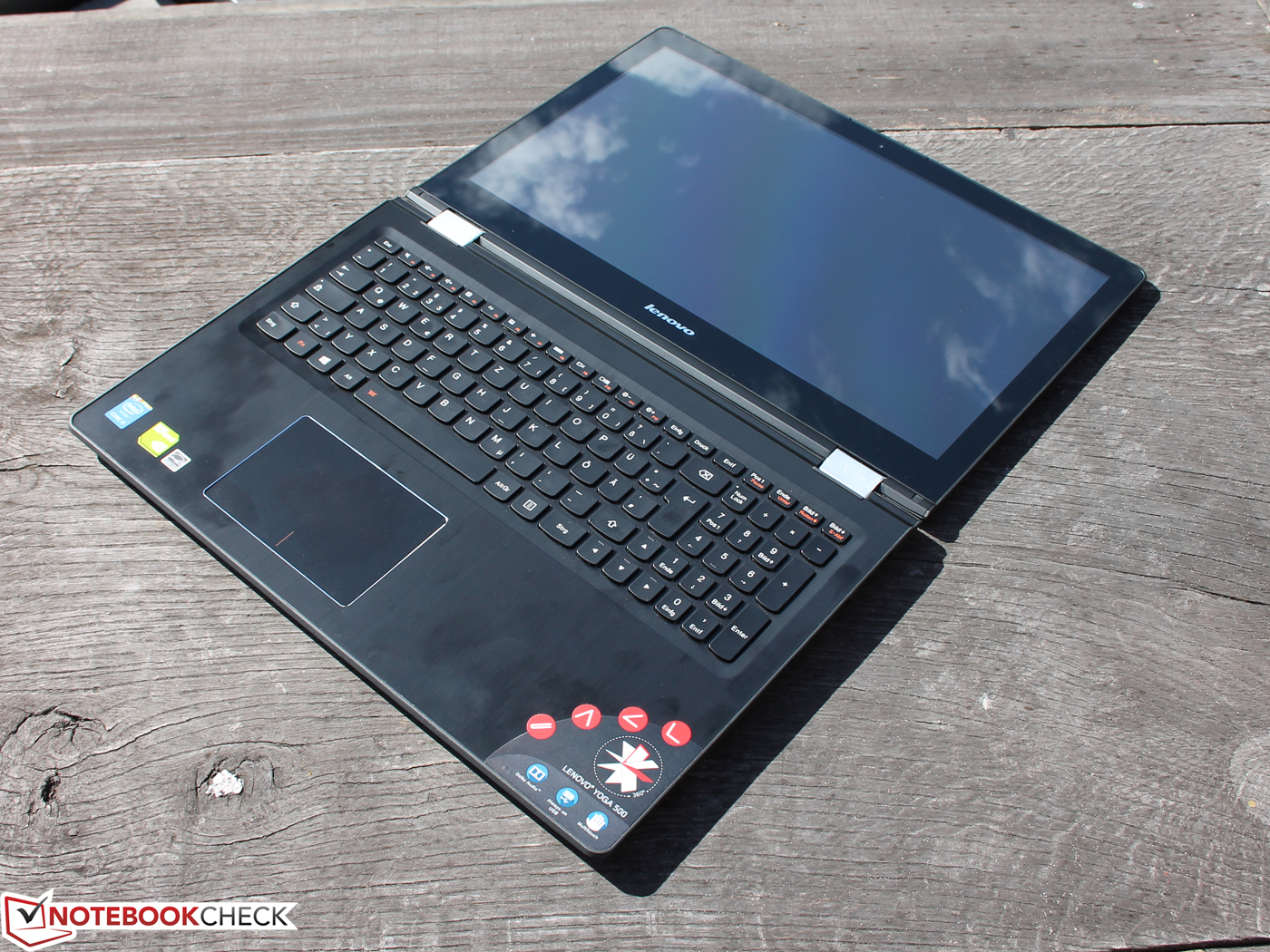

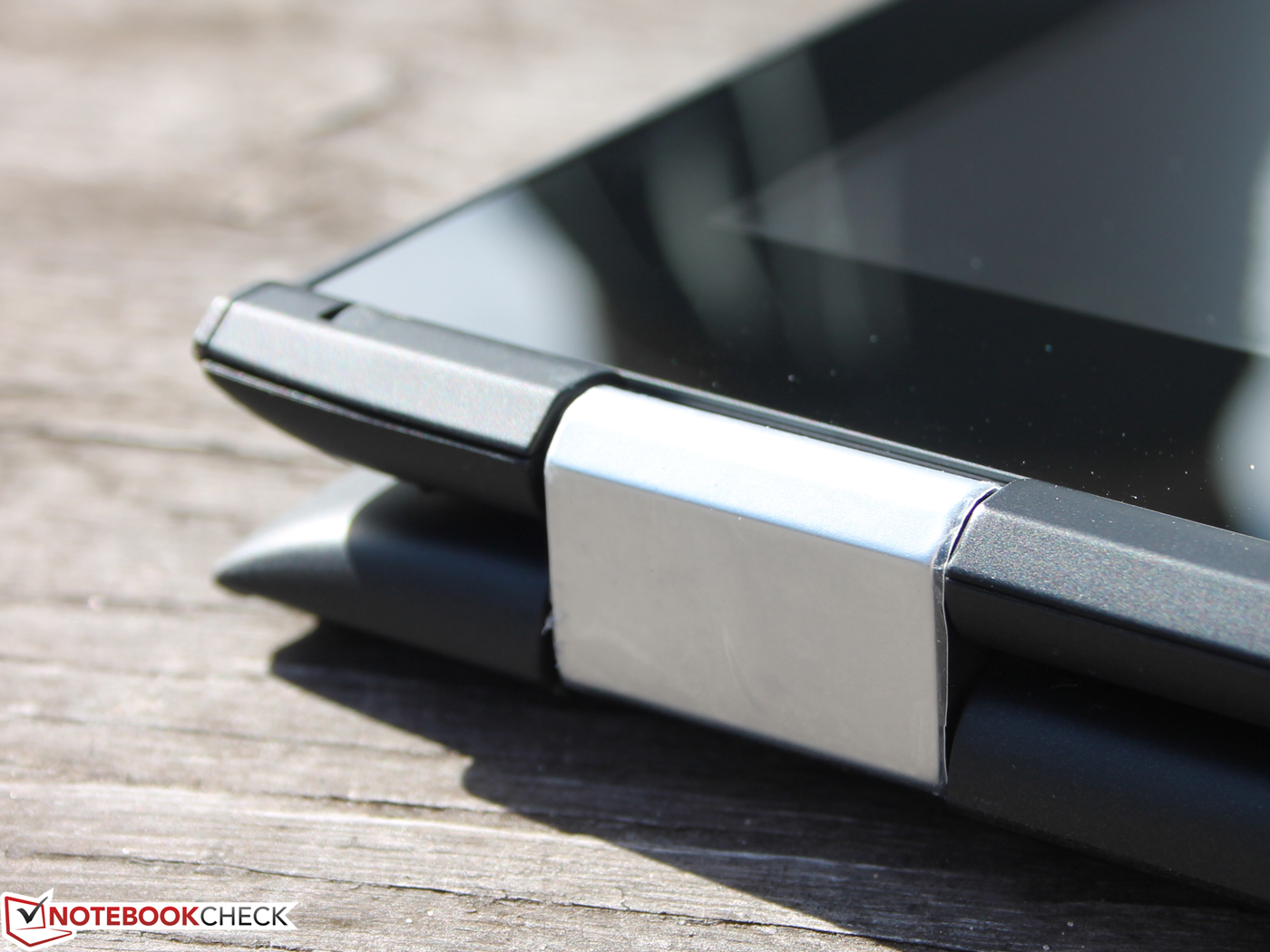

它的输入设备品质和稳定性都让人无法挑剔。它虽然尺寸较大，作为变形本却也十分实用。我们担心它的转轴会在较长时间的使用中很快老化。Yoga 500可能最适合作为桌面笔记本电脑使用，这是基于它全面的配置和强劲的性能。我们认为它可以适合偶尔的游戏需要，不过游戏玩家最好选择一款搭配GTX显卡的机型。不过变形本中还没有这样的设备，940M是我们所知目前在变形本中最强的显卡配置了。

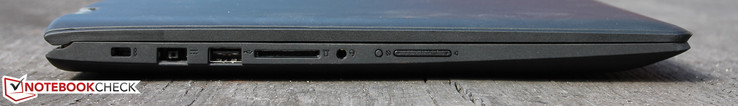

Yoga 500的优势如非常优秀的双阵列麦克风，高速SD读卡器和高质量传统硬盘可以弥补一些小缺陷带来的遗憾，如较差的摄像头。
另外一方面，不足3小时的无线上网电池续航则有些让人难以接受。这要归罪于联想为它配备的低容量电池。
我们测试配置的Yoga 500搭配GeForce显卡和全高清IPS屏幕的800欧元（约5778人民币）售价十分诱人。78%的总分也高于售价更高的Satellite Radius 15 P50W（1080欧元，约7800人民币），这款东芝笔记本电脑没有配备独立显卡。我们无法推荐惠普的Envy 15-u200ng x360则主要是由于它的TN屏幕。华硕的Transformer Book Flip TP500LA是最有力的竞争对手，不过我们还没有测试它的Broadwell架构机型，因此我们比较的是它的Haswell处理器搭配GeForce 840M显卡的TP500LN机型。不过，这款华硕笔记本的Broadwell机型没有搭配独立显卡。因此，只有联想的Flex 2 Pro会是最大的潜在对手。采用固态硬盘，840M处理器和IPS屏幕的这款机型的评测将会很快发布。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
Lenovo Yoga 500-15IBD
- 09/21/2015 v4 (old)
Sebastian Jentsch
Convertible - Weighted Average
Price comparison
