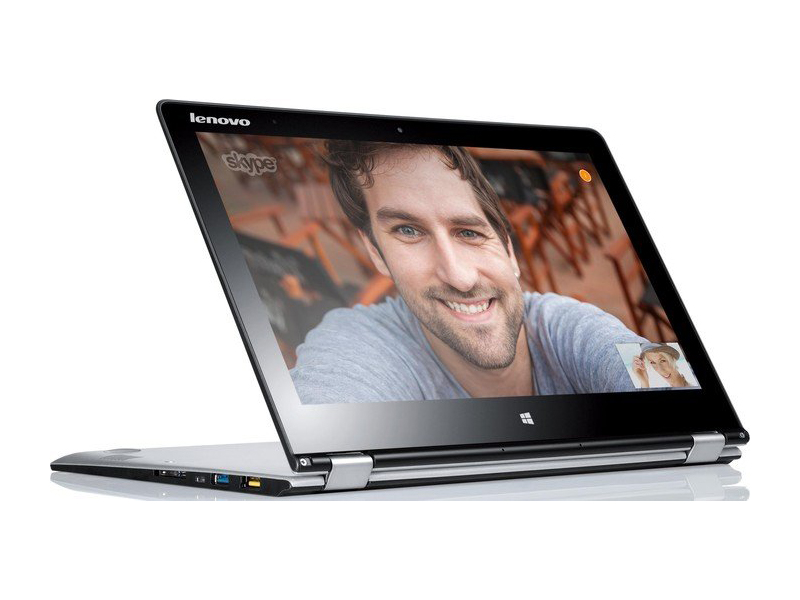

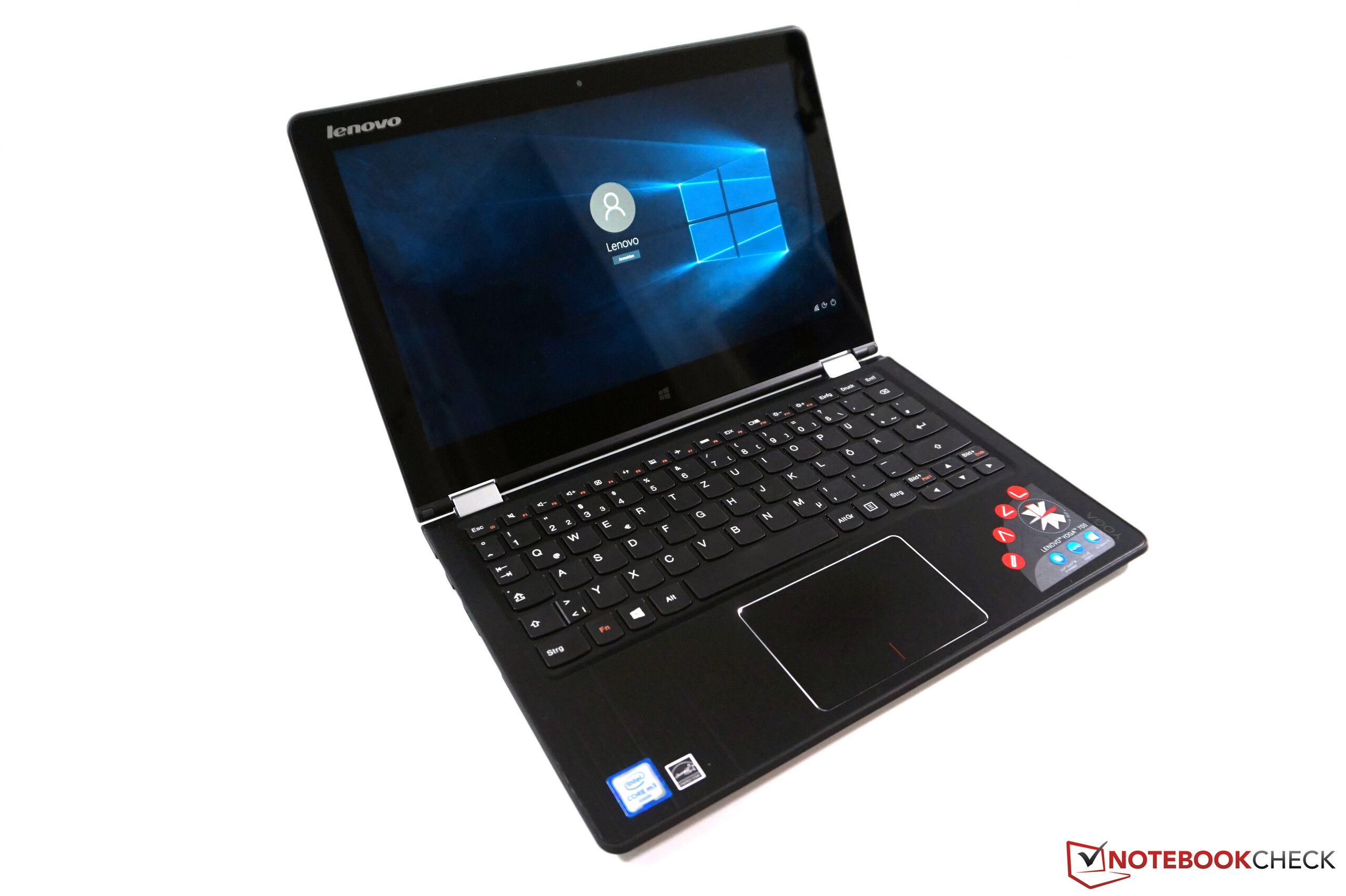

联想 Yoga 700-11ISK 变形本简短评测

Name: Lenovo Yoga 700-11ISK
Brand: Lenovo

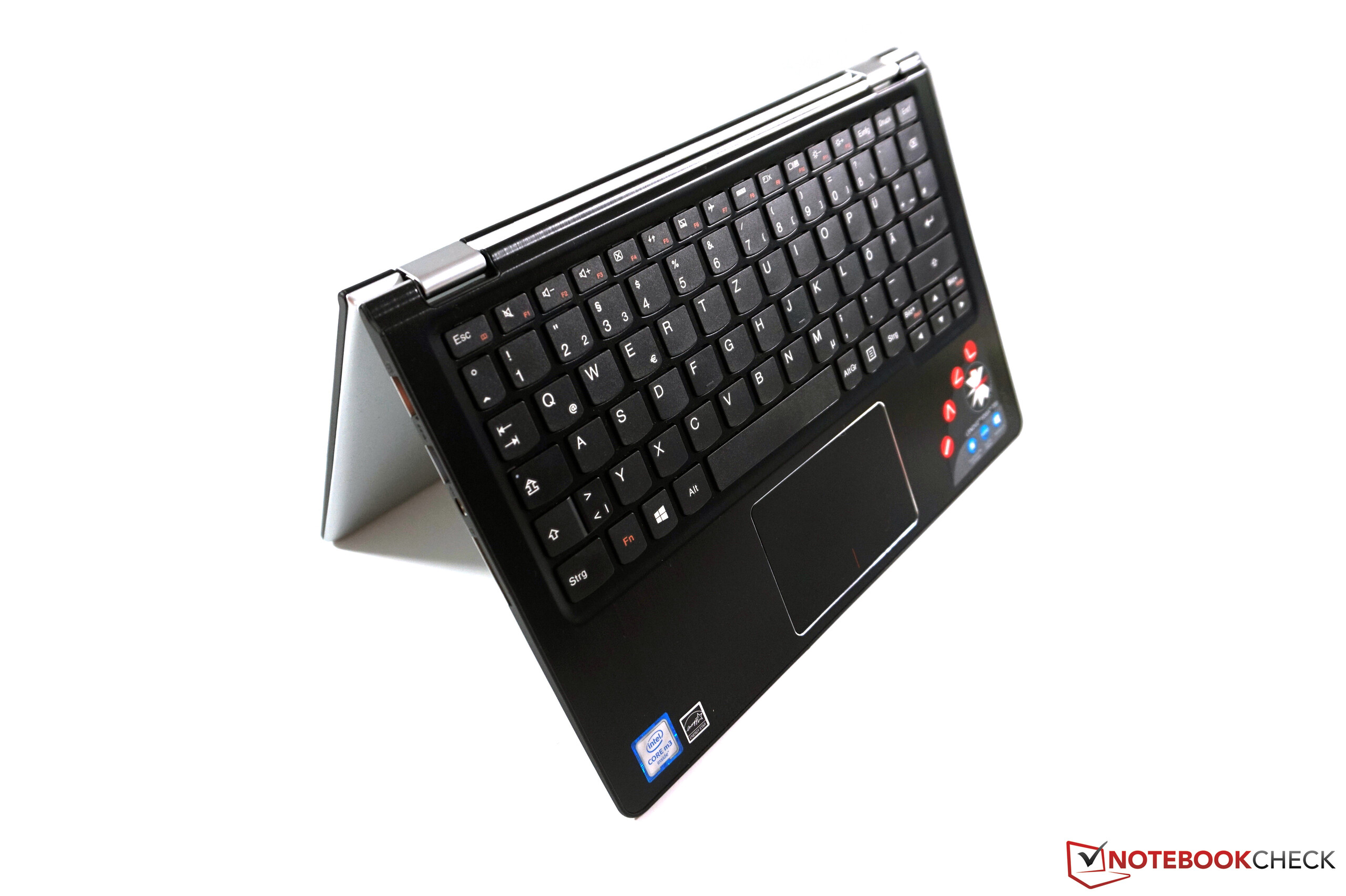

散热能力差。 小巧的联想Yoga 700是一个便携且功能非常多的设备，归功于其11.6英寸的屏幕和不同的操作模式。然而，因为处理器不能利用其全部潜能，它在输入设备和散热解决方案方面存在问题。

Andreas Osthoff, ✓ Tanja Hinum (translated by Kangfei Zheng), Published 02/19/2017 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Laptop / Notebook Windows Touchscreen Skylake

Test device courtesy of Lenovo Deutschland

Download your licensed rating image as PNG / SVG

Lenovo Yoga 700-11ISK (Yoga 700 Series)

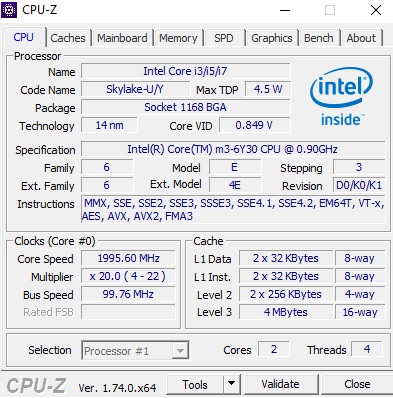

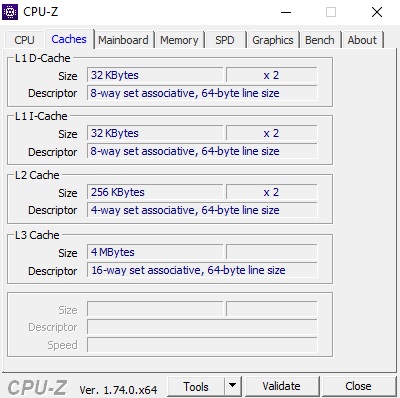

Processor

Intel Core m3-6Y30 2 x 0.9 - 2.2 GHz, Skylake

Graphics adapter

Intel HD Graphics 515

Memory

4 GB

, LPDDR3-1866, 双通道, 焊接

Display

11.60 inch 16:9, 1920 x 1080 pixel 190 PPI, 电容式, CMN1137, IPS, glossy: yes

Mainboard

Intel Skylake-Y Premium PCH

Storage

Samsung SSD PM871 MZNLN256HCHP, 256 GB

, 180 GB free

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5 毫米, Card Reader: SDHC, SDXC, SD, MMC, Sensors: 位置感应器

Networking

Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 15.8 x 290 x 197

Battery

40 Wh, 4770 mAh Lithium-Polymer, 4 cells, Battery runtime (according to manufacturer): 7 h

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 0.9 MP

Additional features

Speakers: 立体声, Keyboard: 巧克力键盘, Keyboard Light: no, 电源适配器, 服务传单, Lenovo Tools, Dolby Audio, Office 365 (trial), McAfee LiveSafe (trial), 24 Months Warranty, fanless

Weight

1.094 kg, Power Supply: 201 g

Price

800 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

HP Pavilion x2 12-b000ng Lenovo Yoga 3 11 80J8001WGE Lenovo Yoga 700-11ISK Acer Aspire Switch Alpha 12 SA5-271-56HM Microsoft Surface Pro 4, Core m3 DIN A4 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 13-9365 2-in-1	61.6 MB/s +319%
Lenovo Yoga 700-11ISK	14.7 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13-9365 2-in-1	87.2 MB/s +223%
Lenovo Yoga 700-11ISK	27 MB/s

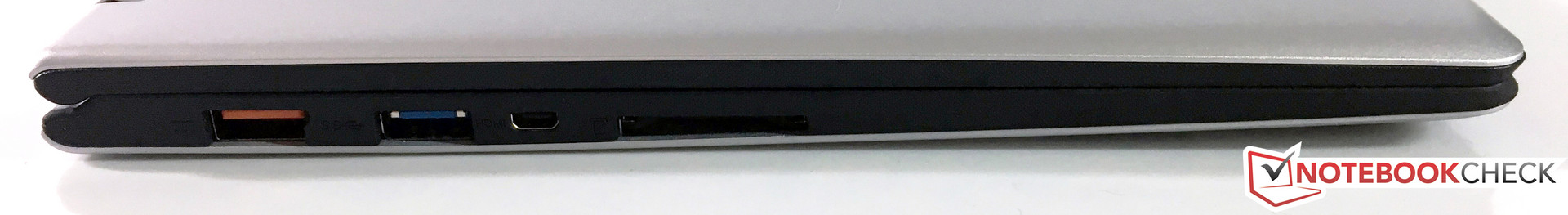

Left side: Power/USB 2.0, USB 3.0, mini-HDMI, SD-card reader

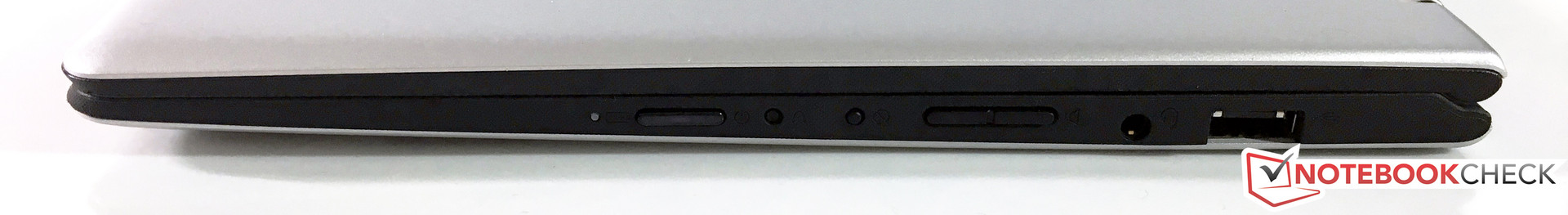

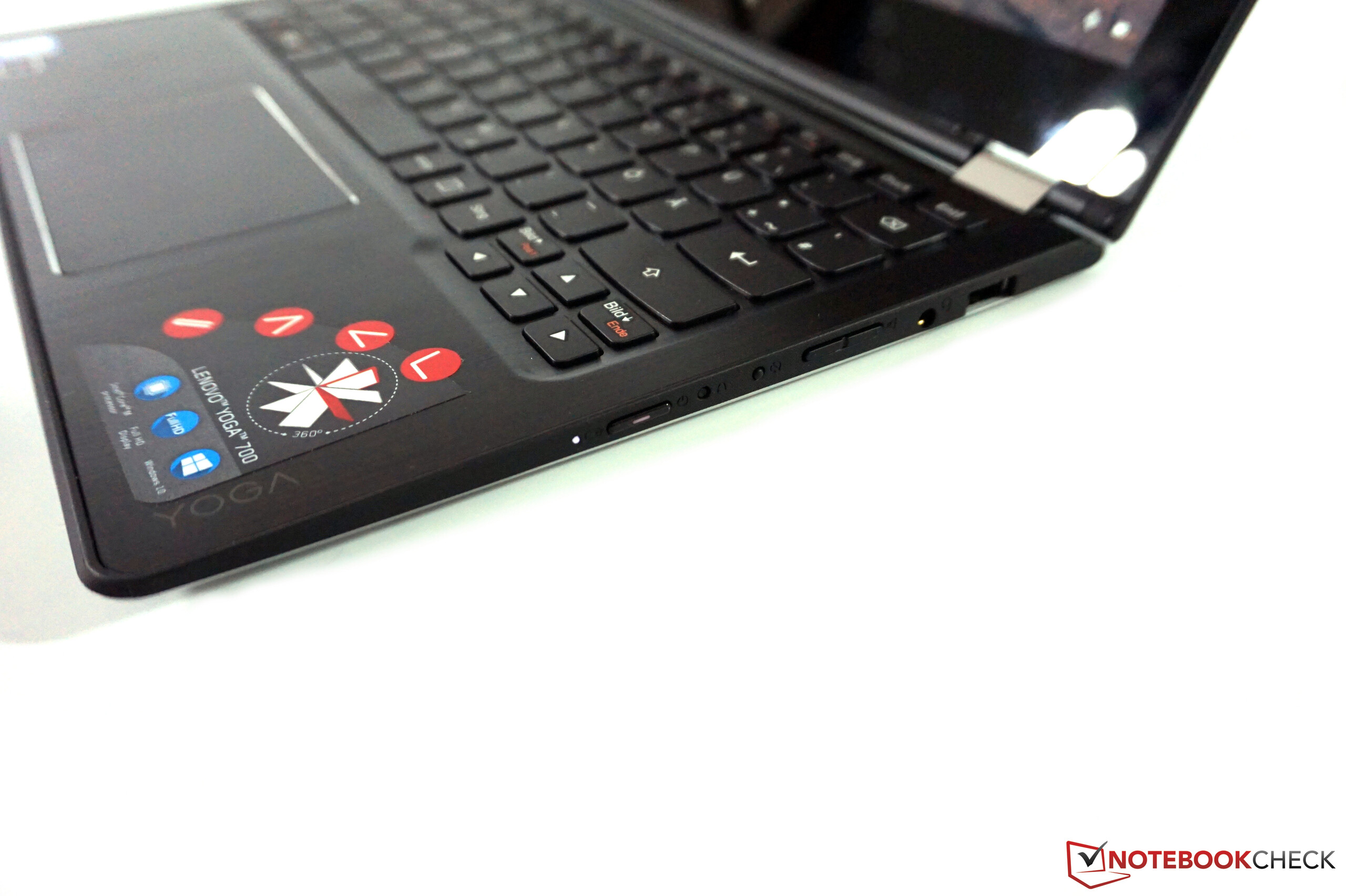

Right side: Power button, One-Key recovery, volume rocker, 3.5 mm audio, USB 2.0

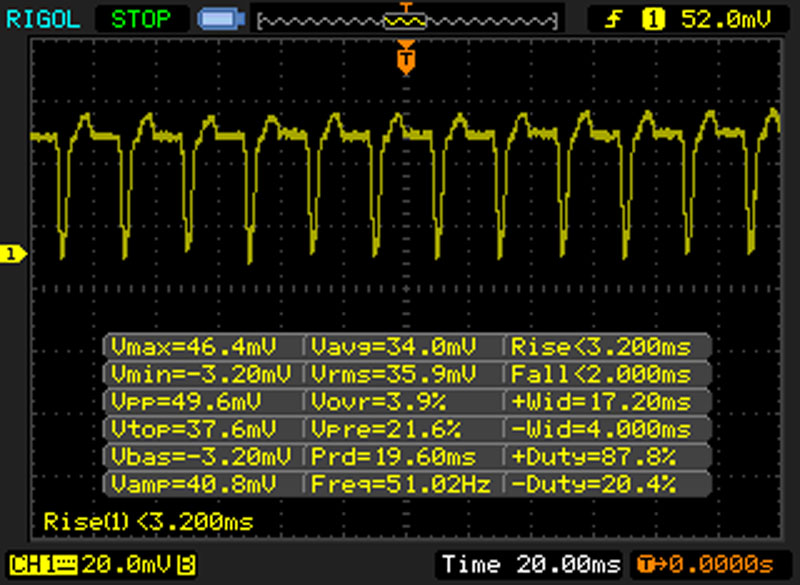

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

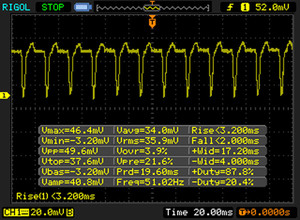

Screen flickering / PWM detected

50 Hz

≤ 70 % brightness setting

The display backlight flickers at 50 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 70 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 50 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.


270 cd/m²	286 cd/m²	284 cd/m²
259 cd/m²	300 cd/m²	271 cd/m²
275 cd/m²	317 cd/m²	291 cd/m²

Distribution of brightness

CMN1137 tested with X-Rite i1Pro 2

Maximum: 317 cd/m² (Nits) Average: 283.7 cd/m² Minimum: 4 cd/m²
Brightness Distribution: 82 %
Center on Battery: 300 cd/m²
Contrast: 909:1 (Black: 0.33 cd/m²)
ΔE Color 7.87 | 0.5-29.43 Ø4.93
ΔE Greyscale 8.45 | 0.5-98 Ø5.2
64% sRGB (Argyll 1.6.3 3D)
41% AdobeRGB 1998 (Argyll 1.6.3 3D)
45.17% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.2% sRGB (Argyll 2.2.0 3D)
43.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.42

Download ICC File (X-Rite i1Pro 2)

	Lenovo Yoga 700-11ISK HD Graphics 515, 6Y30, Samsung SSD PM871 MZNLN256HCHP	HP Pavilion x2 12-b000ng HD Graphics 515, 6Y30, SanDisk Z400s SD8SNAT-128G	Acer Aspire Switch Alpha 12 SA5-271-56HM HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2	Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	Lenovo Yoga 3 11 80J8001WGE HD Graphics 5300, 5Y10c, Lite-On IT L8T-128L9G
Display		17%	49%	53%	2%
Display P3 Coverage	43.6	53.2 22%	65.5 50%	67.5 55%	44.54 2%
sRGB Coverage	64.2	72.4 13%	96.1 50%	96.6 50%	65.7 2%
AdobeRGB 1998 Coverage	45.17	52.9 17%	66.9 48%	69 53%	46.15 2%
Response Times		-54%	611%	-54%
Response Time Grey 50% / Grey 80% *	23 ?(13, 10)	38 ?(17, 21) -65%	20 ?(5, 15, detail 5 schraffiert) 13%	46 ?(17.2, 28.8) -100%
Response Time Black / White *	19 ?(11, 8)	27 ?(14, 13) -42%	34 ?(15, 19, PWM@100% mit/ohne PSU) -79%	31 ?(6, 25.2) -63%
PWM Frequency	50 ?(70)		1000 ?(100) 1900%	50 ?(50) 0%
Screen		7%	17%	41%	-0%
Brightness middle	300	314 5%	345 15%	389.2 30%	290 -3%
Brightness	284	308 8%	328 15%	392 38%	286 1%
Brightness Distribution	82	93 13%	91 11%	92 12%	86 5%
Black Level *	0.33	0.48 -45%	0.38 -15%	0.27 18%	0.42 -27%
Contrast	909	654 -28%	908 0%	1441 59%	690 -24%
Colorchecker dE 2000 *	7.87	6.12 22%	8.4 -7%	3.61 54%	6.5 17%
Colorchecker dE 2000 max. *	17.75	10.92 38%	11.9 33%
Greyscale dE 2000 *	8.45	6.1 28%	4.3 49%	3.8 55%	6.35 25%
Gamma	2.42 ^91%	2.35 ^94%	2.63 ^84%	2.16 ^102%	2.44 ^90%
CCT	6856 ^95%	7391 ^88%	7368 ^88%	5969 ^109%	7156 ^91%
Color Space (Percent of AdobeRGB 1998)	41	46.81 14%	62 51%	63 54%	42 2%
Color Space (Percent of sRGB)	64	71.74 12%		97 52%	65 2%
Total Average (Program / Settings)		-10% / 1%	226% / 142%	13% / 24%	1% / 0%

* ... smaller is better

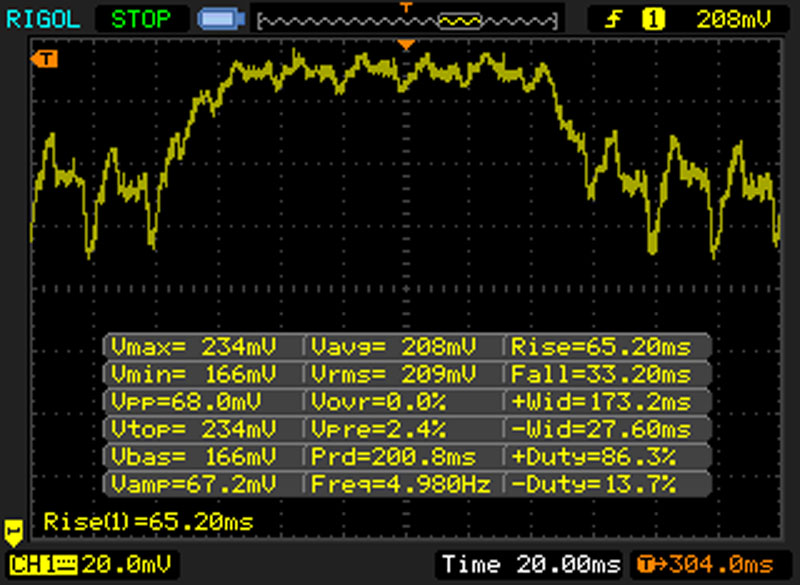

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

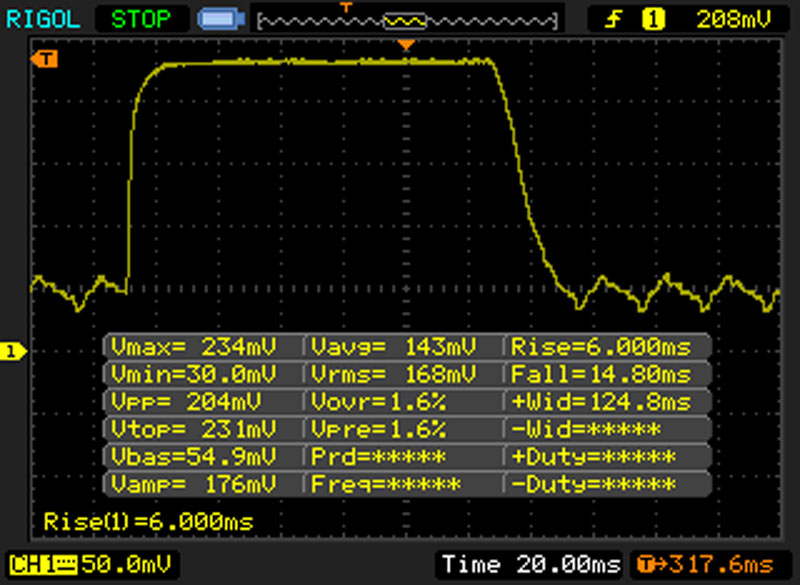

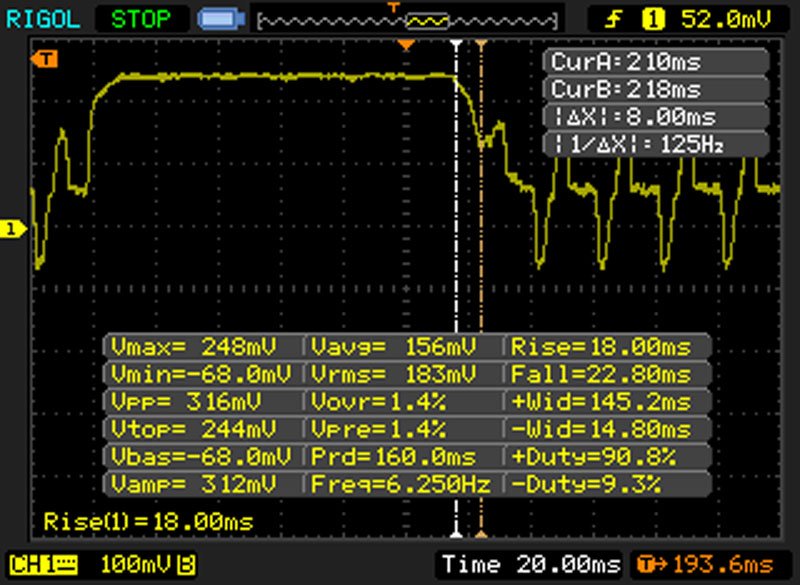

↔ Response Time Black to White
19 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
19 ms ... rise ↗ and fall ↘ combined	↘ 8 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms).

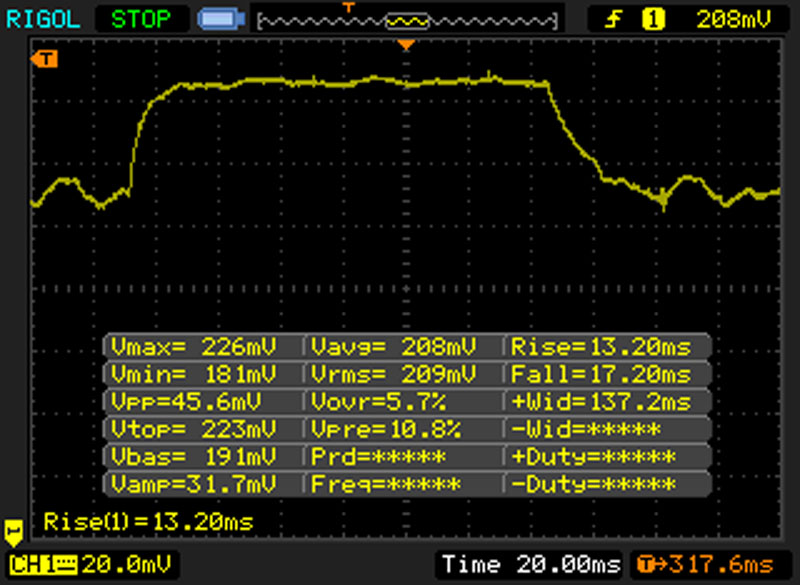

↔ Response Time 50% Grey to 80% Grey
23 ms ... rise ↗ and fall ↘ combined	↗ 13 ms rise
23 ms ... rise ↗ and fall ↘ combined	↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms).

Cinebench R15
CPU Multi 64Bit
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel Core i5-6200U	289 Points +198%
HP Pavilion x2 12-b000ng Intel Core m3-6Y30	216 Points +123%
Microsoft Surface Pro 4, Core m3 Intel Core m3-6Y30	206 Points +112%
Lenovo Yoga 3 11 80J8001WGE Intel Core M-5Y10c	131 Points +35%
Lenovo Yoga 700-11ISK Intel Core m3-6Y30	97 Points
CPU Single 64Bit
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel Core i5-6200U	114 Points +61%
HP Pavilion x2 12-b000ng Intel Core m3-6Y30	92 Points +30%
Microsoft Surface Pro 4, Core m3 Intel Core m3-6Y30	88 Points +24%
Lenovo Yoga 700-11ISK Intel Core m3-6Y30	71 Points
Lenovo Yoga 3 11 80J8001WGE Intel Core M-5Y10c	57 Points -20%

Cinebench R15 CPU Single 64Bit

71 Points

Cinebench R15 CPU Multi 64Bit

97 Points

Cinebench R15 OpenGL 64Bit

18.93 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Help

... in comparison

PCMark 8
Home Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, 4096, Kingston RBU-SNS8152S3256GG2	3281 Points +25%
HP Pavilion x2 12-b000ng 6Y30, 4096, SanDisk Z400s SD8SNAT-128G	2831 Points +8%
Lenovo Yoga 700-11ISK 6Y30, 4096, Samsung SSD PM871 MZNLN256HCHP	2625 Points
Microsoft Surface Pro 4, Core m3 6Y30, 4096, Samsung MZFLV128 NVMe	2426 Points -8%
Lenovo Yoga 3 11 80J8001WGE 5Y10c, 8192, Lite-On IT L8T-128L9G	2114 Points -19%
Creative Score Accelerated v2
Lenovo Yoga 700-11ISK 6Y30, 4096, Samsung SSD PM871 MZNLN256HCHP	3202 Points
HP Pavilion x2 12-b000ng 6Y30, 4096, SanDisk Z400s SD8SNAT-128G	3198 Points 0%
Microsoft Surface Pro 4, Core m3 6Y30, 4096, Samsung MZFLV128 NVMe	2968 Points -7%
Work Score Accelerated v2
Acer Aspire Switch Alpha 12 SA5-271-56HM 6200U, 4096, Kingston RBU-SNS8152S3256GG2	3996 Points +7%
HP Pavilion x2 12-b000ng 6Y30, 4096, SanDisk Z400s SD8SNAT-128G	3773 Points +1%
Lenovo Yoga 700-11ISK 6Y30, 4096, Samsung SSD PM871 MZNLN256HCHP	3729 Points
Lenovo Yoga 3 11 80J8001WGE 5Y10c, 8192, Lite-On IT L8T-128L9G	3253 Points -13%
Microsoft Surface Pro 4, Core m3 6Y30, 4096, Samsung MZFLV128 NVMe	3186 Points -15%

PCMark 8 Home Score Accelerated v2		2625 points
PCMark 8 Creative Score Accelerated v2		3202 points
PCMark 8 Work Score Accelerated v2		3729 points
Help

	Lenovo Yoga 700-11ISK Samsung SSD PM871 MZNLN256HCHP	HP Pavilion x2 12-b000ng SanDisk Z400s SD8SNAT-128G	Acer Aspire Switch Alpha 12 SA5-271-56HM Kingston RBU-SNS8152S3256GG2	Microsoft Surface Pro 4, Core m3 Samsung MZFLV128 NVMe	Lenovo Yoga 3 11 80J8001WGE Lite-On IT L8T-128L9G
CrystalDiskMark 3.0		-33%	-13%	-19%	-15%
Write 4k QD32	268.6	173.2 -36%	197.1 -27%	149.2 -44%	216.7 -19%
Read 4k QD32	324.2	136.4 -58%	272 -16%	243.7 -25%	222.3 -31%
Write 4k	73.6	57.9 -21%	76.8 4%	68 -8%	34.96 -52%
Read 4k	31.27	21.12 -32%	29.3 -6%	30.14 -4%	23 -26%
Write 512	301.9	176.2 -42%	201 -33%	158.2 -48%	318.9 6%
Read 512	385.7	226.2 -41%	374.9 -3%	313.1 -19%	352.4 -9%
Write Seq	302.8	184.3 -39%	199.9 -34%	158.2 -48%	322 6%
Read Seq	456.2	477.3 5%	518 14%	663 45%	468.7 3%

CrystalDiskMark 3.0

AS SSD

Samsung SSD PM871 MZNLN256HCHP

Sequential Read: 456.2 MB/s

Sequential Write: 302.8 MB/s

512K Read: 385.7 MB/s

512K Write: 301.9 MB/s

4K Read: 31.27 MB/s

4K Write: 73.6 MB/s

4K QD32 Read: 324.2 MB/s

4K QD32 Write: 268.6 MB/s

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	1585 Points +74%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	1344 Points +48%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	1260 Points +38%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	911 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	498 Points -45%
1280x720 Performance GPU
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	1428 Points +65%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	1206 Points +40%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	1133 Points +31%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	863 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	458 Points -47%

3DMark
1280x720 Cloud Gate Standard Score
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	5608 Points +107%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	4604 Points +70%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	4330 Points +60%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	2705 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	1361 Points -50%
1280x720 Cloud Gate Standard Graphics
Acer Aspire Switch Alpha 12 SA5-271-56HM Intel HD Graphics 520	7307 Points +68%
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	6597 Points +51%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	6178 Points +42%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	4357 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	2895 Points -34%
1920x1080 Fire Strike Score
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	740 Points +59%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	671 Points +44%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	466 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	331 Points -29%
1920x1080 Fire Strike Graphics
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515	810 Points +56%
HP Pavilion x2 12-b000ng Intel HD Graphics 515	740 Points +43%
Lenovo Yoga 700-11ISK Intel HD Graphics 515	519 Points
Lenovo Yoga 3 11 80J8001WGE Intel HD Graphics 5300	389 Points -25%

3DMark 11 Performance		911 points
3DMark Cloud Gate Standard Score		2705 points
3DMark Fire Strike Score		466 points
Help

... in comparison

	low	med.
Tomb Raider (2013)	27.9	14.8
BioShock Infinite (2013)	21.8	12
The Witcher 3 (2015)	5.1

Max. Load

Idle


34.4 °C	36.8 °C	33.8 °C
32 °C	34 °C	31.3 °C
27.1 °C	26.2 °C	27.7 °C

Maximum: 36.8 °C
Average: 31.5 °C


35.7 °C	42 °C	37 °C
30.4 °C	35 °C	31.9 °C
27.1 °C	27.4 °C	27.1 °C

Maximum: 42 °C
Average: 32.6 °C

Power Supply (max.) 39.2 °C | Room Temperature 22 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 42 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.6 °C / 85 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+0.3 °C / 0.6 F).

Power Consumption

Off / Standby	0.35 / 0.45 Watt
Idle	4.3 / 7.1 / 7.2 Watt
Load	14.6 / 15.7 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo Yoga 700-11ISK 40 Wh	HP Pavilion x2 12-b000ng 33 Wh	Acer Aspire Switch Alpha 12 SA5-271-56HM 37 Wh	Lenovo Yoga 3 11 80J8001WGE 34 Wh
Power Consumption		-28%	-62%	23%
Idle Minimum *	4.3	5.3 -23%	7.3 -70%	2.9 33%
Idle Average *	7.1	8.2 -15%	10 -41%	5.5 23%
Idle Maximum *	7.2	9 -25%	10.15 -41%	5.7 21%
Load Average *	14.6	20.7 -42%	25.2 -73%	11.3 23%
Load Maximum *	15.7	21.4 -36%	29.3 -87%	13.6 13%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		14h 24min
WiFi Websurfing		6h 57min
Big Buck Bunny H.264 1080p		7h 42min
Load (maximum brightness)		3h 46min

	Lenovo Yoga 700-11ISK 40 Wh	HP Pavilion x2 12-b000ng 33 Wh	Acer Aspire Switch Alpha 12 SA5-271-56HM 37 Wh	Microsoft Surface Pro 4, Core m3 38 Wh	Lenovo Yoga 3 11 80J8001WGE 34 Wh
Battery Runtime		-41%	-25%	-10%	7%
Reader / Idle	864	474 -45%	640 -26%	791 -8%	856 -1%
H.264	462	311 -33%	468 1%
WiFi v1.3	417	285 -32%	321 -23%	488 17%	443 6%
Load	226	109 -52%	112 -50%	138 -39%	260 15%

Pros

+ 小而多用

+ 明亮的IPS屏

+ 低温

+ 操作时低温

+ 良好的电池运行时间

Cons

- 由于散热方案而造成的低性能

- 输入设备不良

- 非常低频率的屏幕闪烁

- 机身不是很稳定

- 只有1个USB 3.0

In review: Lenovo Yoga 700 11ISK. Test model courtesy of Lenovo Germany.

联想Yoga 700-11ISK是一个小而多功能的变形本。与前代相比，得益于更先进的组件，联想提高了性能，特别是改进了媒体播放性能。您仍然应该认为变形本局限于运行简单的应用程序。如果您计划编辑电影或同时运行多个应用程序，该测试机型可能不是正确的选择。

Yoga 700-11ISK的其他优点包括被动散热，因此无操作声。IPS显示屏亮度高，可提供宽广的视角，但某些用户可能会遇到屏幕闪烁的问题。

轻巧便携——联想Yoga 700-11ISK是处理简单事务的好选择，但键盘却令人特别失望。

两个主要的缺点是键盘和性能。输入时，提供的反馈很少，它是我们迄今为止评测的最糟糕的键盘之一。我们还期望它能有更好的性能，因为即使m3处理器在负载下被严重节流，在更合理的散热方案下，它能更为出色。总的来说，在这个价格范围内，有更好的替代品 - 例如，宏碁 Aspire Switch 12 Alpha。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Lenovo Yoga 700-11ISK - 2017-02-07 02/07/2017 v6 ^(old)
Andreas Osthoff

Chassis

82 / 98 → 84%

Keyboard

66%

Pointing Device

76%

Connectivity

42 / 80 → 53%

Weight

74 / 35-78 → 90%

Battery

89%

Display

79%

Games Performance

43 / 68 → 63%

Application Performance

69 / 87 → 79%

Temperature

92%

Noise

100%

Audio

56 / 91 → 62%

Camera

46 / 85 → 54%

Average

70%

81%

Convertible - Weighted Average

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 Yoga 700-11ISK 变形本简短评测

Andreas Osthoff, 2017-02-19 (Update: 2017-02-26)
