联想 Yoga 710-14ISK 变形本简短评测

瑜伽时间? 联想提高赌注,推出了一台新颖的变形本,搭配超低电压处理器和独立显卡。我们将在接下来的详尽测试中考察这个组合的实际效果。
Convertible / 2-in-1 Geforce Laptop / Notebook Skylake Tablet Windows

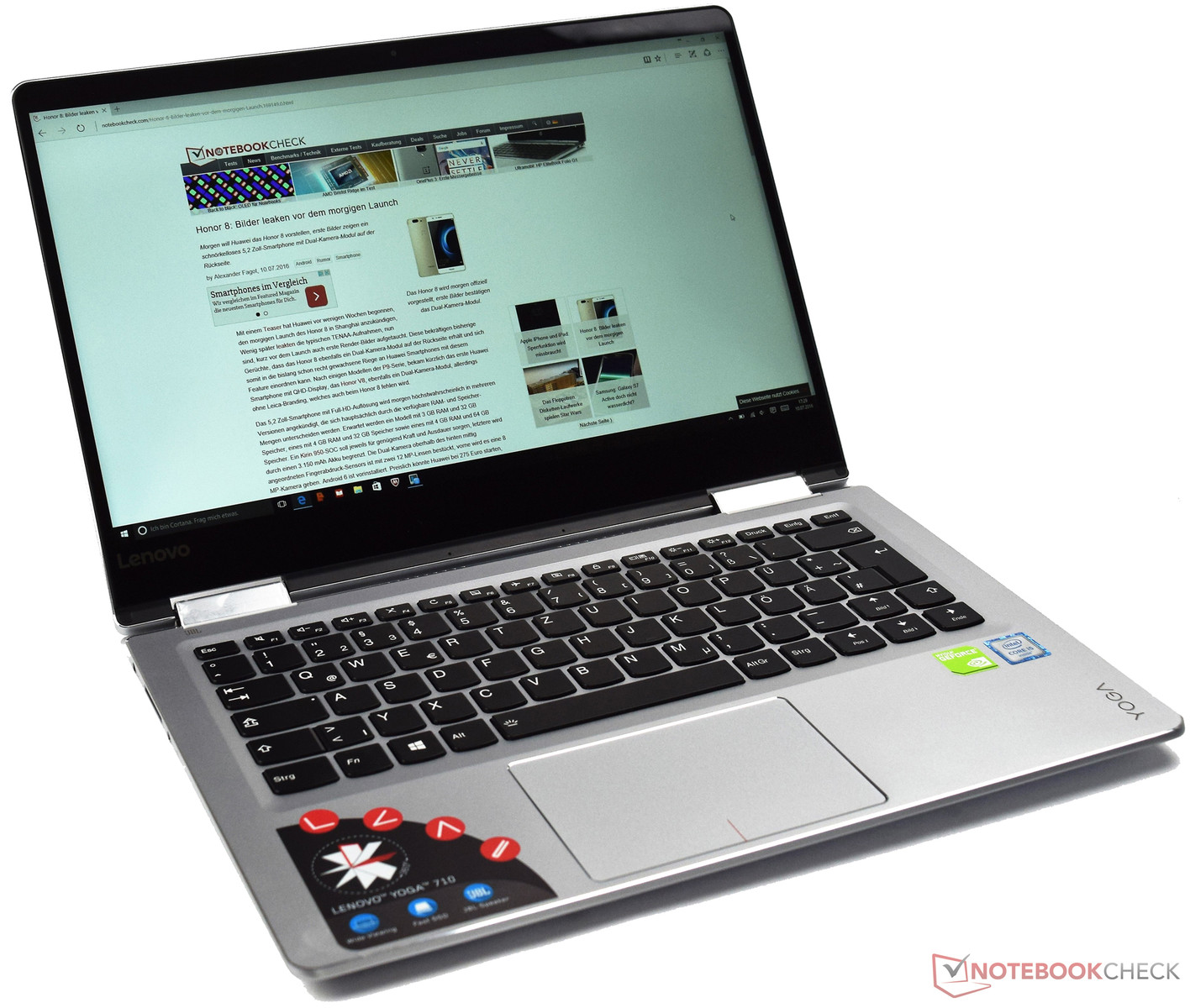

Lenovo Yoga 710-14ISK (Yoga 700 Series)
Processor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Graphics adapter
NVIDIA GeForce 940MX - 2048 MB VRAM, Core: 1242 MHz, RAM: 900 MHz, DDR3 (三星), ForceWare 368.69, Nvidia Optimus, HD Graphics 520
Memory
8 GB
, 2133 MHz, DDR4, 一个内存槽已占用, 单通道
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, 多点触控, AU Optronics B140HAN03.0, a-Si WLED TFT, IPS, glossy: yes
Mainboard
Intel Skylake-U Premium PCH
Storage
Samsung SSD PM871 MZNLN256HCHP, 256 GB
, 180 GB free
Soundcard
Realtek High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: Combo, Card Reader: SD/SDHC/SDXC, Brightness Sensor, Sensors: Lagesensor, Gyroskop
Networking
Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 17.3 x 322 x 223
Battery
53 Wh, 6810 mAh Lithium-Ion
Operating System
Microsoft Windows 10 Home 64 Bit

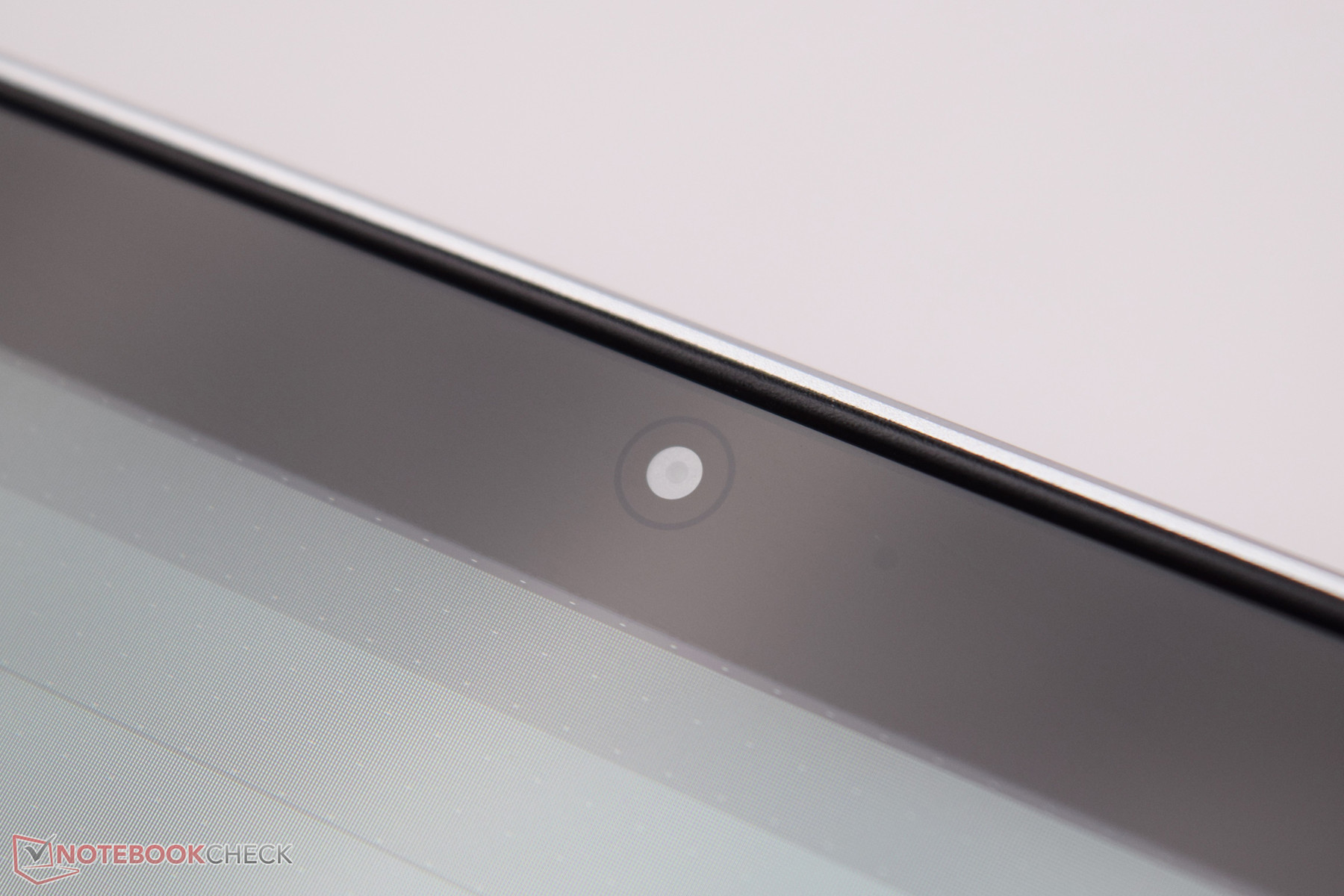

Camera
Webcam: 高清
Additional features
Speakers: JBL 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 电源适配器, Lenovo Solution Center, McAfee Life Safe, Dolby Audio, 24 Months Warranty
Weight
1.6 kg, Power Supply: 230 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



382 mm 250 mm 23.9 mm 2.2 kg378 mm 253 mm 21.35 mm 2.1 kg334.8 mm 229.4 mm 18.3 mm 1.7 kg322 mm 223 mm 17.3 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo Yoga 710-14ISK

77.8 MB/s
Lenovo Yoga 510-15ISK

74.2 MB/s -5%
HP Envy 15-w103ng x360

68.4 MB/s -12%
maximum AS SSD Seq Read Test (1GB)
HP Envy 15-w103ng x360

88 MB/s +1%
Lenovo Yoga 710-14ISK

87.1 MB/s
Lenovo Yoga 510-15ISK

85.1 MB/s -2%
Networking
WiFi Speed Client 1m
WiFi Speed Server 1m
301
cd/m²
299
cd/m²
299
cd/m²
293
cd/m²
325
cd/m²
289
cd/m²
289
cd/m²
305
cd/m²
285
cd/m²
Distribution of brightness
AU Optronics B140HAN03.0 tested with X-Rite i1Pro 2
Maximum: 325 cd/m² (Nits) Average: 298.3 cd/m² Minimum: 4.7 cd/m²
Brightness Distribution: 88 %
Center on Battery: 325 cd/m²
Contrast: 929:1 (Black: 0.35 cd/m²)
ΔE Color 6.2 | 0.5-29.43 Ø4.93
ΔE Greyscale 6.32 | 0.5-98 Ø5.2
90% sRGB (Argyll 1.6.3 3D)
58% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.3
Lenovo Yoga 710-14ISK
AU Optronics B140HAN03.0, , 1920x1080, 14"
Lenovo Yoga 510-15ISK
BOE HF NV156FHM-N42, , 1920x1080, 15.6"
Lenovo Yoga 3 14-80JH0035GE
LG Philips LGD047A (LP140WF3-SPL2), , 1920x1080, 14"
HP Envy 15-w103ng x360
LG Philips, , 1920x1080, 15.6"
Display
Display P3 Coverage
42.58
39.31
39.97
sRGB Coverage
63.9
58.8
59.8
AdobeRGB 1998 Coverage
43.99
40.65
41.32
Response Times
-11%
2%
Response Time Grey 50% / Grey 80% *
35 ?(16, 19)
43.2 ?(19.6, 23.6)
-23%
37 ?(38, 36)
-6%
Response Time Black / White *
31 ?(9, 22)
30.8 ?(17.6, 13.2)
1%
28 ?(24, 32)
10%
PWM Frequency
50 ?(50)
Screen
2%
-2%
-18%
Brightness middle
325
254
-22%
239
-26%
208
-36%
Brightness
298
230
-23%
227
-24%
205
-31%
Brightness Distribution
88
86
-2%
88
0%
80
-9%
Black Level *
0.35
0.26
26%
0.21
40%
0.26
26%
Contrast
929
977
5%
1138
22%
800
-14%
Colorchecker dE 2000 *
6.2
4.23
32%
5.4
13%
6.97
-12%
Colorchecker dE 2000 max. *
10.82
9.5
12%
Greyscale dE 2000 *
6.32
2.87
55%
4.71
25%
7.37
-17%
Gamma
2.3 96%
2.35 94%
2.51 88%
2.34 94%
CCT
6926 94%
5965 109%
6354 102%
6823 95%
Color Space (Percent of AdobeRGB 1998)
58
40.35
-30%
37
-36%
38
-34%
Color Space (Percent of sRGB)
90
63.48
-29%
59
-34%
59
-34%
Total Average (Program / Settings)
-5% / 0%
-2% / -2%
-8% / -14%

* ... smaller is better

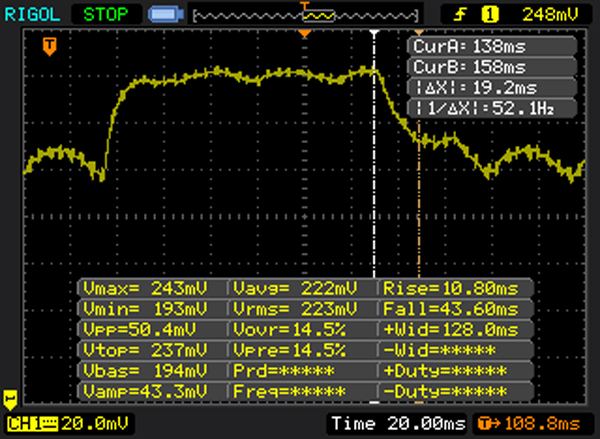

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

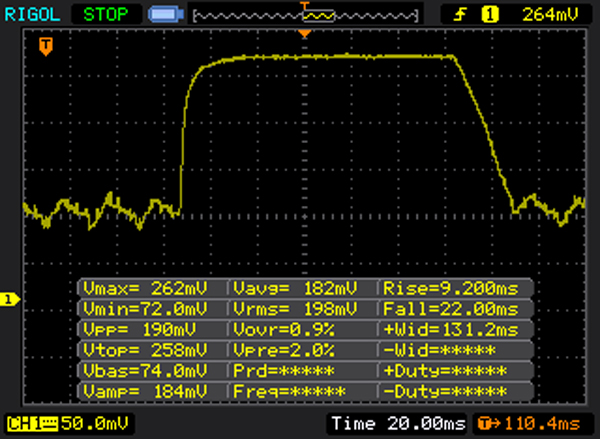

       Response Time Black to White
31 ms ... rise ↗ and fall ↘ combined↗ 9 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).
       Response Time 50% Grey to 80% Grey
35 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 44 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.9 ms).

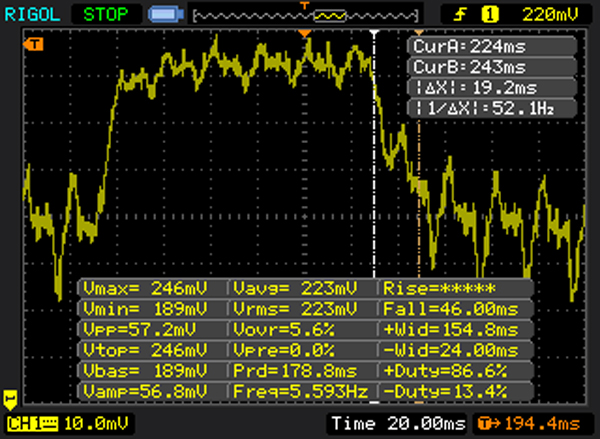

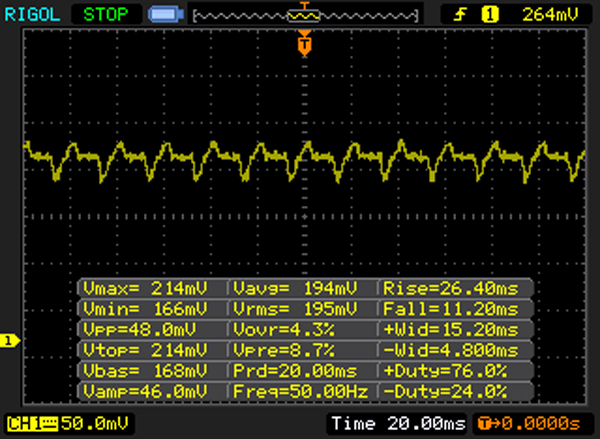

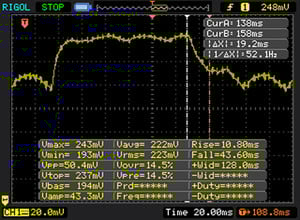

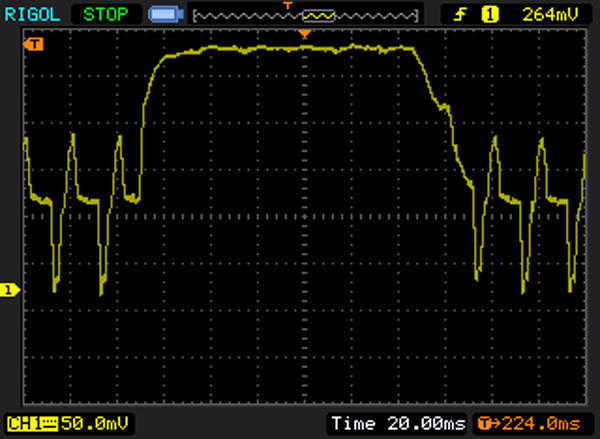

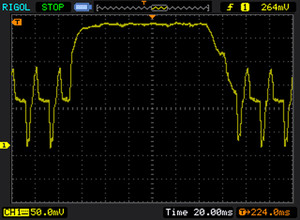

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 50 Hz ≤ 50 % brightness setting

The display backlight flickers at 50 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 50 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 50 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

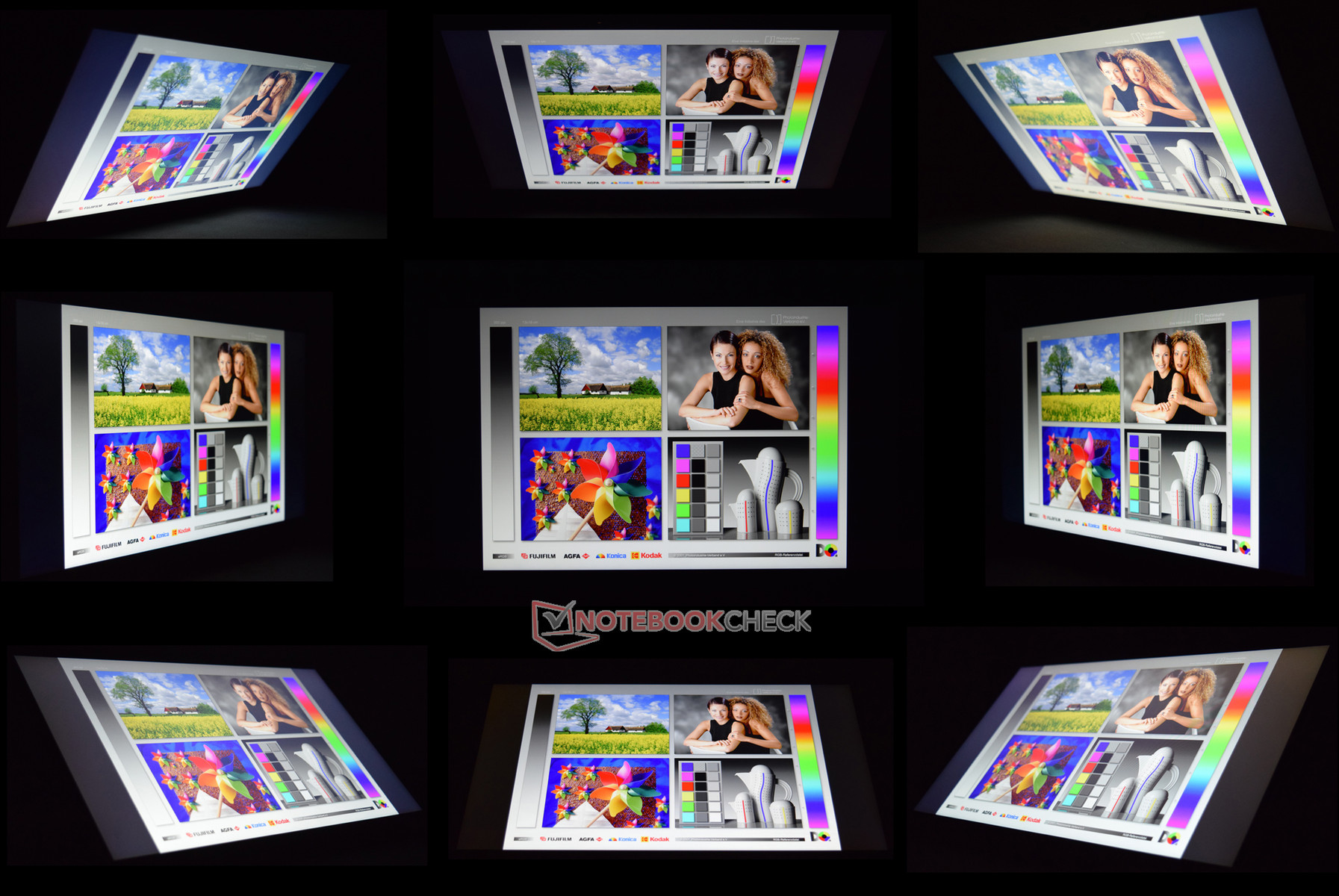

Viewing angles Yoga 710-14ISK
Viewing angles Yoga 710-14ISK

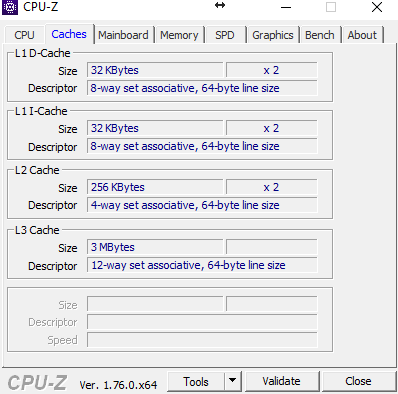

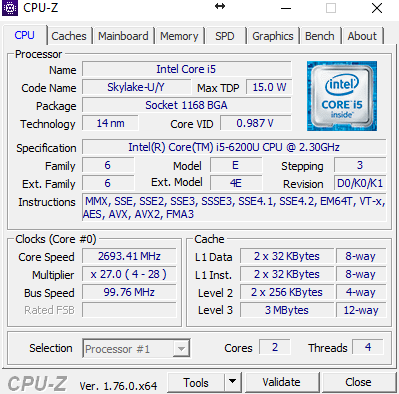

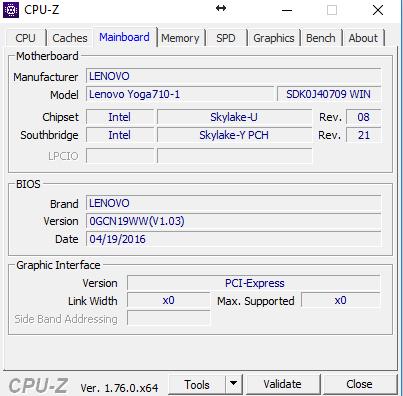

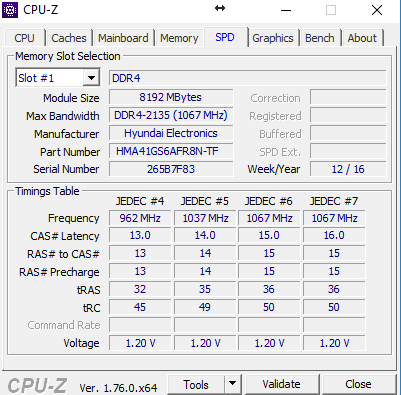

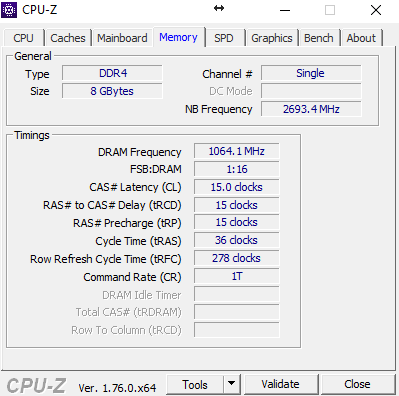

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

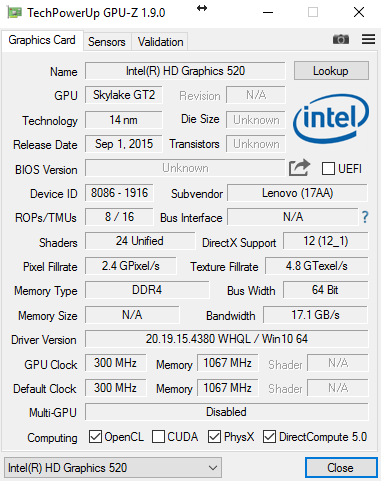

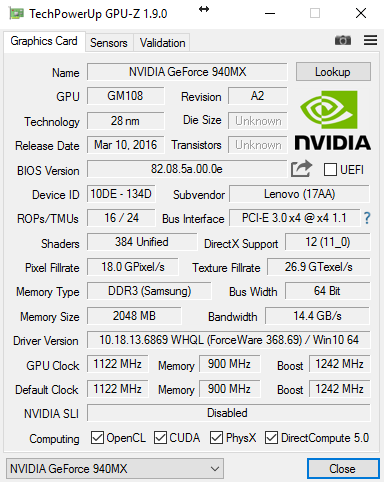

GPU-Z
GPU-Z
HWiNFO

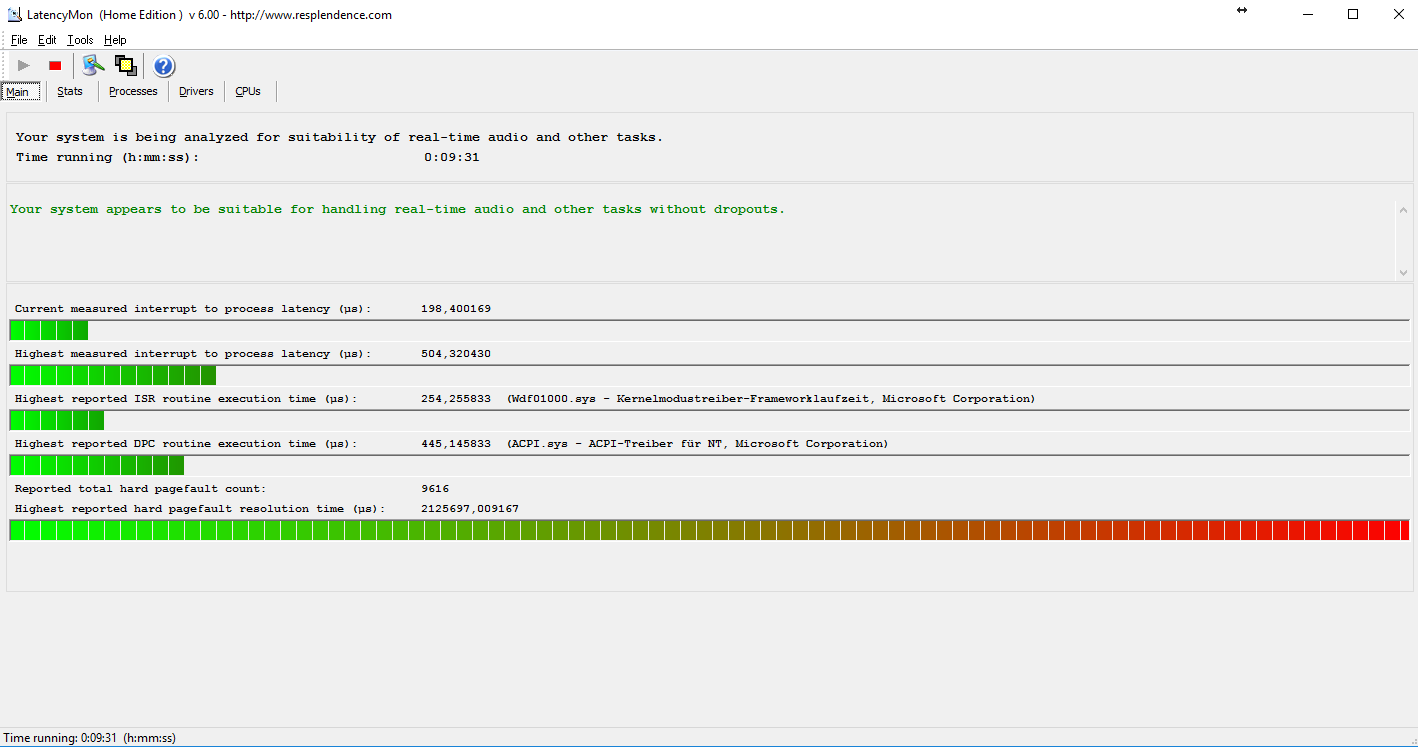

DPC-Latenzen

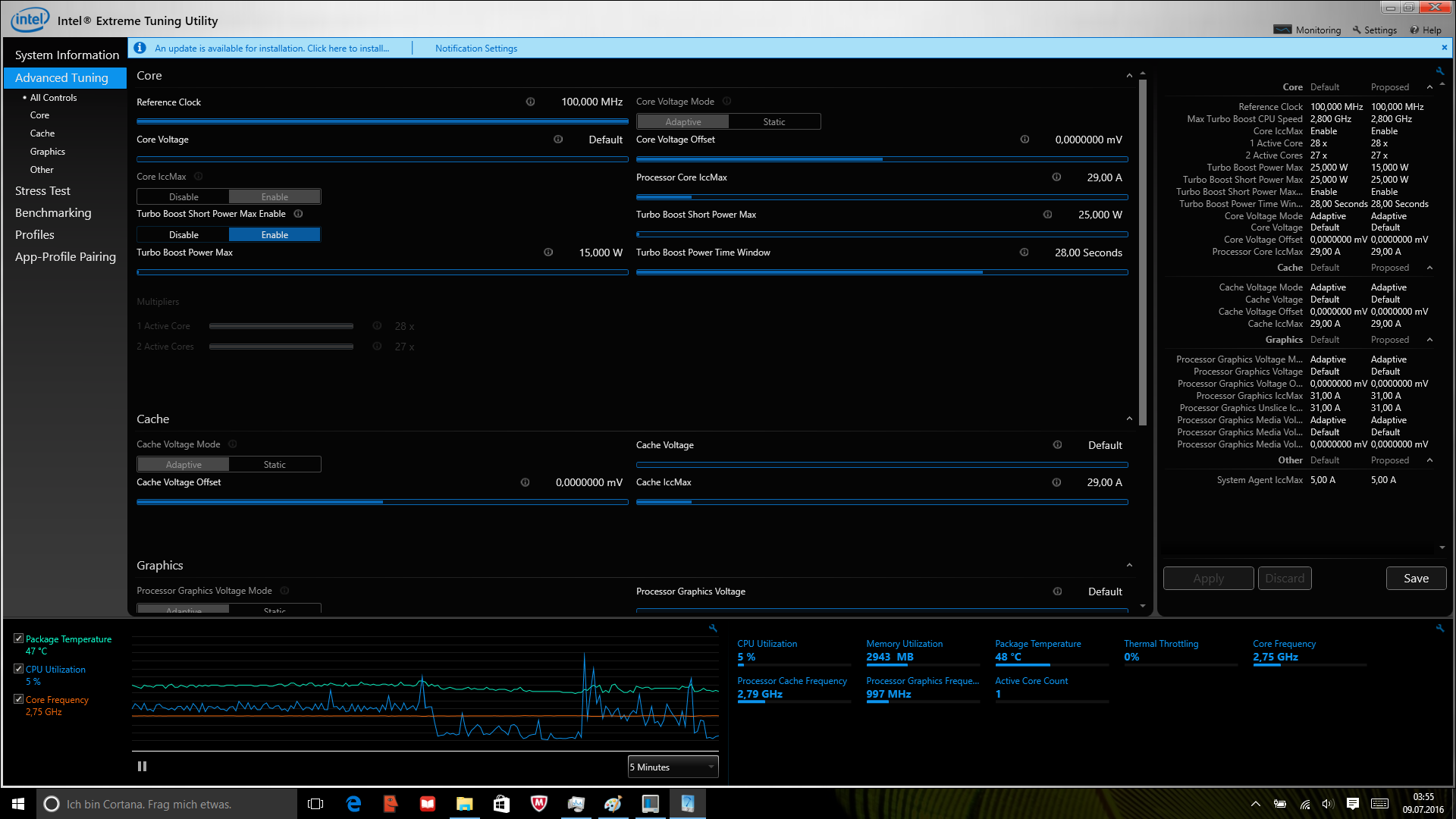

Intel Extreme Tuning Utility

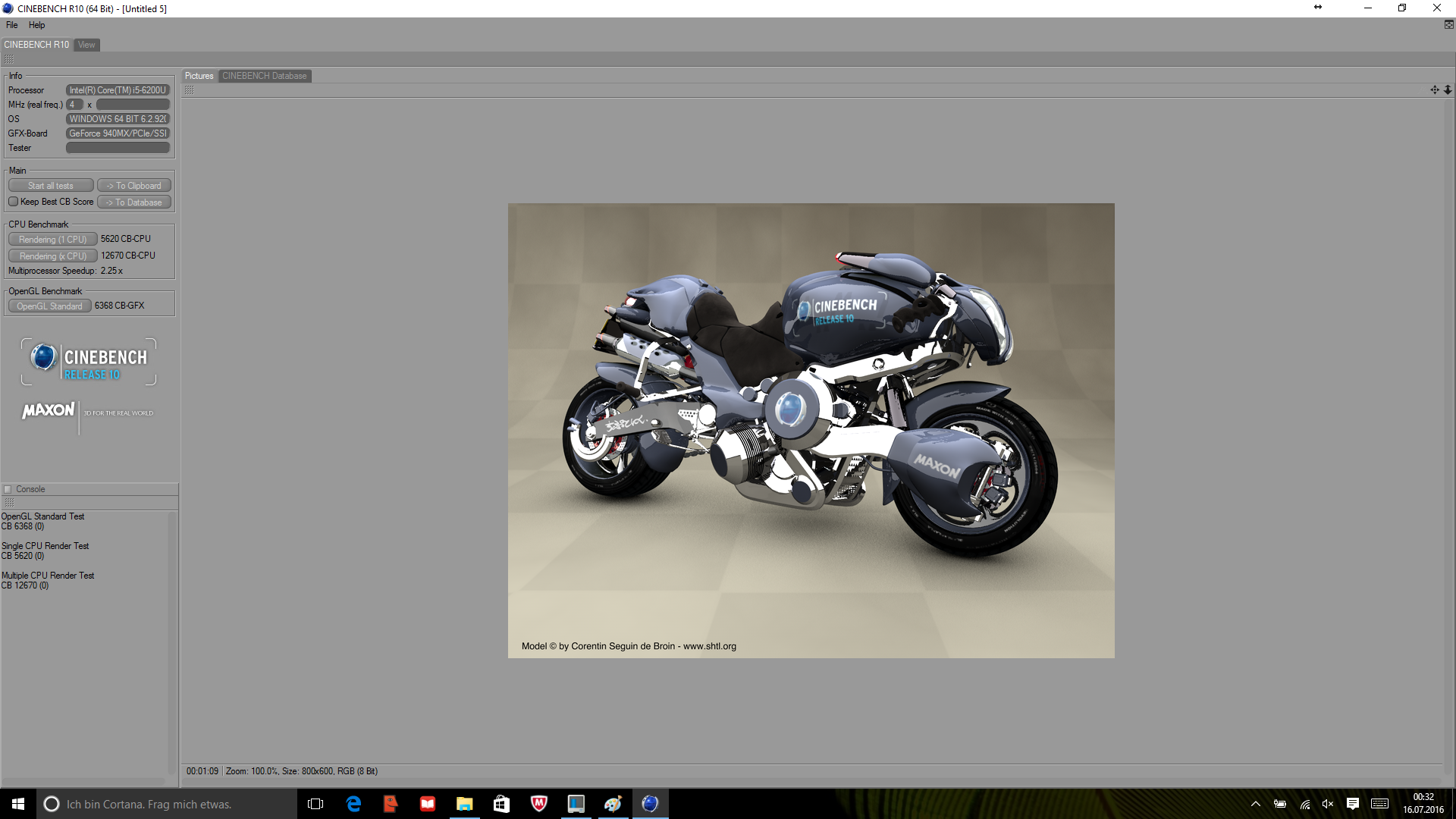

Cinebench R10
Cinebench R10

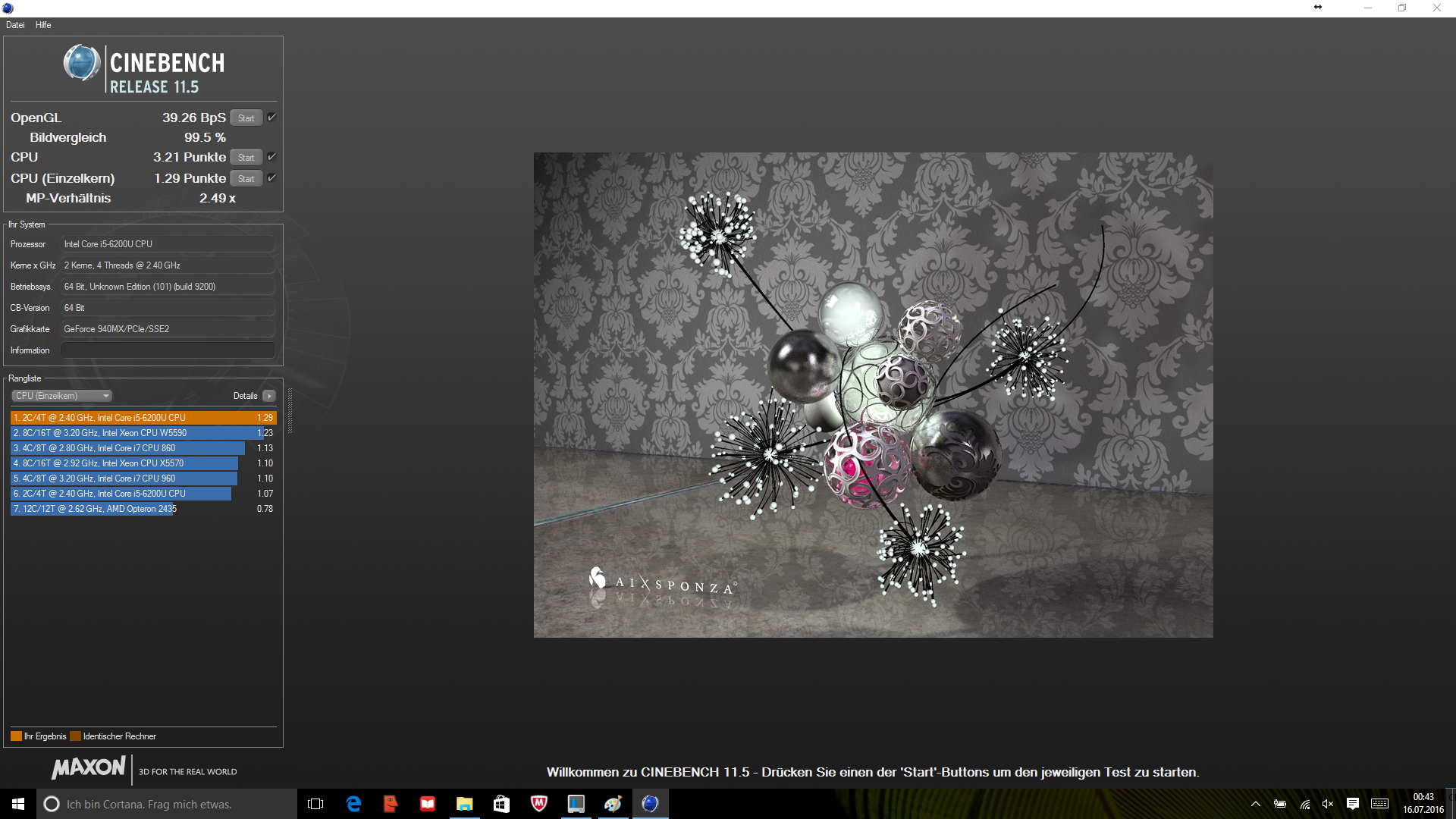

Cinebench R11.5
Cinebench R11.5
Cinebench R15
Cinebench R15

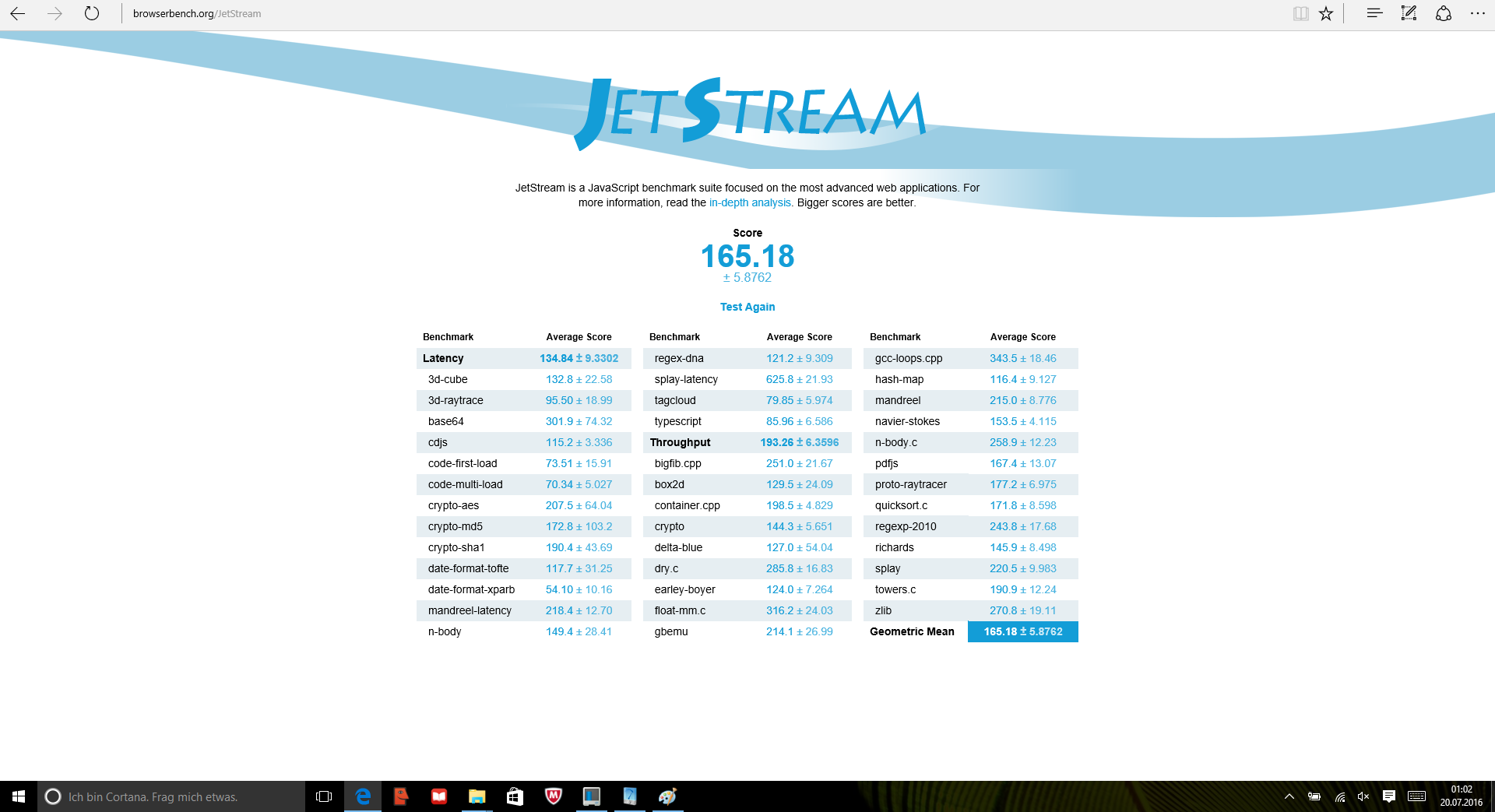

Jetstream 1.1
Jetstream 1.1
Octane V2
Octane V2

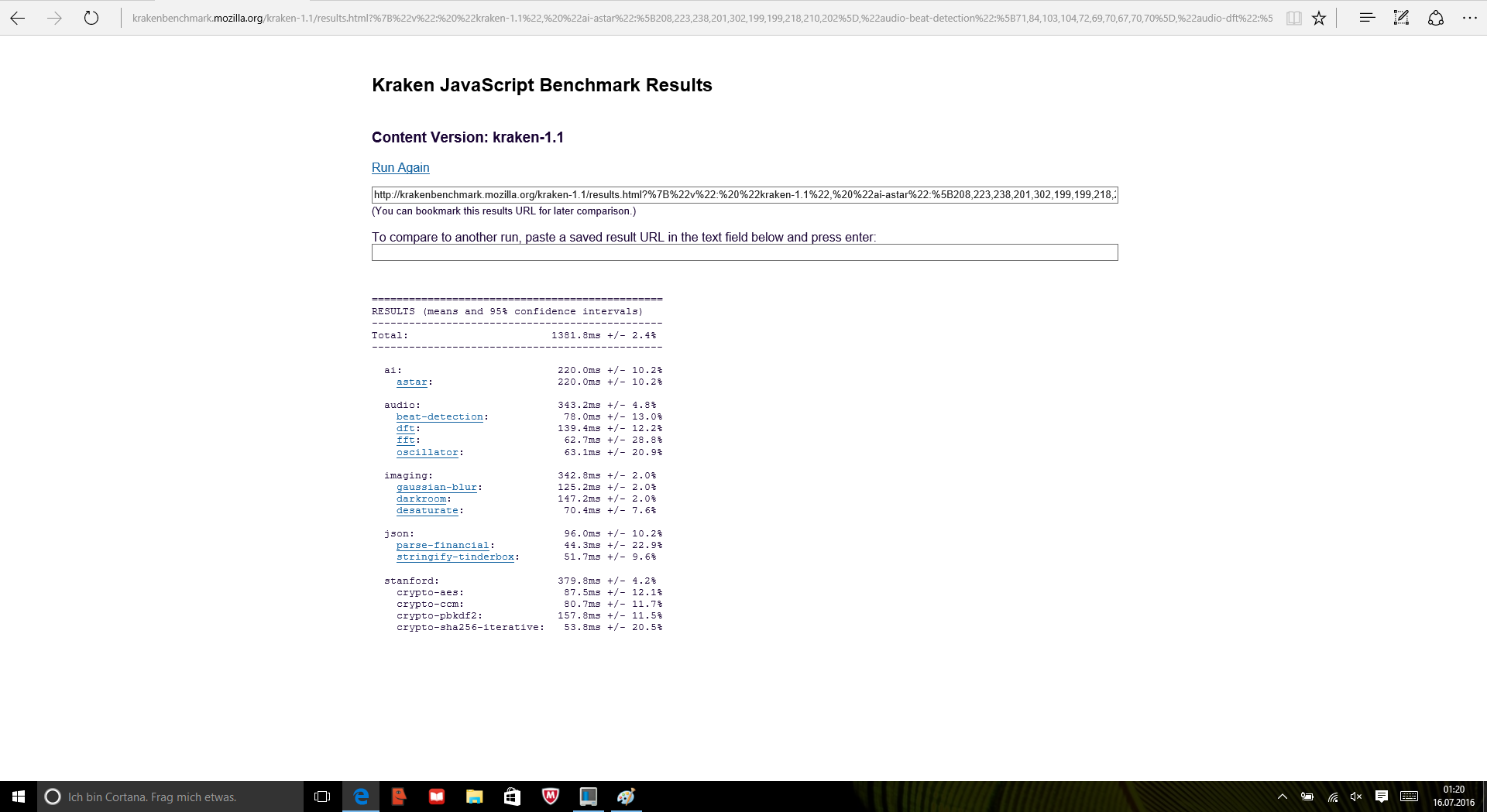

Mozilla Kraken 1.1
Mozilla Kraken 1.1
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
114 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
114 Points 0%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
108 Points -5%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
116 Points +2%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
292 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
289 Points -1%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
254 Points -13%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
292 Points 0%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
1.29 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
1.34 Points +4%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
1.25 Points -3%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
1.3 Points +1%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
3.21 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
3.23 Points +1%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
2.86 Points -11%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
3.2 Points 0%
Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
5620 Points
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
5493 Points -2%
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
12670 Points
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
11307 Points -11%
JetStream 1.1 - Total Score (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
165.2 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
196.9 Points +19%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
192.1 Points +16%

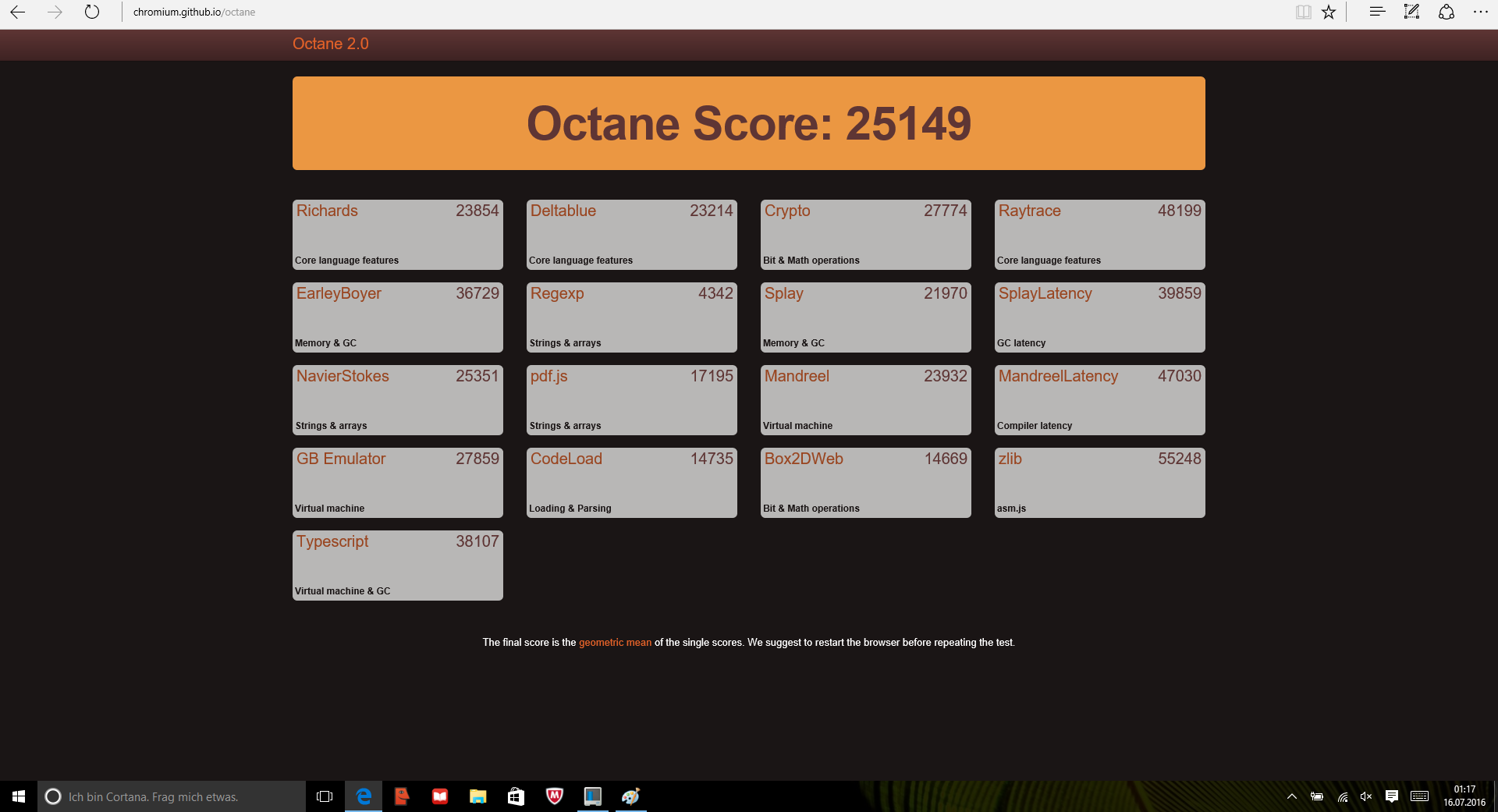

Octane V2 - Total Score (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
25149 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
29126 Points +16%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
12322 Points -51%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
28301 Points +13%
Mozilla Kraken 1.1 - Total (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz
1382 ms *
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz
1232 ms * +11%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz
2588 ms * -87%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz
1265 ms * +8%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit
4336
Cinebench R10 Rendering Multiple CPUs 32Bit
9962
Cinebench R10 Shading 32Bit
6317
Cinebench R10 Shading 64Bit
6368 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
12670 Points
Cinebench R10 Rendering Single CPUs 64Bit
5620 Points
Cinebench R11.5 CPU Multi 64Bit
3.21 Points
Cinebench R11.5 OpenGL 64Bit
39.26 fps
Cinebench R11.5 CPU Single 64Bit
1.29 Points

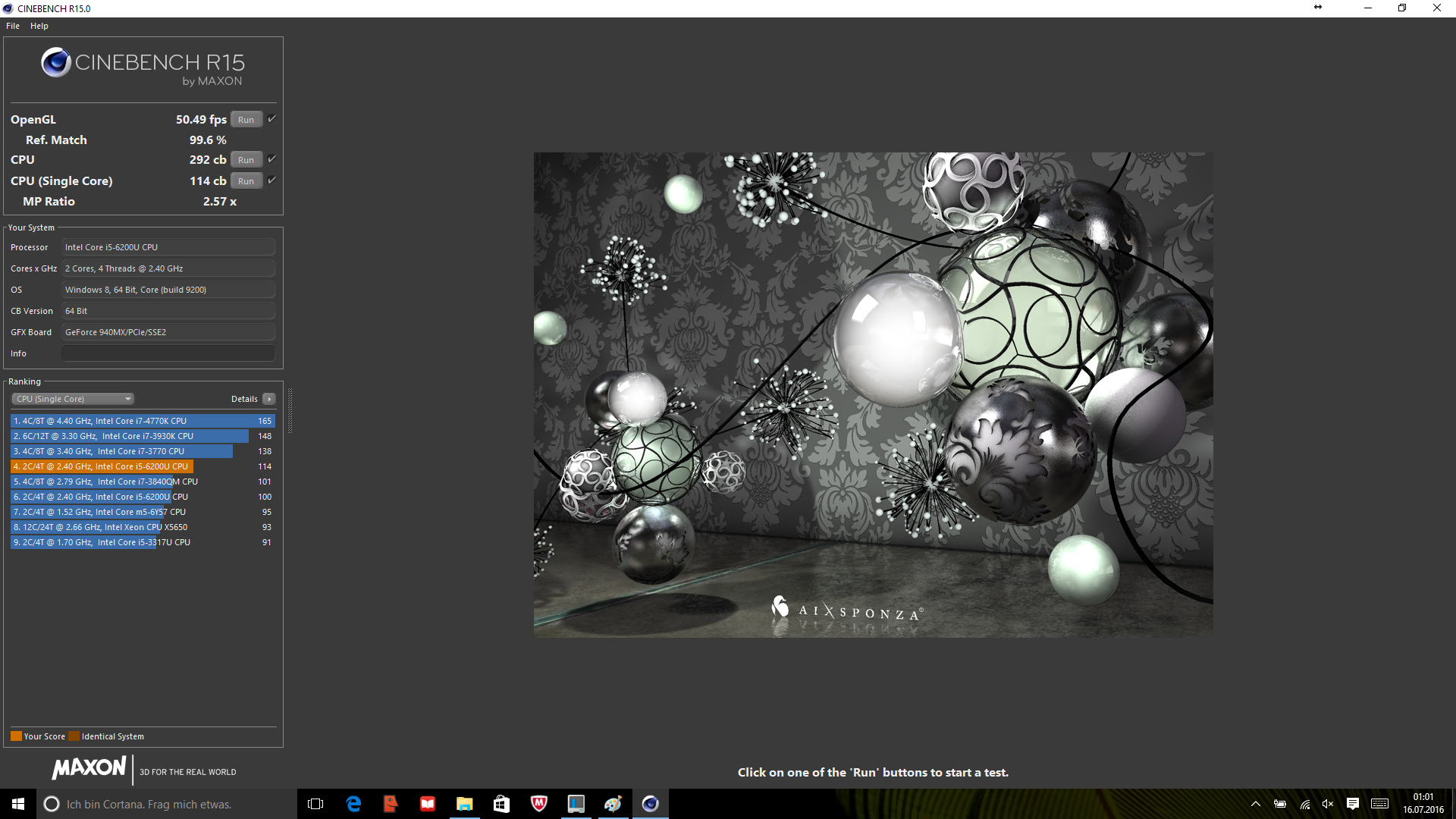

Cinebench R15 CPU Multi 64Bit
292 Points
Cinebench R15 CPU Single 64Bit
114 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
50.5 fps
Help
PCMark 8 Home
PCMark 8 Home
PCMark 8 Creative
PCMark 8 Creative

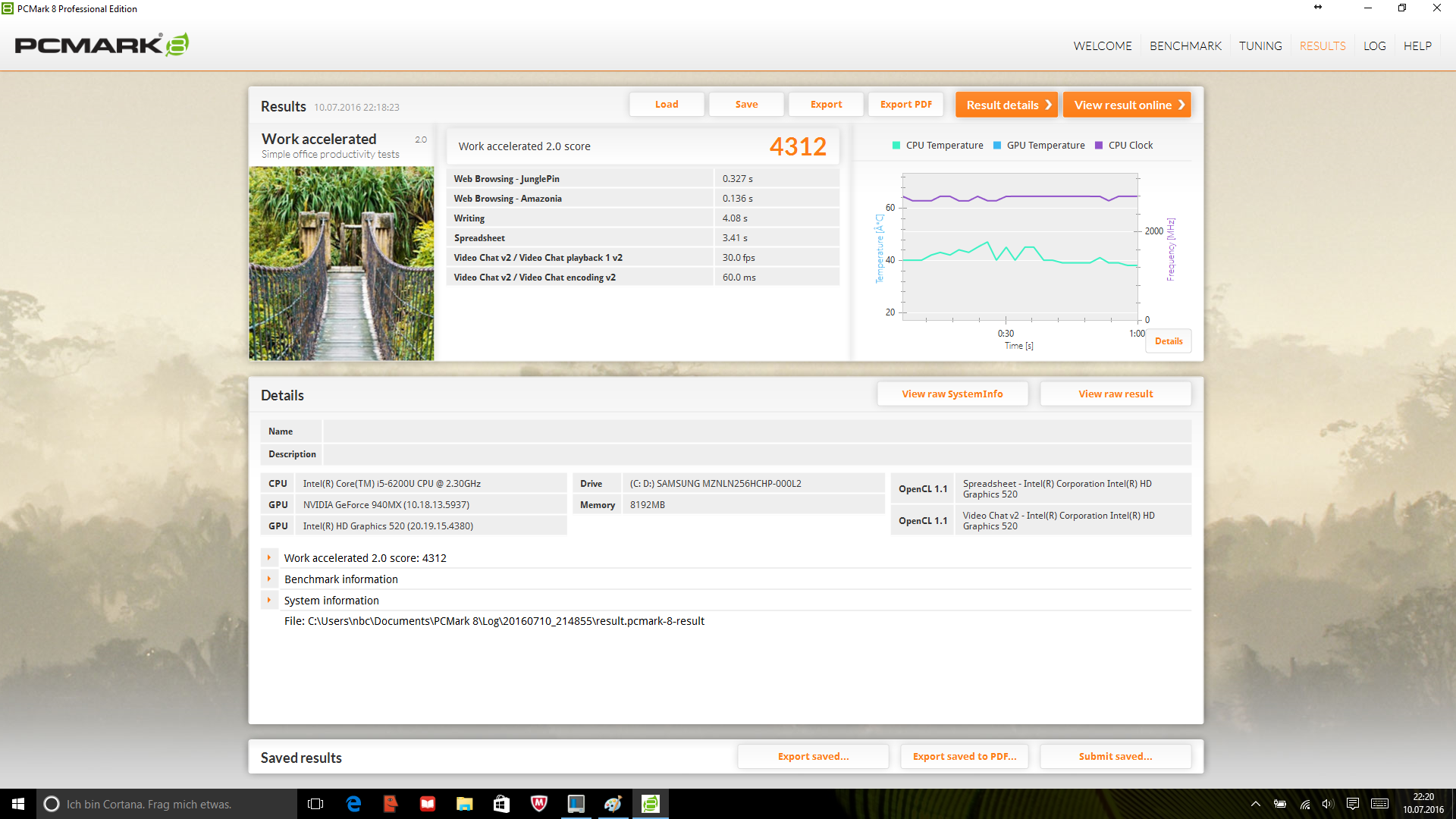

PCMark 8 Work
PCMark 8 Work

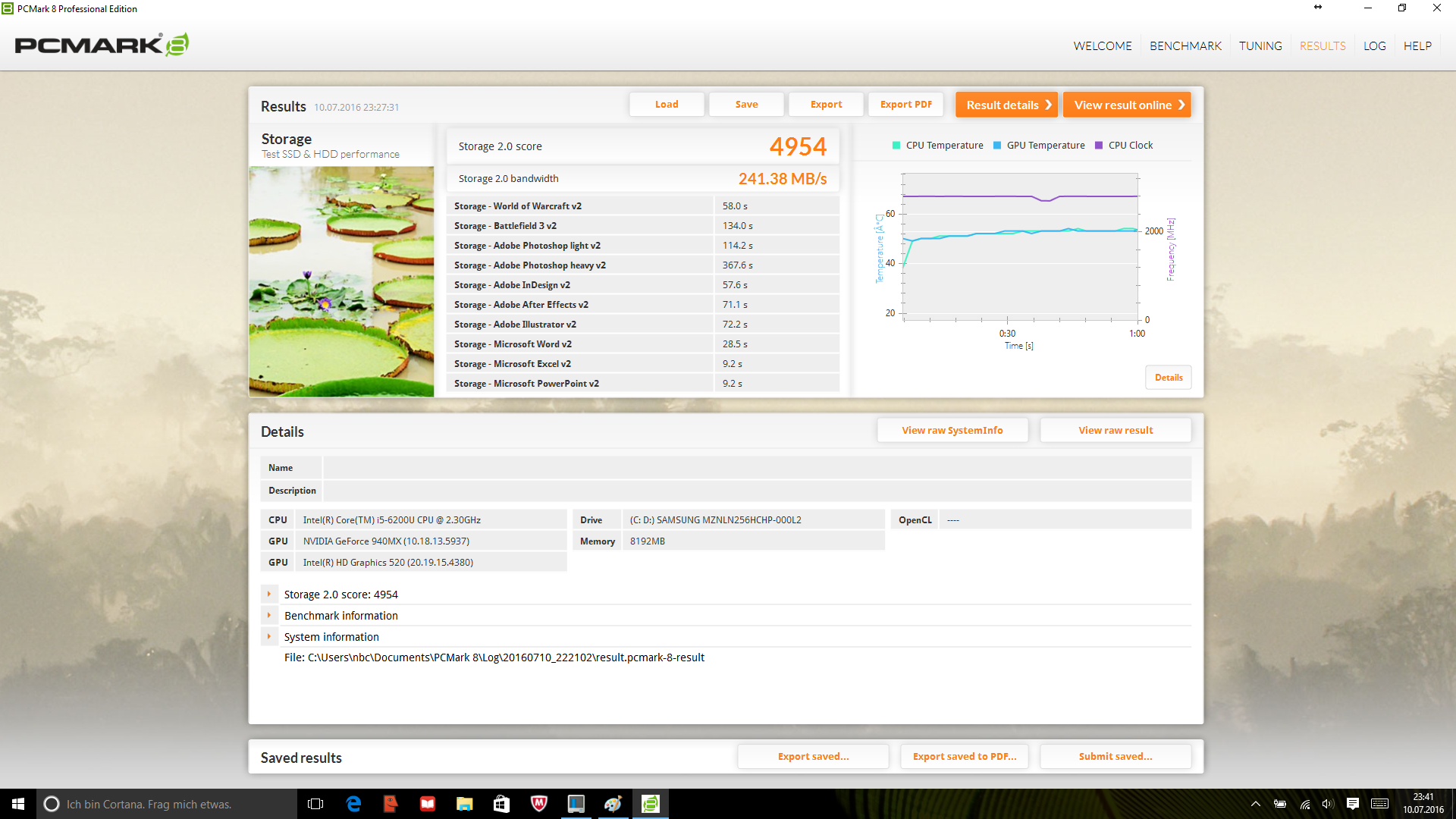

PCMark 8 Storage
PCMark 8 Storage

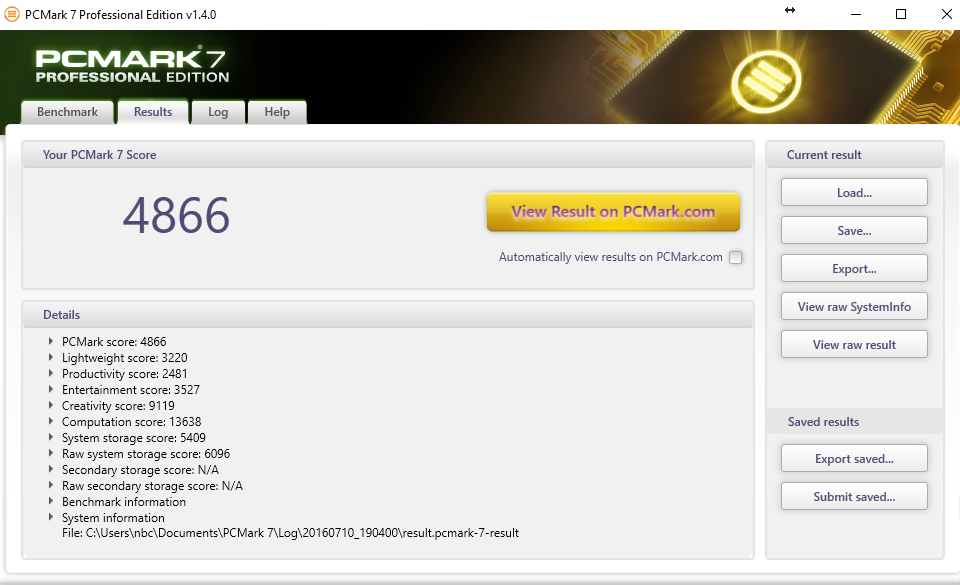

PCMark 7
PCMark 7
PCMark Vantage
PCMark Vantage
PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM871 MZNLN256HCHP
3337 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz, Liteonit CV3-DE256
3651 Points +9%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz, Samsung SSD PM851 256 GB MZYTE256HMHP
3041 Points -9%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
3200 Points -4%
Creative Score Accelerated v2 (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM871 MZNLN256HCHP
3961 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz, Liteonit CV3-DE256
4380 Points +11%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz, Samsung SSD PM851 256 GB MZYTE256HMHP
3583 Points -10%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
3801 Points -4%
Work Score Accelerated v2 (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM871 MZNLN256HCHP
4312 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz, Liteonit CV3-DE256
4555 Points +6%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz, Samsung SSD PM851 256 GB MZYTE256HMHP
4184 Points -3%
HP Envy 15-w103ng x360
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM851 256 GB MZNTE256HMHP
4154 Points -4%
PCMark 7
Score (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM871 MZNLN256HCHP
4866 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz, Liteonit CV3-DE256
5028 Points +3%
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, 2200 MHz, Samsung SSD PM851 256 GB MZYTE256HMHP
4575 Points -6%
Productivity (sort by value)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, 2300 MHz, Samsung SSD PM871 MZNLN256HCHP
2481 Points
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, 2300 MHz, Liteonit CV3-DE256
2362 Points -5%

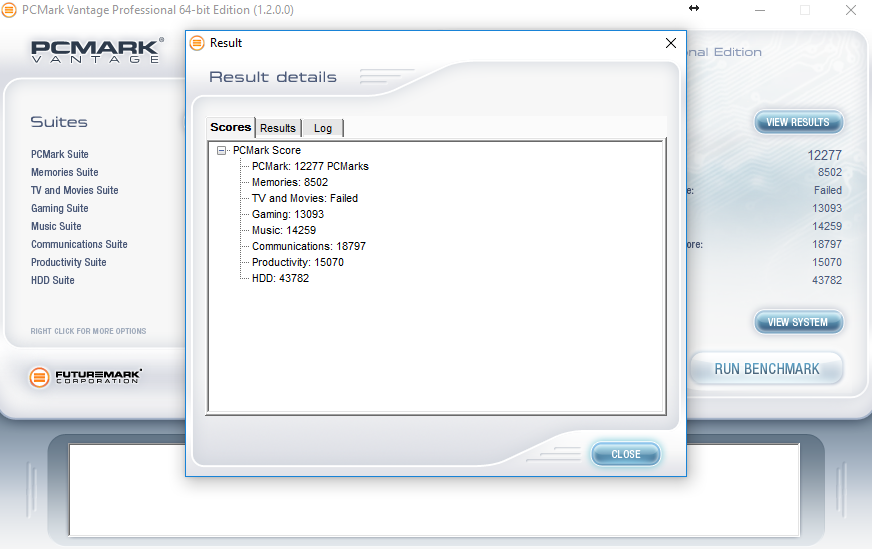

PCMark Vantage Result
12277 points
PCMark 7 Score
4866 points

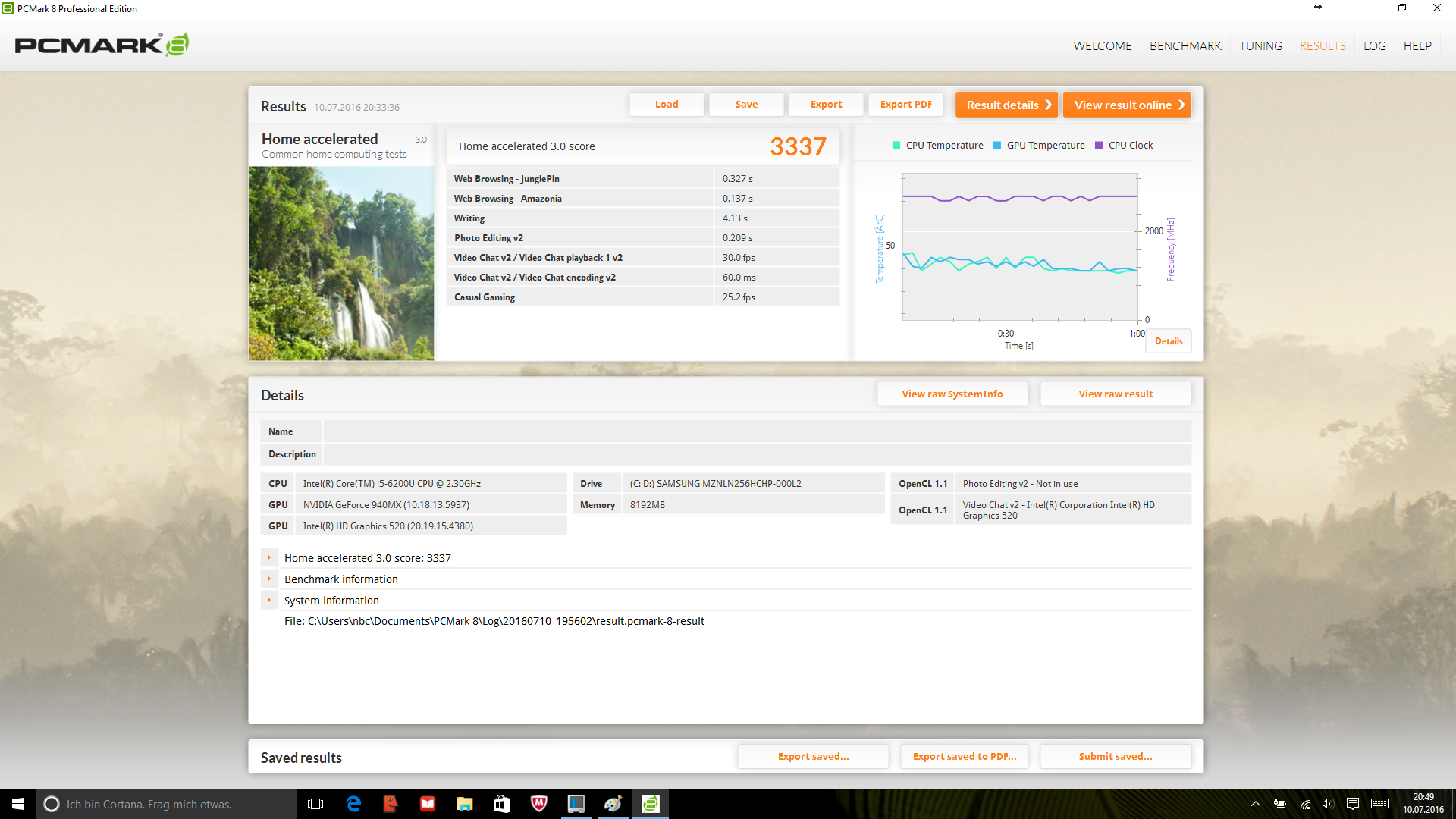

PCMark 8 Home Score Accelerated v2
3337 points

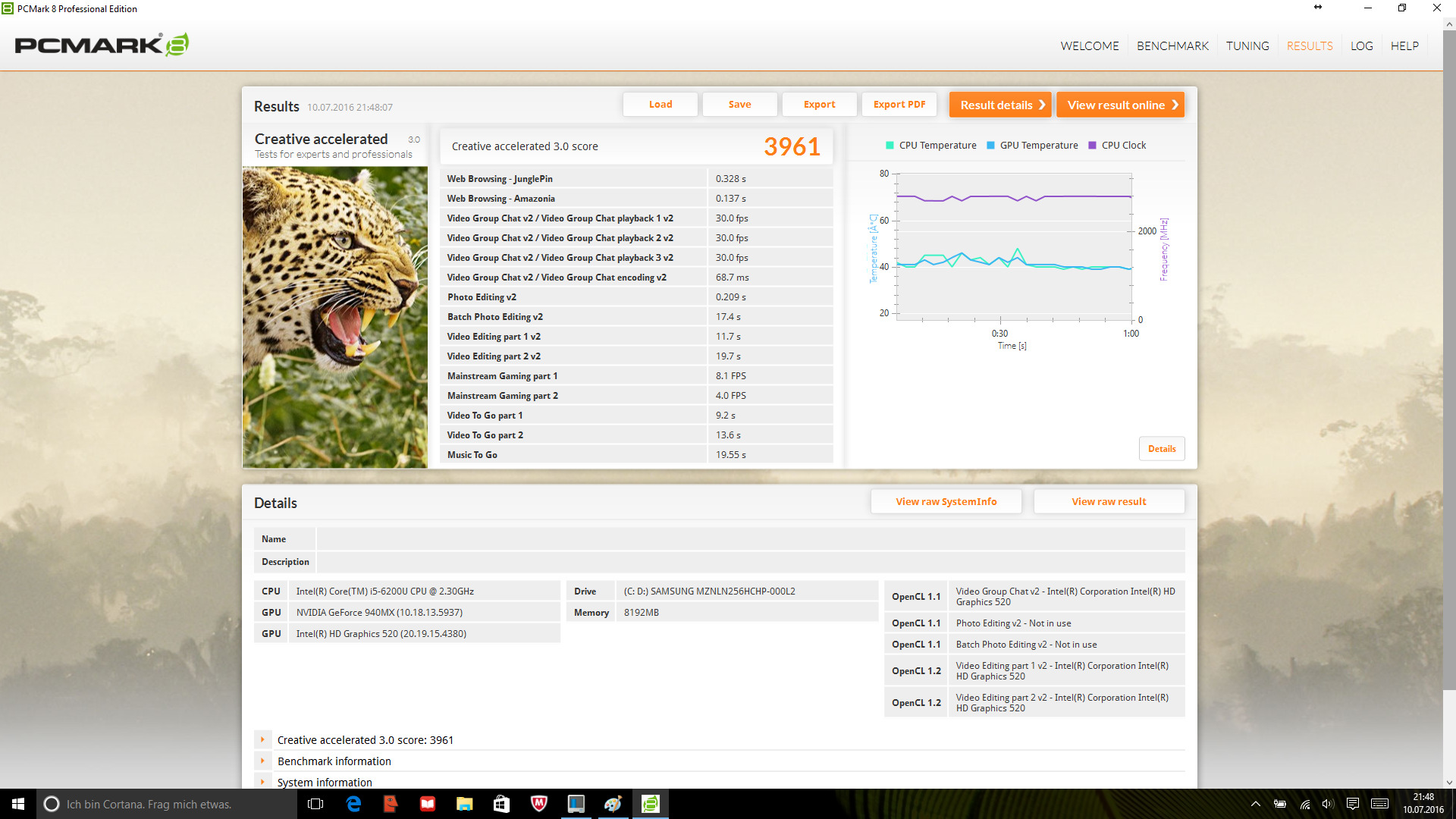

PCMark 8 Creative Score Accelerated v2
3961 points
PCMark 8 Work Score Accelerated v2
4312 points
Help

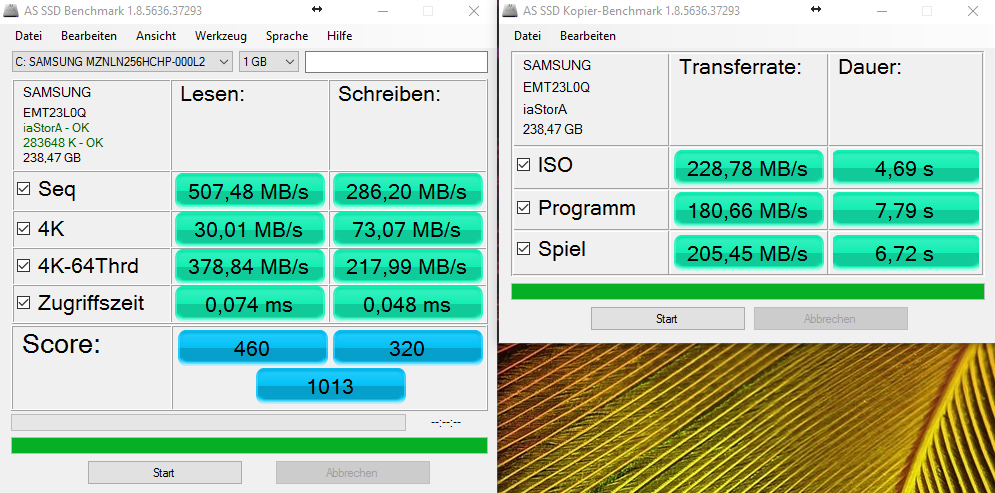

AS SSD
AS SSD

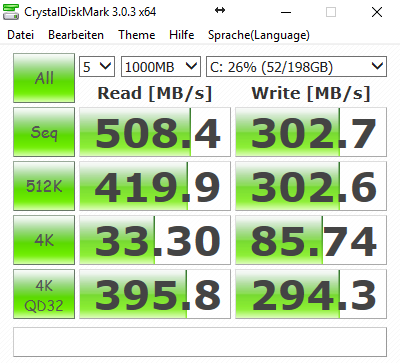

CrystalDiskMark
CrystalDiskMark
Lenovo Yoga 710-14ISK
Samsung SSD PM871 MZNLN256HCHP
Lenovo Yoga 510-15ISK
Liteonit CV3-DE256
Lenovo Yoga 3 14-80JH0035GE
Samsung SSD PM851 256 GB MZYTE256HMHP
HP Envy 15-w103ng x360
Samsung SSD PM851 256 GB MZNTE256HMHP
CrystalDiskMark 3.0
-5%
-2%
-10%
Read Seq
508
487
-4%
525
3%
515
1%
Write Seq
302.7
450.7
49%
265.8
-12%
240.7
-20%
Read 512
419.9
384.5
-8%
428.9
2%
391.3
-7%
Write 512
302.6
356.3
18%
266.1
-12%
240
-21%
Read 4k
33.3
27.05
-19%
35.18
6%
27.64
-17%
Write 4k
85.8
63.7
-26%
97.6
14%
95.2
11%
Read 4k QD32
395.8
281.5
-29%
354.6
-10%
367.9
-7%
Write 4k QD32
294.3
232
-21%
265.4
-10%
239
-19%
Samsung SSD PM871 MZNLN256HCHP
Sequential Read: 508 MB/s
Sequential Write: 302.7 MB/s
512K Read: 419.9 MB/s
512K Write: 302.6 MB/s
4K Read: 33.3 MB/s
4K Write: 85.8 MB/s
4K QD32 Read: 395.8 MB/s
4K QD32 Write: 294.3 MB/s
3DMark Ice Storm

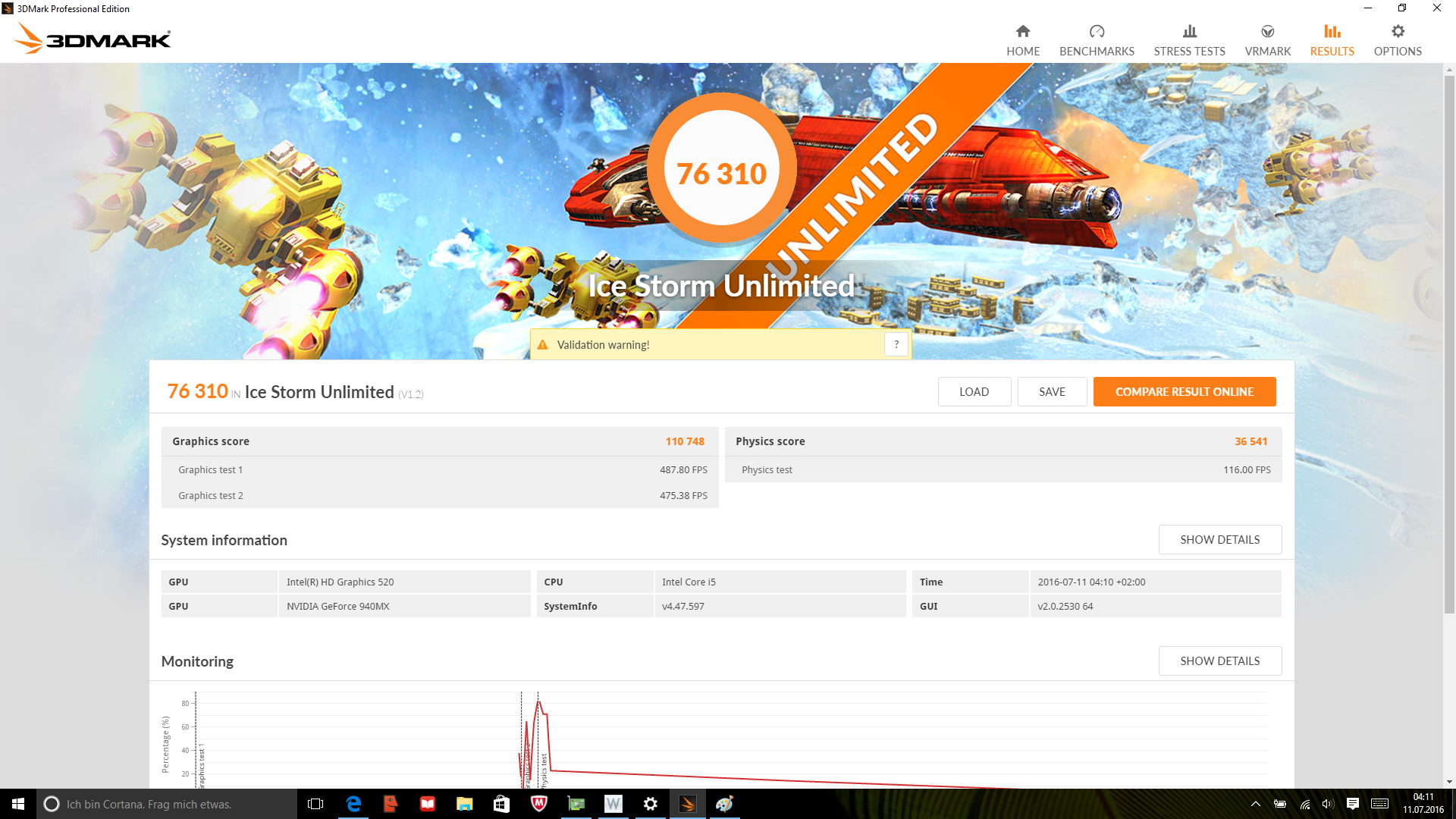

3DMark Ice Storm Unlimited

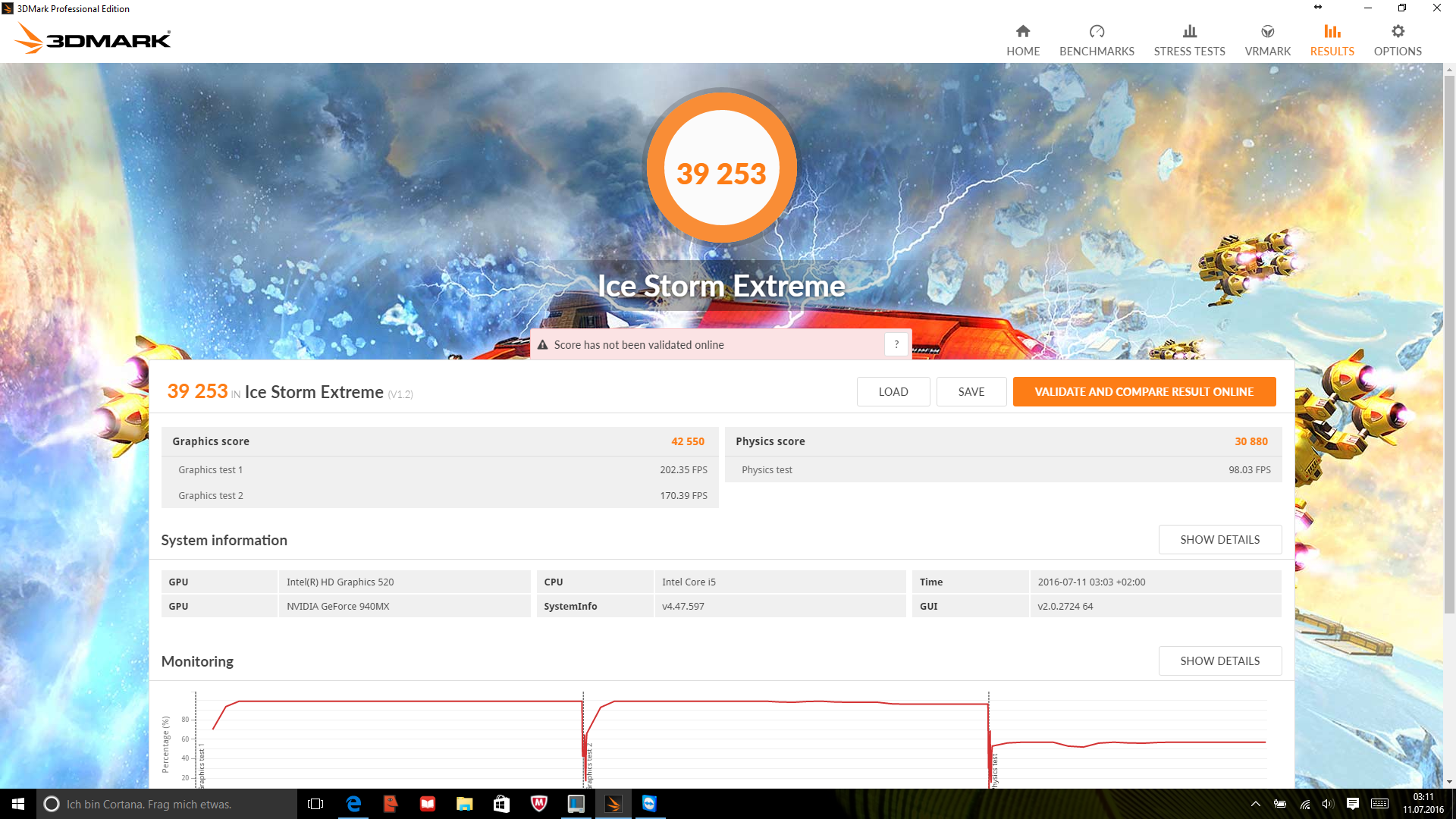

3DMark Ice Storm Extreme
3DMark Cloud Gate

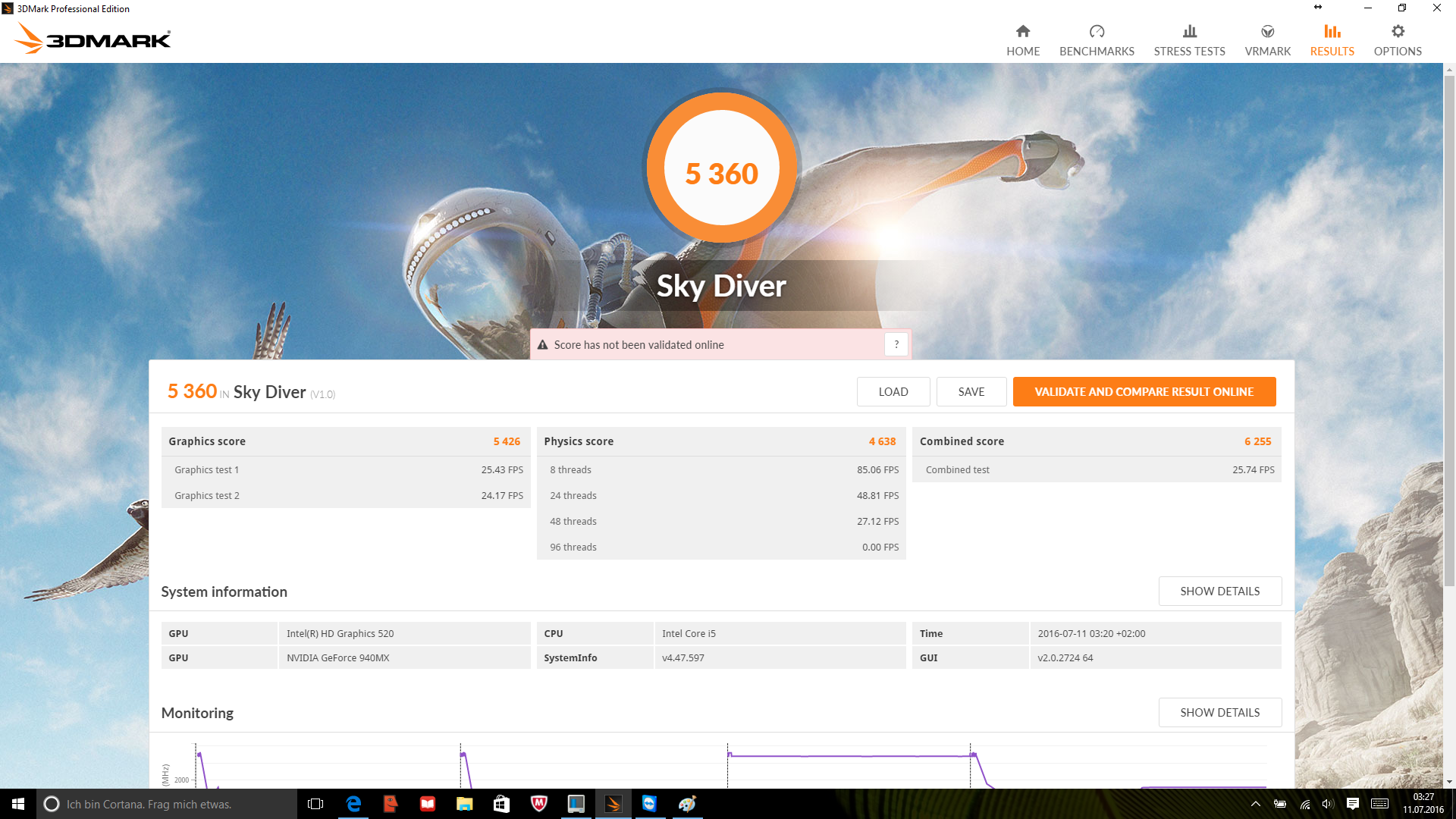

3DMark Sky Diver
3DMark Fire Strike
3DMark Fire Strike Extreme
3DMark Fire Strike Ultra
3DMark 11
3DMark Vantage
3DMark 06
3DMark 05
3DMark 03

3DMark
1280x720 Cloud Gate Standard Graphics
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
8552 Points
Lenovo Yoga 3 14-80JH0035GE
NVIDIA GeForce 940M, Intel Core i5-5200U
8446 Points -1%
HP Envy 15-w103ng x360
NVIDIA GeForce 930M, Intel Core i5-6200U
8252 Points -4%
Lenovo Yoga 510-15ISK
AMD Radeon R7 M460, Intel Core i5-6200U
6081 Points -29%
1920x1080 Fire Strike Graphics
Lenovo Yoga 3 14-80JH0035GE
NVIDIA GeForce 940M, Intel Core i5-5200U
1567 Points +1%
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
1553 Points
HP Envy 15-w103ng x360
NVIDIA GeForce 930M, Intel Core i5-6200U
1475 Points -5%
Lenovo Yoga 510-15ISK
AMD Radeon R7 M460, Intel Core i5-6200U
1177 Points -24%
1280x720 Ice Storm Standard Graphics
HP Envy 15-w103ng x360
NVIDIA GeForce 930M, Intel Core i5-6200U
54016 Points +19%
Lenovo Yoga 510-15ISK
AMD Radeon R7 M460, Intel Core i5-6200U
46656 Points +2%
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
45561 Points
Lenovo Yoga 3 14-80JH0035GE
NVIDIA GeForce 940M, Intel Core i5-5200U
41100 Points -10%
3DMark 11
1280x720 Performance
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
2330 Points
Lenovo Yoga 3 14-80JH0035GE
NVIDIA GeForce 940M, Intel Core i5-5200U
2282 Points -2%
HP Envy 15-w103ng x360
NVIDIA GeForce 930M, Intel Core i5-6200U
2270 Points -3%
Lenovo Yoga 510-15ISK
AMD Radeon R7 M460, Intel Core i5-6200U
2246 Points -4%
1280x720 Performance GPU
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
2221 Points
Lenovo Yoga 3 14-80JH0035GE
NVIDIA GeForce 940M, Intel Core i5-5200U
2213 Points 0%
HP Envy 15-w103ng x360
NVIDIA GeForce 930M, Intel Core i5-6200U
2172 Points -2%
Lenovo Yoga 510-15ISK
AMD Radeon R7 M460, Intel Core i5-6200U
2137 Points -4%
3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x
Lenovo Yoga 710-14ISK
NVIDIA GeForce 940MX, Intel Core i5-6200U
11658 Points
Lenovo Yoga 510-15ISK
AMD Radeon R7 M460, Intel Core i5-6200U
8587 Points -26%

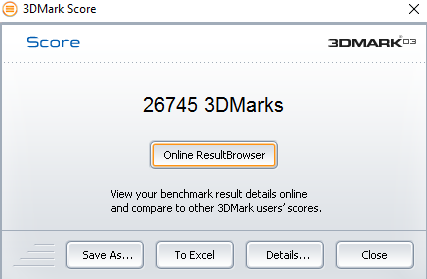

3DMark 03 Standard
26745 points
3DMark 05 Standard
19024 points

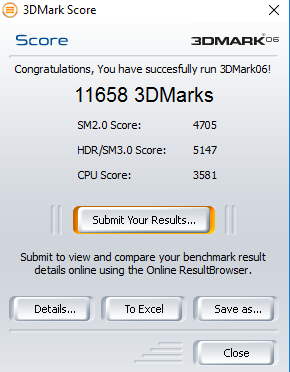

3DMark 06 Standard Score
11658 points

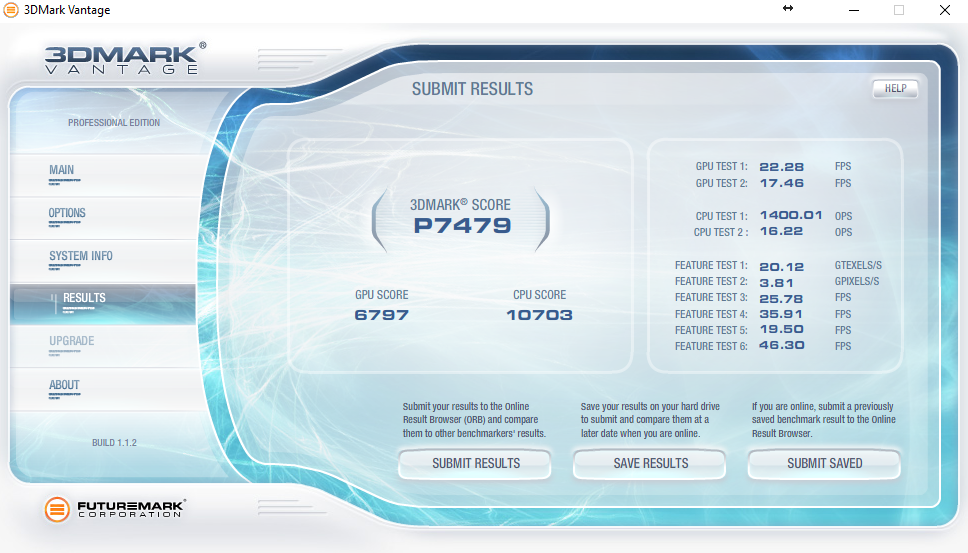

3DMark Vantage P Result
7479 points

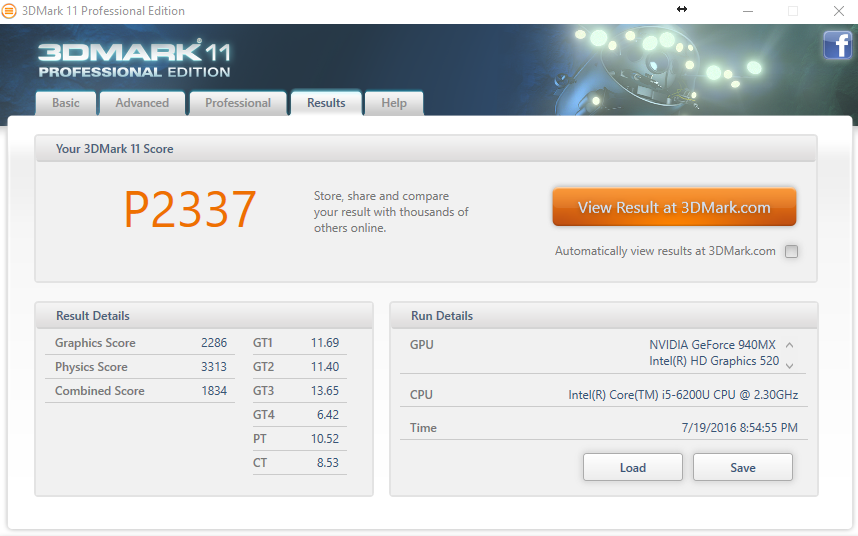

3DMark 11 Performance
2330 points

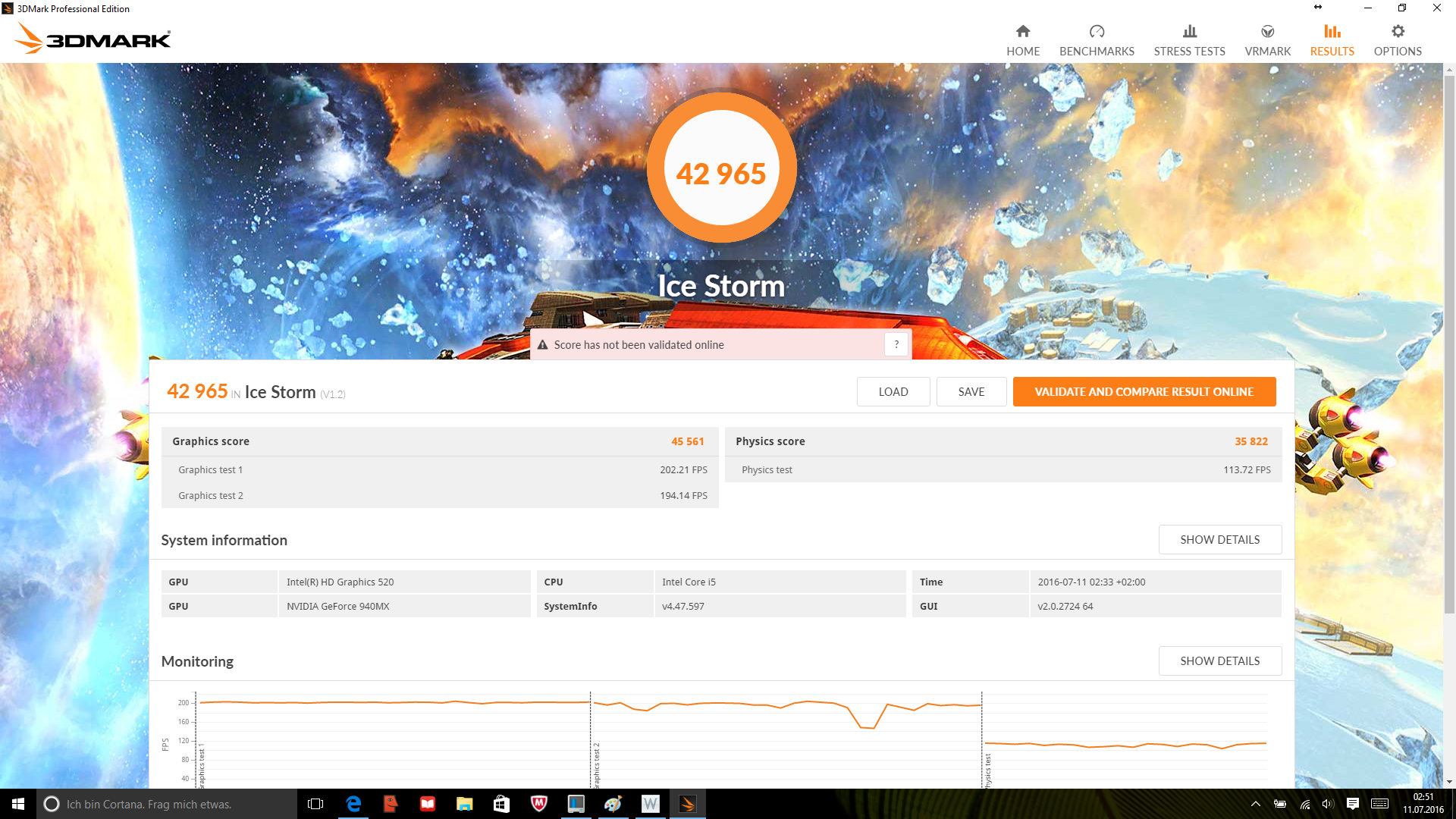

3DMark Ice Storm Standard Score
42965 points

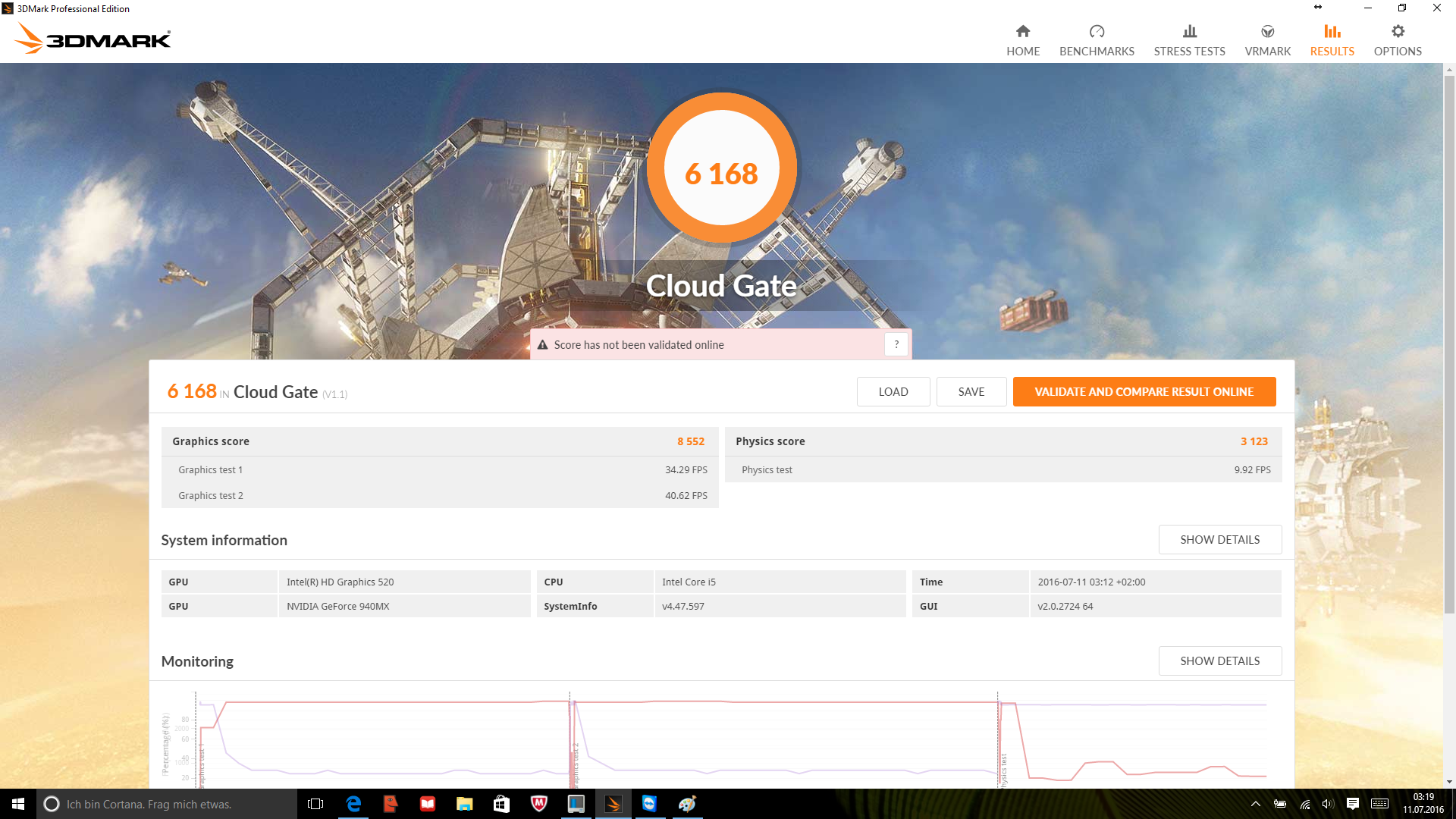

3DMark Cloud Gate Standard Score
6168 points

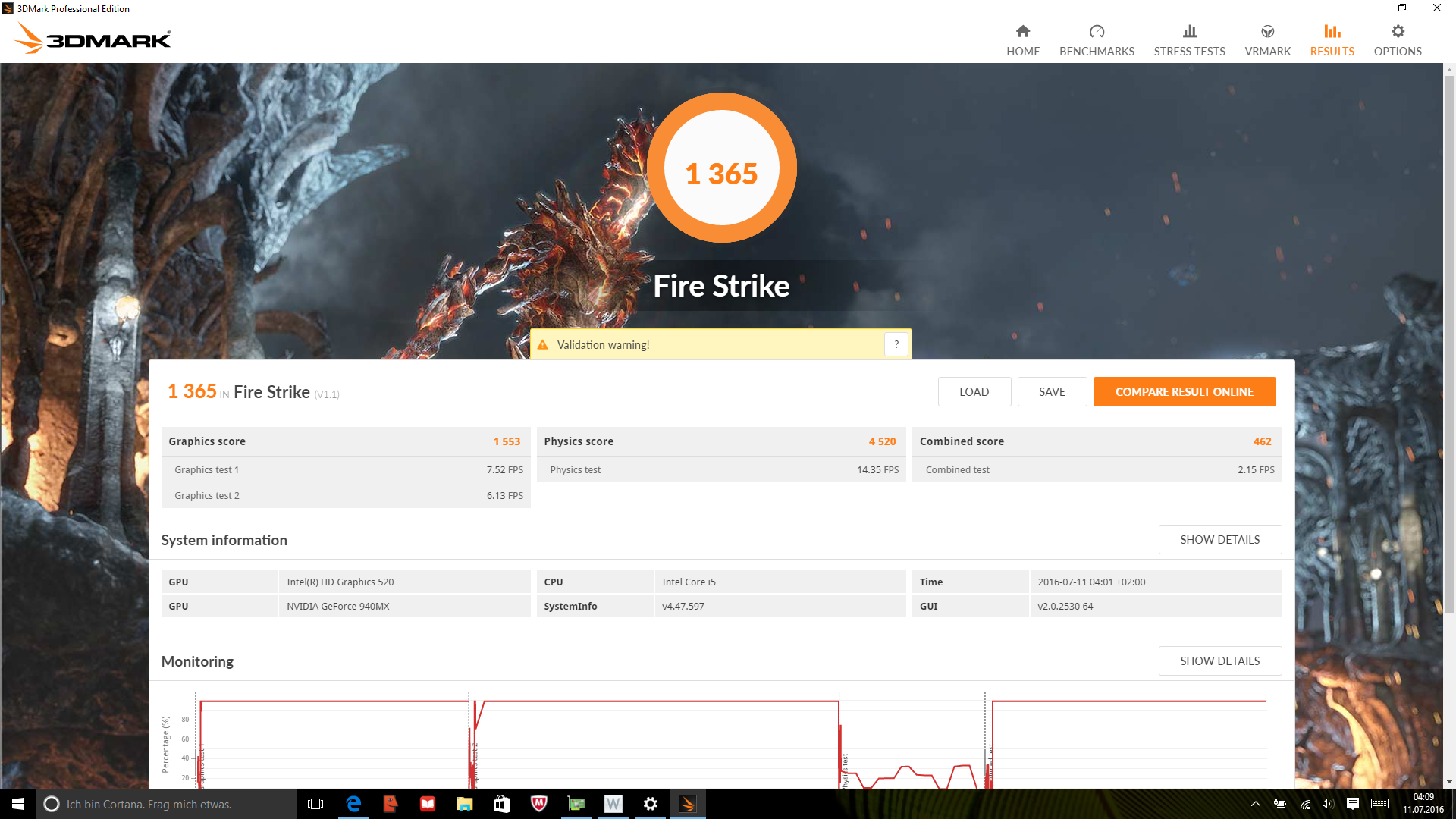

3DMark Fire Strike Score
1365 points

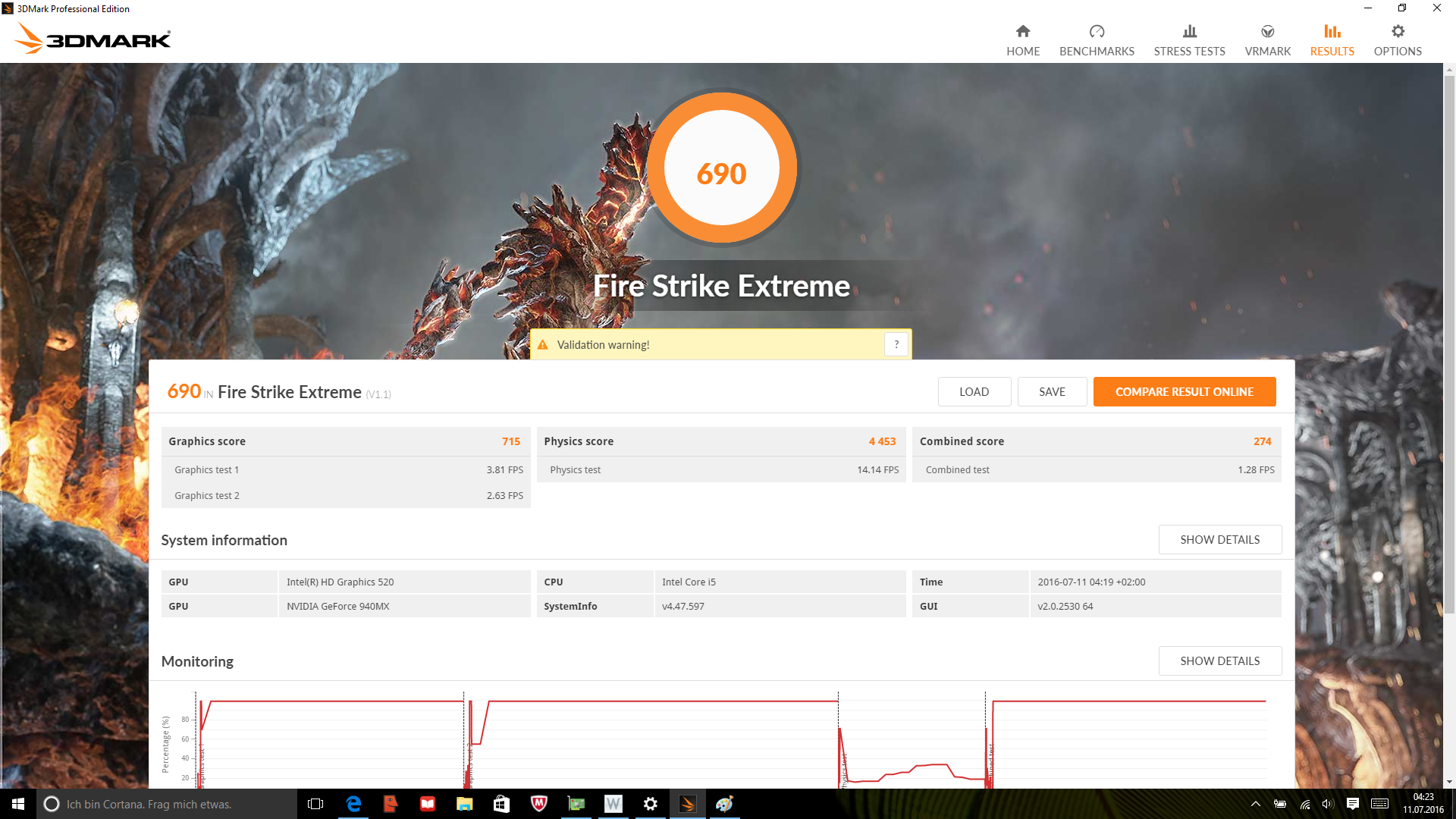

3DMark Fire Strike Extreme Score
690 points
Help
lowmed.highultra
Dirt 3 (2011) 60.3 55.7 40.7 16.3
Hitman: Absolution (2012) 54.9 35.7 25.1 13.4
BioShock Infinite (2013) 85.3 47.7 39.5 13.6
GRID 2 (2013) 121.5 80.4 56.3 19.6
Battlefield 4 (2013) 66.5 43.2 28.6 10.4
Thief (2014) 31.3 23 18.5 9.1
Titanfall (2014) 60 49.2 40.1 23.6
The Elder Scrolls Online (2014) 79.6 77.4 58.3 31.4
GRID: Autosport (2014) 137 70.9 21.8 15.7
Risen 3: Titan Lords (2014) 50.7 36.8 11.2 7.8
Fifa 15 (2014) 96.3 72.7 47.9
Ryse: Son of Rome (2014) 24.5 18.7 8.9 8.4
The Evil Within (2014) 39.2 27.9 16.7
F1 2014 (2014) 99 85 48 29
Civilization: Beyond Earth (2014) 67.2 29.7 21.4 17.3
Call of Duty: Advanced Warfare (2014) 50.4 30.4 13 12.1
Assassin's Creed Unity (2014) 29.4 17.9 12.1 8.3
Far Cry 4 (2014) 44.2 31.4 14.2 13.3
The Crew (2014) 43.4 36.7 17.2 9.8
The Witcher 3 (2015) 23.8 16 8.5 5.4
Batman: Arkham Knight (2015) 28 24 10 10
Rise of the Tomb Raider (2016) 27.4 17.7 10.4 8.2

Noise Level

Idle
32.5 / 34.6 / 34.6 dB(A)
Load
38.7 / 39.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 32.2 dB(A)
Lenovo Yoga 710-14ISK
Intel Core i5-6200U, GeForce 940MX
Lenovo Yoga 510-15ISK
Intel Core i5-6200U, Radeon R7 M460
Lenovo Yoga 3 14-80JH0035GE
Intel Core i5-5200U, GeForce 940M
HP Envy 15-w103ng x360
Intel Core i5-6200U, GeForce 930M
Noise
10%
1%
-0%
off / environment *
32.2
29
10%
Idle Minimum *
32.5
29
11%
32
2%
32.9
-1%
Idle Average *
34.6
29
16%
32.6
6%
32.9
5%
Idle Maximum *
34.6
29
16%
33.9
2%
32.9
5%
Load Average *
38.7
35.9
7%
40.1
-4%
37
4%
Load Maximum *
39.9
41
-3%
39.8
-0%
46
-15%

* ... smaller is better

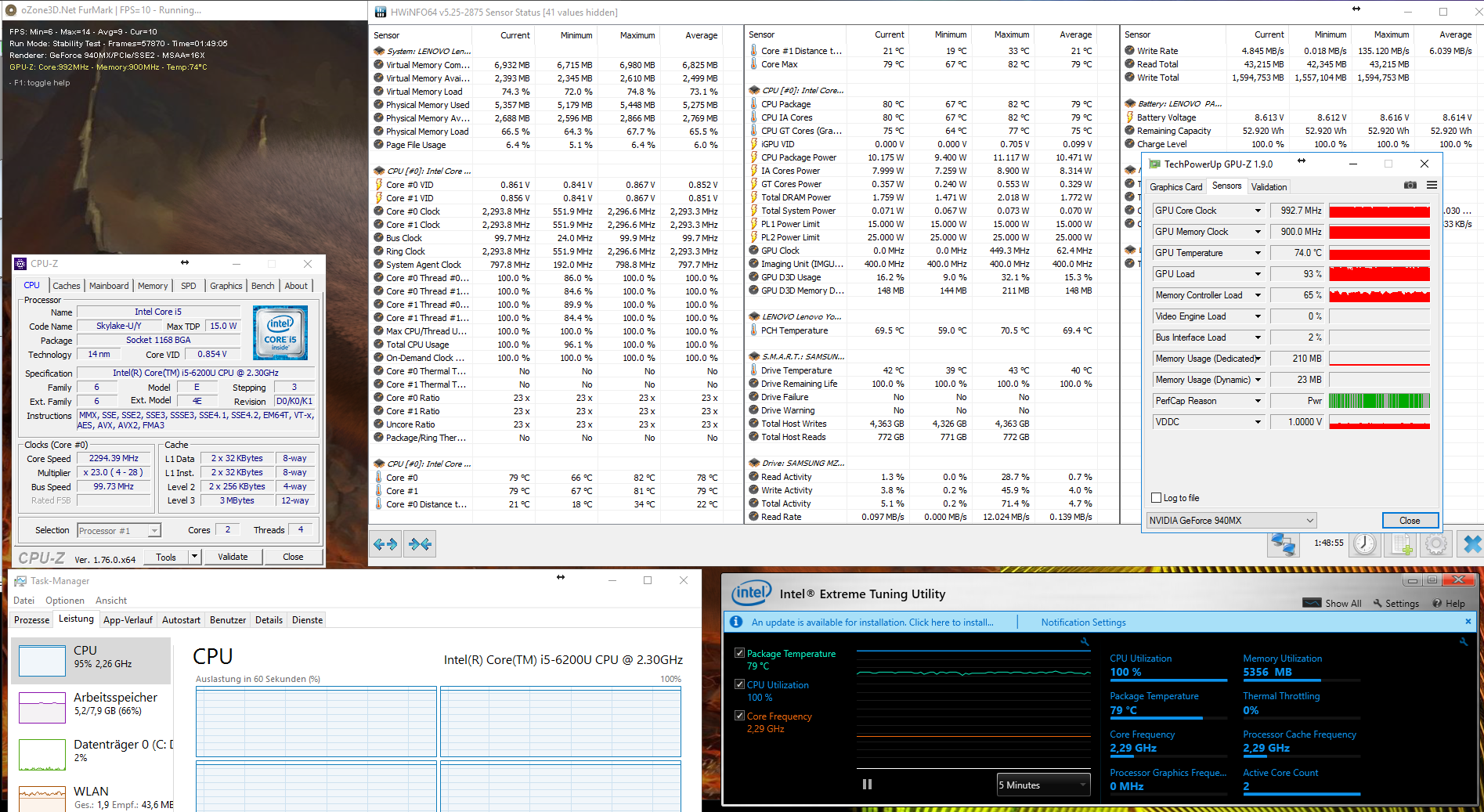

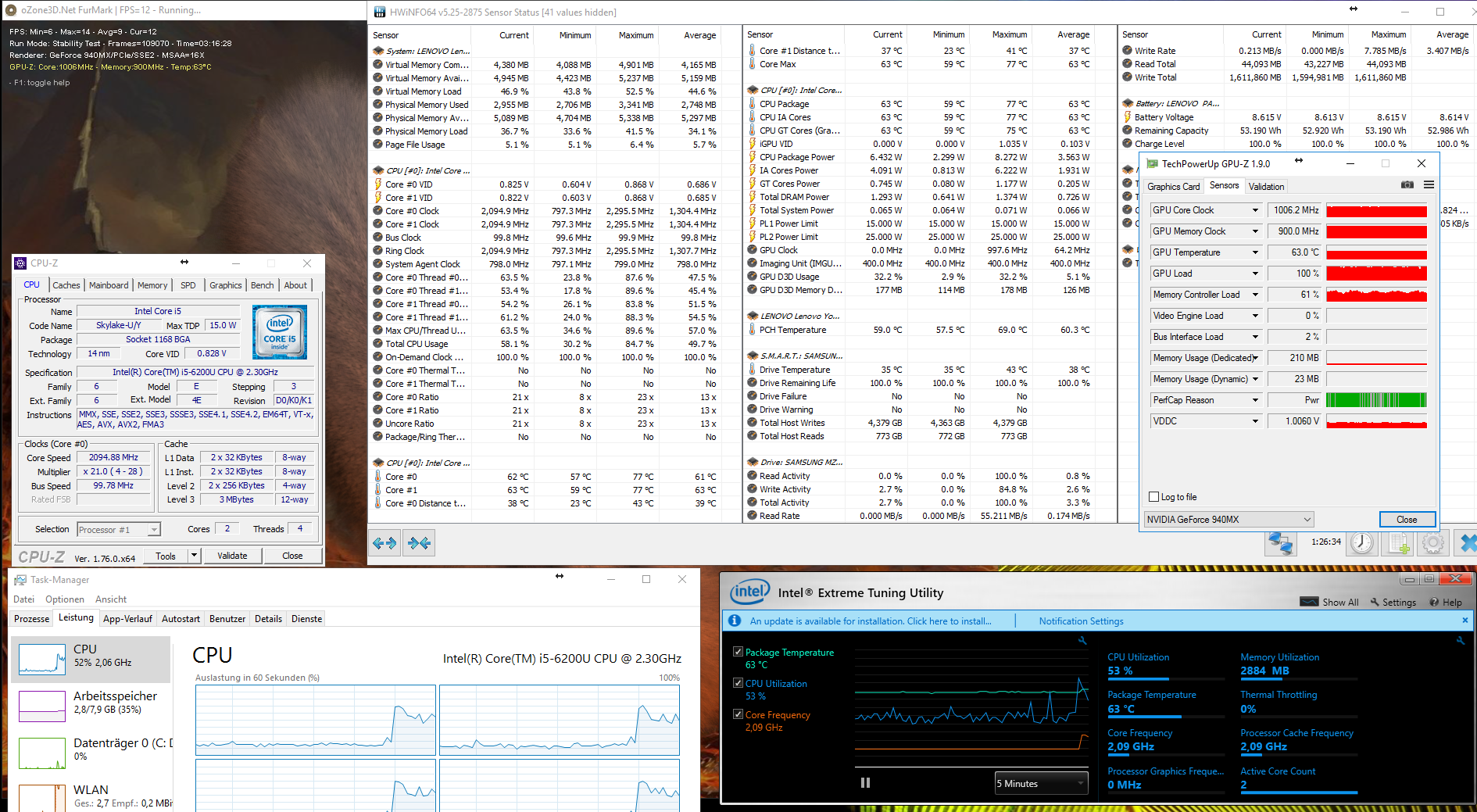

Stress test Prime95 + FurMark
Stress test Prime95 + FurMark
Stress test - only FurMark
Stress test - only FurMark

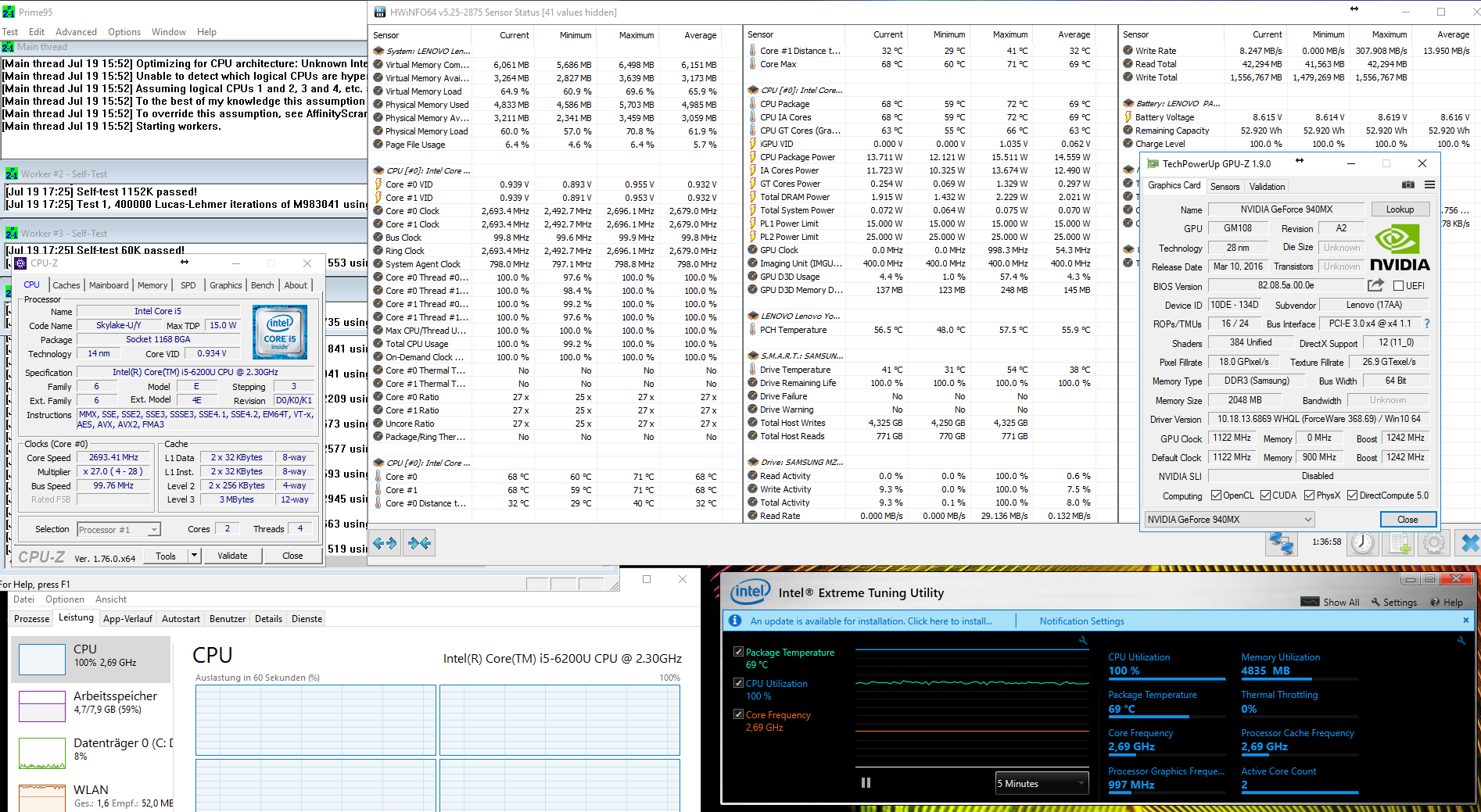

Stress test - only Prime95
Stress test - only Prime95
Max. Load
 38.2 °C43.4 °C41 °C
 33.9 °C43.4 °C39.6 °C
 30.2 °C29.5 °C32 °C
Maximum: 43.4 °C
Average: 36.8 °C
36.1 °C43.2 °C33.9 °C
36 °C37.7 °C33 °C
32.2 °C33 °C31.5 °C
Maximum: 43.2 °C
Average: 35.2 °C
Power Supply (max.)  42.9 °C | Room Temperature 22.6 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 36.8 °C / 98 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 43.4 °C / 110 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.7 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32 °C / 89.6 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.9 °C / -7 F).

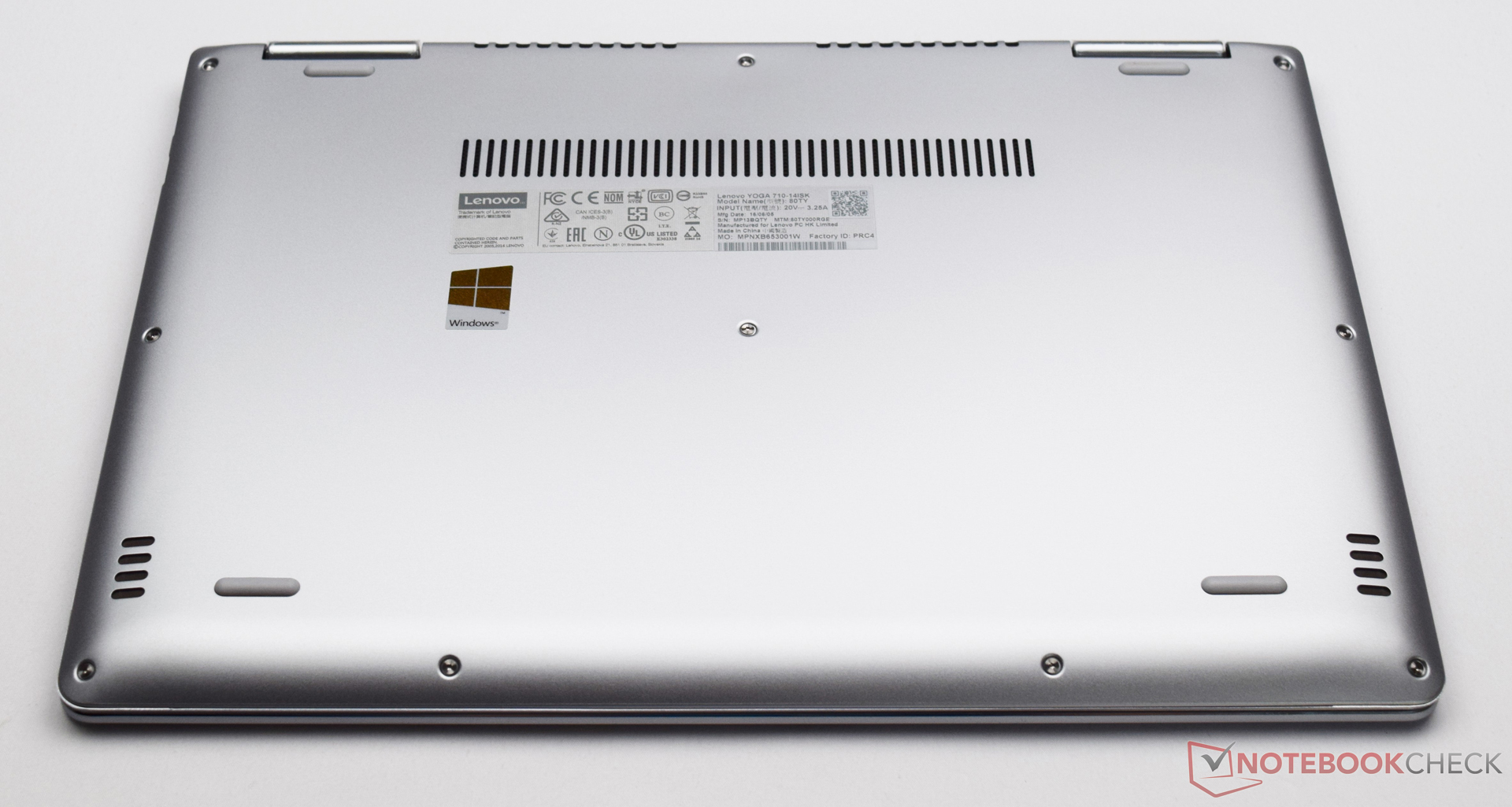

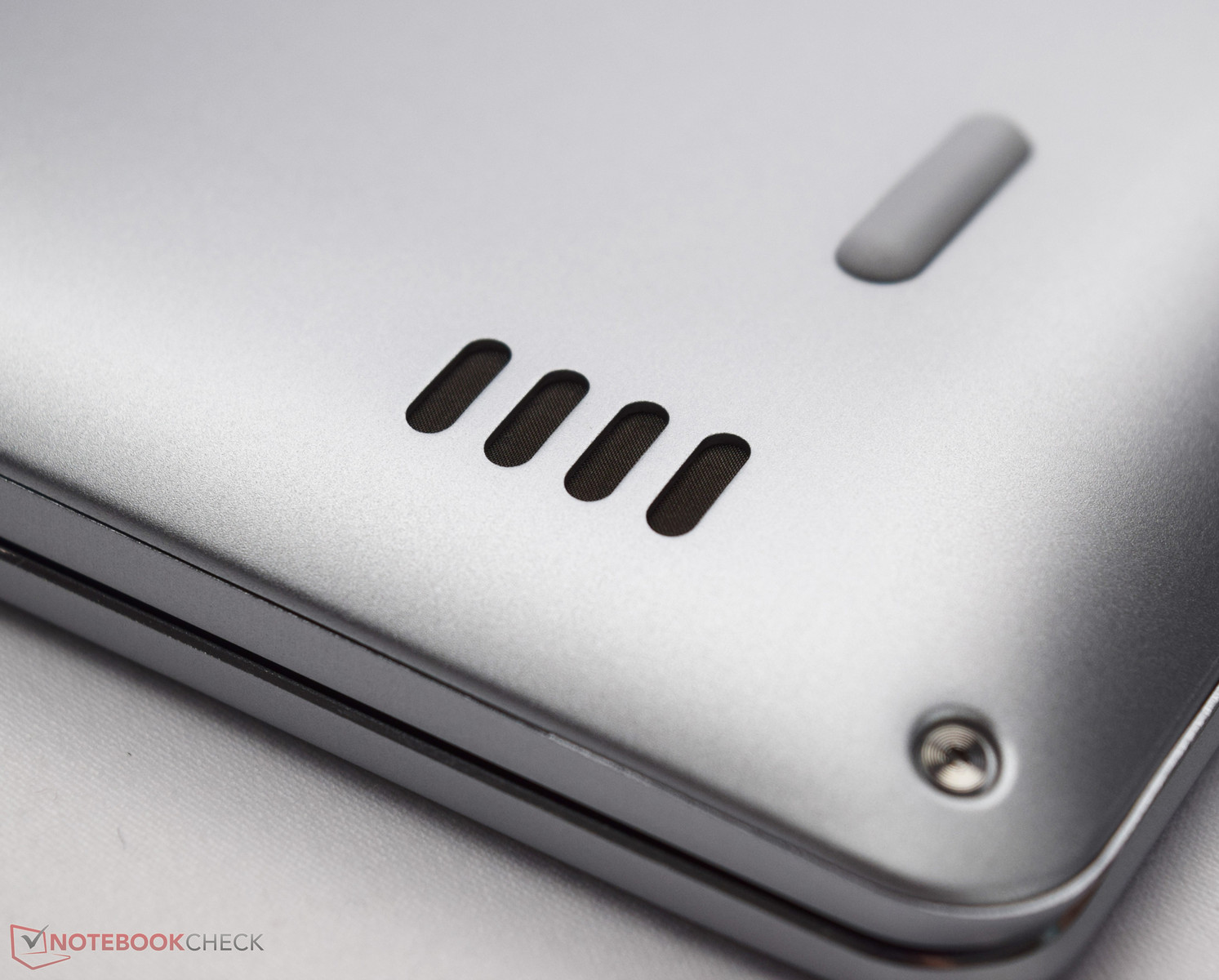

The openings for the speakers are on the bottom.
The openings for the speakers are on the bottom.
The speaker with the cover removed.
The speaker with the cover removed.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2041.340.641.32542.935.542.93139.733.439.74040.832.440.85041.731.841.76343.333.643.38043.530.843.510045.23145.21254728.34716048.527.848.520052.227.552.225057.525.357.531563.524.663.540064246450062.723.462.763063.522.363.580066.921.666.9100063.120.963.1125059.920.559.9160061.819.961.8200063.219.763.2250064.219.764.231506119.76140006119.561500056.319.656.3630057.519.457.5800059.819.559.81000067.519.367.5125006419.364160005719.257SPL74.632.874.6N37.11.937.1median 61median 20.5median 61Delta4.52.64.535.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseLenovo Yoga 710-14ISKApple MacBook 12 (Early 2016) 1.1 GHz
Lenovo Yoga 710-14ISK audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 9.5% lower than median
(±) | linearity of bass is average (8.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.7% away from median
(±) | linearity of highs is average (7.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.8% difference to median)
Compared to same class
» 17% of all tested devices in this class were better, 4% similar, 80% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 13% of all tested devices were better, 4% similar, 83% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.63 / 0.53 Watt
Idledarkmidlight 4.9 / 9.4 / 10.7 Watt
Load midlight 46 / 47.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo Yoga 710-14ISK
6200U, GeForce 940MX, Samsung SSD PM871 MZNLN256HCHP, a-Si WLED TFT, IPS, 1920x1080, 14"
Lenovo Yoga 510-15ISK
6200U, Radeon R7 M460, Liteonit CV3-DE256, IPS, 1920x1080, 15.6"
Lenovo Yoga 3 14-80JH0035GE
5200U, GeForce 940M, Samsung SSD PM851 256 GB MZYTE256HMHP, IPS, 1920x1080, 14"
HP Envy 15-w103ng x360
6200U, GeForce 930M, Samsung SSD PM851 256 GB MZNTE256HMHP, IPS, 1920x1080, 15.6"
Power Consumption
10%
28%
15%
Idle Minimum *
4.9
4
18%
3.2
35%
4.15
15%
Idle Average *
9.4
7.5
20%
5.5
41%
8.2
13%
Idle Maximum *
10.7
8.1
24%
6.8
36%
8.2
23%
Load Average *
46
40.8
11%
40
13%
34.6
25%
Load Maximum *
47.2
57.3
-21%
40.4
14%
48
-2%

* ... smaller is better

Maximum run time
Maximum run time
Minimum run time
Minimum run time
WLAN battery life
WLAN battery life
H.264 battery life
H.264 battery life

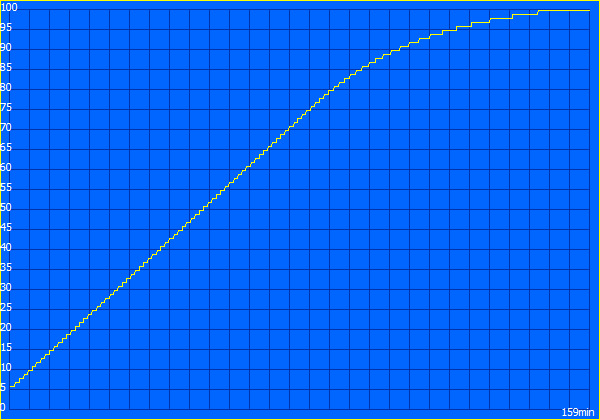

Charging time
Charging time
Battery Runtime

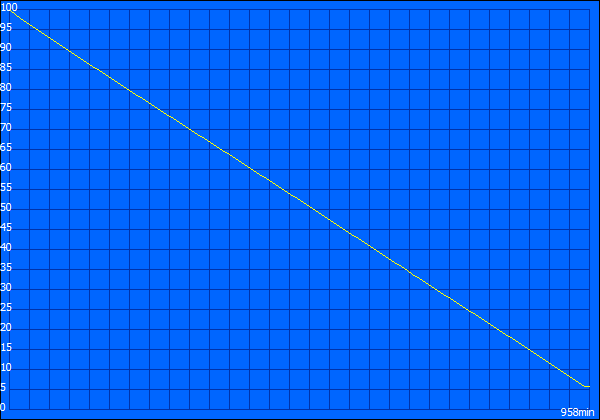

Idle (without WLAN, min brightness)
15h 58min
WiFi Websurfing (EDGE: 25.10586.0.0)
7h 13min

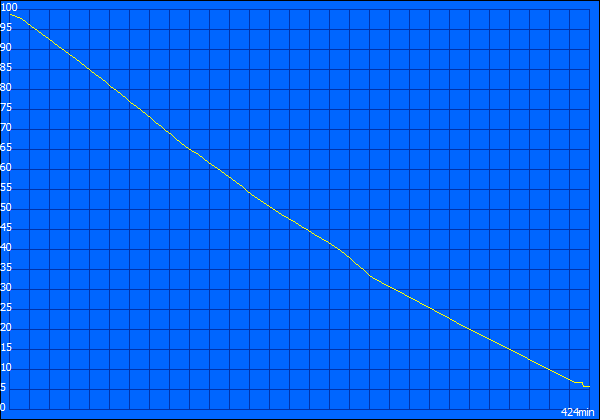

Big Buck Bunny H.264 1080p
7h 04min
Load (maximum brightness)
2h 27min
Lenovo Yoga 710-14ISK
6200U, GeForce 940MX, 53 Wh
Lenovo Yoga 510-15ISK
6200U, Radeon R7 M460, 35 Wh
Lenovo Yoga 3 14-80JH0035GE
5200U, GeForce 940M, 47 Wh
HP Envy 15-w103ng x360
6200U, GeForce 930M, 48 Wh
Battery Runtime
-25%
-9%
-8%
Reader / Idle
958
730
-24%
888
-7%
H.264
424
337
-21%
WiFi v1.3
433
335
-23%
381
-12%
398
-8%
Load
147
100
-32%
134
-9%

Pros

+ 不错的机身品质
+ 坚固的铝合金机身
+ 低重量
+ 背光键盘
+ IPS屏幕可视角度优秀
+ 优秀的固态硬盘
+ 不错的电池续航
+ Nvidia GeForce 940XM显卡
+ 24个月质保(德国)

Cons

- 高功耗
- 仅两个USB接口
- 50赫兹屏幕闪烁(50%亮度以下)
- 无锁孔
- 屏幕有些漏光
In review: Lenovo Yoga 710-14ISK. Test model courtesy of Campuspoint.de
In review: Lenovo Yoga 710-14ISK. Test model courtesy of Campuspoint.de

联想的Yoga 710-14ISK是一台提供了充足续航的14寸变形本。我们的测试机型售价约1000欧元(约7416人民币)。在这个价位上,它的铝合金机身外观显得十分高档。而英特尔 Core i5-6200U,8 GB DDR4内存和Nvidia GeForce 940MX的配置则提供了坚实的性能保障。我们也很喜欢它的三星固态硬盘,256 GB的容量也能够满足主要应用软件的需要。如果用户需要的话,独立显卡也为部分游戏提供了足够的性能。

我们十分欣赏联想Yoga 710-14ISK雅致简洁的机身设计以及坚固的构造。视觉上它十分引人注目。在性能的方面,它表现中规中矩。一个有待联想改进的方面是功耗,它应该还有降低的空间。

它的输入设备十分不错,屏幕提供了出色的可视角度稳定性,机身品质也无懈可击。它所采用的材质十分优秀,也不容易沾染指纹。考虑到各个方面,联想Yoga 710是一台优秀的变形本,十分适合日常使用。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Lenovo Yoga 710-14ISK - 11/03/2016 v5.1 (old)
Sebastian Bade

Chassis
90 / 98 → 92%
Keyboard
91%
Pointing Device
83%
Connectivity
45 / 80 → 56%
Weight
68 / 35-78 → 77%
Battery
89%
Display
82%
Games Performance
61 / 68 → 90%
Application Performance
81 / 87 → 93%
Temperature
90%
Noise
82%
Audio
52 / 91 → 57%
Camera
48 / 85 → 56%
Average
74%
83%
Convertible - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 联想 Yoga 710-14ISK 变形本简短评测
Sebastian Bade, 2016-08-12 (Update: 2016-08-15)
