联想 Yoga Book 2016 Windows 64GB LTE 变形本简短评测

Name: Lenovo Yoga Book 2016 Windows 64GB LTE
Brand: Lenovo

创作者的绘图板。 你对平板手写笔输入不满意吗？联想为创作者们带来了一个更方便的设备：既可以用笔在纸上书写绘画也可以用电子手写输入，任你选择。这台10毫米厚的Book不是一个全能型设备，但能力也绝不限于手写输入。请阅读我们的详尽评测了解更多。

Sebastian Jentsch, ✓ Tanja Hinum (translated by Yuchen Wang), Published 11/10/2016 🇺🇸 🇩🇪 ...

Windows Touchscreen Tablet Convertible / 2-in-1 Business

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

Yoga Book Windows YB1-X91L 64GB, LTE (Yoga Book Series)

Processor

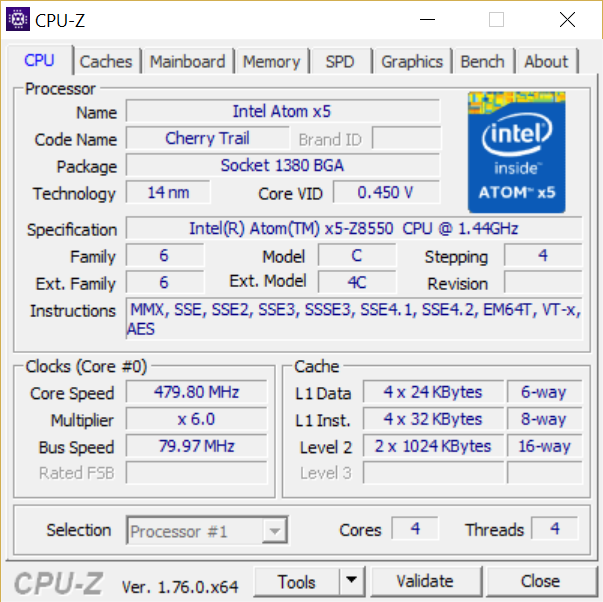

Intel Atom x5-Z8550 4 x 1.4 - 2.4 GHz, Cherry Trail, Cherryview

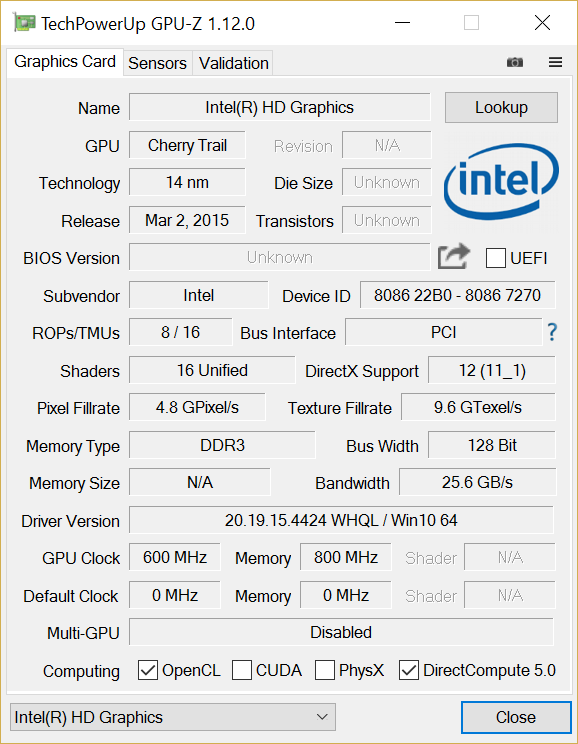

Graphics adapter

Intel HD Graphics 400 (Braswell), Core: 600 MHz, RAM: 800 MHz, 128位, 20.19.15.4424 WHQL

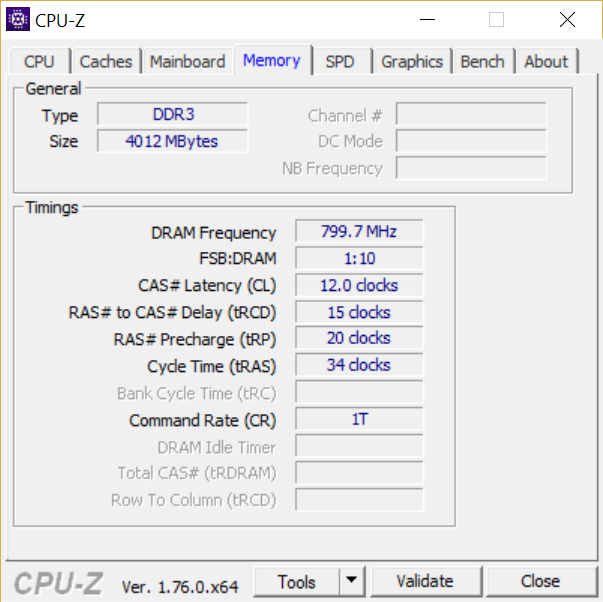

Memory

4 GB

, LPDDR3 双通道

Display

10.10 inch 16:10, 1920 x 1080 pixel 218 PPI, 主屏幕: 电容式触控屏幕支持AnyPen技术 / CreativePad: 电容式触控屏幕和EMR手写技术, native pen support, nicht auslesbar, Farbgamut: 70% lt. Hersteller, IPS , 电容式触控屏幕支持AnyPen技术, 色彩: 1670万, 色域覆盖: 70%, 亮度: 400 nits , glossy: yes

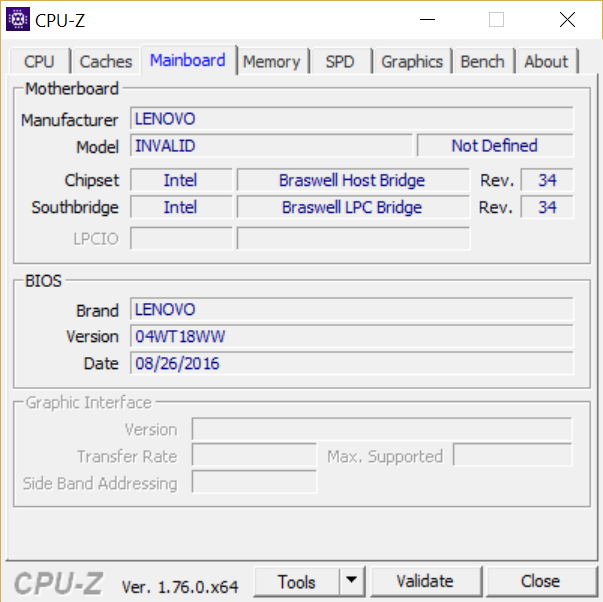

Mainboard

Intel Cherry Trail

Storage

64 GB eMMC Flash, 64 GB

, 三星 CWBD3R 64 GB eMMC闪存, 37.5 GB free

Soundcard

Realtek ALC282 @ Intel Cherry Trail / Braswell SoC - HD Audio Controller

Connections

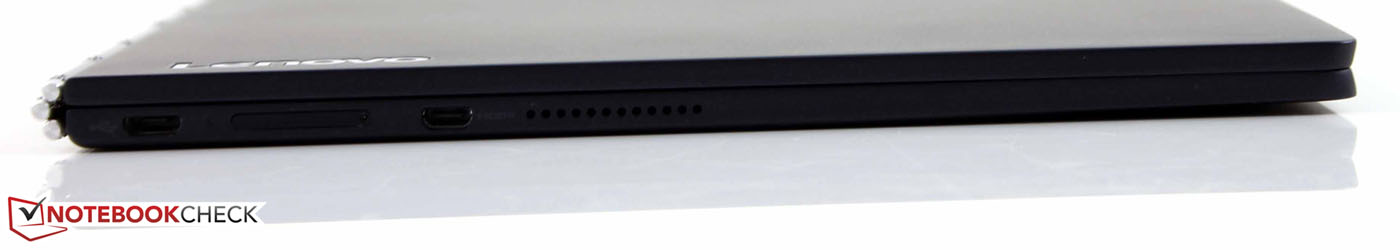

1 USB 2.0, 1 HDMI, Audio Connections: 3.5毫米, Card Reader: micro-SD, 最高支持 128 G, Brightness Sensor, Sensors: 振动，重力感应器，霍尔感应器，GPS, Micro HDMI, micro-USB, nano-SIM卡

Networking

Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps) (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1, LTE

Size

height x width x depth (in mm): 9.6 x 256.6 x 170.8

Battery

32 Wh, 8500 mAh Lithium-Polymer, 待机电池续航: 生产上称超过70天, Battery runtime (according to manufacturer): 13 h

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 双相机
Primary Camera: 8 MPix 自动对焦
Secondary Camera: 2 MPix 定焦

Additional features

Speakers: 立体声, Keyboard: 键盘+触控板，第二块屏幕的创意手写版, Keyboard Light: yes, 配有不同笔头的手写笔，磁感应绘图板, Office Mobile: Excel, PowerPoint, Word, OneNote, ArtRage (Lite试用版), 12 Months Warranty, fanless

Weight

695 g, Power Supply: 87 g

Price

699 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

HP Elite x2 1012 G1 Microsoft Surface Pro 4, Core m3 Dell Latitude 11 5175 Huawei MateBook m5-6Y54 Lenovo Yoga Book 2016 Windows 64GB LTE DIN A4 ❌

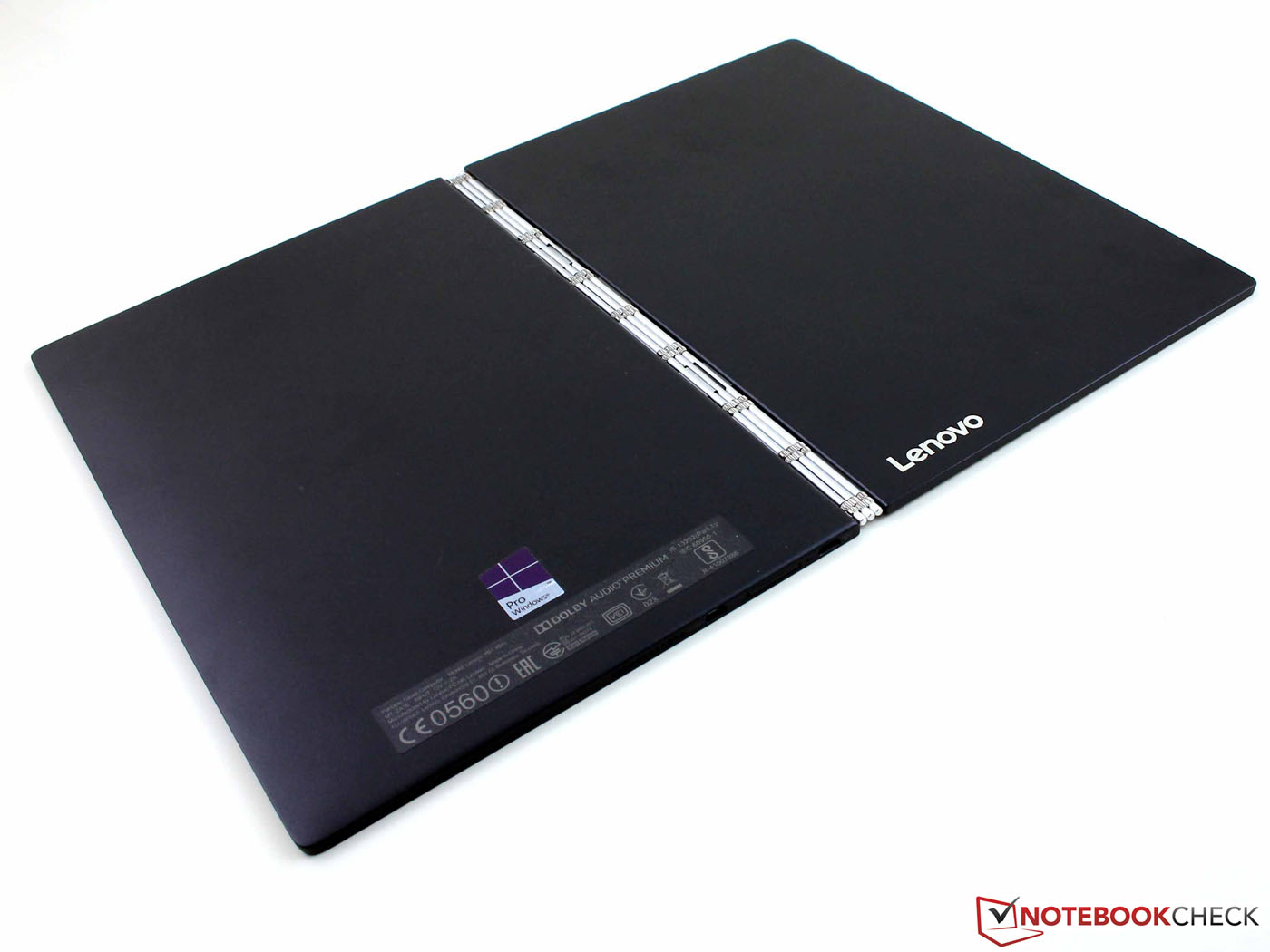

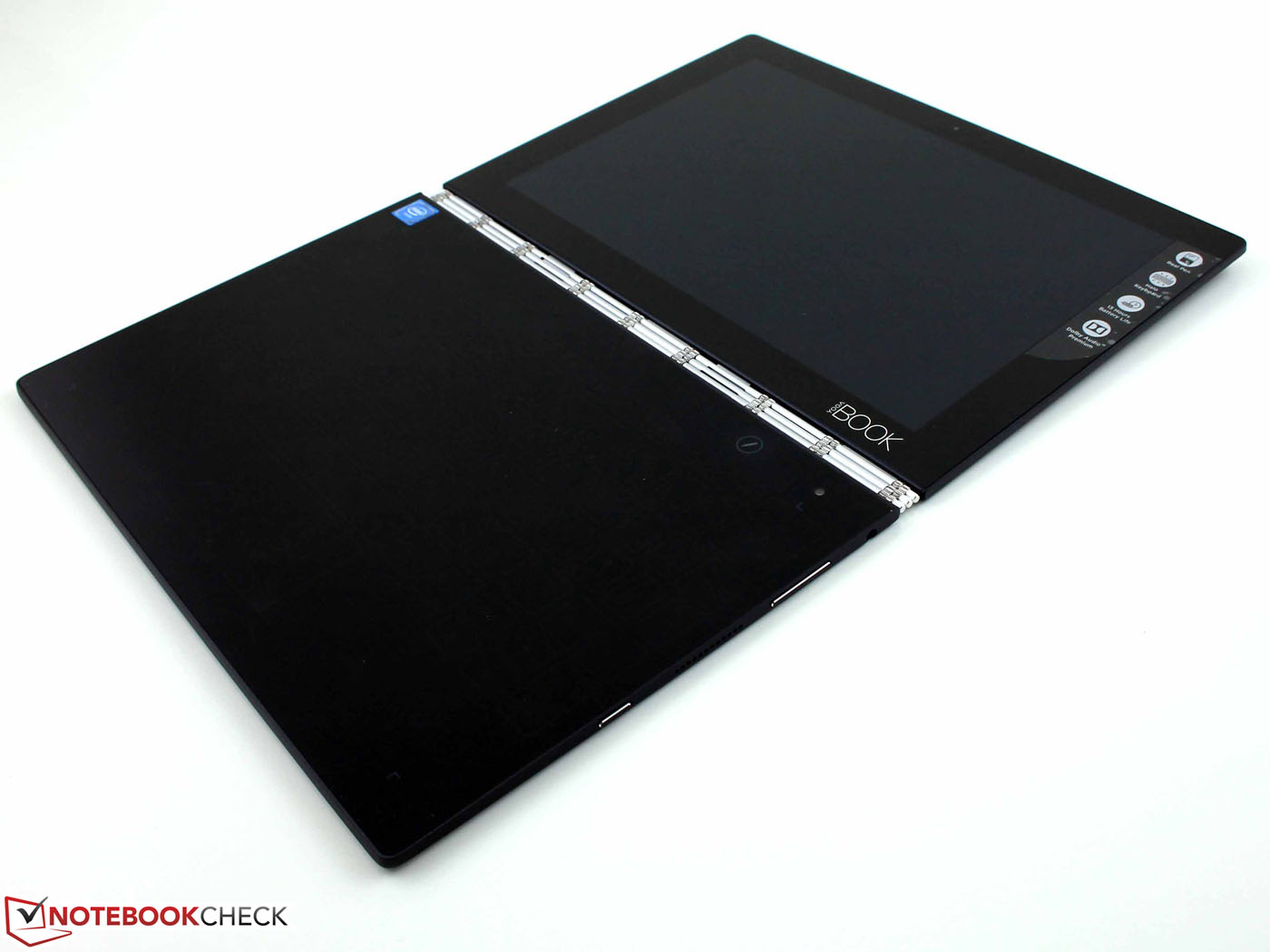

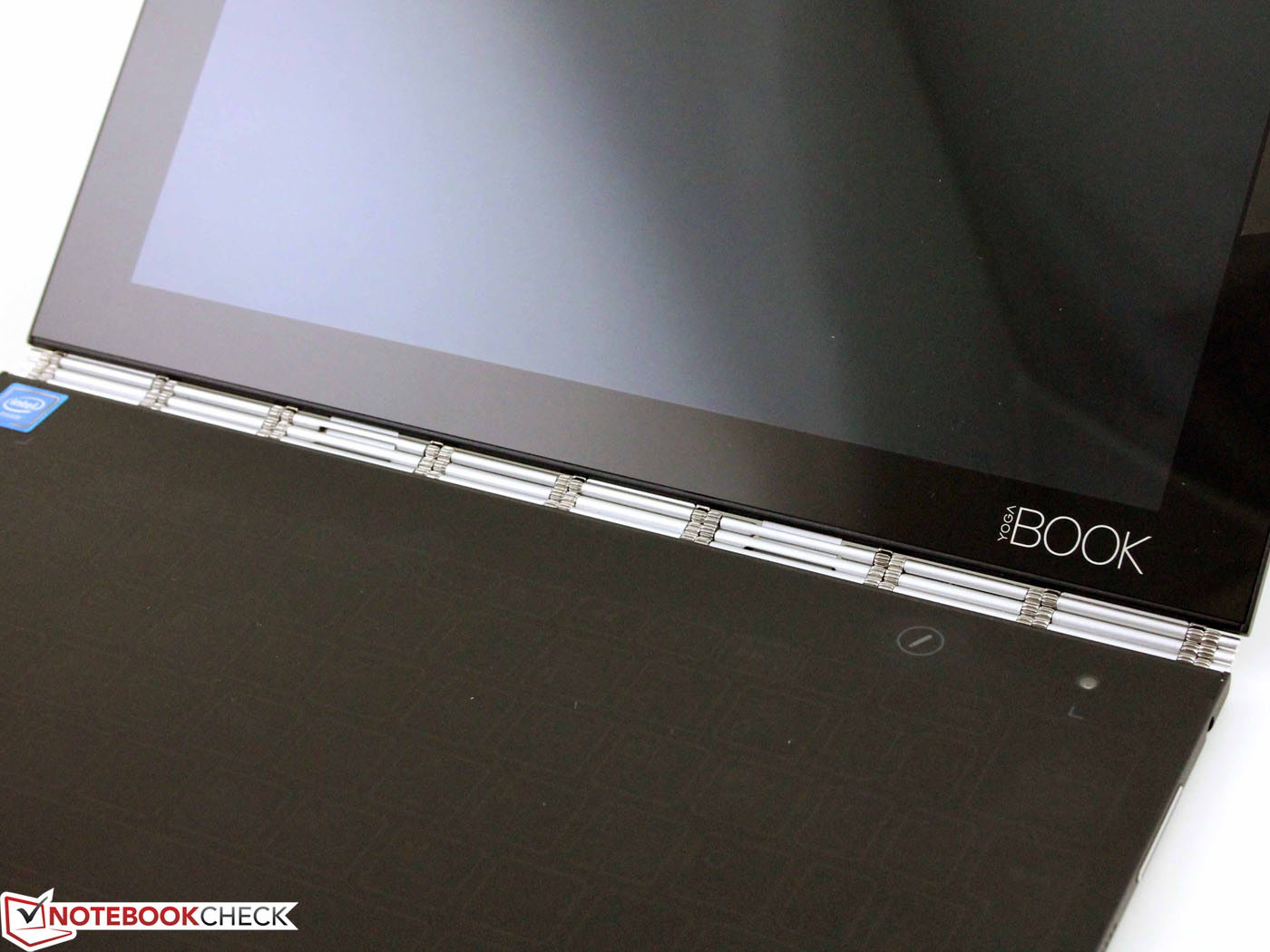

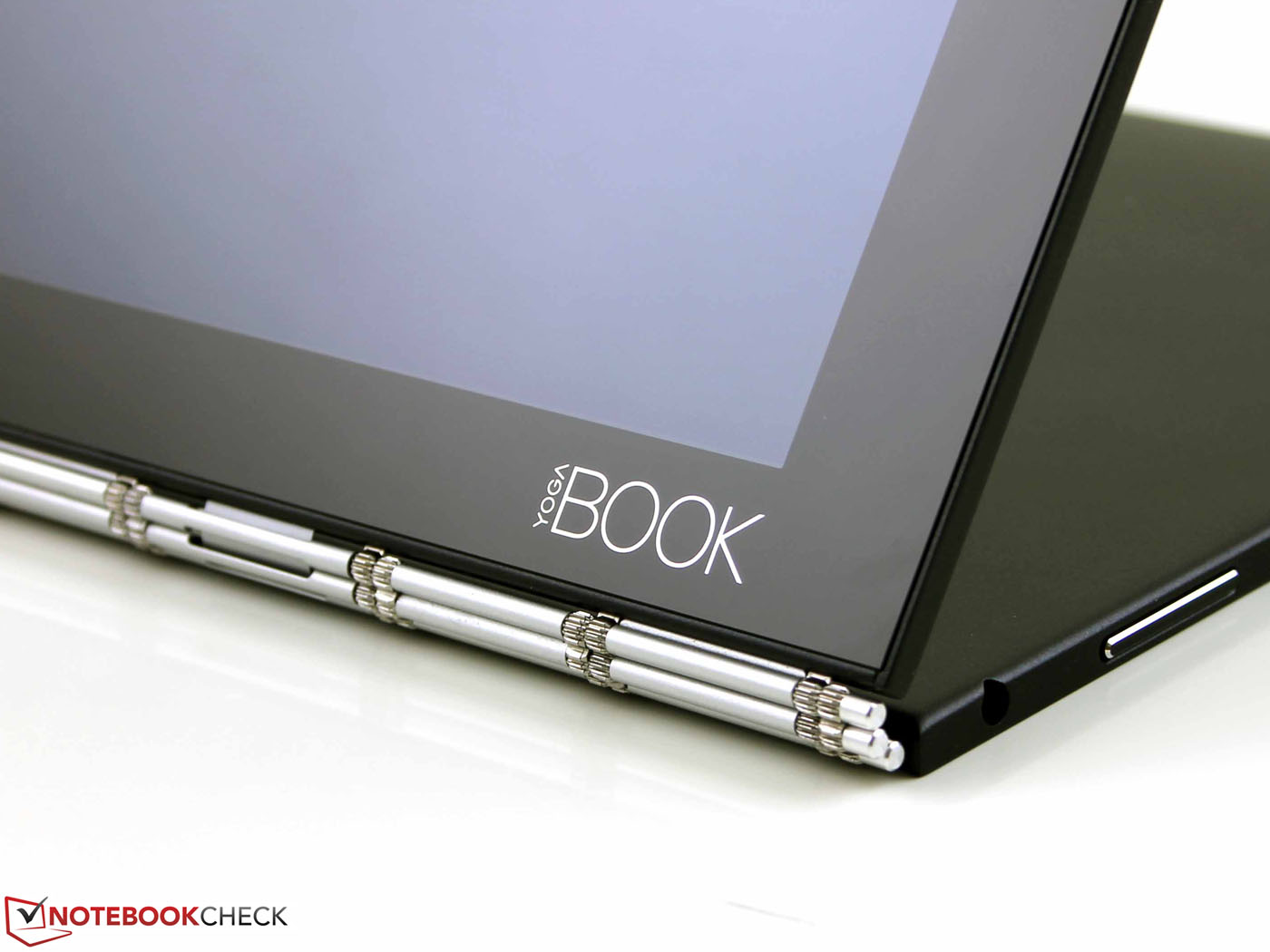

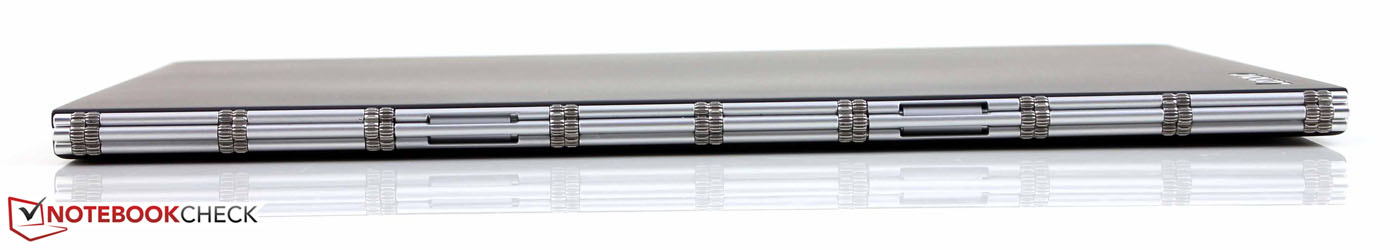

Mini-watchband hinges; 130 mechanical parts ensure a strong joint.

SD Card Reader
maximum SDCardreader Maximum Transfer Rate
average SDCardreader Average Transfer Rate

Networking
iperf Server (receive) TCP 1 m
Huawei MateBook m5-6Y54 Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)	534 MBit/s
iperf Client (transmit) TCP 1 m
Huawei MateBook m5-6Y54 Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps)	453 MBit/s
iperf3 transmit AX12
Lenovo Yoga Book 2016 Windows 64GB LTE Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps) (jseb)	496 MBit/s
iperf3 receive AX12
Lenovo Yoga Book 2016 Windows 64GB LTE Broadcom BCM4356 802.11ac 2x2:2 (876 Mbps) (jseb)	455 MBit/s


388 cd/m²	382 cd/m²	348 cd/m²
384 cd/m²	382 cd/m²	323 cd/m²
368 cd/m²	366 cd/m²	329 cd/m²

Distribution of brightness

nicht auslesbar, Farbgamut: 70% lt. Hersteller tested with X-Rite i1Pro 2

Maximum: 388 cd/m² (Nits) Average: 363.3 cd/m² Minimum: 2.5 cd/m²
Brightness Distribution: 83 %
Center on Battery: 314 cd/m²
Contrast: 1032:1 (Black: 0.37 cd/m²)
ΔE Color 3.61 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.77 | 0.5-98 Ø5.2
Gamma: 2.43

	Lenovo Yoga Book 2016 Windows 64GB LTE nicht auslesbar, Farbgamut: 70% lt. Hersteller, , 1920x1080, 10.1"	Microsoft Surface Pro 4, Core m3 Samsung SDC3853, , 2736x1824, 12.3"	Dell Latitude 11 5175 YJ0MP-TV108FM, , 1920x1080, 10.8"	HP Elite x2 1012 G1 LG Philips, , 1920x1280, 12.1"	Huawei MateBook m5-6Y54 TMA 1200 Unknown Vendor, , 2160x1440, 12"
Display
Display P3 Coverage		67.5	63.4	53.8	65.8
sRGB Coverage		96.6	81.1	73.7	96.2
AdobeRGB 1998 Coverage		69	59.3	53.8	66.8
Response Times		-22%	-12%	12%	34%
Response Time Grey 50% / Grey 80% *	36 ?(18, 18)	46 ?(17.2, 28.8) -28%	46 ?(19, 27) -28%	33.2 ?(15.2, 18) 8%	25 ?(9, 16) 31%
Response Time Black / White *	27 ?(6, 21)	31 ?(6, 25.2) -15%	26 ?(7.2, 18.8) 4%	22.8 ?(10.4, 12.4) 16%	17 ?(4, 13) 37%
PWM Frequency		50 ?(50)	200
Screen		12%	-1%	-27%	-53%
Brightness middle	382	389.2 2%	462 21%	322 -16%	451 18%
Brightness	363	392 8%	449 24%	319 -12%	425 17%
Brightness Distribution	83	92 11%	86 4%	97 17%	80 -4%
Black Level *	0.37	0.27 27%	0.45 -22%	0.42 -14%	0.37 -0%
Contrast	1032	1441 40%	1027 0%	767 -26%	1219 18%
Colorchecker dE 2000 *	3.61	3.61 -0%	4.4 -22%	6.02 -67%	11.04 -206%
Colorchecker dE 2000 max. *	7.92		9.21 -16%	10.06 -27%	14.92 -88%
Greyscale dE 2000 *	3.77	3.8 -1%	3.49 7%	6.29 -67%	10.45 -177%
Gamma	2.43 ^91%	2.16 ^102%	2.55 ^86%	2.4 ^92%	2 ^110%
CCT	6760 ^96%	5969 ^109%	6256 ^104%	7712 ^84%	8849 ^73%
Color Space (Percent of AdobeRGB 1998)		63	53.21	47.8	74
Color Space (Percent of sRGB)		97	80.76	73.2	100
Total Average (Program / Settings)		-5% / 5%	-7% / -3%	-8% / -19%	-10% / -35%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

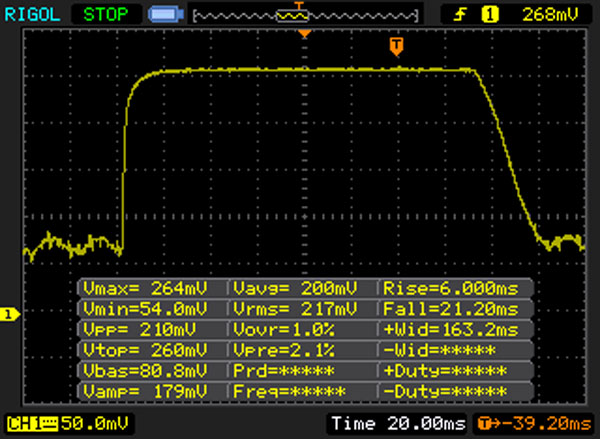

↔ Response Time Black to White
27 ms ... rise ↗ and fall ↘ combined	↗ 6 ms rise
27 ms ... rise ↗ and fall ↘ combined	↘ 21 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 64 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

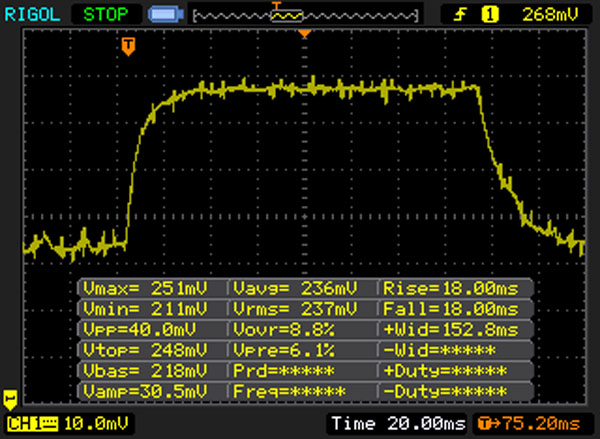

↔ Response Time 50% Grey to 80% Grey
36 ms ... rise ↗ and fall ↘ combined	↗ 18 ms rise
36 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 46 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit
HP Elite x2 1012 G1 Intel Core m5-6Y54	111 Points +208%
Huawei MateBook m5-6Y54 Intel Core m5-6Y54	107 Points +197%
Dell Latitude 11 5175 Intel Core m5-6Y57	95 Points +164%
Microsoft Surface Pro 4, Core m3 Intel Core m3-6Y30	88 Points +144%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel Atom x5-Z8550	36 Points
CPU Multi 64Bit
HP Elite x2 1012 G1 Intel Core m5-6Y54	255 Points +90%
Huawei MateBook m5-6Y54 Intel Core m5-6Y54	232 Points +73%
Microsoft Surface Pro 4, Core m3 Intel Core m3-6Y30	206 Points +54%
Dell Latitude 11 5175 Intel Core m5-6Y57	171 Points +28%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel Atom x5-Z8550	134 Points

Cinebench R15 CPU Single 64Bit

36 Points

Cinebench R15 CPU Multi 64Bit

134 Points

Cinebench R15 OpenGL 64Bit

13.98 fps

Cinebench R15 Ref. Match 64Bit

98 %

Help

... in comparison

PCMark 8
Home Score Accelerated v2
HP Elite x2 1012 G1 HD Graphics 515, 6Y54, Liteon L8H-256V2G	2983 Points +130%
Huawei MateBook m5-6Y54 HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027	2717 Points +110%
Dell Latitude 11 5175 HD Graphics 515, 6Y57, Samsung PM871 MZYLN256HCHP	2641 Points +104%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	2426 Points +87%
Lenovo Yoga Book 2016 Windows 64GB LTE HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash	1296 Points
Work Score Accelerated v2
HP Elite x2 1012 G1 HD Graphics 515, 6Y54, Liteon L8H-256V2G	3932 Points +215%
Dell Latitude 11 5175 HD Graphics 515, 6Y57, Samsung PM871 MZYLN256HCHP	3720 Points +198%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	3186 Points +155%
Huawei MateBook m5-6Y54 HD Graphics 515, 6Y54, SanDisk SD8SN8U256G1027	2721 Points +118%
Lenovo Yoga Book 2016 Windows 64GB LTE HD Graphics 400 (Braswell), Z8550, 64 GB eMMC Flash	1247 Points

PCMark 8 Home Score Accelerated v2		1296 points
PCMark 8 Work Score Accelerated v2		1247 points
Help

	Lenovo Yoga Book 2016 Windows 64GB LTE 64 GB eMMC Flash	Microsoft Surface Pro 4, Core m3 Samsung MZFLV128 NVMe	Dell Latitude 11 5175 Samsung PM871 MZYLN256HCHP	HP Elite x2 1012 G1 Liteon L8H-256V2G	Huawei MateBook m5-6Y54 SanDisk SD8SN8U256G1027
CrystalDiskMark 3.0		466%	620%	715%	667%
Read Seq	120.5	663 450%	472.6 292%	501 316%	512 325%
Write Seq	34.39	158.2 360%	296.8 763%	297.2 764%	462.1 1244%
Read 512	102.6	313.1 205%	383.8 274%	351.7 243%	376 266%
Write 512	26.58	158.2 495%	296.8 1017%	295.7 1012%	295.2 1011%
Read 4k	13.34	30.14 126%	30.89 132%	28.31 112%	31.83 139%
Write 4k	11.56	68 488%	71.4 518%	90.3 681%	64.5 458%
Read 4k QD32	33.6	243.7 625%	243.9 626%	285 748%	269.6 702%
Write 4k QD32	13.79	149.2 982%	198.6 1340%	268.4 1846%	178.2 1192%

CrystalDiskMark 3.0

AS SSD

64 GB eMMC Flash

Sequential Read: 120.5 MB/s

Sequential Write: 34.39 MB/s

512K Read: 102.6 MB/s

512K Write: 26.58 MB/s

4K Read: 13.34 MB/s

4K Write: 11.56 MB/s

4K QD32 Read: 33.6 MB/s

4K QD32 Write: 13.79 MB/s

3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515, Intel Core m3-6Y30	1206 Points +189%
HP Elite x2 1012 G1 Intel HD Graphics 515, Intel Core m5-6Y54	1200 Points +187%
Dell Latitude 11 5175 Intel HD Graphics 515, Intel Core m5-6Y57	863 Points +106%
Huawei MateBook m5-6Y54 Intel HD Graphics 515, Intel Core m5-6Y54	781 Points +87%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel HD Graphics 400 (Braswell), Intel Atom x5-Z8550	418 Points

3DMark
1280x720 Cloud Gate Standard Graphics
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515, Intel Core m3-6Y30	6597 Points +169%
HP Elite x2 1012 G1 Intel HD Graphics 515, Intel Core m5-6Y54	6308 Points +157%
Huawei MateBook m5-6Y54 Intel HD Graphics 515, Intel Core m5-6Y54	5638 Points +130%
Dell Latitude 11 5175 Intel HD Graphics 515, Intel Core m5-6Y57	4904 Points +100%
Lenovo Yoga Book 2016 Windows 64GB LTE Intel HD Graphics 400 (Braswell), Intel Atom x5-Z8550	2455 Points
1920x1080 Fire Strike Graphics
Microsoft Surface Pro 4, Core m3 Intel HD Graphics 515, Intel Core m3-6Y30	810 Points
HP Elite x2 1012 G1 Intel HD Graphics 515, Intel Core m5-6Y54	797 Points
Dell Latitude 11 5175 Intel HD Graphics 515, Intel Core m5-6Y57	601 Points

3DMark 11 Performance		478 points
3DMark Cloud Gate Standard Score		2087 points
Help

... in comparison

	low	med.
The Elder Scrolls V: Skyrim (2011)	19.8	9.5
Tomb Raider (2013)	24.8	10 ()
BioShock Infinite (2013)	19.5	7.8
Rise of the Tomb Raider (2016)	5.3

Max. Load

Idle


24.2 °C	25.7 °C	24.9 °C
24.1 °C	24.8 °C	24.3 °C
23.3 °C	23.8 °C	23.8 °C

Maximum: 25.7 °C
Average: 24.3 °C


25.1 °C	27.1 °C	26.2 °C
24.5 °C	25.6 °C	24.7 °C
24 °C	24.4 °C	24.1 °C

Maximum: 27.1 °C
Average: 25.1 °C

Power Supply (max.) 29 °C | Room Temperature 21.2 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 28.9 °C / 84 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 34 °C / 93 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 40.2 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.2 °C / 79.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+1.9 °C / 3.4 F).

Lenovo Yoga Book 2016 Windows 64GB LTE audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.9% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(±) | linearity of mids is average (12.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (11.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.9% difference to median)
Compared to same class
» 83% of all tested devices in this class were better, 2% similar, 14% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 83% of all tested devices were better, 3% similar, 14% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Huawei MateBook m5-6Y54 audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.8% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (14.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5% higher than median
(±) | linearity of highs is average (7.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.9% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 3% similar, 12% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 85% of all tested devices were better, 3% similar, 12% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	3.8 / 2.6 Watt
Idle	2 / 4.6 / 5.7 Watt
Load	11.5 / 11.5 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo Yoga Book 2016 Windows 64GB LTE Z8550, HD Graphics 400 (Braswell), 64 GB eMMC Flash, IPS , 1920x1080, 10.1"	Dell Latitude 11 5175 6Y57, HD Graphics 515, Samsung PM871 MZYLN256HCHP, IPS, 1920x1080, 10.8"	HP Elite x2 1012 G1 6Y54, HD Graphics 515, Liteon L8H-256V2G, IPS, 1920x1280, 12.1"	Huawei MateBook m5-6Y54 6Y54, HD Graphics 515, SanDisk SD8SN8U256G1027, IPS, 2160x1440, 12"	Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520, Samsung MZFLV128 NVMe, IPS, 2736x1824, 12.3"
Power Consumption		-30%	-92%	-128%	-89%
Idle Minimum *	2	2.7 -35%	3.7 -85%	7.4 -270%	4.4 -120%
Idle Average *	4.6	5.8 -26%	6.8 -48%	11.6 -152%	9 -96%
Idle Maximum *	5.7	6.6 -16%	7.6 -33%	11.6 -104%	10.7 -88%
Load Average *	11.5	15.2 -32%	22.5 -96%	16.8 -46%	19.6 -70%
Load Maximum *	11.5	16.1 -40%	34.5 -200%	19.1 -66%	19.9 -73%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		19h 13min
WiFi Websurfing		8h 18min

	Lenovo Yoga Book 2016 Windows 64GB LTE Z8550, HD Graphics 400 (Braswell), 32 Wh	Microsoft Surface Pro 4, Core m3 6Y30, HD Graphics 515, 38 Wh	Dell Latitude 11 5175 6Y57, HD Graphics 515, 35 Wh	HP Elite x2 1012 G1 6Y54, HD Graphics 515, 37 Wh	Huawei MateBook m5-6Y54 6Y54, HD Graphics 515, 33 Wh
Battery Runtime		-17%	-23%	-24%	-53%
Reader / Idle	1153	791 -31%	793 -31%	732 -37%	478 -59%
WiFi v1.3	498	488 -2%	426 -14%	443 -11%	263 -47%
Load		138	172	130	106
H.264			411	432

Pros

+ 设计和稳定性

+ 稳固的屏幕转轴

+ 触控按键反馈优秀

+ 触控版易于使用

+ 可以在纸上书写绘画

+ 电池可以满足一整天使用

+ 明亮高对比度的屏幕

+ 表现不错的800万像素相机

Cons

- 接口较少

- 不支持A5尺寸纸

- eMMC闪存速度慢

- 无维护升级空间

Sketchbook for creators: Lenovo Yoga Book 2016. Test model courtesy of Cyberport.

展开、记下笔记、实现创意：Yoga Book将各种输入方式的集聚一身，更是支持前所未有的新颖纸上手写支持。

那么我能够把之前的笔记本电脑放在一边，把这台二合一设备作为主要办公Windows设备吗？答案是不能，因为Yoga Book的设计重心是作为输入界面。在课堂上，实习时，会议中或会展台上，打开Yoga Book记笔记或在纸上自由绘画，并储存在OneDrive中。其他更复杂的编辑则需要使用DTP软件如Adobe InDesign或Photoshop，在高性能笔记本电脑或台式机上进行。
