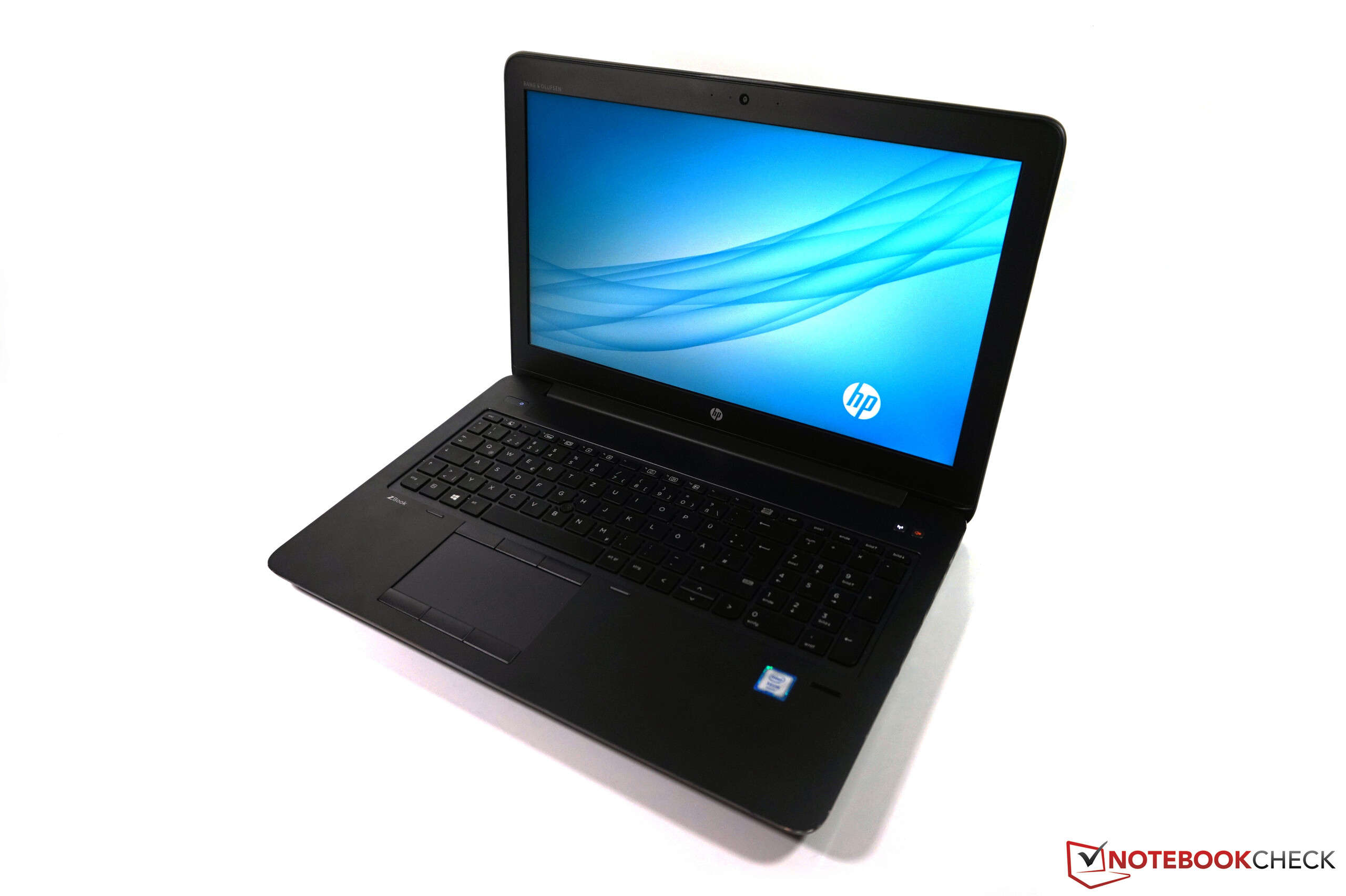

惠普 ZBook 15 G3 工作站简短评测

Name: HP ZBook 15 G3
Brand: HP

昂贵，超凡？ 惠普的移动工作站一直都是市场上最贵的设备之一。这对于最新的ZBook 15 G3来说也不例外。不过这款售价4000欧元笔记本电脑（约29481人民币）可以达到我们期待的高水准吗？

Andreas Osthoff, ✓ Tanja Hinum (translated by Yuchen Wang), Published 04/09/2016 🇺🇸 🇩🇪 ...

Laptop / Notebook Skylake Windows Workstation

Test device courtesy of HP Deutschland

Download your licensed rating image as PNG / SVG

HP ZBook 15 G3 (ZBook 15u G4 Series)

Processor

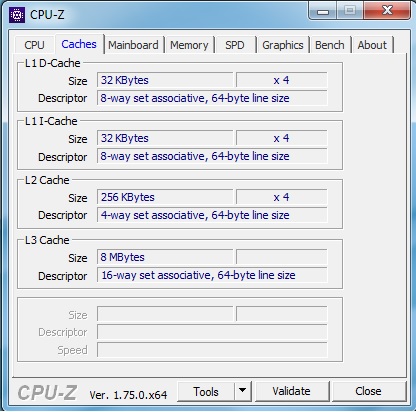

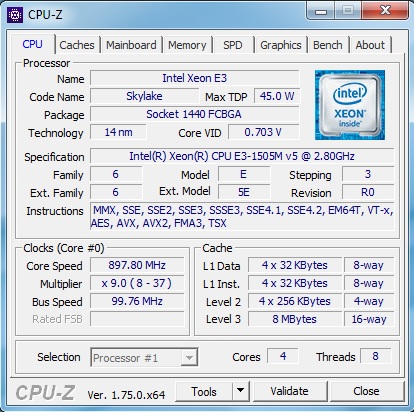

Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake

Graphics adapter

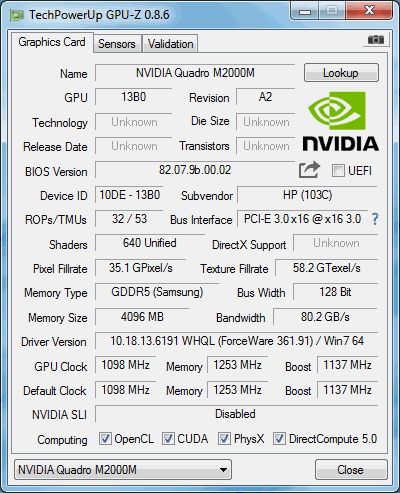

NVIDIA Quadro M2000M - 4 GB VRAM, Core: 1137 MHz, RAM: 1252 MHz, GDDR5, 361.91, Optimus

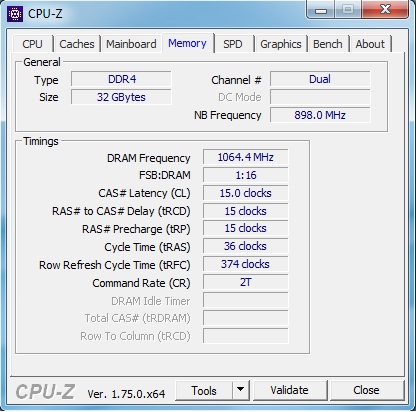

Memory

32 GB

, DDR4-2133, 双通道, 四个内存槽两个已占用, 最大支持 64 GB

Display

15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Samsung SDC5344, UWVA-IPS, glossy: no

Mainboard

Intel CM236 (Skylake PCH-H)

Storage

Samsung SM951 MZVPV512HDGL m.2 PCI-e, 512 GB

Soundcard

Intel Skylake PCH-H High Definition Audio Controller

Connections

3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米耳机接口, Card Reader: SD 读卡器 (SD, SDHC, SDXC UHS-II), 1 SmartCard, 1 Fingerprint Reader

Networking

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 26 x 386 x 264

Battery

90 Wh Lithium-Polymer, 9 芯

Operating System

Microsoft Windows 7 Professional 64 Bit

Camera

Webcam: 720p高清摄像头

Additional features

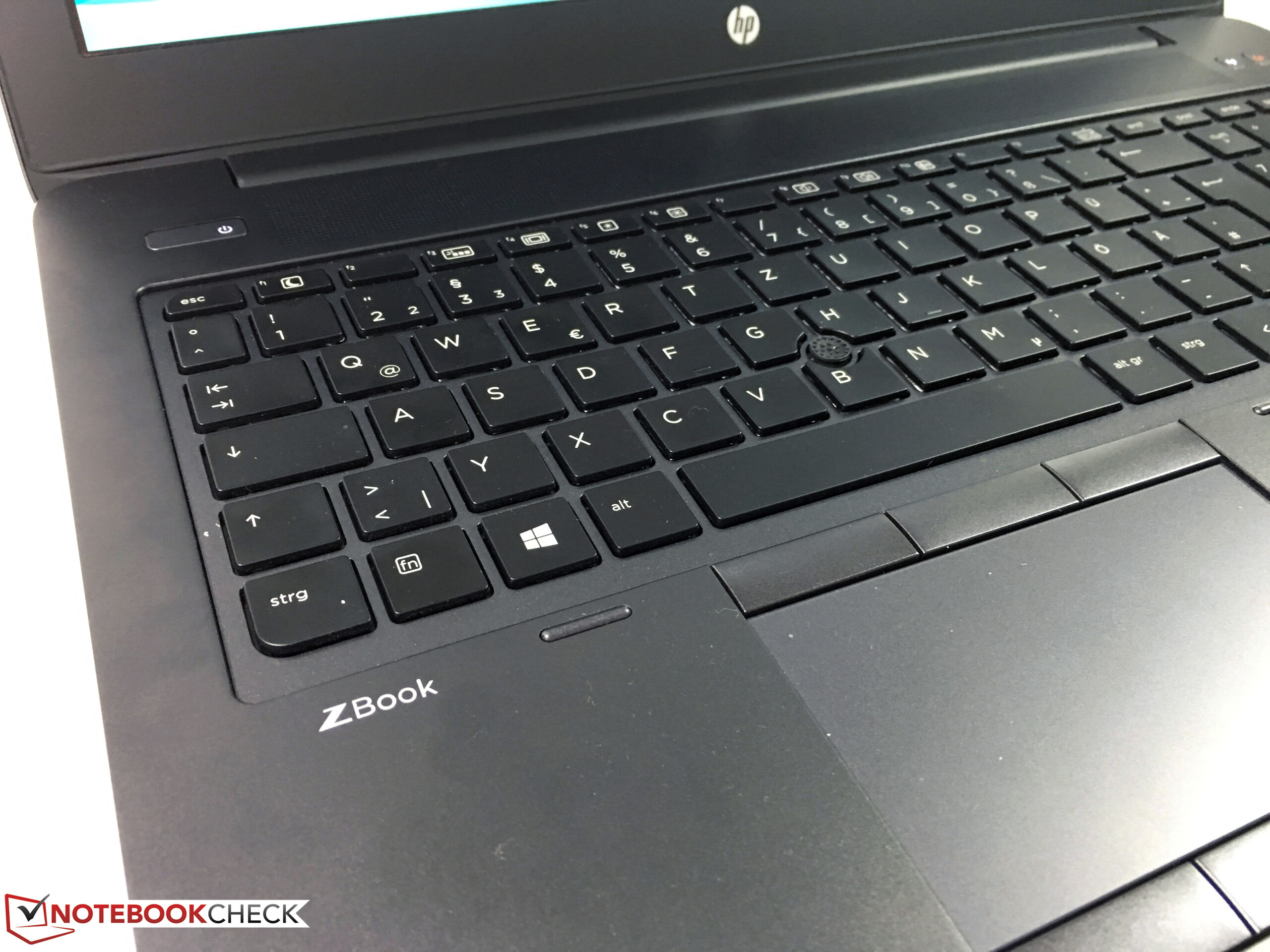

Speakers: Stereo, Bang & Olufsen HD Audio, Keyboard: 孤岛式, Keyboard Light: yes, 150瓦电源适配器，快速开始说明，质保信息, Windows 10 Pro (支持还原到 Windows 7 专业版), HP Performance Advisor, HP Remote Graphics Software, HP Velocity, HP Client Security, Microsoft Security Essentials, HP ePrint Driver, HP Recovery Manager, Foxit PhantomPDF Express, 36 Months Warranty

Weight

2.625 kg, Power Supply: 460 g

Price

4000 Euro

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

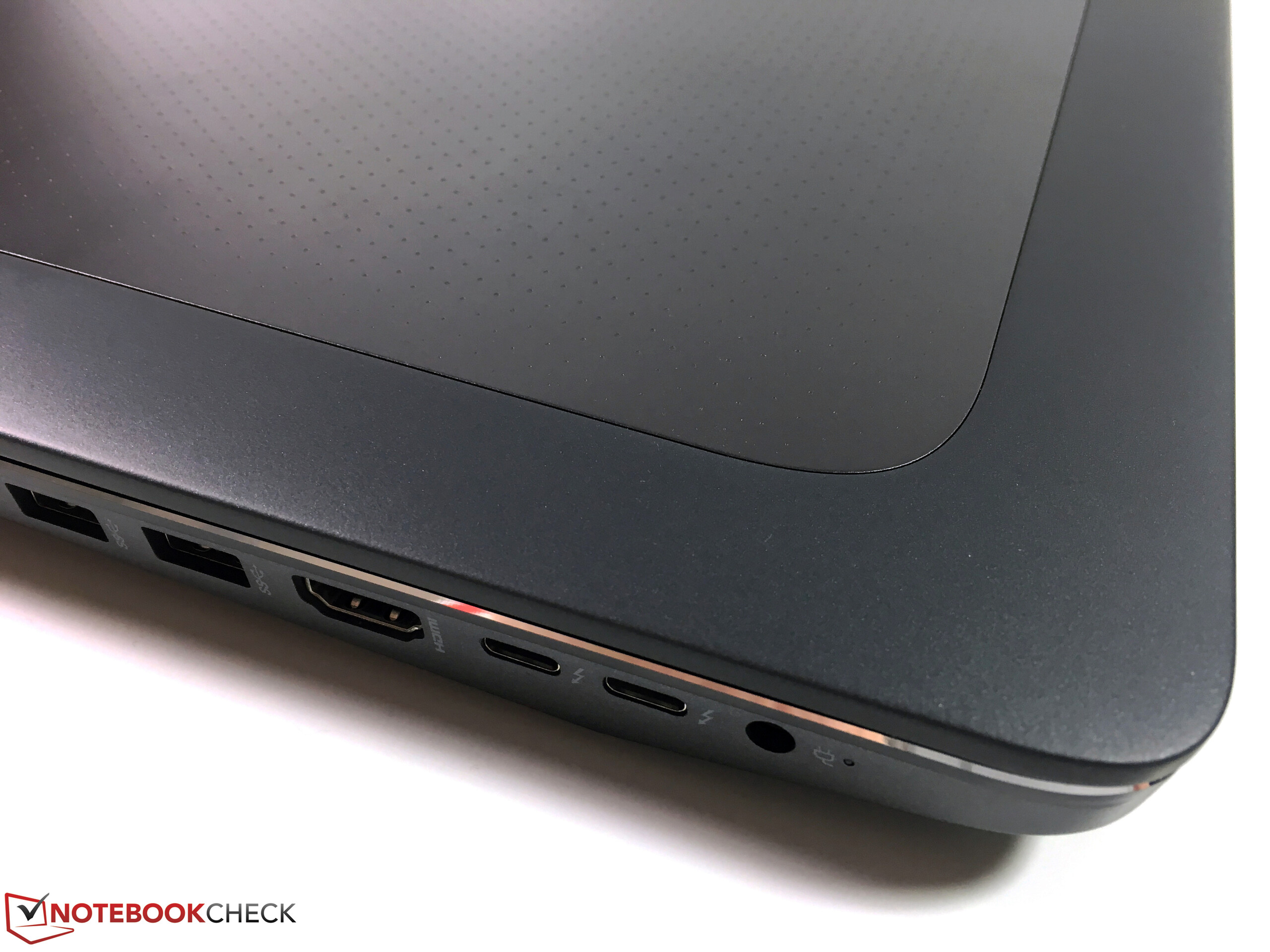

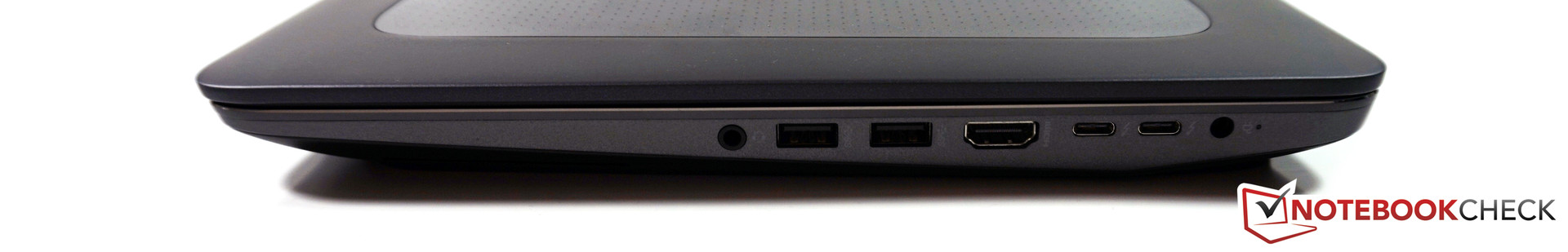

Right: SmartCard reader, 3.5 mm audio, 2x USB 3.0, HDMI, 2x Thunderbolt 3, power

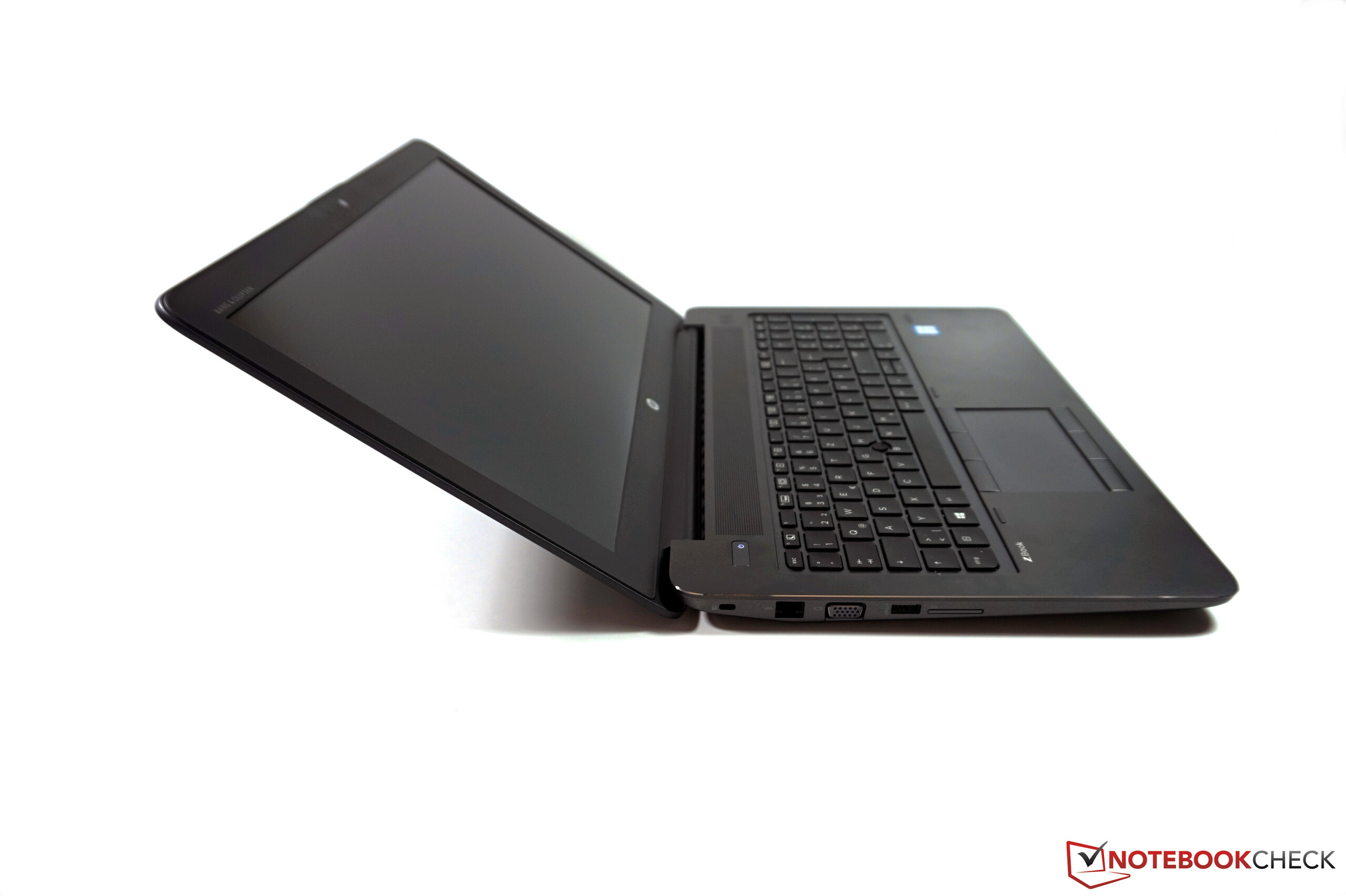

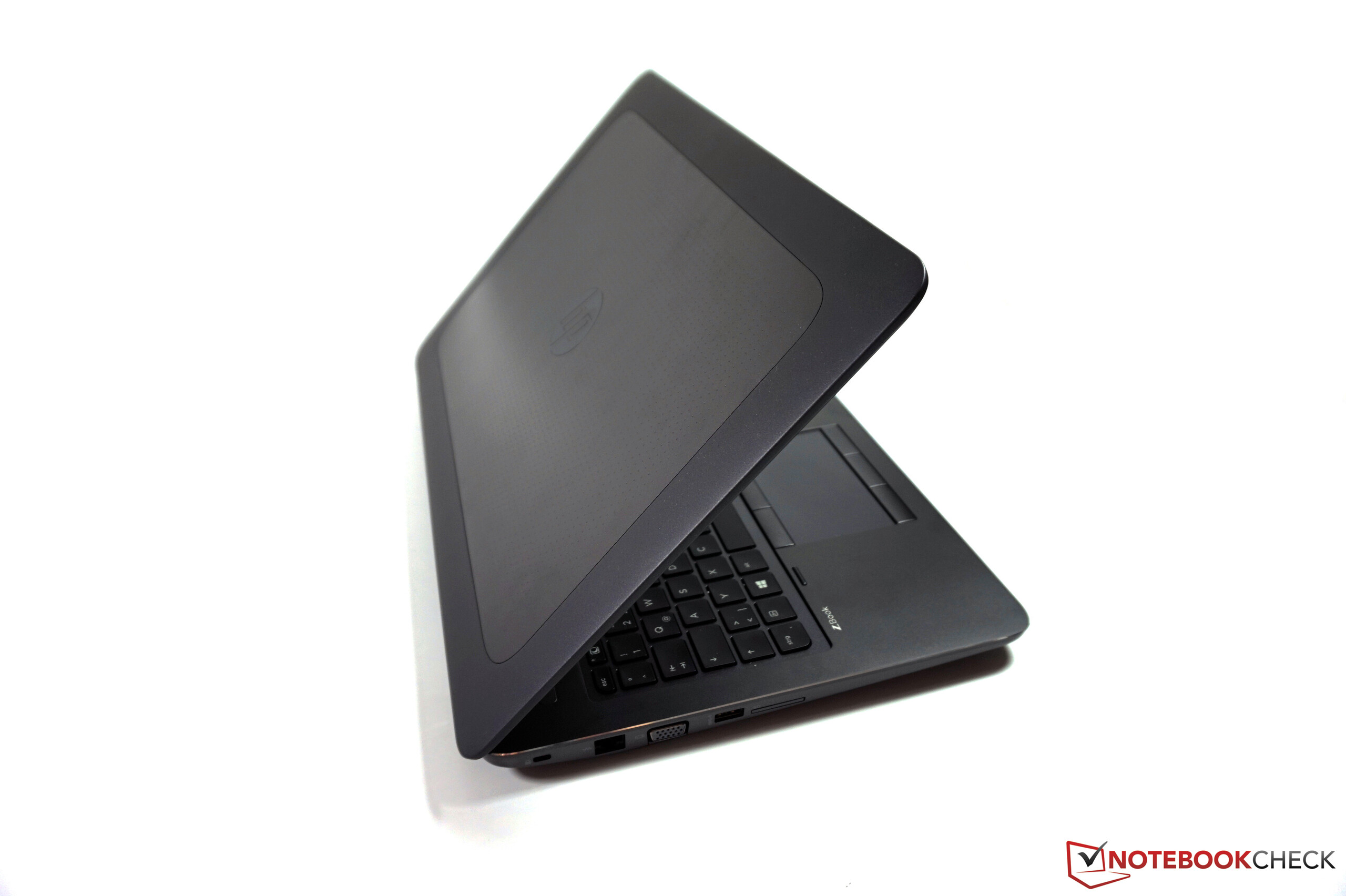

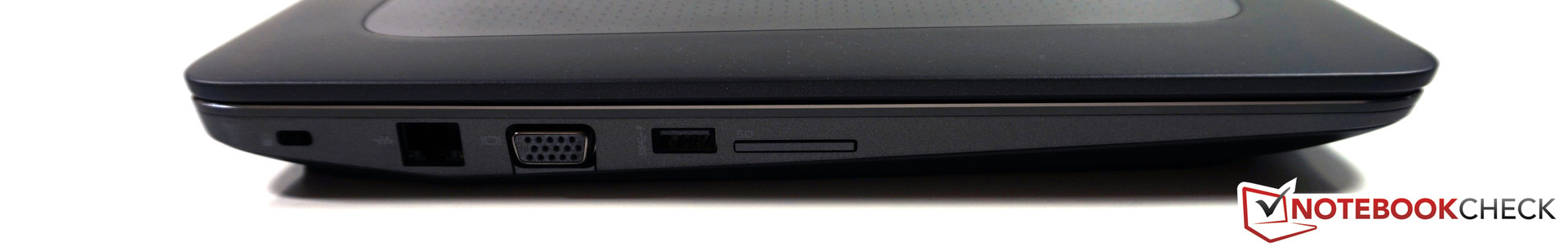

Left: Kensington lock, Gigabit Ethernet, VGA, USB 3.0 (Always-On), SD reader


297 cd/m²	310 cd/m²	300 cd/m²
276 cd/m²	306 cd/m²	286 cd/m²
270 cd/m²	263 cd/m²	294 cd/m²

Distribution of brightness

Samsung SDC5344 tested with X-Rite i1Pro 2

Maximum: 310 cd/m² (Nits) Average: 289.1 cd/m² Minimum: 14.6 cd/m²
Brightness Distribution: 85 %
Center on Battery: 306 cd/m²
Contrast: 900:1 (Black: 0.34 cd/m²)
ΔE Color 5.1 | 0.5-29.43 Ø4.92
ΔE Greyscale 7.4 | 0.5-98 Ø5.2
95% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 2.2.0 3D)
95.5% sRGB (Argyll 2.2.0 3D)
66.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37

Download ICC File (X-Rite i1Pro 2)

	HP ZBook 15 G3 Samsung SDC5344, UWVA-IPS, 1920x1080	Lenovo ThinkPad P50 LP156WF6-SPK1, IPS, 1920x1080	Dell Precision 5510 SHP143E, 7PHPT_LQ156D1, IGZO LED, 3840x2160	Dell XPS 15 2016 9550 Sharp SHP1453 LQ156M1 Dell PN: 1203M, IPS, 1920x1080	HP ZBook 15 G2 Samsung SDC5344, IPS LED, 1920x1080
Display		-40%	27%	3%	2%
Display P3 Coverage	66.8	39.13 -41%	88.4 32%	68.8 3%	68.5 3%
sRGB Coverage	95.5	58.5 -39%	100 5%	97.9 3%	97.3 2%
AdobeRGB 1998 Coverage	69	40.45 -41%	99.5 44%	70.7 2%	70.7 2%
Response Times		21%	0%	19%
Response Time Grey 50% / Grey 80% *	54 ?(24.4, 29.6)	46 ?(17, 29) 15%	56.4 ?(23.2, 33.2) -4%	62 ?(25, 37) -15%
Response Time Black / White *	35.6 ?(11.6, 24)	26 ?(9, 17) 27%	34 ?(11, 23) 4%	40 ?(13, 27) -12%
PWM Frequency	198 ?(95)			362 ?(10) 83%
Screen		-3%	17%	18%	-2%
Brightness middle	306	263 -14%	391 28%	399 30%	309 1%
Brightness	289	236 -18%	361 25%	394 36%	289 0%
Brightness Distribution	85	78 -8%	87 2%	89 5%	84 -1%
Black Level *	0.34	0.34 -0%	0.4 -18%	0.24 29%	0.47 -38%
Contrast	900	774 -14%	978 9%	1663 85%	657 -27%
Colorchecker dE 2000 *	5.1	2.35 54%	4.85 5%	5.95 -17%	3.82 25%
Colorchecker dE 2000 max. *	9.9
Greyscale dE 2000 *	7.4	3.33 55%	4.01 46%	8.41 -14%	5.94 20%
Gamma	2.37 ^93%	2.38 ^92%	2.18 ^101%	2.35 ^94%	2.16 ^102%
CCT	7263 ^89%	6917 ^94%	7340 ^89%	7010 ^93%	6996 ^93%
Color Space (Percent of AdobeRGB 1998)	63	37 -41%	96 52%	64 2%	63.8 1%
Color Space (Percent of sRGB)	95	58 -39%	100 5%	98 3%
Total Average (Program / Settings)		-7% / -7%	15% / 17%	13% / 15%	0% / -1%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

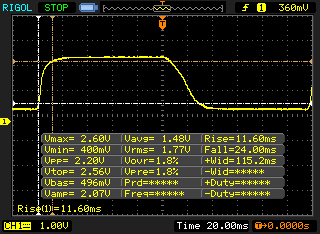

↔ Response Time Black to White
35.6 ms ... rise ↗ and fall ↘ combined	↗ 11.6 ms rise
35.6 ms ... rise ↗ and fall ↘ combined	↘ 24 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

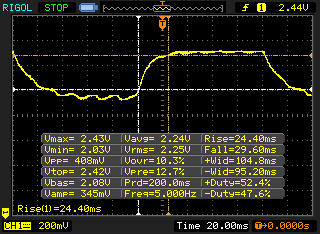

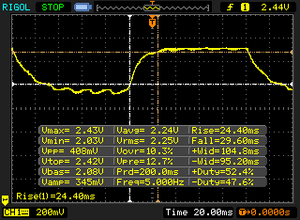

↔ Response Time 50% Grey to 80% Grey
54 ms ... rise ↗ and fall ↘ combined	↗ 24.4 ms rise
54 ms ... rise ↗ and fall ↘ combined	↘ 29.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 90 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

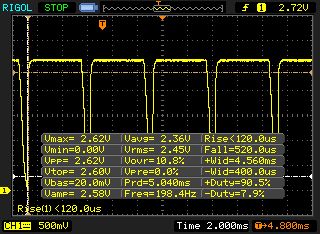

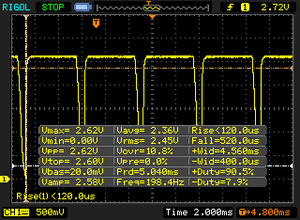

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

198 Hz

≤ 95 % brightness setting

The display backlight flickers at 198 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 95 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5 | Cinebench R10

Cinebench R15
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	732 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	732 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	674 Points -8%
HP ZBook 15 G2 Intel Core i7-4910MQ	651 Points -11%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	592 Points -19%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	461 Points -37%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	158 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	158 Points
HP ZBook 15 G2 Intel Core i7-4910MQ	149 Points -6%
Dell Precision 5510 Intel Xeon E3-1505M v5	142 Points -10%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	118 Points -25%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	117 Points -26%

Cinebench R11.5
CPU Multi 64Bit
Dell Precision 5510 Intel Xeon E3-1505M v5	7.93 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	7.91 Points
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7.42 Points -6%
HP ZBook 15 G2 Intel Core i7-4910MQ	7.05 Points -11%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	6.48 Points -18%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	5.28 Points -33%
CPU Single 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	1.78 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	1.78 Points
HP ZBook 15 G2 Intel Core i7-4910MQ	1.69 Points -5%
Dell Precision 5510 Intel Xeon E3-1505M v5	1.6 Points -10%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	1.47 Points -17%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	1.32 Points -26%

Cinebench R10
Rendering Multiple CPUs 32Bit
HP ZBook 15 G3 Intel Xeon E3-1505M v5	21834 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	21436 Points -2%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	20115 Points -8%
HP ZBook 15 G2 Intel Core i7-4910MQ	19910 Points -9%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	17506 Points -20%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	16161 Points -26%
Rendering Single 32Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	5670 Points +2%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	5560 Points
HP ZBook 15 G2 Intel Core i7-4910MQ	5457 Points -2%
Dell Precision 5510 Intel Xeon E3-1505M v5	5367 Points -3%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	4759 Points -14%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	4420 Points -21%
Rendering Multiple CPUs 64Bit
HP ZBook 15 G3 Intel Xeon E3-1505M v5	28384 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	28057 Points -1%
HP ZBook 15 G2 Intel Core i7-4910MQ	26355 Points -7%
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	23333 Points -18%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	22840 Points -20%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	21034 Points -26%
Rendering Single CPUs 64Bit
MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5	7347 Points +2%
HP ZBook 15 G2 Intel Core i7-4910MQ	7223 Points 0%
HP ZBook 15 G3 Intel Xeon E3-1505M v5	7222 Points
Dell Precision 5510 Intel Xeon E3-1505M v5	6890 Points -5%
Dell XPS 15 2016 9550 Intel Core i5-6300HQ	6180 Points -14%
Lenovo ThinkPad P50 Intel Core i7-6820HQ	5791 Points -20%

Cinebench R10 Rendering Single CPUs 64Bit

7222 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

28384 Points

Cinebench R10 Shading 64Bit

6838 Points

Cinebench R10 Shading 32Bit

6841

Cinebench R10 Rendering Multiple CPUs 32Bit

21834

Cinebench R10 Rendering Single 32Bit

5560

Cinebench R11.5 OpenGL 64Bit

94 fps

Cinebench R11.5 CPU Multi 64Bit

7.91 Points

Cinebench R11.5 CPU Single 64Bit

1.78 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

115.1 fps

Cinebench R15 CPU Multi 64Bit

732 Points

Cinebench R15 CPU Single 64Bit

158 Points

Help

... in comparison

PCMark 7 | PCMark 8

PCMark 7 - Score
HP ZBook 15 G2	5846 Points +6%
HP ZBook 15 G3	5521 Points
MSI WS60-6QJE316H11	5340 Points -3%
Dell Precision 5510	5317 Points -4%
Dell XPS 15 2016 9550	5128 Points -7%
Lenovo ThinkPad P50	4892 Points -11%

PCMark 8
Home Score Accelerated v2
HP ZBook 15 G2	4654 Points +18%
Lenovo ThinkPad P50	4213 Points +6%
HP ZBook 15 G3	3959 Points
Dell Precision 5510	3941 Points 0%
Dell XPS 15 2016 9550	3575 Points -10%
MSI WS60-6QJE316H11	3134 Points -21%
Creative Score Accelerated v2
HP ZBook 15 G2	4990 Points +14%
Dell Precision 5510	4429 Points +1%
HP ZBook 15 G3	4392 Points
Dell XPS 15 2016 9550	4257 Points -3%
Work Score Accelerated v2
HP ZBook 15 G3	5221 Points
HP ZBook 15 G2	5200 Points 0%
Dell Precision 5510	5100 Points -2%
Lenovo ThinkPad P50	4677 Points -10%
MSI WS60-6QJE316H11	4045 Points -23%

Legend

HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M, Samsung SSD PM871 MZNLN256HCHP

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Dell XPS 15 2016 9550 Intel Core i5-6300HQ, NVIDIA GeForce GTX 960M, WDC WD10SPCX-75KHST0 + LiteON CS1-SP32-11 M.2 2242 32GB

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M, Toshiba NVMe THNSN5128GP

PCMark Vantage Result		23161 points
PCMark 7 Score		5521 points
PCMark 8 Home Score Accelerated v2		3959 points
PCMark 8 Creative Score Accelerated v2		4392 points
PCMark 8 Work Score Accelerated v2		5221 points
Help

... in comparison

CrystalDiskMark 3.0

AS SSD

Samsung SM951 MZVPV512HDGL m.2 PCI-e

Sequential Read: 1502 MB/s

Sequential Write: 1538 MB/s

512K Read: 1164 MB/s

512K Write: 1432 MB/s

4K Read: 59.1 MB/s

4K Write: 207.3 MB/s

4K QD32 Read: 798 MB/s

4K QD32 Write: 393.8 MB/s

SPECviewperf 12 | SPECviewperf 11

SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	71.7 fps +9%
HP ZBook 15 G3 NVIDIA Quadro M2000M	66 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	63 fps -5%
Dell Precision 5510 NVIDIA Quadro M1000M	62 fps -6%
HP ZBook 15 G2 AMD FirePro M5100	39.72 fps -40%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	22.41 fps -66%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	22.03 fps -67%
1900x1060 Siemens NX (snx-02)
HP ZBook 15 G3 NVIDIA Quadro M2000M	35.87 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	33.95 fps -5%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	32.52 fps -9%
Dell Precision 5510 NVIDIA Quadro M1000M	31 fps -14%
HP ZBook 15 G2 AMD FirePro M5100	29.69 fps -17%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	21.35 fps -40%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	2.39 fps -93%
1900x1060 Showcase (showcase-01)
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	24.25 fps +2%
HP ZBook 15 G3 NVIDIA Quadro M2000M	23.86 fps
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	21.73 fps -9%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.35 fps -11%
Dell Precision 5510 NVIDIA Quadro M1000M	20 fps -16%
HP ZBook 15 G2 AMD FirePro M5100	16.36 fps -31%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	11.23 fps -53%
1900x1060 Medical (medical-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	15.03 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	14.68 fps -2%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	14.4 fps -4%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	12.3 fps -18%
Dell Precision 5510 NVIDIA Quadro M1000M	12 fps -20%
HP ZBook 15 G2 AMD FirePro M5100	7.82 fps -48%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	2.16 fps -86%
1900x1060 Maya (maya-04)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.46 fps +7%
HP ZBook 15 G3 NVIDIA Quadro M2000M	35.94 fps
Dell Precision 5510 NVIDIA Quadro M1000M	30 fps -17%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	29.89 fps -17%
HP ZBook 15 G2 AMD FirePro M5100	24.92 fps -31%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	15.82 fps -56%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	15.37 fps -57%
1900x1060 Energy (energy-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	3.29 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3.2 fps -3%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3.16 fps -4%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	0.74 fps -78%
Dell Precision 5510 NVIDIA Quadro M1000M	0.69 fps -79%
HP ZBook 15 G2 AMD FirePro M5100	0.44 fps -87%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	0.17 fps -95%
1900x1060 Creo (creo-01)
HP ZBook 15 G3 NVIDIA Quadro M2000M	40.61 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	38.95 fps -4%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	37.48 fps -8%
Dell Precision 5510 NVIDIA Quadro M1000M	34 fps -16%
HP ZBook 15 G2 AMD FirePro M5100	19.64 fps -52%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	19.14 fps -53%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	10.72 fps -74%
1900x1060 Catia (catia-04)
HP ZBook 15 G3 NVIDIA Quadro M2000M	47.08 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.26 fps -2%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	44.29 fps -6%
Dell Precision 5510 NVIDIA Quadro M1000M	37 fps -21%
HP ZBook 15 G2 AMD FirePro M5100	23.62 fps -50%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	19.6 fps -58%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	15.76 fps -67%

SPECviewperf 11
1920x1080 Siemens NX
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.31 fps 0%
HP ZBook 15 G3 NVIDIA Quadro M2000M	43.17 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.14 fps -2%
Dell Precision 5510 NVIDIA Quadro M1000M	41 fps -5%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	30.87 fps -28%
HP ZBook 15 G2 AMD FirePro M5100	26.63 fps -38%
1920x1080 Tcvis
HP ZBook 15 G3 NVIDIA Quadro M2000M	44.89 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	43.93 fps -2%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	42.91 fps -4%
Dell Precision 5510 NVIDIA Quadro M1000M	40 fps -11%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	34.34 fps -24%
HP ZBook 15 G2 AMD FirePro M5100	21.43 fps -52%
1920x1080 SolidWorks
HP ZBook 15 G2 AMD FirePro M5100	56.1 fps +17%
Dell Precision 5510 NVIDIA Quadro M1000M	51 fps +6%
HP ZBook 15 G3 NVIDIA Quadro M2000M	48.13 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	47.71 fps -1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.69 fps -3%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	41.64 fps -13%
1920x1080 Pro/ENGINEER
HP ZBook 15 G3 NVIDIA Quadro M2000M	21.57 fps
Dell Precision 5510 NVIDIA Quadro M1000M	21 fps -3%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	17.54 fps -19%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	17.4 fps -19%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	15.96 fps -26%
HP ZBook 15 G2 AMD FirePro M5100	10.64 fps -51%
1920x1080 Maya
HP ZBook 15 G2 AMD FirePro M5100	60.3 fps +5%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	58.3 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	57.7 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	56.9 fps -1%
Dell Precision 5510 NVIDIA Quadro M1000M	56 fps -3%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	52 fps -10%
1920x1080 Lightwave
HP ZBook 15 G2 AMD FirePro M5100	75.8 fps +46%
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +4%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	52.5 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	52 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	48.27 fps -7%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	47.6 fps -8%
1920x1080 Ensight
HP ZBook 15 G3 NVIDIA Quadro M2000M	46.68 fps
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	46.43 fps -1%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	43.49 fps -7%
Dell Precision 5510 NVIDIA Quadro M1000M	39 fps -16%
HP ZBook 15 G2 AMD FirePro M5100	25.07 fps -46%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	24.64 fps -47%
1920x1080 Catia
Dell Precision 5510 NVIDIA Quadro M1000M	54 fps +1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	53.5 fps 0%
HP ZBook 15 G3 NVIDIA Quadro M2000M	53.5 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	48.98 fps -8%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	39.12 fps -27%
HP ZBook 15 G2 AMD FirePro M5100	35.61 fps -33%

LuxMark v2.0 64Bit | SiSoft Sandra 2016

LuxMark v2.0 64Bit
Room GPUs-only
HP ZBook 15 G3 NVIDIA Quadro M2000M	930 Samples/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	903 Samples/s -3%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	895 Samples/s -4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	791 Samples/s -15%
Dell Precision 5510 NVIDIA Quadro M1000M	534 Samples/s -43%
HP ZBook 15 G2 AMD FirePro M5100	375 Samples/s -60%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	68 Samples/s -93%
Sala GPUs-only
HP ZBook 15 G3 NVIDIA Quadro M2000M	1556 Samples/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	1434 Samples/s -8%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	1426 Samples/s -8%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	1417 Samples/s -9%
Dell Precision 5510 NVIDIA Quadro M1000M	889 Samples/s -43%
HP ZBook 15 G2 AMD FirePro M5100	675 Samples/s -57%
Lenovo ThinkPad W541 20EF000SGE NVIDIA Quadro K2100M	146 Samples/s -91%

SiSoft Sandra 2016
Image Processing
HP ZBook 15 G3 NVIDIA Quadro M2000M	228.6 MPix/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	155.8 MPix/s -32%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	155.7 MPix/s -32%
Dell Precision 5510 NVIDIA Quadro M1000M	127.5 MPix/s -44%
GP Cryptography (Higher Security AES256+SHA2-512)
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	12.28 GB/s +25%
HP ZBook 15 G3 NVIDIA Quadro M2000M	9.82 GB/s
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	9.28 GB/s -5%
Dell Precision 5510 NVIDIA Quadro M1000M	7.38 GB/s -25%
GP Financial Analysis (FP High/Double Precision)
HP ZBook 15 G3 NVIDIA Quadro M2000M	21.8 KOPT/s
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	21.75 KOPT/s 0%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	21.63 KOPT/s -1%
Dell Precision 5510 NVIDIA Quadro M1000M	17 KOPT/s -22%

3DMark 11 | 3DMark | Unigine Valley 1.0 | Unigine Heaven 3.0

3DMark 11
1280x720 Performance
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	5593 Points +3%
HP ZBook 15 G3 NVIDIA Quadro M2000M	5414 Points
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	5375 Points -1%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	5375 Points -1%
Dell Precision 5510 NVIDIA Quadro M1000M	4648 Points -14%
1280x720 Performance GPU
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	5258 Points +5%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	5220 Points +4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	5107 Points +2%
HP ZBook 15 G3 NVIDIA Quadro M2000M	4997 Points
Dell Precision 5510 NVIDIA Quadro M1000M	4234 Points -15%

3DMark
1920x1080 Fire Strike Score
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	3952 Points +3%
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	3907 Points +2%
HP ZBook 15 G3 NVIDIA Quadro M2000M	3820 Points
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	3813 Points 0%
Dell Precision 5510 NVIDIA Quadro M1000M	3344 Points -12%
HP ZBook 15 G2 AMD FirePro M5100	2253 Points -41%
1920x1080 Fire Strike Graphics
Dell XPS 15 2016 9550 NVIDIA GeForce GTX 960M	4362 Points +7%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	4243 Points +4%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	4126 Points +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	4091 Points
Dell Precision 5510 NVIDIA Quadro M1000M	3517 Points -14%
HP ZBook 15 G2 AMD FirePro M5100	2358 Points -42%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	20.4 fps 0%
HP ZBook 15 G3 NVIDIA Quadro M2000M	20.4 fps
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	20.3 fps 0%
Dell Precision 5510 NVIDIA Quadro M1000M	18.7 fps -8%
1920x1080 Extreme HD Preset OpenGL AA:x8
HP ZBook 15 G3 NVIDIA Quadro M2000M	18.3 fps
Dell Precision 5510 NVIDIA Quadro M1000M	16.2 fps -11%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	13.8 fps -25%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	13.2 fps -28%

Unigine Heaven 3.0
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	53.4 fps +3%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	52.5 fps +1%
HP ZBook 15 G3 NVIDIA Quadro M2000M	51.8 fps
Dell Precision 5510 NVIDIA Quadro M1000M	44.9 fps -13%
HP ZBook 15 G2 AMD FirePro M5100	28 fps -46%
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off
HP ZBook 15 G3 NVIDIA Quadro M2000M	51.6 fps
Dell Precision 5510 NVIDIA Quadro M1000M	43.4 fps -16%
MSI WS60-6QJE316H11 NVIDIA Quadro M2000M	33.9 fps -34%
Lenovo ThinkPad P50 NVIDIA Quadro M2000M	32.4 fps -37%
HP ZBook 15 G2 AMD FirePro M5100	22.9 fps -56%

3DMark 06 Standard Score		25462 points
3DMark Vantage P Result		21026 points
3DMark 11 Performance		5414 points
3DMark Ice Storm Standard Score		89211 points
3DMark Cloud Gate Standard Score		18230 points
3DMark Fire Strike Score		3820 points
Help

... in comparison

	low	med.	high	ultra
BioShock Infinite (2013)	211	133	115.8	72.2
The Witcher 3 (2015)	75.7	46.8	25.9	13.6
Rise of the Tomb Raider (2016)	72.6	44.6	25.5	21.8

Noise Level

Idle		30 / 30 / 30 dB(A)
Load		45.3 / 49.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1 Arta (15 cm distance) environment noise: 30 dB(A)

	HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M
Noise		8%	3%	6%	-13%
off / environment *	30
Idle Minimum *	30	30 -0%	30 -0%	30.6 -2%	37.2 -24%
Idle Average *	30	30 -0%	30 -0%	30.6 -2%	37.2 -24%
Idle Maximum *	30	30 -0%	30 -0%	30.6 -2%	37.2 -24%
Load Average *	45.3	34.5 24%	42.08 7%	35.7 21%	42.1 7%
Load Maximum *	49.7	42.1 15%	46.78 6%	43.2 13%	50.7 -2%

* ... smaller is better

Max. Load

Idle


40.7 °C	54.6 °C	39.6 °C
29.5 °C	40 °C	29.7 °C
27.3 °C	28.6 °C	27 °C

Maximum: 54.6 °C
Average: 35.2 °C


34.7 °C	60.8 °C	34.5 °C
30.9 °C	42.3 °C	30.2 °C
28 °C	32.5 °C	26.9 °C

Maximum: 60.8 °C
Average: 35.6 °C

Power Supply (max.) 59.1 °C | Room Temperature 20 °C | Fennel FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 35.2 °C / 95 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 54.6 °C / 130 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 60.8 °C / 141 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27.7 °C / 82 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.6 °C / 83.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-0.7 °C / -1.3 F).

	HP ZBook 15 G3 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M	Lenovo ThinkPad P50 Intel Core i7-6820HQ, NVIDIA Quadro M2000M	Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M	HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100	MSI WS60-6QJE316H11 Intel Xeon E3-1505M v5, NVIDIA Quadro M2000M
Heat		11%	8%	10%	2%
Maximum Upper Side *	54.6	36.7 33%	45.8 16%	44.1 19%	42.3 23%
Maximum Bottom *	60.8	41.3 32%	46.7 23%	45.7 25%	60.1 1%
Idle Upper Side *	30.3	31.1 -3%	31.2 -3%	29.6 2%	32.7 -8%
Idle Bottom *	30.7	36.2 -18%	31.9 -4%	32.2 -5%	33.1 -8%

* ... smaller is better

Power Consumption

Off / Standby	0.3 / 1.1 Watt
Idle	5.7 / 12.2 / 12.6 Watt
Load	83.1 / 138.2 Watt


Key: min: , med: , max: Metrahit Energy

	HP ZBook 15 G3 Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e	Lenovo ThinkPad P50 Quadro M2000M, 6820HQ, Samsung SSD PM871 MZNLN256HCHP	Dell Precision 5510 Quadro M1000M, E3-1505M v5, SK hynix SC920 512 GB	HP ZBook 15 G2 FirePro M5100, 4910MQ, SanDisk A110 SD6PP4M-256G-1006	MSI WS60-6QJE316H11 Quadro M2000M, E3-1505M v5, Toshiba NVMe THNSN5128GP
Power Consumption		15%	-22%	-71%	-106%
Idle Minimum *	5.7	5.6 2%	8.6 -51%	17.1 -200%	18.8 -230%
Idle Average *	12.2	8.6 30%	16.2 -33%	21.9 -80%	29.6 -143%
Idle Maximum *	12.6	9.3 26%	16.7 -33%	23.2 -84%	30.3 -140%
Load Average *	83.1	89.5 -8%	82.6 1%	86.6 -4%	90.4 -9%
Load Maximum *	138.2	105 24%	131.8 5%	120.7 13%	150.2 -9%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		13h 42min
WiFi Websurfing (IE 11)		6h 26min
Big Buck Bunny H.264 1080p		7h 29min
Load (maximum brightness)		1h 50min

	HP ZBook 15 G3 90 Wh	Lenovo ThinkPad P50 90 Wh	Dell Precision 5510 56 Wh	HP ZBook 15 G2 83 Wh	MSI WS60-6QJE316H11 47 Wh
Battery Runtime		14%	-33%	-44%	-69%
Reader / Idle	822	860 5%	428 -48%	370 -55%	160 -81%
H.264	449	533 19%	197 -56%	260 -42%	141 -69%
WiFi v1.3	386	498 29%	286 -26%	278 -28%	106 -73%
Load	110	113 3%	109 -1%	53 -52%	51 -54%
WiFi			298	237

Pros

+ 非常坚固而精致的机身

+ 优秀的性能

+ 非常优秀的IPS屏幕（校对后）

+ 高速固态硬盘

+ 长电池续航

+ 最新接口

+ 优秀的可扩展性

+ 高速无线网络

+ 三年质保

+ 个性化配置

Cons

- 一些部件难以接触到（SIM卡槽）

- 电池无法直接更换

- 处理器无法长时间持续最高速度

- 闪烁亮度控制

- 高负载下发热量大，吵闹

- 风扇噪音

- 昂贵

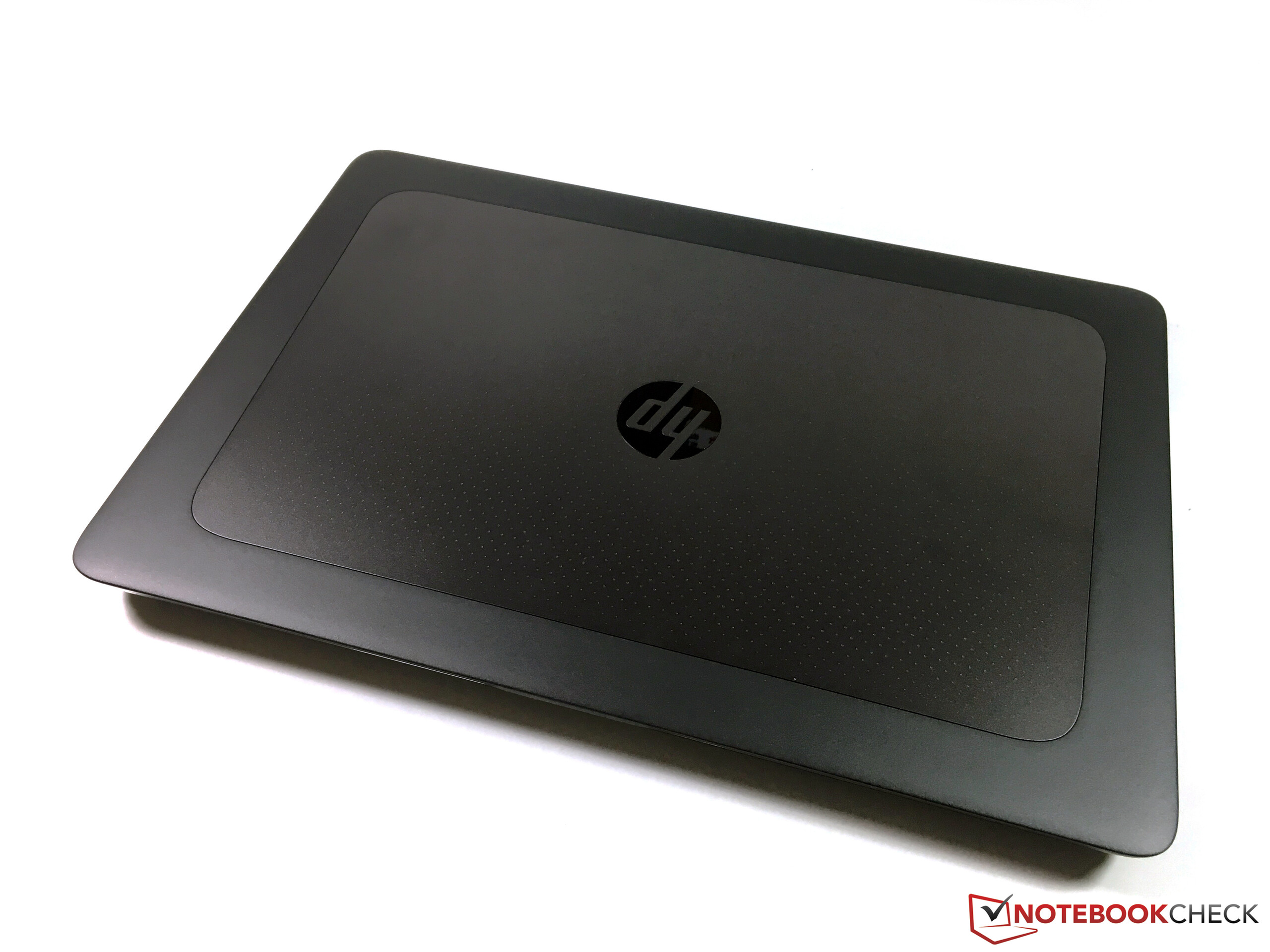

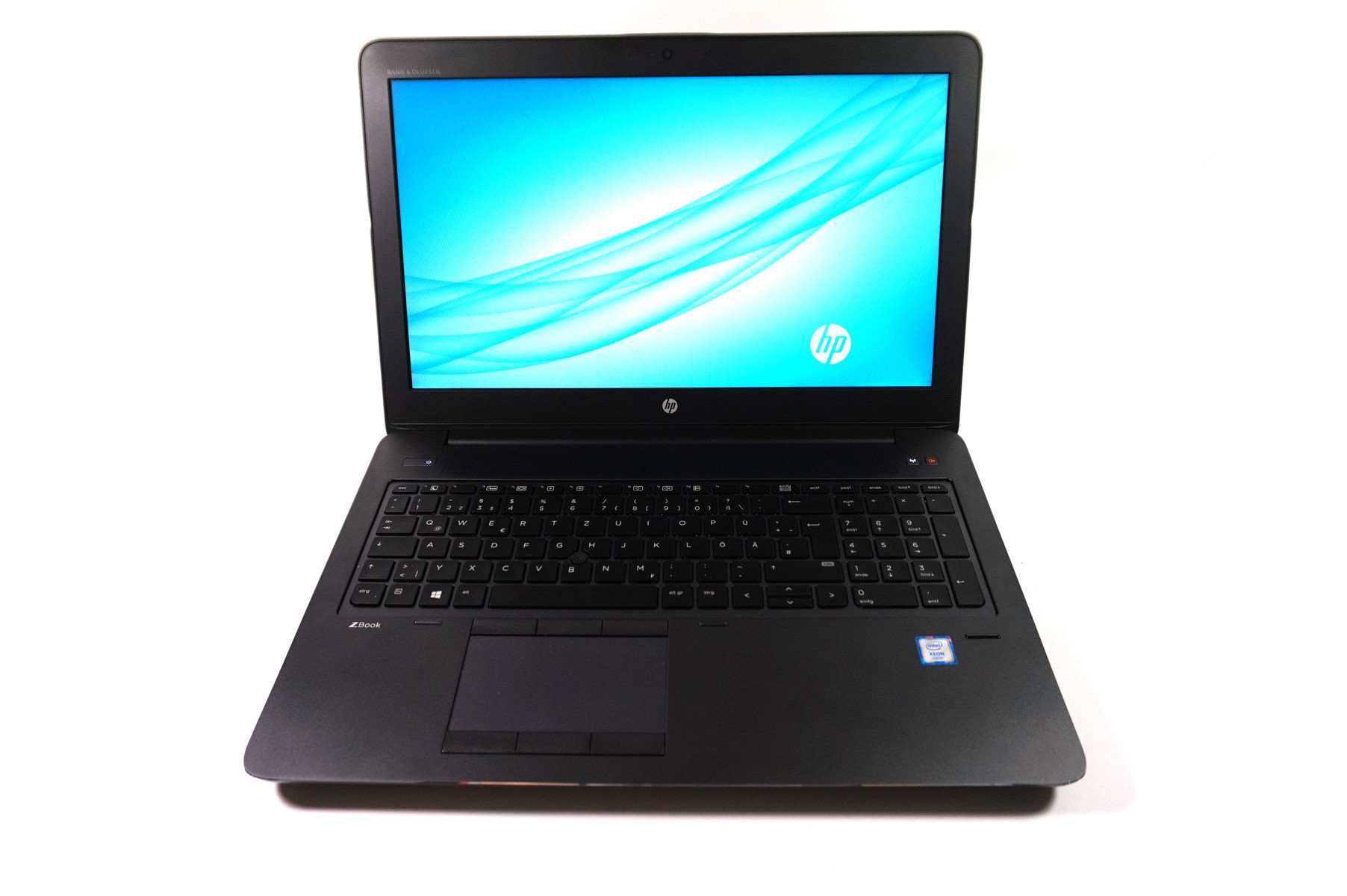

In review: HP ZBook 15 G3. Test device courtesy of HP Germany.

惠普成功地改进了原已十分成功的前代机型，给我们带来了ZBook 15 G3。重新设计的机身给人以非常考究的感觉，在工艺品质和坚固性上相比竞争对手都不甘示弱。除了最新的Skylake处理器，惠普还从内到外地为它搭配了最新的接口。它的性能也非常优秀，是目前15寸移动工作站的标杆级别。在前几代产品的全高清屏幕持续表现疲软之后，这次ZBook 15 G3所搭配的IPS屏幕终于有了不俗的表现，不过你需要校对一下它的色彩。它也有可选的DreamColor屏幕，如果你需要更高的色域覆盖范围的话可以考虑。

我们对它不够满意的都是一些小地方。这包括了电池无法从外面直接更换的新设计，和比较吵闹的风扇，特别是在负载下相比前代机型噪音更大的问题。它的屏幕在几乎所有亮度水平上都使用了闪烁亮度控制，而处理器在负载下也会有受到散热的限制无法完全发挥潜能。惠普还可以进一步改进键盘的品质。它的输入设备十分优秀，不过联想 ThinkPad P50做的还更好。另外一个问题明显是它高昂的售价，配置相似的同类设备的表现与它并没有太大差距。

惠普ZBook 15 G3是这台移动工作站的一次成功更新，它成为了更优秀的办公设备，当然售价也不同寻常。

现在对于移动工作站用户来说是个好时候，因为继联想的ThinkPad P50之后，ZBook 15 G3已经是第二台让我们非常满意的高端移动工作站设备了。这两台机型间当然存在不少差异，但在选择时的决定因素可能还是个人的偏好。ZBook有更好的设计和更明亮的全高清屏幕，而ThinkPad提供了更好的键盘和更低的发热和噪音。如果加上即将推出的戴尔Precision 7510到比较之中的话情况应该会更有趣，它看起来会是另一台出色的设备。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

HP ZBook 15 G3 - 04/18/2016 v5.1 ^(old)
Andreas Osthoff

Chassis

94 / 98 → 96%

Keyboard

91%

Pointing Device

89%

Connectivity

80 / 81 → 99%

Weight

59 / 10-66 → 88%

Battery

89%

Display

85%

Games Performance

81%

Application Performance

93%

Workstation

68%

Temperature

85 / 95 → 89%

Noise

80 / 90 → 89%

Audio

73%

Camera

42 / 85 → 49%

Average

79%

85%

Workstation - Weighted Average

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1697 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 惠普 ZBook 15 G3 工作站简短评测

Andreas Osthoff, 2016-04- 9 (Update: 2024-11- 4)
