华硕 ZenBook Pro UX501JW 笔记本电脑简短评测

终极ZenBook? 我们发现UX501JW与最近评测过的G501JW配置基本相同——搭配4K LCD屏幕,独立显卡和一颗四核处理器——目标用户群可能会更适合它的设计选择。它会是终极的ZenBook吗?
Windows Haswell Touchscreen Laptop / Notebook
Asus UX501JW-DS71T (ZenBook Duo 14 UX482 Series)
Processor
Intel Core i7-4720HQ 4 x 2.6 - 3.6 GHz, Haswell
Graphics adapter
NVIDIA GeForce GTX 960M - 2048 MB VRAM, Core: 1097 MHz, RAM: 2500 MHz, GDDR5, 9.18.14.3505, yes
Memory
16 GB
, DDR3 1600MHz
Display
15.60 inch 16:9, 3840 x 2160 pixel, 10点触控, Samsung SDC434B, IPS, glossy: yes
Mainboard
Intel HM87 (Lynx Point)
Storage
Samsung SSD SM951 512 GB MZHPV512HDGL, 512 GB
, PCI-E 3.0 x4
Soundcard
Realtek ALC668 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米整合耳机接口, Card Reader: SD / MMC
Networking
Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 22 x 385 x 255
Battery
96 Wh Lithium-Polymer
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 高清(720p)
Additional features
Speakers: 2.0, 位于底面, Keyboard: 孤岛式, Keyboard Light: yes
Weight
2.29 kg, Power Supply: 544 g
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



385 mm 255 mm 22 mm 2.3 kg383 mm 255 mm 20.6 mm 2.1 kg372 mm 253 mm 18 mm 2.1 kg345 mm 235 mm 17.9 mm 2 kg297 mm 210 mm 1 mm 5.7 g

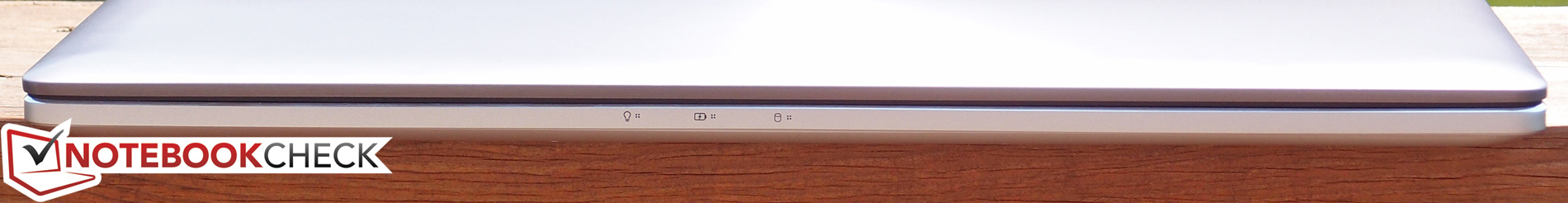

Front: No connections
Front: No connections

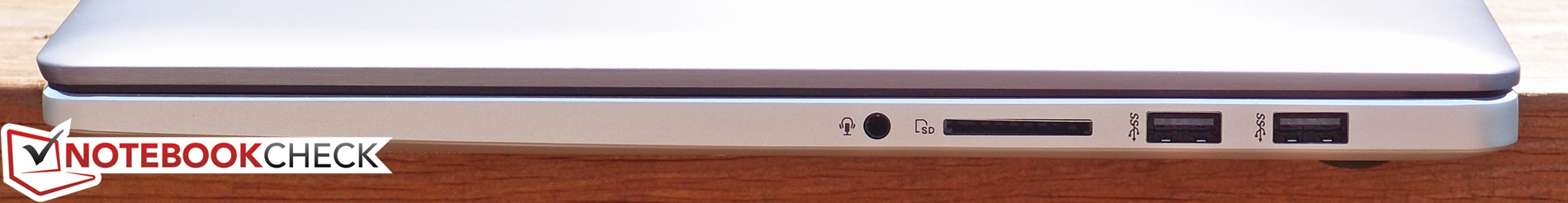

Right: 3.5 mm combo audio, SD card reader, USB 3.0 x 2
Right: 3.5 mm combo audio, SD card reader, USB 3.0 x 2

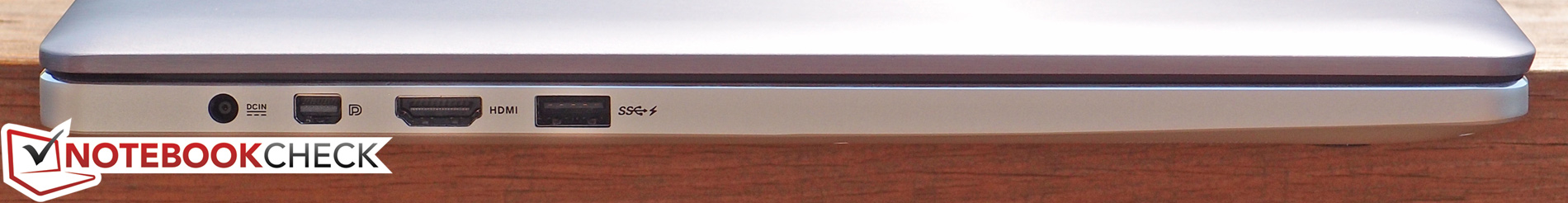

Left: Charging port, mini-DisplayPort, HDMI, USB 3.0 (powered)
Left: Charging port, mini-DisplayPort, HDMI, USB 3.0 (powered)
279
cd/m²
287.8
cd/m²
295.1
cd/m²
271.8
cd/m²
278.1
cd/m²
291.7
cd/m²
263.9
cd/m²
282.7
cd/m²
279.1
cd/m²
Distribution of brightness
Samsung SDC434B tested with X-Rite i1Basic Pro 2
Maximum: 295.1 cd/m² (Nits) Average: 281 cd/m²
Brightness Distribution: 89 %
Center on Battery: 254.8 cd/m²
Contrast: 949:1 (Black: 0.293 cd/m²)
ΔE Color 8.78 | 0.5-29.43 Ø4.92
ΔE Greyscale 6.29 | 0.5-98 Ø5.2
72.54% sRGB (Argyll 1.6.3 3D)
48.31% AdobeRGB 1998 (Argyll 1.6.3 3D)
51.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
75% sRGB (Argyll 2.2.0 3D)
50.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.25

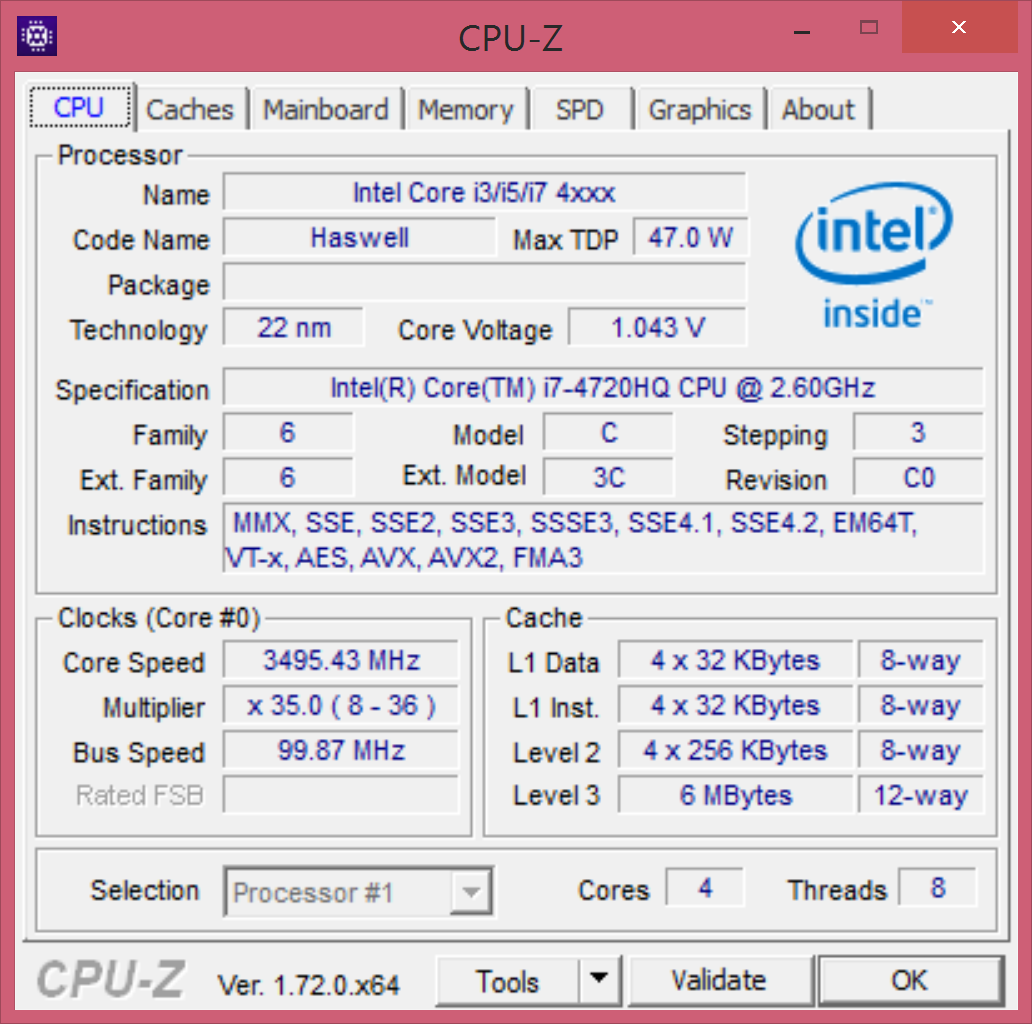

CPU-Z CPU
CPU-Z CPU

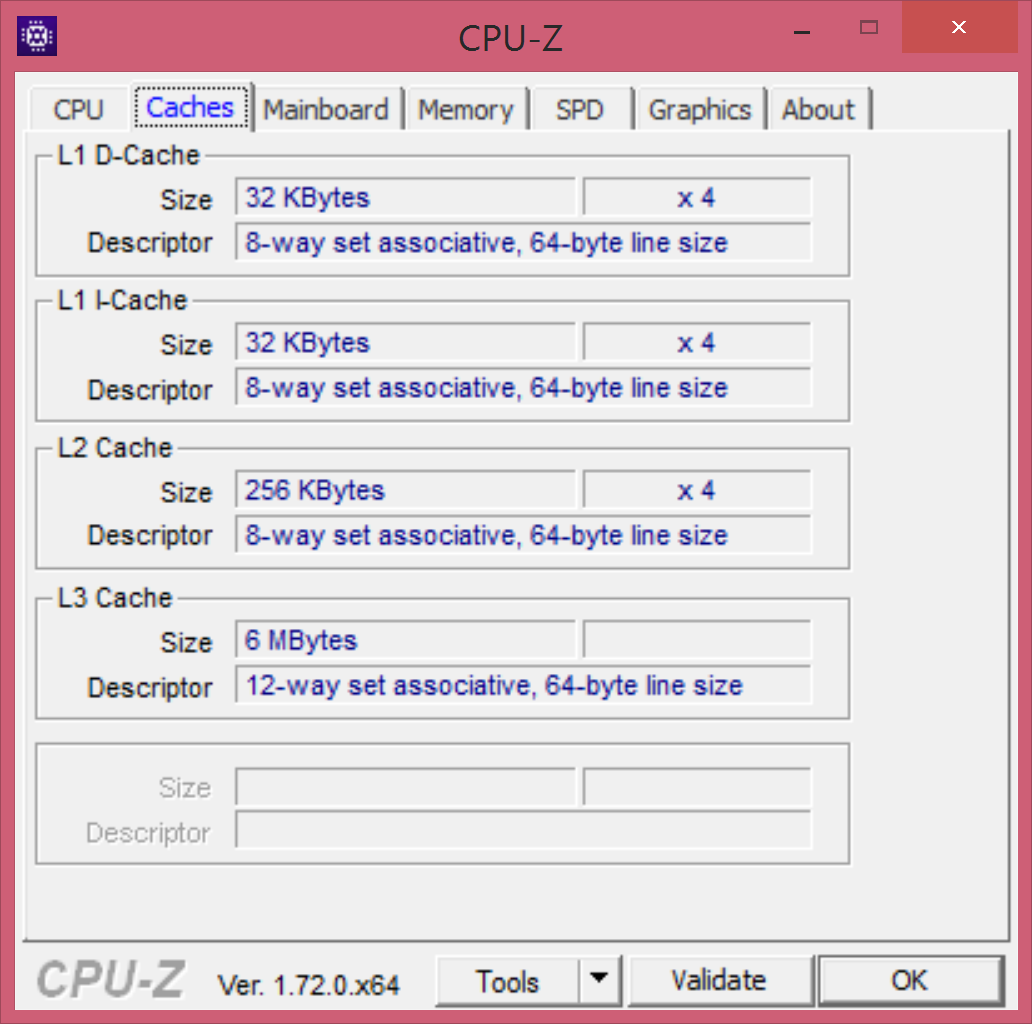

CPU-Z Caches
CPU-Z Caches

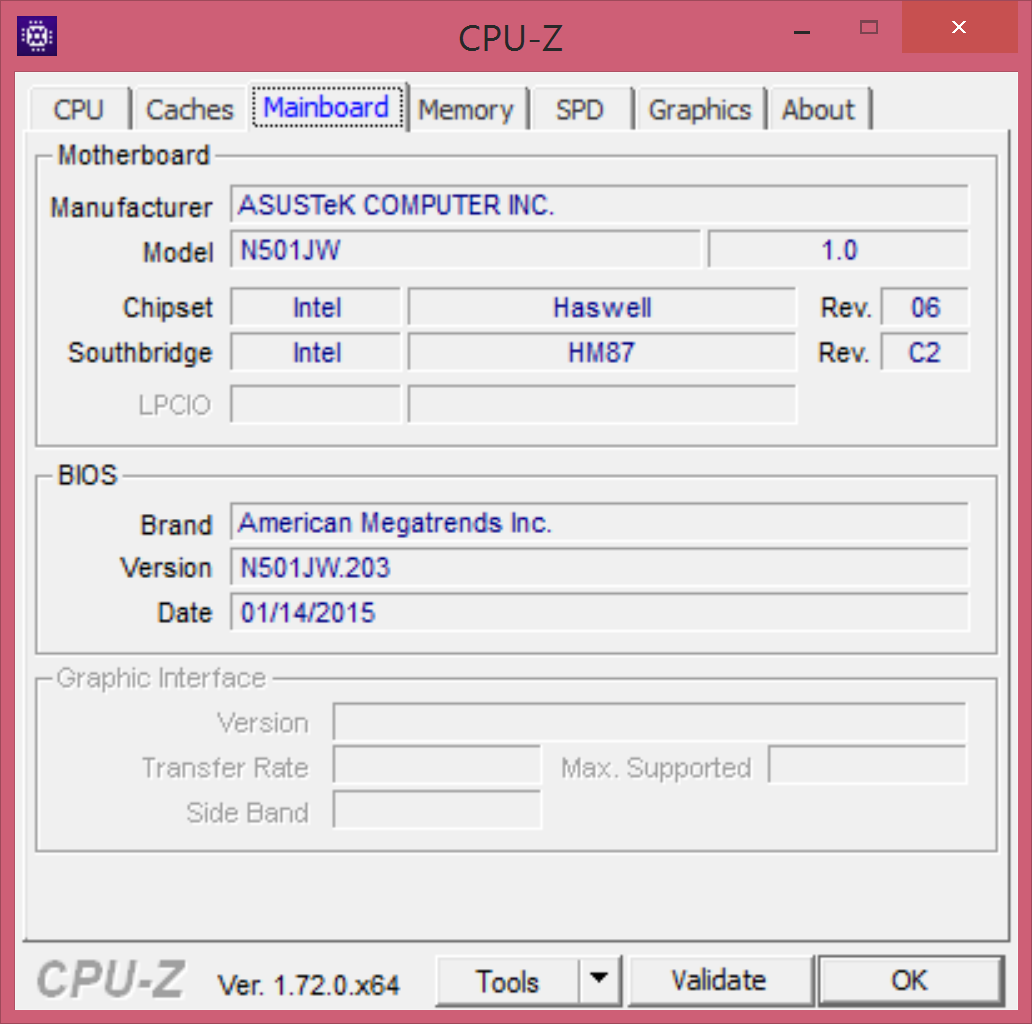

CPU-Z Mainboard
CPU-Z Mainboard

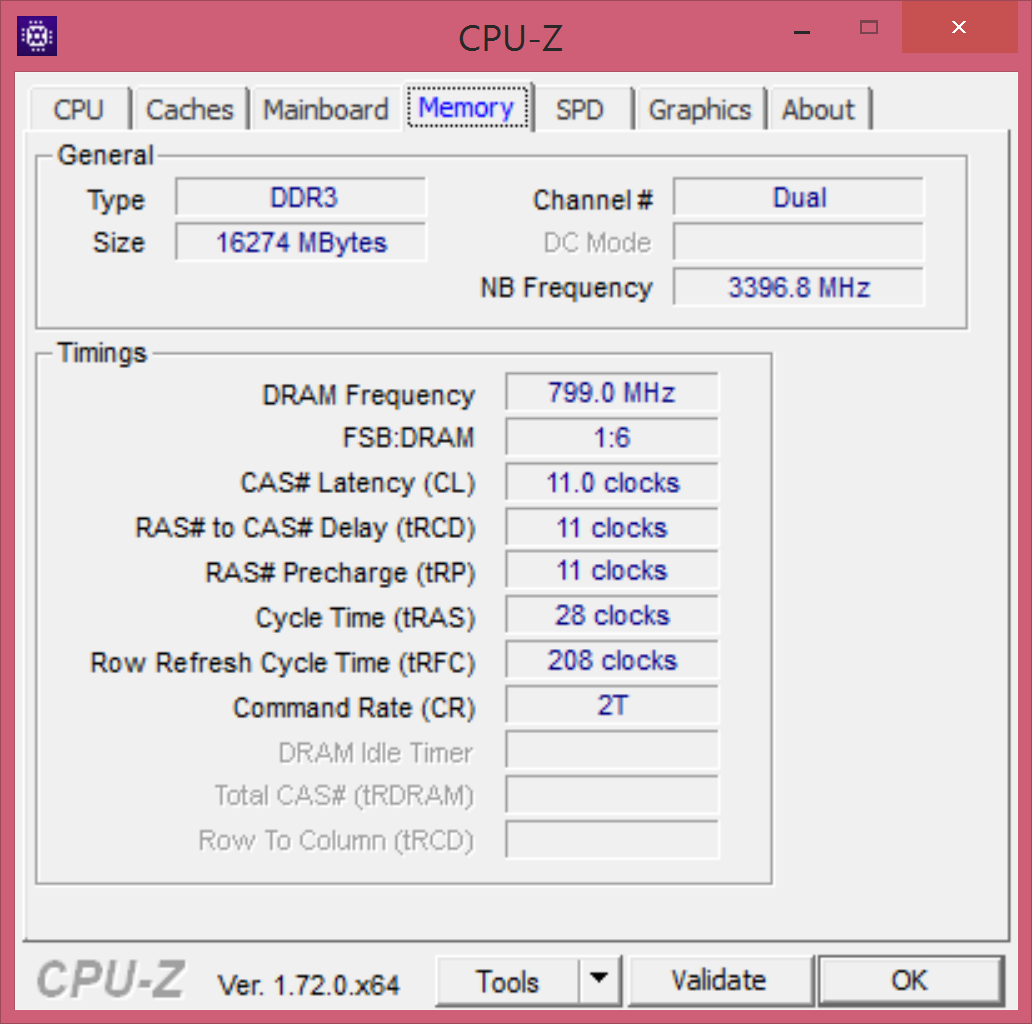

CPU-Z Memory
CPU-Z Memory

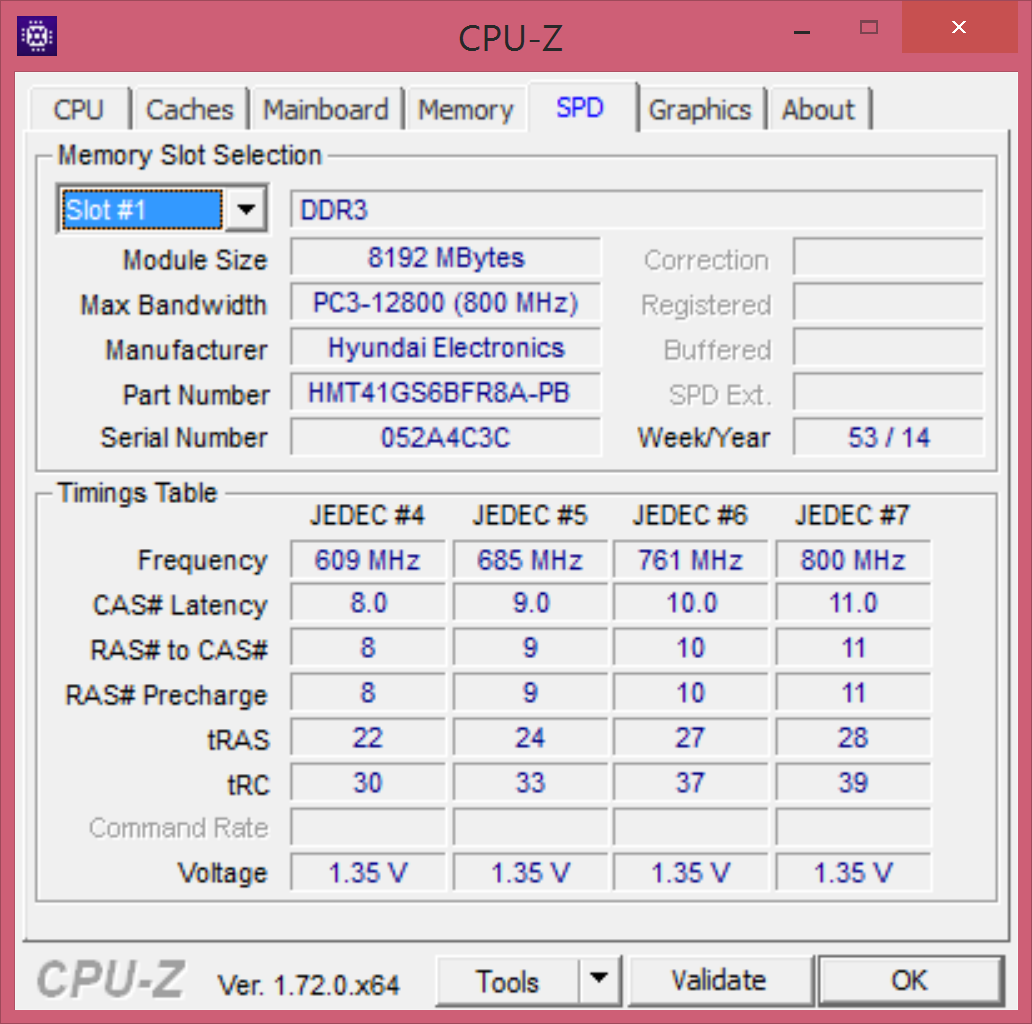

CPU-Z RAM SPD
CPU-Z RAM SPD

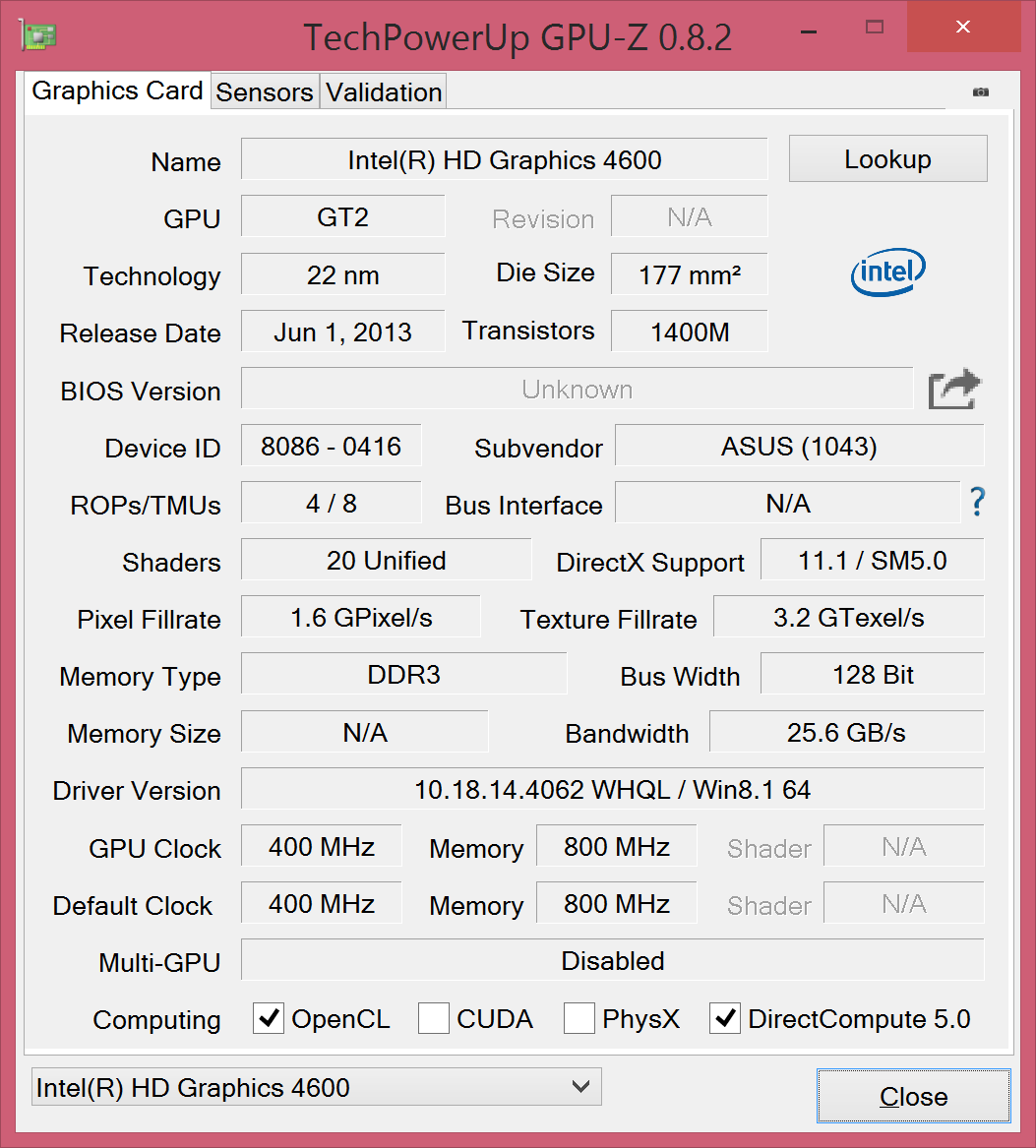

GPU-Z
GPU-Z

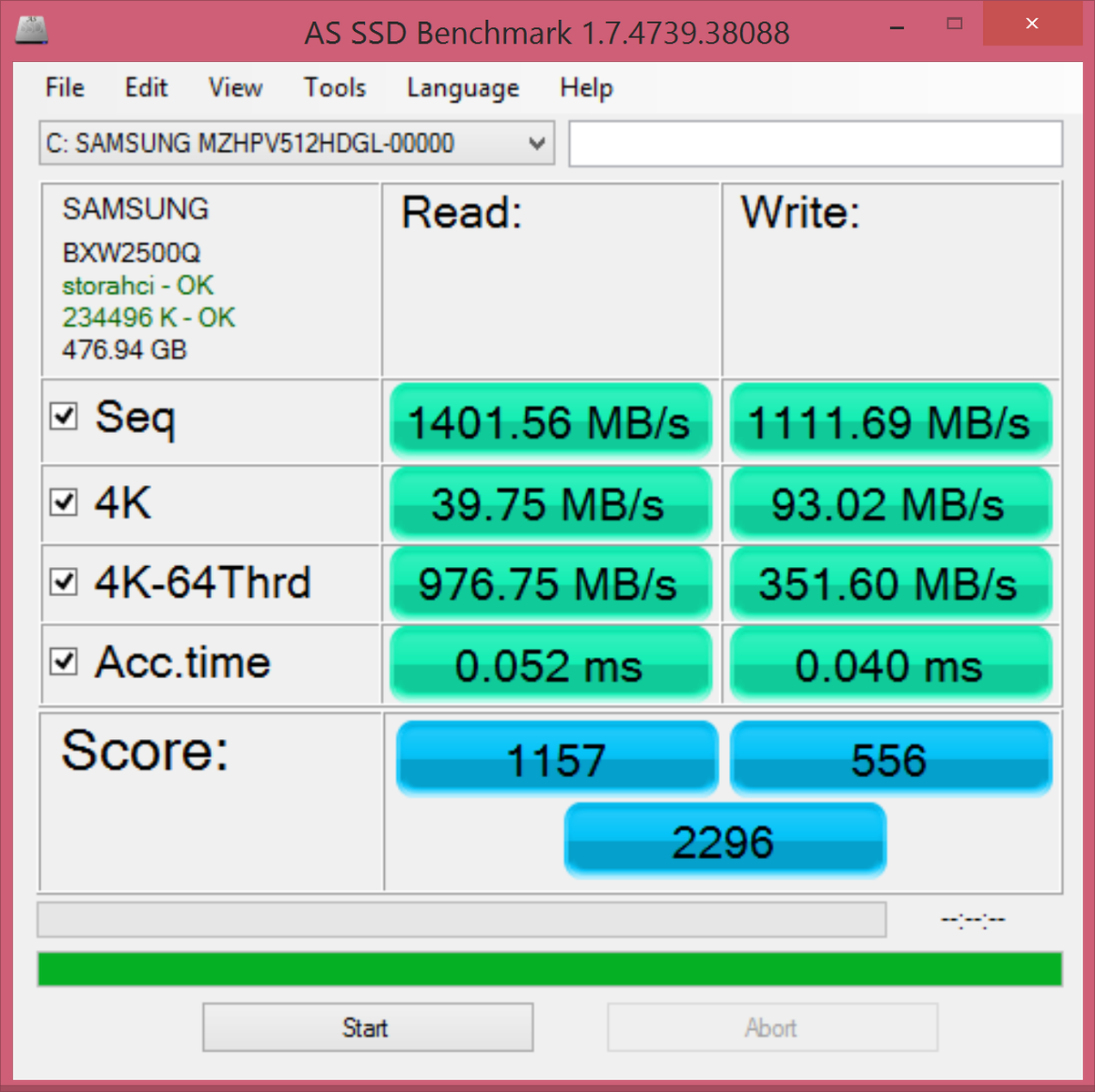

AS SSD
AS SSD

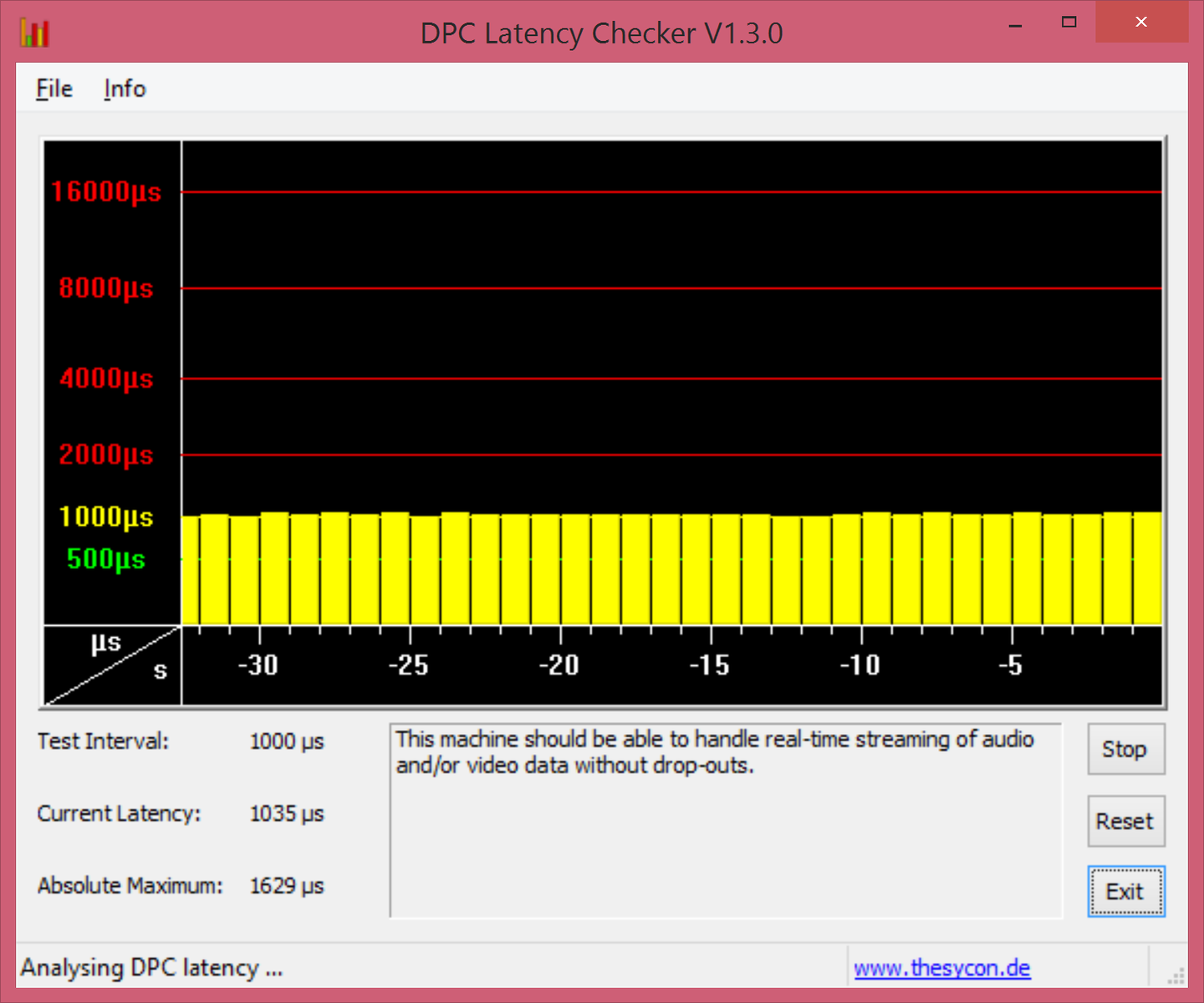

DPC Latencies
DPC Latencies
Cinebench R10 Shading 64Bit
6726 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
24104 Points
Cinebench R10 Rendering Single CPUs 64Bit
6679 Points
Cinebench R10 Shading 32Bit
6666
Cinebench R10 Rendering Multiple CPUs 32Bit
18263
Cinebench R10 Rendering Single 32Bit
5040
Cinebench R11.5 OpenGL 64Bit
58.2 fps
Cinebench R11.5 CPU Multi 64Bit
6.44 Points
Cinebench R11.5 CPU Single 64Bit
1.54 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
93.2 fps
Cinebench R15 CPU Multi 64Bit
579 Points
Cinebench R15 CPU Single 64Bit
137 Points
Help
PCMark 7 Score
6087 points
PCMark 8 Home Score Accelerated v2
3064 points
PCMark 8 Creative Score Accelerated v2
4195 points
PCMark 8 Work Score Accelerated v2
3944 points
Help
Samsung SSD SM951 512 GB MZHPV512HDGL
Transfer Rate Minimum: 849 MB/s
Transfer Rate Maximum: 885 MB/s
Transfer Rate Average: 877 MB/s
Access Time:
Burst Rate: 172.2 MB/s
CPU Usage: 3.7 %
3DMark 06 Standard Score
23938 points
3DMark 11 Performance
5342 points
3DMark Ice Storm Standard Score
43886 points
3DMark Cloud Gate Standard Score
13410 points
3DMark Fire Strike Score
3801 points
Help
lowmed.highultra
Guild Wars 2 (2012) 100.3 52.2 29.1
Tomb Raider (2013) 296.3 153.2 109.5 49
BioShock Infinite (2013) 170.8 118.6 104.8 41.21
Metro: Last Light (2013) 94.1 84.9 53.7 28
Thief (2014) 62.7 51.6 44.1 24.6
Battlefield Hardline (2015) 117.9 96.2 46.2 28.4

Noise Level

Idle
31.2 / 31.3 / 33.4 dB(A)
Load
38.6 / 46.5 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)
Max. Load
 38 °C41.6 °C42.2 °C
 34.6 °C37 °C35.4 °C
 33.6 °C32.2 °C33 °C
Maximum: 42.2 °C
Average: 36.4 °C
46.6 °C48.6 °C43.4 °C
38.6 °C43.8 °C38.6 °C
34.6 °C37.6 °C35.6 °C
Maximum: 48.6 °C
Average: 40.8 °C
Power Supply (max.)  46 °C | Room Temperature 25 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 42.2 °C / 108 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 48.6 °C / 119 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 31.3 °C / 88 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.6 °C / 92.5 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-4.8 °C / -8.7 F).
Battery Runtime
Idle (without WLAN, min brightness)
6h 01min
WiFi Surfing
0h 00min
WiFi Websurfing
4h 23min
Load (maximum brightness)
3h 10min

Pros

+ 搭配了我们测试过最快的固态硬盘
+ 出色的整体系统性能
+ 强劲的四核处理器
+ 出色的独立显卡
+ 优秀的键盘,相比NX500有了很大改进

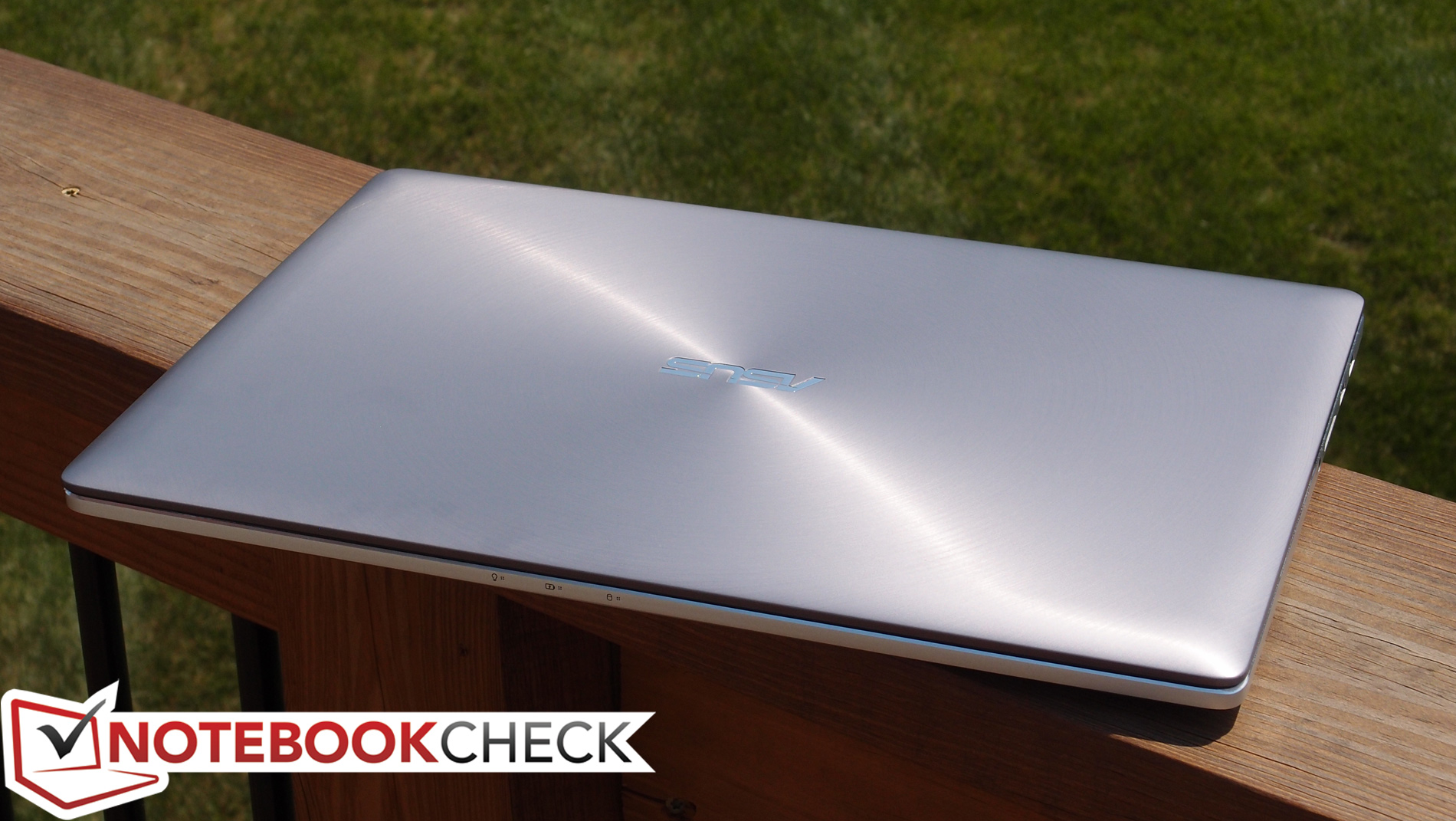

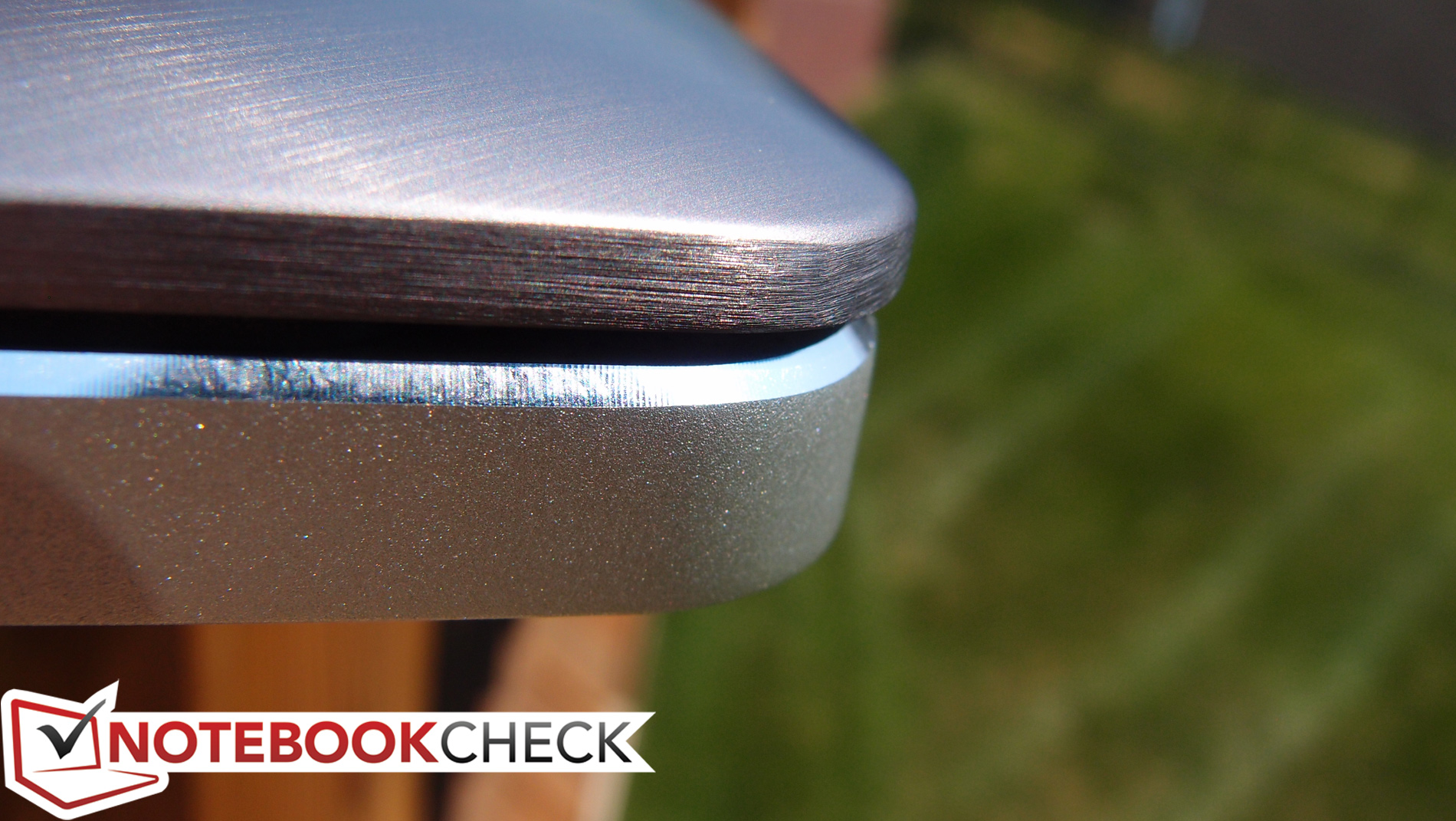

+ 魅力机身设计
+ 温度和噪音得到了很好的控制

Cons

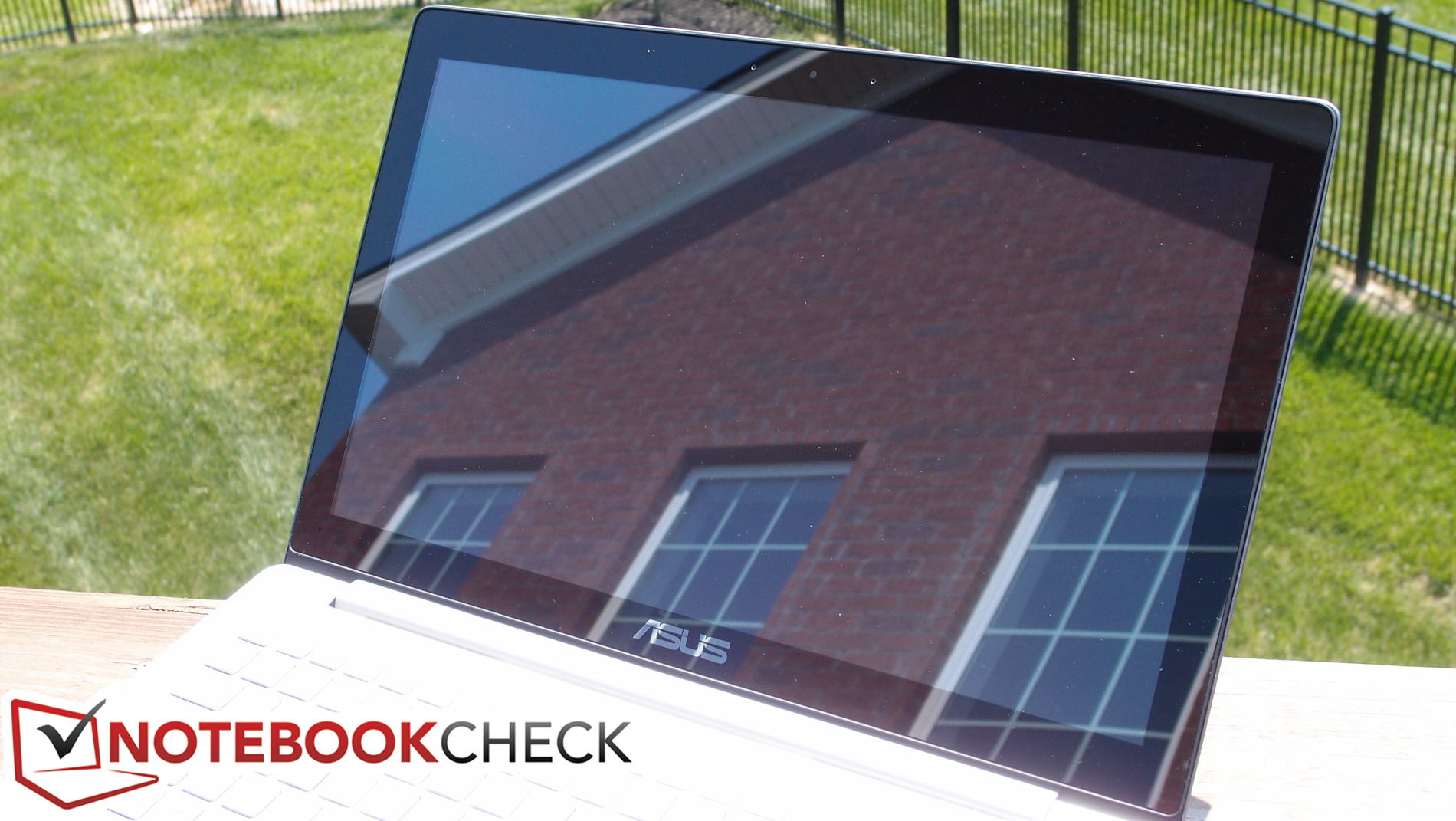

- 反光强烈的屏幕
- LCD色彩偏黄
- 底面扬声器音量较小,低频较弱
- 电池续航让人失望

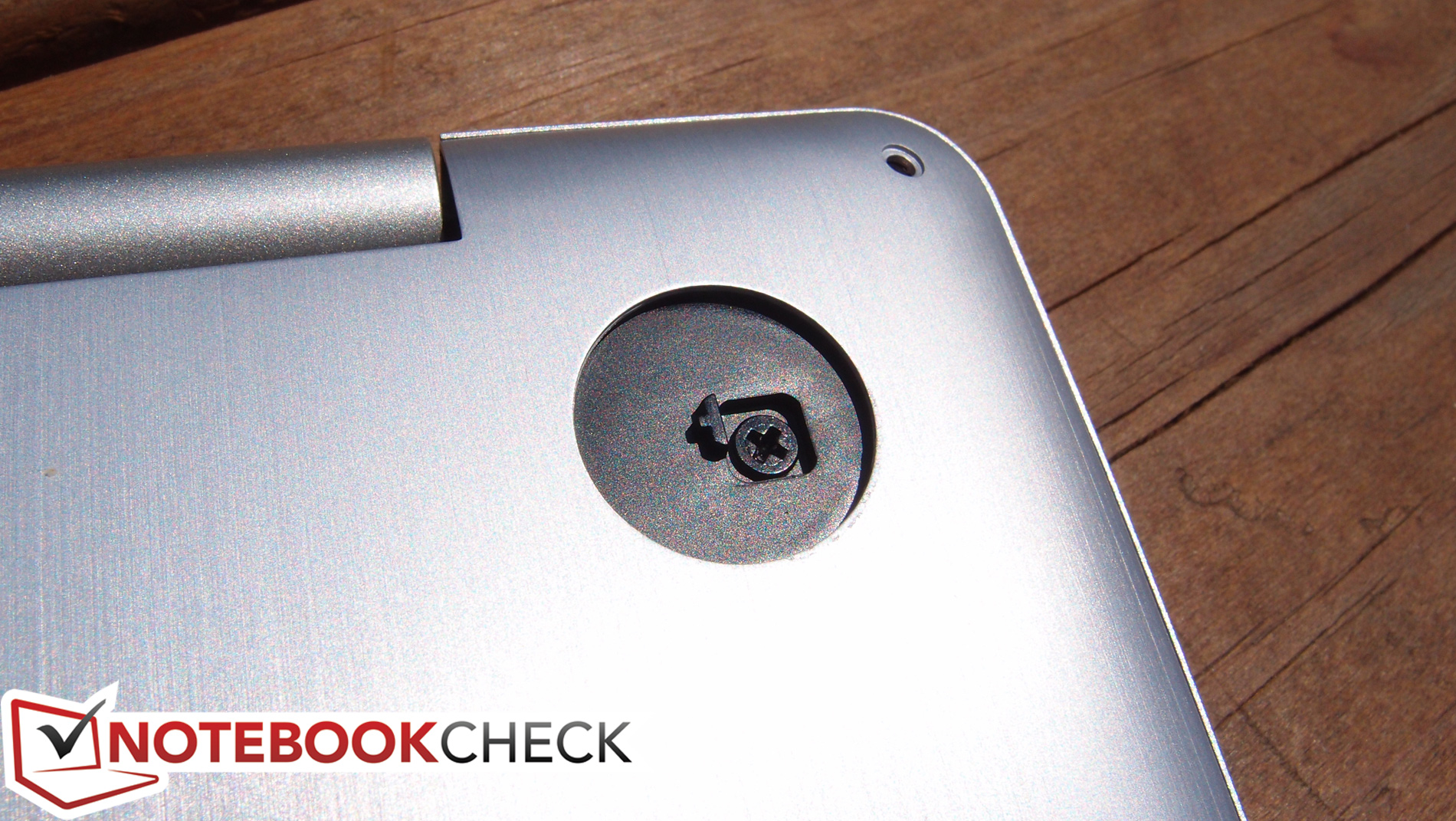

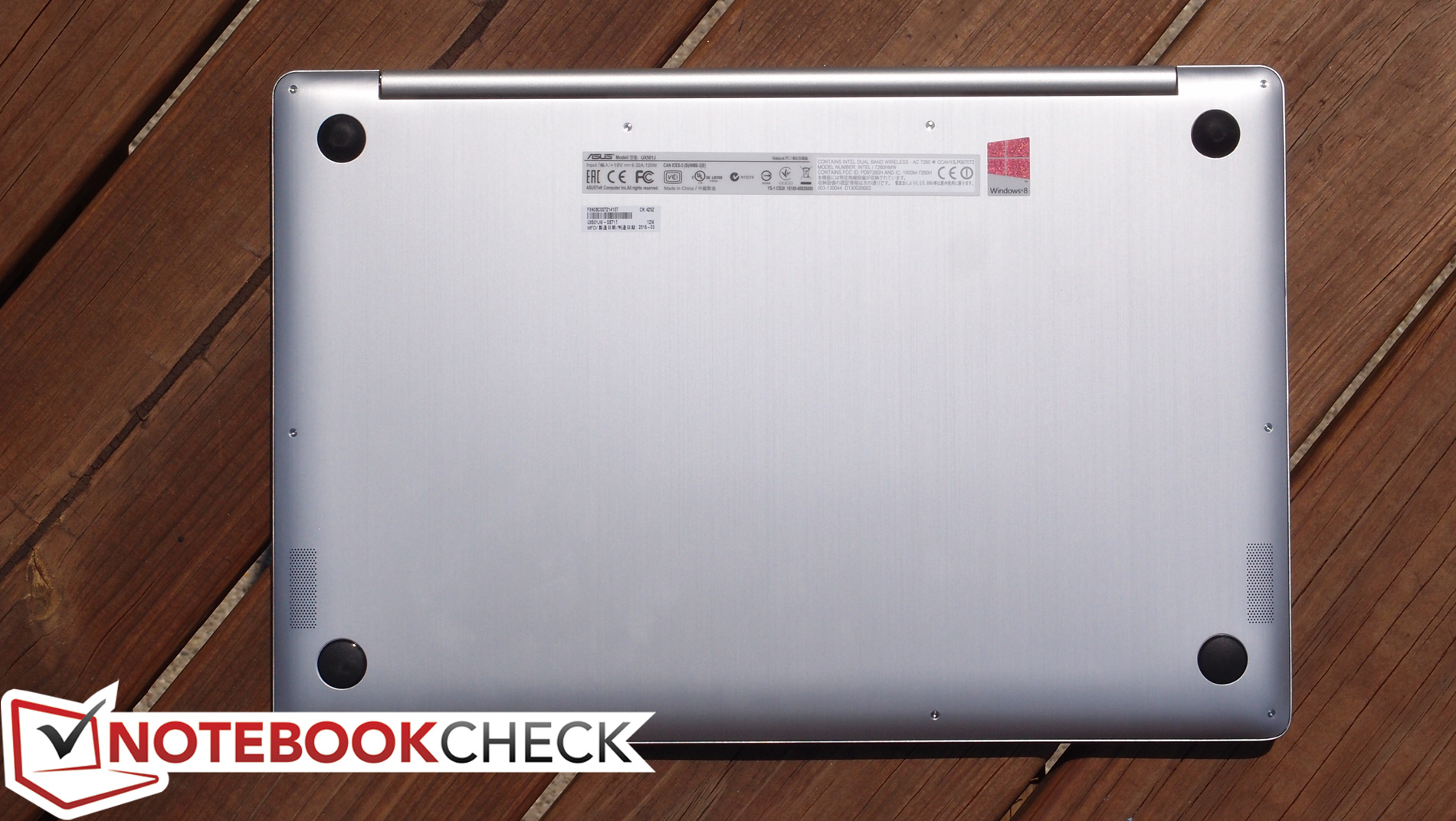

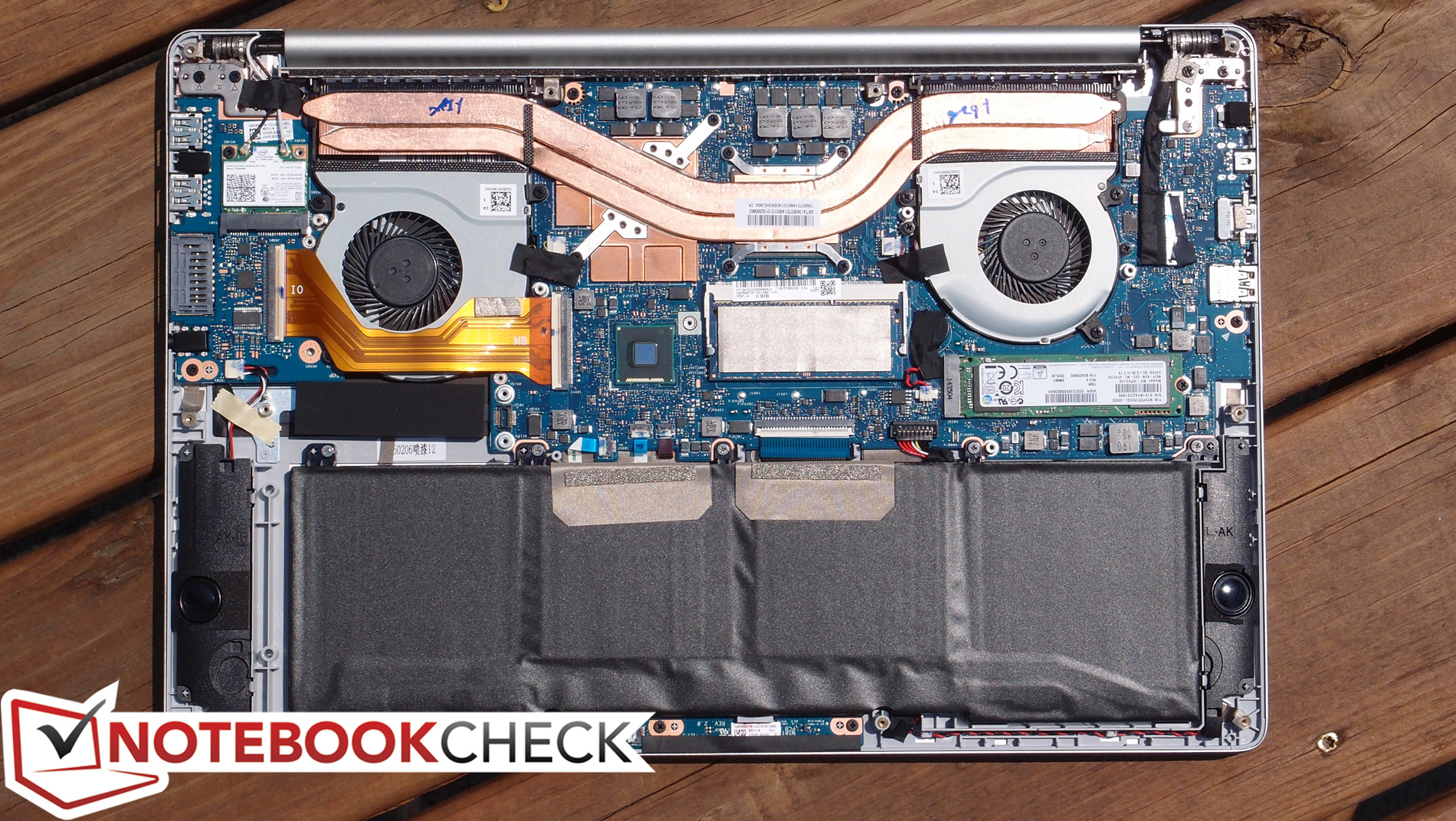

- 维护性差让人难以理解

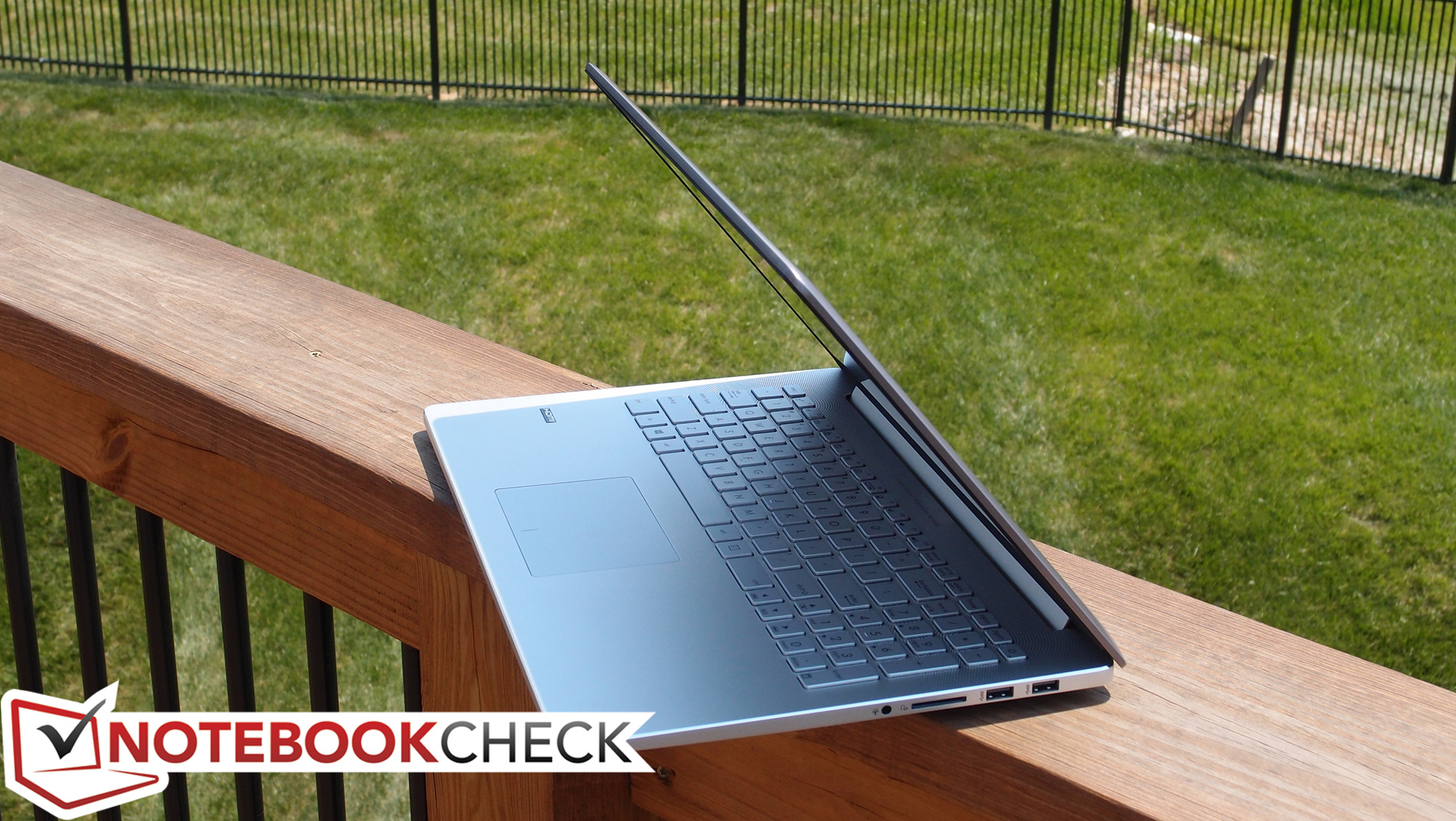

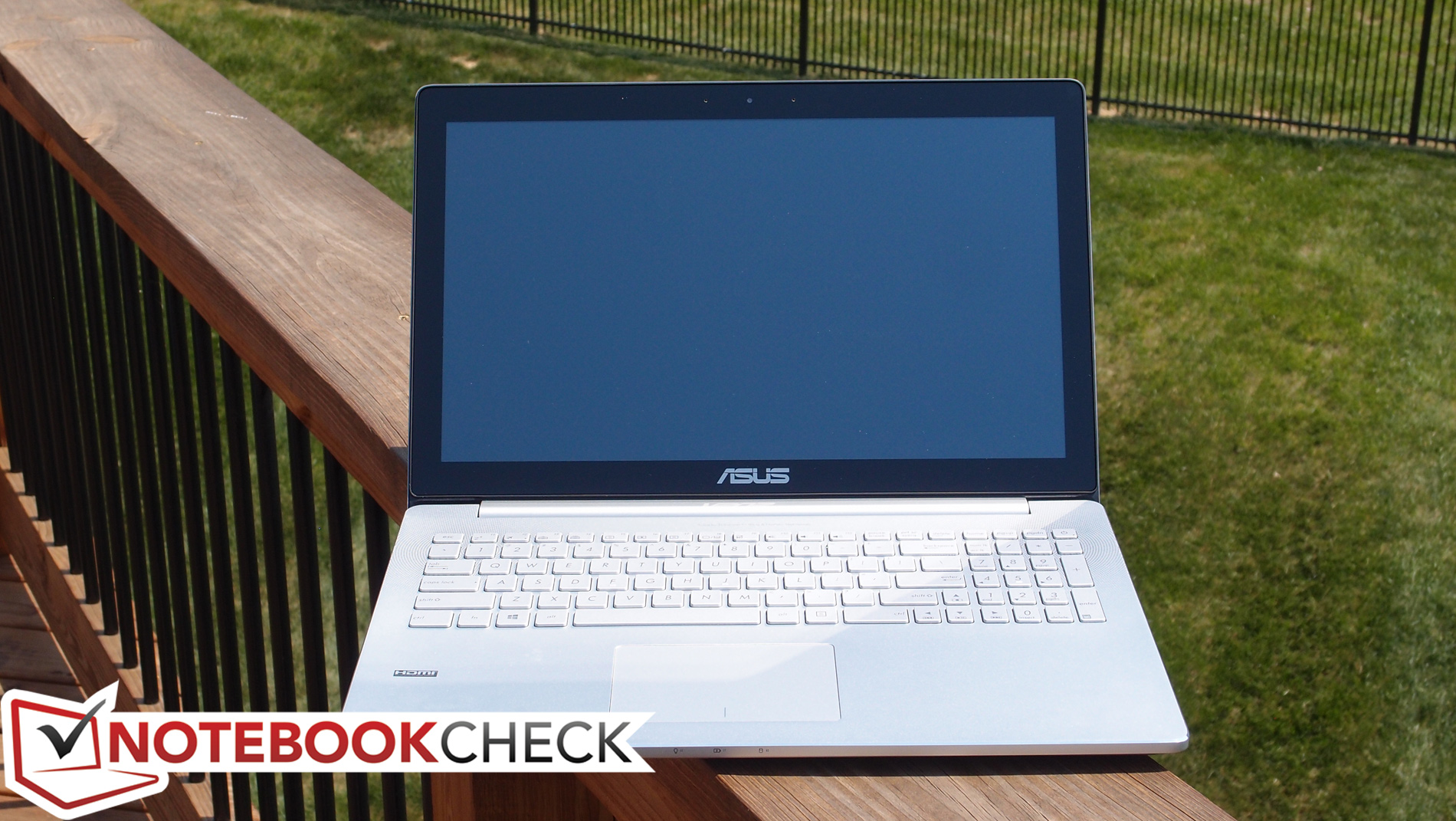

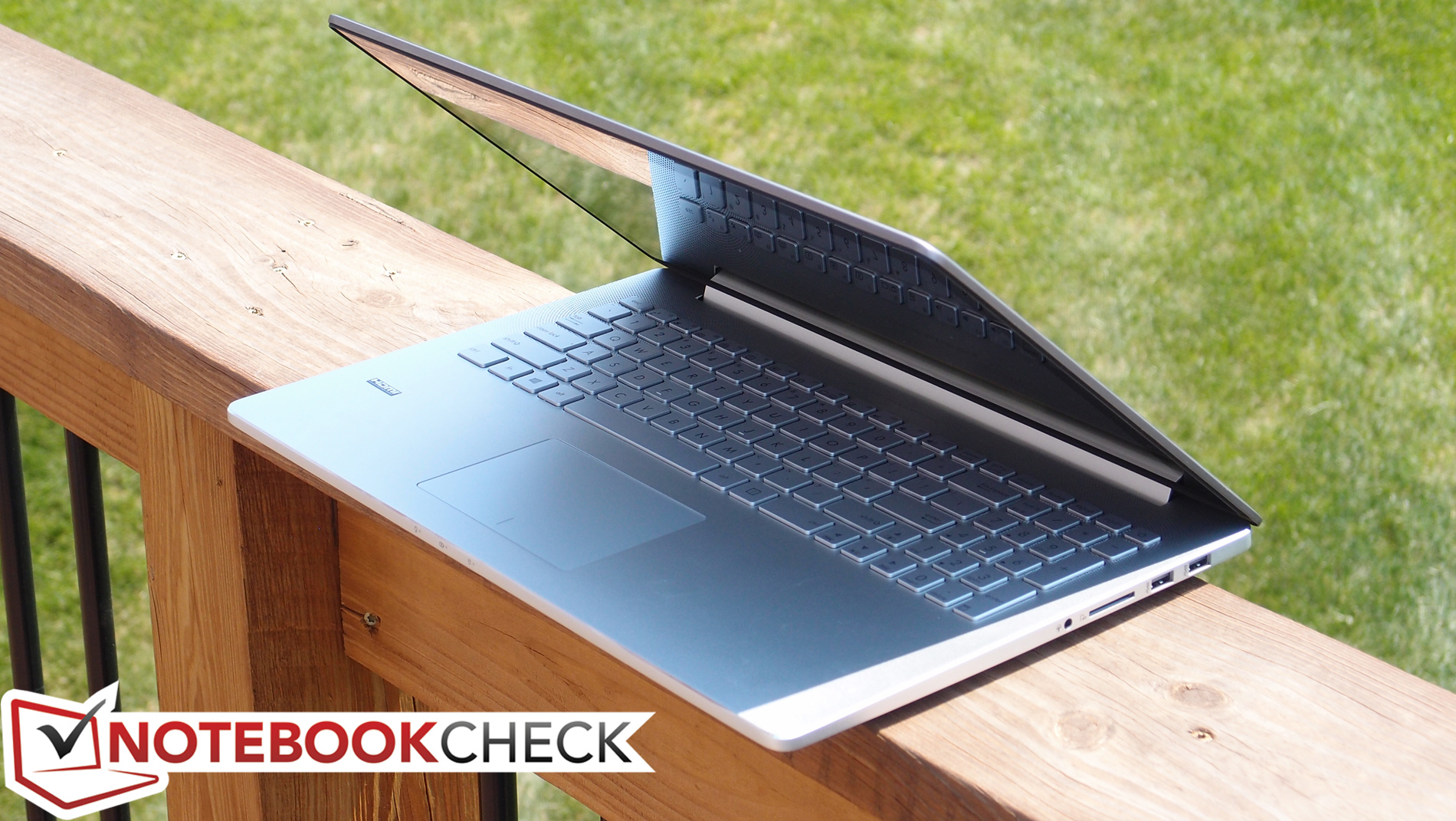

The ASUS ZenBook Pro UX501JW
The ASUS ZenBook Pro UX501JW

凭借ZenBook系列,华硕在超级本领域赢得了很高的声誉,就像他们的游戏本在全世界的骨灰级玩家中间的地位一样。不过,和ROG G501JW一起,UX501JW是这两个独立产品线的一款融合产品,面向需要高工作性能设备的用户设计。不过尽管它的命名方式十分直接,它很难成为MacBook Pro的替代品。是的,它确实很快,也极具魅力——但是它的设计定位限制了它的发展。

让我们看看它的优势:一颗毋庸置疑的高性能处理器,一块快速而实用的显卡,支持Optimus技术,至今为止我们测试过最快的固态硬盘(华硕也将此作为卖点之一),一块像素密度很高(过高)的触控屏幕,和大部分由金属实现的美观机身设计。UX501在散热控制上做得很好,噪音也在合理的范围,它的键盘相比NX500系列有了极大的改进。

是的,它确实很快,也极具魅力——但是它的设计定位限制了它的发展。

不过,ZenBook Pro的几个主要失误的影响十足轻重。首先,尽管它的电池续航作为游戏本来说可以接受,不过作为办公和商务产品,4.5小时的电池续航时间有些说不过去。同时,它的触控屏幕尽管在锐度上毫无问题,不过屏幕表面反光严重,一般的亮度和对比度也无法弥补这个缺点。它的色彩奇怪地有些偏黄,同时对sRGB色域的覆盖也难以达到预期的水平。它的可维护性在这个价位的产品中也理应做的更佳方便。最后,它的扬声器——生产商所宣称的“高保真音效”——在与其他竞争对手的对比中相形见绌。

ZenBook Pro的概念十分值得赞赏,生产商也应该继续在这个领域进行探索。不过真正可以吸引我们注意力的将会是一台功耗更低(或许搭配37瓦处理器),搭配独立显卡,高品质磨砂1080p屏幕,优质扬声器和易用维护底盖,以及采用同样的三星SM951固态硬盘的UX502。更长的电池续航时间和这些方面的改进将会对专业用户有很大的影响,这样的一台设备在市场上也将会有更强的竞争力。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Asus UX501JW-DS71T - 05/31/2015 v4 (old)
Steve Schardein

Chassis
80 / 98 → 82%
Keyboard
85%
Pointing Device
81%
Connectivity
75 / 81 → 93%
Weight
61 / 20-67 → 87%
Battery
84%
Display
80%
Games Performance
85 / 85 → 100%
Application Performance
92 / 92 → 100%
Temperature
85%
Noise
82 / 95 → 86%
Audio
50%
Camera
63 / 85 → 74%
Average
77%
83%
Multimedia - Weighted Average
