华硕 ZenBook UX360UA 变形本简短评测

Name: Asus Zenbook UX360UA-C4159T
Brand: Asus

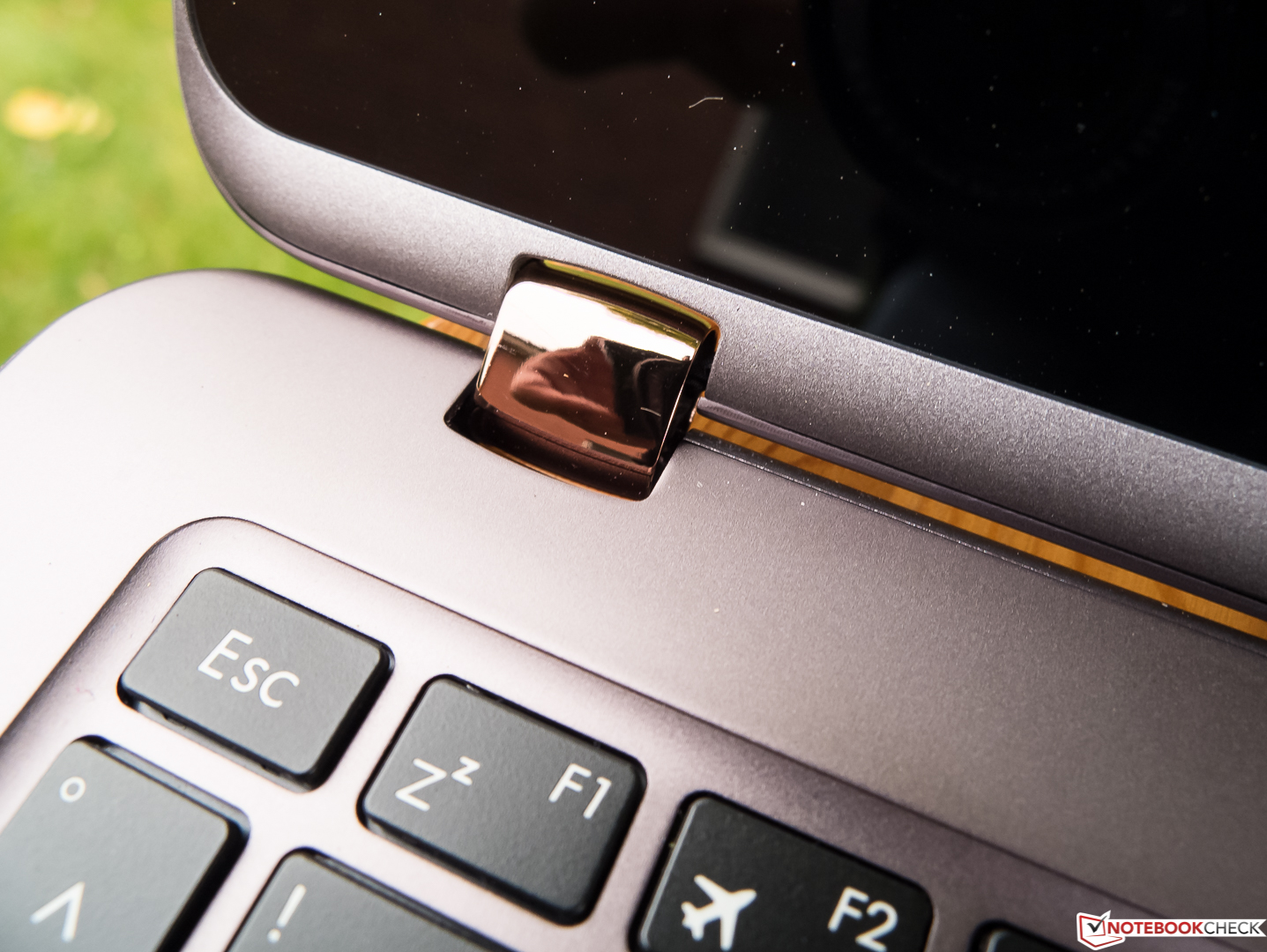

发抖的面试者。 这台整体上十分优秀且续航时间长的高端变形本大概亟需屏幕转轴的重新设计。生产商需要在这个方面多下一些功夫，因为它屏幕的晃动为它作为笔记本电脑使用带来了不小的不便。这是这台十分优秀的全新ZenBook的唯一缺点。

Sven Kloevekorn, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 10/28/2016 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Skylake Tablet Touchscreen Windows

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Asus Zenbook UX360UA-C4159T

Processor

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Graphics adapter

Intel HD Graphics 520, Core: 1050 MHz, RAM: 1600 MHz, 共享内存, 20.19.15.4416

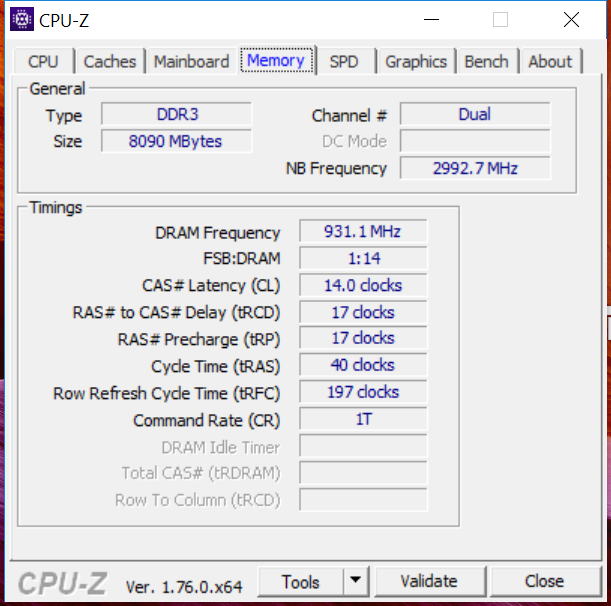

Memory

8 GB

, DDR3, 1600 MHz, 双通道, 板载, 无空余内存槽

Display

13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, 10点触控, AU Optronics AOU272D / B133HAN02.7, IPS, glossy: yes

Mainboard

Intel Skylake-U Premium PCH

Storage

SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND), 512 GB

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5毫米整合音频输入输出接口, Card Reader: SD/SDHC/SDXC, Brightness Sensor

Networking

Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 13.9 x 321 x 219

Battery

57 Wh Lithium-Ion

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 高清

Additional features

Speakers: 立体声，位于底部, Keyboard: 孤岛式, Keyboard Light: yes

Weight

1.2 kg

Price

1200 EUR

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Acer Aspire R13 R7-372T-746N Dell Inspiron 13 5368 Lenovo Yoga 3 Pro 13 80HE004LGE Asus Zenbook UX360CA-FC060T Asus Zenbook UX360UA-C4159T DIN A4 ❌

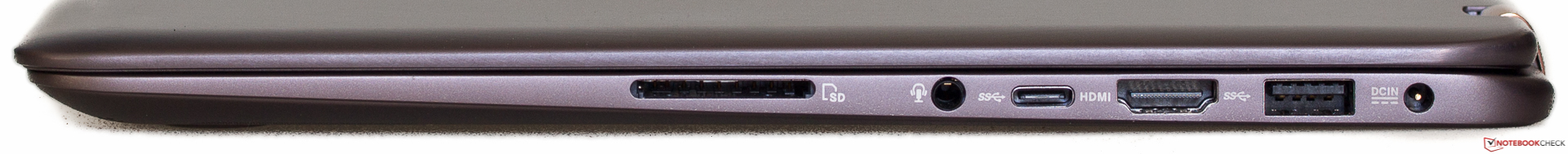

Right: SD-card, audio in/out, USB 3.1 Typ C, HDMI, USB 3.0, power-in

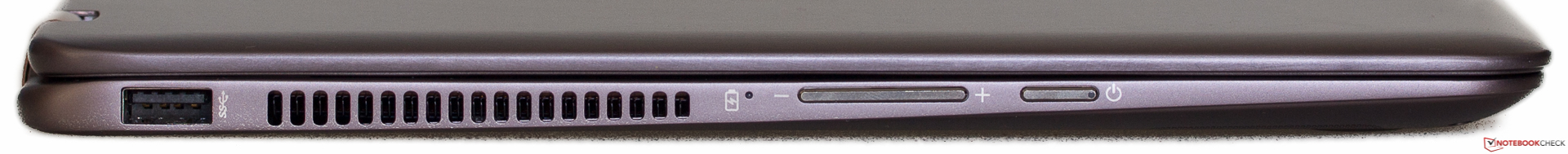

Left: USB 3.0, vent, volume control, power button

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Asus Zenbook UX360UA-C4159T	31 MB/s
Acer Aspire R13 R7-372T-746N	14.3 MB/s -54%
maximum AS SSD Seq Read Test (1GB)
Asus Zenbook UX360UA-C4159T	37 MB/s
Acer Aspire R13 R7-372T-746N	25.2 MB/s -32%

Networking
iperf Server (receive) TCP 1 m
Asus Zenbook UX360UA-C4159T Intel Dual Band Wireless-AC 7265	505 MBit/s
HP Spectre x2 12-a001ng Intel Wireless-AC 7265	439 MBit/s -13%
iperf Client (transmit) TCP 1 m
Asus Zenbook UX360UA-C4159T Intel Dual Band Wireless-AC 7265	526 MBit/s
HP Spectre x2 12-a001ng Intel Wireless-AC 7265	323 MBit/s -39%


314 cd/m²	331 cd/m²	342 cd/m²
296 cd/m²	344 cd/m²	341 cd/m²
298 cd/m²	337 cd/m²	327 cd/m²

Distribution of brightness

AU Optronics AOU272D / B133HAN02.7 tested with X-Rite i1Pro 2

Maximum: 344 cd/m² (Nits) Average: 325.6 cd/m² Minimum: 10 cd/m²
Brightness Distribution: 86 %
Center on Battery: 344 cd/m²
Contrast: 1274:1 (Black: 0.27 cd/m²)
ΔE Color 5.53 | 0.5-29.43 Ø4.92
ΔE Greyscale 6.67 | 0.5-98 Ø5.2

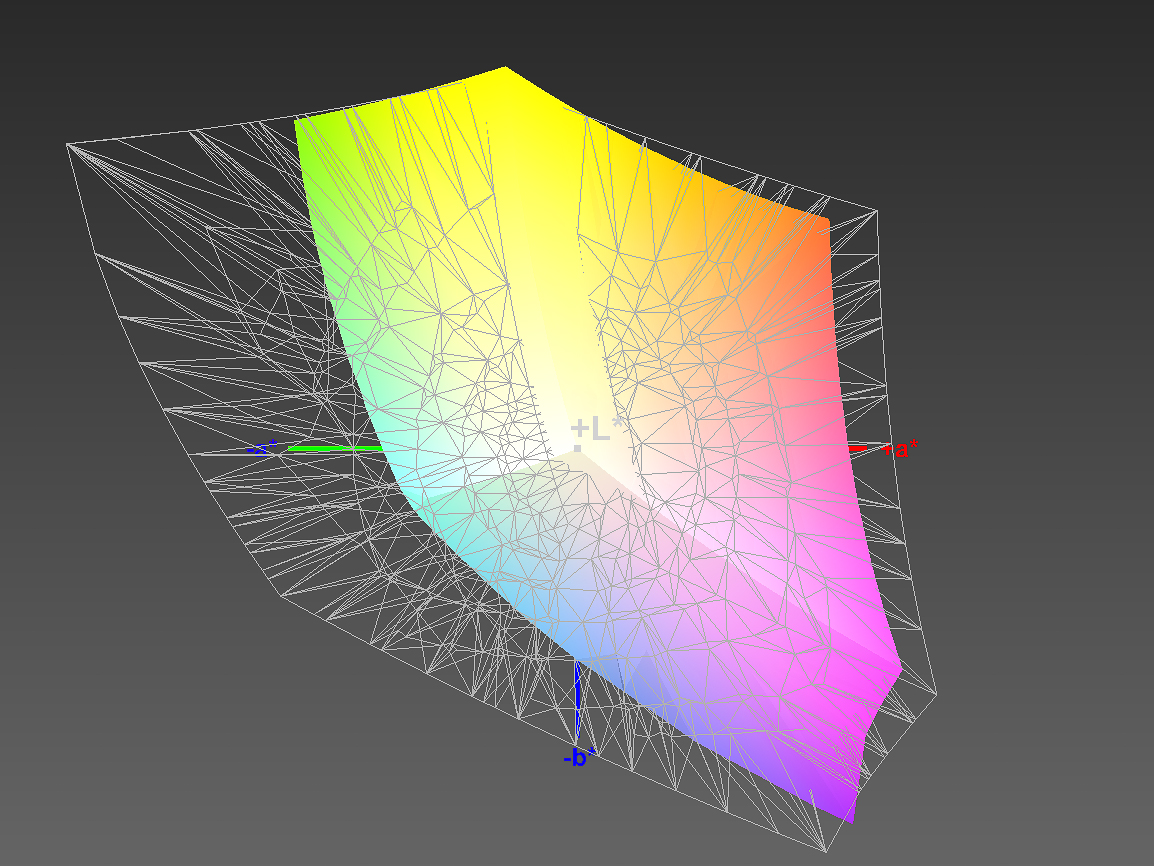

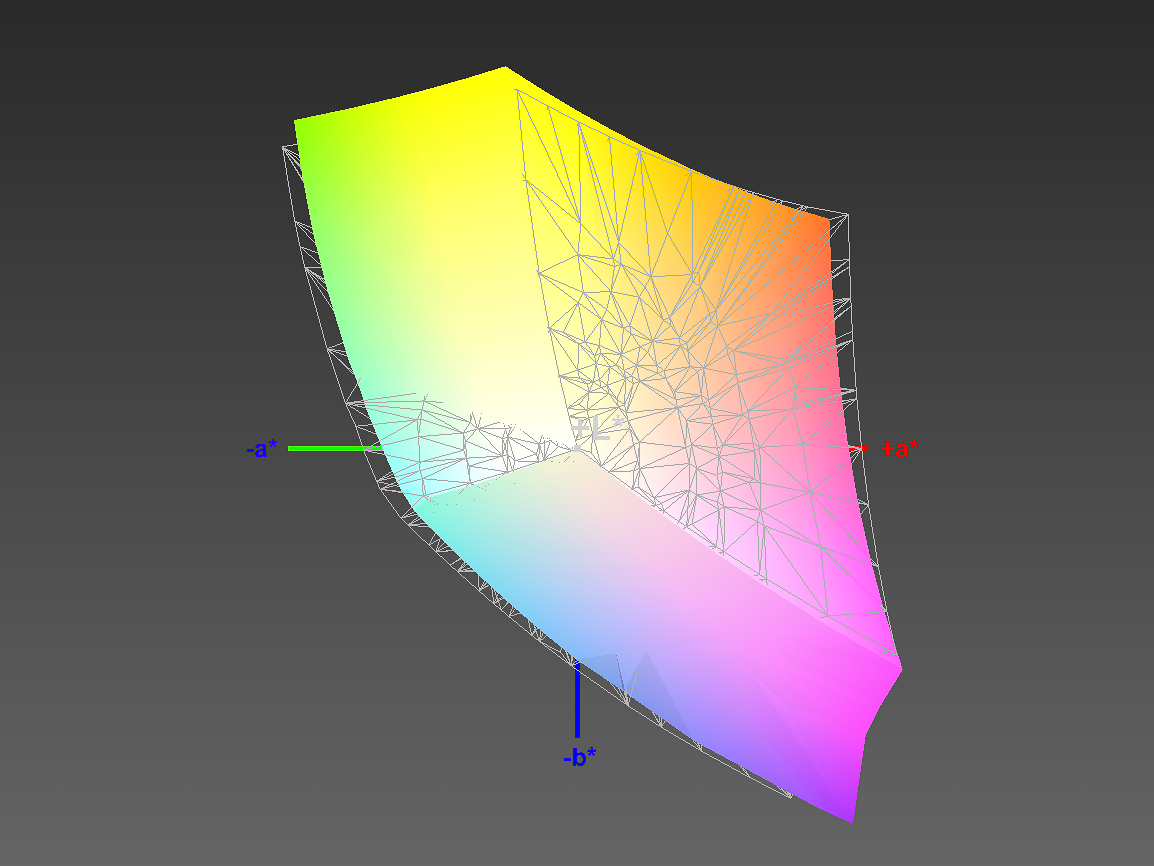

93% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
66% AdobeRGB 1998 (Argyll 2.2.0 3D)
93.1% sRGB (Argyll 2.2.0 3D)
64.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.43

Download ICC File (X-Rite i1Pro 2)

	Asus Zenbook UX360UA-C4159T AU Optronics AOU272D / B133HAN02.7, , 1920x1080, 13.3"	Acer Aspire R13 R7-372T-746N Sharp LQ133T1JW02, , 2560x1440, 13.3"	HP Spectre x2 12-a001ng LGD04A5, , 1920x1280, 12"	Lenovo ThinkPad Yoga 260 20FD001XGE LEN40E6 N125HCE-GN1, , 1920x1080, 12.5"
Display		6%	-20%	-33%
Display P3 Coverage	64.8	69.6 7%	52.9 -18%	42.98 -34%
sRGB Coverage	93.1	98 5%	71.8 -23%	62.8 -33%
AdobeRGB 1998 Coverage	66	70.7 7%	52.6 -20%	44.55 -32%
Response Times		606%	-54%	-90%
Response Time Grey 50% / Grey 80% *	29 ?(11, 18)	36 ?(12, 24) -24%	51 ?(19, 32) -76%	64 ?(30, 34) -121%
Response Time Black / White *	19 ?(7, 12)	30 ?(8, 22) -58%	25 ?(4, 21) -32%	30 ?(5, 25, Nano Seconds ns) -58%
PWM Frequency	50 ?(40)	1000 ?(10) 1900%
Screen		17%	-15%	-26%
Brightness middle	344	320 -7%	353 3%	371 8%
Brightness	326	308 -6%	347 6%	335 3%
Brightness Distribution	86	91 6%	91 6%	84 -2%
Black Level *	0.27	0.17 37%	0.44 -63%	0.29 -7%
Contrast	1274	1882 48%	802 -37%	1279 0%
Colorchecker dE 2000 *	5.53	3.18 42%	6.09 -10%	8.51 -54%
Colorchecker dE 2000 max. *	10.01	9.91 1%		20.43 -104%
Greyscale dE 2000 *	6.67	4.13 38%	6.24 6%	9.23 -38%
Gamma	2.43 ^91%	2.03 ^108%	2.41 ^91%	2.24 ^98%
CCT	7012 ^93%	6752 ^96%	7238 ^90%	6759 ^96%
Color Space (Percent of AdobeRGB 1998)	60	65 8%	46 -23%	41 -32%
Color Space (Percent of sRGB)	93	98 5%	71 -24%	62 -33%
Total Average (Program / Settings)		210% / 126%	-30% / -22%	-50% / -36%

* ... smaller is better

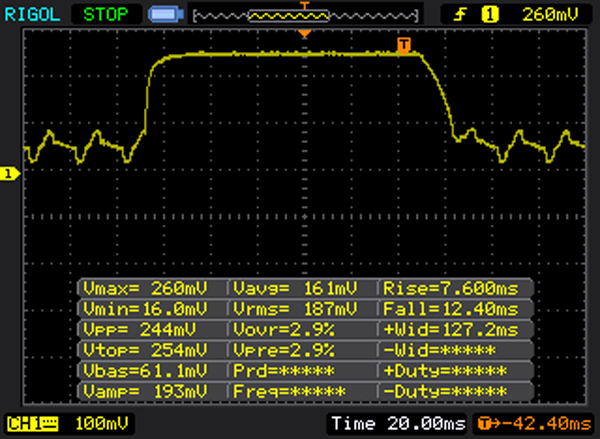

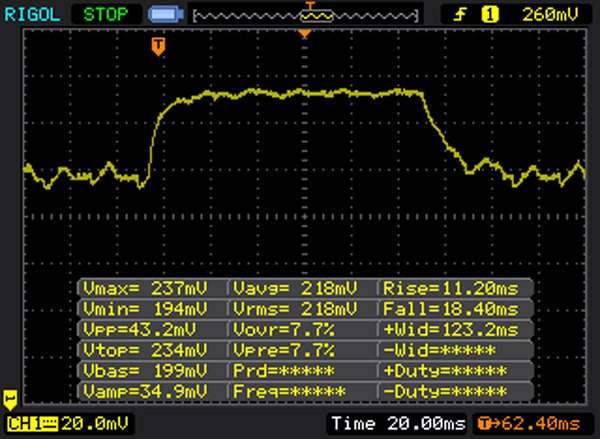

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
19 ms ... rise ↗ and fall ↘ combined	↗ 7 ms rise
19 ms ... rise ↗ and fall ↘ combined	↘ 12 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms).
↔ Response Time 50% Grey to 80% Grey
29 ms ... rise ↗ and fall ↘ combined	↗ 11 ms rise
29 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms).

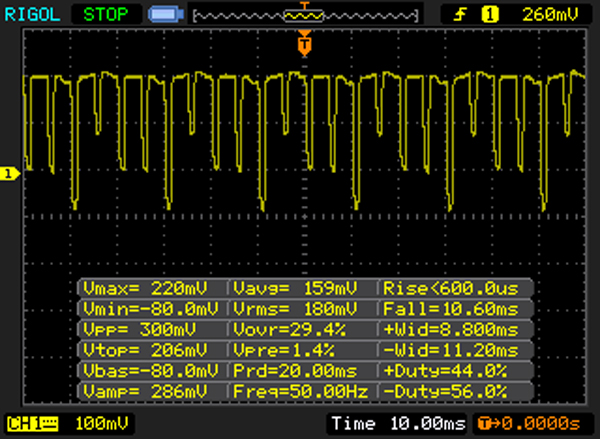

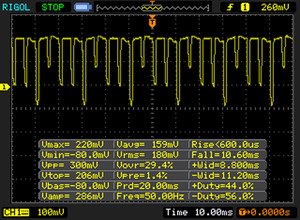

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

50 Hz

≤ 40 % brightness setting

The display backlight flickers at 50 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 40 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 50 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad Yoga 260 20FD001XGE Intel Core i7-6500U	128 Points +4%
Asus Zenbook UX360UA-C4159T Intel Core i7-6500U	123 Points
Acer Aspire R13 R7-372T-746N Intel Core i7-6500U	104 Points -15%
HP Spectre x2 12-a001ng Intel Core m3-6Y30	62 Points -50%
CPU Multi 64Bit
Acer Aspire R13 R7-372T-746N Intel Core i7-6500U	321 Points +1%
Asus Zenbook UX360UA-C4159T Intel Core i7-6500U	317 Points
Lenovo ThinkPad Yoga 260 20FD001XGE Intel Core i7-6500U	264 Points -17%
HP Spectre x2 12-a001ng Intel Core m3-6Y30	172 Points -46%

Cinebench R15 CPU Single 64Bit

123 Points

Cinebench R15 CPU Multi 64Bit

317 Points

Help

... in comparison

PCMark 8
Home Score Accelerated v2
Asus Zenbook UX360UA-C4159T HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)	3435 Points
Lenovo ThinkPad Yoga 260 20FD001XGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	3263 Points -5%
Acer Aspire R13 R7-372T-746N HD Graphics 520, 6500U, Lite-On CV1-8B256	3161 Points -8%
HP Spectre x2 12-a001ng HD Graphics 515, 6Y30, Liteon L8H-256V2G	2116 Points -38%
Work Score Accelerated v2
Lenovo ThinkPad Yoga 260 20FD001XGE HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP	4368 Points +1%
Asus Zenbook UX360UA-C4159T HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)	4315 Points
Acer Aspire R13 R7-372T-746N HD Graphics 520, 6500U, Lite-On CV1-8B256	3971 Points -8%

PCMark 8 Home Score Accelerated v2		3435 points
PCMark 8 Work Score Accelerated v2		4315 points
Help

	Asus Zenbook UX360UA-C4159T SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)	Acer Aspire R13 R7-372T-746N Lite-On CV1-8B256	HP Spectre x2 12-a001ng Liteon L8H-256V2G	Lenovo ThinkPad Yoga 260 20FD001XGE Samsung SSD PM871 MZNLN256HCHP
CrystalDiskMark 3.0		3%	-15%	-1%
Read Seq	452.1	507 12%	517 14%	468.9 4%
Write Seq	421.3	354.4 -16%	270.1 -36%	297.3 -29%
Read 512	288.6	355.3 23%	369.2 28%	397.9 38%
Write 512	310.7	353.9 14%	264.6 -15%	297.1 -4%
Read 4k	28.52	32.66 15%	23.48 -18%	33.11 16%
Write 4k	72.1	81.6 13%	57.4 -20%	85.1 18%
Read 4k QD32	389.6	277.6 -29%	223.4 -43%	398.3 2%
Write 4k QD32	285.3	261.2 -8%	195.8 -31%	136.6 -52%

CrystalDiskMark 3.0

AS SSD

SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)

Sequential Read: 452.1 MB/s

Sequential Write: 421.3 MB/s

512K Read: 288.6 MB/s

512K Write: 310.7 MB/s

4K Read: 28.52 MB/s

4K Write: 72.1 MB/s

4K QD32 Read: 389.6 MB/s

4K QD32 Write: 285.3 MB/s

3DMark 11 - 1280x720 Performance GPU
Asus Zenbook UX360UA-C4159T Intel HD Graphics 520, Intel Core i7-6500U	1489 Points
Acer Aspire R13 R7-372T-746N Intel HD Graphics 520, Intel Core i7-6500U	1415 Points -5%
Lenovo ThinkPad Yoga 260 20FD001XGE Intel HD Graphics 520, Intel Core i7-6500U	1197 Points -20%

3DMark - 1280x720 Cloud Gate Standard Graphics
Asus Zenbook UX360UA-C4159T Intel HD Graphics 520, Intel Core i7-6500U	7917 Points
Acer Aspire R13 R7-372T-746N Intel HD Graphics 520, Intel Core i7-6500U	7843 Points -1%
Lenovo ThinkPad Yoga 260 20FD001XGE Intel HD Graphics 520, Intel Core i7-6500U	6759 Points -15%

3DMark 11 Performance		1651 points
3DMark Ice Storm Standard Score		65139 points
3DMark Cloud Gate Standard Score		5832 points
Help

... in comparison

	low	med.	high
BioShock Infinite (2013)	49.5	29.2	24.5
Battlefield 4 (2013)	32.2	24.8
The Witcher 3 (2015)	13.6

Noise Level

Idle		30.5 / 32.1 / 32.3 dB(A)
HDD		32 dB(A)
DVD		37.6 / dB(A)
Load		36.1 / 36.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1, Arta (15 cm distance) environment noise: 30.5 dB(A)

Max. Load

Idle


23.6 °C	24.6 °C	24.6 °C
23.4 °C	24.1 °C	24.2 °C
23.3 °C	23.2 °C	24.8 °C

Maximum: 24.8 °C
Average: 24 °C


25 °C	24.7 °C	24.6 °C
24.5 °C	24.4 °C	23.7 °C
24.1 °C	23.8 °C	23.4 °C

Maximum: 25 °C
Average: 24.2 °C

Power Supply (max.) 27.4 °C | Room Temperature 22 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 27.8 °C / 82 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 31.3 °C / 88 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 33.3 °C / 92 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.3 °C / 79.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (+1.8 °C / 3.3 F).

Asus Zenbook UX360UA-C4159T audio analysis

(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.1% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.3% away from median
(±) | linearity of mids is average (7.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.9% away from median
(+) | highs are linear (3.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.4% difference to median)
Compared to same class
» 30% of all tested devices in this class were better, 8% similar, 62% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 29% of all tested devices were better, 8% similar, 62% worse
» The best had a delta of 4%, average was 25%, worst was 134%

HP Spectre x2 12-a001ng audio analysis

(-) | not very loud speakers (67 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.3% lower than median
(+) | bass is linear (5.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.1% higher than median
(±) | linearity of mids is average (13.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.9% higher than median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (34.2% difference to median)
Compared to same class
» 92% of all tested devices in this class were better, 2% similar, 5% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 92% of all tested devices were better, 1% similar, 7% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.22 / 0.24 Watt
Idle	6.9 / 7.9 / 8.3 Watt
Load	30.1 / 29.6 Watt


Key: min: , med: , max: Metrahit Energy

	Asus Zenbook UX360UA-C4159T 6500U, HD Graphics 520, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND), IPS, 1920x1080, 13.3"	Acer Aspire R13 R7-372T-746N 6500U, HD Graphics 520, Lite-On CV1-8B256, IPS, 2560x1440, 13.3"	HP Spectre x2 12-a001ng 6Y30, HD Graphics 515, Liteon L8H-256V2G, IPS, 1920x1280, 12"	Lenovo ThinkPad Yoga 260 20FD001XGE 6500U, HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP, IPS, 1920x1080, 12.5"
Power Consumption		-18%	8%	22%
Idle Minimum *	6.9	6.2 10%	6 13%	3.6 48%
Idle Average *	7.9	8 -1%	8 -1%	6.3 20%
Idle Maximum *	8.3	11.6 -40%	10.6 -28%	7.6 8%
Load Average *	30.1	40 -33%	21.5 29%	27.2 10%
Load Maximum *	29.6	36.6 -24%	22 26%	22.8 23%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		19h 25min
WiFi Websurfing		9h 41min
Load (maximum brightness)		2h 49min

	Asus Zenbook UX360UA-C4159T 6500U, HD Graphics 520, 57 Wh	Acer Aspire R13 R7-372T-746N 6500U, HD Graphics 520, 49 Wh	HP Spectre x2 12-a001ng 6Y30, HD Graphics 515, 43 Wh	Lenovo ThinkPad Yoga 260 20FD001XGE 6500U, HD Graphics 520, 44 Wh
Battery Runtime		-42%	-28%	-35%
Reader / Idle	1165	669 -43%	681 -42%	943 -19%
WiFi v1.3	581	382 -34%	364 -37%	346 -40%
Load	169	85 -50%	161 -5%	92 -46%
H.264		393

Pros

+ 几种不同配置型号可选

+ 紧凑，轻盈，纤薄

+ 坚固的机身质感十足

+ 舒适的表面材质

+ 优秀的无线性能

+ 明亮，高对比度，视角稳定的屏幕

+ 非常安静清凉

+ 出色的电池续航

Cons

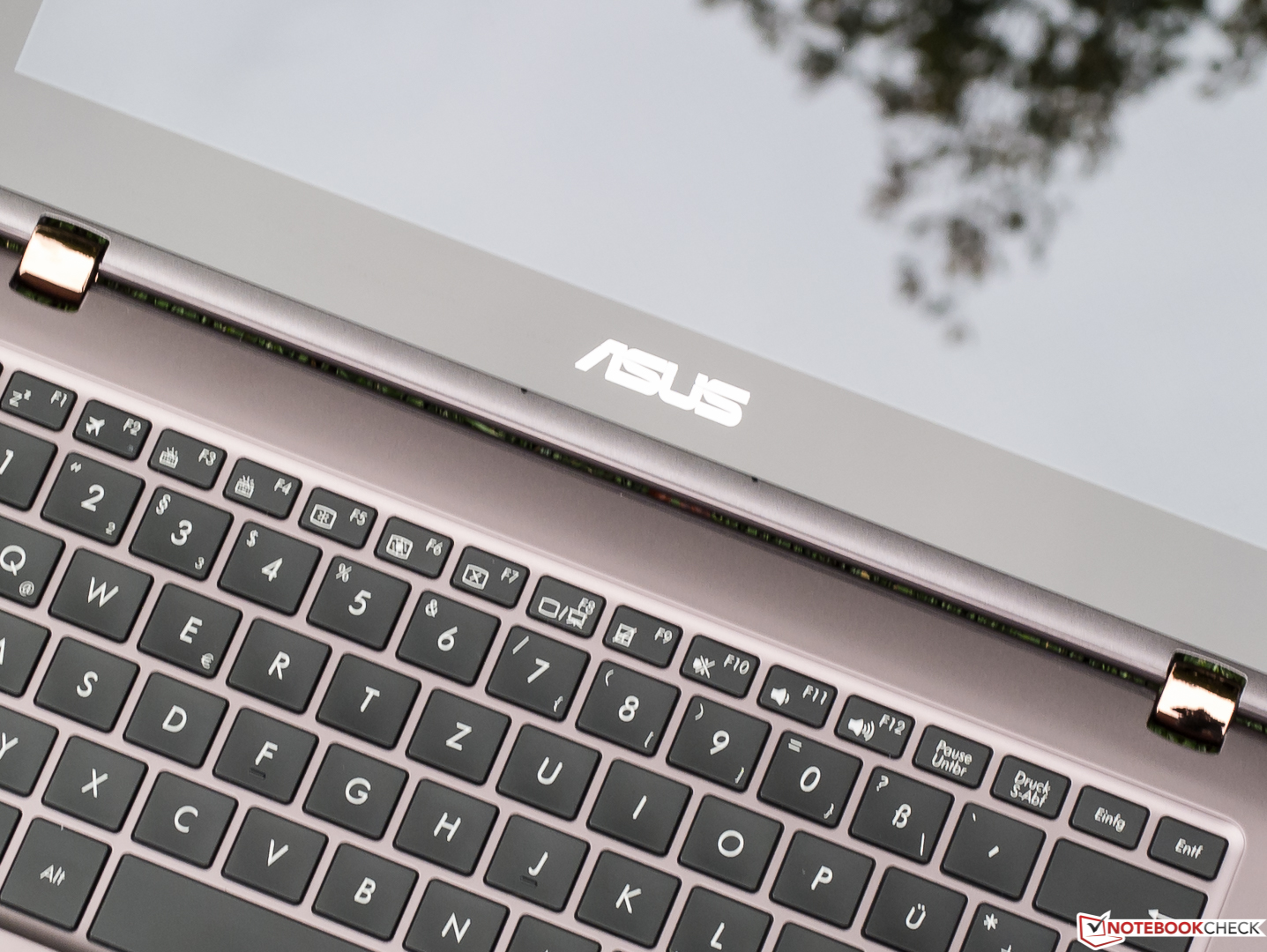

- 屏幕转轴对于笔记本电脑模式不够稳定

- 易于沾染指纹

- 用户维护升级必须拆机

- 接口较少

- 读卡器速度慢

- 华硕FlipLock功能无法正常使用

- 点击触控版的滑动操作不便

- 有限的户外实用性

In review: Asus ZenBook UX360UA. Test model courtesy of Notebooksbilliger.de

我们的测试基于我们所得到的设备——这是一台来自在线商店的全新零售机型。遗憾的是，这台变形本由于不合理的屏幕转轴收到了不小的限制。它在笔记本电脑模式下或在汽车或火车上等摇晃的情况下几乎无法正常使用。另外，它的屏幕在桌面使用时也经常无法稳定保持一定角度。这个缺陷给它的最后得分带来了不小的影响。我们也对华硕提出了质疑。我们将在之后更新相应的官方答复。
