光环无限的性能分析

酋长大人的回归。

经过多年的期待，《光环无限》终于问世了。我们进行了性能分析以确定系统要求。

Florian Glaser, 👁 Florian Glaser (translated by DeepL / Ninh Duy), Published 12/15/2021 🇺🇸 🇩🇪 ...

Gaming Laptop / Notebook Desktop Gamecheck

技术

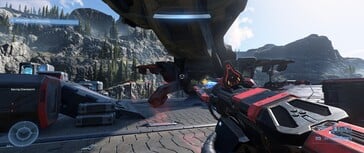

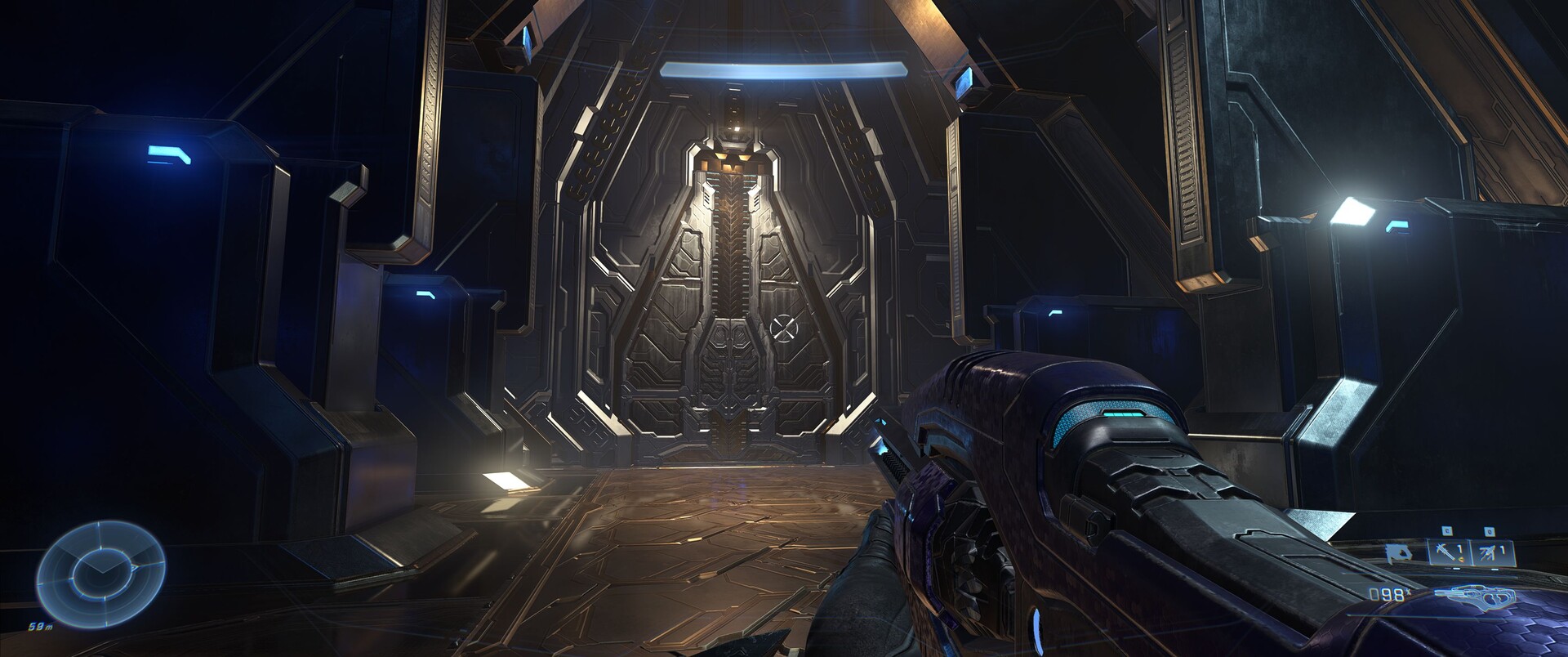

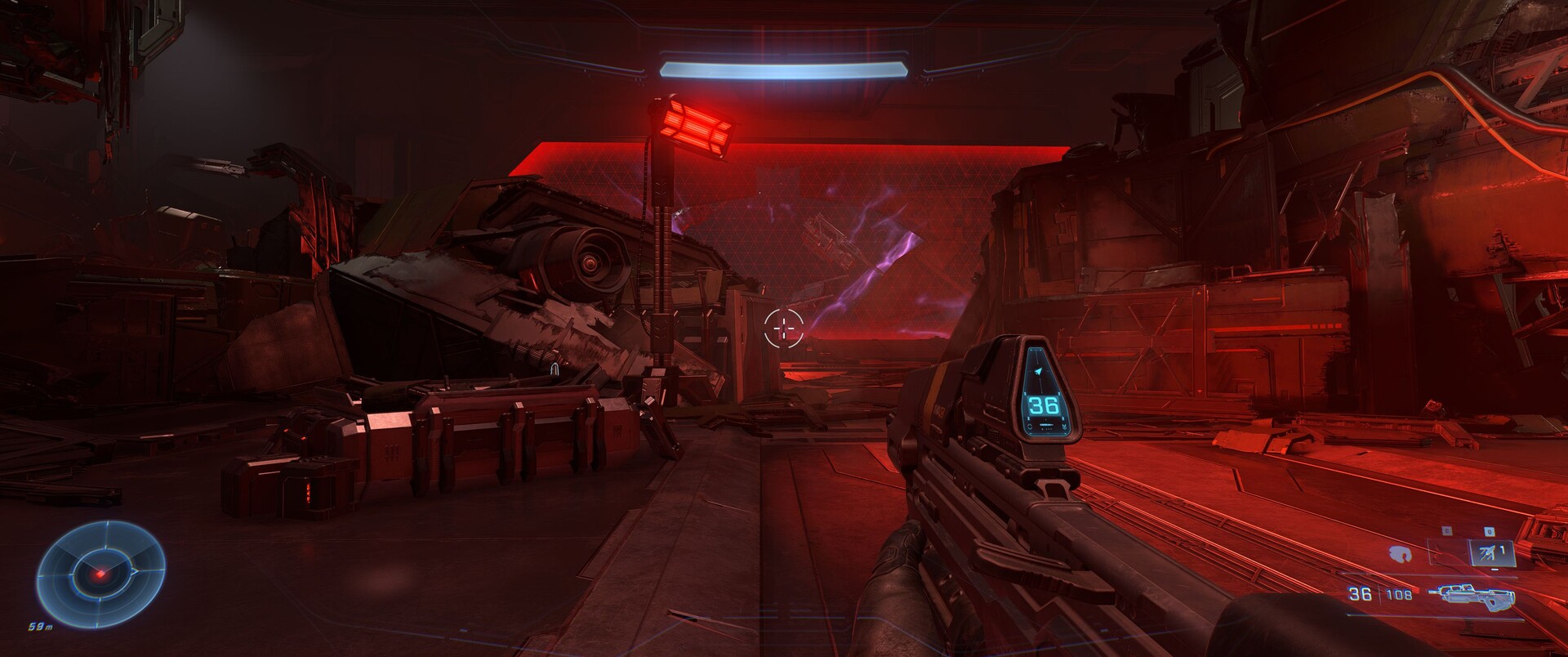

在PC上，《光环》系列的最后几部作品在视觉上并不引人注目。游戏世界无论在室外还是室内都显得空洞而无生气。这在很大程度上是由于当时硬件的固有限制。尽管《光环无限》没有夸耀令人窒息的视觉效果，但它的表现力却相当惊人。

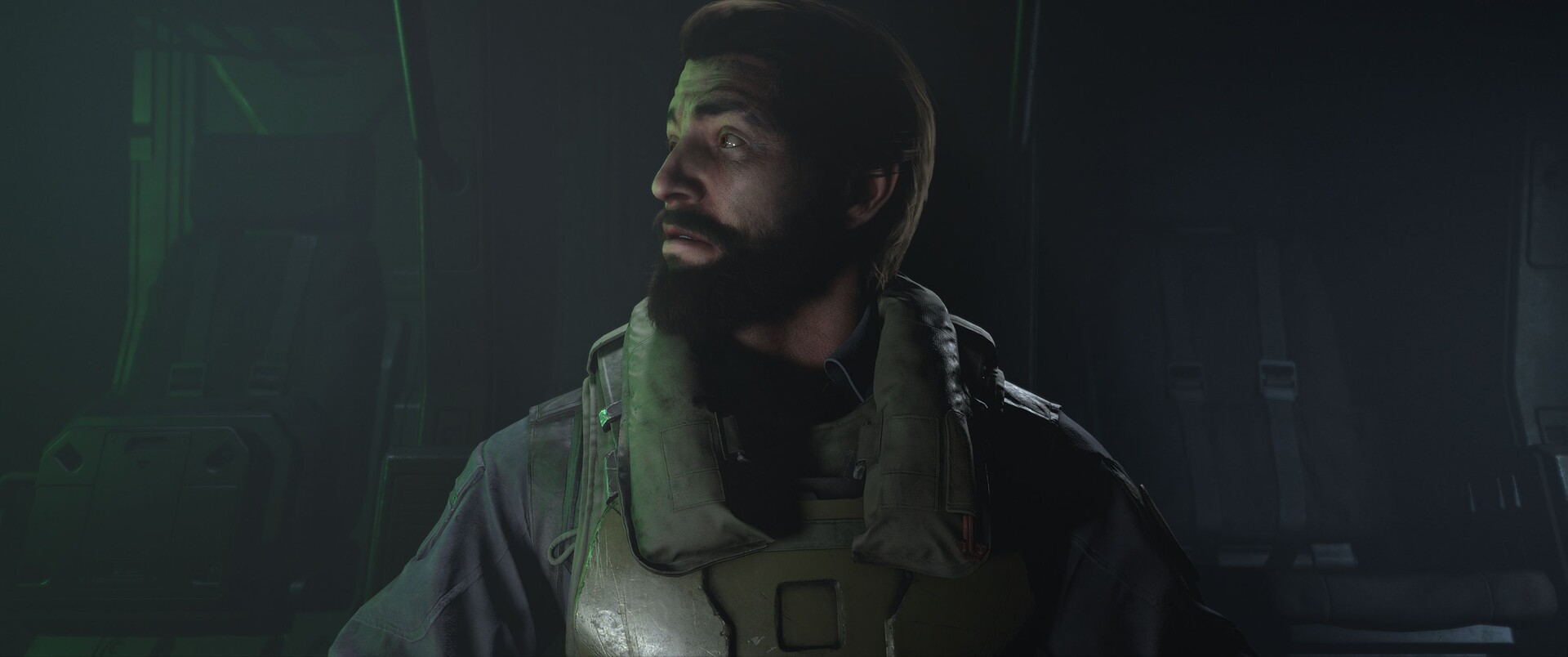

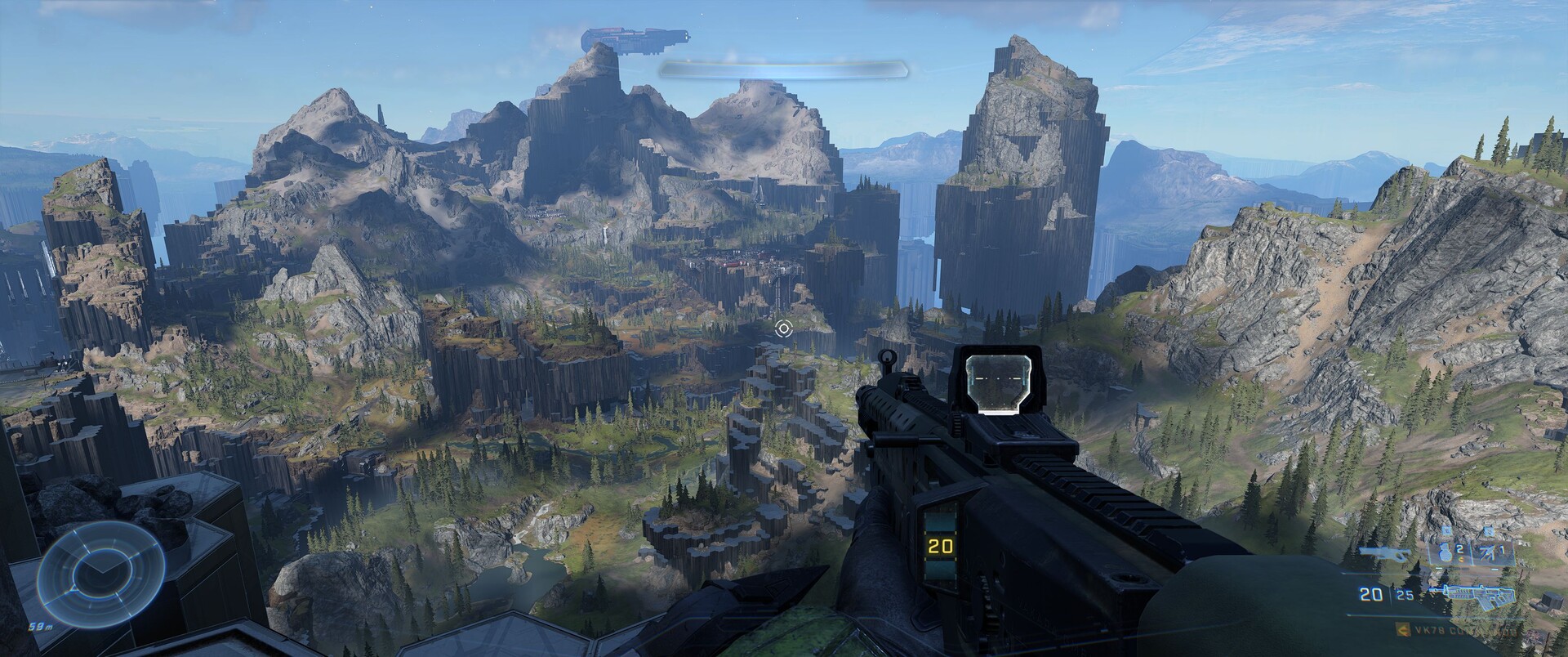

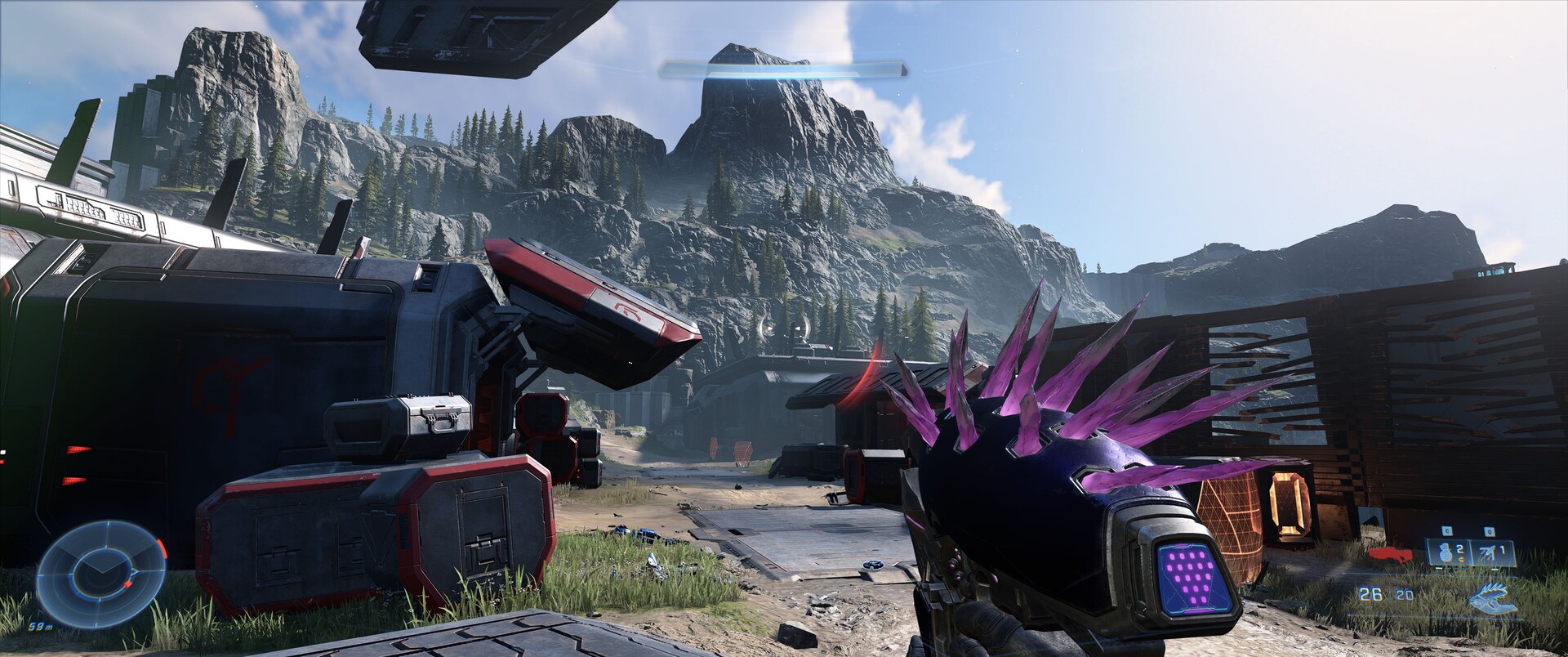

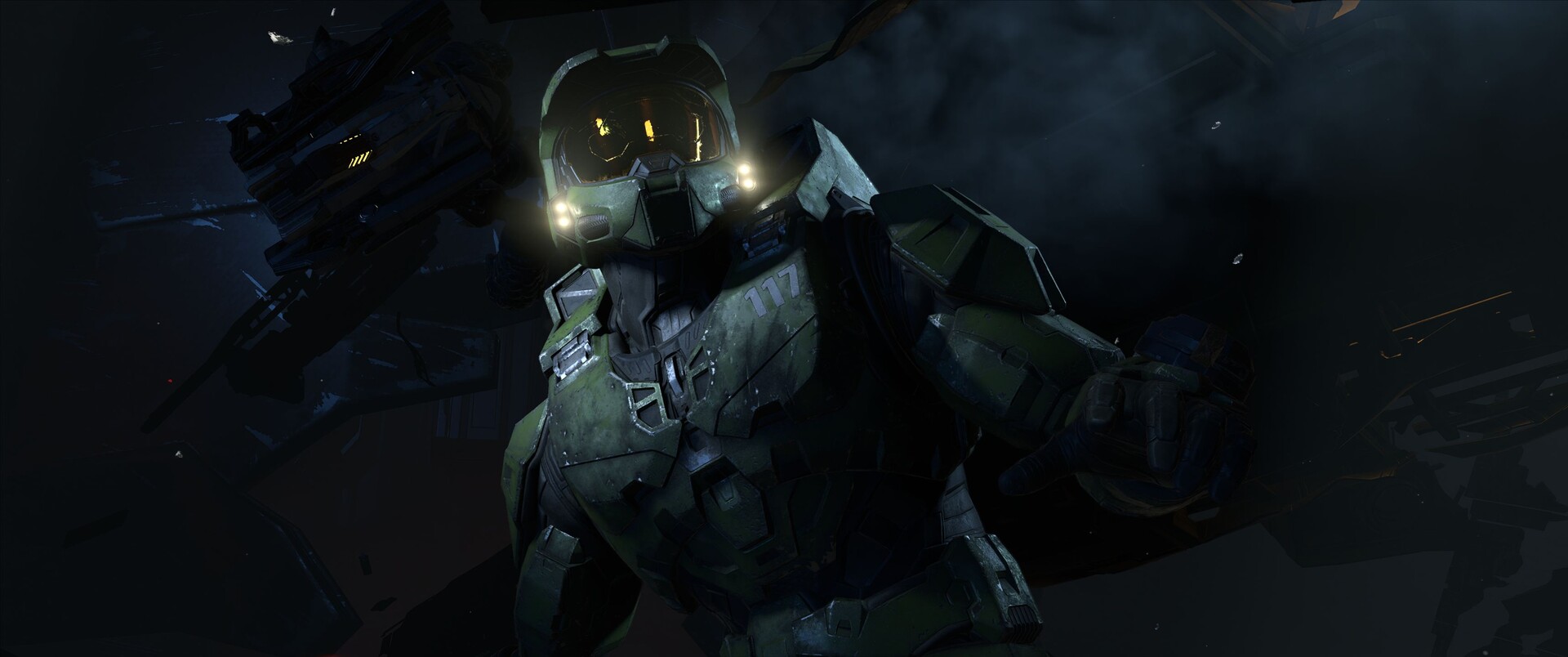

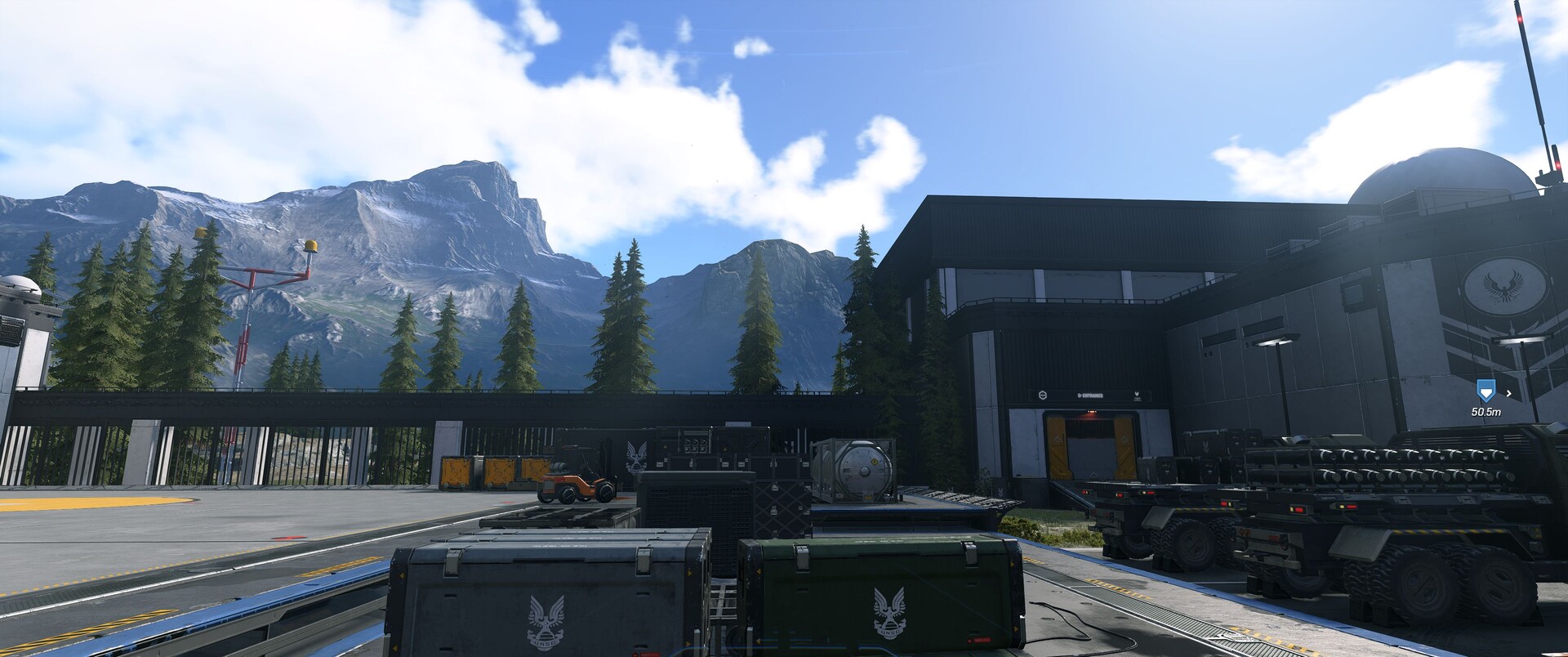

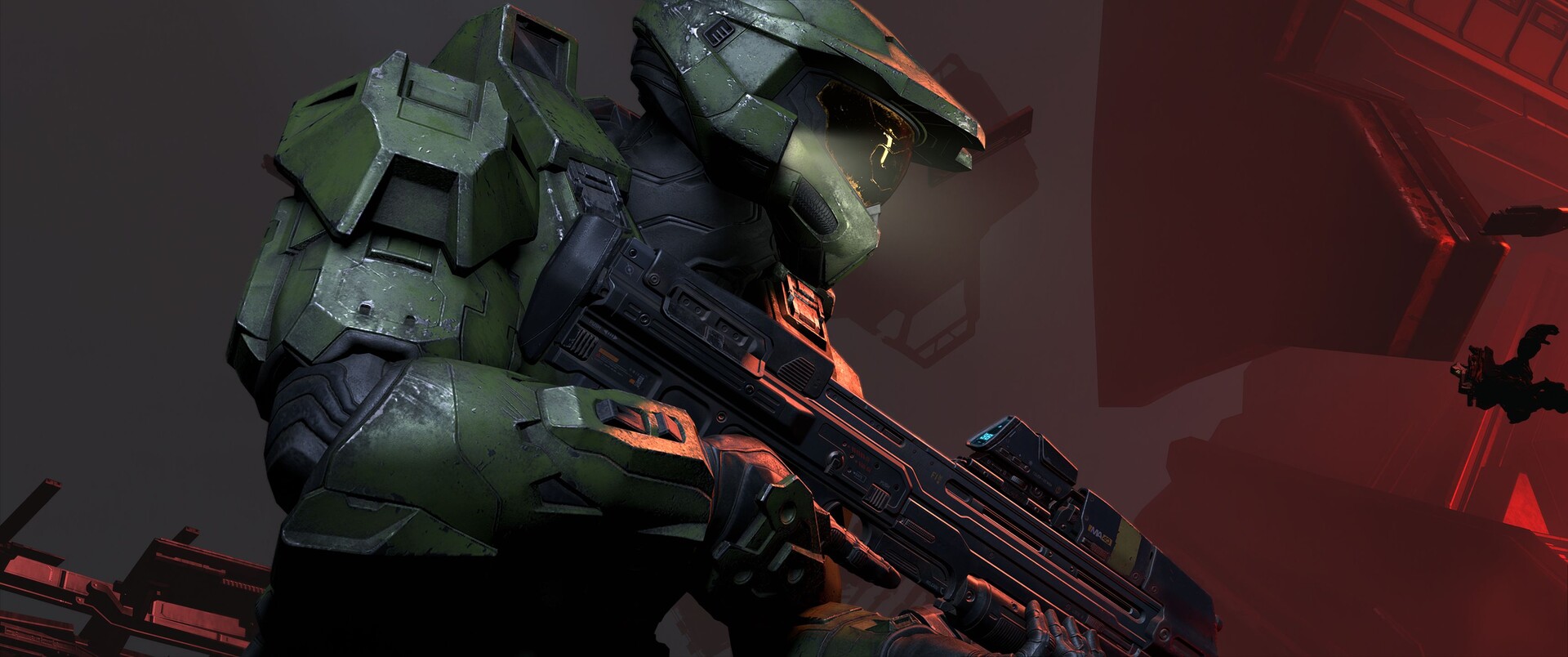

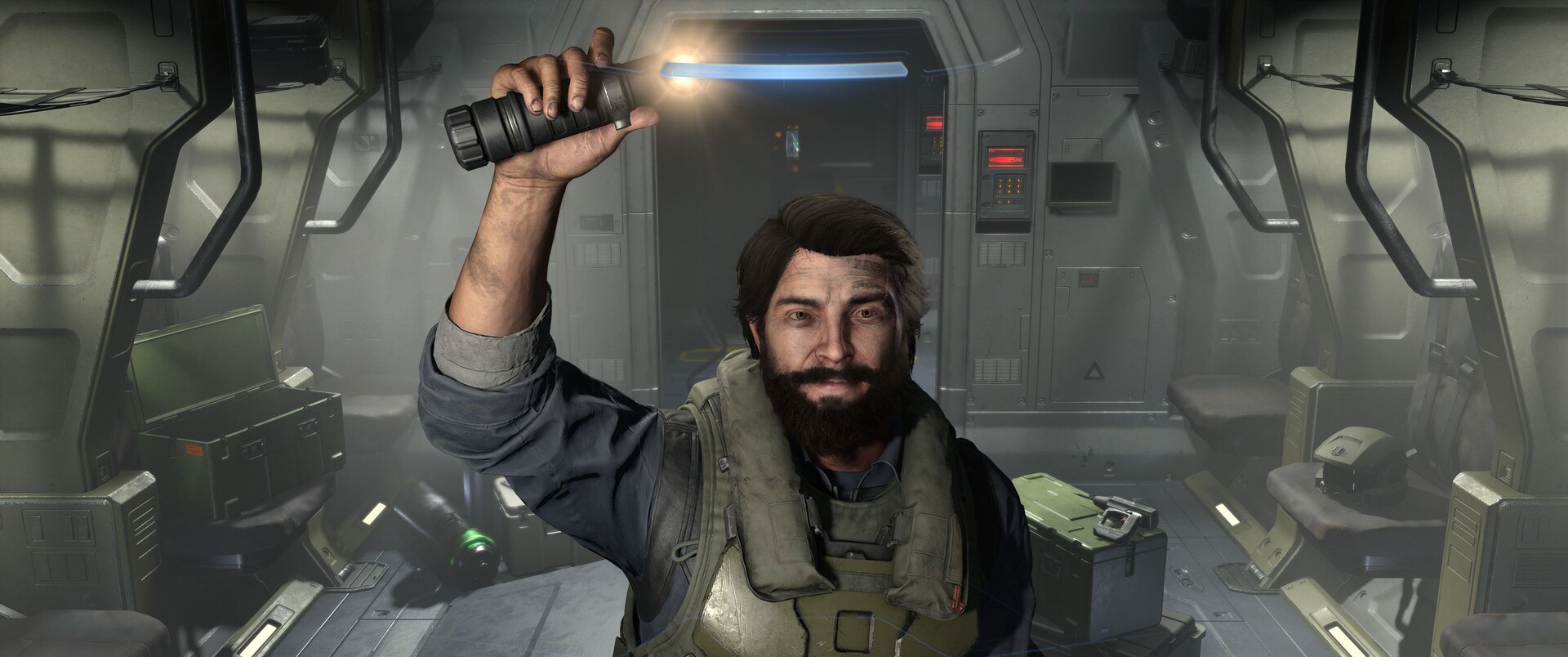

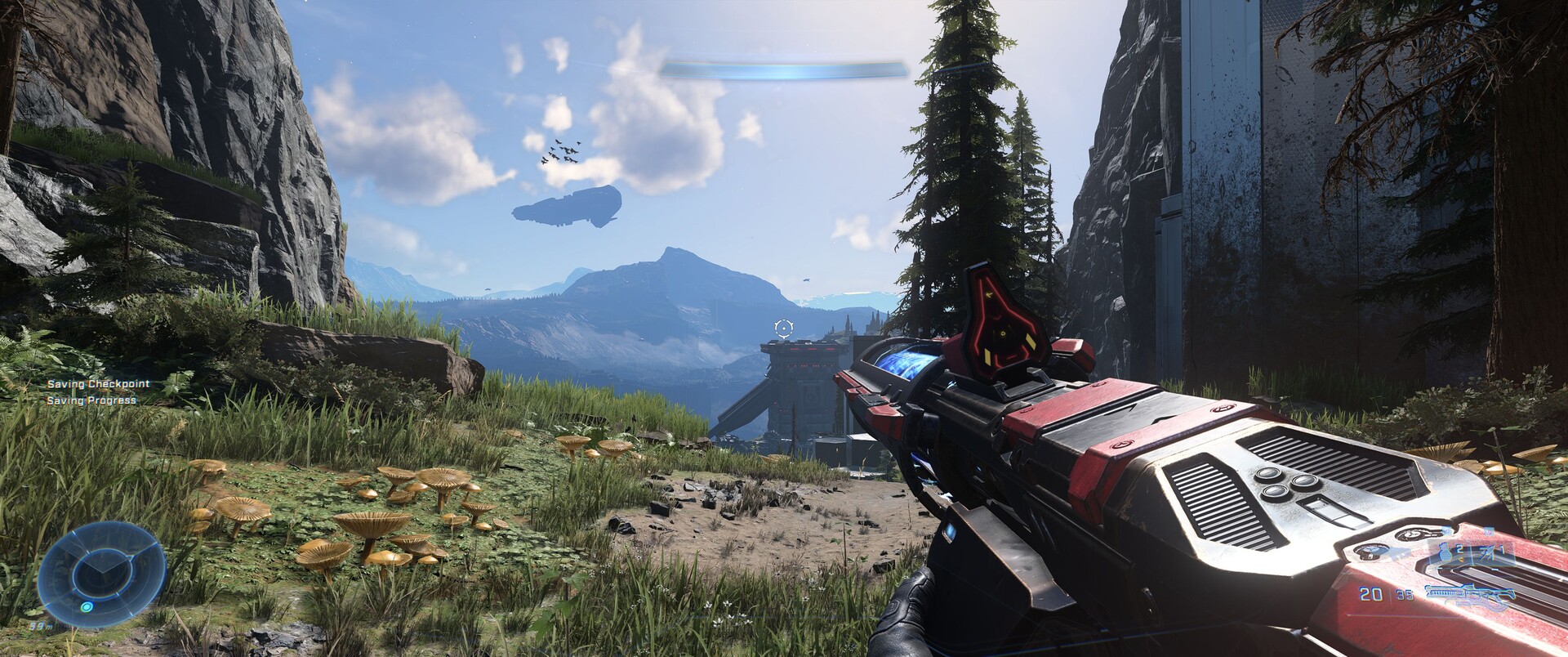

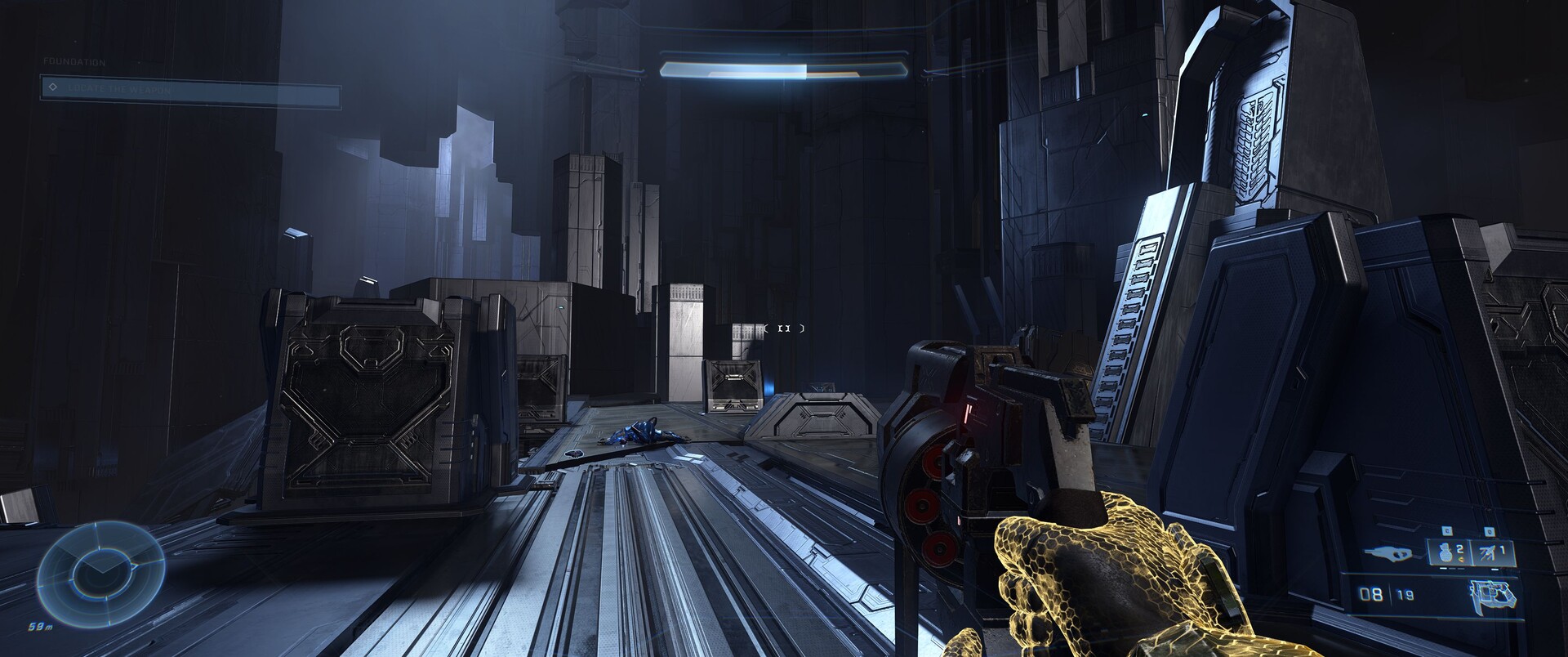

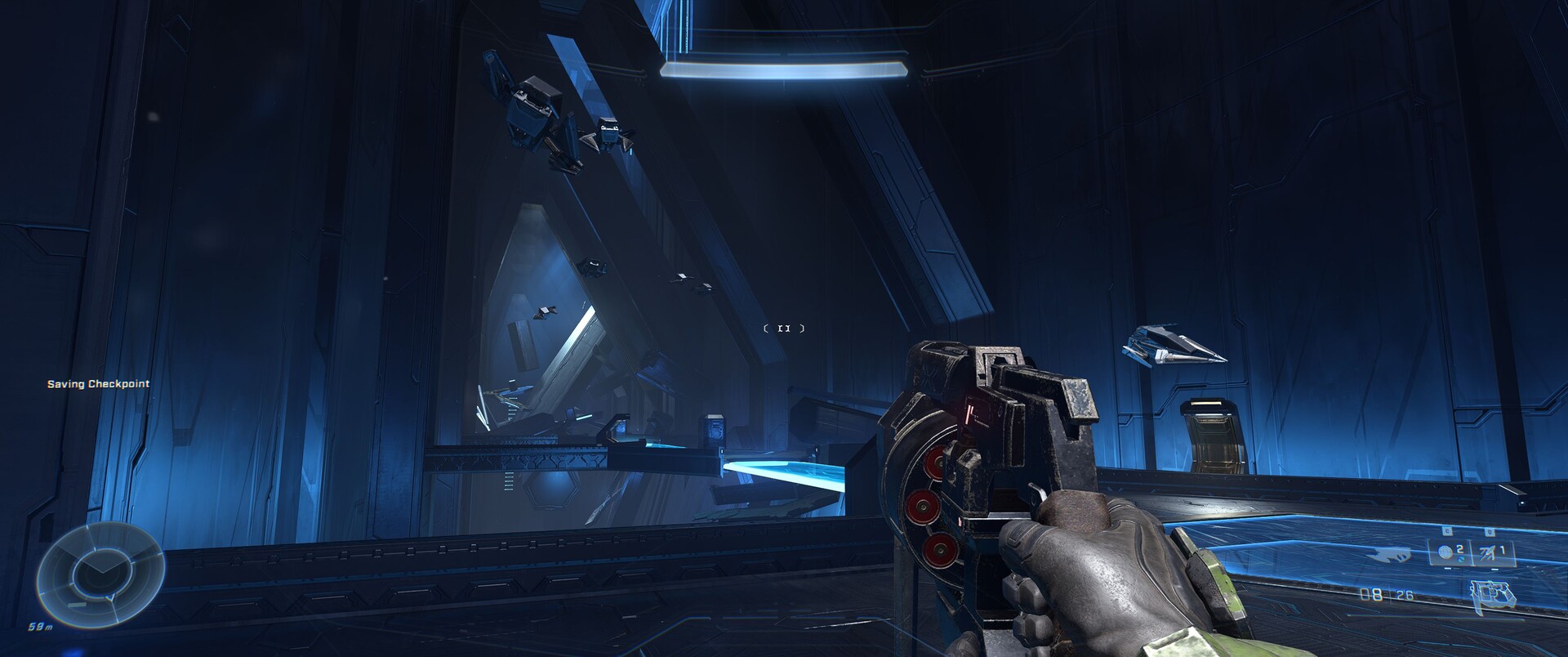

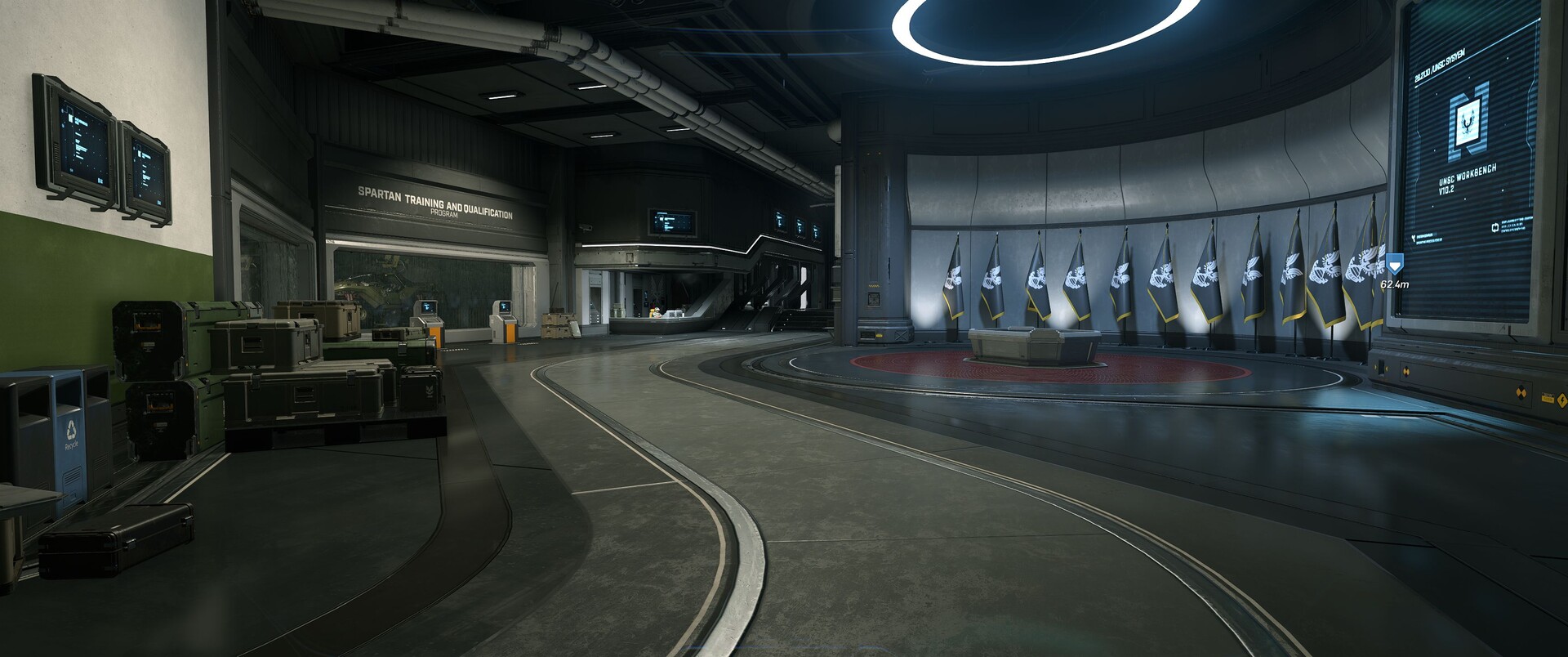

除了高度详细的人物模型外，其效果（照明、枪口闪光......）也令人印象深刻。纹理质量也达到了很高的水平。在室外，视距也没有让人失望。

我们在单人游戏中没有任何真正令人惊叹的时刻，与免费的多人游戏模式不同，单人游戏需要花费60欧元（约68美元）。这是由于游戏性和任务的重复性造成的。良好的枪法和动作未能弥补这一根本缺陷。这个游戏循环包括从一个房间跑到另一个房间或从一个区域跑到另一个区域。

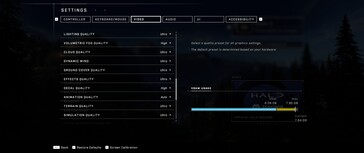

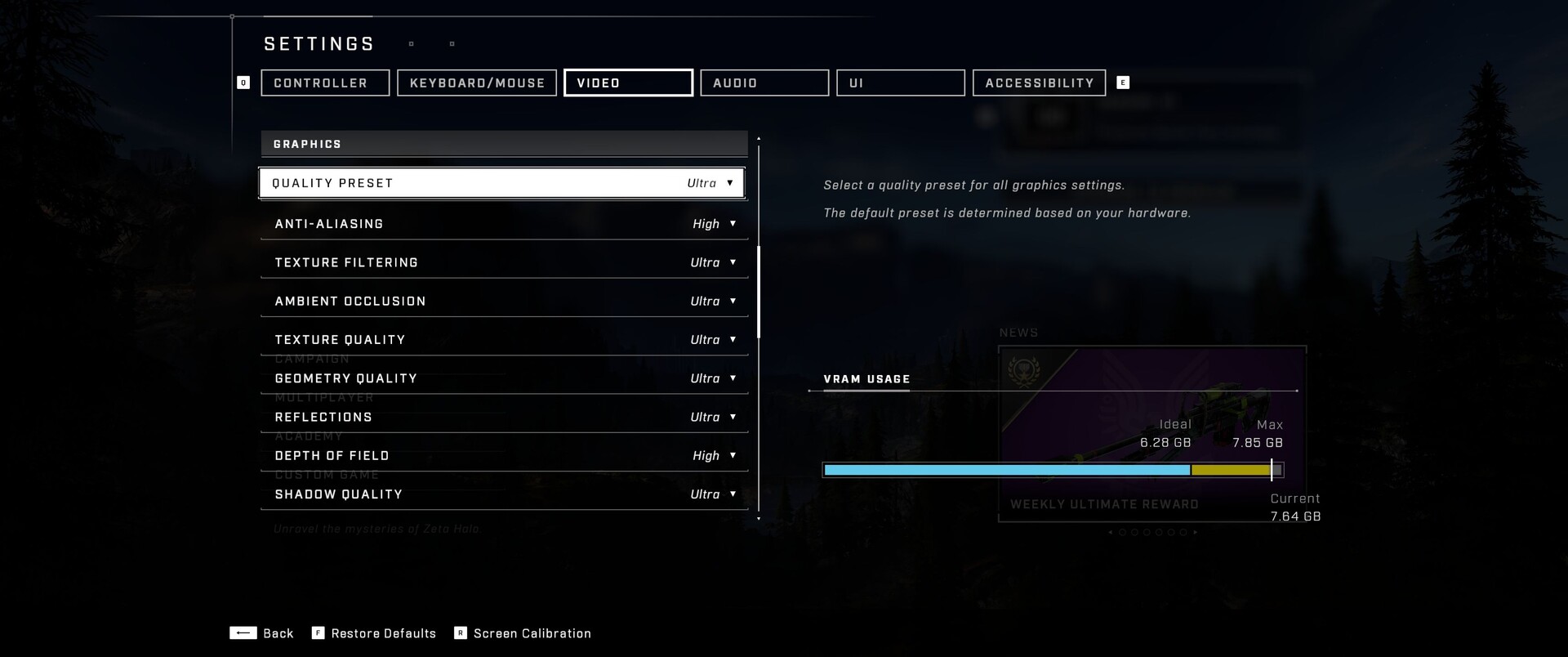

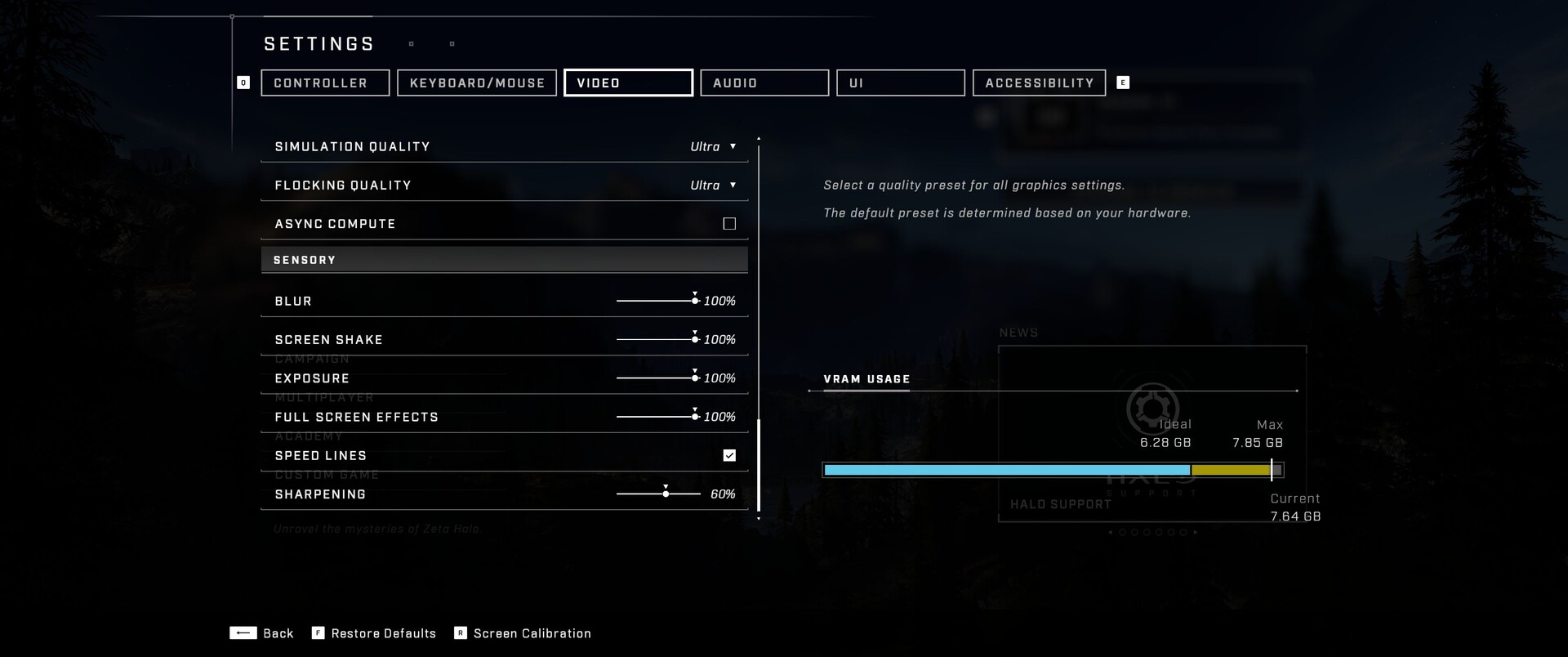

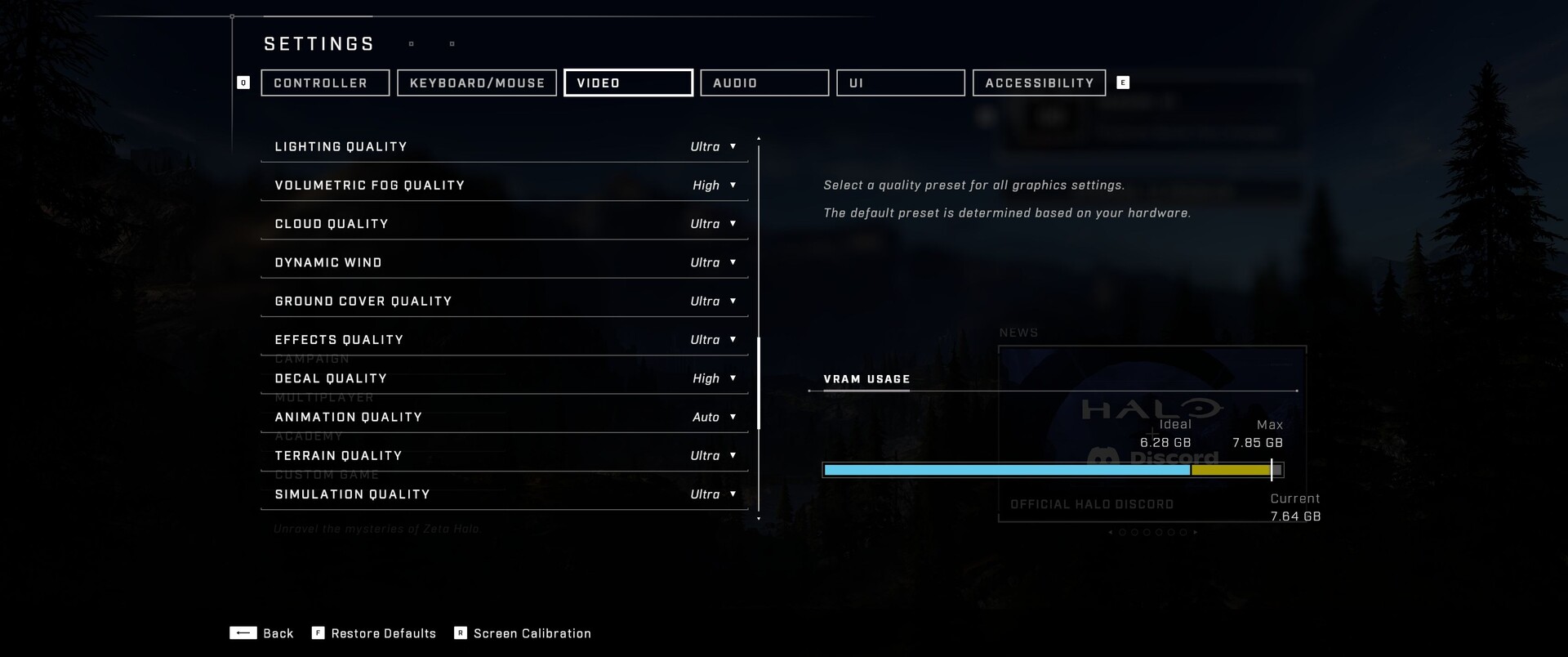

PC游戏玩家将对图形设置菜单感到满意。它包含20多个视觉设置和各种显示设置。还有内置预设。然而，一些设置的改变需要重新启动才能生效。

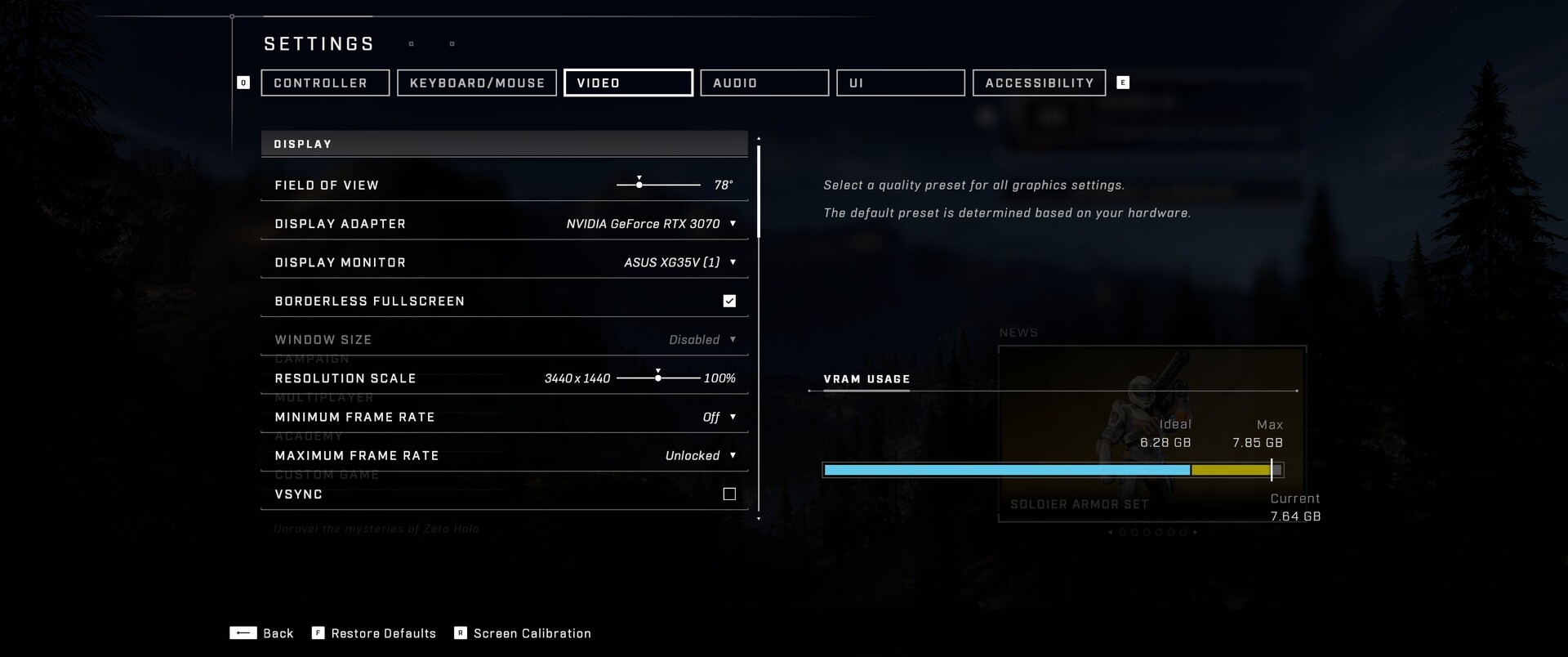

还有一个VRAM仪表。像许多其他现代游戏一样，《光环无限》需要大量的视频内存。对于超级设置，你将需要大约8GB的VRAM。

很不寻常的是，《光环无限》没有真正的全屏模式（无边界的全屏模式是与分辨率缩放相配合的）。为了使用经典的分辨率，PC玩家将不得不使用窗口模式。游戏有一个帧率限制器，我们在进行性能分析时禁用了它。垂直同步功能也被禁用。

基准

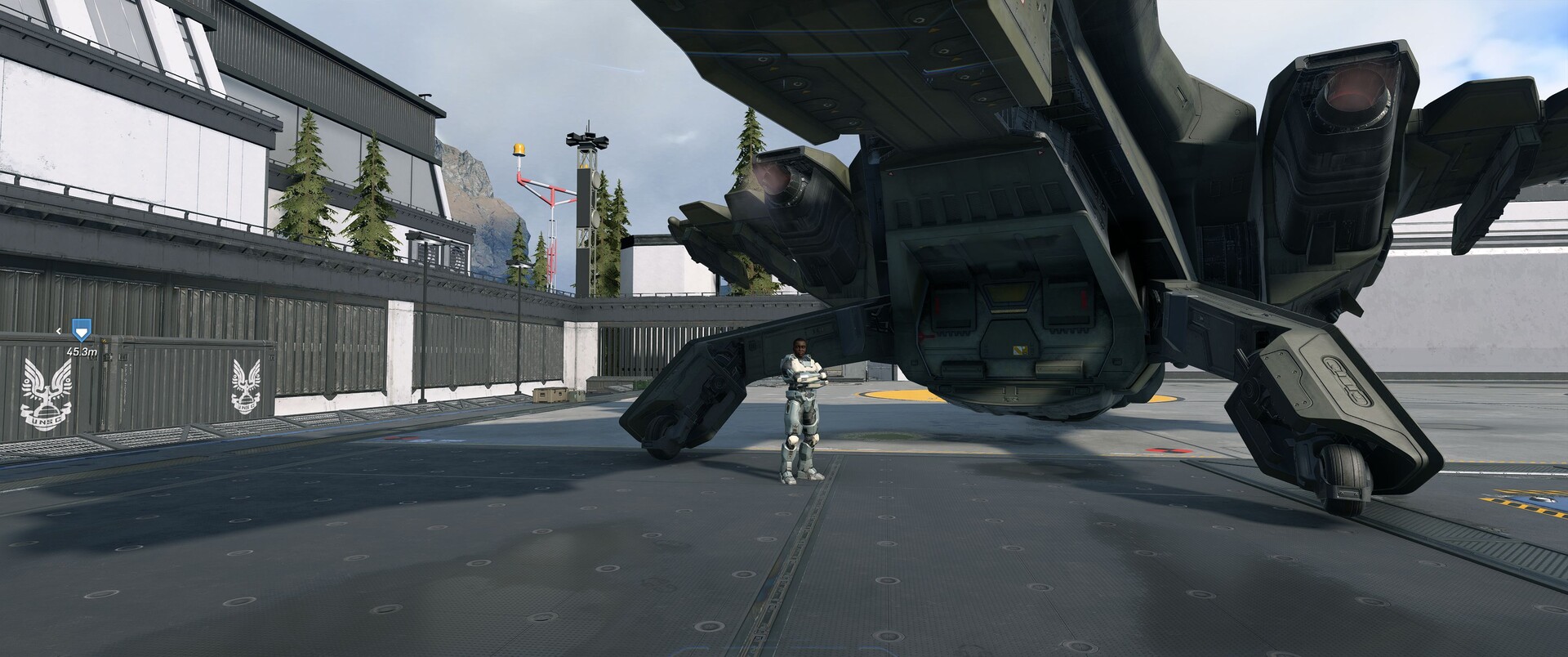

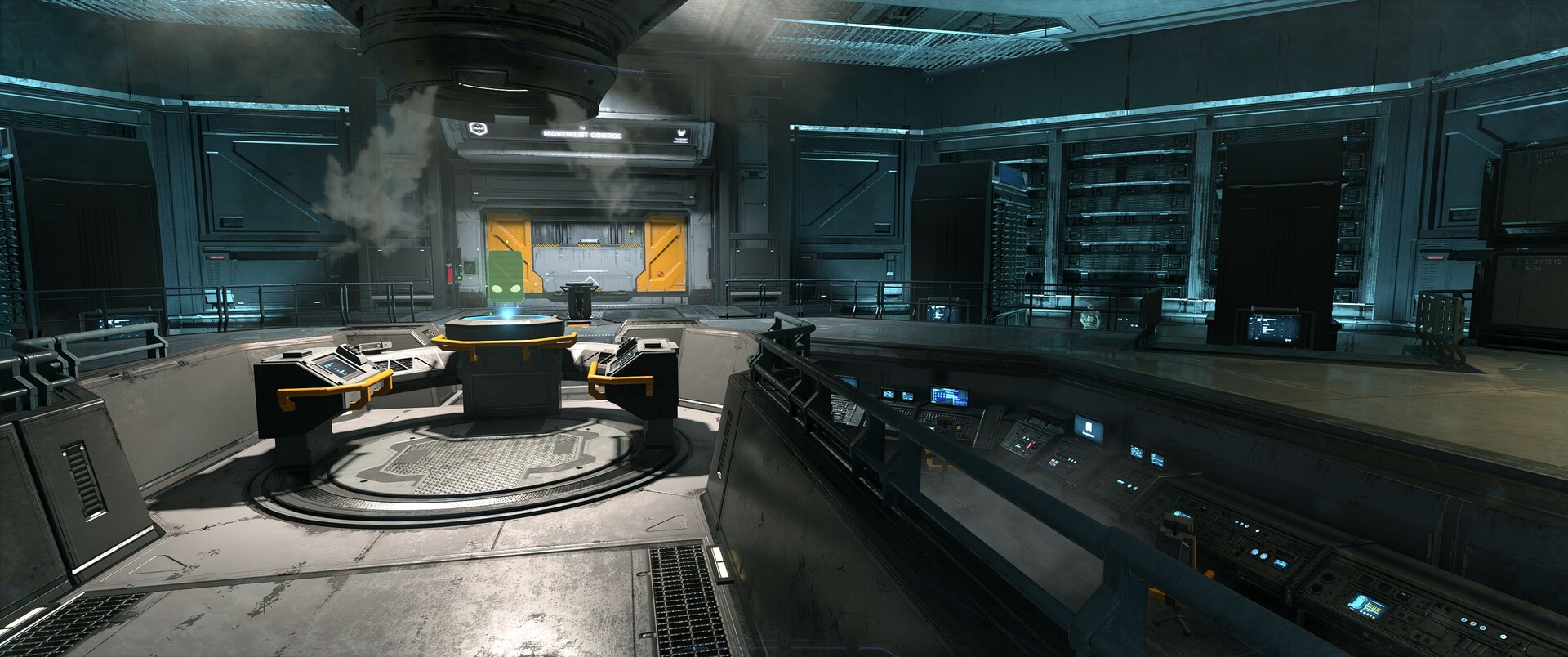

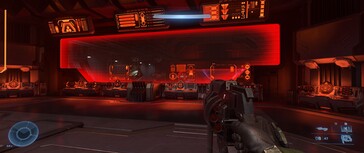

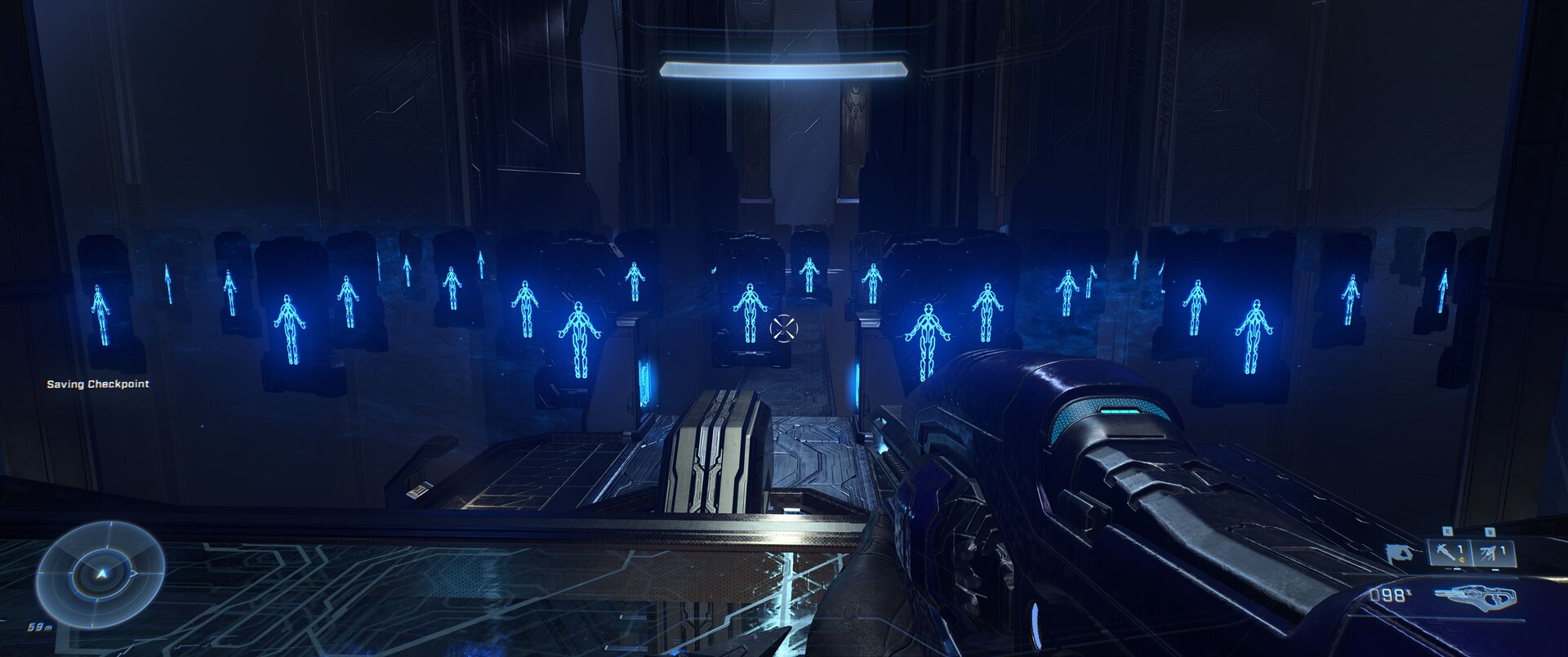

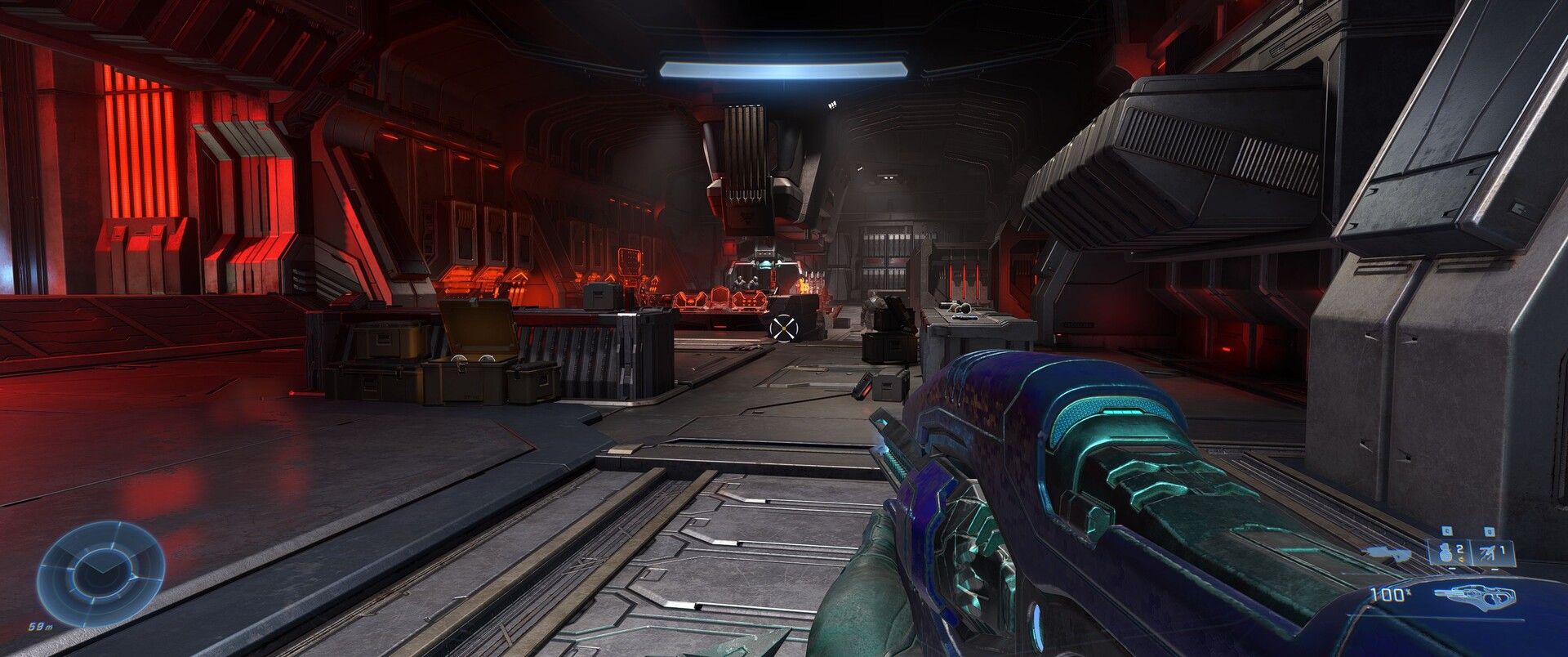

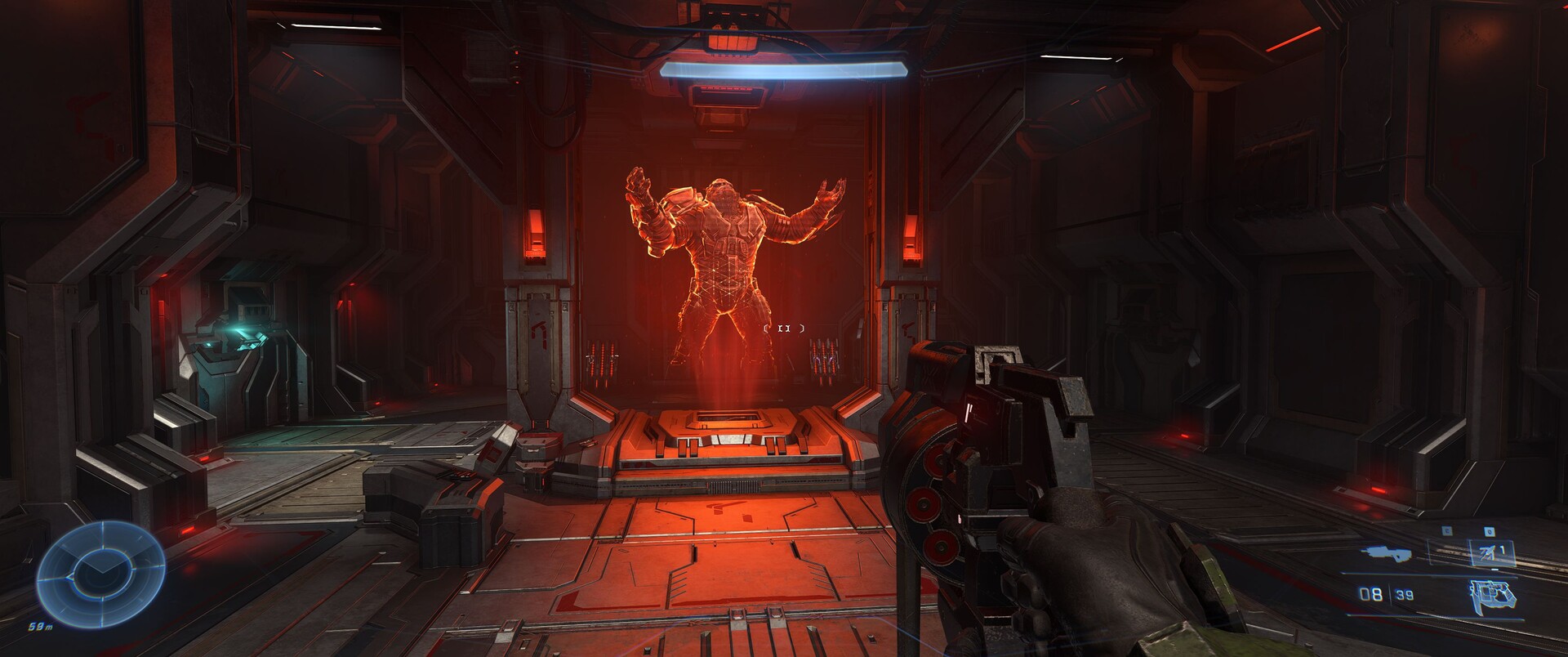

由于《光环无限》的单人战役有一个非常特殊的保存系统，我们决定使用发生在所谓的学院里的教程任务。教程任务可以从主菜单中进入。从下面的视频中可以看出，我们的基准通过包括沿着特定路线的20秒运行。在这里，我们跑过户外和室内区域。

我们使用CapFrameX来收集性能数据。我们的基准序列反映了游戏在单人模式下对你的系统进行的最常见的负载类型。值得一提的是，我们在单人游戏中经常遇到帧率下降和无法解释的冻结。

▶ load Youtube video

结果

基准测试主要使用我们的合作伙伴MSI和XMG（Schenker Technologies）借给我们的笔记本电脑进行。

FHD (1920x1080)

那些想在1080p下享受《光环无限》的人至少需要一个中端GPU才能做到这一点。虽然 GeForce GTX 1650(Ti)可以在低到中等设置下处理《光环无限》，而 GeForce RTX 3050 Ti或 GTX 1660 Ti则需要高/超高设置。

Halo Infinite
1920x1080 Low Preset 1920x1080 Medium Preset 1920x1080 High Preset 1920x1080 Ultra Preset
NVIDIA GeForce RTX 3090, i9-9900K MSI GeForce RTX 3090 Suprim X	179 (40^min, 64.1^P0.1, 115^P1) fps ∼30% 155 (47.5^min, 65.2^P0.1, 100^P1) fps ∼35% 148 (58.7^min, 76.5^P0.1, 103^P1) fps ∼26%
NVIDIA GeForce RTX 3080, i9-9900K MSI GeForce RTX 3080 Gaming X Trio	174 (39.5^min, 66.2^P0.1, 110^P1) fps ∼29% 151 (48^min, 68.7^P0.1, 101^P1) fps ∼34% 142 (48.7^min, 70.4^P0.1, 94.9^P1) fps ∼25%
NVIDIA GeForce RTX 3070, i9-9900K MSI GeForce RTX 3070 Ventus 3X	149 (56.1^min, 81.1^P0.1, 99^P1) fps ∼25% 129 (45.3^min, 73.9^P0.1, 89.3^P1) fps ∼29% 121 (29.4^min, 51.5^P0.1, 84.5^P1) fps ∼21%
NVIDIA GeForce RTX 3080 Laptop GPU, i7-11800H XMG Neo 15 @165 W TGP	133 (52.3^min, 71.3^P0.1, 92.6^P1) fps ∼22% 113 (45.6^min, 57.6^P0.1, 78.7^P1) fps ∼25% 106 (36.3^min, 57^P0.1, 76.8^P1) fps ∼19%
NVIDIA GeForce RTX 3070 Laptop GPU, i7-11800H XMG Neo 17 @140 W TGP	126 (59^min, 81.3^P0.1, 97.8^P1) fps ∼21% 108 (54.2^min, 66.5^P0.1, 82.8^P1) fps ∼24% 102 (54.1^min, 64.4^P0.1, 81.9^P1) fps ∼18%
NVIDIA GeForce RTX 3060 Laptop GPU, i7-11800H XMG Core 15 @130 W TGP	109 (40.3^min, 56.8^P0.1, 80.9^P1) fps ∼18% 92.2 (38^min, 53.4^P0.1, 72.1^P1) fps ∼21% 85.3 (35.4^min, 41.1^P0.1, 65.4^P1) fps ∼15%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H MSI GP65 Leopard 9SD	83.1 (47.1^min, 51.2^P0.1, 60.7^P1) fps ∼14% 70.3 (40.6^min, 43.1^P0.1, 50.7^P1) fps ∼16% 66.1 (24.4^min, 32.3^P0.1, 50.3^P1) fps ∼12%
NVIDIA GeForce RTX 3050 Ti Laptop GPU, i7-11800H XMG Focus 17 @75 W TGP	81.3 (43.3^min, 46.6^P0.1, 64.5^P1) fps ∼14% 61.7 (28.2^min, 34.9^P0.1, 43^P1) fps ∼14% 57 (29.7^min, 32.6^P0.1, 42.2^P1) fps ∼10%
AMD Radeon RX 5600M, R7 4800H Dell G5 15 SE	62.5 (24.5^min, 32.1^P0.1, 41.4^P1) fps ∼11% 50.1 (6.96^min, 19.1^P0.1, 34.5^P1) fps ∼11% 44.6 (5.98^min, 22.8^P0.1, 30.7^P1) fps ∼8%
NVIDIA GeForce GTX 1650 Ti Mobile, i7-10750H MSI GP75	70.4 (37.4^min, 41.6^P0.1, 52.3^P1) fps ∼15% 62.2 (31^min, 39.4^P0.1, 48.2^P1) fps ∼10% 48.5 (26.8^min, 29.8^P0.1, 37.2^P1) fps ∼11% 43 (29.9^min, 30.3^P0.1, 32.7^P1) fps ∼8%
NVIDIA GeForce GTX 1650 Mobile, i7-10750H MSI GL75	64.5 (40.2^min, 41.8^P0.1, 49.9^P1) fps ∼14% 56.1 (37.7^min, 41.3^P0.1, 44.1^P1) fps ∼9% 40.6 (23.1^min, 23.7^P0.1, 28.7^P1) fps ∼9% 36 (16.3^min, 19^P0.1, 25^P1) fps ∼6%

QHD (2560x1440)

PC游戏玩家将需要有一个真正的高端GPU，如 GeForce RTX 3060来实现《光环无限》在1440p和超级设置下的可玩帧率。

Halo Infinite
2560x1440 Ultra Preset
NVIDIA GeForce RTX 3090, i9-9900K MSI GeForce RTX 3090 Suprim X	121 (37.3^min, 72.5^P0.1, 87.5^P1) fps ∼25%
NVIDIA GeForce RTX 3080, i9-9900K MSI GeForce RTX 3080 Gaming X Trio	114 (45.4^min, 64.5^P0.1, 82.1^P1) fps ∼24%
NVIDIA GeForce RTX 3070, i9-9900K MSI GeForce RTX 3070 Ventus 3X	92.3 (38.7^min, 52.4^P0.1, 69.7^P1) fps ∼19%
NVIDIA GeForce RTX 3080 Laptop GPU, i7-11800H XMG Neo 15 @165 W TGP	79.5 (44.8^min, 48.7^P0.1, 60.1^P1) fps ∼17%
NVIDIA GeForce RTX 3070 Laptop GPU, i7-11800H XMG Neo 17 @140 W TGP	73 (48.6^min, 49.8^P0.1, 57.9^P1) fps ∼15%
NVIDIA GeForce RTX 3060 Laptop GPU, i7-11800H XMG Core 15 @130 W TGP	58.4 (28.9^min, 36.9^P0.1, 47.7^P1) fps ∼12%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H MSI GP65 Leopard 9SD	43.4 (27.6^min, 30.1^P0.1, 33^P1) fps ∼9%
NVIDIA GeForce RTX 3050 Ti Laptop GPU, i7-11800H XMG Focus 17 @75 W TGP	37.5 (26.1^min, 26.4^P0.1, 28.5^P1) fps ∼8%
AMD Radeon RX 5600M, R7 4800H Dell G5 15 SE	21.2 (12.5^min, 13.6^P0.1, 16.1^P1) fps ∼4%

UHD (3840x2160)

在4K和超强设置下，即使是顶级的笔记本电脑GPU，如 GeForce RTX 3080也很难达到合适的帧率。桌面GPU在这里做得更好，因为TGPs要高得多。

Halo Infinite
3840x2160 Ultra Preset
NVIDIA GeForce RTX 3090, i9-9900K MSI GeForce RTX 3090 Suprim X	76.9 (33.3^min, 39.2^P0.1, 58^P1) fps ∼27%
NVIDIA GeForce RTX 3080, i9-9900K MSI GeForce RTX 3080 Gaming X Trio	70.1 (33.2^min, 37.4^P0.1, 55.3^P1) fps ∼25%
NVIDIA GeForce RTX 3070, i9-9900K MSI GeForce RTX 3070 Ventus 3X	52.9 (32.7^min, 35.2^P0.1, 43^P1) fps ∼18%
NVIDIA GeForce RTX 3080 Laptop GPU, i7-11800H XMG Neo 15 @165 W TGP	46.2 (20.7^min, 27.6^P0.1, 37.5^P1) fps ∼16%
NVIDIA GeForce RTX 3070 Laptop GPU, i7-11800H XMG Neo 17 @140 W TGP	41.2 (30.3^min, 32.8^P0.1, 35.4^P1) fps ∼14%
NVIDIA GeForce RTX 3060 Laptop GPU, i7-11800H XMG Core 15 @130 W TGP	27.8 (17.5^min, 19.1^P0.1, 21.9^P1) fps ∼10%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H MSI GP65 Leopard 9SD	19.7 (14.3^min, 14.7^P0.1, 15.7^P1) fps ∼7%
NVIDIA GeForce RTX 3050 Ti Laptop GPU, i7-11800H XMG Focus 17 @75 W TGP	14.9 (10.9^min, 11.2^P0.1, 12.2^P1) fps ∼5%
AMD Radeon RX 5600M, R7 4800H Dell G5 15 SE	10.4 (5.62^min, 5.95^P0.1, 7.66^P1) fps ∼4%

注意事项

由于对视频游戏进行基准测试非常耗时，而且经常受到安装/激活限制的制约，在发布时，我们只能提供《光环无限》的部分性能分析。其他显卡将在未来几天和几周内加入。

Overview

Test Systems

设备	GPU	CPU	RAM	操作系统
XMG Neo 15	NvidiaGeForce RTX 3080 @165 W TGP (16 GB GDDR6)	Intel Core i7-11800H	2 x 16 GB DDR4	Windows 10 64 Bit
XMG Neo 17	NvidiaGeForce RTX 3070 @140 W TGP (8 GB GDDR6)	Intel Core i7-11800H	2 x 16 GB DDR4	Windows 10 64 Bit
XMG Core 15	NvidiaGeForce RTX 3060 @130 W TGP (6 GB GDDR6)	Intel Core i7-11800H	2 x 16 GB DDR4	Windows 10 64 Bit
XMG Focus 17	NvidiaGeForce RTX 3050 Ti @75 W TGP (4 GB GDDR6)	Intel Core i7-11800H	2 x 16 GB DDR4	Windows 10 64 Bit
微星GP65	NvidiaGeForce GTX 1660 Ti (6 GB GDDR6)	Intel Core i7-9750H	2 x 8 GB DDR4	Windows 10 64位
微星GP75	NvidiaGeForce GTX 1650 Ti (4 GB GDDR6)	Intel Core i7-10750H	2 x 8 GB DDR4	Windows 10 64位
微星GL75	NvidiaGeForce GTX 1650 (4 GB GDDR6)	Intel Core i7-10750H	2 x 8 GB DDR4	Windows 10 64位
戴尔G5 15 SE	AMD Radeon RX 5600M (6 GB GDDR6)	AMD Ryzen 7 4800H	2 x 8 GB DDR4	Windows 10 64位
微星 Prestige 14 Evo	Intel Iris Xe (96 CUs)	Intel Core i7-1185G7	1 x 16 GB DDR4	Windows 10 64 Bit
华硕ROG Strix G15	AMD Radeon RX 6800M (12 GB GDDR6)	AMD Ryzen 9 5900HX	2 x 8 GB DDR4	Windows 10 64位
台式电脑 I	MSIGeForce RTX 3090 (24 GB GDDR6X) MSIGeForce RTX 3080 (10 GB GDDR6X) MSIGeForce RTX 3070 (8 GB GDDR6)	Intel Core i9-9900K	4 x 8 GB DDR4	Windows 10 64位
Desktop PC II	NvidiaGeForce RTX 3090 FE (24 GB GDDR6X) NvidiaGeForce RTX 3060 (12 GB GDDR6X) Nvidia Titan RTX (24 GB GDDR6) NvidiaGeForce RTX 2070 Super (8GB GDDR6) NvidiaGeForce RTX 2060 Super (8 GB GDDR6) KFA2GeForce GTX 1660 Super (6 GB GDDR6) PNYGeForce GTX 1660 (6 GB GDDR5) KFA2GeForce GTX 1650 Super (4 GB GDDR6) KFA2GeForce GTX 1650 (4 GB GDDR5) AMD Radeon RX 6700 XT (12 GB DDR6) AMD Radeon RX 6600 XT (8 GB GDDR6) AMD Radeon RX 6600 (8 GB GDDR6) AMD Radeon RX 5700 XT (8 GB GDDR6) AMD Radeon RX 5700 (8 GB GDDR6) AMD Radeon RX 5600 XT (6 GB GDDR6) AMD Radeon RX 5500 XT (8 GB GDDR6)	AMD Ryzen 9 5900X	2 x 32 GB DDR4	Windows 10 64 位
桌面电脑III	NvidiaGeForce RTX 2080 Super FE	Intel Core i9-11900K	2 x 8 GB DDR4	Windows 11

4K显示器	Nvidia驱动程序	AMD驱动程序
华硕PB287Q,飞利浦Brilliance 329P9H, Acer Predator XB321HK	ForceWare 497.09	Adrenalin 21.12.1
