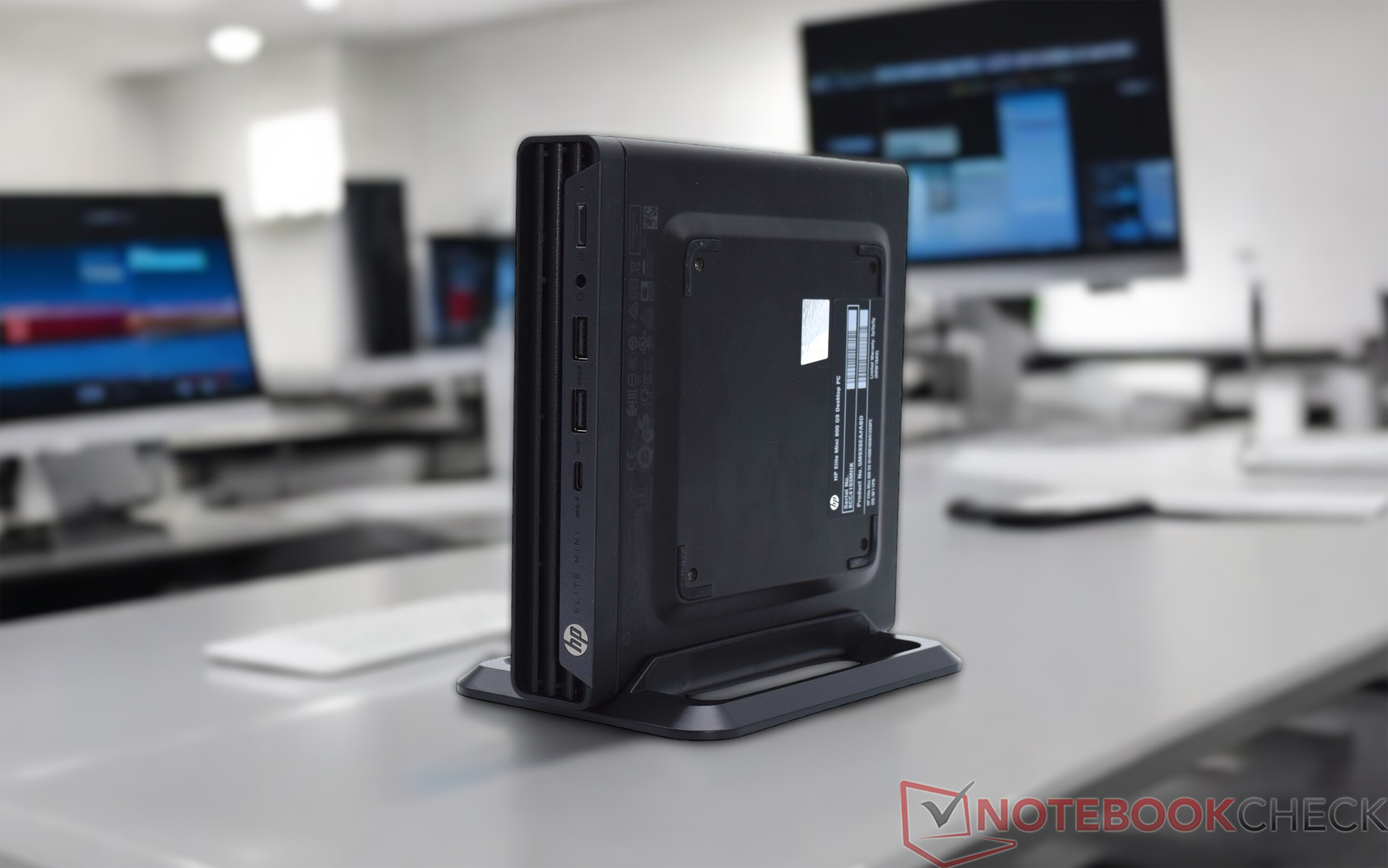

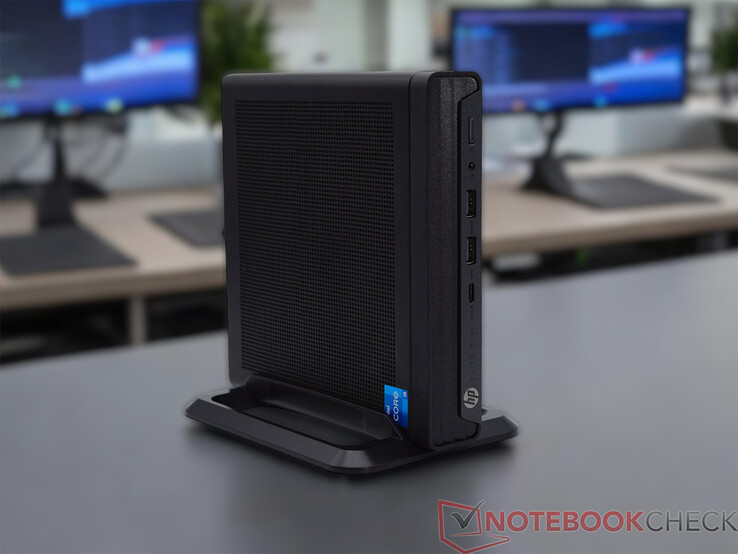

惠普精英迷你 800 G9 评测：配备英特尔酷睿 i5-14500、DDR5 内存和模块化设计的静音 NUC 迷你电脑

Name: HP Elite Mini 800 G9-5M9X6EA
Brand: HP

猛禽湖遇上迷你电脑

惠普最新的 Elite Mini 800 G9 系列机型的 CPU 已升级。我们在测试过程中对这款适用于各种办公任务的迷你电脑进行了测试。我们分析了英特尔酷睿 i5-14500 和 DDR5 内存的性能，并考察了配置的效率。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 07/21/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Raptor Lake Business

除了充斥市场的众多迷你 PC 外，知名制造商也推出了适用于各种用途的紧凑型系统。HP Elite Mini 800 G9 就是一款可用于多种不同配置的迷你电脑。它的一大特色是配备了传统的台式机处理器。我们的测试设备配备了英特尔酷睿 i5-1450016 GB 内存和 512 GB 固态硬盘。如果直接从惠普订购该设备，则需要支付1,060 欧元。在最高配置中，惠普Elite Mini 800 G9可配备英特尔酷睿i9-14900T以及64 GB DDR5内存和1 TB固态硬盘，包括配备4 GB VRAM的NvidiaGeForce RTX 3050。这款设备的售价为2300 欧元。

作为一款可靠的中端机型，惠普 Elite Mini 800 G9 必须与我们最近测试过的功能强大的迷你 PC 相抗衡。在本次评测的直接对决中，我们为惠普精英迷你 800 G9 添加了基于英特尔酷睿 i5-13500的惠普精英迷你 800 G9。我们在下表中总结了对比设备的概况。

Test device courtesy of HP Store Deutschland

Download your licensed rating image as PNG / SVG

HP Elite Mini 800 G9-5M9X6EA

Processor

Intel Core i5-14500 14 x 2.6 - 5 GHz, 87 W PL2 / Short Burst, 65 W PL1 / Sustained, Raptor Lake

Graphics adapter

Intel UHD Graphics 770

Memory

16 GB

, DDR5-4800, Dual-Channel

Mainboard

Intel Q670

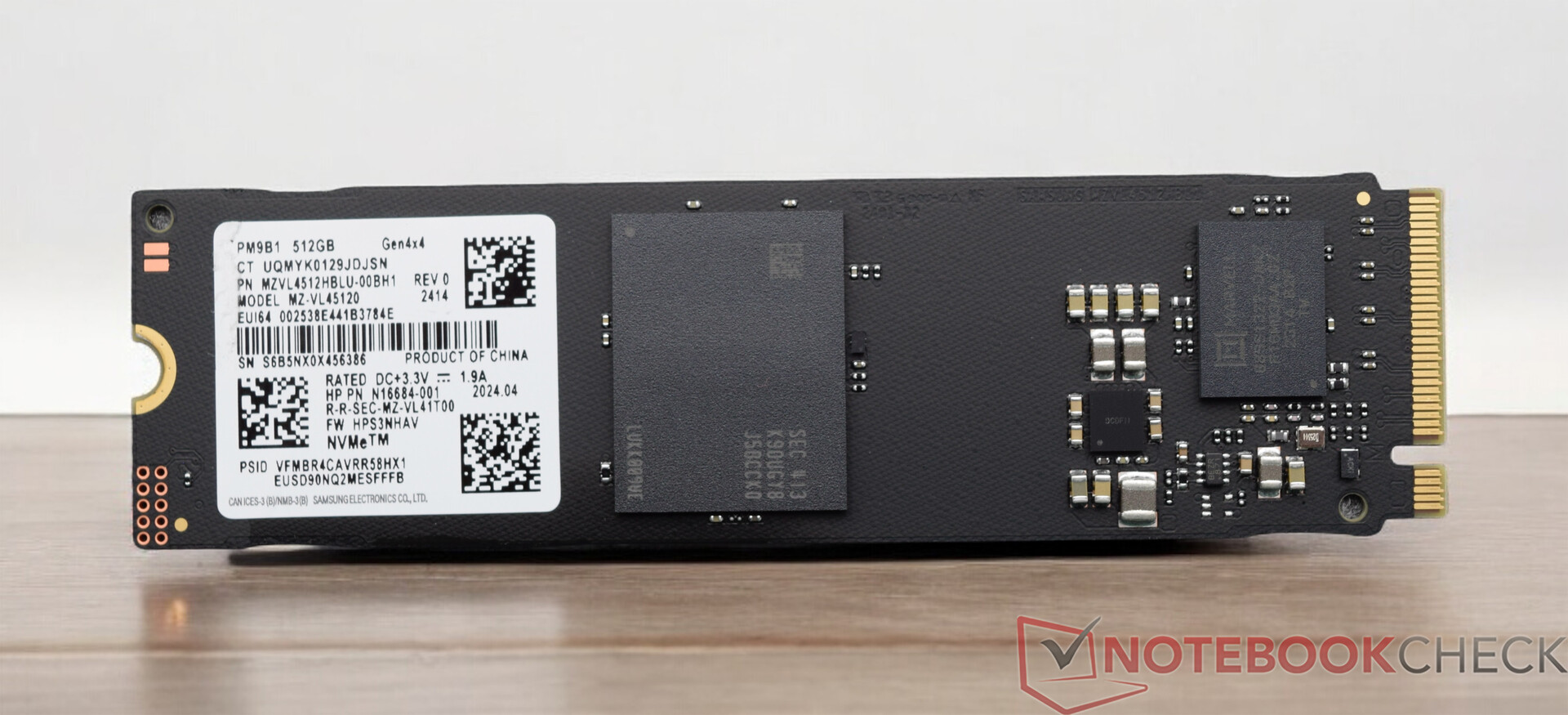

Storage

Samsung PM9B1 512GB MZVL4512HBLU, 512 GB

, 390 GB free

Soundcard

Intel Alder Lake-S PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 5 USB 3.1 Gen2, 2 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke

Networking

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 34 x 177 x 175

Operating System

Microsoft Windows 11 Pro

Additional features

120 Watt Power Adapter, HP 320K-Keyboard, HP 125 Mouse, HP Wolf Security, 12 Months Warranty

Weight

1.291 kg, Power Supply: 333 g

Price

1062 EUR

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Version	Date	Model	Weight	Height
71.1 %	v8	07 / 2024	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	1.3 kg	34 mm
72.1 %	v8	06 / 2024	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	440 g	37 mm
71.5 %	v8	06 / 2024	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	1.3 kg	34 mm
87.5 % v7 ^(old)	v7 ^(old)	05 / 2024	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	863 g	48.6 mm
81.5 % v7 ^(old)	v7 ^(old)	05 / 2024	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	1.5 kg	48 mm
83.4 % v7 ^(old)	v7 ^(old)	04 / 2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	768 g	57 mm

注：我们已经更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。这里.

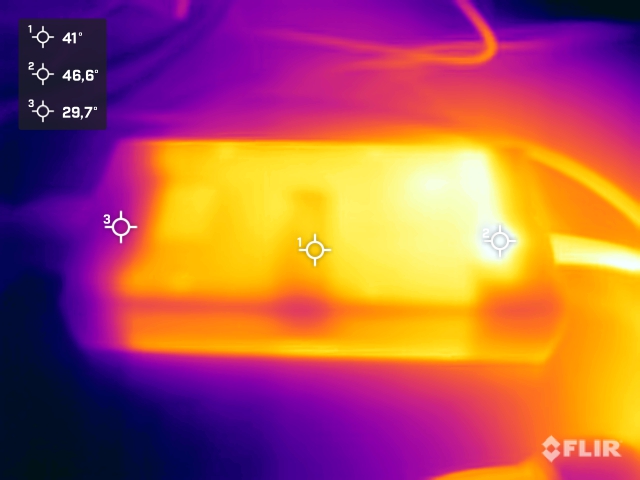

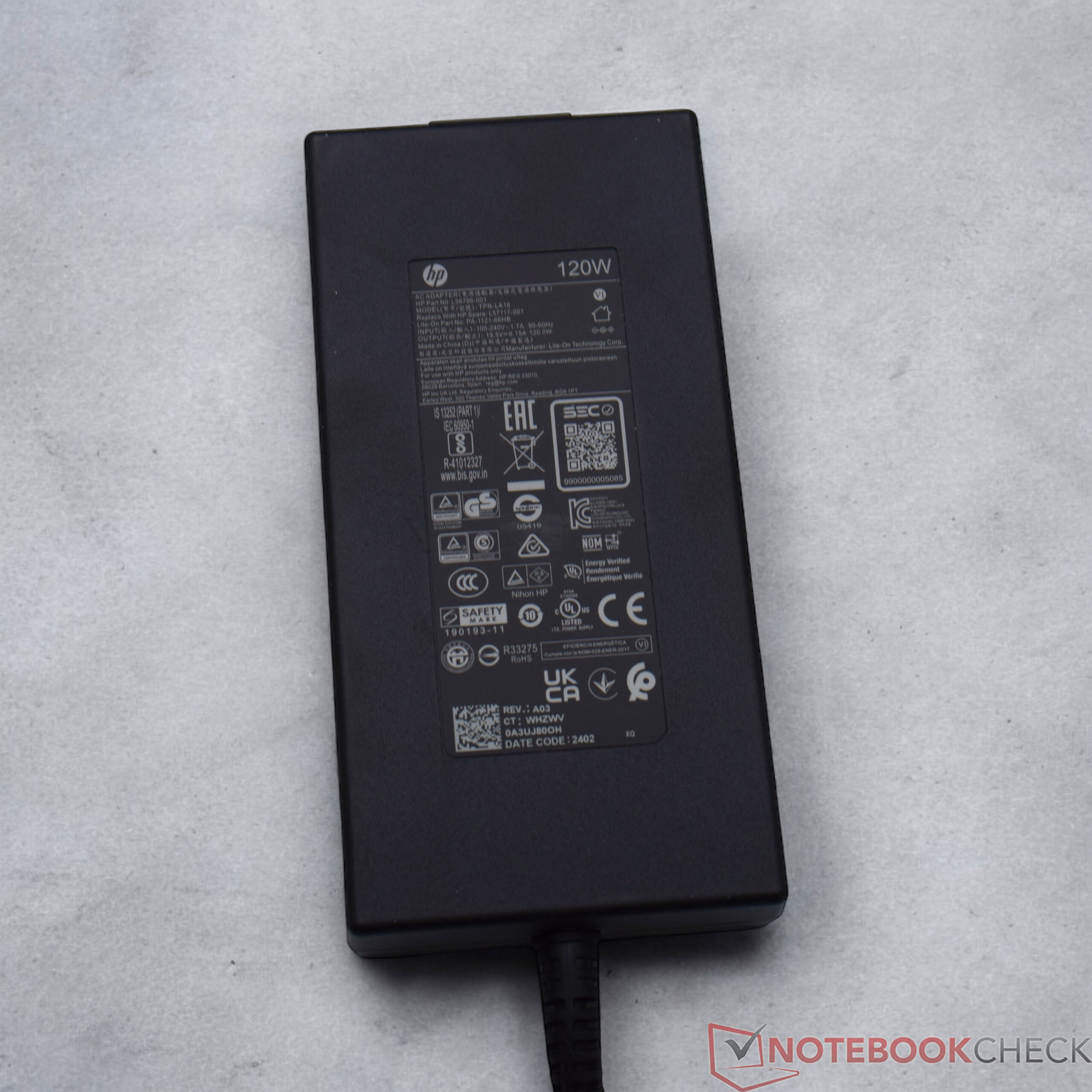

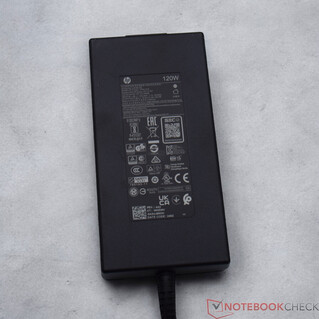

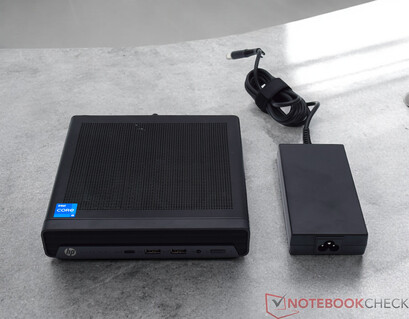

HP Elite Mini 800 G9 和电源装置（19.5 伏；6.15 安）

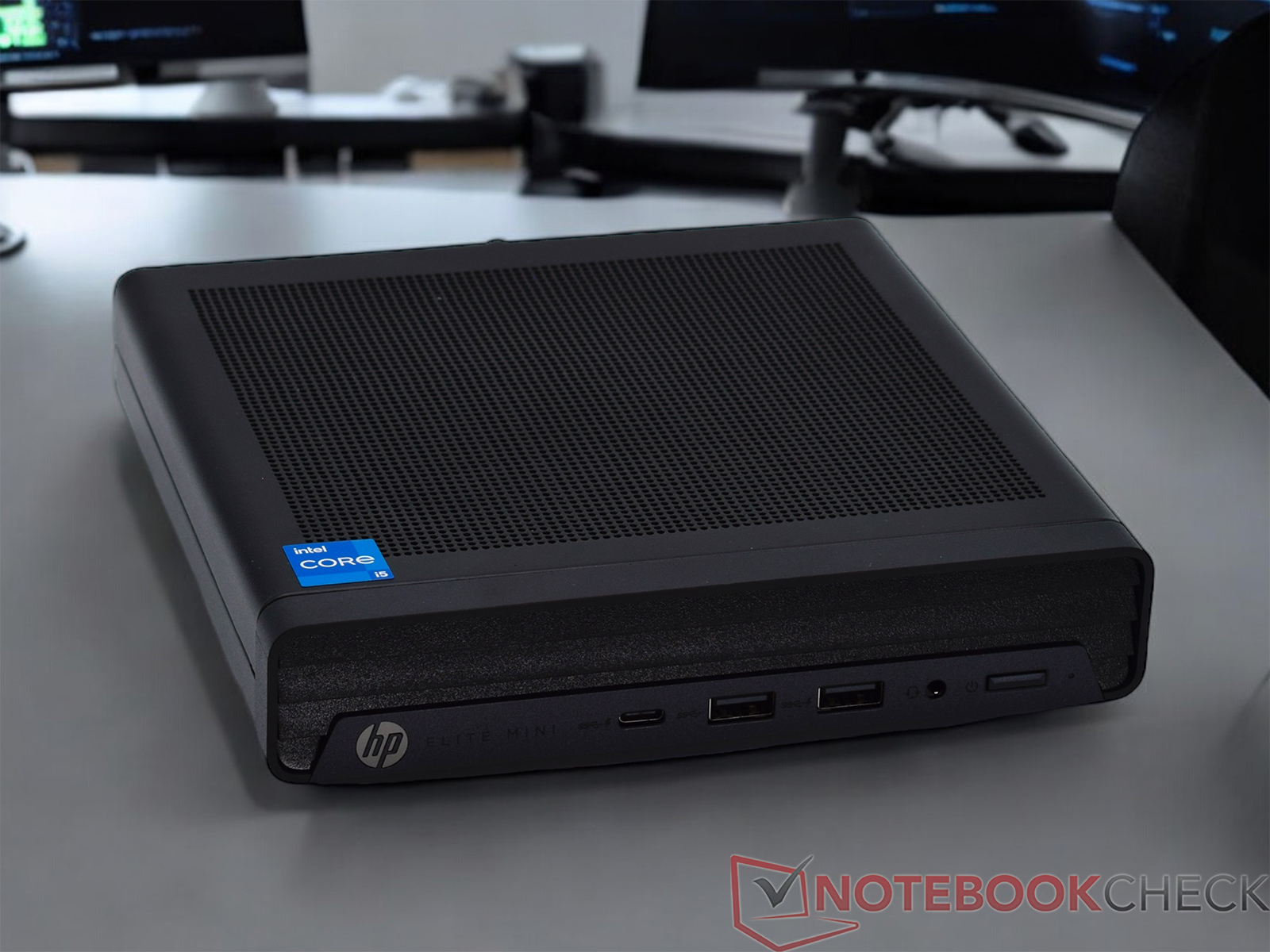

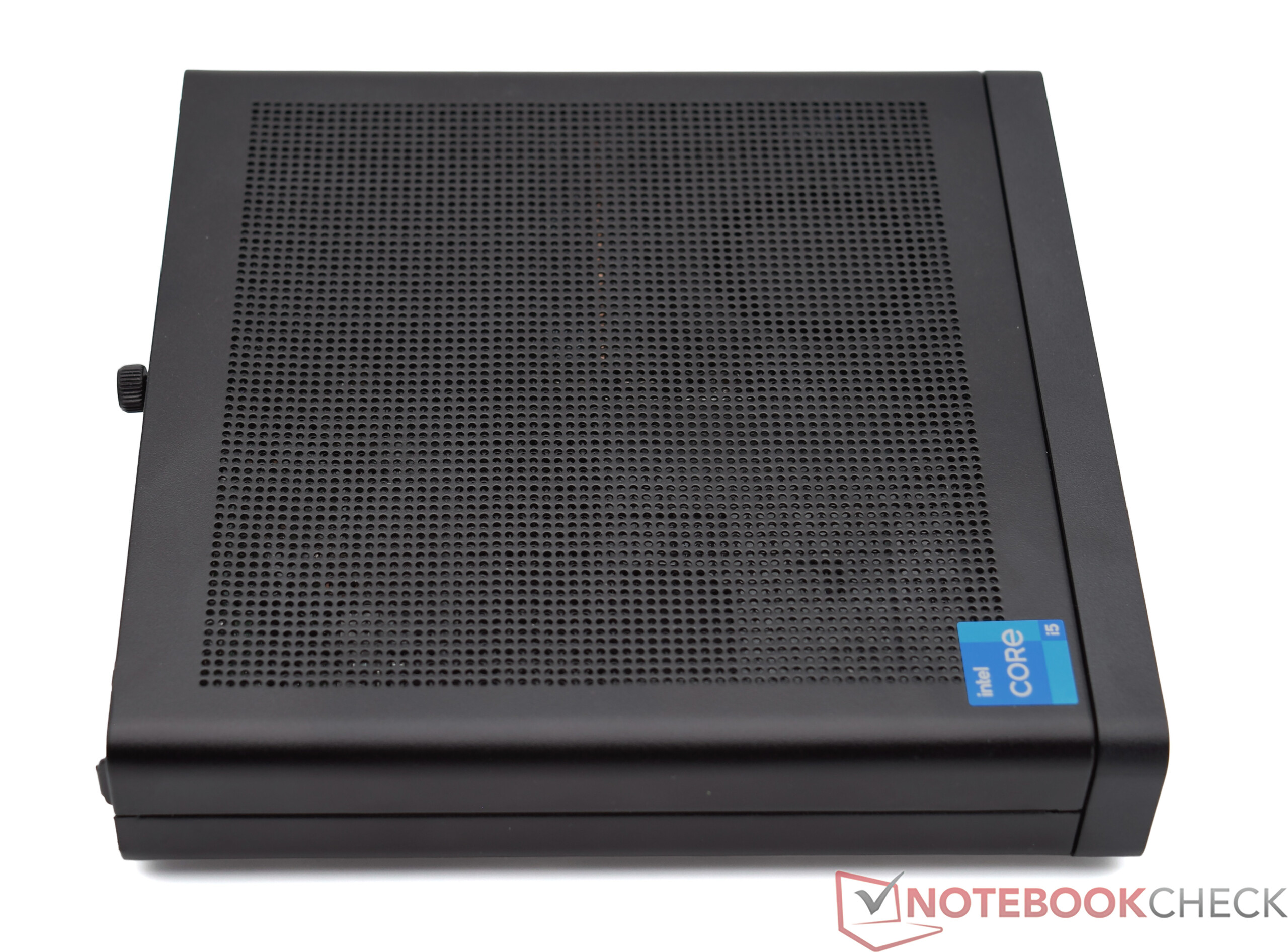

外壳 - 坚固的金属

惠普采用坚固的金属外壳作为硬件基础，无需工具即可打开。不过，惠普的机型并不是最小的设备之一。来自远东的大多数设备都设计得更为紧凑，重量也更轻一些。只有 Minisforum MS-01 比惠普 Elite Mini 800 G9 稍大，也稍重。我们的测试设备做工无可挑剔，没有任何视觉亮点。惠普 Elite Mini 800 G9 也不需要这样。这款迷你电脑的一大优势是采用了模块化设计，大大方便了维护工作。

尺寸比较

Minisforum MS-01 HP Elite Mini 800 G9-5M9X6EA HP Elite Mini 800 G9-5M9T9EA Acemagic F2A Minisforum AtomMan X7 Ti Geekom GT13 Pro DIN A4 ❌

设备 - 数量充足

在连接性方面，惠普 Elite Mini 800 G9 通过大量的外部接口超越了竞争对手。不过，这只是指 USB 端口的数量。我们在机身后部发现了 6 个 USB 端口，不过机身前部还有 3 个。其中两个 USB 端口为 Type-C 插座，但不提供 USB4 连接，这与竞争对手相比是一个明显的劣势。屏幕可通过 HDMI 或 DisplayPort 连接。后者在我们的测试设备上有两个版本。当然，我们不能忘记背面的 LAN 接口。

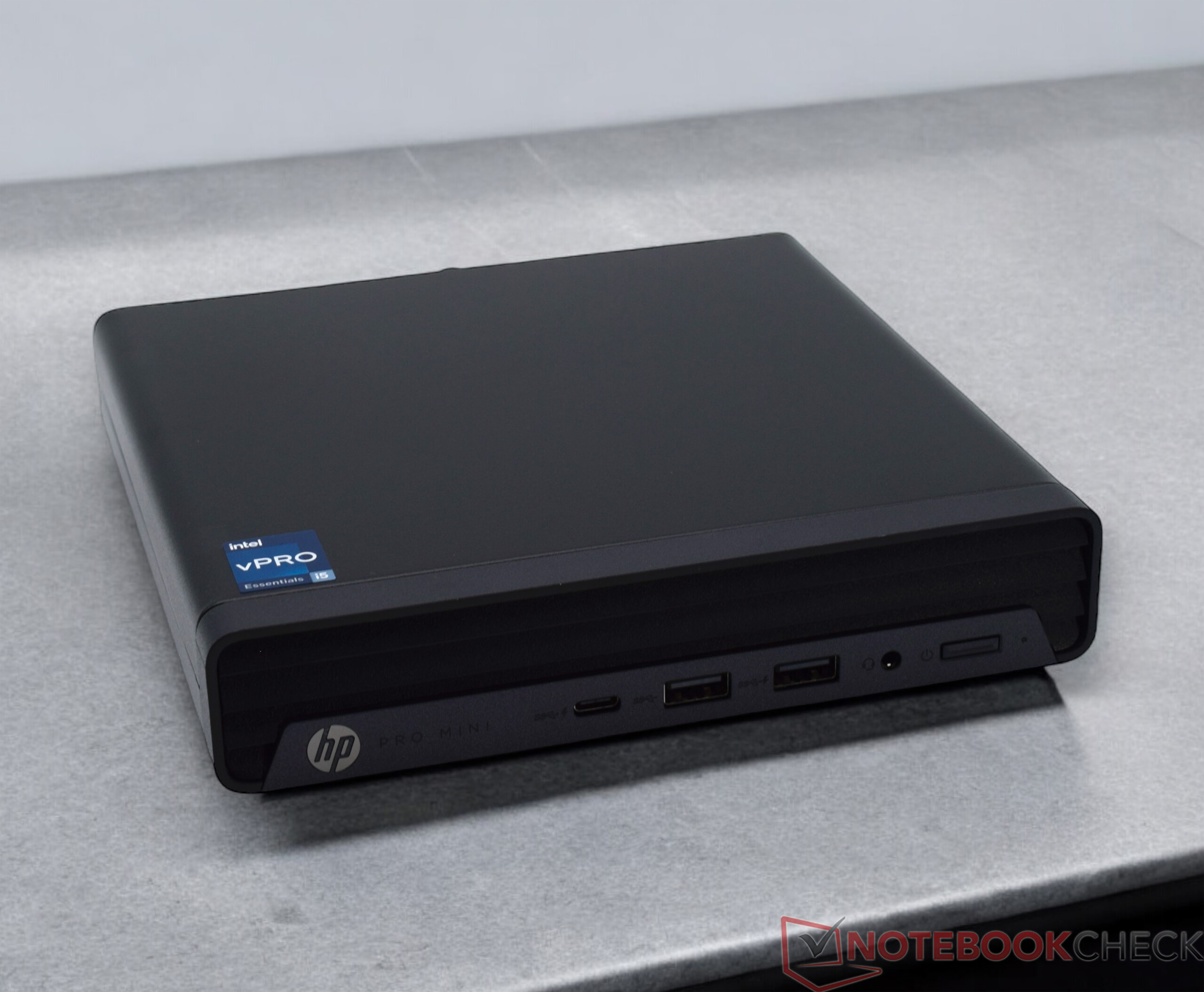

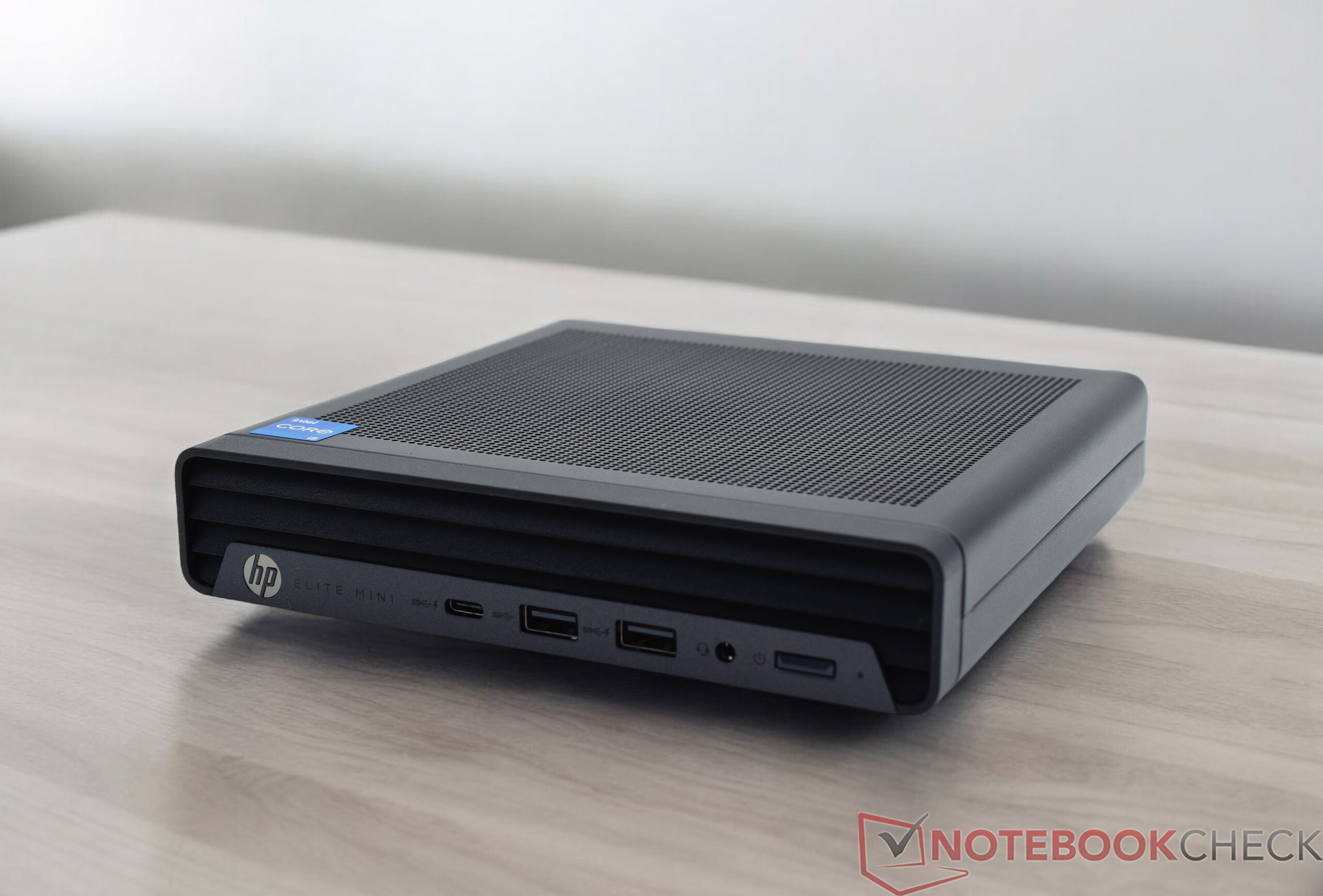

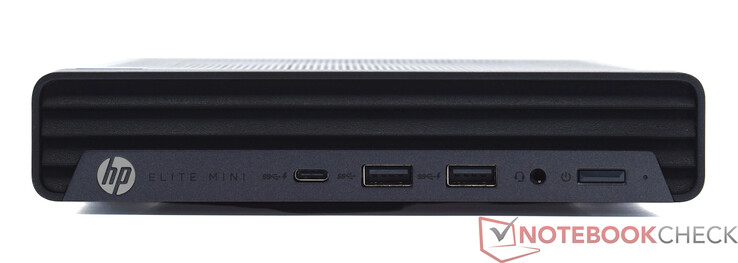

前置USB Type-C 20 Gbit/s、2x USB Type-A 10 Gbit/s、3.5 mm 音频

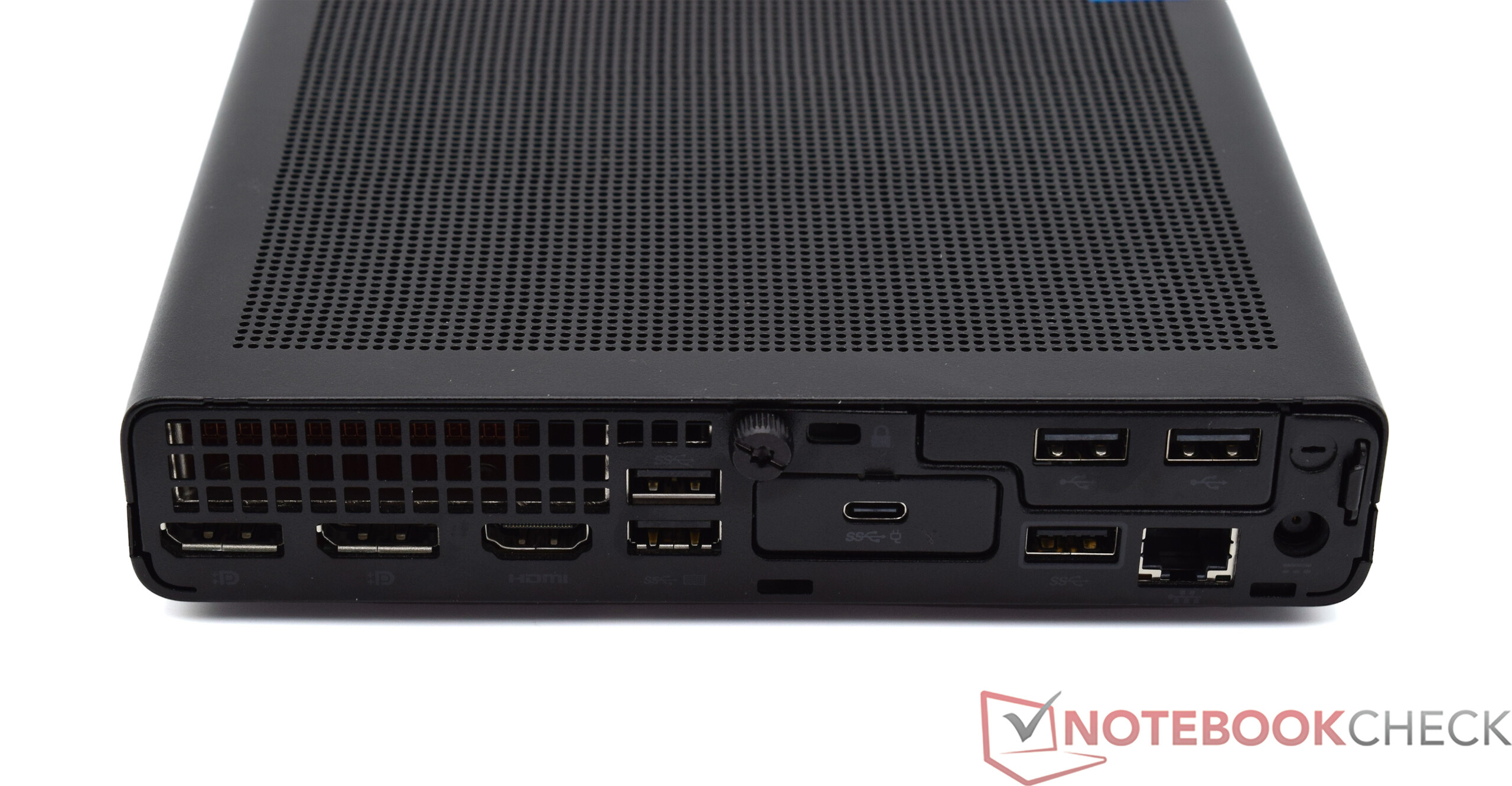

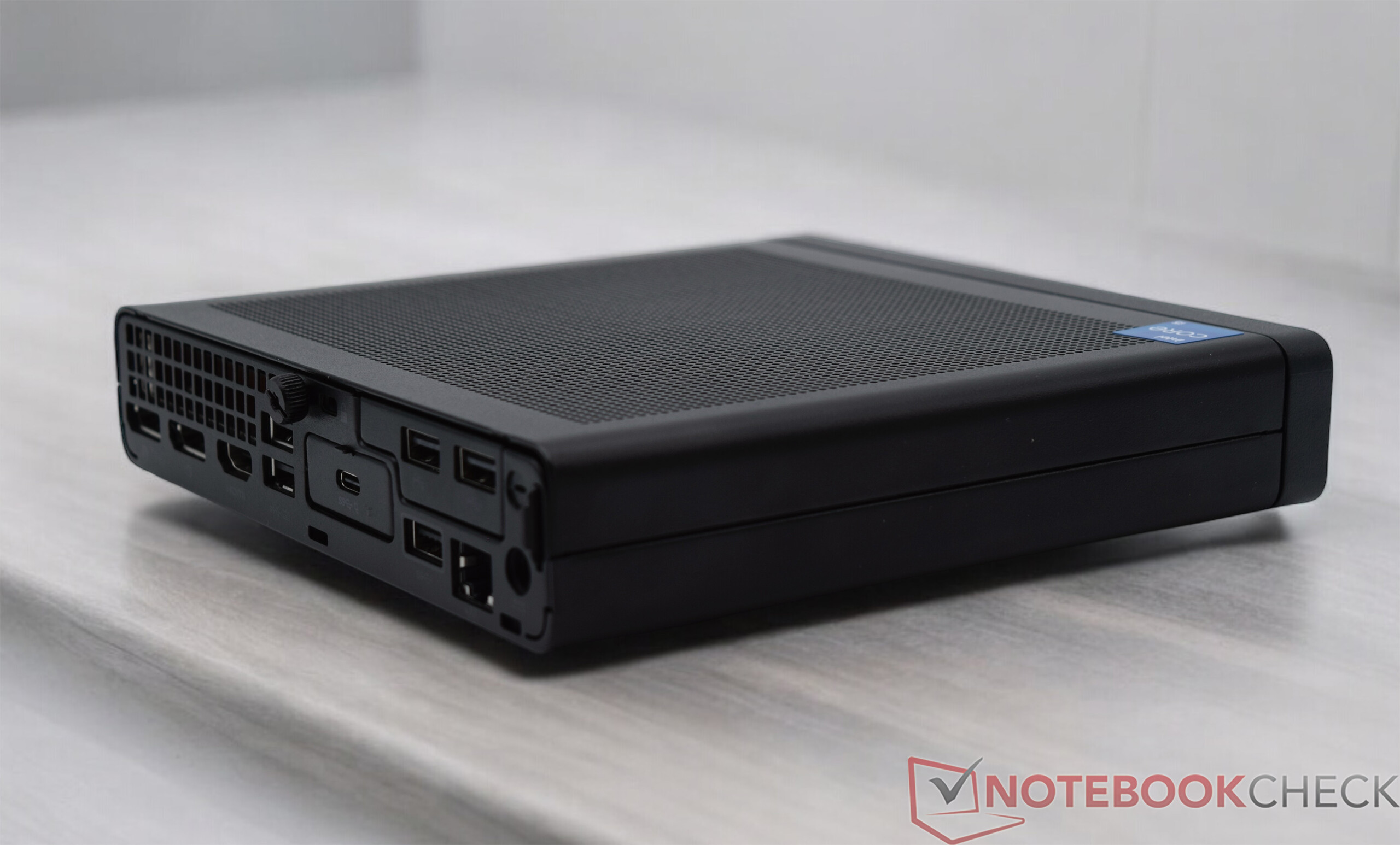

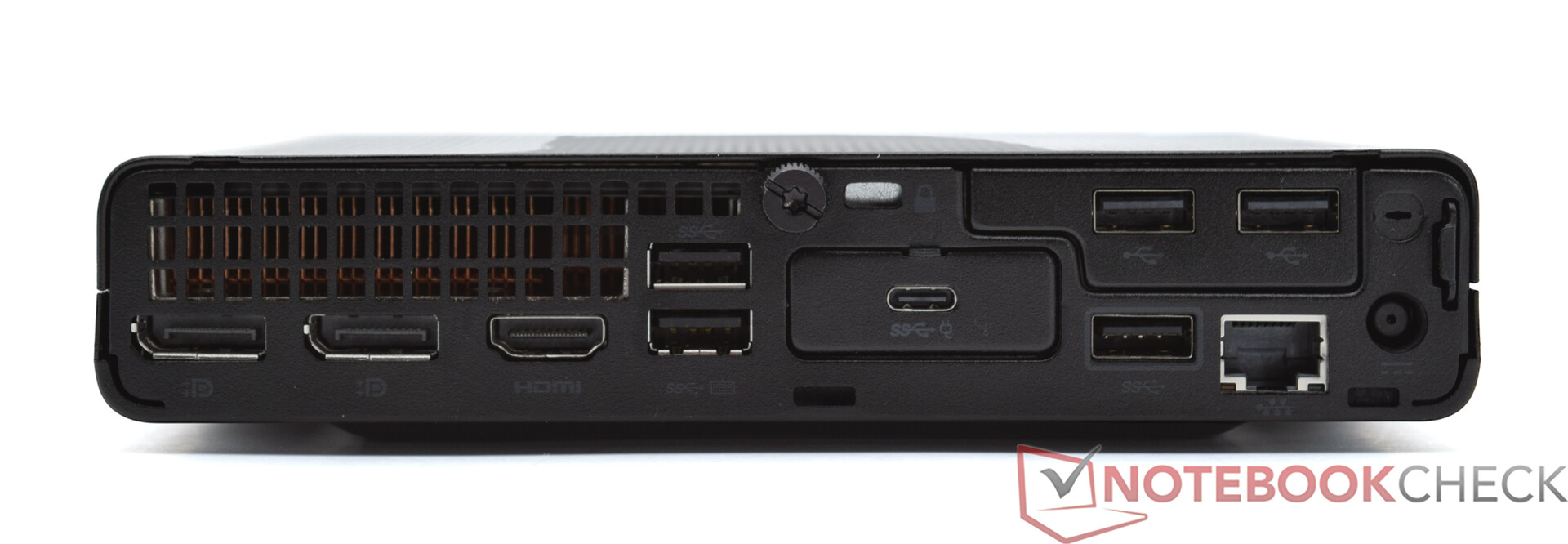

后部：2x DisplayPort 1.4、HDMI 2.1、3x USB Type-A 10 Gbit/s、2x USB Type-A 2.0、1x USB Type-C 10 Gbit/s、RJ45 GBit-LAN、电源接口

交流

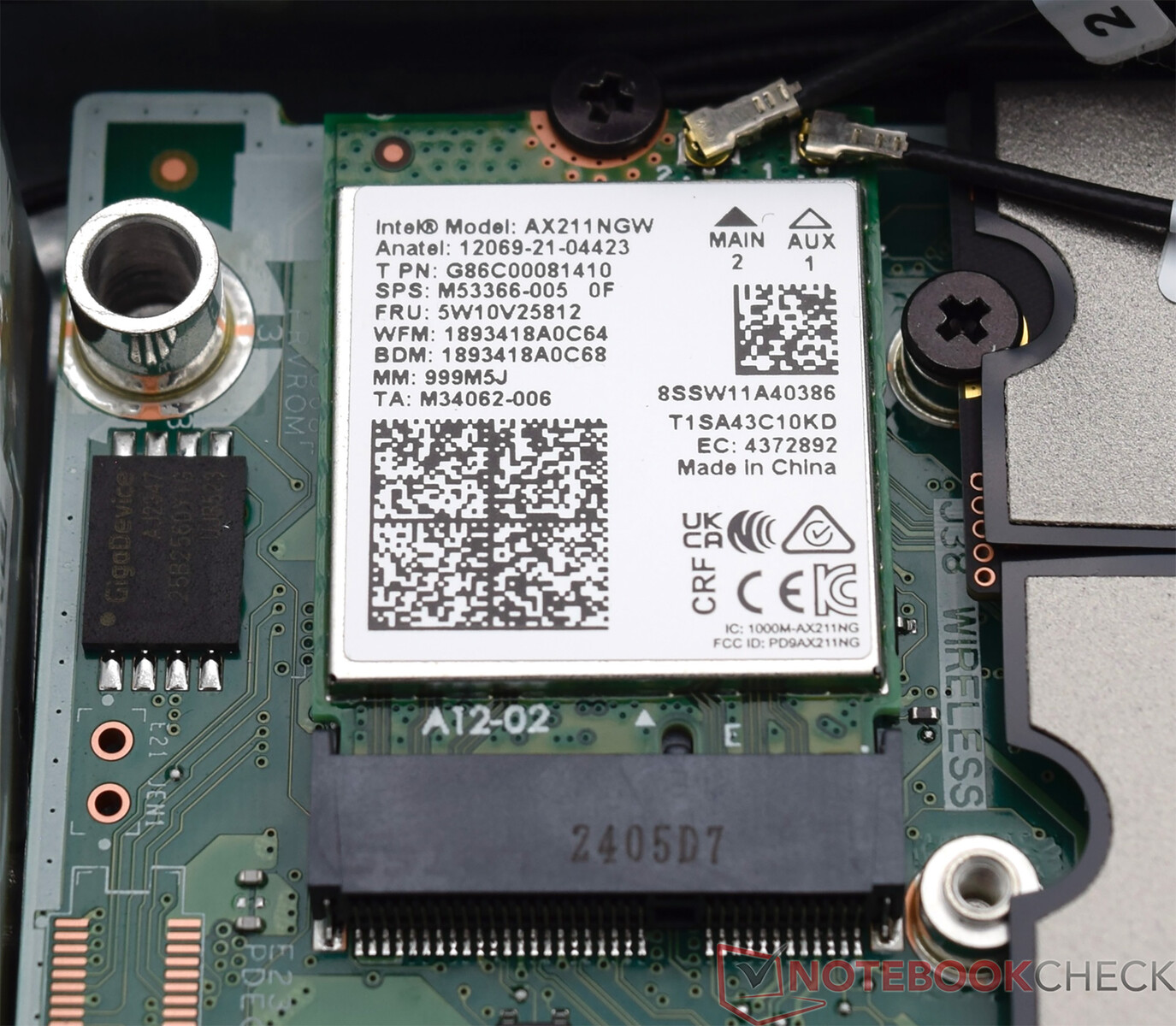

在我们的测试系统中使用的英特尔 Wi-Fi 6E-AX211 无线模块，惠普也在其他微型电脑中使用。因此，性能是相似的。我们使用华硕 ROG Rapture GT-AXE11000 测试路由器确定了结果。在这里，我们很快发现，如果有 6 GHz 频段，则应主要使用该频段。在速度较慢的 5 GHz 频段中，传输速率明显较慢。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +11%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1761 (1734^min - 1774^max) MBit/s +10%
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1753 (1734^min - 1765^max) MBit/s +10%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	1665 (1635^min - 1684^max) MBit/s +4%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	1594 (806^min - 1645^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s -1%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=211)	1493 MBit/s -6%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -13%
iperf3 transmit AXE11000 6GHz
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (877^min - 1883^max) MBit/s +18%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +7%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1562 (1198^min - 1713^max) MBit/s +4%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	1507 (1371^min - 1587^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s -5%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	1404 (1338^min - 1435^max) MBit/s -7%
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=212)	1372 MBit/s -9%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -12%
iperf3 receive AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1719^min - 1796^max) MBit/s +116%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1599 (802^min - 1683^max) MBit/s +95%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s +71%
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=238)	1379 MBit/s +68%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +14%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	927 (910^min - 944^max) MBit/s +13%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s +2%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	819 (779^min - 837^max) MBit/s
iperf3 transmit AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1732 (1659^min - 1839^max) MBit/s +149%
Minisforum AtomMan X7 Ti Intel Wi-Fi 7 BE200 320MHz	1566 (904^min - 1695^max) MBit/s +125%
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=238)	1233 MBit/s +77%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s +65%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	936 (891^min - 986^max) MBit/s +35%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +24%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s +2%
HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211	695 (364^min - 734^max) MBit/s

HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1507 (1371-1587)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1429 (1373-1511)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1590 (767-1670)

HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1566 (806-1645)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1582 (1557-1611)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1769 (1584-1790)

HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø818 (779-837)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1397 (1261-1453)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø838 (728-926)

HP Elite Mini 800 G9-5M9X6EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø683 (364-734)

Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1146 (846-1308)

Acemagic F2A Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø695 (369-977)

配件

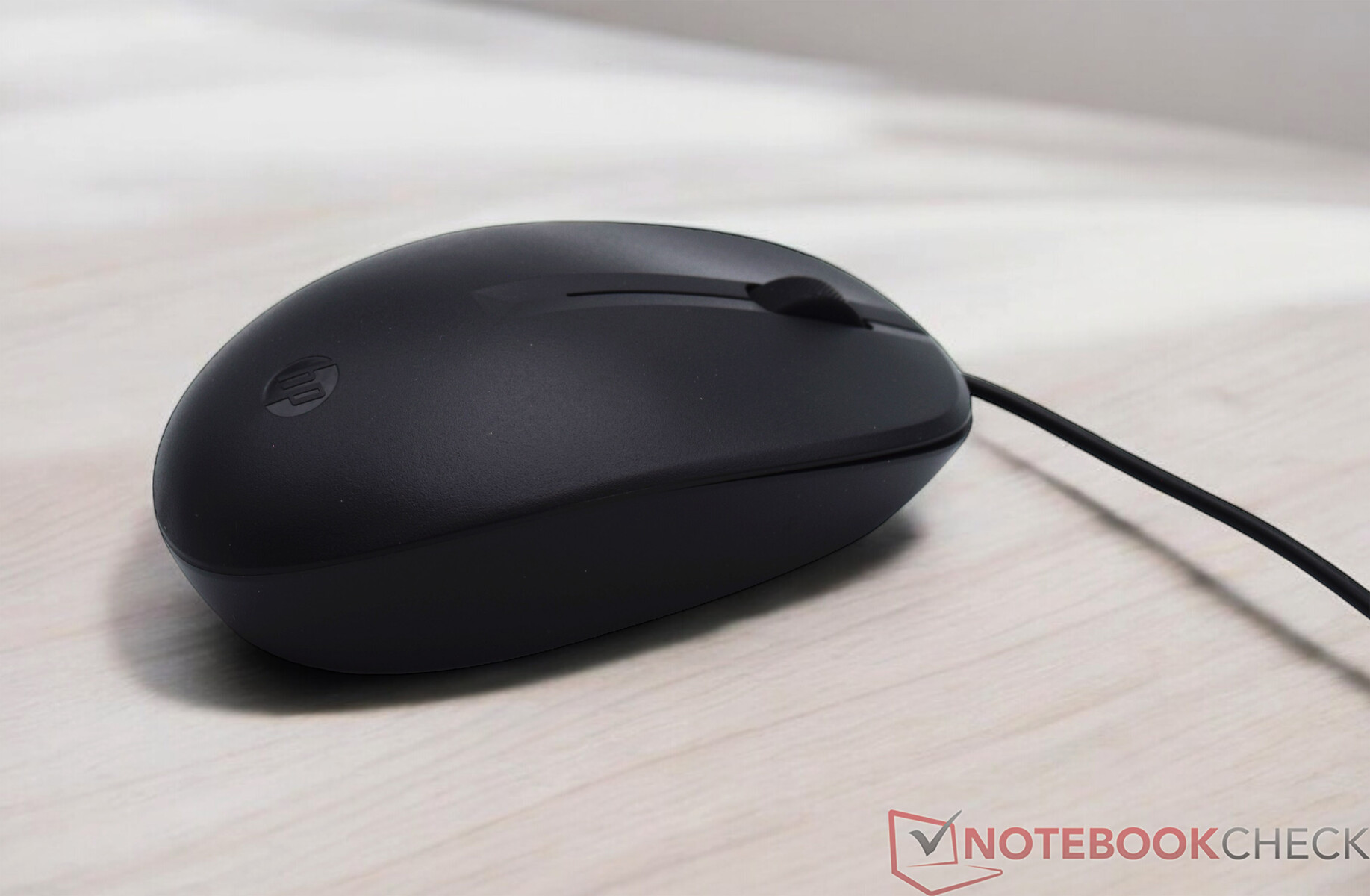

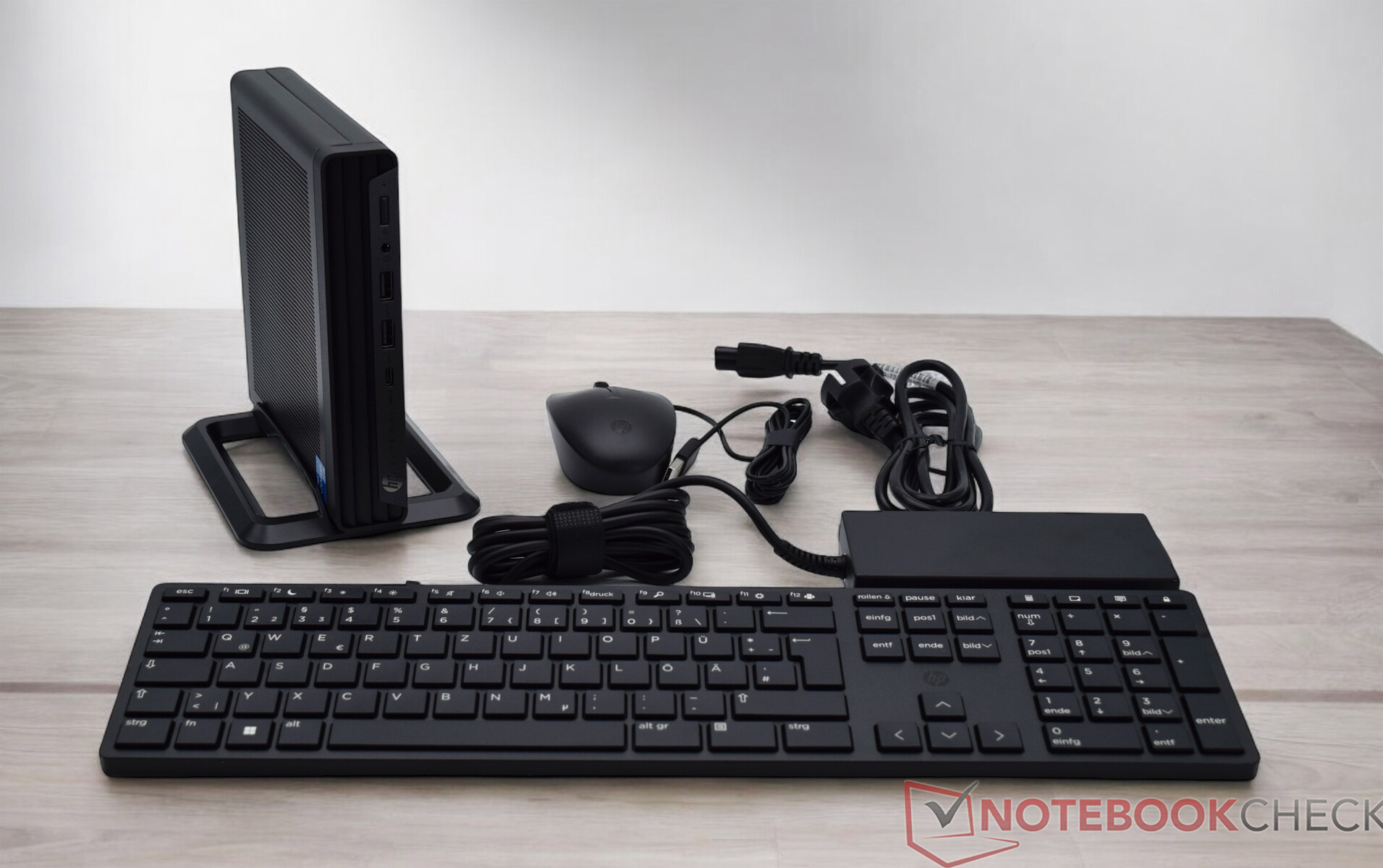

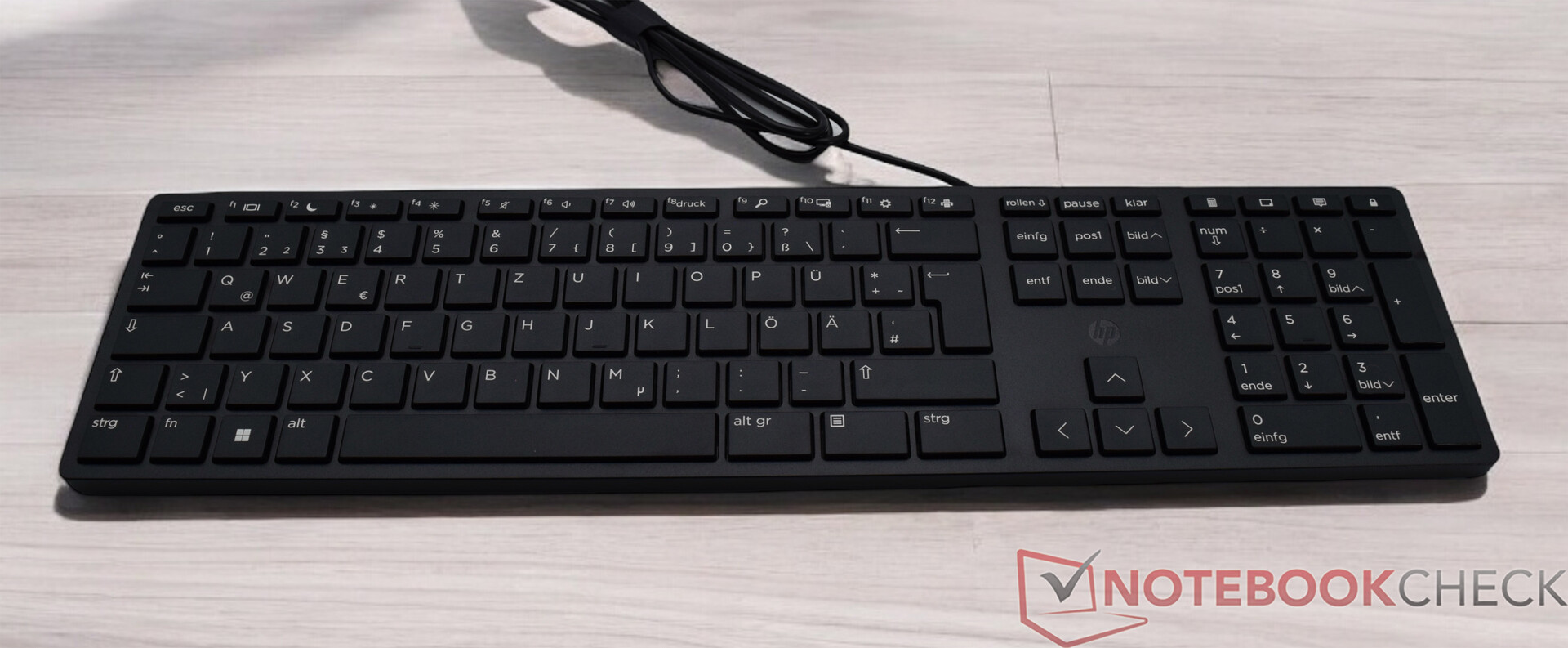

惠普 Elite Mini 800 G9 的供货范围超出了远东地区的常规设备。除了设备和相应的电源装置外，还包括一个键盘和一个鼠标。这些都是简单的有线输入设备。

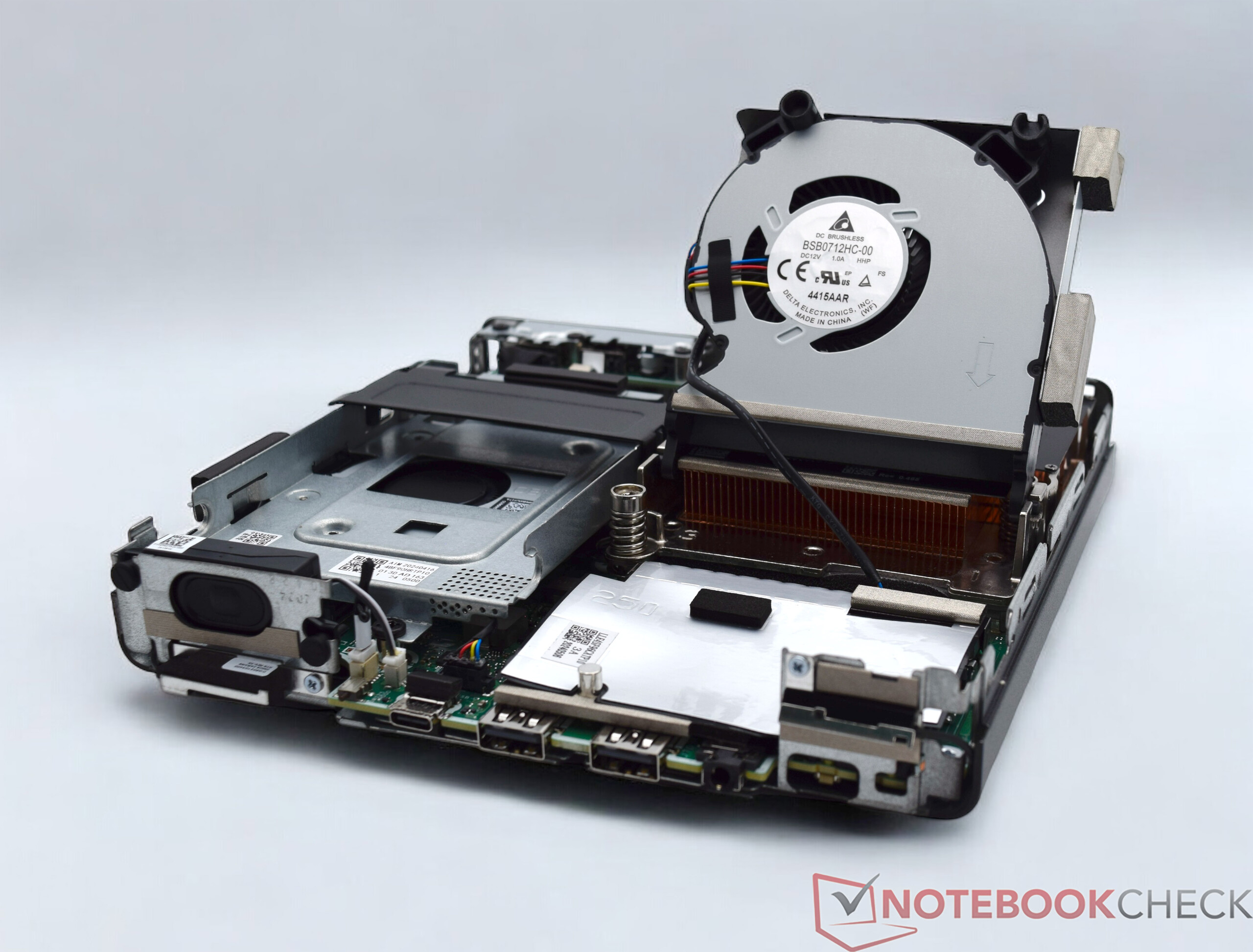

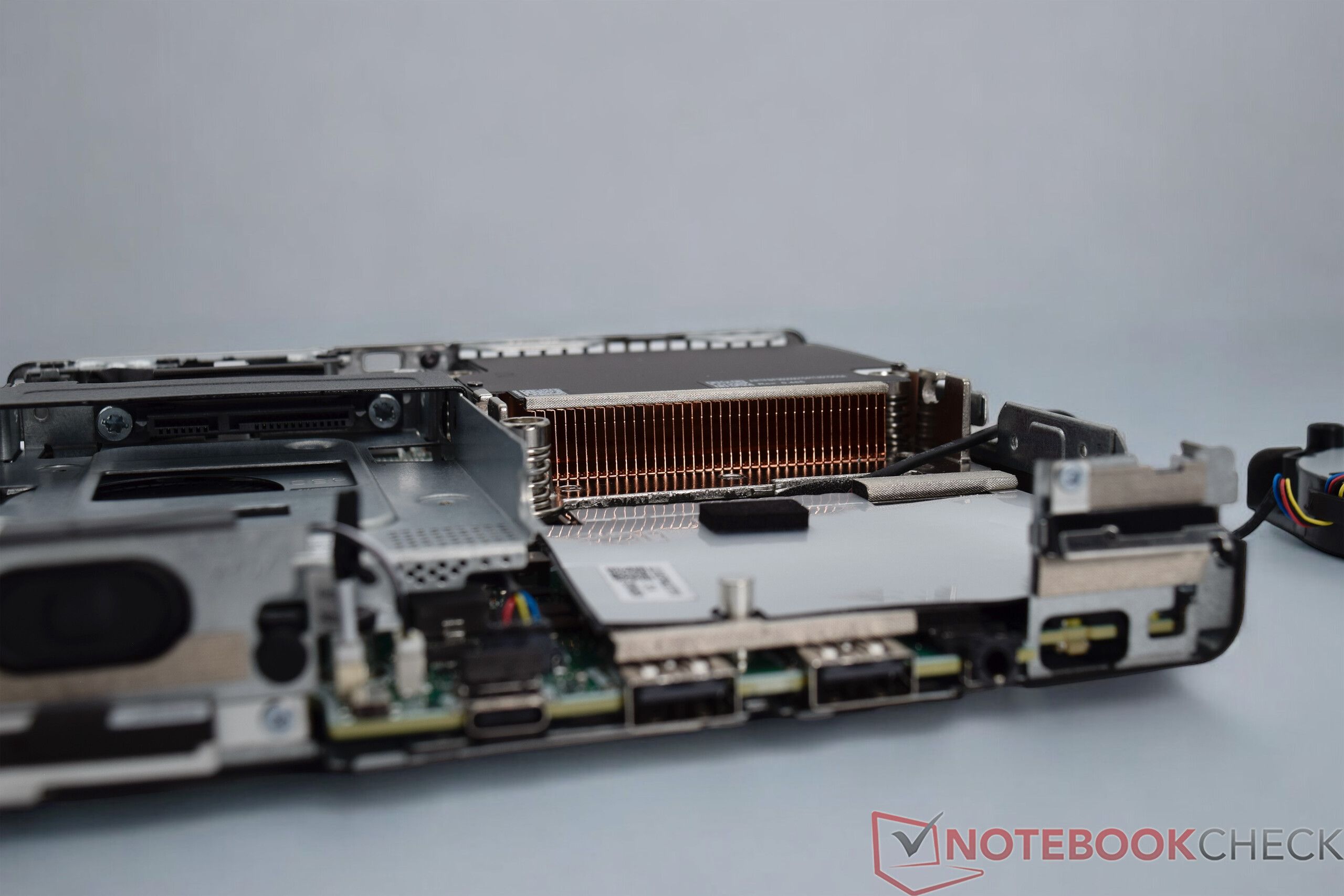

维护

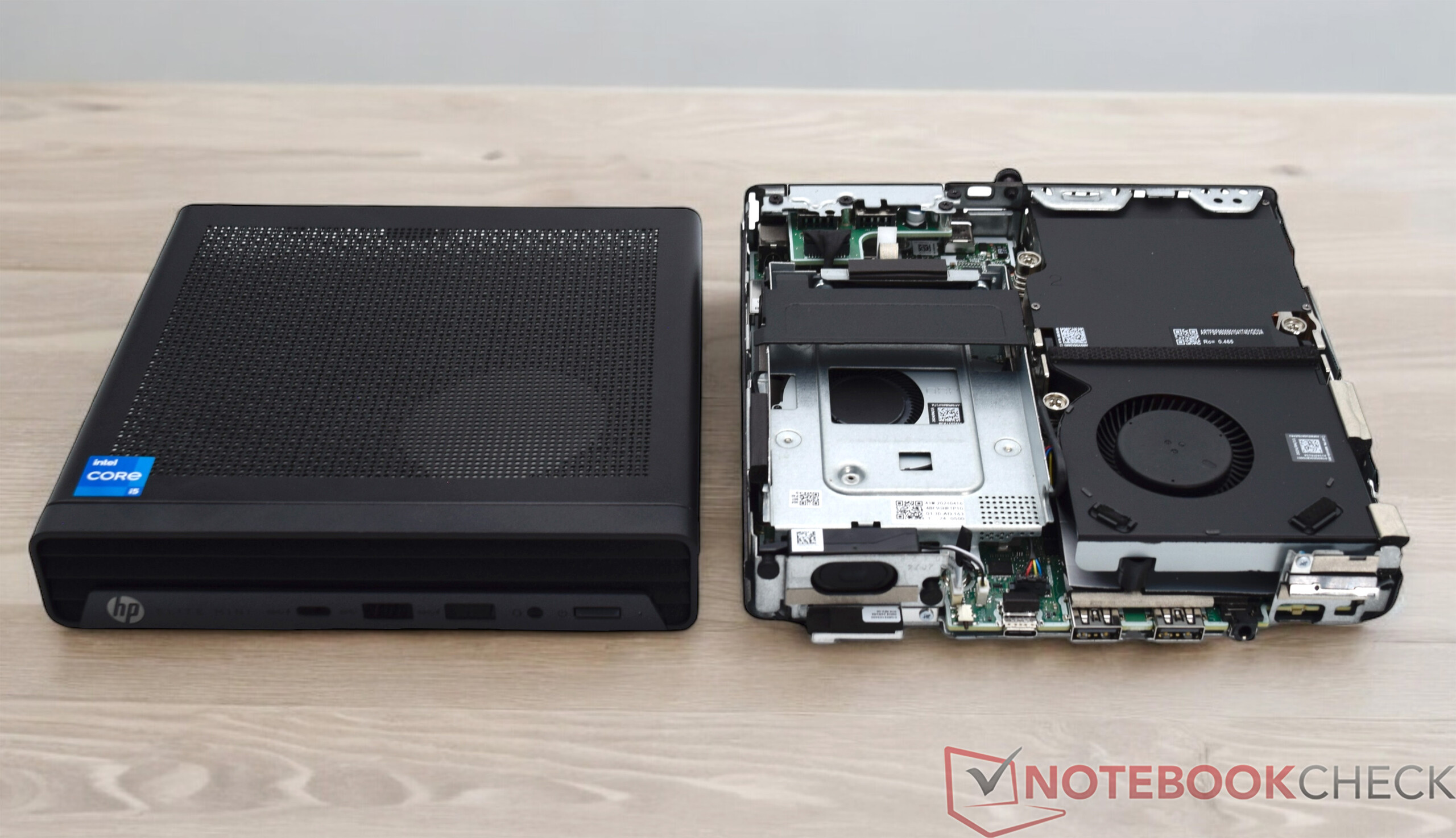

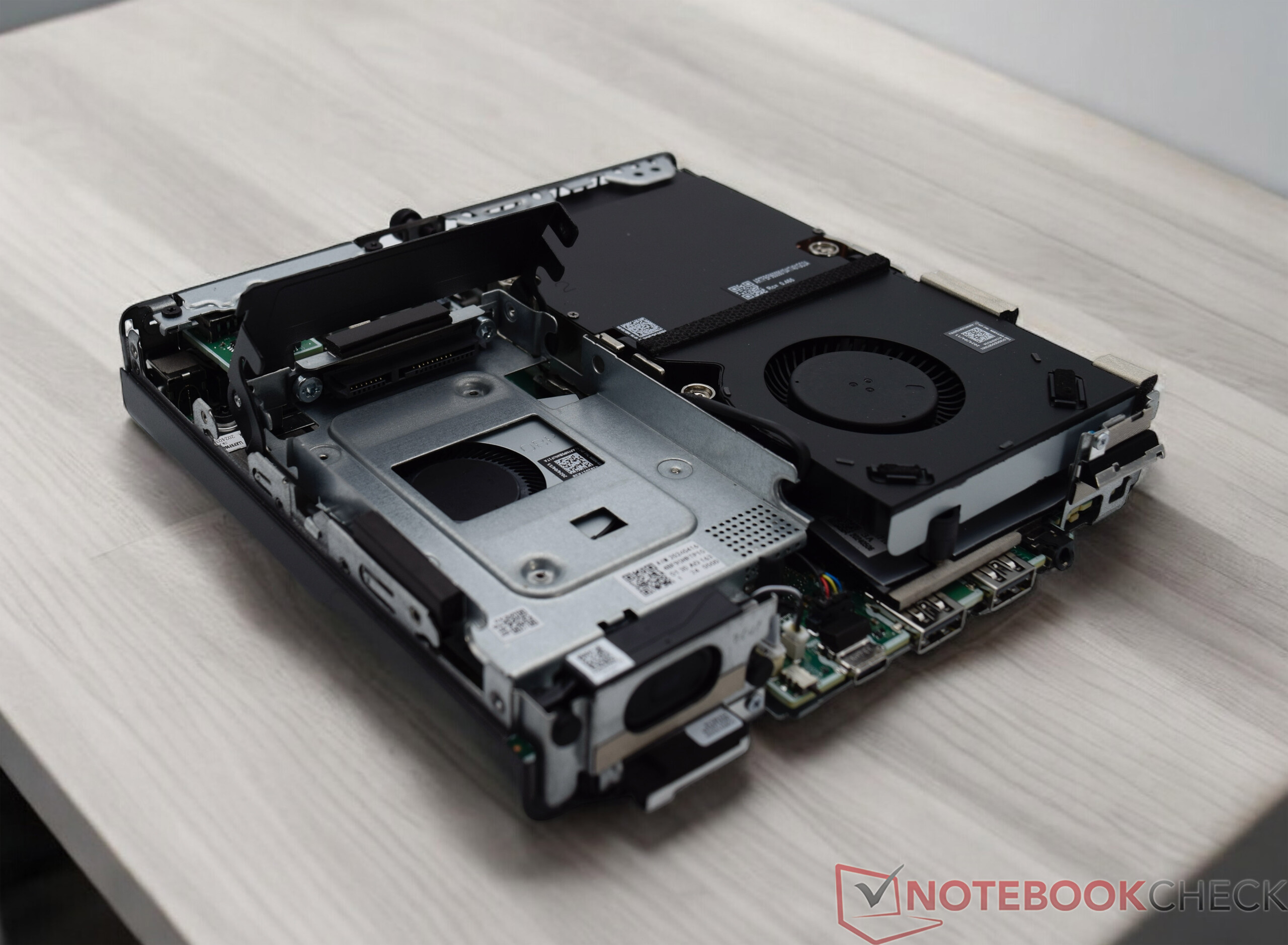

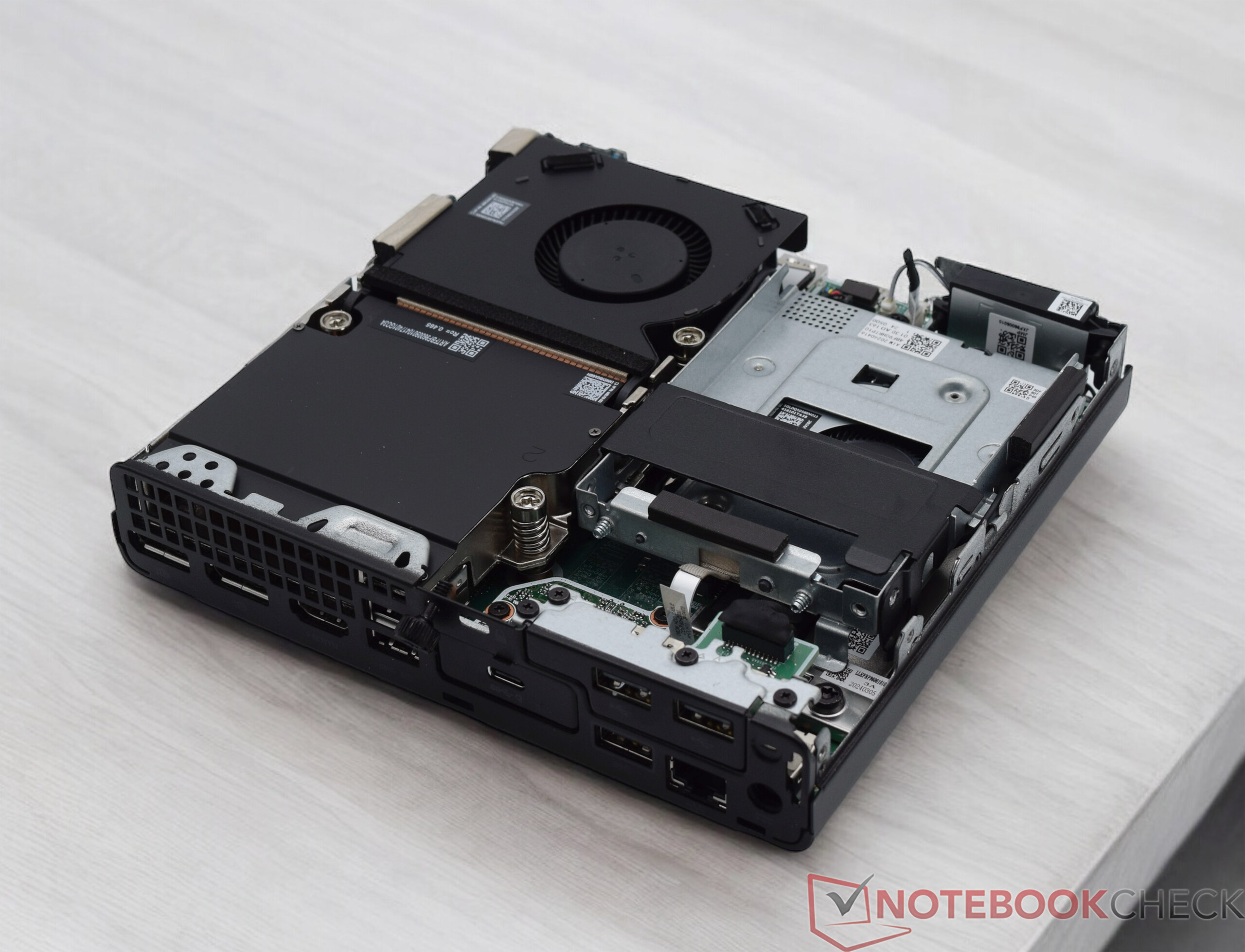

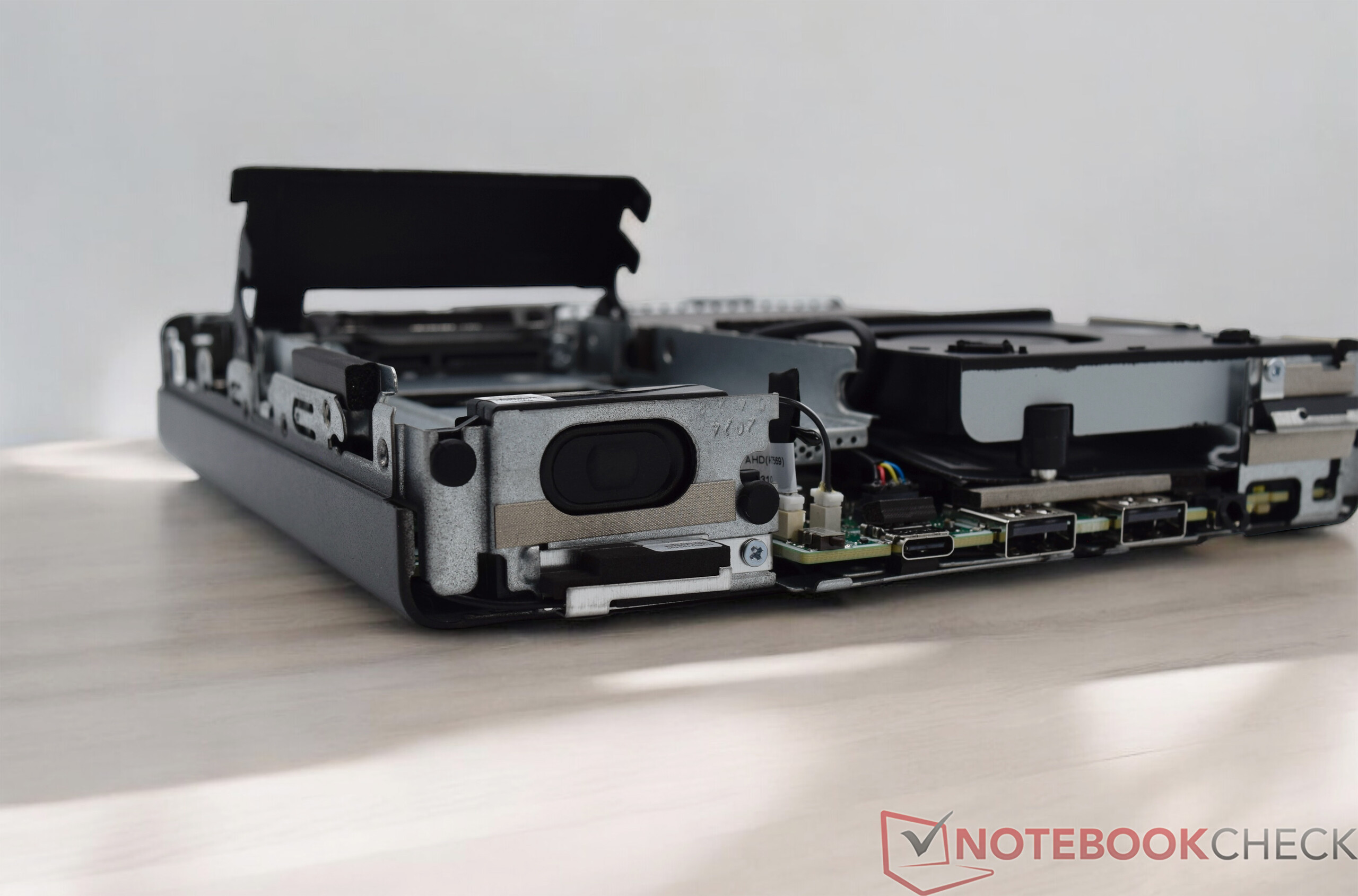

惠普 Elite Mini 800 G9 迷你电脑总是预先配置好的，这意味着内存和固态硬盘总是已经安装好的。不过，该设备无需工具即可轻松打开。机箱盖仅在背面用滚花螺丝固定。这样，你就可以或多或少地接触到盖子下面已经安装好的部件。不过，我们的测试设备还可以升级。一个空闲的内存插槽和两个额外的大容量存储设备仍然可以容纳。

模块化设计在这里得到了很好的实现。这意味着整个组件都可以拆卸和更换。这意味着你也可以自己进行小规模维修。即使是 CPU 也可以更换，而不是像其他大多数微型电脑那样永久焊接。

可持续性

该设备与所附配件一起装在一个简单的纸箱中。单个组件还配有一个塑料盖，当然可以在可持续发展的过程中加以保存。尽管如此，惠普还是为 Elite Mini 800 G9 加分不少，因为它采用模块化设计，可以进行小规模维修。制造商本身也通过惠普备件商店提供一些备件。当我们直接询问生产商时，他们也证实在设备生产过程中使用了海洋塑料，否则这些塑料就会流入海洋。此外，还使用了回收金属和创新的回收原材料，如使用过的烹调油、渔网和咖啡渣。这一点在 "蓝色天使"、"EPEAT "或 "TCO "等外部合作伙伴的认证中都有所体现。

性能 - Raptor Lake 更新，配备 14 个核心和 20 个线程

HP Elite Mini 800 G9 是一款紧凑型工作电脑，配备了功能强大的英特尔酷睿 i5-14500 CPU。该芯片拥有 14 个内核，是执行多线程任务的理想之选。在相同的基础上，惠普 Elite Mini 800 G9 还可配备较早的 Alder Lake 处理器。不过，值得仔细看看这里的规格，因为并非所有第 12 代机型都配备了 P 核和 E 核，这导致多线程性能大大降低。

测试条件

我们使用 "惠普优化 "能源配置文件对惠普 Elite Mini 800 G9 进行所有性能测试。惠普公司本身并不提供定制系统性能的其他选项。处理器的功率限制可通过 XTU（Intel Extreme Tuning Utility）工具进行调整。不过，我们建议不要提高限值。这是因为功耗过高，而电源装置并非为此设计。

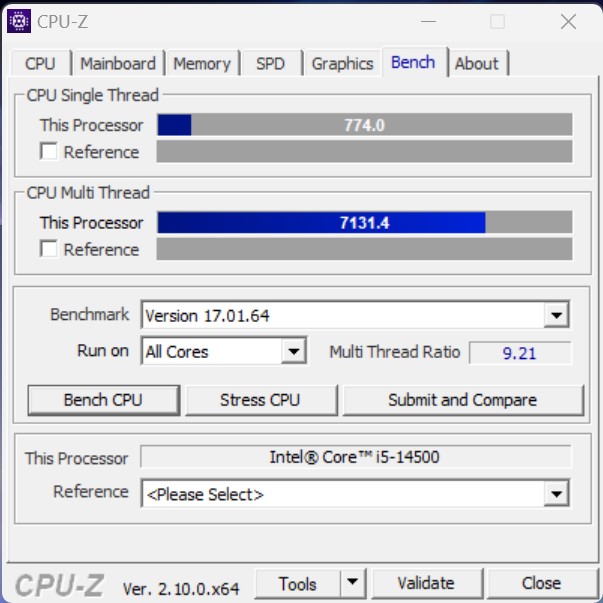

处理器

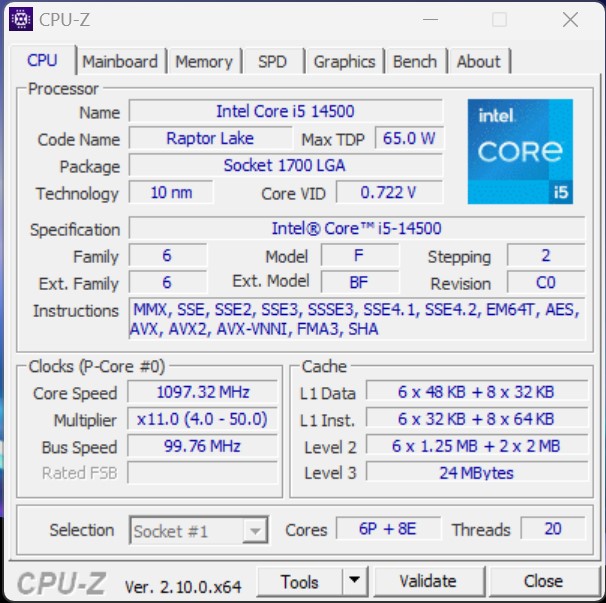

英特尔英特尔酷睿 i5-14500是一款经济实惠但功能强大的台式机处理器。基本上，它是一款略有改进的英特尔酷睿 i5-13500由于时钟频率略高，因此性能优势很小。从结果中可以看出，英特尔酷睿 i5-14500 的性能比英特尔酷睿 i5-13500 只高出两个百分点。如果我们只看这里的性能评级，其他采用移动处理器的对比设备几乎一样快。在单项测试中，各种型号的处理器偶尔会比我们测试设备中的英特尔酷睿 i5-14500 性能更高。这一点在 Cinebench 2024 多核测试中表现得非常明显，Minisforum AtomMan X7 Ti 的性能要高出约 30%。不过，在单核性能测试中，英特尔酷睿 i5-14500 再次展现了自己的实力，在某些方面超过了竞争对手。

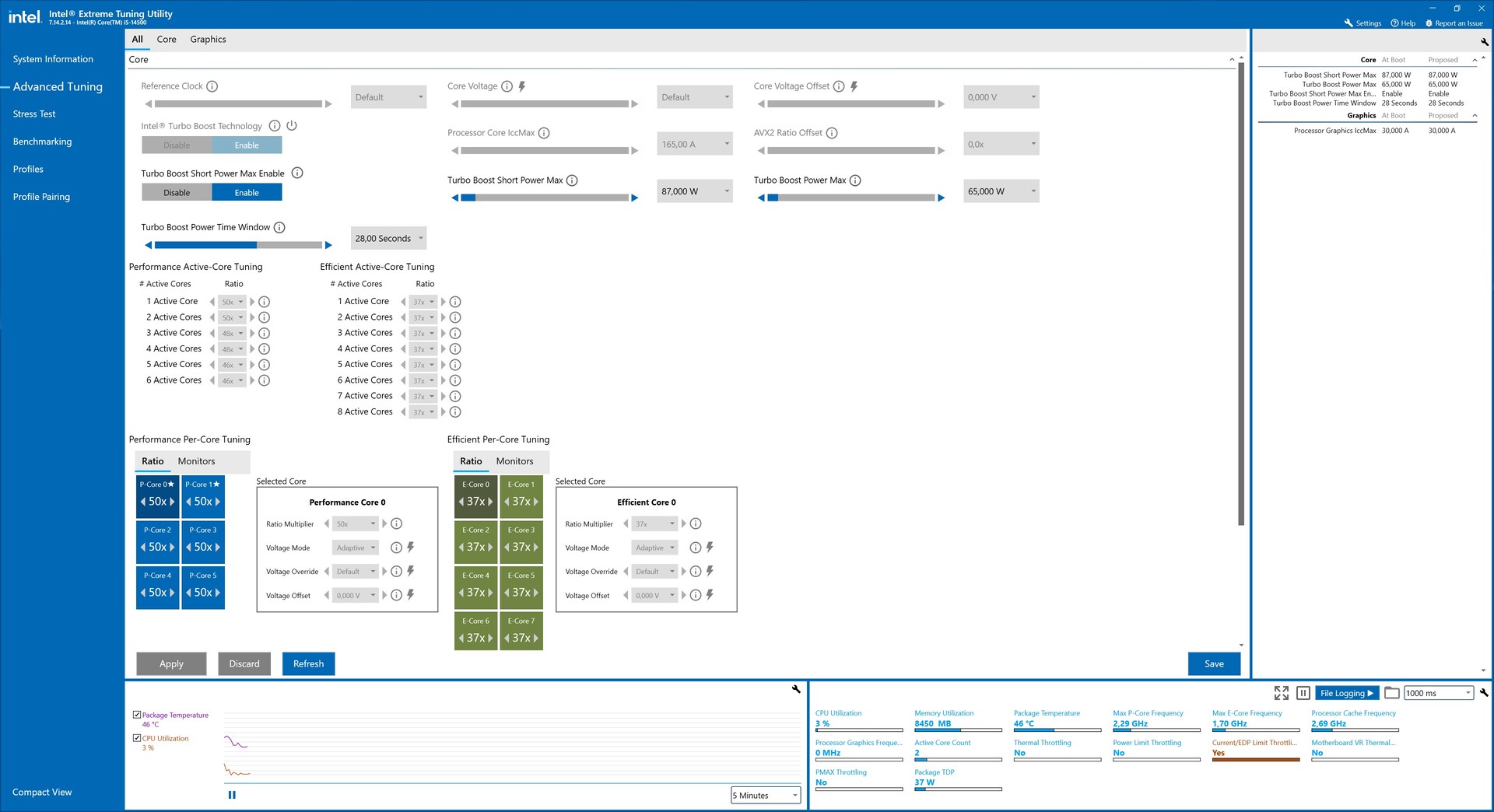

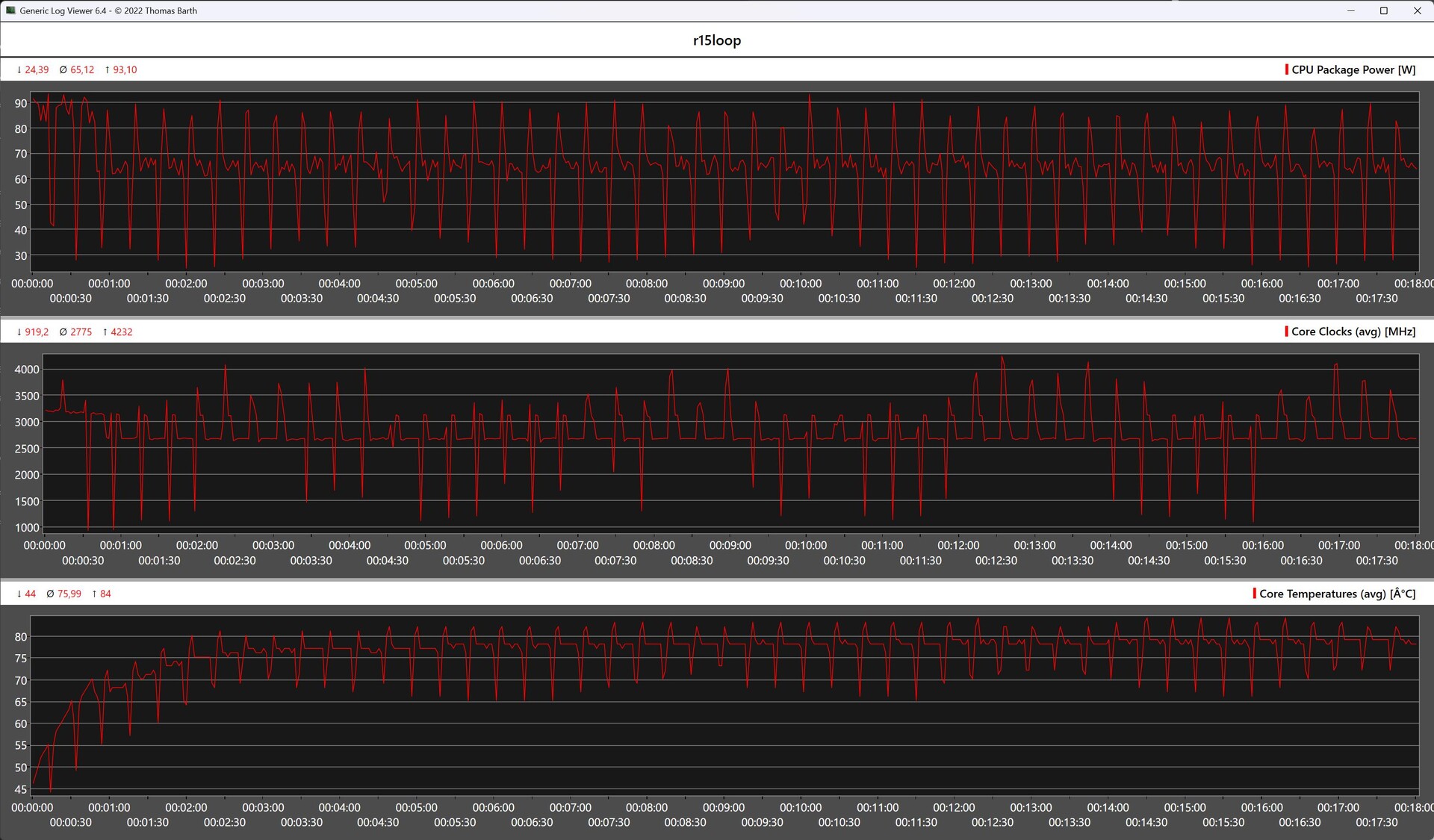

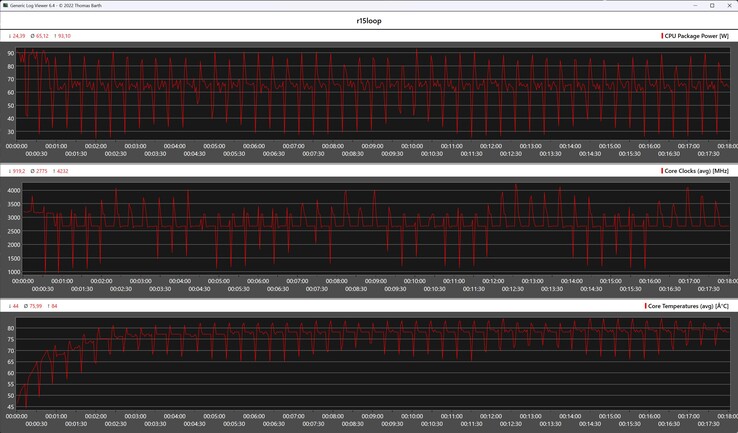

需要注意的是，由于散热装置较小，英特尔酷睿 i5-14500 只能在较低的功率限制下工作。就像基于英特尔酷睿 i5-13500 的惠普精英迷你 800 G9一样，制造商将 87 瓦定义为极限。不过，根据英特尔的规格，该处理器的最高运行功率可达 154 瓦。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	55.8 pt
Minisforum MS-01 Intel Core i9-13900H	55.2 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54.8 pt
Acemagic F2A Intel Core Ultra 7 155H	54.5 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	53.4 pt
Geekom GT13 Pro Intel Core i9-13900H	53 pt

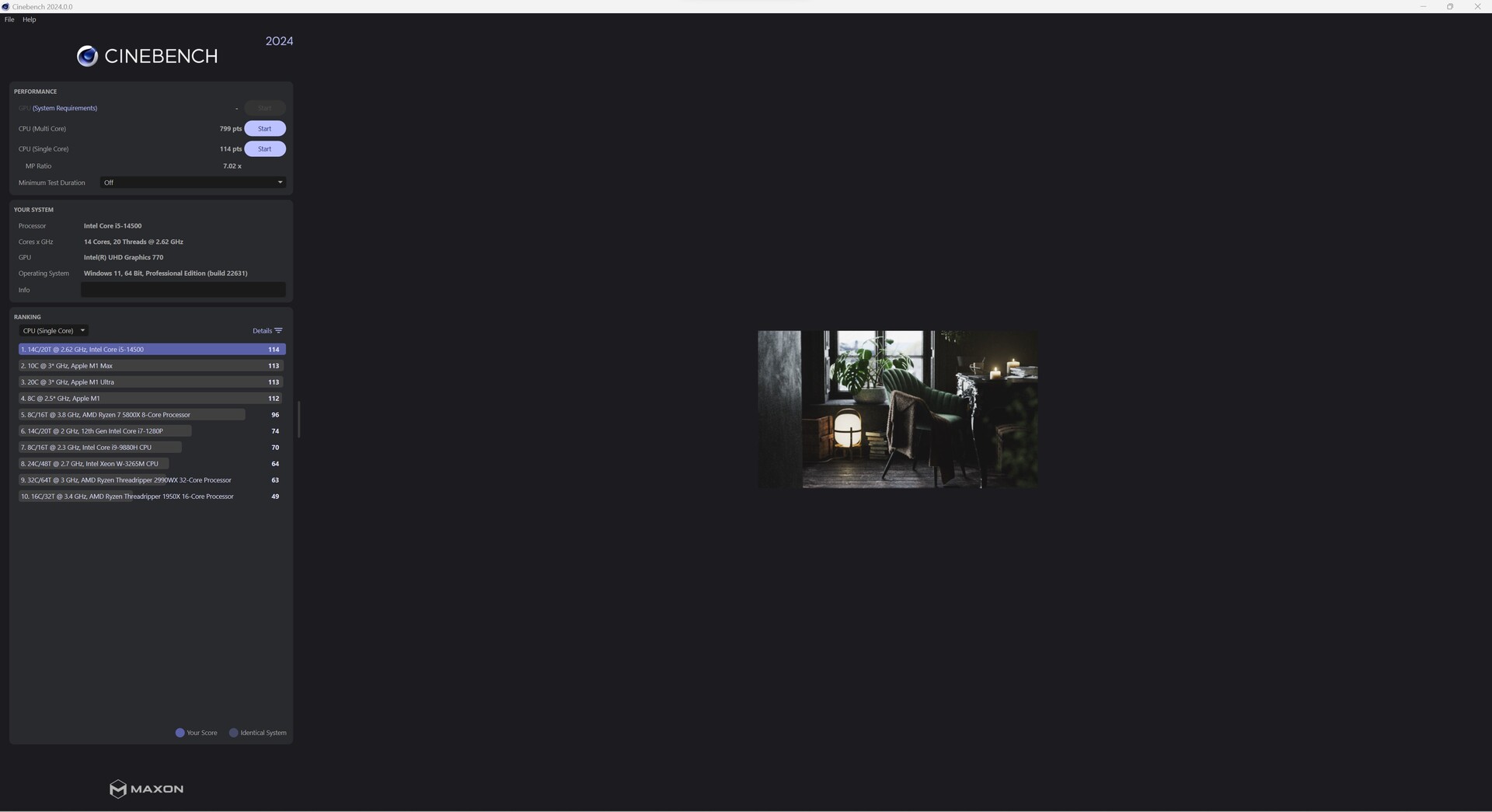

Cinebench 2024
CPU Multi Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1067 Points +34%
Acemagic F2A Intel Core Ultra 7 155H	1022 Points +28%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	822 Points +3%
Minisforum MS-01 Intel Core i9-13900H	818 Points +2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	799 Points
Geekom GT13 Pro Intel Core i9-13900H	703 Points -12%
CPU Single Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	114 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	110 Points -4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	107 Points -6%
Acemagic F2A Intel Core Ultra 7 155H	106 Points -7%
Geekom GT13 Pro Intel Core i9-13900H	104 Points -9%
Minisforum MS-01 Intel Core i9-13900H	101 Points -11%

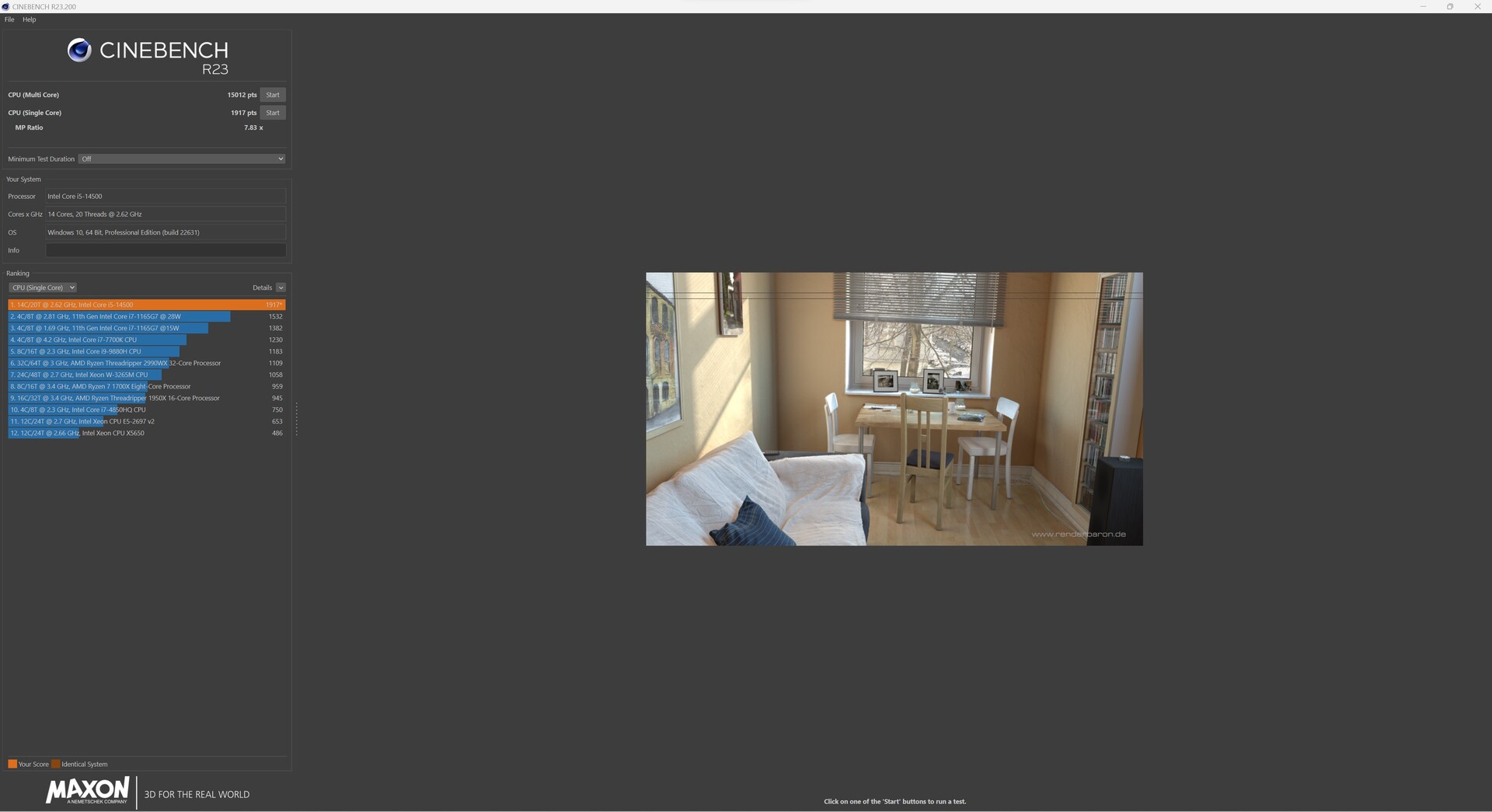

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +23%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points +20%
Minisforum MS-01 Intel Core i9-13900H	16209 Points +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15012 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points -3%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points -13%
Single Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1917 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points -3%
Minisforum MS-01 Intel Core i9-13900H	1806 Points -6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points -11%

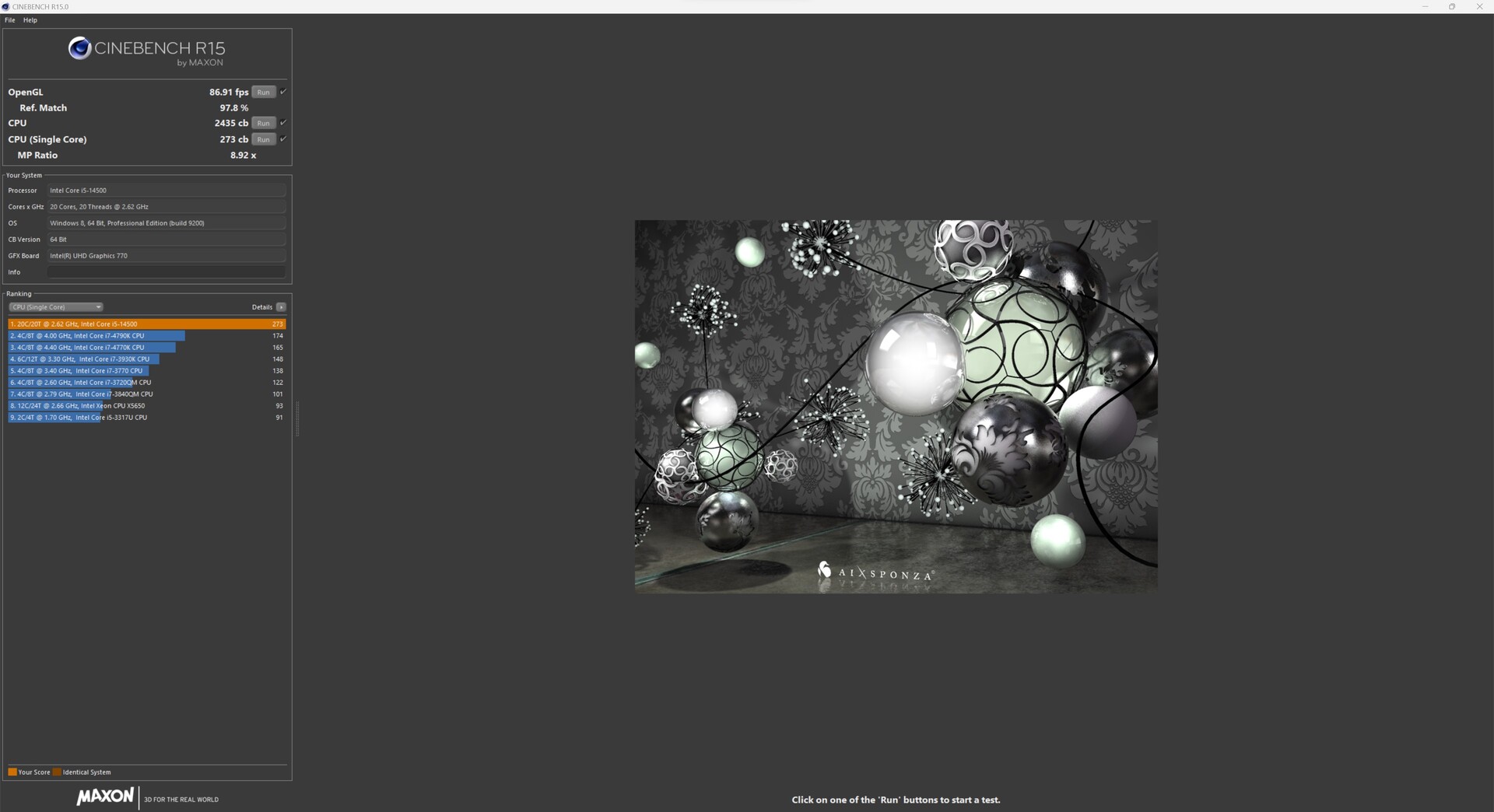

Cinebench R15
CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	273 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points -2%
Acemagic F2A Intel Core Ultra 7 155H	258 Points -5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points -6%
Minisforum MS-01 Intel Core i9-13900H	253 Points -7%
Geekom GT13 Pro Intel Core i9-13900H	245 Points -10%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points +13%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +12%
Minisforum MS-01 Intel Core i9-13900H	2459 Points +1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2435 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points -7%

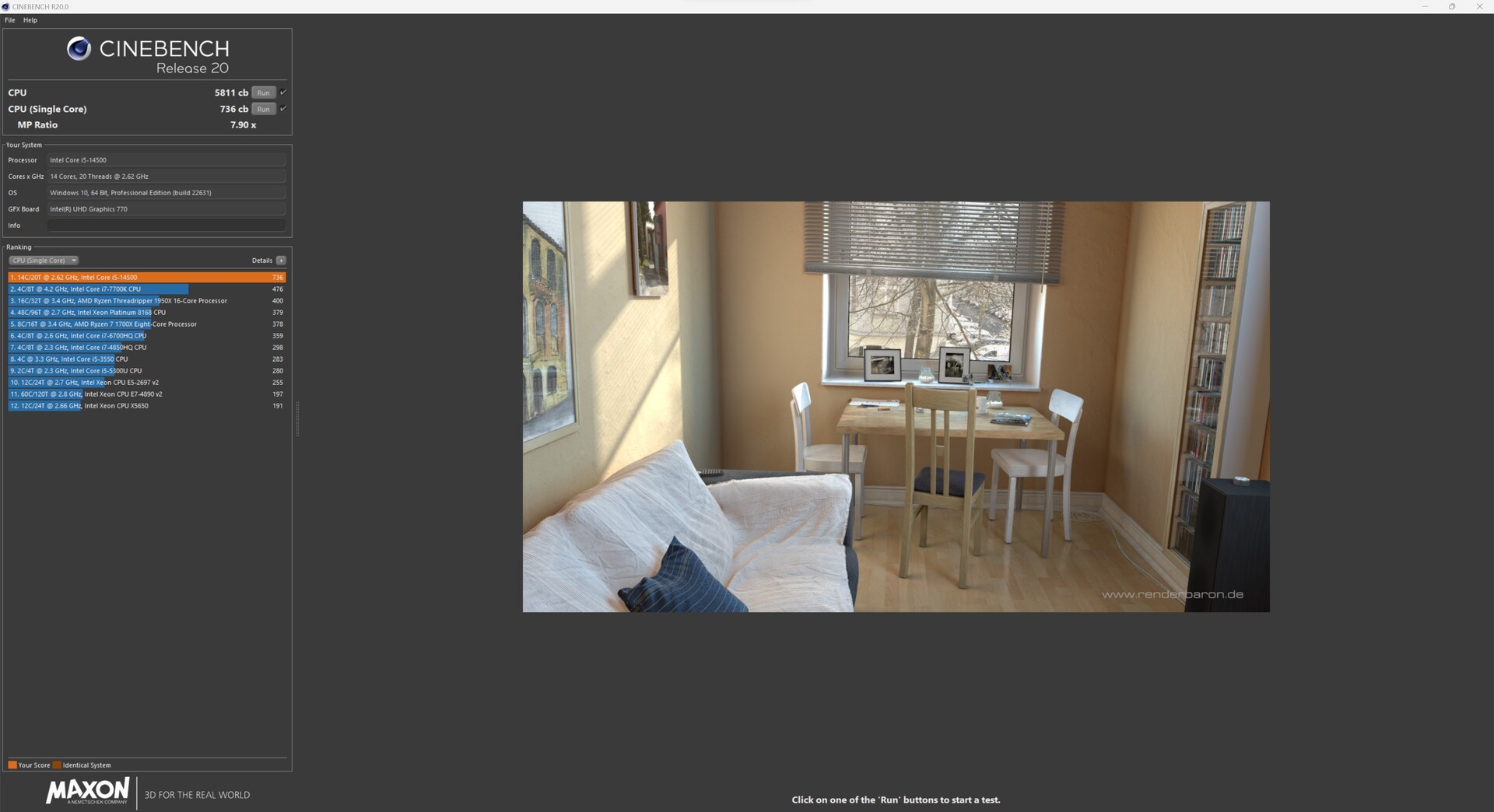

Cinebench R20
CPU (Single Core)
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	736 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points -3%
Minisforum MS-01 Intel Core i9-13900H	699 Points -5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	679 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	659 Points -10%
CPU (Multi Core)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points +24%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +24%
Minisforum MS-01 Intel Core i9-13900H	6203 Points +7%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	5811 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points -3%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points -14%

Cinebench R11.5
CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	3.31 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.27 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points -5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	3.11 Points -6%
Minisforum MS-01 Intel Core i9-13900H	3 Points -9%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points -10%
CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	33.95 Points +18%
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points +16%
Minisforum MS-01 Intel Core i9-13900H	29.65 Points +3%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	28.75 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	28.43 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points -4%

Cinebench R10
Rendering Single CPUs 64Bit
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	15313 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14374 Points -6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14282 Points -7%
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -9%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points -10%
Minisforum MS-01 Intel Core i9-13900H	13752 Points -10%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +16%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	88902 Points +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	82201 Points
Minisforum MS-01 Intel Core i9-13900H	79856 Points -3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	79625 Points -3%
Geekom GT13 Pro Intel Core i9-13900H	79014 Points -4%

Blender - v2.79 BMW27 CPU
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * -17%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * -0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	223 Seconds *
Minisforum MS-01 Intel Core i9-13900H	201 Seconds * +10%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +20%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * +23%

wPrime 2.10
32m
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	4.02 s * -9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	3.705 s *
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * +5%
Geekom GT13 Pro Intel Core i9-13900H	3.518 s * +5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	3.254 s * +12%
Minisforum MS-01 Intel Core i9-13900H	3.141 s * +15%
1024m
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	441.275 s * -130%
Geekom GT13 Pro Intel Core i9-13900H	412.775 s * -115%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	192.207 s *
Minisforum MS-01 Intel Core i9-13900H	179.496 s * +7%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * +27%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	100.707 s * +48%

X264 HD Benchmark 4.0
Pass 1
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	335.5 (329^min - 340^max) fps +6%
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	318 (249^min - 321^max) fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	306 (302^min - 312^max) fps -4%
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps -6%
Minisforum MS-01 Intel Core i9-13900H	284 (276^min - 298^max) fps -11%
Pass 2
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	158.2 (157.4^min - 158.8^max) fps +15%
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps +12%
Minisforum MS-01 Intel Core i9-13900H	138.55 (135.5^min - 145.8^max) fps 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	138.1 (131.2^min - 138.6^max) fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	134.55 (130.4^min - 135.2^max) fps -3%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps -17%

WinRAR - Result
Minisforum MS-01 Intel Core i9-13900H	9303 KB/s +18%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7940 KB/s 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7912 KB/s
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s -2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7704 KB/s -3%
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s -14%

TrueCrypt
AES Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	14.8 GB/s +19%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s +6%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	12.4 GB/s
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	12 GB/s -3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11.3 GB/s -9%
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s -15%
Twofish Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	2.5 GB/s 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	2.5 GB/s
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s -4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2.3 GB/s -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.8 GB/s -28%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -32%
Serpent Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	1.4 GB/s 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1.4 GB/s
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1.3 GB/s -7%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s -14%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1.1 GB/s -21%
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -29%

Geekbench 5.5
Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +27%
Minisforum MS-01 Intel Core i9-13900H	13014 Points +23%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +20%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +7%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10543 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points -2%
Single-Core
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1898 Points
Minisforum MS-01 Intel Core i9-13900H	1867 Points -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points -3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points -5%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -8%

Geekbench 5.0
5.0 Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13228 Points +26%
Minisforum MS-01 Intel Core i9-13900H	12681 Points +21%
Acemagic F2A Intel Core Ultra 7 155H	12438 Points +19%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points +7%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	10477 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10213 Points -3%
5.0 Single-Core
Minisforum MS-01 Intel Core i9-13900H	1847 Points 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	1842 Points
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1821 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points -2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1749 Points -5%
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -7%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum MS-01 Intel Core i9-13900H	8190 Points +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7873 Points
Geekom GT13 Pro Intel Core i9-13900H	7787 Points -1%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7602 Points -3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7379 Points -6%
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -12%
64 Bit Multi-Core Score
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	47960 Points +19%
Minisforum MS-01 Intel Core i9-13900H	47461 Points +18%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points +12%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	40233 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	39094 Points -3%

3DMark 11 - 1280x720 Performance Physics
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	21875 Points +17%
Minisforum MS-01 Intel Core i9-13900H	21786 Points +17%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points +12%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	18692 Points
Geekom GT13 Pro Intel Core i9-13900H	18383 Points -2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	18026 Points -4%

7-Zip 18.03
7z b 4
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS +31%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +21%
Minisforum MS-01 Intel Core i9-13900H	63093 MIPS +15%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS +1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	54851 MIPS
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS -4%
7z b 4 -mmt1
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	6198 MIPS
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS -5%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -10%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -12%
Minisforum MS-01 Intel Core i9-13900H	5473 MIPS -12%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps +27%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +20%
Minisforum MS-01 Intel Core i9-13900H	18.7 fps +14%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.4 fps
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps -1%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps -14%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * -6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * -3%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * -1%
Minisforum MS-01 Intel Core i9-13900H	0.439 sec * -1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	0.4356 sec *

LibreOffice - 20 Documents To PDF
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * -14%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * -8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	46 s *
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +3%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +14%
Minisforum MS-01 Intel Core i9-13900H	35.1 s * +24%

WebXPRT 3 - Overall
Minisforum MS-01 Intel Core i9-13900H	317 Points +14%
Geekom GT13 Pro Intel Core i9-13900H	304 Points +9%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	278 Points
Acemagic F2A Intel Core Ultra 7 155H	276 Points -1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	266 Points -4%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	264 Points -5%

Mozilla Kraken 1.1 - Total
Acemagic F2A Intel Core Ultra 7 155H	535 ms * -6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	532 ms * -5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	519 ms * -3%
Geekom GT13 Pro Intel Core i9-13900H	517 ms * -2%
Minisforum MS-01 Intel Core i9-13900H	506 ms * -0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	506 ms *

3DMark
1920x1080 Fire Strike Physics
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	26263 Points +6%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	26038 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points +1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	24708 Points
Minisforum MS-01 Intel Core i9-13900H	24273 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points -4%
2560x1440 Time Spy CPU
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	11481 Points +19%
Minisforum MS-01 Intel Core i9-13900H	10995 Points +14%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	9657 Points
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	9655 Points 0%
Geekom GT13 Pro Intel Core i9-13900H	9347 Points -3%

Super Pi mod 1.5 XS 1M - 1M
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7.752 s * -5%
Geekom GT13 Pro Intel Core i9-13900H	7.445 s * -0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	7.413 s *
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * +3%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	6.751 s * +9%
Minisforum MS-01 Intel Core i9-13900H	6.156 s * +17%

Super Pi mod 1.5 XS 2M - 2M
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	17.176 s * -4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500	16.493 s *
Geekom GT13 Pro Intel Core i9-13900H	16.234 s * +2%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	14.879 s * +10%
Minisforum MS-01 Intel Core i9-13900H	13.784 s * +16%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

9388

Cinebench R10 Shading 64Bit

15858 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

82201 Points

Cinebench R10 Rendering Single CPUs 64Bit

15313 Points

Cinebench R10 Shading 32Bit

15343

Cinebench R10 Rendering Multiple CPUs 32Bit

52699

Cinebench R11.5 CPU Single 32Bit

2.91 Points

Cinebench R11.5 CPU Multi 32Bit

25.61 Points

Cinebench R11.5 OpenGL 32Bit

91.33 fps

Cinebench R11.5 CPU Single 64Bit

3.31 Points

Cinebench R11.5 CPU Multi 64Bit

28.75 Points

Cinebench R11.5 OpenGL 64Bit

91.49 fps

Cinebench R15 CPU Single 64Bit

273 Points

Cinebench R15 CPU Multi 64Bit

2435 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

86.91 fps

Cinebench R20 CPU (Single Core)

736 Points

Cinebench R20 CPU (Multi Core)

5811 Points

Cinebench R23 Multi Core

15012 Points

Cinebench R23 Single Core

1917 Points

Cinebench 2024 CPU Single Core

114 Points

Cinebench 2024 CPU Multi Core

799 Points

Help

... in comparison

Performance Rating
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	98.5 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	94.4 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	82.4 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	74.2 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	73.4 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	68.8 pt
Average of class Mini PC	67.9 pt

AIDA64 / FP32 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +29%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	17312 KRay/s +27%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	14105 KRay/s +4%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	13616 KRay/s
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	13251 KRay/s -3%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s -9%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s -14%

AIDA64 / FPU Julia
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	91112 Points +32%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points +29%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73742 Points +7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	70708 Points +3%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	68912 Points
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points -9%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points -14%

AIDA64 / CPU SHA3
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	4343 MB/s +37%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s +34%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	3386 MB/s +7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	3234 MB/s +2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	3169 MB/s
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s -13%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s -14%

AIDA64 / CPU Queen
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	98480 Points
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points -5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	93077 Points -5%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points -9%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	87544 Points -11%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	87291 Points -11%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -21%

AIDA64 / FPU SinJulia
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	10759 Points +20%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points +15%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	9170 Points +2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	8977 Points 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	8948 Points
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points -5%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points -10%

AIDA64 / FPU Mandel
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +34%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	44874 Points +31%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	35318 Points +3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	35080 Points +2%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	34243 Points
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points -5%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points -15%

AIDA64 / CPU AES
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	154066 MB/s +142%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +128%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	123819 MB/s +95%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s +61%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +34%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	67775 MB/s +7%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	63608 MB/s

AIDA64 / CPU ZLib
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	1233 MB/s +20%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +15%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	1044 MB/s +1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	1030 MB/s
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	951 MB/s -8%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -23%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -31%

AIDA64 / FP64 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s +24%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	9270 KRay/s +24%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	7611 KRay/s +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	7582 KRay/s +1%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	7504 KRay/s
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s -11%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s -17%

AIDA64 / CPU PhotoWorxx
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	45560 MPixel/s +126%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	44996 MPixel/s +123%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s +64%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s +40%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +38%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	20189 MPixel/s 0%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	20153 MPixel/s

Cinebench R15 多循环

我们的测试样本通过 Cinebench R15 连续循环运行，使用的是英特尔酷睿 i5-14500相对较好。开始时，我们的测试设备可以提供较好的性能，然后在平均 2127 点时趋于平稳。最高温度为 84 °C，我们看到英特尔酷睿 i5-14500与英特尔酷睿 i5-13500.

HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, Intel Core i5-14500: Ø2127 (1940.52-2429.84)

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel Core i5-13500: Ø2153 (1959.73-2450.98)

Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Intel Core Ultra 9 185H: Ø2784 (2721.64-2831.86)

Minisforum MS-01 Intel Core i9-13900H, Intel Core i9-13900H: Ø2354 (2022.76-2582.31)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

系统性能

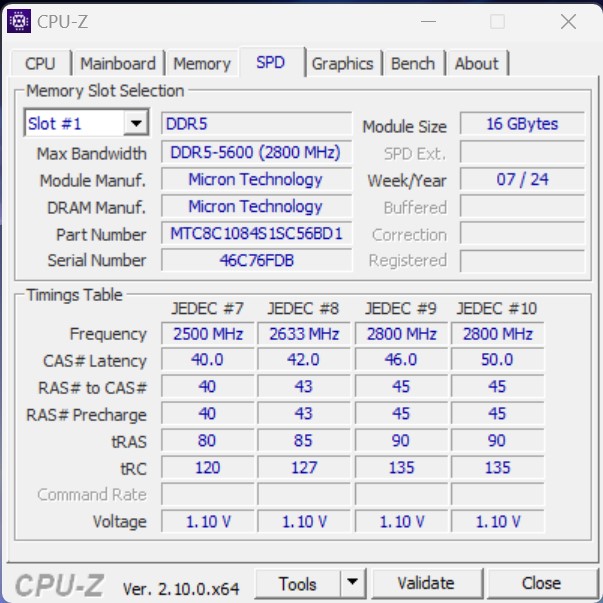

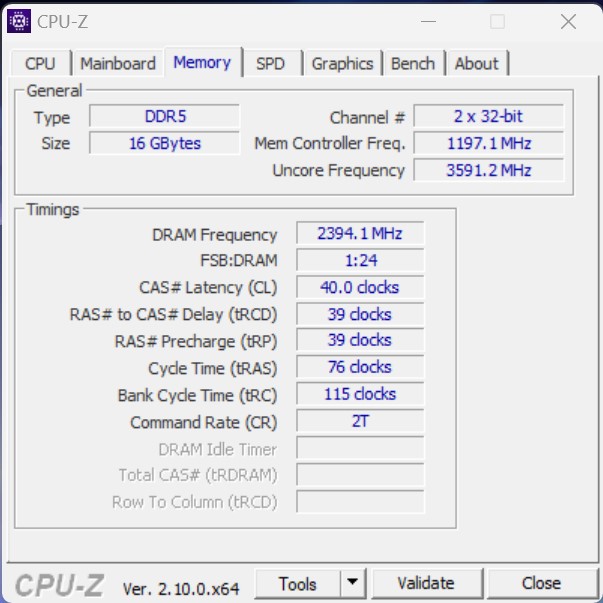

与图形显示相反，主观系统性能非常出色。尽管如此，我们的测试设备还是输给了大多数对手。我们欢迎英特尔酷睿 i5-14500 与 DDR5 内存的组合，尽管由于技术原因，4800 MT/s 的速度已经是最大值。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	7510 Points +32%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points +25%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	6802 Points +19%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	5944 Points +4%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	5705 Points
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	5388 Points -6%

PCMark 10 / Essentials
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	12286 Points +23%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +11%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	11030 Points +10%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	10347 Points +4%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	9994 Points
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	9262 Points -7%

PCMark 10 / Productivity
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	10484 Points +38%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points +17%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	8526 Points +12%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	7584 Points
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	7319 Points -3%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	7130 Points -6%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +11%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1797 Points +11%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1766 Points +9%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1675 Points +3%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1625 Points
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1549 Points -5%

CrossMark / Responsiveness
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1790 Points +46%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +39%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1512 Points +24%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1378 Points +13%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1222 Points
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1153 Points -6%

CrossMark / Creativity
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	2031 Points +11%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +5%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1883 Points +3%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1837 Points
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1789 Points -3%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1768 Points -4%

CrossMark / Productivity
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1736 Points +10%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points +9%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1684 Points +7%
Minisforum AtomMan X7 Ti, Intel Core Ultra 9 185H Intel Arc 8-Core iGPU, Kingston OM8PGP41024Q-A0	1589 Points +1%
HP Elite Mini 800 G9-5M9X6EA, Intel Core i5-14500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1580 Points
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1498 Points -5%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	71990 MB/s +106%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	69219 MB/s +98%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +78%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +36%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s +31%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	35000 MB/s
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	34824 MB/s -1%

AIDA64 / Memory Read
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	75449 MB/s +109%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73633 MB/s +104%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +78%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +34%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s +27%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	36160 MB/s
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	35746 MB/s -1%

AIDA64 / Memory Write
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	70707 MB/s +118%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	70596 MB/s +117%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +100%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	53817 MB/s +66%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +60%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s +41%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	32473 MB/s

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -59%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	146.1 ns * -56%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	93.5 ns *
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * +2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	91.7 ns * +2%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	89.9 ns * +4%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +19%

* ... smaller is better

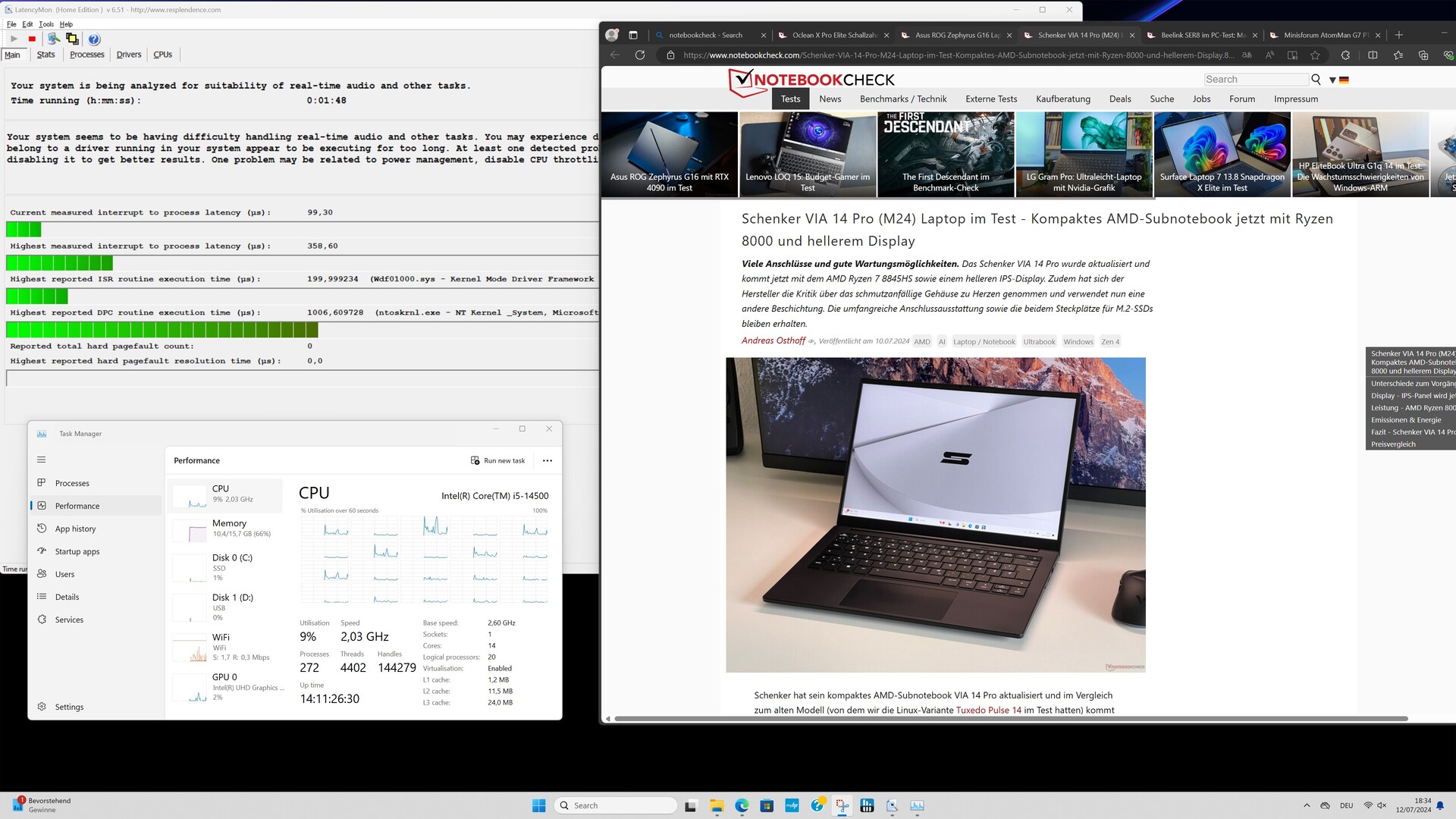

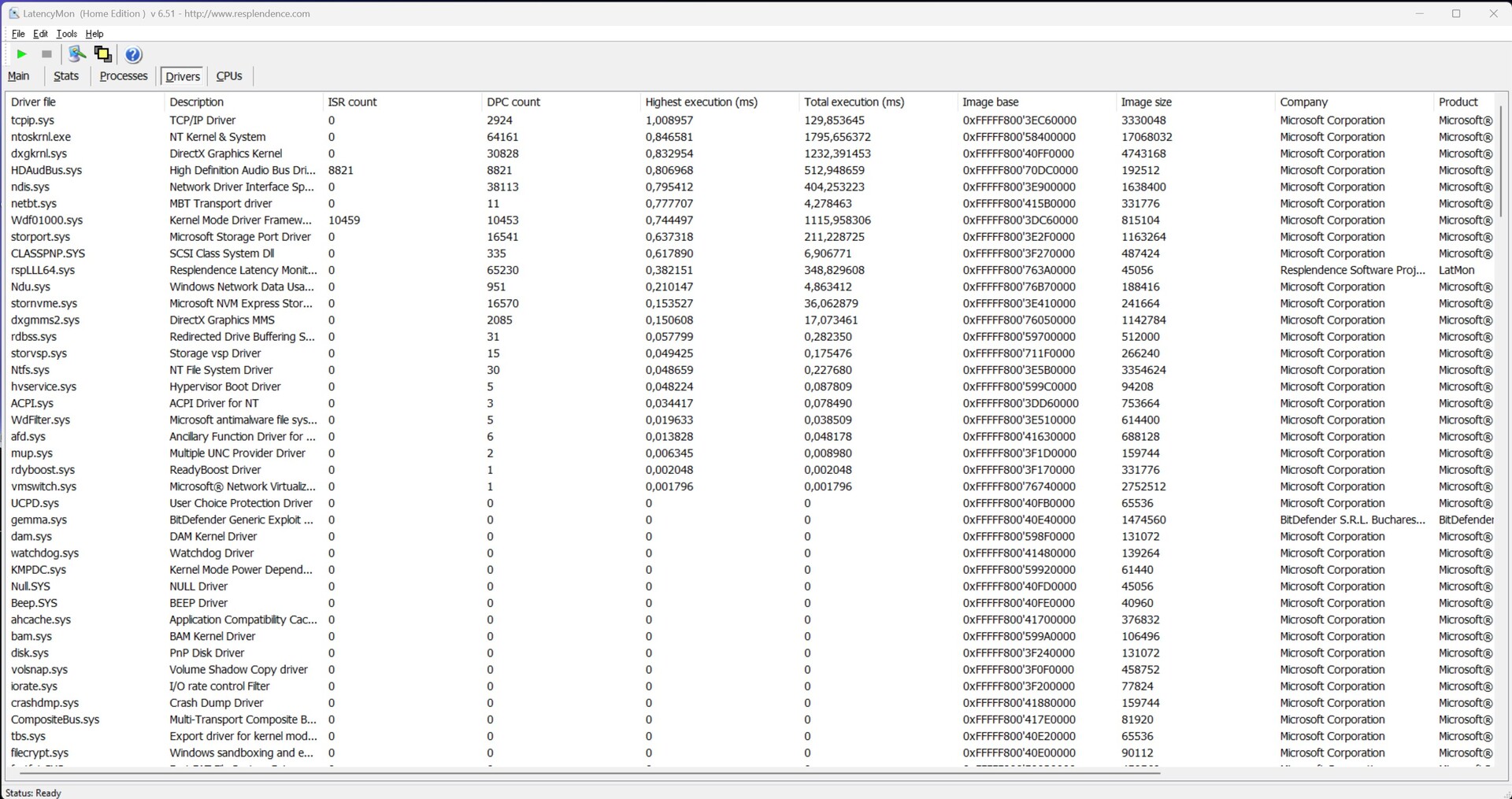

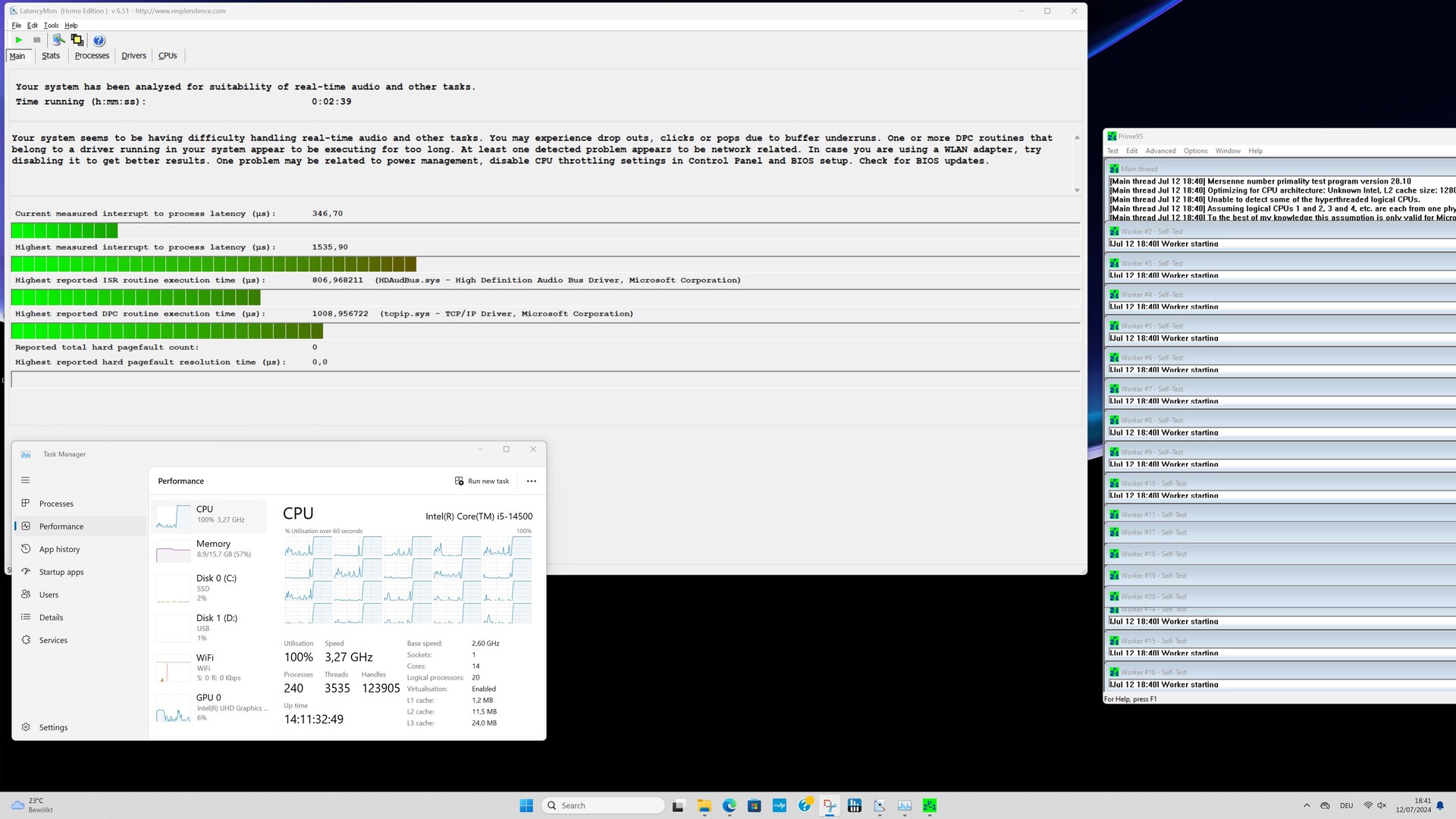

DPC 延迟

HP Elite Mini 800 G9 在上网时的延迟已经略有增加。在播放 4K 测试视频时，这些延迟只增加了很少。在播放 4K 视频时，iGPU 的负载约为 40%。我们只看到两个丢帧，这反过来意味着在播放过程中没有受到影响。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -170%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	2069.2 μs * -105%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1533.4 μs * -52%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	1124 μs * -11%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	1008.9 μs *
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	931 μs * +8%

* ... smaller is better

大容量存储器

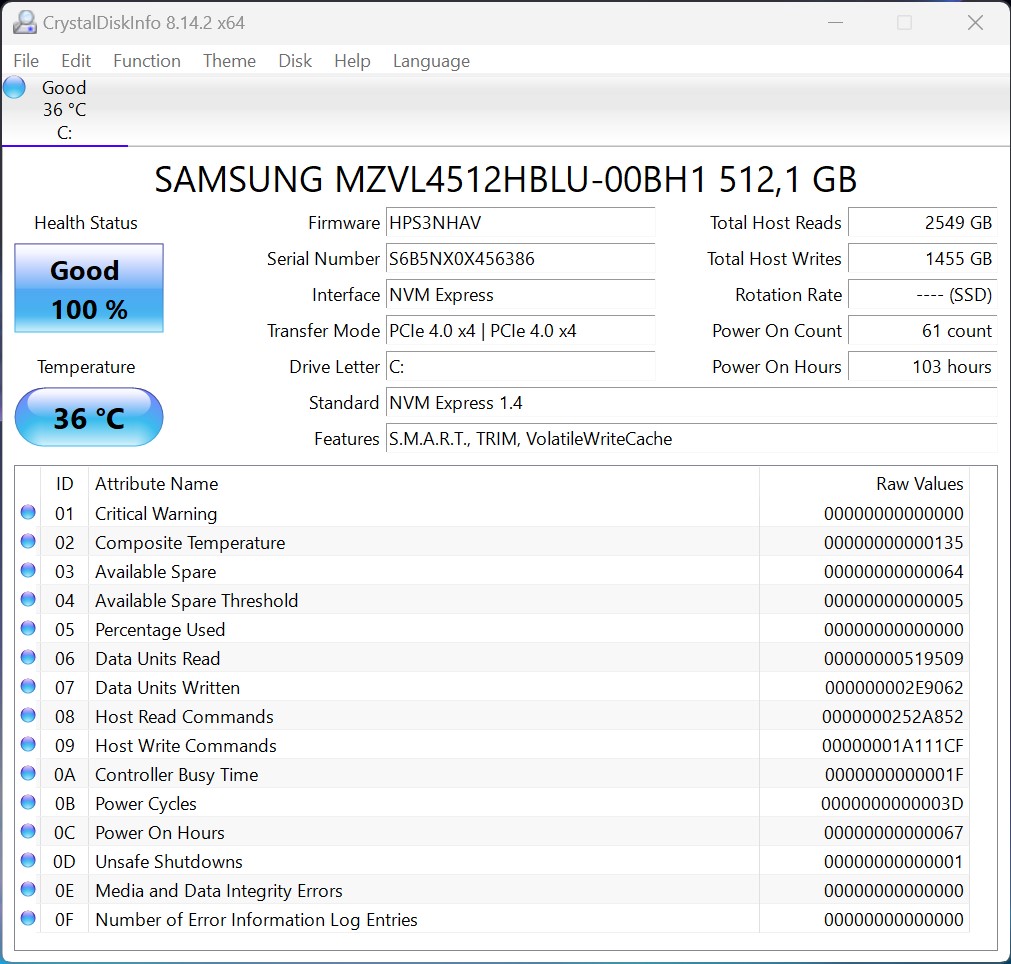

内置固态硬盘对我们的测试样品来说并不陌生。在基于英特尔酷睿 i5-13500 处理器的同款机型中，三星已经使用了相同的大容量存储设备。内置型号提供 NVMe 速度，并在测试中提供了稳定的传输速率。不过，与大多数其他竞争对手相比，大容量存储设备的性能要差一些。惠普在 Elite Mini 800 G9 中安装了主动冷却装置，覆盖了两个 M.2 插槽，因此至少可以保证性能稳定。该设备最多可容纳三个数据载体。

有关进一步的比较和基准测试，请参阅我们的比较表.

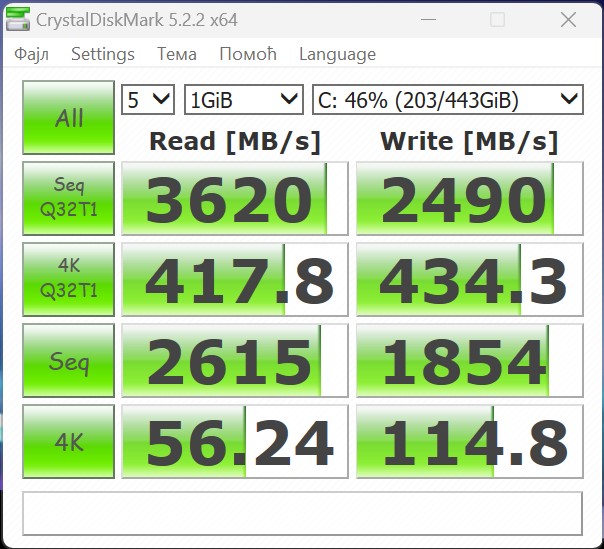

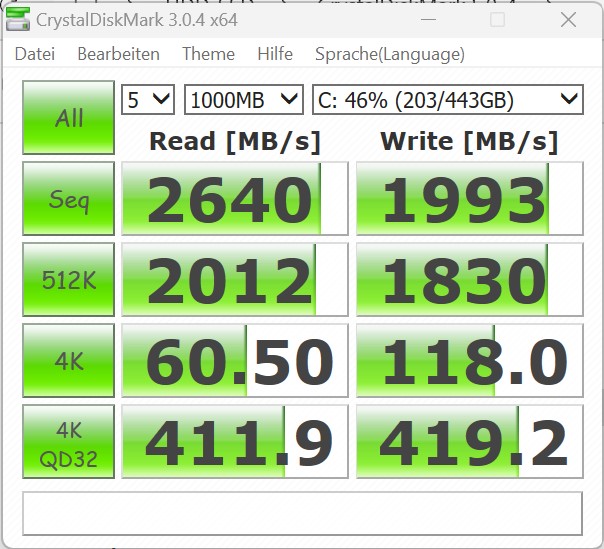

CrystalDiskMark 3.0

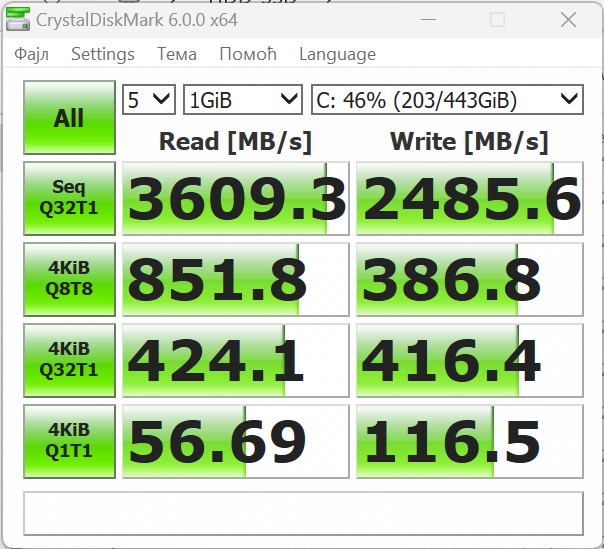

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Samsung PM9B1 512GB MZVL4512HBLU

Sequential Read: 2640 MB/s

Sequential Write: 1993 MB/s

512K Read: 2012 MB/s

512K Write: 1830 MB/s

4K Read: 60.5 MB/s

4K Write: 118 MB/s

4K QD32 Read: 411.9 MB/s

4K QD32 Write: 419.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Geekom GT13 Pro Acer N7000	85.4 pt
Minisforum MS-01 Kingston OM8PGP41024Q-A0	73.5 pt
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	65.1 pt
Average of class Mini PC	52.2 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	52 pt
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	48.5 pt
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	43.7 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s +71%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2960 (2934.76^min - 2959.92^max) MB/s +16%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2549 (2502.53^min - 2548.88^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2519 (2472.21^min - 2519.1^max) MB/s -1%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2315 (2293.84^min - 2315.26^max) MB/s -9%
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -10%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -34%
seq write
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s +141%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3726 (3634.99^min - 3725.8^max) MB/s +97%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3386 (3076.94^min - 3385.64^max) MB/s +79%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +30%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1887 (1818.3^min - 1887.44^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1821 (1747^min - 1820.96^max) MB/s -3%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -29%
seq q8 t1 read
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s +95%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4759 (4492.55^min - 4759.49^max) MB/s +32%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4676 (4310.07^min - 4675.81^max) MB/s +30%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +3%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	3594 (3087.52^min - 3594.31^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	3549 (3126.4^min - 3549.4^max) MB/s -1%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -11%
seq q8 t1 write
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s +125%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3757 (3691.41^min - 3756.63^max) MB/s +60%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3729 (3700.15^min - 3728.95^max) MB/s +59%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +17%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2342 (2178.26^min - 2342.1^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2236 (2193.18^min - 2236.33^max) MB/s -5%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -6%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s +42%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	81.1 (80.57^min - 81.14^max) MB/s +35%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.5 (59.81^min - 63.5^max) MB/s +6%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	60.7 (58.39^min - 60.66^max) MB/s +1%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	60 (47.33^min - 60.02^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -9%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -21%
4k q1 t1 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	435 (271.59^min - 435.46^max) MB/s +274%
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s +181%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +67%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +61%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	184.4 (177.6^min - 184.36^max) MB/s +58%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	116.4 (112.09^min - 116.37^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	111.9 (109.46^min - 111.85^max) MB/s -4%
4k q32 t16 read
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s +336%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2953 (2944.17^min - 2952.67^max) MB/s +258%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +121%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +65%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1143 (1091.01^min - 1142.98^max) MB/s +39%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	824 (808.12^min - 823.95^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	813 (801.88^min - 812.84^max) MB/s -1%
4k q32 t16 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2734 (939.34^min - 2734.2^max) MB/s +546%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +239%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +204%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s +80%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	497 (467.49^min - 497.28^max) MB/s +17%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	423 (412.36^min - 423.28^max) MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	416 (404.01^min - 415.72^max) MB/s -2%

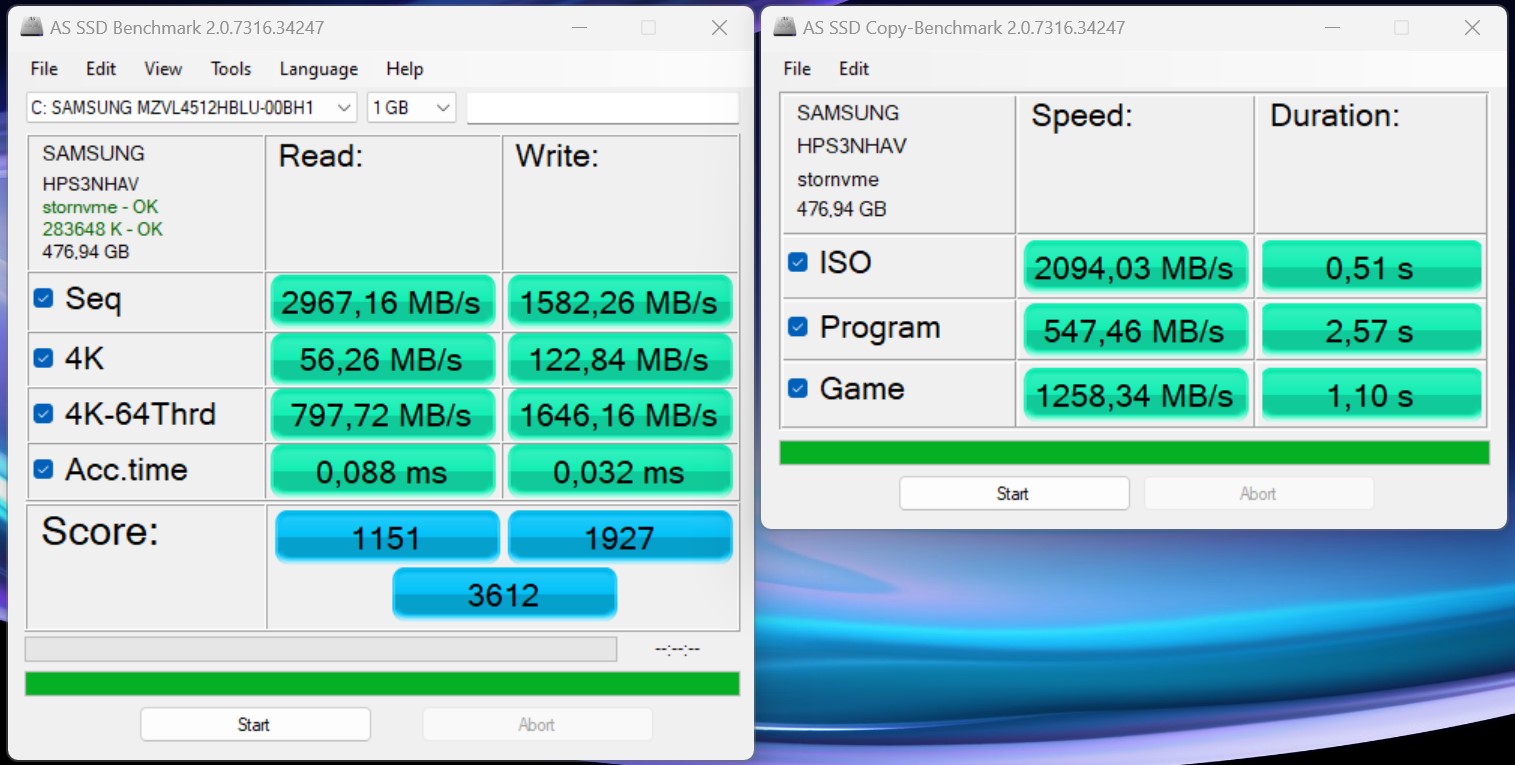

AS SSD
Score Total
Geekom GT13 Pro Acer N7000	6798 Points +88%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	4987 Points +38%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4648 Points +29%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points +22%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +14%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	3612 Points
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	3146 Points -13%
Score Read
Geekom GT13 Pro Acer N7000	2866 Points +149%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1831 Points +59%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +36%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +33%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1482 Points +29%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1151 Points
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1129 Points -2%
Score Write
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2807 Points +46%
Geekom GT13 Pro Acer N7000	2516 Points +31%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points +8%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1927 Points
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1863 Points -3%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points -4%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1501 Points -22%
Seq Read
Geekom GT13 Pro Acer N7000	4546 MB/s +53%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	3779 MB/s +27%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +7%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s +1%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	2967 MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2897 MB/s -2%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1623 MB/s -45%
Seq Write
Geekom GT13 Pro Acer N7000	3374 MB/s +113%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s +50%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2285 MB/s +44%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +40%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1582 MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1543 MB/s -2%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1361 MB/s -14%
4K Read
Minisforum MS-01 Kingston OM8PGP41024Q-A0	86.8 MB/s +54%
Geekom GT13 Pro Acer N7000	83.4 MB/s +48%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	63.3 MB/s +12%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +5%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	56.3 MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	56.1 MB/s 0%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -26%
4K Write
Geekom GT13 Pro Acer N7000	296 MB/s +141%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	266 MB/s +117%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	238 MB/s +94%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +60%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s +43%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	122.8 MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	120 MB/s -2%
4K-64 Read
Geekom GT13 Pro Acer N7000	2328 MB/s +192%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1581 MB/s +98%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +53%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +45%
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	1041 MB/s +30%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	798 MB/s
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	783 MB/s -2%
4K-64 Write
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	2340 MB/s +42%
Geekom GT13 Pro Acer N7000	1883 MB/s +14%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s 0%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	1646 MB/s
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s -12%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1443 MB/s -12%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1245 MB/s -24%
Access Time Read
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	0.128 ms * -45%
Geekom GT13 Pro Acer N7000	0.127 ms * -44%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * -11%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	0.088 ms *
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.067 ms * +24%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.055 ms * +37%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +48%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -294%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -260%
Geekom GT13 Pro Acer N7000	0.059 ms * -84%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	0.038 ms * -19%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.034 ms * -6%
HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU	0.032 ms *
Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0	0.02 ms * +37%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

HP Elite Mini 800 G9-5M9X6EA Samsung PM9B1 512GB MZVL4512HBLU; diskspd 2.0.17 f: Ø3514 (2825.49-3591.43)

Geekom GT13 Pro Acer N7000; diskspd 2.0.17 f: Ø5377 (3710.83-7006.62)

HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU; diskspd 2.0.17 f: Ø3409 (3038.35-3569.55)

Minisforum AtomMan X7 Ti Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4683 (3872.18-4767.25)

Minisforum MS-01 Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø3798 (1858.92-4778.57)

Acemagic F2A Kingston OM8SEP1024Q-A0; diskspd 2.0.17 f: Ø1320 (771.89-3141.95)

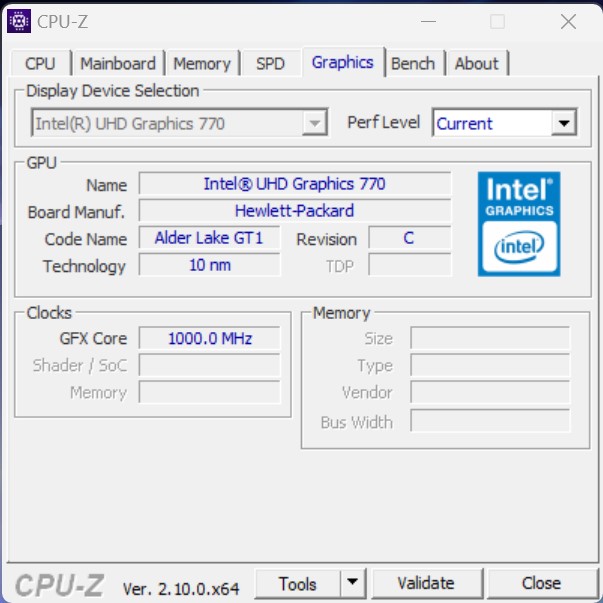

图形卡

在图像输出方面，惠普 Elite Mini 800 G9 只配备了一个简单的 iGPU，它集成在英特尔酷睿 i5-14500 中。基于英特尔 Iris Xe 架构的英特尔UHD Graphics 770 不再是英特尔提供的最新机型之一。此外，iGPU 只有 32 个 EU，这在性能上有明显的体现。英特尔酷睿 i9-13900H 配备 iGPU 和 96 个 EU，性能明显更高，尽管该型号已被英特尔 Arc 8 取代。小型惠普 Elite Mini 800 G9 无法加装专用显卡。由于连接的原因，也无法使用外置显卡。

更多比较和基准测试请参见我们的图形处理器比较表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	100 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	98.3 pt
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	68.5 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	63.2 pt
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	28.6 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	28.6 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +253%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points +241%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7676 Points +124%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points +117%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points 0%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	3428 Points

3DMark
2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +335%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points +333%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1854 Points +152%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points +129%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points 0%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	737 Points
1920x1080 Fire Strike Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +190%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points +186%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6482 Points +144%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points +119%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	2655 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points 0%

Unigine Heaven 4.0
Extreme Preset OpenGL
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps +123%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.2 fps +120%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	29.7 fps +109%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps +77%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	14.4 fps +1%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	14.2 fps
Extreme Preset DX11
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	33.2 fps +127%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps +124%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.9 fps +118%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps +78%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	14.6 fps
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	14.4 fps -1%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	20 fps +122%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	18.5 fps +106%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps +90%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps +68%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	9 fps
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	8.9 fps -1%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	32.4 fps +218%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	21.7 fps +113%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps +79%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps +54%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	10.2 fps
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	9.9 fps -3%

Unigine Superposition
1280x720 720p Low
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points +144%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	10102 Points +135%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8223 Points +91%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points +54%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	4303 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	4251 Points -1%
1920x1080 1080p High
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points +204%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3341 Points +199%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2744 Points +146%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points +106%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1117 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1112 Points 0%
1920x1080 1080p Extreme
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points +286%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1812 Points +265%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1251 Points +152%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points +126%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	497 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	492 Points -1%

ComputeMark v2.1
1024x600 Normal, Score
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points +384%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	6270 Points +306%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3877 Points +151%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points +136%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1546 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1540 Points 0%
1024x600 Normal, Fluid 3DTex
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	469 Points +149%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points +127%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	420 Points +123%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points +52%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	188 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	186 Points -1%
1024x600 Normal, Fluid 2DTexArr
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	462 Points +172%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points +148%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	398 Points +134%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points +73%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	171 Points +1%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	170 Points
1024x600 Normal, Mandel Vector
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points +621%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1620 Points +496%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	918 Points +238%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points +221%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	272 Points 0%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	272 Points
1024x600 Normal, Mandel Scalar
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points +287%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	1274 Points +209%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points +116%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	883 Points +114%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	412 Points 0%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	412 Points
1024x600 Normal, QJuliaRayTrace
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points +509%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2444 Points +384%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points +159%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1258 Points +149%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	505 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	498 Points -1%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1196 Samples/s +146%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s +34%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	640 Samples/s +31%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s +13%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	487 Samples/s 0%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	487 Samples/s
Sala GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3188 Samples/s +160%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	2732 Samples/s +123%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +89%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s +72%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1246 Samples/s +2%
HP Elite Mini 800 G9-5M9X6EA Intel UHD Graphics 770, Intel Core i5-14500	1226 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	5308 Points
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4958 Points
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2471 Points

	HP Elite Mini 800 G9-5M9X6EA, Intel UHD Graphics 770 i5-14500	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	HP Elite Mini 800 G9-5M9T9EA, Intel UHD Graphics 770 i5-13500	Minisforum AtomMan X7 Ti, Intel Arc 8-Core iGPU Ultra 9 185H	Minisforum MS-01, Intel Iris Xe Graphics G7 96EUs i9-13900H	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Average of class Mini PC
SPECviewperf 2020		67%	-8%	138%	100%	122%	360%
3840x2160 Medical (medical-03)	1.34	2.69 101%	1.34 0%	4.23 216%	2.72 103%	5.05 277%	7.74 ?(0.78 - 30.8, n=65, last 2 years) 478%
3840x2160 Energy (energy-03)	1.51	3.17 110%	0.76 -50%	6.03 299%	4.75 215%	4.61 205%	10.8 ?(0.52 - 47.9, n=65, last 2 years) 615%
3840x2160 Creo (creo-03)	9.17	16.3 78%	9.08 -1%	18.5 102%	19.2 109%	17.9 95%	29.7 ?(7.73 - 97.5, n=65, last 2 years) 224%
3840x2160 CATIA (catia-06)	5.6	8.53 52%	5.56 -1%	11.1 98%	9.99 78%	10 79%	18.3 ?(4.61 - 64.1, n=64, last 2 years) 227%
3840x2160 3ds Max (3dsmax-07)	6.69	10.3 54%	6.66 0%	14.9 123%	11.6 73%	12.9 93%	21.8 ?(5.53 - 87.5, n=65, last 2 years) 226%
3840x2160 Siemens NX (snx-04)	6.24	6.62 6%	5.98 -4%	6.24 0%	6.9 11%	5.7 -9%	37.5 ?(2.25 - 224, n=63, last 2 years) 501%
3840x2160 Maya (maya-06)	16.3	27.3 67%	16.1 -1%	37.7 131%	34.1 109%	35.4 117%	56.4 ?(12.2 - 207, n=65, last 2 years) 246%

3DMark 05 Standard		34010 points
3DMark 06 Standard Score		20877 points
3DMark Vantage P Result		14951 points
3DMark 11 Performance		3960 points
3DMark Ice Storm Standard Score		77543 points
3DMark Cloud Gate Standard Score		16716 points
3DMark Fire Strike Score		2498 points
3DMark Fire Strike Extreme Score		1196 points
3DMark Time Spy Score		855 points
Help

... in comparison

游戏性能

iGPU 的 3D 性能较低，不足以玩当前的游戏。即使是较老的游戏，也只能在低分辨率和最低细节的情况下流畅运行。

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.1 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	166.4 (7.6^min, 111.1^P1) fps +63%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	163.6 (4.63^min, 111.1^P1) fps +60%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	161 (4.76^min, 100^P1) fps +57%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	119.7 (7.51^min, 66.7^P1) fps +17%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	102.4 (25.3^min, 71.4^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	41.2 (3.12^min, 30.3^P1) fps +235%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	31.3 (2.94^min, 22.7^P1) fps +154%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	31.1 (13.1^min, 23.8^P1) fps +153%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	22 (6.3^min, 16.4^P1) fps +79%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	12.3 (4.52^min, 9.35^P1) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	128.6 (80.1^min) fps +22%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	109.8 (85^min) fps +4%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	106.5 (61^min) fps +1%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	105.8 (73.2^min) fps
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	103.2 (59.8^min) fps -2%
1920x1080 high (2/3)
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	80.8 (65.9^min) fps +84%
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	79 (48.2^min) fps +80%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	77.3 (52.5^min) fps +76%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	65.5 (56.1^min) fps +49%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	43.9 (24.2^min) fps

Cyberpunk 2077 2.1 Phantom Liberty
1920x1080 Low Preset (FSR off)
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	34.3 (29.1^min) fps +276%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	29.5 (24.1^min) fps +223%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	22.5 (17.3^min) fps +146%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	18.2 (14.7^min) fps +99%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	9.3 (7.27^min) fps +2%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	9.13 (7.04^min) fps
1920x1080 High Preset (FSR off)
Minisforum AtomMan X7 Ti Arc 8-Core, Ultra 9 185H, Kingston OM8PGP41024Q-A0	24 (20.6^min) fps +294%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	20.4 (13.8^min) fps +235%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	15 (12.4^min) fps +146%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	12.8 (10.9^min) fps +110%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	6.1 (4.98^min) fps 0%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	6.09 (5.05^min) fps

Baldur's Gate 3
1280x720 Low Preset
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	26.2 (4.4^min, 7.02^P0.1, 18.4^P1) fps +55%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	16.9 (10.9^min, 11.1^P0.1, 12.8^P1) fps
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	16.6 (2.68^min, 3.81^P0.1, 6.04^P1) fps -2%
1920x1080 High Preset
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	11.7 (3.43^min, 3.51^P0.1, 3.99^P1) fps +70%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	6.88 (5.24^min, 5.26^P0.1, 5.41^P1) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	40.4 (34^min, 33^P1) fps +91%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	21.2 (17^min, 18^P1) fps 0%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	21.1 (17^min, 17^P1) fps
1920x1080 High Preset AA:T AF:16x
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	25.6 (22^min, 21^P1) fps +100%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	12.9 (11^min, 11^P1) fps +1%
HP Elite Mini 800 G9-5M9X6EA UHD Graphics 770, i5-14500, Samsung PM9B1 512GB MZVL4512HBLU	12.8 (10^min, 10^P1) fps

FPS chart

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770: Ø5.17 (4.9-5.29)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770: Ø5.16 (4.95-5.27)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs: Ø12.5 (11.3-13.6)

	low	med.	high	ultra
GTA V (2015)	102.4	90.8	12.3	5.34
Dota 2 Reborn (2015)	105.8	78.4	43.9	40.7
Final Fantasy XV Benchmark (2018)	26.2	14.3	9.38
Baldur's Gate 3 (2023)	10.2	7.86	6.88
Cyberpunk 2077 2.1 Phantom Liberty (2023)	9.13	7.06	6.09	5.24
F1 24 (2024)	21.1	18	12.8

排放 - 英特尔酷睿 i5-14500 冷却正常

噪音排放

我们的测试设备在大多数情况下工作时都很安静，在正常的日常使用中几乎听不到声音。不过，风扇的声压级略低于 28 dB(A)，工作稳定。在低负载情况下，我们也只测得略高于 30 dB（A）的声音，与同类产品相比，这是一个非常出色的结果。在压力测试中，我们测得的最大噪音值为 39.8 dB(A)，同样非常出色。老实说，在这种情况下，惠普 Elite Mini 800 G9 是可以听到的。不过，在满载的情况下，迷你电脑的音量并不能说是非常恼人。

Noise Level

Idle		27.7 / 27.8 / 27.8 dB(A)
Load		30.2 / 39.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.5 dB(A)

	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core
Noise		-11%	2%	-9%	-24%	-9%
off / environment *	25.5	24.3 5%	24.4 4%	24.1 5%	24.4 4%	24.9 2%
Idle Minimum *	27.7	27.9 -1%	28.1 -1%	29.8 -8%	33.7 -22%	25.4 8%
Idle Average *	27.8	27.9 -0%	28.1 -1%	29.9 -8%	33.9 -22%	25.7 8%
Idle Maximum *	27.8	28 -1%	28.2 -1%	30 -8%	34.7 -25%	25.7 8%
Load Average *	30.2	43.8 -45%	29.8 1%	37.3 -24%	47.7 -58%	47.8 -58%
Cyberpunk 2077 ultra *	39.5	45.4 -15%	33.9 14%
Load Maximum *	39.8	48.5 -22%	40.7 -2%	43.5 -9%	49.1 -23%	49 -23%
Witcher 3 ultra *				40.2	48.9	45.23

* ... smaller is better

温度

由于采用了金属外壳，惠普 Elite Mini 800 G9 可以完美散热。不过，内置处理器区域的温度仍然较高。底部温度略高于 45 °C，发热量不大。上侧的温度值甚至更高。紧凑的机身只能为精心设计的冷却装置提供有限的空间。不过英特尔酷睿 i5-14500仍能可靠地冷却。在压力测试中，我们看到最高温度在短时间内达到 95 °C，不过随后温度趋于稳定，为 84 °C。处理器可以永久保持功率极限 1 (PL1)，即 65 瓦。

Max. Load

Idle


32.3 °C	37.5 °C	43.5 °C
28 °C	29.1 °C	33.6 °C
26.2 °C	24.5 °C	26 °C

Maximum: 43.5 °C
Average: 31.2 °C


45.3 °C	43.9 °C	36.5 °C
44.6 °C	45.4 °C	35.6 °C
38.5 °C	36.8 °C	34.2 °C

Maximum: 45.4 °C
Average: 40.1 °C

Power Supply (max.) 43.2 °C | Room Temperature 21.7 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 31.2 °C / 88 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 43.5 °C / 110 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 45.4 °C / 114 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 24.2 °C / 76 F, compared to the device average of 32.2 °C / 90 F.

发言人

HP Elite Mini 800 G9 的前面板后面安装了一个迷你扬声器，这有点不同寻常。声音足以满足小房间的需求。基本上，这个小扬声器非常适合在工作时播放安静的背景音乐。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

HP Elite Mini 800 G9-5M9X6EA audio analysis

(+) | speakers can play relatively loud (87.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 38.3% lower than median
(±) | linearity of bass is average (7.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.3% higher than median
(±) | linearity of mids is average (9.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.7% higher than median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.7% difference to median)
Compared to same class
» 64% of all tested devices in this class were better, 14% similar, 21% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 86% of all tested devices were better, 3% similar, 11% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Minisforum Mars Series MC560 audio analysis

(-) | not very loud speakers (62.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.5% lower than median
(-) | mids are not linear (20.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38.4% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 7% similar, 7% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 5% worse
» The best had a delta of 4%, average was 25%, worst was 134%

耗电量

基本上，这里列出的所有微型电脑都很经济。不过，它们之间还是存在明显的差异，这主要体现在空闲模式下。在空闲模式下，偶尔会出现高达 21.5 瓦的峰值。在平均负载下，电源必须提供 55.5 瓦的功率。但在负载情况下，我们会看到高达 122.8 瓦的峰值，略高于电源的最大输出功率。不过，这些极短的超限并不是问题，而且在测试过程中电源也没有出现任何问题。

从效率来看，英特尔酷睿 i5-14500 和英特尔酷睿 i5-13500 的效率值完全相同。在本次比较中，所有配备移动处理器的微型电脑在负载情况下的工作效率都明显更高。

Power Consumption

Off / Standby	1.8 / 2.7 Watt
Idle	6 / 8.9 / 21.5 Watt
Load	55.5 / 122.8 Watt


Key: min: , med: , max: Metrahit Energy

	HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Average Intel UHD Graphics 770	Average of class Mini PC
Power Consumption		-1%	16%	-3%	-59%	-5%	13%	-8%
Idle Minimum *	6	7.9 -32%	3.5 42%	8.2 -37%	14.4 -140%	9.1 -52%	4.88 ?(3.5 - 6.3, n=5) 19%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -58%
Idle Average *	8.9	10.3 -16%	7.9 11%	12.1 -36%	16.1 -81%	10.3 -16%	8.12 ?(7.2 - 8.9, n=5) 9%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -29%
Idle Maximum *	21.5	22.3 -4%	13.2 39%	14 35%	25.5 -19%	14.4 33%	13.9 ?(8.7 - 21.5, n=5) 35%	14.9 ?(2.6 - 57.1, n=119, last 2 years) 31%
Load Average *	55.5	57.44 -3%	52.7 5%	53.1 4%	87.3 -57%	54.9 1%	53.5 ?(44.6 - 69.5, n=5) 4%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -3%
Cyberpunk 2077 ultra external monitor *	73.4	55.9 24%	73.8 -1%
Load Maximum *	122.8	93.4 24%	122.2 -0%	100.4 18%	123.3 -0%	110.4 10%	128.2 ?(81.3 - 231, n=5) -4%	97.5 ?(18.1 - 423, n=119, last 2 years) 21%

* ... smaller is better

Efficiency overview

Performance Rating | Power Consumption

Performance Rating - Percent
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	99.2 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	92.4 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	90.1 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	71.5 pt
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	64.6 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	64 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	210 Points per Watt +52%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	205 Points per Watt +48%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	183.7 Points per Watt +33%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	164.2 Points per Watt +19%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	138.4 Points per Watt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	130.5 Points per Watt -6%
Cinebench R23 Single Power Efficiency - external Monitor
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	55.6 Points per Watt +61%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	54.3 Points per Watt +57%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	54.2 Points per Watt +57%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	36.8 Points per Watt +6%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	36.4 Points per Watt +5%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	34.6 Points per Watt
Cinebench R15 Multi Efficiency (external Monitor)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	31.2 Points per Watt +52%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	26.6 Points per Watt +30%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	24.8 Points per Watt +21%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	22.1 Points per Watt +8%
HP Elite Mini 800 G9-5M9X6EA Intel Core i5-14500, UHD Graphics 770	20.5 Points per Watt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	19.9 Points per Watt -3%

Power consumption with external monitor

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Idle 1min (external Monitor): Ø8.89 (4.55-21.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.7 (16.8-25.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.9 (70.9-87.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.4 (86.5-106.1)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø97.8 (96.8-99.3)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø73.4 (69-87.1)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 3DMark06 Return To Proxycon: Ø55.5 (40.1-87.3)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 3DMark06 Return To Proxycon: Ø87.3 (83.2-92.2)

Power consumption with external monitor

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø95.1 (87.6-114.6)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø98.7 (85.9-123.3)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø118.7 (117.6-120.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø111.3 (106.3-117.5)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø55.4 (52.3-78.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø49.6 (44.3-102.7)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø108.5 (87-122.8)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø98.7 (91-111.3)

HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø41.4 (37.4-53.8)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø92.1 (88.6-103.5)

Pros

+ 坚固的金属外壳

+ 模块化设计

+ 无需工具即可打开

+ 插槽式英特尔酷睿 i5-14500

+ 可安装三个固态硬盘

+ 快速无线局域网

+ 安静高效的冷却装置

+ 小型扬声器

+ 附带鼠标和键盘

Cons

- 3D 性能较低

- 无 USB4 或 OCuLink

- 保修期仅为 12 个月

- DPC 延迟增加

- 价格明显高于相同的英特尔酷睿 i5-13500 型号

评价：性能稳定的小型 PC，连接选择一般

测试中的 HP Elite Mini 800 G9（配备英特尔酷睿 i5-14500）--由德国惠普公司提供

惠普 Elite Mini 800 G9 是一款适用于计算密集型任务的可靠迷你电脑。对于普通的日常使用，无需改用英特尔酷睿 i5-14500因为惠普的迷你 PC 系列还可配备许多其他处理器。我们测试的版本配备了 16GB 内存和 512GB 存储空间，这款小巧的电脑非常适合工作。在设计方面，惠普没有尝试任何伟大的壮举，而是将一切都装进了坚固的金属外壳中。内部结构考虑周全，模块化设计使维护工作更加轻松。即使是小修小补，惠普也能提供各种备件。这是我们在远东地区的微型电脑上所不熟悉的。从外观和触感上看，惠普 Elite Mini 800 G9 在经典工业 PC 和消费 PC 之间实现了很好的平衡。惠普 Elite Mini 800 G9 还可作为经济型家用工作站。不过，一些缺点也不容忽视：首先是连接性。从数字上看，惠普 Elite Mini 800 G9 令人印象深刻。不过，如果能集成 USB4 或 Thunderbolt 接口就更好了，这样就能扩大这款小型计算设备的应用范围。在这方面，竞争对手往往能提供更好的解决方案，除了 USB4，我们还越来越多地看到使用 OCuLink 接口，该接口主要用于操作外部显卡。

惠普 Elite Mini 800 G9 是一款出色的工作站。不过，性价比是配备英特尔酷睿 i5-14500 处理器的 Elite Mini 800 G9 的最大弱点。

在非常紧凑的机箱中使用英特尔酷睿 i5-14500 是值得肯定的。遗憾的是，功耗的降低是不可避免的。不过，在功耗降低的情况下，英特尔酷睿 i5-14500 仍能实现出色的日常性能。我们的测试也表明，惠普在这方面已经探索到了最大可能。

惠普 Elite Mini 800 G9 的官方售价为 1,063 欧元，绝对不便宜。目前，多家在线零售商的报价为 1,000 欧元，但这只能将性价比提升到最低。配备英特尔酷睿 i5-13500 处理器的惠普 Elite Mini 800 G9 稍微便宜一些，性能也不相上下，起价为843欧元。

注：我们最近更新了评级系统，第 8 版的结果与第 7 版的结果不具可比性。更多信息请点击这里.

价格和供应情况

HP Elite Mini 800 G9 可直接从制造商处购买。另外，感兴趣的用户也可以在亚马逊上购买这款迷你电脑。

HP Elite Mini 800 G9-5M9X6EA - 07/18/2024 v8
Sebastian Bade

Chassis

85 / 98 → 87%

Connectivity

61 / 81 → 75%

Weight

72%

Games Performance

14 / 80 → 17%

Application Performance

80 / 92 → 87%

Workstation

14%

AI Performance

58%

Temperature

91%

Noise

82%

Audio

65%

Average

56%

71%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
75%

Power Use
64.6%

Repairability
68%

Software Updates
22.3%

Total Sustainability Score: 46.7%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Maingear ML-16 MK2 Ultra 7 155H, NVIDIA GeForce RTX 4070 Laptop GPU	789
Medion SPRCHRGD 14 S1 Elite SD X Elite X1E-78-100, Adreno X1-85 3.8 TFLOPS	794
Microsoft Surface Pro Copilot+ SD X Plus X1P-64-100, Adreno X1-85 3.8 TFLOPS	795
HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	799
Asus ROG Zephyrus G16 2024 GU605M Ultra 7 155H, NVIDIA GeForce RTX 4070 Laptop GPU	799
Gigabyte G6X 9KG (2024) i7-13650HX, NVIDIA GeForce RTX 4060 Laptop GPU	805
Lenovo LOQ 15IRX9 i5-13450HX, NVIDIA GeForce RTX 4060 Laptop GPU	812
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

惠普精英迷你 800 G9 评测：配备英特尔酷睿 i5-14500、DDR5 内存和模块化设计的静音 NUC 迷你电脑

猛禽湖遇上迷你电脑

潜在的竞争对手比较

外壳 - 坚固的金属

尺寸比较

设备 - 数量充足

交流

配件

维护

可持续性

性能 - Raptor Lake 更新，配备 14 个核心和 20 个线程

测试条件

处理器

Cinebench R15 多循环

系统性能

DPC 延迟

大容量存储器

Continuous read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

FPS chart

排放 - 英特尔酷睿 i5-14500 冷却正常

噪音排放

温度

发言人

HP Elite Mini 800 G9-5M9X6EA audio analysis

Minisforum Mars Series MC560 audio analysis

耗电量

Efficiency overview

Power consumption with external monitor

Power consumption with external monitor

Pros

Cons

评价：性能稳定的小型 PC，连接选择一般

价格和供应情况

Transparency

Price comparison

More articles related to this device

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Minisforum BD790i R9 7945HX, Radeon 610M	3929
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, Radeon R9 M370X	3942
HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	3954
HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	3960
Huawei MateBook X Pro 2020 i7 i7-10510U, GeForce MX250	3963
Huawei MateBook D 14-53010TVS R5 3500U, Vega 8	4013
Lenovo IdeaPad 3 14ALC6-82KT0077GE R3 5300U, Vega 6	4067
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
