惠普 Elite Mini 800 G9 迷你 PC 评测 - 配备英特尔酷睿 i5-13500、16 GB DDR5 内存和静音冷却系统的模块化 NUC PC

Name: HP Elite Mini 800 G9-5M9T9EA
Brand: HP

微型计算机和台式机 CPU？

通过 Elite Mini 800 G9，惠普销售了适用于多种办公任务的紧凑型 PC。我们对这款基于英特尔酷睿 i5-13500 处理器和 16GB 内存的迷你电脑进行了深入了解。在这篇详细的评测中，我们将分析传统台式机处理器能否跟上移动处理器的步伐。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 06/22/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Raptor Lake

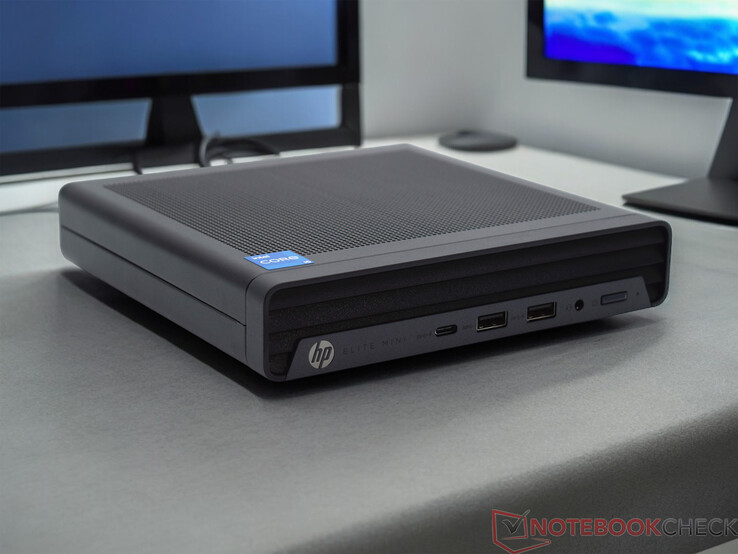

惠普提供广泛的产品组合，其中也包括迷你 PC 领域。我们这次评测的惠普 Elite Mini 800 G9 就是一款紧凑型工作设备。我们测试的这款迷你 PC 配备了英特尔酷睿 i5-1350016GB内存和512GB固态硬盘。惠普为这一配置收取 1,085 欧元，其中包括 Windows 11 专业版许可证。惠普为 Elite Mini 800 G9 提供了多种配置，但在订购过程中不能更改内存和大容量存储的配置选项。在顶级配置中，这款小巧的 PC 甚至还可以配备 NvidiaGeForce RTX 3050，但价格不菲，远远超过 2000 欧元。

作为一款功能强大、结构紧凑的工作站，惠普 Elite Mini 800 G9 必须与我们最近测试过的功能强大的微型电脑相抗衡。我们在下面的概述中总结了对比设备的清单。

Test device courtesy of HP Store Deutschland

Download your licensed rating image as PNG / SVG

HP Elite Mini 800 G9-5M9T9EA

Processor

Intel Core i5-13500 14 x 2.5 - 4.8 GHz, 87 W PL2 / Short Burst, 65 W PL1 / Sustained, Raptor Lake

Graphics adapter

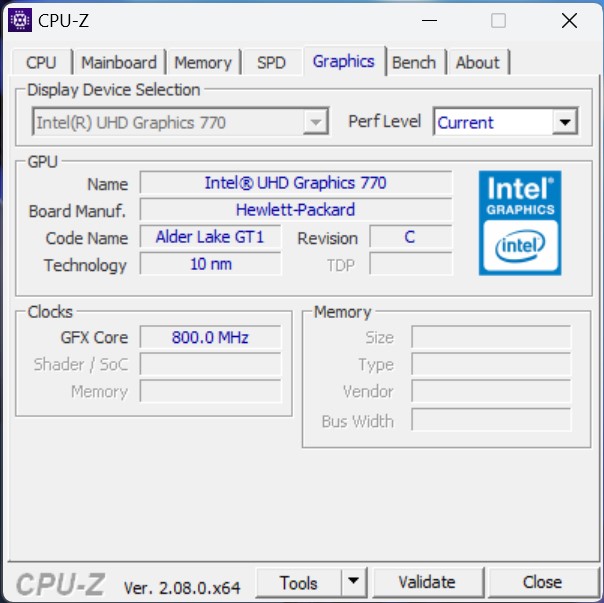

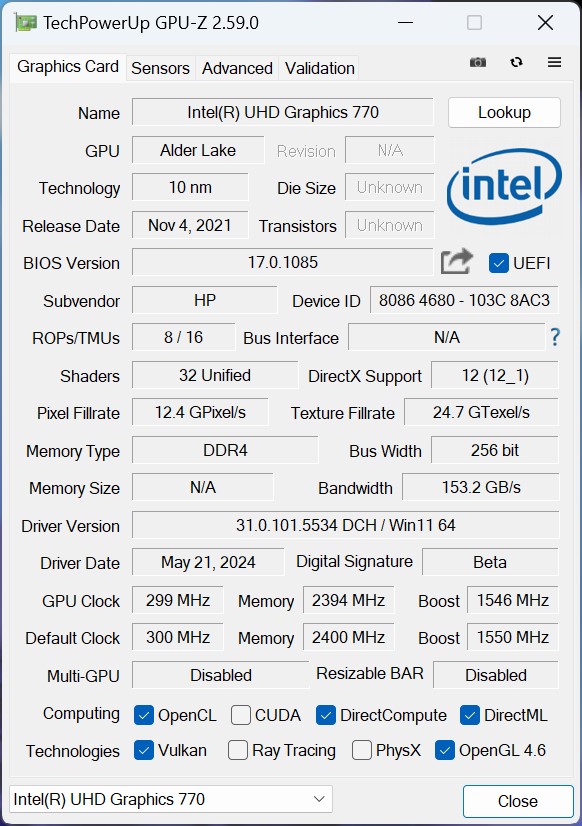

Intel UHD Graphics 770, Core: 1550 MHz, 31.0.101.5334 DCH

Memory

16 GB

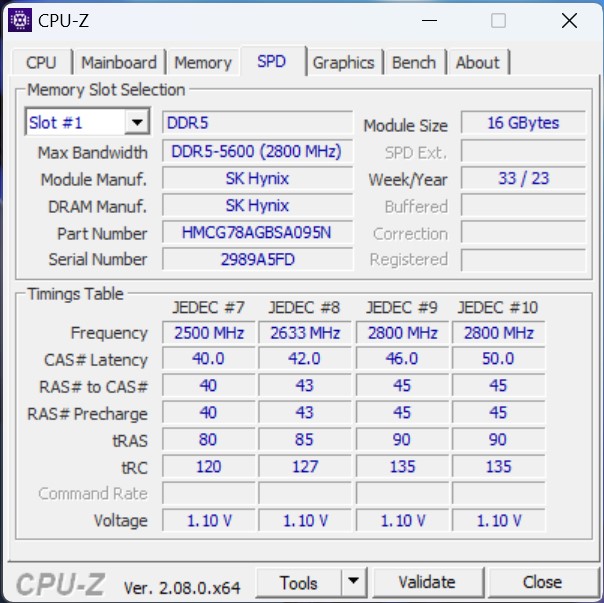

, DDR5-4800, Dual-Channel

Mainboard

Intel Q670

Storage

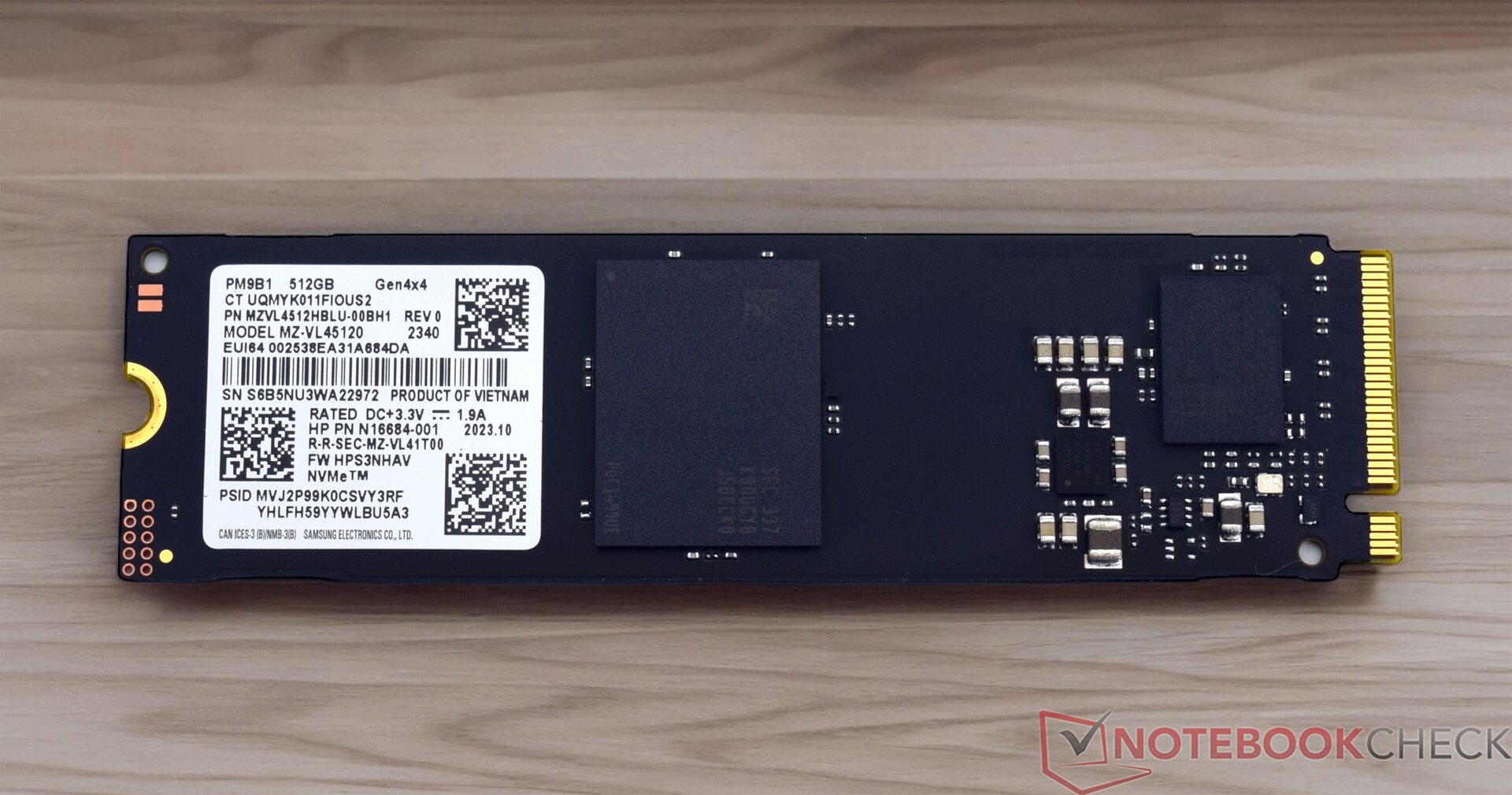

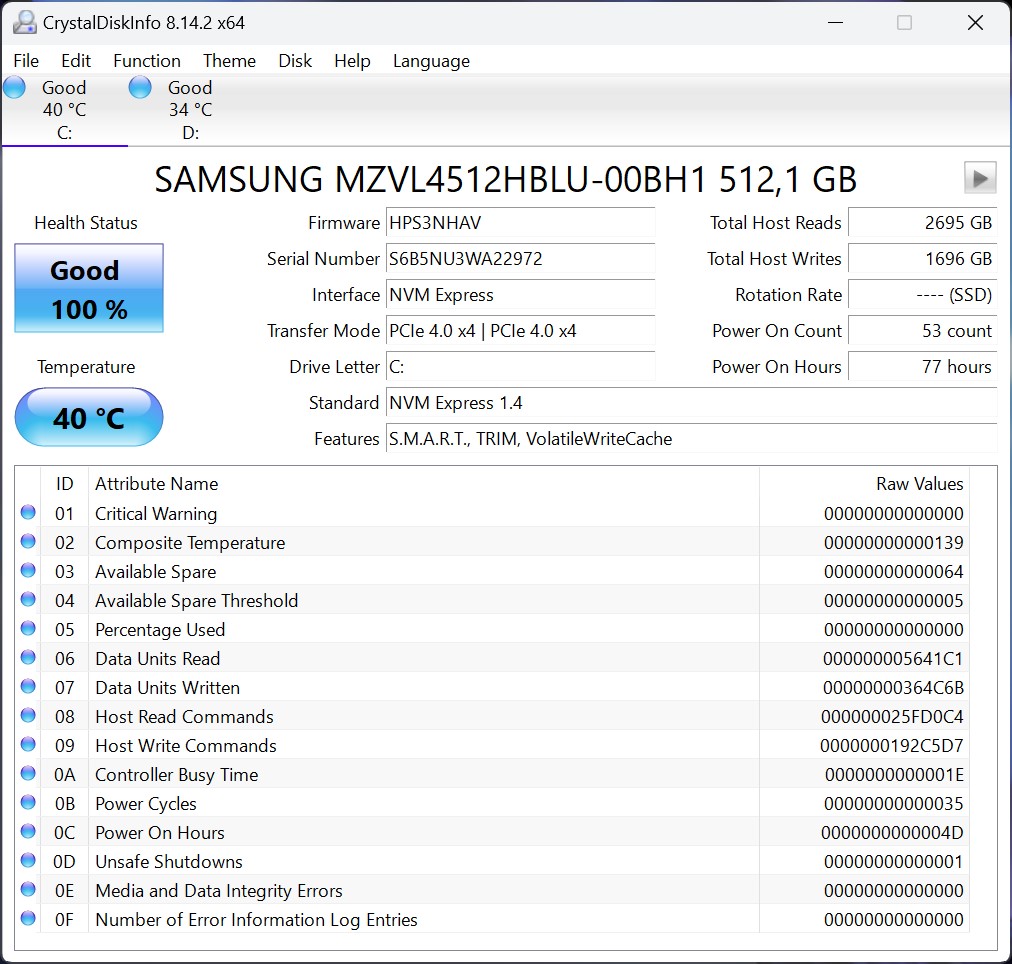

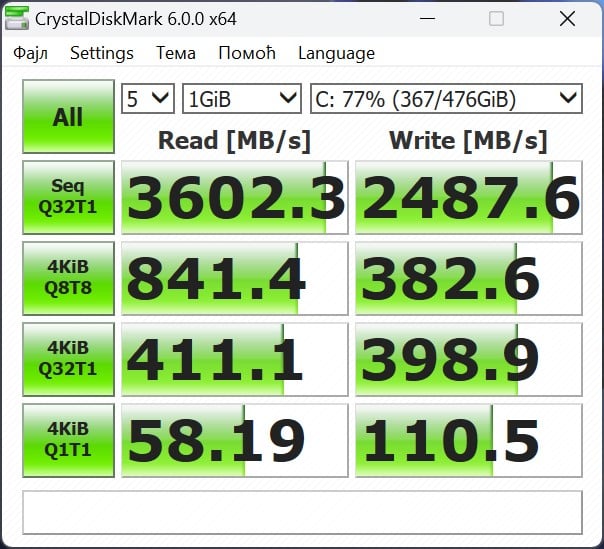

Samsung PM9B1 512GB MZVL4512HBLU, 512 GB

, NVMe, 400 GB free

Soundcard

Intel Alder Lake-S PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 5 USB 3.1 Gen2, 2 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke

Networking

Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Wi-Fi 6E AX211 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.3

Size

height x width x depth (in mm): 34 x 177 x 175

Operating System

Microsoft Windows 11 Pro

Additional features

Speakers: Mono, 120 Watt Power Adapter, HP 320K-Keyboard, HP 125 Mouse, HP Wolf Security, 12 Months Warranty

Weight

1.26 kg, Power Supply: 335 g

Price

1085 Euro

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Date	Model	Memory	Weight	Height	Price
06 / 2024	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	16384 MB	1.3 kg	34 mm	1085 Euro
06 / 2024	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	32768 MB	440 g	37 mm	930 EUR
05 / 2024	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	32768 MB	615 g	55 mm	709 EUR
05 / 2024	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	32768 MB	1.5 kg	48 mm	979 EUR
04 / 2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	32768 MB	768 g	57 mm	1199 EUR
08 / 2023	Khadas Mind i7-1360P, Iris Xe G7 96EUs	32768 MB	438 g	20 mm	799 Euro

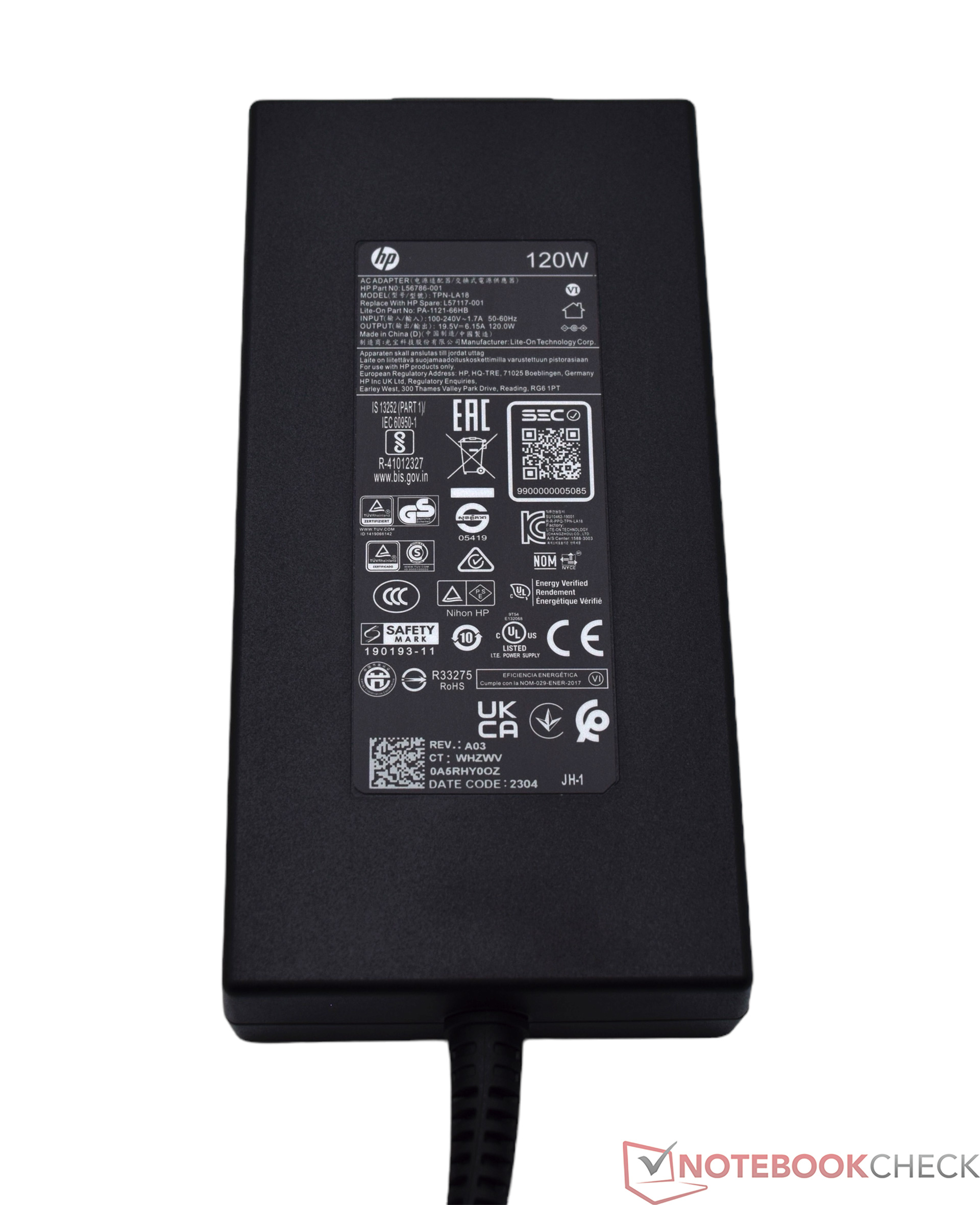

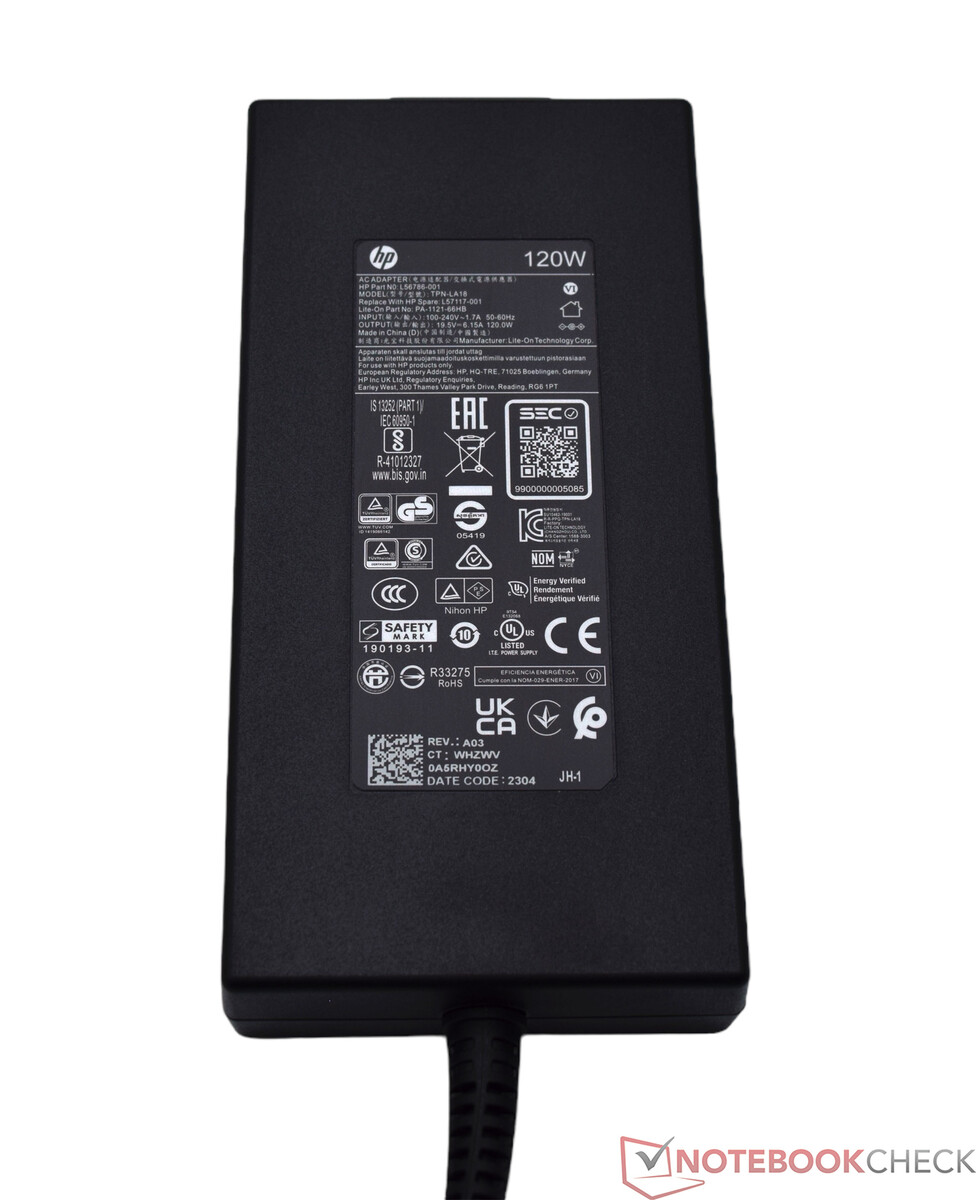

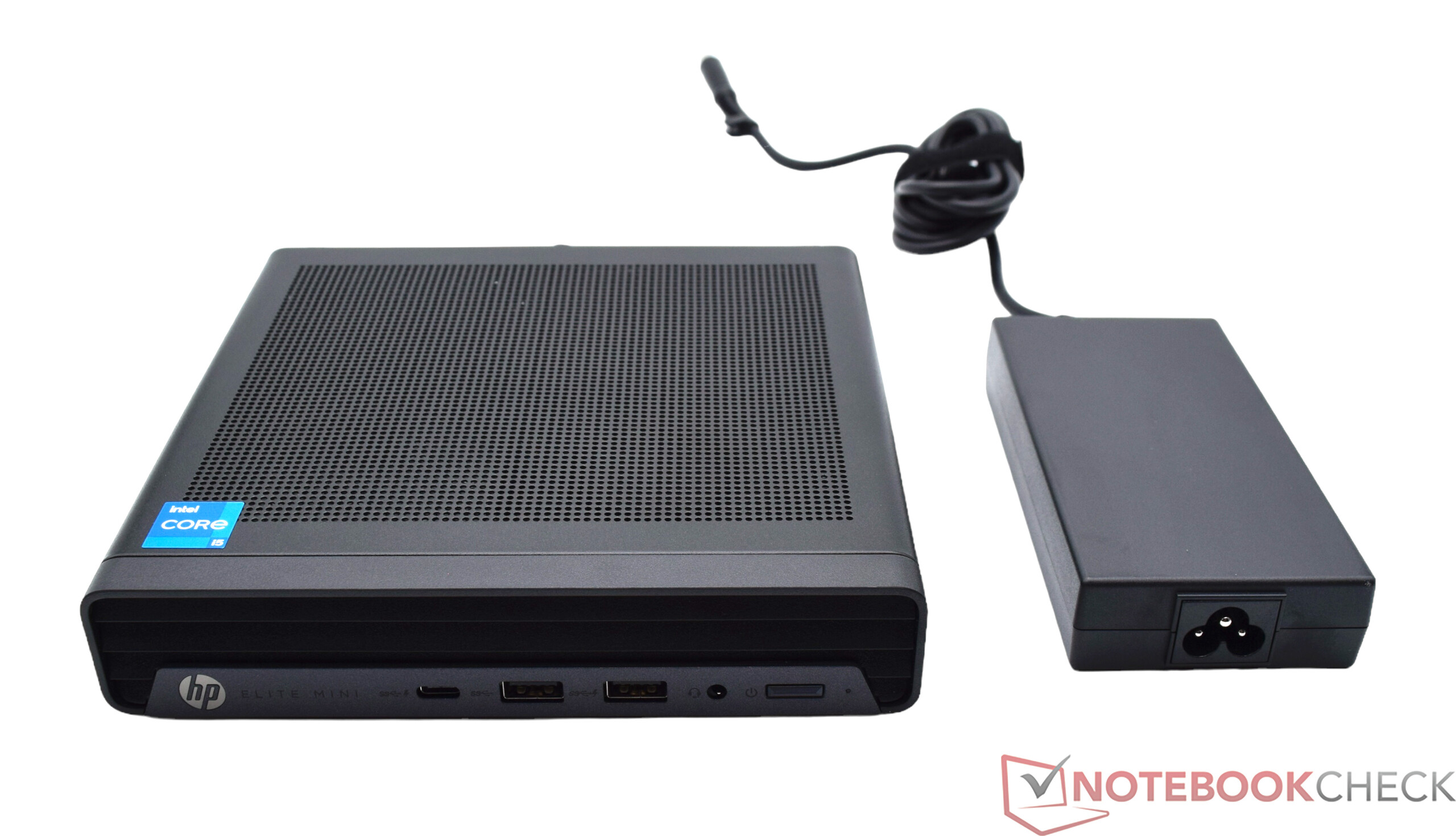

HP Elite Mini 800 G9 和电源装置（19.5 伏；6.15 安）

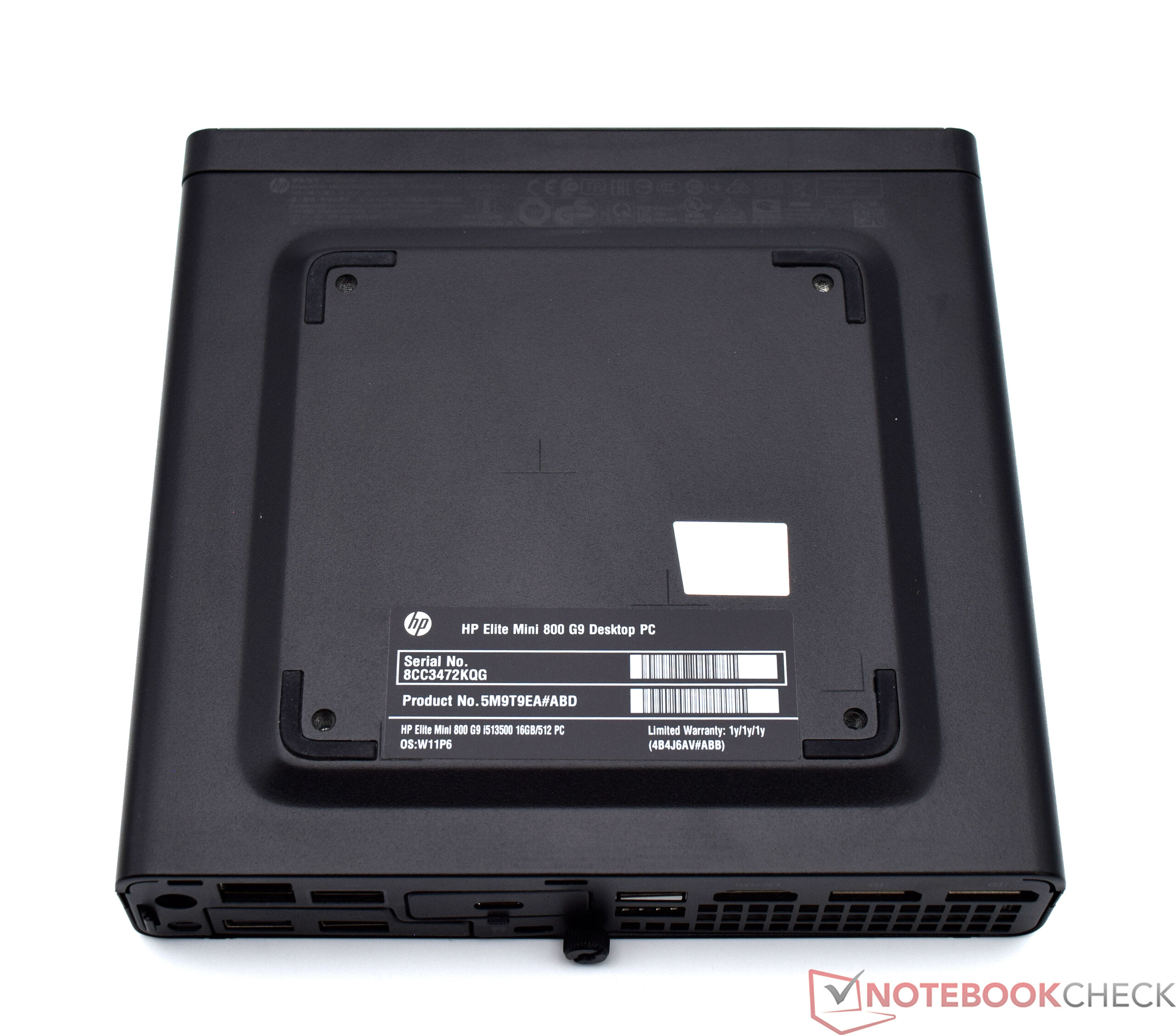

外壳 - 大量金属和模块化设计

惠普 Elite Mini 800 G9 并不是最小的设备之一，尽管它的体积非常小。微型论坛 MS-01尺寸稍大。尽管如此，其他大多数迷你 PC 都要小巧得多，也轻便得多。HP Elite Mini 800 G9 的外壳主要由金属制成。仅在正面安装了一块塑料面板，但这并不影响整体印象。做工质量很高，模块化设计在维护方面也有很大优势。

尺寸比较

Minisforum MS-01 HP Elite Mini 800 G9-5M9T9EA Acemagic F2A Minisforum Venus Series NAB9 Khadas Mind Geekom GT13 Pro DIN A4 ❌

功能 - 多个 USB 端口，但没有 USB4 或 Thunderbolt 接口

惠普 Elite Mini 800 G9 的功能基本不错。不过，我们也看到了一些可以改进的地方。外部 USB 端口的数量优于竞争对手。惠普在机身后部安装了 6 个 USB 端口，尽管前部还有 3 个。由于采用了模块化设计，制造商还可以在机身背面提供其他连接选项。其中两个 USB 端口提供 Type-C 接口，但不提供 USB4 连接，这无疑是一个值得批评的地方。有一个 HDMI 和两个 DisplayPort 接口用于图像输出。HP Elite Mini 800 G9 还提供一个 RJ45 端口。

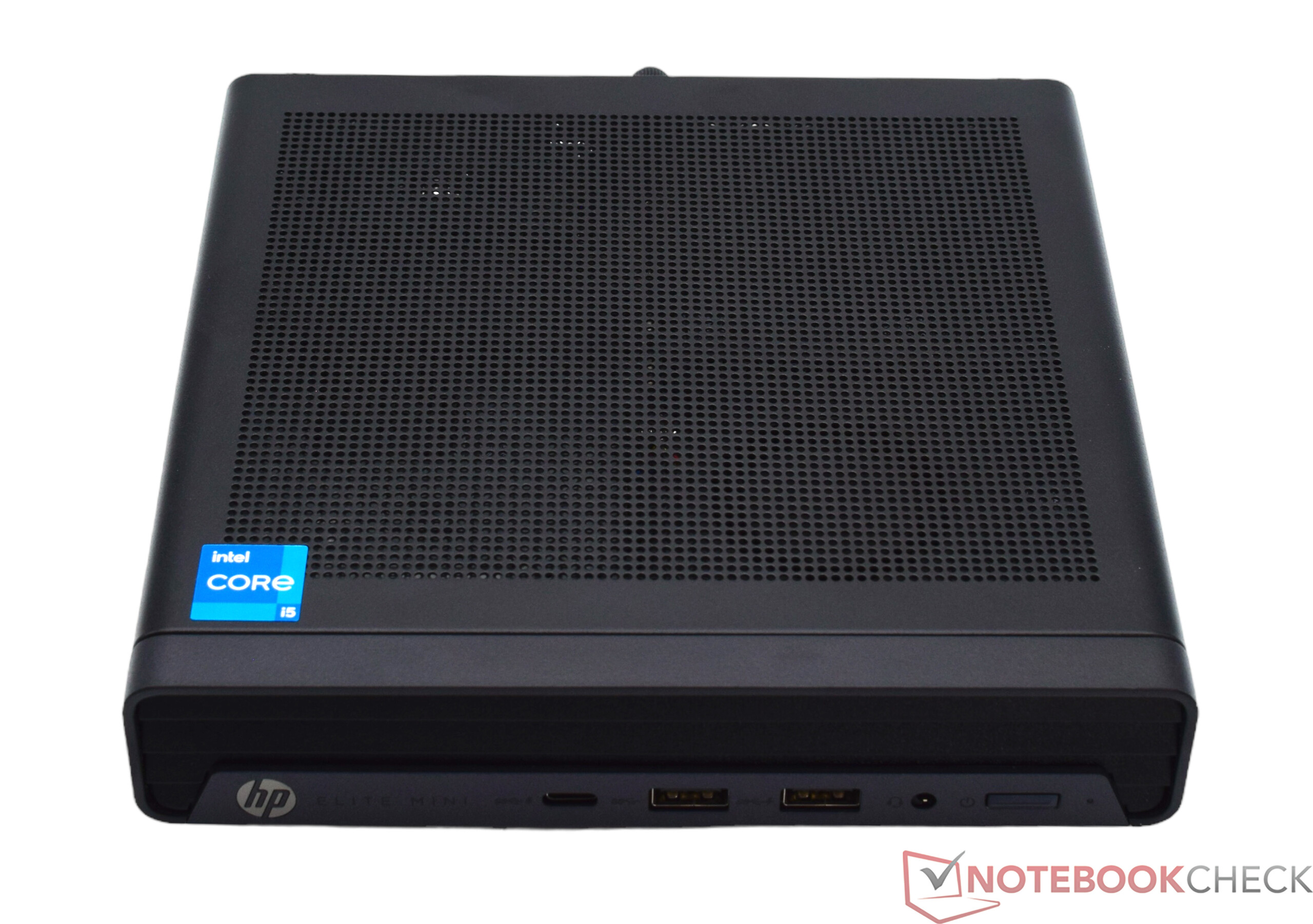

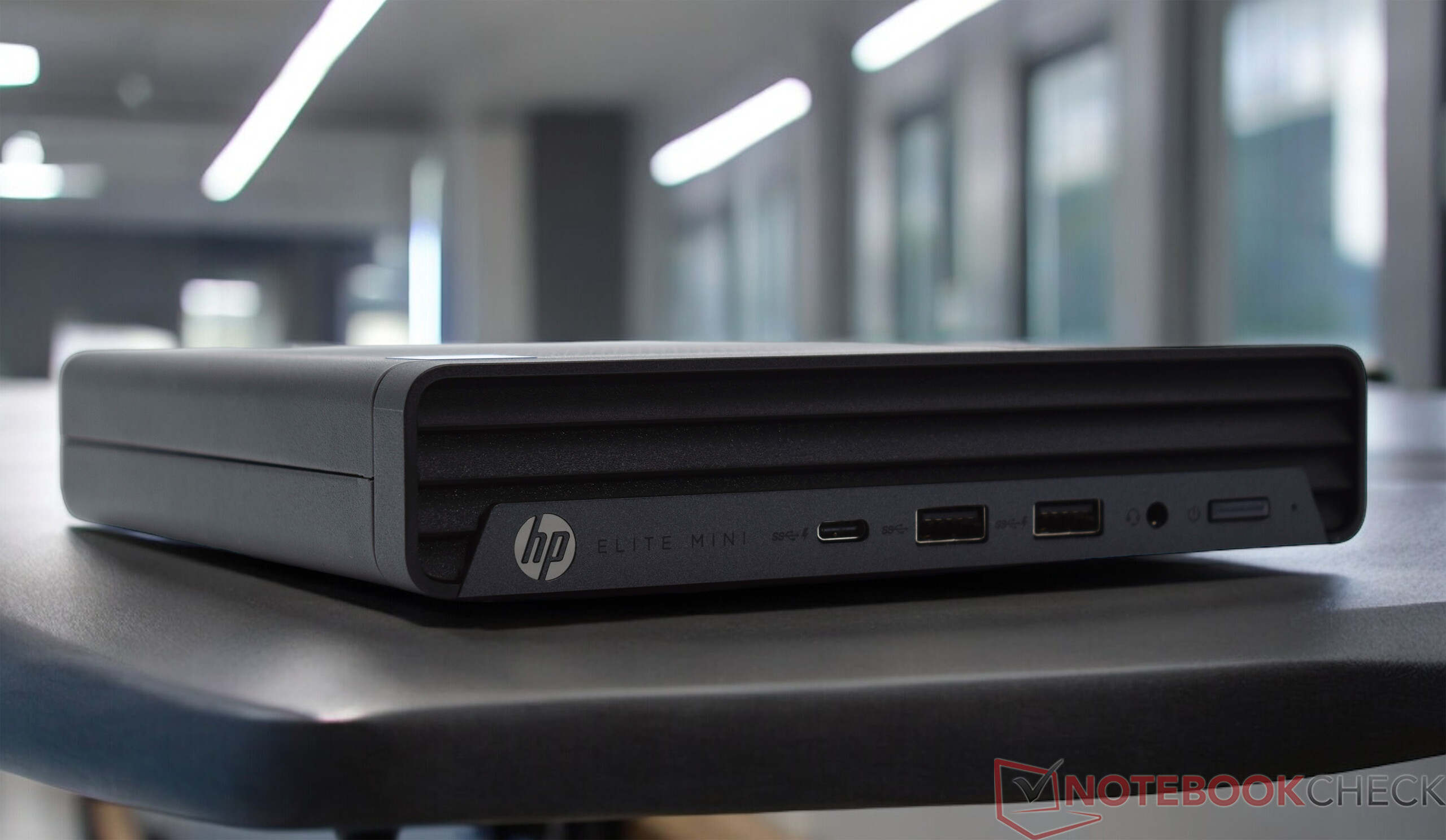

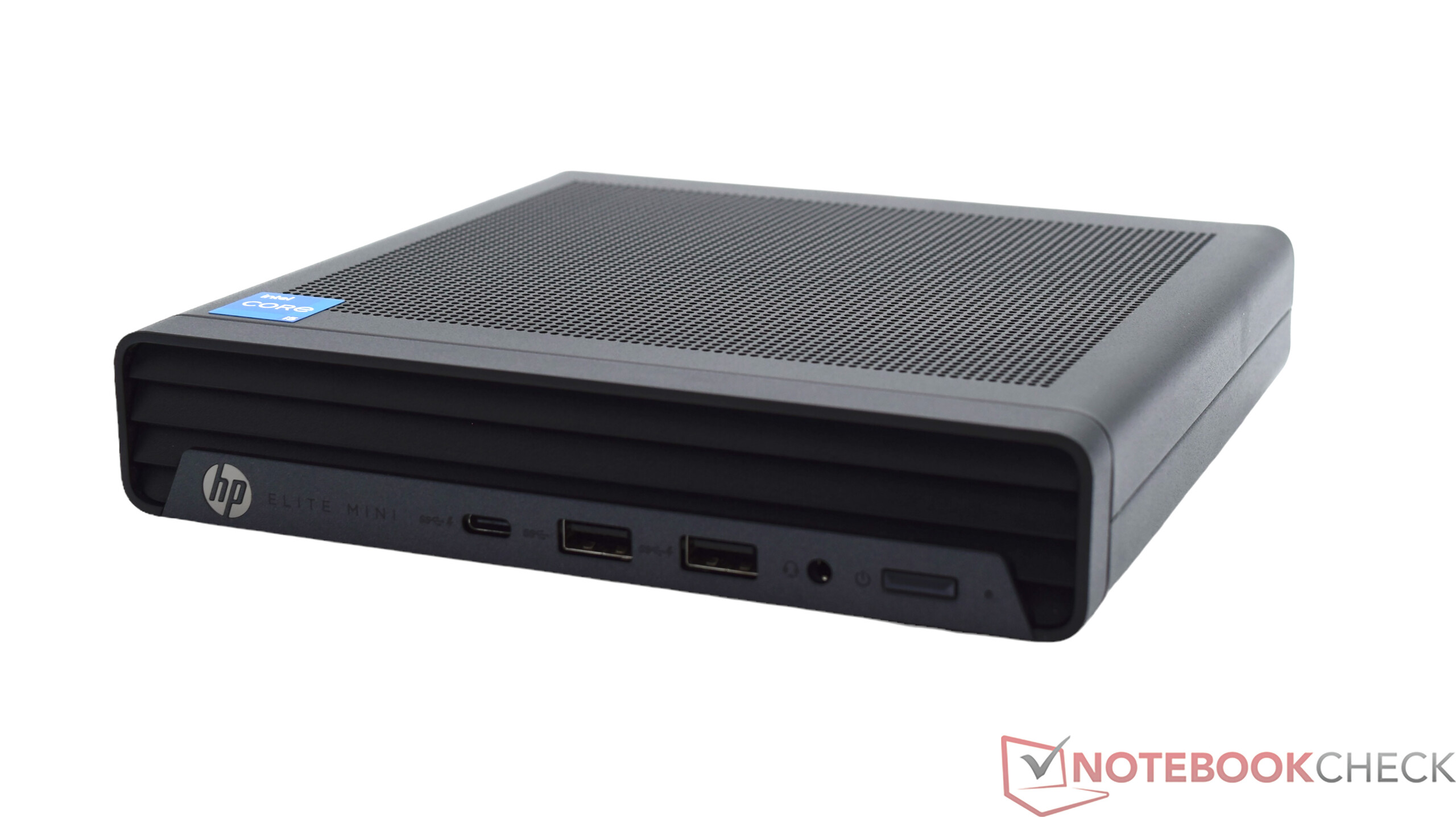

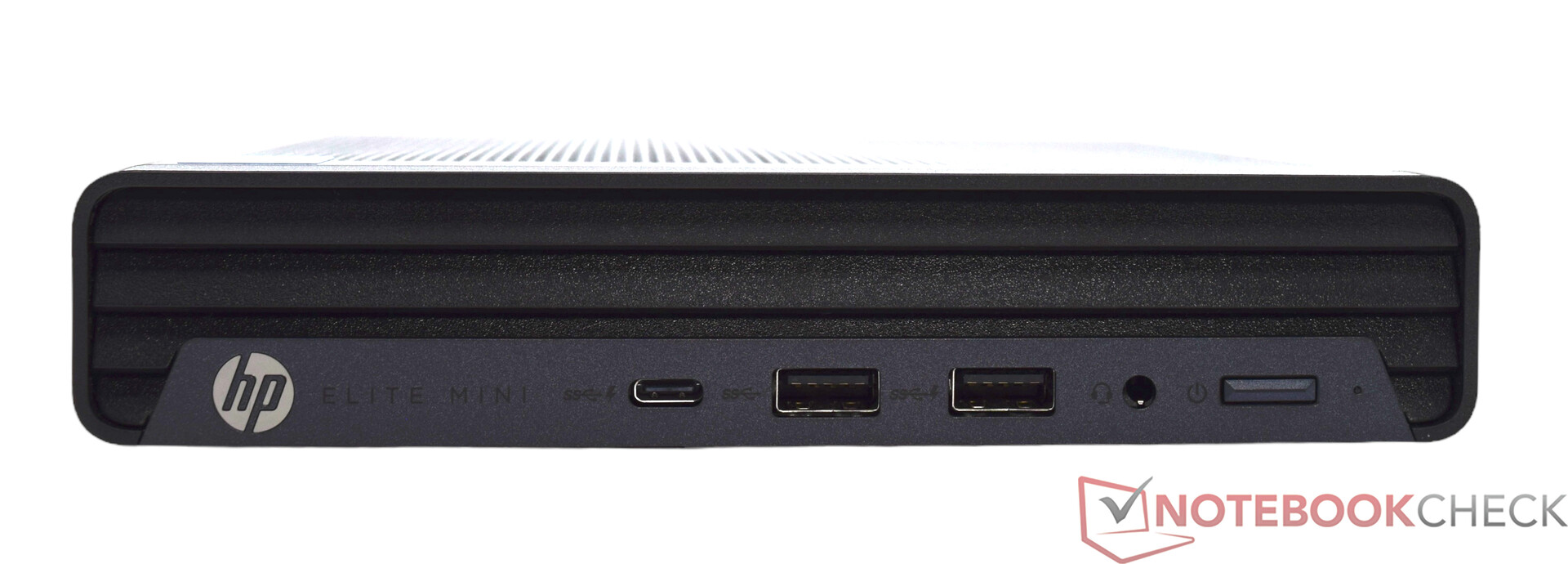

前置USB Type-C 20 Gbit/s、2x USB Type-A 10 Gbit/s、3.5 mm 音频

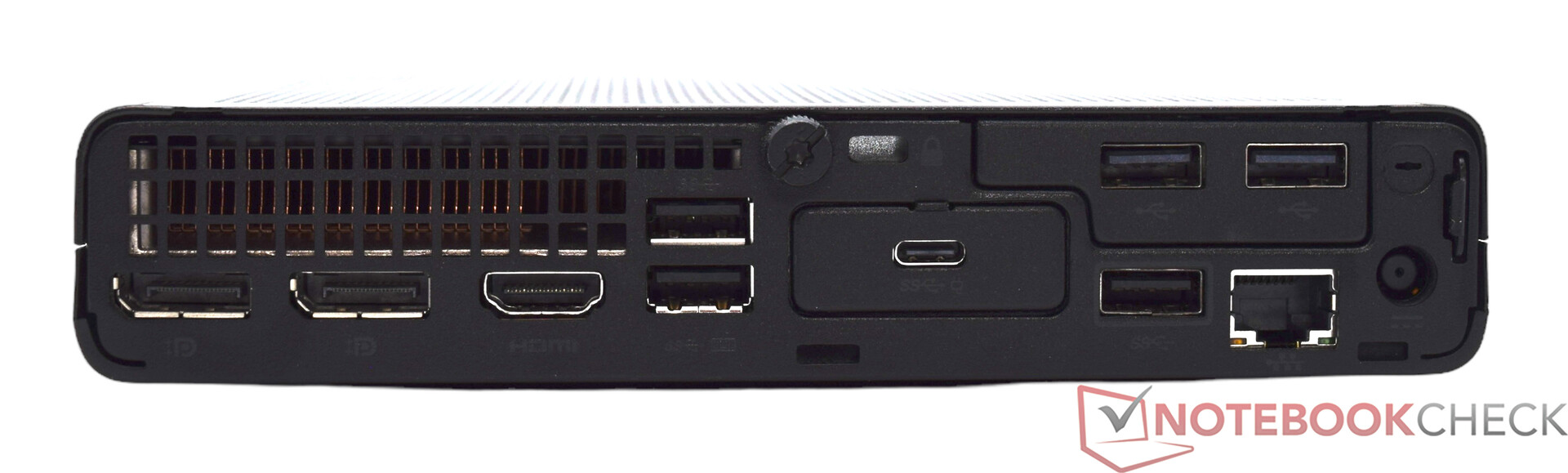

后部：2x DisplayPort 1.4、HDMI 2.1、3x USB Type-A 10 Gbit/s、2x USB Type-A 2.0、USB Type-C 10 Gbit/s、RJ45 GBit-LAN、电源接口

交流

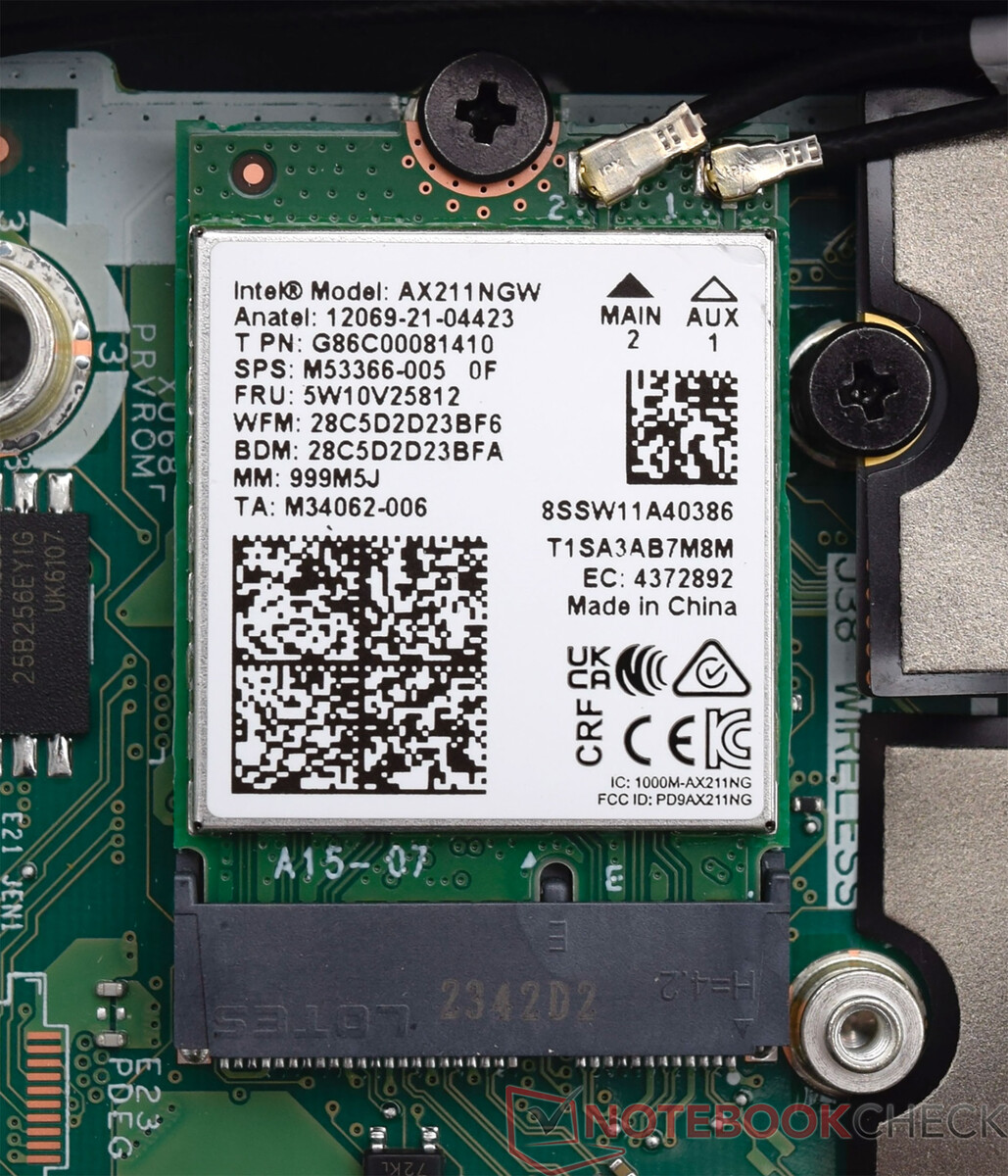

惠普在 Elite Mini 800 G9 中安装了英特尔 Wi-Fi 6E-AX211 无线模块，在我们的测试中表现出色。通过华硕 ROG Rapture GT-AXE11000 测试路由器，我们记录了 5 GHz 和 6 GHz 频段的性能。后者的数据传输速率要高得多。在满足要求的情况下，应主要使用这一频段。后部安装了一个 RJ45 插座，但只能以 Gbit 速率工作。

Networking
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +6%
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1753 (1734^min - 1765^max) MBit/s +5%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	1665 (1635^min - 1684^max) MBit/s
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1583 (1557^min - 1611^max) MBit/s -5%
Average Intel Wi-Fi 6E AX211 (700 - 1857, n=211)	1493 MBit/s -10%
Khadas Mind Intel Wi-Fi 6E AX211	1445 (1342^min - 1468^max) MBit/s -13%
Average of class Mini PC (684 - 1771, n=53, last 2 years)	1381 MBit/s -17%
iperf3 transmit AXE11000 6GHz
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (877^min - 1883^max) MBit/s +26%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +15%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1429 (1392^min - 1511^max) MBit/s +2%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	1404 (1338^min - 1435^max) MBit/s
Average Intel Wi-Fi 6E AX211 (632 - 1851, n=212)	1372 MBit/s -2%
Khadas Mind Intel Wi-Fi 6E AX211	1348 (1293^min - 1402^max) MBit/s -4%
Average of class Mini PC (394 - 1800, n=53, last 2 years)	1328 MBit/s -5%
iperf3 receive AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1771 (1719^min - 1796^max) MBit/s +91%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1398 (1261^min - 1453^max) MBit/s +51%
Average Intel Wi-Fi 6E AX211 (582 - 1890, n=238)	1379 MBit/s +49%
Khadas Mind Intel Wi-Fi 6E AX211	1059 (937^min - 1173^max) MBit/s +14%
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +1%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	927 (910^min - 944^max) MBit/s
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -10%
Minisforum Venus Series NAB9 MediaTek MT7921	503 (371^min - 687^max) MBit/s -46%
iperf3 transmit AXE11000
Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1732 (1659^min - 1839^max) MBit/s +85%
Average Intel Wi-Fi 6E AX211 (464 - 1921, n=238)	1233 MBit/s +32%
Geekom GT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1146 (846^min - 1308^max) MBit/s +22%
Khadas Mind Intel Wi-Fi 6E AX211	1108 (703^min - 1199^max) MBit/s +18%
HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211	936 (891^min - 986^max) MBit/s
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s -8%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -24%
Minisforum Venus Series NAB9 MediaTek MT7921	531 (255^min - 725^max) MBit/s -43%

HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1404 (1338-1435)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1746 (877-1883)

HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1664 (1635-1684)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1752 (1734-1765)

HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø928 (910-944)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1770 (1719-1796)

HP Elite Mini 800 G9-5M9T9EA Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø936 (891-986)

Minisforum MS-01 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1732 (1659-1839)

配件

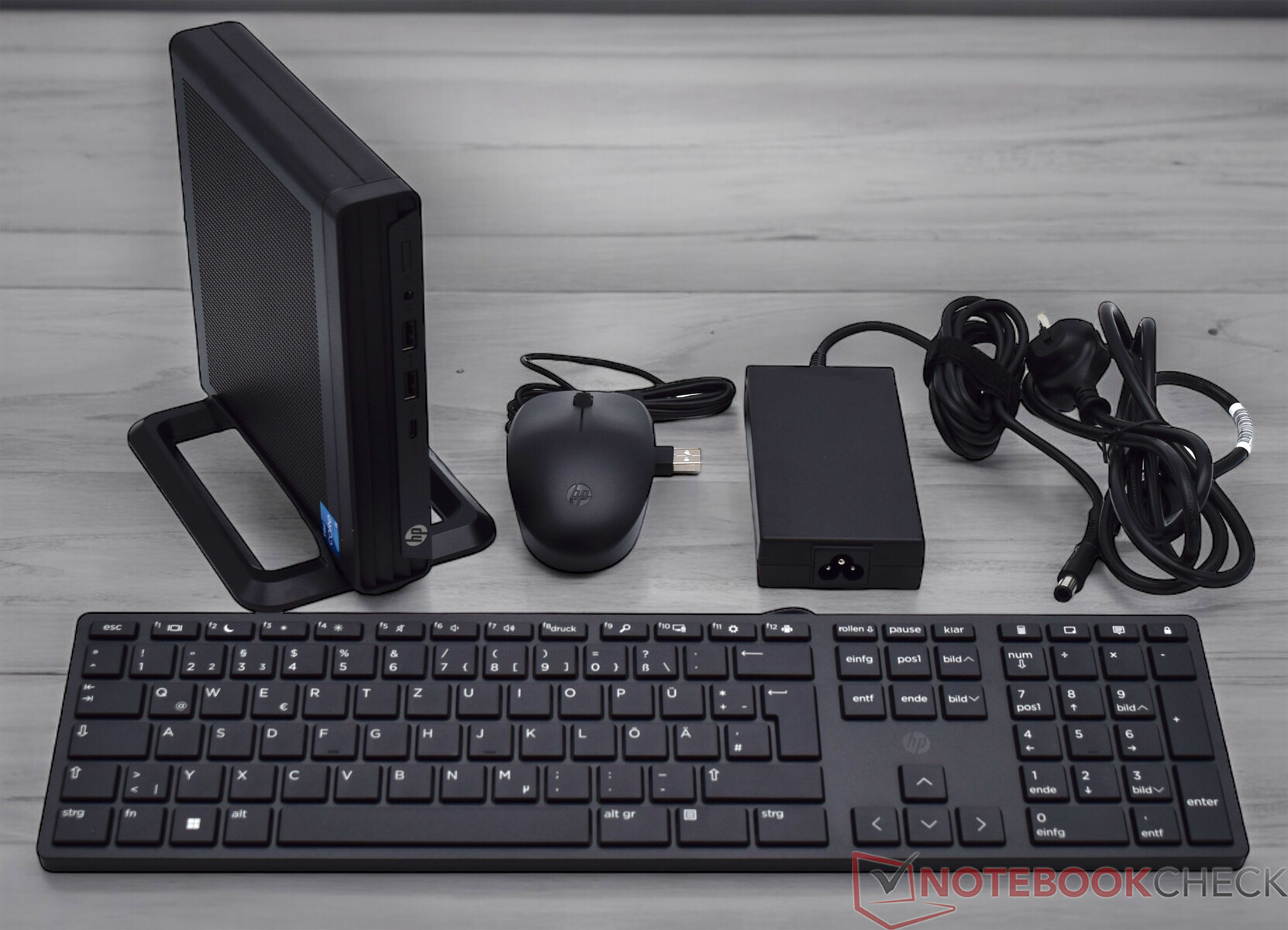

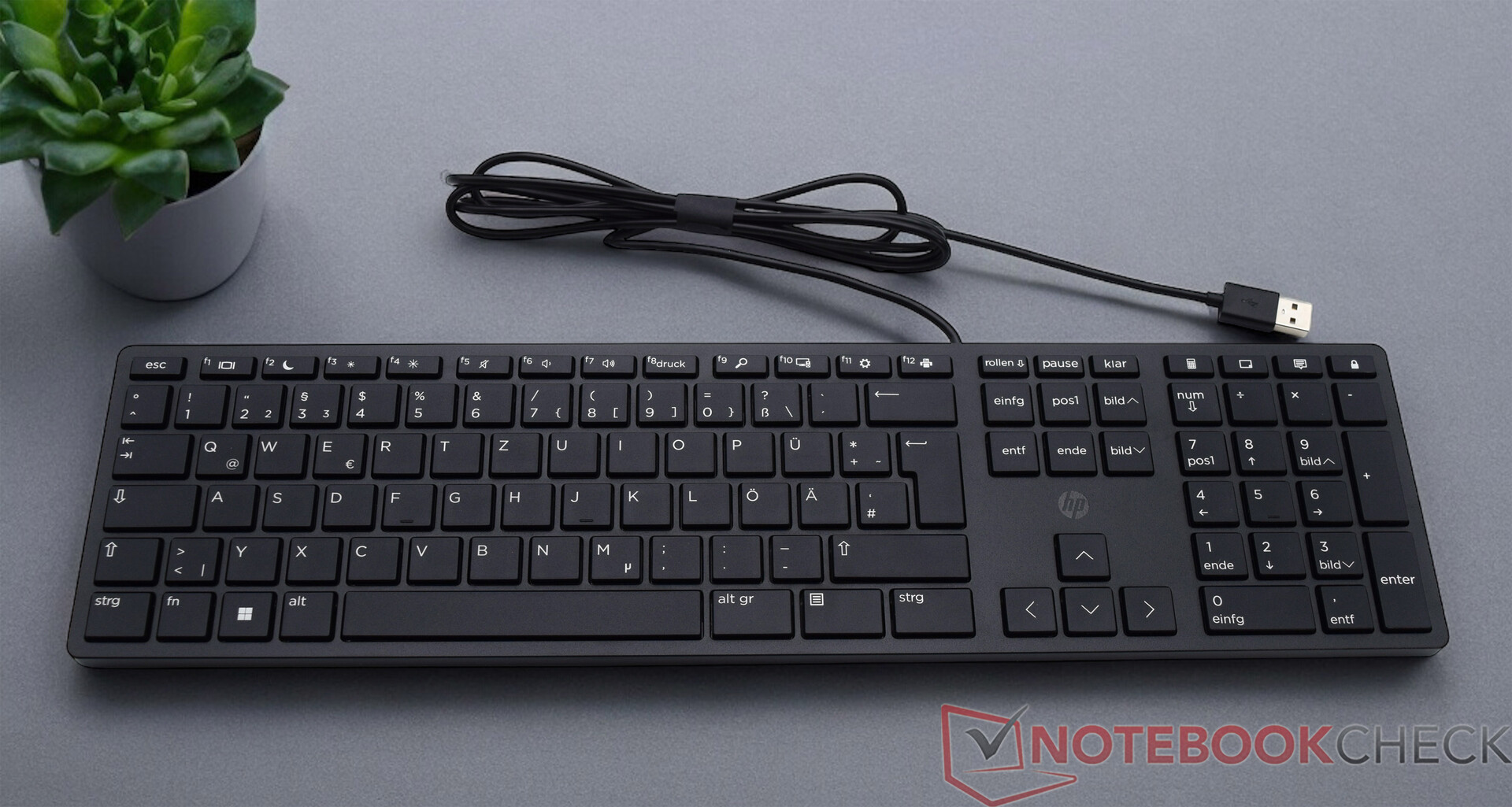

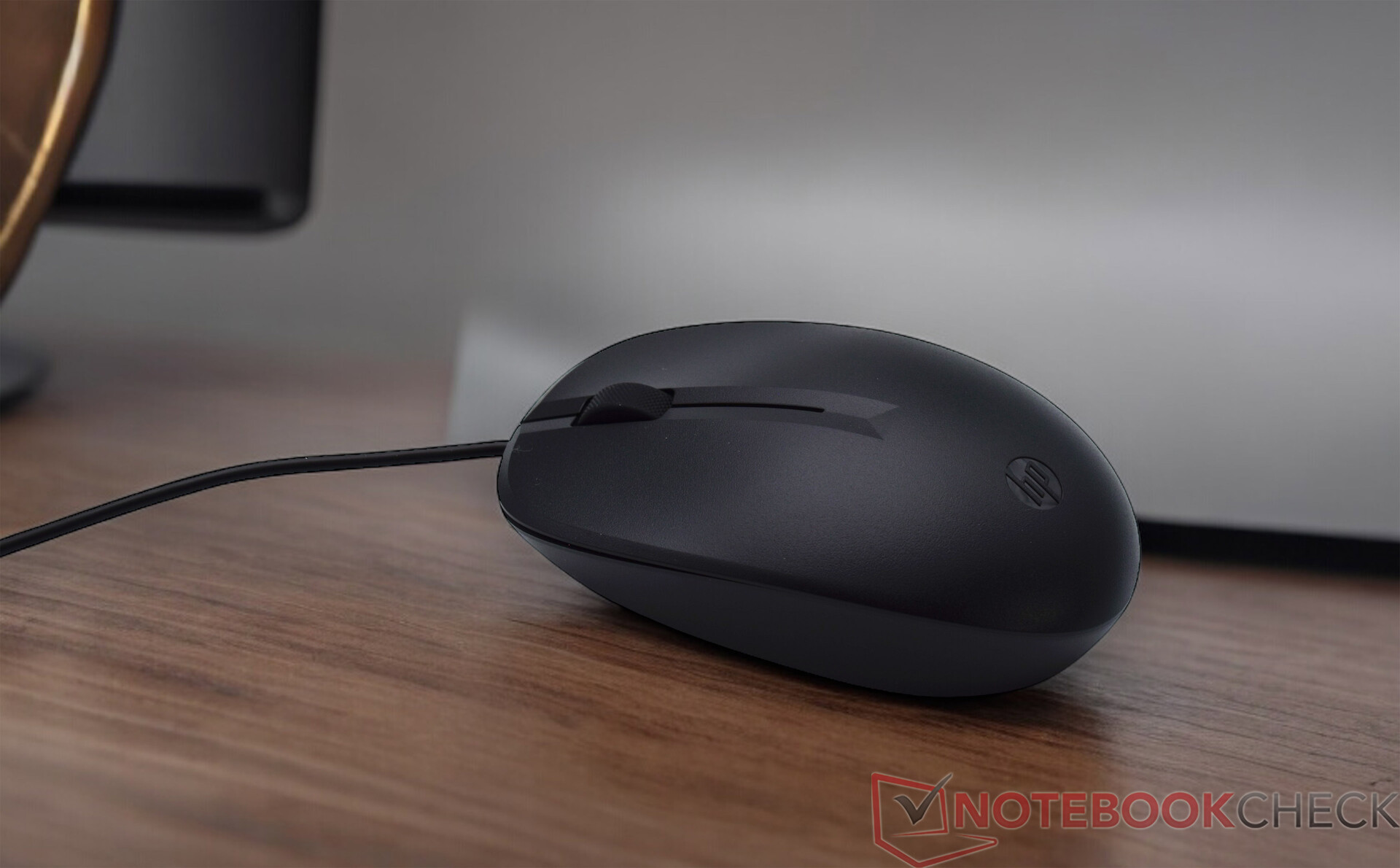

HP Elite Mini 800 G9 的供货范围包括少量基本设备，可让您立即投入使用。除了设备和相应的电源装置外，还包括一个键盘和一个鼠标。这些都是简单的有线输入设备。

维护

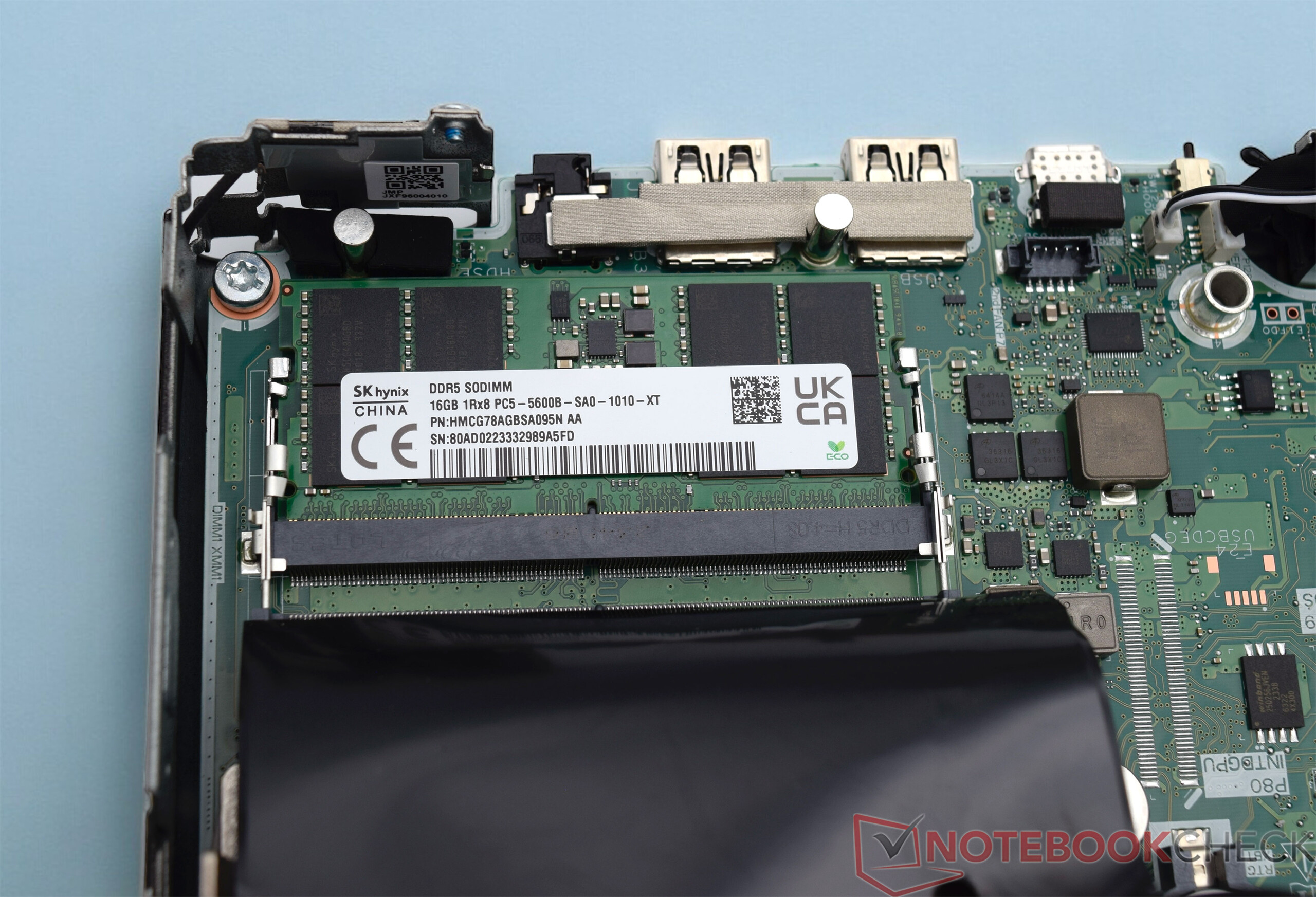

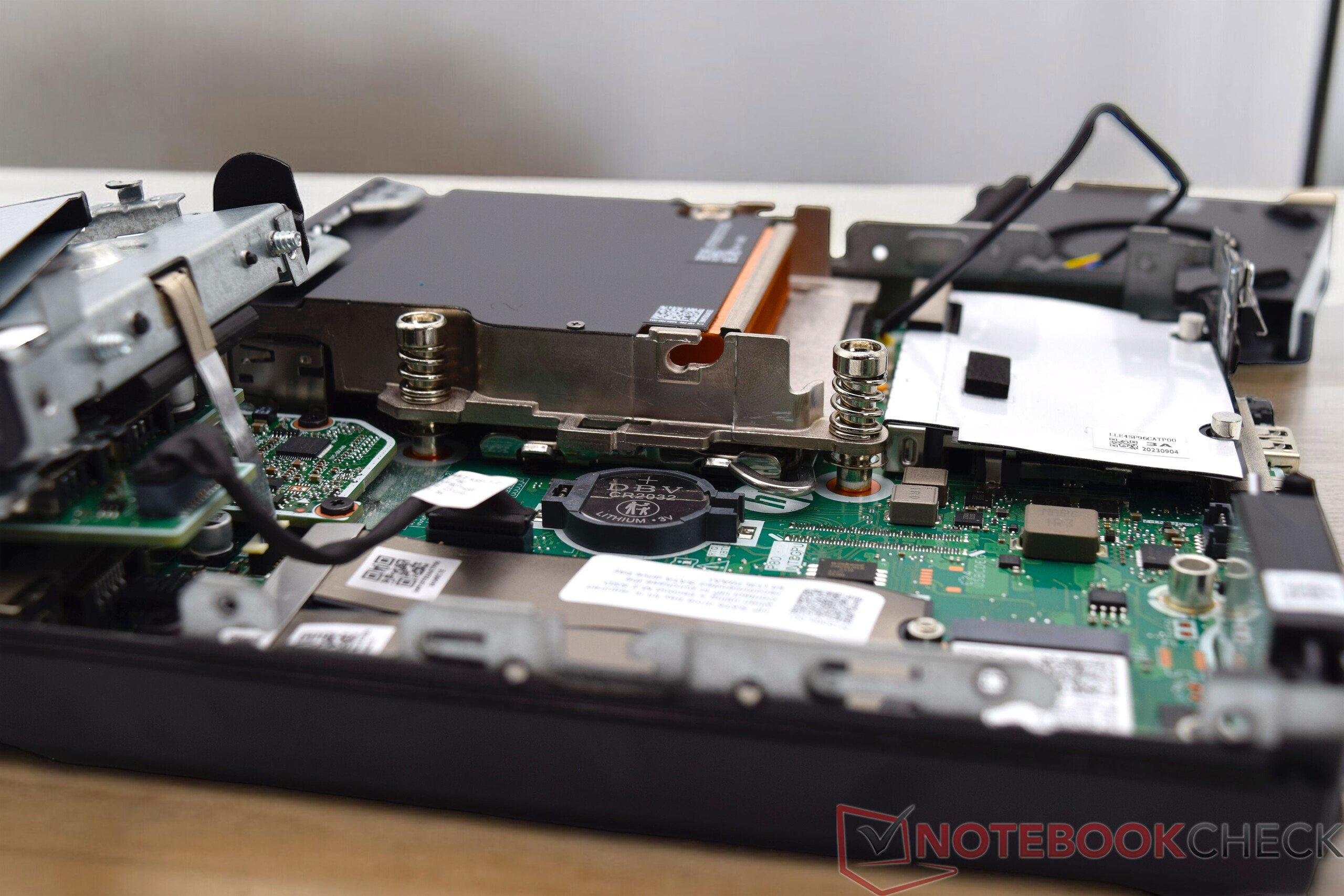

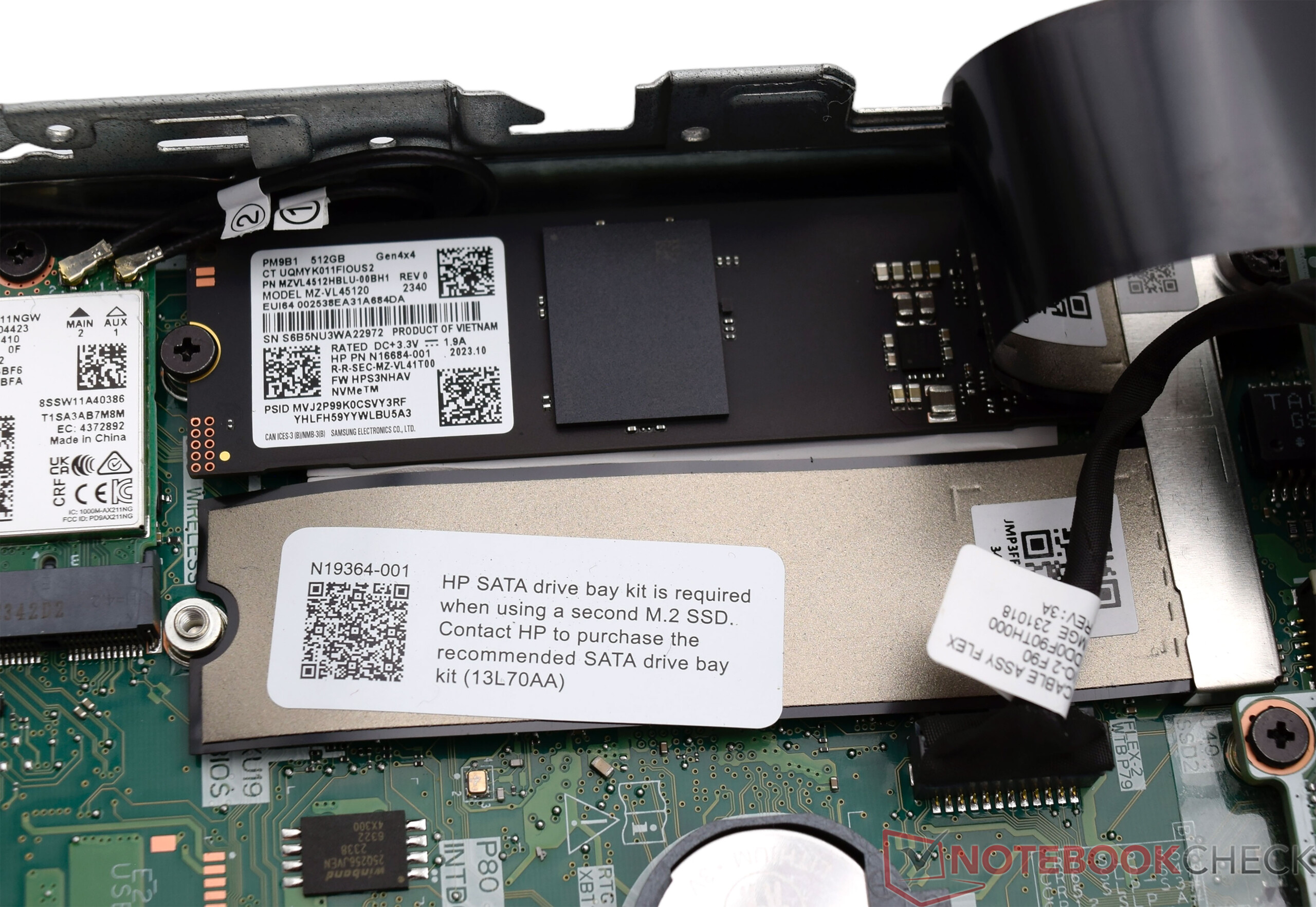

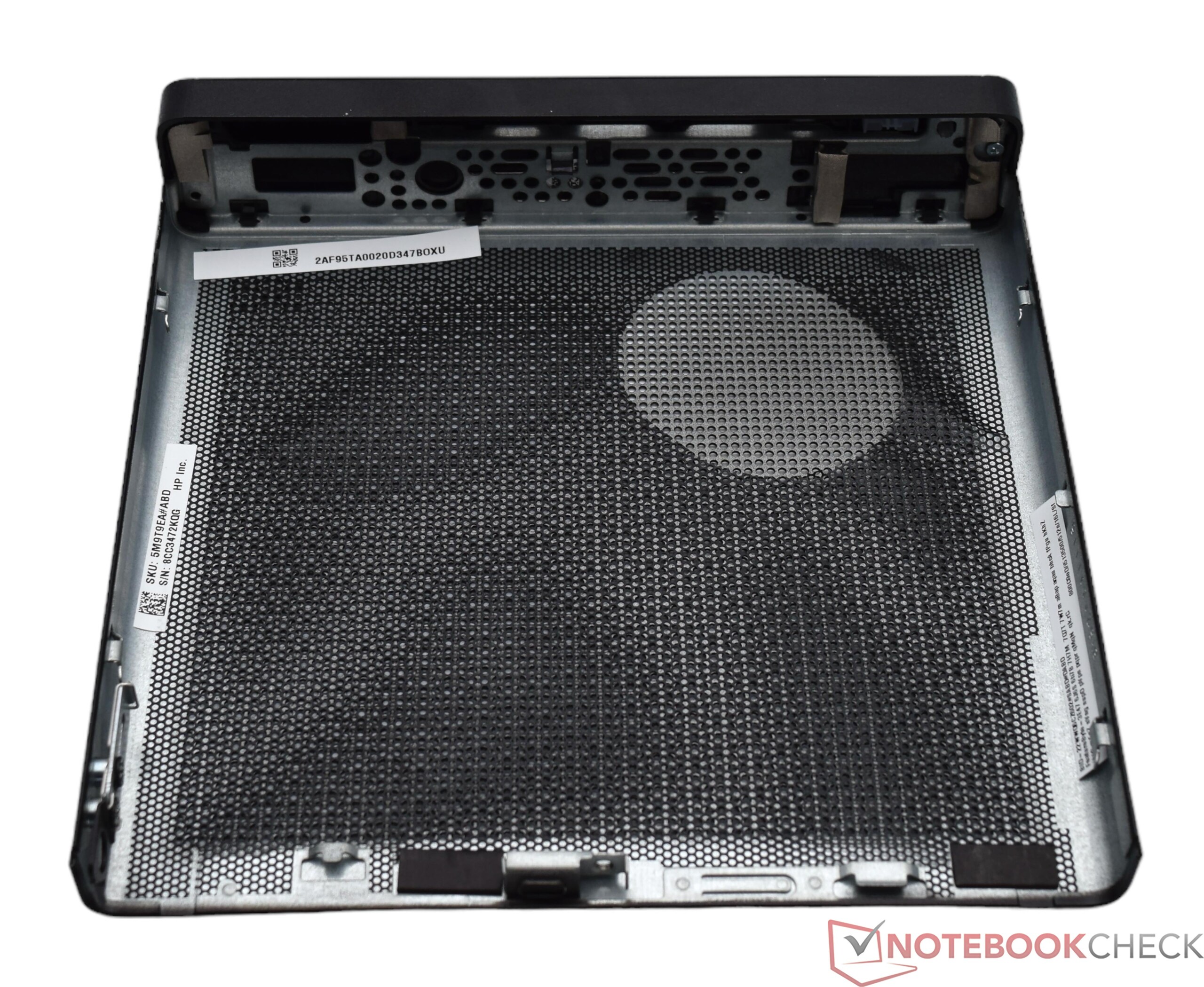

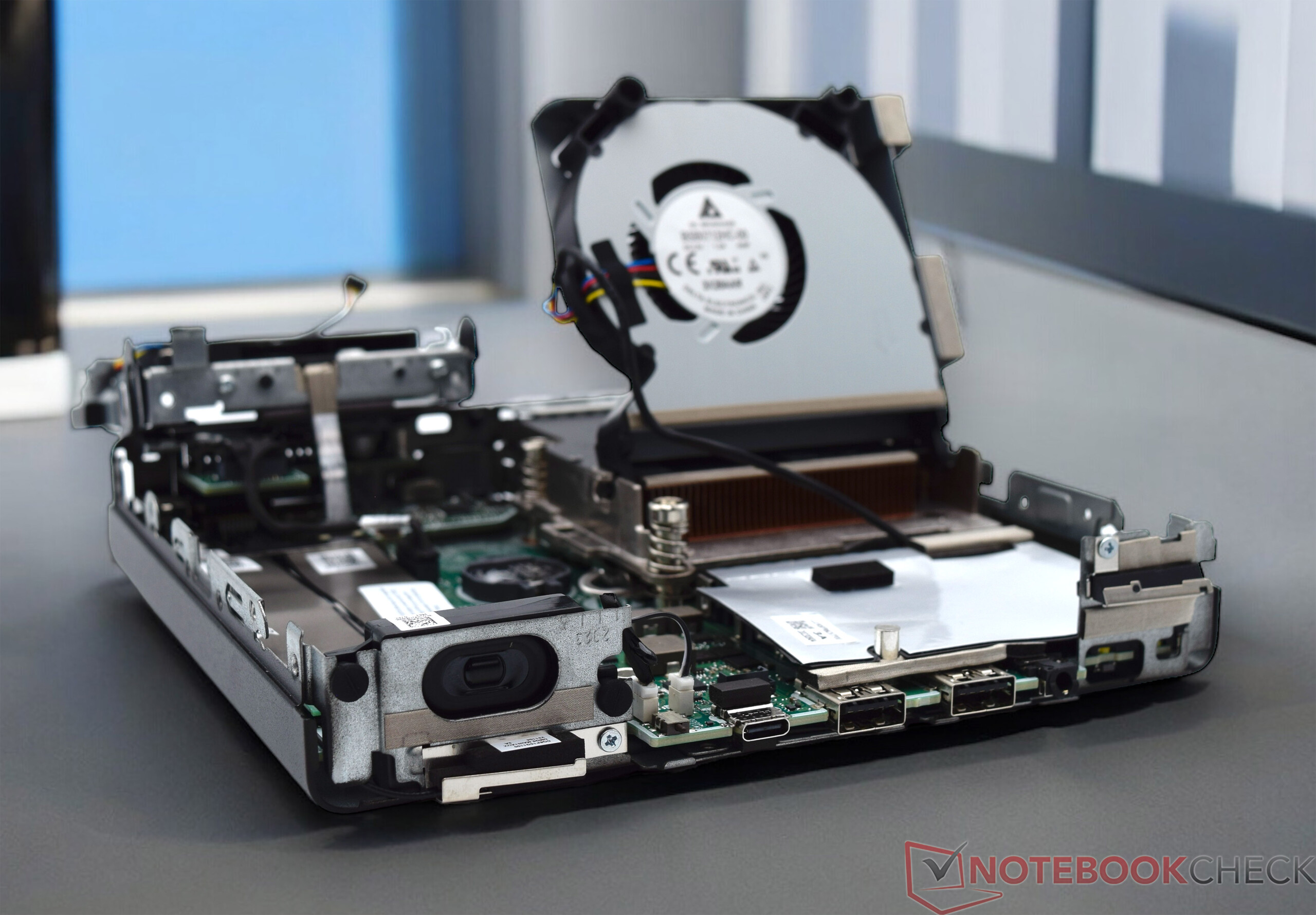

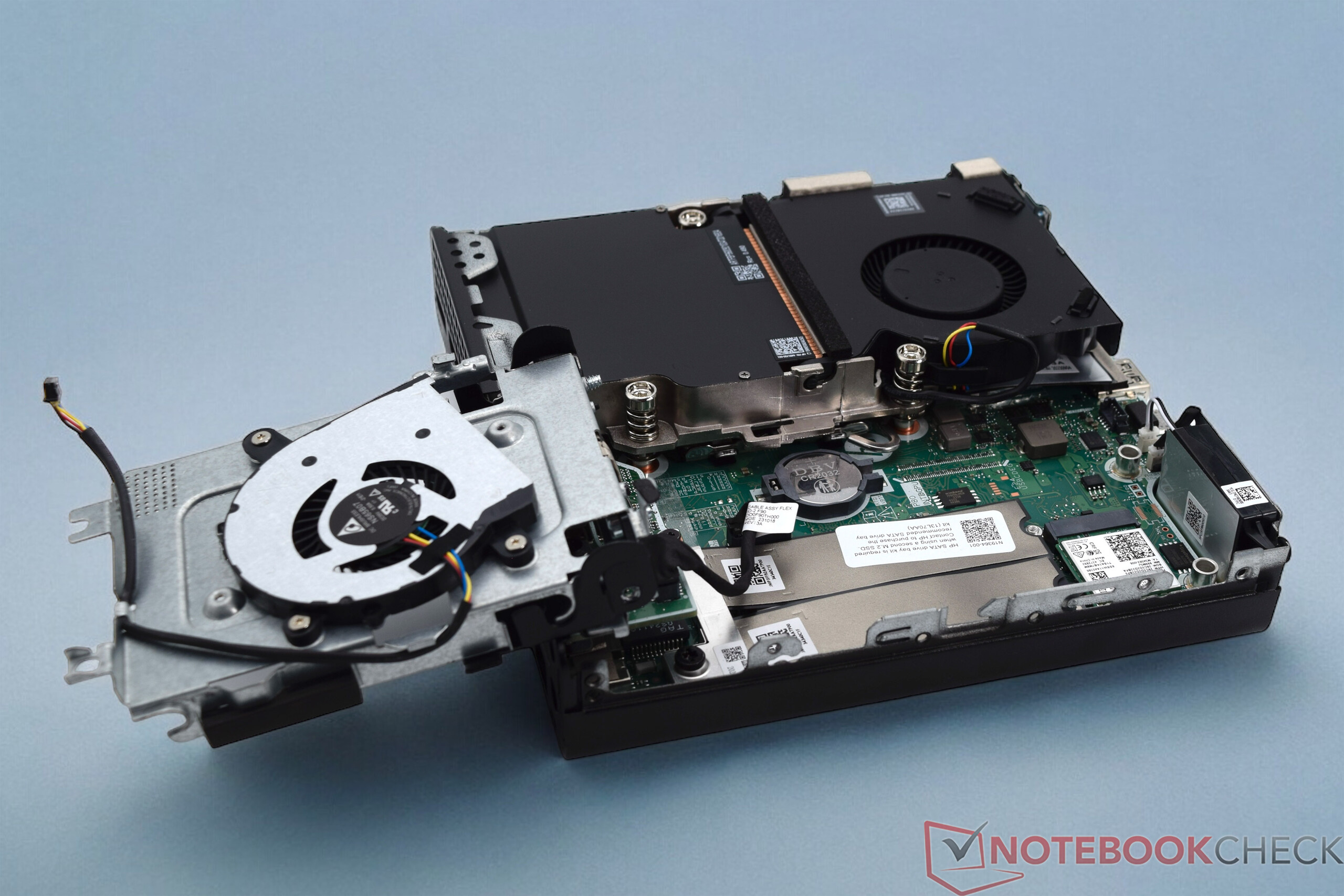

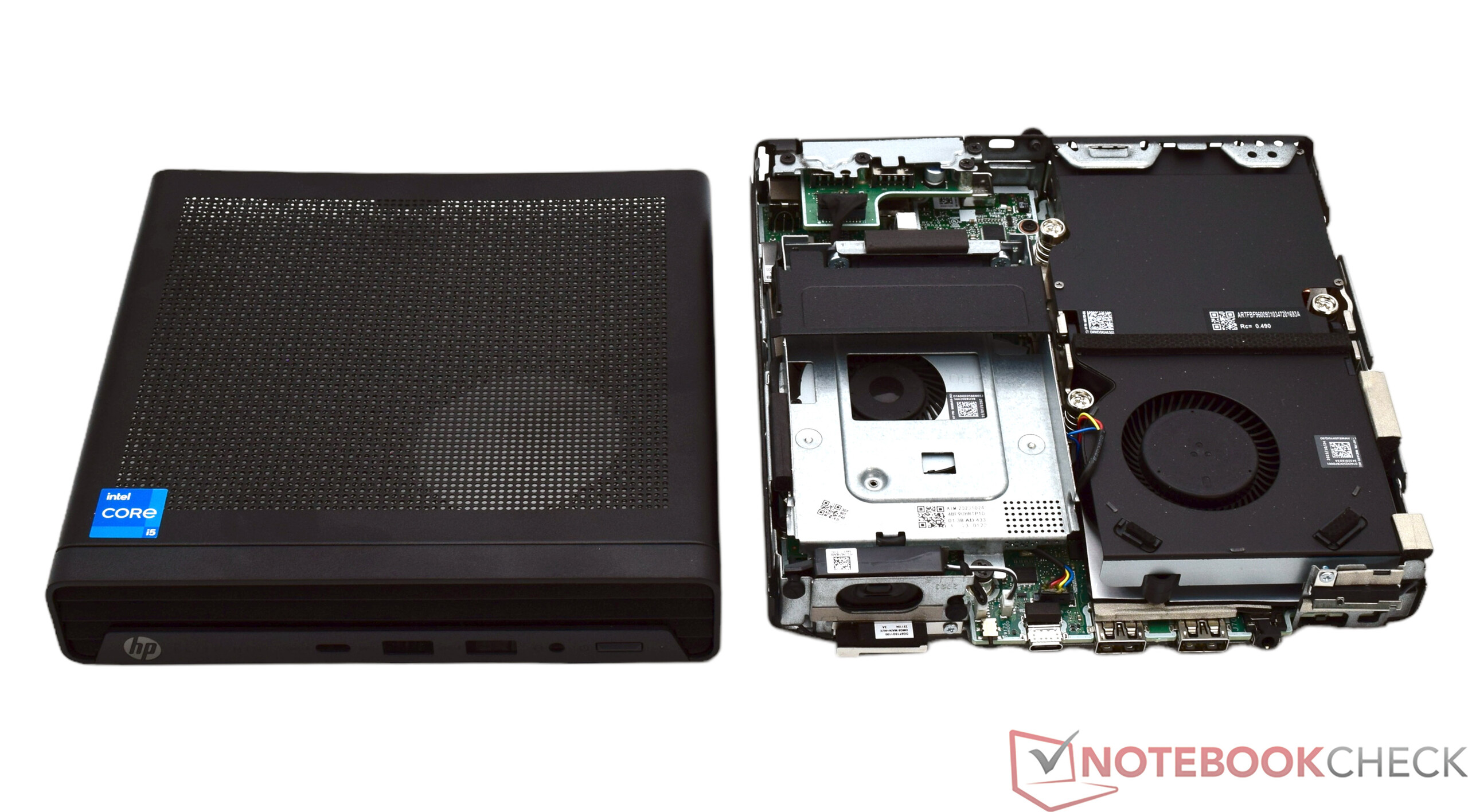

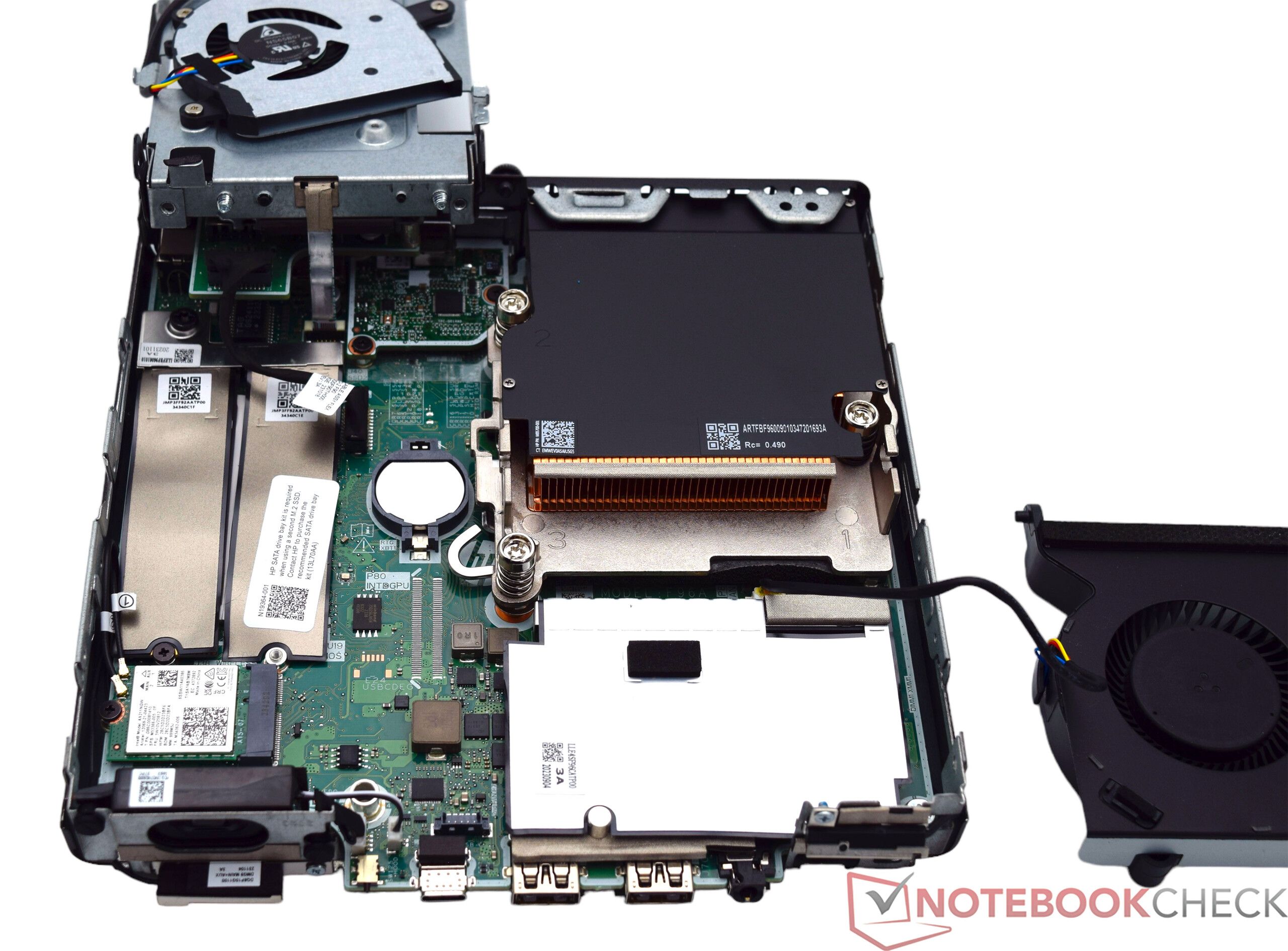

惠普销售的 Elite Mini 800 G9 迷你电脑是预配置的，这意味着不一定要打开设备。不过，打开过程非常简单，甚至无需工具即可完成。背面有一个滚花螺丝，用于固定上机壳盖。松开后，盖子可以向前推，然后取下。内部布局整洁，结构合理。模块化设计也值得强调，不过确实需要使用工具才能进入大容量存储设备的插槽等。在我们的测试样品中，总共可以安装三个大容量存储设备（2 个 M.2 SSD、1 个 2.5 英寸）。同时，内存的存取也更加方便：您只需翻转 CPU 风扇即可。我们的测试样品有两个 SO-DIMM 插槽，其中一个还是免费的。

模块化设计也使清洁两个风扇变得更加容易。值得一提的是，Elite Mini 800 G9 的 CPU 可以拆卸，因为它采用了英特尔酷睿 i5-13500是传统的台式机 CPU，安装在 LGA1700 插座上。

可持续性

设备和随附配件都装在一个简单的纸箱里。不过，单个部件还配有一个塑料盖，当然可以在可持续发展过程中加以保存。尽管如此，惠普还是为 Elite Mini 800 G9 加分不少，因为它采用了模块化设计，可以进行小规模维修。制造商本身也通过惠普备件商店提供一些备件。当我们直接询问生产商时，他们也证实在设备生产过程中使用了海洋塑料，否则这些塑料就会流入海洋。此外，还使用了回收金属和创新的回收原材料，如使用过的烹调油、渔网和咖啡渣。这一点在 "蓝色天使"、"EPEAT "或 "TCO "等外部合作伙伴的认证中都有所体现。

性能 - 嵌入式英特尔酷睿 i5-13500

HP Elite Mini 800 G9 是一款适用于多种任务的小型 PC。这款迷你电脑配置了英特尔酷睿 i5-13500，在价格和性能之间实现了很好的折中。此外，惠普 Elite Mini 800 G9 也有配备较早的 Alder Lake 处理器的机型，价格略低。内存和固态硬盘可以轻松升级，但在我们的测试配置中为启动提供了坚实的基础。

测试条件

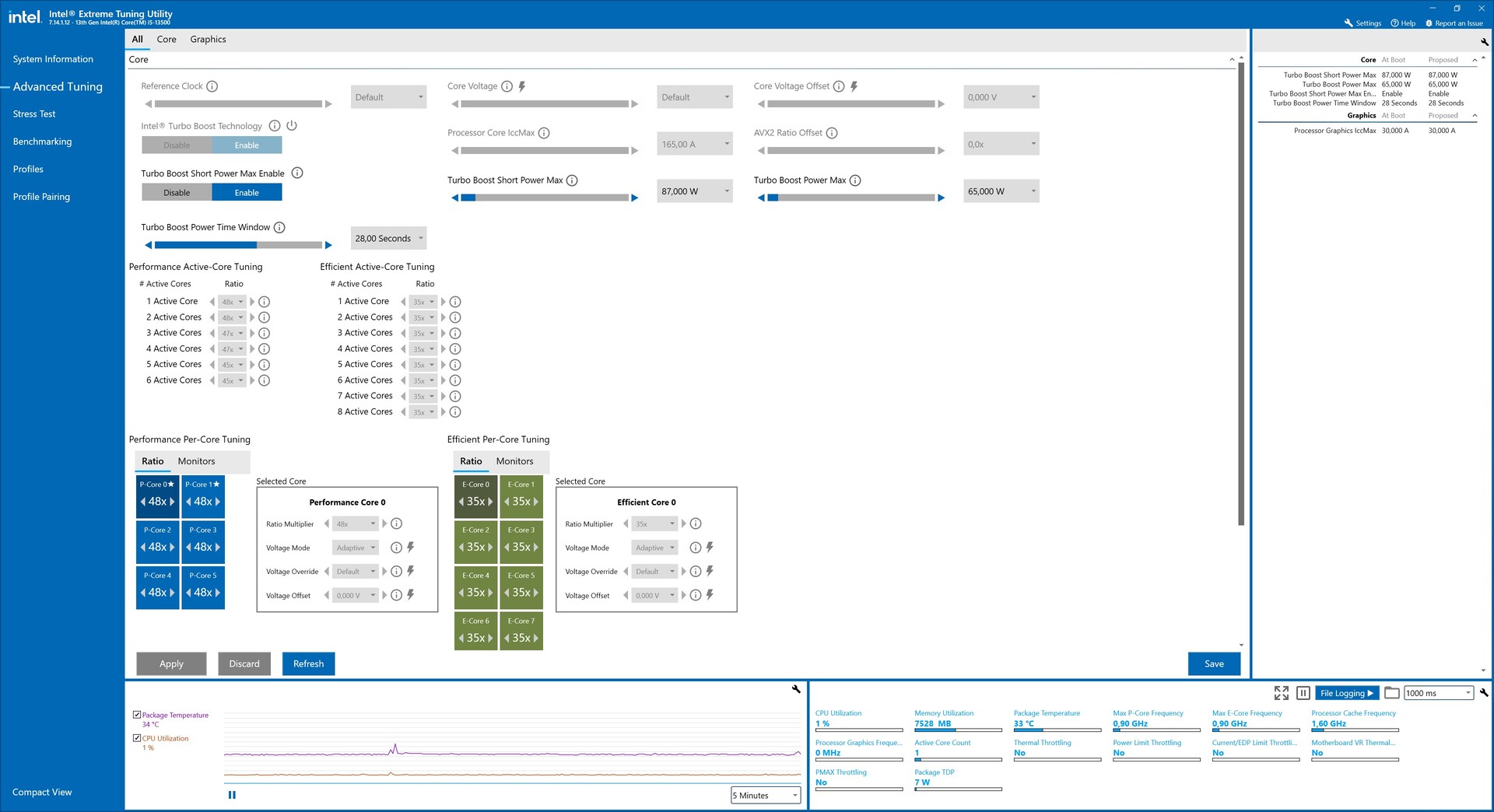

我们使用 "惠普优化 "能源配置文件对惠普 Elite Mini 800 G9 进行所有性能测试。惠普公司本身并不提供定制系统性能的其他选项。处理器的功率限制可通过 XTU（Intel Extreme Tuning Utility）工具进行调整。不过，我们不建议提高该值。这是因为功耗过高，而电源装置并非为此而设计。

处理器

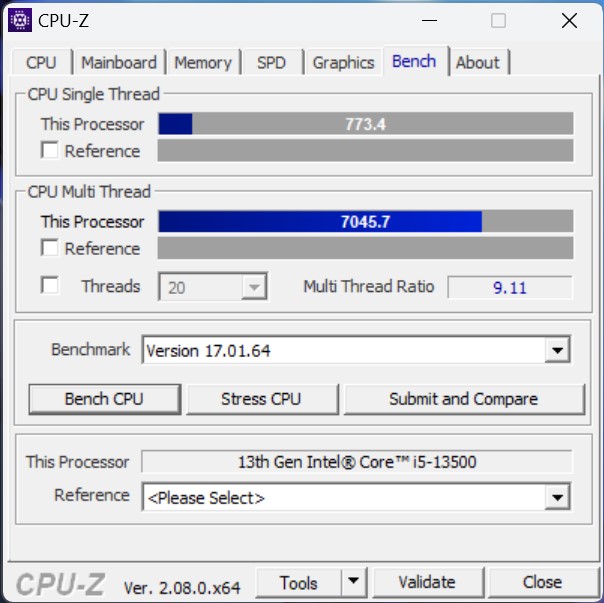

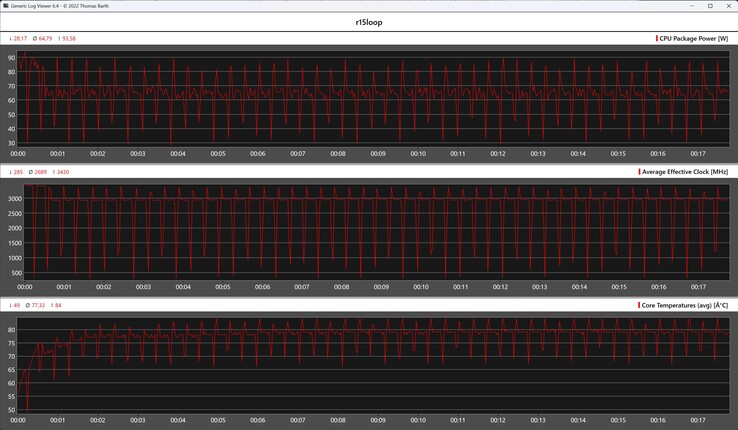

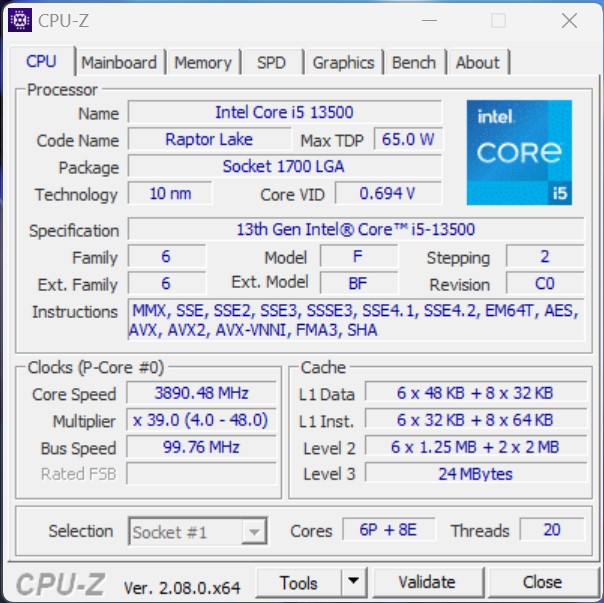

HP Elite Mini 800 G9 的计算能力由英特尔酷睿 i5-13500处理器。与其他大多数迷你电脑不同，惠普在其设备中没有使用笔记本电脑技术，而是采用了完全插槽式处理器，也可以拆卸和更换。不过，惠普限制了英特尔酷睿 i5-13500 的功耗。根据英特尔的规格，该处理器的最大功耗高达 154 瓦。由于设计紧凑，惠普将功耗降至 87 瓦，与竞争对手相比略高。在性能比较中，英特尔酷睿 i5-13500 显示出卓越的性能，可与英特尔酷睿 i9-12900HK的性能相当。性能对比还显示，各种迷你 PC 之间的性能差异并不明显。偶尔 Acemagic F2A与英特尔酷睿至尊 7 155H在某些单项测试中表现不佳。

有关进一步的比较和基准测试，请参阅我们的 CPU 对比表.

Performance Rating - Percent
Minisforum MS-01 Intel Core i9-13900H	55.2 pt
Acemagic F2A Intel Core Ultra 7 155H	54.5 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK	54.4 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	53.4 pt
Geekom GT13 Pro Intel Core i9-13900H	53 pt
Khadas Mind Intel Core i7-1360P	50.6 pt

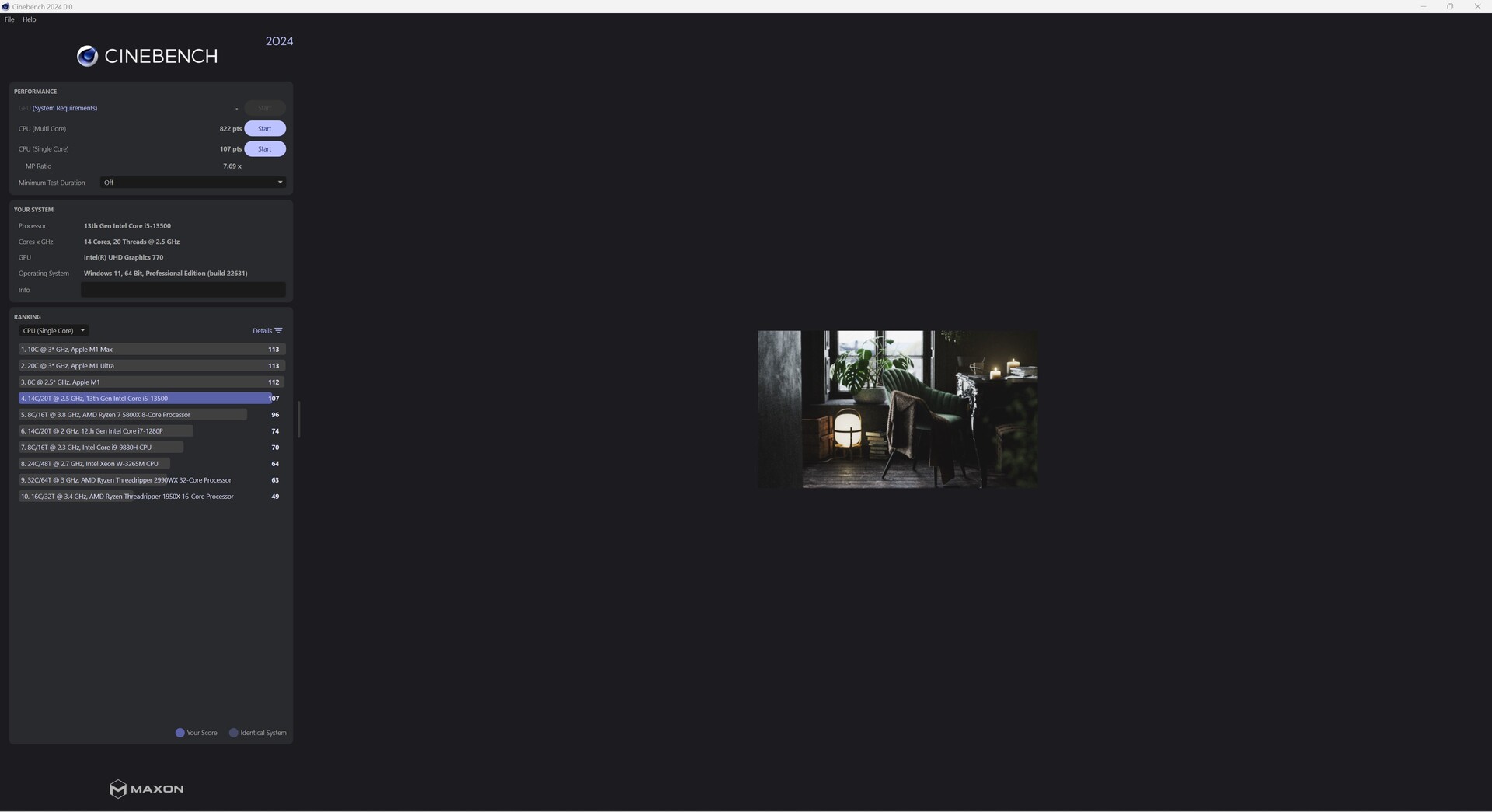

Cinebench 2024
CPU Multi Core
Acemagic F2A Intel Core Ultra 7 155H	1022 Points +24%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	822 Points
Minisforum MS-01 Intel Core i9-13900H	818 Points 0%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	746 Points -9%
Geekom GT13 Pro Intel Core i9-13900H	703 Points -14%
Khadas Mind Intel Core i7-1360P	560 Points -32%
CPU Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	114 Points +7%
Khadas Mind Intel Core i7-1360P	113 Points +6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	107 Points
Acemagic F2A Intel Core Ultra 7 155H	106 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	104 Points -3%
Minisforum MS-01 Intel Core i9-13900H	101 Points -6%

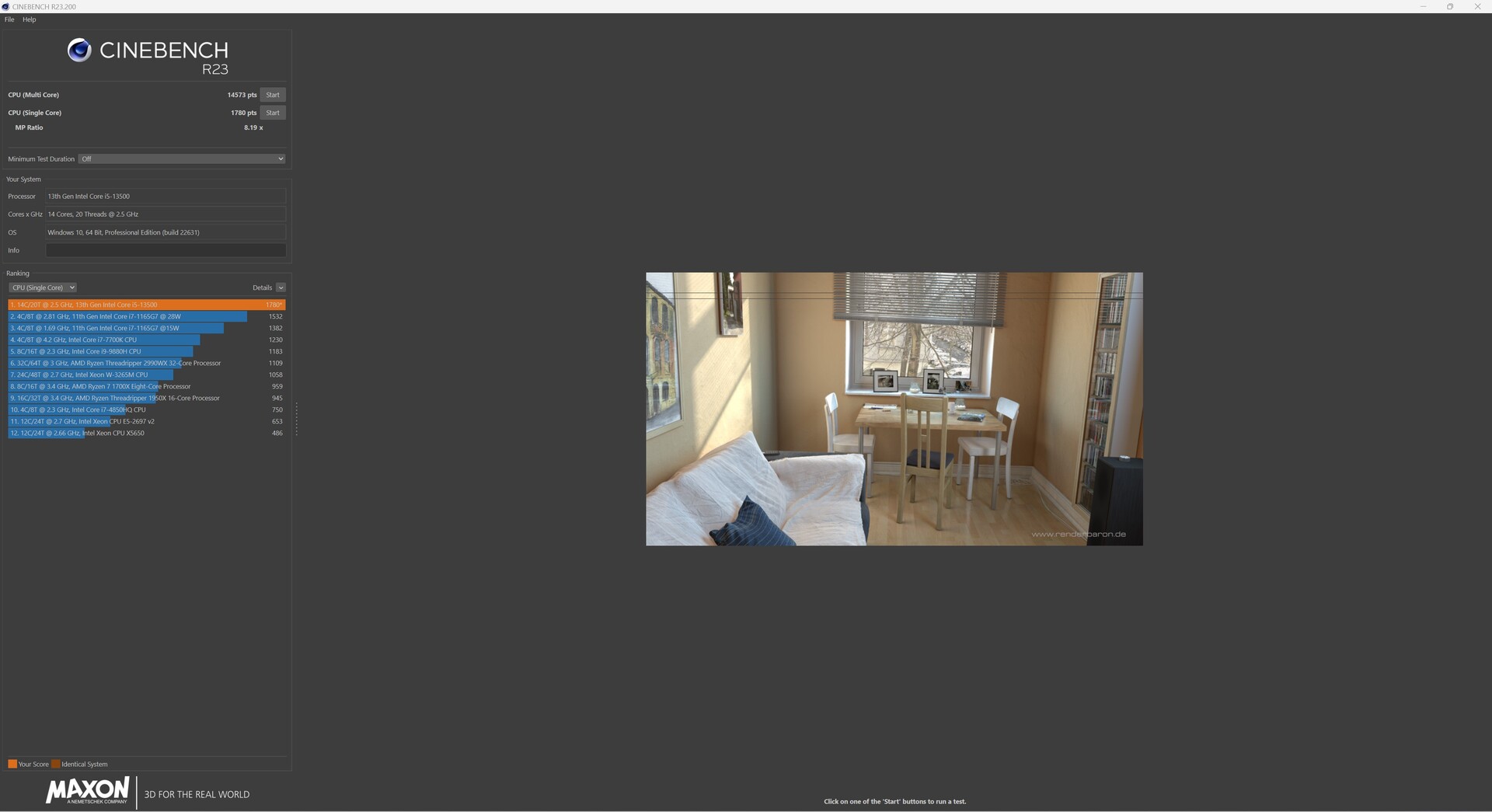

Cinebench R23
Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +27%
Minisforum MS-01 Intel Core i9-13900H	16209 Points +11%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	14659 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points
Geekom GT13 Pro Intel Core i9-13900H	13015 Points -11%
Khadas Mind Intel Core i7-1360P	9859 Points -32%
Single Core
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1901 Points +7%
Khadas Mind Intel Core i7-1360P	1877 Points +5%
Minisforum MS-01 Intel Core i9-13900H	1806 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points
Acemagic F2A Intel Core Ultra 7 155H	1771 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points -4%

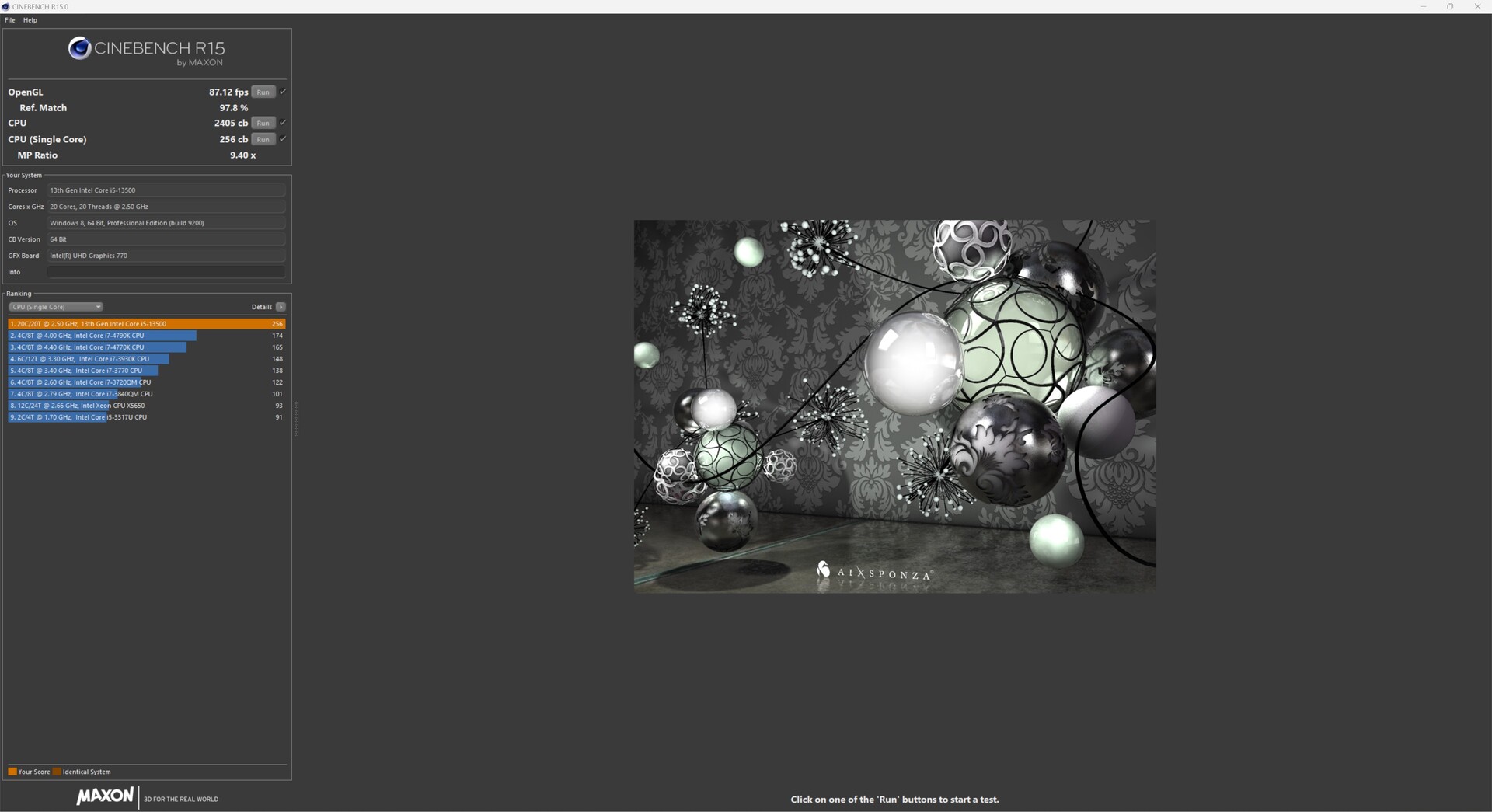

Cinebench R15
CPU Single 64Bit
Khadas Mind Intel Core i7-1360P	270 Points +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	270 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points
Minisforum MS-01 Intel Core i9-13900H	253 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	245 Points -4%
CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +14%
Minisforum MS-01 Intel Core i9-13900H	2459 Points +2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points
Geekom GT13 Pro Intel Core i9-13900H	2260 Points -6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2249 Points -6%
Khadas Mind Intel Core i7-1360P	1642 Points -32%

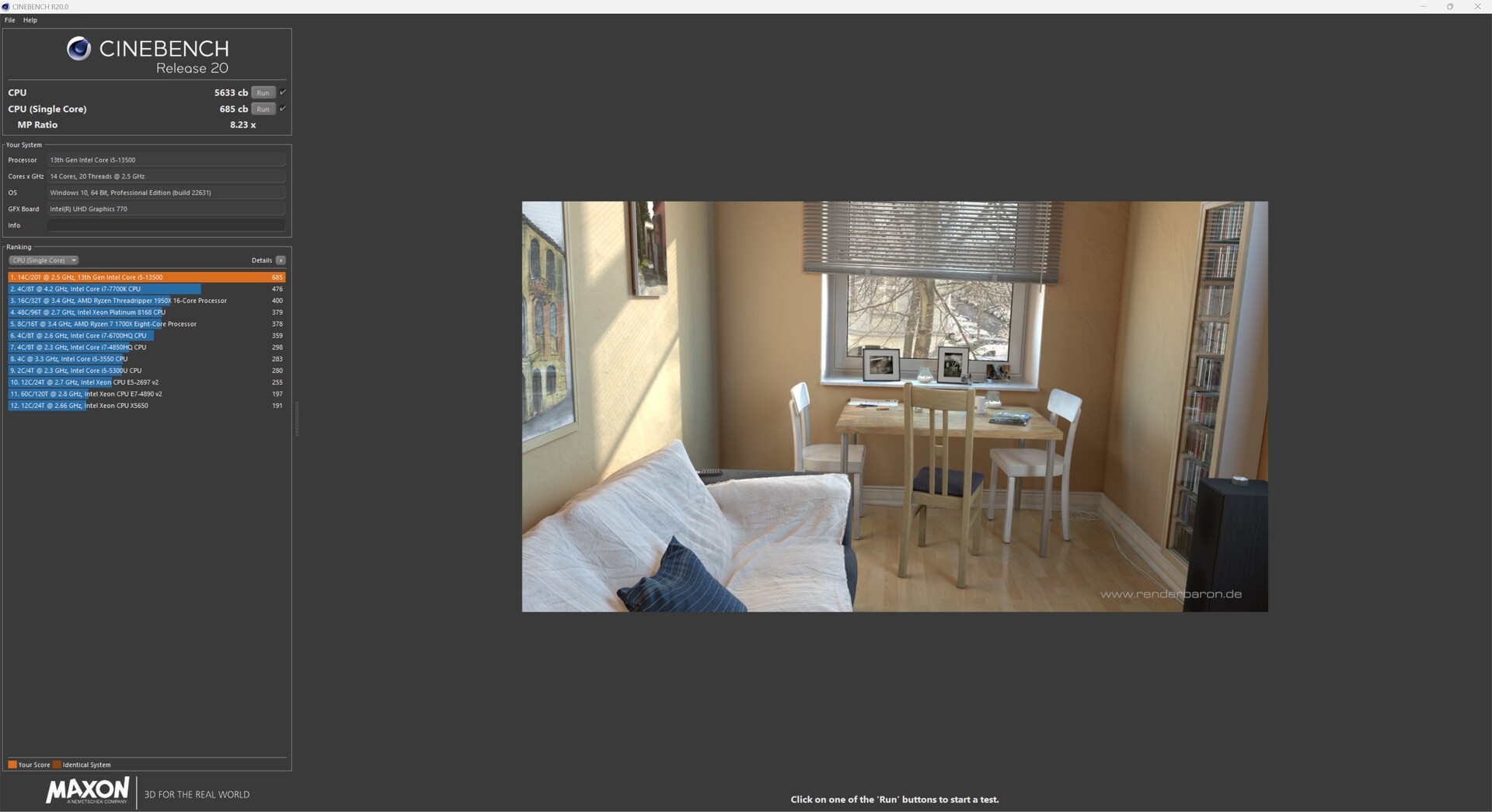

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB9 Intel Core i9-12900HK	734 Points +7%
Khadas Mind Intel Core i7-1360P	724 Points +6%
Minisforum MS-01 Intel Core i9-13900H	699 Points +2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points
Acemagic F2A Intel Core Ultra 7 155H	679 Points -1%
Geekom GT13 Pro Intel Core i9-13900H	659 Points -4%
CPU (Multi Core)
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +28%
Minisforum MS-01 Intel Core i9-13900H	6203 Points +10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	5691 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points
Geekom GT13 Pro Intel Core i9-13900H	5013 Points -11%
Khadas Mind Intel Core i7-1360P	3820 Points -32%

Cinebench R11.5
CPU Single 64Bit
Khadas Mind Intel Core i7-1360P	3.27 Points +5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.26 Points +5%
Acemagic F2A Intel Core Ultra 7 155H	3.13 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	3.11 Points
Minisforum MS-01 Intel Core i9-13900H	3 Points -4%
Geekom GT13 Pro Intel Core i9-13900H	2.98 Points -4%
CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	33.49 Points +18%
Minisforum MS-01 Intel Core i9-13900H	29.65 Points +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	28.43 Points
Geekom GT13 Pro Intel Core i9-13900H	27.48 Points -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	27.25 Points -4%
Khadas Mind Intel Core i7-1360P	19.54 Points -31%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB9 Intel Core i9-12900HK	15303 Points +7%
Khadas Mind Intel Core i7-1360P	15227 Points +7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14282 Points
Acemagic F2A Intel Core Ultra 7 155H	13938 Points -2%
Geekom GT13 Pro Intel Core i9-13900H	13820 Points -3%
Minisforum MS-01 Intel Core i9-13900H	13752 Points -4%
Rendering Multiple CPUs 64Bit
Acemagic F2A Intel Core Ultra 7 155H	95005 Points +19%
Minisforum MS-01 Intel Core i9-13900H	79856 Points 0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	79625 Points
Geekom GT13 Pro Intel Core i9-13900H	79014 Points -1%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	75947 Points -5%
Khadas Mind Intel Core i7-1360P	61639 Points -23%

Blender - v2.79 BMW27 CPU
Khadas Mind Intel Core i7-1360P	324 Seconds * -45%
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * -17%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	234 Seconds * -5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds *
Minisforum MS-01 Intel Core i9-13900H	201 Seconds * +10%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +20%

wPrime 2.10
32m
Khadas Mind Intel Core i7-1360P	4.957 s * -23%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	4.02 s *
Acemagic F2A Intel Core Ultra 7 155H	3.523 s * +12%
Geekom GT13 Pro Intel Core i9-13900H	3.518 s * +12%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	3.454 s * +14%
Minisforum MS-01 Intel Core i9-13900H	3.141 s * +22%
1024m
Geekom GT13 Pro Intel Core i9-13900H	412.775 s * -310%
Khadas Mind Intel Core i7-1360P	240.083 s * -138%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	186.394 s * -85%
Minisforum MS-01 Intel Core i9-13900H	179.496 s * -78%
Acemagic F2A Intel Core Ultra 7 155H	139.617 s * -39%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	100.707 s *

X264 HD Benchmark 4.0
Pass 1
Acemagic F2A Intel Core Ultra 7 155H	325 (323^min - 328^max) fps +6%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	317.5 (292^min - 319^max) fps +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	306 (302^min - 312^max) fps
Geekom GT13 Pro Intel Core i9-13900H	300.5 (288^min - 319^max) fps -2%
Minisforum MS-01 Intel Core i9-13900H	284 (276^min - 298^max) fps -7%
Khadas Mind Intel Core i7-1360P	273 (264^min - 275^max) fps -11%
Pass 2
Acemagic F2A Intel Core Ultra 7 155H	154.15 (153.8^min - 154.3^max) fps +15%
Minisforum MS-01 Intel Core i9-13900H	138.55 (135.5^min - 145.8^max) fps +3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	134.55 (130.4^min - 135.2^max) fps
Minisforum Venus Series NAB9 Intel Core i9-12900HK	125.05 (112.4^min - 132^max) fps -7%
Geekom GT13 Pro Intel Core i9-13900H	113.95 (106.5^min - 136.6^max) fps -15%
Khadas Mind Intel Core i7-1360P	94.7 (87.4^min - 101.7^max) fps -30%

WinRAR - Result
Minisforum MS-01 Intel Core i9-13900H	9303 KB/s +21%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	8735 KB/s +13%
Acemagic F2A Intel Core Ultra 7 155H	7723 KB/s 0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7704 KB/s
Geekom GT13 Pro Intel Core i9-13900H	6800 KB/s -12%
Khadas Mind Intel Core i7-1360P	6079 KB/s -21%

TrueCrypt
AES Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	14.8 GB/s +23%
Geekom GT13 Pro Intel Core i9-13900H	13.2 GB/s +10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	13 GB/s +8%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	12 GB/s
Acemagic F2A Intel Core Ultra 7 155H	10.6 GB/s -12%
Khadas Mind Intel Core i7-1360P	9.5 GB/s -21%
Twofish Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	2.5 GB/s +9%
Geekom GT13 Pro Intel Core i9-13900H	2.4 GB/s +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2.3 GB/s
Minisforum Venus Series NAB9 Intel Core i9-12900HK	2.2 GB/s -4%
Khadas Mind Intel Core i7-1360P	1.7 GB/s -26%
Acemagic F2A Intel Core Ultra 7 155H	1.7 GB/s -26%
Serpent Mean 100MB
Minisforum MS-01 Intel Core i9-13900H	1.4 GB/s +8%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1.3 GB/s
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1.2 GB/s -8%
Geekom GT13 Pro Intel Core i9-13900H	1.2 GB/s -8%
Acemagic F2A Intel Core Ultra 7 155H	1 GB/s -23%
Khadas Mind Intel Core i7-1360P	0.935 GB/s -28%

Geekbench 5.5
Multi-Core
Minisforum MS-01 Intel Core i9-13900H	13014 Points +26%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +23%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10378 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points
Khadas Mind Intel Core i7-1360P	9159 Points -11%
Single-Core
Minisforum MS-01 Intel Core i9-13900H	1867 Points +3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1866 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points +2%
Khadas Mind Intel Core i7-1360P	1824 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points
Acemagic F2A Intel Core Ultra 7 155H	1746 Points -3%

Geekbench 5.0
5.0 Multi-Core
Minisforum MS-01 Intel Core i9-13900H	12681 Points +24%
Acemagic F2A Intel Core Ultra 7 155H	12438 Points +22%
Geekom GT13 Pro Intel Core i9-13900H	11168 Points +9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10276 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10213 Points
Khadas Mind Intel Core i7-1360P	9000 Points -12%
5.0 Single-Core
Minisforum MS-01 Intel Core i9-13900H	1847 Points +6%
Khadas Mind Intel Core i7-1360P	1826 Points +4%
Geekom GT13 Pro Intel Core i9-13900H	1810 Points +3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	1795 Points +3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1749 Points
Acemagic F2A Intel Core Ultra 7 155H	1708 Points -2%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum MS-01 Intel Core i9-13900H	8190 Points +11%
Khadas Mind Intel Core i7-1360P	8084 Points +10%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7932 Points +7%
Geekom GT13 Pro Intel Core i9-13900H	7787 Points +6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7379 Points
Acemagic F2A Intel Core Ultra 7 155H	6927 Points -6%
64 Bit Multi-Core Score
Minisforum MS-01 Intel Core i9-13900H	47461 Points +21%
Acemagic F2A Intel Core Ultra 7 155H	45250 Points +16%
Geekom GT13 Pro Intel Core i9-13900H	41851 Points +7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	39510 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	39094 Points
Khadas Mind Intel Core i7-1360P	33052 Points -15%

3DMark 11 - 1280x720 Performance Physics
Minisforum MS-01 Intel Core i9-13900H	21786 Points +21%
Acemagic F2A Intel Core Ultra 7 155H	20846 Points +16%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	18553 Points +3%
Geekom GT13 Pro Intel Core i9-13900H	18383 Points +2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	18026 Points
Khadas Mind Intel Core i7-1360P	15245 Points -15%

7-Zip 18.03
7z b 4
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +20%
Minisforum MS-01 Intel Core i9-13900H	63093 MIPS +14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	55620 MIPS 0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS -5%
Khadas Mind Intel Core i7-1360P	43201 MIPS -22%
7z b 4 -mmt1
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	6136 MIPS +4%
Khadas Mind Intel Core i7-1360P	5904 MIPS 0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -7%
Minisforum MS-01 Intel Core i9-13900H	5473 MIPS -7%

HWBOT x265 Benchmark v2.2 - 4k Preset
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +20%
Minisforum MS-01 Intel Core i9-13900H	18.7 fps +15%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.2 fps -1%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps -13%
Khadas Mind Intel Core i7-1360P	11.4 fps -30%

R Benchmark 2.5 - Overall mean
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * -4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec *
Khadas Mind Intel Core i7-1360P	0.4463 sec * -0%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * +2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	0.4391 sec * +2%
Minisforum MS-01 Intel Core i9-13900H	0.439 sec * +2%

LibreOffice - 20 Documents To PDF
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s *
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +15%
Khadas Mind Intel Core i7-1360P	40.9 s * +22%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +25%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	37.2 s * +29%
Minisforum MS-01 Intel Core i9-13900H	35.1 s * +33%

WebXPRT 3 - Overall
Minisforum MS-01 Intel Core i9-13900H	317 Points +19%
Khadas Mind Intel Core i7-1360P	316 Points +19%
Geekom GT13 Pro Intel Core i9-13900H	304 Points +14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	301 Points +13%
Acemagic F2A Intel Core Ultra 7 155H	276 Points +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	266 Points

Mozilla Kraken 1.1 - Total
Acemagic F2A Intel Core Ultra 7 155H	535 ms * -3%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	519 ms *
Geekom GT13 Pro Intel Core i9-13900H	517 ms * -0%
Minisforum MS-01 Intel Core i9-13900H	506 ms * +3%
Khadas Mind Intel Core i7-1360P	502 ms * +3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	499 ms * +4%

3DMark
1920x1080 Fire Strike Physics
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	26263 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK	26093 Points -1%
Acemagic F2A Intel Core Ultra 7 155H	25043 Points -5%
Minisforum MS-01 Intel Core i9-13900H	24273 Points -8%
Geekom GT13 Pro Intel Core i9-13900H	23626 Points -10%
Khadas Mind Intel Core i7-1360P	18564 Points -29%
2560x1440 Time Spy CPU
Minisforum MS-01 Intel Core i9-13900H	10995 Points +14%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	10402 Points +8%
Acemagic F2A Intel Core Ultra 7 155H	10014 Points +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	9655 Points
Geekom GT13 Pro Intel Core i9-13900H	9347 Points -3%
Khadas Mind Intel Core i7-1360P	7942 Points -18%

Super Pi mod 1.5 XS 1M - 1M
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	7.752 s *
Geekom GT13 Pro Intel Core i9-13900H	7.445 s * +4%
Minisforum Venus Series NAB9 Intel Core i9-12900HK	7.281 s * +6%
Acemagic F2A Intel Core Ultra 7 155H	7.168 s * +8%
Khadas Mind Intel Core i7-1360P	6.784 s * +12%
Minisforum MS-01 Intel Core i9-13900H	6.156 s * +21%

Super Pi mod 1.5 XS 2M - 2M
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	17.176 s *
Minisforum Venus Series NAB9 Intel Core i9-12900HK	16.498 s * +4%
Geekom GT13 Pro Intel Core i9-13900H	16.234 s * +5%
Acemagic F2A Intel Core Ultra 7 155H	16.125 s * +6%
Khadas Mind Intel Core i7-1360P	14.771 s * +14%
Minisforum MS-01 Intel Core i9-13900H	13.784 s * +20%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

8875

Cinebench R10 Shading 64Bit

15434 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

79625 Points

Cinebench R10 Rendering Single CPUs 64Bit

14282 Points

Cinebench R10 Shading 32Bit

14559

Cinebench R10 Rendering Multiple CPUs 32Bit

49300

Cinebench R11.5 CPU Single 32Bit

2.73 Points

Cinebench R11.5 CPU Multi 32Bit

25.58 Points

Cinebench R11.5 OpenGL 32Bit

91.16 fps

Cinebench R11.5 CPU Single 64Bit

3.11 Points

Cinebench R11.5 CPU Multi 64Bit

28.43 Points

Cinebench R11.5 OpenGL 64Bit

90.5 fps

Cinebench R15 CPU Single 64Bit

256 Points

Cinebench R15 CPU Multi 64Bit

2405 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

87.12 fps

Cinebench R20 CPU (Single Core)

685 Points

Cinebench R20 CPU (Multi Core)

5633 Points

Cinebench R23 Multi Core

14573 Points

Cinebench R23 Single Core

1780 Points

Cinebench 2024 CPU Single Core

107 Points

Cinebench 2024 CPU Multi Core

822 Points

Help

... in comparison

Performance Rating
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	96.3 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	84.1 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	75.5 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	74.1 pt
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	70.1 pt
Average of class Mini PC	69.2 pt
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	59.9 pt

AIDA64 / FP32 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +24%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	14105 KRay/s
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	13251 KRay/s -6%
Average of class Mini PC (561 - 51004, n=119, last 2 years)	12449 KRay/s -12%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	12389 KRay/s -12%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	11735 KRay/s -17%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	9567 KRay/s -32%

AIDA64 / FPU Julia
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points +26%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73742 Points +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	70708 Points
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	64350 Points -9%
Average of class Mini PC (3604 - 214250, n=119, last 2 years)	62645 Points -11%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	59094 Points -16%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	47763 Points -32%

AIDA64 / CPU SHA3
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s +31%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	3386 MB/s +5%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	3234 MB/s
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	3028 MB/s -6%
Average of class Mini PC (225 - 9399, n=119, last 2 years)	2760 MB/s -15%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	2718 MB/s -16%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	2430 MB/s -25%

AIDA64 / CPU Queen
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	99851 Points +7%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	93952 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	93077 Points
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points -4%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	87544 Points -6%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	77998 Points -16%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65324 Points -30%

AIDA64 / FPU SinJulia
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points +14%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	9170 Points +2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	8977 Points
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8538 Points -5%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	8417 Points -6%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	8026 Points -11%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	5734 Points -36%

AIDA64 / FPU Mandel
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +30%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	35318 Points +1%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	35080 Points
Average of class Mini PC (1958 - 113499, n=119, last 2 years)	32689 Points -7%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	31933 Points -9%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	29138 Points -17%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	22832 Points -35%

AIDA64 / CPU AES
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +114%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	123819 MB/s +83%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	112254 MB/s +66%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	102677 MB/s +51%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	85358 MB/s +26%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	80041 MB/s +18%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	67775 MB/s

AIDA64 / CPU ZLib
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +13%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	1044 MB/s
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	951 MB/s -9%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	870 MB/s -17%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	789 MB/s -24%
Average of class Mini PC (74.8 - 2039, n=119, last 2 years)	714 MB/s -32%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	671 MB/s -36%

AIDA64 / FP64 Ray-Trace
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s +22%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	7611 KRay/s 0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	7582 KRay/s
Average of class Mini PC (308 - 26952, n=119, last 2 years)	6658 KRay/s -12%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	6325 KRay/s -17%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	6205 KRay/s -18%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	4975 KRay/s -34%

AIDA64 / CPU PhotoWorxx
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	44996 MPixel/s +123%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	43544 MPixel/s +116%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s +64%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	28269 MPixel/s +40%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	27805 MPixel/s +38%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	24903 MPixel/s +23%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	20189 MPixel/s

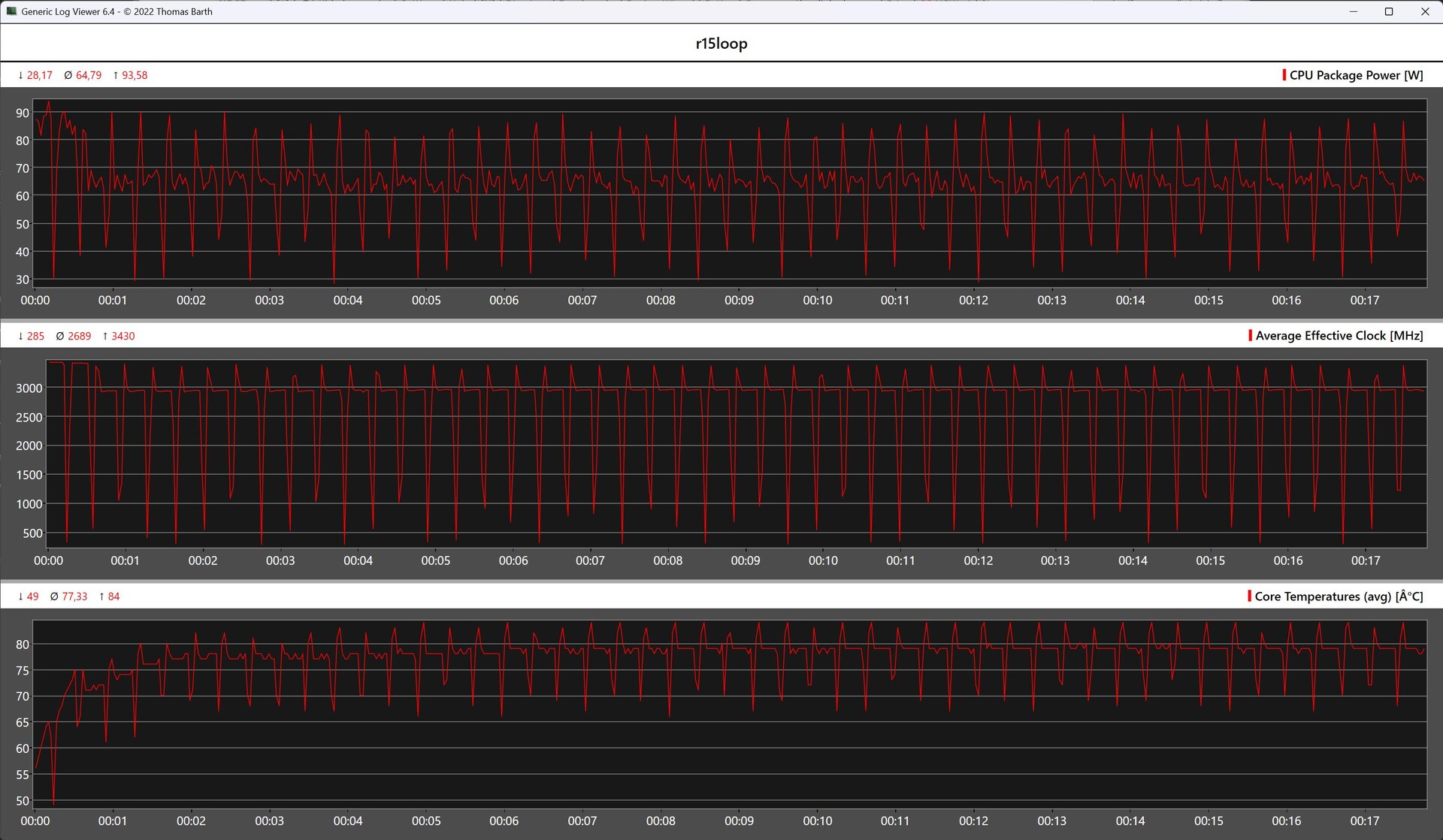

Cinebench R15 多循环

Cinebench R15 连续循环显示英特尔酷睿 i5-13500可以提供稳定的性能，只有少数例外。在性能比较中，它足以获得第三名的好成绩。在温度方面，我们可以从记录的遥测数据中看到，没有达到临界值，最高温度为 84 °C。这说明制造商并没有将处理器推到最高温度（100 °C）。

HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, Intel Core i5-13500: Ø2153 (1959.73-2450.98)

Geekom GT13 Pro Intel Core i9-13900H, Intel Core i9-13900H: Ø1776 (1688.48-2326.12)

Minisforum Venus Series NAB9 Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1981 (1895.47-2262.7)

Minisforum MS-01 Intel Core i9-13900H, Intel Core i9-13900H: Ø2354 (2022.76-2582.31)

Acemagic F2A Intel Core Ultra 7 155H, Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

Khadas Mind Intel Core i7-1360P, Intel Core i7-1360P: Ø1443 (1386.82-1627.54)

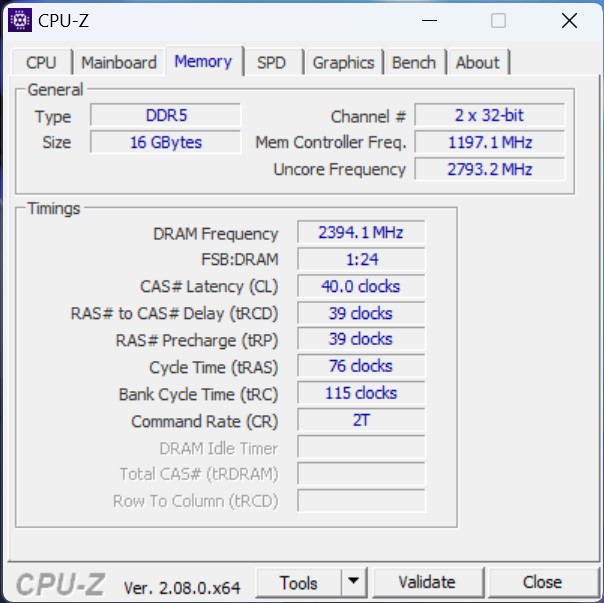

系统性能

主观系统性能良好，尽管与其他微型电脑相比，这一点从图形上并不明显。我们欢迎将英特尔酷睿 i5-13500与 DDR5 内存的组合，尽管出于技术原因，4800 MT/s 的速度已是最高值。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	7120 Points +32%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	6802 Points +26%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	6435 Points +19%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	5944 Points +10%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	5937 Points +10%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	5388 Points

PCMark 10 / Essentials
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	12286 Points +33%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	11591 Points +25%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	11125 Points +20%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	10761 Points +16%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	10347 Points +12%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	9262 Points

PCMark 10 / Productivity
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	8901 Points +25%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	8526 Points +20%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	8161 Points +14%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	7924 Points +11%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	7319 Points +3%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	7130 Points

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1986 Points +28%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1802 Points +16%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1797 Points +16%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1766 Points +14%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1564 Points +1%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1549 Points

CrossMark / Responsiveness
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	2205 Points +91%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1790 Points +55%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1700 Points +47%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1528 Points +33%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1512 Points +31%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1153 Points

CrossMark / Creativity
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	2031 Points +15%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1929 Points +9%
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1907 Points +8%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1789 Points +1%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1768 Points
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1600 Points -10%

CrossMark / Productivity
Minisforum Venus Series NAB9, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Kingston OM3PGP41024P-A0	1996 Points +33%
Geekom GT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000	1736 Points +16%
Acemagic F2A, Intel Core Ultra 7 155H Intel Arc 8-Core iGPU, Kingston OM8SEP1024Q-A0	1717 Points +15%
Minisforum MS-01, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP41024Q-A0	1684 Points +12%
Khadas Mind, Intel Core i7-1360P Intel Iris Xe Graphics G7 96EUs, WD PC SN740 SDDPTQD-1T00	1541 Points +3%
HP Elite Mini 800 G9-5M9T9EA, Intel Core i5-13500 Intel UHD Graphics 770, Samsung PM9B1 512GB MZVL4512HBLU	1498 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	69219 MB/s +99%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	65299 MB/s +88%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +79%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +37%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45721 MB/s +31%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	44442 MB/s +28%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	34824 MB/s

AIDA64 / Memory Read
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	73633 MB/s +106%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +80%
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	60668 MB/s +70%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +35%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	47960 MB/s +34%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45995 MB/s +29%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	35746 MB/s

AIDA64 / Memory Write
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	74777 MB/s +39%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	70707 MB/s +31%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +21%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	53817 MB/s
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s -3%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	45952 MB/s -15%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45733 MB/s -15%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -62%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -0%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	91.7 ns *
Khadas Mind Intel Core i7-1360P, Iris Xe G7 96EUs	90.5 ns * +1%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	89.9 ns * +2%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	79.9 ns * +13%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	75.8 ns * +17%

* ... smaller is better

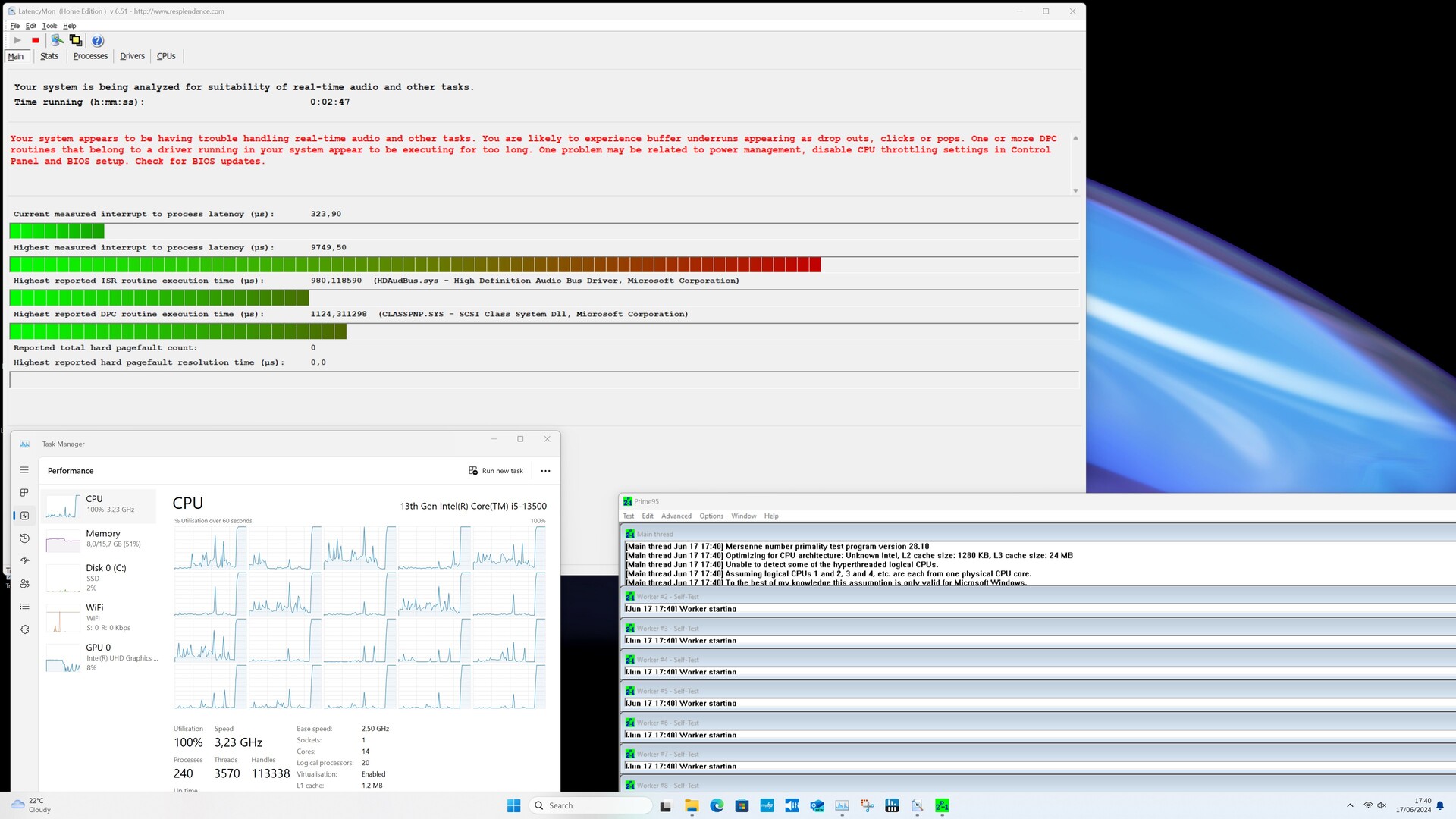

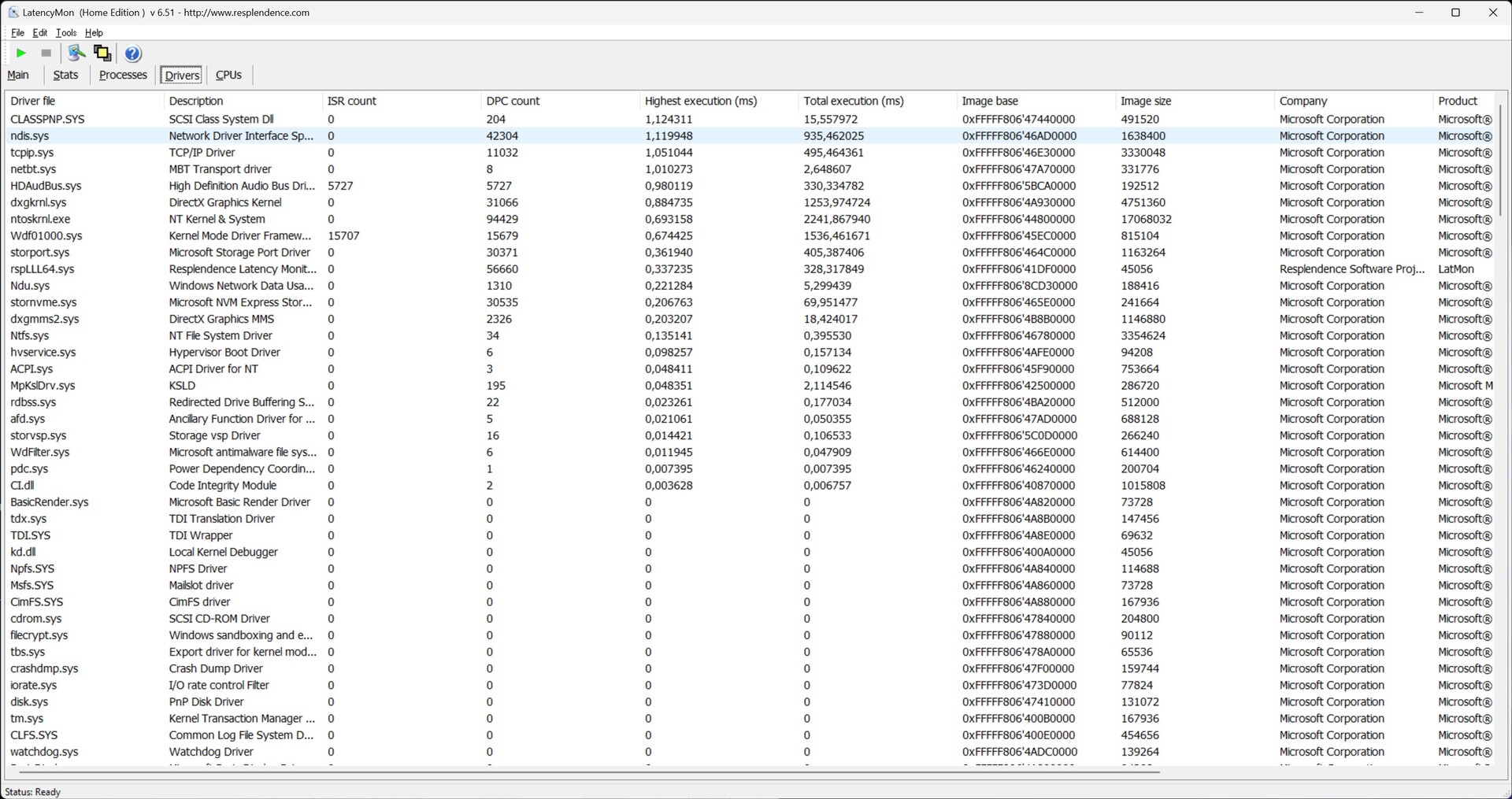

DPC 延迟

HP Elite Mini 800 G9 存在延迟增加的问题，我们已经在 Edge 浏览器中打开多个标签页时记录了这些问题。与此同时，播放 4K 测试视频和短时压力测试不会导致延迟增加。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -142%
Geekom GT13 Pro Iris Xe G7 96EUs, i9-13900H, Acer N7000	1533.4 μs * -36%
HP Elite Mini 800 G9-5M9T9EA UHD Graphics 770, i5-13500, Samsung PM9B1 512GB MZVL4512HBLU	1124 μs *
Minisforum Venus Series NAB9 Iris Xe G7 96EUs, i9-12900HK, Kingston OM3PGP41024P-A0	1026 μs * +9%
Khadas Mind Iris Xe G7 96EUs, i7-1360P, WD PC SN740 SDDPTQD-1T00	962 μs * +14%
Minisforum MS-01 Iris Xe G7 96EUs, i9-13900H, Kingston OM8PGP41024Q-A0	931 μs * +17%

* ... smaller is better

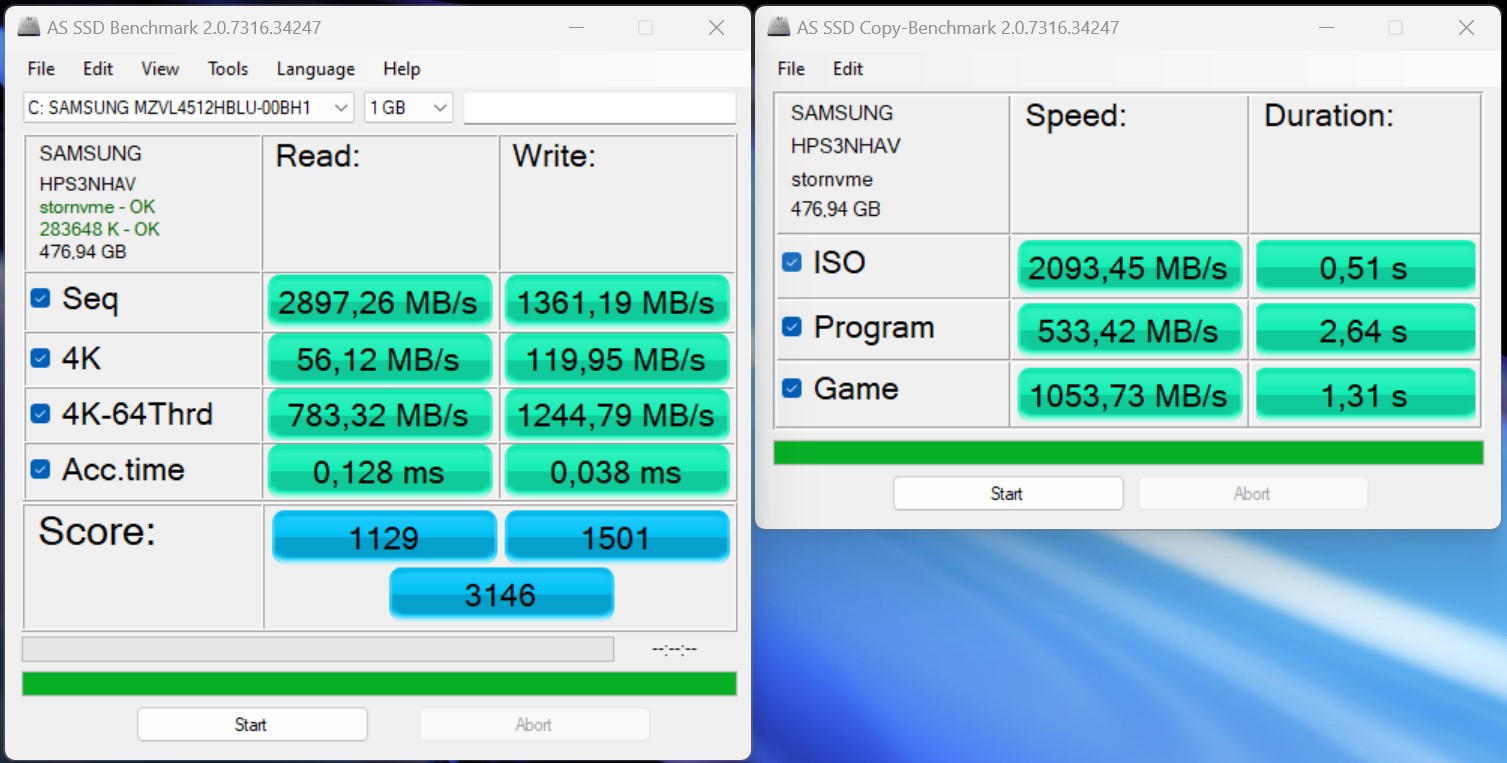

大容量存储器

惠普在 Elite Mini 800 G9 中使用了三星固态硬盘作为大容量存储设备。该机型提供 512 GB 的存储空间和稳定的性能。不过，与同类产品相比，该机型安装的固态硬盘速度稍慢。在连续负载情况下，我们还发现性能略有下降。虽然惠普在固态硬盘区域安装了一个小风扇，但无法长期保持性能稳定。与竞争对手相比，我们的测试样本仍然表现出色，但它们在负载情况下也会因温度问题而出现问题。在我们测试的版本中，惠普 Elite Mini 800 G9 总共可以配备三个大容量存储设备。另一个 M.2 插槽可用于额外的 NVMe 存储设备，还有一个 2.5 英寸插槽。

有关进一步的比较和基准测试，请参阅我们的比较表.

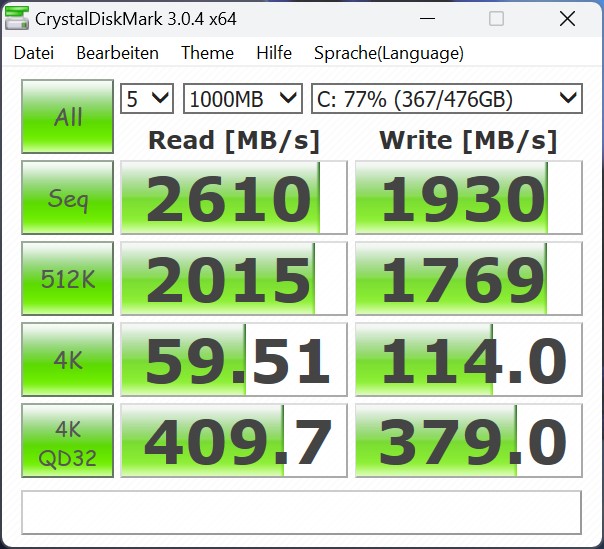

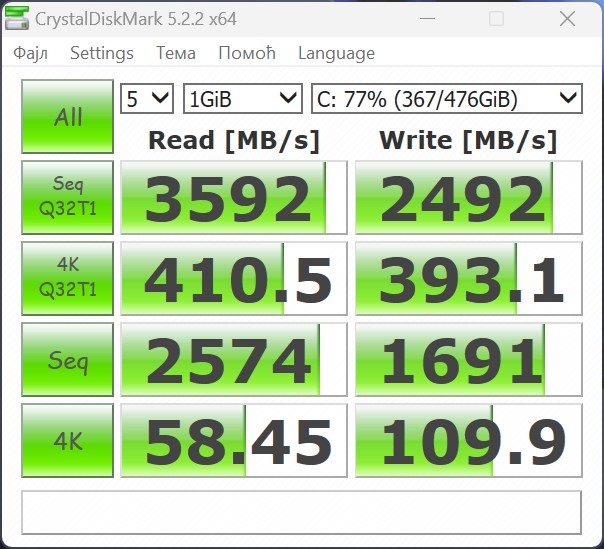

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Samsung PM9B1 512GB MZVL4512HBLU

Sequential Read: 2610 MB/s

Sequential Write: 1930 MB/s

512K Read: 2015 MB/s

512K Write: 1769 MB/s

4K Read: 59.51 MB/s

4K Write: 114 MB/s

4K QD32 Read: 409.7 MB/s

4K QD32 Write: 379 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	88.3 pt
Geekom GT13 Pro Acer N7000	79.5 pt
Khadas Mind WD PC SN740 SDDPTQD-1T00	78 pt
Minisforum MS-01 Kingston OM8PGP41024Q-A0	68.3 pt
Average of class Mini PC	48 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	47.6 pt
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	40.6 pt

DiskSpd
seq read
Geekom GT13 Pro Acer N7000	4357 (4314.26^min - 4356.72^max) MB/s +73%
Khadas Mind WD PC SN740 SDDPTQD-1T00	3628 (3596.13^min - 3627.65^max) MB/s +44%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2960 (2934.76^min - 2959.92^max) MB/s +18%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2668 (2648.91^min - 2668.42^max) MB/s +6%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2519 (2472.21^min - 2519.1^max) MB/s
Average of class Mini PC (233 - 4357, n=119, last 2 years)	2288 MB/s -9%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -34%
seq write
Geekom GT13 Pro Acer N7000	4544 (4380.79^min - 4543.83^max) MB/s +150%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4121 (3696.6^min - 4120.84^max) MB/s +126%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3866 (206.78^min - 3865.71^max) MB/s +112%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3726 (3634.99^min - 3725.8^max) MB/s +105%
Average of class Mini PC (222 - 5595, n=119, last 2 years)	2448 MB/s +34%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1821 (1747^min - 1820.96^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -26%
seq q8 t1 read
Geekom GT13 Pro Acer N7000	7007 (6166.72^min - 7006.62^max) MB/s +97%
Khadas Mind WD PC SN740 SDDPTQD-1T00	5168 (4831.21^min - 5167.59^max) MB/s +46%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4780 (4492.97^min - 4780.46^max) MB/s +35%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4759 (4492.55^min - 4759.49^max) MB/s +34%
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3706 MB/s +4%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	3549 (3126.4^min - 3549.4^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -10%
seq q8 t1 write
Geekom GT13 Pro Acer N7000	5261 (5018.9^min - 5261.3^max) MB/s +135%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4212 (3767.95^min - 4212.34^max) MB/s +88%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3901 (912.47^min - 3901.29^max) MB/s +74%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	3757 (3691.41^min - 3756.63^max) MB/s +68%
Average of class Mini PC (228 - 6669, n=119, last 2 years)	2743 MB/s +23%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2236 (2193.18^min - 2236.33^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -1%
4k q1 t1 read
Geekom GT13 Pro Acer N7000	85.3 (82.57^min - 85.32^max) MB/s +41%
Khadas Mind WD PC SN740 SDDPTQD-1T00	83.7 (81.47^min - 83.67^max) MB/s +38%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	81.1 (80.57^min - 81.14^max) MB/s +34%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	80.9 (78.95^min - 80.85^max) MB/s +33%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	60.7 (58.39^min - 60.66^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=119, last 2 years)	54.7 MB/s -10%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -22%
4k q1 t1 write
Minisforum MS-01 Kingston OM8PGP41024Q-A0	435 (271.59^min - 435.46^max) MB/s +289%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	422 (409.3^min - 421.98^max) MB/s +277%
Geekom GT13 Pro Acer N7000	327 (306.06^min - 326.78^max) MB/s +192%
Khadas Mind WD PC SN740 SDDPTQD-1T00	301 (296.91^min - 301.44^max) MB/s +169%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	194.7 MB/s +74%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +67%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	111.9 (109.46^min - 111.85^max) MB/s
4k q32 t16 read
Geekom GT13 Pro Acer N7000	3593 (3380.17^min - 3593.41^max) MB/s +342%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2967 (2962.7^min - 2967.4^max) MB/s +265%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2953 (2944.17^min - 2952.67^max) MB/s +263%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2300 (2238.78^min - 2299.5^max) MB/s +183%
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s +124%
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1360 MB/s +67%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	813 (801.88^min - 812.84^max) MB/s
4k q32 t16 write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3364 (866.38^min - 3364.31^max) MB/s +709%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	2734 (939.34^min - 2734.2^max) MB/s +557%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2441 (2189.1^min - 2441.28^max) MB/s +487%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +245%
Average of class Mini PC (30.2 - 4288, n=119, last 2 years)	1287 MB/s +209%
Geekom GT13 Pro Acer N7000	762 (700.88^min - 761.76^max) MB/s +83%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	416 (404.01^min - 415.72^max) MB/s

AS SSD
Score Total
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	7931 Points +152%
Geekom GT13 Pro Acer N7000	6798 Points +116%
Khadas Mind WD PC SN740 SDDPTQD-1T00	6460 Points +105%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	4648 Points +48%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points +40%
Average of class Mini PC (181.5 - 10021, n=117, last 2 years)	4121 Points +31%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	3146 Points
Score Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2899 Points +157%
Geekom GT13 Pro Acer N7000	2866 Points +154%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2658 Points +135%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1831 Points +62%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +38%
Average of class Mini PC (61 - 3741, n=117, last 2 years)	1534 Points +36%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1129 Points
Score Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3564 Points +137%
Geekom GT13 Pro Acer N7000	2516 Points +68%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2447 Points +63%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points +39%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1863 Points +24%
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1851 Points +23%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1501 Points
Seq Read
Geekom GT13 Pro Acer N7000	4546 MB/s +57%
Khadas Mind WD PC SN740 SDDPTQD-1T00	4496 MB/s +55%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	4162 MB/s +44%
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3161 MB/s +9%
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s +4%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	2897 MB/s
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1623 MB/s -44%
Seq Write
Khadas Mind WD PC SN740 SDDPTQD-1T00	4258 MB/s +213%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	3477 MB/s +155%
Geekom GT13 Pro Acer N7000	3374 MB/s +148%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s +74%
Average of class Mini PC (240 - 5783, n=117, last 2 years)	2212 MB/s +63%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1543 MB/s +13%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1361 MB/s
4K Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	104.3 MB/s +86%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	86.8 MB/s +55%
Geekom GT13 Pro Acer N7000	83.4 MB/s +49%
Khadas Mind WD PC SN740 SDDPTQD-1T00	76.3 MB/s +36%
Average of class Mini PC (6.08 - 104.3, n=117, last 2 years)	58.9 MB/s +5%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	56.1 MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -25%
4K Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	366 MB/s +205%
Geekom GT13 Pro Acer N7000	296 MB/s +147%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	266 MB/s +122%
Khadas Mind WD PC SN740 SDDPTQD-1T00	258 MB/s +115%
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +64%
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	175.1 MB/s +46%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	120 MB/s
4K-64 Read
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2379 MB/s +204%
Geekom GT13 Pro Acer N7000	2328 MB/s +197%
Khadas Mind WD PC SN740 SDDPTQD-1T00	2132 MB/s +172%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1581 MB/s +102%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +56%
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1159 MB/s +48%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	783 MB/s
4K-64 Write
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	2850 MB/s +129%
Geekom GT13 Pro Acer N7000	1883 MB/s +51%
Khadas Mind WD PC SN740 SDDPTQD-1T00	1763 MB/s +42%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s +32%
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1455 MB/s +17%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	1443 MB/s +16%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	1245 MB/s
Access Time Read
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	0.128 ms *
Geekom GT13 Pro Acer N7000	0.127 ms * +1%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09726 ms * +24%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.094 ms * +27%
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.055 ms * +57%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +64%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.044 ms * +66%
Access Time Write
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * -232%
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1153 ms * -203%
Geekom GT13 Pro Acer N7000	0.059 ms * -55%
HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU	0.038 ms *
Minisforum MS-01 Kingston OM8PGP41024Q-A0	0.034 ms * +11%
Minisforum Venus Series NAB9 Kingston OM3PGP41024P-A0	0.031 ms * +18%
Khadas Mind WD PC SN740 SDDPTQD-1T00	0.016 ms * +58%

* ... smaller is better

Continuous read: DiskSpd Read Loop, Queue Depth 8

HP Elite Mini 800 G9-5M9T9EA Samsung PM9B1 512GB MZVL4512HBLU; diskspd 2.0.17 f: Ø3409 (3038.35-3569.55)

Minisforum EliteMini UM780 XTX Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (3366.33-4823.24)

Minisforum Venus Series UM790 Pro 2x Kingston OM8PGP4256Q-A0 (RAID 0): Ø6430 (5686.85-6828.93)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ: Ø5462 (4797.39-5479.86)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G: Ø2845 (145.88-3195.22)

Khadas Mind WD PC SN740 SDDPTQD-1T00: Ø5222 (4952.01-5235.75)

图形卡

HP Elite Mini 800 G9 只配备了简单的 iGPU 显卡。英特尔英特尔UHD Graphics 770基于 Intel Iris Xe 架构，与英特尔酷睿 i5-13500只有 32 个 EU。由于 EU 数量少，3D 性能与竞争对手相比明显较差。我们的测试系统无法安装专用显卡。连接方式也不提供使用外置显卡的选项。

更多比较和基准测试可参见我们的 GPU 对比表.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average Intel Arc 8-Core iGPU	99.7 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	97.4 pt
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	66.3 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	61.2 pt
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	57.8 pt
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	57.3 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	27.7 pt

3DMark 11 - 1280x720 Performance GPU
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +253%
Average Intel Arc 8-Core iGPU (8064 - 13716, n=35)	11984 Points +250%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7676 Points +124%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points +117%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6999 Points +104%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6722 Points +96%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points

3DMark
2560x1440 Time Spy Graphics
Average Intel Arc 8-Core iGPU (2018 - 3770, n=42)	3231 Points +337%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +334%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1854 Points +151%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points +129%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1680 Points +127%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1583 Points +114%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points
1920x1080 Fire Strike Graphics
Average Intel Arc 8-Core iGPU (5568 - 9692, n=39)	8302 Points +214%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +192%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6482 Points +145%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points +120%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5461 Points +107%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5407 Points +105%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points

Unigine Heaven 4.0
Extreme Preset OpenGL
Average Intel Arc 8-Core iGPU (29.7 - 36.4, n=6)	33.7 fps +134%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	31.6 fps +119%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.2 fps +117%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25.2 fps +75%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.1 fps +74%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	22.3 fps +55%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	14.4 fps
Extreme Preset DX11
Average Intel Arc 8-Core iGPU (30.6 - 37.5, n=6)	34.4 fps +139%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	32.7 fps +127%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	31.9 fps +122%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26 fps +81%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	25.6 fps +78%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	23.2 fps +61%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	14.4 fps

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	20 fps +125%
Average Intel Arc 8-Core iGPU (17.1 - 20.1, n=5)	19 fps +113%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	17.2 fps +93%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	17.1 fps +92%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.1 fps +70%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	13.7 fps +54%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	8.9 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Average Intel Arc 8-Core iGPU (18.3 - 32.4, n=5)	22.9 fps +131%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	21.7 fps +119%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	20.4 fps +106%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	18.3 fps +85%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.7 fps +59%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	14.6 fps +47%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	9.9 fps

Unigine Superposition
1280x720 720p Low
Average Intel Arc 8-Core iGPU (10102 - 12451, n=5)	11384 Points +168%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	10491 Points +147%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	8223 Points +93%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6619 Points +56%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	6265 Points +47%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6129 Points +44%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	4251 Points
1920x1080 1080p High
Average Intel Arc 8-Core iGPU (3341 - 3948, n=5)	3674 Points +230%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3391 Points +205%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2744 Points +147%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2306 Points +107%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	2279 Points +105%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2113 Points +90%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1112 Points
1920x1080 1080p Extreme
Average Intel Arc 8-Core iGPU (1812 - 2119, n=6)	1988 Points +304%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1920 Points +290%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1251 Points +154%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1124 Points +128%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1101 Points +124%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1060 Points +115%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	492 Points

ComputeMark v2.1
1024x600 Normal, Score
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7480 Points +386%
Average Intel Arc 8-Core iGPU (6270 - 7963, n=6)	7207 Points +368%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3877 Points +152%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3650 Points +137%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	3605 Points +134%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3382 Points +120%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1540 Points
1024x600 Normal, Fluid 3DTex
Average Intel Arc 8-Core iGPU (427 - 579, n=6)	499 Points +168%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	427 Points +130%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	420 Points +126%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	385 Points +107%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points +54%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	226 Points +22%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	186 Points
1024x600 Normal, Fluid 2DTexArr
Average Intel Arc 8-Core iGPU (422 - 537, n=6)	479 Points +180%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	422 Points +147%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	398 Points +133%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	354 Points +107%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	294 Points +72%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	239 Points +40%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	171 Points
1024x600 Normal, Mandel Vector
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1961 Points +621%
Average Intel Arc 8-Core iGPU (1542 - 2039, n=6)	1829 Points +572%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	918 Points +238%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	873 Points +221%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	850 Points +213%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	830 Points +205%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	272 Points
1024x600 Normal, Mandel Scalar
Average Intel Arc 8-Core iGPU (1273 - 2587, n=6)	1679 Points +308%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	1594 Points +287%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	888 Points +116%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	883 Points +114%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	866 Points +110%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	864 Points +110%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	412 Points
1024x600 Normal, QJuliaRayTrace
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3076 Points +518%
Average Intel Arc 8-Core iGPU (2433 - 3244, n=6)	2888 Points +480%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1310 Points +163%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1258 Points +153%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1201 Points +141%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1174 Points +136%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	498 Points

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1196 Samples/s +146%
Average Intel Arc 8-Core iGPU (549 - 747, n=6)	670 Samples/s +38%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	651 Samples/s +34%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	577 Samples/s +18%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	549 Samples/s +13%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	487 Samples/s
Sala GPUs-only
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3188 Samples/s +156%
Average Intel Arc 8-Core iGPU (2319 - 2927, n=6)	2665 Samples/s +114%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2349 Samples/s +89%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	2319 Samples/s +86%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2104 Samples/s +69%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	1246 Samples/s

Affinity Photo 2 - Combined (Single / Multi GPU)
Average Intel Arc 8-Core iGPU (4928 - 6468, n=5)	5673 Points +130%
Minisforum MS-01 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4958 Points +101%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	4928 Points +99%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4460 Points +80%
Minisforum Venus Series NAB9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	4215 Points +71%
Khadas Mind Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	3724 Points +51%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2471 Points

	HP Elite Mini 800 G9-5M9T9EA, Intel UHD Graphics 770 i5-13500	Geekom GT13 Pro, Intel Iris Xe Graphics G7 96EUs i9-13900H	Minisforum Venus Series NAB9, Intel Iris Xe Graphics G7 96EUs i9-12900HK	Minisforum MS-01, Intel Iris Xe Graphics G7 96EUs i9-13900H	Acemagic F2A, Intel Arc 8-Core iGPU Ultra 7 155H	Khadas Mind, Intel Iris Xe Graphics G7 96EUs i7-1360P	Average of class Mini PC
SPECviewperf 12		72%	66%	101%	125%	58%	1030%
1900x1060 3ds Max (3dsmax-05)	29.8	41.4 39%	40.2 35%	46.7 57%	49.8 67%	37.8 27%	75.4 ?(13.6 - 295, n=63, last 2 years) 153%
1900x1060 Catia (catia-04)	23.4	38.6 65%	35.9 53%	41.7 78%	48.2 106%	39.4 68%	64.2 ?(10.9 - 251, n=63, last 2 years) 174%
1900x1060 Creo (creo-01)	16.7	28.2 69%	27.7 66%	30 80%	23.1 38%	7.37 -56%	37 ?(4.03 - 117, n=63, last 2 years) 122%
1900x1060 Energy (energy-01)	0.19	0.41 116%	0.4 111%	0.5 163%	0.91 379%	0.46 142%	13.3 ?(0.15 - 80.4, n=57, last 2 years) 6900%
1900x1060 Maya (maya-04)	25.1	42.4 69%	39.8 59%	51.9 107%	54.9 119%	41.3 65%	64 ?(11.4 - 226, n=63, last 2 years) 155%
1900x1060 Medical (medical-01)	5.18	12.2 136%	12.2 136%	14.5 180%	16.9 226%	12 132%	28.5 ?(2.53 - 136, n=60, last 2 years) 450%
1900x1060 Showcase (showcase-01)	11.5	19.1 66%	17.4 51%	24.8 116%	18.2 58%	21.2 84%	35.3 ?(5.71 - 133, n=63, last 2 years) 207%
1900x1060 Solidworks (sw-03)	41.1	46.6 13%	47.3 15%	53.1 29%	42.7 4%	41.6 1%	72.4 ?(20.9 - 243, n=63, last 2 years) 76%
SPECviewperf 13		90%	78%	107%	131%	84%	337%
3ds Max (3dsmax-06)	29.7	41.2 39%	39.9 34%	46.5 57%	46.4 56%	39 31%	74.8 ?(13.4 - 294, n=63, last 2 years) 152%
Catia (catia-05)	33.8	54.7 62%	51.6 53%	58.9 74%	71.6 112%	57.1 69%	91.4 ?(15.6 - 381, n=62, last 2 years) 170%
Creo (creo-02)	24.6	42.7 74%	40.2 63%	46.2 88%	29.6 20%	37.5 52%	73 ?(11.6 - 275, n=63, last 2 years) 197%
Energy (energy-02)	1.4	4.62 230%	4.39 214%	4.72 237%	5.69 306%	4.34 210%	17.7 ?(0.92 - 310, n=60, last 2 years) 1164%
Maya (maya-05)	34.6	51.6 49%	48.3 40%	58.4 69%	59.5 72%	46.3 34%	97.5 ?(15.9 - 340, n=63, last 2 years) 182%
Medical (medical-02)	5.57	15.6 180%	14.4 159%	15.8 184%	29.7 433%	16 187%	37.6 ?(2.28 - 198, n=63, last 2 years) 575%
Showcase (showcase-02)	11.6	19.1 65%	17.3 49%	25 116%	18.2 57%	21.4 84%	35 ?(5.69 - 133, n=63, last 2 years) 202%
Solidworks (sw-04)	49.7	58.3 17%	57.4 15%	63.7 28%	44.8 -10%	53.7 8%	76.6 ?(27.4 - 223, n=63, last 2 years) 54%
SPECviewperf 2020		98%	97%	146%	167%	94%	466%
3840x2160 Medical (medical-03)	1.34	2.69 101%	3.48 160%	2.72 103%	5.05 277%	2.67 99%	7.74 ?(0.78 - 30.8, n=65, last 2 years) 478%
3840x2160 Energy (energy-03)	0.76	3.17 317%	3 295%	4.75 525%	4.61 507%	2.97 291%	10.8 ?(0.52 - 47.9, n=65, last 2 years) 1321%
3840x2160 Creo (creo-03)	9.08	16.3 80%	15.1 66%	19.2 111%	17.9 97%	16.9 86%	29.7 ?(7.73 - 97.5, n=65, last 2 years) 227%
3840x2160 CATIA (catia-06)	5.56	8.53 53%	8.08 45%	9.99 80%	10 80%	8.82 59%	18.3 ?(4.61 - 64.1, n=64, last 2 years) 229%
3840x2160 3ds Max (3dsmax-07)	6.66	10.3 55%	9.78 47%	11.6 74%	12.9 94%	10.1 52%	21.8 ?(5.53 - 87.5, n=65, last 2 years) 227%
3840x2160 Siemens NX (snx-04)	5.98	6.62 11%	6.67 12%	6.9 15%	5.7 -5%	6.01 1%	37.5 ?(2.25 - 224, n=63, last 2 years) 527%
3840x2160 Maya (maya-06)	16.1	27.3 70%	24.4 52%	34.1 112%	35.4 120%	27.8 73%	56.4 ?(12.2 - 207, n=65, last 2 years) 250%
Total Average (Program / Settings)		87% / 86%	80% / 80%	118% / 117%	141% / 140%	79% / 78%	611% / 617%

3DMark 05 Standard		34544 points
3DMark 06 Standard Score		22191 points
3DMark Vantage P Result		14821 points
3DMark 11 Performance		3954 points
3DMark Ice Storm Standard Score		79499 points
3DMark Cloud Gate Standard Score		16618 points
3DMark Fire Strike Score		2491 points
3DMark Fire Strike Extreme Score		1176 points
3DMark Time Spy Score		857 points
3DMark Steel Nomad Score		72 points
3DMark Steel Nomad Light Score		553 points
Help

... in comparison

游戏性能

由于 3D 性能非常低，我们在图形性能的合成基准测试中已经看到了这一点，因此游戏性能自然无从谈起。即使是较老的游戏，也只能在低分辨率和最低细节的情况下流畅运行。

FPS chart

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770: Ø5.16 (4.95-5.27)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs: Ø11.1 (5.97-12.3)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs: Ø12.5 (11.3-13.6)

	low	med.	high	ultra
The Witcher 3 (2015)	53.5		17.9
Final Fantasy XV Benchmark (2018)	26.3	13.3	9.3
Strange Brigade (2018)	61.4	23.1	17.7	15.9
Baldur's Gate 3 (2023)	9.7	7.5
Cyberpunk 2077 2.1 Phantom Liberty (2023)	9.3	7	6.1	5.2
F1 24 (2024)	21.2	18.1	12.9

排放 - 英特尔酷睿 i5-13500 静音冷却型

噪音排放

HP Elite Mini 800 G9 通常表现得非常不起眼，几乎听不到声音。不过，尽管在空闲模式下声压级仅约为 28 dB(A)，但两个风扇仍在持续工作。即使在低负载情况下，测得的噪音水平也只是略微上升到 30 dB(A)左右，这是迄今为止同类产品中最好的结果。在压力测试中，CPU 风扇必须更加努力地工作，导致最大噪音水平达到 40.7 dB(A)。

Noise Level

Idle		28.1 / 28.1 / 28.2 dB(A)
Load		29.8 / 40.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.4 dB(A)

	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Khadas Mind i7-1360P, Iris Xe G7 96EUs
Noise		-14%	-12%	-24%	-9%	-24%
off / environment *	24.4	24.3 -0%	25.4 -4%	24.4 -0%	24.9 -2%	25.2 -3%
Idle Minimum *	28.1	27.9 1%	27.5 2%	33.7 -20%	25.4 10%	34.4 -22%
Idle Average *	28.1	27.9 1%	28 -0%	33.9 -21%	25.7 9%	34.4 -22%
Idle Maximum *	28.2	28 1%	33 -17%	34.7 -23%	25.7 9%	34.5 -22%
Load Average *	29.8	43.8 -47%	42.8 -44%	47.7 -60%	47.8 -60%	44.7 -50%
Cyberpunk 2077 ultra *	33.9	45.4 -34%
Load Maximum *	40.7	48.5 -19%	44.9 -10%	49.1 -21%	49 -20%	50.4 -24%
Witcher 3 ultra *			44.5	48.9	45.23	49

* ... smaller is better

温度

HP Elite Mini 800 G9 的金属外壳能在负载情况下最佳地分散热量，因此不会出现极端热点。我们可以看到，底部的热量明显高于顶部。尽管如此，表面温度仍在绿色范围内。尽管英特尔酷睿 i5-13500 采用了紧凑型设计，但在负载情况下仍能可靠散热。在压力测试中，我们记录的最高温度为 88 °C，永久功耗约为 65 瓦，完全符合 PL1 值。冷却概念非常巧妙，冷空气可以通过外壳顶部的穿孔吸入，然后直接吹入 CPU 冷却器。Minisforum 采用了与 MS-01的概念相似，但在噪音方面却无法令人信服。

Max. Load

Idle


32 °C	36.2 °C	40.4 °C
26.4 °C	30 °C	33 °C
26.5 °C	23.8 °C	26.3 °C

Maximum: 40.4 °C
Average: 30.5 °C


46.4 °C	43.9 °C	35 °C
44.4 °C	45.6 °C	36.3 °C
38.9 °C	38.8 °C	35.1 °C

Maximum: 46.4 °C
Average: 40.5 °C

Power Supply (max.) 46.2 °C | Room Temperature 21.2 °C | Fluke t3000FC (calibrated)

(+) The average temperature for the upper side under maximal load is 30.5 °C / 87 F, compared to the average of 32.2 °C / 90 F for the devices in the class Mini PC.
(±) The maximum temperature on the upper side is 40.4 °C / 105 F, compared to the average of 35.7 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 46.4 °C / 116 F, compared to the average of 36.2 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 32.2 °C / 90 F.

发言人

惠普在 Elite Mini 800 G9 的正面安装了一个小型扬声器。语音重现清晰、分明。遗憾的是，该机没有内置麦克风，无法参加音频会议。唯一的选择是使用耳机，耳机可通过插孔或 USB 接口连接。原则上，这款小型扬声器也适合在工作时播放安静的背景音乐。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

HP Elite Mini 800 G9-5M9T9EA audio analysis

(+) | speakers can play relatively loud (86.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.4% lower than median
(±) | linearity of bass is average (8.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.1% higher than median
(+) | mids are linear (6.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.6% higher than median
(±) | linearity of highs is average (8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.6% difference to median)
Compared to same class
» 43% of all tested devices in this class were better, 7% similar, 50% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 57% of all tested devices were better, 7% similar, 36% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Minisforum Mars Series MC560 audio analysis

(-) | not very loud speakers (62.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(+) | bass is linear (5.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.5% lower than median
(-) | mids are not linear (20.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.1% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38.4% difference to median)
Compared to same class
» 86% of all tested devices in this class were better, 7% similar, 7% worse
» The best had a delta of 14%, average was 25%, worst was 40%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 5% worse
» The best had a delta of 4%, average was 25%, worst was 134%

能源管理

惠普的 Elite Mini 800 G9 很好地证明了，即使是采用传统台式机处理器的微型电脑也可以很经济：我们的测试样品在空闲模式下非常经济，明显优于竞争对手。当可以使用 Turbo 时，我们测得的峰值功率略高于 122 瓦，但这并不是永久性的。在这种情况下，我们测试系统的能耗略高于对比设备。不过，我们也看到，在平均负载下仅需要略低于 53 瓦的功率。与 Minisforum MS-01这是一个明显更好的结果。

不过，我们必须正确看待功耗问题，因为考虑到 CPU 性能，惠普 Elite Mini 800 G9 的能效与其他迷你 PC 并不在同一水平线上。另外值得一提的是，惠普只为 Elite Mini 800 G9 配备了 120 瓦的电源。不过，我们在测试中没有遇到任何电源稳定的问题。

Power Consumption

Off / Standby	0.9 / 1.3 Watt
Idle	3.5 / 7.9 / 13.2 Watt
Load	52.7 / 122.2 Watt


Key: min: , med: , max: Metrahit Energy

	HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs	Minisforum Venus Series NAB9 i9-12900HK, Iris Xe G7 96EUs	Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	Acemagic F2A Ultra 7 155H, Arc 8-Core	Khadas Mind i7-1360P, Iris Xe G7 96EUs	Average Intel UHD Graphics 770	Average of class Mini PC
Power Consumption		-31%	-73%	-115%	-39%	-17%	-11%	-44%
Idle Minimum *	3.5	7.9 -126%	12.1 -246%	14.4 -311%	9.1 -160%	7.8 -123%	4.88 ?(3.5 - 6.3, n=5) -39%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -171%
Idle Average *	7.9	10.3 -30%	13.2 -67%	16.1 -104%	10.3 -30%	10.9 -38%	8.12 ?(7.2 - 8.9, n=5) -3%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -46%
Idle Maximum *	13.2	22.3 -69%	14.1 -7%	25.5 -93%	14.4 -9%	11.8 11%	13.9 ?(8.7 - 21.5, n=5) -5%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -13%
Load Average *	52.7	57.44 -9%	82.9 -57%	87.3 -66%	54.9 -4%	39.2 26%	53.5 ?(44.6 - 69.5, n=5) -2%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -9%
Cyberpunk 2077 ultra external monitor *	73.8	55.9 24%
Load Maximum *	122.2	93.4 24%	106.8 13%	123.3 -1%	110.4 10%	76.4 37%	128.2 ?(81.3 - 231, n=5) -5%	97.5 ?(18.1 - 423, n=119, last 2 years) 20%

* ... smaller is better

Efficiency

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	97.7 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	95.8 pt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	76.1 pt
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	73.9 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	68.2 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	210 Points per Watt +61%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	183.7 Points per Watt +41%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	164.2 Points per Watt +26%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	148.1 Points per Watt +13%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	130.5 Points per Watt
Cinebench R23 Single Power Efficiency - external Monitor
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	54.3 Points per Watt +48%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	54.2 Points per Watt +47%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	36.8 Points per Watt
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	36.4 Points per Watt -1%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	34.9 Points per Watt -5%
Cinebench R15 Multi Efficiency (external Monitor)
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	26.6 Points per Watt +34%
Geekom GT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	24.8 Points per Watt +25%
Minisforum Venus Series NAB9 Intel Core i9-12900HK, Iris Xe G7 96EUs	23.1 Points per Watt +16%
Minisforum MS-01 Intel Core i9-13900H, Iris Xe G7 96EUs	22.1 Points per Watt +11%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500, UHD Graphics 770	19.9 Points per Watt

Power consumption with the external monitor

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; Idle 1min (external Monitor): Ø7.91 (4.15-13.2)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.4 (12.6-22.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Idle 1min (external Monitor): Ø17.7 (16.8-25.5)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Idle 1min (external Monitor): Ø10.4 (9.08-14.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø73.9 (70.9-87.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1920x1080 The Witcher 3 ultra (external Monitor): Ø48.4 (45.6-52.4)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; 1280x720 Prime95 28.10 and Furmark 1.25: Ø96.8 (93.1-105.6)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø60.2 (57-86.6)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø97.8 (96.8-99.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 Prime95 28.10 and Furmark 1.25: Ø92.2 (78.7-114)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø73.8 (69.2-110.8)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cyberpunk 2077 FHD ultra no FSR - external Monitor: Ø55.9 (54.2-59.2)

Power consumption with the external monitor

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; Prime95 V2810 Stress (external Monitor): Ø98.7 (93.7-122.2)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø59.5 (53.5-84.7)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø98.7 (85.9-123.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Prime95 V2810 Stress (external Monitor): Ø99.6 (92-110.4)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; Cinebench R15 Multi (external Monitor): Ø121 (119.8-121.8)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø91.2 (88.5-93.4)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø111.3 (106.3-117.5)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R15 Multi (external Monitor): Ø103 (99.2-107)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; Cinebench R23 Single (external Monitor): Ø48.4 (44.5-91.5)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø31.6 (29-59.5)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Single (external Monitor): Ø49.6 (44.3-102.7)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Single (external Monitor): Ø32.7 (19.4-55.3)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; Cinebench R23 Multi (external Monitor): Ø111.7 (90.6-123.7)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø62.1 (50.4-89.7)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; Cinebench R23 Multi (external Monitor): Ø98.7 (91-111.3)

Acemagic F2A Ultra 7 155H, Arc 8-Core; Cinebench R23 Multi (external Monitor): Ø100.7 (97.2-108.6)

HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.7 (36.7-86.6)

Geekom GT13 Pro i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.6 (51.3-69.7)

Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø92.1 (88.6-103.5)

Acemagic F2A Ultra 7 155H, Arc 8-Core; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.7 (47.3-60.6)

Pros

+ 坚固的金属外壳

+ 模块化设计

+ 无需工具即可打开

+ 插槽式英特尔酷睿 i5-13500

+ 可安装三个固态硬盘

+ 快速无线局域网

+ 安静高效的冷却装置

+ 小型扬声器

+ 附带鼠标和键盘

Cons

- 3D 性能较低

- 无 USB4 或 OCuLink

- 保修期仅为 12 个月

- DPC 延迟增加

结论：方法得当，连接选择一般

配备英特尔酷睿 i5-13500 处理器的 HP Elite Mini 800 G9 评测 - 由惠普德国公司提供

HP Elite Mini 800 G9 是一款非常适合日常使用的迷你电脑。我们测试的配置为英特尔酷睿 i5-1350016 GB 内存和 512 GB 存储空间的配置下，这款小巧的 PC 是一款不错的工作设备。虽然惠普在经典工业 PC 和消费 PC 之间取得了良好的平衡，但其设计还是值得商榷的。模块化设计很受欢迎，这一直是小型 PC 面临的挑战。惠普 Elite Mini 800 G9 很容易打开，内存和固态硬盘也很容易加装。

基于英特尔酷睿 i5-13500，惠普 Elite Mini 800 G9 提供了足够的性能和丰富的外部连接选项。但不包括 USB4 或 OCuLink。

连接性留下了平淡的余味，在数量上当然令人信服。如果能提供 USB4 或 OCuLink 连接，将极大地扩展应用的可能性。HP Elite Mini 800 G9 的 3D 性能尤其是一个不容忽视的短板。在这方面，大多数竞争对手都提供了性能明显更好的替代产品。惠普本可以把模块化设计的积极意义发挥得更好一些。惠普很好地解决了处理器的散热问题，尽管由于机身小巧，它无法全功率运行。尽管如此，我们还是看到英特尔酷睿 i5-13500 处理器可以在 65 瓦的功率下持续、相对安静地运行。而对比设备则无法做到这一点。这些设备的散热装置的噪音几乎都很大。

惠普 Elite Mini 800 G9 的官方售价为 1,085 欧元，无疑并不便宜。目前，其他多家在线零售商的售价约为 850 欧元，性价比要高得多。如果你对充斥迷你 PC 市场的不知名品牌不感兴趣，而更愿意选择久经考验的品牌，那么惠普 Elite Mini 800 G9 不失为一款日常性能出色的迷你 PC。

价格和供应情况

HP Elite Mini 800 G9 可直接从制造商处购买。另外，搭载酷睿 i7 处理器的版本也在亚马逊上有售。

HP Elite Mini 800 G9-5M9T9EA - 06/21/2024 v8
Sebastian Bade

Chassis

85 / 98 → 87%

Connectivity

61 / 81 → 76%

Weight

72%

Games Performance

14 / 80 → 17%

Application Performance

80 / 92 → 87%

Workstation

14%

AI Performance

58%

Temperature

91%

Noise

84%

Audio

68%

Average

57%

72%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
50%

Packaging
75%

Power Use
72.5%

Repairability
68%

Software Updates
22.4%

Total Sustainability Score: 48%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

惠普 Elite Mini 800 G9 迷你 PC 评测 - 配备英特尔酷睿 i5-13500、16 GB DDR5 内存和静音冷却系统的模块化 NUC PC

微型计算机和台式机 CPU？

潜在的竞争对手比较

外壳 - 大量金属和模块化设计

尺寸比较

功能 - 多个 USB 端口，但没有 USB4 或 Thunderbolt 接口

交流

配件

维护

可持续性

性能 - 嵌入式英特尔酷睿 i5-13500

测试条件

处理器

Cinebench R15 多循环

系统性能

DPC 延迟

大容量存储器

Continuous read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

FPS chart

排放 - 英特尔酷睿 i5-13500 静音冷却型

噪音排放

温度

发言人

HP Elite Mini 800 G9-5M9T9EA audio analysis

Minisforum Mars Series MC560 audio analysis

能源管理

Efficiency

Power consumption with the external monitor

Power consumption with the external monitor

Pros

Cons

结论：方法得当，连接选择一般

价格和供应情况

Transparency

Price comparison

More articles related to this device

Cinebench 2024 CPU Multi Core in comparison
HP Spectre x360 16 RTX 4050 (min) Ultra 7 155H, NVIDIA GeForce RTX 4050 Laptop GPU	28.1
...
Nubia RedMagic Titan 16 Pro i9-14900HX, NVIDIA GeForce RTX 4060 Laptop GPU	817
Tulpar T7 V20.6 i7-13700H, NVIDIA GeForce RTX 4060 Laptop GPU	818
Minisforum MS-01 i9-13900H, Iris Xe G7 96EUs	818
HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	822
Apple MacBook Pro 16 2021 M1 Pro M1 Pro, M1 Pro 16-Core GPU	824
Asus ROG Zephyrus G14 GA402XY R9 7940HS, NVIDIA GeForce RTX 4090 Laptop GPU	824
Huawei MateBook X Pro 2024 Ultra 9 185H, Arc 8-Core	828
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

3DMark 11 in comparison
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
HP Pro Mini 400 G9-937U0EA i5-14500T, UHD Graphics 770	3920
Minisforum BD790i R9 7945HX, Radeon 610M	3929
Apple MacBook Pro Retina 15 inch 2015-05 4870HQ, Radeon R9 M370X	3942
HP Elite Mini 800 G9-5M9T9EA i5-13500, UHD Graphics 770	3954
HP Elite Mini 800 G9-5M9X6EA i5-14500, UHD Graphics 770	3960
Huawei MateBook X Pro 2020 i7 i7-10510U, GeForce MX250	3963
Huawei MateBook D 14-53010TVS R5 3500U, Vega 8	4013
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609
