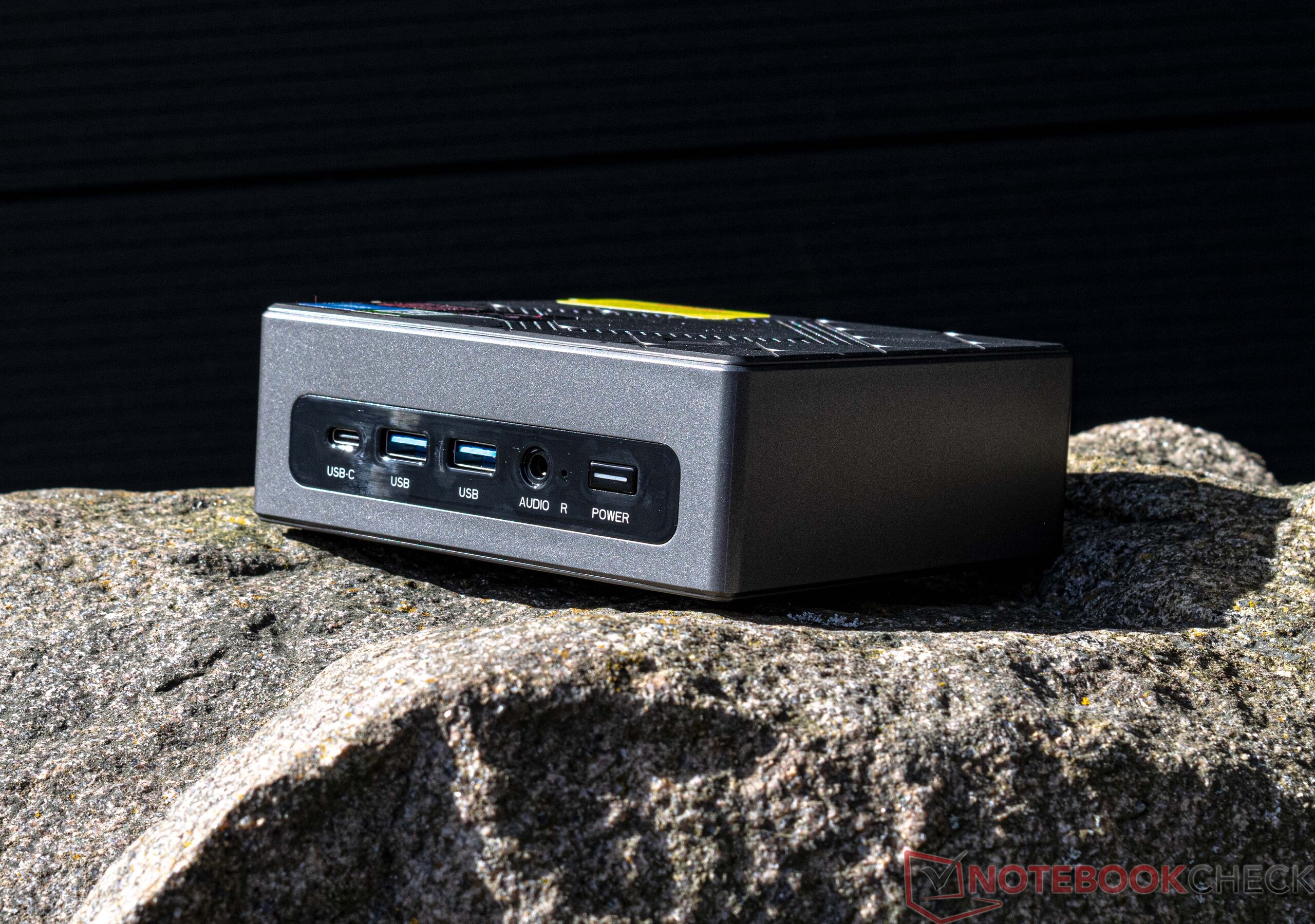

ACEMagician ACE-CK10-8259U迷你电脑评测--安静的办公电脑，最多可容纳三块固态硬盘的空间

Name: ACEMagician ACE-CK10-8259U
Brand: ACEMagician

记忆怪物!

ACEMagician ACE-CK10-8259U是一款基于原生4核处理器的小型办公电脑。然而，它的处理器仍然是Coffee Lake一代的一部分，这不一定会成为新设备的首选。尽管如此，制造商已经为这个模型提供了足够的性能潜力，供日常使用。我们将ACEMagician ACE-CK10-8259U进行了测试，这篇评论将向你展示该SoC能做的一切。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 04/19/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Coffee Lake

中国的系统制造商Minipc Union经销ACEMagician、NiPoGi和Kamuri等品牌，我们已经在一些测试中了解了这些品牌。ACEMagician ACE-CK10-8259U依靠的是一个英特尔酷睿i5-8259U作为一个SoC。该SoC有4个核心和8个线程，在日常使用中能比较好地应对工作负荷--这一点我们已经可以猜到了。SoC由16GB的LPDDR3内存支持，该内存不能被扩展。我们的测试样品的SSD是512GB的型号。制造商目前对测试设备收费约400美元，其中还包括Windows 11专业版。

这款迷你电脑采用紧凑的包装，包括一个65瓦的电源和一个VESA支架--这意味着你可以将该设备安装在显示器上。潜在对手的概况可以在下表中找到。

ACEMagician ACE-CK10-8259U

Processor

Intel Core i5-8259U 4 x 2.3 - 3.8 GHz, Coffee Lake-U

Graphics adapter

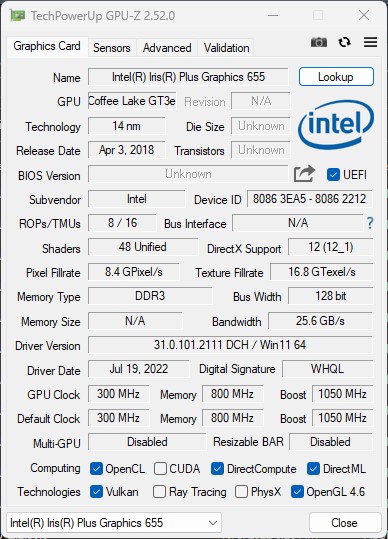

Intel Iris Plus Graphics 655

Memory

16 GB

, LPDDR3-1600, fest verbaut

Mainboard

Intel Cannon Lake-U PCH-LP Premium

Storage

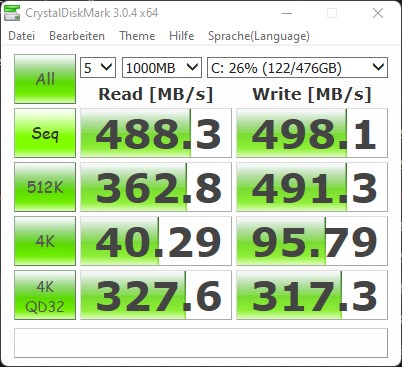

FPT330M8SSD512G, 512 GB

, M.2 2280, 440 GB free

Soundcard

Intel Cannon Lake-LP - cAVS

Connections

5 USB 3.0 / 3.1 Gen1, 1 VGA, 2 HDMI

Networking

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), RealTek Semiconductor, Device ID: C821 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 50 x 137.5 x 125

Operating System

Microsoft Windows 11 Pro

Weight

449 g, Power Supply: 236 g

Price

450 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
73.4 % v7 ^(old)	04 / 2023	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	449 g	50 mm
v ^(old)	01 / 2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v ^(old)	02 / 2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
v ^(old)	09 / 2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v7 ^(old)	09 / 2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
70.9 % v7 ^(old)	12 / 2022	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
68.2 % v7 ^(old)	03 / 2023	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	381 g	47 mm

ACEMagician ACE-CK10-8259U的详细信息

案例

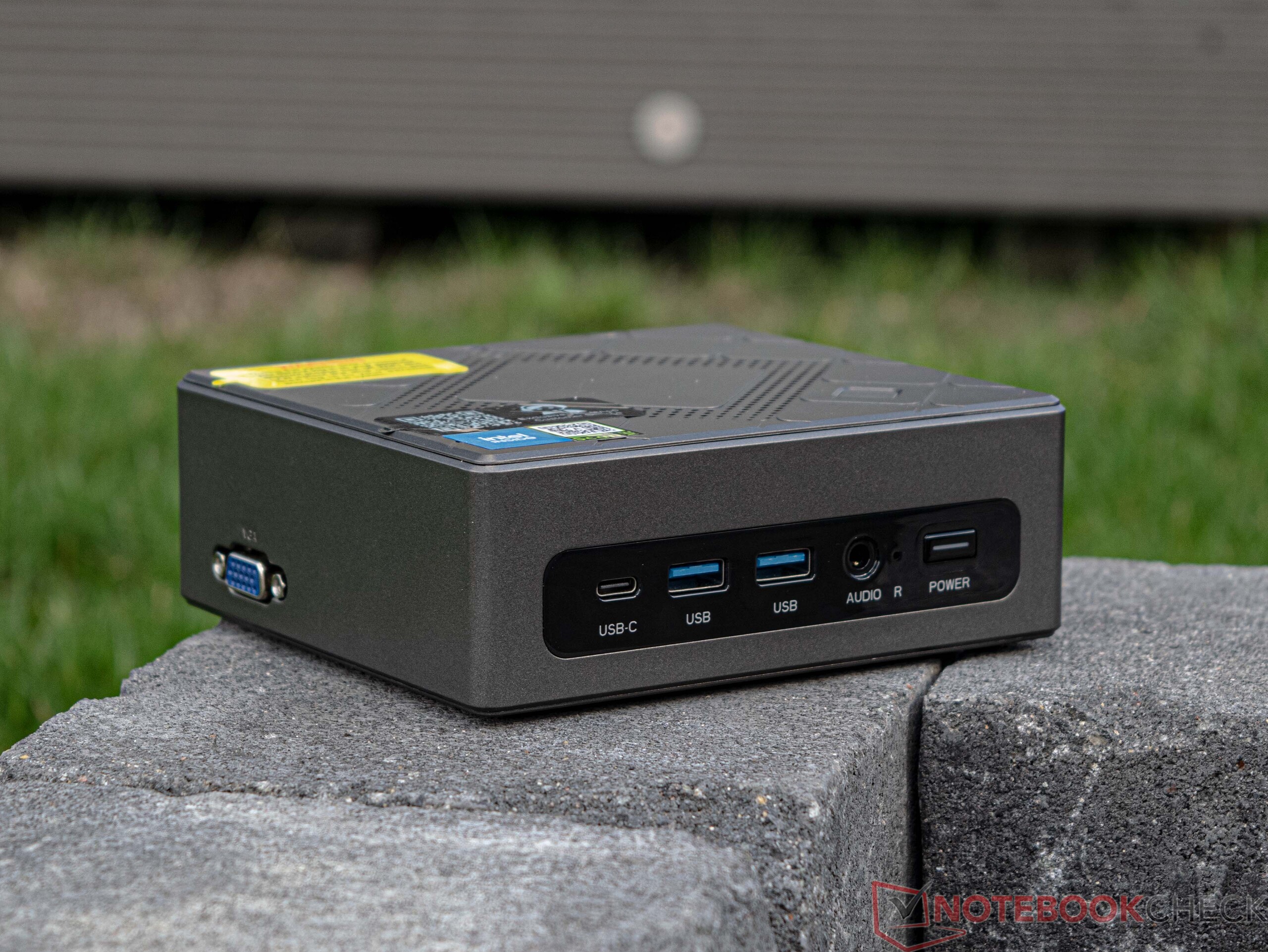

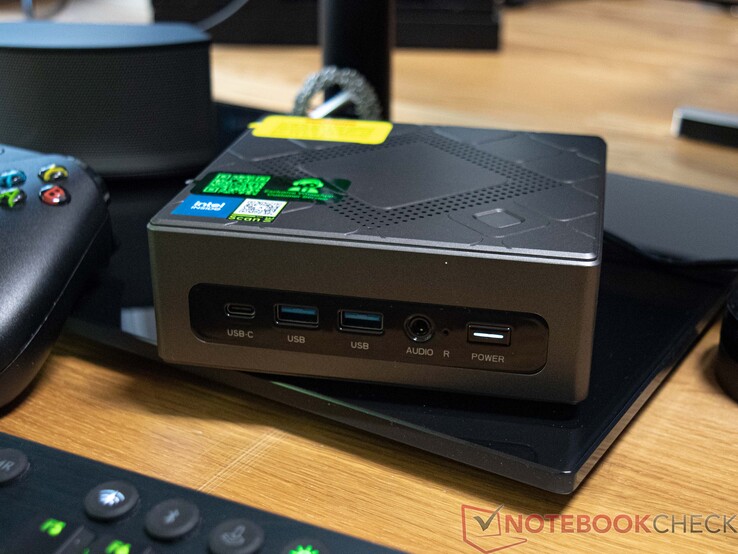

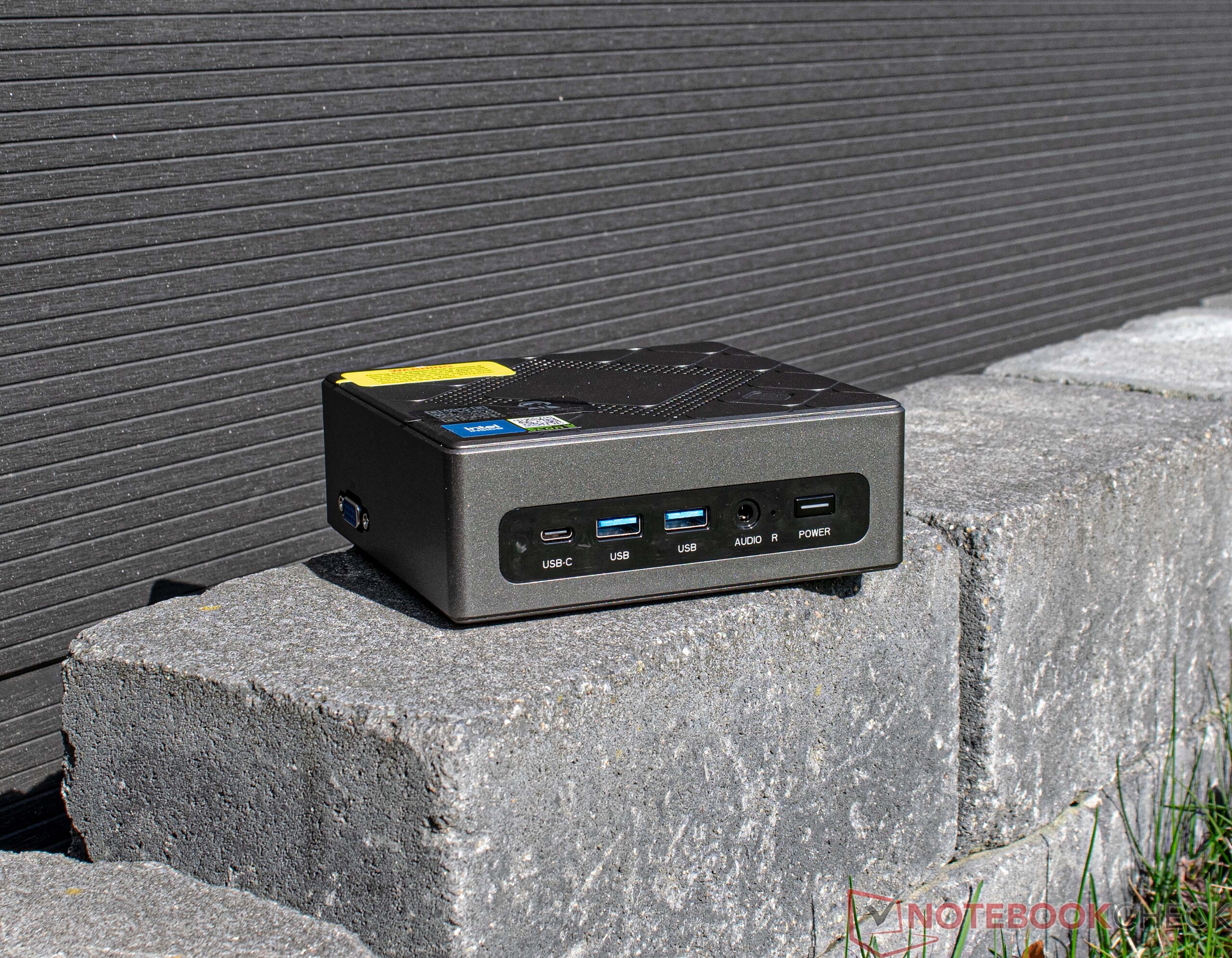

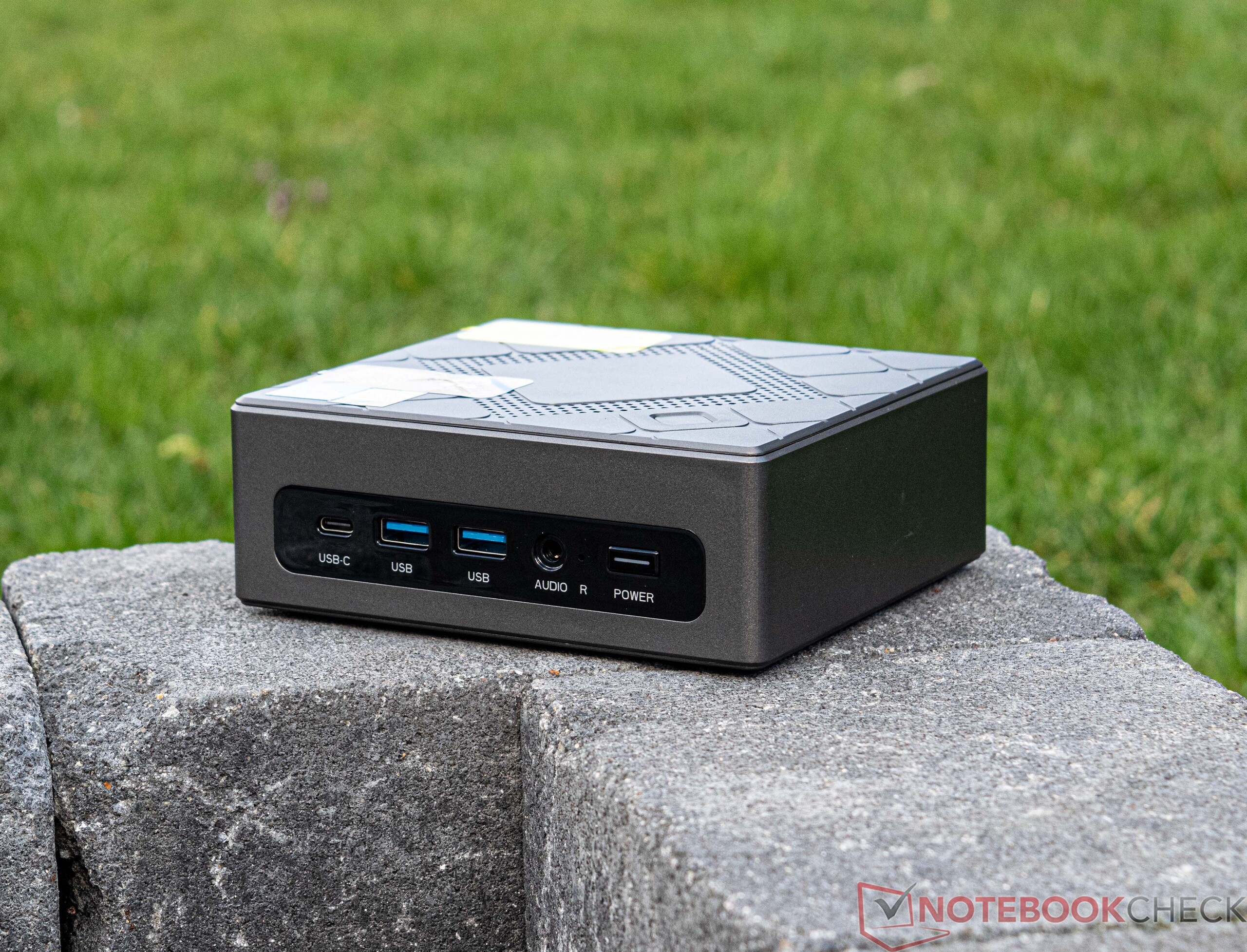

ACEMagician ACE-CK10-8259U在结构上与NiPoGi CK10完全相同。两个型号都有相同的外壳，主要由塑料制成。该设备的颜色是相对不明显的哑光灰色。这很好，因为有光泽的表面有相当快的划痕趋势。其13.7 x 12.5厘米的占地面积比其竞争对手要小。然而，它的建筑高度，在我们的测试样本中几乎正好是5厘米，最终有点偏高。至于ACEMagician对材料的选择，NiPoGi CK10大部分是塑料。制造商选择放弃了一个额外的金属框架以获得稳定性。在我们的测试设备上，上侧隐含的指纹扫描仪似乎并不工作。似乎制造商利用该设备的外壳进行了进一步的配置选择。

尺寸比较

Minipc Union Ace Magician AMR5 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 ACEMagician ACE-CK10-8259U Minipc Union NiPoGi CK10 - 10810U Morefine S500+ Minipc Union NiPoGi GK3PLUS - N95 DIN A4 ❌

连接性

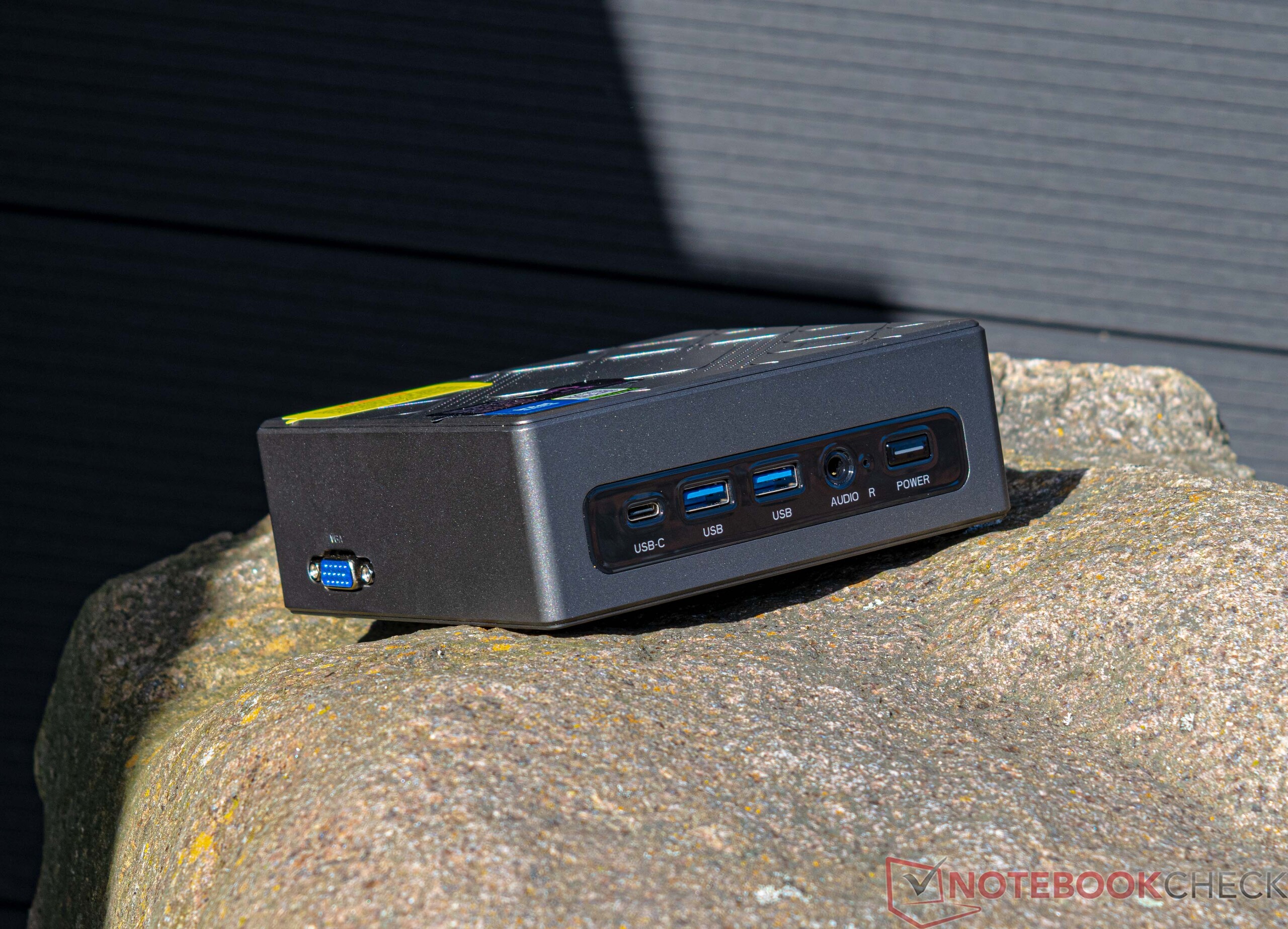

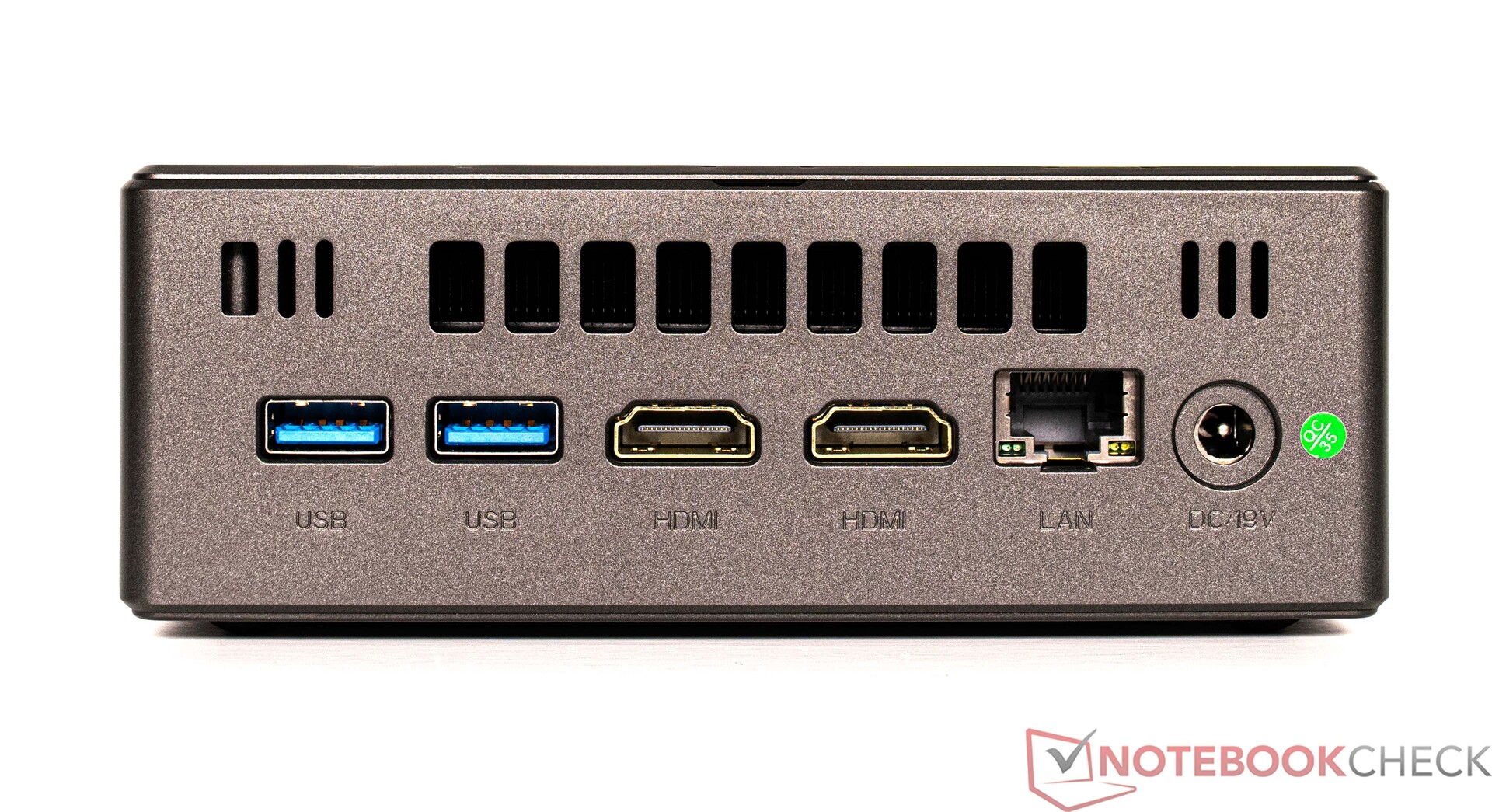

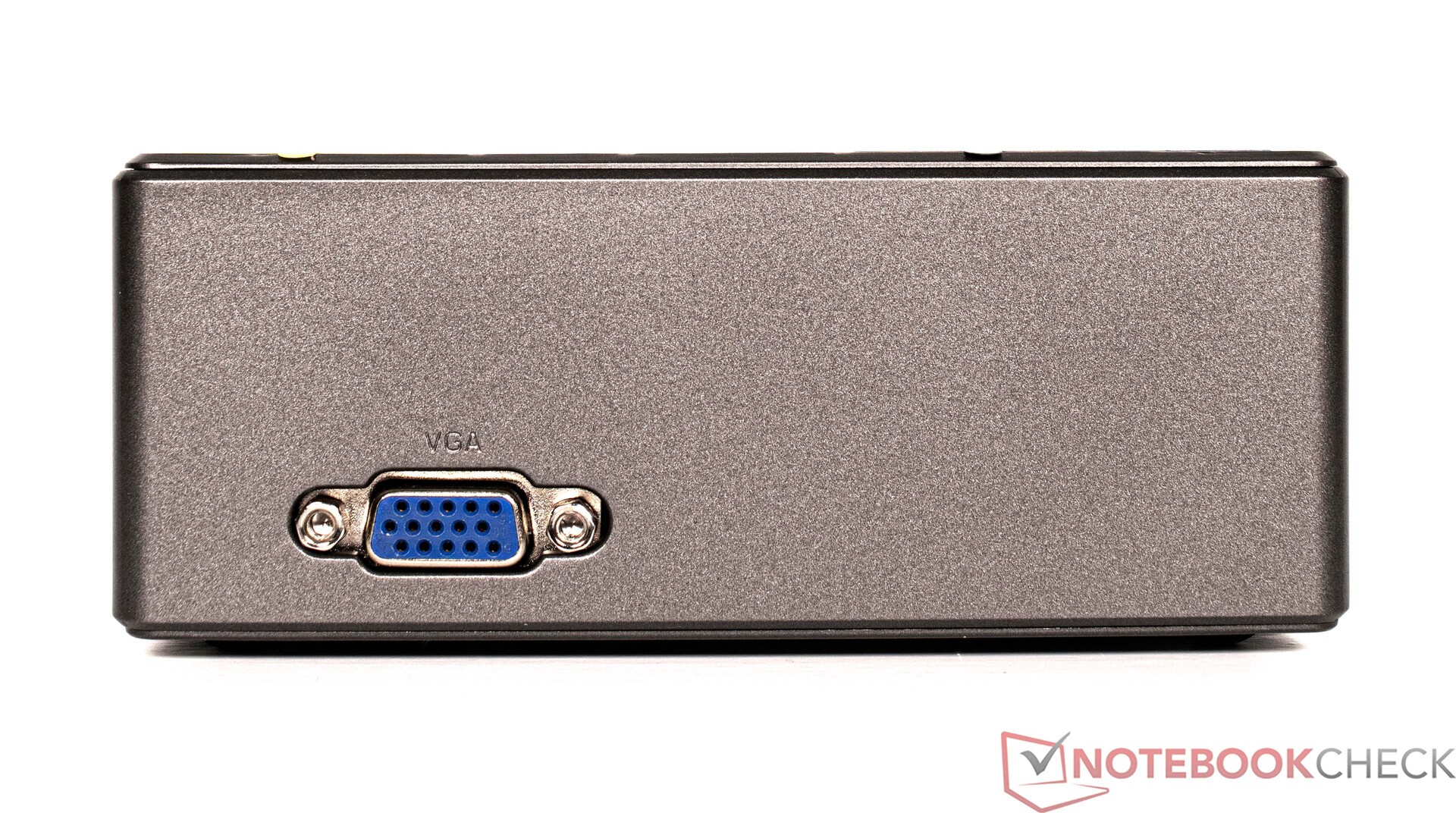

在外部端口方面，我们能够看到ACEMagician ACE-CK10-8259U上的端口与NiPoGi CK10上的相同。我们数了一下，总共有5个USB接口，这对大多数用户来说应该是绰绰有余。USB接口分为4个USB Type-A接口和1个USB Type-C接口。然而，后者只是一个普通的数据端口，因此，不提供Thunderbolt支持。显示器可以通过背面的HDMI端口连接到设备上。此外，ACEMagician ACE-CK10-8259U有一个VGA端口，如今已不再广泛使用。

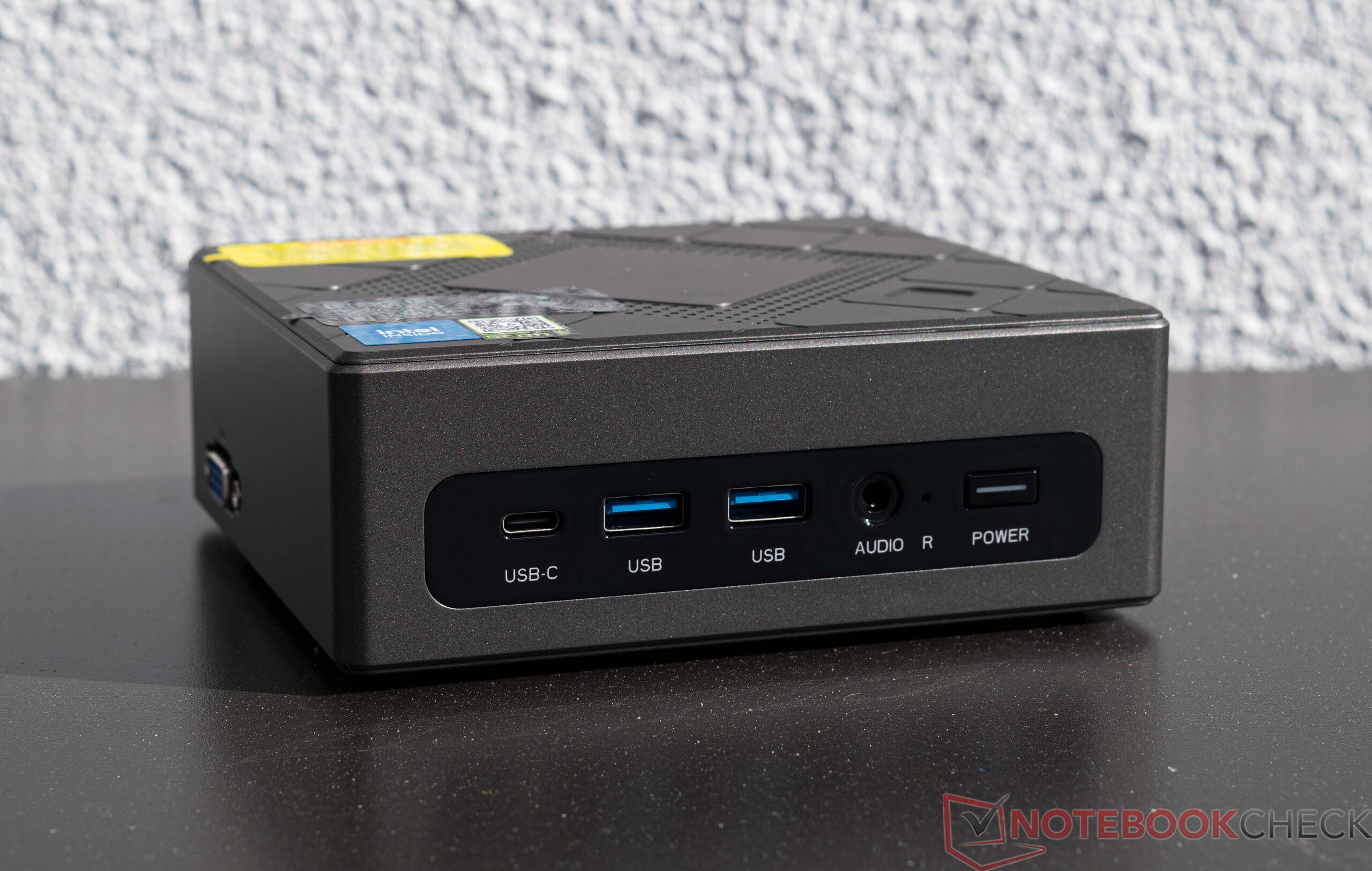

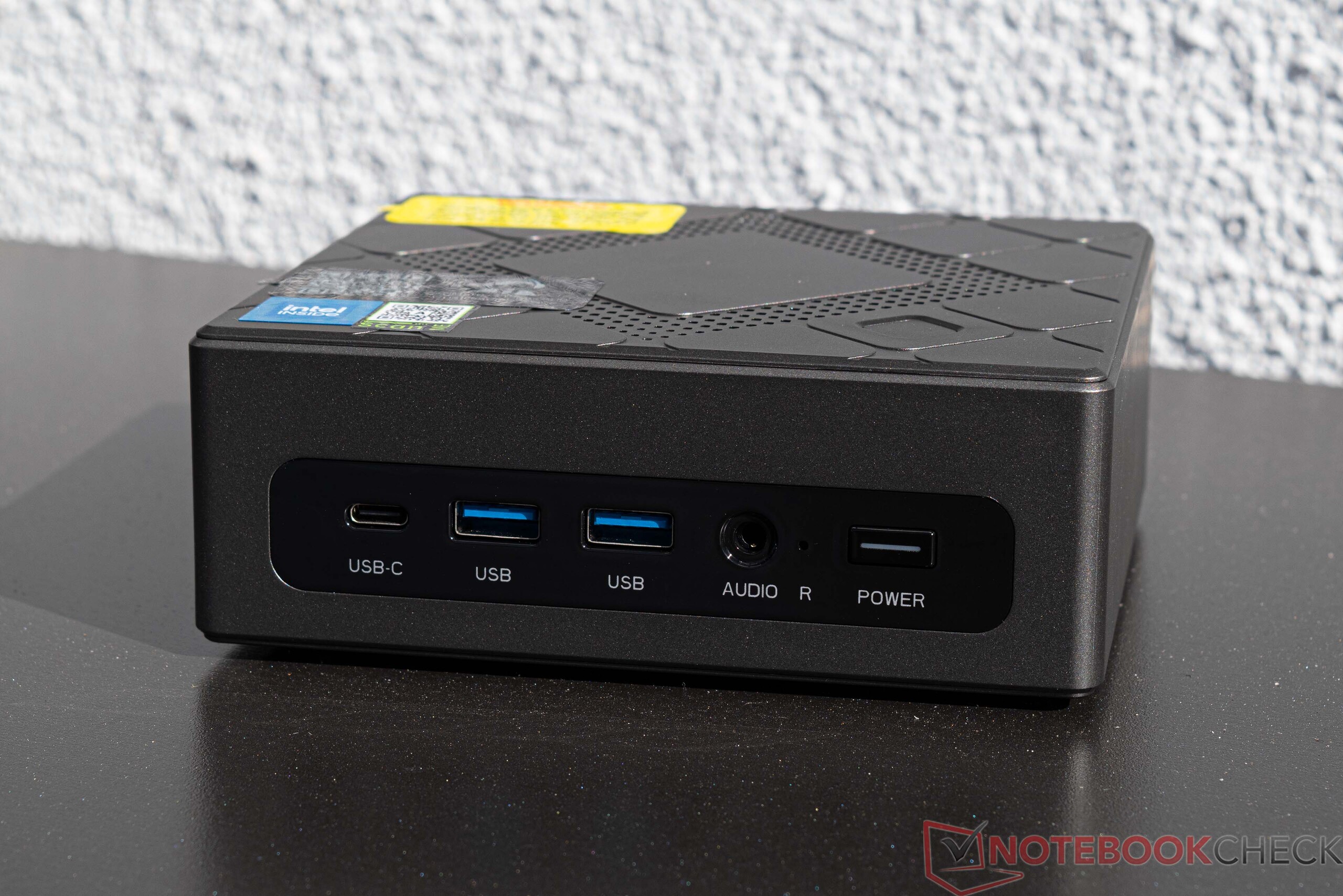

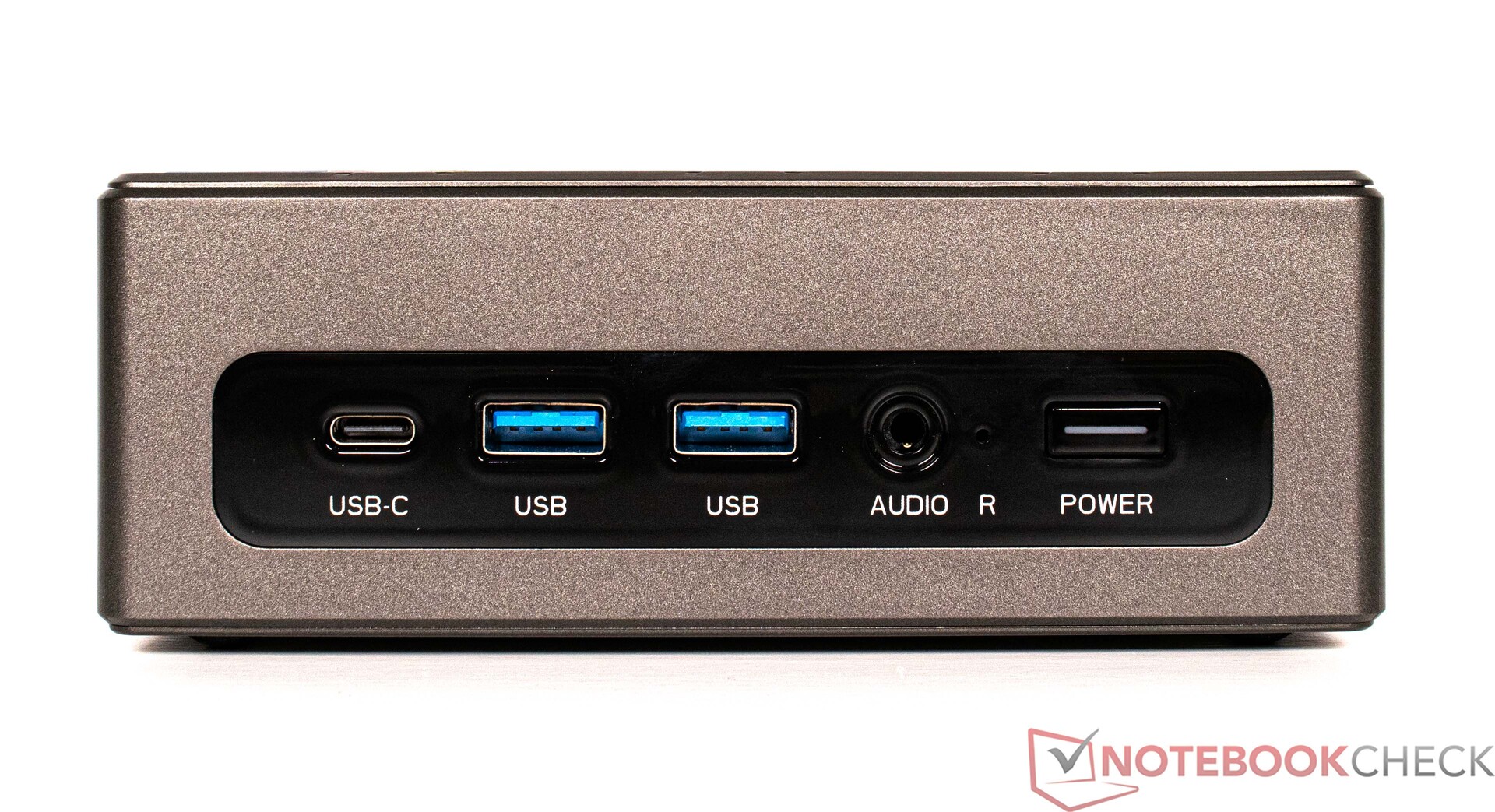

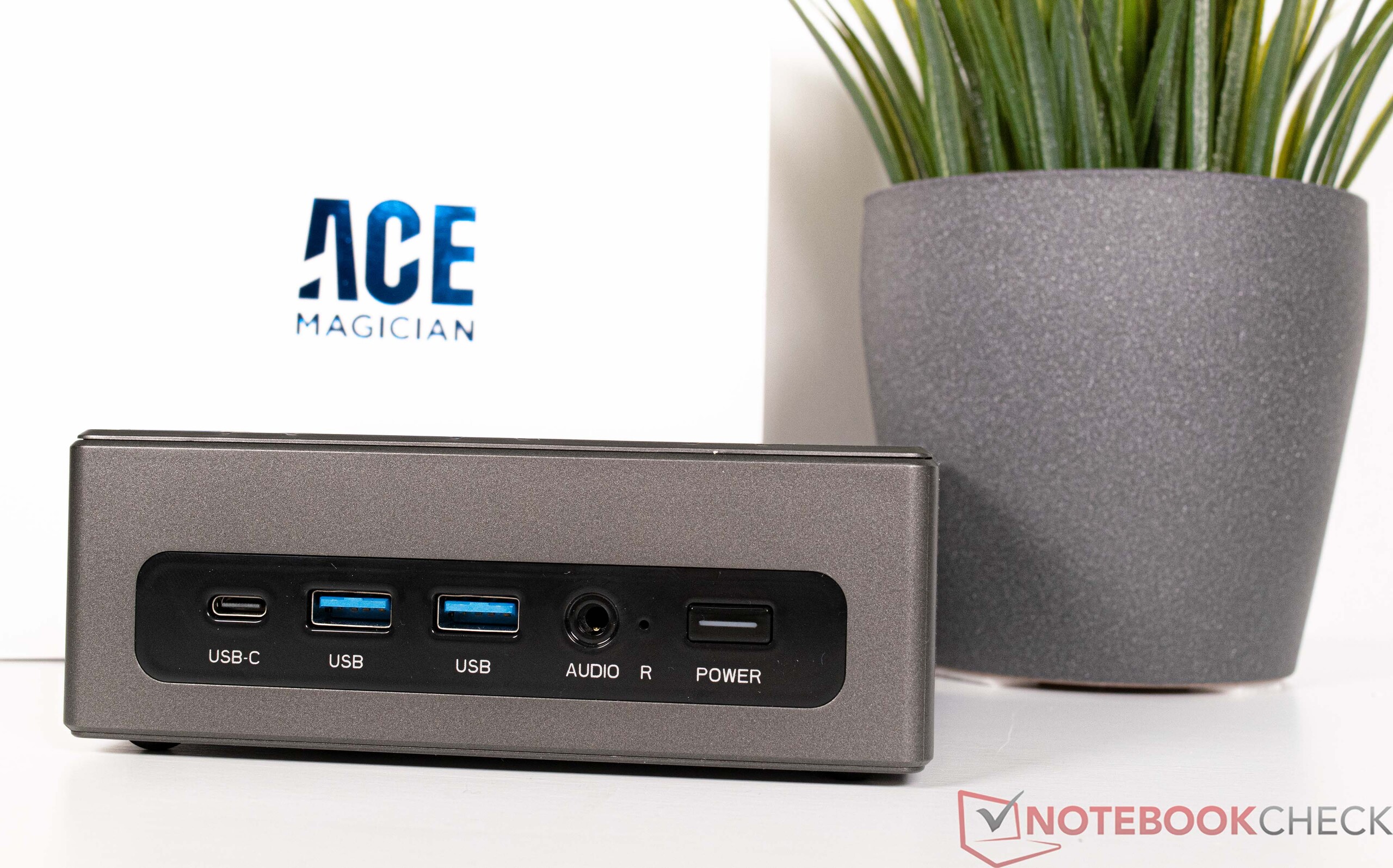

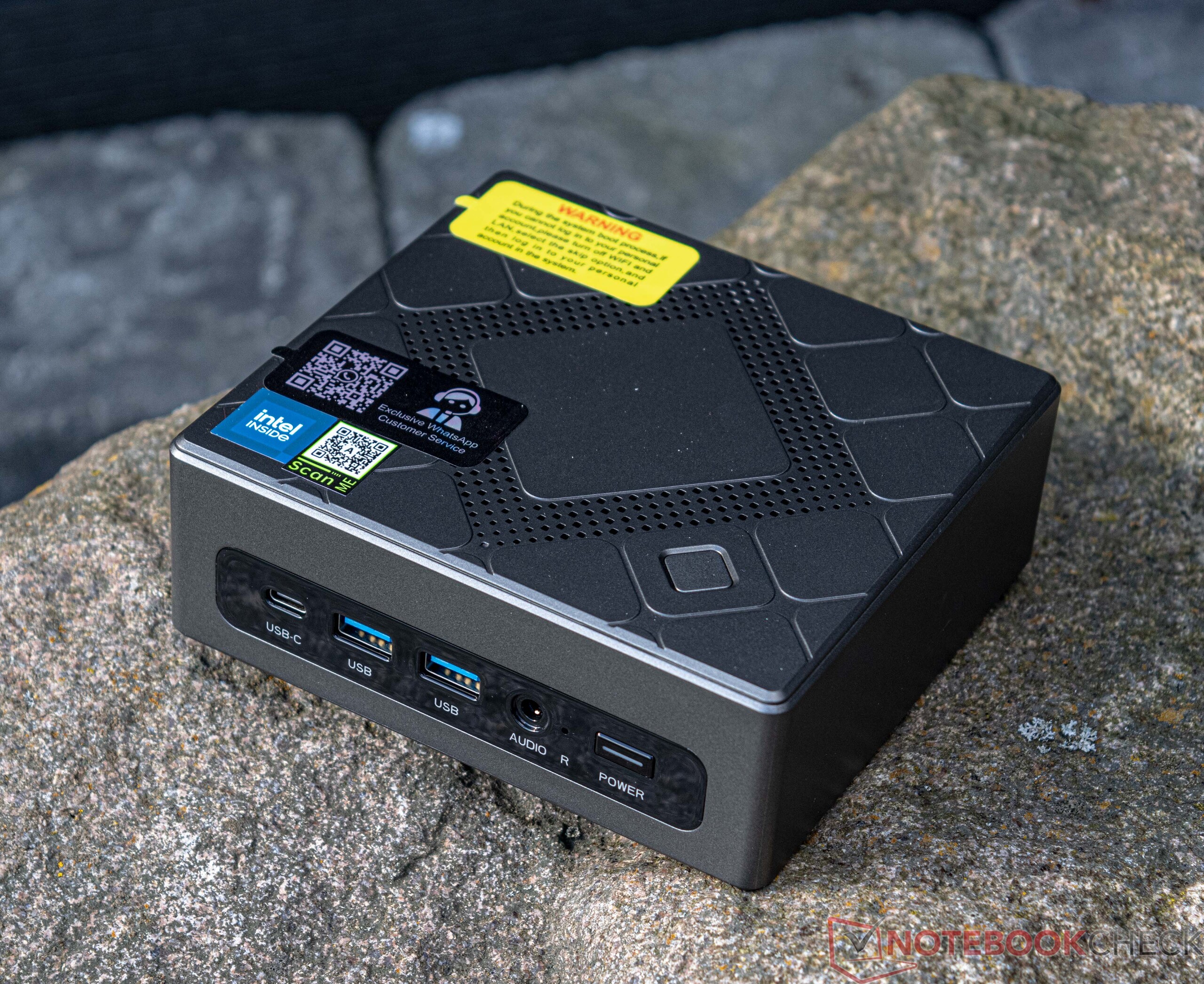

前面：USB Type-C（数据），2个USB 3.0，3.5毫米插孔，电源接通

沟通

ACEMagician CK10配备了一个来自Realtek的Wi-Fi模块。然而，在我们的测试中，该无线模块的工作并不十分可靠，这意味着我们的测试样品在我们的名单中排名垫底。一个相同的模块也被用在 NiPoGi CK10中使用了一个相同的模块，显示了类似的结果。华硕ROG Rapture GT-AXE11000被用作该测试的路由器。另外，ACEMagician ACE-CK10-8259U也具有一个以太网端口。在这里，最高可以达到1GBit/s。

Networking
iperf3 receive AXE11000
Average of class Mini PC (192.9 - 1796, n=113, last 2 years)	932 MBit/s +167%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 MBit/s +159%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s +122%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s +12%
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	358 (180^min - 362^max) MBit/s +3%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	349 (175^min - 353^max) MBit/s
Average RealTek Semiconductor, Device ID: C821 (192.9 - 349, n=2)	271 MBit/s -22%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -45%
iperf3 transmit AXE11000
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 MBit/s +256%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s +218%
Average of class Mini PC (184.1 - 1776, n=113, last 2 years)	864 MBit/s +218%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +174%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s +26%
Average RealTek Semiconductor, Device ID: C821 (272 - 343, n=2)	308 MBit/s +13%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	272 (263^min - 279^max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95 Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC	269 (136^min - 276^max) MBit/s -1%

ACEMagician ACE-CK10-8259U; iperf3 receive AXE11000; iperf 3.1.3: Ø342 (175-353)

ACEMagician ACE-CK10-8259U; iperf3 transmit AXE11000; iperf 3.1.3: Ø272 (263-279)

辅料

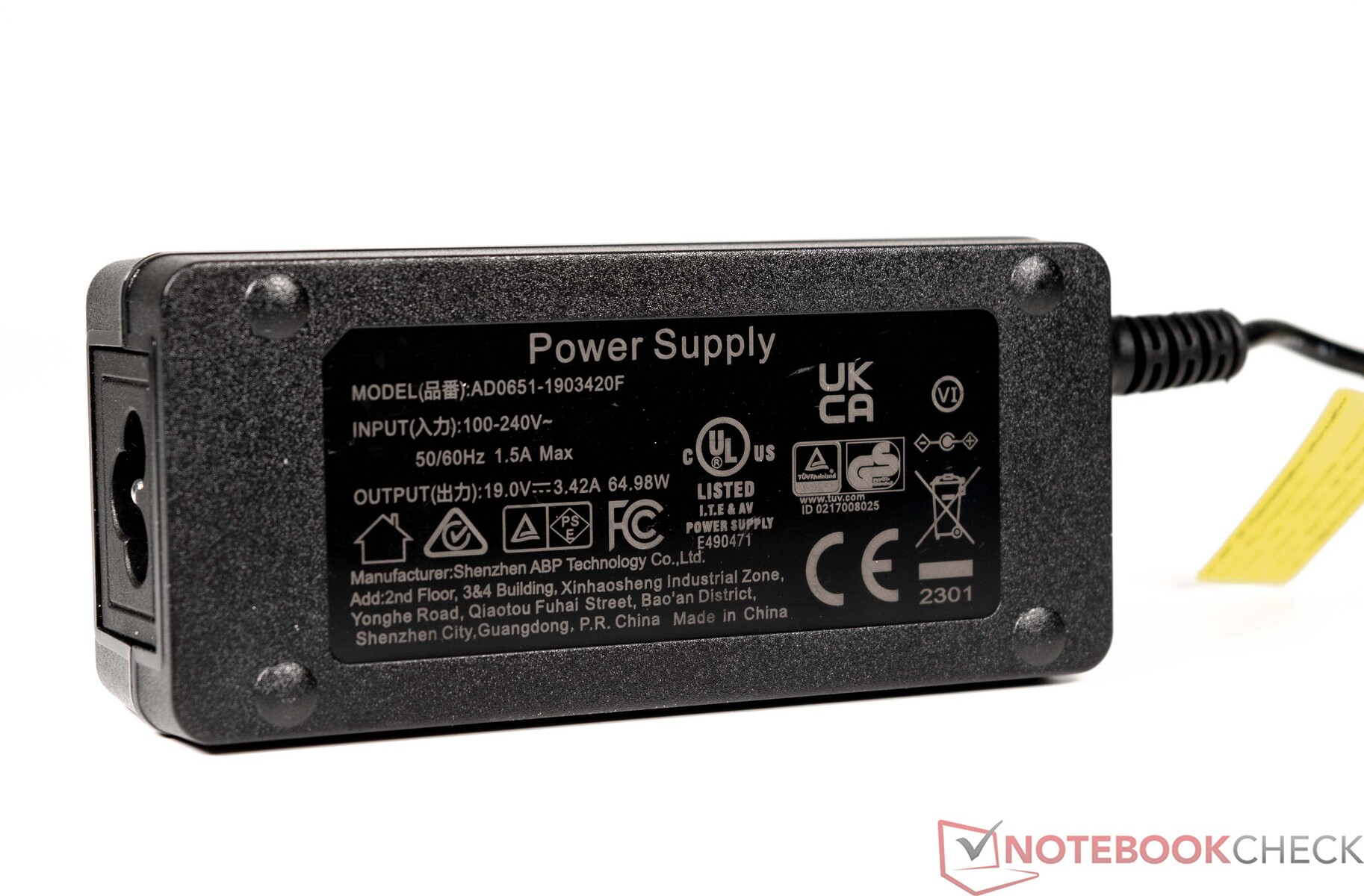

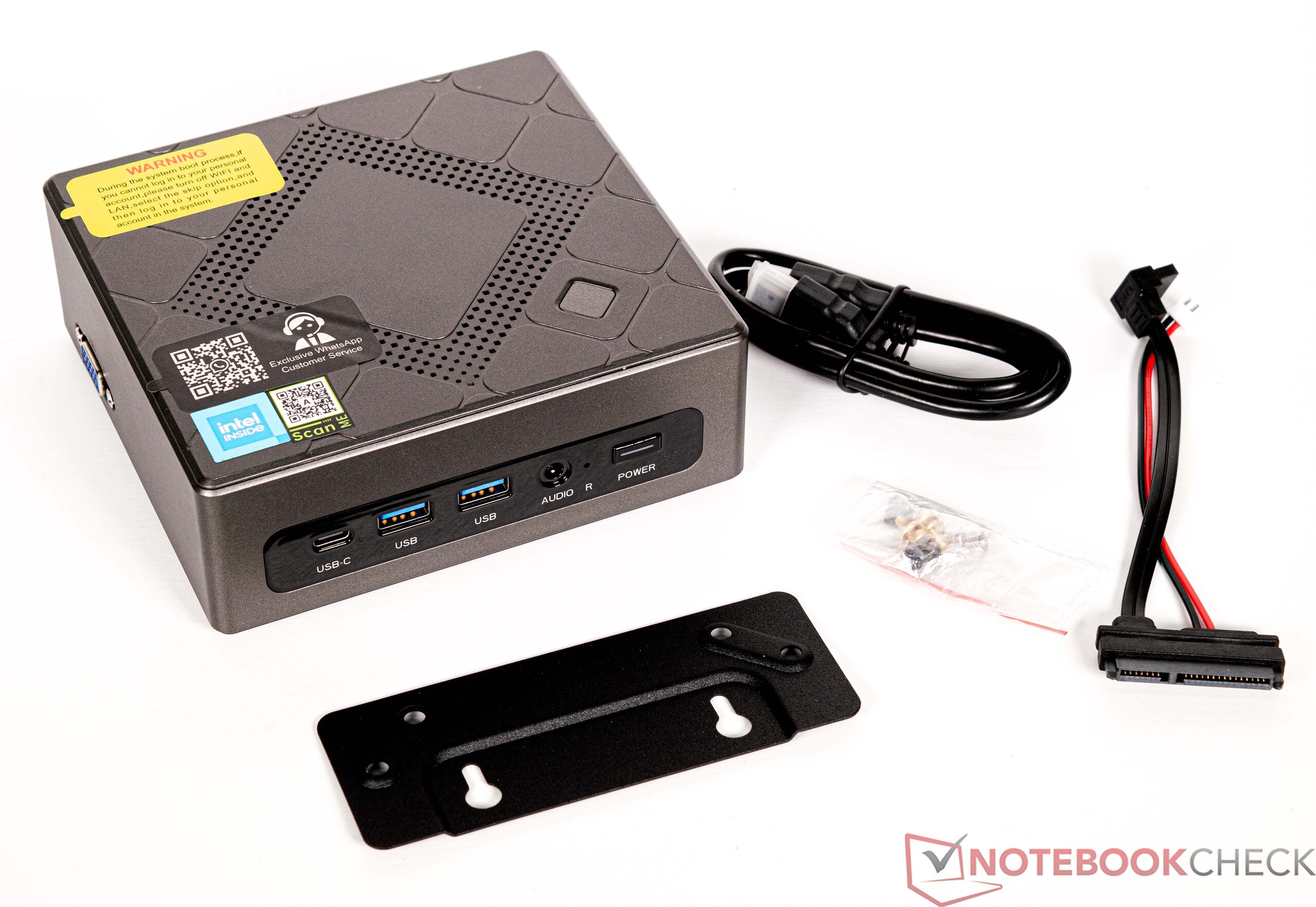

除了设备本身，我们的包装中还有一个65瓦的电源适配器和一个包括所有必要螺丝的VESA安装板。此外，交货范围包括一条HDMI线和一条用于2.5英寸存储介质的连接线，可以在内部安装。

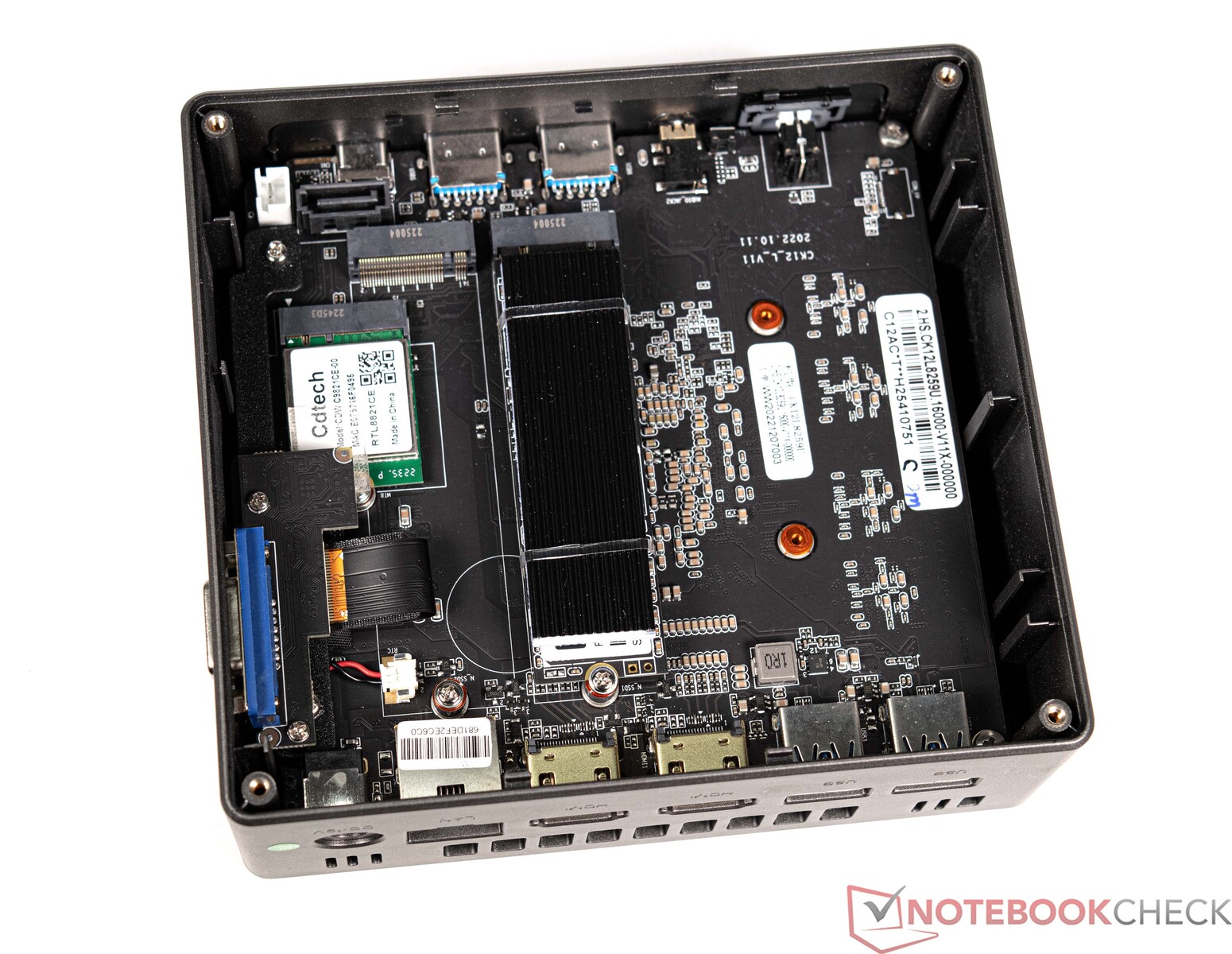

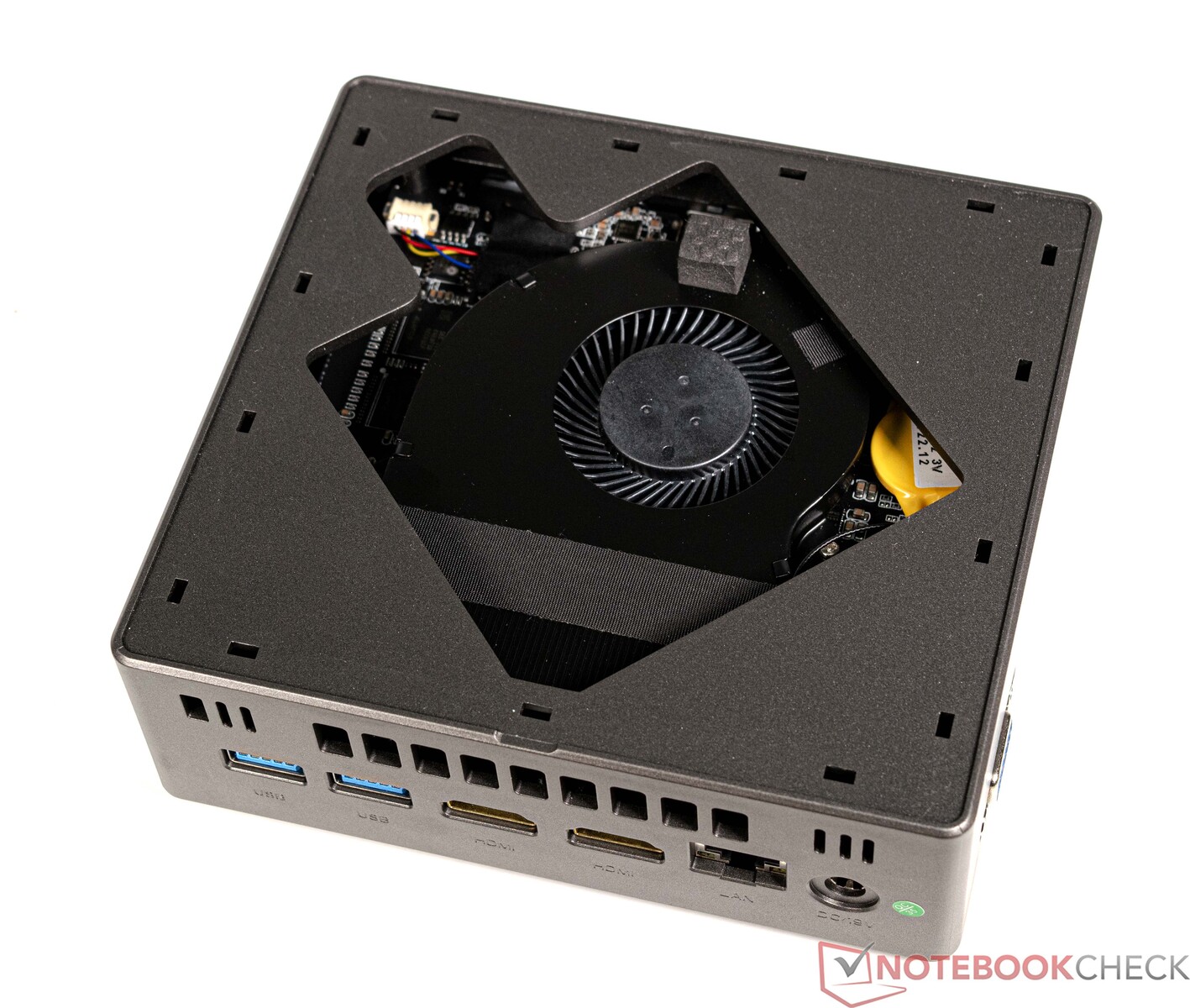

维护

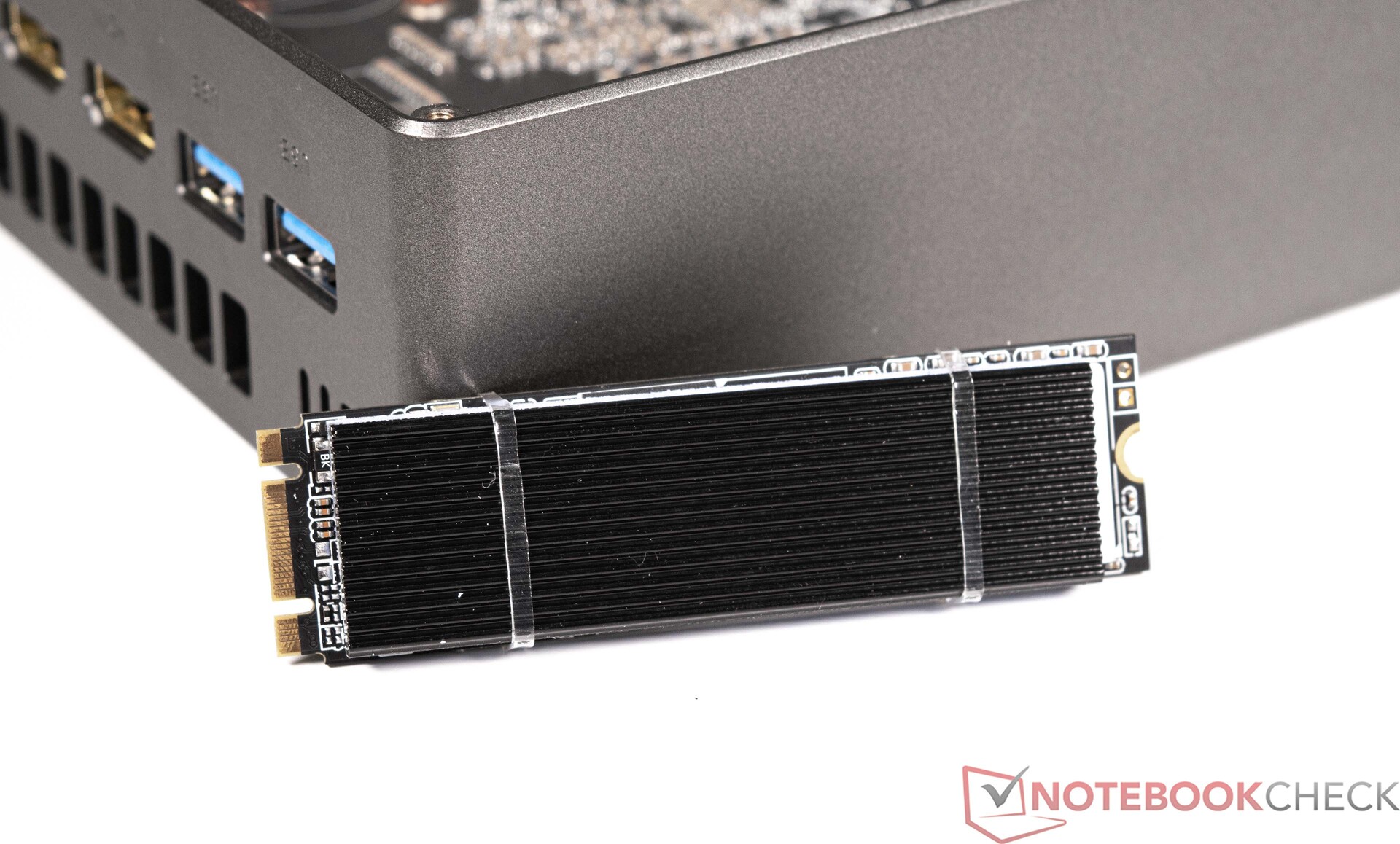

由于迷你电脑的预设基本配置包括内存和固态硬盘，暂时应该没有必要升级。由于它的工作内存无论如何都不能被替换，唯一的选择就是安装额外的固态硬盘。该设备的底部可以很容易地被拆下，以做到这一点。顶部也可以打开--面板仅由几个塑料夹子固定。CPU风扇隐藏在下面。

业绩

ACEMagician ACE-CK10-8259U是一台英特尔酷睿i5-8259USoC，已经在市场上存在了相当长的时间。因此，这种SoC将很难与目前的原生4核竞争。尽管如此，ACEMagician ACE-CK10-8259U，连同其16GB内存和512GB固态硬盘，提供了坚实的性能，绝对可以考虑作为办公设备使用。

测试条件

在所有的性能测试中，我们将系统保持在其交付状态。我们没有改变SoC的功率限制。不过，BIOS提供了改变这些数值的可能性。

处理器

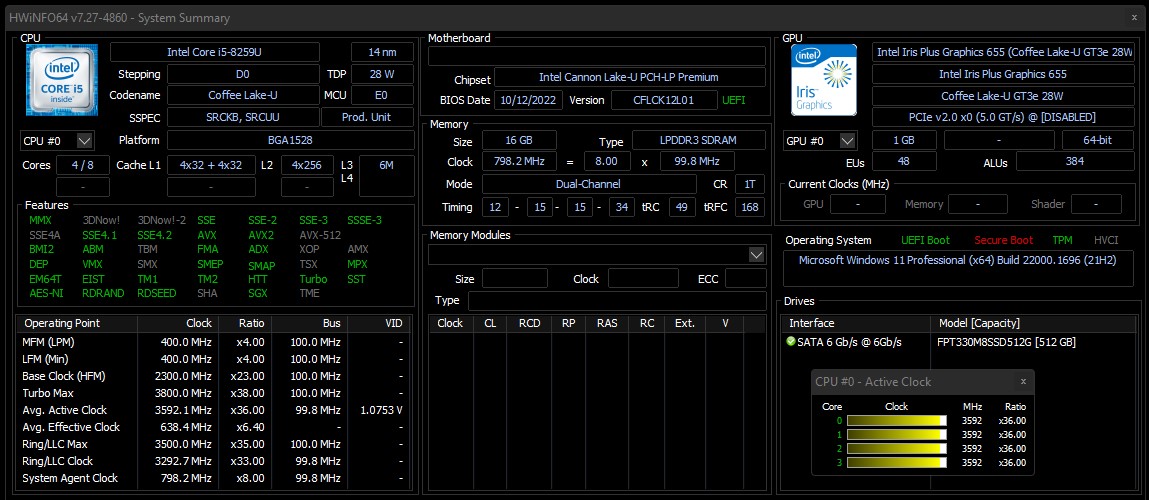

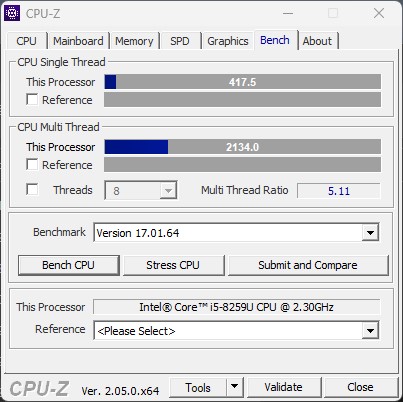

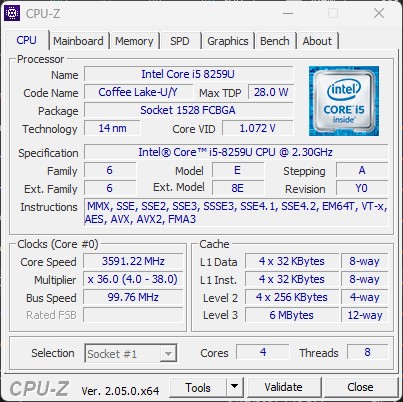

ǞǞǞ英特尔酷睿i5-8259U是Coffee Lake系列的一部分，具有四个原生处理核心，共有8个线程。其功耗分别限制在40瓦和28瓦。在我们的测试中，我们看到的性能等同于 NiPoGi CK10的性能，实际上它的CPU在这两款产品中应该是更快的，这要归功于它的英特尔酷睿i7-10810U.与Tiger Lake 系列的4个核心相比，我们的测试样品根本无法跟上。它缺乏IPC，而IPC来自于较新的CPU架构，在基准测试结果中被证明是相当明显的。

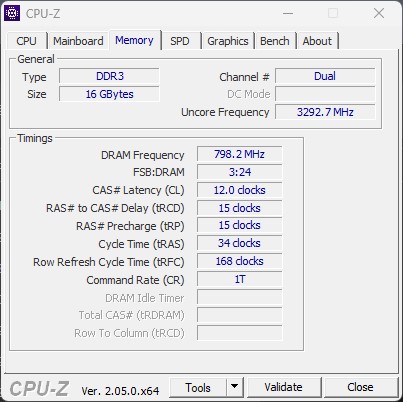

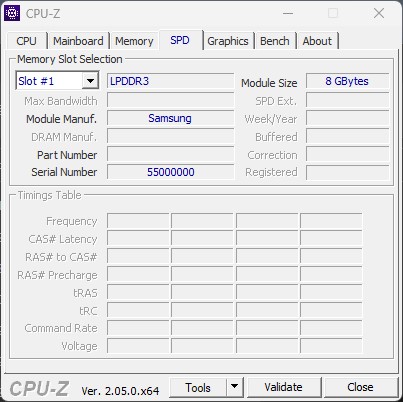

此外，ACEMagician ACE-CK10-8259U被迫使用较慢的LPDDR3内存，这说明它在内存基准测试中的表现相对较差。

更多的处理器基准测试可以在下面找到这里.

Performance Rating - Percent
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	33.9 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	32.6 pt
Average Intel Core i5-8259U	32.4 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	27.9 pt

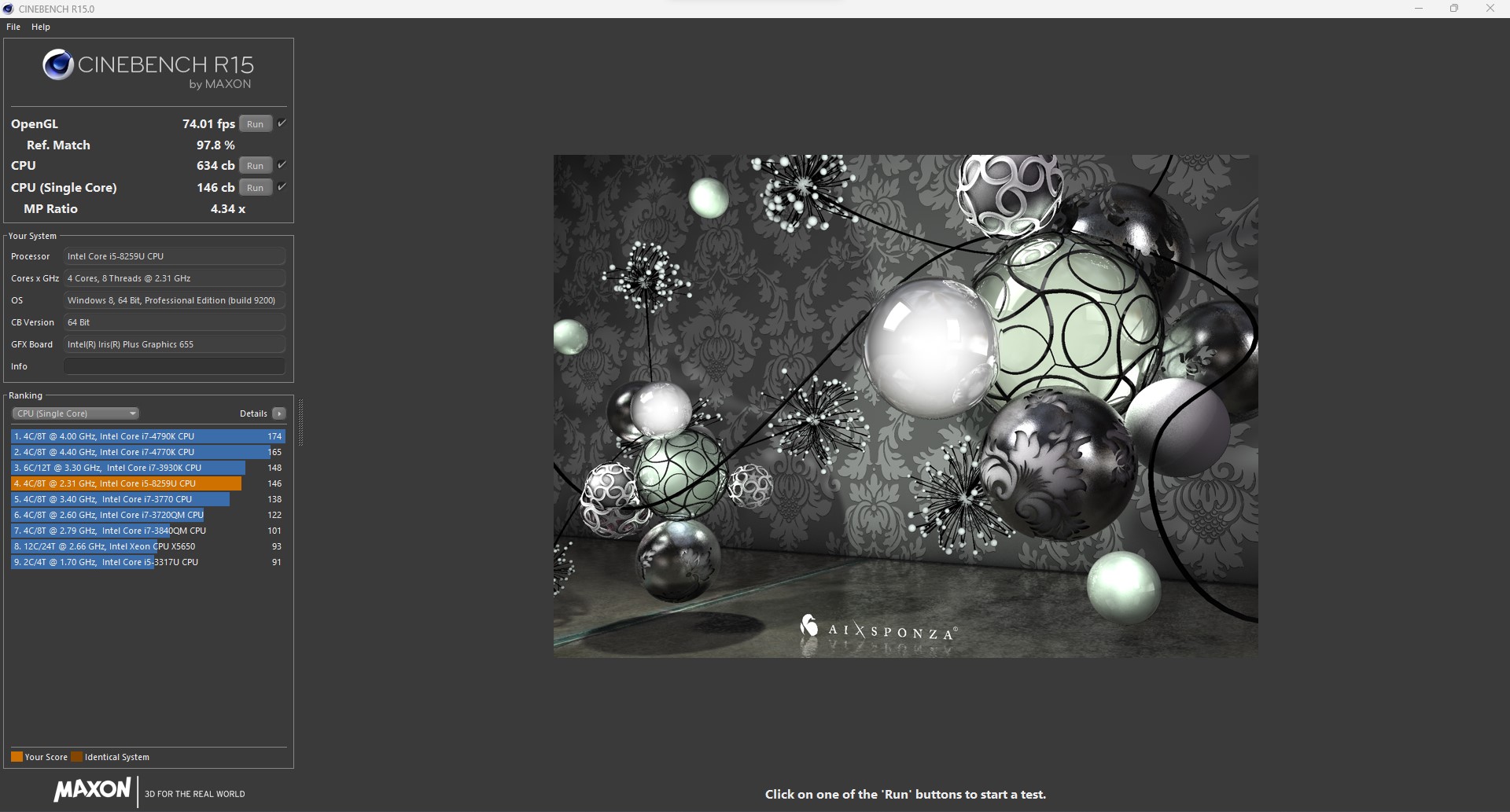

Cinebench R15
CPU Single 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +53%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points +35%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	170 Points +16%
Average Intel Core i5-8259U (132 - 154, n=6)	147.1 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	146 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	123 Points -16%
CPU Multi 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +203%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +100%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +50%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	634 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	623 Points -2%
Average Intel Core i5-8259U (575 - 687, n=7)	622 Points -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -12%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	408 Points -36%

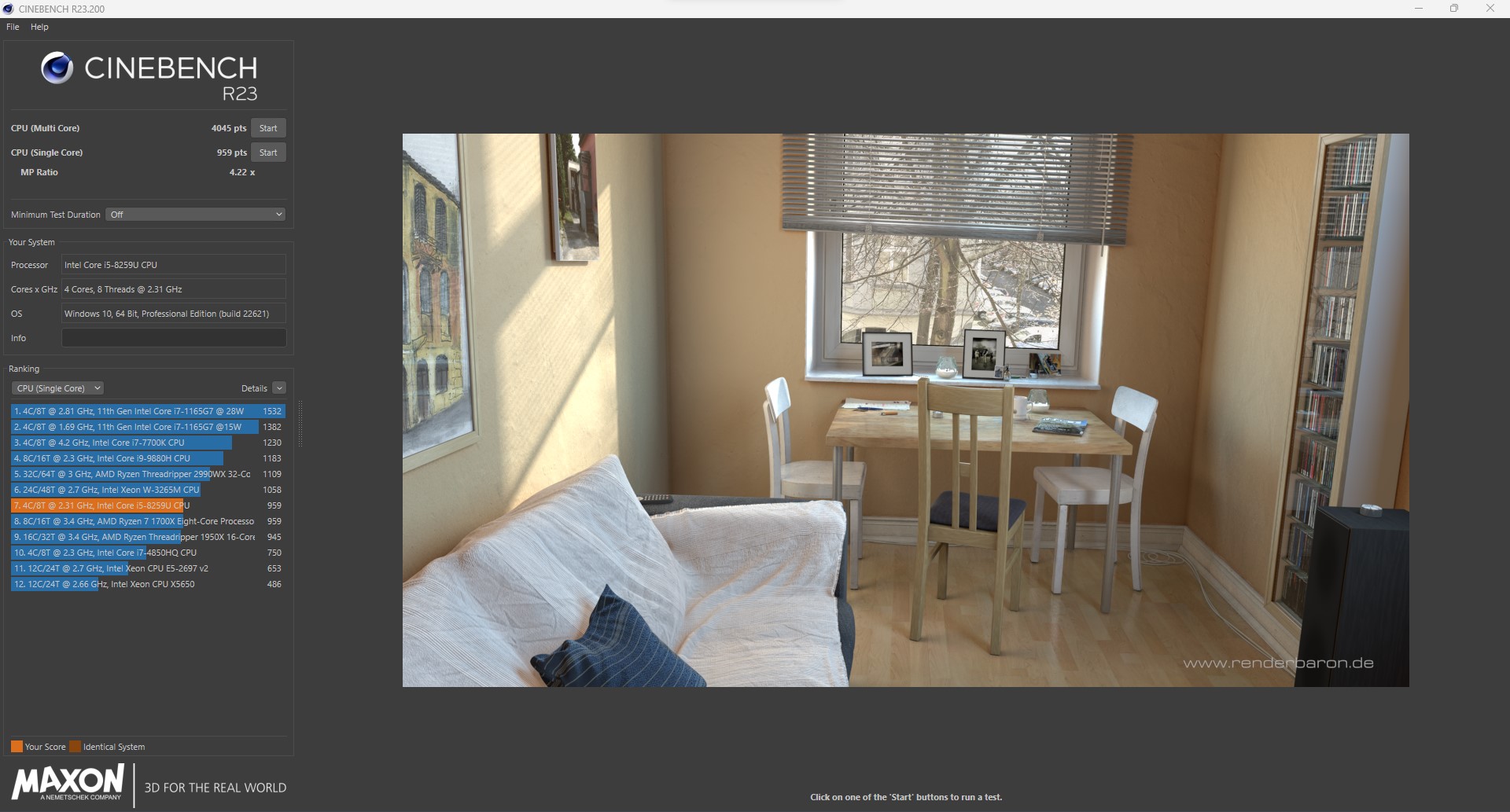

Cinebench R20
CPU (Single Core)
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +52%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +51%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points +39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	415 Points +12%
Average Intel Core i5-8259U (369 - 386, n=5)	378 Points +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	372 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	241 Points -35%
CPU (Multi Core)
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +187%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +90%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +48%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1567 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1498 Points -4%
Average Intel Core i5-8259U (1385 - 1567, n=5)	1473 Points -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	976 Points -38%

Cinebench R11.5
CPU Single 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +68%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +58%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points +38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1.95 Points +17%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1.67 Points
Average Intel Core i5-8259U ()	1.67 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.49 Points -11%
CPU Multi 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +211%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +52%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7.07 Points
Average Intel Core i5-8259U ()	7.07 Points 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.98 Points -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -10%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5.18 Points -27%

Cinebench R10
Rendering Single CPUs 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +60%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points +41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8591 Points +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7397 Points
Average Intel Core i5-8259U ()	7397 Points 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	6562 Points -11%
Rendering Multiple CPUs 64Bit
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +135%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +55%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	27377 Points
Average Intel Core i5-8259U ()	27377 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	23491 Points -14%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	20429 Points -25%

Blender - v2.79 BMW27 CPU
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1152 Seconds * -67%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -9%
Average Intel Core i5-8259U (688 - 769, n=6)	730 Seconds * -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	694 Seconds * -1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	688 Seconds *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +42%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +61%

wPrime 2.10
32m
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	16.449 s * -120%
Average Intel Core i5-8259U ()	7.48 s * -0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	7.479 s *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6.952 s * +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * +9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +28%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +41%
1024m
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	535.88 s * -116%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -15%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	267.369 s * -8%
Average Intel Core i5-8259U ()	249 s * -0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	248.619 s *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +23%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +37%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +57%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +65%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +39%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	167.95 (167.5^min - 172.9^max) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -1%
Average Intel Core i5-8259U (162.3 - 168, n=2)	165.1 fps -2%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	145.25 (144.9^min - 145.6^max) fps -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	141.6 (140.9^min - 163.1^max) fps -16%
Pass 2
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +177%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +88%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	40.5 (39.6^min - 43.1^max) fps
Average Intel Core i5-8259U (38.5 - 40.5, n=2)	39.5 fps -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	39.15 (39.1^min - 42.7^max) fps -3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	29.65 (29.5^min - 29.7^max) fps -27%

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +29%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	5348 KB/s
Average Intel Core i5-8259U ()	5348 KB/s 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4747 KB/s -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -22%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2181 KB/s -59%

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +163%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +88%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.9 GB/s +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	4.1 GB/s
Average Intel Core i5-8259U ()	4.1 GB/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2.4 GB/s -41%
Twofish Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1 GB/s +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.753 GB/s
Average Intel Core i5-8259U ()	0.753 GB/s 0%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.497 GB/s -34%
Serpent Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +142%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.566 GB/s +25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.454 GB/s
Average Intel Core i5-8259U ()	0.454 GB/s 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -1%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	0.243 GB/s -46%

Geekbench 5.5
Multi-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +105%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3934 Points +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3839 Points
Average Intel Core i5-8259U (3359 - 3839, n=3)	3602 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2391 Points -38%
Single-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +64%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +53%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1219 Points +29%
Average Intel Core i5-8259U (948 - 984, n=3)	961 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	948 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -15%

Geekbench 5.0
5.0 Multi-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +106%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points +27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	3924 Points +3%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3811 Points
Average Intel Core i5-8259U (3335 - 3811, n=3)	3571 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2382 Points -37%
5.0 Single-Core
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +59%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	1220 Points +29%
Average Intel Core i5-8259U (944 - 979, n=3)	957 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	944 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	804 Points -15%

Geekbench 4.4
64 Bit Single-Core Score
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +53%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points +39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4762 Points +13%
Average Intel Core i5-8259U (4200 - 4383, n=3)	4265 Points +1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	4211 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3591 Points -15%
64 Bit Multi-Core Score
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	19324 Points +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	14984 Points
Average Intel Core i5-8259U (13421 - 14984, n=3)	14122 Points -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	9662 Points -36%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +94%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +35%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	8666 Points
Average Intel Core i5-8259U (7105 - 9276, n=6)	8348 Points -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	6537 Points -25%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5084 Points -41%

7-Zip 18.03
7z b 4
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +194%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +43%
Average Intel Core i5-8259U (17799 - 28824, n=6)	20778 MIPS +11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	20163 MIPS +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	18729 MIPS
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -6%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	11654 MIPS -38%
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +57%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS +28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	4638 MIPS +24%
Average Intel Core i5-8259U (3753 - 4022, n=6)	3949 MIPS +5%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3753 MIPS
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3121 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +164%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +43%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	5.49 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -4%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	5.2 fps -5%
Average Intel Core i5-8259U (4.72 - 5.49, n=6)	5.19 fps -5%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	3.03 fps -45%

R Benchmark 2.5 - Overall mean
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1.032 sec * -26%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	0.818 sec *
Average Intel Core i5-8259U (0.738 - 0.818, n=5)	0.779 sec * +5%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	0.7 sec * +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * +22%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +34%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +40%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	80.4 s * -28%
Average Intel Core i5-8259U (62.7 - 76, n=5)	69.5 s * -11%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	68.2 s * -9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	62.7 s *
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * +17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +20%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +22%

WebXPRT 3 - Overall
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +50%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points +29%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	205 Points +12%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	182.4 Points
Average Intel Core i5-8259U (173.3 - 182.4, n=5)	176.9 Points -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	155.3 Points -15%

Mozilla Kraken 1.1 - Total
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	1238 ms * -14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	1088 ms *
Average Intel Core i5-8259U (1010 - 1095, n=5)	1054 ms * +3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	968 ms * +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +38%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +41%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +45%

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +122%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +67%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +31%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	10500 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -9%
Average Intel Core i5-8259U (8488 - 10583, n=4)	9530 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	8470 Points -19%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5843 Points -44%
1920x1080 Fire Strike Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +27%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	10860 Points
Average Intel Core i5-8259U (8348 - 11006, n=6)	9726 Points -10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	9003 Points -17%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	5903 Points -46%
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +145%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +63%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +56%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, 2300 MHz	3346 Points
Average Intel Core i5-8259U (2752 - 3346, n=6)	3096 Points -7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, 1100 MHz	2728 Points -18%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, MHz	2081 Points -38%

* ... smaller is better

Performance Rating
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	96.5 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67.3 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	57.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	45.7 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	36.9 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	34.9 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7.3 pt

AIDA64 / FP32 Ray-Trace
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +157%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +73%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	5247 KRay/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -11%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	744 KRay/s -86%

AIDA64 / FPU Julia
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +226%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +119%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points 0%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	26145 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	3970 Points -85%

AIDA64 / CPU SHA3
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +114%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s +21%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	1367 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -23%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	270 MB/s -80%

AIDA64 / CPU Queen
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43072 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8178 Points -81%

AIDA64 / FPU SinJulia
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +177%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +92%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	4310 Points
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -8%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -91%

AIDA64 / FPU Mandel
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +264%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +143%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points +15%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	12914 Points
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -3%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	1987 Points -85%

AIDA64 / CPU AES
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +606%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +378%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +368%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s +260%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s +9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	16354 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7954 MB/s -51%

AIDA64 / CPU ZLib
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +136%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +60%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +30%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	316 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -16%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	74.9 MB/s -76%

AIDA64 / FP64 Ray-Trace
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +160%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +67%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s +8%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	2771 KRay/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -9%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	412 KRay/s -85%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +105%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +80%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s +29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	14986 MPixel/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -33%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4408 MPixel/s -71%

ACEMagician ACE-CK10-8259U在Cinebench R15多循环中的表现

内置风扇并没有努力保持英特尔酷睿i5-8259U在控制之下。总之，我们甚至可以观察到比配备原生6核处理器的NiPoGi CK10的结果要好一点。即便如此，制造商也决定在功率限制方面非常保守地运行该SoC。平均621分，其性能在所有50次运行中都非常稳定。

ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

系统性能

安装的SoC的年龄在系统基准测试中也变得很明显。较新的型号在这里明显更快。只有NiPoGi GK3PLUS可以被打败。它基于一个非常节俭的英特尔N95，由于其效率而得分。经过主观评估，我们对其在日常任务中的纯系统性能感到积极的惊讶。这个所谓的劣质和过时的SoC表现良好，在任何时候都可以顺利工作。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +52%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +39%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +24%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points +9%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	4132 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -6%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	2983 Points -28%

PCMark 10 / Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +26%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +23%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points +8%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	8215 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -9%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	6650 Points -19%

PCMark 10 / Productivity
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +65%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +60%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +14%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points +11%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points +6%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	5976 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	4524 Points -24%

Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity

Performance Rating
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	100 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	95.6 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	91.7 pt
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	72.2 pt
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	68.5 pt
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	49.2 pt

CrossMark / Overall
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +44%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +36%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points +31%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points +7%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	954 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	666 Points -30%

CrossMark / Responsiveness
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +59%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +58%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +54%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	796 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -2%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	661 Points -17%

CrossMark / Creativity
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +34%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +21%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points +16%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points +1%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	1027 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	616 Points -40%

CrossMark / Productivity
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +49%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +46%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points +38%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points +16%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	943 Points
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	721 Points -24%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +28%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +25%
Average Intel Core i5-8259U (37992 - 49395, n=4)	46216 MB/s +22%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +10%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	37992 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -8%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -50%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6481 MB/s -83%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +36%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s +8%
Average Intel Core i5-8259U (35415 - 39382, n=4)	37919 MB/s +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	35415 MB/s
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -45%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6914 MB/s -80%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +19%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +15%
Average Intel Core i5-8259U (43598 - 51980, n=4)	48814 MB/s +12%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43598 MB/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -14%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -58%
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6862 MB/s -84%

AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	146 ns * -142%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -59%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * -52%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -51%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * -14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	60.3 ns *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * -0%
Average Intel Core i5-8259U (55.2 - 60.3, n=4)	56.6 ns * +6%

* ... smaller is better

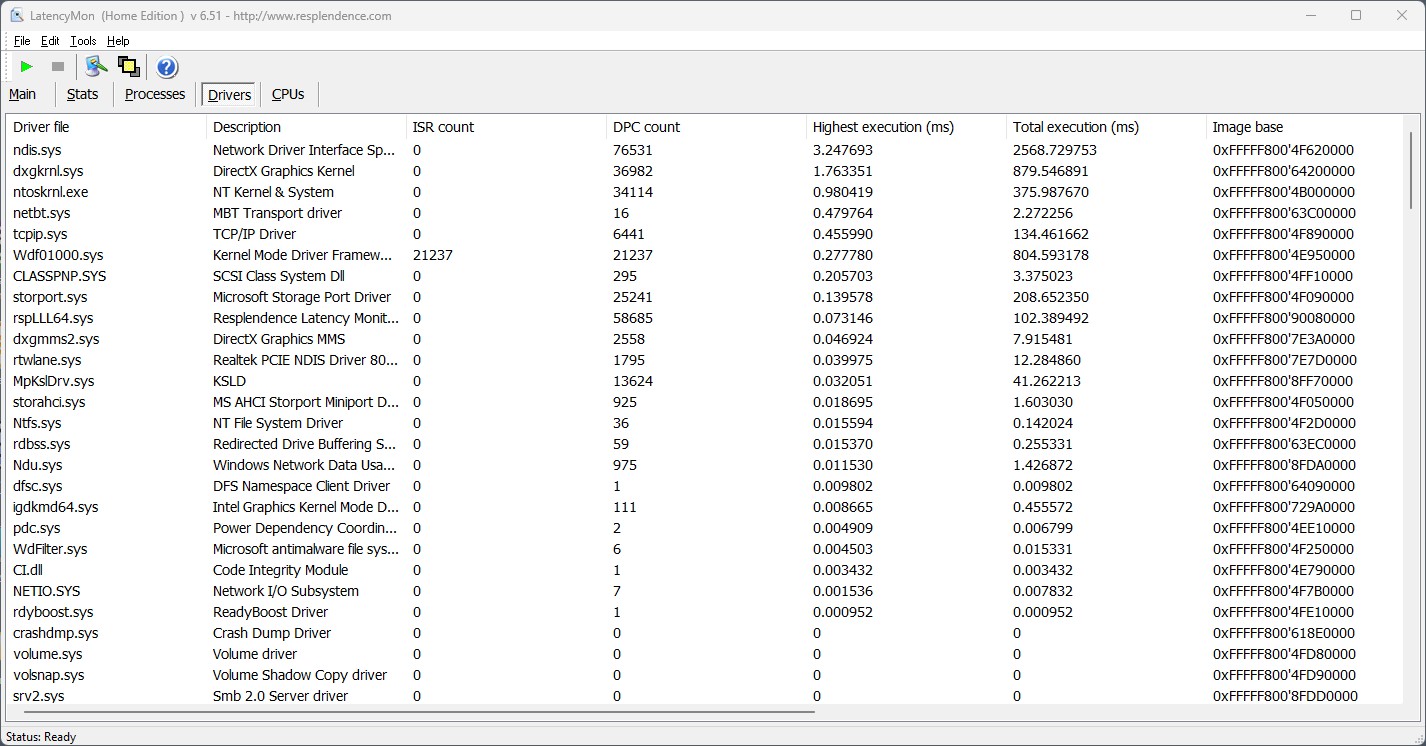

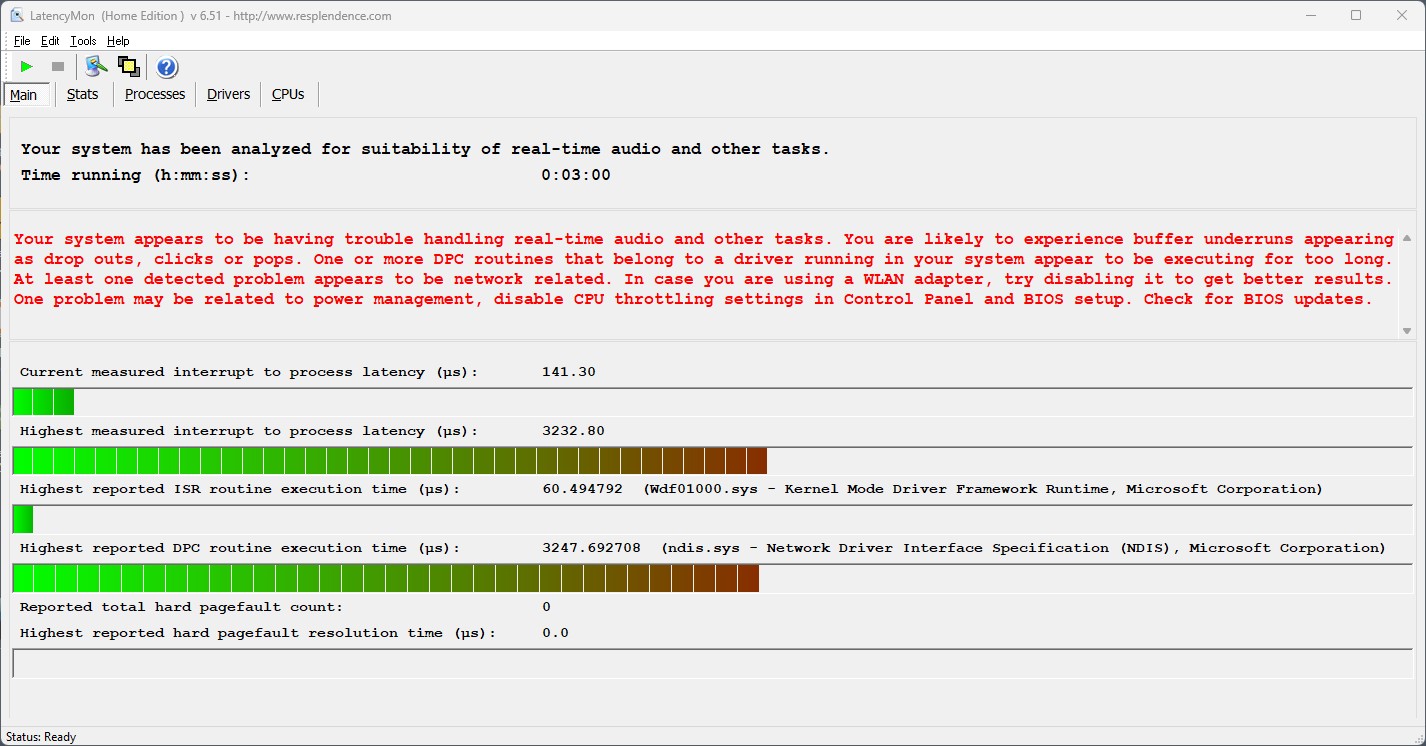

DPC延时

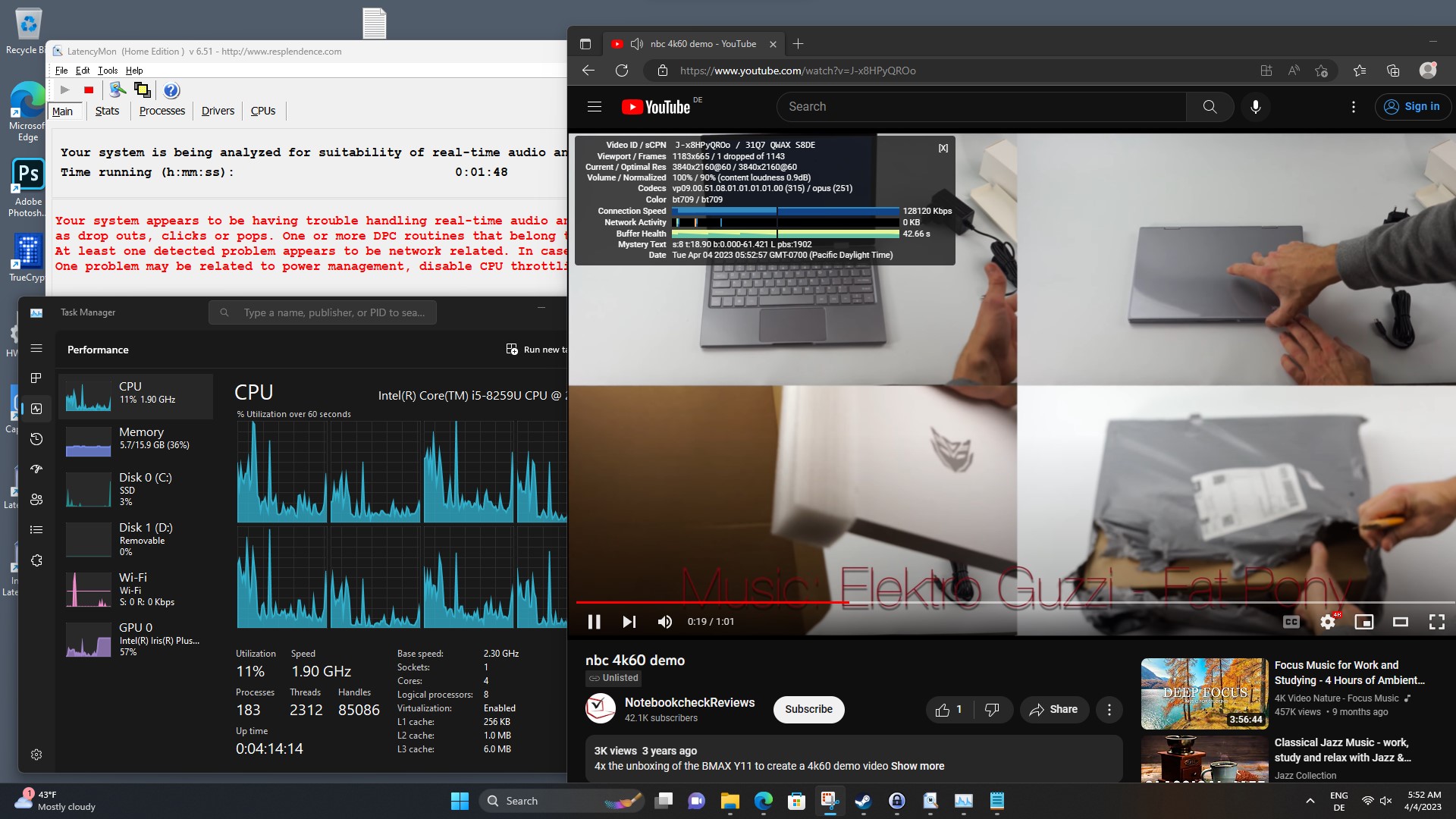

LatencyMon已经显示我们在使用Edge浏览器打开几个标签时延迟增加。在播放4K YouTube测试视频时，这些延迟没有进一步增加。我们看不到任何丢帧的情况，英特尔酷睿i5-8259U的iGPU也是如此。英特尔酷睿i5-8259U的iGPU使用率高达约60%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7414 μs * -128%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95 Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB	3463 μs * -7%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	3247 μs *
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * +50%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * +76%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +80%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +89%

* ... smaller is better

存储设备

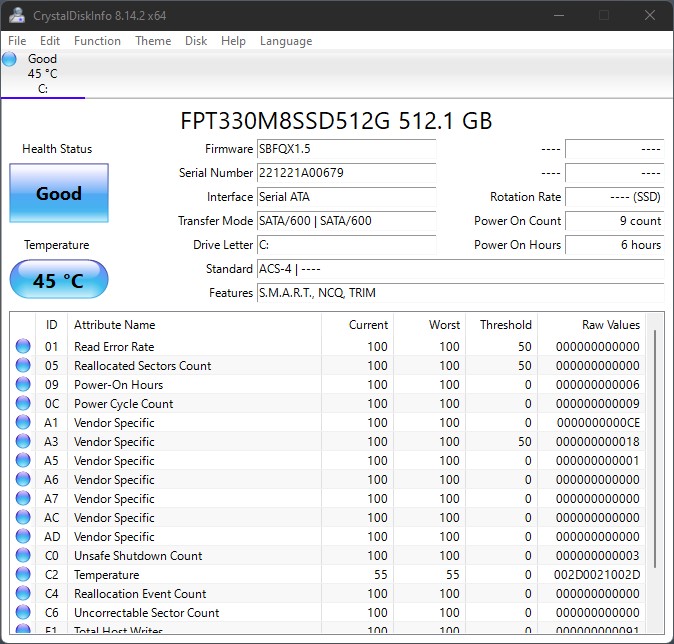

我们的测试样品配备了一块存储量为512GB的SSD，我们不知道更多细节。安装的固态硬盘使用M.2-2280接口，提供SATA速度，这在测试结果中可以看到。与更快的NVMe固态硬盘相比，它的缺点变得明显可见。然而，在我们的测试中，我们能够观察到相对较好的4K读取性能，这在加载许多小文件时被证明是一个优势。安装的固态硬盘配备了一个小型冷却器。这似乎是有效的，因为SSD的连续性能保持非常稳定。ACEMagician ACE-CK10-8259U总共可以配备三个固态硬盘（2x M.2-2280, 1x 2.5英寸）。

关于进一步的比较和基准，请看我们的比较表.

CrystalDiskMark 3.0

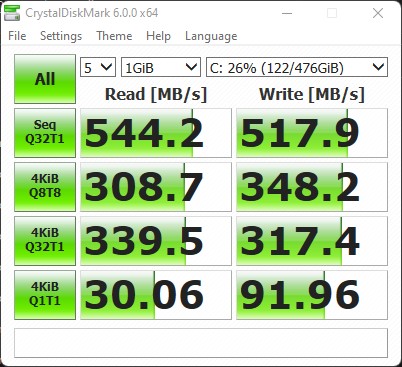

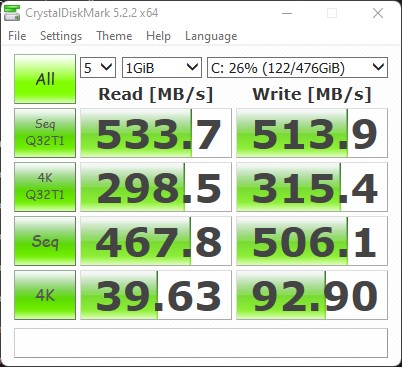

CrystalDiskMark 5.2 / 6

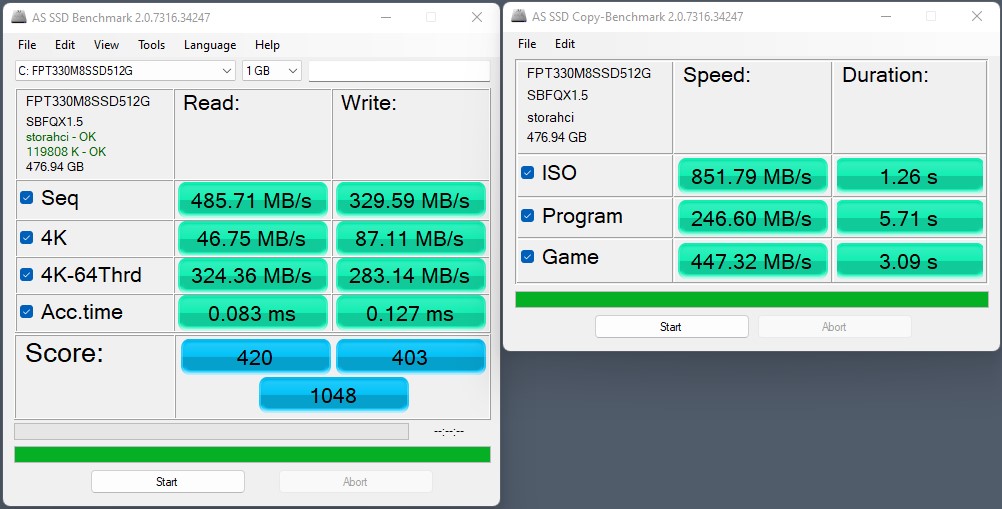

AS SSD

DiskSpd

FPT330M8SSD512G

Sequential Read: 488.3 MB/s

Sequential Write: 498.1 MB/s

512K Read: 362.8 MB/s

512K Write: 491.3 MB/s

4K Read: 40.29 MB/s

4K Write: 95.79 MB/s

4K QD32 Read: 327.6 MB/s

4K QD32 Write: 317.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	90.2 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	88.5 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	71 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	65.8 pt
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	35.8 pt
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	30.1 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	28.9 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +371%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +349%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s +338%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s +230%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	464 (407.92^min - 464.01^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	459 (458.57^min - 459.41^max) MB/s -1%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -33%
seq write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +257%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +257%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s +154%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s +10%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	502 (311.64^min - 502.31^max) MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	494 (488.92^min - 494.36^max) MB/s -2%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -13%
seq q8 t1 read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +970%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +936%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s +897%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s +818%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	504 (458.23^min - 504.4^max) MB/s +114%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s +88%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	236 (35.65^min - 236.35^max) MB/s
seq q8 t1 write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +250%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +246%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s +157%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s +8%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	519 (472.8^min - 519.47^max) MB/s +1%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	512 (493.73^min - 511.73^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -10%
4k q1 t1 read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +27%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +18%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s +2%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s 0%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	38.1 (37.92^min - 38.07^max) MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -23%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	25.9 (25.82^min - 25.85^max) MB/s -32%
4k q1 t1 write
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +140%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +131%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +116%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s +52%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	96 (93.72^min - 96.04^max) MB/s +6%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	90.9 (89.44^min - 90.91^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -10%
4k q32 t16 read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +214%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +197%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +193%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s +99%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	338 (299.48^min - 338.25^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s -12%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	260 (259.46^min - 259.7^max) MB/s -23%
4k q32 t16 write
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +154%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +121%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +88%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s +51%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	350 (206.15^min - 349.79^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s -6%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	259 (224.2^min - 258.97^max) MB/s -26%

AS SSD
Score Total
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +175%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +167%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points +115%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	1048 Points
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	736 Points -30%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -83%
Score Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +177%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +174%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points +104%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	420 Points
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points -9%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	232 Points -45%
Score Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +190%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +163%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points +146%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	403 Points
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	373 Points -7%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -57%
Seq Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +365%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +353%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s +321%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s +1%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	486 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	470 MB/s -3%
Seq Write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +398%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +386%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s +280%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	484 MB/s +47%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s +21%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	330 MB/s
4K Read
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +12%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	46.8 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s -10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -15%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -41%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	27.5 MB/s -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +113%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +65%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s +39%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	87.1 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	85.6 MB/s -2%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -55%
4K-64 Read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +175%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +173%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s +92%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	324 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s -10%
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	157.7 MB/s -51%
4K-64 Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +191%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +165%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s +163%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	283 MB/s
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	239 MB/s -16%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -67%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -86%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * -35%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.083 ms *
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.076 ms * +8%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +28%
Access Time Write
Minipc Union NiPoGi GK3PLUS - N95 Kimtigo KTB900SM28/512GB	0.127 ms * -0%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.127 ms *
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * +11%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * +19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +20%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

ACEMagician ACE-CK10-8259U FPT330M8SSD512G: Ø330 (164.21-394.73)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

图形卡

由于其年龄的原因，英特尔Iris Plus 655最近并不经常使用。与英特尔Iris Plus 655相比，这个型号的表现出乎意料地好。英特尔UHD Graphics 620在 NiPoGi CK10.由于它的双通道内存，在我们的测试样本中能够达到其最大性能。然而，英特尔Iris Plus 655还不能完全达到带有英特尔Iris Xe IGPU的较新SoC。

更多的英特尔Iris Plus 655的基准测试可以在下面找到这里.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	97.5 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	87.7 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	78.1 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	73 pt
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	41.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	23.6 pt
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	22.6 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +147%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +126%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +94%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +93%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	2888 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1467 Points -49%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +139%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +91%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +72%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +49%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	13739 Points
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -41%
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8035 Points -42%
1920x1080 Fire Strike Graphics
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +138%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +120%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +87%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points +80%
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	1987 Points
Minipc Union NiPoGi GK3PLUS - N95 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1080 Points -46%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -46%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1

Performance Rating - Percent
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	93.5 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	91.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	75.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	70.3 pt
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	43.4 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	23.7 pt
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	22.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +121%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +87%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +69%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +65%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10.5 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6.3 fps -40%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -49%
Extreme Preset DX11
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +108%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +91%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +58%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps +53%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	11.2 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	6.4 fps -43%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -49%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +82%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +73%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +40%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps +38%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	8.2 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4.1 fps -50%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -52%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +109%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +80%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps +68%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps +51%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	7.6 fps
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	4.8 fps -37%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +162%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +116%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points +104%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +70%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	1584 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points -43%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	628 Points -60%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +110%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +89%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points +53%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +27%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	146 Points
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	103 Points -29%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points -41%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +147%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +131%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points +80%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +73%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	118 Points
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	90 Points -24%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points -29%
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +340%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +237%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points +162%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +92%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	291 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	126 Points -57%
1024x600 Normal, Mandel Scalar
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1115 Points +146%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +100%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	853 Points +88%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +66%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	453 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points -56%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	112 Points -75%
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +109%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +108%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +72%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points +56%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	577 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points -39%
Minipc Union NiPoGi GK3PLUS - N95 UHD Graphics 24EUs (Alder Lake-N), N95, Kimtigo KTB900SM28/512GB	197 Points -66%

3DMark 05 Standard		22740 points
3DMark 06 Standard Score		18594 points
3DMark Vantage P Result		12481 points
3DMark 11 Performance		3182 points
3DMark Ice Storm Standard Score		74401 points
3DMark Cloud Gate Standard Score		11788 points
3DMark Fire Strike Score		1850 points
3DMark Fire Strike Extreme Score		893 points
3DMark Time Spy Score		720 points
Help

... in comparison

游戏性能

芯片Intel Iris Plus 655在试图玩最新的游戏时，几乎总是不堪重负。即使是老游戏，也只能在720p和最低的细节下玩--如果有的话。在最好的情况下，iGPU能在原始分辨率下掌握最简单的休闲游戏。

关于进一步的比较和基准，请看我们的 GPU游戏列表.

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +139%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +101%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +74%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps +20%
Average Intel Iris Plus Graphics 655 (57 - 68, n=3)	62 fps +9%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	57 (12.6^min, 32.3^P1) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps -41%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +140%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +67%
Average Intel Iris Plus Graphics 655 (51.2 - 62.1, n=3)	55 fps +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps +7%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	51.2 (20.4^min, 29.4^P1) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps -45%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +182%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +150%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +100%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps +14%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	22 (19^min) fps
Average Intel Iris Plus Graphics 655 (20 - 23, n=3)	21.7 fps -1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (10^min) fps -50%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +164%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +164%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +91%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps +55%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	11 (10^min) fps
Average Intel Iris Plus Graphics 655 (10 - 11, n=3)	10.7 fps -3%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (5^min) fps -55%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +167%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +90%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps +38%
Average Intel Iris Plus Graphics 655 (21 - 22, n=2)	21.5 fps +2%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	21 (16^min) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11 (8^min) fps -48%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +164%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +155%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +82%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps +45%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	11 (10^min) fps
Average Intel Iris Plus Graphics 655 (11 - 11, n=2)	11 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5 (4^min) fps -55%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +180%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +122%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps +48%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	40.7 (33^min) fps
Average Intel Iris Plus Graphics 655 ()	40.7 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.5 (19^min) fps -37%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +177%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +150%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +116%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps +71%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	19.1 (16^min) fps
Average Intel Iris Plus Graphics 655 ()	19.1 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	11.3 (5^min) fps -41%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +58%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	86.8 (75.1^min) fps
Average Intel Iris Plus Graphics 655 (51.4 - 98, n=8)	86.3 fps -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps -16%
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +37%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	77.9 (62.1^min) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps -8%
Average Intel Iris Plus Graphics 655 (34.6 - 77.9, n=8)	58.5 fps -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps -42%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +142%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +111%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +93%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps +76%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	41.4 (9.8^min, 11.7^P1) fps
Average Intel Iris Plus Graphics 655 ()	41.4 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps -38%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +117%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +112%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +72%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps +61%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.6 (5^min, 5.65^P1) fps
Average Intel Iris Plus Graphics 655 ()	17.6 fps 0%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps -44%

	low	med.	high	ultra
GTA V (2015)	57	51.2	14.3	5.18
The Witcher 3 (2015)	27.9	17.8	10.1
Dota 2 Reborn (2015)	86.8	77.9	34.5	28.1
Final Fantasy XV Benchmark (2018)	18.1	9.73	6.55
X-Plane 11.11 (2018)	26.8	18.4	16
Far Cry 5 (2018)	22	11	10	9
Strange Brigade (2018)	41.4	17.6	16.9	14.5
Shadow of the Tomb Raider (2018)	23.5	11	10.1
Far Cry New Dawn (2019)	21	11	10	9
Metro Exodus (2019)	20.1	10.1	7.41
Borderlands 3 (2019)	22.5	10.4	6.65
F1 2020 (2020)	40.7	19.1	14.5	9.64
F1 2021 (2021)	44.6	21.6	16.4	10.2

排放--安静而高效

噪声排放

它的冷却装置能够轻松地控制SoC，而且不会造成任何恼人的噪音。在空闲模式下，ACEMagician ACE-CK10-8259U基本上是安静的。即使在负载下，我们注意到在最大负载下只有33.6 dB(A)。这意味着我们的测试样品与NiPoGi CK10分享了第一名。 NiPoGi CK10.这并不令我们惊讶，因为这两个型号都是基于类似的基础。与其他竞争者相比，ACEMagician ACE-CK10-8259U在任何时候都非常安静地运行。在超过50分贝（A）的情况下，AMR5的声音要大得多。

Noise Level

Idle		29.7 / 29.8 / 29.8 dB(A)
Load		33.5 / 33.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 29.6 dB(A)

	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)
Noise		-12%	-8%	-22%	-8%	0%	-7%
off / environment *	29.6	30.1 -2%	30.2 -2%	30.5 -3%	30.28 -2%	30.4 -3%	30.4 -3%
Idle Minimum *	29.7		30.8 -4%	31.5 -6%	31.82 -7%	30.8 -4%	31 -4%
Idle Average *	29.8	33.15 -11%	32.1 -8%	32.6 -9%	32.27 -8%	30.9 -4%	31.1 -4%
Idle Maximum *	29.8		32.9 -10%	33.8 -13%	33.17 -11%	30.9 -4%	31.8 -7%
Load Average *	33.5		33.9 -1%	49.3 -47%	35.82 -7%	31 7%	33.3 1%
Load Maximum *	33.6	41.63 -24%	41.4 -23%	50.9 -51%	37.1 -10%	31 8%	42.5 -26%

* ... smaller is better

温度

ACEMagician ACE-CK10-8259U的外壳只在很小的程度上发热。当SoC处于负载状态时，我们也只能测量到88℃的最高温度。它的最大功率限制为40瓦，没有任何问题，并在适当时候应用了PL1的28瓦限制。然而，SoC仍然能够以2.5GHz的平均时钟速率工作。

消耗功率

总而言之，ACEMagician ACE-CK10-8259U提供了良好的功耗结果，尽管其他竞争者在空闲模式下表现得更好。然而，记录的8至13瓦的能耗仍在良好水平之内。在负载下，我们观察到最大的55.9瓦，65瓦的电源能够很好地管理。

Power Consumption

Off / Standby	0.4 / 0.8 Watt
Idle	8.1 / 8.4 / 13.8 Watt
Load	43.1 / 55.9 Watt


Key: min: , med: , max: Metrahit Energy

	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Morefine S500+ R9 5900HX, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union NiPoGi GK3PLUS - N95 N95, UHD Graphics 24EUs (Alder Lake-N)	Average Intel Iris Plus Graphics 655	Average of class Mini PC
Power Consumption		-5%	5%	26%	39%	39%	8%	-34%
Idle Minimum *	8.1	8.1 -0%	8.4 -4%	3.4 58%	4.8 41%	6.1 25%	5.96 ?(2.2 - 12.6, n=8) 26%	9.48 ?(1.9 - 45.7, n=119, last 2 years) -17%
Idle Average *	8.4	8.4 -0%	8.7 -4%	5.7 32%	4.9 42%	6.9 18%	8.44 ?(3.1 - 15, n=8) -0%	11.5 ?(1.9 - 47.5, n=117, last 2 years) -37%
Idle Maximum *	13.8	11.9 14%	9.3 33%	7 49%	5.5 60%	8.9 36%	10.6 ?(6.3 - 15.3, n=8) 23%	14.9 ?(2.6 - 57.1, n=119, last 2 years) -8%
Load Average *	43.1	47.1 -9%	46.4 -8%	36.5 15%	23 47%	20 54%	46.5 ?(34.2 - 59.7, n=8) -8%	57.4 ?(11.3 - 170.6, n=119, last 2 years) -33%
Load Maximum *	55.9	72.9 -30%	52 7%	68 -22%	54 3%	21.1 62%	56.2 ?(39.2 - 78, n=8) -1%	97.5 ?(18.1 - 423, n=119, last 2 years) -74%

* ... smaller is better

Power consumption with external monitor

ACEMagician ACE-CK10-8259U; Prime95 V2810 Stress (external Monitor): Ø39.5 (37.2-54.3)

ACEMagician ACE-CK10-8259U; Cinebench R15 Multi (external Monitor): Ø43.7 (36.9-52.4)

ACEMagician ACE-CK10-8259U; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø42.4 (40.1-51.7)

ACEMagician ACE-CK10-8259U; 1920x1080 The Witcher 3 ultra (external Monitor): Ø39.4 (35.1-52.5)

ACEMagician ACE-CK10-8259U; Idle 1min (external Monitor): Ø13.9 (13.7-15)

Pros

+ 尺寸紧凑

+ 4核处理器，性能良好

+ 16GB内存和512GB固态硬盘

+ 可选择安装多达三个固态硬盘

+ 大量的USB端口

+ 易于打开

+ 任何时候都很安静

+ 低耗电

Cons

- 缓慢的WLAN

- 内存被牢牢固定

- 没有Thunderbolt

- 没有SD卡读卡器

- 高DPC延迟

结论 - 安静而紧凑的办公电脑

ACEMagician ACE-CK10-8259U评测 - 测试设备由Minipc联盟提供

ACEMagician ACE-CK10-8259U是一台由坚实的组件制成的小型办公电脑。在一天结束时，该英特尔酷睿i5-8259U的性能仍然完全可以满足日常使用。除此之外，该SoC经常发现自己的排名低于更现代的4核处理器。在与NiPoGi CK10的直接比较中 NiPoGi CK10的直接比较中，后者同样配备了一个英特尔酷睿i7-10810U我们的测试样品仍然可以站在自己的两脚上。有时，6核处理器的性能甚至可以被超越。这让我们感到惊讶，同时也反映了我们在测试阶段的主观印象如何。该系统速度很快，你从来没有真正感觉到你是在用旧的硬件工作。

在连接方面也没有什么可抱怨的。有足够多的USB端口，包括Type-C。只有缺少SD卡读卡器令人失望--你必须通过使用适配器来弥补这一点。在我们看来，它的Wi-Fi性能是值得批评的。在这里，ACEMagician ACE-CK10-8259U显然没有达到我们的期望。

ACEMagician ACE-CK10-8259U是一款非常适合在家工作的设备。所谓的老式SoC在日常常规使用中提供了卓越的性能。

主要来说，ACEMagician ACE-CK10-8259U最适合在家里进行简单的工作。该系统在任何时候都非常安静地工作，而且需要的能量很少。然而，你有时可以找到提供更多现代设备的好的替代品，如王牌魔术师TK11-A0 - 而且也在相同的价格范围内。但是Minisforum EliteMini TH50也值得一看，当它涉及到简单的办公用途时。

价格和可用性

目前，你可以在亚马逊上购买带有英特尔酷睿i7-10810U的ACEMagician ACE-CK10-8259U版本，价格为379美元。.

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

ACEMagician ACE-CK10-8259U - 04/09/2023 v7 ^(old)
Sebastian Bade

Chassis

81 / 98 → 82%

Connectivity

48 / 81 → 60%

Weight

84%

Games Performance

55%
