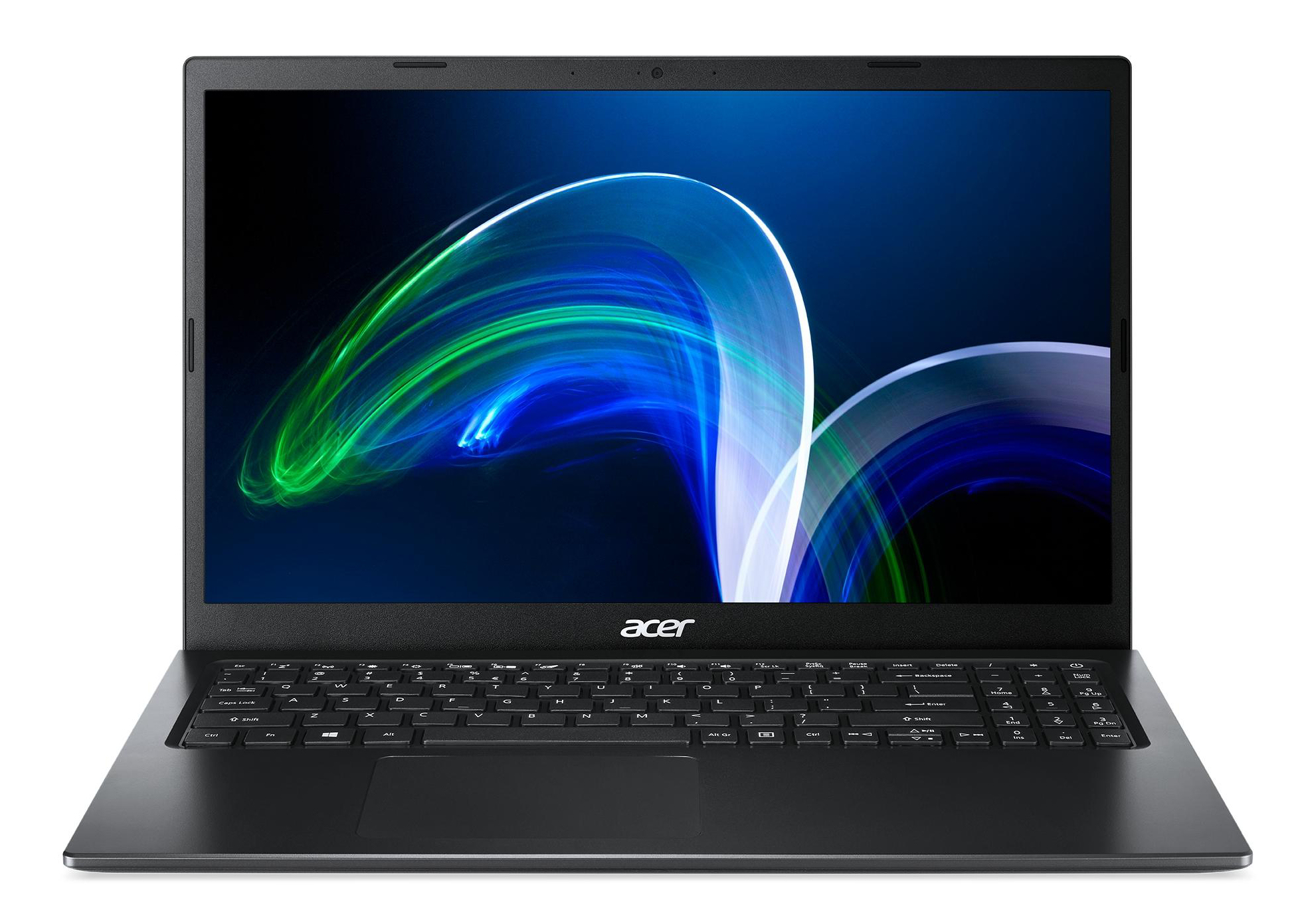

Acer Extensa 15 EX215-54 in Review:廉价的酷睿i5动力

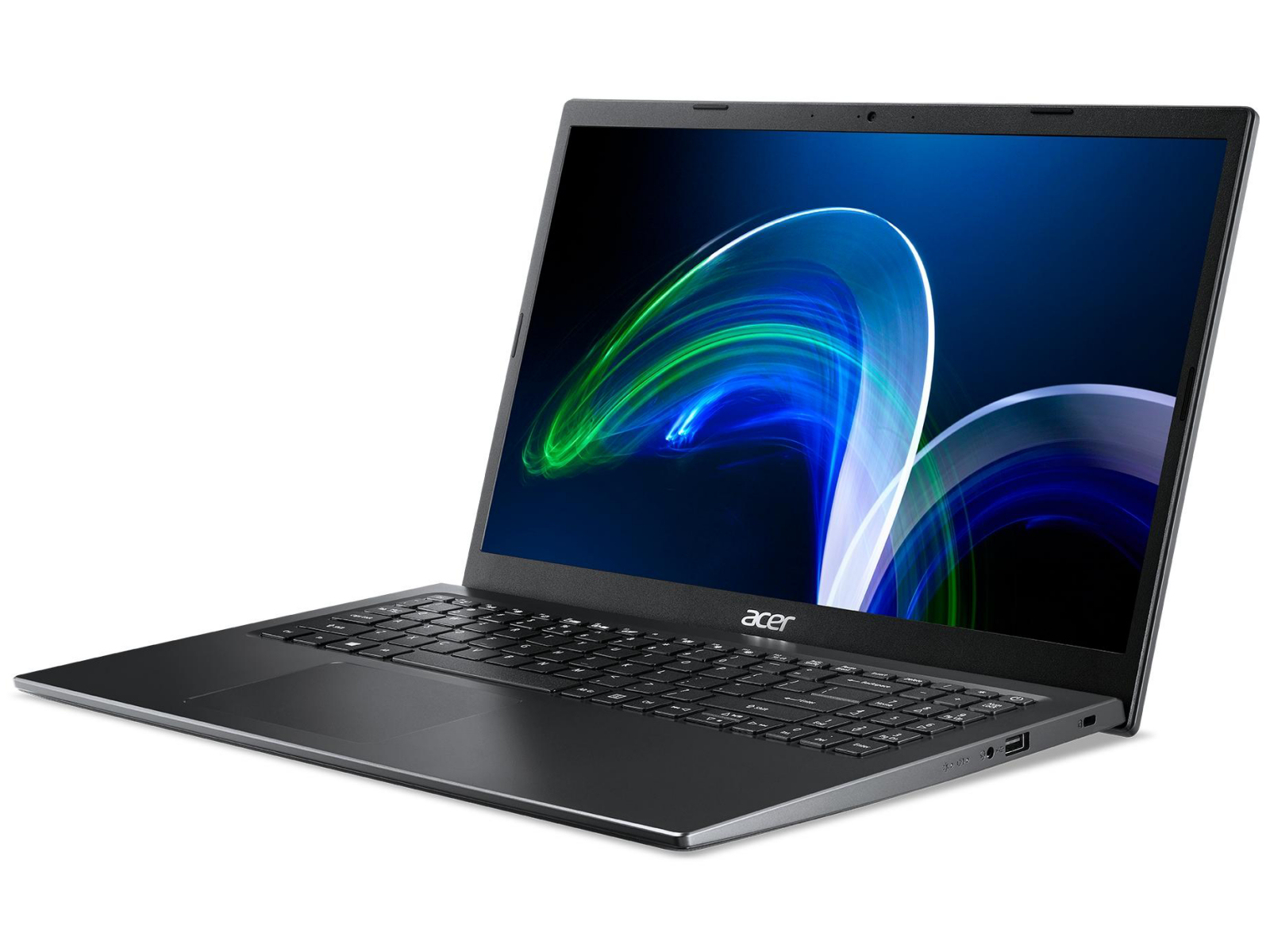

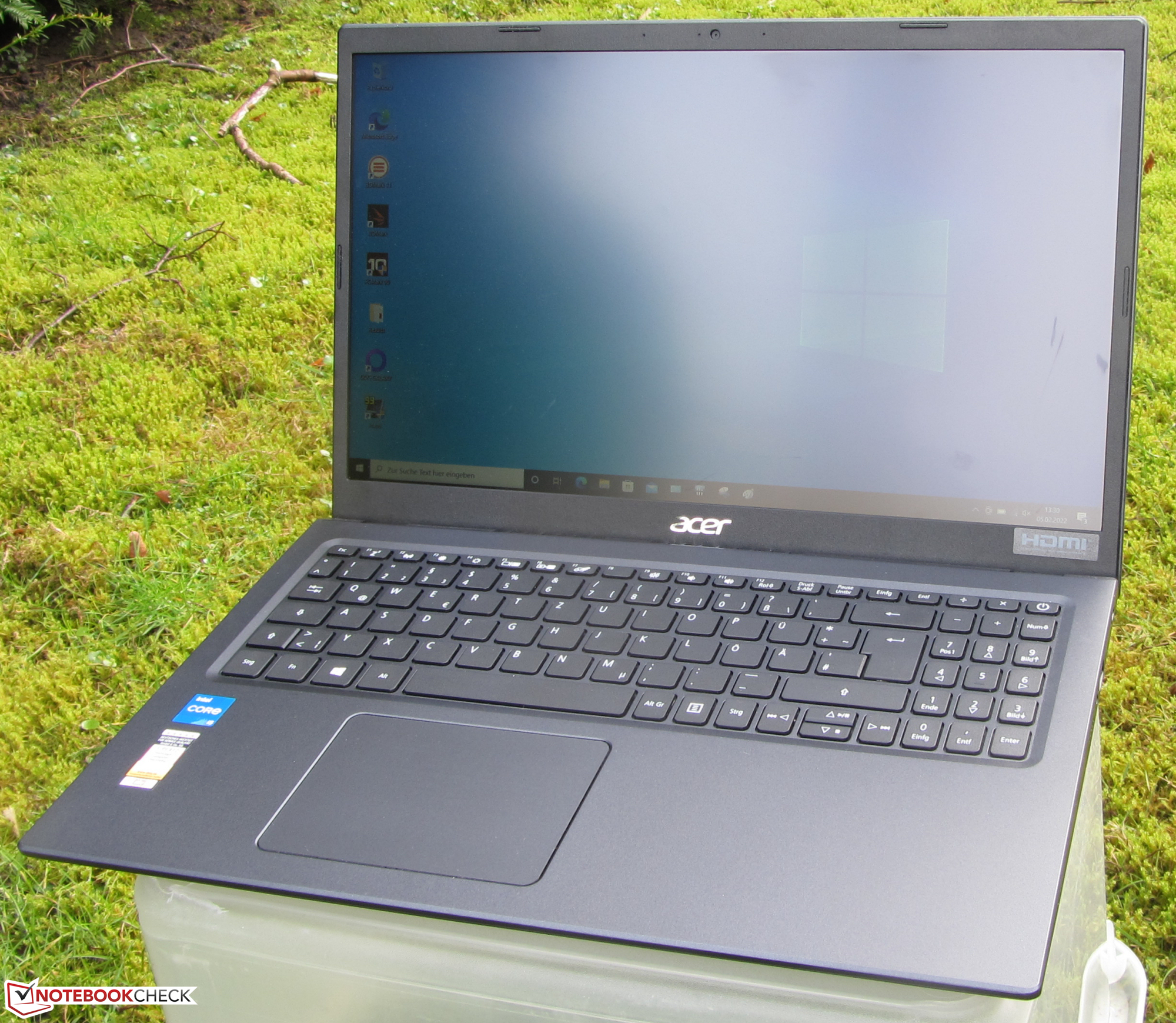

宏碁Extensa 15是一款简单的15.6英寸办公笔记本电脑，属于入门级商务领域，同样面向商务和私人客户。竞争对手的设备包括 戴尔 Inspiron 15 3511, 富士通LifeBook A3510，以及 联想IdeaPad 3 15ALC6.
Acer Extensa 15 EX215-54-5103 (Extensa 15 Series)
Processor
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3
Graphics adapter

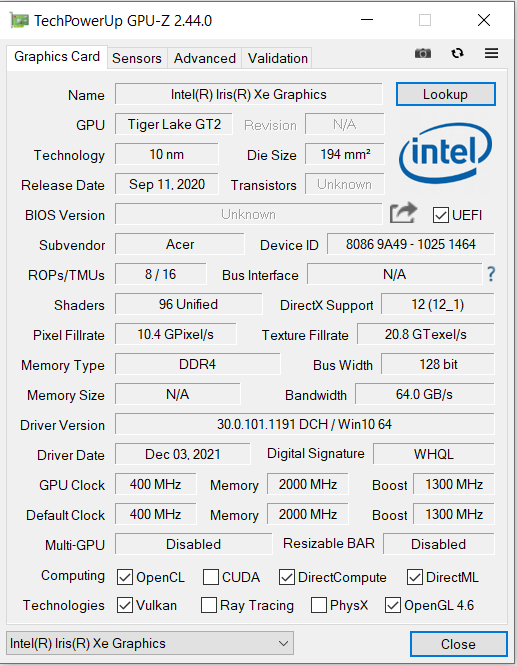

Intel Iris Xe Graphics G7 80EUs, Core: 1300 MHz, Single-Channel, 30.0.101.1191
Memory
8 GB

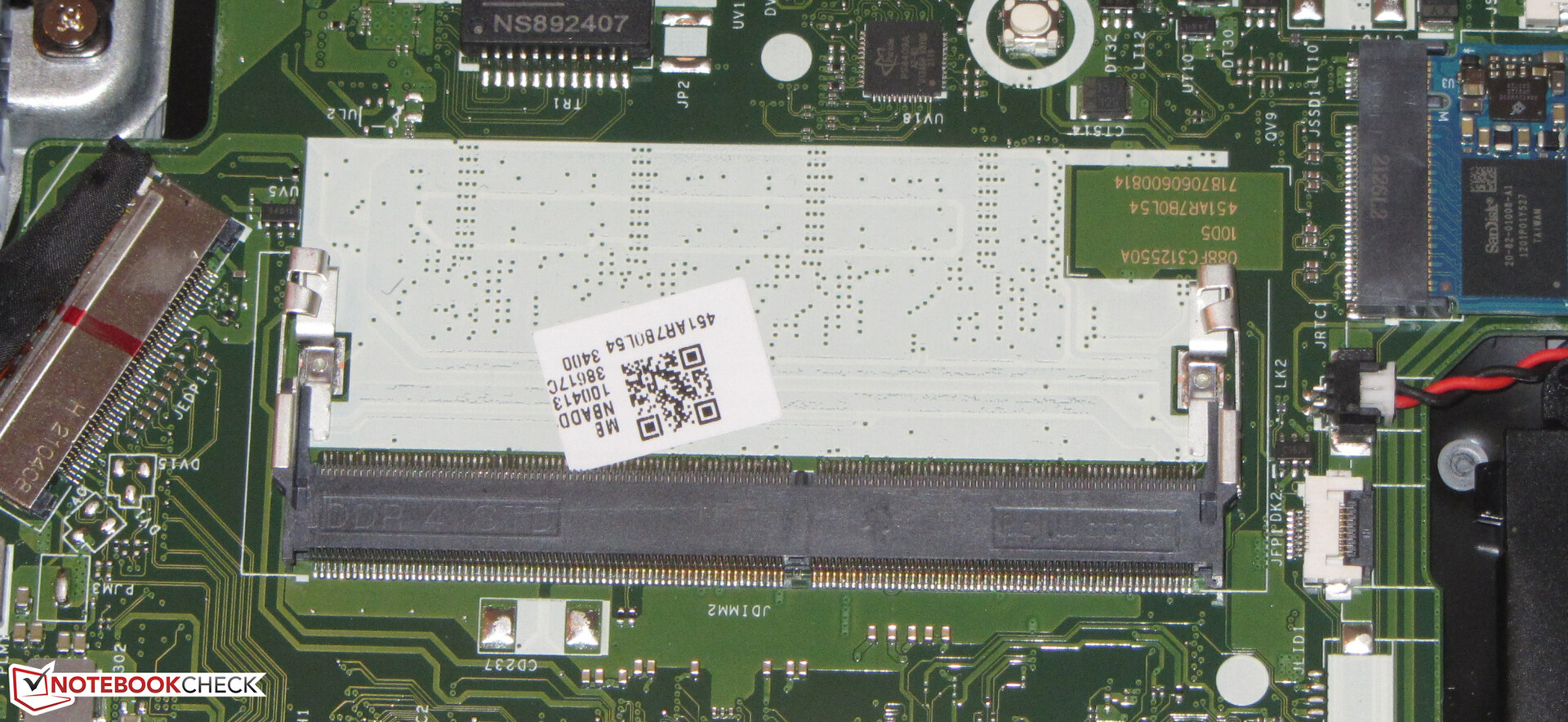

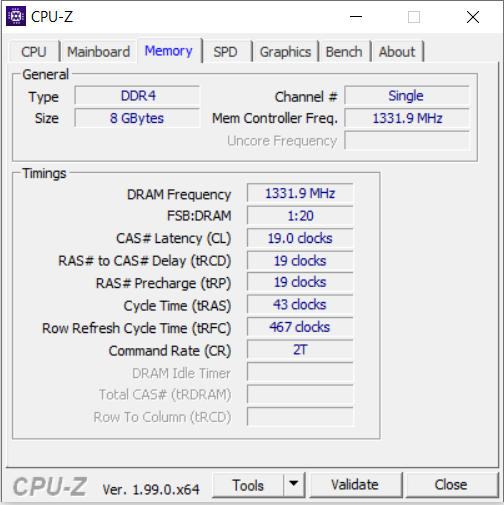

, DDR4-3200, Single-Channel-Mode, one memory slot (empty), 8 GB onboard
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, AU Optronics B156HTN06.1, TN LED, glossy: no, 60 Hz
Mainboard

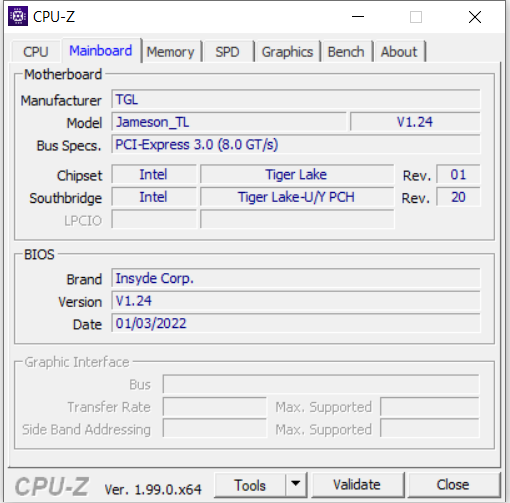

Intel Tiger Lake-UP3 PCH-LP
Storage

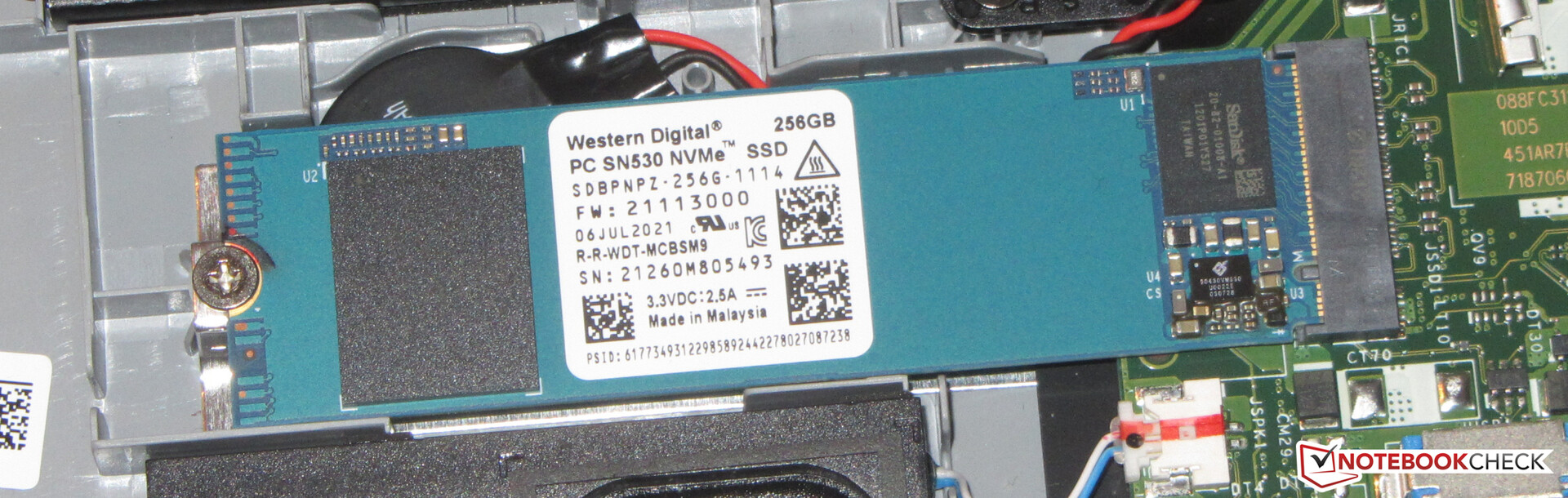

WDC PC SN530 SDBPNPZ-265G, 256 GB
, 256 GB free
Weight
1.9 kg, Power Supply: 262 g
Price
599 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 78 % v7 (old) | 02 / 2022 | Acer Extensa 15 EX215-54-5103 i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 79.9 % v7 (old) | 01 / 2022 | Dell Inspiron 15 3000 3511 i5-1135G7, Iris Xe G7 80EUs | 1.7 kg | 18.99 mm | 15.60" | 1920x1080 | |
| 81.2 % v7 (old) | 02 / 2022 | Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) | 1.8 kg | 23.9 mm | 15.60" | 1920x1080 | |
| 80.4 % v7 (old) | 12 / 2021 | Lenovo IdeaPad 3 15ALC6 R3 5300U, Vega 6 | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 |
外壳和功能。EX215没有USB-C接口

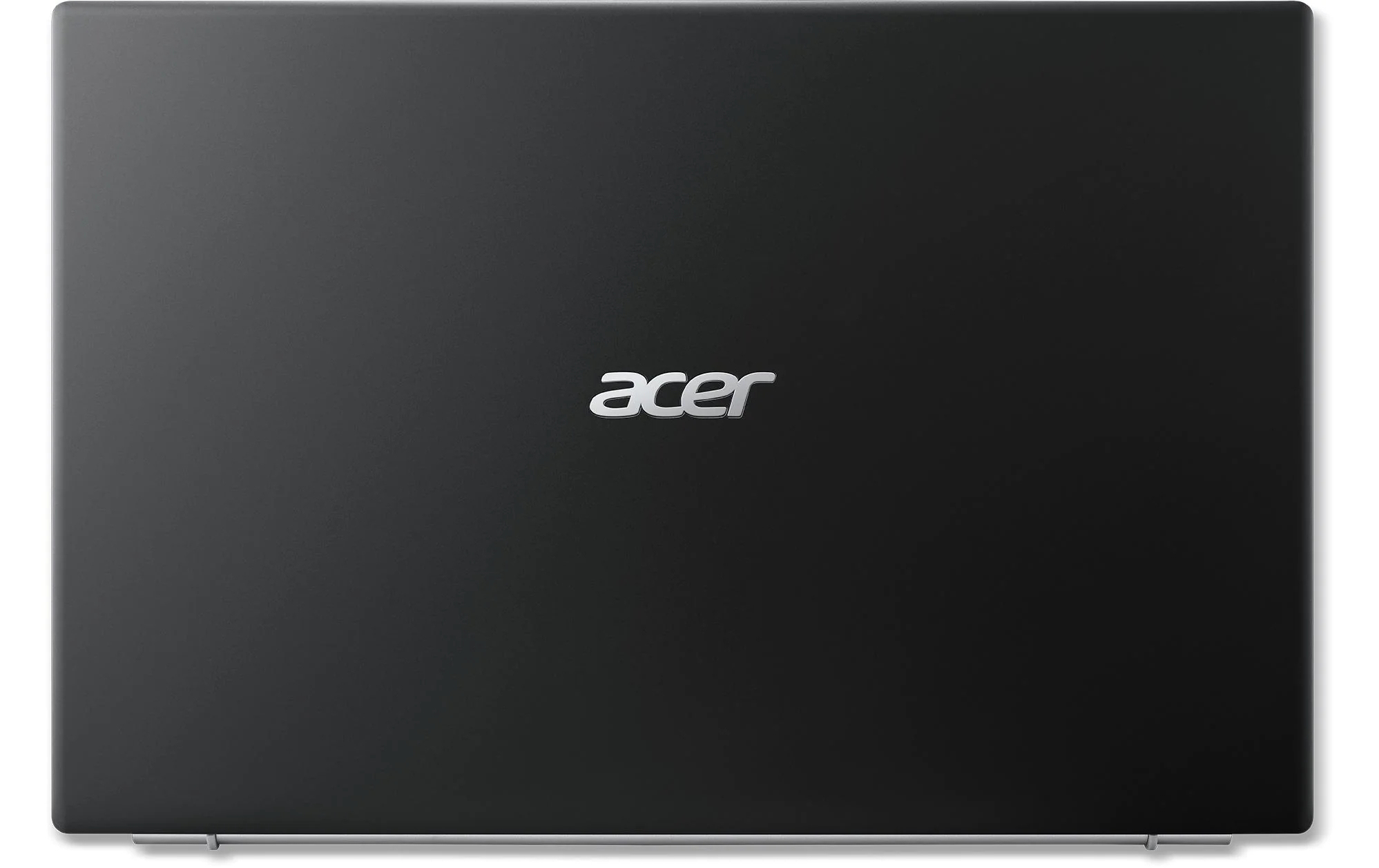

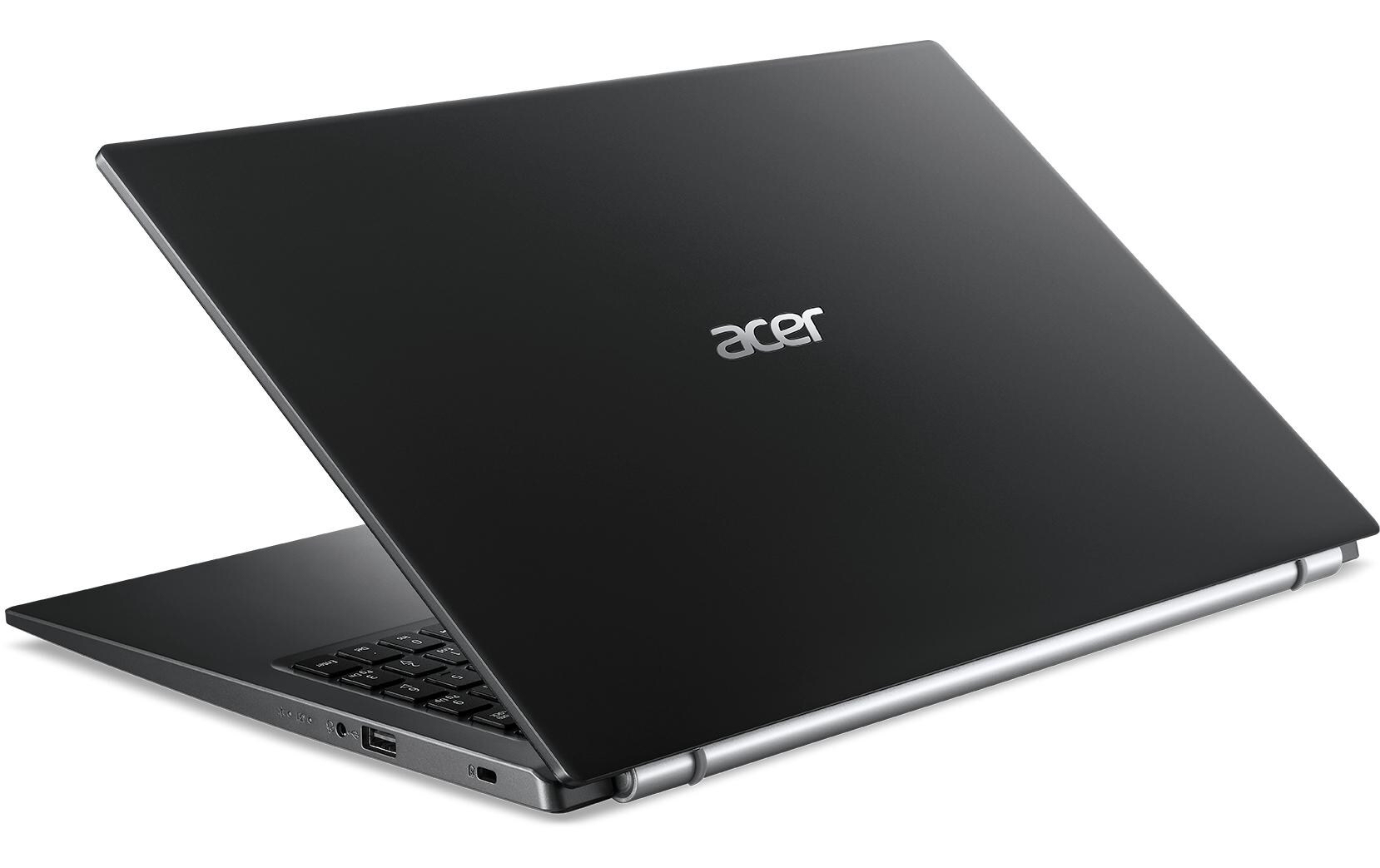

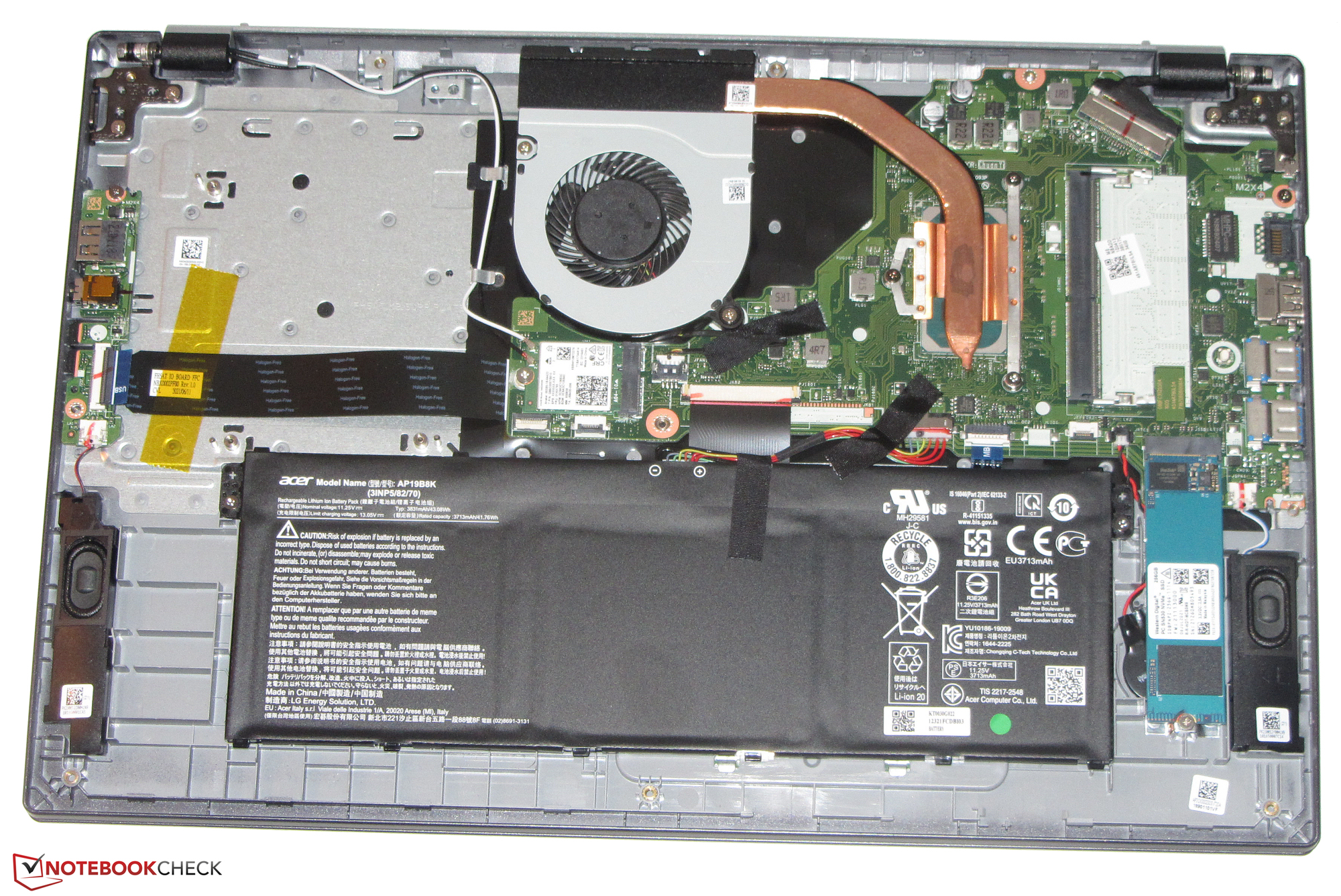

Extensa并非由高质量的机箱材料制成，如铝或镁。机箱是由黑色塑料制成的，但加工缺陷并不明显。底部装置和盖子似乎有更高的硬度。电池是不可拆卸的，也没有提供维护舱口。

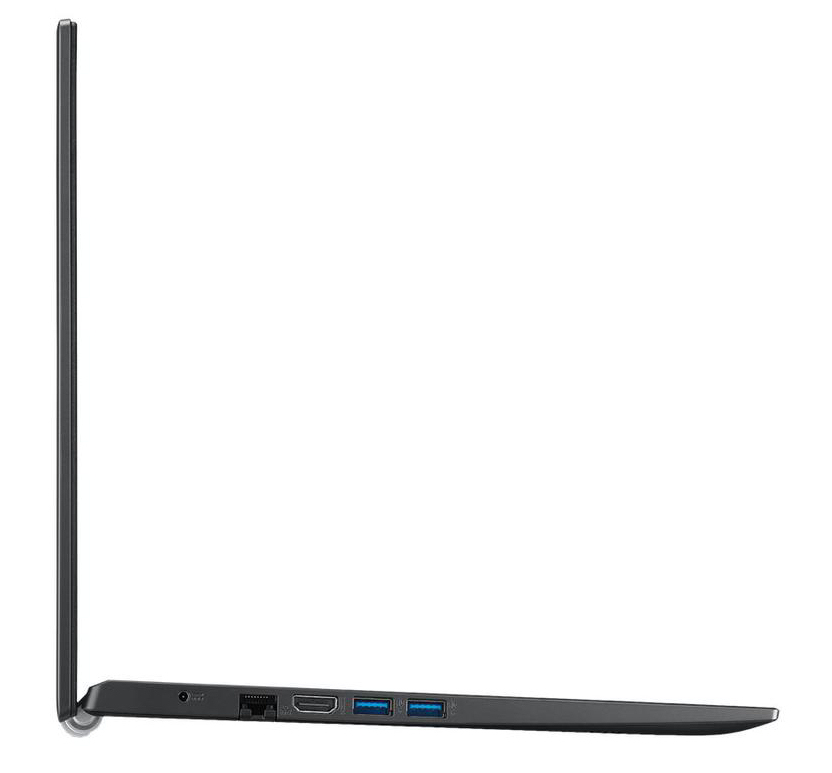

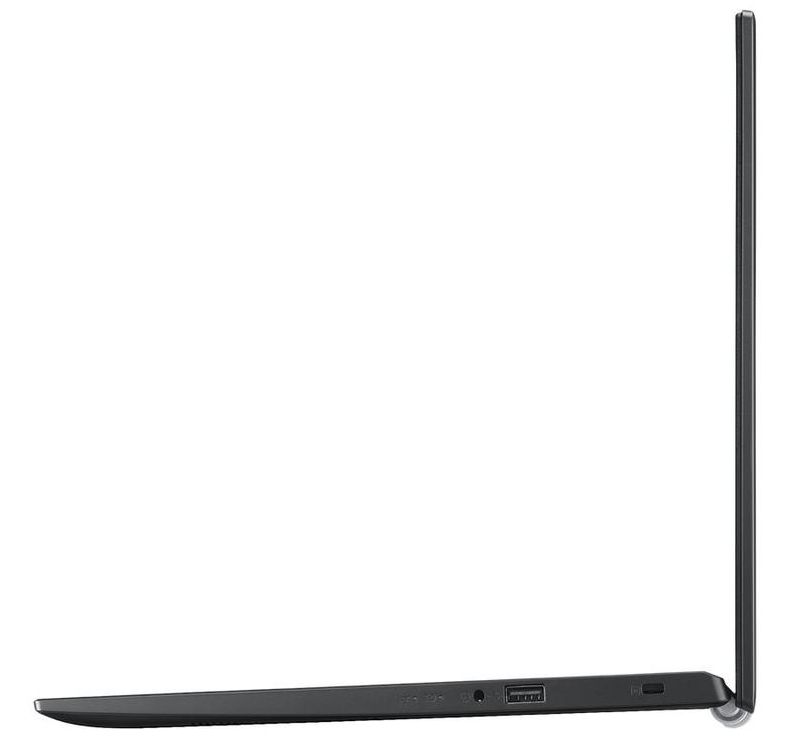

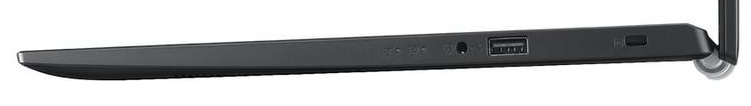

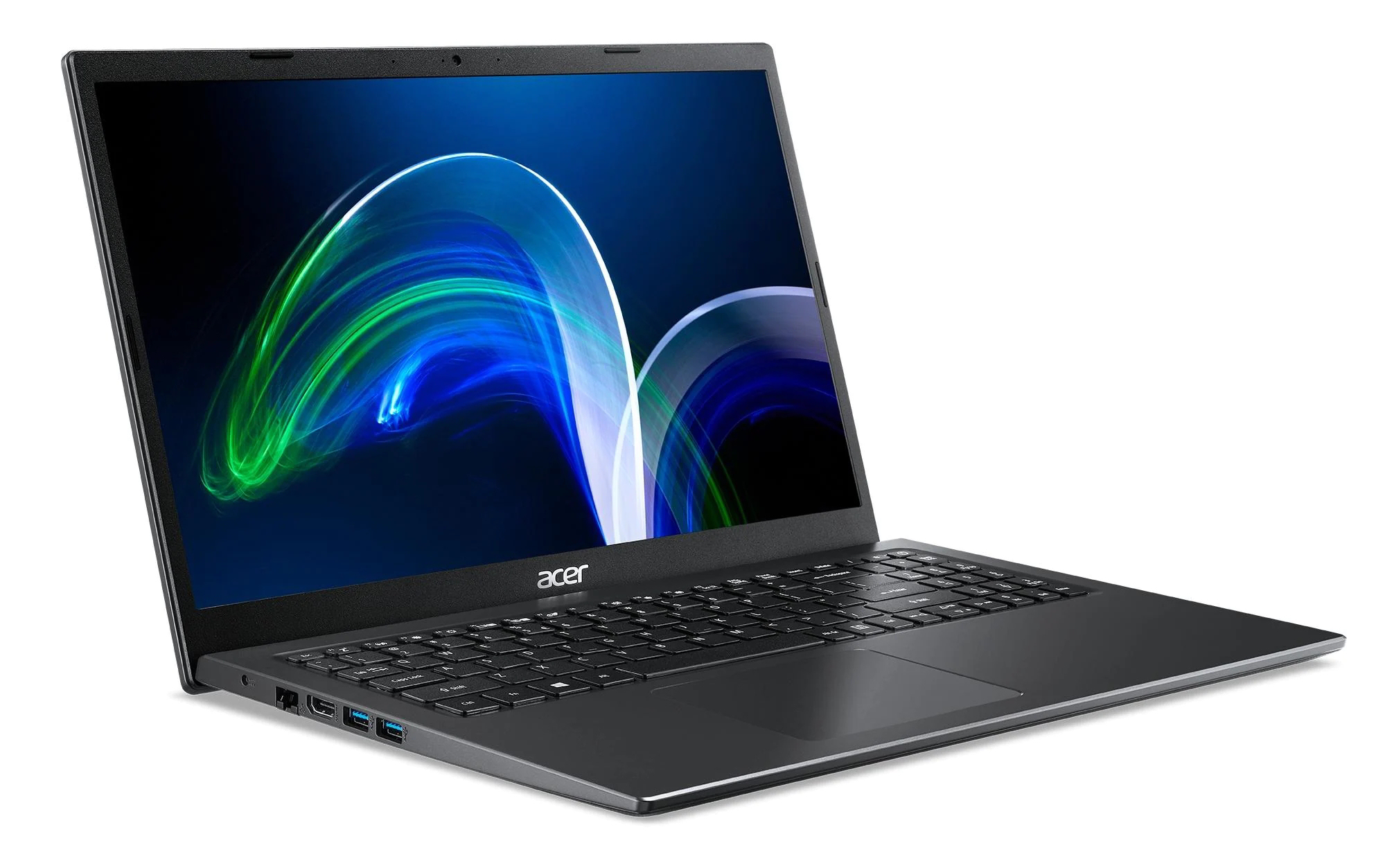

EX215的端口选择主要包括三个USB-A端口（1个USB 2.0，2个USB 3.2 Gen 1）。可以通过HDMI连接外部显示器。宏碁在笔记本电脑中包括一个USB-C端口和一个存储卡阅读器。
在最佳条件下确定的WLAN数据率（附近没有其他WLAN设备，笔记本和服务器PC之间的距离很短）似乎不能与竞争对手相提并论。这可能是由于所安装的WLAN芯片（英特尔Wireless-AC 9462）的选择，该芯片允许的最大传输率仅为433 MBit/s。
这款笔记本电脑应该与Windows 10和Windows 11兼容。然而，我们的变体没有安装Windows操作系统。宏碁为该设备配备了一个名为 "eShell "的象征性操作系统--它自己的Linux发行版。因此，完全的Linux兼容性是必然的。测试安装的Ubuntu 20.04.03 LTS（64位）运行没有问题。所有硬件都被识别和设置，所有功能键都可以使用。
Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462; iperf3 receive AX12; iperf 3.1.3: Ø360 (345-365)
Dell Inspiron 15 3000 3511 Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 receive AX12; iperf 3.1.3: Ø333 (310-348)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560; iperf3 receive AX12; iperf 3.1.3, Speedport Pro Plus: Ø948 (917-950)
Lenovo IdeaPad 3 15ALC6 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø604 (567-620)
Acer Extensa 15 EX215-54-5103 Intel Wireless AC 9462; iperf3 transmit AX12; iperf 3.1.3: Ø345 (321-353)
Dell Inspiron 15 3000 3511 Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 transmit AX12; iperf 3.1.3: Ø307 (226-327)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560; iperf3 transmit AX12; iperf 3.1.3, Speedport Pro Plus: Ø922 (909-935)
Lenovo IdeaPad 3 15ALC6 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø598 (526-661)
16.5 ∆E
16.9 ∆E
19.7 ∆E
18.5 ∆E
18.1 ∆E
17.5 ∆E
11.7 ∆E
24.2 ∆E
16.4 ∆E
19.1 ∆E
14.8 ∆E
9.9 ∆E
23 ∆E
17.5 ∆E
20.3 ∆E
9.3 ∆E
19.5 ∆E
22.6 ∆E
2.3 ∆E
11.7 ∆E
19.5 ∆E
18.4 ∆E
18.4 ∆E
12.4 ∆E

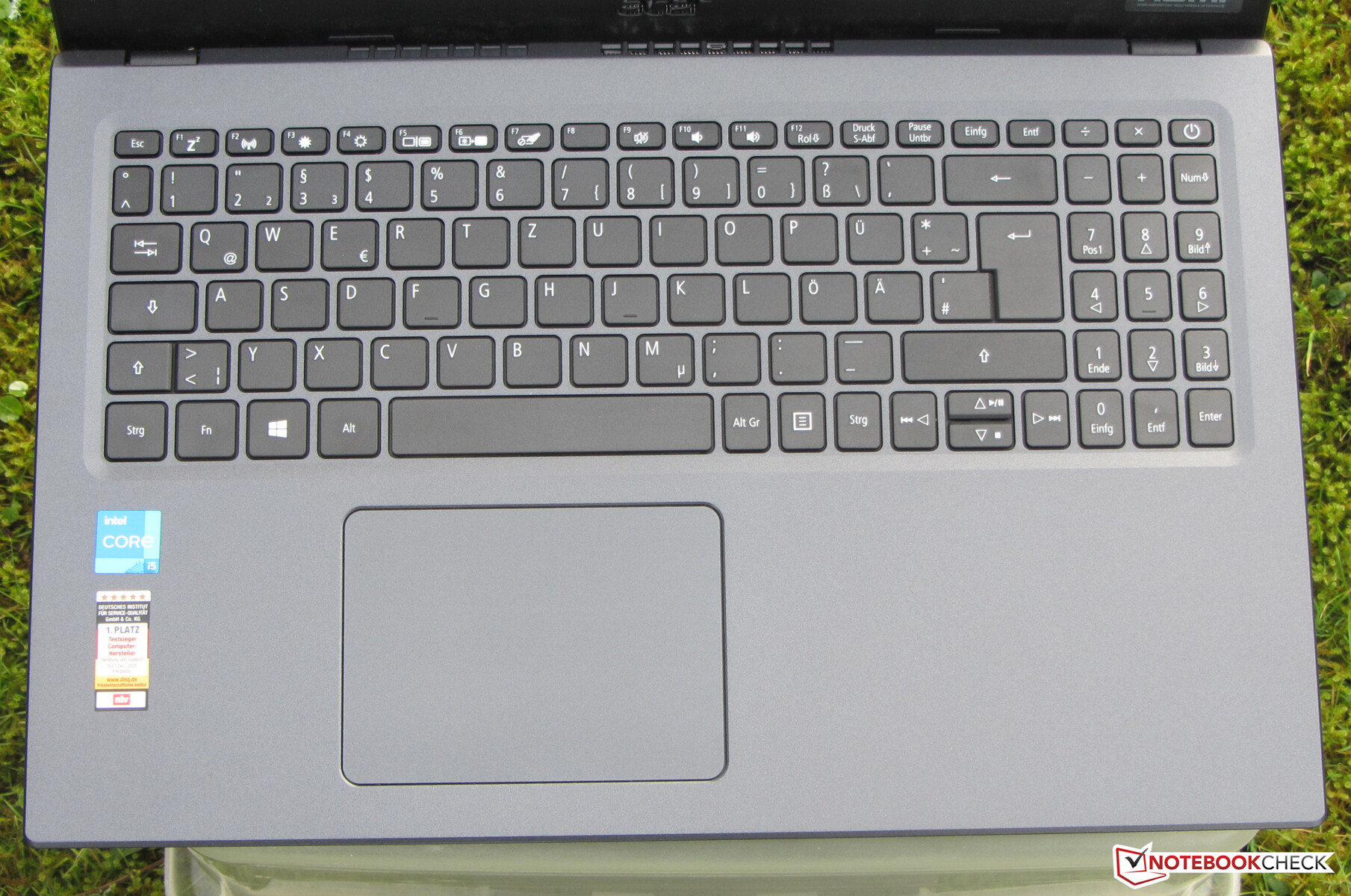

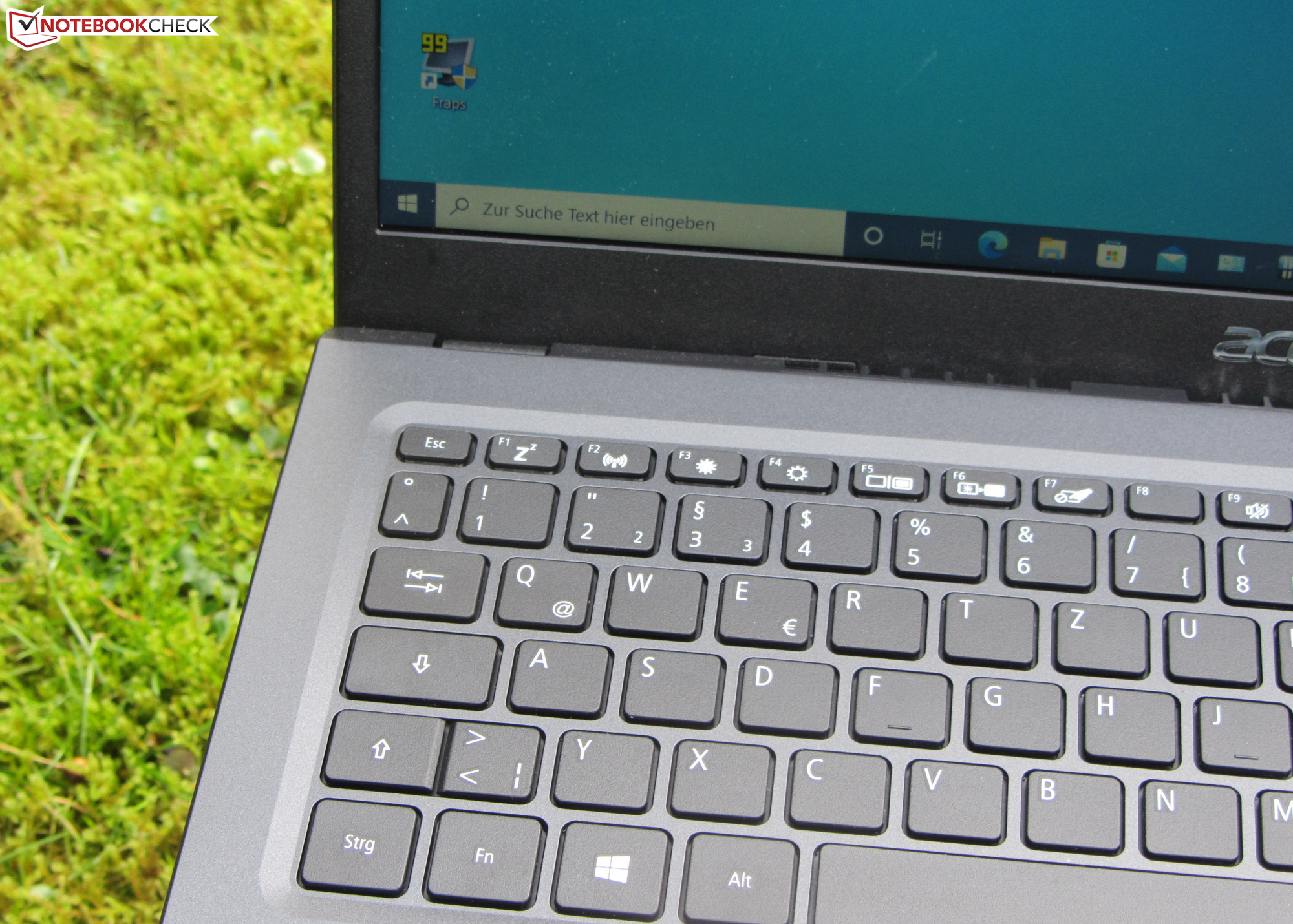

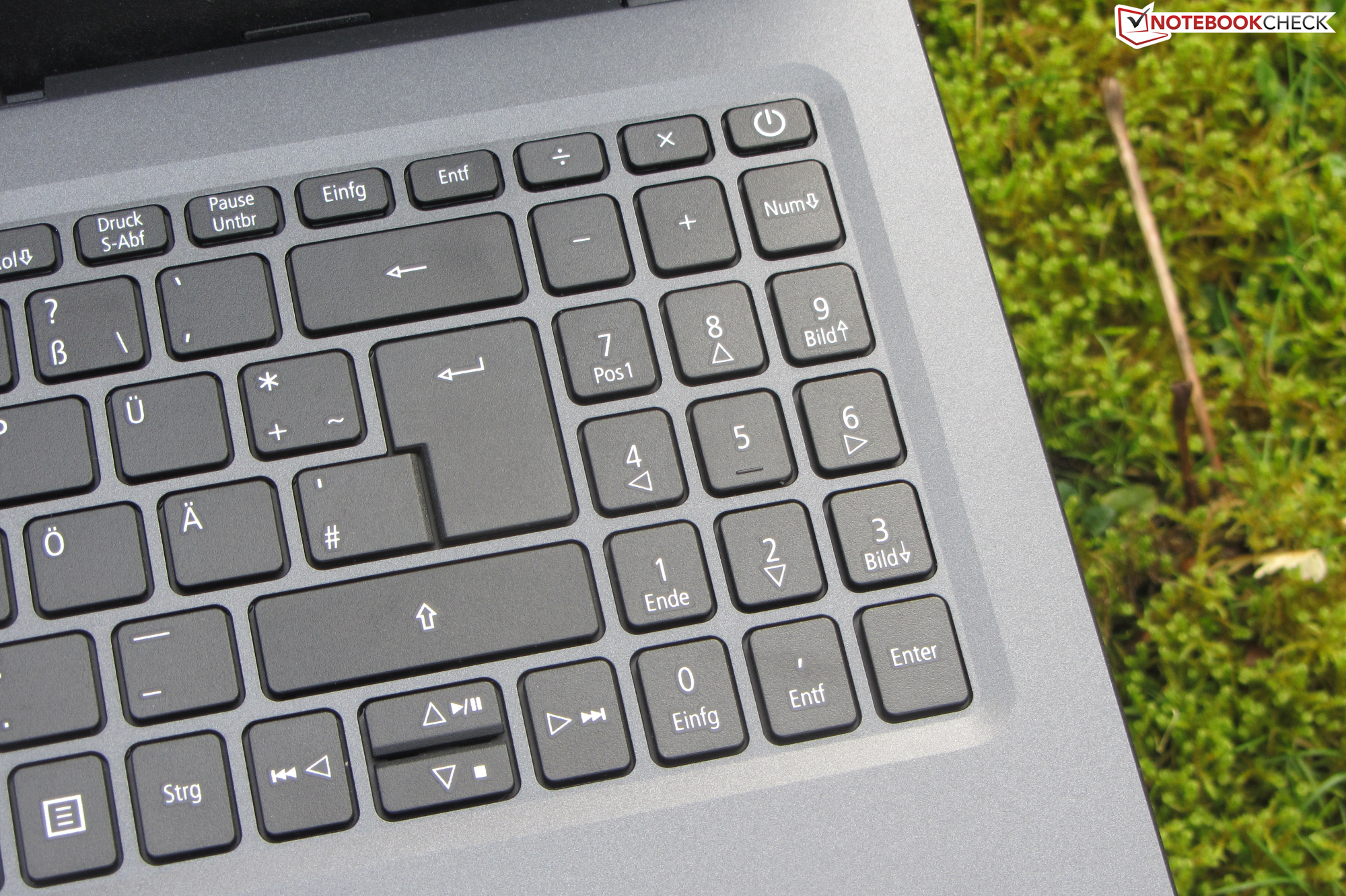

输入设备。Extensa没有背光的按键
扁平的、略微粗糙的无灯小键盘的按键提供了一个短的行程和一个清晰的压力点。键盘在打字时有一点弯曲，不过事实证明这并不令人讨厌。总而言之，宏碁提供了一个适合日常使用的键盘。

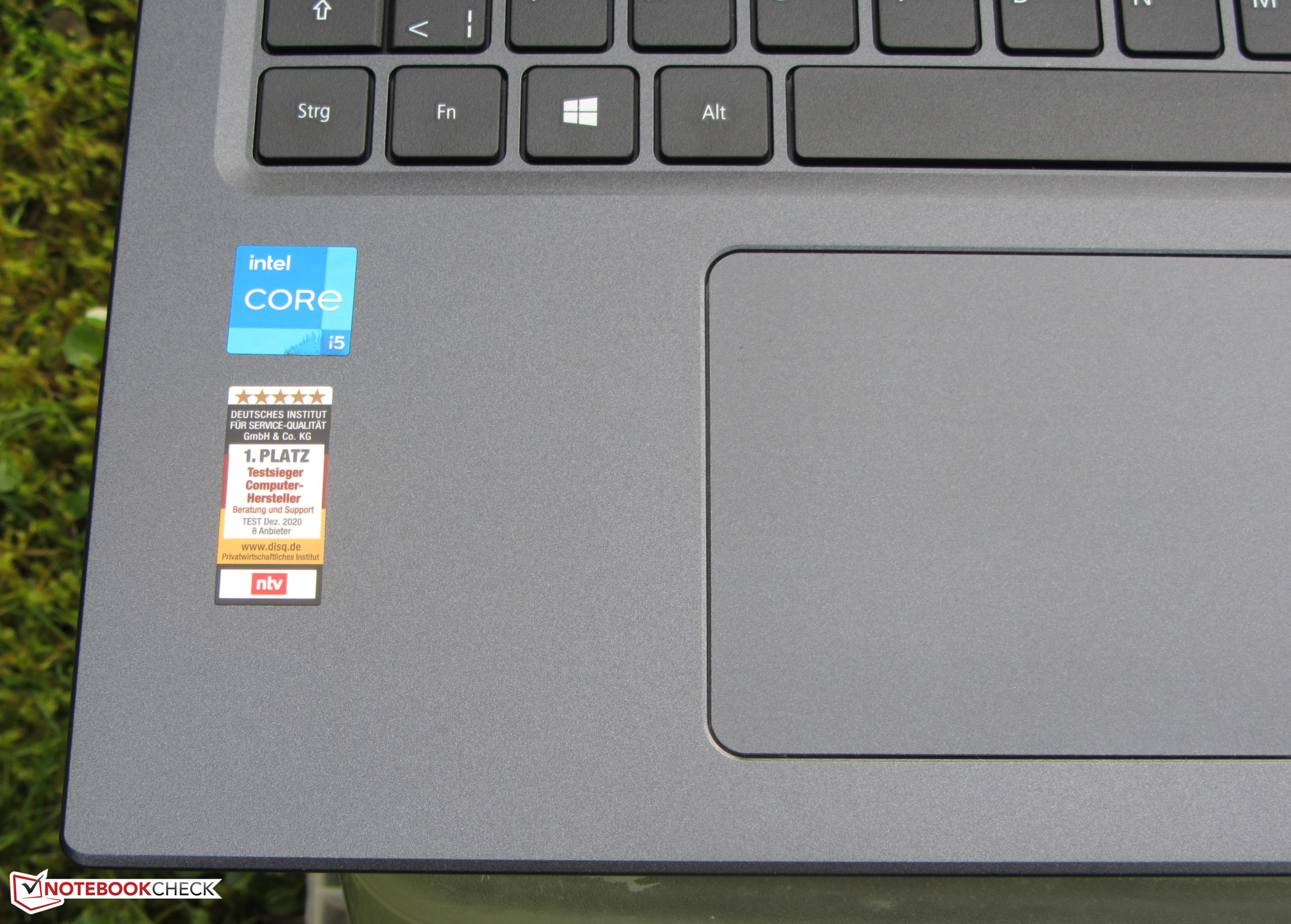

一个具有多点触摸功能的ClickPad（约10.6 x 7.8厘米）可作为鼠标的替代品。其光滑的表面使手指容易滑动。该垫子也对角落里的输入作出反应。它有一个短的行程和一个清晰的压力点。

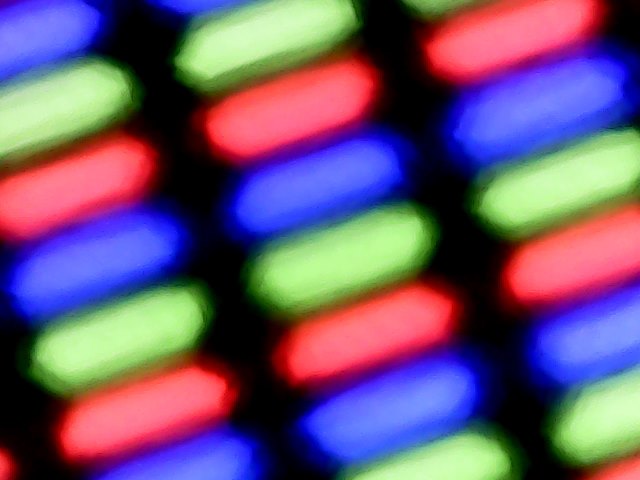

显示屏。宏碁15有一个过时的面板
哑光15.6英寸屏幕（1,920 x 1,080像素）的亮度（203.1 cd/m²）和对比度（512:1）原来是很低的。我们认为超过300cd/m²或1,000:1的数值为好。在每个亮度水平上都会出现频率为52Hz的闪烁。这可能会导致对PWM敏感的人头痛和/或眼睛出问题。
| |||||||||||||||||||||||||
AU Optronics B156HTN06.1 tested with X-Rite i1Pro 2
Maximum: 220 cd/m² (Nits) Average: 203.1 cd/m² Minimum: 20 cd/m²Brightness Distribution: 82 %
Center on Battery: 224 cd/m²
Contrast: 512:1 (Black: 0.43 cd/m²)
ΔE Color 10.74 | 0.5-29.43 Ø4.92, calibrated: 4.44

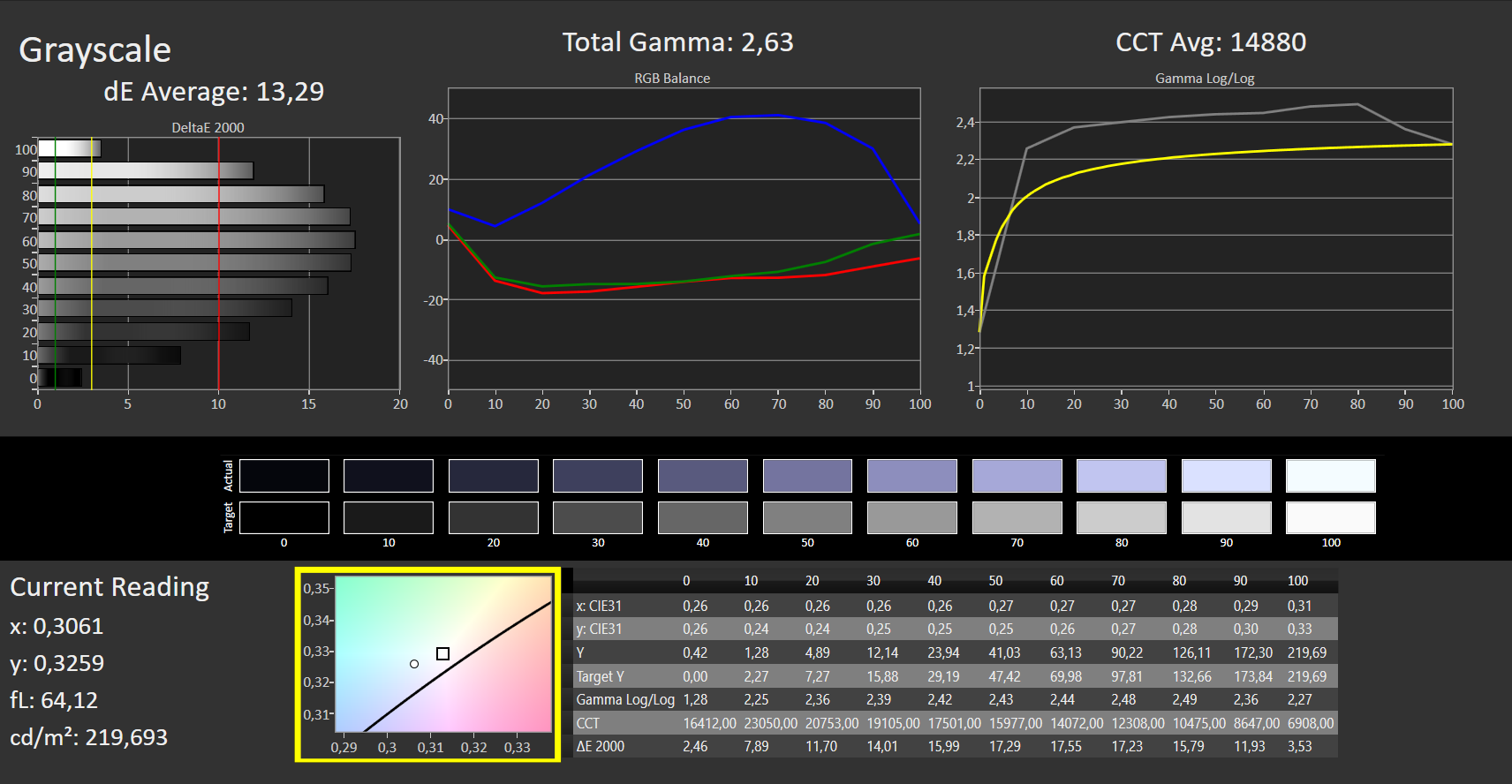

ΔE Greyscale 13.29 | 0.5-98 Ø5.2
38.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
55.7% sRGB (Argyll 2.2.0 3D)
37% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.63
| Acer Extensa 15 EX215-54-5103 AU Optronics B156HTN06.1, TN LED, 1920x1080, 15.6" | Dell Inspiron 15 3000 3511 BOE NV15T06, IPS, 1920x1080, 15.6" | Fujitsu Lifebook A3510 (FPC04905BP) BOE CQ NV156FHM-N48, IPS, 1920x1080, 15.6" | Lenovo IdeaPad 3 15ALC6 BOE CQ NV156FHM-T07, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|
| Display | 8% | 7% | 7% | |
| Display P3 Coverage | 37 | 40.1 8% | 39.9 8% | 40 8% |
| sRGB Coverage | 55.7 | 58.8 6% | 58.9 6% | 57.7 4% |
| AdobeRGB 1998 Coverage | 38.2 | 41.5 9% | 41.3 8% | 41.2 8% |
| Response Times | 2% | -35% | 0% | |
| Response Time Grey 50% / Grey 80% * | 38 ? | 31.6 ? 17% | 45 ? -18% | 24.8 ? 35% |
| Response Time Black / White * | 21 ? | 24 ? -14% | 32 ? -52% | 28.4 ? -35% |
| PWM Frequency | 52 ? | |||
| Screen | 40% | 61% | 54% | |
| Brightness middle | 220 | 239.9 9% | 218 -1% | 336.4 53% |
| Brightness | 203 | 230 13% | 209 3% | 318 57% |
| Brightness Distribution | 82 | 87 6% | 64 -22% | 84 2% |
| Black Level * | 0.43 | 0.21 51% | 0.11 74% | 0.24 44% |
| Contrast | 512 | 1142 123% | 1982 287% | 1402 174% |
| Colorchecker dE 2000 * | 10.74 | 6.34 41% | 4.89 54% | 6.46 40% |
| Colorchecker dE 2000 max. * | 20.92 | 21.03 -1% | 8.3 60% | 19.75 6% |
| Colorchecker dE 2000 calibrated * | 4.44 | 2.08 53% | 3.88 13% | 2.09 53% |
| Greyscale dE 2000 * | 13.29 | 5.1 62% | 2.57 81% | 5.6 58% |
| Gamma | 2.63 84% | 2.41 91% | 2.22 99% | 2.25 98% |
| CCT | 14880 44% | 6169 105% | 6272 104% | 5934 110% |
| Total Average (Program / Settings) | 17% /
27% | 11% /
36% | 20% /
36% |
* ... smaller is better

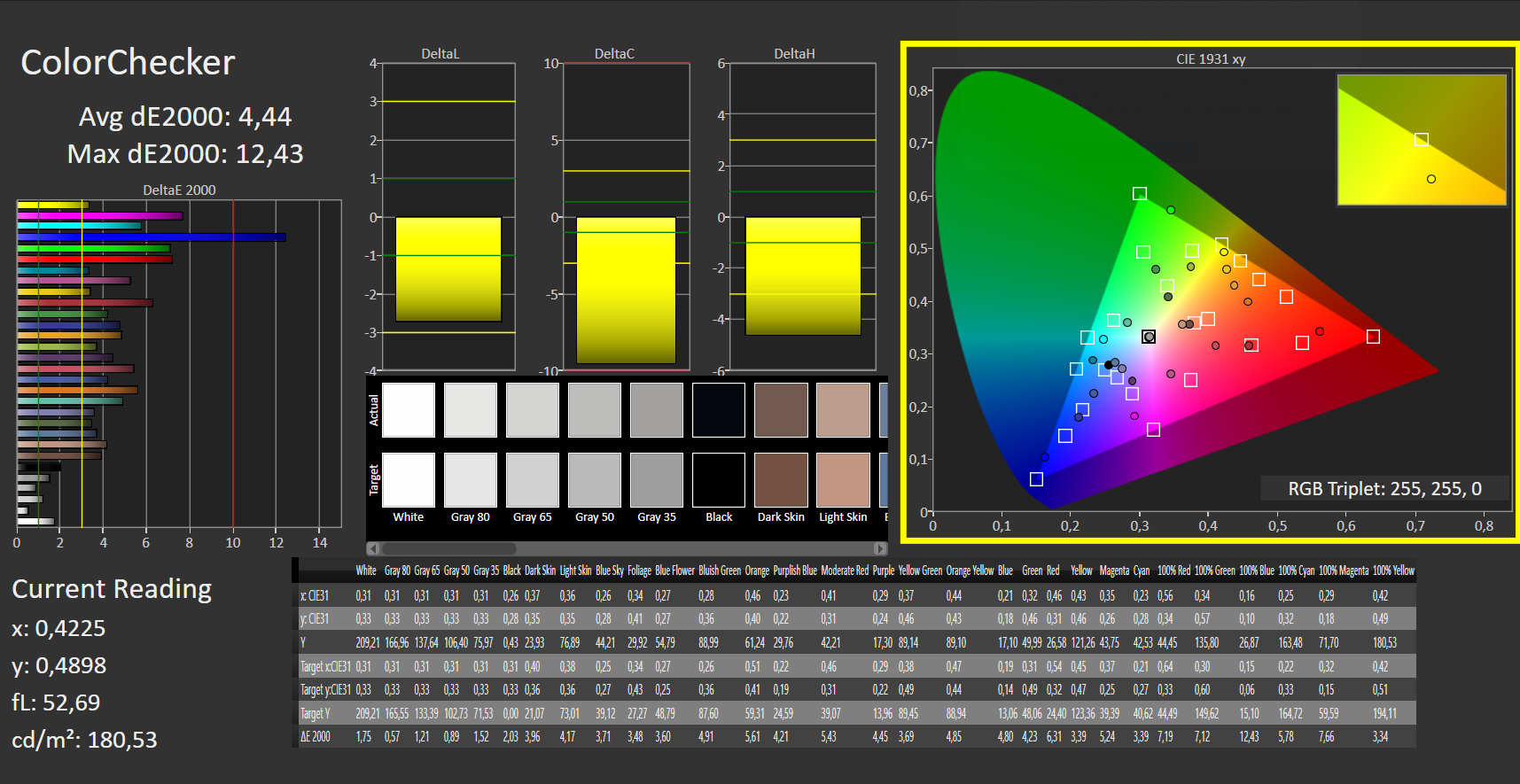

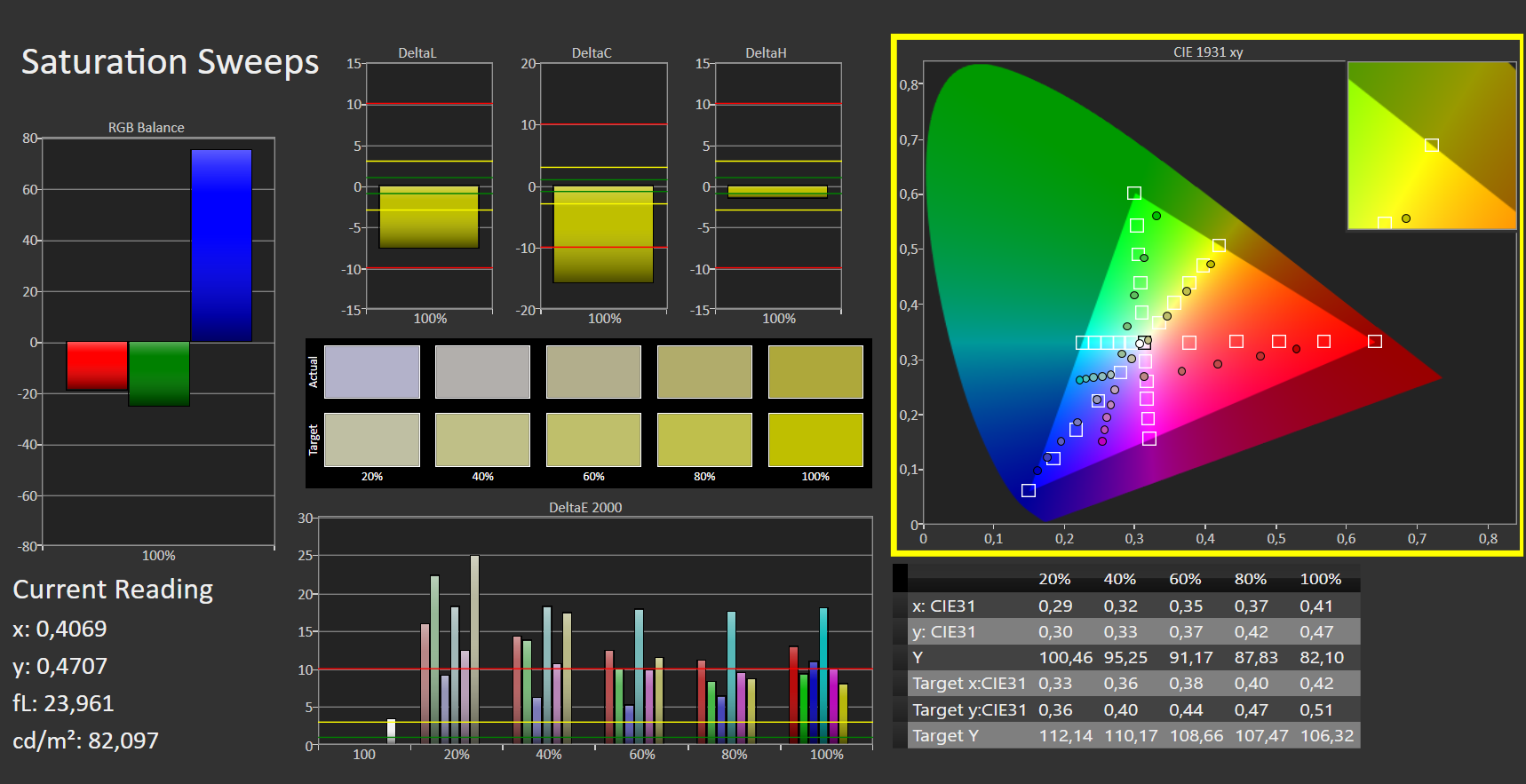

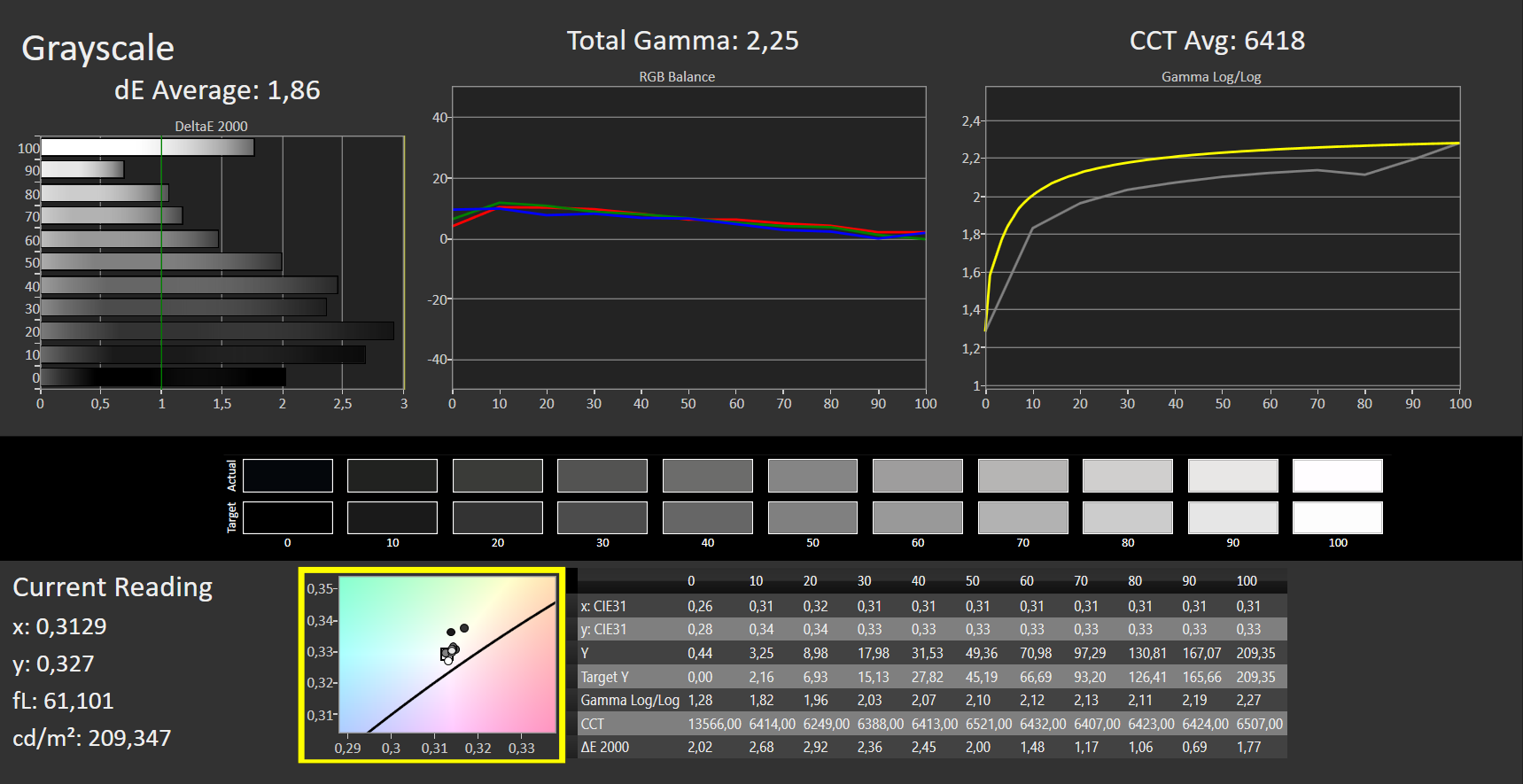

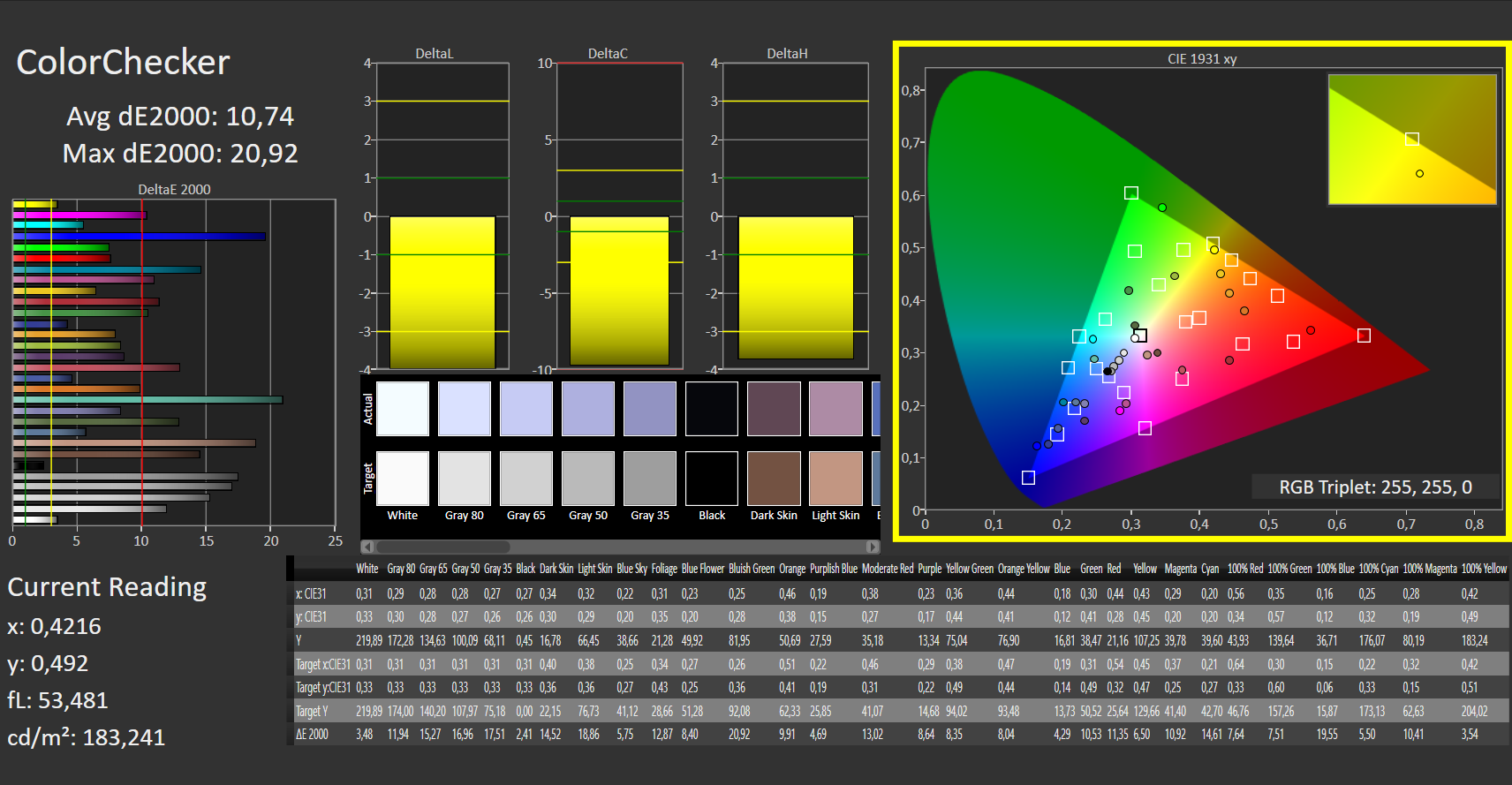

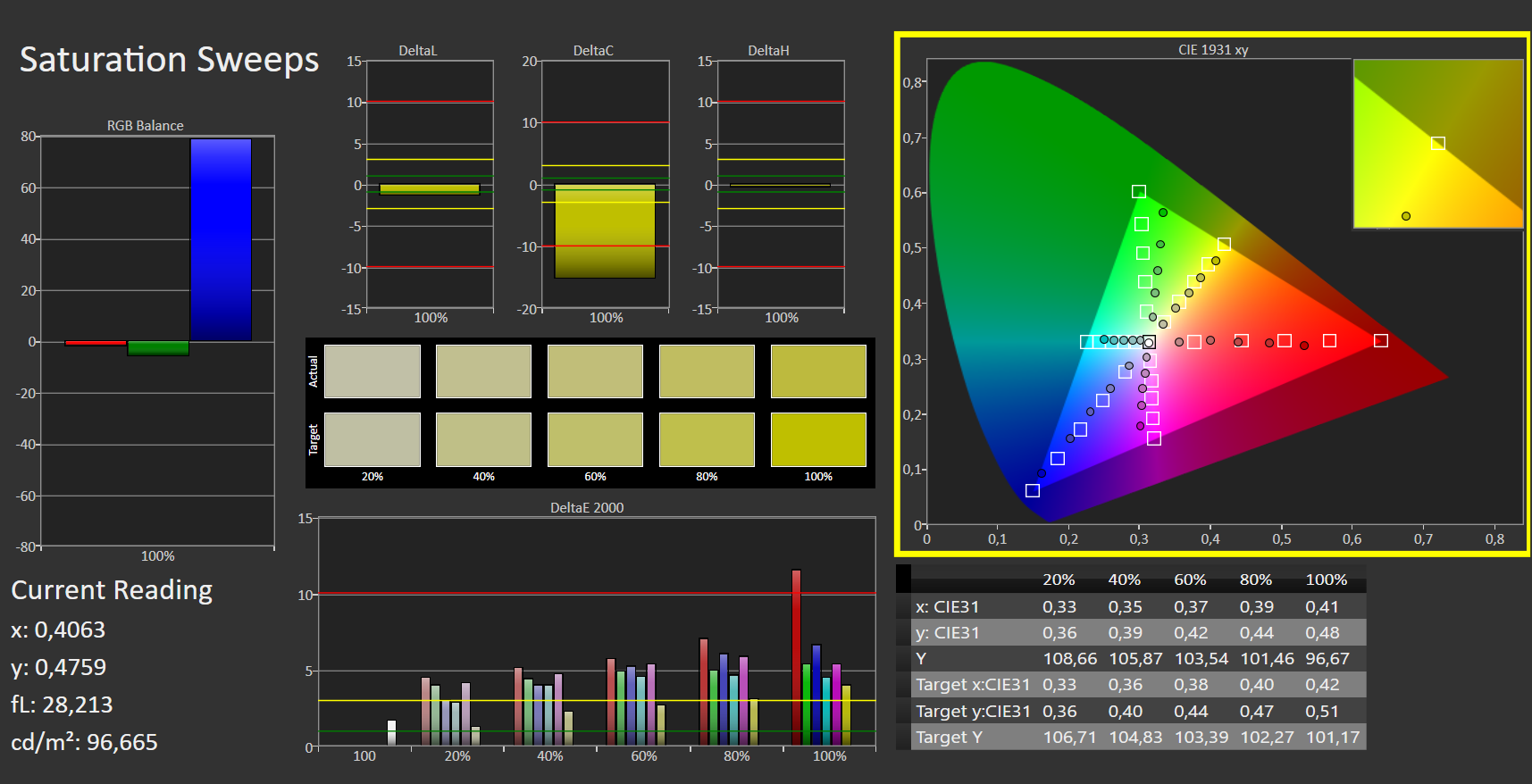

这块屏幕的色彩再现在开箱后并不令人信服--我们观察到色彩明显偏离了目标。此外，显示屏还存在偏蓝的问题。校准可以消除偏蓝的现象，并确保体面的色彩再现。该显示器不能充分覆盖AdobeRGB（38%）、sRGB（56%）和DCI-P3（37%）色彩空间。
Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 21 ms ... rise ↗ and fall ↘ combined | ↗ 17 ms rise |  |
| ↘ 4 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms). | ||

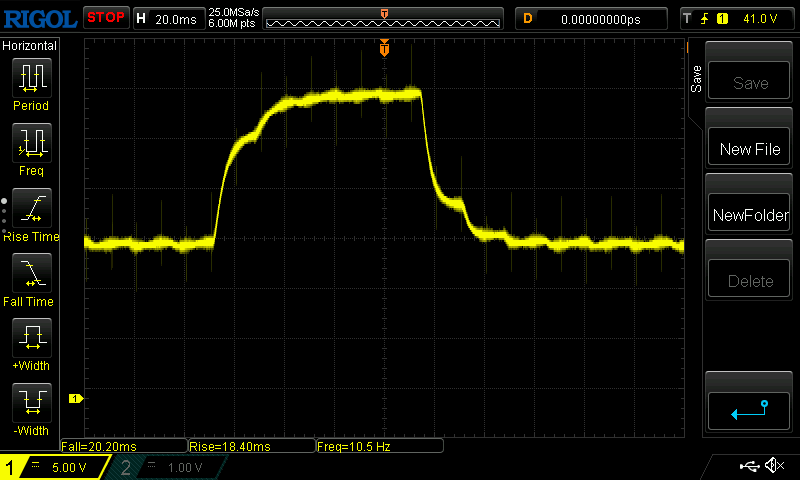

| ↔ Response Time 50% Grey to 80% Grey | ||
| 38 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 20 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 51 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||

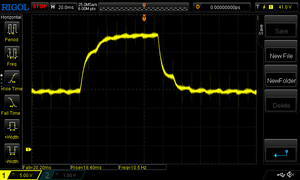

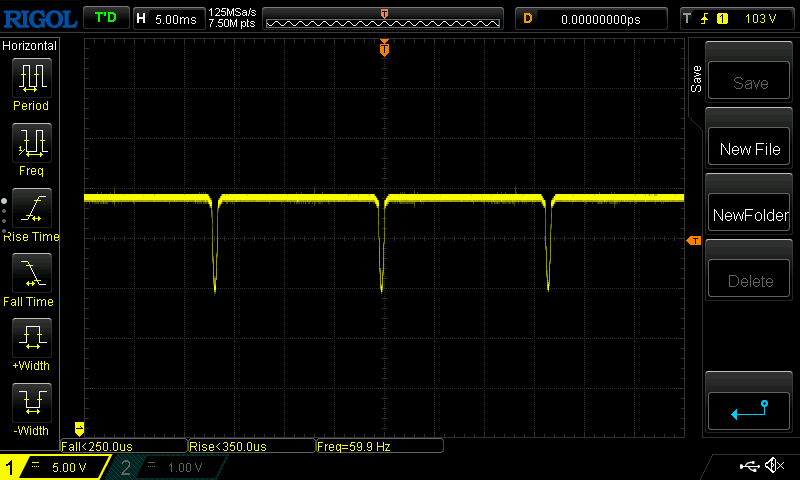

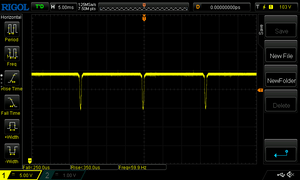

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 52 Hz | ≤ 100 % brightness setting |  |

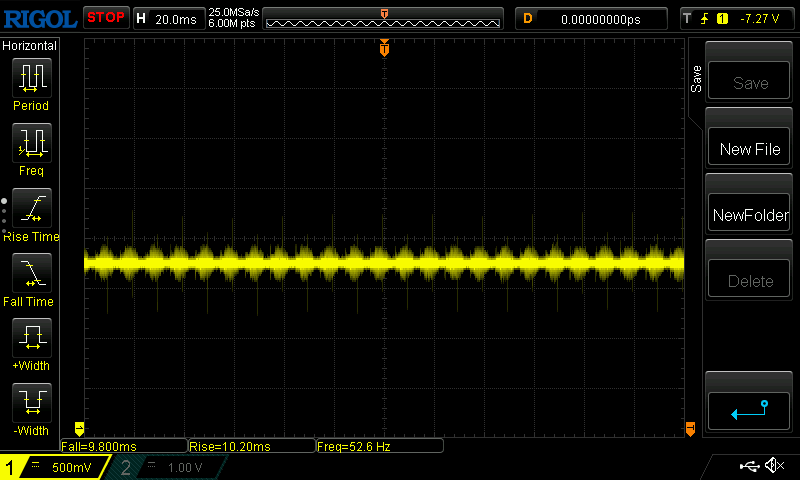

The display backlight flickers at 52 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 52 Hz is very low, so the flickering may cause eyestrain and headaches after extended use. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||

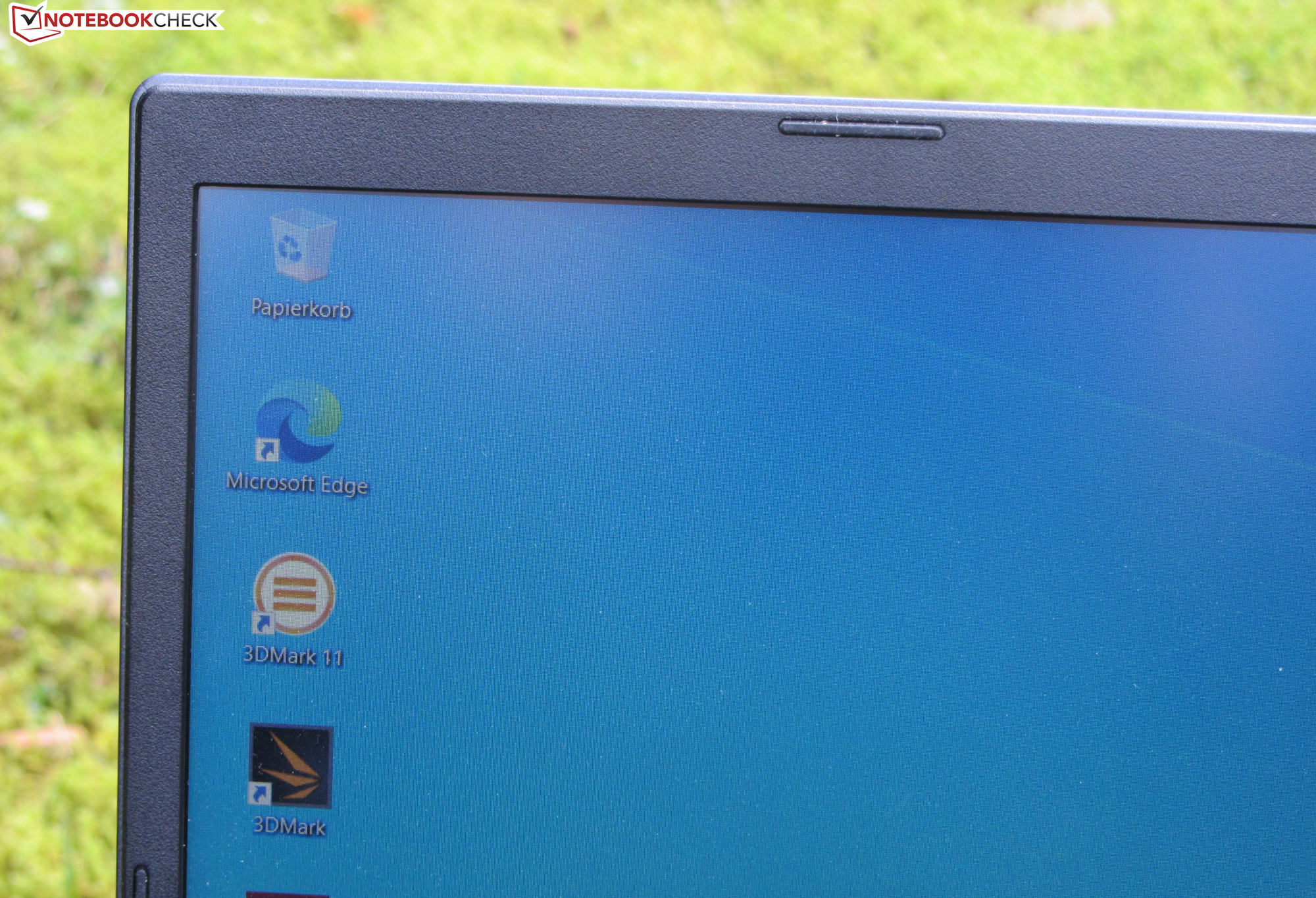

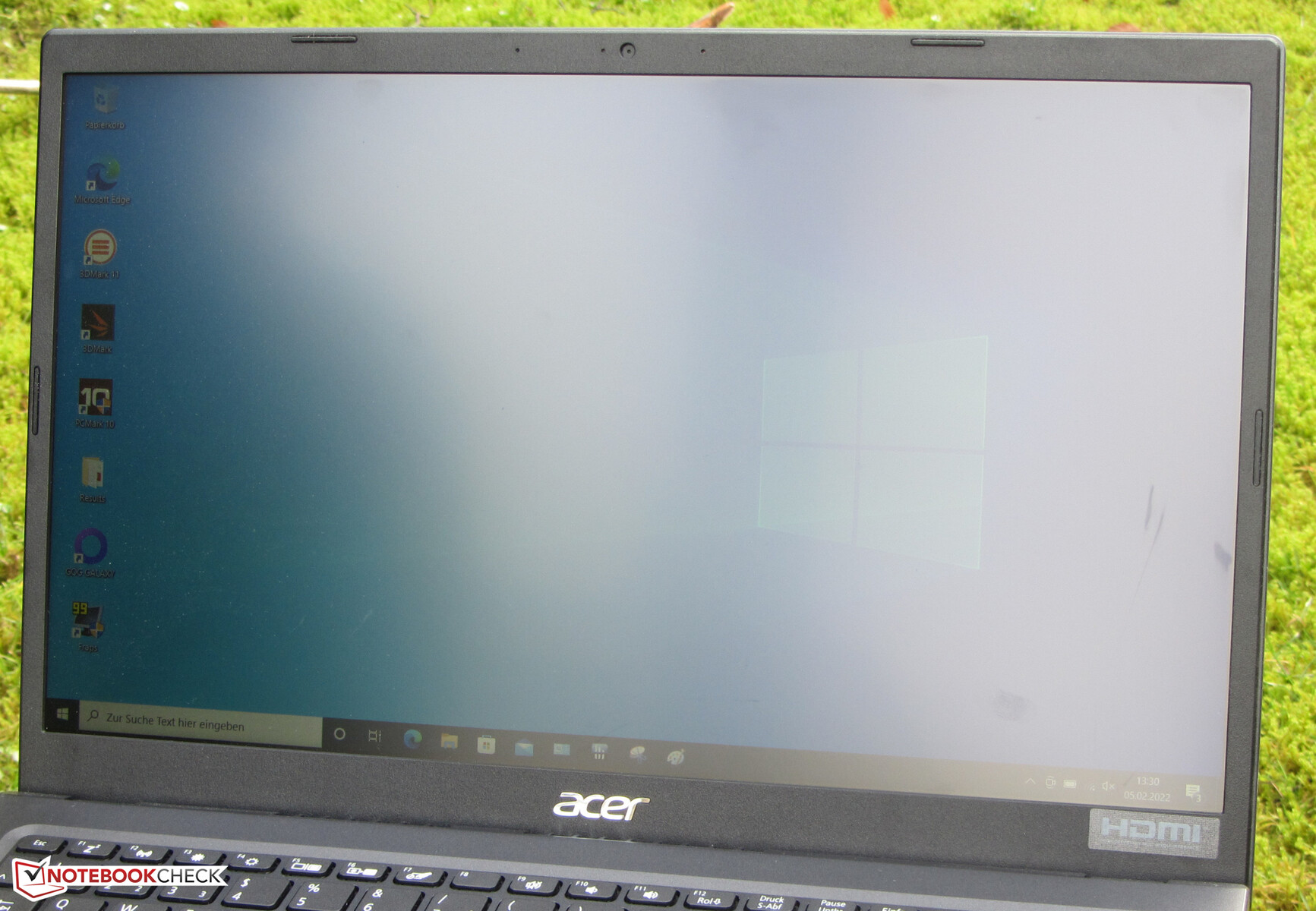

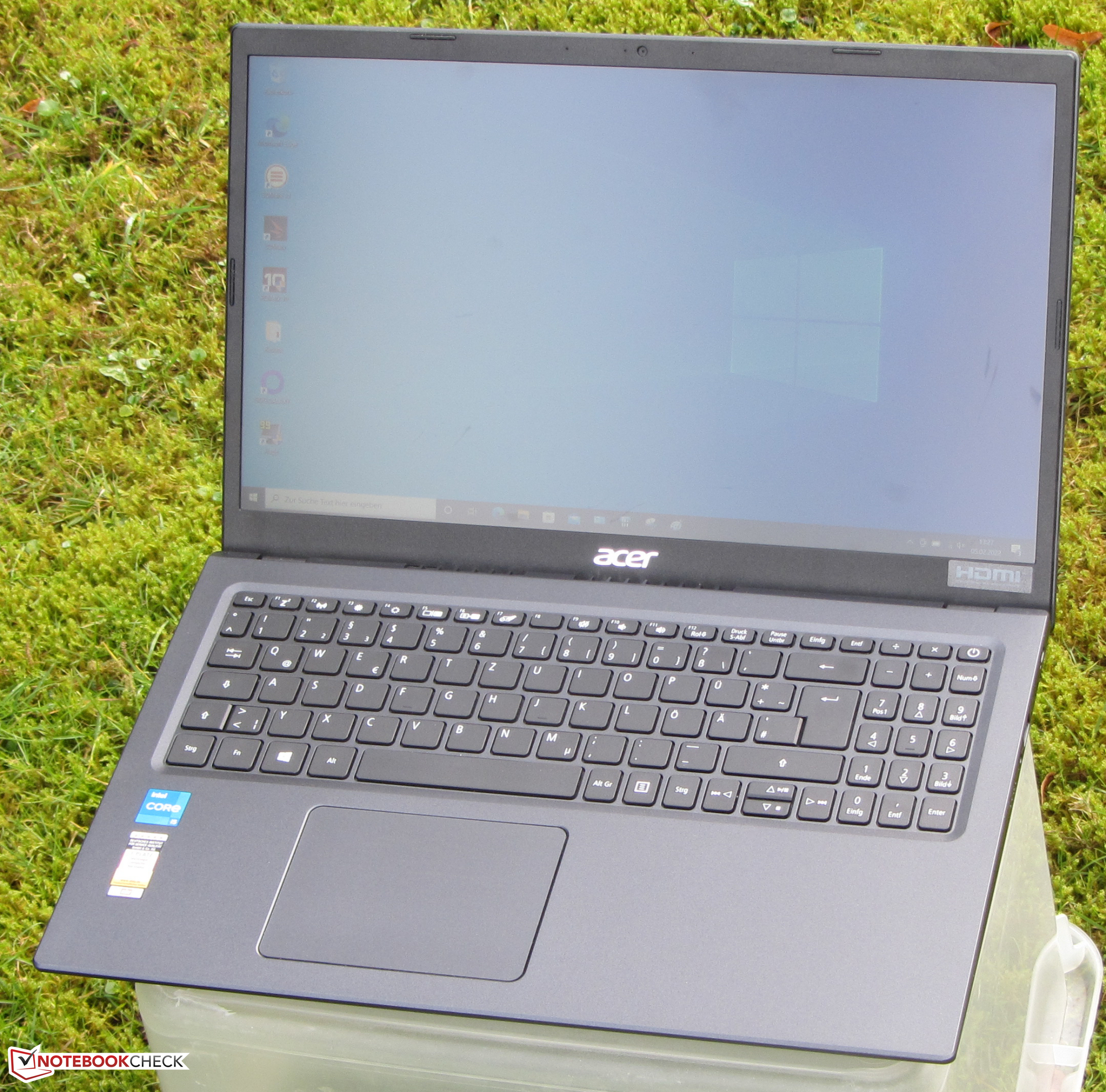

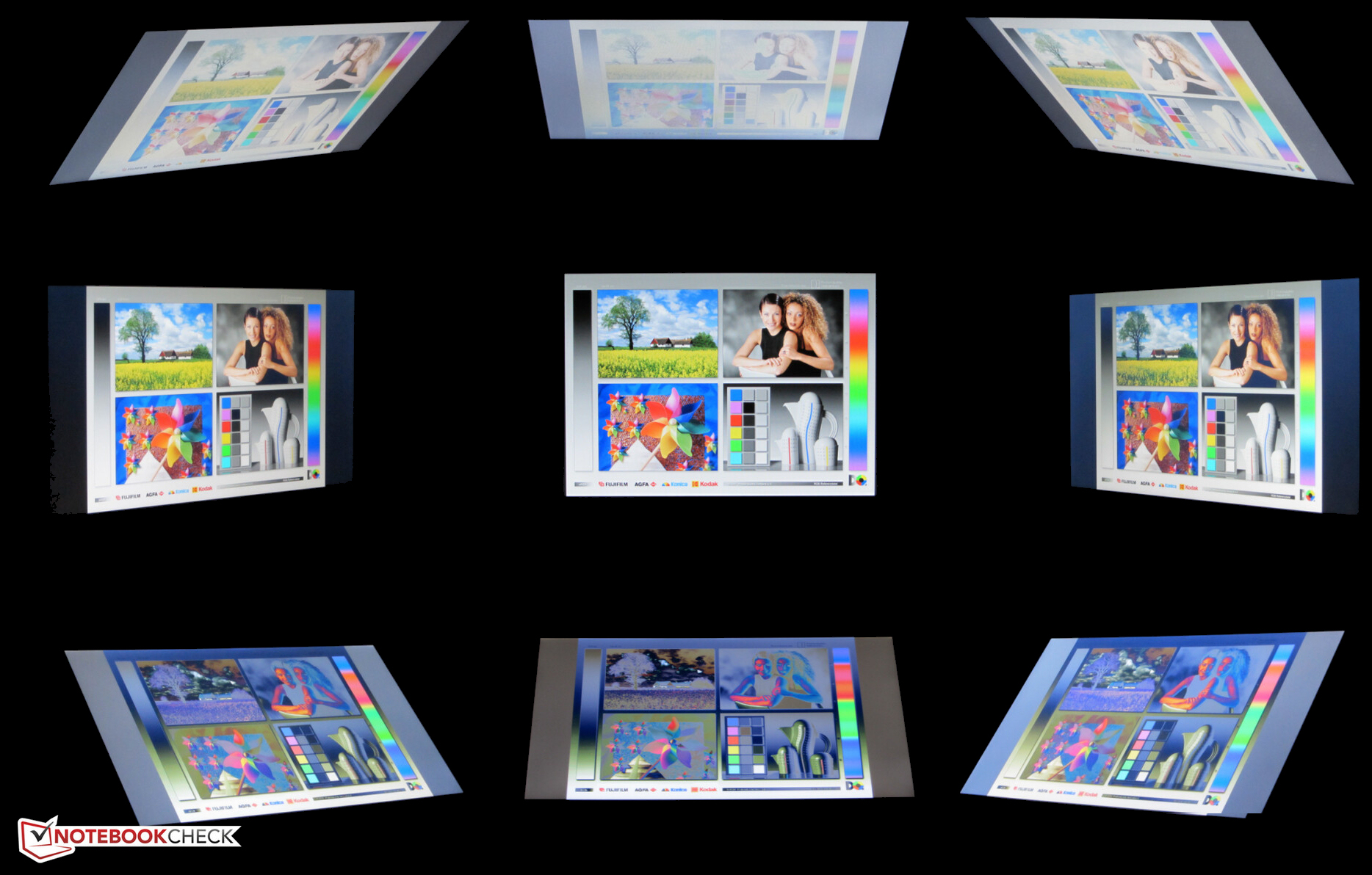

TN面板的可视角度不稳定，因此不是在每个位置都能读懂。如果太阳不是太亮的话，在户外阅读屏幕是差不多的。否则，低的显示亮度在这方面没有多大帮助。
性能。宏碁依靠的是Tiger Lake
宏碁通过Extensa 15 EX215-54提供了一款15.6英寸规格的简单办公笔记本，为办公和互联网应用提供了足够的计算能力。
测试条件

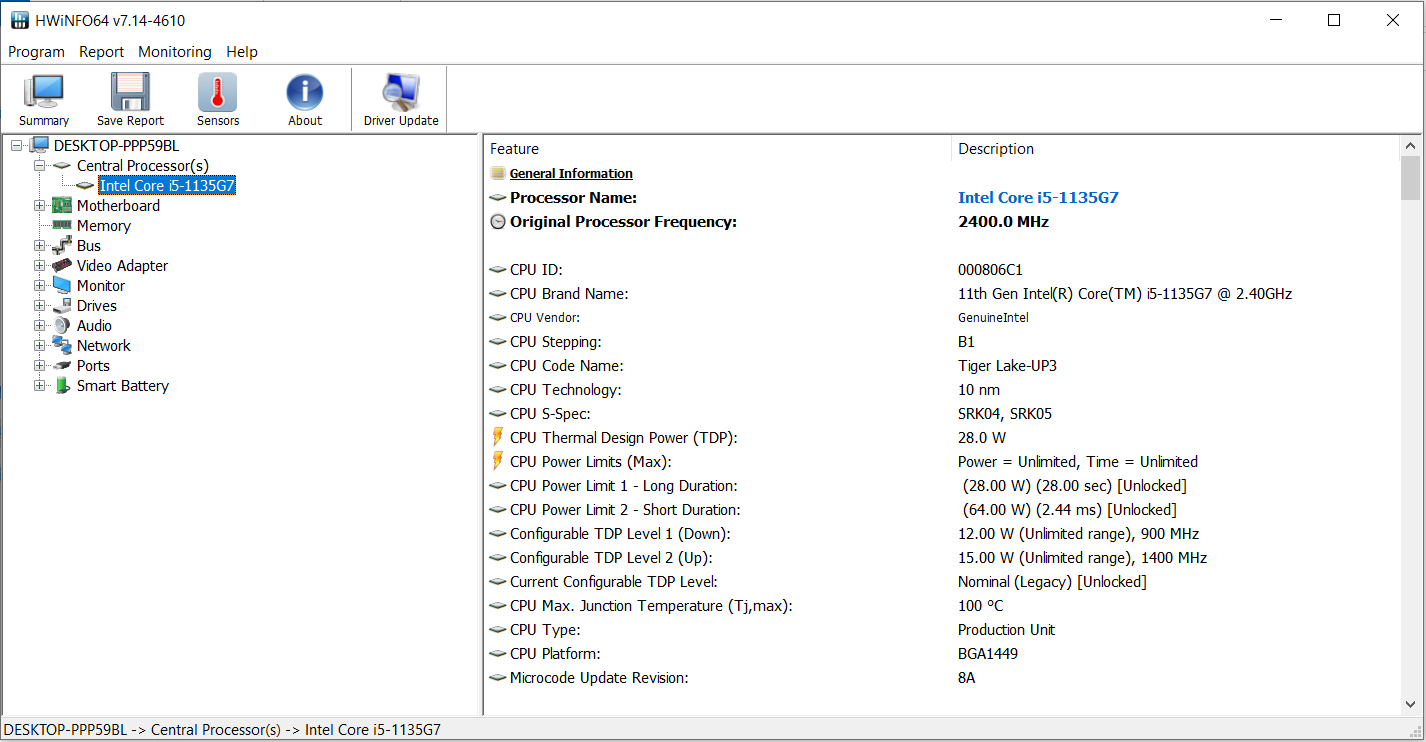

我们使用了Windows中的 "平衡 "能源配置文件，因为其他能源模式不可用。该模式下的CPU功率限制为28W（PL1）和64W（PL2）。
处理器

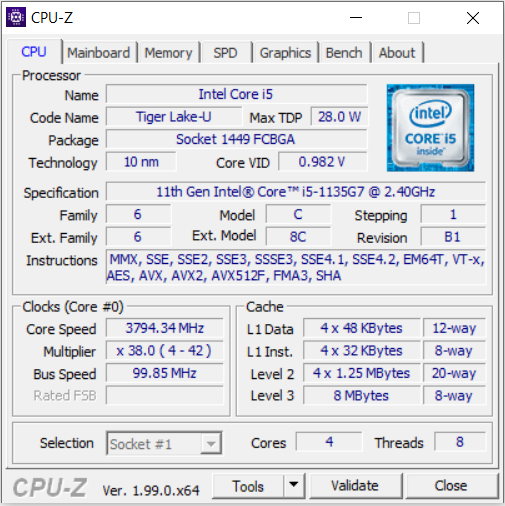

芯片 酷睿i5-1135G7四核处理器（Tiger Lake ）的基本时钟为2.4 GHz。通过Turbo Boost可以提高到3.8 GHz（所有核心）或高达4.2 GHz（一个核心），而且还支持超线程（每个核心两个线程）。Cinebench R15测试在3.4至3.8 GHz（多线程），或2至4.2 GHz（单线程）下运行。在电池模式下，时钟速率明显降低。

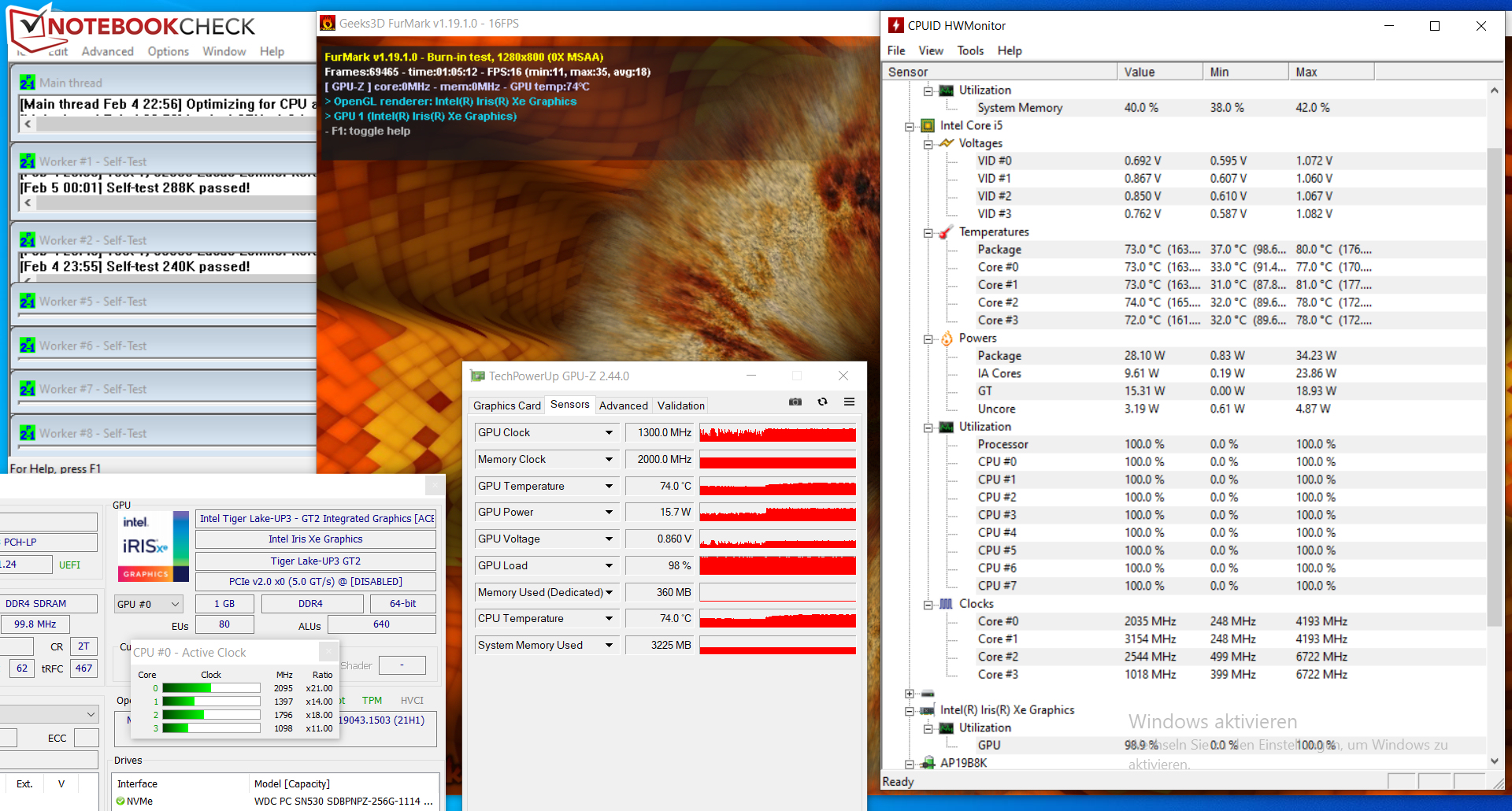

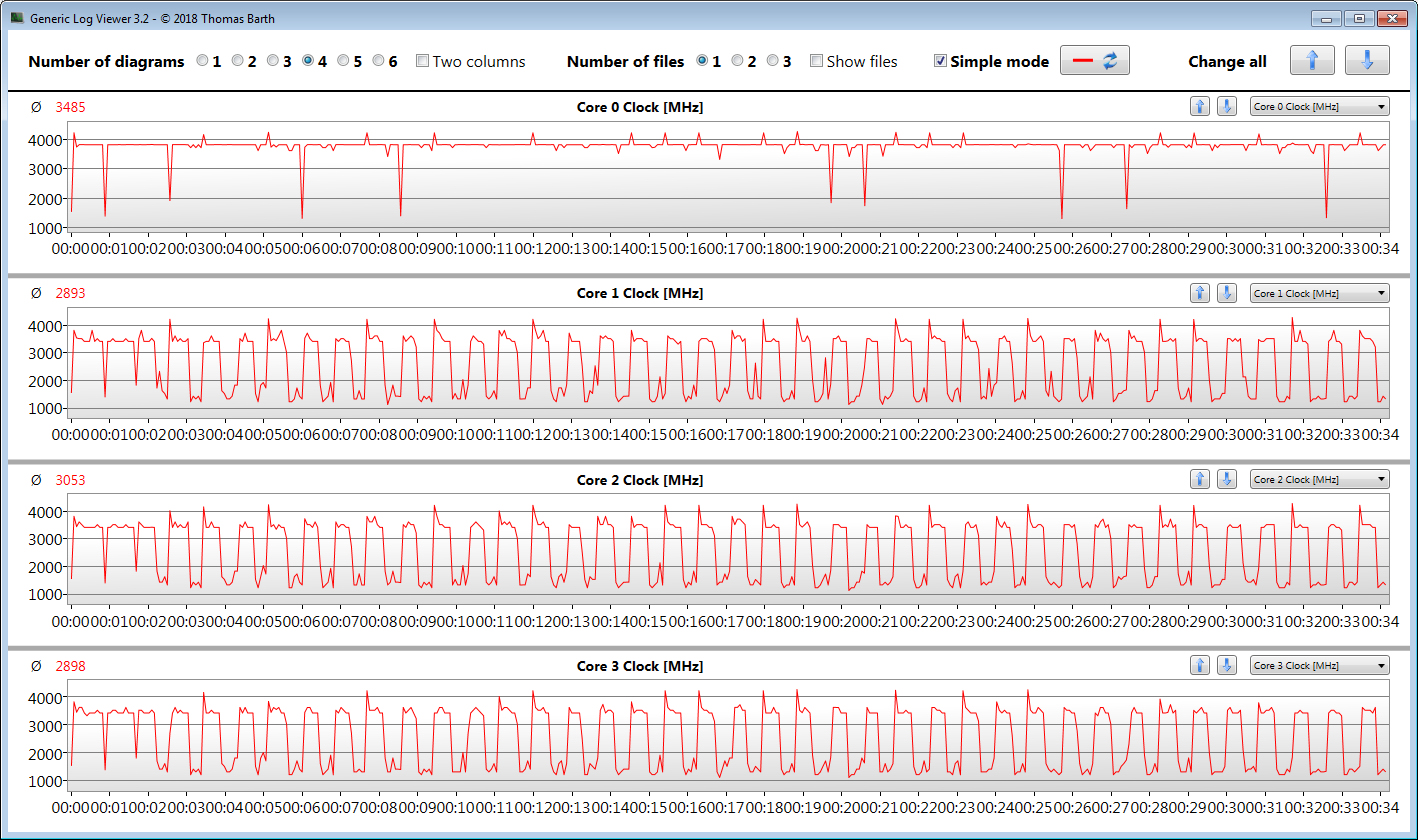

我们通过运行Cinebench R15基准测试的循环多线程测试至少30分钟，检查CPU提升是否在直流电力运行时被永久使用。四个CPU核心中的三个以基础时钟附近的平均值运行。第四个核心以升压频率持续工作。
Cinebench R15 Multi loop test
Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7: Ø837 (828.74-856.81)
Dell Inspiron 15 3000 3511 Intel Core i5-1135G7: Ø665 (655.8-671.77)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1: Ø355 (352.4-375.14)
Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U: Ø909 (902.16-915.31)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Office | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Office (1577 - 15743, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average Intel Core i5-1135G7 (2786 - 6136, n=55) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Single Core | |
| Average of class Office (618 - 1995, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Dell Inspiron 15 3000 3511 | |
| Average Intel Core i5-1135G7 (1062 - 1373, n=53) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average Intel Core i5-1135G7 (979 - 2382, n=62) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| CPU (Single Core) | |
| Average of class Office (229 - 764, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Dell Inspiron 15 3000 3511 | |
| Average Intel Core i5-1135G7 (375 - 527, n=62) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=93, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (431 - 941, n=65) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| CPU Single 64Bit | |
| Average of class Office (98 - 284, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (141.4 - 205, n=61) | |
| Dell Inspiron 15 3000 3511 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Blender - v2.79 BMW27 CPU | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Inspiron 15 3000 3511 | |
| Average Intel Core i5-1135G7 (499 - 1044, n=60) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Average of class Office (208 - 1956, n=93, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Office (7532 - 65460, n=93, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (14745 - 24873, n=62) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=93, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average Intel Core i5-1135G7 (3924 - 4921, n=62) | |
| Dell Inspiron 15 3000 3511 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Office (1018 - 11980, n=92, last 2 years) | |
| Average Intel Core i5-1135G7 (3475 - 5472, n=58) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Single-Core | |
| Average of class Office (510 - 1989, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (1147 - 1428, n=58) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Inspiron 15 3000 3511 | |
| Lenovo IdeaPad 3 15ALC6 | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Office (1.72 - 18.7, n=91, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7 (3.57 - 7.6, n=57) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| LibreOffice - 20 Documents To PDF | |
| Lenovo IdeaPad 3 15ALC6 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average of class Office (31.3 - 129.6, n=91, last 2 years) | |
| Average Intel Core i5-1135G7 (44.2 - 62.9, n=60) | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| R Benchmark 2.5 - Overall mean | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Inspiron 15 3000 3511 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Average Intel Core i5-1135G7 (0.619 - 0.727, n=59) | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average of class Office (0.4244 - 1.135, n=90, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Acer Extensa 15 EX215-54-5103 | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Average Intel Core i5-1135G7 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Average Intel Core i5-1135G7 (4313 - 7952, n=45) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=92, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Average Intel Core i5-1135G7 (19402 - 32283, n=45) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Average Intel Core i5-1135G7 (1316 - 2172, n=45) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=92, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Average Intel Core i5-1135G7 (39000 - 46951, n=45) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=92, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Average Intel Core i5-1135G7 (3497 - 4445, n=45) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=92, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Average Intel Core i5-1135G7 (12569 - 19635, n=45) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / CPU AES | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Average Intel Core i5-1135G7 (28988 - 67977, n=45) | |
| Average of class Office (7860 - 155900, n=92, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=92, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Average Intel Core i5-1135G7 (265 - 373, n=51) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=92, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Average Intel Core i5-1135G7 (2226 - 4291, n=45) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=92, last 2 years) | |
| Average Intel Core i5-1135G7 (9004 - 45366, n=45) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
系统性能
在我们的测试中，这个灵活而流畅的系统没有造成任何问题，而且该设备在PCMark中也取得了良好的成绩。CPU为办公和互联网应用提供了足够的性能。由于焊接的工作存储器（8GB）只在单通道模式下运行，一些计算能力没有得到发挥。幸运的是，笔记本内部仍有一个未被占用的工作存储器库。双通道模式可以通过安装一个内存模块来激活。
| PCMark 10 Score | 4703 points | |
Help | ||
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| PCMark 10 / Essentials | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| PCMark 10 / Productivity | |
| Lenovo IdeaPad 3 15ALC6 | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2126 - 9773, n=86, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Dell Inspiron 15 3000 3511 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=86, last 2 years) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1058 - 1293, n=11) | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=86, last 2 years) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1148 - 1332, n=11) | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=86, last 2 years) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (895 - 1263, n=11) | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=86, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (923 - 1320, n=11) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (17443 - 63889, n=45) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 112436, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (19716 - 63705, n=45) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (18722 - 66778, n=45) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| AIDA64 / Memory Latency | |
| Dell Inspiron 15 3000 3511 (v6.50.5800) | |
| Lenovo IdeaPad 3 15ALC6 (v6.50.5800) | |
| Average of class Office (8.3 - 185.2, n=93, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800, Dual-Channel) | |
| Average Intel Core i5-1135G7 (68.3 - 107, n=51) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Acer Extensa 15 EX215-54-5103 (v6.50.5800) | |
* ... smaller is better
DPC延时
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Inspiron 15 3000 3511 | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo IdeaPad 3 15ALC6 | |
* ... smaller is better
大容量存储
宏碁在EX215中安装了西数的NVMe SSD（M.2 2280），其存储容量为256GB。在我们的基准测试中，传输率是不错的。
WDC PC SN530 SDBPNPZ-265G
CDM 5/6 Read Seq Q32T1:
2491 MB/s
CDM 5/6 Write Seq Q32T1:
966 MB/s
CDM 5/6 Read 4K Q32T1:
630 MB/s
CDM 5/6 Write 4K Q32T1:
351.8 MB/s
CDM 5 Read Seq:
1865 MB/s
CDM 5 Write Seq:
957 MB/s
CDM 5/6 Read 4K:
57.7 MB/s
CDM 5/6 Write 4K:
230 MB/s
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
Acer Extensa 15 EX215-54-5103 WDC PC SN530 SDBPNPZ-265G: Ø2467 (2193.62-2474.72)
Dell Inspiron 15 3000 3511 SK Hynix BC711 HFM256GD3GX013N: Ø3384 (3159.33-3407.14)
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD: Ø1496 (1218.03-2034.03)
Lenovo IdeaPad 3 15ALC6 Samsung PM991a MZALQ512HBLU: Ø2524 (2171.39-2607.18)
图形卡
英特尔的 Iris-Xe-Graphics-G7 80 EUsGPU实现了高达1300MHz的工作时钟，正如TheWitcher 3测试所证明的那样，它可以持续保持。Extensa不是一款游戏笔记本。然而，安装的硬件可以在低分辨率和低质量设置下流畅地渲染一些游戏。对硬件要求适中的游戏，如《Dota 2》。重生》等对硬件要求适中的游戏应该可以在这台笔记本电脑上以低到中等的设置播放。

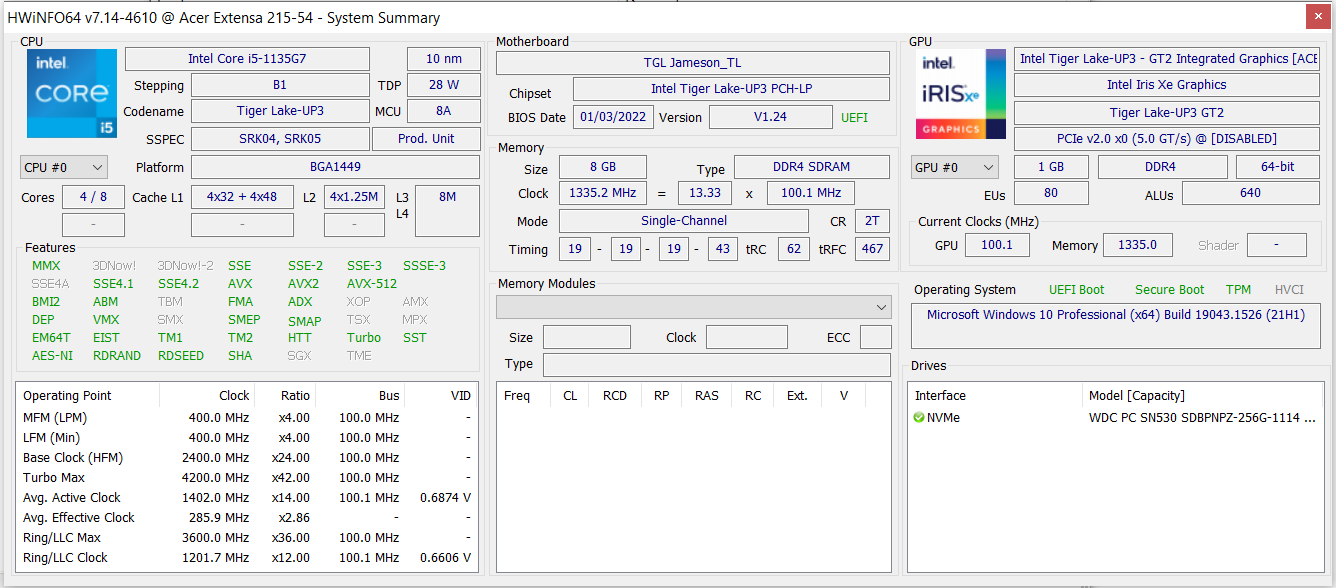

由于工作内存只在单通道模式下运行，因此GPU的性能远低于其能力。启用双通道模式（即安装一个内存模块）将提高基准测试结果和游戏中的帧率（见下面的对比表）。

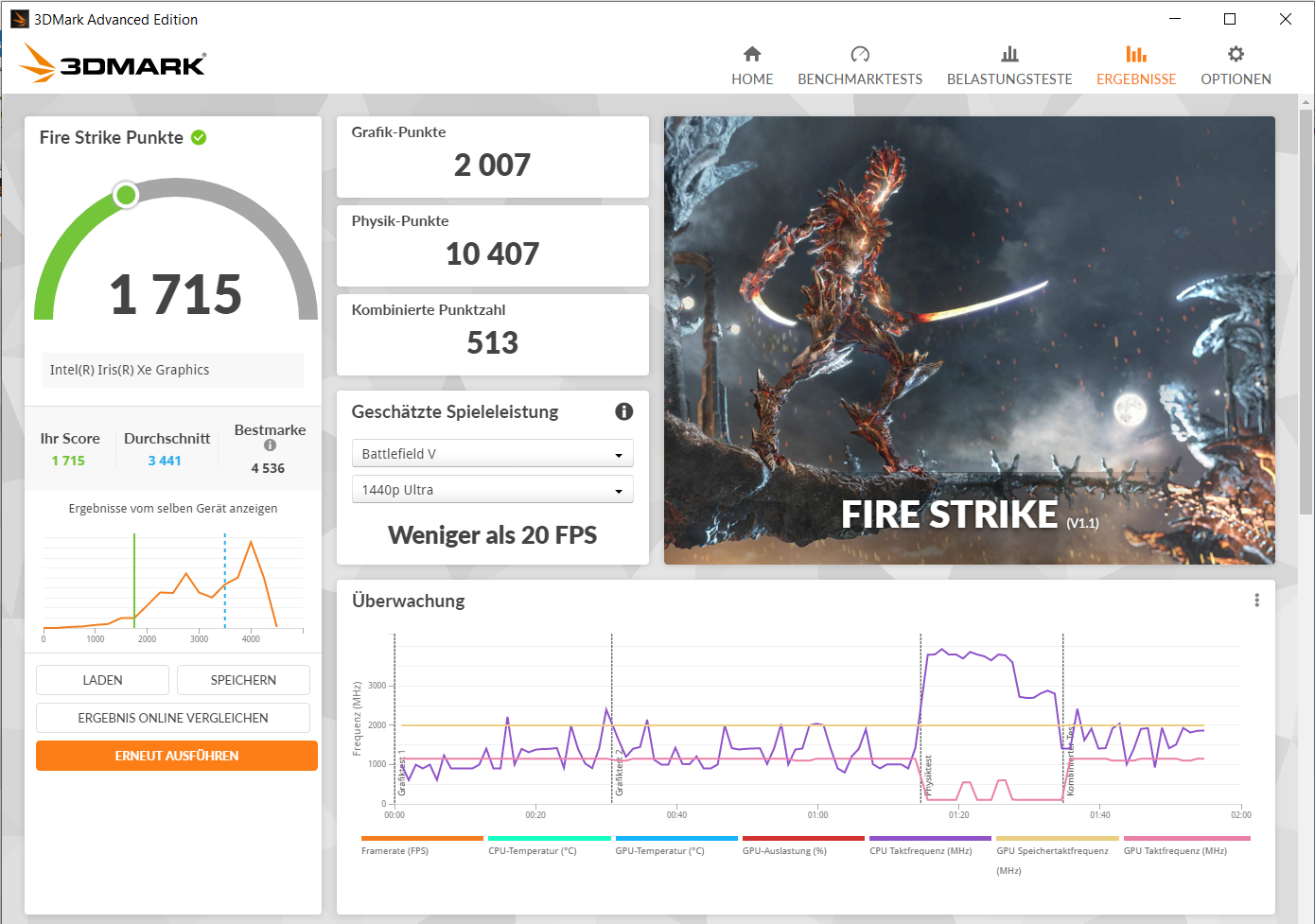

| 3DMark 11 Performance | 3880 points | |
| 3DMark Ice Storm Standard Score | 58193 points | |
| 3DMark Cloud Gate Standard Score | 11907 points | |

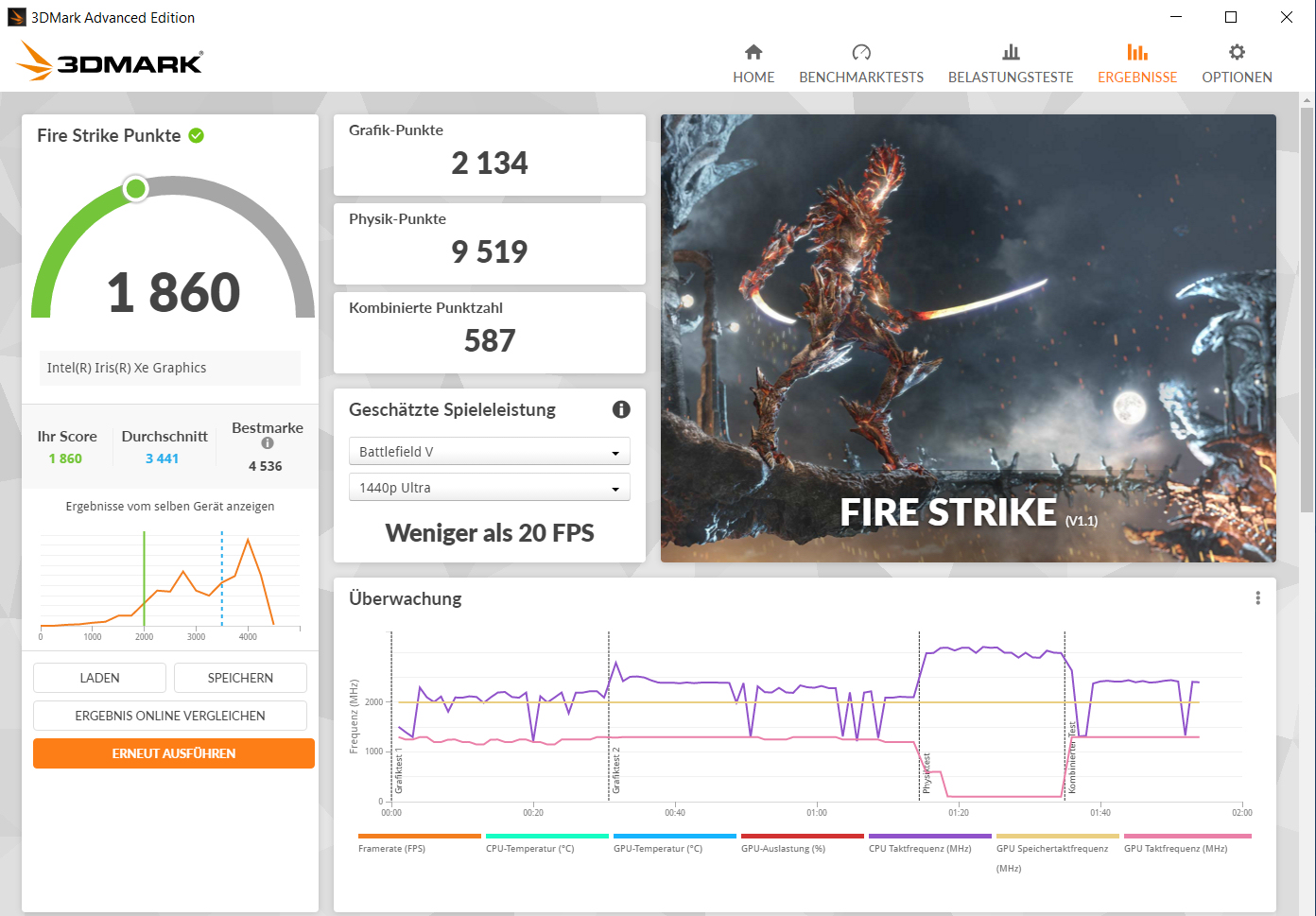

| 3DMark Fire Strike Score | 1860 points | |
| 3DMark Time Spy Score | 897 points | |
Help | ||
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Average Intel Iris Xe Graphics G7 80EUs | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 13132, n=88, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Office (7982 - 58068, n=65, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average Intel Iris Xe Graphics G7 80EUs (6361 - 30894, n=95) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Office (1089 - 9375, n=89, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| 2560x1440 Time Spy Graphics | |
| Average of class Office (313 - 4109, n=89, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | GTA V | Strange Brigade | F1 2021
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| Average of class Office (12 - 106.3, n=68, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Dell Inspiron 15 3000 3511 | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dota 2 Reborn - 1366x768 med (1/3) | |
| Average of class Office (27.6 - 146.2, n=94, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Average Intel Iris Xe Graphics G7 80EUs (10.9 - 119.5, n=109) | |
| Dell Inspiron 15 3000 3511 | |
| Acer Extensa 15 EX215-54-5103 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Average of class Office (13.6 - 128.2, n=93, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 | |
| Lenovo IdeaPad 3 15ALC6 | |
| Average Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=109) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Inspiron 15 3000 3511 | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=89, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104) | |
| Lenovo IdeaPad 3 15ALC6 (1.3) | |
| Acer Extensa 15 EX215-54-5103 (1.3, Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 (1.3) | |
| Dell Inspiron 15 3000 3511 (1.3) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (1.3) | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| Average of class Office (32.1 - 171.4, n=80, last 2 years) | |
| Lenovo IdeaPad 3 15ALC6 | |
| Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84) | |
| Acer Extensa 15 EX215-54-5103 (Dual-Channel) | |
| Acer Extensa 15 EX215-54-5103 | |
| Dell Inspiron 15 3000 3511 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.7 - 175.7, n=81, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81) | |
| Lenovo IdeaPad 3 15ALC6 (1.47.22.14 D3D12) | |
| Acer Extensa 15 EX215-54-5103 (1.47.22.14 D3D12, Dual-Channel) | |
| Dell Inspiron 15 3000 3511 (1.47.22.14 D3D12) | |
| Acer Extensa 15 EX215-54-5103 (1.47.22.14 D3D12) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (1.47.22.14 D3D12) | |
| F1 2021 - 1280x720 Ultra Low Preset | |
| Average of class Office (73.1 - 197.8, n=14, last 2 years) | |
| Acer Extensa 15 EX215-54-5103 (843175, Dual-Channel) | |
| Average Intel Iris Xe Graphics G7 80EUs (15.6 - 102, n=18) | |
| Acer Extensa 15 EX215-54-5103 (843175) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (840701) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 42.3 | 31.9 | 8.55 | 3.42 |
| The Witcher 3 (2015) | 33.6 | 21.8 | 10.2 | 6.59 |
| Dota 2 Reborn (2015) | 65.9 | 41.9 | 24 | 22.2 |
| Final Fantasy XV Benchmark (2018) | 18.4 | 10 | 7.84 | |
| X-Plane 11.11 (2018) | 39 | 28.6 | 26 | |
| Strange Brigade (2018) | 35.5 | 13.3 | 11.8 | |
| F1 2021 (2021) | 41.5 |
排放和能源。Extensa 15提供平庸的电池运行时间
噪声排放
在日常工作中（办公室、互联网），风扇不会转起来，操作起来一般很安静。在负载情况下，声压级上升到50 dB(A)，这对一个简单的办公笔记本来说是相当高的。竞争对手在这方面的表现似乎更好。
Noise Level
| Idle |
| 25 / 25 / 27 dB(A) |
| Load |
| 32.3 / 50 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| Acer Extensa 15 EX215-54-5103 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-265G | Dell Inspiron 15 3000 3511 Iris Xe G7 80EUs, i5-1135G7, SK Hynix BC711 HFM256GD3GX013N | Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD | Lenovo IdeaPad 3 15ALC6 Vega 6, R3 5300U, Samsung PM991a MZALQ512HBLU | |
|---|---|---|---|---|
| Noise | 14% | 1% | 2% | |
| off / environment * | 25 | 23.2 7% | 25 -0% | 25.2 -1% |
| Idle Minimum * | 25 | 23.3 7% | 25 -0% | 25.8 -3% |
| Idle Average * | 25 | 23.3 7% | 25 -0% | 25.8 -3% |
| Idle Maximum * | 27 | 23.3 14% | 25 7% | 25.8 4% |
| Load Average * | 32.3 | 23.3 28% | 39.2 -21% | 32.3 -0% |
| Load Maximum * | 50 | 39.2 22% | 39 22% | 44 12% |
| Witcher 3 ultra * | 31.5 | 32 |
* ... smaller is better

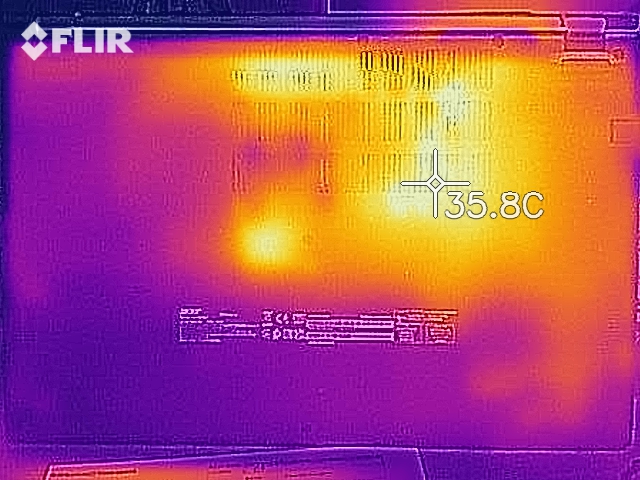

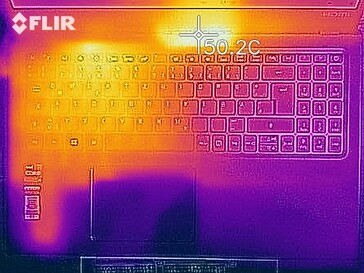

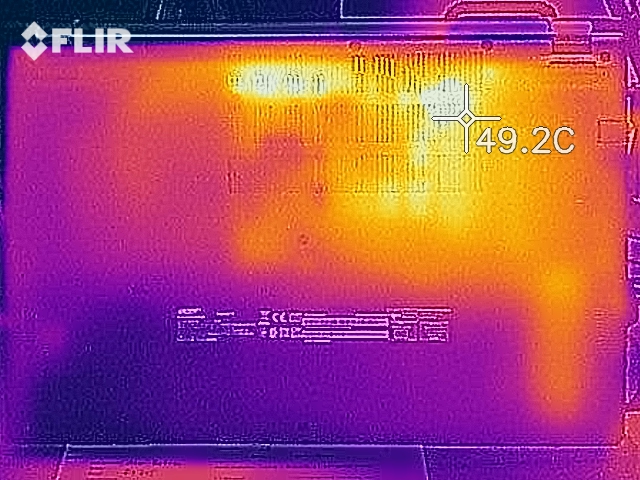

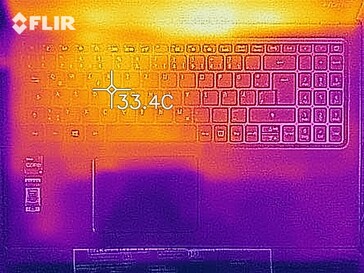

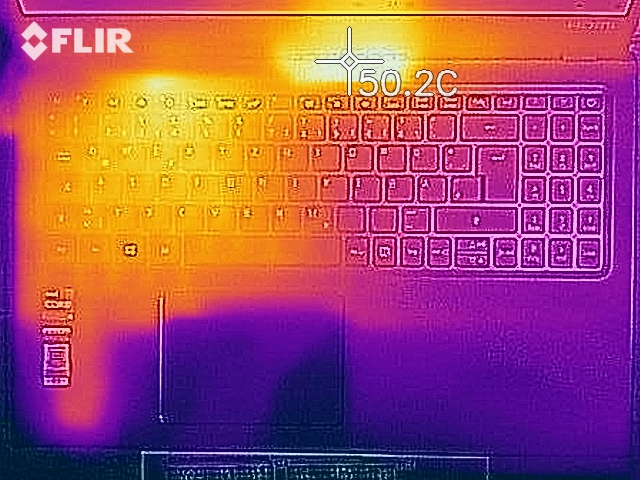

温度
这款15.6英寸的笔记本电脑发热量不大。在压力测试中，有两个测量点的温度超过40摄氏度。在日常使用中（办公室、互联网），温度都在绿色区域内。CPU的温度也没有显示出任何值得关注的原因。
在压力测试的开始阶段（Prime95和Furmark至少运行了一个小时），CPU以3.1至3.5GHz的时钟工作。此外，时钟在1.4和2.1GHz之间下降。图形核心的时钟在1,100至1,300MHz之间。
值得注意的是，我们的压力测试代表了一种极端情况。我们用它来检查系统是否在全负荷下稳定运行。
(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.3 °C / -0.5 F).
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.3 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.3 °C / -0.5 F).
| Acer Extensa 15 EX215-54-5103 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Dell Inspiron 15 3000 3511 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) | Lenovo IdeaPad 3 15ALC6 AMD Ryzen 3 5300U, AMD Radeon RX Vega 6 (Ryzen 4000/5000) | |
|---|---|---|---|---|
| Heat | -4% | 13% | 11% | |
| Maximum Upper Side * | 42 | 37.8 10% | 34.4 18% | 31.2 26% |
| Maximum Bottom * | 43.3 | 55.6 -28% | 30.9 29% | 43 1% |
| Idle Upper Side * | 27.9 | 26.2 6% | 27.7 1% | 24.8 11% |
| Idle Bottom * | 30.4 | 32 -5% | 29.2 4% | 28.2 7% |
* ... smaller is better
扬声器
立体声扬声器能产生体面的声音，但几乎没有任何低音。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Extensa 15 EX215-54-5103 audio analysis
(±) | speaker loudness is average but good (77.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 34.2% lower than median
(±) | linearity of bass is average (9.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 7.7% lower than median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.8% difference to median)
Compared to same class
» 65% of all tested devices in this class were better, 10% similar, 26% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 68% of all tested devices were better, 7% similar, 25% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell Inspiron 15 3000 3511 audio analysis
(±) | speaker loudness is average but good (78.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.8% lower than median
(±) | linearity of bass is average (13.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.8% higher than median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.2% higher than median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.6% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 10% similar, 41% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 57% of all tested devices were better, 7% similar, 36% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源消耗
在压力测试开始时，达到了略低于45W的最大功耗。几秒钟后，由于CPU降低了时钟，这个数值就下降了。笔记本在通过TheWitcher 3测试时，耗电量稳定。电源的额定功率为45W。
Power Consumption
| Off / Standby | 0.15 / 0.46 Watt |
| Idle | 3.5 / 7.1 / 8 Watt |
| Load |
28 / 44 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption Witcher 3 / Stress test
Acer Extensa 15 EX215-54-5103; Witcher 3 ultra: Ø28.6 (27.9-33.3)
Acer Extensa 15 EX215-54-5103; 1280x720 Prime95 28.10 and Furmark 1.25: Ø38.7 (36.4-44.8)
电池寿命
在我们的实际WLAN测试中，Extensia 15 EX215实现了约6:58小时的运行时间，该测试使用一个脚本来浏览定义的网页。
Pros
+ 哑光屏幕
+ 强大的计算能力
+ NVMe SSD
+ 适度升温
+ 兼容Linux
+ 未被占用的工作存储器库
Cons
- 黑暗、低对比度的显示屏幕
- 视角不稳定的TN面板
- 每个亮度级别上的PWM闪烁
- 工作存储器在单通道模式下运行
- 没有Windows操作系统
- 没有按键照明
- 没有存储卡读卡器
- 没有USB-C
- 缓慢的WLAN芯片
评语：坚实的办公机器
A酷睿i5-1135G7-CPU、8GB工作内存和256GB NVMe固态硬盘，使宏碁Extensia EX215适合办公和互联网使用。噪音和热量排放处于中等水平。一次电池充电足以使无线局域网运行时间略低于7小时--这是一个合理的但不是一个出色的运行时间。
宏碁在Extensa 15 EX215-54上依靠的是一个令人失望的屏幕。
Tiger Lake Core i5处理器和略低于500欧元的相对适中的价格标签相结合，使Extensa具有一定的吸引力。每欧元的性能相对较高，但你将不得不在其他方面做出妥协。
也许，主要的缺点是显示屏。宏碁选择了一个视角不稳定的TN显示屏，它也只提供低亮度和低对比度。色彩空间覆盖率和色彩再现也没有说服力。更糟糕的是，该面板在每个亮度水平上都显示PWM闪烁。
由于该设备交付时没有Windows操作系统，Linux可以是一个不错的选择。Ubuntu 20.04.03 LTS（64位）可以顺利安装--整个硬件都能被识别，并且很容易设置，包括所有功能键。
Extensa的另一个选择是 联想Ideapad 3 15ALC6.它提供了一个明亮的、高对比度的IPS屏幕，具有稳定的可视角度，有一个背光键盘，而且电池运行时间明显更好。
价格和可用性
宏碁Extensa EX215的测试配置（Core i5-1135G7, 8 GB RAM, 256 GB SSD, no Windows）为486.30欧元（约552美元），在Office-Partner.de。.Cyberport.de笔记本电脑的价格为536欧元（约合人民币608元）。
Acer Extensa 15 EX215-54-5103
- 02/17/2022 v7 (old)
Sascha Mölck
Office - Weighted Average
Price comparison
