MagyarAorus 17 XE4评论。具有360赫兹屏幕的强大游戏笔记本

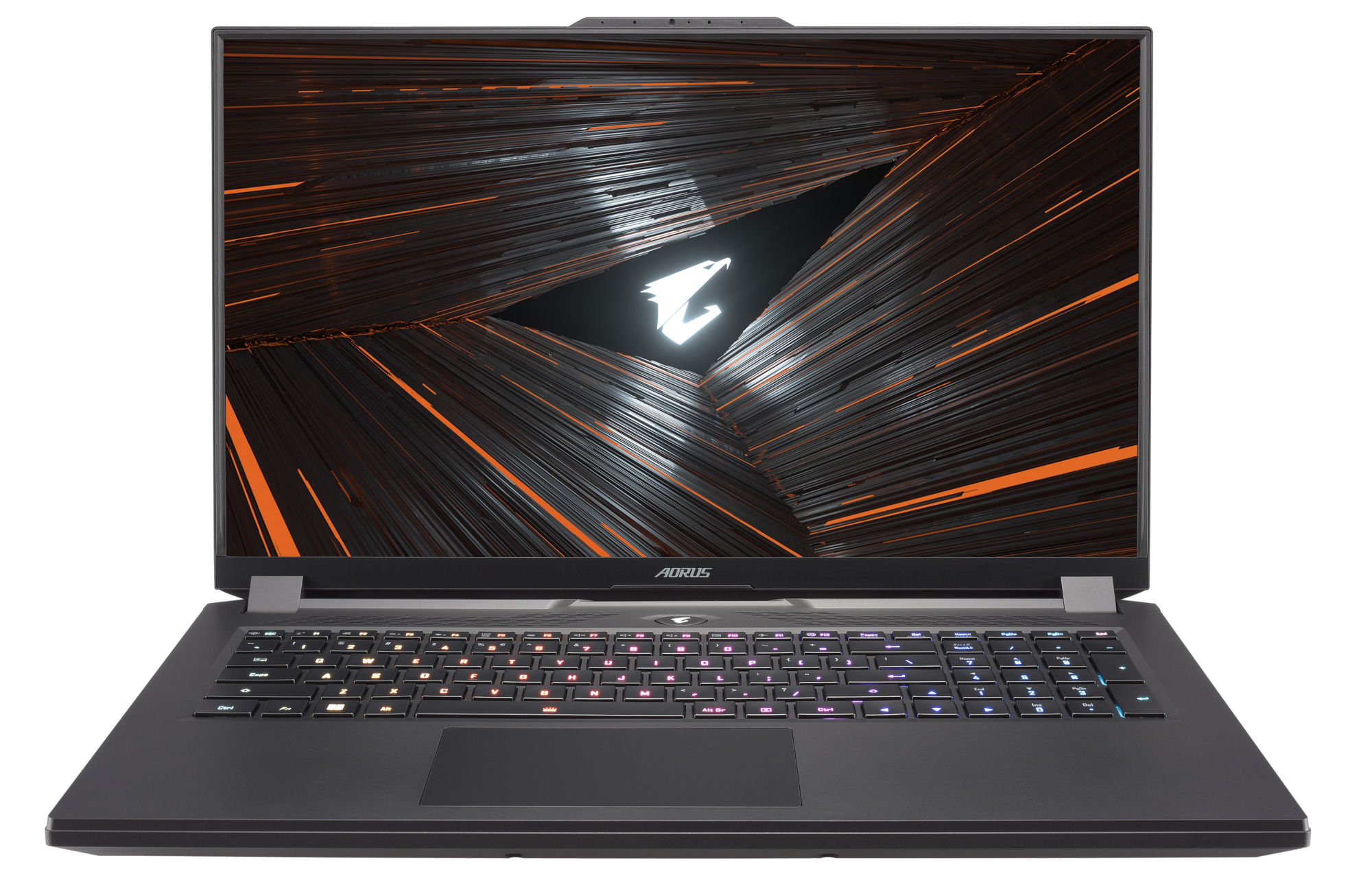

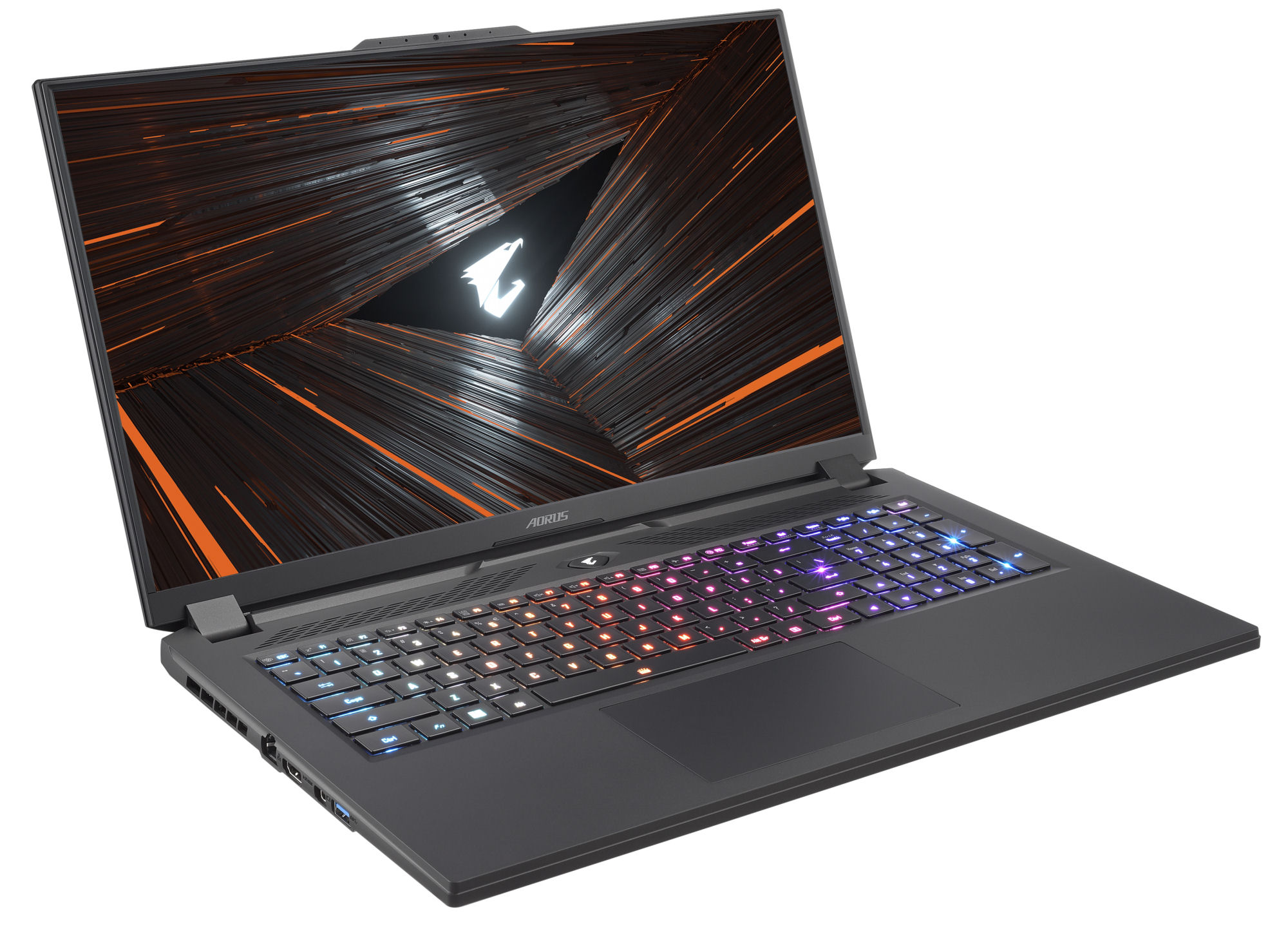

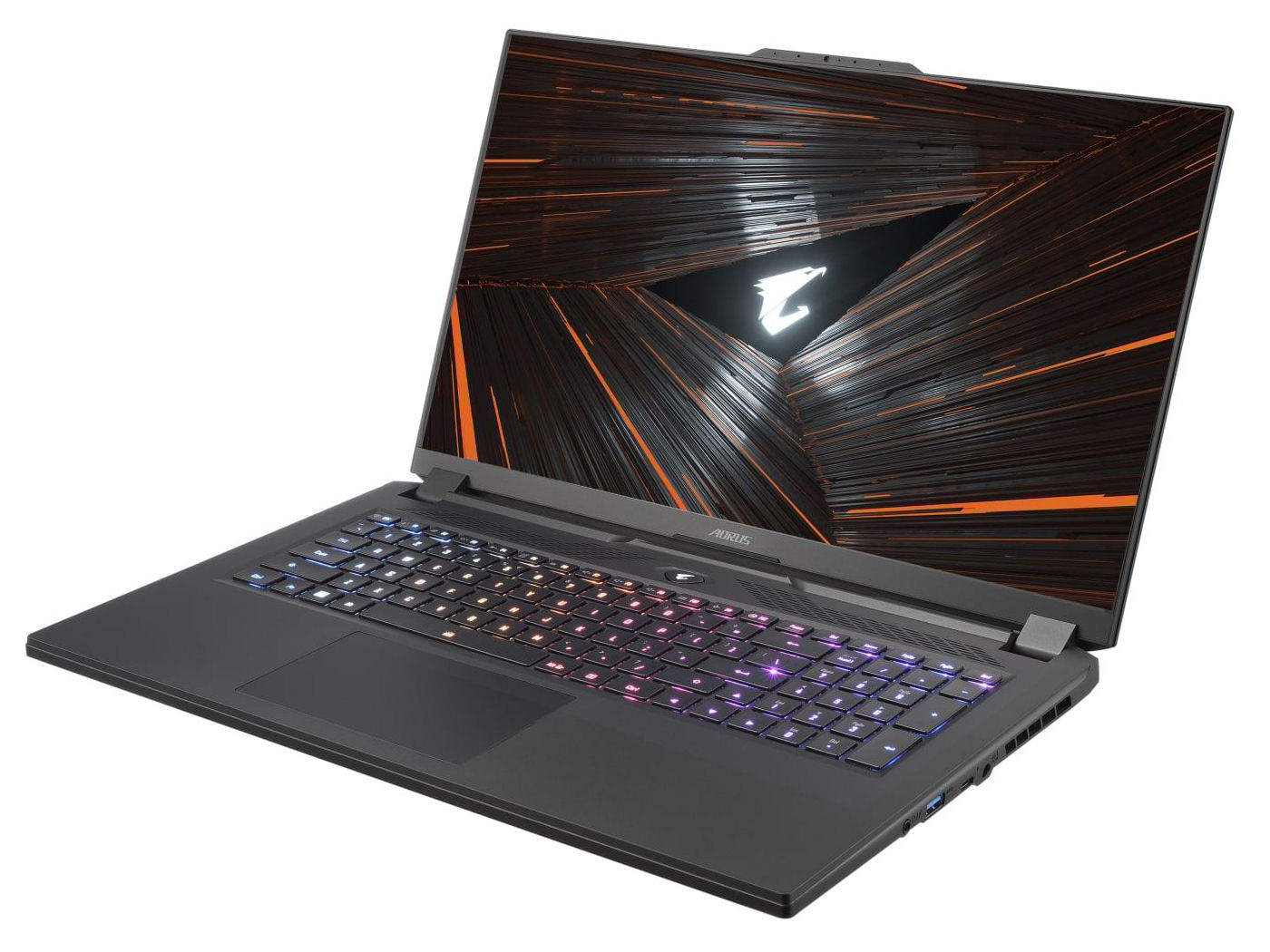

Aorus 17 XE4属于17.3英寸格式的紧凑型游戏笔记本类别。该机器由一个 酷睿i7-12700H处理器和一个 GeForce RTX 3070 Ti笔记本GPU。竞争者包括 Razer Blade 17，以及 联想Legion 5 Pro 16 G7，以及 微星Vector GP66 12UGS.

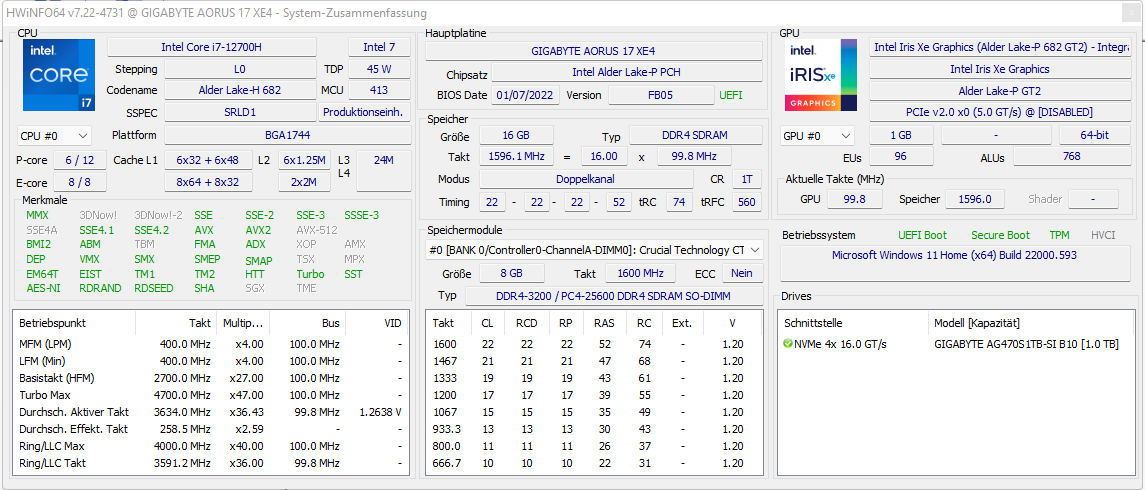

Aorus 17 XE4 (17 Series)
Processor
Intel Core i7-12700H 14 x 1.7 - 4.7 GHz, 115 W PL2 / Short Burst, 70 W PL1 / Sustained, Alder Lake-H
Graphics adapter

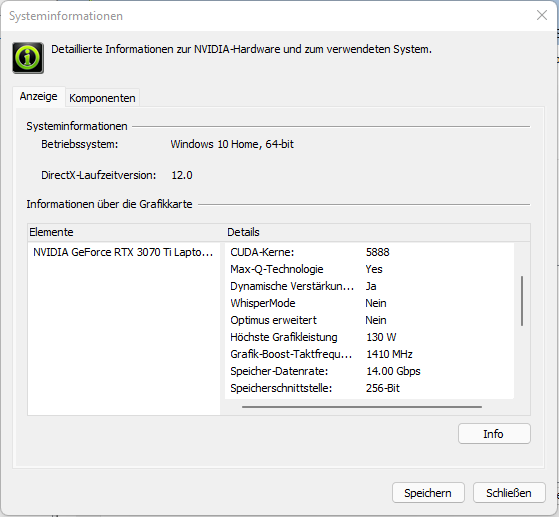

NVIDIA GeForce RTX 3070 Ti Laptop GPU - 8 GB VRAM, Core: 1410 MHz, RAM: 1750 MHz, 130 W TDP ( including 15 W Dynamic Boost), GDDR6, 30.0.15.1215, Optimus

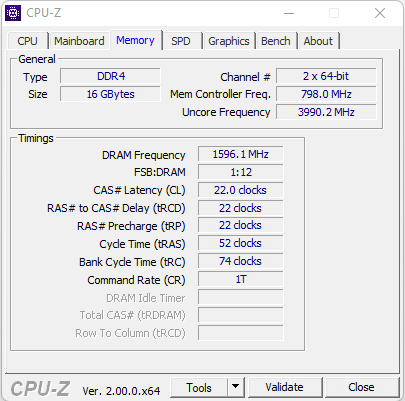

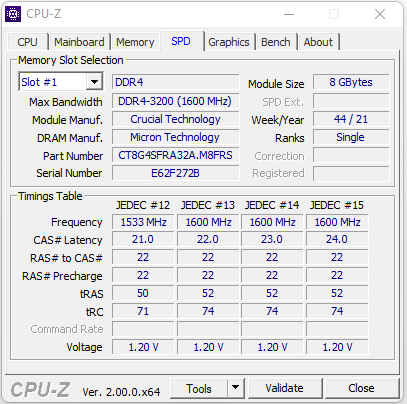

Memory
16 GB

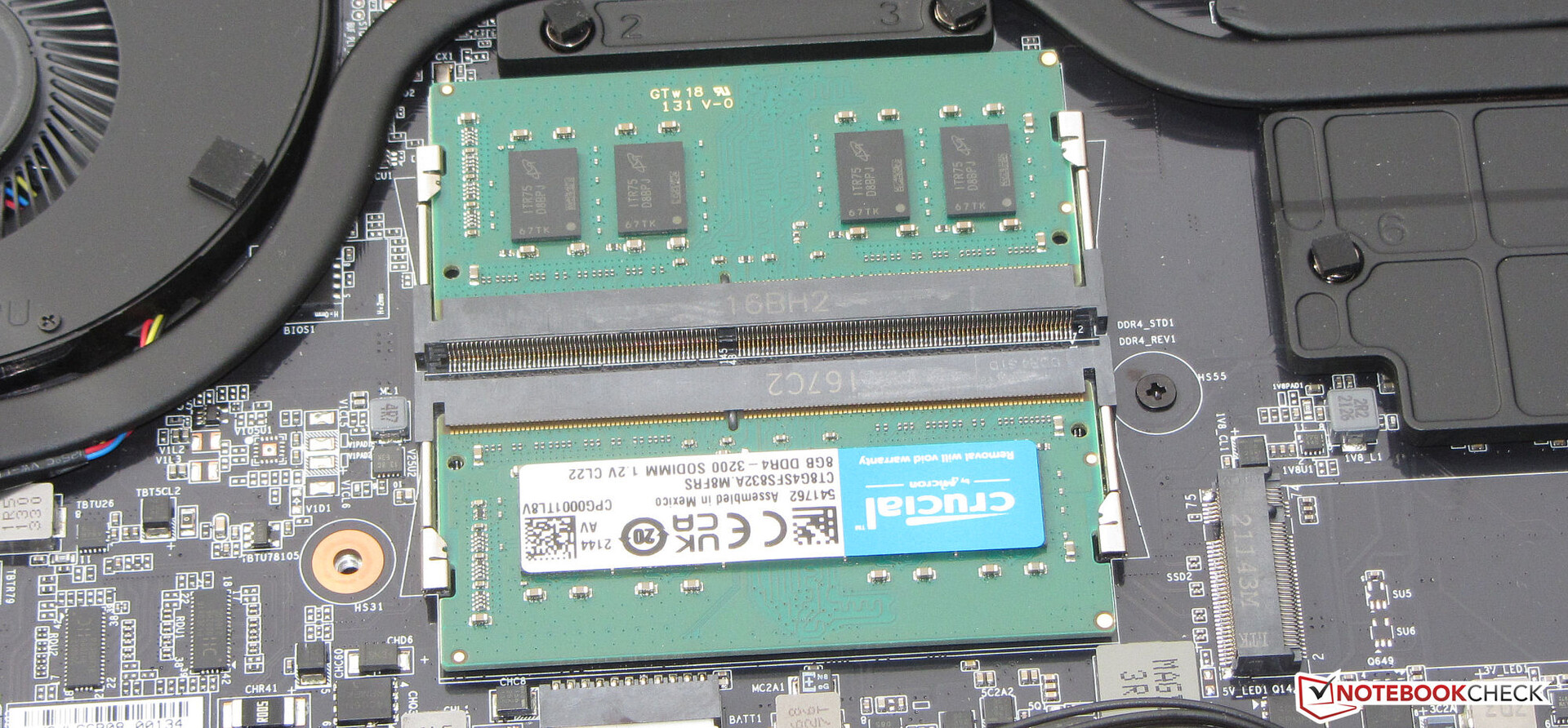

, DDR4-3200, Dual-Channel-Mode, two memory slots (both in use)
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, Sharp LQ173M1JW12, IPS, glossy: no, 360 Hz
Mainboard
Intel Alder Lake-P PCH
Storage
Gigabyte AG470S1TB-SI B10, 1024 GB
, + second SSD-Slot (PCIe 4, M.2-2280), 876 GB free
Weight
2.618 kg, Power Supply: 575 g
Price
2500 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 85.2 % v7 (old) | 04 / 2022 | Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU | 2.6 kg | 27 mm | 17.30" | 1920x1080 | |
| 91.2 % v7 (old) | 03 / 2022 | Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU | 2.7 kg | 19.9 mm | 17.30" | 2560x1440 | |
| 88 % v7 (old) | 03 / 2022 | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU | 2.6 kg | 26.6 mm | 16.00" | 2560x1600 | |
| 86.9 % v7 (old) | 03 / 2022 | MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU | 2.3 kg | 23.4 mm | 15.60" | 1920x1080 |

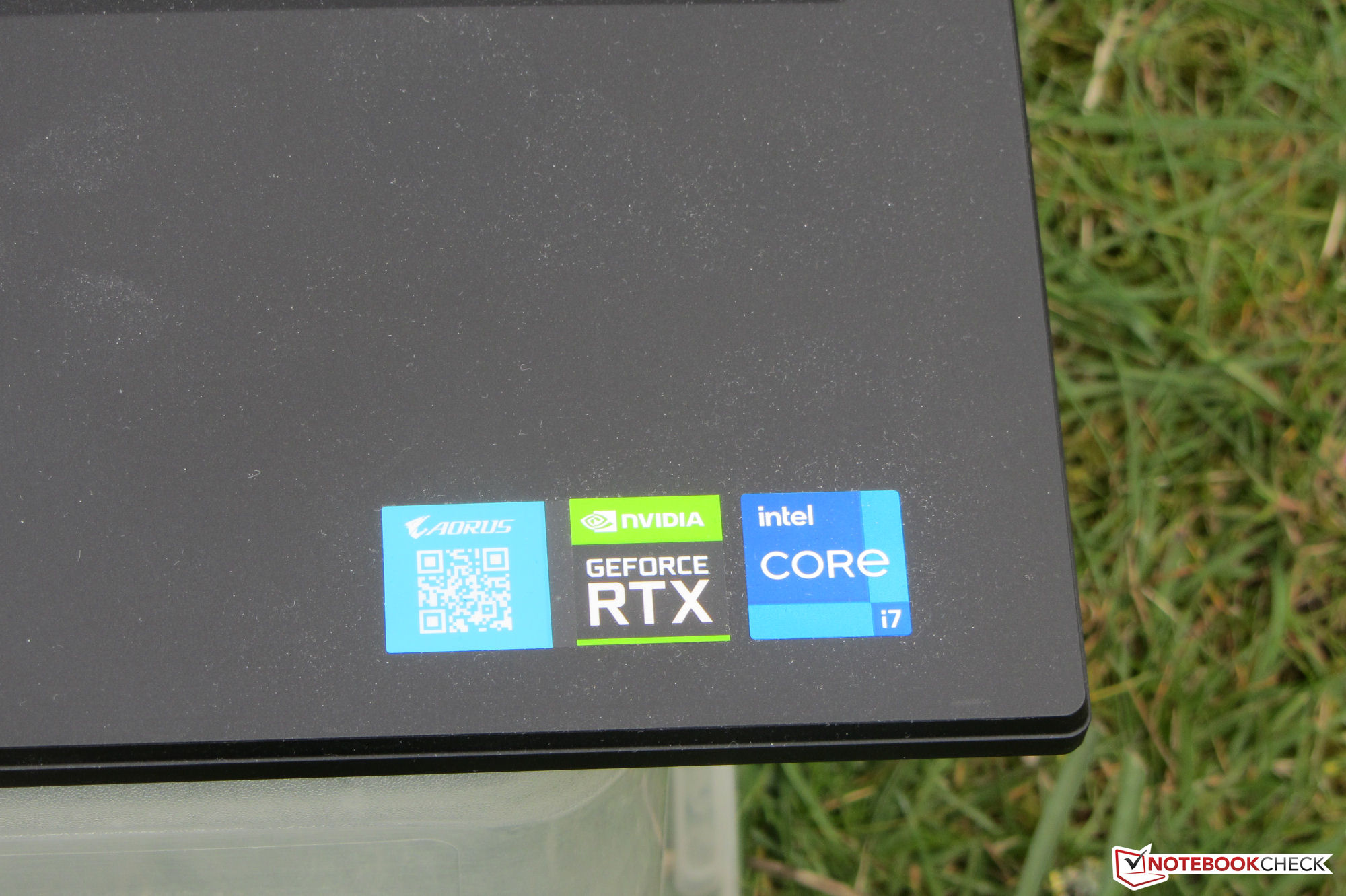

机箱 - 用于Aorus 17的塑料机箱

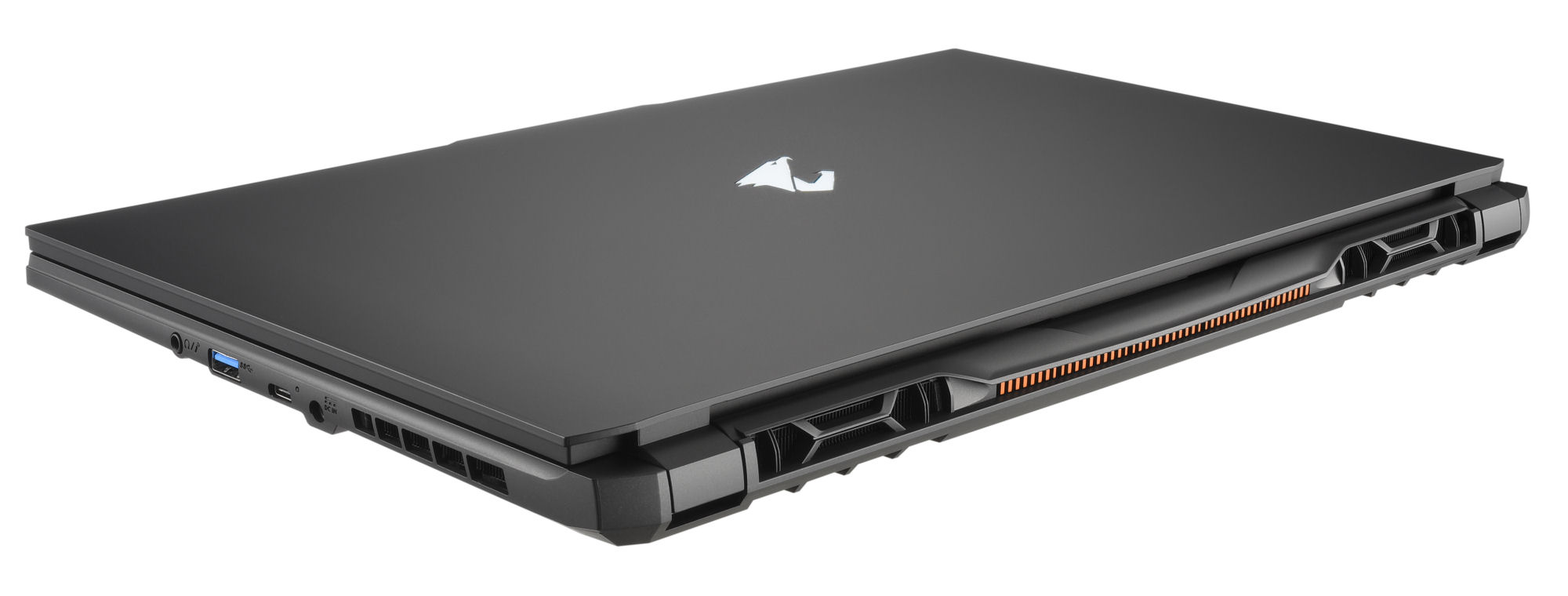

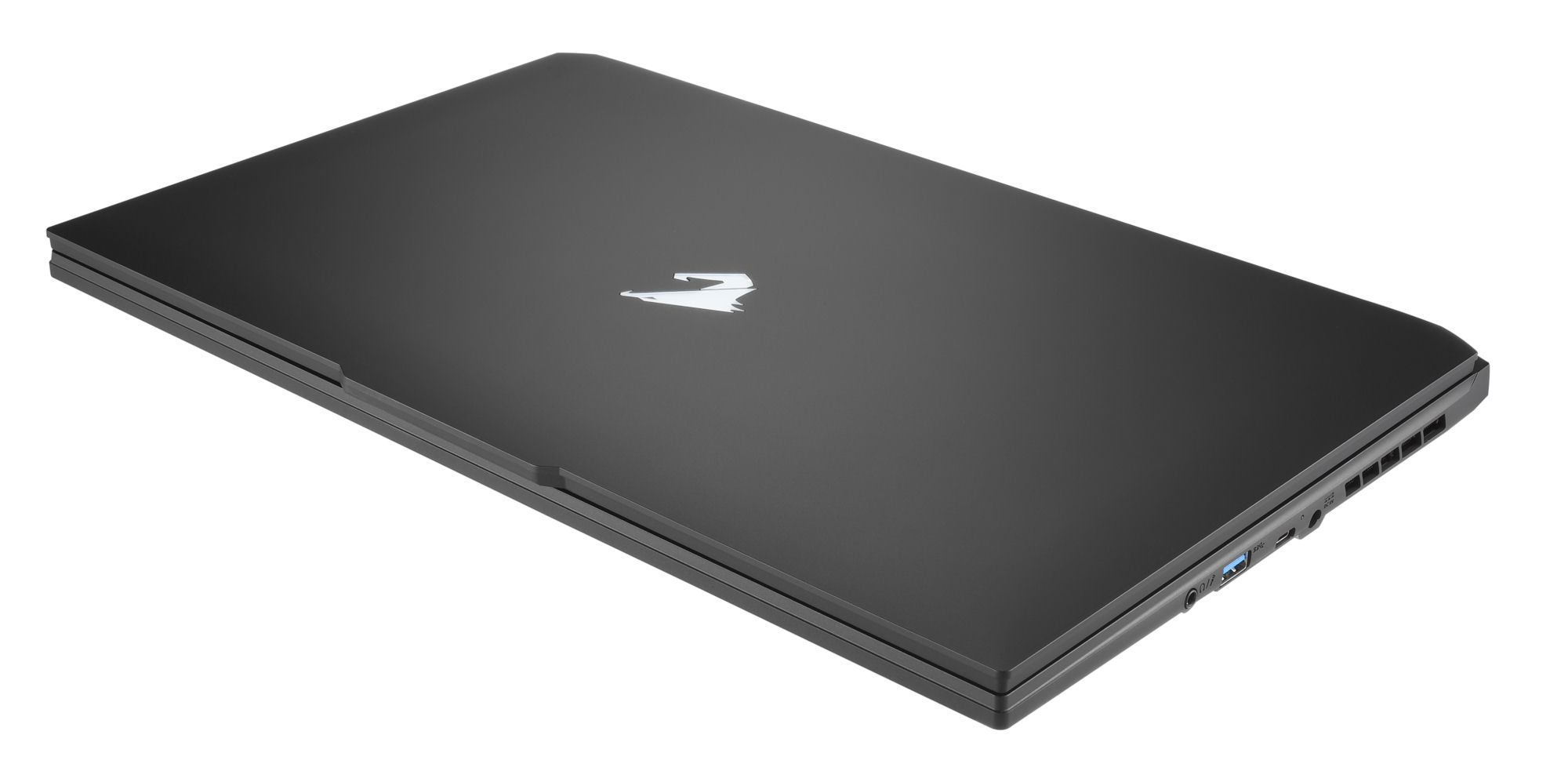

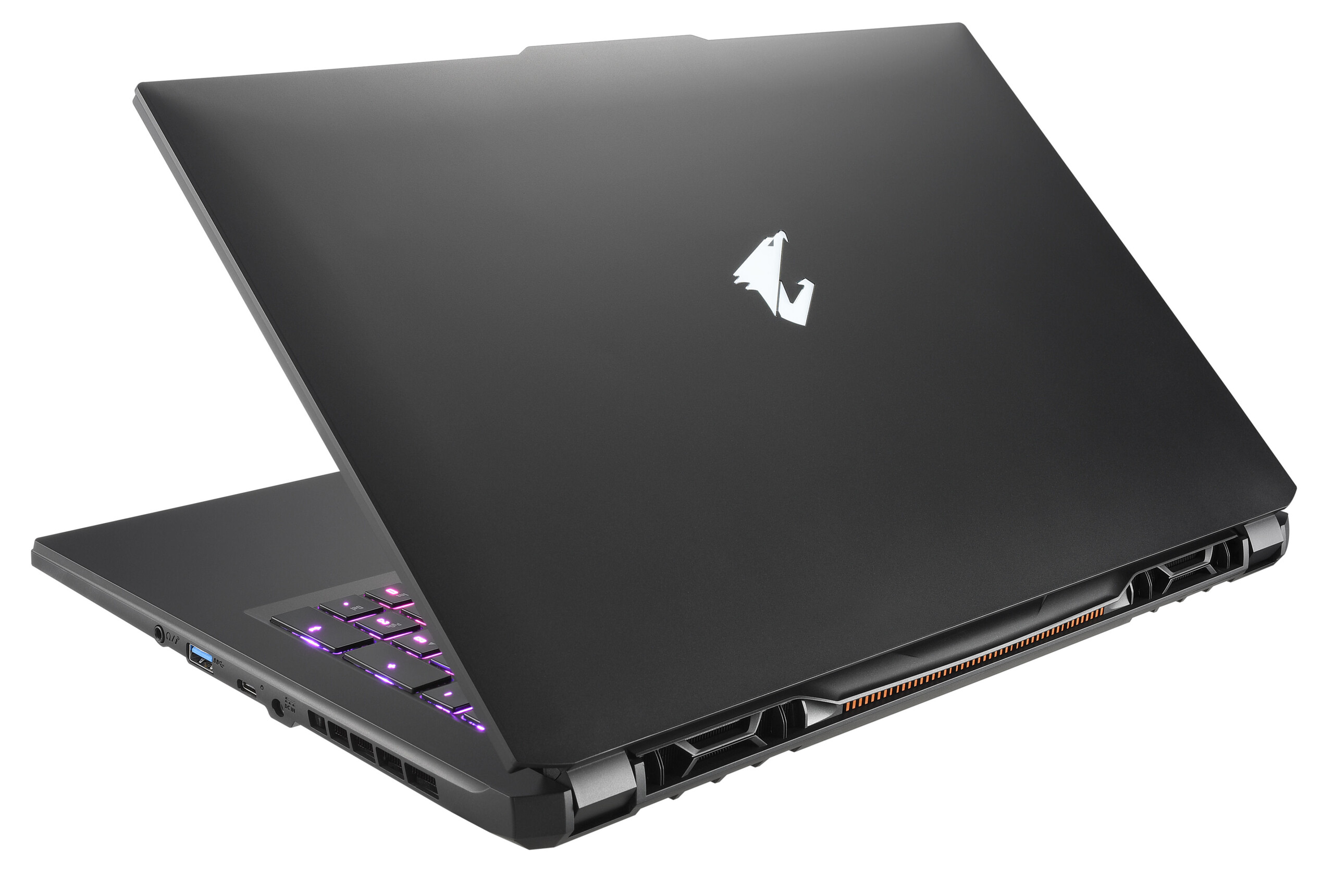

Aorus笔记本电脑的外壳由哑光黑色塑料制成，表面光滑。盖子背面的一个发光的Aorus标志起到了点睛作用。薄薄的显示屏边框补充了笔记本电脑的优雅外观。早期的鉴赏家们 Aorus 17型号的行家会注意到，摄像头已经移到了屏幕上方的区域。电池是内置的。取下底盖后可以看到内部。
箱子制造得很好。间隙尺寸均匀，没有材料突起和/或尖锐的边缘。底座和盖子在扭转时有一点弯曲，但在日常使用中这不是一个严重的问题。铰链将盖子牢牢地固定住，但单手打开是可能的。最大打开角度约为130度。
对于17.3英寸的笔记本来说，Aorus 17的重量和尺寸都相对较小--这一点对于 Razer Blade 17.当然，两者都不符合15.6英寸笔记本的尺寸。
硬件 - 技嘉笔记本提供Thunderbolt 4技术

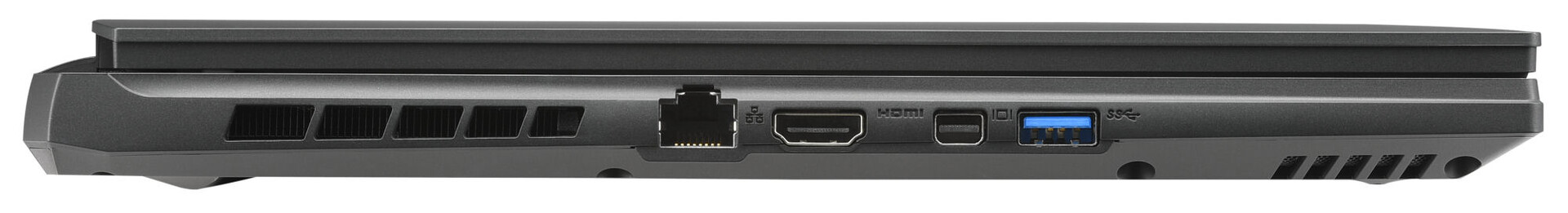

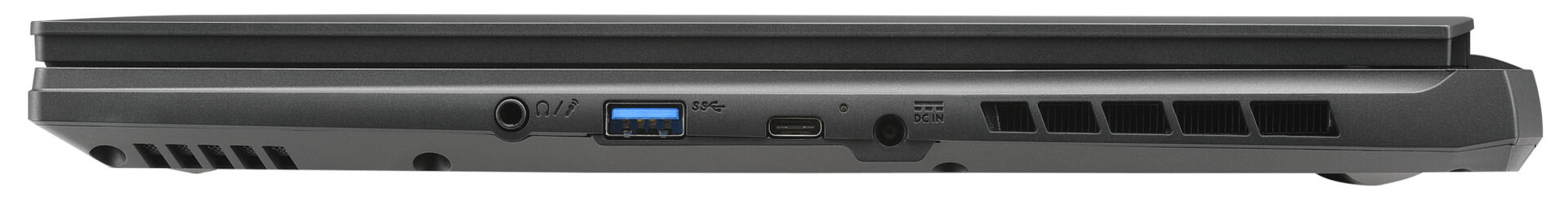

这款游戏笔记本电脑配备了两个USB-A插槽（USB 3.2 Gen 1）和一个USB-C插槽（Thunderbolt 4）。后者通过USB-C支持DisplayPort。因此，加上HDMI连接和专用迷你DisplayPort，有三个视频输出。Aorus 17没有一个板载存储卡读卡器。
沟通
WLAN模块包含一个英特尔的芯片（AX211），支持802.11a/b/g/n/ac/ax标准。在最佳条件下（附近没有其他WLAN设备，笔记本和服务器PC之间的距离很小）确定的传输速度非常好。网络连接由Realtek的RTL8125千兆以太网控制器处理，它的工作完美无缺。
| Networking | |
| iperf3 receive AXE11000 | |
| Aorus 17 XE4 | |
| Average of class Gaming (680 - 1890, n=151, last 2 years) | |
| Average Intel Wi-Fi 6E AX211 (582 - 1890, n=237) | |
| iperf3 transmit AXE11000 | |
| Aorus 17 XE4 | |
| Average Intel Wi-Fi 6E AX211 (464 - 1921, n=237) | |
| Average of class Gaming (469 - 1843, n=151, last 2 years) | |
Aorus 17 XE4 Intel Wi-Fi 6E AX211; iperf3 receive AXE11000; iperf 3.1.3: Ø1650 (840-1718)
Razer Blade 17 RTX 3080 Ti Killer Wi-Fi 6E AX1690i 160MHz; iperf3 receive AX12; iperf 3.1.3: Ø1470 (1368-1570)
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1493 (1284-1716)
MSI Vector GP66 12UGS Intel Wi-Fi 6E AX211; iperf3 receive AX12; iperf 3.1.3: Ø1462 (1366-1531)
Aorus 17 XE4 Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000; iperf 3.1.3: Ø1485 (777-1637)
Razer Blade 17 RTX 3080 Ti Killer Wi-Fi 6E AX1690i 160MHz; iperf3 transmit AX12; iperf 3.1.3: Ø1160 (1095-1239)
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1556 (738-1775)
MSI Vector GP66 12UGS Intel Wi-Fi 6E AX211; iperf3 transmit AX12; iperf 3.1.3: Ø1476 (755-1562)

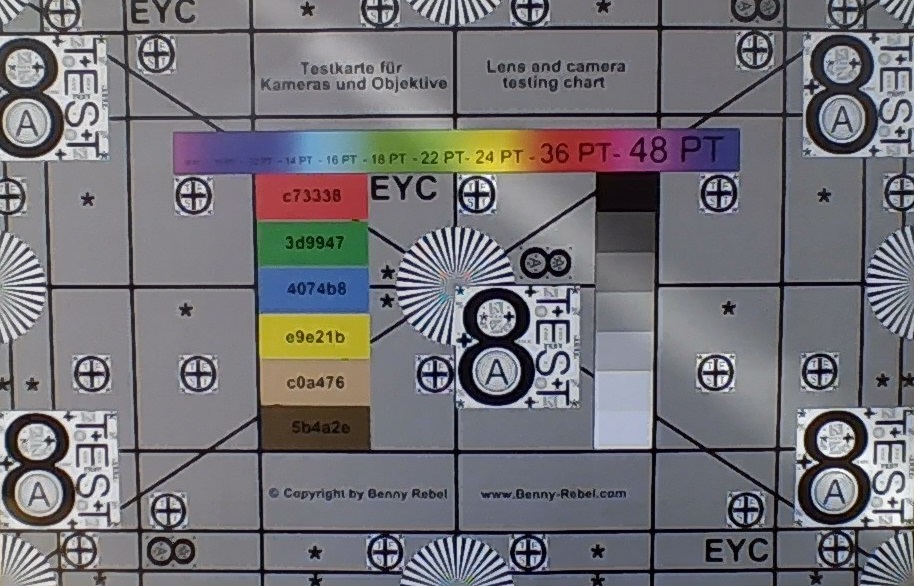

网络摄像头

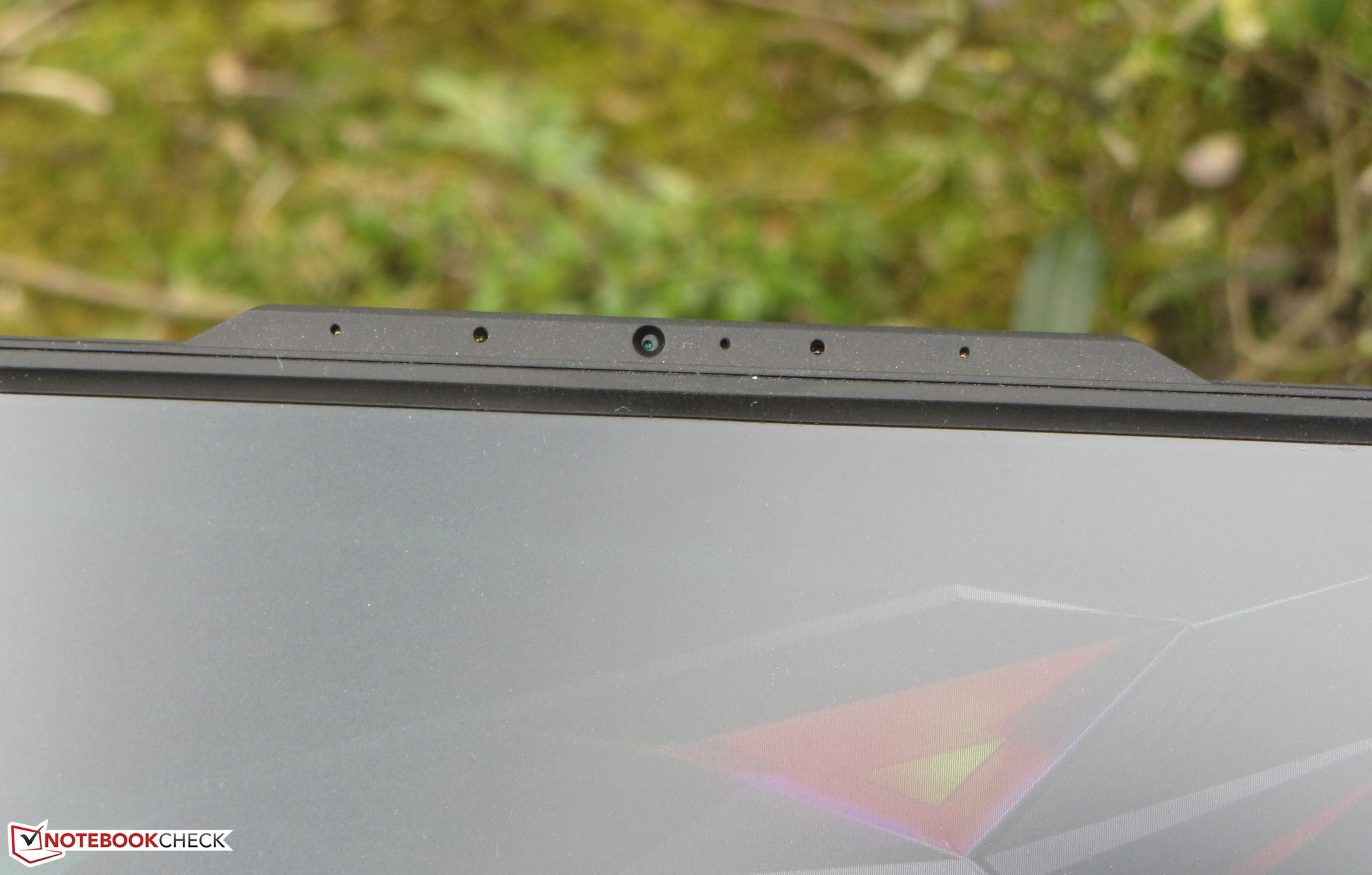

网络摄像头（0.9MP）创建的图像最大分辨率为1280x720像素。色彩准确性有问题：色调明显偏离目标。该摄像头没有机械盖，但它可以在计算机的BIOS中永久停用。
10.2 ∆E
11 ∆E
7 ∆E
9.8 ∆E
8.5 ∆E
11.6 ∆E
10.2 ∆E
5 ∆E
11.8 ∆E
10.7 ∆E
9.2 ∆E
12.2 ∆E
4.9 ∆E
9.7 ∆E
8.9 ∆E
16.2 ∆E
12.3 ∆E
10.5 ∆E
14.4 ∆E
13.5 ∆E
13.8 ∆E
17.4 ∆E
15.9 ∆E
12 ∆E
辅料
除了通常的文件（快速入门指南和保修信息），笔记本没有包括其他附件。
维护

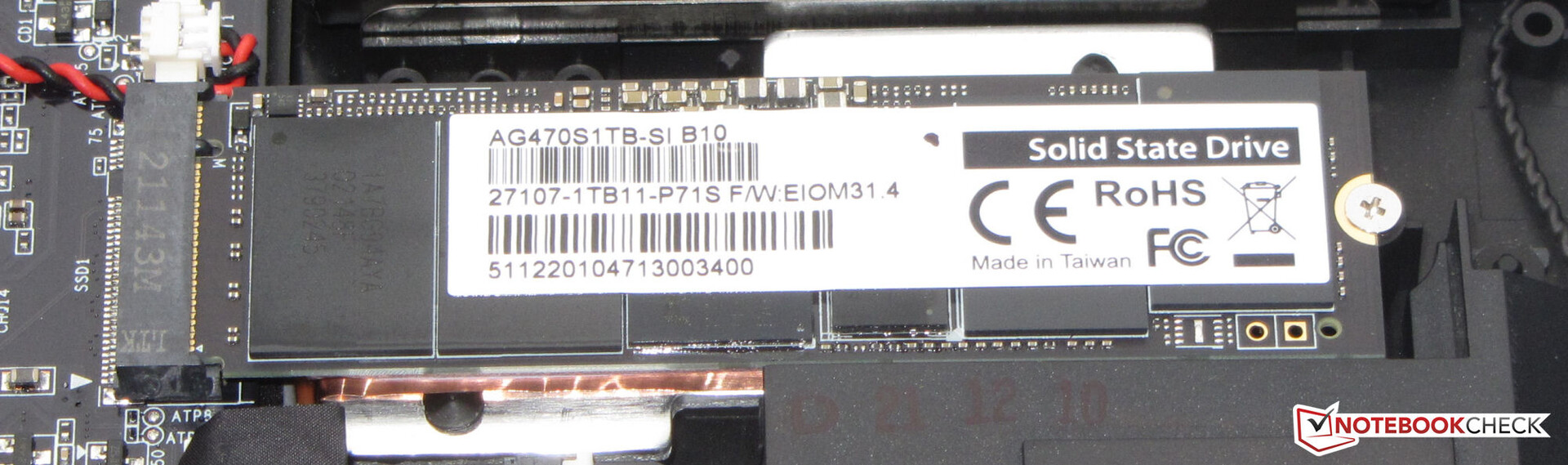

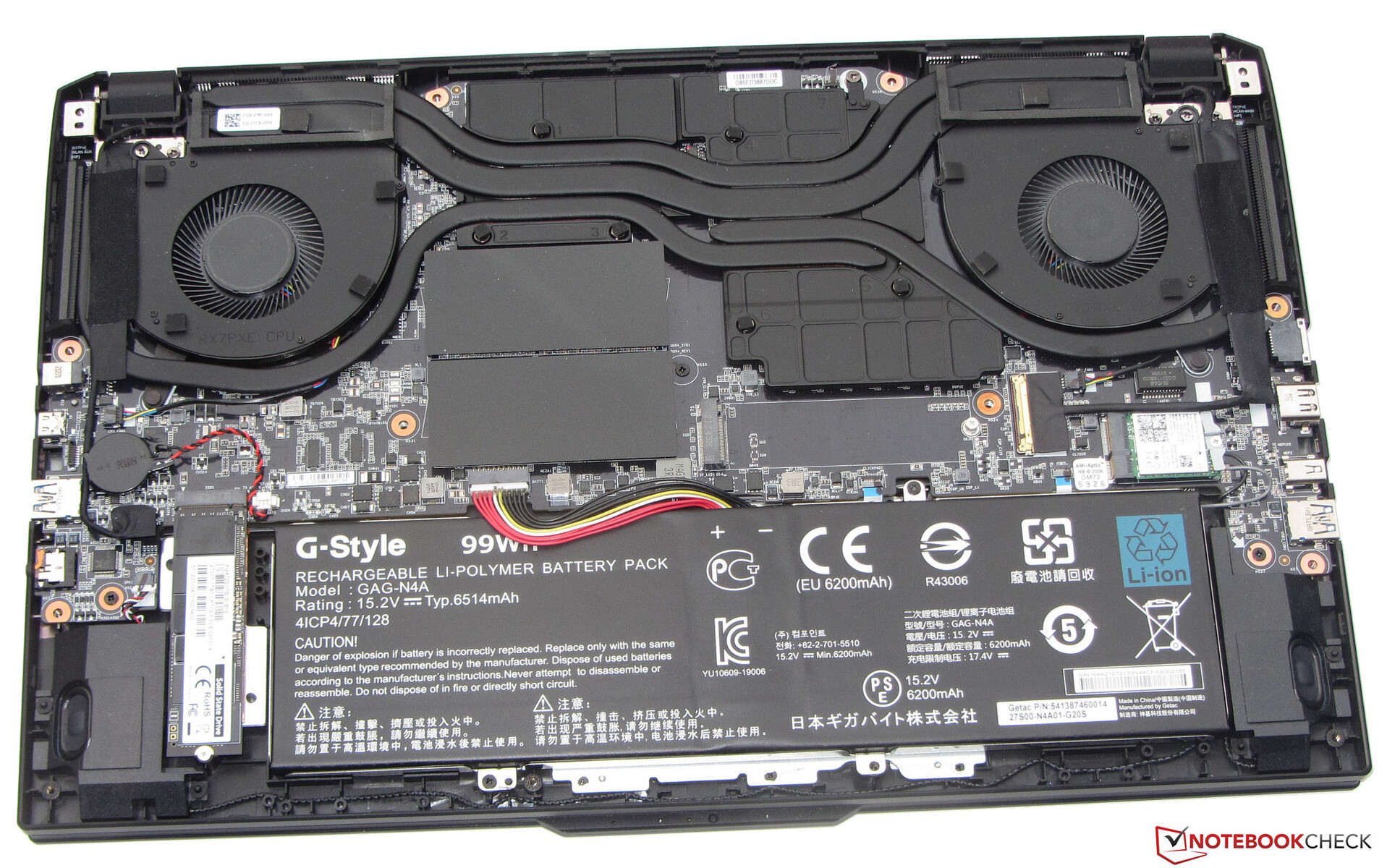

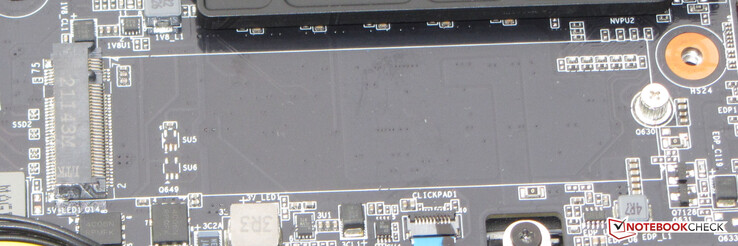

卸下设备底部的所有螺丝后，可以用平铲或油灰刀拆下底盖。之后，你可以接触到固态硬盘、第二个M.2插槽（PCIe 4，M.2-2280）、WLAN模块、内存、BIOS电池和风扇。
担保
技嘉为这台17.3英寸的笔记本电脑提供了两年的保修期。保修期延长是不可能的。
输入设备 - 键盘提供RGB照明
键盘

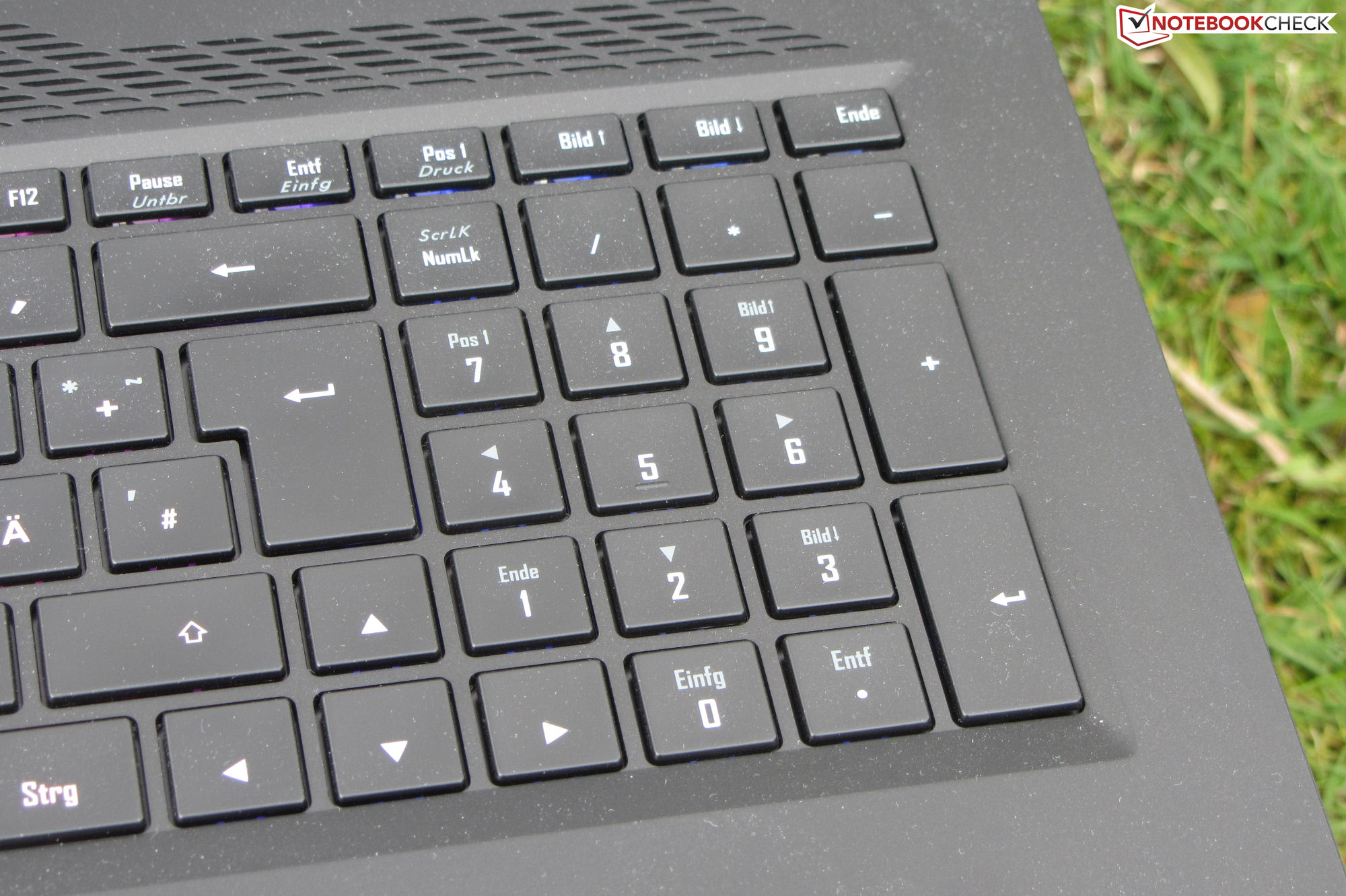

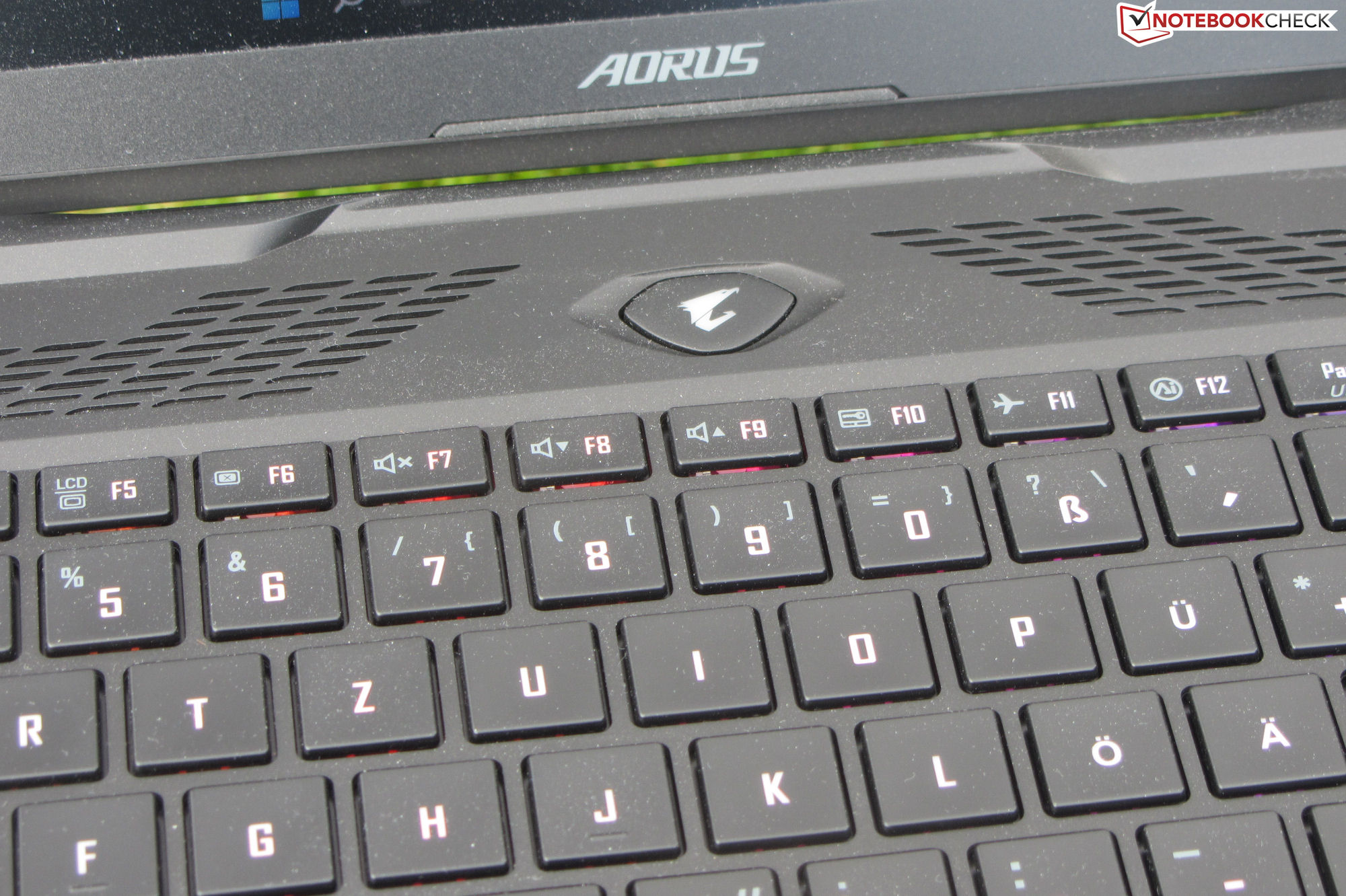

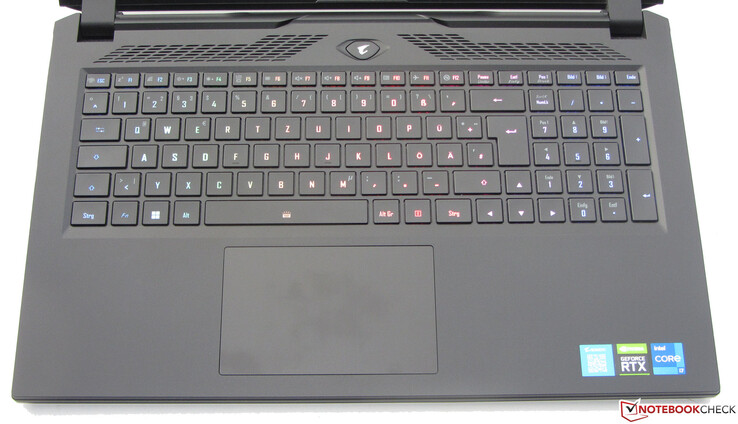

这款笔记本有一个带数字键盘的发光Chiclet键盘。平滑的按键具有中等的键程和清晰的压力点。在打字过程中，键盘的倾斜度很小，这并没有被证明是一种困扰。两段式的按键照明是通过组合键控制的。总的来说，技嘉提供了一个适合日常使用的键盘。
触摸板
一个具有多点触控功能的点击板（~12.2 x 7.6厘米）可作为鼠标的替代品。其光滑的表面使手指易于滑动。它对角落里的输入也有反应。该垫子提供了一个短的行程和一个清晰的压力点。
显示器 - IPS面板可以更亮
虽然17.3英寸哑光屏幕（1920x1080像素）的对比度（1096:1）符合目标值（>1000:1），但亮度（266.8 cd/m²）太低。我们认为高于300cd/m²的数值是好的。360赫兹的面板提供了短的响应时间。无法检测到PWM闪烁。
| |||||||||||||||||||||||||
Sharp LQ173M1JW12 tested with X-Rite i1Pro 2
Maximum: 293 cd/m² (Nits) Average: 266.8 cd/m² Minimum: 6 cd/m²Brightness Distribution: 82 %
Center on Battery: 274 cd/m²
Contrast: 1096:1 (Black: 0.25 cd/m²)
ΔE Color 2.07 | 0.5-29.43 Ø4.92, calibrated: 0.83
ΔE Greyscale 3 | 0.5-98 Ø5.2

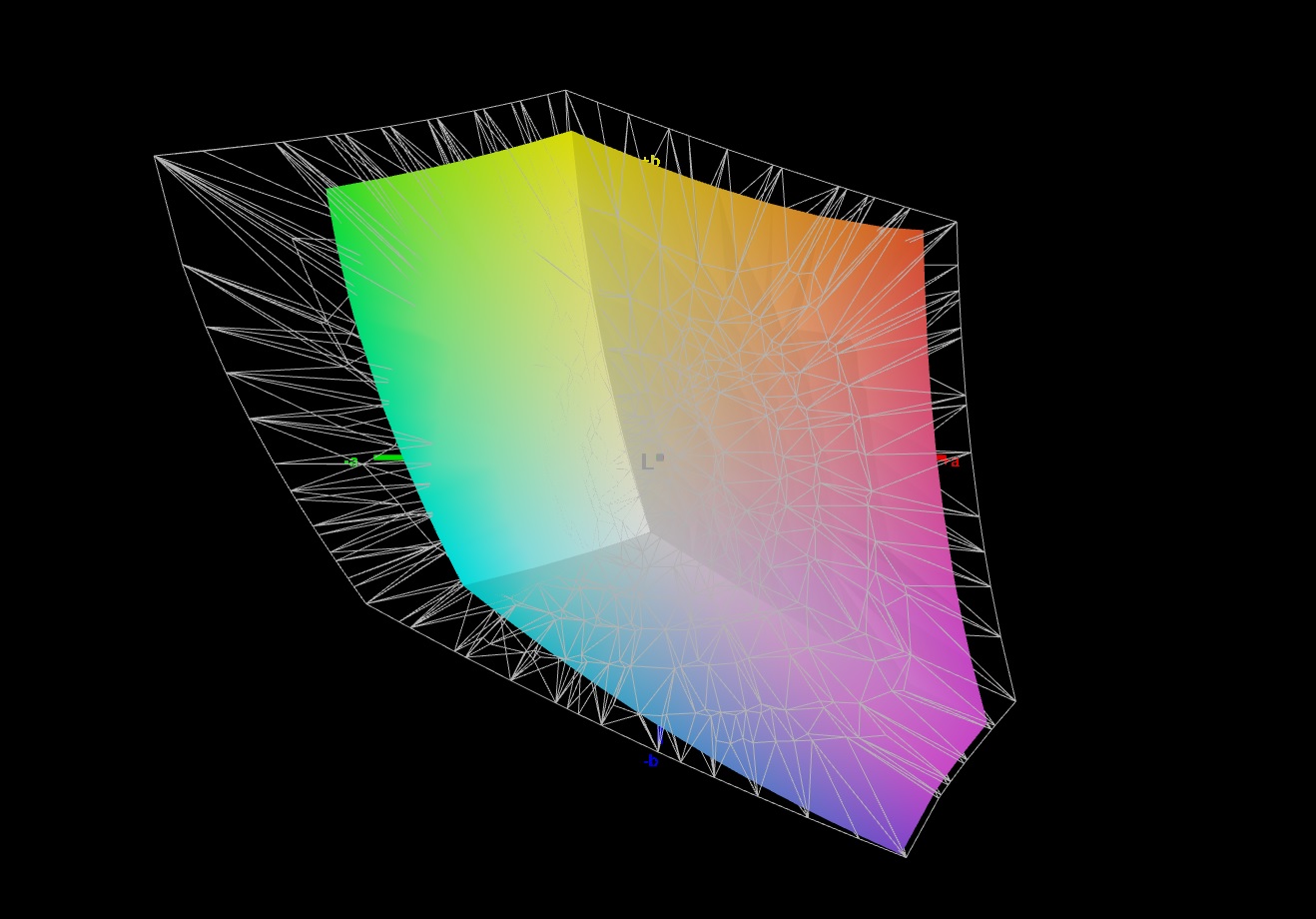

71.2% AdobeRGB 1998 (Argyll 2.2.0 3D)

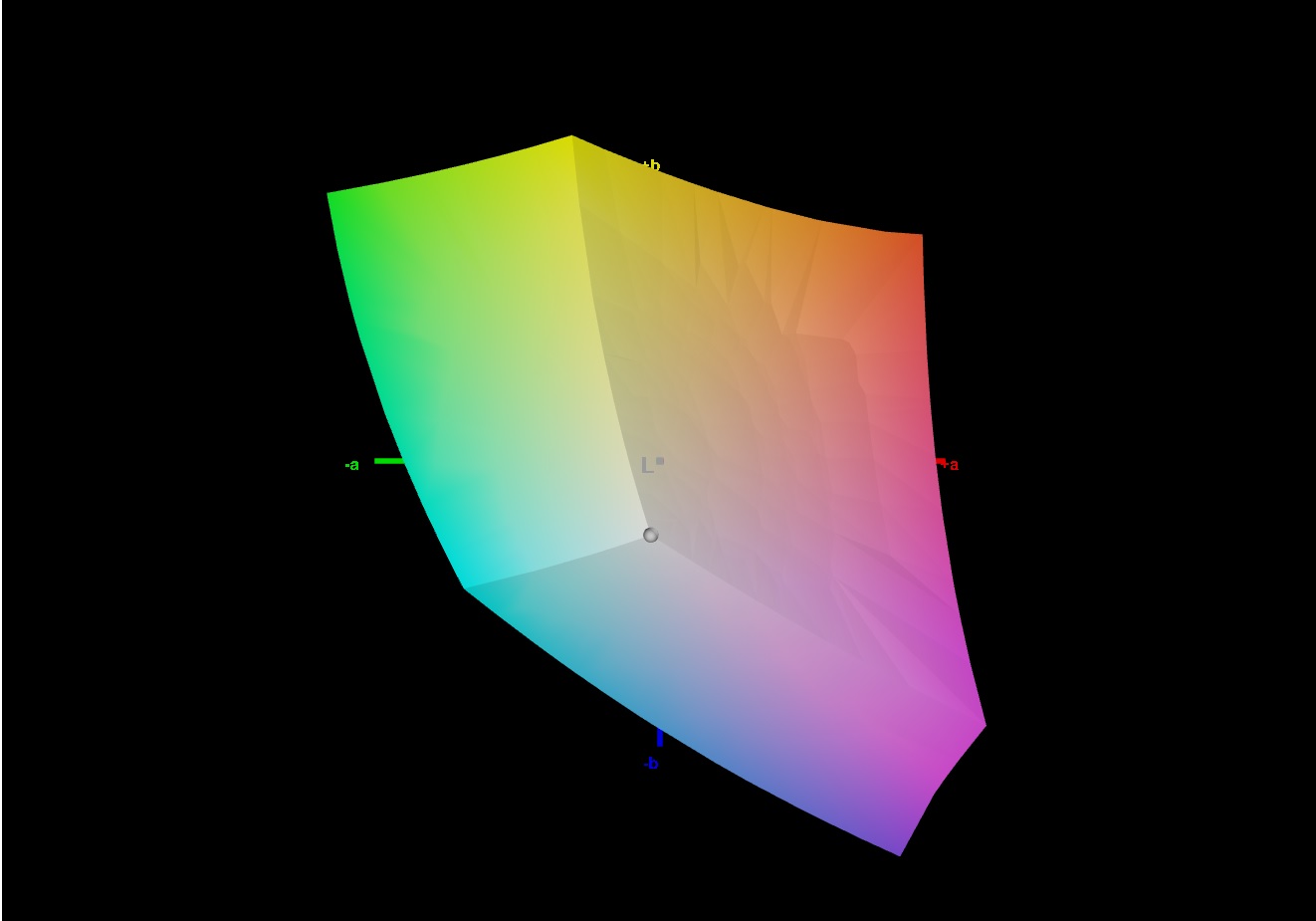

99.4% sRGB (Argyll 2.2.0 3D)
69% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.207
| Aorus 17 XE4 Sharp LQ173M1JW12, IPS, 1920x1080, 17.3" | Razer Blade 17 RTX 3080 Ti BOE NE173QHM-NZ1, IPS, 2560x1440, 17.3" | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti NE160QDM-NY1, IPS, 2560x1600, 16" | MSI Vector GP66 12UGS BOE NE156FHM-NZ3, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|
| Display | 22% | -1% | 1% | |
| Display P3 Coverage | 69 | 98.7 43% | 68.7 0% | 70.1 2% |
| sRGB Coverage | 99.4 | 99.9 1% | 97.6 -2% | 99.5 0% |
| AdobeRGB 1998 Coverage | 71.2 | 86.2 21% | 70.9 0% | 72.1 1% |
| Response Times | -9% | 8% | 38% | |
| Response Time Grey 50% / Grey 80% * | 15.2 ? | 17.6 ? -16% | 17.6 ? -16% | 5.8 ? 62% |
| Response Time Black / White * | 11.2 ? | 11.4 ? -2% | 7.6 ? 32% | 9.6 ? 14% |
| PWM Frequency | ||||
| Screen | -5% | 8% | -9% | |
| Brightness middle | 274 | 335.9 23% | 502 83% | 353.1 29% |
| Brightness | 267 | 294 10% | 491 84% | 325 22% |
| Brightness Distribution | 82 | 75 -9% | 91 11% | 85 4% |
| Black Level * | 0.25 | 0.38 -52% | 0.37 -48% | 0.38 -52% |
| Contrast | 1096 | 884 -19% | 1357 24% | 929 -15% |
| Colorchecker dE 2000 * | 2.07 | 2.82 -36% | 2.7 -30% | 2.24 -8% |
| Colorchecker dE 2000 max. * | 4.89 | 5.04 -3% | 4.5 8% | 5 -2% |
| Colorchecker dE 2000 calibrated * | 0.83 | 1.4 -69% | 1.02 -23% | |
| Greyscale dE 2000 * | 3 | 1.7 43% | 2.7 10% | 4 -33% |
| Gamma | 2.207 100% | 2.14 103% | 2.44 90% | 2.24 98% |
| CCT | 6999 93% | 6382 102% | 6326 103% | 6864 95% |
| Total Average (Program / Settings) | 3% /
0% | 5% /
6% | 10% /
0% |
* ... smaller is better

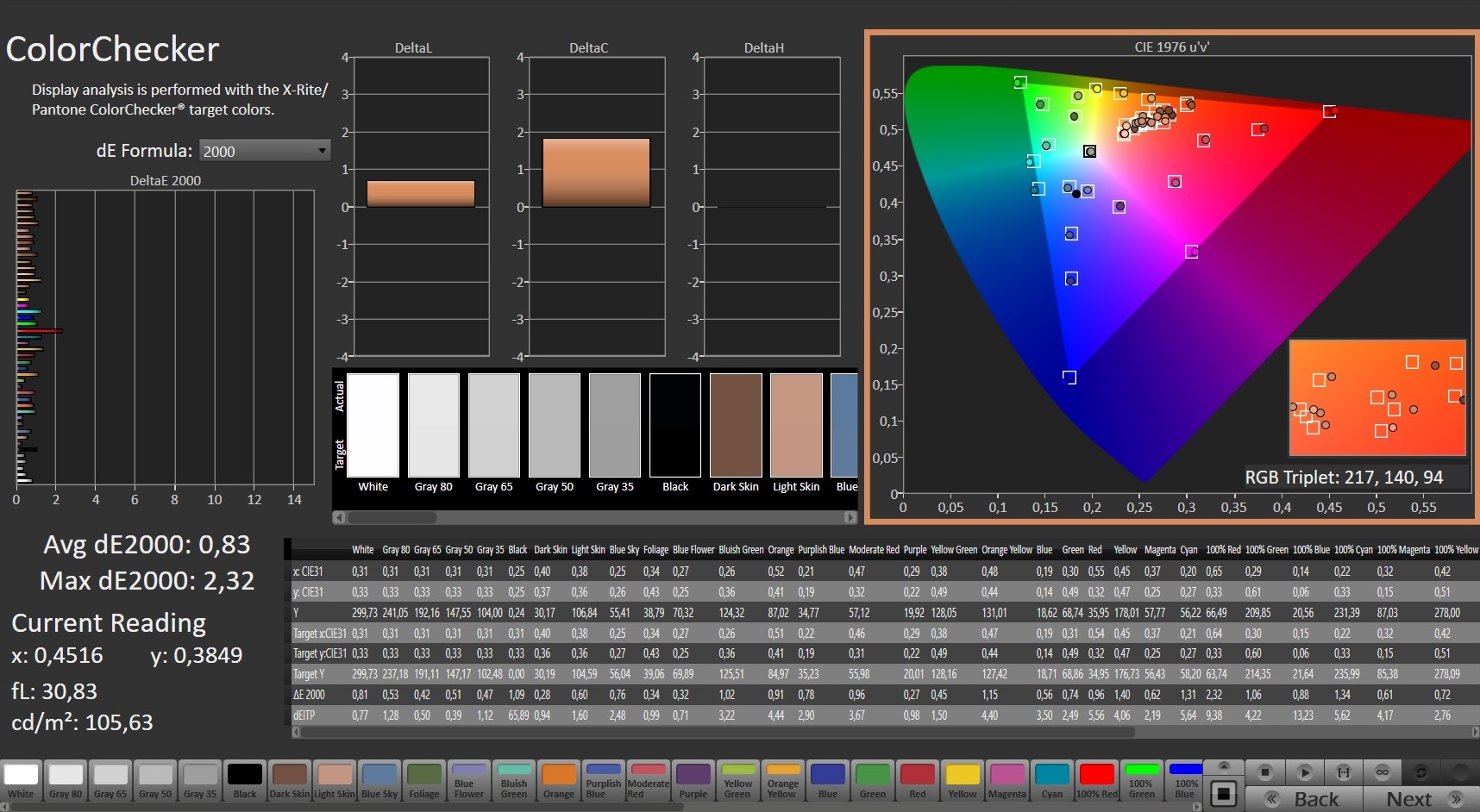

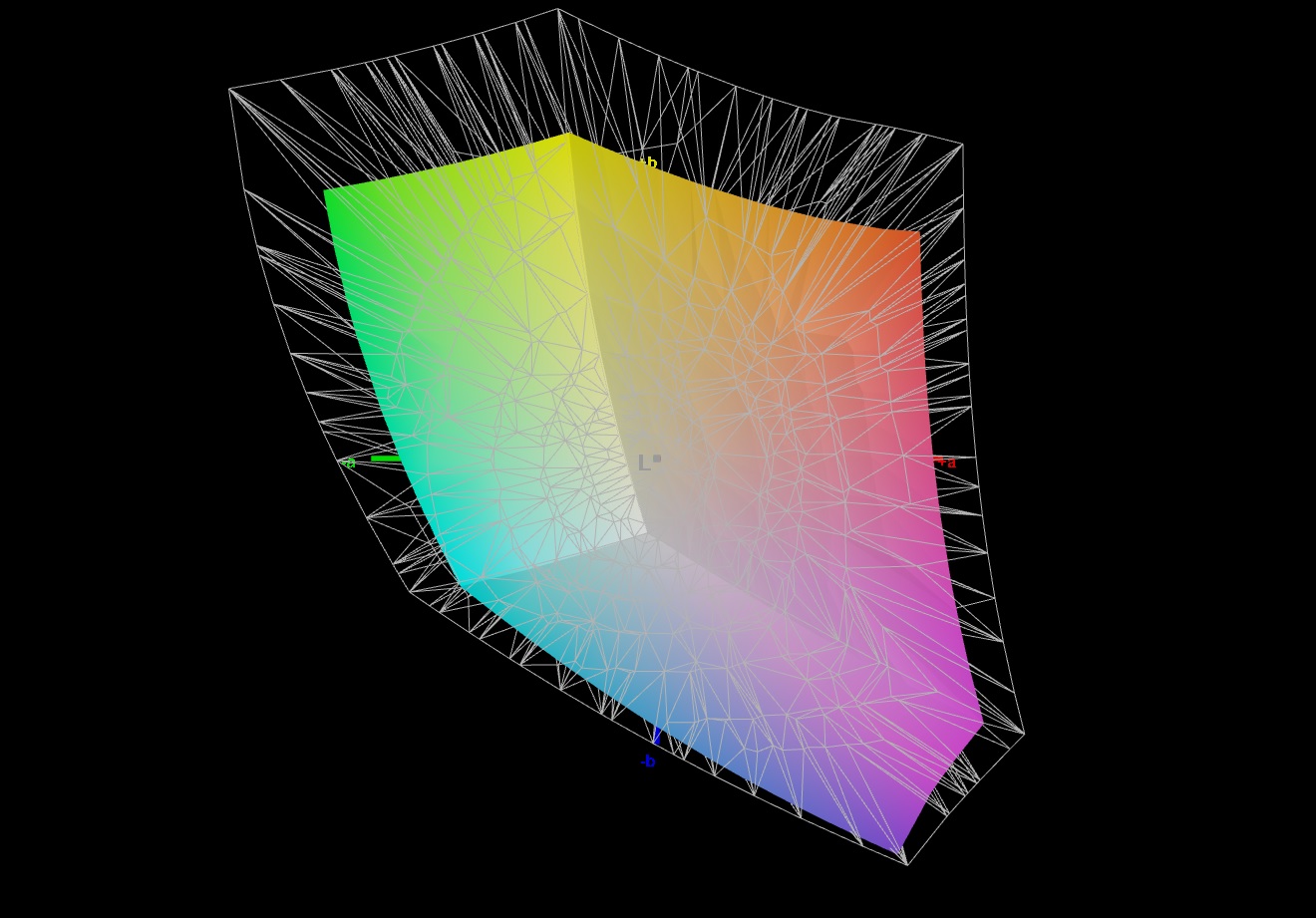

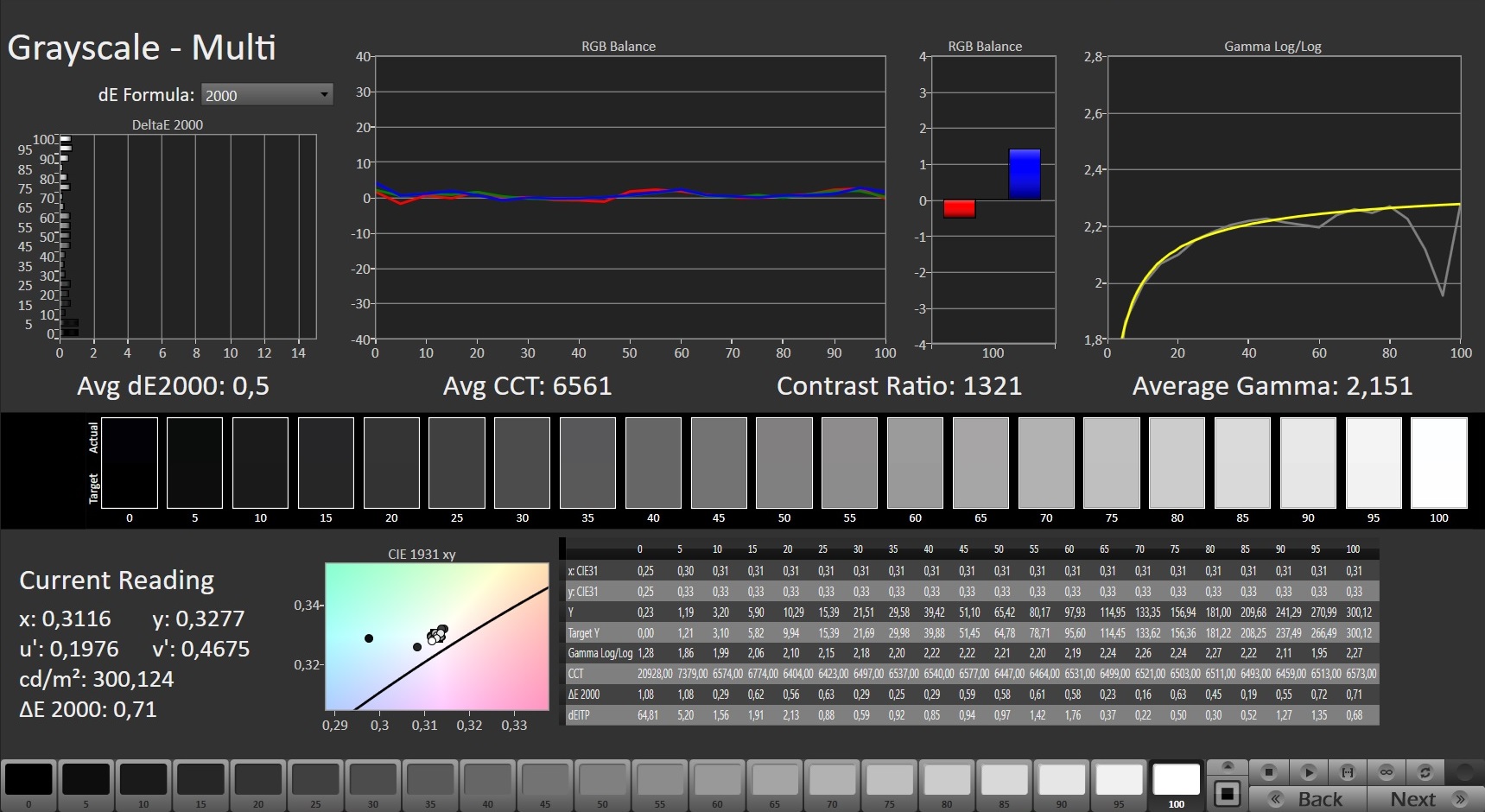

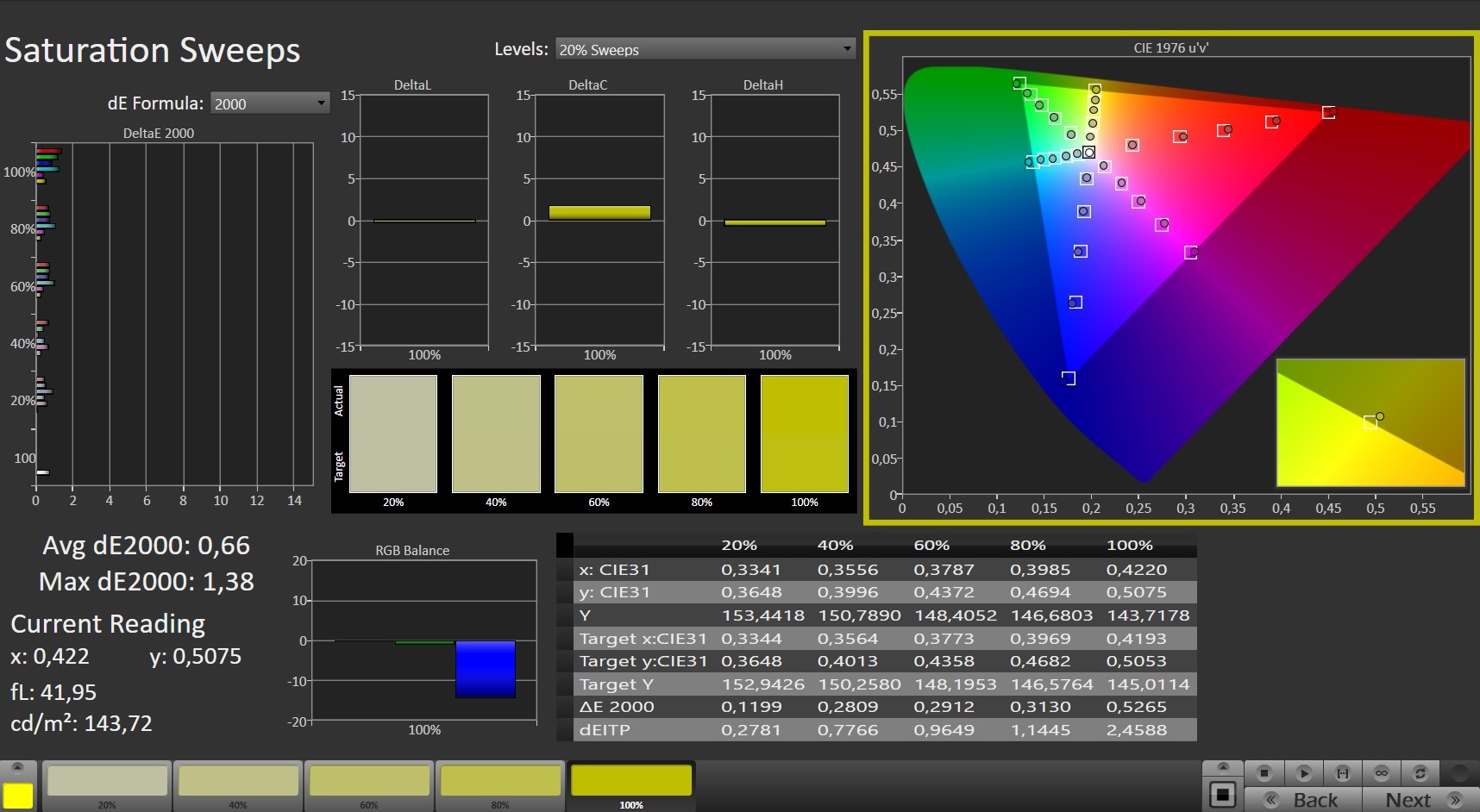

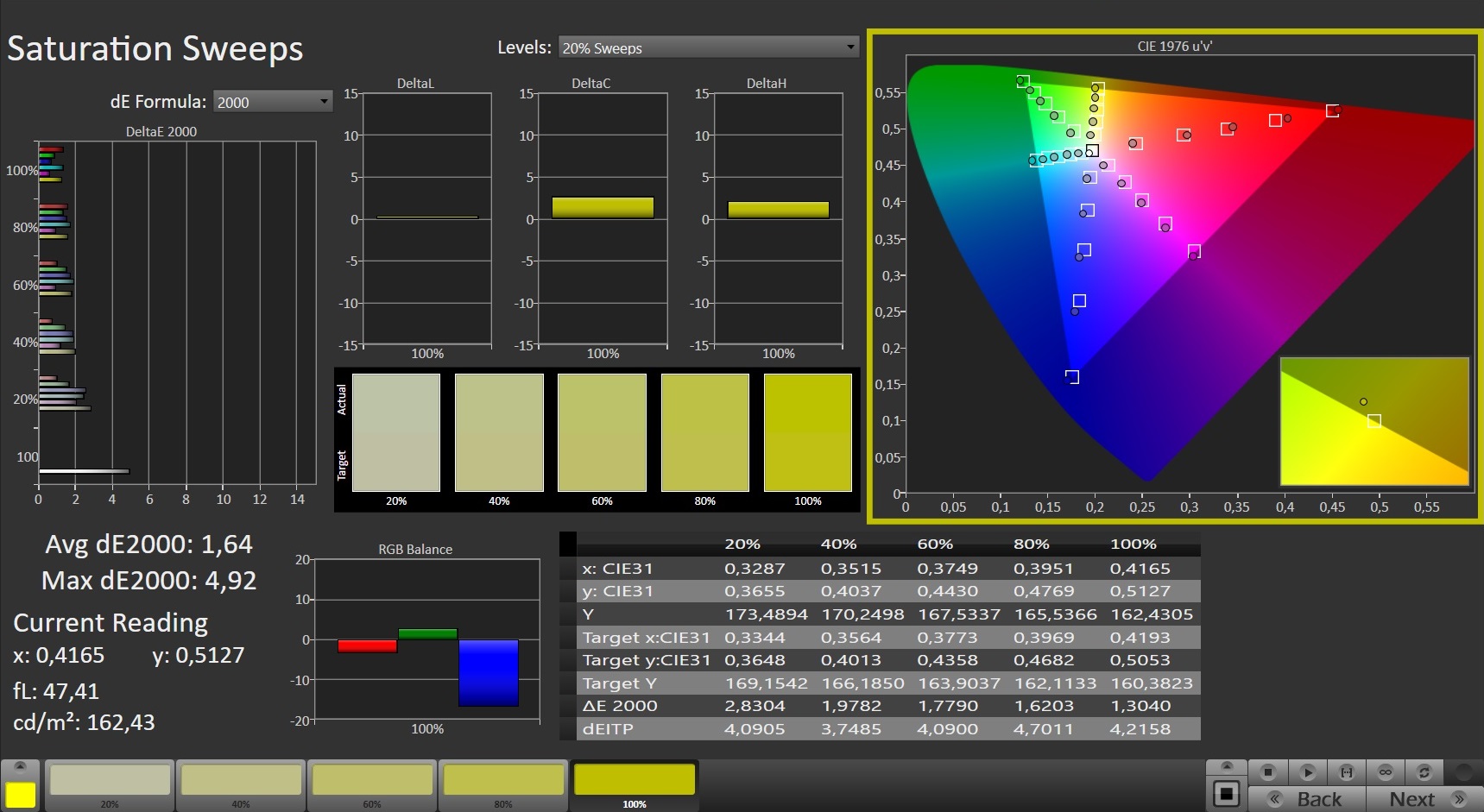

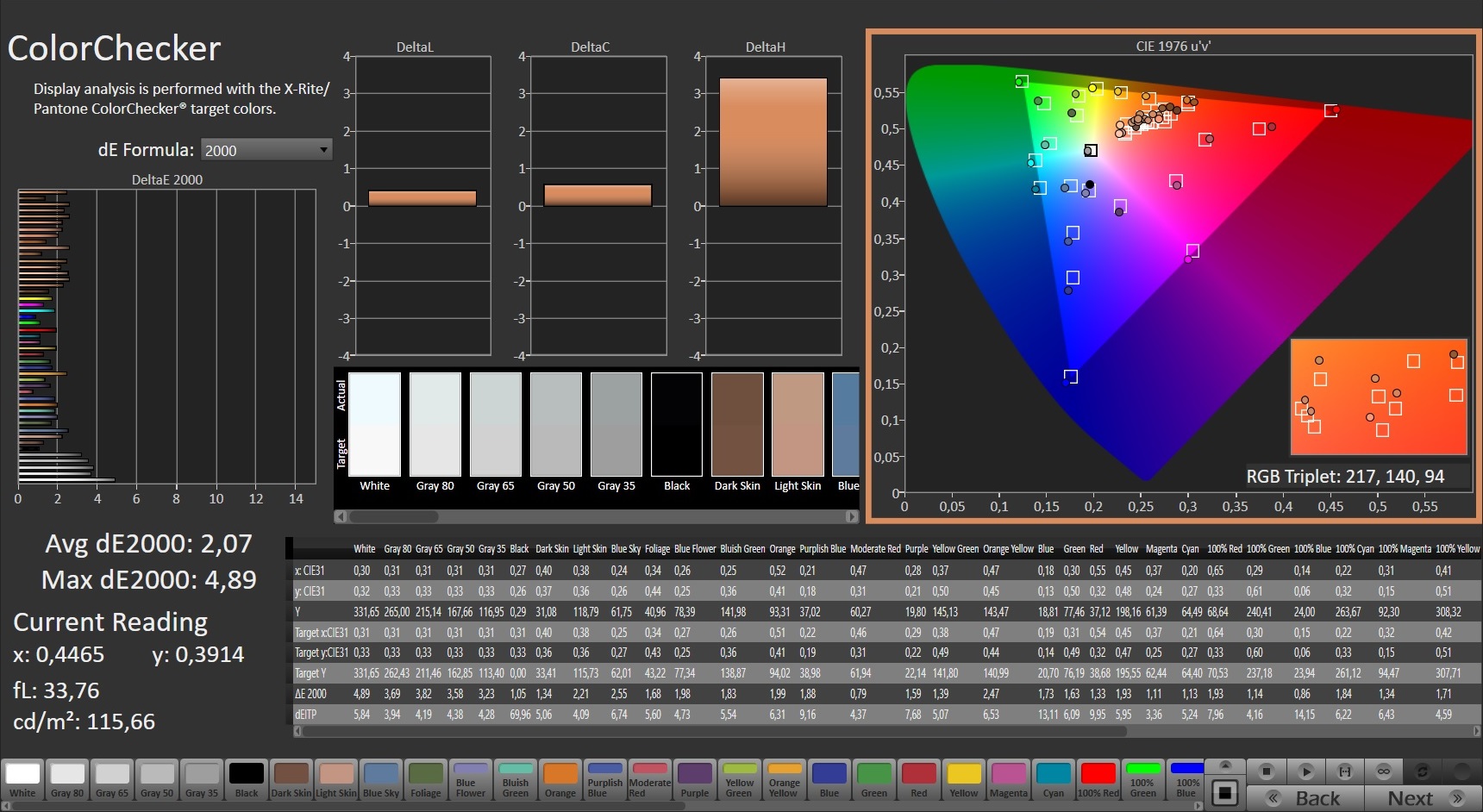

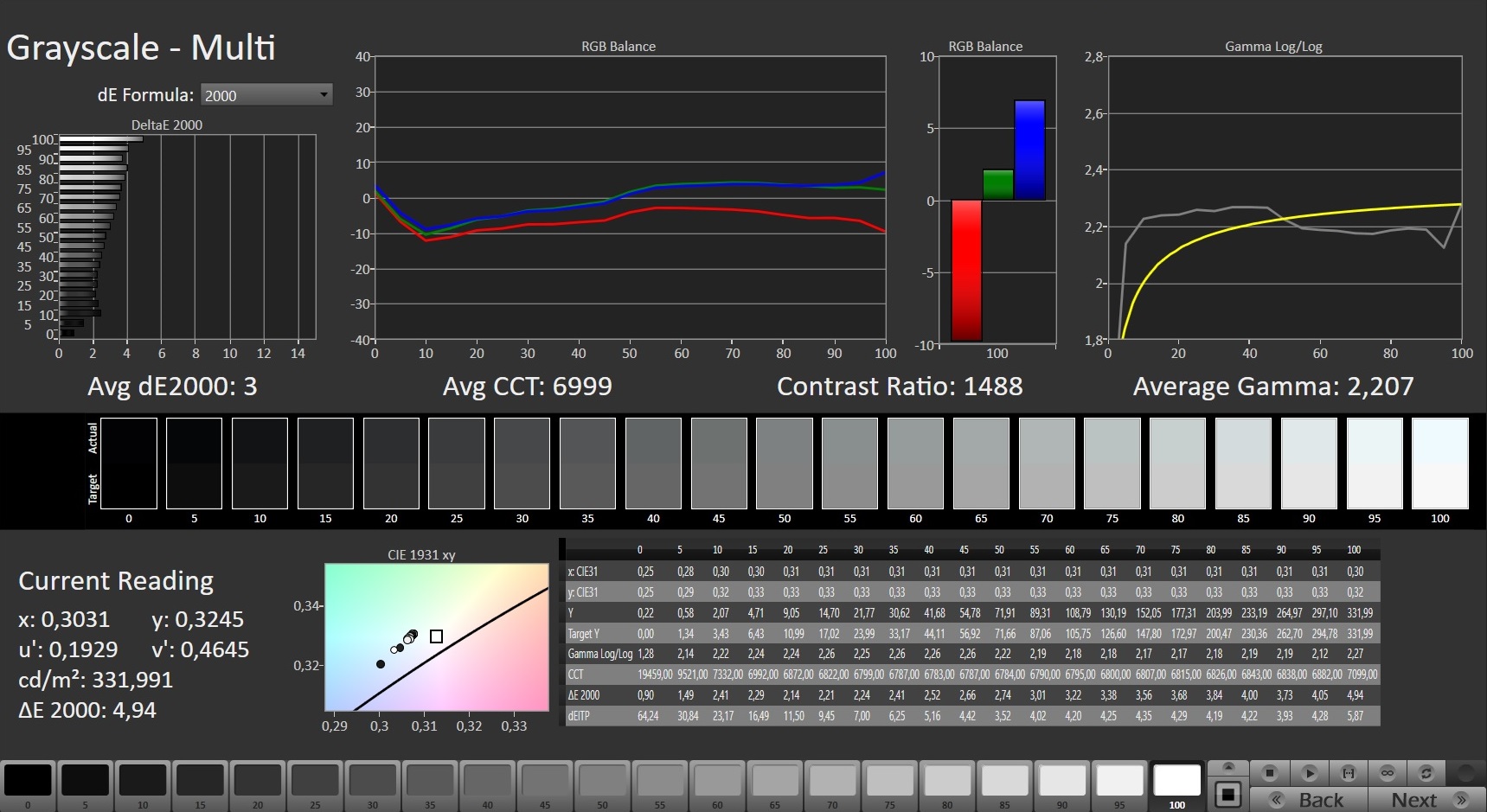

开箱后，该显示器实现了良好的色彩表现：色彩偏差在目标范围内。校准提供了进一步的改进。该显示器不能再现AdobeRGB（71%）和DCI-P3（69%）色彩空间，但sRGB色彩空间的再现率为99%。

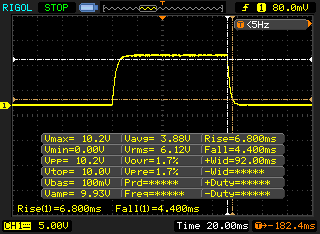

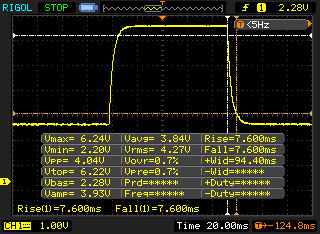

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 11.2 ms ... rise ↗ and fall ↘ combined | ↗ 6.8 ms rise |  |
| ↘ 4.4 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 27 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 15.2 ms ... rise ↗ and fall ↘ combined | ↗ 7.6 ms rise |  |
| ↘ 7.6 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 26 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

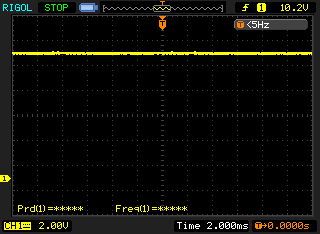

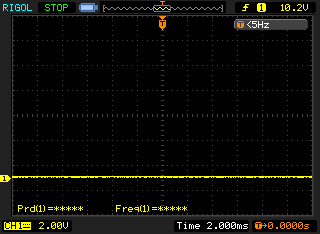

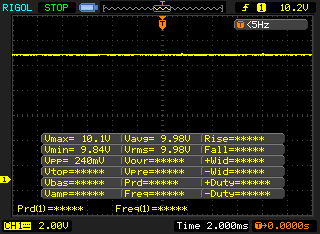

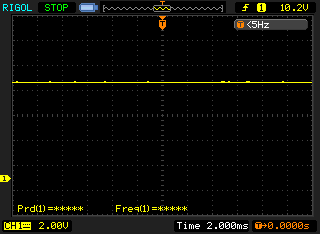

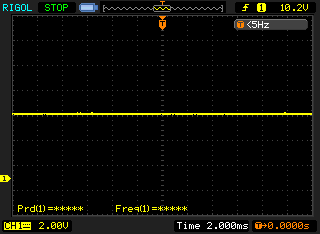

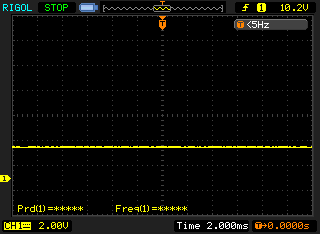

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured. | |||

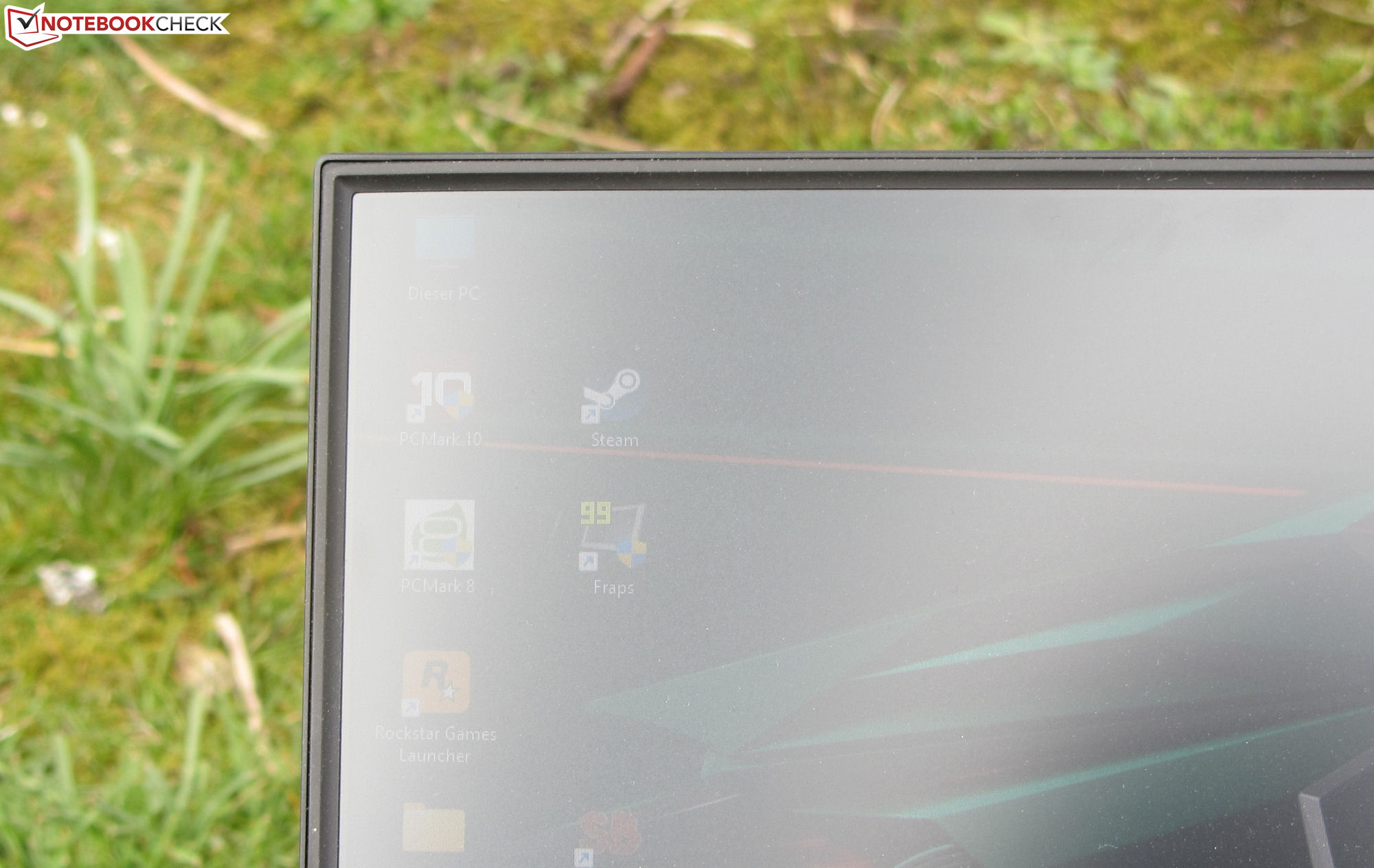

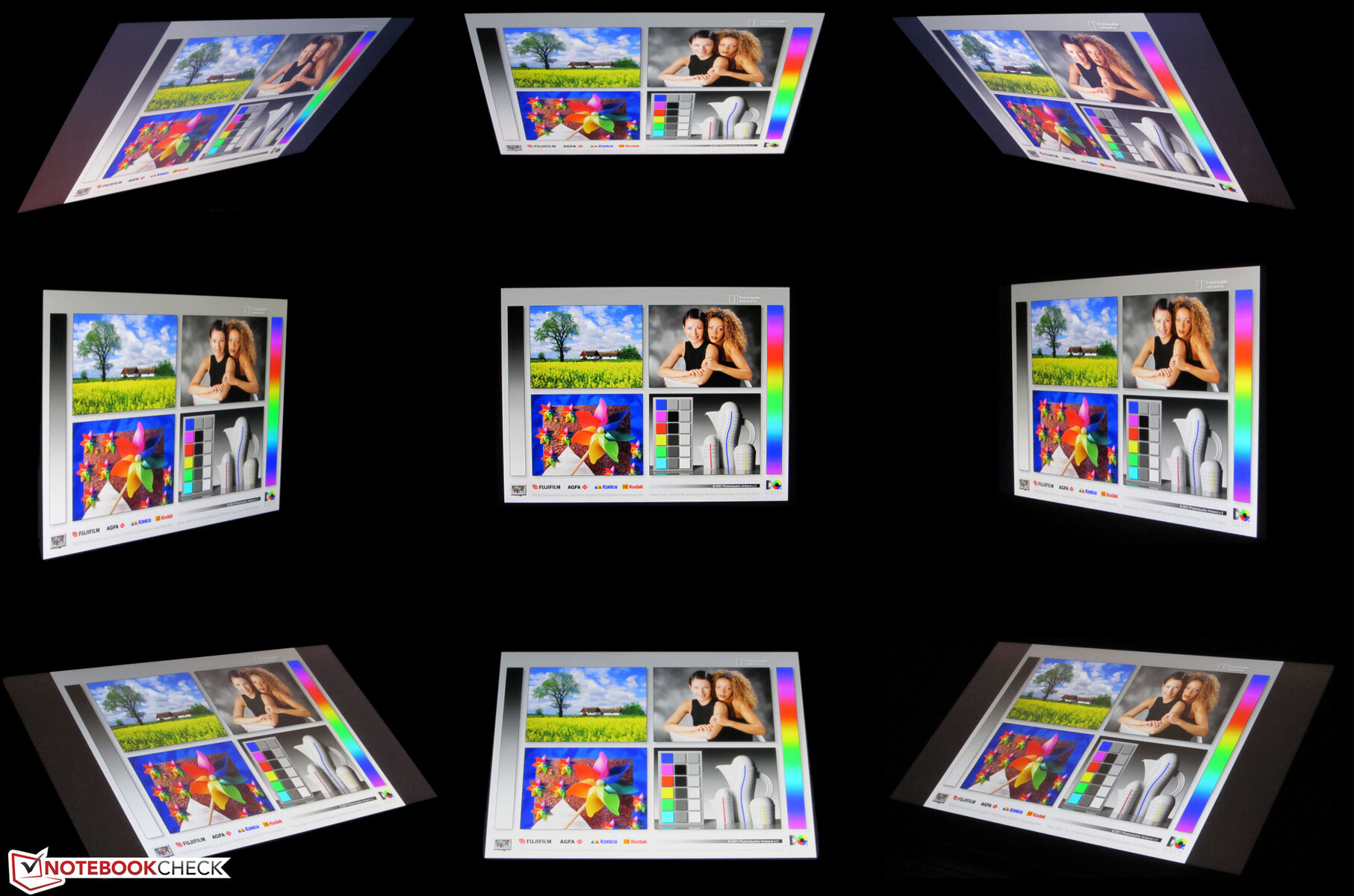

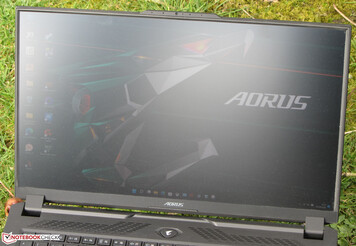

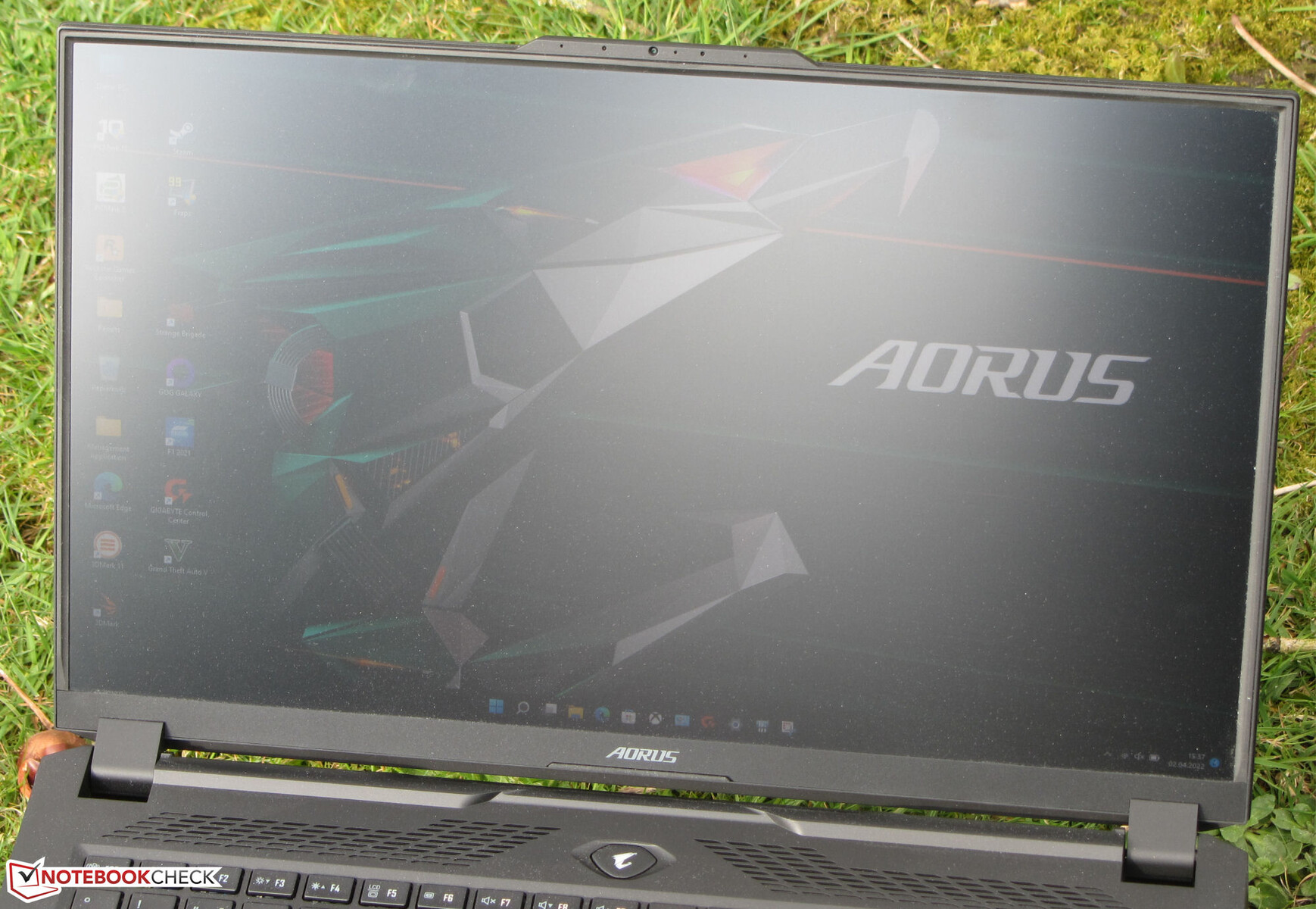

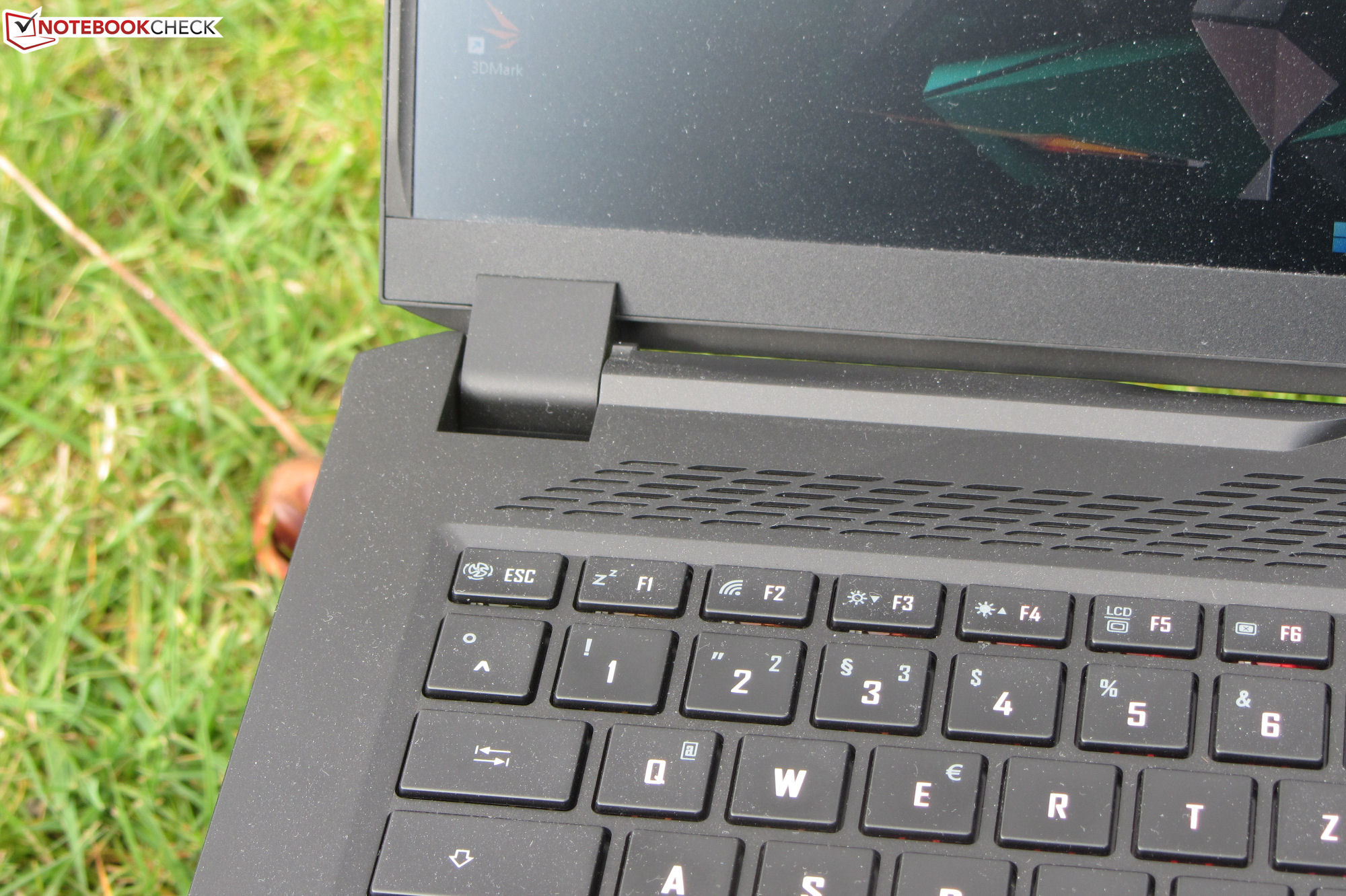

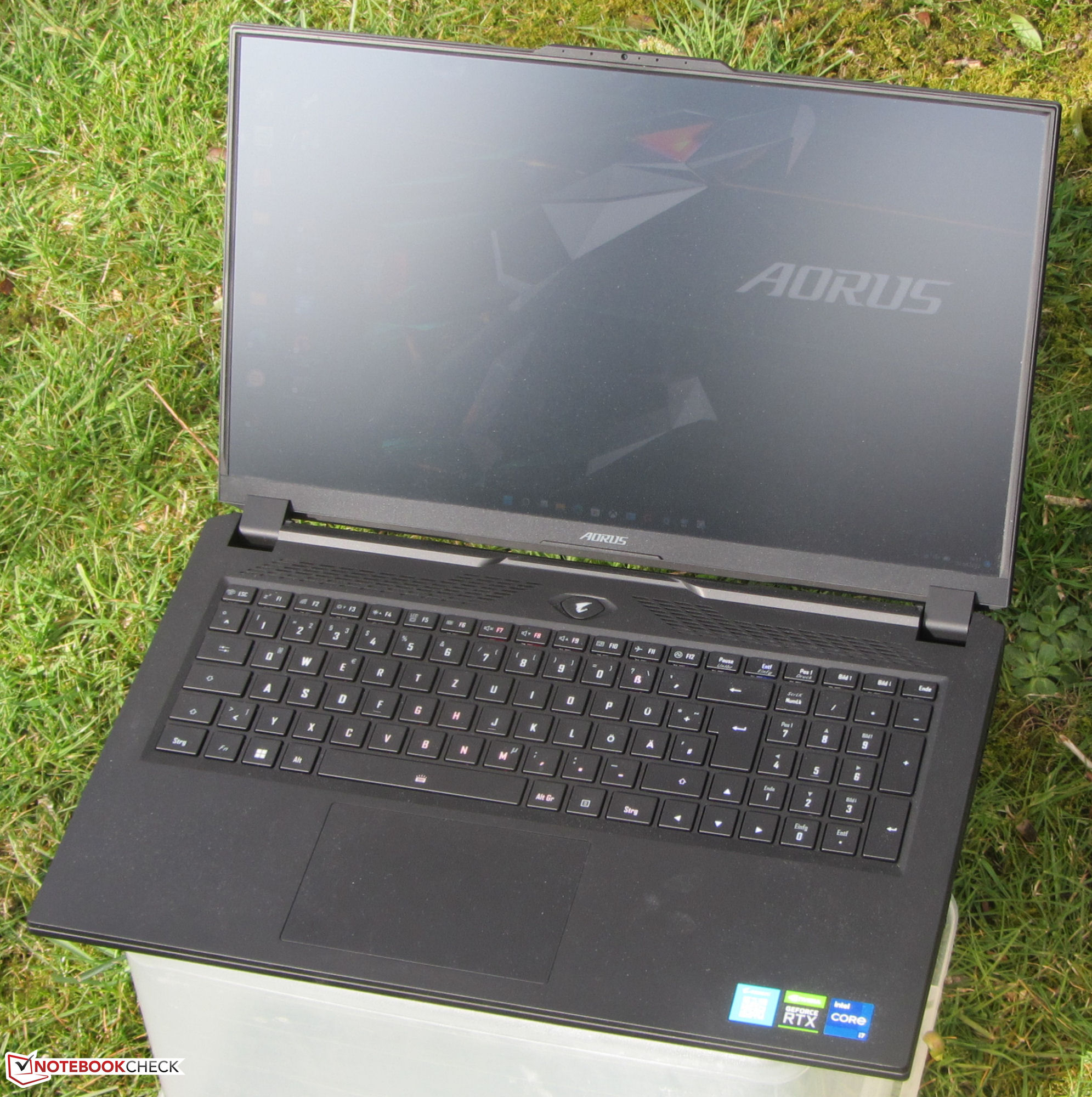

IPS面板的可视角度很好，从所有位置都可以读取内容。在阳光不太强烈的情况下，显示屏的室外可读性是正常的。
性能 - Alder Lake和Ampere为未来几年提供足够的动力
Gigabyte的Aorus 17是一款17.3英寸的游戏笔记本，可以将当前的每一款游戏流畅地呈现在屏幕上。
测试条件

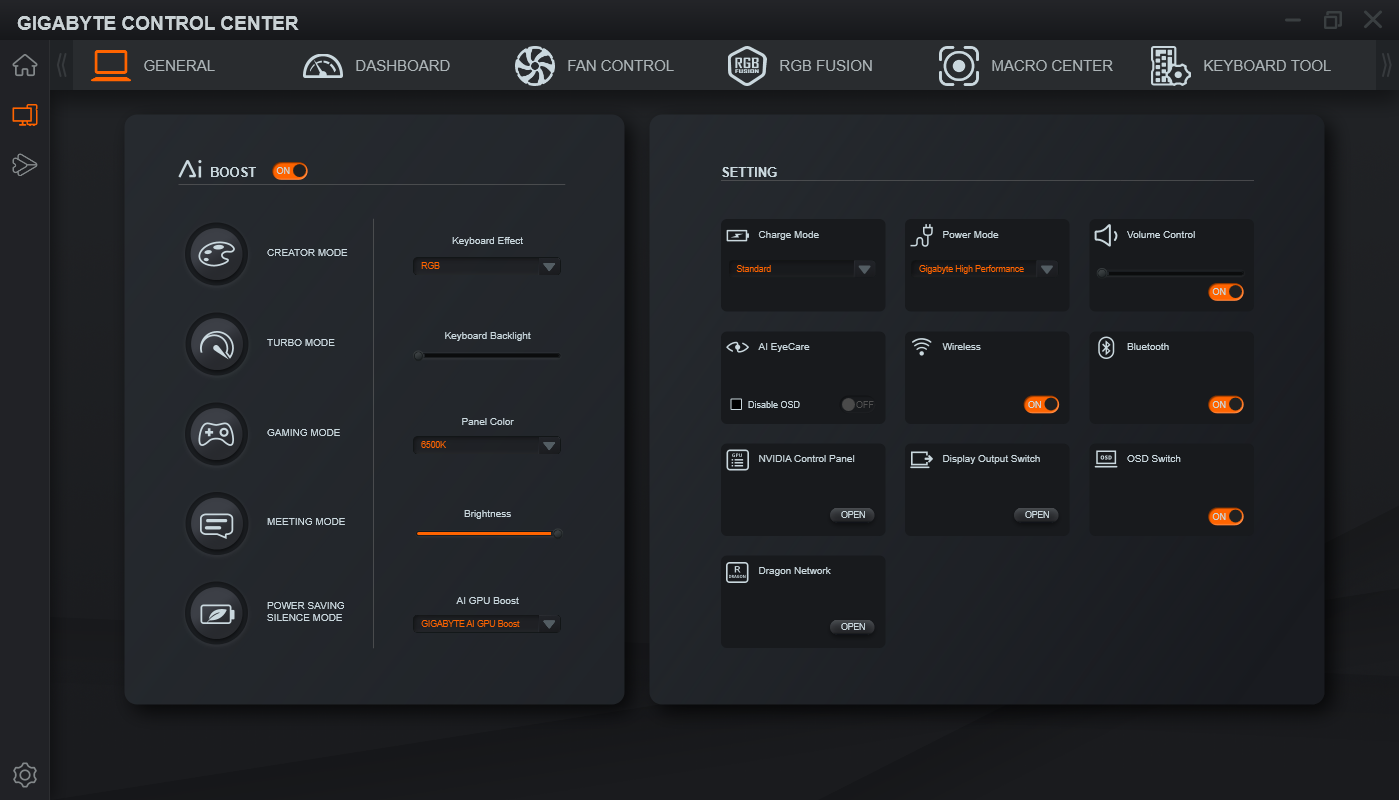

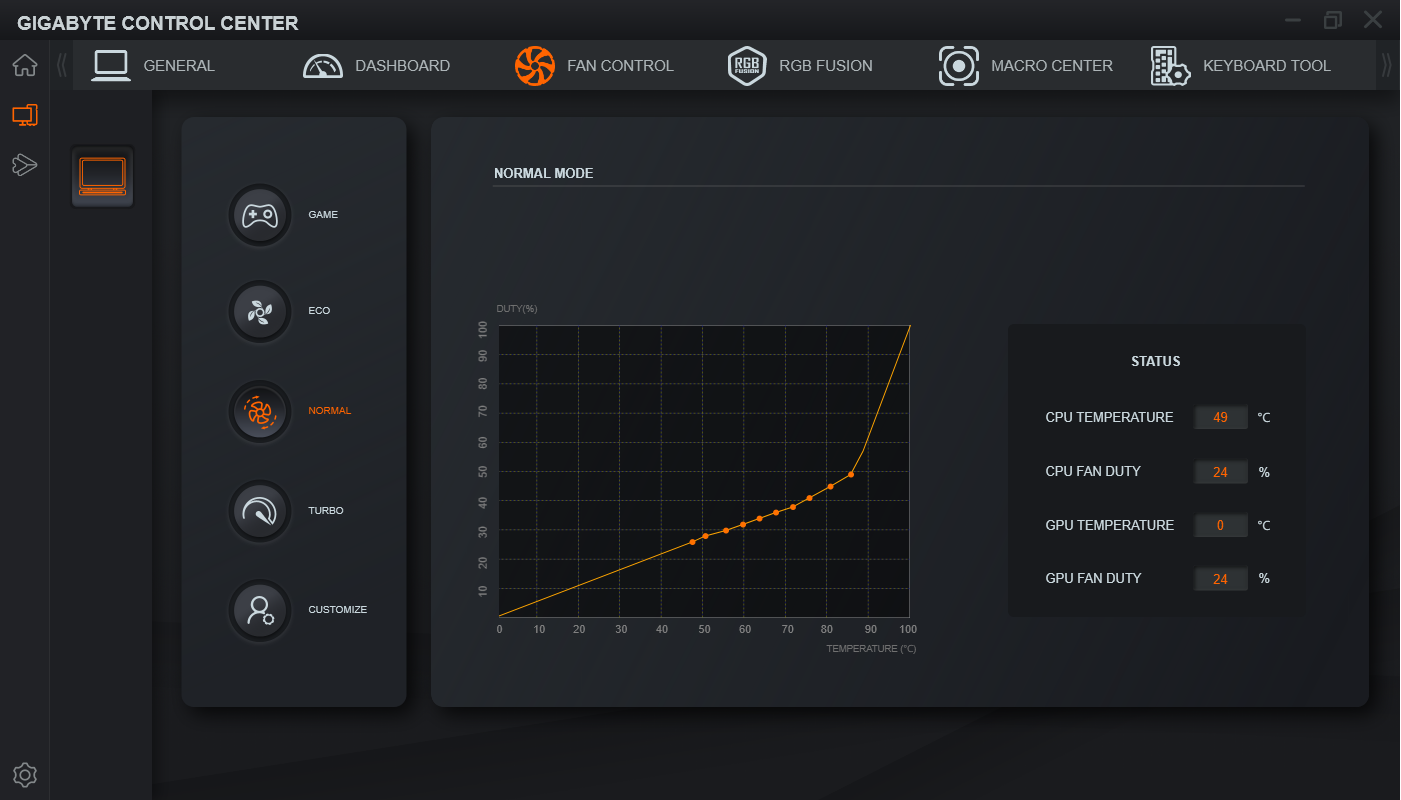

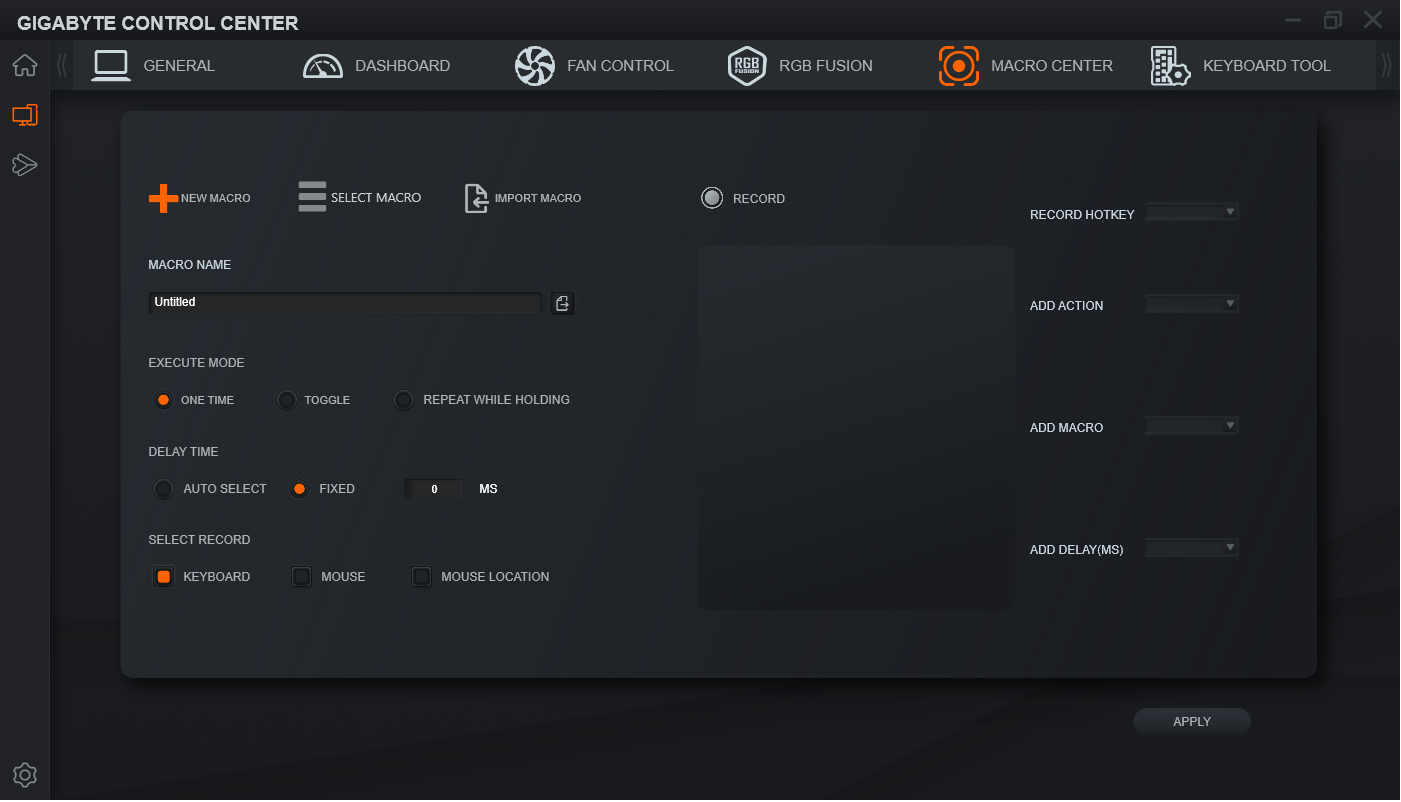

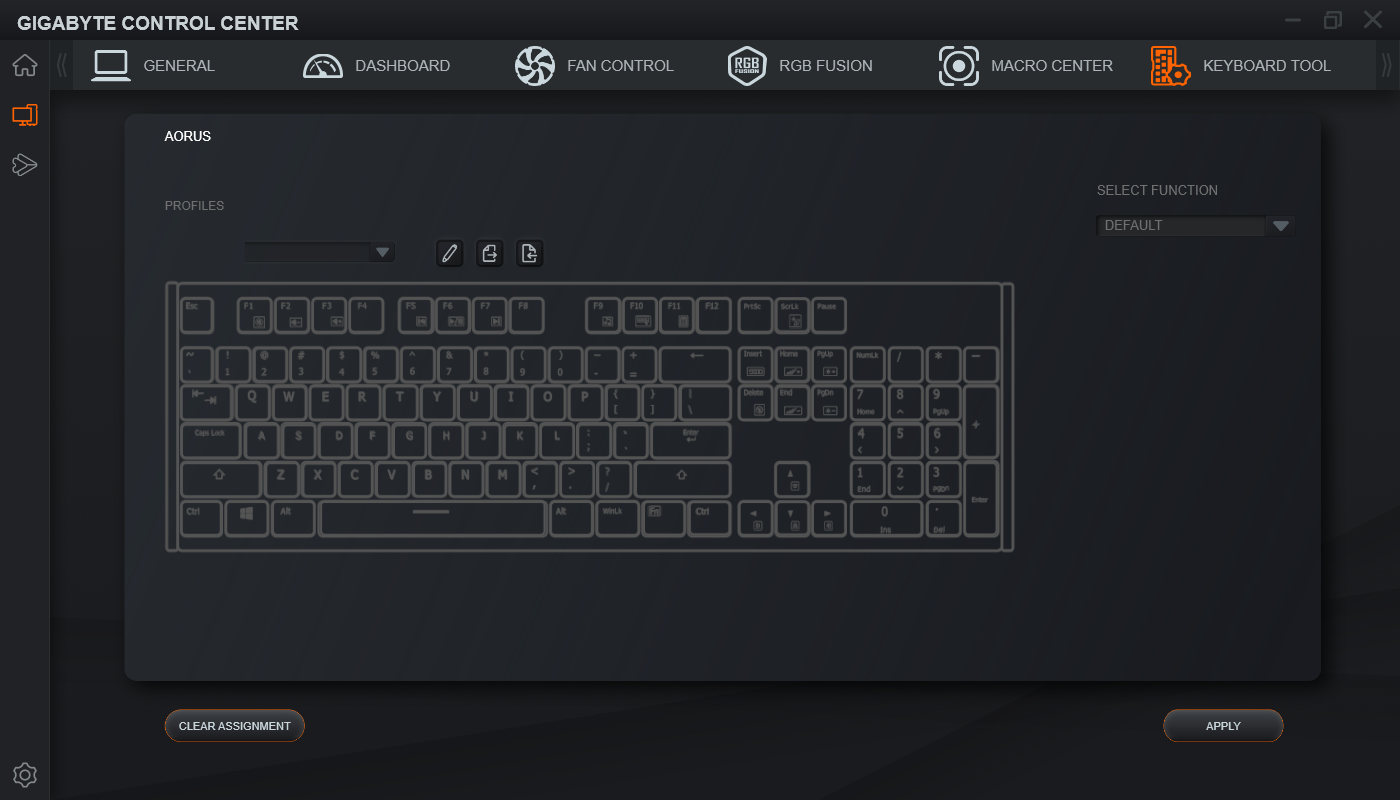

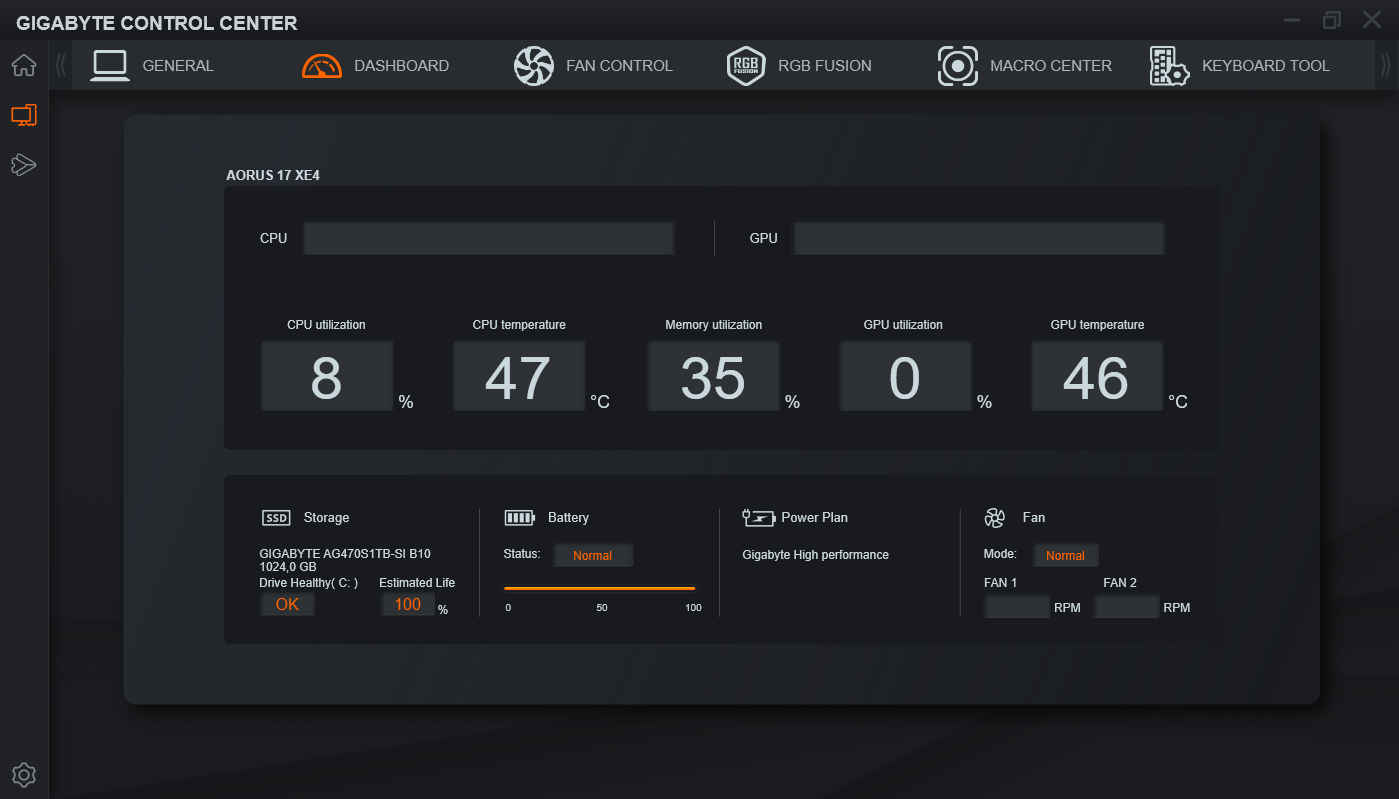

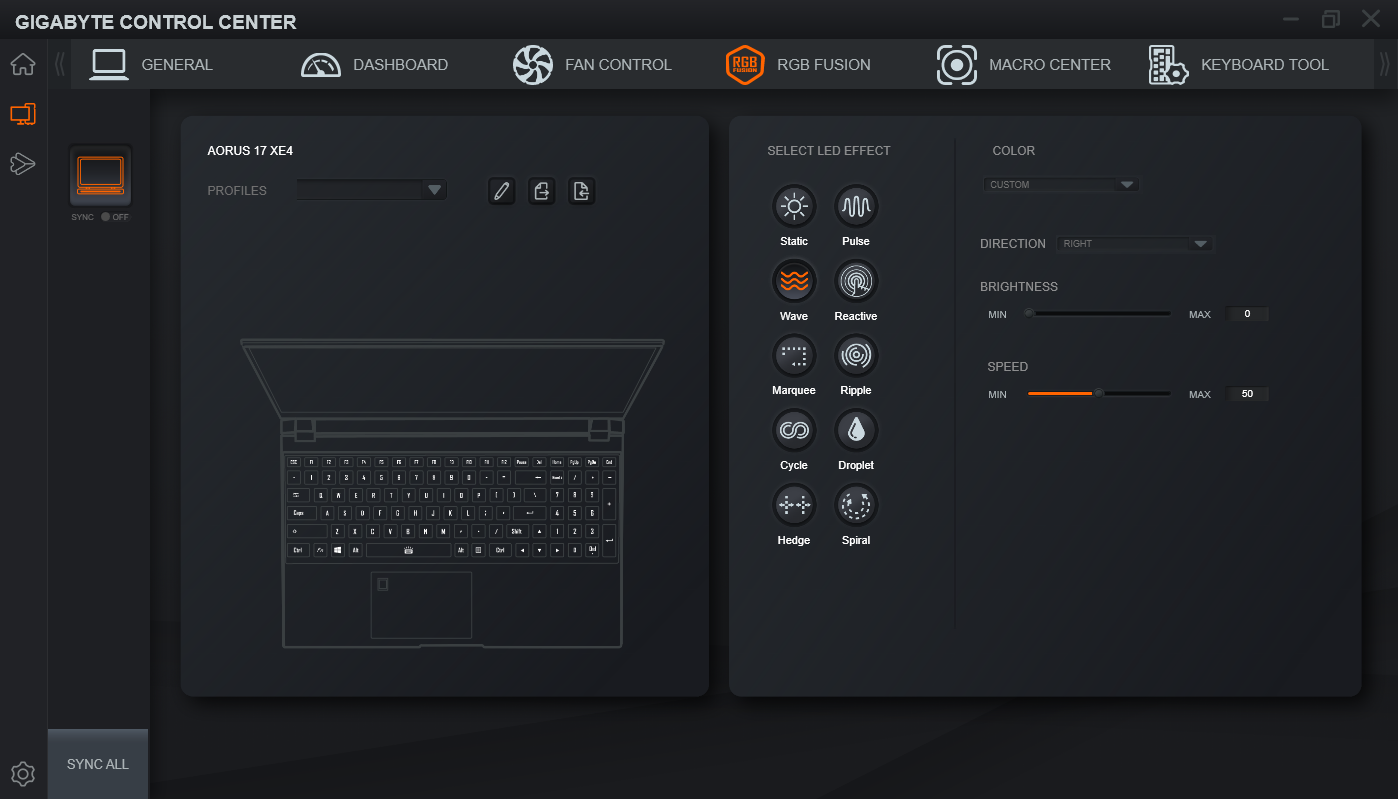

预装的技嘉控制中心提供各种性能配置文件，可以控制CPU和GPU性能、风扇活动、屏幕亮度和色温等。我们在这里使用更高级别的AI模式。然后控制中心会自动选择适当的配置文件。
一些基准测试是在 "省电静音模式 "和 "加速模式 "持续激活的情况下进行的。后者不建议长期使用，因为风扇持续以全速运行。
| 创造者模式 | 涡轮模式 | 游戏模式 | 会议模式 | 省电静音模式 | |
|---|---|---|---|---|---|
| 功率限制1 | 70瓦 | 70瓦 | 55瓦 | 15瓦 | 15瓦 |
| 功率限制 2 | 115 瓦 | 115 瓦 | 115 瓦 | 30 瓦 | 30 瓦 |
处理器

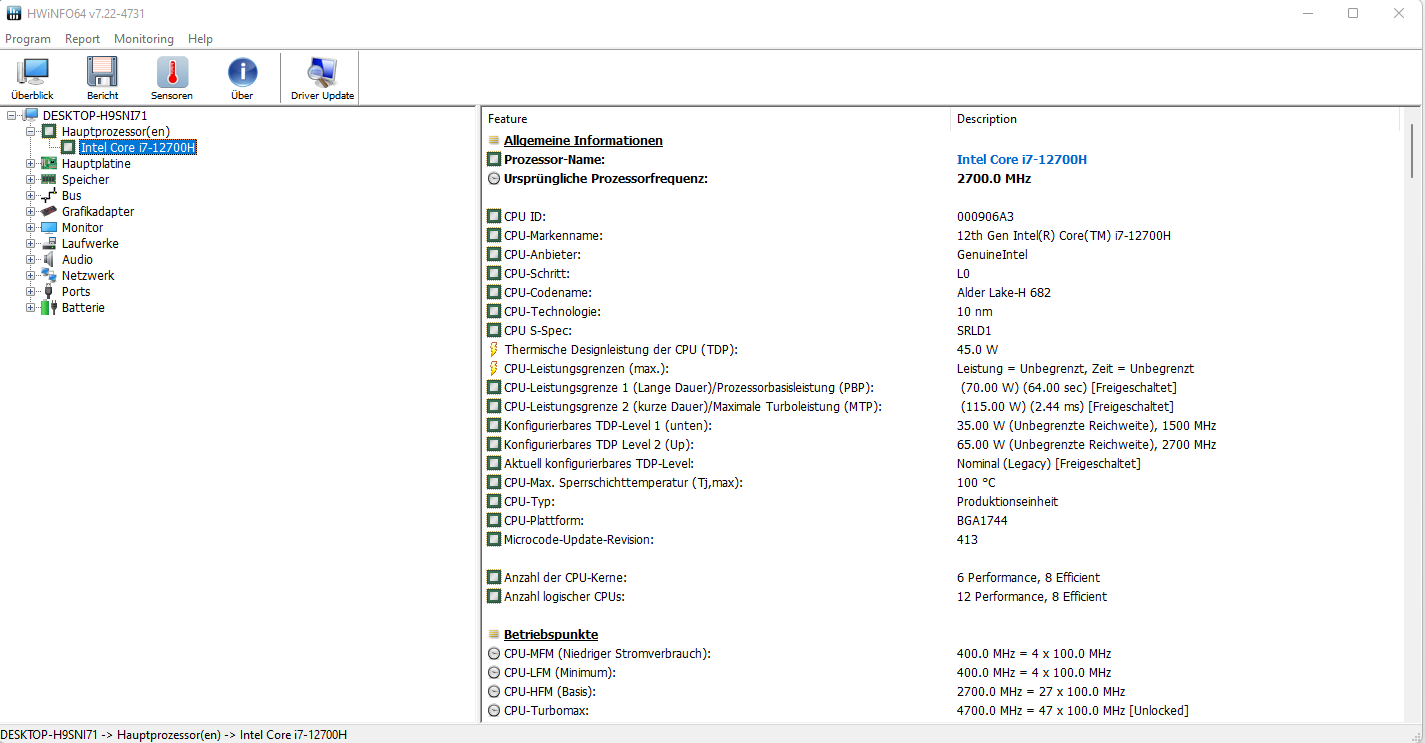

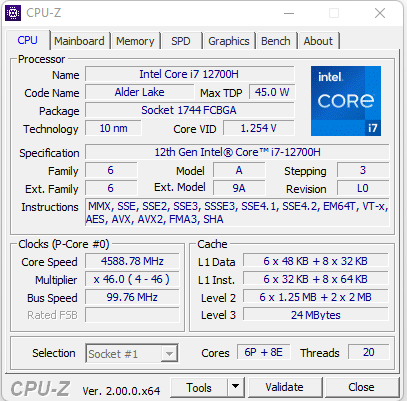

该 酷睿i7-12700H处理器（Alder Lake）包括六个性能核心（超线程，2.4至4.7 GHz）和八个效率核心（无超线程，1.8至3.5 GHz）。总的来说，这相当于20个逻辑CPU核心。

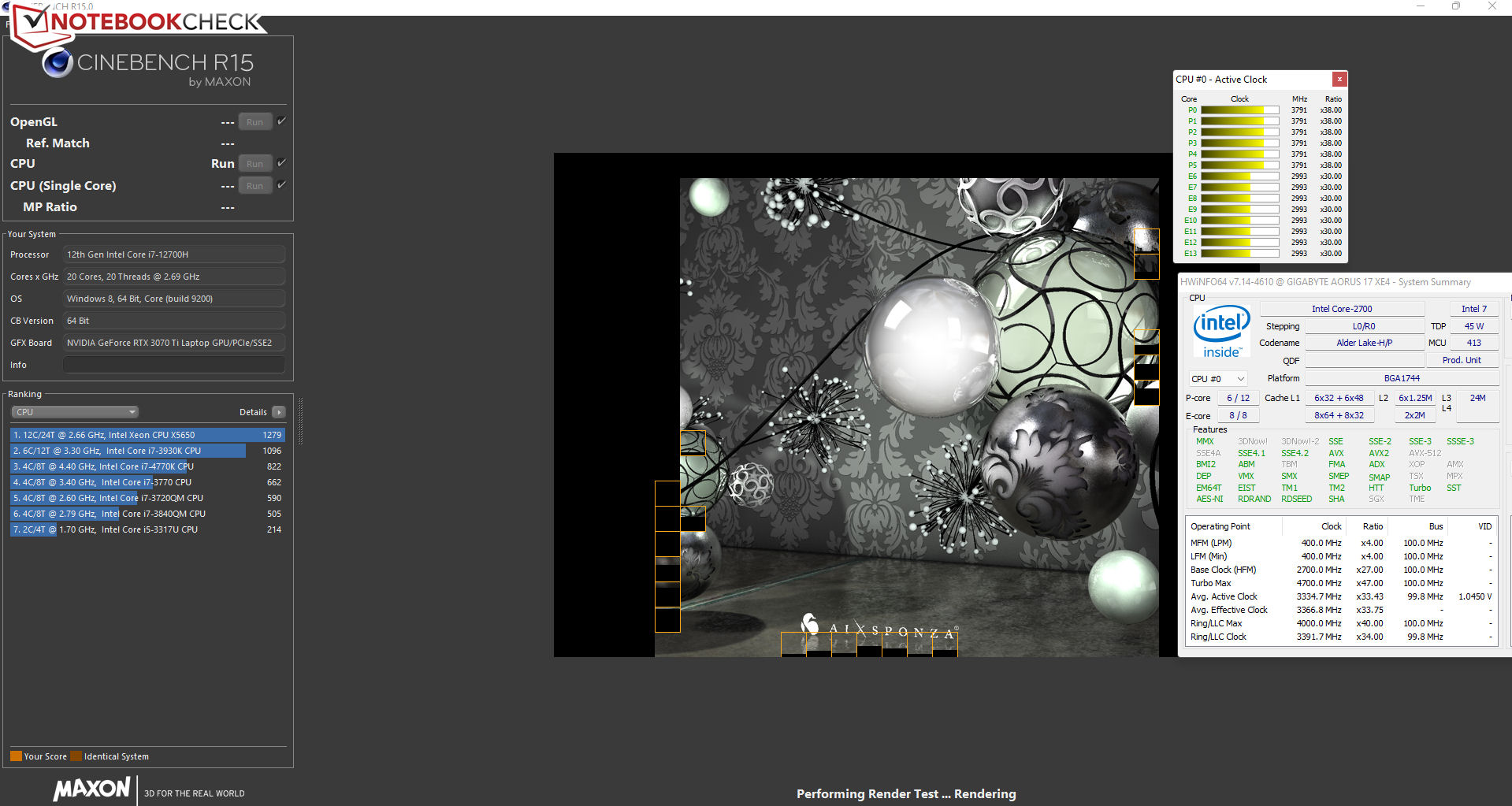

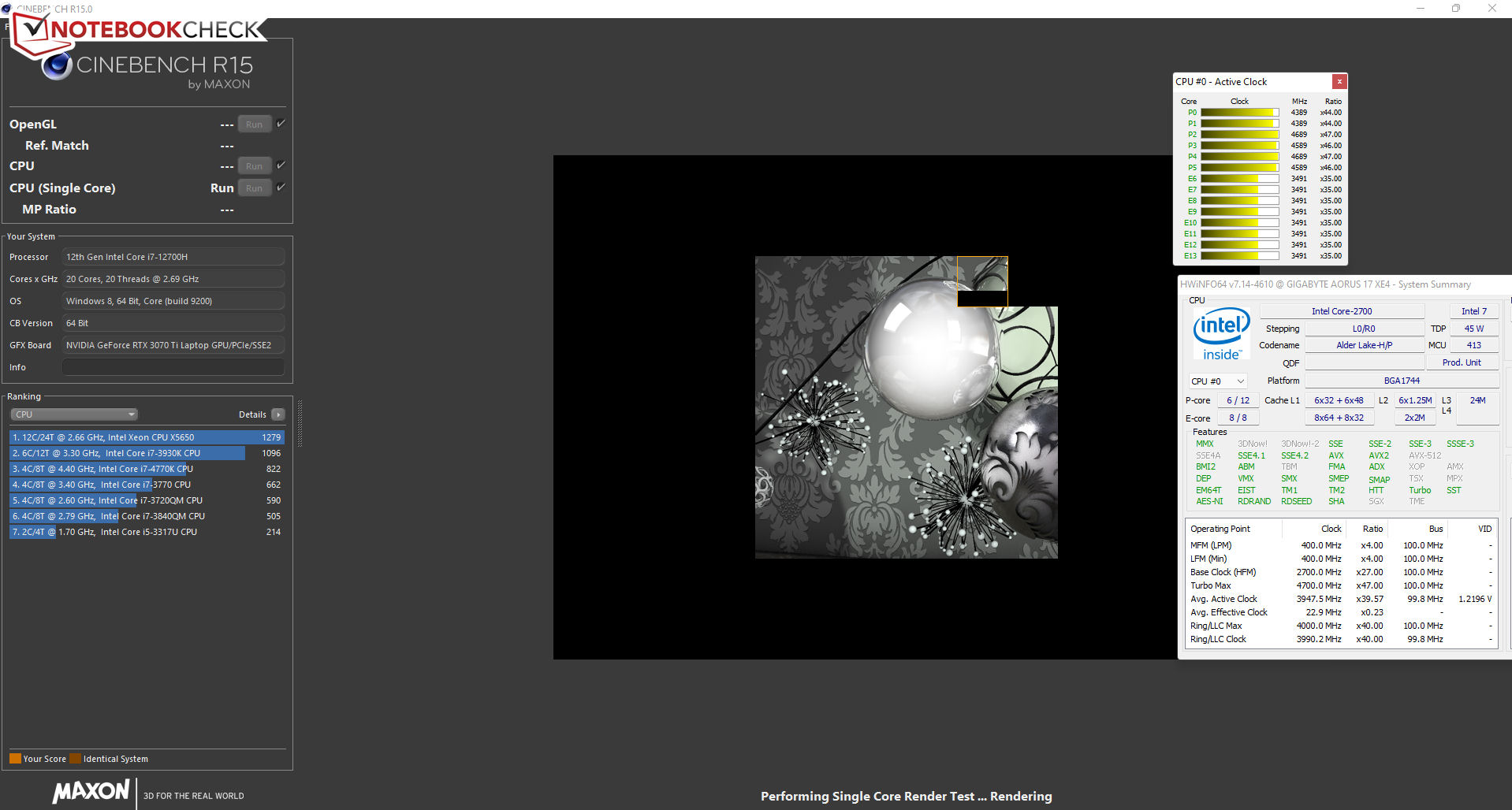

Cinebench R15基准测试的多线程测试在高时钟速率下短暂运行（P-cores：3.7至4.1 GHz，E-cores：3至3.1 GHz），然后下降（P-Core：3.1 GHz，E-Core：2.6 GHz）。单线程测试以高速连续运行（P-cores：4.1至4.7 GHz，E-cores：3.5 GHz）。

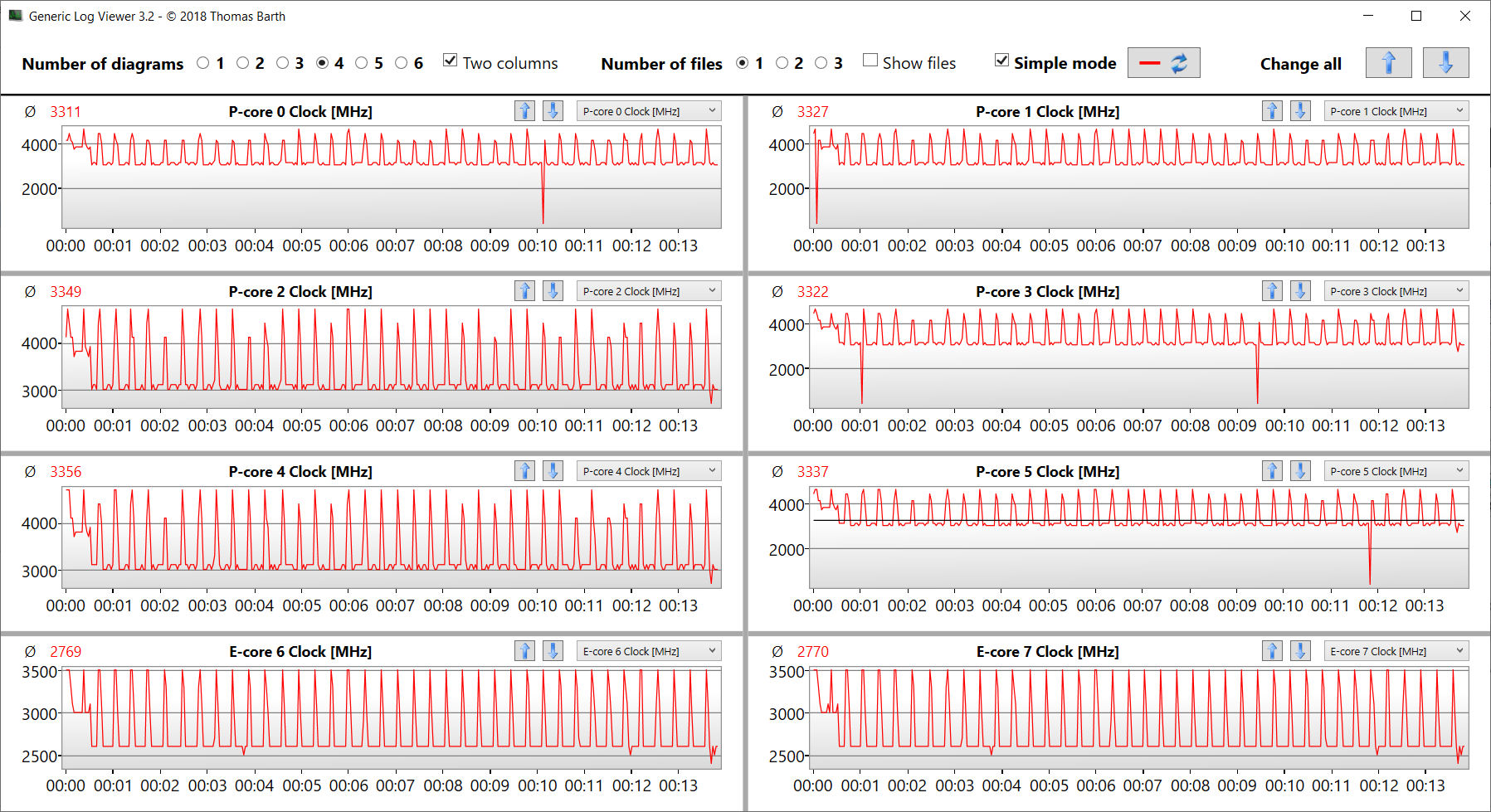

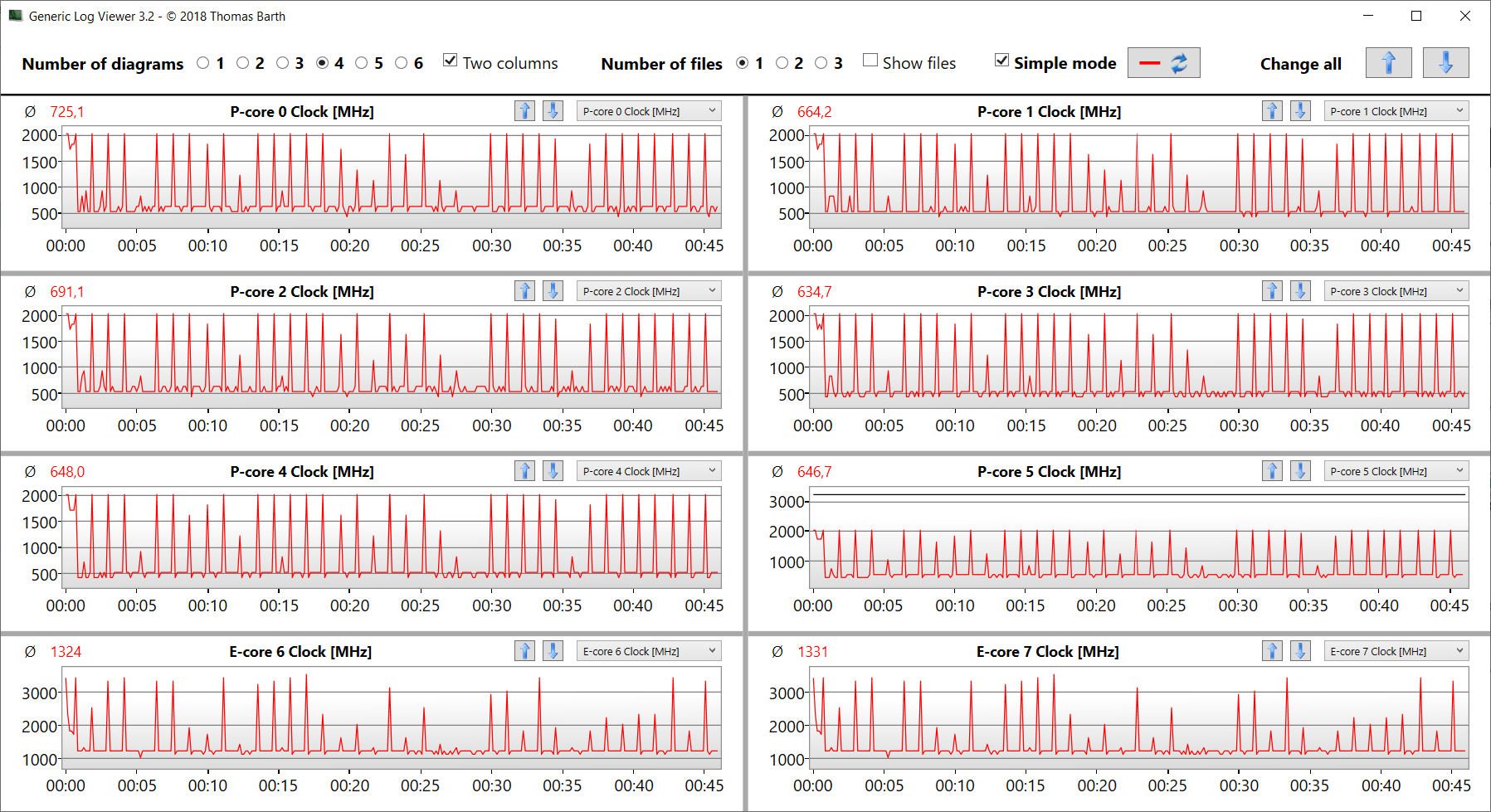

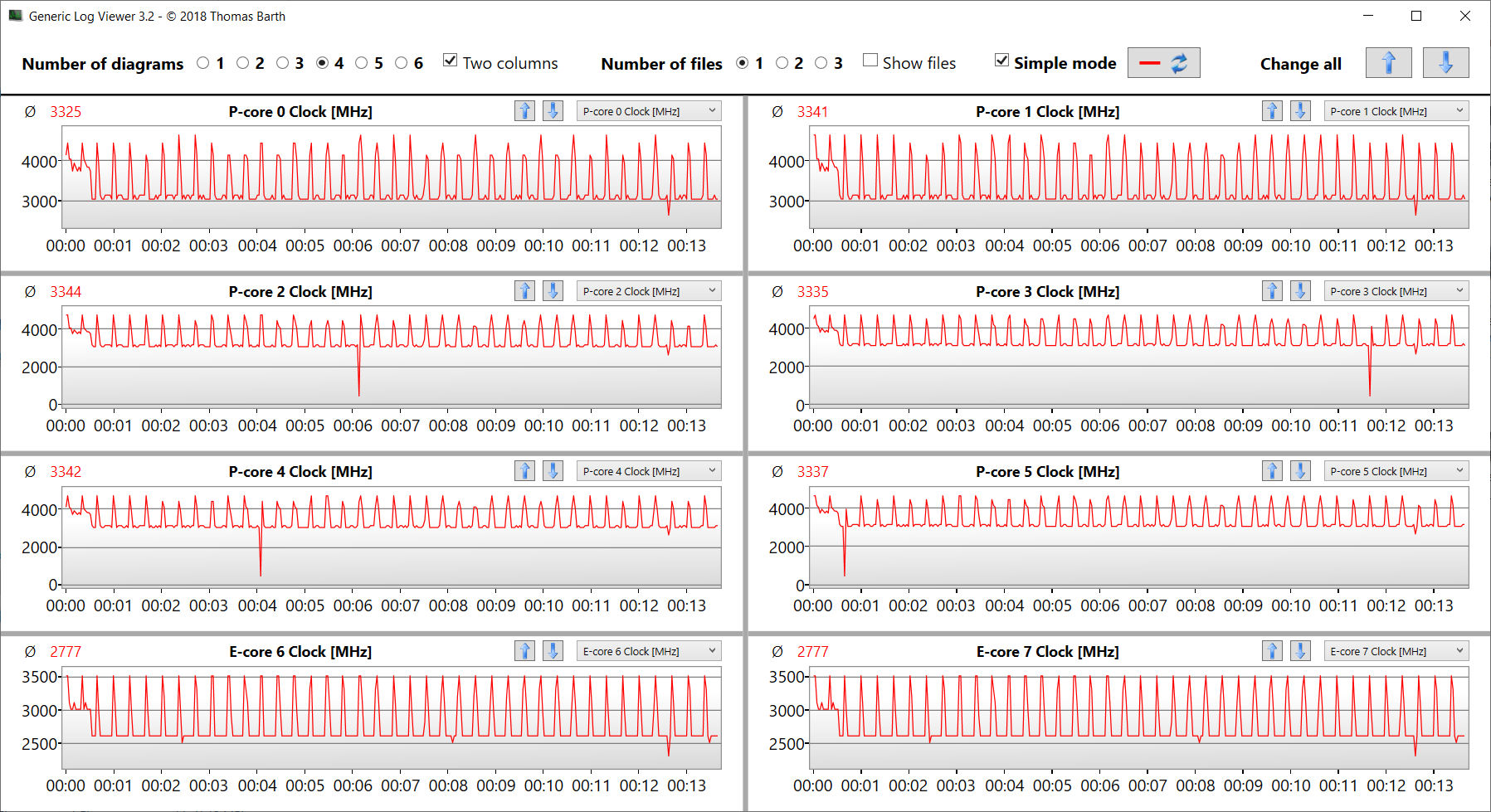

我们通过循环运行Cinebench R15基准测试的多线程测试来检查CPU Turbo在电源运行下是否被持续使用。高的时钟速率只能维持很短的时间。之后，P核和E核的运行速度都在中等涡轮范围内。选择性地激活性能配置文件 "涡轮模式 "并没有产生任何优势。
Cinebench R15 Multi Sustained Load
Aorus 17 XE4 Intel Core i7-12700H: Ø2279 (2184.6-2669.69)
Razer Blade 17 RTX 3080 Ti Intel Core i7-12800H: Ø2150 (2140.41-2221.61)
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H: Ø2829 (2783-2902.76)
MSI Vector GP66 12UGS Intel Core i9-12900H: Ø2372 (2349.62-2449.33)
Aorus 17 XE4 Intel Core i7-12700H; Turbo Mode: Ø2252 (2083.22-2679.35)
Aorus 17 XE4 Intel Core i7-12700H; Silence Mode: Ø642 (594.72-1378.88)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Gaming | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Intel Core i7-12700H | |
| Aorus 17 XE4 | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Gaming (5668 - 36249, n=193, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H (4032 - 19330, n=63) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 (Silence Mode) | |
| Single Core | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (1088 - 2235, n=191, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Turbo Mode) | |
| Average Intel Core i7-12700H (778 - 1826, n=62) | |
| Aorus 17 XE4 (Silence Mode) | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Gaming (2179 - 13832, n=191, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H (1576 - 7407, n=63) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 (Silence Mode) | |
| CPU (Single Core) | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (427 - 856, n=191, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H (300 - 704, n=63) | |
| Aorus 17 XE4 (Silence Mode) | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Gaming (905 - 5663, n=198, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H (1379 - 2916, n=69) | |
| MSI Vector GP66 12UGS | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 (Silence Mode) | |
| CPU Single 64Bit | |
| Average of class Gaming (176.6 - 318, n=195, last 2 years) | |
| MSI Vector GP66 12UGS | |
| Razer Blade 17 RTX 3080 Ti | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Turbo Mode) | |
| Average Intel Core i7-12700H (113 - 263, n=64) | |
| Aorus 17 XE4 (Silence Mode) | |
| Blender - v2.79 BMW27 CPU | |
| Aorus 17 XE4 (Silence Mode) | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H (168 - 732, n=62) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (87 - 555, n=186, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Gaming (23795 - 140932, n=190, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Intel Core i7-12700H (22844 - 73067, n=62) | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Silence Mode) | |
| 7z b 4 -mmt1 | |
| Average of class Gaming (4168 - 7581, n=190, last 2 years) | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Turbo Mode) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Intel Core i7-12700H (2743 - 5972, n=62) | |
| Aorus 17 XE4 (Silence Mode) | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Gaming (4557 - 23194, n=191, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Razer Blade 17 RTX 3080 Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Turbo Mode) | |
| Average Intel Core i7-12700H (5144 - 13745, n=63) | |
| Aorus 17 XE4 (Silence Mode) | |
| Single-Core | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (986 - 2210, n=191, last 2 years) | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Intel Core i7-12700H (803 - 1851, n=63) | |
| Aorus 17 XE4 (Silence Mode) | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Gaming (6.72 - 38.9, n=190, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Intel Core i7-12700H (4.67 - 21.8, n=63) | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Silence Mode) | |
| LibreOffice - 20 Documents To PDF | |
| Aorus 17 XE4 (Silence Mode) | |
| Average of class Gaming (31.4 - 96.6, n=187, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Intel Core i7-12700H (34.2 - 95.3, n=62) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 | |
| R Benchmark 2.5 - Overall mean | |
| Aorus 17 XE4 (Silence Mode) | |
| Average Intel Core i7-12700H (0.4441 - 1.052, n=62) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average of class Gaming (0.3609 - 0.759, n=191, last 2 years) | |
| MSI Vector GP66 12UGS | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Gaming | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average Intel Core i7-12700H | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Gaming (4986 - 60169, n=187, last 2 years) | |
| Average Intel Core i7-12700H (2585 - 17957, n=62) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / FPU Julia | |
| Average of class Gaming (25360 - 252486, n=187, last 2 years) | |
| Average Intel Core i7-12700H (12439 - 90760, n=62) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / CPU SHA3 | |
| Average of class Gaming (1339 - 10389, n=187, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| Average Intel Core i7-12700H (833 - 4242, n=62) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / CPU Queen | |
| Average of class Gaming (50699 - 200651, n=187, last 2 years) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Average Intel Core i7-12700H (57923 - 103202, n=62) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / FPU SinJulia | |
| Average of class Gaming (4800 - 32988, n=187, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Average Intel Core i7-12700H (3249 - 9939, n=62) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / FPU Mandel | |
| Average of class Gaming (12321 - 134044, n=187, last 2 years) | |
| Average Intel Core i7-12700H (7135 - 44760, n=62) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / CPU AES | |
| Average of class Gaming (19065 - 328679, n=187, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Average Intel Core i7-12700H (31839 - 144360, n=62) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / CPU ZLib | |
| Average of class Gaming (373 - 2409, n=187, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Average Intel Core i7-12700H (305 - 1171, n=62) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Gaming (2540 - 31796, n=187, last 2 years) | |
| Average Intel Core i7-12700H (1437 - 9692, n=62) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
| AIDA64 / CPU PhotoWorxx | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Average of class Gaming (10805 - 60161, n=188, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| Average Intel Core i7-12700H (12863 - 52207, n=62) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800, Turbo Mode) | |
| Aorus 17 XE4 (v6.50.5800, Silence Mode) | |
系统性能
系统运行平稳。安装的硬件为游戏和图像编辑等对性能要求高的应用提供了足够的计算能力。此外，PCMark的结果也很好。对于DDR4-3200内存来说，内存传输率处于正常水平。竞争者如 Razer Blade 17和 Legion 5 Pro 16 G7提供更好的速率，因为它们配备了更快的DDR5-4800内存。
| PCMark 8 Home Score Accelerated v2 | 5881 points | |
| PCMark 8 Creative Score Accelerated v2 | 7483 points | |
| PCMark 8 Work Score Accelerated v2 | 6906 points | |
| PCMark 10 Score | 7700 points | |
Help | ||
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (5776 - 9852, n=168, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (6941 - 7947, n=11) | |
| PCMark 10 / Essentials | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (9057 - 12334, n=167, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (9892 - 10935, n=11) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| PCMark 10 / Productivity | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (6662 - 14612, n=167, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (9024 - 10638, n=11) | |
| Razer Blade 17 RTX 3080 Ti | |
| PCMark 10 / Digital Content Creation | |
| MSI Vector GP66 12UGS | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming (6703 - 18475, n=167, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (10165 - 12546, n=11) | |
| CrossMark / Overall | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average of class Gaming (1247 - 2344, n=151, last 2 years) | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (974 - 2000, n=12) | |
| CrossMark / Productivity | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average of class Gaming (1299 - 2204, n=151, last 2 years) | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (907 - 1962, n=12) | |
| CrossMark / Creativity | |
| Average of class Gaming (1275 - 2660, n=151, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (1027 - 2057, n=12) | |
| CrossMark / Responsiveness | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU (1029 - 2142, n=12) | |
| Average of class Gaming (1030 - 2330, n=151, last 2 years) | |
| AIDA64 / Memory Copy | |
| Average of class Gaming (21842 - 94222, n=187, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Average Intel Core i7-12700H (25615 - 80511, n=62) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| AIDA64 / Memory Read | |
| Average of class Gaming (23681 - 99713, n=187, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| Average Intel Core i7-12700H (25586 - 79442, n=62) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Gaming (22986 - 108954, n=187, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| Average Intel Core i7-12700H (23679 - 88660, n=62) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Aorus 17 XE4 (v6.50.5800) | |
| AIDA64 / Memory Latency | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (v6.50.5800) | |
| Average of class Gaming (59.5 - 259, n=187, last 2 years) | |
| Aorus 17 XE4 (v6.50.5800) | |
| MSI Vector GP66 12UGS (v6.50.5800) | |
| Average Intel Core i7-12700H (76.2 - 133.9, n=60) | |
| Razer Blade 17 RTX 3080 Ti (v6.50.5800) | |
* ... smaller is better

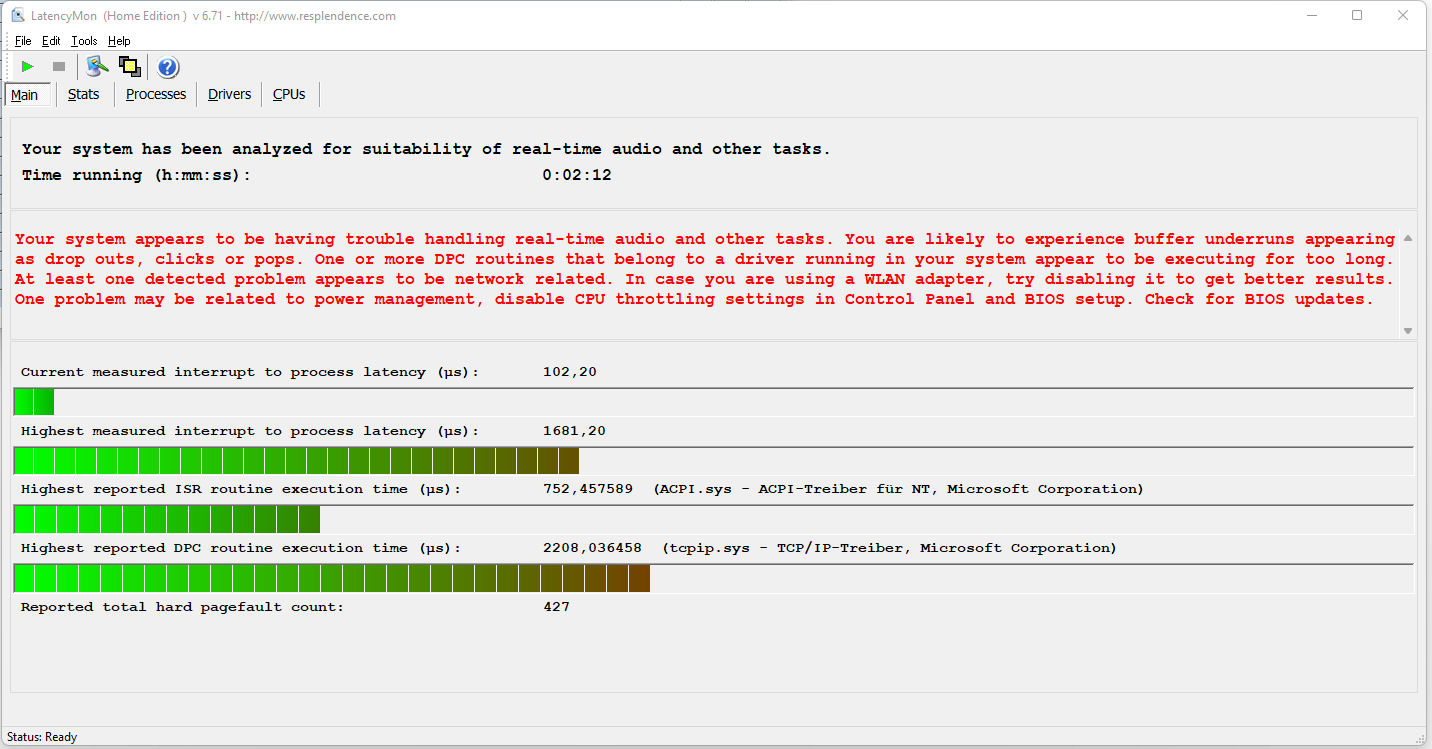

DPC延迟

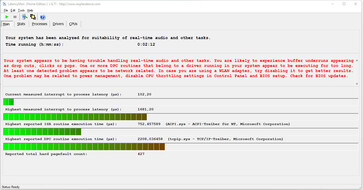

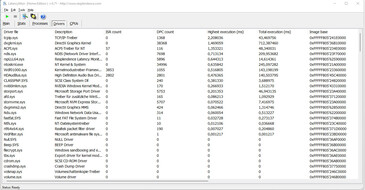

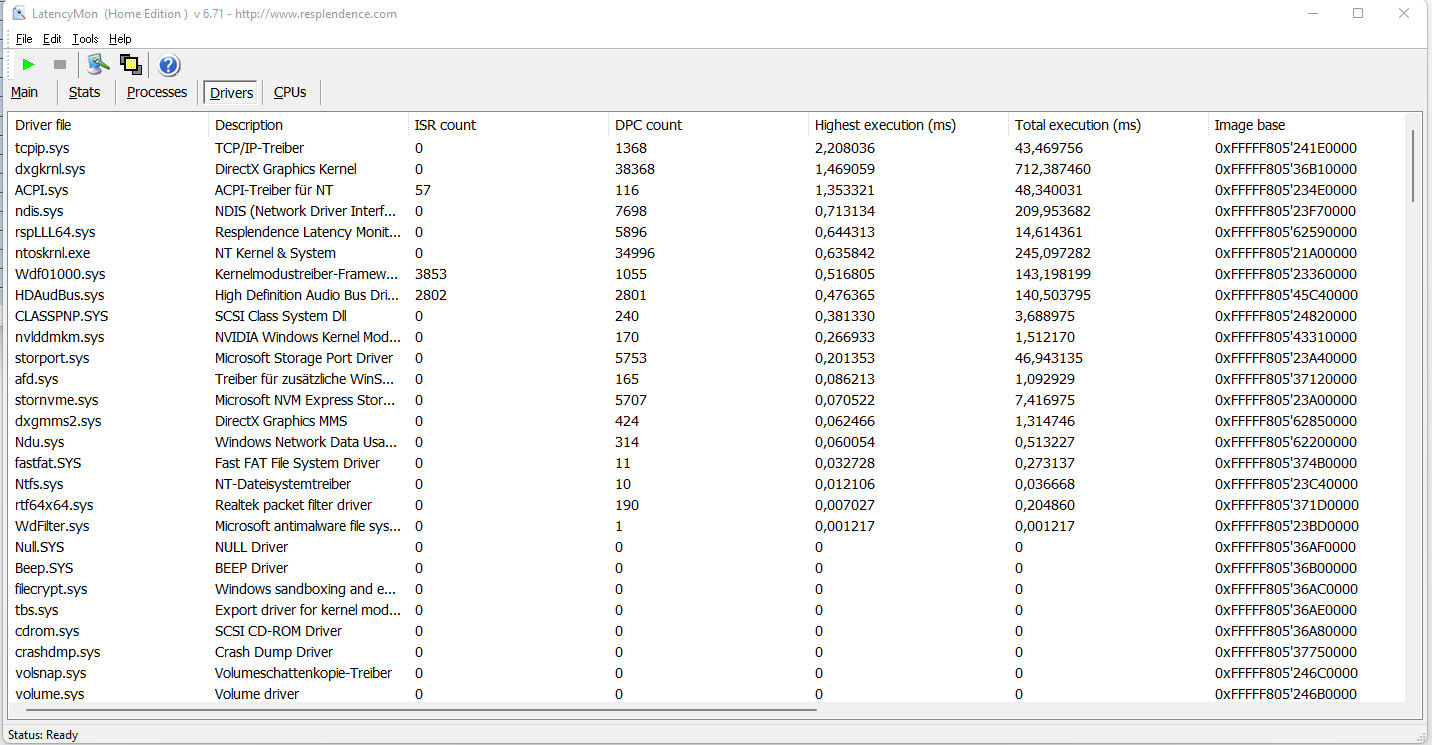

标准化的延迟监测测试（网络冲浪、4k视频播放、Prime95高负荷）发现了几个异常的DPC延迟。该系统似乎不适合实时视频和音频编辑。未来的软件更新可能会带来改进，或者在最坏的情况下，带来损害。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 | |
| Razer Blade 17 RTX 3080 Ti | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
* ... smaller is better
存储设备
Gigabyte的NVMe SSD（M.2-2280，PCIe 4）作为系统驱动器。它提供1TB的存储空间，并提供出色的传输速率。笔记本有空间容纳第二个PCIe 4固态硬盘（M.2-2280）。
Gigabyte AG470S1TB-SI B10
CDM 5/6 Read Seq Q32T1:
7082 MB/s
CDM 5/6 Write Seq Q32T1:
5000 MB/s
CDM 5/6 Read 4K Q32T1:
1035 MB/s
CDM 5/6 Write 4K Q32T1:
769 MB/s
CDM 5 Read Seq:
3048 MB/s
CDM 5 Write Seq:
3417 MB/s
CDM 5/6 Read 4K:
87.9 MB/s
CDM 5/6 Write 4K:
324.7 MB/s
| Drive Performance Rating - Percent | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Razer Blade 17 RTX 3080 Ti | |
| Average Gigabyte AG470S1TB-SI B10 | |
| Average of class Gaming | |
| MSI Vector GP66 12UGS | |
* ... smaller is better
Sustained Read: DiskSpd Read Loop, Queue Depth 8
Aorus 17 XE4 Gigabyte AG470S1TB-SI B10: Ø7005 (6083-7047.69)
Razer Blade 17 RTX 3080 Ti Samsung PM9A1 MZVL21T0HCLR: Ø6594 (6402.4-6612.32)
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Samsung PM9A1 MZVL21T0HCLR: Ø6611 (6175.27-6637.7)
MSI Vector GP66 12UGS : Ø3557 (3324.05-3569.97)
GPU性能

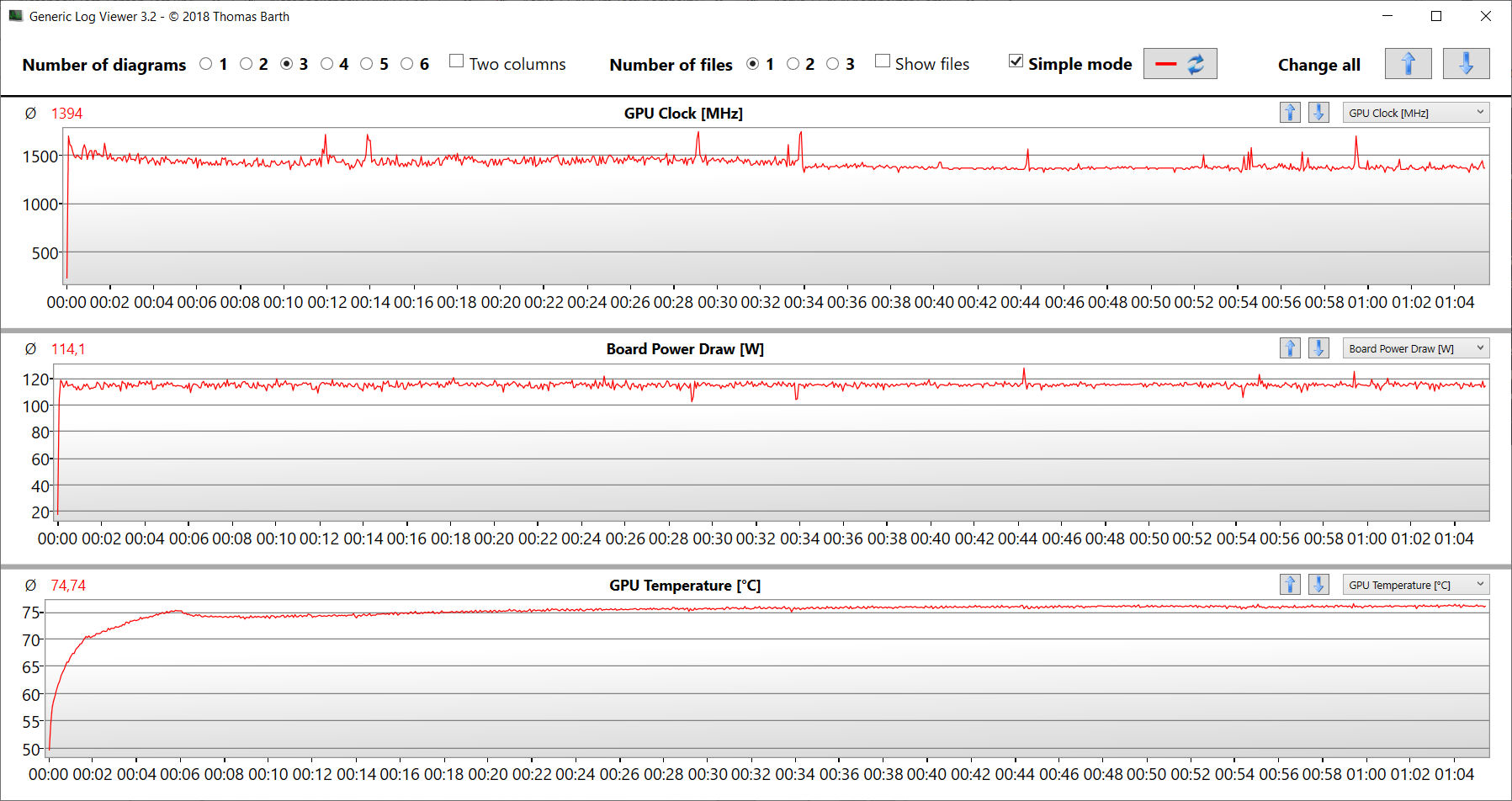

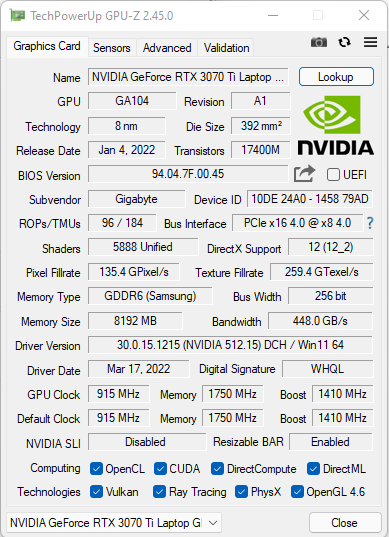

RTX 3000 GPU的实际性能取决于几个因素：冷却、内存配置，以及笔记本制造商在Nvidia定义的限制内选择的最大TGP。Gigabyte给出了安装 GeForce RTX 3070 Ti笔记本GPU的最大TGP为130瓦（115瓦+15瓦的动态提升）。然而，Witcher 3 测试显示，动态提升功能没有（或不能）被完全利用。
基准测试结果略高于之前确定的RTX 3070 Ti平均水平。激活 "涡轮模式 "配置文件会导致性能的小幅提升。GPU可以利用快速的GDDR6显存（8,192 MB）。该处理器的集成 Iris Xe Graphics G7图形核心是活跃的，笔记本与Nvidia的Optimus切换图形解决方案一起工作。
| 3DMark 11 Performance | 31122 points | |
| 3DMark Ice Storm Standard Score | 133013 points | |
| 3DMark Cloud Gate Standard Score | 54234 points | |
| 3DMark Fire Strike Score | 24133 points | |
| 3DMark Time Spy Score | 10754 points | |
Help | ||
| 3DMark Performance Rating - Percent | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming | |
| MSI Vector GP66 12UGS | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti -2! | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU | |
| Aorus 17 XE4 | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Gaming (1029 - 72178, n=186, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (13799 - 42569, n=36) | |
| Aorus 17 XE4 (Silence Mode) | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Aorus 17 XE4 (Turbo Mode) | |
| MSI Vector GP66 12UGS | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming (15902 - 193851, n=101, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (33126 - 181005, n=25) | |
| Aorus 17 XE4 (Silence Mode) | |
| 1920x1080 Fire Strike Graphics | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming (781 - 53059, n=196, last 2 years) | |
| MSI Vector GP66 12UGS | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (22612 - 32550, n=37) | |
| Aorus 17 XE4 (Silence Mode) | |
| 2560x1440 Time Spy Graphics | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming (224 - 22717, n=191, last 2 years) | |
| MSI Vector GP66 12UGS | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 (Turbo Mode) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (8142 - 12324, n=37) | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Silence Mode) | |
游戏性能
内置硬件可以在最大设置下以FHD分辨率流畅地运行所有当前游戏。当连接相应的显示器时，更高的分辨率也是可能的--质量设置部分降低。刷新率略高于RTX 3070 Ti的平均值。
The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | GTA V | Strange Brigade | F1 2021 | Far Cry 6 | Guardians of the Galaxy | Riders Republic | Forza Horizon 5 | God of War | Rainbow Six Extraction | Cyberpunk 2077 1.6 | Elex 2
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Gaming (18.4 - 216, n=168, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (76.8 - 124.1, n=39) | |
| Aorus 17 XE4 | |
| Aorus 17 XE4 (Silence Mode) | |
| Dota 2 Reborn - 1920x1080 high (2/3) | |
| Razer Blade 17 RTX 3080 Ti | |
| MSI Vector GP66 12UGS | |
| Average of class Gaming (31.6 - 244, n=189, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (75.4 - 170.2, n=38) | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 (Silence Mode) | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| MSI Vector GP66 12UGS | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming (31.5 - 166.2, n=196, last 2 years) | |
| Aorus 17 XE4 (Turbo Mode) | |
| Aorus 17 XE4 | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (51.6 - 116.9, n=37) | |
| Aorus 17 XE4 (Silence Mode) | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Razer Blade 17 RTX 3080 Ti (1.3) | |
| Average of class Gaming (19.2 - 201, n=184, last 2 years) | |
| MSI Vector GP66 12UGS (1.3) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (1.3) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (49.5 - 122.4, n=35) | |
| Aorus 17 XE4 (1.3, Turbo Mode) | |
| Aorus 17 XE4 (1.3) | |
| Aorus 17 XE4 (1.3, Silence Mode) | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| MSI Vector GP66 12UGS | |
| Aorus 17 XE4 (Turbo Mode) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 | |
| Razer Blade 17 RTX 3080 Ti | |
| Average of class Gaming (12.1 - 167.7, n=171, last 2 years) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (44 - 123.9, n=36) | |
| Aorus 17 XE4 (Silence Mode) | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Average of class Gaming (38.9 - 421, n=182, last 2 years) | |
| Razer Blade 17 RTX 3080 Ti (1.47.22.14 D3D12) | |
| MSI Vector GP66 12UGS (1.47.22.14 D3D12) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Aorus 17 XE4 (1.47.22.14 D3D12, Turbo Mode) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (109 - 221, n=37) | |
| Aorus 17 XE4 (1.47.22.14 D3D12) | |
| Aorus 17 XE4 (1.47.22.14 D3D12, Silence Mode) | |
| F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| Average of class Gaming (27.6 - 271, n=17, last 2 years) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti (852849) | |
| Aorus 17 XE4 (868399, Turbo Mode) | |
| Aorus 17 XE4 (865624) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (67.3 - 134.2, n=13) | |
| Far Cry 6 | |
| 1920x1080 Ultra Graphics Quality + HD Textures AA:T | |
| Average of class Gaming (35 - 167, n=28, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (82 - 95.3, n=4) | |
| 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| Average of class Gaming (71.9 - 119, n=9, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (59 - 77.7, n=2) | |
| Guardians of the Galaxy | |
| 1920x1080 Ultra Preset | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (108 - 120, n=2) | |
| Average of class Gaming (42 - 163, n=10, last 2 years) | |
| Aorus 17 XE4 | |
| 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| Average of class Gaming (54 - 128, n=7, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (63 - 69, n=2) | |
| Riders Republic - 1920x1080 Ultra Preset | |
| Average of class Gaming (83 - 179, n=6, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (96 - 105, n=2) | |
| Forza Horizon 5 - 1920x1080 Extreme Preset | |
| Average of class Gaming (55 - 124, n=4, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (76 - 80, n=3) | |
| God of War - 1920x1080 Ultra Preset | |
| Average of class Gaming (41.8 - 133, n=13, last 2 years) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (55.1 - 64.3, n=5) | |
| Aorus 17 XE4 | |
| Rainbow Six Extraction - 1920x1080 Ultra Preset (with Fixed Resolution Quality) | |
| Average of class Gaming (33 - 314, n=7, last 2 years) | |
| Aorus 17 XE4 | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (138 - 141, n=2) | |
| Cyberpunk 2077 1.6 | |
| 1920x1080 Ultra Preset | |
| Razer Blade 17 RTX 3080 Ti | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average of class Gaming (16.7 - 159.7, n=71, last 2 years) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (48.5 - 104, n=13) | |
| Aorus 17 XE4 (1.52) | |
| 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti | |
| Average of class Gaming (19.1 - 74, n=26, last 2 years) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (27.9 - 63, n=7) | |
| Aorus 17 XE4 (1.52) | |
| Elex 2 - 1920x1080 Ultra / On AA:SM AF:16x | |
| Average of class Gaming (30.1 - 118.5, n=7, last 2 years) | |
| Average NVIDIA GeForce RTX 3070 Ti Laptop GPU (75 - 89, n=3) | |
| Aorus 17 XE4 | |

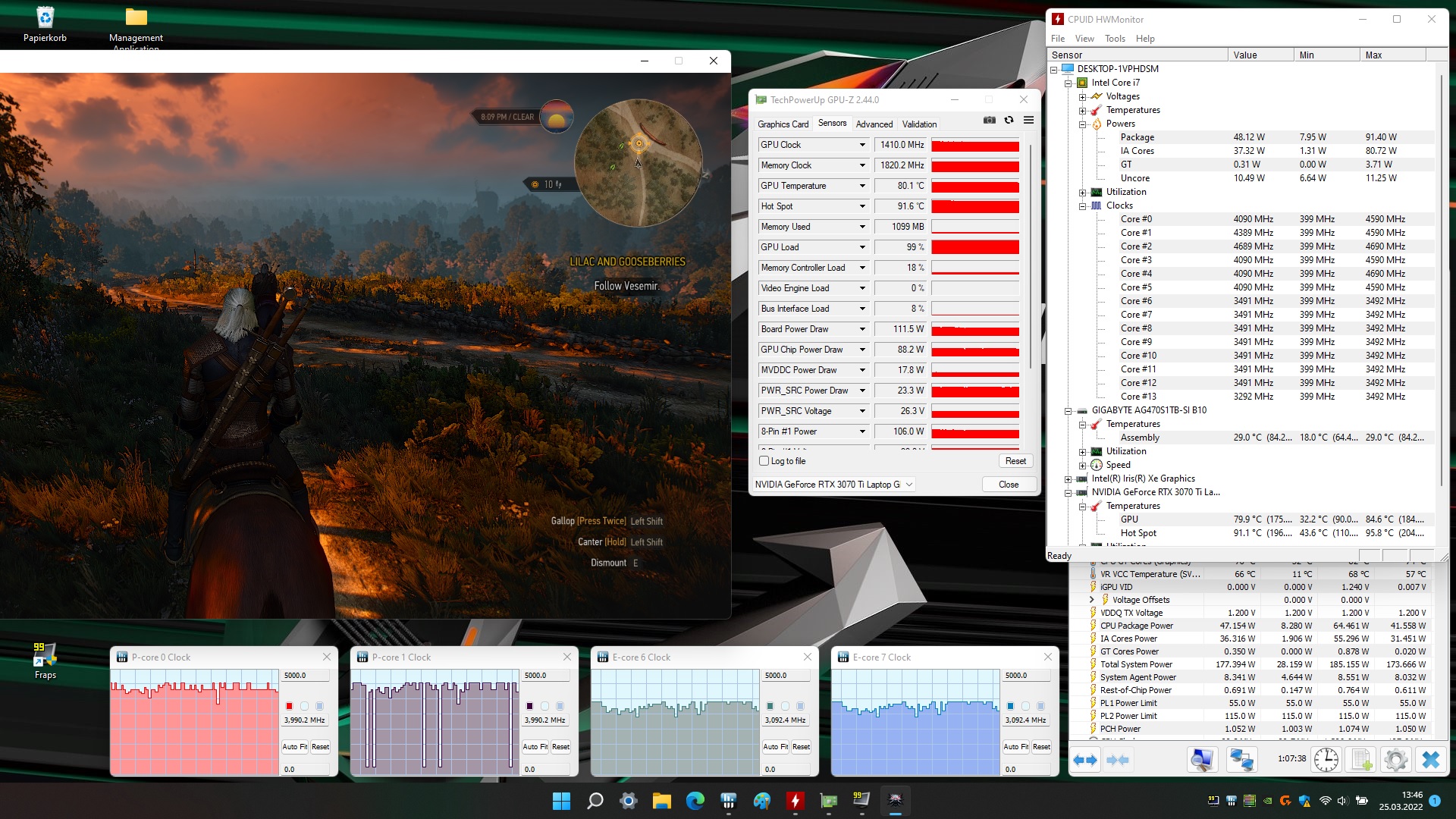

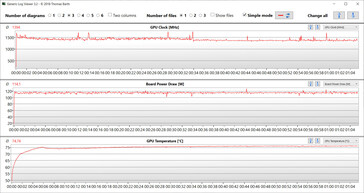

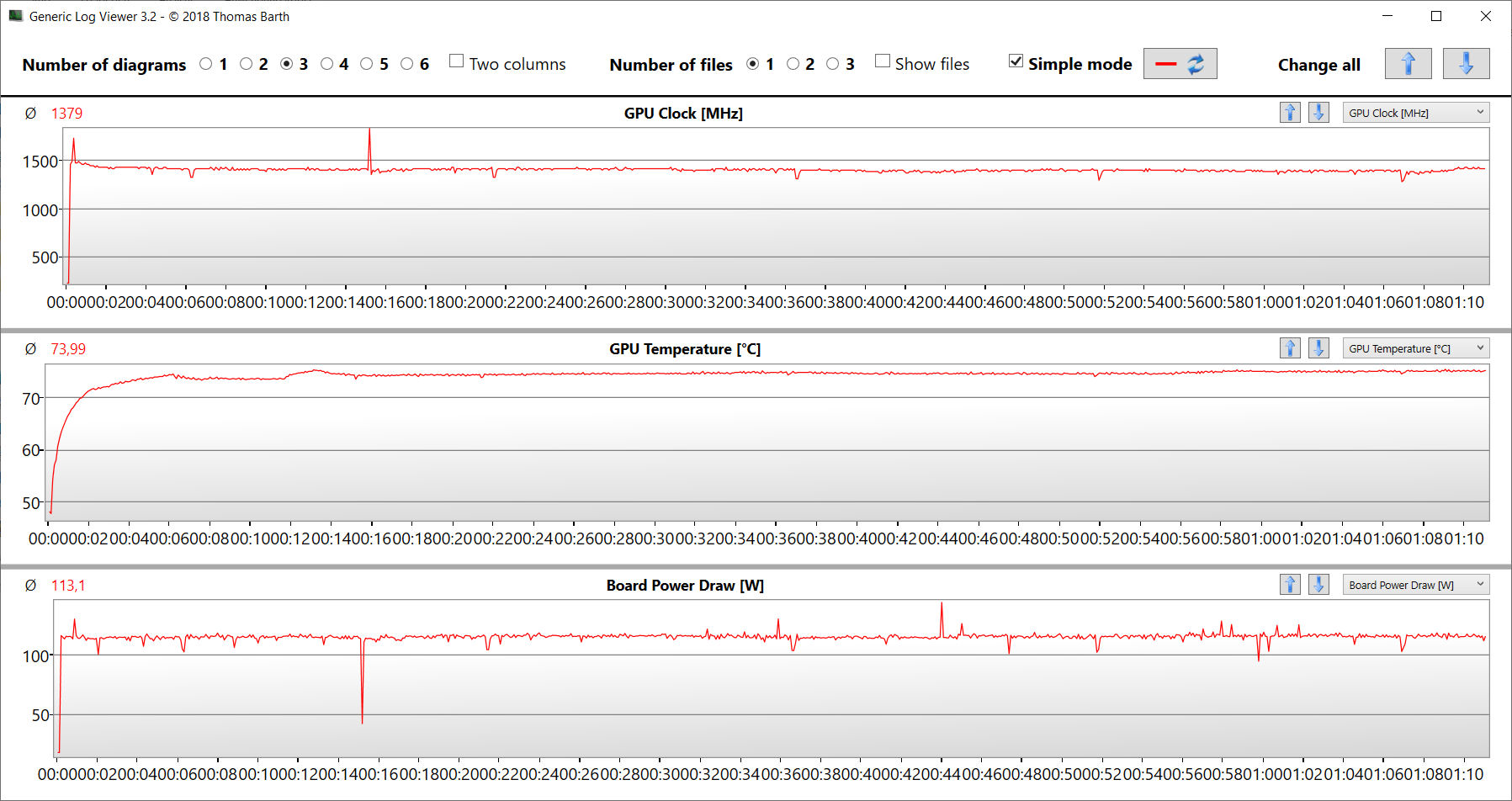

为了检查帧率是否在很长一段时间内保持基本稳定，我们在全高清分辨率和最高质量设置下运行了游戏 "TheWitcher 3"约60分钟。游戏角色没有被移动。帧率没有明显的下降。
Witcher 3 FPS Chart
Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU: Ø96.5 (87-103)
Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU: Ø121 (110-130)
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU: Ø103.3 (89-111)
MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU: Ø109.3 (61-117)
Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU; Silence Mode: Ø87.9 (47-95)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 185 | 179 | 175 | 117 |
| The Witcher 3 (2015) | 422 | 291 | 180 | 99.9 |
| Dota 2 Reborn (2015) | 174 | 155 | 147 | 139 |
| Final Fantasy XV Benchmark (2018) | 180 | 126 | 96.5 | |
| X-Plane 11.11 (2018) | 147 | 131 | 103 | |
| Far Cry 5 (2018) | 177 | 146 | 138 | 130 |
| Strange Brigade (2018) | 426 | 244 | 200 | 178 |
| Doom Eternal (2020) | 365 | 240 | 207 | 198.4 |
| Death Stranding (2020) | 156.9 | 143.1 | 137.9 | 137.1 |
| Mafia Definitive Edition (2020) | 161.8 | 119.8 | 111.5 | |
| Watch Dogs Legion (2020) | 121 | 106 | 96.3 | 70.6 |
| Dirt 5 (2020) | 219 | 136.5 | 111.9 | 88.7 |
| Assassin´s Creed Valhalla (2020) | 157 | 107 | 90 | 77 |
| Hitman 3 (2021) | 250.8 | 183.5 | 165.5 | 156.9 |
| F1 2021 (2021) | 327 | 229 | 196 | 116 |
| Alan Wake Remastered (2021) | 169.3 | 136.3 | 130.5 | |
| Far Cry 6 (2021) | 149 | 116 | 103 | 95.3 |
| Guardians of the Galaxy (2021) | 120 | 109 | 111 | 108 |
| Riders Republic (2021) | 189 | 139 | 115 | 105 |
| Forza Horizon 5 (2021) | 195 | 130 | 124 | 79 |
| Battlefield 2042 (2021) | 136.4 | 111.7 | 101.4 | 90 |
| Halo Infinite (2021) | 129.9 | 113.3 | 106.7 | |
| God of War (2022) | 124 | 104 | 84.7 | 59.6 |
| Rainbow Six Extraction (2022) | 210 | 183 | 177 | 141 |
| GRID Legends (2022) | 187.3 | 169.1 | 149.1 | 111.2 |
| Cyberpunk 2077 1.6 (2022) | 123 | 108 | 84.2 | 69.7 |
| Elex 2 (2022) | 110 | 104 | 88.8 | 80.1 |
排放--技嘉Aorus发出大量的噪音
噪声
Aorus笔记本电脑在整个负载范围内产生正常水平的噪音--由硬件测量。在日常使用中（办公室、互联网），噪音水平在限制范围内，但在负载下会变得很吵（49至51 dB(A)）。风扇在两个方面很明显：一方面，它们会轻微摆动，另一方面，它们在较高的旋转速度下会发出呼啸的噪音。
负载下的噪音可以通过使用性能配置文件 "省电静音模式 "来减少--以牺牲性能为代价。在降低设置的情况下仍然可以进行游戏。
Noise Level
| Idle |
| 30 / 31 / 34 dB(A) |
| Load |
| 44 / 49 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24 dB(A) | ||
| Aorus 17 XE4 GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Gigabyte AG470S1TB-SI B10 | Razer Blade 17 RTX 3080 Ti GeForce RTX 3080 Ti Laptop GPU, i7-12800H, Samsung PM9A1 MZVL21T0HCLR | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti GeForce RTX 3070 Ti Laptop GPU, i7-12700H, Samsung PM9A1 MZVL21T0HCLR | MSI Vector GP66 12UGS GeForce RTX 3070 Ti Laptop GPU, i9-12900H | |
|---|---|---|---|---|
| Noise | 12% | 1% | 8% | |
| off / environment * | 24 | 23.3 3% | 24.6 -3% | 22.9 5% |
| Idle Minimum * | 30 | 23.3 22% | 28.4 5% | 23.4 22% |
| Idle Average * | 31 | 23.3 25% | 28.4 8% | 23.4 25% |
| Idle Maximum * | 34 | 26.3 23% | 28.4 16% | 27.4 19% |
| Load Average * | 44 | 38.2 13% | 49.4 -12% | 36 18% |
| Witcher 3 ultra * | 51 | 50.9 -0% | 49.4 3% | 58.2 -14% |
| Load Maximum * | 49 | 49.1 -0% | 54.7 -12% | 58 -18% |
* ... smaller is better

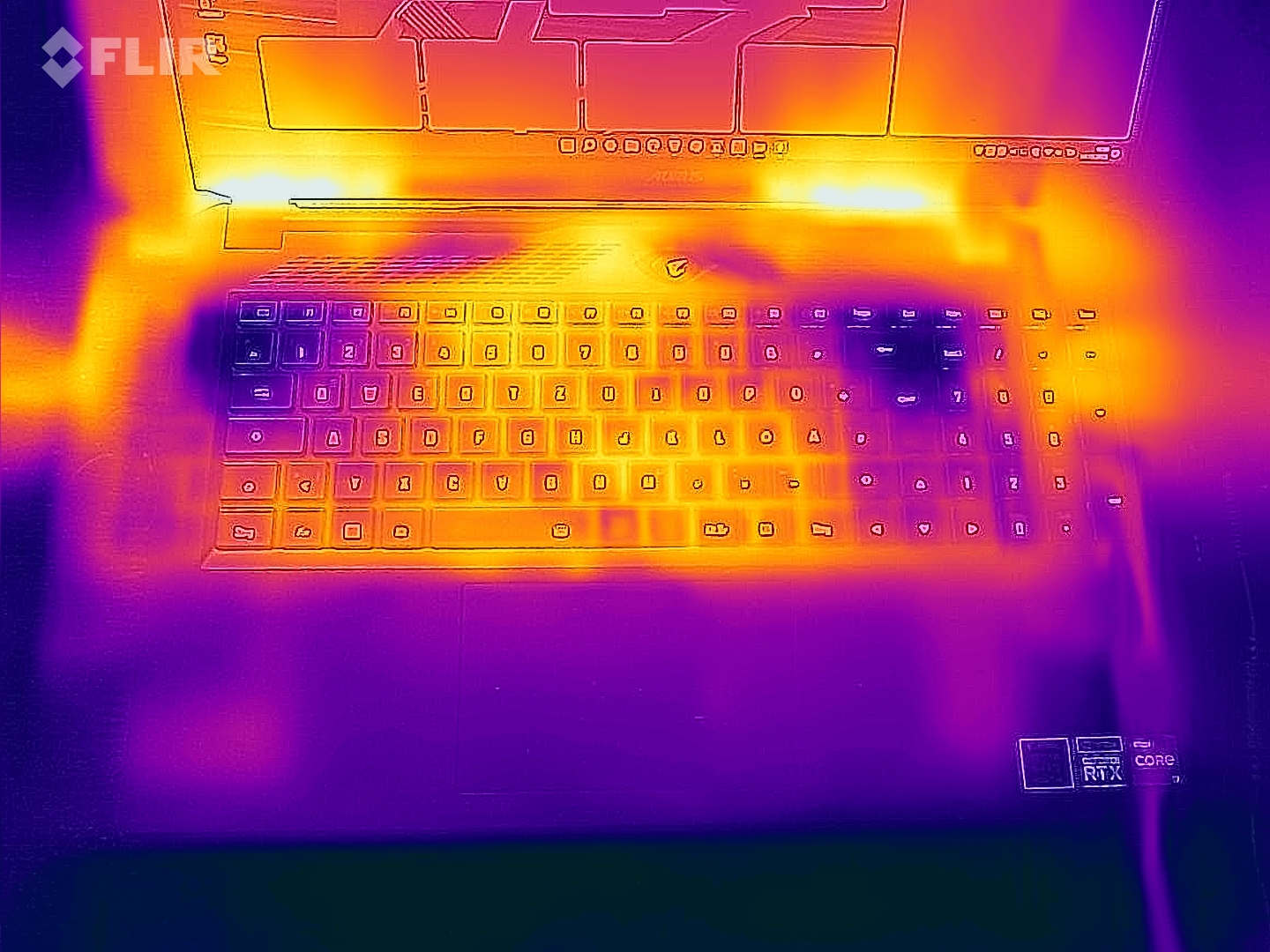

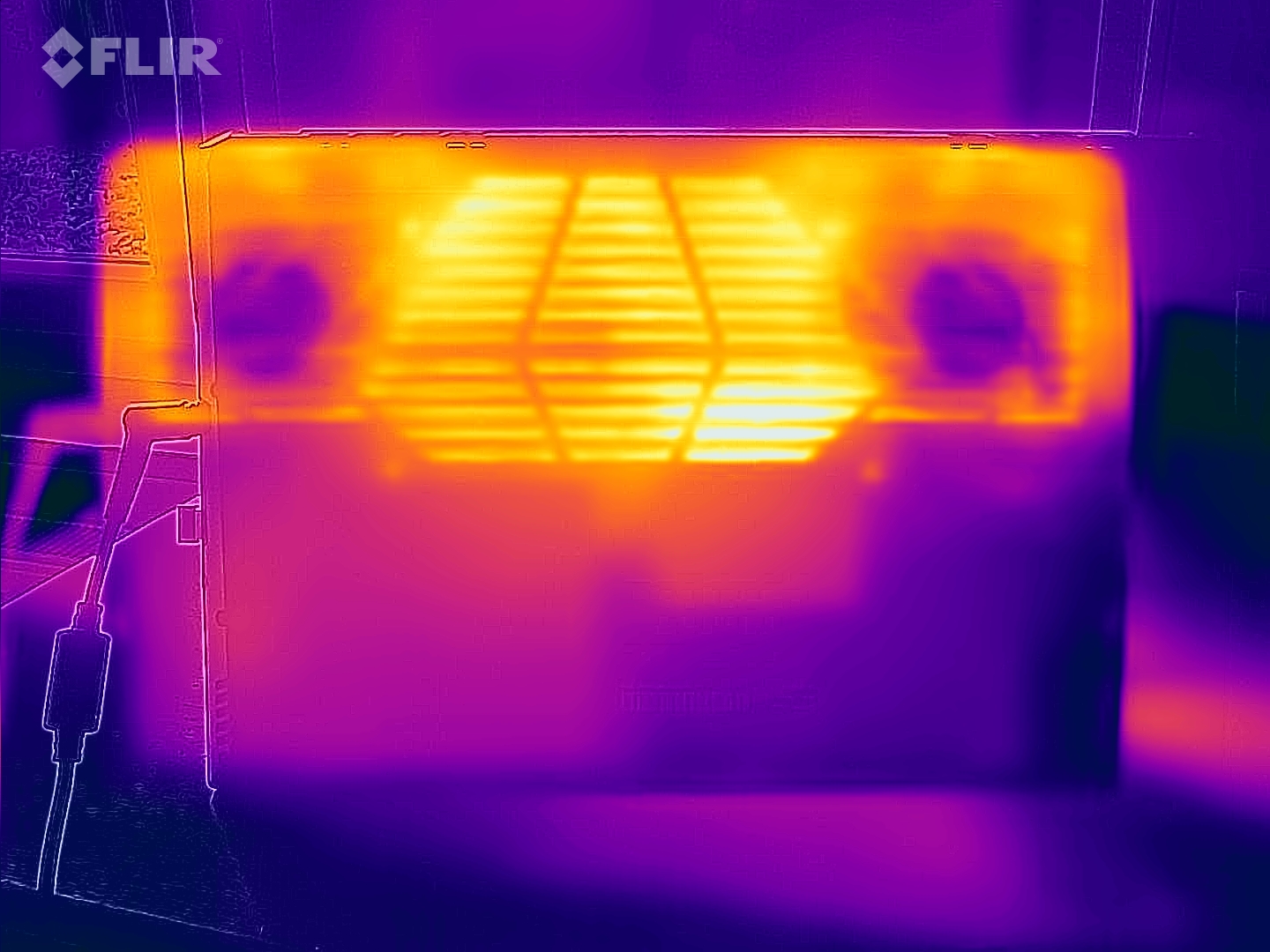

温度

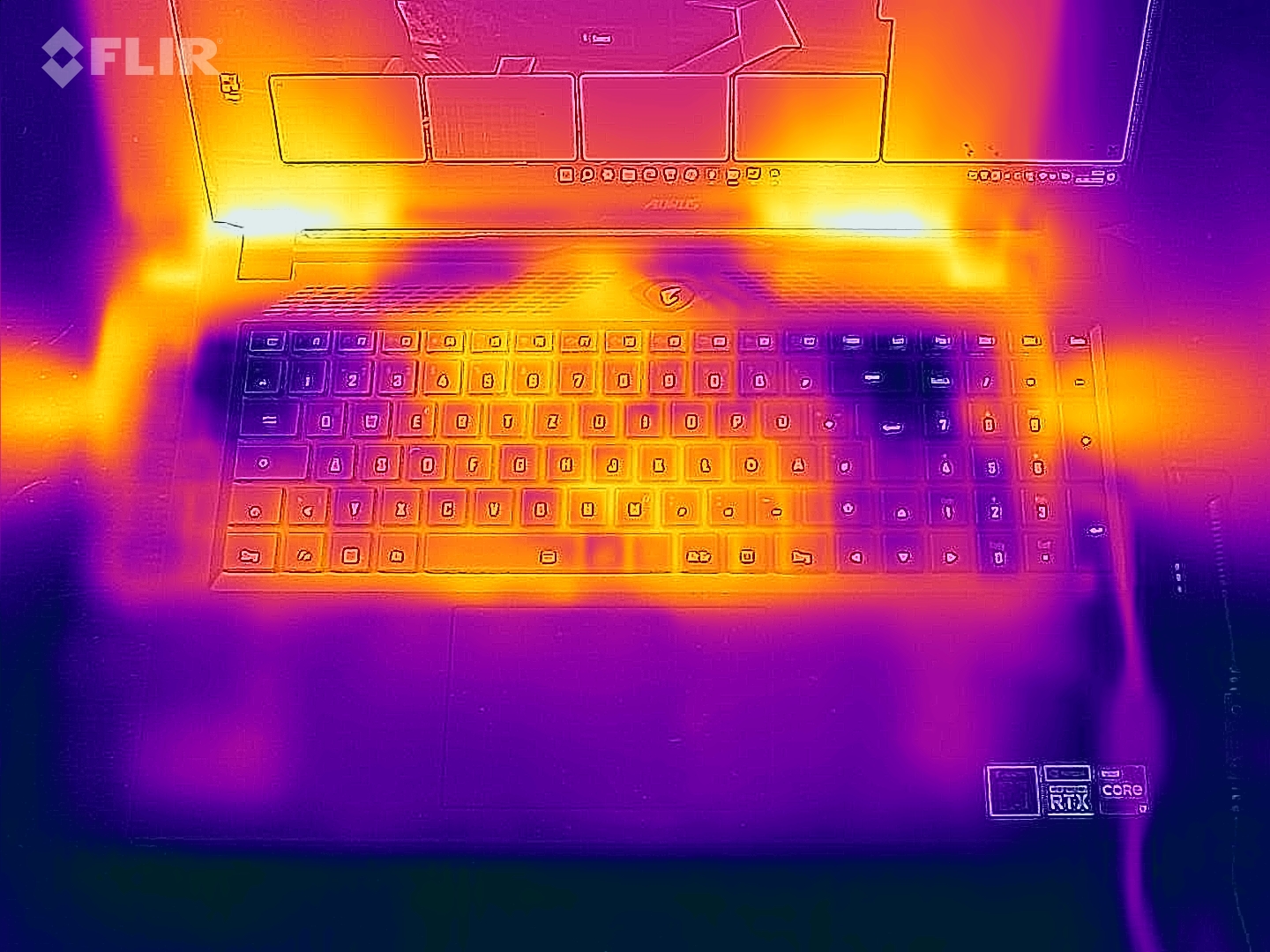

在日常使用中，机箱温度保持在绿色范围内（办公室、互联网）。笔记本在负载情况下会明显发热（压力测试，Witcher 3 ）。在一些测量点，温度刚刚超过60摄氏度。CPU的温度没有引起关注。
(-) The average temperature for the upper side under maximal load is 39.1 °C / 102 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 58 °C / 136 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 27.6 °C / 82 F, compared to the device average of 33.9 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 41.7 °C / 107 F, compared to the device average of 33.9 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36 °C / 96.8 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-7.1 °C / -12.8 F).
(-) The maximum temperature on the upper side is 50 °C / 122 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 58 °C / 136 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 27.6 °C / 82 F, compared to the device average of 33.9 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 41.7 °C / 107 F, compared to the device average of 33.9 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36 °C / 96.8 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-7.1 °C / -12.8 F).
| Aorus 17 XE4 Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU | Razer Blade 17 RTX 3080 Ti Intel Core i7-12800H, NVIDIA GeForce RTX 3080 Ti Laptop GPU | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti Intel Core i7-12700H, NVIDIA GeForce RTX 3070 Ti Laptop GPU | MSI Vector GP66 12UGS Intel Core i9-12900H, NVIDIA GeForce RTX 3070 Ti Laptop GPU | |
|---|---|---|---|---|
| Heat | -4% | 3% | 3% | |
| Maximum Upper Side * | 50 | 46 8% | 45.3 9% | 40.2 20% |
| Maximum Bottom * | 58 | 46.8 19% | 61.2 -6% | 43.8 24% |
| Idle Upper Side * | 30 | 36.2 -21% | 28.6 5% | 34.8 -16% |
| Idle Bottom * | 32 | 38.6 -21% | 31.4 2% | 37 -16% |
* ... smaller is better

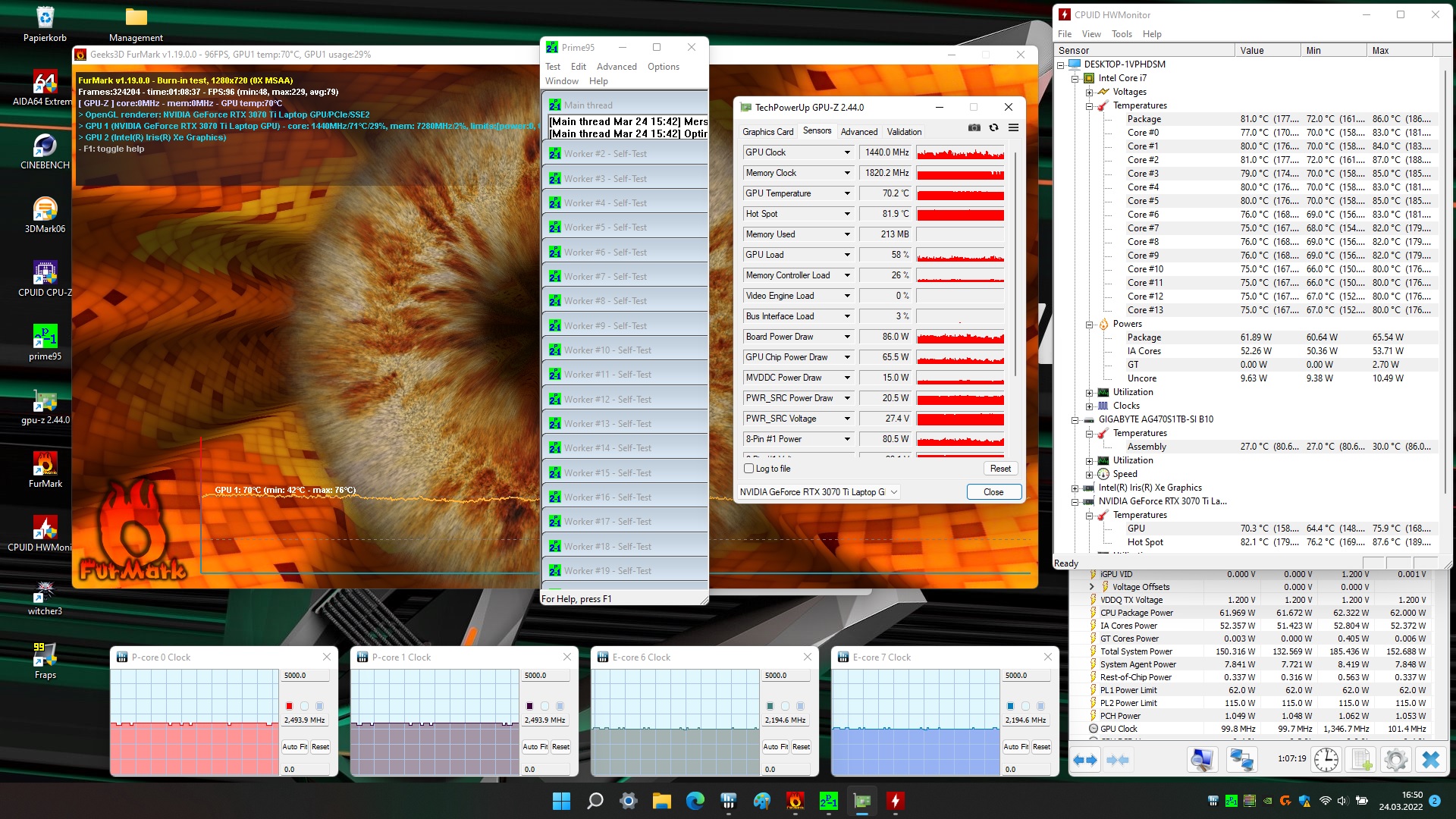

压力测试
CPU以2.5 GHz（P-cores）和2.2 GHz（E-cores）的速度完成压力测试。GPU的运行速度超过了1000MHz。压力测试代表了一种极端情况。我们用这个测试来检查系统是否在全负荷下稳定运行。
发言人
立体声扬声器产生的声音还不错，但缺乏低音。最大音量相对较高。建议使用耳机或外部扬声器以获得更好的声音体验。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Aorus 17 XE4 audio analysis
(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.3% lower than median
(±) | linearity of bass is average (12.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.9% away from median
(+) | mids are linear (4.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.5% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 12% similar, 42% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 30% of all tested devices were better, 8% similar, 62% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti audio analysis
(±) | speaker loudness is average but good (79.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.8% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (5.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 7% similar, 66% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 17% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理--17.3英寸显示器提供平均的电池寿命
消耗功率
对于安装在这里的硬件来说，电源要求处于正常水平。在压力测试开始时，功耗短时间内上升到257瓦，但很快下降到200瓦左右。Witcher 3 ，进行了平均196瓦的测试。附带的电源适配器（额定输出：240瓦）的大小足够了。
Power Consumption
| Off / Standby | 0.1 / 0.1 Watt |
| Idle | 20 / 23 / 28 Watt |
| Load |
120 / 257 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Gigabyte AG470S1TB-SI B10, IPS, 1920x1080, 17.3" | Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1440, 17.3" | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU, Samsung PM9A1 MZVL21T0HCLR, IPS, 2560x1600, 16" | MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU, , IPS, 1920x1080, 15.6" | Average NVIDIA GeForce RTX 3070 Ti Laptop GPU | Average of class Gaming | |
|---|---|---|---|---|---|---|
| Power Consumption | -45% | 15% | -9% | 9% | 14% | |
| Idle Minimum * | 20 | 29.8 -49% | 8.6 57% | 17.5 12% | 14.2 ? 29% | 13.5 ? 32% |
| Idle Average * | 23 | 37.1 -61% | 17.6 23% | 20.1 13% | 19.9 ? 13% | 18.9 ? 18% |
| Idle Maximum * | 28 | 60.8 -117% | 18.5 34% | 47.3 -69% | 26.2 ? 6% | 26.7 ? 5% |
| Load Average * | 120 | 135.3 -13% | 110 8% | 107.3 11% | 125.8 ? -5% | 106.6 ? 11% |
| Witcher 3 ultra * | 196 | 243 -24% | 227 -16% | 225 -15% | ||
| Load Maximum * | 257 | 273.1 -6% | 294.6 -15% | 277.7 -8% | 248 ? 4% | 249 ? 3% |
* ... smaller is better
Power Consumption Witcher 3 / Stresstest
Aorus 17 XE4; Witcher 3 ultra: Ø196 (187-208)
Aorus 17 XE4; 1280x720 Prime95 28.10 and Furmark 1.25: Ø205 (170-245)
Power Consumption with an external monitor
Aorus 17 XE4; Prime95 V2810 Stress (external Monitor): Ø105.8 (101-150)
Aorus 17 XE4; Cinebench R15 Multi (external Monitor): Ø154.4 (149-167)
Aorus 17 XE4; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø190.1 (186-193)
Aorus 17 XE4; 1920x1080 The Witcher 3 ultra (external Monitor): Ø190.9 (186-207)
电池寿命
在WLAN测试（通过脚本访问网站）和视频测试（短片Big Buck Bunny（H.264编码，FHD）循环播放）中，这台17.3英寸的笔记本分别实现了5:08小时和6:06小时的运行时间。在这两项测试中，笔记本的节能功能被停用，显示亮度被设置为150cd/m²左右。在视频测试中，无线模块也被关闭。

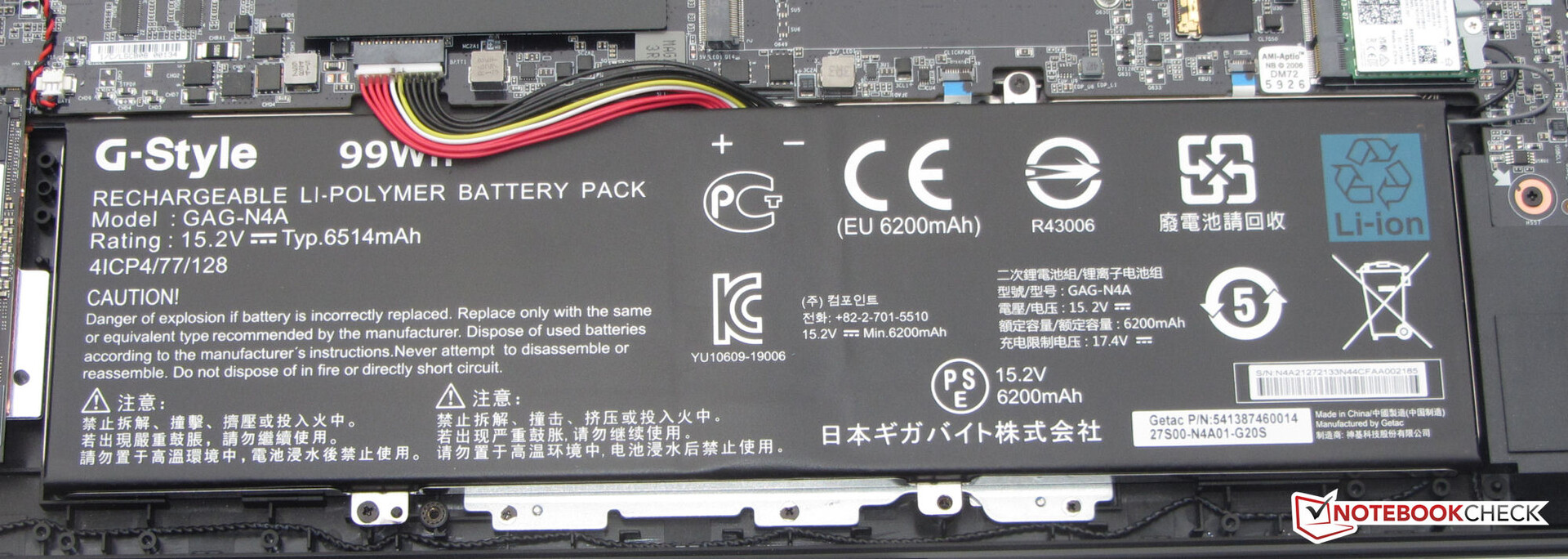

简而言之，Aorus 17只能提供平均的电池运行时间。与电池容量（99Wh）相比，这并不特别令人印象深刻。竞争对手的笔记本电脑用相对低得多的容量获得了类似的运行时间。
| Aorus 17 XE4 i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 99 Wh | Razer Blade 17 RTX 3080 Ti i7-12800H, GeForce RTX 3080 Ti Laptop GPU, 82 Wh | Lenovo Legion 5 Pro 16 G7 i7 RTX 3070Ti i7-12700H, GeForce RTX 3070 Ti Laptop GPU, 80 Wh | MSI Vector GP66 12UGS i9-12900H, GeForce RTX 3070 Ti Laptop GPU, 65 Wh | Average of class Gaming | |
|---|---|---|---|---|---|
| Battery Runtime | -9% | -17% | -11% | 9% | |
| Reader / Idle | 513 | 482 -6% | 473 -8% | 565 ? 10% | |
| H.264 | 366 | 377 3% | 408 ? 11% | ||
| WiFi v1.3 | 308 | 330 7% | 326 6% | 342 11% | 376 ? 22% |
| Load | 94 | 68 -28% | 37 -61% | 61 -35% | 85.3 ? -9% |
Pros
+ 360赫兹屏幕的快速刷新率
+ 良好的色彩还原性
+ 系统性能高
+ PCIe 4固态硬盘
+ 免费的M.2-2280插槽(PCIe 4)
+ 雷电4
Cons
- 显示屏亮度可以更高
- 负载下发热且声音大
- 风扇呼啸而过
- "只有 "DDR4工作内存
- 没有存储卡读卡器
- 没有电源传输
结论 - 一个强大的高端游戏机
Aorus 17是一款强大的游戏笔记本，采用17.3英寸格式，设计用于最大设置下的FHD游戏。A 酷睿i7-12700H处理器和 GeForce RTX 3070 Ti笔记本GPU使之成为可能。快如闪电的PCIe 4固态硬盘（1TB）提供了必要的存储空间，并确保短的加载时间。
通过Aorus 17 XE4，技嘉提供了一个全面的、高性能的游戏笔记本。
处理器和GPU能够以高速度运行。然而：CPU时钟在短时间内被降低到中等涡轮水平。发热和噪音水平在通常的范围内--在负载下变得响亮和热。能源配置文件 "省电静音模式 "减少了噪音，但减少的计算能力在某些限制下仍然足够用于游戏。
具有稳定视角的哑光显示屏（FHD，IPS，360Hz）在响应时间、对比度、色彩表现和色彩空间覆盖方面都有得分。但亮度太低，电池寿命属于平均范围。另一个缺点：电池不能通过USB-C端口（Thunderbolt 4）充电。但该端口确实提供了其他选择，如连接外部GPU或综合对接方案。
作为Aorus 17的替代产品，... 联想Legion 5 Pro 16 G7是一种可能性。这款产品从相同的CPU-GPU组合中获得了更多的性能，并且在16:10格式下有一个更明亮的屏幕。
价格和可获得性
在审查时，Aorus 17 XE4在任何已知的网上商店或价格搜索引擎中都没有销售。
Aorus 17 XE4
- 04/13/2022 v7 (old)
Sascha Mölck
Gaming - Weighted Average
Price comparison
