Apple M4 Pro (12 cores)

Apple M4 Pro (12 cores)

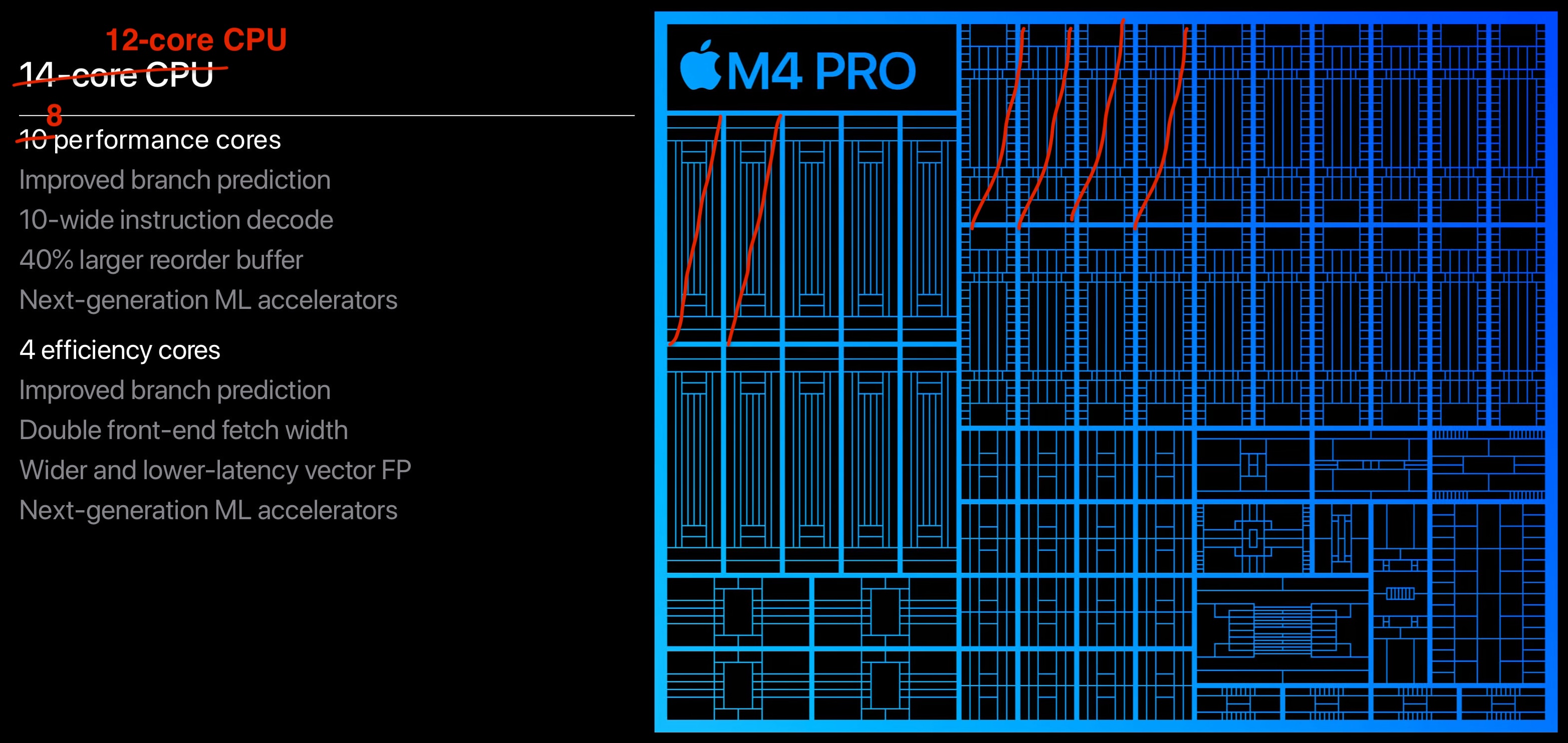

Apple M4 Pro 12 核 CPU是一款用于笔记本电脑和迷你 PC 的高端 SoC，于 2024 年 9 月推出。它的 10 个强大 CPU 内核中有 8 个运行频率高达 4.5 GHz，4 个高效内核运行频率高达 2.6 GHz。集成的 16 核 GPU 和至少 24 GB 的快速 LPDDR5x 内存，速度为 273 GB/s（取决于配置），还支持 USB 4 和 Thunderbolt 5。

整个 M4 芯片系列都集成了 16 核（高达 38 TOPS）的神经引擎。此外，所有 M4 处理器在某种程度上都基于 ARM v9.4-A 架构。

使用所有内核时的 CPU 性能类似于 AMD Ryzen AI 9 HX 370(平均略快于 Cinebench R23）。现代 酷睿至尊 9 288V的性能明显优于 AMD Ryzen AI 9 HX 370。在单核性能方面，M4 Pro 的得分非常高，与最快的英特尔芯片不相上下，如 酷睿 i9-14900HX.有趣的是 M4和 在 Cinebench（同级别的 Geekbench在 Cinebench（同级别的 Geekbench）中比瘦身后的入门级 M4 Pro 快 4-5%。

Cinebench 2024 Multi 的功耗在开始时约为 40 瓦（根据 powermetrics），随后降至约 32 瓦（持续）。结合 GPU（Cinebench + Valley），SoC 的峰值功耗在开始时可达到 47.5 瓦，但随后会降低到 31 瓦（CPU 22 瓦 + GPU 9 瓦）。

M4 Pro 采用第二代 3 纳米 TSMC 工艺制造，能效很高。

SeriesApple M4

Series: M4

Apple M4 Max (16 cores)2.59 - 4.51 GHz16 / 16 cores
Apple M4 Max (14 cores)2.59 - 4.51 GHz14 / 14 cores
Apple M4 Pro (14 cores)2.59 - 4.51 GHz14 / 14 cores
Apple M4 Pro (12 cores) « 2.59 - 4.51 GHz12 / 12 cores
Apple M4 (10 cores)2.89 - 4.46 GHz10 / 10 cores
Apple M4 (9 cores)2.9 - 4.4 GHz9 / 9 cores
Apple M4 (8 cores)2.9 - 4 GHz8 / 8 cores
Clock Rate2592 - 4512 MHz
Level 2 Cache4 MB
Number of Cores / Threads12 / 12
8 x 4.5 GHz Apple M4 P-Core
4 x 2.6 GHz Apple M4 E-Core
Power Consumption (TDP = Thermal Design Power)32 Watt
TDP Turbo PL240 Watt
Manufacturing Technology3 nm
FeaturesUnified Memory LPDDR5X-8533 (273 GB/s), 16-Core Neural Engine, Media Engine (Encoding / Decoding: H.264, HEVC, ProRes, ProRes RAW, AV1 Decoding only)
GPUApple M4 Pro 16-Core GPU
64 Bit64 Bit support
ArchitectureARM
Announcement Date10/30/2024
Product Link (external)www.apple.com

Benchmarks

Cinebench 2024 - Cinebench 2024 CPU Single Core
min: 174     avg: 175     median: 175 (98%)     max: 176 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench 2024 - Cinebench 2024 CPU Multi Core
min: 1403     avg: 1431     median: 1435 (27%)     max: 1455 Points
+ 3 benchmarks and specifications   + Show comparison chart
Cinebench R23 - Cinebench R23 Multi Core
min: 18569     avg: 19207     median: 19206.5 (18%)     max: 19844 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
min: 2172     avg: 2213     median: 2213 (94%)     max: 2254 Points
+ 2 benchmarks and specifications   - Hide comparison chart
AMD A10-5745M
74.4 -97%
...
AMD Ryzen AI 9 HX 375
1988 -10%
Intel Core i7-14700HX
2000 -10%
AMD Ryzen AI 9 HX 370
2009 -9%
Intel Core i7-13800H
2017 -9%
Intel Core i9-13900HX
2044 -8%
Intel Core i9-13950HX
2067 -7%
Intel Core i9-13980HX
2081 -6%
Intel Core i9-14900HX
2150 -3%
Apple M4 Max (16 cores)
2209 0%
Apple M4 Pro (12 cores)
2213
Apple M4 (10 cores)
2221 0%
Apple M4 Pro (14 cores)
2270 3%
max:
Intel Core Ultra 9 285K
2348 6%
0%
100%
Cinebench R20 - Cinebench R20 CPU (Single Core)
557 Points (62%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R20 - Cinebench R20 CPU (Multi Core)
5074 Points (12%)
+ 1 benchmarks and specifications   + Show comparison chart
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
min: 2706     avg: 2711     median: 2708 (17%)     max: 2720 Points
+ 3 benchmarks and specifications   - Hide comparison chart
0140280420560700840980112012601400154016801820196021002240238025202660Tooltip
Cinebench R15 - Cinebench R15 CPU Single 64 Bit
min: 297     avg: 301.5     median: 301.5 (85%)     max: 306 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Blender - Blender 3.3 Classroom CPU *
237 Seconds (3%)
+ 1 benchmarks and specifications   + Show comparison chart
Blender - Blender 2.79 BMW27 CPU *
270 Seconds (2%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Single-Core
min: 3837     avg: 3870     median: 3844 (98%)     max: 3928 points
+ 3 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Multi-Core
min: 20385     avg: 20487     median: 20458 (79%)     max: 20617 points
+ 3 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Single-Core
2555 points (100%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.5 64 Bit Multi-Core
19529 points (35%)
+ 1 benchmarks and specifications   + Show comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 255.1     avg: 255.6     median: 255.6 (0%)     max: 256 ms
+ 2 benchmarks and specifications   + Show comparison chart
Sunspider - Sunspider 1.0 Total Score *
46.4 ms (1%)
+ 1 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
115983 Points (97%)
+ 1 benchmarks and specifications   + Show comparison chart
WebXPRT 4 - WebXPRT 4 Score
min: 338     avg: 351     median: 351 (96%)     max: 364 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
min: 525     avg: 541     median: 541 (97%)     max: 557 Points
+ 2 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
min: 2123     avg: 2141     median: 2141 (80%)     max: 2159 Points
+ 2 benchmarks and specifications   + Show comparison chart
Power Consumption - Prime95 Power Consumption - external Monitor *
36.4 Watt (6%)
+ 1 benchmarks and specifications   + Show comparison chart
05101520253035404550Tooltip
Power Consumption - Cinebench R15 Multi Power Consumption - external Monitor *
min: 67.9     avg: 69     median: 69 (13%)     max: 70 Watt
+ 2 benchmarks and specifications   + Show comparison chart
0510152025303540455055606570Tooltip
Power Consumption - Geekbench 5.5 Power Consumption 150cd *
16.4 Watt (7%)
+ 1 benchmarks and specifications   + Show comparison chart
05101520253035404550556065Tooltip
Power Consumption - Idle Power Consumption - external Monitor *
min: 2.59     avg: 4.2     median: 4.2 (3%)     max: 5.83 Watt
+ 2 benchmarks and specifications   + Show comparison chart
01234567Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
4.3 Watt (5%)
+ 1 benchmarks and specifications   + Show comparison chart
00.20.50.711.21.41.71.92.22.42.62.93.13.33.63.84.14.34.5Tooltip
Power Consumption - Power Efficiency - Cinebench R15 Multi external Monitor
min: 38.7     avg: 39.4     median: 39.4 (29%)     max: 40.1 Points per Watt
+ 2 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
