Apple M4 Pro (14 cores)

Apple M4 Pro (14 cores)

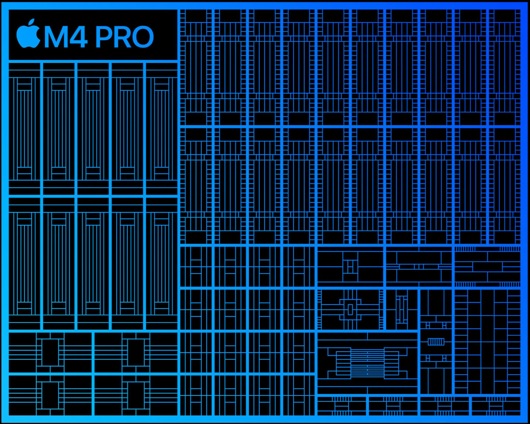

14 核Apple M4 Pro是一款功能强大的 ARM 架构处理器（SoC），适用于笔记本电脑和迷你 PC，于 2024 年 9 月首次亮相。它拥有 10 个运行频率高达 4.5 GHz 的高性能 CPU 内核和 4 个运行频率高达 2.6 GHz 的高效内核。其 20 核 M4 GPU和至少 24 GB 快速 273 GB/s LPDDR5x 封装内存（取决于配置），以及 USB 4 和 Thunderbolt 5 支持。

整个 M4 芯片系列都内置了 16 核神经引擎（高达 38 TOPS）。此外，所有 M4 处理器在一定程度上都基于 ARM v9.4-A 架构。

性能表现

在我们的测试中，M4 Pro 的多线程基准测试成绩非常接近于 16 核 M3 Max以及 英特尔酷睿 i9-12950HX.代与代之间的微小改进是显而易见的，但新的集成图形适配器才是真正的明星。

显卡

图形 20 核 M4 GPU硬件支持光线追踪、网格着色和其他现代技术。它支持分辨率高达 "8K "的外接显示器，并能对 h.264、h.265 和 AV1 等几种流行的视频编解码器进行硬件解码。

其游戏性能至少不亚于 GTX 1660 Ti 笔记本电脑.请记住，很少有游戏是专门为Apple silicon Mac 编制的，这意味着大多数游戏都必须通过模拟层运行。因此，有些游戏在显示时会出现视觉假象，或者根本无法启动。

功耗

在 CPU 和 GPU 负载较高的情况下，SoC 的功耗会短暂降低到 80 W 左右，之后会稳定在 70 W 左右。在无负载的情况下，它的功耗在 2 W 到 7 W 之间。

截至 2024 年底，M4 Pro 采用的第二代 3 纳米台积电工艺具有良好的能效。

SeriesApple M4

Series: M4

Apple M4 Max (16 cores)2.59 - 4.51 GHz16 / 16 cores
Apple M4 Max (14 cores)2.59 - 4.51 GHz14 / 14 cores
Apple M4 Pro (14 cores) « 2.59 - 4.51 GHz14 / 14 cores
Apple M4 Pro (12 cores)2.59 - 4.51 GHz12 / 12 cores
Apple M4 (10 cores)2.89 - 4.46 GHz10 / 10 cores
Apple M4 (9 cores)2.9 - 4.4 GHz9 / 9 cores
Apple M4 (8 cores)2.9 - 4 GHz8 / 8 cores
Clock Rate2592 - 4512 MHz
Level 2 Cache4 MB
Number of Cores / Threads14 / 14
10 x 4.5 GHz Apple M4 P-Core
4 x 2.6 GHz Apple M4 E-Core
Power Consumption (TDP = Thermal Design Power)40 Watt
TDP Turbo PL246 Watt
Manufacturing Technology3 nm
FeaturesUnified Memory LPDDR5X-8533 (273 GB/s), 16-Core Neural Engine, Media Engine (Encoding / Decoding: H.264, HEVC, ProRes, ProRes RAW, AV1 Decoding only)
GPUApple M4 20-core GPU
64 Bit64 Bit support
ArchitectureARM
Announcement Date10/30/2024
Product Link (external)www.apple.com

Benchmarks

Cinebench 2024 - Cinebench 2024 CPU Single Core
min: 177     avg: 177.5     median: 177.5 (100%)     max: 178 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench 2024 - Cinebench 2024 CPU Multi Core
min: 1662     avg: 1696     median: 1695.5 (32%)     max: 1729 Points
+ 2 benchmarks and specifications   + Show comparison chart
Cinebench R23 - Cinebench R23 Multi Core
min: 23433     avg: 23435     median: 23435 (22%)     max: 23437 Points
+ 2 benchmarks and specifications   - Hide comparison chart
Cinebench R23 - Cinebench R23 Single Core
min: 2249     avg: 2270     median: 2269.5 (96%)     max: 2290 Points
+ 2 benchmarks and specifications   - Hide comparison chart
AMD A10-5745M
74.4 -97%
...
AMD Ryzen AI 9 HX 370
2009 -11%
Intel Core i7-13800H
2017 -11%
Intel Core i9-13900HX
2044 -10%
Intel Core i9-13950HX
2067 -9%
Intel Core i9-13980HX
2081 -8%
Intel Core i9-14900HX
2151 -5%
Apple M4 Pro (12 cores)
2172 -4%
Apple M4 Max (16 cores)
2209 -3%
Apple M4 (10 cores)
2221 -2%
Apple M4 Pro (14 cores)
2270
max:
Intel Core Ultra 9 285K
2348 3%
0%
100%
Cinebench R15 - Cinebench R15 CPU Multi 64 Bit
3031 Points (19%)
+ 1 benchmarks and specifications   - Hide comparison chart
01653304956608259901155132014851650181519802145231024752640280529703135Tooltip
Geekbench 6.3 - Geekbench 6.3 Single-Core
min: 3836     avg: 3882     median: 3881.5 (99%)     max: 3927 points
+ 2 benchmarks and specifications   + Show comparison chart
Geekbench 6.3 - Geekbench 6.3 Multi-Core
min: 22509     avg: 22527     median: 22526.5 (87%)     max: 22544 points
+ 2 benchmarks and specifications   - Hide comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 254.3     avg: 254.4     median: 254.4 (0%)     max: 254.5 ms
+ 2 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
min: 119553     avg: 119754     median: 119754 (100%)     max: 119954 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 4 - WebXPRT 4 Score
min: 337     avg: 345     median: 345 (97%)     max: 353 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
min: 525     avg: 535     median: 535 (98%)     max: 545 Points
+ 2 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
min: 2148     avg: 2155     median: 2155 (83%)     max: 2162 Points
+ 2 benchmarks and specifications   + Show comparison chart
Power Consumption - Idle Power Consumption - external Monitor *
min: 2.62     avg: 4.2     median: 4.2 (3%)     max: 5.79 Watt
+ 2 benchmarks and specifications   + Show comparison chart
0123456Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
min: 4.28     avg: 6     median: 6 (7%)     max: 7.74 Watt
+ 2 benchmarks and specifications   + Show comparison chart
0123456789Tooltip
- Range of benchmark values for this graphics card
red legend - Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

v1.28
log 15. 20:57:02

#0 ran 0s before starting gpusingle class +0s ... 0s

#1 no ids found in url (should be separated by "_") +0s ... 0s

#2 not redirecting to Ajax server +0s ... 0s

#3 did not recreate cache, as it is less than 5 days old! Created at Fri, 13 Dec 2024 05:28:20 +0100 +0.001s ... 0.001s

#4 no comparison url found in template nbc.compare_page_2 needed +0.02s ... 0.022s

#5 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.022s

#6 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.022s

#7 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.022s

#8 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.023s

#9 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.023s

#10 composed specs +0.001s ... 0.024s

#11 did output specs +0s ... 0.024s

#12 getting avg benchmarks for device 18019 +0.003s ... 0.026s

#13 got single benchmarks 18019 +0.009s ... 0.035s

#14 got avg benchmarks for devices +0s ... 0.035s

#15 min, max, avg, median took s +0.212s ... 0.247s

#16 no comparison url found in template nbc.compare_page_2 needed +0s ... 0.247s

#17 return log +0s ... 0.247s

Reviews for the Apple M4 Pro (14 cores) processor

Apple MacBook Pro 16 2024 评测：超长电池使用时间，性能更胜 M4 Pro

Apple MacBook Pro 16 2024 评测：超长电池使用时间，性能更胜 M4 Pro

与较小的 MacBook Pro 14-plus 相比，大尺寸 MacBook Pro 16 能更好地发挥Apple M4 Pro SoC 的性能潜力，电池续航时间也更长。同样，如果你经常在明亮的环境中工作，可选的磨砂面板也是一个真正的优势。...
Apple M4 Pro (14 cores) | Apple M4 20-core GPU | 16.20" | 2.1 kg
Apple M4 Pro 分析 - 速度极快，但效率较低

Apple M4 Pro 分析 - 速度极快，但效率较低

Apple MacBook Pro 发布了采用新一代 M4 处理器的新款 MacBook Pro 机型，我们对新款 M4 Pro SoC 进行了一番了解。除了纯粹的性能之外，我们对它的效率也很感兴趣。 是否进一步扩大了对高通、AMD 和英特尔的领先优势？Apple ...
Apple M4 Pro (14 cores) | Apple M4 20-core GPU | 14.20" | 1.6 kg
Apple MacBook Pro 14 2024 评测：M4 Pro 和雾面显示屏的巨大升级

Apple MacBook Pro 14 2024 评测：M4 Pro 和雾面显示屏的巨大升级

Apple MacBook Pro 14 更新了，除了新的 M4 Pro SoC 现在速度更快之外，它还可以选择哑光显示屏。此外，它的网络摄像头也从 200 万像素提升到了 1200 万像素，并且首次加入了 Thunderbolt 5 端口。...
Apple M4 Pro (14 cores) | Apple M4 20-core GPU | 14.20" | 1.6 kg

Apple MacBook Pro 14 2024 M4 Pro: Apple M4 20-core GPU, 14.20", 1.6 kg
  External Review » Apple MacBook Pro 14 2024 M4 Pro

Apple MacBook Pro 16 2024 M4 Pro: Apple M4 20-core GPU, 16.20", 2.1 kg
  External Review » Apple MacBook Pro 16 2024 M4 Pro

Apple MacBook Pro 14 2024 M4 Pro: Apple M4 20-core GPU, 14.20", 1.6 kg
   » iFixit 拆解配备Apple M4 Pro 的 MacBook Pro，揭示与 M3 Pro 机型的不同之处
