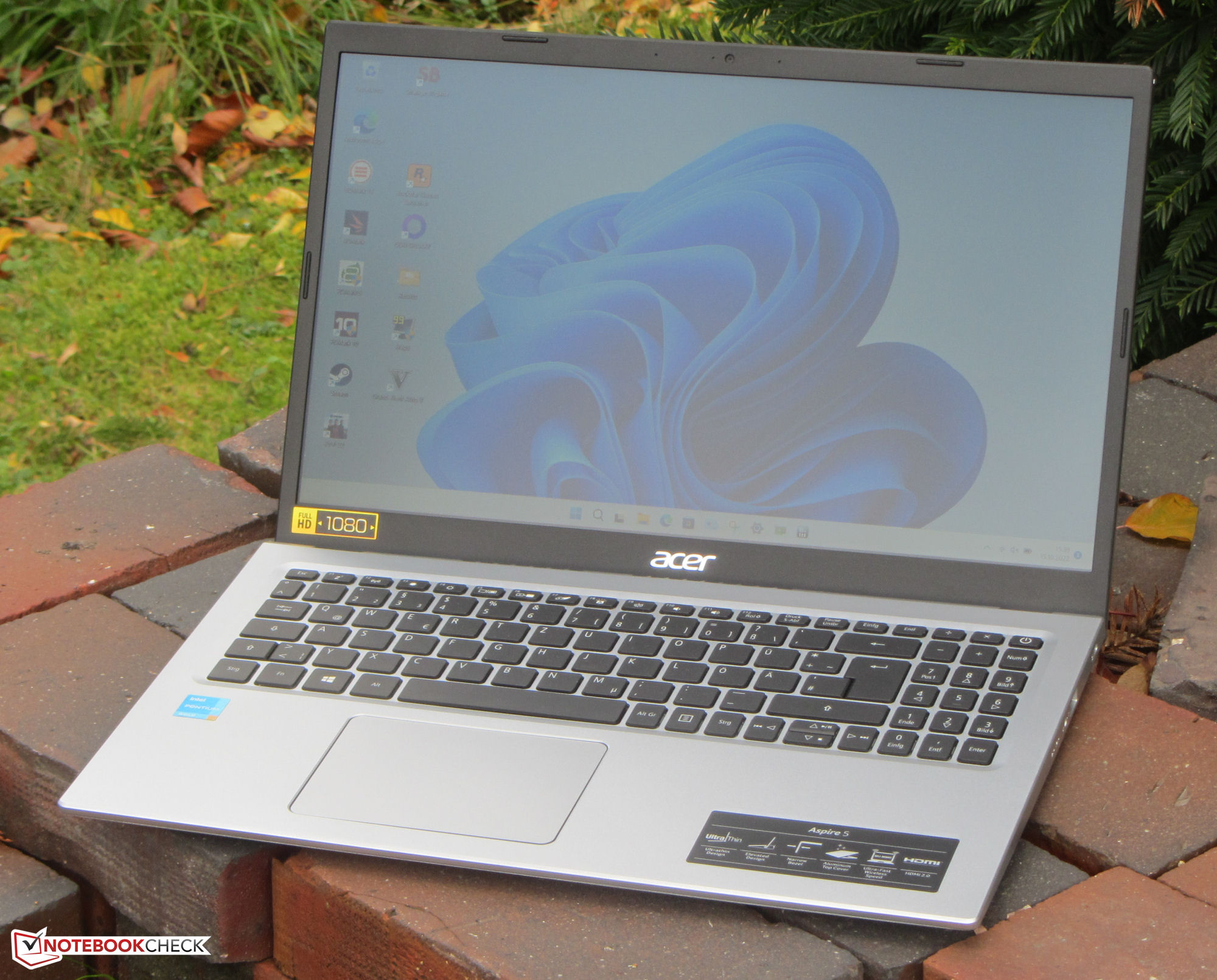

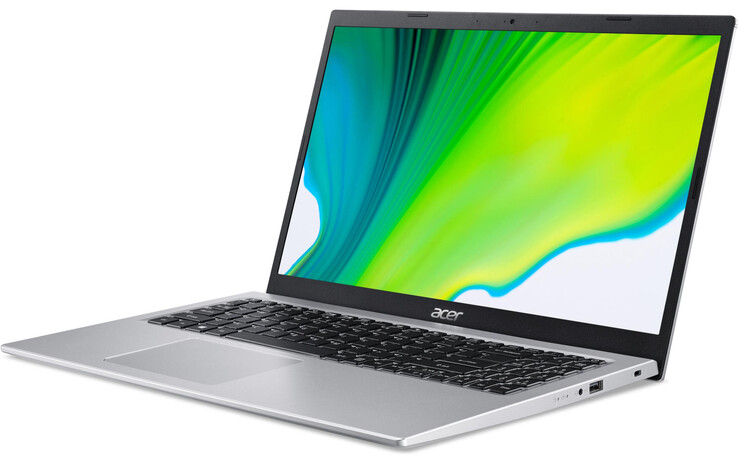

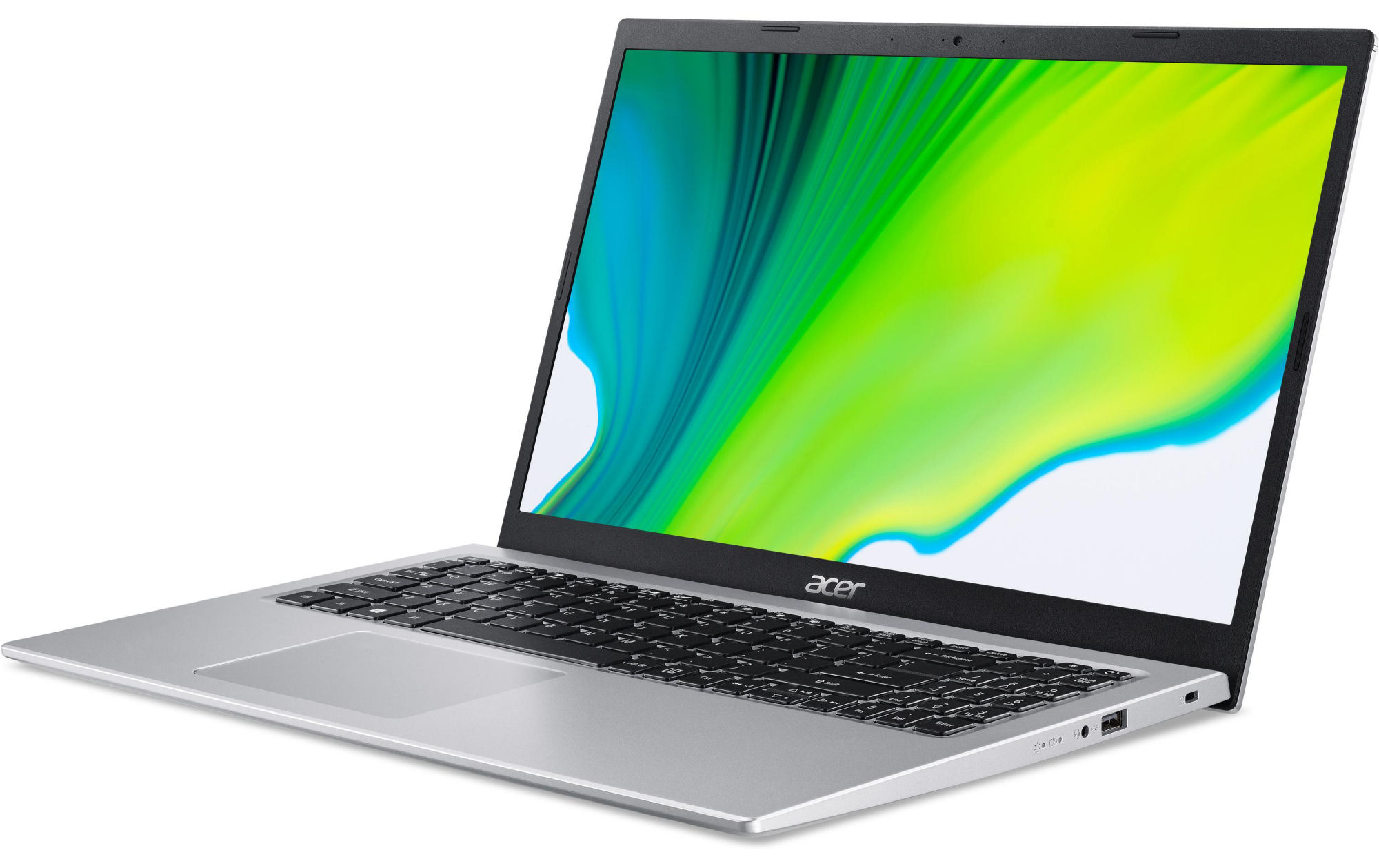

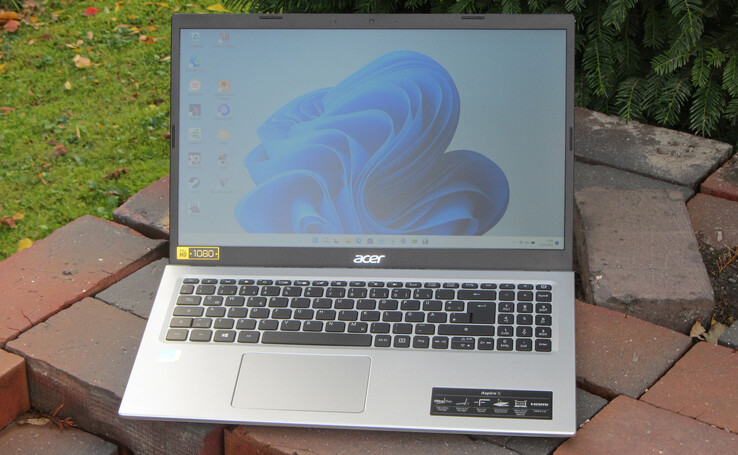

宏碁Aspire 5 A515-56评论。具有良好价值的办公笔记本电脑，电池寿命合理
宏碁公司的Aspire 5系列由无数个型号组成（英特尔以及AMD CPU，带/不带dGPU），构成了宏碁的面包和黄油业务。这里展示的模型--15.6英寸的办公笔记本--由一个 奔腾金7505处理器（Tiger Lake ），价格在500欧元左右。我们已经测试了该系列中一个相同的、更昂贵的成员，即 Aspire 5 A515-56-511A(Core i5-1135G7, 16 GB Ram, 1 TB SSD)。竞争者包括以下设备戴尔Inspiron 15 3505竞争者包括戴尔Inspiron 15 3505、联想 联想IdeaPad 3 15ITL05，以及惠普250 G7和 联想V15 G2 ALC.

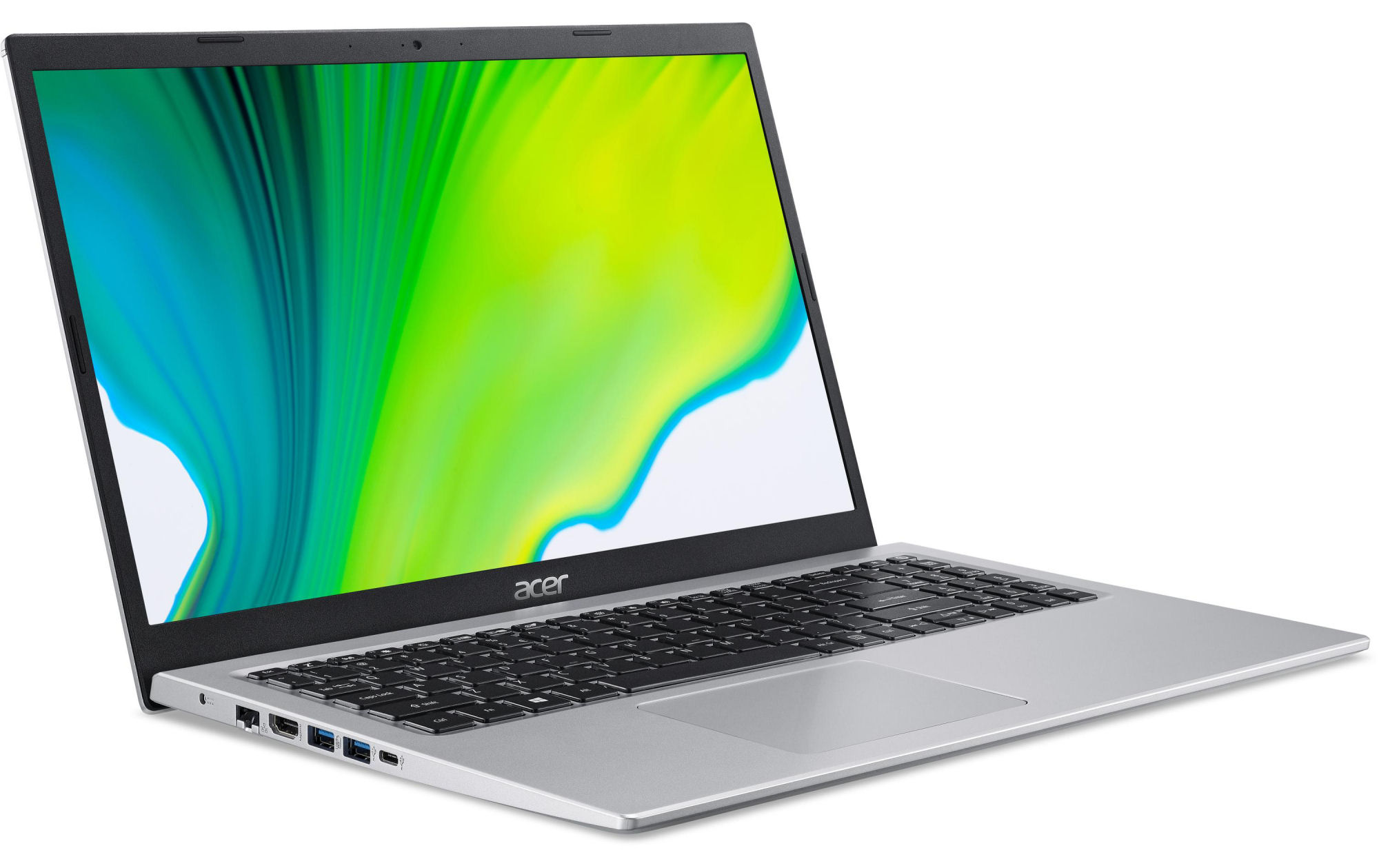

Acer Aspire 5 A515-56-P8NZ (Aspire 5 A515 Series)
Processor
Intel Pentium Gold 7505 2 x 2 - 3.5 GHz, 38 W PL2 / Short Burst, 15 W PL1 / Sustained, Tiger Lake-U

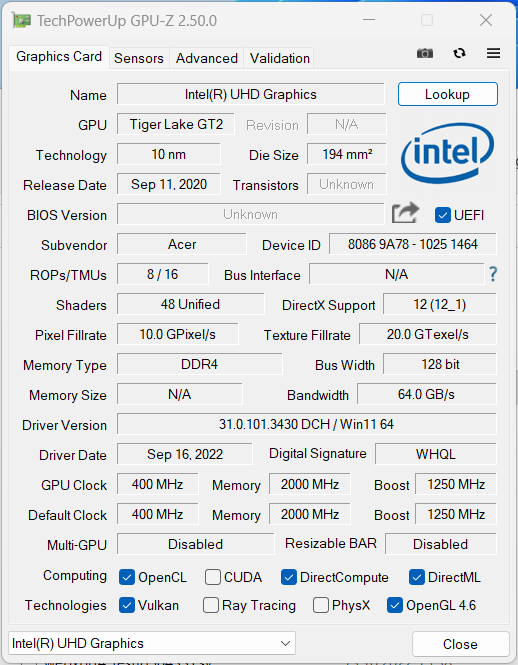

Graphics adapter
Intel UHD Graphics Xe G4 48EUs, Core: 1250 MHz, Single Channel, 31.0.101.3430

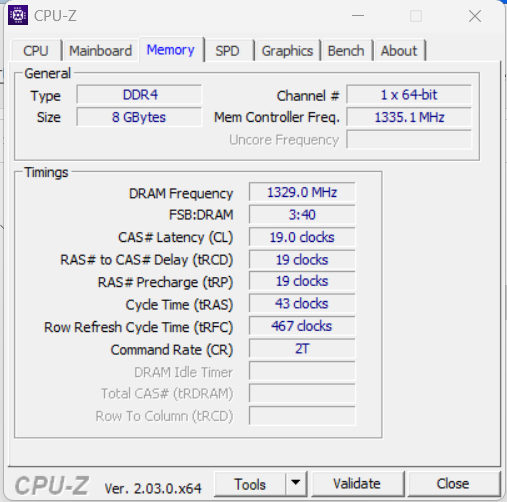

Memory
8 GB

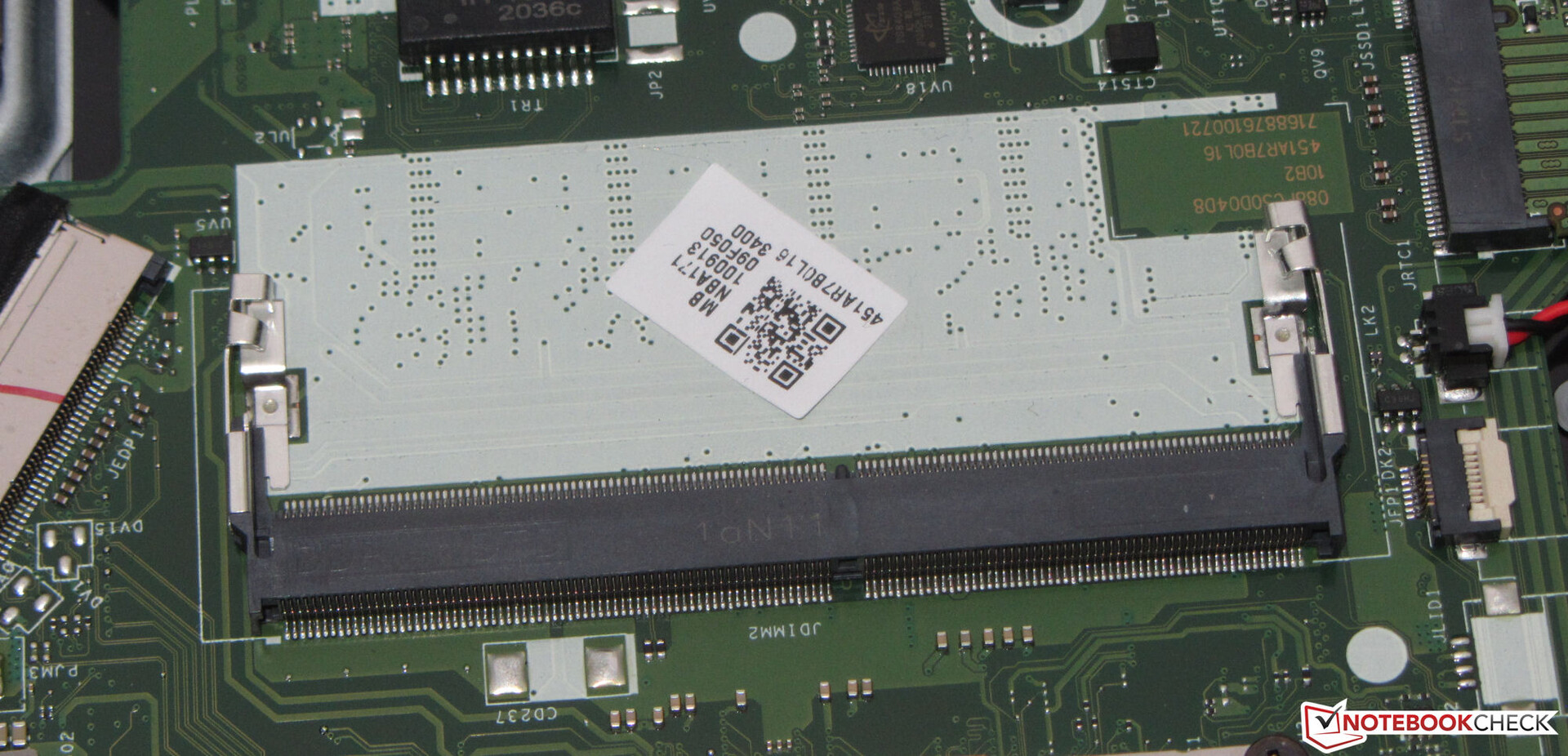

, DDR4-2666, Single Channel Mode, one memory slot (not in use), 8 GB onboard
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, AU Optronics B156HAN02.1, IPS, glossy: no, 60 Hz
Mainboard
Intel Tiger Lake-UP3 PCH-LP

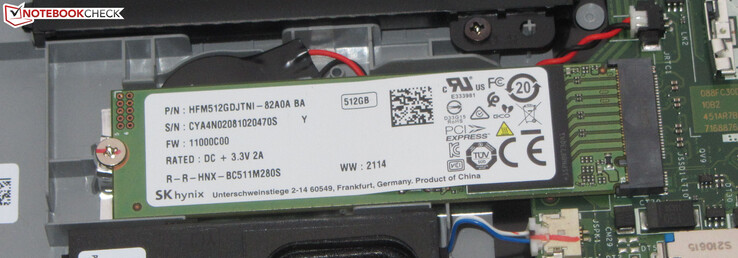

Storage
SK Hynix BC511 HFM512GDJTNI, 512 GB
, PCIe 3, M.2-2280, 441 GB free
Weight
1.65 kg, Power Supply: 247 g
Price
499 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 82.2 % v7 (old) | 11 / 2022 | Acer Aspire 5 A515-56-P8NZ Pentium 7505, UHD Graphics Xe G4 48EUs | 1.7 kg | 17.95 mm | 15.60" | 1920x1080 | |
| 75.9 % v7 (old) | 04 / 2022 | Dell Inspiron 15 3505-PXHPW R5 3450U, Vega 8 | 2 kg | 19.89 mm | 15.60" | 1920x1080 | |
| 80 % v7 (old) | 04 / 2022 | Lenovo V15 G2 ALC-82KD003XGE R5 5500U, Vega 7 | 1.6 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 79.3 % v7 (old) | 02 / 2022 | Lenovo IdeaPad 3 15ITL05 81X80074GE i3-1115G4, UHD Graphics Xe G4 48EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 75.4 % v7 (old) | HP 250 G7-15S40ES i5-1035G1, GeForce MX110 | 1.8 kg | 22.5 mm | 15.60" | 1920x1080 |
外壳和连接 - A515没有存储卡阅读器

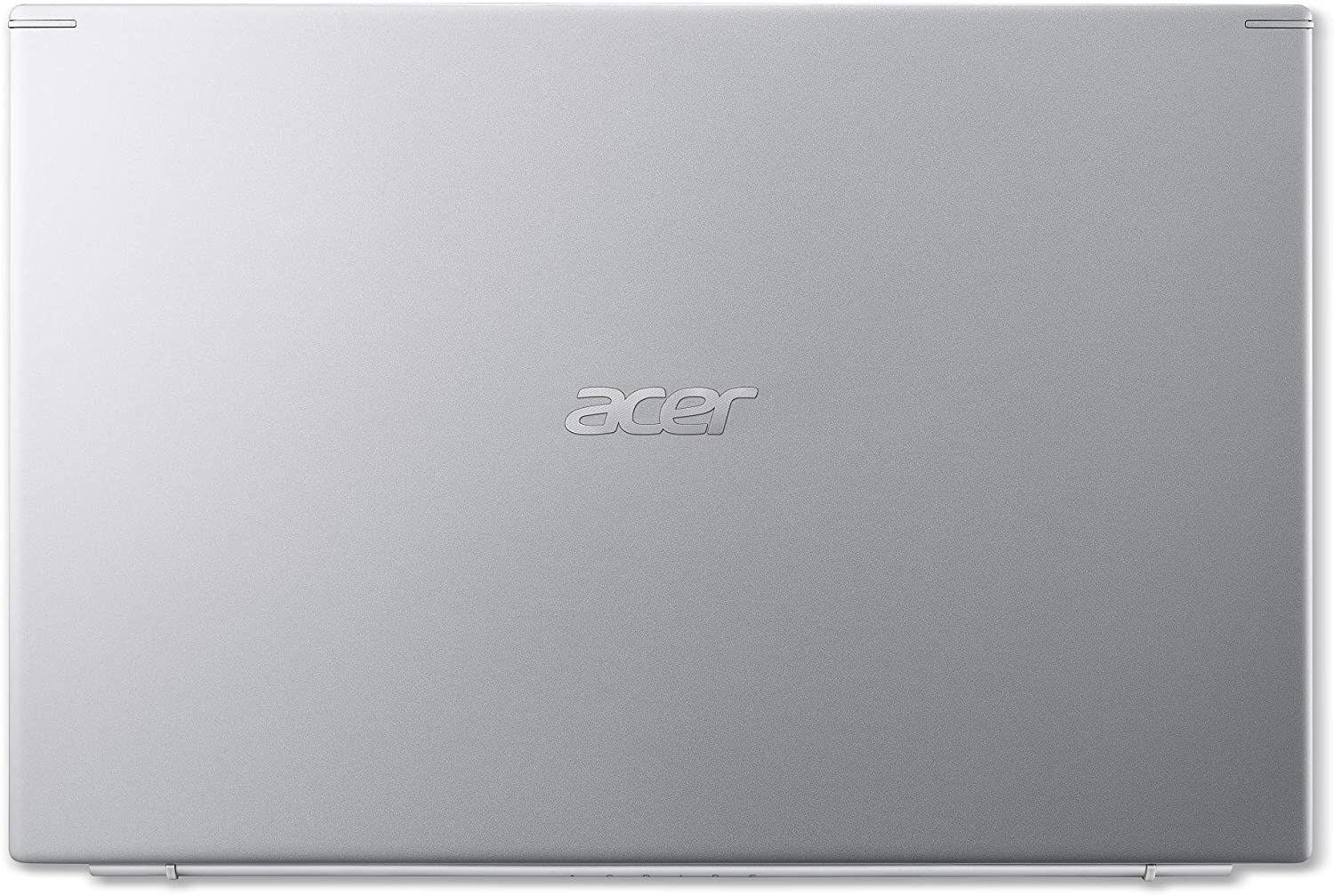

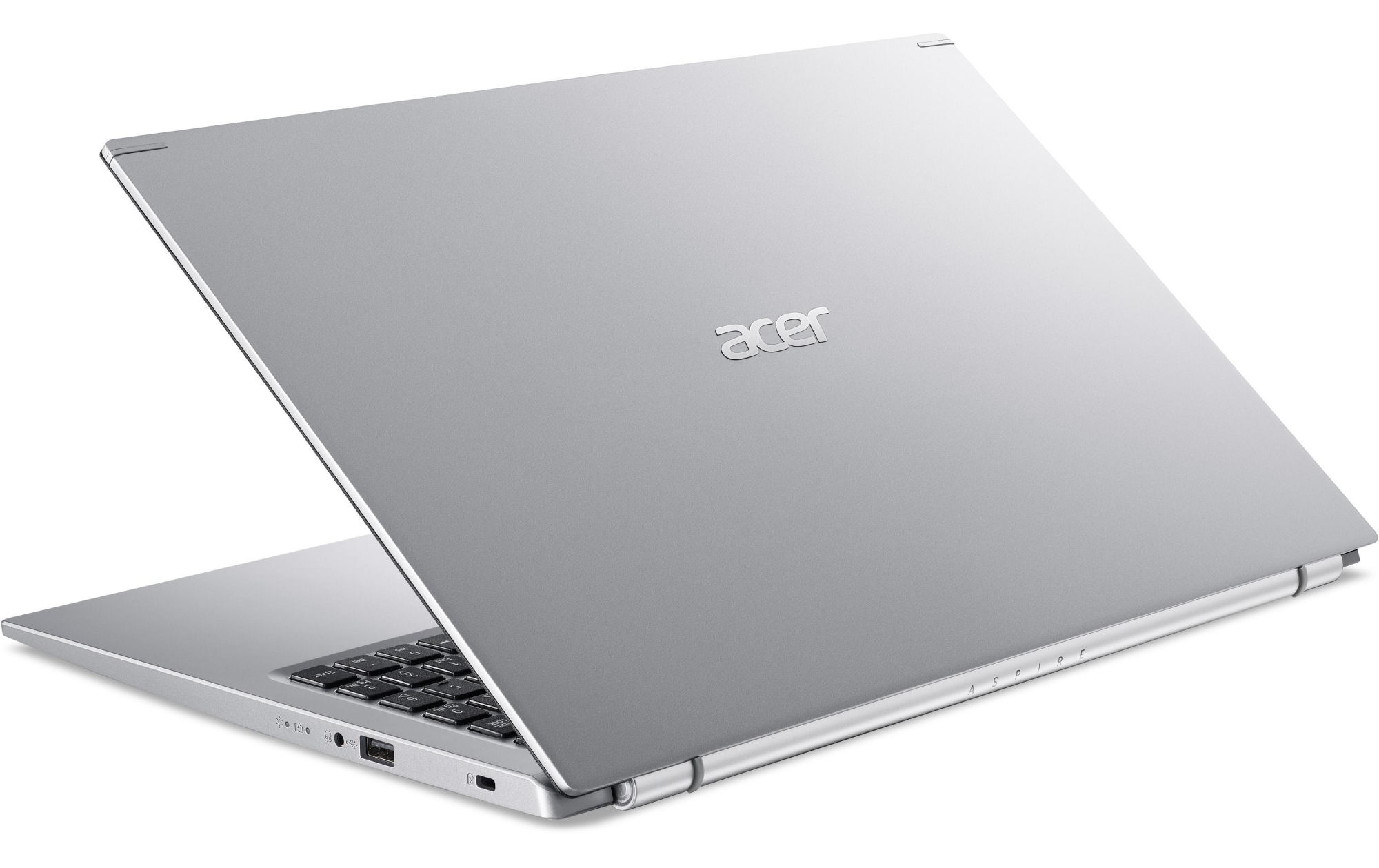

银灰色的外壳由金属（盖子）和塑料元素（基本单元）组成。宏碁依靠的是哑光、光滑的表面。虽然底座和盖子都可以稍稍扭转，但任何加工不良的迹象都无处可寻。电池（用螺丝固定而不是用胶水粘住）以及其他内部零件都可以在拆下底壳后拿到。内置网络摄像头（0.9MP，最大1280 x 720像素）没有机械盖。

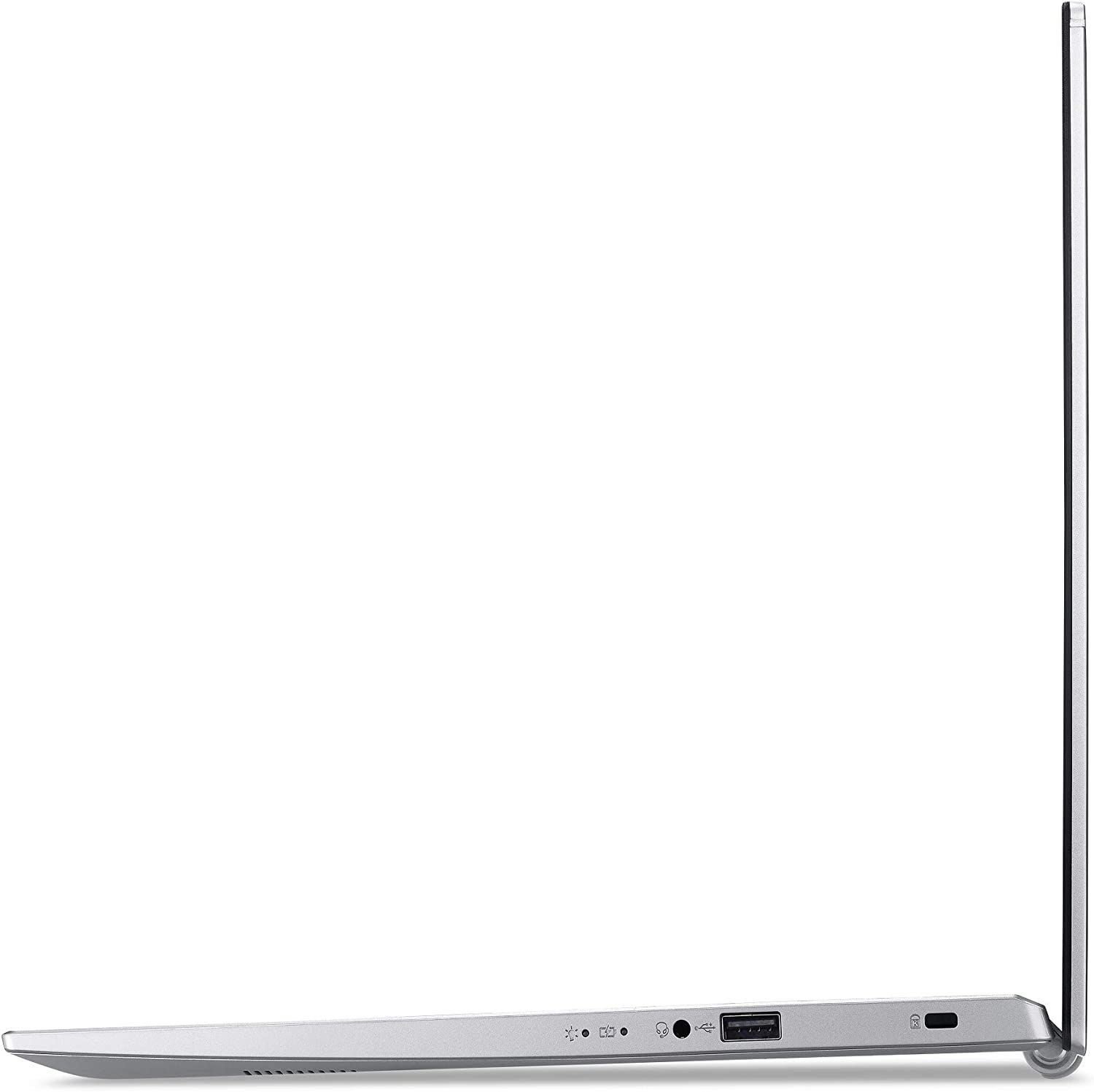

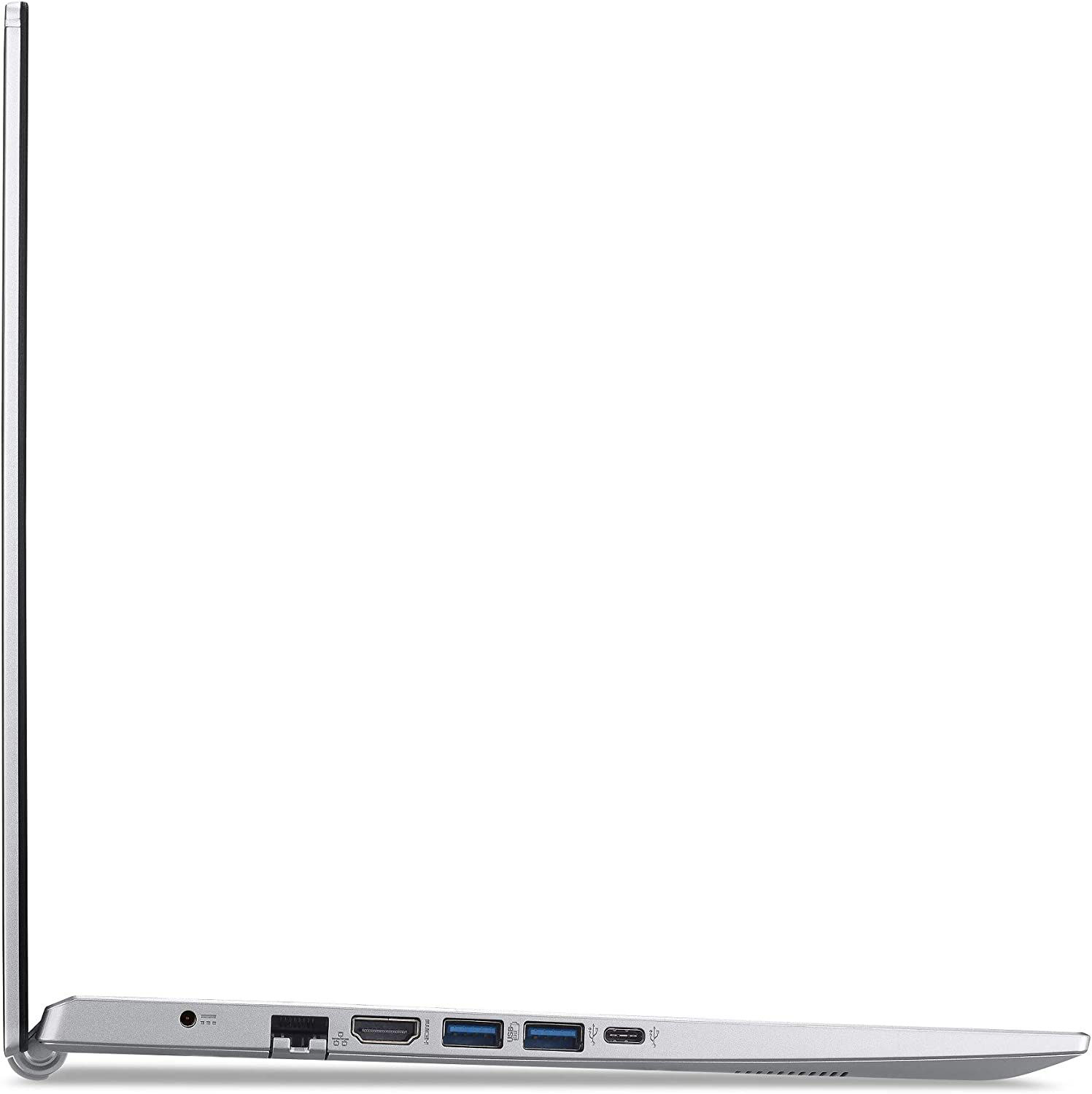

该电脑有三个USB-A端口（1个USB 2.0，2个USB 3.2 Gen 1）和一个USB-C插槽（USB 3.2 Gen 1）。后者既不支持Power Delivery，也不支持通过USB-C的DisplayPort。这意味着只有一个视频输出可以用HDMI连接。存储卡读卡器也不在机上。

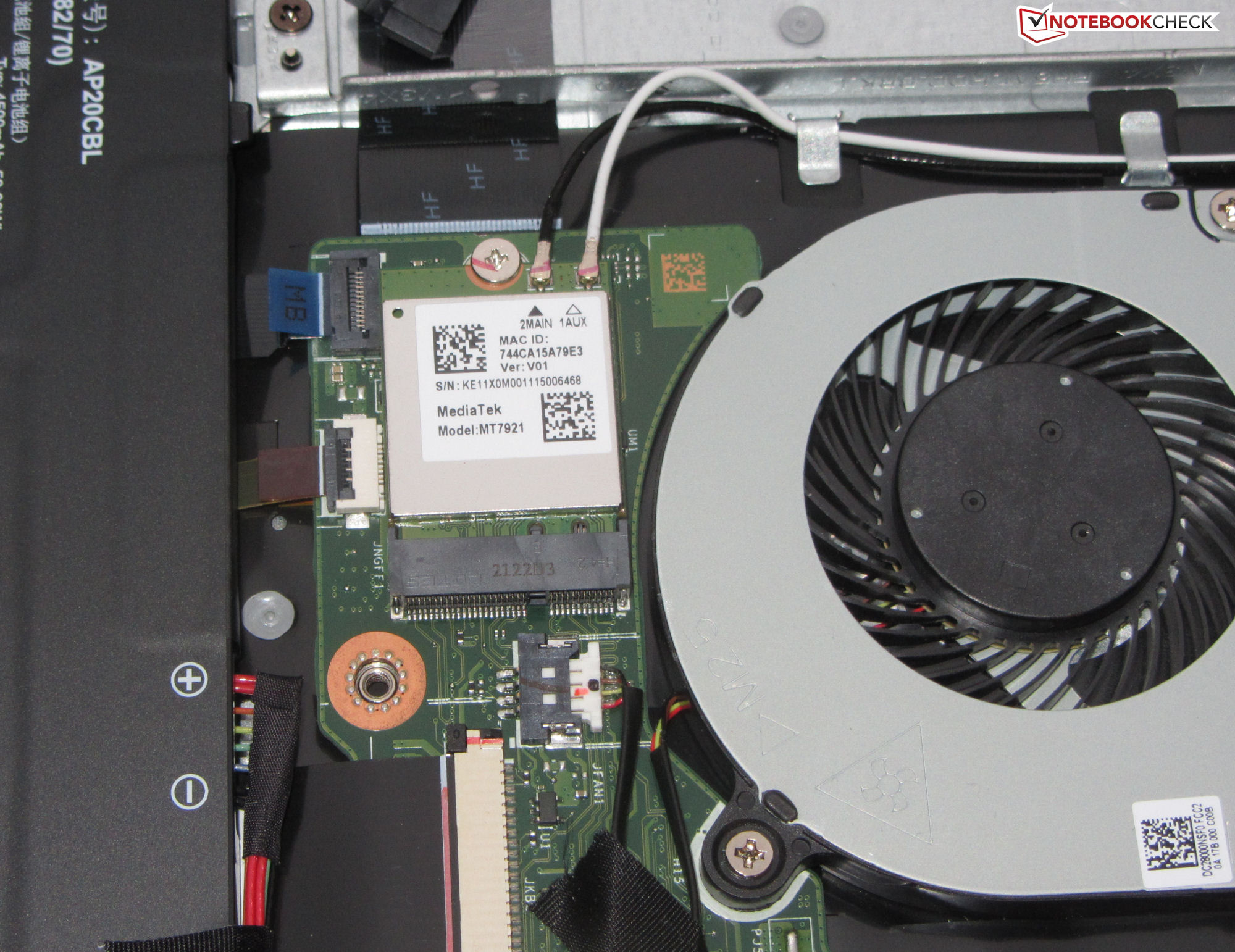

在最佳条件下（附近没有其他支持WLAN的设备，笔记本电脑和服务器PC之间的距离较短），WLAN传输率很好，但并不完全符合WiFi芯片（联发科MT7921；802.11ax）的能力。
| Networking | |
| iperf3 transmit AX12 | |
| Acer Aspire 5 A515-56-511A | |
| Average MediaTek MT7921 (548 - 985, n=16) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| HP 250 G7-15S40ES | |
| Dell Inspiron 15 3505-PXHPW | |
| iperf3 receive AX12 | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Average MediaTek MT7921 (90 - 972, n=16) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| iperf3 receive AXE11000 6GHz | |
| Average of class Office (1065 - 1790, n=50, last 2 years) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average MediaTek MT7921 (609 - 1245, n=5) | |
Acer Aspire 5 A515-56-P8NZ MediaTek MT7921; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø915 (529-994)
Dell Inspiron 15 3505-PXHPW Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø280 (268-327)
Lenovo V15 G2 ALC-82KD003XGE Atheros/Qualcomm QCA6174; iperf3 transmit AX12; iperf 3.1.3: Ø620 (586-660)
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Wireless-AC 9560; iperf3 transmit AX12; iperf 3.1.3: Ø701 (679-719)
HP 250 G7-15S40ES Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø302 (291-310)
Acer Aspire 5 A515-56-511A Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1422 (1330-1712)
22 ∆E
23.6 ∆E
25.2 ∆E
24.3 ∆E
24.5 ∆E
20.1 ∆E
24.7 ∆E
27.4 ∆E
17.4 ∆E
18.7 ∆E
17.3 ∆E
26 ∆E
19.1 ∆E
21.3 ∆E
20.6 ∆E
13.2 ∆E
21.2 ∆E
26.2 ∆E
2.3 ∆E
11.8 ∆E
23.2 ∆E
22.5 ∆E
19 ∆E
4.9 ∆E

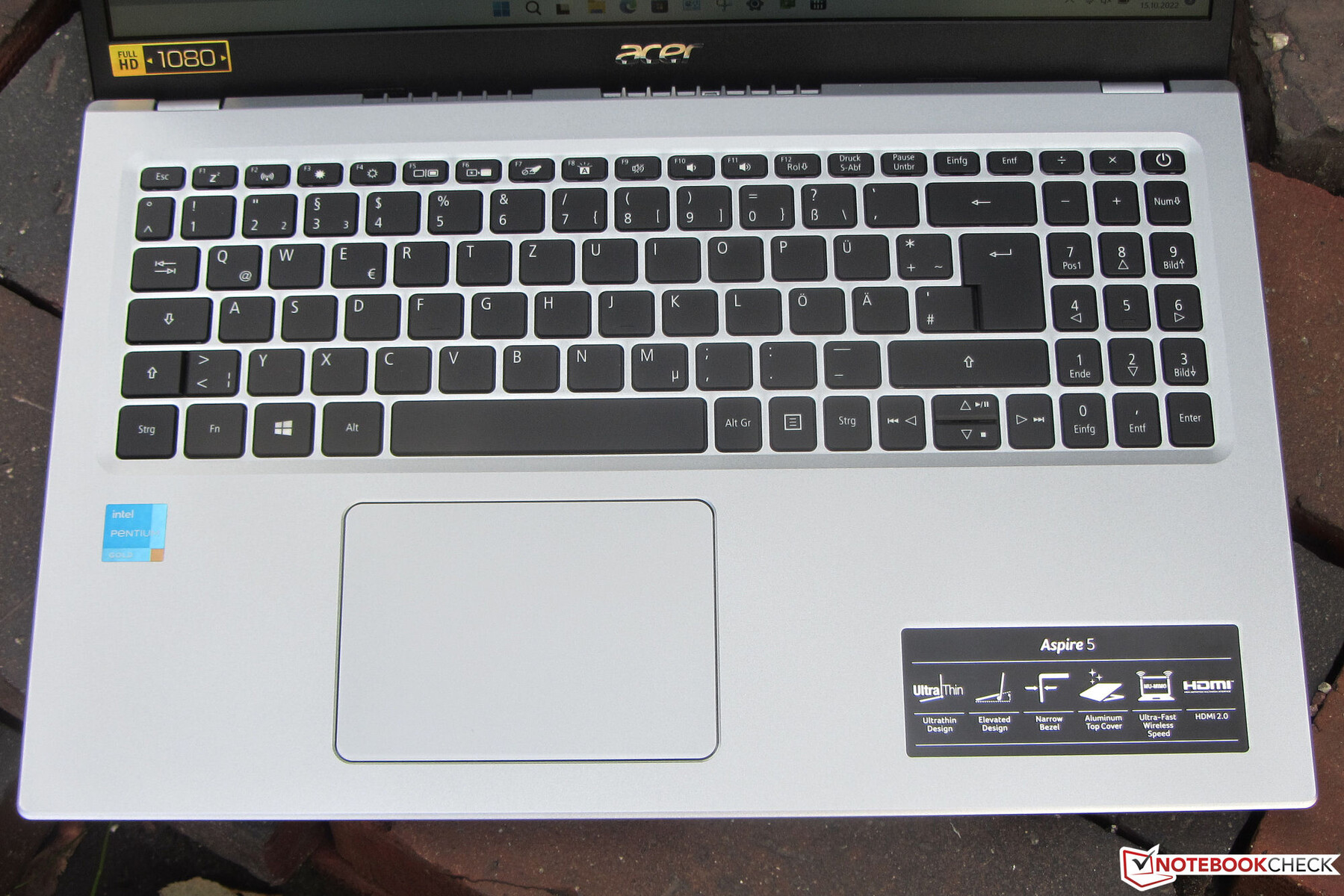

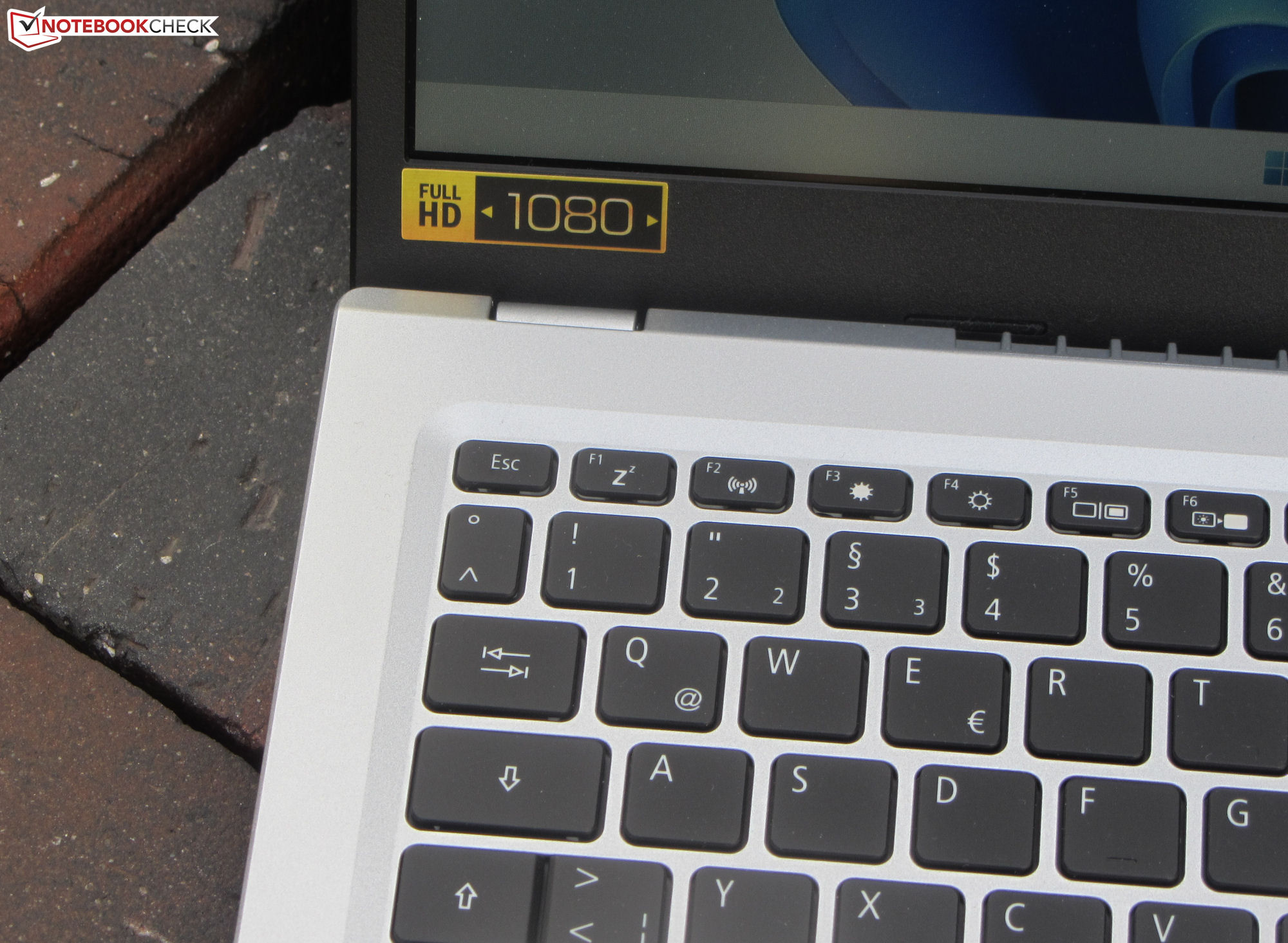

输入设备 - 宏碁笔记本电脑有背光键
背光的Chiclet键盘按键（一个亮度级别）行程短，压力点清晰。键的阻力是可以接受的。键盘在打字时有轻微的晃动，但这并没有被证明是过于恼人的。总而言之，宏碁已经提供了一个适合日常使用的键盘。
一个具有多点触控功能的点击板（约10.5 x 7.8厘米）可作为鼠标的替代品。其光滑的表面使手指很容易滑行。
它对角落里的输入也有反应。该垫子既有短行程，又有明确的压力点。
屏幕 - IPS技术

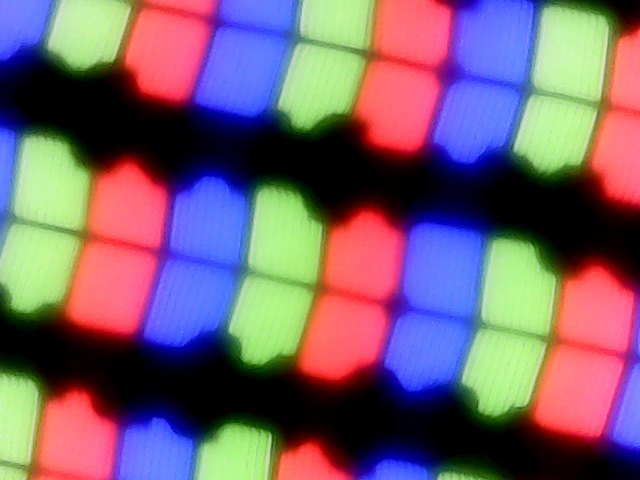

哑光的15.6英寸屏幕（1920 x 1080像素）以1800:1的良好对比度将竞争对手甩在后面。在最大屏幕亮度（251.8cd/m²）方面，没有达到我们认为合适的数值（即300cd/m²或更高），而且在电池供电时，面板的亮度更低。总的来说，竞争对手的表现并没有好到哪里去。积极方面：无论亮度设置如何，面板都没有显示PWM闪烁。
| |||||||||||||||||||||||||
AU Optronics B156HAN02.1 tested with X-Rite i1Pro 2
Maximum: 268 cd/m² (Nits) Average: 251.8 cd/m² Minimum: 20.2 cd/m²Brightness Distribution: 85 %
Center on Battery: 235 cd/m²
Contrast: 1800:1 (Black: 0.14 cd/m²)
ΔE Color 3.58 | 0.5-29.43 Ø4.91, calibrated: 4.85
ΔE Greyscale 1.38 | 0.5-98 Ø5.2
38.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
55.8% sRGB (Argyll 2.2.0 3D)
37.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44
| Acer Aspire 5 A515-56-P8NZ AU Optronics B156HAN02.1, IPS, 1920x1080, 15.6" | Dell Inspiron 15 3505-PXHPW AU Optronics B156HAN, IPS, 1920x1080, 15.6" | Lenovo V15 G2 ALC-82KD003XGE BOE CQ NT156FHM-N43, TN, 1920x1080, 15.6" | Lenovo IdeaPad 3 15ITL05 81X80074GE BOE CQ 3, IPS, 1920x1080, 15.6" | HP 250 G7-15S40ES BOE BOE0687, TN LED, 1920x1080, 15.6" | Acer Aspire 5 A515-56-511A LG Philips LGD065A, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|---|
| Display | 9% | 5% | 3% | 4% | 3% | |
| Display P3 Coverage | 37.1 | 40.3 9% | 38.8 5% | 38.5 4% | 38.64 4% | 38.32 3% |
| sRGB Coverage | 55.8 | 60.4 8% | 58.4 5% | 56.7 2% | 58.2 4% | 57.5 3% |
| AdobeRGB 1998 Coverage | 38.3 | 41.7 9% | 40.09 5% | 39.8 4% | 39.93 4% | 39.6 3% |
| Response Times | 2% | 24% | -11% | 31% | 0% | |
| Response Time Grey 50% / Grey 80% * | 37 ? | 36 ? 3% | 38 ? -3% | 42 ? -14% | 38 ? -3% | 37 ? -0% |
| Response Time Black / White * | 28 ? | 28 ? -0% | 14 ? 50% | 30 ? -7% | 10 ? 64% | 28 ? -0% |
| PWM Frequency | 66 ? | 5000 ? | ||||
| Screen | -29% | -157% | -64% | -204% | -30% | |
| Brightness middle | 252 | 235 -7% | 235 -7% | 258 2% | 178 -29% | 285 13% |
| Brightness | 252 | 231 -8% | 231 -8% | 237 -6% | 174 -31% | 255 1% |
| Brightness Distribution | 85 | 84 -1% | 84 -1% | 72 -15% | 82 -4% | 84 -1% |
| Black Level * | 0.14 | 0.25 -79% | 0.25 -79% | 0.26 -86% | 0.41 -193% | 0.325 -132% |
| Contrast | 1800 | 940 -48% | 940 -48% | 992 -45% | 434 -76% | 877 -51% |
| Colorchecker dE 2000 * | 3.58 | 4.11 -15% | 10.59 -196% | 6.01 -68% | 12.66 -254% | 4.23 -18% |
| Colorchecker dE 2000 max. * | 6.25 | 6.72 -8% | 22.08 -253% | 9.38 -50% | 22.77 -264% | 7.94 -27% |
| Colorchecker dE 2000 calibrated * | 4.85 | 4.56 6% | 5.41 -12% | 4.36 10% | 3.75 23% | |
| Greyscale dE 2000 * | 1.38 | 2.79 -102% | 12.5 -806% | 4.69 -240% | 15.05 -991% | 2.51 -82% |
| Gamma | 2.44 90% | 2.53 87% | 2.43 91% | 2.21 100% | 2.63 84% | 2.57 86% |
| CCT | 6645 98% | 6666 98% | 16404 40% | 6260 104% | 20050 32% | 6626 98% |
| Color Space (Percent of AdobeRGB 1998) | 37 | 36 | ||||
| Color Space (Percent of sRGB) | 58 | 57 | ||||
| Total Average (Program / Settings) | -6% /
-17% | -43% /
-96% | -24% /
-40% | -56% /
-126% | -9% /
-19% |
* ... smaller is better

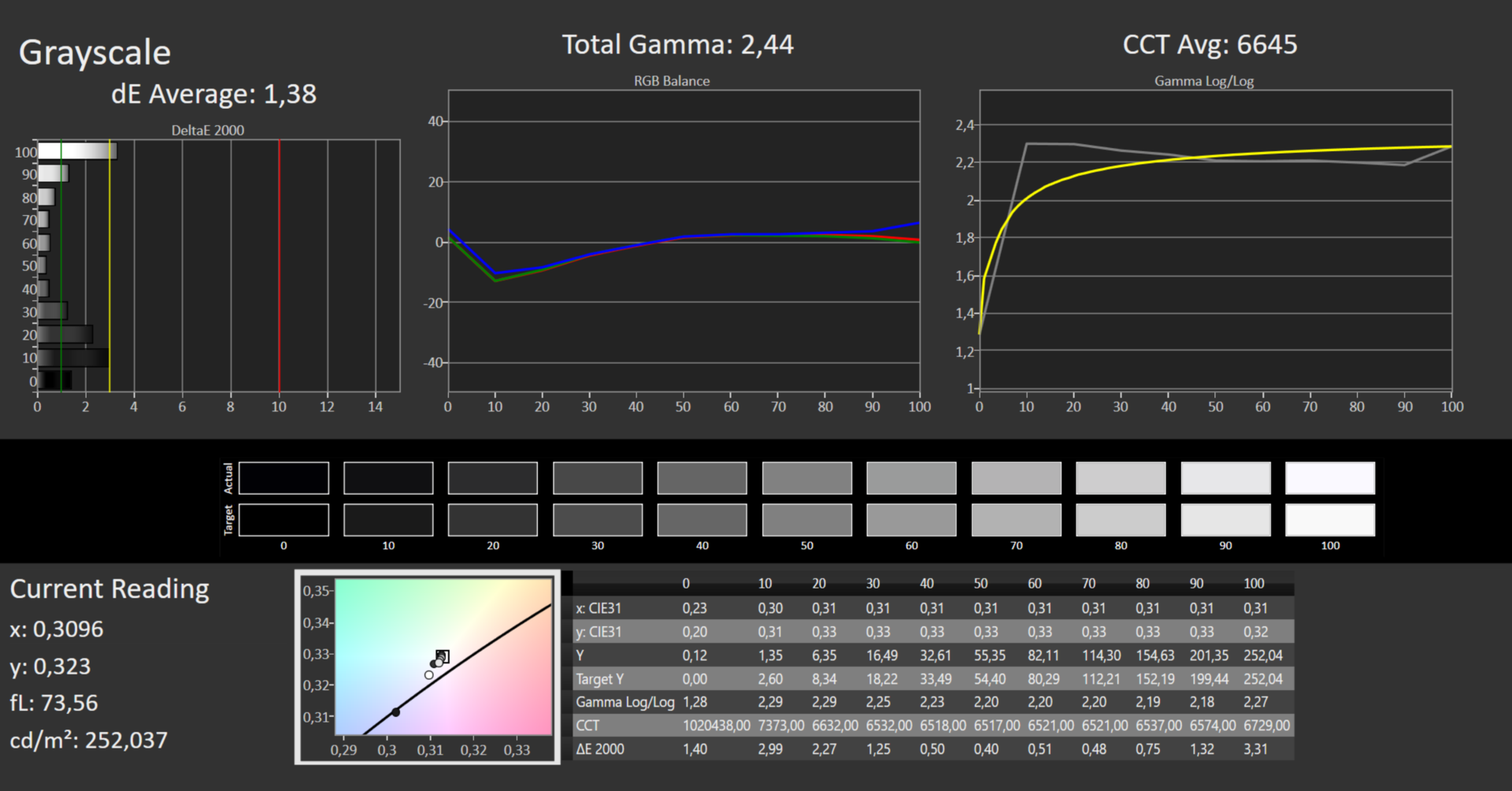

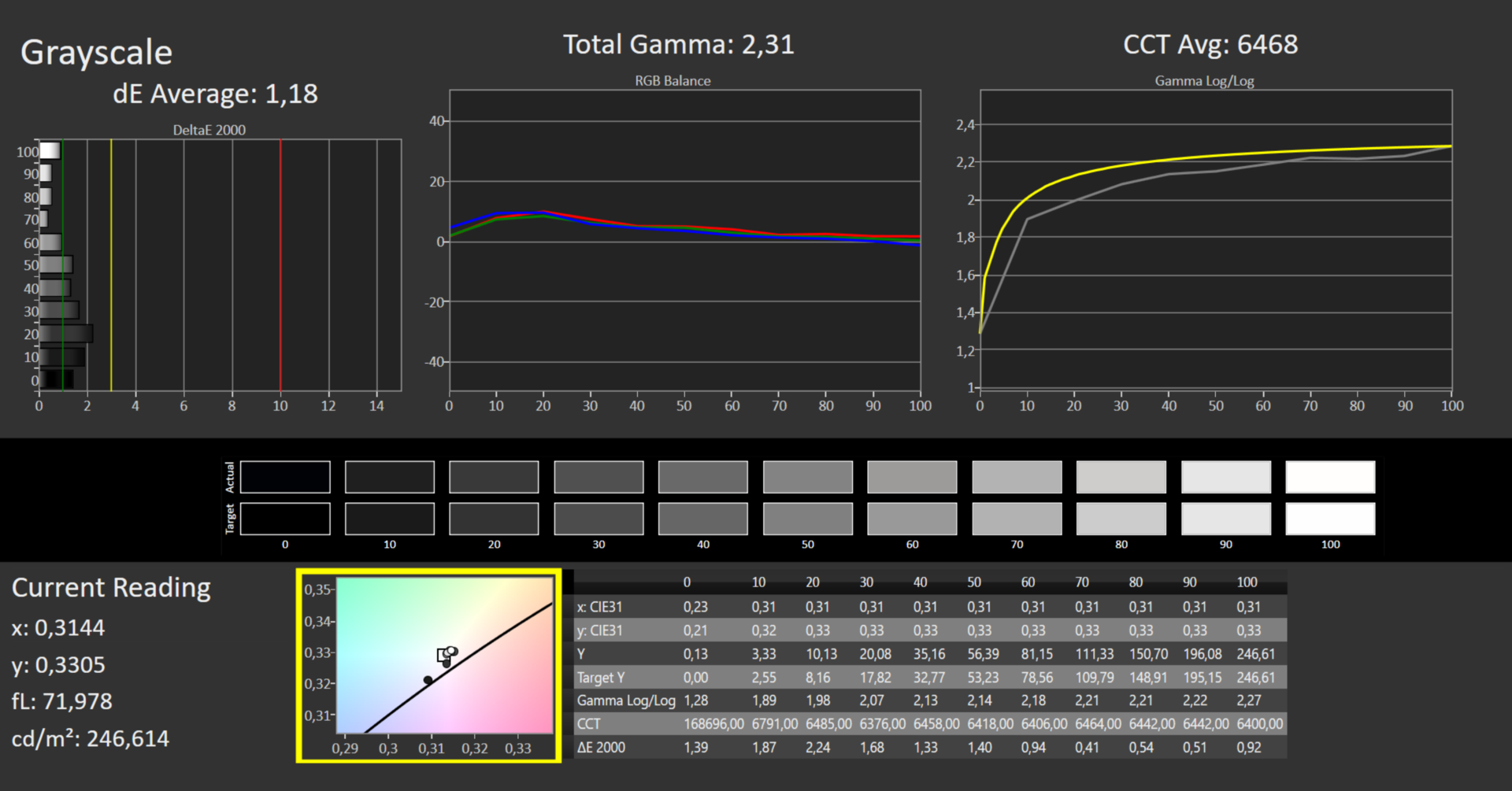

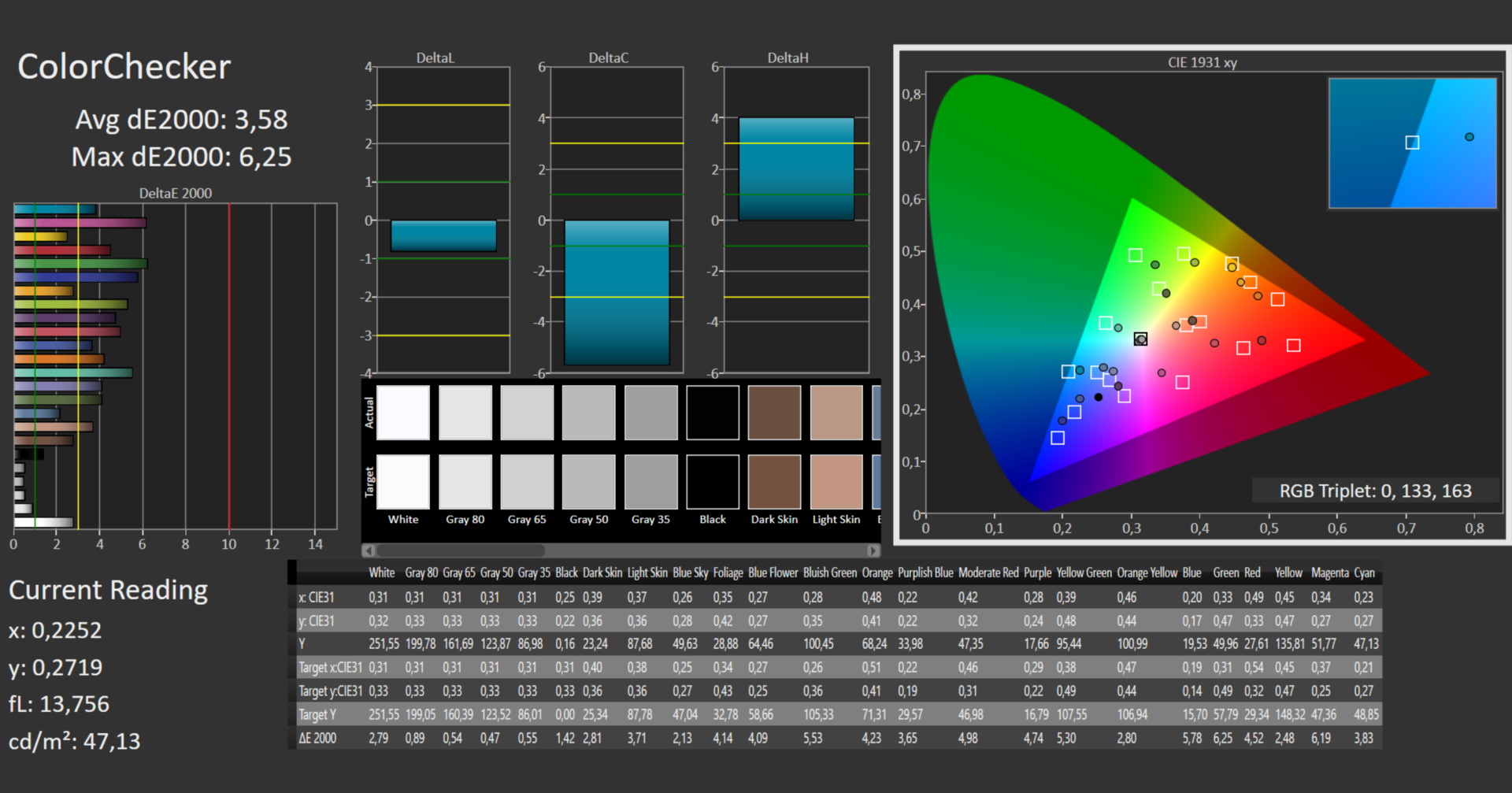

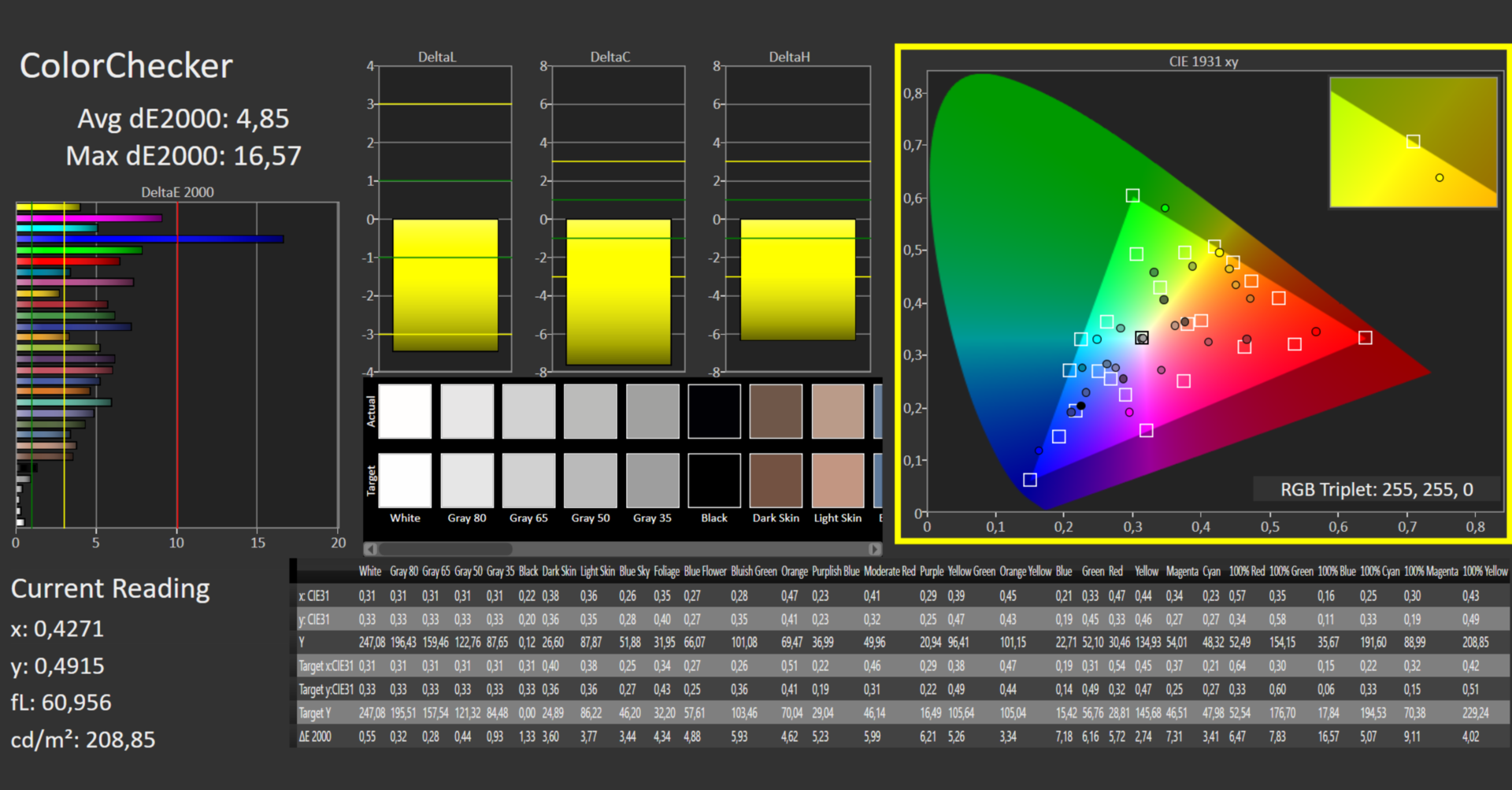

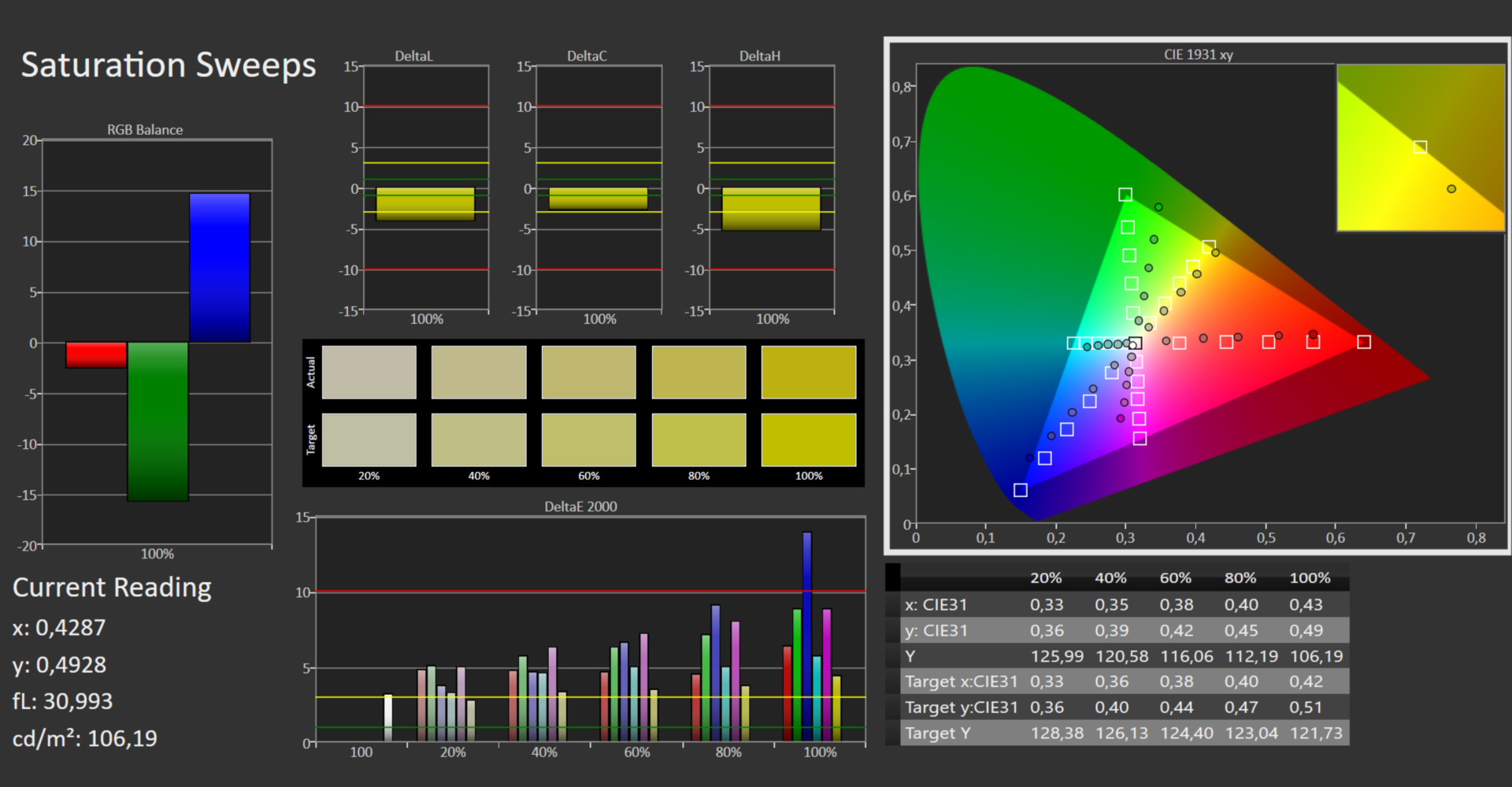

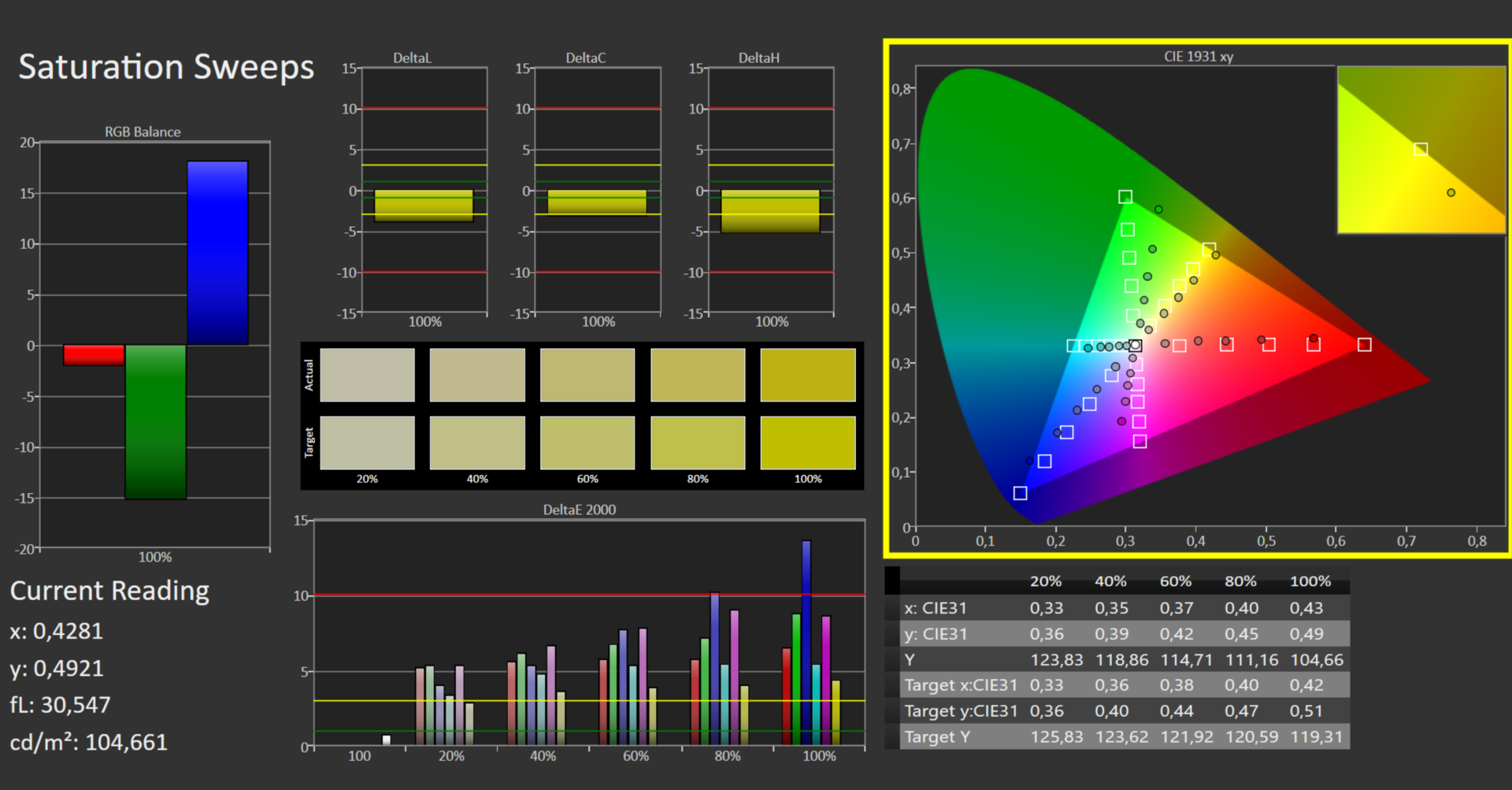

屏幕显示的颜色是正确的：偏差为3.58，与目标（DeltaE<3）相差无几。不建议进行校准：虽然显示的灰度更均匀，但也使颜色偏差增加到4.85。
屏幕不能显示AdobeRGB（38%）、sRGB（56%）和DCI-P3（37%）的色彩空间。由于这个原因，该面板不适合需要精确色彩再现的应用场景。在这方面，竞争者的情况也没有好到哪里去。

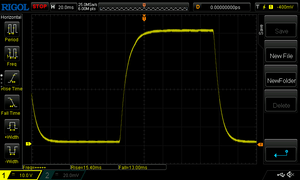

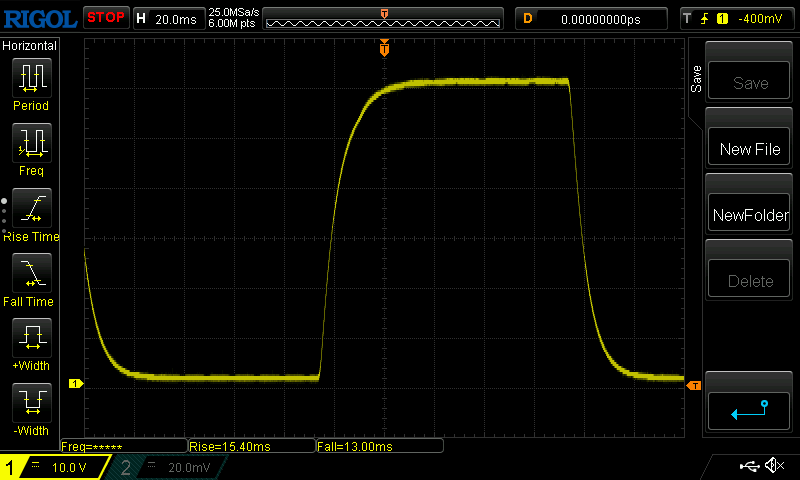

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 28 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 13 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

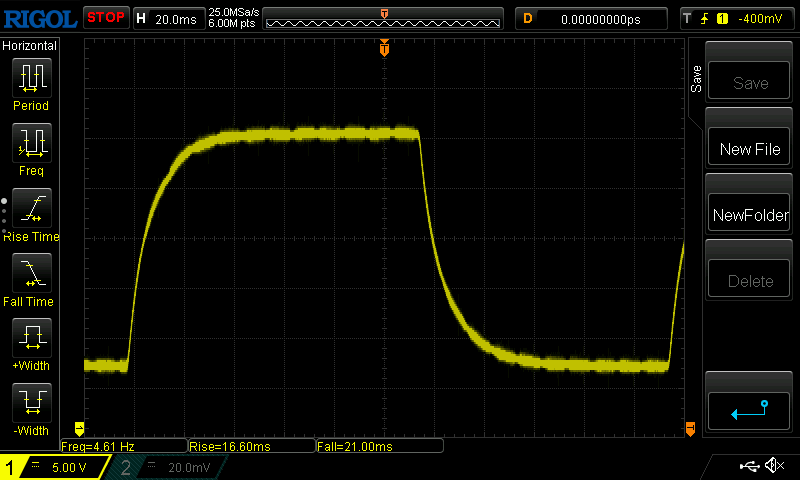

| ↔ Response Time 50% Grey to 80% Grey | ||
| 37 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise |  |
| ↘ 21 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

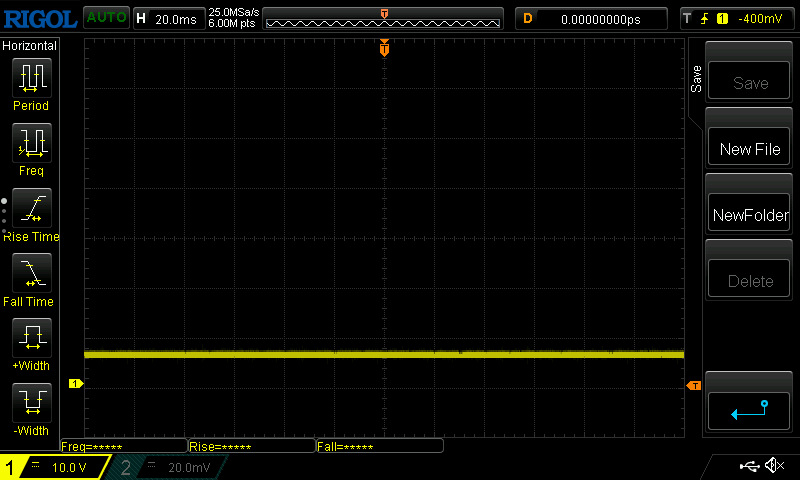

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

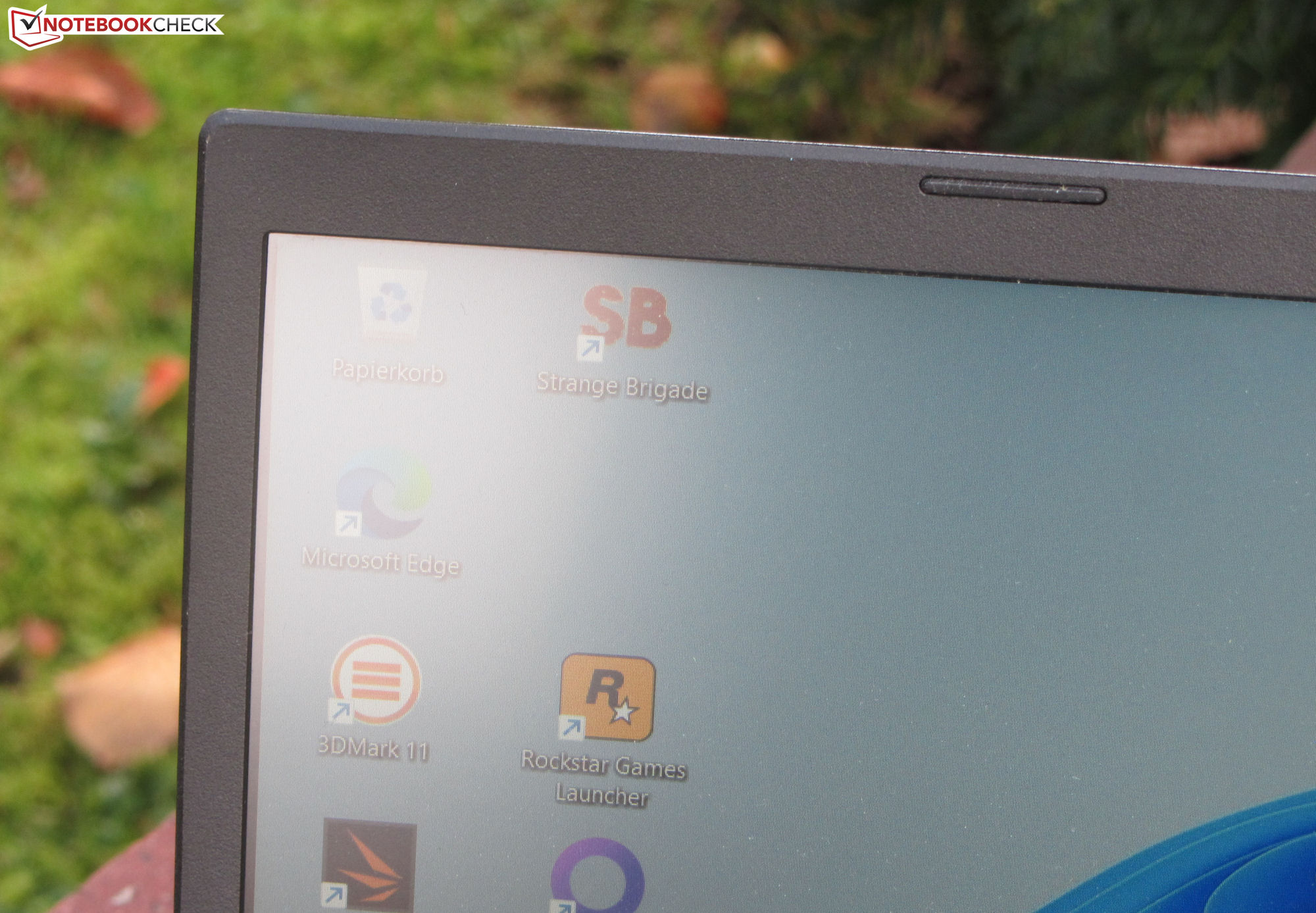

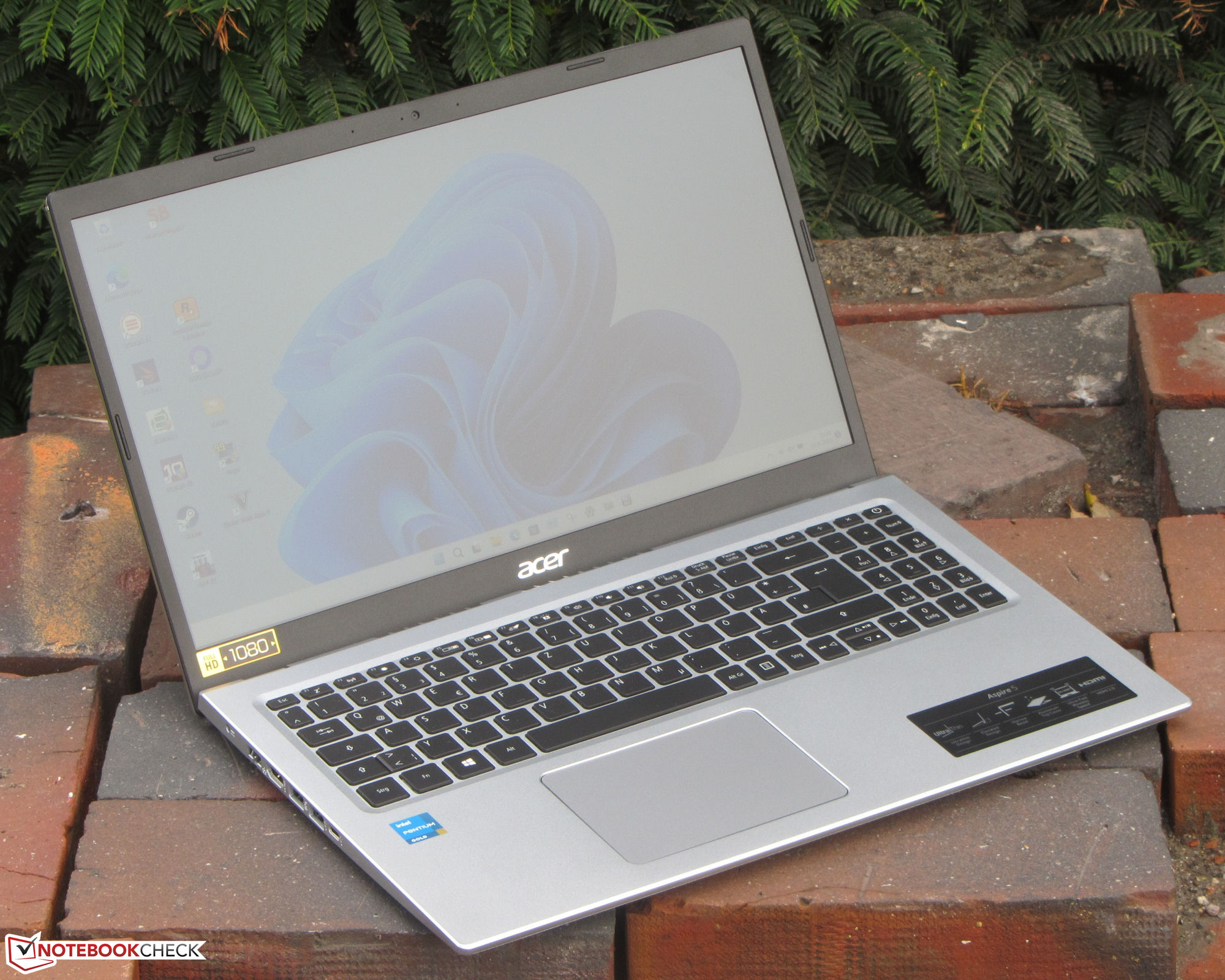

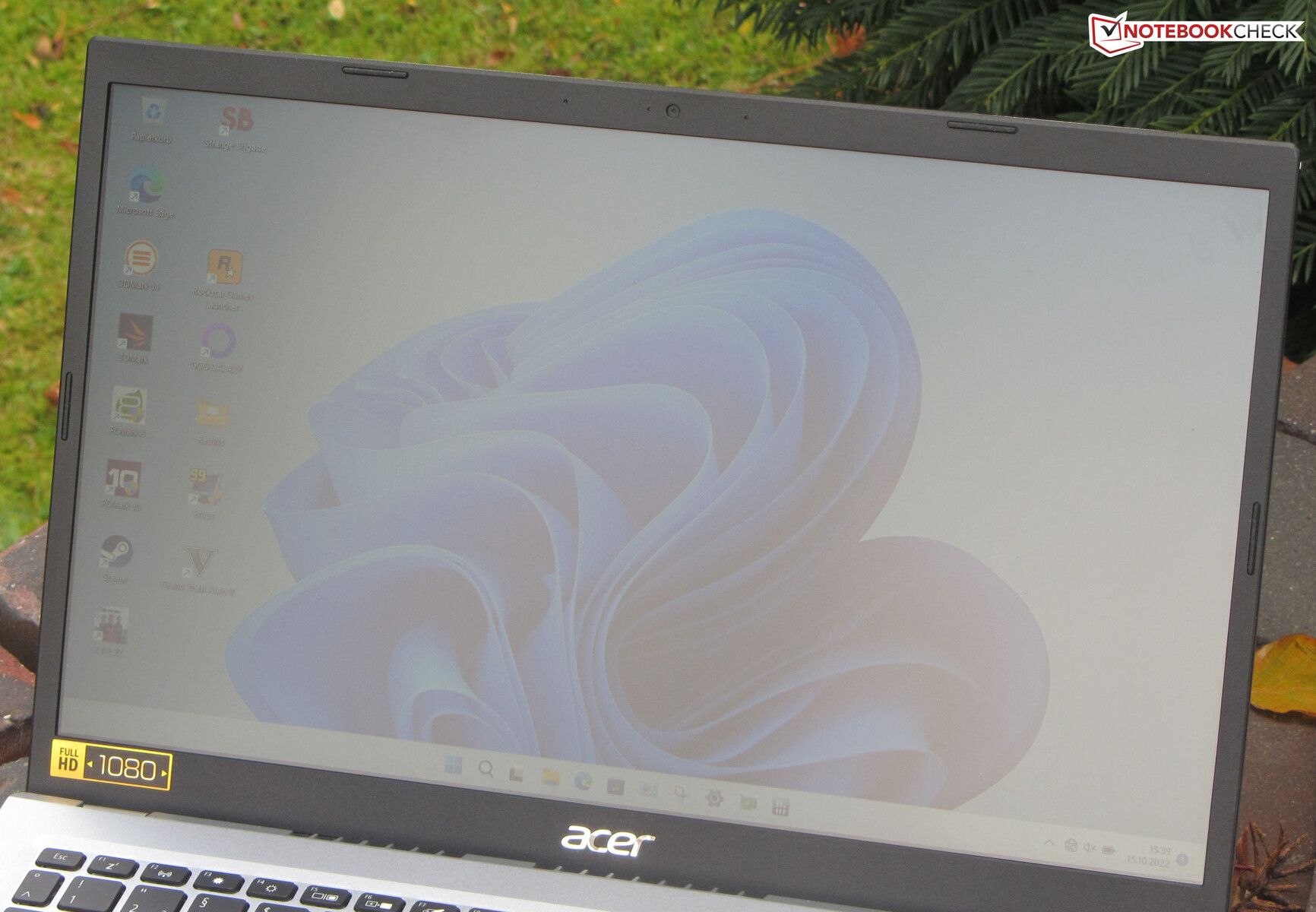

视角稳定的IPS面板可以从任何位置阅读。在户外，如果阳光不是太亮，也可以阅读屏幕。
性能 - Aspire 5配备了Tiger Lake
宏碁提供了Aspire 5 A515-56 - 一个15.6英寸格式的办公笔记本电脑 - 在无数的配置，从400到900欧元。这里测试的型号属于定价范围的下半部分。这里使用了从奔腾到酷睿i7的Tiger Lake 处理器。某些（价格较高的）SKU有一个 GeForce MX450图形核心，使游戏和图形密集型应用成为可能。
测试条件
你可以使用组合键 "Fn "+"F "从三个预装的性能配置文件（"正常模式"、"性能模式"、"沉默模式"）中进行选择。测试是在 "正常模式 "配置文件激活的情况下进行的。没有发现配置文件之间的性能差异。在任何情况下，CPU的功率限制为15瓦（PL1）和38瓦（PL2）。
处理器

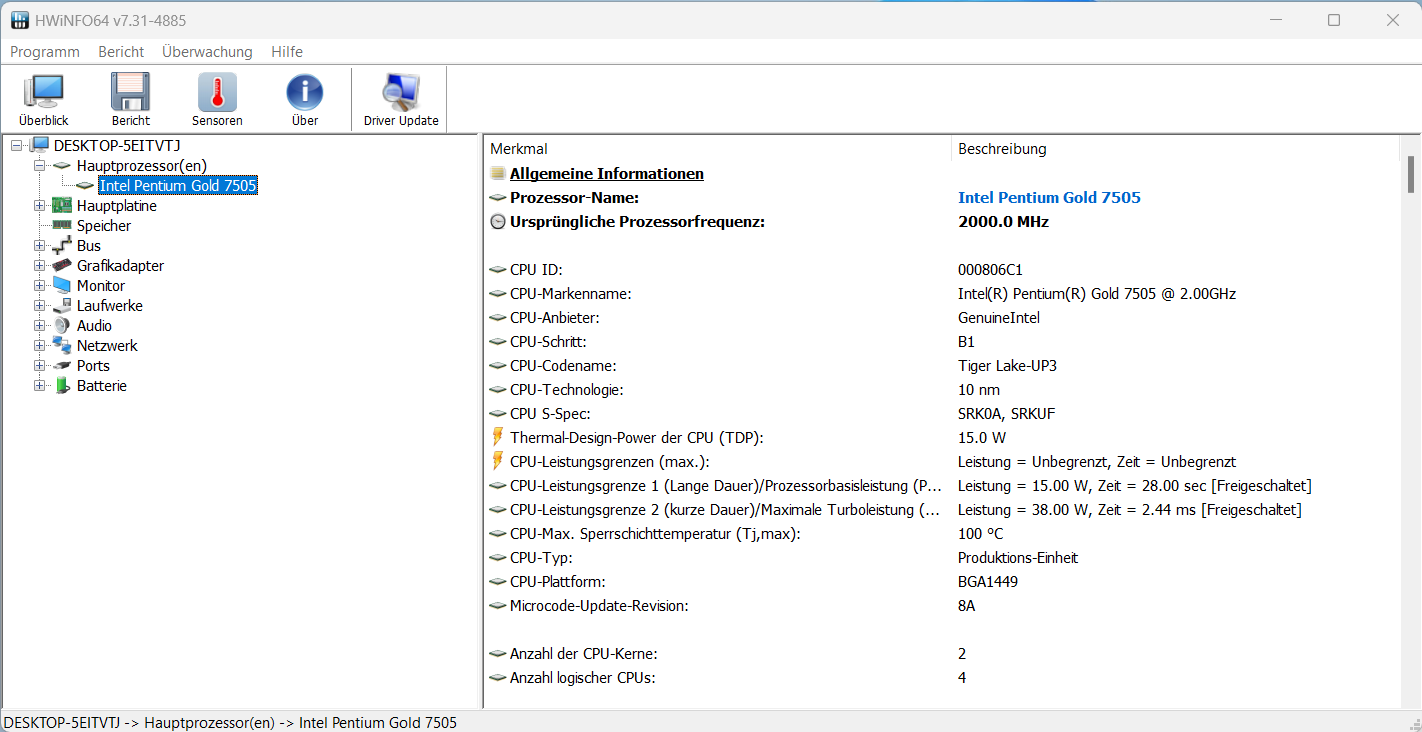

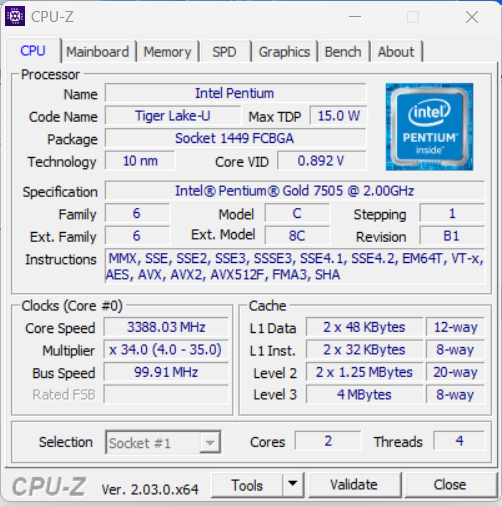

奔腾金服奔腾金7505双核处理器（Tiger Lake 系列）以2 GHz的基本时钟速度运行。由于采用了涡轮增压模式，可以提高到3.5GHz。支持超线程（每个核心两个线程）。

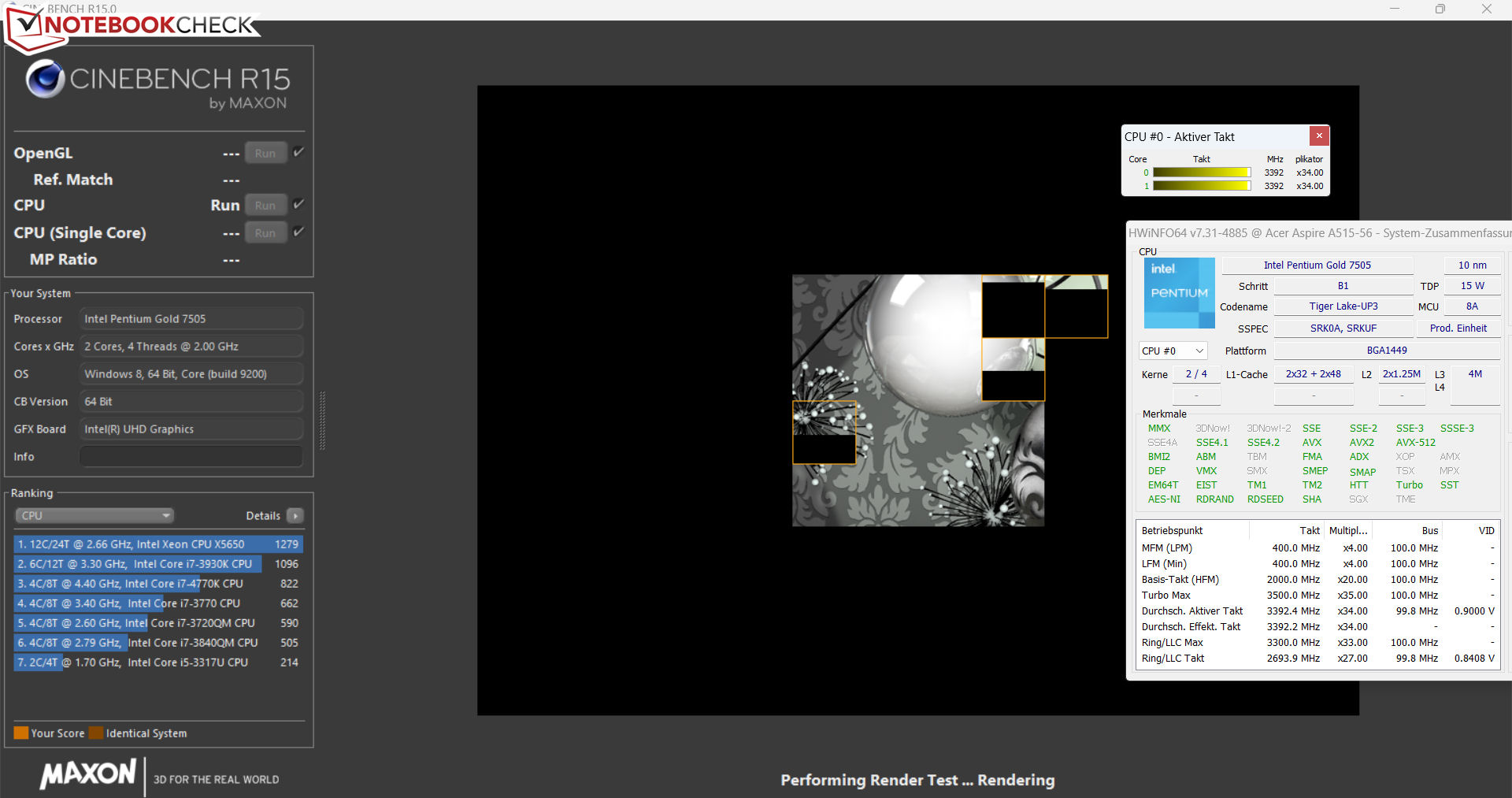

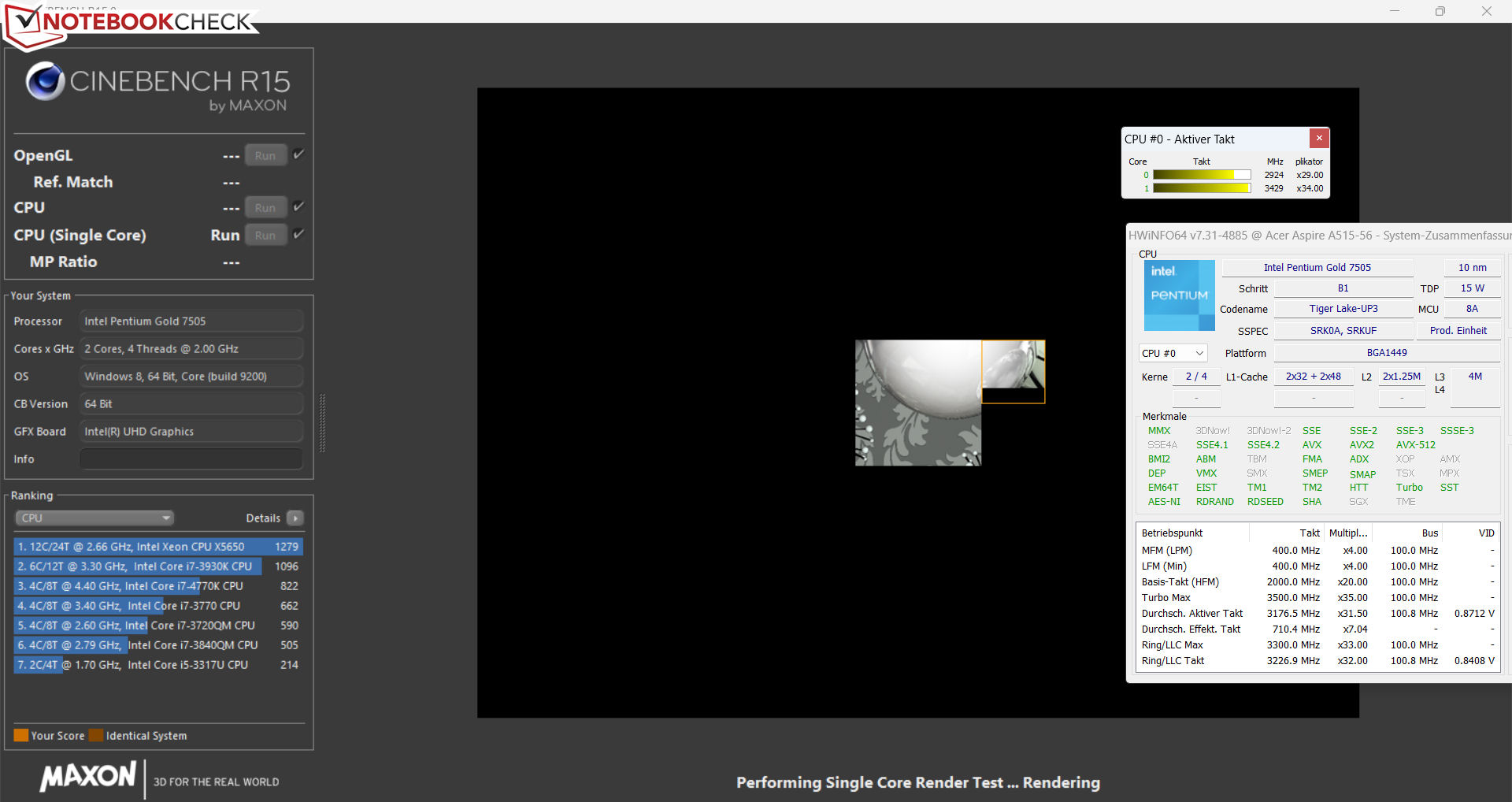

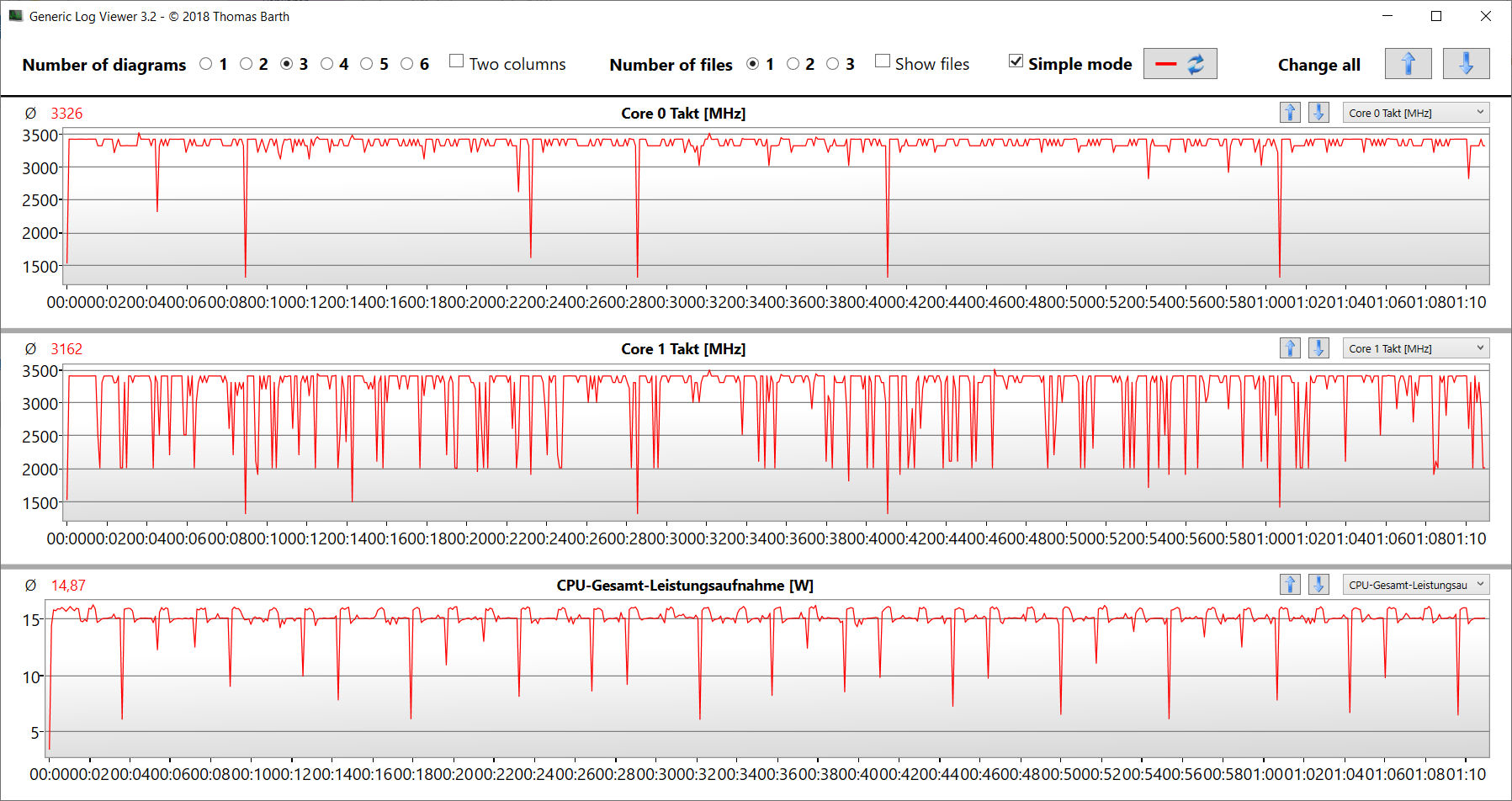

Cinebench R15多线程测试最初以3.4 GHz的速度运行，然后时钟速度降至3至3.2 GHz之间。单线程测试在1.9至3.4GHz下进行。在电池上，时钟速度要低得多。CB R15的循环测试证实了CPU涡轮增压的持续使用。奔腾将自己置于性能表的较低部分，但对于简单、廉价的办公笔记本电脑来说是一个不错的选择。对于日常使用（办公室、互联网、流媒体），CPU可以很好地应对，不会遇到任何问题。
Cinebench R15 Multi Endurance Test
Acer Aspire 5 A515-56-P8NZ Intel Pentium Gold 7505: Ø388 (384.86-396.77)
Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U: Ø469 (445.57-602.6)
Lenovo V15 G2 ALC-82KD003XGE AMD Ryzen 5 5500U: Ø1129 (1115.11-1138.98)
Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4: Ø400 (388.93-418.63)
HP 250 G7-15S40ES Intel Core i5-1035G1: Ø529 (517.84-560.97)
Acer Aspire 5 A515-56-511A Intel Core i5-1135G7: Ø636 (630.73-668.34)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Office | |
| Lenovo V15 G2 ALC-82KD003XGE -1! | |
| Acer Aspire 5 A515-56-511A -2! | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| HP 250 G7-15S40ES -2! | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505 | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Office (1577 - 15743, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505 (2594 - 2606, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Single Core | |
| Average of class Office (618 - 1995, n=93, last 2 years) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505 (1110 - 1115, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| HP 250 G7-15S40ES | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (1017 - 1017, n=2) | |
| CPU (Single Core) | |
| Average of class Office (229 - 766, n=92, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505 (428 - 430, n=2) | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Dell Inspiron 15 3505-PXHPW | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=95, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (397 - 403, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| CPU Single 64Bit | |
| Average of class Office (98 - 284, n=94, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (164.9 - 165.1, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Blender - v2.79 BMW27 CPU | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (1142 - 1158, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average of class Office (208 - 1956, n=94, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Office (7532 - 65460, n=95, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (10347 - 11164, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=94, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505 (4032 - 4092, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Dell Inspiron 15 3505-PXHPW | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Office (1018 - 11980, n=94, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (2210 - 2459, n=3) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Single-Core | |
| Average of class Office (510 - 1995, n=95, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| HP 250 G7-15S40ES | |
| Average Intel Pentium Gold 7505 (1093 - 1206, n=3) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Dell Inspiron 15 3505-PXHPW | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Office (1.72 - 18.7, n=92, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505 (3.4 - 3.46, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| LibreOffice - 20 Documents To PDF | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ | |
| HP 250 G7-15S40ES | |
| Average Intel Pentium Gold 7505 (54.5 - 59.2, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average of class Office (31.3 - 129.6, n=92, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| R Benchmark 2.5 - Overall mean | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A515-56-P8NZ | |
| HP 250 G7-15S40ES | |
| Average Intel Pentium Gold 7505 (0.739 - 0.75, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| Average of class Office (0.4244 - 1.135, n=91, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505 | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A515-56-P8NZ | |
| Acer Aspire 5 A515-56-511A -9! | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Average Intel Pentium Gold 7505 (3528 - 3528, n=2) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Average Intel Pentium Gold 7505 (14396 - 14403, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Average Intel Pentium Gold 7505 (970 - 970, n=2) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Average Intel Pentium Gold 7505 (23254 - 23260, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| AIDA64 / FPU SinJulia | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Average of class Office (404 - 14288, n=93, last 2 years) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Average Intel Pentium Gold 7505 (1981 - 1986, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Average Intel Pentium Gold 7505 (8758 - 8758, n=2) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / CPU AES | |
| Average of class Office (7254 - 155900, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Average Intel Pentium Gold 7505 (30367 - 30385, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=93, last 2 years) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Average Intel Pentium Gold 7505 (162.7 - 163.3, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Acer Aspire 5 A515-56-511A (v6.25.5400) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Average Intel Pentium Gold 7505 (1934 - 1935, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=93, last 2 years) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Average Intel Pentium Gold 7505 (10215 - 19568, n=2) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
系统性能

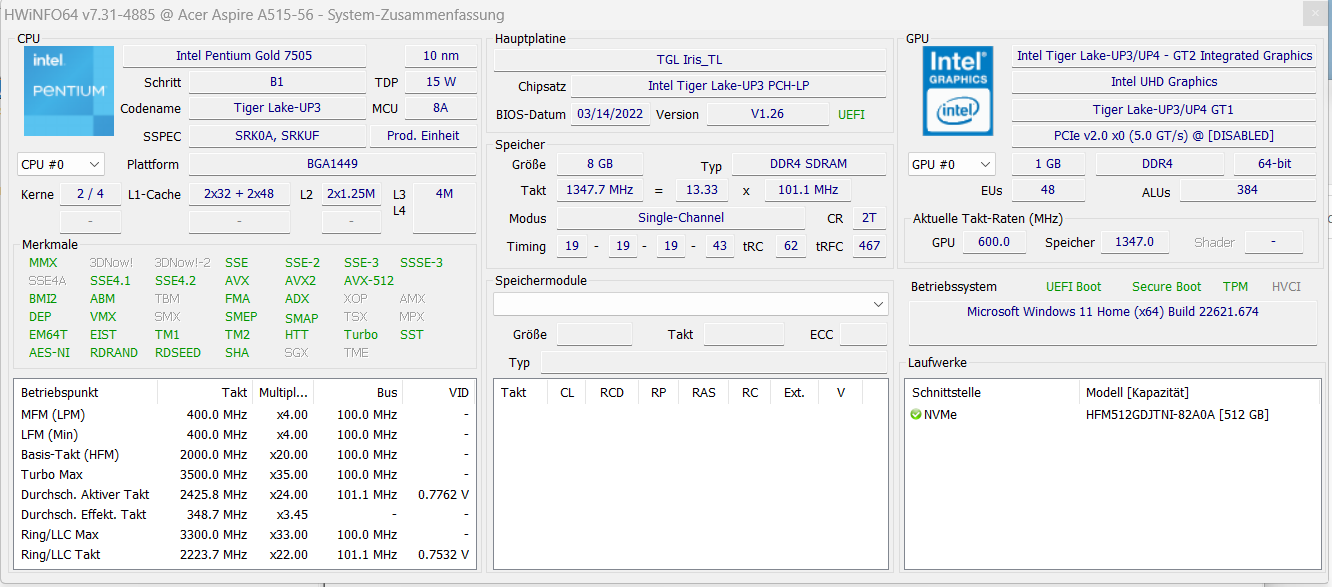

运行流畅的系统可以轻松处理办公和互联网应用。宏碁让部分计算能力闲置，因为内存（8GB，DDR4-3200，板载）只在单通道模式下运行。安装一个内存模块会有好处。对于DDR4-3200内存来说，可用内存的传输率处于正常水平。PCMark的结果还算不错。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs () | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| PCMark 10 / Essentials | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs () | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 10 / Productivity | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs () | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=86, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs () | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=88, last 2 years) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs (853 - 902, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=88, last 2 years) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs (967 - 991, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=88, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs (750 - 825, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=88, last 2 years) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs (861 - 888, n=2) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| PCMark 8 Home Score Accelerated v2 | 3228 points | |
| PCMark 8 Work Score Accelerated v2 | 2679 points | |
| PCMark 10 Score | 3640 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=94, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Average Intel Pentium Gold 7505 (17188 - 32353, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=94, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Average Intel Pentium Gold 7505 (20212 - 37131, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=94, last 2 years) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Average Intel Pentium Gold 7505 (19075 - 38595, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| AIDA64 / Memory Latency | |
| Dell Inspiron 15 3505-PXHPW (v6.50.5800) | |
| Lenovo V15 G2 ALC-82KD003XGE (v6.50.5800) | |
| Average of class Office (6.9 - 185.2, n=93, last 2 years) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (v6.50.5800) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100, Dual-Channel) | |
| Average Intel Pentium Gold 7505 (70.7 - 72.6, n=2) | |
| Acer Aspire 5 A515-56-P8NZ (v6.75.6100) | |
| HP 250 G7-15S40ES (v6.25.5400) | |
| Acer Aspire 5 A515-56-511A (v6.25.5400) | |
* ... smaller is better

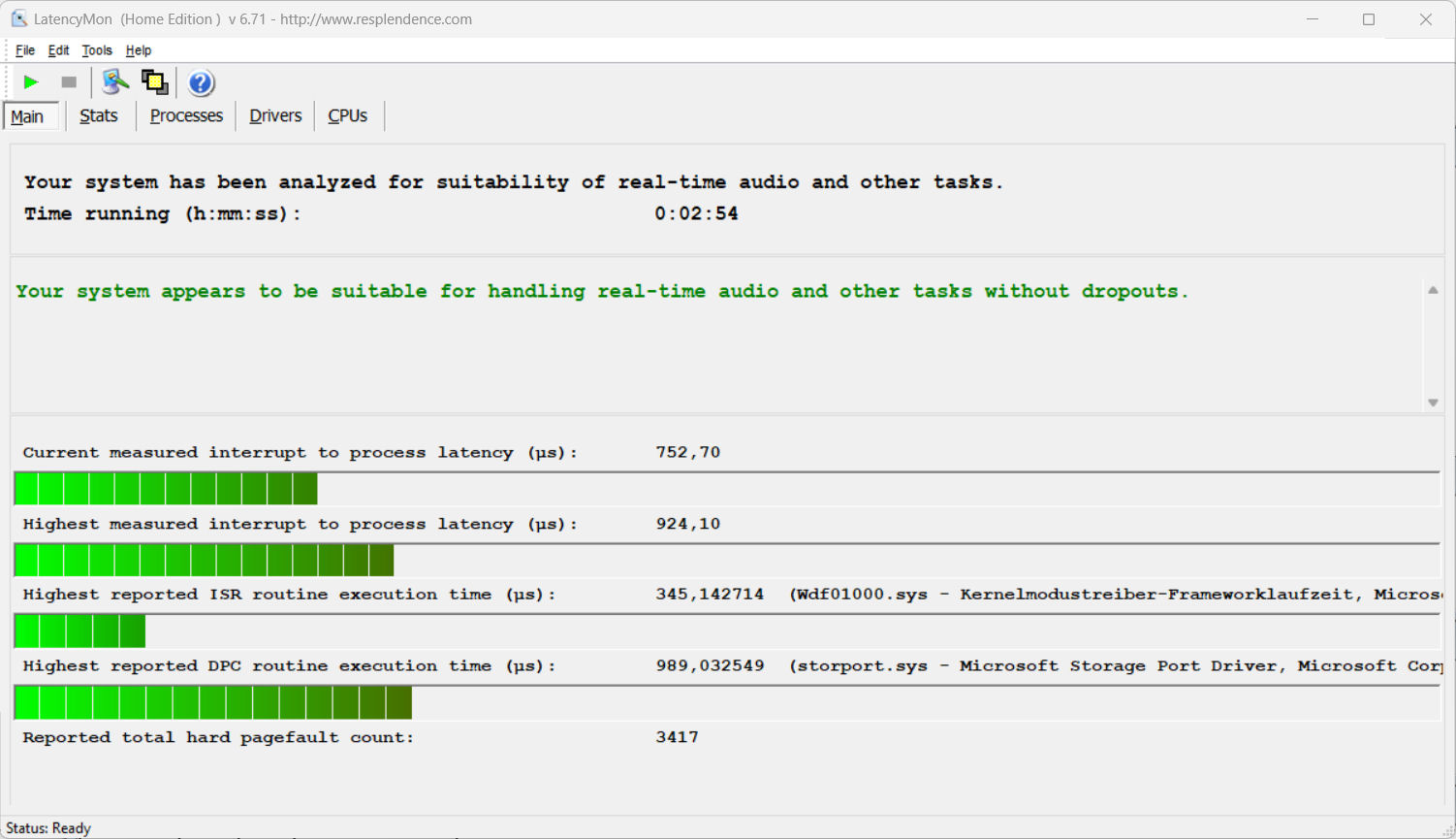

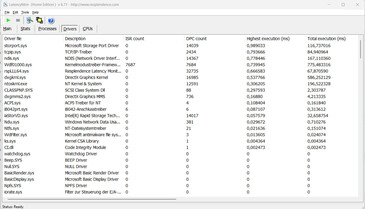

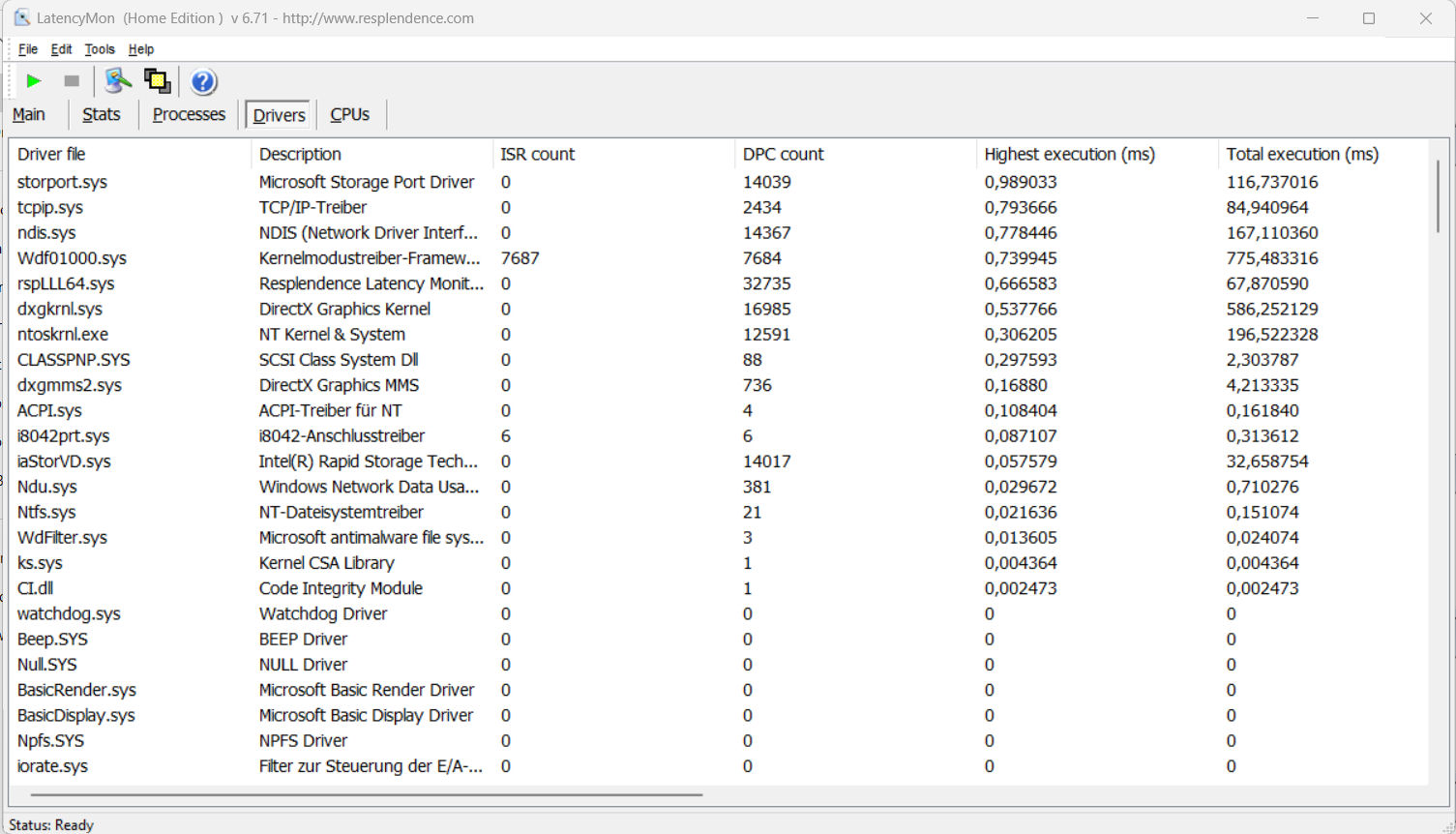

DPC延时
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| HP 250 G7-15S40ES | |
| Dell Inspiron 15 3505-PXHPW | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| Acer Aspire 5 A515-56-P8NZ | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
* ... smaller is better
大容量存储
来自SK海力士的内置512GB固态硬盘（PCIe 3，M.2 2280）提供了良好的传输速度，但不属于顶级固态硬盘型号。不幸的是，由于热节流，它的性能下降。Aspire为2.5英寸存储介质提供了额外的空间。SATA插槽和安装框架在笔记本电脑内部。
SK Hynix BC511 HFM512GDJTNI
CDM 5/6 Read Seq Q32T1:
2289 MB/s
CDM 5/6 Write Seq Q32T1:
1097 MB/s
CDM 5/6 Read 4K Q32T1:
561.8 MB/s
CDM 5/6 Write 4K Q32T1:
426.1 MB/s
CDM 5 Read Seq:
1147 MB/s
CDM 5 Write Seq:
1079 MB/s
CDM 5/6 Read 4K:
49.77 MB/s
CDM 5/6 Write 4K:
157.3 MB/s
| Drive Performance Rating - Percent | |
| Average of class Office | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Average SK Hynix BC511 HFM512GDJTNI | |
| HP 250 G7-15S40ES | |
| Dell Inspiron 15 3505-PXHPW | |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Acer Aspire 5 A515-56-P8NZ SK Hynix BC511 HFM512GDJTNI: Ø1601 (1024.51-2291.35)
Dell Inspiron 15 3505-PXHPW KDI OM3PDP3-AD NVMe KDI 256GB: Ø2158 (1671.84-2352.47)
Lenovo V15 G2 ALC-82KD003XGE WDC PC SN530 SDBPMPZ-512G: Ø2478 (1902.51-2490.84)
Lenovo IdeaPad 3 15ITL05 81X80074GE Lenovo UMIS RPJTJ256MEE1OWX: Ø1769 (1625.4-1774.21)
图形卡

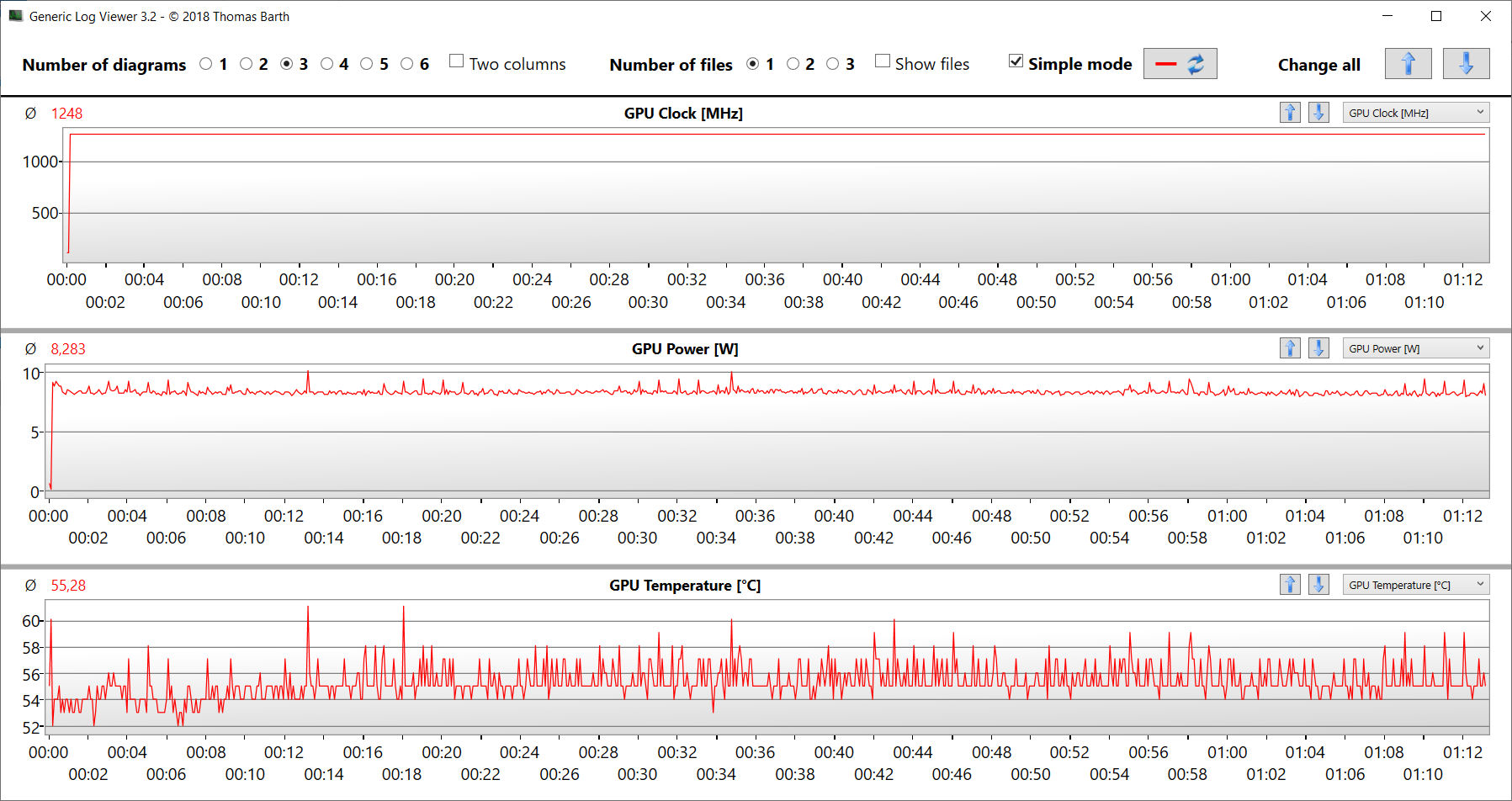

英特尔的 UHD Graphics Xe G4图形核心可以在全功率（1,250 MHz）下连续工作--正如该测试所揭示的那样。 Witcher 3测试显示。低于平均水平的基准测试结果可以追溯到RAM在单通道模式下运行。通过激活双通道模式（安装内存模块），将实现图形性能的提高。
A515不是一款游戏笔记本电脑。尽管如此，该硬件可以在低设置下流畅地运行一些要求不高的游戏--如《GTA V》、《Dota 2 Reborn》和《暗黑破坏神III》等。只要双通道模式处于激活状态，这一点就成立（见对比表）。
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-511A | |
| Acer Aspire 5 A515-56-P8NZ | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Average Intel UHD Graphics Xe G4 48EUs | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| HP 250 G7-15S40ES | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 13132, n=89, last 2 years) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Average Intel UHD Graphics Xe G4 48EUs (2156 - 3906, n=11) | |
| Dell Inspiron 15 3505-PXHPW | |
| Acer Aspire 5 A515-56-P8NZ | |
| HP 250 G7-15S40ES | |

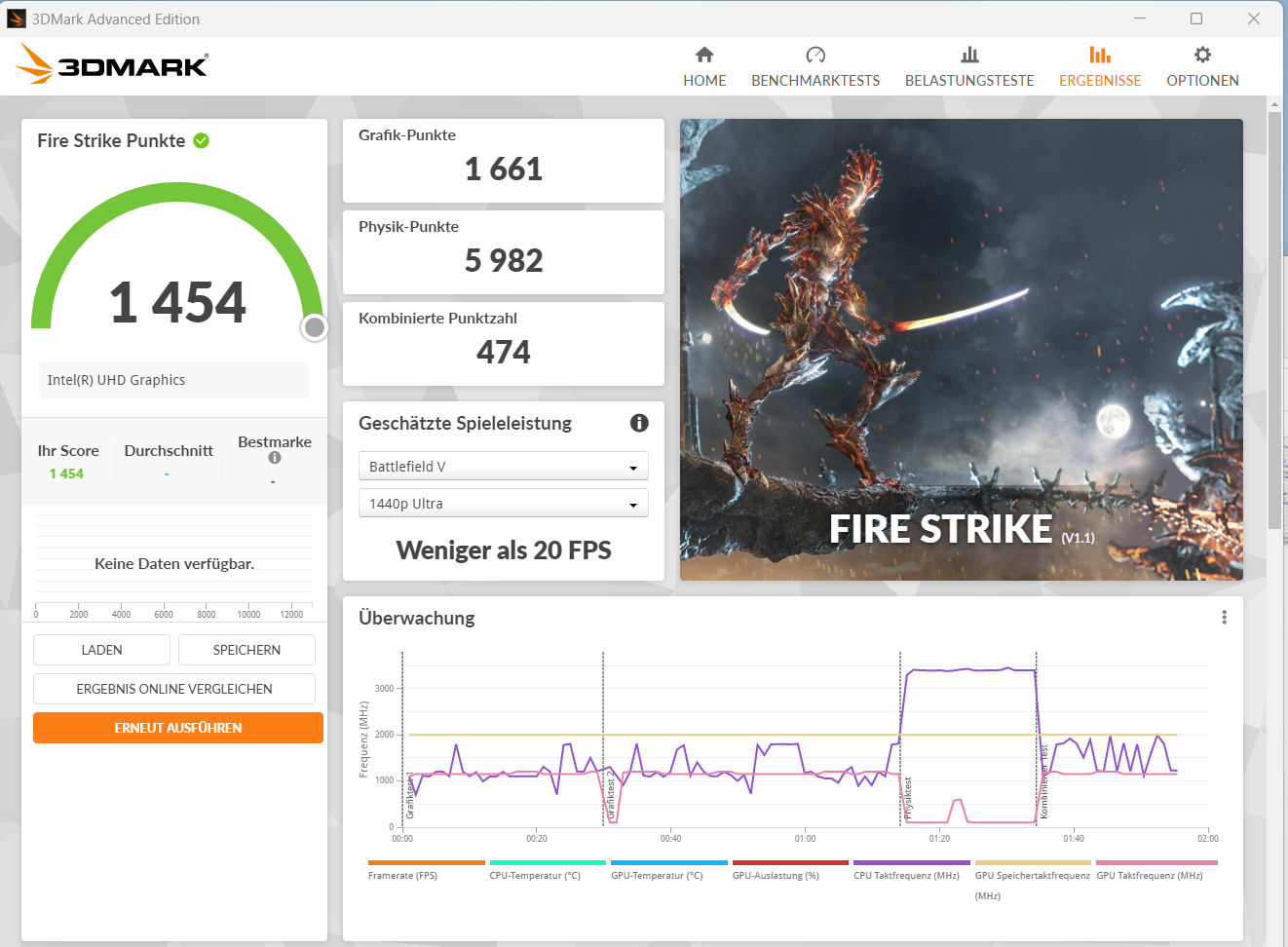

| 3DMark 06 Standard Score | 10519 points | |
| 3DMark 11 Performance | 2875 points | |
| 3DMark Cloud Gate Standard Score | 8312 points | |

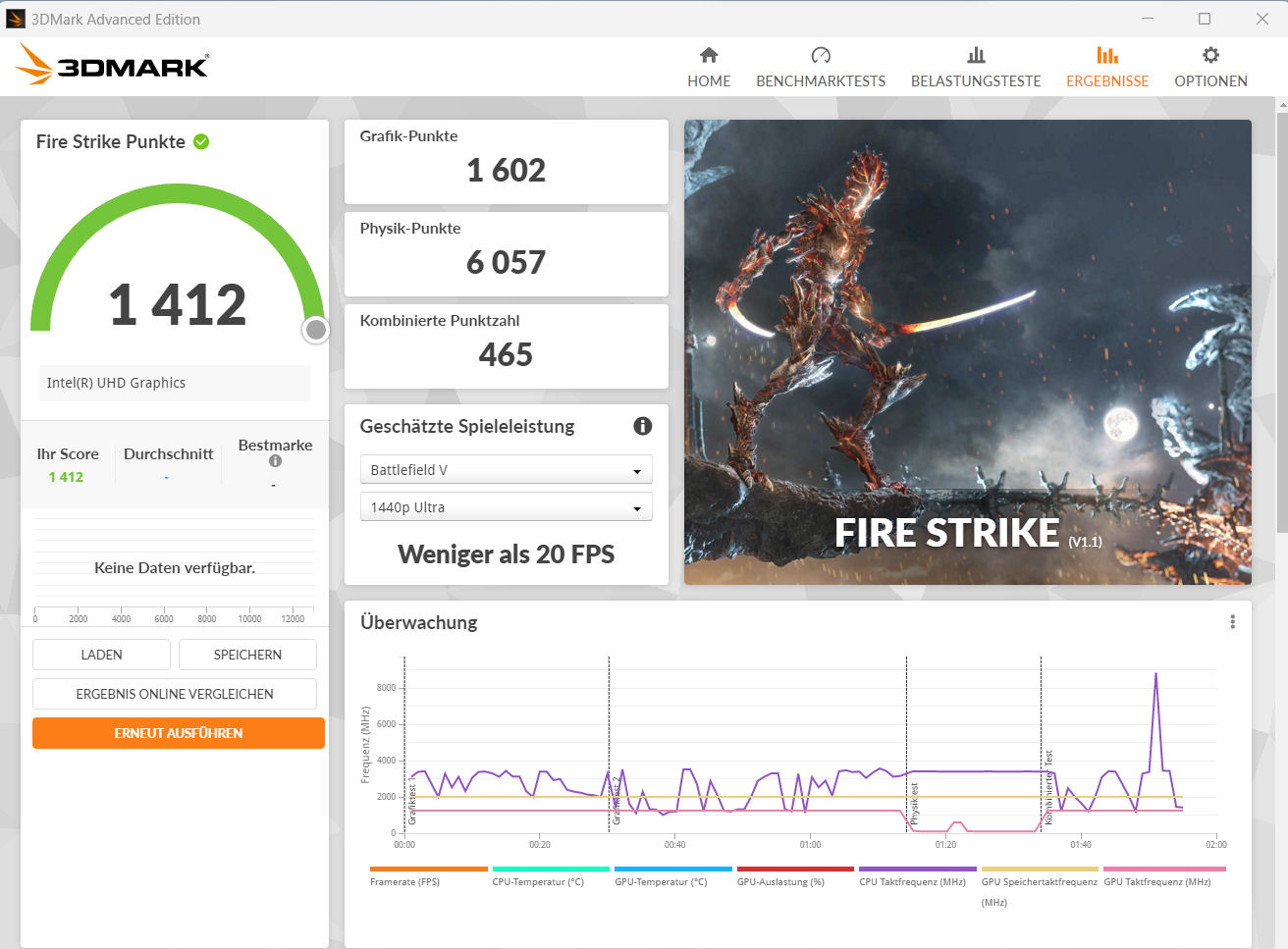

| 3DMark Fire Strike Score | 1412 points | |
| 3DMark Time Spy Score | 718 points | |
Help | ||
The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | GTA V | Strange Brigade
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Office (16 - 177, n=70, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel UHD Graphics Xe G4 48EUs (20.6 - 62.3, n=11) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| Dota 2 Reborn - 1280x720 min (0/3) fastest | |
| Average of class Office (36.8 - 161.8, n=95, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-511A | |
| Average Intel UHD Graphics Xe G4 48EUs (37 - 95.8, n=12) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Acer Aspire 5 A515-56-511A | |
| Average of class Office (13.6 - 128.2, n=94, last 2 years) | |
| HP 250 G7-15S40ES | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel UHD Graphics Xe G4 48EUs (21.8 - 42.5, n=11) | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=89, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (1.3) | |
| Acer Aspire 5 A515-56-P8NZ (1.3, Dual-Channel) | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (1.3) | |
| Average Intel UHD Graphics Xe G4 48EUs (14.6 - 29.3, n=12) | |
| Acer Aspire 5 A515-56-P8NZ (1.3) | |
| Dell Inspiron 15 3505-PXHPW (1.3) | |
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Average of class Office (41.2 - 176.4, n=84, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel UHD Graphics Xe G4 48EUs (36.7 - 106.7, n=8) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| 1920x1080 Lowest Settings possible | |
| Average of class Office (24.8 - 174.9, n=63, last 2 years) | |
| HP 250 G7-15S40ES | |
| Acer Aspire 5 A515-56-P8NZ (Dual-Channel) | |
| Average Intel UHD Graphics Xe G4 48EUs (30.6 - 61.2, n=7) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Dell Inspiron 15 3505-PXHPW | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.7 - 175.7, n=78, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE (1.47.22.14 D3D12) | |
| Acer Aspire 5 A515-56-P8NZ (1.47.22.14 D3D12, Dual-Channel) | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE (1.47.22.14 D3D12) | |
| Average Intel UHD Graphics Xe G4 48EUs (31.3 - 64.4, n=7) | |
| Dell Inspiron 15 3505-PXHPW (1.47.22.14 D3D12) | |
| Acer Aspire 5 A515-56-P8NZ (1.47.22.14 D3D12) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 41.8 | 34.9 | 8.7 | |
| The Witcher 3 (2015) | 32.4 | 19.8 | 9.46 | 5.7 |
| Dota 2 Reborn (2015) | 68.5 | 27.3 | 19.3 | 21.1 |
| Final Fantasy XV Benchmark (2018) | 16.6 | 8.88 | ||
| X-Plane 11.11 (2018) | 28.4 | 22.1 | 20.8 | |
| Strange Brigade (2018) | 32.4 | 13.4 | 11.6 |
排放和功耗 - 低排放的笔记本电脑，电池寿命还算不错
噪声排放
宏碁笔记本电脑在整个负载范围内产生的噪音很小。在日常使用中（办公室、互联网），风扇经常是不活动的，而且很安静。在负载情况下，它的声音会稍微大一些：最大的声压级是35.9 dB(A)。
Noise Level
| Idle |
| 25 / 25 / 26.4 dB(A) |
| Load |
| 32 / 35.9 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| Acer Aspire 5 A515-56-P8NZ UHD Graphics Xe G4 48EUs, Pentium 7505, SK Hynix BC511 HFM512GDJTNI | Dell Inspiron 15 3505-PXHPW Vega 8, R5 3450U, KDI OM3PDP3-AD NVMe KDI 256GB | Lenovo V15 G2 ALC-82KD003XGE Vega 7, R5 5500U, WDC PC SN530 SDBPMPZ-512G | Lenovo IdeaPad 3 15ITL05 81X80074GE UHD Graphics Xe G4 48EUs, i3-1115G4, Lenovo UMIS RPJTJ256MEE1OWX | HP 250 G7-15S40ES GeForce MX110, i5-1035G1, Samsung PM991 MZVLQ256HAJD | Acer Aspire 5 A515-56-511A Iris Xe G7 80EUs, i5-1135G7, Micron 2210 MTFDHBA1T0QFD | |
|---|---|---|---|---|---|---|
| Noise | 1% | 1% | -3% | -10% | -1% | |
| off / environment * | 25 | 25 -0% | 25 -0% | 25 -0% | 26.6 -6% | 24.5 2% |
| Idle Minimum * | 25 | 25 -0% | 25 -0% | 25 -0% | 26.6 -6% | 24.5 2% |
| Idle Average * | 25 | 25 -0% | 25 -0% | 25 -0% | 28.6 -14% | 24.5 2% |
| Idle Maximum * | 26.4 | 25 5% | 25 5% | 25 5% | 28.6 -8% | 26.4 -0% |
| Load Average * | 32 | 33.6 -5% | 33.6 -5% | 37.9 -18% | 35.6 -11% | 32 -0% |
| Load Maximum * | 35.9 | 34.5 4% | 34.5 4% | 38 -6% | 40.3 -12% | 39 -9% |
* ... smaller is better

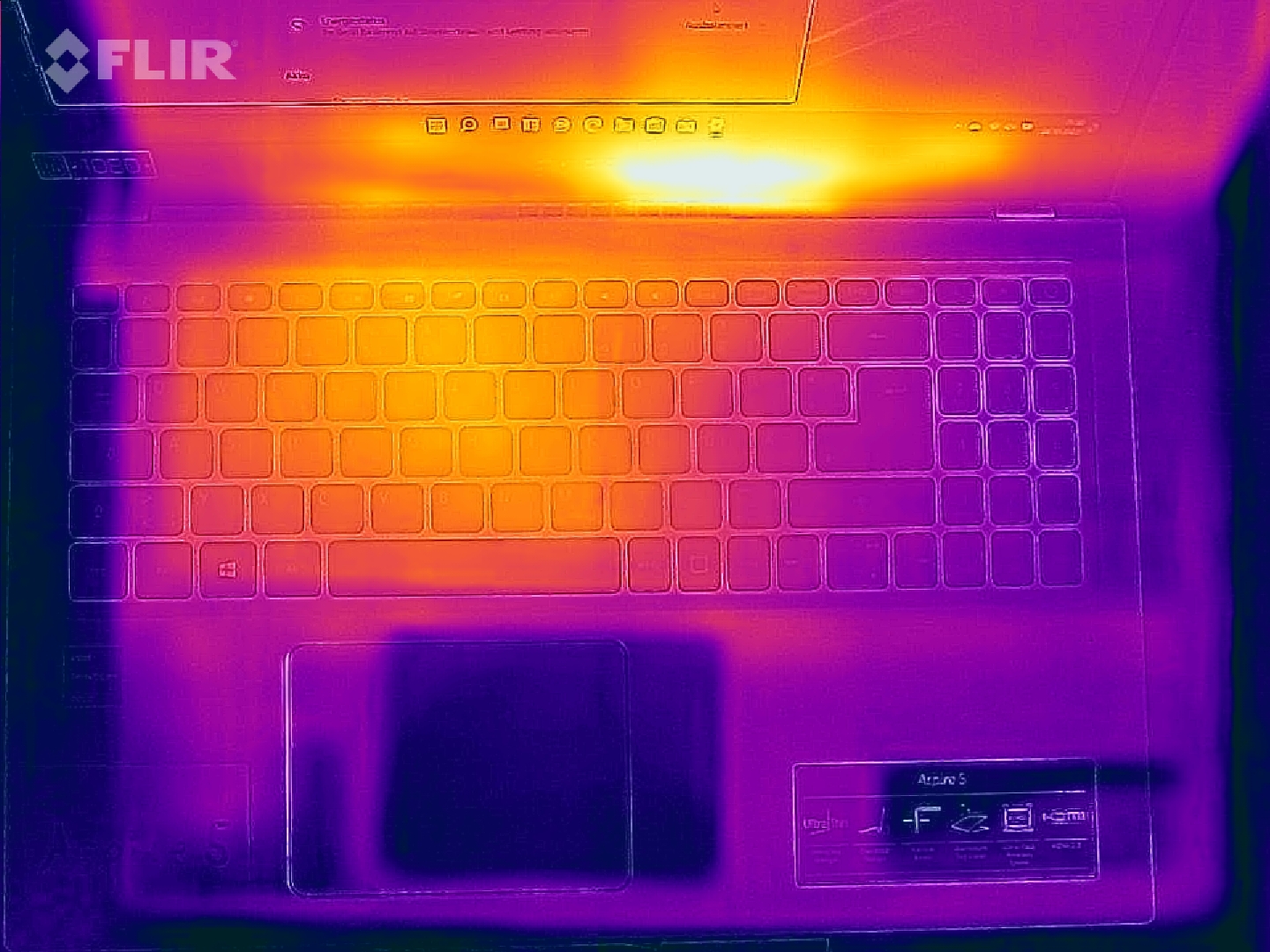

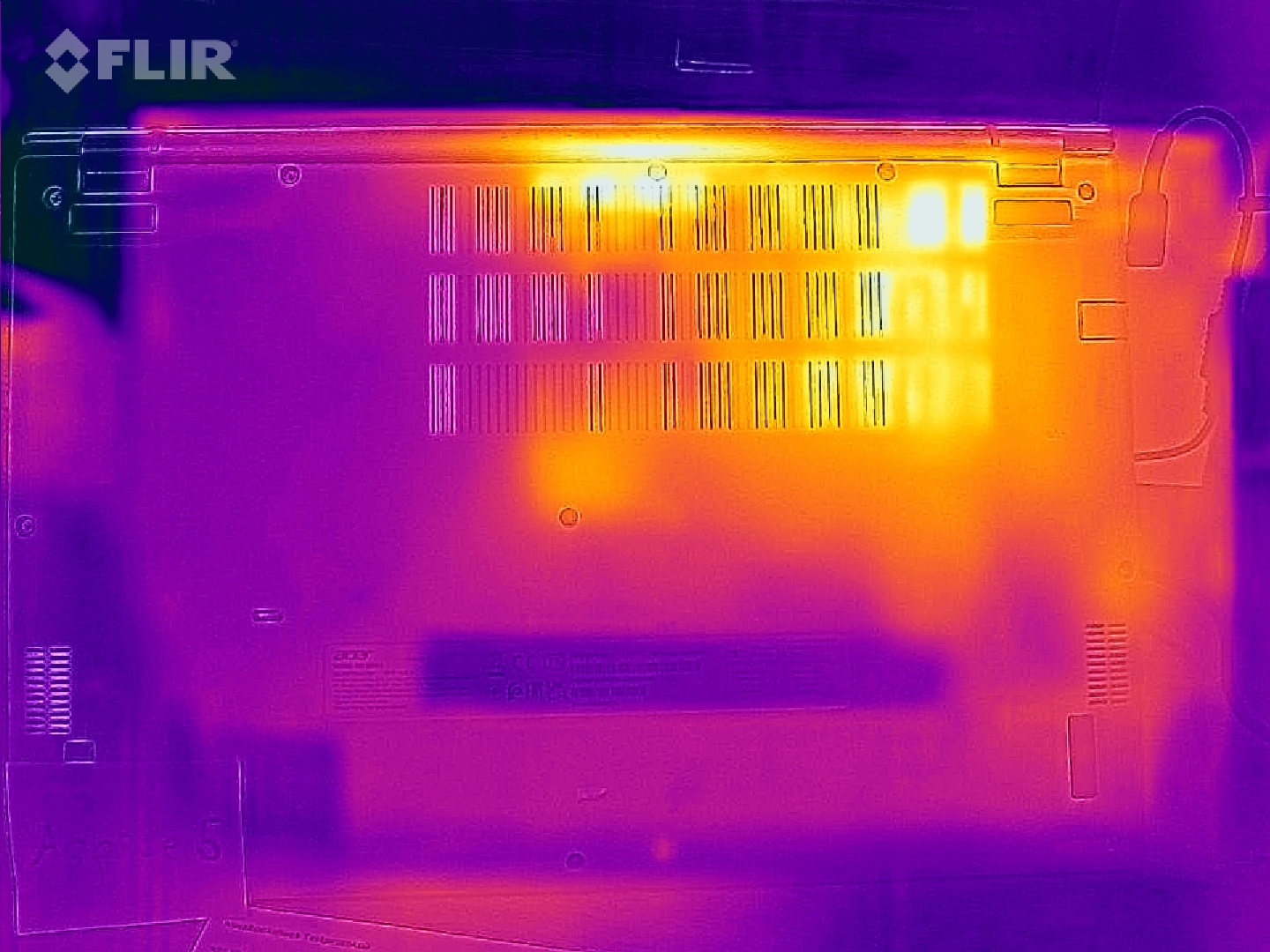

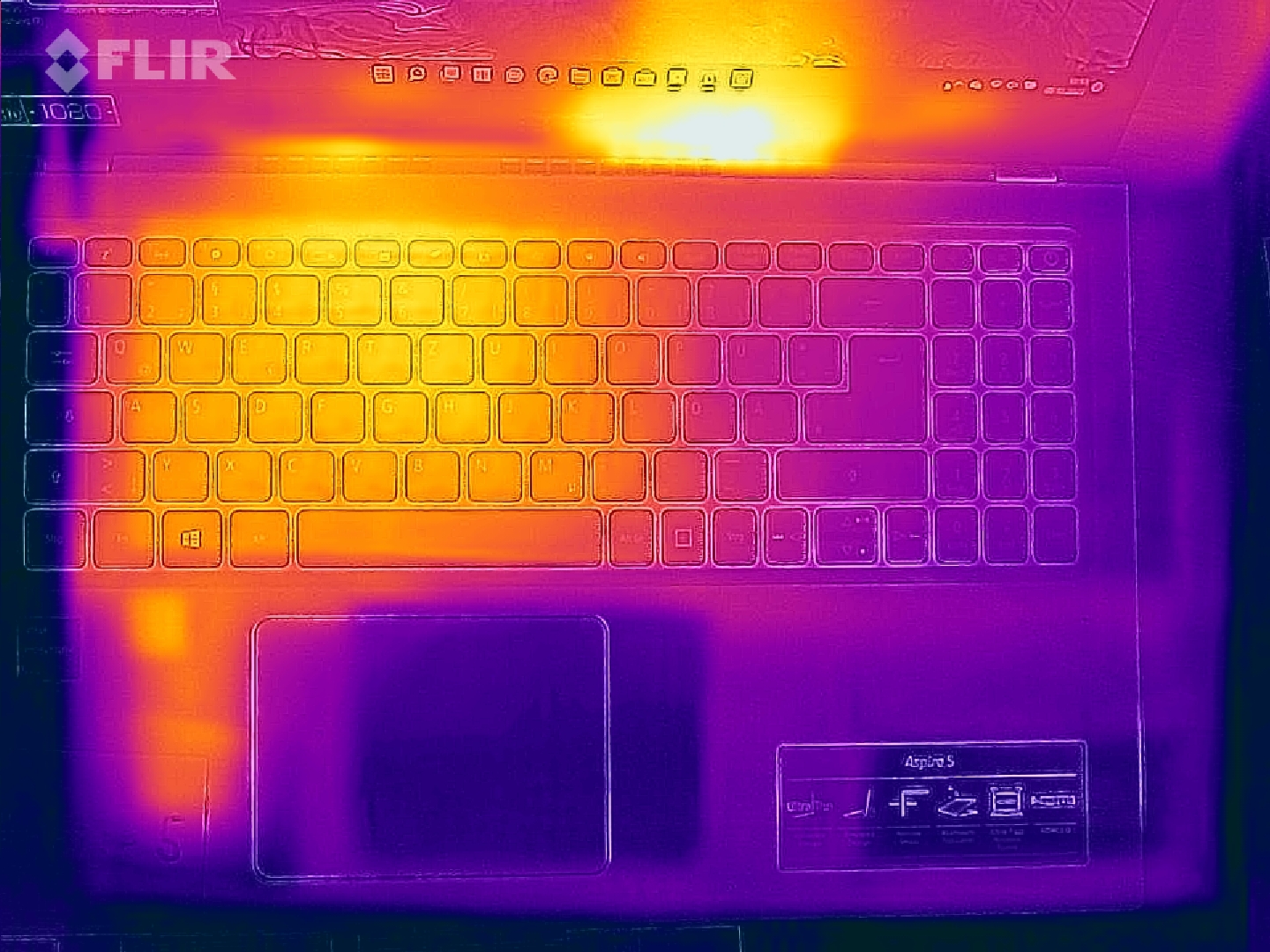

温度
在日常使用中（办公室、互联网），机箱温度保持在绿色区域。在负载（压力测试）下，笔记本电脑几乎没有升温。CPU温度徘徊在60摄氏度（140华氏度）左右，因此没有引起很大的关注。

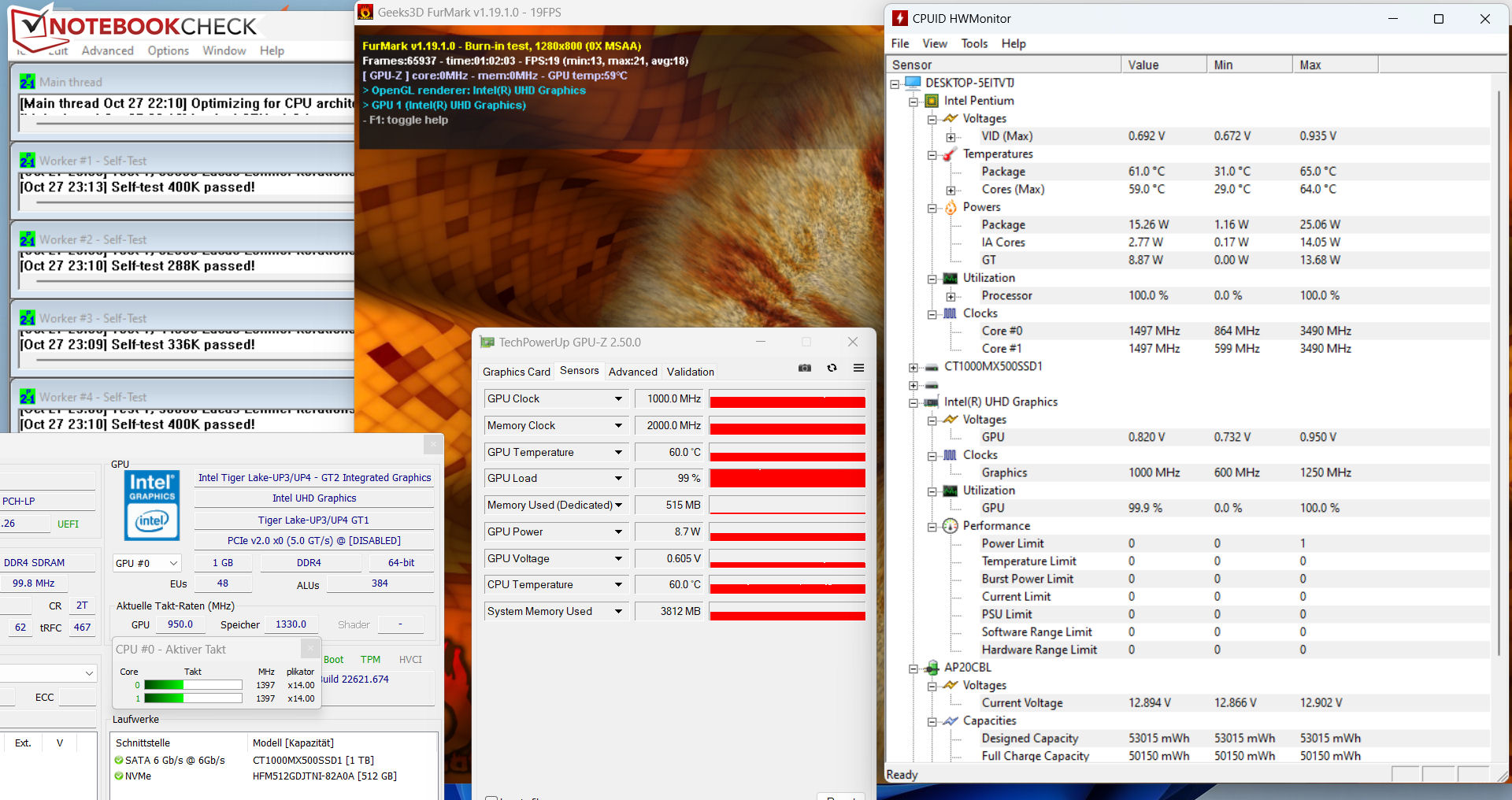

压力测试（Prime95和Furmark至少运行一个小时）代表了测试全负荷下系统稳定性的一个极端情况。在测试开始时，CPU（3.4 GHz）和GPU（1,250 MHz）达到其最大时钟速度。在测试过程中，CPU的时钟速度下降到1.4GHz，而GPU的时钟速度则稳定在1,000MHz。
(+) The average temperature for the upper side under maximal load is 28.5 °C / 83 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 36.9 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

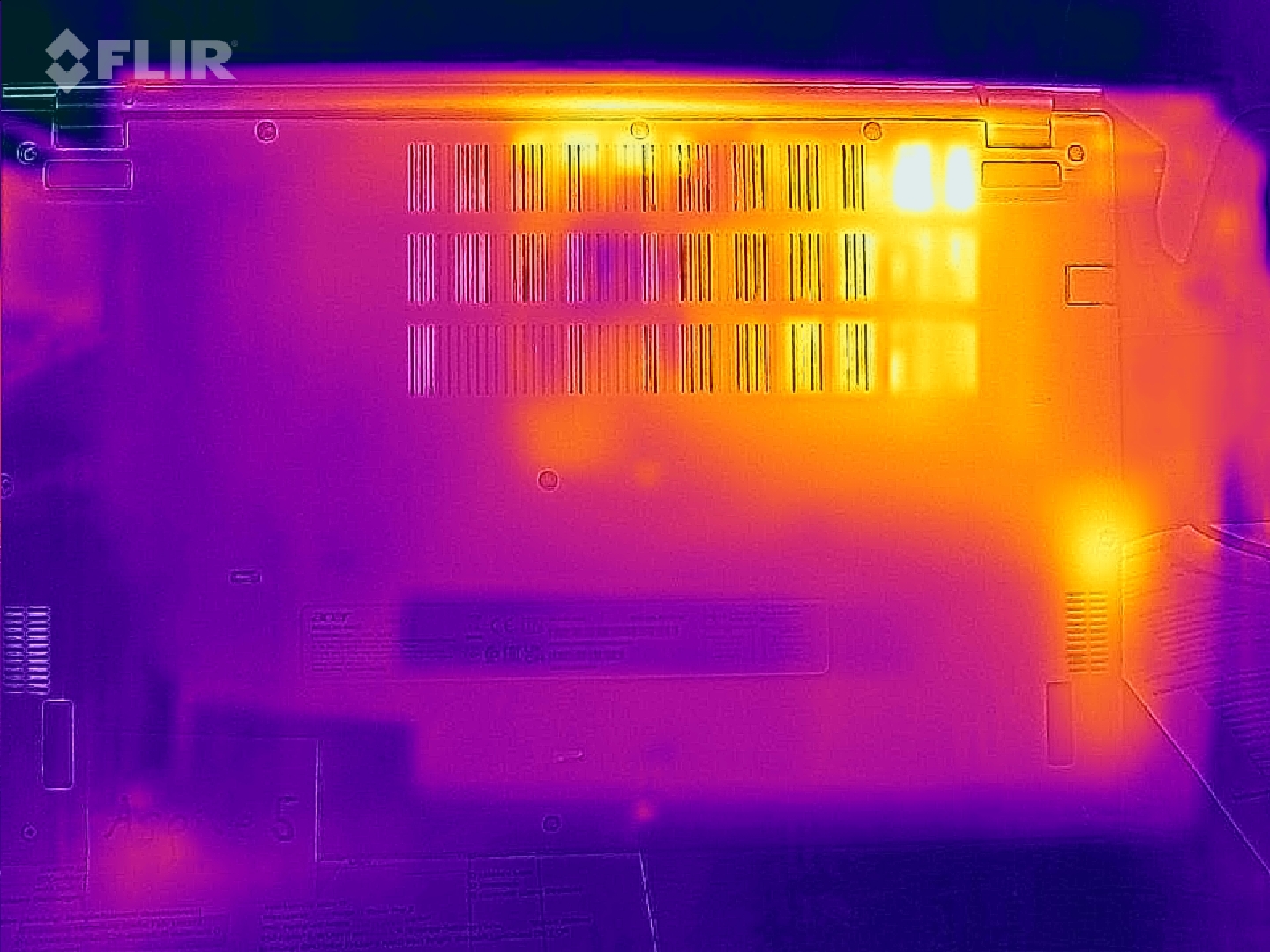

(+) The bottom heats up to a maximum of 34.4 °C / 94 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.4 °C / 78 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.3 °C / 77.5 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+2.3 °C / 4.2 F).
(+) The maximum temperature on the upper side is 36.9 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 34.4 °C / 94 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.4 °C / 78 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.3 °C / 77.5 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+2.3 °C / 4.2 F).
| Acer Aspire 5 A515-56-P8NZ Intel Pentium Gold 7505, Intel UHD Graphics Xe G4 48EUs | Dell Inspiron 15 3505-PXHPW AMD Ryzen 5 3450U, AMD Radeon RX Vega 8 (Ryzen 2000/3000) | Lenovo V15 G2 ALC-82KD003XGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Lenovo IdeaPad 3 15ITL05 81X80074GE Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs | HP 250 G7-15S40ES Intel Core i5-1035G1, NVIDIA GeForce MX110 | Acer Aspire 5 A515-56-511A Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|---|---|
| Heat | -22% | -22% | -2% | -0% | 10% | |
| Maximum Upper Side * | 36.9 | 40.4 -9% | 40.4 -9% | 37.2 -1% | 36.4 1% | 33.6 9% |
| Maximum Bottom * | 34.4 | 41.1 -19% | 41.1 -19% | 38 -10% | 36.5 -6% | 30.1 12% |
| Idle Upper Side * | 28.4 | 34.6 -22% | 34.6 -22% | 27.3 4% | 28.1 1% | 25.5 10% |
| Idle Bottom * | 29.1 | 40 -37% | 40 -37% | 29.1 -0% | 28.3 3% | 26.1 10% |
* ... smaller is better
发言人

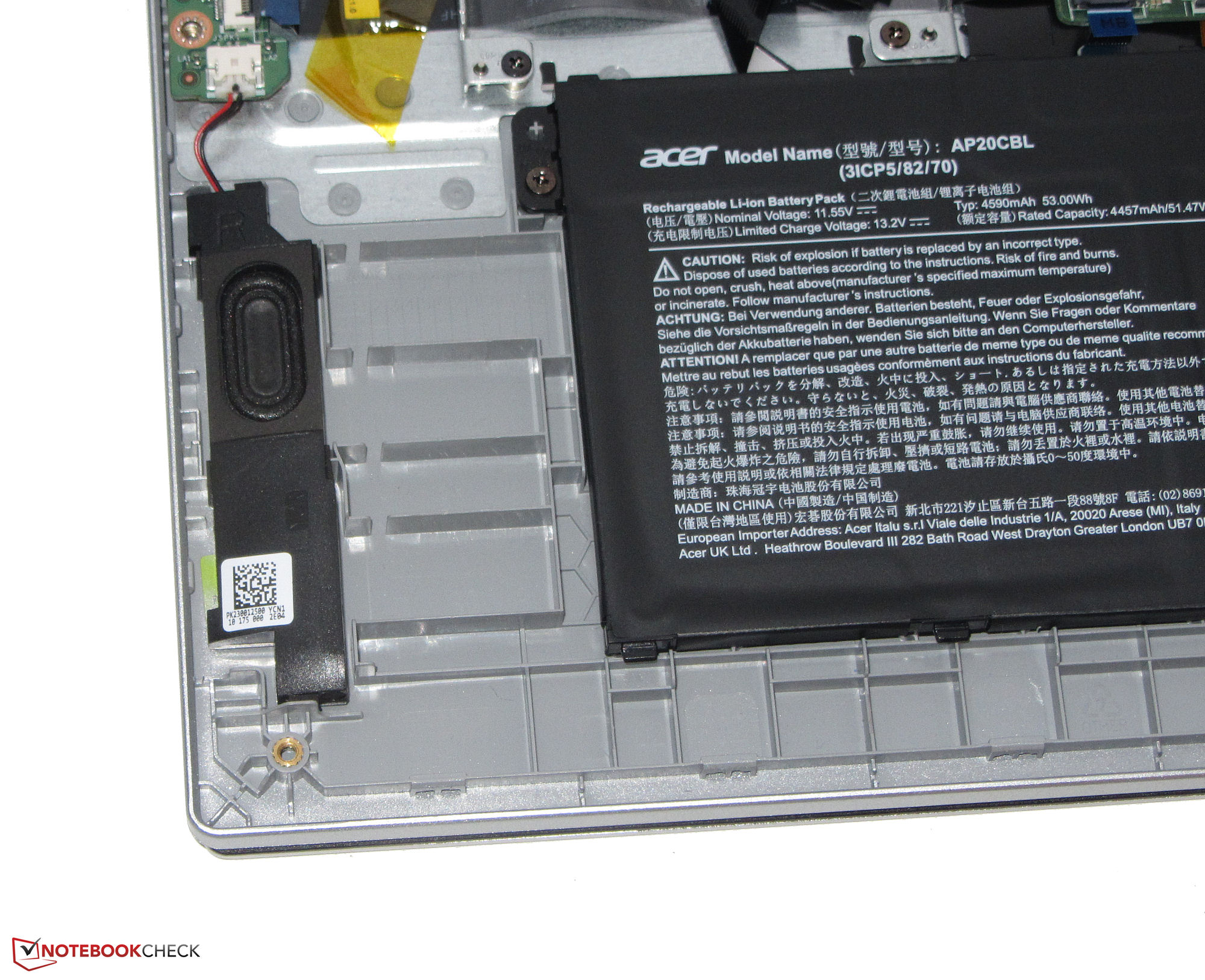

立体声扬声器能产生体面的声音，但几乎没有任何低音。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Aspire 5 A515-56-P8NZ audio analysis
(±) | speaker loudness is average but good (73.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.2% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(+) | mids are linear (6.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.1% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 9% similar, 44% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 55% of all tested devices were better, 7% similar, 38% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo V15 G2 ALC-82KD003XGE audio analysis
(-) | not very loud speakers (65.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 27.6% lower than median
(-) | bass is not linear (16.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.2% away from median
(+) | highs are linear (6.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.6% difference to median)
Compared to same class
» 64% of all tested devices in this class were better, 9% similar, 27% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 68% of all tested devices were better, 7% similar, 26% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
总而言之，这台笔记本电脑需要的电量相对较少，这都要归功于节能的奔腾处理器。在压力测试（Prime95 + Furmark, Witcher 3随着时间的推移，功耗会略有下降。附带的电源（45瓦）足以胜任这项工作。
Power Consumption
| Off / Standby | 0.16 / 0.45 Watt |
| Idle | 5 / 6.4 / 9 Watt |
| Load |
26.5 / 34 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption Witcher 3 / gaming stress test
Acer Aspire 5 A515-56-P8NZ; Witcher 3 ultra: Ø25 (23.7-32)
Acer Aspire 5 A515-56-P8NZ; 1280x720 Prime95 28.10 and Furmark 1.25: Ø26.5 (24.2-40.7)
Acer Aspire 5 A515-56-P8NZ; Idle 150cd/m2: Ø6.58 (5-22.6)
Power consumption with an external monitor
Acer Aspire 5 A515-56-P8NZ; Prime95 V2810 Stress (external Monitor): Ø23.6 (21.4-30)
Acer Aspire 5 A515-56-P8NZ; Cinebench R15 Multi (external Monitor): Ø23 (19.5-26.2)
Acer Aspire 5 A515-56-P8NZ; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.2 (22.1-27.8)
Acer Aspire 5 A515-56-P8NZ; 1920x1080 The Witcher 3 ultra (external Monitor): Ø23.5 (21.7-30.4)
Acer Aspire 5 A515-56-P8NZ; Idle 1min (external Monitor): Ø3.84 (3.13-7.06)
电池寿命
在现实生活中的WLAN测试中，这台15.6英寸笔记本电脑的运行时间为7小时51分钟（使用脚本打开网站）。由于电池容量大（53Wh），在电池寿命方面，它显然将大多数竞争对手甩在了后面。只有 联想V15 G2处于同一水平--尽管它只有38Wh的电池容量。V15的高效 Ryzen 5500UAPU在这里发挥了作用。

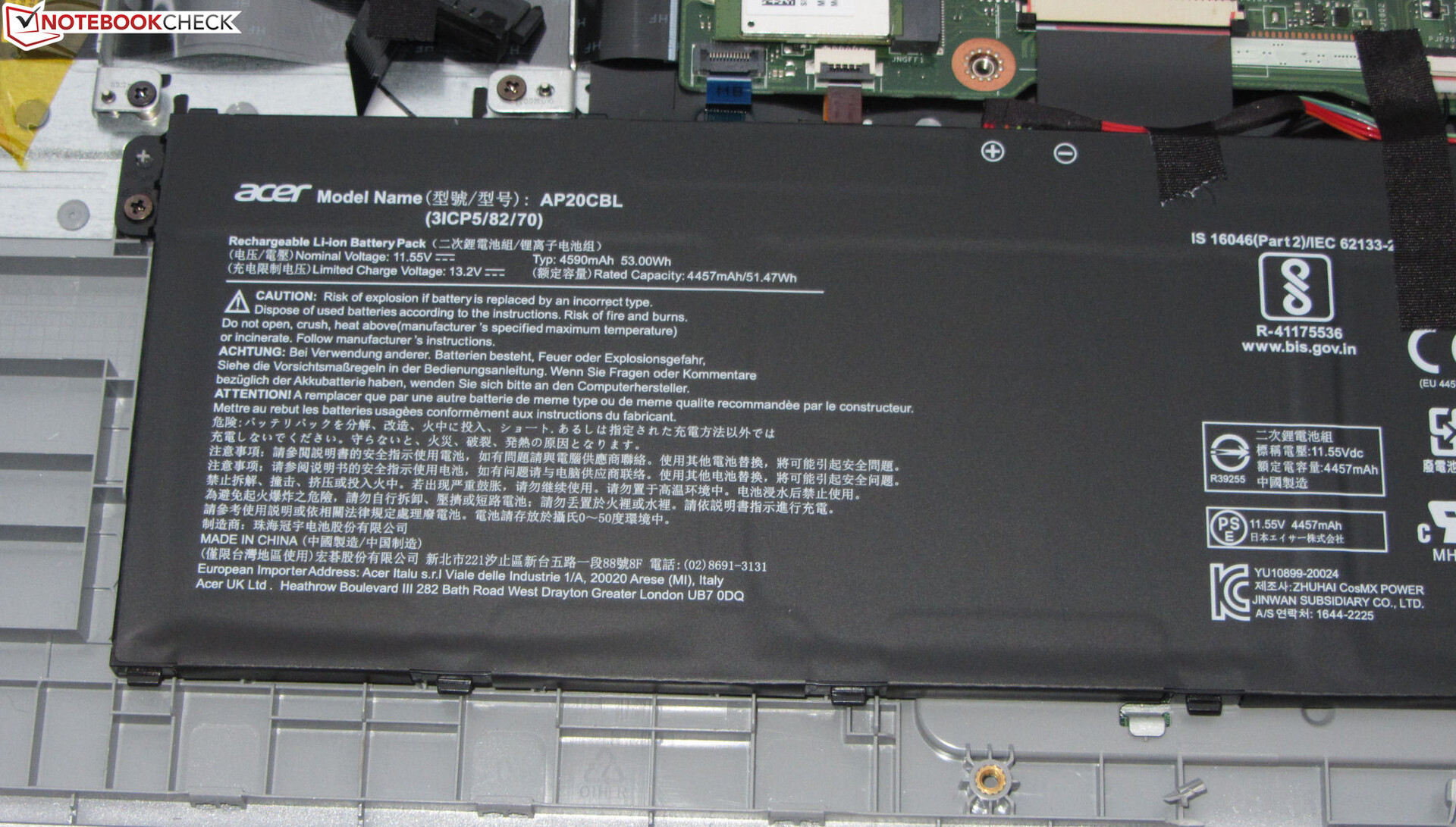

注意：我们的测试机型的电池容量（53Wh对48Wh）比之前测试的姐妹机型略大。
| Battery Runtime - WiFi Websurfing | |
| Average of class Office (230 - 1349, n=93, last 2 years) | |
| Lenovo V15 G2 ALC-82KD003XGE | |
| Acer Aspire 5 A515-56-P8NZ | |
| Acer Aspire 5 A515-56-511A | |
| HP 250 G7-15S40ES | |
| Lenovo IdeaPad 3 15ITL05 81X80074GE | |
| Dell Inspiron 15 3505-PXHPW | |
Pros
+ 哑光IPS屏幕
+ PCIe 3 SSD

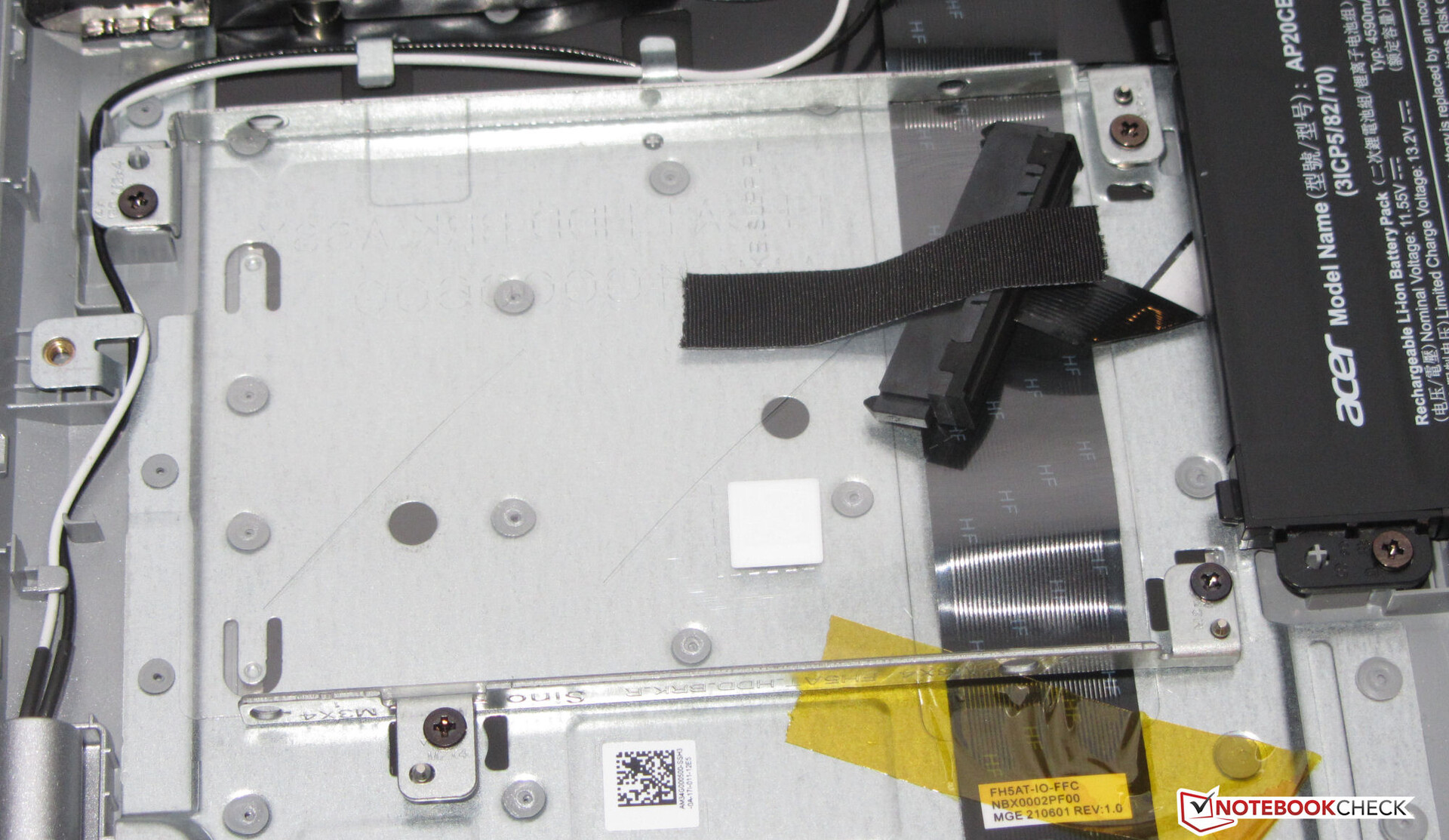

+ 可容纳2.5英寸存储介质的空间
+ 运行时很安静
+ 最小的热量积聚
+ 可扩展的内存
+ 背光键
+ 良好的电池寿命
+ 两年的保证
Cons
- 屏幕可以更亮一些
- 焊接的内存
- 没有存储卡读卡器
- 没有电源传输
- 没有通过USB-C的显示端口
结论 - 一个经济实惠的办公笔记本电脑，没有任何严重的弱点
纤细的外观、相对较低的重量（约1.7公斤）和8小时的实际电池运行时间的结合使宏碁5成为真正的移动笔记本电脑。适度的Tiger Lake 处理器支持这一领域，并同时确保价格合理。
宏碁Aspire 5 A515-56代表了一个小预算的全面的办公笔记本电脑。
这款笔记本电脑配备了奔腾金7505处理器、8GB内存（单通道模式，焊接）和基于PCIe 3的固态硬盘（512GB，M.2 2280），可以满足办公和互联网使用。A515产生的噪音很小，并能保持凉爽。
屏幕（15.6英寸，FHD，IPS）可能不会赢得任何奖项，但对于这个价格来说是完全合适的。此外，还有一个背光键盘，没有留下任何负面印象。太糟糕了：USB-C端口既不支持Power Delivery也不支持DisplayPort。
500欧元的价位对于整套产品来说是可以接受的，但所提供的电脑绝对不是一个便宜货。如果你可以不使用Windows操作系统，并应付256GB的固态硬盘，只需要投资400欧元就可以了。一个配备酷睿i3、256GB固态硬盘和Windows 11的姐妹机型售价为450欧元。对我们来说，这两款便宜的机型似乎更有吸引力。节省下来的钱可以投资于额外的内存（以实现双通道模式）。
Aspire的一个替代品是联想V15 G2 ALC.由于采用了Ryzen 5 5500UAPU，它提供了相当高的GPU和多线程CPU性能，但有一个明显较差的屏幕负担。
价格和供应情况
在测试的时候，这里显示的宏碁Aspire 5的变体，很难得到。A515-56-34WT型号（Core i3 1115G4, 8 GB RAM, 256 GB SSD, Windows 11）可以在Notebooksbilliger.de以449欧元买到。.A515-56 P5TX变体（奔腾金7505，8GB内存，256GB固态硬盘，无Windows）可在Notebooksbilliger.de上以399欧元购买。.

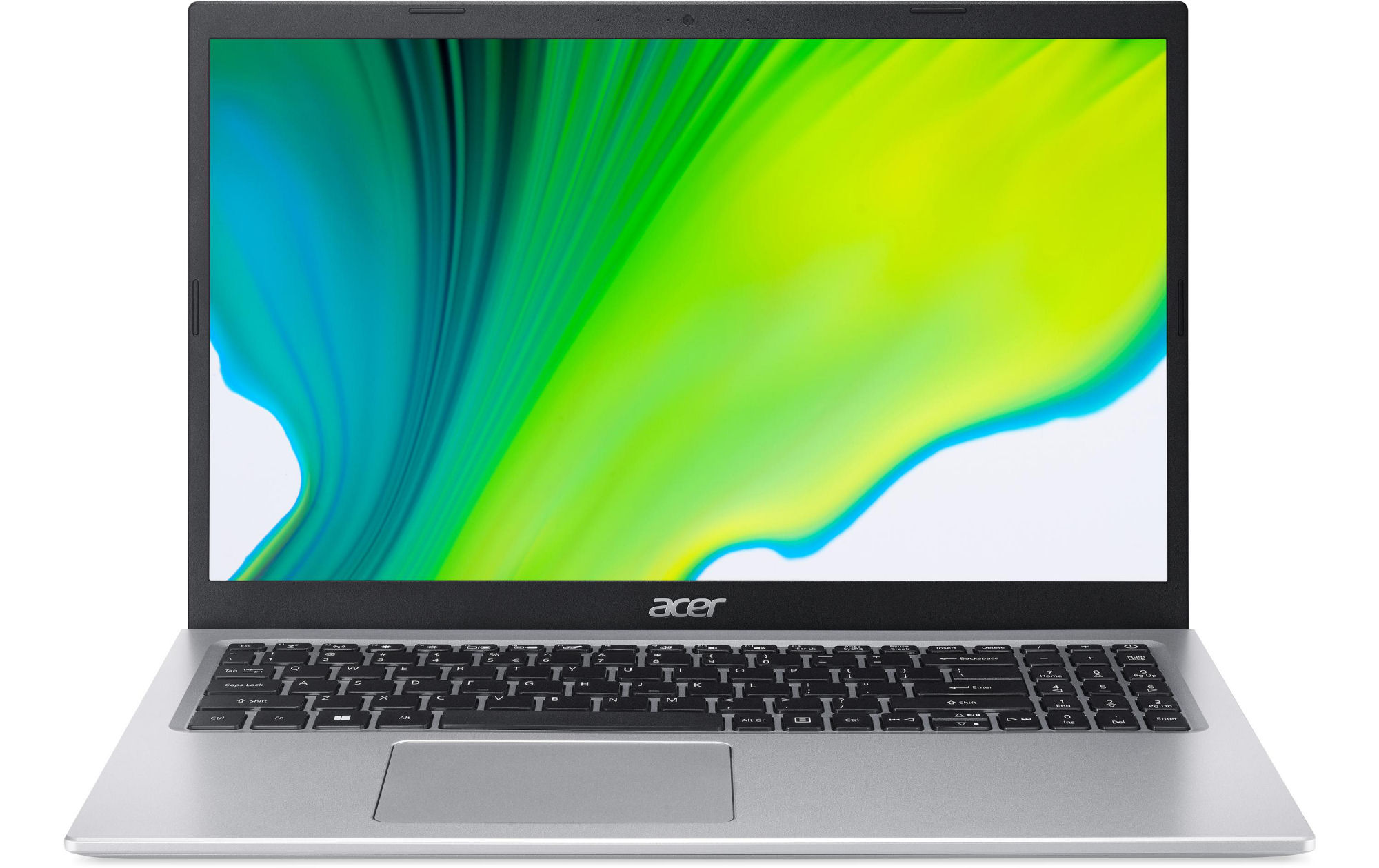

Acer Aspire 5 A515-56-P8NZ
- 11/04/2022 v7 (old)
Sascha Mölck
Office - Weighted Average
Price comparison
