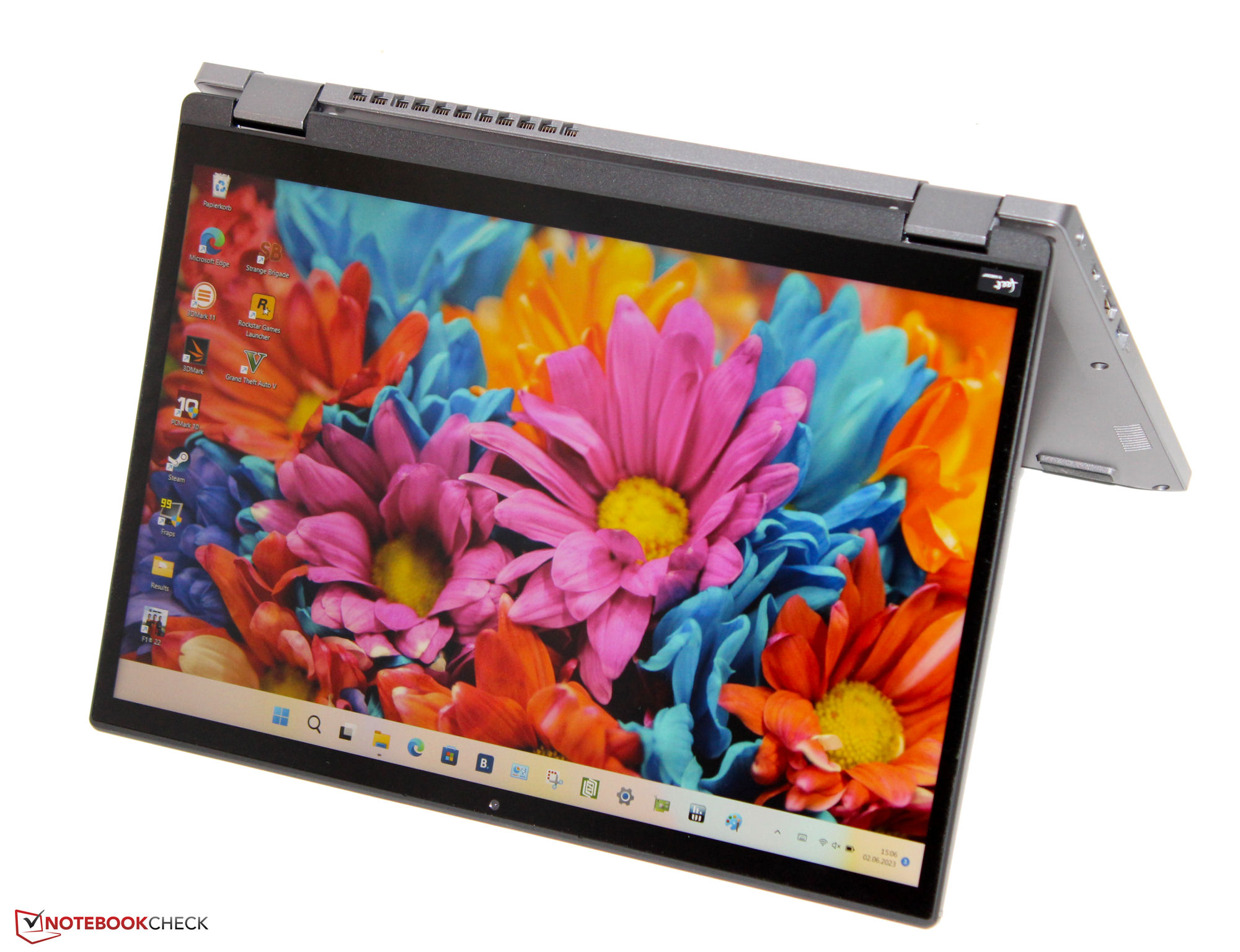

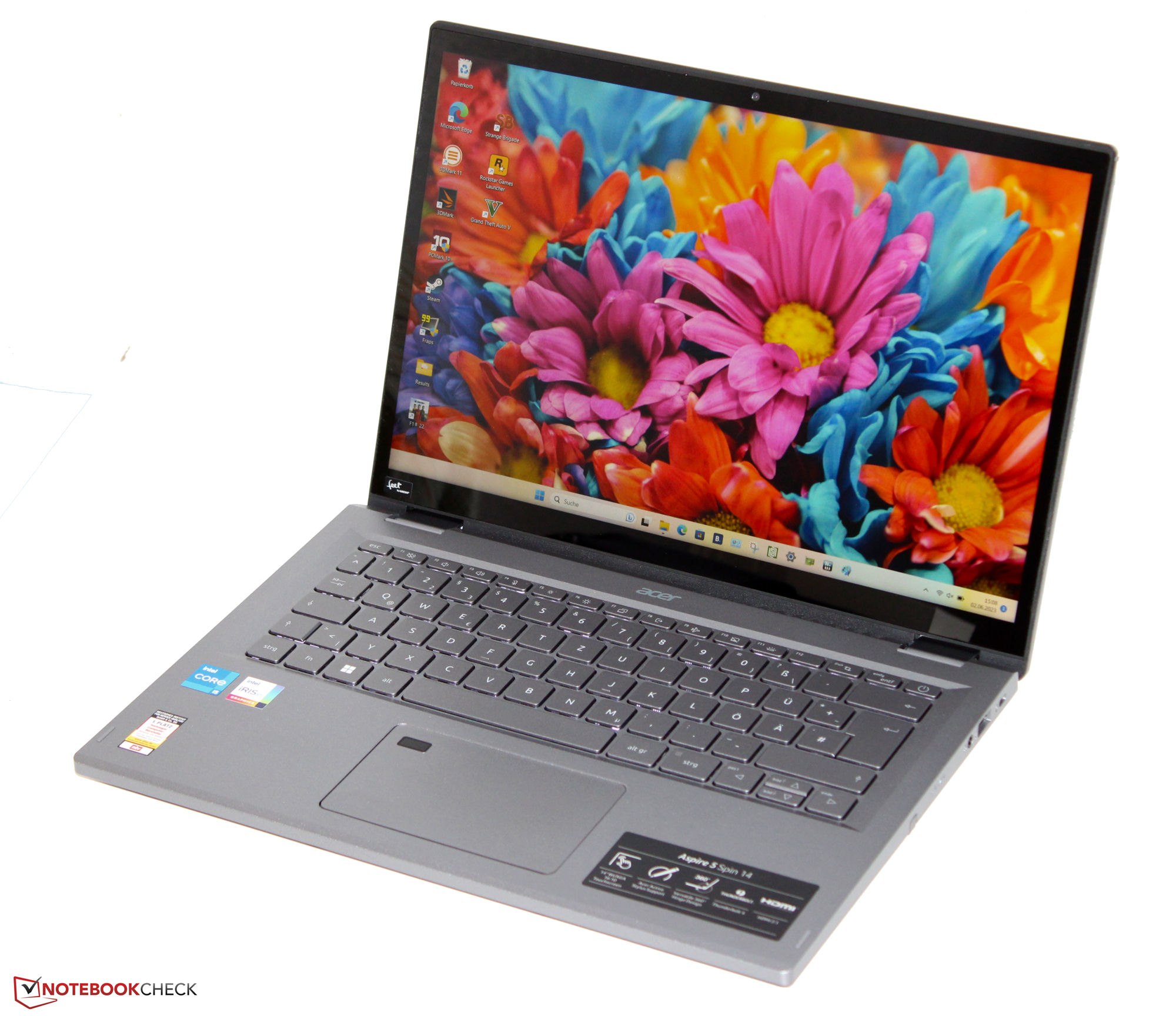

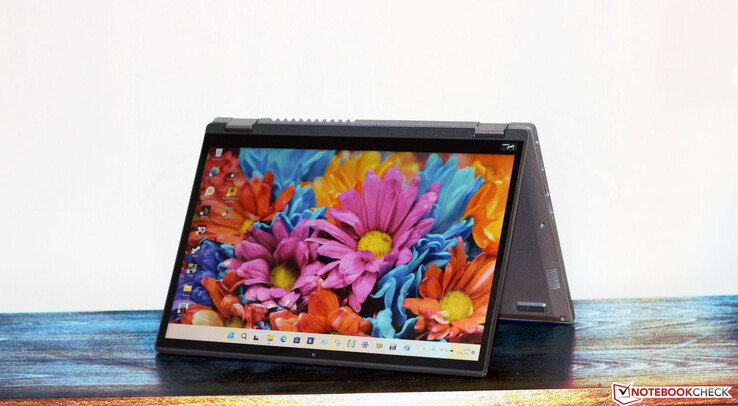

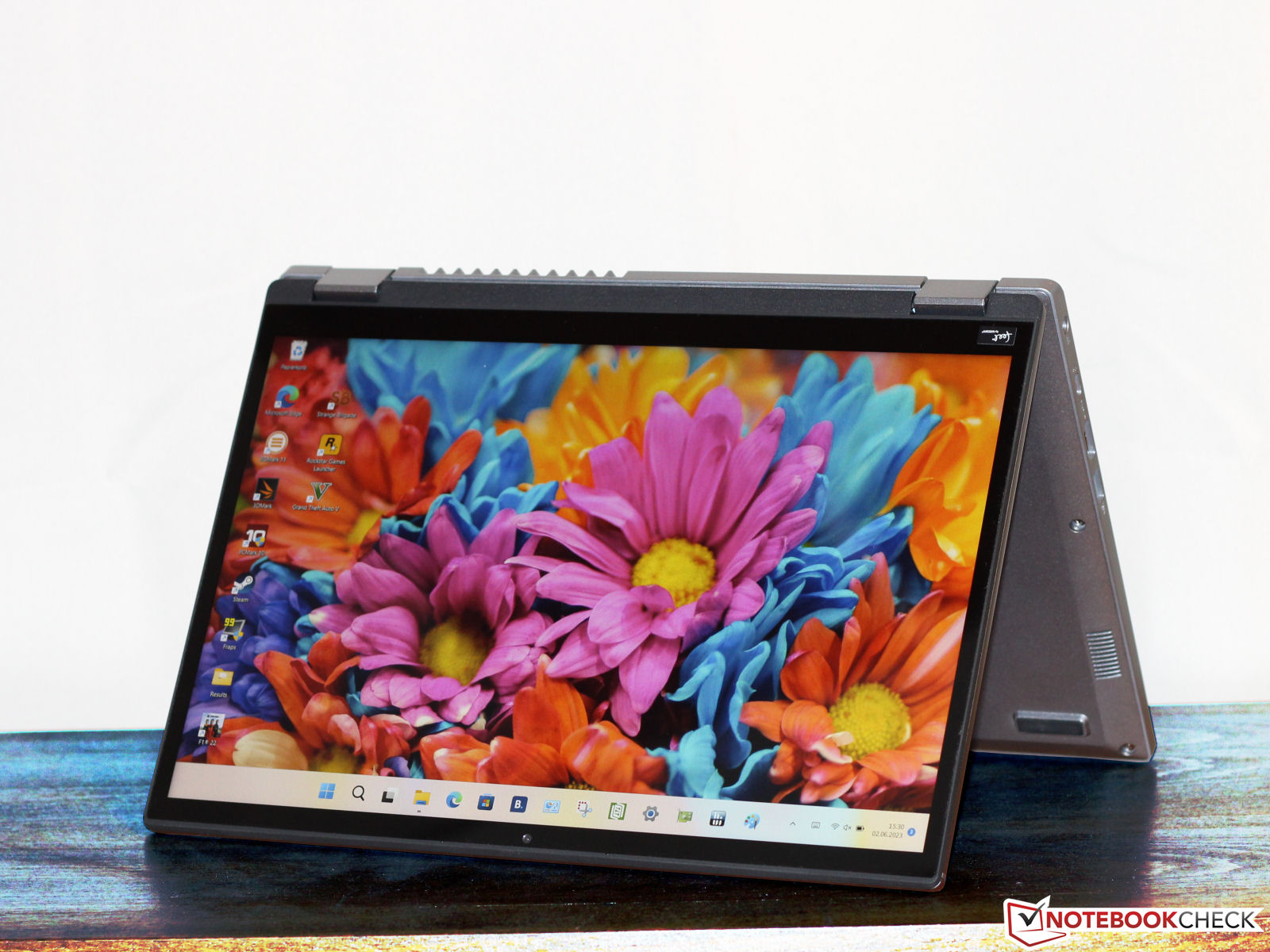

宏碁Aspire 5 Spin 14评论：带有主动式手写笔的二合一笔记本电脑
宏碁的Aspire 5 Spin 14系列由拥有14英寸屏幕的二合一笔记本电脑组成。在这个阵容中，使用了Raptor Lake CPU。目前的测试设备是一个中档型号，配备了酷睿i5-1335U.竞争者包括联想IdeaPad Flex 7i 14IAU7和戴尔Inspiron 14 7420 2合1.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 82.2 % v7 (old) | 06 / 2023 | Acer Aspire 5 Spin 14 i5-1335U, Iris Xe G7 80EUs | 1.6 kg | 17.99 mm | 14.00" | 1920x1200 | |
| 83.2 % v7 (old) | 12 / 2022 | Lenovo IdeaPad Flex 7i 14IAU7 i7-1255U, Iris Xe G7 96EUs | 1.5 kg | 18.9 mm | 14.00" | 2240x1400 | |
| 83.7 % v7 (old) | 06 / 2022 | Dell Inspiron 14 7420 2-in-1 i7-1255U, Iris Xe G7 96EUs | 1.6 kg | 17.86 mm | 14.00" | 1920x1200 |

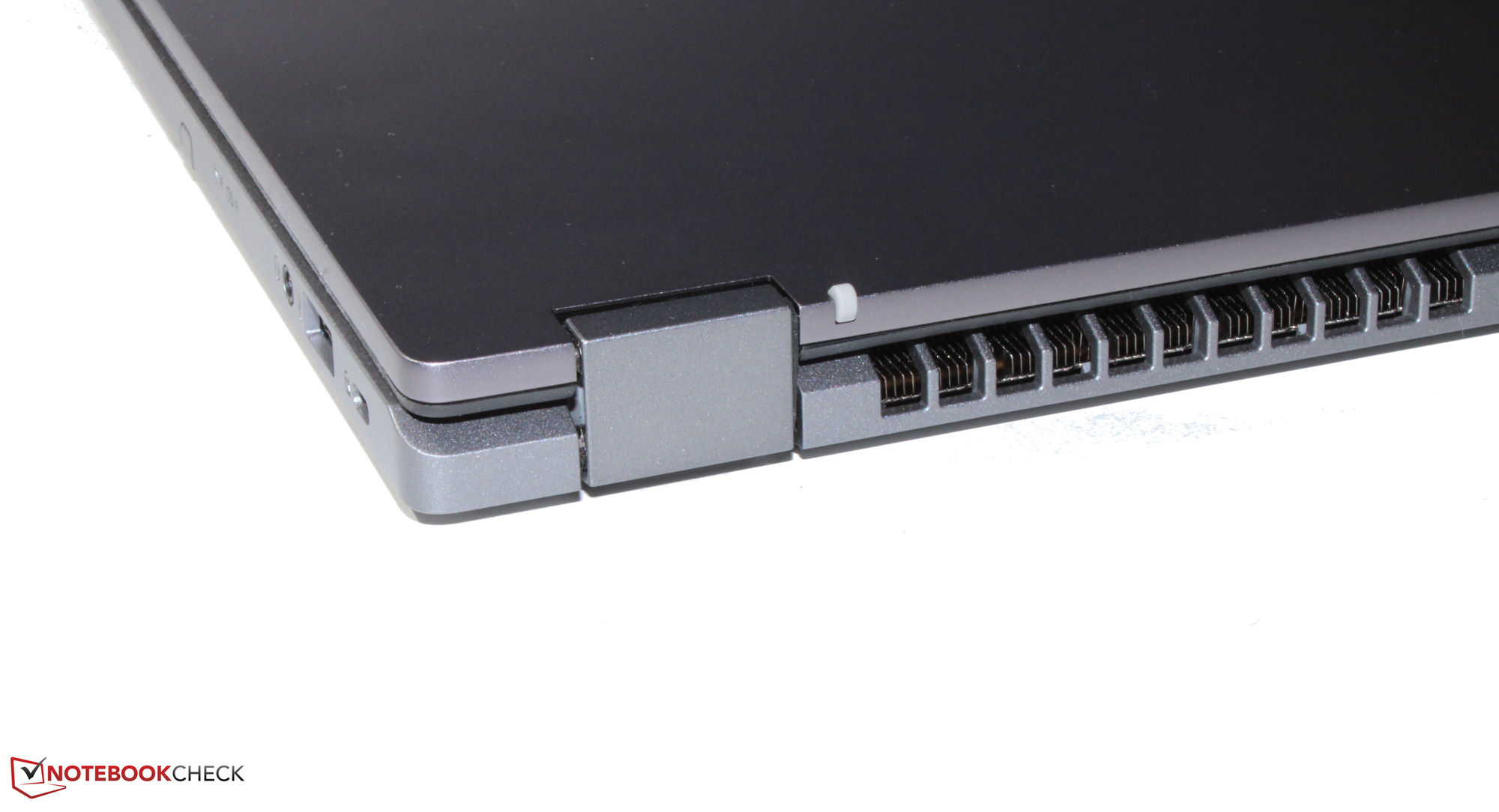

机箱和连接性--宏基可折叠机的Thunderbolt 4系统

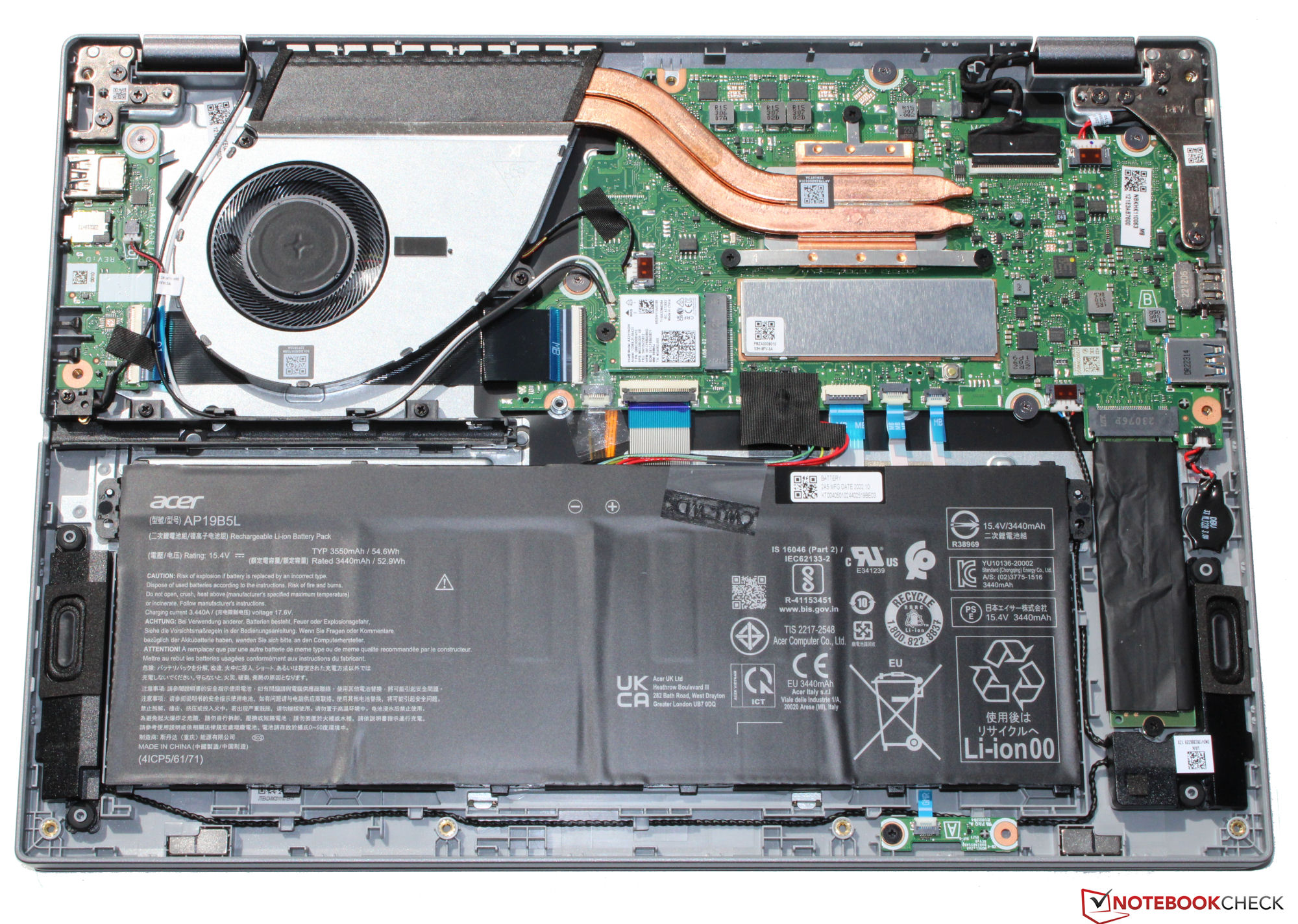

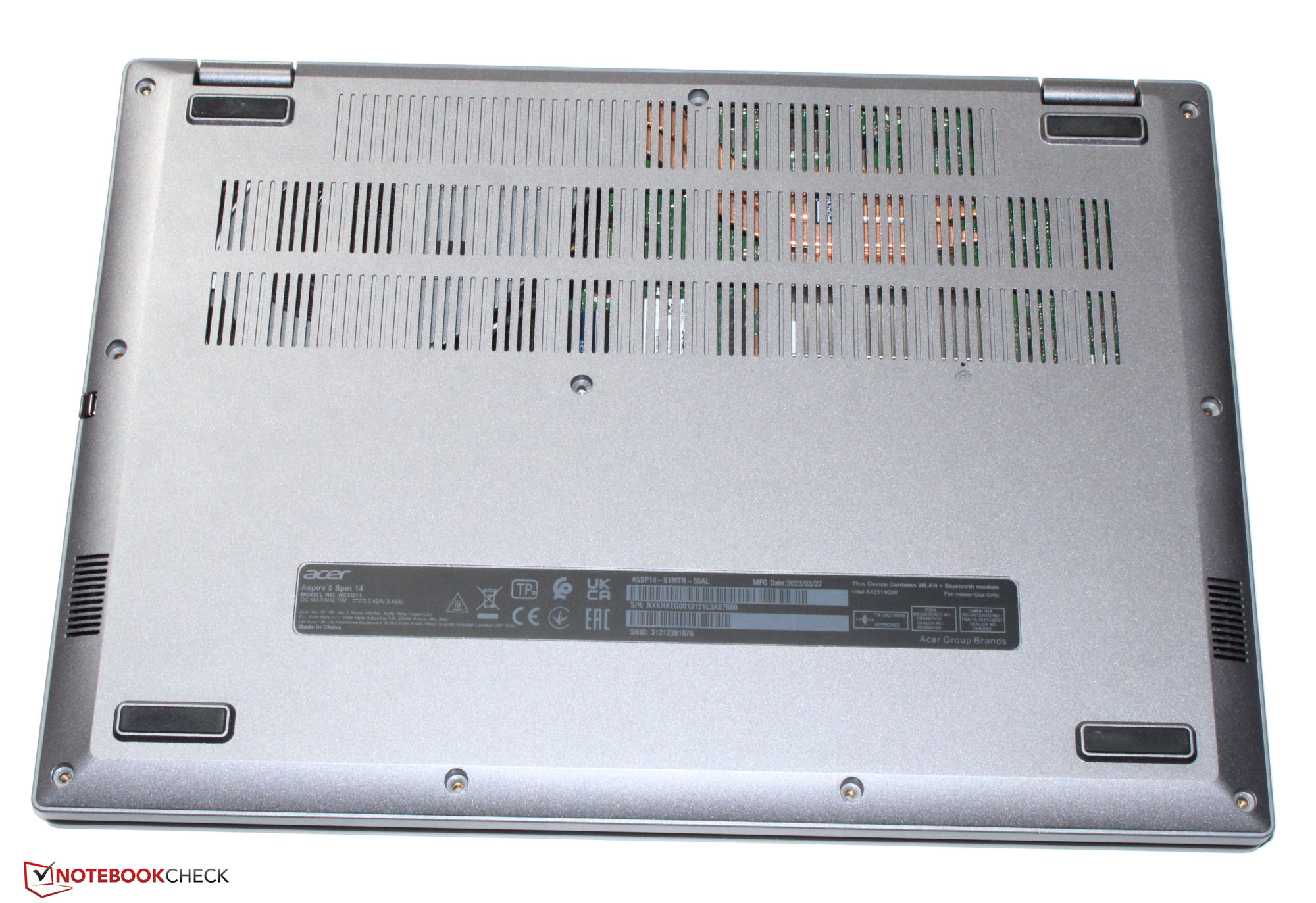

宏碁笔记本电脑有一个结构良好的钢灰色外壳，表面光滑、无光泽。底座（塑料）和盖子（金属背面）可以稍微扭转--但没有什么太出格的地方。它的电池（没有粘在上面）和所有通常的内脏都可以在你取下外壳的底部后进入。

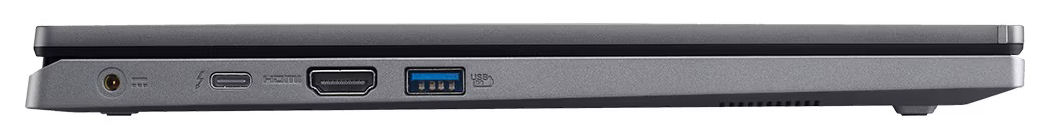

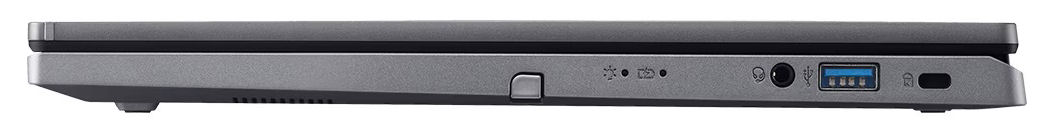

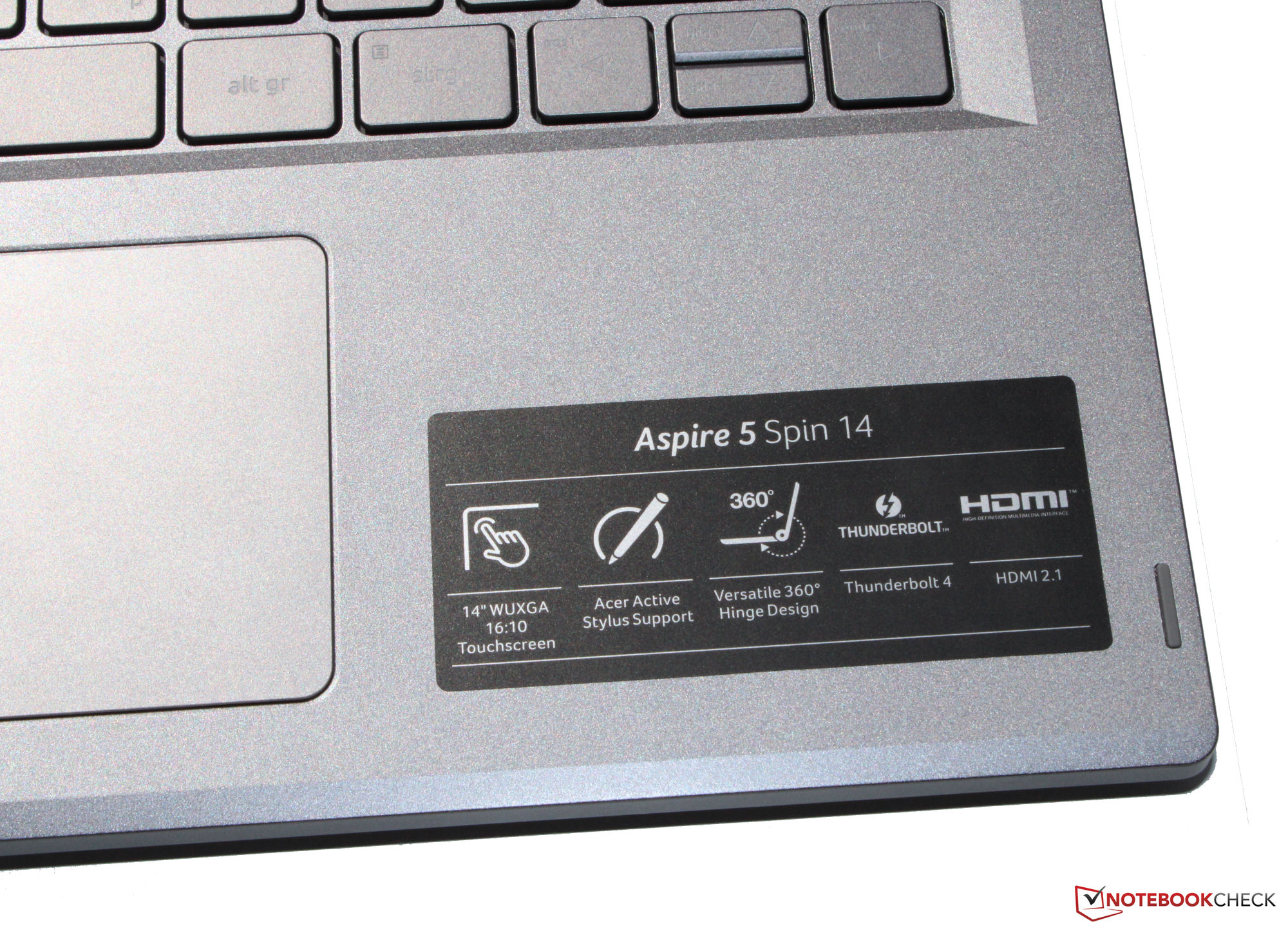

该二合一设备有两个USB-A端口（USB 3.2 Gen 1）和一个USB-C端口（Thunderbolt 4）。后者支持Power Delivery，可以输出DisplayPort信号。这款笔记本电脑总共有两个视频输出（1个HDMI，1个DP）。该设备没有一个SD读卡器。它的网络摄像头（210万像素，最大1,920 x 1,080，无盖）是相当可以接受的。
在最佳条件下（附近没有WiFi设备，笔记本电脑和服务器PC之间的距离很短），Spin 14实现了出色的WiFi数据速率。这台笔记本电脑使用的是WiFi 6E芯片（英特尔AX211）。

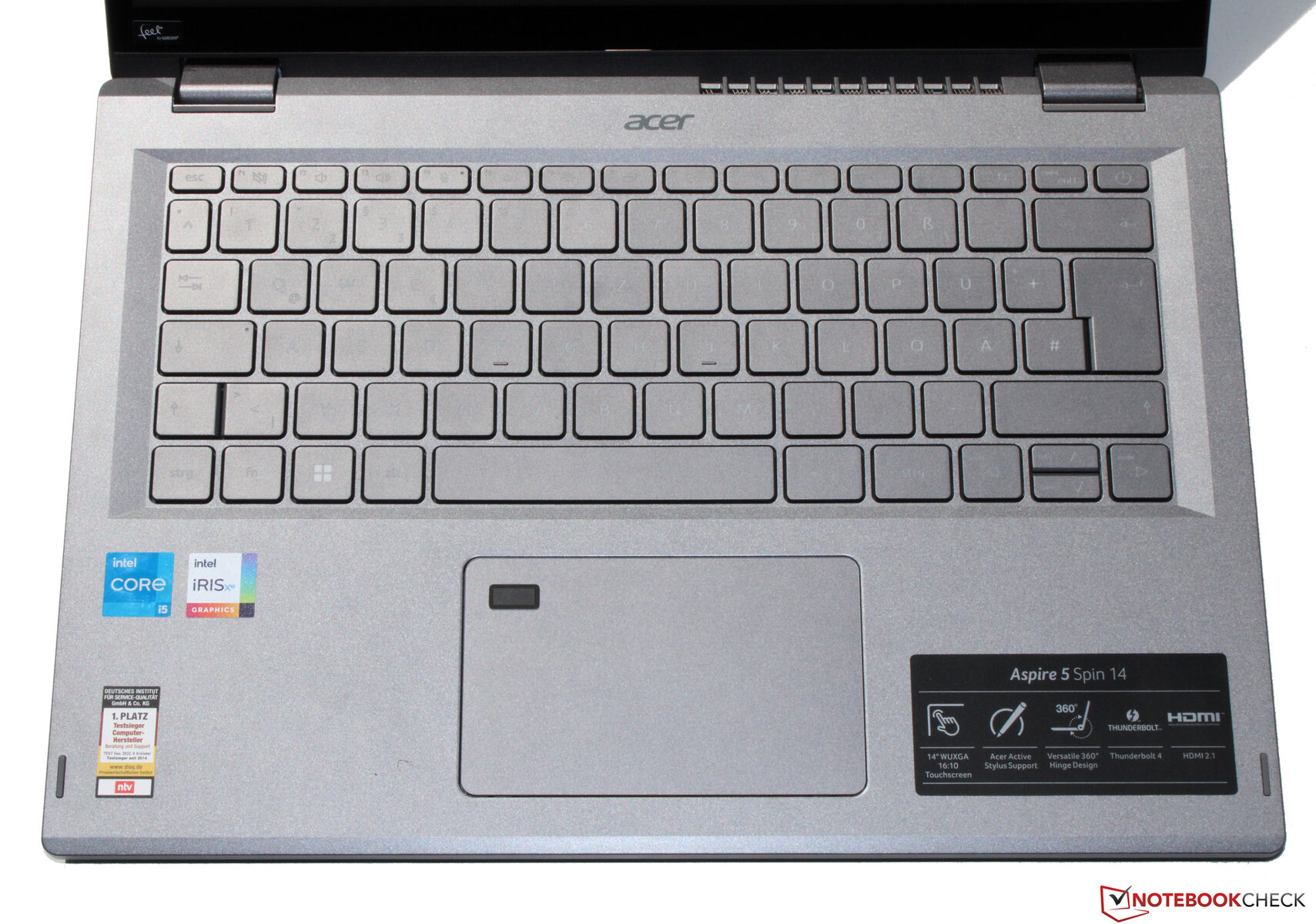

输入设备--包括一支有源手写笔

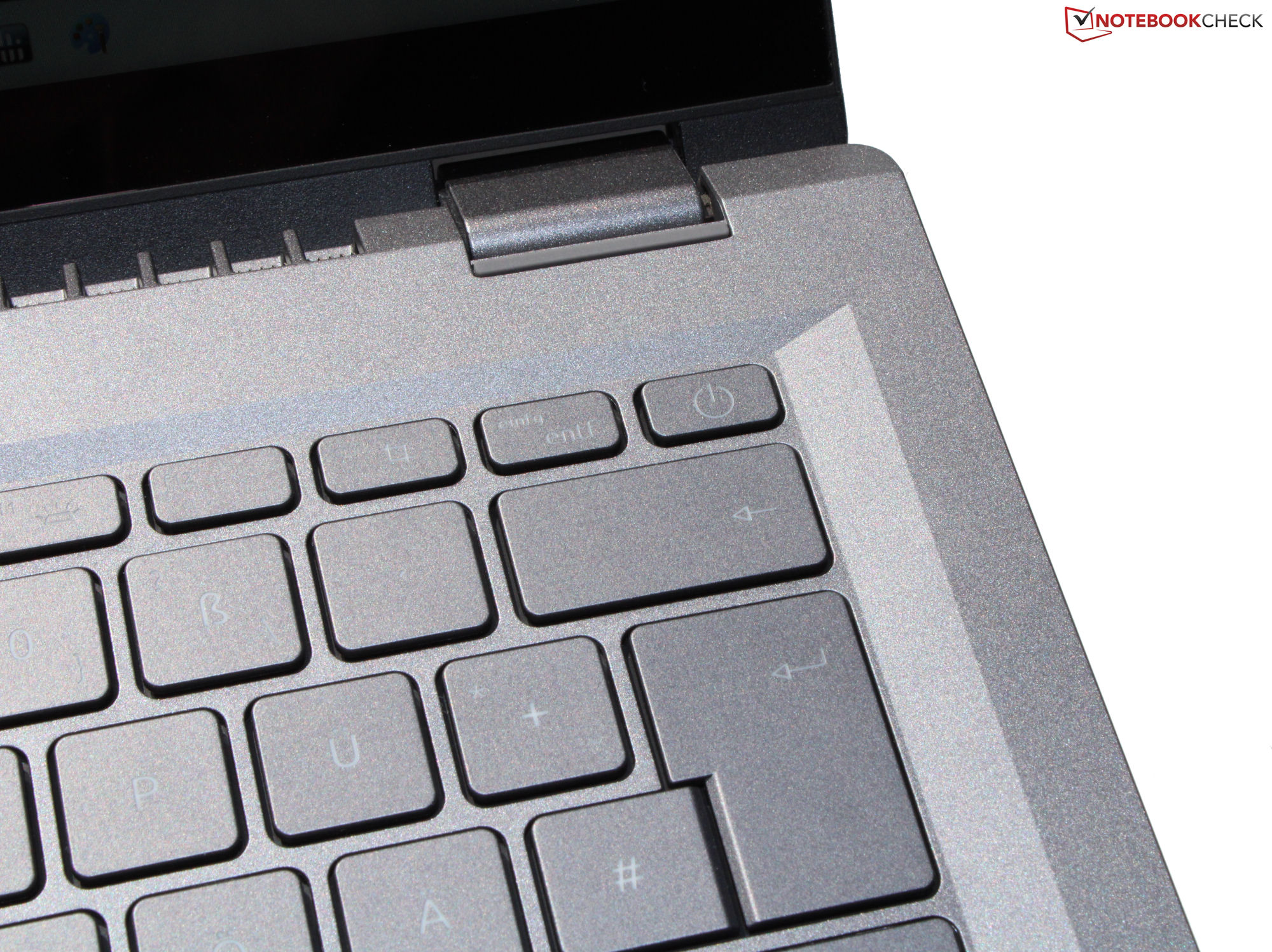

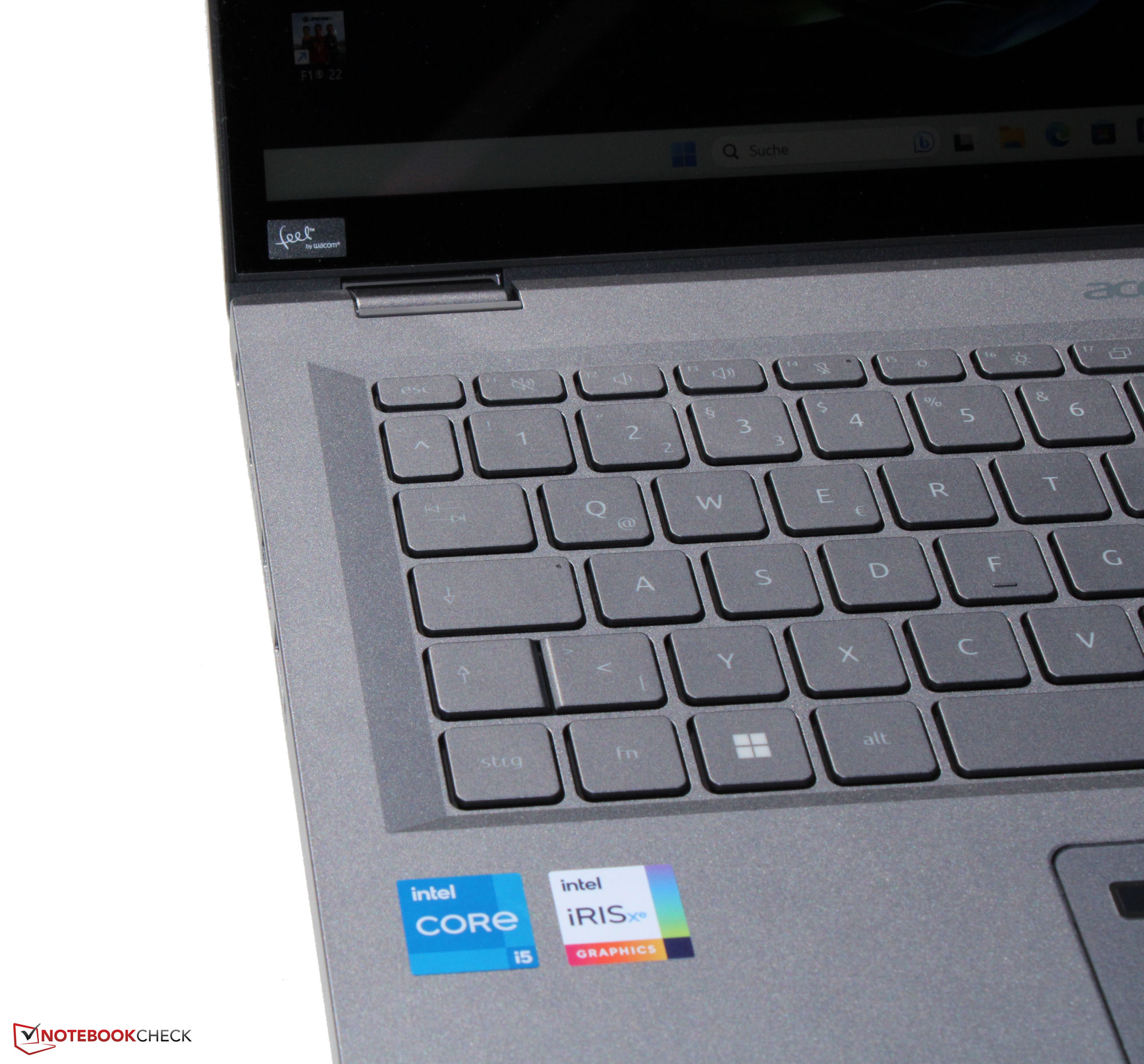

背光式小册子键盘的平坦、光滑的按键有很短的提升，清晰的压力点和体面的按键阻力。事实证明，打字时的轻微摇晃并不太令人讨厌。在关闭背光灯的情况下，部分按键印记难以阅读--这取决于观察角度。键盘（约10.5 x 6.5厘米）具有较短的升力和清晰的压力点，取代了对鼠标的需求。

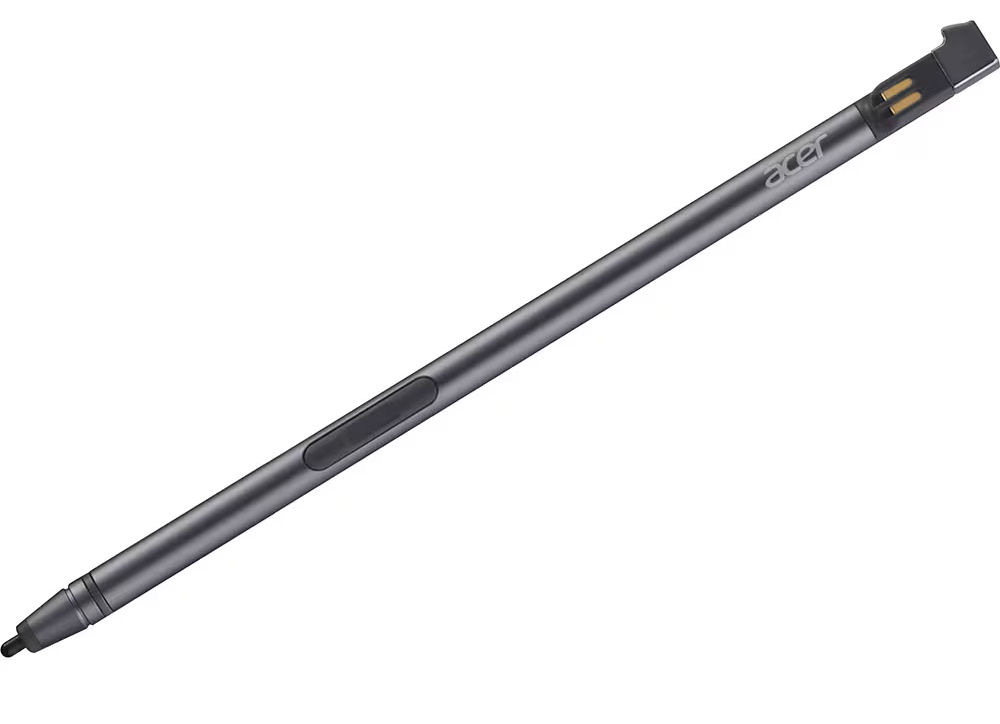

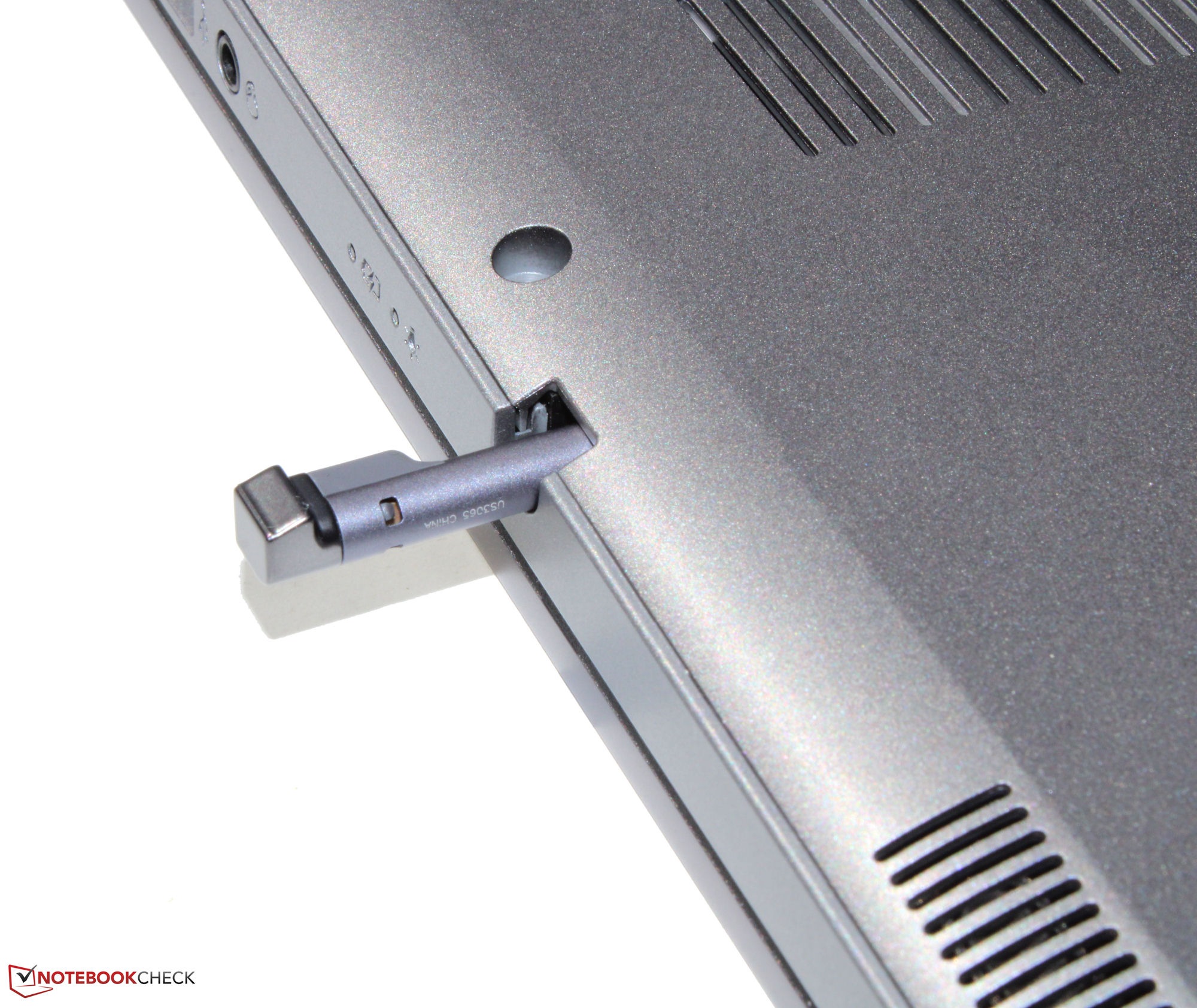

触摸屏（十个触摸点）对输入的反应很迅速。既可以用手指操作，也可以用附带的手写笔。后者有一种舒适的感觉；笔尖在屏幕上平稳地滑行。这支笔被存放在底座的一个隔间里，也可以在那里充电。
显示屏 - 宏碁笔记本电脑的屏幕很暗

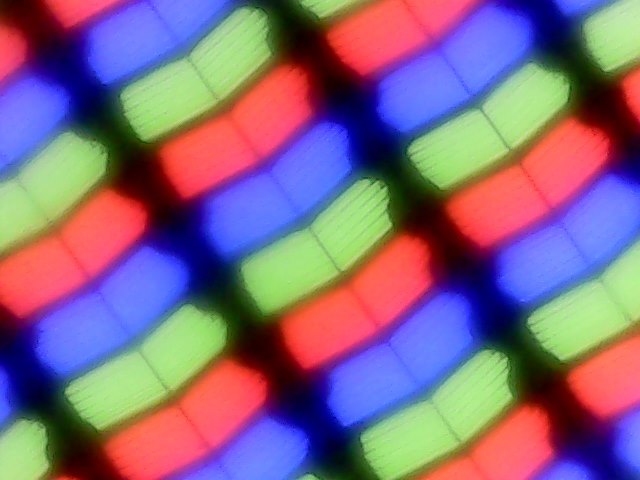

光面触摸屏的亮度和对比度（1,920 x 1,200像素，14英寸，16:10格式）没有达到各自的目标（分别为>300 cd/m²和1,000:1）。负面的：在电池模式下，最大亮度下降到200 cd/m²以下。在另一方面：该面板没有显示任何PWM闪烁。
| |||||||||||||||||||||||||
Brightness Distribution: 85 %
Center on Battery: 176 cd/m²
Contrast: 922:1 (Black: 0.27 cd/m²)
ΔE Color 5 | 0.5-29.43 Ø4.91, calibrated: 5.06
ΔE Greyscale 2.86 | 0.5-98 Ø5.2
39.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.3% sRGB (Argyll 2.2.0 3D)
38.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
| Acer Aspire 5 Spin 14 BOE CQ NV140WUM-N41, IPS, 1920x1200, 14" | Lenovo IdeaPad Flex 7i 14IAU7 BOE CQ NV140DRM-162, IPS, 2240x1400, 14" | Dell Inspiron 14 7420 2-in-1 BOE NV14N42, IPS, 1920x1200, 14" | |
|---|---|---|---|
| Display | 78% | -1% | |
| Display P3 Coverage | 38.5 | 69.8 81% | 38.6 0% |
| sRGB Coverage | 57.3 | 98 71% | 56.2 -2% |
| AdobeRGB 1998 Coverage | 39.8 | 72.2 81% | 39.9 0% |
| Response Times | -65% | -2% | |
| Response Time Grey 50% / Grey 80% * | 29 ? | 44.4 ? -53% | 27.2 ? 6% |
| Response Time Black / White * | 19 ? | 33.6 ? -77% | 20.8 ? -9% |
| PWM Frequency | |||
| Screen | 10% | -31% | |
| Brightness middle | 249 | 317.3 27% | 269.4 8% |
| Brightness | 235 | 301 28% | 260 11% |
| Brightness Distribution | 85 | 90 6% | 89 5% |
| Black Level * | 0.27 | 0.22 19% | 0.41 -52% |
| Contrast | 922 | 1442 56% | 657 -29% |
| Colorchecker dE 2000 * | 5 | 3.99 20% | 6.53 -31% |
| Colorchecker dE 2000 max. * | 8.32 | 9.34 -12% | 19.76 -138% |
| Colorchecker dE 2000 calibrated * | 5.06 | 0.6 88% | 3.13 38% |
| Greyscale dE 2000 * | 2.86 | 6.9 -141% | 5.4 -89% |
| Gamma | 2.19 100% | 2.19 100% | 2.05 107% |
| CCT | 6419 101% | 6161 106% | 6007 108% |
| Total Average (Program / Settings) | 8% /
14% | -11% /
-20% |
* ... smaller is better

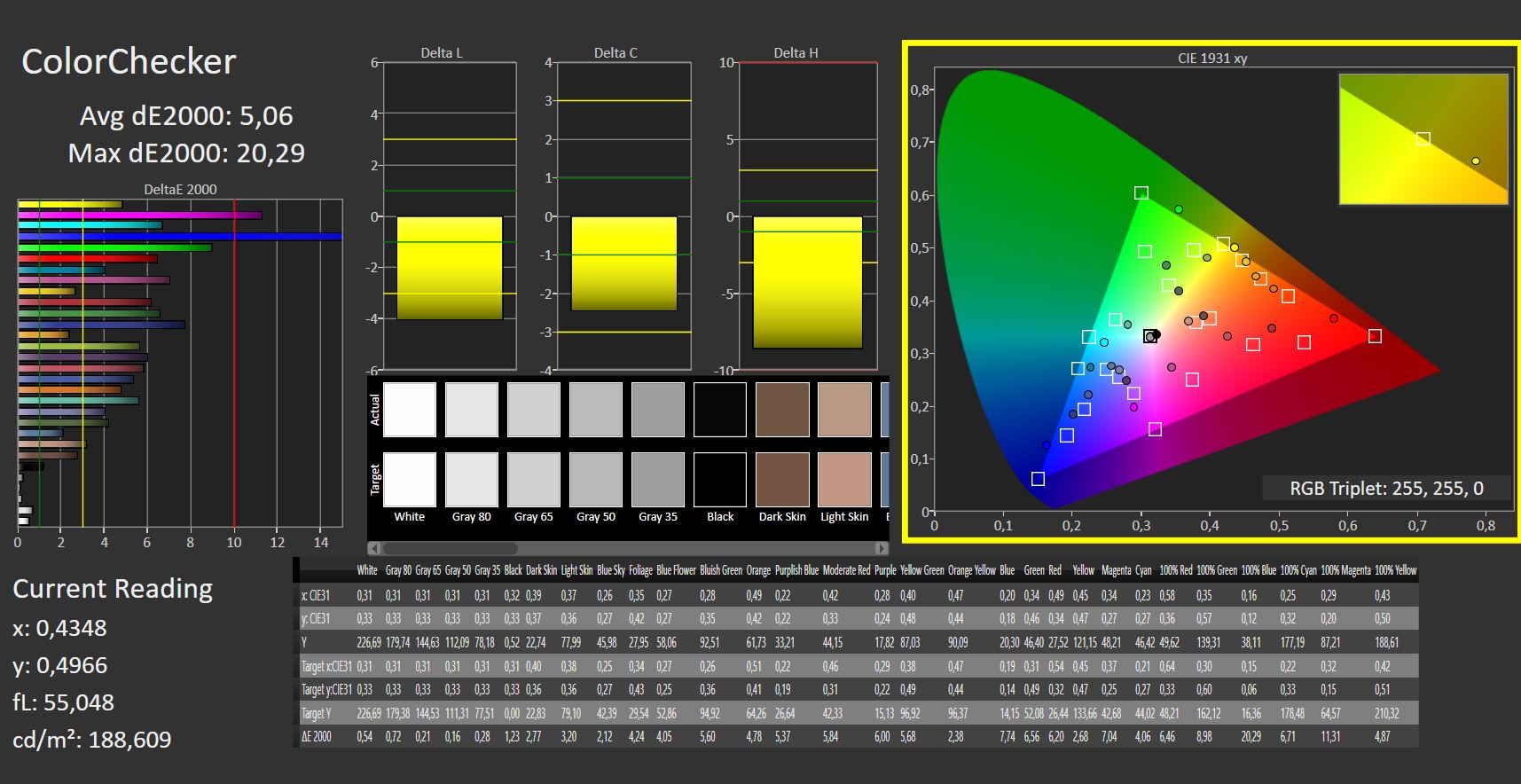

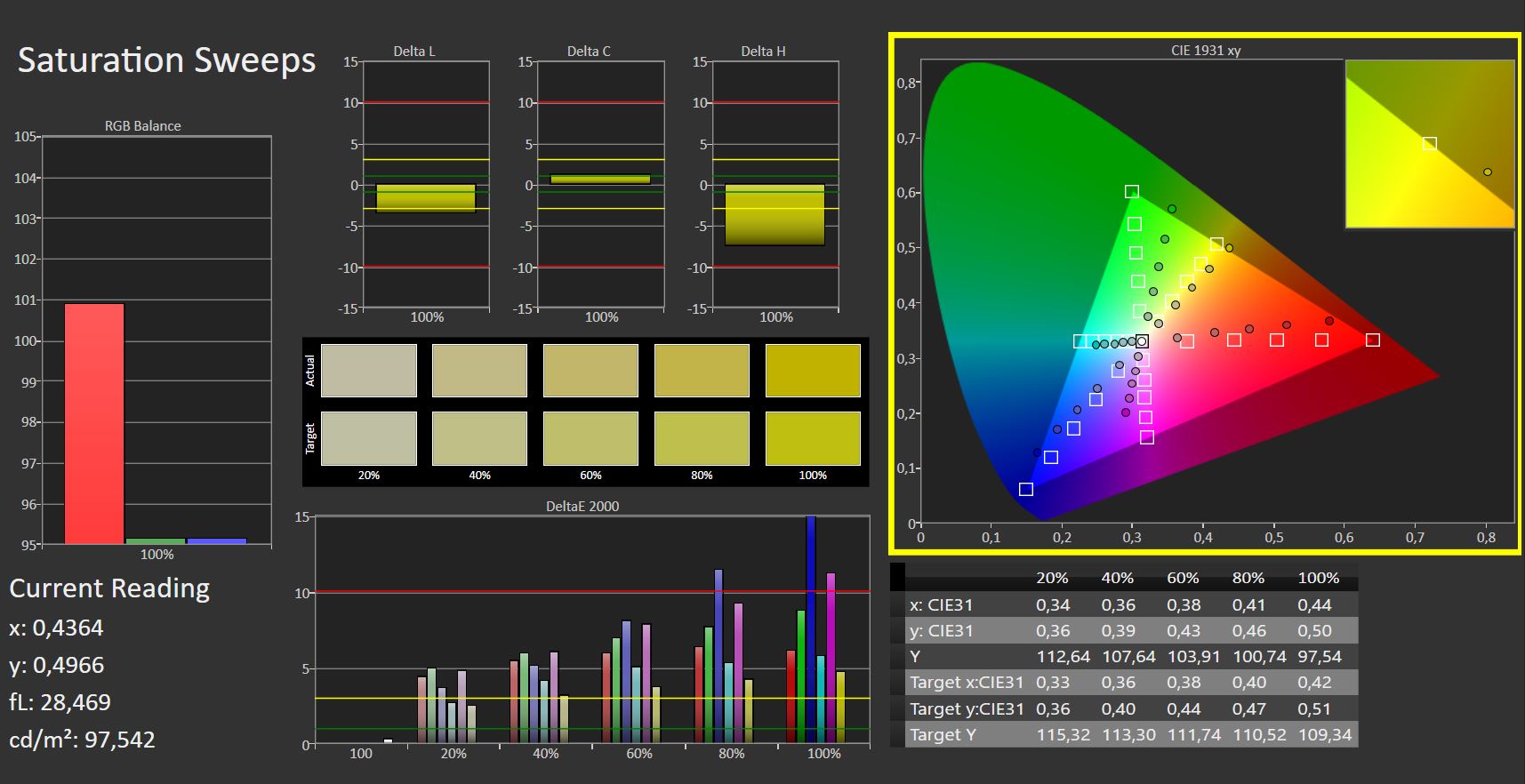

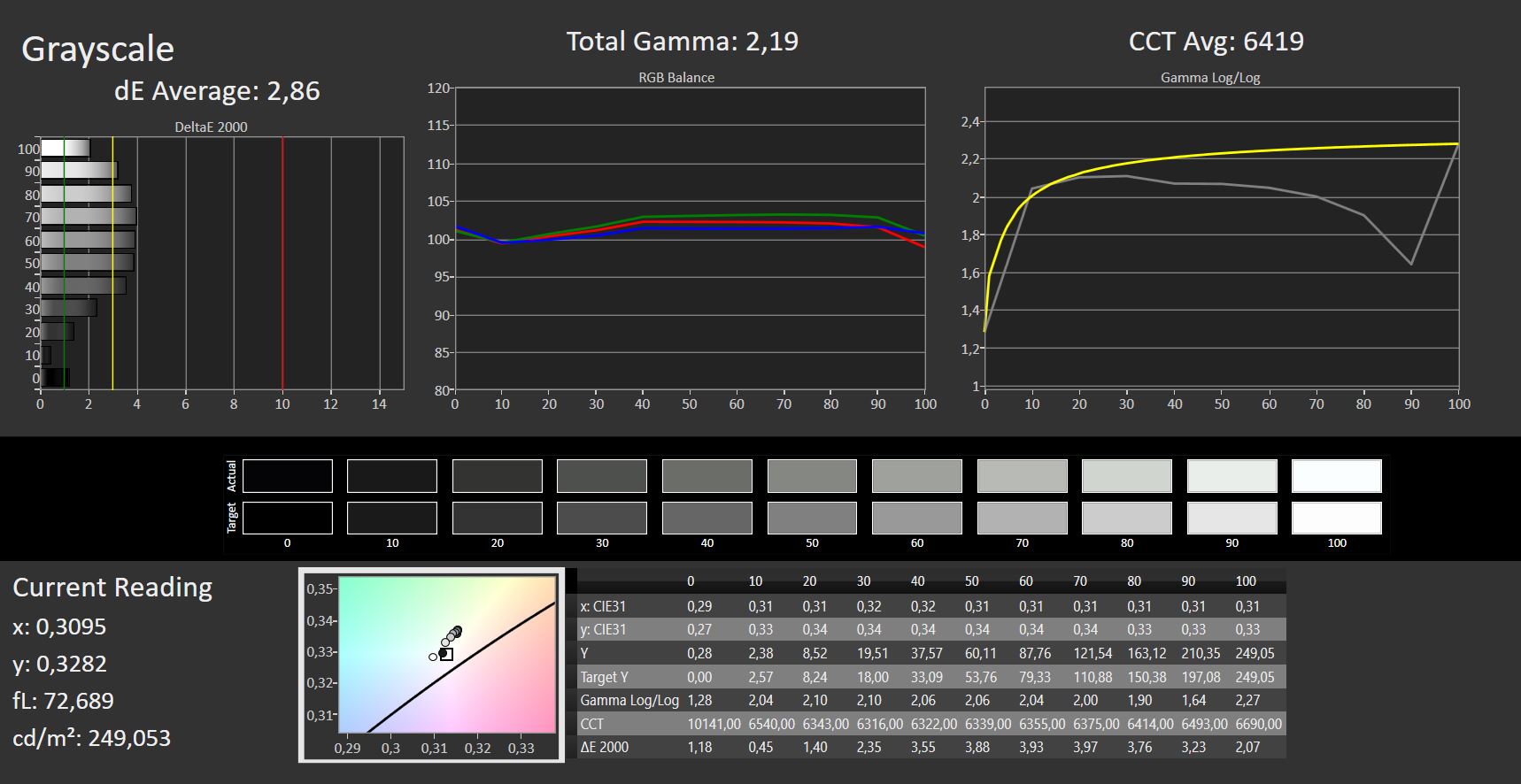

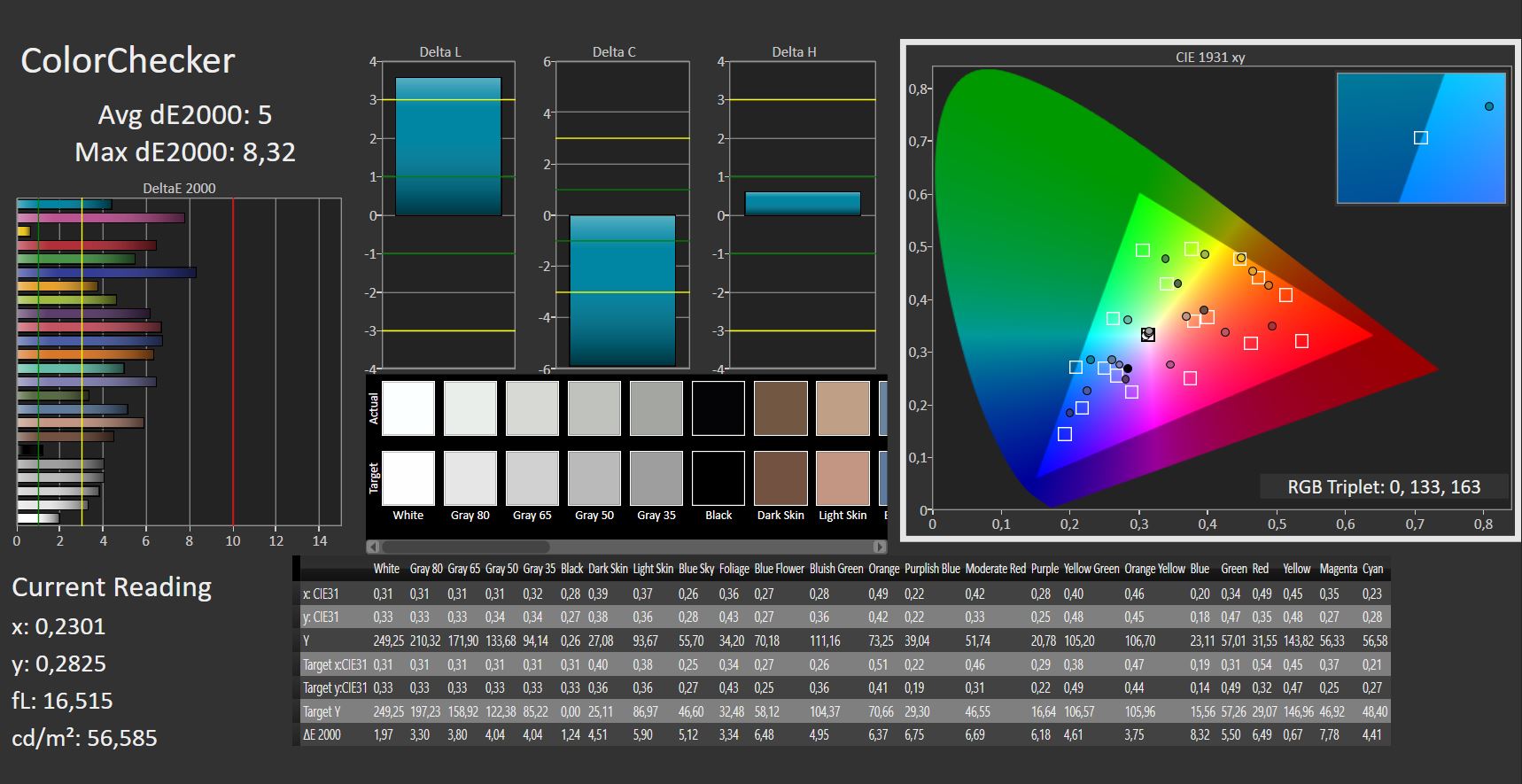

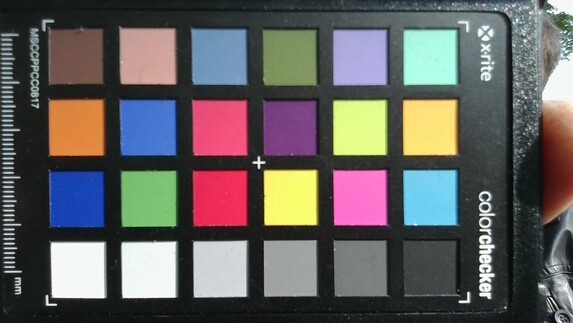

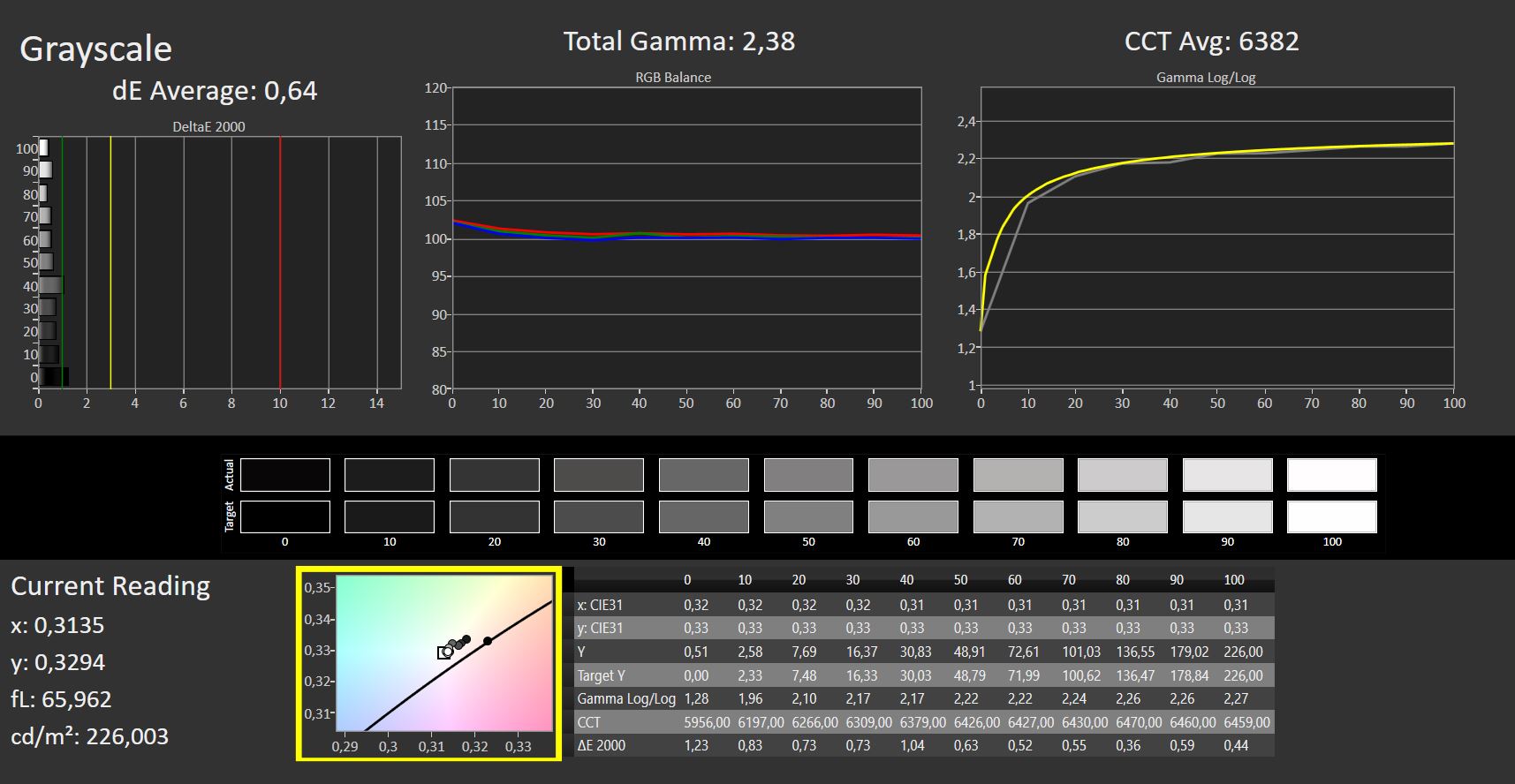

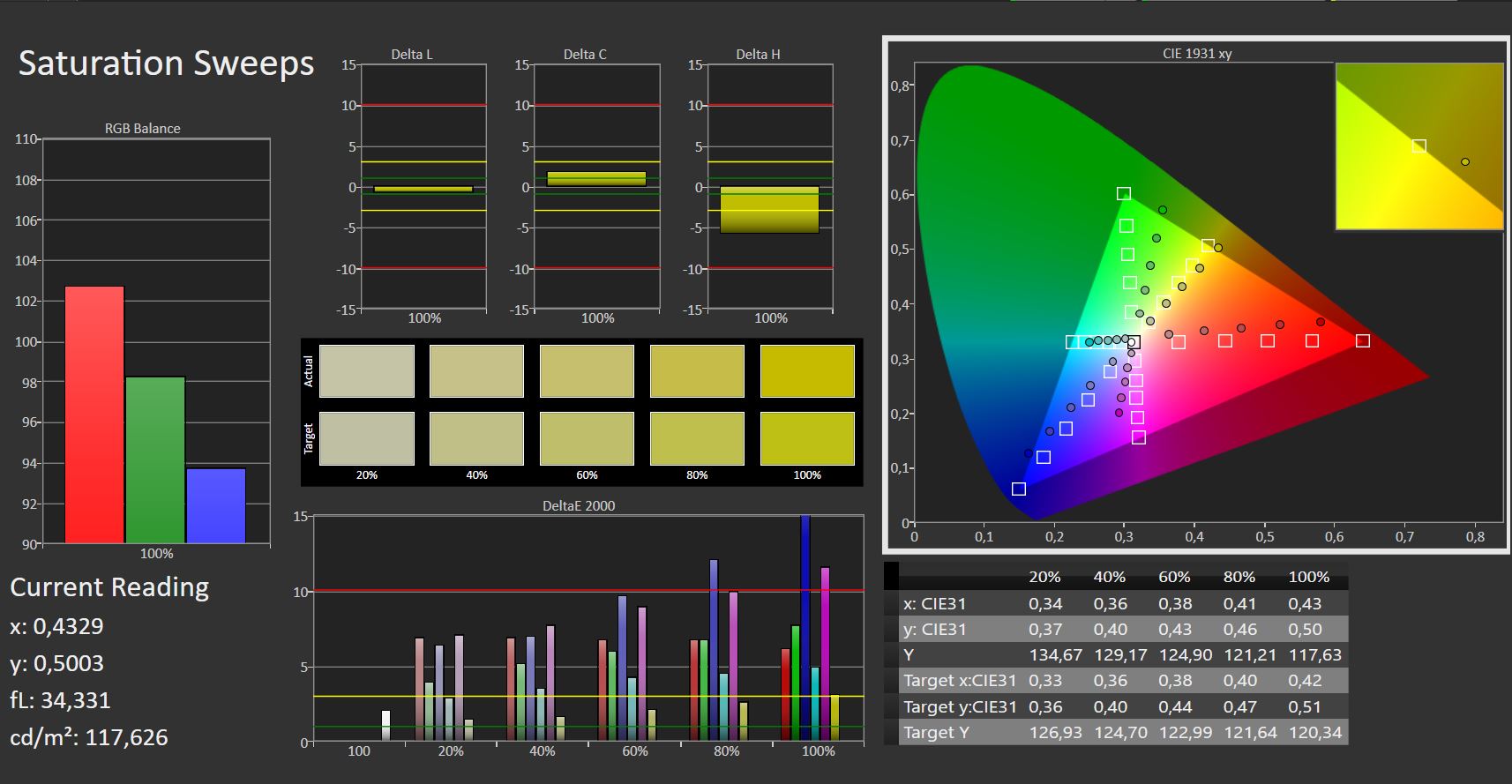

开箱后，笔记本电脑的屏幕具有体面的色彩描述。然而，由于偏差在5左右，它的目标（DeltaE<3）被错过了。校准可以使灰色调更加平衡。该显示器无法描绘AdobeRGB（40%）、sRGB（58%）或DCI-P3（39%）的色彩空间。

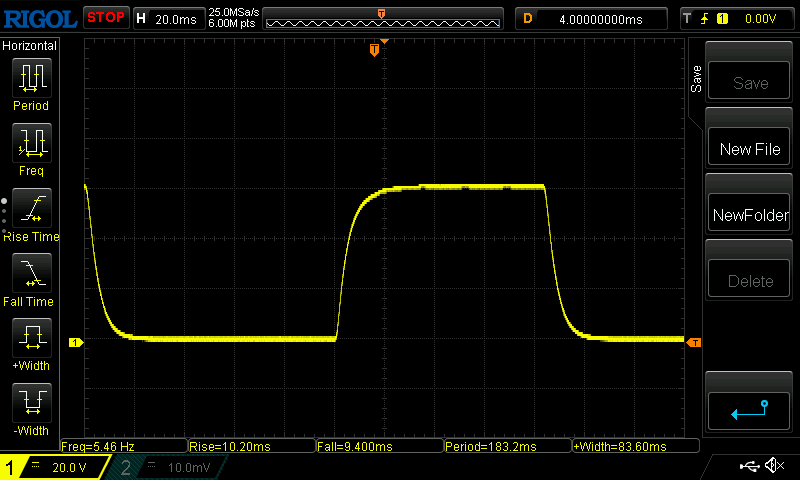

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 19 ms ... rise ↗ and fall ↘ combined | ↗ 10 ms rise |  |
| ↘ 9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 38 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

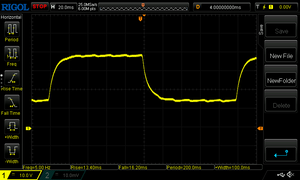

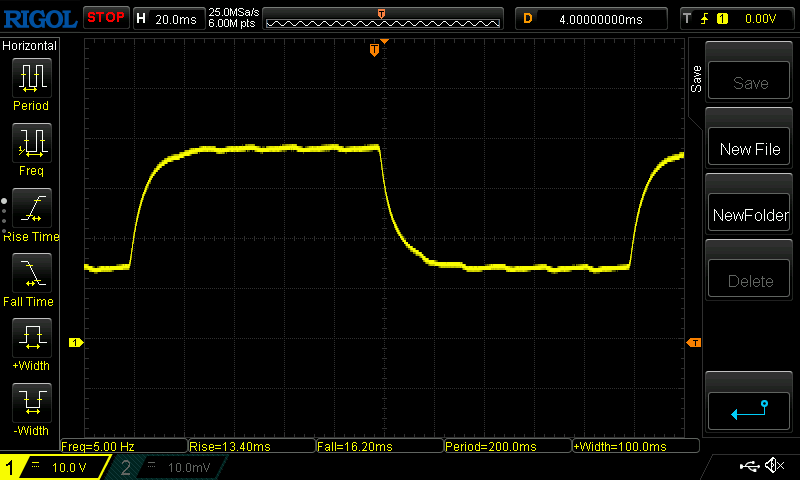

| ↔ Response Time 50% Grey to 80% Grey | ||
| 29 ms ... rise ↗ and fall ↘ combined | ↗ 13 ms rise |  |
| ↘ 16 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

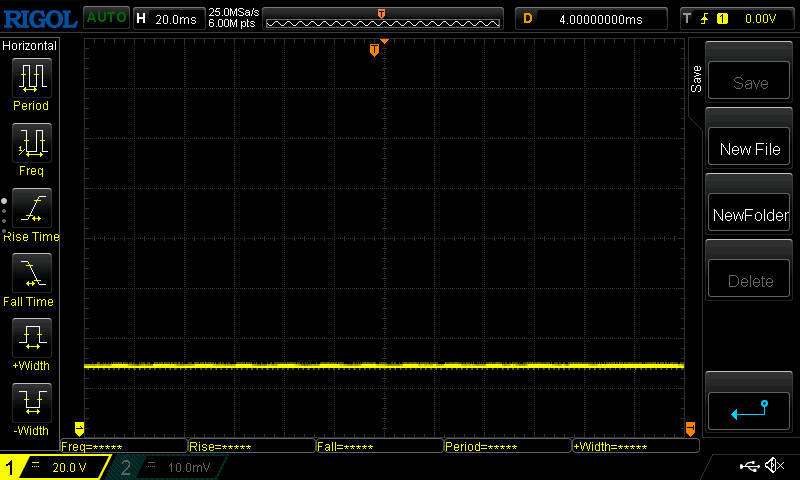

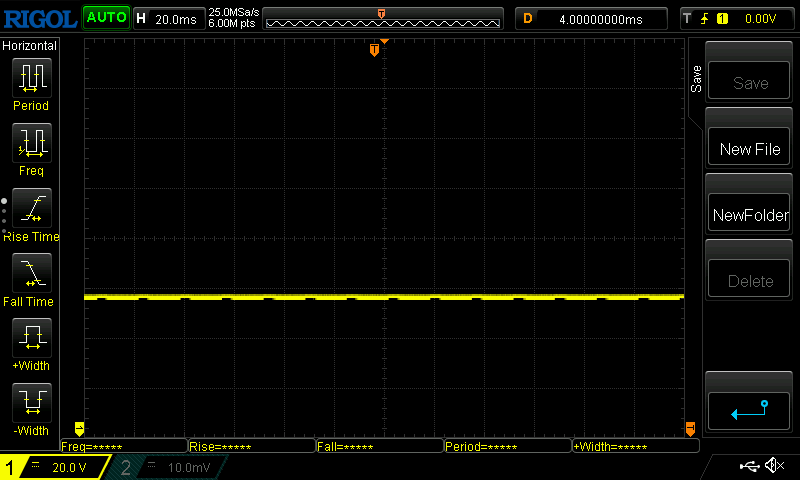

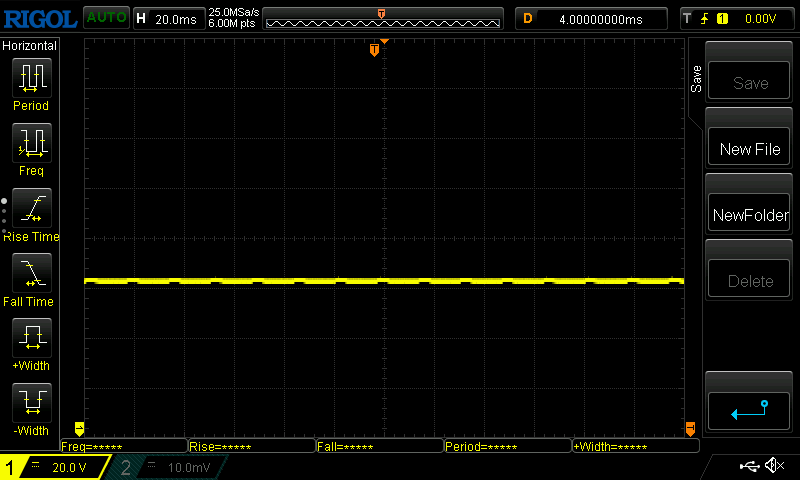

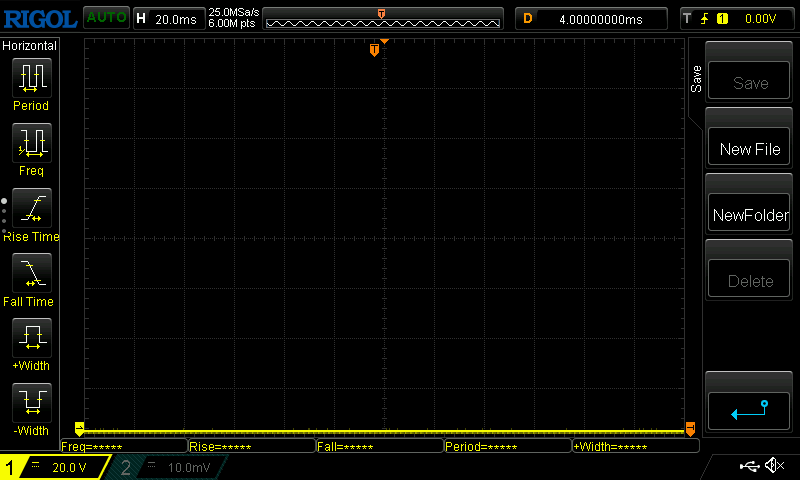

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured. | |||

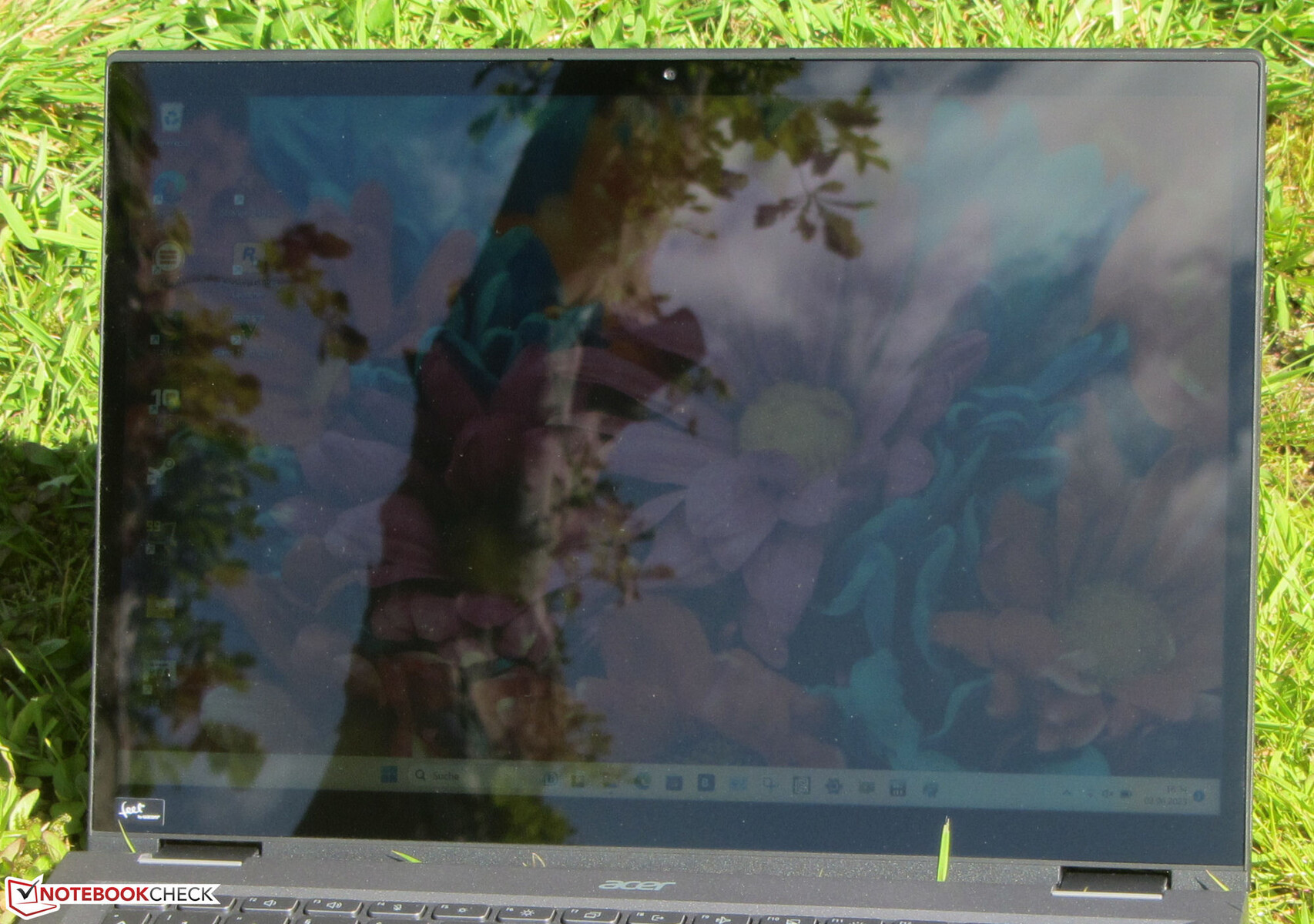

它的可视角度稳定的IPS面板从任何角度都能保持清晰。不幸的是，你基本上无法在外面看到这个屏幕。它的低显示亮度和反射表面使之几乎不可能。
性能 - 配备猛禽湖处理器的二合一笔记本电脑
宏碁的Aspire 5 Spin 14系列是一个由各种二合一笔记本电脑组成的阵容，它使用猛禽湖CPU，有足够的动力用于互联网和办公用途以及一些节俭的游戏。
测试条件
你能够通过组合键 "Fn "+"F "在三个制造商特定的性能配置文件（见表）之间切换。使用了 "正常模式"（基准测试）和 "静音模式"（电池测试）配置文件。所有三个配置文件都提供相同的CPU和GPU性能。
| 性能模式 | 正常模式 | 静音模式 | |
|---|---|---|---|
| 功率限制1（HWInfo） | 28瓦 | 25瓦 | 28瓦 |
| 功率限制 2 (HWInfo) | 55 瓦 | 50 瓦 | 55 瓦 |

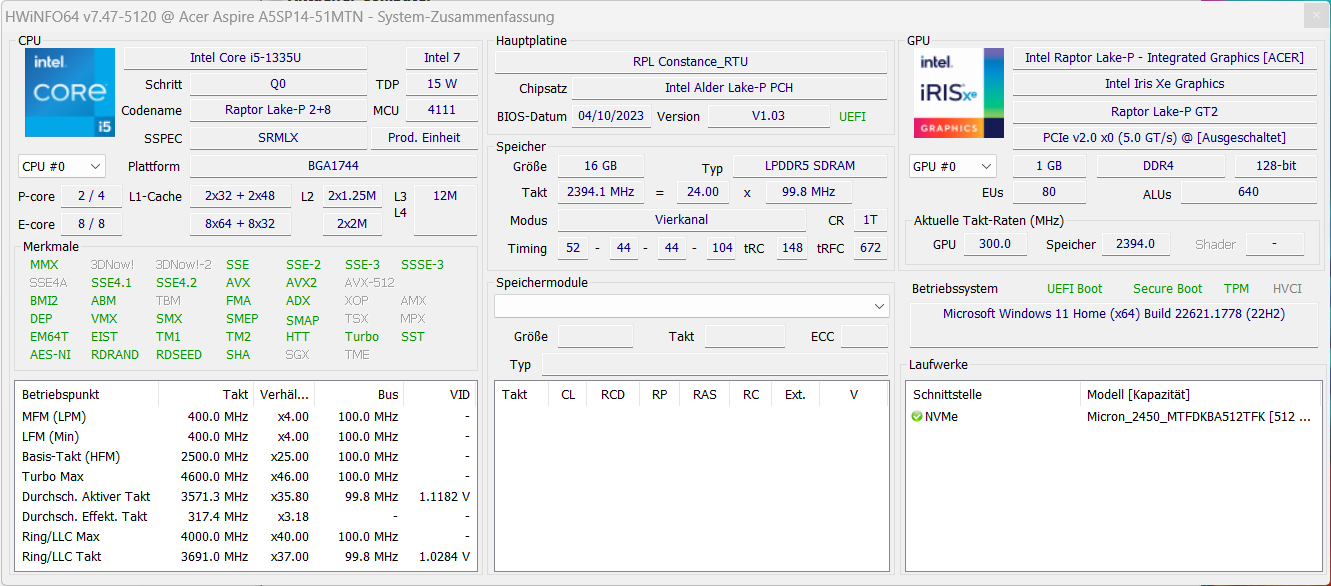

处理器

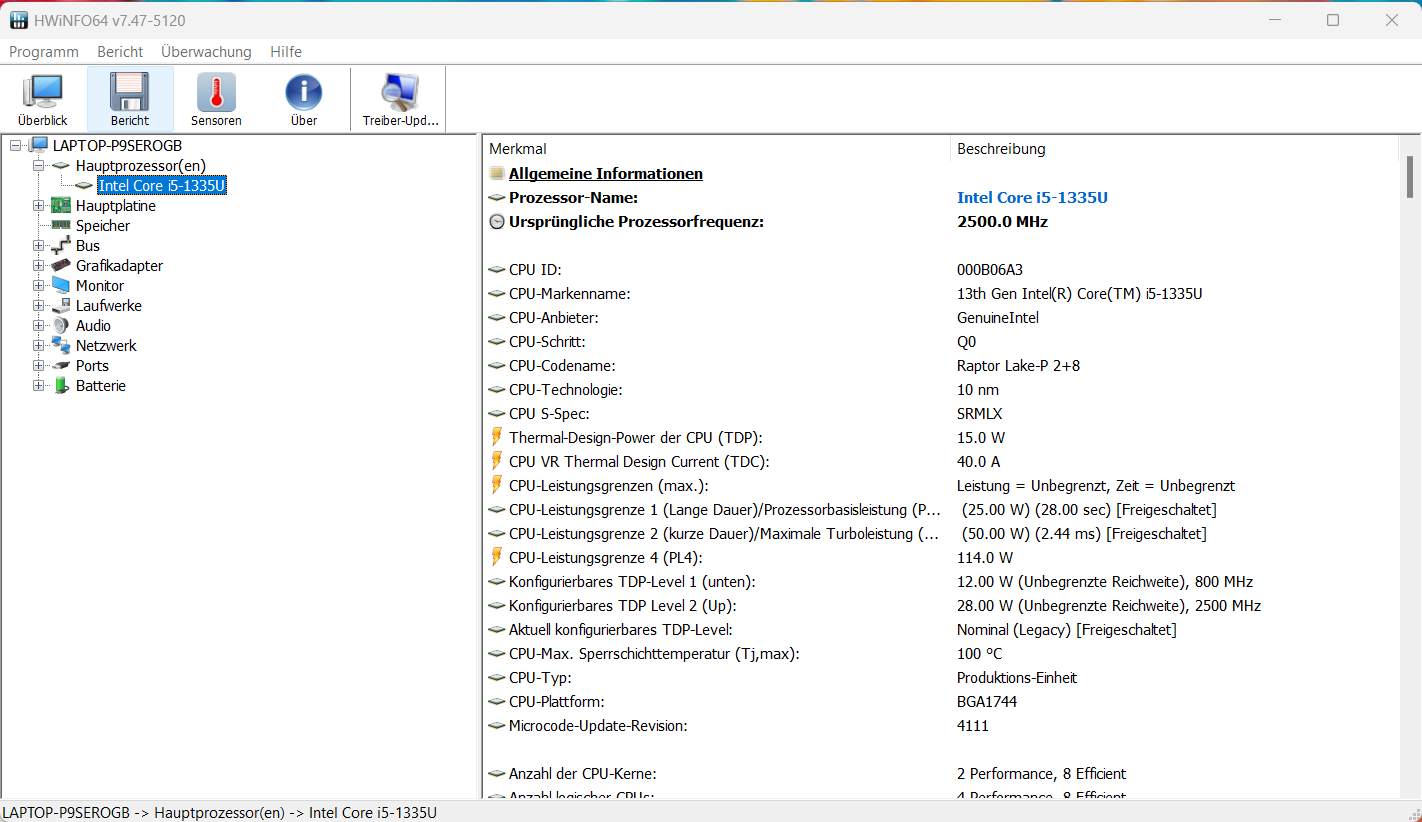

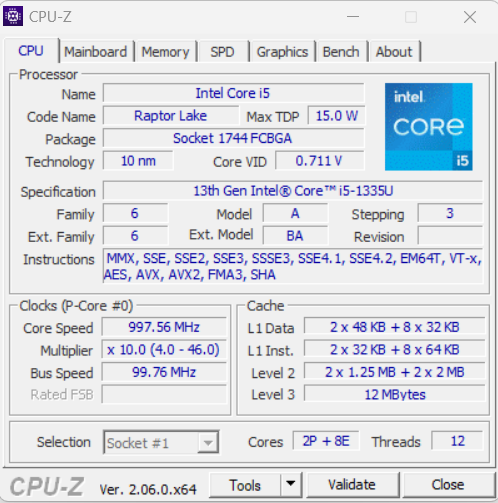

芯片 酷睿-i5-1335U处理器（Raptor Lake）包括两个性能核心（超线程，1.3-4.6 GHz）和八个效率核心（无超线程，0.9-3.4 GHz）。总共有12个逻辑上的CPU核心。

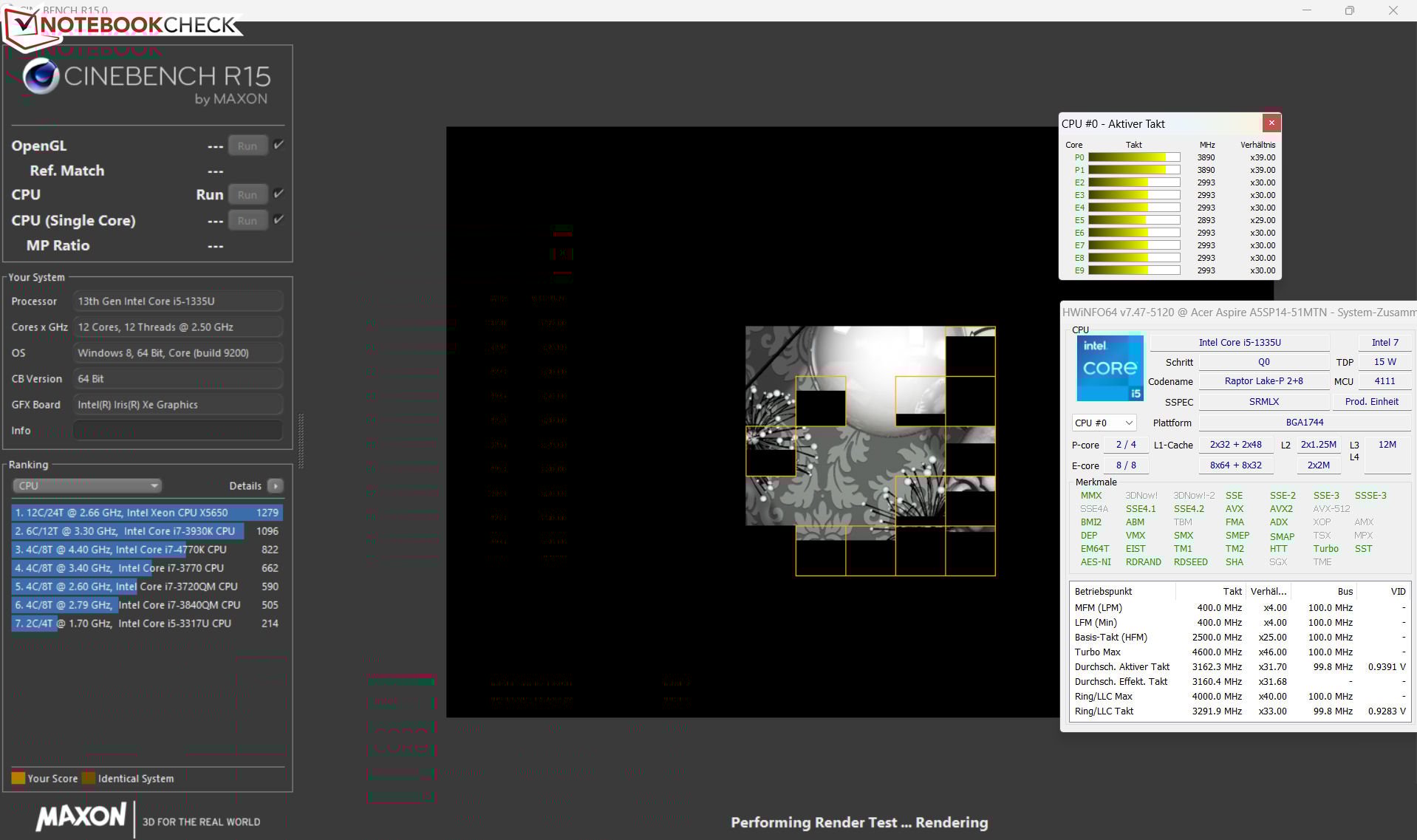

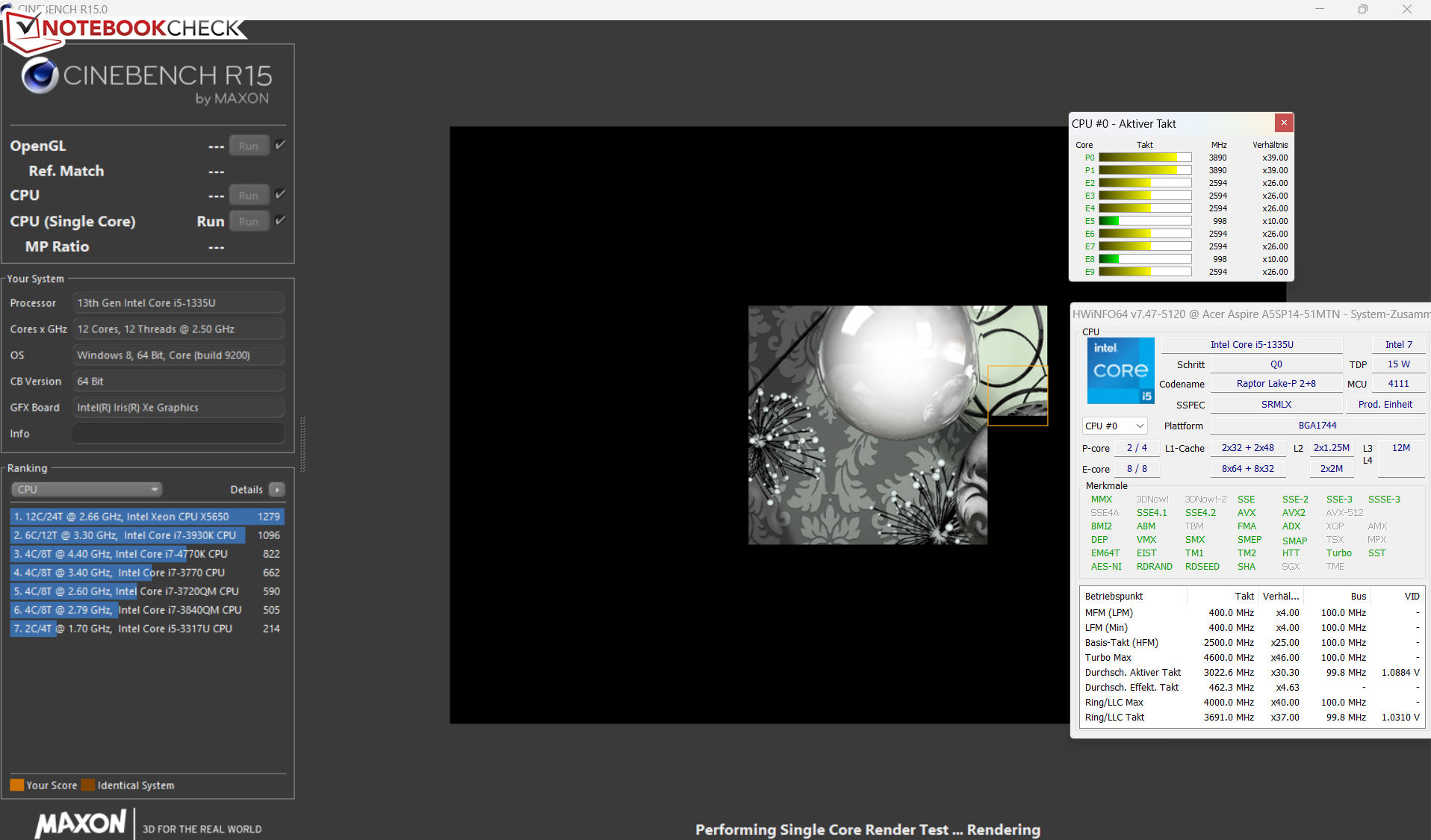

在Cinebench R15基准测试期间，笔记本电脑以相对较高的时钟频率开始多线程测试（P：3.9-4 GHz；E：3 GHz），很快就下沉到3 GHz（P）和1.8 GHz（E）。单线程测试在2.4-4.6 GHz（P）和1-3.2 GHz（E）下运行。其单线程性能（73分）和多线程性能（570分）在电池使用期间都有所下降。
CB15的循环测试显示：永久的多线程负载导致涡轮增压时钟率从第一次运行到第二次运行下沉。随后，它保持了一致的速率。使用配置文件 "性能模式 "并没有带来任何改善。
Cinebench R15 Multi continuous test
| CPU Performance Rating - Percent | |
| Average of class Convertible | |
| Dell Inspiron 14 7420 2-in-1 -1! | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Convertible | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Convertible (468 - 29594, n=63, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U (5661 - 7809, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / FPU Julia | |
| Average of class Convertible (2644 - 114033, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (29483 - 43636, n=11) | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / CPU SHA3 | |
| Average of class Convertible (182 - 4841, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (1515 - 2278, n=11) | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / CPU Queen | |
| Average of class Convertible (10502 - 120368, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U (53839 - 60992, n=11) | |
| AIDA64 / FPU SinJulia | |
| Average of class Convertible (659 - 16315, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (3873 - 5008, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| Acer Aspire 5 Spin 14 | |
| AIDA64 / FPU Mandel | |
| Average of class Convertible (1420 - 61249, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (14376 - 20553, n=11) | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / CPU AES | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (1279 - 169089, n=62, last 2 years) | |
| Average Intel Core i5-1335U (31154 - 65997, n=11) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / CPU ZLib | |
| Average of class Convertible (61.4 - 1243, n=62, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (378 - 676, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Convertible (254 - 16065, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U (2878 - 4214, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / CPU PhotoWorxx | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (5136 - 53406, n=62, last 2 years) | |
| Average Intel Core i5-1335U (13584 - 41123, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
系统性能

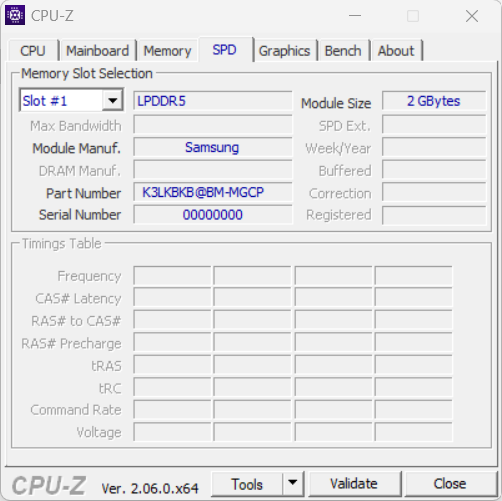

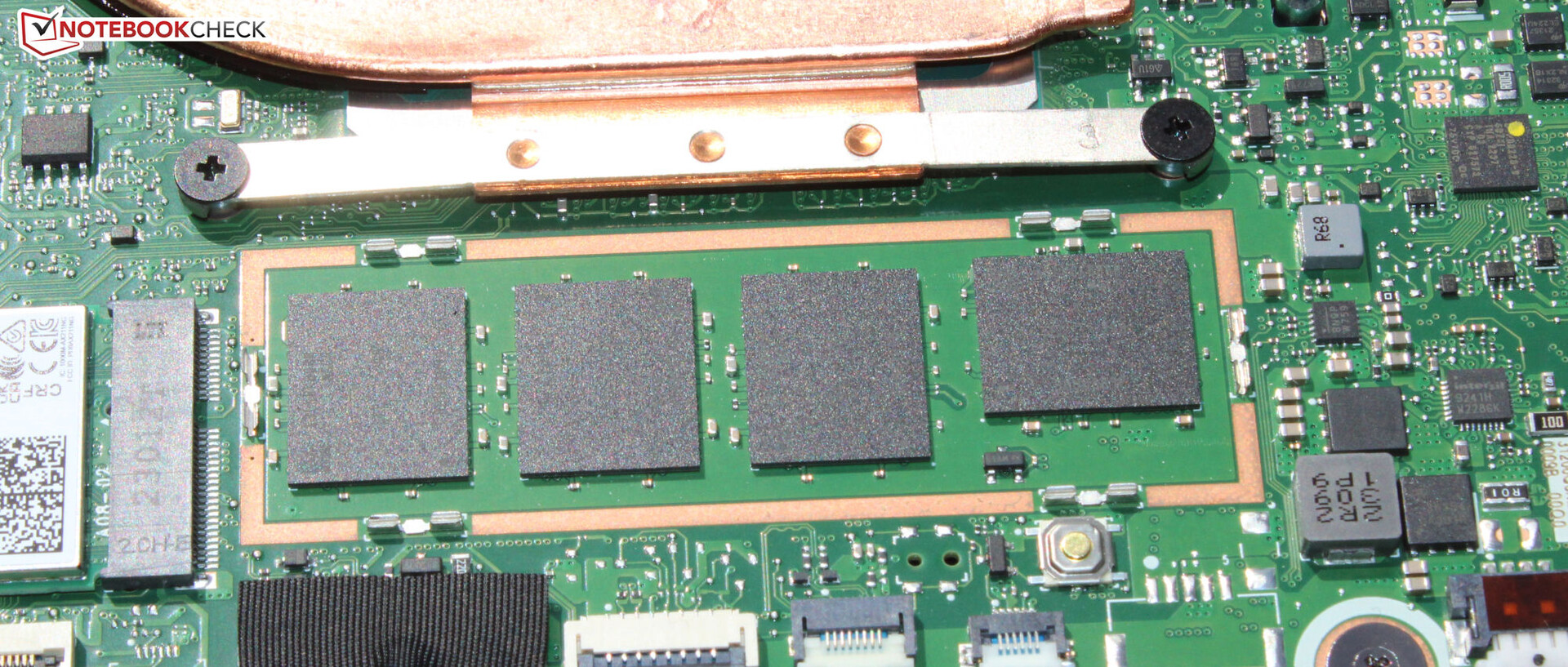

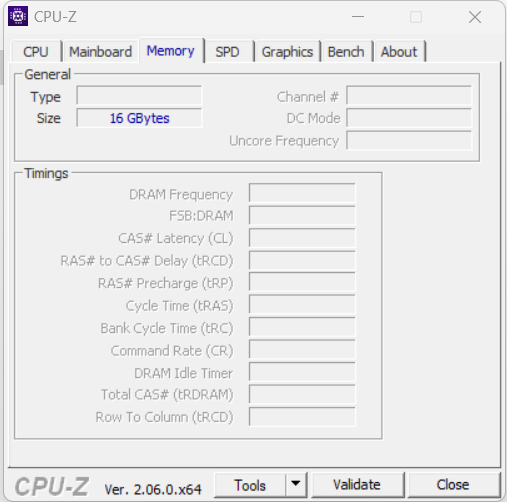

运行平稳的系统取得了良好的PCMark结果。它为办公和互联网应用以及一些适度的游戏提供了足够的性能。内存（LPDDR5-6400）的传输率并不稳定：写入率大约在预期水平上，但读取率明显落后。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Convertible (1486 - 7963, n=59, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (5068 - 5600, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| Acer Aspire 5 Spin 14 | |
| PCMark 10 / Essentials | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average of class Convertible (3975 - 12059, n=59, last 2 years) | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (9828 - 11912, n=11) | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| PCMark 10 / Productivity | |
| Average of class Convertible (2764 - 10800, n=59, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (6196 - 7261, n=11) | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Convertible (811 - 12360, n=59, last 2 years) | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (5361 - 6164, n=11) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| CrossMark / Overall | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (310 - 1912, n=60, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1339 - 1599, n=11) | |
| CrossMark / Productivity | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average of class Convertible (389 - 1790, n=60, last 2 years) | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1337 - 1638, n=11) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| CrossMark / Creativity | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average of class Convertible (252 - 2183, n=60, last 2 years) | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1315 - 1620, n=11) | |
| Acer Aspire 5 Spin 14 | |
| CrossMark / Responsiveness | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs (1023 - 1868, n=11) | |
| Average of class Convertible (295 - 1868, n=60, last 2 years) | |
| Dell Inspiron 14 7420 2-in-1 | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| PCMark 10 Score | 5216 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Convertible (16353 - 108544, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U (22417 - 60884, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / Memory Read | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average of class Convertible (12706 - 125359, n=62, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Core i5-1335U (23104 - 61555, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / Memory Write | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (10177 - 117920, n=62, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (22936 - 72584, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
| AIDA64 / Memory Latency | |
| Average of class Convertible (7.4 - 173, n=62, last 2 years) | |
| Acer Aspire 5 Spin 14 | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Average Intel Core i5-1335U (78.6 - 112.8, n=11) | |
| Dell Inspiron 14 7420 2-in-1 | |
* ... smaller is better

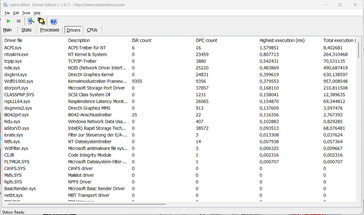

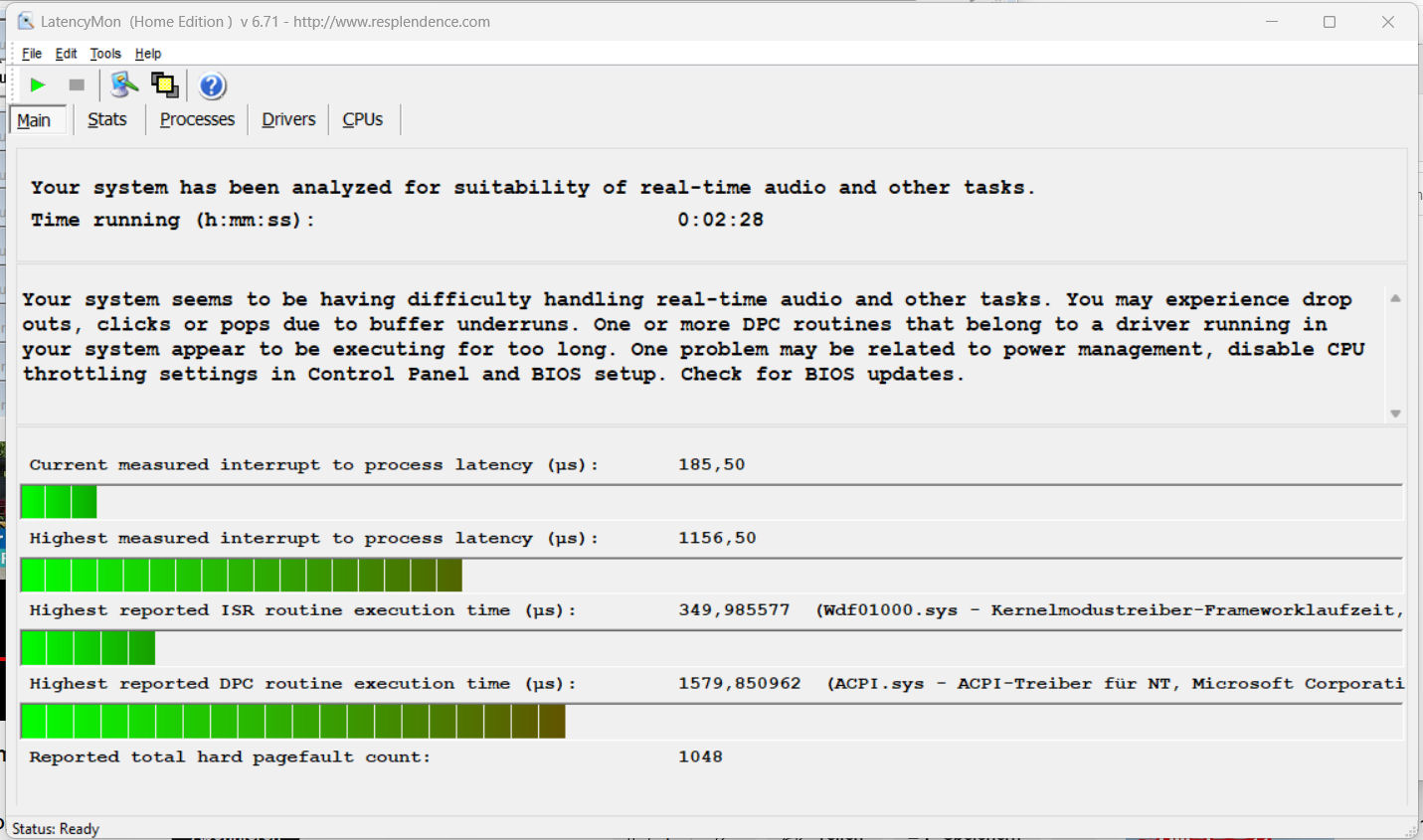

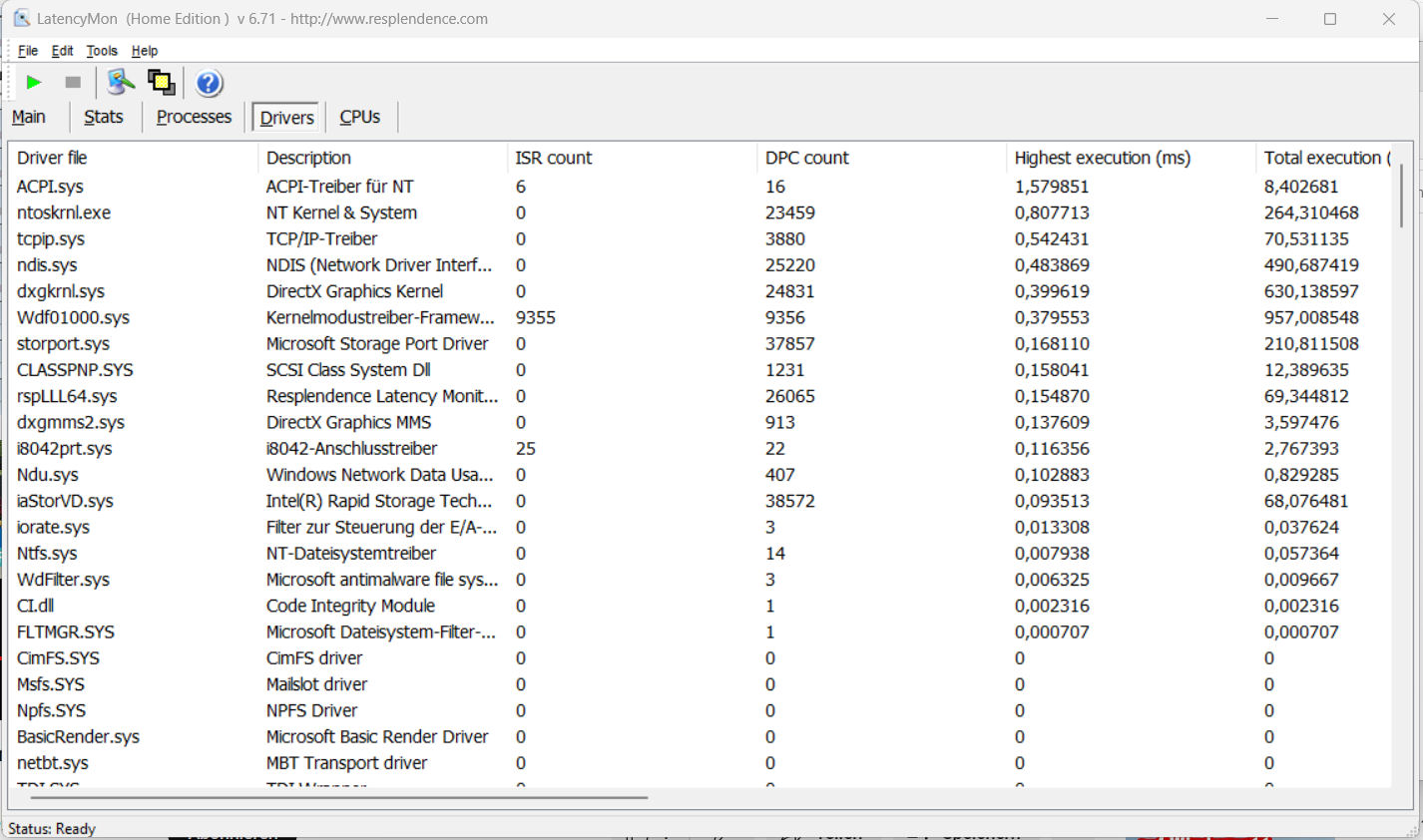

DPC延时
标准化的延迟监测测试（网络冲浪、4k视频播放、Prime95高负荷）发现了一些异常情况。该系统似乎不适合实时视频和音频编辑。未来的软件更新可能会导致改进，甚至是退化。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer Aspire 5 Spin 14 | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
* ... smaller is better
存储设备

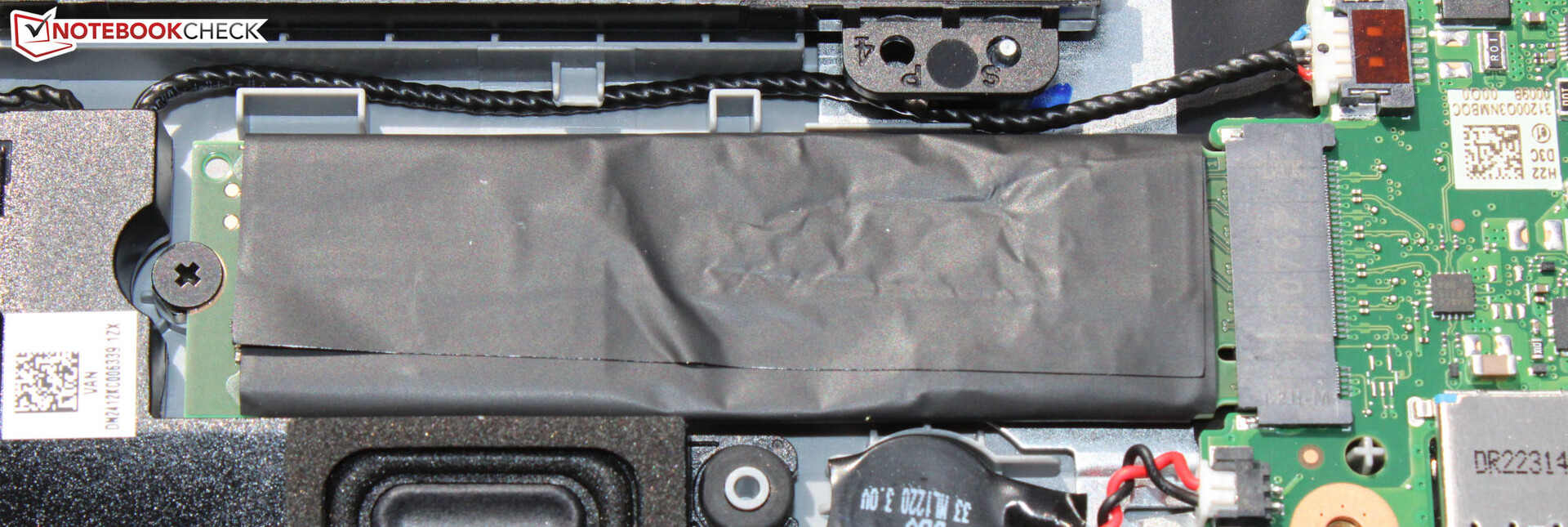

宏碁为Spin 14配备了美光公司的PCIe 4固态硬盘（M.2-2280），其存储容量为512GB，并提供良好的传输速率。负面的：在DiskSpd循环的后期过程中，可以观察到由于热节流而导致的性能下降。敞篷车没有为额外的存储介质提供空间。
| Drive Performance Rating - Percent | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible | |
| Average Micron 2450 512GB MTFDKBA512TFK | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8
图形卡

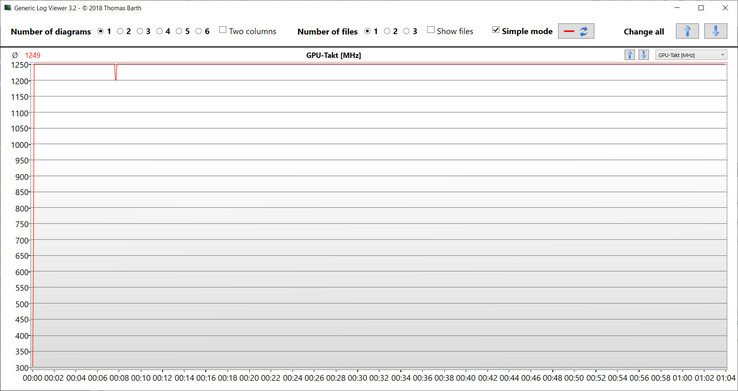

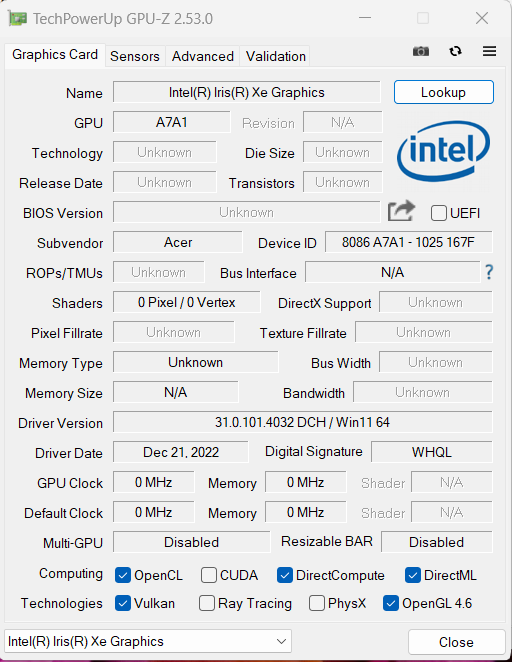

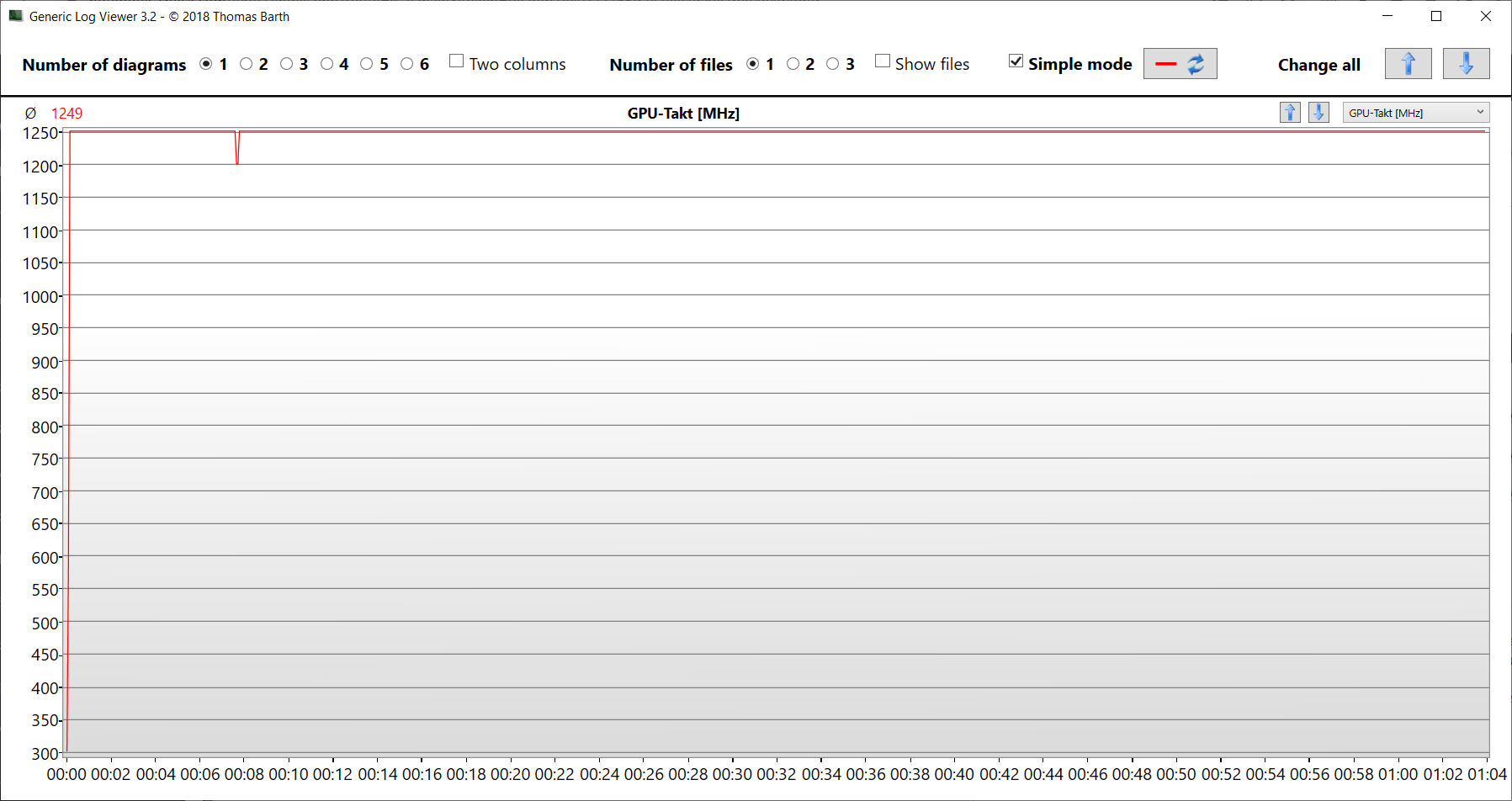

英特尔的iGPU (UHD Graphics Xe G7)能够在全功率(1,250 MHz)下持续工作--测试显示 Witcher 3测试显示了这一点。该硬件应该能够满足许多适度游戏的要求--但Aspire绝不是一台游戏笔记本电脑。3DMark的结果和帧率都高于iGPU的平均水平。
| 3DMark Performance Rating - Percent | |
| Average of class Convertible | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average Intel Iris Xe Graphics G7 80EUs | |
| 3DMark 11 Performance | 6006 points | |
| 3DMark Cloud Gate Standard Score | 19526 points | |

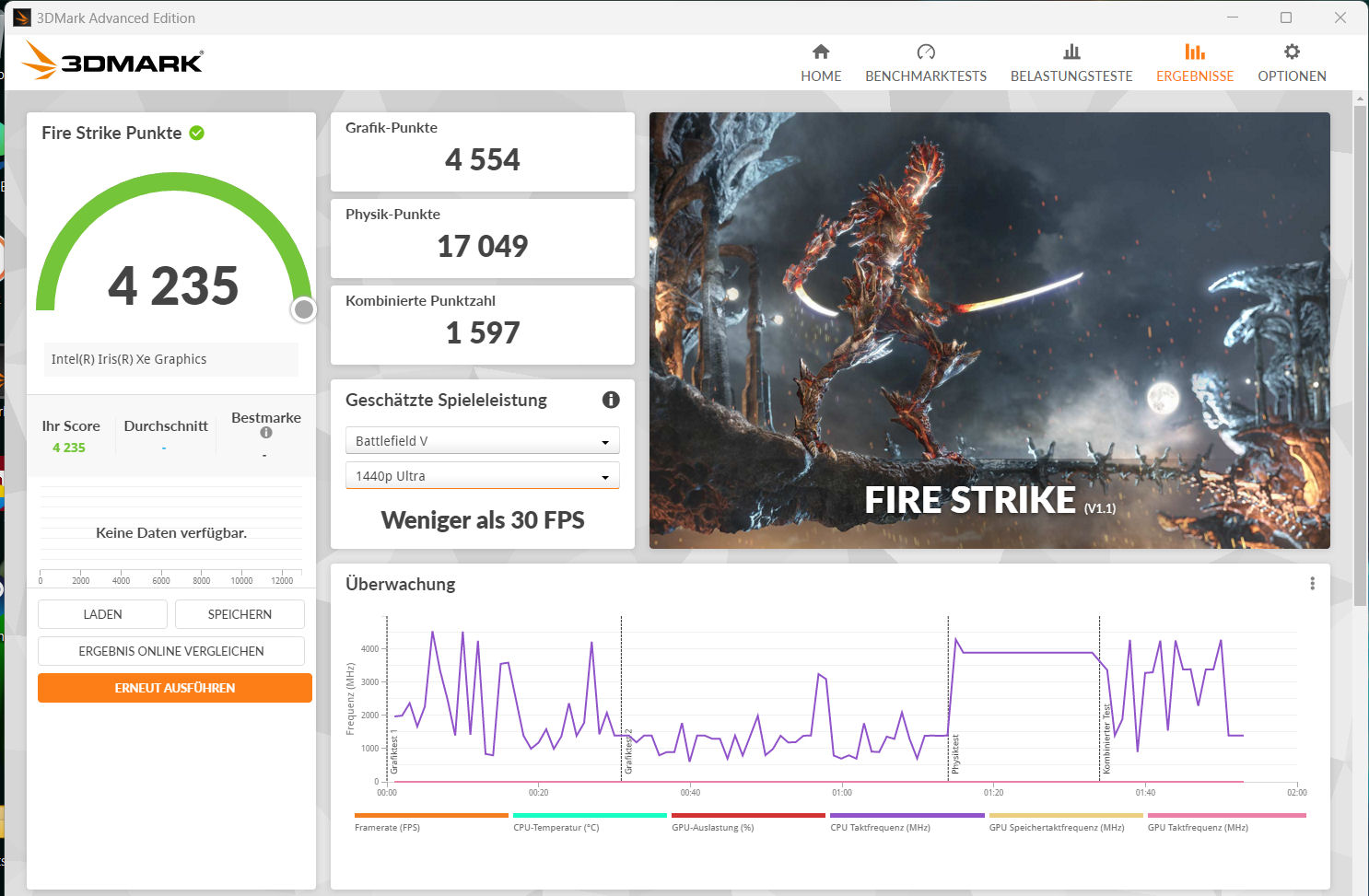

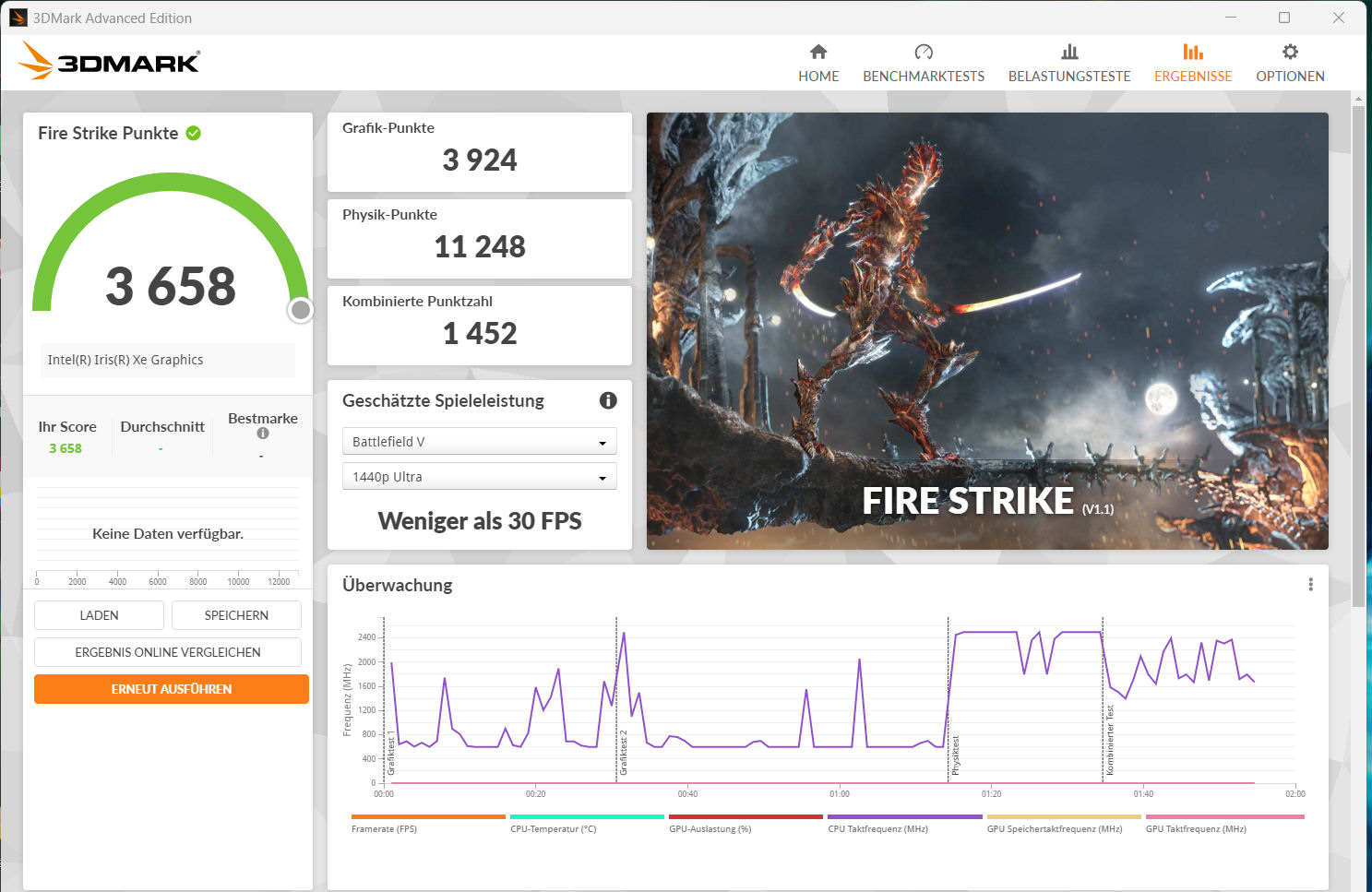

| 3DMark Fire Strike Score | 4217 points | |
| 3DMark Time Spy Score | 1447 points | |
Help | ||
| Performance Rating - Percent | |
| Average of class Convertible | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Iris Xe Graphics G7 80EUs | |
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| Average of class Convertible (28 - 257, n=40, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103) | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Convertible (3.56 - 182.7, n=59, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Acer Aspire 5 Spin 14 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104) | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Average of class Convertible (5.4 - 158.3, n=63, last 2 years) | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
| Dell Inspiron 14 7420 2-in-1 | |
| Acer Aspire 5 Spin 14 | |
| Average Intel Iris Xe Graphics G7 80EUs (7.8 - 66.1, n=110) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 113.1 | 101 | 21.8 | 9.39 |
| The Witcher 3 (2015) | 81.4 | 50.9 | 27.3 | 12.9 |
| Dota 2 Reborn (2015) | 98.5 | 76 | 49.9 | 45.5 |
| Final Fantasy XV Benchmark (2018) | 38.7 | 21.5 | 14.9 | |
| X-Plane 11.11 (2018) | 30 | 21 | 20.5 | |
| Strange Brigade (2018) | 67 | 29.2 | 23.6 | 19 |
排放与电源管理--运行时间良好的宏基公司
噪声排放
在日常使用中（办公室、互联网），笔记本电脑经常静静地运行。在负载情况下，它可以变得相当响亮：测得的噪音压力水平高达46.3 dB (A)--对于一台办公用笔记本电脑来说太高了。该IdeaPad Flex 7i显示了它是如何做到的。使用 "静音模式 "会导致更安静的噪音水平，但温度更高。
Noise Level
| Idle |
| 27.7 / 27.7 / 29.7 dB(A) |
| Load |
| 46.3 / 45.4 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| Acer Aspire 5 Spin 14 Iris Xe G7 80EUs, i5-1335U, Micron 2450 512GB MTFDKBA512TFK | Lenovo IdeaPad Flex 7i 14IAU7 Iris Xe G7 96EUs, i7-1255U, Samsung PM9B1 512GB MZAL4512HBLU | Dell Inspiron 14 7420 2-in-1 Iris Xe G7 96EUs, i7-1255U, WDC PC SN530 SDBPMPZ-512G | |
|---|---|---|---|
| Noise | 18% | 15% | |
| off / environment * | 26 | 23.3 10% | 23.1 11% |
| Idle Minimum * | 27.7 | 23.3 16% | 24.7 11% |
| Idle Average * | 27.7 | 23.3 16% | 24.7 11% |
| Idle Maximum * | 29.7 | 23.3 22% | 24.7 17% |
| Load Average * | 46.3 | 34.3 26% | 27.7 40% |
| Load Maximum * | 45.4 | 37.8 17% | 45.1 1% |
| Witcher 3 ultra * | 37.8 | 45.1 |
* ... smaller is better
温度
Aspire在负载下发热明显，但总的来说是适度的：在压力测试期间，在一个测量点达到了最高约54℃。在日常使用中，该比率在绿色区域内。

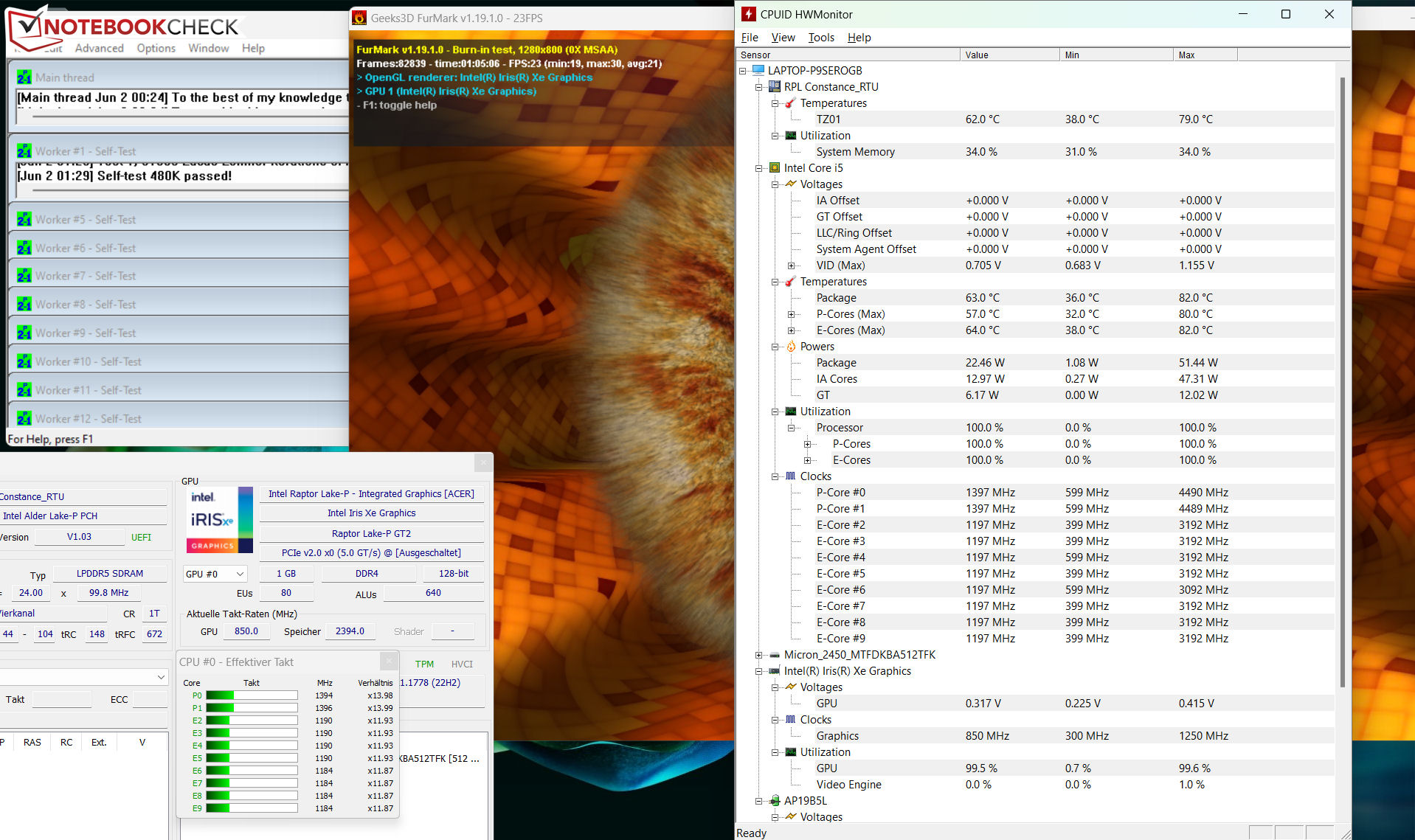

压力测试（Prime95和Furmark连续运行）模拟了一个极端情况，以测试系统在全负荷下的稳定性。测试开始时，CPU的时钟频率处于中等水平（P：3GHz，E：2.4GHz），图形核心工作在1GHz。几秒钟后，CPU的时钟明显下降，而GPU的时钟只在很小的范围内。

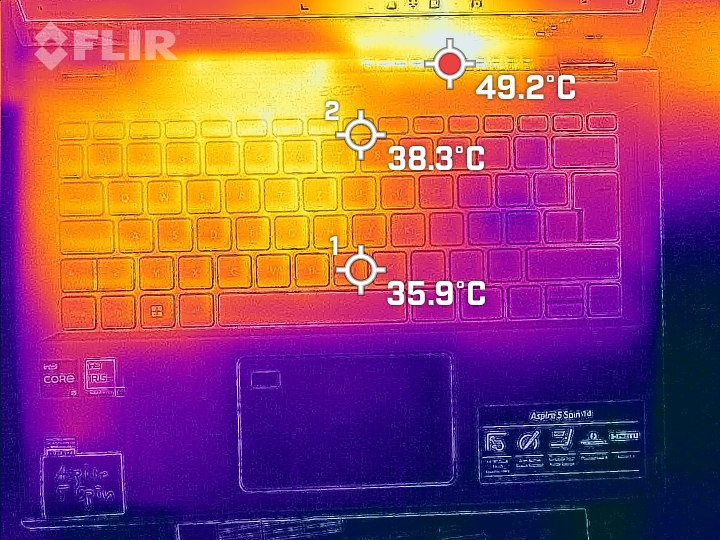

(±) The maximum temperature on the upper side is 41.7 °C / 107 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.

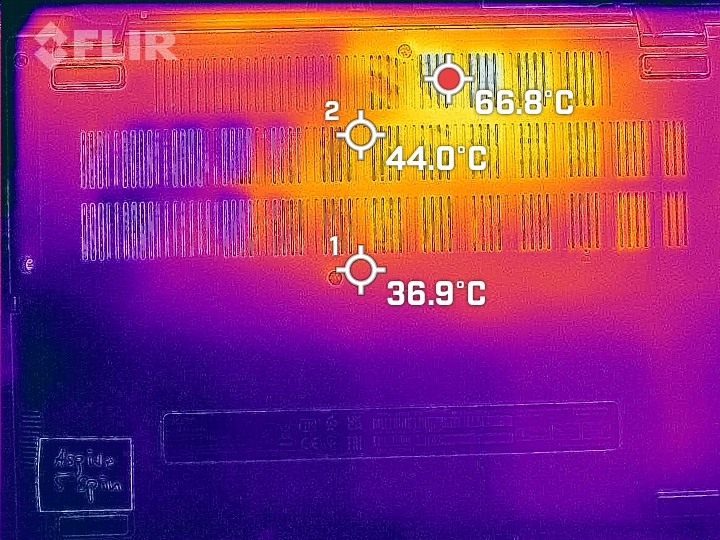

(-) The bottom heats up to a maximum of 54.4 °C / 130 F, compared to the average of 36.8 °C / 98 F

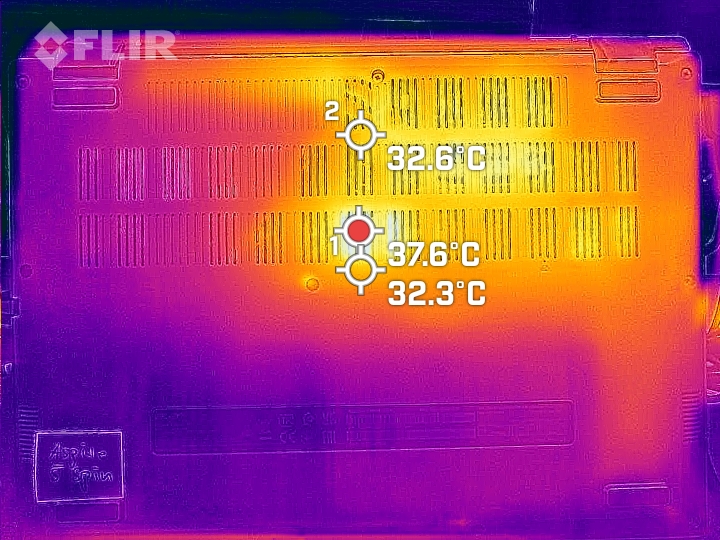

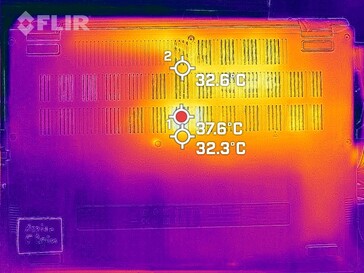

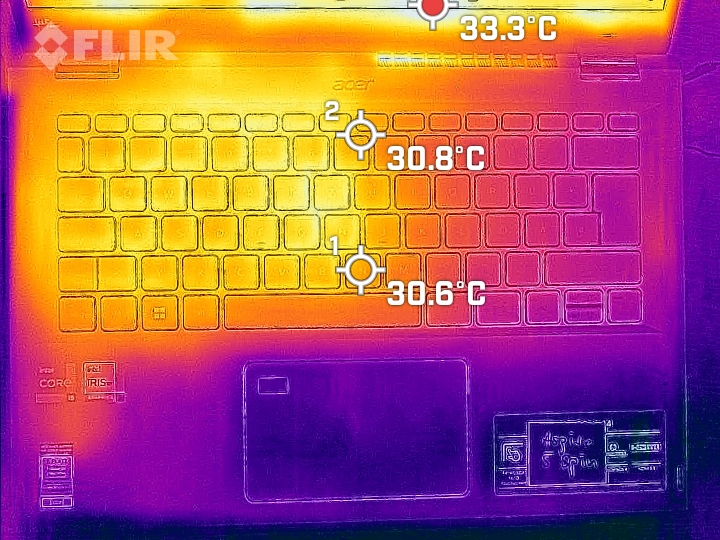

(+) In idle usage, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.8 °C / 85.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-1.8 °C / -3.2 F).
| Acer Aspire 5 Spin 14 Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs | Lenovo IdeaPad Flex 7i 14IAU7 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | Dell Inspiron 14 7420 2-in-1 Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|
| Heat | 22% | 10% | |
| Maximum Upper Side * | 41.7 | 35.4 15% | 38.2 8% |
| Maximum Bottom * | 54.4 | 38.8 29% | 45.6 16% |
| Idle Upper Side * | 30.4 | 22.6 26% | 27.4 10% |
| Idle Bottom * | 29.8 | 24.2 19% | 28.4 5% |
* ... smaller is better
发言人
立体声扬声器产生了体面的声音，但几乎没有任何低音。
Acer Aspire 5 Spin 14 audio analysis
(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 32% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.2% away from median
(+) | mids are linear (5.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.8% higher than median
(±) | linearity of highs is average (7.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.3% difference to median)
Compared to same class
» 75% of all tested devices in this class were better, 7% similar, 19% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 75% of all tested devices were better, 5% similar, 20% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo IdeaPad Flex 7i 14IAU7 audio analysis
(±) | speaker loudness is average but good (74.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.3% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.3% higher than median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.3% difference to median)
Compared to same class
» 49% of all tested devices in this class were better, 7% similar, 44% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 49% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
笔记本电脑在耗电方面没有显示任何异常。就所安装的硬件而言，这些比率处于正常水平。在压力测试期间，由于CPU和GPU被节流，功耗下降。附带的电源（65瓦）的大小足够了。
| Off / Standby | 0.2 / 0.5 Watt |
| Idle | 4.3 / 5.8 / 8.8 Watt |
| Load |
44 / 67 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
power consumption Witcher 3 / stress test
power consumption with external monitor
电池寿命
Spin 14在我们的WLAN测试中取得了11:04小时的运行时间（通过脚本调用网站）--一个非常好的速度。竞争对手更早放弃了--尽管电池容量相似。
| Battery Runtime - WiFi Websurfing | |
| Acer Aspire 5 Spin 14 | |
| Average of class Convertible (305 - 981, n=61, last 2 years) | |
| Dell Inspiron 14 7420 2-in-1 | |
| Lenovo IdeaPad Flex 7i 14IAU7 | |
Pros
Cons
结论 - 一个屏幕令人失望的二合一笔记本电脑
宏碁的二合一笔记本电脑，配备了其酷睿i5-1335U，16GB内存（双通道）和PCIe 4固态硬盘（512GB），足以满足办公和互联网使用，以及玩一些节俭的游戏。虽然，这款笔记本电脑在负载下确实产生了相当大的噪音。
宏碁的Aspire 5 Spin 14是一款顽强的二合一笔记本电脑，非常适合室内使用。
其相对较轻的结构（1.6公斤），出色的运行时间（WLAN：11小时），支持Power Delivery（通过Thunderbolt 4）和装在电脑外壳中的手写笔，都使Spin 14成为一台非常便携的笔记本电脑。
该设备的触摸屏（1,920 x 1,200像素，14英寸，IPS），具有16:10的格式，稍微影响了笔记本电脑的便携性：由于其反射表面和昏暗的灯光（235尼特；电池：<200尼特），Spin 14真的只能在室内使用。它的对比度和色彩空间覆盖率也同样不令人印象深刻。
该设备的替代产品可能是联想IdeaPad Flex 7i 14IAU7.它的特点是性能更好，屏幕更亮，具有sRGB覆盖率--但它不能像Spin 14那样拥有出色的运行时间。
价格和可用性
在测试时，Aspire 5 Spin 14还没有在美国购买。
Acer Aspire 5 Spin 14
- 06/12/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
