华硕 BR1402FG 学生笔记本电脑评测:坚固耐用,适合日常使用

可转换,内置学生用笔。

新款华硕 BR1402FG 采用防刮康宁大猩猩玻璃和美国军用标准 MIL-STD 810H 认证,坚固耐用。再加上二合一设计和良好的可维修性,这款笔记本是日常学习生活的理想伴侣。
Intel Convertible / 2-in-1 Touchscreen Laptop / Notebook Education Alder Lake

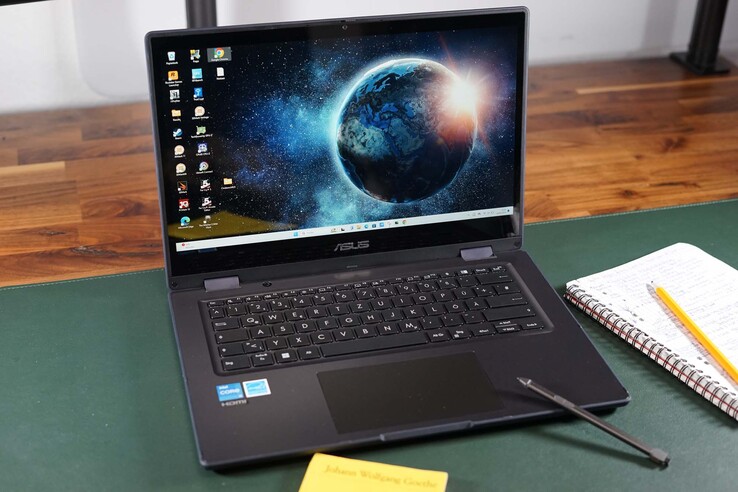

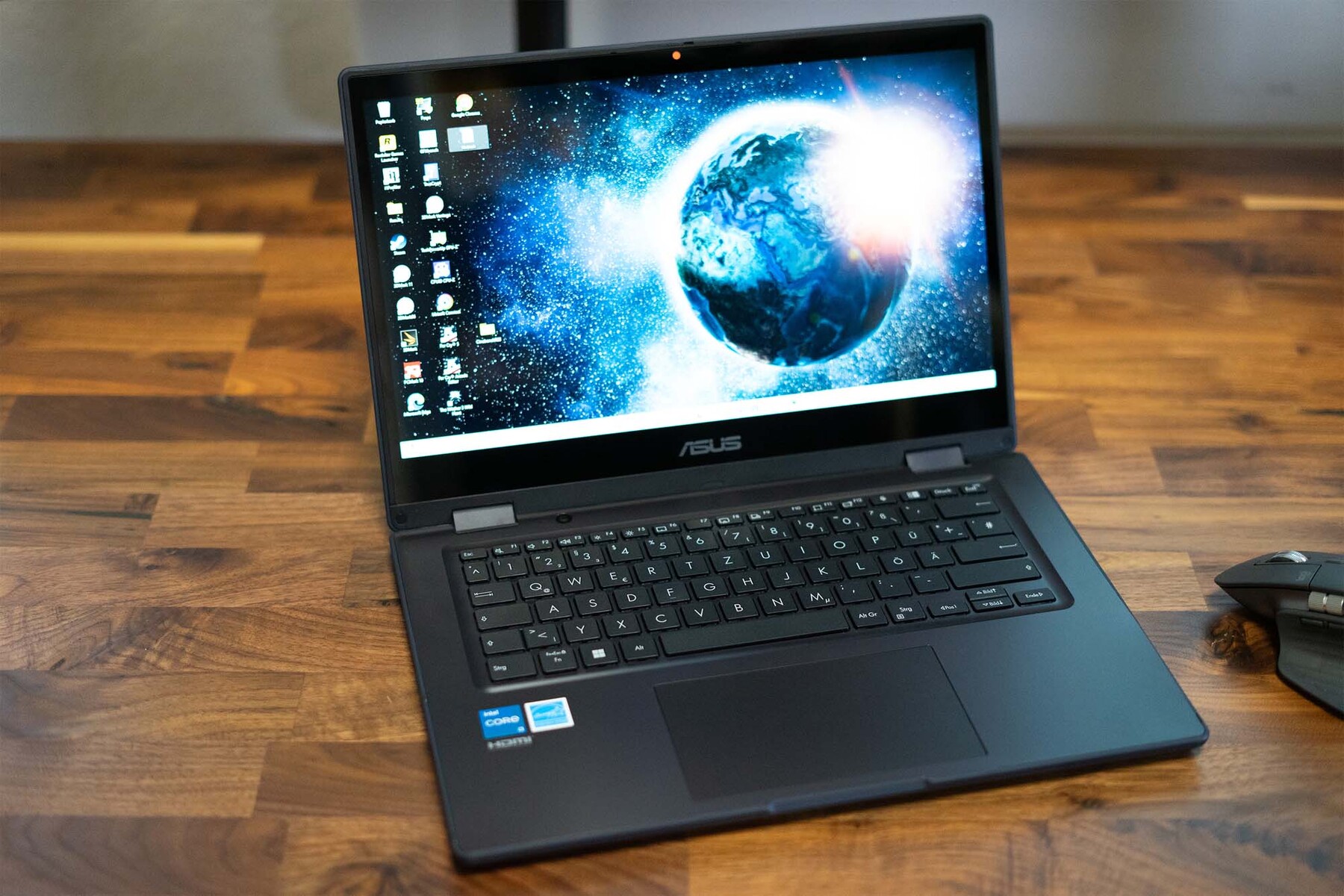

华硕 BR1402FG - 特别适合学生使用的坚固耐用的可转换机型
华硕 BR1402FG - 特别适合学生使用的坚固耐用的可转换机型

新款华硕 BR1402F 主要面向中小学生。整体包装设计既适合日常学校生活,也适合学生使用技术设备。键盘具有防溅功能,外壳具有防震和防指纹功能。显示屏盖和底座底部也采用了防滑材料,这样笔记本电脑在往返教室的途中就不会轻易从手中滑落。此外,还预装了 Windows 11 Pro Education,这进一步提升了这款可折叠笔记本电脑的整体价值,并使学校能够管理设备和已安装的应用程序等。

售价仅为 590 欧元的同类可转换设备中,很难找到能提供与华硕机型类似的全面综合解决方案的。只有 戴尔 Inspiron 14 7435 二合一电脑,但它不提供集成笔,经济性较差,没有配备 Windows 11 Pro 教育版,而且远不如华硕机型坚固耐用。除了戴尔之外,我们还使用了 联想 ThinkPad L13 Yoga G4联想 IdeaPad Flex 5 14IRU8宏碁 Spin 3 SP313-51N-56YV.参与比较的还有 微软 Surface Pro 9 - 这是一款可选键盘的平板电脑,虽然价格区间完全不同,但它展示了 Windows ARM 处理器的现状,未来必将对学生笔记本电脑市场产生巨大影响。

Asus BR1402FG
Processor
Intel Core i3-N305 8 x 1.8 - 3.8 GHz, 55 W PL2 / Short Burst, 17 W PL1 / Sustained, Alder Lake-N
Graphics adapter
Intel UHD Graphics 32EUs (Alder Lake), Core: 1247 MHz, RAM: 1596 MHz
Memory
8 GB
, DDR4-3200
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, yes, AUO B140HAN04.0, LED, glossy: yes, 60 Hz
Storage
Kingston OM8PGP41024Q-A0, 1024 GB
, M.2 2280, PCIe-4-NVMe
Soundcard
Intel Alder Lake-N PCH - cAVS
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 USB 3.2 Gen 2x2 20Gbps, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm, 1 Fingerprint Reader, RJ45 Gigabit Ethernet
Networking
Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), Intel Wireless AC 9462 (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.1
Size
height x width x depth (in mm): 20.8 x 332 x 228
Battery
50 Wh Lithium-Ion, removeable
Operating System
Microsoft Windows 11 Home
Additional features
Speakers: Stereo, Keyboard Light: no, 65 W USB C charger, 24 Months Warranty
Weight
1.719 kg, Power Supply: 321 g
Price
589 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Size
Resolution
Price
79.5 %
v7 (old)
03 / 2024
Asus BR1402FG
i3-N305, UHD Graphics 32EUs
1.7 kg20.8 mm14.00"1920x1080
88.7 %
v7 (old)
08 / 2023
Lenovo ThinkPad L13 Yoga G4 21FSS00100
R5 7530U, Vega 7
1.4 kg17.1 mm13.30"1920x1200
84.5 %
v7 (old)
08 / 2023
Dell Inspiron 14 7435 2-in-1
R5 7530U, Vega 7
1.6 kg18.6 mm14.00"1920x1200
81.9 %
v7 (old)
08 / 2023
Lenovo IdeaPad Flex 5 14IRU8
i5-1335U, Iris Xe G7 80EUs
1.6 kg17.4 mm14.00"1920x1200
85.7 %
v7 (old)
Acer Spin 3 SP313-51N-56YV
i5-1135G7, Iris Xe G7 80EUs
1.4 kg16 mm13.30"2560x1600
86.9 %
v7 (old)
03 / 2023
Microsoft Surface Pro 9, ARM
SD 8cx Gen 3, Adreno 690
883 g9.3 mm13.00"2880x1920

箱子和设备

华硕 BR1402FG 作为学生的强大日常伴侣
华硕 BR1402FG 作为学生的强大日常伴侣

华硕 BR1402FG 的整个外壳由塑料制成,这在这个价位的产品中是意料之中的。不过,就华硕可折叠机而言,所使用的材料并不自动意味着坚固性的下降。例如,显示屏盖就非常稳定,几乎不会弯曲。底座也比较坚固,不过键盘区域的外壳会出现松动。不过,这在日常打字时几乎看不出来,也不会限制打字体验。不过,采用镁合金或铝合金外壳的机型在这方面更具优势。美国军用标准 MIL-STD 810H 的认证显示了该设备的坚固性。该认证并不像其他许多机型那样无足轻重,因为它确实适用于整个设备。该认证的测试特别关注环境条件。例如,华硕机型在极端温度、湿度、灰尘和振动条件下都表现出色。

底部和显示屏盖采用了特别防滑的表面,这样可折叠手机就能更好地握在手中,即使在潮湿的环境中也不会滑落。敞篷车只有一种颜色可供选择,即黑色,边缘和铰链为蓝色。考虑到价格区间,该机型的占地面积尚可接受,但显示屏边缘非常宽,不再符合当今的标准。我们猜测,较厚的显示屏边缘是该机型弹性差的原因之一。笔可以不显眼地存放在外壳中,也可以在外壳中充电,这一点非常实用。

每台华硕 BR1402FG 都标配了 Windows 11 Pro Education。它允许用户只使用管理员选择的应用程序,管理员可以管理设备及其上安装的应用程序,保护教育机构的敏感数据,并可设置简单的远程访问学校网络。

该设备还令人印象深刻,两侧均提供 USB-A 和 USB-C 端口。可转换设备可通过两个 USB-C 端口充电,只有左侧端口还提供集成的 DisplayPort。遗憾的是,右侧的 USB 端口仅为 USB 2.0。右侧有一个 Kensington 锁、一个音量控制器和一个手写笔 "车库",左侧还有一个全尺寸以太网端口、一个 HDMI 1.4b 端口和一个 3.5mm 组合插孔。此外,该机还集成了两个摄像头:一个带隐私快门的网络摄像头,另一个功能更强大的摄像头位于键盘左上方,在平板模式下可作为后置摄像头使用。

与众不同的是,"Good-to-Go "LED 指示灯直接集成在显示屏盖上。这样,教师就能立即看到某个学生的笔记本电脑是否存在网络连接或电源问题,并在学生需要帮助时发出信号。

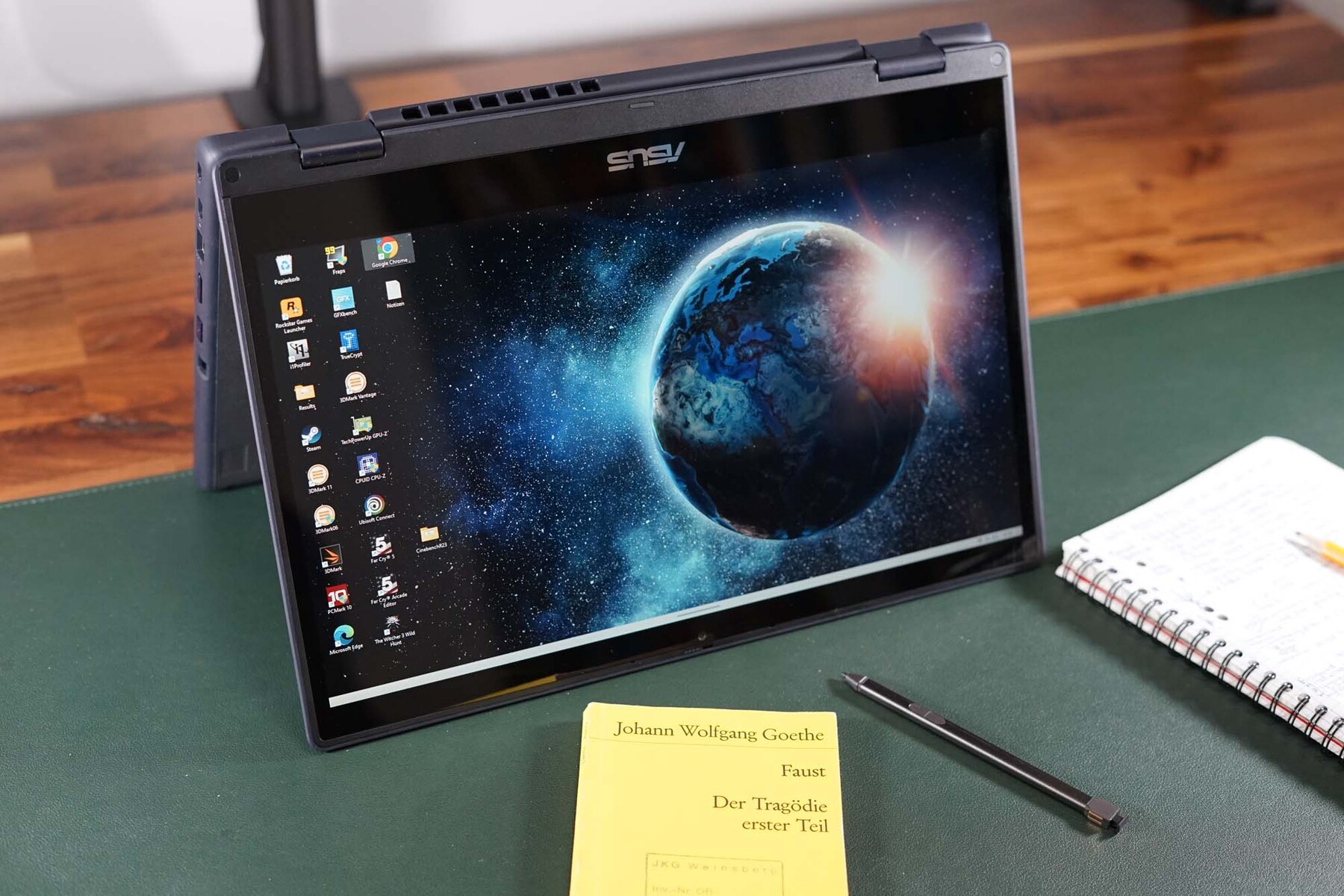

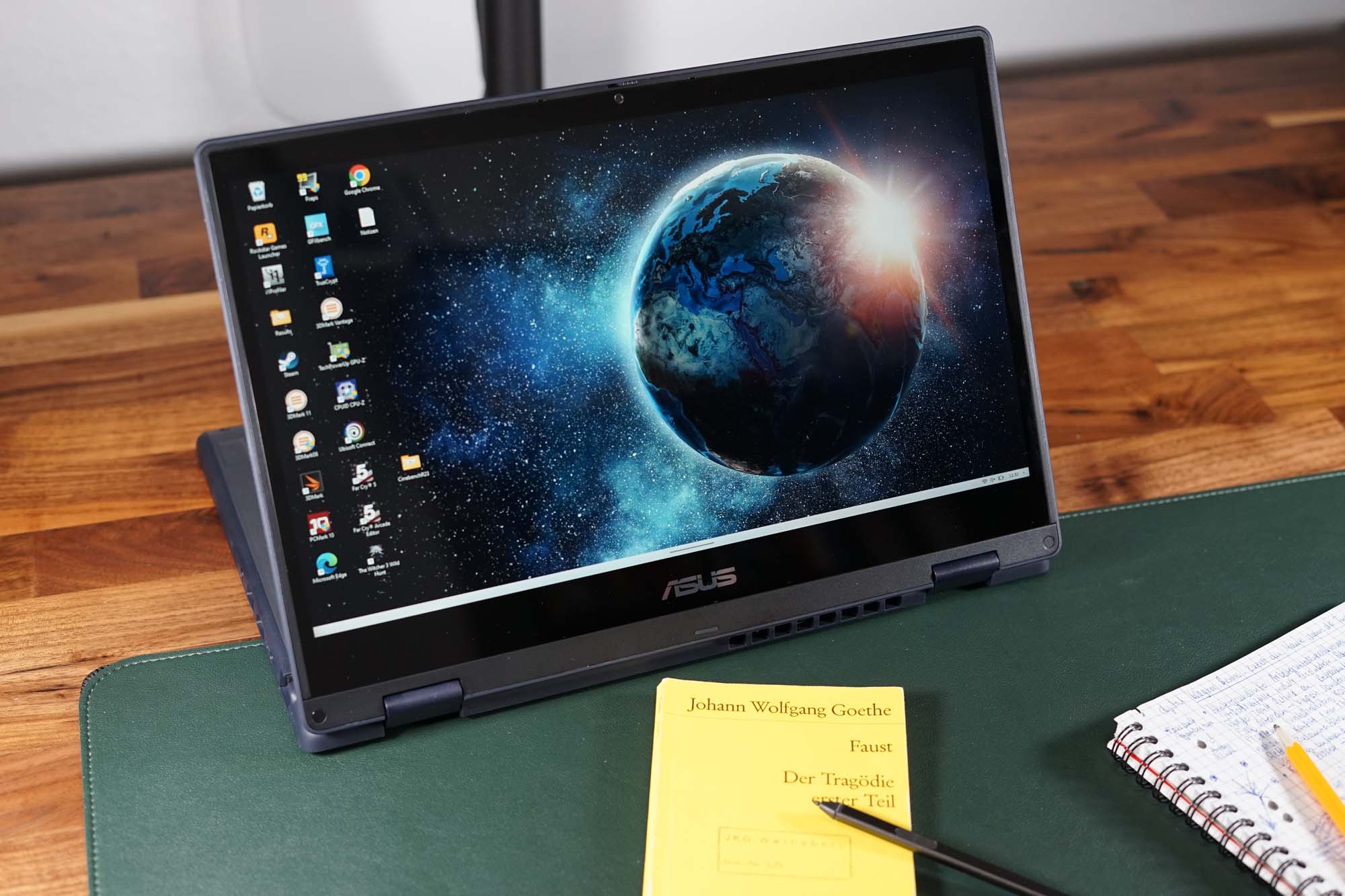

测试中的华硕 BR1402FG - 帐篷模式

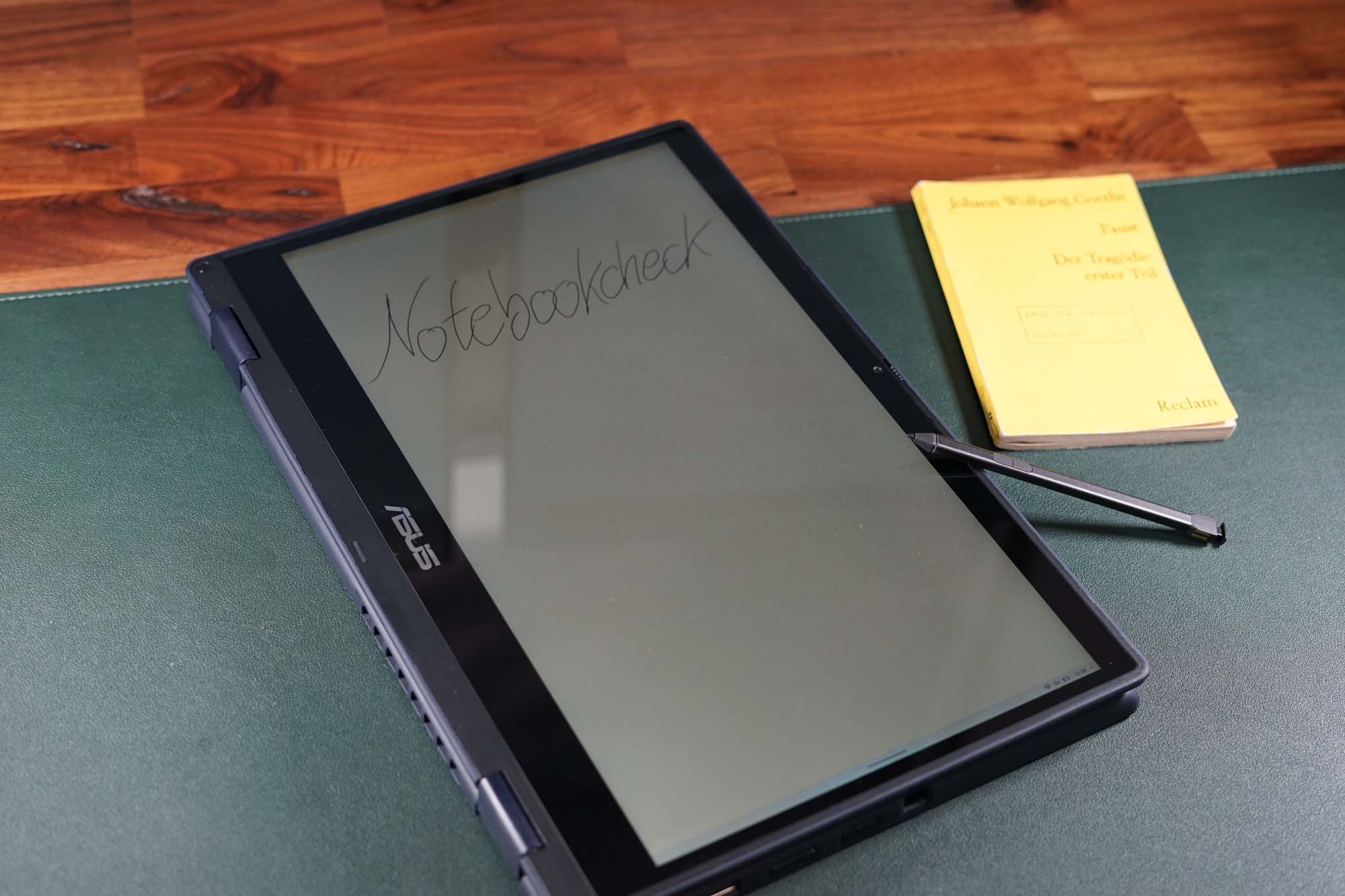

测试中的华硕 BR1402FG - 平板电脑模式

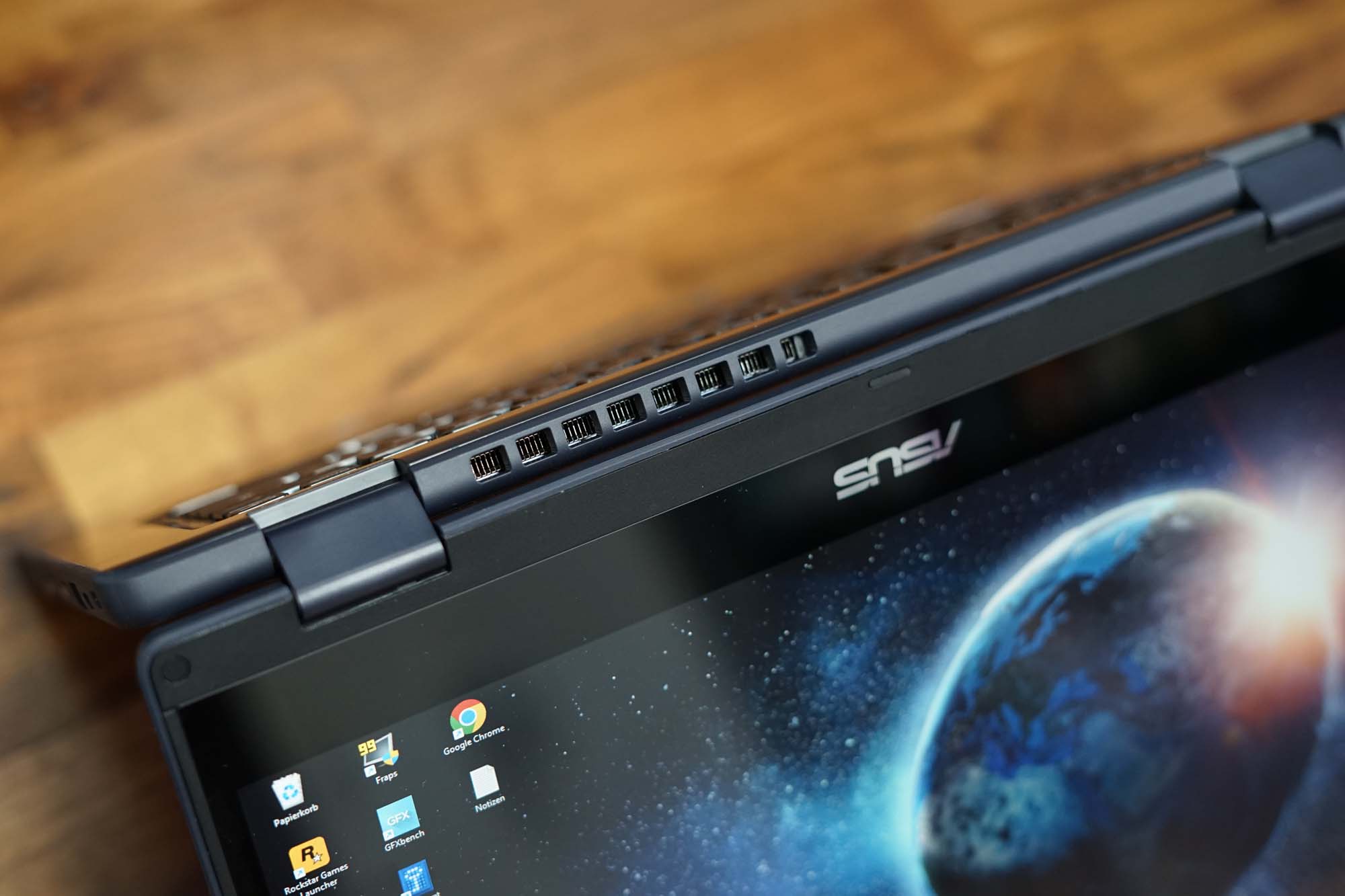

测试中的华硕 BR1402FG - 显示器下方的风扇出口

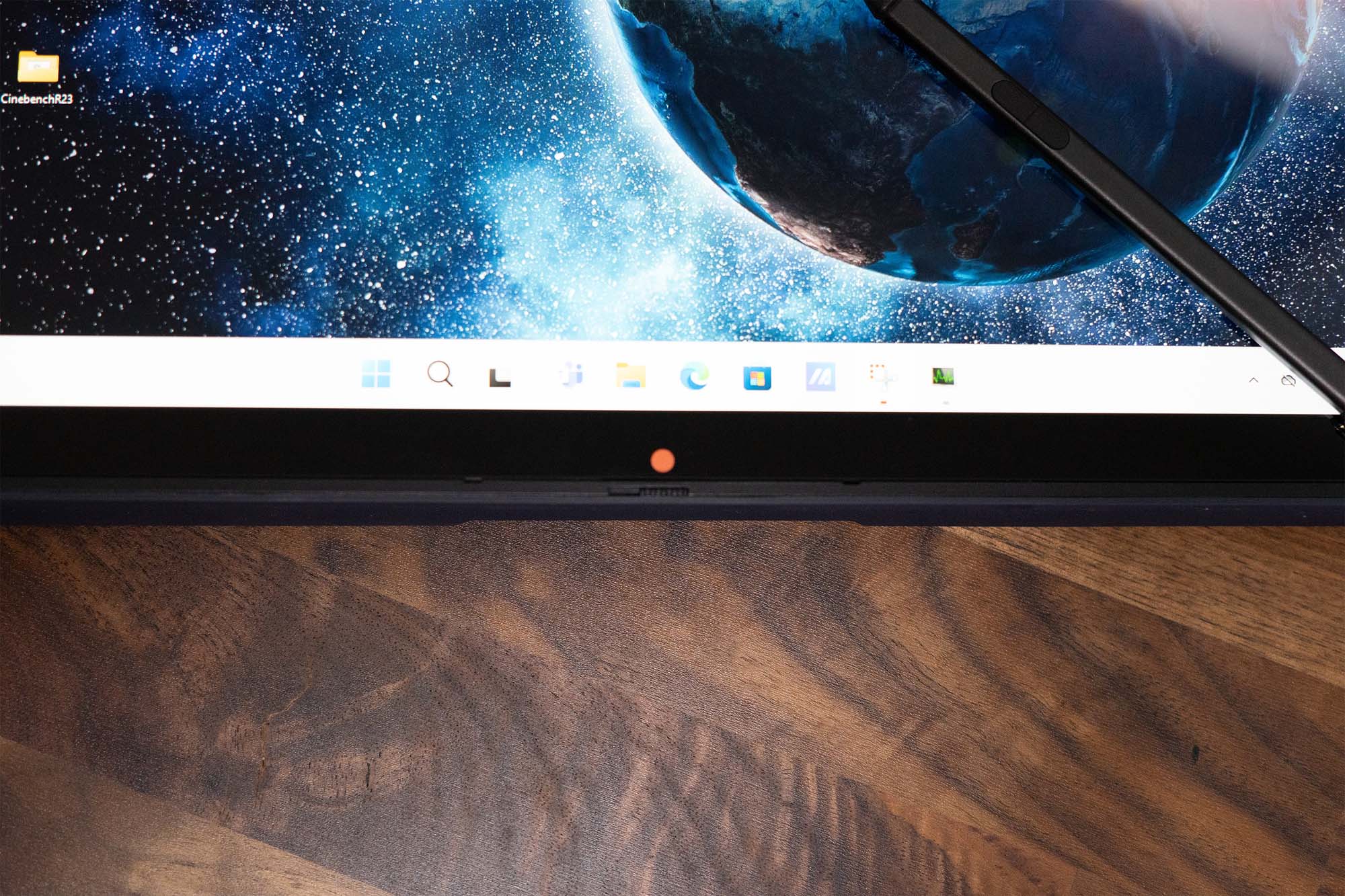

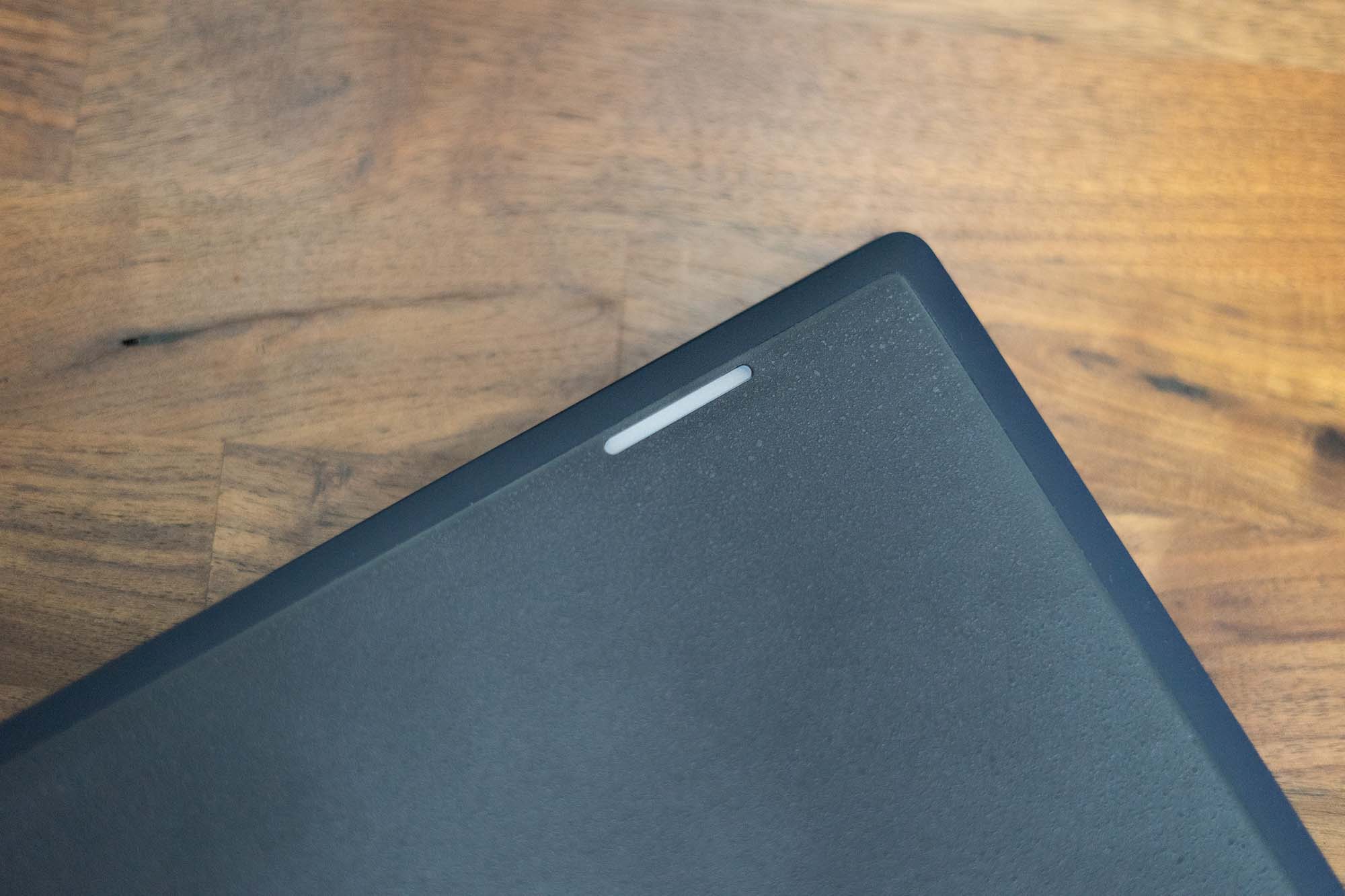

测试中的华硕 BR1402FG - 教师用 LED 状态指示灯

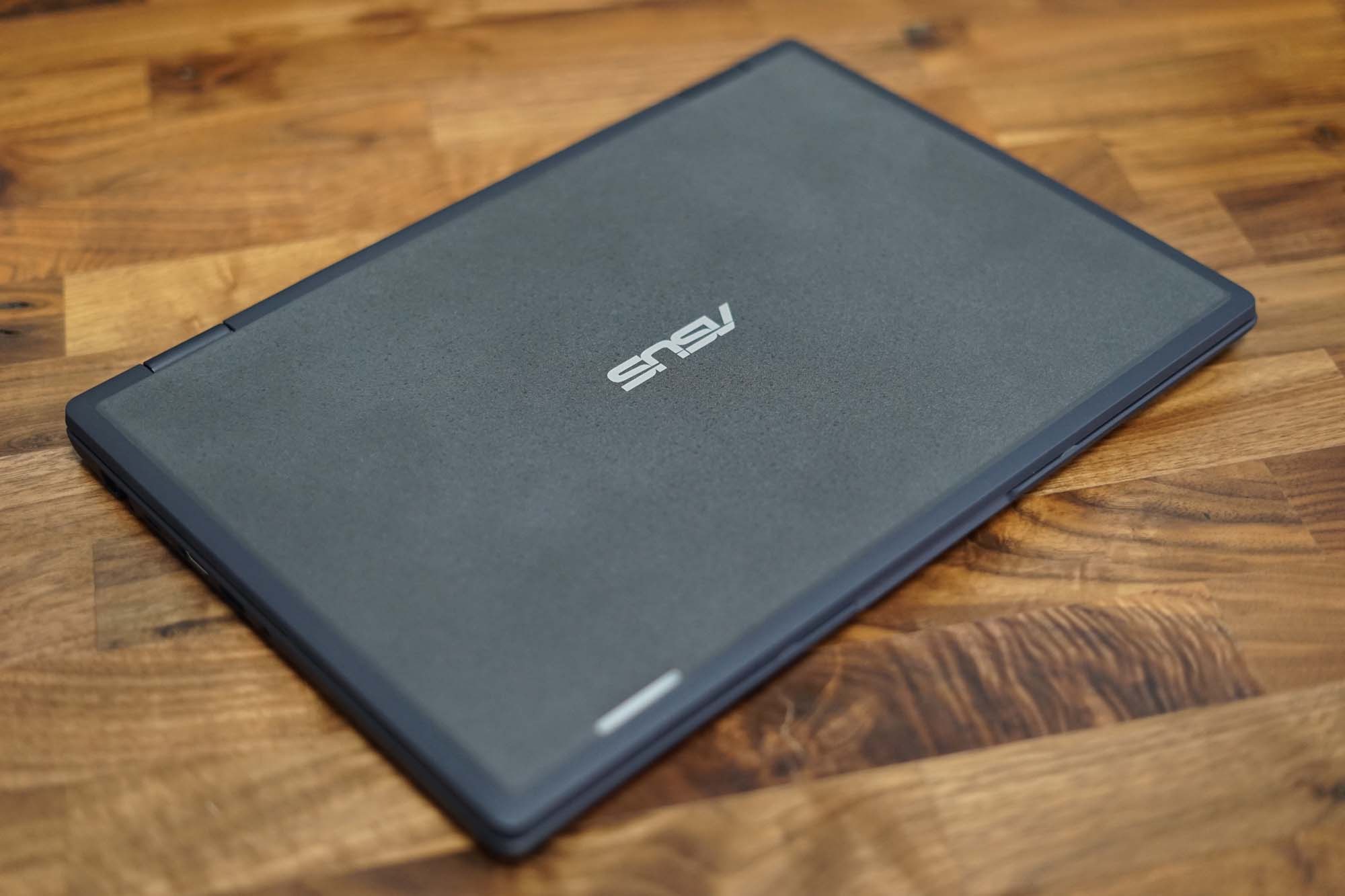

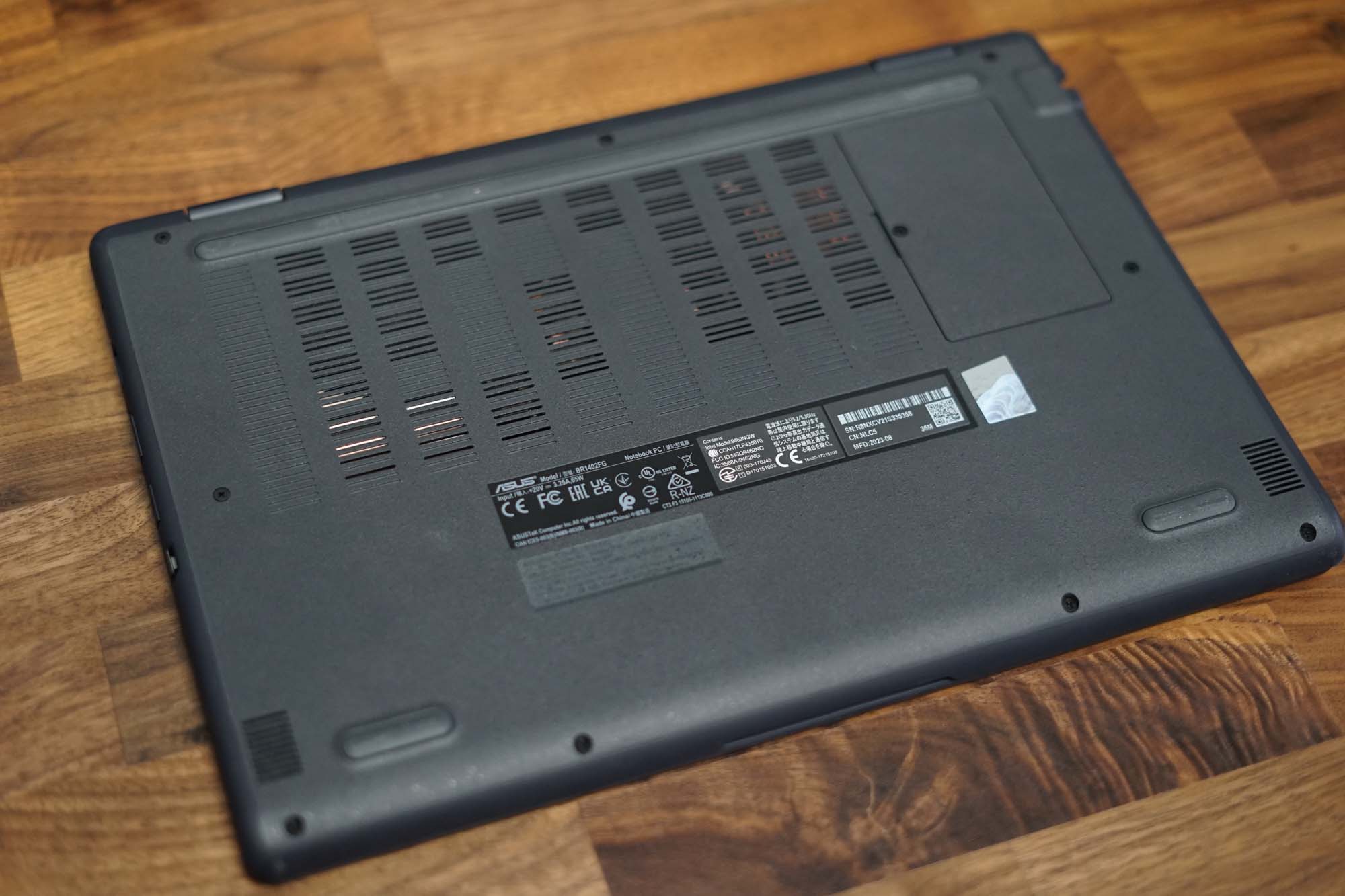

测试中的华硕 BR1402FG - 特别防滑材料制成的防震外壳
维护时不会丢失固定螺钉
用于平板电脑模式的后置摄像头

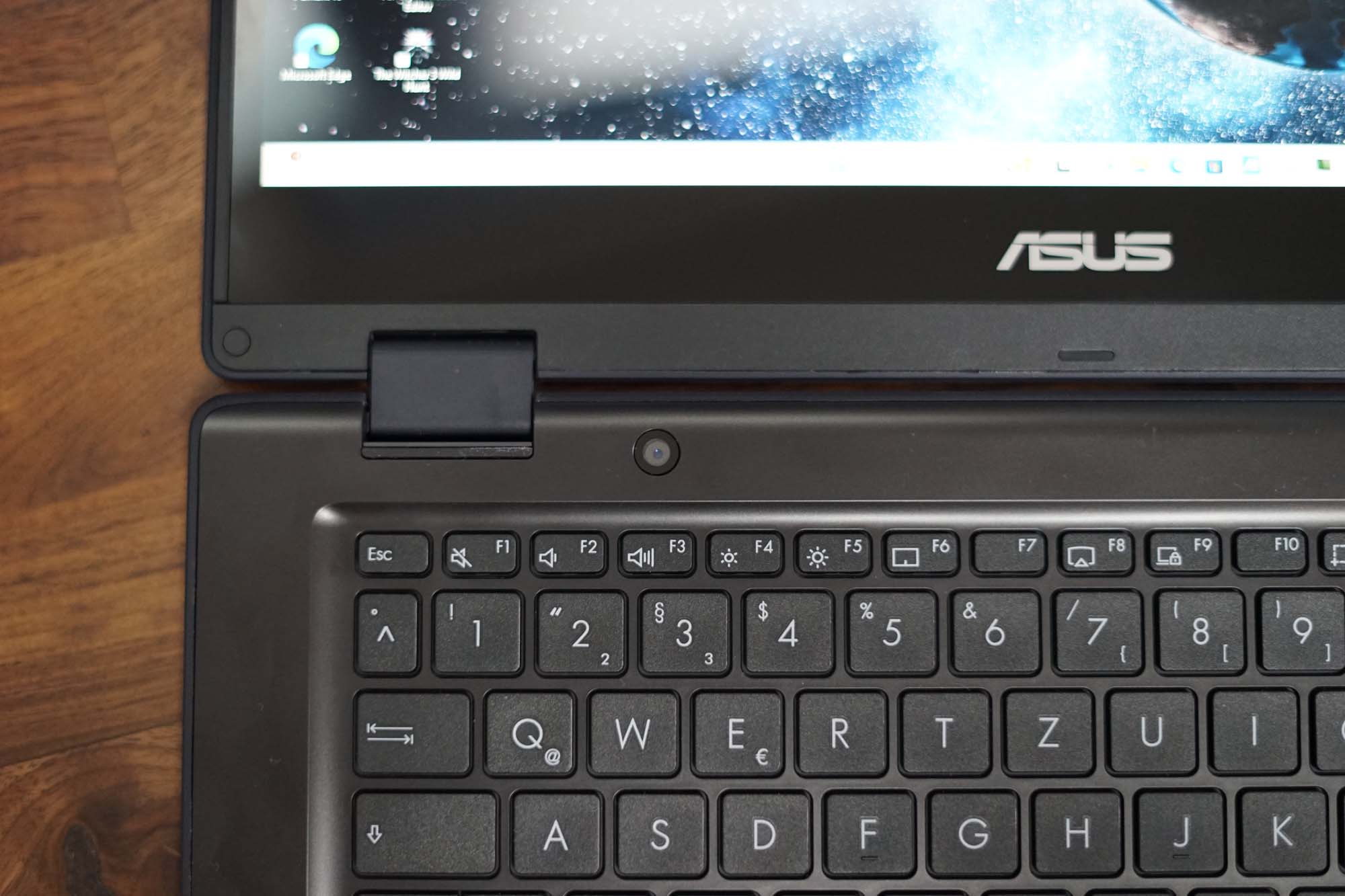

带安全快门的网络摄像头

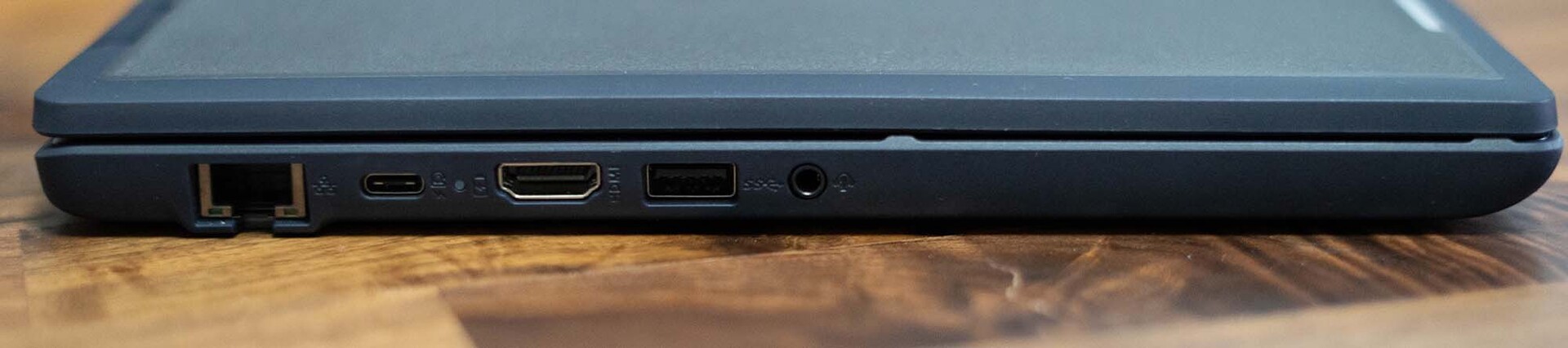

以太网端口,USB-C 3.2 Gen1,HDMI 1.4b,USB-A 3.2 Gen1,音频插孔
以太网端口,USB-C 3.2 Gen1,HDMI 1.4b,USB-A 3.2 Gen1,音频插孔

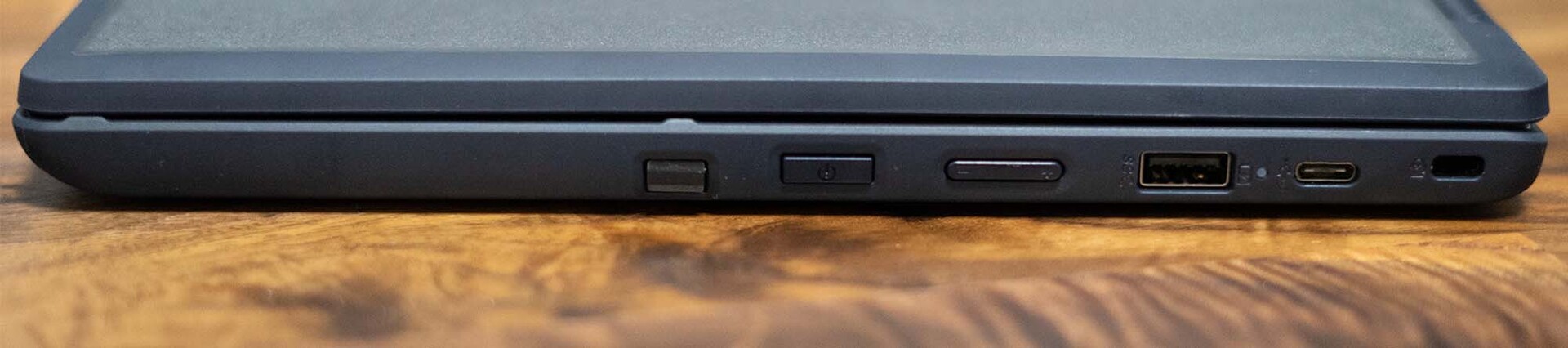

笔槽、音量控制、USB-A 3.2 Gen1、USB-C 2.0(电源传输和数据)、Kensington 锁
笔槽、音量控制、USB-A 3.2 Gen1、USB-C 2.0(电源传输和数据)、Kensington 锁

尺寸比较

332 mm 228 mm 20.8 mm 1.7 kg314 mm 226.6 mm 18.6 mm 1.6 kg313.1 mm 224.9 mm 17.4 mm 1.6 kg305 mm 218 mm 17.1 mm 1.4 kg300 mm 220 mm 16 mm 1.4 kg287 mm 209 mm 9.3 mm 883 g297 mm 210 mm 1 mm 5.7 g
Networking
iperf3 transmit AX12
Acer Spin 3 SP313-51N-56YV
Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW)
758 (682min - 804max) MBit/s
Average Intel Wireless AC 9462
  (95 - 365, n=13)
287 MBit/s
iperf3 receive AX12
Acer Spin 3 SP313-51N-56YV
Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW)
887 (812min - 947max) MBit/s
Average Intel Wireless AC 9462
  (119 - 360, n=13)
308 MBit/s
iperf3 transmit AXE11000
Dell Inspiron 14 7435 2-in-1
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1483 (1384min - 1668max) MBit/s +307%
Average of class Office
  (47.8 - 1793, n=89, last 2 years)
1130 MBit/s +210%
Lenovo IdeaPad Flex 5 14IRU8
Realtek RTL8852BE
836 (776min - 864max) MBit/s +130%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
MediaTek RZ616
734 (350min - 1385max) MBit/s +102%
Average Intel Wireless AC 9462
  (359 - 370, n=5)
366 MBit/s +1%
Asus BR1402FG
Intel Wireless AC 9462
364 (178min - 379max) MBit/s
iperf3 receive AXE11000
Lenovo ThinkPad L13 Yoga G4 21FSS00100
MediaTek RZ616
1661 (1521min - 1757max) MBit/s +351%
Average of class Office
  (104.2 - 1775, n=89, last 2 years)
1271 MBit/s +245%
Dell Inspiron 14 7435 2-in-1
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
848 (799min - 928max) MBit/s +130%
Lenovo IdeaPad Flex 5 14IRU8
Realtek RTL8852BE
742 (681min - 798max) MBit/s +102%
Asus BR1402FG
Intel Wireless AC 9462
368 (186min - 376max) MBit/s
Average Intel Wireless AC 9462
  (245 - 371, n=5)
335 MBit/s -9%
iperf3 transmit AXE11000 6GHz
Dell Inspiron 14 7435 2-in-1
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
1569 (1418min - 1823max) MBit/s
Average of class Office
  (713 - 1961, n=48, last 2 years)
1404 MBit/s
Microsoft Surface Pro 9, ARM
Qualcomm WCN685x
1387 (1345min - 1438max) MBit/s
Lenovo ThinkPad L13 Yoga G4 21FSS00100
MediaTek RZ616
741 (452min - 1436max) MBit/s
iperf3 receive AXE11000 6GHz
Lenovo ThinkPad L13 Yoga G4 21FSS00100
MediaTek RZ616
1628 (1495min - 1718max) MBit/s
Microsoft Surface Pro 9, ARM
Qualcomm WCN685x
1627 (1564min - 1665max) MBit/s
Average of class Office
  (1065 - 1790, n=48, last 2 years)
1542 MBit/s
Dell Inspiron 14 7435 2-in-1
MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card
860 (788min - 971max) MBit/s
0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750Tooltip
Lenovo ThinkPad L13 Yoga G4 21FSS00100 MediaTek RZ616; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø742 (452-1436)
Lenovo ThinkPad L13 Yoga G4 21FSS00100 MediaTek RZ616; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1628 (1495-1718)
Asus BR1402FG Intel Wireless AC 9462; iperf3 transmit AXE11000; iperf 3.1.3: Ø358 (178-379)
Lenovo ThinkPad L13 Yoga G4 21FSS00100 MediaTek RZ616; iperf3 transmit AXE11000; iperf 3.1.3: Ø734 (350-1385)
Lenovo IdeaPad Flex 5 14IRU8 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø836 (776-864)
Asus BR1402FG Intel Wireless AC 9462; iperf3 receive AXE11000; iperf 3.1.3: Ø362 (186-376)
Lenovo ThinkPad L13 Yoga G4 21FSS00100 MediaTek RZ616; iperf3 receive AXE11000; iperf 3.1.3: Ø1660 (1521-1757)
Lenovo IdeaPad Flex 5 14IRU8 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø741 (681-798)
ColorChecker
10.2 ∆E
14.2 ∆E
14.5 ∆E
19.5 ∆E
19.3 ∆E
18.8 ∆E
14.8 ∆E
6.9 ∆E
10.4 ∆E
11.9 ∆E
15.6 ∆E
18.7 ∆E
4 ∆E
8.6 ∆E
5.5 ∆E
16 ∆E
10.1 ∆E
13.4 ∆E
8.1 ∆E
6.8 ∆E
8.8 ∆E
13.9 ∆E
14.1 ∆E
12.3 ∆E
ColorChecker Asus BR1402FG: 12.34 ∆E min: 4.05 - max: 19.47 ∆E
ColorChecker
3.1 ∆E
5.4 ∆E
6.8 ∆E
1.1 ∆E
5.5 ∆E
6.9 ∆E
4.7 ∆E
7.6 ∆E
7.8 ∆E
5.2 ∆E
5.6 ∆E
2.3 ∆E
5.8 ∆E
6.6 ∆E
7.1 ∆E
6.6 ∆E
8.5 ∆E
3 ∆E
4.2 ∆E
4.2 ∆E
5.6 ∆E
5.5 ∆E
7.6 ∆E
7.3 ∆E
ColorChecker Asus BR1402FG: 5.58 ∆E min: 1.09 - max: 8.45 ∆E

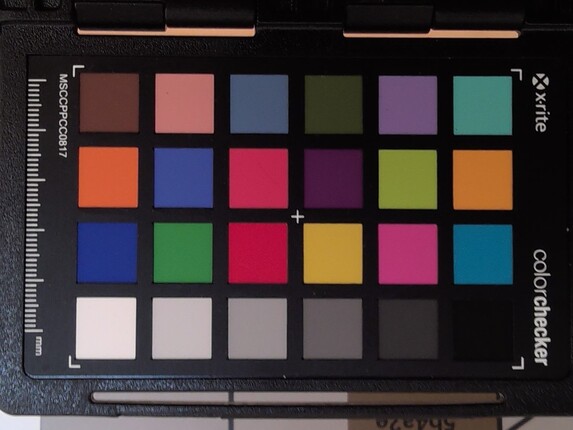

与网络摄像头相比,色彩更逼真,整个图像更清晰
与网络摄像头相比,色彩更逼真,整个图像更清晰
使用敞篷车功能更强大的后置摄像头拍摄照片
使用敞篷车功能更强大的后置摄像头拍摄照片

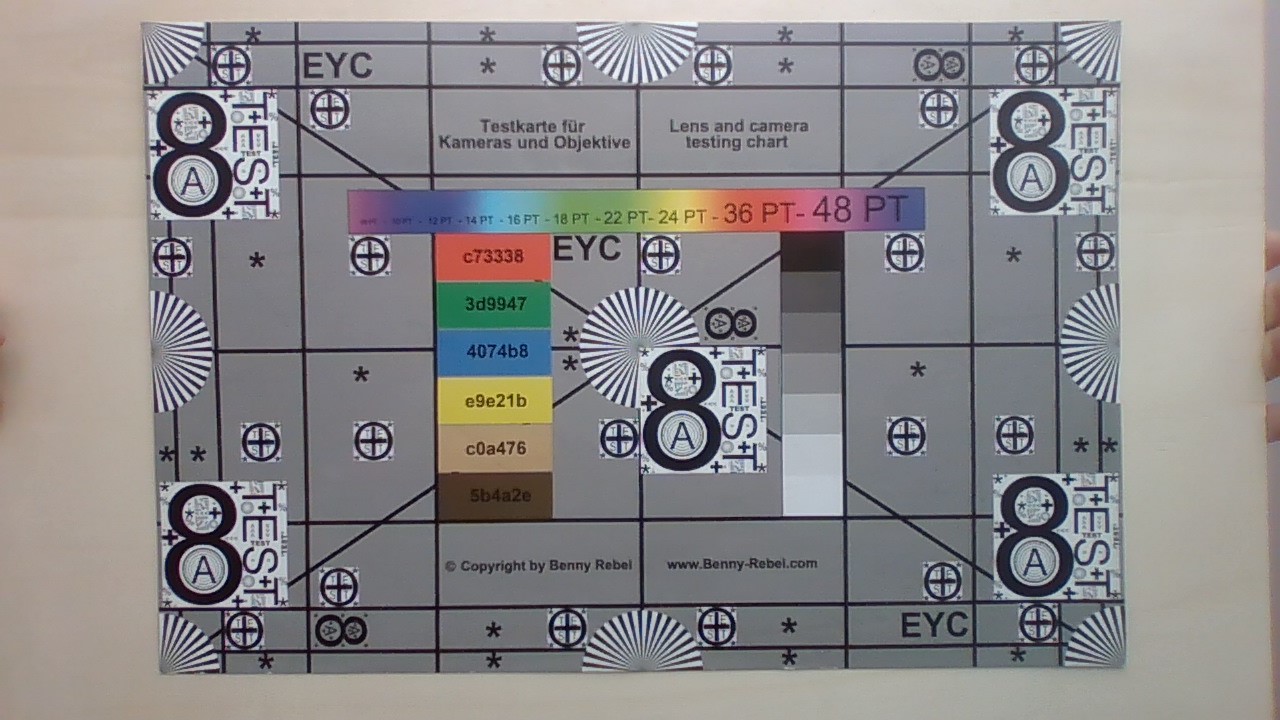

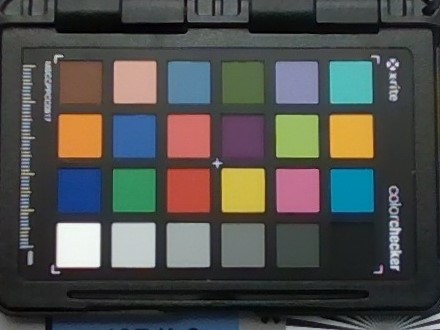

网络摄像头拍摄的图像,以作对比
网络摄像头拍摄的图像,以作对比

维护

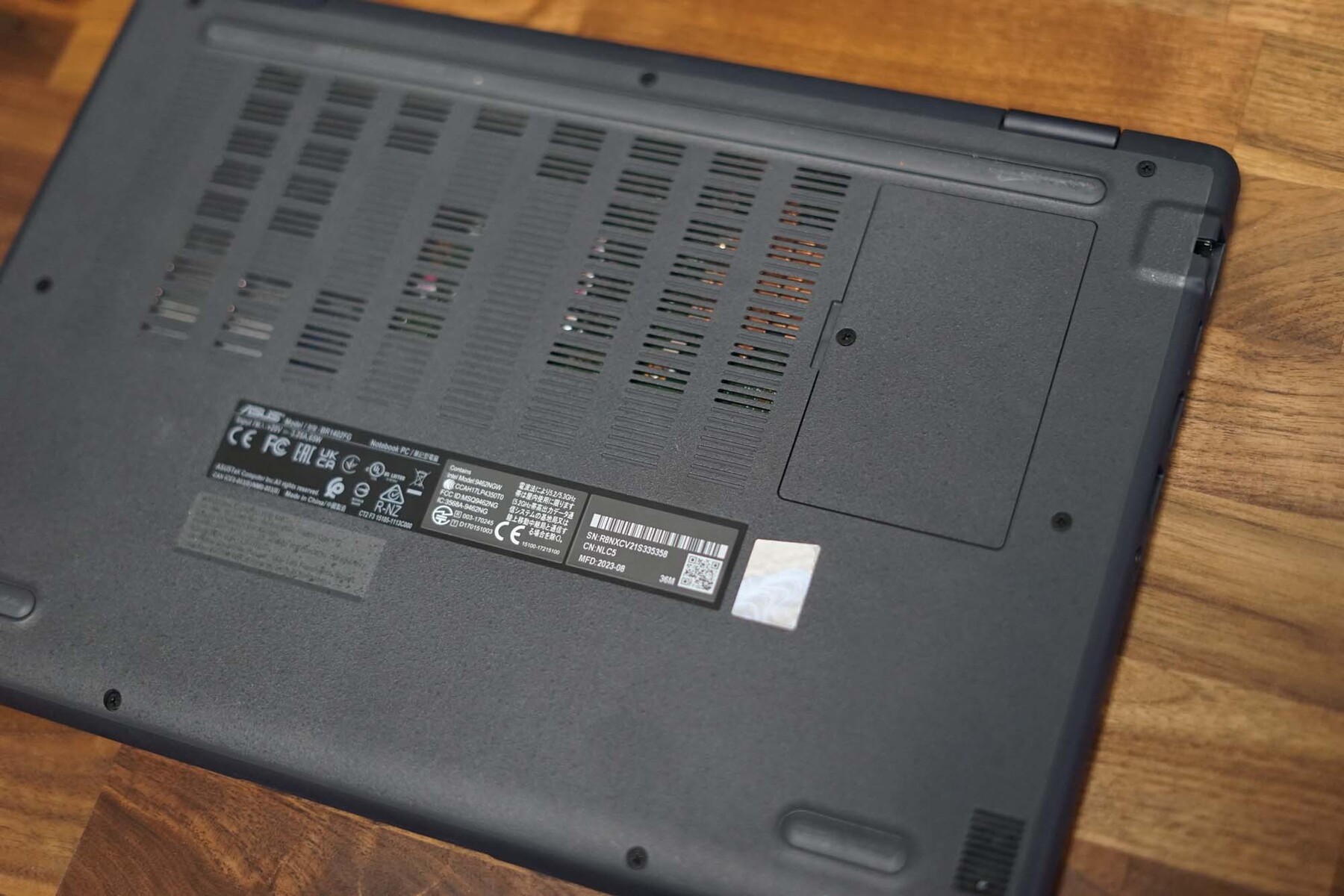

华硕 BR1402FG 可转换机非常注重维修性。如果您只想更换内存,甚至还在底部设计了一个特别容易打开的盖子,只需拧下一颗螺丝即可。如果要仔细查看机身底部,只需拧下底部的 9 颗螺丝。然后就可以取下键盘了。特别实用的是,螺丝在拆卸后全部留在底板上,不会丢失。M.2 固态硬盘是标准的 2280 格式,可以轻松更换。根据华硕的宣传材料,散热装置、电池、键盘和连接件也可以顺利更换。

无需拆卸整个底座即可更换内存
经典 2280 格式的 M.2

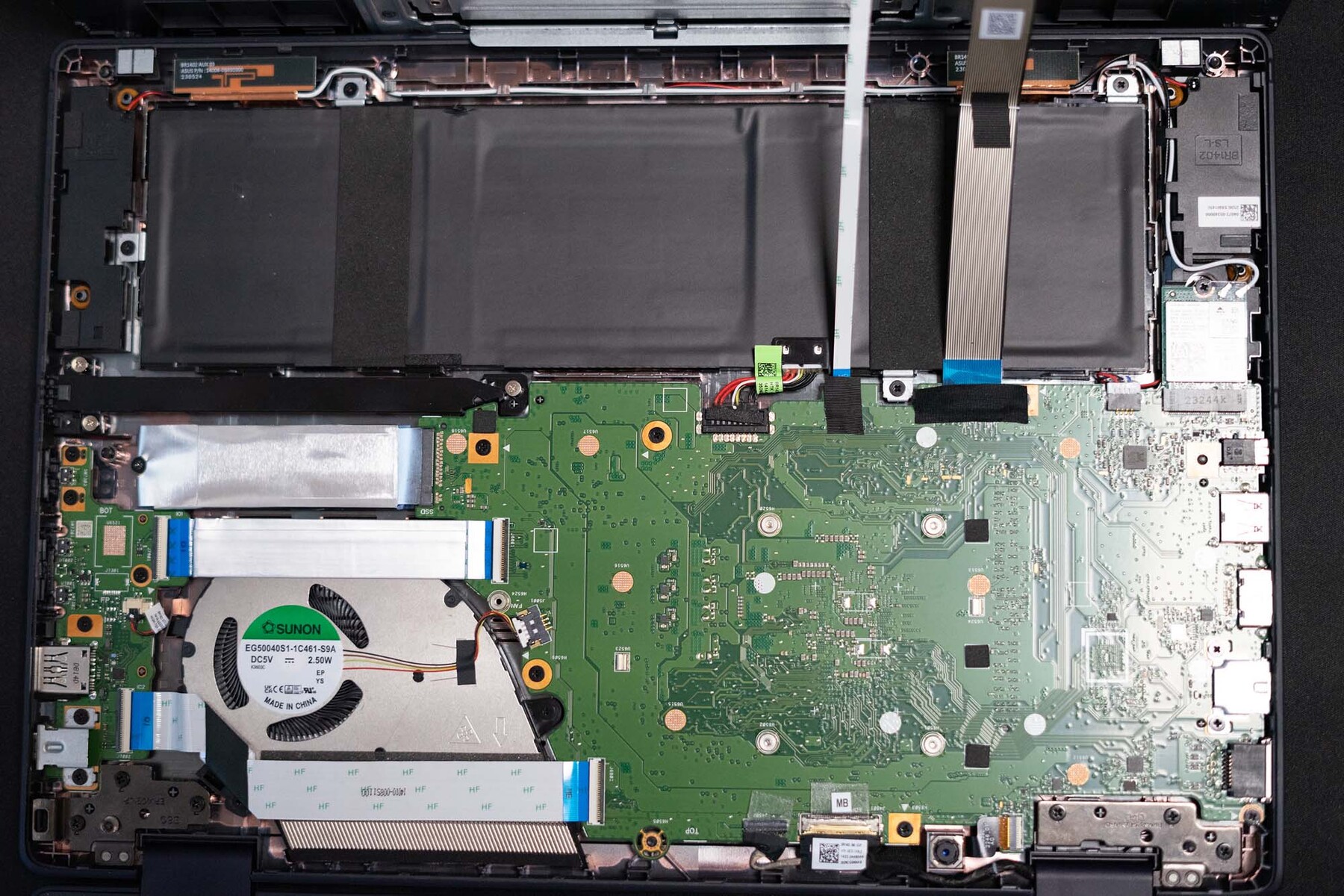

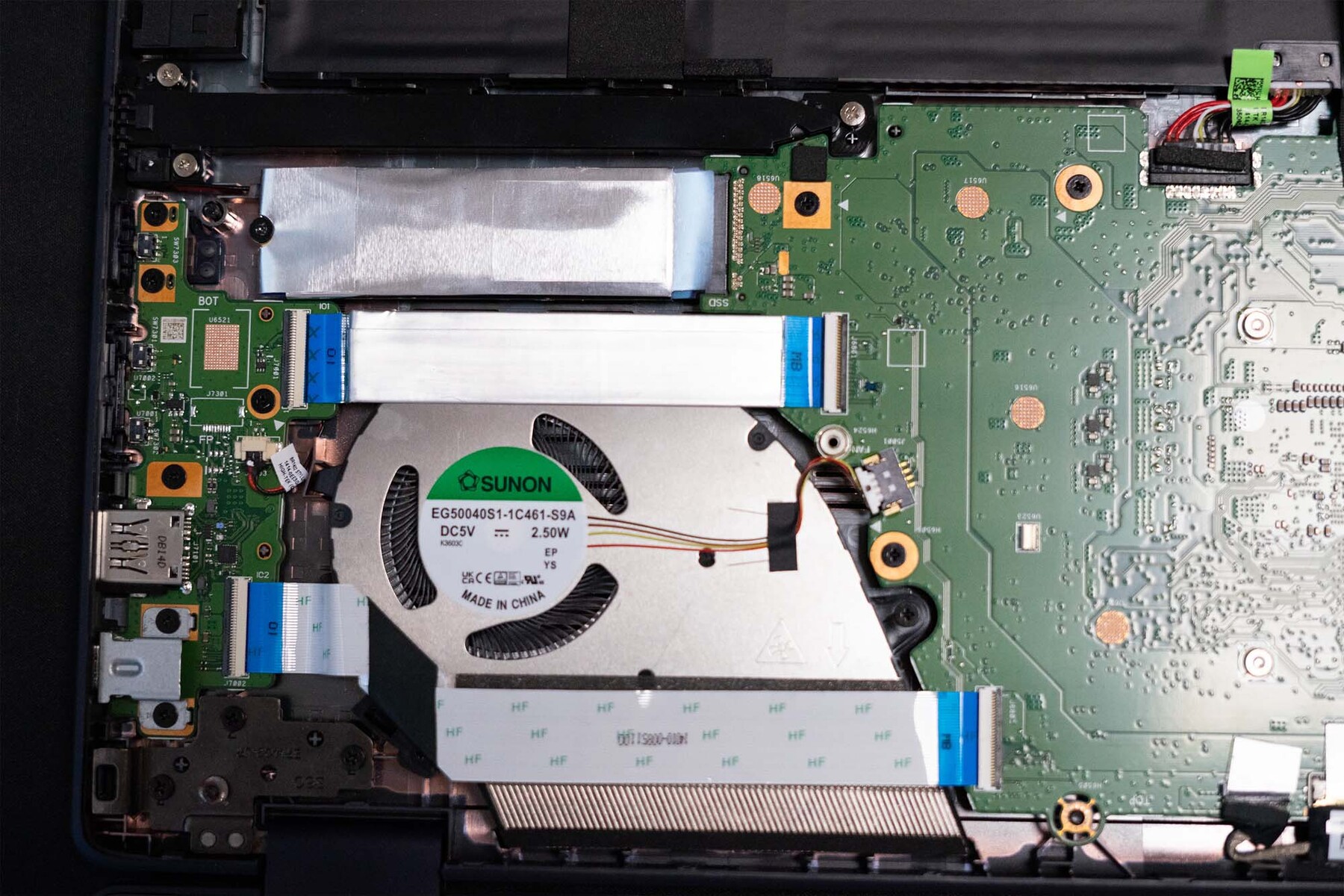

由于采用了模块化设计,电池、键盘、散热和连接都可以轻松更换

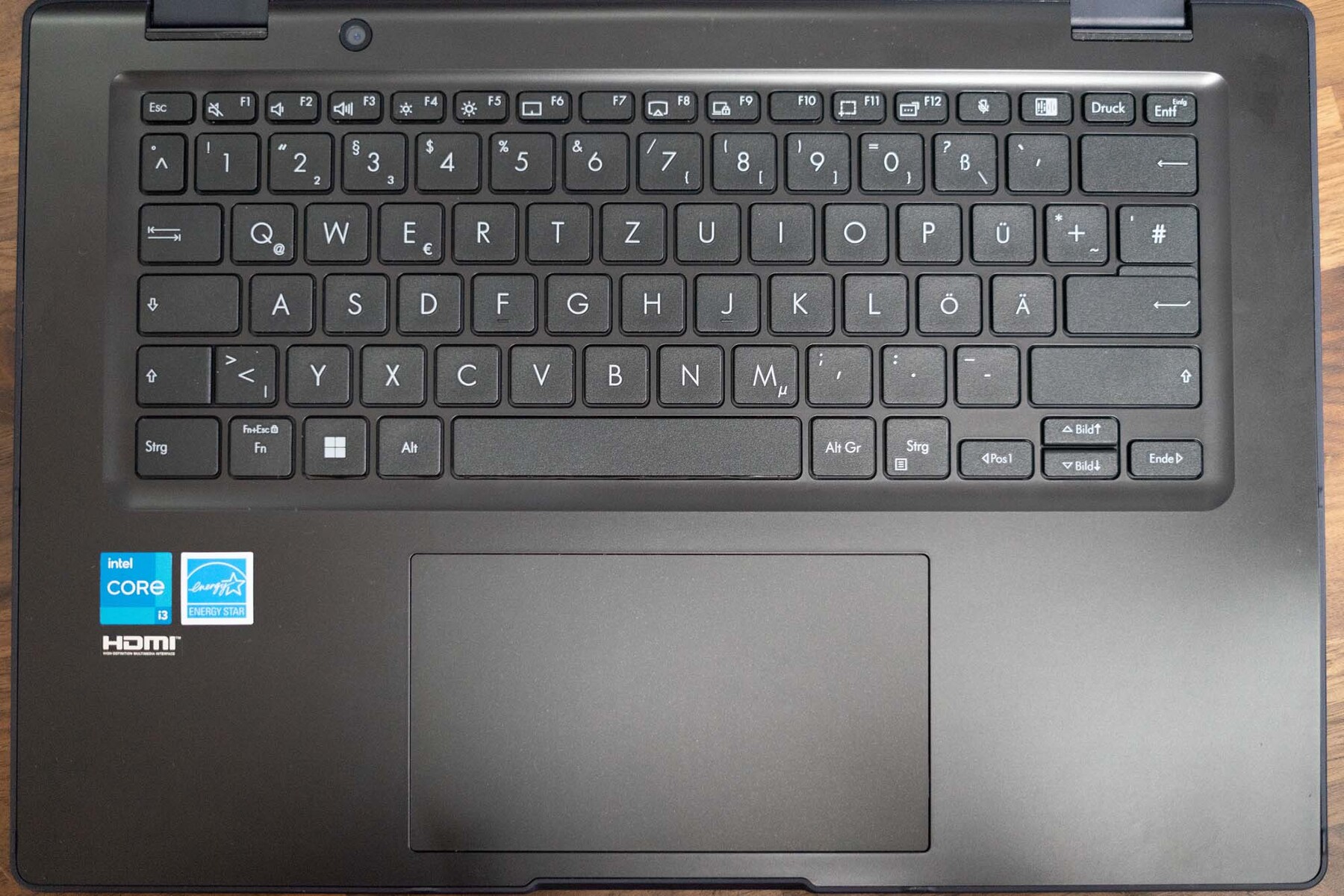

输入设备:坚固的键盘,但声音可能会更小一些

华硕 BR1402FG 可转换机的键盘非常坚固,键程适中,提供了良好而清晰的键入体验。键盘在键入时会发出 "嘎吱嘎吱 "的响声,但不会影响键入过程。不过,键盘的咔哒声可能会受到批评,因为根据键入时的气势,可能会导致较大的咔哒声。触控板大小适中,但可以再大一些。实用的是,触控板可以转换成数字键盘。虽然这不能像实体数字键盘那样实现精确输入,但总比没有数字键盘要好。

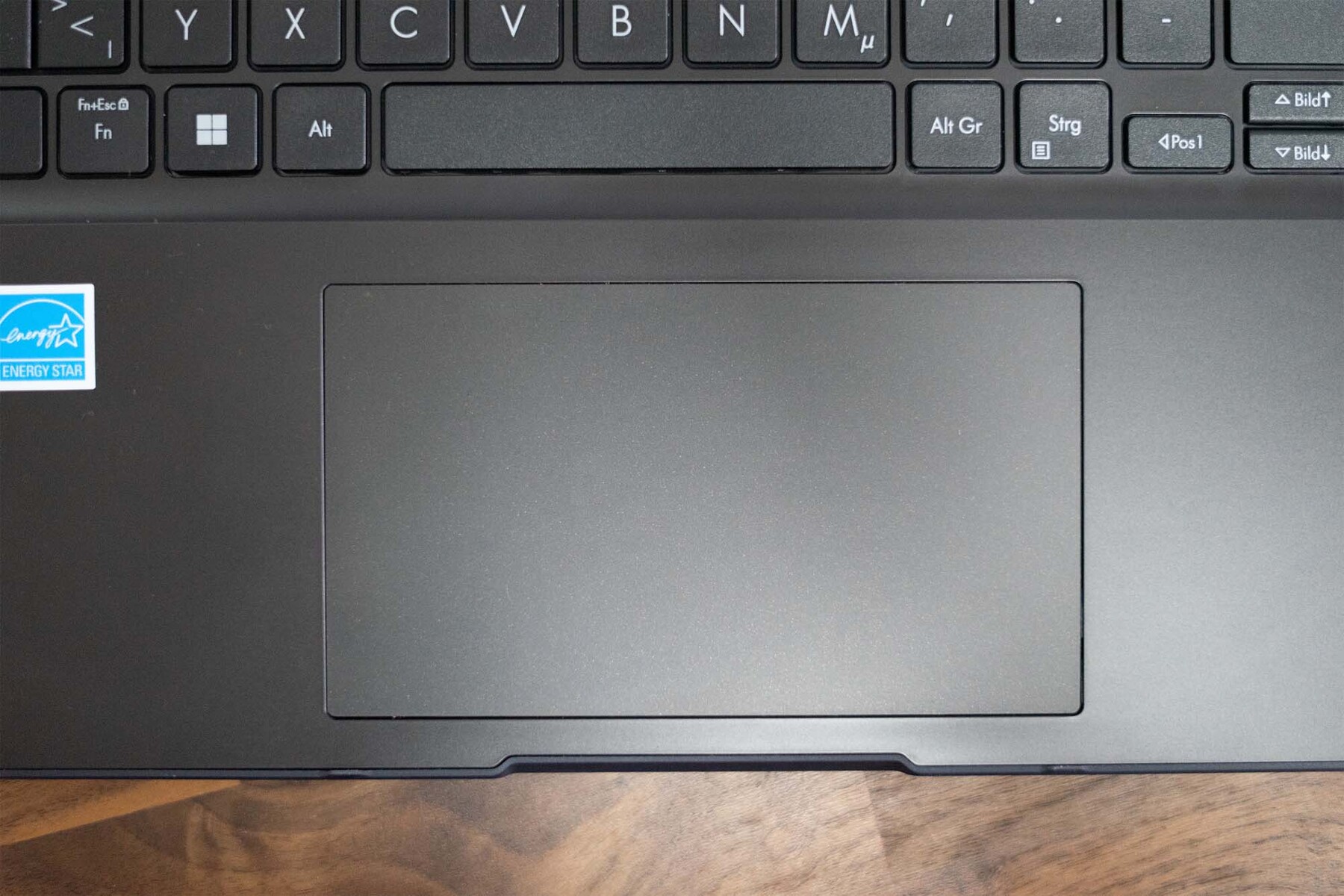

触控板可以更大
同价位键盘中的佼佼者

显示屏

数字化仪网格

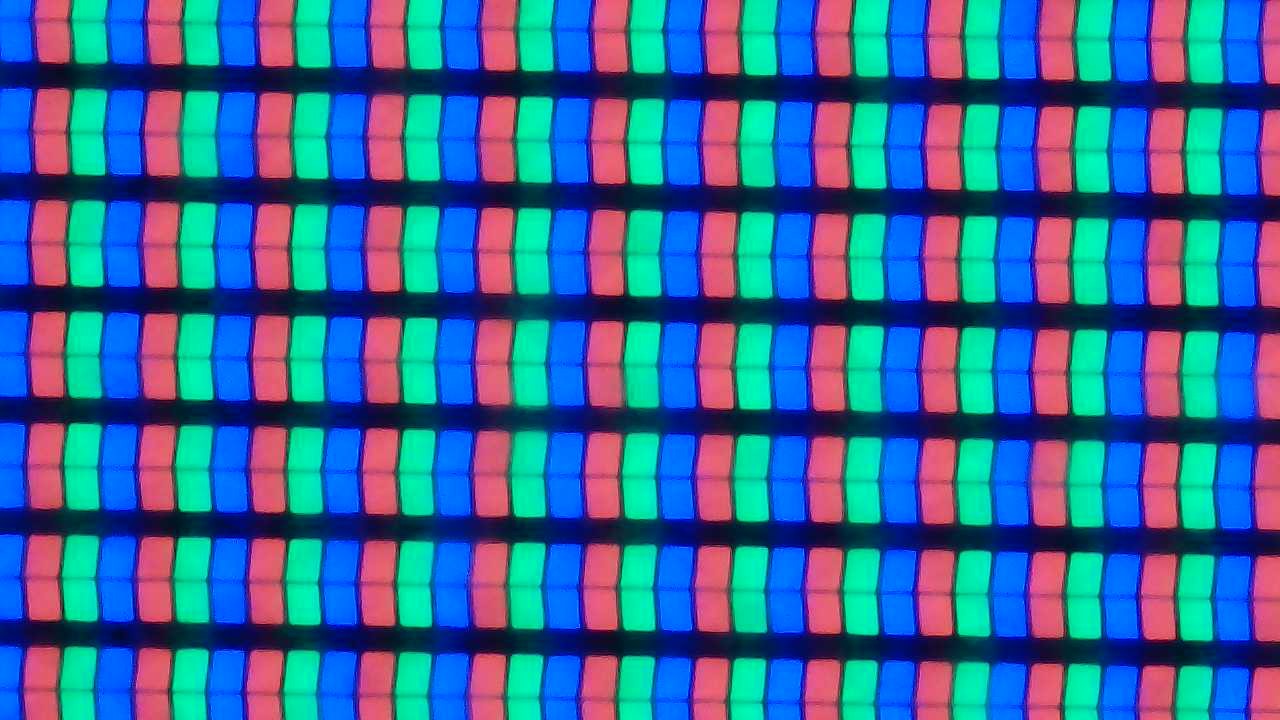

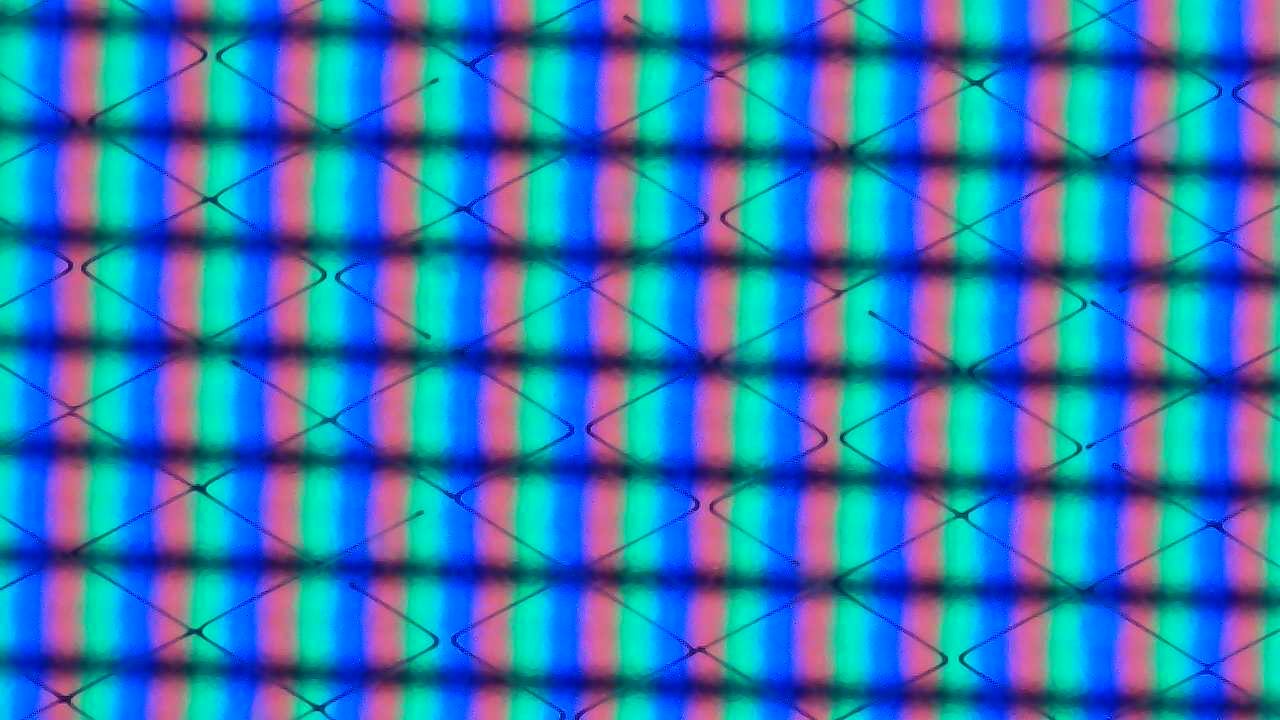

子像素结构

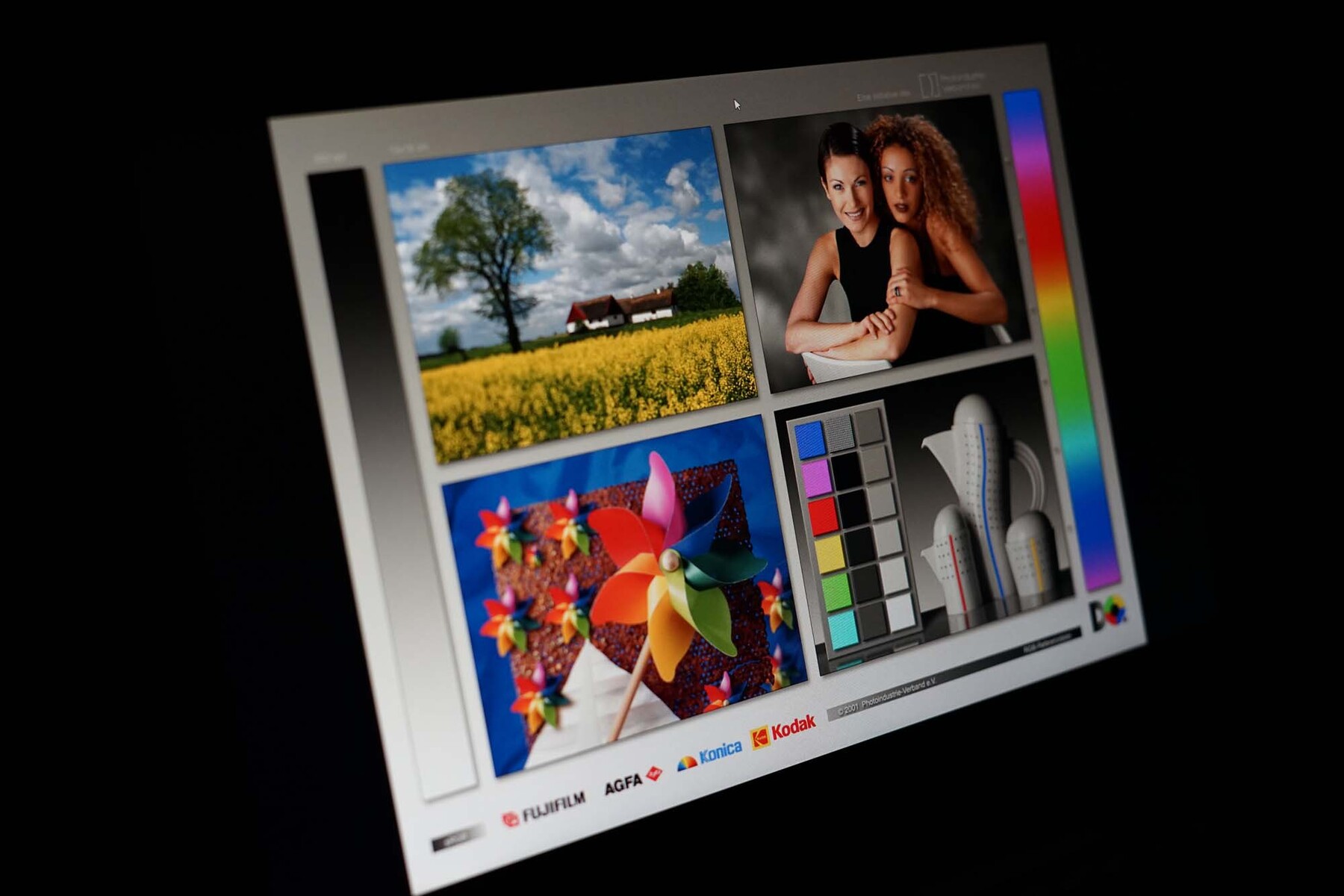

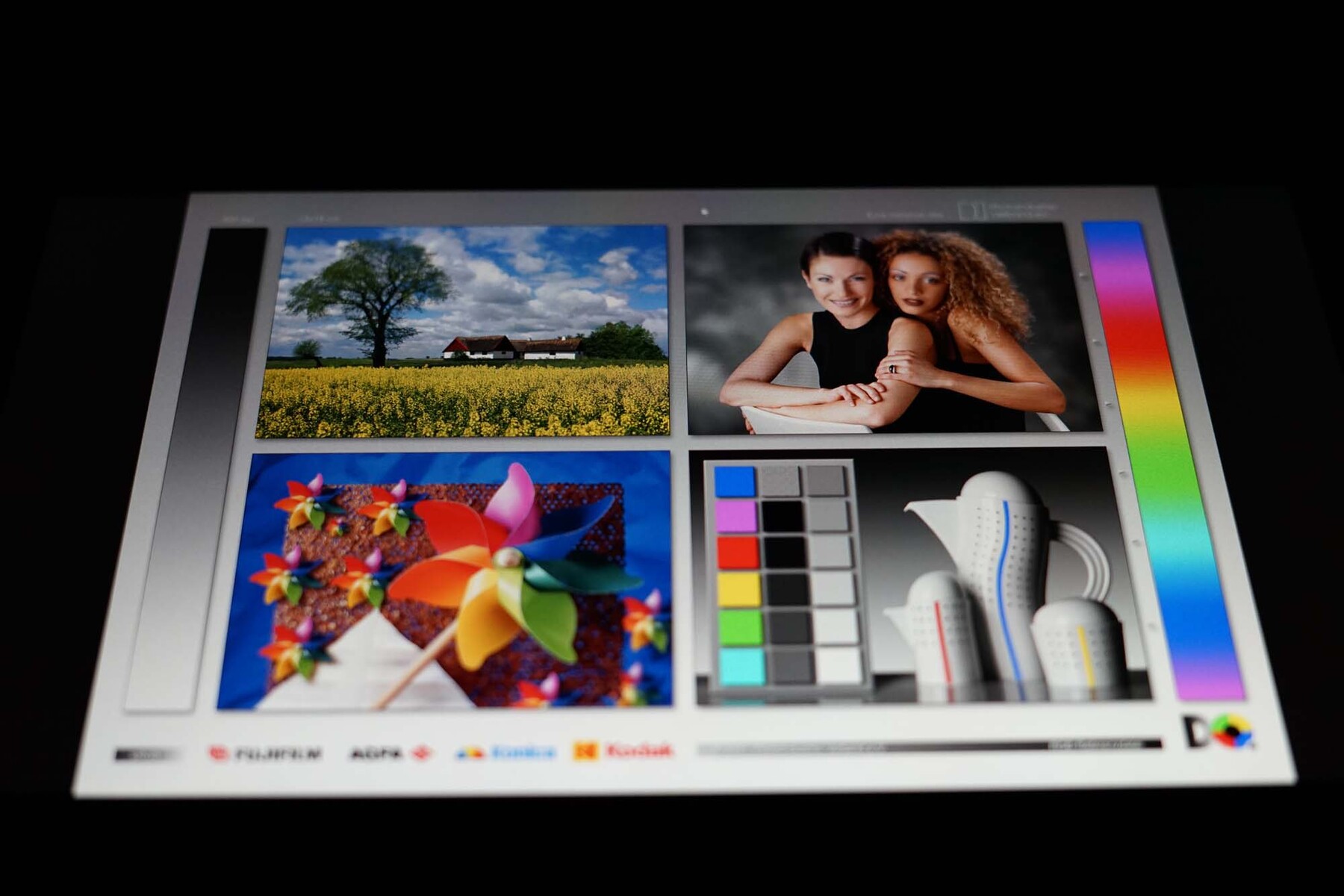

细微混浊(放大显示)

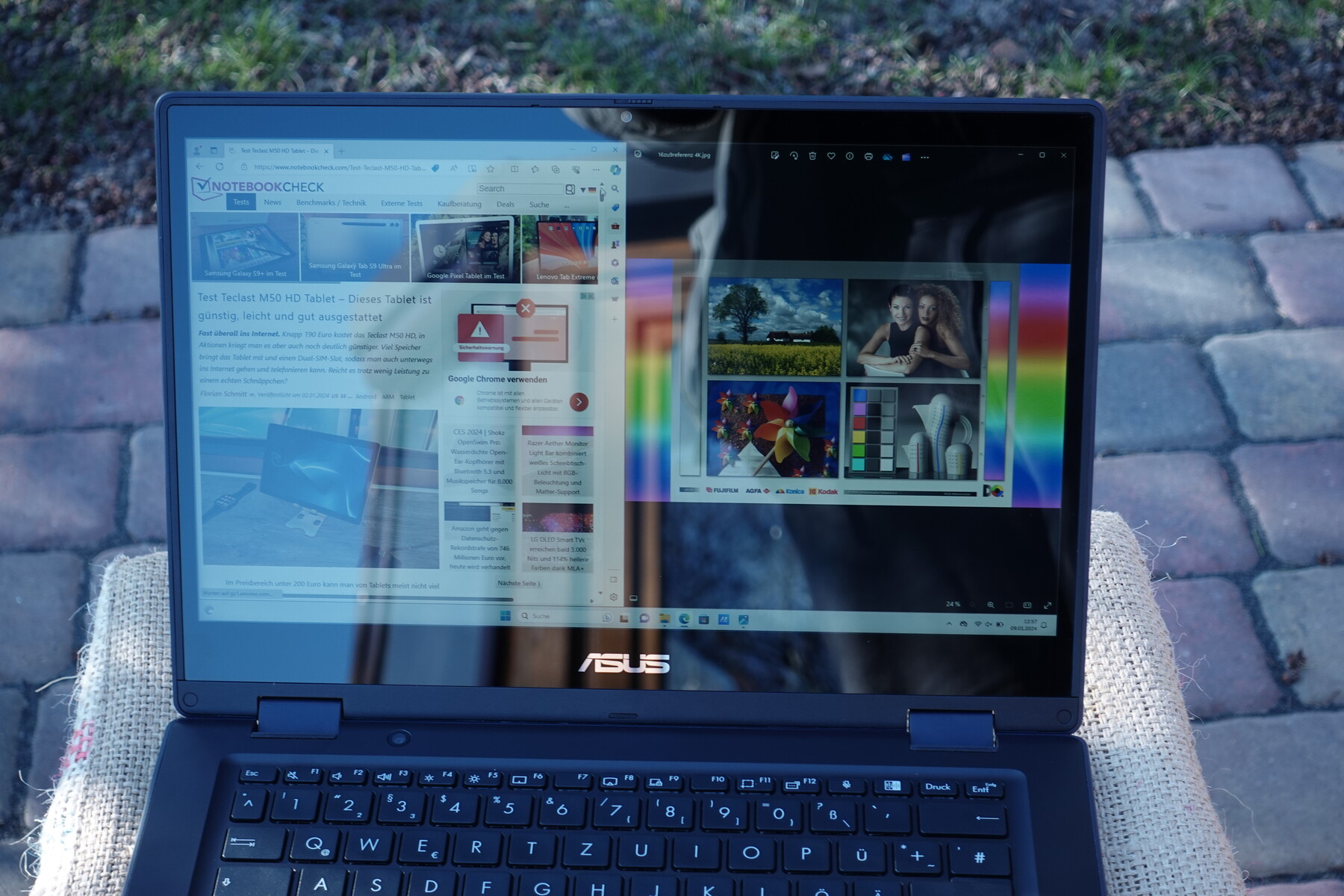

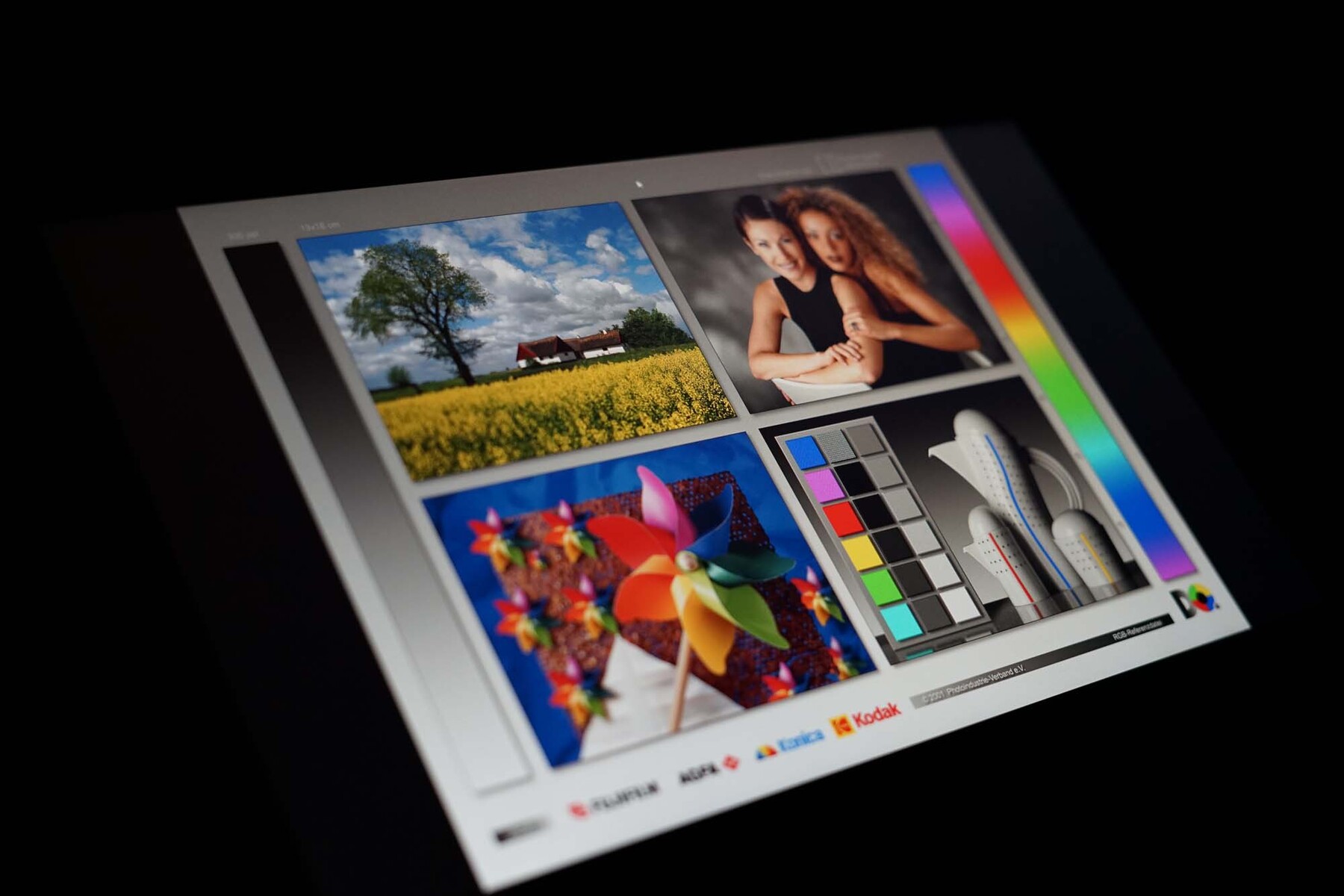

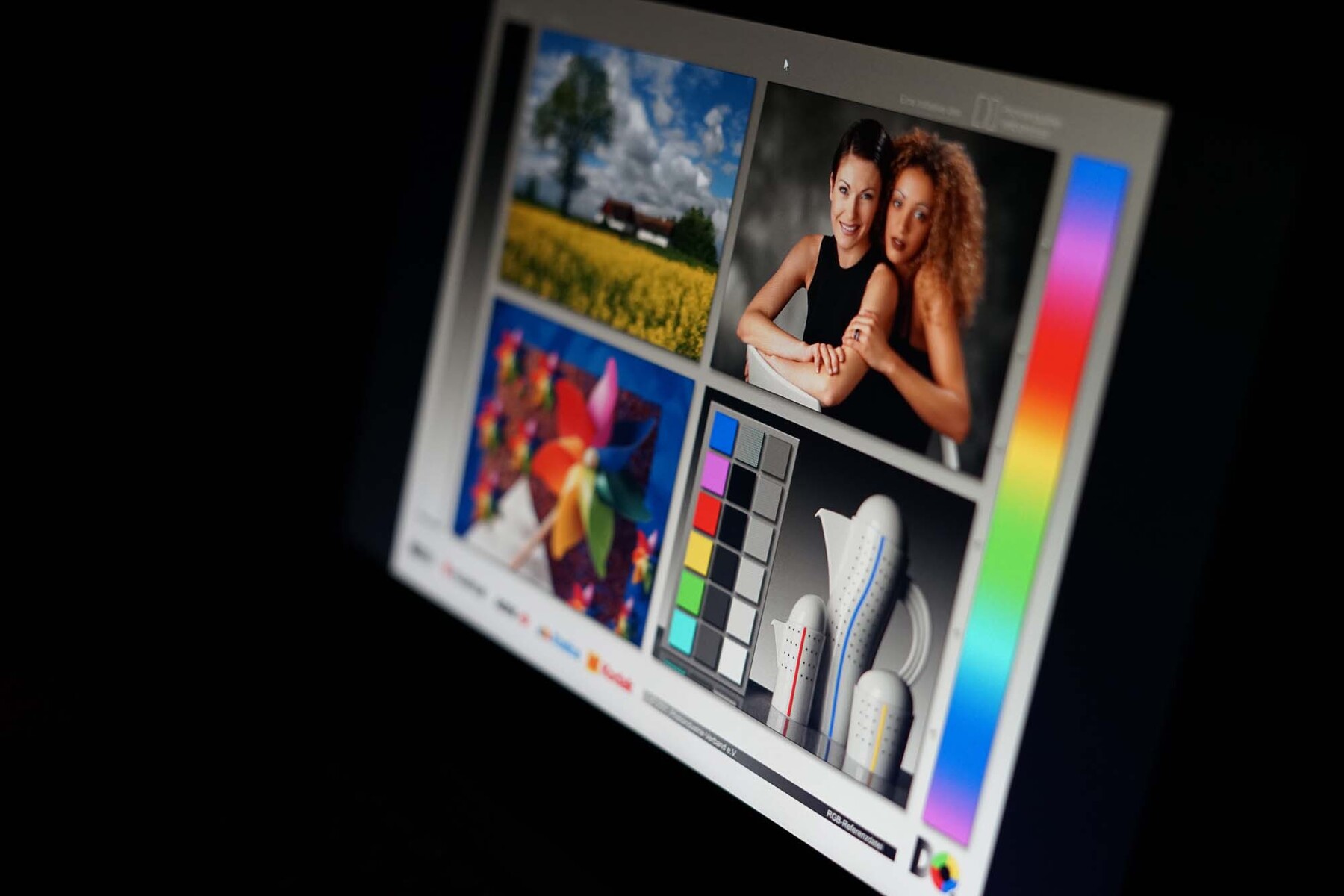

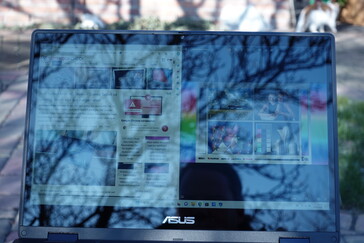

就价格而言,华硕 BR1402FG 的显示屏也是可以接受的。对比度甚至相对非常好,亮度理论上也足够,平均为 251 cd/m2,但由于采用了亮面显示屏,因此在阳光下的显示效果并不好。在教室里,可能有必要调整座位位置和笔记本电脑的摆放位置,以避免阳光带来的眩光。

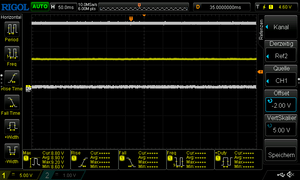

色彩空间的覆盖范围可以接受,足以满足日常使用;当然,专业的照片和视频编辑是不可能的。我们也无法检测到 PWM 闪烁。

248
cd/m²
267
cd/m²
267
cd/m²
223
cd/m²
278
cd/m²
247
cd/m²
232
cd/m²
260
cd/m²
244
cd/m²
Distribution of brightness
AUO B140HAN04.0 tested with X-Rite i1Pro 3
Maximum: 278 cd/m² (Nits) Average: 251.8 cd/m² Minimum: 14.8 cd/m²
Brightness Distribution: 80 %
Center on Battery: 278 cd/m²
Contrast: 3707:1 (Black: 0.075 cd/m²)
ΔE Color 7.02 | 0.5-29.43 Ø4.92, calibrated: 4.25
ΔE Greyscale 0.8 | 0.5-98 Ø5.2
39.15% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.7% sRGB (Argyll 2.2.0 3D)
37.87% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.158
Asus BR1402FG
AUO B140HAN04.0, LED, 1920x1080, 14"
Lenovo ThinkPad L13 Yoga G4 21FSS00100
B133UAN01.2 , IPS LED, 1920x1200, 13.3"
Dell Inspiron 14 7435 2-in-1
LG Philips 140WU2, IPS, 1920x1200, 14"
Lenovo IdeaPad Flex 5 14IRU8
LEN140WUXGA, IPS, 1920x1200, 14"
Acer Spin 3 SP313-51N-56YV
AU Optronics AUOB493, IPS, 2560x1600, 13.3"
Display
87%
16%
4%
94%
Display P3 Coverage
37.87
74.1
96%
44.4
17%
39.8
5%
78.8
108%
sRGB Coverage
56.7
99.3
75%
64.4
14%
58
2%
99.8
76%
AdobeRGB 1998 Coverage
39.15
74.5
90%
45.8
17%
41.1
5%
77.6
98%
Response Times
-2%
43%
30%
-27%
Response Time Grey 50% / Grey 80% *
39 ?(17.5, 21.5)
43.3 ?(20.2, 23.1)
-11%
19.6 ?(13.6, 16)
50%
30.2 ?(14.9, 15.3)
23%
52 ?(26, 26)
-33%
Response Time Black / White *
30 ?(16.5, 13.5)
28 ?(16.1, 11.9)
7%
19.3 ?(10.6, 8.7)
36%
19.3 ?(10.7, 8.6)
36%
36 ?(21, 15)
-20%
PWM Frequency
Screen
-41%
-86%
-113%
-97%
Brightness middle
278
336
21%
231.8
-17%
335.2
21%
338
22%
Brightness
252
321
27%
216
-14%
316
25%
307
22%
Brightness Distribution
80
88
10%
87
9%
86
8%
83
4%
Black Level *
0.075
0.22
-193%
0.27
-260%
0.29
-287%
0.27
-260%
Contrast
3707
1527
-59%
859
-77%
1156
-69%
1252
-66%
Colorchecker dE 2000 *
7.02
2.8
60%
6.59
6%
7.49
-7%
4.63
34%
Colorchecker dE 2000 max. *
24.28
6.9
72%
16.83
31%
22.25
8%
9.99
59%
Colorchecker dE 2000 calibrated *
4.25
1.4
67%
3.94
7%
2.17
49%
1.64
61%
Greyscale dE 2000 *
0.8
3.8
-375%
4.5
-463%
6.9
-763%
6.76
-745%
Gamma
2.158 102%
2.15 102%
2.17 101%
2.17 101%
2.37 93%
CCT
5966 109%
6664 98%
6110 106%
5988 109%
5934 110%
Color Space (Percent of AdobeRGB 1998)
68
Color Space (Percent of sRGB)
98
Total Average (Program / Settings)
15% / -8%
-9% / -46%
-26% / -67%
-10% / -46%

* ... smaller is better

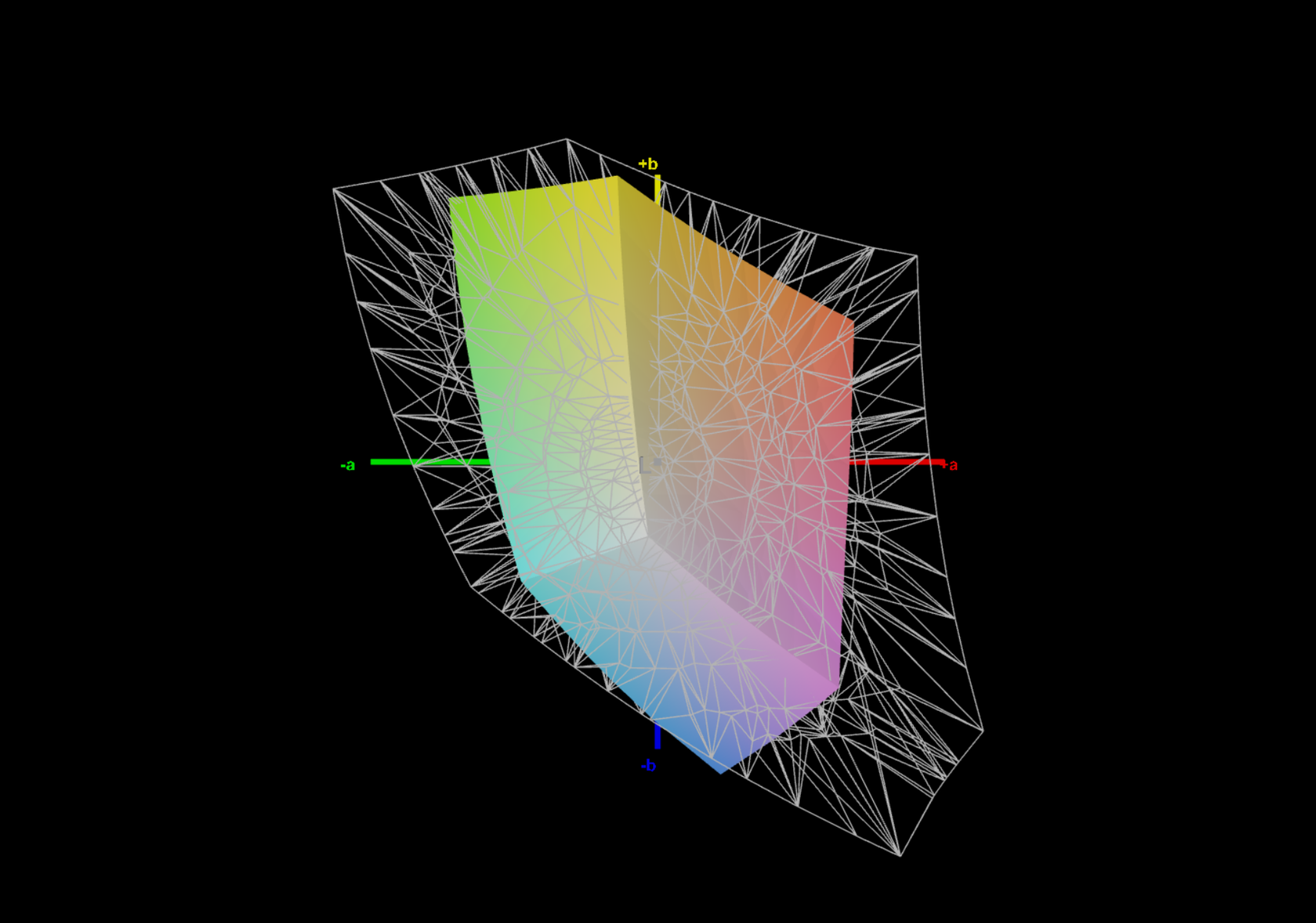

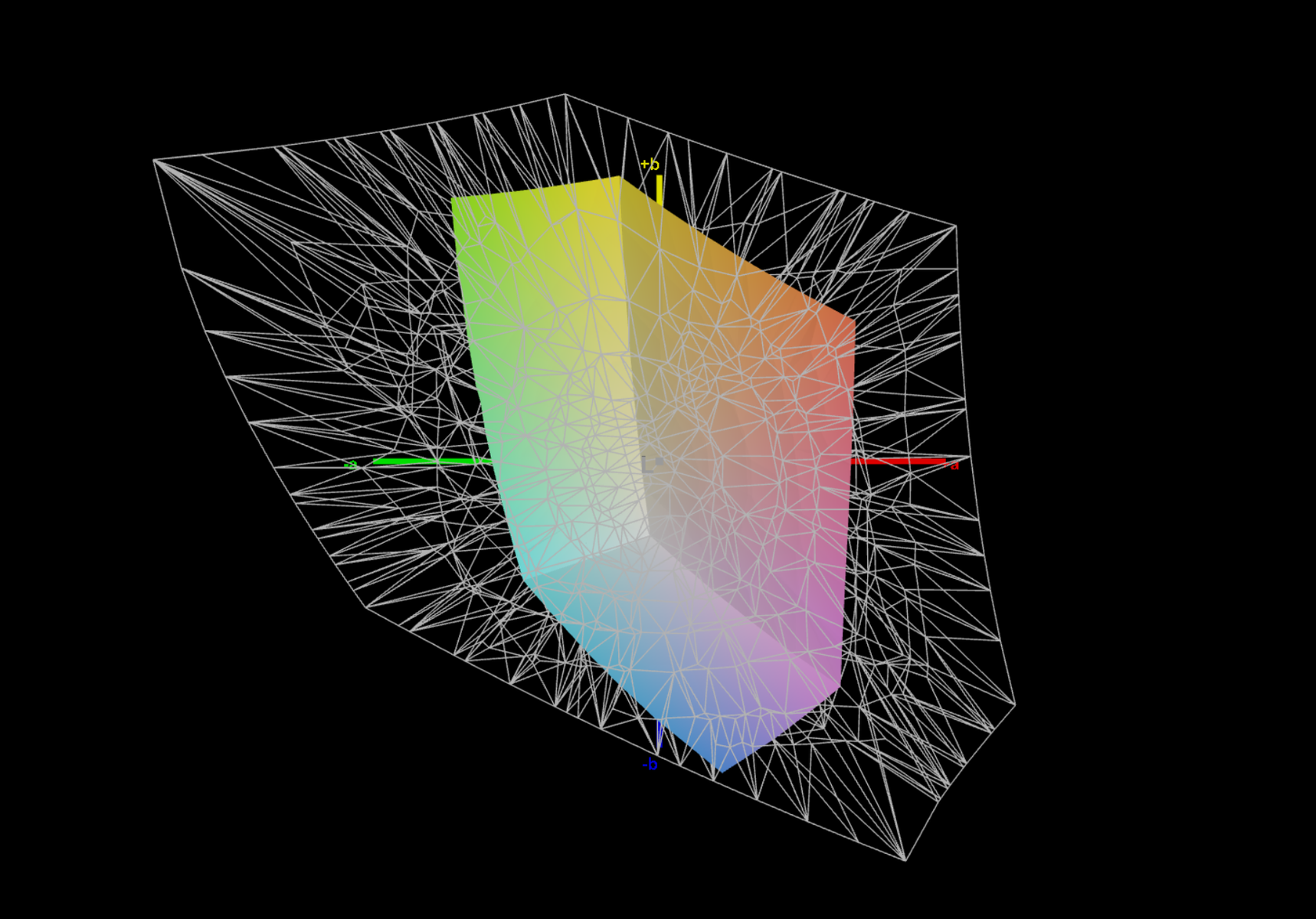

面板覆盖了 39.15% 的 AdobeRGB 色彩空间。
面板覆盖了 39.15% 的 AdobeRGB 色彩空间。
37.覆盖 9% 的 DCI-P3 色域。
37.覆盖 9% 的 DCI-P3 色域。

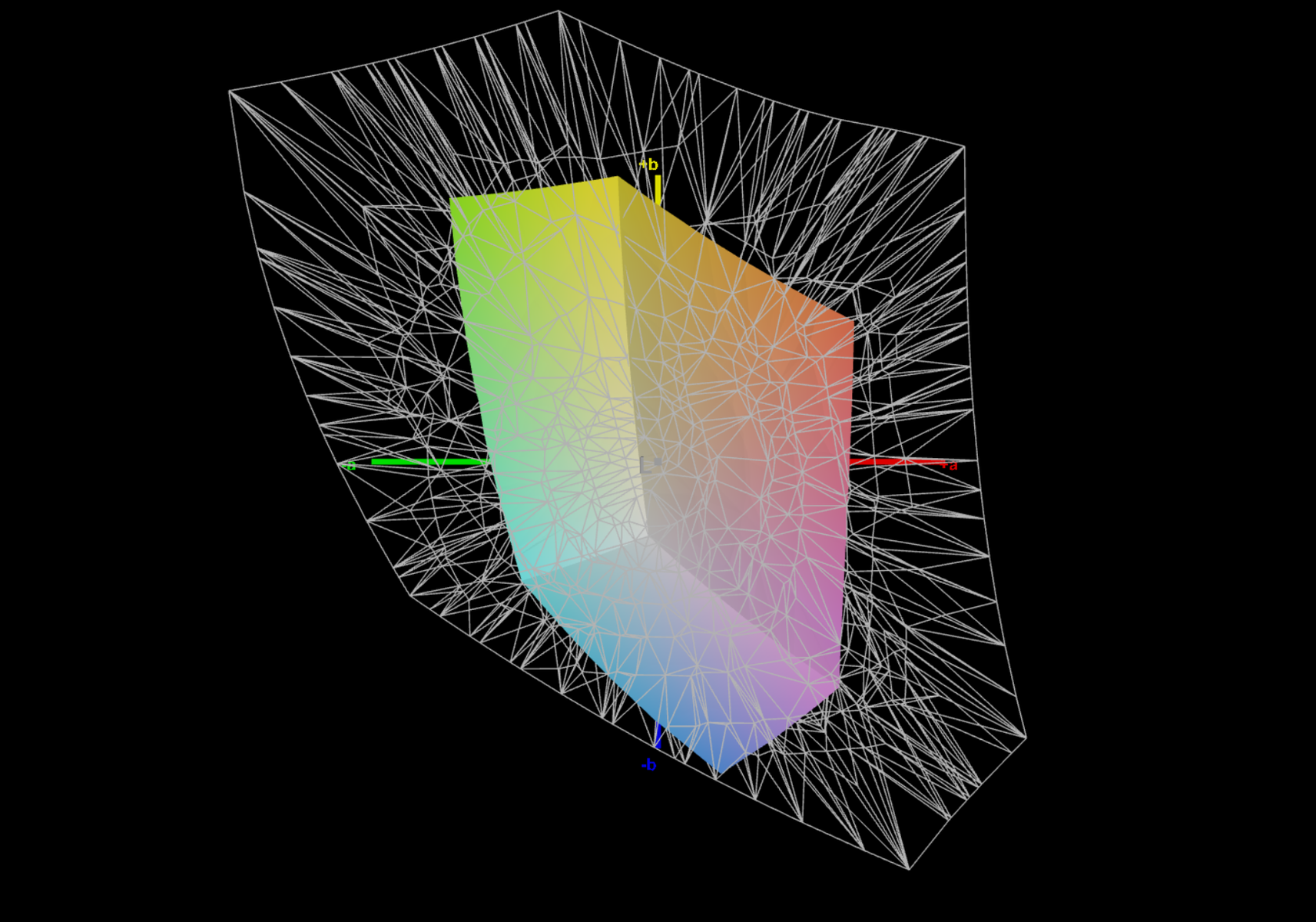

sRGB 色彩空间的覆盖率为 56.7%。
sRGB 色彩空间的覆盖率为 56.7%。

通过校准,我们测得灰度的平均 DeltaE 值有了显著改善。平均值从 6.3 提高到了非常好的 0.6。色彩校准也显示出明显的改进,原来的 DeltaE 值为 7.02,现在改进为 4.25。饱和度在校准后的改善幅度最小,因此平均 DeltaE 值仅为 6.59。

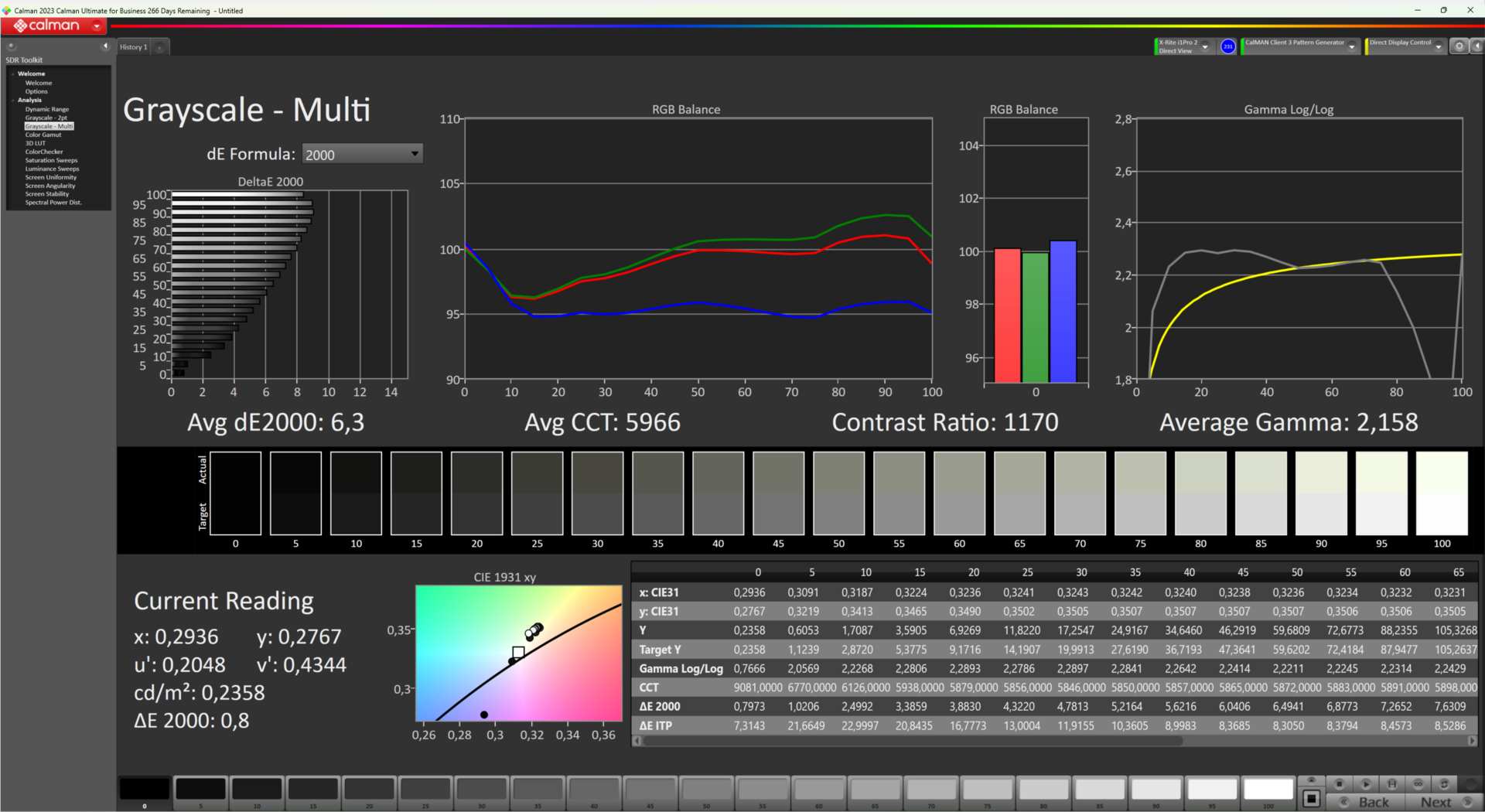

校准前的灰度
校准前的灰度
校准前的 ColorChecker
校准前的 ColorChecker

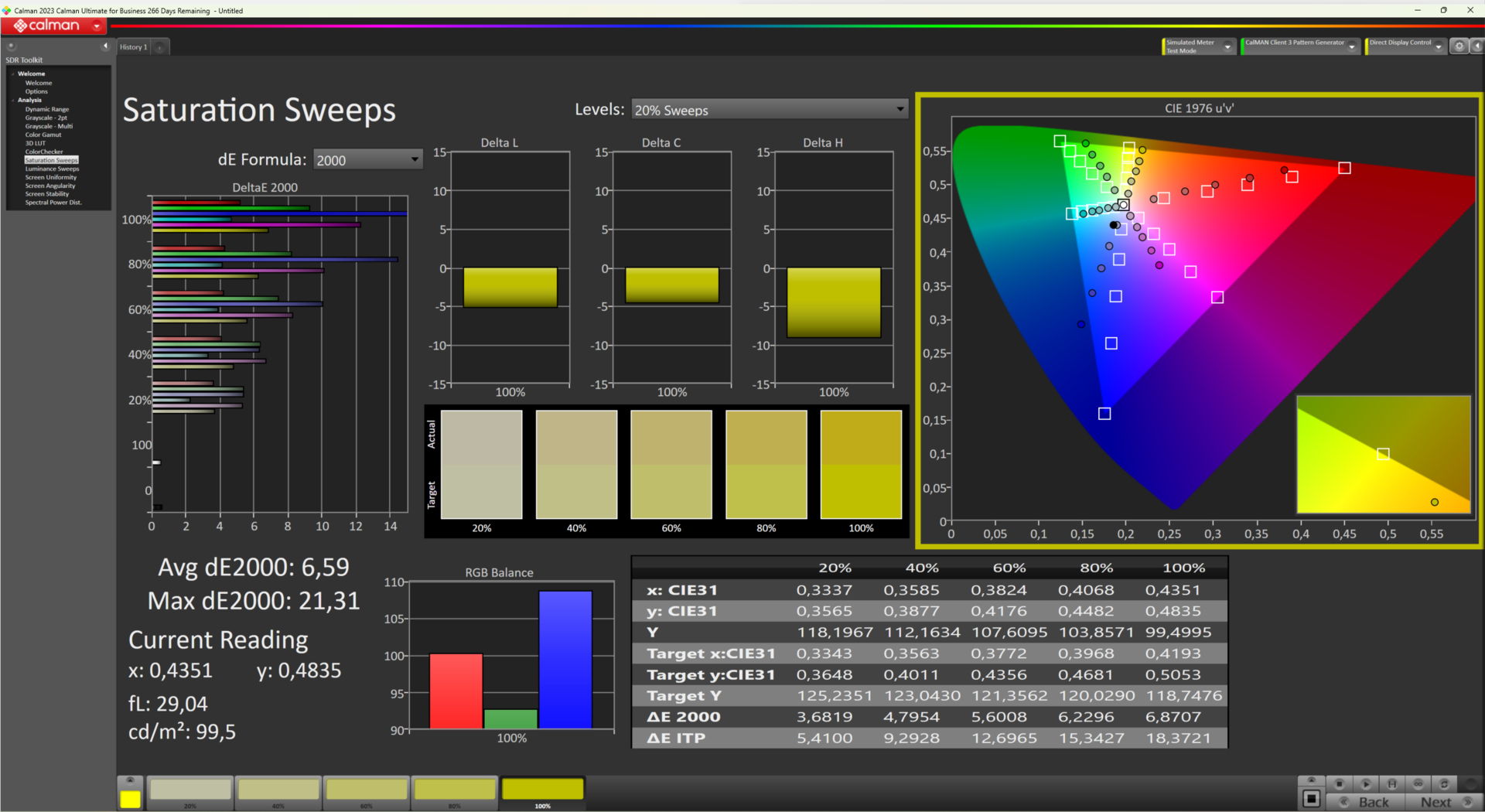

校准前的饱和度曲线
校准前的饱和度曲线

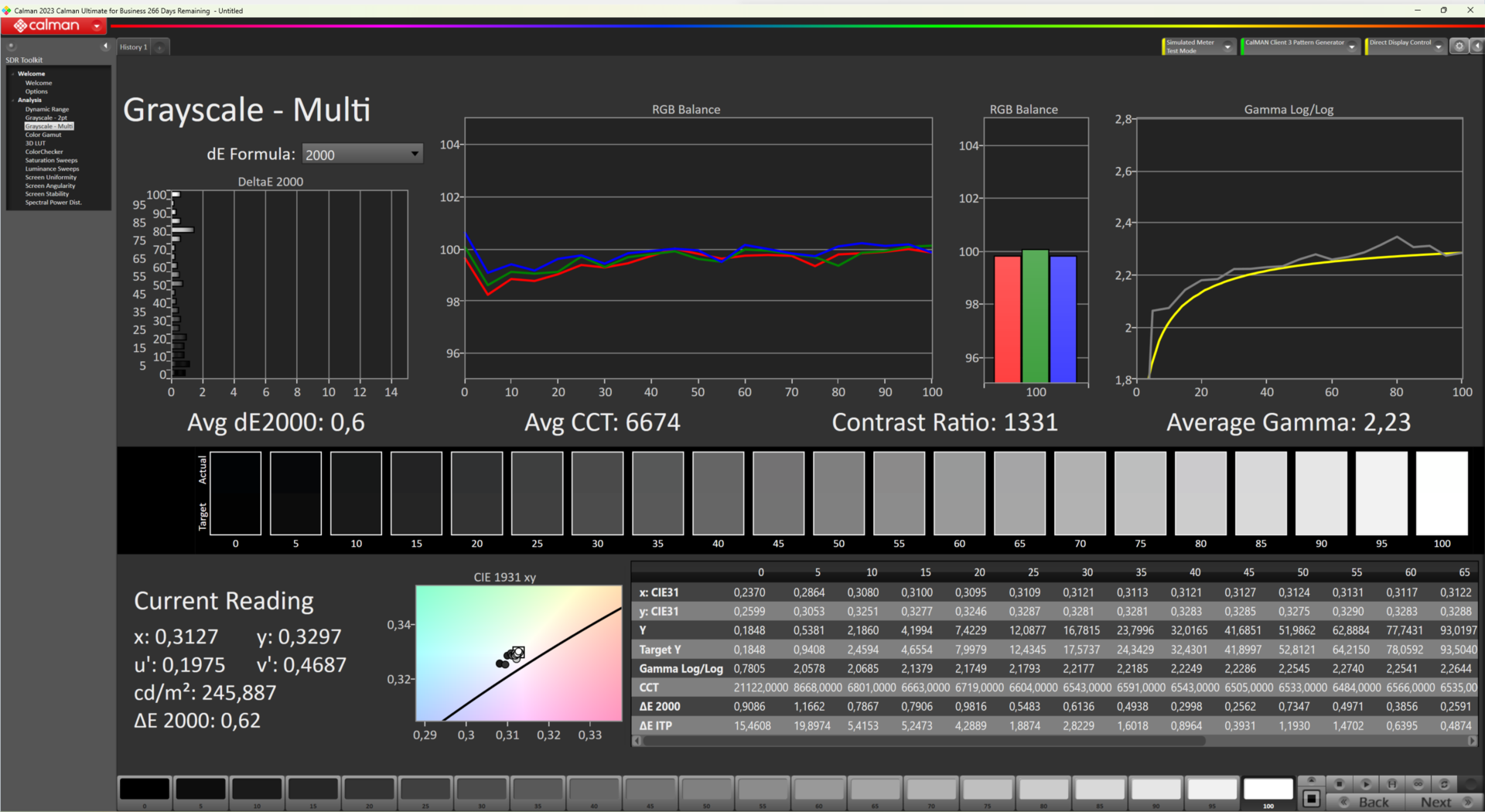

校准后的灰度
校准后的灰度

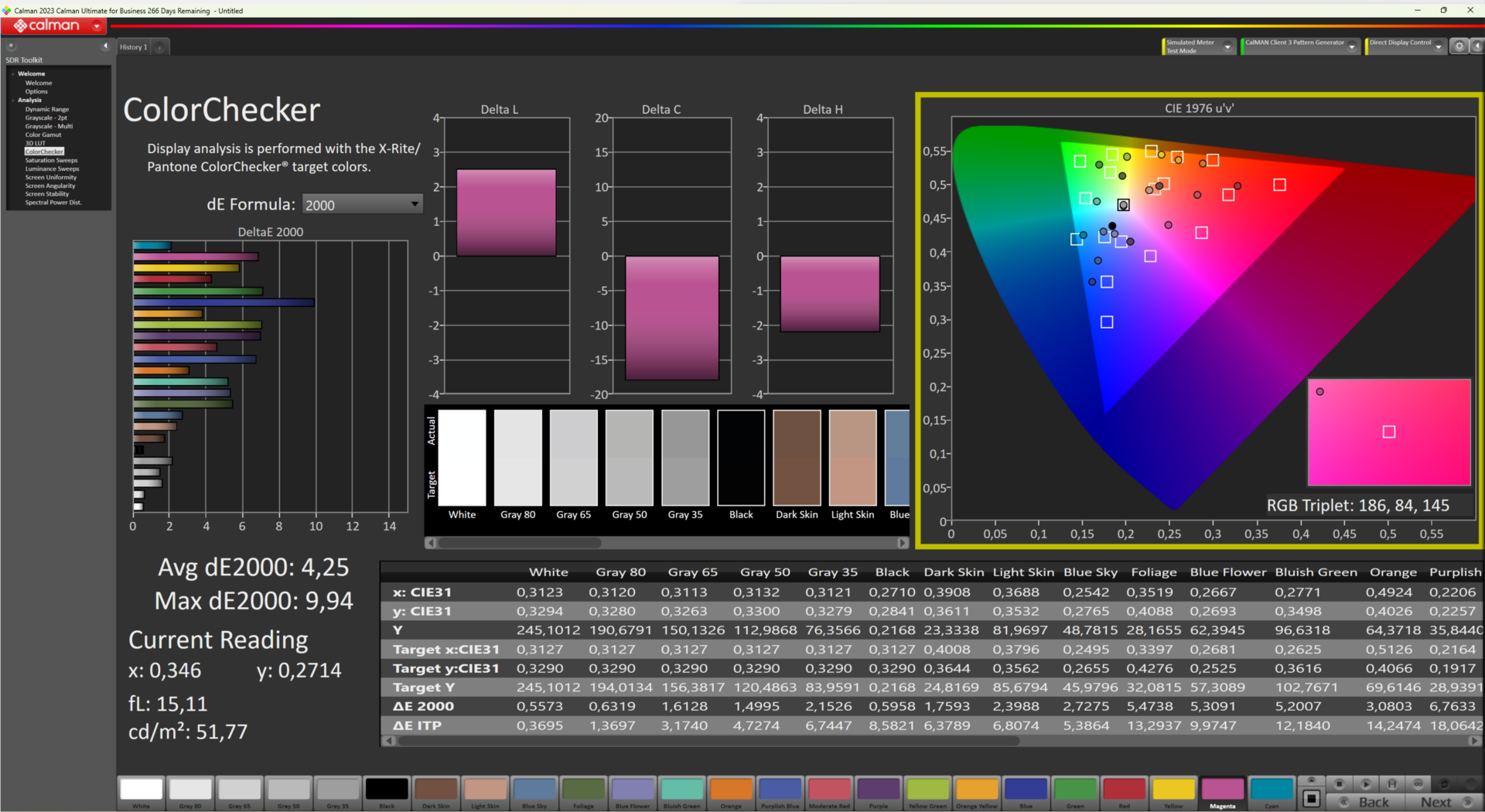

校准后的 ColorChecker
校准后的 ColorChecker
校准后的饱和度曲线
校准后的饱和度曲线

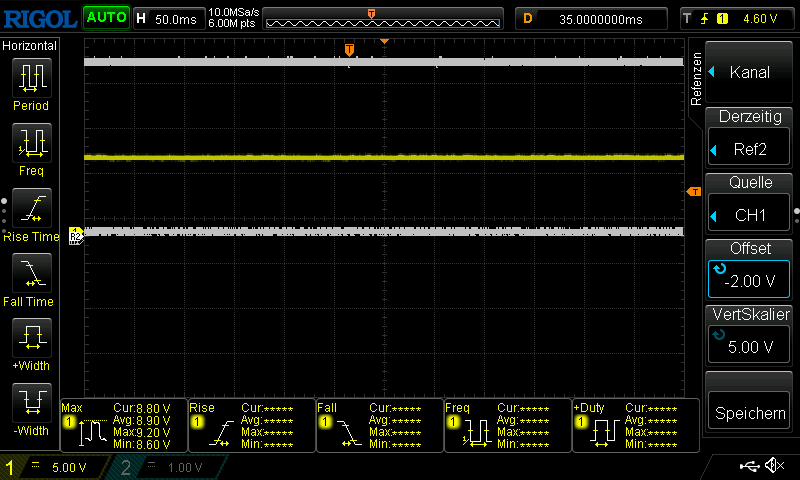

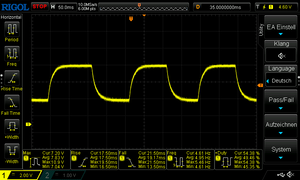

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

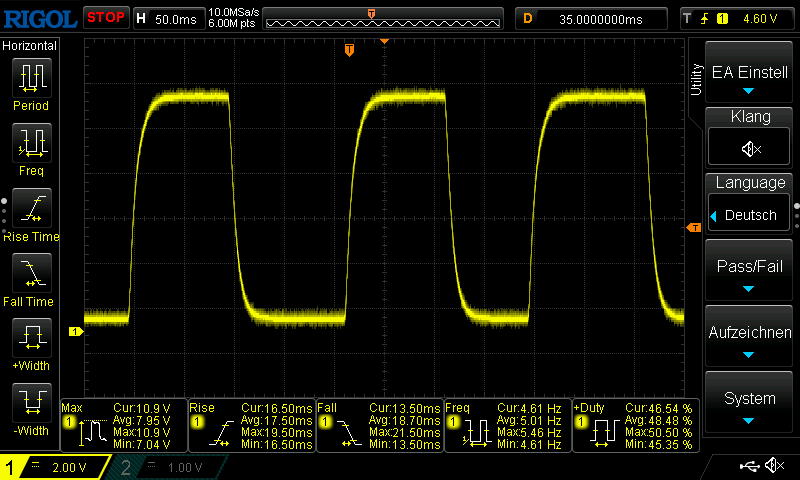

       Response Time Black to White
30 ms ... rise ↗ and fall ↘ combined↗ 16.5 ms rise
↘ 13.5 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 78 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

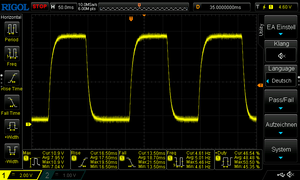

       Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined↗ 17.5 ms rise
↘ 21.5 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 55 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

正如之前公布的那样,在室外使用时,亮面显示屏的最大弱点是最大亮度较低。强烈的反光使图像失真,难以看清内容。

户外使用的华硕 BR1402FG
户外使用的华硕 BR1402FG

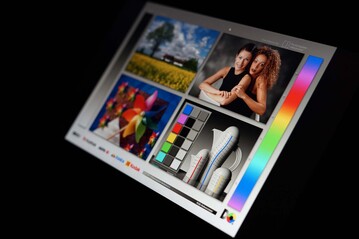

可视角度尚可,在日常使用中没有明显限制
可视角度尚可,在日常使用中没有明显限制
可视角度尚可,在日常使用中没有明显限制
可视角度尚可,在日常使用中没有明显限制
可视角度尚可,在日常使用中没有明显限制


性能仅适用于基本应用

华硕 BR1402FG 的性能很难评估。一方面,内置的 英特尔酷睿 i3-N305的性能通常比竞争对手要差,但另一方面,该机型的价格却比我们列表中的大多数机型低几百欧元。很明显,华硕的目标是为典型的办公任务和网页浏览提供最稳定的整体解决方案。这里唯一的例外是戴尔的二合一产品,测试时售价仅为 500 欧元,但不提供 Windows 11 Pro 教育版,没有内置手写笔,没有那么坚固耐用,而且功耗明显更高,但效果却更好。

不过,必须指出的是 AMD Ryzen 5 7530U联想 ThinkPad L13 Yoga戴尔 Inspiron 14 7435 2 合 1以及 英特尔酷睿 i5-1335U联想 IdeaPad Flex 5 14IRU8英特尔酷睿 i5-1135G7宏碁 Spin 3 SP313-51N-56YV 的英特尔酷睿 i5-1135G7显然更快。只有 微软 Surface Pro 9采用 ARM 处理器在某些基准测试中性能下降得更多。不过,这款可转换本在日常使用中运行流畅,只有在执行重要任务时才会出现问题。因此,只需要用它来编辑 PDF 文件和使用微软 Office 套件的学生一般不会注意到它的低性能。

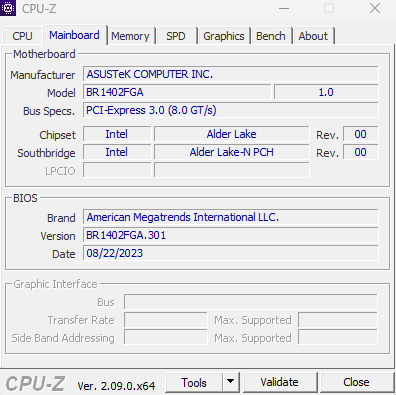

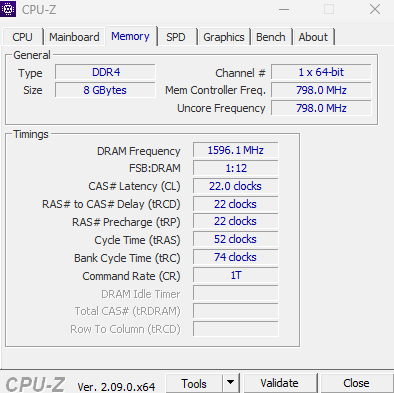

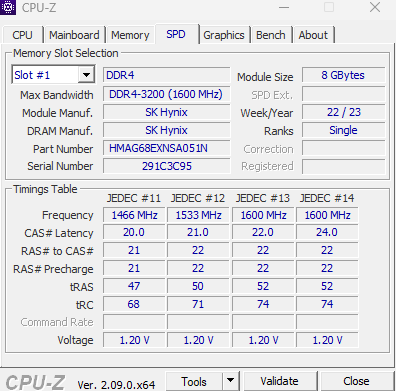

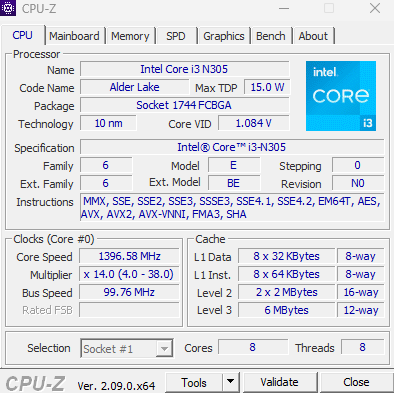

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

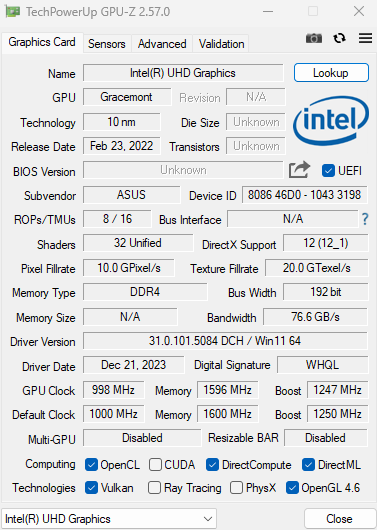

GPU-Z
GPU-Z

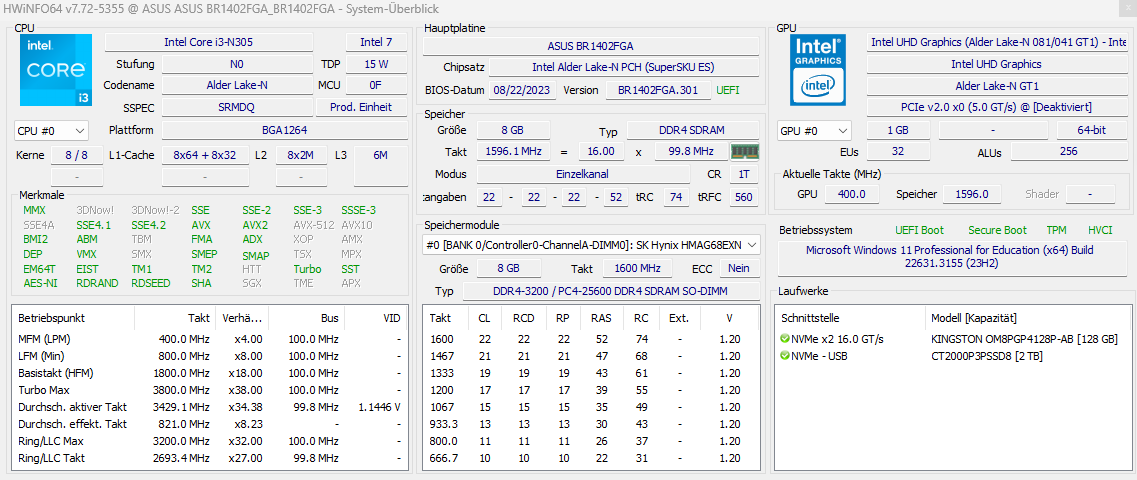

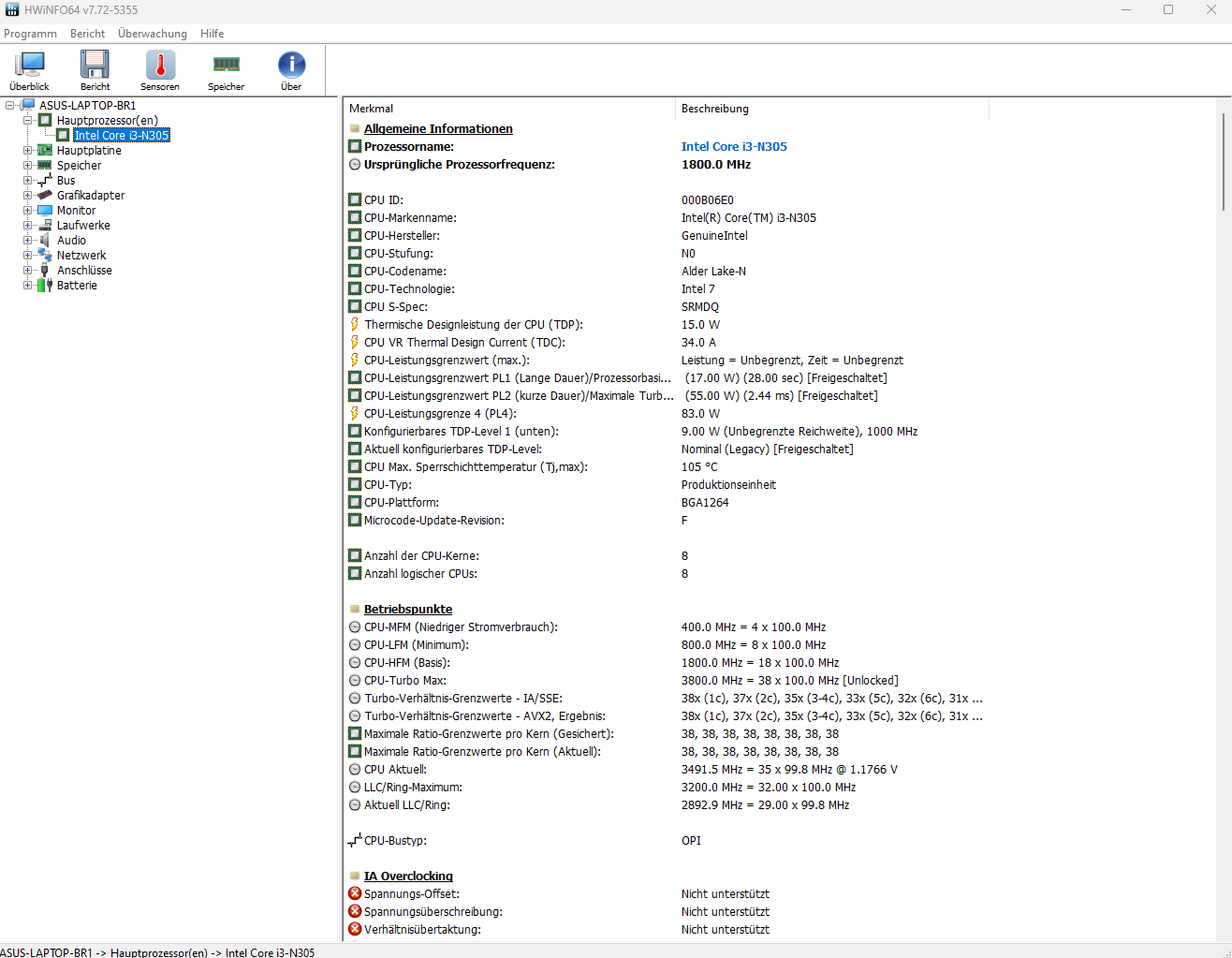

HWInfo
HWInfo
HWInfo
HWInfo




测试条件

华硕没有为 BR1402FG Convertible 提供任何用于自定义性能的附加软件。因此,只有 Windows 本身的各种性能模式。不过,在这些模式下都无法调整 TDP;Windows 设置通常只能调整提升功率的持续时间和频率。因此,默认情况下 PL1 的 TDP 为 17 瓦,PL2 为 26 瓦。在性能模式下,风扇的声音较大,在轻度使用时,我们经常会遇到风扇在几秒钟内反复转动的问题。因此,在学校或图书馆,建议使用 "平衡 "和 "节能 "模式。

处理器

华硕依靠 英特尔酷睿 i3-N305为学生设计的敞篷机。这是 Alder Lake-N 系列的入门级 CPU。这款处理器将于 2023 年初发布,提供八个主频高达 3.8 GHz 的高效内核。我们的 Cinebench R15 耐久性测试表明,只有在基准测试开始的短时间内才能基本达到 3.8 GHz。一分钟后,时钟频率稳定在 2.4 GHz 以下,偶尔会达到 3.2 至 3.6 GHz 的峰值。在运行过程中,该处理器比较经济,最大功耗为 26.3 瓦。

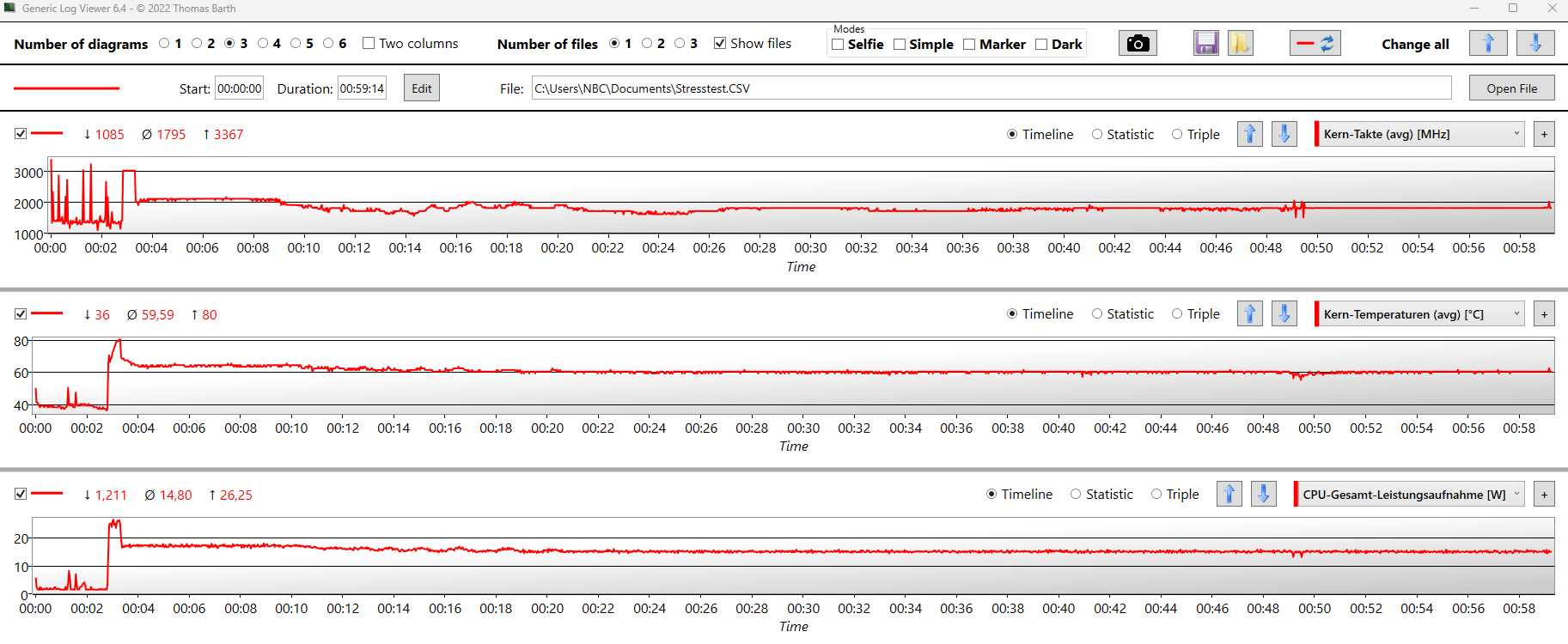

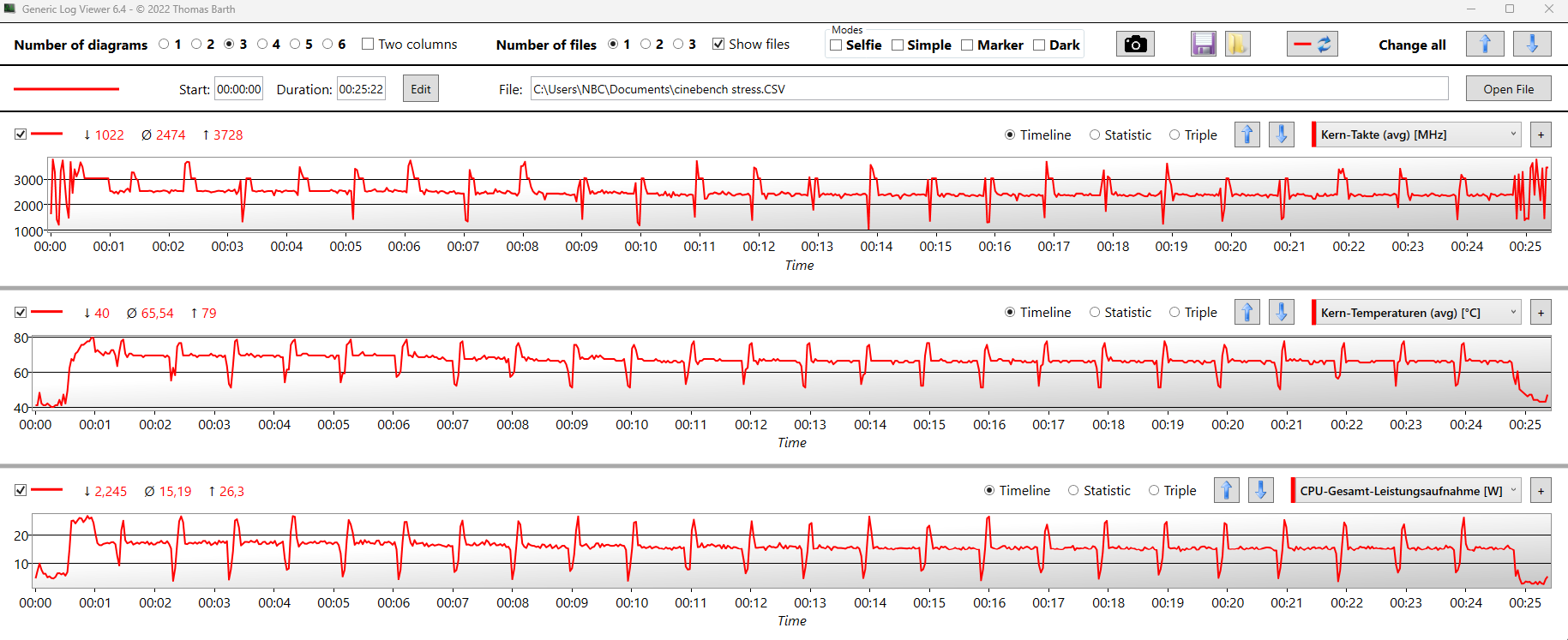

值得注意的是,核心温度从未超过 79 °C,这表明制造商方面的限制。如果温度更高,基准测试结果可能会更好。

Cinebench R15 Multi loop

0701402102803504204905606307007708409109801050112011901260Tooltip
Asus BR1402FG Intel Core i3-N305: Ø805 (794.06-878.19)
Lenovo ThinkPad L13 Yoga G4 21FSS00100 AMD Ryzen 5 7530U: Ø1082 (1000.35-1289.24)
Dell Inspiron 14 7435 2-in-1 AMD Ryzen 5 7530U: Ø1242 (1217.69-1302.59)
Lenovo IdeaPad Flex 5 14IRU8 Intel Core i5-1335U: Ø1050 (1019.19-1277.22)
Acer Spin 3 SP313-51N-56YV Intel Core i5-1135G7: Ø700 (666.11-824.1)
Microsoft Surface Pro 9, ARM Qualcomm Snapdragon 8cx Gen 3: Ø700 (640.9-773.99)
CPU 数据 Cinebench R15 多回路
CPU 数据 Cinebench R15 多回路
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Lenovo IdeaPad Flex 5 14IRU8 -2!
Intel Core i5-1335U
89 pt
Average of class Office

88.8 pt
Dell Inspiron 14 7435 2-in-1 -2!
AMD Ryzen 5 7530U
82.6 pt
Lenovo ThinkPad L13 Yoga G4 21FSS00100 -2!
AMD Ryzen 5 7530U
74.6 pt
Acer Spin 3 SP313-51N-56YV -2!
Intel Core i5-1135G7
62.3 pt
Asus BR1402FG
Intel Core i3-N305
54.1 pt
Average Intel Core i3-N305

54.1 pt
Microsoft Surface Pro 9, ARM -2!
Qualcomm Snapdragon 8cx Gen 3
42 pt
Cinebench R23 / Multi Core
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
9438 (7011.67min - 9437.52max) Points +82%
Average of class Office
  (1577 - 15743, n=92, last 2 years)
9250 Points +79%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
8476 (7306.45min - 8475.87max) Points +64%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
6931 Points +34%
Asus BR1402FG
Intel Core i3-N305
5181 Points
Asus BR1402FG
Intel Core i3-N305
5167 Points 0%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5171 Points 0%
Average Intel Core i3-N305
  (4832 - 5181, n=4)
5049 Points -3%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
3567 Points -31%
Cinebench R23 / Single Core
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
1684 Points +69%
Average of class Office
  (618 - 1995, n=92, last 2 years)
1563 Points +57%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
1421 Points +42%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
1371 Points +37%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1337 Points +34%
Asus BR1402FG
Intel Core i3-N305
998 Points
Asus BR1402FG
Intel Core i3-N305
939 Points -6%
Average Intel Core i3-N305
  (939 - 1001, n=4)
983 Points -2%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
608 Points -39%
Cinebench R20 / CPU (Multi Core)
Average of class Office
  (590 - 5980, n=92, last 2 years)
3556 Points +78%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
3349 Points +68%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
3080 Points +54%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
2833 Points +42%
Asus BR1402FG
Intel Core i3-N305
1998 Points
Average Intel Core i3-N305
  (1855 - 1998, n=3)
1943 Points -3%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1854 Points -7%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
1248 Points -38%
Cinebench R20 / CPU (Single Core)
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
645 Points +72%
Average of class Office
  (229 - 764, n=92, last 2 years)
602 Points +60%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
559 Points +49%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
528 Points +40%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
512 Points +36%
Average Intel Core i3-N305
  (375 - 380, n=3)
377 Points 0%
Asus BR1402FG
Intel Core i3-N305
376 Points
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
199 Points -47%
Cinebench R15 / CPU Multi 64Bit
Average of class Office
  (246 - 2642, n=93, last 2 years)
1561 Points +78%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
1303 (1217.69min - 1302.59max) Points +48%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
1289 (1000.35min - 1289.24max) Points +47%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
1277 (1019.19min - 1277.22max) Points +45%
Asus BR1402FG
Intel Core i3-N305
878 (794.06min - 878.19max) Points
Average Intel Core i3-N305
  (828 - 878, n=3)
845 Points -4%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
824 (666.11min - 824.1max) Points -6%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
774 (640.9min - 773.99max) Points -12%
Cinebench R15 / CPU Single 64Bit
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
238 Points +45%
Average of class Office
  (98 - 284, n=92, last 2 years)
230 Points +40%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
229 Points +39%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
213 Points +29%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
200 Points +21%
Average Intel Core i3-N305
  (163.6 - 167, n=3)
165.1 Points 0%
Asus BR1402FG
Intel Core i3-N305
164.7 Points
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
119.1 Points -28%
Blender / v2.79 BMW27 CPU
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
1059 Seconds * -82%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
705 Seconds * -21%
Average Intel Core i3-N305
  (583 - 622, n=3)
598 Seconds * -3%
Asus BR1402FG
Intel Core i3-N305
583 Seconds *
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
469 Seconds * +20%
Average of class Office
  (208 - 1956, n=93, last 2 years)
419 Seconds * +28%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
380 Seconds * +35%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
361 Seconds * +38%
7-Zip 18.03 / 7z b 4
Average of class Office
  (7532 - 65460, n=93, last 2 years)
38934 MIPS +73%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
38153 MIPS +69%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
36687 MIPS +63%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
32204 MIPS +43%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
24505 MIPS +9%
Asus BR1402FG
Intel Core i3-N305
22551 MIPS
Average Intel Core i3-N305
  (21080 - 22551, n=3)
21623 MIPS -4%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
19495 MIPS -14%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Office
  (2972 - 6687, n=93, last 2 years)
5276 MIPS +28%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
5238 MIPS +27%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
5113 MIPS +24%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
5094 MIPS +24%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
4744 MIPS +15%
Asus BR1402FG
Intel Core i3-N305
4123 MIPS
Average Intel Core i3-N305
  (3871 - 4123, n=3)
4033 MIPS -2%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
3946 MIPS -4%
Geekbench 6.3 / Multi-Core
Average of class Office
  (662 - 14767, n=58, last 2 years)
8682 Points +87%
Average Intel Core i3-N305
  (4632 - 5034, n=3)
4798 Points +4%
Asus BR1402FG
Intel Core i3-N305
4632 Points
Geekbench 6.3 / Single-Core
Average of class Office
  (457 - 2769, n=57, last 2 years)
2184 Points +65%
Asus BR1402FG
Intel Core i3-N305
1326 Points
Average Intel Core i3-N305
  (1304 - 1326, n=3)
1316 Points -1%
Geekbench 5.5 / Multi-Core
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
8618 Points +92%
Average of class Office
  (1018 - 11980, n=92, last 2 years)
7612 Points +69%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
7522 Points +67%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
6479 Points +44%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
5733 Points +28%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5472 Points +22%
Average Intel Core i3-N305
  (4492 - 4905, n=3)
4680 Points +4%
Asus BR1402FG
Intel Core i3-N305
4492 Points
Geekbench 5.5 / Single-Core
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
1690 Points +58%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
1669 Points +56%
Average of class Office
  (510 - 1989, n=93, last 2 years)
1585 Points +48%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
1486 Points +39%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
1398 Points +31%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
1393 Points +30%
Asus BR1402FG
Intel Core i3-N305
1071 Points
Average Intel Core i3-N305
  (1050 - 1083, n=3)
1068 Points 0%
HWBOT x265 Benchmark v2.2 / 4k Preset
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
10.9 fps +95%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
10.7 fps +91%
Average of class Office
  (1.72 - 18.7, n=91, last 2 years)
10.4 fps +86%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
8.17 fps +46%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
5.69 fps +2%
Asus BR1402FG
Intel Core i3-N305
5.59 fps
Average Intel Core i3-N305
  (5.41 - 5.62, n=3)
5.54 fps -1%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
2.52 fps -55%
LibreOffice / 20 Documents To PDF
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
121.5 s * -40%
Asus BR1402FG
Intel Core i3-N305
86.8 s *
Average Intel Core i3-N305
  (73.3 - 86.8, n=3)
79.3 s * +9%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
58.1 s * +33%
Average of class Office
  (31.3 - 129.6, n=91, last 2 years)
53.2 s * +39%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
49.5 s * +43%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
46.6 s * +46%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
45 s * +48%
R Benchmark 2.5 / Overall mean
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3
1.013 sec * -30%
Asus BR1402FG
Intel Core i3-N305
0.778 sec *
Average Intel Core i3-N305
  (0.766 - 0.786, n=3)
0.777 sec * -0%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7
0.645 sec * +17%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U
0.567 sec * +27%
Average of class Office
  (0.4244 - 1.135, n=90, last 2 years)
0.543 sec * +30%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U
0.527 sec * +32%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U
0.4892 sec * +37%

* ... smaller is better

Cinebench R10 Shading 32Bit
6964
Cinebench R10 Rendering Multiple CPUs 32Bit
26524
Cinebench R10 Rendering Single 32Bit
5680
Cinebench R10 Rendering Single CPUs 64Bit
8648 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
40726 Points
Cinebench R10 Shading 64Bit
7856 Points
Cinebench R11.5 OpenGL 64Bit
46 fps
Cinebench R11.5 CPU Multi 64Bit
12.05 Points
Cinebench R11.5 CPU Single 64Bit
2.05 Points
Cinebench R15 CPU Single 64Bit
164.7 Points
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
58.4 fps
Cinebench R15 CPU Multi 64Bit
878 Points
Cinebench R20 CPU (Single Core)
376 Points
Cinebench R20 CPU (Multi Core)
1998 Points
Cinebench R23 Multi Core
5167 Points
Cinebench R23 Single Core
998 Points
Help
Performance Rating
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
87.5 pt
Average of class Office

85.7 pt
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
85.3 pt
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
76.7 pt
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
69.9 pt
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
43.8 pt
Average Intel Core i3-N305

43.7 pt
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
30.5 pt
AIDA64 / FP32 Ray-Trace
Average of class Office
  (763 - 24250, n=92, last 2 years)
9320 KRay/s +111%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
9263 KRay/s +110%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
9097 KRay/s +106%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
7778 KRay/s +76%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
7040 KRay/s +59%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
4415 KRay/s
Average Intel Core i3-N305
  (4127 - 4415, n=3)
4292 KRay/s -3%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
2627 KRay/s -40%
AIDA64 / FPU Julia
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
59173 Points +182%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
57481 Points +174%
Average of class Office
  (4113 - 102228, n=92, last 2 years)
47898 Points +128%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
40111 Points +91%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
28994 Points +38%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
20988 Points
Average Intel Core i3-N305
  (19828 - 20988, n=3)
20528 Points -2%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
14113 Points -33%
AIDA64 / CPU SHA3
Average of class Office
  (287 - 4551, n=92, last 2 years)
2212 MB/s +57%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
2054 MB/s +46%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
1970 MB/s +40%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
1968 MB/s +40%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
1955 MB/s +39%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
1409 MB/s
Average Intel Core i3-N305
  (1275 - 1409, n=3)
1355 MB/s -4%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
1144 MB/s -19%
AIDA64 / CPU Queen
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
75448 Points +82%
Average of class Office
  (8185 - 115197, n=92, last 2 years)
70379 Points +70%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
68103 Points +65%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
60298 Points +46%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
46562 Points +13%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
41350 Points
Average Intel Core i3-N305
  (40581 - 41393, n=3)
41108 Points -1%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
27474 Points -34%
AIDA64 / FPU SinJulia
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
8566 Points +267%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
8277 Points +255%
Average of class Office
  (404 - 14288, n=92, last 2 years)
6714 Points +188%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
5008 Points +115%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
4439 Points +90%
Average Intel Core i3-N305
  (2332 - 2333, n=3)
2333 Points 0%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
2332 Points
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
1257 Points -46%
AIDA64 / FPU Mandel
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
32517 Points +209%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
31632 Points +201%
Average of class Office
  (2075 - 54365, n=92, last 2 years)
24965 Points +137%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
19501 Points +85%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
17489 Points +66%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
10524 Points
Average Intel Core i3-N305
  (9919 - 10524, n=3)
10274 Points -2%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
7166 Points -32%
AIDA64 / CPU AES
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
78730 MB/s +220%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
67259 MB/s +174%
Average of class Office
  (7860 - 155900, n=92, last 2 years)
51340 MB/s +109%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
40646 MB/s +65%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
33883 MB/s +38%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
24577 MB/s
Average Intel Core i3-N305
  (23892 - 24577, n=3)
24335 MB/s -1%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
1279 MB/s -95%
AIDA64 / CPU ZLib
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
610 MB/s +46%
Average of class Office
  (78 - 1018, n=92, last 2 years)
600 MB/s +43%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
526 MB/s +26%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
503 MB/s +20%
Average Intel Core i3-N305
  (415 - 448, n=3)
427 MB/s +2%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
419 MB/s
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
411 MB/s -2%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
354 MB/s -16%
AIDA64 / FP64 Ray-Trace
Average of class Office
  (432 - 12755, n=92, last 2 years)
4939 KRay/s +130%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
4875 KRay/s +127%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
4642 KRay/s +116%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
4128 KRay/s +92%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
3733 KRay/s +73%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
2152 KRay/s
Average Intel Core i3-N305
  (2042 - 2152, n=3)
2097 KRay/s -3%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
1379 KRay/s -36%
AIDA64 / CPU PhotoWorxx
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
45366 MPixel/s +200%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
40484 MPixel/s +167%
Average of class Office
  (4814 - 54971, n=92, last 2 years)
29077 MPixel/s +92%
Average Intel Core i3-N305
  (15143 - 21591, n=3)
17353 MPixel/s +15%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
16583 MPixel/s +10%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
15143 MPixel/s
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
13965 MPixel/s -8%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
13761 MPixel/s -9%

系统性能

PCMark 10 基准测试的结果再次显示了这款处理器的弱点,清楚地表明这款机型实际上只适合学生使用,主要用于办公程序和网页浏览。处理器 AMD R5 7530U的 AMD R5 7530U 戴尔 Inspiron 14 7435 二合一电脑的 AMD R5 7530U 性能明显更好,尽管价格更低,但耗电量更大。教室里往往没有足够的电源插座。
华硕 BR1402FG 的其他基准测试结果也相对较低。尽管如此,对于目标群体来说,性能总体上还是足够的。不过,对于那些在早期阶段就开设计算机科学课程且要求较高的学校来说,性能可能会太低。

PCMark 10 / Score
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
6001 Points +105%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
5686 Points +94%
Average of class Office
  (2463 - 7344, n=86, last 2 years)
5618 Points +92%
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
5600 Points +91%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
4676 Points +60%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (2929 - 3818, n=3)
3454 Points +18%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
2929 Points
PCMark 10 / Essentials
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
11363 Points +58%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
11242 Points +57%
Average of class Office
  (5575 - 20841, n=86, last 2 years)
10136 Points +41%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
10016 Points +40%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
9614 Points +34%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (6947 - 7867, n=3)
7328 Points +2%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
7171 Points
PCMark 10 / Productivity
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
9778 Points +222%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
8983 Points +195%
Average of class Office
  (3041 - 10415, n=86, last 2 years)
7689 Points +153%
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
7005 Points +130%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
6165 Points +103%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (3041 - 4866, n=3)
4230 Points +39%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
3041 Points
PCMark 10 / Digital Content Creation
Average of class Office
  (2126 - 9773, n=86, last 2 years)
6335 Points +102%
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
5989 Points +91%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
5988 Points +91%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
4941 Points +58%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
4684 Points +50%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (3130 - 3945, n=3)
3643 Points +16%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
3130 Points
CrossMark / Overall
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
1486 Points +69%
Average of class Office
  (348 - 1891, n=86, last 2 years)
1410 Points +60%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1239 Points +41%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
1222 Points +39%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (881 - 958, n=3)
907 Points +3%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
881 Points
CrossMark / Productivity
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
1450 Points +58%
Average of class Office
  (393 - 1870, n=86, last 2 years)
1409 Points +53%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1287 Points +40%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
1266 Points +38%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (919 - 999, n=3)
946 Points +3%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
919 Points
CrossMark / Creativity
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
1620 Points +85%
Average of class Office
  (340 - 1982, n=86, last 2 years)
1466 Points +68%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1284 Points +47%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
1264 Points +45%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (874 - 906, n=3)
889 Points +2%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
874 Points
CrossMark / Responsiveness
Average of class Office
  (258 - 2017, n=86, last 2 years)
1269 Points +59%
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
1234 Points +55%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
996 Points +25%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
991 Points +24%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (764 - 1001, n=3)
854 Points +7%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
797 Points
WebXPRT 3 / Overall
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
268 Points +45%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
267 Points +44%
Average of class Office
  (121 - 455, n=84, last 2 years)
259 Points +40%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
257 Points +39%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
234 Points +26%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
185.4 Points
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (179.4 - 190.4, n=3)
185.1 Points 0%
Microsoft Surface Pro 9, ARM
Adreno 690, SD 8cx Gen 3
84.7 Points -54%
WebXPRT 4 / Overall
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
231 Points +22%
Average of class Office
  (80 - 328, n=84, last 2 years)
218 Points +15%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
209 Points +11%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
205 Points +8%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
189 Points
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (140.3 - 189, n=3)
158.2 Points -16%
Microsoft Surface Pro 9, ARM
Adreno 690, SD 8cx Gen 3
64.2 Points -66%
Mozilla Kraken 1.1 / Total
Microsoft Surface Pro 9, ARM
Adreno 690, SD 8cx Gen 3
1915 ms * -95%
Average Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
  (981 - 993, n=3)
986 ms * -0%
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
984 ms *
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
759 ms * +23%
Average of class Office
  (404 - 1966, n=91, last 2 years)
672 ms * +32%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
637 ms * +35%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
631 ms * +36%
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
550 ms * +44%

* ... smaller is better

PCMark 10 Score
2929 points
Help
AIDA64 / Memory Copy
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
63889 MB/s +182%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
60616 MB/s +168%
Average of class Office
  (7158 - 108783, n=93, last 2 years)
49017 MB/s +116%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
40599 MB/s +79%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
34992 MB/s +54%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
32799 MB/s +45%
Average Intel Core i3-N305
  (22655 - 31989, n=3)
25861 MB/s +14%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
22655 MB/s
AIDA64 / Memory Read
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
61511 MB/s +159%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
54295 MB/s +128%
Average of class Office
  (7325 - 112436, n=93, last 2 years)
48863 MB/s +106%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
38318 MB/s +61%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
35438 MB/s +49%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
33013 MB/s +39%
Average Intel Core i3-N305
  (23286 - 35038, n=3)
27363 MB/s +15%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
23766 MB/s
AIDA64 / Memory Write
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
66442 MB/s +185%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
65553 MB/s +181%
Average of class Office
  (7579 - 117935, n=93, last 2 years)
53233 MB/s +128%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
49815 MB/s +113%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
38436 MB/s +65%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
30110 MB/s +29%
Average Intel Core i3-N305
  (22849 - 35986, n=3)
27391 MB/s +17%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
23339 MB/s
AIDA64 / Memory Latency
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, Vega 7
110.8 ns * -150%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, Vega 7
110.5 ns * -149%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Iris Xe G7 80EUs
101.6 ns * -129%
Average of class Office
  (8.3 - 185.2, n=93, last 2 years)
97.1 ns * -119%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Iris Xe G7 80EUs
88.2 ns * -99%
Average Intel Core i3-N305
  (44.3 - 50.1, n=3)
46.4 ns * -5%
Asus BR1402FG
Intel Core i3-N305, UHD Graphics 32EUs
44.3 ns *
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Adreno 690
10.2 ns * +77%

* ... smaller is better

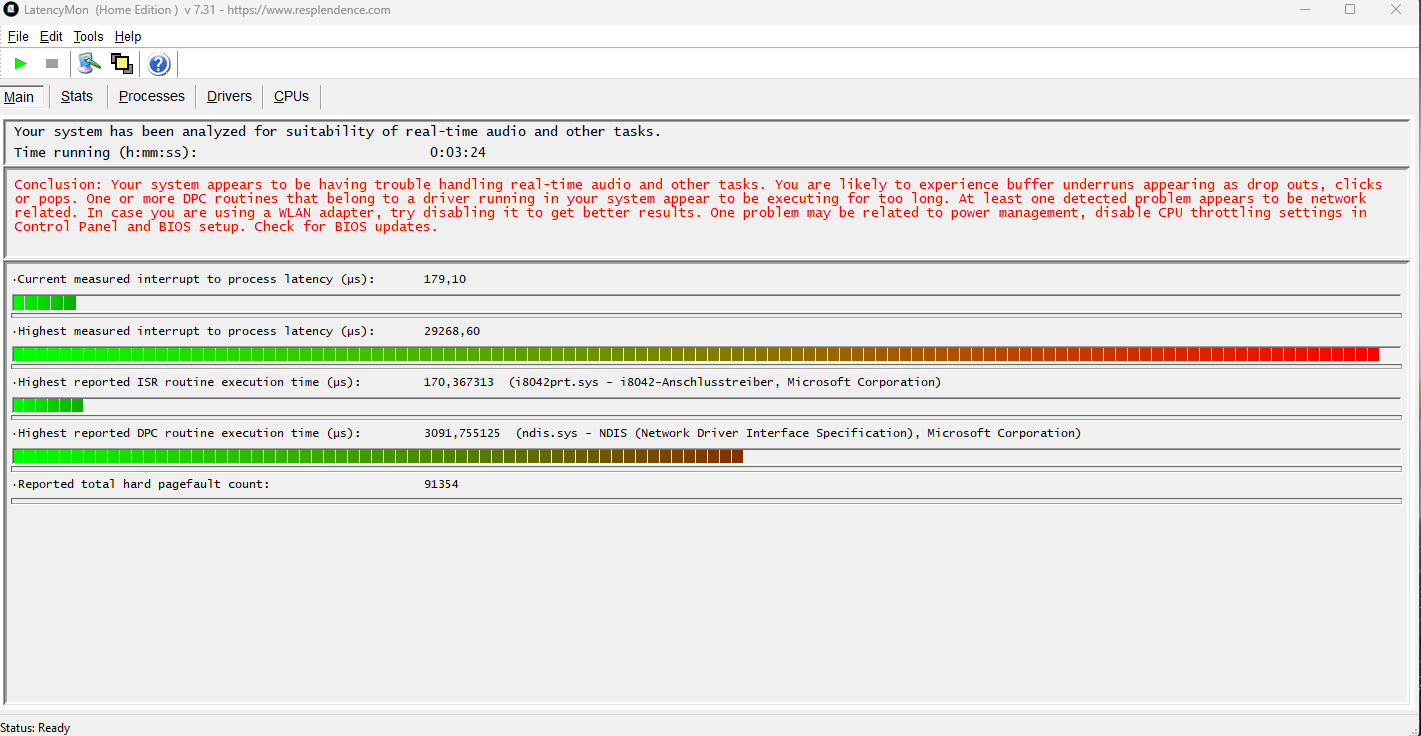

DPC 延迟

新款华硕 BR1402FG Convertible 在 DPC 延迟方面表现不佳。该设备目前不适合无损音频和视频编辑。不过,随着驱动程序和 BIOS 的更新,这种情况可能会随时改变。我们在日常使用中没有发现任何问题,也可以播放 4K 画质的 YouTube 视频。

延迟监控器
延迟监控器
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
29268 μs *
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
1332.8 μs * +95%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
1102.3 μs * +96%
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
1072.1 μs * +96%
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
911 μs * +97%

* ... smaller is better

大容量存储器

安装的金士顿 M.2 NVMe 固态硬盘与 英特尔酷睿 i3-N305读取速度并不突出。竞争对手通常在这方面表现更好。在个别情况下,一些竞争对手,如 戴尔 Inspiron 14 7435 2 合 1宏碁 Spin 3的内存速度较慢。微软 微软 Surface Pro 9的性能往往不如华硕 BR1402FG 可折叠本。我们模拟了真实的学生日常生活,主要打开 Word 和 PDF 文件以及微软办公套件中的其他文件。我们没有发现任何明显的干扰加载时间。基本配置的存储容量低是个大问题,因为 128 GB 很快就用完了。不过,最大配置只能提供 512 GB 的存储空间,对于学生笔记本电脑来说应该足够了。经典的 2280 格式固态硬盘可以选择 1 TB 的型号进行扩展。

Kingston OM8PGP41024Q-A0
Sequential Read: 1474.4MB/s
Sequential Write: 647.7MB/s
4K Read: 41.2MB/s
4K Write: 82.5MB/s
4K-64 Read: 382MB/s
4K-64 Write: 183.4MB/s
Access Time Read: 0.097ms
Access Time Write: 0.045ms
Score Read: 571Points
Score Write: 331Points
Score Total: 1166Points
Drive Performance Rating - Percent
Average Kingston OM8PGP41024Q-A0

94.8 pt
Average of class Office

82.2 pt
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
68.9 pt
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
67.9 pt
Dell Inspiron 14 7435 2-in-1

47.2 pt
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
46.7 pt
Microsoft Surface Pro 9, ARM

44.6 pt
Asus BR1402FG
Kingston OM8PGP41024Q-A0
36.3 pt
DiskSpd
seq read
Average of class Office
  (121 - 4554, n=89, last 2 years)
2657 MB/s +114%
Average Kingston OM8PGP41024Q-A0
  (1243 - 3327, n=9)
2541 MB/s +104%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
2354 (2277.98min - 2354.26max) MB/s +89%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
2348 (2258.84min - 2347.97max) MB/s +89%
Dell Inspiron 14 7435 2-in-1

2029 (2014.9min - 2029.34max) MB/s +63%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1300 (1291.28min - 1299.61max) MB/s +5%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
1243 (1204.71min - 1243.19max) MB/s
Microsoft Surface Pro 9, ARM

1216 (1188.74min - 1215.93max) MB/s -2%
seq write
Average Kingston OM8PGP41024Q-A0
  (977 - 3913, n=9)
3359 MB/s +244%
Average of class Office
  (43 - 5842, n=89, last 2 years)
2567 MB/s +163%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
2226 (1899.16min - 2226.29max) MB/s +128%
Dell Inspiron 14 7435 2-in-1

1781 (1739.05min - 1780.9max) MB/s +82%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
1617 (1585.24min - 1616.82max) MB/s +66%
Microsoft Surface Pro 9, ARM

1466 (1421.15min - 1466.12max) MB/s +50%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
984 (975.74min - 984.19max) MB/s +1%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
977 (924.46min - 977.42max) MB/s
seq q8 t1 read
Average Kingston OM8PGP41024Q-A0
  (1754 - 4821, n=9)
4444 MB/s +153%
Average of class Office
  (124.2 - 7120, n=89, last 2 years)
4362 MB/s +149%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
3554 (3148.67min - 3554.25max) MB/s +103%
Dell Inspiron 14 7435 2-in-1

2966 (2651.58min - 2965.58max) MB/s +69%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
2726 (2431.61min - 2725.67max) MB/s +55%
Microsoft Surface Pro 9, ARM

2620 (2449.47min - 2619.97max) MB/s +49%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1989 (1732.56min - 1988.53max) MB/s +13%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
1754 (1477.65min - 1753.7max) MB/s
seq q8 t1 write
Average Kingston OM8PGP41024Q-A0
  (982 - 3927, n=9)
3511 MB/s +258%
Average of class Office
  (46.7 - 6791, n=89, last 2 years)
3371 MB/s +243%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
2560 (490.8min - 2559.57max) MB/s +161%
Dell Inspiron 14 7435 2-in-1

2327 (2260.82min - 2327.17max) MB/s +137%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
2161 (2062.13min - 2161.03max) MB/s +120%
Microsoft Surface Pro 9, ARM

1620 (1607.05min - 1619.51max) MB/s +65%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
983 (976.37min - 982.73max) MB/s 0%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
982 (920.49min - 981.68max) MB/s
4k q1 t1 read
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
70.9 (67.73min - 70.87max) MB/s +58%
Average Kingston OM8PGP41024Q-A0
  (44.9 - 81.1, n=9)
63.6 MB/s +42%
Average of class Office
  (5.55 - 89.9, n=89, last 2 years)
58.3 MB/s +30%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
48.5 (48.33min - 48.46max) MB/s +8%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
47.9 (47.64min - 47.91max) MB/s +7%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
44.9 (43.62min - 44.91max) MB/s
Dell Inspiron 14 7435 2-in-1

43.7 (43.3min - 43.67max) MB/s -3%
Microsoft Surface Pro 9, ARM

39 (33.35min - 38.96max) MB/s -13%
4k q1 t1 write
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
268 (121.3min - 267.87max) MB/s +231%
Average Kingston OM8PGP41024Q-A0
  (81 - 435, n=9)
213 MB/s +163%
Average of class Office
  (1.23 - 429, n=89, last 2 years)
165.2 MB/s +104%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
136.5 (134.88min - 136.52max) MB/s +69%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
128.2 (114.8min - 128.18max) MB/s +58%
Dell Inspiron 14 7435 2-in-1

111.4 (103.31min - 111.38max) MB/s +38%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
81 (76.68min - 81.03max) MB/s
Microsoft Surface Pro 9, ARM

48.4 (39.33min - 48.35max) MB/s -40%
4k q32 t16 read
Average Kingston OM8PGP41024Q-A0
  (434 - 2980, n=9)
1847 MB/s +326%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
1734 (1719.37min - 1734.3max) MB/s +300%
Average of class Office
  (7.49 - 4425, n=89, last 2 years)
1254 MB/s +189%
Microsoft Surface Pro 9, ARM

774 (729.42min - 773.82max) MB/s +78%
Dell Inspiron 14 7435 2-in-1

694 (668.2min - 694.47max) MB/s +60%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
596 (569.28min - 596.47max) MB/s +37%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
434 (427.75min - 433.85max) MB/s
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
312 (309.85min - 312.11max) MB/s -28%
4k q32 t16 write
Average Kingston OM8PGP41024Q-A0
  (203 - 3784, n=9)
1491 MB/s +634%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
983 (978.13min - 983.35max) MB/s +384%
Average of class Office
  (1.5 - 3254, n=89, last 2 years)
943 MB/s +365%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
842 (484.63min - 841.92max) MB/s +315%
Dell Inspiron 14 7435 2-in-1

387 (371.4min - 387.31max) MB/s +91%
Microsoft Surface Pro 9, ARM

371 (347.99min - 371.14max) MB/s +83%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
338 (318.74min - 337.91max) MB/s +67%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
203 (158.85min - 203.26max) MB/s
AS SSD
Score Total
Average Kingston OM8PGP41024Q-A0
  (1166 - 8405, n=9)
4973 Points +327%
Average of class Office
  (704 - 9204, n=87, last 2 years)
4202 Points +260%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
3826 Points +228%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
3395 Points +191%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
2084 Points +79%
Dell Inspiron 14 7435 2-in-1

1922 Points +65%
Microsoft Surface Pro 9, ARM

1699 Points +46%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
1166 Points
Score Read
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
1661 Points +191%
Average Kingston OM8PGP41024Q-A0
  (571 - 2901, n=9)
1648 Points +189%
Average of class Office
  (252 - 3364, n=87, last 2 years)
1476 Points +158%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
1020 Points +79%
Dell Inspiron 14 7435 2-in-1

929 Points +63%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
670 Points +17%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
571 Points
Microsoft Surface Pro 9, ARM

476 Points -17%
Score Write
Average Kingston OM8PGP41024Q-A0
  (331 - 4040, n=9)
2516 Points +660%
Average of class Office
  (247 - 4111, n=87, last 2 years)
2014 Points +508%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
1904 Points +475%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
1350 Points +308%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1098 Points +232%
Microsoft Surface Pro 9, ARM

1021 Points +208%
Dell Inspiron 14 7435 2-in-1

588 Points +78%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
331 Points
Seq Read
Average of class Office
  (508 - 5796, n=87, last 2 years)
3452 MB/s +134%
Average Kingston OM8PGP41024Q-A0
  (1474 - 4193, n=9)
3388 MB/s +130%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
2996.91 MB/s +103%
Dell Inspiron 14 7435 2-in-1

2823.9 MB/s +92%
Microsoft Surface Pro 9, ARM

2318 MB/s +57%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
2295 MB/s +56%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
1748 MB/s +19%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
1474.4 MB/s
Seq Write
Average Kingston OM8PGP41024Q-A0
  (648 - 3688, n=9)
2411 MB/s +272%
Average of class Office
  (294 - 5880, n=87, last 2 years)
2350 MB/s +263%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
1509.93 MB/s +133%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
1470 MB/s +127%
Microsoft Surface Pro 9, ARM

1233 MB/s +90%
Dell Inspiron 14 7435 2-in-1

1201.08 MB/s +85%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
941 MB/s +45%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
647.7 MB/s
4K Read
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
68.87 MB/s +67%
Average Kingston OM8PGP41024Q-A0
  (41.2 - 89.2, n=9)
67.9 MB/s +65%
Average of class Office
  (18 - 91.1, n=87, last 2 years)
58.3 MB/s +42%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
51.7 MB/s +25%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
44.06 MB/s +7%
Dell Inspiron 14 7435 2-in-1

42.09 MB/s +2%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
41.2 MB/s
Microsoft Surface Pro 9, ARM

34.2 MB/s -17%
4K Write
Average Kingston OM8PGP41024Q-A0
  (82.5 - 266, n=9)
203 MB/s +146%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
188.32 MB/s +128%
Average of class Office
  (28.2 - 350, n=87, last 2 years)
167.1 MB/s +103%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
119.7 MB/s +45%
Dell Inspiron 14 7435 2-in-1

102.75 MB/s +25%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
82.5 MB/s
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
77.7 MB/s -6%
Microsoft Surface Pro 9, ARM

66.4 MB/s -20%
4K-64 Read
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
1380 MB/s +261%
Average Kingston OM8PGP41024Q-A0
  (382 - 2409, n=9)
1242 MB/s +225%
Average of class Office
  (182.3 - 2713, n=87, last 2 years)
1073 MB/s +181%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
651.75 MB/s +71%
Dell Inspiron 14 7435 2-in-1

604.89 MB/s +58%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
451.1 MB/s +18%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
382 MB/s
Microsoft Surface Pro 9, ARM

210 MB/s -45%
4K-64 Write
Average Kingston OM8PGP41024Q-A0
  (183.4 - 3492, n=9)
2071 MB/s +1029%
Average of class Office
  (183.4 - 3394, n=87, last 2 years)
1612 MB/s +779%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
1565 MB/s +753%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
1083 MB/s +491%
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
926 MB/s +405%
Microsoft Surface Pro 9, ARM

832 MB/s +354%
Dell Inspiron 14 7435 2-in-1

365.27 MB/s +99%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
183.4 MB/s
Access Time Read
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
0.188 ms * -94%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
0.16 ms * -65%
Dell Inspiron 14 7435 2-in-1

0.102 ms * -5%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
0.097 ms *
Average Kingston OM8PGP41024Q-A0
  (0.055 - 0.127, n=9)
0.07878 ms * +19%
Average of class Office
  (0.022 - 0.302, n=87, last 2 years)
0.07797 ms * +20%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
0.07 ms * +28%
Microsoft Surface Pro 9, ARM

0.062 ms * +36%
Access Time Write
Dell Inspiron 14 7435 2-in-1

0.445 ms * -889%
Lenovo IdeaPad Flex 5 14IRU8
Samsung PM9B1 512GB MZAL4512HBLU
0.105 ms * -133%
Average of class Office
  (0.017 - 0.625, n=87, last 2 years)
0.06914 ms * -54%
Microsoft Surface Pro 9, ARM

0.059 ms * -31%
Asus BR1402FG
Kingston OM8PGP41024Q-A0
0.045 ms *
Acer Spin 3 SP313-51N-56YV
Kingston OM8PCP3512F-AB
0.043 ms * +4%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Kioxia BG5 KBG5AZNT512G
0.038 ms * +16%
Average Kingston OM8PGP41024Q-A0
  (0.02 - 0.06, n=9)
0.03222 ms * +28%

* ... smaller is better

Continuous reading: DiskSpd Read Loop, Queue Depth 8

018036054072090010801260144016201800198021602340252027002880306032403420Tooltip
Asus BR1402FG Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø1748 (1531.34-1753.43)
Lenovo ThinkPad L13 Yoga G4 21FSS00100 Kioxia BG5 KBG5AZNT512G: Ø3100 (2534.58-3312.75)
Dell Inspiron 14 7435 2-in-1  : Ø2913 (2630.86-2932.04)
Lenovo IdeaPad Flex 5 14IRU8 Samsung PM9B1 512GB MZAL4512HBLU: Ø3075 (1713.16-3544.23)
Microsoft Surface Pro 9, ARM  : Ø2746 (2540.12-2818.15)

图形

集成 Iris Xe(32 个 EU图形单元的性能非常简陋。因此,该机型绝对不适合玩游戏。不过,对于一款主要面向学生的笔记本电脑来说,这甚至有可能被视为一种优势。基准测试表明,在图形处理性能方面 高通骁龙 8cx Gen3ARM 芯片的 微软 Surface Pro 9要优于华硕机型。此外,与英特尔第十一代和第十二代芯片相比,AMD 在移动处理器方面的优势再次显现。集成的 AMD Radeon RX Vega 7戴尔 Inspiron 14 7345 二合一电脑的集成 AMD Radeon RX Vega 7 在所有竞争对手中取得了最佳成绩,击败了价格几乎是其两倍的机型。不过,与华硕 BR1402FG 相比,集成显卡的额外性能其实并不重要,因为该设备根本不是为 AAA 级游戏或游戏而设计的。

3DMark Performance Rating - Percent
Average of class Office

98.1 pt
Acer Spin 3 SP313-51N-56YV -1!
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
94.9 pt
Lenovo IdeaPad Flex 5 14IRU8 -1!
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
86.5 pt
Dell Inspiron 14 7435 2-in-1
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
83.9 pt
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
69.6 pt
Microsoft Surface Pro 9, ARM -1!
Qualcomm Adreno 690, Qualcomm Snapdragon 8cx Gen 3
57.8 pt
Average Intel UHD Graphics 32EUs (Alder Lake)

38.6 pt
Asus BR1402FG
Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305
38.3 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Office
  (1468 - 13132, n=88, last 2 years)
6704 Points +162%
Dell Inspiron 14 7435 2-in-1
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
6024 Points +135%
Acer Spin 3 SP313-51N-56YV
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5944 Points +132%
Lenovo IdeaPad Flex 5 14IRU8
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
5526 Points +116%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
5244 Points +105%
Microsoft Surface Pro 9, ARM
Qualcomm Adreno 690, Qualcomm Snapdragon 8cx Gen 3
2898 Points +13%
Asus BR1402FG
Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305
2562 Points
Average Intel UHD Graphics 32EUs (Alder Lake)
  (2194 - 2688, n=4)
2527 Points -1%
3DMark
1280x720 Cloud Gate Standard Graphics
Dell Inspiron 14 7435 2-in-1
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
28931 Points +126%
Acer Spin 3 SP313-51N-56YV
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
28217 Points +120%
Average of class Office
  (7982 - 58068, n=65, last 2 years)
26787 Points +109%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
22530 Points +76%
Microsoft Surface Pro 9, ARM
Qualcomm Adreno 690, Qualcomm Snapdragon 8cx Gen 3
19647 Points +53%
Asus BR1402FG
Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305
12816 Points
Average Intel UHD Graphics 32EUs (Alder Lake)
  (10945 - 14214, n=4)
12633 Points -1%
1920x1080 Fire Strike Graphics
Average of class Office
  (1089 - 9375, n=89, last 2 years)
4861 Points +165%
Acer Spin 3 SP313-51N-56YV
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4785 Points +161%
Lenovo IdeaPad Flex 5 14IRU8
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
4549 Points +148%
Dell Inspiron 14 7435 2-in-1
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
3663 Points +100%
Microsoft Surface Pro 9, ARM
Qualcomm Adreno 690, Qualcomm Snapdragon 8cx Gen 3
3028 Points +65%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
3009 Points +64%
Average Intel UHD Graphics 32EUs (Alder Lake)
  (1736 - 1995, n=4)
1880 Points +2%
Asus BR1402FG
Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305
1835 Points
2560x1440 Time Spy Graphics
Average of class Office
  (313 - 4109, n=89, last 2 years)
1585 Points +203%
Lenovo IdeaPad Flex 5 14IRU8
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1335U
1321 Points +153%
Dell Inspiron 14 7435 2-in-1
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
1118 Points +114%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Radeon RX Vega 7, AMD Ryzen 5 7530U
957 Points +83%
Average Intel UHD Graphics 32EUs (Alder Lake)
  (523 - 583, n=3)
547 Points +5%
Asus BR1402FG
Intel UHD Graphics 32EUs (Alder Lake), Intel Core i3-N305
523 Points
3DMark Vantage P Result
9462 points
3DMark 11 Performance
2861 points
3DMark Cloud Gate Standard Score
11548 points
3DMark Fire Strike Score
1675 points
3DMark Time Spy Score
599 points
Help
Performance Rating - Percent
Average of class Office

94.3 pt
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
85 pt
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
84.3 pt
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
84.2 pt
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
73.2 pt
Microsoft Surface Pro 9, ARM -4!
Qualcomm Snapdragon 8cx Gen 3, Qualcomm Adreno 690
60.3 pt
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
43.4 pt
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Office
  (3.8 - 34, n=79, last 2 years)
14.8 fps +175%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
14.5 (13min) fps +169%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
12 fps +123%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
11.3 (9min) fps +110%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
10.4 (8min) fps +93%
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
5.39 (4min, 5P1) fps
Final Fantasy XV Benchmark - 1920x1080 High Quality
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
18 fps +179%
Average of class Office
  (3.86 - 35.7, n=87, last 2 years)
15.9 fps +147%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
15.3 fps +137%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
12.1 fps +88%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
10.7 fps +66%
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
6.45 fps
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
57.1 (50.9min) fps +115%
Average of class Office
  (13.4 - 121.2, n=94, last 2 years)
51.6 fps +94%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
47.1 (41.1min) fps +77%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
40.9 (36.8min) fps +54%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Qualcomm Adreno 690
40.7 (35.3min) fps +53%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
38.8 (26.9min) fps +46%
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
26.6 (24.3min) fps
X-Plane 11.11 - 1920x1080 high (fps_test=3)
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
33 fps +85%
Average of class Office
  (8.88 - 92.6, n=92, last 2 years)
30.1 fps +69%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
26.4 fps +48%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
24 fps +35%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
23.2 fps +30%
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
17.8 fps
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
15.9 fps -11%
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Qualcomm Adreno 690
16.3 fps -8%
Strange Brigade - 1920x1080 high AA:high AF:8
Average of class Office
  (10.8 - 64.5, n=81, last 2 years)
31 fps +131%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
26 fps +94%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
25.7 (5.8min, 8.74P1) fps +92%
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
25.6 (5min, 10.1P1) fps +91%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
21.9 (16min, 17.5P1) fps +63%
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
13.4 (5min, 5P1) fps
GTA V - 1024x768 Lowest Settings possible
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
107.7 (9.5min, 66.7P1) fps +112%
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
104.8 (17.6min, 62.5P1) fps +106%
Average of class Office
  (41.2 - 176.4, n=83, last 2 years)
103.2 fps +103%
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
95.2 (26.7min, 58.8P1) fps +87%
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
78 fps +54%
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
50.8 (2.27min, 23.8P1) fps

Witcher 3 FPS chart

0123456789101112Tooltip
Asus BR1402FG i3-N305, UHD Graphics 32EUs: Ø5.39 (4-6)
Lenovo ThinkPad L13 Yoga G4 21FSS00100 R5 7530U, Vega 7: Ø11.2 (10-12)
lowmed.highultra
GTA V (2015) 50.8
The Witcher 3 (2015) 16 12 5.39
Dota 2 Reborn (2015) 75.1 51.7 28.4 26.6
Final Fantasy XV Benchmark (2018) 18 9.31 6.45
X-Plane 11.11 (2018) 20.3 19.3 17.8
Far Cry 5 (2018) 21 10 9 8
Strange Brigade (2018) 39.2 15.2 13.4
Cyberpunk 2077 2.1 Phantom Liberty (2023) 6.85

排放与能源

噪音排放

在正常办公使用中,华硕 BR1402FG 可折叠笔记本一般都能保持安静。只有偶尔风扇会令人恼火地旋转起来,导致笔记本电脑的噪音短暂达到近 31 分贝。这种情况可以通过 Windows 性能设置中的节能模式最小化,但不能完全避免。不过,华硕可折叠笔记本的优势在于,即使在负载情况下,它的声音也不会特别大。与可能的竞争对手相比,只有价格高得多的 联想 ThinkPad L13 Yoga G4的噪音要小得多。戴尔 戴尔 Inspiron 14 7435 2 合 1在负载情况下的平均噪音与华硕机型相当,但峰值噪音明显更大。联想 联想 IdeaPad Flex 5 14IRU8宏碁 Spin 3的噪音都比华硕可折叠电脑大。

Noise Level

Idle
24.78 / 24.78 / 30.8 dB(A)
Load
33.5 / 37.25 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.78 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2047.341.439.147.3254037.631.5403133.430.828.633.44034.732.732.534.75040.533.234.240.56343.233.733.643.28028.329.528.128.310021.320.419.221.31251717.816.11716019.118.517.619.120018.417.514.718.425021.818.813.521.831523.220.61223.24002623.212.62650030.424.311.930.463026.120.311.326.180021.216.311.621.21000211711.321125022.518.711.722.5160024.320.611.724.3200025.621.112.225.6250026.922.612.526.9315028.724.612.728.7400025.921.413.225.9500025.721.613.325.7630023.115.913.323.1800016.814.713.316.81000015.414.313.215.41250014.413.613.314.41600013.313.412.413.3SPL37.332.824.837.3N2.51.60.52.5median 22.5median 18.8median 12.7median 22.5Delta3.92.61.13.919.624.118.621.618.218.720.41920.322.51920.819.416.917.416.917.517.113.113.917.713.214.614.112.114.313.91211.712.911.311.71311.111.215.511.912.316.911.512.217.510.911.416.81212.919.411.41118.411.710.11912.69.91912.410.318.61210.21911.910.921.111.811.320.112.111.716.611.81213.811.91212.91212.112.212.1121212.112.111.911.511.411.32423.4300.50.51.2median 11.9median 11.7median 16.60.20.73hearing rangehide median Fan NoiseAsus BR1402FGLenovo ThinkPad L13 Yoga G4 21FSS00100
Asus BR1402FG
UHD Graphics 32EUs, i3-N305, Kingston OM8PGP41024Q-A0
Lenovo ThinkPad L13 Yoga G4 21FSS00100
Vega 7, R5 7530U, Kioxia BG5 KBG5AZNT512G
Dell Inspiron 14 7435 2-in-1
Vega 7, R5 7530U
Lenovo IdeaPad Flex 5 14IRU8
Iris Xe G7 80EUs, i5-1335U, Samsung PM9B1 512GB MZAL4512HBLU
Acer Spin 3 SP313-51N-56YV
Iris Xe G7 80EUs, i5-1135G7, Kingston OM8PCP3512F-AB
Noise
15%
6%
5%
0%
off / environment *
24.78
23.4
6%
22.8
8%
23.1
7%
25.5
-3%
Idle Minimum *
24.78
23.4
6%
23.2
6%
23.3
6%
25.5
-3%
Idle Average *
24.78
23.4
6%
23.2
6%
23.3
6%
25.5
-3%
Idle Maximum *
30.8
23.4
24%
23.2
25%
23.3
24%
25.5
17%
Load Average *
33.5
24
28%
33
1%
37.3
-11%
34.5
-3%
Load Maximum *
37.25
30.1
19%
41.3
-11%
38.6
-4%
38.7
-4%
Witcher 3 ultra *
30.8
40.9
38.7

* ... smaller is better

温度

Prime95 + Furmark
Prime95 + Furmark

华硕 BR1402FG 的温度一直很高。空闲时,我们测得的最高温度为 24 °C,最低温度为 22 °C。在负载情况下,温度也保持在一定范围内。顶部键盘上方的中间位置有一个 41 ℃ 的热点。不过,平均而言,顶部的平均温度为 28.4 °C,我们在底部测得的平均温度为 28 °C。

Max. Load
 30.8 °C41 °C27.2 °C
 28.7 °C35.5 °C26 °C
 22.2 °C22.2 °C22.2 °C
Maximum: 41 °C
Average: 28.4 °C
24.5 °C37.6 °C30 °C
26.2 °C37.2 °C29.5 °C
22.2 °C22.5 °C22.3 °C
Maximum: 37.6 °C
Average: 28 °C
Power Supply (max.)  37 °C | Room Temperature 22.2 °C | Fluke t3000FC (calibrated), FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 28.4 °C / 83 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 41 °C / 106 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 37.6 °C / 100 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.1 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 22.2 °C / 72 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+5.5 °C / 9.9 F).
载荷
载荷
载荷
载荷
闲置
闲置
闲置
闲置
Asus BR1402FG
Intel Core i3-N305, Intel UHD Graphics 32EUs (Alder Lake)
Lenovo ThinkPad L13 Yoga G4 21FSS00100
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
Dell Inspiron 14 7435 2-in-1
AMD Ryzen 5 7530U, AMD Radeon RX Vega 7
Lenovo IdeaPad Flex 5 14IRU8
Intel Core i5-1335U, Intel Iris Xe Graphics G7 80EUs
Acer Spin 3 SP313-51N-56YV
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Microsoft Surface Pro 9, ARM
Qualcomm Snapdragon 8cx Gen 3, Qualcomm Adreno 690
Heat
-28%
-14%
-19%
-9%
-3%
Maximum Upper Side *
41
43.3
-6%
35.2
14%
39.4
4%
38.3
7%
40.8
-0%
Maximum Bottom *
37.6
46.5
-24%
38.2
-2%
38.8
-3%
41.9
-11%
43.4
-15%
Idle Upper Side *
24.1
31.9
-32%
31.2
-29%
31.2
-29%
25.4
-5%
23.2
4%
Idle Bottom *
22.2
33.1
-49%
30.4
-37%
32.8
-48%
27.7
-25%
22.6
-2%

* ... smaller is better

发言人

不要指望华硕 BR1402FG 可折叠手机的扬声器能创造奇迹。低音几乎完全没有,最大音量也相对较低。不过,对于在沙发上或床上观看 YouTube 视频或 Netflix 电影等简单场景来说,音质完全足够。

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2042.739.144.12530.831.532.13128.528.628.94033.532.533.8503434.233.36333.433.632.28029.728.130.110030.219.224.312533.716.124.516039.417.628.120043.214.731.225041.713.530.131545.21234.44005412.642.350062.511.951.463062.711.351.680071.511.660.410007011.359.1125067.111.755.4160062.611.751.2200065.912.254.825006112.549.9315066.812.755.9400068.113.257.1500069.513.358.363006913.357.8800066.613.355.21000061.413.250.11250053.113.341.61600046.712.436.1SPL7924.867.9N40.70.520.4median 62.5median 12.7median 51.2Delta11.11.111.138.237.238.229.524.529.523.820.923.821.721.521.722.422.822.422.421.222.426.918.226.937.816.237.844.414.444.448.612.448.653.811.653.855.512.755.560.814.160.868.511.868.572.511.372.573.410.473.468.99.568.971.19.671.173.19.773.1779.97774.210.174.268.310.368.370.21170.266.611.466.668.611.968.66911.96969.312.569.372.612.872.669.413.469.467.713.567.783.823.283.8600.560median 68.9median 11.8median 68.961.56hearing rangehide median Pink NoiseAsus BR1402FGDell Inspiron 14 7435 2-in-1
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus BR1402FG audio analysis

(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23.6% lower than median
(+) | bass is linear (6.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(±) | linearity of mids is average (9.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.6% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 10% similar, 41% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 57% of all tested devices were better, 7% similar, 36% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Dell Inspiron 14 7435 2-in-1 audio analysis

(+) | speakers can play relatively loud (83.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.8% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(+) | mids are linear (6.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.2% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.3% difference to median)
Compared to same class
» 12% of all tested devices in this class were better, 4% similar, 85% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 25%, worst was 134%

耗电量

华硕 BR1402FG 可折叠笔记本的功耗非常低,空闲模式下最大功耗为 7 瓦。即使在负载情况下,功耗也不高,笔记本的最大功耗仅为 35 瓦。因此,所提供的 65 瓦电源装置绰绰有余。如前所述,对于一款专门面向学生的笔记本电脑来说,低功耗尤为重要。作为对比,戴尔 戴尔 Inspiron 14 7435 二合一笔记本电脑相比之下,戴尔 Inspiron 14 7435 二合一笔记本电脑在大多数基准测试中表现更佳,但在几乎所有负载情况下所需的功耗几乎是后者的两倍。这意味着,教室里配备戴尔可转换笔记本电脑所需的平均电量是华硕 BR1402FG 的两倍。

Power Consumption
Off / Standbydarklight 0.19 / 0.3 Watt
Idledarkmidlight 4.8 / 4.8 / 7 Watt
Load midlight 26.9 / 35 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Power consumption

051015202530Tooltip
Asus BR1402FG; Witcher 3 ultra: Ø28.2 (25.5-34.3)
Asus BR1402FG; 1280x720 Prime95 28.10 and Furmark 1.25: Ø26.6 (22.9-34.3)
Asus BR1402FG; Idle 150cd/m2: Ø5.18 (4.61-8.97)
Asus BR1402FG; 3DMark06 Return To Proxycon: Ø26.9 (24-31.1)

Power consumption with external monitor

051015202530Tooltip
Asus BR1402FG; Prime95 V2810 Stress (external Monitor): Ø25.5 (23.8-34.3)
Asus BR1402FG; Cinebench R23 Single (external Monitor): Ø15.8 (15-21)
Asus BR1402FG; Cinebench R23 Multi (external Monitor): Ø26.2 (22.6-34.5)
Asus BR1402FG; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø19.9 (18.8-33.8)
Asus BR1402FG; 1920x1080 The Witcher 3 ultra (external Monitor): Ø24.7 (20.4-28)
Asus BR1402FG; Idle 1min (external Monitor): Ø3.01 (2.56-4.98)

电池寿命

在亮度为 150 cd/m² 的 WLAN 测试中,华硕可折叠手机的续航时间略低于 9.5 小时,这是一个稳定的数值。不过,戴尔 戴尔 Inspiron 14 7435 2 合 1以超过 11 小时的时间遥遥领先。微软 微软 Surface Pro 9联想 IdeaPad Flex 5 14IRU8的续航时间更长。联想 联想 ThinkPad L13 Yoga G4宏碁 Spin 3 SP313-51N-56YV只能维持不到 8 小时。不过,华硕 BR1402FG 可折叠电脑的电池充满电后,应该足以满足学校的日常使用。

Battery Runtime
WiFi Websurfing
9h 23min
Load (maximum brightness)
2h 16min
Asus BR1402FG
i3-N305, UHD Graphics 32EUs, 50 Wh
Lenovo ThinkPad L13 Yoga G4 21FSS00100
R5 7530U, Vega 7, 46 Wh
Dell Inspiron 14 7435 2-in-1
R5 7530U, Vega 7, 54 Wh
Lenovo IdeaPad Flex 5 14IRU8
i5-1335U, Iris Xe G7 80EUs, 52.5 Wh
Acer Spin 3 SP313-51N-56YV
i5-1135G7, Iris Xe G7 80EUs, 48 Wh
Microsoft Surface Pro 9, ARM
SD 8cx Gen 3, Adreno 690, 47.7 Wh
Average of class Office

Battery Runtime
-26%
4%
4%
-17%
7%
-3%
WiFi v1.3
563
463
-18%
668
19%
588
4%
483
-14%
603
7%
Load
136
91
-33%
120
-12%
110
-19%
Reader / Idle
1192

Pros

+ 坚固的防震外壳
+ 防溅
+ 多种连接方式
+ 集成笔
+ 用途广泛
+ 易于维修

Cons

- 性能问题
- 存储速度慢
- 基本配置下存储容量低
- 显示效果差
- 键盘无照明

评价 - 注重多功能性和可修复性,性能有所削弱

评测中:华硕 BR1402FG。测试设备由华硕提供
评测中:华硕 BR1402FG。测试设备由华硕提供

华硕 BR1402FG 学生笔记本是一款专为满足日常学习生活需求而设计的精致而坚固的设备。它采用防刮康宁大猩猩玻璃、MIL-STD 810H 认证和防溅键盘,具有出色的抗日常磨损性能。尽管价格低至 590 欧元,但它却提供了同价位产品中少有的全面的整体解决方案。集成的手写笔功能和二合一设计增加了课堂教学的灵活性和应用可能性,而各种连接和良好的可维修性则保证了长期使用和适应性。此外,还预装了 Windows 11 Pro 教育版。

华硕 BR1402FG 以稳健的设计和性价比锁定教育领域,但在系统性能方面面临挑战。

唯一的问题是内置的英特尔处理器性能较低。本可以再强一些。另一方面,这可能会增加功耗,而这可能是课堂使用的一项排除标准。在日常使用中,该笔记本可以可靠地履行学生工作设备的职责,但前提是任务仅限于传统的办公活动、记笔记、PDF 编辑和网页浏览。

良好的连接性和可维修性是该设备使用寿命和实用性的进一步加分项。虽然显示屏和性能落后于顶级机型,但扎实的输入设备和整体可靠的结构使其整体表现更上一层楼。最强劲的竞争对手 戴尔 Inspiron 14 7435 二合一笔记本价格更低,内置 AMD 芯片,性能明显更强,但在集成手写笔、坚固性和高连接性等附加功能方面却无法与之匹敌。此外,在几乎所有情况下,它的功耗都要高出一倍。

华硕在 BR1402FG 可折叠本上注重多功能性和节能设计,而忽略了性能。尽管如此,BR1402FG 仍然是一款非常灵活耐用的可转换本,只需升级固态硬盘和内存,即可在未来数年内有效使用。

价格和供应情况

华硕 BR1402FG 可转换机型的配置为 128 GB 固态硬盘和 8 GB 内存,可在cotec.de 网站上购买。售价 589 欧元。

Asus BR1402FG - 03/12/2024 v7 (old)
Philip Macdonald

Chassis
68 / 98 → 69%
Keyboard
75%
Pointing Device
87%
Connectivity
59 / 80 → 73%
Weight
66 / 20-75 → 84%
Battery
87%
Display
76%
Games Performance
51 / 78 → 65%
Application Performance
83 / 95 → 87%
Temperature
95%
Noise
85%
Audio
74%
Camera
32 / 85 → 38%
Average
72%
80%
Office - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 华硕 BR1402FG 学生笔记本电脑评测:坚固耐用,适合日常使用
Philip Macdonald, 2024-03-24 (Update: 2024-03-24)
