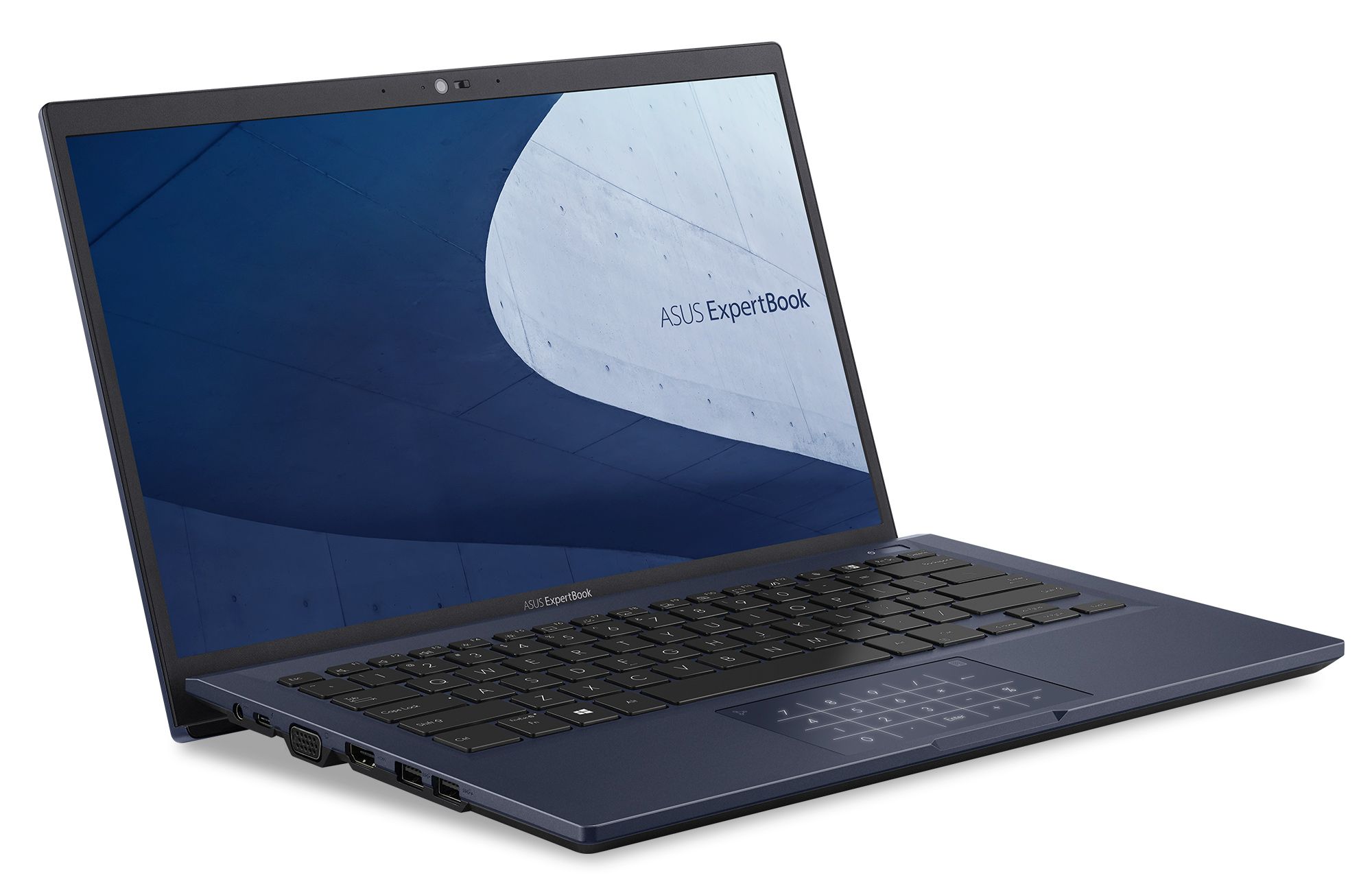

华硕ExpertBook B1 B1400的回顾。小巧、轻便、实惠
在华硕的ExpertBooks中，B1系列提供了最实惠的笔记本型号，用于办公和商业任务。在我们的测试中，我们已经可以看一下15英寸的 ExpertBook B1 B1500它提供了与B1 B1400类似的配置。后者在我们的测试配置中配备了一个 英特尔酷睿i5-1135G78GB内存以及512GB固态硬盘，售价约为700欧元（约796美元）。最昂贵的配置配备了酷睿i7处理器和更多的内存，价格约为1030欧元（约1171美元）。
Possible competitors in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 83.9 % v7 (old) | 12 / 2021 | Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 19.2 mm | 14.00" | 1920x1080 | |
v (old) | 09 / 2021 | Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs | 1 kg | 16.8 mm | 14.00" | 1920x1200 | |
| 84.9 % v7 (old) | 05 / 2021 | Honor Magicbook 14 i7-1165G7 i7-1165G7, Iris Xe G7 96EUs | 1.4 kg | 15.9 mm | 14.00" | 1920x1080 | |
| 83.9 % v7 (old) | 05 / 2021 | Lenovo ThinkBook 14 G2 ITL 20VD008WGE i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 17.9 mm | 14.00" | 1920x1080 |
外壳和功能 - 14英寸笔记本电脑，带Thunderbolt 4

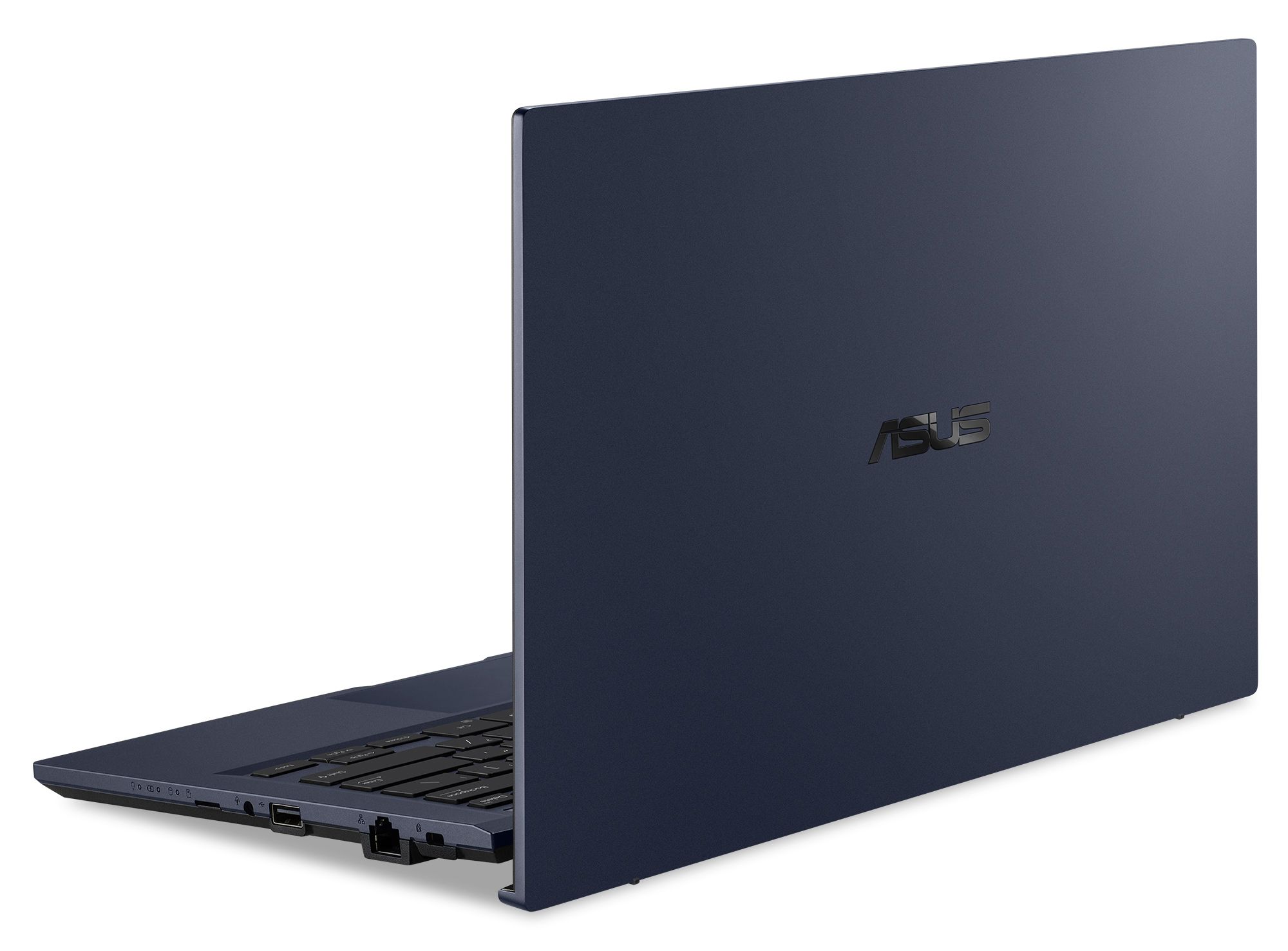

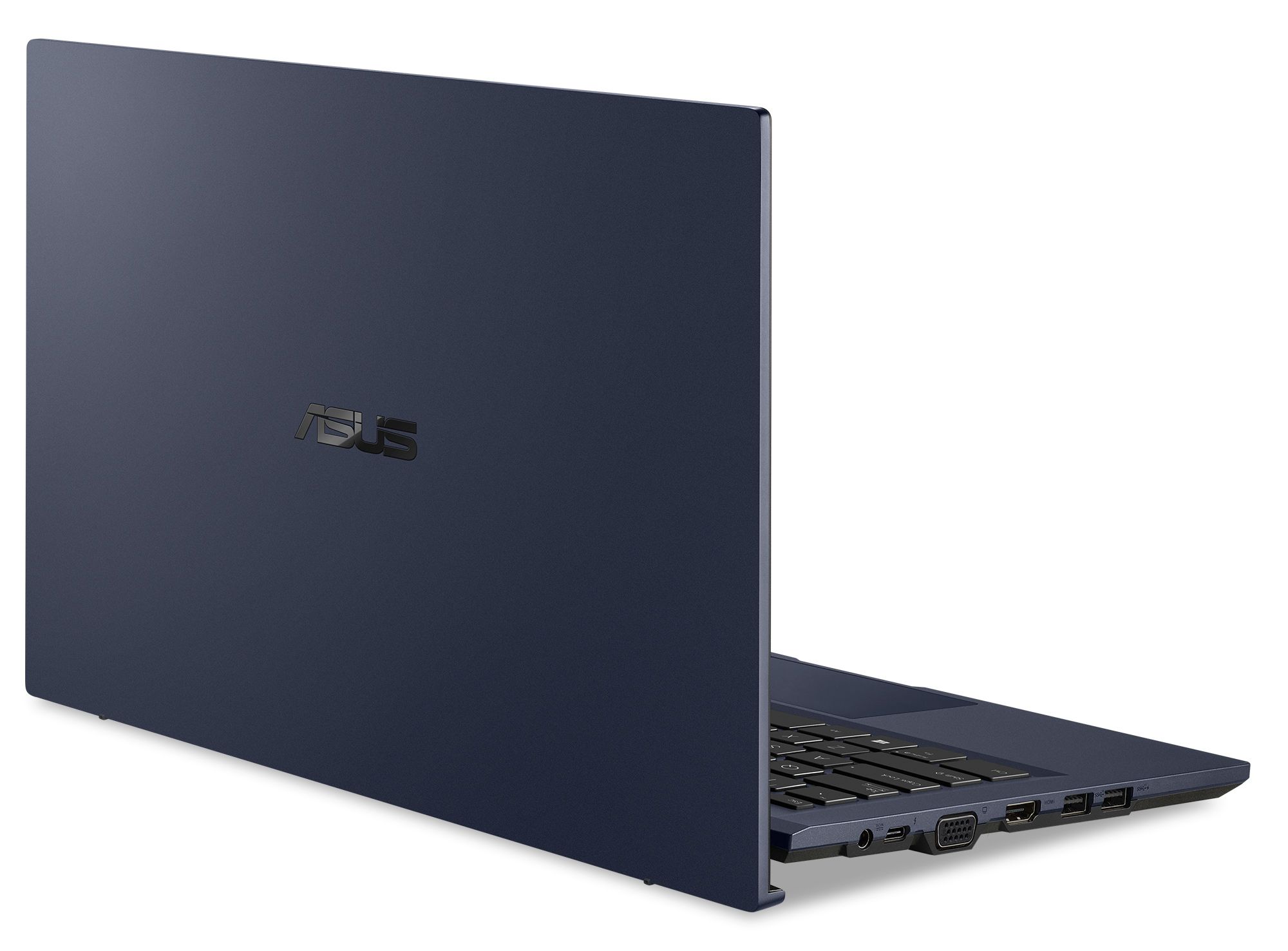

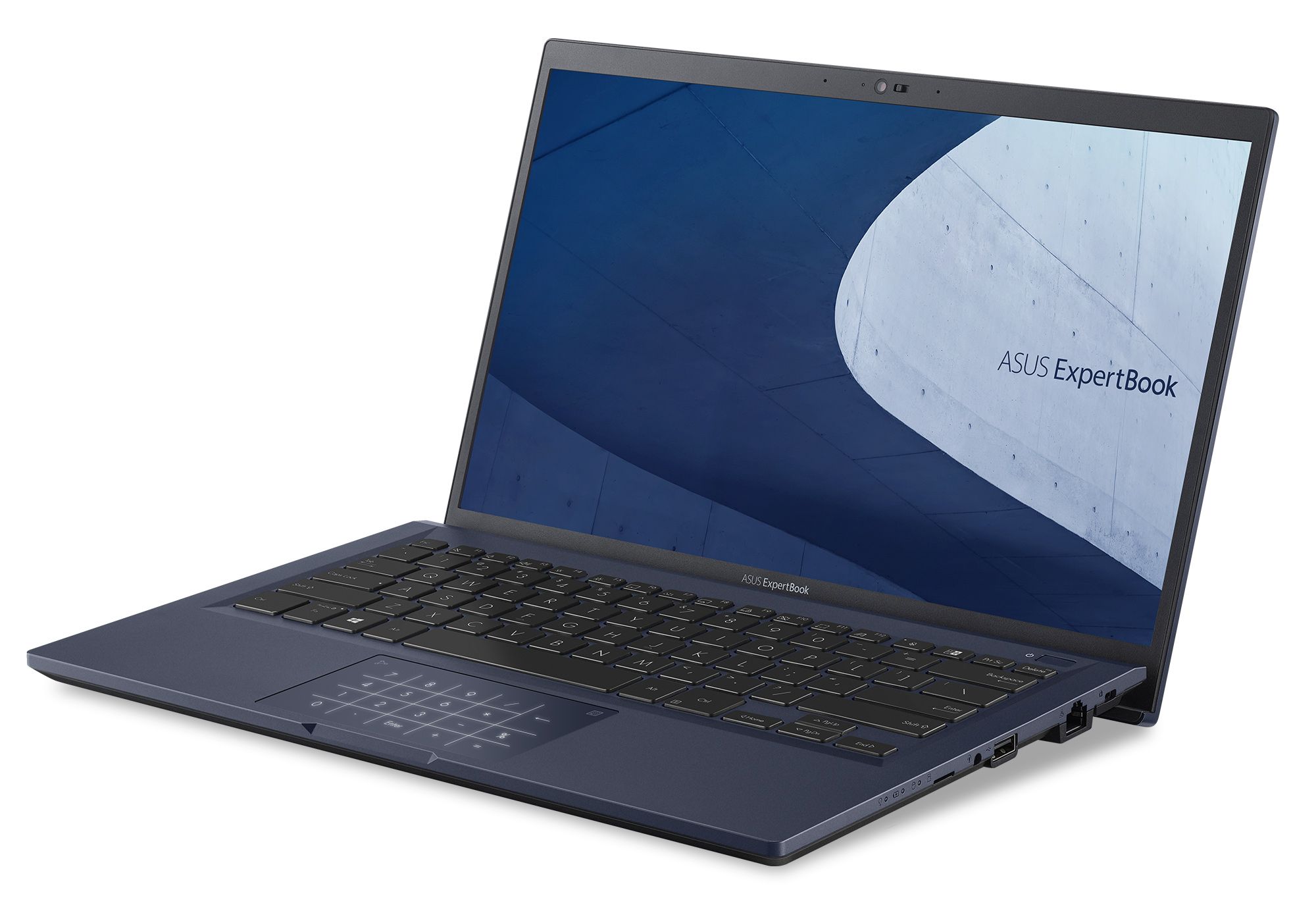

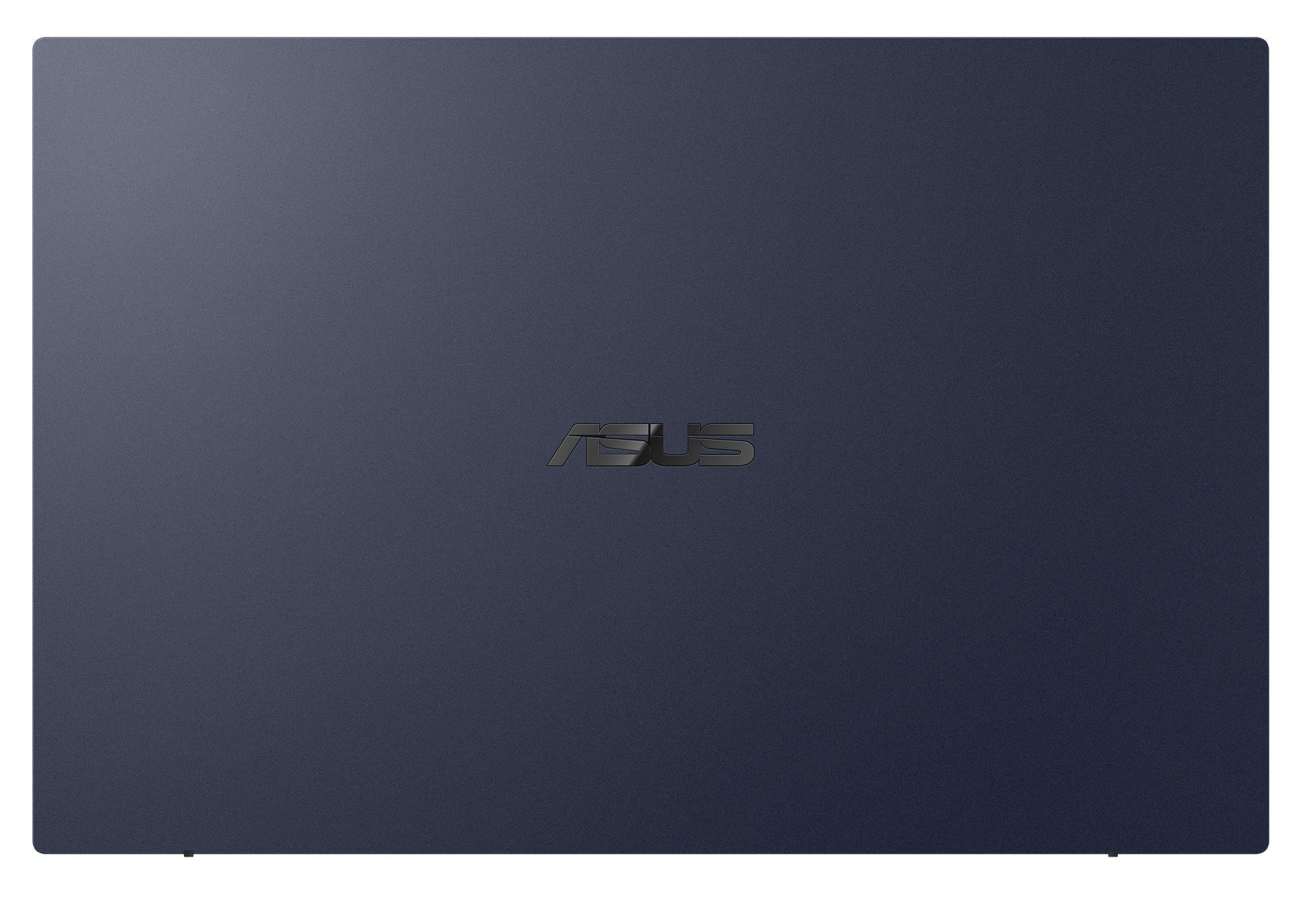

华硕用坚固的塑料制造了ExpertBook B1 B1400的外壳，并用铝合金加固了盖子。建造质量很高，没有不均匀的缝隙或类似情况。
打开盖子时，显示屏不会弯曲，可以向后折叠达180度。尺寸和重量都符合其他14英寸笔记本的要求。其重量为1.5公斤（约3.3磅）。

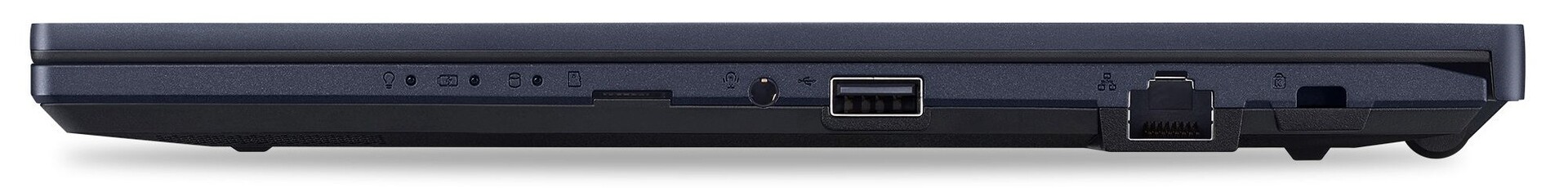

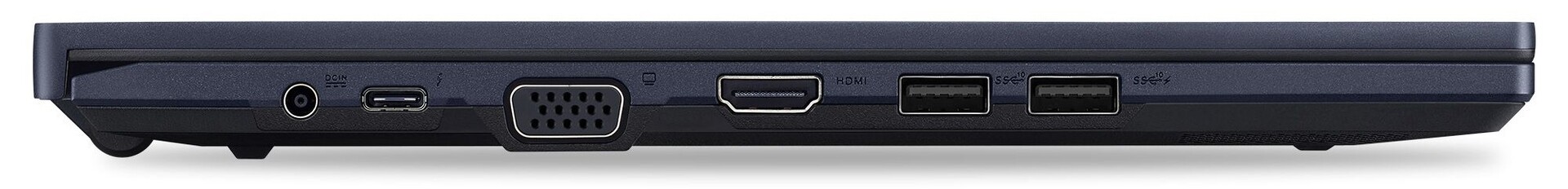

ExpertBook B1 B1400还提供不寻常的端口，如VGA端口。由于Thunderbolt 4端口没有被电源阻挡，因此也可以用相应的适配器创建许多其他接口。
还提供了一个microSD读卡器。然而，这在使用我们的参考存储卡Angelbird AV Pro V60复制数据时只能达到缓慢的25.3 MB/s，在写入数据时只能达到26.6 MB/s。
WiFi 6可用于无线网络连接。与我们的参考路由器Netgear Nighthawk AX12结合使用，测试机型在传输数据时实现了非常好的传输速率，达到1,333 MBit/s，在接收数据时达到1,480 MBit/s。

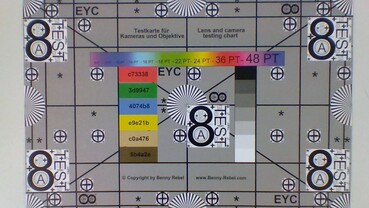

网络摄像头解决的图片只有0.9MP，与目前许多笔记本的情况一样。图像质量相应较低，即使在良好的光线条件下，显示的内容也是模糊的，颜色也是苍白的。机械式网络摄像头快门可以防止不必要的瞥视。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE (AV Pro V60) | |
| Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 (AV Pro V60) | |
| Acer TravelMate P614P-52 (AV PRO microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE (AV Pro V60) | |
| Average of class Office (25 - 249, n=31, last 2 years) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 (AV Pro V60) | |
| Acer TravelMate P614P-52 (AV PRO microSD 128 GB V60) | |

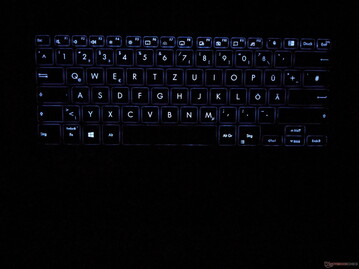

输入设备 - 带背光键盘的ExpertBook

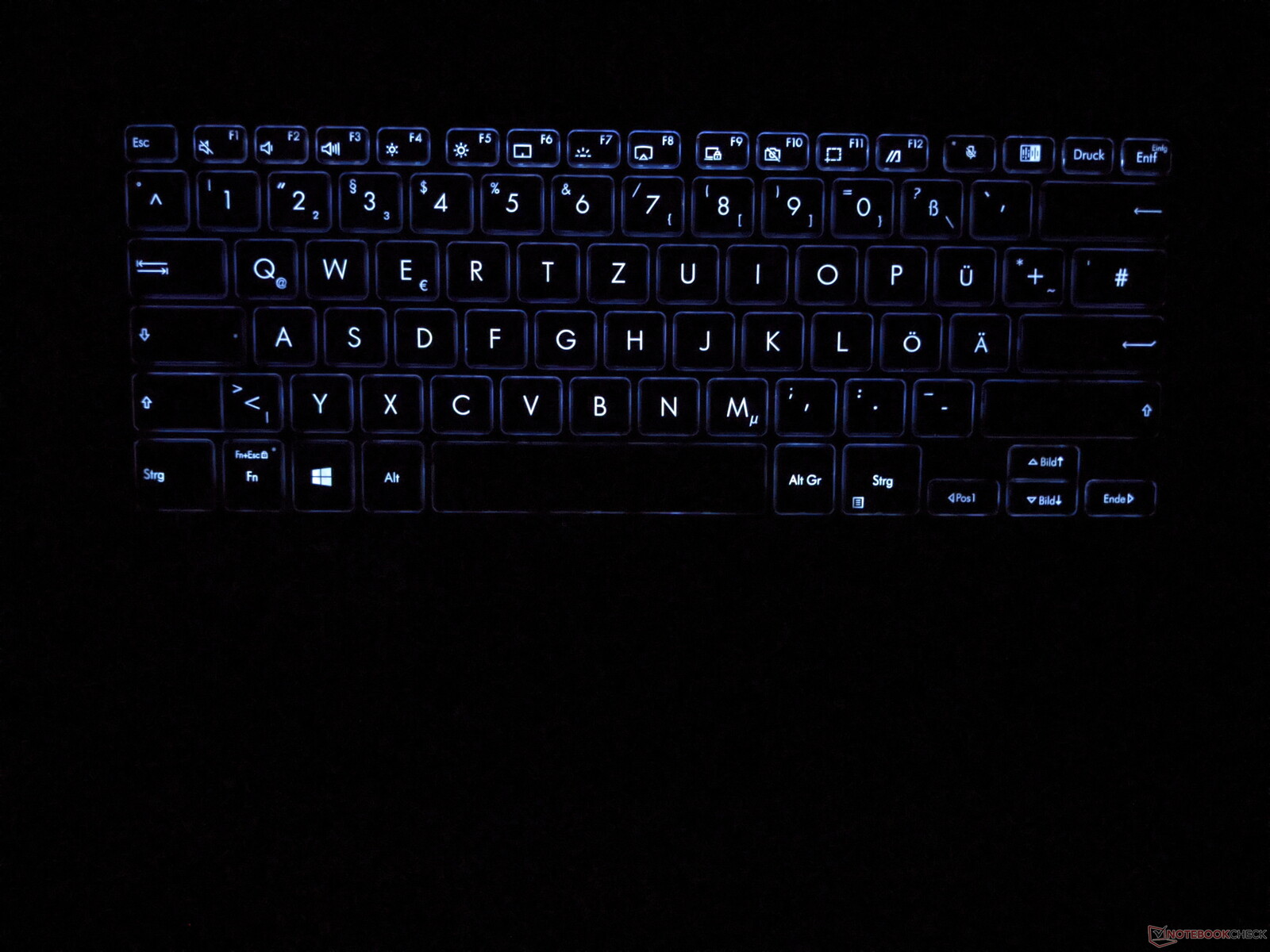

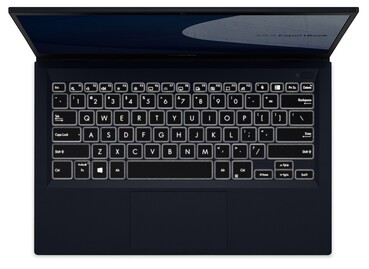

ExpertBook B1 B1400的键盘提供了一个明显的压力点，很适合书写较长的文本。方向键有点小，而且它们与滚动键以及主页和结束键的双重分配并不理想。数字键盘可以显示在点击板上，从而使鼠标指针可以进一步导航。
作为鼠标的替代品，触摸板的效果非常好，可以进行精确的导航。通过点击和触摸触发的输入被可靠地注册。在我们的测试期间，集成在电源按钮上的指纹传感器也能可靠地工作。
显示器 - 华硕笔记本的全高清

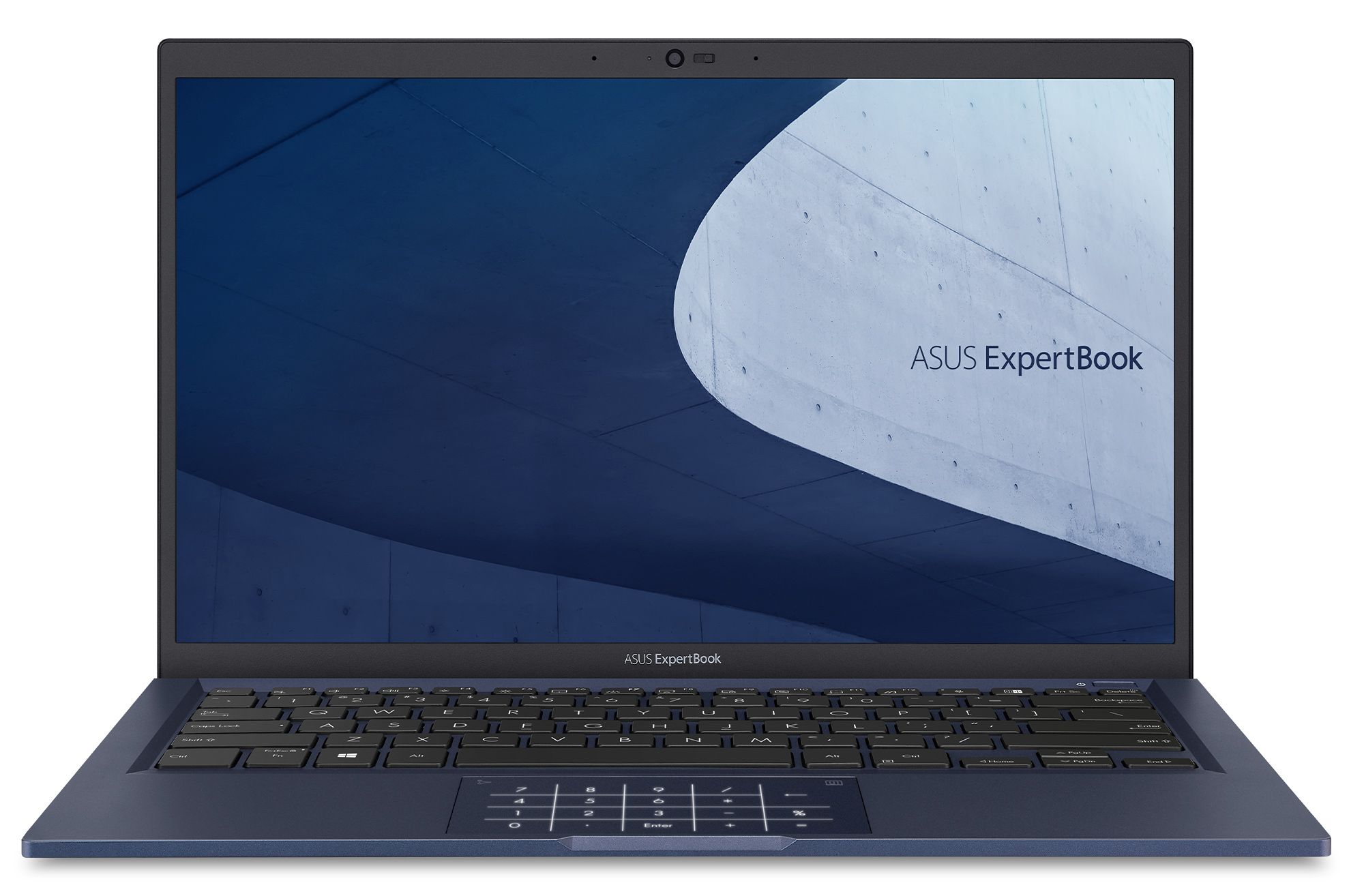

ExpertBook B1 B1400的屏幕由一个14英寸的IPS面板组成，提供1,920 x 1,080像素的分辨率。平均亮度约为240cd/m²，非常低，但良好的黑值（0.23cd/m²）仍能带来超过1,100:1的良好对比度。因此，与哑光面板相结合的亮度仍足以满足室内使用。主观的画质很好，即使是明亮的表面也不会显得太有颗粒感。

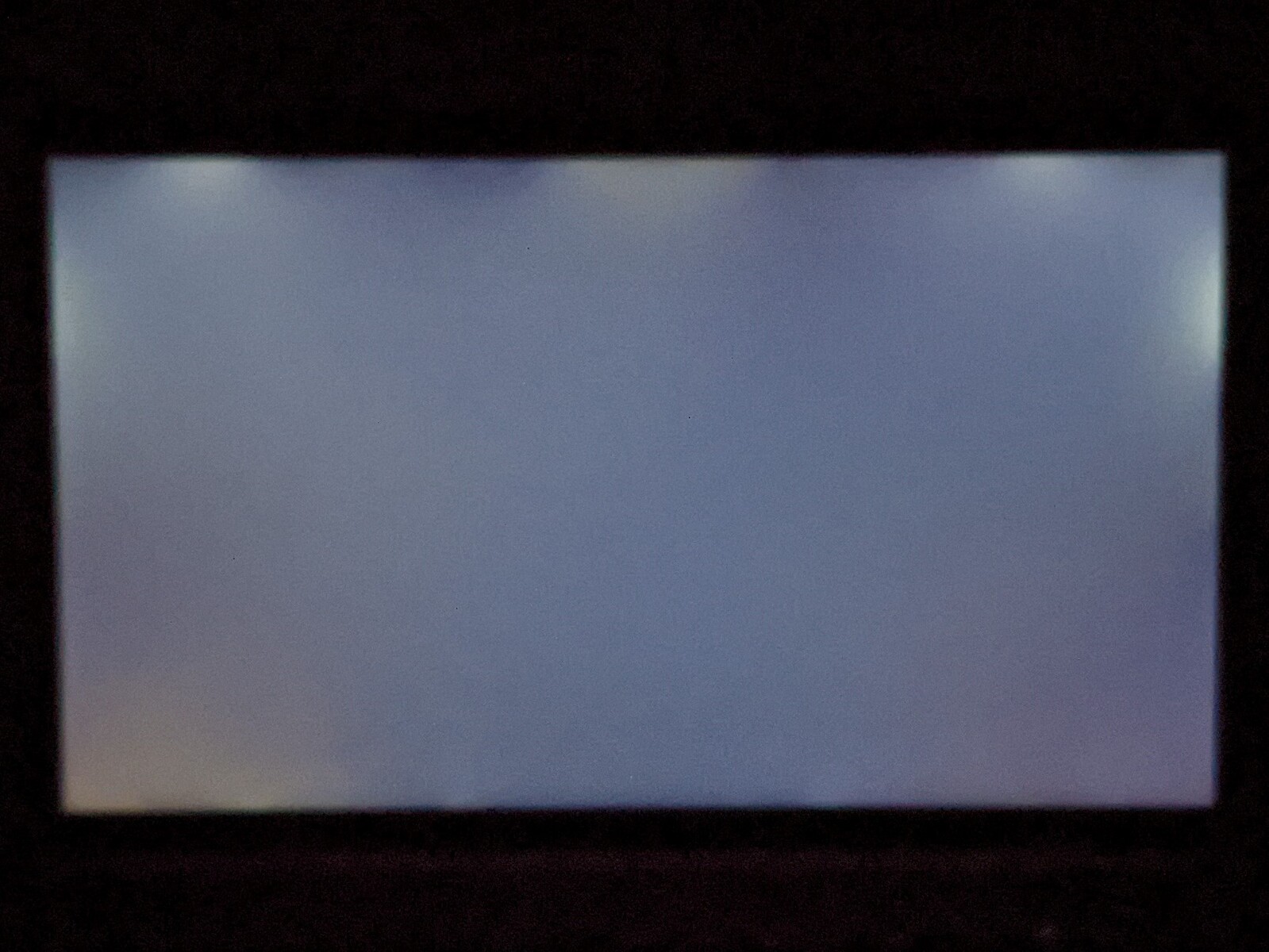

从20%及以下的亮度水平来看，我们测量了 PWM频率为25,000赫兹。由于这个值变成了非常高，所以眼睛敏感的人应该不必期待任何问题。在边缘也有明显的光晕。
| |||||||||||||||||||||||||
Brightness Distribution: 83 %
Center on Battery: 256 cd/m²
Contrast: 1113:1 (Black: 0.23 cd/m²)
ΔE Color 6.2 | 0.5-29.43 Ø4.91, calibrated: 3.8
ΔE Greyscale 5 | 0.5-98 Ø5.2
44.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
63.9% sRGB (Argyll 2.2.0 3D)
42.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.97
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 Chi Mei CMN14D4, IPS, 1920x1080, 14" | Acer TravelMate P614P-52 AU Optronics B140UAV01.0, IPS, 1920x1200, 14" | Honor Magicbook 14 i7-1165G7 BOE092E, IPS, 1920x1080, 14" | Lenovo ThinkBook 14 G2 ITL 20VD008WGE B140HAN04.0, a-Si IPS LED, 1920x1080, 14" | |
|---|---|---|---|---|
| Display | 68% | 50% | -13% | |
| Display P3 Coverage | 42.8 | 76 78% | 64.8 51% | 37.23 -13% |
| sRGB Coverage | 63.9 | 99.4 56% | 96.3 51% | 55.9 -13% |
| AdobeRGB 1998 Coverage | 44.3 | 75.5 70% | 66.1 49% | 38.47 -13% |
| Response Times | -37% | 14% | -42% | |
| Response Time Grey 50% / Grey 80% * | 35.2 ? | 40.79 ? -16% | 31.2 ? 11% | 51.6 ? -47% |
| Response Time Black / White * | 23.2 ? | 22.9 ? 1% | 19.2 ? 17% | 31.6 ? -36% |
| PWM Frequency | 25000 ? | 1000 ? -96% | ||
| Screen | 66% | 35% | -1% | |
| Brightness middle | 256 | 504.15 97% | 341 33% | 240 -6% |
| Brightness | 239 | 482 102% | 313 31% | 226 -5% |
| Brightness Distribution | 83 | 77 -7% | 87 5% | 69 -17% |
| Black Level * | 0.23 | 0.19 17% | 0.27 -17% | 0.23 -0% |
| Contrast | 1113 | 2653 138% | 1263 13% | 1043 -6% |
| Colorchecker dE 2000 * | 6.2 | 2.75 56% | 1.76 72% | 5.4 13% |
| Colorchecker dE 2000 max. * | 18.2 | 4.66 74% | 4.85 73% | 21.9 -20% |
| Colorchecker dE 2000 calibrated * | 3.8 | 1.72 55% | 1.01 73% | 4.8 -26% |
| Greyscale dE 2000 * | 5 | 1.9 62% | 3.3 34% | 2.3 54% |
| Gamma | 1.97 112% | 2.13 103% | 2.26 97% | 2.37 93% |
| CCT | 7364 88% | 6426 101% | 7233 90% | 6706 97% |
| Color Space (Percent of AdobeRGB 1998) | 66 | 35.4 | ||
| Color Space (Percent of sRGB) | 89 | 55.8 | ||
| Total Average (Program / Settings) | 32% /
46% | 33% /
35% | -19% /
-10% |
* ... smaller is better

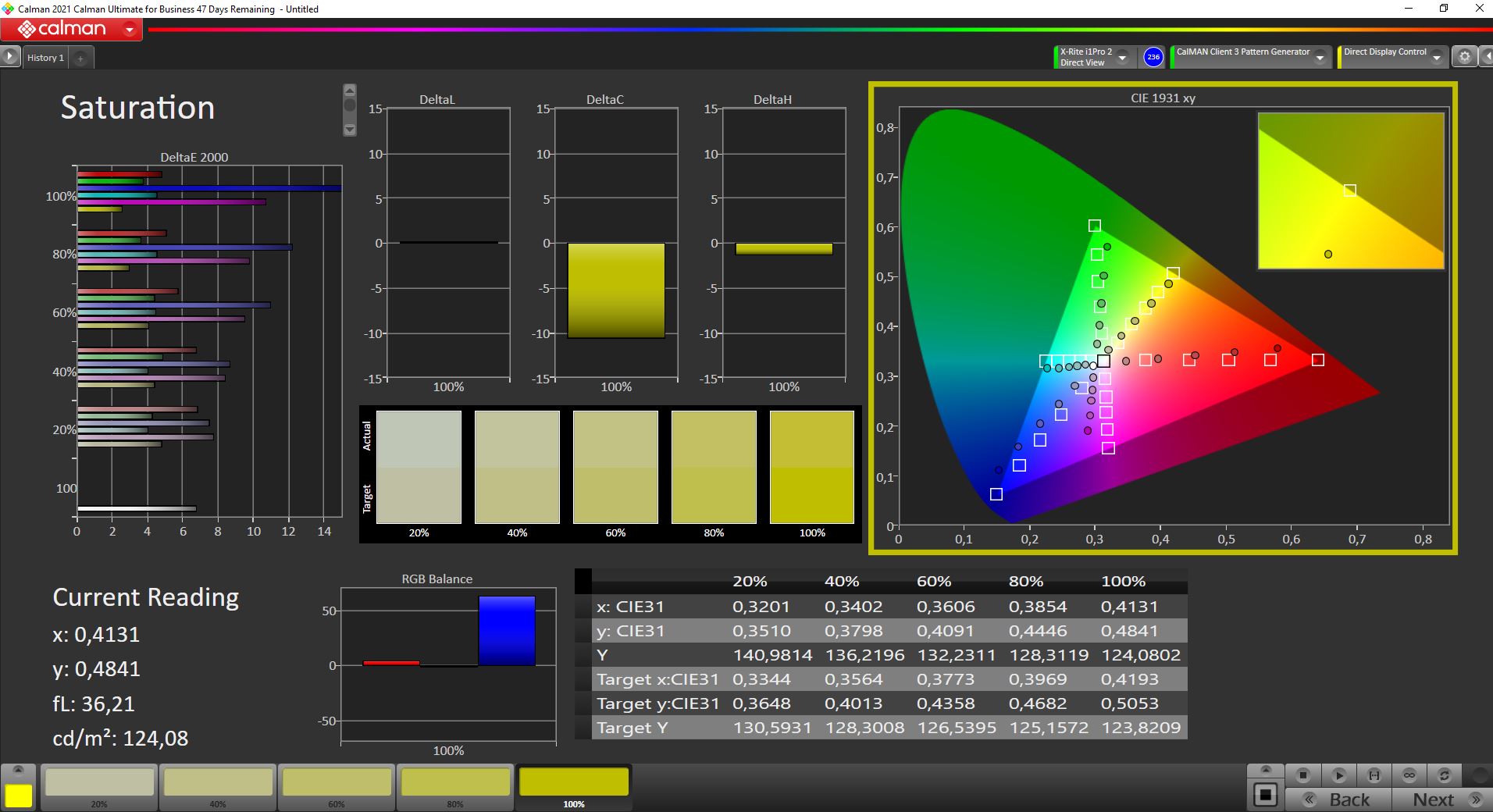

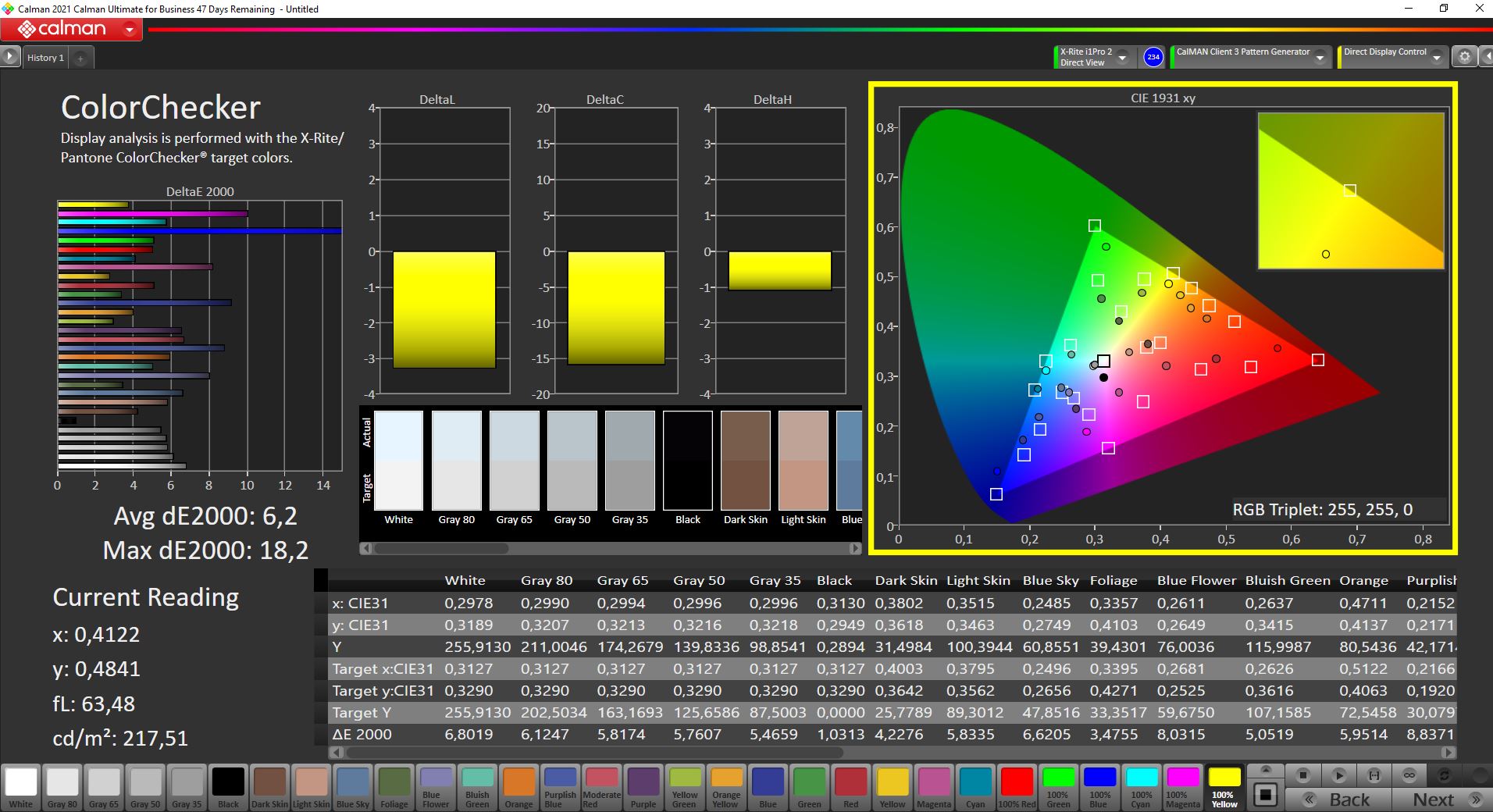

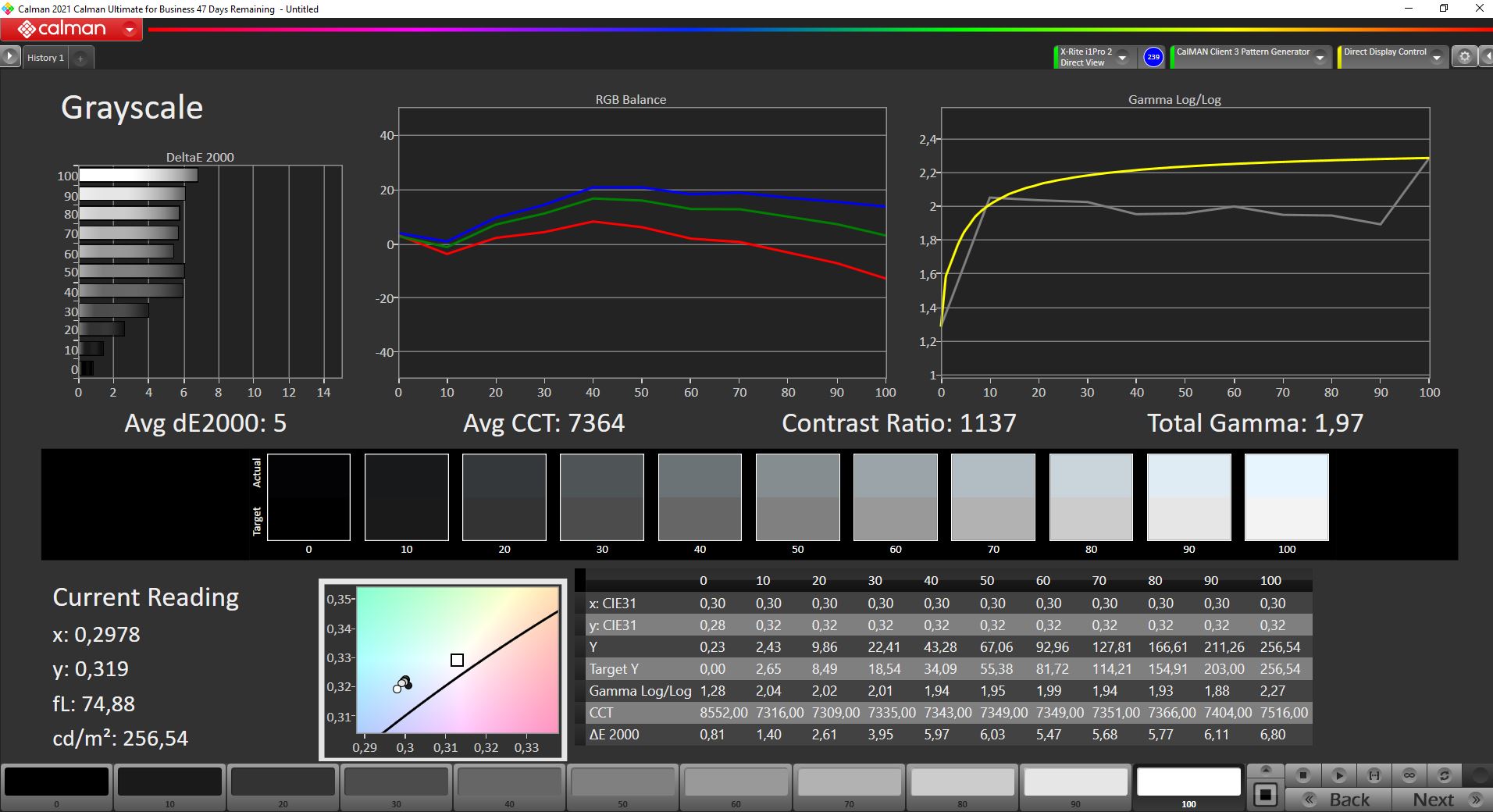

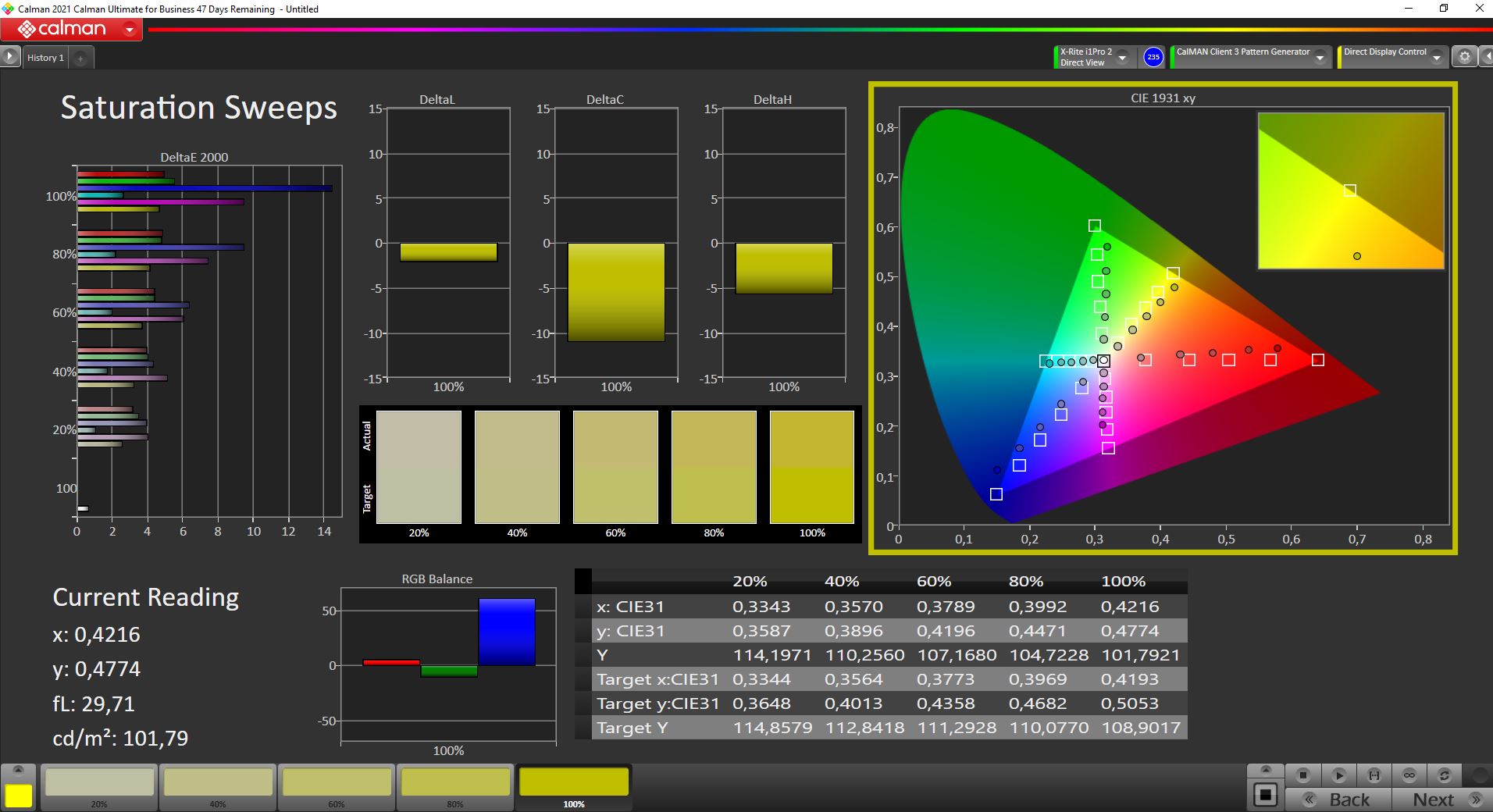

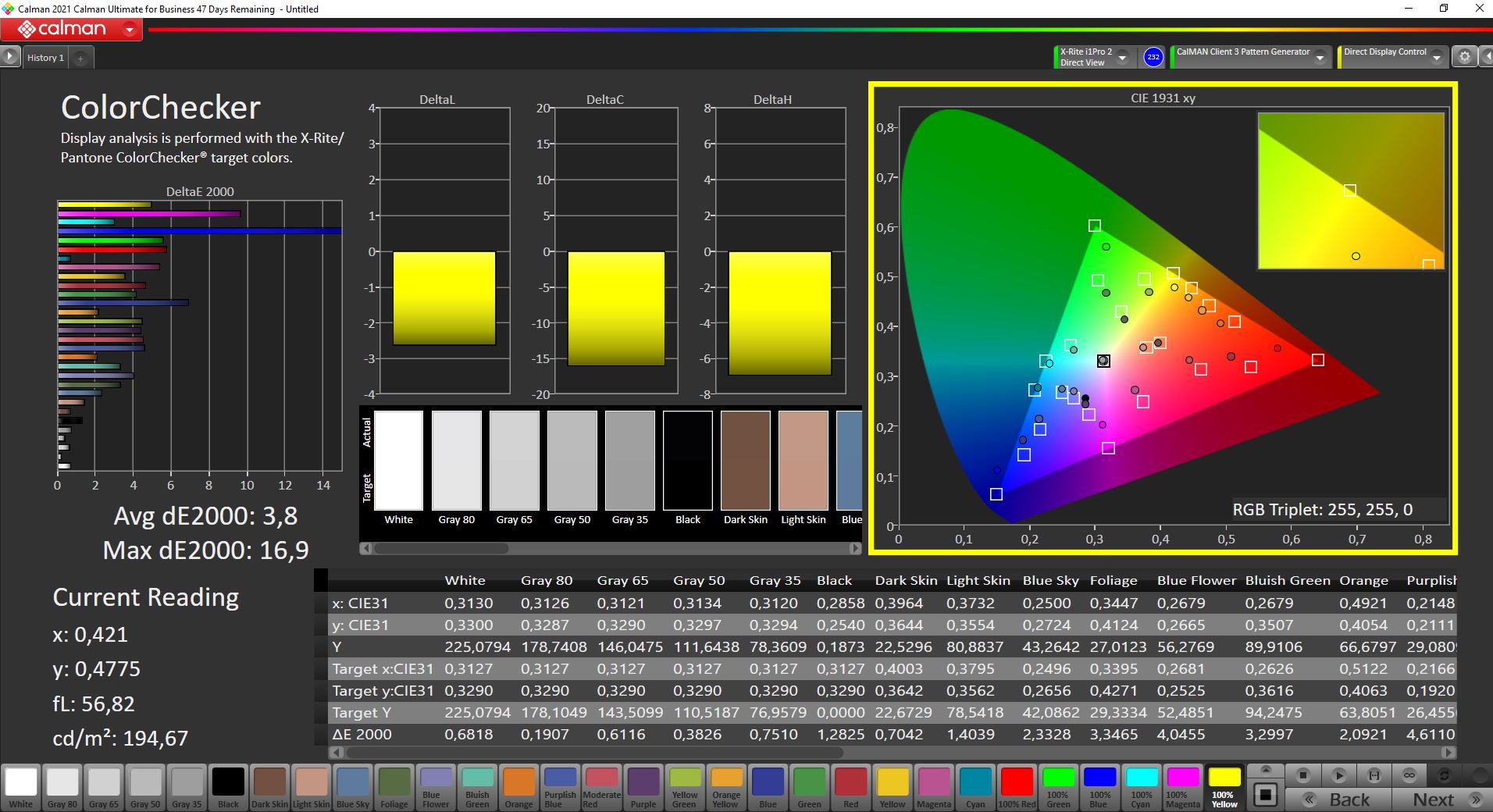

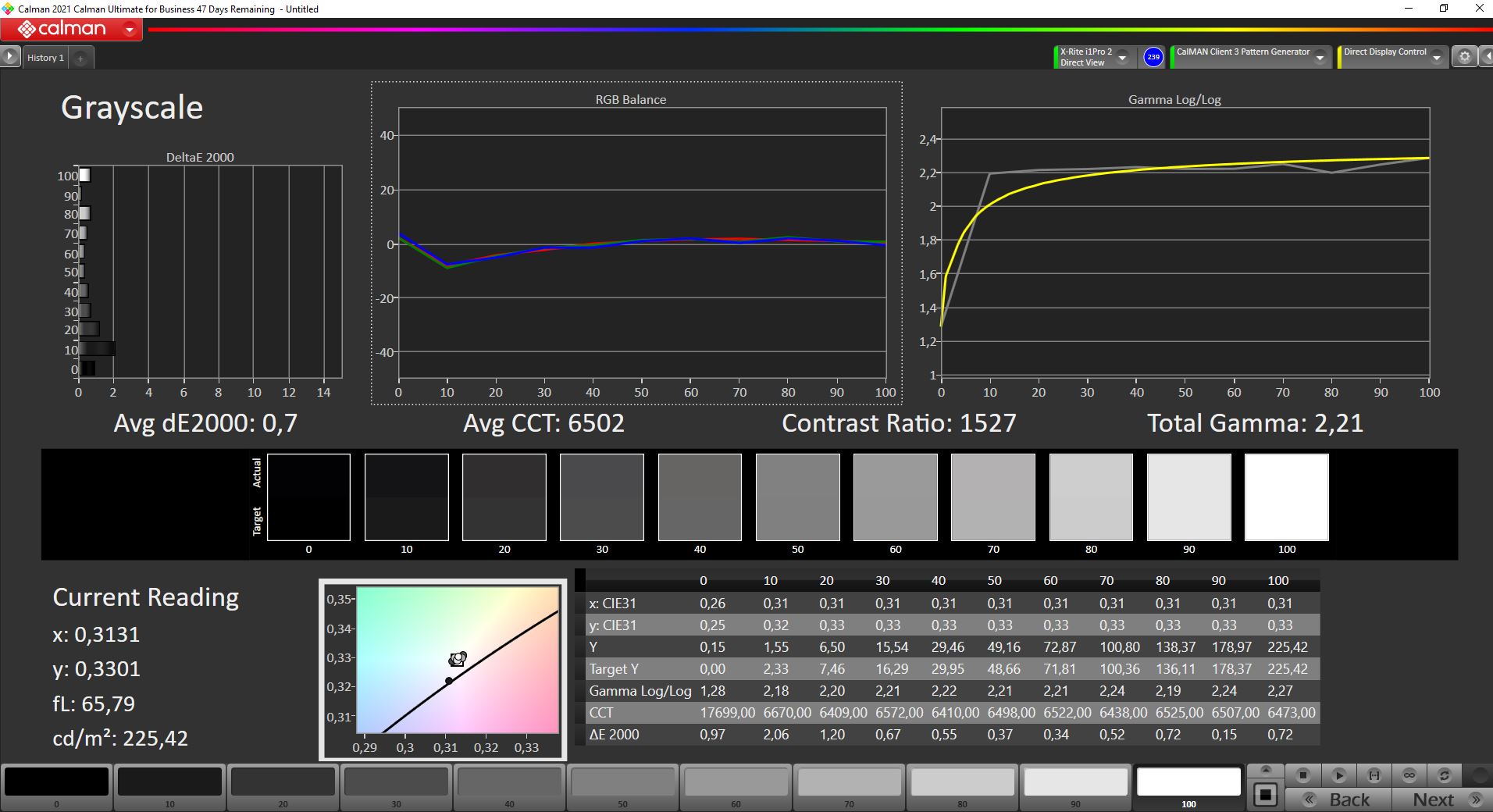

我们的分析（CalMAN和X-Rite i1 Pro 2）显示，在交付状态下，可见的蓝色偏光与过冷的色温相结合。我们通过校准使偏色得到控制，但同时亮度又进一步下降到225cd/m²。色彩表现也有一些改善，但对于严肃的图像编辑来说，偏差仍然太高，因为色彩空间覆盖率也太低（sRGB只有63%）。校准的ICC文件可以在右上角的窗口中找到，就在屏幕照度图形旁边。
总的来说，这是一款非常便宜的IPS面板，但其画质完全可以满足正常办公任务的需要。
Display Response Times

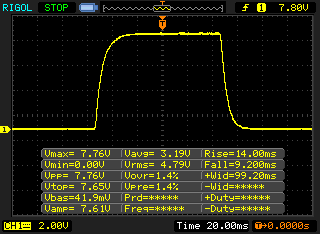

| ↔ Response Time Black to White | ||
|---|---|---|
| 23.2 ms ... rise ↗ and fall ↘ combined | ↗ 14 ms rise |  |
| ↘ 9.2 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

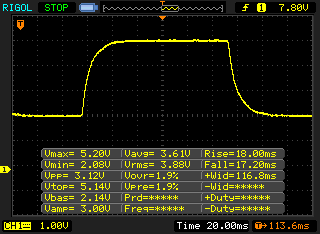

| ↔ Response Time 50% Grey to 80% Grey | ||
| 35.2 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 17.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 45 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||

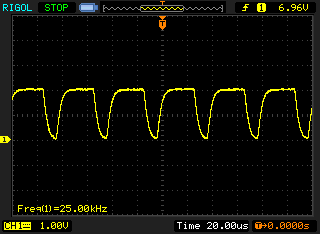

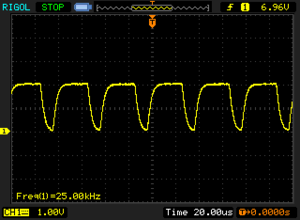

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM detected | 25000 Hz | ≤ 20 % brightness setting |  |
The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

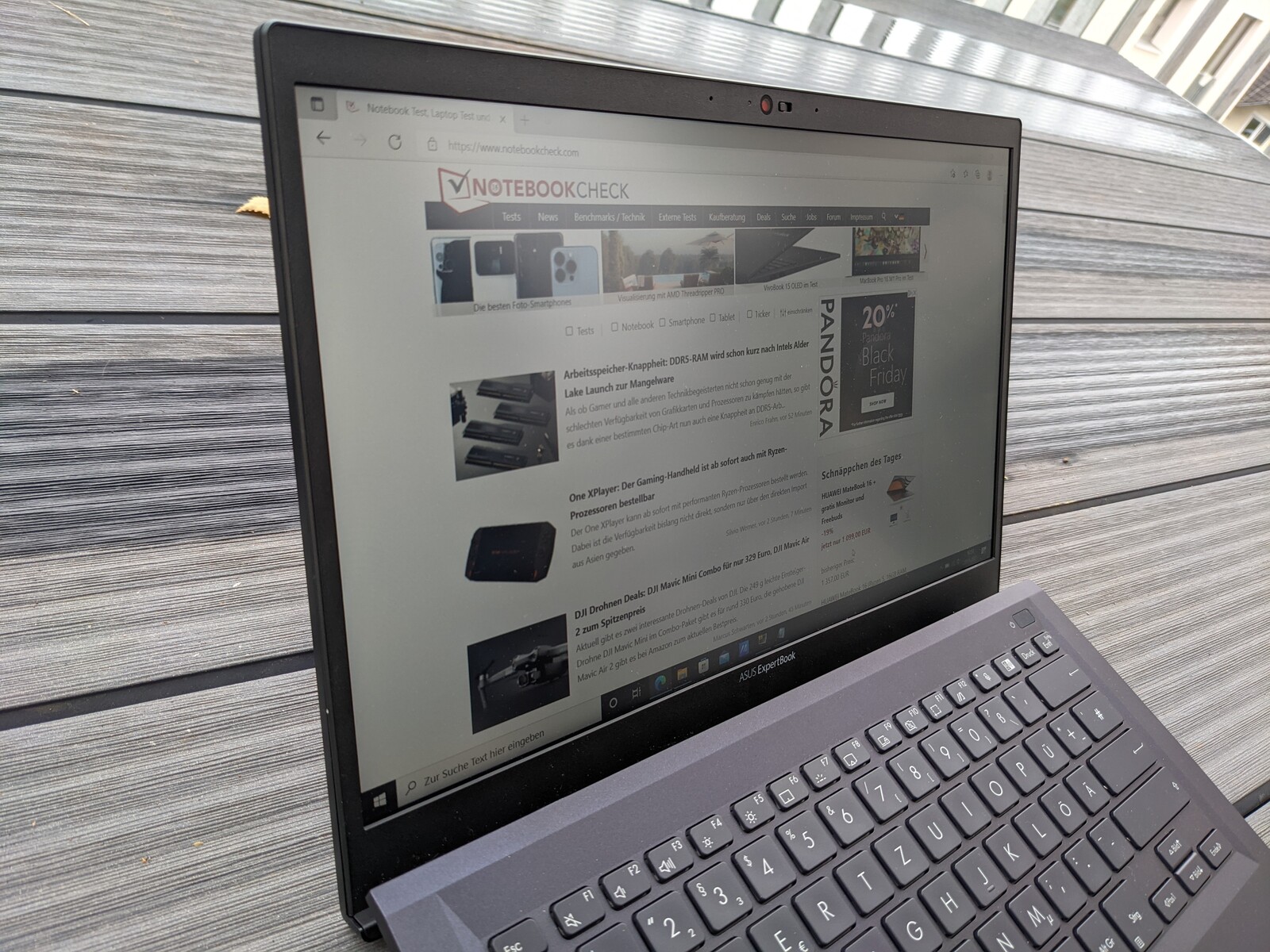

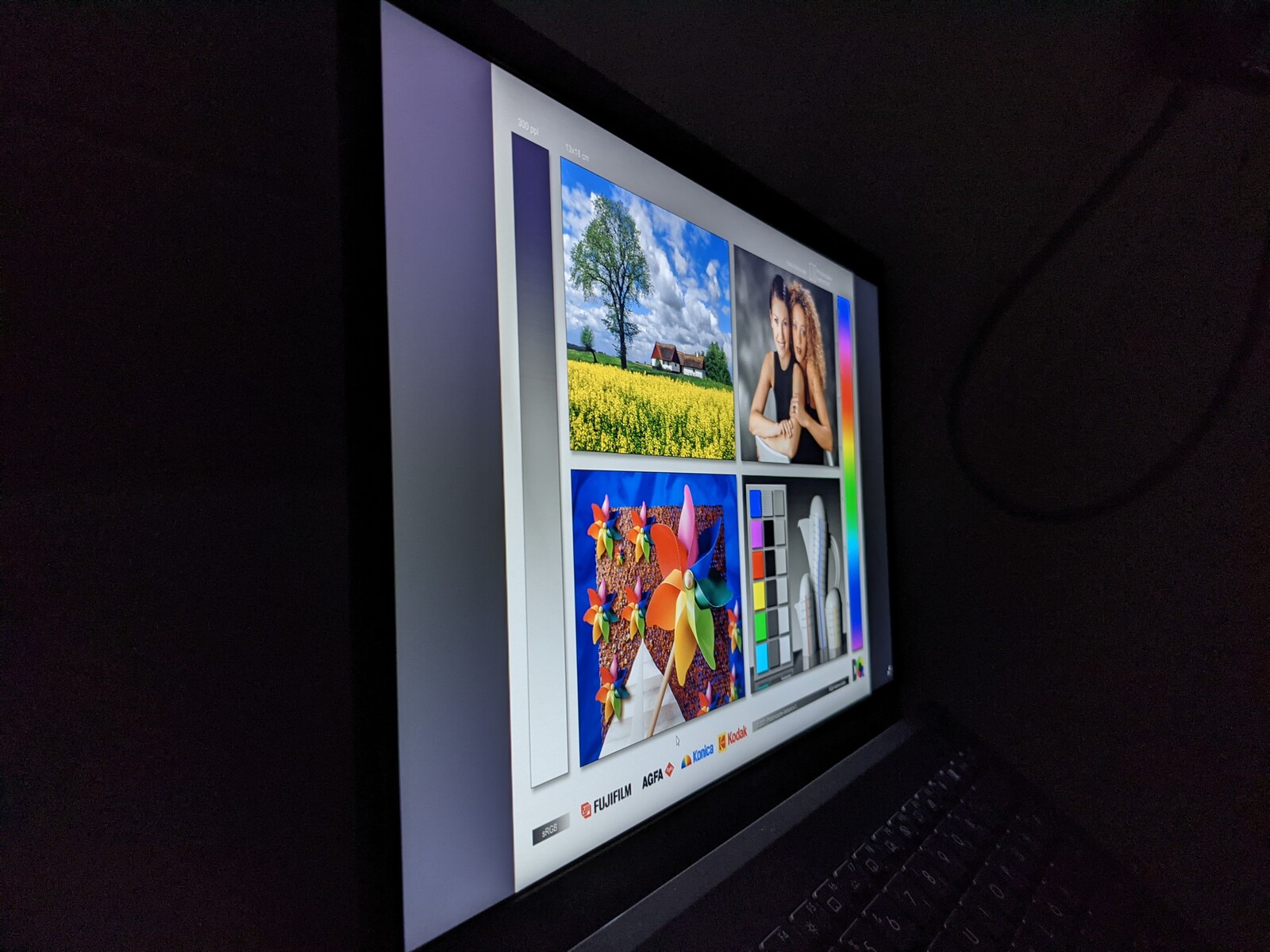

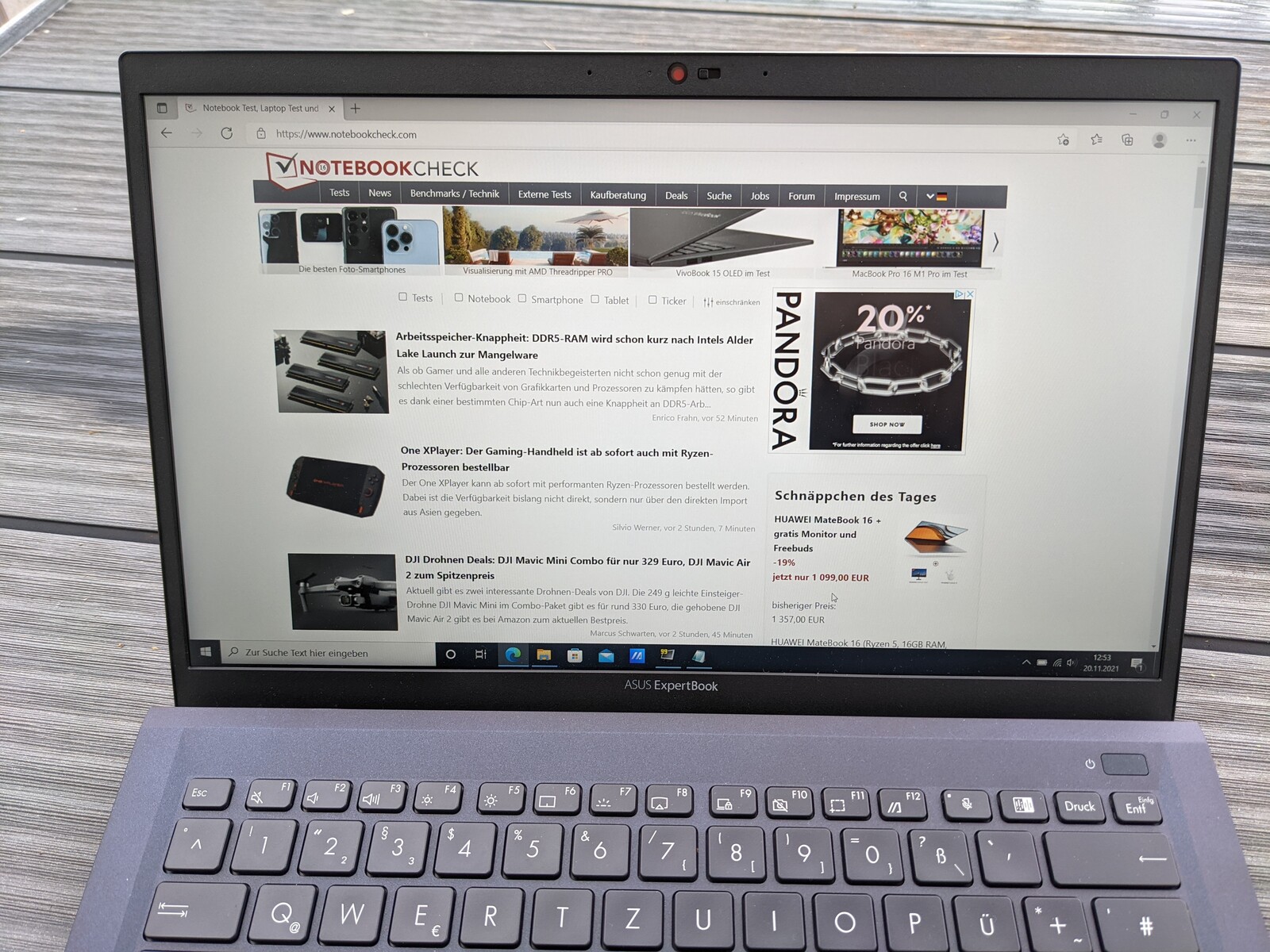

在户外，ExpertBook B1 B1400可以很好地使用，特别是在阴天或在阴凉处。然而，显示屏的亮度不足以在阳光直射下工作。所使用的IPS面板的可视角度非常稳定。
性能 - 非常适用于办公室工作

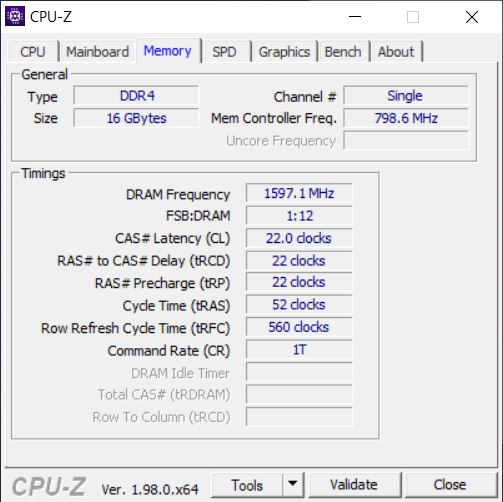

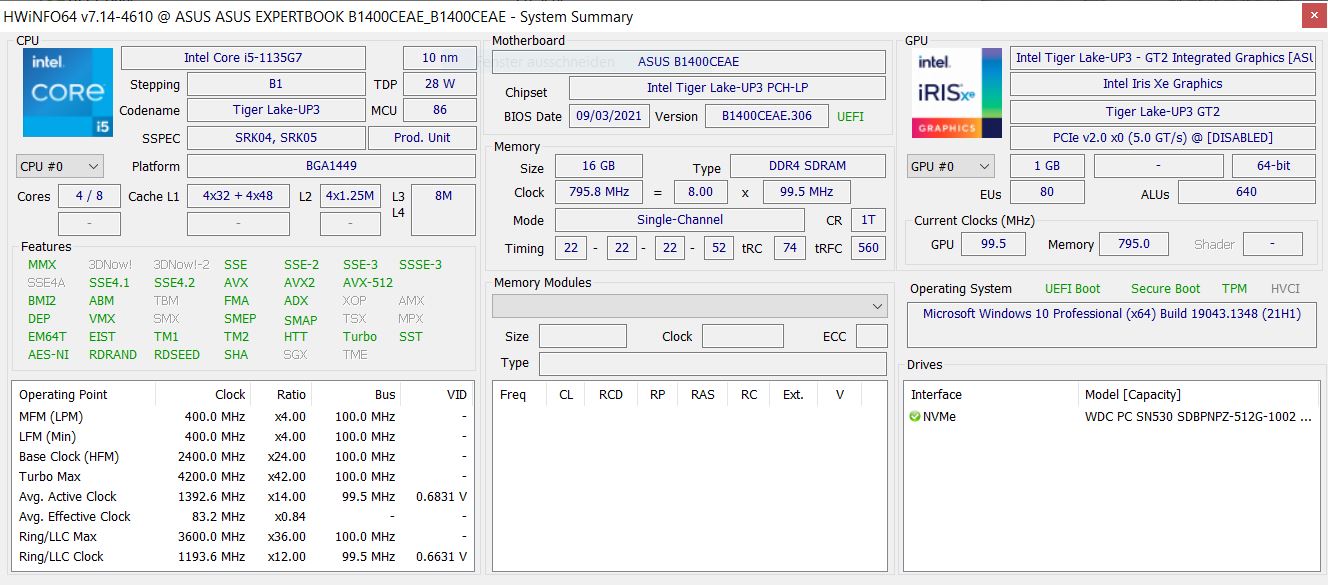

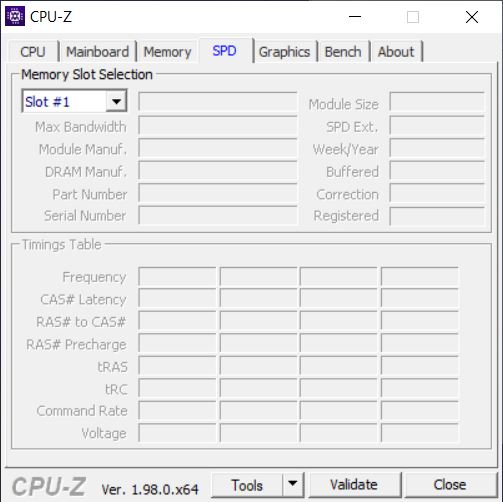

我们的测试模型华硕ExpertBook B1 B1400配备了一个 英特尔酷睿i5-1135G7，8GB内存和512GB SSD。对于图像内容的显示，内部图形单元 英特尔Iris Xe图形G7 80EUs负责。作为一种选择，ExpertBook也可以配备更强大的 英特尔酷睿i7-1165G7和更多的工作内存。
测试条件
在我们的测试中，我们使用可以在MyAsus应用程序中设置的 "平衡 "性能配置文件。也可选择低语和功率模式。
处理器

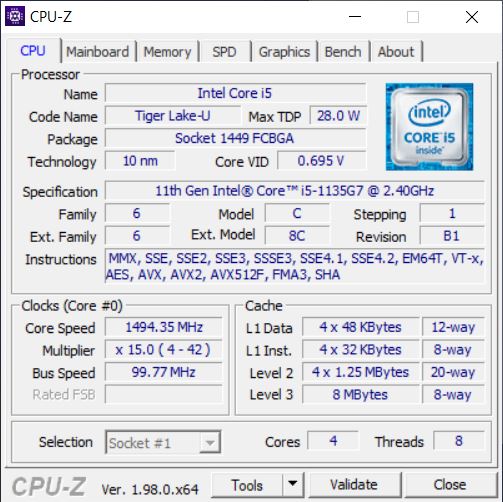

该测试单元运行在一台 英特尔酷睿i5-1135G7英特尔Tiger Lake 代的四核处理器，并在2.4和4.2 GHz之间运行。然而，除了冷却系统，设定的TDP也对CPU的性能起着作用。它的尺寸非常大，短期值为51瓦（PL2），长期值为28瓦（PL1）。
在我们的Cinebench R15耐力测试中，初始值处于较高的水平，甚至达到了一些笔记本电脑的水平，其配备的是 英特尔酷睿i7-1165G7.然而，之后，结果明显下降，并以大约15%的低速率稳定下来。个别学科的结果通常有点低于平均水平，往往只够在我们的测试领域中排在最后一名。
在电池模式下，CPU的性能明显下降。在没有连接电源的情况下，在Cinebench R15多核测试中只取得248分，而不是860分。
Cinebench R15 Multi Endurance test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Office | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 -2! | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1577 - 15743, n=93, last 2 years) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i5-1135G7 (2786 - 6136, n=55) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R23 / Single Core | |
| Average of class Office (618 - 1995, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (1062 - 1373, n=53) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (979 - 2382, n=62) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 766, n=92, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (375 - 527, n=62) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=95, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (431 - 941, n=65) | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Office (98 - 284, n=94, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (141.4 - 205, n=61) | |
| Blender / v2.79 BMW27 CPU | |
| Average Intel Core i5-1135G7 (499 - 1044, n=60) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Average of class Office (208 - 1956, n=94, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Office (7532 - 65460, n=95, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (14745 - 24873, n=62) | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Honor Magicbook 14 i7-1165G7 | |
| Average of class Office (2972 - 6687, n=94, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3924 - 4921, n=62) | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=94, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (3475 - 5472, n=58) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 1995, n=95, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (1147 - 1428, n=58) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Office (1.72 - 18.7, n=92, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3.57 - 7.6, n=57) | |
| LibreOffice / 20 Documents To PDF | |
| Average of class Office (31.3 - 129.6, n=92, last 2 years) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7 (44.2 - 62.9, n=60) | |
| Honor Magicbook 14 i7-1165G7 | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| R Benchmark 2.5 / Overall mean | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (0.619 - 0.727, n=59) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Average of class Office (0.4244 - 1.135, n=91, last 2 years) | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 | |
| Honor Magicbook 14 i7-1165G7 -9! | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE -9! | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (4313 - 7952, n=45) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (19402 - 32283, n=45) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (1316 - 2172, n=45) | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (39000 - 46951, n=45) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3497 - 4445, n=45) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (12569 - 19635, n=45) | |
| AIDA64 / CPU AES | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Acer TravelMate P614P-52 | |
| Average Intel Core i5-1135G7 (28988 - 67977, n=45) | |
| Average of class Office (7254 - 155900, n=93, last 2 years) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (265 - 373, n=51) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Honor Magicbook 14 i7-1165G7 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (2226 - 4291, n=45) | |
| AIDA64 / CPU PhotoWorxx | |
| Acer TravelMate P614P-52 | |
| Average of class Office (4814 - 54971, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (9004 - 45366, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
系统性能
在评估系统性能的PCMark 10测试中，ExpertBook B1 B1400取得了略高于平均水平的总分。各个学科的结果反映了这个分数，与联想ThinkBook 14 G2持平。然而，在AIDA64测试中，人们注意到工作内存的速度相对较低。
| PCMark 10 / Score | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
| PCMark 10 / Essentials | |
| Acer TravelMate P614P-52 | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=86, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Honor Magicbook 14 i7-1165G7 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
| PCMark 10 Score | 4738 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Acer TravelMate P614P-52 | |
| Average of class Office (7158 - 108783, n=94, last 2 years) | |
| Average Intel Core i5-1135G7 (17443 - 63889, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| AIDA64 / Memory Read | |
| Acer TravelMate P614P-52 | |
| Average of class Office (7325 - 127282, n=94, last 2 years) | |
| Average Intel Core i5-1135G7 (19716 - 63705, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| AIDA64 / Memory Write | |
| Acer TravelMate P614P-52 | |
| Average of class Office (7579 - 117935, n=94, last 2 years) | |
| Average Intel Core i5-1135G7 (18722 - 66778, n=45) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| AIDA64 / Memory Latency | |
| Average of class Office (6.9 - 185.2, n=93, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (68.3 - 107, n=51) | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Honor Magicbook 14 i7-1165G7 | |
* ... smaller is better
DPC延迟

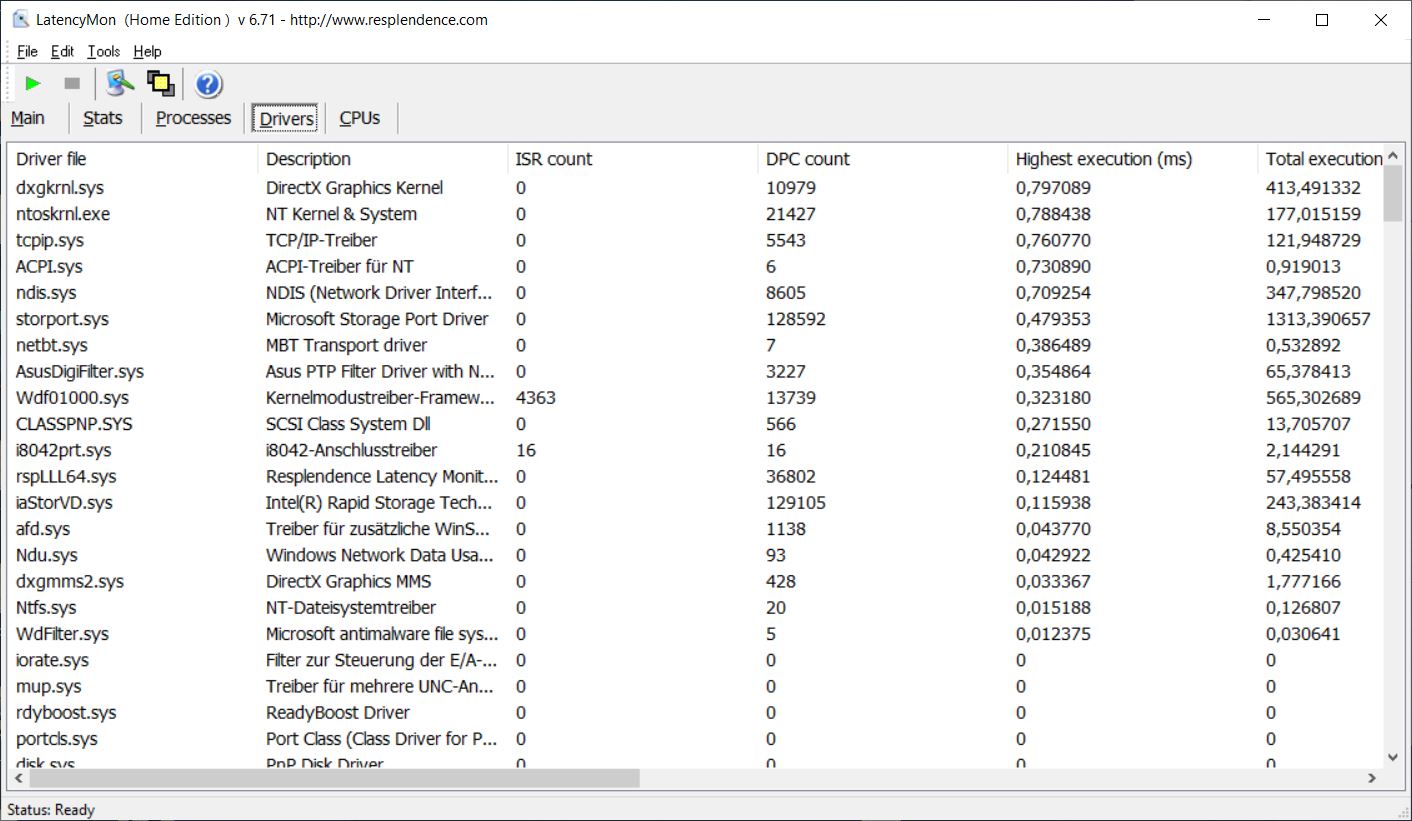

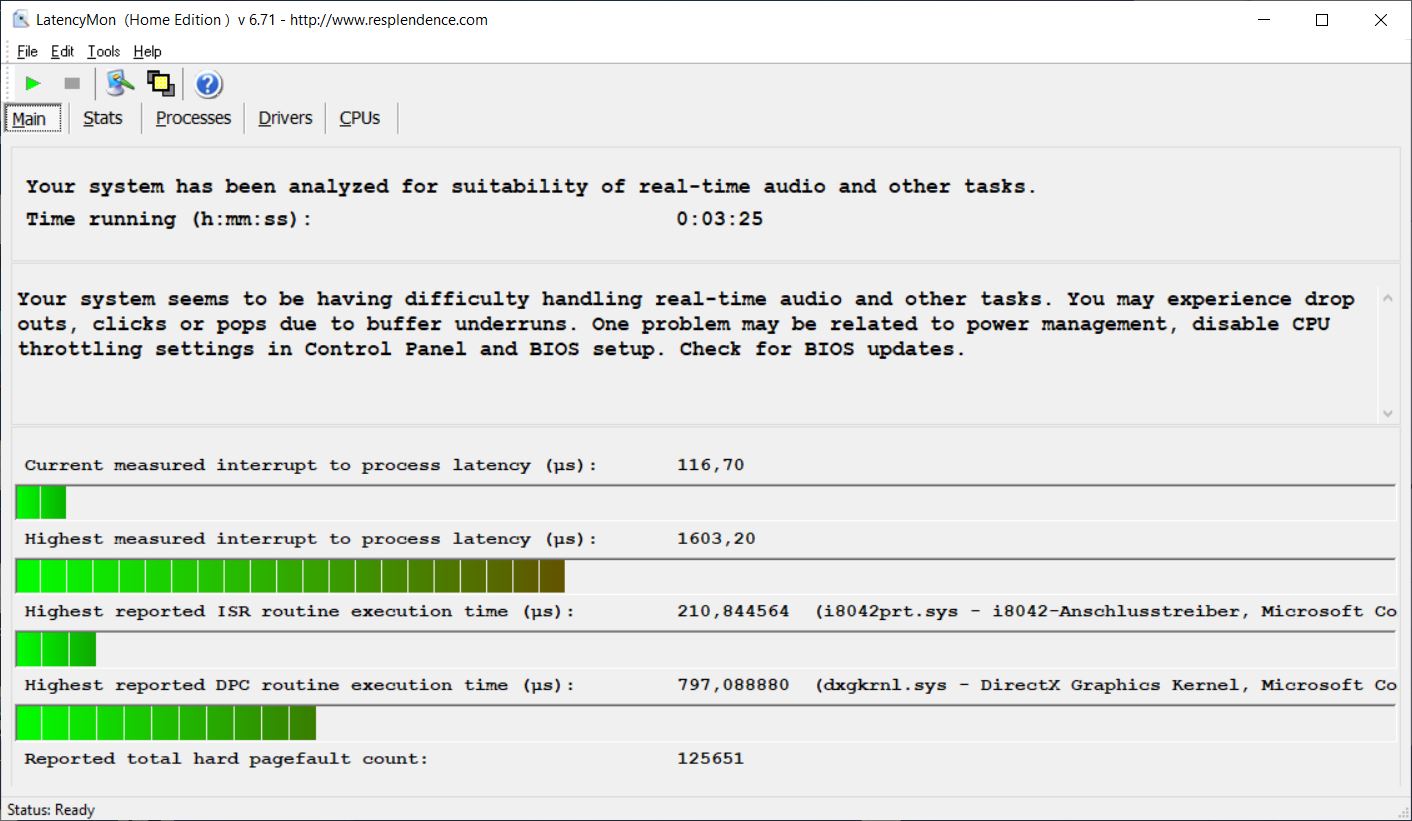

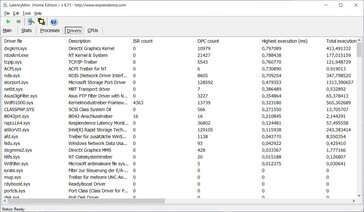

在使用LatencyMon的测试中，我们来自华硕的测试模型显示出轻微增加的 中断时间.然而，它应该仍然适用于实时应用程序等。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Acer TravelMate P614P-52 | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Honor Magicbook 14 i7-1165G7 | |
* ... smaller is better
大容量存储
我们配置的ExpertBook B1 B1400配备了512GB M.2-2280固态硬盘（PCIe-3.0 x4），在存储基准中取得了良好的速度。因此，这台笔记本电脑可以在我们的测试领域中处于中间位置。
其他大容量存储设备的预期速度可以在我们的 硬盘/SSD基准测试列表.
* ... smaller is better
Continuous power reading: DiskSpd Read Loop, Queue Depth 8
图形卡

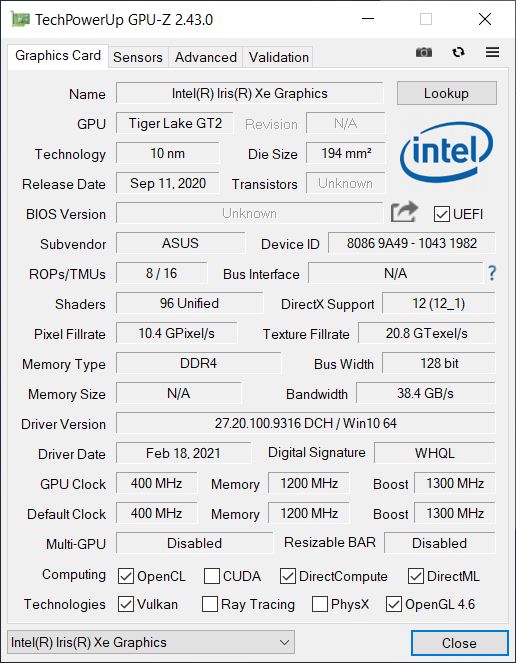

华硕ExpertBook B1 B1400配备了一个 英特尔Iris Xe图形G7 80EUs适用于简单的图形应用。性能也取决于安装的工作内存，这就是为什么我们测试模型的单通道配置提供了比同类笔记本更低的性能。
这也反映在3DMark以及游戏基准测试中，华硕的笔记本在我们的测试领域排名最后。通过使用第二个RAM模块，可以实现性能的提高。在电池模式下，3DMark 11的结果是4472分，与4684分相比，只是稍微差一点。
然而，iGPU对于办公和多媒体应用（包括播放高分辨率视频）是完全足够的，但在游戏时通常只能实现低细节/分辨率。与此相比，其他图形单元的性能可以在我们的 GPU基准测试列表和我们的 GPU游戏列表.
| 3DMark 11 Performance | 4701 points | |
| 3DMark Cloud Gate Standard Score | 14042 points | |
| 3DMark Fire Strike Score | 2303 points | |
| 3DMark Time Spy Score | 1099 points | |
Help | ||
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Acer TravelMate P614P-52 | |
| Average of class Office (16 - 177, n=70, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101) | |
| Honor Magicbook 14 i7-1165G7 | |
| Lenovo ThinkBook 14 G2 ITL 20VD008WGE | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| Average of class Office (32.1 - 171.4, n=81, last 2 years) | |
| Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Acer TravelMate P614P-52 | |
| Average of class Office (12.1 - 103.1, n=89, last 2 years) | |
| Honor Magicbook 14 i7-1165G7 | |
| Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.7 - 175.7, n=78, last 2 years) | |
| Acer TravelMate P614P-52 | |
| Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81) | |
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 | |
Witcher 3 FPS Diagram
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 57.2 | 44.9 | 9.94 | 4.38 |
| The Witcher 3 (2015) | 51.5 | 31.2 | 15.89 | 8.22 |
| Dota 2 Reborn (2015) | 75.4 | 54.1 | 33 | 31.1 |
| Final Fantasy XV Benchmark (2018) | 24.3 | 12.2 | 9.5 | |
| X-Plane 11.11 (2018) | 35.4 | 29.1 | 26.5 | |
| Strange Brigade (2018) | 48.8 | 18.4 | 15.8 | 14.9 |
排放与能源 - 几乎无声无息，经济实惠
噪声排放
在日常使用办公软件和浏览网页的过程中，华硕ExpertBook B1 B1400基本上是安静的。当系统满载时，风扇的最大音量为37.4dB(A)，并发出稳定的噪音。我们无法检测到任何其他的电子噪音（如线圈啸叫）。
Noise Level
| Idle |
| 23.8 / 23.8 / 26.5 dB(A) |
| Load |
| 28.6 / 37.4 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23.8 dB(A) | ||
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G | Acer TravelMate P614P-52 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBQNTY-1T00 | Honor Magicbook 14 i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, WDC PC SN730 SDBPNTY-512G | Lenovo ThinkBook 14 G2 ITL 20VD008WGE Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU | |
|---|---|---|---|---|
| Noise | -19% | -10% | -20% | |
| off / environment * | 23.8 | 26.61 -12% | 24 -1% | 28.7 -21% |
| Idle Minimum * | 23.8 | 26.61 -12% | 24 -1% | 28.7 -21% |
| Idle Average * | 23.8 | 26.61 -12% | 25 -5% | 28.7 -21% |
| Idle Maximum * | 26.5 | 26.61 -0% | 28 -6% | 28.7 -8% |
| Load Average * | 28.6 | 42.1 -47% | 36 -26% | 35.5 -24% |
| Witcher 3 ultra * | 30.6 | 40.7 -33% | 41.6 -36% | |
| Load Maximum * | 37.4 | 43.71 -17% | 46 -23% | 41.6 -11% |
* ... smaller is better
温度

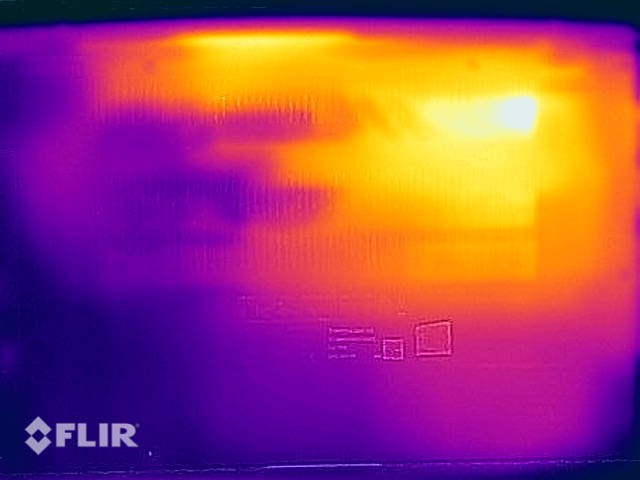

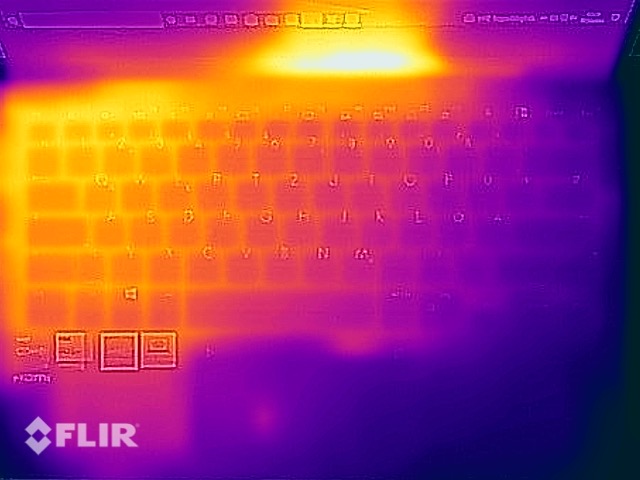

在我们苛刻的负载测试中，ExpertBook B1 B1400的表面在左下角加热到了54.3℃（约130°F）。然而，由于这种情况在日常使用中不会发生，所以温度始终保持适中，不必期待任何限制。

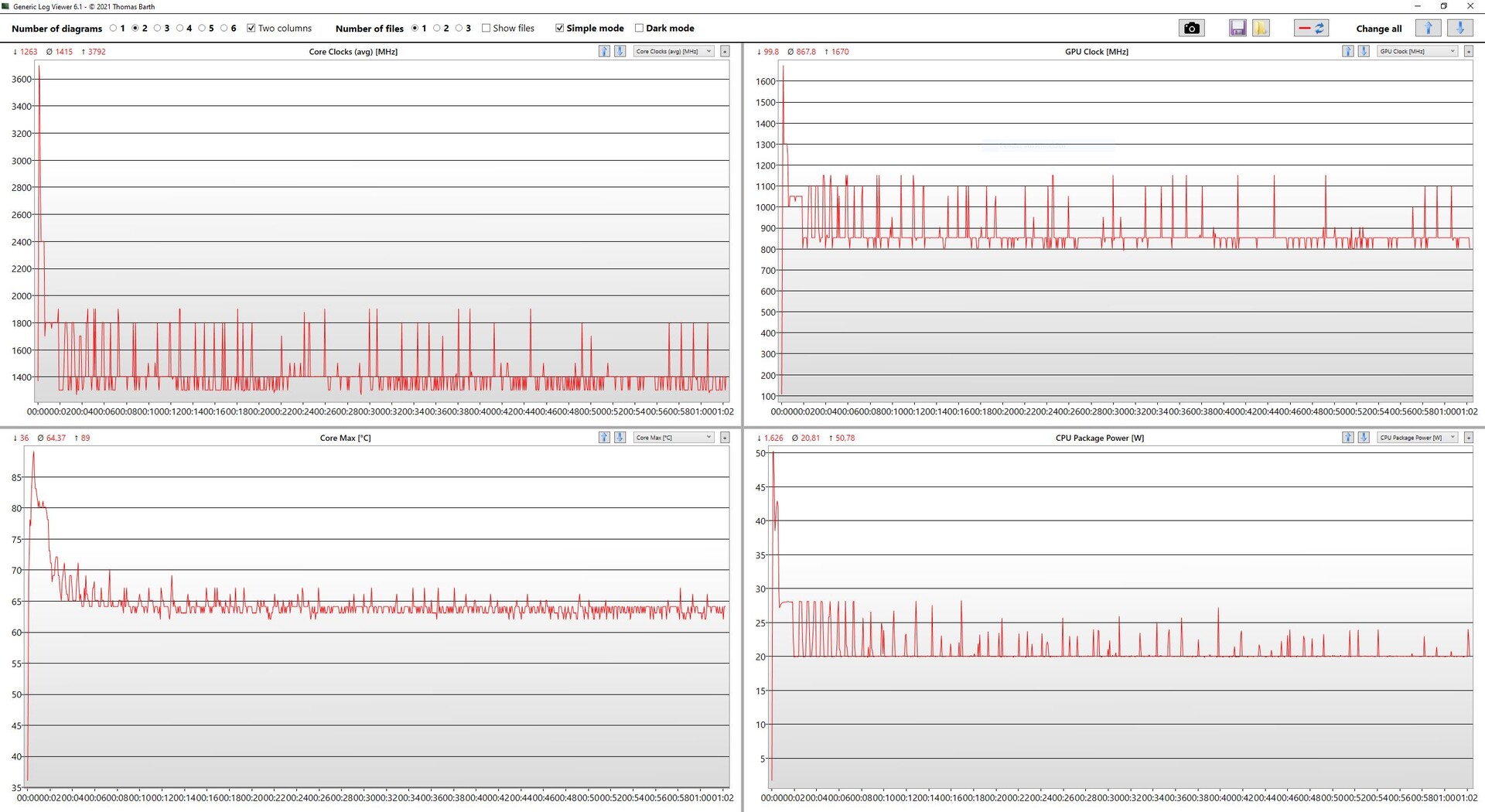

在华硕的笔记本电脑内部，温度在长期压力测试中短暂上升到89 °C（约192 °F）左右，然后下降到80 °C（176 °F），并稳定在65 °C（149 °F）左右，可以保持到测试结束。CPU的时钟速率下降到2.4GHz的基础时钟以下，但在测试结束后，系统又迅速稳定下来。由于这种情况在日常使用中也不应该发生，因此，有限的系统性能只可能发生在非常苛刻的应用中。
(±) The maximum temperature on the upper side is 41.7 °C / 107 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 54.3 °C / 130 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.4 °C / 90 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.8 °C / 89.2 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-4.2 °C / -7.5 F).
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Acer TravelMate P614P-52 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkBook 14 G2 ITL 20VD008WGE Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|
| Heat | 0% | 2% | 6% | |
| Maximum Upper Side * | 41.7 | 41 2% | 43 -3% | 40.6 3% |
| Maximum Bottom * | 54.3 | 43 21% | 47 13% | 46.4 15% |
| Idle Upper Side * | 26 | 29.4 -13% | 27 -4% | 25.2 3% |
| Idle Bottom * | 27.1 | 29.6 -9% | 27 -0% | 26.8 1% |
* ... smaller is better
演讲者
ExpertBook B1 B1400的扬声器提供中等音量，声音频谱在中音上很明显。因此，它们适合在安静的环境中偶尔消费媒体内容。但是，在听音乐等方面，仍然建议使用外部扬声器或耳机。
Asus ExpertBook B1 B1400CEAE, i5-1135G7 audio analysis
(±) | speaker loudness is average but good (81.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.6% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(+) | mids are linear (6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (4.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 4% similar, 85% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer TravelMate P614P-52 audio analysis
(±) | speaker loudness is average but good (73.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (8.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.4% higher than median
(±) | linearity of mids is average (12% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24% difference to median)
Compared to same class
» 66% of all tested devices in this class were better, 10% similar, 24% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 69% of all tested devices were better, 7% similar, 24% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理 - 良好的电池寿命
能源消耗
根据我们的测量，华硕笔记本的最大功耗在短时间内高达64.3瓦，但从长远来看，只有42瓦左右。在我们闲置的情况下，ExpertBook B1 B1400非常节俭，平均功耗为5.2瓦。
附带的电源的输出功率为65瓦，因此规模足够大。
| Off / Standby | 0.45 / 0.83 Watt |
| Idle | 3.2 / 5.2 / 6.1 Watt |
| Load |
25.2 / 64.3 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption Witcher 3 / Stress test
电池寿命
在我们的实际WLAN测试中，华硕ExpertBook B1 B1400实现了不到7小时的运行时间。因此，它可以很好地利用其42Wh的电池，并且表现得比 联想ThinkBook 14 G2，后者配备了更大的容量。
| Asus ExpertBook B1 B1400CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs, 42 Wh | Acer TravelMate P614P-52 i7-1165G7, Iris Xe G7 96EUs, 56 Wh | Honor Magicbook 14 i7-1165G7 i7-1165G7, Iris Xe G7 96EUs, 56 Wh | Lenovo ThinkBook 14 G2 ITL 20VD008WGE i5-1135G7, Iris Xe G7 80EUs, 45 Wh | Average of class Office | |
|---|---|---|---|---|---|
| Battery Runtime | 28% | 39% | -17% | 46% | |
| WiFi v1.3 | 416 | 534 28% | 580 39% | 347 -17% | 608 ? 46% |
| Witcher 3 ultra | 120 | 142 ? |
Pros
Cons
结论--使用华硕ExpertBook B1 B1400的手机
在我们的测试中，华硕ExpertBook B1 B1400被证明是一款超薄和移动的笔记本，很适合日常工作。由于其良好的性能，办公应用程序的运行效率很高，而且这款笔记本电脑也能很好地应对更多的任务。得益于相对较好的7小时电池运行时间，你不必一直在附近准备一个电源插座。

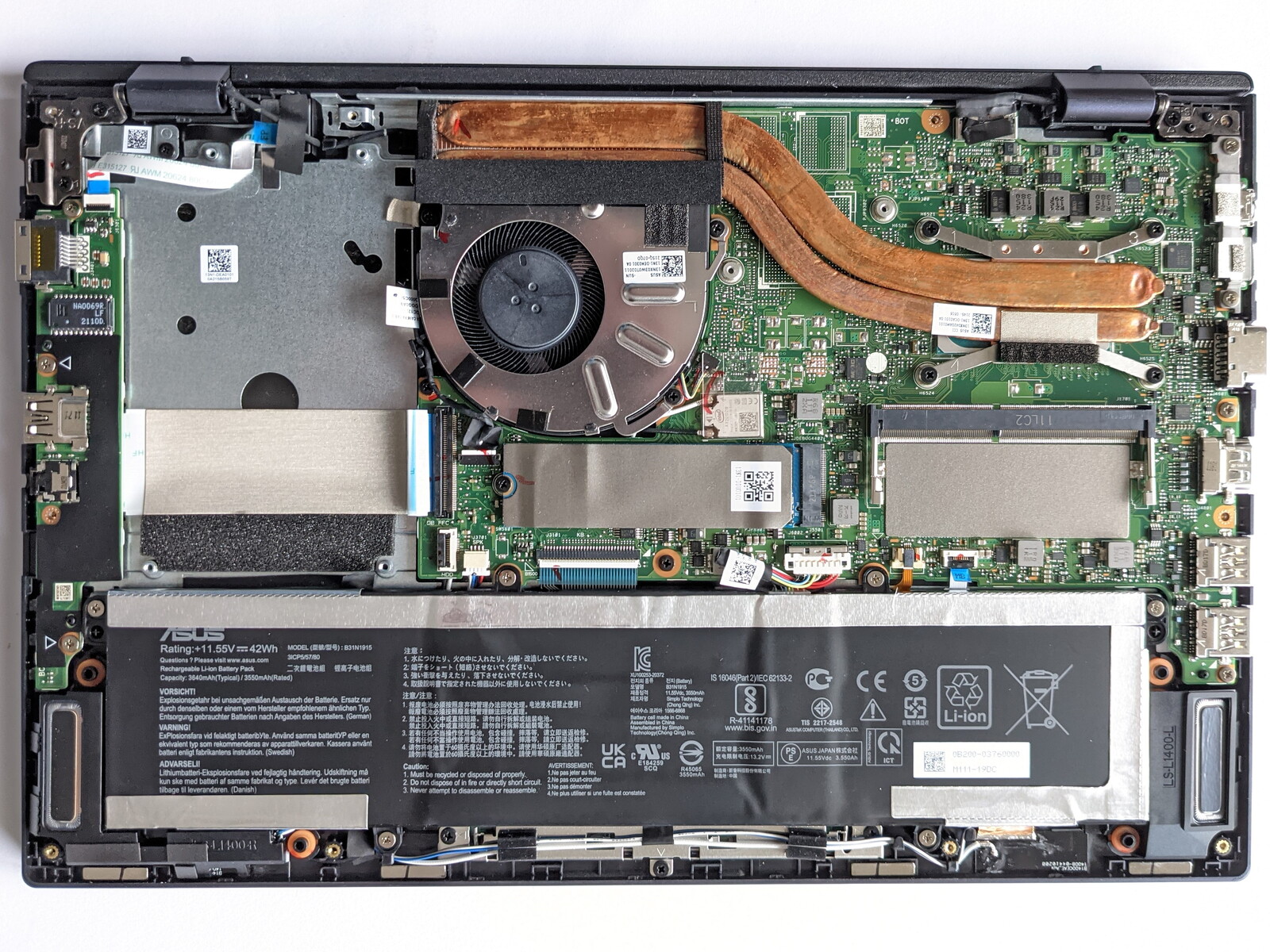

尽管性能在日常使用中被证明是完全足够的，但通过使用第二个内存模块，可以实现改进，特别是在图形性能方面。维护选项也允许扩展大容量内存。与竞争对手相比，如 联想ThinkBook 14 G2，ExpertBook B1 B1400被证明是不相上下的。那些还想与更强大的机型合作的人，如 Honor MagicBook 14或 Acer TravelMate P6，也可以简单地切换到配备英特尔酷睿i7-1165G7的型号变体。 英特尔酷睿i7-1165G7.
华硕ExpertBook B1 B1400非常适用于移动办公，由于其坚固的外壳，也非常坚固。
价格和可用性
除了我们的借阅服务Campuspoint华硕ExpertBook B1 B1400还可以在亚马逊上购买。(DE)。
Asus ExpertBook B1 B1400CEAE, i5-1135G7
- 11/20/2021 v7 (old)
Mike Wobker
Price comparison
