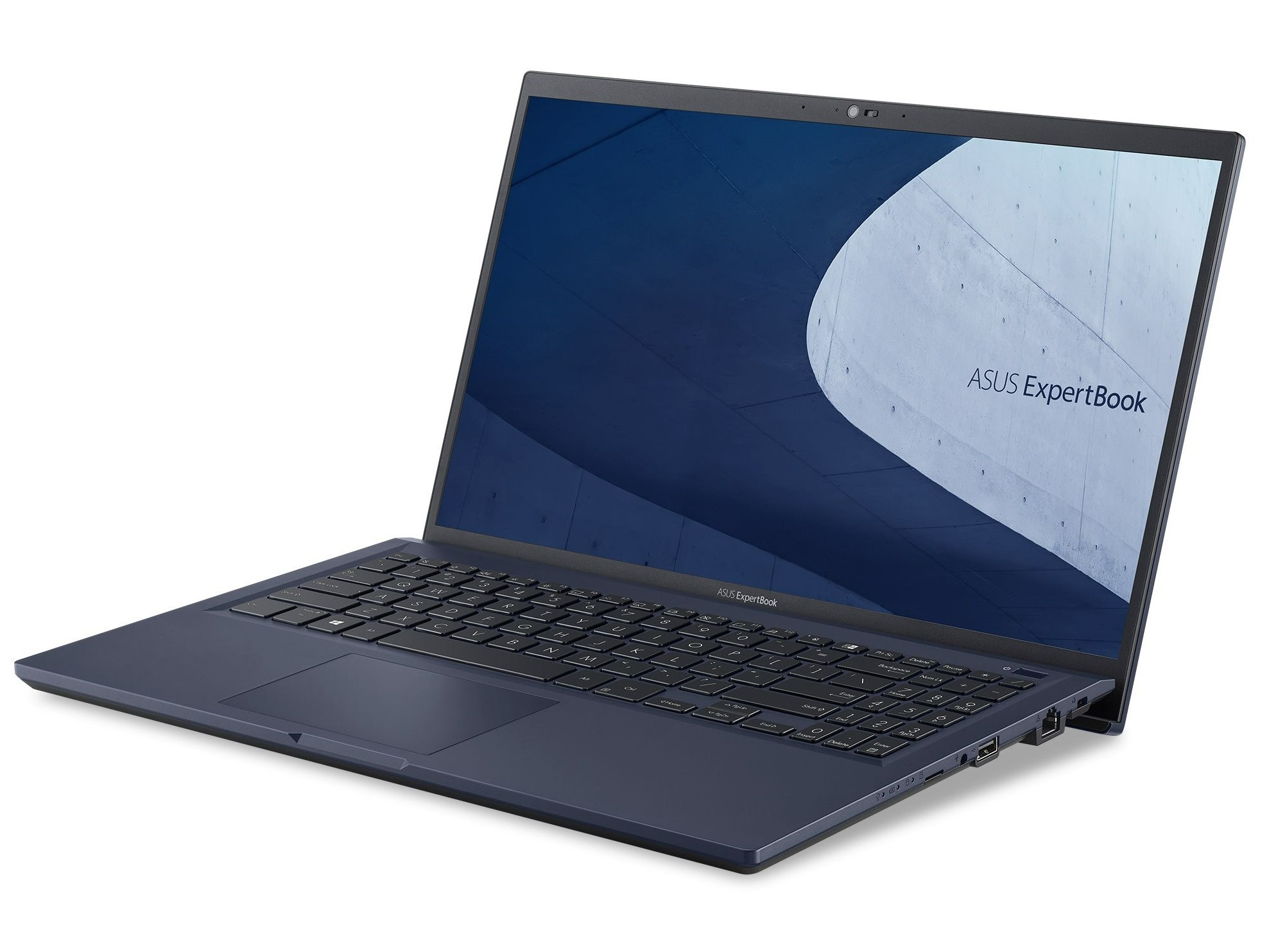

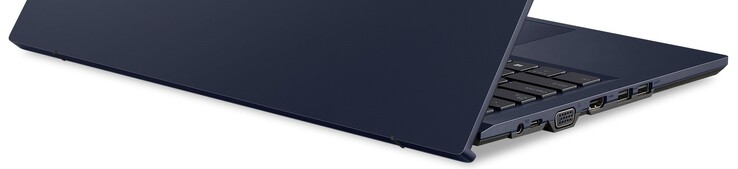

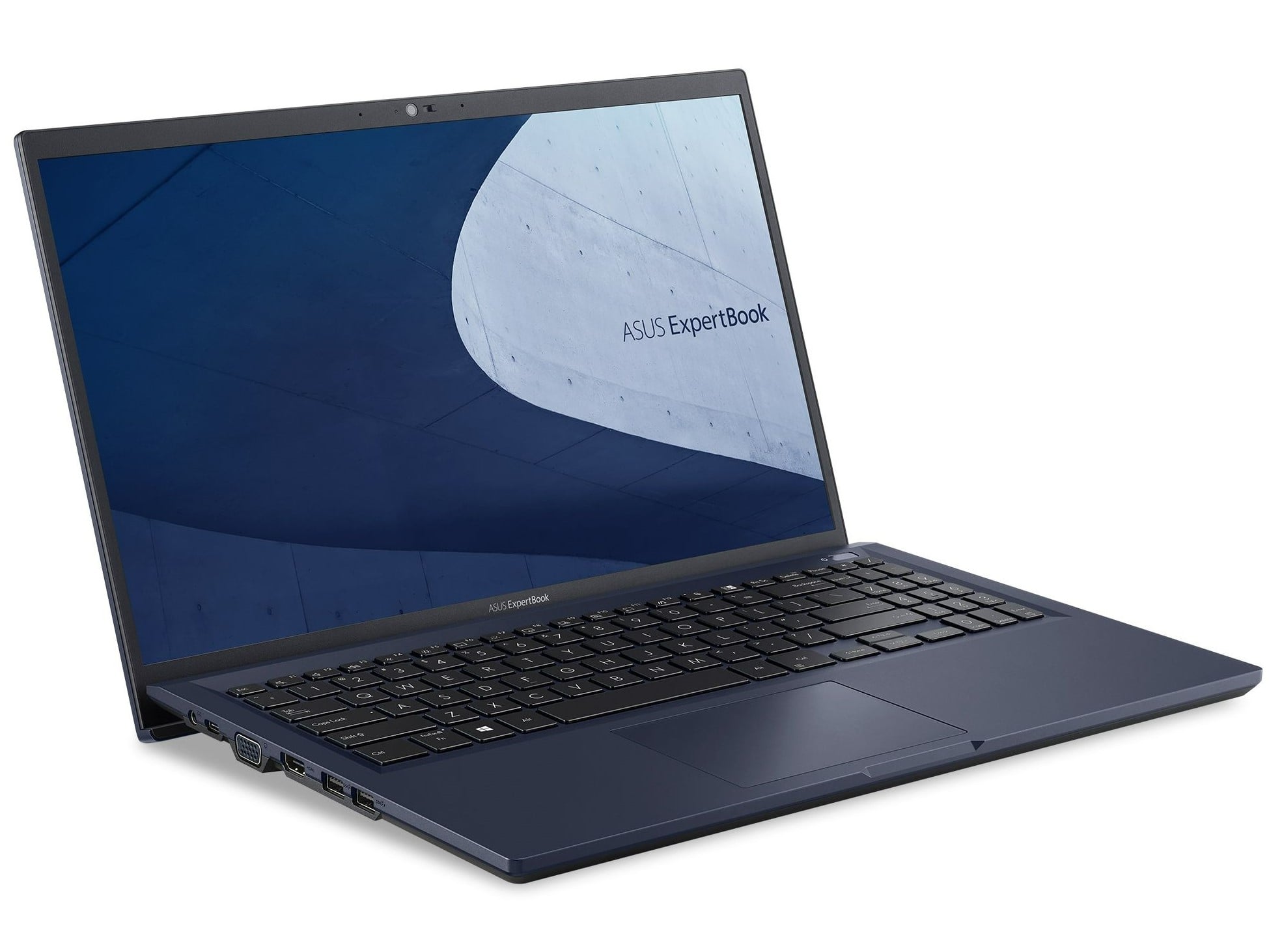

华硕ExpertBook B1 B1500在审查:商务笔记本上的许多端口
通过B1系列的ExpertBooks，华硕提供了廉价的商务设备，价格从700到约1200欧元（约789美元到1353美元）不等，取决于配置。在我们对 专家本B5和 专家本B9这个系列的设备已经给我们留下了非常好的印象。现在我们来看看拥有15英寸显示屏的华硕ExpertBook B1。
在我们的测试配置中，它配备了一个 英特尔酷睿i5-1135G7及其内部图形单元，8GB内存和512GB SSD。根据报价，价格在700到800欧元之间（约789美元和902美元）。
Possible competitors in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 84.8 % v7 (old) | 11 / 2021 | Asus ExpertBook B1 B1500CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.7 kg | 19.4 mm | 15.60" | 1920x1080 | |
| 82 % v7 (old) | Samsung Galaxy Book NP750XDA i5-1135G7, Iris Xe G7 80EUs | 1.6 kg | 16 mm | 15.60" | 1920x1080 | ||
| 83.6 % v7 (old) | 08 / 2021 | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 17 mm | 15.60" | 1920x1080 | |
| 82.8 % v7 (old) | 02 / 2022 | Lenovo ThinkBook 15 Gen2 ITL i5-1135G7, Iris Xe G7 80EUs | 1.8 kg | 18.9 mm | 15.60" | 1920x1080 |
机箱和设备 - 快速WiFi 6和Thunderbolt 4

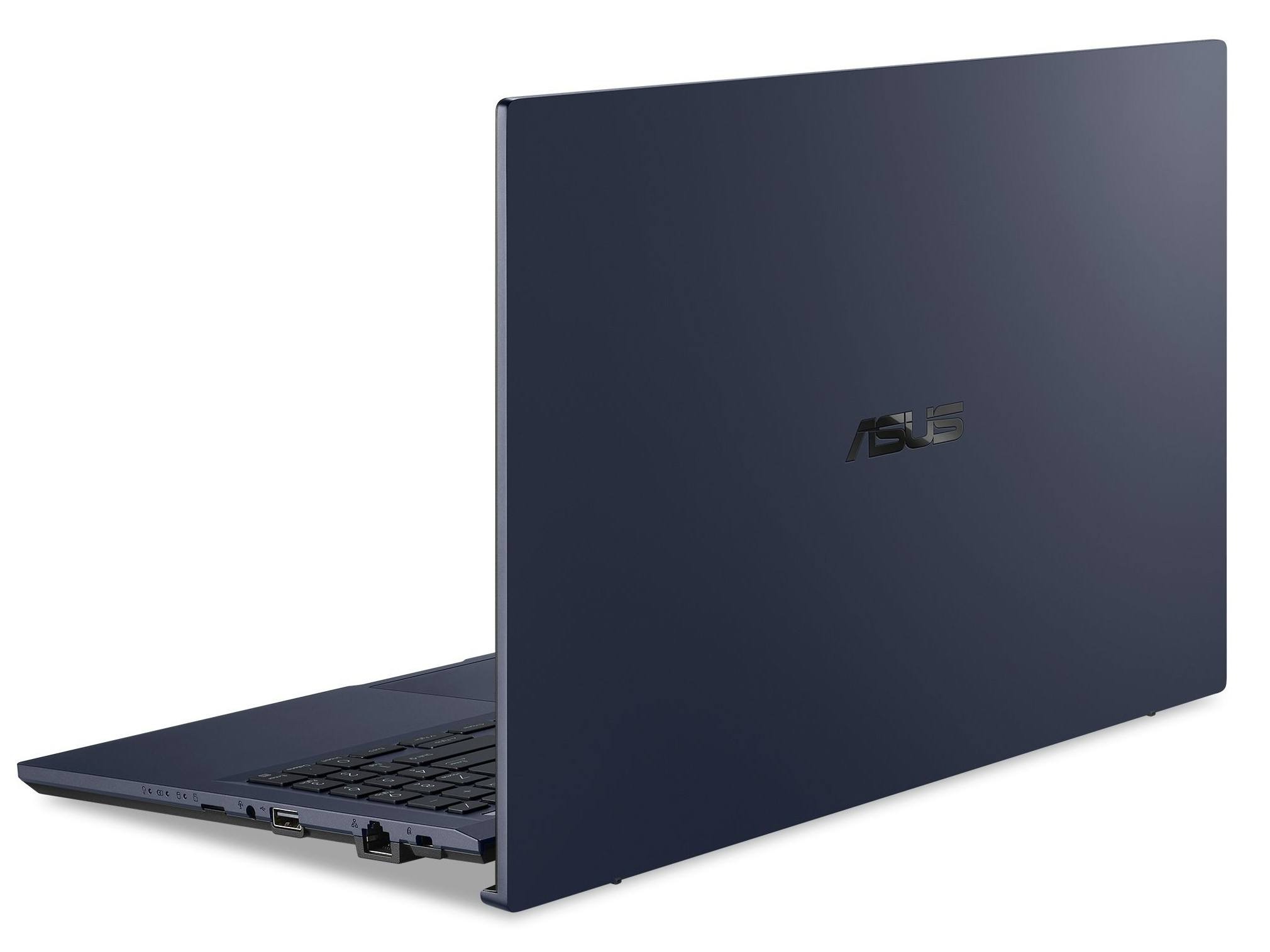

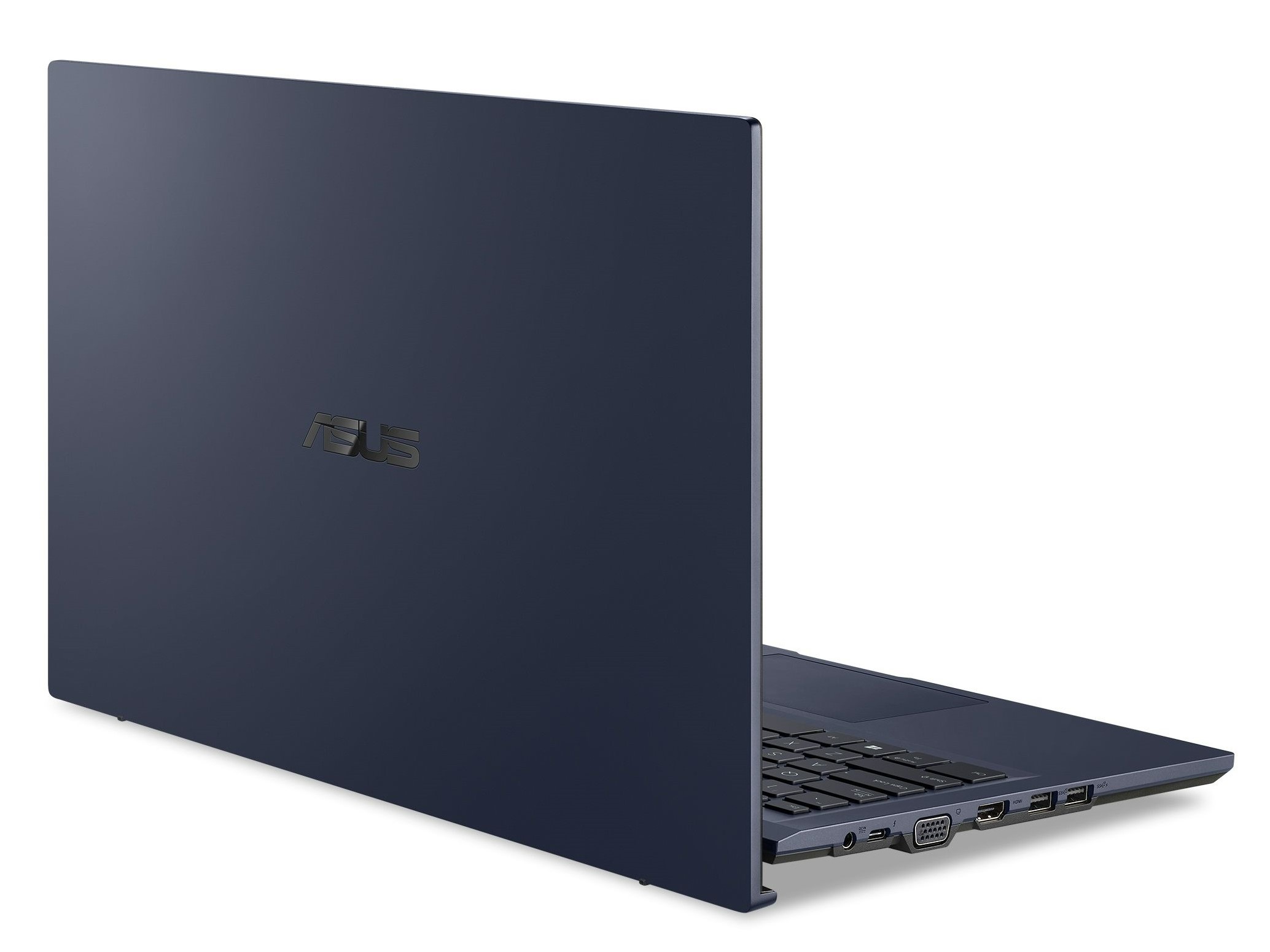

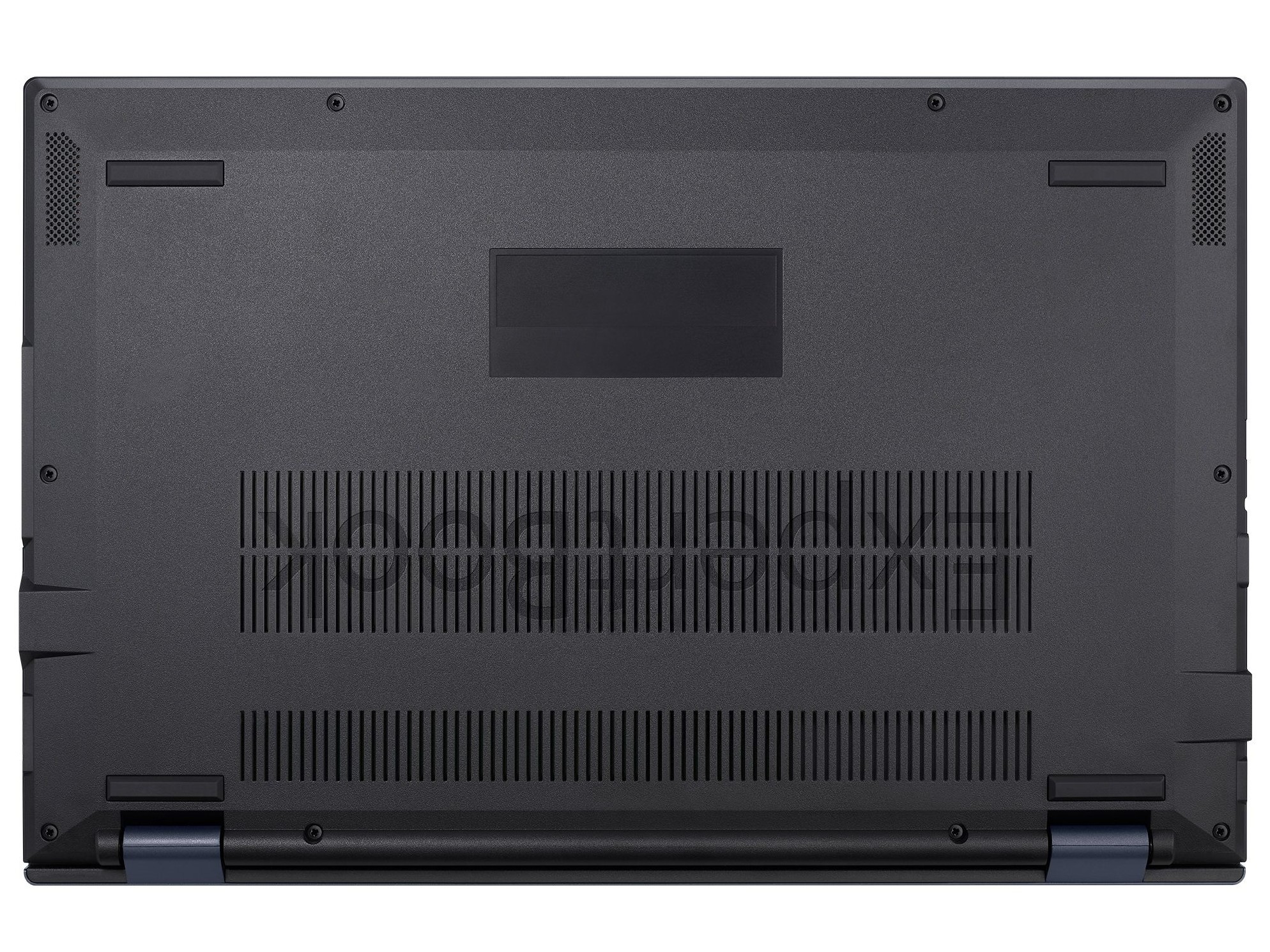

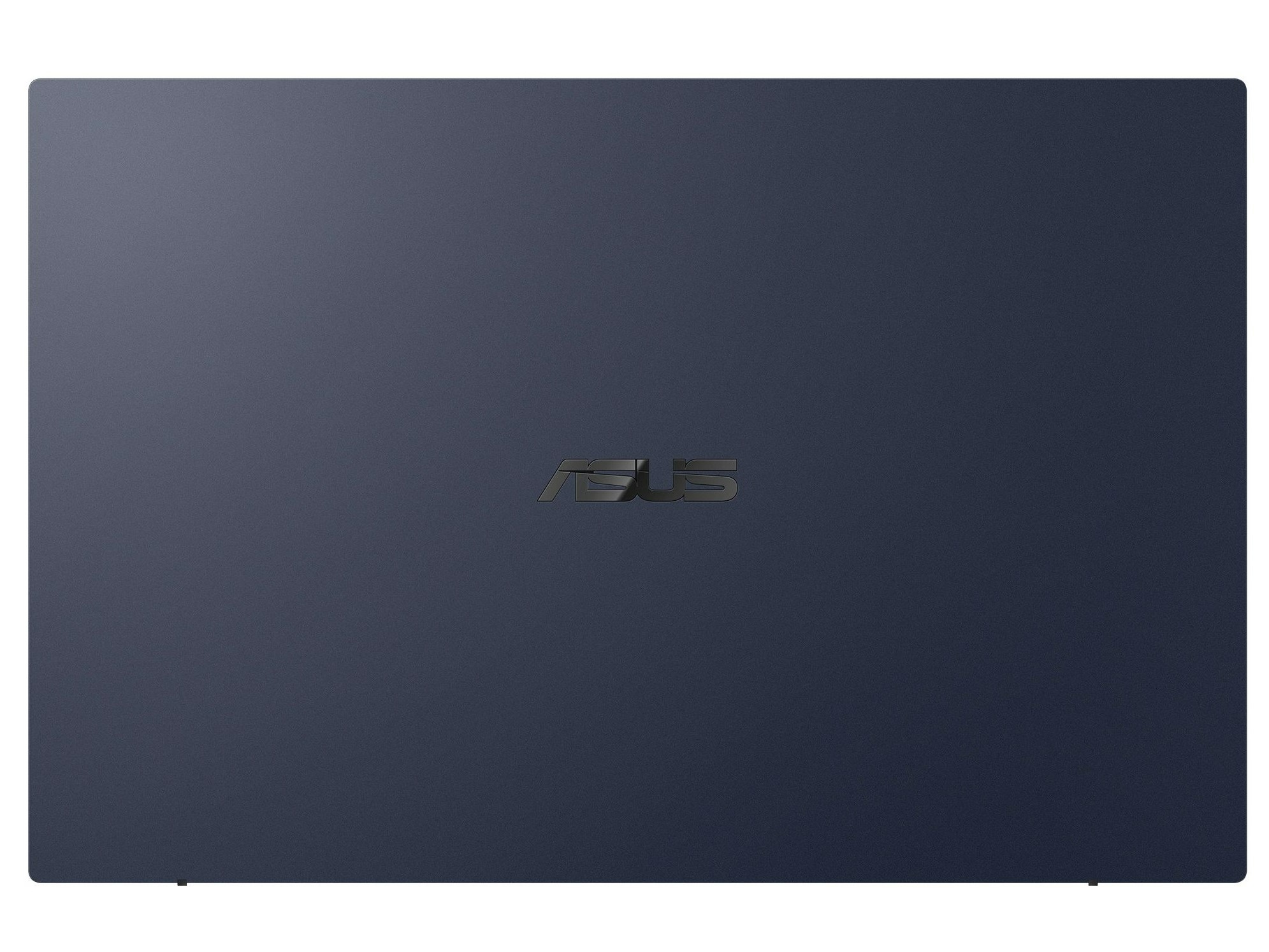

华硕用塑料制造了ExpertBook B1的基本单元，并用铝合金加固了盖子。建造质量很高，笔记本看起来非常坚固。由于显示器边框较窄，尺寸也相当紧凑，重量也很低，约为1.7公斤（约3.8磅）。显示器的最大开启角度为180度。

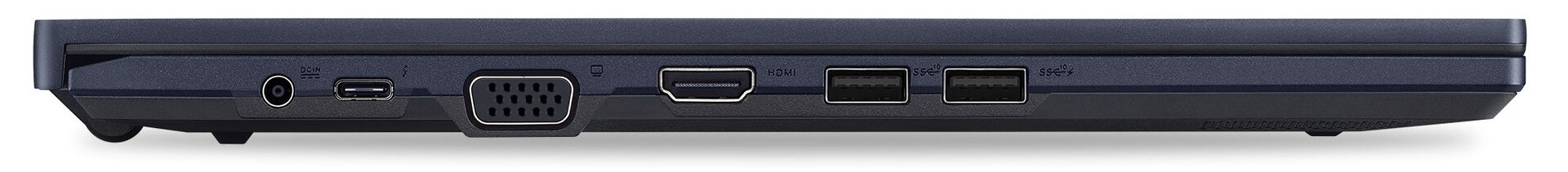

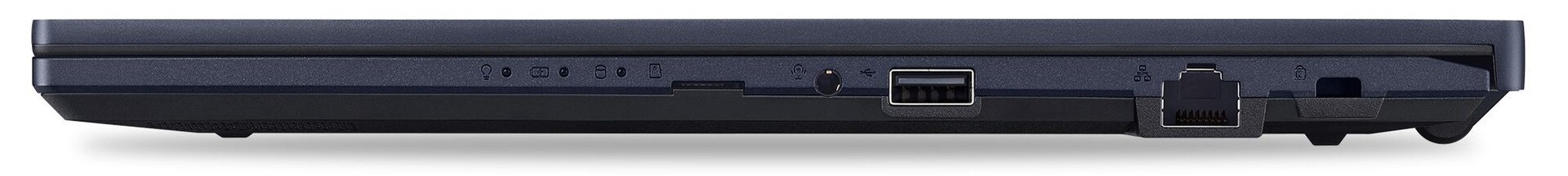

除了HDMI、USB-C和USB-A等正常端口，华硕的笔记本还提供了VGA和以太网端口。由于有了Thunderbolt 4，许多其他端口可以通过相应的适配器连接。然而，右侧蹩脚的USB 2.0端口已经过时了。
一个microSD读卡器也出现了，但它的速度相当慢，用我们的参考存储卡AV Pro V60复制时为25.5MB/s，读取数据时为26.9MB/s。
在WLAN测试中，由于WiFi 6与我们的参考路由器Netgear Nighthawk AX12的配合，在传输数据时达到了1,359 MBit/s的速度，在接收数据时达到了1,478 MBit/s。这些速度非常好，符合我们测试领域的水平。

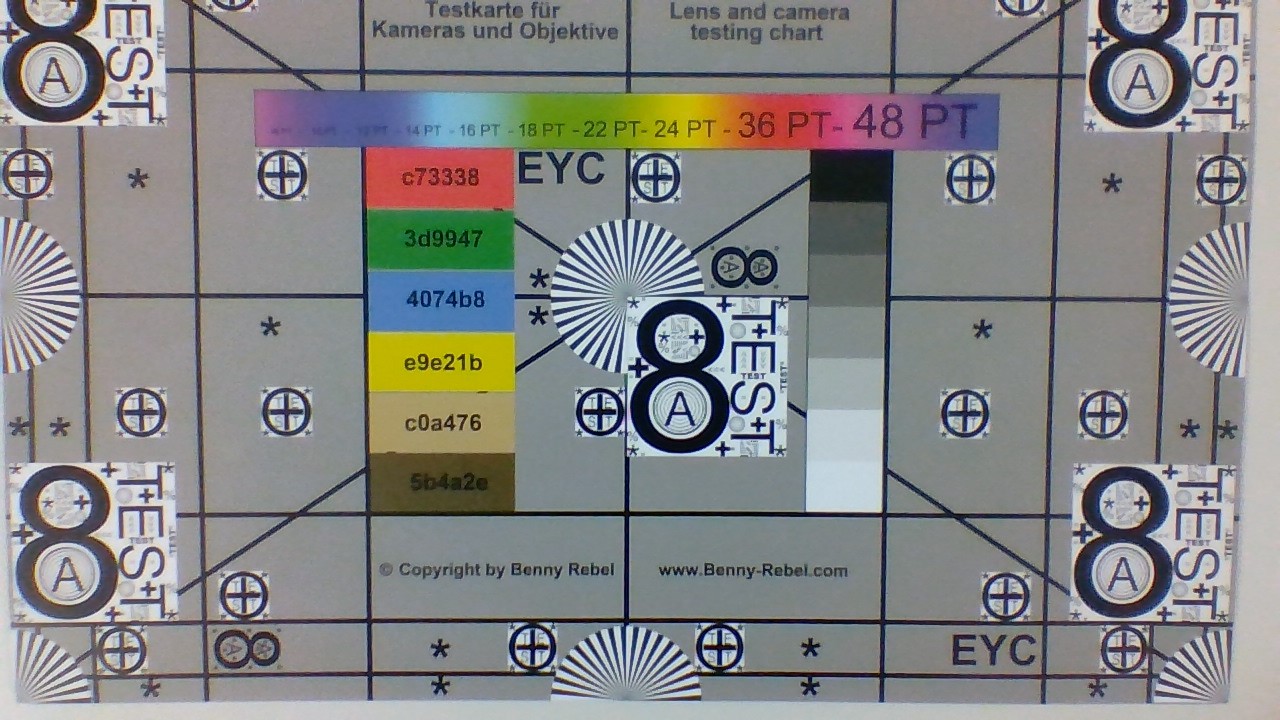

内置的网络摄像头，像目前大多数笔记本一样，只能显示0.9MP的低分辨率的主题。相应地，我们测试的照片质量也很一般。一个机械的网络摄像头快门可以防止不需要的目光。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo ThinkBook 15 Gen2 ITL (AV Pro V60) | |
| Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
| Samsung Galaxy Book NP750XDA (AV PRO microSD 128 GB V60) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (AV Pro V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo ThinkBook 15 Gen2 ITL (AV Pro V60) | |
| Average of class Office (25 - 249, n=31, last 2 years) | |
| Samsung Galaxy Book NP750XDA (AV PRO microSD 128 GB V60) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 (AV Pro V60) | |
| Networking | |
| iperf3 transmit AX12 | |
| Samsung Galaxy Book NP750XDA | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Wi-Fi 6 AX201 (49.8 - 1775, n=324) | |
| iperf3 receive AX12 | |
| Samsung Galaxy Book NP750XDA | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Wi-Fi 6 AX201 (136 - 1743, n=324) | |
输入设备 - 带有良好键盘的华硕笔记本

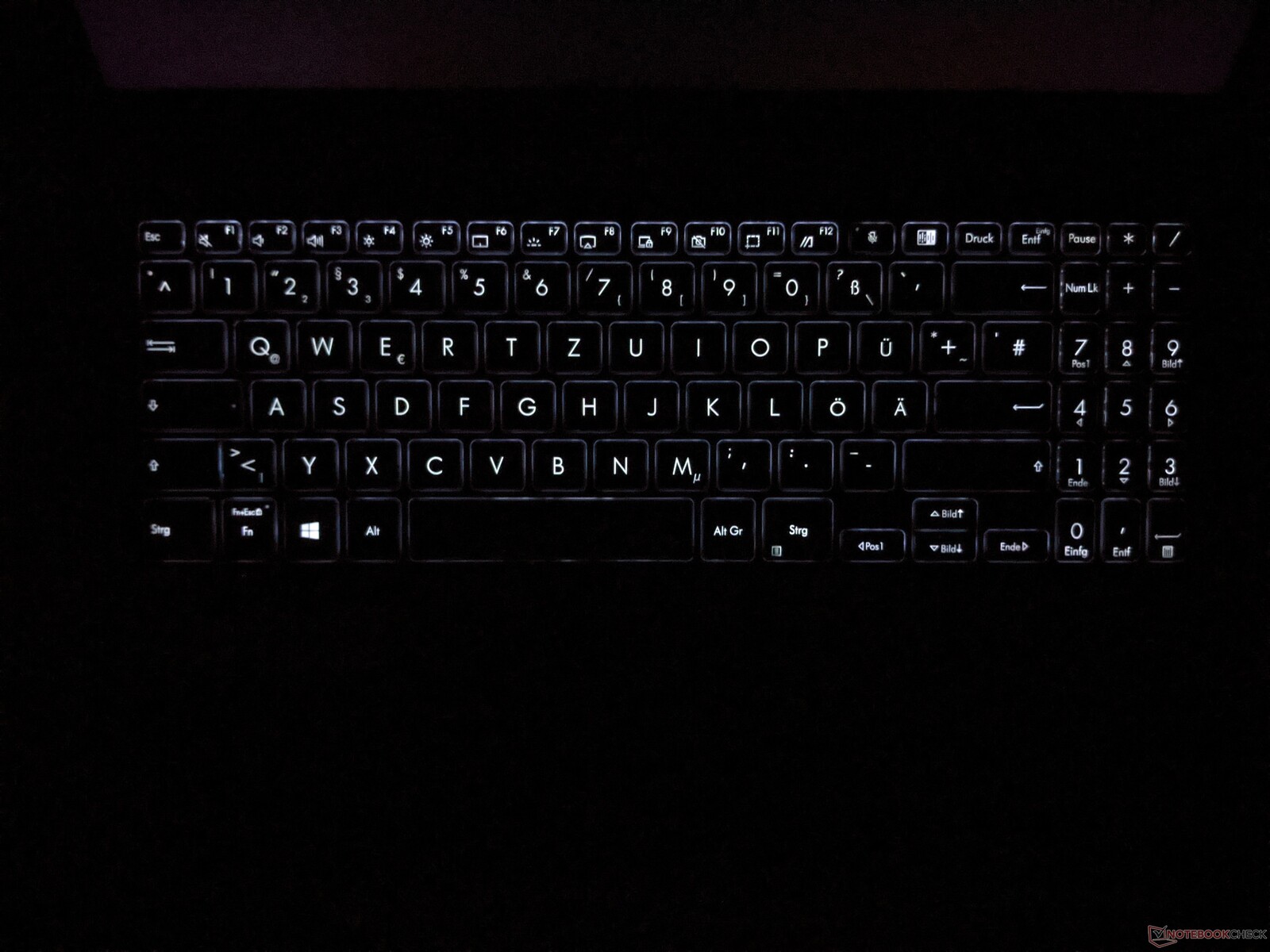

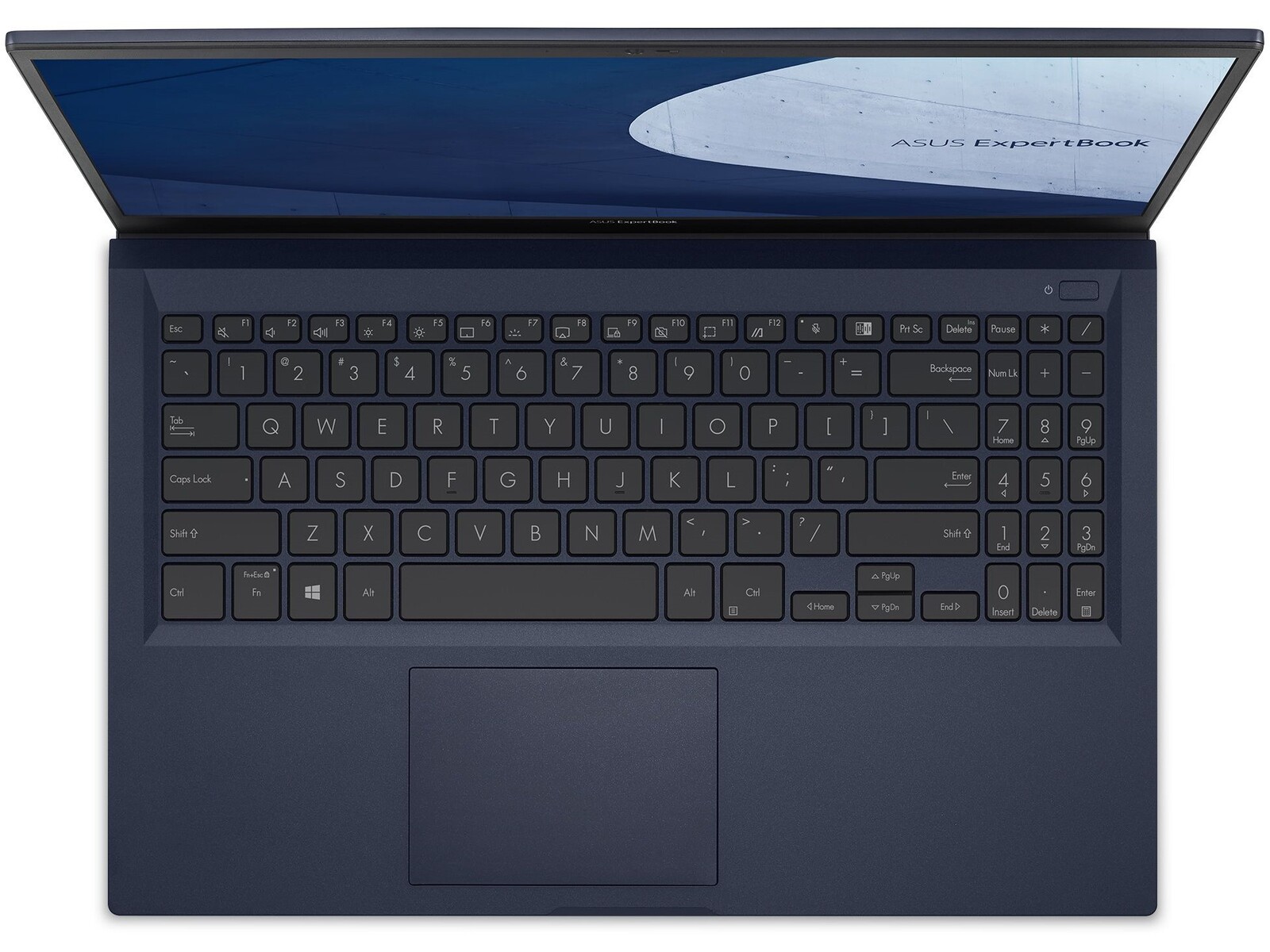

ExpertBook B1的键盘提供了令人愉快的大按键和清晰的压力点。因此，在短暂的熟悉期后，打字工作就可以顺利进行。一个完整的数字键盘完善了键盘。只有滚动键、位置1键和结束键在相当狭窄的方向键上的双重分配是不理想的。
一个点击板可作为鼠标的替代品，它很适合于导航鼠标指针的使用。鼠标的点击可以通过触摸以及机械压力可靠地触发。在我们的测试期间，集成在电源按钮上的指纹扫描仪也有可靠的反应。
显示 - ExpertBook B1的明亮屏幕

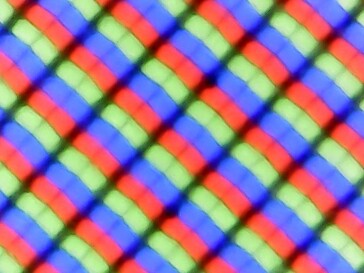

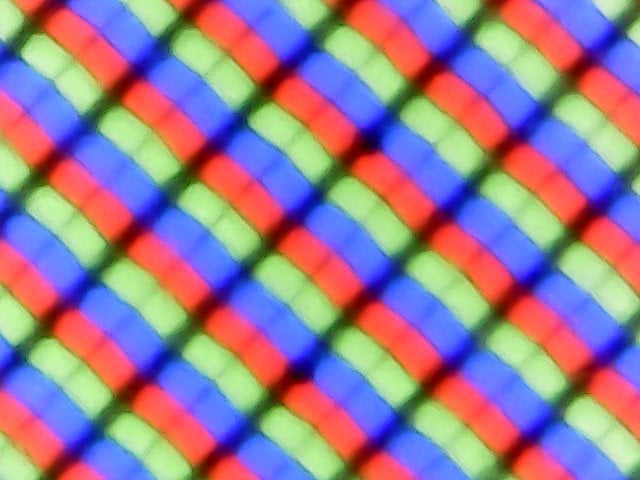

ExpertBook B1 B1500的屏幕使用15.6英寸的IPS面板，分辨率为1,920 x 1,080像素。最大亮度为305cd/m²，因此处于我们测试领域的中间位置。华硕笔记本电脑的屏幕提供了非常好的对比度1,600:1和同样非常好的黑值0.19 cd/m²。

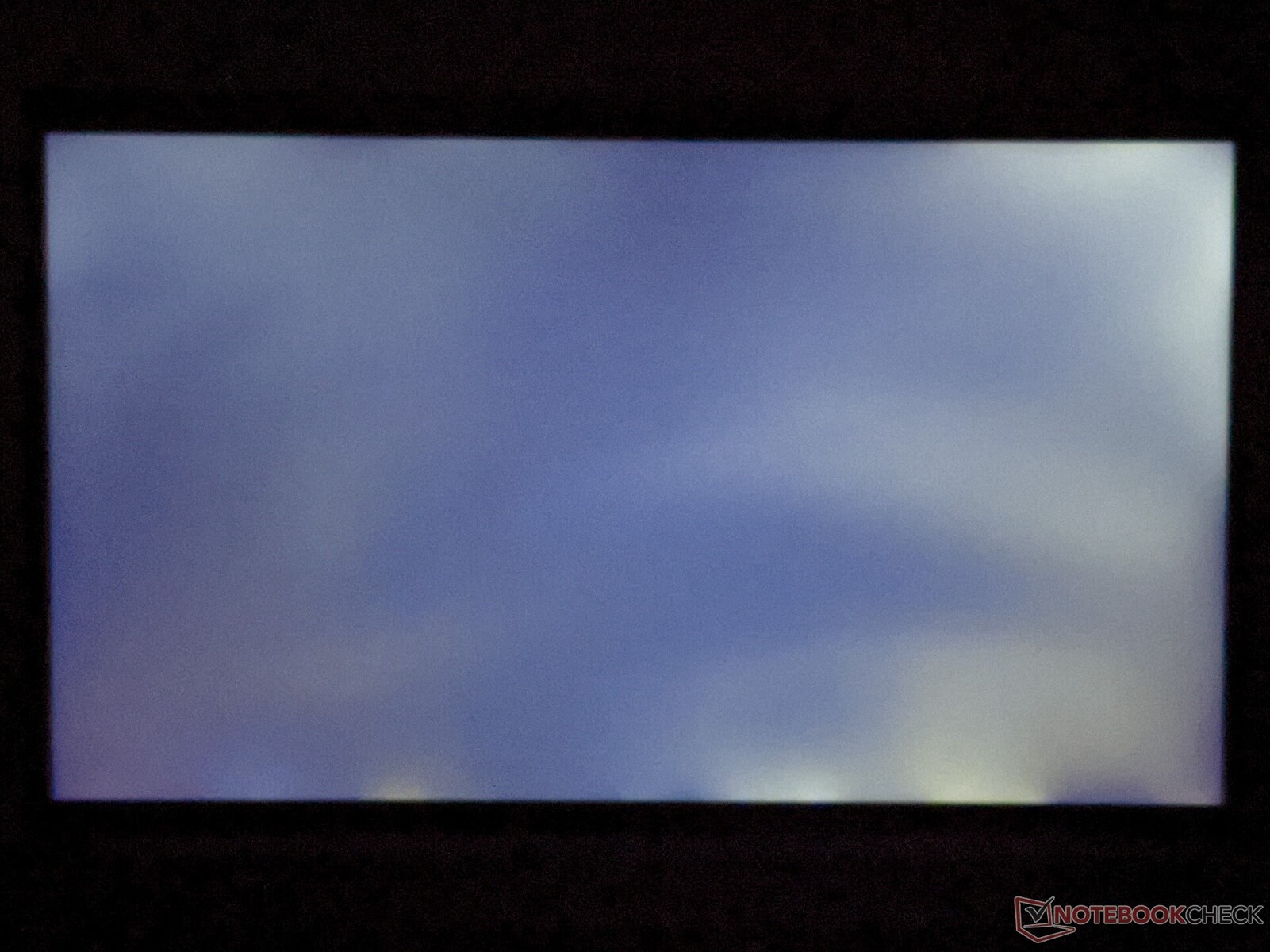

哑光面板的主观画面印象很好，即使是明亮的表面看起来也不会有太多的颗粒感。此外，在亮度控制方面没有使用PWM。然而，在全亮度的情况下，在边缘的黑暗背景上可以看到轻微的屏幕渗漏。
| |||||||||||||||||||||||||
Brightness Distribution: 89 %
Center on Battery: 305 cd/m²
Contrast: 1600:1 (Black: 0.19 cd/m²)
ΔE Color 5.2 | 0.5-29.43 Ø4.91, calibrated: 4.5
ΔE Greyscale 2.9 | 0.5-98 Ø5.2
43% AdobeRGB 1998 (Argyll 2.2.0 3D)
62.3% sRGB (Argyll 2.2.0 3D)
41.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.14
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 CEC Panda LM156LF-5L06, IPS, 1920x1080, 15.6" | Samsung Galaxy Book NP750XDA CEC PANDA LM156LF5L03, IPS, 1920x1080, 15.6" | Honor MagicBook 15 i5 1135G7 BOE TV156FHM-NH2, IPS, 1920x1080, 15.6" | Lenovo ThinkBook 15 Gen2 ITL LG Philips LP156WFC-SPD7, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|
| Display | 56% | -3% | ||
| Display P3 Coverage | 41.6 | 65.4 57% | 40.36 -3% | |
| sRGB Coverage | 62.3 | 96.3 55% | 60.4 -3% | |
| AdobeRGB 1998 Coverage | 43 | 67.5 57% | 41.72 -3% | |
| Response Times | 33% | 21% | 8% | |
| Response Time Grey 50% / Grey 80% * | 44.8 ? | 29 ? 35% | 36 ? 20% | 40 ? 11% |
| Response Time Black / White * | 32 ? | 22 ? 31% | 24.8 ? 22% | 30.4 ? 5% |
| PWM Frequency | ||||
| Screen | -22% | 5% | -14% | |
| Brightness middle | 304 | 325 7% | 332 9% | 288 -5% |
| Brightness | 285 | 297 4% | 318 12% | 276 -3% |
| Brightness Distribution | 89 | 86 -3% | 87 -2% | 87 -2% |
| Black Level * | 0.19 | 0.445 -134% | 0.27 -42% | 0.26 -37% |
| Contrast | 1600 | 730 -54% | 1230 -23% | 1108 -31% |
| Colorchecker dE 2000 * | 5.2 | 3.48 33% | 3.3 37% | 5.9 -13% |
| Colorchecker dE 2000 max. * | 18.5 | 8.07 56% | 7.8 58% | 18.4 1% |
| Colorchecker dE 2000 calibrated * | 4.5 | 1 78% | 4.9 -9% | |
| Greyscale dE 2000 * | 2.9 | 5.27 -82% | 5.2 -79% | 3.8 -31% |
| Gamma | 2.14 103% | 2.41 91% | 2.07 106% | 2.34 94% |
| CCT | 6639 98% | 7769 84% | 7370 88% | 6856 95% |
| Color Space (Percent of AdobeRGB 1998) | 44 | 38.1 | ||
| Color Space (Percent of sRGB) | 70 | 60 | ||
| Total Average (Program / Settings) | 6% /
-11% | 27% /
19% | -3% /
-9% |
* ... smaller is better

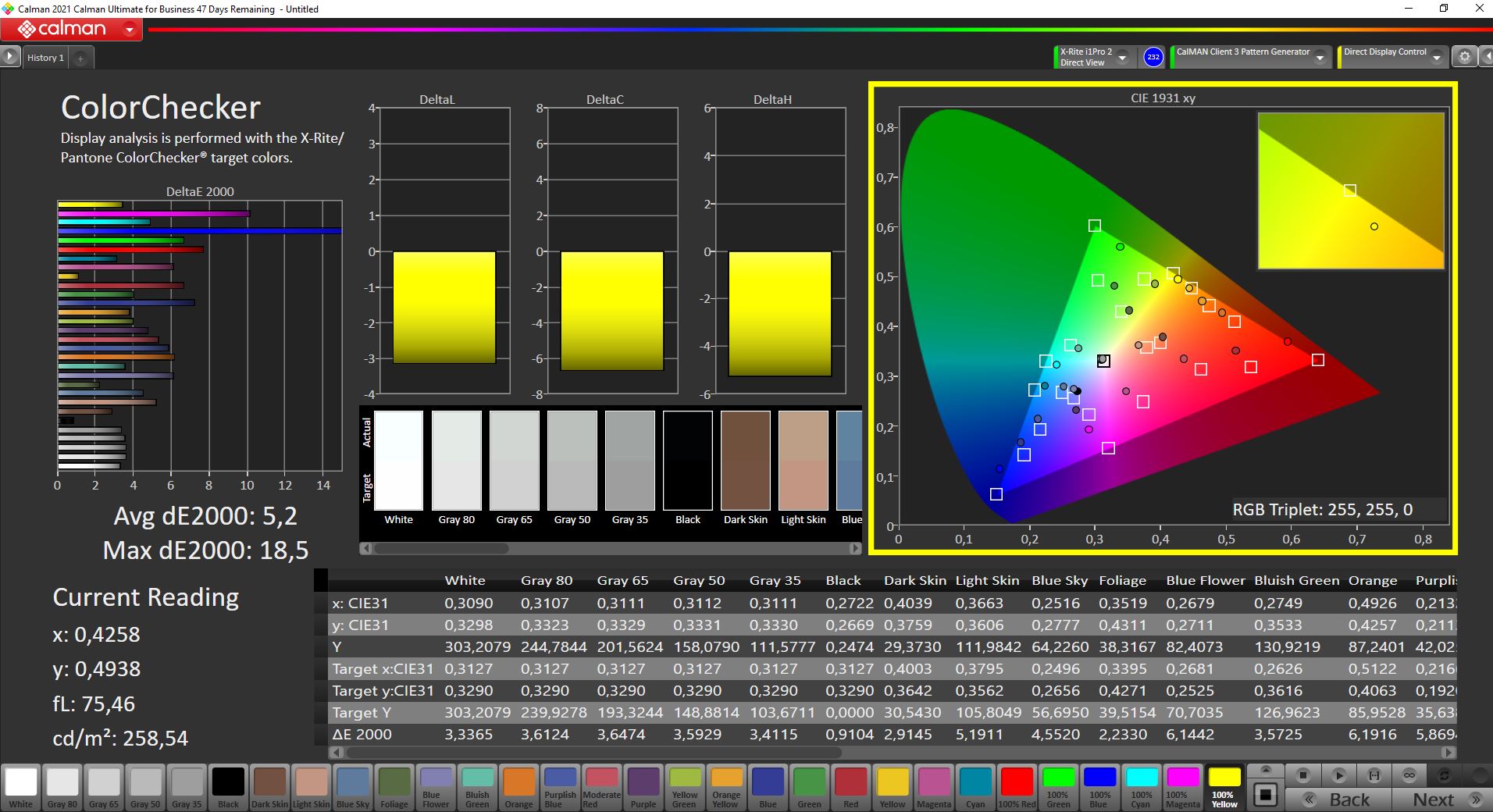

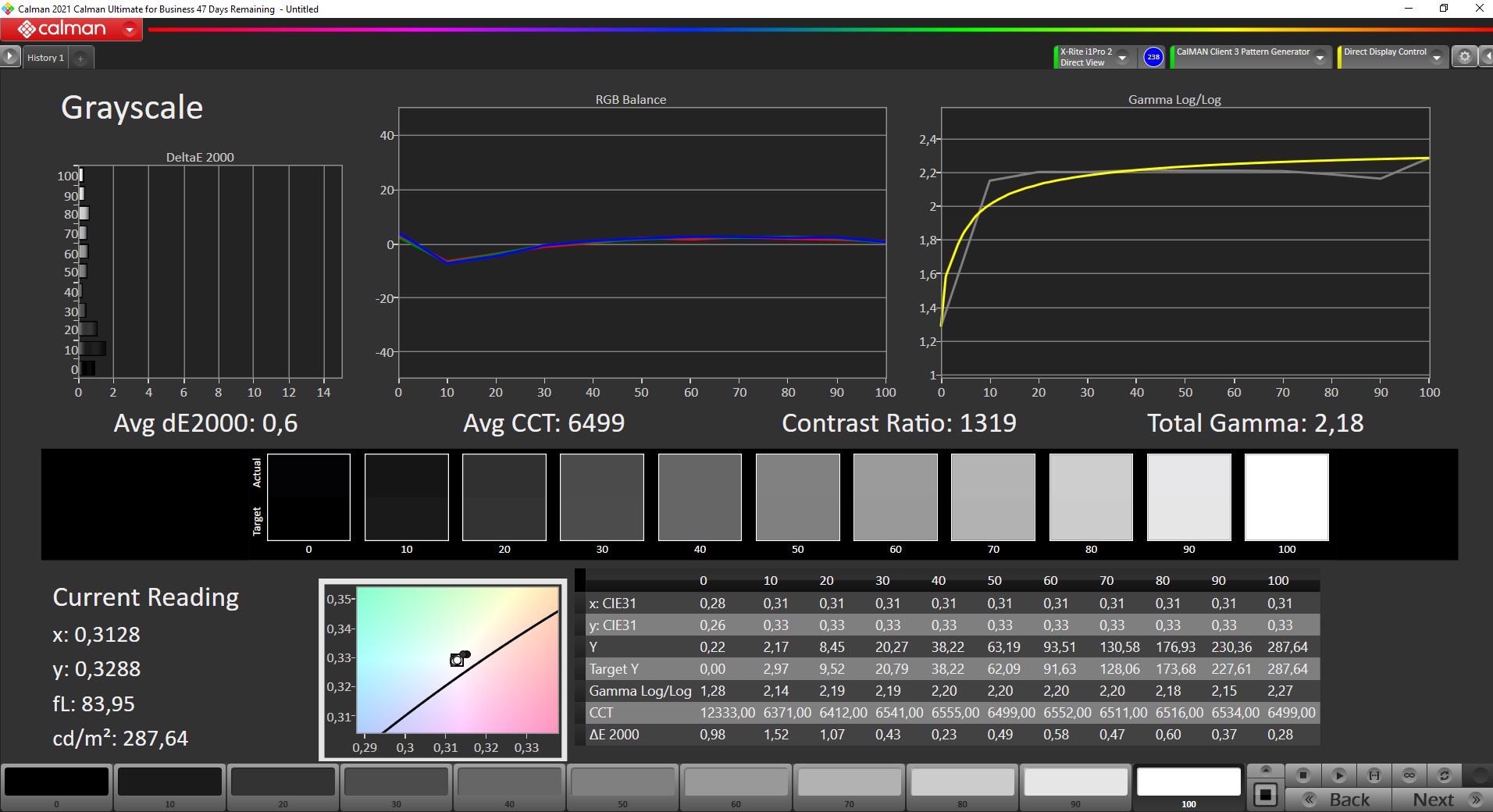

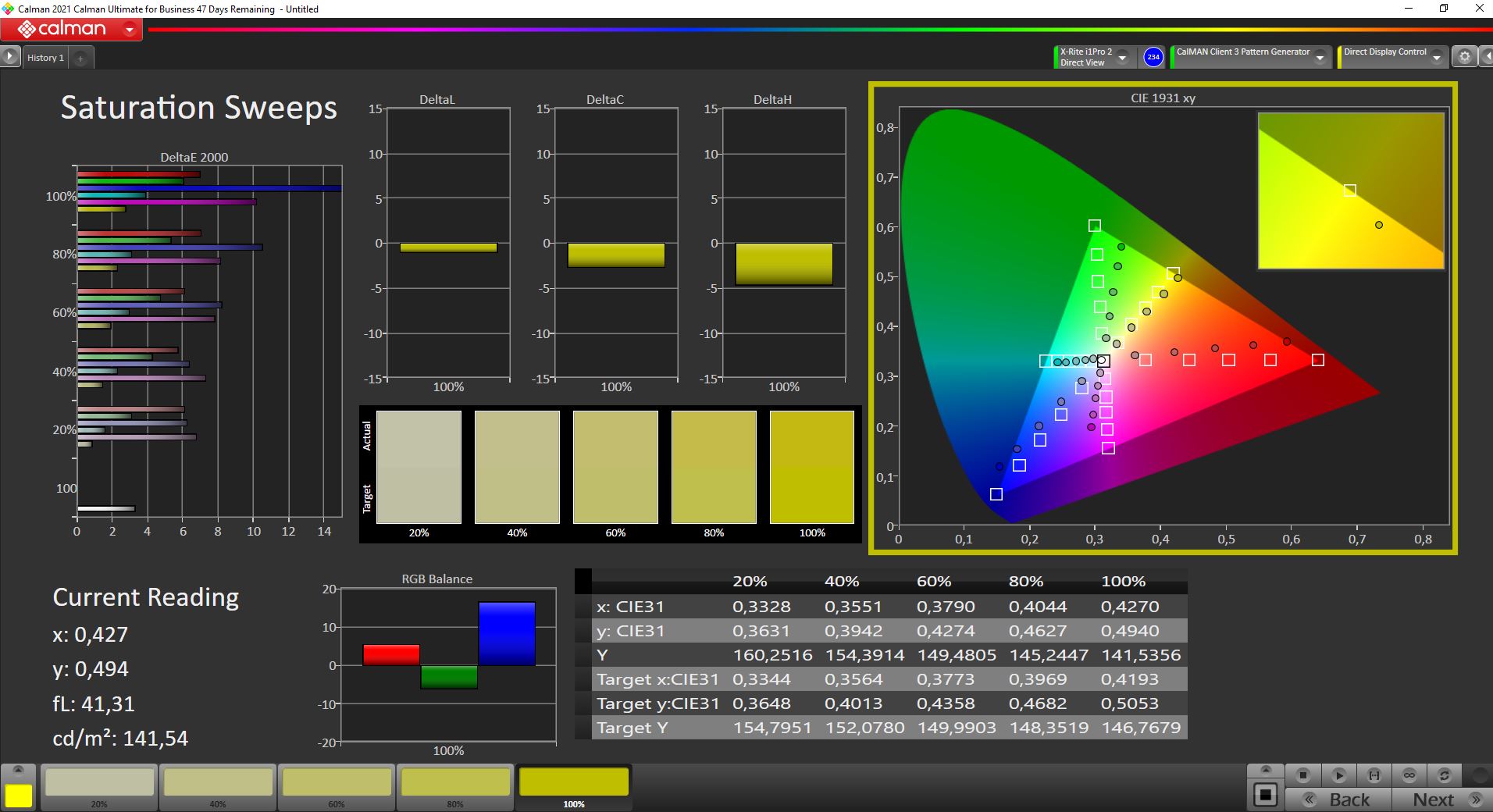

我们的分析（CalMAN和X-Rite i1 Pro 2）表明，显示器在交付状态下已经很合理。有一个最小的偏色（向绿色），但肉眼不可见。我们还可以通过校准降低DeltaE-2000的平均偏差（相应的配置文件可在上面下载），但这并不适用于颜色。高偏差与低色彩空间覆盖率相结合，清楚地表明我们面对的是一个廉价的IPS面板。其质量完全可以满足正常办公的需要，但该屏幕不适合编辑图片或视频。

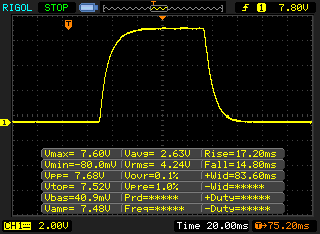

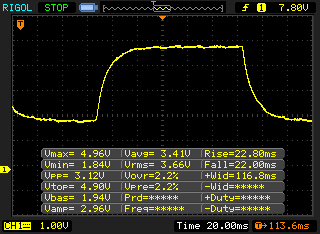

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 32 ms ... rise ↗ and fall ↘ combined | ↗ 17.2 ms rise |  |
| ↘ 14.8 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 44.8 ms ... rise ↗ and fall ↘ combined | ↗ 22.8 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 74 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

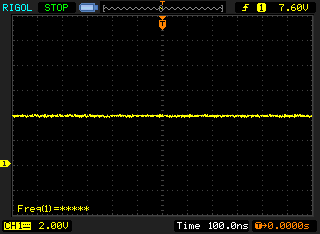

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

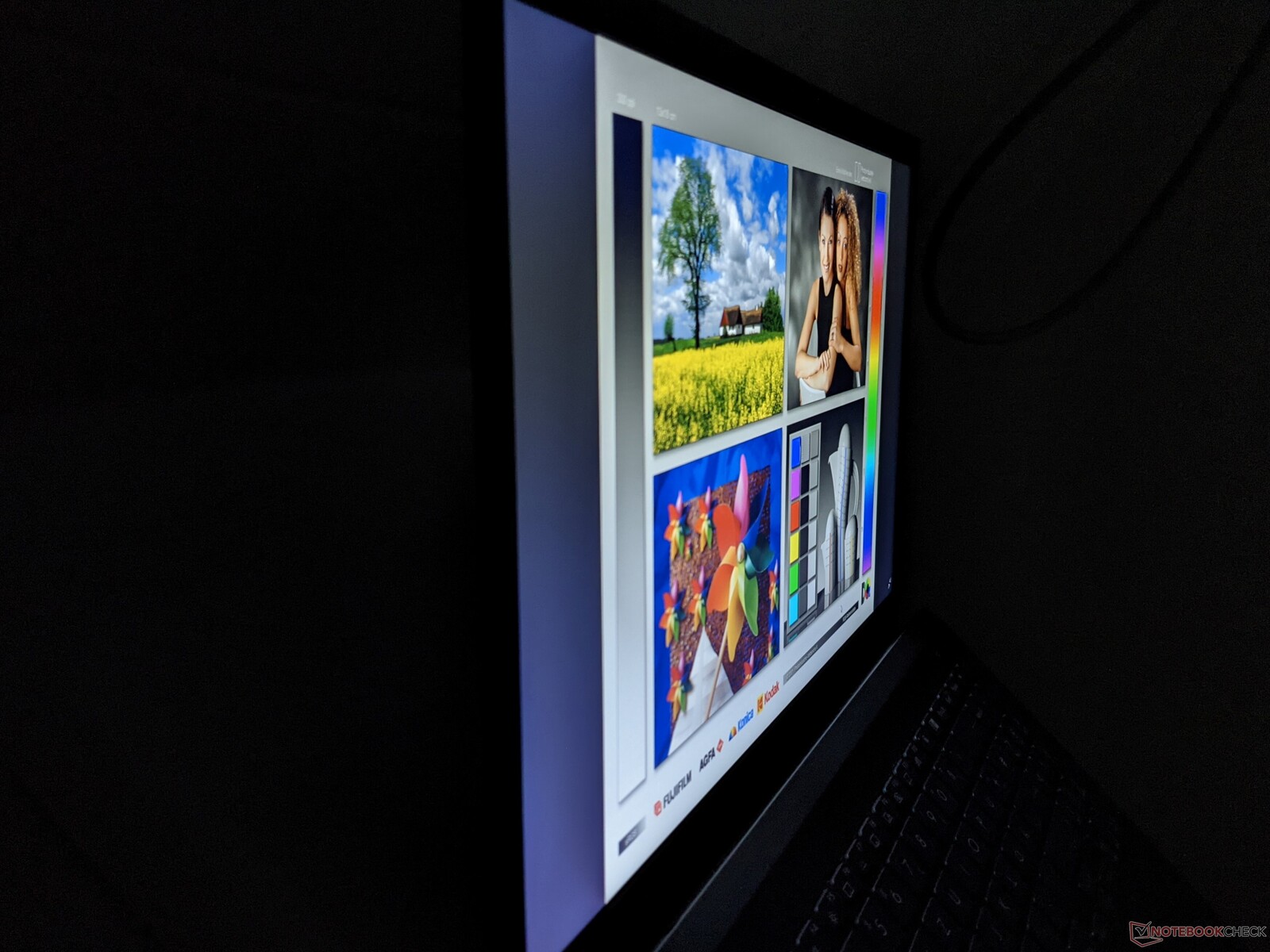

ExpertBook B1的哑光显示表面和足够高的亮度使其在户外也能轻松阅读图像内容。所安装的IPS面板也非常具有视角稳定性。
性能 - 适用于日常使用

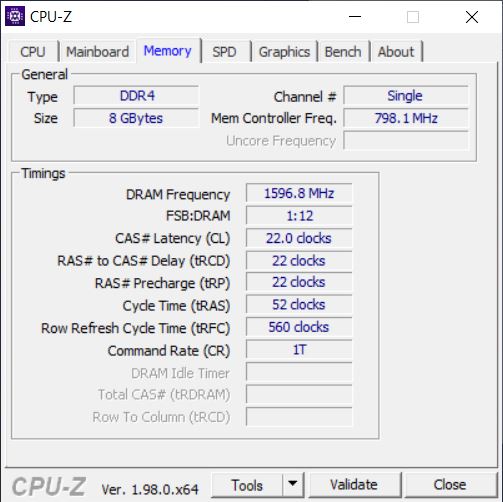

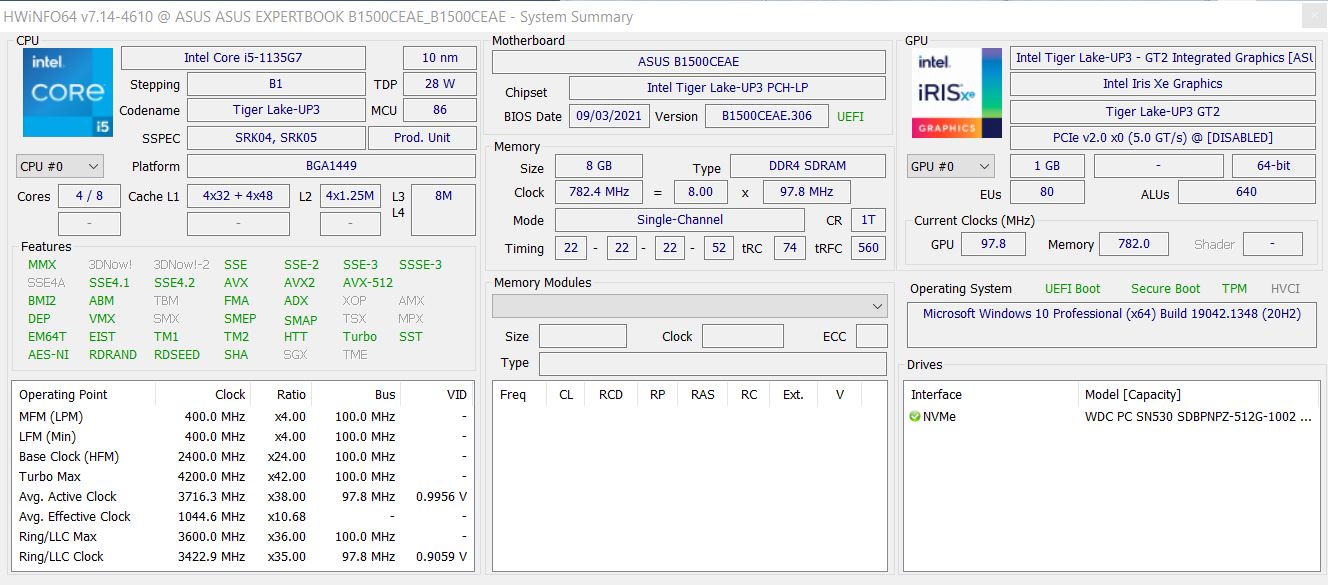

在我们的测试配置中，华硕为ExpertBook B1配备了一台 英特尔酷睿i5-1135G7在我们的测试配置中。此外，还有8GB的工作内存和512GB的SSD。因此，它应该适用于多样化的办公任务和简单的图形应用。由于有一个内存插槽是空闲的，如果有必要，工作内存可以很容易地被扩展（用32GB的条子最多可扩展到40GB）。

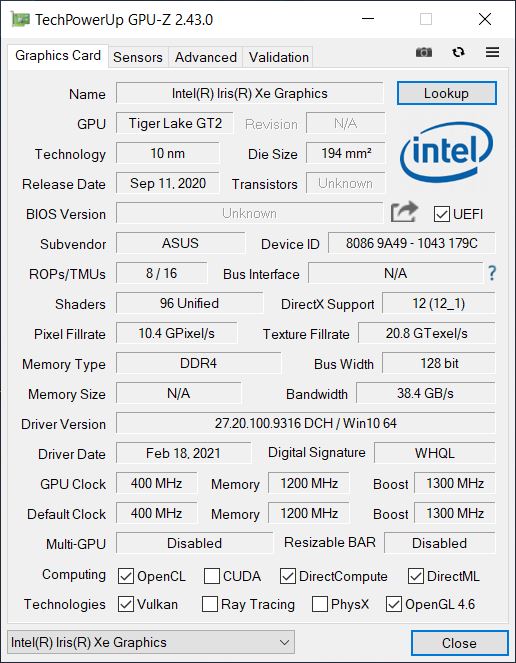

作为替代方案，这款笔记本还可以配备稍强的 英特尔酷睿i7-1165G7和16GB工作内存。CPU的内部图形单元始终负责显示图像内容。
测试条件
ExpertBook B1 B1500的性能可以通过 "我的华硕 "应用程序中的不同配置文件根据用户的要求进行调整。在我们的测试中，我们选择了预设的 "平衡"，但也有性能模式和低语模式可供选择。
处理器

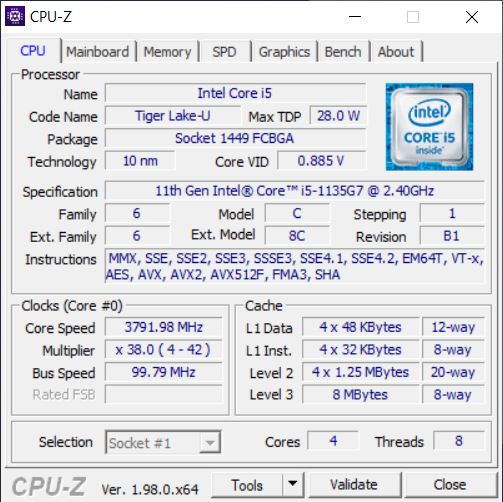

的 英特尔酷睿i5-1135G7这里使用的是英特尔Tiger Lake 代的四个核心的处理器。时钟频率在2.4和4.2GHz之间，据此，冷却系统和设定的TDP也对性能有影响。后者是慷慨的尺寸，短期为51瓦（PL2），长期为28瓦（PL1）。
在Cinebench R15耐力测试中，ExpertBook B1显示的入门级分数略低于其他使用该CPU的竞争对手。然而，长期保持的数值正好在Cinebench R15的水平上。 Honor MagicBook 15.与后者相比，ExpertBook B1在个别测试中也经常占据我们测试领域的较低位置。在电池供电的情况下，Cinebench R15的多核分数下降到只有240分，所以你失去了大约70%的性能。
Cinebench R15 Multi Endurance test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Office | |
| Lenovo ThinkBook 15 Gen2 ITL -2! | |
| Average Intel Core i5-1135G7 | |
| Samsung Galaxy Book NP750XDA -2! | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R23 / Multi Core | |
| Average of class Office (1577 - 15743, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (2786 - 6136, n=55) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R23 / Single Core | |
| Average of class Office (618 - 1995, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (1062 - 1373, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7 (979 - 2382, n=62) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Honor MagicBook 15 i5 1135G7 | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Office (229 - 766, n=92, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (375 - 527, n=62) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=95, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7 (431 - 941, n=65) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Office (98 - 284, n=94, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7 (141.4 - 205, n=61) | |
| Blender / v2.79 BMW27 CPU | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (499 - 1044, n=60) | |
| Samsung Galaxy Book NP750XDA | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average of class Office (208 - 1956, n=94, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Office (7532 - 65460, n=95, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7 (14745 - 24873, n=62) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Honor MagicBook 15 i5 1135G7 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=94, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3924 - 4921, n=62) | |
| Honor MagicBook 15 i5 1135G7 | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Office (1018 - 11980, n=94, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average Intel Core i5-1135G7 (3475 - 5472, n=58) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Office (510 - 1995, n=95, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (1147 - 1428, n=58) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Office (1.72 - 18.7, n=92, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7 (3.57 - 7.6, n=57) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| LibreOffice / 20 Documents To PDF | |
| Honor MagicBook 15 i5 1135G7 | |
| Average of class Office (31.3 - 129.6, n=92, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7 (44.2 - 62.9, n=60) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| R Benchmark 2.5 / Overall mean | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (0.619 - 0.727, n=59) | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average of class Office (0.4244 - 1.135, n=91, last 2 years) | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (4313 - 7952, n=45) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (19402 - 32283, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (1316 - 2172, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (39000 - 46951, n=45) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (3497 - 4445, n=45) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (12569 - 19635, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / CPU AES | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (28988 - 67977, n=45) | |
| Average of class Office (7254 - 155900, n=93, last 2 years) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average Intel Core i5-1135G7 (265 - 373, n=51) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=93, last 2 years) | |
| Average Intel Core i5-1135G7 (2226 - 4291, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Honor MagicBook 15 i5 1135G7 | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=93, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (9004 - 45366, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
系统性能
在评估系统性能的PCMark 10测试中，华硕的笔记本在我们的测试领域中排在最后一名，但与第一名的差距只有5%，其性能可以说是具有竞争力。在个别项目中，生产力得分是ExpertBook B1 B1500的最佳结果。
AIDA64内存测试证明所安装的工作内存的性能率相当低，这对内部图形单元的性能产生了负面影响，例如。
在日常测试中，笔记本始终运行平稳，没有出现任何微颤动或类似情况。
| PCMark 10 / Score | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| PCMark 10 / Essentials | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
| Samsung Galaxy Book NP750XDA | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=86, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| PCMark 10 Score | 4506 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=94, last 2 years) | |
| Average Intel Core i5-1135G7 (17443 - 63889, n=45) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=94, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (19716 - 63705, n=45) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=94, last 2 years) | |
| Average Intel Core i5-1135G7 (18722 - 66778, n=45) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| AIDA64 / Memory Latency | |
| Average of class Office (6.9 - 185.2, n=93, last 2 years) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Core i5-1135G7 (68.3 - 107, n=51) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
* ... smaller is better
DPC延迟

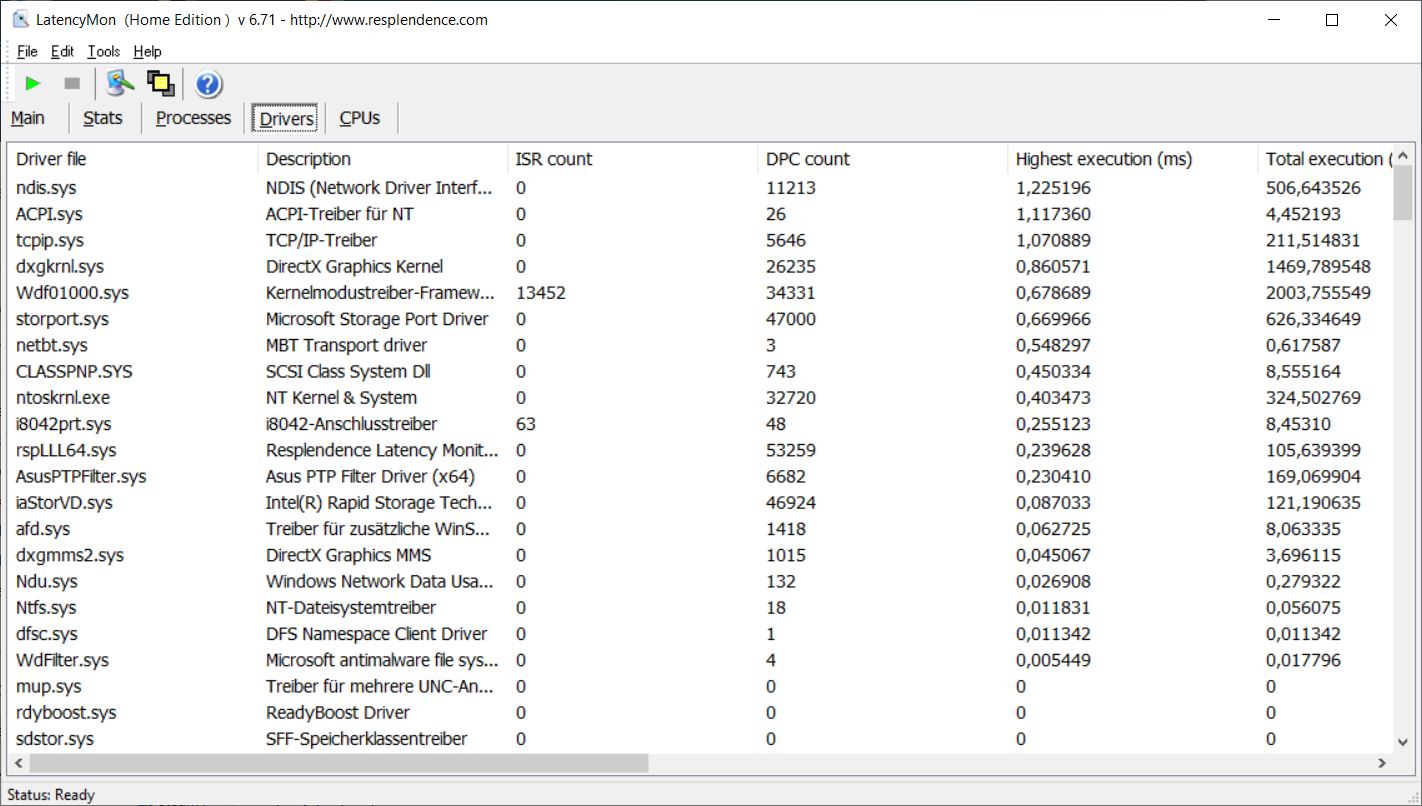

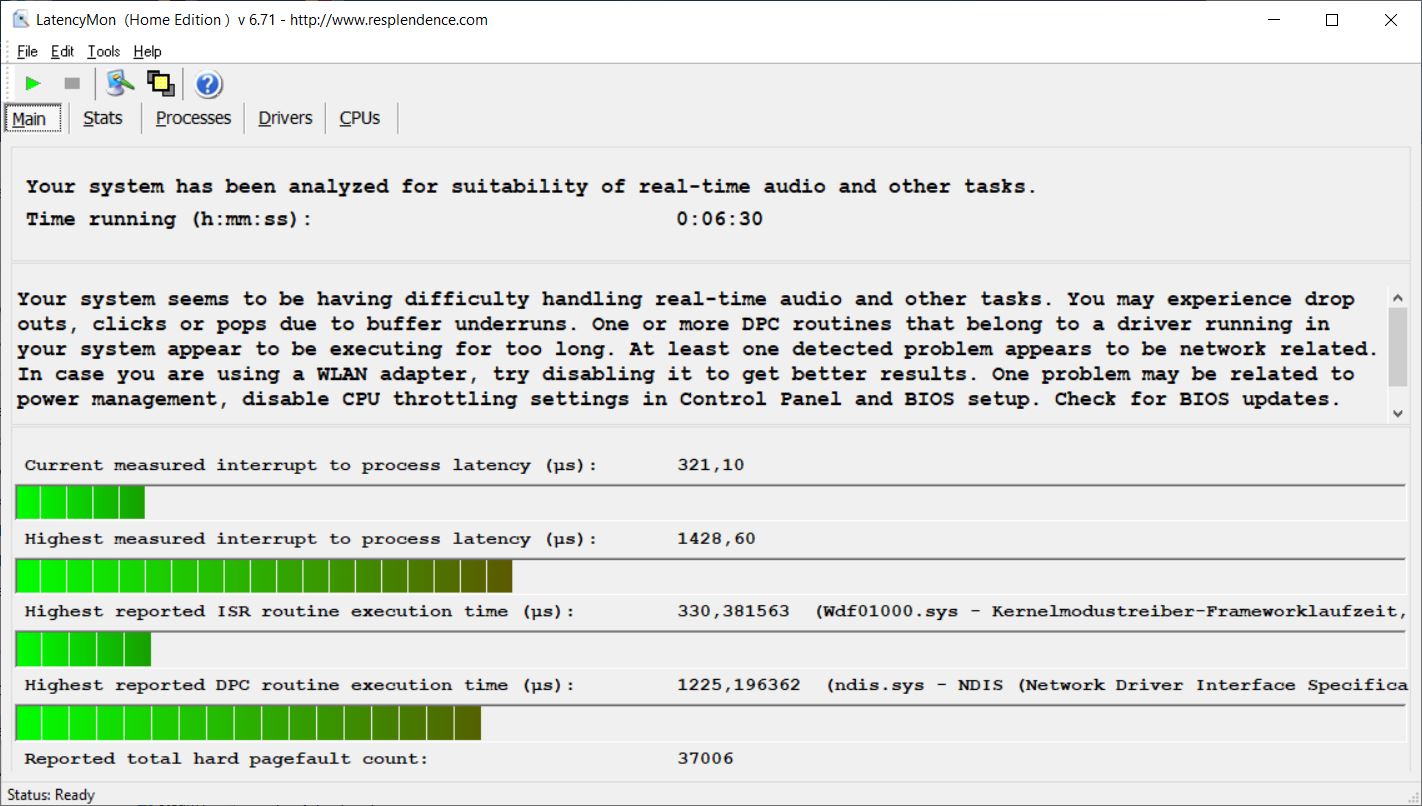

在使用LatencyMon的测试中，我们的ExpertBook的测试设备显示出轻微的增加 中断时间但应该仍然适合于实时应用等。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
* ... smaller is better
大容量存储
在我们的测试配置中使用的M.2-2280固态硬盘（PCIe-3.0 x4）实现了非常好的速度，足以在我们的测试领域中获得第二名。其他大容量存储设备的预期结果可以在我们的 硬盘/SSD基准列表.
| Drive Performance Rating - Percent | |
| Honor MagicBook 15 i5 1135G7 | |
| Average of class Office | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Average WDC PC SN530 SDBPNPZ-512G | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Samsung Galaxy Book NP750XDA | |
* ... smaller is better
Continuous reading: DiskSpd Read Loop, Queue Depth 8
图形卡
Intel Iris Xe Graphics G7 80EUs ，内部图形单元，负责显示ExpertBook B1 B1500的图像内容。这适用于对图形性能要求不高的应用，如简单的图像编辑。
它还得益于双通道配置的工作内存，这就是为什么单通道内存在我们的测试配置中不能实现全部性能。因此，在3DMark基准测试中的结果也变得相对较低。在电池模式下，3DMark 11的性能得分从3905分降至3637分。
游戏也应限于旧的或非常简单的标题。与此相比，其他图形单元所达到的性能可以在我们的 GPU基准测试列表.
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Iris Xe Graphics G7 80EUs | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 13132, n=89, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Office (7982 - 58068, n=63, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Iris Xe Graphics G7 80EUs (6361 - 30894, n=95) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Office (736 - 9375, n=91, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| 2560x1440 Time Spy Graphics | |
| Average of class Office (313 - 4109, n=90, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| 3DMark 11 Performance | 3837 points | |
| 3DMark Cloud Gate Standard Score | 11848 points | |
| 3DMark Fire Strike Score | 1701 points | |
| 3DMark Time Spy Score | 883 points | |
Help | ||
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Office (16 - 177, n=70, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101) | |
| Samsung Galaxy Book NP750XDA | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Dota 2 Reborn - 1366x768 med (1/3) | |
| Average of class Office (27.6 - 146.2, n=95, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Iris Xe Graphics G7 80EUs (10.9 - 119.5, n=109) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=89, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Honor MagicBook 15 i5 1135G7 | |
| Average of class Office (13.6 - 128.2, n=94, last 2 years) | |
| Lenovo ThinkBook 15 Gen2 ITL | |
| Average Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=109) | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| Samsung Galaxy Book NP750XDA | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.7 - 175.7, n=78, last 2 years) | |
| Samsung Galaxy Book NP750XDA | |
| Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 37 | 22.6 | 11 | 6.26 |
| Dota 2 Reborn (2015) | 68 | 44.1 | 23.8 | 22.8 |
| Final Fantasy XV Benchmark (2018) | 17.7 | 8.64 | 5.91 | |
| X-Plane 11.11 (2018) | 25.4 | 24.5 | 20.9 | |
| Strange Brigade (2018) | 37.3 | 13.5 | 12.1 |
排放和能源 - 安静和经济的笔记本电脑
噪声排放
ExpertBook B1在办公室使用时很安静，风扇在负载下只产生32.2 dB(A)的安静噪音。在我们的测试设备中，我们无法检测到任何其他背景噪音，如线圈啸叫或类似的声音。
Noise Level
| Idle |
| 23.8 / 23.8 / 25 dB(A) |
| Load |
| 32.2 / 32.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23.8 dB(A) | ||
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G | Samsung Galaxy Book NP750XDA Iris Xe G7 80EUs, i5-1135G7, Lite-On CL1-8D512 | Honor MagicBook 15 i5 1135G7 Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G | Lenovo ThinkBook 15 Gen2 ITL Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ512HALU | |
|---|---|---|---|---|
| Noise | -18% | -4% | -7% | |
| off / environment * | 23.8 | 26 -9% | 24.6 -3% | 24.4 -3% |
| Idle Minimum * | 23.8 | 26 -9% | 24.6 -3% | 24.4 -3% |
| Idle Average * | 23.8 | 26 -9% | 24.6 -3% | 24.4 -3% |
| Idle Maximum * | 25 | 26 -4% | 24.6 2% | 27.4 -10% |
| Load Average * | 32.2 | 43.3 -34% | 33.9 -5% | 30 7% |
| Witcher 3 ultra * | 32.2 | 33.9 -5% | 36.3 -13% | |
| Load Maximum * | 32.2 | 45.7 -42% | 36.5 -13% | 40.4 -25% |
* ... smaller is better
温度
在我们的ExpertBook B1 B1500的测试模型中，在压力测试的情况下，表面加热到48.6℃（约194°F）。然而，由于这只发生在极端条件下，你不必期望在日常使用中由于温暖的外壳而受到限制。

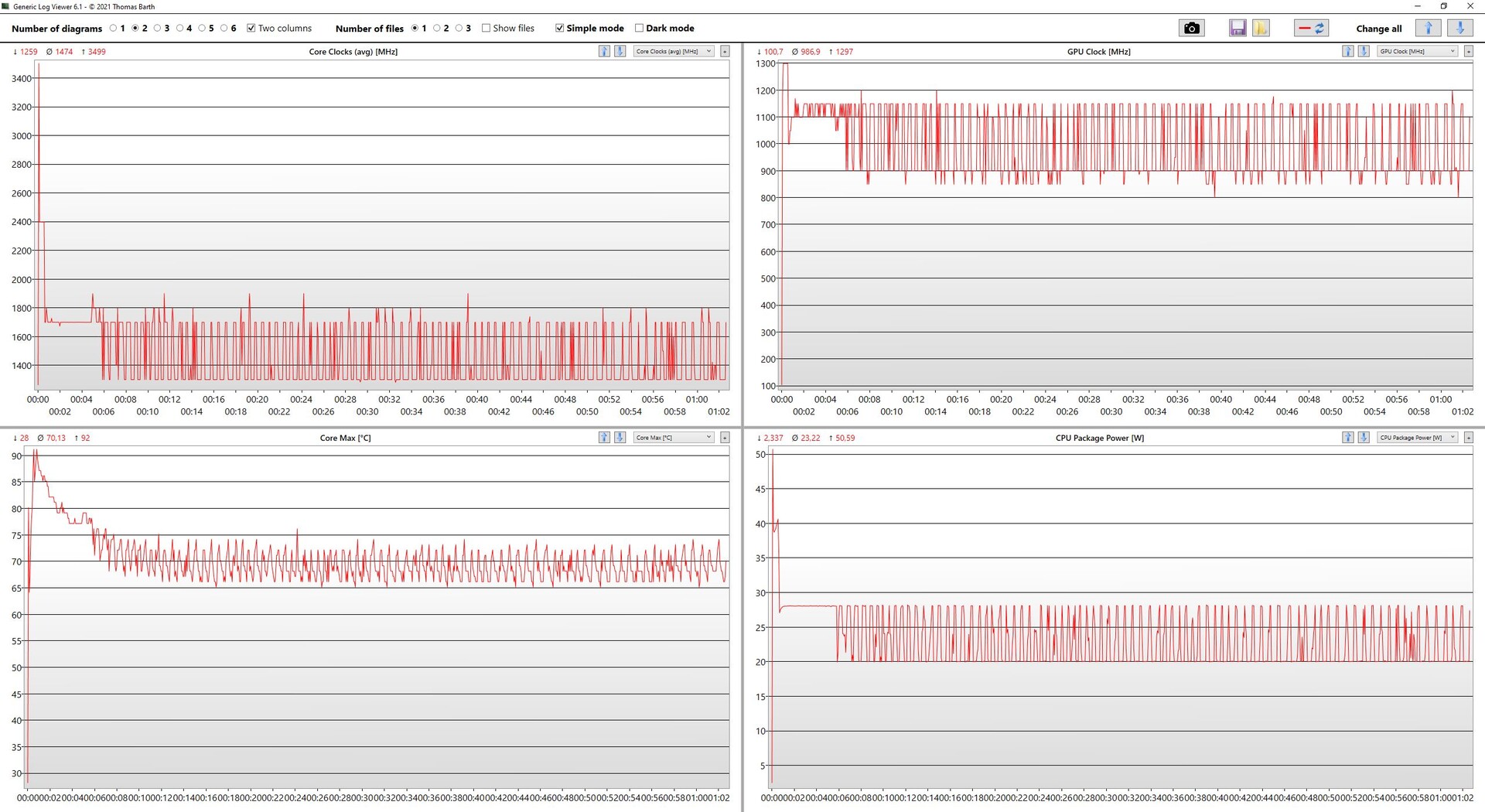

在内部，温度在重载下会短暂上升到90°C（约194°F）以上，然后被冷却系统保持在65至75°C（约149至167°F）之间。时钟速率明显下降到基本时钟以下，但系统仍然可以顺利使用。然而，这样的负载在日常使用中不应该出现，所以由于高温造成的限制是不可预期的。

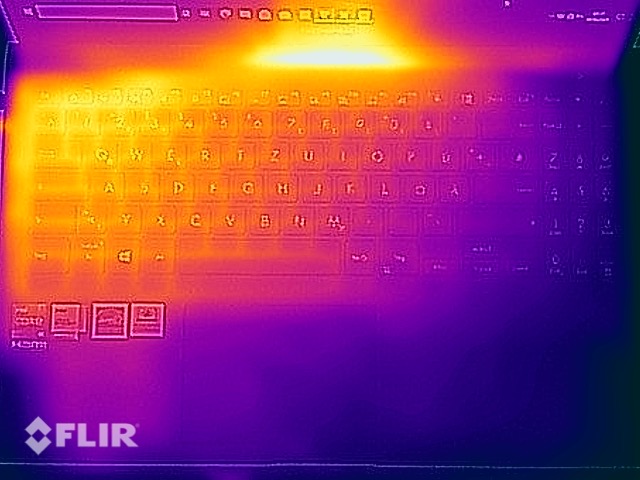

(±) The maximum temperature on the upper side is 41.9 °C / 107 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

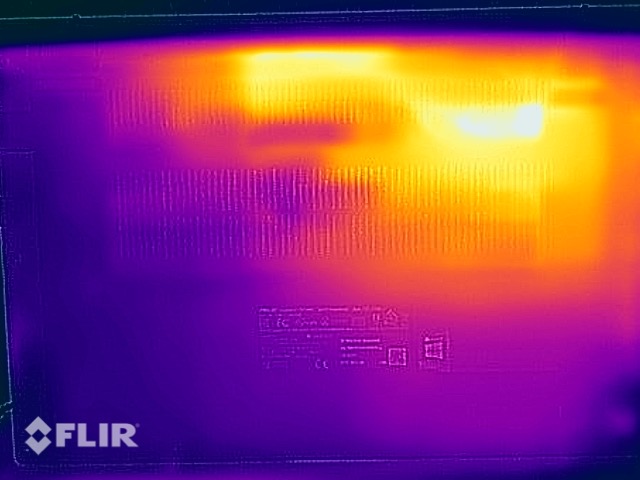

(-) The bottom heats up to a maximum of 48.6 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.9 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(+) Playing The Witcher 3, the average temperature for the upper side is 30.7 °C / 87 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.5 °C / 81.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+0.1 °C / 0.2 F).
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Samsung Galaxy Book NP750XDA Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Honor MagicBook 15 i5 1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkBook 15 Gen2 ITL Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | |
|---|---|---|---|---|
| Heat | -5% | 8% | -2% | |
| Maximum Upper Side * | 41.9 | 46.5 -11% | 35.4 16% | 39.9 5% |
| Maximum Bottom * | 48.6 | 44.8 8% | 40.8 16% | 46 5% |
| Idle Upper Side * | 25.1 | 27.8 -11% | 25.4 -1% | 26.8 -7% |
| Idle Bottom * | 26.4 | 28.3 -7% | 26 2% | 29.3 -11% |
* ... smaller is better
演讲者
华硕ExpertBook B1的扬声器提供中等音量和相对较宽的声谱。因此，它们适合在安静的环境中偶尔播放媒体内容。
Asus ExpertBook B1 B1500CEAE, i5-1135G7 audio analysis
(±) | speaker loudness is average but good (78.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(±) | linearity of highs is average (7.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.4% difference to median)
Compared to same class
» 8% of all tested devices in this class were better, 3% similar, 88% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 16% of all tested devices were better, 4% similar, 81% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Samsung Galaxy Book NP750XDA audio analysis
(±) | speaker loudness is average but good (77.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.1% lower than median
(±) | linearity of bass is average (11.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (8.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.8% higher than median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.1% difference to median)
Compared to same class
» 46% of all tested devices in this class were better, 9% similar, 44% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 55% of all tested devices were better, 7% similar, 38% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理 - 良好的电池寿命
能源消耗
根据我们的测量，ExpertBook B1的功耗在负载下会短暂增加到63瓦，然后下降到30到40瓦之间的数值。在简单的办公模式下，该笔记本非常节俭，最大功耗为6.9瓦。
附带的充电器的输出功率为65瓦，因此足够高了。
| Off / Standby | 0.39 / 1.4 Watt |
| Idle | 3.1 / 6.1 / 6.9 Watt |
| Load |
23.6 / 63 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Energy consumption Witcher 3 / Stress test
电池寿命
在我们的实际WLAN测试中，华硕ExpertBook B1 B1500实现了略高于7小时的运行时间。因此，它可以很好地利用其42Wh的电池，与竞争对手持平。
| Asus ExpertBook B1 B1500CEAE, i5-1135G7 i5-1135G7, Iris Xe G7 80EUs, 42 Wh | Samsung Galaxy Book NP750XDA i5-1135G7, Iris Xe G7 80EUs, 54 Wh | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs, 42 Wh | Lenovo ThinkBook 15 Gen2 ITL i5-1135G7, Iris Xe G7 80EUs, 45 Wh | Average of class Office | |
|---|---|---|---|---|---|
| Battery Runtime | 41% | 4% | -22% | 41% | |
| WiFi v1.3 | 432 | 607 41% | 451 4% | 335 -22% | 608 ? 41% |
| Reader / Idle | 1365 | 1239 ? | |||
| Load | 97 | 55 | 117.4 ? |
Pros
Cons
评语 - 作为一个完整的软件包推荐使用
在我们的测试中，ExpertBook B1 B1500证明了它正是华硕宣传的那样。这是一款15英寸的笔记本，由于其薄而轻的外壳，也很适合在旅途中使用。电池寿命足够好，刚刚超过7个小时，硬件可以毫无问题地运行办公程序。然而，对图形要求高的应用程序不应该是日常工作的一部分。此外，在电池模式下，CPU的多核性能会大大降低。
华硕ExpertBook B1 B1500稳定、轻便，很适合日常办公任务。
与竞争对手相比，如 三星Galaxy Book或 联想ThinkBook 15 Gen2不容易区分，因为它们从安装的CPU中获得了更多的性能，但在电池寿命或输入设备等方面却略显薄弱。因此，华硕ExpertBook B1 B1500绝对有自己的附加价值。
价格和可用性
华硕ExpertBook B1 B1500在我们的贷款人Campuspoint，售价约为700欧元（约合789美元）。但也可以在Amazon购买(DE)。
Asus ExpertBook B1 B1500CEAE, i5-1135G7
- 11/15/2021 v7 (old)
Mike Wobker
Price comparison
