华硕ExpertBook B7 Flip在审查中。具有5G调制解调器和长电池寿命的2合1笔记本电脑

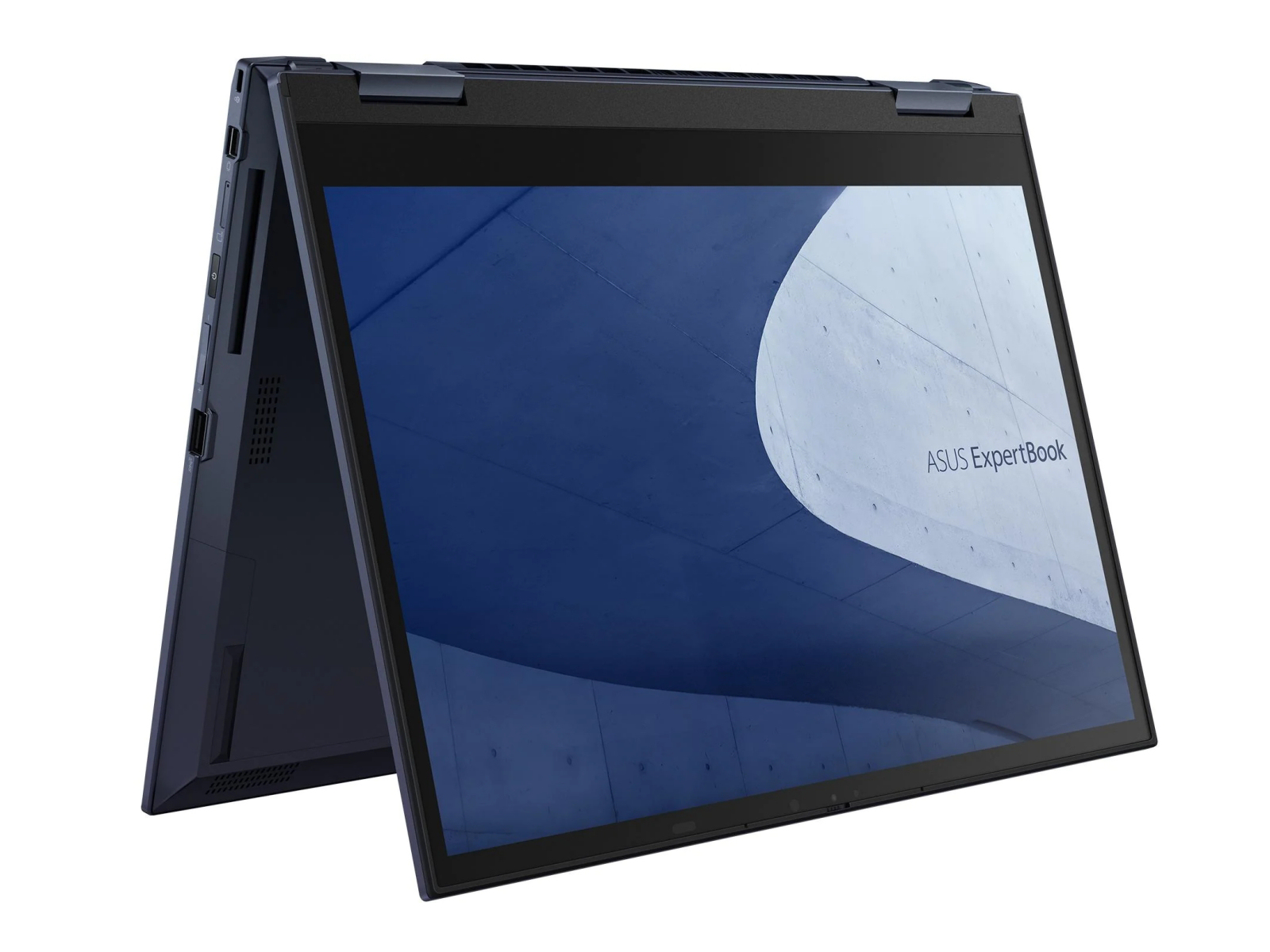

ExpertBook B7 Flip是一款二合一设备，属于商务领域。它代表了华硕阵容中的高端机型。与 专家书B5 Flip我们已经审查了中档机型。竞争者包括如下设备 戴尔Latitude 9420 2合1竞争者包括戴尔联想ThinkPad X1 Yoga G6，以及富士通LifeBook U9311X.

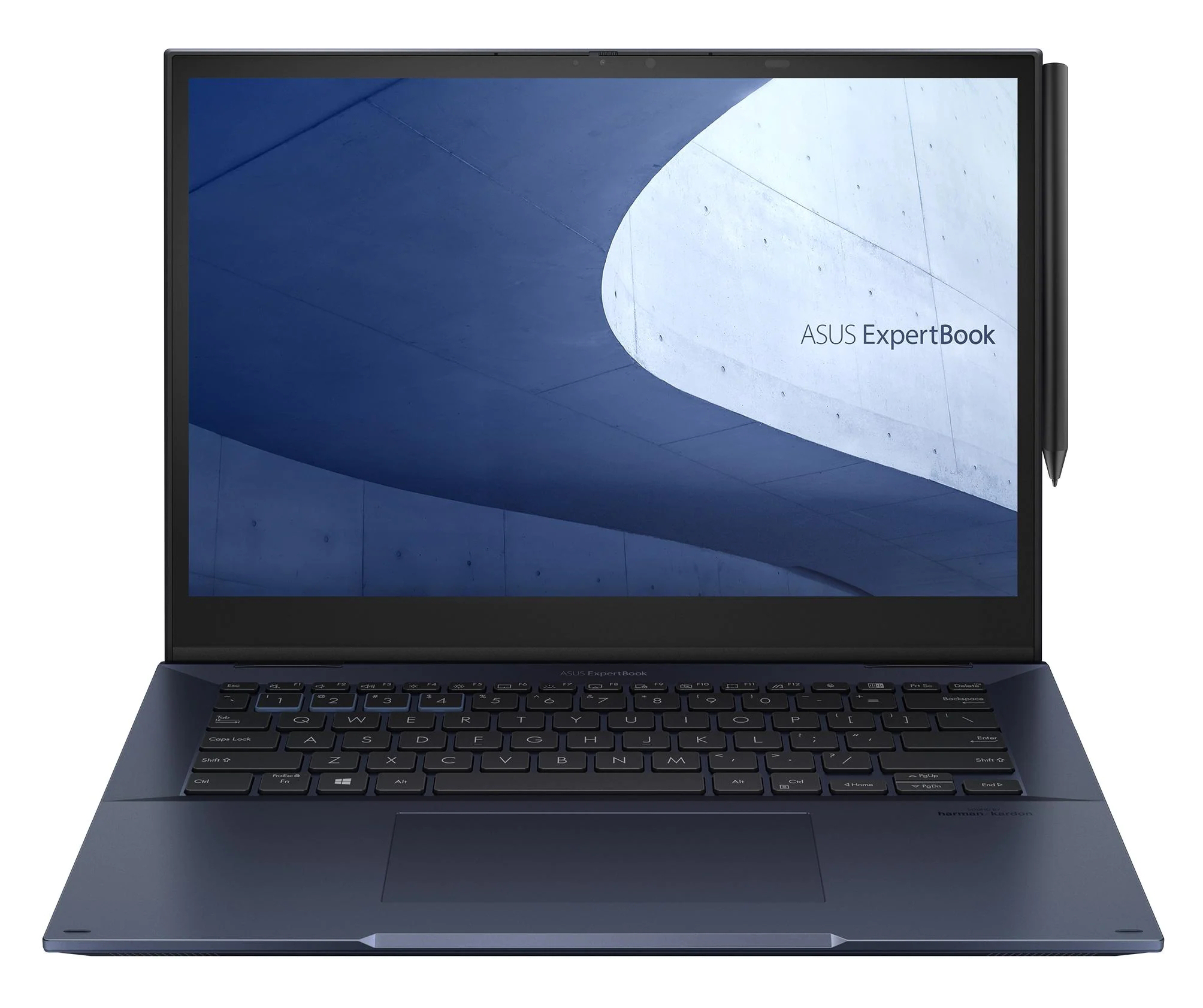

Asus ExpertBook B7 Flip B7402FEA (ExpertBook B7 Flip Series)

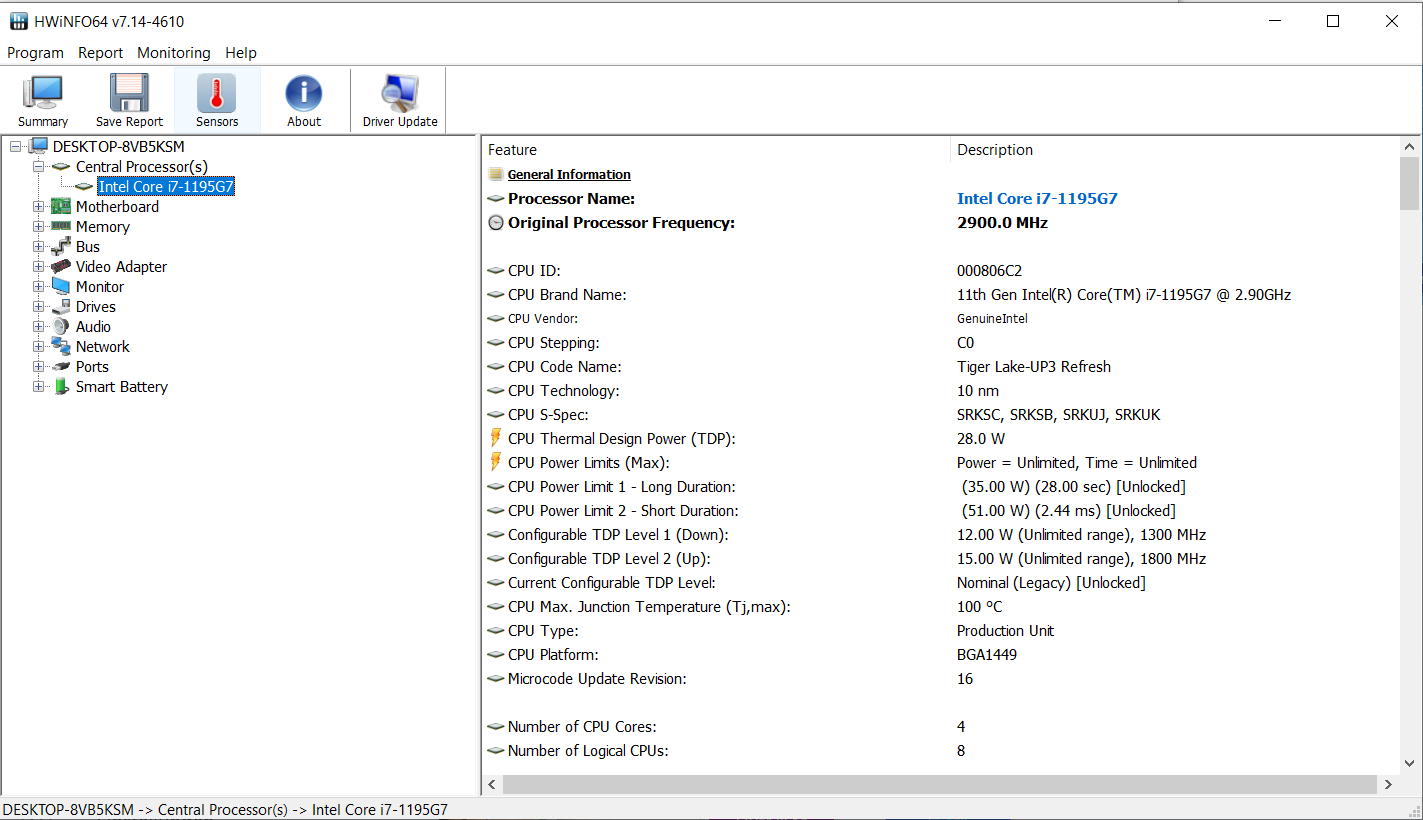

Processor
Intel Core i7-1195G7 4 x 2.9 - 5 GHz, 51 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-UP3

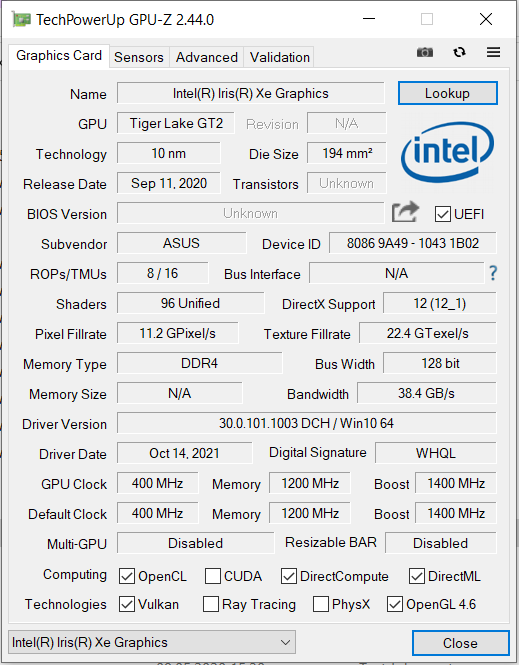

Graphics adapter
Intel Iris Xe Graphics G7 96EUs, Core: 1400 MHz, single-channel, 30.0.101.1003

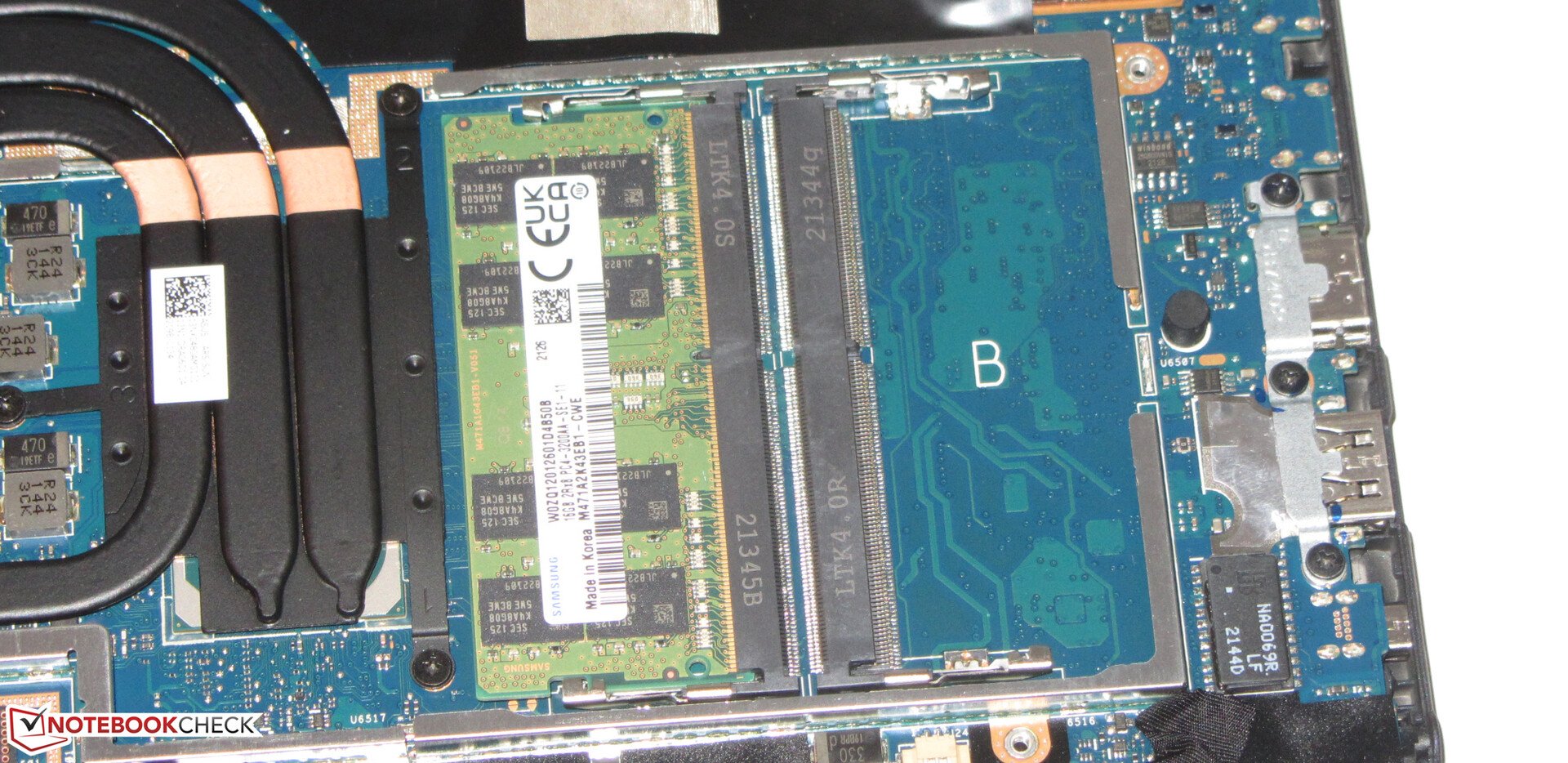

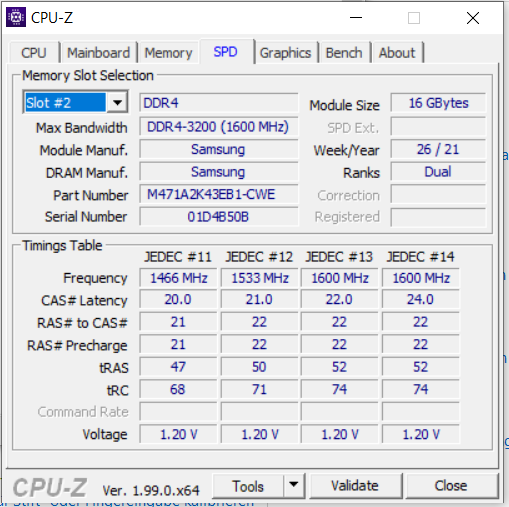

Memory
16 GB

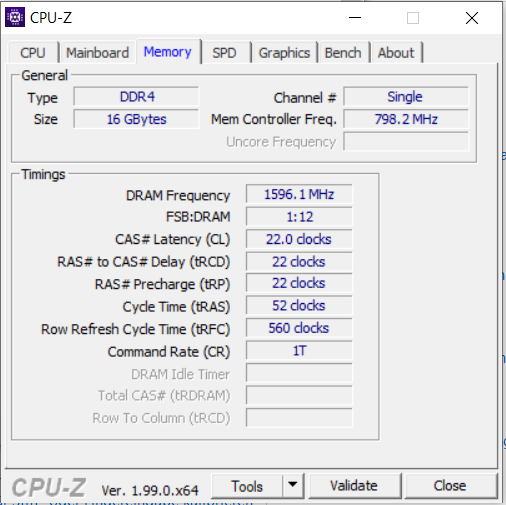

, DDR4-3200, single-channel mode, two memory slots (one in use)
Display
14.00 inch 16:10, 1900 x 1200 pixel 161 PPI, capacitive, 10 touchpoints, native pen support, BOE CQ NE140WUM-N65, IPS, glossy: yes, 60 Hz

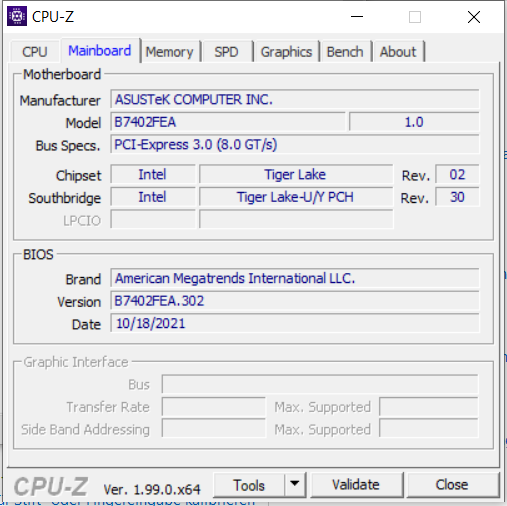

Mainboard
Intel Tiger Lake-UP3 PCH-LP

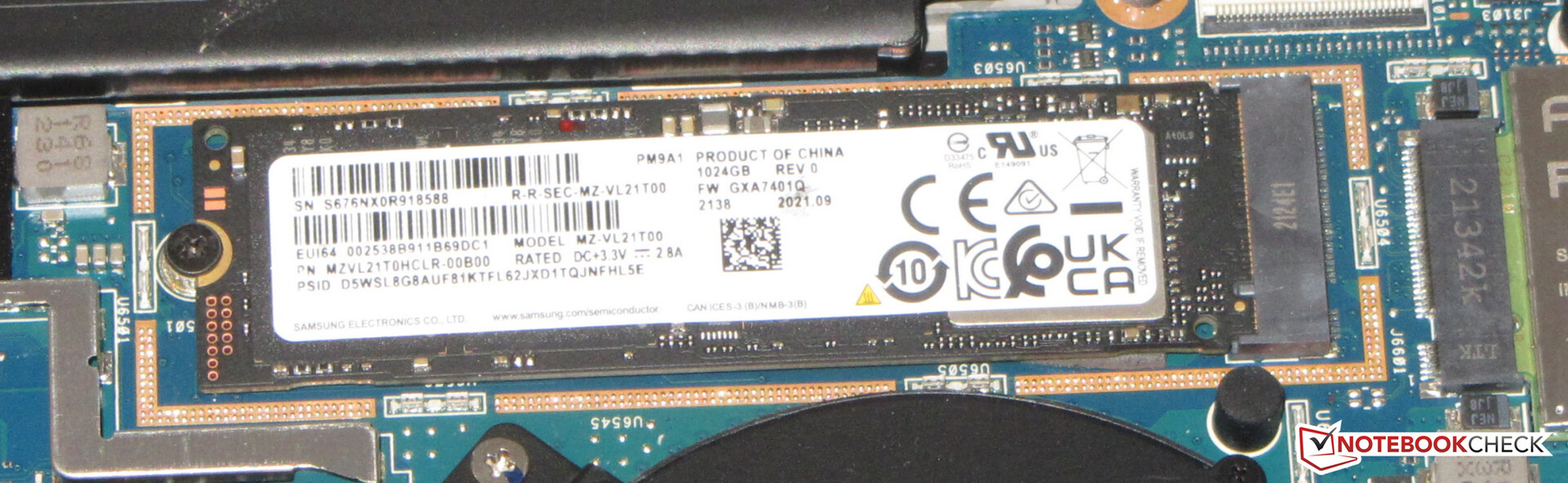

Storage
Samsung PM9A1 MZVL21T0HCLR, 1024 GB
, 907 GB free
Weight
1.44 kg, Power Supply: 330 g
Price
2 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
可能的竞争者比较
Benchmark Comparison Plugin: ERROR, Layout "57" not supported!
机箱和连接性 - 华硕笔记本电脑，带Thunderbolt 4
Die angerauten Oberflächen des matt-schwarzen Gehäuses (bestehend aus einer Magnesium-Aluminium-Legierung) zeigen sich nicht sonderlich anfällig für Fingerabdrücke。Der Lack enthält winzige Glitzerelemente, die b哑光黑色表壳（由镁铝合金制成）的粗糙表面似乎并不特别容易留下指纹。涂层含有微小的闪光元素，当光线照射到它们时就会闪烁 - 这解释了颜色的名称：星辰黑。这台笔记本电脑没有任何制造缺陷。缝隙尺寸是准确的，没有材料突起。机箱的稳定性和刚度都恰到好处。没有维修舱口。电池被牢固地内置在设备中。

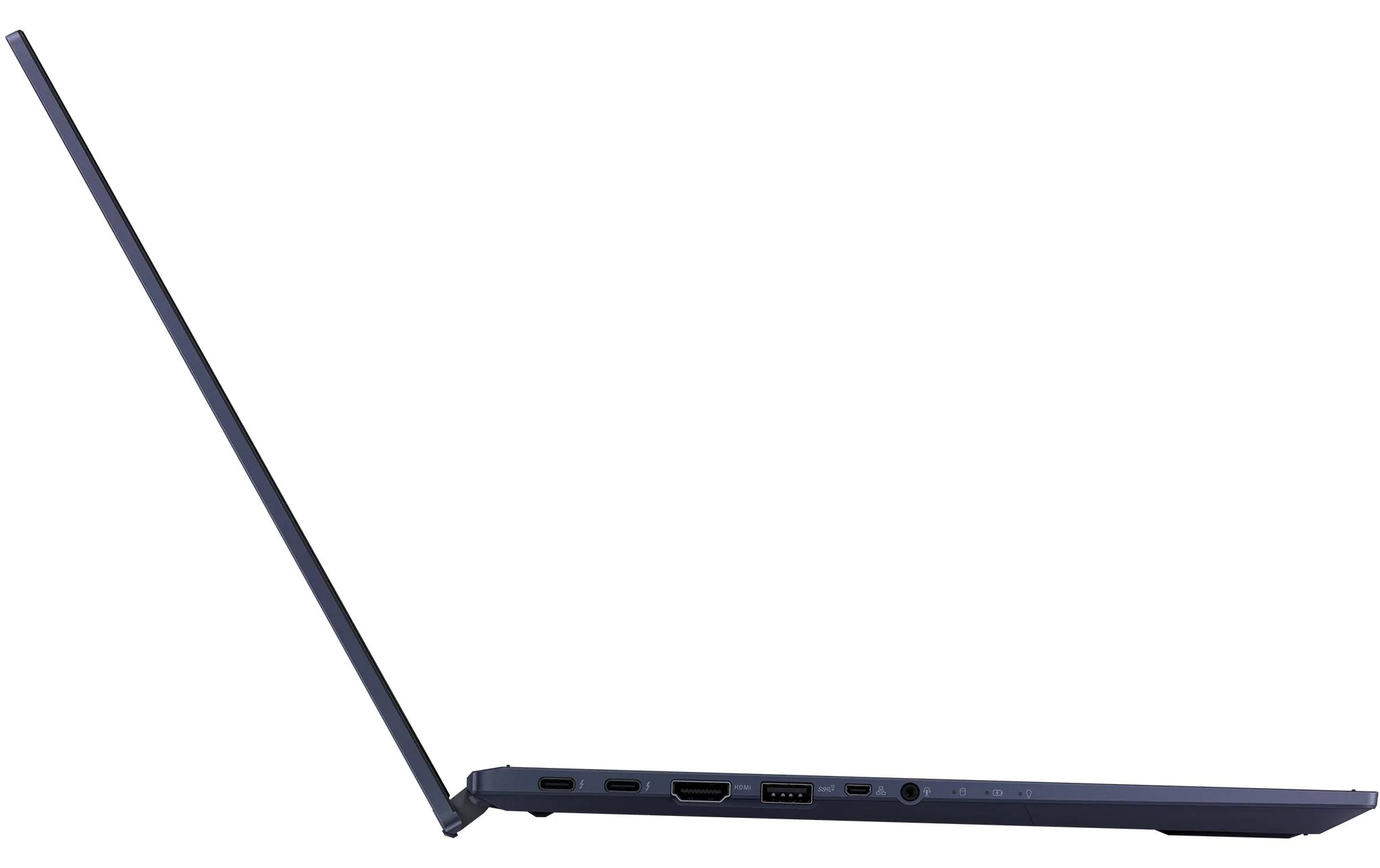

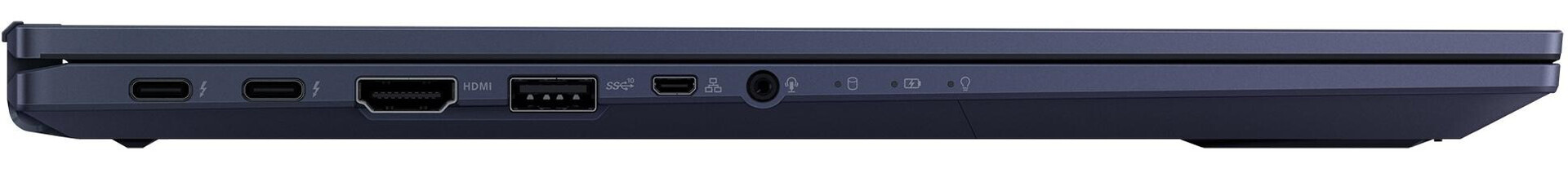

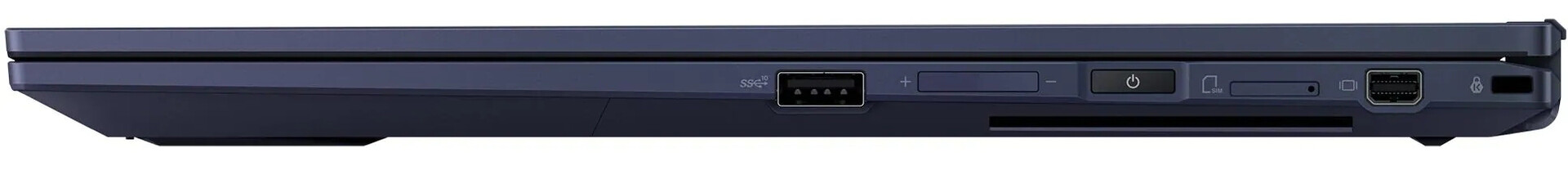

这款敞篷车有两个USB-A端口（USB 3.2 Gen 2）和两个USB-C端口（Thunderbolt 4）。后者有多种用途。为笔记本电脑提供电源（Power Delivery），通过扩展坞扩展接口，连接外部GPU，以及视频输出（通过USB-C的DisplayPort）。加上HDMI输出和独立的Mini DisplayPort，B7有四个视频输出。微型HDMI端口可作为一个以太网端口（使用附带的适配器）。B7没有存储卡读卡器。
WLAN芯片（Intel AX201）支持802.11a/b/g/n/ac/ax标准。在最佳条件下（附近没有其他WLAN设备，笔记本电脑和服务器PC之间的距离较短）确定的传输速率非常好。还可以通过5G或LTE网络建立无线连接。华硕为B7配备了一个5G调制解调器（Intel 5G Solution 5000）。
尺寸比较
Benchmark Comparison Plugin: ERROR, Layout "0" not supported!
Asus ExpertBook B7 Flip B7402FEA Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1579 (1514-1675)
Dell Latitude 9420 2-in-1 Intel Wi-Fi 6E AX210; iperf3 receive AX12; iperf 3.1.3: Ø1163 (965-1251)
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1416 (691-1539)
Fujitsu LifeBook U9311X i7 LTE Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1554 (1374-1656)
Asus ExpertBook B7 Flip B7402FEA Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1408 (1330-1504)
Dell Latitude 9420 2-in-1 Intel Wi-Fi 6E AX210; iperf3 transmit AX12; iperf 3.1.3: Ø926 (741-986)
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1389 (1273-1436)
Fujitsu LifeBook U9311X i7 LTE Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1450 (1258-1519)
22.1 ∆E
17.7 ∆E
20.5 ∆E
19.6 ∆E
19.5 ∆E
13.2 ∆E
15.6 ∆E
27.3 ∆E
20.4 ∆E
23.2 ∆E
14.6 ∆E
13.4 ∆E
28 ∆E
15.8 ∆E
28.6 ∆E
7.5 ∆E
21.7 ∆E
21.7 ∆E
3.3 ∆E
12.1 ∆E
17.7 ∆E
17.4 ∆E
20.4 ∆E
11.8 ∆E

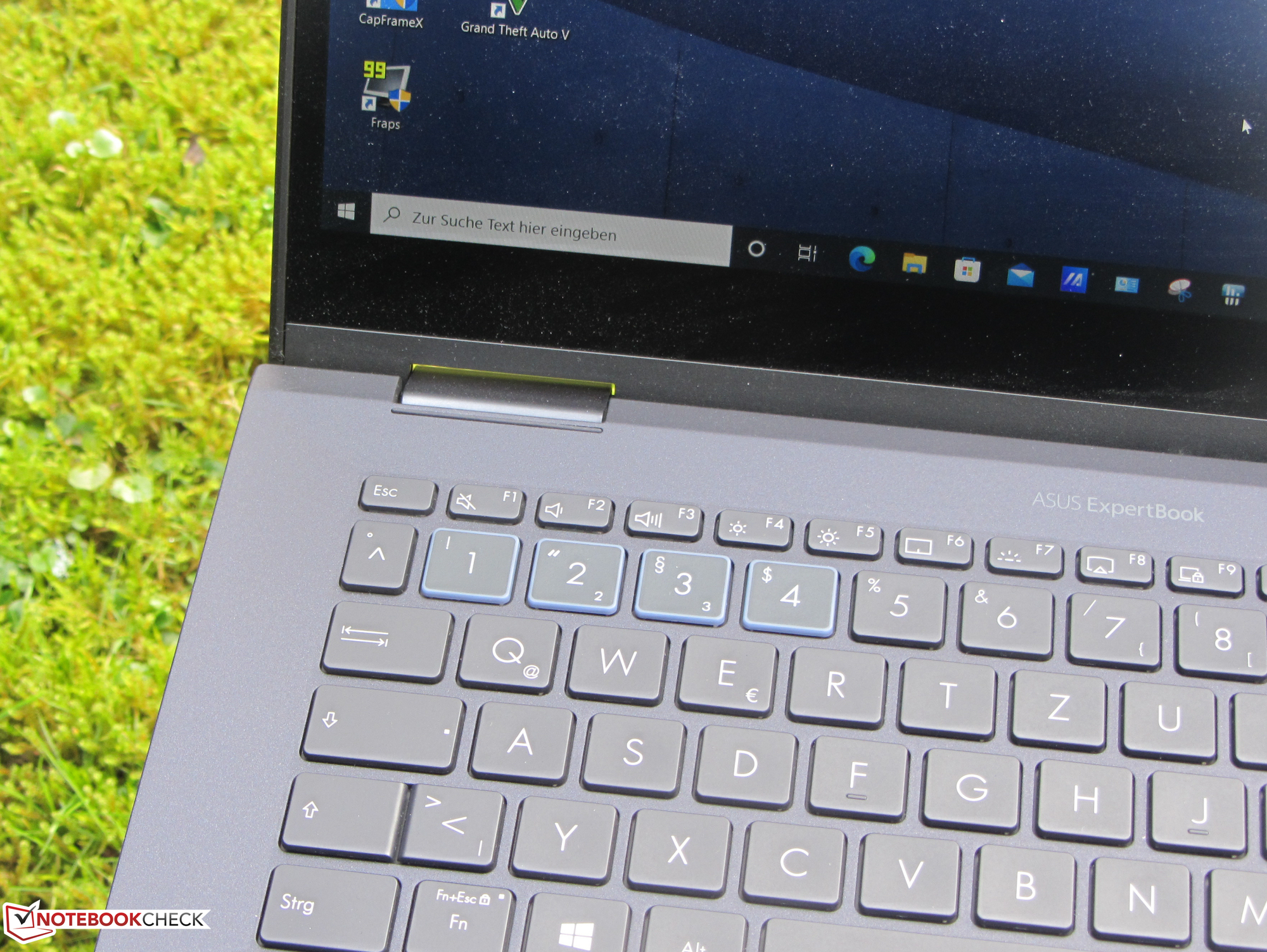

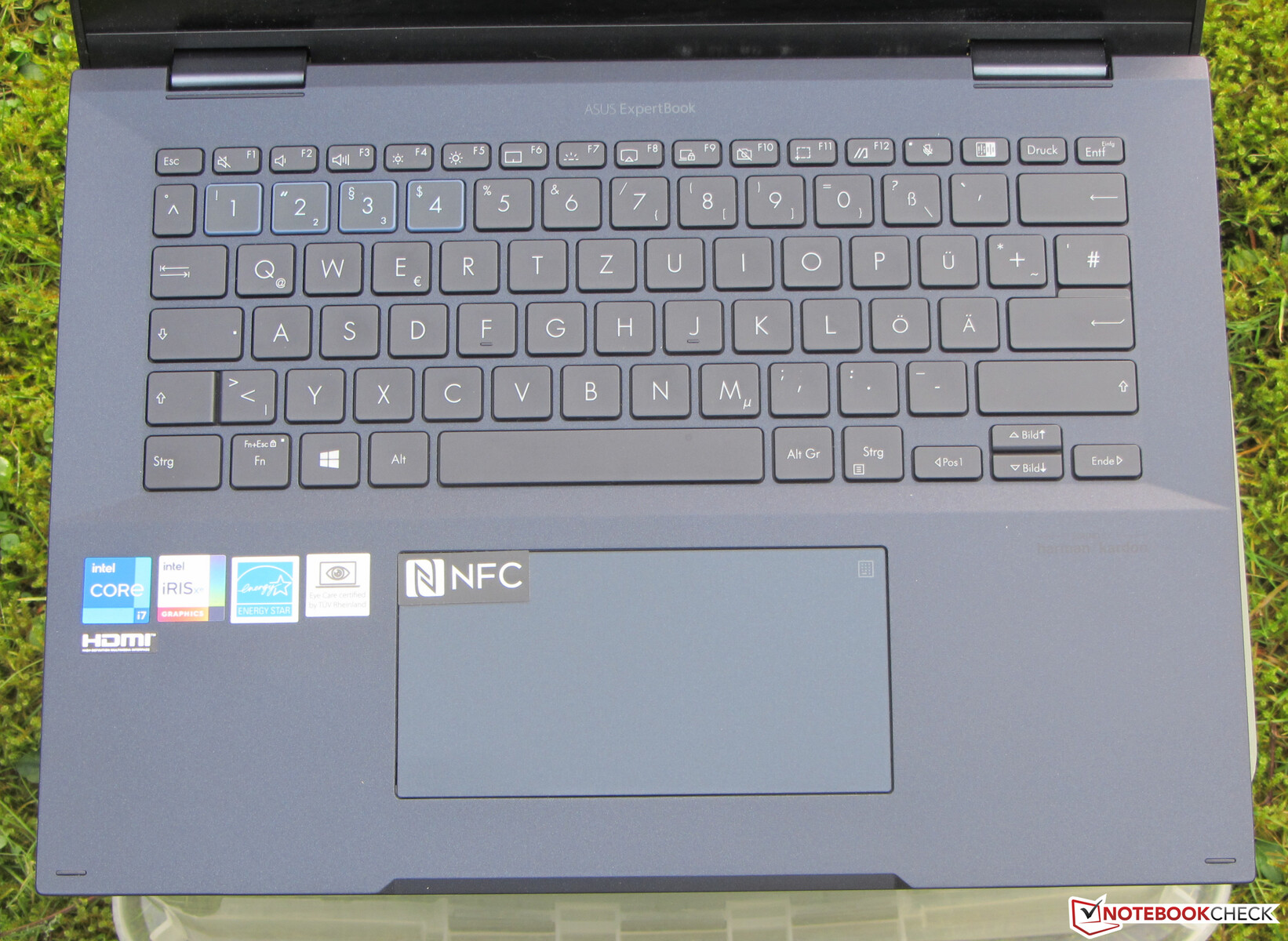

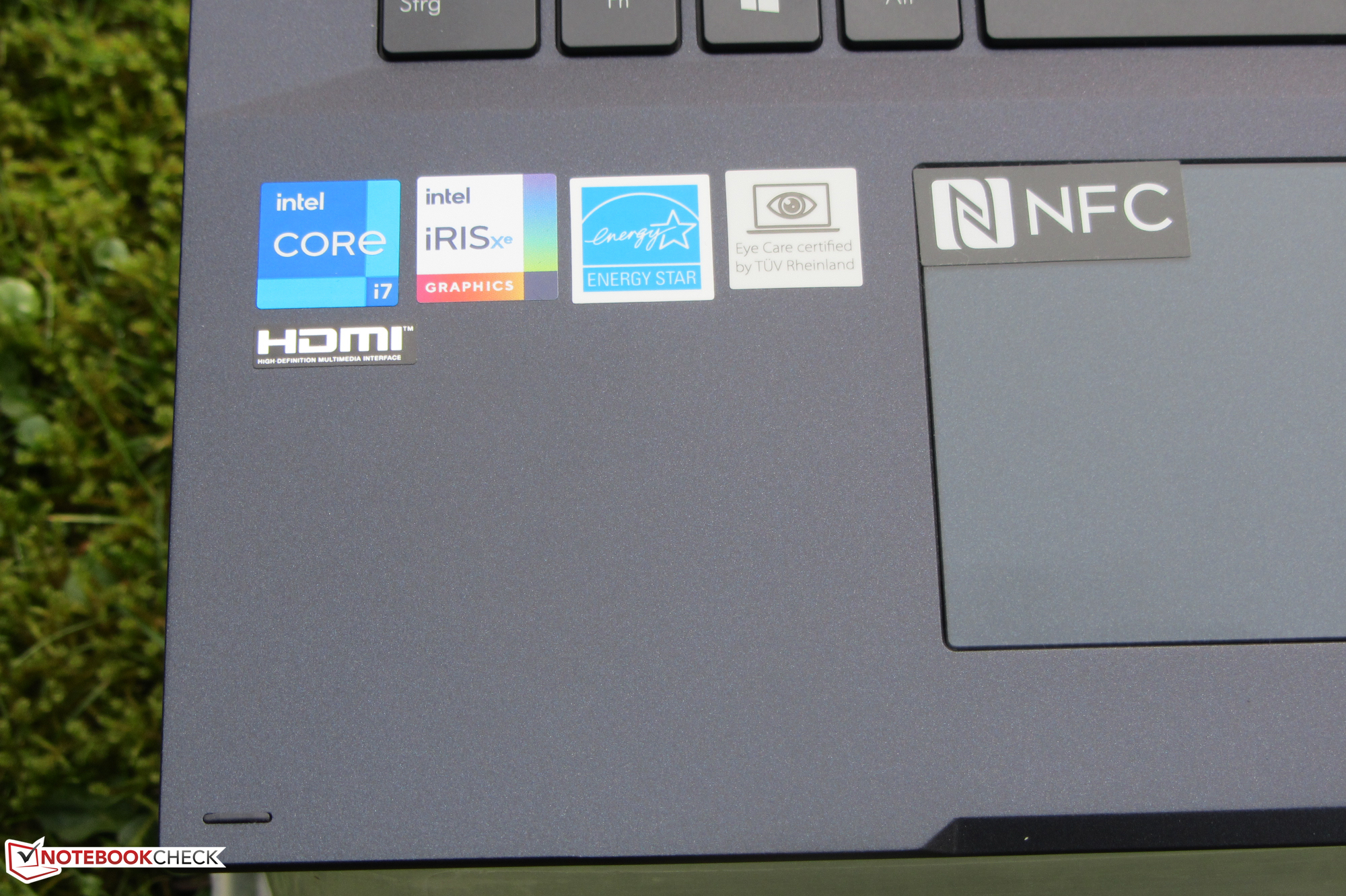

输入设备 - ExpertBook Flip配备了一个背光键盘
背光Chiclet键盘的平坦、光滑的按键具有较短的行程和清晰的压力点。键盘提供的阻力是令人愉悦的。键盘在打字过程中不会出现弯曲。单层键的照明是通过一个功能键控制的。总而言之，华硕在这里提供了一个适合日常使用的键盘。
具有多点触摸功能的ClickPad（约13 x 6.6厘米）的光滑表面使手指很容易在上面滑行。垫子对角落里的输入也有反应。它的行程很短，有一个清晰的压力点。敲击垫子的右上角会在表面上显示一个数字块。

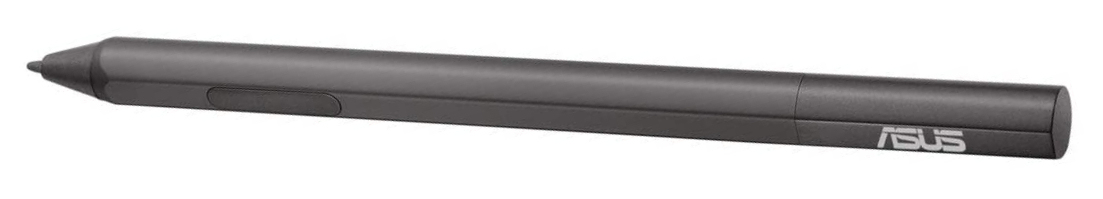

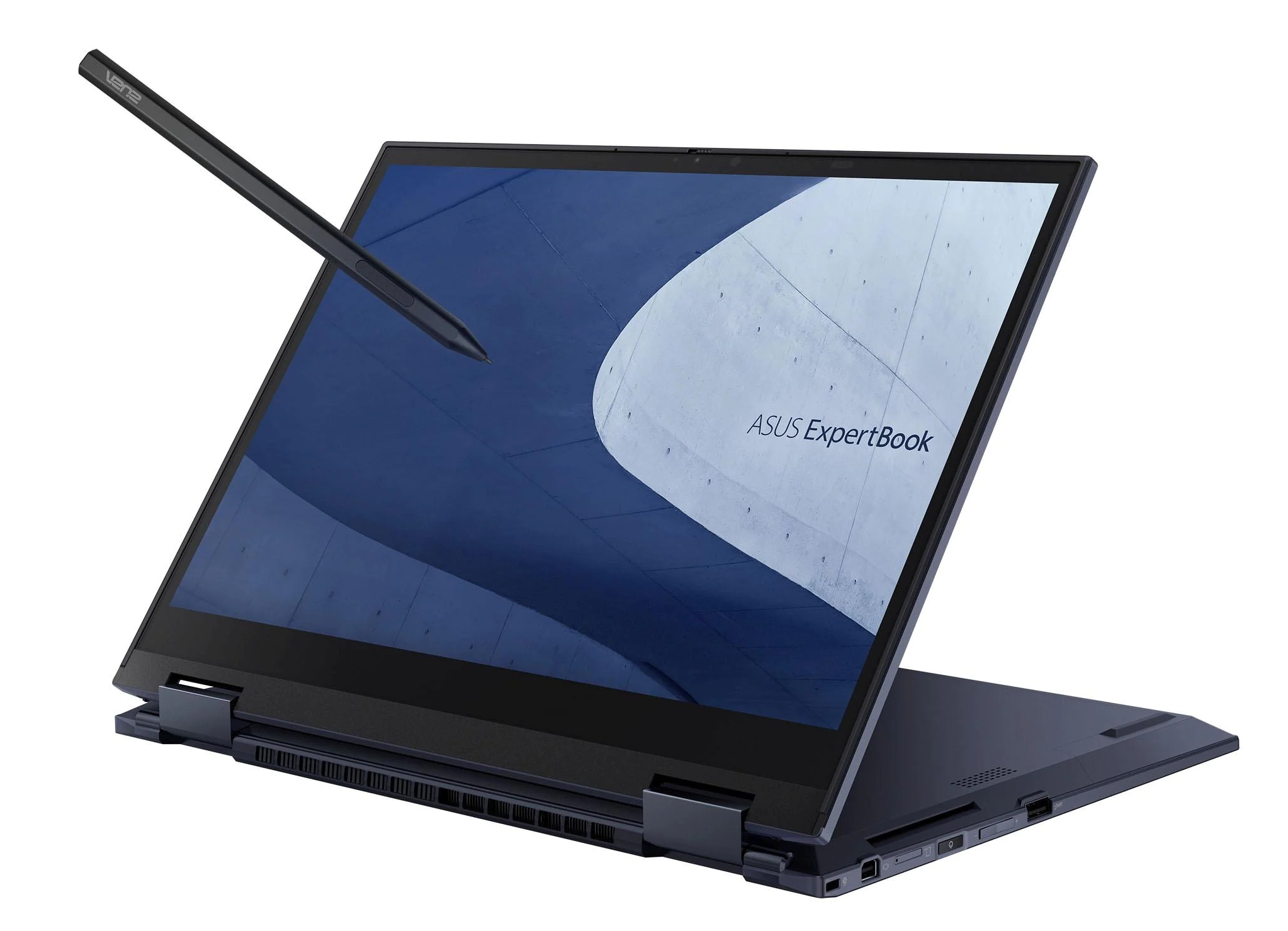

触摸屏支持10个触摸点，对输入反应迅速。屏幕可以通过触摸输入以及附带的华硕手写笔（SA201H）来操作。手写笔以磁性方式固定在机盖右侧。

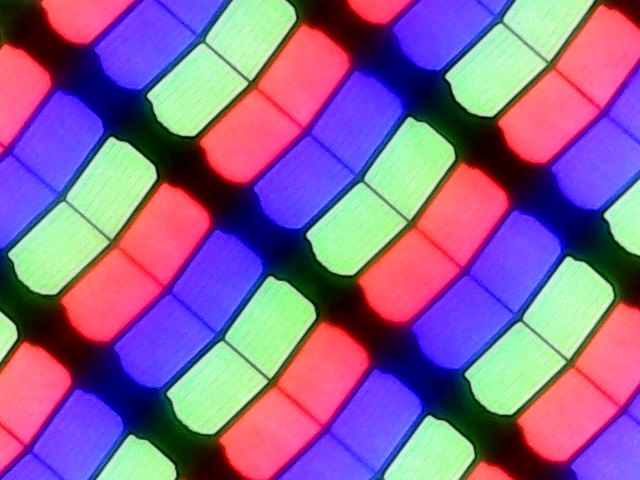

显示屏 - 华硕笔记本电脑的16:10明亮面板
华硕为ExpertBook配备了一个光亮的14英寸触摸屏（1920x1080），长宽比为16：10。亮度（515cd/m²）和对比度（3,224:1）都非常好。显示屏的防眩光涂层减少了反射，但它们仍然存在。积极的一面。没有检测到PWM的闪烁。
该显示器配备了一个可以打开和关闭的隐私保护罩（华硕隐私视图）。这是为了防止/阻碍显示器的横向视野。可以通过组合键（"Fn "+"2"）启用或禁用隐私功能。
| |||||||||||||||||||||||||
BOE CQ NE140WUM-N65 tested with X-Rite i1Pro 2
Maximum: 548 cd/m² (Nits) Average: 515 cd/m² Minimum: 29 cd/m²Brightness Distribution: 87 %
Center on Battery: 551 cd/m²
Contrast: 3224:1 (Black: 0.17 cd/m²)
ΔE Color 3.67 | 0.5-29.43 Ø4.88

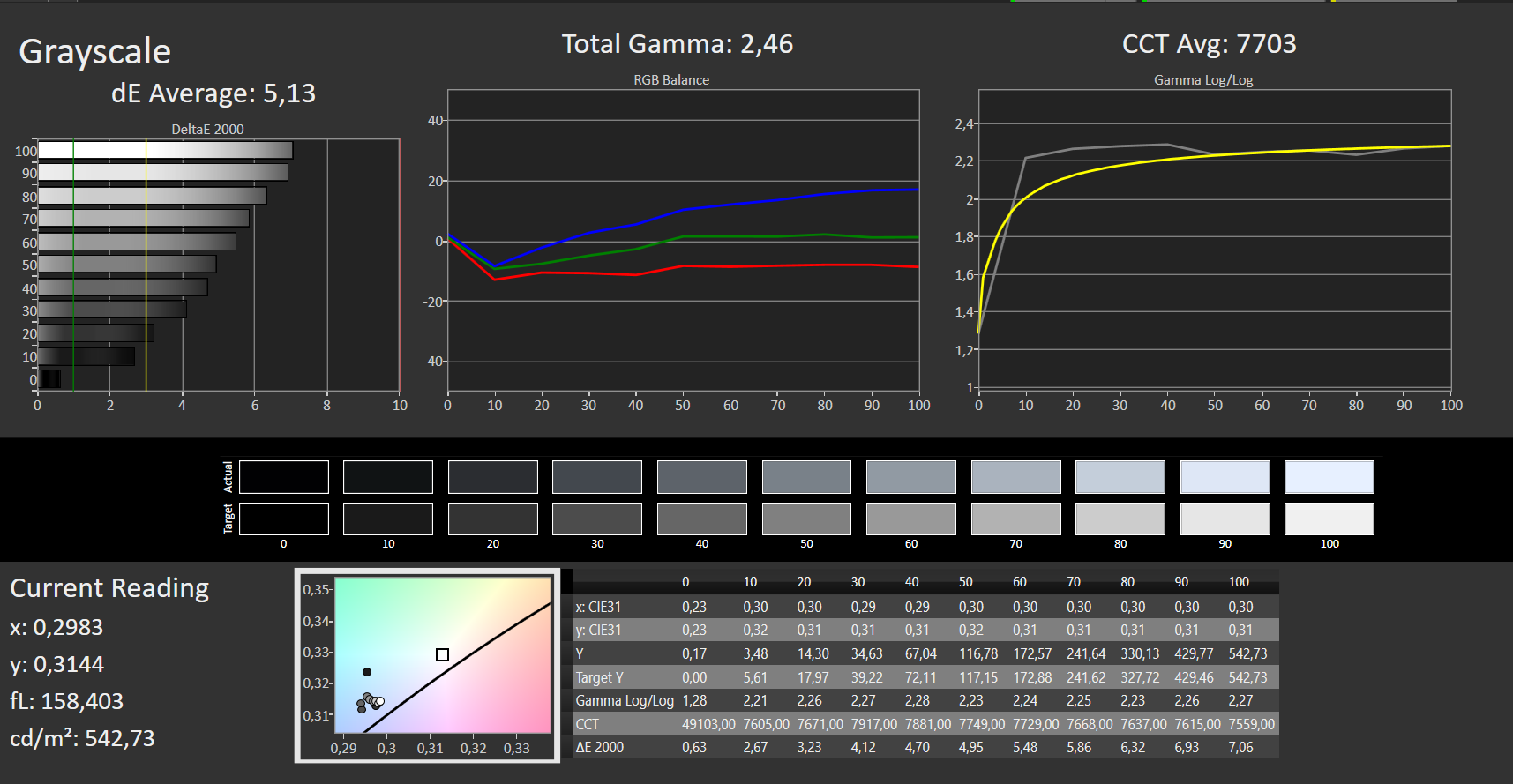

ΔE Greyscale 5.13 | 0.5-98 Ø5.1
69.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.9% sRGB (Argyll 2.2.0 3D)
68% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.46
| Asus ExpertBook B7 Flip B7402FEA BOE CQ NE140WUM-N65, IPS, 1900x1200, 14" | Dell Latitude 9420 2-in-1 AU Optronics B140QAN, IPS, 2560x1600, 14" | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 LP140WU1-SPB1, IPS, 1920x1200, 14" | Fujitsu LifeBook U9311X i7 LTE LQ133M1JW48, IPS, 1920x1080, 13.3" | |
|---|---|---|---|---|
| Display | 12% | 2% | -1% | |
| Display P3 Coverage | 68 | 80.7 19% | 69.8 3% | 67.3 -1% |
| sRGB Coverage | 98.9 | 100 1% | 97.1 -2% | 98.4 -1% |
| AdobeRGB 1998 Coverage | 69.3 | 79.7 15% | 72.2 4% | 68.8 -1% |
| Response Times | -13% | 12% | -28% | |
| Response Time Grey 50% / Grey 80% * | 50 ? | 54 ? -8% | 49.2 ? 2% | 61.2 ? -22% |
| Response Time Black / White * | 28 ? | 32.8 ? -17% | 22 ? 21% | 37.6 ? -34% |
| PWM Frequency | 211.9 ? | |||
| Screen | -14% | -3% | -22% | |
| Brightness middle | 548 | 483.6 -12% | 417 -24% | 348 -36% |
| Brightness | 515 | 465 -10% | 404 -22% | 350 -32% |
| Brightness Distribution | 87 | 92 6% | 93 7% | 92 6% |
| Black Level * | 0.17 | 0.32 -88% | 0.22 -29% | 0.31 -82% |
| Contrast | 3224 | 1511 -53% | 1895 -41% | 1123 -65% |
| Colorchecker dE 2000 * | 3.67 | 3.69 -1% | 2.8 24% | 2.8 24% |
| Colorchecker dE 2000 max. * | 7.15 | 5.97 17% | 4.7 34% | 6.8 5% |
| Greyscale dE 2000 * | 5.13 | 3.5 32% | 3.7 28% | 4.8 6% |
| Gamma | 2.46 89% | 2.04 108% | 2.08 106% | 2.2 100% |
| CCT | 7703 84% | 6158 106% | 6545 99% | 6978 93% |
| Colorchecker dE 2000 calibrated * | 2.05 | 1.6 | 0.8 | |
| Color Space (Percent of AdobeRGB 1998) | 65.9 | |||
| Color Space (Percent of sRGB) | 96.6 | |||
| Total Average (Program / Settings) | -5% /
-8% | 4% /
0% | -17% /
-18% |
* ... smaller is better

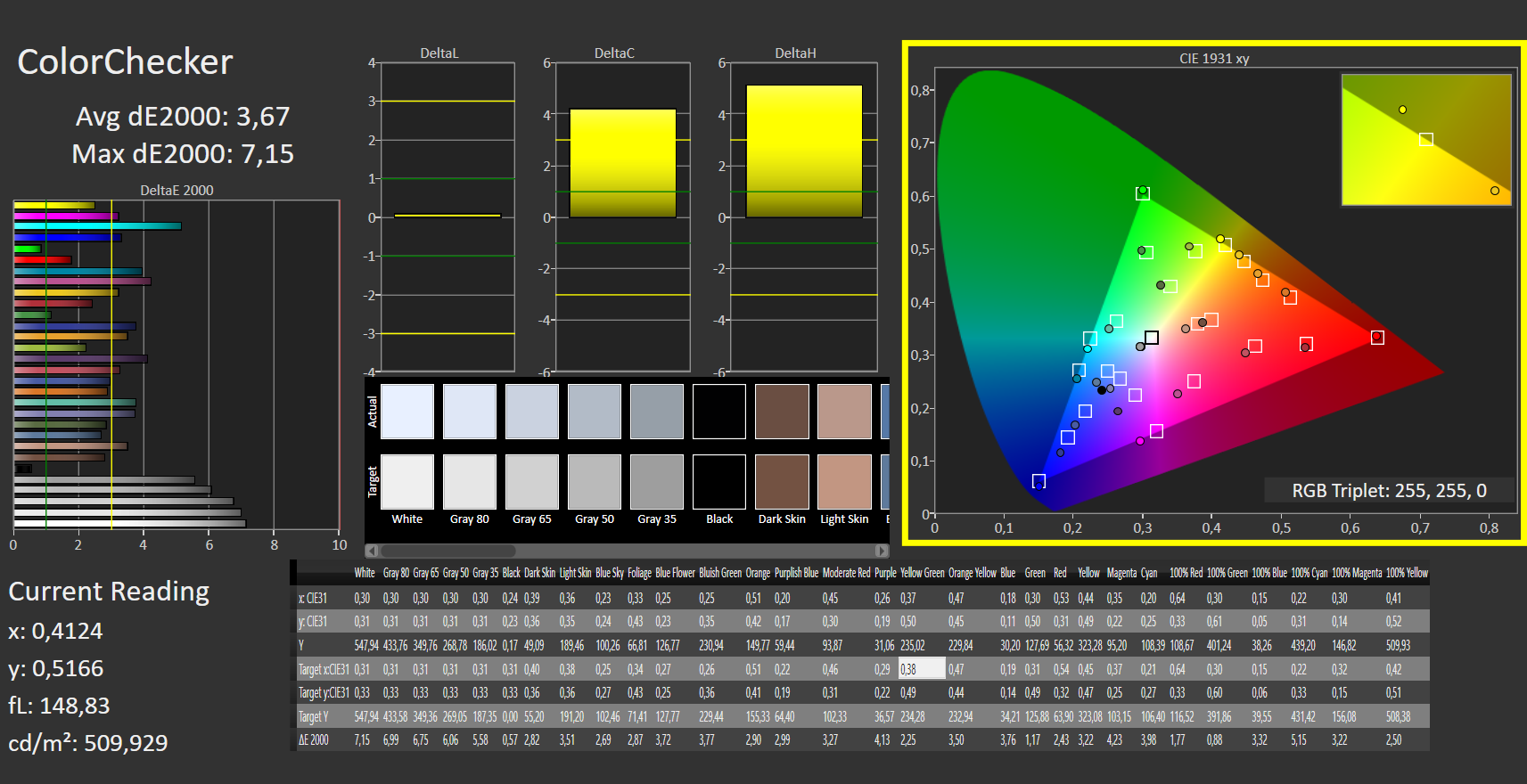

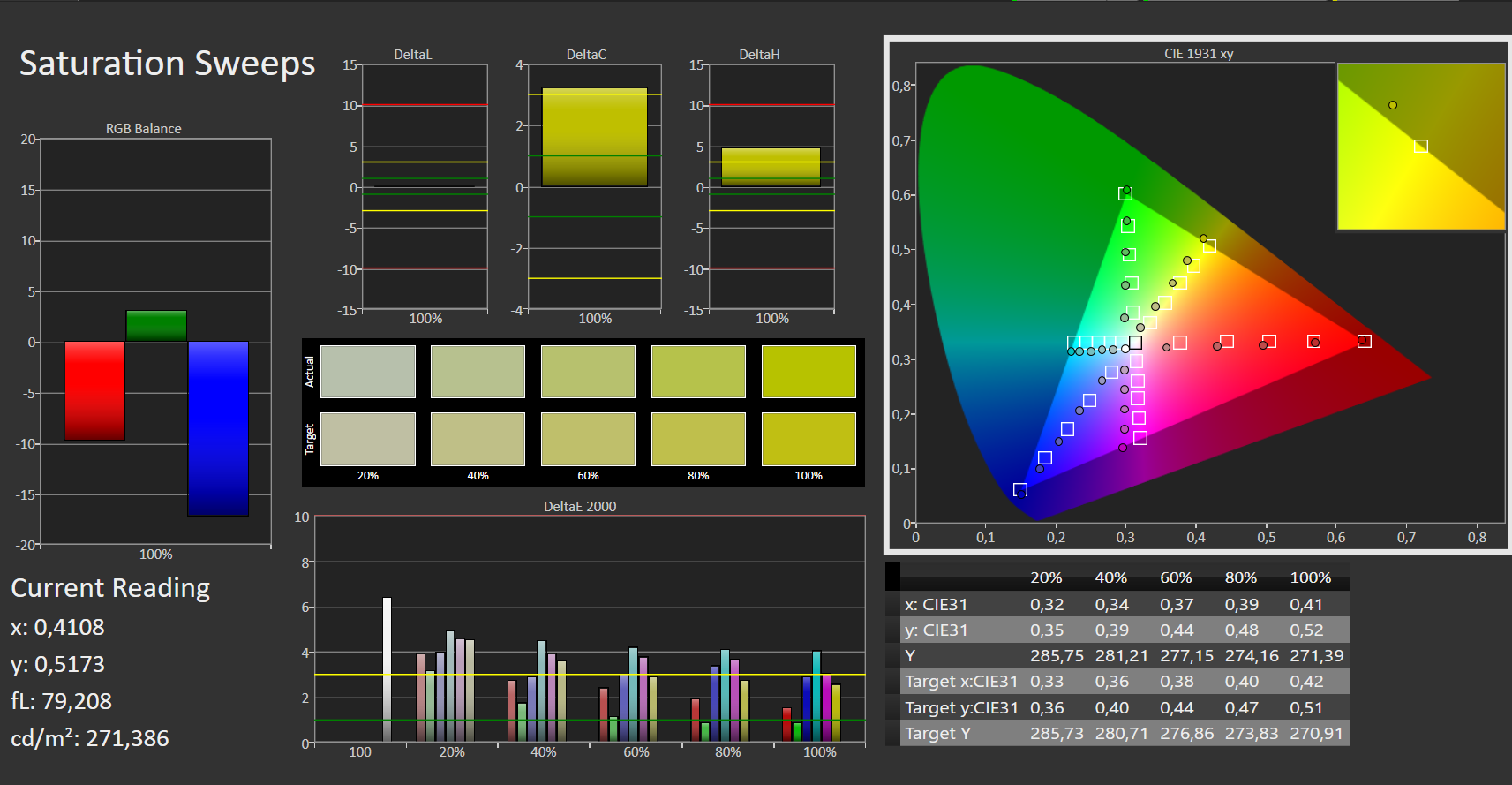

开箱后，该显示器显示了非常体面的色彩再现，但色彩与目标略有偏差--不过这并不明显。sRGB色彩空间的再现率为99%，AdobeRGB和DCI-P3色彩空间的再现率分别为69%和68%。

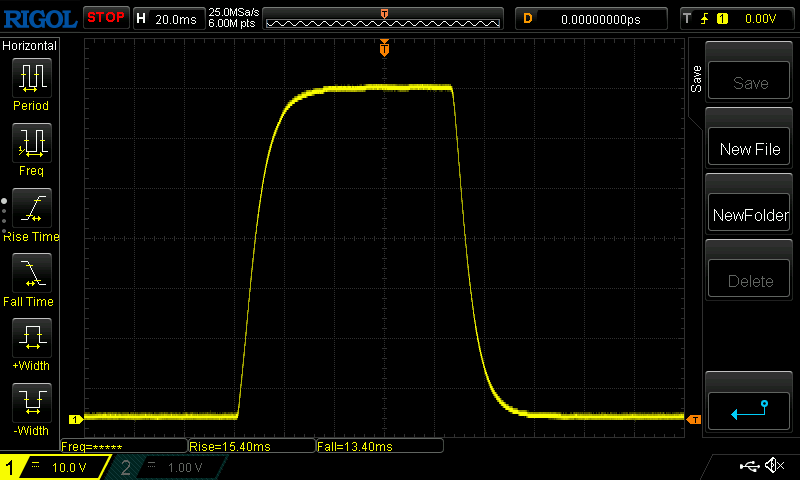

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 28 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 13 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 69 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.8 ms). | ||

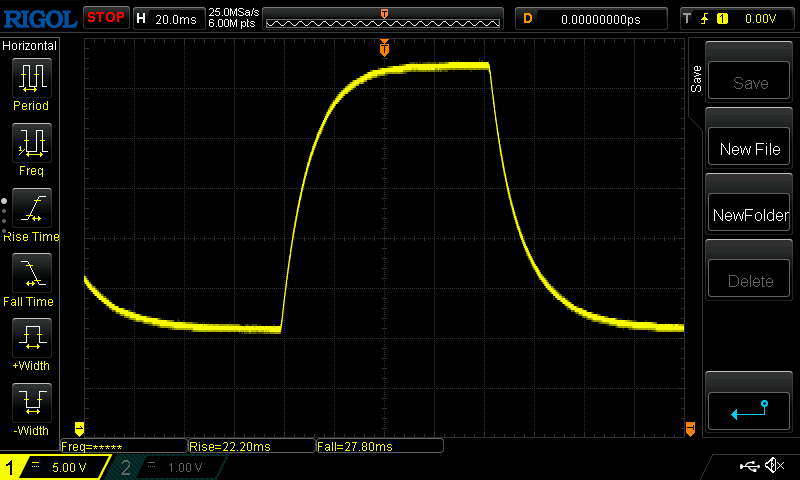

| ↔ Response Time 50% Grey to 80% Grey | ||
| 50 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise |  |
| ↘ 28 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 85 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.6 ms). | ||

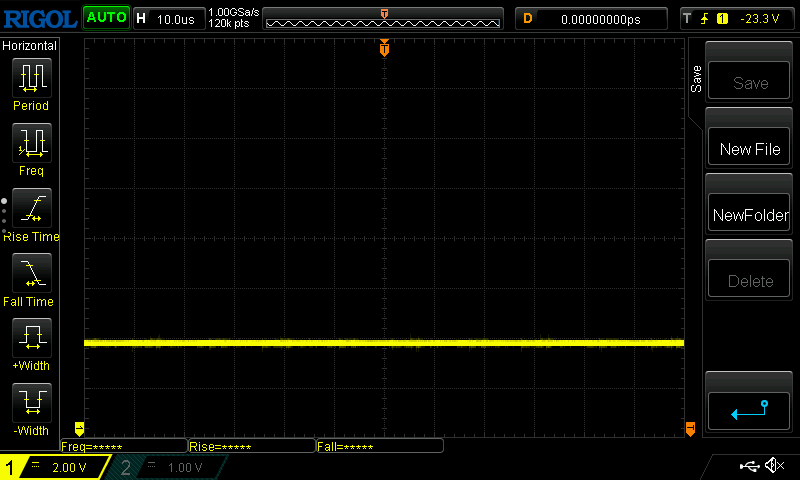

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8549 (minimum: 5 - maximum: 343500) Hz was measured. | |||

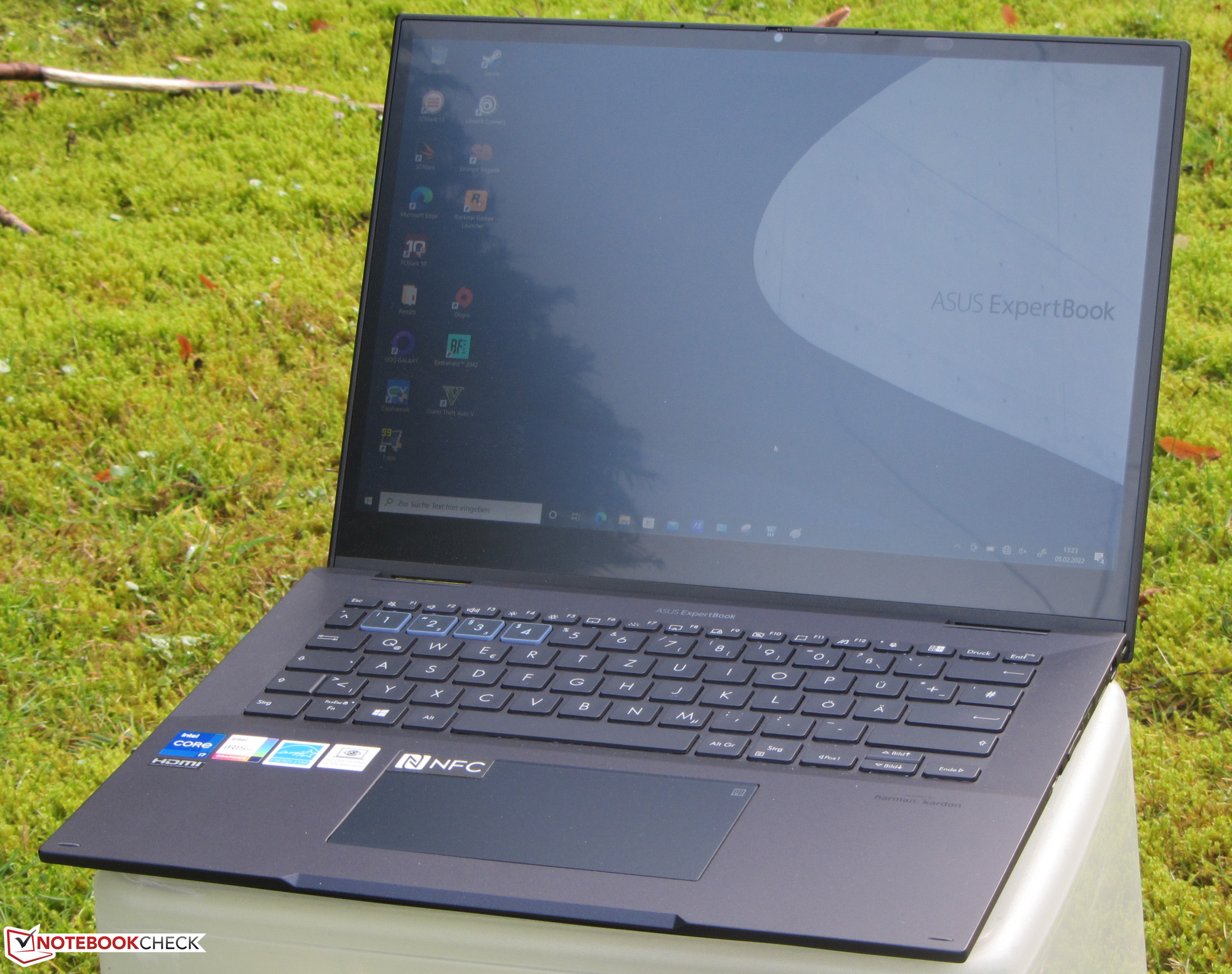

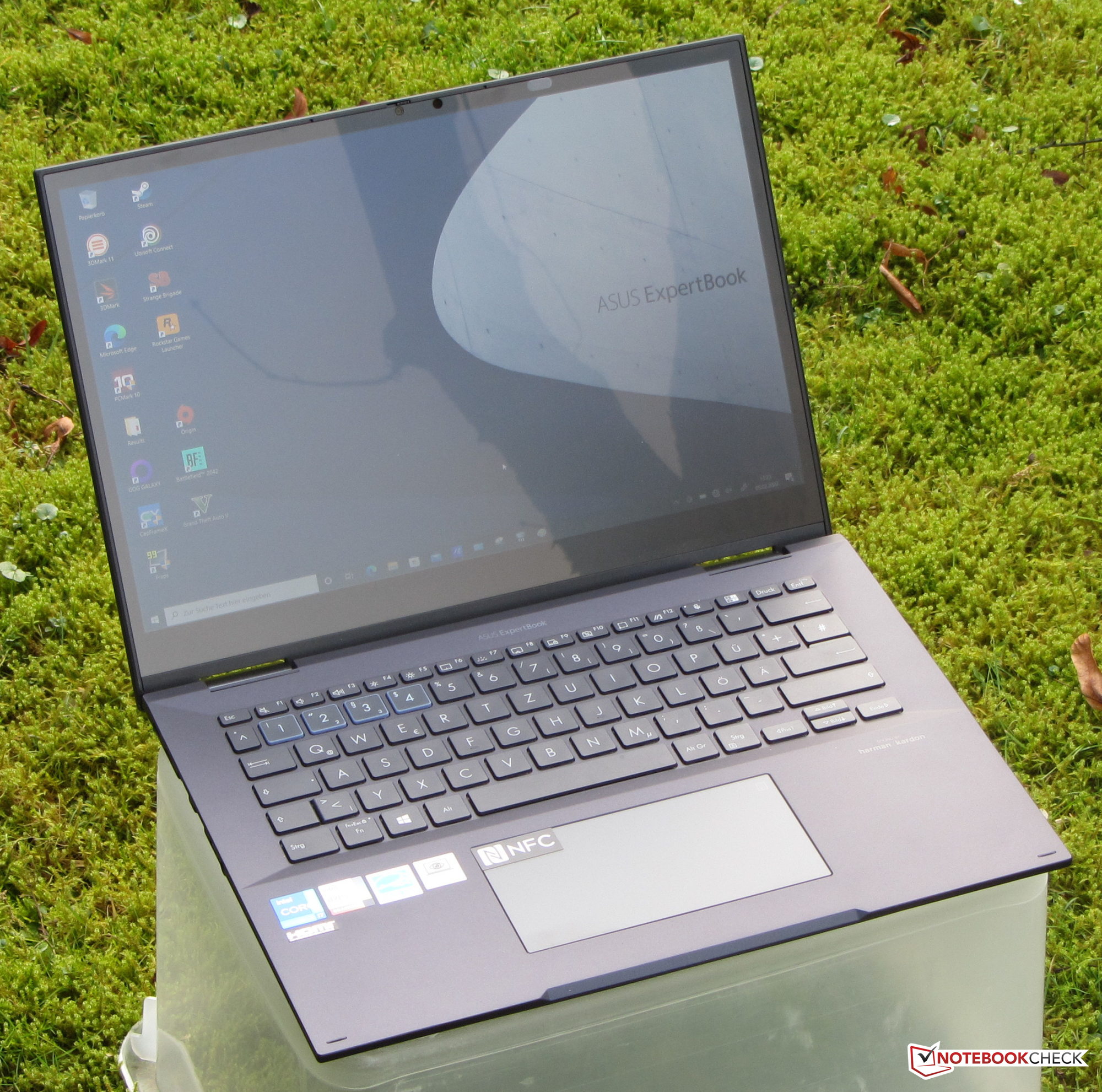

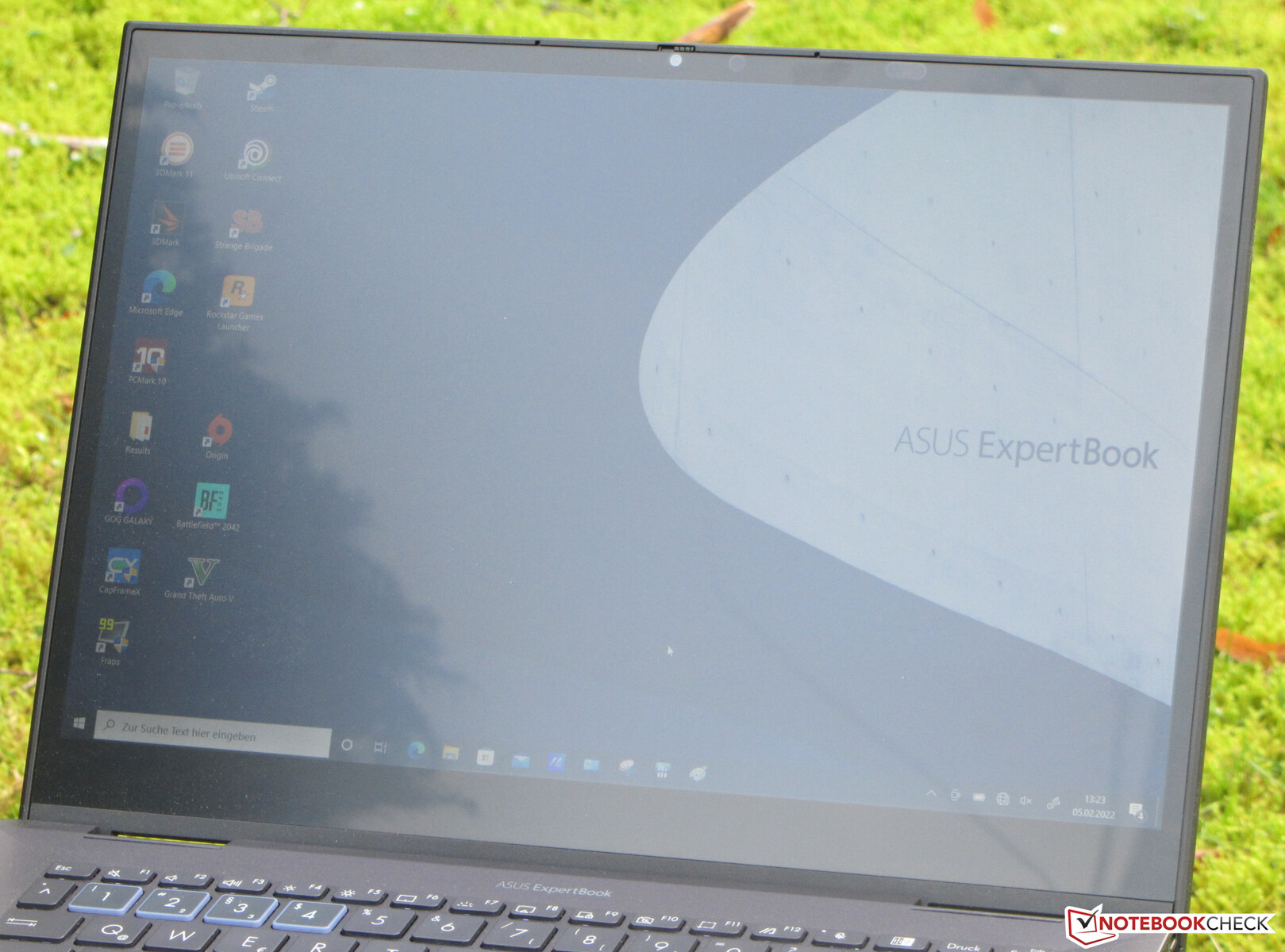

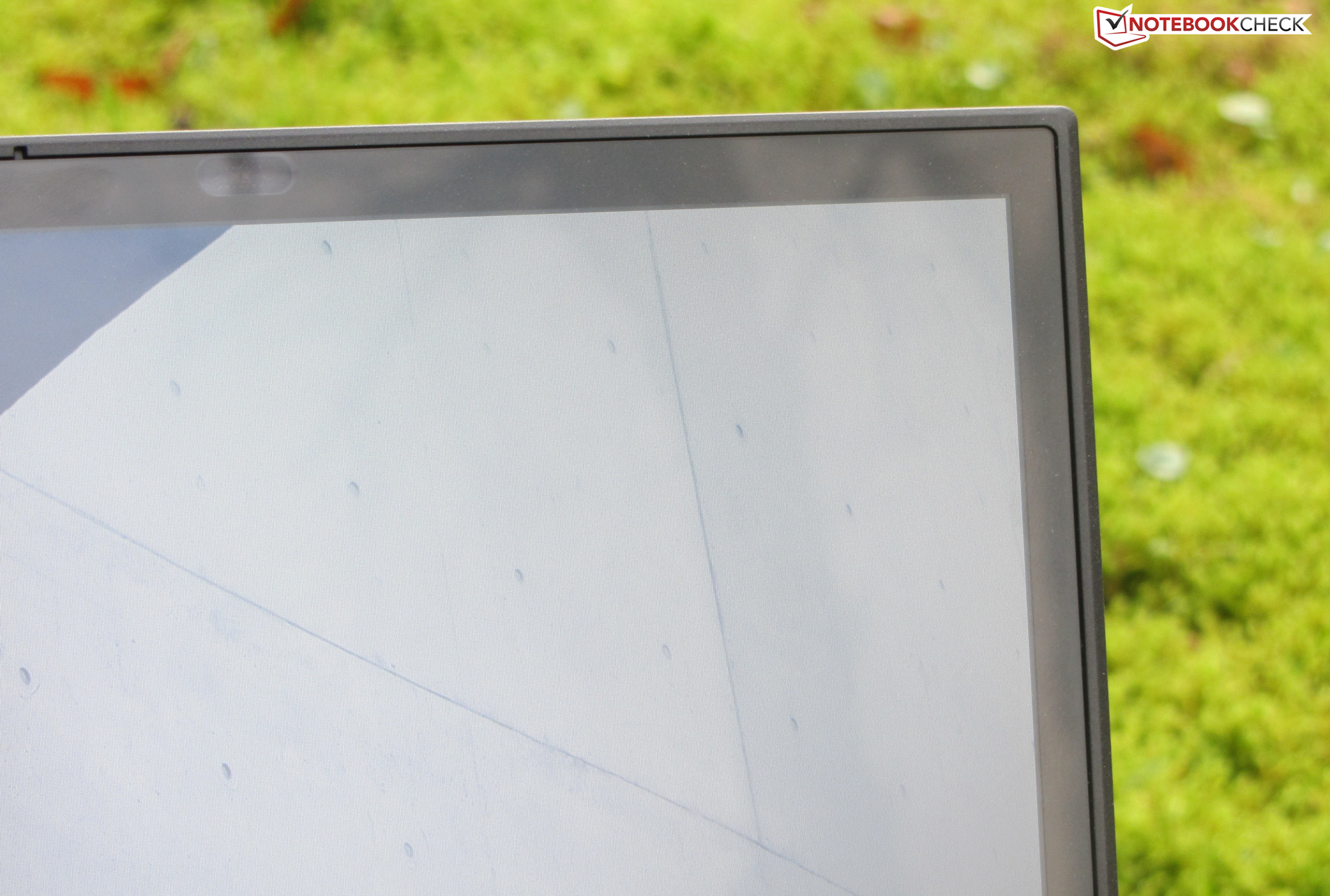

视角稳定的IPS面板从任何位置都能看清。在户外，反射性的显示表面往往会阻止或妨碍可读性。
性能 -Tiger Lake 为华硕翻转机提供动力
通过ExpertBook B7 Flip，华硕提供了一款商务级别的二合一设备，为办公和互联网应用提供了足够的计算能力。
测试条件
笔记本电脑有三个制造商特定的性能配置文件（"性能模式"、"平衡模式"、"安静模式"），可以使用组合键 "Fn "+"F "在它们之间进行切换。基准测试是在 "平衡模式 "配置文件激活时进行的。一些基准测试还在其他配置文件下运行。结果见对比图。

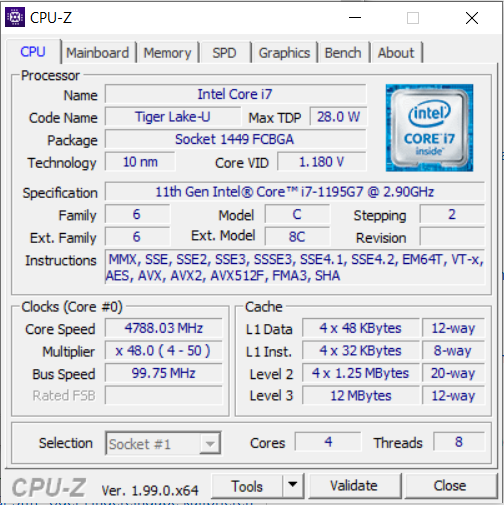

处理器

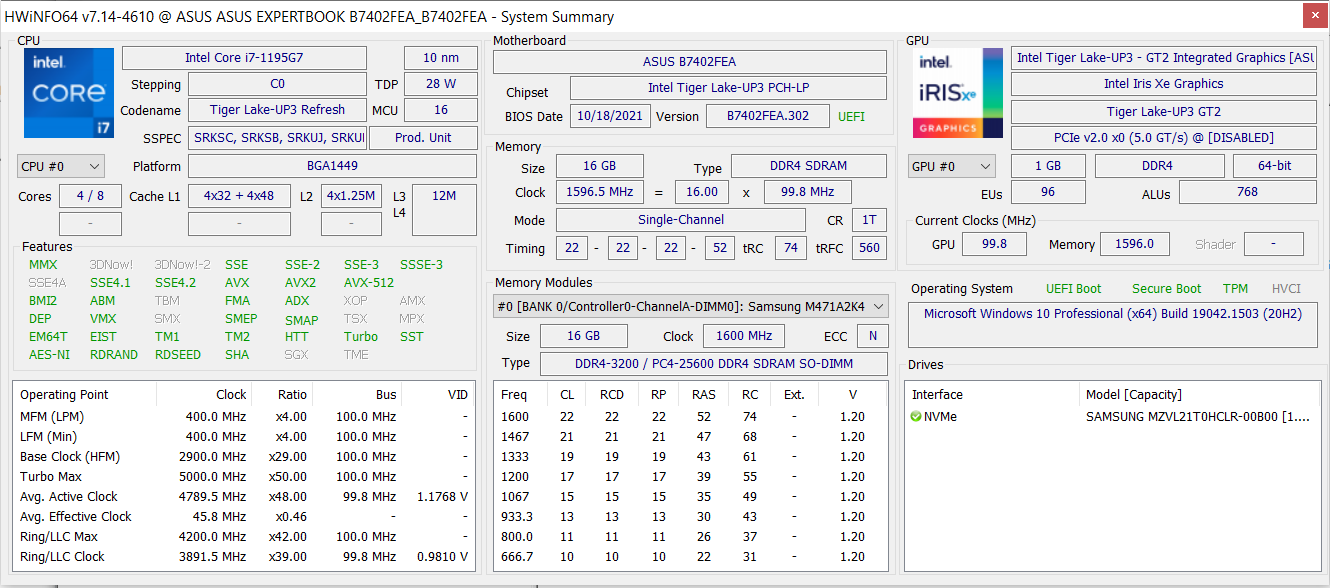

芯片酷睿i7-1195G7四核处理器（Tiger Lake ）以2.9 GHz的基本时钟速度运行。通过涡轮增压可以提高到4.2 GHz（四个核心）或5 GHz（一个核心）。支持超线程（每个核心两个线程）。Cinebench R15基准测试的多线程测试在3.7至3.9GHz下执行，单线程测试在2至5GHz下执行。这些时钟速率在电池电量上明显降低。

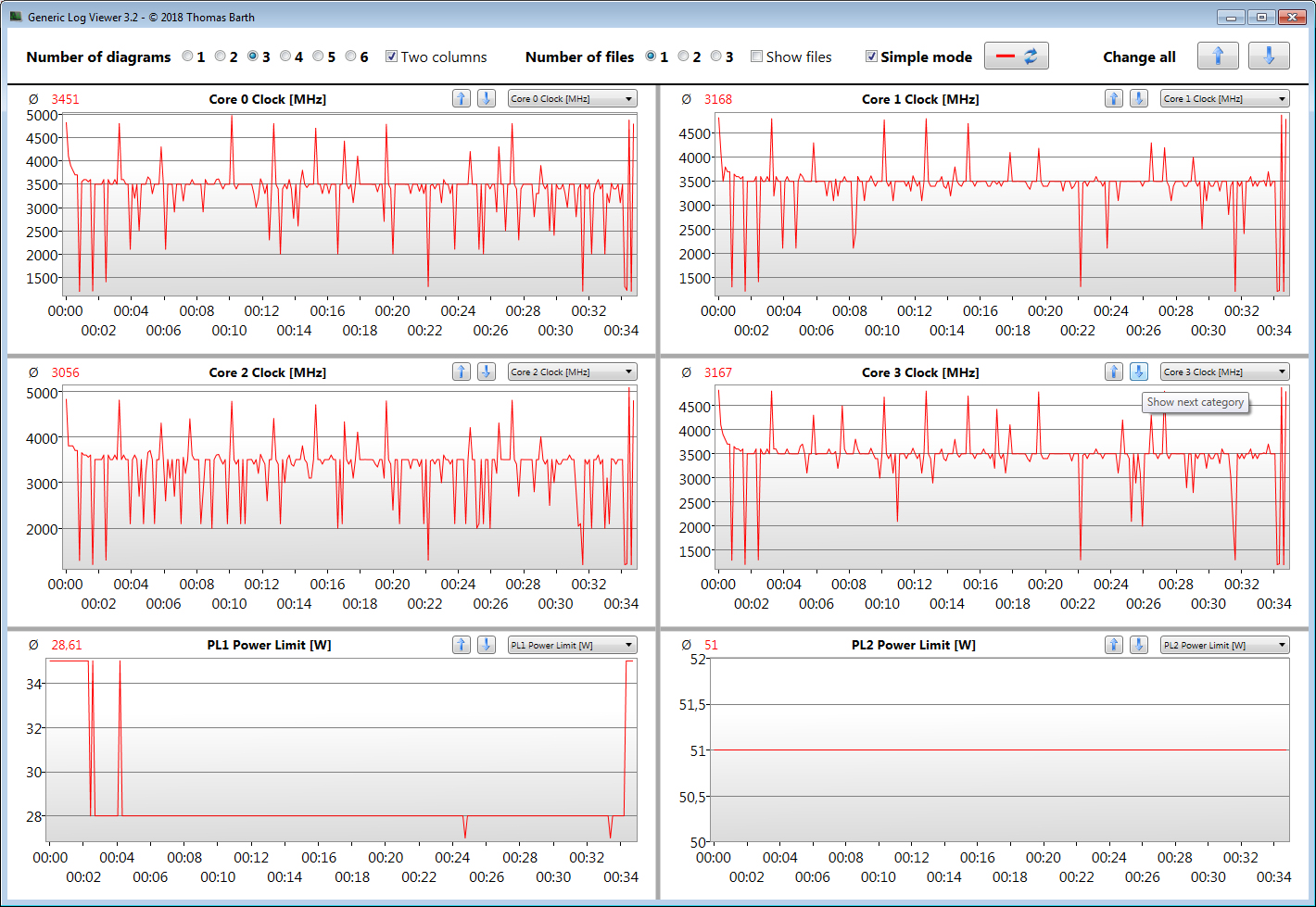

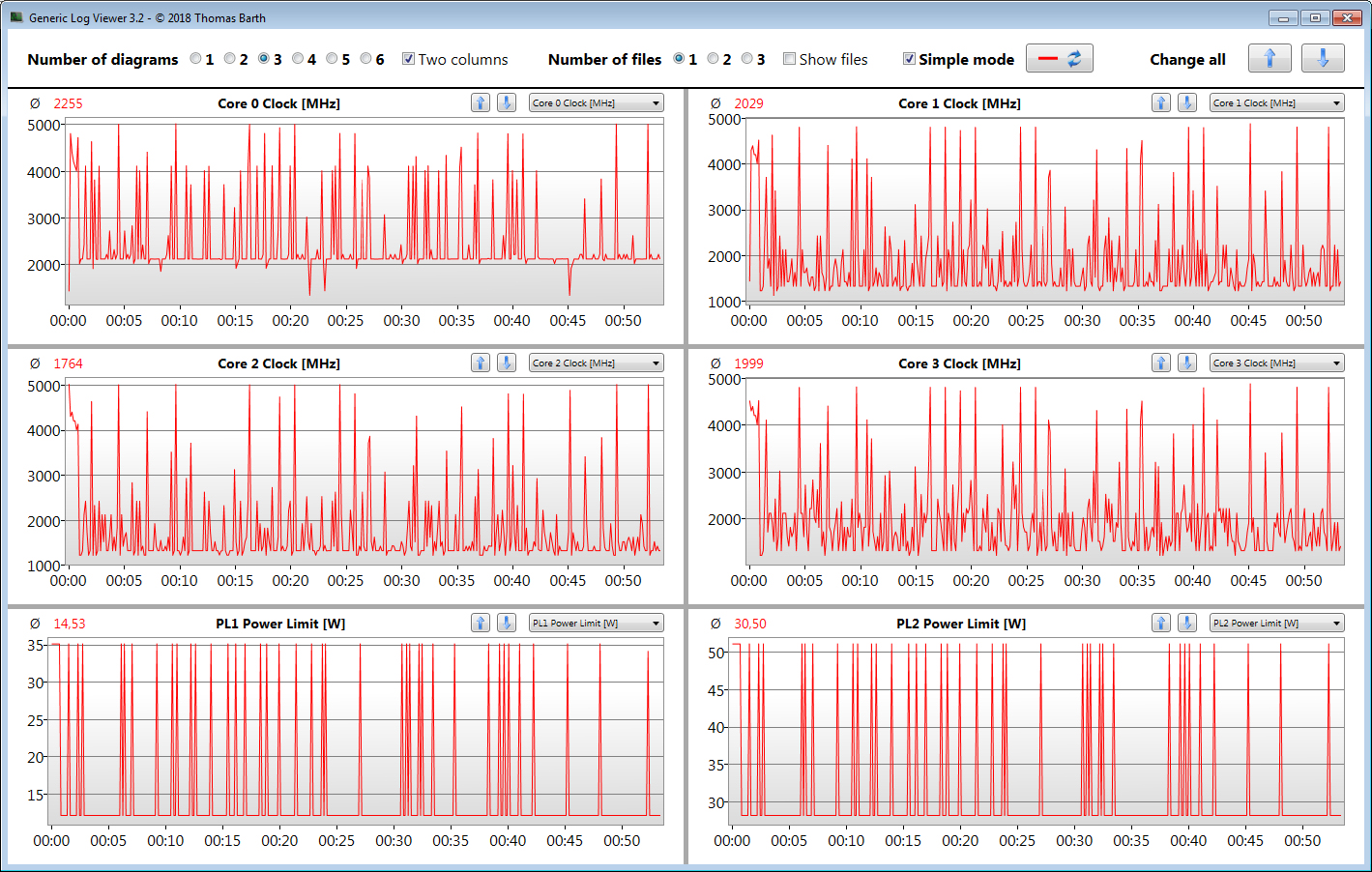

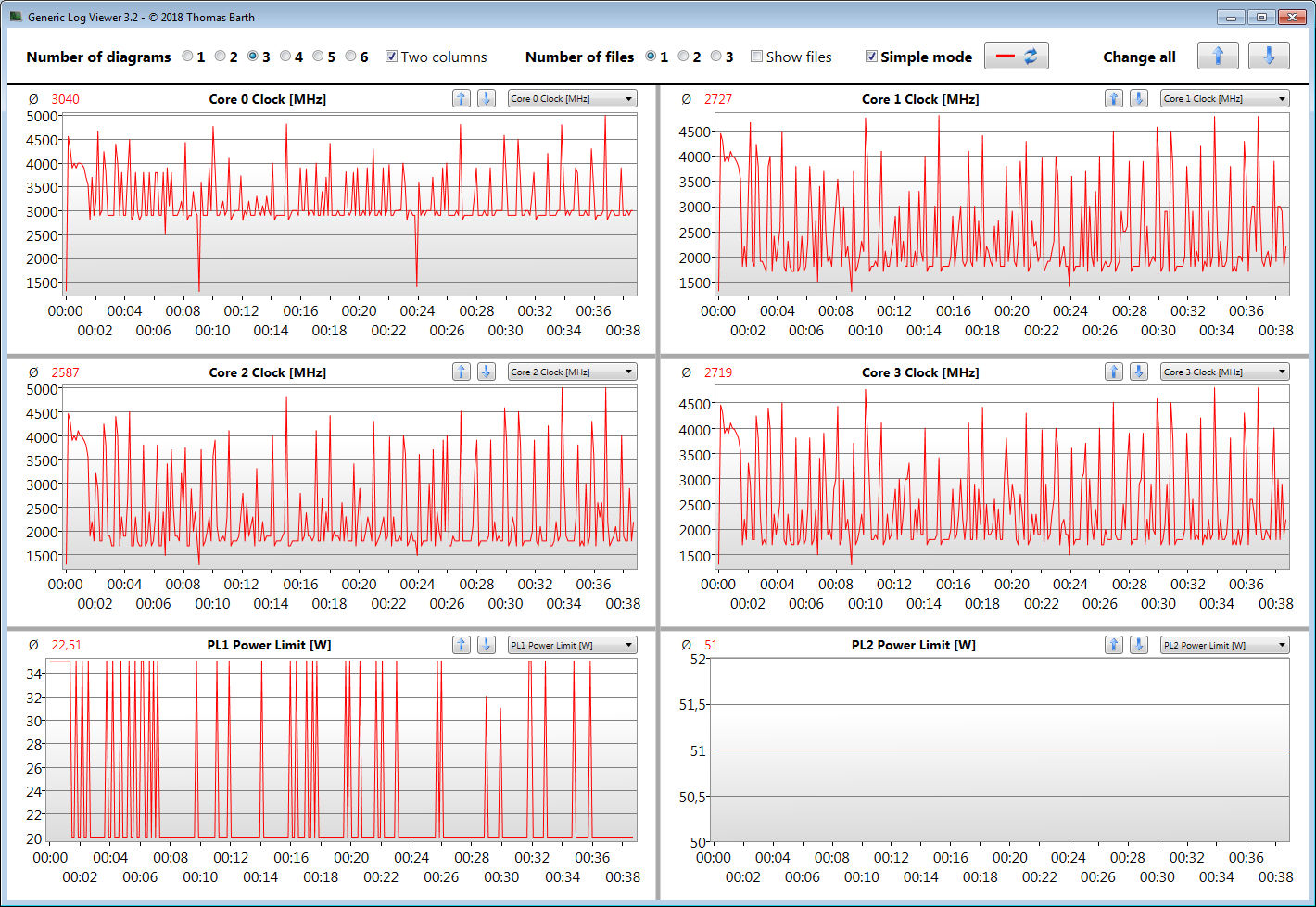

我们通过循环运行Cinebench R15基准的多线程测试至少30分钟来验证插电时是否持续使用CPU Turbo。Turbo只在低程度上被使用。四个CPU核心中的三个以略低于基本时钟速度的平均速度运行。性能模式 "能源配置文件提供了一个增加的时钟速率。
Cinebench R15 multi endurance test
Asus ExpertBook B7 Flip B7402FEA Intel Core i7-1195G7: Ø732 (673.83-985.19)
Asus ExpertBook B7 Flip B7402FEA Intel Core i7-1195G7; Leistungsmodus: Ø834 (819.47-939.85)
Asus ExpertBook B7 Flip B7402FEA Intel Core i7-1195G7; Flüstermodus: Ø525 (489.23-951.52)
Dell Latitude 9420 2-in-1 Intel Core i7-1185G7: Ø866 (787.54-921.96)
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Core i7-1165G7: Ø804 (719.39-910.5)
Fujitsu LifeBook U9311X i7 LTE Intel Core i7-1185G7: Ø672 (651.67-816.61)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Convertible | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Dell Latitude 9420 2-in-1 -2! | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA -1! | |
| Asus ExpertBook B7 Flip B7402FEA -2! | |
| Average Intel Core i7-1195G7 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Convertible (2949 - 29063, n=61, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7 (3142 - 6806, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Single Core | |
| Average of class Convertible (914 - 2163, n=61, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Core i7-1195G7 (1290 - 1624, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Convertible (1124 - 11357, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7 (1212 - 2590, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| CPU (Single Core) | |
| Average of class Convertible (348 - 827, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7 (498 - 620, n=9) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Convertible (478 - 4830, n=63, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Dell Latitude 9420 2-in-1 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Core i7-1195G7 (574 - 999, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| CPU Single 64Bit | |
| Average of class Convertible (149.8 - 317, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7 (198 - 238, n=8) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Blender - v2.79 BMW27 CPU | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Average Intel Core i7-1195G7 (473 - 1211, n=10) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Dell Latitude 9420 2-in-1 | |
| Average of class Convertible (107 - 1051, n=58, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Convertible (12977 - 121368, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Core i7-1195G7 (17053 - 26183, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| 7z b 4 -mmt1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Average Intel Core i7-1195G7 (5059 - 5890, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Dell Latitude 9420 2-in-1 | |
| Average of class Convertible (3672 - 6540, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Convertible (2188 - 22023, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Average Intel Core i7-1195G7 (4241 - 6349, n=7) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Single-Core | |
| Average of class Convertible (806 - 2275, n=60, last 2 years) | |
| Average Intel Core i7-1195G7 (1519 - 1649, n=7) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Convertible (3.43 - 36.2, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7 (4.23 - 8.8, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| LibreOffice - 20 Documents To PDF | |
| Average of class Convertible (42.7 - 84.3, n=59, last 2 years) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Average Intel Core i7-1195G7 (39.2 - 83.9, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| R Benchmark 2.5 - Overall mean | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Core i7-1195G7 (0.53 - 0.611, n=9) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Average of class Convertible (0.3985 - 0.84, n=59, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Convertible | |
| Dell Latitude 9420 2-in-1 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Convertible (2179 - 64158, n=61, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Average Intel Core i7-1195G7 (4378 - 7361, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / FPU Julia | |
| Average of class Convertible (11392 - 183760, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Average Intel Core i7-1195G7 (20576 - 30422, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / CPU SHA3 | |
| Average of class Convertible (797 - 8151, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Average Intel Core i7-1195G7 (1310 - 2026, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / CPU Queen | |
| Average of class Convertible (22413 - 145339, n=60, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Average Intel Core i7-1195G7 (38530 - 56262, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| AIDA64 / FPU SinJulia | |
| Average of class Convertible (1120 - 29155, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Average Intel Core i7-1195G7 (3209 - 4937, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / FPU Mandel | |
| Average of class Convertible (5749 - 97193, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1195G7 (12142 - 18123, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / CPU AES | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Average Intel Core i7-1195G7 (30854 - 70936, n=9) | |
| Average of class Convertible (21774 - 169089, n=60, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| AIDA64 / CPU ZLib | |
| Average of class Convertible (218 - 2001, n=60, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Average Intel Core i7-1195G7 (231 - 399, n=10) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Convertible (1169 - 34297, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1195G7 (2300 - 3949, n=9) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
| AIDA64 / CPU PhotoWorxx | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Average of class Convertible (13761 - 81626, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1195G7 (13455 - 35235, n=9) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Flüstermodus) | |
系统性能
快速而流畅的系统没有造成任何问题。CPU为办公和互联网应用提供了足够的性能。这一点得到了良好的PCMark结果的补充。然而，华硕让一些性能付诸东流，因为它的内存只在单通道模式下运行。可以通过安装第二个内存模块来启用双通道模式。
| PCMark 10 Score | 5250 points | |
Help | ||
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Convertible (3229 - 9125, n=58, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (5067 - 5406, n=6) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| PCMark 10 / Essentials | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average of class Convertible (7233 - 12005, n=58, last 2 years) | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (10156 - 10614, n=6) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Fujitsu LifeBook U9311X i7 LTE | |
| PCMark 10 / Productivity | |
| Average of class Convertible (5062 - 10800, n=58, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (6637 - 7390, n=6) | |
| Dell Latitude 9420 2-in-1 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Convertible (2496 - 16551, n=58, last 2 years) | |
| Dell Latitude 9420 2-in-1 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (4737 - 5941, n=6) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| CrossMark / Overall | |
| Average of class Convertible (524 - 2274, n=60, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (1341 - 1460, n=3) | |
| CrossMark / Productivity | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (1371 - 1545, n=3) | |
| Average of class Convertible (554 - 1925, n=60, last 2 years) | |
| CrossMark / Creativity | |
| Average of class Convertible (550 - 2949, n=60, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (1331 - 1401, n=3) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| CrossMark / Responsiveness | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (1151 - 1441, n=3) | |
| Average of class Convertible (381 - 1868, n=60, last 2 years) | |
| AIDA64 / Memory Copy | |
| Average of class Convertible (29473 - 158525, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Average Intel Core i7-1195G7 (23332 - 57053, n=10) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| AIDA64 / Memory Read | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Average of class Convertible (28905 - 126517, n=60, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1195G7 (24068 - 53332, n=10) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| AIDA64 / Memory Write | |
| Average of class Convertible (30110 - 216896, n=60, last 2 years) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1195G7 (22151 - 59019, n=10) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| AIDA64 / Memory Latency | |
| Average of class Convertible (7.7 - 173, n=59, last 2 years) | |
| Fujitsu LifeBook U9311X i7 LTE (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800, Dual-Channel) | |
| Average Intel Core i7-1195G7 (69.8 - 114.4, n=10) | |
| Dell Latitude 9420 2-in-1 (v6.33.5700) | |
| Asus ExpertBook B7 Flip B7402FEA (v6.50.5800) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 (v6.32.5600) | |
* ... smaller is better

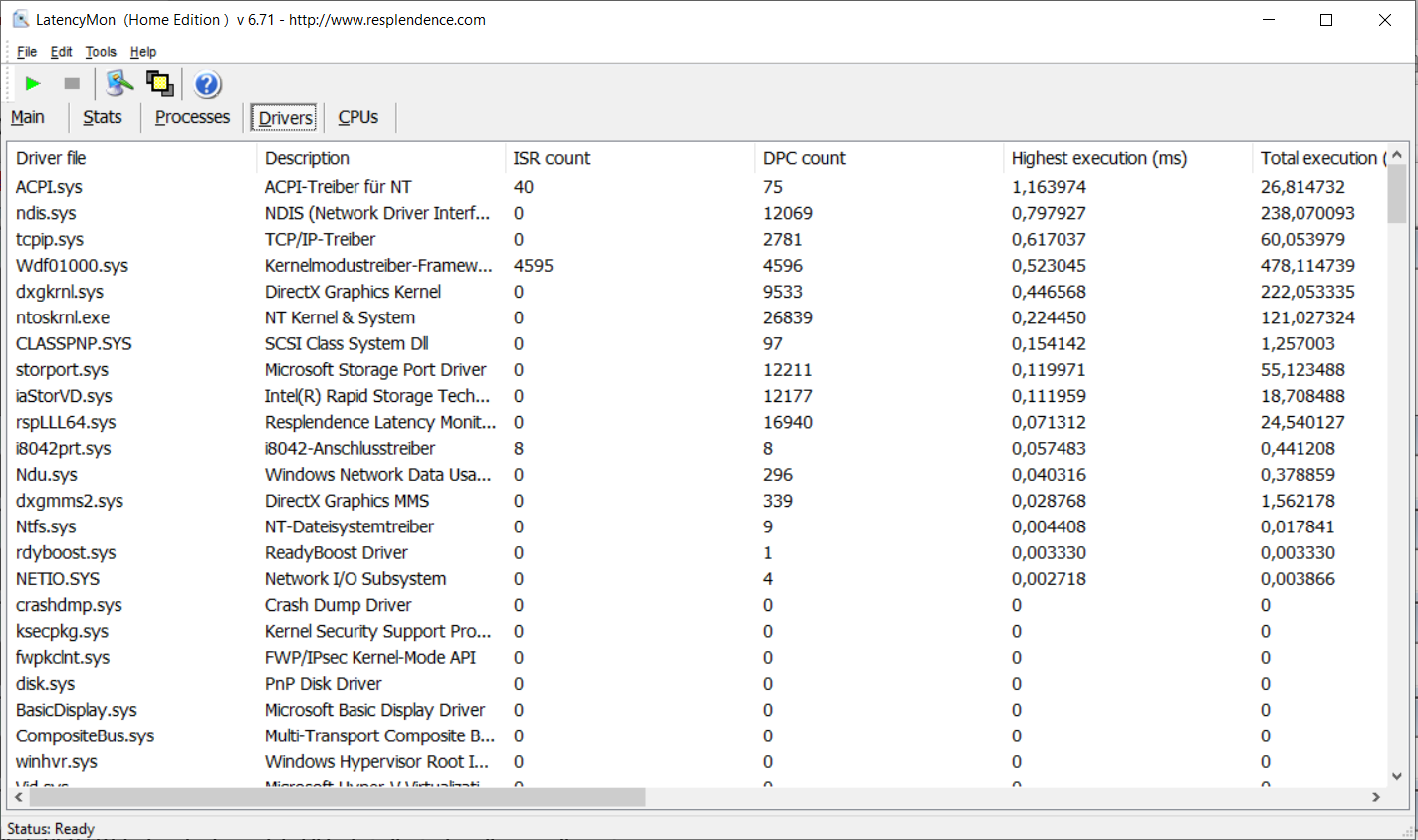

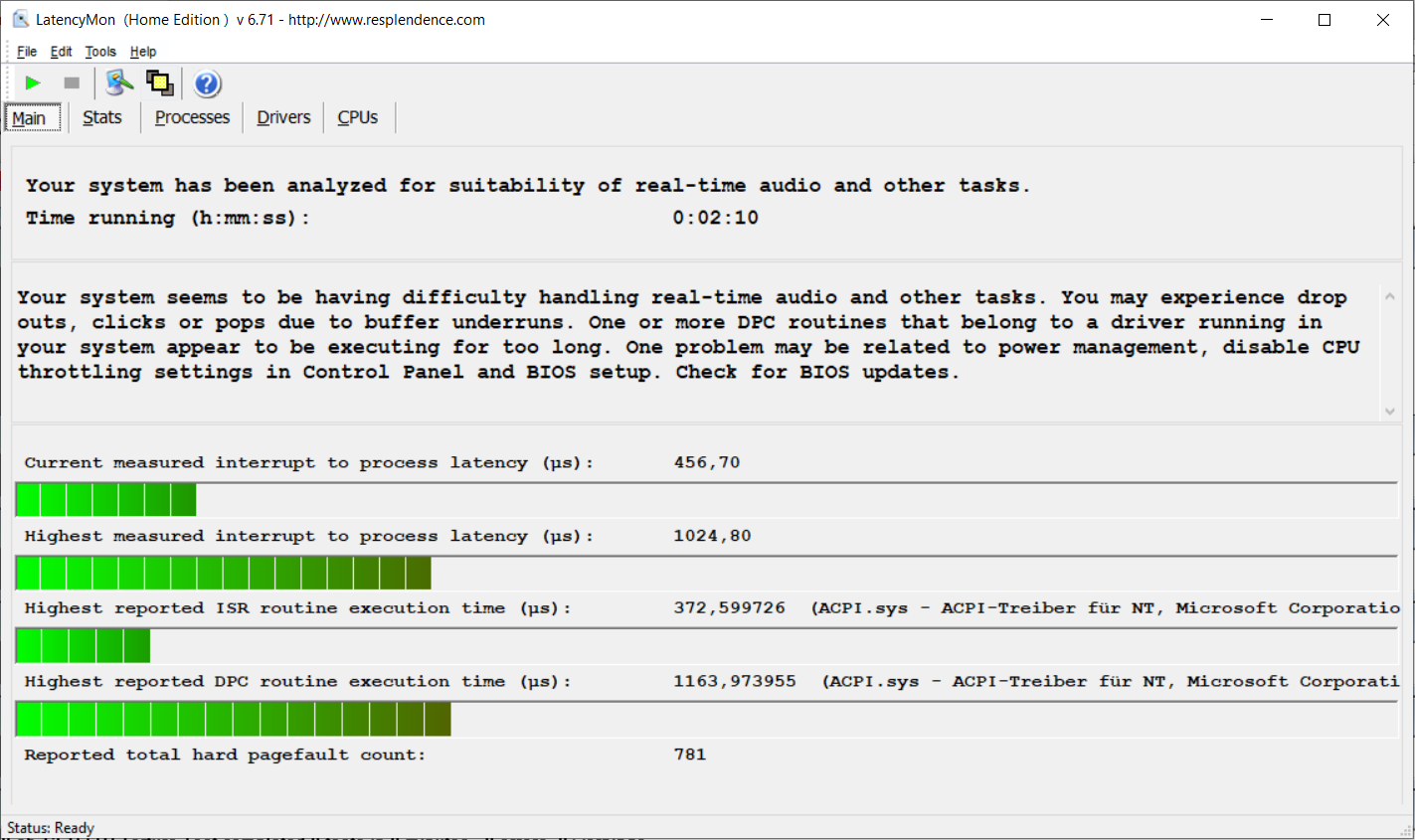

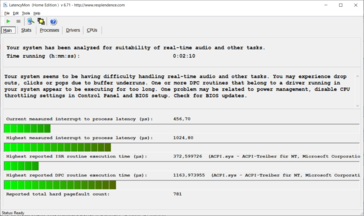

DPC延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Dell Latitude 9420 2-in-1 | |
* ... smaller is better
储存
来自三星的1TB NVMe SSD（M.2 2280）作为系统驱动器，它总体上提供了良好的传输速率。不幸的是，由于ExpertBook只支持PCIe 3，这块PCIe 4固态硬盘无法发挥其全部性能。
Samsung PM9A1 MZVL21T0HCLR
CDM 5/6 Read Seq Q32T1:
2794 MB/s
CDM 5/6 Write Seq Q32T1:
3460 MB/s
CDM 5/6 Read 4K Q32T1:
710 MB/s
CDM 5/6 Write 4K Q32T1:
560 MB/s
CDM 5 Read Seq:
2876 MB/s
CDM 5 Write Seq:
3100 MB/s
CDM 5/6 Read 4K:
89.2 MB/s
CDM 5/6 Write 4K:
219.3 MB/s
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
Asus ExpertBook B7 Flip B7402FEA Samsung PM9A1 MZVL21T0HCLR: Ø3529 (3285.89-3539.99)
图形卡
内置的Intel Iris Xe Graphics G7 96EU GPU无法长期保持1,400 MHz的最大时钟速度--但已经接近。该GPU在1,350至1,400兆赫时执行我们的TheWitcher 3
测试。B7不是一款游戏笔记本电脑。然而，内置硬件可以流畅地渲染一些游戏--在低分辨率和低质量设置下。在每个测试中，GPU仍然明显低于其潜力。原因是。内存只在单通道模式下运行。启用双通道模式（=安装第二个内存模块）将提高基准测试结果以及游戏的帧率（见对比表）。
| 3DMark 11 Performance | 5921 points | |
| 3DMark Ice Storm Standard Score | 68652 points | |
| 3DMark Cloud Gate Standard Score | 16218 points | |
| 3DMark Fire Strike Score | 3170 points | |
| 3DMark Time Spy Score | 1383 points | |
Help | ||
| 3DMark Performance Rating - Percent | |
| Average of class Convertible | |
| Dell Latitude 9420 2-in-1 | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Average Intel Iris Xe Graphics G7 96EUs | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Convertible (1505 - 40768, n=59, last 2 years) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=204) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | GTA V | Strange Brigade | F1 2021
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Convertible (22 - 354, n=37, last 2 years) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=187) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Dota 2 Reborn - 1366x768 med (1/3) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Dell Latitude 9420 2-in-1 | |
| Average of class Convertible (38.2 - 192.3, n=61, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=217) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Average of class Convertible (23 - 143.4, n=62, last 2 years) | |
| Lenovo ThinkPad X1 Yoga G6-20Y0S00200 | |
| Average Intel Iris Xe Graphics G7 96EUs (13.4 - 88.4, n=212) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Convertible (12.8 - 182.7, n=59, last 2 years) | |
| Dell Latitude 9420 2-in-1 (1.3) | |
| Fujitsu LifeBook U9311X i7 LTE (1.3) | |
| Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=185) | |
| Asus ExpertBook B7 Flip B7402FEA (1.3, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (1.3) | |
| Asus ExpertBook B7 Flip B7402FEA (1.3, Flüstermodus) | |
| GTA V - 1366x768 Normal/Off AF:4x | |
| Average of class Convertible (46.6 - 175.4, n=43, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (24.1 - 152.7, n=167) | |
| Asus ExpertBook B7 Flip B7402FEA (Dual-Channel) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Asus ExpertBook B7 Flip B7402FEA | |
| Asus ExpertBook B7 Flip B7402FEA (Leistungsmodus) | |
| Dell Latitude 9420 2-in-1 | |
| Asus ExpertBook B7 Flip B7402FEA (Flüstermodus) | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Convertible (27.6 - 453, n=58, last 2 years) | |
| Dell Latitude 9420 2-in-1 (1.47.22.14 D3D12) | |
| Fujitsu LifeBook U9311X i7 LTE | |
| Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=170) | |
| Asus ExpertBook B7 Flip B7402FEA (1.47.22.14 D3D12, Dual-Channel) | |
| Asus ExpertBook B7 Flip B7402FEA (1.47.22.14 D3D12, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (1.47.22.14 D3D12, Flüstermodus) | |
| Asus ExpertBook B7 Flip B7402FEA (1.47.22.14 D3D12) | |
| F1 2021 - 1280x720 Ultra Low Preset | |
| Average of class Convertible (143.6 - 191.7, n=3, last 2 years) | |
| Asus ExpertBook B7 Flip B7402FEA (840701, Dual-Channel) | |
| Average Intel Iris Xe Graphics G7 96EUs (59.4 - 129.9, n=46) | |
| Asus ExpertBook B7 Flip B7402FEA (840701) | |
| Asus ExpertBook B7 Flip B7402FEA (843175, Leistungsmodus) | |
| Asus ExpertBook B7 Flip B7402FEA (843175, Flüstermodus) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 67.1 | 53.1 | 15.5 | 6.05 |
| The Witcher 3 (2015) | 62.4 | 39.9 | 18.7 | 10.7 |
| Dota 2 Reborn (2015) | 112 | 67.1 | 40 | 39.5 |
| Final Fantasy XV Benchmark (2018) | 29.6 | 15.2 | 11.9 | |
| X-Plane 11.11 (2018) | 24.9 | 22.6 | 20.9 | |
| Strange Brigade (2018) | 62.9 | 22.5 | 19.4 | 16.1 |
| F1 2021 (2021) | 68.8 | 34.1 | 27.1 | 19.5 |
排放和能源--华硕敞篷车提供非常好的电池寿命
噪声排放
在日常使用中（办公室、互联网），风扇经常是空转的，而且是安静的。在负载情况下，声压级上升到46.7 dB(A)--一个过高的数值。竞争对手在这方面的成绩更好。使用 "静音模式 "配置文件可以降低噪音发展--以牺牲处理能力为代价。
Noise Level
| Idle |
| 25 / 25 / 29 dB(A) |
| Load |
| 39.6 / 46.9 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| Asus ExpertBook B7 Flip B7402FEA Iris Xe G7 96EUs, i7-1195G7, Samsung PM9A1 MZVL21T0HCLR | Dell Latitude 9420 2-in-1 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN530 SDBPNPZ-512G | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Iris Xe G7 96EUs, i7-1165G7, Samsung PM9A1 MZVL21T0HCLR | Fujitsu LifeBook U9311X i7 LTE Iris Xe G7 96EUs, i7-1185G7, Toshiba XG6 KXG6AZNV1T02 | |
|---|---|---|---|---|
| Noise | 9% | 7% | 9% | |
| off / environment * | 25 | 25.4 -2% | 24.2 3% | 23.5 6% |
| Idle Minimum * | 25 | 25.4 -2% | 24.2 3% | 23.5 6% |
| Idle Average * | 25 | 25.4 -2% | 24.2 3% | 23.5 6% |
| Idle Maximum * | 29 | 25.4 12% | 29.9 -3% | 28 3% |
| Load Average * | 39.6 | 25.4 36% | 33.7 15% | 35 12% |
| Load Maximum * | 46.9 | 41.3 12% | 36.7 22% | 38.5 18% |
| Witcher 3 ultra * | 41.3 | 33.7 | 35 |
* ... smaller is better

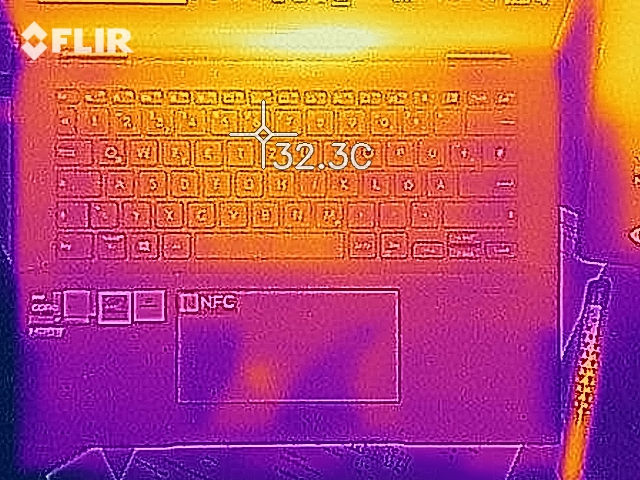

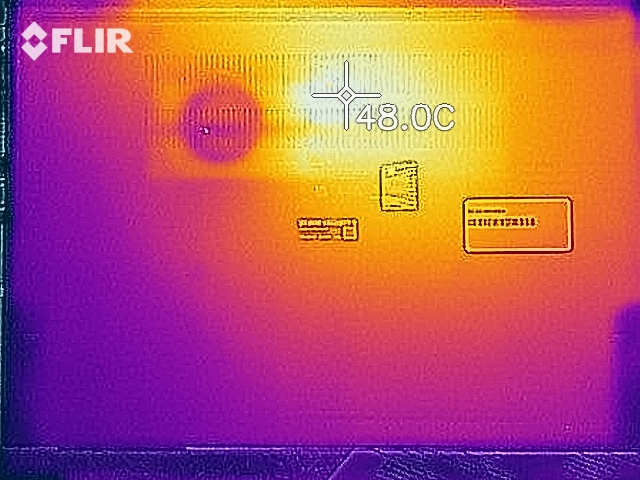

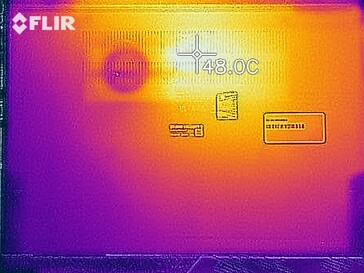

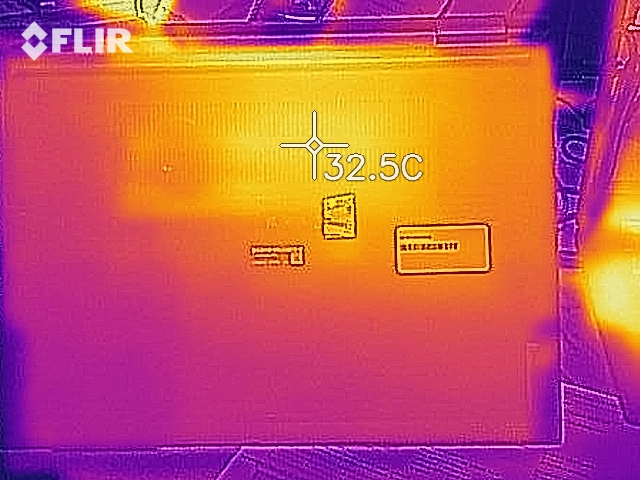

温度

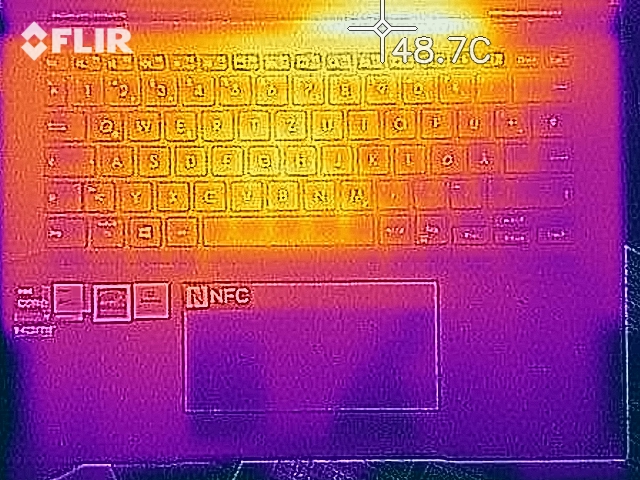

敞篷车不会过度发热。在压力测试中，有两个测量点的温度超过40°C（约104°F）。在日常使用中（办公室、互联网），该比率保持在绿色区域。

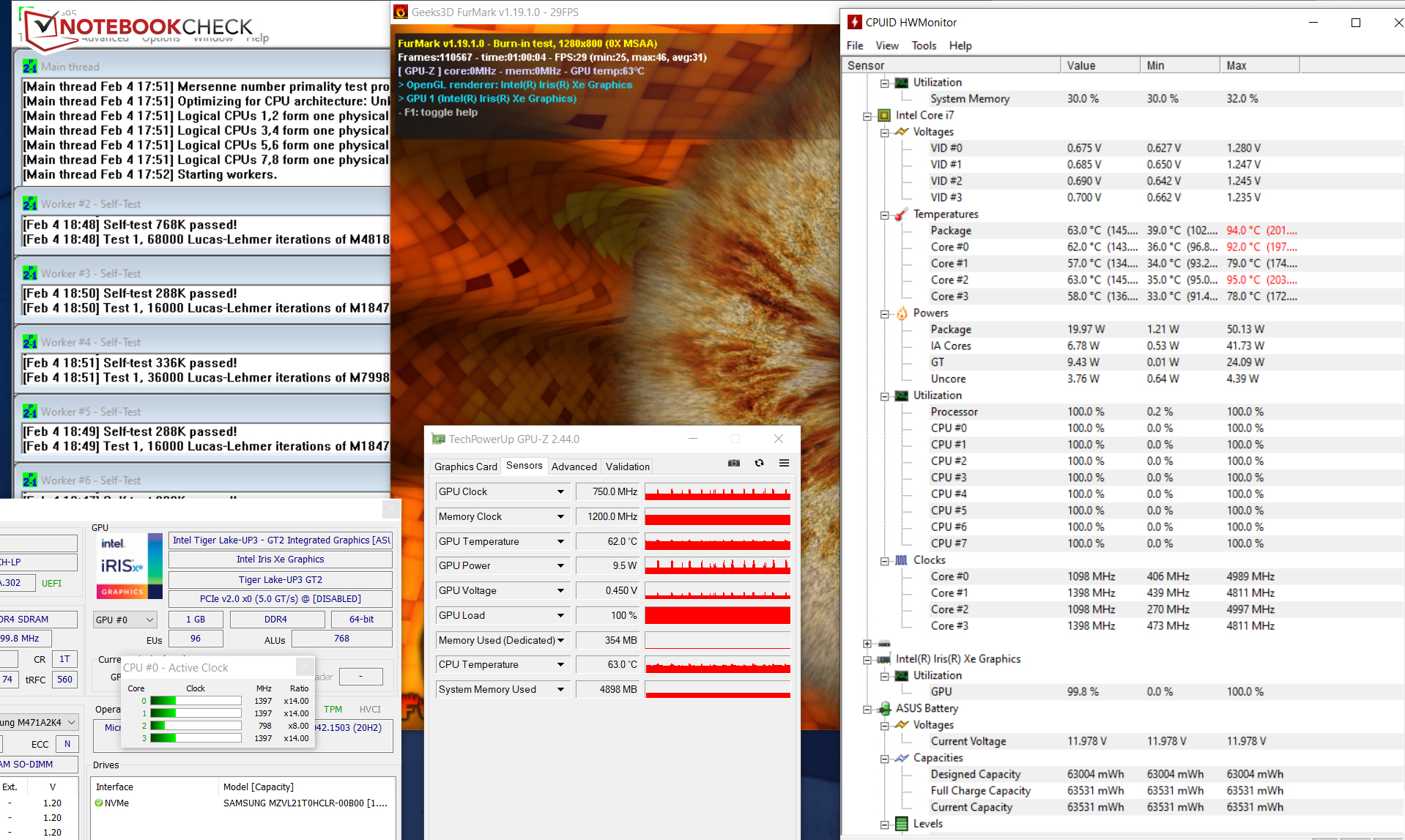

在压力测试开始时（Prime95和FurMark至少运行一个小时），CPU和GPU分别以3.9GHz和1,050MHz的频率运行几秒钟。时钟速率下降得相当快，分别稳定在800至1400兆赫和750兆赫左右。压力测试代表了一种极端情况。我们用这个测试来检查系统是否在全负荷下保持稳定。
(+) The average temperature for the upper side under maximal load is 31.4 °C / 89 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.7 °C / 102 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.3 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.6 °C / 81.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+0.4 °C / 0.7 F).
(+) The maximum temperature on the upper side is 38.7 °C / 102 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.3 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.6 °C / 81.7 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (+0.4 °C / 0.7 F).
| Asus ExpertBook B7 Flip B7402FEA Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs | Dell Latitude 9420 2-in-1 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | Lenovo ThinkPad X1 Yoga G6-20Y0S00200 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Fujitsu LifeBook U9311X i7 LTE Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | |
|---|---|---|---|---|
| Heat | -8% | -3% | -2% | |
| Maximum Upper Side * | 38.7 | 43.4 -12% | 44.1 -14% | 42.1 -9% |
| Maximum Bottom * | 45.3 | 48 -6% | 47.3 -4% | 46.7 -3% |
| Idle Upper Side * | 25.9 | 29.8 -15% | 25.5 2% | 25.9 -0% |
| Idle Bottom * | 28 | 28 -0% | 26.6 5% | 26.5 5% |
* ... smaller is better
发言人
立体声扬声器产生了一个体面的声音，但它们几乎没有提供任何低音。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Asus ExpertBook B7 Flip B7402FEA audio analysis
(+) | speakers can play relatively loud (93.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.7% lower than median
(±) | linearity of bass is average (9.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.6% away from median
(+) | mids are linear (4.6% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 8.8% higher than median
(±) | linearity of highs is average (7.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.1% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 3% similar, 71% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 23% of all tested devices were better, 5% similar, 72% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Lenovo ThinkPad X1 Yoga G6-20Y0S00200 audio analysis
(±) | speaker loudness is average but good (81.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.8% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (4.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.1% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 2% similar, 82% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 11% of all tested devices were better, 3% similar, 86% worse
» The best had a delta of 4%, average was 24%, worst was 134%
能源消耗
在能源消耗方面没有问题。对于安装在这里的硬件来说，耗电量是正常的。在压力测试的开始阶段，达到了略低于65瓦的最大值。这个数值在测试过程中不断下降。这台笔记本电脑以恒定的功耗执行我们的TheWitcher 3测试。由于标称输出功率为65瓦，电源适配器有足够的容量。
Power Consumption
| Off / Standby | 0.4 / 0.47 Watt |
| Idle | 3.2 / 6.3 / 7.5 Watt |
| Load |
35 / 63 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Energy consumption during The Witcher 3 / stress test
Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs; Witcher 3 ultra: Ø35.4 (33.9-45.6)
Dell Latitude 9420 2-in-1 i7-1185G7, Iris Xe G7 96EUs; Witcher 3 ultra: Ø38.8 (32.1-51.8)
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs; Witcher 3 ultra: Ø34.1 (31.2-42.8)
Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø45 (31.6-65.5)
Dell Latitude 9420 2-in-1 i7-1185G7, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø41.3 (24.3-89.1)
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø36.2 (7.66-54.9)
Energy consumption with an external monitor
Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø36.7 (27.7-52.9)
Dell Latitude 9420 2-in-1 i7-1185G7, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø41.3 (30.7-80.4)
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø32.7 (26.6-51.7)
Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø49.3 (39.5-60.3)
Dell Latitude 9420 2-in-1 i7-1185G7, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø55.4 (47.8-71.8)
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø38.8 (6.99-55)
Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.9 (27.5-45.6)
Dell Latitude 9420 2-in-1 i7-1185G7, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø39.5 (19.9-55.9)
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø32.2 (26.8-46.2)
Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø33.2 (31-45.3)
Dell Latitude 9420 2-in-1 i7-1185G7, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø36.6 (29.5-47.4)
Fujitsu LifeBook U9311X i7 LTE i7-1185G7, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.9 (27.2-30.1)
电池寿命
在我们的实际Wi-Fi测试中，该笔记本电脑实现了11:45小时的运行时间。通过这里的脚本再现了访问网站造成的负载。
Pros
+ 明亮、高对比度的触摸屏显示
+ 16:10长宽比显示屏
+ NVMe SSD
+ 良好的键盘
+ 非常好的电池寿命
+ 可替换/可扩展的内存
+ 适度的热量开发
+ 2个Thunderbolt 4
+ 四个视频输出
+ 电源交付
+ 手写笔输入

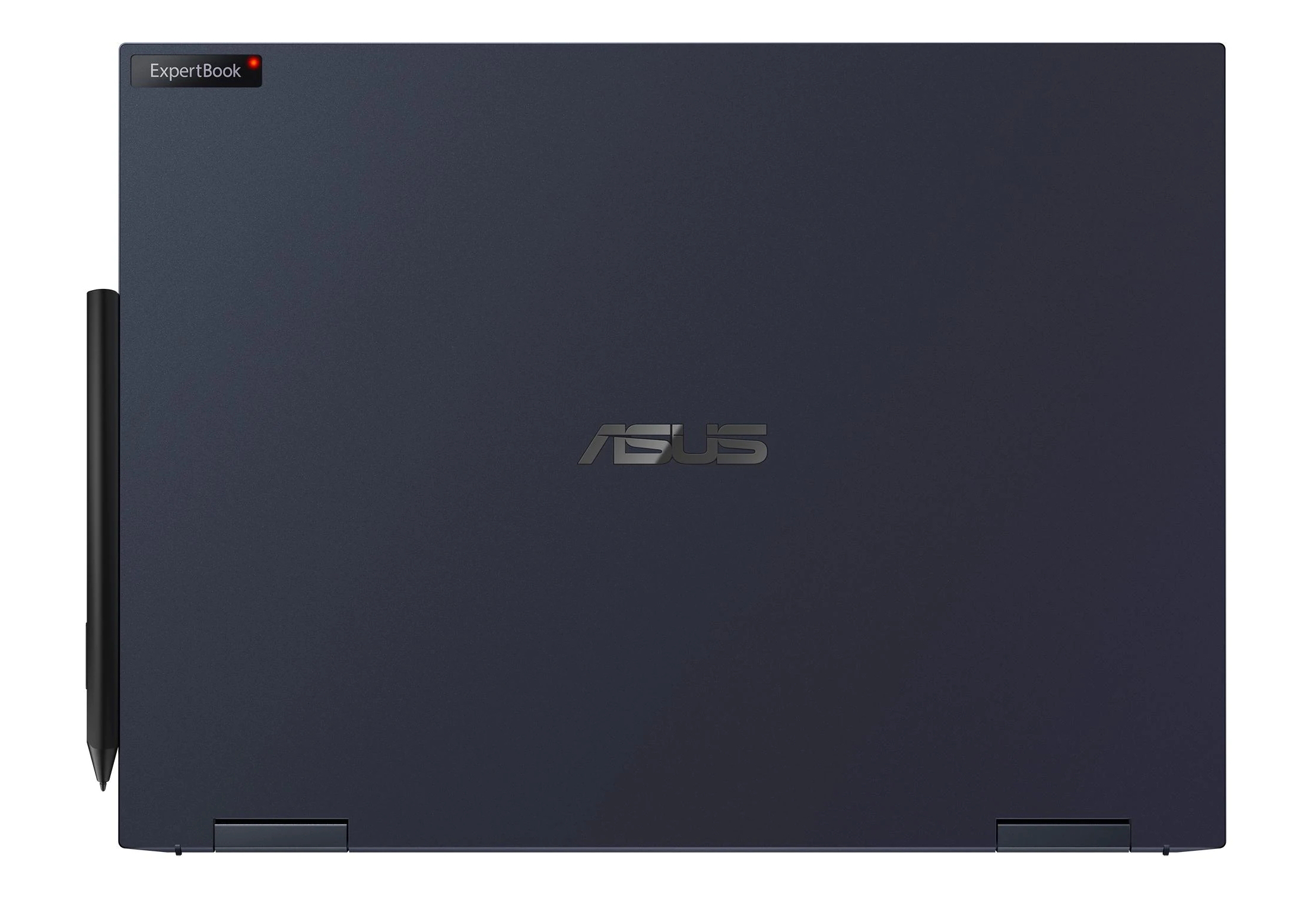

+ 包括华硕笔
+ 5G调制解调器
Cons
- 光滑的显示屏
- 负载下声音大
- "仅 "支持PCIe 3
- RAM在单通道模式下运行
结论 - 适合专业用途的二合一笔记本电脑
约1.4公斤的重量和略低于12小时的实际电池运行时间使这个二合一设备成为一个伟大的移动伴侣。好。该设备可以通过两个USB-C端口（Thunderbolt 4）供电。可以通过以太网、Wi-Fi和5G/LTE访问网络。
华硕通过ExpertBook B7 Flip为高端商务领域提供了一款全面的二合一笔记本电脑。
A 酷睿i7-1195G7处理器、16GB内存（单通道模式，可扩展）和1TB NVMe固态硬盘，使这台笔记本电脑能够满足可转换电脑的所有常见应用场景。酷睿i7以强大的处理能力应对短时间的负载高峰；在长时间的负载中，它需要放慢一点速度。笔记本电脑在负载下几乎不发热，但会产生相对较高的噪音。性能配置文件 "静音模式 "在这里提供了缓解。由此产生的降低的计算能力对于办公和互联网使用来说仍然是足够的。
触摸屏（1920x1200像素）以出色的对比度、高亮度、稳定的视角、非常扎实的色彩再现和良好的色域覆盖而得分。触摸屏可以通过触摸输入以及附带的华硕手写笔（华硕笔SA201H）来操作。
该 戴尔Latitude 94202合1和 联想ThinkPad X1 Yoga G6可以被认为是ExpertBook的同等替代品。这两款设备的弱点是。它们的内存是焊接的，不能扩展。
Asus ExpertBook B7 Flip B7402FEA
- 02/13/2022 v7 (old)
Sascha Mölck
Convertible - Weighted Average
Price comparison
