华硕F415EA评论。凉爽和安静的酷睿i5办公笔记本电脑
华硕以F415型号提供了一系列低价位的办公笔记本电脑（约330欧元至550欧元）。目前的测试机型是该系列中较为昂贵的变体之一，起价为550欧元。
在这个套装中，你可以得到一个酷睿i5-1135G7CPU，8GB内存，和512GB固态硬盘。一些设备，如 华为MateBook D 14, 联想IdeaPad 3 14ITL6, 盖特威超薄14.1 GWTC51427, 以及 Acer Swift 3 SF314-43与华硕F415竞争。
注：该笔记本电脑的名称是 "华硕F415EA"。许多在线商店也将该设备归入Vivobook 14系列，并相应地使用该术语。在其他地区，它也以Vivobook的名义进行销售。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 78.4 % v7 (old) | 02 / 2023 | Asus F415EA-EK115W i5-1135G7, Iris Xe G7 80EUs | 1.6 kg | 19.9 mm | 14.00" | 1920x1080 | |
| 84.7 % v7 (old) | 01 / 2023 | Huawei MateBook D 14 (2021) i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 15.9 mm | 14.00" | 1920x1080 | |
| 79.2 % v7 (old) | 06 / 2022 | Lenovo IdeaPad 3 14ITL6 82H700CCGE Celeron 6305, UHD Graphics Xe G4 48EUs | 1.4 kg | 19.9 mm | 14.00" | 1920x1080 | |
| 78 % v7 (old) | 07 / 2022 | Gateway Ultra Slim 14.1 GWTC51427 i5-1235U, Iris Xe G7 80EUs | 1.6 kg | 20.3 mm | 14.10" | 1920x1080 | |
| 86 % v7 (old) | 03 / 2022 | Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7 | 1.3 kg | 16.5 mm | 14.00" | 1920x1080 |

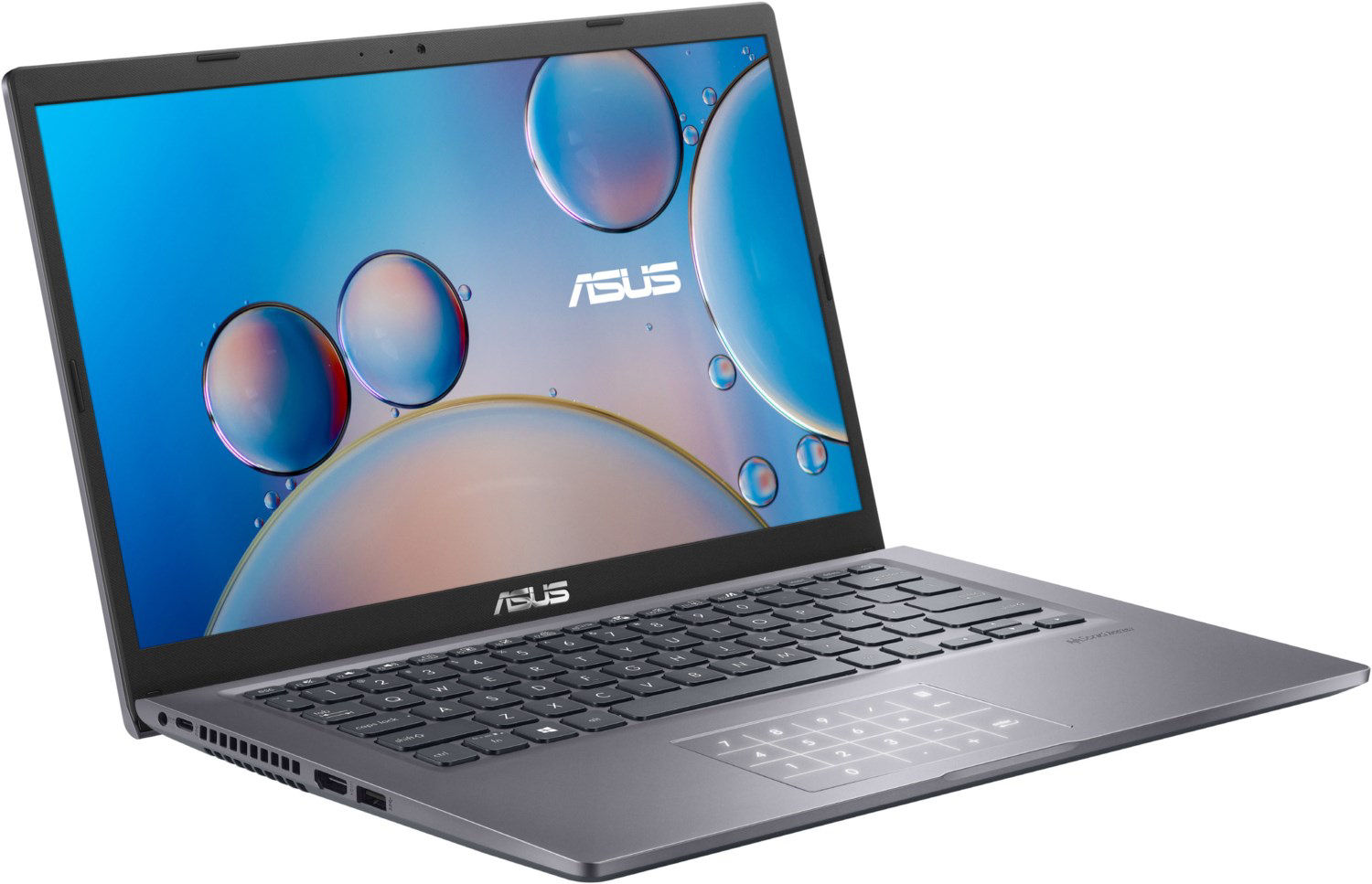

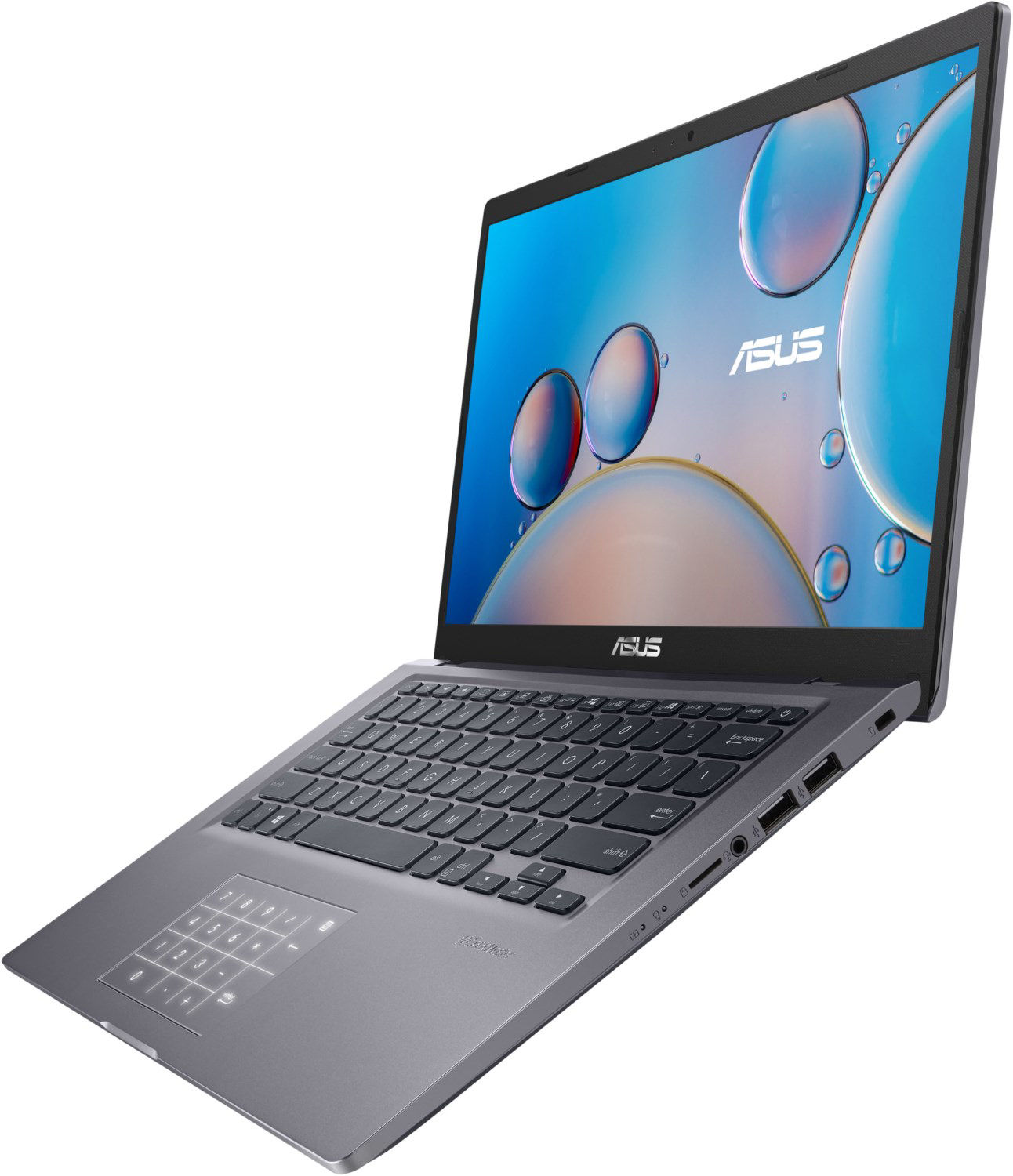

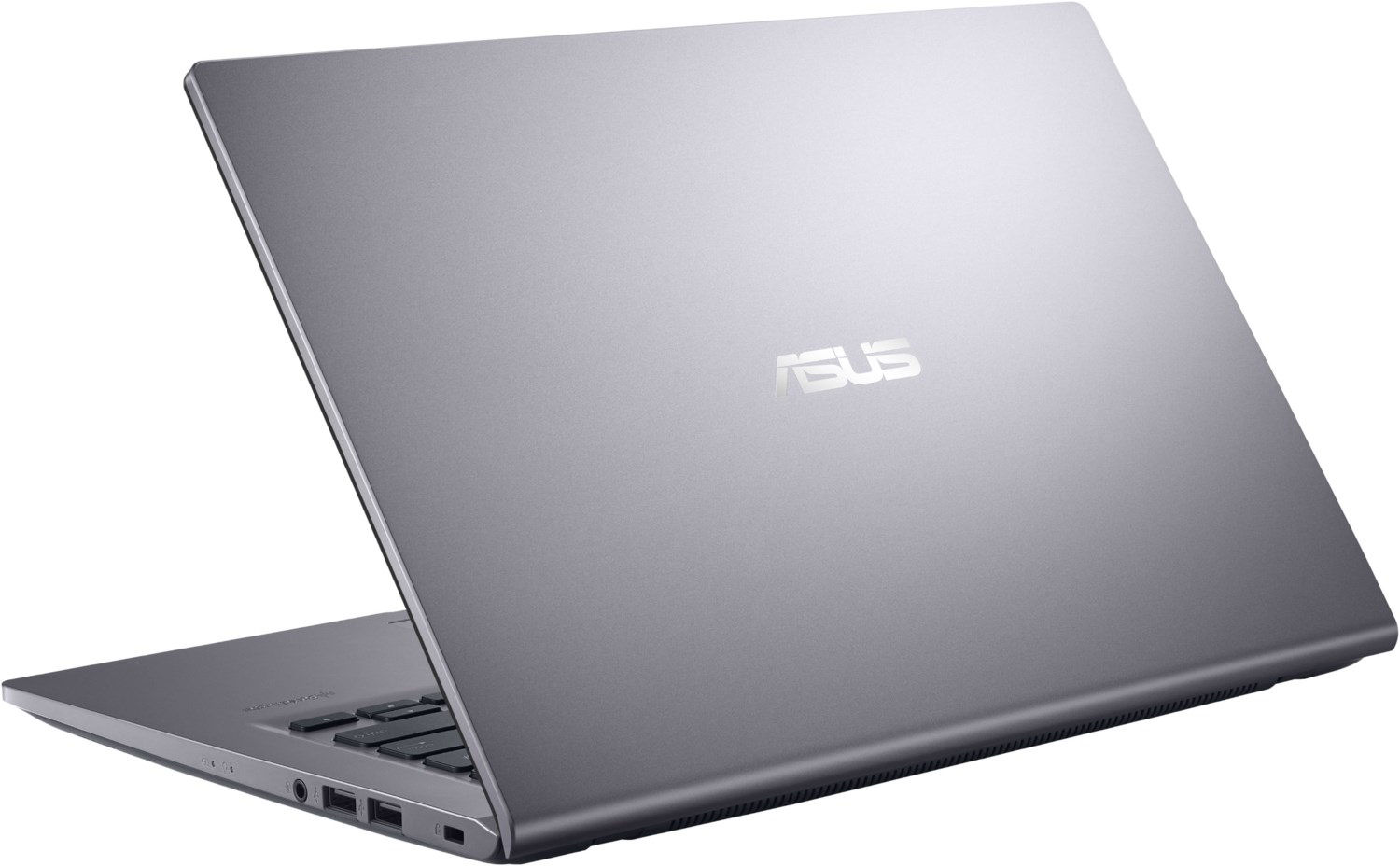

外壳和功能。华硕在F415上采用了塑料底盘

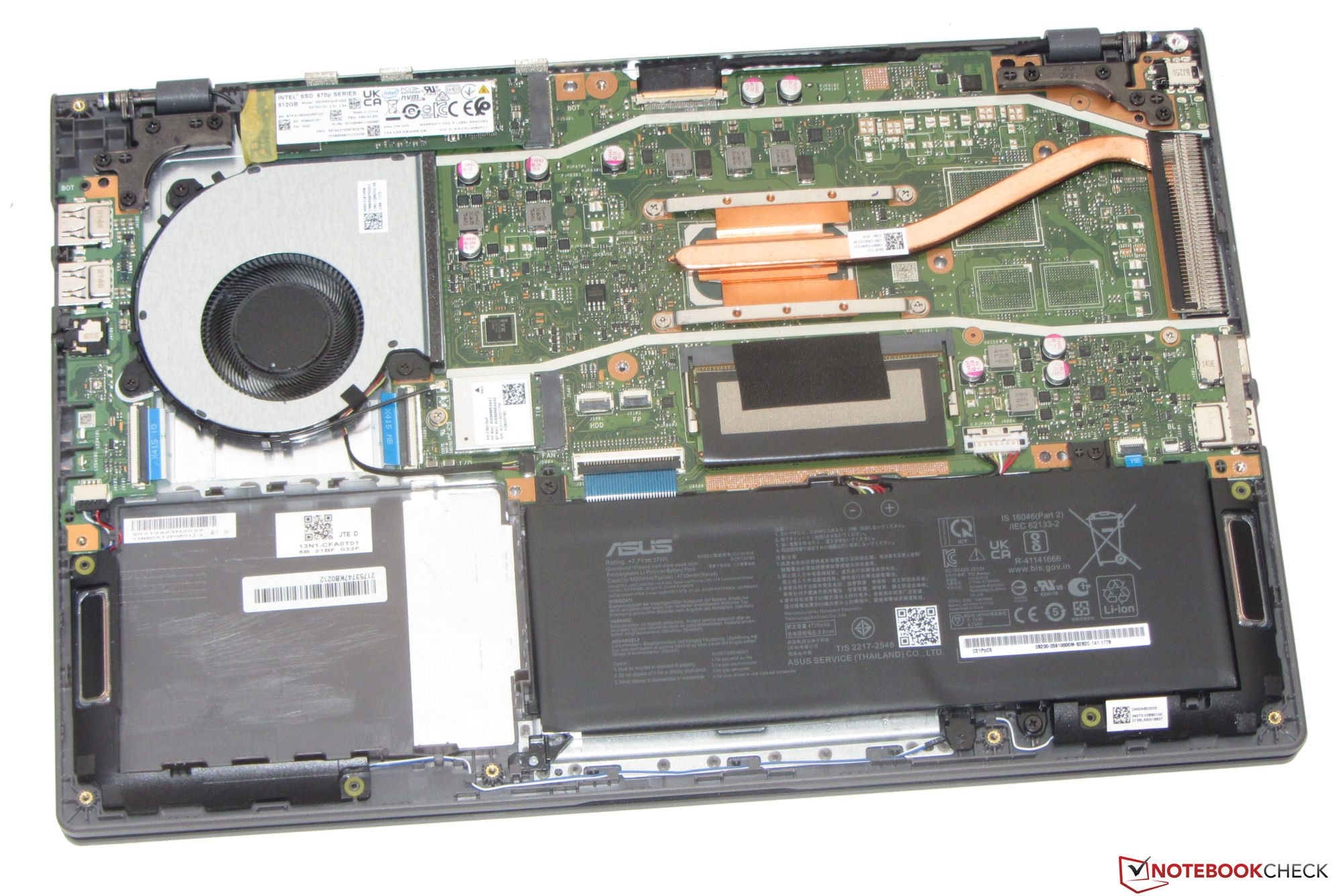

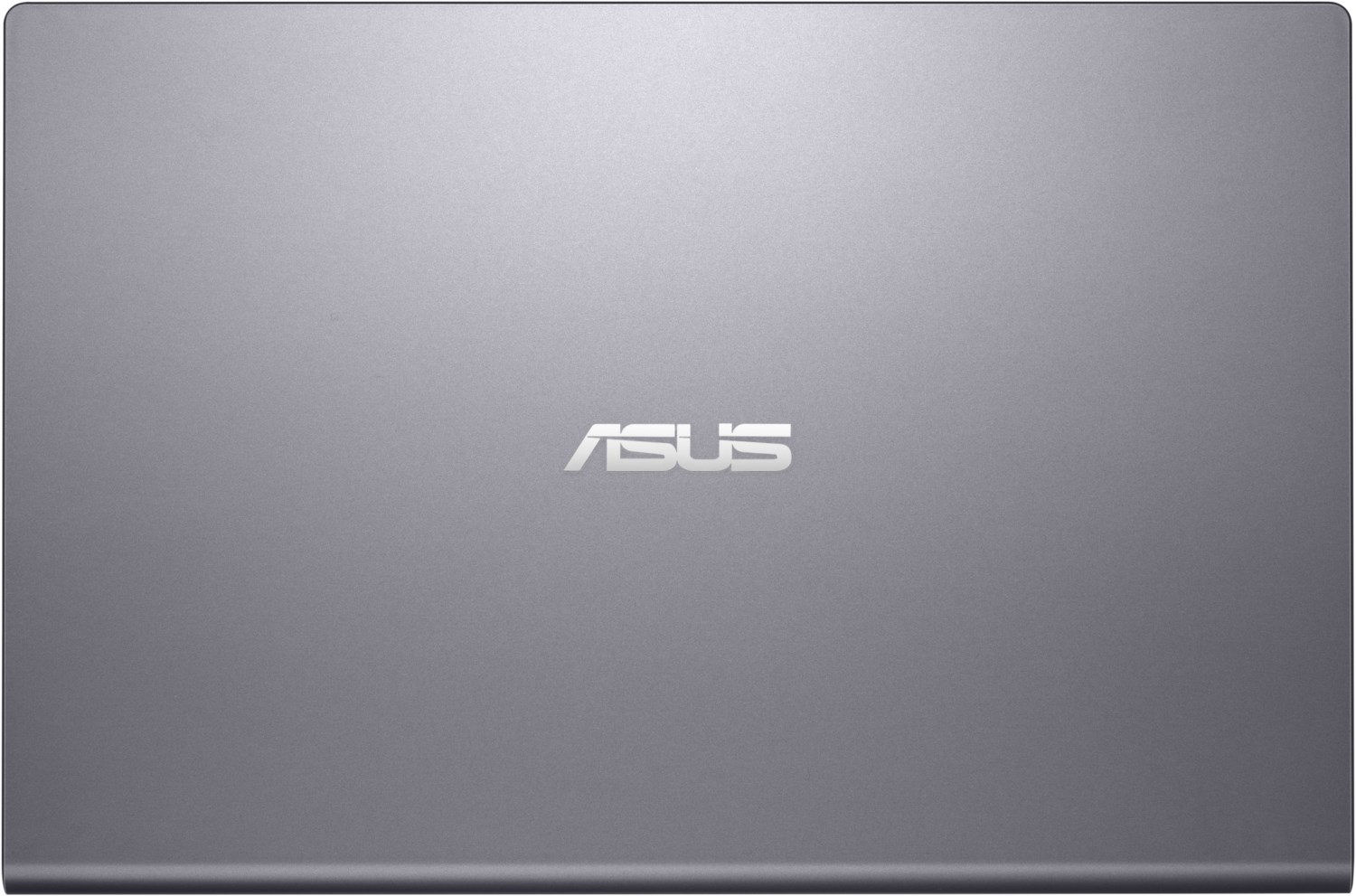

灰色的塑料外壳有一个光滑的哑光表面。缝隙看起来恰到好处，材料中的突起也不明显。机箱的稳定性和刚度都不错--底座和盖子可以扭动一下。电池（用螺丝固定，不是用胶水）和其他内件在拆下底座后可以接触到。

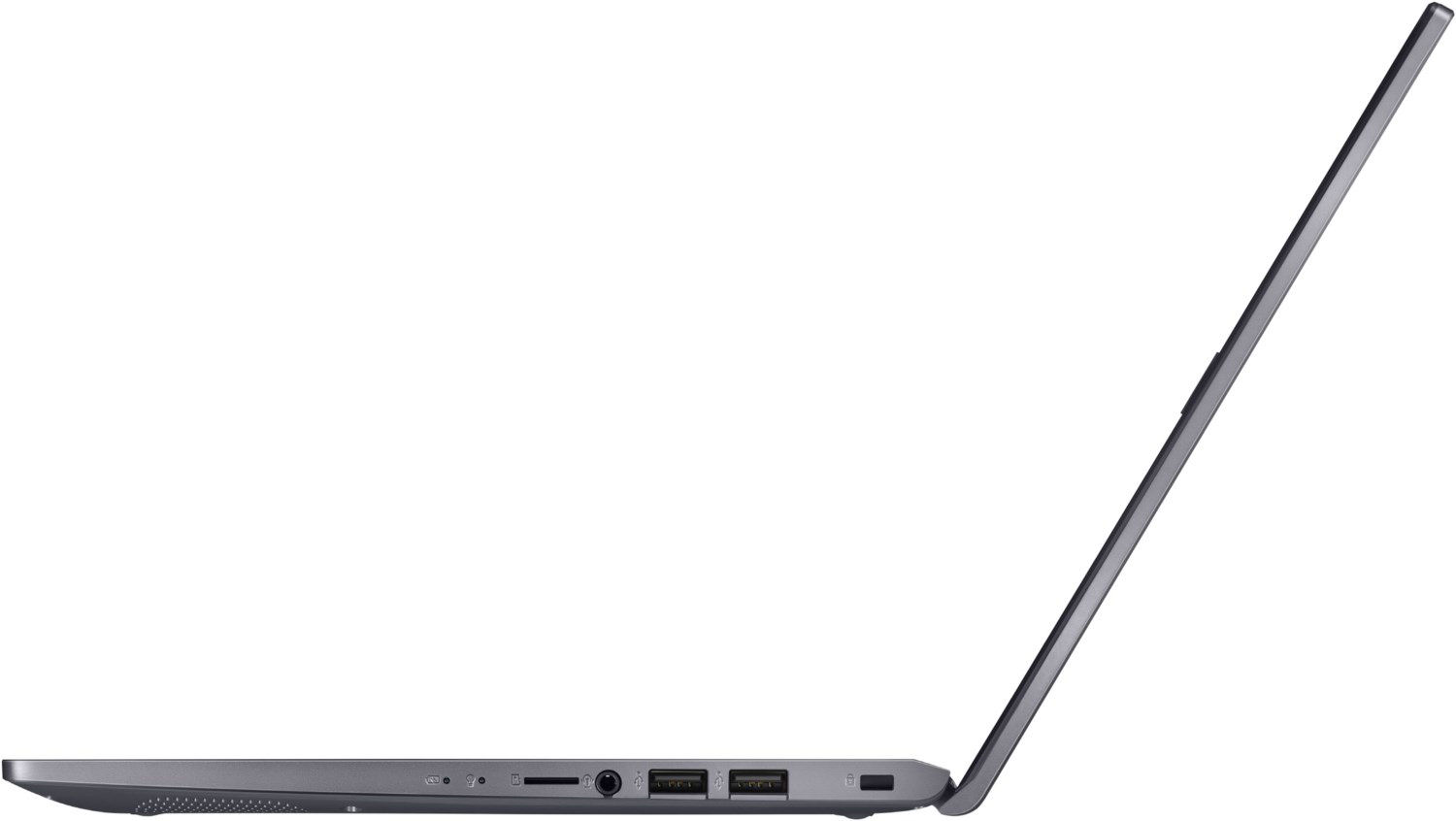

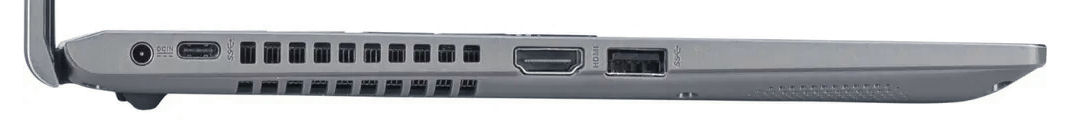

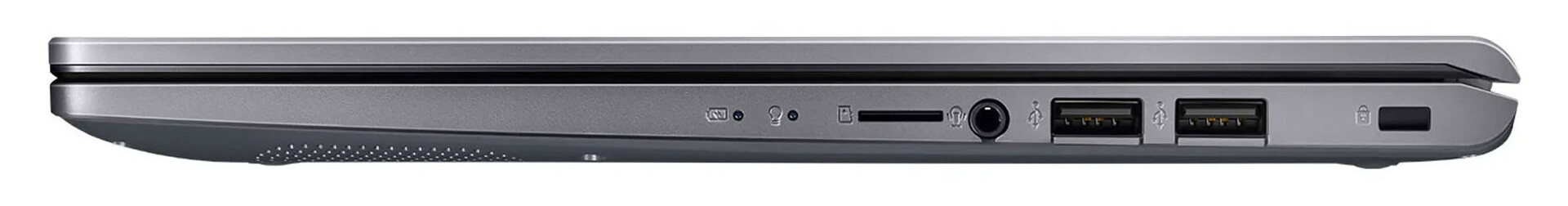

笔记本电脑有三个USB-A端口（2个USB 2.0，1个USB 3.2 Gen1）和一个USB 3.2 Gen1 Type-C端口--后者不支持通过USB-C或Power Delivery的DisplayPort输出。外部显示器可以通过HDMI连接。网络摄像头（0.9MP，最大1,280 x 720像素）没有物理快门。微型SD卡读卡器可作为一个选项，尽管我们的评测样品没有这个选项。
在最佳条件下确定的WLAN数据速率（笔记本电脑和服务器PC之间的距离为1米，附近没有其他WLAN设备）没有达到标准，但与安装的Realtek 8821CE Wi-Fi芯片的能力相符。

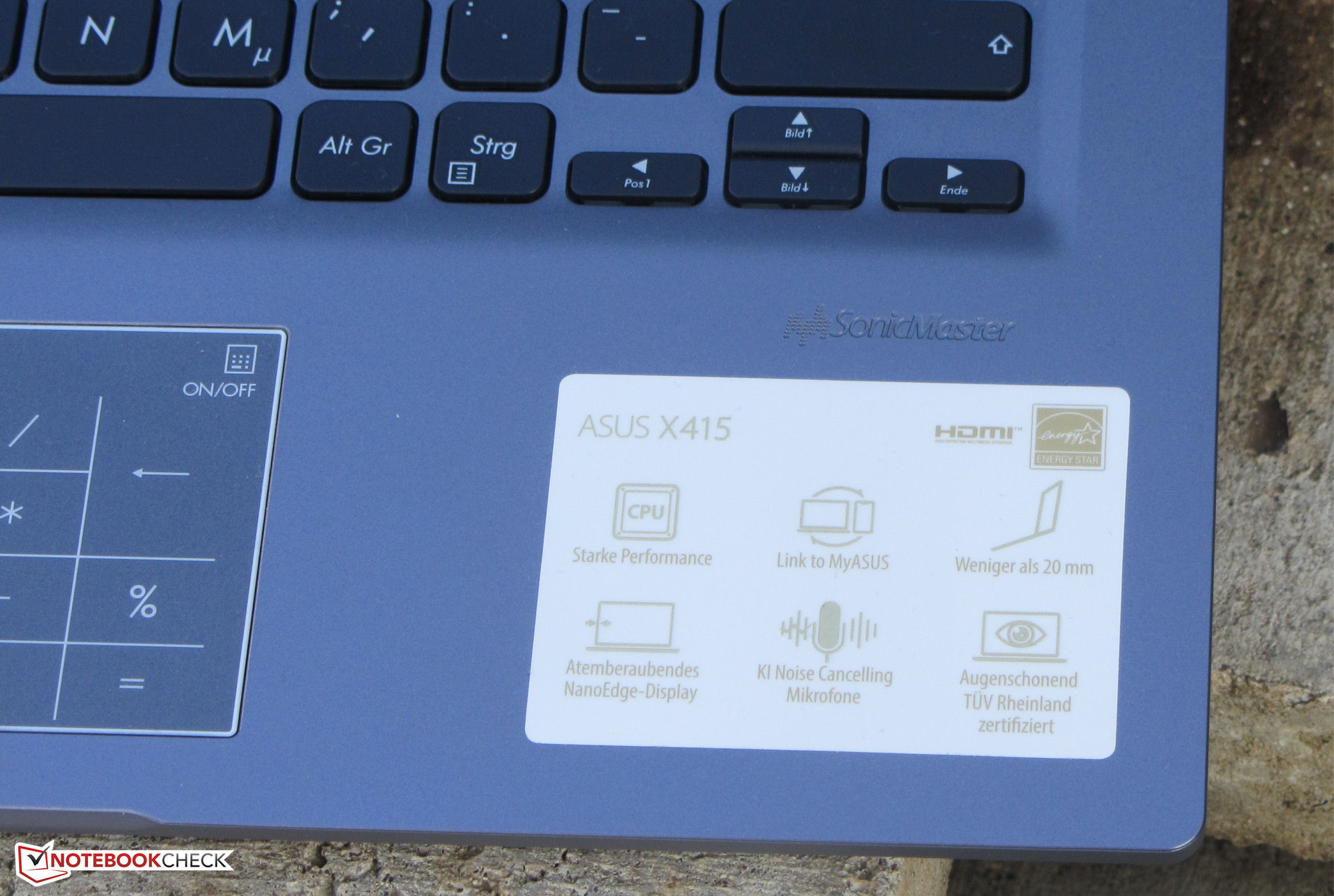

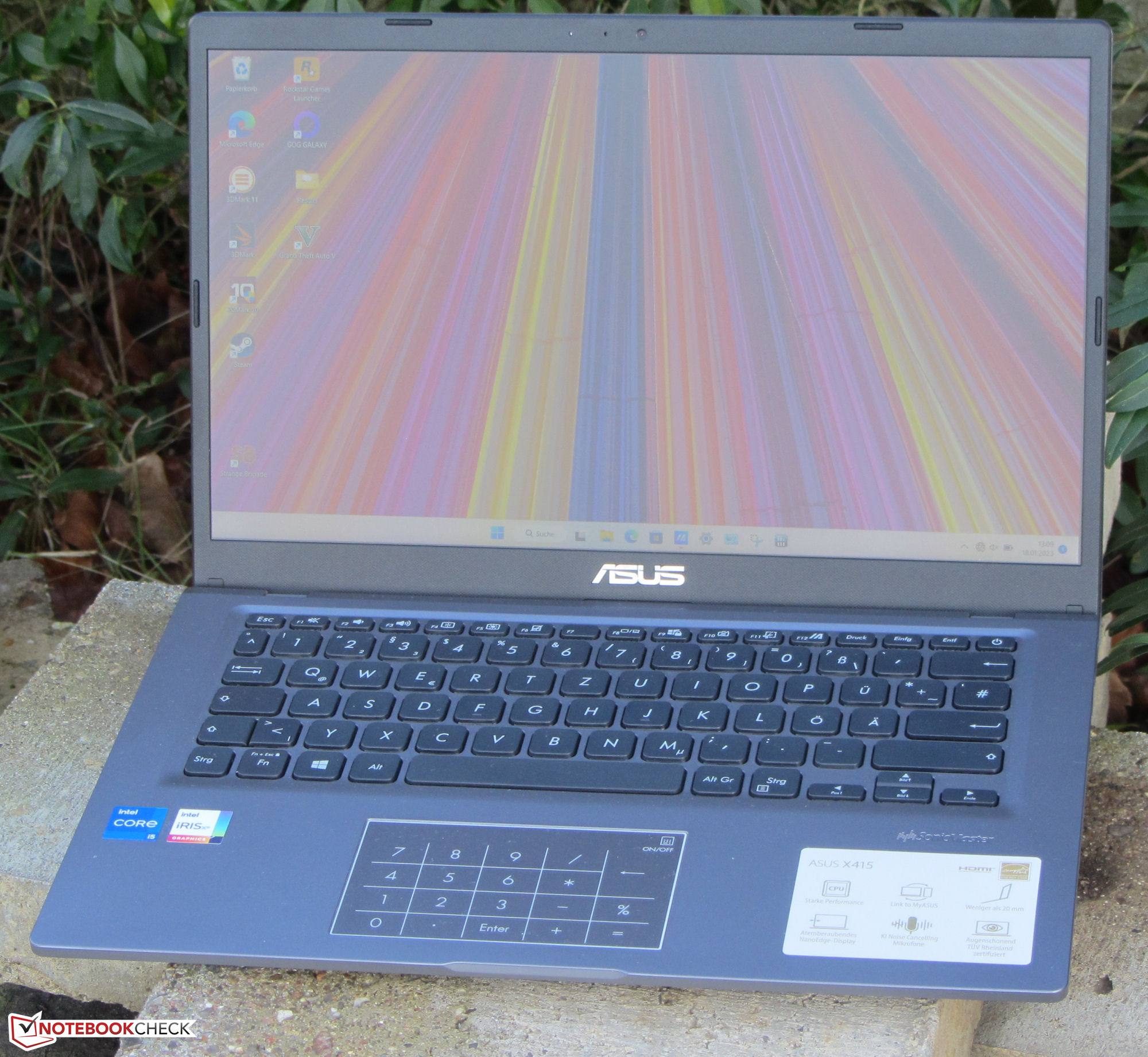

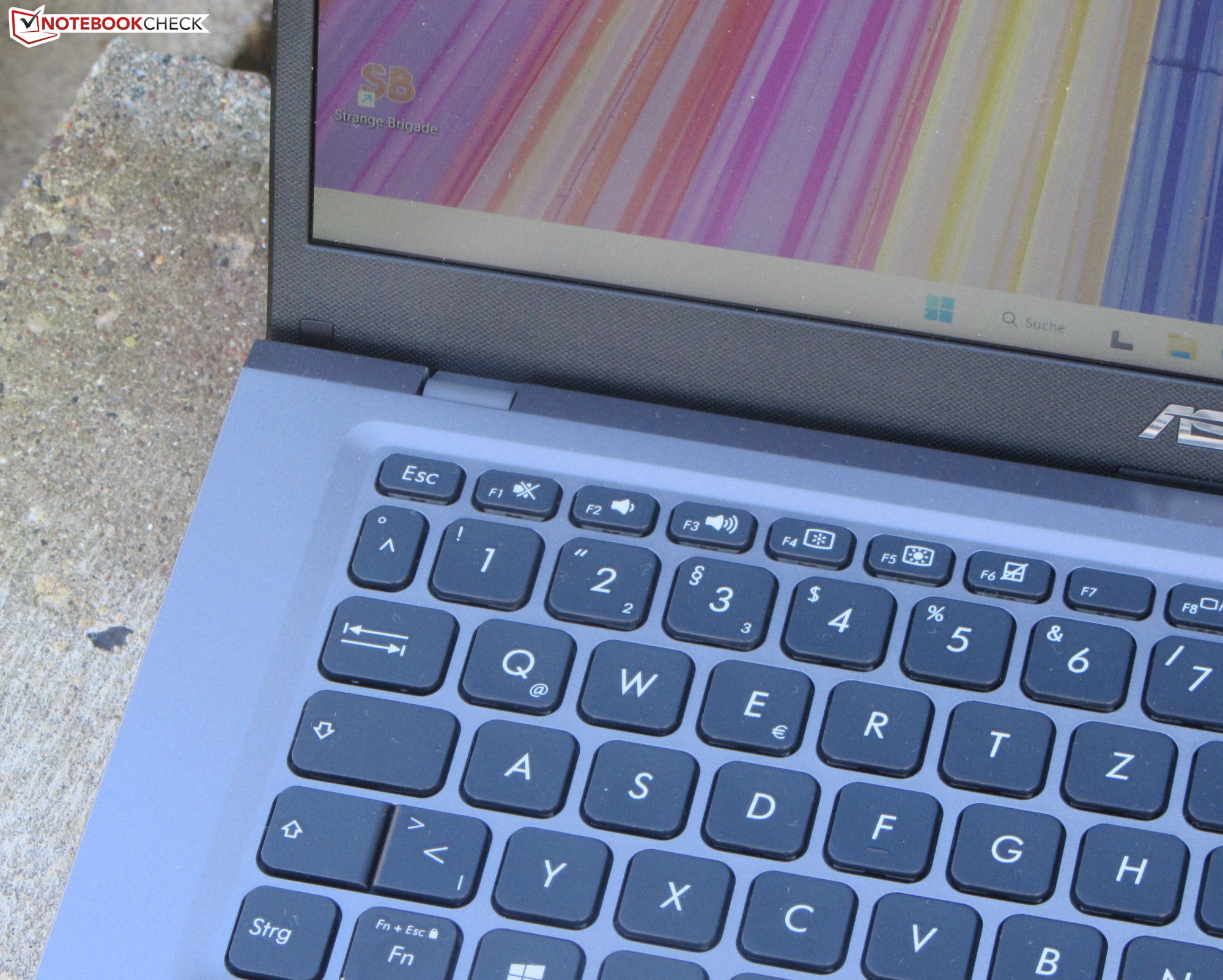

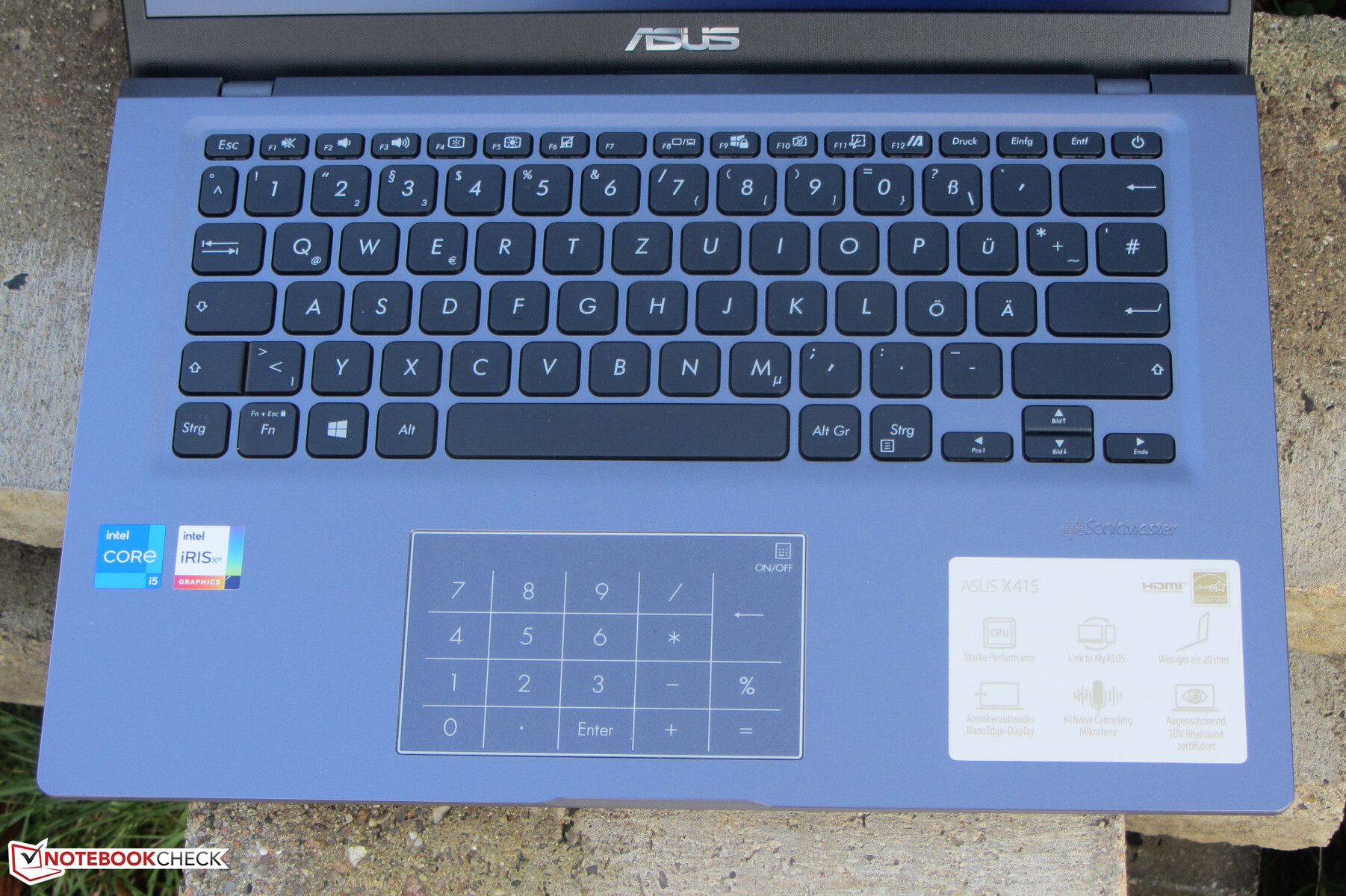

输入设备。这款VivoBook的衍生产品不提供背光键盘
未点亮的软木键盘的粗糙键有一个短的行程和一个清晰的压力点。因此，按键的阻力应该感觉更清晰。键盘在打字过程中会有一点弹跳，并发出咔哒声，不过事实证明这并不令人厌烦。
一个具有多点触摸功能的点击板（10.3厘米×6厘米）可以作为鼠标的替代品。其光滑的表面使手指容易滑动。垫子的行程很短，有一个清晰的压力点。

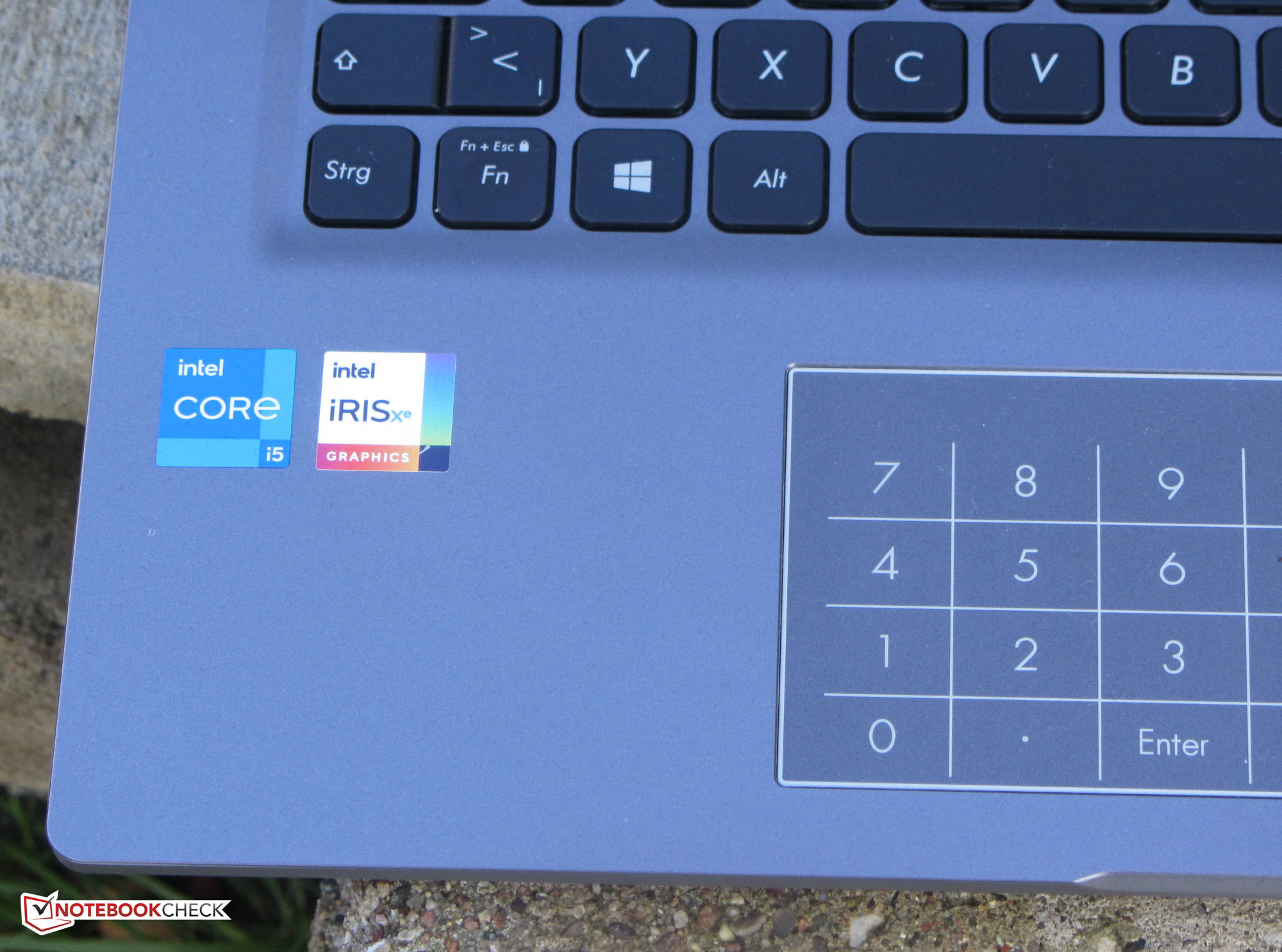

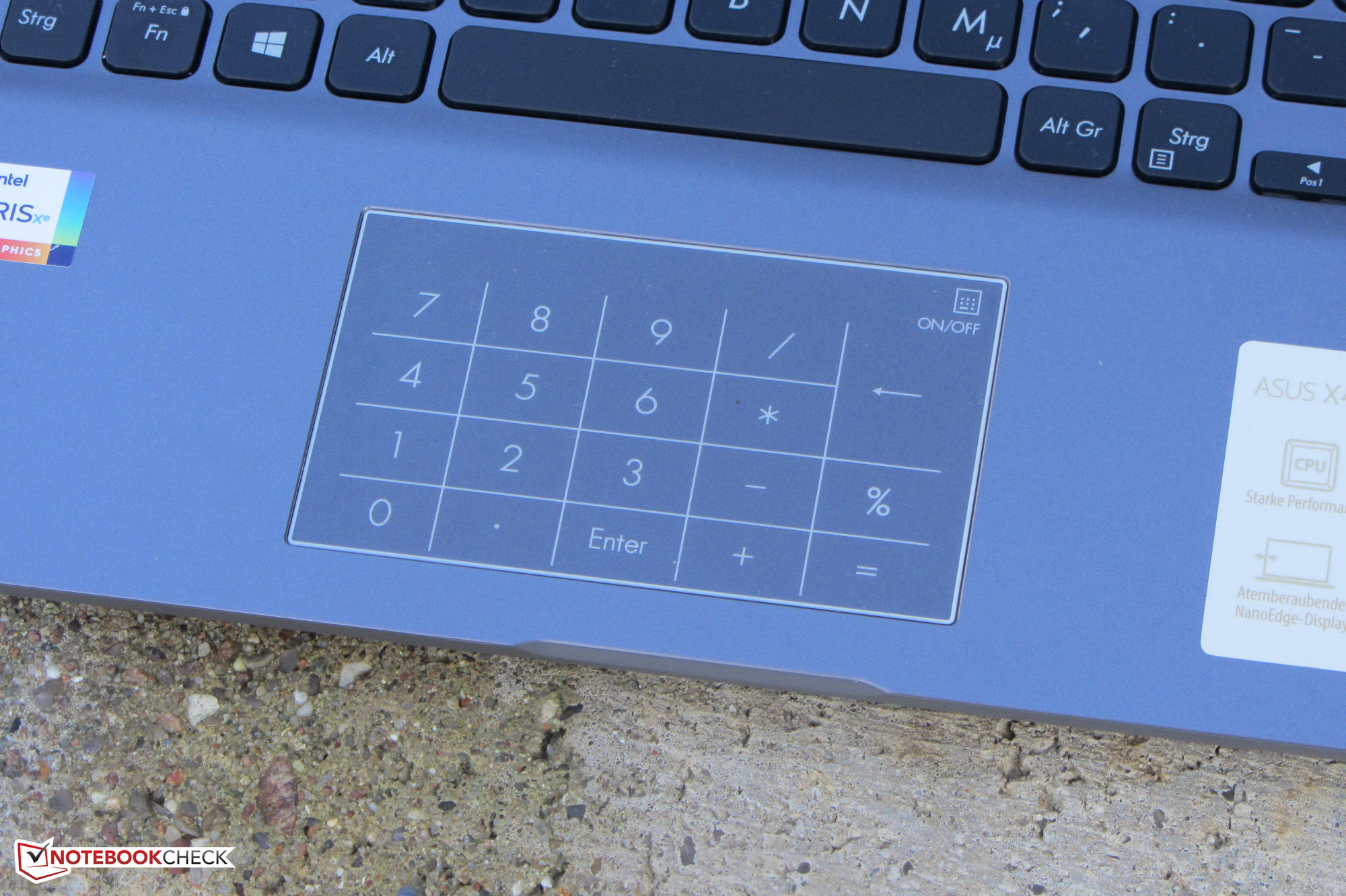

一个有用的功能是可以通过点击右上角的切换键将触摸板变成一个数字键盘。
显示器。暗淡，对比度低，可视角度不稳定
哑光14英寸1,920 x 1,080屏幕的亮度（230.8 cd/m²）和对比度（351:1）没有达到它们各自的目标（分别为>300 cd/m²和1,000:1）。
然而，大多数的竞争对手都在同一水平线上--一个例外是 IdeaPad 3是个例外，它有一个足够明亮的显示屏。
也就是说，F415的面板在任何亮度水平下都不会出现PWM闪烁。
| |||||||||||||||||||||||||
Brightness Distribution: 76 %
Center on Battery: 246 cd/m²
Contrast: 351:1 (Black: 0.7 cd/m²)
ΔE Color 5.96 | 0.5-29.43 Ø4.91, calibrated: 5.5
ΔE Greyscale 6.25 | 0.5-98 Ø5.2
35.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
52% sRGB (Argyll 2.2.0 3D)
34.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26
| Asus F415EA-EK115W BOE CQ NT140FHM-N44, TN LED, 1920x1080, 14" | Huawei MateBook D 14 (2021) Chi Mei N140HCA-EAD, IPS, 1920x1080, 14" | Lenovo IdeaPad 3 14ITL6 82H700CCGE AU Optronics B140HAN04.E, IPS, 1920x1080, 14" | Gateway Ultra Slim 14.1 GWTC51427 BOE CQ NV140FHM-N48, IPS, 1920x1080, 14.1" | Acer Swift 3 SF314-43-R8BP Chi Mei N140HCA EAC CMN, IPS, 1920x1080, 14" | |
|---|---|---|---|---|---|
| Display | 21% | 6% | 20% | 25% | |
| Display P3 Coverage | 34.6 | 42 21% | 36.6 6% | 41.4 20% | 43 24% |
| sRGB Coverage | 52 | 63.3 22% | 54.7 5% | 61.8 19% | 65 25% |
| AdobeRGB 1998 Coverage | 35.8 | 43.4 21% | 37.8 6% | 42.8 20% | 45 26% |
| Response Times | -98% | -229% | -249% | -197% | |
| Response Time Grey 50% / Grey 80% * | 23 ? | 26 ? -13% | 44 ? -91% | 36.4 ? -58% | 37 ? -61% |
| Response Time Black / White * | 6 ? | 17 ? -183% | 28 ? -367% | 32.4 ? -440% | 26 ? -333% |
| PWM Frequency | 25000 ? | 25000 ? | |||
| Screen | 55% | 34% | 30% | 51% | |
| Brightness middle | 246 | 291 18% | 368 50% | 213.9 -13% | 259 5% |
| Brightness | 231 | 258 12% | 332 44% | 208 -10% | 229 -1% |
| Brightness Distribution | 76 | 77 1% | 83 9% | 82 8% | 78 3% |
| Black Level * | 0.7 | 0.23 67% | 0.47 33% | 0.21 70% | 0.24 66% |
| Contrast | 351 | 1265 260% | 783 123% | 1019 190% | 1079 207% |
| Colorchecker dE 2000 * | 5.96 | 3.98 33% | 6.14 -3% | 6.97 -17% | 3.63 39% |
| Colorchecker dE 2000 max. * | 15.77 | 16.57 -5% | 17.76 -13% | 18.69 -19% | 6.53 59% |
| Colorchecker dE 2000 calibrated * | 5.5 | 3.59 35% | 2 64% | 3.83 30% | |
| Greyscale dE 2000 * | 6.25 | 1.85 70% | 4.44 29% | 6.2 1% | 2.89 54% |
| Gamma | 2.26 97% | 2.33 94% | 2.73 81% | 2.16 102% | 2.31 95% |
| CCT | 6923 94% | 6589 99% | 5979 109% | 8084 80% | 6759 96% |
| Total Average (Program / Settings) | -7% /
26% | -63% /
-13% | -66% /
-12% | -40% /
10% |
* ... smaller is better

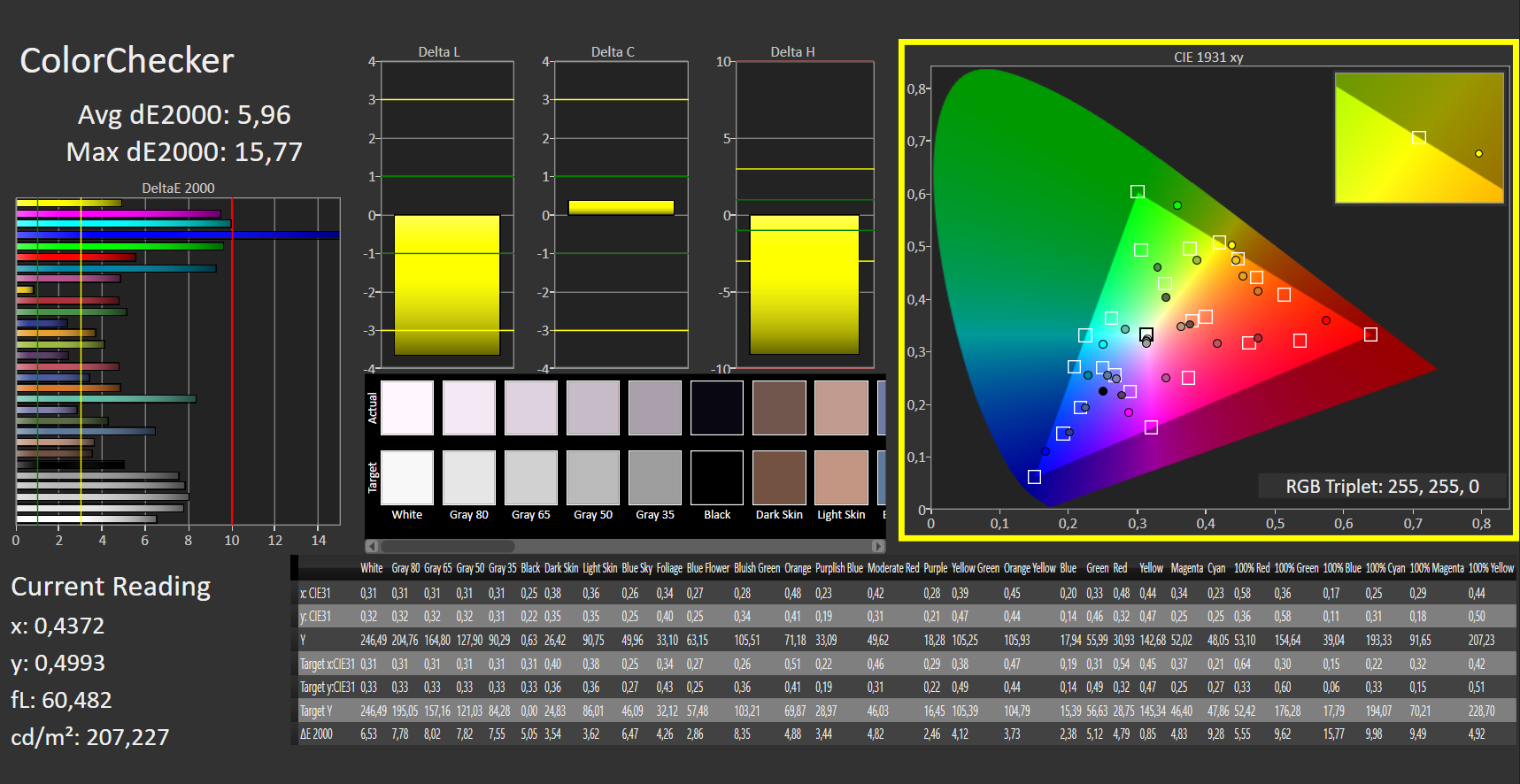

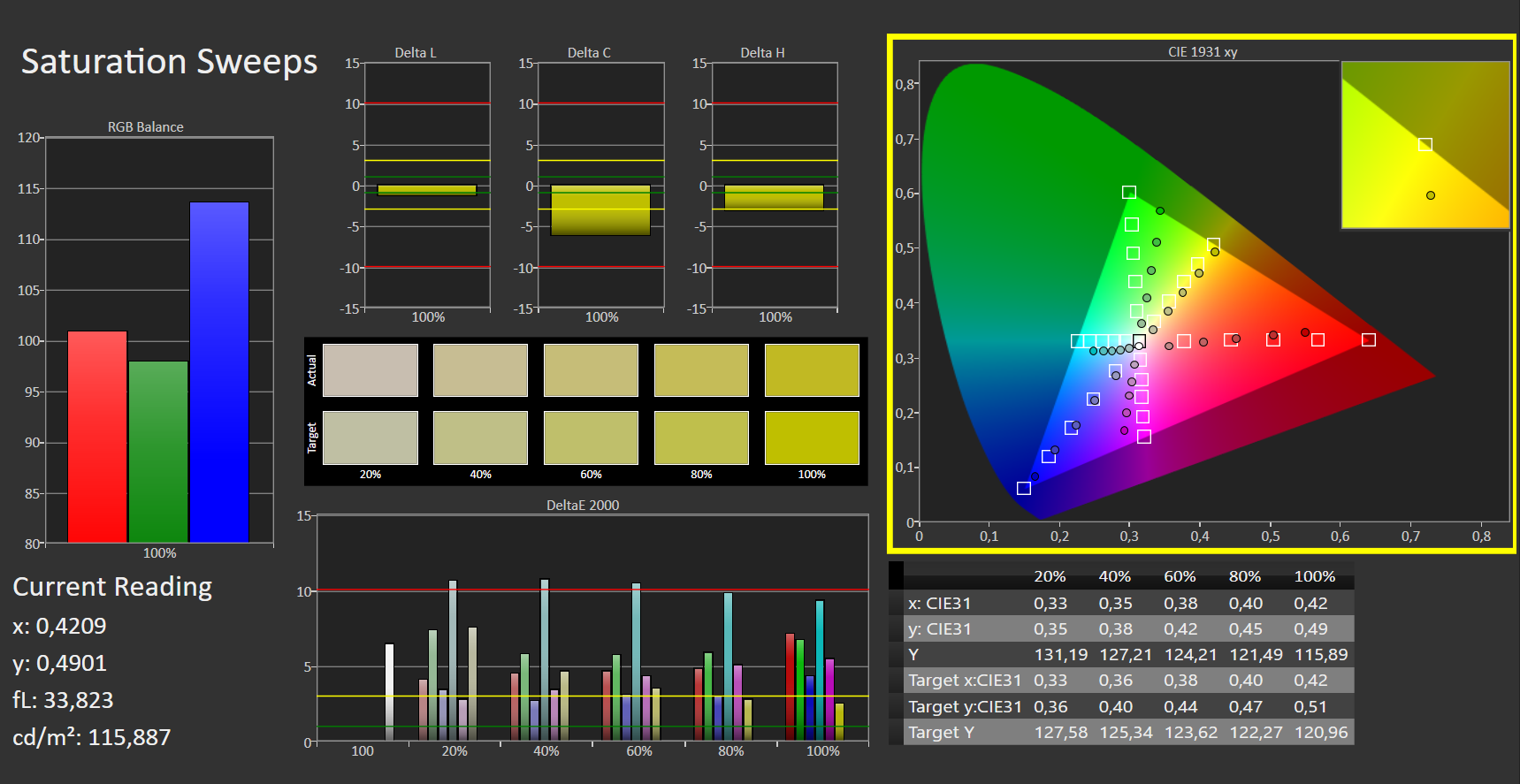

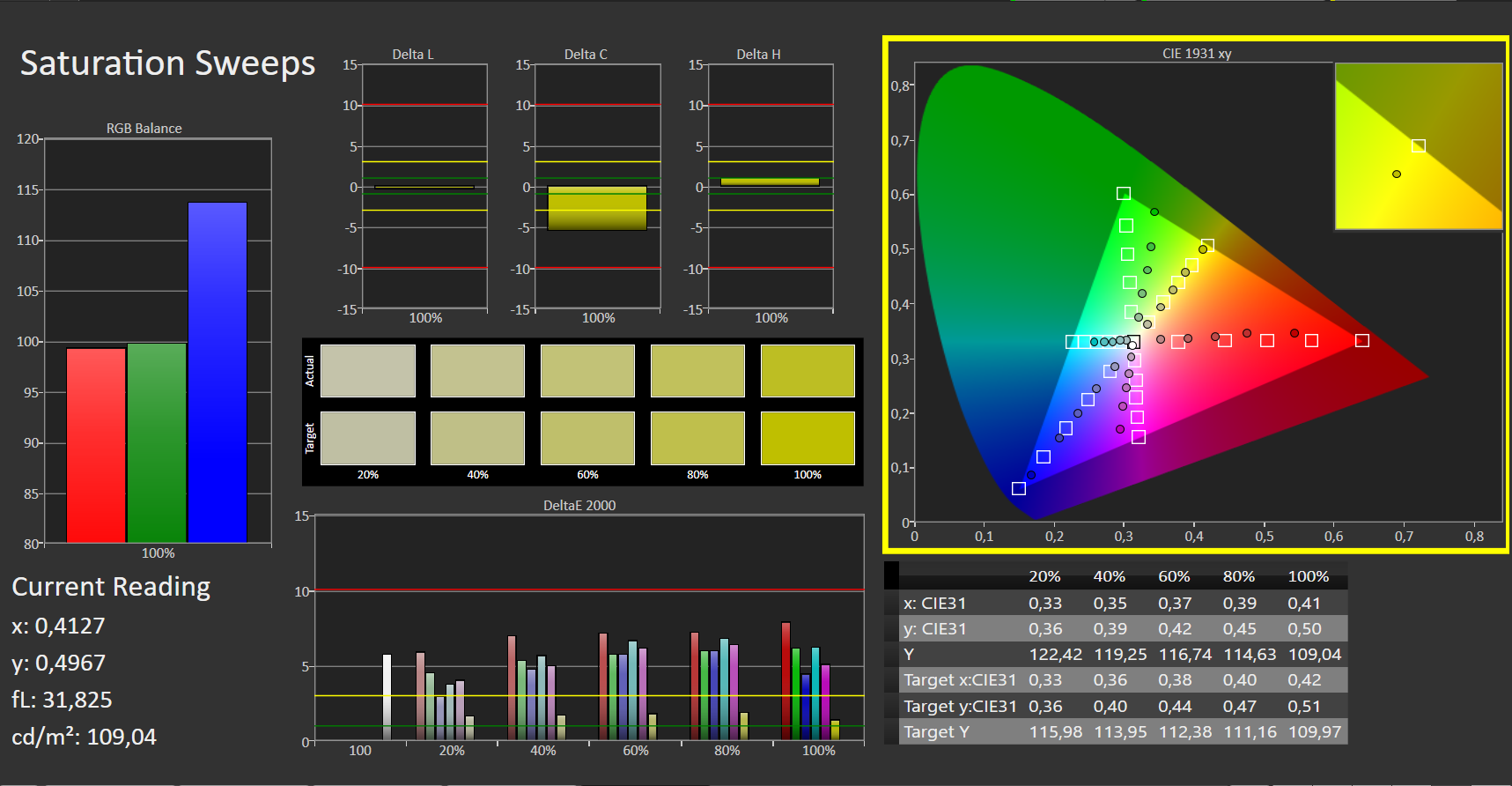

默认情况下，屏幕显示的颜色还算不错。然而，Delta E < 3的目标没有达到，其偏差略低于6。

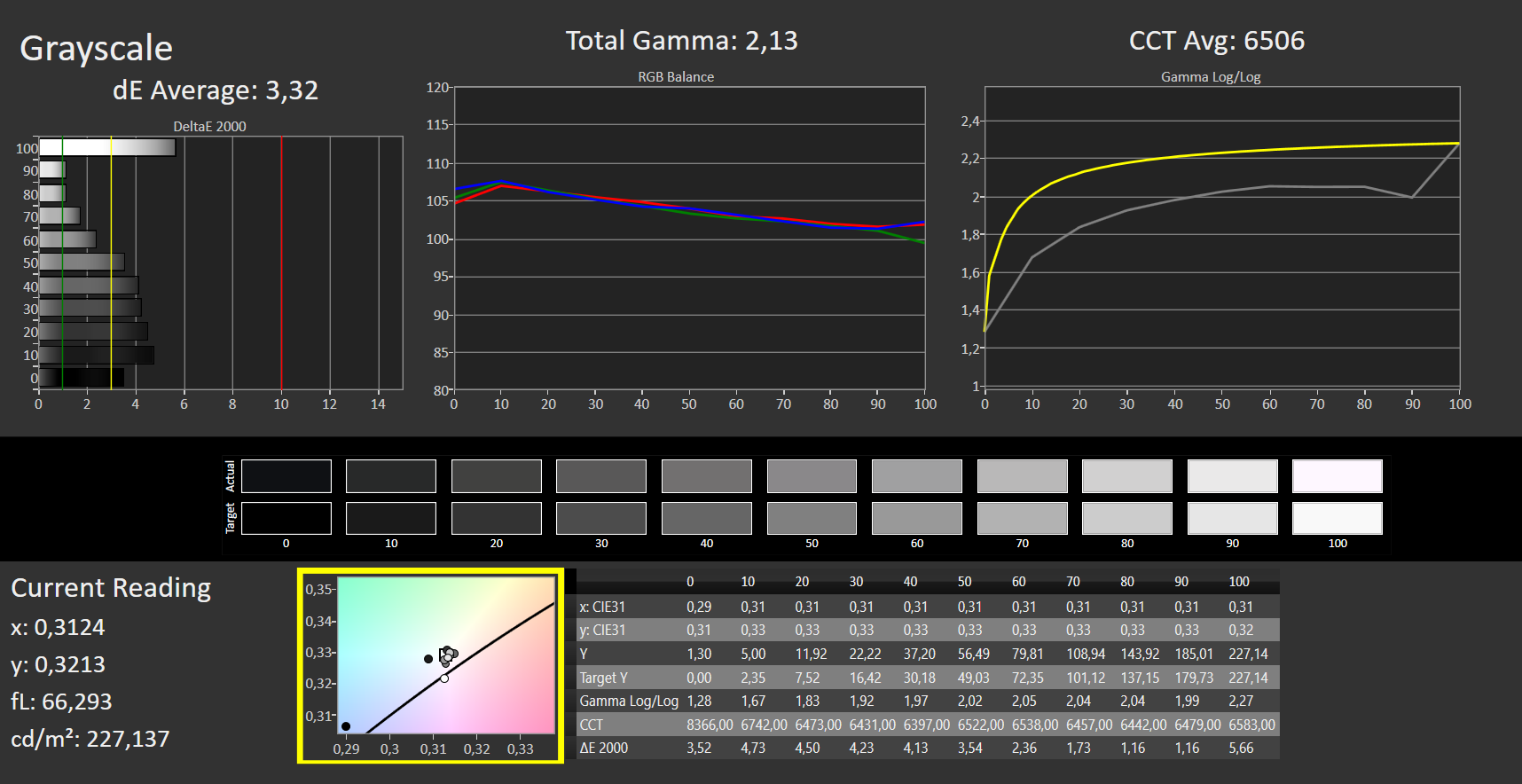

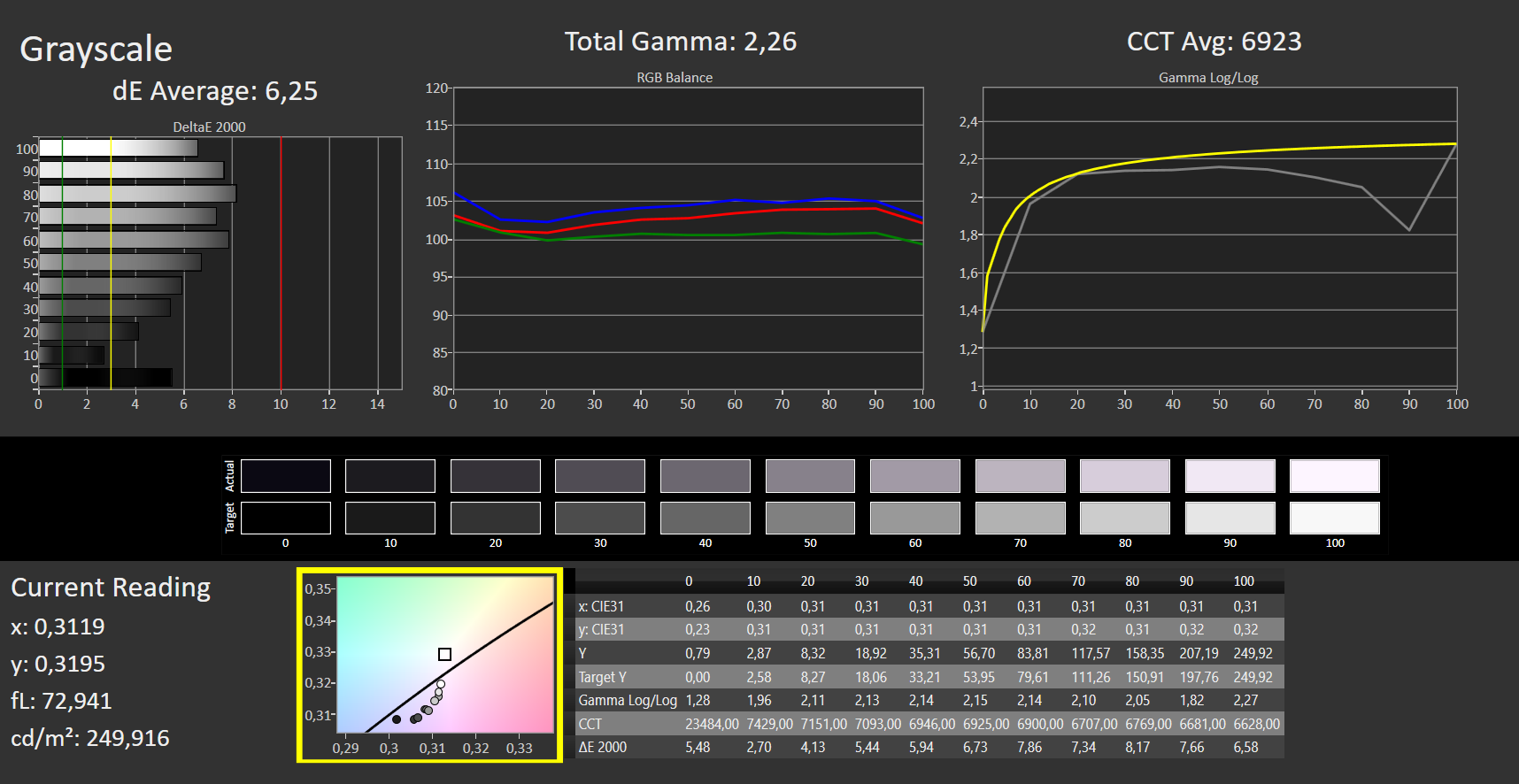

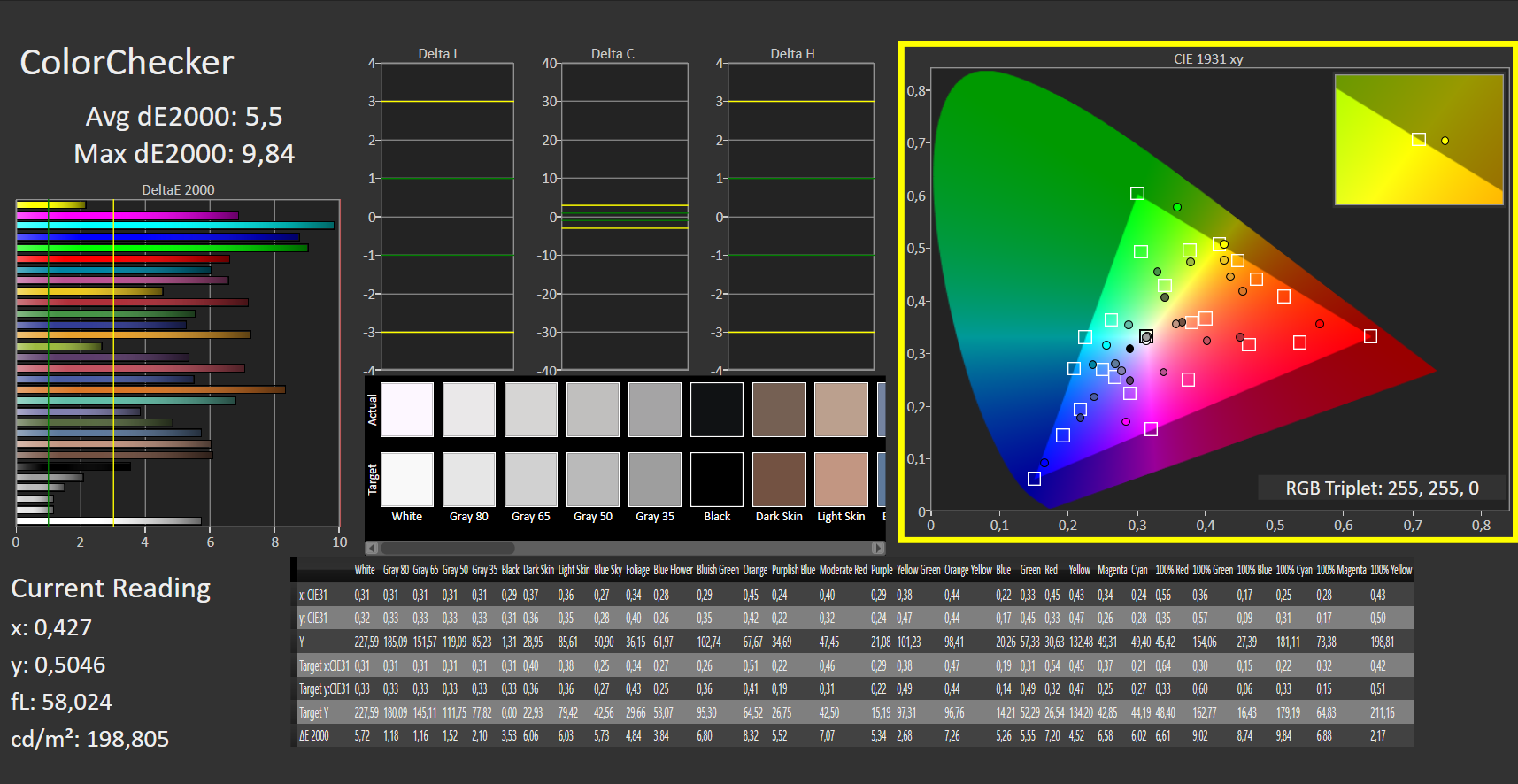

我们的校准程序只稍微改善了色彩表现，但提供了一个更平衡的灰度。该显示器不能充分再现Adobe RGB（36%）、sRGB（52%）和DCI-P3（35%）色彩空间。
因此，该面板不是为依赖色彩保真度的应用场景而制造的。华硕F415EA的竞争对手在这方面也没有更好的表现。

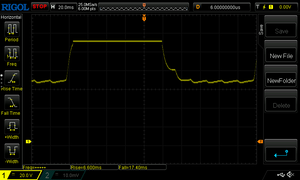

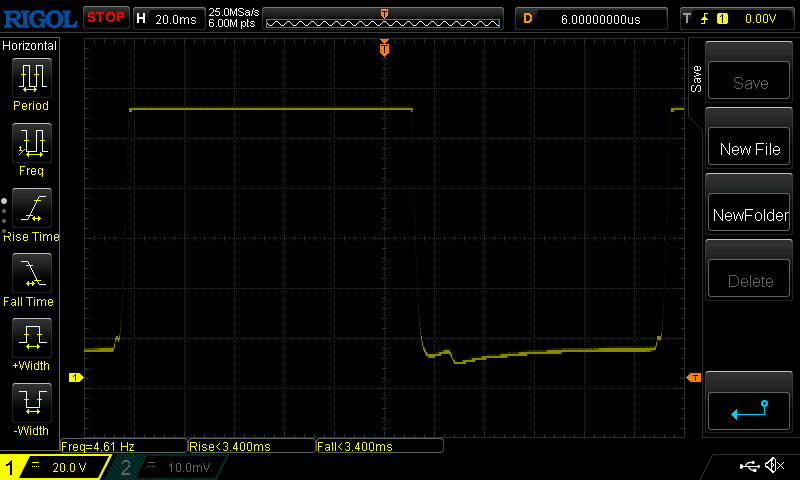

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 6 ms ... rise ↗ and fall ↘ combined | ↗ 3 ms rise |  |
| ↘ 3 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 15 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

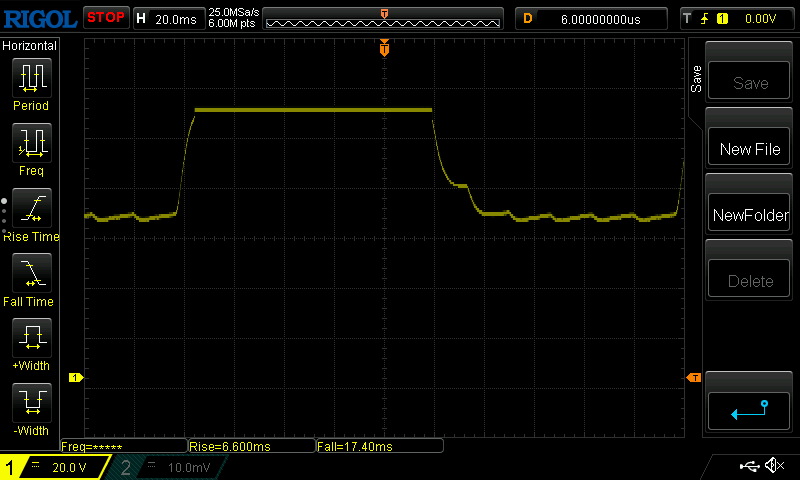

| ↔ Response Time 50% Grey to 80% Grey | ||
| 23 ms ... rise ↗ and fall ↘ combined | ↗ 6 ms rise |  |
| ↘ 17 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

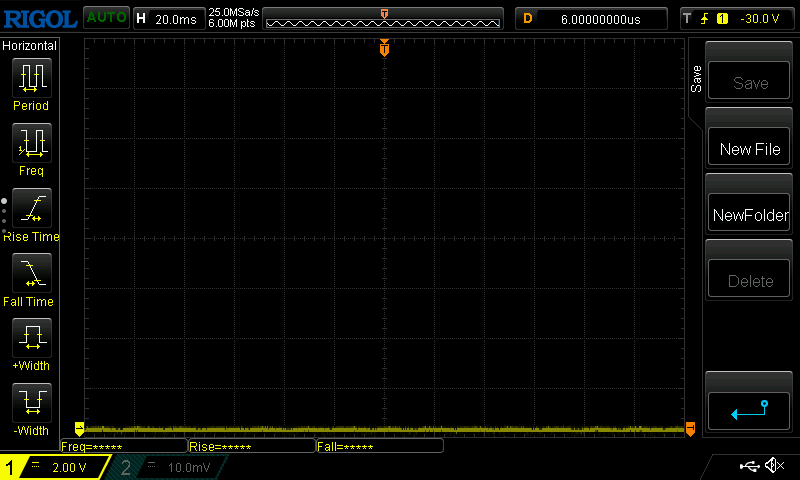

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

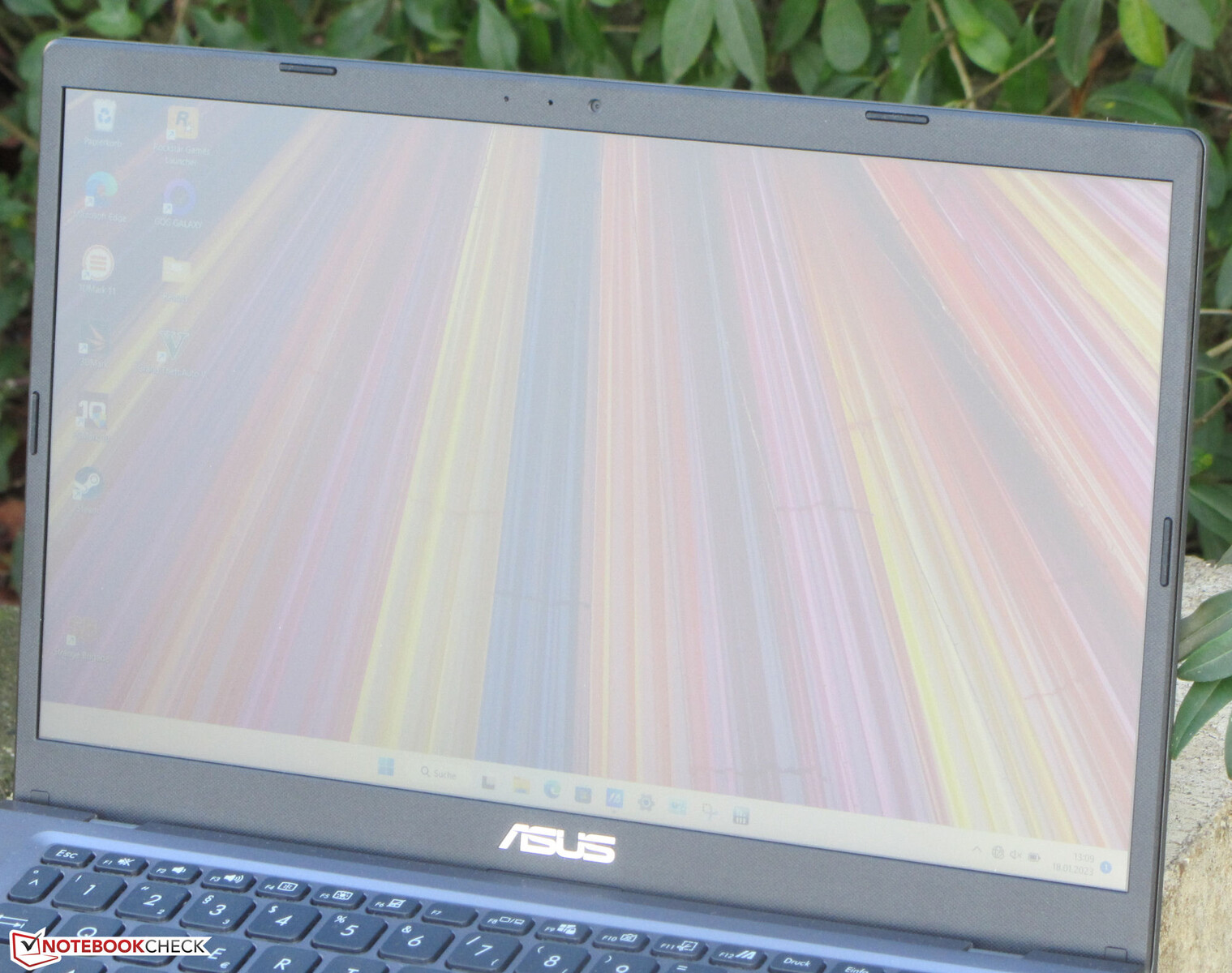

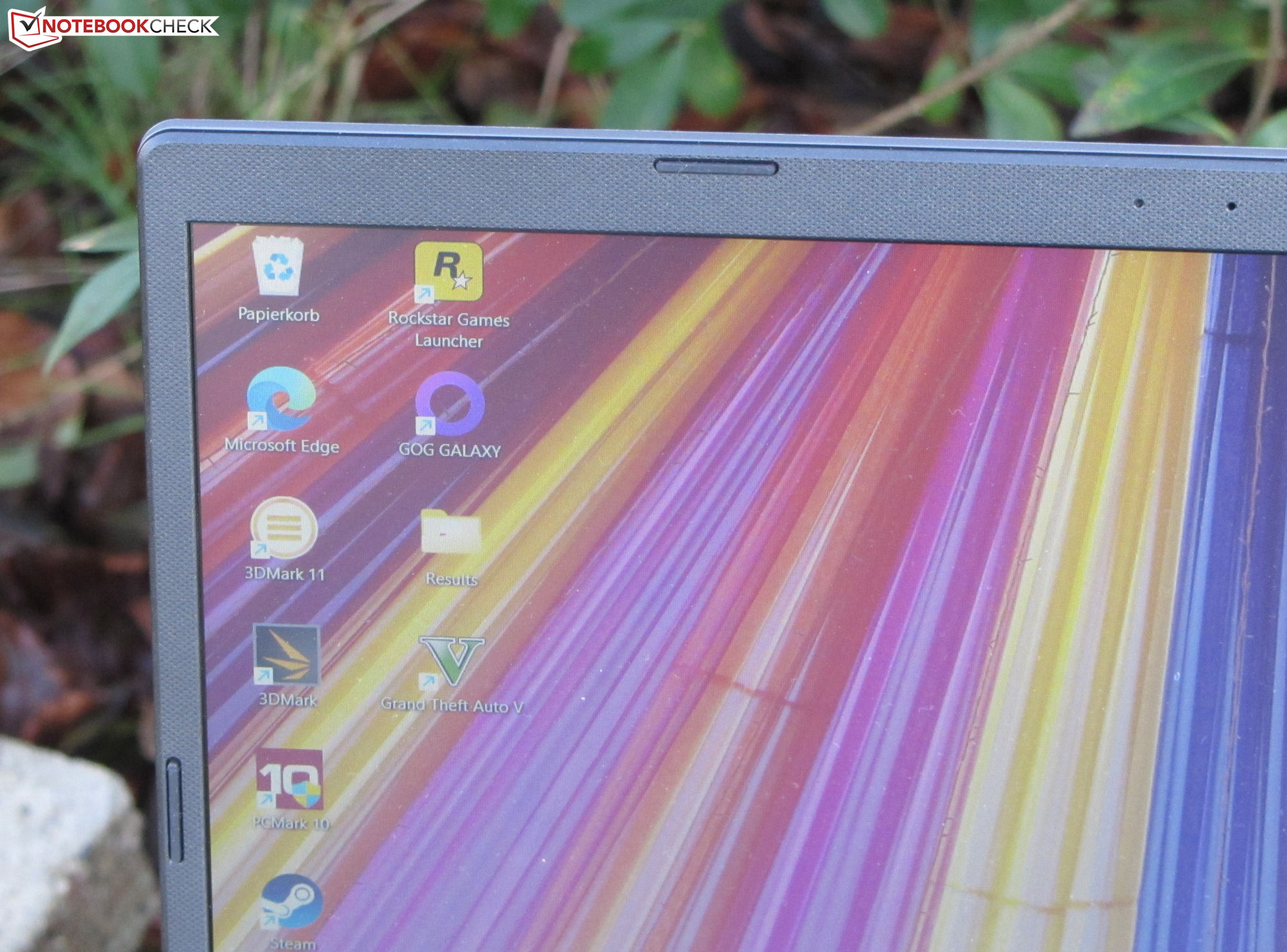

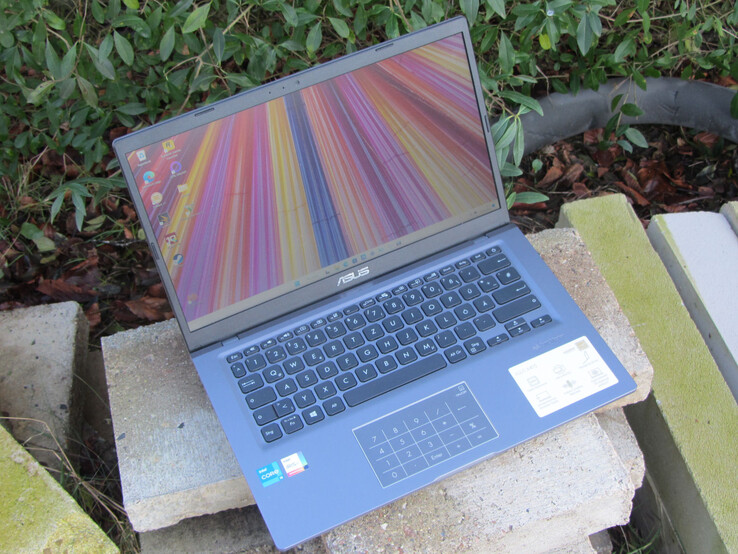

TN面板的可视角度不稳定，不是在每个位置都能读懂。在户外，当太阳不太亮时，可以阅读屏幕。
性能。F415EA提供Tiger Lake 功率
该公司依靠英特尔处理器（酷睿i3到酷睿i7），从Ice Lake （F415JA）和Tiger Lake （F415EA）这两代人的入门级办公笔记本阵容。
测试条件
F415EA提供了三种制造商特定的风扇模式（见表），可以通过组合键 "Fn + F "在它们之间进行切换。用于基准测试的标准模式和用于电池测试的低语模式被使用。

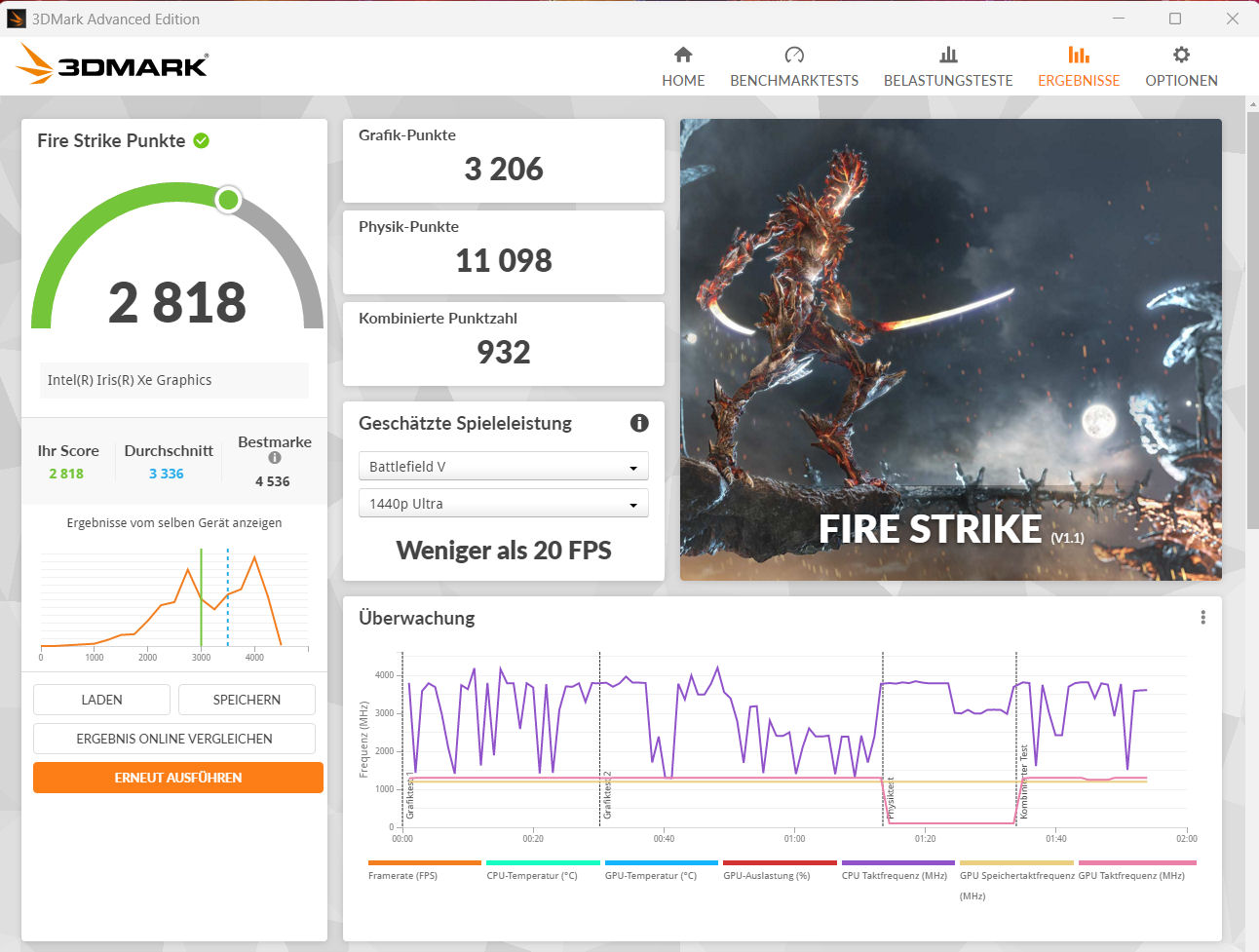

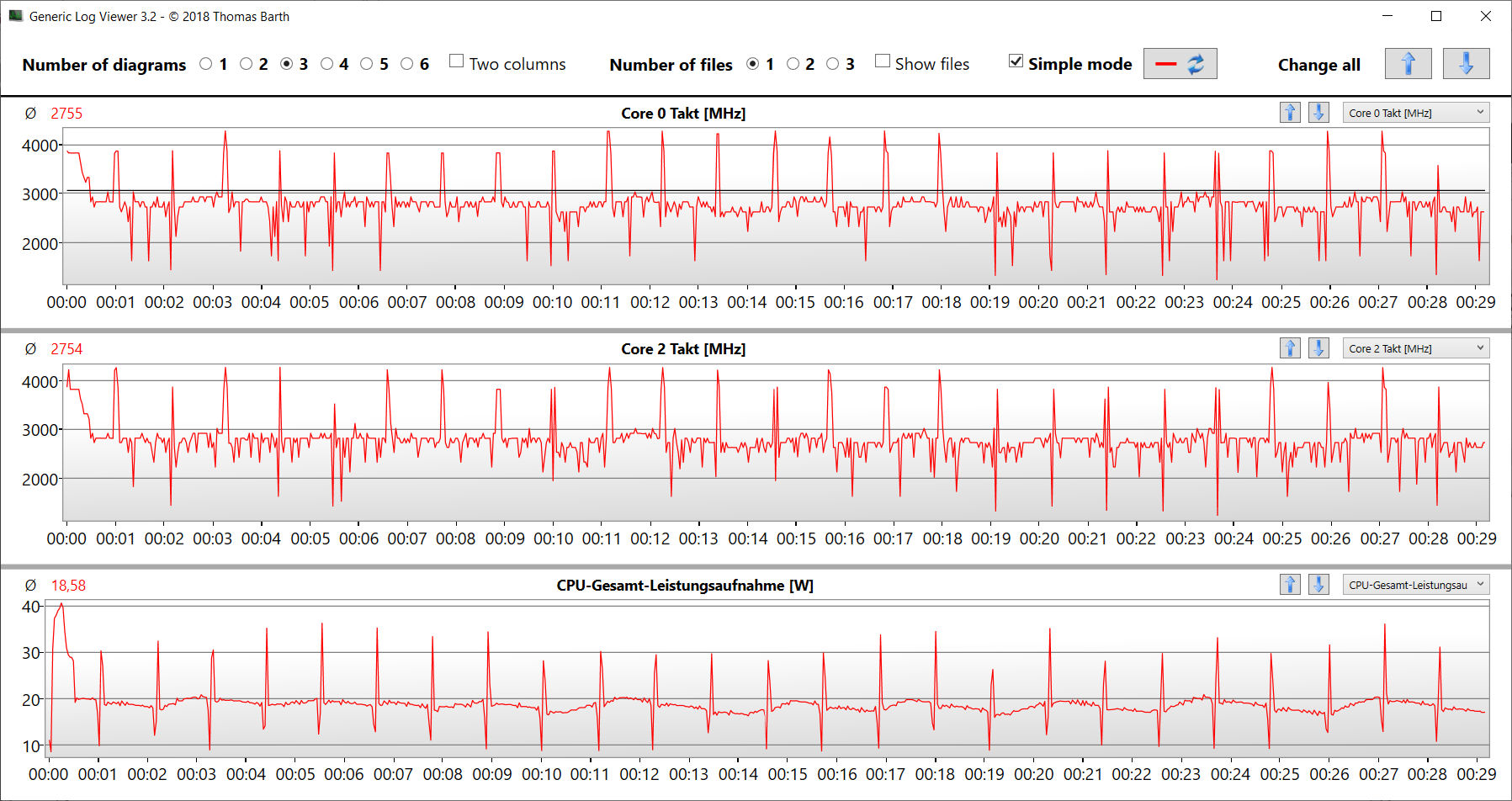

性能模式 "导致CPU性能略有提高，尽管图形性能保持不变。GPU被启用为永久工作在最大时钟。Whisper模式降低了负载下已经很低的工作噪音，尽管是以牺牲CPU性能为代价的。
| 功率模式 | 标准模式 | 悄悄话模式 | |
|---|---|---|---|
| 功率限制1 | 64 W | 40 W | 20 W |
| 功率限制2 | 64 W | 64 W | 64 W |
处理器

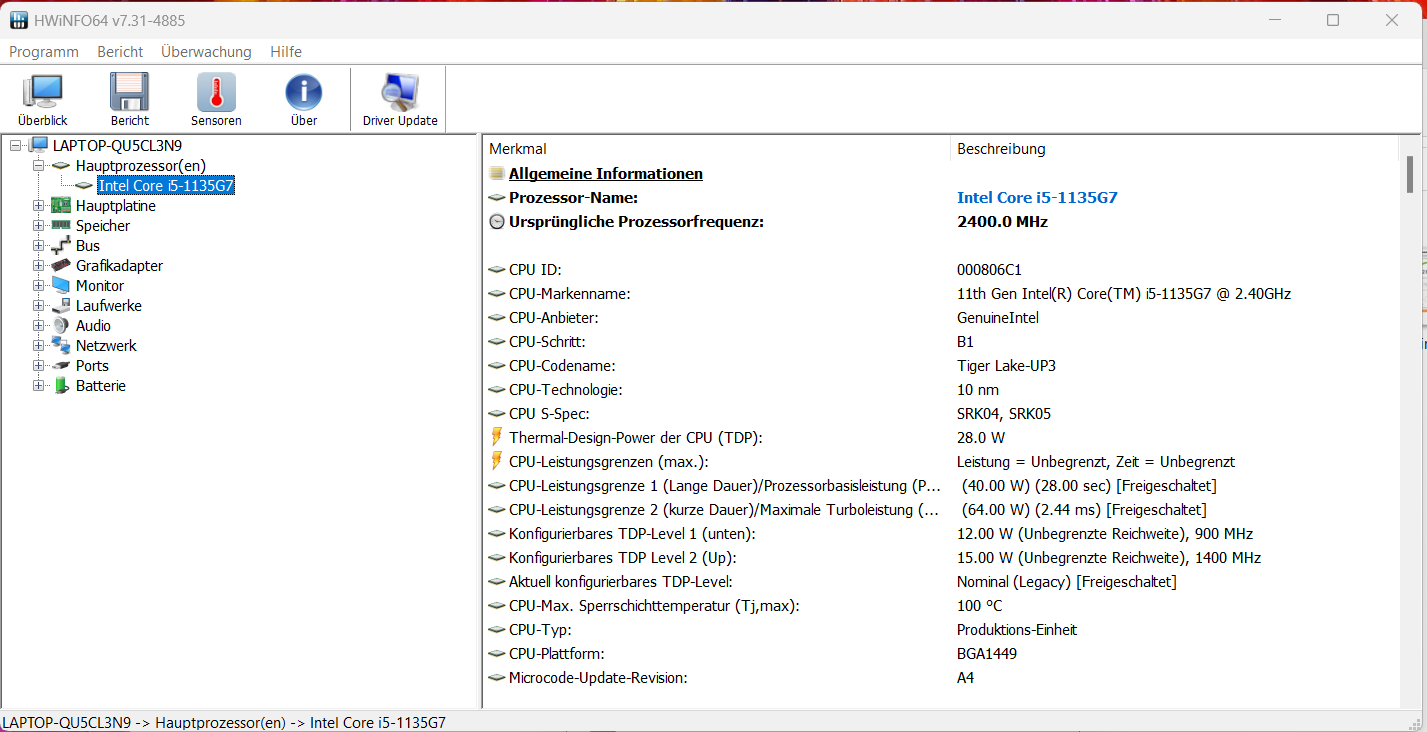

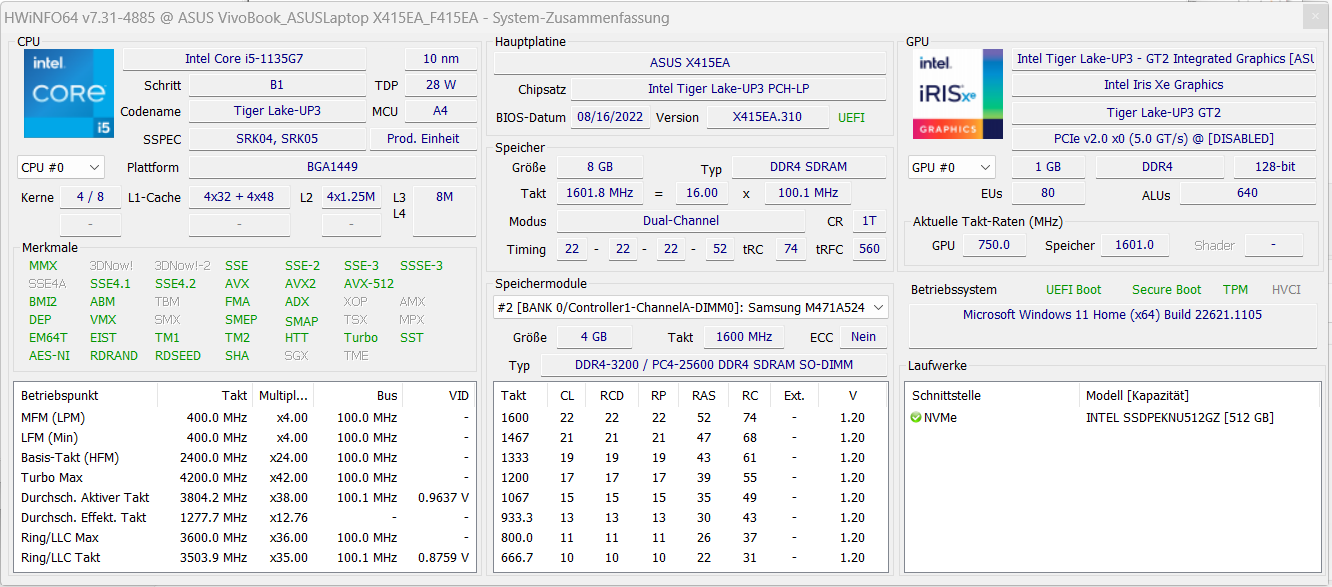

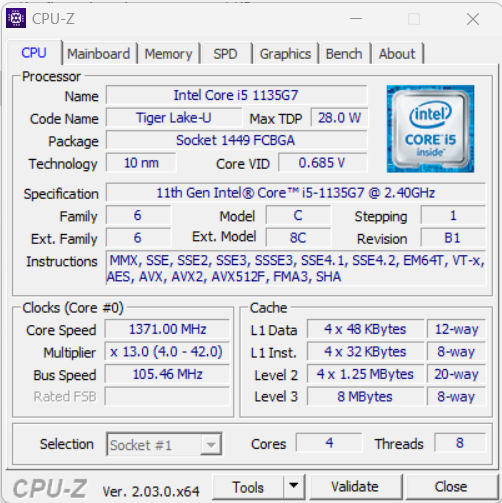

芯片 酷睿i5-1135G7是一个4C/8T处理器，基本时钟为2.4 GHz。随着对超线程的支持，可以提高到3.8 GHz（所有内核）或高达4.2 GHz（单核提升）。这款不再是最新的CPU，属于Tiger Lake 代（英特尔第11代）。目前，猛禽湖笔记本（英特尔第13代）已经开始作为入门级设备出现。

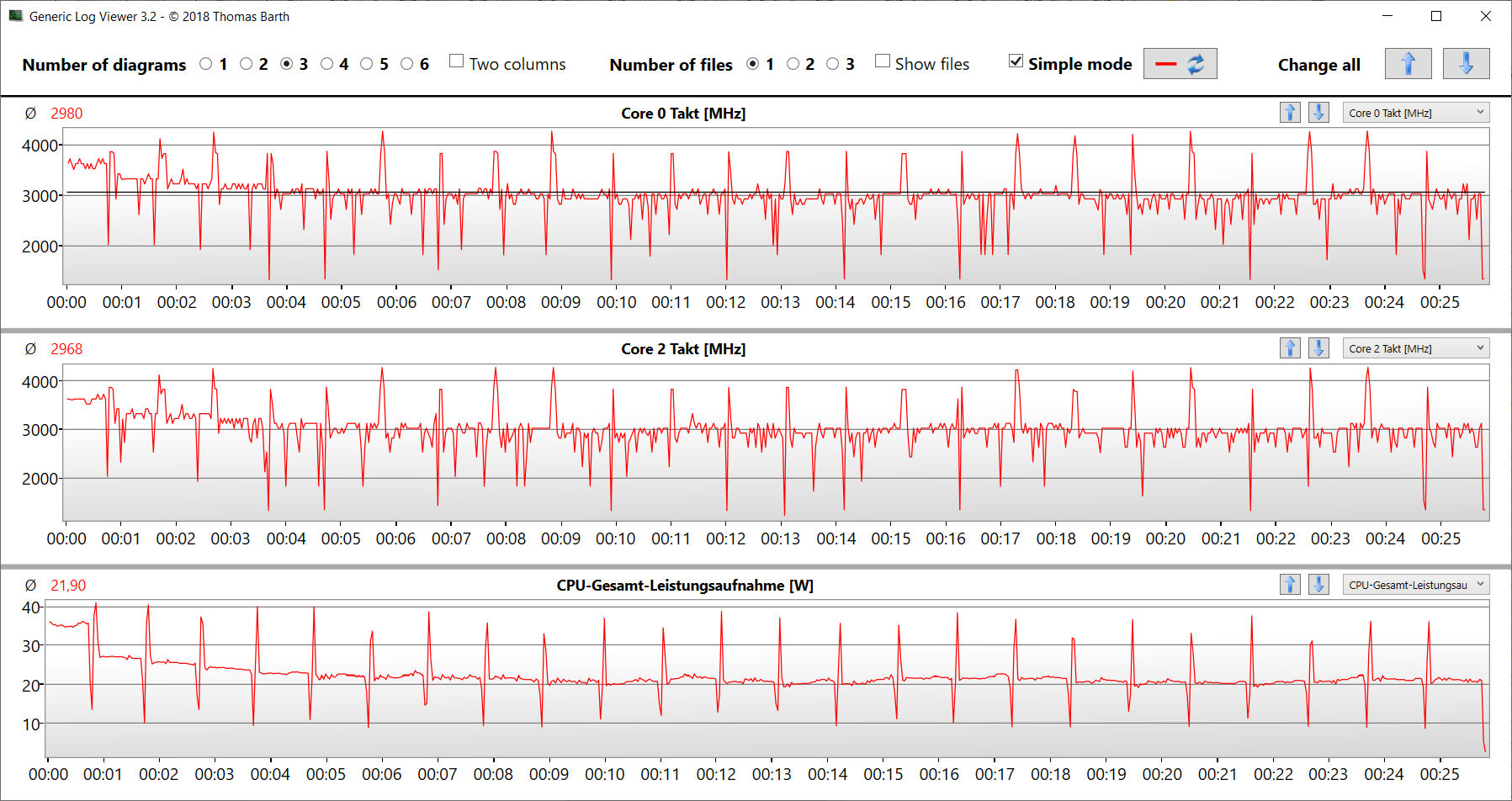

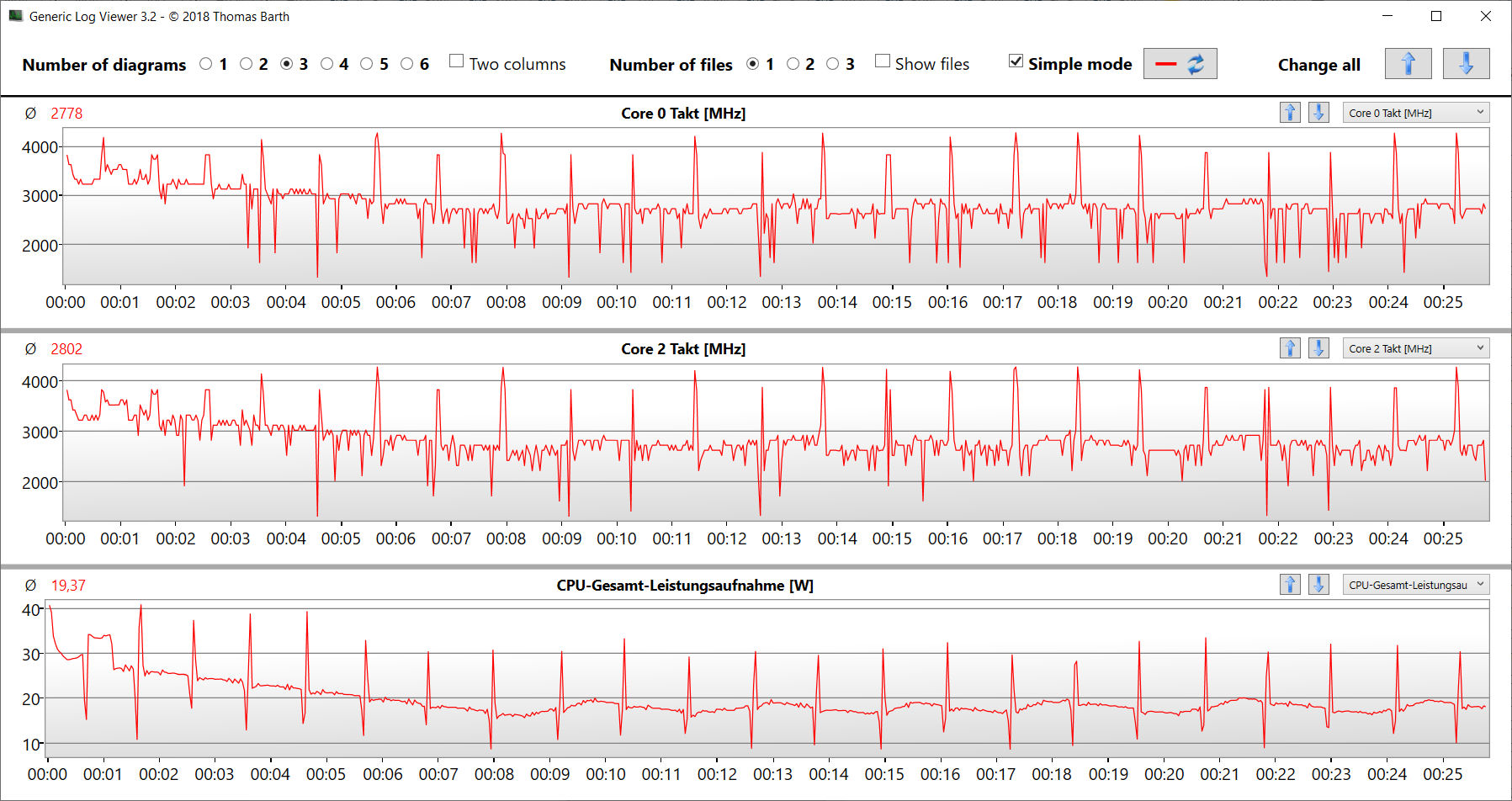

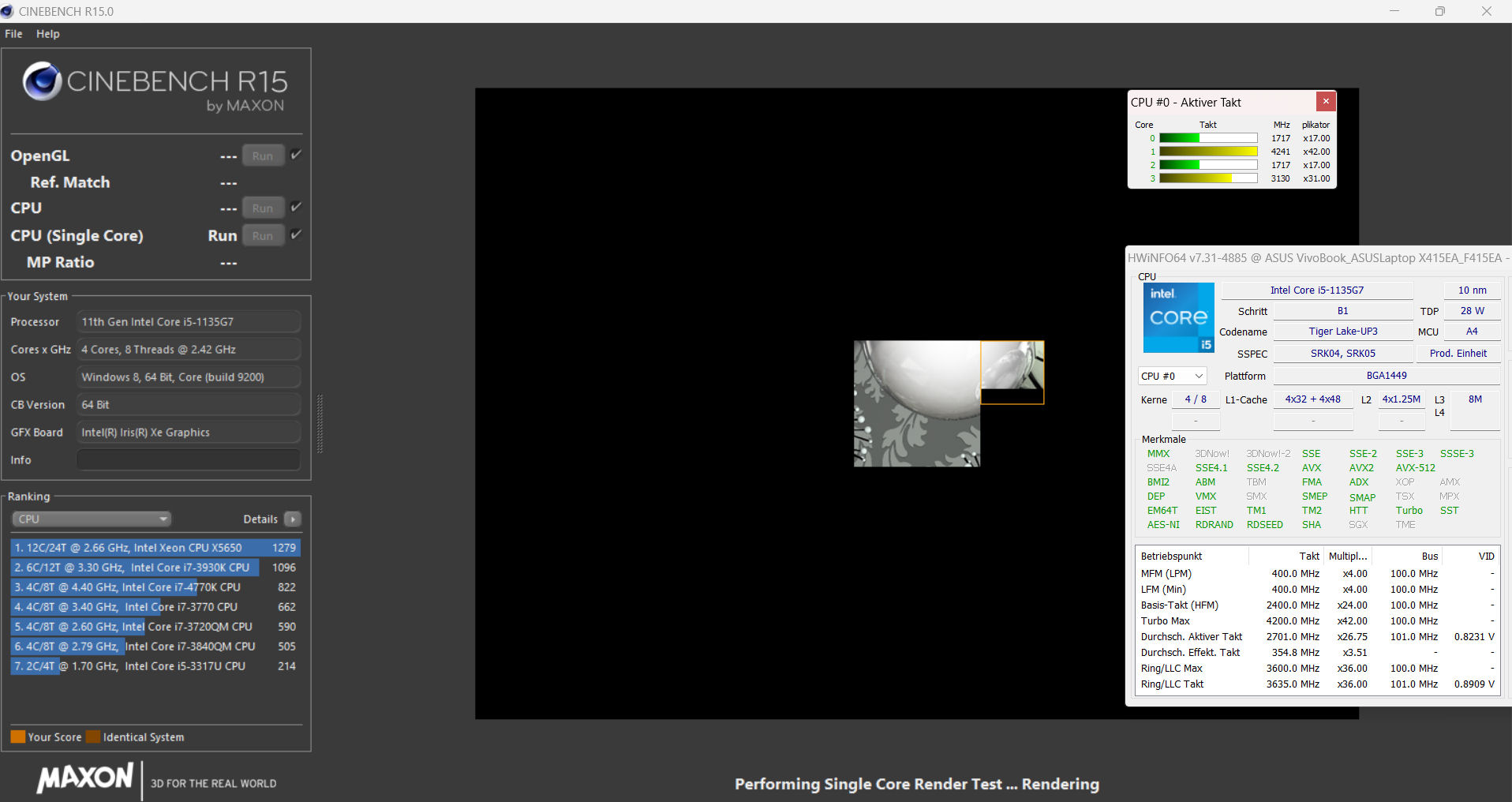

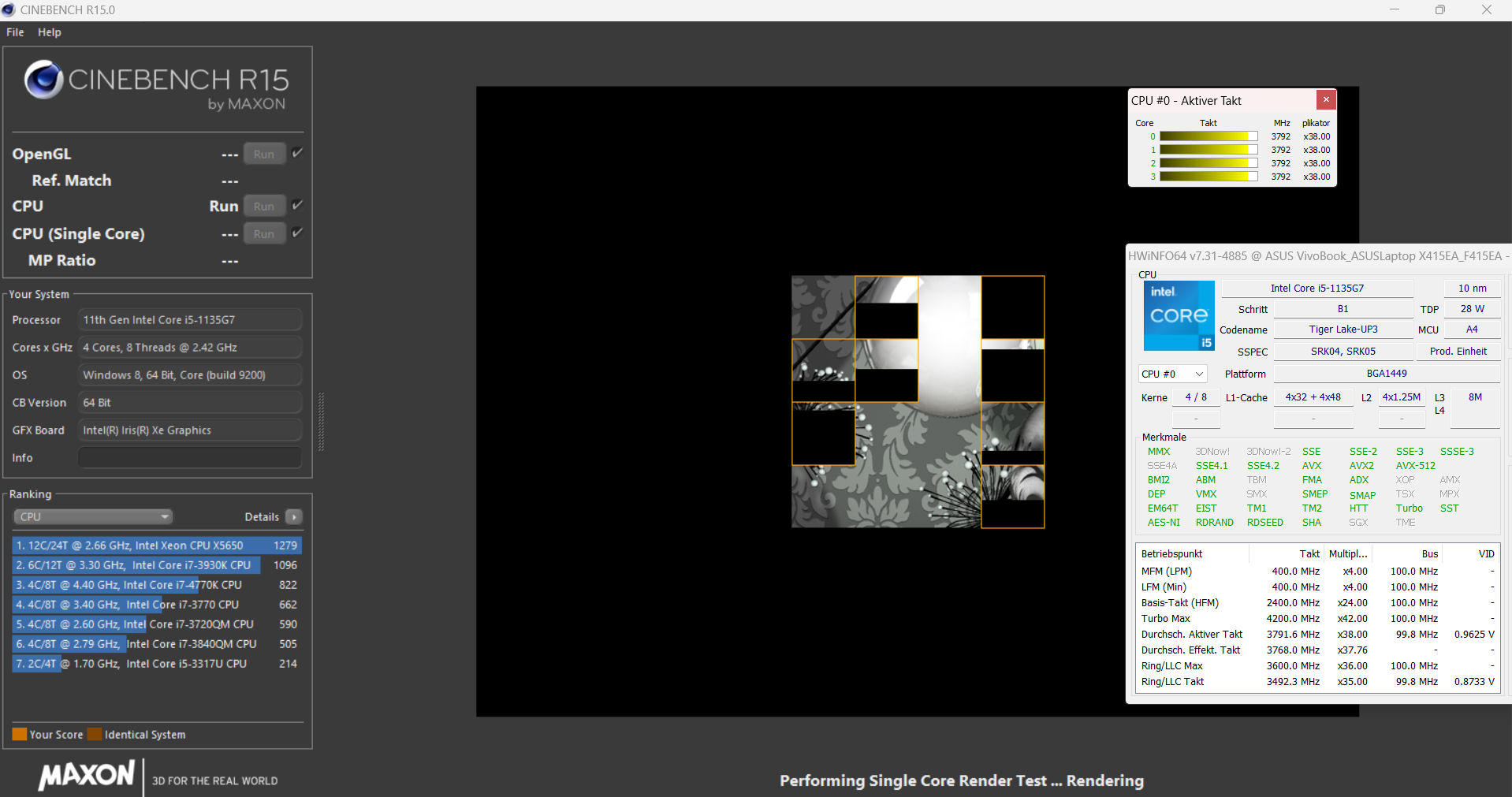

Cinebench R15基准测试的多线程测试最初以3.8 GHz的速度处理，然后时钟下降到约3.2或3.3 GHz。单线程测试在1.7 GHz和4.2 GHz之间执行。在电池模式下，时钟速率较低。CB15循环测试证实了CPU Turbo在低水平上的永久使用。
Cinebench R15 Multi Dauertest
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Huawei MateBook D 14 (2021) | |
| Average Intel Core i5-1135G7 | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=97, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (4313 - 7952, n=45) | |
| Huawei MateBook D 14 (2021) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=97, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (19402 - 32283, n=45) | |
| Huawei MateBook D 14 (2021) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=97, last 2 years) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (1316 - 2172, n=45) | |
| Huawei MateBook D 14 (2021) | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / CPU Queen | |
| Acer Swift 3 SF314-43-R8BP | |
| Average of class Office (8185 - 115197, n=97, last 2 years) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Huawei MateBook D 14 (2021) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (39000 - 46951, n=45) | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / FPU SinJulia | |
| Acer Swift 3 SF314-43-R8BP | |
| Average of class Office (404 - 14288, n=97, last 2 years) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (3497 - 4445, n=45) | |
| Huawei MateBook D 14 (2021) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=97, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (12569 - 19635, n=45) | |
| Huawei MateBook D 14 (2021) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / CPU AES | |
| Asus F415EA-EK115W | |
| Huawei MateBook D 14 (2021) | |
| Average Intel Core i5-1135G7 (28988 - 67977, n=45) | |
| Average of class Office (7860 - 155900, n=97, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=97, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Huawei MateBook D 14 (2021) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (265 - 373, n=51) | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=97, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (2226 - 4291, n=45) | |
| Huawei MateBook D 14 (2021) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / CPU PhotoWorxx | |
| Huawei MateBook D 14 (2021) | |
| Average of class Office (4814 - 54971, n=97, last 2 years) | |
| Average Intel Core i5-1135G7 (9004 - 45366, n=45) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
系统性能
运行流畅的系统可以管理办公和互联网应用，以及在低设置下的适度游戏。PCMark的结果是好的。

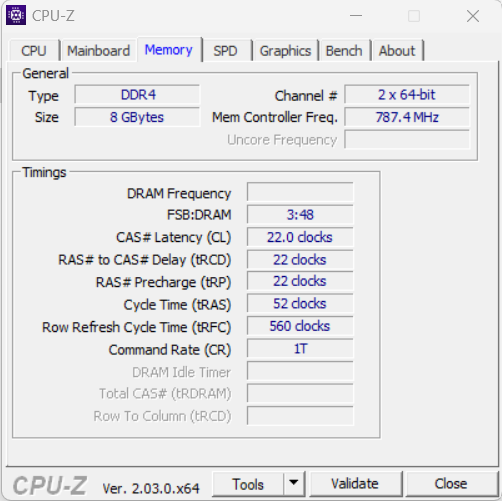

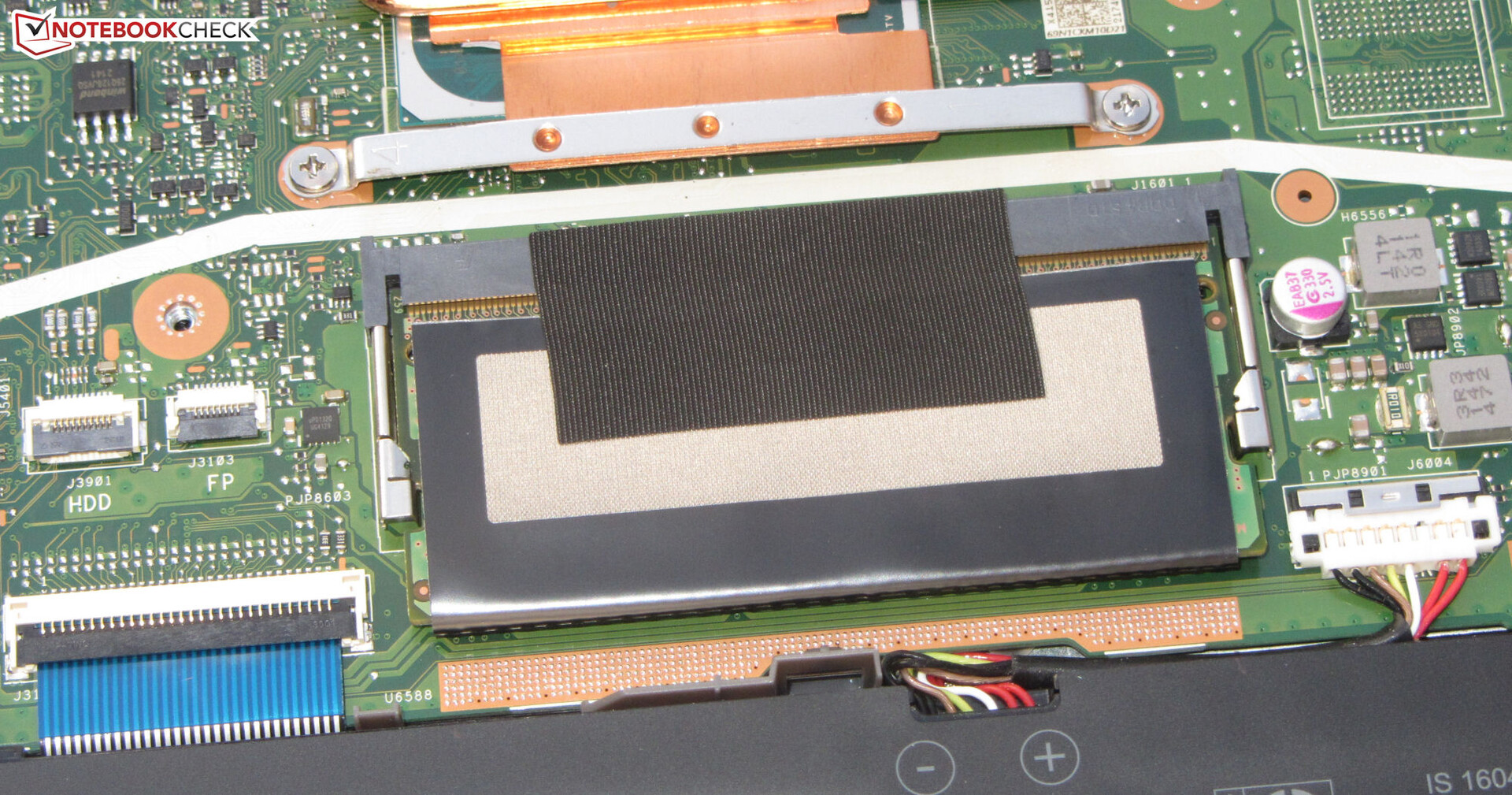

工作内存（8GB，双通道模式）的传输率符合DDR4-3200内存的预期线路。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Office (2463 - 7344, n=89, last 2 years) | |
| Asus F415EA-EK115W | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Huawei MateBook D 14 (2021) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53) | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| PCMark 10 / Essentials | |
| Average of class Office (5575 - 20841, n=89, last 2 years) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Huawei MateBook D 14 (2021) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10415, n=89, last 2 years) | |
| Asus F415EA-EK115W | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Huawei MateBook D 14 (2021) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53) | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2126 - 9773, n=89, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Huawei MateBook D 14 (2021) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53) | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=91, last 2 years) | |
| Huawei MateBook D 14 (2021) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1058 - 1293, n=11) | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=91, last 2 years) | |
| Huawei MateBook D 14 (2021) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (1148 - 1332, n=11) | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=91, last 2 years) | |
| Huawei MateBook D 14 (2021) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (895 - 1263, n=11) | |
| Asus F415EA-EK115W | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| CrossMark / Responsiveness | |
| Asus F415EA-EK115W | |
| Average of class Office (258 - 2017, n=91, last 2 years) | |
| Huawei MateBook D 14 (2021) | |
| Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (923 - 1320, n=11) | |
| Acer Swift 3 SF314-43-R8BP | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| PCMark 10 Score | 4852 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Huawei MateBook D 14 (2021) | |
| Average of class Office (7158 - 108783, n=98, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average Intel Core i5-1135G7 (17443 - 63889, n=45) | |
| Asus F415EA-EK115W | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / Memory Read | |
| Huawei MateBook D 14 (2021) | |
| Average of class Office (7325 - 127282, n=98, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (19716 - 63705, n=45) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / Memory Write | |
| Huawei MateBook D 14 (2021) | |
| Average of class Office (7579 - 117935, n=98, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (18722 - 66778, n=45) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| AIDA64 / Memory Latency | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| Average of class Office (6.9 - 185.2, n=97, last 2 years) | |
| Huawei MateBook D 14 (2021) | |
| Asus F415EA-EK115W | |
| Average Intel Core i5-1135G7 (68.3 - 107, n=51) | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
* ... smaller is better

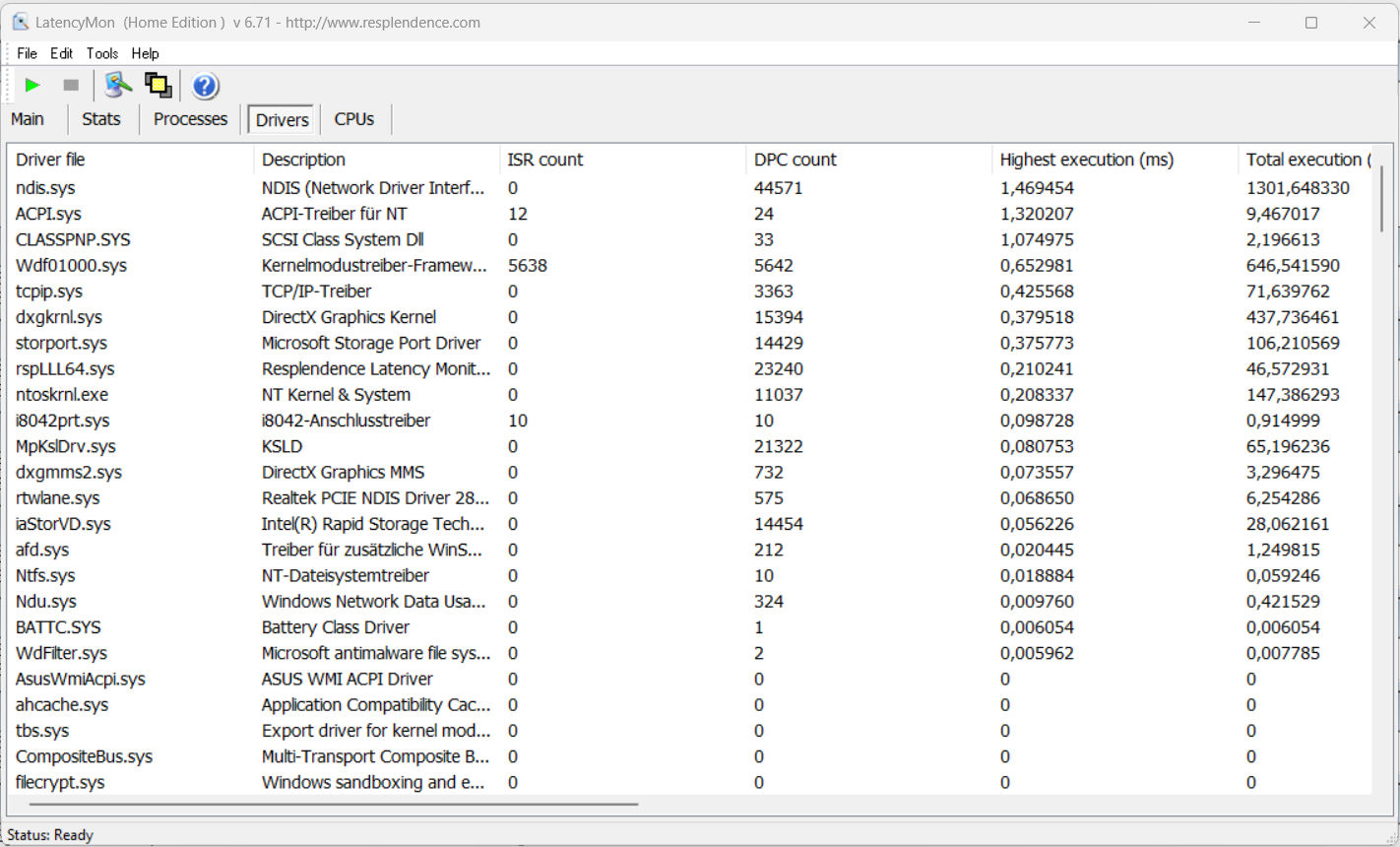

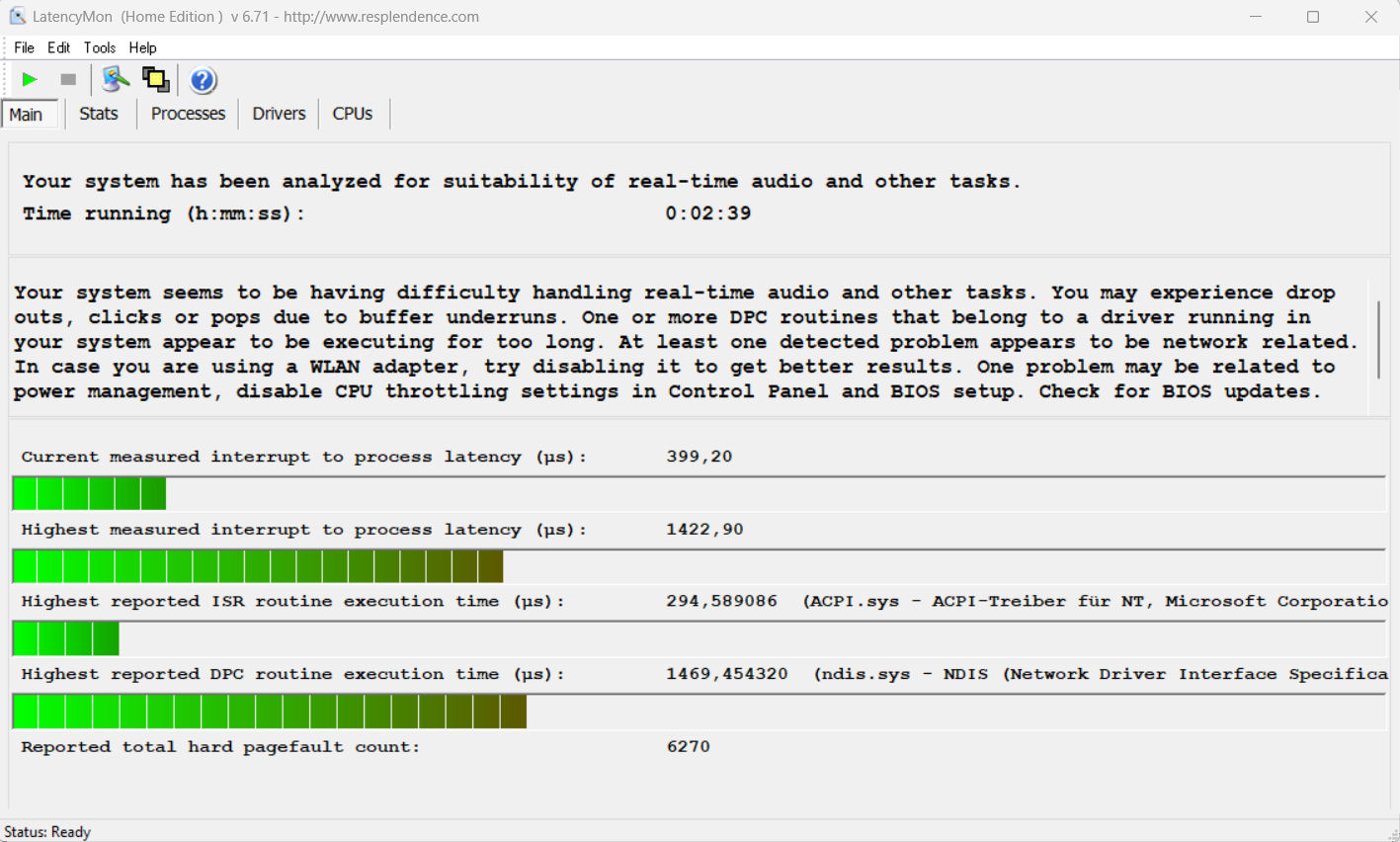

DPC延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| Asus F415EA-EK115W | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook D 14 (2021) | |
* ... smaller is better
大容量存储

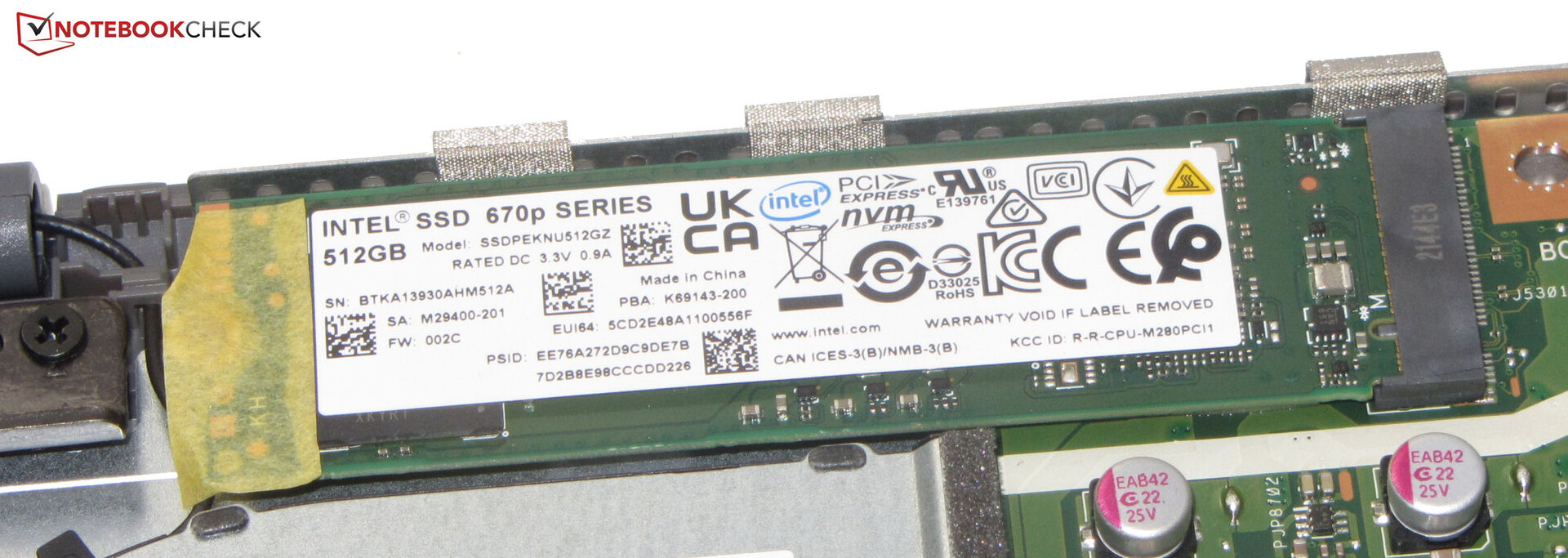

来自英特尔的PCIe Gen3固态硬盘（M.2 2280），存储容量为512GB，作为系统驱动器。传输速率很好，但它不是顶级的固态硬盘之一。

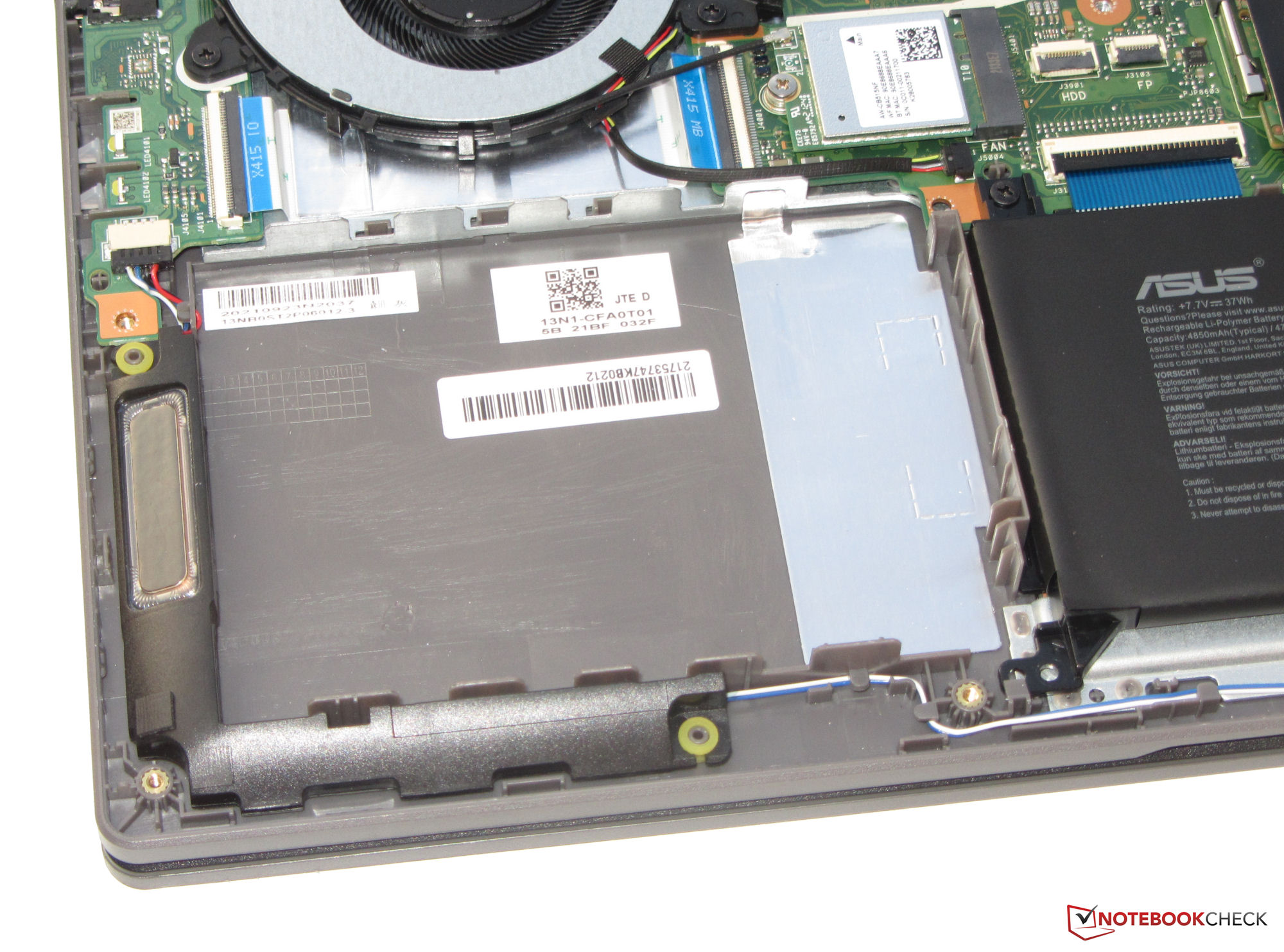

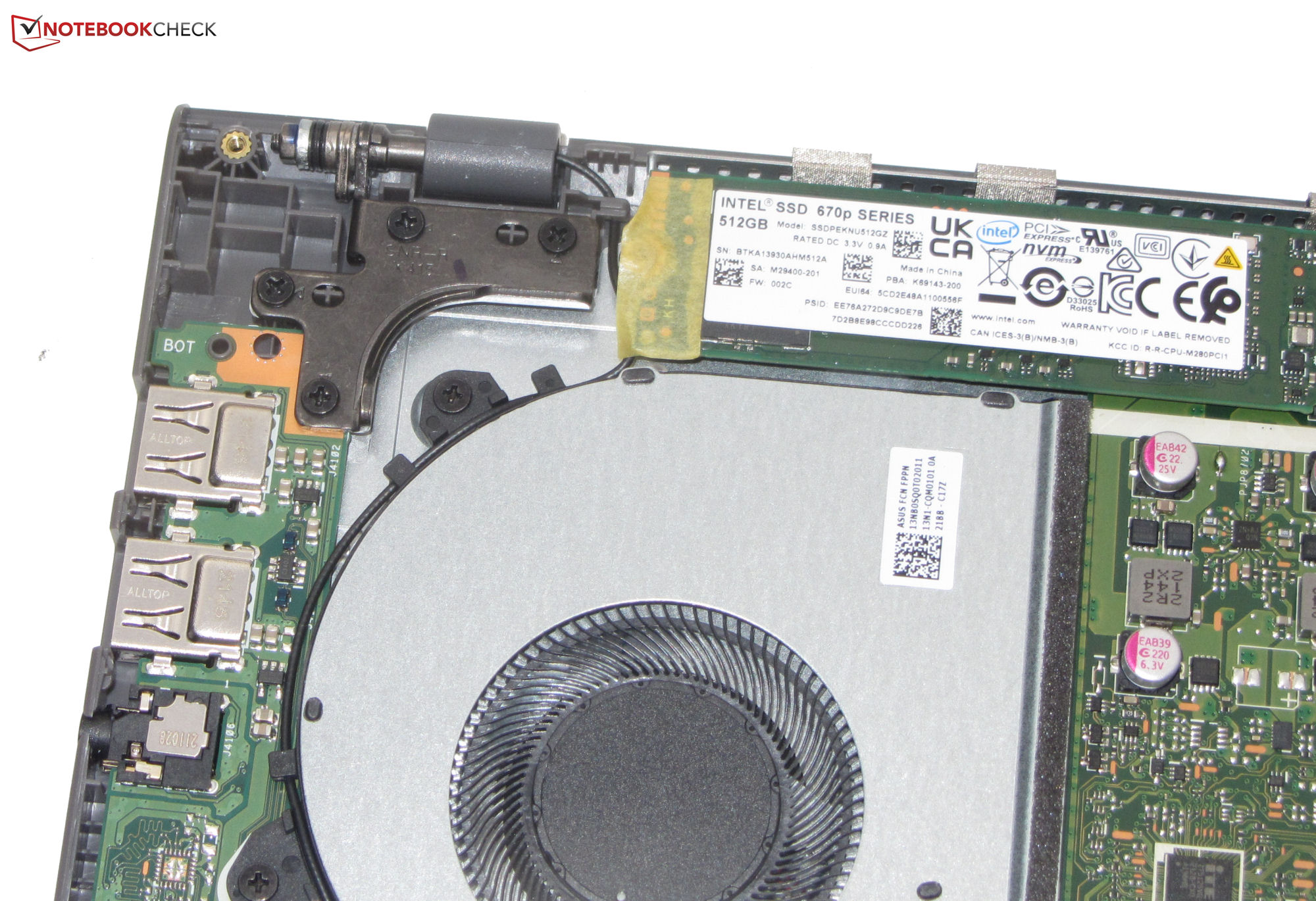

在DiskSpd循环过程中出现了性能波动，可能是由于热节流造成的。该笔记本为另一个2.5英寸的存储介质提供了空间。但是，安装框架、螺丝和SATA插槽并不包括在交货范围内。
* ... smaller is better
Dauerleistung Lesen: DiskSpd Read Loop, Queue Depth 8
图形卡

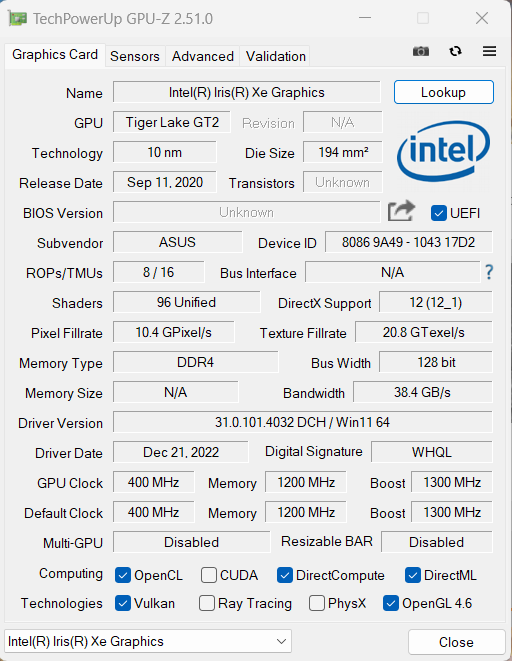

Witcher 3测试显示英特尔的 UHD Graphics G7-80EUGPU在性能模式下永久工作在其全部潜力（1,300 MHz）。标准模式的结果是，几分钟后时钟降低到约1150兆赫至1100兆赫。
安装的硬件可以在低到中等设置下显示节俭的游戏，这是可以接受的，因为我们在这里处理的不是一台游戏笔记本电脑。

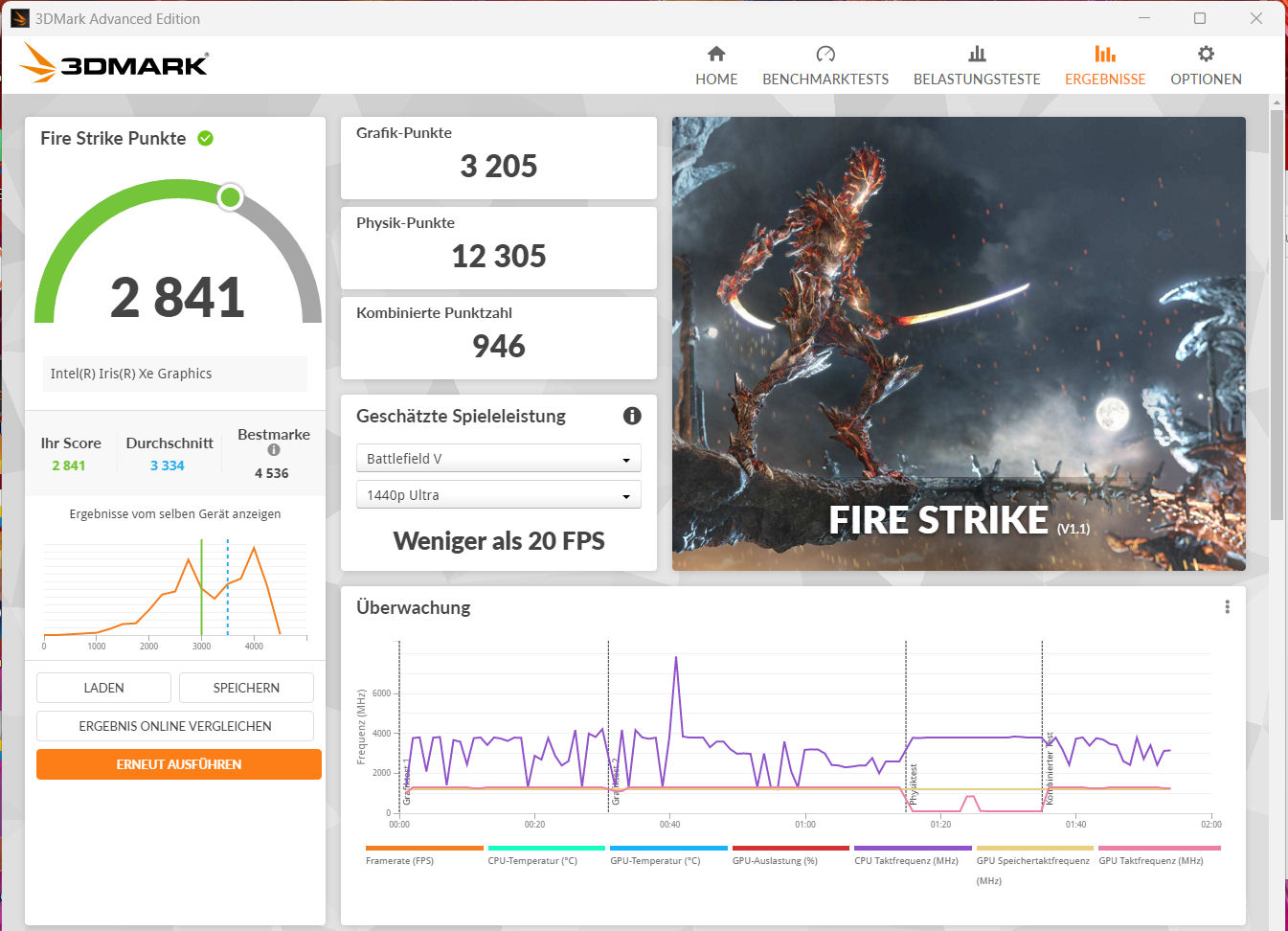

对于安装的iGPU来说，3DMark结果和帧率都低于平均水平。
| 3DMark 11 Performance | 5178 points | |
| 3DMark Cloud Gate Standard Score | 14782 points | |

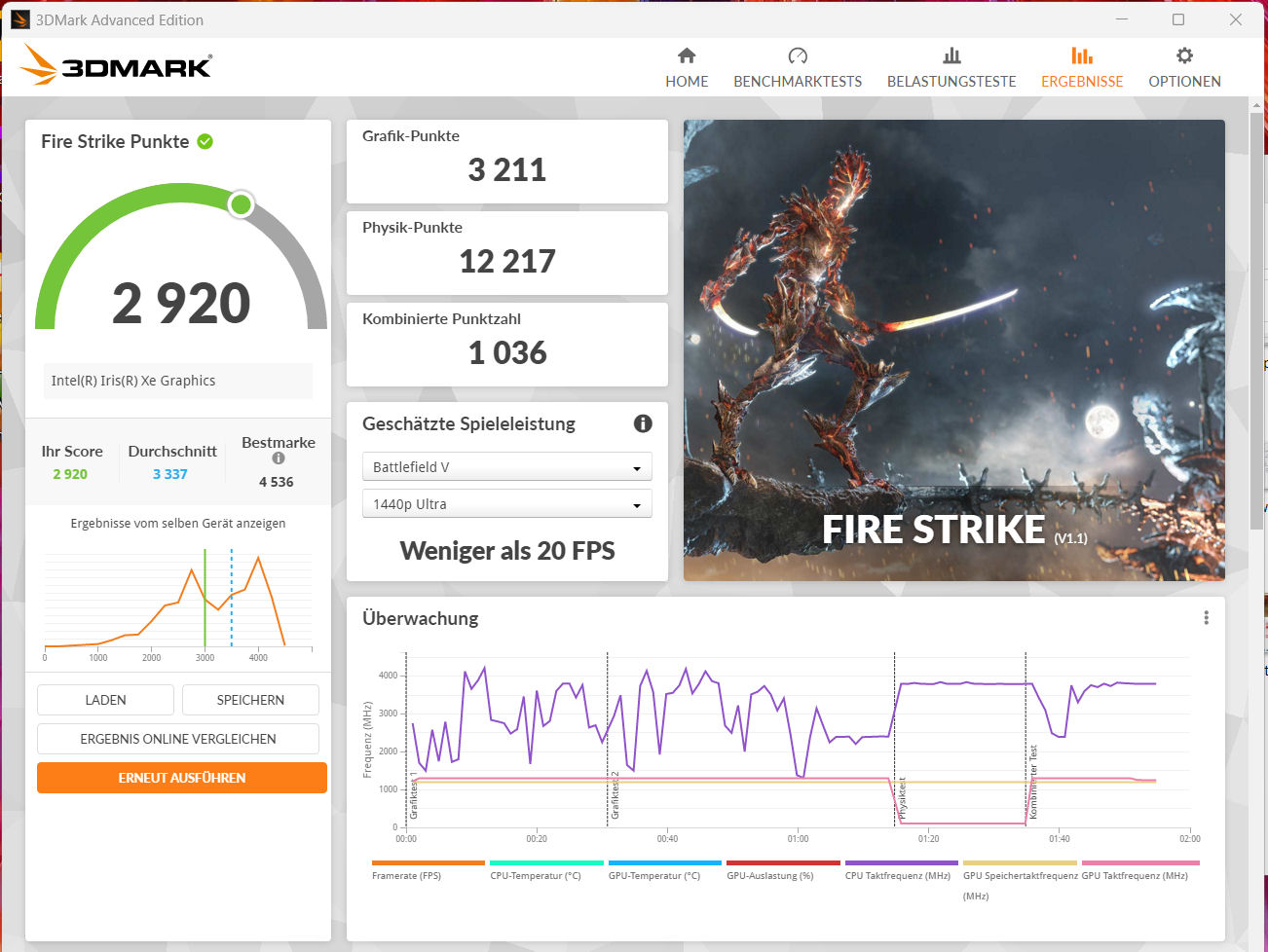

| 3DMark Fire Strike Score | 2920 points | |
| 3DMark Time Spy Score | 1182 points | |
Help | ||
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Office (16 - 177, n=75, last 2 years) | |
| Huawei MateBook D 14 (2021) | |
| Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101) | |
| Asus F415EA-EK115W | |
| Gateway Ultra Slim 14.1 GWTC51427 | |
| Lenovo IdeaPad 3 14ITL6 82H700CCGE | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 64.8 | 56.1 | 14.8 | 5.73 |
| The Witcher 3 (2015) | 57.5 | 36.3 | 17.6 | 9.8 |
| Dota 2 Reborn (2015) | 97.9 | 81.5 | 39.1 | 39.2 |
| Final Fantasy XV Benchmark (2018) | 27 | 14.4 | 6.45 | |
| X-Plane 11.11 (2018) | 36 | 33.6 | 28.6 | |
| Strange Brigade (2018) | 62.9 | 24.8 | 20.3 |
排放和能源。华硕F415EA几乎不发热

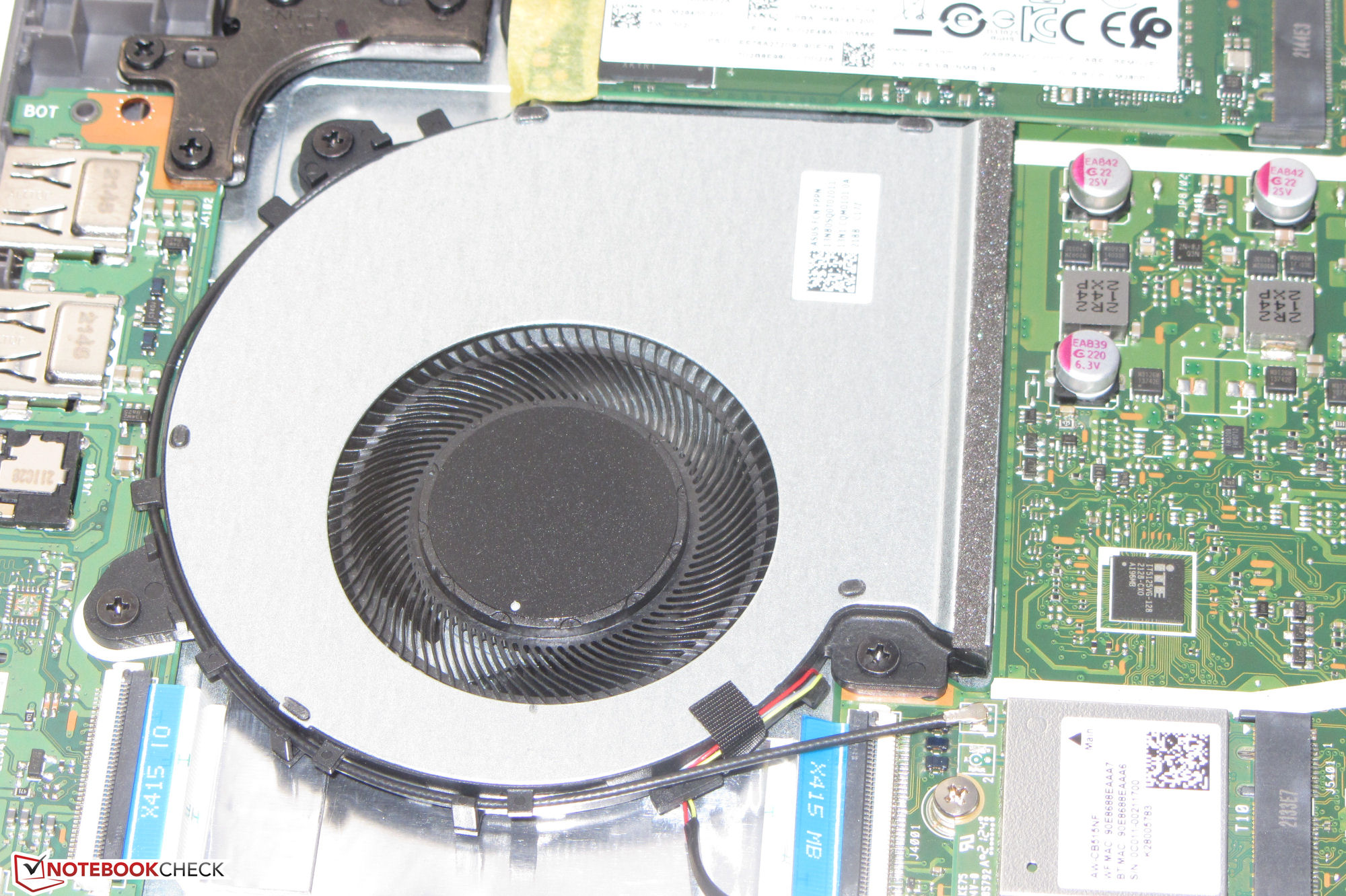

噪声排放
华硕F415EA在整个负载范围内只产生很少的风扇噪音。在闲置和日常使用中（办公室、互联网），安静的统治和风扇一般保持静止。
在负载情况下（压力测试， Witcher 3 ），声压级可以--但并不总是--上升到38.1分贝（A），这是一个可接受的水平。
Noise Level
| Idle |
| 26 / 26 / 26 dB(A) |
| Load |
| 36.9 / 38.1 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| Asus F415EA-EK115W Iris Xe G7 80EUs, i5-1135G7, Intel SSD 670p SSDPEKNU512GZ | Huawei MateBook D 14 (2021) Iris Xe G7 80EUs, i5-1135G7, Phison PS5013 311CD0512GB | Lenovo IdeaPad 3 14ITL6 82H700CCGE UHD Graphics Xe G4 48EUs, Celeron 6305, SK Hynix BC711 HFM128GD3HX015N | Gateway Ultra Slim 14.1 GWTC51427 Iris Xe G7 80EUs, i5-1235U, W800S W800SHMQ 512GB SSD | Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1 | |
|---|---|---|---|---|---|
| Noise | -5% | 3% | 4% | 0% | |
| off / environment * | 26 | 26 -0% | 25.4 2% | 23.1 11% | 26 -0% |
| Idle Minimum * | 26 | 26 -0% | 25.4 2% | 23.3 10% | 26 -0% |
| Idle Average * | 26 | 26 -0% | 25.4 2% | 23.3 10% | 26 -0% |
| Idle Maximum * | 26 | 26 -0% | 25.4 2% | 23.3 10% | 27.5 -6% |
| Load Average * | 36.9 | 42.9 -16% | 27.2 26% | 39.7 -8% | 34 8% |
| Load Maximum * | 38.1 | 42.6 -12% | 44.8 -18% | 40.7 -7% | 38.2 -0% |
| Witcher 3 ultra * | 40.5 |
* ... smaller is better

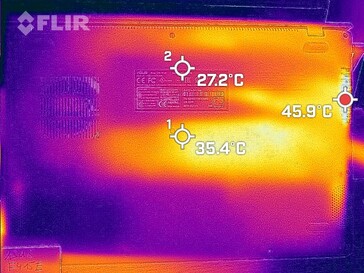

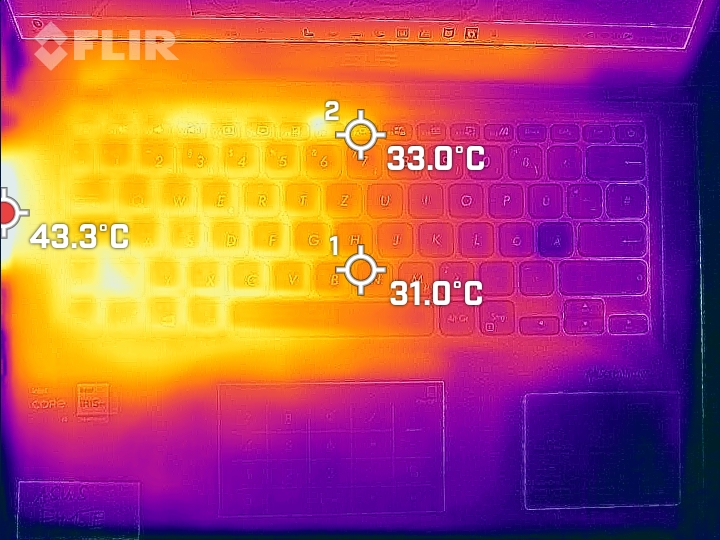

温度

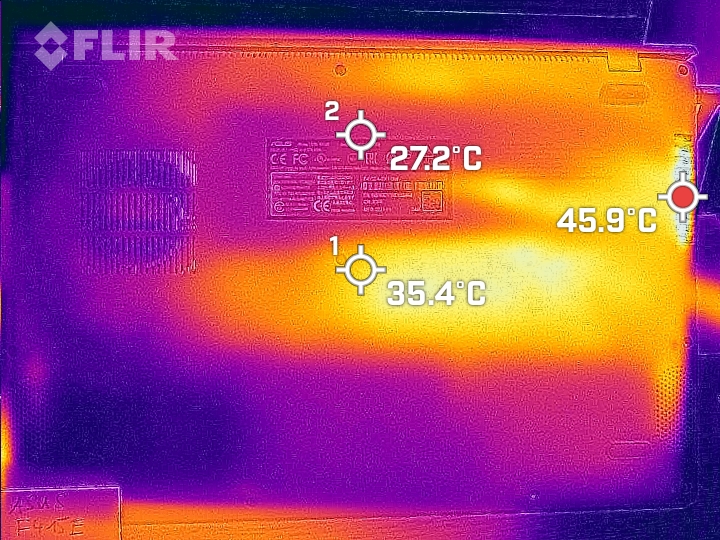

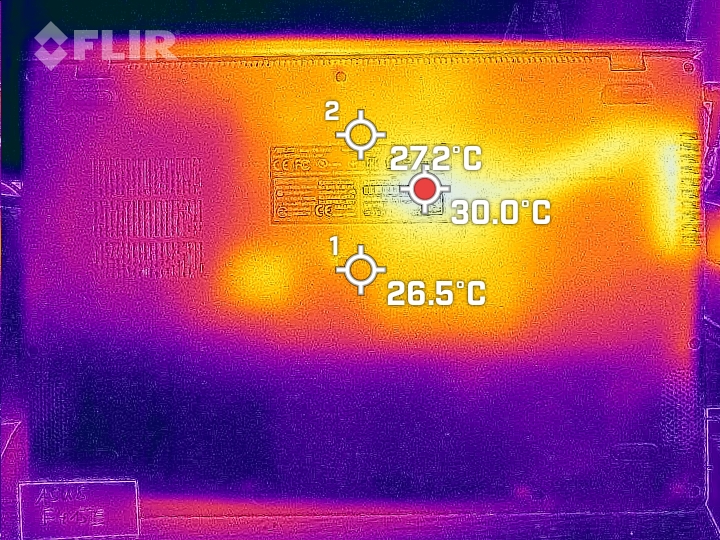

在日常使用中（办公室、互联网），机箱温度保持在绿色区域内。F415EA在负载（压力测试）下几乎没有升温。CPU的温度（约60°C）并没有引起任何关注。

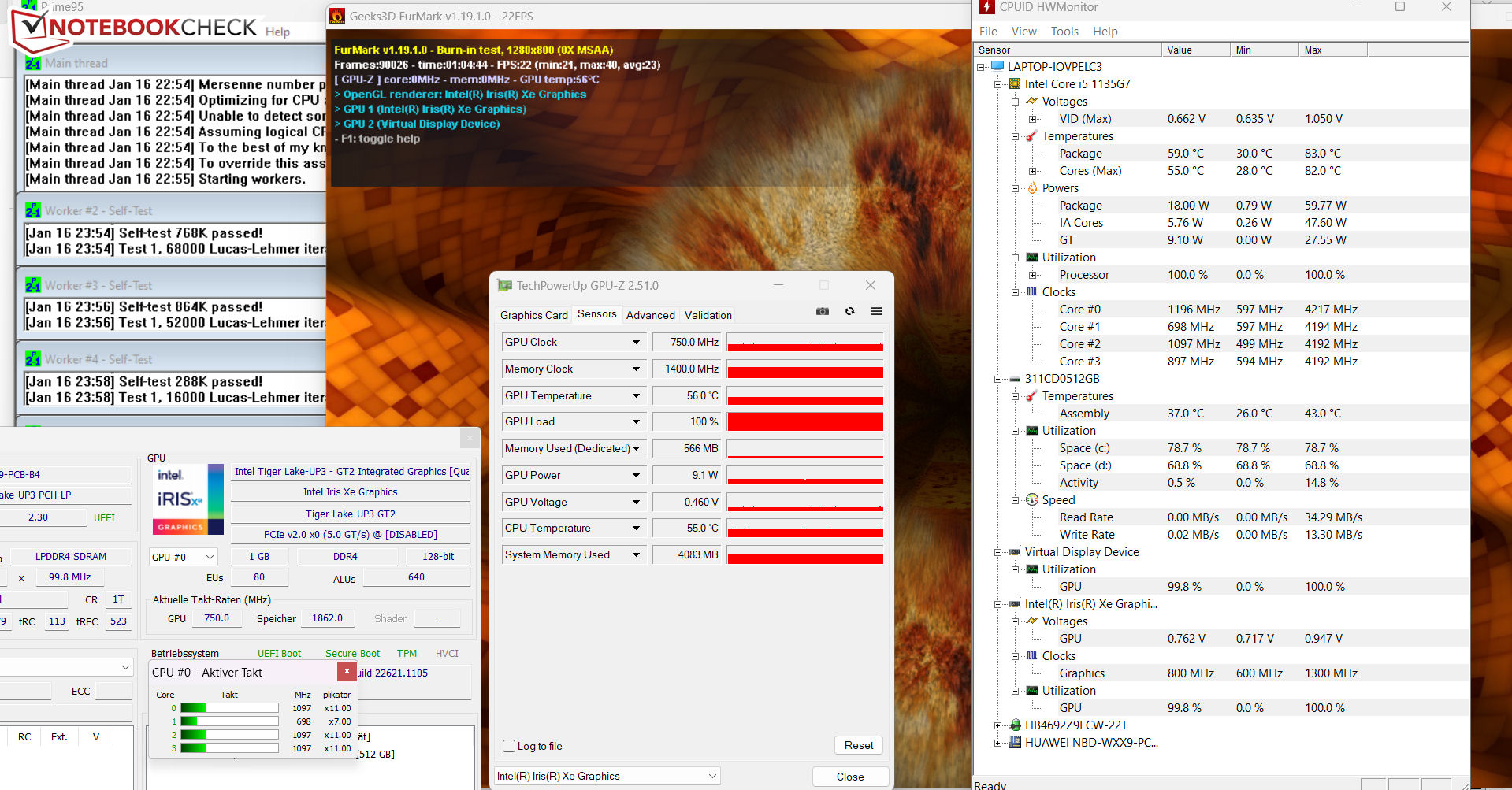

压力测试（Prime95和FurMark连续运行）是一个极端情况，以检查系统在全负荷下的稳定性。CPU和GPU分别以1.8 GHz和1,050 MHz开始测试。在测试的过程中，这些数值会下降。
(+) The maximum temperature on the upper side is 36.4 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 26.2 °C / 79 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-2.3 °C / -4.1 F).
| Asus F415EA-EK115W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Huawei MateBook D 14 (2021) Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo IdeaPad 3 14ITL6 82H700CCGE Intel Celeron 6305, Intel UHD Graphics Xe G4 48EUs | Gateway Ultra Slim 14.1 GWTC51427 Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs | Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | |
|---|---|---|---|---|---|
| Heat | -27% | -25% | -5% | -6% | |
| Maximum Upper Side * | 36.4 | 39.1 -7% | 38.6 -6% | 36.2 1% | 36 1% |
| Maximum Bottom * | 26.2 | 41.1 -57% | 41 -56% | 32.2 -23% | 38 -45% |
| Idle Upper Side * | 27.1 | 33.3 -23% | 32.6 -20% | 26.4 3% | 24.1 11% |
| Idle Bottom * | 28.5 | 34.8 -22% | 33.9 -19% | 28.4 -0% | 25.7 10% |
* ... smaller is better
扬声器
立体声扬声器能产生体面的声音，但几乎没有任何低音。
Asus F415EA-EK115W audio analysis
(+) | speakers can play relatively loud (85.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28% lower than median
(±) | linearity of bass is average (12.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(±) | linearity of mids is average (7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 12% higher than median
(±) | linearity of highs is average (9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.4% difference to median)
Compared to same class
» 84% of all tested devices in this class were better, 5% similar, 11% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 82% of all tested devices were better, 4% similar, 15% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Swift 3 SF314-43-R8BP audio analysis
(-) | not very loud speakers (71.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.3% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 3% similar, 13% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 78% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源消耗
这台笔记本电脑在能源消耗方面没有显示任何异常。对于安装在这里的硬件来说，耗电量似乎处于正常水平。附带的45W电源的尺寸足够大。
| Off / Standby | 0.24 / 0.15 Watt |
| Idle | 4.2 / 7.4 / 8.6 Watt |
| Load |
38.8 / 43.6 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption - The Witcher 3 / Stress test
Power consumption - External monitor
电池寿命
Pros
Cons
评语。一台有许多弱点的办公笔记本电脑
14英寸的华硕F415EA以酷睿i5处理器和低排放的组合得分。该设备几乎不发热，大部分时间运行安静，为办公和互联网使用以及适度的游戏提供足够的计算能力。
与价格相比，华硕F415EA提供了太多的弱点。

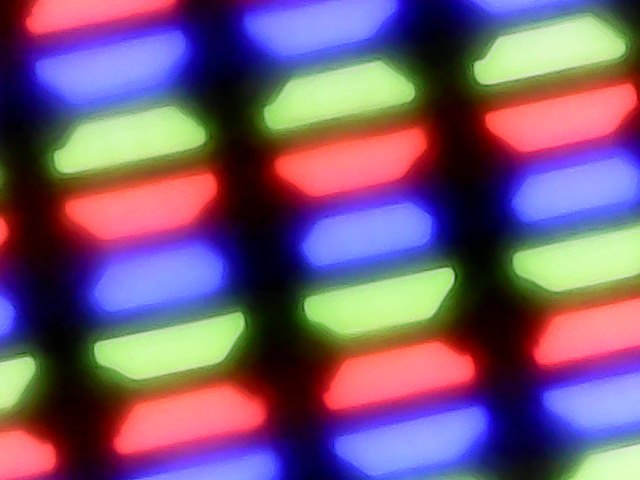

这个良好的出发点被糟糕的屏幕破坏了。华硕选择了一个14英寸FHD TN面板，视角不稳定，亮度低，对比度低。色彩再现和色彩空间覆盖率也不令人信服。只有哑光的表面能说明面板的问题。
尽管尺寸紧凑，重量相对较轻，但移动性不是很好。一块电池充电就足以让无线局域网运行不到6个小时--这是一个糟糕的速度。紧凑的专有的145克电源适配器应该总是随身携带。通过USB-C供电是不可能的。
如果销售价格相应较低，上述弱点是可以接受的。但现在的情况并非如此。在测试时，所测试的配置的售价在550至650欧元之间，这对于所提供的产品来说是很高的。
华硕F415EA的替代品是 华为MateBook D 14.它提供了一个别致的金属外壳，一个背光键盘，以及出色的电池运行时间。然而，它的弱点是，焊接的工作内存（8GB）不能扩展。
价格和可用性
华硕F415EA在测试配置中的价格为567欧元，在Technikdirekt.de。.Cyberport.de要求该设备的价格为639欧元。
Asus F415EA-EK115W
- 01/28/2023 v7 (old)
Sascha Mölck
Price comparison
