Acer Swift 3 SF314在审查中。AMD笔记本电脑没有花哨的飞行
Swift 3是宏碁的面包和主食笔记本电脑 - 一个廉价的模型，其入门级变体的价格是530欧元（约530美元）。因此，我们在过去测试了许多Swift型号，特别是英特尔变种和高端解决方案，如 雨燕X带GTX 1650手机和斯威夫特3X配有英特尔Iris Xe MAXdGPU。

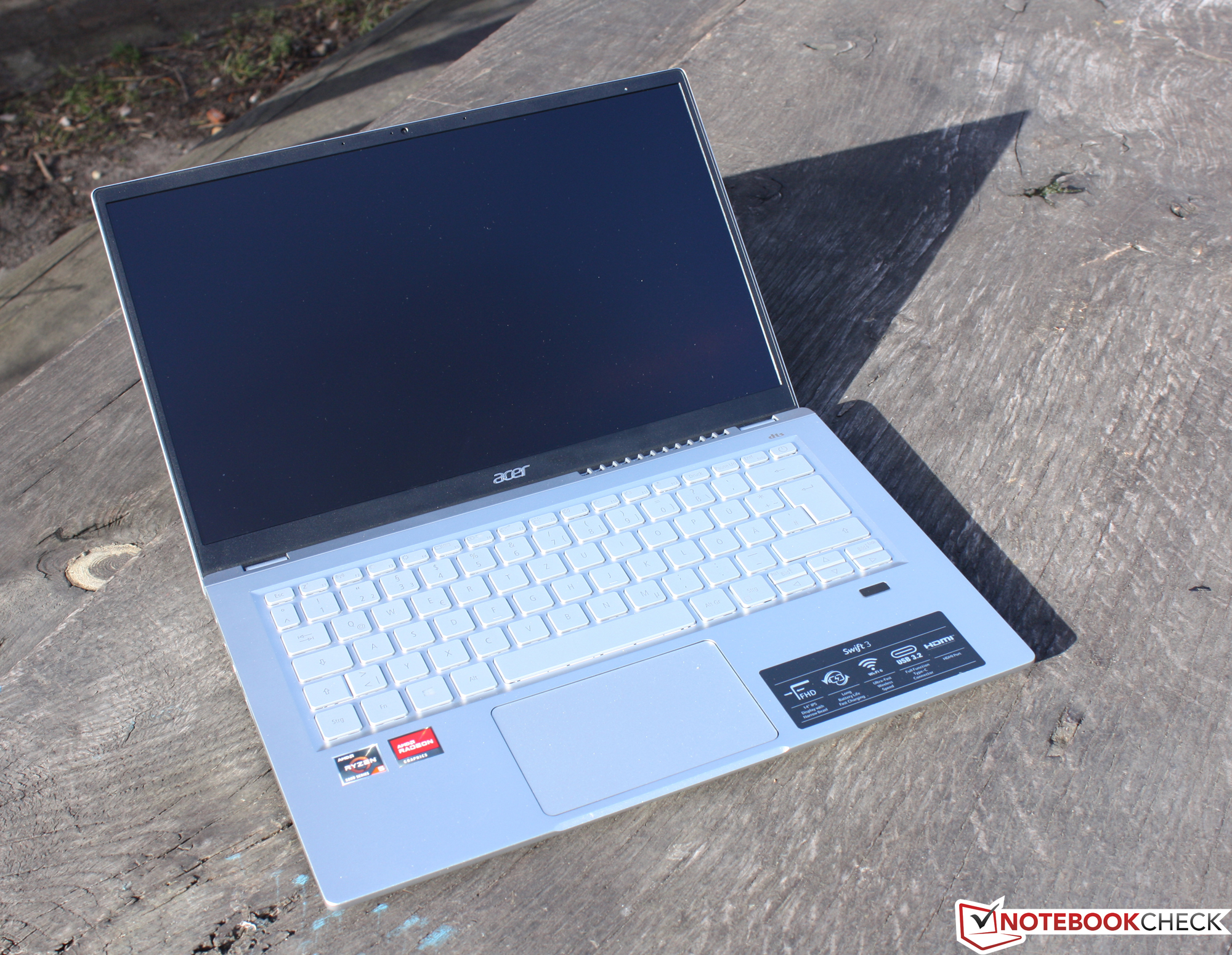

今天的更新是关于Swift系列中最小的笔记本之一，1.3公斤轻的SF314-43，配备了 Ryzen 5 5500U，16GB内存，和512GB固态硬盘。为了实现尽可能低的价格，零售商将该机型与Linux（eShell）一起发货。我们安装了Windows 11，其中的一个小分区也有必要的驱动程序。
由于平台策略，一个机箱用于技术上不同的变体，所以我们已经有了机箱、输入设备和端口，从 Swift X SFX14(GTX 1650)和英特尔的对应产品 Swift 3 SF314-511.因此，我们将跳过这些章节，请您参阅相应的评论。
其他宏碁Swift 14英寸设备的评论。
- Acer Swift X SFX14-41G-R7F3(Ryzen 5 5500U, GTX 1650 移动版)
- Acer Swift 3 SF314-511(i5-1135G7, Iris Xe Graphics G7 80EUs)
- Acer Swift 3X SF314-510G(i7-1165G7, IntelIris Xe MAX)
- Acer Swift 3 SF314-42(Ryzen 7 4700U, Radeon RX) - 6/2020
Acer Swift 3 SF314-43-R8BP (Swift 3 SF314 Series)
Processor
AMD Ryzen 5 5500U 6 x 2.1 - 4 GHz, 48 W PL2 / Short Burst, 37 W PL1 / Sustained, Lucienne-U (Zen 2)
Graphics adapter

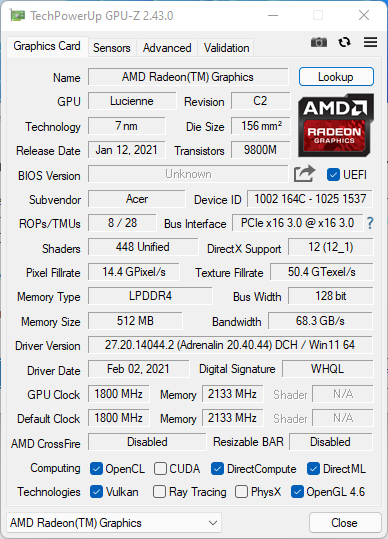

AMD Radeon RX Vega 7 - 512 MB VRAM, Core: 1800 MHz, RAM: 2133 MHz, LPDDR4, Adrenalin 20.40.44
Memory
16 GB
, DDR4 Dual Channel, onboard, no upgrade
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei N140HCA EAC CMN, IPS, glossy: no, 60 Hz

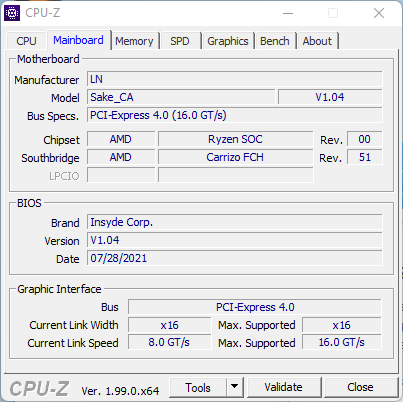

Mainboard
AMD Promontory/Bixby FCH
Storage
Kingston OM8PDP3512B-AI1, 512 GB
, M.2 80, 3.5 GB Windriver partition, 372 GB free
Weight

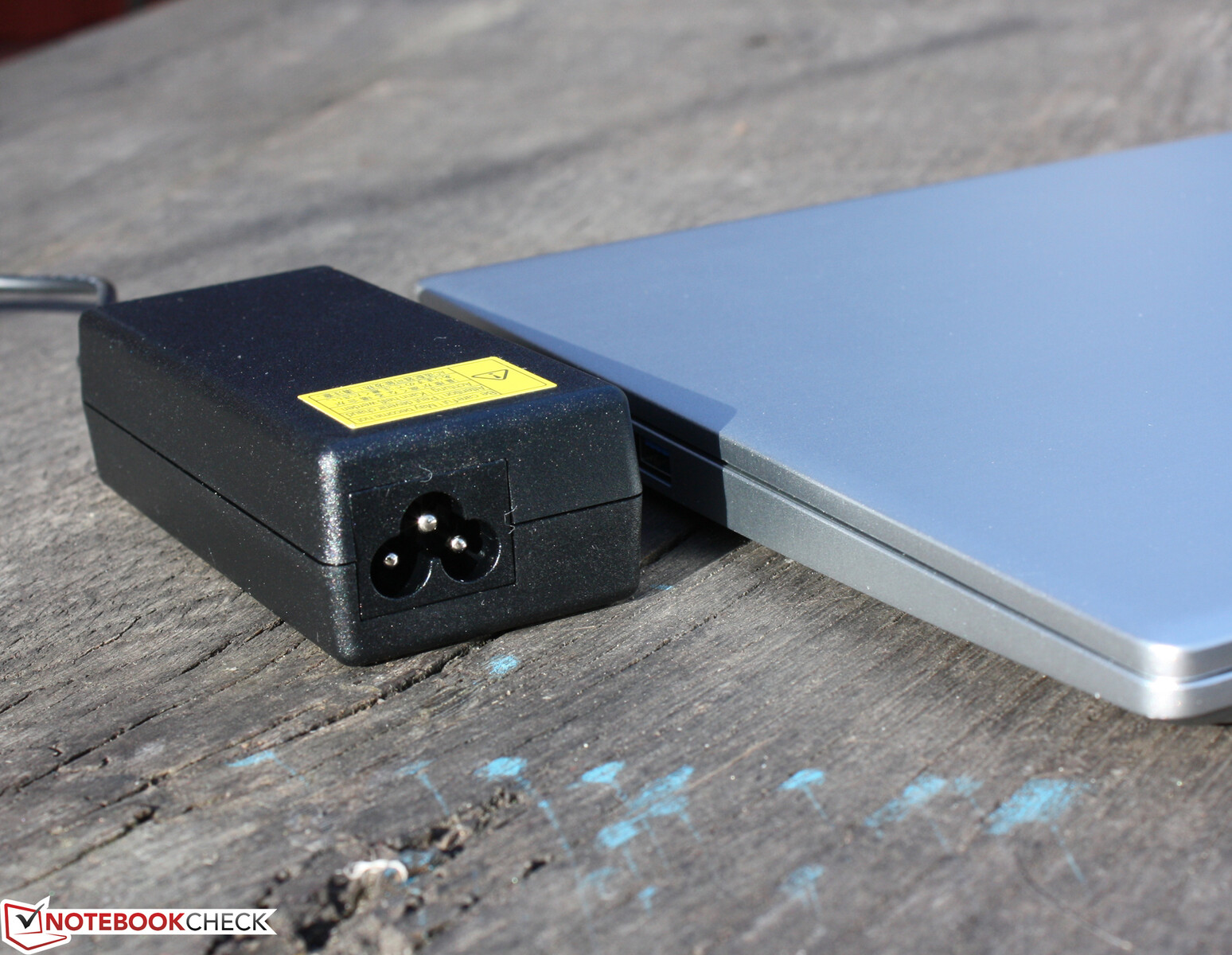

1.319 kg, Power Supply: 313 g
Price
750 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 86 % v7 (old) | 03 / 2022 | Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7 | 1.3 kg | 16.5 mm | 14.00" | 1920x1080 | |
| 88.2 % v7 (old) | 02 / 2022 | Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs | 1.2 kg | 16.55 mm | 14.00" | 1920x1080 | |
| 86.7 % v7 (old) | 08 / 2021 | Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7 | 1.6 kg | 17.9 mm | 14.00" | 1920x1080 | |
| 84.8 % v7 (old) | 01 / 2022 | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 19 mm | 14.00" | 1920x1080 | |
| 84.8 % v7 (old) | 01 / 2022 | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 20.9 mm | 14.00" | 1920x1080 | |
| 83.6 % v7 (old) | Lenovo ThinkBook 14 G2 ITL 20VDS02G00 i3-1115G4, UHD Graphics Xe G4 48EUs | 1.5 kg | 17.9 mm | 14.00" | 1920x1080 |

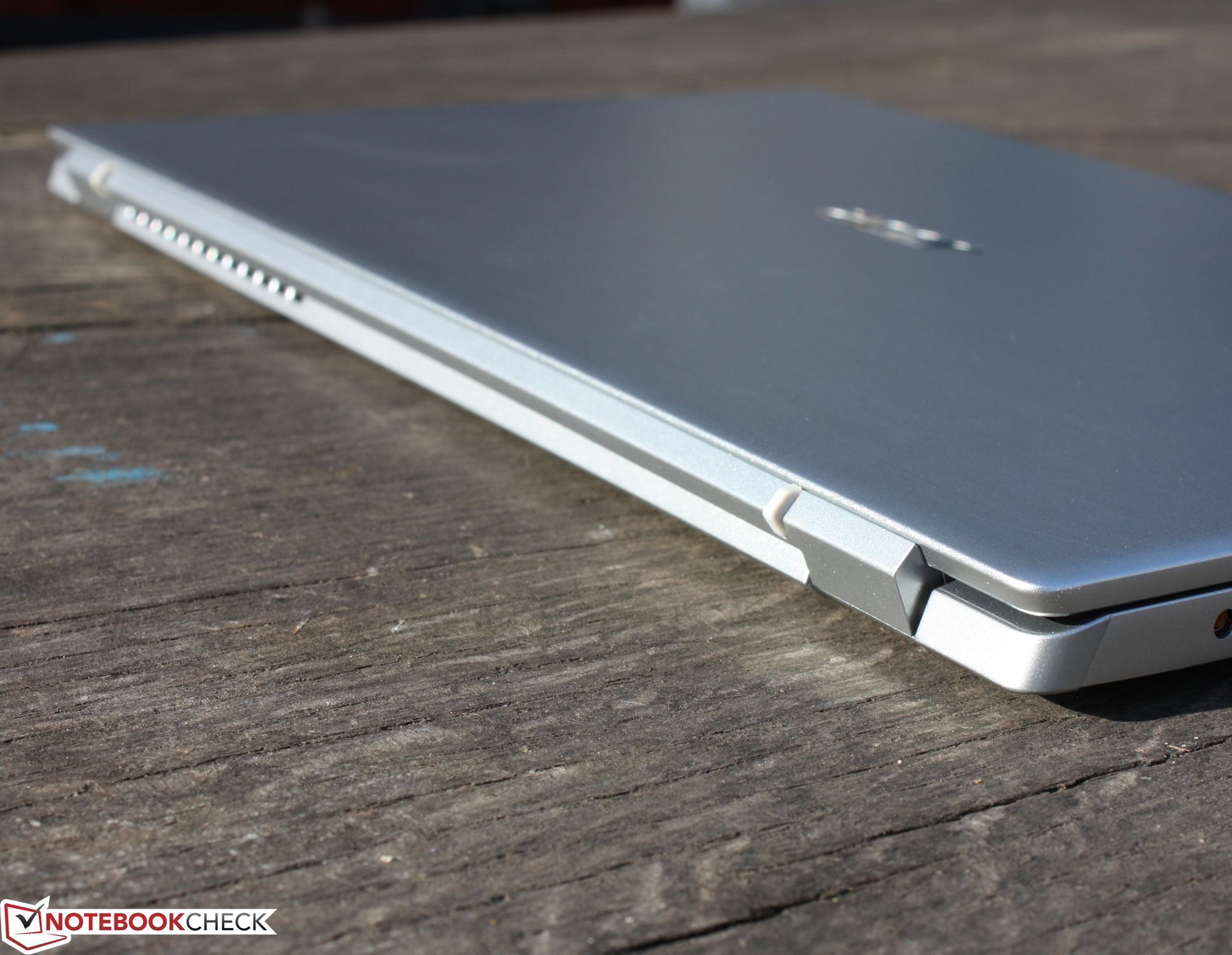

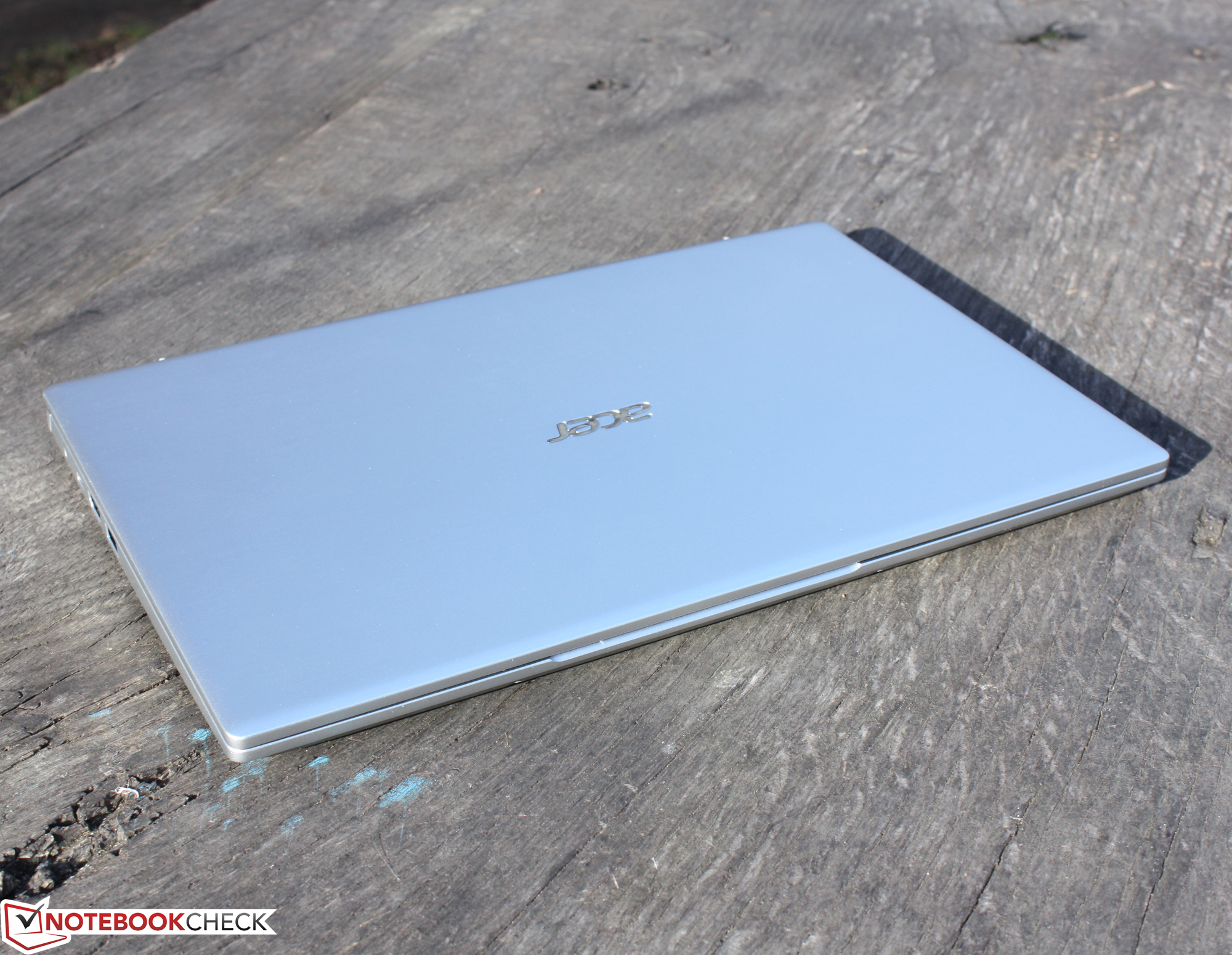

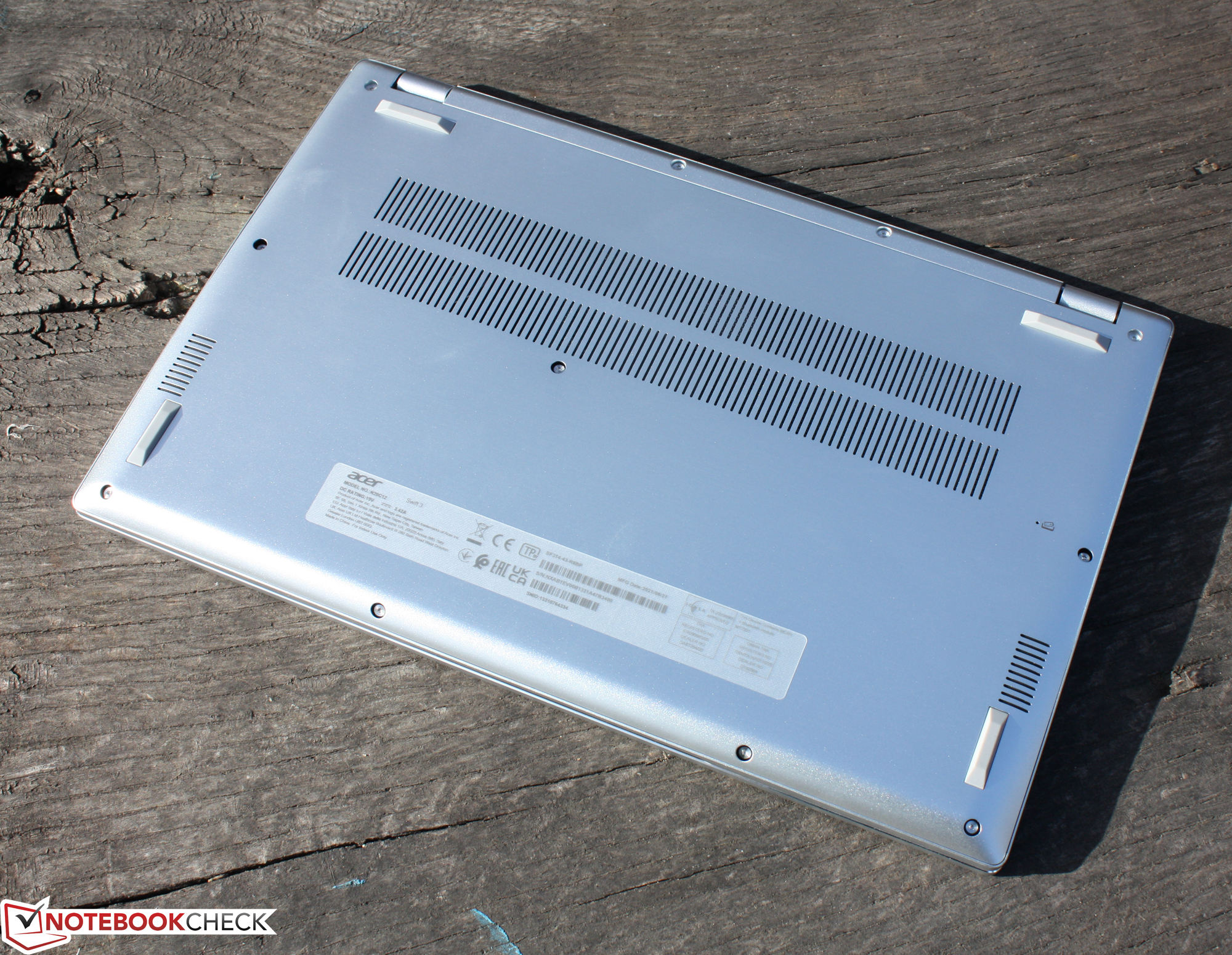

案例：稳定的Swift 3
设备。联发科的Wi-Fi太慢了

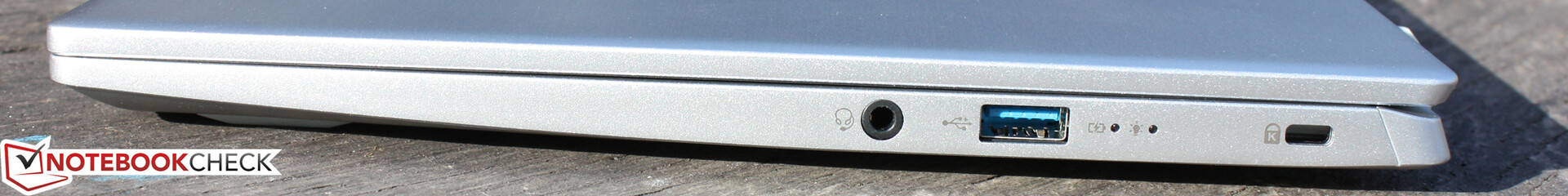

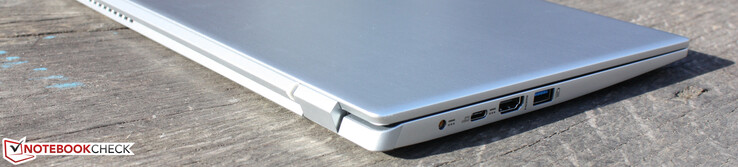

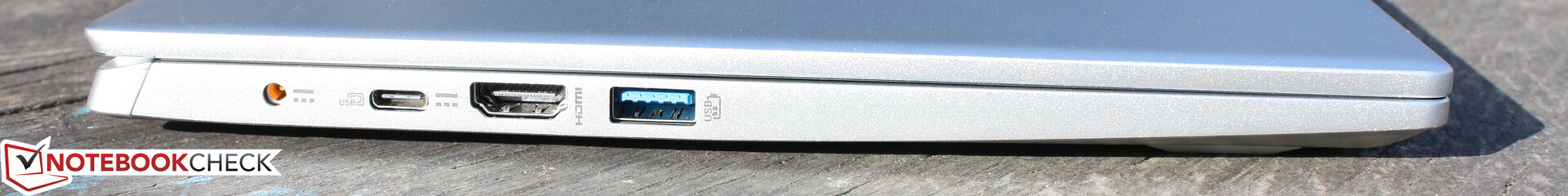

这些端口与 Swift X.不幸的是，糟糕的Wi-Fi性能也与Swift X相同。下载速度似乎是一场灾难，这也是Swift X的问题。 雨燕X也有同样的问题。在最佳条件下确定的传输速度（附近没有其他WLAN设备，笔记本电脑和服务器PC之间有一米的距离），结果是非常糟糕的，只有182MBit/s左右（几个随机样本）。
然而，在传输时，联发科Wi-Fi芯片的速度要快得多，约为871MBit/s。这是一个很好的结果，尽管不是真的令人振奋。发送和接收速度之间的差异表明有一个驱动问题，我们认为这个问题可以通过未来的驱动更新来弥补。
然而，问题确实出现了，在全封闭的铝制盖子上，天线安装在哪里？话虽如此，这不可能是得分低的原因，因为否则上传的分数也会同样低。
| Networking | |
| iperf3 transmit AX12 | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
| Average MediaTek MT7921 (548 - 985, n=16) | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| HP Pavilion 14-dv0357ng | |
| iperf3 receive AX12 | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Average MediaTek MT7921 (90 - 972, n=16) | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-43-R8BP | |
Acer Swift 3 SF314-43-R8BP MediaTek MT7921; iperf3 receive AX12; iperf 3.1.3: Ø181.8 (47-494)
Acer Swift 3 SF314-511-54ZK Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø1230 (785-1353)
Lenovo ThinkPad E14 G3-20Y7003SGE RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø776 (405-842)
Acer Swift 3 SF314-43-R8BP MediaTek MT7921; iperf3 transmit AX12; iperf 3.1.3: Ø871 (601-1018)
Acer Swift 3 SF314-511-54ZK Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø1361 (1269-1443)
Lenovo ThinkPad E14 G3-20Y7003SGE RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø856 (441-906)

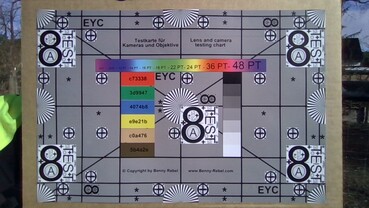

网络摄像头
7.4 ∆E
16.1 ∆E
20 ∆E
17.1 ∆E
19 ∆E
17.5 ∆E
10.7 ∆E
15.3 ∆E
13.2 ∆E
10.7 ∆E
16.2 ∆E
21.3 ∆E
7.8 ∆E
20.8 ∆E
14.8 ∆E
13.5 ∆E
14.3 ∆E
21.7 ∆E
2.9 ∆E
11.8 ∆E
20.8 ∆E
18.2 ∆E
10.2 ∆E
7.8 ∆E

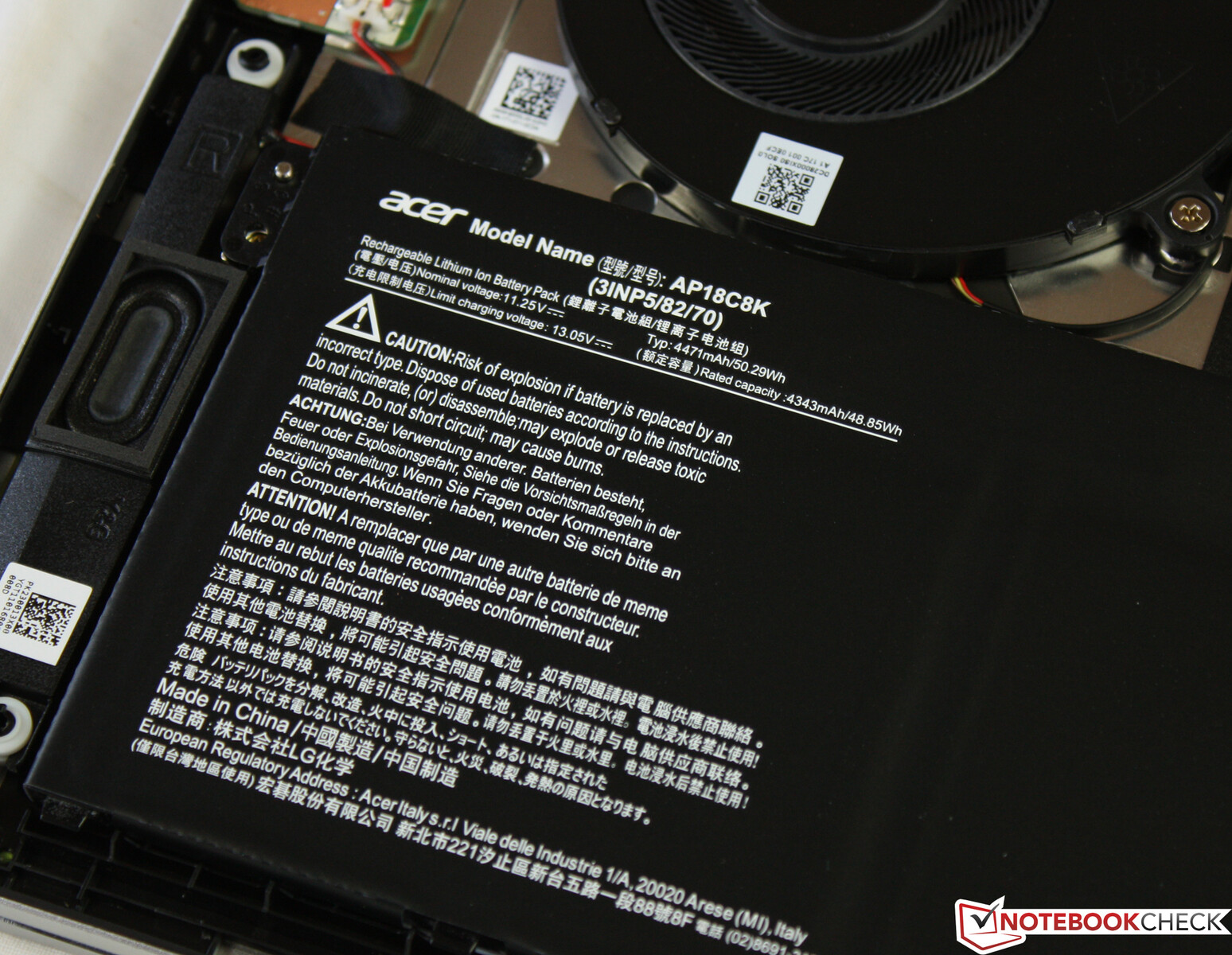

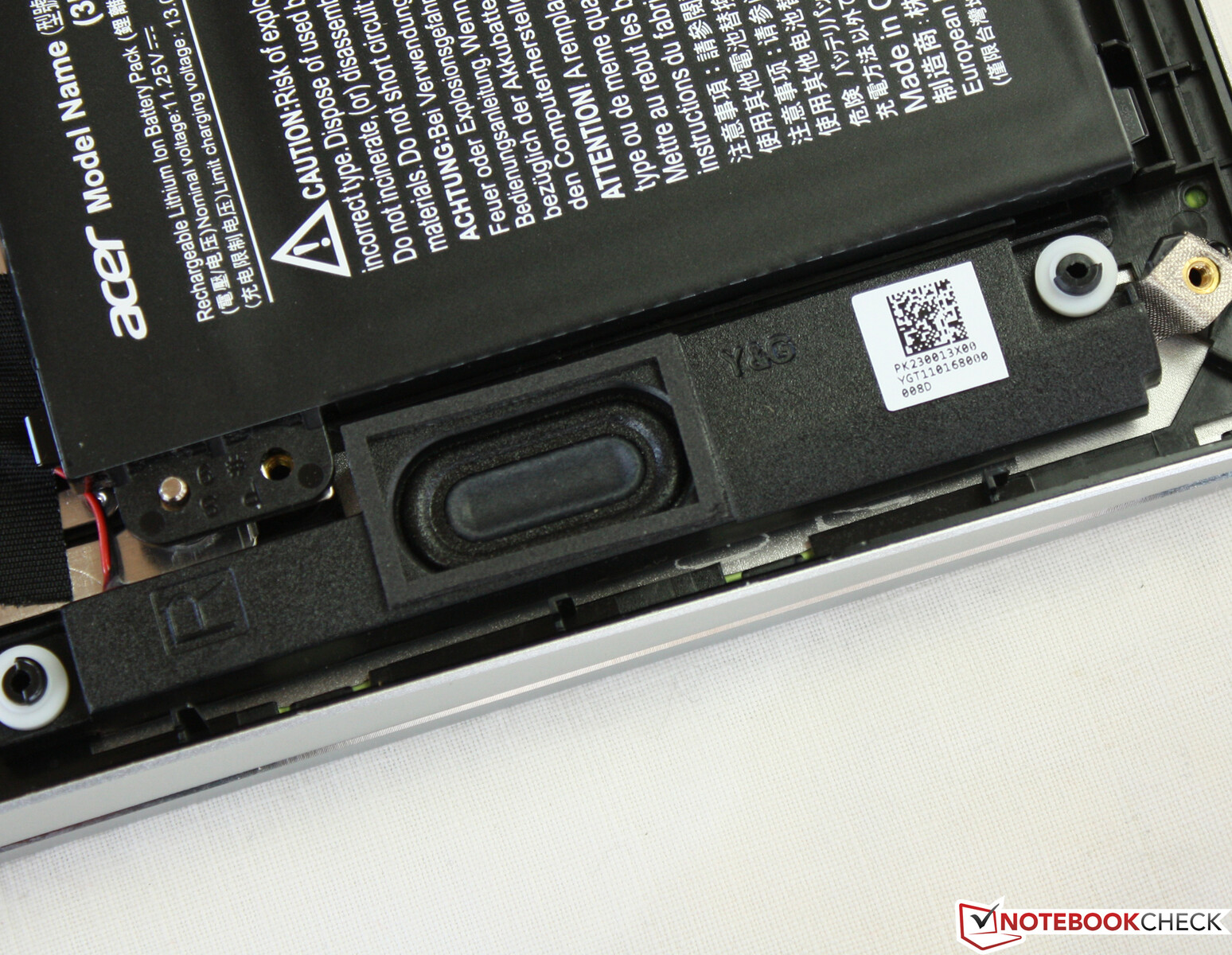

维护

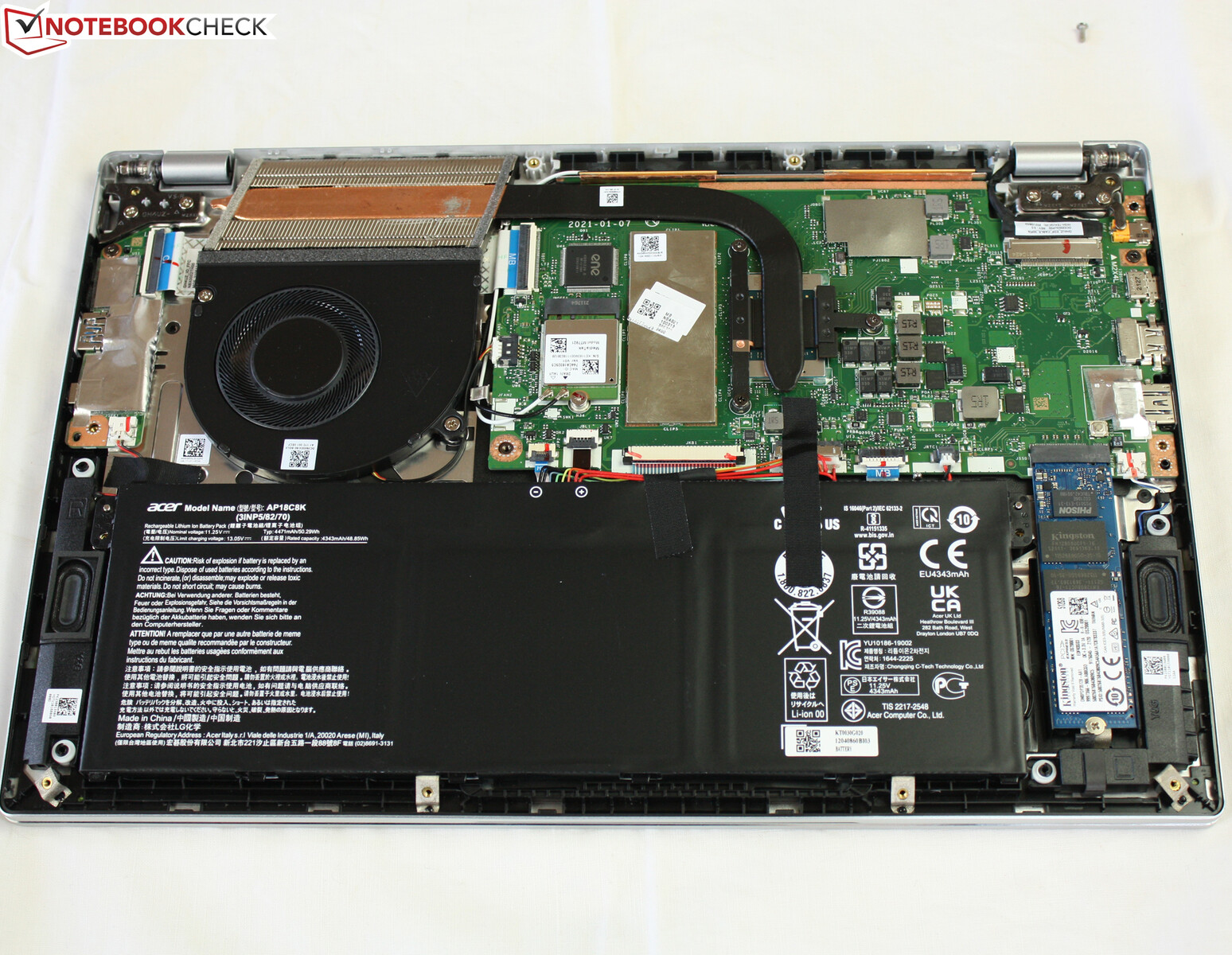

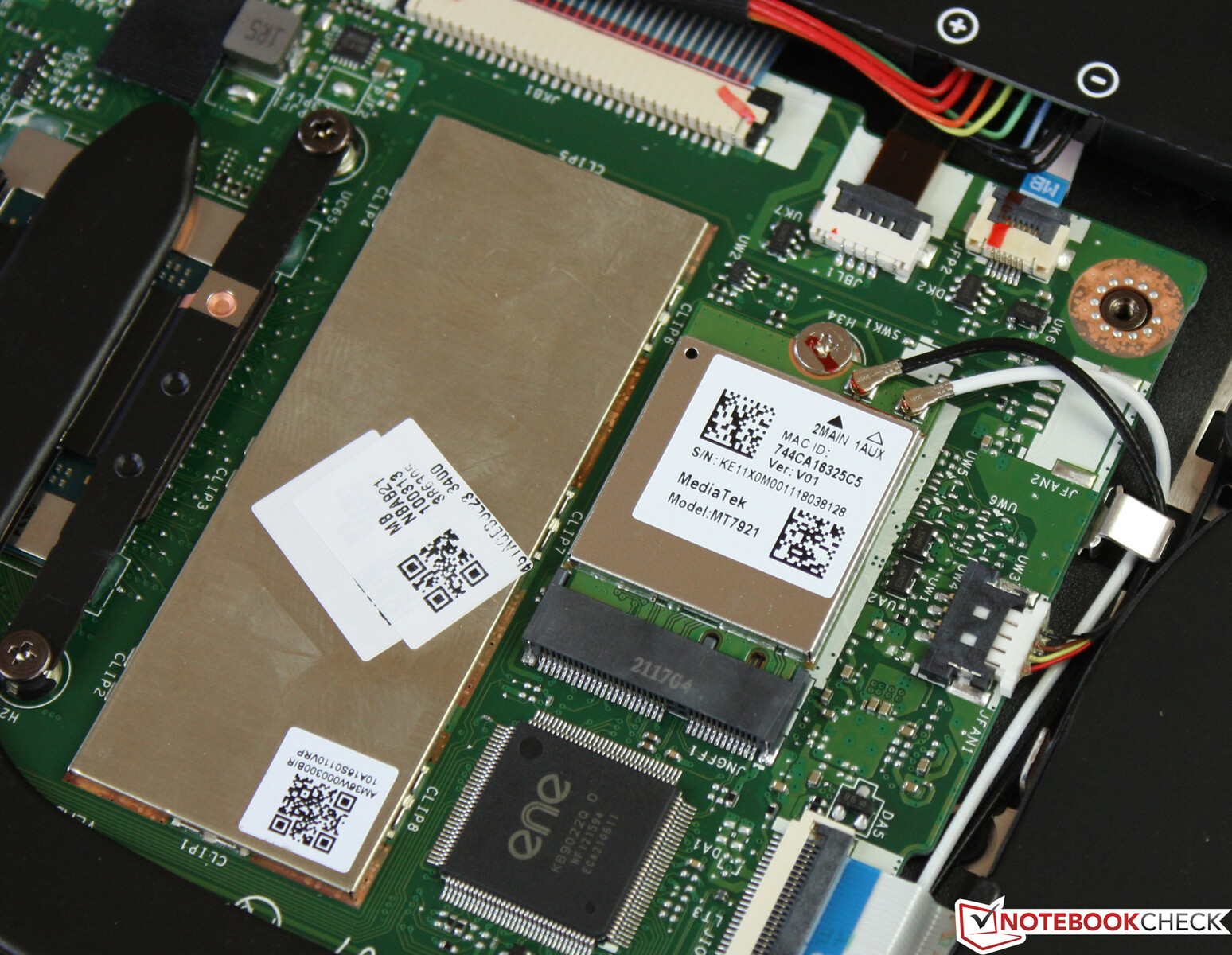

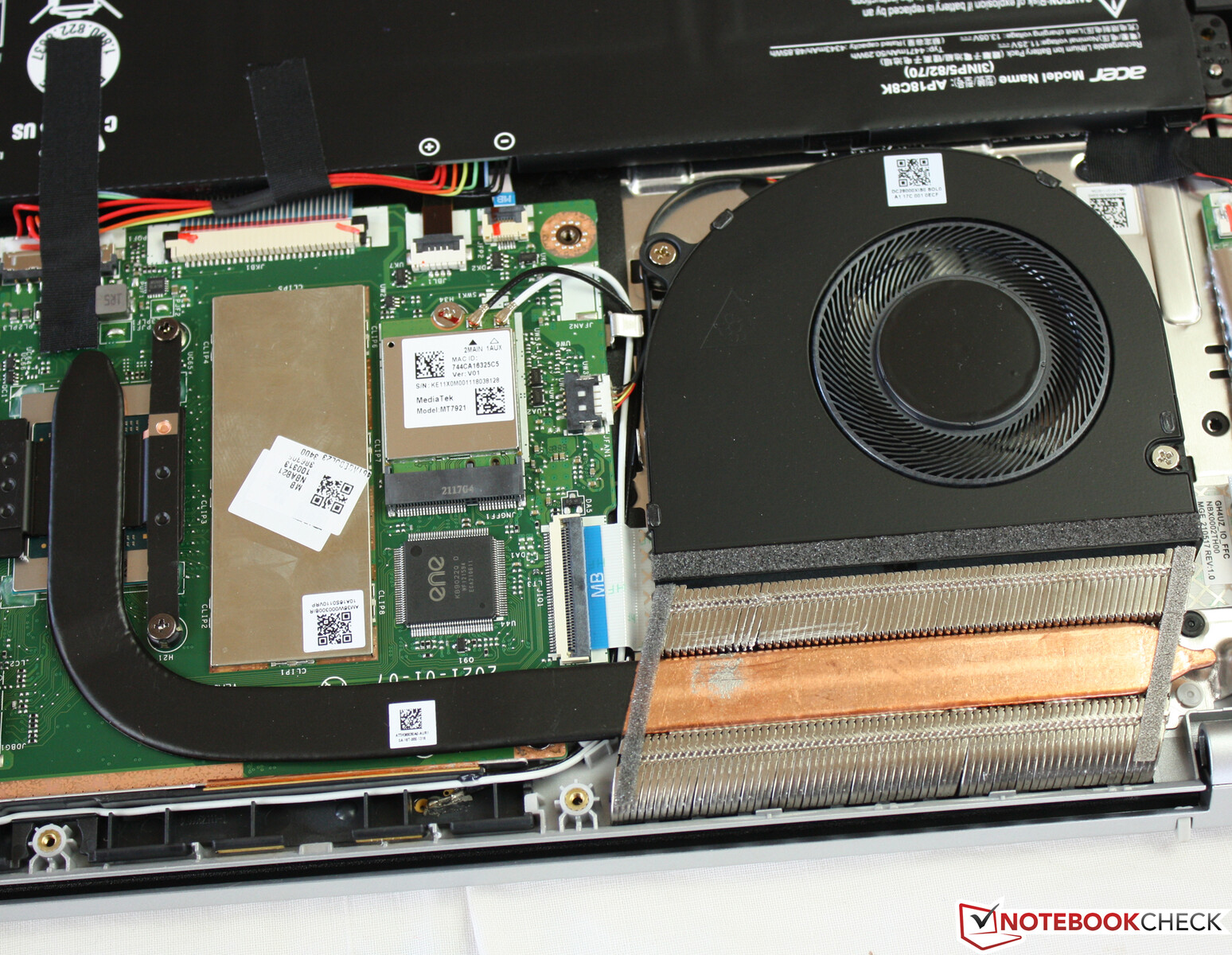

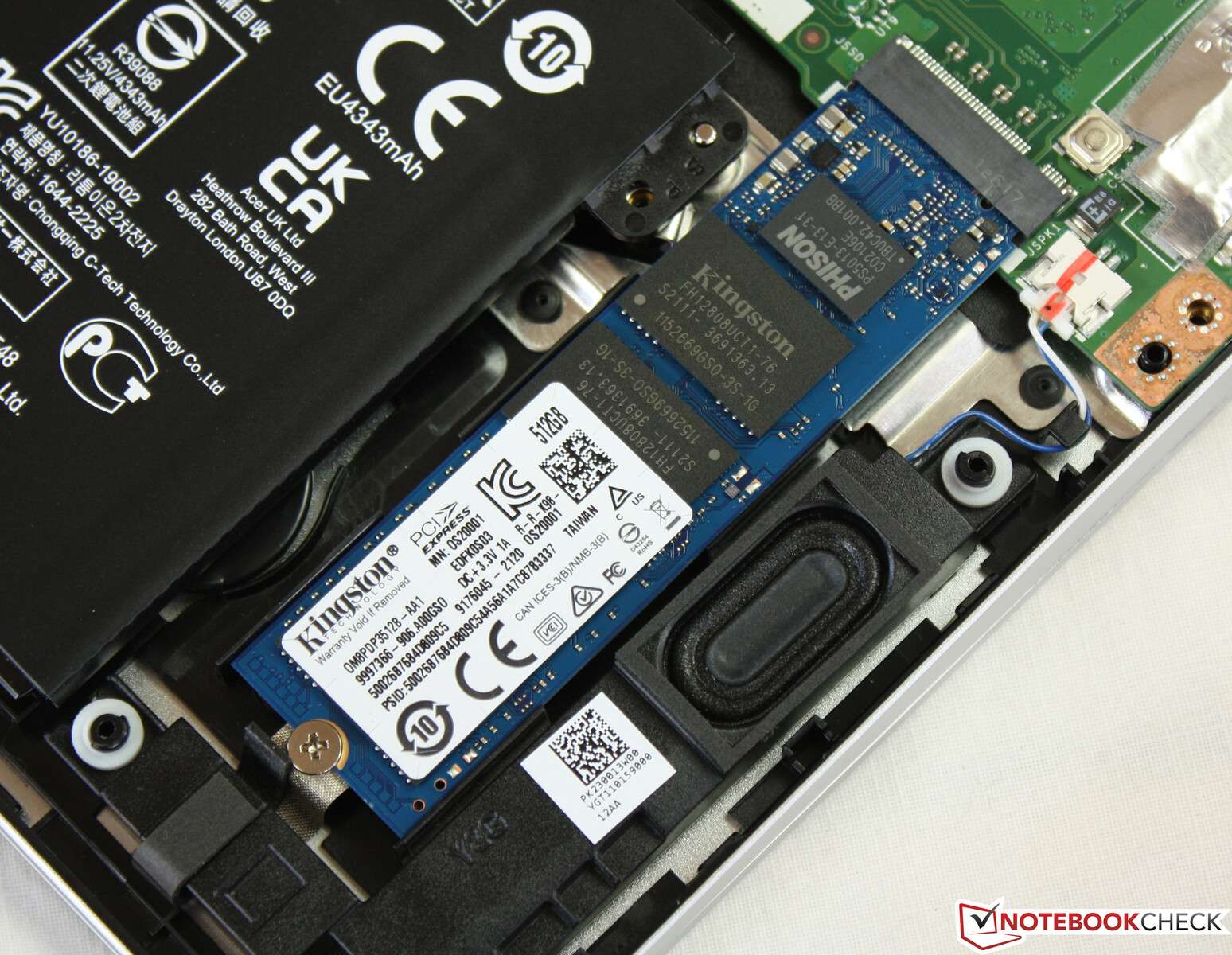

Swift 3的WLAN卡可以升级。固态硬盘以后也可以换成更大的型号。没有像Swift X那样的第二个M.2插槽。 斯威夫特X.工作内存是焊接的。

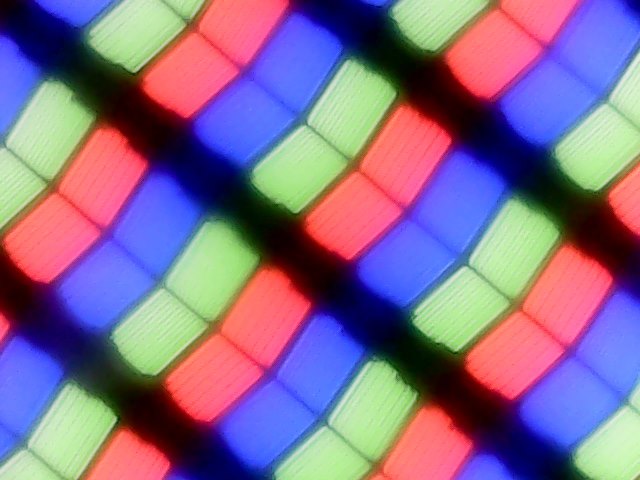

显示器。宏碁的屏幕发光太弱了
虽然Swift X SFX14-41G和 Swift 3 SF314-511配备了友达面板（B140HAN06），在我们的测试中表现出色，而我们现在的机型则依靠智美屏幕（N140HCA EAC CMN）。这似乎是一个更糟糕的选择，因为sRGB空间不再被完全覆盖，亮度也更低。然而，对比度的差异是可以忽略不计的。
亮度明显向屏幕中心增加，但没有明显的背光渗漏。只要在Radeon设置中禁用AMD Vari Bright，电池模式下的亮度就会保持不变。
这里的一个消极方面是，当亮度为20%和低时，显示器使用PWM来降低亮度。也就是说，25,000赫兹的高频率应该不会对眼睛造成压力。此外，大多数用户会发现在如此低的亮度下很难在屏幕上工作，因为即使在室内，20%的亮度也简直太暗了。
| |||||||||||||||||||||||||
Chi Mei N140HCA EAC CMN tested with X-Rite i1Pro 2
Maximum: 259 cd/m² (Nits) Average: 228.7 cd/m² Minimum: 21 cd/m²Brightness Distribution: 78 %
Center on Battery: 259 cd/m²
Contrast: 1079:1 (Black: 0.24 cd/m²)

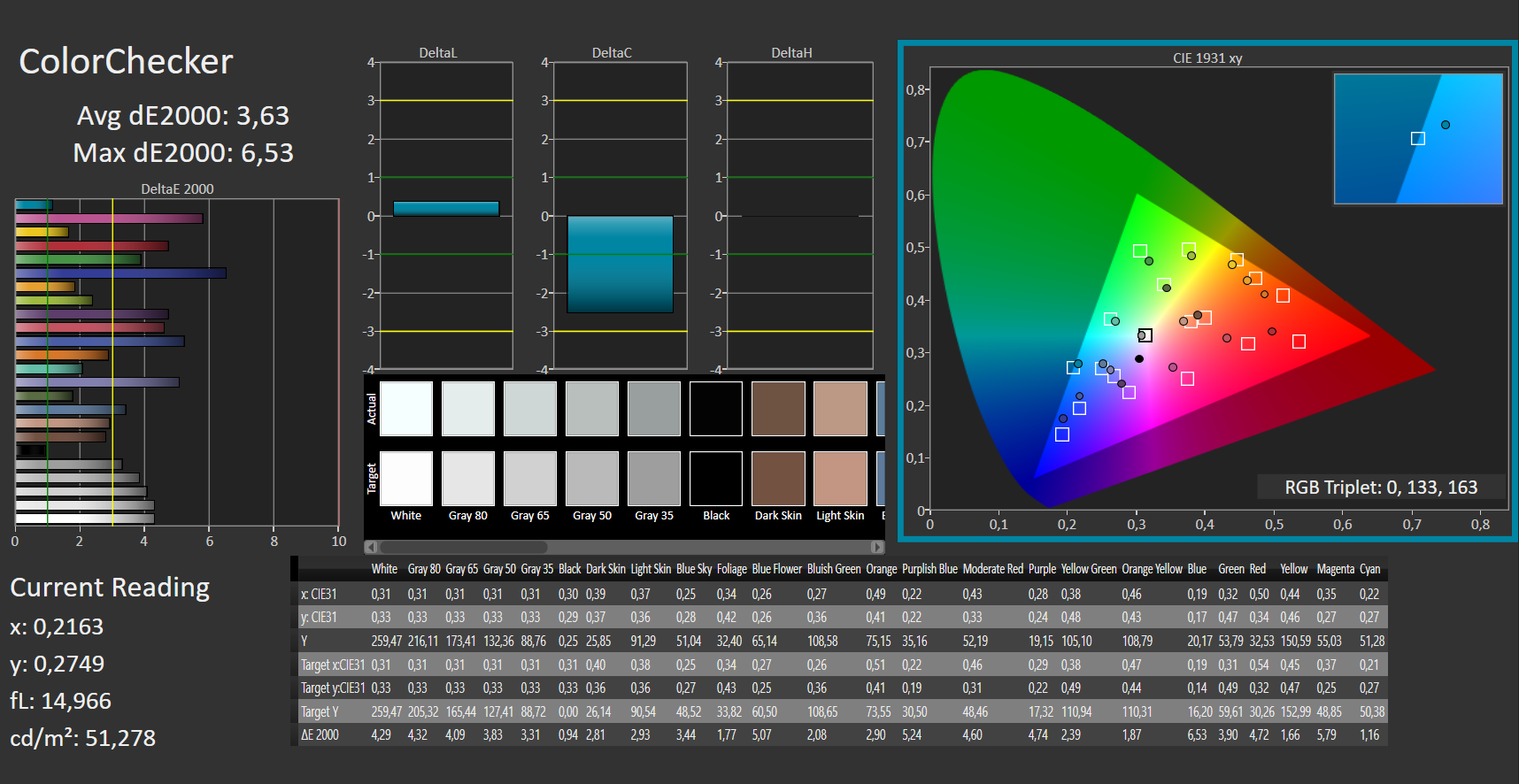

ΔE Color 3.63 | 0.5-29.43 Ø4.91, calibrated: 3.83

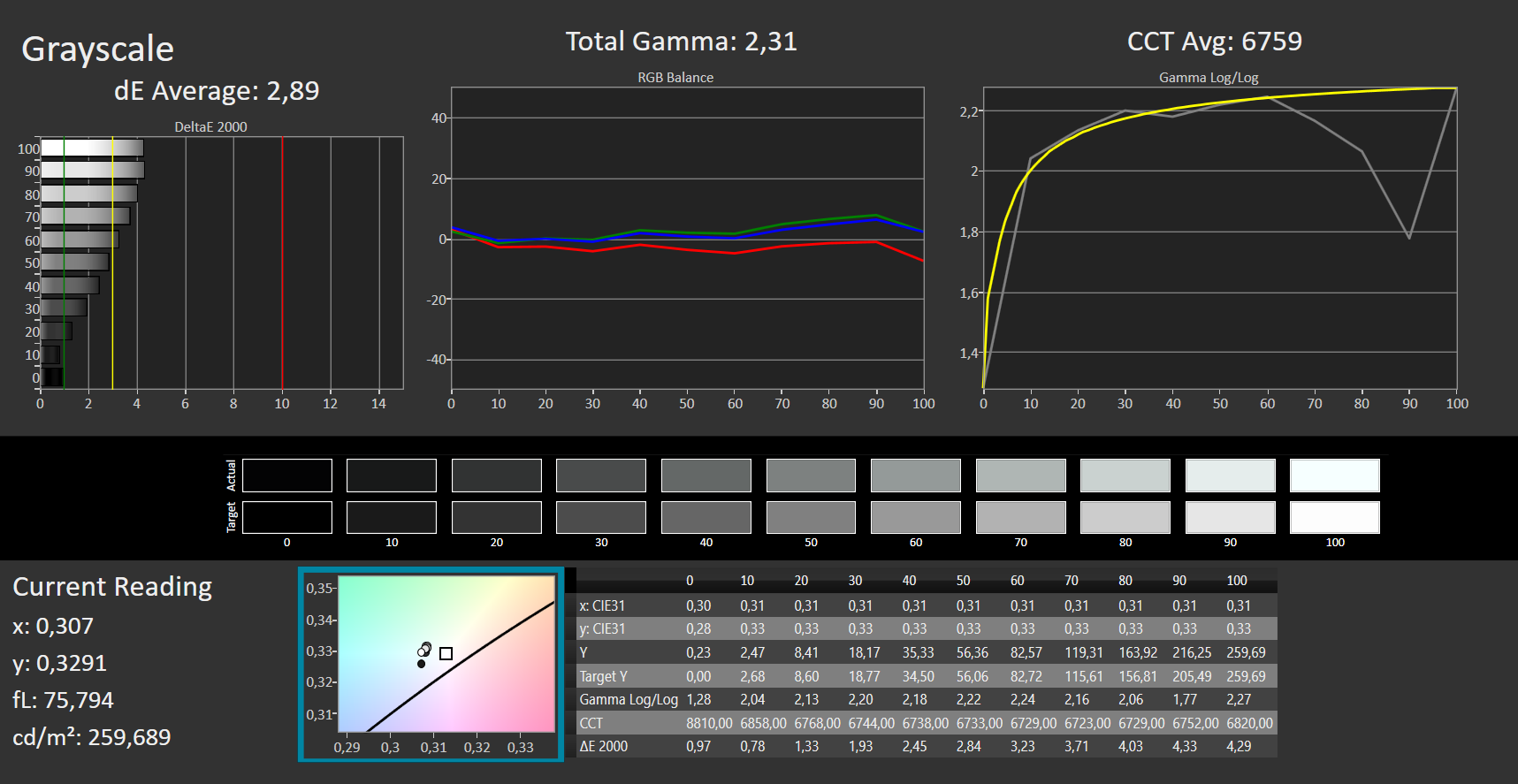

ΔE Greyscale 2.89 | 0.5-98 Ø5.2
45% AdobeRGB 1998 (Argyll 2.2.0 3D)
65% sRGB (Argyll 2.2.0 3D)
43% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31
| Acer Swift 3 SF314-43-R8BP Chi Mei N140HCA EAC CMN, IPS, 1920x1080, 14" | Acer Swift 3 SF314-511-54ZK AUO B140HAN06, IPS, 1920x1080, 14" | Lenovo ThinkPad E14 G3-20Y7003SGE NVM140FHM-N4V, IPS, 1920x1080, 14" | HP Pavilion 14-dv0357ng LGD0619, IPS, 1920x1080, 14" | Dell Latitude 14 5420-D2G5W AUO5491 / B140HAN, IPS, 1920x1080, 14" | Lenovo ThinkBook 14 G2 ITL 20VDS02G00 AU Optronics B140HAN04.E, a-Si IPS LED, 1920x1080, 14" | |
|---|---|---|---|---|---|---|
| Display | 53% | -7% | 42% | -17% | -14% | |
| Display P3 Coverage | 43 | 67 56% | 40.3 -6% | 62 44% | 36 -16% | 37.2 -13% |
| sRGB Coverage | 65 | 98 51% | 59.5 -8% | 92 42% | 54 -17% | 55.5 -15% |
| AdobeRGB 1998 Coverage | 45 | 69 53% | 41.7 -7% | 63 40% | 37 -18% | 38.4 -15% |
| Response Times | -27% | 11% | 18% | -6% | -18% | |
| Response Time Grey 50% / Grey 80% * | 37 ? | 52 ? -41% | 35.2 ? 5% | 37 ? -0% | 41 ? -11% | 45.9 ? -24% |
| Response Time Black / White * | 26 ? | 29 ? -12% | 21.6 ? 17% | 17 ? 35% | 26 ? -0% | 29 ? -12% |
| PWM Frequency | 25000 ? | |||||
| Screen | 28% | -10% | -10% | -3% | -27% | |
| Brightness middle | 259 | 320 24% | 341 32% | 387 49% | 290 12% | 386 49% |
| Brightness | 229 | 309 35% | 327 43% | 359 57% | 282 23% | 348 52% |
| Brightness Distribution | 78 | 84 8% | 90 15% | 84 8% | 81 4% | 83 6% |
| Black Level * | 0.24 | 0.25 -4% | 0.26 -8% | 0.55 -129% | 0.26 -8% | 0.29 -21% |
| Contrast | 1079 | 1280 19% | 1312 22% | 704 -35% | 1115 3% | 1331 23% |
| Colorchecker dE 2000 * | 3.63 | 2.57 29% | 5.1 -40% | 4.04 -11% | 4.65 -28% | 6.3 -74% |
| Colorchecker dE 2000 max. * | 6.53 | 3.5 46% | 17.6 -170% | 8.28 -27% | 7.5 -15% | 18.3 -180% |
| Colorchecker dE 2000 calibrated * | 3.83 | 0.76 80% | 4.4 -15% | 1 74% | 3.98 -4% | 4.1 -7% |
| Greyscale dE 2000 * | 2.89 | 2.46 15% | 2.1 27% | 5 -73% | 3.22 -11% | 5.4 -87% |
| Gamma | 2.31 95% | 2.23 99% | 2.11 104% | 2.62 84% | 2.54 87% | 2.55 86% |
| CCT | 6759 96% | 6311 103% | 6755 96% | 7123 91% | 6169 105% | 5894 110% |
| Total Average (Program / Settings) | 18% /
26% | -2% /
-7% | 17% /
5% | -9% /
-6% | -20% /
-23% |
* ... smaller is better
AdobeRGB（45%）和sRGB（65%）色彩空间不能完全再现。

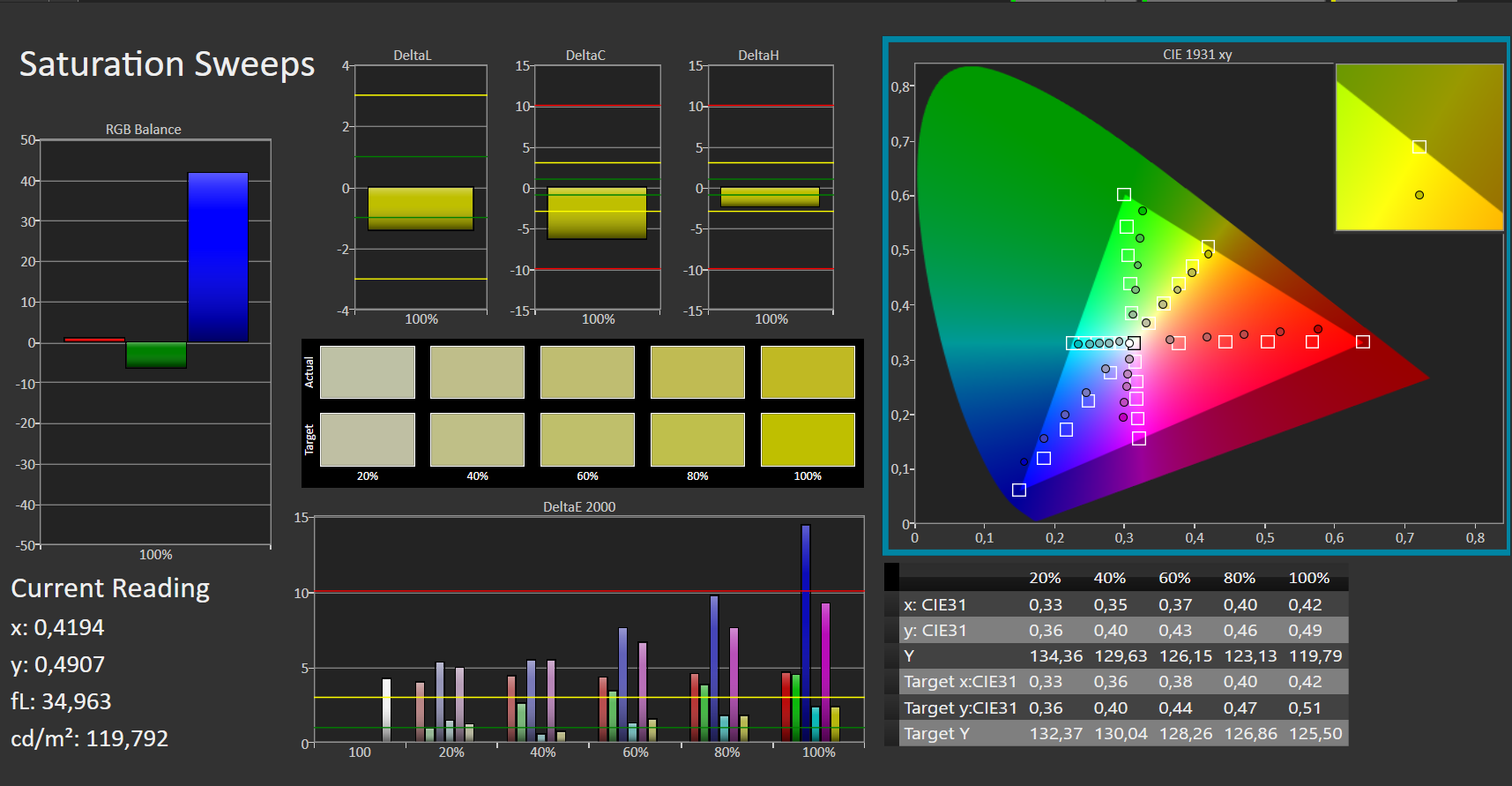

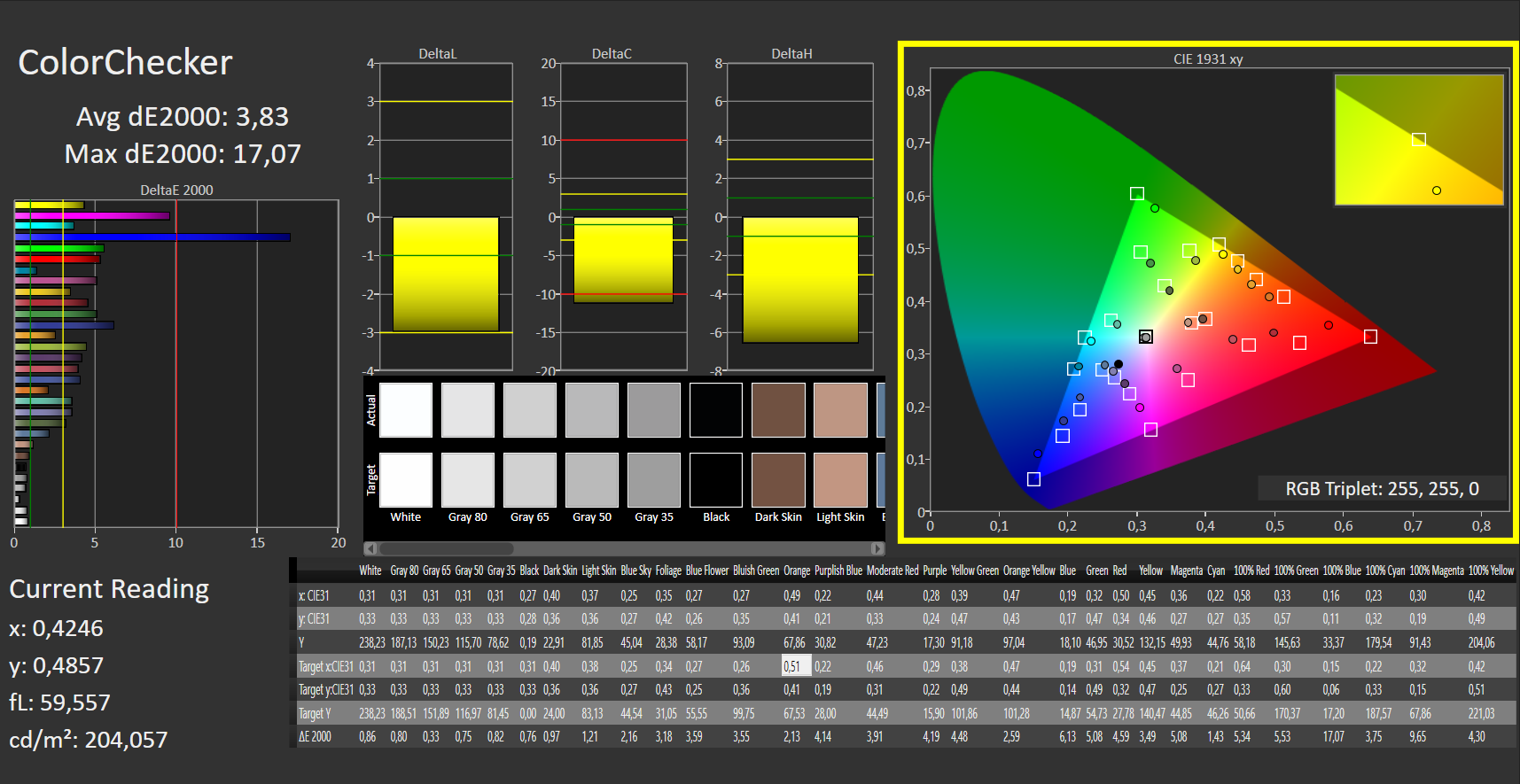

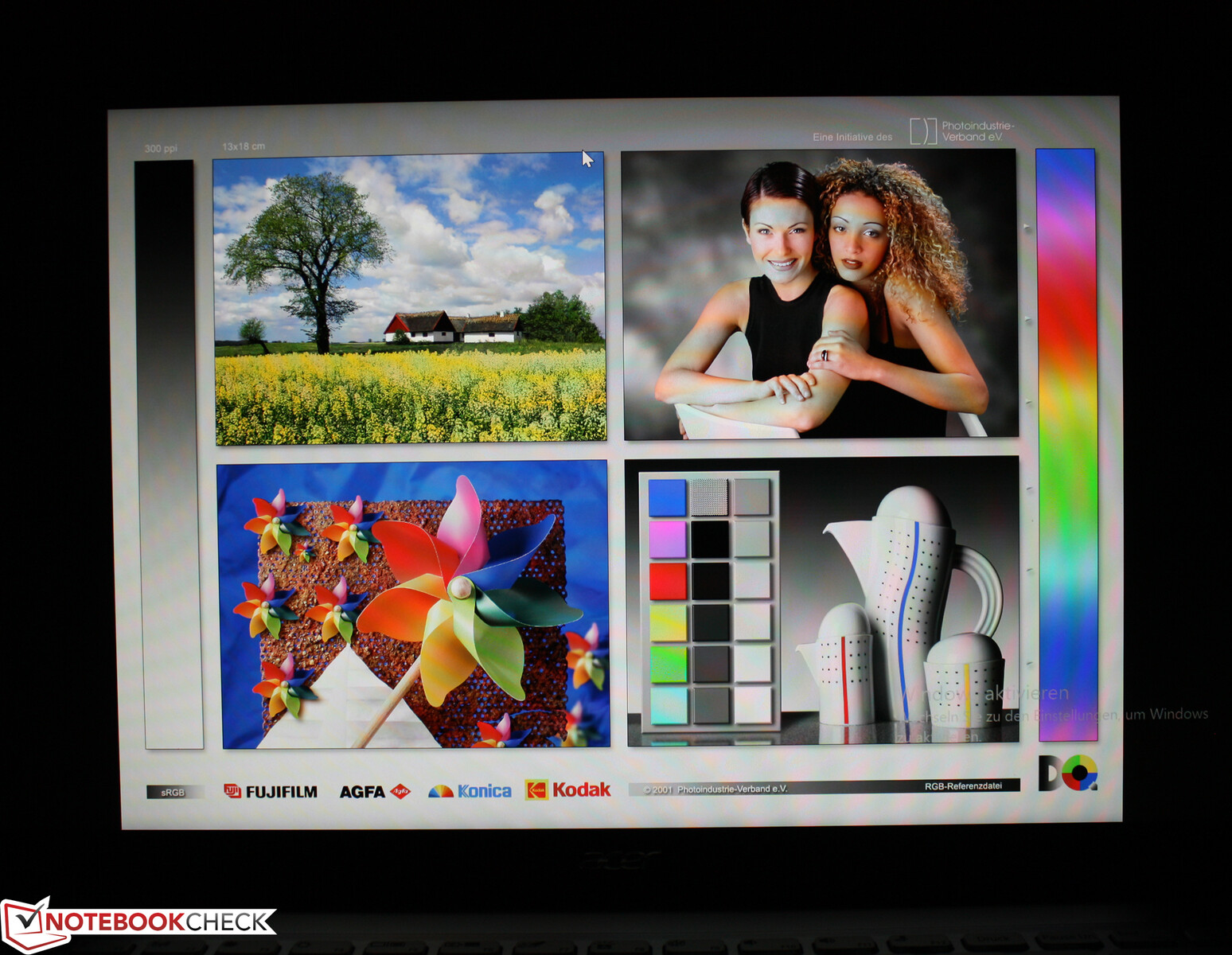

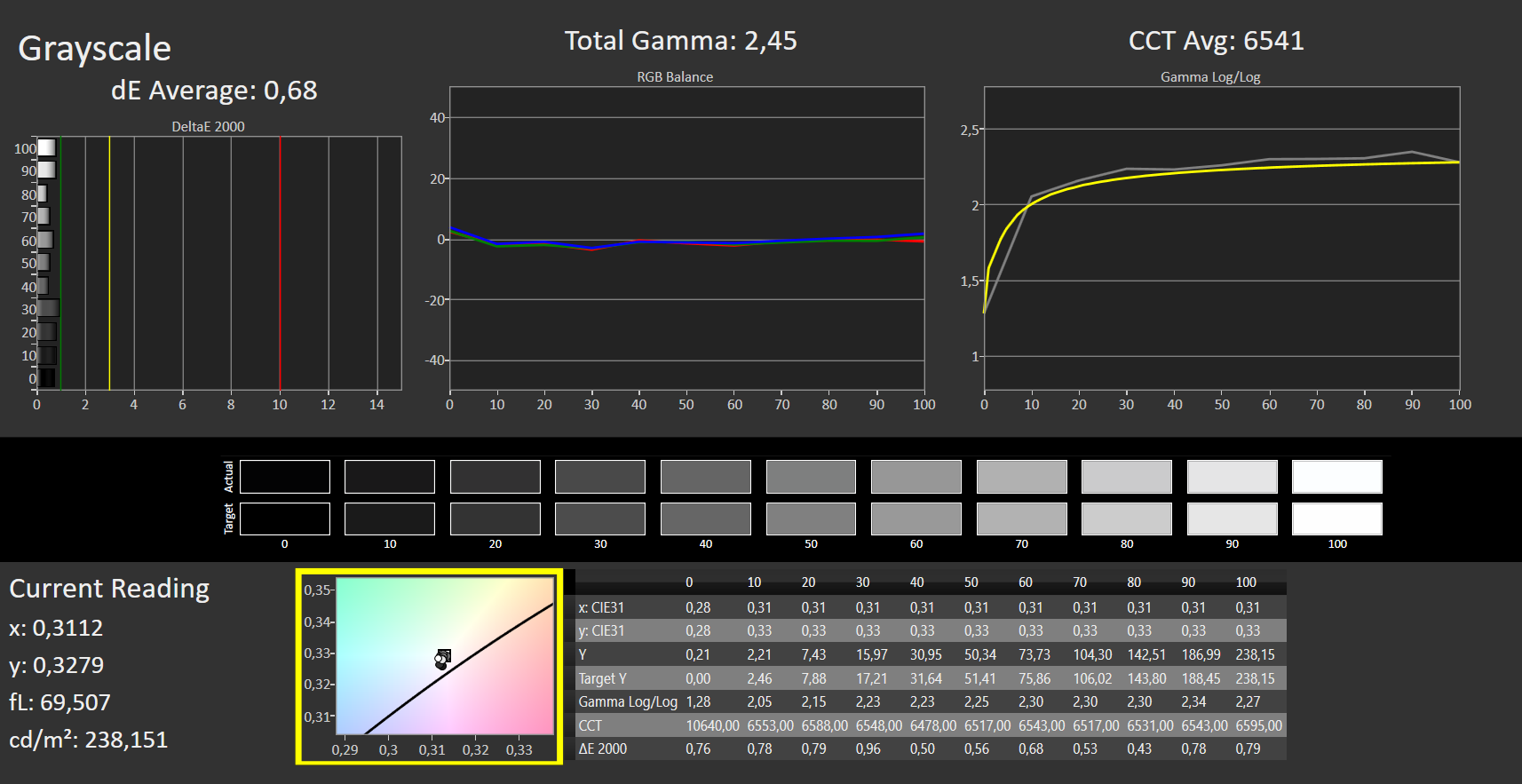

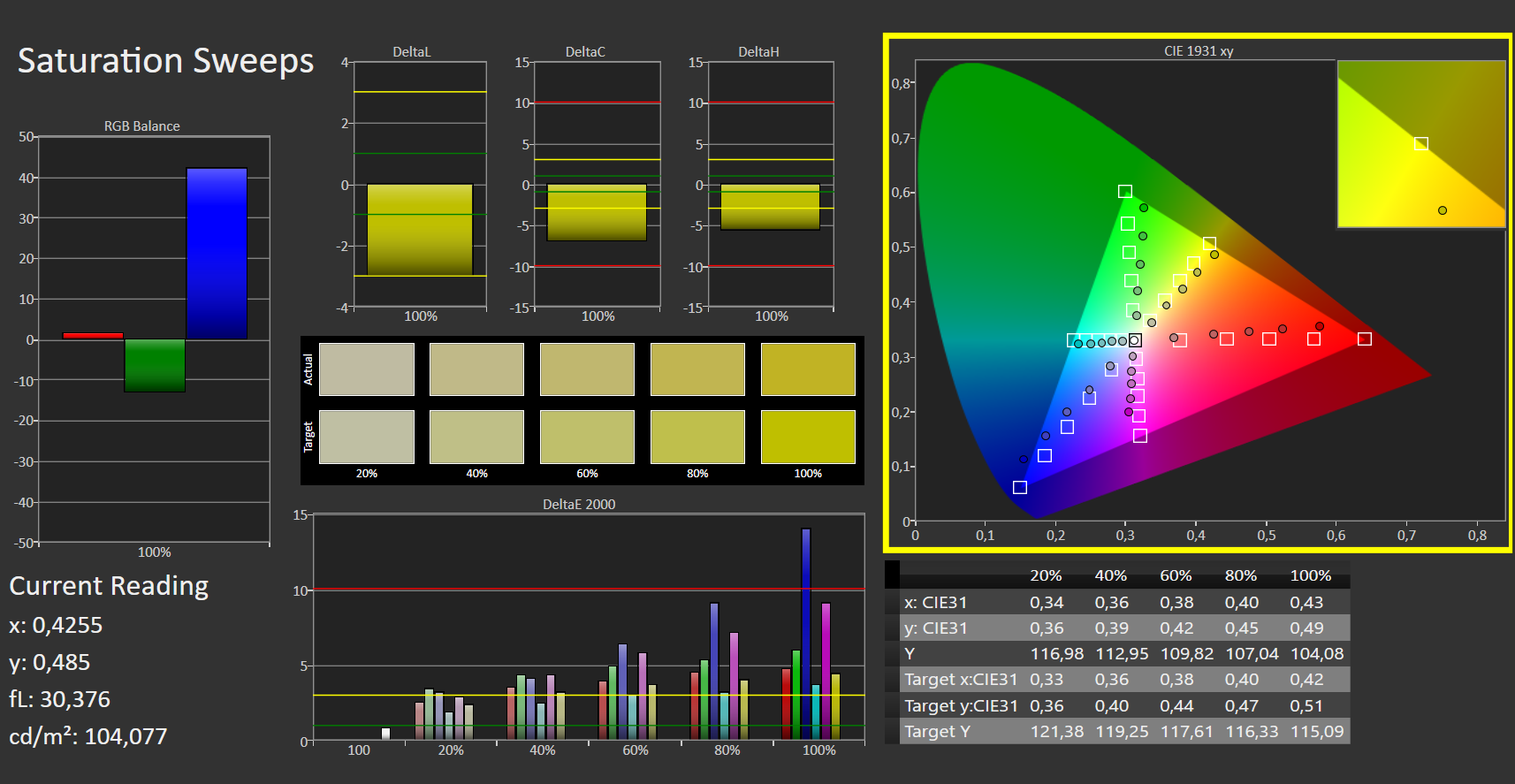

屏幕在交付状态下显示了相当体面的色彩再现。然而，Delta E 2000色彩偏差为3.6，刚刚错过目标（Delta E小于3）。该显示器没有出现偏蓝的情况。灰度的Delta E是2.9。校准并没有带来改善--智美面板显然难以校准。友达光电的面板 Swift X(AMD)或 Swift 3 SF314-511(英特尔)的友达面板可以通过校准改善其色彩再现。

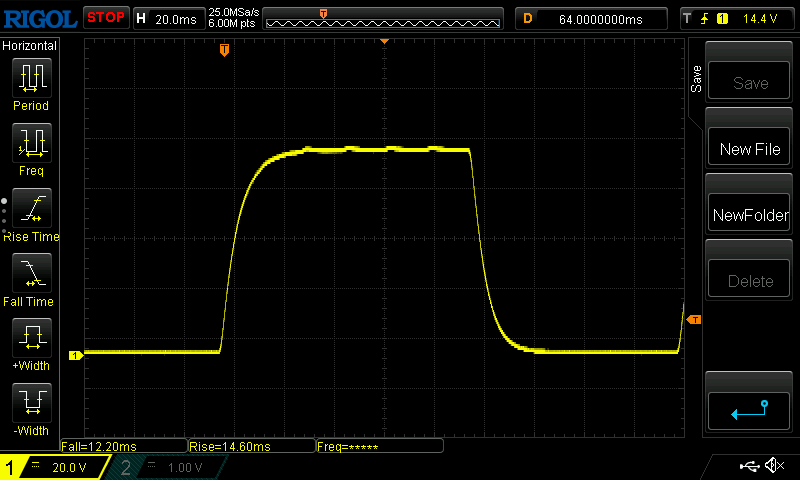

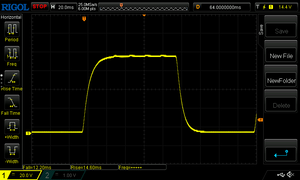

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 26 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise |  |
| ↘ 14 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 59 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

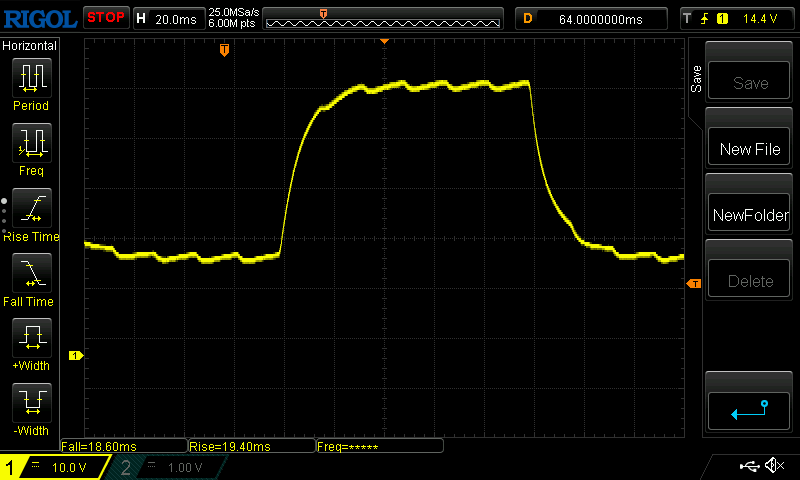

| ↔ Response Time 50% Grey to 80% Grey | ||
| 37 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise |  |
| ↘ 19 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

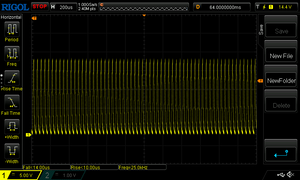

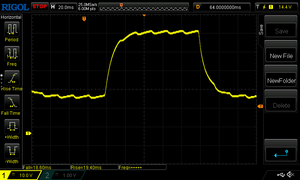

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 25000 Hz | ≤ 20 % brightness setting |  |

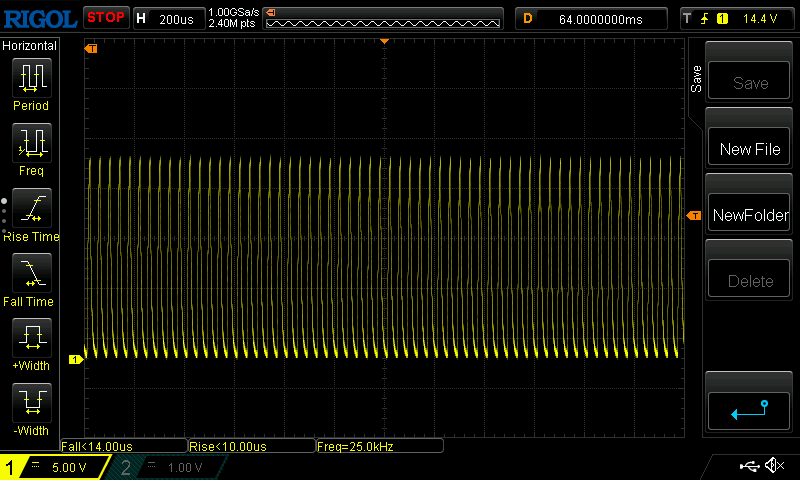

The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured. | |||

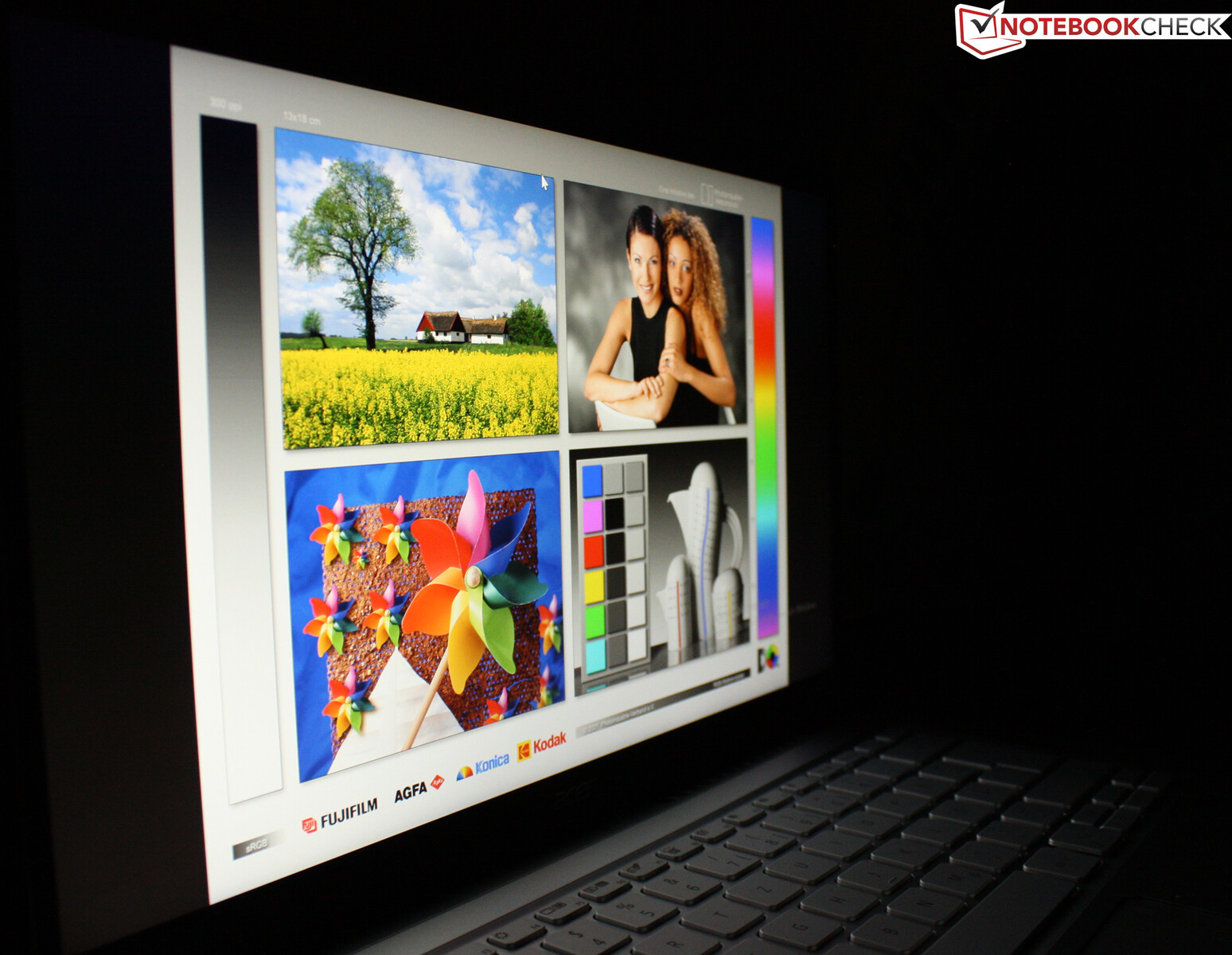

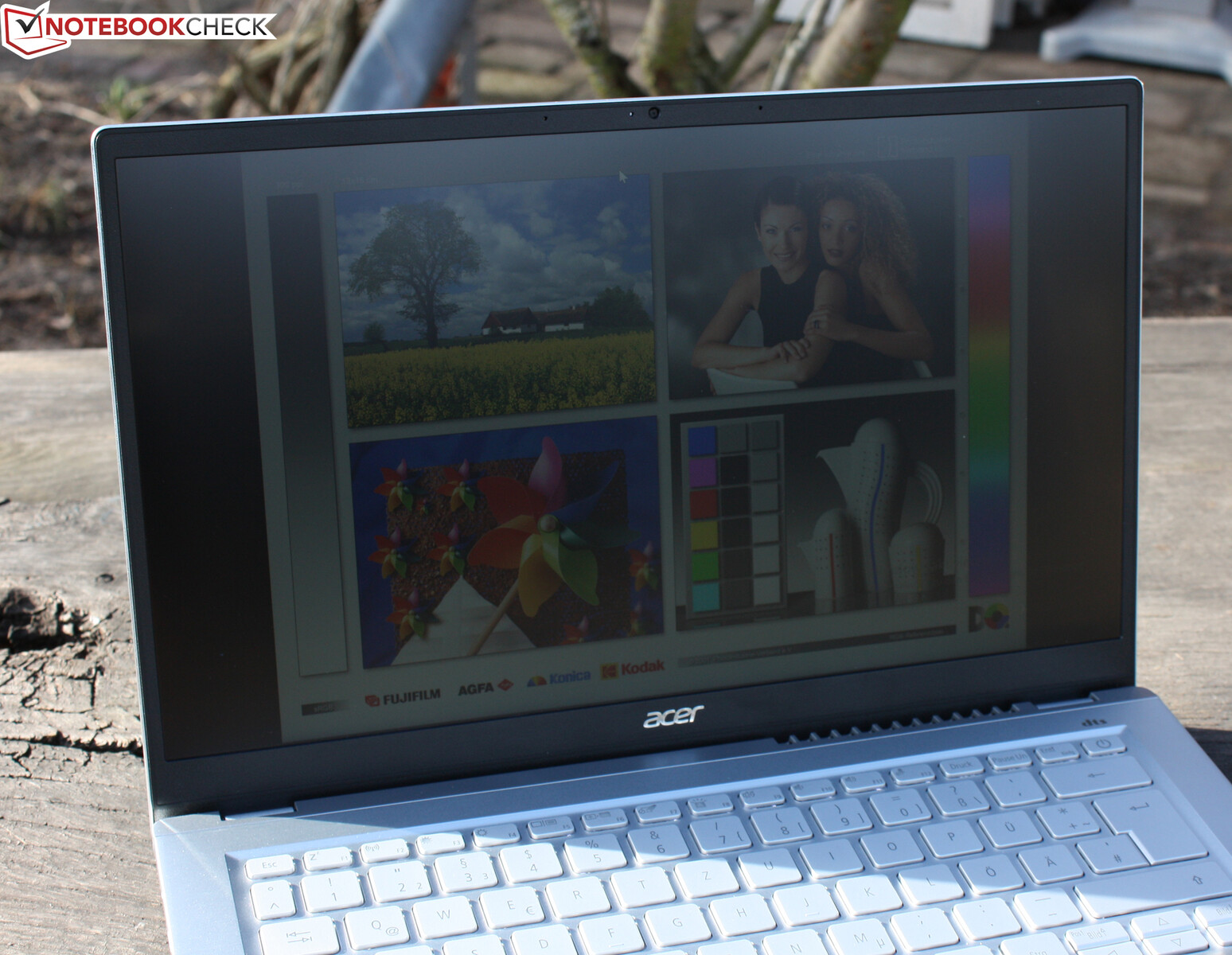

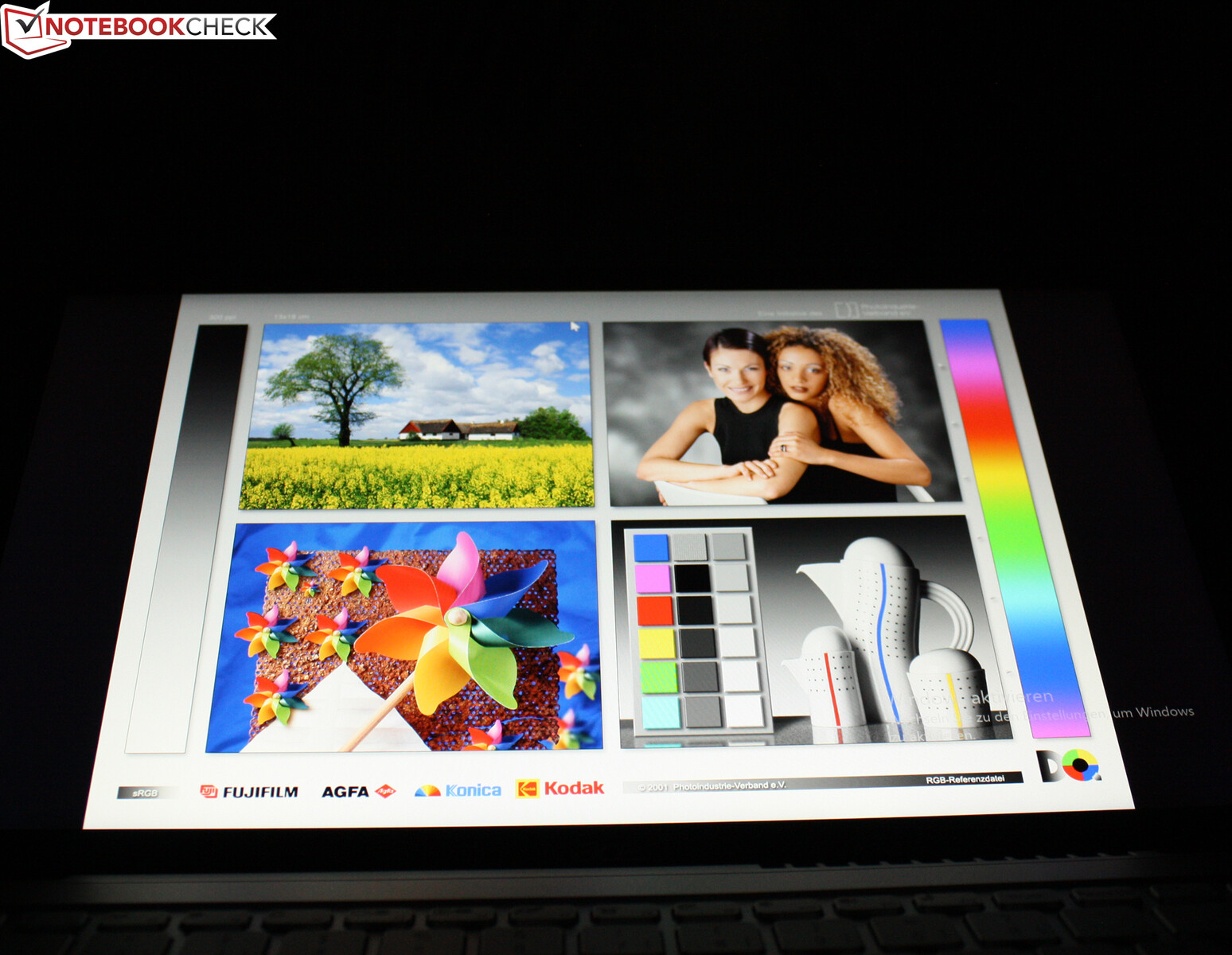

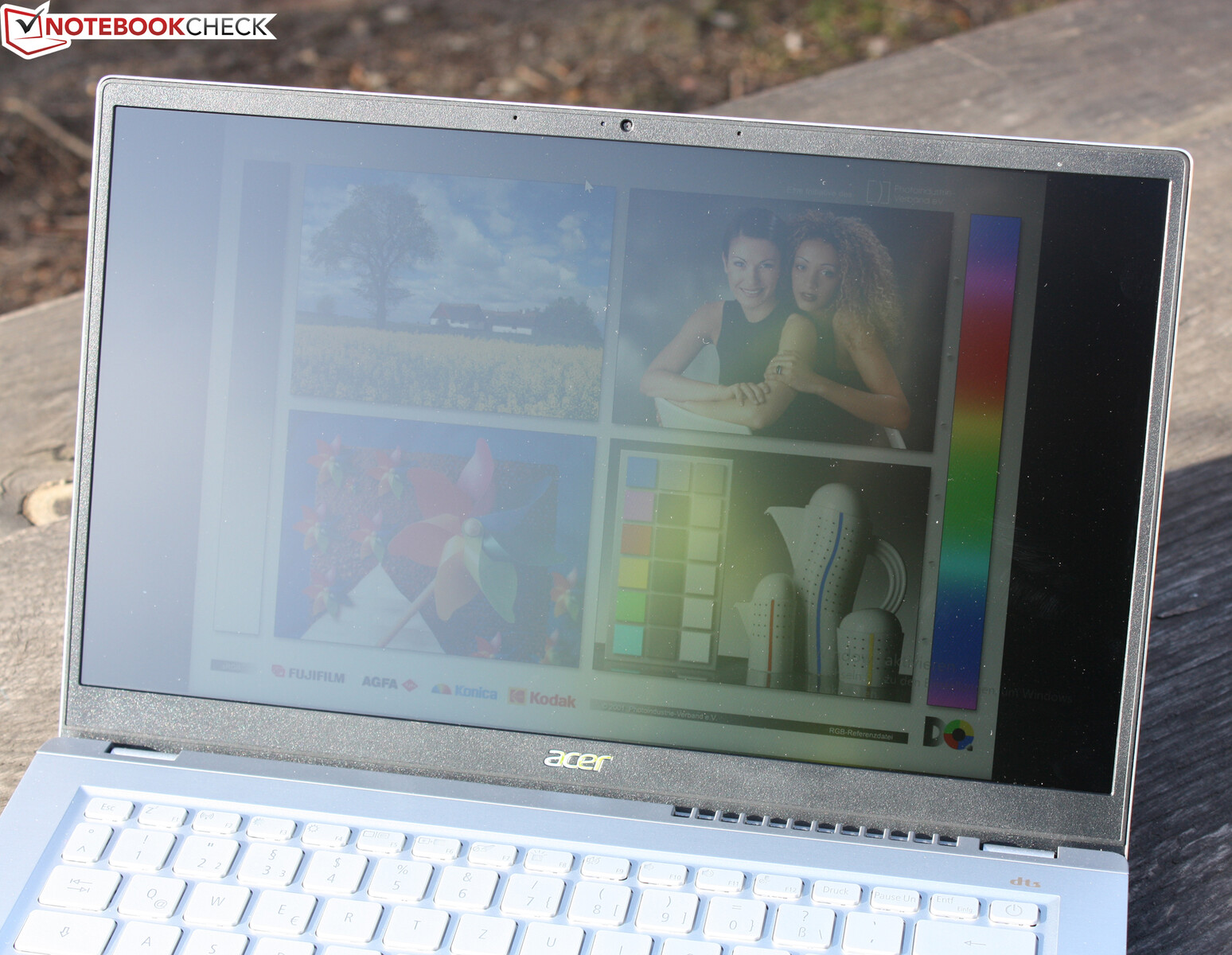

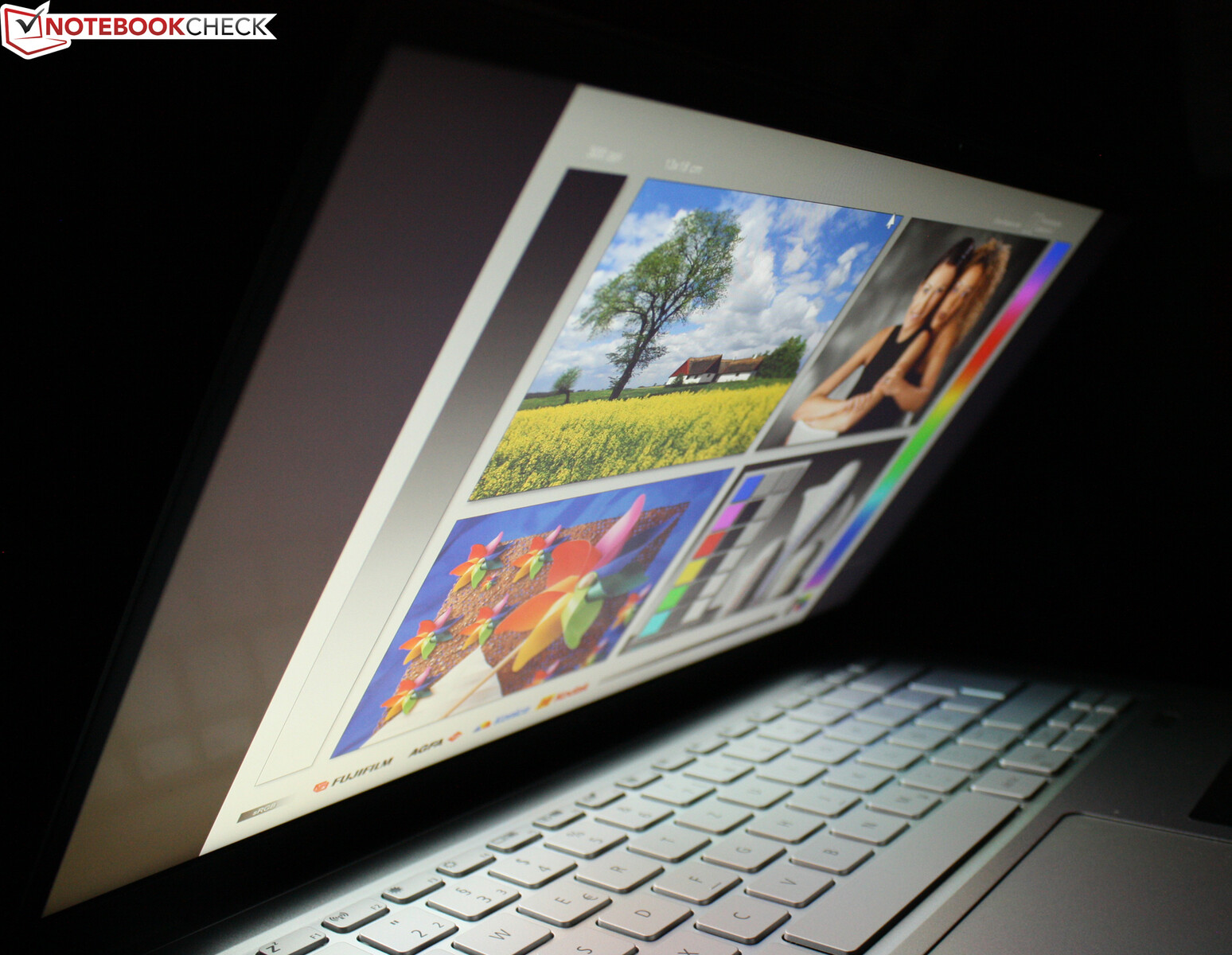

Swift 3配备了一个具有稳定视角的IPS面板。因此，屏幕可以从任何位置阅读。屏幕的最大亮度较低，在很大程度上妨碍了在阳光下阅读。如果你不关闭Vari Bright，你会失去大量的亮度。这款14英寸的手机主要是为室内使用而制造的。至少，哑光的表面确保了最小的反射。
性能。这一次没有AMD的高飞者

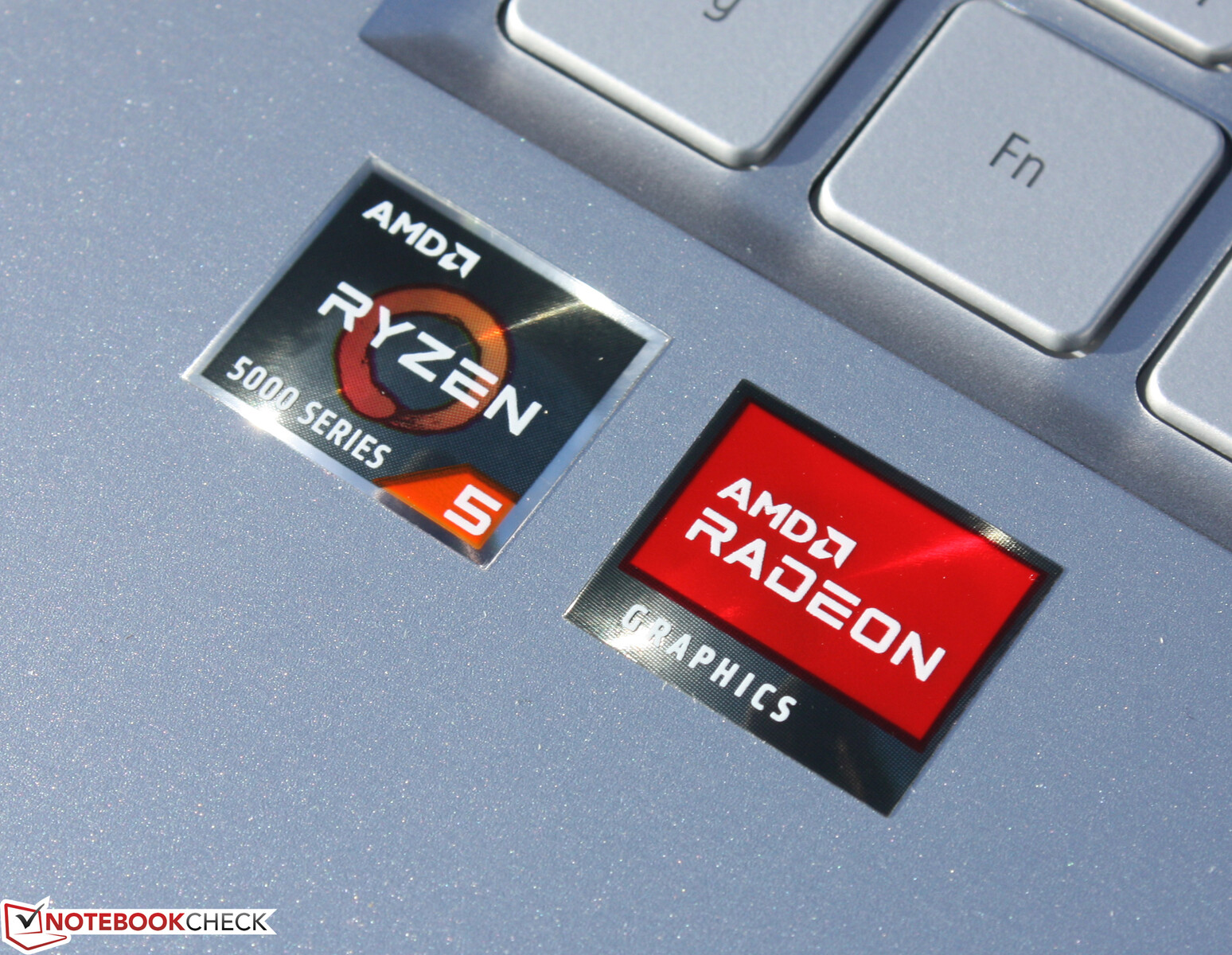

Swift 3的可用AMD配置包括基于以下的配置Ryzen 5 5500U, 5700U和 5300U.AMD的型号提供8或16GB的内存。应该仔细考虑选择，因为工作内存不能改变或升级，因为它是焊接的。固态硬盘也是如此，它提供的容量从256GB到1TB。硬盘是插入式的，但是第二个M.2插座--就像Swift X上的那样。 Swift X- 并不提供。

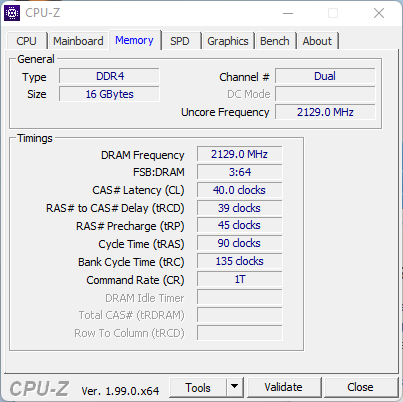

内存是双通道的，在游戏时可以获得更多的性能。我们觉得，我们的测试版本采用了 Ryzen 5 5500U512GB固态硬盘和16GB内存提供了最佳的性价比。
测试条件
我们在移除Linux eShell后安装了Windows。因此，只有Windows的电源管理是可用的。这在性能测试中被设置为 "最佳性能"，在耐久性测试中被设置为 "最佳节能"。
处理器

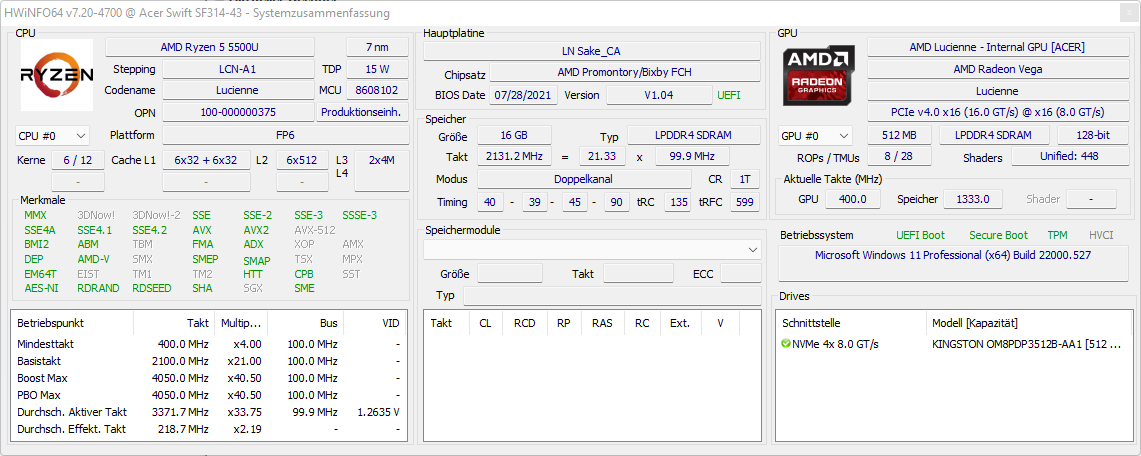

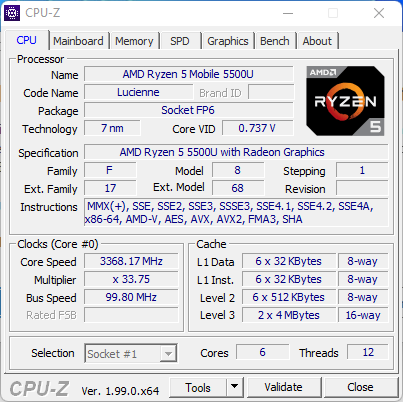

的 Ryzen 5 5500U在Swift 3中的时钟频率高达3.9 GHz。这款来自2021年初的六核具有良好的计算性能，但在单核方面不得不向英特尔的第11代处理器认输。Ryzen在多核方面总是击败英特尔的竞争对手，从Core i5到Core i7。然而， Ryzen 5 5500U的评测样本在许多基准测试中仅低于其自身的平均水平，尽管-1%的差异是微不足道的。

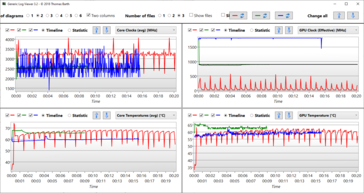

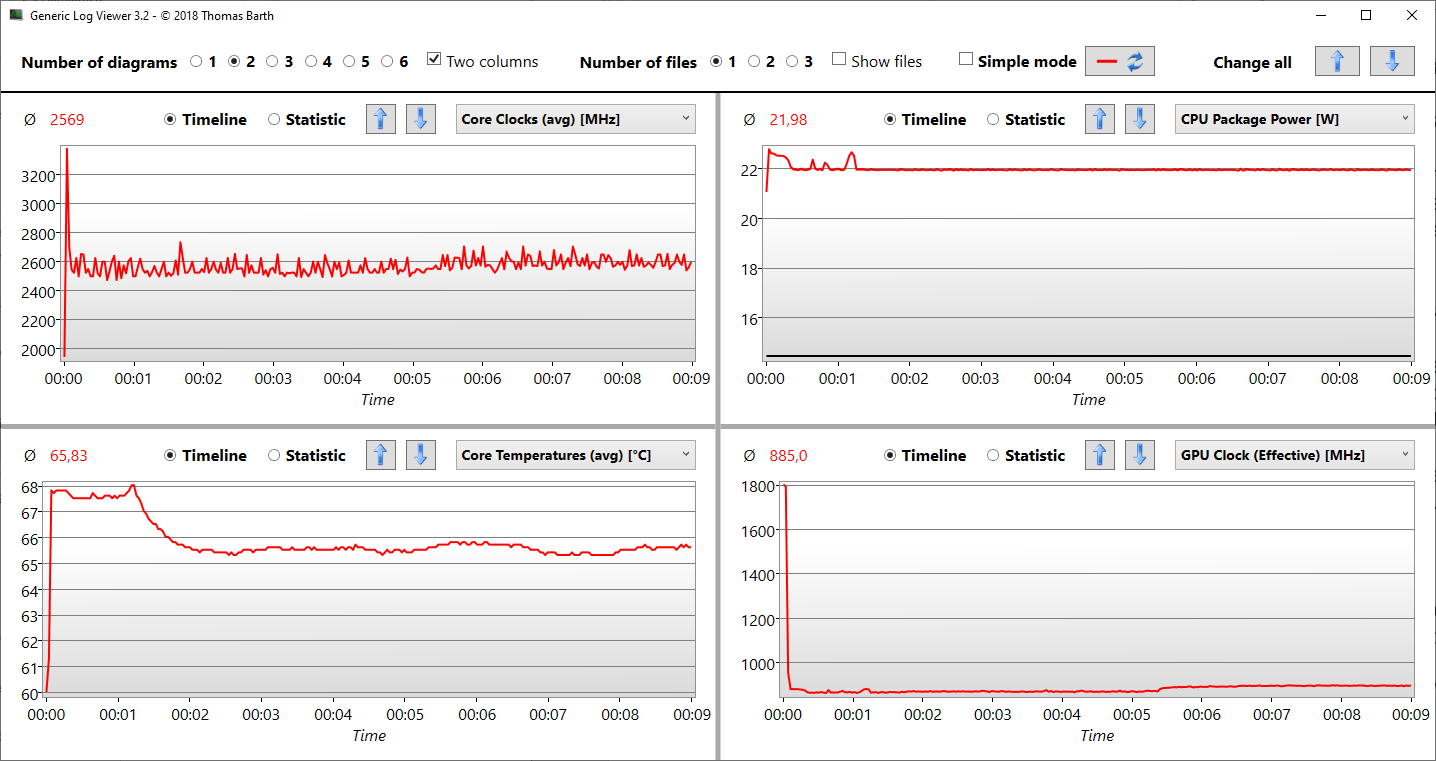

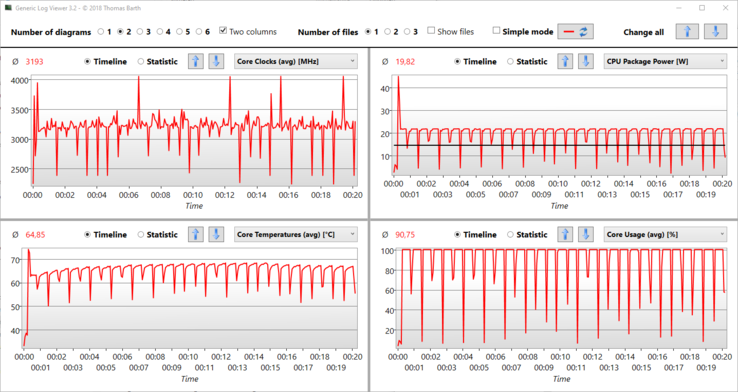

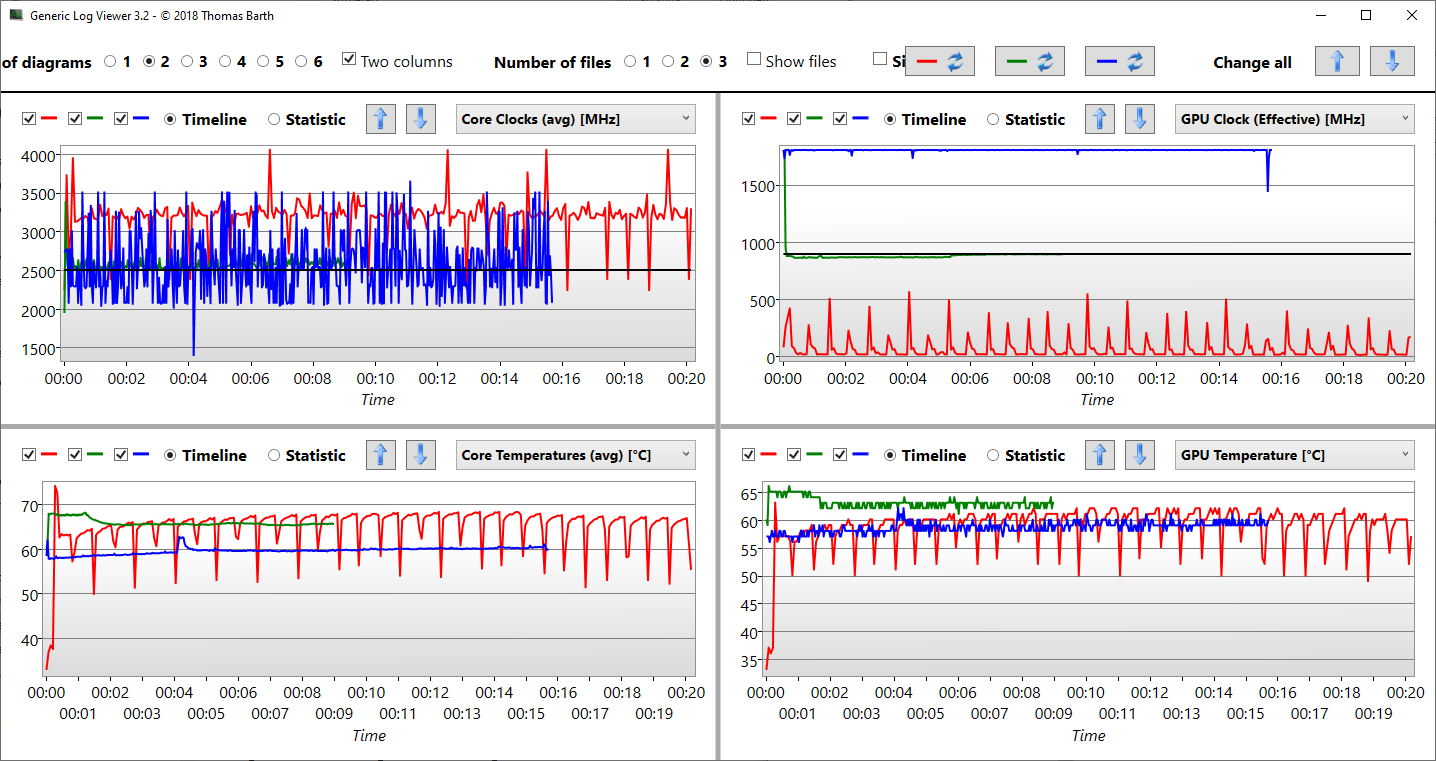

CPU的性能取决于设定的TDP和冷却。在Cinebench测量中，我们看到CPU封装功率最大为45W，这应该与PL2/Short Burst相对应。然而，这只能维持几秒钟，之后继续维持在22W（3.2而不是3.9GHz）。然后，除了在测试过程中出现几个时钟峰值外，这个水平从第一个循环到最后一个循环都保持不变。在电池模式下，性能并没有下降，这一点从R15在电池电源下循环运行的最后5分钟中可以看出。

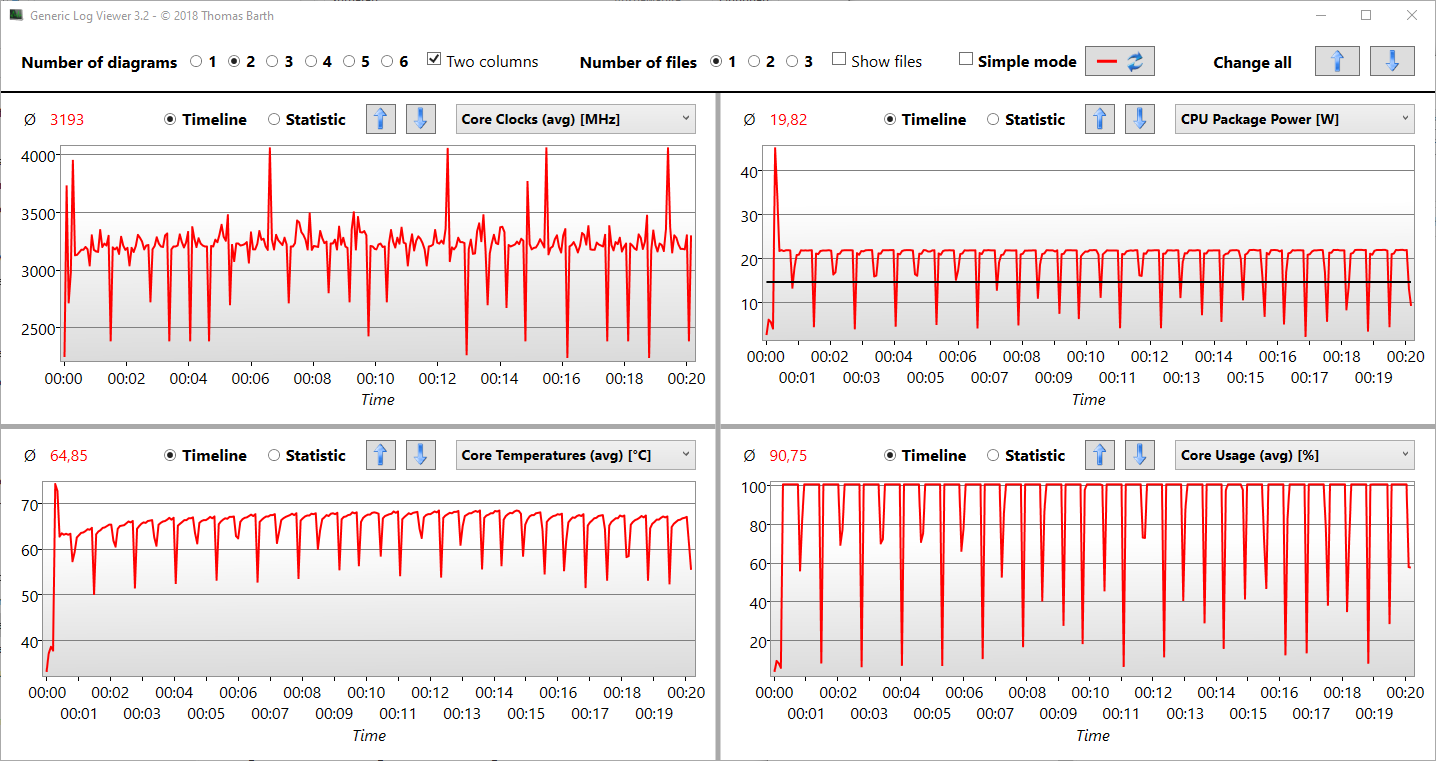

由于PL2的使用时间极短，而且大幅度限制在22W，R15循环的结果几乎看起来像一条没有偏差的直线。在这里，宏碁选择了一个非常保守的TDP方法，以利于废热和低噪音，这并没有从APU中提取最后一盎司的性能，这与我们所见的 联想ThinkPad E14 G3.Swift 3在双热管设置下会有怎样的表现，从它的姐妹Swift X SFX14（R5 5500U）可以看出，它可以在4到5次运行中保持高性能（PL2），因此在第一次运行中快12%。
Cinebench R15 Multi Dauertest
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U: Ø1157 (1150.91-1168.84)
Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7: Ø843 (803.42-904.02)
Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U: Ø1207 (1162.45-1245.1)
HP Pavilion 14-dv0357ng Intel Core i5-1135G7: Ø674 (639.66-774.95)
Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7: Ø836 (755.62-919.65)
Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4: Ø483 (461.33-499.9)
Acer Swift X SFX14-41G-R7F3 AMD Ryzen 5 5500U: Ø1221 (1168.05-1329.26)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Subnotebook | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U | |
| Acer Swift 3 SF314-43-R8BP | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| HP Pavilion 14-dv0357ng -6! | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Cinebench R23 / Multi Core | |
| Average of class Subnotebook (1555 - 21812, n=63, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (6030 - 8565, n=19) | |
| Acer Swift 3 SF314-43-R8BP | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Cinebench R23 / Single Core | |
| Average of class Subnotebook (358 - 2001, n=63, last 2 years) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (1149 - 1183, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Subnotebook (579 - 8541, n=59, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (2223 - 3316, n=20) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Subnotebook (128 - 790, n=59, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (449 - 461, n=19) | |
| HP Pavilion 14-dv0357ng | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Subnotebook (327 - 3345, n=65, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (995 - 1412, n=20) | |
| Acer Swift 3 SF314-43-R8BP | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Subnotebook (72.4 - 307, n=60, last 2 years) | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (170 - 179, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| Average AMD Ryzen 5 5500U (358 - 490, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average of class Subnotebook (159 - 2271, n=63, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Subnotebook (11775 - 77867, n=56, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (29585 - 36896, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Subnotebook (2669 - 6403, n=58, last 2 years) | |
| HP Pavilion 14-dv0357ng | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Acer Swift 3 SF314-511-54ZK | |
| Average AMD Ryzen 5 5500U (4174 - 4378, n=19) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Acer Swift 3 SF314-43-R8BP | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Subnotebook (2557 - 14728, n=58, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (4063 - 5917, n=20) | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Subnotebook (621 - 2350, n=58, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (1070 - 1126, n=20) | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Subnotebook (0.97 - 25.1, n=58, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (6.7 - 9.74, n=20) | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| LibreOffice / 20 Documents To PDF | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (60 - 80.7, n=17) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
| Average of class Subnotebook (38.5 - 220, n=57, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| R Benchmark 2.5 / Overall mean | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Average AMD Ryzen 5 5500U (0.607 - 0.67, n=19) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average of class Subnotebook (0.413 - 1.456, n=58, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Subnotebook | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Subnotebook (1141 - 32888, n=58, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (7222 - 10680, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / FPU Julia | |
| Average of class Subnotebook (6838 - 123315, n=58, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (41815 - 58107, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / CPU SHA3 | |
| Average of class Subnotebook (444 - 5287, n=58, last 2 years) | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (1354 - 1907, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / CPU Queen | |
| Average of class Subnotebook (11579 - 115682, n=58, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (68235 - 74033, n=18) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (9007 - 10446, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average of class Subnotebook (744 - 18418, n=58, last 2 years) | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / FPU Mandel | |
| Average of class Subnotebook (3366 - 65433, n=58, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (21894 - 30659, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / CPU AES | |
| Dell Latitude 14 5420-D2G5W | |
| Average of class Subnotebook (638 - 161430, n=58, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (31792 - 54455, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / CPU ZLib | |
| Average of class Subnotebook (166.9 - 1379, n=58, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (234 - 614, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Subnotebook (610 - 17495, n=58, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (3943 - 5717, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Subnotebook (6569 - 54881, n=58, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U (7765 - 22932, n=18) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
系统性能
因此，其应用性能比起其他的产品要差一些。 联想ThinkPad E14 G3的性能要差一些，例如，联想ThinkPad E14 G3能够从R5 5500U中获得更多的性能。 R5 5500U.PCMark 10中的生产力和要点测试尤其受到影响。相比之下，该测试设备在数字内容创作方面相当领先，这可能是由于快速的双通道工作内存（见AIDA64测试）和低延迟。金士顿的固态硬盘在这里没有产生积极的影响；它的速度只是中等偏下。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Subnotebook (4993 - 7788, n=50, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4626 - 5301, n=13) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| HP Pavilion 14-dv0357ng | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| PCMark 10 / Essentials | |
| Average of class Subnotebook (9476 - 11331, n=50, last 2 years) | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (8390 - 9789, n=13) | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-43-R8BP | |
| PCMark 10 / Productivity | |
| Average of class Subnotebook (6440 - 10623, n=50, last 2 years) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (6262 - 7958, n=13) | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| PCMark 10 / Digital Content Creation | |
| Average of class Subnotebook (5305 - 10983, n=50, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Acer Swift 3 SF314-511-54ZK | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4513 - 5540, n=13) | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Dell Latitude 14 5420-D2G5W | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| CrossMark / Overall | |
| Average of class Subnotebook (365 - 1971, n=56, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (958 - 1103, n=6) | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| CrossMark / Productivity | |
| Average of class Subnotebook (364 - 1875, n=56, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (1039 - 1153, n=6) | |
| Acer Swift 3 SF314-43-R8BP | |
| CrossMark / Creativity | |
| Average of class Subnotebook (385 - 2210, n=56, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (895 - 1054, n=6) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| CrossMark / Responsiveness | |
| Average of class Subnotebook (312 - 1899, n=56, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (918 - 1112, n=6) | |
| Dell Latitude 14 5420-D2G5W | |
| Acer Swift 3 SF314-43-R8BP | |
| PCMark 10 Score | 4787 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Subnotebook (14916 - 108756, n=58, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (19083 - 40547, n=18) | |
| AIDA64 / Memory Read | |
| Average of class Subnotebook (15948 - 122210, n=58, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (23005 - 47024, n=18) | |
| AIDA64 / Memory Write | |
| Average of class Subnotebook (16513 - 117898, n=58, last 2 years) | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (20150 - 42337, n=18) | |
| AIDA64 / Memory Latency | |
| Acer Swift 3 SF314-43-R8BP | |
| Average of class Subnotebook (7.2 - 187.8, n=58, last 2 years) | |
| Average AMD Ryzen 5 5500U (87.3 - 119, n=18) | |
* ... smaller is better
DPC延时

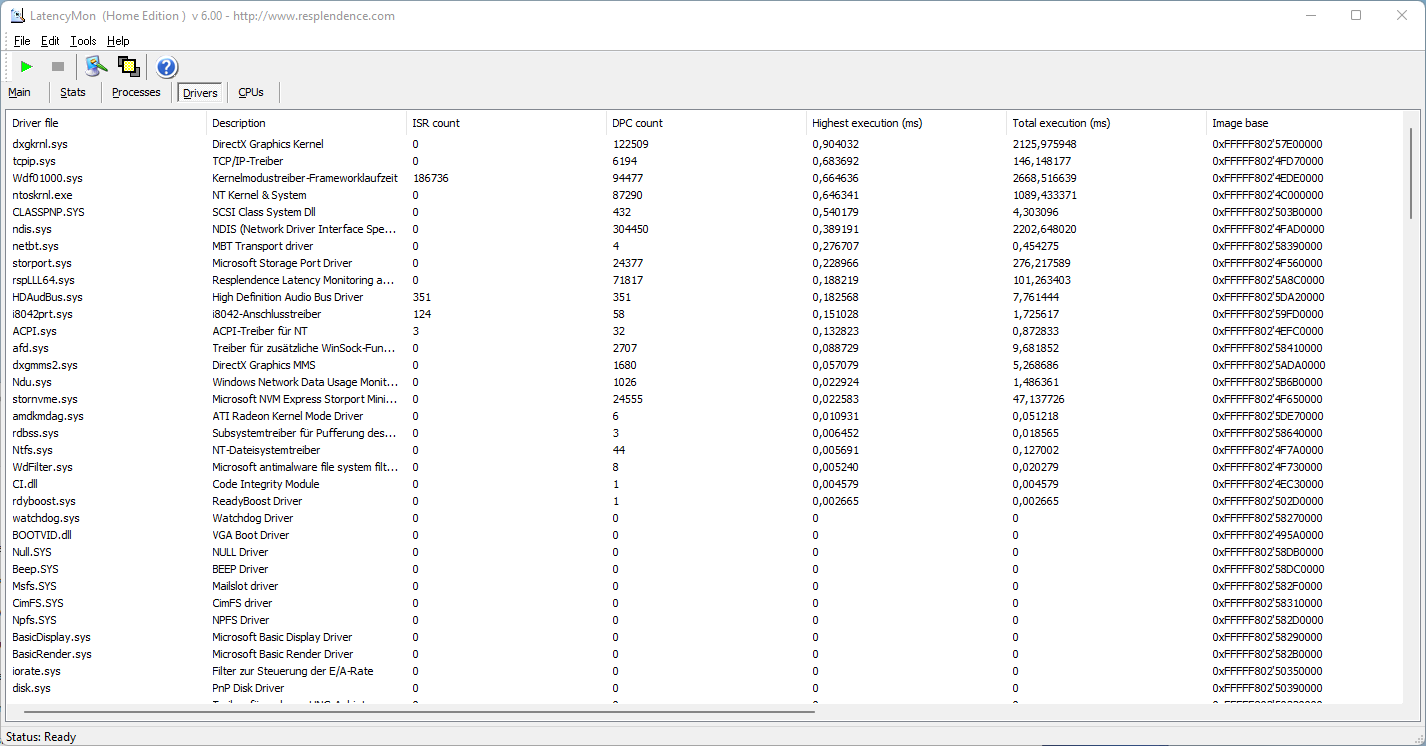

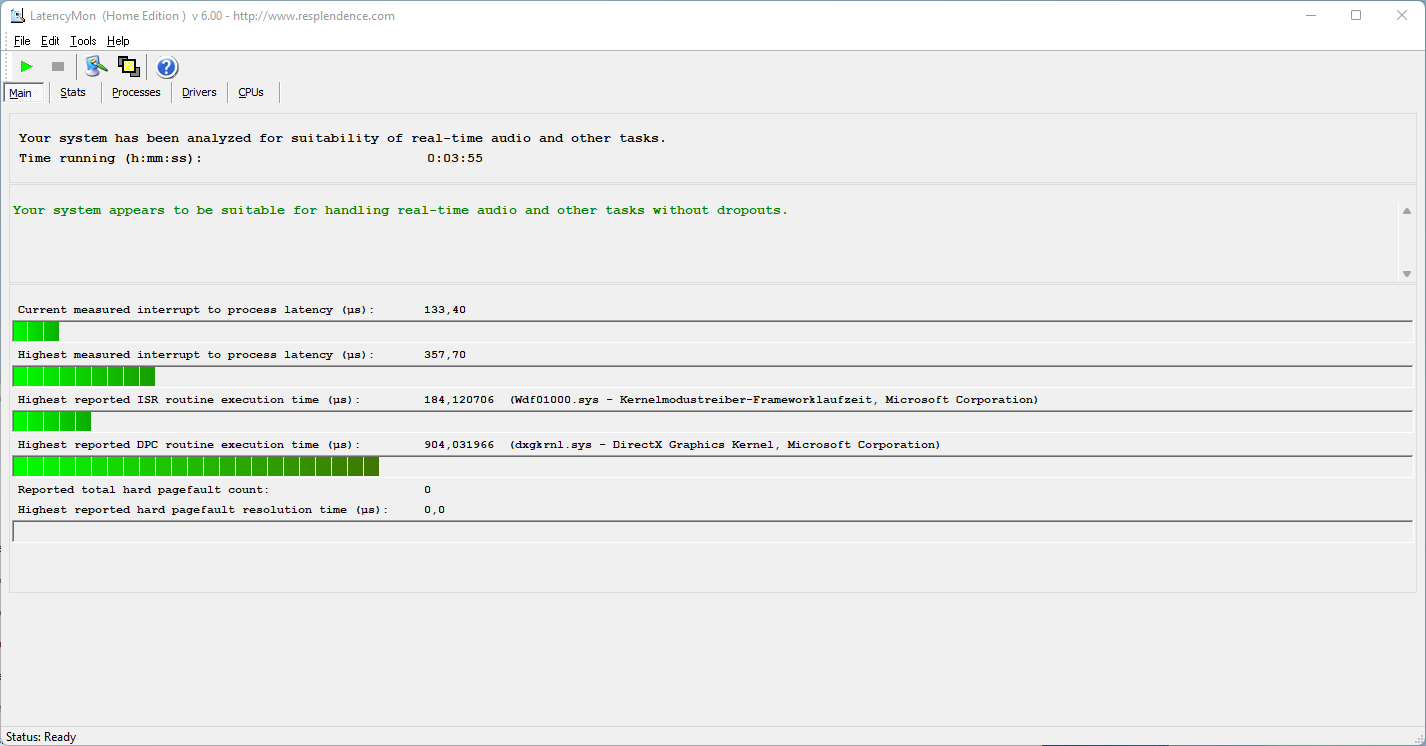

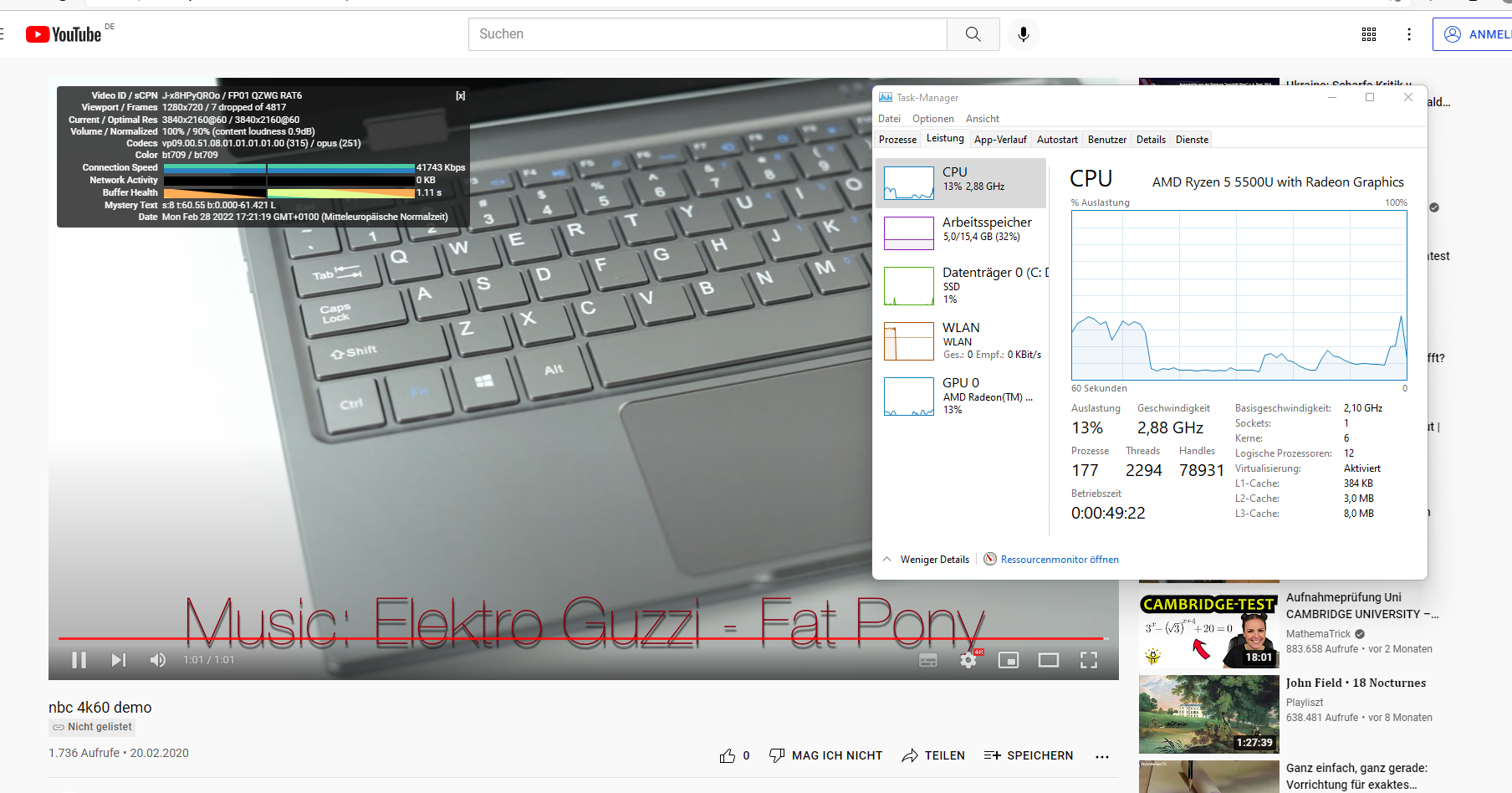

在LatencyMon的测试中，Swift 3几乎没有显示出任何延迟的增加。因此，14英寸处理器相当适用于实时应用等。该测量是基于目前的驱动配置。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Acer Swift 3 SF314-43-R8BP | |
* ... smaller is better
大容量存储
总容量为512GB的金士顿固态存储是宏碁配置中最中间的一个。没有第二个M.2插槽用于扩展。金士顿的驱动器在中场很吃力。我们发现三星PM9A1固态硬盘在 Swift 3 SF314-511(英特尔，iGPU）的速度非常快。注意：制造商可以为同一类型的设备配备不同的固态硬盘；不能保证你会得到一个WDC、一个美光、一个金士顿或一个三星。
在我们的测试中，其他大容量存储设备的性能可以在我们的硬盘/SSD基准表.
Kingston OM8PDP3512B-AI1
Sequential Read:
1451MB/s
Sequential Write:
542MB/s
4K Read:
30.23MB/s
4K Write:
70.4MB/s
4K-64 Read:
556MB/s
4K-64 Write:
707MB/s
Access Time Read:
0ms
Access Time Write:
0.039ms
Score Read:
731Points
Score Write:
832Points
Score Total:
1899Points
| Drive Performance Rating - Percent | |
| Acer Swift 3 SF314-511-54ZK -1! | |
| Average of class Subnotebook | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Acer Swift 3 SF314-43-R8BP | |
| Average Kingston OM8PDP3512B-AI1 | |
| Dell Latitude 14 5420-D2G5W | |
| HP Pavilion 14-dv0357ng -8! | |
* ... smaller is better
Continuous power read: DiskSpd Read Loop, Queue Depth 8
Acer Swift 3 SF314-511-54ZK Samsung PM9A1 MZVL2512HCJQ: Ø3706 (3238.84-6230.55)
HP Pavilion 14-dv0357ng Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H): Ø1345 (223.32-2529.58)
Dell Latitude 14 5420-D2G5W WDC PC SN530 SDBPTPZ-256G: Ø2118 (1853.25-2470.65)
图形卡
有了集成的 的Radeon RX Vega 7SoC显卡，Swift 3并不是为游戏而设计的，这在我们的游戏表中立即显现出来。即使是老牌游戏也只能在最低设置下顺利运行。如果你认真考虑目前的游戏，你肯定应该寻找一个替代品。在iGPU笔记本电脑中，Radeon RX与以下产品处于相同水平 英特尔Iris Xe Graphics G7 80EUs.
与其他GPU的性能比较可以在我们的 GPU基准列表.
| 3DMark Performance Rating - Percent | |
| Average of class Subnotebook | |
| Acer Swift 3 SF314-511-54ZK | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Subnotebook (968 - 16296, n=55, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (3353 - 6249, n=58) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| 3DMark | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Subnotebook (832 - 11887, n=59, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (1772 - 4037, n=62) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| 2560x1440 Time Spy Graphics | |
| Average of class Subnotebook (804 - 4501, n=60, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (496 - 1249, n=57) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| 3DMark 11 Performance | 5686 points | |
| 3DMark Fire Strike Score | 3437 points | |
| 3DMark Time Spy Score | 1305 points | |
Help | ||
游戏性能
| The Witcher 3 | |
| 1366x768 Medium Graphics & Postprocessing | |
| Average of class Subnotebook (33 - 118, n=35, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37) | |
| Dell Latitude 14 5420-D2G5W | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Average of class Subnotebook (11.2 - 71, n=50, last 2 years) | |
| HP Pavilion 14-dv0357ng | |
| Acer Swift 3 SF314-511-54ZK | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (8.96 - 26.2, n=49) | |
| Acer Swift 3 SF314-43-R8BP | |
| Dell Latitude 14 5420-D2G5W | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Average of class Subnotebook (13 - 99.5, n=63, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (23.3 - 58.2, n=58) | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Final Fantasy XV Benchmark | |
| 1920x1080 Standard Quality | |
| Average of class Subnotebook (16.3 - 59.9, n=61, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (8.9 - 20.3, n=40) | |
| Dell Latitude 14 5420-D2G5W | |
| 1280x720 Lite Quality | |
| Average of class Subnotebook (29.9 - 111.6, n=61, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| HP Pavilion 14-dv0357ng | |
| Average AMD Radeon RX Vega 7 (17.1 - 41.1, n=40) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| Strange Brigade | |
| 1280x720 lowest AF:1 | |
| Average of class Subnotebook (65.6 - 229, n=60, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (34.8 - 95.3, n=41) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| 1920x1080 medium AA:medium AF:4 | |
| Average of class Subnotebook (29.4 - 96.5, n=61, last 2 years) | |
| Acer Swift 3 SF314-511-54ZK | |
| Acer Swift 3 SF314-43-R8BP | |
| HP Pavilion 14-dv0357ng | |
| Lenovo ThinkPad E14 G3-20Y7003SGE | |
| Average AMD Radeon RX Vega 7 (13.4 - 36.1, n=41) | |
| Dell Latitude 14 5420-D2G5W | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
| F1 2021 | |
| 1280x720 Ultra Low Preset | |
| Average of class Subnotebook (77 - 223, n=10, last 2 years) | |
| Average AMD Radeon RX Vega 7 (71 - 107.9, n=13) | |
| Acer Swift 3 SF314-43-R8BP | |
| 1920x1080 Medium Preset AA:T AF:16x | |
| Average of class Subnotebook (34.3 - 127.4, n=11, last 2 years) | |
| Average AMD Radeon RX Vega 7 (29 - 45.8, n=12) | |
| Acer Swift 3 SF314-43-R8BP | |
| 1920x1080 Ultra Low Preset | |
| Lenovo ThinkBook 14 G2 ITL 20VDS02G00 | |
Witcher 3 FPS-Diagramm
Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7: Ø12.6 (11-15)
Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs: Ø12.3 (11-14)
Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7: Ø13.9 (12-15)
HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs: Ø10.8 (8-12)
Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs: Ø7.15 (6-8)
| low | med. | high | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 34.7 | 17.4 | 13 | |
| Dota 2 Reborn (2015) | 100 | 82.8 | 54 | 50.2 |
| Final Fantasy XV Benchmark (2018) | 35.4 | 18.1 | 12.4 | |
| Far Cry 5 (2018) | 44 | 20 | 19 | |
| Strange Brigade (2018) | 81.4 | 32.1 | 27 | 22.9 |
| F1 2021 (2021) | 71 | 29 |
排放。来自宏碁的安静的14英寸手机
噪声排放
在整个负载范围内，Swift 3并没有产生太多的噪音。怠速时，风扇静止不动，无声无息。在负载情况下，风扇几乎没有转速。因此，我们在压力测试中测得的声压级为38分贝（A），在中等负荷下为34分贝（A）。这些排放是相当低的，这对于移动副笔记本来说应该是这样的。没有人愿意带着风扇加热器去图书馆。
Noise Level
| Idle |
| 26 / 26 / 27.5 dB(A) |
| Load |
| 34 / 38.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1 | Acer Swift 3 SF314-511-54ZK Iris Xe G7 80EUs, i5-1135G7, Samsung PM9A1 MZVL2512HCJQ | Lenovo ThinkPad E14 G3-20Y7003SGE Vega 7, R5 5500U, SK Hynix BC711 HFM512GD3HX015N | HP Pavilion 14-dv0357ng Iris Xe G7 80EUs, i5-1135G7, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H) | Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G | Lenovo ThinkBook 14 G2 ITL 20VDS02G00 UHD Graphics Xe G4 48EUs, i3-1115G4, Samsung PM991A MZALQ256HBJD | |
|---|---|---|---|---|---|---|
| Noise | 1% | 8% | 3% | -4% | -1% | |
| off / environment * | 26 | 25 4% | 23.8 8% | 25.4 2% | 25 4% | 24.6 5% |
| Idle Minimum * | 26 | 25 4% | 23.8 8% | 25.4 2% | 25 4% | 24.6 5% |
| Idle Average * | 26 | 25 4% | 23.8 8% | 25.4 2% | 25 4% | 24.6 5% |
| Idle Maximum * | 27.5 | 27.5 -0% | 25 9% | 25.4 8% | 25 9% | 26.7 3% |
| Load Average * | 34 | 32.9 3% | 32 6% | 35.4 -4% | 36.5 -7% | 38.9 -14% |
| Load Maximum * | 38.2 | 42 -10% | 34.5 10% | 35.5 7% | 52.4 -37% | 42.8 -12% |
| Witcher 3 ultra * | 32 |
* ... smaller is better
温度

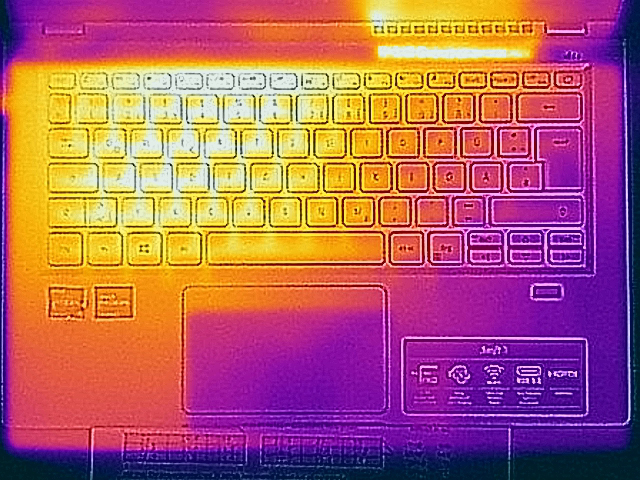

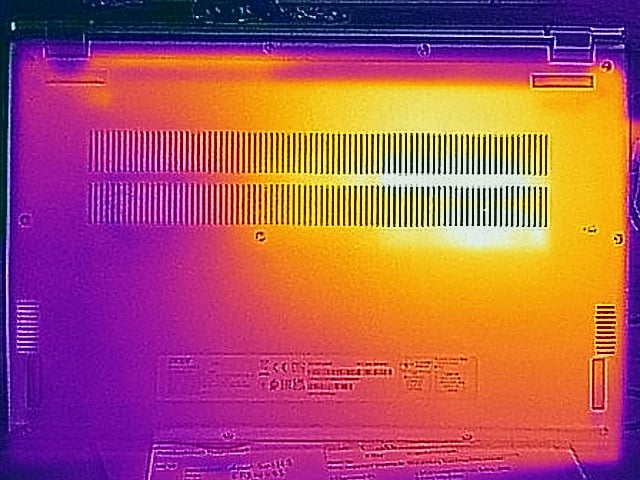

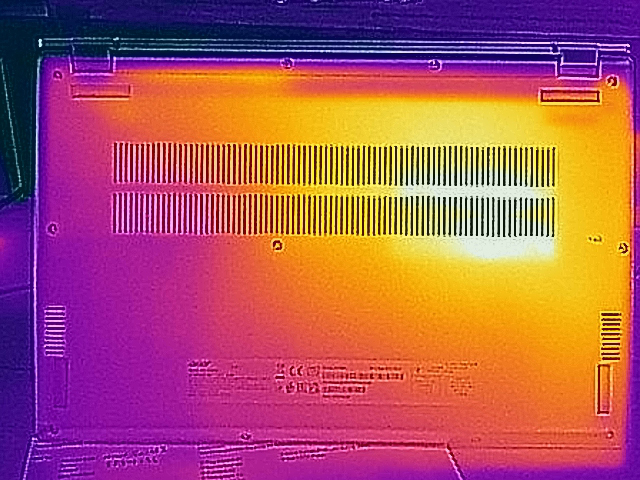

性能被修整到低温，并确保最多只有36或38度的适度热量排放。散热图显示了我们压力测试后的结果，机箱在游戏过程中保持了相对凉爽。
这款机箱只有在持续负载时才会感到温暖，而且绝不会因为太热而放在大腿上，比如说。然而，你不应该把这个14英寸的机箱放在毯子或地毯上，因为那会挡住机箱底部的进气口。显示器在打开时，故意抬高底座，以便更好地进行空气供应。
平均怠速温度只有23度，金属外壳感觉很温润。
(+) The average temperature for the upper side under maximal load is 30 °C / 86 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23 °C / 73 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.6 °C / -1.1 F).
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 38 °C / 100 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23 °C / 73 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.6 °C / -1.1 F).
| Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Acer Swift 3 SF314-511-54ZK Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkPad E14 G3-20Y7003SGE AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | HP Pavilion 14-dv0357ng Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Dell Latitude 14 5420-D2G5W Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Lenovo ThinkBook 14 G2 ITL 20VDS02G00 Intel Core i3-1115G4, Intel UHD Graphics Xe G4 48EUs | |
|---|---|---|---|---|---|---|
| Heat | -8% | -14% | -17% | -13% | -8% | |
| Maximum Upper Side * | 36 | 39.6 -10% | 45.1 -25% | 40.5 -13% | 41.7 -16% | 35 3% |
| Maximum Bottom * | 38 | 43.2 -14% | 49.3 -30% | 39.9 -5% | 35.6 6% | 38 -0% |
| Idle Upper Side * | 24.1 | 25 -4% | 24.7 -2% | 31.3 -30% | 29.9 -24% | 28 -16% |
| Idle Bottom * | 25.7 | 26.2 -2% | 25.6 -0% | 31.1 -21% | 29.7 -16% | 30 -17% |
* ... smaller is better
压力测试
宏碁Swift 3在主电源和电池模式下都以类似的方式通过我们的压力测试（Prime95和Furmark一小时）。处理器以3.4GHz的速度运行了几秒钟，然后时钟下降到2.5GHz。图形核心的时钟从最初的1,800 MHz降至约800 MHz。我们在这里也可以看到先前Cinebench R15测试的行为--PL2只能保持很短的时间（仅仅几秒钟），之后就会出现明显的节流。节流是AMD和英特尔处理器的典型现象，但我们很少看到如此大规模的下降，尤其是它也发生在R15循环中--即在唯一的CPU负载下。
这里必须指出，压力测试是一种极端情况，在日常使用中不会发生。我们用这个测试来检查系统是否也在全负荷下稳定运行。
这款纤薄的笔记本并没有过度发热。在压力测试期间，我们在三个测量点上记录的温度约为35摄氏度。这些数值在日常使用中属于绿色区域。这个基本无声的设备甚至触摸起来都不热。

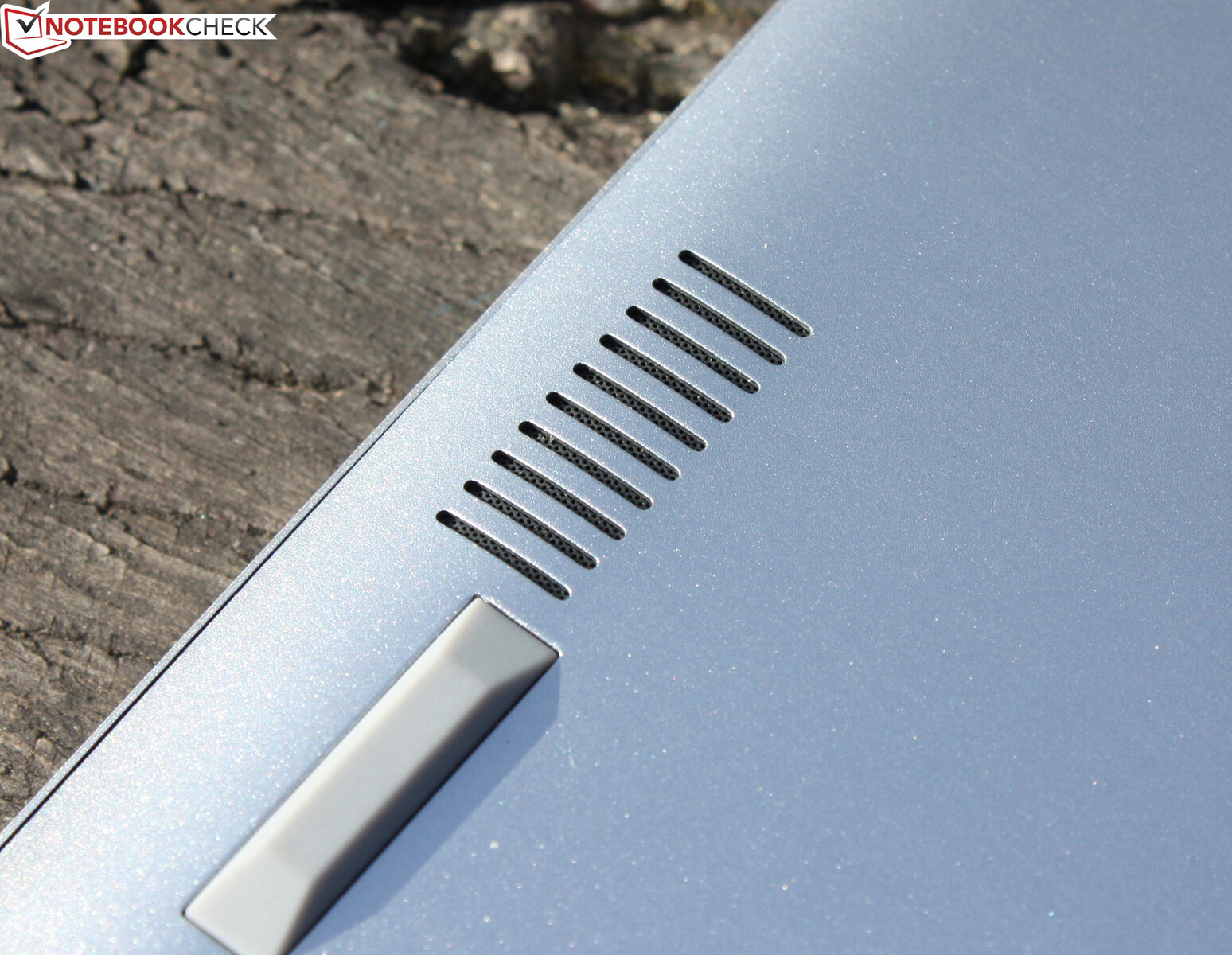

扬声器
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Swift 3 SF314-43-R8BP audio analysis
(-) | not very loud speakers (71.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.3% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 3% similar, 13% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 78% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo ThinkPad E14 G3-20Y7003SGE audio analysis
(±) | speaker loudness is average but good (77.5 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 13.7% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7% higher than median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.3% difference to median)
Compared to same class
» 34% of all tested devices in this class were better, 7% similar, 59% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 43% of all tested devices were better, 8% similar, 49% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理
能源消耗
在能源消耗方面，Swift 3没有显示出任何突出的问题。我们记录了空闲时的最大功耗为7.7瓦。在压力测试期间（Prime95和Furmark至少运行一小时），该值增加到63瓦，但只是在最初的几秒钟！之后，节流的Swift以略低于1瓦的速度前进。在那之后，节流的Swift以略低于40W的速度前进。
更多的能量--大约44瓦--是在我们运行"测试 "时消耗的。Witcher 3测试时，会消耗更多的能量--约44W，但这也只是在前30秒。此后，iGPU的时钟节流确保了持续降低到41W。
Power Consumption
| Off / Standby | 0.2 / 0.5 Watt |
| Idle | 4.1 / 5.4 / 7.7 Watt |
| Load |
44 / 63 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7, Kingston OM8PDP3512B-AI1, IPS, 1920x1080, 14" | Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 14" | Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7, SK Hynix BC711 HFM512GD3HX015N, IPS, 1920x1080, 14" | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs, Intel Optane Memory H10 with Solid State Storage 32GB + 1TB HBRPEKNX0203AH(L/H), IPS, 1920x1080, 14" | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, WDC PC SN530 SDBPTPZ-256G, IPS, 1920x1080, 14" | Lenovo ThinkBook 14 G2 ITL 20VDS02G00 i3-1115G4, UHD Graphics Xe G4 48EUs, Samsung PM991A MZALQ256HBJD, a-Si IPS LED, 1920x1080, 14" | Average AMD Radeon RX Vega 7 | Average of class Subnotebook | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -1% | -4% | -13% | 1% | -28% | -8% | -17% | |
| Idle Minimum * | 4.1 | 4.3 -5% | 3.5 15% | 4.8 -17% | 3.4 17% | 6.3 -54% | 4.66 ? -14% | 4.43 ? -8% |
| Idle Average * | 5.4 | 6.8 -26% | 7.5 -39% | 8.5 -57% | 7.1 -31% | 9.5 -76% | 7.56 ? -40% | 7.58 ? -40% |
| Idle Maximum * | 7.7 | 9 -17% | 8.7 -13% | 12.4 -61% | 8.4 -9% | 10.4 -35% | 8.95 ? -16% | 9.43 ? -22% |
| Load Average * | 44 | 33.3 24% | 43.6 1% | 37.7 14% | 35.3 20% | 32.7 26% | 38.7 ? 12% | 45.8 ? -4% |
| Witcher 3 ultra * | 41.8 | 33.3 20% | 42.2 -1% | 35.4 15% | 35.4 15% | |||
| Load Maximum * | 63 | 65 -3% | 55 13% | 45.3 28% | 67 -6% | 63.3 -0% | 51.9 ? 18% | 68.7 ? -9% |
* ... smaller is better
Energieaufnahme Witcher 3 / Stresstest
Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7; Witcher 3 ultra: Ø41.8 (38.6-51.5)
Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs; Witcher 3 ultra: Ø33.3 (31.1-40.6)
Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7; 1280x720 Prime95 28.10 and Furmark 1.25: Ø41.8 (39-63.5)
Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø48.4 (43.3-65.3)
Energieaufnahme mit externem Monitor
Acer Swift 3 SF314-43-R8BP; Prime95 V2810 Stress (external Monitor): Ø38.3 (37.4-39)
Acer Swift 3 SF314-43-R8BP; Cinebench R15 Multi (external Monitor): Ø42.3 (39-63.9)
Acer Swift 3 SF314-43-R8BP; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.5 (39.7-43.7)
Acer Swift 3 SF314-43-R8BP; 1920x1080 The Witcher 3 ultra (external Monitor): Ø39.7 (34.2-42.9)
电池寿命
宏碁Swift 3笔记本在我们的实际WLAN测试中实现了8:25小时的运行时间。我们用一个脚本来模拟访问网站时的负载。显示屏的亮度被设置为大约150cd/m²。这比大多数竞争对手的运行时间要短，但我们的Swift 3设备只有48Wh的电池，不像56Wh的电池在 Swift 3 SF314-511(英特尔)。
| Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7, 48 Wh | Acer Swift 3 SF314-511-54ZK i5-1135G7, Iris Xe G7 80EUs, 56 Wh | Lenovo ThinkPad E14 G3-20Y7003SGE R5 5500U, Vega 7, 57 Wh | HP Pavilion 14-dv0357ng i5-1135G7, Iris Xe G7 80EUs, 43 Wh | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, 63 Wh | Lenovo ThinkBook 14 G2 ITL 20VDS02G00 i3-1115G4, UHD Graphics Xe G4 48EUs, 58 Wh | Average of class Subnotebook | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | 42% | 2% | -29% | 37% | -8% | 38% | |
| Reader / Idle | 1155 | 2015 74% | 1371 19% | 793 -31% | 1808 ? 57% | ||
| WiFi v1.3 | 505 | 724 43% | 680 35% | 360 -29% | 769 52% | 454 -10% | 729 ? 44% |
| Load | 104 | 114 10% | 71 -32% | 146 40% | 121 16% | 116.5 ? 12% | |
| H.264 | 827 | 356 | 526 | 917 ? | |||
| Witcher 3 ultra | 121 |
Pros
+ 别致、纤细的金属外壳
+ NVMe SSD
+ 良好的电池运行时间

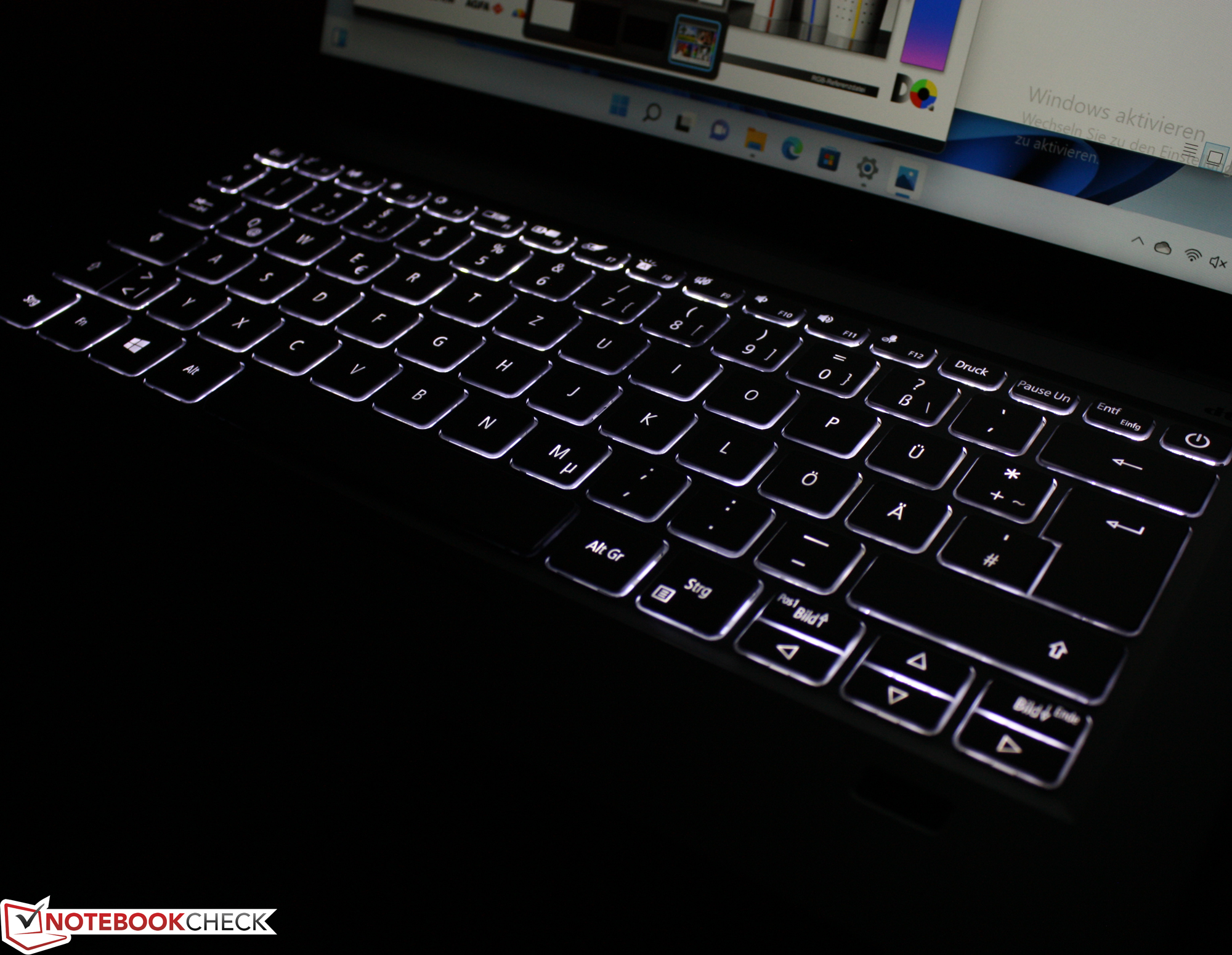

+ 按键照明
+ 几乎不产生噪音
+ 几乎不发热
+ USB 3.2 Gen 2 & Displayport
Cons
- 黑屏
- 色彩空间覆盖率低
- Ryzen APU的节流比平时更猛烈，几乎没有涡轮增压功能
- 没有存储卡读卡器
- 工作内存被焊接
结论。宏碁的Swift 3不是最迅捷的

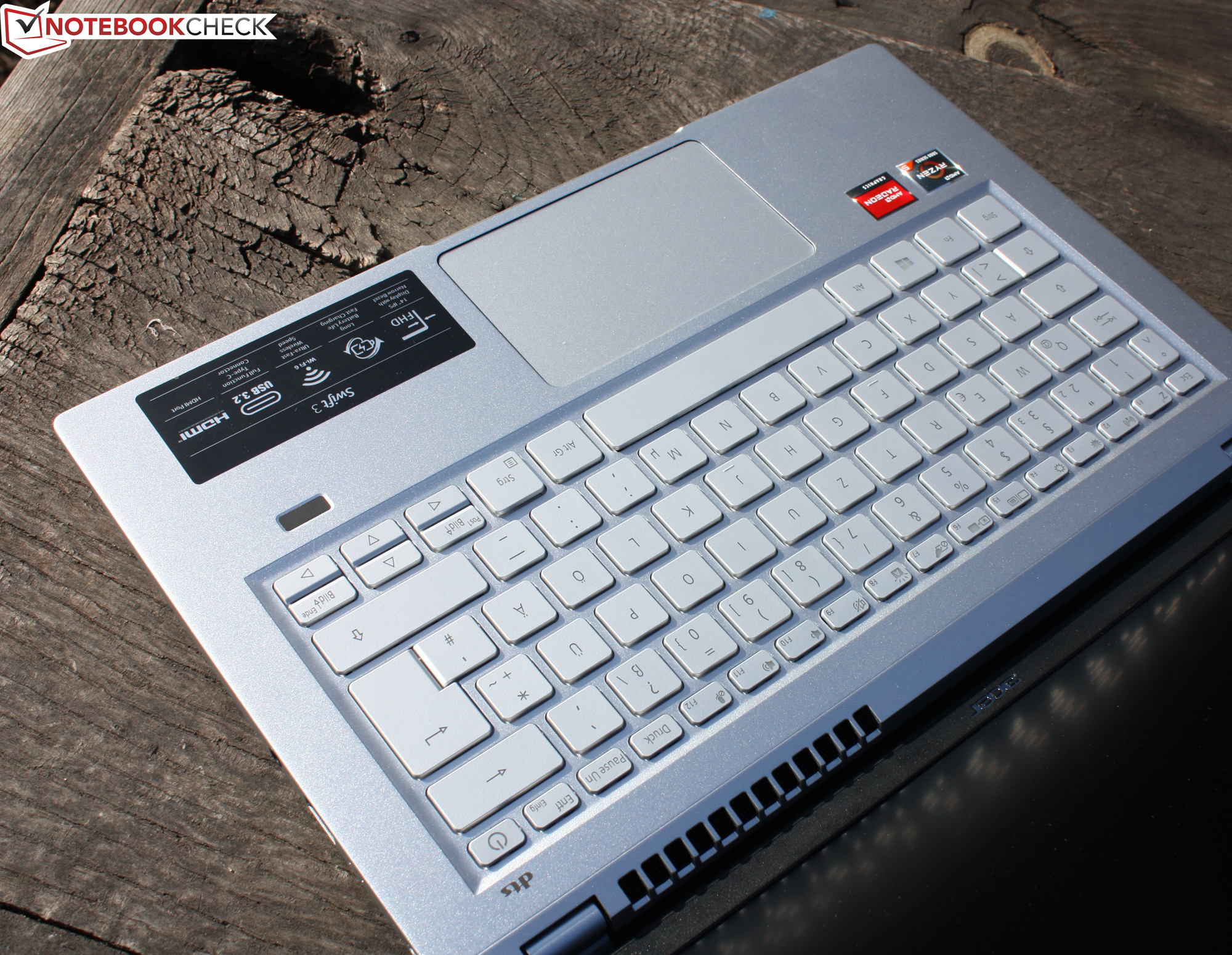

宏碁提供了一款14英寸的笔记本，Swift 3 SF314-43采用了超薄的金属底盘。紧凑的机身仅重1.3公斤，厚度为16.5毫米，在这个价格范围内提供了出色的稳定性和触觉效果。
宏碁通过Swift 3 SF314-43提供了一款移动的14英寸机，只在显示屏和Wi-Fi方面让人失望。
对屏幕的主要批评是亮度低--平均230cd/m²的亮度即使对哑光显示器来说也太低了。色彩空间覆盖面也不是很大，但这对于不从事图像编辑和CAD的用户来说几乎没有关系（这些用户肯定不会购买Swift 3）。
Ryzen 5 5500U APU，在其他方面以其良好的性能著称，即使在Cinebench R15循环中，其节流程度也超过预期。然而，Swift 3 SF314-43的性能仍然超过了英特尔笔记本电脑，或者至少与它们持平。
保守的温度表使一个几乎无声的14英寸笔记本在任何时候都能保持凉爽。因此，Swift 3 SF314-43是一款值得推荐的次笔记本，适合那些不关心最高性能，但想要稳定、符合人体工程学和移动性的预算买家。
如果你想保持在预算之内--但关注最大的性能--你应该看看联想的 ThinkPad E14 G3它能够从Ryzen 5500U中提取更多的性能。 5500U.
价格和可用性
我们的测试配置宏碁Swift 3 SF314-43-R8BP目前在notebooksbilliger，售价679欧元。.
Acer Swift 3 SF314-43-R8BP
- 03/09/2022 v7 (old)
Sebastian Jentsch
Subnotebook - Weighted Average
Price comparison
