华硕 FX502VM-AS73 笔记本电脑简短评测

专注游戏。 FX502VM，在不太影响性能的情况下，实现了GL502VM几乎所有的功能。然而，该机带有最低端TN显示屏。对比度非常差。
Gaming Geforce Windows Kaby Lake
Asus FX502VM-AS73 (FX Series)
Processor
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake

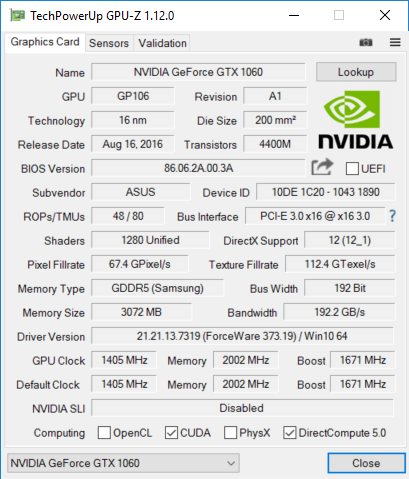

Graphics adapter

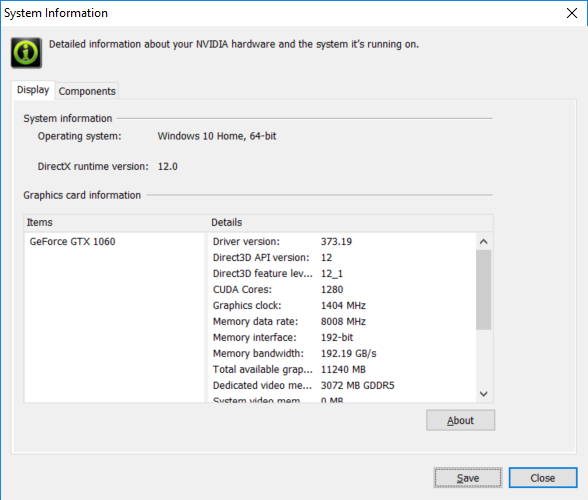

NVIDIA GeForce GTX 1060 Mobile - 3 GB VRAM, Core: 1404 MHz, RAM: 8008 MHz, GDDR5, 373.19

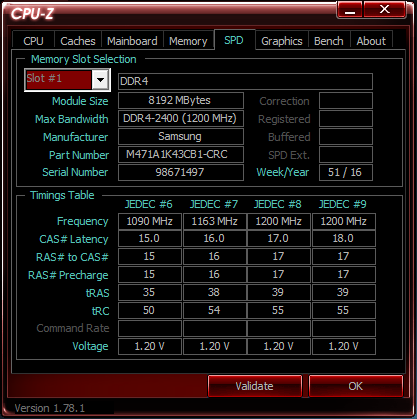

Memory
16 GB

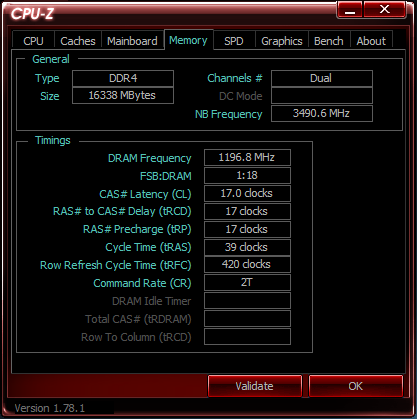

, DDR4, 8 GB gelötet, 8 GB SODIMM, dual-channel, 17-17-17-39
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, TN LED, ID: BOE069C, Name: BOE NT156FHM-N41, glossy: no

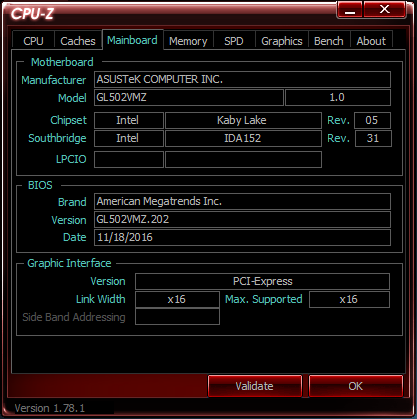

Mainboard
Intel HM175
Storage
SK Hynix HFS256G39TND-N210A, 256 GB
, Sekundäre: Toshiba MQ01ABD100
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5 毫米 耳麦合一, Card Reader: SD Speicherkartenleser
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 23 x 390 x 266
Battery
64 Wh Lithium-Polymer, 4颗
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清
Additional features
Speakers: 立体声, Keyboard: 巧克力键盘, Keyboard Light: yes, MyAsus, Asus Giftbox, McAfee, 12 Months Warranty
Weight
2.57 kg, Power Supply: 660 g
Price
1250 USD
Links
Asus homepage
Asus notebook section
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



❌
390 mm 266 mm 40 mm 2.9 kg389 mm 305 mm 25 mm 3.5 kg380 mm 269 mm 34 mm 2.6 kg390 mm 266 mm 24 mm 2.5 kg390 mm 266 mm 23 mm 2.6 kg357 mm 235 mm 17 mm 2 kg297 mm 210 mm 1 mm 5.7 g

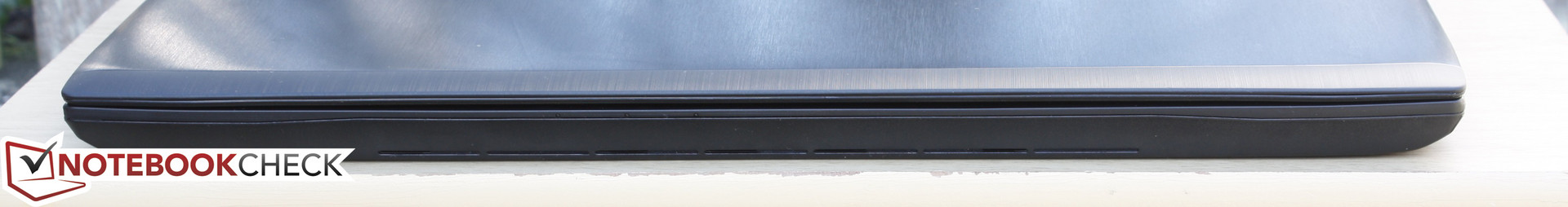

Front: No connectivity
Front: No connectivity

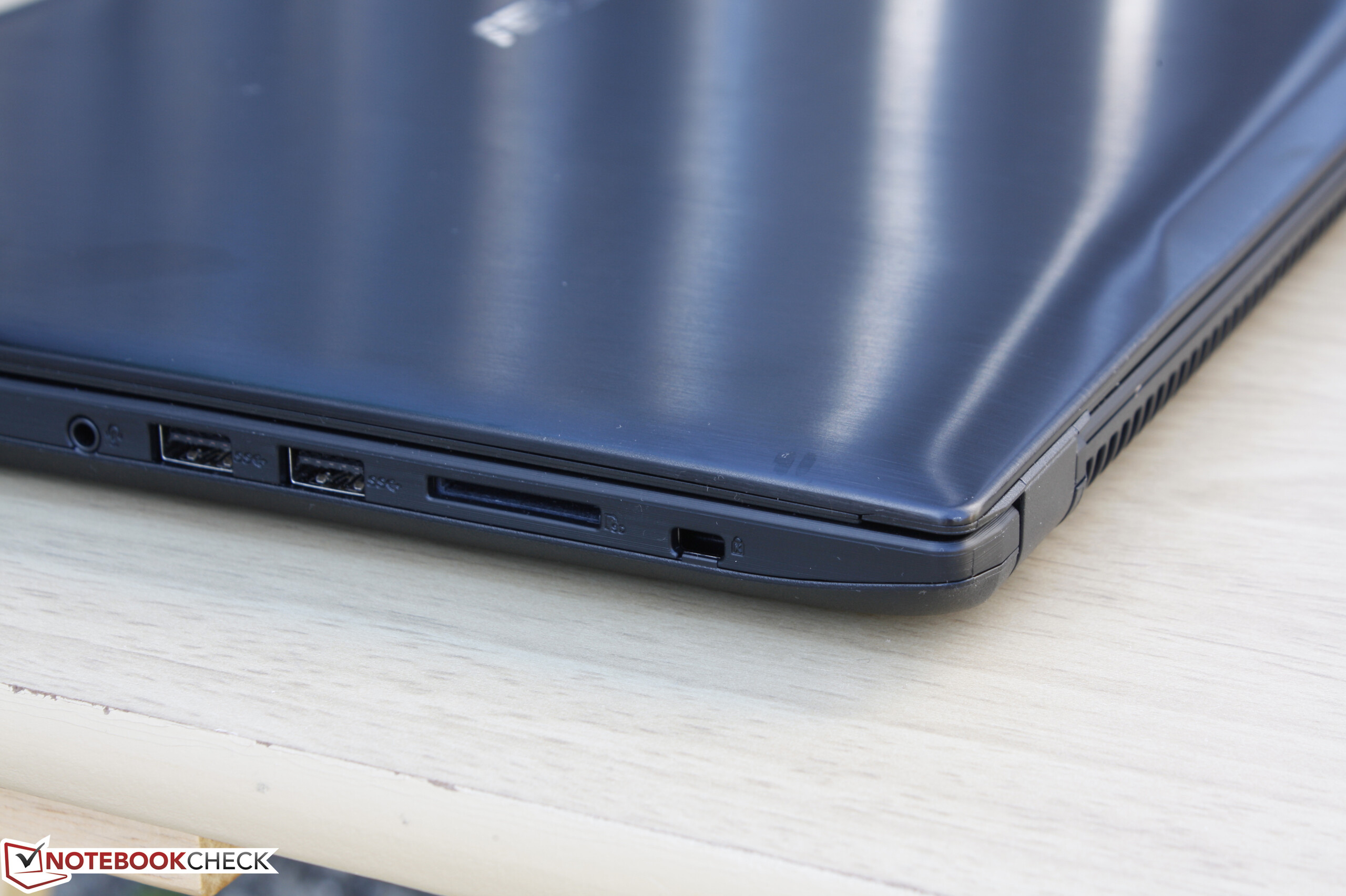

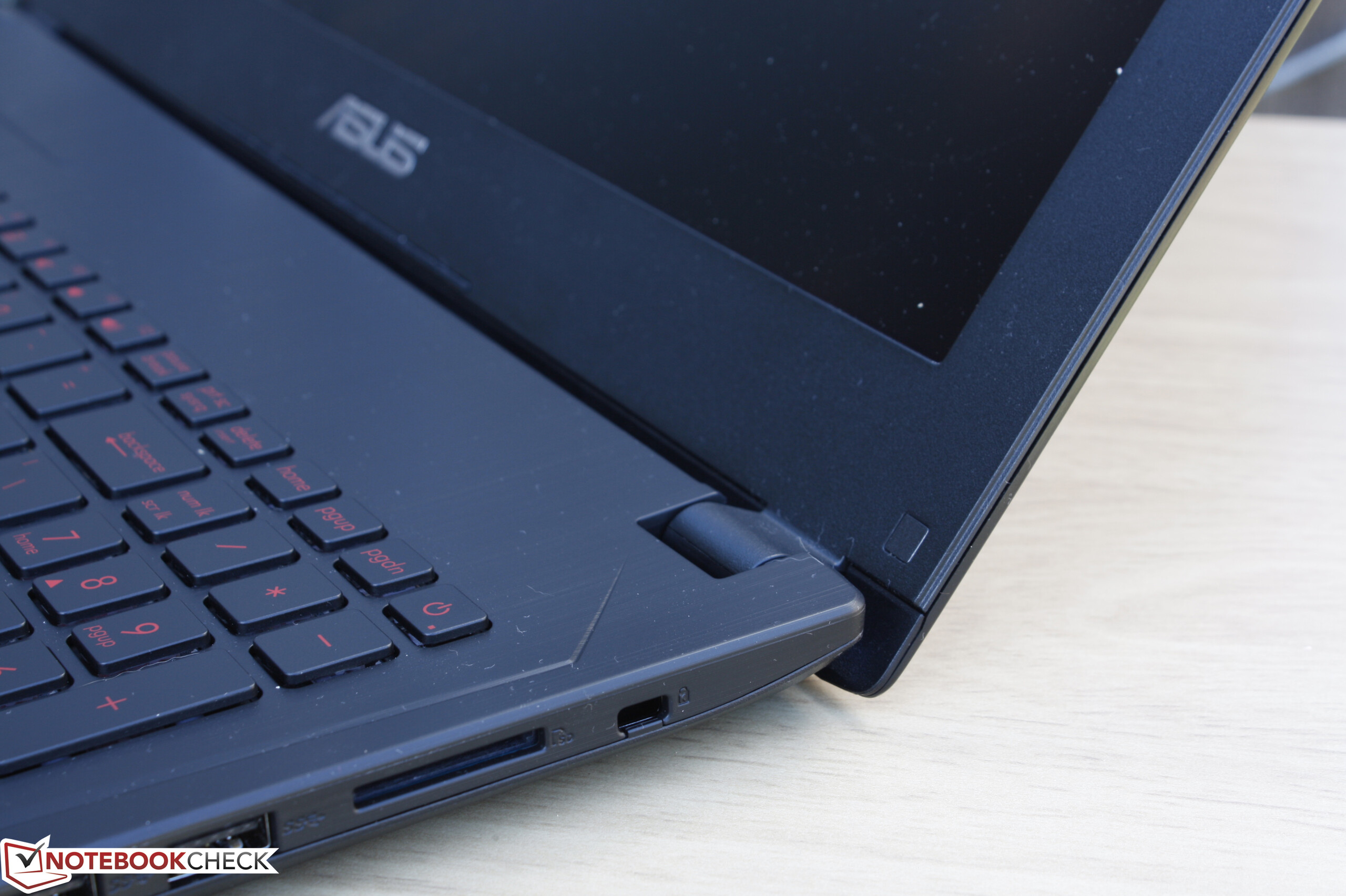

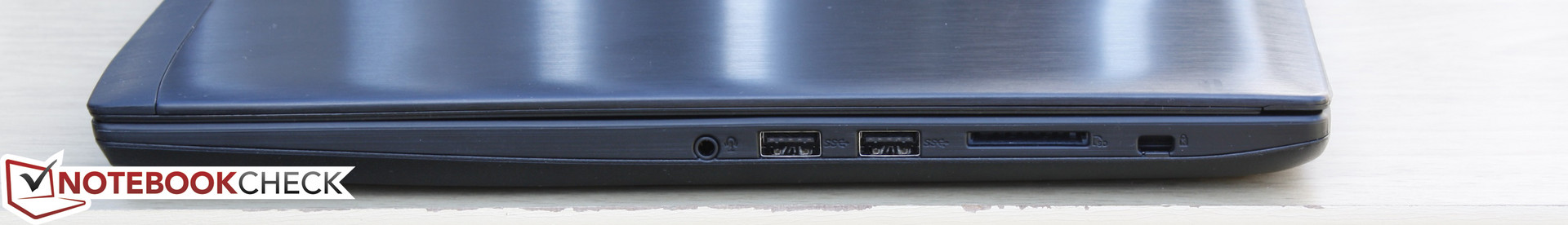

Right: 3.5 mm combo audio, 2x USB 3.0, SD reader, Kensington Lock
Right: 3.5 mm combo audio, 2x USB 3.0, SD reader, Kensington Lock

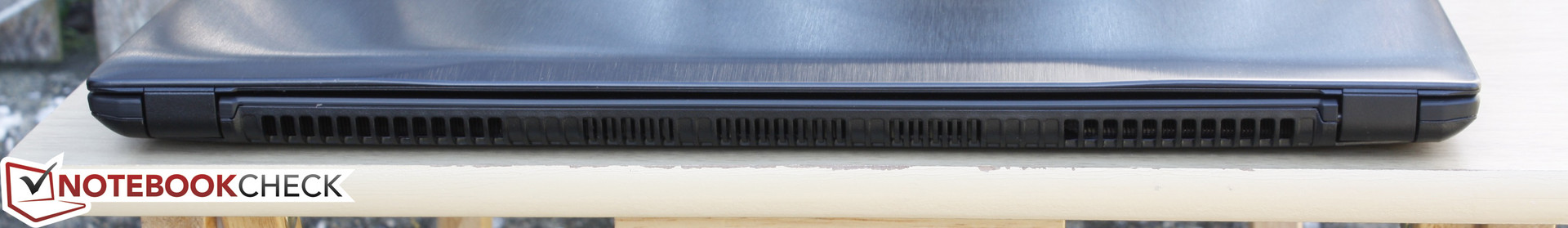

Rear: No connectivity
Rear: No connectivity

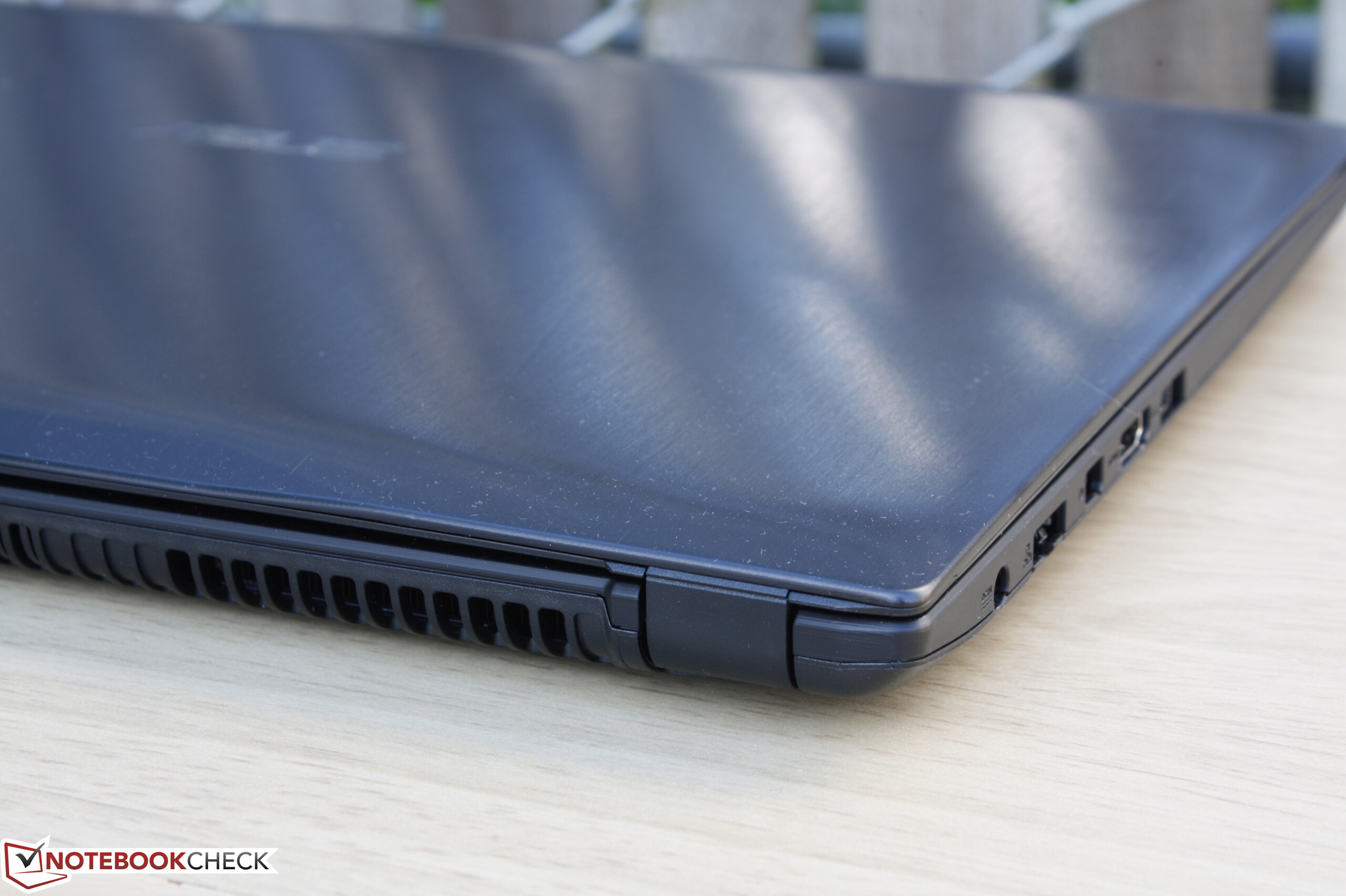

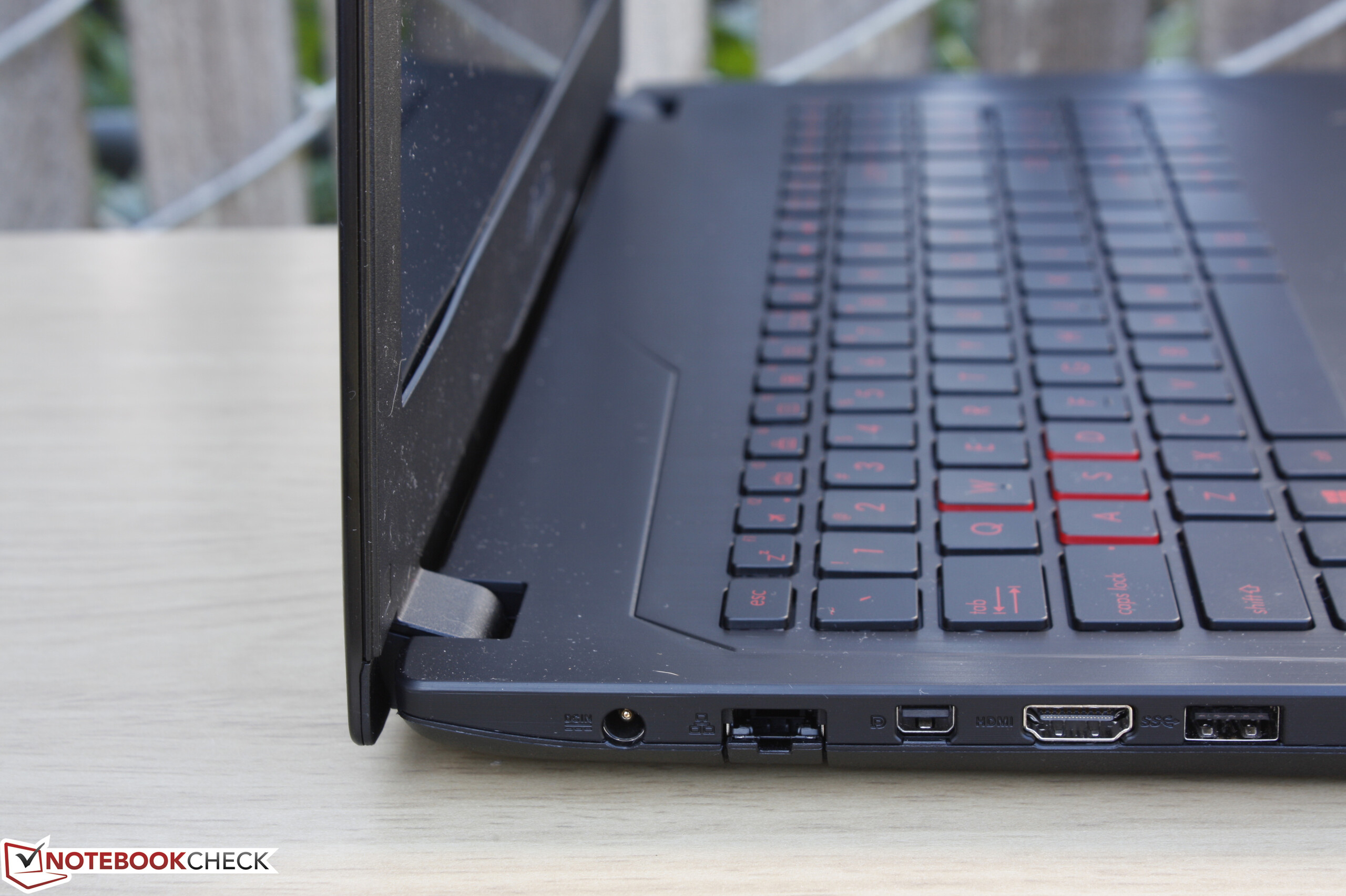

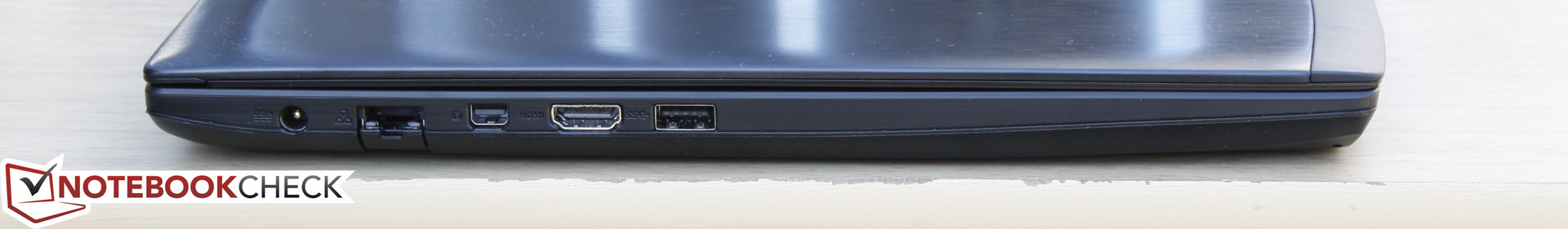

Left: AC adapter, Gigabit RJ-45, mDP, HDMI, USB 3.0
Left: AC adapter, Gigabit RJ-45, mDP, HDMI, USB 3.0
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Dell XPS 15-9550 i7

121 MB/s +54%
Asus Strix GL502VM-DS74

80.3 MB/s +2%
Asus FX502VM-AS73

78.8 MB/s
maximum AS SSD Seq Read Test (1GB)
Dell XPS 15-9550 i7

211 MB/s +143%
Asus Strix GL502VM-DS74

89.5 MB/s +3%
Asus FX502VM-AS73

86.9 MB/s
Networking
iperf3 transmit AX12
Alienware 15 R3
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
560 MBit/s +9%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
513 MBit/s
Asus Strix GL502VM-DS74
Intel Dual Band Wireless-AC 8260
468 MBit/s -9%
iperf3 receive AX12
Alienware 15 R3
Killer Wireless-n/a/ac 1435 Wireless Network Adapter
681 MBit/s +26%
Asus FX502VM-AS73
Intel Dual Band Wireless-AC 8260
541 MBit/s
Asus Strix GL502VM-DS74
Intel Dual Band Wireless-AC 8260
331 MBit/s -39%
206.8
cd/m²		206.5
cd/m²		203.4
cd/m²
200.3
cd/m²		209.5
cd/m²		207.6
cd/m²
196.2
cd/m²		214.2
cd/m²		200.5
cd/m²
Distribution of brightness
tested with X-Rite i1Pro Basic 2
Maximum: 214.2 cd/m² (Nits) Average: 205 cd/m² Minimum: 22.01 cd/m²
Brightness Distribution: 92 %
Center on Battery: 209.5 cd/m²
Contrast: 304:1 (Black: 0.69 cd/m²)
ΔE Color 4.7 | 0.5-29.43 Ø4.93
ΔE Greyscale 1.8 | 0.5-98 Ø5.2
56.6% sRGB (Argyll 1.6.3 3D)
36.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.47% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.9% sRGB (Argyll 2.2.0 3D)
38.28% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
Asus FX502VM-AS73
TN LED, 15.6", 1920x1080		Alienware 15 R3
HPJGK_B156HTN (AUO51ED), TN, 15.6", 1920x1080		MSI GT62VR 7RE-223
LG Philips LP156WF6 (LGD046F), IPS, 15.6", 1920x1080		Dell XPS 15 2017 9560 (7300HQ, Full-HD)
Sharp SHP1453 LQ156M1, LED IGZO IPS InfinityEdge, 15.6", 1920x1080		Gigabyte P55W v7
LG Philips LP156WF6 (LGD046F), IPS, 15.6", 1920x1080		Asus Strix GL502VM-DS74
IPS, 15.6", 1920x1080
Display
66%
56%
78%
54%
58%
Display P3 Coverage
38.28
66
72%
63.9
67%
68.9
80%
63.5
66%
64.8
69%
sRGB Coverage
56.9
90.5
59%
83.1
46%
98.9
74%
82
44%
84.9
49%
AdobeRGB 1998 Coverage
39.47
66.2
68%
60.8
54%
70.9
80%
59.9
52%
62
57%
Response Times
29%
-21%
-112%
-21%
-47%
Response Time Grey 50% / Grey 80% *
28.4 ?(11.2, 17.2)
25 ?(12, 13)
12%
37 ?(16, 21)
-30%
54 ?(33.2, 20)
-90%
37 ?(15, 22)
-30%
42 ?(19.2, 22.8)
-48%
Response Time Black / White *
22.4 ?(6, 16.4)
12 ?(4, 8)
46%
25 ?(4, 21)
-12%
52.4 ?(33.2, 19.2)
-134%
25 ?(5, 20)
-12%
32.8 ?(6, 26.8)
-46%
PWM Frequency
Screen
-6%
41%
54%
39%
44%
Brightness middle
209.5
386
84%
310
48%
400
91%
287
37%
307.8
47%
Brightness
205
382
86%
311
52%
392
91%
289
41%
301
47%
Brightness Distribution
92
93
1%
85
-8%
89
-3%
87
-5%
88
-4%
Black Level *
0.69
0.39
43%
0.3
57%
0.26
62%
0.29
58%
0.33
52%
Contrast
304
990
226%
1033
240%
1538
406%
990
226%
933
207%
Colorchecker dE 2000 *
4.7
10.2
-117%
4.82
-3%
4.9
-4%
4.92
-5%
4.5
4%
Colorchecker dE 2000 max. *
19.7
15.81
20%
10.14
49%
11
44%
11
44%
10
49%
Greyscale dE 2000 *
1.8
11.28
-527%
3.94
-119%
7.2
-300%
3.66
-103%
2.9
-61%
Gamma
2.23 99%
2.23 99%
2.45 90%
2.11 104%
2.32 95%
2.22 99%
CCT
6975 93%
11383 57%
6877 95%
6911 94%
6482 100%
1136 572%
Color Space (Percent of AdobeRGB 1998)
36.2
59
63%
54
49%
64.2
77%
54
49%
55.4
53%
Color Space (Percent of sRGB)
56.6
90
59%
83
47%
98.9
75%
82
45%
84.8
50%
Total Average (Program / Settings)
30% / 13%
25% / 36%
7% / 37%
24% / 34%
18% / 35%

* ... smaller is better

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

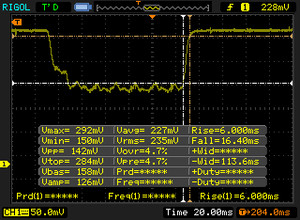

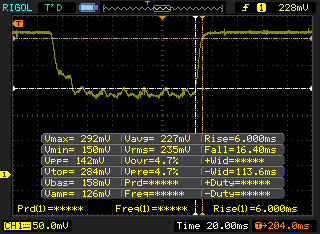

   ↔    Response Time Black to White
22.4 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 46 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21 ms).

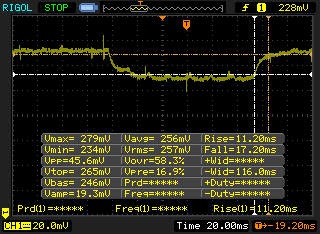

   ↔    Response Time 50% Grey to 80% Grey
28.4 ms ... rise ↗ and fall ↘ combined↗ 11.2 ms rise
↘ 17.2 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 34 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.9 ms).

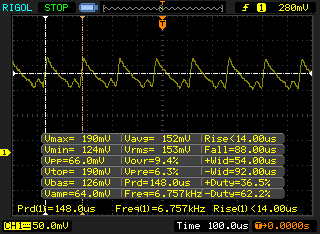

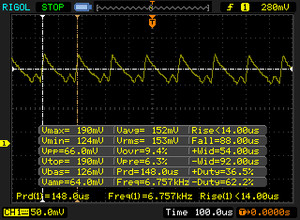

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10
Cinebench R15
CPU Single 64Bit
Asus G701VIK-BA049T
Intel Core i7-7820HK
184 Points +31%
Eurocom Sky X7E2
Intel Core i7-6700K
160 Points +14%
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Intel Core i7-6820HQ
154 Points +10%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)
Intel Core i5-7300HQ
146 Points +4%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
144 Points +3%
MSI GE72VR-6RF16H21
Intel Core i7-6700HQ
140 Points 0%
Asus FX502VM-AS73
Intel Core i7-7700HQ
140 Points
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
131 Points -6%
CPU Multi 64Bit
Asus G701VIK-BA049T
Intel Core i7-7820HK
899 Points +24%
Eurocom Sky X7E2
Intel Core i7-6700K
874 Points +21%
Asus FX502VM-AS73
Intel Core i7-7700HQ
725 Points
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
719 Points -1%
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Intel Core i7-6820HQ
704 Points -3%
MSI GE72VR-6RF16H21
Intel Core i7-6700HQ
676 Points -7%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
566 Points -22%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)
Intel Core i5-7300HQ
508 Points -30%
Cinebench R11.5
CPU Single 64Bit
Asus G701VIK-BA049T
Intel Core i7-7820HK
2.08 Points +25%
Eurocom Sky X7E2
Intel Core i7-6700K
1.72 Points +3%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
1.68 Points +1%
Asus FX502VM-AS73
Intel Core i7-7700HQ
1.67 Points
MSI GE72VR-6RF16H21
Intel Core i7-6700HQ
1.55 Points -7%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
1.49 Points -11%
CPU Multi 64Bit
Asus G701VIK-BA049T
Intel Core i7-7820HK
9.91 Points +24%
Eurocom Sky X7E2
Intel Core i7-6700K
8.55 Points +7%
Asus FX502VM-AS73
Intel Core i7-7700HQ
7.99 Points
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
7.96 Points 0%
MSI GE72VR-6RF16H21
Intel Core i7-6700HQ
7.39 Points -8%
Toshiba Satellite S70-B-106
Intel Core i7-4700HQ
6.02 Points -25%
Cinebench R10
Rendering Multiple CPUs 32Bit
Eurocom Sky X7E2
Intel Core i7-6700K
23815 Points +11%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
21681 Points +1%
Asus FX502VM-AS73
Intel Core i7-7700HQ
21376 Points
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Intel Core i7-6820HQ
21079 Points -1%
MSI GE72VR-6RF16H21
Intel Core i7-6700HQ
19720 Points -8%
Rendering Single 32Bit
Eurocom Sky X7E2
Intel Core i7-6700K
6434 Points +14%
Asus FX502VM-AS73
Intel Core i7-7700HQ
5660 Points
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Intel Core i7-6820HQ
5580 Points -1%
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
5567 Points -2%
MSI GE72VR-6RF16H21
Intel Core i7-6700HQ
4720 Points -17%
wPrime 2.10 - 1024m
Apple MacBook Pro 15 2016 (2.7 GHz, 455)
Intel Core i7-6820HQ
241 s * -12%
Asus FX502VM-AS73
Intel Core i7-7700HQ
214.3 s *
MSI GE62 2QC-468XPL
Intel Core i7-5700HQ
206.3 s * +4%
Eurocom Sky X7E2
Intel Core i7-6700K
205.9 s * +4%

* ... smaller is better

Cinebench R10 Shading 32Bit
10685
Cinebench R10 Rendering Multiple CPUs 32Bit
21376
Cinebench R10 Rendering Single 32Bit
5660
Cinebench R11.5 OpenGL 64Bit
66.8 fps
Cinebench R11.5 CPU Multi 64Bit
7.99 Points
Cinebench R11.5 CPU Single 64Bit
1.67 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
114.9 fps
Cinebench R15 CPU Multi 64Bit
725 Points
Cinebench R15 CPU Single 64Bit
140 Points
Help
PCMark 8
Home Score Accelerated v2
MSI GT62VR 7RE-223
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD PM871a MZNLN256HMHQ
5011 Points +5%
Asus Strix GL502VM-DS74
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
4967 Points +4%
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
4966 Points +4%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
4765 Points
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
4013 Points -16%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)
GeForce GTX 1050 Mobile, i5-7300HQ, WDC WD10SPCX-75KHST0 + SanDisk Z400s M.2 2242 32 GB Cache
3659 Points -23%
Work Score Accelerated v2
Asus Strix GL502VM-DS74
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
5447 Points +100%
MSI GT62VR 7RE-223
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD PM871a MZNLN256HMHQ
5406 Points +99%
Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256
5317 Points +95%
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
5299 Points +95%
Dell XPS 15 2017 9560 (7300HQ, Full-HD)
GeForce GTX 1050 Mobile, i5-7300HQ, WDC WD10SPCX-75KHST0 + SanDisk Z400s M.2 2242 32 GB Cache
4884 Points +79%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
2722 Points
Creative Score Accelerated v2
MSI GT62VR 7RE-223
GeForce GTX 1070 Mobile, i7-7700HQ, Samsung SSD PM871a MZNLN256HMHQ
7738 Points +7%
Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ
7678 Points +6%
Asus Strix GL502VM-DS74
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
7332 Points +2%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
7220 Points
PCMark 8 Home Score Accelerated v2
4765 points
PCMark 8 Creative Score Accelerated v2
7220 points
PCMark 8 Work Score Accelerated v2
2722 points
Help
Asus FX502VM-AS73
SK Hynix HFS256G39TND-N210A		Alienware 15 R3
 		Dell XPS 15 2017 9560 (7300HQ, Full-HD)
WDC WD10SPCX-75KHST0 + SanDisk Z400s M.2 2242 32 GB Cache		Gigabyte P55W v7
Liteonit CV3-8D256		Asus Strix GL502VM-DS74
Samsung SSD 960 Evo 250GB m.2 NVMe
CrystalDiskMark 3.0
146%
-75%
31%
351%
Read Seq
503
1123
123%
123
-76%
466.2
-7%
1747
247%
Write Seq
138.2
429.2
211%
74.2
-46%
261.9
90%
1477
969%
Read 512
343.5
833
143%
101.7
-70%
252.5
-26%
863
151%
Write 512
137.8
428.1
211%
42.51
-69%
254.8
85%
1115
709%
Read 4k
29.36
37.8
29%
10.84
-63%
25.4
-13%
56.8
93%
Write 4k
70.9
122.9
73%
1.021
-99%
55
-22%
152.4
115%
Read 4k QD32
369.9
542
47%
69.8
-81%
358.5
-3%
652
76%
Write 4k QD32
99.7
429.8
331%
1.057
-99%
240.1
141%
542
444%
CrystalDiskMark 3.0
AS SSD
hddimg
SK Hynix HFS256G39TND-N210A
Sequential Read: 503 MB/s
Sequential Write: 138.2 MB/s
512K Read: 343.5 MB/s
512K Write: 137.8 MB/s
4K Read: 29.36 MB/s
4K Write: 70.9 MB/s
4K QD32 Read: 369.9 MB/s
4K QD32 Write: 99.7 MB/s
3DMark | 3DMark 11
3DMark
1920x1080 Fire Strike Graphics
Acer Predator 17 X GX-792-76DL
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK
22566 Points +94%
Gigabyte P57X v7
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
17170 Points +48%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
12984 Points +12%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
11633 Points
Asus Strix GL502VM-DS74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
11186 Points -4%
MSI GE72 7RE-046
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ
8086 Points -30%
HP Pavilion 17t-ab200
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ
5961 Points -49%
Fire Strike Extreme Graphics
Acer Predator 17 X GX-792-76DL
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK
10451 Points +91%
Gigabyte P57X v7
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
8236 Points +51%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
5463 Points
Asus Strix GL502VM-DS74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
5369 Points -2%
HP Pavilion 17t-ab200
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ
2694 Points -51%
3840x2160 Fire Strike Ultra Graphics
Acer Predator 17 X GX-792-76DL
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK
5046 Points +97%
Gigabyte P57X v7
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
4005 Points +56%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
2893 Points +13%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
2565 Points
Asus Strix GL502VM-DS74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
2534 Points -1%
3DMark 11
1280x720 Performance GPU
Acer Predator 17 X GX-792-76DL
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK
28595 Points +94%
Gigabyte P57X v7
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
23243 Points +58%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
17401 Points +18%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
14732 Points
Asus Strix GL502VM-DS74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
14347 Points -3%
MSI GE72 7RE-046
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ
10186 Points -31%
HP Pavilion 17t-ab200
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ
7649 Points -48%
1280x720 Performance Combined
Nvidia GeForce GTX 1060 Founders Edition 6 GB
NVIDIA GeForce GTX 1060 (Desktop), 6700K
11160 Points +24%
Acer Predator 17 X GX-792-76DL
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK
11082 Points +24%
Gigabyte P57X v7
NVIDIA GeForce GTX 1070 Mobile, i7-7700HQ
9116 Points +2%
Asus FX502VM-AS73
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
8967 Points
Asus Strix GL502VM-DS74
NVIDIA GeForce GTX 1060 Mobile, i7-7700HQ
8583 Points -4%
HP Pavilion 17t-ab200
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ
7440 Points -17%
MSI GE72 7RE-046
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ
7216 Points -20%
3DMark 11 Performance
12736 points
3DMark Ice Storm Standard Score
125692 points
3DMark Cloud Gate Standard Score
25979 points
3DMark Fire Strike Score
9845 points
3DMark Fire Strike Extreme Score
5189 points
Help
BioShock Infinite | Metro: Last Light | Sleeping Dogs | Thief | Fallout 4 | Rise of the Tomb Raider | Ashes of the Singularity | Doom | Overwatch | Mafia 3
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
164.7 fps +60%
Gigabyte P57X v7
GeForce GTX 1070 Mobile, i7-7700HQ, Transcend MTS800 256GB M.2 (TS256GMTS800)
130 fps +26%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
103.1 fps
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
86.4 fps -16%
MSI GL62M 7RD-077
GeForce GTX 1050 Mobile, i7-7700HQ, HGST Travelstar 7K1000 HTS721010A9E630
66.2 fps -36%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
130 fps +64%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
79.3 fps
Sleeping Dogs - 1920x1080 Extreme Preset AA:Extreme
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
140.6 fps +81%
Gigabyte P57X v7
GeForce GTX 1070 Mobile, i7-7700HQ, Transcend MTS800 256GB M.2 (TS256GMTS800)
116.3 fps +50%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
77.5 fps
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
57.5 fps -26%
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
125 fps +62%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
77.3 fps
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
58.6 fps -24%
MSI GL62M 7RD-077
GeForce GTX 1050 Mobile, i7-7700HQ, HGST Travelstar 7K1000 HTS721010A9E630
43.6 fps -44%
Fallout 4 - 1920x1080 Ultra Preset AA:T AF:16x
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
124 fps +68%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
77.1 fps +5%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
73.7 fps
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
57.9 fps -21%
MSI GE72 7RE-046
GeForce GTX 1050 Ti Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
46.2 fps -37%
Rise of the Tomb Raider - 1920x1080 Very High Preset AA:FX AF:16x
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
118 fps +92%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
66.9 fps +9%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
66.5 fps +8%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
61.3 fps
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
55 fps -10%
MSI GE72 7RE-046
GeForce GTX 1050 Ti Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
39.7 fps -35%
MSI GL62M 7RD-077
GeForce GTX 1050 Mobile, i7-7700HQ, HGST Travelstar 7K1000 HTS721010A9E630
33.7 fps -45%
Ashes of the Singularity - 1920x1080 high
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
54.8 fps
MSI GL62M 7RD-077
GeForce GTX 1050 Mobile, i7-7700HQ, HGST Travelstar 7K1000 HTS721010A9E630
29.1 fps -47%
Doom - 1920x1080 Ultra Preset AA:SM
Aorus X7 DT v6
GeForce GTX 1080 Mobile, 6820HK, Samsung SM951 MZVPV512HDGL m.2 PCI-e
153 fps +61%
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
99.7 fps +5%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
95.1 fps
MSI GE72 7RE-046
GeForce GTX 1050 Ti Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
63.8 fps -33%
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
56 fps -41%
Overwatch - 1920x1080 Epic (Render Scale 100 %) AA:SM AF:16x
Nvidia GeForce GTX 1060 Founders Edition 6 GB
GeForce GTX 1060 (Desktop), 6700K
116 fps +8%
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
107.3 fps
Asus Strix GL502VY-DS71
GeForce GTX 980M, 6700HQ, SanDisk SD8SN8U1T001122
87.3 fps -19%
MSI GE72 7RE-046
GeForce GTX 1050 Ti Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
71 (59min - 85max) fps -34%
MSI GL62M 7RD-077
GeForce GTX 1050 Mobile, i7-7700HQ, HGST Travelstar 7K1000 HTS721010A9E630
56 (48min - 65max) fps -48%
Mafia 3 - 1920x1080 High Preset
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A
46.7 fps
MSI GE72 7RE-046
GeForce GTX 1050 Ti Mobile, i7-7700HQ, Toshiba HG6 THNSNJ256G8NY
28.7 fps -39%
lowmed.highultra
Sleeping Dogs (2012) 77.5
BioShock Infinite (2013) 103.1
Metro: Last Light (2013) 79.3
Thief (2014) 77.3
Metal Gear Solid V (2015) 60
Fallout 4 (2015) 73.7
Rise of the Tomb Raider (2016) 61.3
Ashes of the Singularity (2016) 54.8
Doom (2016) 95.1
Overwatch (2016) 107.3
Mafia 3 (2016) 46.7

Noise Level

Idle
30.6 / 30.6 / 31 dB(A)
Load
46.2 / 52.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)   environment noise: 28.7 dB(A)
Asus FX502VM-AS73
GeForce GTX 1060 Mobile, i7-7700HQ, SK Hynix HFS256G39TND-N210A		Alienware 15 R3
GeForce GTX 1070 Mobile, i7-7700HQ		Dell XPS 15 2017 9560 (7300HQ, Full-HD)
GeForce GTX 1050 Mobile, i5-7300HQ, WDC WD10SPCX-75KHST0 + SanDisk Z400s M.2 2242 32 GB Cache		Gigabyte P55W v7
GeForce GTX 1060 Mobile, i7-7700HQ, Liteonit CV3-8D256		Asus Strix GL502VM-DS74
GeForce GTX 1060 Mobile, i7-7700HQ, Samsung SSD 960 Evo 250GB m.2 NVMe
Noise
-8%
-2%
-3%
-4%
off / environment *
28.7
30
-5%
30.3
-6%
30
-5%
30.8
-7%
Idle Minimum *
30.6
31
-1%
31.6
-3%
33
-8%
32
-5%
Idle Average *
30.6
32
-5%
31.6
-3%
34
-11%
32
-5%
Idle Maximum *
31
42
-35%
33.4
-8%
35
-13%
32
-3%
Load Average *
46.2
49
-6%
47.8
-3%
39
16%
48.3
-5%
Load Maximum *
52.3
50
4%
47.8
9%
50
4%
51.2
2%

* ... smaller is better

Max. Load
 39.8 °C53.2 °C38.8 °C
 27.2 °C43.6 °C25.4 °C
 21.6 °C22 °C22.2 °C
Maximum: 53.2 °C
Average: 32.6 °C
50.2 °C56.8 °C47 °C
25.8 °C40.4 °C23.4 °C
23.4 °C23 °C23 °C
Maximum: 56.8 °C
Average: 34.8 °C
Power Supply (max.)  44 °C | Room Temperature 20 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 32.6 °C / 91 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 53.2 °C / 128 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 56.8 °C / 134 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 25.5 °C / 78 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 23.4 °C / 74.1 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+5.5 °C / 9.9 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.734.92535.632.13132.835.64030.632.55033.632.86331.931.28030.430.61003130.512531.730.716028.230.520027.236.825026.148.631525.35140025.35250025.149.363024.454.180025.360.1100024.357.2125023.953160024.154.7200023.352.1250023.154.9315023.155.740002357.250002358.8630023.158.6800023.251.41000023.243.31250023.142.31600023.238.3SPL35.967.8N2.623median 24.1median 52Delta17.735.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAsus FX502VM-AS73Apple MacBook 12 (Early 2016) 1.1 GHz
Asus FX502VM-AS73 audio analysis

(-) | not very loud speakers (67.7 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.7% away from median
(±) | linearity of mids is average (11.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.9% away from median
(±) | linearity of highs is average (11.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (29.9% difference to median)
Compared to same class
» 94% of all tested devices in this class were better, 2% similar, 3% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 86% of all tested devices were better, 3% similar, 11% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.46 / 0.74 Watt
Idledarkmidlight 14.9 / 15.1 / 15.2 Watt
Load midlight 105.8 / 148.8 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus FX502VM-AS73Alienware 15 R3Dell XPS 15 2017 9560 (7300HQ, Full-HD)Gigabyte P55W v7Asus Strix GL502VM-DS74
Power Consumption
-36%
33%
15%
-102%
Idle Minimum *
14.9
19
-28%
6.6
56%
8
46%
38.3
-157%
Idle Average *
15.1
23
-52%
9
40%
13
14%
40.5
-168%
Idle Maximum *
15.2
29
-91%
10.7
30%
18
-18%
42.2
-178%
Load Average *
105.8
85
20%
77.5
27%
76
28%
110.4
-4%
Load Maximum *
148.8
192
-29%
130
13%
143
4%
155.7
-5%

* ... smaller is better

Battery Runtime
Idle (without WLAN, min brightness)
6h 03min
WiFi Websurfing
4h 37min
Load (maximum brightness)
1h 04min
Asus FX502VM-AS73
i7-7700HQ, GeForce GTX 1060 Mobile, 64 Wh		Alienware 15 R3
i7-7700HQ, GeForce GTX 1070 Mobile, 99 Wh		Dell XPS 15 2017 9560 (7300HQ, Full-HD)
i5-7300HQ, GeForce GTX 1050 Mobile, 56 Wh		Gigabyte P55W v7
i7-7700HQ, GeForce GTX 1060 Mobile, 63 Wh		Asus Strix GL502VM-DS74
i7-7700HQ, GeForce GTX 1060 Mobile, 64 Wh
Battery Runtime
20%
36%
65%
-50%
Reader / Idle
363
382
5%
565
56%
789
117%
104
-71%
WiFi v1.3
277
264
-5%
334
21%
346
25%
88
-68%
Load
64
102
59%
84
31%
98
53%
57
-11%

Pros

+ 内部开拆开; 2x存储托架，1x SODIMM模块
+ 相对小巧轻薄的游戏笔记本
+ 性能强; 没有大的节流
+ 键盘按键安静
+ 支持NVMe 固态硬盘

Cons

- 非常差的TN屏幕; 无120 Hz / 5 ms选项
- 相对较大的风扇噪音; 风扇始终处于活动状态
- 3 GB GTX 1060，而不是6 GB GTX 1060
- 鼠标键可以更加坚固
- A面可以更坚硬
- 无USB Type-C

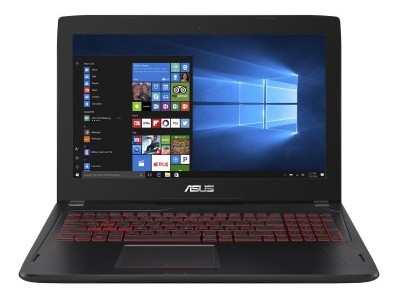

In review: Asus ROG FX502VM-AS73. $150 off at CUKUSA.com with code NBCUK-FX502.
In review: Asus ROG FX502VM-AS73. $150 off at CUKUSA.com with code NBCUK-FX502.

即使在处理器和存储配置相同的情况下，FX502VM的价格也比GL502VM低几百美元。当然，它在其他方面做出了牺牲，包括缺乏USB C型接口和只有一半的VRAM的GTX 1060。即使考虑到被砍掉的性能，该机仍然是一个非常平衡的游戏本。这些缺点几乎1080p游戏游戏没有什么坏影响。除此之外，GL502VM的特点是，风扇噪声相对较大，盖子不稳固且缺乏Thunderbolt 3。GL502VM已经是一个很好的游戏笔记本电脑了，而FX502VM性能稍差，价格更优 。该机明显比微星GE / GL系列更薄，并且可以说比惠普Omen系列 更具吸引力，同时比目前的技嘉科技的产品更便宜。

虽然我们会推荐预算少的游戏玩家购买该机，但是，买家应该尽量避免像该机一样使用低端TN显示屏的机型。而应该购买更高端的IPS显示屏机型。TN显示屏在这个产品类别中没有地位，因为它的亮度，颜色和对比度都差。即便是预算笔记本标准下，更别说这是一个1000美元的游戏本。


注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Asus FX502VM-AS73 - 03/04/2017 v6 (old)
Allen Ngo

Chassis
82 / 98 → 83%
Keyboard
84%
Pointing Device
78%
Connectivity
58 / 81 → 71%
Weight
59 / 10-66 → 88%
Battery
79%
Display
74%
Games Performance
92%
Application Performance
87%
Temperature
87 / 95 → 92%
Noise
76 / 90 → 84%
Audio
70%
Camera
55 / 85 → 65%
Average
76%
82%
Gaming - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版（NBC中国） > 评测 > 华硕 FX502VM-AS73 笔记本电脑简短评测
Allen Ngo, 2017-03-13 (Update: 2024-08-15)
