GEEKOM MiniAir 11上机评测

外形低矮，功率小，成本低。

GEEKOM MiniAir 11很小，即使按照迷你PC的标准也是如此。尽管它的包装很小，但对于基本的家庭和工作任务来说，它是一台合格的PC。

Sam Medley (translated by DeepL / Ninh Duy), Published 08/16/2022 🇺🇸 🇸🇪 ...

Chinese Tech Desktop Jasper Lake Intel Mini PC

GEEKOM以其紧凑型迷你电脑而闻名，包括最近推出的MiniAir 11和Mini IT11。今天，我们将看一下前者。MiniAir 11是一款由英特尔赛扬N5095驱动的小型台式机。让我们看看这款高效的芯片是否有能力解决典型家庭用户的需求。

由于这是一个较短的上手审查，我们将快速查看MiniAir 11的性能、建造质量和我们的整体印象。我们不会对MiniAir 11进行最终评级。评测单位由GEEKOM提供。

Geekom MiniAir 11

Processor

Intel Celeron N5095 4 x 2 - 2.9 GHz, Jasper Lake

Graphics adapter

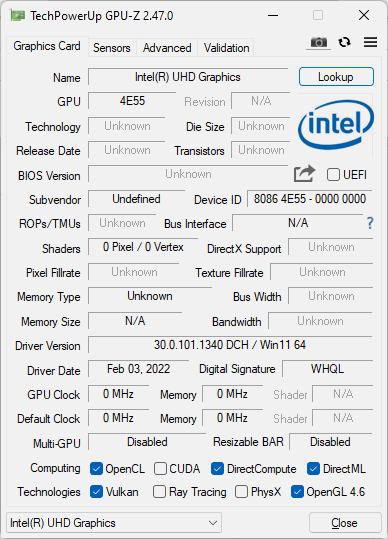

Intel UHD Graphics (Jasper Lake 16 EU) - 1024 MB VRAM, Intel UHD Graphics 30.0.101.1340

Memory

8 GB

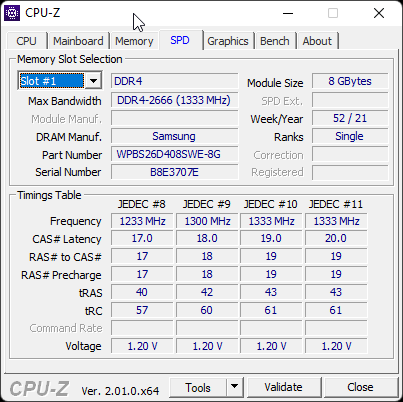

, 1x8 GB, DDR4-2666 / PC4-21300, 1333.3 MHz, Shenzhen WODPOSIT WPBS26D408SWE-8G

Storage

NF830 256GB M.2 2280, 256 GB

, 256 GB SSD (SATA), 237 GB free

Soundcard

Intel Jasper Lake PCH - cAVS Controller

Connections

3 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Combo audio out/in, Card Reader: Half-size SD/SDHC/SDXC

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 34.2 x 117 x 112

Operating System

Microsoft Windows 11 Home

Additional features

Speakers: None, Keyboard: None, 12 Months Warranty

Weight

524 g, Power Supply: 287 g

Price

279 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	08 / 2022	Geekom MiniAir 11 Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	524 g	34.2 mm	x
v ^(old)	06 / 2022	Beelink U59 Mini-S Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	279 g	41 mm	x
v ^(old)	07 / 2022	Zotac ZBOX PI336 pico Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)	293 g	20.7 mm	x
v ^(old)	02 / 2022	GMK NucBox 3 Celeron J4125, UHD Graphics 600	410 g	32.5 mm	x
v ^(old)	02 / 2022	Newsmay AC8 N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	534 g	48 mm	x
v ^(old)	06 / 2022	Nofflink M500-5405U Pentium 5405U, UHD Graphics 610	657 g	39 mm	x

外壳和连接

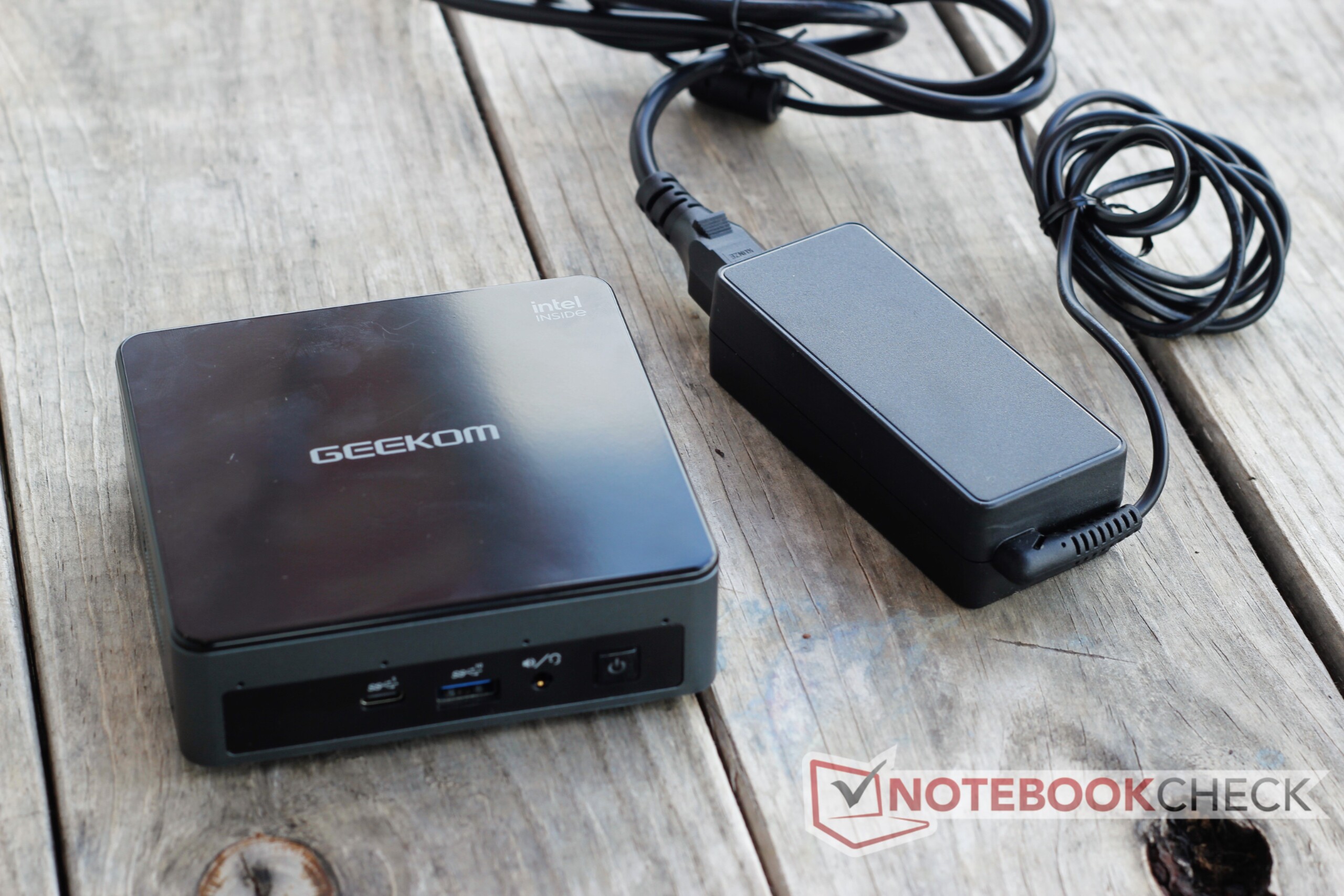

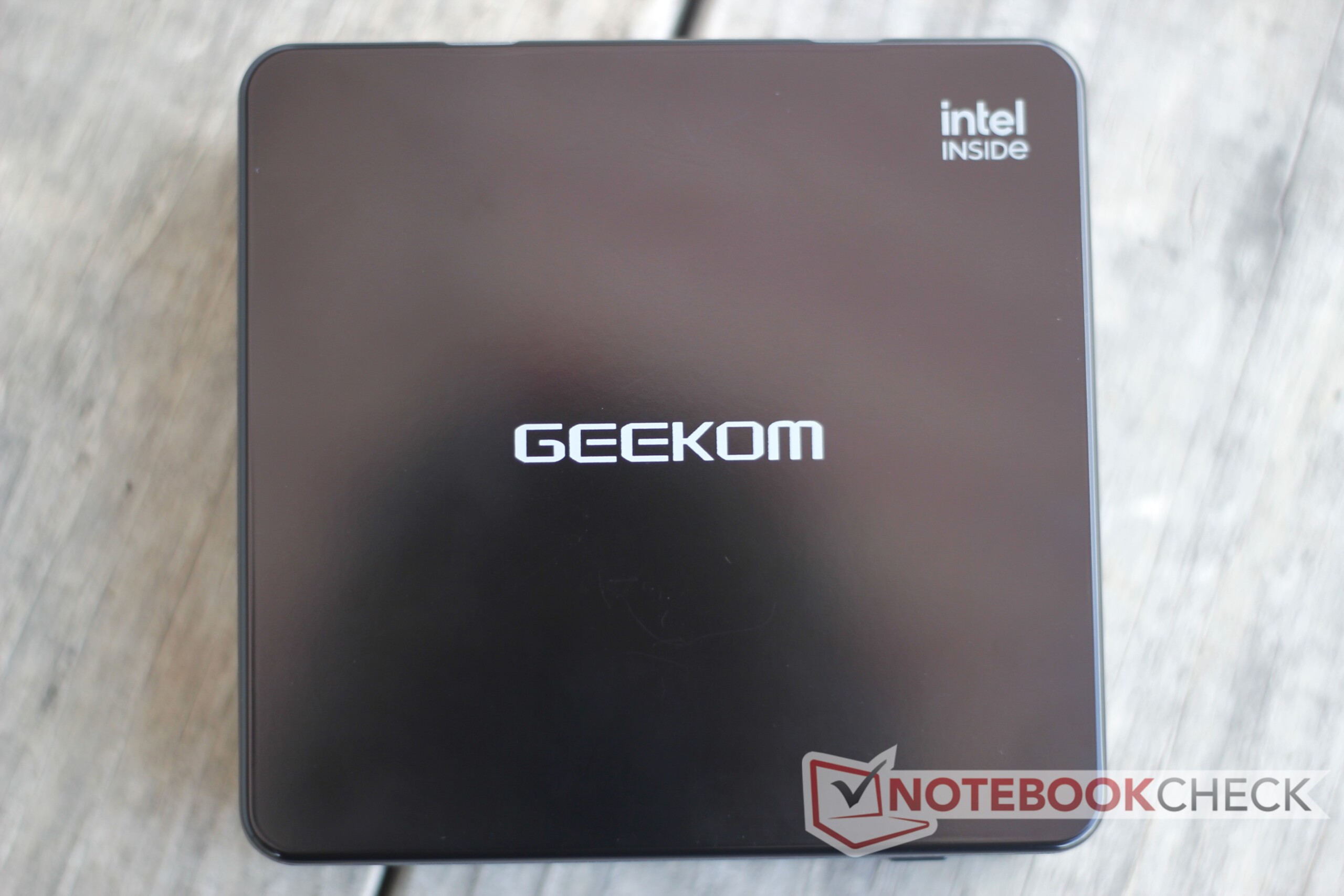

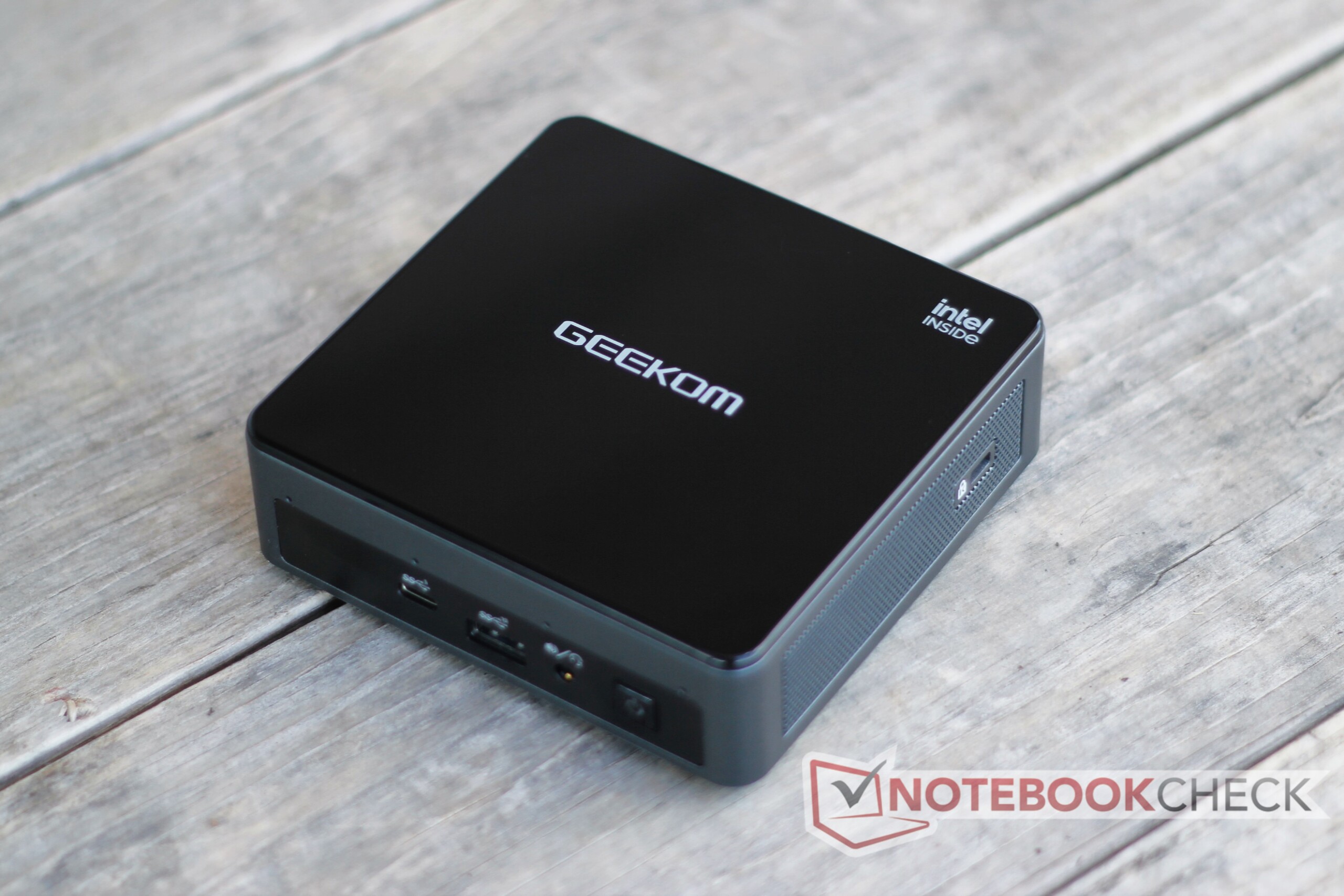

和GEEKOM的其他迷你电脑一样，MiniAir 11的结构也很好。箱子是由厚厚的塑料制成的，按压时不会弯折。侧面和底部有一个略带纹理的哑光表面，可以隐藏污点，但光亮的顶部很容易留下指纹。它的黑色和灰色有助于MiniAir 11融入办公室的审美。GEEKOM包括一个VESA安装板，因此MiniAir 11可以安装在兼容显示器的背面。

考虑到桌面的紧凑尺寸，端口选择相当不错。两个USB 3.2 Gen 2（10 Gbps）端口是这个价位上不常见的好东西，还有SD卡插槽和两个显示器接口（一个HDMI 2.0，一个迷你DisplayPort 1.4）。前面的USB端口间距很好，可以容纳庞大的USB配件。然而，背面的两个USB-A端口没有太多的间隙，所以较厚的驱动器或连接器可能无法相邻。

尺寸比较

Newsmay AC8 N6005 Nofflink M500-5405U Beelink U59 Mini-S GMK NucBox 3 Geekom MiniAir 11 Zotac ZBOX PI336 pico DIN A5 ❌

连接性

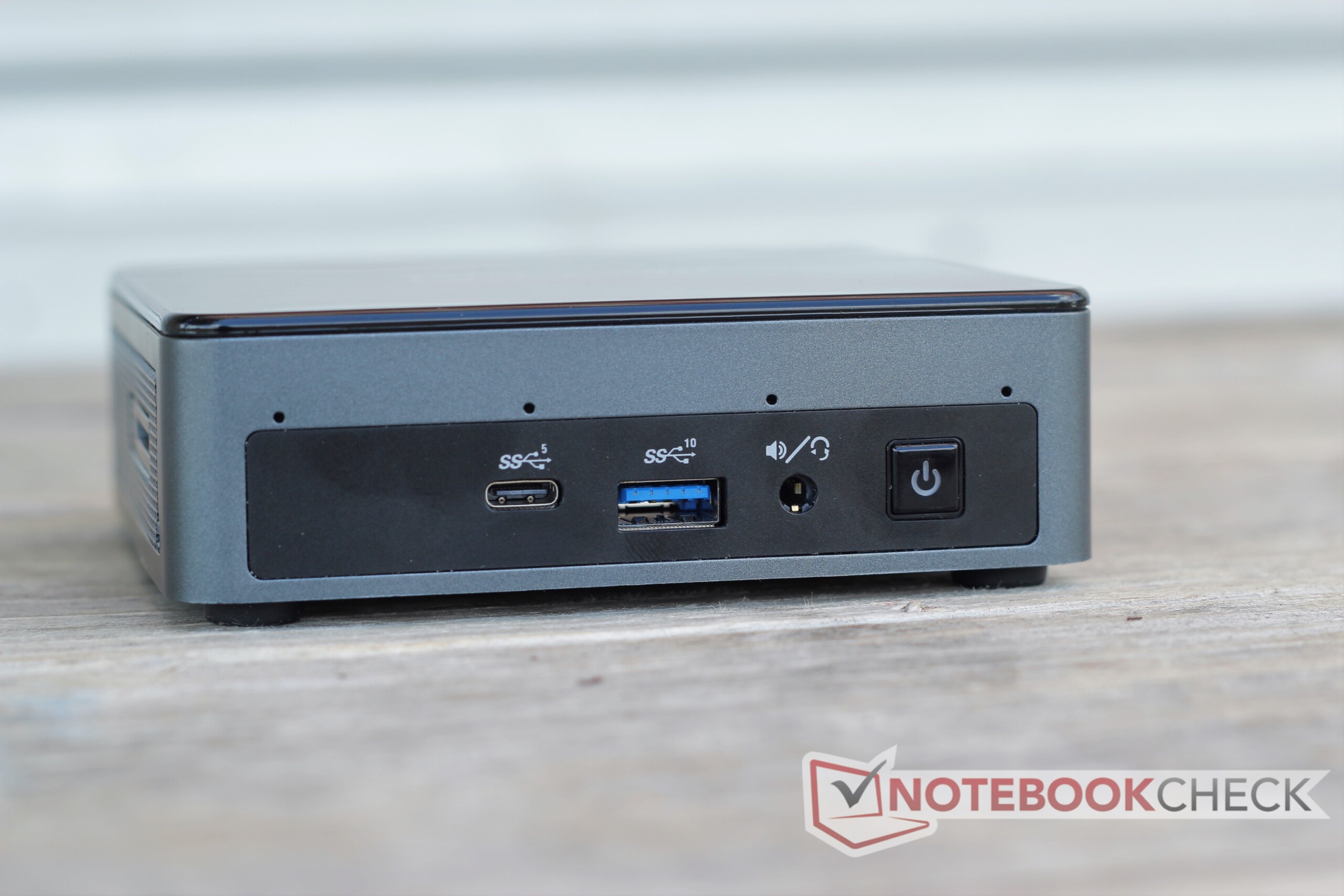

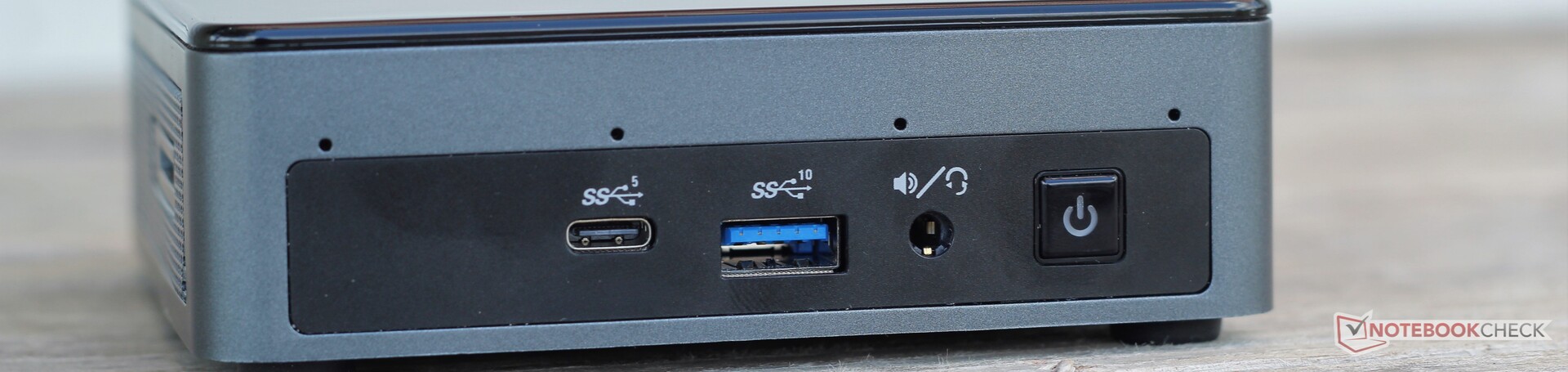

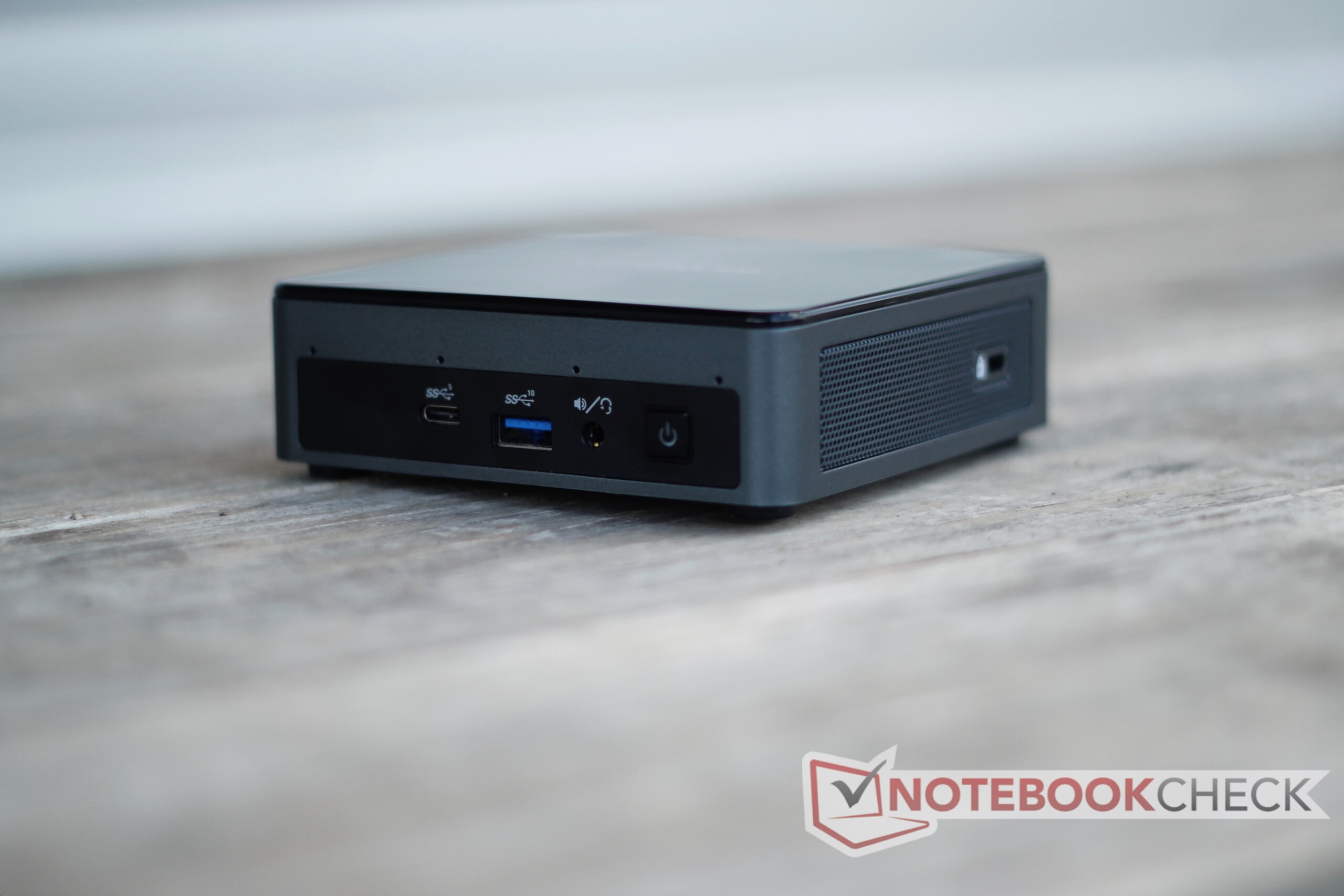

前面。四个麦克风阵列，USB-C 3.2 Gen 1（5 Gbps），USB-A 3.2 Gen 2（10 Gbps），组合音频，电源

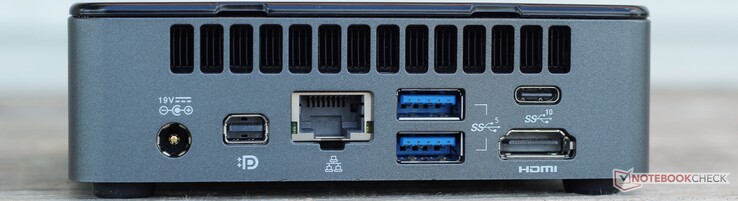

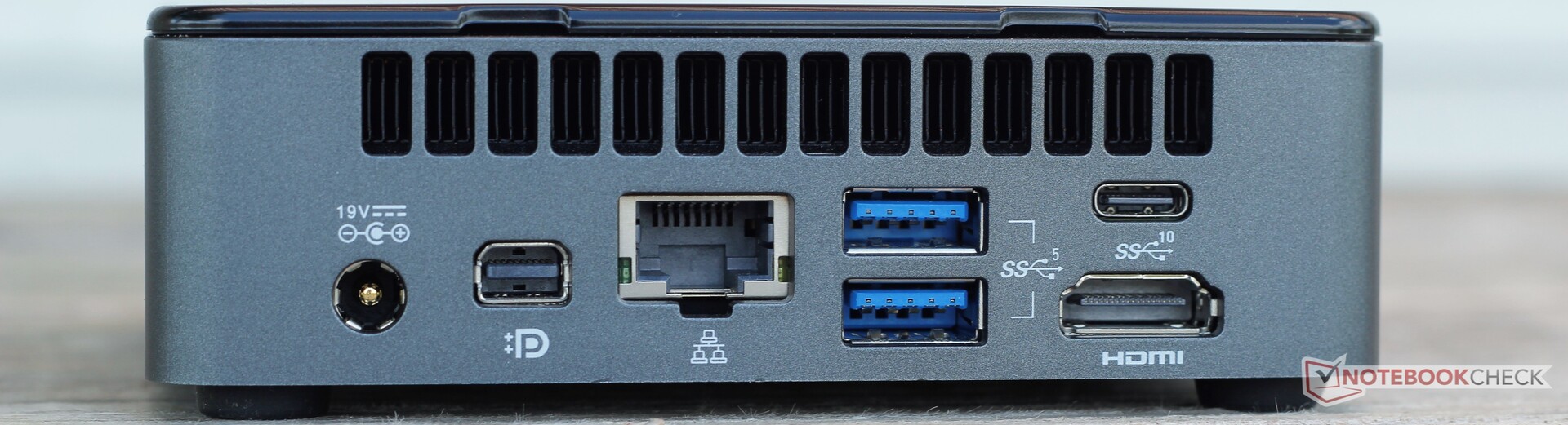

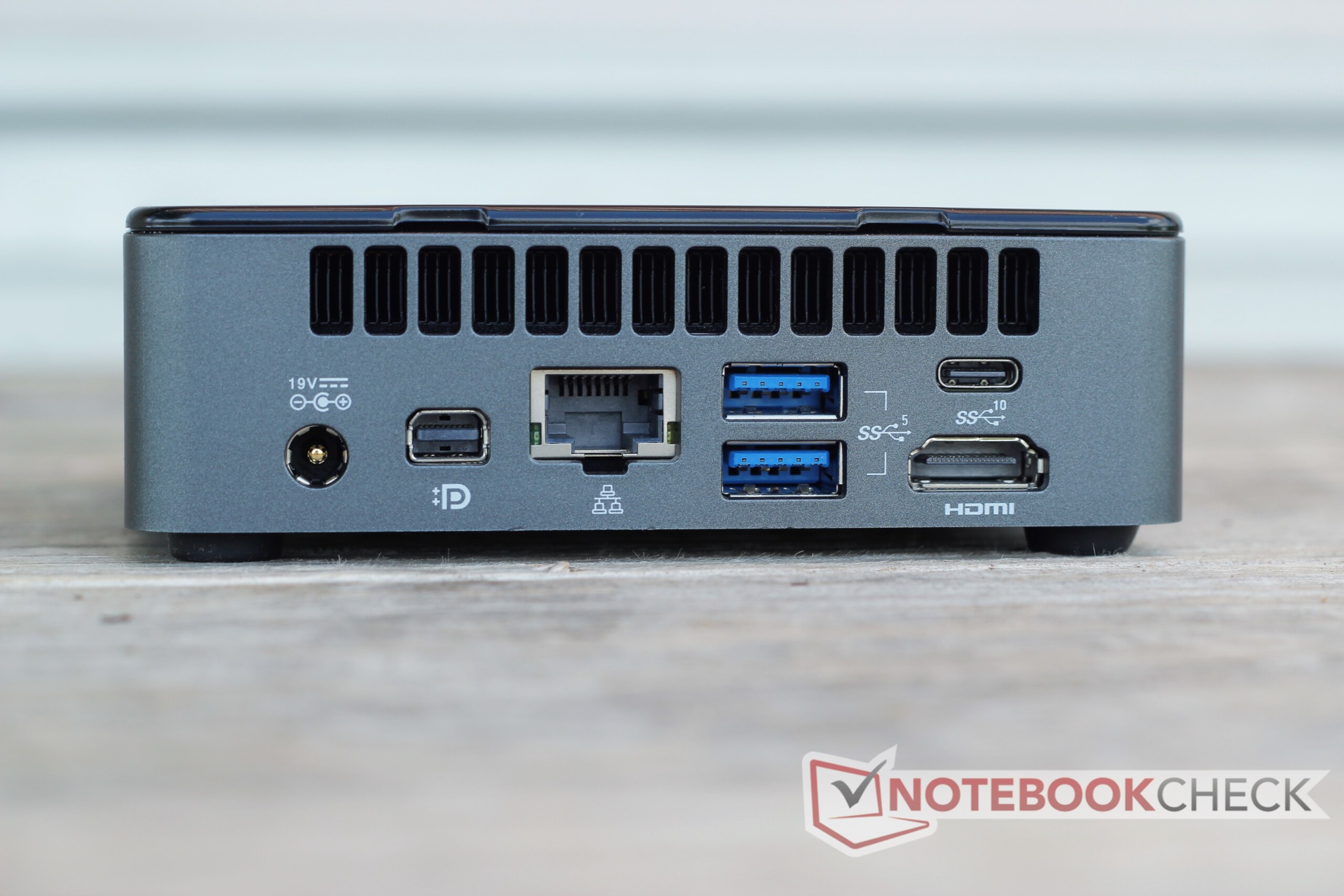

后部。直流电输入，迷你显示端口1.4，千兆网络，2个USB-A 3.2 Gen 1，USB-C 3.2 Gen 2，HDMI 2.0

维护

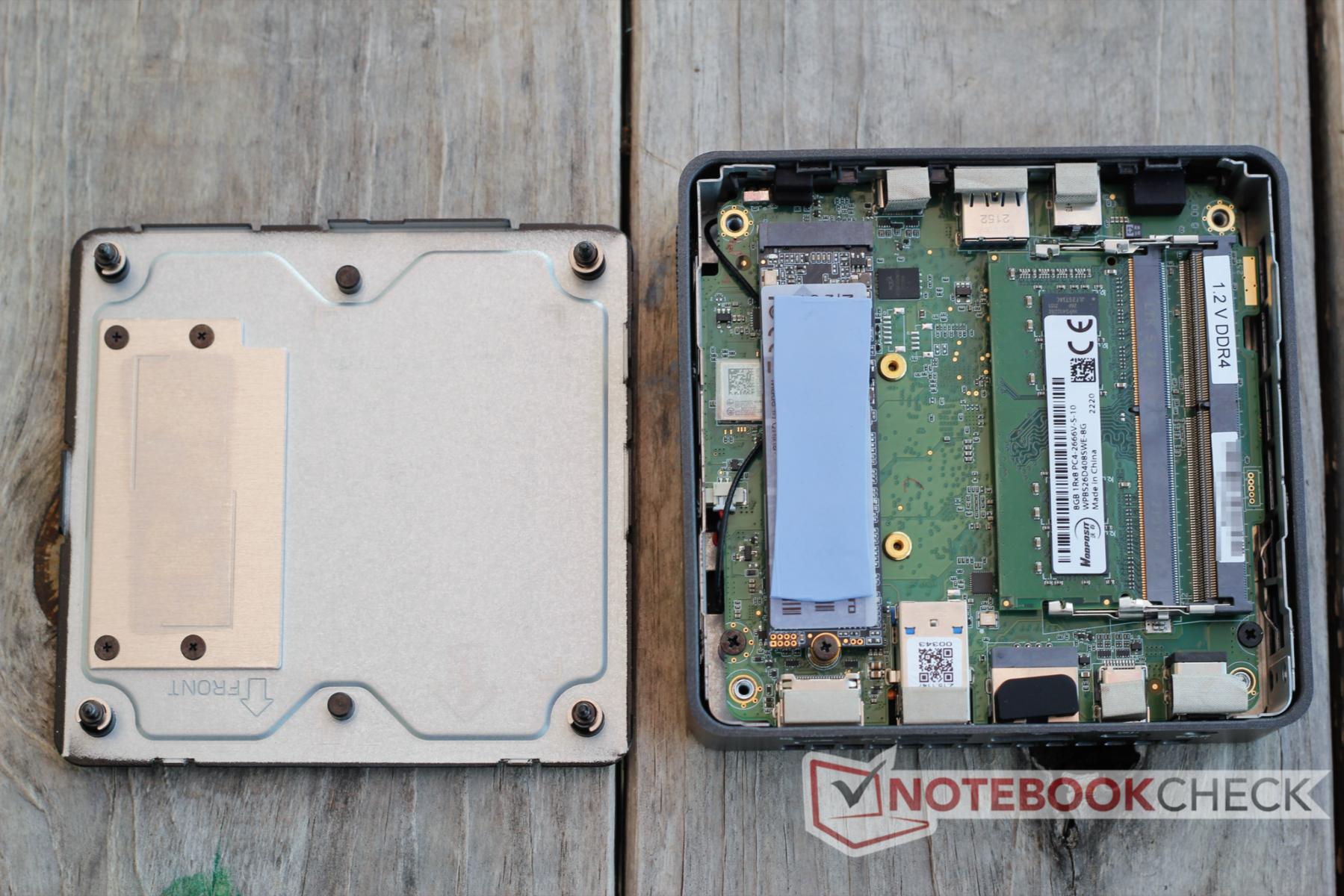

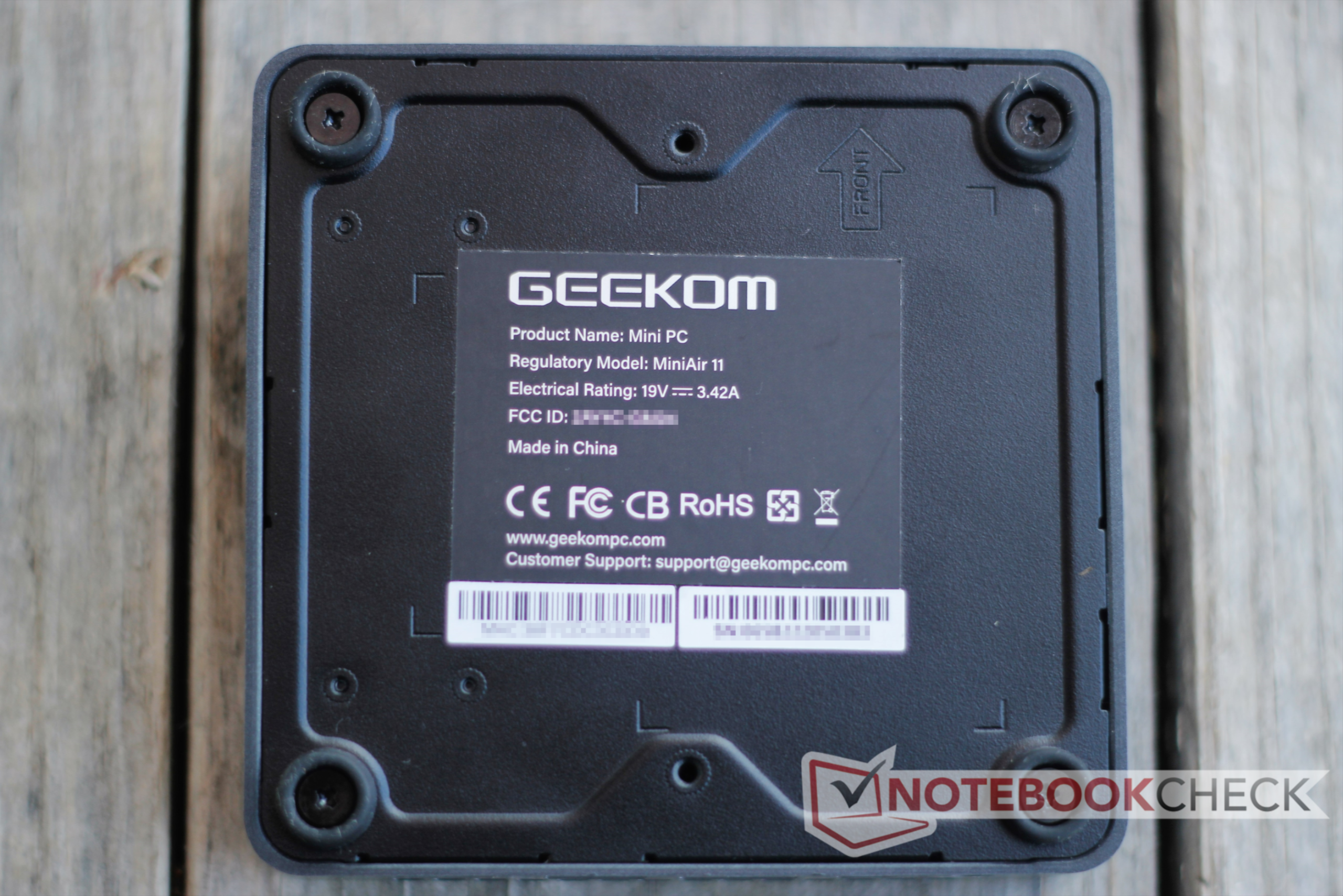

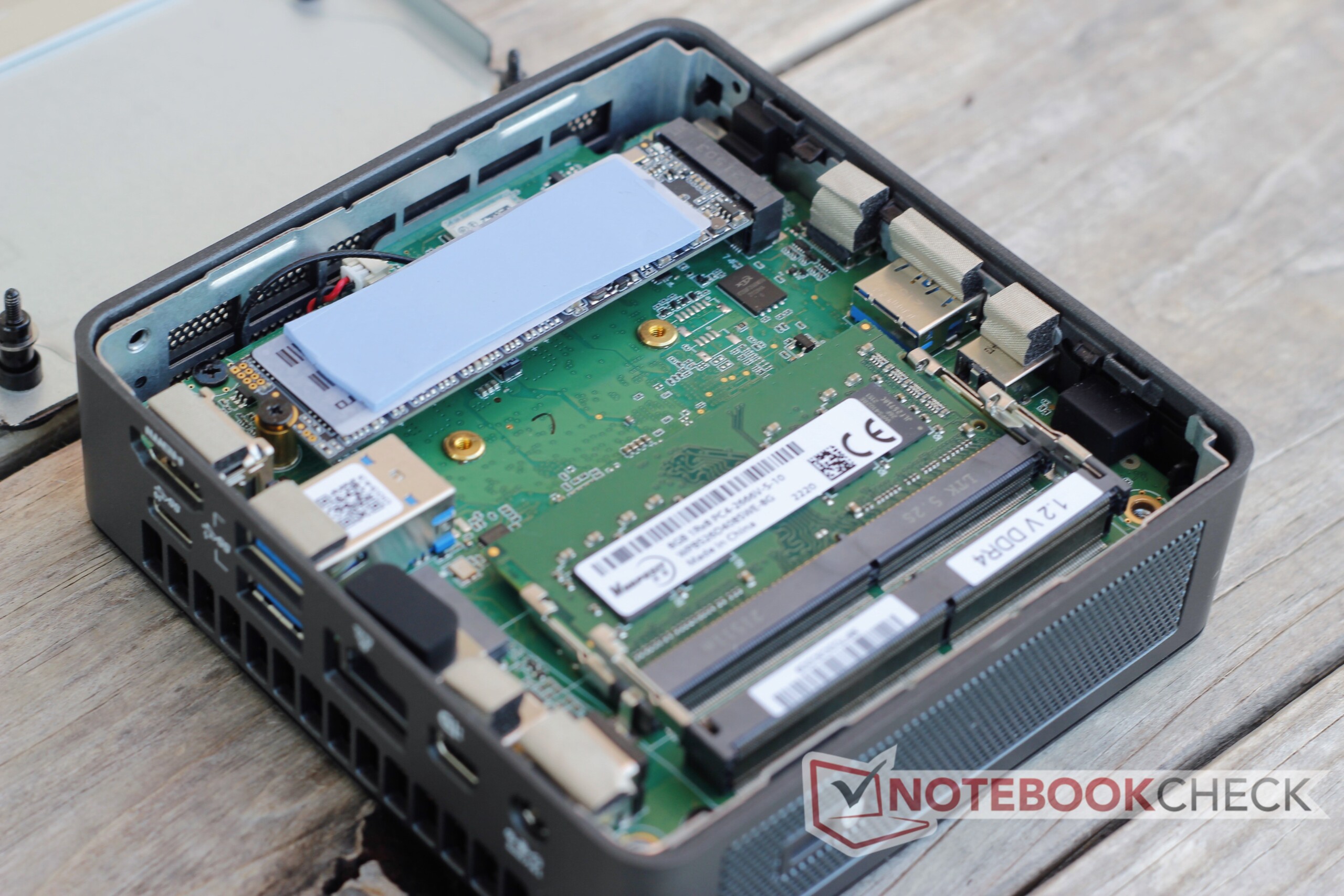

维护是很容易的。四个保留的十字头螺钉将底板固定在上面。一旦这些螺丝被拧开，底板就可以被拉出来。用户可以使用两个DDR4内存插槽（1.2V）和M.2驱动器。

业绩

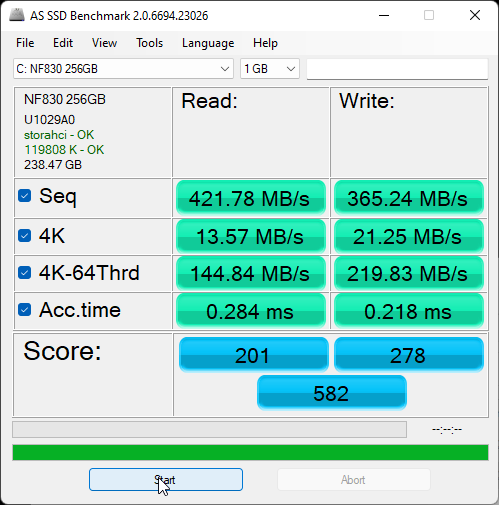

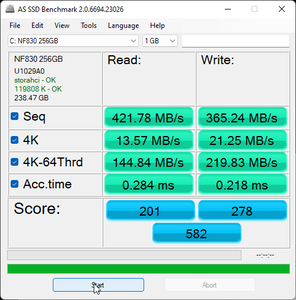

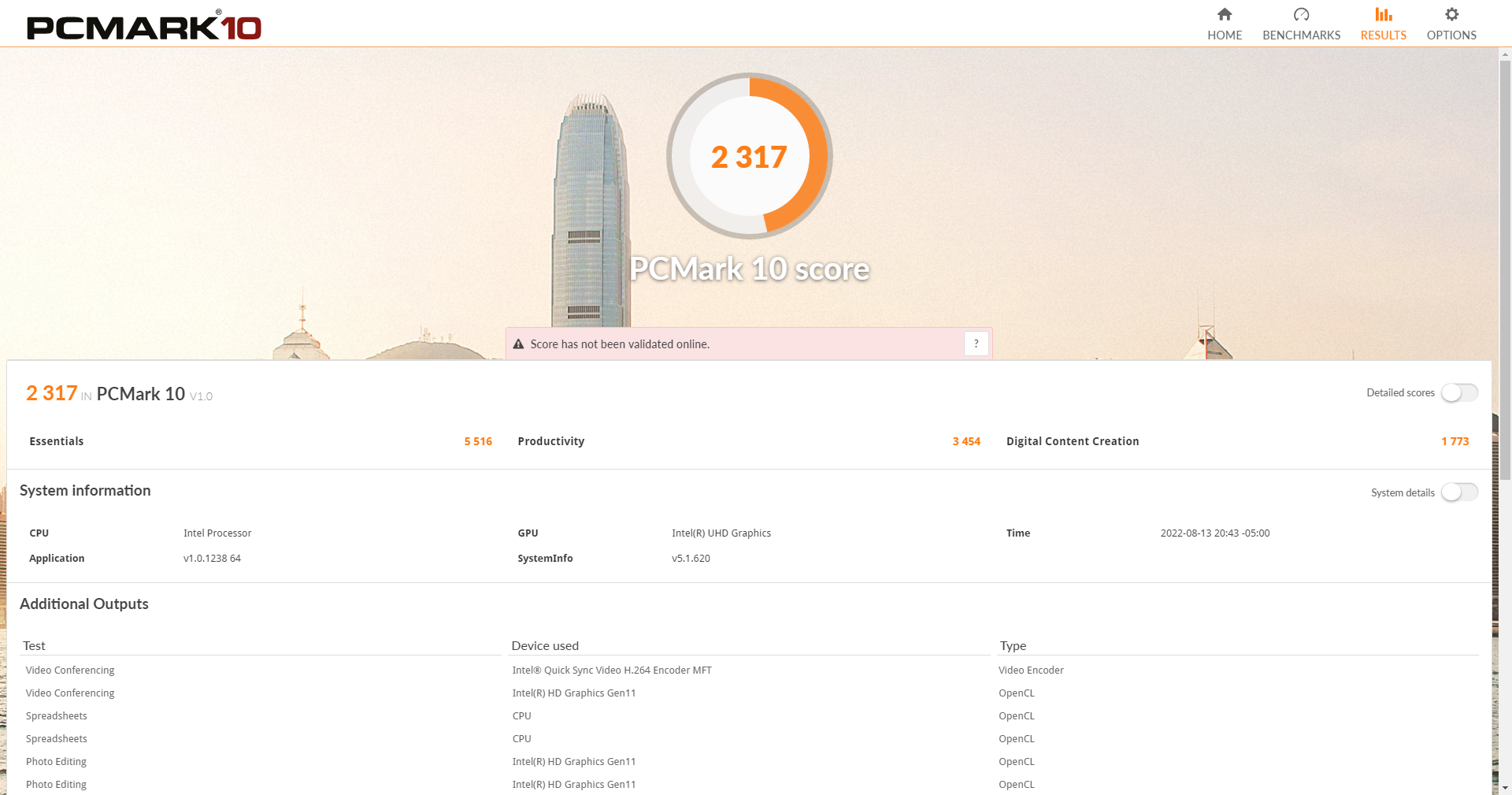

GEEKOM MiniAir 11提供了良好的日常性能，而不至于破费。由于其第11代赛扬CPU，8GB DDR4内存和坚实的SATA M.2驱动器，MiniAir可以解决网络浏览和办公室工作，没有太多的麻烦。

处理器

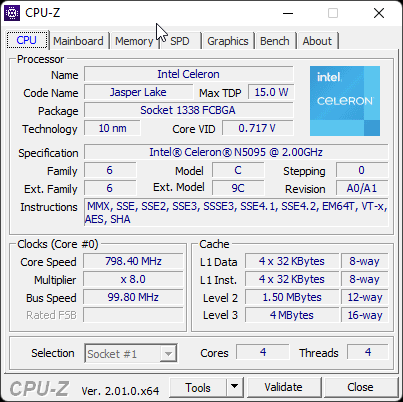

该英特尔赛扬N5095是英特尔最新推出的低功率CPU之一。这款10纳米的芯片专注于降低成本，同时平衡性能与发热量和功耗的关系。为此，这款四核芯片在预算领域占据了一个良好的位置。15瓦的Jasper Lake芯片在Cinebench中的得分高于其他赛扬CPU，并与以下产品进行了良好的竞争奔腾银N6005在单核测试中竞争激烈。然而，N5095在多核基准测试中比奔腾银N6005高出约15%。

正如预期的那样，赛扬N5095远远落后于中端芯片，如 Ryzen 5 3550H和酷睿i5-11400T.

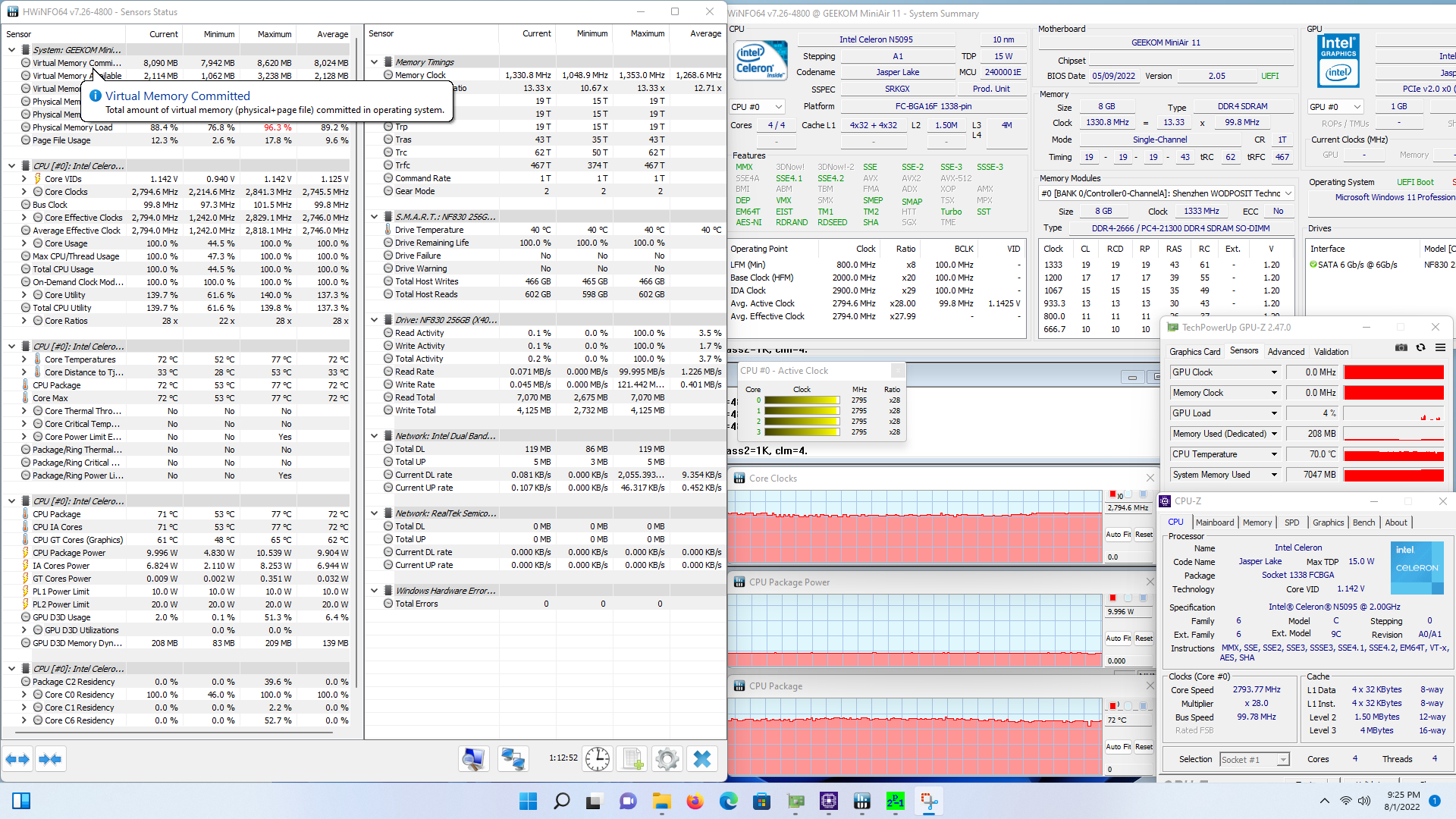

MiniAir 11提供稳定的长期多核CPU性能，这在我们的Cinebench R15循环测试中得到了证明。

Cinebench R15 Multi Loop

Geekom MiniAir 11 Intel Celeron N5095: Ø373 (370.41-374.55)

Beelink U59 Mini-S Intel Celeron N5095: Ø353 (350.25-357.53)

Zotac ZBOX PI336 pico Intel Celeron N6211: Ø127.4 (121.19-129.05)

GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)

Nofflink M500-5405U Intel Pentium Gold 5405U: Ø238 (236.3-238.86)

Newsmay AC8 N6005 Intel Pentium Silver N6005: Ø273 (225.33-307.03)

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Single Core)
Average of class Desktop (451 - 902, n=13, last 2 years)	771 Points +227%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	585 Points +148%
Beelink SER4 AMD Ryzen 7 4800U	488 Points +107%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	378 Points +60%
Beelink SEi8 Intel Core i3-8109U	351 Points +49%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	347 Points +47%
Newsmay AC8 N6005 Intel Pentium Silver N6005	266 Points +13%
Geekom MiniAir 11 Intel Celeron N5095	236 Points
Average Intel Celeron N5095 (228 - 239, n=5)	234 Points -1%
Beelink U59 Mini-S Intel Celeron N5095	228 Points -3%
Nofflink M500-5405U Intel Pentium Gold 5405U	208 Points -12%
Zotac ZBOX PI336 pico Intel Celeron N6211	174 Points -26%
GMK NucBox 3 Intel Celeron J4125	170 Points -28%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	156 Points -34%

Cinebench R20 / CPU (Multi Core)
Average of class Desktop (4085 - 16722, n=13, last 2 years)	10221 Points +1136%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	4660 Points +463%
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +293%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	1583 Points +91%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	1500 Points +81%
Geekom MiniAir 11 Intel Celeron N5095	827 Points
Average Intel Celeron N5095 (804 - 844, n=5)	825 Points 0%
Beelink U59 Mini-S Intel Celeron N5095	804 Points -3%
Beelink SEi8 Intel Core i3-8109U	772 Points -7%
Newsmay AC8 N6005 Intel Pentium Silver N6005	720 Points -13%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	590 Points -29%
Nofflink M500-5405U Intel Pentium Gold 5405U	535 Points -35%
GMK NucBox 3 Intel Celeron J4125	430 Points -48%
Zotac ZBOX PI336 pico Intel Celeron N6211	285 Points -66%

Cinebench R15 / CPU Single 64Bit
Average of class Desktop (233 - 356, n=18, last 2 years)	305 Points +184%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	243 Points +126%
Beelink SER4 AMD Ryzen 7 4800U	187 Points +74%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	153 Points +43%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	146 Points +36%
Beelink SEi8 Intel Core i3-8109U	124.3 Points +16%
Newsmay AC8 N6005 Intel Pentium Silver N6005	123 Points +15%
Geekom MiniAir 11 Intel Celeron N5095	107.3 Points
Average Intel Celeron N5095 (95.4 - 109, n=5)	103.9 Points -3%
Beelink U59 Mini-S Intel Celeron N5095	95.4 Points -11%
Nofflink M500-5405U Intel Pentium Gold 5405U	94 Points -12%
Zotac ZBOX PI336 pico Intel Celeron N6211	76 Points -29%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	71.1 Points -34%
GMK NucBox 3 Intel Celeron J4125	63.1 Points -41%

Cinebench R15 / CPU Multi 64Bit
Average of class Desktop (2005 - 6588, n=18, last 2 years)	4403 Points +1084%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	1980 Points +432%
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points +279%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	672 (494.25^min - 672.07^max) Points +81%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	642 Points +73%
Geekom MiniAir 11 Intel Celeron N5095	372 Points
Beelink U59 Mini-S Intel Celeron N5095	358 (350.25^min - 357.53^max) Points -4%
Average Intel Celeron N5095 (221 - 379, n=6)	343 Points -8%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -13%
Newsmay AC8 N6005 Intel Pentium Silver N6005	319 Points -14%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	263 (207.57^min - 262.65^max) Points -29%
Nofflink M500-5405U Intel Pentium Gold 5405U	239 Points -36%
GMK NucBox 3 Intel Celeron J4125	207 (171.15^min - 207.16^max) Points -44%
Zotac ZBOX PI336 pico Intel Celeron N6211	128 Points -66%

Blender / v2.79 BMW27 CPU
Zotac ZBOX PI336 pico Intel Celeron N6211	3767 Seconds * -151%
GMK NucBox 3 Intel Celeron J4125	3032 Seconds * -102%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2380 Seconds * -58%
Nofflink M500-5405U Intel Pentium Gold 5405U	2168 Seconds * -44%
Newsmay AC8 N6005 Intel Pentium Silver N6005	1805 Seconds * -20%
Beelink U59 Mini-S Intel Celeron N5095	1624 Seconds * -8%
Average Intel Celeron N5095 (1502 - 1624, n=5)	1548 Seconds * -3%
Geekom MiniAir 11 Intel Celeron N5095	1502 Seconds *
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * +12%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	704 Seconds * +53%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	670 Seconds * +55%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +77%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	252.1 Seconds * +83%
Average of class Desktop (77 - 333, n=15, last 2 years)	142.7 Seconds * +90%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Desktop (5262 - 8020, n=12, last 2 years)	7447 MIPS +140%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	5809 MIPS +87%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS +48%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	4157 MIPS +34%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS +21%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3543 MIPS +14%
Newsmay AC8 N6005 Intel Pentium Silver N6005	3515 MIPS +13%
Beelink U59 Mini-S Intel Celeron N5095	3124 MIPS +1%
Geekom MiniAir 11 Intel Celeron N5095	3100 MIPS
Average Intel Celeron N5095 (2935 - 3124, n=5)	3074 MIPS -1%
Zotac ZBOX PI336 pico Intel Celeron N6211	2593 MIPS -16%
Nofflink M500-5405U Intel Pentium Gold 5405U	2563 MIPS -17%
GMK NucBox 3 Intel Celeron J4125	2237 MIPS -28%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2215 MIPS -29%

7-Zip 18.03 / 7z b 4
Average of class Desktop (45947 - 160423, n=12, last 2 years)	109321 MIPS +892%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	55046 MIPS +399%
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +264%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	19699 MIPS +79%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	16683 MIPS +51%
Average Intel Celeron N5095 (10924 - 11168, n=5)	11024 MIPS 0%
Geekom MiniAir 11 Intel Celeron N5095	11023 MIPS
Beelink U59 Mini-S Intel Celeron N5095	11013 MIPS 0%
Newsmay AC8 N6005 Intel Pentium Silver N6005	9964 MIPS -10%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -14%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	8098 MIPS -27%
Nofflink M500-5405U Intel Pentium Gold 5405U	6557 MIPS -41%
GMK NucBox 3 Intel Celeron J4125	5694 MIPS -48%
Zotac ZBOX PI336 pico Intel Celeron N6211	3974 MIPS -64%

Geekbench 5.5 / Single-Core
Average of class Desktop (1967 - 2559, n=13, last 2 years)	2272 Points +245%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	1560 Points +137%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points +81%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	1146 Points +74%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	903 Points +37%
Beelink SEi8 Intel Core i3-8109U	888 Points +35%
Geekom MiniAir 11 Intel Celeron N5095	659 Points
Average Intel Celeron N5095 (637 - 659, n=4)	649 Points -2%
Beelink U59 Mini-S Intel Celeron N5095	644 Points -2%
Newsmay AC8 N6005 Intel Pentium Silver N6005	606 Points -8%
Nofflink M500-5405U Intel Pentium Gold 5405U	600 Points -9%
Zotac ZBOX PI336 pico Intel Celeron N6211	556 Points -16%
GMK NucBox 3 Intel Celeron J4125	462 Points -30%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	388 Points -41%

Geekbench 5.5 / Multi-Core
Average of class Desktop (11095 - 26186, n=13, last 2 years)	19132 Points +840%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	7818 Points +284%
Beelink SER4 AMD Ryzen 7 4800U	6375 Points +213%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	3510 Points +72%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3203 Points +57%
Geekom MiniAir 11 Intel Celeron N5095	2036 Points
Average Intel Celeron N5095 (1933 - 2052, n=4)	2010 Points -1%
Beelink U59 Mini-S Intel Celeron N5095	1933 Points -5%
Beelink SEi8 Intel Core i3-8109U	1880 Points -8%
Newsmay AC8 N6005 Intel Pentium Silver N6005	1673 Points -18%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1410 Points -31%
Nofflink M500-5405U Intel Pentium Gold 5405U	1393 Points -32%
GMK NucBox 3 Intel Celeron J4125	1198 Points -41%
Zotac ZBOX PI336 pico Intel Celeron N6211	844 Points -59%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Desktop (12.9 - 45.7, n=12, last 2 years)	32 fps +1584%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	14.8 fps +679%
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +447%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	5.24 fps +176%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	4.1 fps +116%
Beelink SEi8 Intel Core i3-8109U	2.85 fps +50%
Beelink U59 Mini-S Intel Celeron N5095	2 fps +5%
Average Intel Celeron N5095 (1.9 - 2.05, n=5)	1.996 fps +5%
Geekom MiniAir 11 Intel Celeron N5095	1.9 fps
Newsmay AC8 N6005 Intel Pentium Silver N6005	1.65 fps -13%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1.49 fps -22%
GMK NucBox 3 Intel Celeron J4125	1.26 fps -34%
Nofflink M500-5405U Intel Pentium Gold 5405U	1.24 fps -35%
Zotac ZBOX PI336 pico Intel Celeron N6211	0.88 fps -54%

LibreOffice / 20 Documents To PDF
GMK NucBox 3 Intel Celeron J4125	159 s * -47%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	150 s * -39%
Zotac ZBOX PI336 pico Intel Celeron N6211	144.7 s * -34%
Nofflink M500-5405U Intel Pentium Gold 5405U	108.9 s * -1%
Geekom MiniAir 11 Intel Celeron N5095	107.9 s *
Beelink U59 Mini-S Intel Celeron N5095	106.5 s * +1%
Average Intel Celeron N5095 (97 - 107.9, n=5)	103.6 s * +4%
Newsmay AC8 N6005 Intel Pentium Silver N6005	92.9 s * +14%
Beelink SEi8 Intel Core i3-8109U	79 s * +27%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	74.9 s * +31%
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * +42%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	62.4 s * +42%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	50.7 s * +53%
Average of class Desktop (35.5 - 49.1, n=12, last 2 years)	40.7 s * +62%

R Benchmark 2.5 / Overall mean
GMK NucBox 3 Intel Celeron J4125	1.525 sec * -31%
Zotac ZBOX PI336 pico Intel Celeron N6211	1.371 sec * -18%
Nofflink M500-5405U Intel Pentium Gold 5405U	1.183 sec * -2%
Beelink U59 Mini-S Intel Celeron N5095	1.178 sec * -2%
Average Intel Celeron N5095 (1.16 - 1.2, n=5)	1.174 sec * -1%
Geekom MiniAir 11 Intel Celeron N5095	1.16 sec *
Newsmay AC8 N6005 Intel Pentium Silver N6005	1.137 sec * +2%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * +26%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T	0.792 sec * +32%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	0.737 sec * +36%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	0.4975 sec * +57%
Average of class Desktop (0.3307 - 0.4987, n=12, last 2 years)	0.3853 sec * +67%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

372 Points

Cinebench R15 OpenGL 64Bit

26.2 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

107.3 Points

Cinebench R20 CPU (Multi Core)

827 Points

Cinebench R20 CPU (Single Core)

236 Points

Cinebench R23 Single Core

587 Points

Cinebench R23 Multi Core

2176 Points

Help

... in comparison

系统性能

整体系统性能良好，对于一般家庭使用来说是足够的。整个用户界面有一些小插曲，比如从冷启动中拉出开始菜单。加载一些程序需要一点时间。一般网络浏览足够快，大多数人不会抱怨。与其他预算级迷你台式机相比，MiniAir 11提供了有竞争力的性能，但在PCMark 10中稍稍落后于竞争对手。

PCMark 10: Score | Essentials | Productivity | Digital Content Creation

PCMark 10 / Score
Average of class Desktop (5331 - 10699, n=10, last 2 years)	9120 Points +294%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2548 Points +10%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	2386 Points +3%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU) (2317 - 2417, n=5)	2376 Points +3%
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	2365 Points +2%
Geekom MiniAir 11 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	2317 Points
GMK NucBox 3 UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN	1707 Points -26%

PCMark 10 / Essentials
Average of class Desktop (10652 - 12591, n=10, last 2 years)	11958 Points +117%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	5778 Points +5%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU) (5516 - 5874, n=5)	5743 Points +4%
Geekom MiniAir 11 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	5516 Points
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	5446 Points -1%
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	5425 Points -2%
GMK NucBox 3 UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN	4754 Points -14%

PCMark 10 / Productivity
Average of class Desktop (7058 - 12944, n=10, last 2 years)	11519 Points +233%
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	4056 Points +17%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	3854 Points +12%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	3591 Points +4%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU) (3454 - 3666, n=5)	3576 Points +4%
Geekom MiniAir 11 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	3454 Points
GMK NucBox 3 UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN	2958 Points -14%

PCMark 10 / Digital Content Creation
Average of class Desktop (5469 - 22005, n=10, last 2 years)	15890 Points +796%
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2139 Points +21%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	1779 Points 0%
Average Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU) (1752 - 1787, n=5)	1775 Points 0%
Geekom MiniAir 11 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	1773 Points
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	1633 Points -8%
GMK NucBox 3 UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN	960 Points -46%

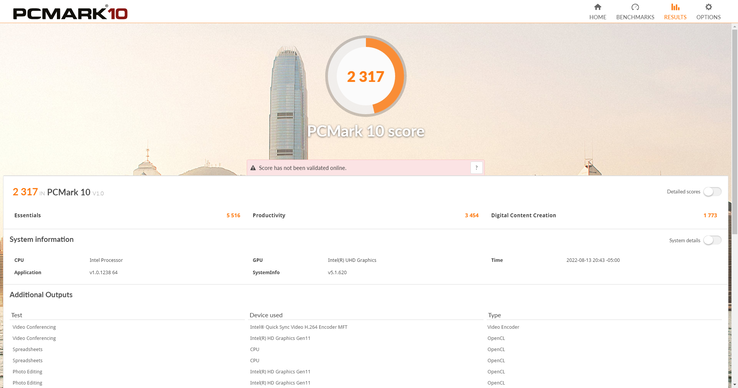

PCMark 10 Score		2317 points
Help

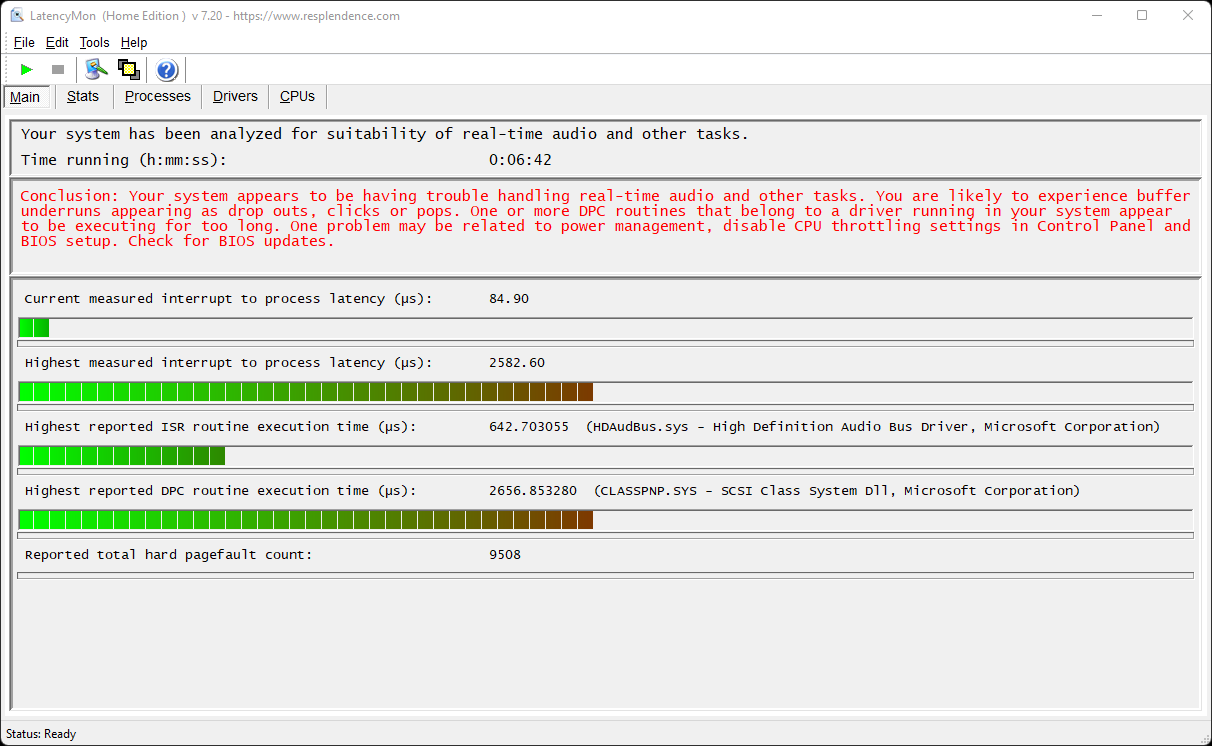

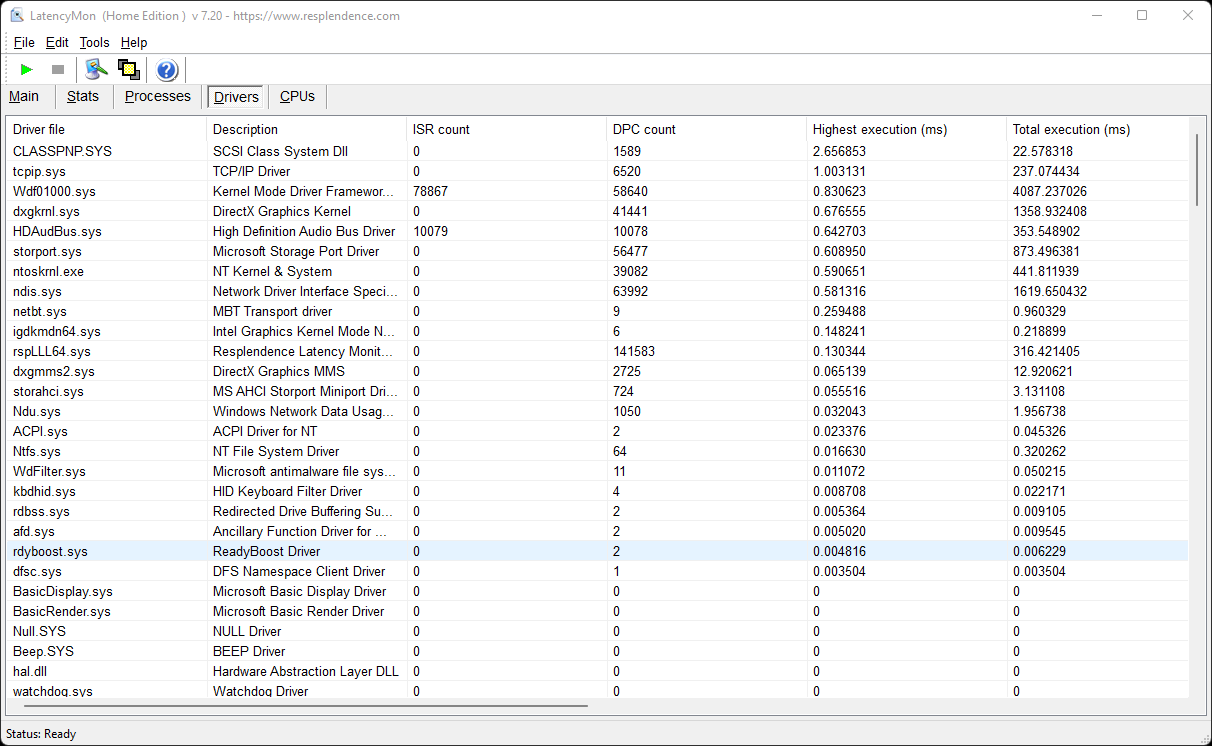

DPC延时

根据MiniAir 11在LatencyMon测试中的表现，它并不适合于实时音频编辑。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Newsmay AC8 N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, Lexar 128GB SSD	2635 μs * -2%
Geekom MiniAir 11 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, NF830 256GB M.2 2280	2582.6 μs *
GMK NucBox 3 UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN	1913 μs * +26%
Beelink U59 Mini-S UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 256G M.228 220426 C SATA 3	1732.2 μs * +33%
Zotac ZBOX PI336 pico UHD Graphics (Elkhart Lake 16 EU), Celeron N6211, SanDisk DF4128	1476.3 μs * +43%
Nofflink M500-5405U UHD Graphics 610, Pentium 5405U, Qunion P20A NGFF 512GB	751.7 μs * +71%

* ... smaller is better

存储设备

包含的M.2 SATA固态硬盘提供合理的快速加载时间，但没有什么特别之处。它可以很容易地被替换，而且MiniAir 11的单个M.2 2280驱动器插槽支持SATA III或NVMe驱动器。

	Geekom MiniAir 11 NF830 256GB M.2 2280	Beelink U59 Mini-S Silicon Motion AZW 256G M.228 220426 C SATA 3	Zotac ZBOX PI336 pico SanDisk DF4128	GMK NucBox 3 Netac S535N8/256GYN	Nofflink M500-5405U Qunion P20A NGFF 512GB	Newsmay AC8 N6005 Lexar 128GB SSD	Average NF830 256GB M.2 2280	Average of class Desktop
CrystalDiskMark 5.2 / 6		13%	-62%	3%	30%	-20%	9%	1060%
Write 4K	25.58	48.42 89%	15.35 -40%	62.3 144%	72.7 184%	71 178%	30.7 ?(25.6 - 35.9, n=2) 20%	349 ?(177.8 - 684, n=4, last 2 years) 1264%
Read 4K	12.78	15.02 18%	15.03 18%	16.91 32%	22.98 80%	18.35 44%	17.7 ?(12.8 - 22.6, n=2) 38%	276 ?(55 - 899, n=4, last 2 years) 2060%
Write Seq	389.5	417.6 7%	107.5 -72%	284.9 -27%	414.9 7%	64.6 -83%	373 ?(356 - 390, n=2) -4%	5122 ?(4399 - 6528, n=3, last 2 years) 1215%
Read Seq	478.4	445.2 -7%	265.6 -44%	344.1 -28%	472.1 -1%	416.3 -13%	459 ?(440 - 478, n=2) -4%	5140 ?(3674 - 7333, n=3, last 2 years) 974%
Write 4K Q32T1	174	166.1 -5%	15.29 -91%	111.2 -36%	168.2 -3%	71.6 -59%	175.7 ?(174 - 177.3, n=2) 1%	557 ?(426 - 699, n=4, last 2 years) 220%
Read 4K Q32T1	149.9	140 -7%	28 -81%	102.8 -31%	163.9 9%	55.3 -63%	177.7 ?(149.9 - 205, n=2) 19%	788 ?(501 - 953, n=4, last 2 years) 426%
Write Seq Q32T1	400.6	423.4 6%	90 -78%	289.5 -28%	446.1 11%	133 -67%	395 ?(389 - 401, n=2) -1%	5264 ?(2705 - 6612, n=4, last 2 years) 1214%
Read Seq Q32T1	491.6	495.3 1%	223.7 -54%	497.6 1%	510.4 4%	483.3 -2%	475 ?(458 - 492, n=2) -3%	6288 ?(3567 - 7446, n=4, last 2 years) 1179%
Write 4K Q8T8	258.5		14.93 -94%		272.3 5%	87.2 -66%	263 ?(259 - 267, n=2) 2%	1939 ?(429 - 3546, n=4, last 2 years) 650%
Read 4K Q8T8	154.9		26.27 -83%		164.9 6%	55.5 -64%	181 ?(154.9 - 207, n=2) 17%	2313 ?(938 - 3182, n=4, last 2 years) 1393%
AS SSD		23%	-76%	-5%	45%	43%	7%	945%
Seq Read	421.78	455.57 8%	264.86 -37%	391 -7%	494.9 17%	512 21%	427 ?(422 - 433, n=2) 1%	5279 ?(2903 - 6331, n=4, last 2 years) 1152%
Seq Write	365.24	438.23 20%	117 -68%	423.2 16%	431.8 18%	411.6 13%	375 ?(365 - 385, n=2) 3%	3959 ?(1487 - 6117, n=4, last 2 years) 984%
4K Read	13.57	13.9 2%	13.21 -3%	11.78 -13%	25.8 90%	23.29 72%	14.9 ?(13.6 - 16.2, n=2) 10%	79.5 ?(59.7 - 98.1, n=4, last 2 years) 486%
4K Write	21.25	49.68 134%	13.46 -37%	49.71 134%	59.78 181%	83 291%	28.9 ?(21.3 - 36.6, n=2) 36%	235 ?(216 - 249, n=4, last 2 years) 1006%
4K-64 Read	144.84	106.99 -26%	25.74 -82%	100.4 -31%	154.49 7%	59.4 -59%	151 ?(144.8 - 157.2, n=2) 4%	2275 ?(883 - 3236, n=4, last 2 years) 1471%
4K-64 Write	219.83	230.65 5%	13.71 -94%	163.7 -26%	231.08 5%	272.3 24%	229 ?(220 - 237, n=2) 4%	3052 ?(1418 - 4913, n=4, last 2 years) 1288%
Access Time Read *	0.284	0.193 32%	0.311 -10%	0.256 10%	0.15 47%	0.139 51%	0.2445 ?(0.205 - 0.284, n=2) 14%	0.0435 ?(0.031 - 0.066, n=4, last 2 years) 85%
Access Time Write *	0.218	0.18 17%	0.942 -332%	0.374 -72%	0.267 -22%	0.145 33%	0.2105 ?(0.203 - 0.218, n=2) 3%	0.05425 ?(0.016 - 0.129, n=4, last 2 years) 75%
Score Read	201	166 -17%	65 -68%	151 -25%	230 14%	134 -33%	209 ?(201 - 217, n=2) 4%	2883 ?(1233 - 3960, n=4, last 2 years) 1334%
Score Write	278	324 17%	39 -86%	256 -8%	334 20%	396 42%	295 ?(278 - 312, n=2) 6%	3683 ?(1784 - 5774, n=4, last 2 years) 1225%
Score Total	582	580 0%	136 -77%	490 -16%	688 18%	604 4%	367 ?(151.3 - 582, n=2) -37%	7981 ?(3592 - 11756, n=4, last 2 years) 1271%
Copy ISO MB/s	375.9	446.75 19%	123.83 -67%	424.1 13%	752.39 100%	484.1 29%	373 ?(369 - 376, n=2) -1%	3666 ?(1500 - 5824, n=4, last 2 years) 875%
Copy Program MB/s	79.75	144.22 81%	54.83 -31%	89.4 12%	142.48 79%	166.9 109%	115.5 ?(79.8 - 151.3, n=2) 45%	1098 ?(360 - 1394, n=4, last 2 years) 1277%
Copy Game MB/s	307.5	390.85 27%	91.02 -70%	118 -62%	459.72 50%	332.3 8%	319 ?(308 - 331, n=2) 4%	2475 ?(1009 - 3377, n=4, last 2 years) 705%
Total Average (Program / Settings)		18% / 19%	-69% / -70%	-1% / -2%	38% / 39%	12% / 17%	8% / 8%	1003% / 993%

* ... smaller is better

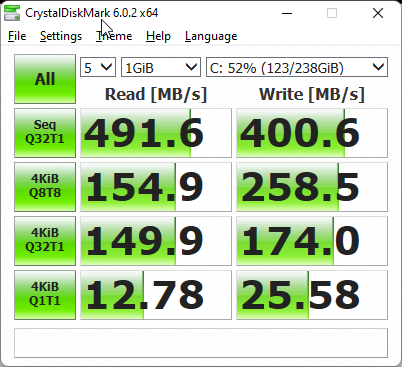

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

NF830 256GB M.2 2280

CDM 5/6 Read Seq Q32T1: 491.6 MB/s

CDM 5/6 Write Seq Q32T1: 400.6 MB/s

CDM 5/6 Read 4K Q32T1: 149.9 MB/s

CDM 5/6 Write 4K Q32T1: 174 MB/s

CDM 5 Read Seq: 478.4 MB/s

CDM 5 Write Seq: 389.5 MB/s

CDM 5/6 Read 4K: 12.78 MB/s

CDM 5/6 Write 4K: 25.58 MB/s

CDM 6 Write 4K Q8T8: 258.5 MB/s

CDM 6 Read 4K Q8T8: 154.9 MB/s

GPU性能

虽然MiniAir 11肯定不是一个图形动力源，但其集成的 Jasper LakeUHD Graphics GPU (16 EU)可以处理媒体流和简单的图像编辑。然而，视频编辑和中端图形工作将使iGPU达到极限。MiniAir 11可以处理简单和休闲游戏，但3D游戏则是遥不可及。即使是像《生化奇兵无限》这样的老游戏，在MiniAir 11上也无法播放。

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1589 Points
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	930 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	854 Points
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points
Average Intel UHD Graphics (Jasper Lake 16 EU) (554 - 894, n=8)	819 Points
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	650 Points
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	508 Points

3DMark
1920x1080 Fire Strike Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	881 Points
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	693 Points
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	623 Points
Average Intel UHD Graphics (Jasper Lake 16 EU) (392 - 679, n=8)	613 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	605 Points
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	523 Points
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	378 Points
1280x720 Cloud Gate Standard Graphics
Newsmay AC8 N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	5895 Points
Nofflink M500-5405U Intel UHD Graphics 610, Intel Pentium Gold 5405U	5414 Points
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4952 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4863 Points
Average Intel UHD Graphics (Jasper Lake 16 EU) (4210 - 5217, n=8)	4863 Points
Zotac ZBOX PI336 pico Intel UHD Graphics (Elkhart Lake 16 EU), Intel Celeron N6211	3762 Points
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	2453 Points

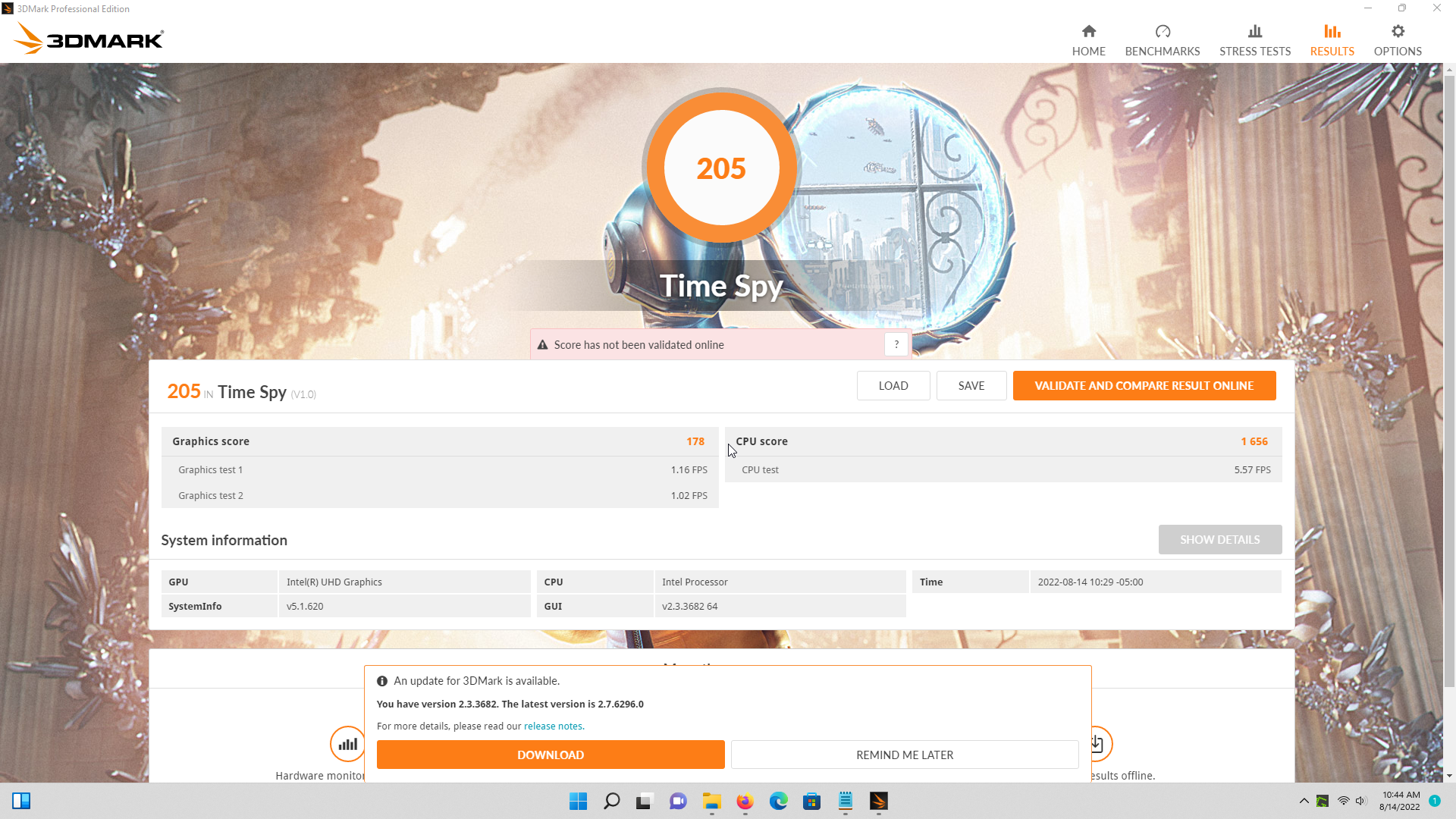

2560x1440 Time Spy Graphics
Geekom MiniAir 11 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	178 Points
Beelink U59 Mini-S Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	173 Points
Average Intel UHD Graphics (Jasper Lake 16 EU) (129 - 182, n=5)	168.2 Points
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	102 Points

3DMark 11 Performance		965 points

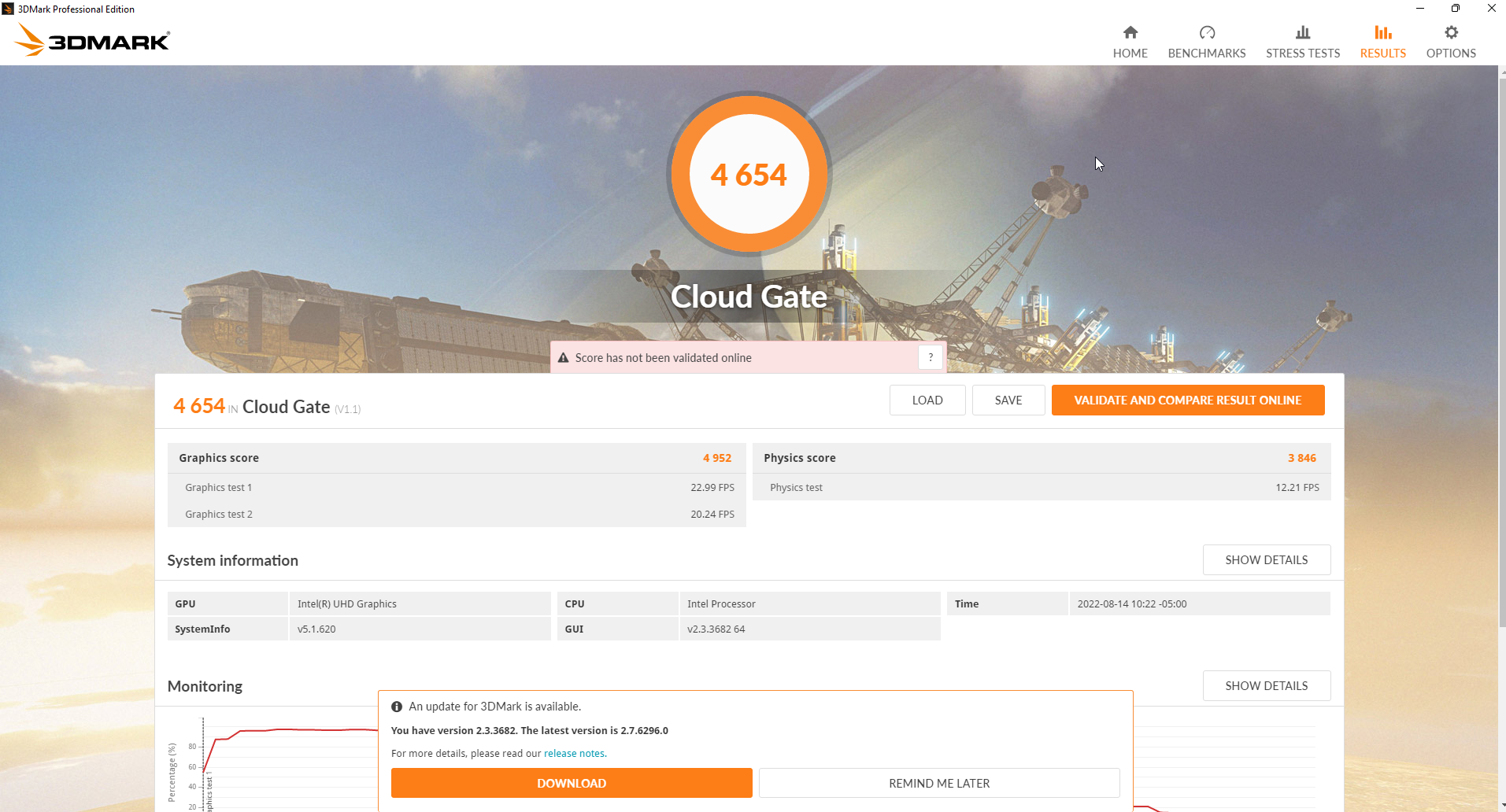

3DMark Cloud Gate Standard Score		4654 points

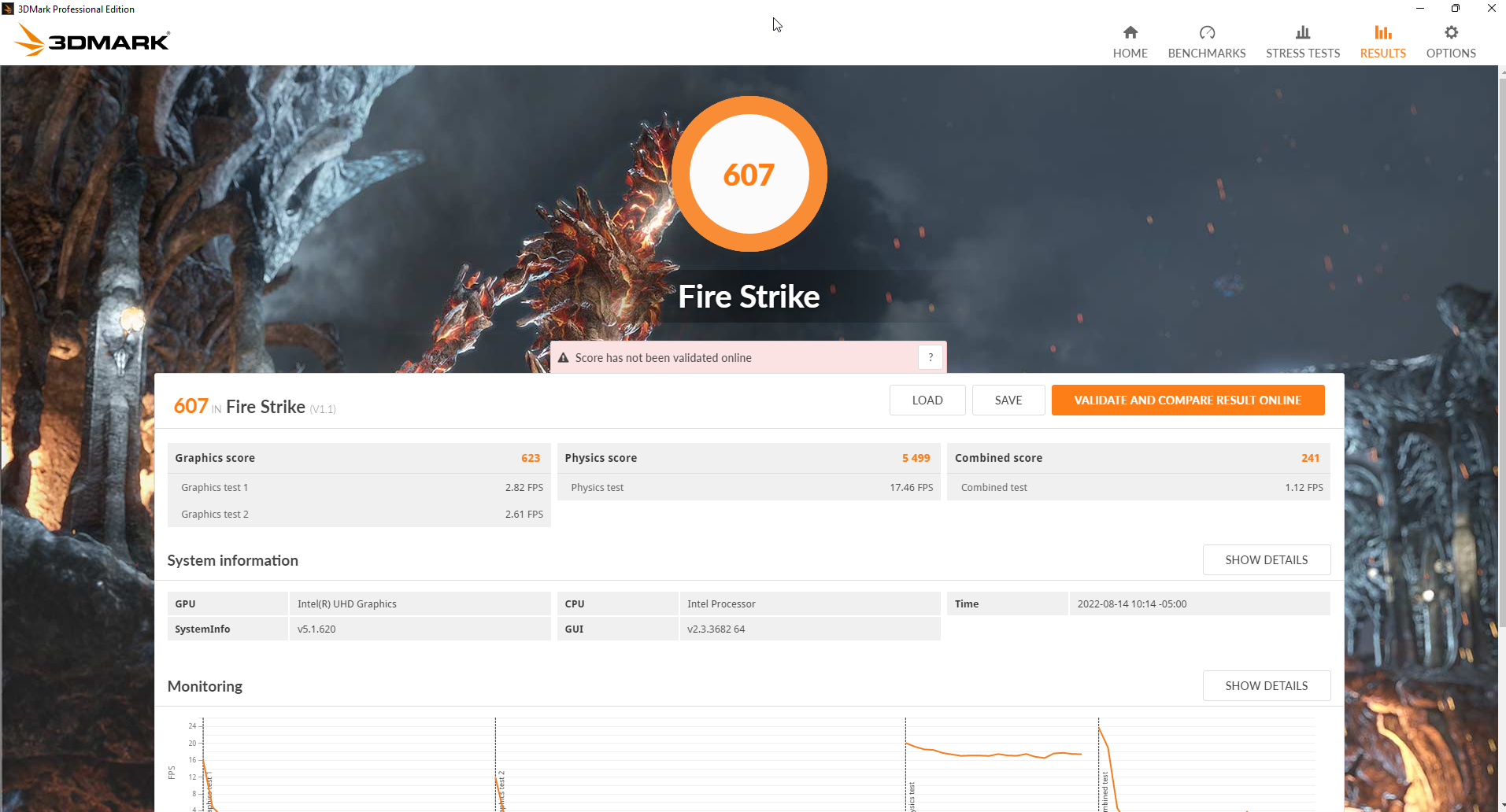

3DMark Fire Strike Score		607 points
3DMark Time Spy Score		205 points
Help

... in comparison

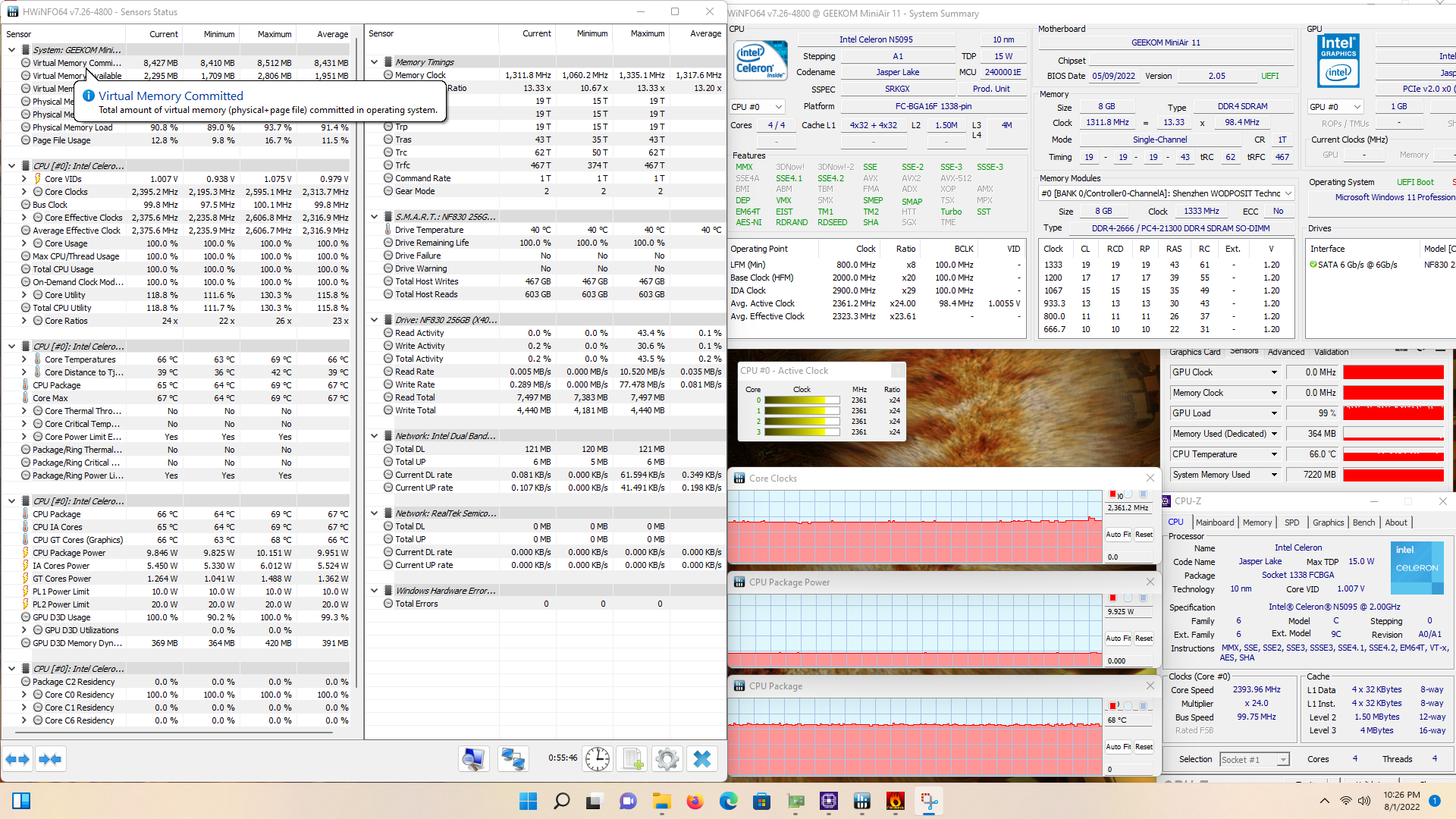

系统噪音和压力测试

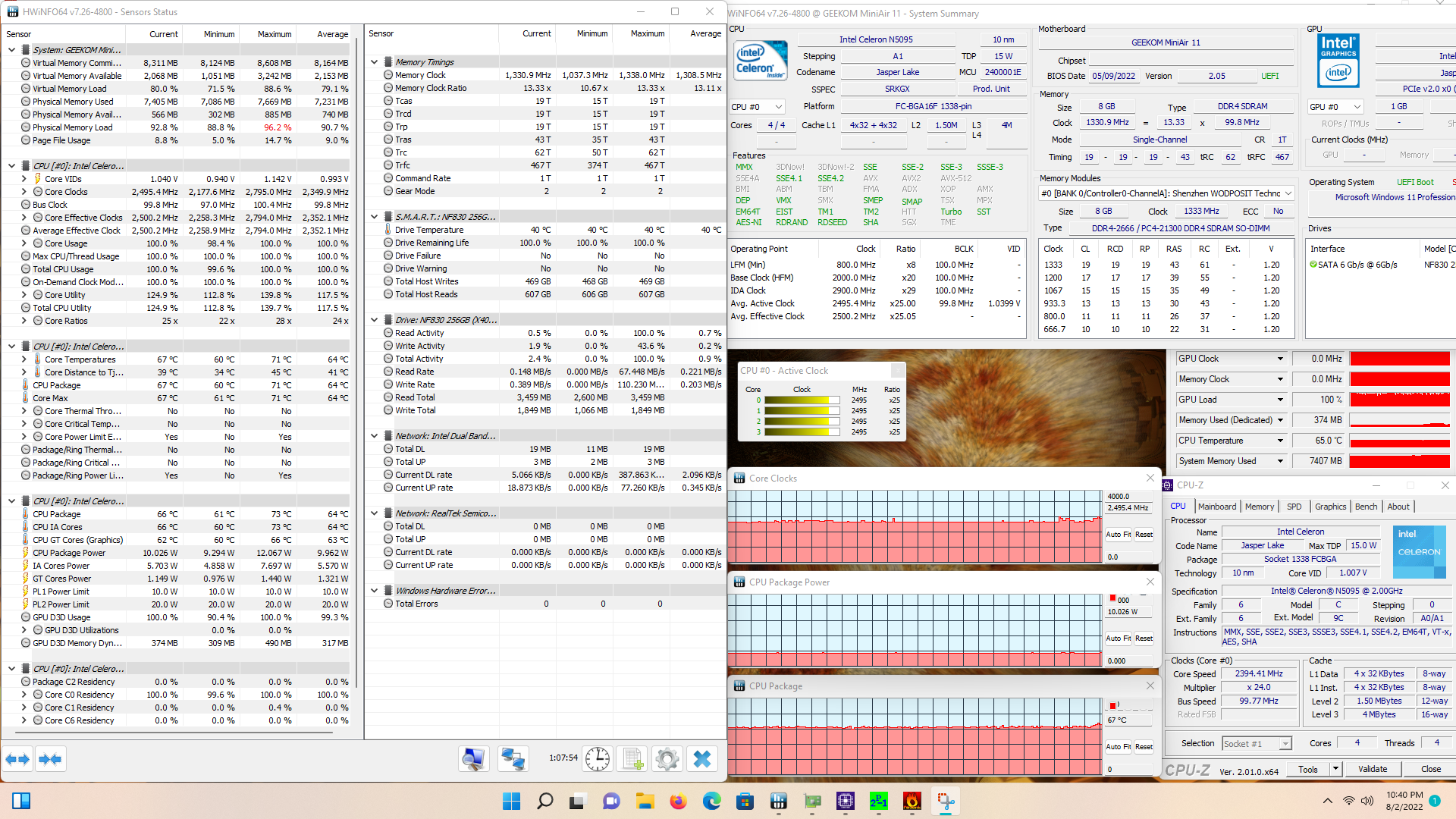

由于其低功率的芯片，MiniAir 11可以很好地处理热量。运行Prime95一小时后，芯片温度达到72°C，同时保持2.8GHz的提升时钟。桌面也能很好地处理紧张的图形负载；在运行FurMark一小时后，整个CPU封装的温度平均为68°C，同时运行Prime95和FurMark使芯片保持在67°C。

在我们的压力测试中，风扇旋转起来，但下降到一个几乎难以察觉的水平。在安静的环境中可以听到它的声音，但在标准的办公室环境中，即使在负载下，它也应该是不显眼的。

Pros

+ 尺寸紧凑

+ 低耗电

+ 近乎无声的操作

+ 良好的端口选择

Cons

- CPU性能缓慢

- 图形能力弱

- 有限的存储选项

判决书

GEEKOM MiniAir 11是家庭电脑或简单办公机器的一个可靠选择。它为网页浏览和办公室工作提供了足够的动力，同时也有能力处理媒体流和一些简单的游戏。其紧凑的尺寸使它几乎适合于任何空间，而且它可以安装在显示器的后面，使桌面干净。

MiniAir 11的优势在于它的小尺寸，坚实的端口选择，以及近乎无声的操作。然而，其紧凑的外壳限制了存储选项；为廉价的2.5英寸或3.5英寸驱动器提供空间将是处理大量存储的一个很好的补充，特别是考虑到其目标是简单的办公工作。再加上有限的CPU性能，可能会让一些人想得到更多。

综上所述，GEEKOM MiniAir 11是家庭电脑或预算有限的办公室寻找不会挤满办公桌的台式机的一个不错的选择。只需279美元（出版时为239美元），它是一个可靠的选择。

价格和可用性

GEEKOM MiniAir 11在GEEKOM网站上有售，价格为279美元(出版时为239美元)，，亚马逊售价279.99美元。.在亚马逊使用优惠券代码05EG9QNQ和页面上的优惠券，可以在2022年8月22日之前以230.99美元购买MiniAir 11。

我们的评测装置是由GEEKOM提供的。

Price comparison

Editor of the original article: Sam Medley - Senior Tech Writer - 1399 articles published on Notebookcheck since 2016

Translator: Ninh Ngoc Duy - Editorial Assistant - 469273 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > GEEKOM MiniAir 11上机评测

Sam Medley, 2022-08-16 (Update: 2022-08-16)
