Geekom Mini IT11 SFF台式电脑上手。坚实的紧凑型Tiger Lake PC

小小Tiger Lake 。

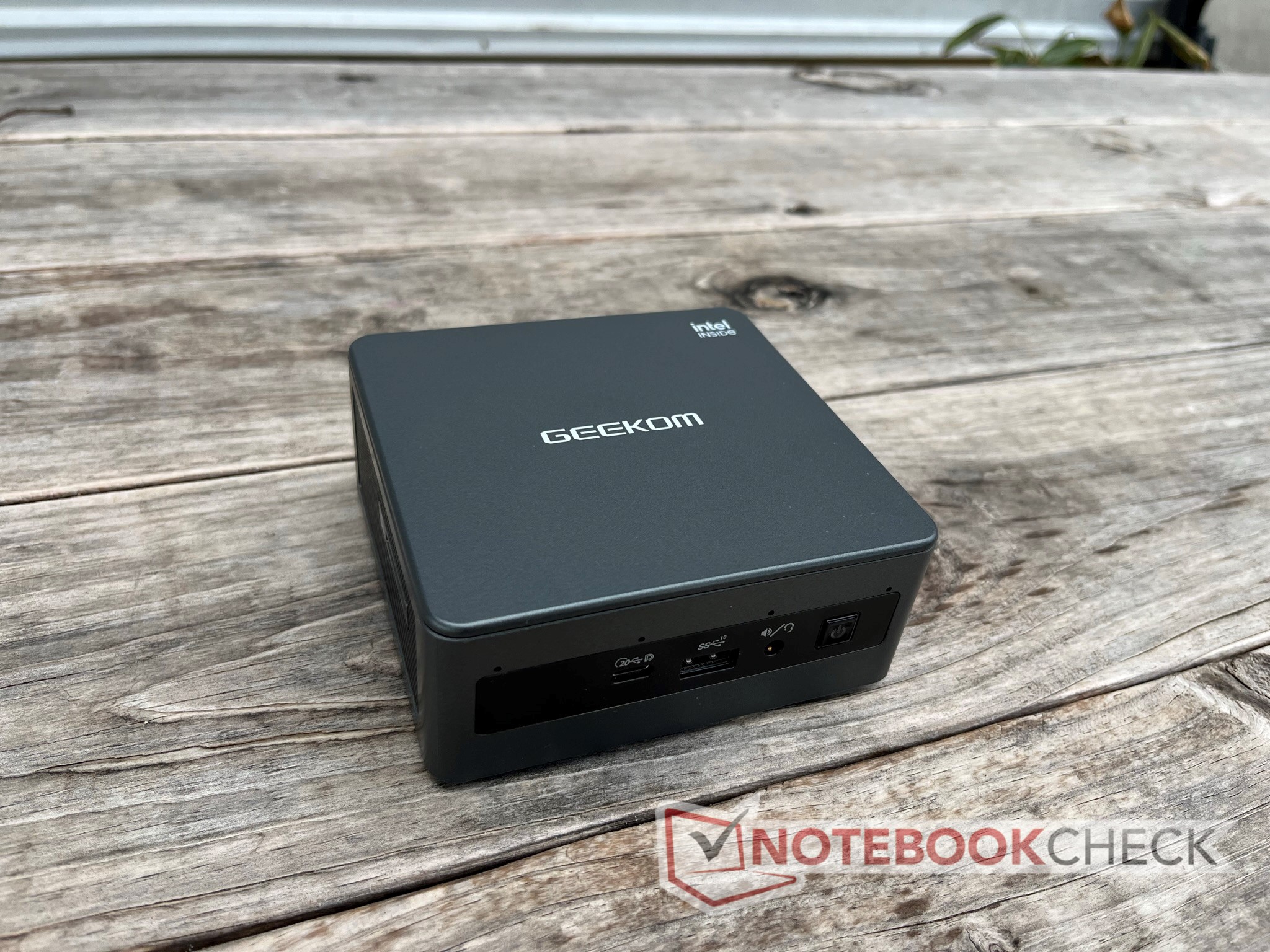

Geekom Mini IT11是一款坚固的小尺寸台式机，有大量的端口和足够的CPU马力，适合一般的媒体工作。当iGPU满载时，它在热量管理方面有困难。最终，Mini IT11是一个物美价廉的选择。

Sam Medley, 👁 Enrico Frahn (translated by DeepL / Ninh Duy), Published 11/27/2022 🇺🇸 🇸🇪 ...

Chinese Tech Desktop Intel Tiger Lake Windows

Geekom公司的Mini IT11是该公司迷你电脑系列中的最新产品。由于采用了英特尔第11代Tiger Lake 酷睿i5或i7处理器和英特尔Iris Xe显卡，迷你IT11为家庭使用、中度媒体工作和一些轻度游戏提供了良好的装备。有一些小插曲和不一致的地方，主要是在图形性能方面。

这篇实战评论将重点关注Mini IT11的性能、制造质量和整体实用性。由于这次评测仅仅是快速浏览，我们不会给出最终评级。审查单位是由Geekom提供的，用于本次审查。

在过去的几年里，迷你台式机市场已经爆发，所以迷你IT11有很多竞争对手。我们将把Geekom的迷你电脑与 Minisforum EliteMini B550, Minisforum EliteMini TH50, Minisforum NUCX i7, Beelink U59, 和贝林克SEi8.

Geekom Mini IT11-GM11i7T

Processor

Intel Core i7-1195G7 4 x 2.9 - 5 GHz, 28 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3

Graphics adapter

Intel Iris Xe Graphics G7 96EUs - 1024 MB VRAM, Integrated, Intel Iris Xe Graphics 27.20.100.8729

Memory

16 GB

, 2x8 GB DDR4-3200 / PC4-25600 (1600 MHz, 15-15-15-35)

Mainboard

Intel Tiger Lake-UP3 PCH-LP

Storage

Intel SSD 660p SSDPEKNW512G8, 512 GB

, 475 GB free

Soundcard

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Connections

3 USB 3.1 Gen2, 2 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 3 DisplayPort, 1 Kensington Lock, Audio Connections: Combo audio in/out, Card Reader: SD/SDHC/SDCX reader (half-size)

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 45.6 x 117 x 112

Operating System

Microsoft Windows 11 Pro

Additional features

VESA Mount, 12 Months Warranty

Weight

565 g, Power Supply: 285 g

Price

769 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	11 / 2022	Geekom Mini IT11-GM11i7T i7-1195G7, Iris Xe G7 96EUs	565 g	45.6 mm	x
v ^(old)	09 / 2022	Beelink U59 N5105 Celeron N5105, UHD Graphics (Jasper Lake 24 EU)	320 g	42 mm	x
v ^(old)	06 / 2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm	x
v ^(old)	04 / 2022	Beelink SEi8 i3-8109U, Iris Plus Graphics 655	346 g	41 mm	x
v7 ^(old)	09 / 2022	Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU	2.4 kg	393 mm	x
v ^(old)	02 / 2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm	x

外壳和连接

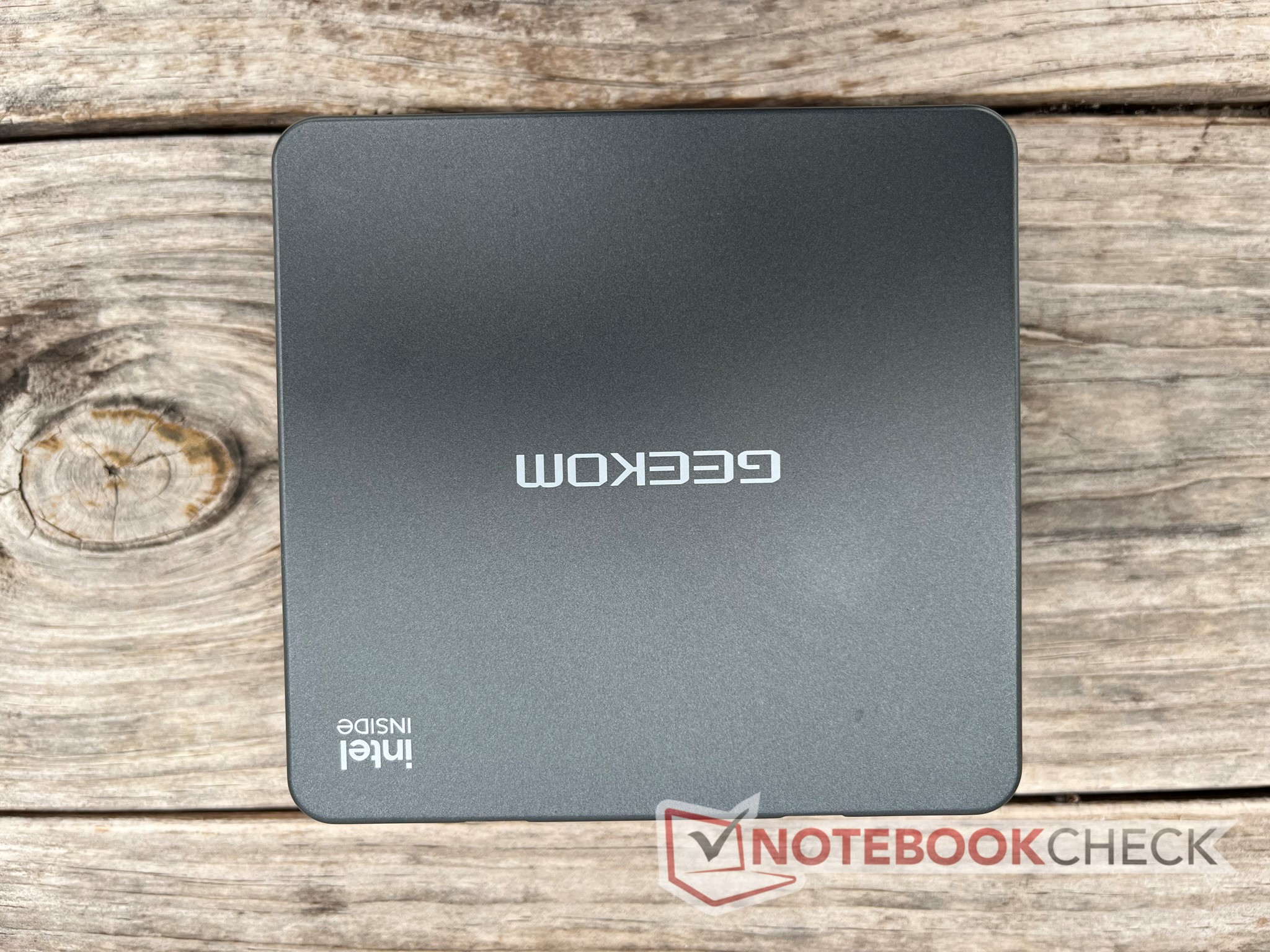

迷你IT11是由铝和厚塑料制成的。与Geekom的其他迷你电脑一样，IT11的制造质量也很好。机身上没有任何弯曲。由于其紧凑而密集的设计，该装置有一些重量。它的机箱与迷你IT8的机箱基本相同，这就应了那句老话："如果它没坏，就不要修"。

Mini IT11采用了与Geekom其他台式机相同的VESA安装系统，因此它应该可以紧紧地贴在显示器后面。它的占地面积相对较小，不会占用太多的桌面空间（大约140平方厘米，或21.7平方英寸）。Mini IT11比Beelink的迷你台式机小一点，比MINISFORUM的迷你台式机明显小一点。 EliteMini B550和 TH50.

尽管体积小，但Geekom Mini IT11有大量的连接。总共有五个USB端口（3x USB-A 3.2 Gen 2，2x USB4 Type-C），一个Mini DisplayPort，和一个HDMI 2.0端口。USB-A端口都支持10Gbps，而USB-C端口可以达到20Gbps，这在小尺寸台式机上并不常见。由于USB-C端口支持DisplayPort，因此有可能将多达四个显示器连接到Mini IT11。千兆以太网、一个耳机插孔和一个半尺寸的SD读卡器完善了端口的选择。

尺寸比较

Minisforum EliteMini B550 Minisforum EliteMini TH50 Beelink SER Pro Ryzen 5 5600H Beelink U59 N5105 Beelink SEi8 Geekom Mini IT11-GM11i7T DIN A5 ❌

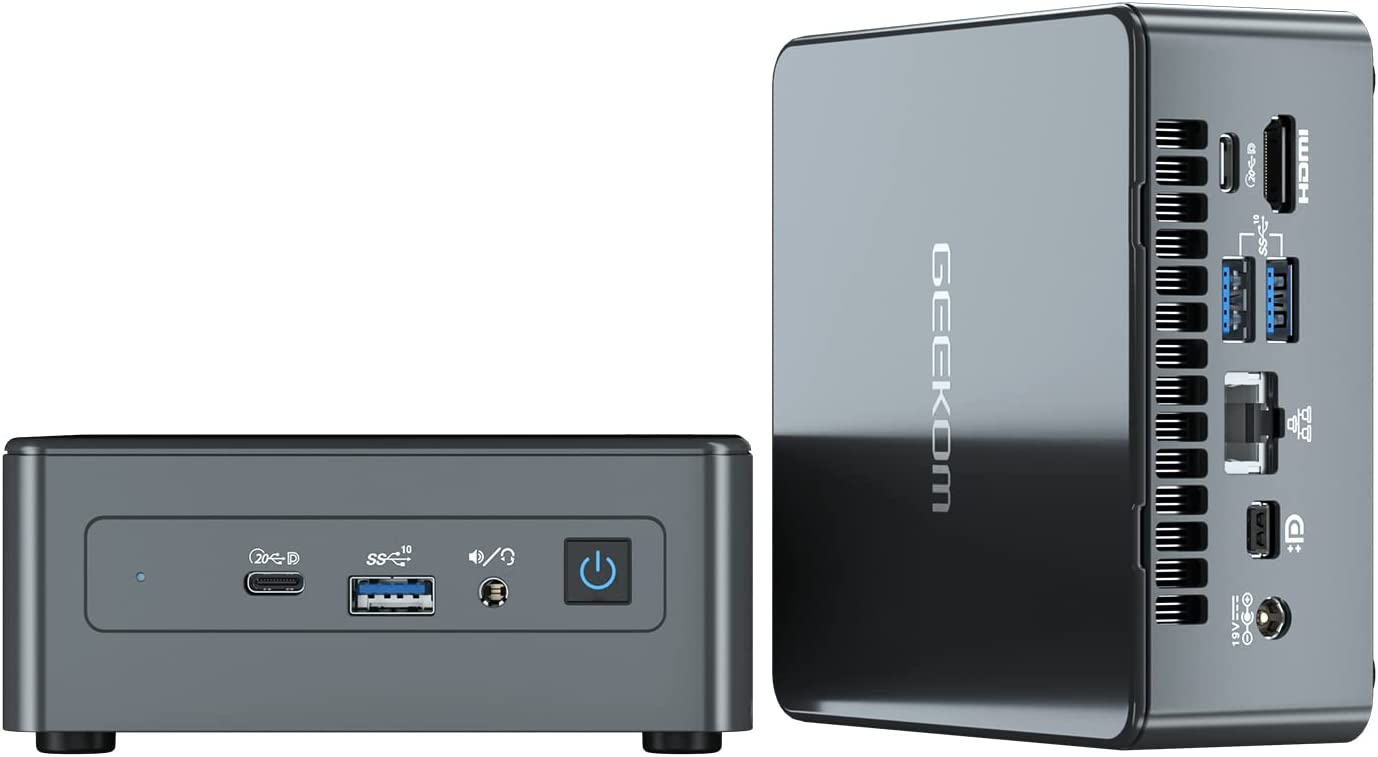

连接性

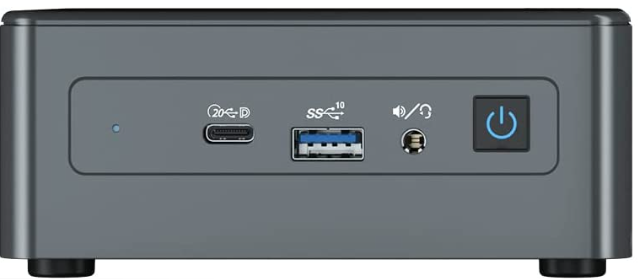

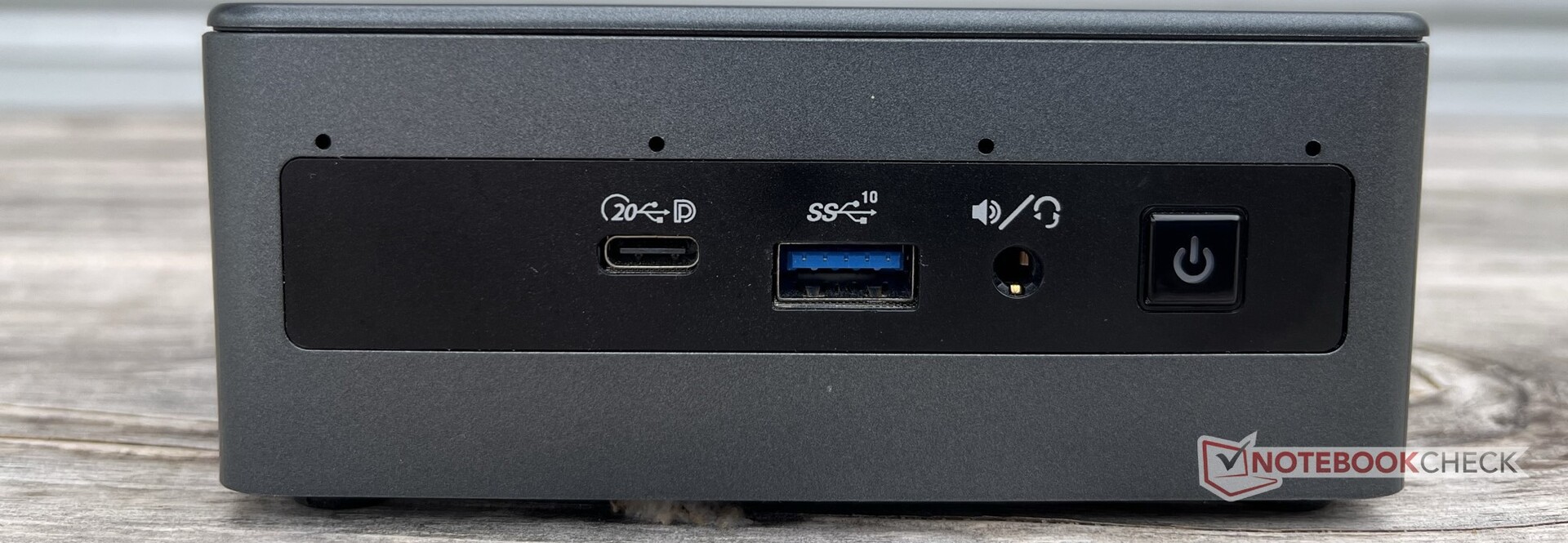

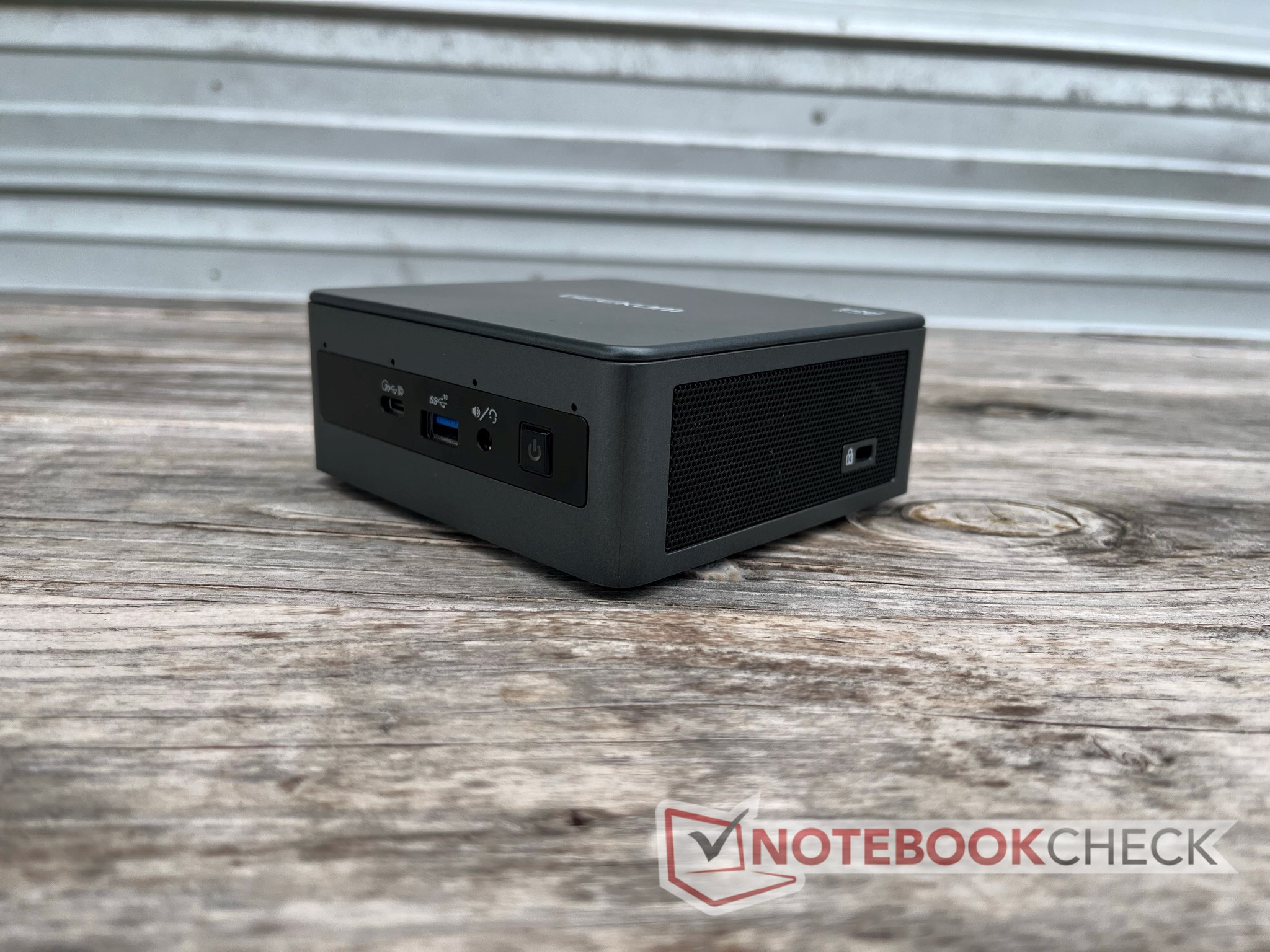

前面。USB4（20Gbps，DisplayPort）Type-C，USB-A 3.2 Gen 2（10Gbps），组合音频，电源按钮

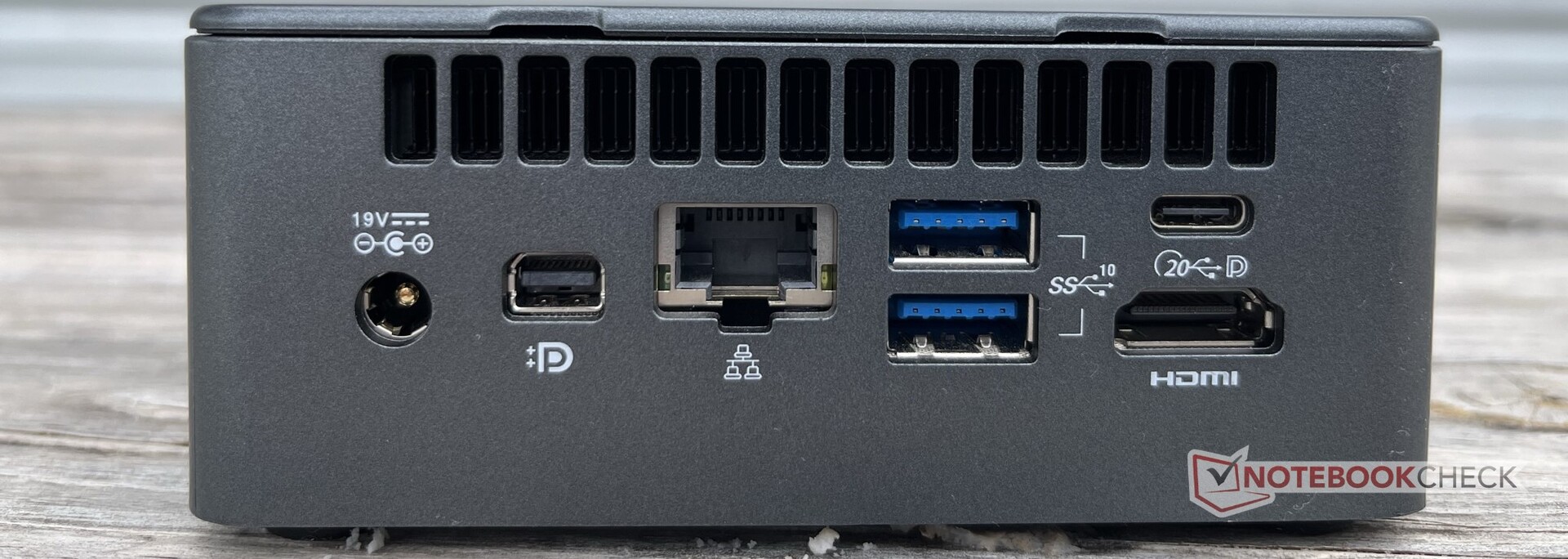

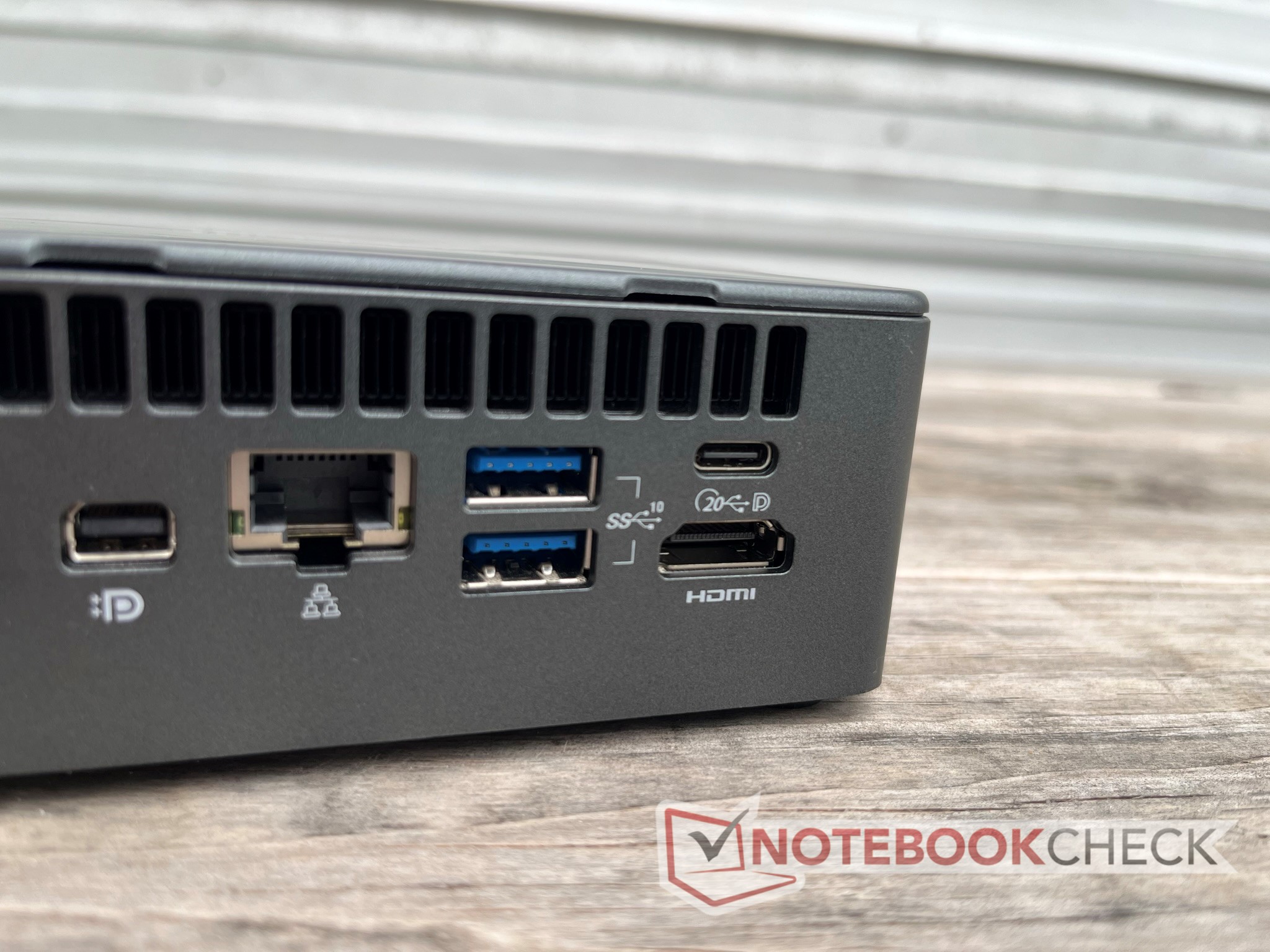

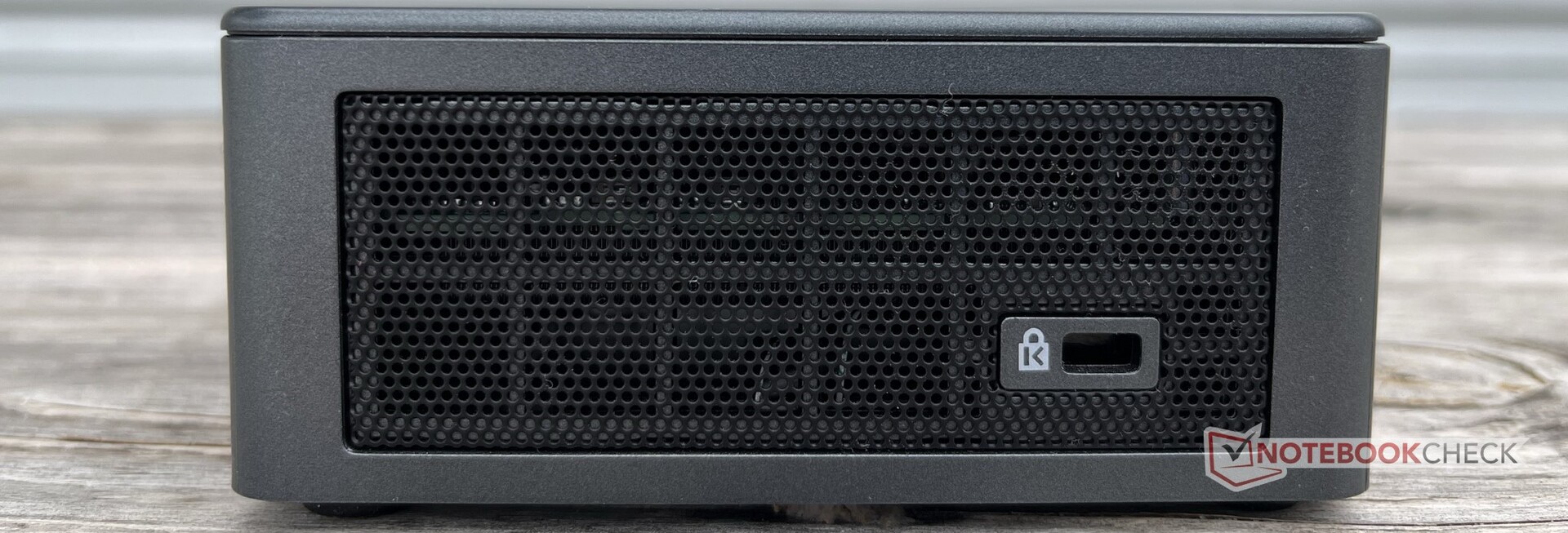

后部。直流电输入，迷你显示端口1.4，千兆以太网，2个USB-A 3.2 Gen 2（10 Gbps），USB4（20 Gbps，显示端口）Type-C，HDMI 2.0

维护

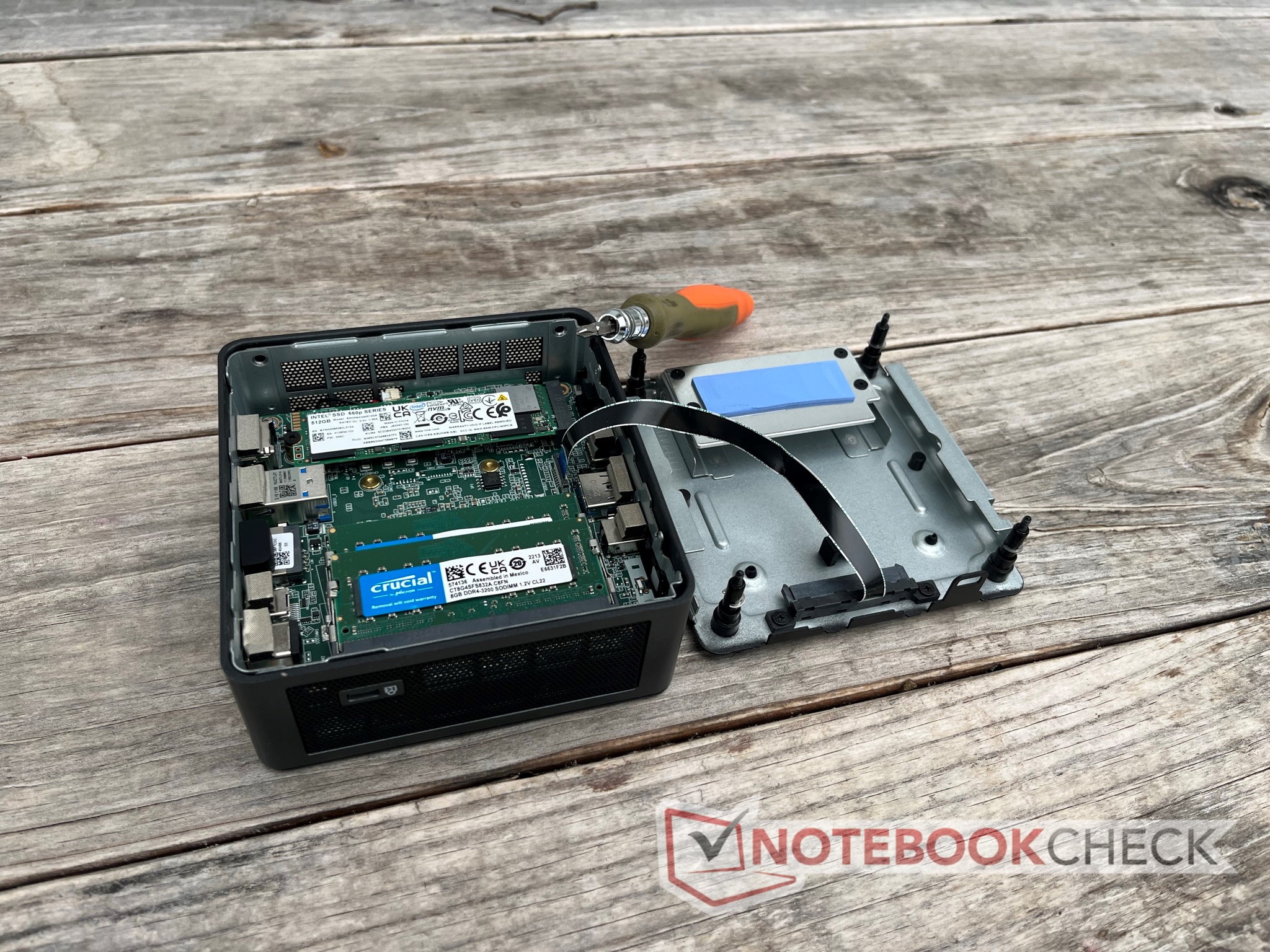

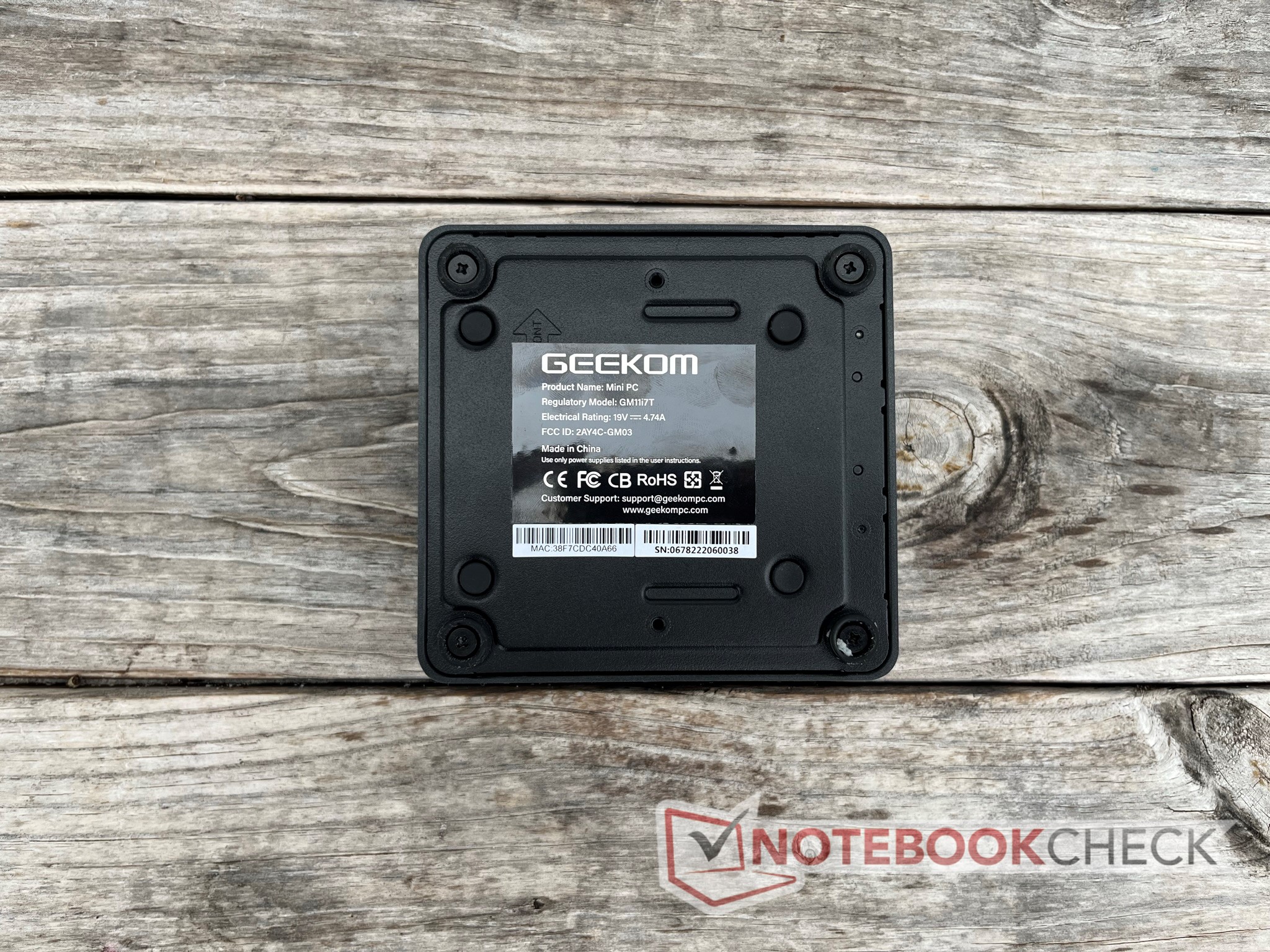

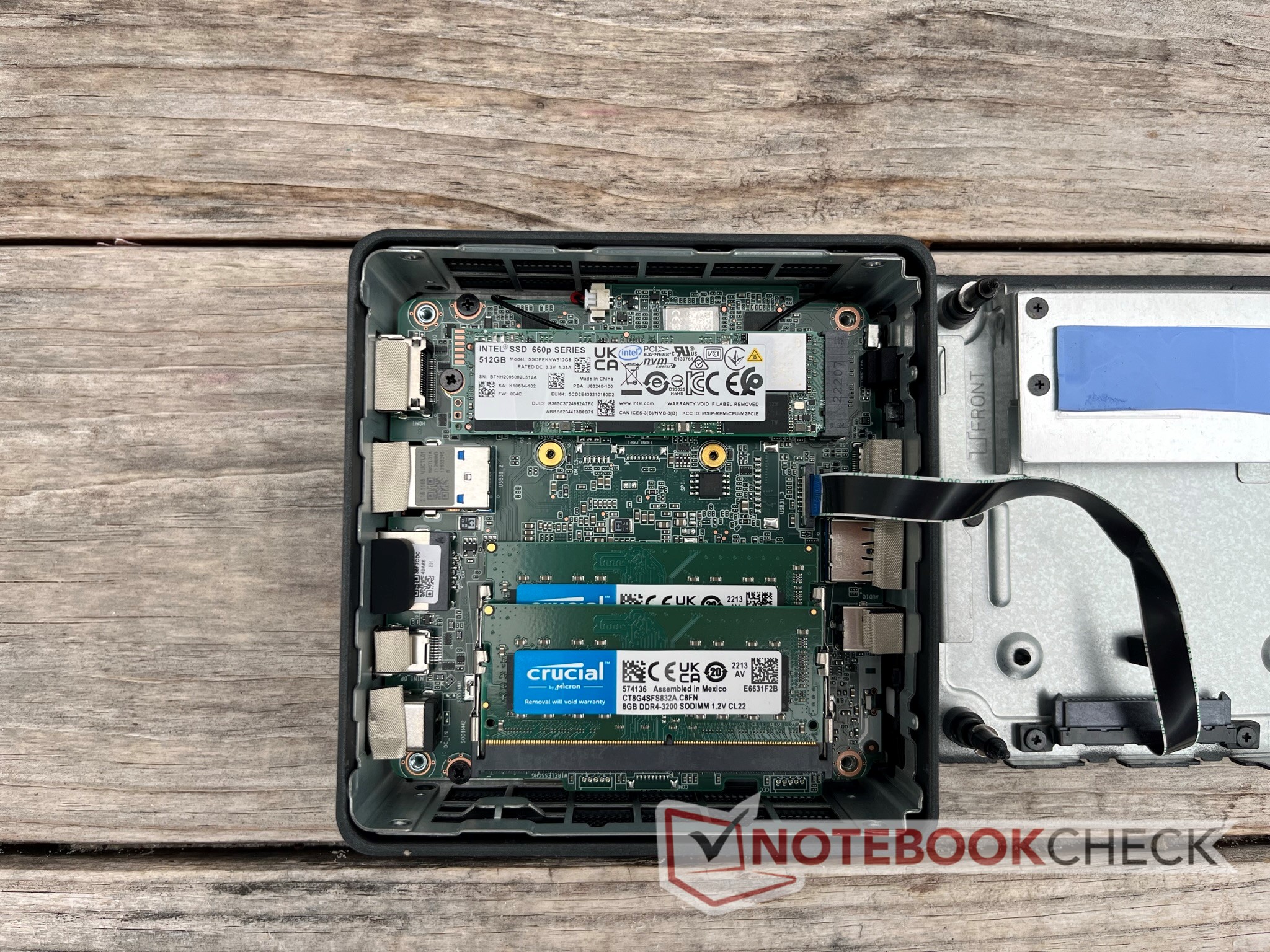

升级很容易。四个自带的螺钉将铝制底板固定在上面。一旦这些螺丝被松开，底板就可以被拉开，但要注意：底板上有一条带状电缆。一旦进去，用户就可以看到一个2.5英寸的驱动器插槽，M.2280 NVMe固态硬盘，以及两个DDR4内存插槽。需要进一步拆卸才能接触到CPU进行清洁或重新粘贴。

业绩

迷你IT11是一台合格的机器。它可以完成办公室工作和媒体流。它甚至可以处理一些较轻的视频或音频项目和简单的游戏。然而，它在较重的图形工作和AAA级游戏方面是有限的。

处理器

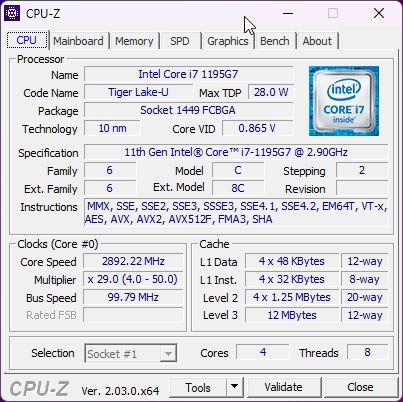

英特尔酷睿i7-1195G7是一款强大但相当高效的芯片。这个四核超线程CPU是基于英特尔的Tiger Lake 平台。虽然英特尔的第11代芯片开始显示其年龄，但1195G7仍足以满足大多数消费者的需求。1195G7是一个单核野兽，在Cinebench R20的单核测试中胜过所有的竞争对手。然而，它在多核测试中落后于AMD的芯片，主要是因为AMD的Ryzen 5000系列芯片拥有多达两倍的内核。因此，1195G7在多线程工作负载中感觉有点乏力，但对于一般使用来说应该是绰绰有余。

在我们的Cinebench R15循环测试中，Mini IT11在很长一段时间内显示出稳定的CPU性能。然而，这项测试表明，第11代芯片的寿命越来越长；AMD的核心包芯片的性能明显更高。

Cinebench R15 Multi Loop

Geekom Mini IT11-GM11i7T Intel Core i7-1195G7: Ø827 (819.47-831.07)

Beelink U59 N5105 Intel Celeron N5105: Ø362 (359.79-368.43)

Minisforum EliteMini B550 AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Beelink SEi8 Intel Core i3-8109U: Ø320 (317.69-324.13)

Minisforum EliteMini TH50 Intel Core i5-11320H: Ø896 (837.78-960.71)

Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Single Core)
Average of class Desktop (451 - 902, n=13, last 2 years)	771 Points +25%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	617 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G	585 Points -5%
Average Intel Core i7-1195G7 (498 - 620, n=9)	563 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H	560 Points -9%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points -14%
Beelink SEi8 Intel Core i3-8109U	351 Points -43%
Beelink U59 N5105 Intel Celeron N5105	235 Points -62%

Cinebench R20 / CPU (Multi Core)
Average of class Desktop (4085 - 16722, n=13, last 2 years)	10221 Points +405%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	4660 Points +130%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points +52%
Minisforum EliteMini TH50 Intel Core i5-11320H	2319 Points +15%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	2024 Points
Average Intel Core i7-1195G7 (1212 - 2590, n=9)	1907 Points -6%
Beelink U59 N5105 Intel Celeron N5105	826 Points -59%
Beelink SEi8 Intel Core i3-8109U	772 Points -62%

Cinebench R15 / CPU Single 64Bit
Average of class Desktop (233 - 356, n=18, last 2 years)	305 Points +29%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	243 Points +3%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	236 Points
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points -6%
Average Intel Core i7-1195G7 (198 - 238, n=8)	221 Points -6%
Minisforum EliteMini TH50 Intel Core i5-11320H	212 Points -10%
Beelink SEi8 Intel Core i3-8109U	124.3 Points -47%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points -54%

Cinebench R15 / CPU Multi 64Bit
Average of class Desktop (2005 - 6588, n=18, last 2 years)	4403 Points +430%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	1980 Points +138%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points +59%
Minisforum EliteMini TH50 Intel Core i5-11320H	950 Points +14%
Average Intel Core i7-1195G7 (574 - 999, n=9)	853 Points +3%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	831 (819.47^min - 831.07^max) Points
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points -56%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -61%

Blender / v2.79 BMW27 CPU
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds * -179%
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * -135%
Average Intel Core i7-1195G7 (473 - 1211, n=10)	691 Seconds * -23%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	564 Seconds *
Minisforum EliteMini TH50 Intel Core i5-11320H	516 Seconds * +9%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * +32%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	252.1 Seconds * +55%
Average of class Desktop (77 - 333, n=15, last 2 years)	142.7 Seconds * +75%

7-Zip 18.03 / 7z b 4 -mmt1
Average of class Desktop (5262 - 8020, n=12, last 2 years)	7447 MIPS +26%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	5890 MIPS
Minisforum EliteMini B550 AMD Ryzen 7 5700G	5809 MIPS -1%
Average Intel Core i7-1195G7 (5059 - 5890, n=9)	5409 MIPS -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS -8%
Minisforum EliteMini TH50 Intel Core i5-11320H	4945 MIPS -16%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS -36%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS -47%

7-Zip 18.03 / 7z b 4
Average of class Desktop (45947 - 160423, n=12, last 2 years)	109321 MIPS +349%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	55046 MIPS +126%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS +64%
Minisforum EliteMini TH50 Intel Core i5-11320H	26858 MIPS +10%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	24351 MIPS
Average Intel Core i7-1195G7 (17053 - 26183, n=9)	23469 MIPS -4%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS -54%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -61%

Geekbench 5.5 / Single-Core
Average of class Desktop (1967 - 2559, n=13, last 2 years)	2272 Points +38%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	1649 Points
Average Intel Core i7-1195G7 (1519 - 1649, n=7)	1569 Points -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	1560 Points -5%
Minisforum EliteMini TH50 Intel Core i5-11320H	1453 Points -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points -13%
Beelink SEi8 Intel Core i3-8109U	888 Points -46%
Beelink U59 N5105 Intel Celeron N5105	653 Points -60%

Geekbench 5.5 / Multi-Core
Average of class Desktop (11095 - 26186, n=13, last 2 years)	19132 Points +304%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	7818 Points +65%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points +29%
Minisforum EliteMini TH50 Intel Core i5-11320H	5657 Points +19%
Average Intel Core i7-1195G7 (4241 - 6349, n=7)	4940 Points +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	4734 Points
Beelink U59 N5105 Intel Celeron N5105	2080 Points -56%
Beelink SEi8 Intel Core i3-8109U	1880 Points -60%

HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Desktop (12.9 - 45.7, n=12, last 2 years)	32 fps +362%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	14.8 fps +114%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps +52%
Minisforum EliteMini TH50 Intel Core i5-11320H	7.86 fps +14%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	6.92 fps
Average Intel Core i7-1195G7 (4.23 - 8.8, n=9)	6.45 fps -7%
Beelink SEi8 Intel Core i3-8109U	2.85 fps -59%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps -71%

LibreOffice / 20 Documents To PDF
Beelink U59 N5105 Intel Celeron N5105	101 s * -20%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	83.9 s *
Beelink SEi8 Intel Core i3-8109U	79 s * +6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G	50.7 s * +40%
Average Intel Core i7-1195G7 (39.2 - 83.9, n=9)	49.1 s * +41%
Minisforum EliteMini TH50 Intel Core i5-11320H	48.7 s * +42%
Average of class Desktop (35.5 - 49.1, n=12, last 2 years)	40.7 s * +51%

R Benchmark 2.5 / Overall mean
Beelink U59 N5105 Intel Celeron N5105	1.162 sec * -119%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * -62%
Minisforum EliteMini TH50 Intel Core i5-11320H	0.622 sec * -17%
Average Intel Core i7-1195G7 (0.53 - 0.611, n=9)	0.57 sec * -8%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * -0%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7	0.53 sec *
Minisforum EliteMini B550 AMD Ryzen 7 5700G	0.4975 sec * +6%
Average of class Desktop (0.3307 - 0.4987, n=12, last 2 years)	0.3853 sec * +27%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

831 Points

Cinebench R15 OpenGL 64Bit

97 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

236 Points

Cinebench R20 CPU (Multi Core)

2024 Points

Cinebench R20 CPU (Single Core)

617 Points

Cinebench R23 Single Core

1595 Points

Cinebench R23 Multi Core

5337 Points

Help

... in comparison

系统性能

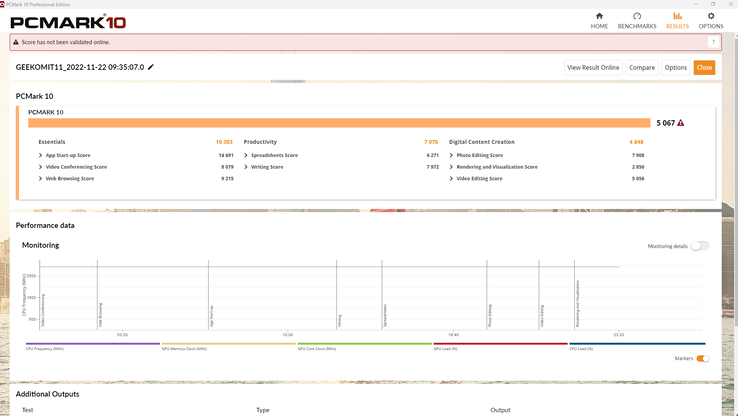

系统的整体性能是快速和响应的。在PCMark 10的数字内容创作基准中，Mini IT11落后于竞争对手；AMD的集成Vega GPU是图形工作的更好选择。然而，Mini IT11并不令人讨厌；考虑到它的小尺寸和适度的价格，它提供了巨大的性能。

PCMark 10: Score | Essentials | Productivity | Digital Content Creation

PCMark 10 / Score
Average of class Desktop (5331 - 10699, n=10, last 2 years)	9120 Points +80%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6214 Points +23%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5902 Points +16%
Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (5067 - 5406, n=6)	5180 Points +2%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5130 Points +1%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	5067 Points
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	3645 Points -28%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2670 Points -47%

PCMark 10 / Essentials
Average of class Desktop (10652 - 12591, n=10, last 2 years)	11958 Points +16%
Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (10156 - 10614, n=6)	10411 Points +1%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	10351 Points 0%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	10303 Points
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10148 Points -2%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	9556 Points -7%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	7861 Points -24%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	6340 Points -38%

PCMark 10 / Productivity
Average of class Desktop (7058 - 12944, n=10, last 2 years)	11519 Points +63%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9941 Points +41%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	9293 Points +31%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	7070 Points
Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (6637 - 7390, n=6)	6950 Points -2%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	6832 Points -3%
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	6093 Points -14%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	3758 Points -47%

PCMark 10 / Digital Content Creation
Average of class Desktop (5469 - 22005, n=10, last 2 years)	15890 Points +228%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6457 Points +33%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5801 Points +20%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5615 Points +16%
Average Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs (4737 - 5941, n=6)	5228 Points +8%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	4848 Points
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	2746 Points -43%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2170 Points -55%

PCMark 10 Score		5067 points
Help

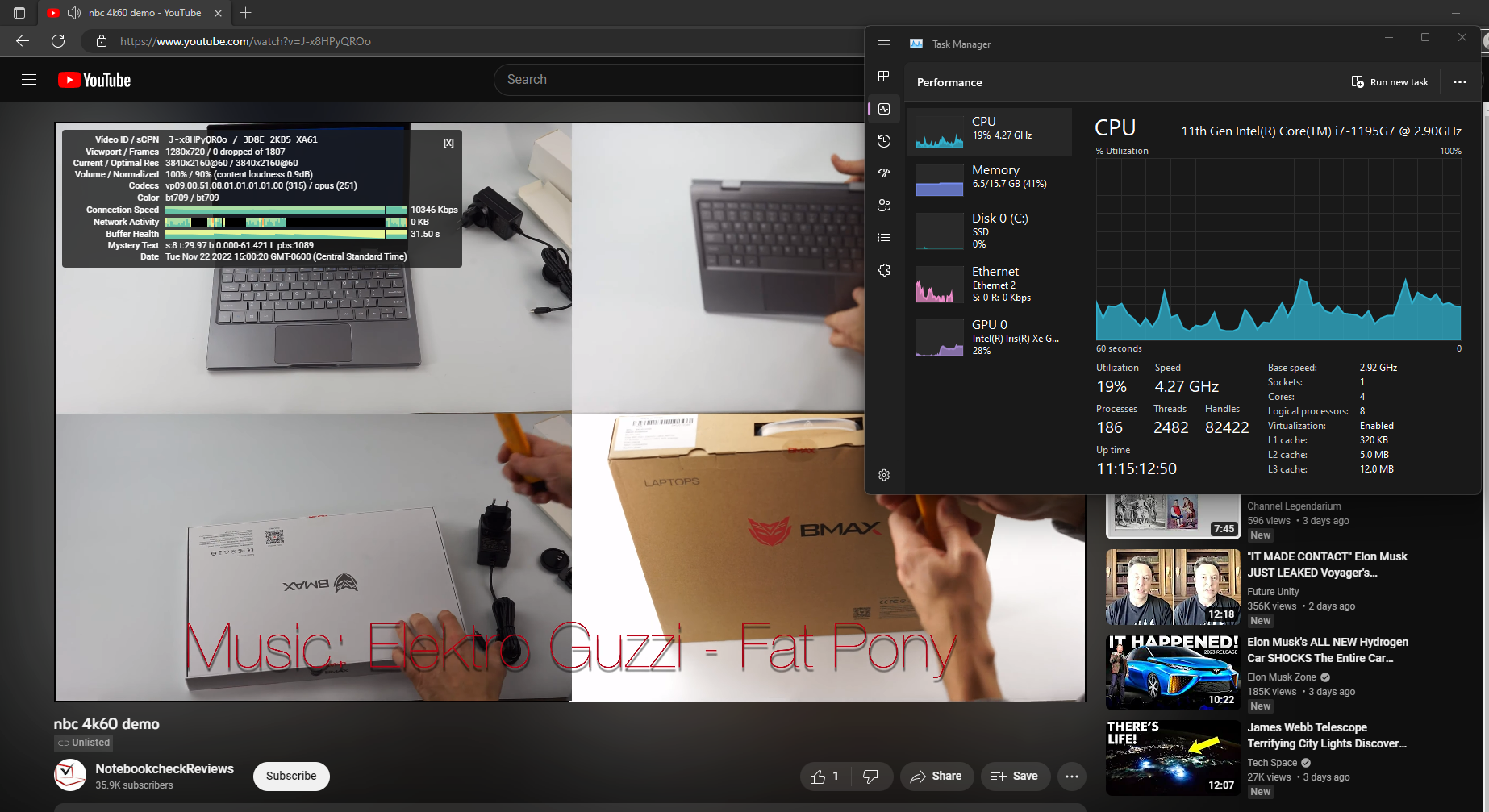

DPC延时

Mini IT11的一个闪光点是其低DPC延迟。这使迷你电脑非常适合于实时音频工作，这一点是竞争对手所不能比拟的。

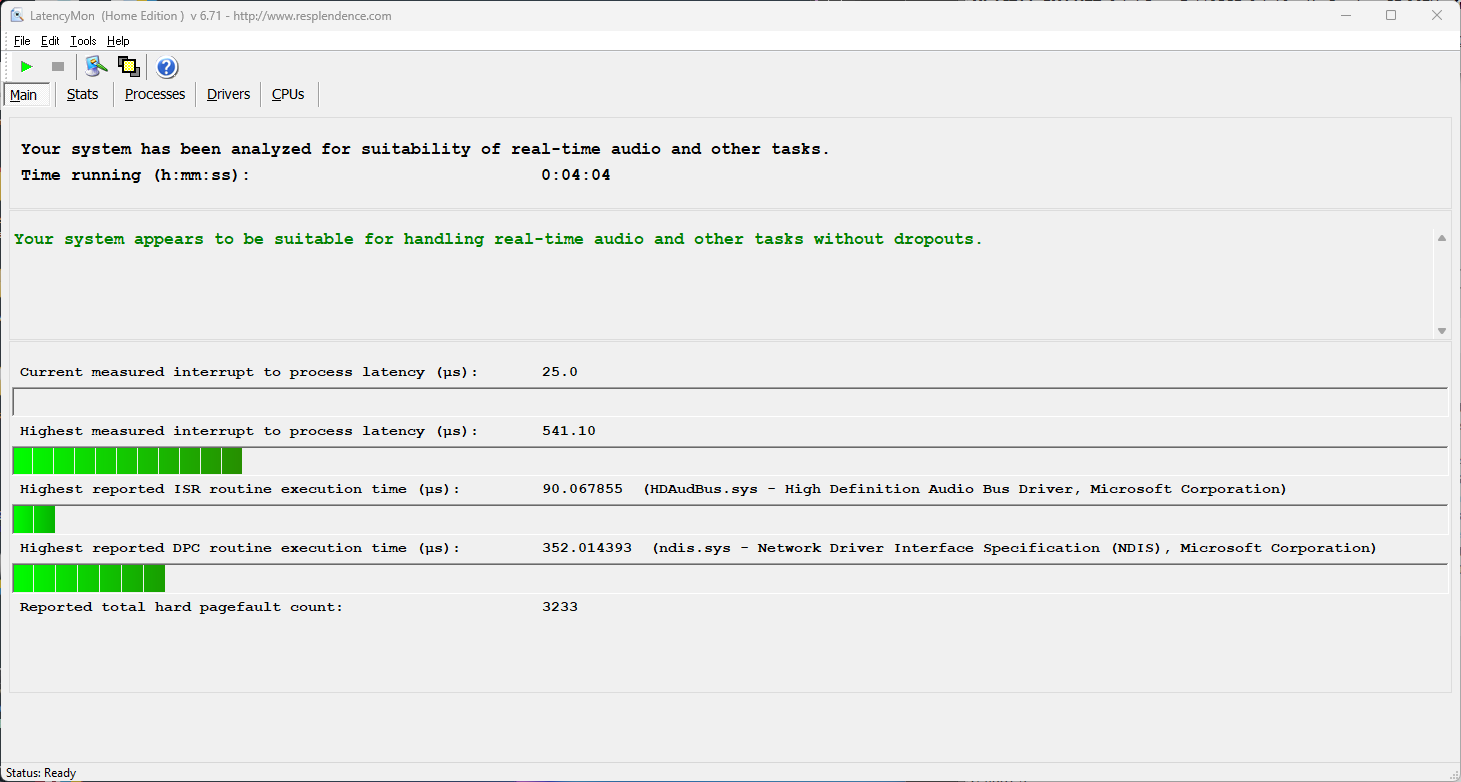

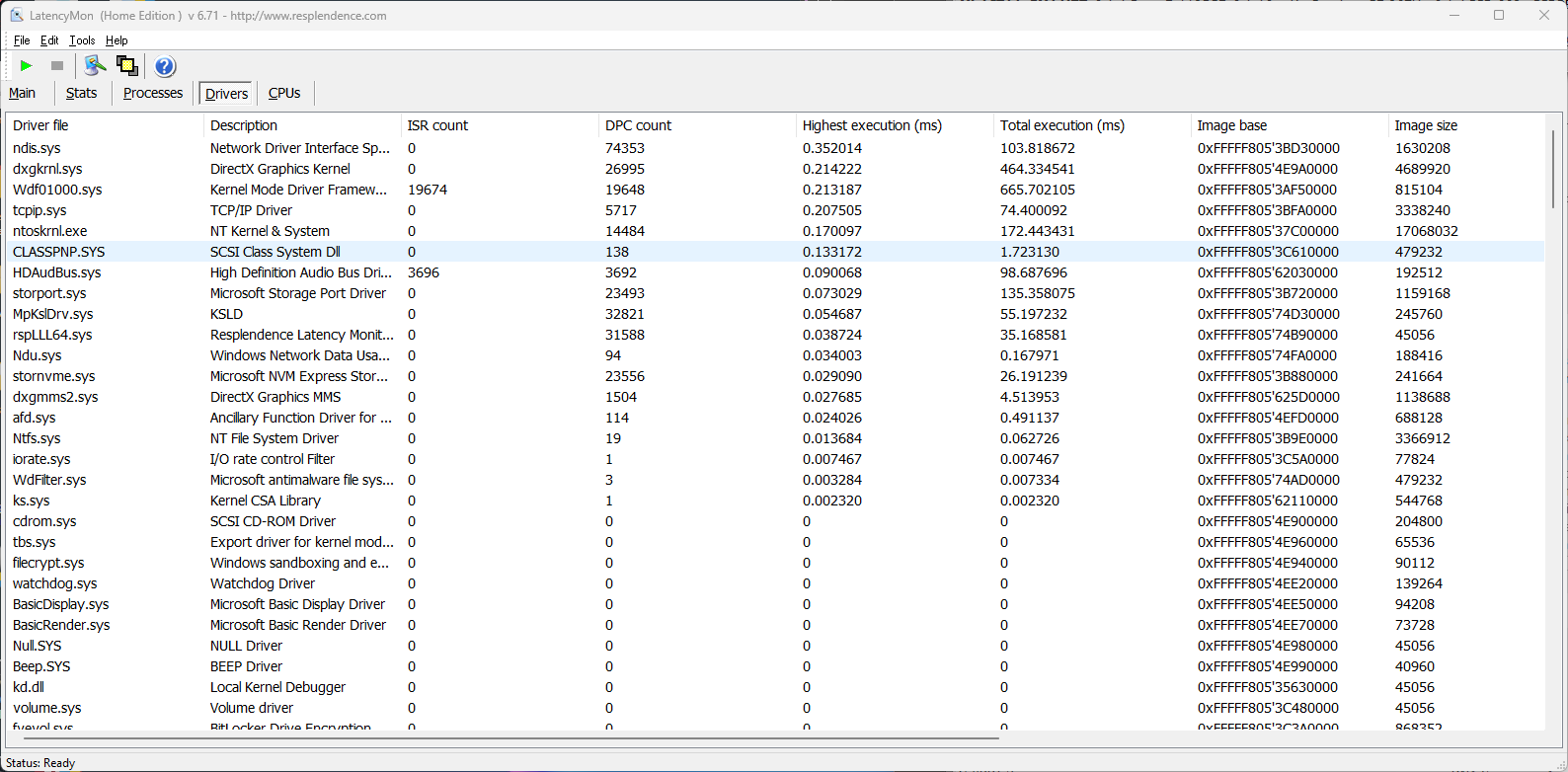

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink SEi8 Iris Plus Graphics 655, i3-8109U, Intel SSD 660p SSDPEKNW512G8	3231 μs * -497%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1867 μs * -245%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	1753.5 μs * -224%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	562 μs * -4%
Geekom Mini IT11-GM11i7T Iris Xe G7 96EUs, i7-1195G7, Intel SSD 660p SSDPEKNW512G8	541.1 μs *
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	349.5 μs * +35%

* ... smaller is better

存储设备

附带的英特尔660p NVMe固态硬盘是相当快的。大多数应用程序可以立即打开，游戏的加载时间也相当快。读取和写入速度与同等价格的竞争对手一致。如果用户愿意，可以轻松安装另一块NVMe SSD。

	Geekom Mini IT11-GM11i7T Intel SSD 660p SSDPEKNW512G8	Beelink U59 N5105 Silicon Motion AZW 512G NV428	Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	Beelink SEi8 Intel SSD 660p SSDPEKNW512G8	Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	Average Intel SSD 660p SSDPEKNW512G8	Average of class Desktop
CrystalDiskMark 5.2 / 6		-63%	33%	-25%	48%	2%	-10%	244%
Write 4K	216.5	86.45 -60%	161.5 -25%	146 -33%	293.1 35%	117.8 -46%	136 ?(64 - 217, n=35) -37%	349 ?(177.8 - 684, n=4, last 2 years) 61%
Read 4K	65.73	25.9 -61%	51.29 -22%	58.49 -11%	62.1 -6%	50.6 -23%	55.2 ?(39.7 - 77.1, n=35) -16%	276 ?(55 - 899, n=4, last 2 years) 320%
Write 4K Q32T1	573.6	165.1 -71%	437 -24%	376.3 -34%	499.4 -13%	270.8 -53%	381 ?(184.6 - 574, n=35) -34%	557 ?(426 - 699, n=4, last 2 years) -3%
Read 4K Q32T1	338.9	146.6 -57%	602.1 78%	339.5 0%	719 112%	353.6 4%	334 ?(212 - 462, n=35) -1%	788 ?(501 - 953, n=4, last 2 years) 133%
Write Seq Q32T1	958.2	359.5 -62%	1210 26%	777.7 -19%	1216 27%	1764 84%	987 ?(778 - 1659, n=35) 3%	5264 ?(2705 - 6612, n=4, last 2 years) 449%
Read Seq Q32T1	1653.5	528.3 -68%	2554.3 54%	805.9 -51%	2554 54%	2440 48%	1744 ?(806 - 2936, n=35) 5%	6288 ?(3567 - 7446, n=4, last 2 years) 280%
Write 4K Q8T8	832.5		1045.2 26%		1092 31%		810 ?(748 - 849, n=3) -3%	1939 ?(429 - 3546, n=4, last 2 years) 133%
Read 4K Q8T8	340.2		857.4 152%		841 147%		344 ?(340 - 346, n=3) 1%	2313 ?(938 - 3182, n=4, last 2 years) 580%
AS SSD		-78%	47%	-34%			-5%	274%
Seq Read	1356.17	503.32 -63%	2303.9 70%	700.68 -48%			1423 ?(701 - 2432, n=36) 5%	5279 ?(2903 - 6331, n=4, last 2 years) 289%
Seq Write	854.29	443.45 -48%	1145 34%	640.31 -25%			828 ?(374 - 1229, n=36) -3%	3959 ?(1487 - 6117, n=4, last 2 years) 363%
4K Read	61.08	18.93 -69%	57.87 -5%	55.28 -9%			51.3 ?(40.1 - 75.7, n=36) -16%	79.5 ?(59.7 - 98.1, n=4, last 2 years) 30%
4K Write	191.79	72.63 -62%	152.35 -21%	128.45 -33%			128.9 ?(87 - 242, n=36) -33%	235 ?(216 - 249, n=4, last 2 years) 23%
4K-64 Read	325.14	146.3 -55%	711.88 119%	323.95 0%			326 ?(320 - 442, n=36) 0%	2275 ?(883 - 3236, n=4, last 2 years) 600%
4K-64 Write	532.6	181.26 -66%	984.11 85%	494.85 -7%			721 ?(94.1 - 1219, n=36) 35%	3052 ?(1418 - 4913, n=4, last 2 years) 473%
Access Time Read *	0.091	0.085 7%	0.105 -15%	0.102 -12%			0.09003 ?(0.048 - 0.24, n=36) 1%	0.0435 ?(0.031 - 0.066, n=4, last 2 years) 52%
Access Time Write *	0.045	0.188 -318%	0.029 36%	0.136 -202%			0.07378 ?(0.033 - 0.144, n=36) -64%	0.05425 ?(0.016 - 0.129, n=4, last 2 years) -21%
Score Read	522	216 -59%	1000 92%	449 -14%			519 ?(449 - 760, n=36) -1%	2883 ?(1233 - 3960, n=4, last 2 years) 452%
Score Write	810	298 -63%	1251 54%	687 -15%			932 ?(285 - 1584, n=36) 15%	3683 ?(1784 - 5774, n=4, last 2 years) 355%
Score Total	1598	628 -61%	2722 70%	1386 -13%			1708 ?(1077 - 2702, n=36) 7%	7981 ?(3592 - 11756, n=4, last 2 years) 399%
Total Average (Program / Settings)		-71% / -73%	40% / 41%	-30% / -31%	48% / 48%	2% / 2%	-8% / -7%	259% / 261%

* ... smaller is better

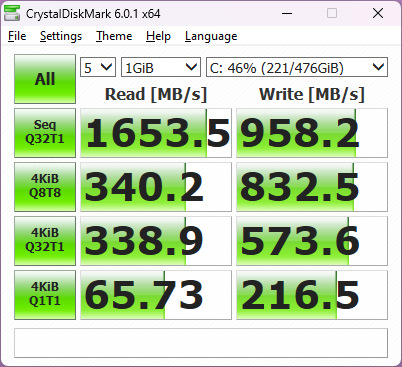

CrystalDiskMark 5.2 / 6

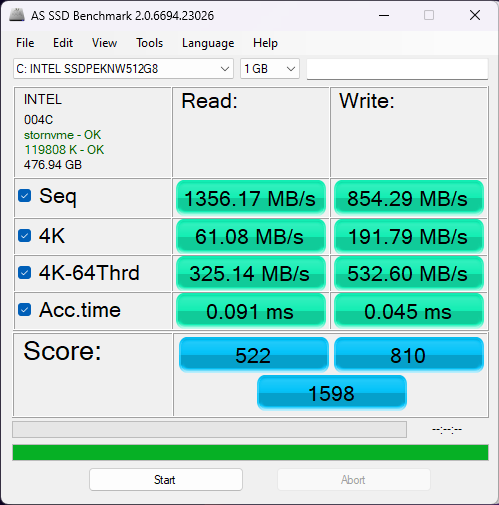

AS SSD

DiskSpd

Intel SSD 660p SSDPEKNW512G8

CDM 5/6 Read Seq Q32T1: 1653.5 MB/s

CDM 5/6 Write Seq Q32T1: 958.2 MB/s

CDM 5/6 Read 4K Q32T1: 338.9 MB/s

CDM 5/6 Write 4K Q32T1: 573.6 MB/s

CDM 5/6 Read 4K: 65.73 MB/s

CDM 5/6 Write 4K: 216.5 MB/s

CDM 6 Write 4K Q8T8: 832.5 MB/s

CDM 6 Read 4K Q8T8: 340.2 MB/s

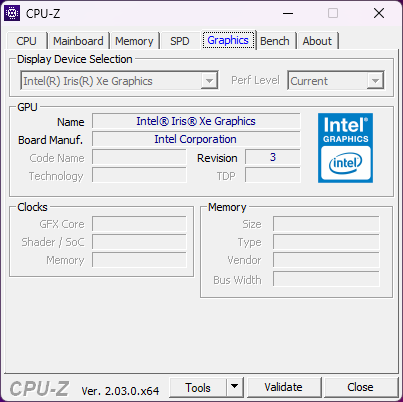

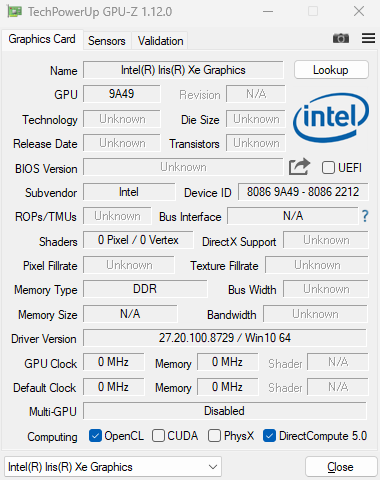

GPU性能

芯片英特尔Iris Xe图形G7具有96个执行单元（EUs），比老式的英特尔HD Graphics iGPU有很大的提升。Xe Graphics iGPU与AMD的集成式 Vega 7和 Vega 8图形卡在3DMark中交锋。然而，在更高的分辨率下，AMD的GPU稍微领先。Mini IT11在与Nvidia的 MX350和 MX450专用GPU竞争，尽管MX系列卡的专用VRAM有助于更高的分辨率和更苛刻的测试。不过，Mini IT11应该适用于轻型建模工作和视频项目。

3DMark
1920x1080 Fire Strike Graphics
Average of class Desktop (2277 - 79185, n=16, last 2 years)	49319 Points +984%
Lenovo IdeaPad Gaming 3 15ARH7 NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 6600H	14157 Points +211%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +8%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +4%
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	4689 Points +3%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	4551 Points
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	4496 Points -1%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points -11%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -26%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	1715 Points -62%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1106 Points -76%
1280x720 Cloud Gate Standard Graphics
Average of class Desktop (13814 - 189497, n=10, last 2 years)	127300 Points +361%
Lenovo IdeaPad Gaming 3 15ARH7 NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 6600H	83568 Points +203%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	31437 Points +14%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	27609 Points
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	27570 Points 0%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38578, n=180)	26508 Points -4%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -5%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	24343 Points -12%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -15%
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	13022 Points -53%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	8388 Points -70%

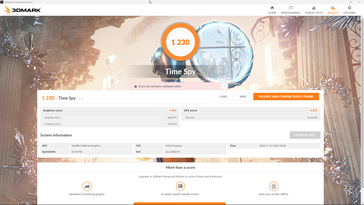

2560x1440 Time Spy Graphics
Average of class Desktop (636 - 37589, n=18, last 2 years)	25908 Points +2275%
Lenovo IdeaPad Gaming 3 15ARH7 NVIDIA GeForce RTX 3050 4GB Laptop GPU, AMD Ryzen 5 6600H	5295 Points +385%
MSI Modern 14 B11SB-085 NVIDIA GeForce MX450, Intel Core i7-1165G7	1968 Points +80%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points +46%
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=212)	1495 Points +37%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	1333 Points +22%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +14%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points +5%
Geekom Mini IT11-GM11i7T Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1195G7	1091 Points
Beelink SEi8 Intel Iris Plus Graphics 655, Intel Core i3-8109U	569 Points -48%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	312 Points -71%

3DMark Ice Storm Standard Score		97098 points
3DMark Cloud Gate Standard Score		18295 points

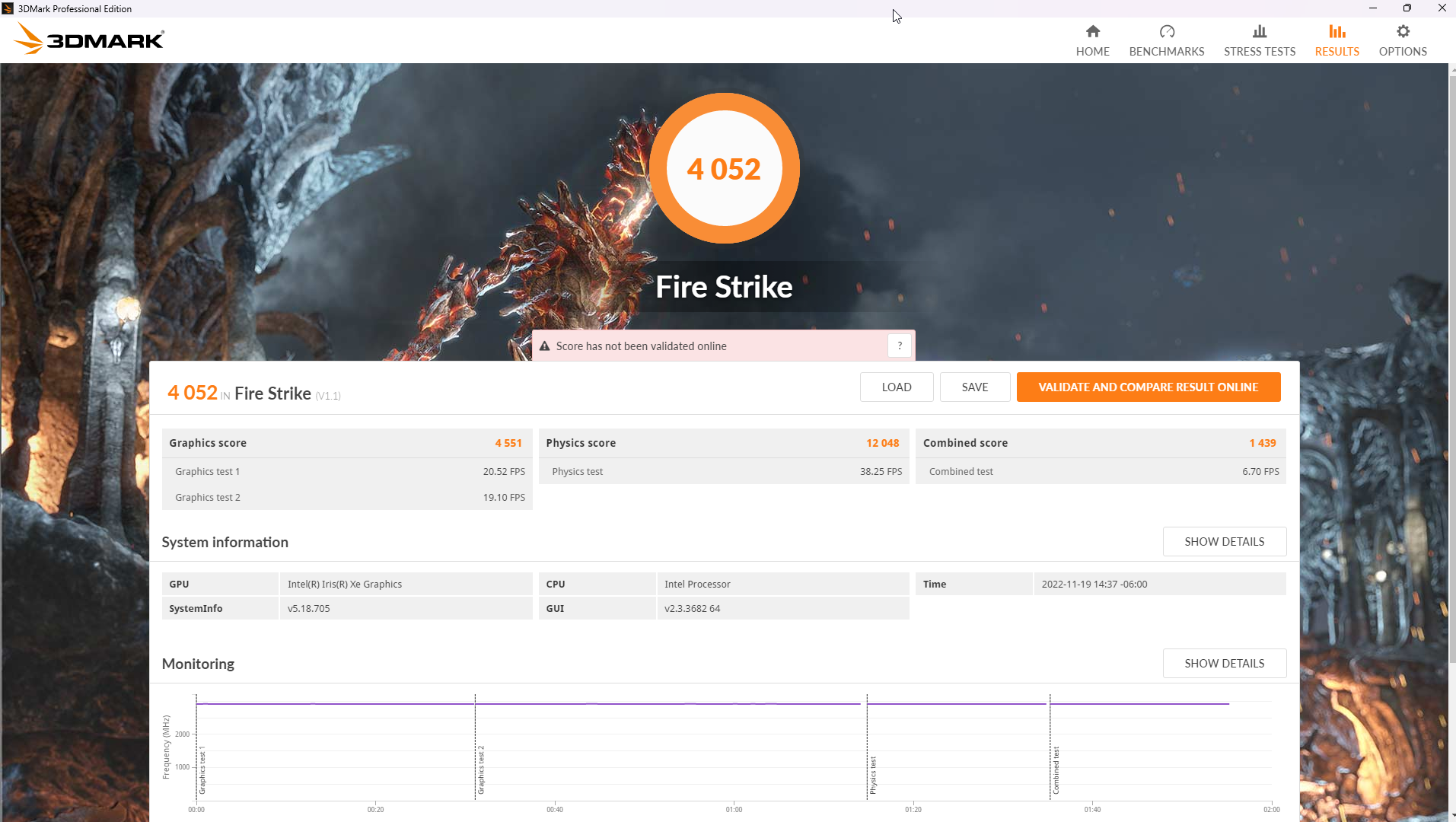

3DMark Fire Strike Score		4052 points

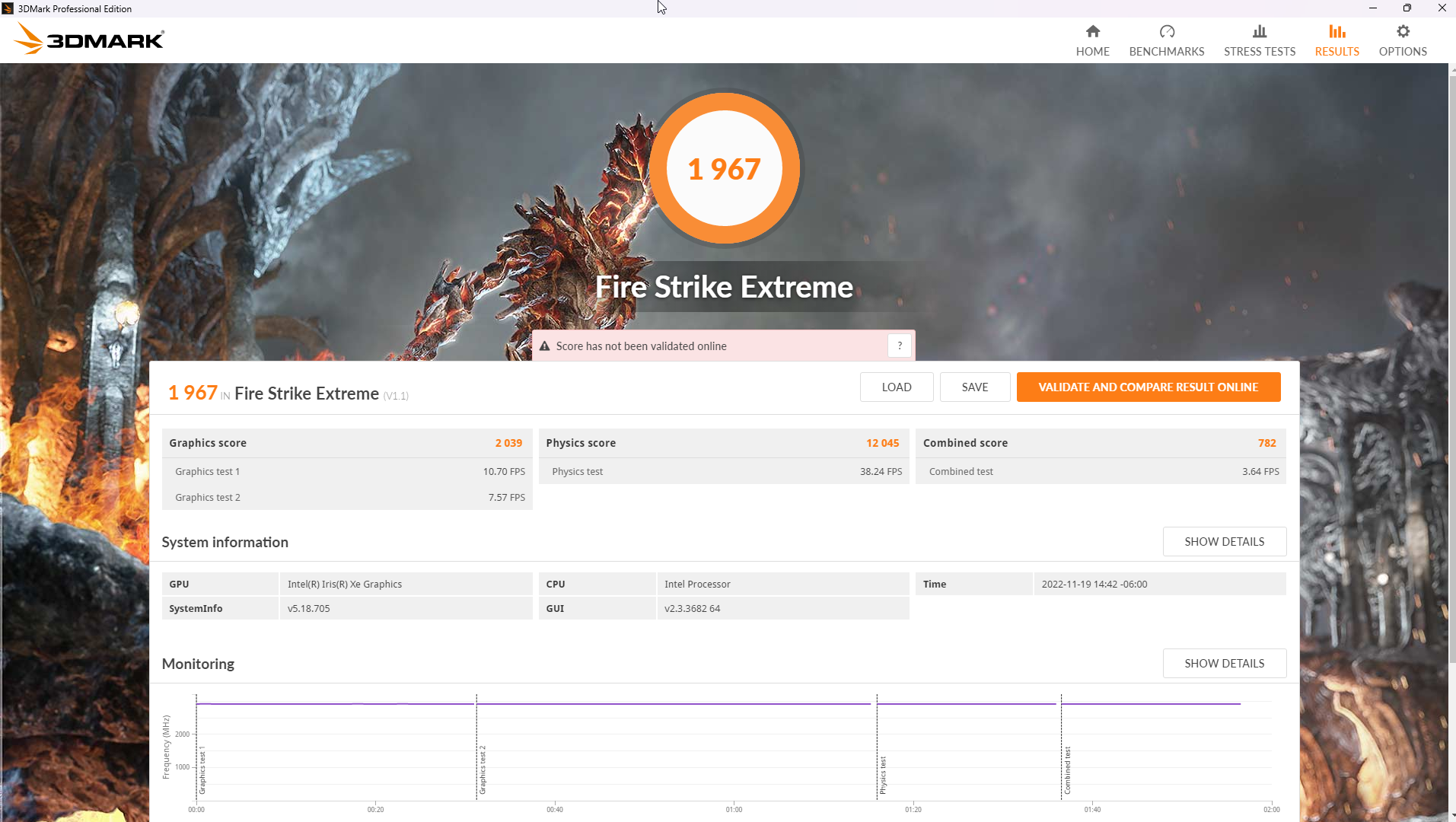

3DMark Fire Strike Extreme Score		1967 points

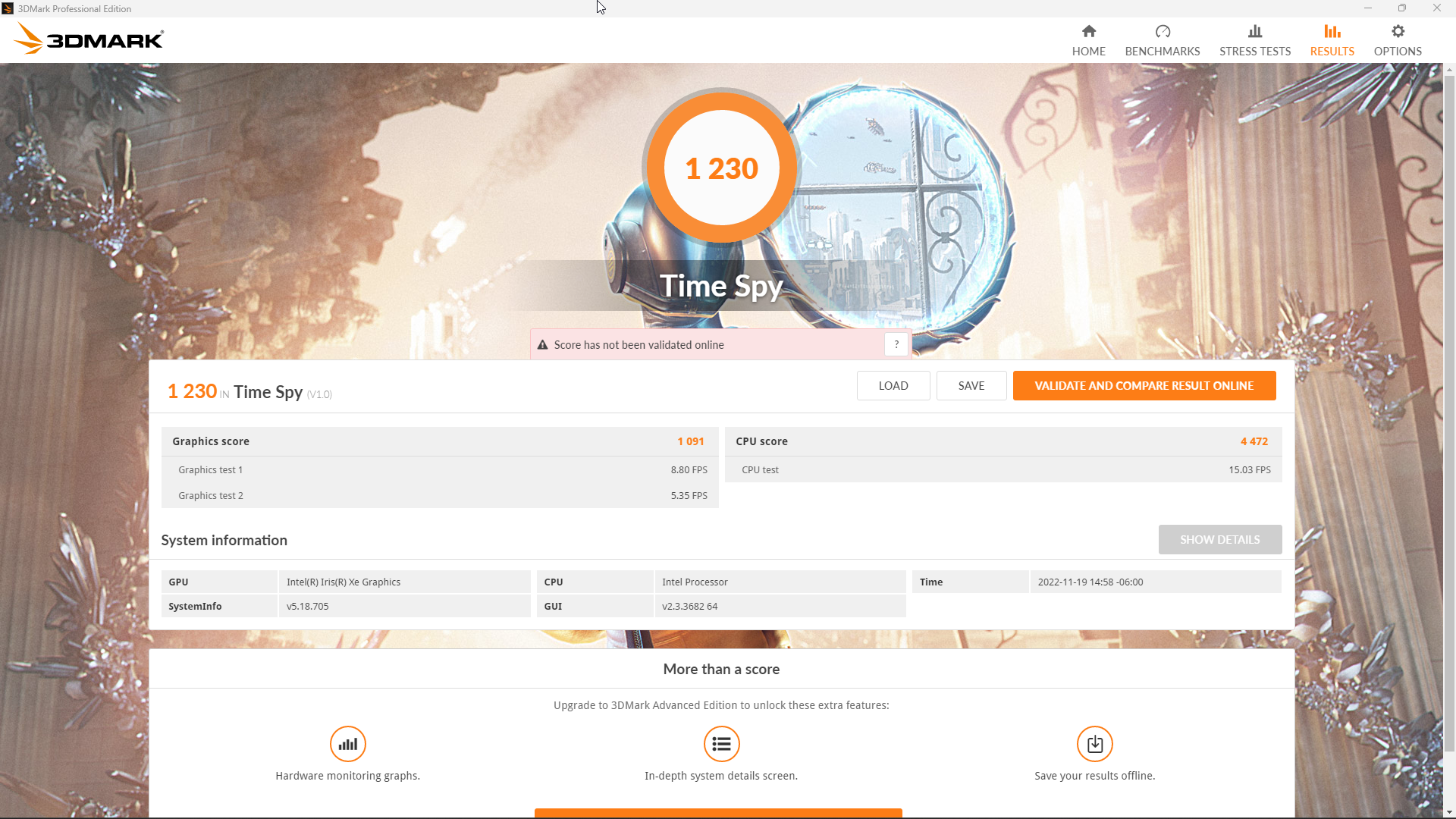

3DMark Time Spy Score		1230 points
Help

游戏性能

虽然英特尔Iris Xe iGPU在媒体消费方面相当不错，但在游戏方面却相当乏力。在低分辨率（如1366x768）和低设置下，它可以在一些老的游戏中达到30FPS或更多。在较新的游戏中，全高清基本上是遥不可及的。有些游戏在游戏过程中仍然有问题，有些则完全拒绝运行。这是由多种原因造成的，其中之一是英特尔缺乏驱动支持。尽管如此，Mini IT11仍然是家庭影院电脑的一个很好的选择，可以处理老游戏和较轻的独立游戏。不过，它与基于Ryzen 5000的竞争对手相比，还是有差距。

Dota 2 Reborn | Final Fantasy XV Benchmark | Shadow of the Tomb Raider

Dota 2 Reborn
1280x720 min (0/3) fastest
Average of class Desktop (35.9 - 320, n=16, last 2 years)	260 fps +199%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps +58%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	126 (109.8^min) fps +45%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +44%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	125 (8.6^min) fps +44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +43%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	117.2 (104.9^min) fps +35%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=215)	100.3 fps +15%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	94.4 (75.6^min) fps +8%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs	87.1 (56.9^min) fps
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	73.8 (65.8^min) fps -15%
1366x768 med (1/3)
Average of class Desktop (35.7 - 274, n=16, last 2 years)	233 fps +134%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	119 (102.7^min) fps +20%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	109 (94.2^min) fps +10%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	106.4 (95.7^min) fps +7%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs	99.4 (81.1^min) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps -5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps -9%
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=215)	75.7 fps -24%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	34.6 (29.8^min) fps -65%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	24.1 (17.1^min) fps -76%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Average of class Desktop (25.9 - 244, n=18, last 2 years)	202 fps +569%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	116.4 fps +285%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	56.2 fps +86%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	48.6 fps +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.2 fps +43%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps +36%
Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=183)	39.4 fps +30%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37 fps +23%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs	30.2 fps
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	16.6 fps -45%
Beelink U59 N5105 Intel Celeron N5105, Intel UHD Graphics (Jasper Lake 24 EU)	13.7 fps -55%
1920x1080 Standard Quality
Average of class Desktop (11.4 - 237, n=17, last 2 years)	195.7 fps +904%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H, NVIDIA GeForce RTX 3050 4GB Laptop GPU	73.6 fps +277%
MSI Modern 14 B11SB-085 Intel Core i7-1165G7, NVIDIA GeForce MX450	25.5 fps +31%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 fps +19%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23 fps +18%
Average Intel Iris Xe Graphics G7 96EUs (10.5 - 31.2, n=179)	21.8 fps +12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps +4%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs	19.5 fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18.6 fps -5%
Beelink SEi8 Intel Core i3-8109U, Intel Iris Plus Graphics 655	8.8 fps -55%

Shadow of the Tomb Raider
1280x720 Lowest Preset
Average of class Desktop (35.7 - 335, n=9, last 2 years)	220 fps +340%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.1 fps +8%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs	50 fps
Average Intel Iris Xe Graphics G7 96EUs (29 - 68.7, n=26)	46 fps -8%
1920x1080 Medium Preset
Average of class Desktop (12.5 - 316, n=11, last 2 years)	212 fps +584%
Geekom Mini IT11-GM11i7T Intel Core i7-1195G7, Intel Iris Xe Graphics G7 96EUs	31 fps
Average Intel Iris Xe Graphics G7 96EUs (11 - 35.6, n=26)	22.3 fps -28%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20.1 fps -35%

	low	med.	high	ultra	4K
Dota 2 Reborn (2015)	87.1	99.4	57.1	51.1	18.5
Final Fantasy XV Benchmark (2018)	30.2	19.5
Shadow of the Tomb Raider (2018)	50	31	17

系统噪音

Mini IT11有一个单风扇来冷却CPU。风扇是均匀调校的，在大多数任务中几乎是安静的。当压力过大时，它将上升，但保持在一个低的耳语，被正常的环境噪音所淹没。没有明显的线圈啸叫。

温度和压力

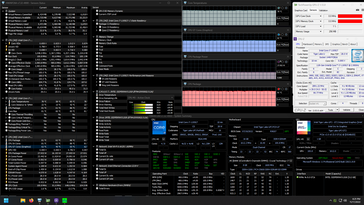

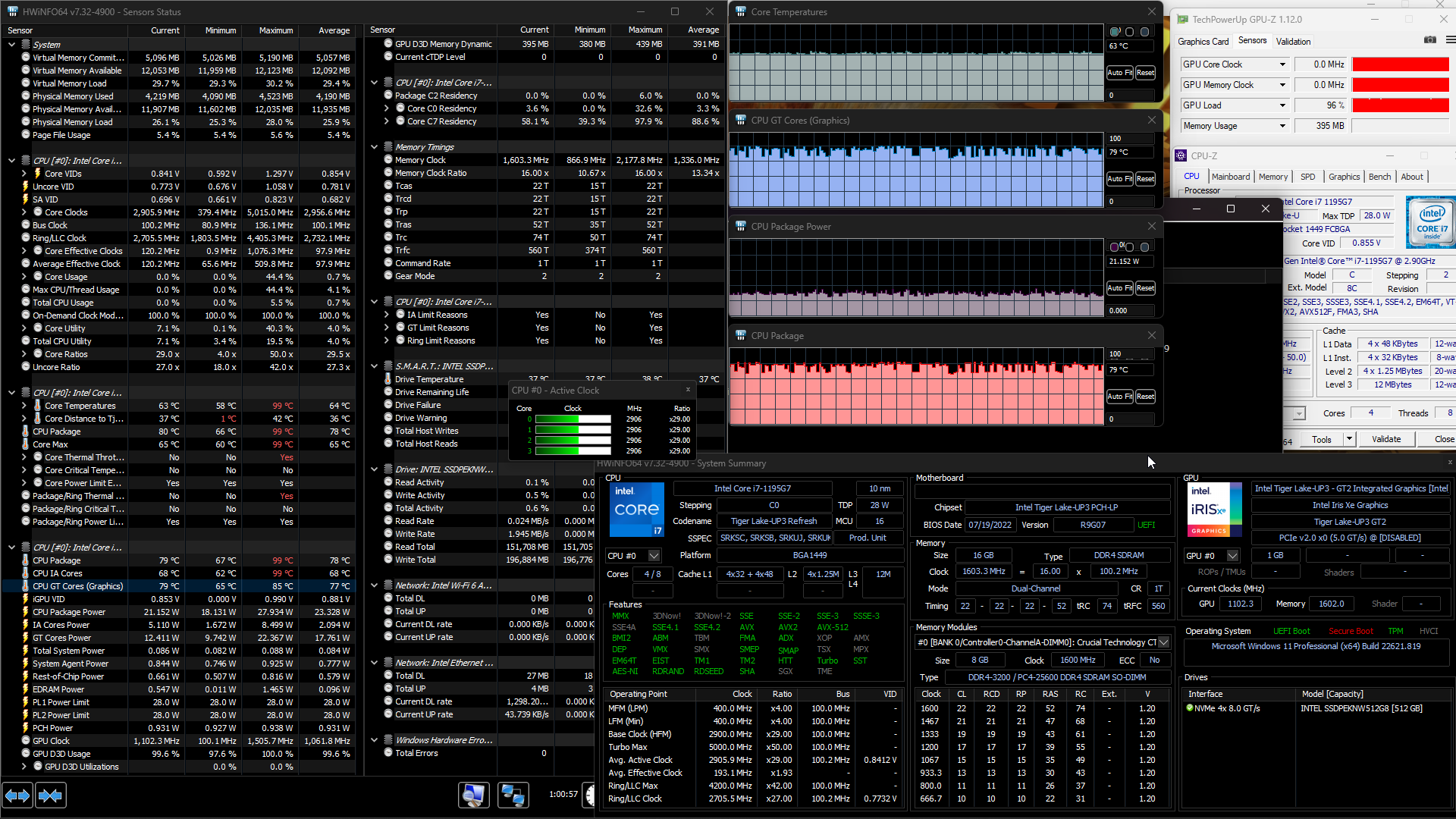

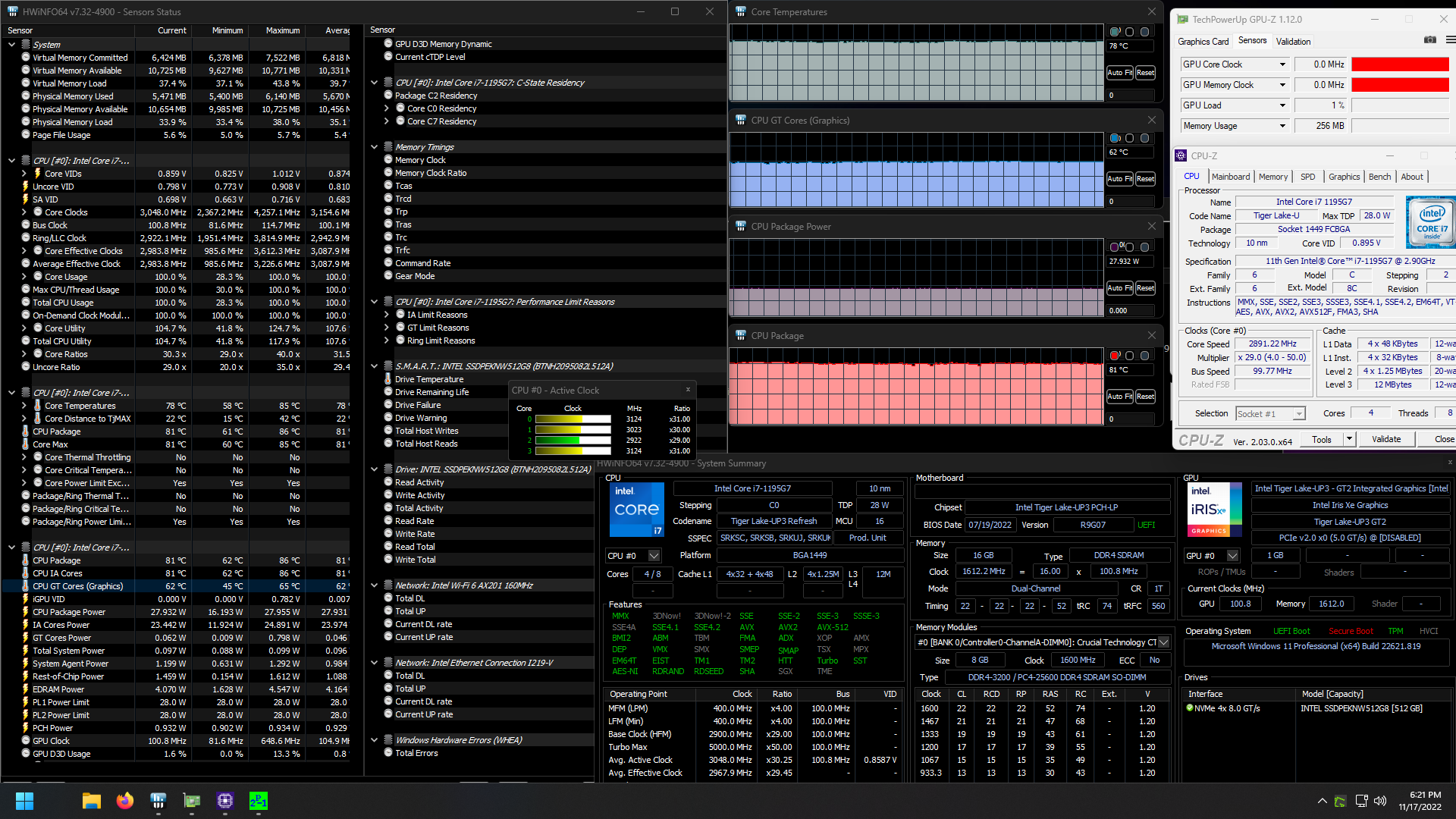

安静的风扇有一个主要缺点：热量管理。在CPU的压力下（通过Prime95），Mini IT11可以很好地处理热量：CPU的最高温度为86℃，平均温度为81℃，它可以保持3.1GHz的提升时钟，短时峰值可达4.3GHz。图形压力被证明是一个有点致命的弱点。在我们长达一小时的FurMark压力测试中，英特尔Iris Xe图形iGPU短暂提升1500MHz，几分钟后降至1100MHz左右。这是因为CPU包达到99ºC，必须节流。不过，Mini IT11的节流是相当积极的。在测试的剩余时间里，GPU在1000-1100MHz之间跳动，CPU温度保持在80ºC左右，CPU时钟保持在3.0GHz左右。

Pros

+ 尺寸紧凑

+ 足够的CPU性能

+ 运行安静

+ 伟大的端口选择

+ 易于维护

Cons

- GPU性能不强

- 游戏性能不稳定

- GPU压力下的高热量

- 老化的CPU架构

判决书

在审查中。Geekom Mini IT11。评测单位由Geekom提供。使用优惠代码SLMUGHNK可在亚马逊获得5%的折扣，外加50美元的亚马逊优惠券。

迷你IT11是一个坚实的升级版。迷你IT8.从过时的Coffee Lake架构跳到较新的（但仍然有点旧）Tiger Lake 平台是一个值得欢迎的变化。最大的改进是在图形能力方面；英特尔Iris Xe图形明显优于英特尔虹膜655图形的英特尔Iris 655图形。 i5-8259U.然而，性能的提高更多的是跳跃，英特尔iGPU在游戏方面仍有不足，尽管英特尔尽力将Xe图形推销为 "游戏能力"。

因此，作为一台游戏电脑，Mini IT11的表现平平。不过，作为一台家用台式电脑，它在很多方面都很出色。它丰富的连接性、稳定的性能和易于升级的特点是明显的赢家。所有这些功能都被装在一个很小的空间里，这是锦上添花。

也有一些缺点。首先，Mini IT11在图形压力下不能很好地管理热量。这可能是因为一个不太积极的风扇配置文件，但它会导致积极的节流。尽管如此，Mini IT11还是非常适合独立游戏或像Minecraft这样的轻量级游戏。它还可以完成办公任务和一些较轻的图形或音频工作，没有什么问题。

迷你IT11的售价为769美元，有点难卖。大约便宜150美元的是贝加莱SER5提供了更多的内核和稍好的图形性能，这要归功于其 AMD Ryzen 5 5600U.然而，Geekom经常有销售，使迷你IT11更具竞争力。

免责声明：本评论的作者从Geekom免费获得了Mini 11T，用于测试目的。

价格和供应

从现在开始到年底，Geekom为Core i7-1195G7型号（50美元的优惠券）和Core i5-1155G7型号（40美元的优惠券）提供5%的折扣和亚马逊页面上的优惠券，这是我们的评测单位。这使得i7-1195G7版本的价格为567.49美元，i5-1155G7版本为434.99美元。使用优惠券代码SLMUGHNK可获得Core i7-1195G7机型的5%折扣，使用优惠券代码AZQ4PEJM可获得Core i5-1155G7版本的5%折扣。别忘了也要选择页面上的优惠券。你可以在亚马逊，抢到这些优惠。.
