Getac S410第4代笔记本电脑回顾。简单的变化,巨大的升级

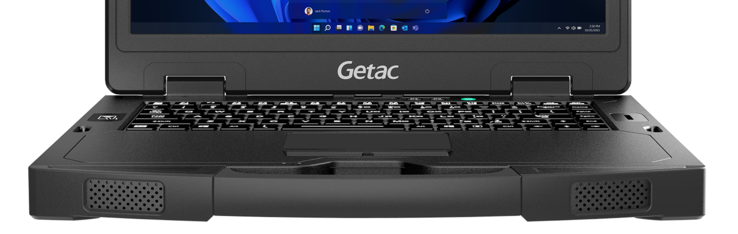

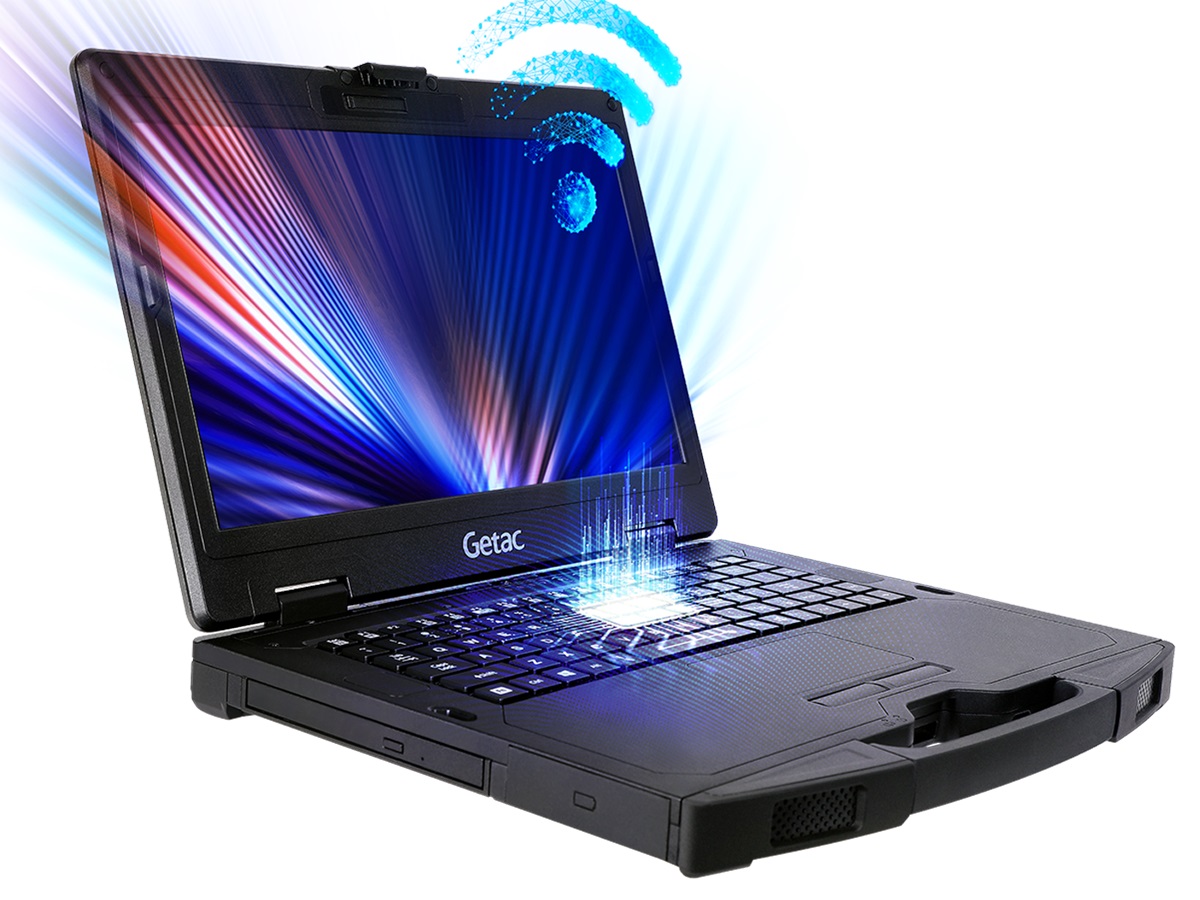

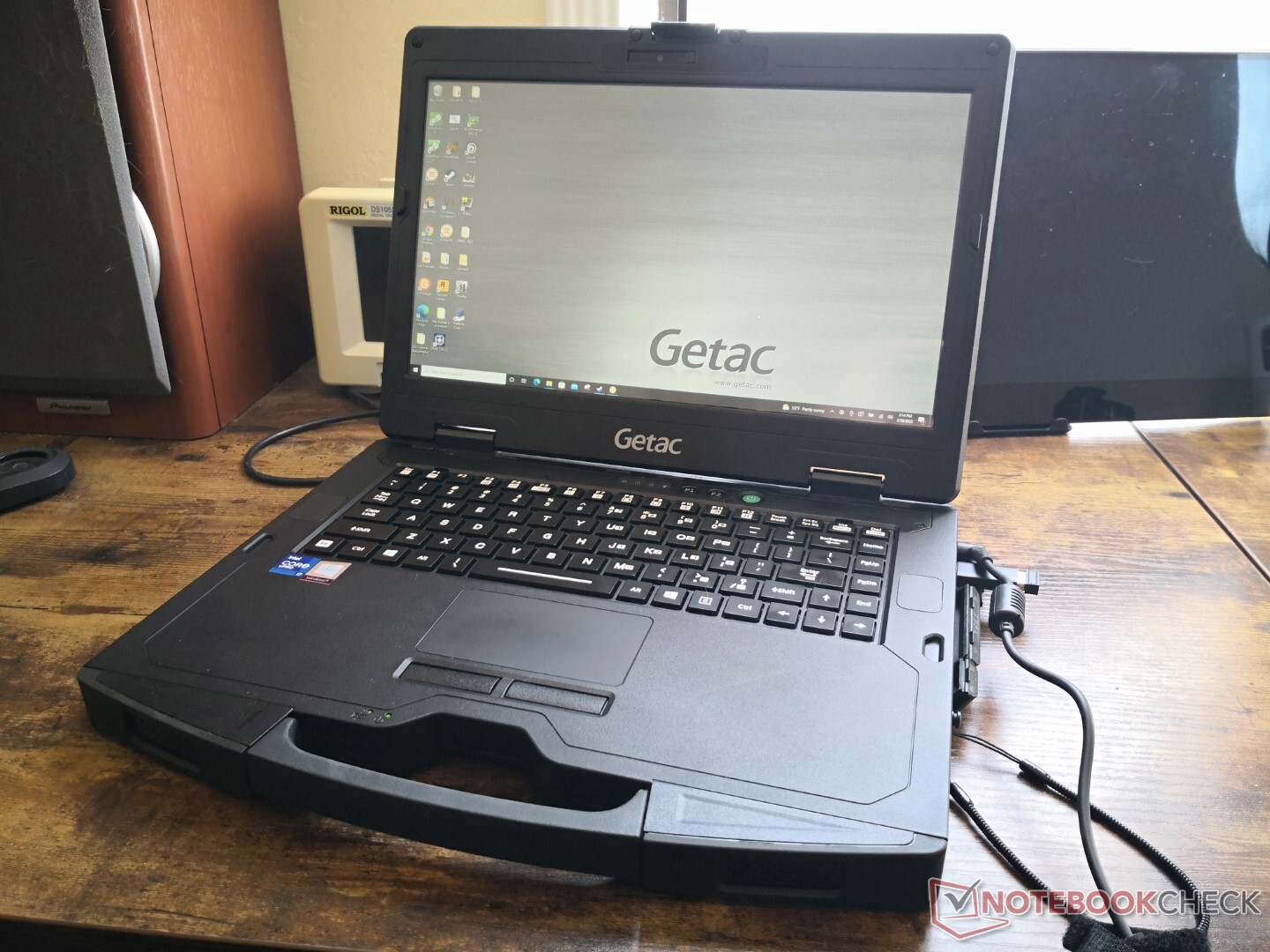

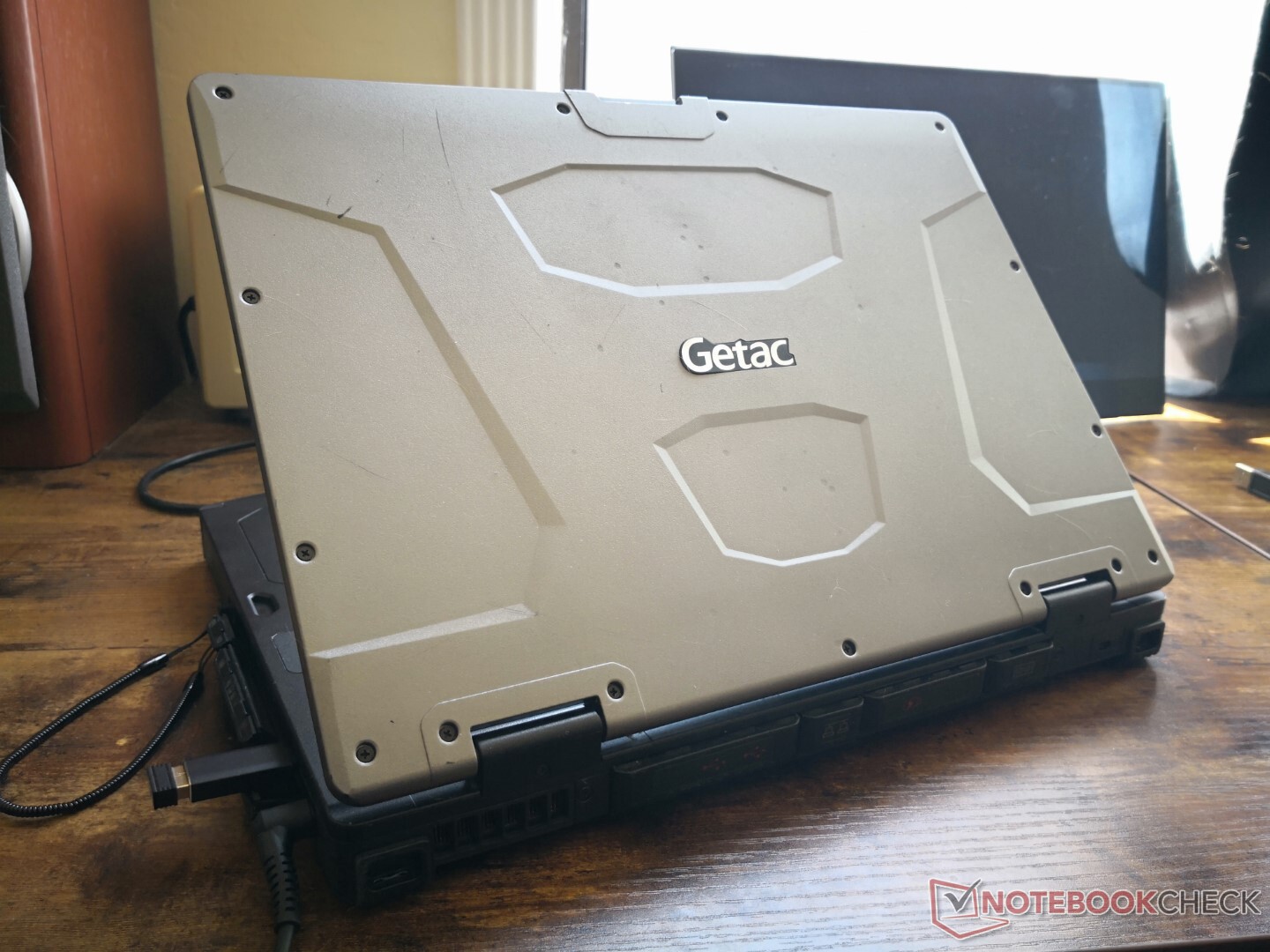

Getac S410第4代是现有第3代和早期机型的第11代英特尔Tiger Lake-U更新。它在其他方面与前辈分享相同的机箱设计,因此我们,现有的关于原始2018年S410模型的评论 ,在这里仍然适用。

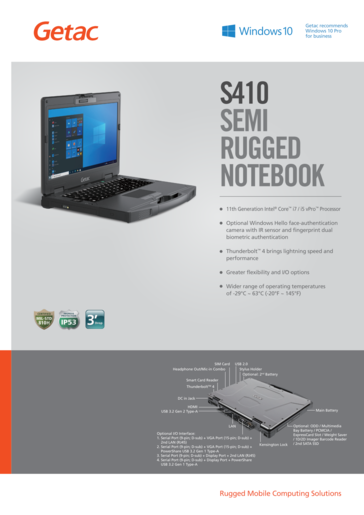

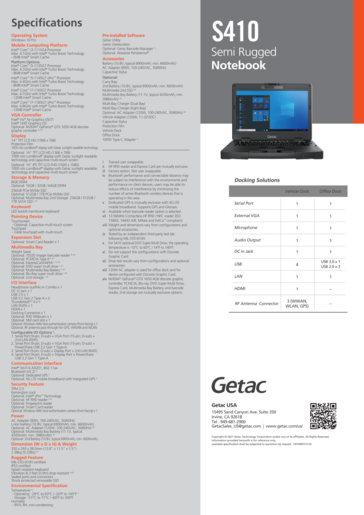

我们的具体审查单位是一个更高端的配置,配备了酷睿i7-1185U CPU和1000尼特的IPS触摸屏。较低端的SKU可在下面的官方规格表中详细说明。关于G410系列的更多信息可以在其产品页面这里 。
更多Getac评论。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
81.7 % v7 (old) | 05 / 2022 | Getac S410 Gen 4 i7-1185G7, Iris Xe G7 96EUs | 3.2 kg | 34.9 mm | 14.00" | 1920x1080 | |
83.9 % v7 (old) | 10 / 2021 | Panasonic Toughbook FZ-55 MK2 i7-1185G7, Iris Xe G7 96EUs | 2.3 kg | 33 mm | 14.00" | 1920x1080 | |
81.9 % v6 (old) | Getac S410 i5-8550U, UHD Graphics 620 | 3.2 kg | 34.9 mm | 14.00" | 1366x768 | ||
89.2 % v6 (old) | Dell Latitude 5420 Rugged-P85G i7-8650U, Radeon RX 540 | 2.8 kg | 32.9 mm | 14.00" | 1920x1080 | ||
82.4 % v7 (old) | 12 / 2021 | Acer Enduro Urban N3 EUN314 i7-1165G7, Iris Xe G7 96EUs | 1.8 kg | 21.95 mm | 14.00" | 1920x1080 | |
v (old) | 09 / 2021 | Durabook S14I i7-1165G7, Iris Xe G7 96EUs | 3 kg | 38.1 mm | 14.00" | 1920x1080 |
案例
沟通
WLAN已经从英特尔8265升级到AX201,以兼容Wi-Fi 6。根据我们的测试,现实世界的传输速率至少快了两倍。
Networking | |
iperf3 transmit AX12 | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac B360 | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W | |
MSI Prestige 14 A10SC-009 | |
Getac S410 | |
Infinix INBook X2 | |
iperf3 receive AX12 | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac S410 Gen 4 | |
Getac B360 | |
Dell Latitude 14 5420-D2G5W | |
MSI Prestige 14 A10SC-009 | |
Getac S410 | |
Infinix INBook X2 |
网络摄像头
720p的网络摄像头仍然没有变化。如果能升级到1080p,以获得更清晰的画面,那就太好了。
显示

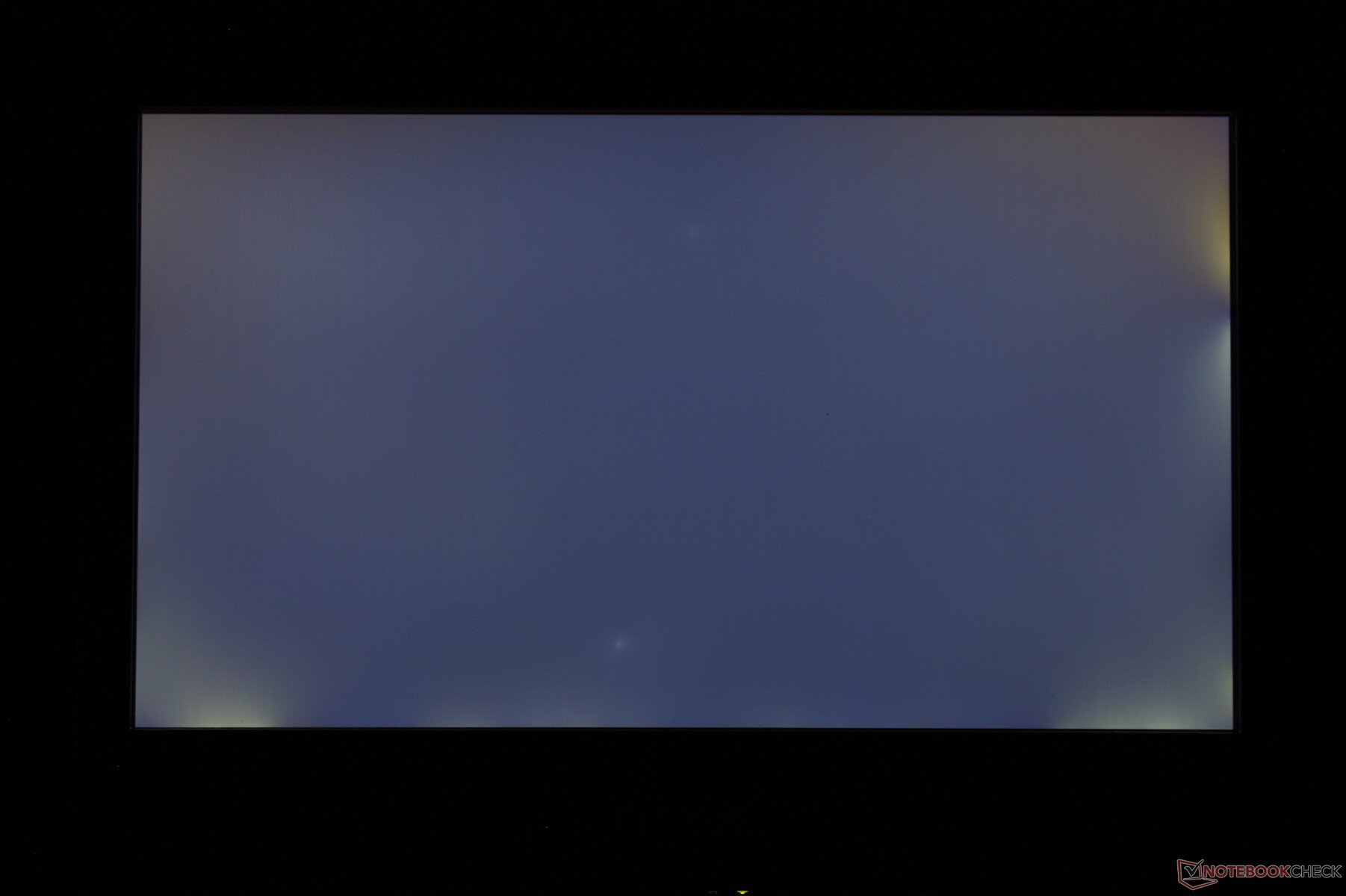

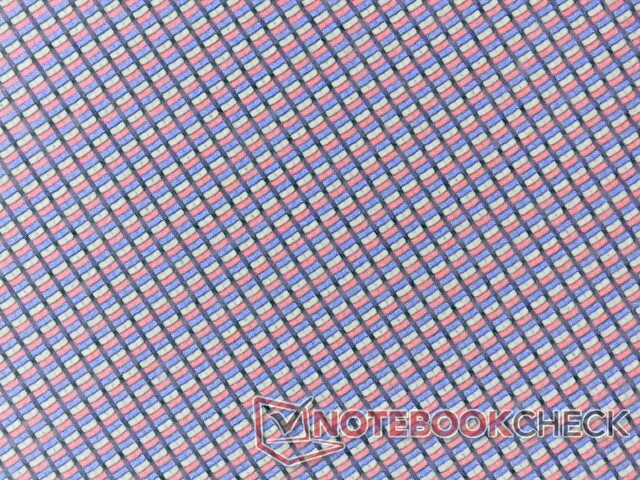

与我们最初的2018年S410 Gen 1上的250-nit 768p TN面板相比,1000-nit 1080p IPS面板是一个重大升级。 对比度甚至翻了一番,但色彩空间几乎没有变化。
请记住,脉宽调制存在于所有亮度水平上,即使是在最大亮度时。持续的屏幕闪烁可能会对一小部分眼睛敏感的用户造成困扰。
|
Brightness Distribution: 84 %
Center on Battery: 956.9 cd/m²
Contrast: 1181:1 (Black: 0.81 cd/m²)
ΔE Color 6.6 | 0.5-29.43 Ø4.91, calibrated: 4.05
ΔE Greyscale 6 | 0.5-98 Ø5.2
39.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.2% sRGB (Argyll 2.2.0 3D)
38.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
Getac S410 Gen 4 AU Optronics AUO413D, IPS, 1920x1080, 14" | Panasonic Toughbook FZ-55 MK2 InfoVision M140NWF5 R3, IPS, 1920x1080, 14" | Getac S410 CMN N140BGE-E33, TN PED, 1366x768, 14" | Dell Latitude 5420 Rugged-P85G AU Optronics AUO523D, IPS, 1920x1080, 14" | Acer Enduro Urban N3 EUN314 XR140EA6T, IPS, 1920x1080, 14" | Durabook S14I KD140N0730A01, TN, 1920x1080, 14" | |
---|---|---|---|---|---|---|
Display | -9% | 6% | 63% | 64% | 14% | |
Display P3 Coverage | 38.3 | 34.8 -9% | 40.46 6% | 62.5 63% | 63.5 66% | 43.55 14% |
sRGB Coverage | 57.2 | 52.2 -9% | 60.9 6% | 92.4 62% | 91.9 61% | 65.4 14% |
AdobeRGB 1998 Coverage | 39.5 | 36 -9% | 41.8 6% | 64.2 63% | 65.5 66% | 45 14% |
Response Times | 1% | 13% | -39% | -19% | 4% | |
Response Time Grey 50% / Grey 80% * | 35.2 ? | 28.4 ? 19% | 41.2 ? -17% | 68 ? -93% | 56 ? -59% | 30.4 ? 14% |
Response Time Black / White * | 31.2 ? | 30 ? 4% | 14 ? 55% | 33.6 ? -8% | 35.2 ? -13% | 11.8 ? 62% |
PWM Frequency | 870 ? | 685 ? -21% | 877 ? 1% | 735 ? -16% | 1000 ? 15% | 304.9 ? -65% |
Screen | 19% | -50% | 19% | 1% | -42% | |
Brightness middle | 956.9 | 1061.1 11% | 265.1 -72% | 1111.7 16% | 487.8 -49% | 1180.7 23% |
Brightness | 984 | 997 1% | 246 -75% | 1026 4% | 464 -53% | 1102 12% |
Brightness Distribution | 84 | 76 -10% | 81 -4% | 80 -5% | 89 6% | 89 6% |
Black Level * | 0.81 | 0.7 14% | 0.58 28% | 0.81 -0% | 0.48 41% | 1.91 -136% |
Contrast | 1181 | 1516 28% | 457 -61% | 1372 16% | 1016 -14% | 618 -48% |
Colorchecker dE 2000 * | 6.6 | 4.64 30% | 14.24 -116% | 3.83 42% | 6.51 1% | 13.45 -104% |
Colorchecker dE 2000 max. * | 22.94 | 20.92 9% | 26.66 -16% | 7.85 66% | 11.36 50% | 22.52 2% |
Colorchecker dE 2000 calibrated * | 4.05 | 2.52 38% | 3.94 3% | 2.98 26% | 1.77 56% | 3.19 21% |
Greyscale dE 2000 * | 6 | 2.8 53% | 14.2 -137% | 5.6 7% | 7.8 -30% | 15.4 -157% |
Gamma | 2.19 100% | 2.08 106% | 2.03 108% | 2.306 95% | 2.28 96% | 1.97 112% |
CCT | 7276 89% | 6364 102% | 17152 38% | 7676 85% | 8102 80% | 21134 31% |
Color Space (Percent of AdobeRGB 1998) | 38.7 | 59 | 41.6 | |||
Color Space (Percent of sRGB) | 61 | 93 | 65.5 | |||
Total Average (Program / Settings) | 4% /
10% | -10% /
-26% | 14% /
16% | 15% /
10% | -8% /
-22% |
* ... smaller is better

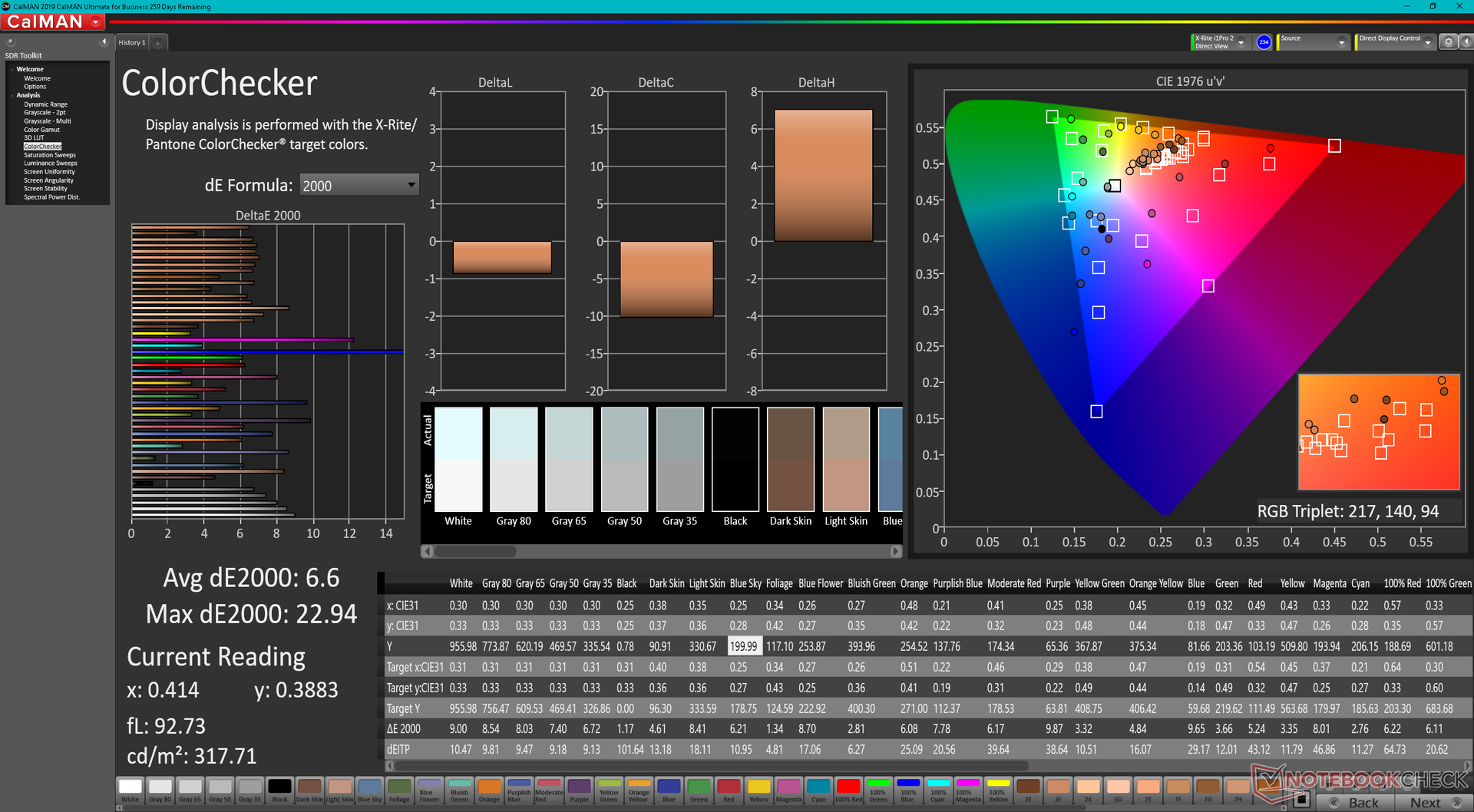

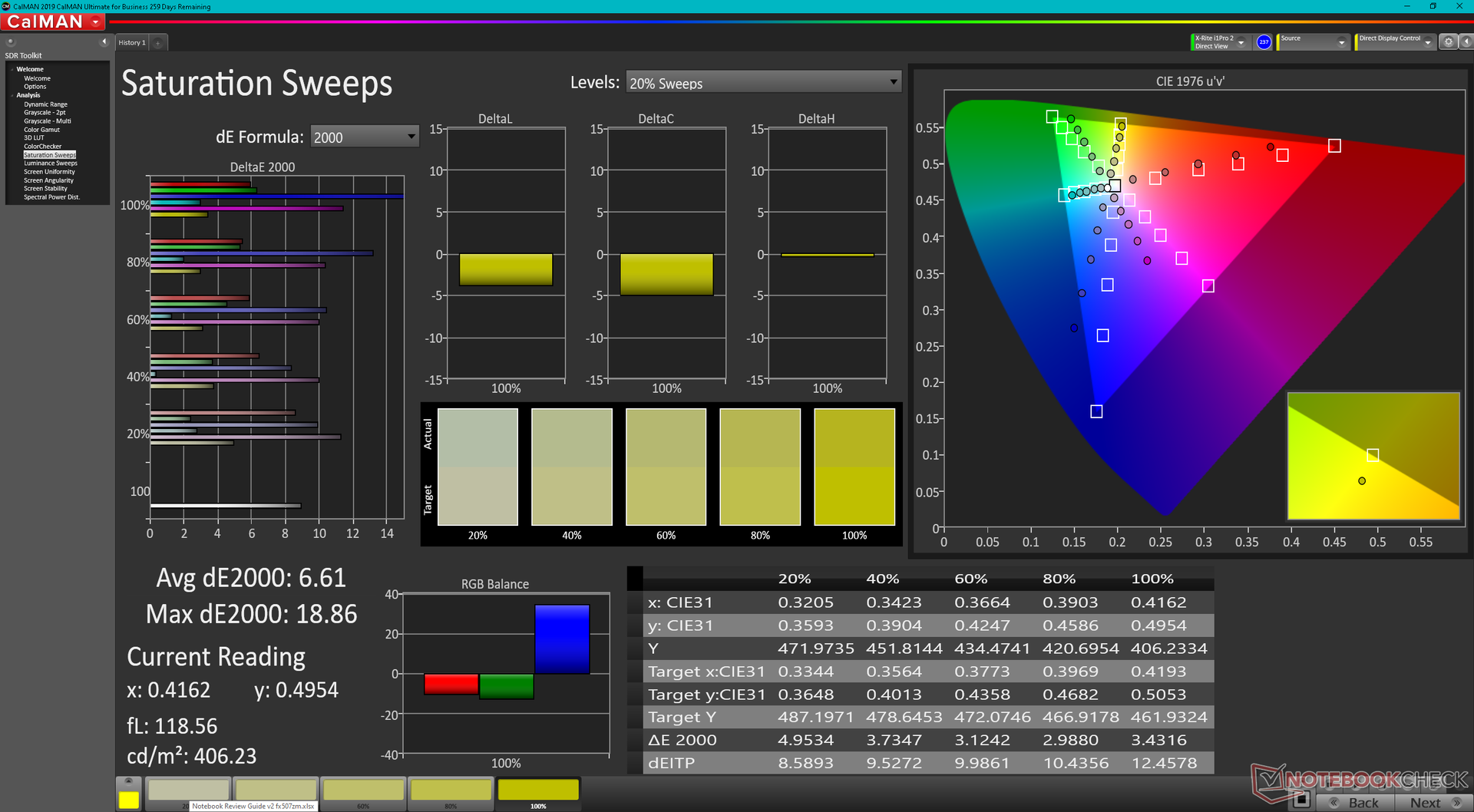

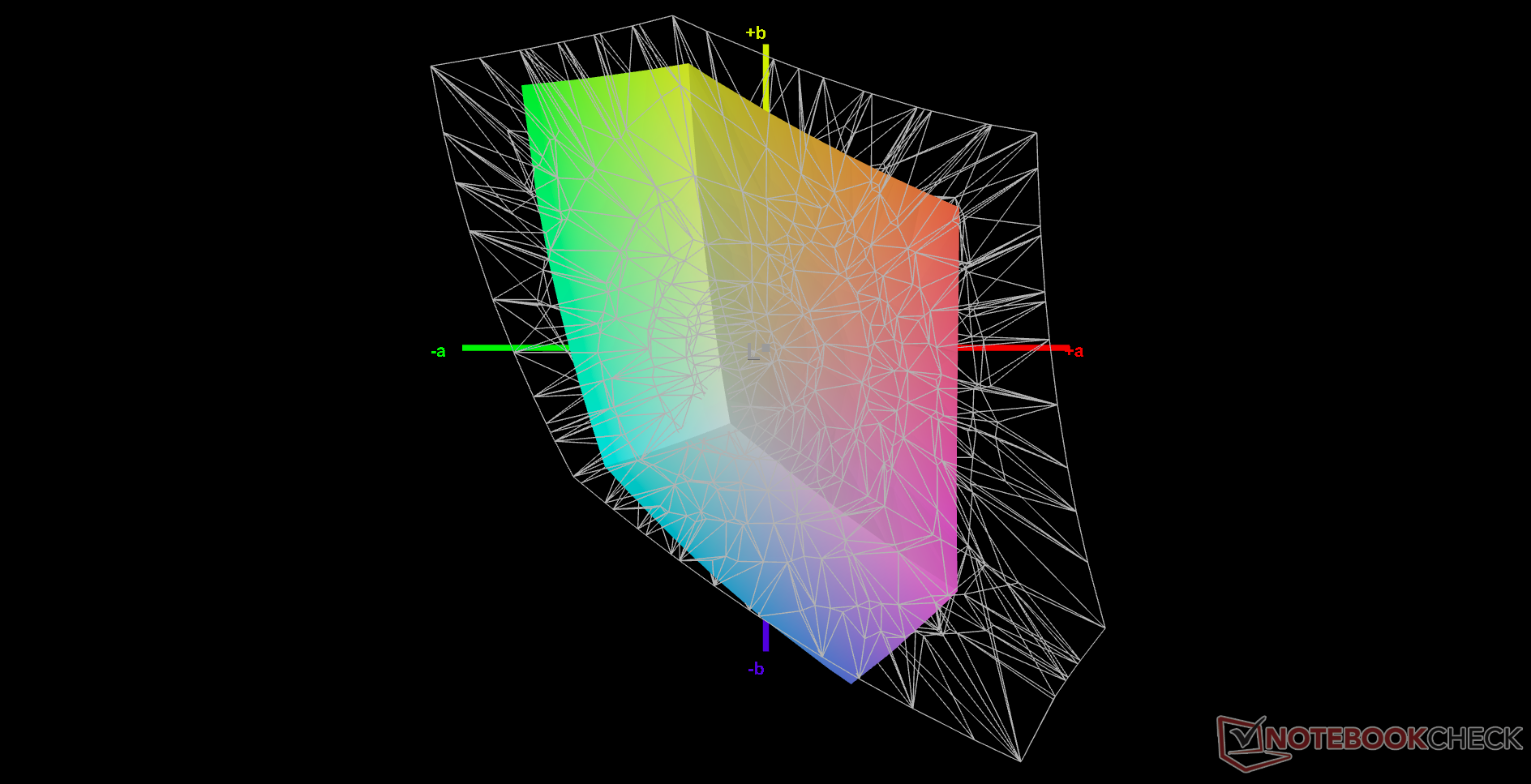

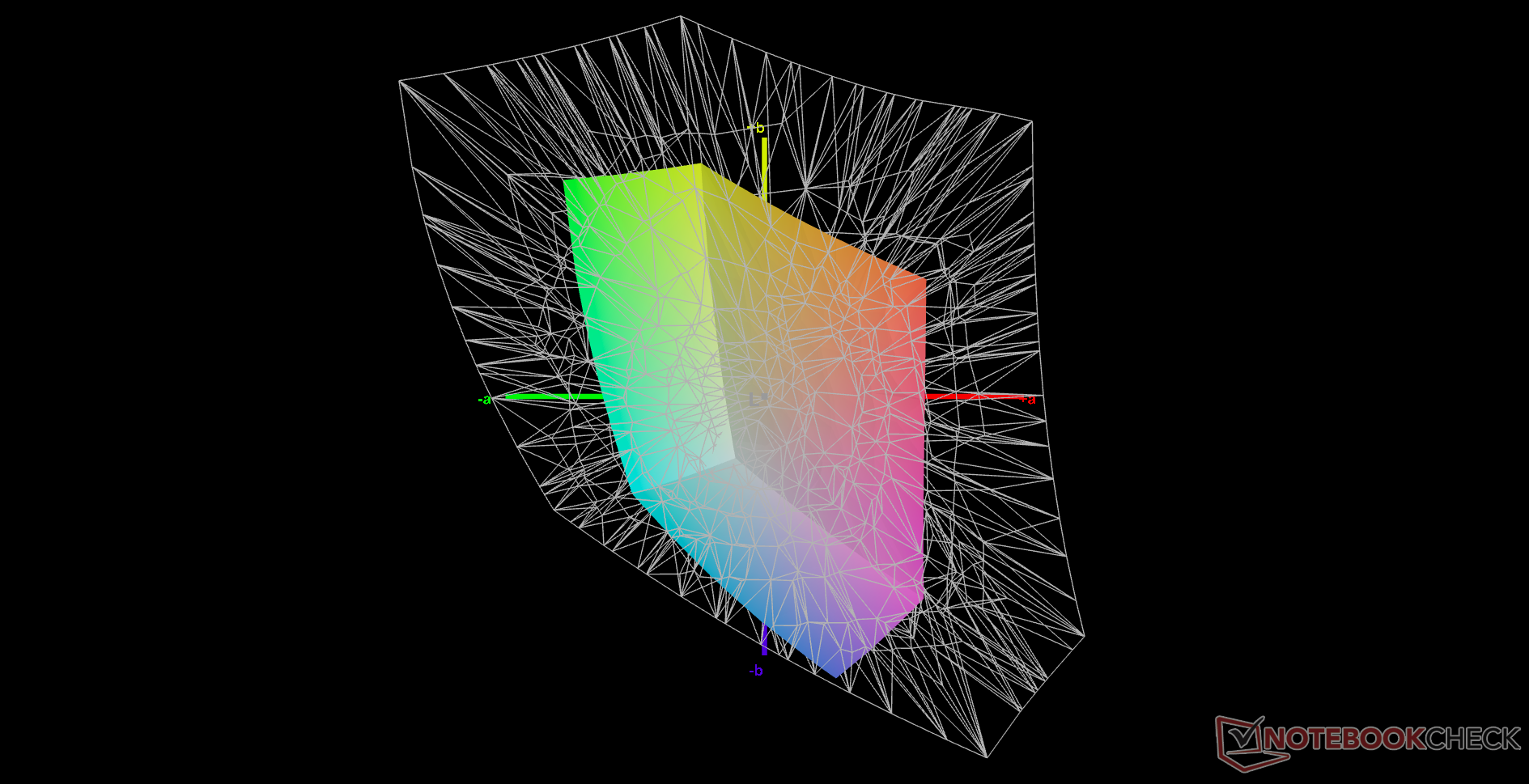

色彩空间只限于sRGB的57%,而许多消费类超极本的色彩空间超过90%。这个系统毕竟不是为专业图形编辑设计的。

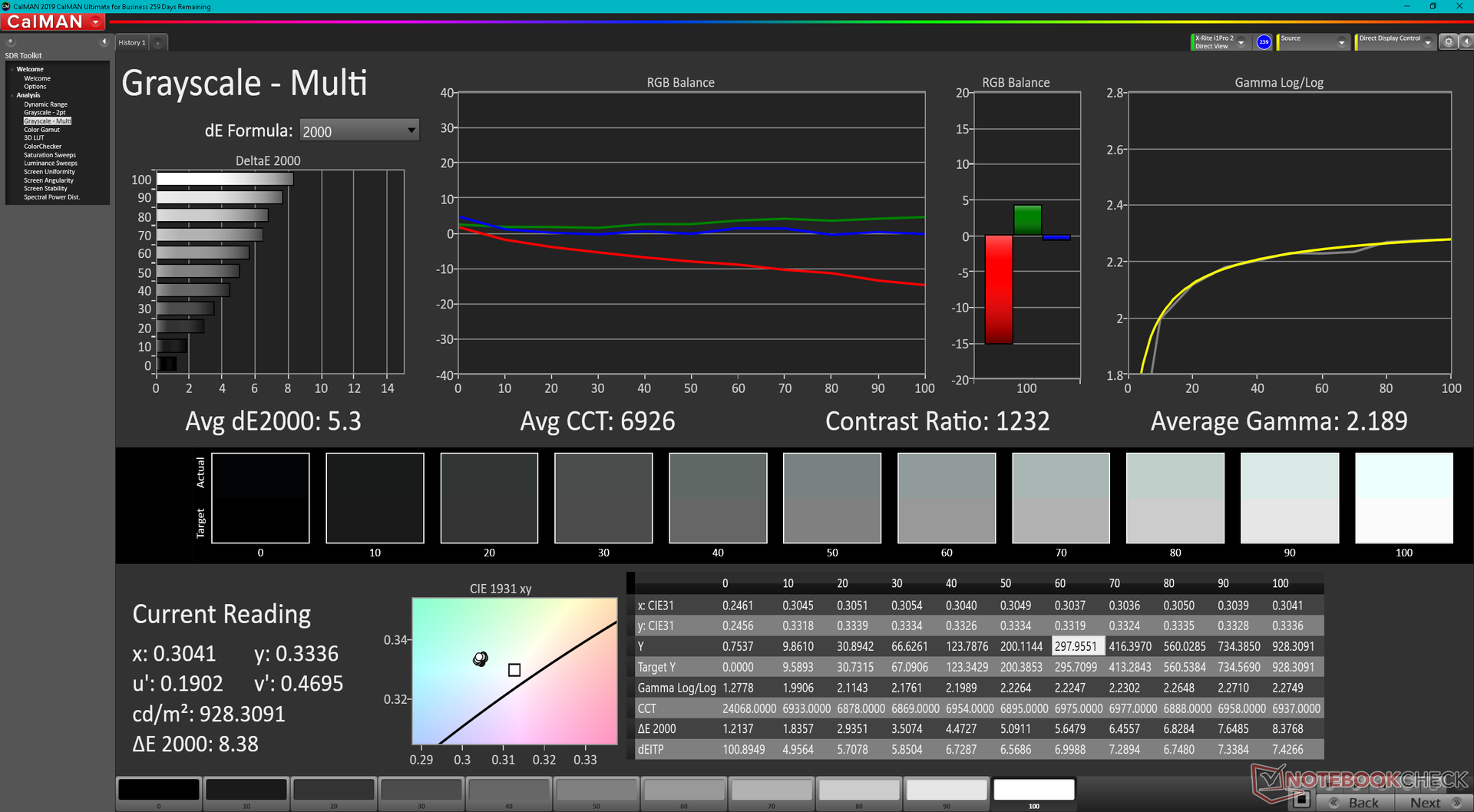

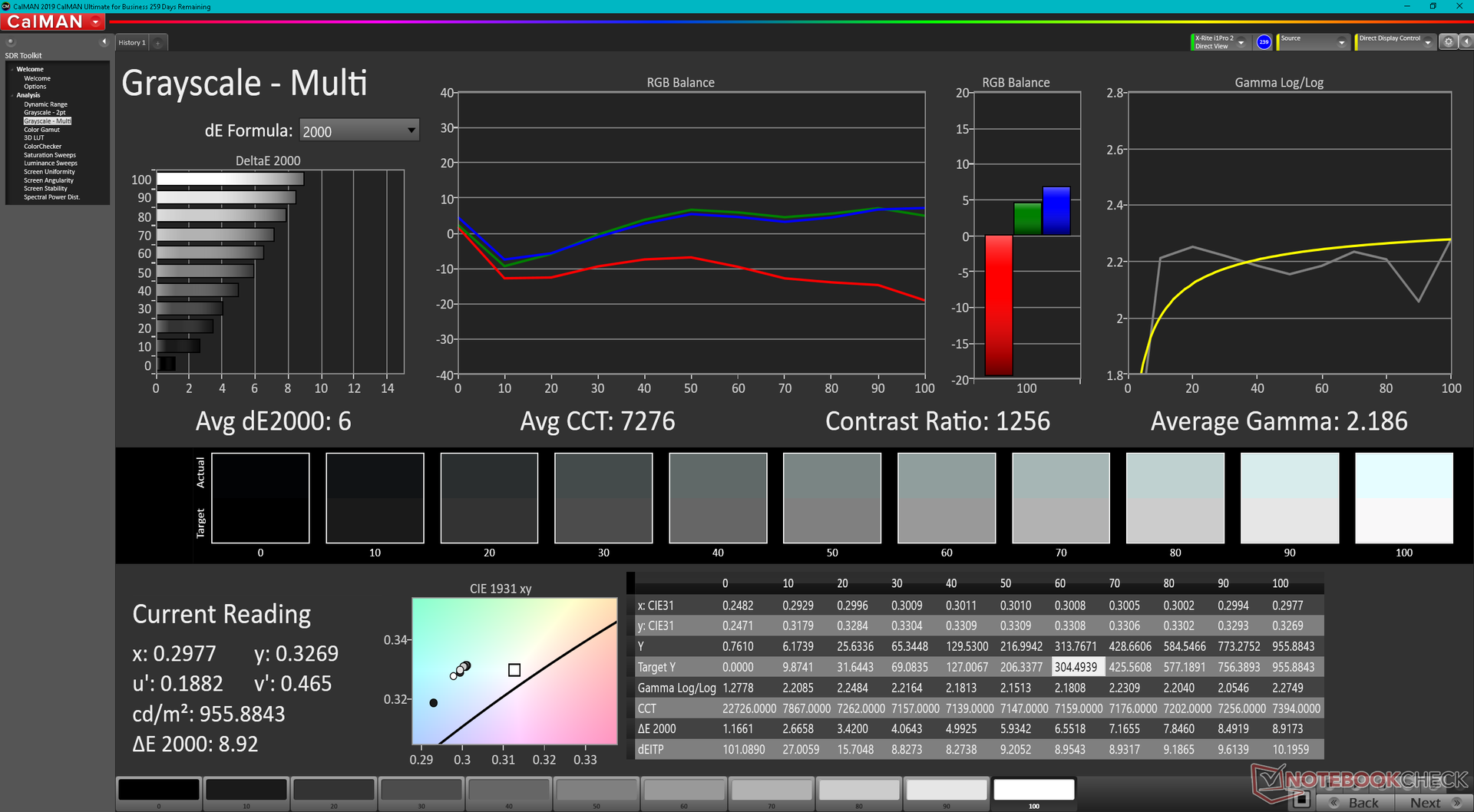

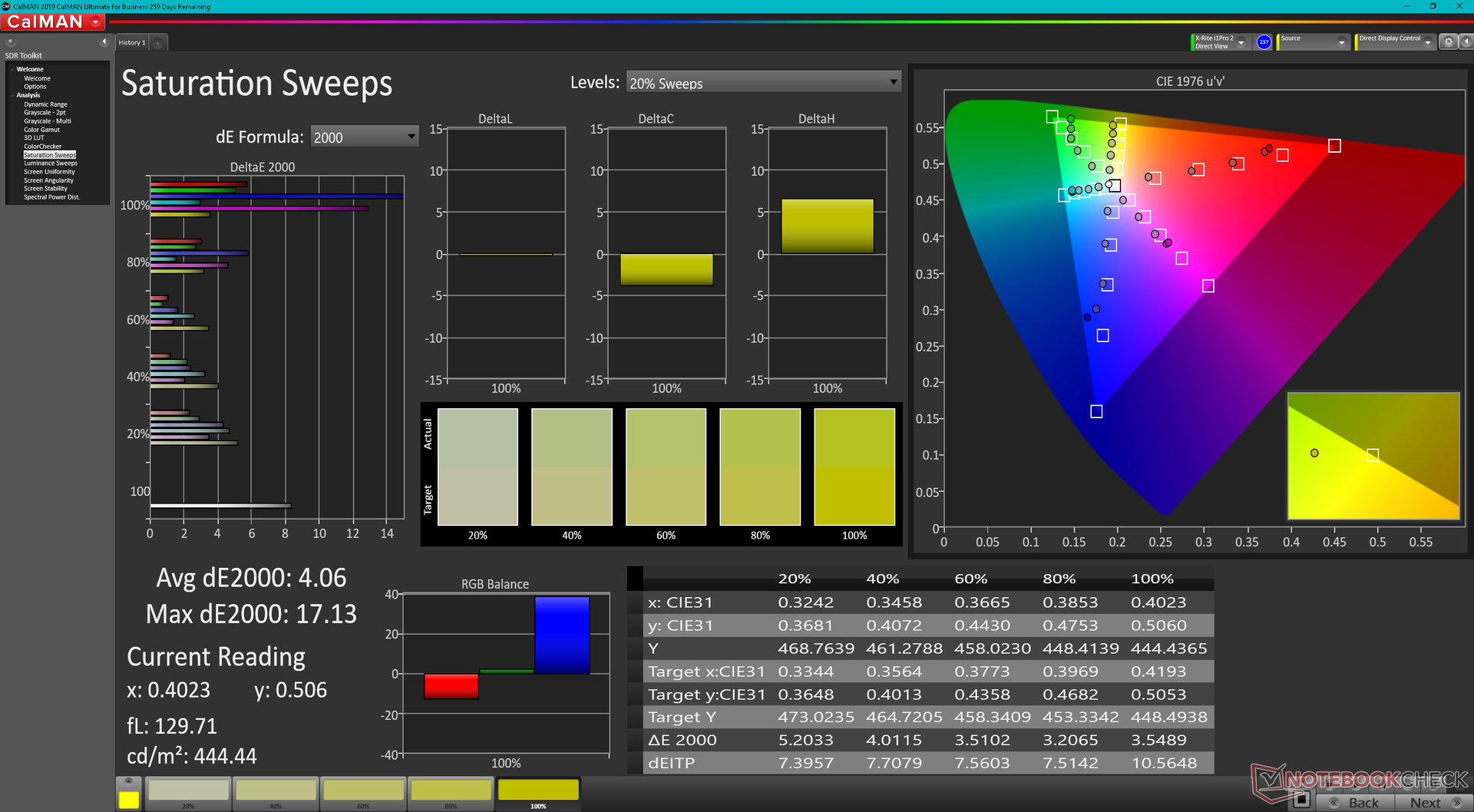

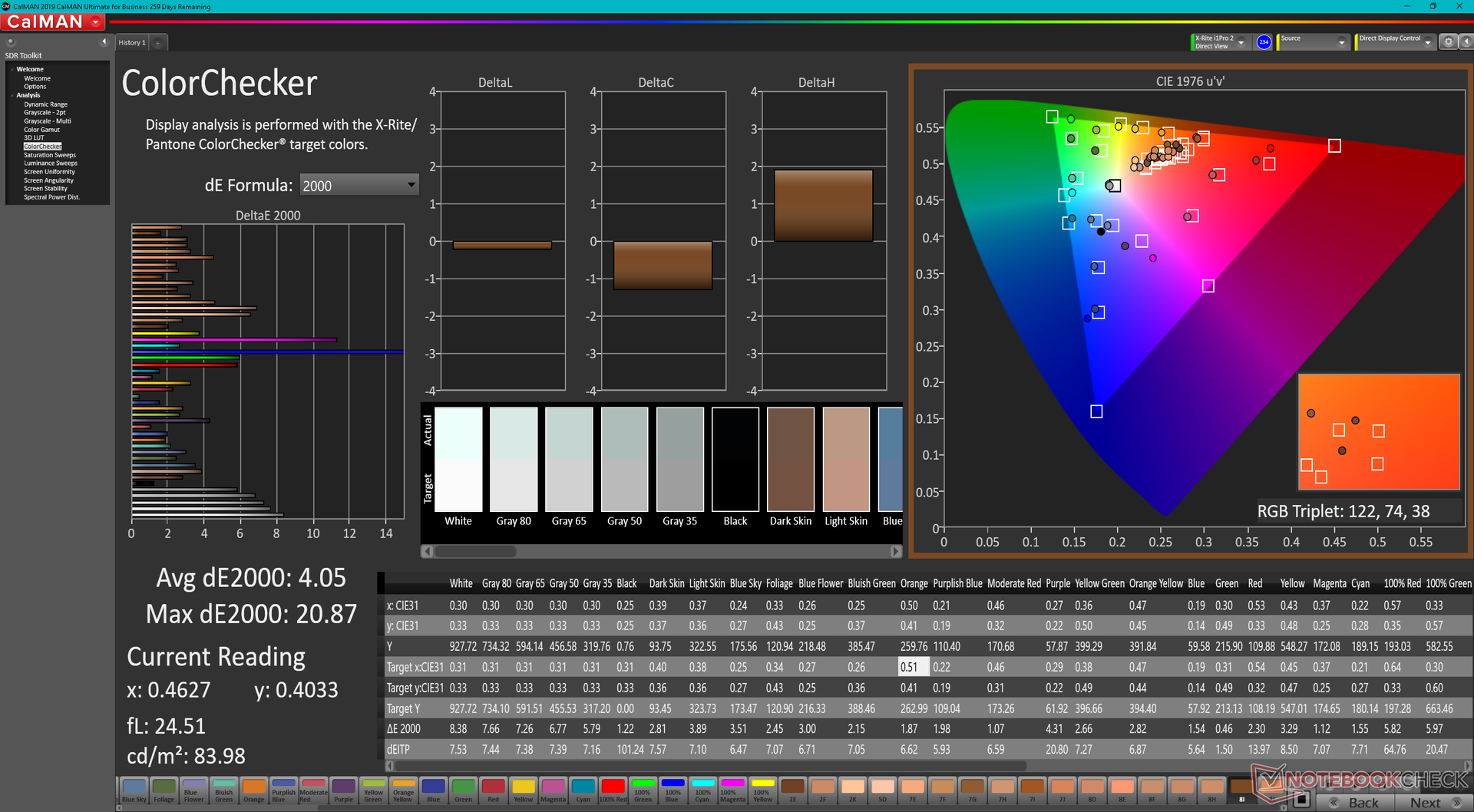

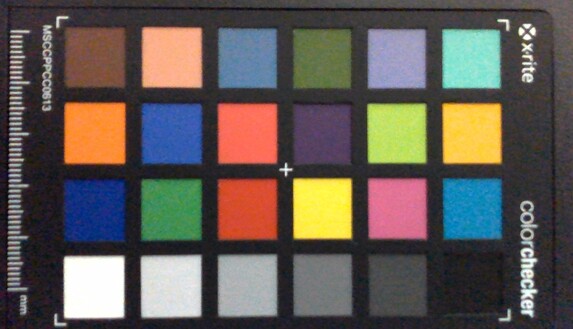

色温过低,这在色彩范围很窄的面板上很常见。即使在用我们自己的X-Rite色度计进行校准后,平均DeltaE值也没有明显改善。

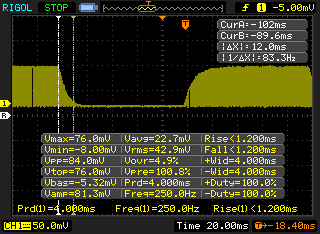

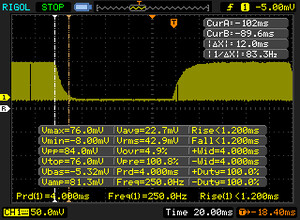

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
31.2 ms ... rise ↗ and fall ↘ combined | ↗ 19.2 ms rise | |
↘ 12 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 83 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

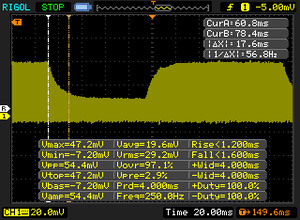

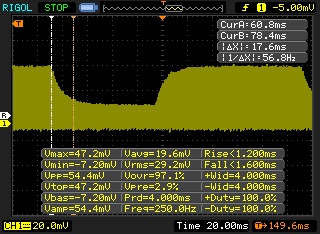

↔ Response Time 50% Grey to 80% Grey | ||
35.2 ms ... rise ↗ and fall ↘ combined | ↗ 17.6 ms rise | |
↘ 17.6 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 45 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). |

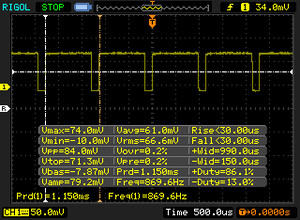

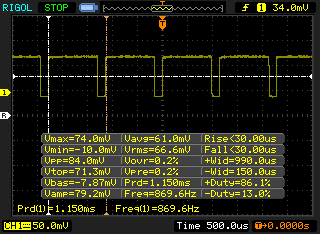

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 870 Hz | ≤ 100 % brightness setting | |
The display backlight flickers at 870 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 870 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. |

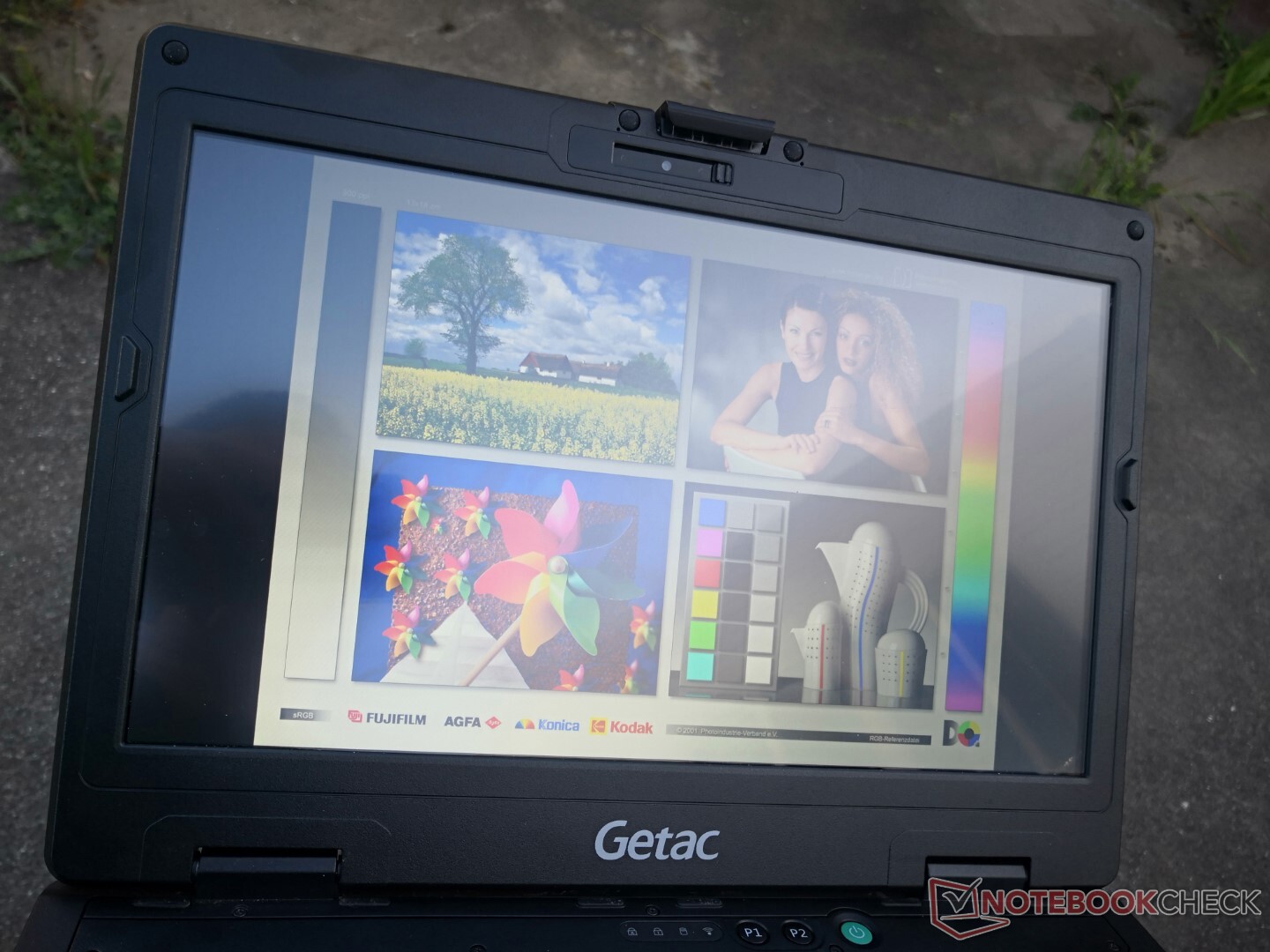

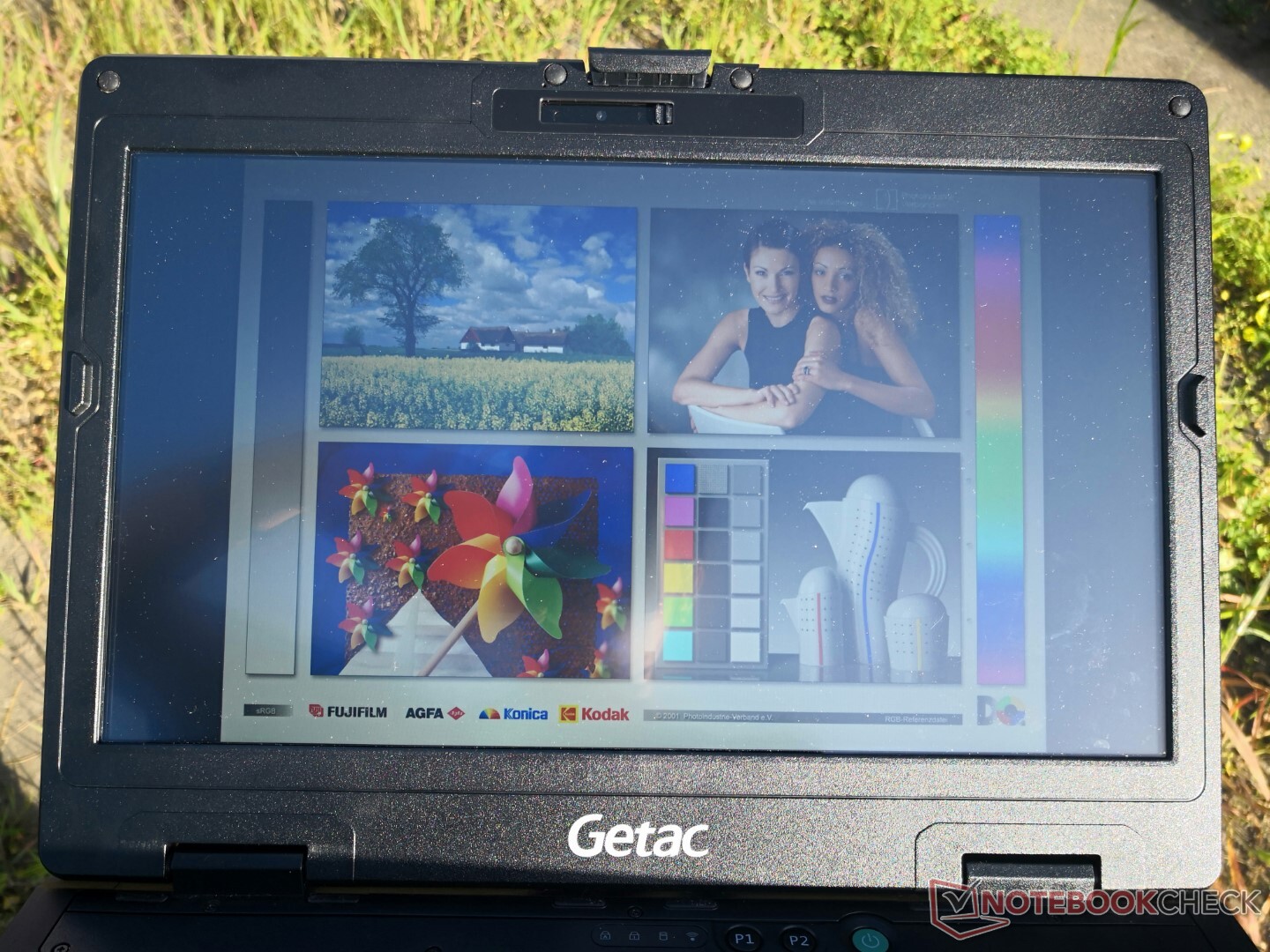

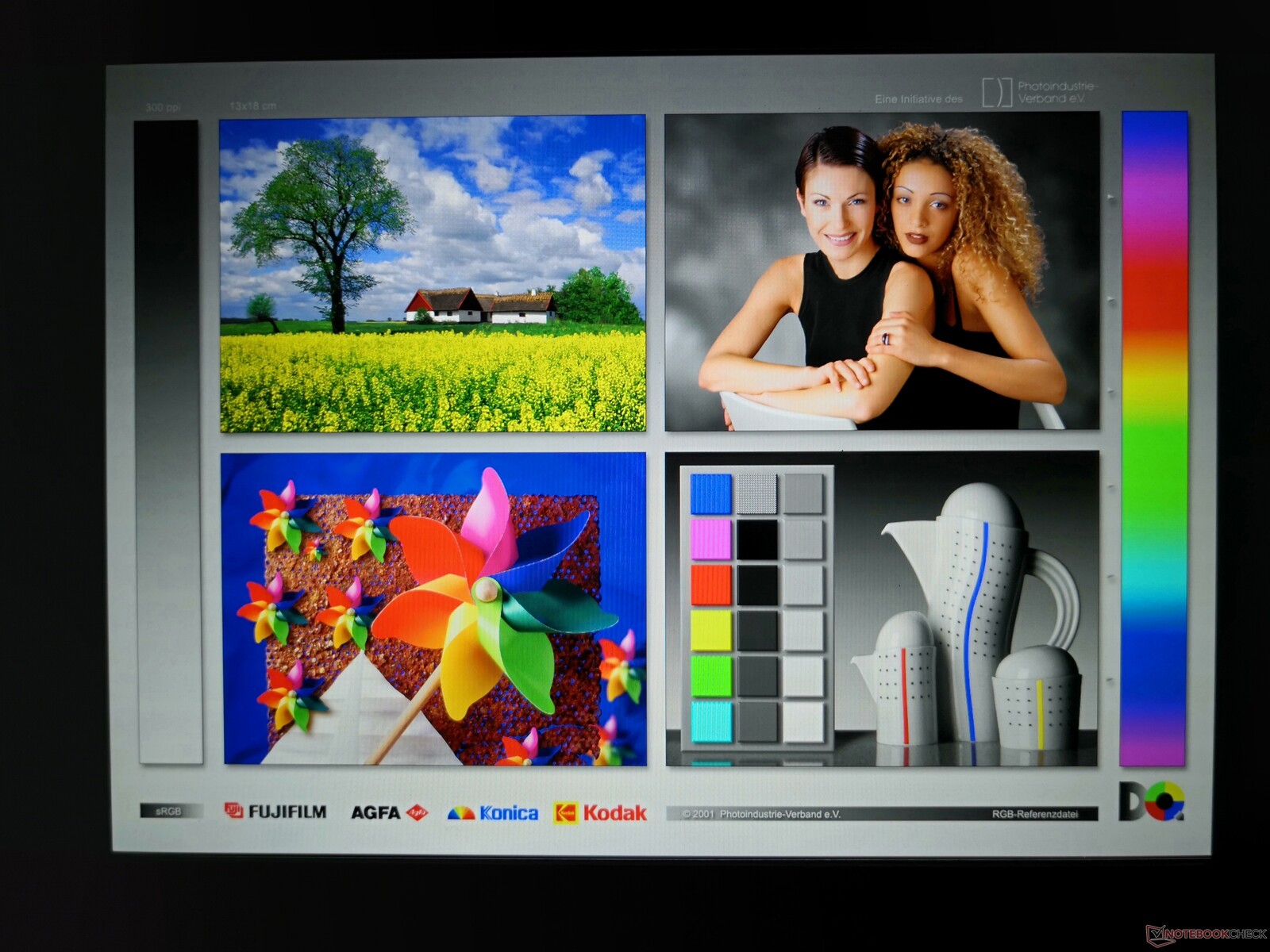

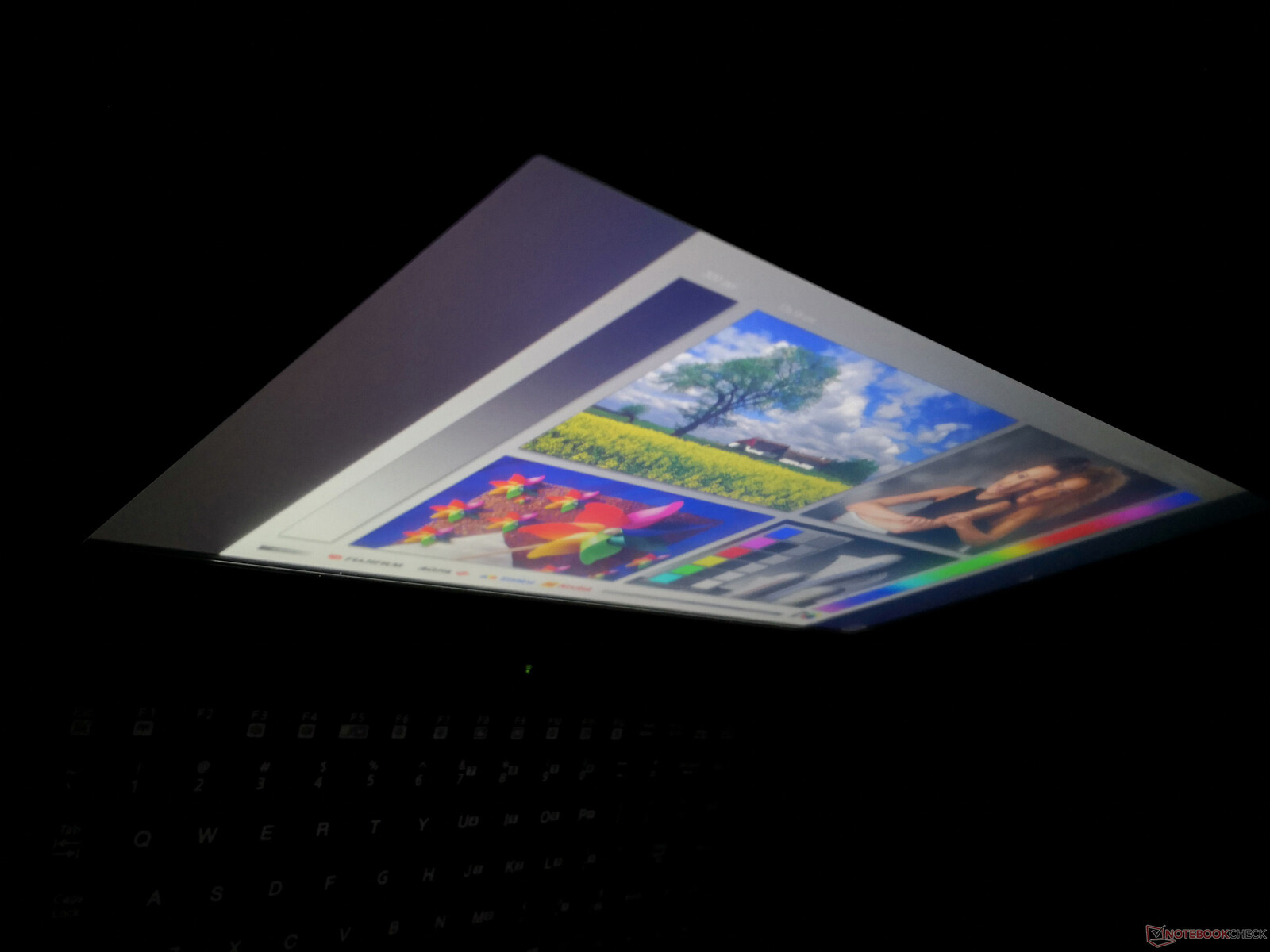

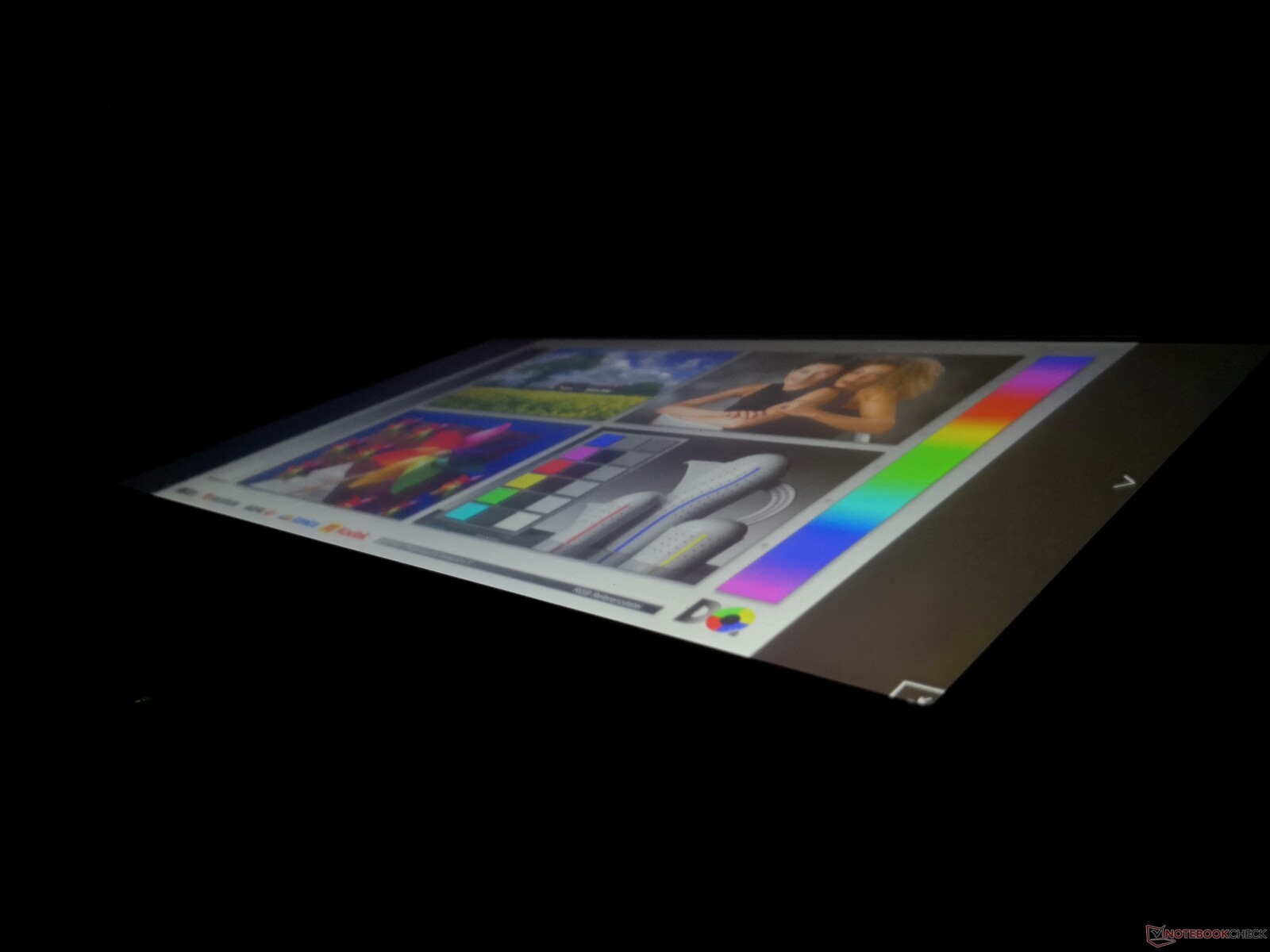

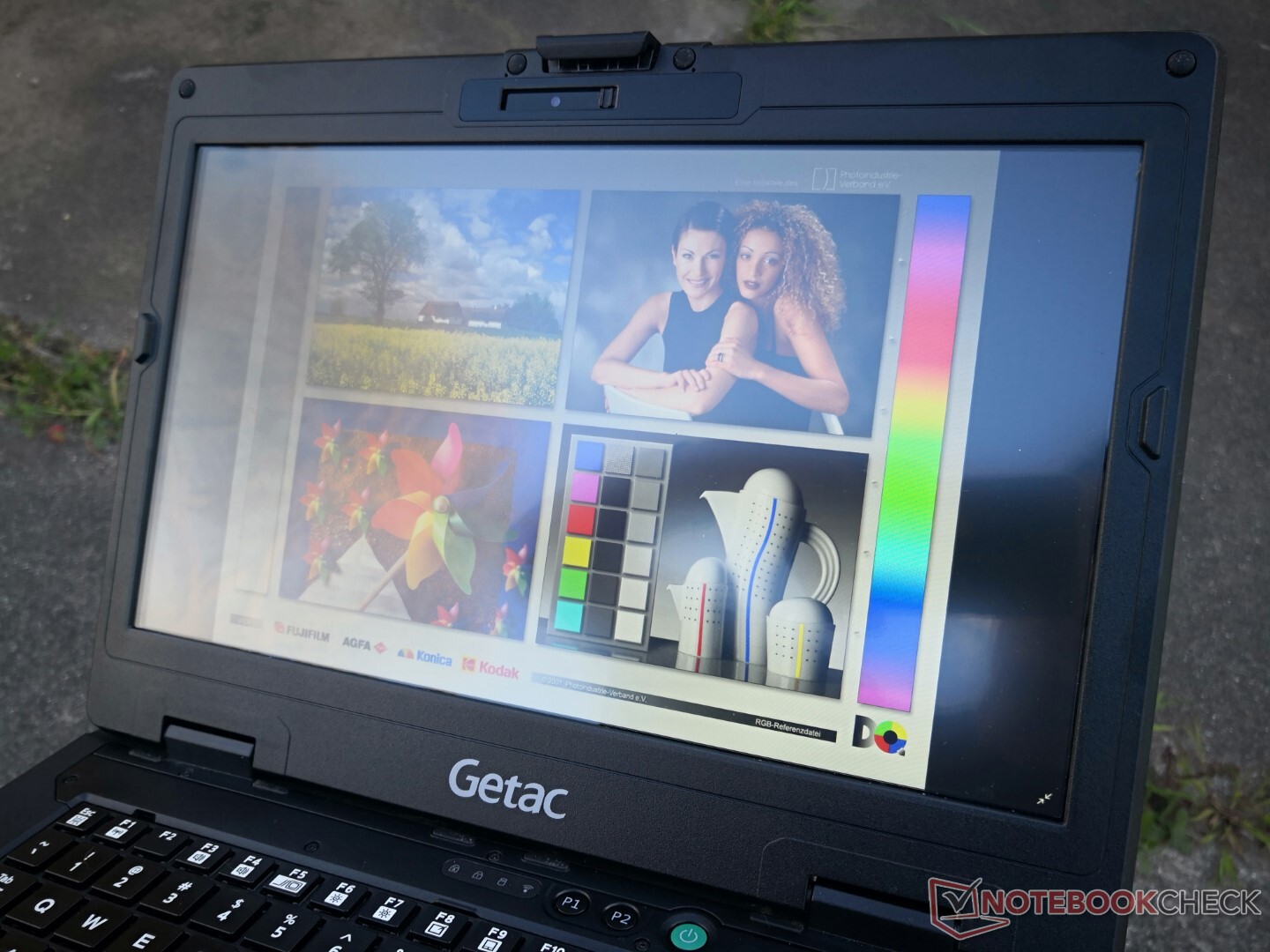

户外能见度很好,特别是在阴凉处。尽管如此,确实存在更明亮的显示屏,如在 戴尔Latitude 7330 Rugged Extreme和它的1400尼特面板。
业绩
测试条件

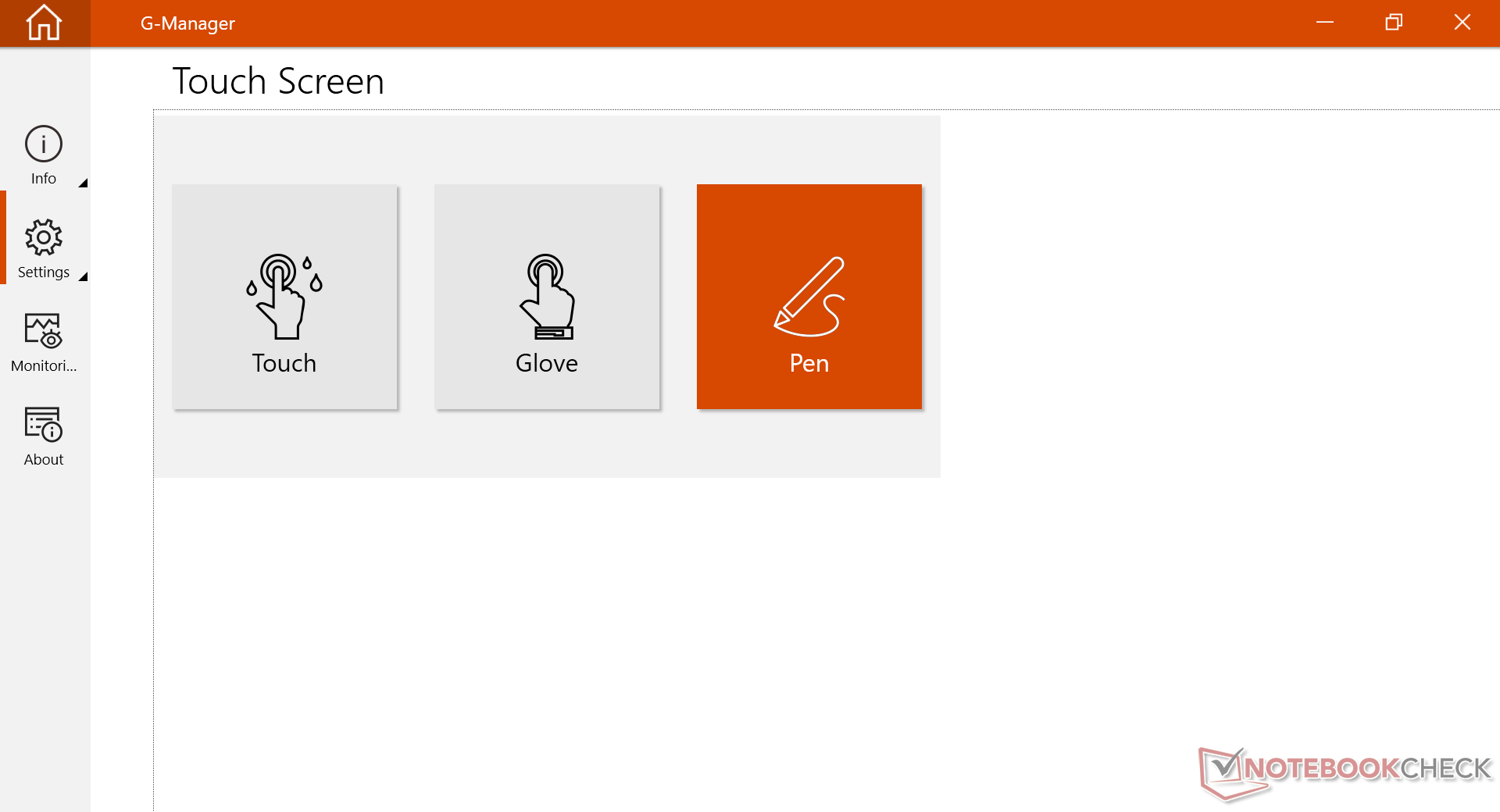

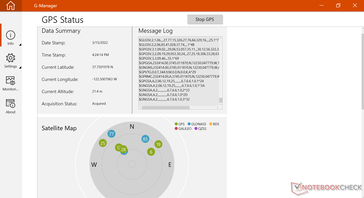

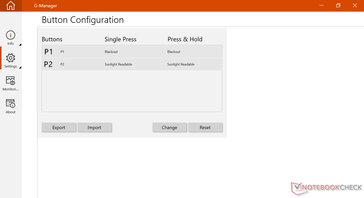

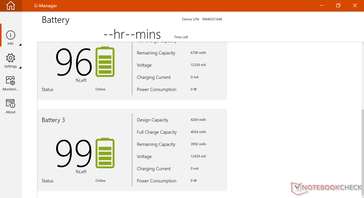

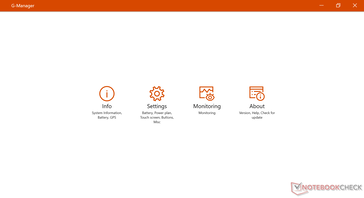

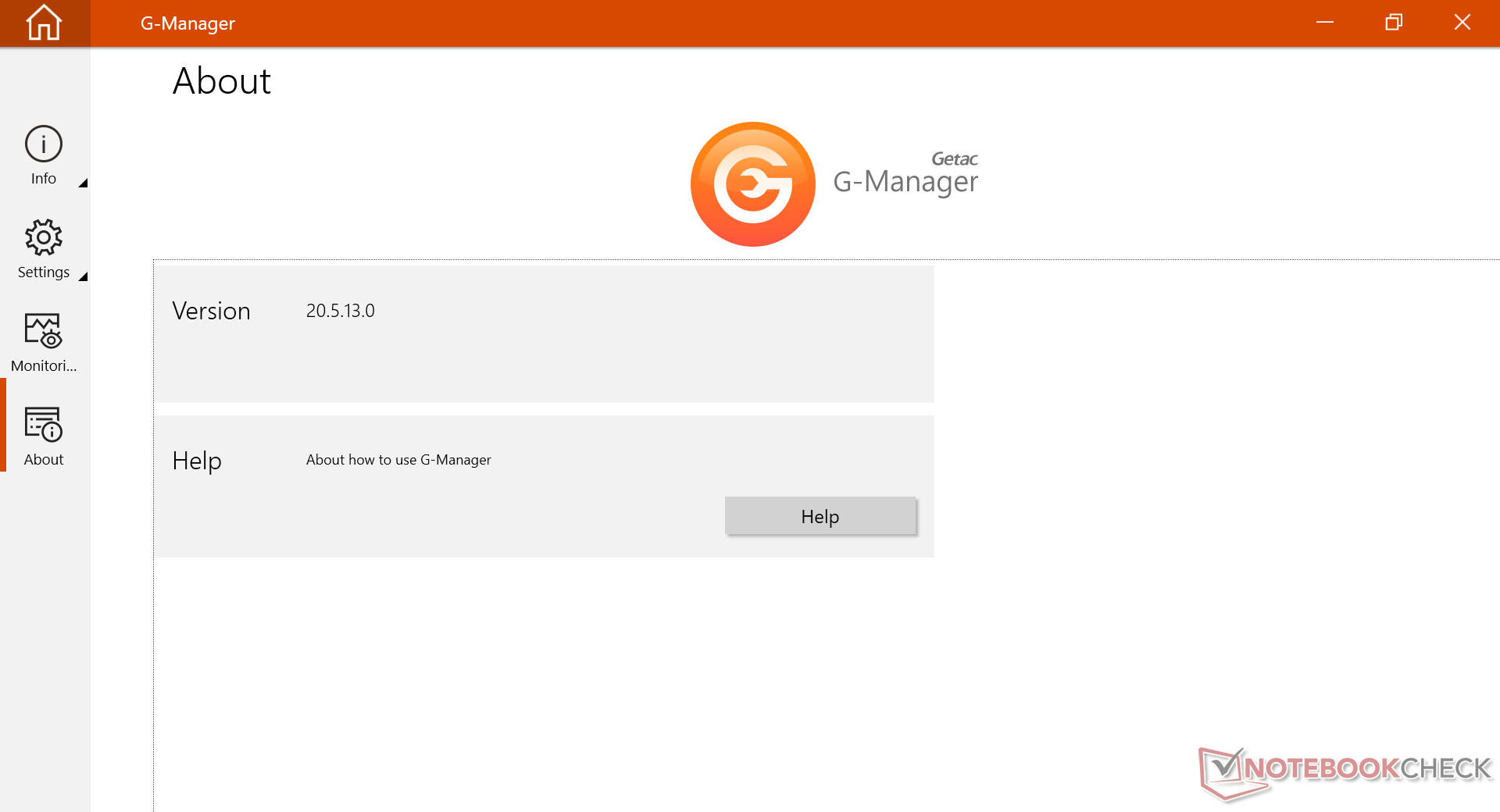

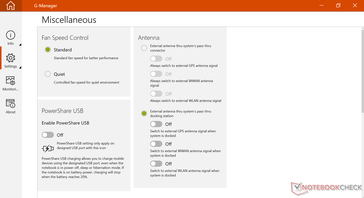

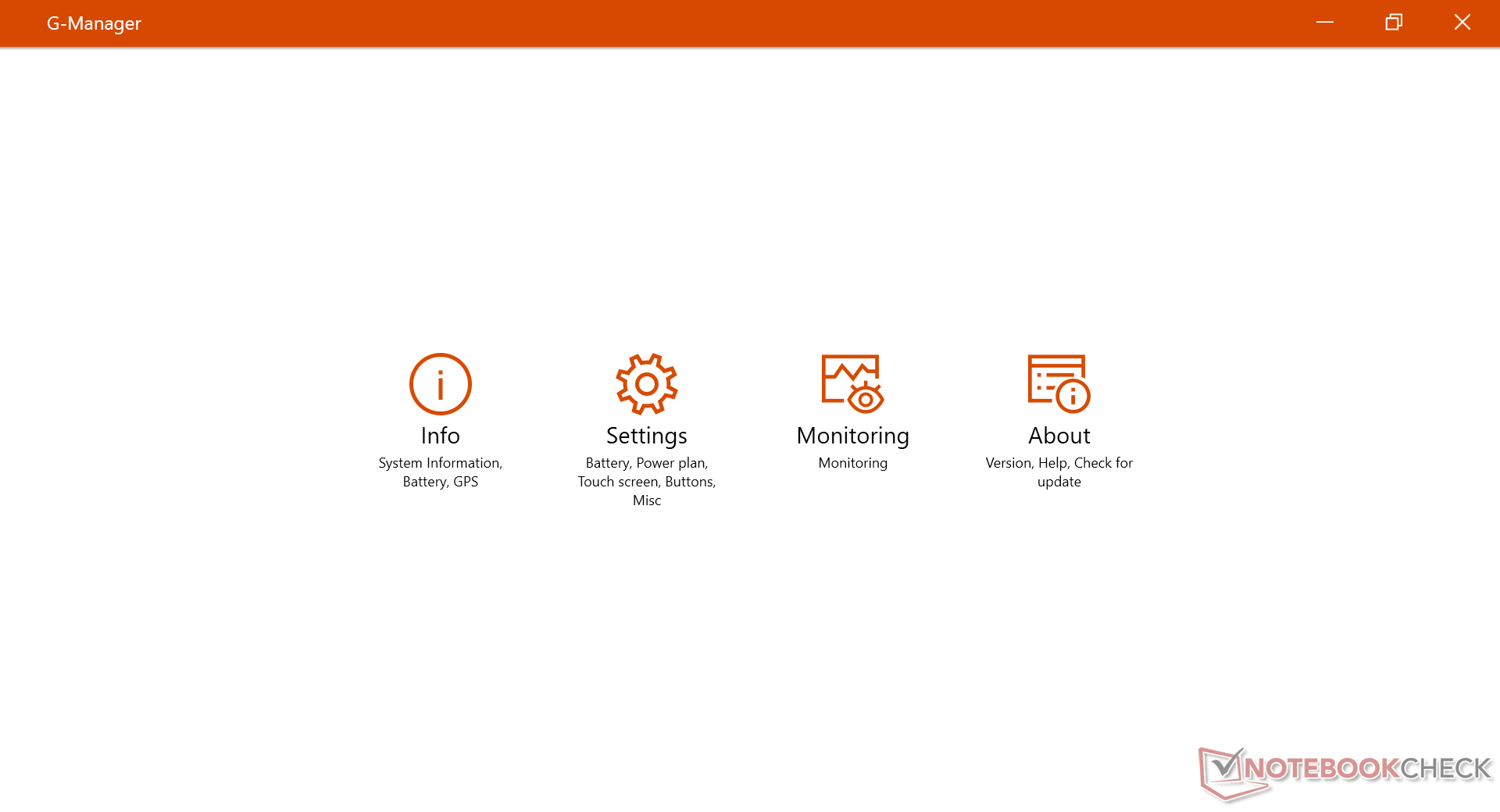

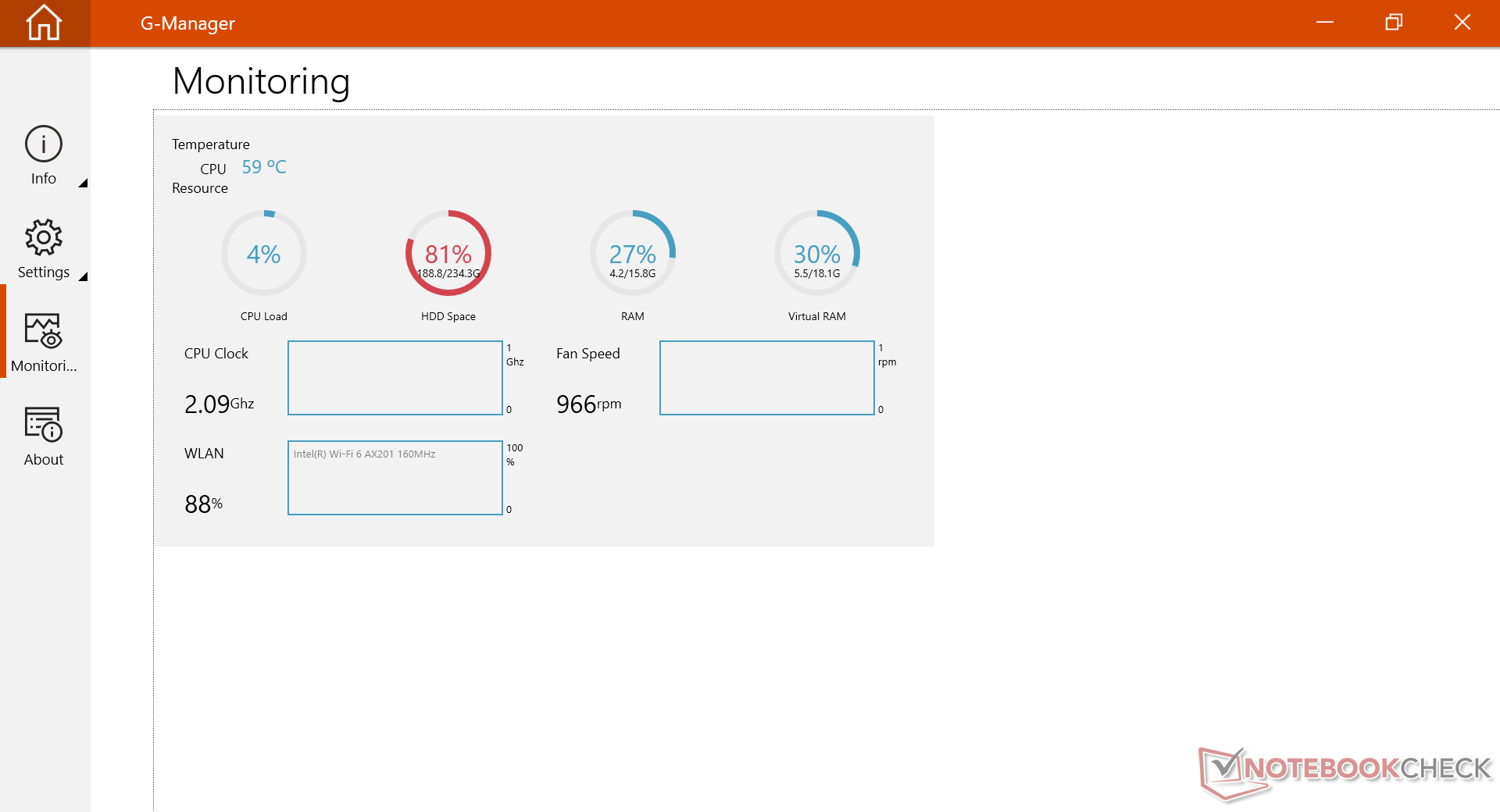

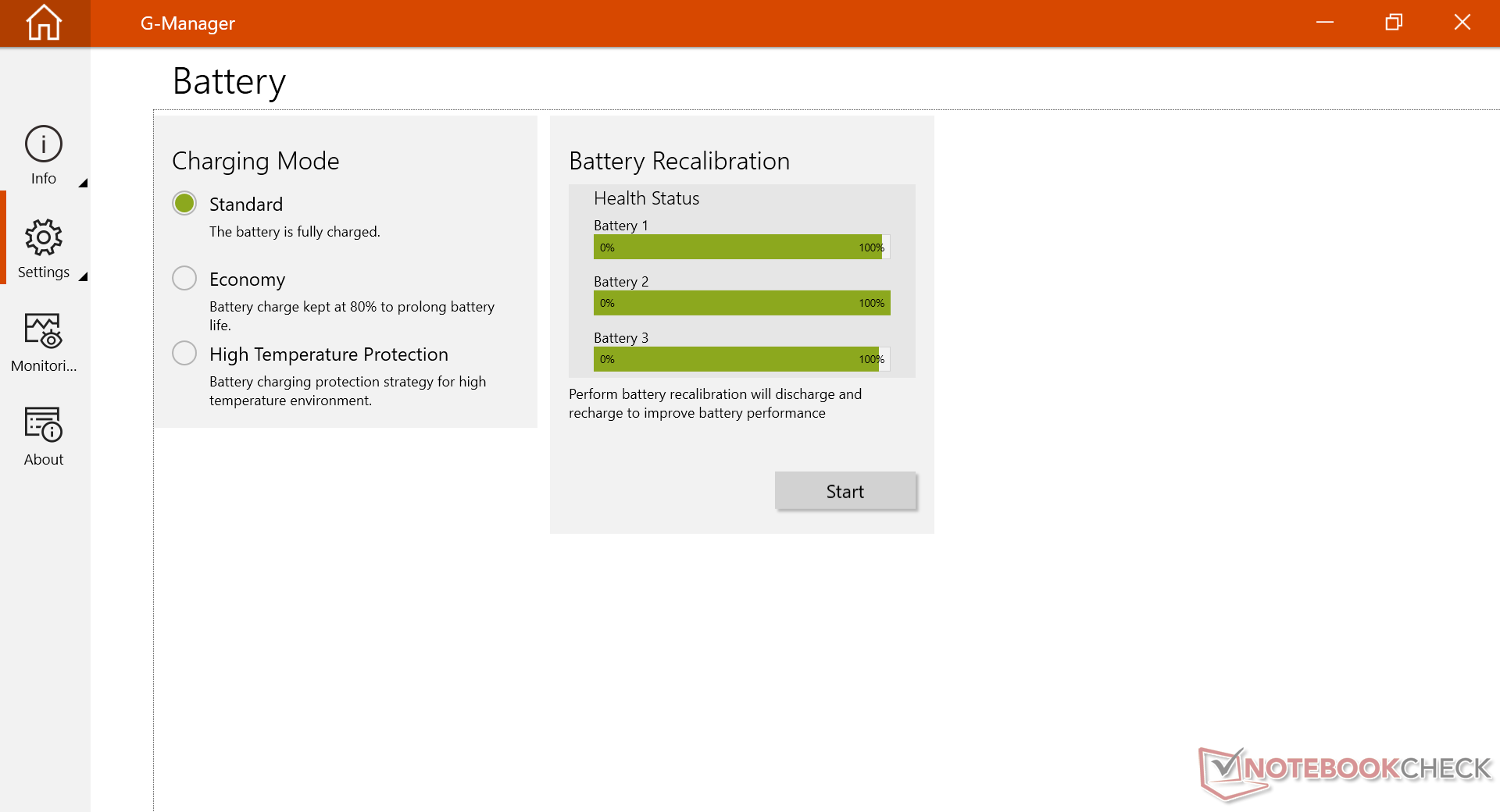

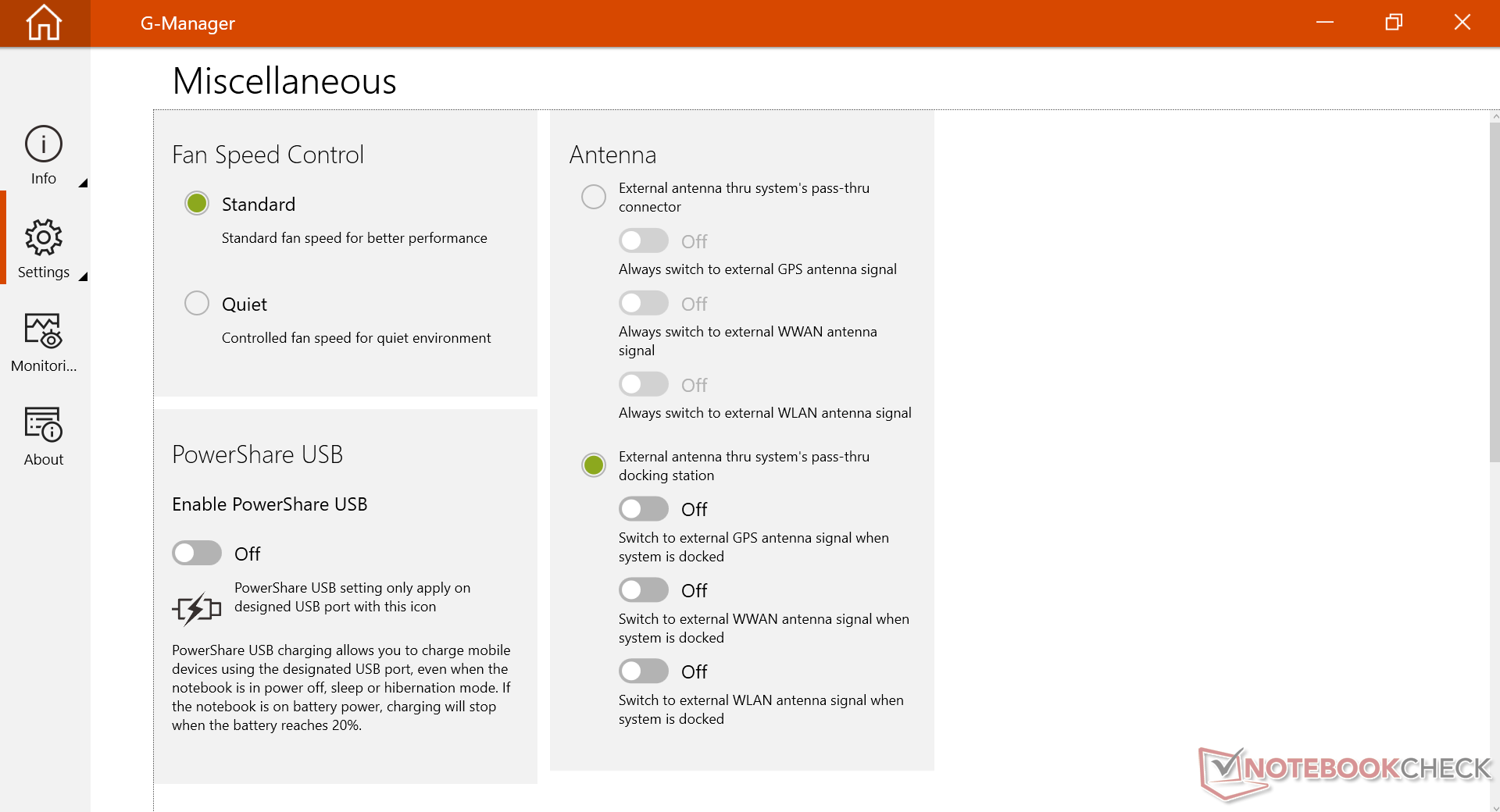

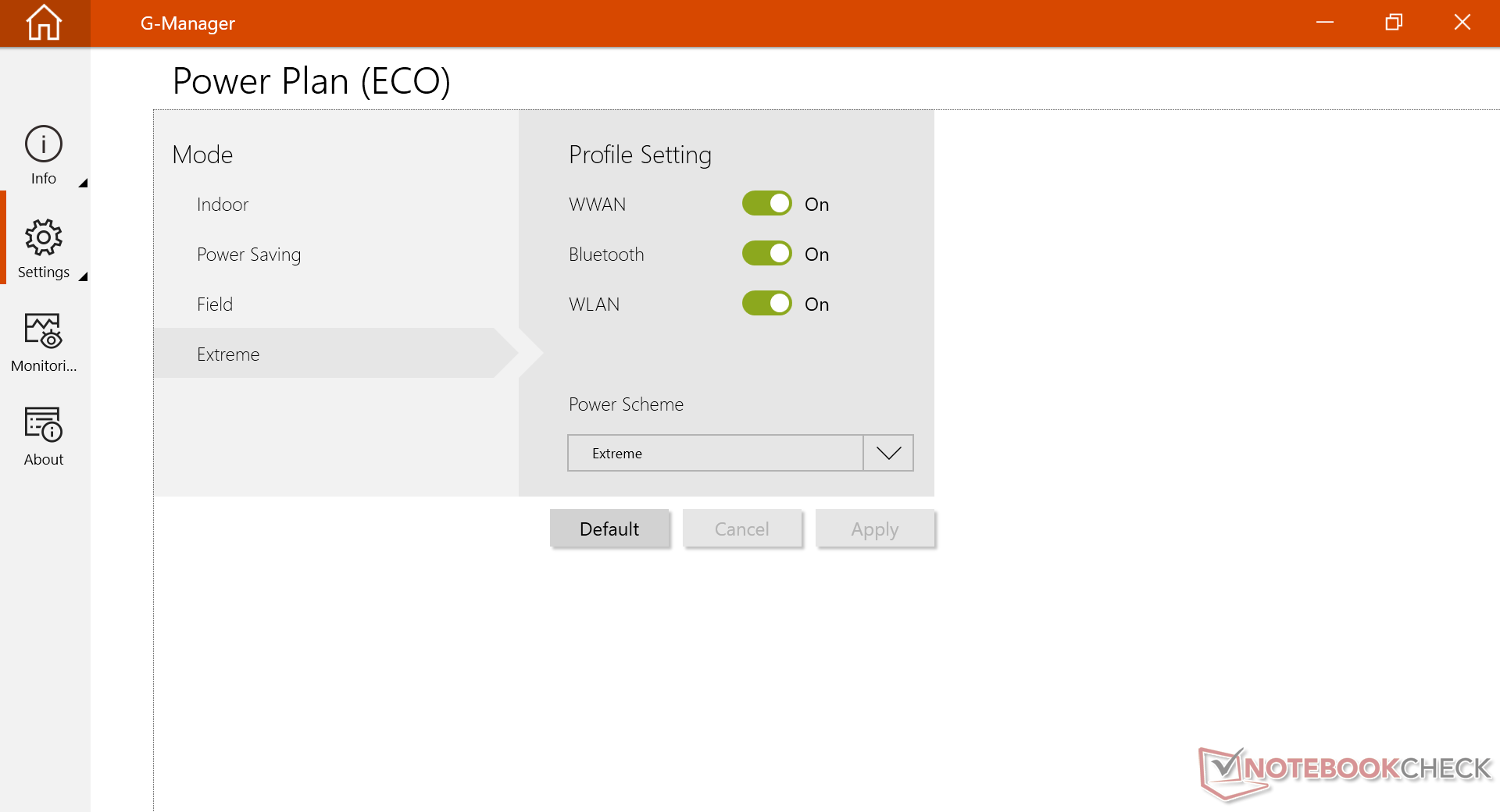

在运行以下任何性能基准测试之前,我们的设备通过G-Manager软件被设置为极限功率计划,以获得可能的最高分数。我们建议用户熟悉这个软件,因为关键功能和更新是在这里切换的。

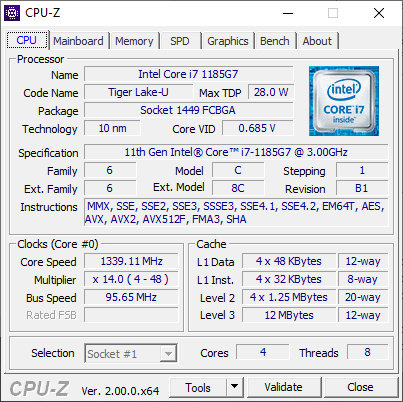

处理器
原始单线程和多线程性能分别比原来S410的Core i7-8550U快30%和50%。选择较小的酷睿i5-1135G7或酷睿i5-1145G7,预计只会对处理器性能产生约10%至15%的影响。
Cinebench R15 Multi Loop
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R15 / CPU Multi 64Bit | |
Lenovo ThinkPad L15 G2 AMD | |
Acer Swift 3 SF314-43-R8BP | |
MSI Prestige 14 A10SC-009 | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (617 - 1066, n=32) | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 7420 JW6MH | |
Getac S410 Gen 4 | |
Getac B360 | |
Dell Latitude 5320-TM4V2 | |
Infinix INBook X2 | |
Getac S410 | |
BMAX X14 Pro |
Cinebench R15 / CPU Single 64Bit | |
Lenovo ThinkPad L15 G2 AMD | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (168 - 230, n=27) | |
Getac S410 Gen 4 | |
Dell Latitude 7420 JW6MH | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 5320-TM4V2 | |
Getac B360 | |
Acer Swift 3 SF314-43-R8BP | |
Getac S410 | |
Infinix INBook X2 | |
MSI Prestige 14 A10SC-009 | |
BMAX X14 Pro |
Cinebench R20 / CPU (Multi Core) | |
Lenovo ThinkPad L15 G2 AMD | |
Acer Swift 3 SF314-43-R8BP | |
Dell Latitude 14 5420-D2G5W | |
Average Intel Core i7-1185G7 (1425 - 2493, n=28) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 7420 JW6MH | |
Dell Latitude 5320-TM4V2 | |
Getac B360 | |
Infinix INBook X2 | |
BMAX X14 Pro |
Cinebench R20 / CPU (Single Core) | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (489 - 593, n=28) | |
Getac S410 Gen 4 | |
Lenovo ThinkPad L15 G2 AMD | |
Dell Latitude 7420 JW6MH | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 5320-TM4V2 | |
Acer Swift 3 SF314-43-R8BP | |
Getac B360 | |
Infinix INBook X2 | |
BMAX X14 Pro |
Cinebench R23 / Multi Core | |
Lenovo ThinkPad L15 G2 AMD | |
Acer Swift 3 SF314-43-R8BP | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (3610 - 6383, n=24) | |
Getac S410 Gen 4 | |
Dell Latitude 7420 JW6MH | |
Dell Latitude 5320-TM4V2 | |
Getac B360 | |
Infinix INBook X2 | |
BMAX X14 Pro |
Cinebench R23 / Single Core | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (1251 - 1532, n=24) | |
Getac S410 Gen 4 | |
Dell Latitude 7420 JW6MH | |
Lenovo ThinkPad L15 G2 AMD | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 5320-TM4V2 | |
Acer Swift 3 SF314-43-R8BP | |
Infinix INBook X2 | |
BMAX X14 Pro | |
Getac B360 |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Asus ExpertBook B7 Flip B7402FEA | |
Lenovo ThinkPad L15 G2 AMD | |
Average Intel Core i7-1185G7 (3678 - 5507, n=27) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 7420 JW6MH | |
Getac B360 | |
Dell Latitude 5320-TM4V2 | |
Acer Swift 3 SF314-43-R8BP | |
BMAX X14 Pro | |
Infinix INBook X2 |
Geekbench 5.5 / Multi-Core | |
Acer Swift 3 SF314-43-R8BP | |
Average Intel Core i7-1185G7 (4620 - 5944, n=21) | |
Lenovo ThinkPad L15 G2 AMD | |
Dell Latitude 7420 JW6MH | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac B360 | |
Dell Latitude 5320-TM4V2 | |
Dell Latitude 14 5420-D2G5W | |
Infinix INBook X2 | |
BMAX X14 Pro |
Geekbench 5.5 / Single-Core | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (1398 - 1626, n=21) | |
Getac S410 Gen 4 | |
Dell Latitude 7420 JW6MH | |
Lenovo ThinkPad L15 G2 AMD | |
Dell Latitude 5320-TM4V2 | |
Getac B360 | |
Dell Latitude 14 5420-D2G5W | |
Infinix INBook X2 | |
Acer Swift 3 SF314-43-R8BP | |
BMAX X14 Pro |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Lenovo ThinkPad L15 G2 AMD | |
Acer Swift 3 SF314-43-R8BP | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac S410 Gen 4 | |
Average Intel Core i7-1185G7 (5.02 - 8.13, n=27) | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 | |
Dell Latitude 7420 JW6MH | |
Infinix INBook X2 | |
BMAX X14 Pro |
LibreOffice / 20 Documents To PDF | |
BMAX X14 Pro | |
Acer Swift 3 SF314-43-R8BP | |
Infinix INBook X2 | |
Dell Latitude 5320-TM4V2 | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 7420 JW6MH | |
Getac S410 Gen 4 | |
Average Intel Core i7-1185G7 (41.3 - 61.7, n=26) | |
Lenovo ThinkPad L15 G2 AMD | |
Asus ExpertBook B7 Flip B7402FEA |
R Benchmark 2.5 / Overall mean | |
BMAX X14 Pro | |
Infinix INBook X2 | |
Getac B360 | |
Dell Latitude 14 5420-D2G5W | |
Dell Latitude 5320-TM4V2 | |
Acer Swift 3 SF314-43-R8BP | |
Dell Latitude 7420 JW6MH | |
Getac S410 Gen 4 | |
Average Intel Core i7-1185G7 (0.55 - 0.615, n=27) | |
Asus ExpertBook B7 Flip B7402FEA | |
Lenovo ThinkPad L15 G2 AMD |
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W | |
Average Intel Core i7-1185G7 | |
Getac S410 Gen 4 | |
Getac B360 | |
Infinix INBook X2 |
AIDA64 / FP32 Ray-Trace | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (5621 - 7453, n=20) | |
Getac S410 Gen 4 | |
Getac B360 | |
Infinix INBook X2 |
AIDA64 / FPU Julia | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (23248 - 32614, n=20) | |
Getac B360 | |
Getac S410 Gen 4 | |
Infinix INBook X2 |
AIDA64 / CPU SHA3 | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (1530 - 2209, n=20) | |
Getac S410 Gen 4 | |
Infinix INBook X2 | |
Getac B360 |
AIDA64 / CPU Queen | |
Getac B360 | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (44677 - 52815, n=20) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W | |
Infinix INBook X2 |
AIDA64 / FPU SinJulia | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac B360 | |
Average Intel Core i7-1185G7 (3870 - 5027, n=20) | |
Dell Latitude 14 5420-D2G5W | |
Getac S410 Gen 4 | |
Infinix INBook X2 |
AIDA64 / FPU Mandel | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (14584 - 19594, n=20) | |
Getac S410 Gen 4 | |
Getac B360 | |
Infinix INBook X2 |
AIDA64 / CPU AES | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W | |
Infinix INBook X2 | |
Average Intel Core i7-1185G7 (33002 - 76826, n=20) | |
Getac S410 Gen 4 | |
Getac B360 |
AIDA64 / CPU ZLib | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 | |
Getac S410 Gen 4 | |
Average Intel Core i7-1185G7 (258 - 412, n=22) | |
Infinix INBook X2 |
AIDA64 / FP64 Ray-Trace | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (2821 - 4094, n=20) | |
Getac S410 Gen 4 | |
Getac B360 | |
Infinix INBook X2 |
AIDA64 / CPU PhotoWorxx | |
Average Intel Core i7-1185G7 (22349 - 43701, n=20) | |
Infinix INBook X2 | |
Getac S410 Gen 4 | |
Getac B360 | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W |
系统性能
PCMark的结果比我们在S410 Gen 1上观察到的要高,除了生产力分测试,可能是由于我们的设备上的SSD性能比预期的要慢,如下面的章节中所示。由于Iris Xe的性能优于更老的UHD Graphics 620,最大的收益可以在数字内容创作分测试中看到。
CrossMark: Overall | Productivity | Creativity | Responsiveness
PCMark 10 / Score | |
Asus ExpertBook B7 Flip B7402FEA | |
MSI Prestige 14 A10SC-009 | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (4746 - 5561, n=20) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W | |
Infinix INBook X2 | |
Getac B360 | |
Getac S410 |
PCMark 10 / Essentials | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac S410 Gen 4 | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (8279 - 10664, n=20) | |
Getac B360 | |
Dell Latitude 14 5420-D2G5W | |
MSI Prestige 14 A10SC-009 | |
Infinix INBook X2 | |
Getac S410 |
PCMark 10 / Productivity | |
Getac B360 | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac S410 | |
MSI Prestige 14 A10SC-009 | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (5799 - 8770, n=20) | |
Dell Latitude 14 5420-D2G5W | |
Getac S410 Gen 4 | |
Infinix INBook X2 |
PCMark 10 / Digital Content Creation | |
MSI Prestige 14 A10SC-009 | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (4424 - 5684, n=20) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W | |
Infinix INBook X2 | |
Getac B360 | |
Getac S410 |
CrossMark / Overall | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (1233 - 1474, n=5) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W |
CrossMark / Productivity | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (1277 - 1506, n=5) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W |
CrossMark / Creativity | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (1291 - 1513, n=5) | |
Asus ExpertBook B7 Flip B7402FEA | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W |
CrossMark / Responsiveness | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs (969 - 1411, n=5) | |
Dell Latitude 14 5420-D2G5W | |
Getac S410 Gen 4 |

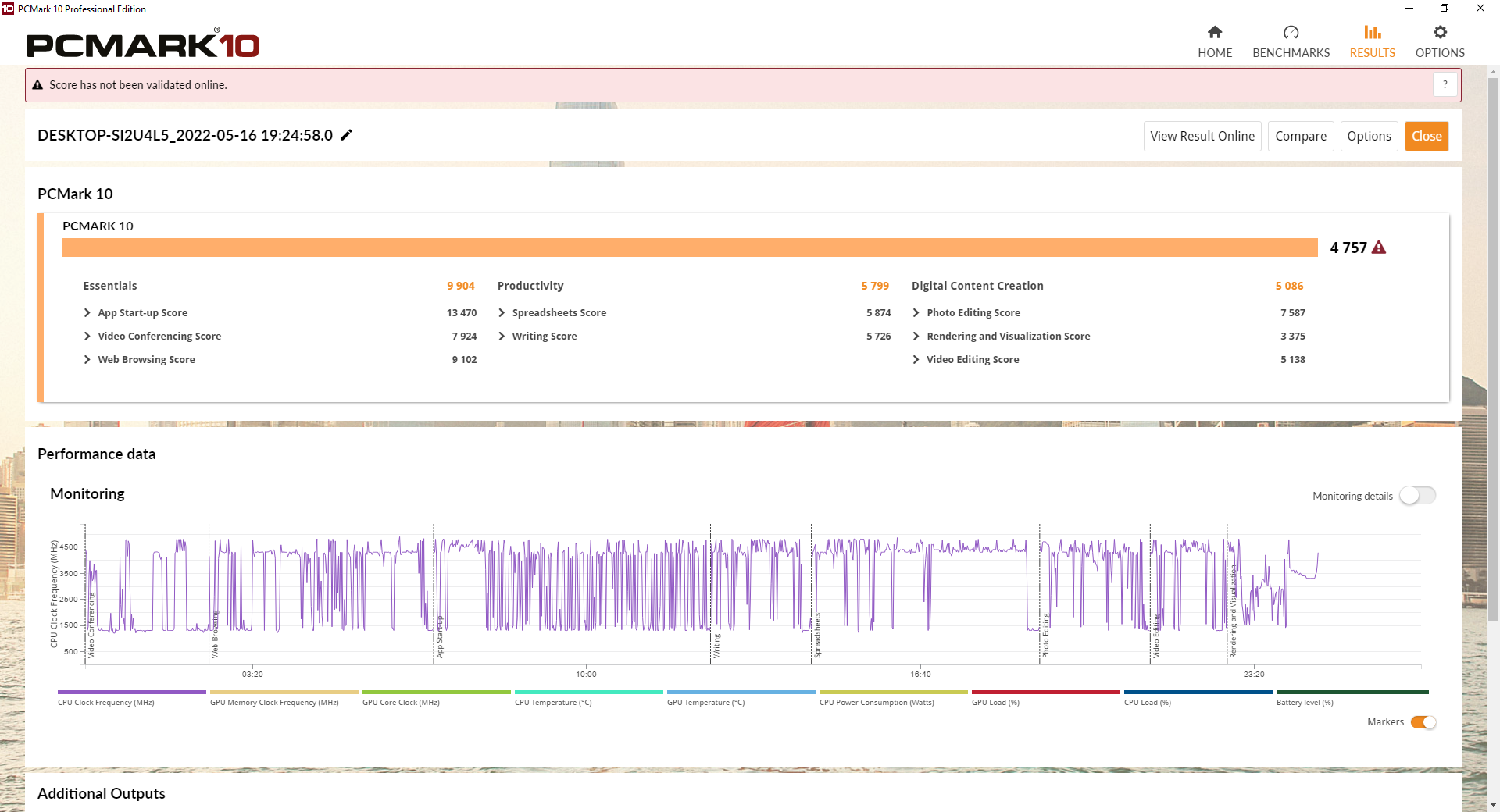

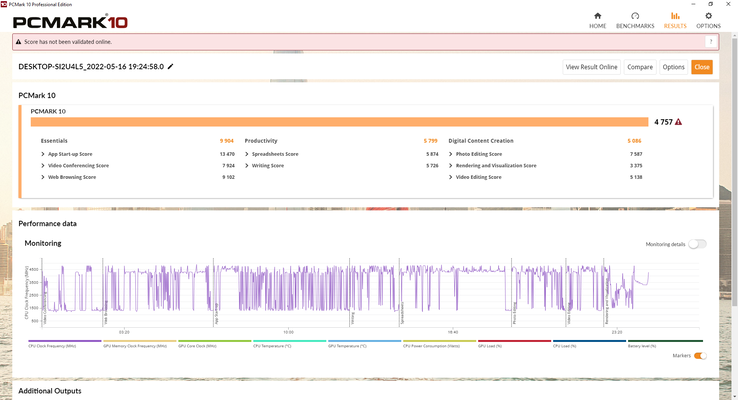

PCMark 10 Score | 4757 points | |
Help |

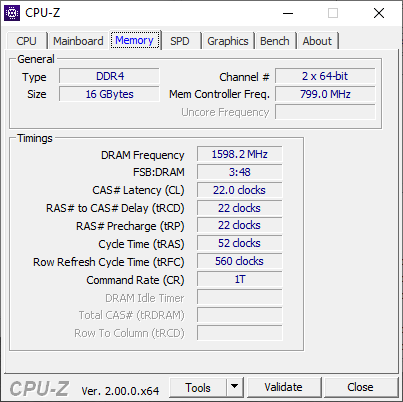

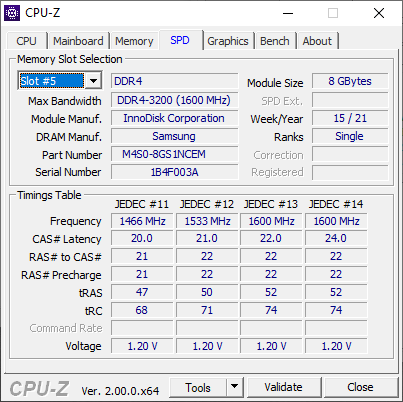

AIDA64 / Memory Copy | |
Average Intel Core i7-1185G7 (36515 - 68450, n=20) | |
Acer Swift 3 SF314-43-R8BP | |
Infinix INBook X2 | |
Getac S410 Gen 4 | |
Getac B360 | |
Asus ExpertBook B7 Flip B7402FEA | |
BMAX X14 Pro | |
Dell Latitude 14 5420-D2G5W |
AIDA64 / Memory Read | |
Average Intel Core i7-1185G7 (38394 - 64291, n=20) | |
Infinix INBook X2 | |
Acer Swift 3 SF314-43-R8BP | |
Getac S410 Gen 4 | |
Getac B360 | |
BMAX X14 Pro | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W |
AIDA64 / Memory Write | |
Average Intel Core i7-1185G7 (37684 - 66873, n=20) | |
Infinix INBook X2 | |
Acer Swift 3 SF314-43-R8BP | |
Getac S410 Gen 4 | |
Getac B360 | |
BMAX X14 Pro | |
Dell Latitude 14 5420-D2G5W | |
Asus ExpertBook B7 Flip B7402FEA |
AIDA64 / Memory Latency | |
BMAX X14 Pro | |
Acer Swift 3 SF314-43-R8BP | |
Infinix INBook X2 | |
Asus ExpertBook B7 Flip B7402FEA | |
Average Intel Core i7-1185G7 (78.3 - 117, n=22) | |
Getac S410 Gen 4 | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 |
* ... smaller is better
DPC延时

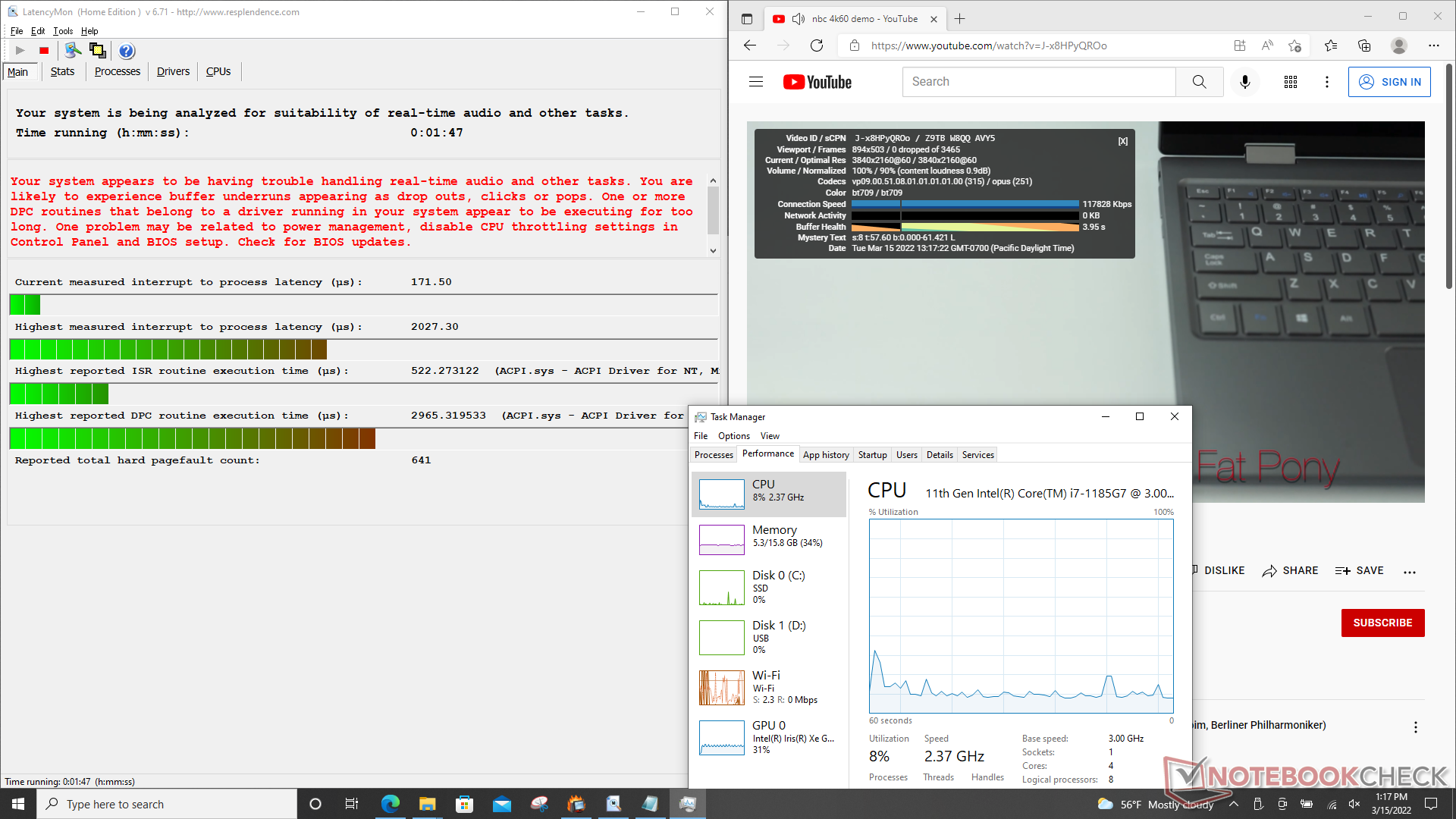

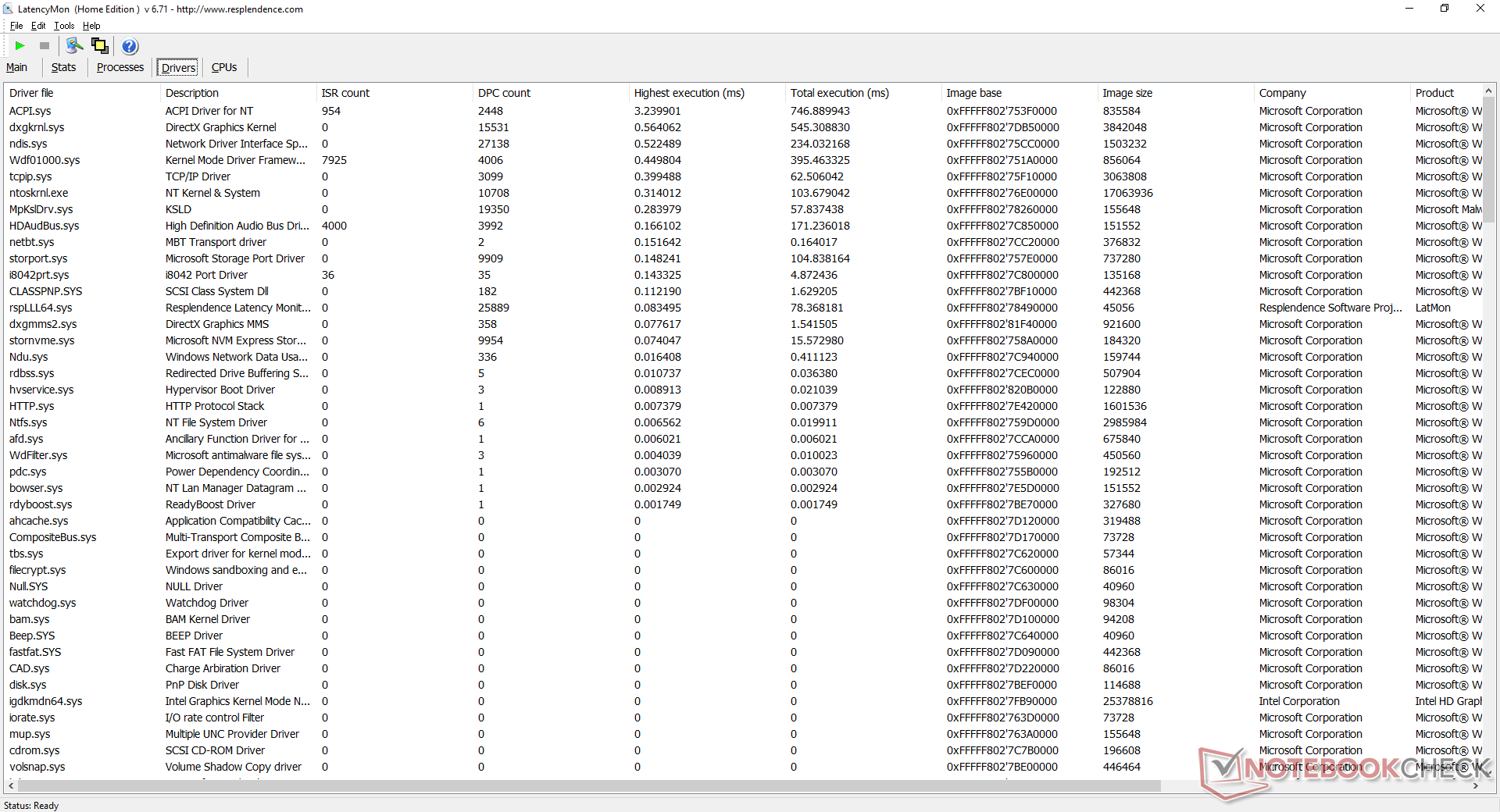

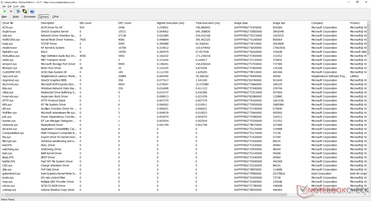

LatencyMon显示了在打开我们的主页的多个浏览器标签时的DPC问题。在60 FPS的情况下,4K视频播放很流畅,没有任何掉帧。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Dell Latitude 14 5420-D2G5W | |
BMAX X14 Pro | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Acer Swift 3 SF314-43-R8BP | |
Getac B360 | |
Infinix INBook X2 |
* ... smaller is better
存储设备

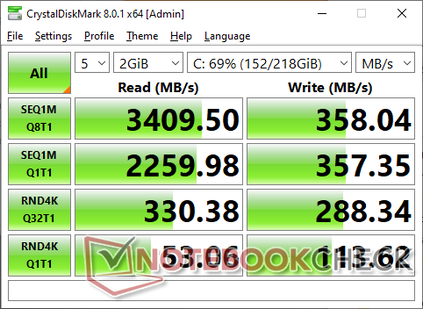

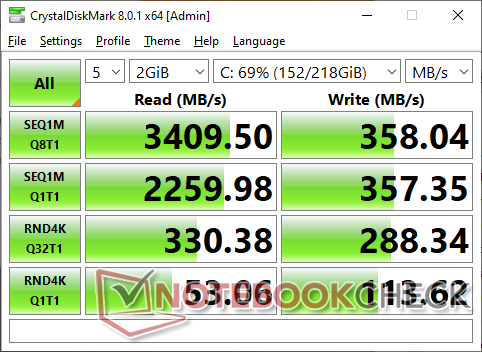

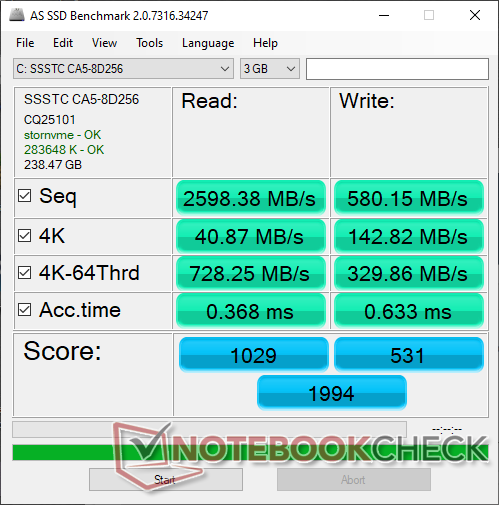

我们的设备配备了一个256GB SSSTC CA5 M.2 2280 PCIe3 x4固态硬盘宣传的连续读取和写入速率分别为3200MB/s和1600MB/s。然而,在我们的设备上,我们能够毫无问题地达到最大的写入率,而连续写入率会异常缓慢,尽管多次重新运行,仍在580MB/s左右。
Drive Performance Rating - Percent | |
Asus ExpertBook B7 Flip B7402FEA | |
MSI Prestige 14 A10SC-009 -8! | |
Getac B360 | |
Infinix INBook X2 | |
Acer Swift 3 SF314-43-R8BP | |
Dell Latitude 14 5420-D2G5W | |
Getac S410 Gen 4 | |
Getac S410 -8! | |
BMAX X14 Pro |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU性能

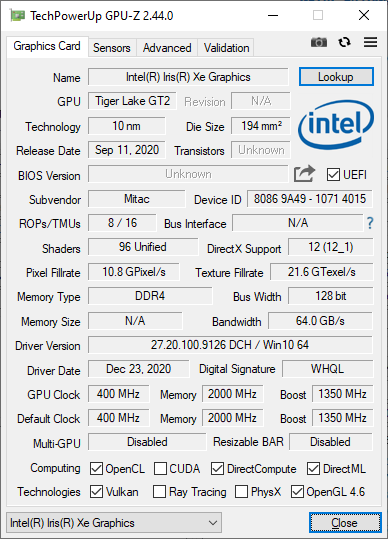

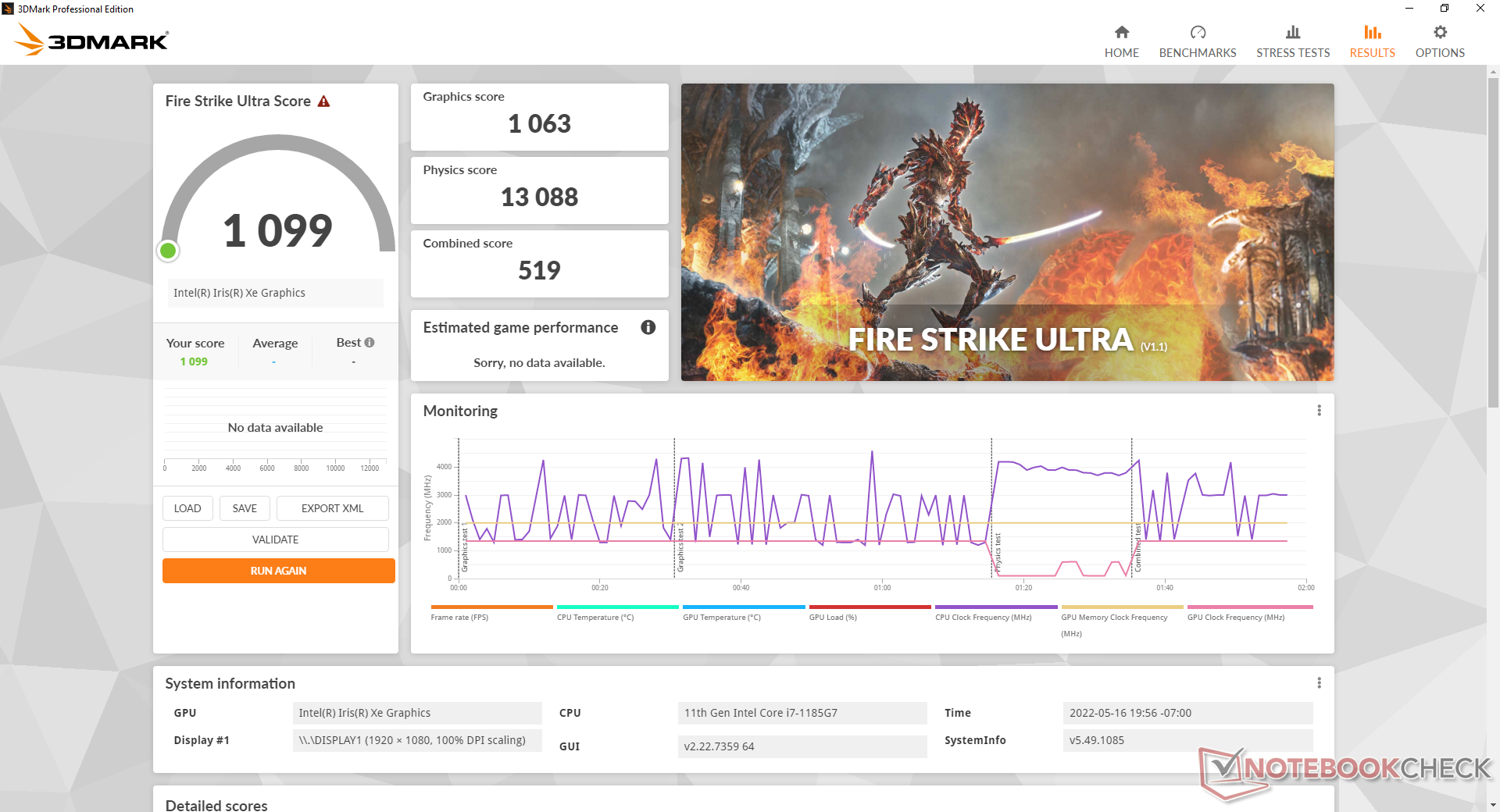

图形性能非常好,相对于其他具有相同集成度的笔记本电脑来说,我们期望它能达到这样的性能。 Iris Xe 96 EUsGPU。选择较小的 Iris Xe 80 EUs配置,根据我们的使用时间,应该只会慢10%左右。戴尔Latitude 7420.在这两种情况下,S410第四代的图形性能可以提供超过3倍于老式的 UHD Graphics 620在S410第1代上发现。

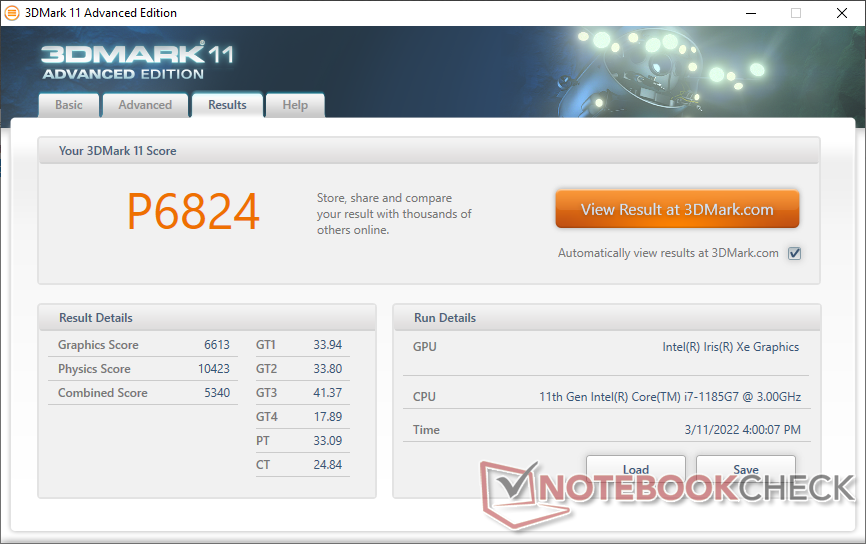

3DMark 11 Performance | 6824 points | |

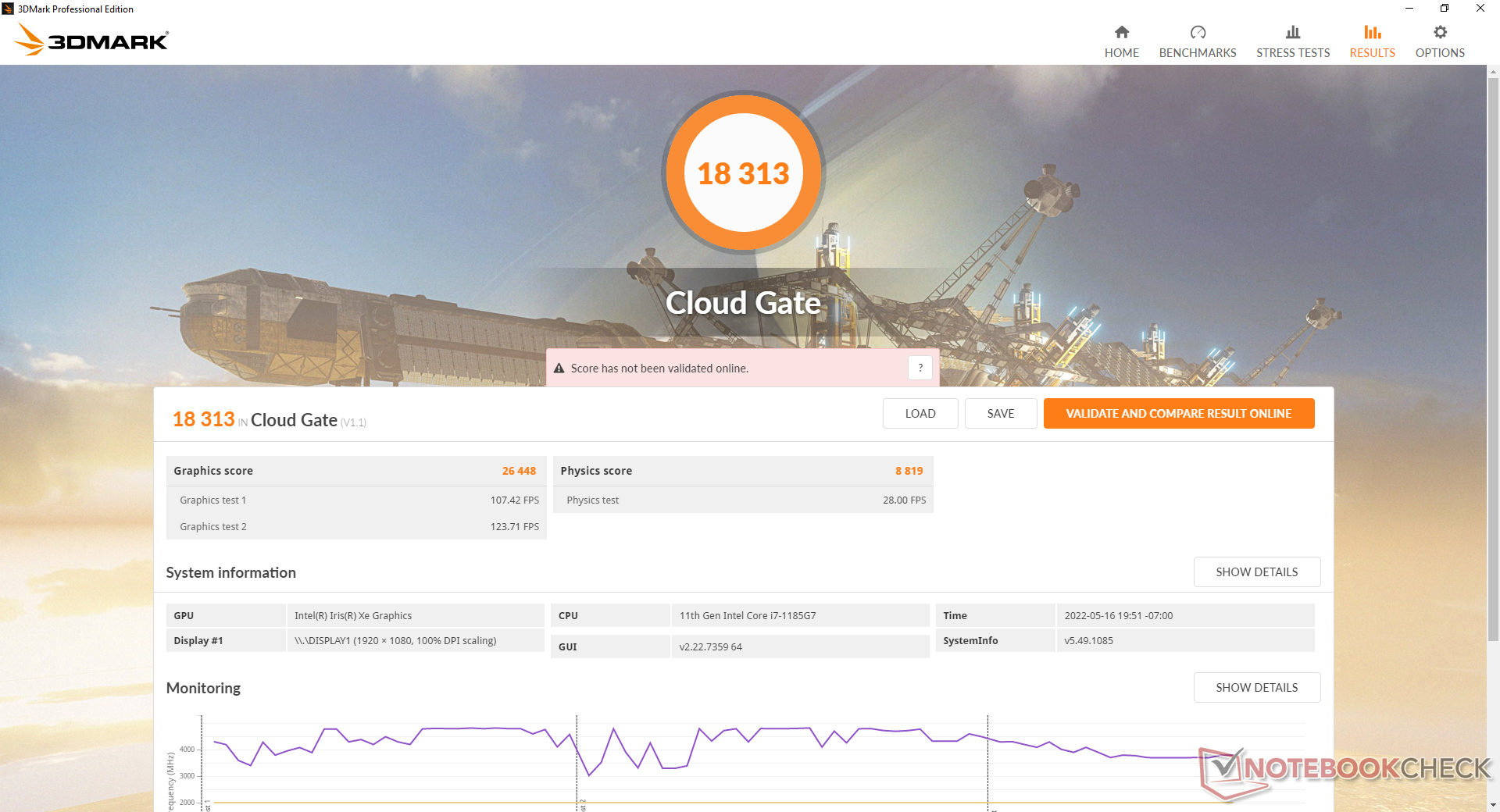

3DMark Cloud Gate Standard Score | 18313 points | |

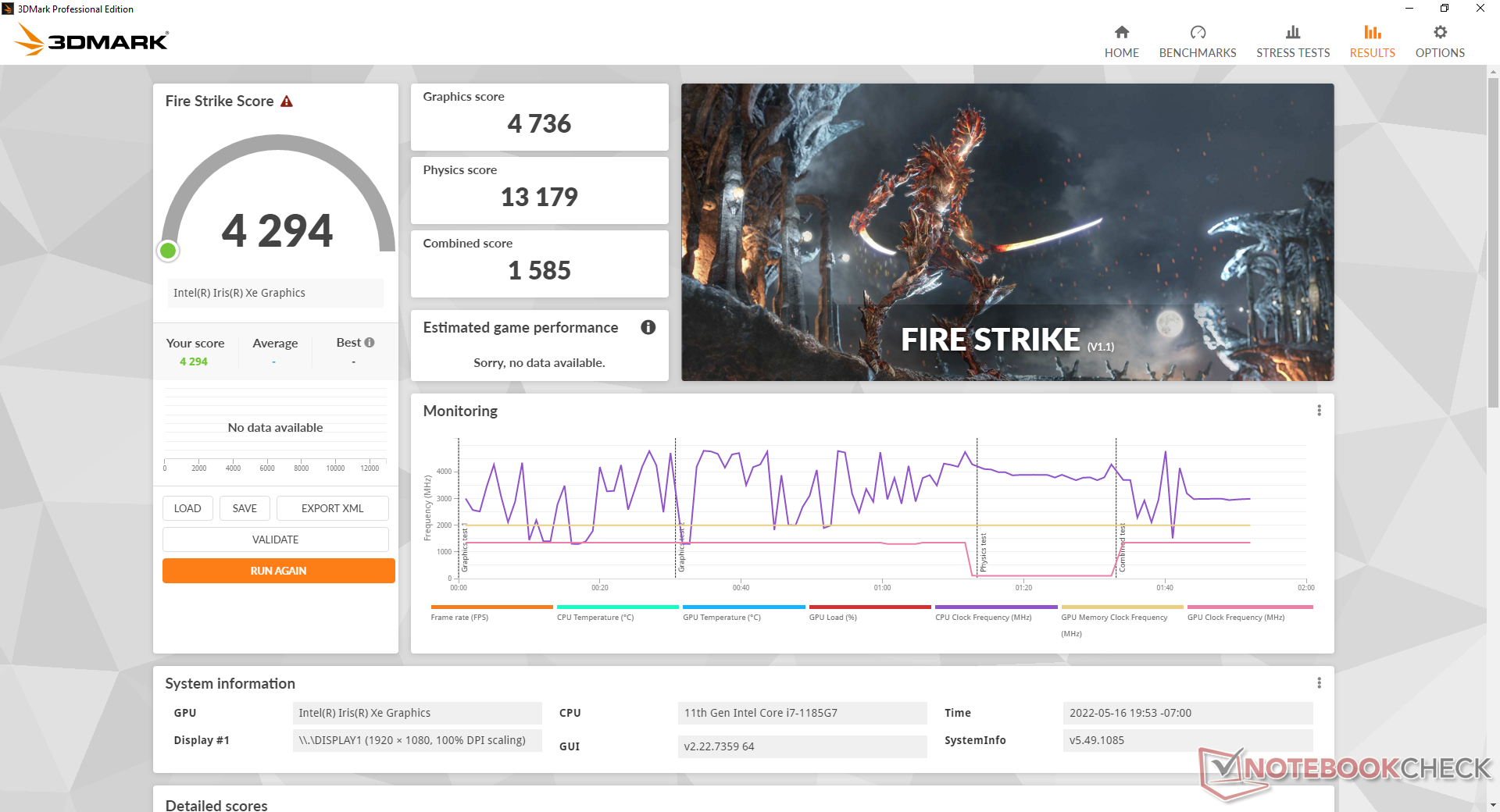

3DMark Fire Strike Score | 4294 points | |

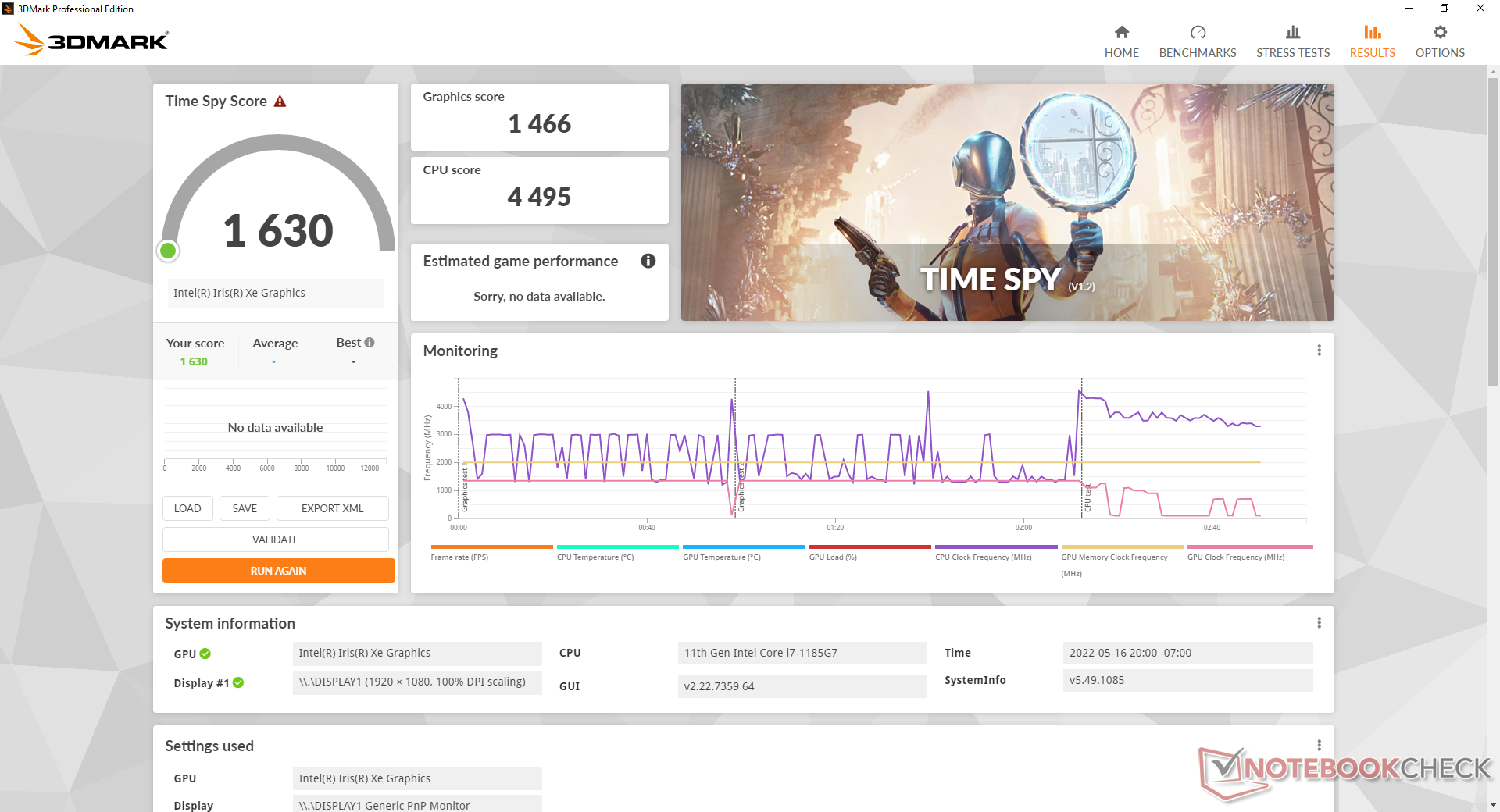

3DMark Time Spy Score | 1630 points | |
Help |
The Witcher 3 | |
1024x768 Low Graphics & Postprocessing | |
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Infinix INBook X2 | |
BMAX X14 Pro | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 | |
1366x768 Medium Graphics & Postprocessing | |
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Infinix INBook X2 | |
Acer Swift 3 SF314-43-R8BP | |
BMAX X14 Pro | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=189) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Infinix INBook X2 | |
Acer Swift 3 SF314-43-R8BP | |
BMAX X14 Pro | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=179) | |
Acer Swift 3 SF314-43-R8BP | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Infinix INBook X2 | |
BMAX X14 Pro | |
Dell Latitude 14 5420-D2G5W | |
Getac B360 |
GTA V | |
1024x768 Lowest Settings possible | |
Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W | |
1920x1080 Lowest Settings possible | |
Average Intel Iris Xe Graphics G7 96EUs (34.7 - 132.1, n=136) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
1366x768 Normal/Off AF:4x | |
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W | |
1920x1080 Normal/Off AF:4x | |
Average Intel Iris Xe Graphics G7 96EUs (20 - 119.3, n=137) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
Average Intel Iris Xe Graphics G7 96EUs (9.39 - 51.6, n=157) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA | |
Dell Latitude 14 5420-D2G5W | |
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Average Intel Iris Xe Graphics G7 96EUs (4.13 - 22.9, n=151) | |
Getac S410 Gen 4 | |
Asus ExpertBook B7 Flip B7402FEA |
Witcher 3 FPS Chart
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 78.7 | 65.6 | 18.9 | 8.04 |
The Witcher 3 (2015) | 77.3 | 49.4 | 25.6 | 12.9 |
Dota 2 Reborn (2015) | 83.1 | 67.7 | 48 | 45.7 |
Final Fantasy XV Benchmark (2018) | 39.4 | 20.1 | 15.3 | |
X-Plane 11.11 (2018) | 44.4 | 33.9 | 30.9 | |
Strange Brigade (2018) | 79.2 | 31.5 | 26.8 | 22 |
排放
系统噪音

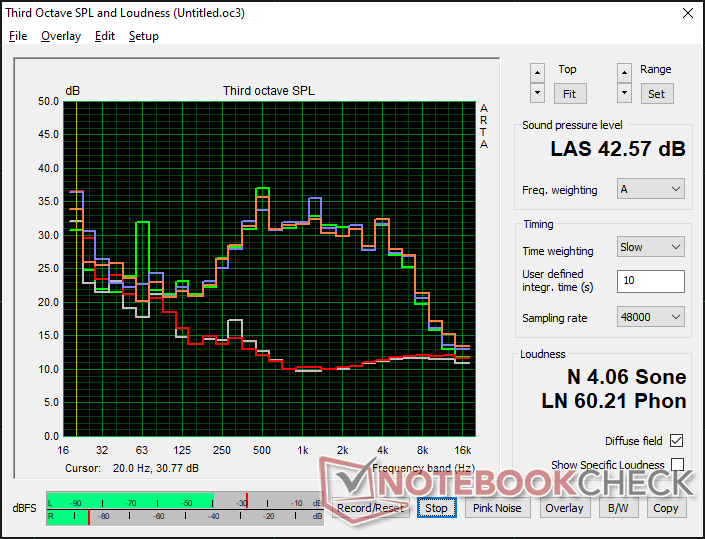

与原来的S410第一代机型相比,风扇噪音似乎更响,更容易出现脉冲。此外,在运行高要求的负载时,内部风扇很快达到最大转速,这意味着脉冲是陡峭和非常明显的。我们建议在较低的功率曲线下运行系统,以减少风扇的脉动。
Noise Level
Idle |
| 23.5 / 23.5 / 28 dB(A) |
Load |
| 42.8 / 42.6 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 23.3 dB(A) |
Getac S410 Gen 4 Iris Xe G7 96EUs, i7-1185G7, SSSTC CA5-8D256 | Dell Latitude 14 5420-D2G5W Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPTPZ-256G | Getac B360 UHD Graphics 620, i7-10710U, Lite-On CA5-8D512 | Getac S410 UHD Graphics 620, i5-8550U, CUKUSA 1 TB SATA SSD Q0526A | Durabook S14I Iris Xe G7 96EUs, i7-1165G7, UDinfo M2P M2P80DE512GBAEP | |
---|---|---|---|---|---|
Noise | -3% | 13% | -2% | -2% | |
off / environment * | 23.3 | 25 -7% | 24.3 -4% | 28.4 -22% | 25.2 -8% |
Idle Minimum * | 23.5 | 25 -6% | 24.5 -4% | 28.4 -21% | 25.2 -7% |
Idle Average * | 23.5 | 25 -6% | 24.5 -4% | 28.4 -21% | 25.2 -7% |
Idle Maximum * | 28 | 25 11% | 24.6 12% | 28.4 -1% | 34.5 -23% |
Load Average * | 42.8 | 36.5 15% | 29.8 30% | 30.3 29% | 34.5 19% |
Witcher 3 ultra * | 42.3 | 27.3 35% | |||
Load Maximum * | 42.6 | 52.4 -23% | 30.8 28% | 33.3 22% | 36.2 15% |
* ... smaller is better
温度

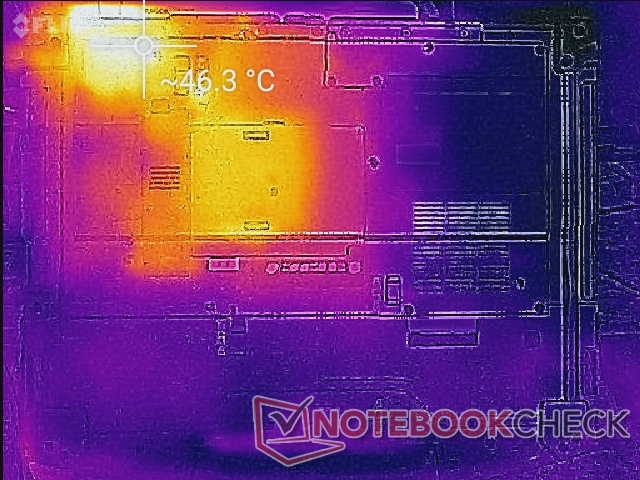

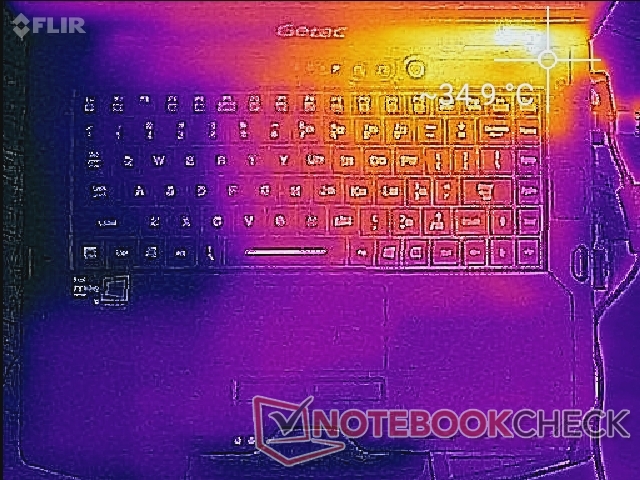

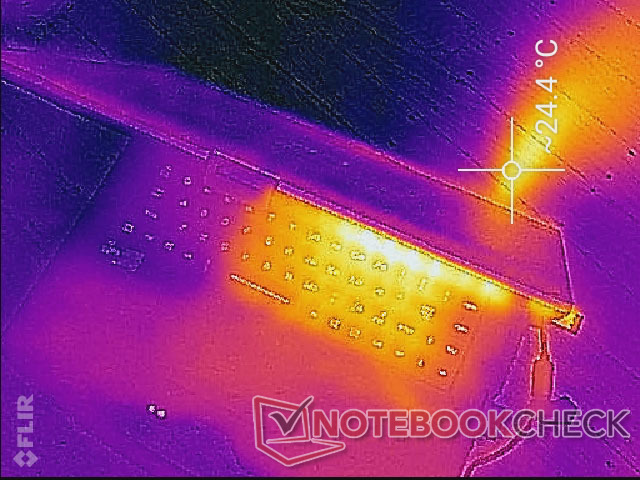

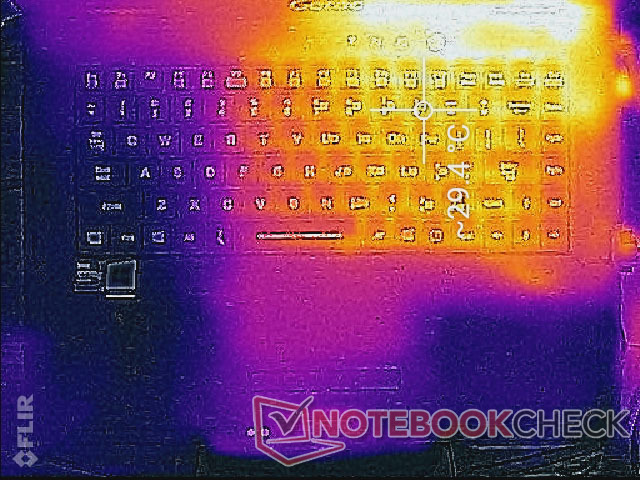

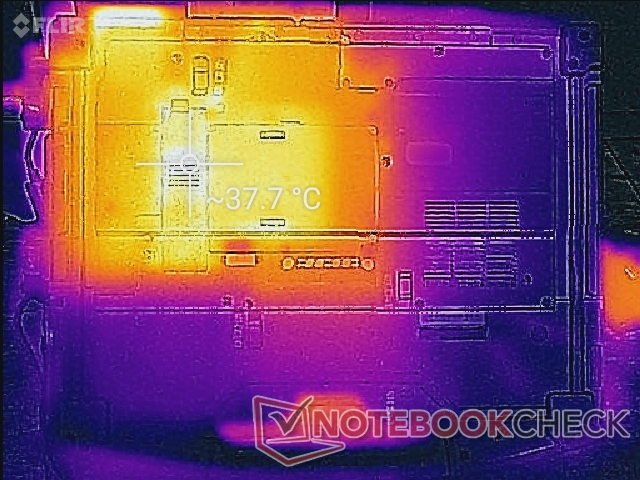

由于处理器和冷却解决方案在机箱内部的位置,机箱右半部分的表面温度比左半部分的温度最高。热点在顶部和底部两侧分别可以达到35摄氏度和46摄氏度,尽管它们是在系统的后部,皮肤不太可能接触到。
(+) The maximum temperature on the upper side is 36 °C / 97 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 46.8 °C / 116 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24 °C / 75.2 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+3.6 °C / 6.5 F).
Getac S410 Gen 4 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | Panasonic Toughbook FZ-55 MK2 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | Getac S410 Intel Core i7-8550U, Intel UHD Graphics 620 | Dell Latitude 5420 Rugged-P85G Intel Core i7-8650U, AMD Radeon RX 540 | Acer Enduro Urban N3 EUN314 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Durabook S14I Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|---|
Heat | 4% | -4% | 1% | 8% | 5% | |
Maximum Upper Side * | 36 | 36.2 -1% | 42.6 -18% | 42.2 -17% | 37.8 -5% | 36.4 -1% |
Maximum Bottom * | 46.8 | 42.2 10% | 49 -5% | 42 10% | 45.8 2% | 38.6 18% |
Idle Upper Side * | 30 | 31 -3% | 30.8 -3% | 31.6 -5% | 26.4 12% | 32.6 -9% |
Idle Bottom * | 38.2 | 34 11% | 34.4 10% | 31.8 17% | 30.2 21% | 33.8 12% |
* ... smaller is better

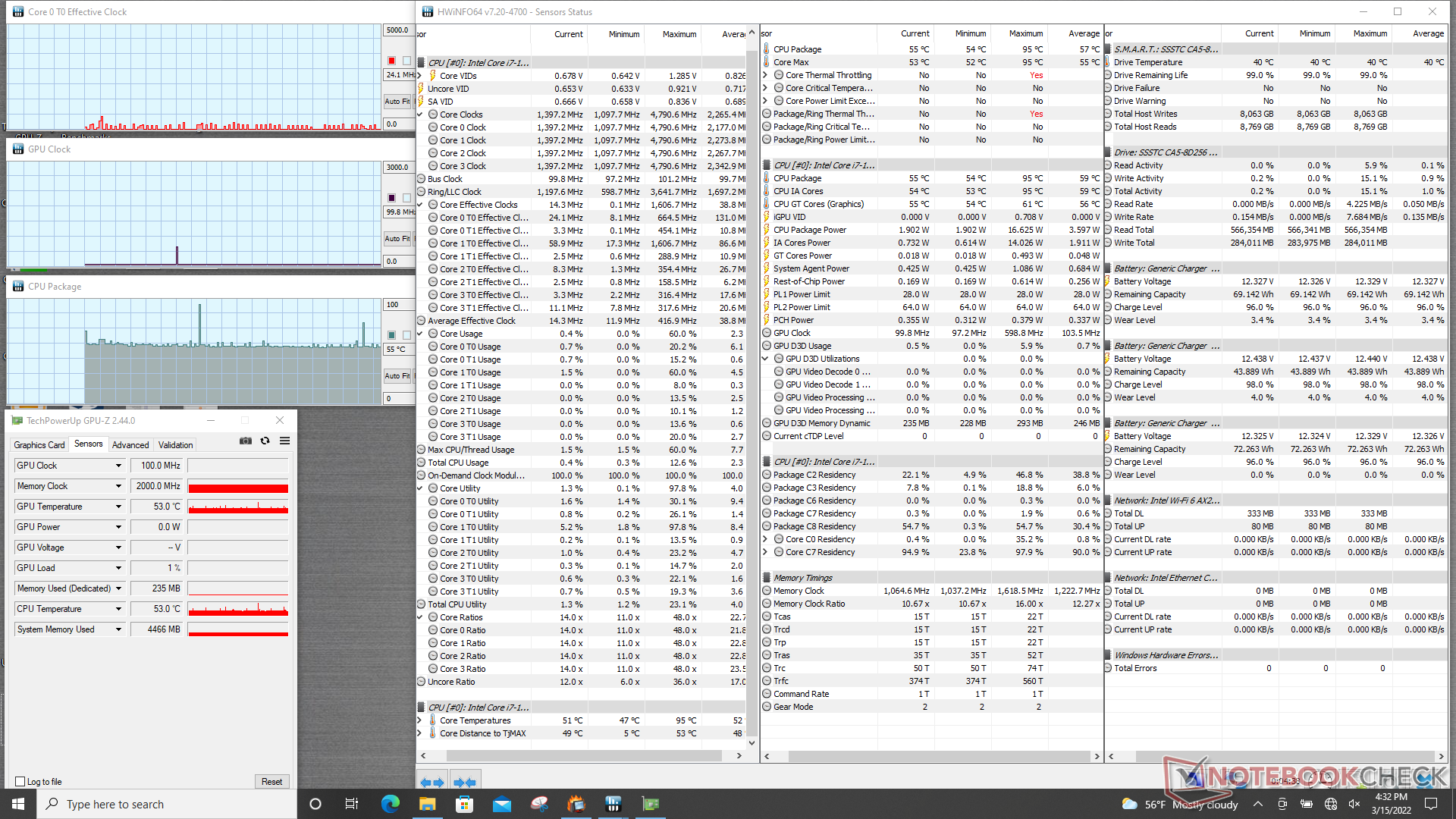

压力测试

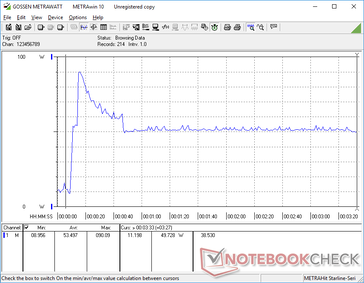

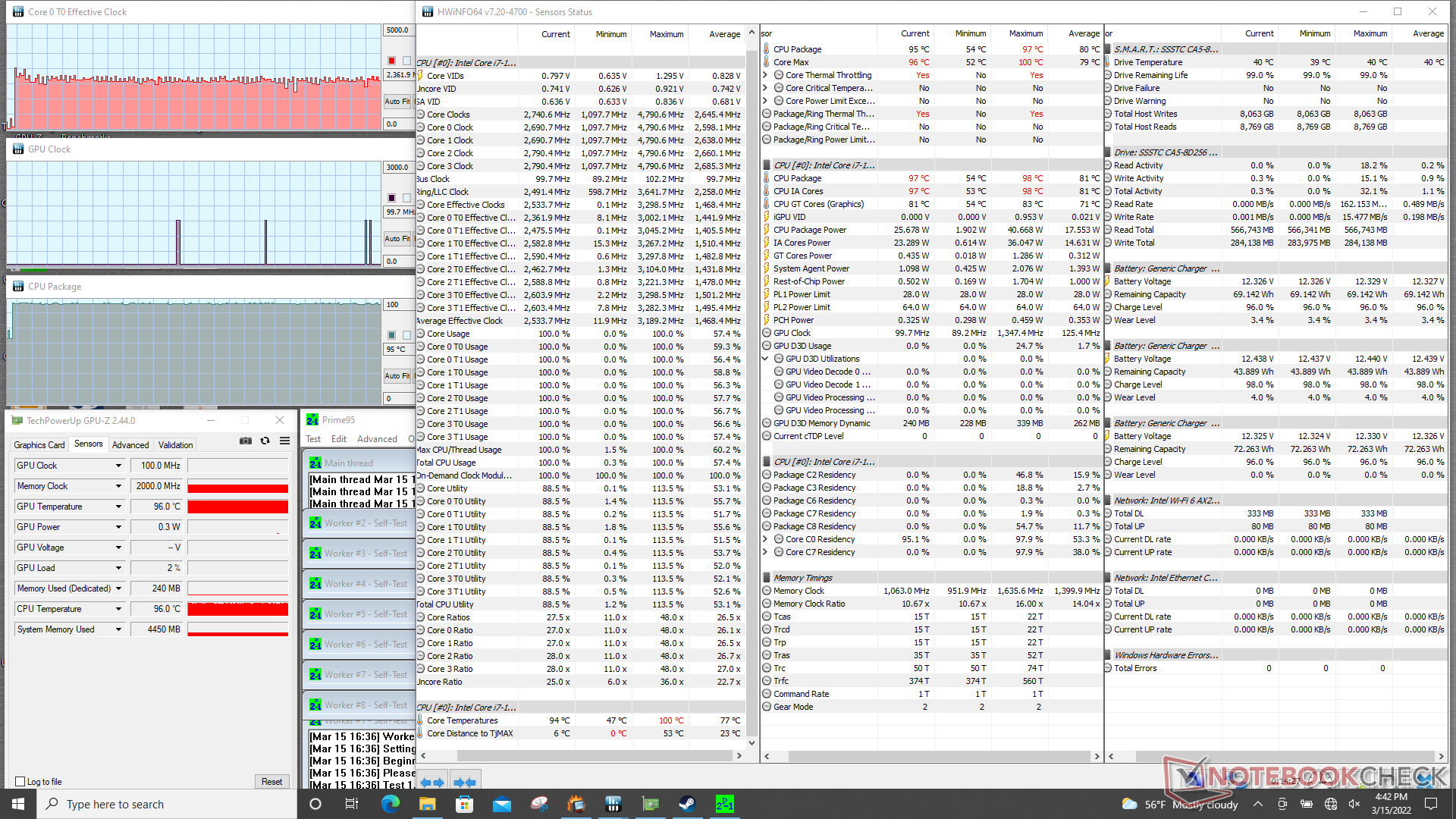

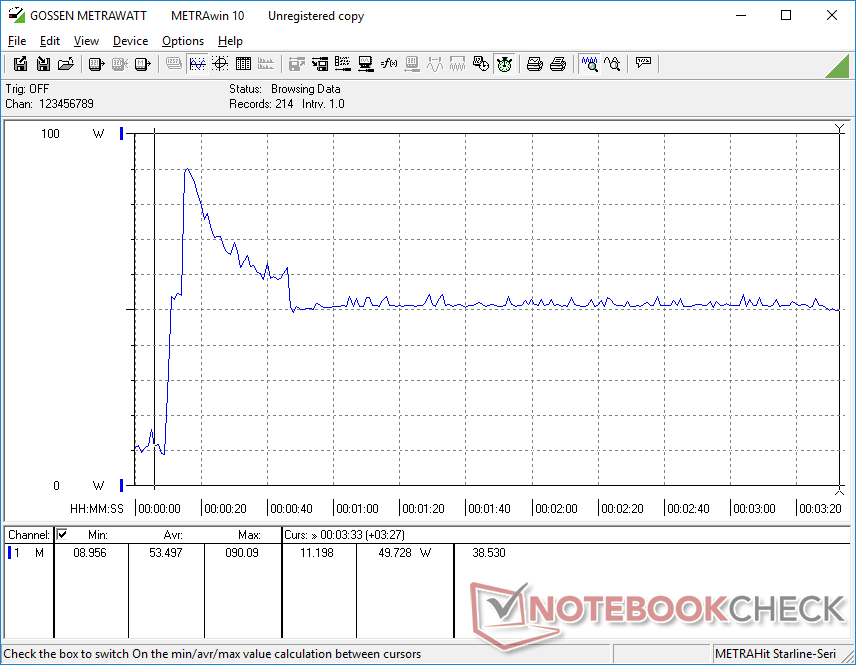

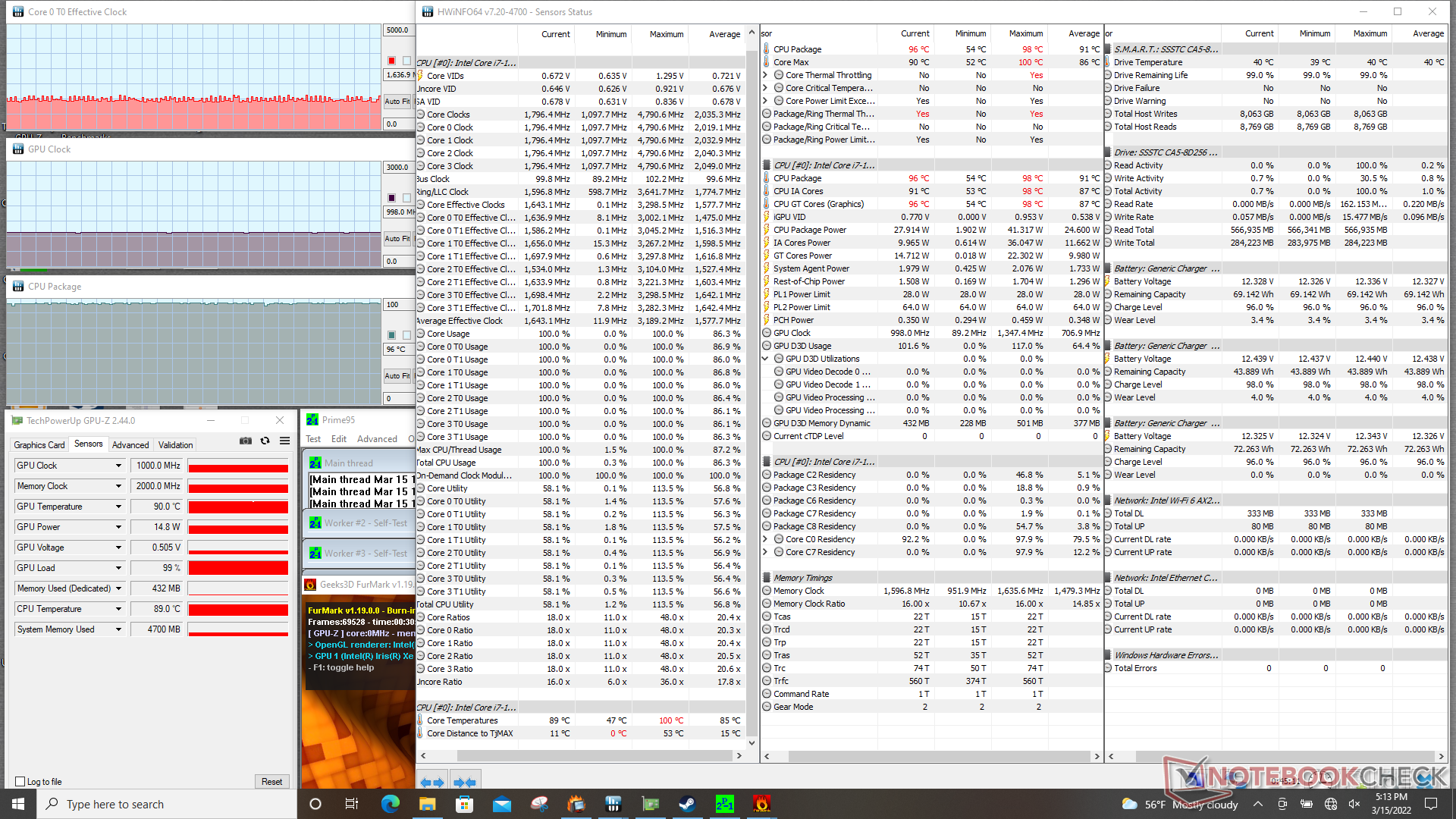

当运行Prime95时,CPU时钟速率会在很短的时间内提升到2.9GHz,然后迅速下降并稳定在2.4GHz。在测试开始时,CPU的封装功率将高达41W,然后稳定在26W。95C的高核心温度表明,在承受苛刻的处理负载时,CPU在机箱的限制范围内尽可能快地运行。相比之下,S410 Gen 1和戴尔Latitude 7330 Rugged的CPU在承受相同条件时,将分别稳定在较低的80 C和62 C。
CPU时钟(GHz) | GPU时钟(MHz) | CPU平均温度(°C) | |
系统空闲 | -- | -- | 55 |
Prime95压力 | 2.3 - 2.4 | - | 95 |
Prime95 + FurMark 压力 | 1.4 - 1.6 | 1000 | 96 |

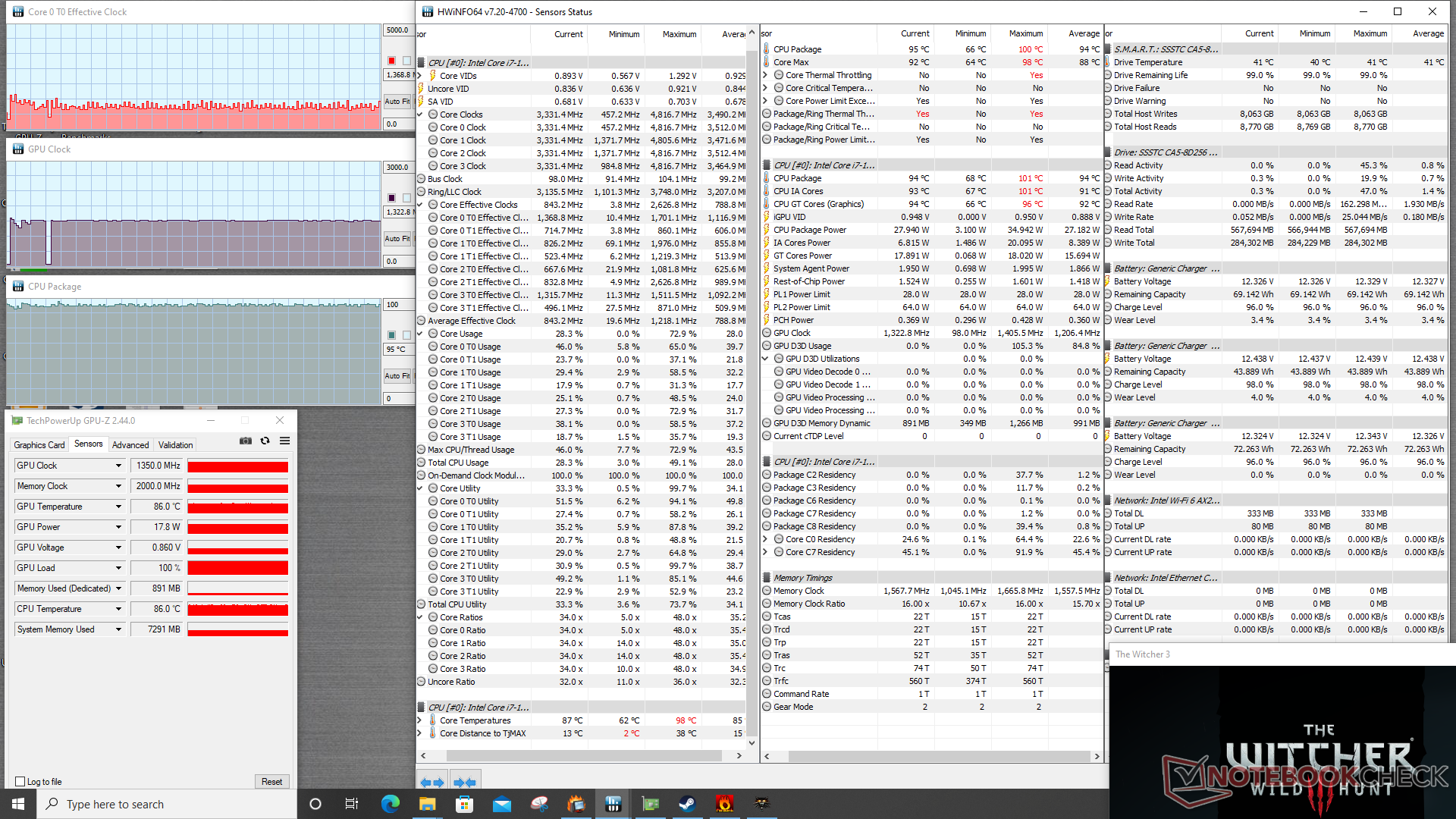

Witcher 3 应力 | 1.2 - 1.4 | 1350 | 95 |
发言人

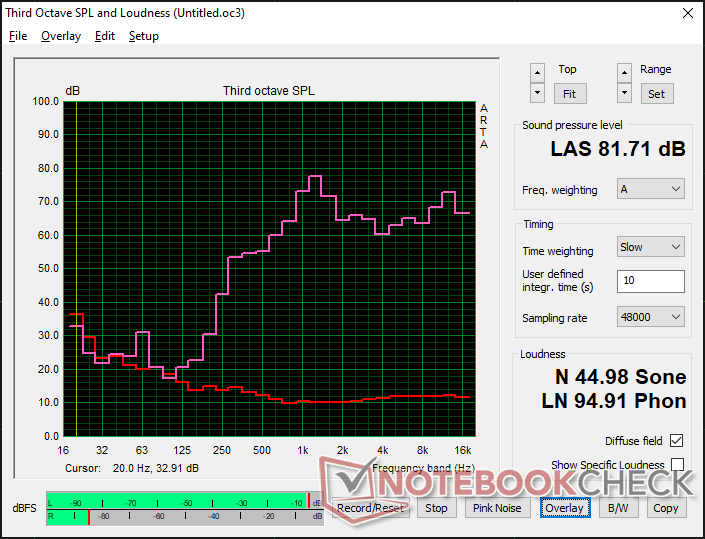

Getac S410 Gen 4 audio analysis
(±) | speaker loudness is average but good (81.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 32.3% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.8% higher than median
(±) | linearity of mids is average (9.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.2% difference to median)
Compared to same class
» 68% of all tested devices in this class were better, 9% similar, 23% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 70% of all tested devices were better, 6% similar, 24% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
消耗功率

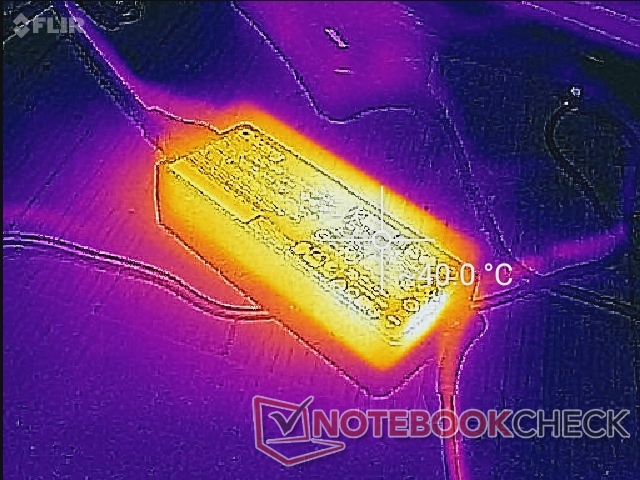

该系统配备了一个小的(约12.8 x 5.2 x 3.0厘米)和相对较高容量的90 W交流适配器,而S410 Gen 1和其他大多数14英寸超极本的交流适配器则是65 W。更高的容量基本上 "解锁 "了CPU,因此它可以在潜在的更高的TDP目标下运行,从而以更高的时钟速率超越许多使用相同处理器的其他笔记本电脑。如果连接不同的Thunderbolt兼容的配件,更高的功率输出也可以派上用场,并且无论屏幕上的活动如何,都可以保持稳定的充电率。
对于一个14英寸的外形尺寸来说,功耗是很高的。桌面上的闲置功率在8W到15W之间,比预期的要求高两倍,部分原因是超亮的显示屏。同时,运行更高的负载,如游戏,将消耗约50W,而旧的S410 Gen 1的功耗约为33W。
Off / Standby | 0.34 / 6 Watt |
Idle | 8.3 / 10.5 / 14.9 Watt |
Load |
48.6 / 90.1 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Getac S410 Gen 4 i7-1185G7, Iris Xe G7 96EUs, SSSTC CA5-8D256, IPS, 1920x1080, 14" | Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs, Samsung PM9A1 MZVL21T0HCLR, IPS, 1900x1200, 14" | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, WDC PC SN530 SDBPTPZ-256G, IPS, 1920x1080, 14" | Getac B360 i7-10710U, UHD Graphics 620, Lite-On CA5-8D512, IPS, 1920x1080, 13.3" | Getac S410 i5-8550U, UHD Graphics 620, CUKUSA 1 TB SATA SSD Q0526A, TN PED, 1366x768, 14" | Durabook S14I i7-1165G7, Iris Xe G7 96EUs, UDinfo M2P M2P80DE512GBAEP, TN, 1920x1080, 14" | |
---|---|---|---|---|---|---|
Power Consumption | 40% | 36% | 15% | 39% | -3% | |
Idle Minimum * | 8.3 | 3.2 61% | 3.4 59% | 5.4 35% | 5.6 33% | 6.8 18% |
Idle Average * | 10.5 | 6.3 40% | 7.1 32% | 12.2 -16% | 7.9 25% | 16.4 -56% |
Idle Maximum * | 14.9 | 7.5 50% | 8.4 44% | 12.6 15% | 8.4 44% | 16.9 -13% |
Load Average * | 48.6 | 35 28% | 35.3 27% | 39.1 20% | 32.8 33% | 39.2 19% |
Witcher 3 ultra * | 50.9 | 35.4 30% | 35.4 30% | 36.5 28% | ||
Load Maximum * | 90.1 | 63 30% | 67 26% | 81.8 9% | 34.3 62% | 73.1 19% |
* ... smaller is better

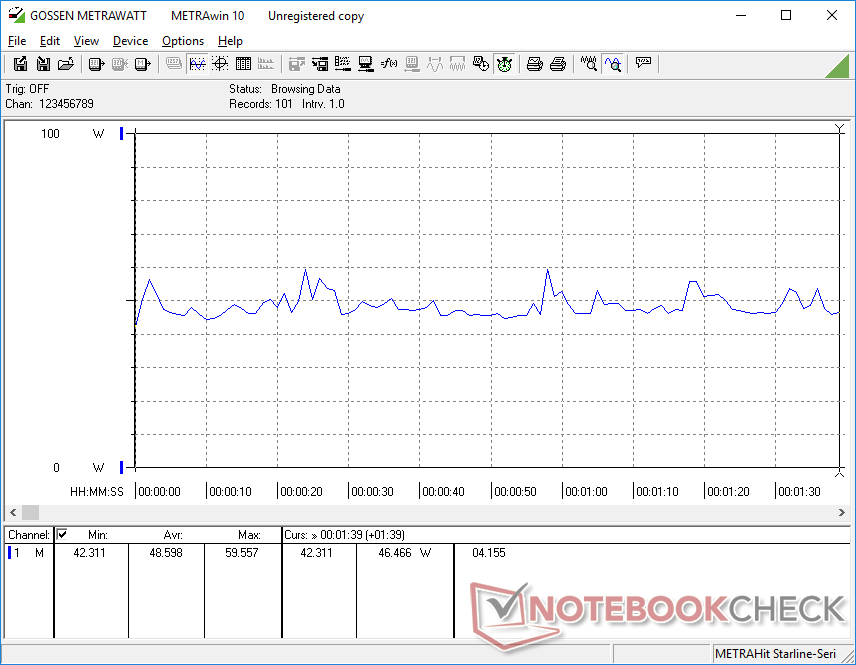

Power Consumption Witcher 3 / Stresstest

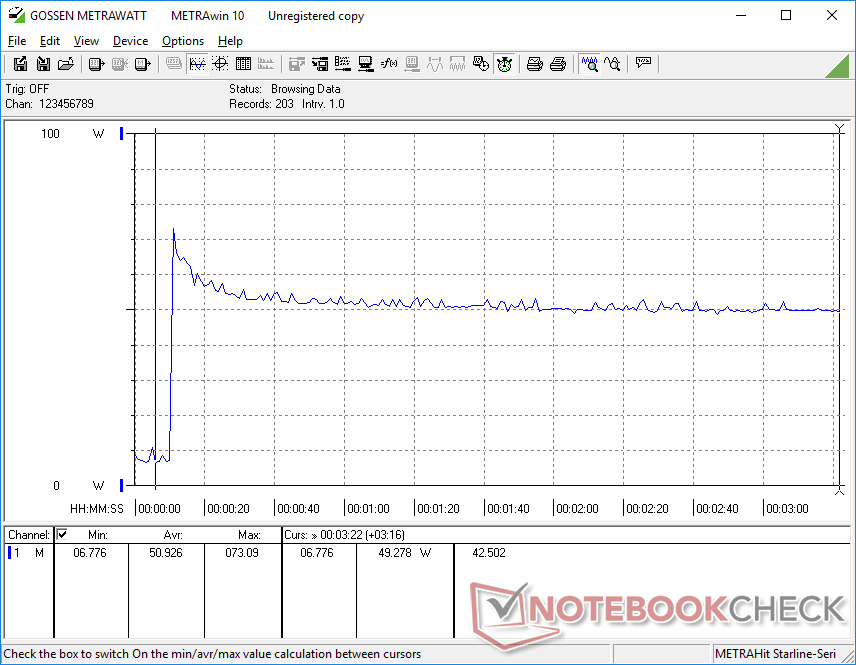

Power Consumption external Monitor
电池寿命
该模型可以同时支持多个电池。我们的特定装置集成了一个44Wh的内部电池,加上两个各75Wh的可移动电池,总共有194Wh。可移动电池通过机箱边缘的对接槽安装。我们能够记录到所有三块电池的实际WLAN运行时间超过28小时。
该系统不能通过USB-C充电。
Getac S410 Gen 4 i7-1185G7, Iris Xe G7 96EUs, 194 Wh | Asus ExpertBook B7 Flip B7402FEA i7-1195G7, Iris Xe G7 96EUs, 63 Wh | Dell Latitude 14 5420-D2G5W i5-1135G7, Iris Xe G7 80EUs, 63 Wh | Getac B360 i7-10710U, UHD Graphics 620, 46 Wh | Getac S410 i5-8550U, UHD Graphics 620, 46.6 Wh | Durabook S14I i7-1165G7, Iris Xe G7 96EUs, 50 Wh | |
---|---|---|---|---|---|---|
Battery Runtime | -59% | -55% | -72% | -82% | -81% | |
WiFi v1.3 | 1715 | 705 -59% | 769 -55% | 484 -72% | 312 -82% | 329 -81% |
Reader / Idle | 1371 | |||||
Load | 146 |
Pros
Cons
判决书
第10代英特尔和第11代英特尔之间的差异很大,特别是在图形性能方面。新的Iris Xe GPU比上一代UHD Graphics 620至少快2-3倍,而不需要消耗更多的电力,每瓦性能明显提高。如果你的工作负荷在GPU上很重,那么即使是这种简单的处理器更新也能提供比上一代S410型号明显更流畅的性能。
机箱在4年多的时间里基本没有变化,这意味着我们在2018年提到的许多相同的缺点在这个2022年的版本上仍然存在。我们很希望看到QoL方面的改进,例如更容易打开的端口盖,更高分辨率的网络摄像头,甚至是USB-C供电,这将使该系统在专有的AC适配器不可用时更加通用。脉宽调制仍然存在,这意味着对屏幕闪烁敏感的用户可能要避免长时间使用S410。相比之下, DellLatitude 7330 Rugged没有这种闪烁行为,同时集成了更容易打开的端口盖和USB-C PD。
价格和可用性
用户可以在这里向制造商,要求提供报价。.
Getac S410 Gen 4
- 05/18/2022 v7 (old)
Allen Ngo
