Honor MagicBook View 14评论。14英寸笔记本电脑的触摸爱好者
再次,目前Honor 笔记本电脑对欧洲和美国消费者来说相当困难。制造商的全球主页只提到了除中国以外的几个MagicBook View 14的官方分销国家。根据法国网站,我们审查的版本配备了 酷睿i7-11390H,16GB内存,512GB固态硬盘和90赫兹面板的价格约为1150欧元(约合1307美元),对于所安装的硬件来说,既不便宜也不特别昂贵。
View 14的竞争对手包括其他精简的14英寸笔记本电脑,如 联想IdeaPad Slim 7i Pro,它也有一个光亮的高分辨率触摸屏和一个并不 "适当 "省电的CPU。大多数竞争者倾向于选择28瓦的芯片,承诺(甚至)延长电池运行时间。这些产品包括,例如, MSI Prestige 14 Evo,以及LG Gram 14,以及内部的 MagicBook 14.所有提到的笔记本电脑都作为对比设备出现在表格中。
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
Possible contenders in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
---|---|---|---|---|---|---|---|
86.4 % v7 (old) | 01 / 2022 | Honor MagicBook View 14 i7-11390H, Iris Xe G7 96EUs | 1.5 kg | 14.5 mm | 14.20" | 2520x1680 | |
86.9 % v7 (old) | 10 / 2021 | Lenovo IdeaPad Slim 7i Pro 14IHU5 i7-11370H, Iris Xe G7 96EUs | 1.4 kg | 16.9 mm | 14.00" | 2880x1800 | |
82.5 % v7 (old) | 01 / 2021 | MSI Prestige 14 Evo A11M-005 i7-1185G7, Iris Xe G7 96EUs | 1.2 kg | 16 mm | 14.00" | 1920x1080 | |
88.3 % v7 (old) | 06 / 2021 | LG Gram 14Z90P-G.AA79G i7-1165G7, Iris Xe G7 96EUs | 967 g | 16.8 mm | 14.00" | 1920x1200 | |
84.9 % v7 (old) | 05 / 2021 | Honor Magicbook 14 i7-1165G7 i7-1165G7, Iris Xe G7 96EUs | 1.4 kg | 15.9 mm | 14.00" | 1920x1080 |
案例

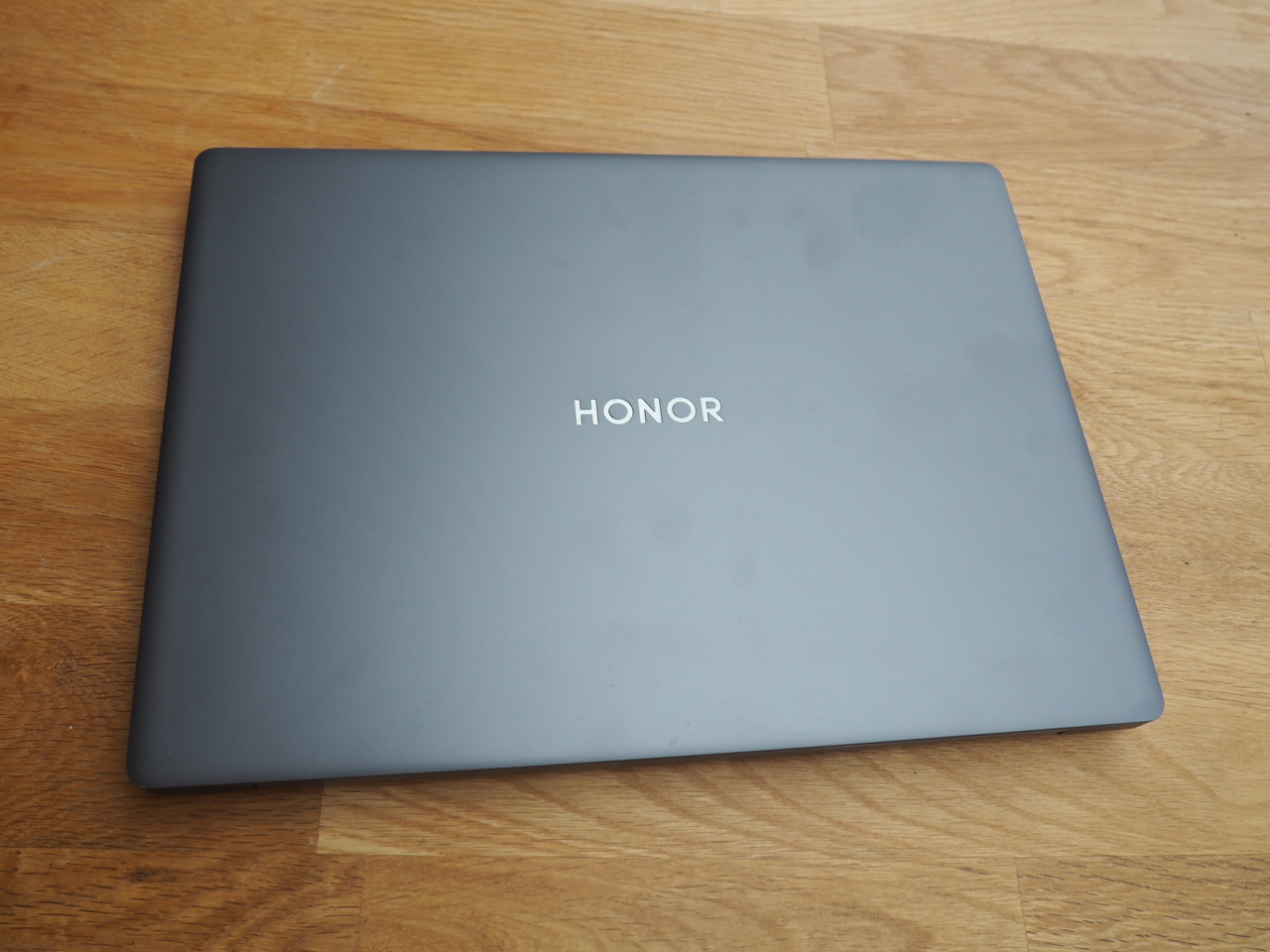

在质量方面,View 14没有留下批评的余地。铝制底盘具有非常高质量和令人愉悦的坚固性。因此,在强大的压力下,表面只有一点点弯曲(例如在键盘区域)。

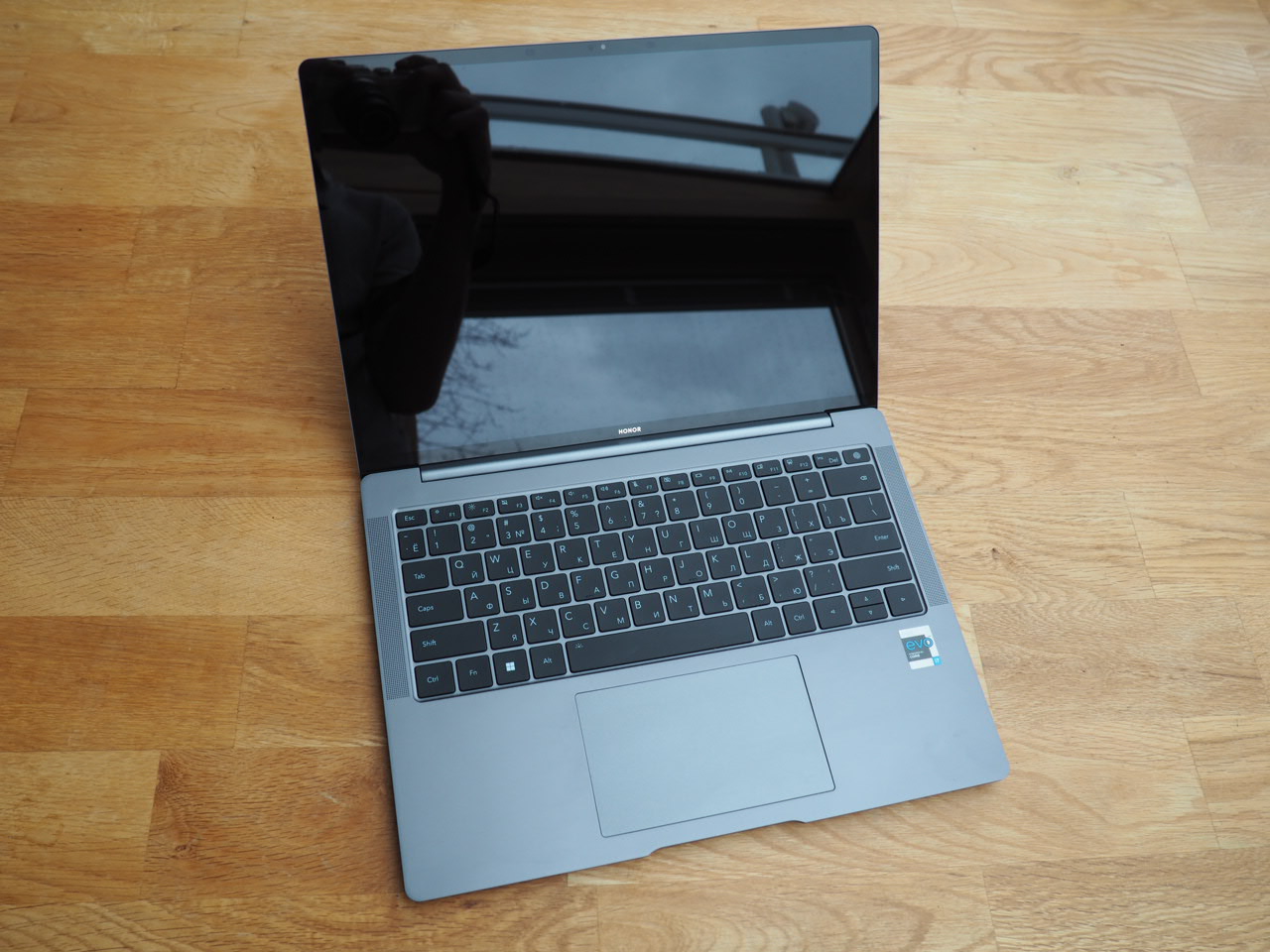

该设备的设计看起来既简单又优雅。特别是显示屏,感觉它没有边框,看起来非常现代,尽管屏幕的光泽度使它成为一个真正的指纹磁铁,并使清洁它成为一项频繁的任务。

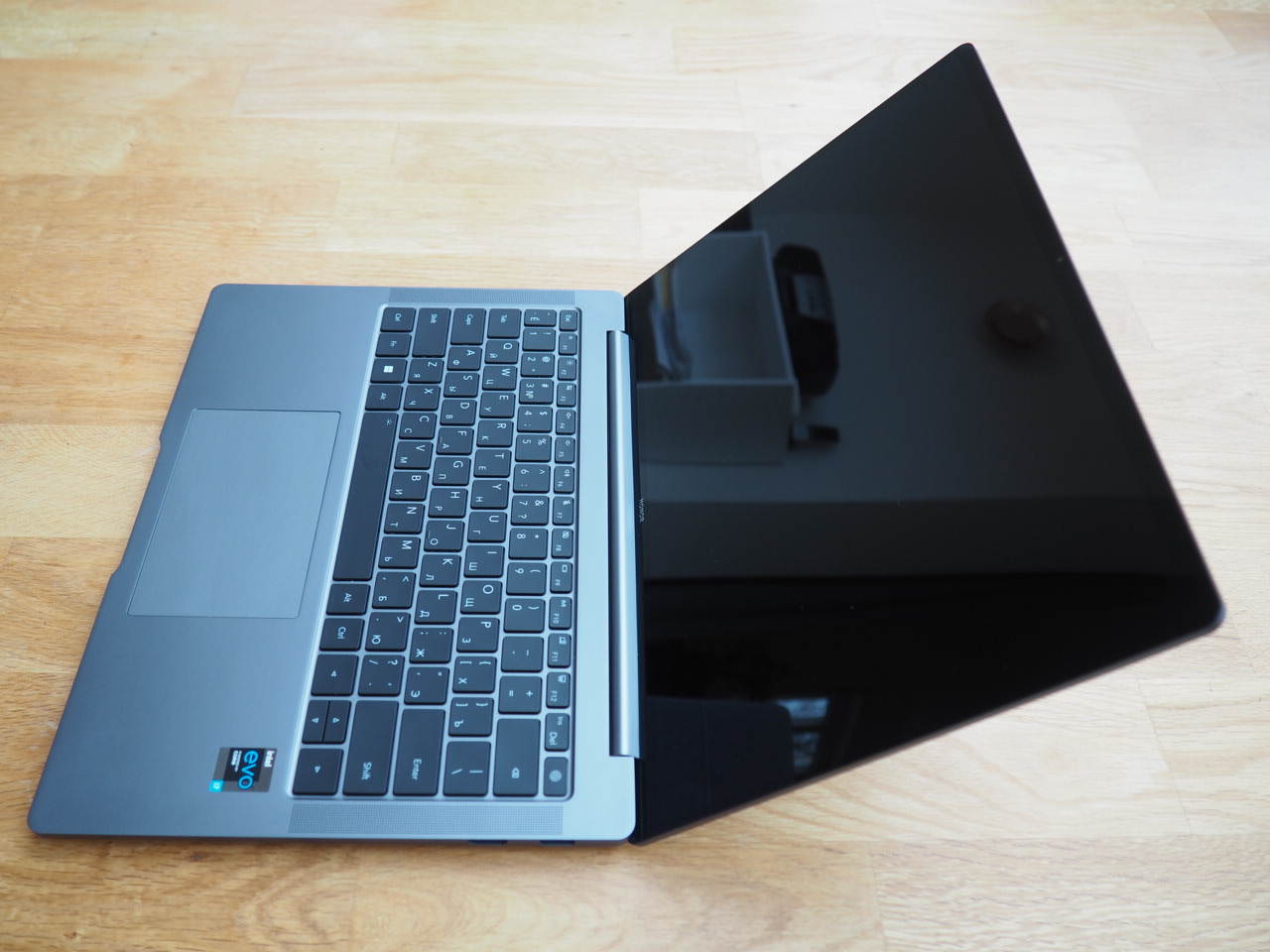

宽大的铰链结构给人留下了良好的印象。虽然当你打开笔记本电脑时,底座有时会有点摇晃,但所需的位置却保持得很牢固。另一方面,最大打开角度(约135°)是制造商可以微调一下的地方。
最大的(视觉)亮点之一是超薄的结构。虽然由于显示器的长宽比不同,占地面积在一定程度上具有可比性,但View 14拥有测试领域内最低的厚度,纸面上为14.5毫米(不含机箱脚)。Honor 笔记本电脑比竞争对手更重,尽管它在1.5公斤左右的情况下仍可舒适携带。根据主页上的信息,这款14英寸的笔记本还有蓝色时间和太空灰两种颜色可供选择。
连接性

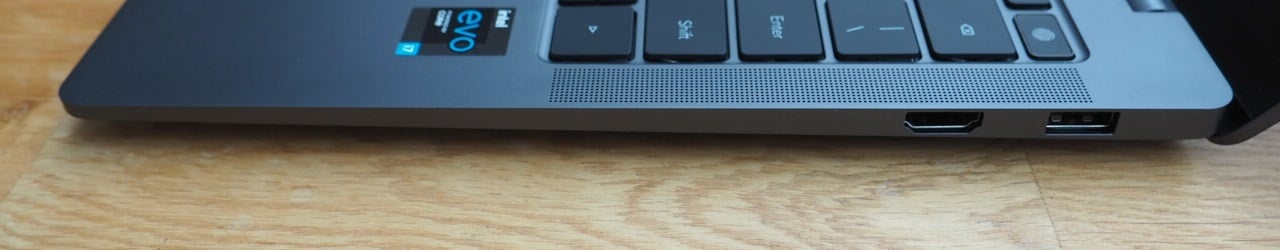

端口

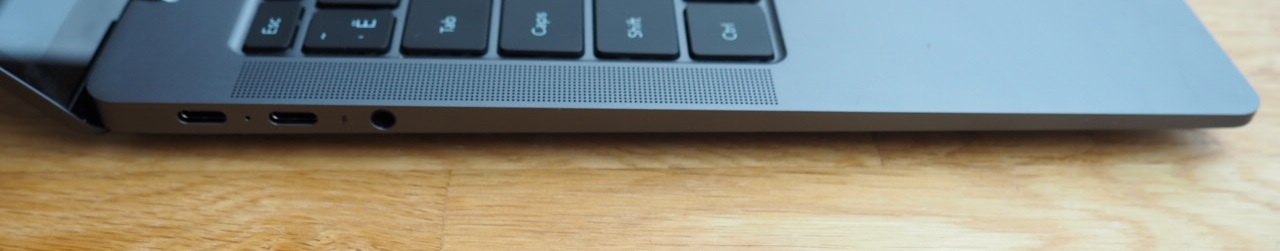

在连接方面,Honor 遵循"Apple 趋势",接口越来越少。这意味着你不仅要没有RJ45端口(这在空间上也会有点拥挤),而且还要没有读卡器、Kensington锁插槽和专用的DisplayPort。
三个USB端口也是相当稀缺的,尤其是在充电或使用笔记本电脑插电时,其中一个可用的Type-C端口必须用于附带的电源适配器。至少两个Type-C端口都支持DisplayPort功能,这意味着理论上最多可以用HDMI端口连接三台显示器。另一个亮点是,其中一个Type-C端口支持Thunderbolt 4/USB 4。该包装由一个组合音频插孔完成。
由于所有的端口都位于笔记本电脑的后半部分,在使用外部鼠标时,两侧有足够的空间。
沟通
一个来自英特尔的无线模块处理无线通信。与竞争对手类似,Honor ,使用Wi-Fi 6 AX201,这是一个非常快速和技术先进的芯片,在View 14中表现得特别好。在我们的Wi-Fi测试中(与Netgear Nighthawk AX12参考路由器的距离为1米),该设备在发送和接收数据方面都取得了第一名。
网络摄像头
按照笔记本电脑的标准,网络摄像头出乎意料地好。这并不令人惊讶,因为Honor ,并不是简单地使用720p或1080p的分辨率;而是使用500万像素的网络摄像头,这在我们的样本照片中是绝对明显的(关键词:图像清晰度)。色彩准确度也高于通常在大多数笔记本电脑中发现的,但当然,你也不应该指望这里有什么一流的东西。很好:与MagicBook 14相比,网络摄像头没有藏在键盘里("鼻孔摄像头"),而是坐在传统的位置上--尽管没有隐私快门。
安全问题

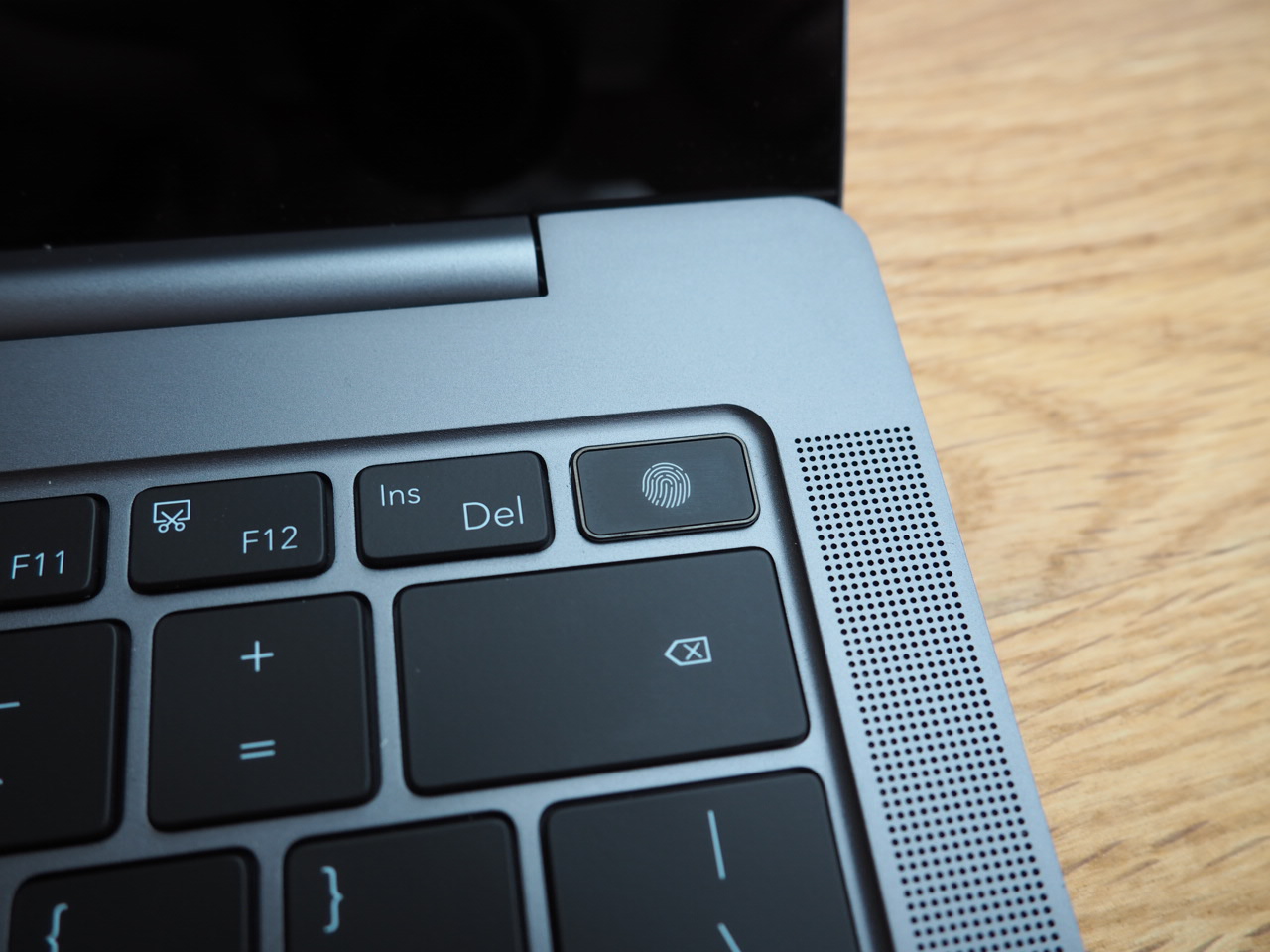

电源键不方便地放在键盘区,如果需要的话,它可以作为指纹识别器使用。
辅料

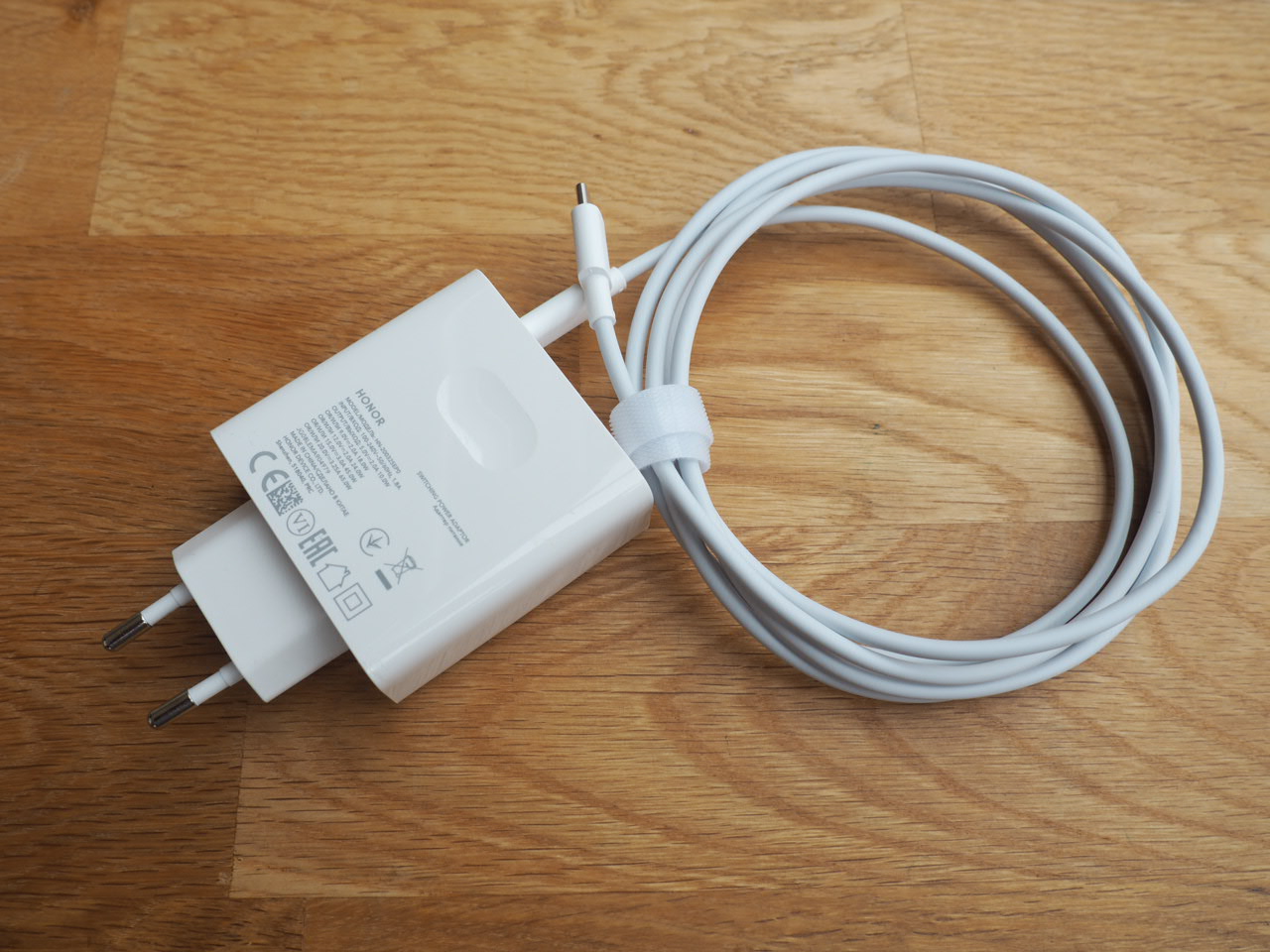

像往常一样,盒子里只有几件物品。除了一个令人愉快的轻巧的65瓦电源适配器,你只能找到一些信息手册。
维护

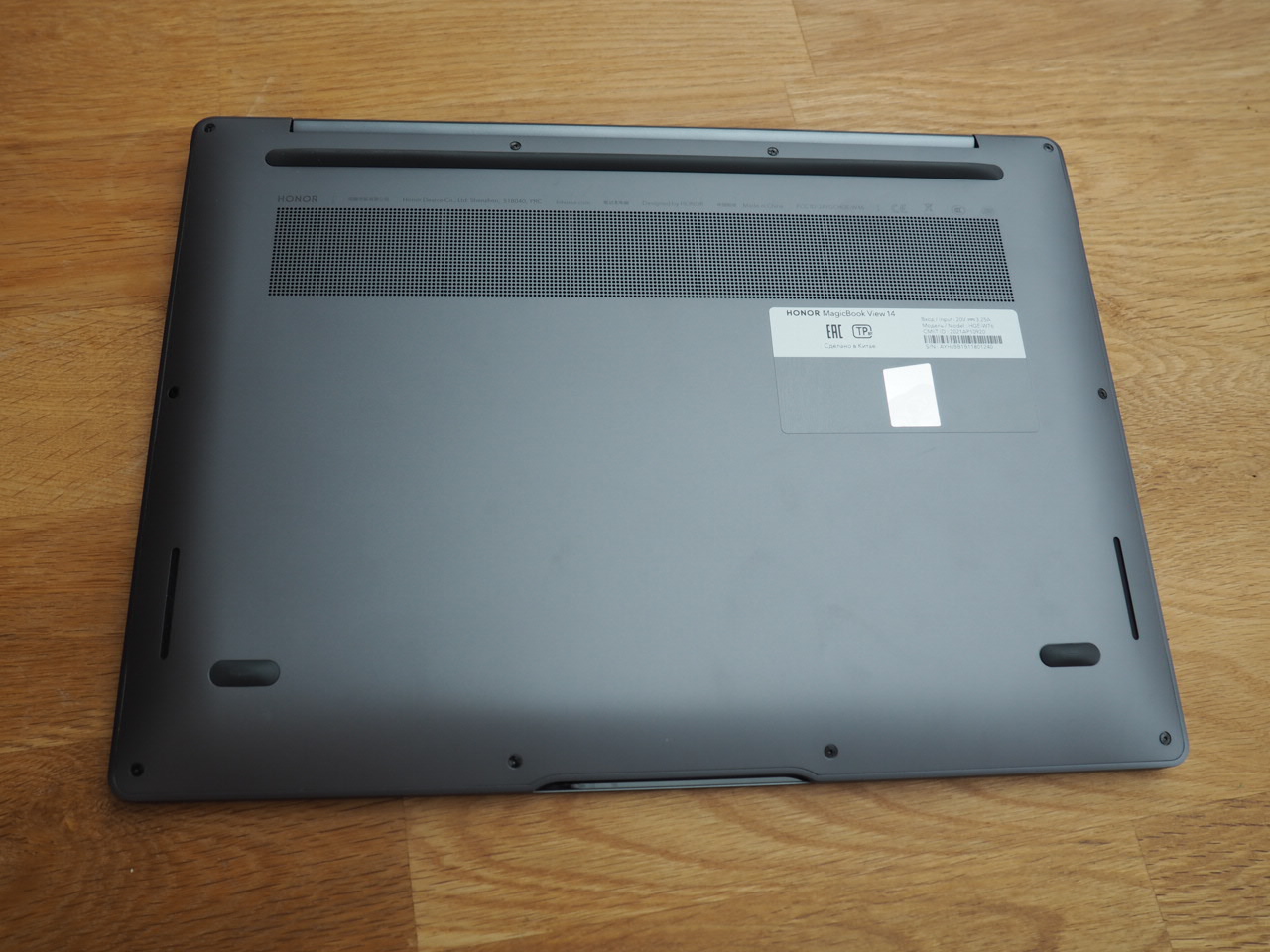

说到维护,我们的感觉很复杂。虽然用合适的螺丝刀可以相对快速和容易地拆下10颗Torx螺丝,但底盖仍然坐得很紧,必须用平坦的工具和相当大的力量才能撬开,这可能会吓跑许多业余或经验不足的用户(我们在试图打开它时几乎放弃了,因为担心会损坏外壳或硬件)。

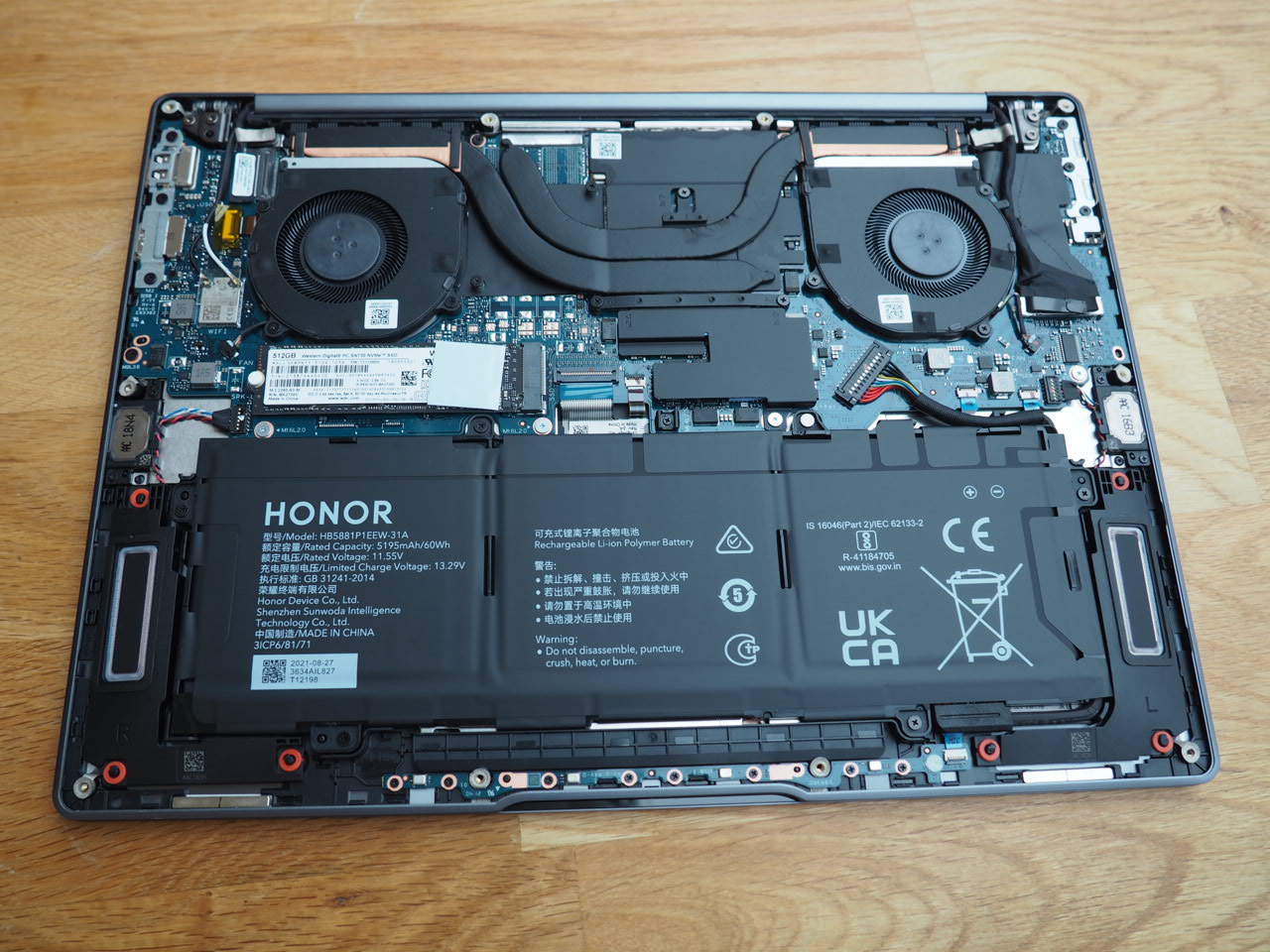

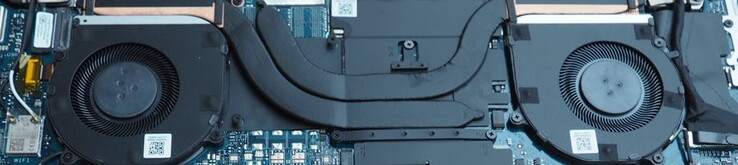

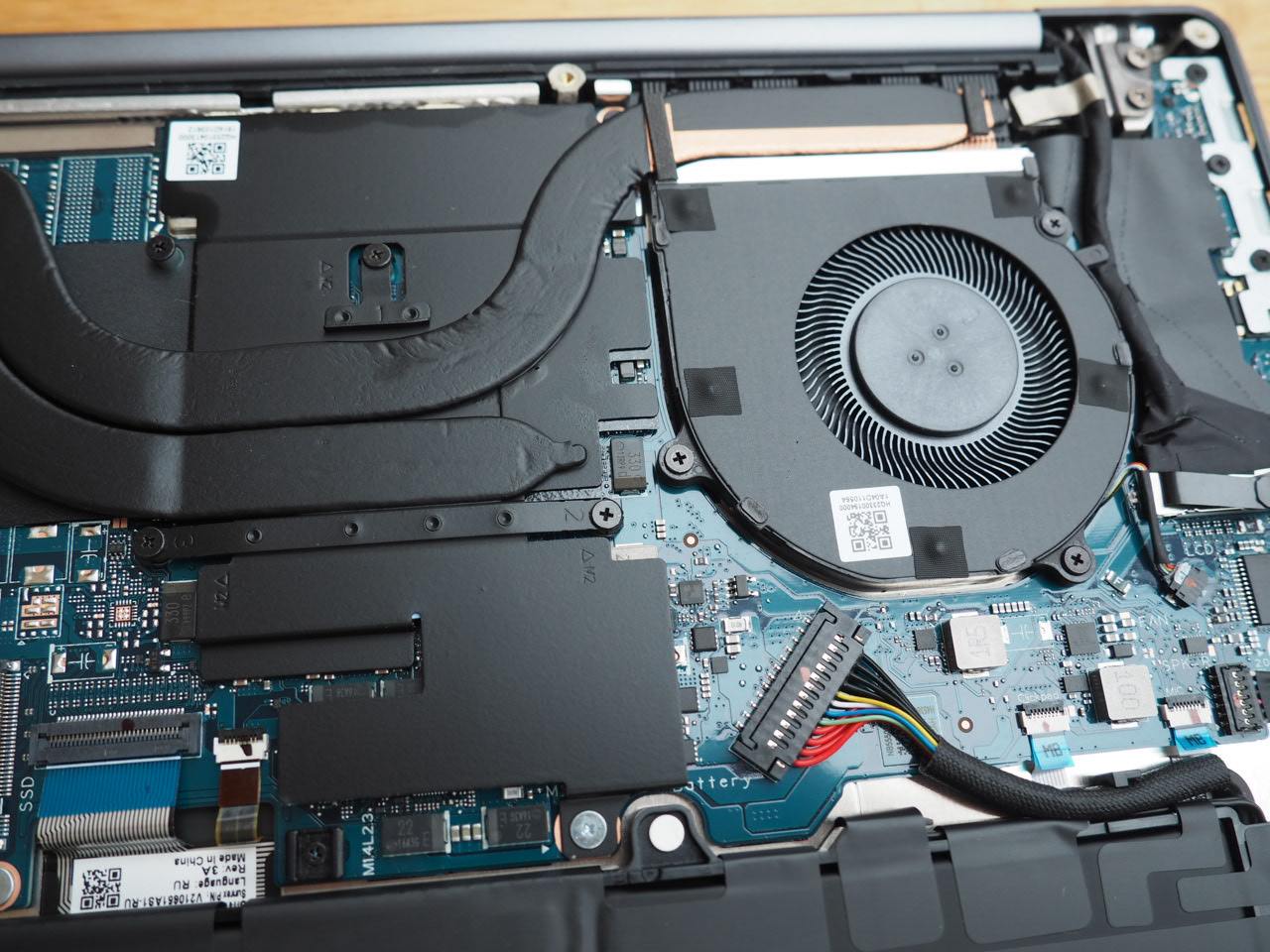

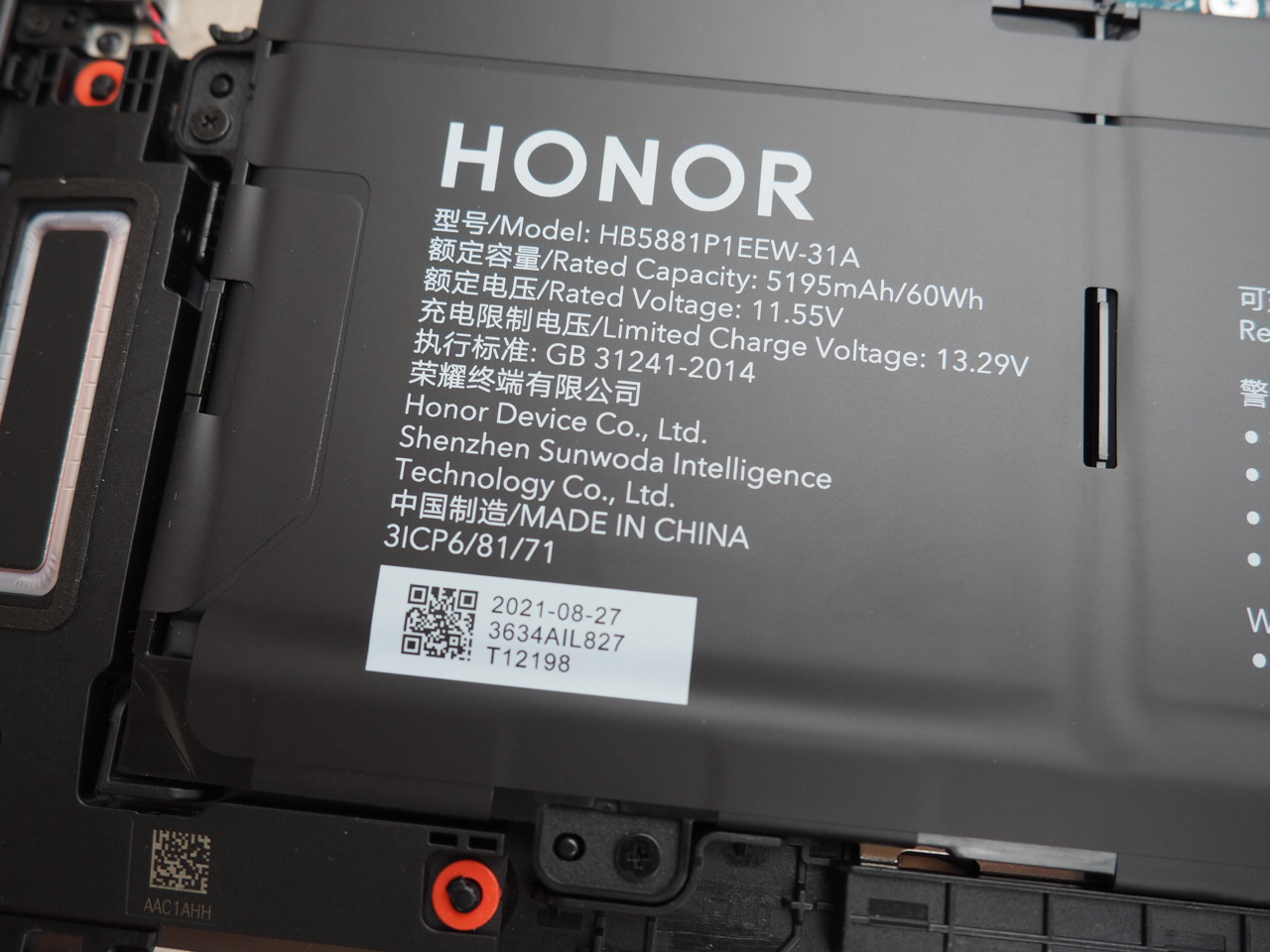

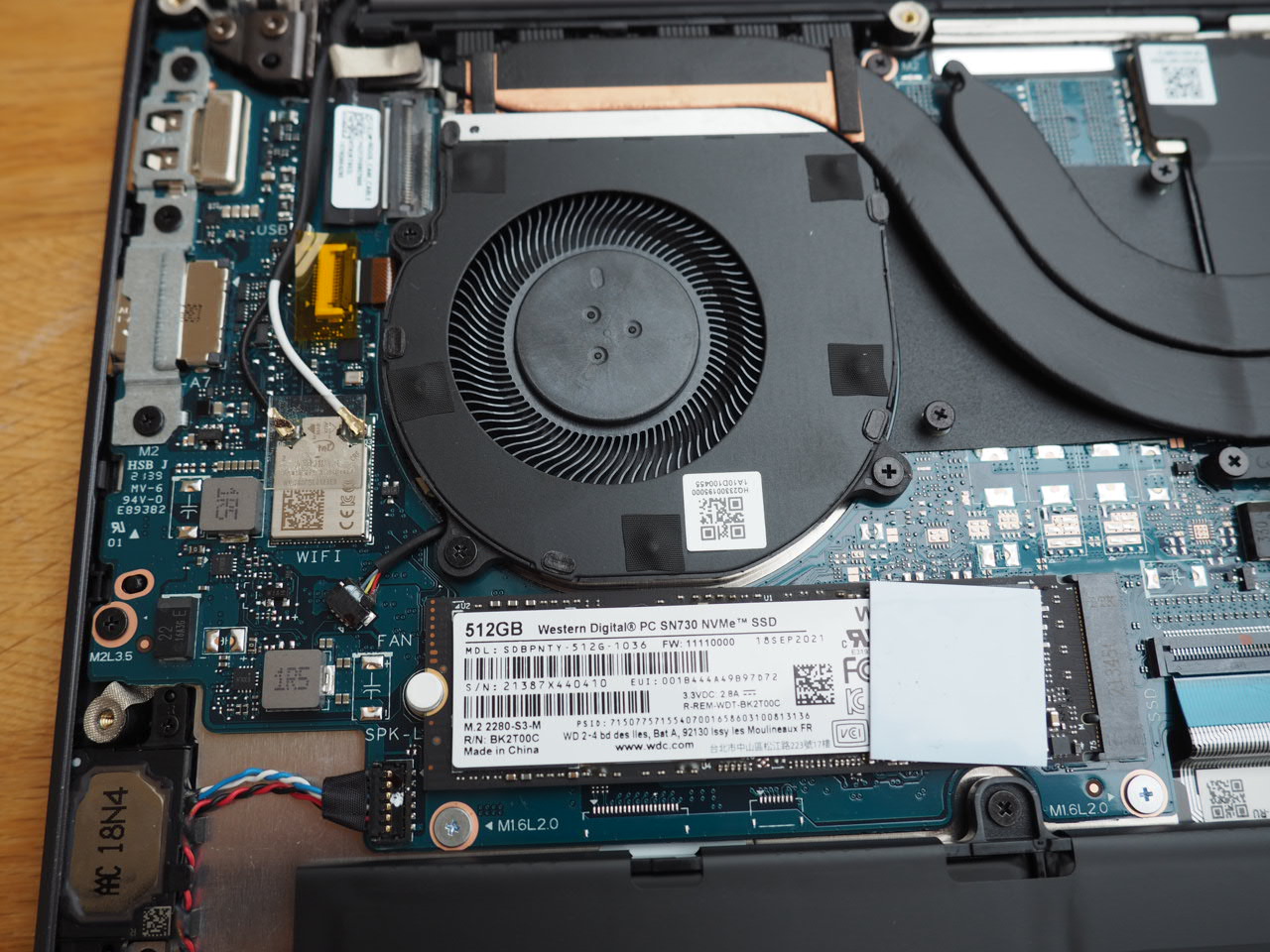

一旦你进入内部,你会看到一个非常整洁的布局。固态硬盘和无线模块,以及电池和冷却系统(双风扇解决方案)都可以使用。另一方面,令人遗憾的是,Honor ,没有选择RAM插槽来扩展内存。集成的16GB是焊接的,当涉及到耐用性和维修时,这不是一个好主意,这对我们来说是一个很大的减分点。
输入设备
键盘

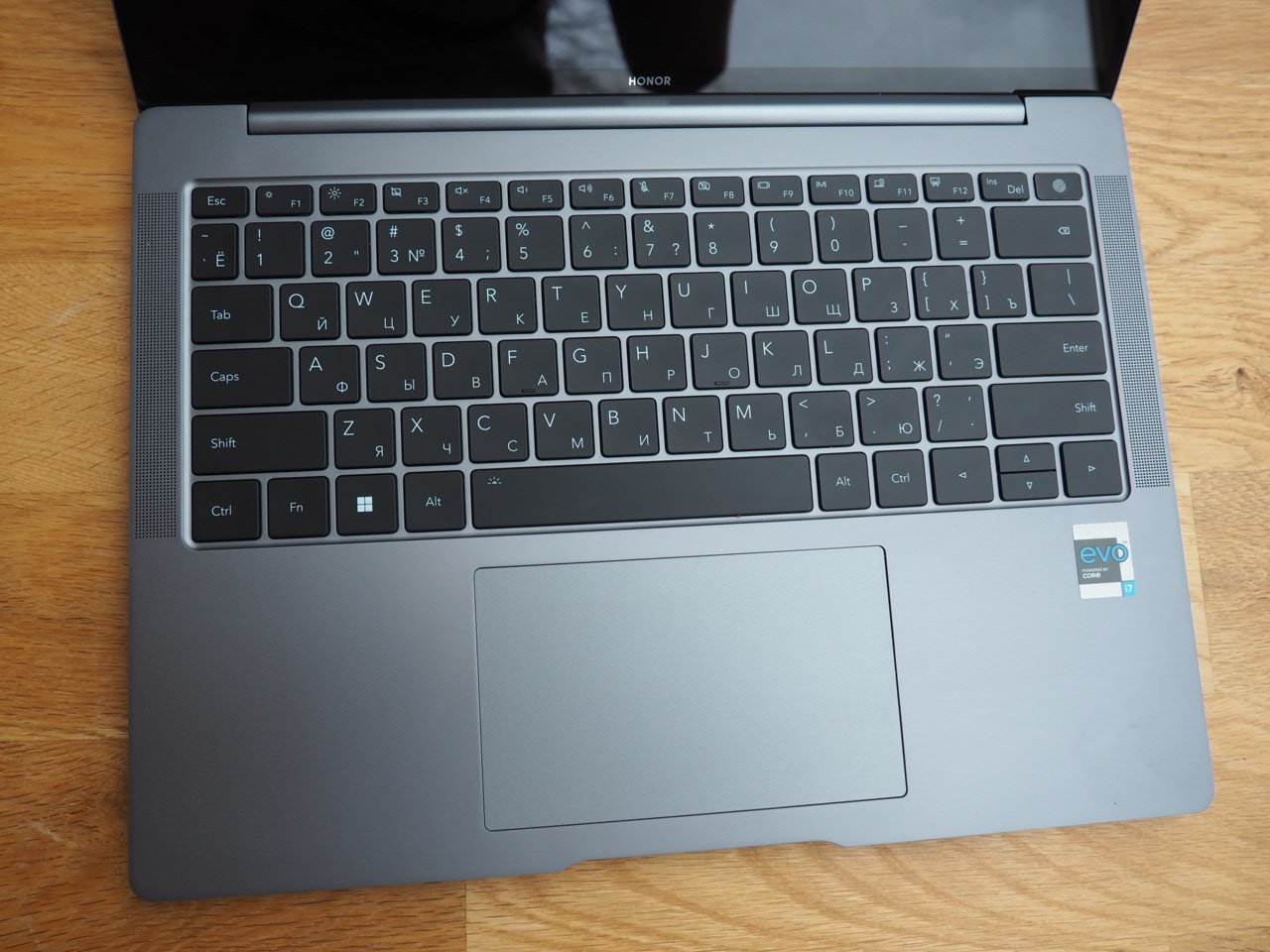

不幸的是,我们只能在有限的范围内评估键盘布局,因为Honor ,给我们寄来了一个带有俄罗斯键盘的模型,它与美国/欧盟市场上常见的QUERTY和QUERTZ布局有时是不同的(至少在二级和三级分配方面)。然而,一些令人遗憾的细节,如插入/删除组合键,可能适用于所有型号。

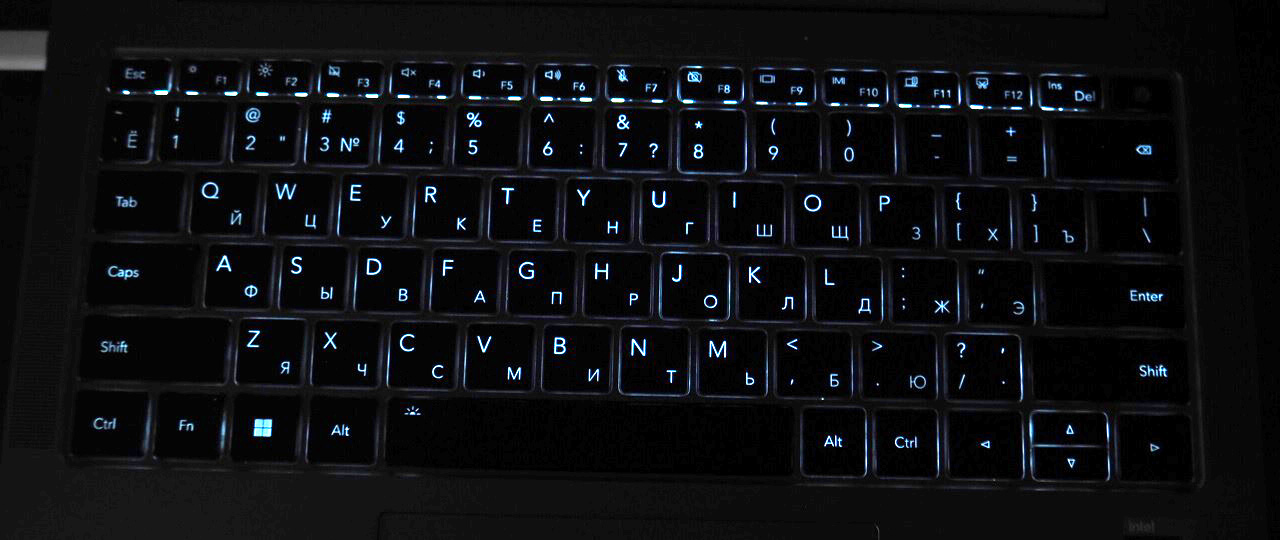

总的来说,该键盘的性能还算不错。虽然键程很短,而且键程可以更有力、更明确,但我们仍然认为反馈足够,适合日常使用。一些用户可能对白色背光不完全满意,因为它缺乏强度,可以在三个级别中进行调整。

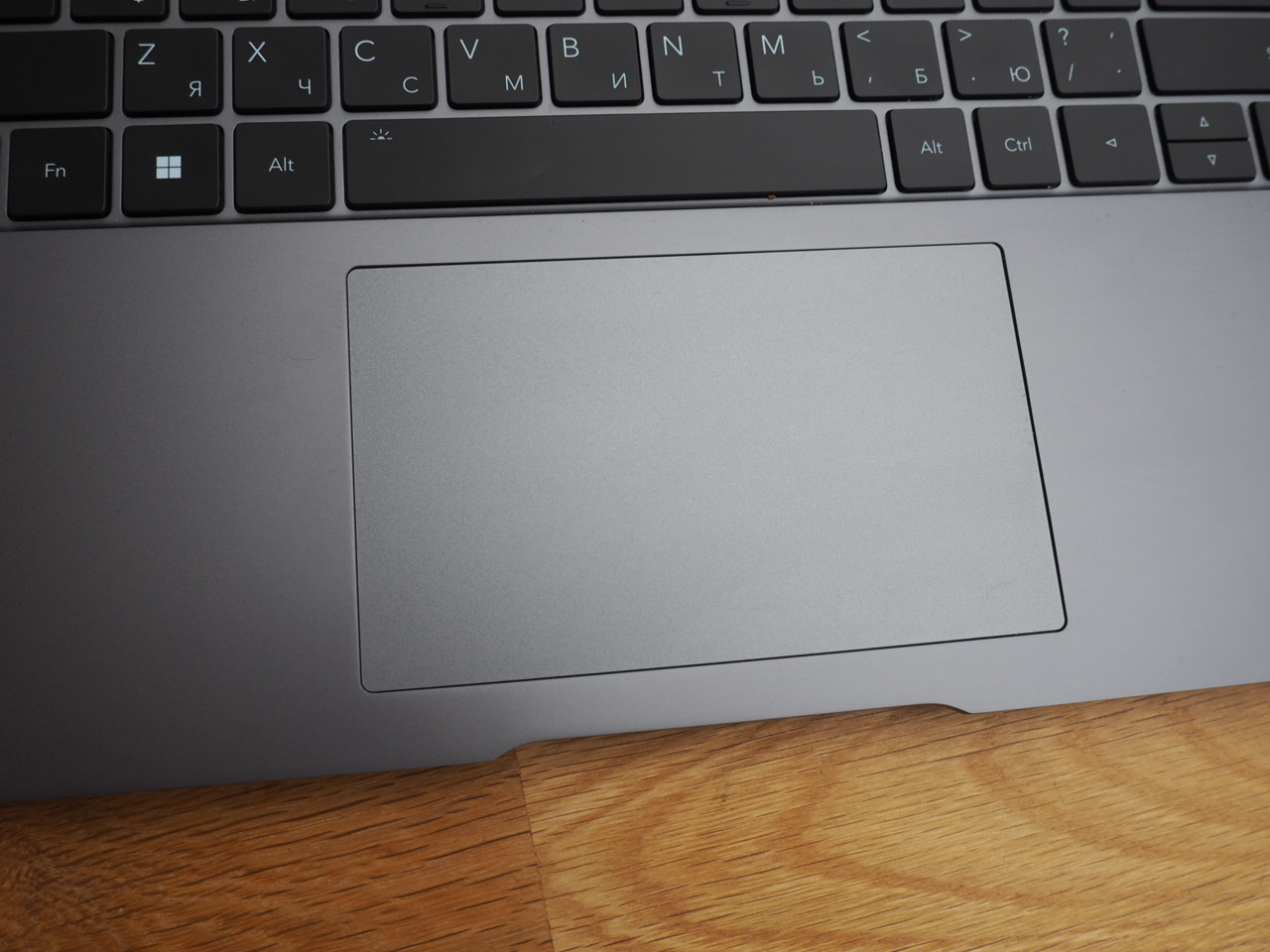

触摸板
谈到触摸板,几乎没有什么可批评的。一方面,对于一个14英寸的设备来说,它特别大(12 x 7.2厘米),另一方面,由于极其光滑(几乎太光滑)的表面,它的滑行性能非常好。精度和手势支持也令人满意。内置的点击区域也是如此,尽管右下角的硬度还有待改进。
显示

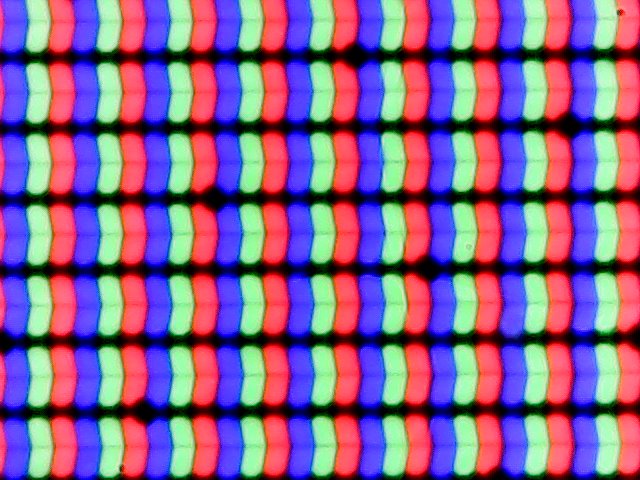

寻找带触摸屏的笔记本电脑的用户来到了MagicBook View 14的正确位置。14英寸显示屏具有3:2的纵横比和很好的屏占比(近90%),提供10点多点触摸功能。2520x1680的分辨率在笔记本电脑领域也是相当少见的。虽然Honor 选择的像素量相对于显示屏尺寸来说有点过高(我们建议Windows缩放比例为150%),但高分辨率确保了极其清晰的画面。
|
Brightness Distribution: 91 %
Center on Battery: 418 cd/m²
Contrast: 1742:1 (Black: 0.24 cd/m²)

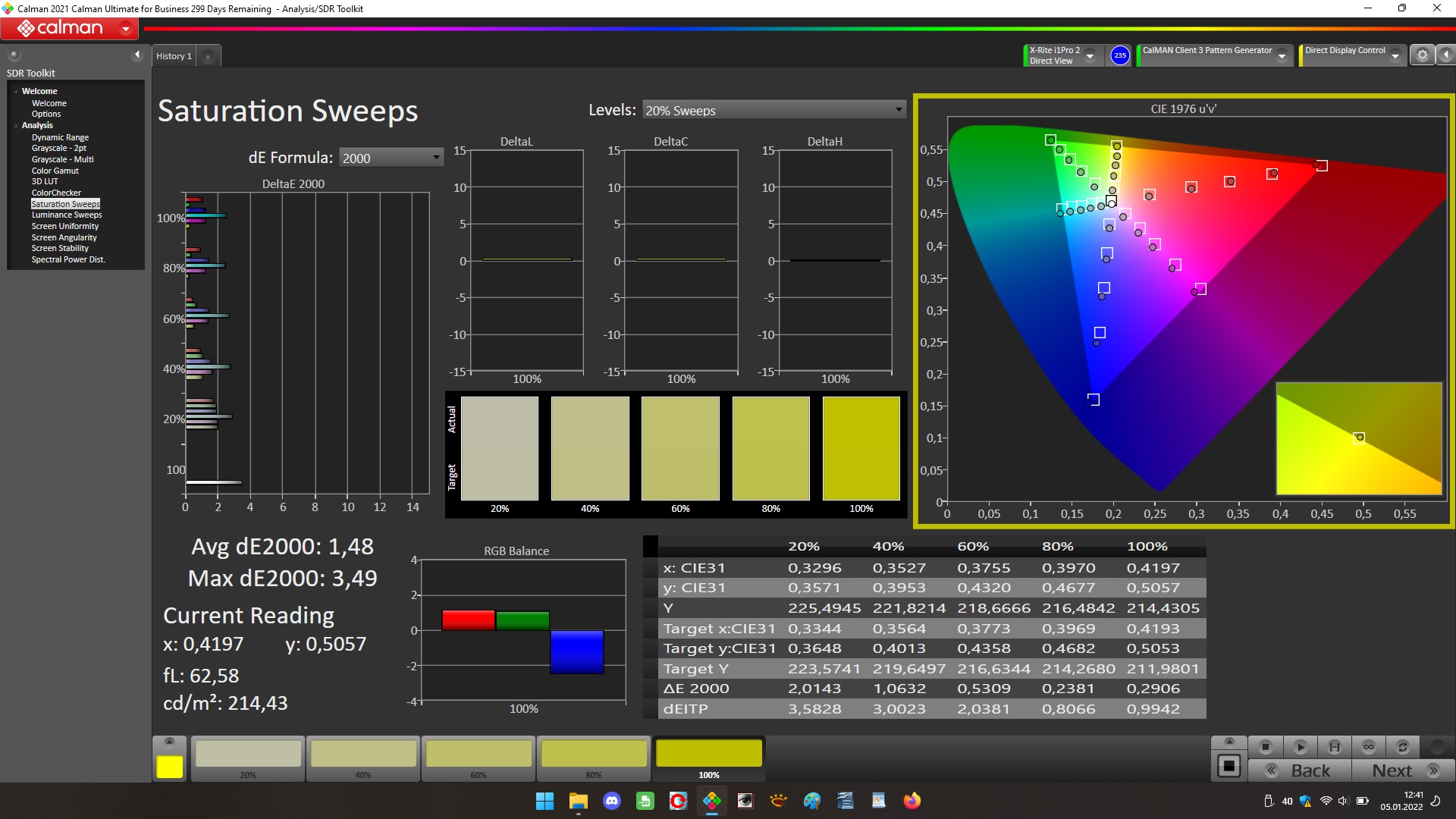

ΔE Color 1.28 | 0.5-29.43 Ø4.91, calibrated: 1.01
ΔE Greyscale 2.7 | 0.5-98 Ø5.2

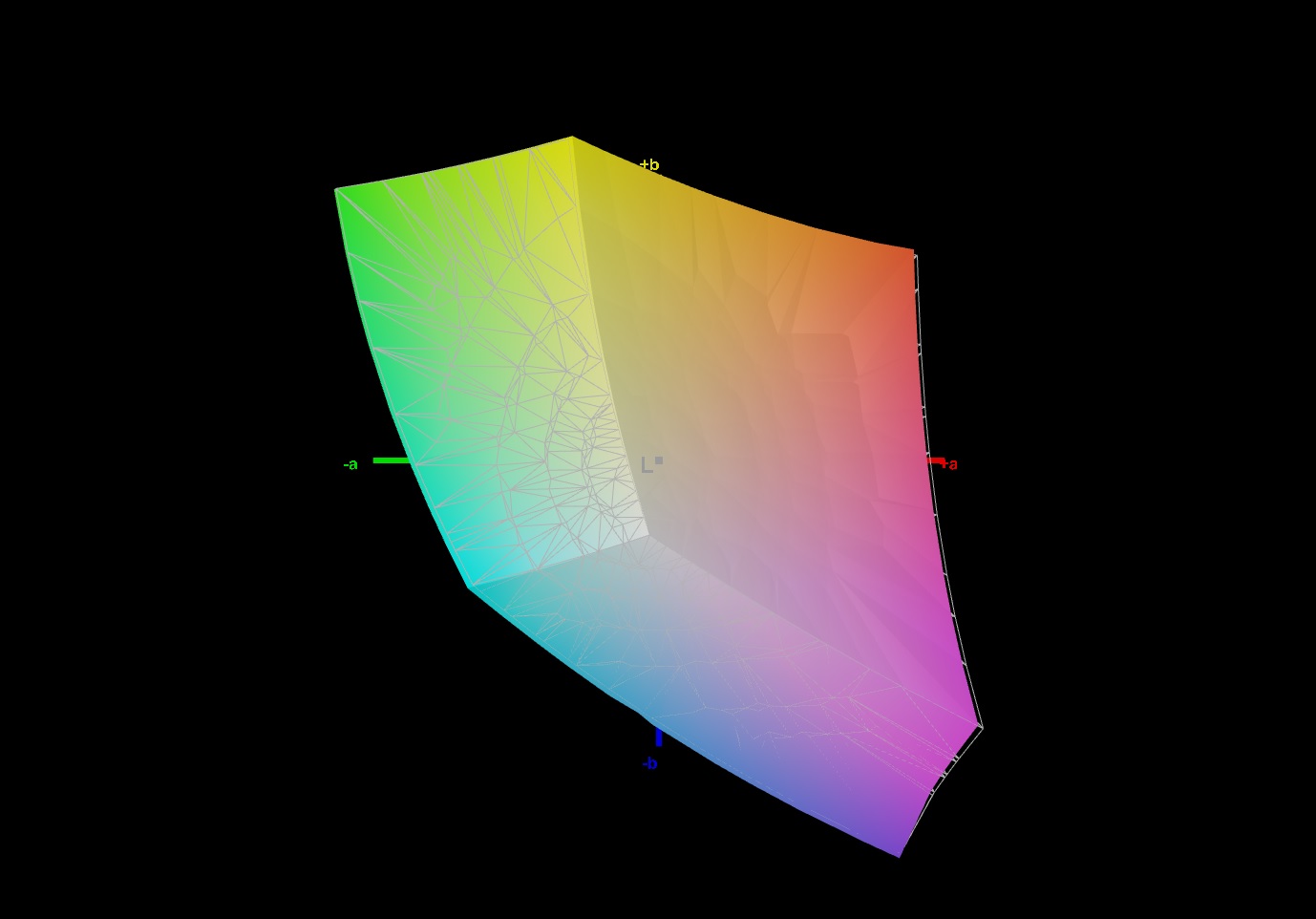

98.6% sRGB (Argyll 2.2.0 3D)
67.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
Honor MagicBook View 14 CSO MNE208UA1-1 (CSO140B), LTPS, 2520x1680, 14.2" | Lenovo IdeaPad Slim 7i Pro 14IHU5 LEN140WQ+, IPS, 2880x1800, 14" | MSI Prestige 14 Evo A11M-005 AUO B140HAN06.2 (AUO623D), IPS-Level, 1920x1080, 14" | LG Gram 14Z90P-G.AA79G LG Display LP140WU1-SPA1, IPS, 1920x1200, 14" | Honor Magicbook 14 i7-1165G7 BOE092E, IPS, 1920x1080, 14" | |
---|---|---|---|---|---|
Display | 8% | 2% | 23% | -3% | |
Display P3 Coverage | 67.5 | 76.9 14% | 68.8 2% | 97.6 45% | 64.8 -4% |
sRGB Coverage | 98.6 | 99.8 1% | 99.4 1% | 99.9 1% | 96.3 -2% |

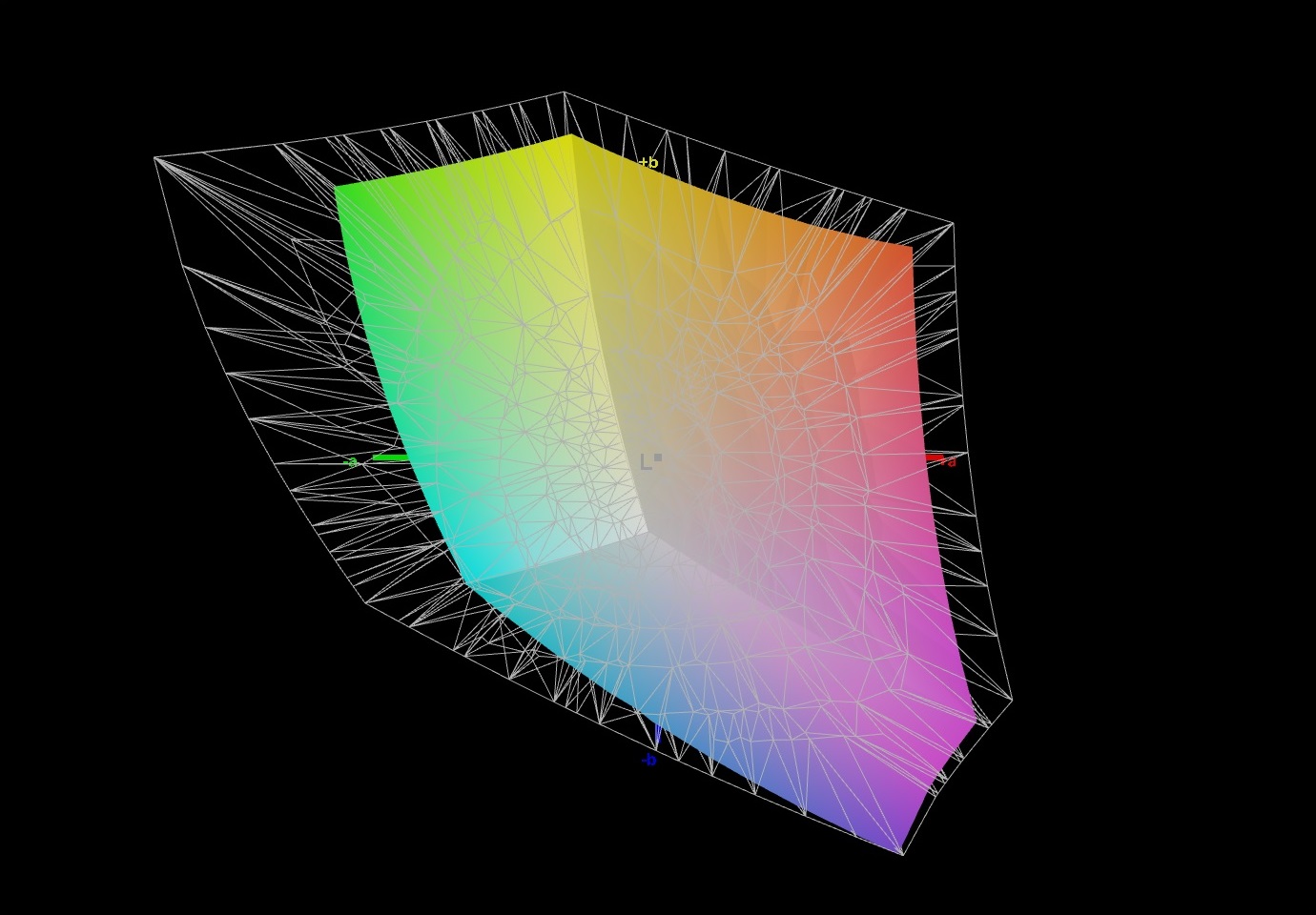

AdobeRGB 1998 Coverage | 76.7 | 70.9 | 85.3 | 66.1 | |
Response Times | -9% | -69% | -24% | 7% | |
Response Time Grey 50% / Grey 80% * | 33.2 ? | 36.4 ? -10% | 59.6 ? -80% | 45 ? -36% | 31.2 ? 6% |
Response Time Black / White * | 20.8 ? | 22.4 ? -8% | 32.8 ? -58% | 23 ? -11% | 19.2 ? 8% |
PWM Frequency | |||||
Screen | -27% | -33% | -58% | -20% | |
Brightness middle | 418 | 410 -2% | 293 -30% | 352 -16% | 341 -18% |
Brightness | 408 | 395 -3% | 277 -32% | 332 -19% | 313 -23% |
Brightness Distribution | 91 | 91 0% | 89 -2% | 91 0% | 87 -4% |
Black Level * | 0.24 | 0.29 -21% | 0.18 25% | 0.22 8% | 0.27 -13% |
Contrast | 1742 | 1414 -19% | 1628 -7% | 1600 -8% | 1263 -27% |

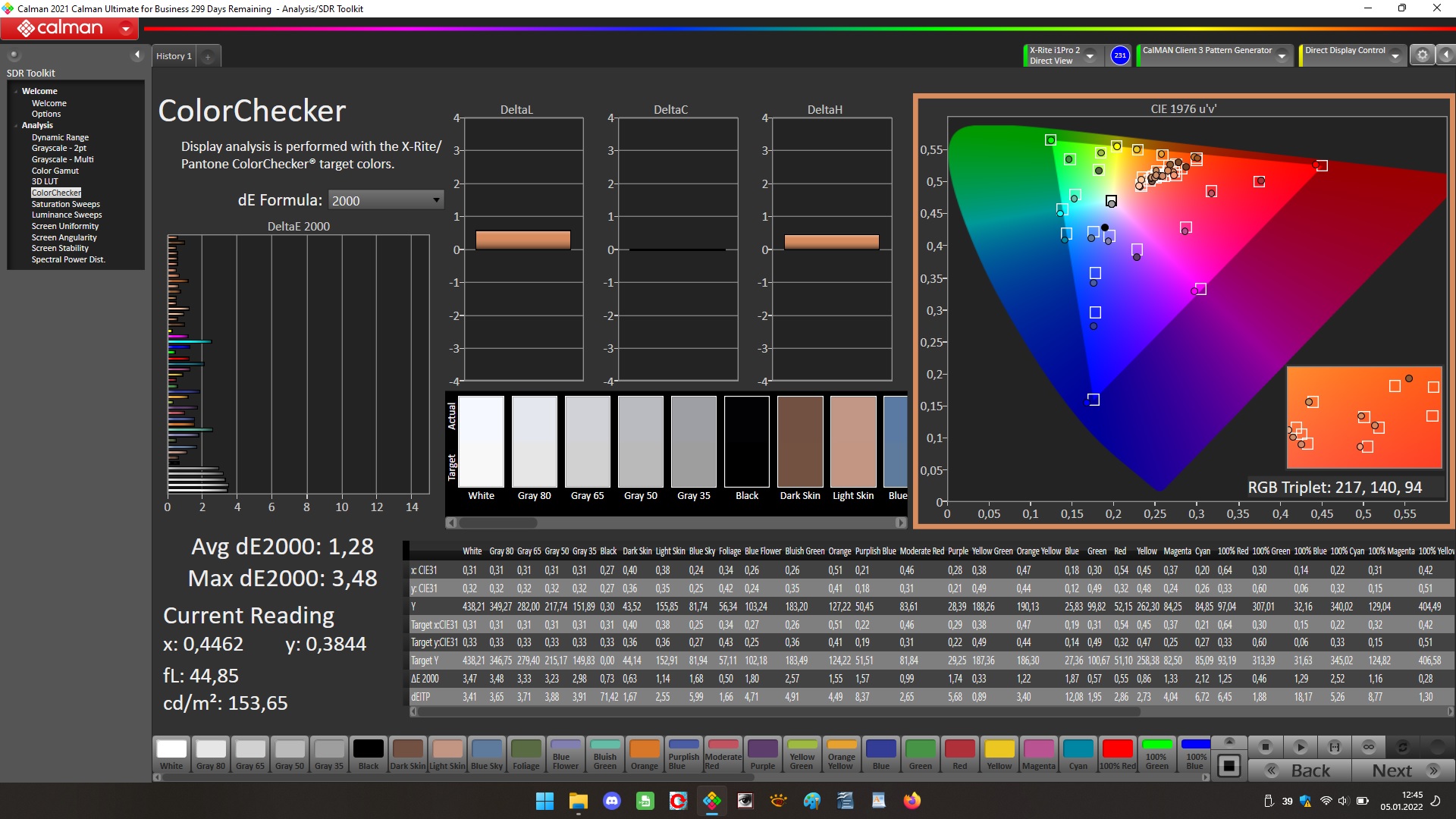

Colorchecker dE 2000 * | 1.28 | 3.24 -153% | 2.95 -130% | 2.89 -126% | 1.76 -38% |
Colorchecker dE 2000 max. * | 3.48 | 5.26 -51% | 6.03 -73% | 4.66 -34% | 4.85 -39% |
Colorchecker dE 2000 calibrated * | 1.01 | 0.41 59% | 0.9 11% | 2.7 -167% | 1.01 -0% |
Greyscale dE 2000 * | 2.7 | 4.2 -56% | 4.2 -56% | 6.9 -156% | 3.3 -22% |
Gamma | 2.19 100% | 2.18 101% | 2.099 105% | 2.34 94% | 2.26 97% |
CCT | 7043 92% | 6012 108% | 6622 98% | 7904 82% | 7233 90% |
Color Space (Percent of AdobeRGB 1998) | 71 | 76 | 66 | ||
Color Space (Percent of sRGB) | 93 | 100 | 89 | ||
Total Average (Program / Settings) | -9% /
-19% | -33% /
-33% | -20% /
-40% | -5% /
-14% |
* ... smaller is better

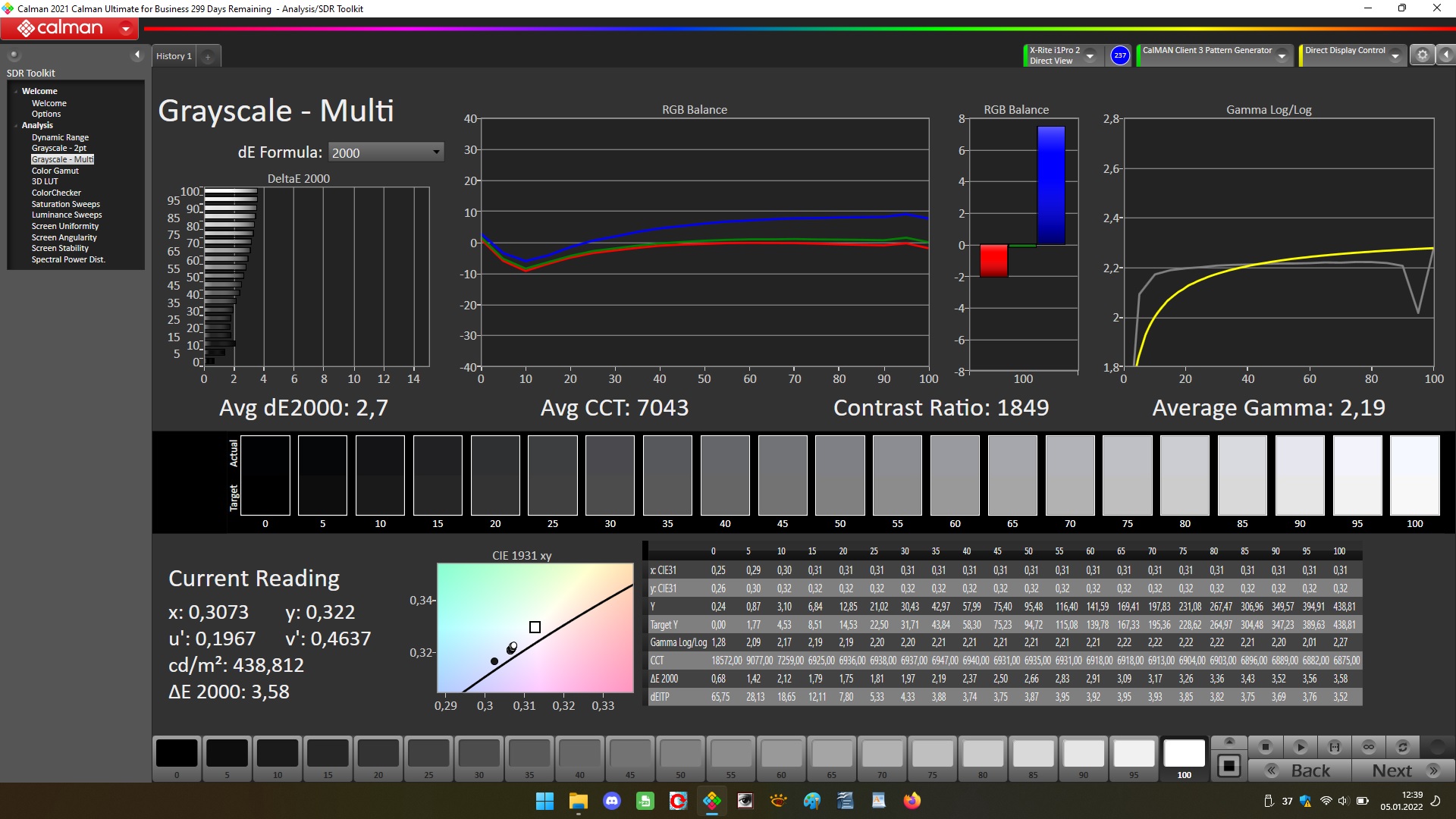

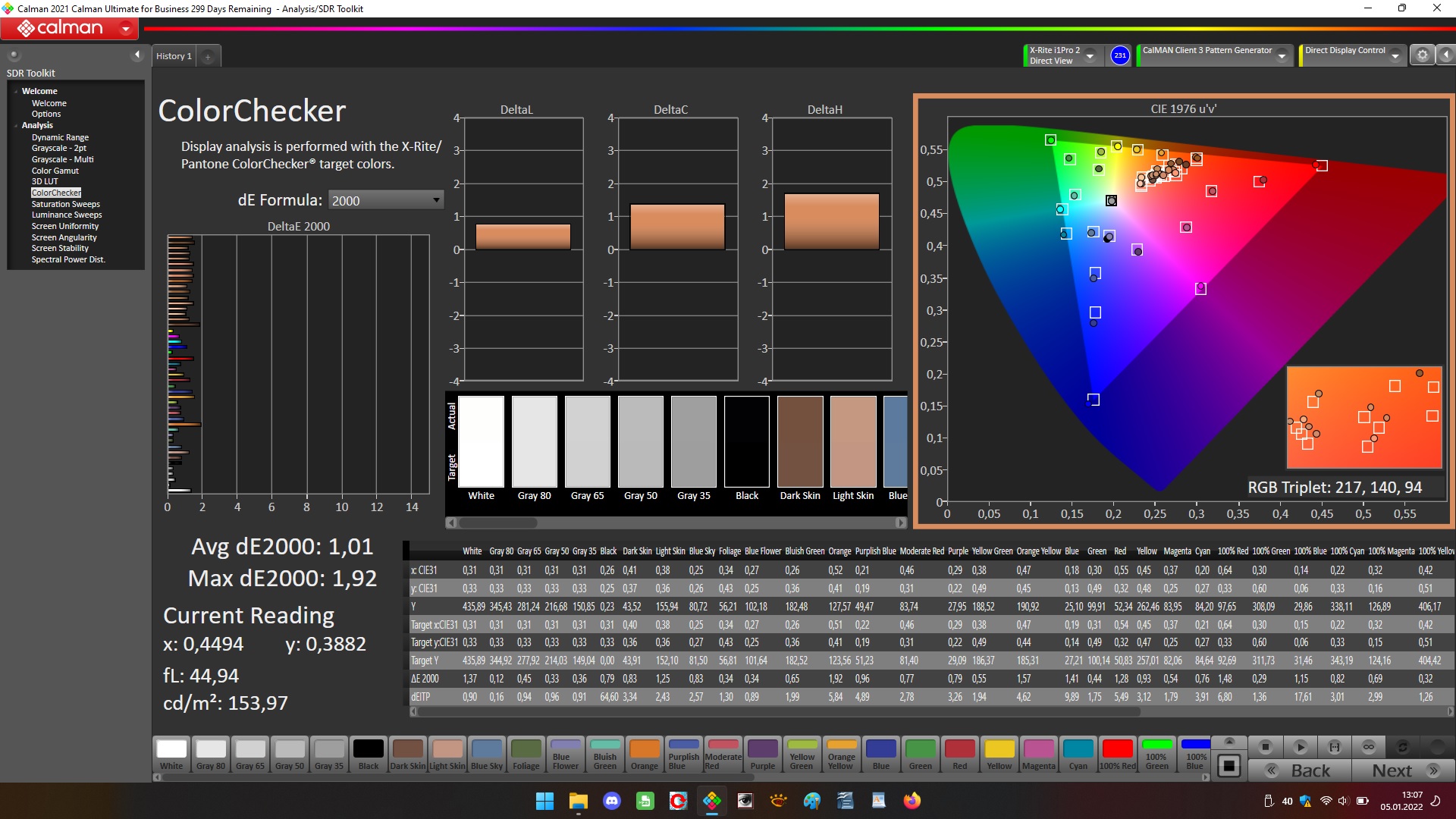

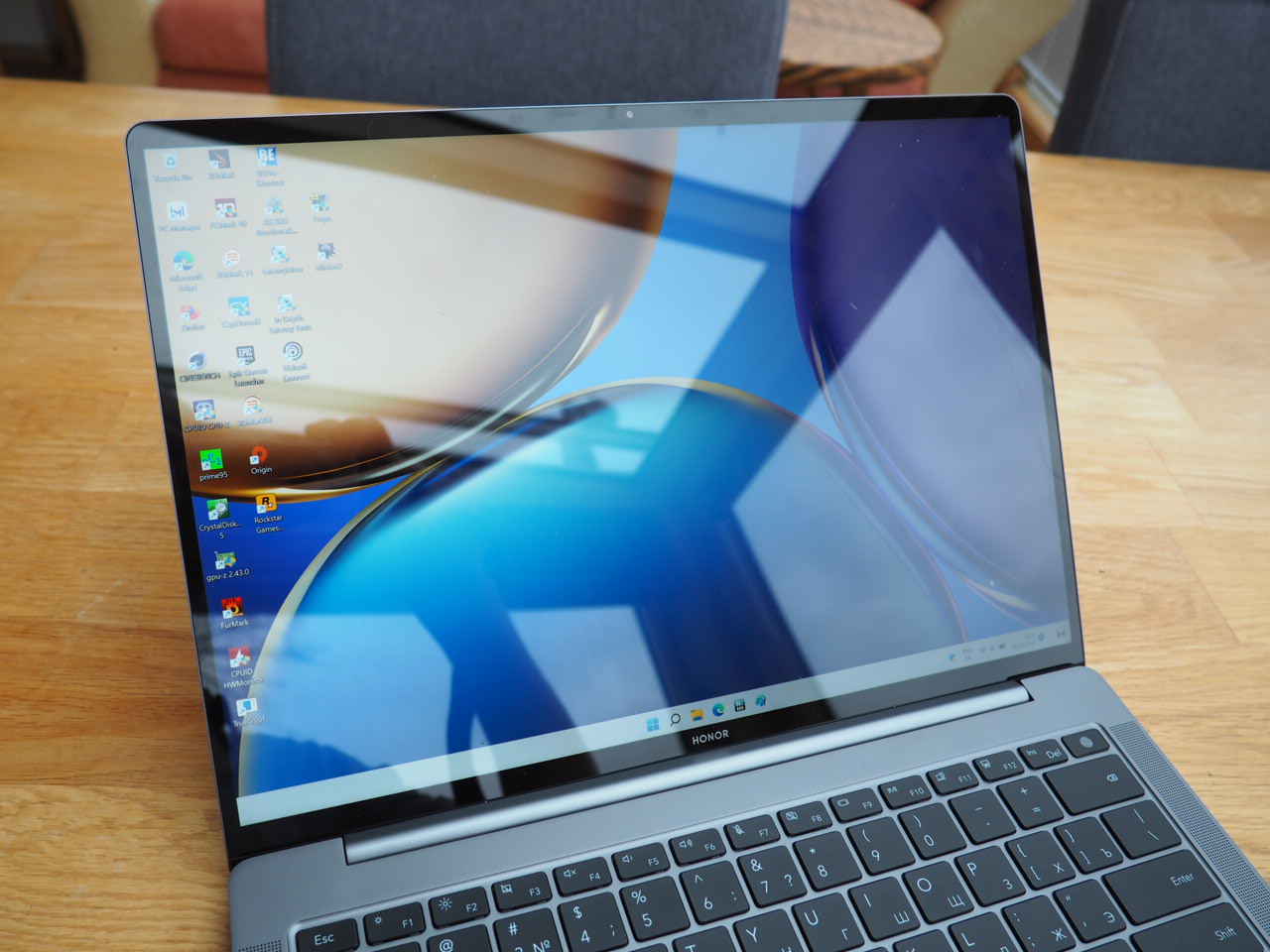

制造商在其他类别中也没有留下任何缺点,几乎得到了全面的赞誉。从超过400cd/m²的一流亮度开始,由于光泽的表面,在较亮的地方也是非常必要的。户外爱好者最好买一台有雾面显示屏的笔记本电脑。
如果你没有眩光的问题,或者一般喜欢(较暗的)室内环境,View 14的图像质量显示了它最好的一面。由于黑度较低(0.24cd/m²),对比度超过1,700:1,在测试领域排名第一,就像亮度一样。色彩空间覆盖率(99% sRGB)和色彩准确性(见Calman截图)也很吸引人。

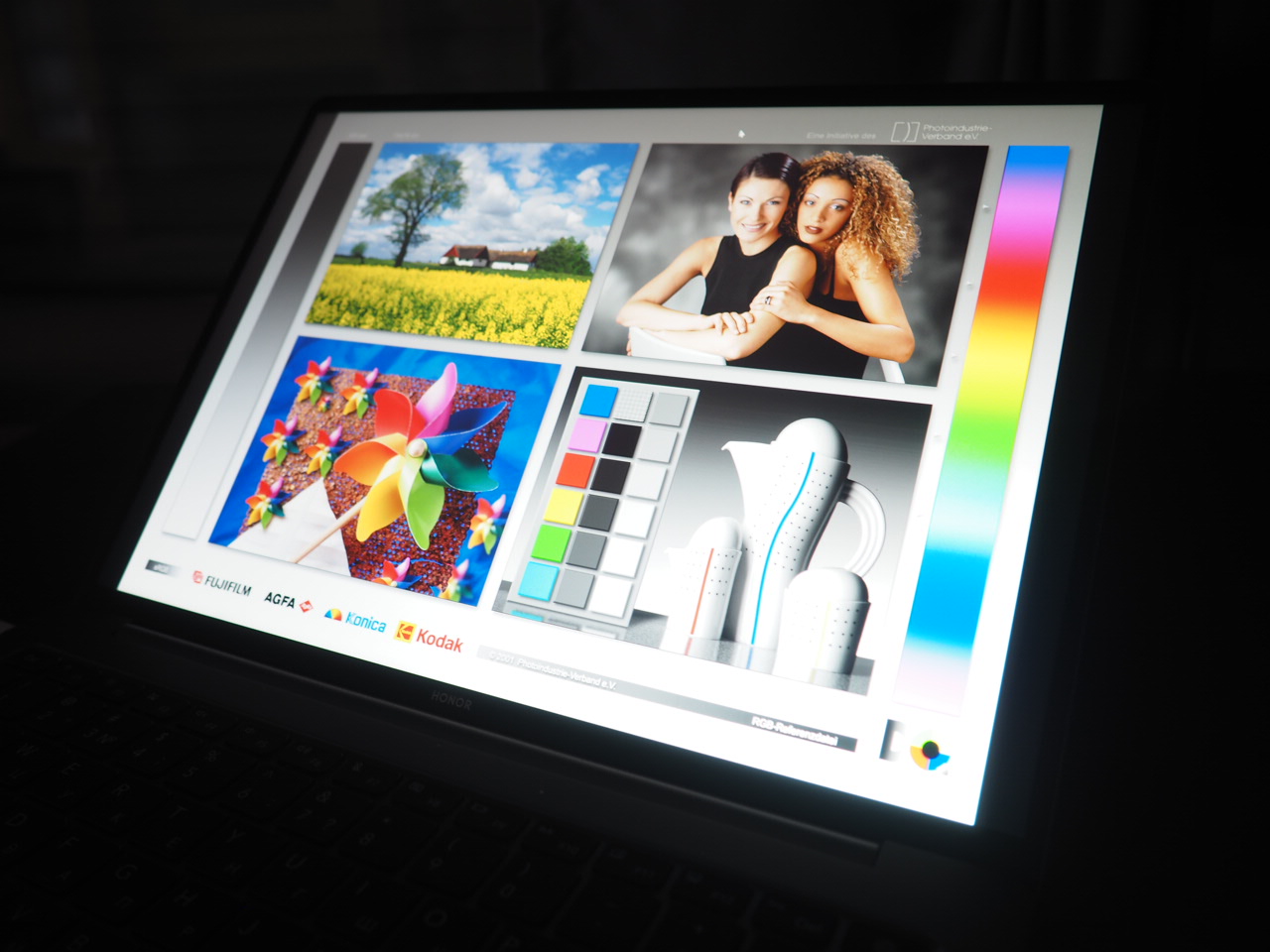

可视角度处于典型的IPS水平,这意味着它们处于良好和非常好之间。不过,响应时间没有那么壮观。黑到白的响应时间略低于21毫秒,灰到灰的响应时间为33毫秒,处于笔记本电脑的中游水平。一个积极的方面是,Honor 使用90赫兹,而不是通常的60赫兹,用于办公/全能设备。
Display Response Times

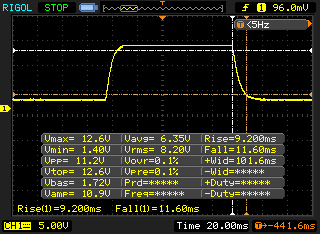

↔ Response Time Black to White | ||
---|---|---|
20.8 ms ... rise ↗ and fall ↘ combined | ↗ 9.2 ms rise | |
↘ 11.6 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

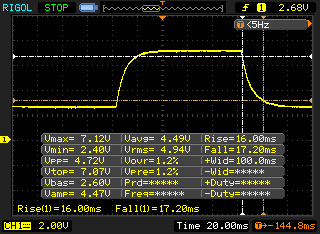

↔ Response Time 50% Grey to 80% Grey | ||
33.2 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise | |
↘ 17.2 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 41 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). |

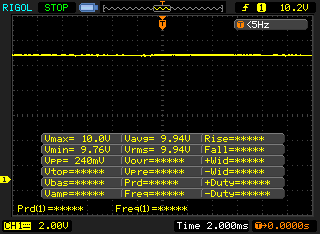

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. |
业绩

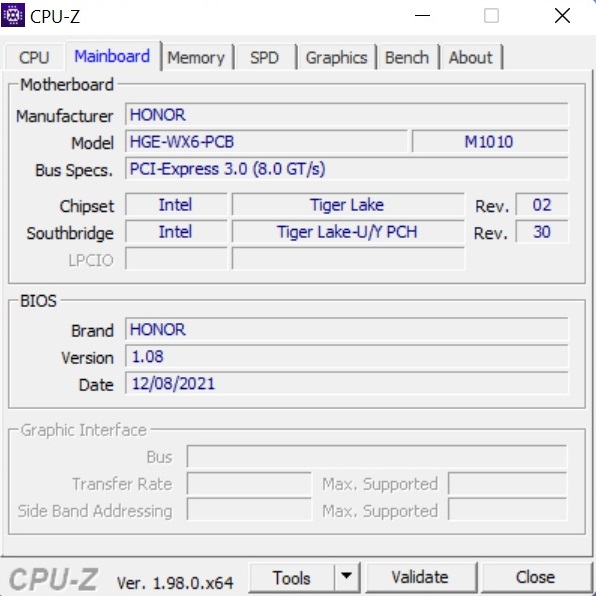

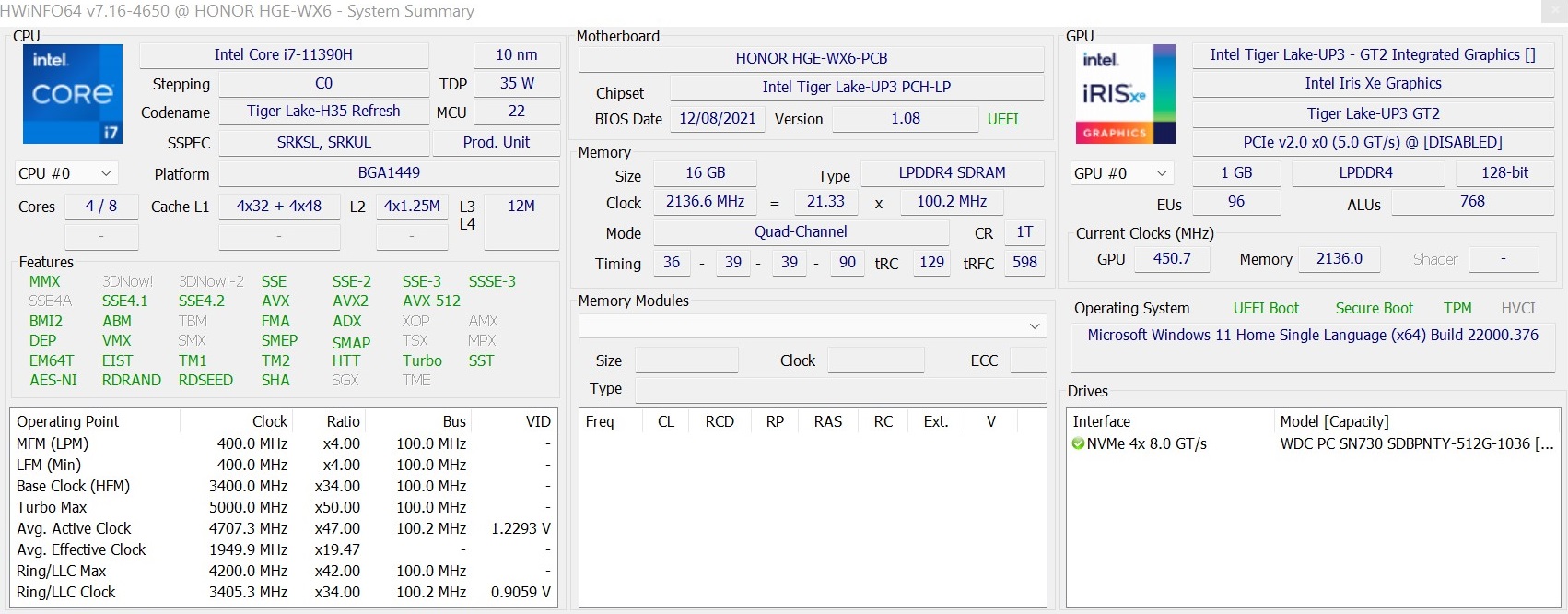

考虑到轻薄的外壳,MagicBook View 14拥有相当大的能量--而且它不需要专用显卡。只要你不需要处理特别苛刻的应用场景,16GB的内存在未来几年也应该足够了。如果有必要,可以用更大的M.2型号替换有点紧张的512GB SSD存储。
测试条件
在预装的PC管理器中,除其他外,它是一个更新中心,你可以在两个电源或性能配置文件中选择。我们所有的测试都是使用平衡模式进行的。
处理器

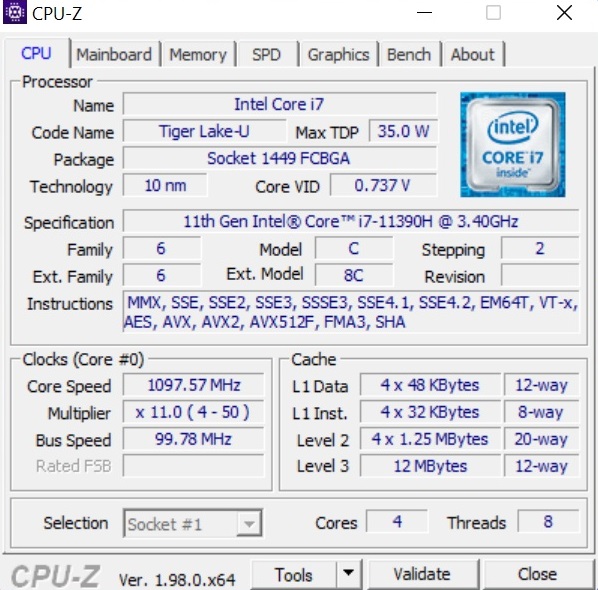

芯片酷睿i7-11390H第一次来到我们的编辑部并通过View 14的基准测试课程。与其他来自Tiger Lake 代的35瓦对应产品一样,11390H相当少见,因为笔记本电脑制造商通常喜欢安装 "成熟的 "45瓦模型或省电的28瓦模型。35瓦的阵容试图结合两类产品的优势(良好的性能加上坚实的能源效率)。
从纯粹的技术角度来看,采用10纳米工艺制造的i7-11390H,利用12MB的L3缓存和四个核心,可以通过超线程技术并行处理八个线程。尽管时钟频率略高(3.4-5.0 GHz),但MagicBook View 14勉强能够超过酷睿i7-11370H(3.3 - 4.8 GHz) 在CPU测试中。一段时间后,前者的性能甚至低于联想设备在Cinebench循环中的性能。然而,11390H很容易与其他竞争者的28瓦芯片竞争,并且通常能以两位数的百分比超过它们。
Cinebench R15 Multi endurance test
CPU Performance Rating - Percent | |
Average of class Subnotebook | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 -2! | |
Average Intel Core i7-11390H | |
Honor Magicbook 14 i7-1165G7 -2! | |
MSI Prestige 14 Evo A11M-005 -2! | |
LG Gram 14Z90P-G.AA79G |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
Performance Rating | |
Average of class Subnotebook | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G | |
Honor Magicbook 14 i7-1165G7 -9! |
AIDA64 / FP32 Ray-Trace | |
Average of class Subnotebook (1141 - 32888, n=58, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H (5904 - 7741, n=4) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
AIDA64 / FPU Julia | |
Average of class Subnotebook (6838 - 123315, n=58, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H (25054 - 32624, n=4) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
AIDA64 / CPU SHA3 | |
Average of class Subnotebook (444 - 5287, n=58, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H (1747 - 2168, n=4) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
AIDA64 / CPU Queen | |
Average of class Subnotebook (11579 - 115682, n=58, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Average Intel Core i7-11390H (47355 - 58761, n=4) | |
LG Gram 14Z90P-G.AA79G | |
MSI Prestige 14 Evo A11M-005 |
AIDA64 / FPU SinJulia | |
Average of class Subnotebook (744 - 18418, n=58, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
MSI Prestige 14 Evo A11M-005 | |
Average Intel Core i7-11390H (4106 - 5412, n=4) | |
LG Gram 14Z90P-G.AA79G |
AIDA64 / FPU Mandel | |
Average of class Subnotebook (3366 - 65433, n=58, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H (15441 - 19348, n=4) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
AIDA64 / CPU AES | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Average Intel Core i7-11390H (57644 - 77817, n=4) | |
Average of class Subnotebook (638 - 161430, n=58, last 2 years) | |
LG Gram 14Z90P-G.AA79G | |
MSI Prestige 14 Evo A11M-005 |
AIDA64 / CPU ZLib | |
Average of class Subnotebook (166.9 - 1379, n=58, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Average Intel Core i7-11390H (362 - 424, n=4) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G | |
Honor Magicbook 14 i7-1165G7 |
AIDA64 / FP64 Ray-Trace | |
Average of class Subnotebook (610 - 17495, n=58, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H (3138 - 4197, n=4) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
AIDA64 / CPU PhotoWorxx | |
LG Gram 14Z90P-G.AA79G | |
MSI Prestige 14 Evo A11M-005 | |
Average of class Subnotebook (6569 - 54881, n=58, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
Average Intel Core i7-11390H (11409 - 39871, n=4) |
系统性能
在系统性能方面,View 14处于领奖台的顶端。在PCMark 10中的5475分代表了对比设备中的第一名。另外,从主观上看,操作系统的响应速度与你期望的1000欧元(约1136美元)范围内的现代设备一样快。
PCMark 10 / Score | |
Average of class Subnotebook (4993 - 7788, n=50, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor Magicbook 14 i7-1165G7 | |
Average Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs (4598 - 5475, n=3) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
PCMark 10 / Essentials | |
Average of class Subnotebook (9476 - 11331, n=50, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
LG Gram 14Z90P-G.AA79G | |
Honor Magicbook 14 i7-1165G7 | |
Average Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs (9188 - 10451, n=3) | |
MSI Prestige 14 Evo A11M-005 |
PCMark 10 / Productivity | |
Average of class Subnotebook (6440 - 10623, n=50, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
LG Gram 14Z90P-G.AA79G | |
Average Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs (6442 - 7197, n=3) | |
Honor Magicbook 14 i7-1165G7 | |
MSI Prestige 14 Evo A11M-005 |
PCMark 10 / Digital Content Creation | |
Average of class Subnotebook (5305 - 10983, n=50, last 2 years) | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor Magicbook 14 i7-1165G7 | |
Average Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs (4459 - 5920, n=3) | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G |
PCMark 10 Score | 5475 points | |
Help |

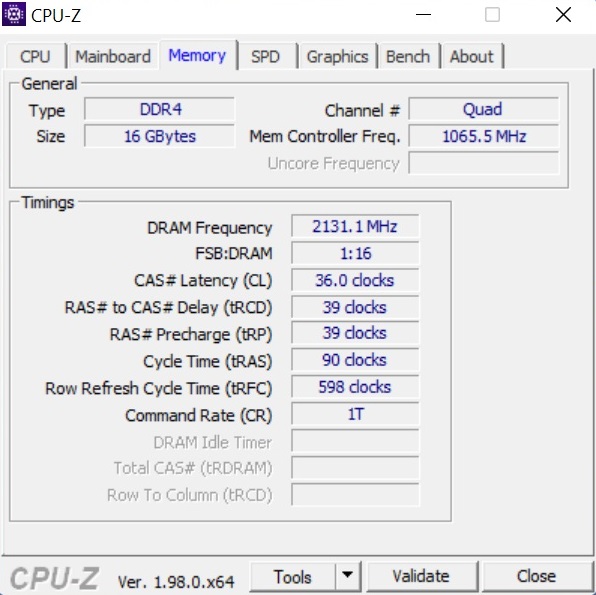

AIDA64 / Memory Copy | |
Average of class Subnotebook (14916 - 108756, n=58, last 2 years) | |
MSI Prestige 14 Evo A11M-005 | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
LG Gram 14Z90P-G.AA79G | |
Average Intel Core i7-11390H (19409 - 64750, n=4) |
AIDA64 / Memory Read | |
Average of class Subnotebook (15948 - 122210, n=58, last 2 years) | |
LG Gram 14Z90P-G.AA79G | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
MSI Prestige 14 Evo A11M-005 | |
Average Intel Core i7-11390H (21253 - 59793, n=4) |
AIDA64 / Memory Write | |
Average of class Subnotebook (16513 - 117898, n=58, last 2 years) | |
Honor MagicBook View 14 | |
LG Gram 14Z90P-G.AA79G | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
MSI Prestige 14 Evo A11M-005 | |
Average Intel Core i7-11390H (19684 - 66881, n=4) |
AIDA64 / Memory Latency | |
Average of class Subnotebook (7.2 - 187.8, n=58, last 2 years) | |
MSI Prestige 14 Evo A11M-005 | |
Honor MagicBook View 14 | |
LG Gram 14Z90P-G.AA79G | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Average Intel Core i7-11390H (66.3 - 95.3, n=4) | |
Honor Magicbook 14 i7-1165G7 |
* ... smaller is better

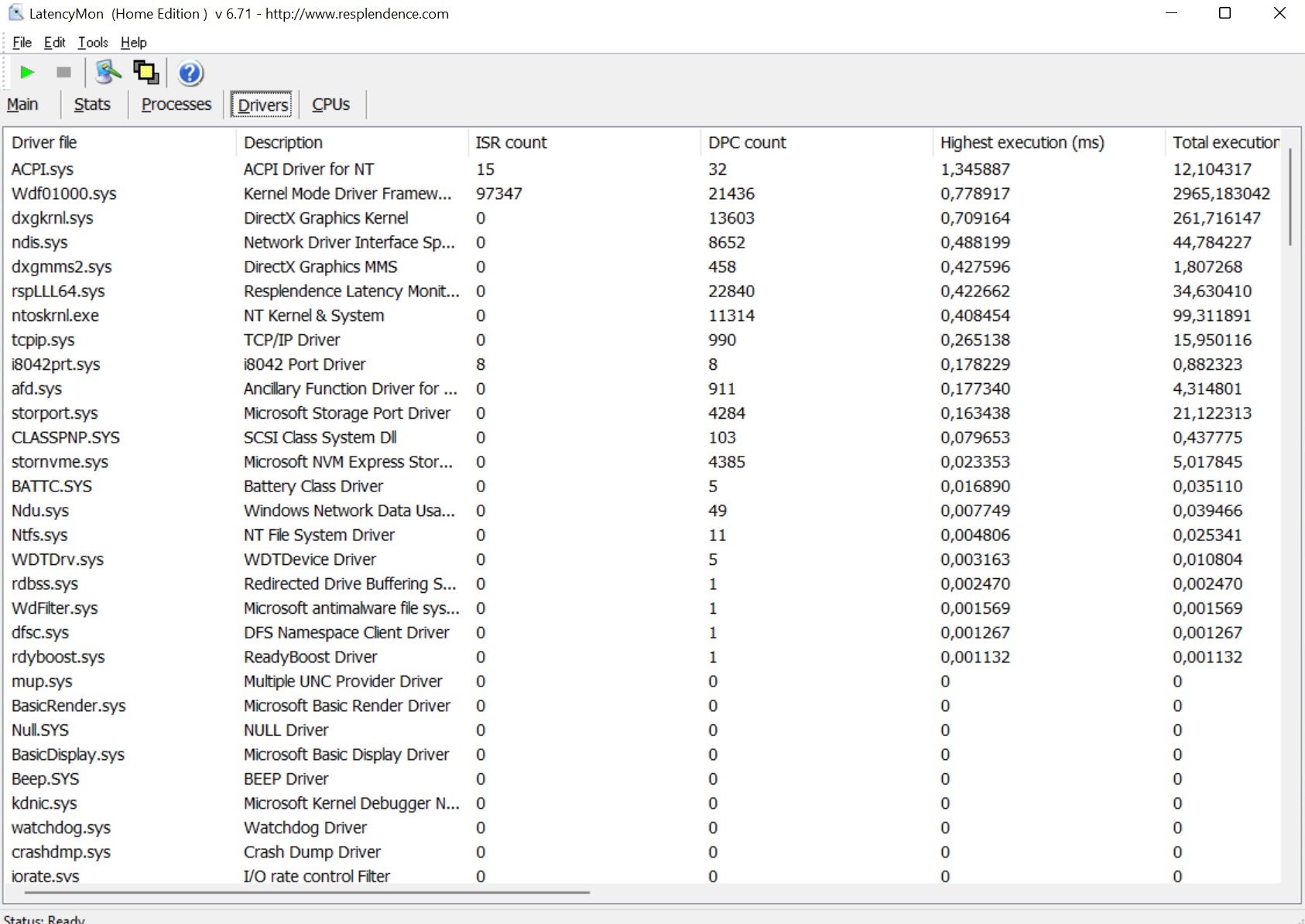

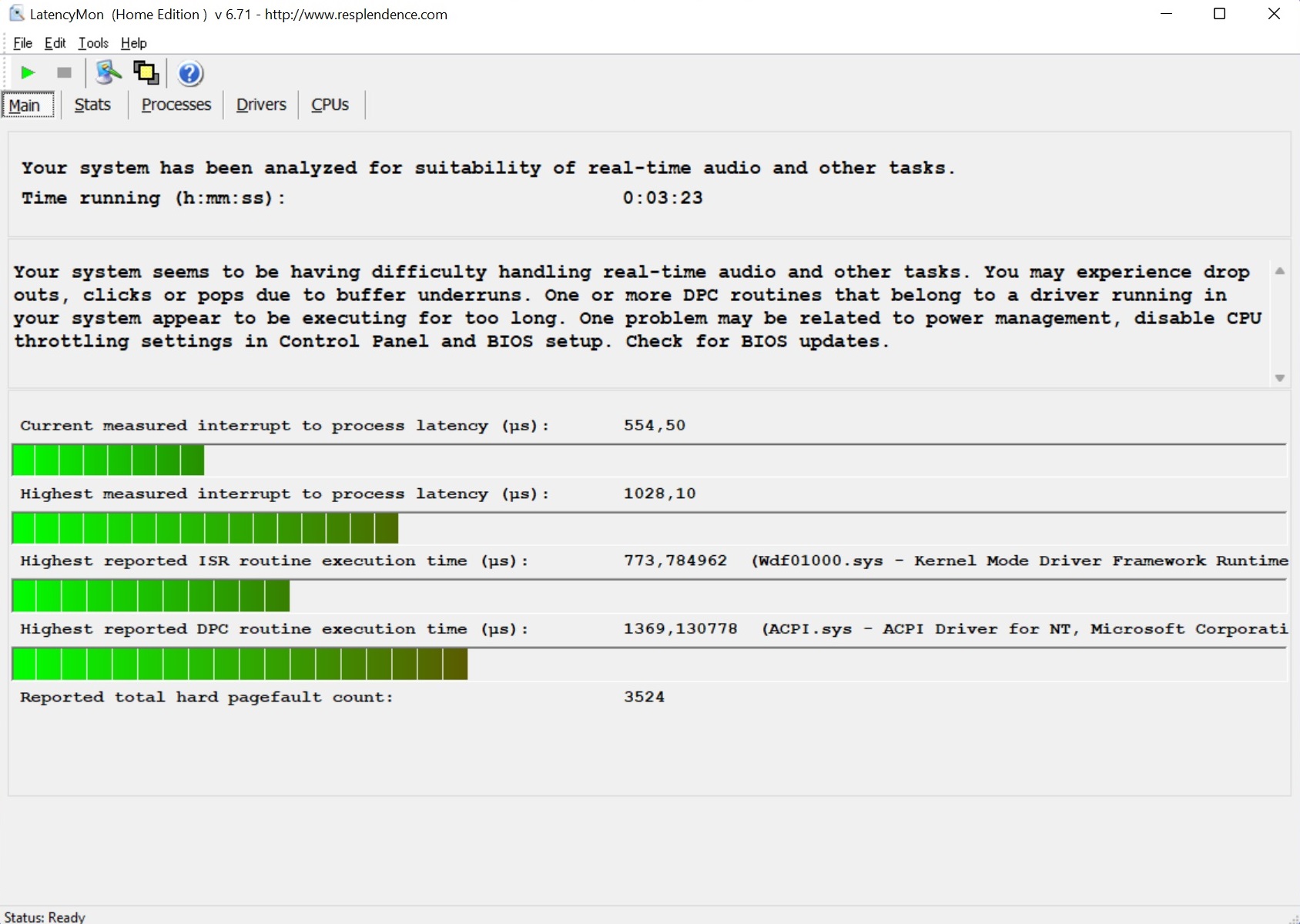

DPC延迟
延迟是14英寸机的唯一问题。那些寻找尽可能低的延迟率的人将首先必须做出一些调整。
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
LG Gram 14Z90P-G.AA79G | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
MSI Prestige 14 Evo A11M-005 | |
Honor Magicbook 14 i7-1165G7 |
* ... smaller is better
储存
西部数据的NVMe驱动器被用于大容量存储。西部数据SN730在基准测试中仅被微星Prestige 14 Evo中的Phison固态硬盘略微击败。除了LG Gram(SK Hynix)之外,其余的对比笔记本也都配备了西数的型号。
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
图形卡

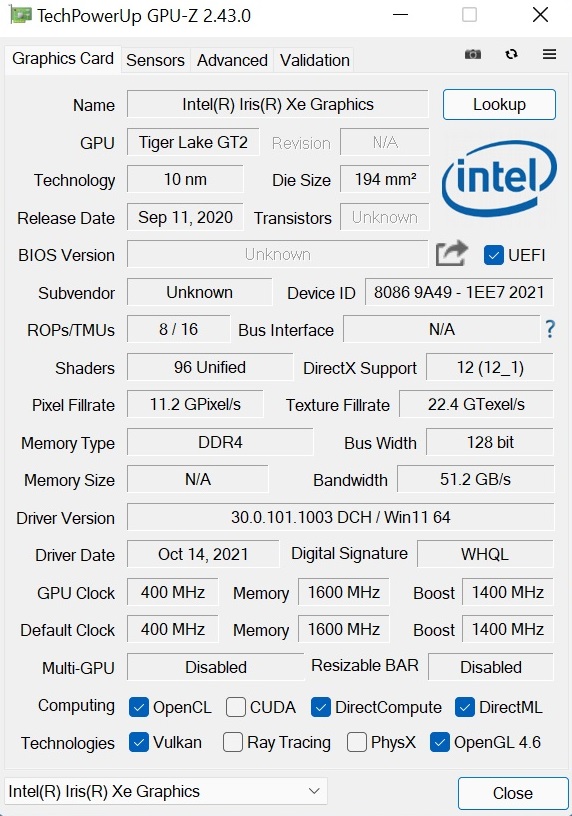

酷睿i7-11390H内置了一个名为DirectX-12的图形芯片Iris Xe Graphics G7有96个EUs。它在MagicBook View 14中的使用效果很好。在大多数情况下,它足以在GPU课程中排名第二,再次仅次于微星Prestige 14 Evo。与只有一个风扇的MagicBook 14相比,尽管有相同的图形芯片,但3D性能几乎高出30%。
3DMark 11 Performance | 7636 points | |
3DMark Ice Storm Standard Score | 106176 points | |
3DMark Cloud Gate Standard Score | 21650 points | |
3DMark Fire Strike Score | 5333 points | |
Help |
游戏性能
14英寸机并不是真正为游戏而生。尽管许多游戏当然可以在降低的分辨率和较低的细节下进行(720p或1080p的最低到中等设置),但一些游戏,主要是最近对图形要求高的游戏,往往一启动就崩溃或产生错误信息。 死亡,孤岛惊魂6,守护者的Galaxy,战场2042, 和 Halo Infinite例如,在测试中出现了问题。
The Witcher 3 | |
1366x768 Medium Graphics & Postprocessing | |
Average of class Subnotebook (33 - 118, n=35, last 2 years) | |
MSI Prestige 14 Evo A11M-005 | |
Honor MagicBook View 14 | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
LG Gram 14Z90P-G.AA79G | |
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184) | |
Honor Magicbook 14 i7-1165G7 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Average of class Subnotebook (11.2 - 71, n=50, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G | |
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=189) | |
Honor Magicbook 14 i7-1165G7 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Average of class Subnotebook (8.5 - 43.7, n=52, last 2 years) | |
Lenovo IdeaPad Slim 7i Pro 14IHU5 | |
Honor MagicBook View 14 | |
MSI Prestige 14 Evo A11M-005 | |
LG Gram 14Z90P-G.AA79G | |
Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=179) |

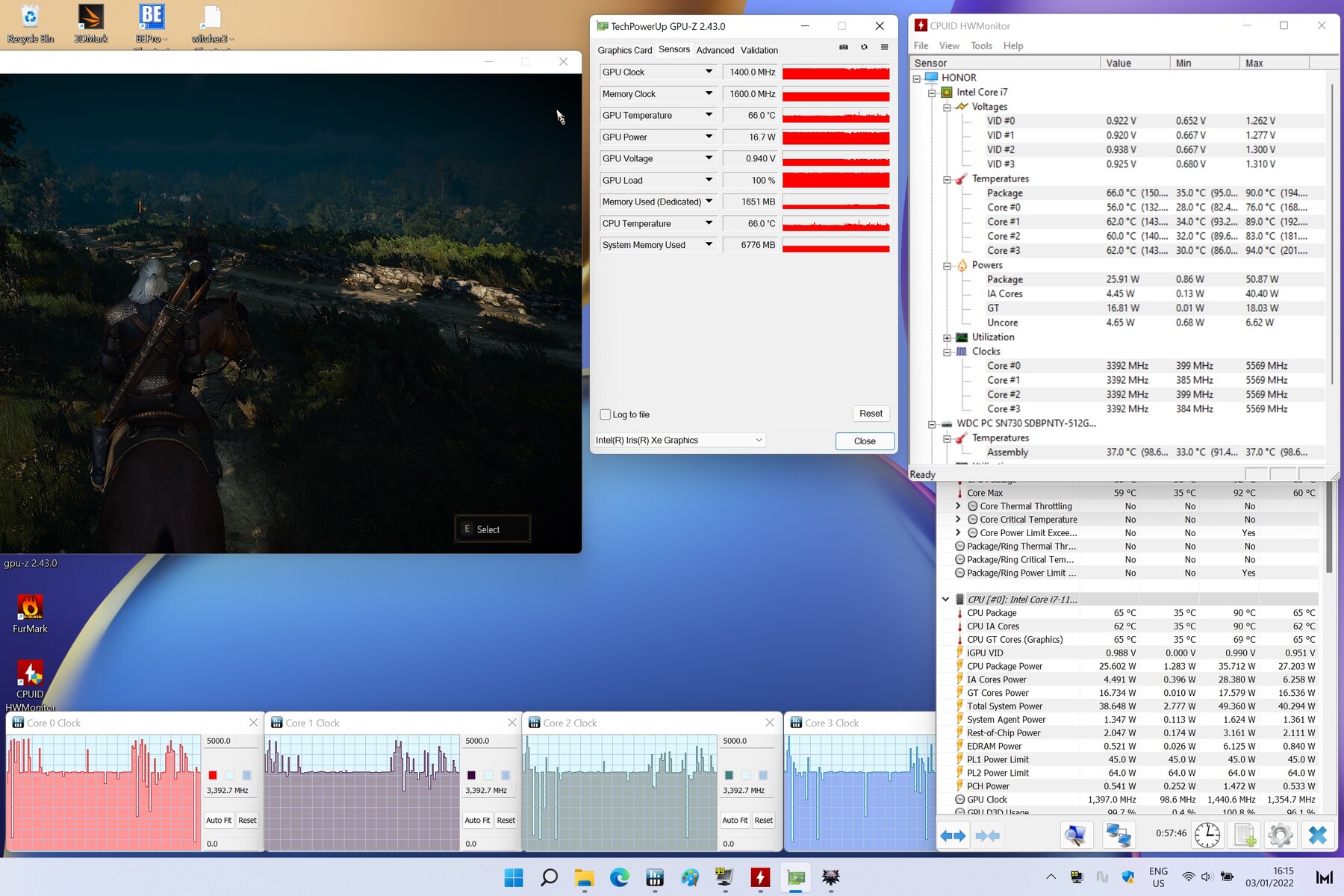

我们通过运行角色扮演游戏来测试3D性能在较长一段时间内的表现。的测试。Witcher 3约60分钟(全高清/超清)。结果。帧率保持相当稳定。
The Witcher 3 FPS diagram
low | med. | high | ultra | |
---|---|---|---|---|
GTA V (2015) | 123 | 111 | 29.1 | |
The Witcher 3 (2015) | 106 | 64 | 33.9 | 16.8 |
Final Fantasy XV Benchmark (2018) | 49.5 | 26.9 | 18.3 | |
X-Plane 11.11 (2018) | 31.8 | 32 | 23.8 | |
Far Cry 5 (2018) | 62 | 34 | 31 | |
Strange Brigade (2018) | 100 | 43.3 | 34 | |
Hitman 3 (2021) | 84.9 | 36.2 | 32 | |
Outriders (2021) | 49.4 | 30 | 28.7 | |
Resident Evil Village (2021) | 47.5 | 28.9 | 26.2 | |
Mass Effect Legendary Edition (2021) | 65.7 | 44.4 | ||
Days Gone (2021) | 39.7 | 27.5 | 23.8 | |
Deathloop (2021) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) | |
New World (2021) | 46.7 | 23.3 | 20.6 | |
Alan Wake Remastered (2021) | 35.2 | 29.7 | ||
Far Cry 6 (2021) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) | |
Back 4 Blood (2021) | 71.3 | 34.8 | 30.1 | |
Guardians of the Galaxy (2021) | 0 game wont start (error message) | 0 game wont start (error message) | 0 game wont start (error message) | |
Riders Republic (2021) | 34 | 22 | 18 | |
Forza Horizon 5 (2021) | 54 | 34 | 30 | |
Battlefield 2042 (2021) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) | |
Farming Simulator 22 (2021) | 112 | 46.5 | 32.2 | |
Halo Infinite (2021) | 0 game wont start (crash) | 0 game wont start (crash) | 0 game wont start (crash) |
排放
噪声排放
在排放方面,Honor 设备表现得相当不明显。让我们以噪音发展为例,在空闲状态下,噪音为26至29 dB(A),在负载状态下,噪音为38至45 dB(A),相当可听,但不令人讨厌。就这些比率而言,View 14与竞争对手基本一致,特别是它让我们想起了它的14英寸兄弟姐妹MagicBook 14。
Noise Level
Idle |
| 26 / 27 / 29 dB(A) |
Load |
| 38 / 45 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) |
Honor MagicBook View 14 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs | Lenovo IdeaPad Slim 7i Pro 14IHU5 Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs | MSI Prestige 14 Evo A11M-005 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | LG Gram 14Z90P-G.AA79G Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|
Noise | 9% | -5% | 10% | 4% | |
off / environment * | 25 | 24.6 2% | 24 4% | 26 -4% | 24 4% |
Idle Minimum * | 26 | 24.7 5% | 25 4% | 26 -0% | 24 8% |
Idle Average * | 27 | 24.7 9% | 27 -0% | 26 4% | 25 7% |
Idle Maximum * | 29 | 24.7 15% | 39 -34% | 26 10% | 28 3% |
Load Average * | 38 | 30.8 19% | 43 -13% | 30.5 20% | 36 5% |
Witcher 3 ultra * | 40 | 33 17% | 39 2% | ||
Load Maximum * | 45 | 46.4 -3% | 43 4% | 30.5 32% | 46 -2% |
* ... smaller is better
温度

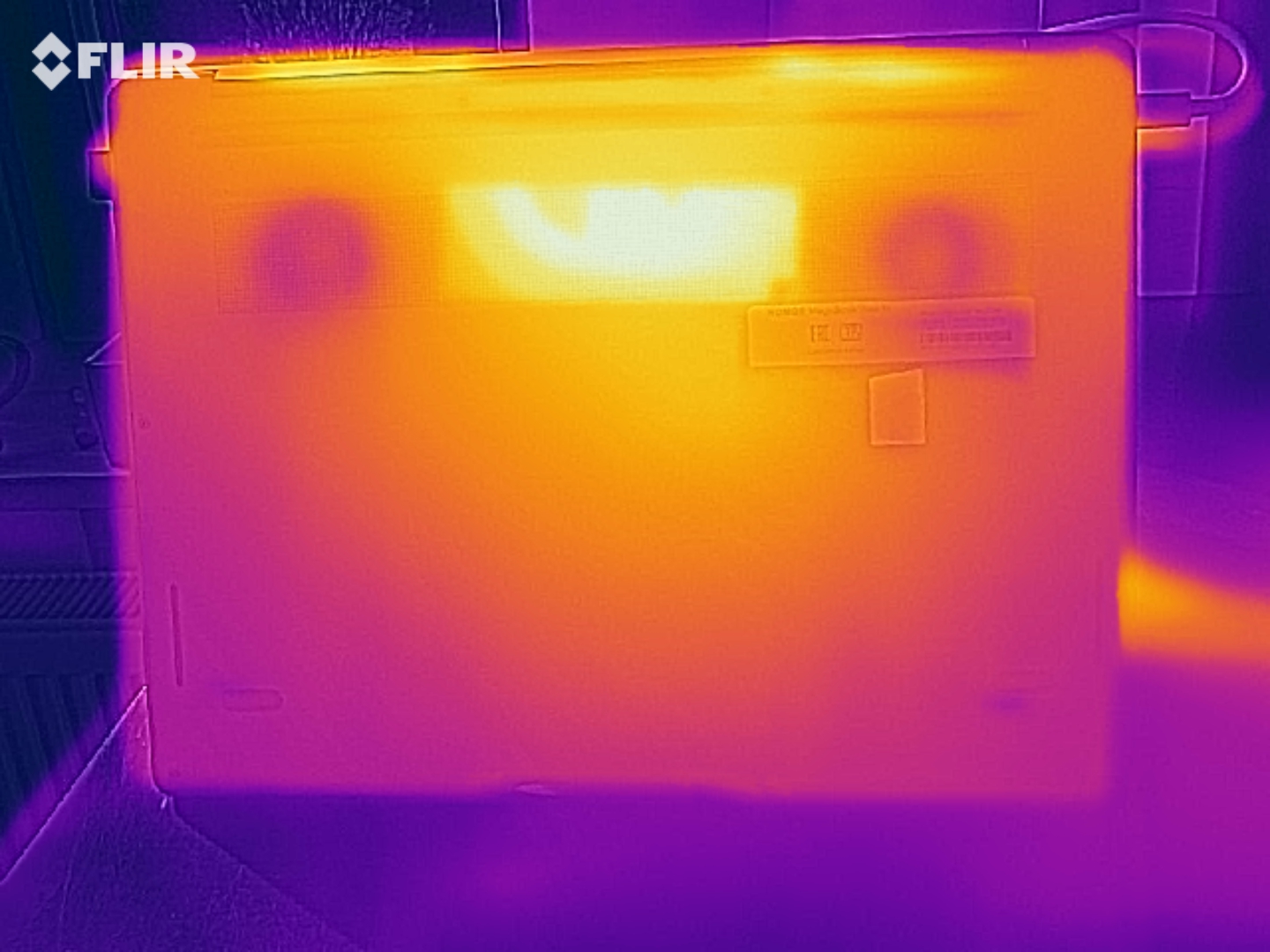

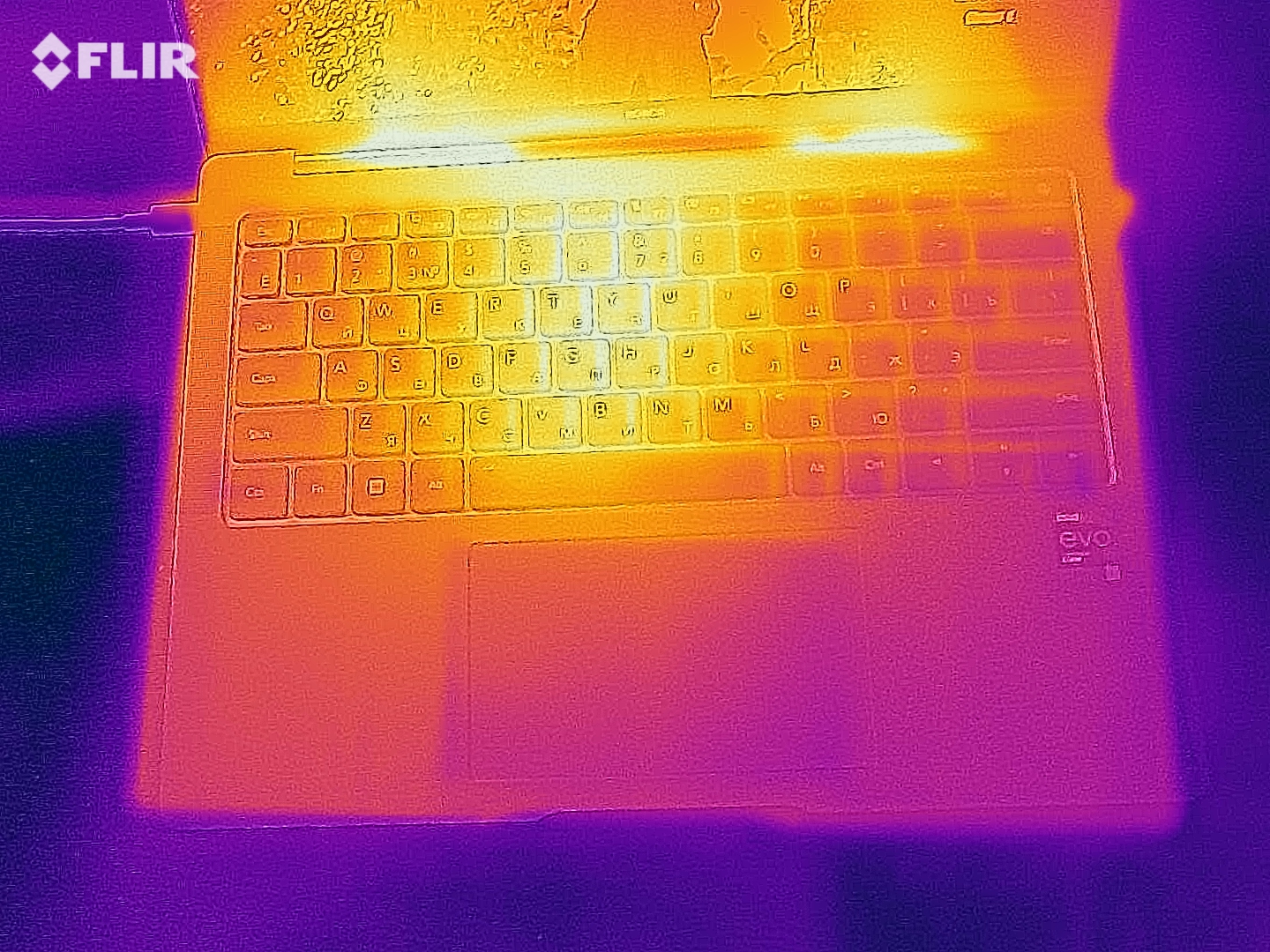

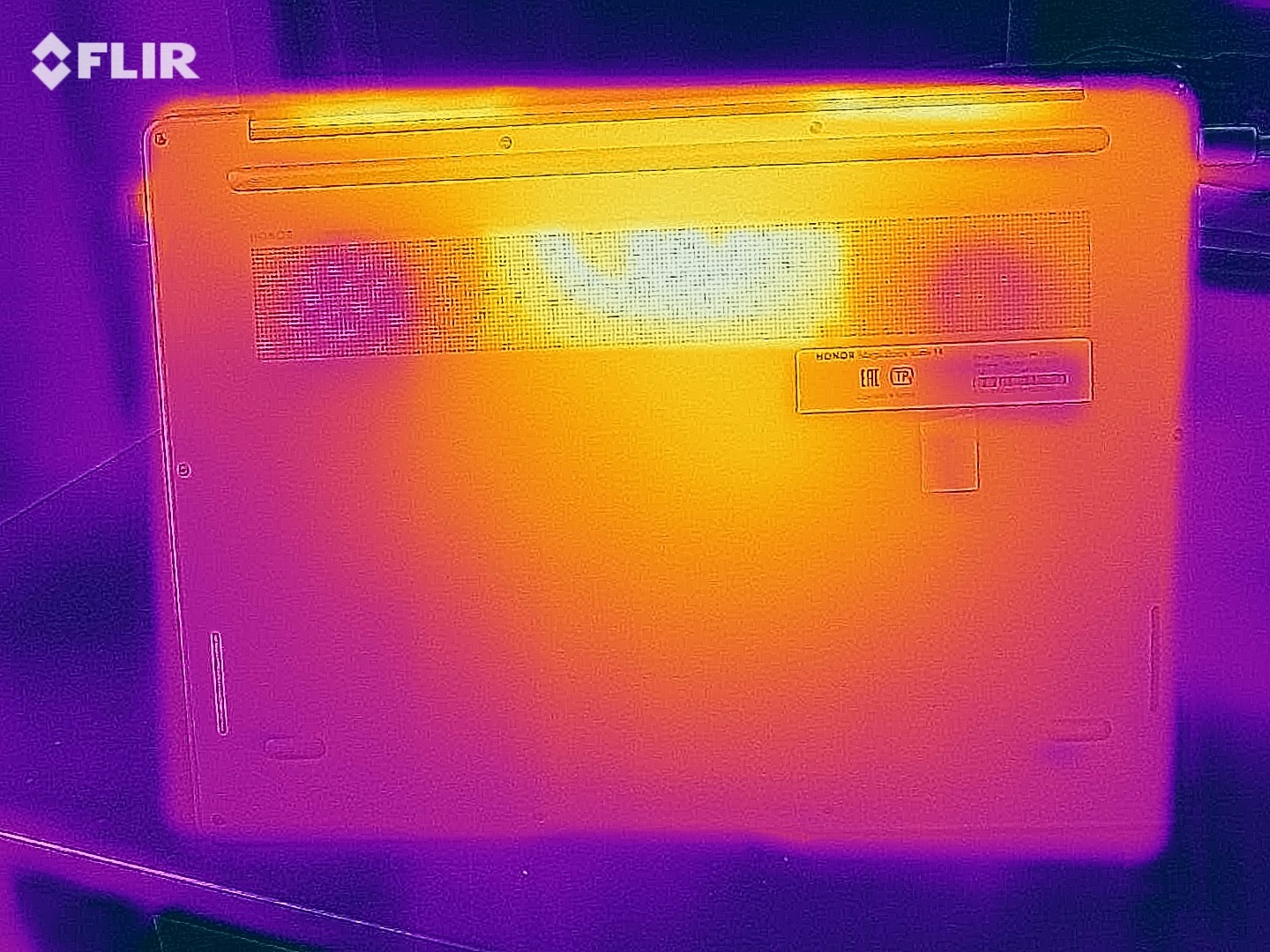

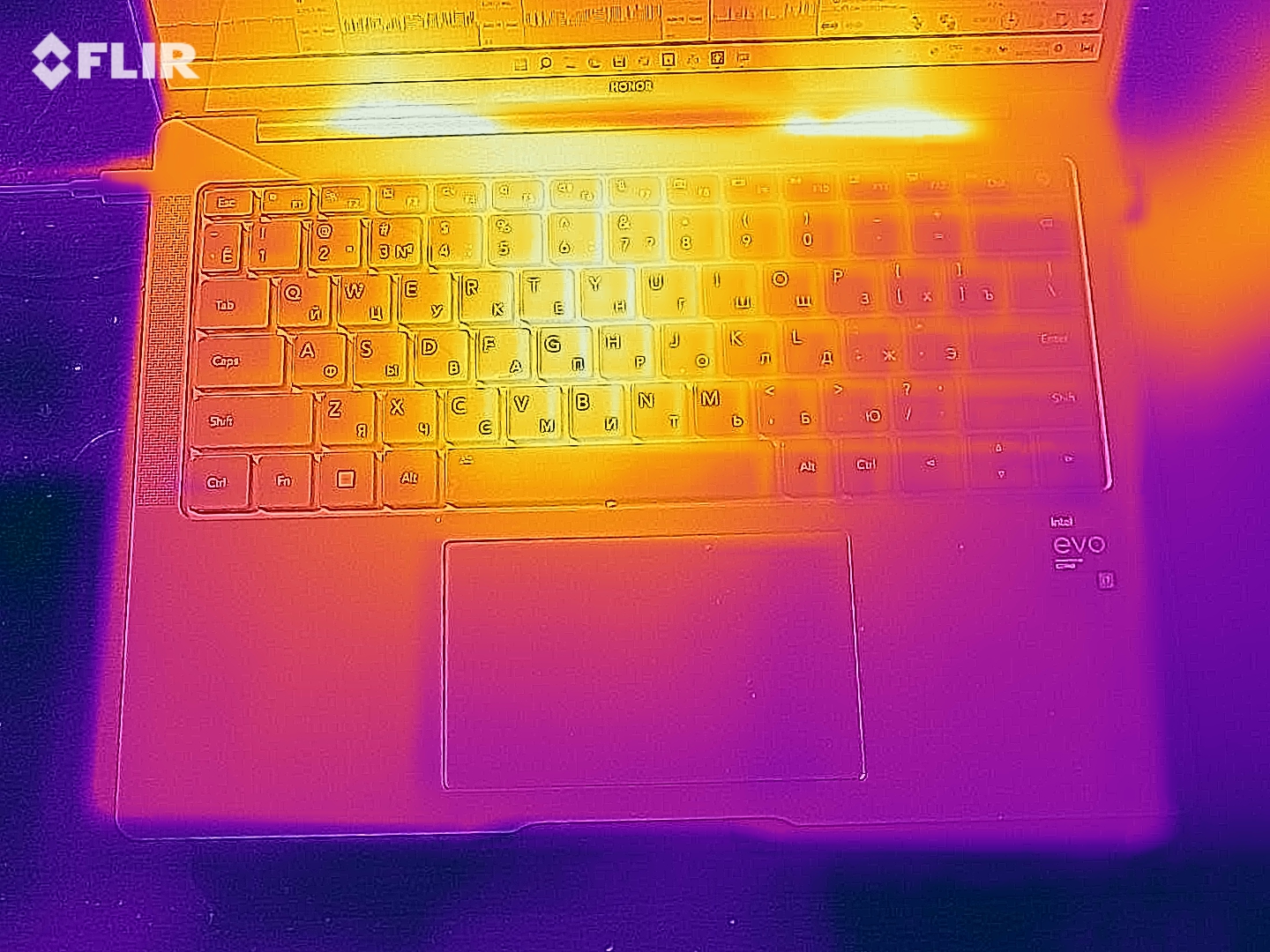

温度发展也被控制在一定范围内。在使用FurMark和Prime95工具进行的压力测试中,我们只能在机箱的顶部获得最高41 °C(约106 °F),在底部获得46 °C(约115 °F)。特别是微星的Prestige 14在这里得到了明显的温度。整个机箱在空闲模式下保持舒适的温度,约为24°C(约75°F)。
此外,组件也没有出现过热现象。虽然在3D模式下短暂地达到了90°C(约194°F)的大关,但随着时间的推移,Core i7-11390H和Iris Xe Graphics G7的温度稳定在温和的60至70°C(140至158°F)。
(±) The maximum temperature on the upper side is 41 °C / 106 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 46 °C / 115 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35 °C / 95 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33 °C / 91.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-4.7 °C / -8.5 F).
Honor MagicBook View 14 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs | Lenovo IdeaPad Slim 7i Pro 14IHU5 Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs | MSI Prestige 14 Evo A11M-005 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs | LG Gram 14Z90P-G.AA79G Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Honor Magicbook 14 i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | |
---|---|---|---|---|---|
Heat | 2% | -21% | -1% | -6% | |
Maximum Upper Side * | 41 | 39.4 4% | 50 -22% | 47.2 -15% | 43 -5% |
Maximum Bottom * | 46 | 51.4 -12% | 61 -33% | 45.8 -0% | 47 -2% |
Idle Upper Side * | 25 | 21.6 14% | 28 -12% | 23.8 5% | 27 -8% |
Idle Bottom * | 25 | 24.6 2% | 29 -16% | 22.9 8% | 27 -8% |
* ... smaller is better
发言人
虽然几乎所有的笔记本电脑在声音质量方面都表现出明显的缺点,但View 14是极少数积极的例外之一。是的,在这种情况下,低音仍然可以使用更多的力量,但除此之外,4.0系统提供了一个彻底令人印象深刻的声音。根据我们的音频分析,在所有被审查的设备中,只有5%的设备表现更好。
Honor MagicBook View 14 audio analysis
(+) | speakers can play relatively loud (82 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 15.5% lower than median
(±) | linearity of bass is average (11.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.5% away from median
(+) | mids are linear (4.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (4.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.6% difference to median)
Compared to same class
» 20% of all tested devices in this class were better, 6% similar, 74% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 12% of all tested devices were better, 4% similar, 84% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo IdeaPad Slim 7i Pro 14IHU5 audio analysis
(±) | speaker loudness is average but good (79.8 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.8% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(+) | mids are linear (5.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.5% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 6% similar, 68% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 16% of all tested devices were better, 4% similar, 80% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
能源消耗
除了排放,能源消耗也没有显示出任何不正常的情况。对于配备35瓦的CPU和Iris Xe Graphics G7的笔记本电脑来说,空闲时消耗4至11瓦,负载时消耗50至67瓦是典型的。
Off / Standby | 0.1 / 1.2 Watt |
Idle | 4 / 7 / 11 Watt |
Load |
50 / 67 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Honor MagicBook View 14 i7-11390H, Iris Xe G7 96EUs | Lenovo IdeaPad Slim 7i Pro 14IHU5 i7-11370H, Iris Xe G7 96EUs | MSI Prestige 14 Evo A11M-005 i7-1185G7, Iris Xe G7 96EUs | LG Gram 14Z90P-G.AA79G i7-1165G7, Iris Xe G7 96EUs | Honor Magicbook 14 i7-1165G7 i7-1165G7, Iris Xe G7 96EUs | Average of class Subnotebook | |
---|---|---|---|---|---|---|
Power Consumption | -0% | -3% | 32% | 11% | 0% | |
Idle Minimum * | 4 | 4.8 -20% | 5 -25% | 2.5 37% | 4 -0% | 4.43 ? -11% |
Idle Average * | 7 | 7.9 -13% | 7 -0% | 5.3 24% | 6 14% | 7.58 ? -8% |
Idle Maximum * | 11 | 8.6 22% | 11 -0% | 9.5 14% | 10 9% | 9.43 ? 14% |
Load Average * | 50 | 46.5 7% | 54 -8% | 26.2 48% | 34 32% | 45.8 ? 8% |
Witcher 3 ultra * | 44.8 | 43 4% | 39 13% | |||
Load Maximum * | 67 | 67.4 -1% | 65 3% | 42.8 36% | 68 -1% | 68.7 ? -3% |
* ... smaller is better
Energy consumption during The Witcher 3 / stress test
Energy consumption with an external monitor
电池寿命
电池容量为60Wh。这使View 14处于中场位置。竞争者可以求助于52Wh(MSI Prestige 14 Evo)和72Wh(LG Gram 14)之间。后者的笔记本电脑在电池运行时间方面明显领先。根据我们的Wi-Fi测试,Honor 笔记本电脑可以在中等显示亮度下浏览互联网约9小时--这是一个非常好的结果,与联想IdeaPad Slim 7i Pro和MagicBook 14相当。
Honor MagicBook View 14 i7-11390H, Iris Xe G7 96EUs, 60 Wh | Lenovo IdeaPad Slim 7i Pro 14IHU5 i7-11370H, Iris Xe G7 96EUs, 61 Wh | MSI Prestige 14 Evo A11M-005 i7-1185G7, Iris Xe G7 96EUs, 52.4 Wh | LG Gram 14Z90P-G.AA79G i7-1165G7, Iris Xe G7 96EUs, 72 Wh | Honor Magicbook 14 i7-1165G7 i7-1165G7, Iris Xe G7 96EUs, 56 Wh | Average of class Subnotebook | |
---|---|---|---|---|---|---|
Battery Runtime | -20% | -27% | 106% | 15% | 32% | |
Reader / Idle | 1382 | 889 -36% | 825 -40% | 2925 112% | 1808 ? 31% | |
WiFi v1.3 | 544 | 502 -8% | 451 -17% | 854 57% | 580 7% | 729 ? 34% |
Load | 88 | 73 -17% | 68 -23% | 219 149% | 107 22% | 116.5 ? 32% |
H.264 | 1149 | 917 ? |
Pros
Cons
判决书
轻巧、紧凑,但速度快。这就是Honor MagicBook View 14在我们评论中的表现。
这款14英寸的笔记本是一个真正的全能选手,适用于各种应用领域和目的,从办公和多媒体到内容创作。
高对比度、锐利和令人愉悦的14英寸显示屏得到了良好的输入设备和光滑、优雅和整洁的机箱的补充。该机酷睿i7-11390H和Iris Xe Graphics G7也出色地显示了其优势,尽管一个酷睿i7-11370H也会很好。另一方面,我们对焊接的内存提出了批评,因为它不提供升级的选择,而且光亮的显示表面--根据环境--有时会导致强烈和非常恼人的反射。
触摸爱好者如果不被过度的反射所影响,可以选择看一下稍微好一点,但也更贵的产品。 联想IdeaPad Slim 7i Pro.喜欢哑光显示器的用户可能会喜欢MSI Prestige 14 Evo或 "普通" Honor MagicBook 14.如果你专注于降低重量,那么LG Gram 14是第一选择。
价格和可用性
到目前为止,MagicBook View 14只在部分国家和市场销售。我们测试的版本采用酷睿i7-11390H,16GB内存和512GB固态硬盘,价格约为1150欧元(约合人民币1307元)。
Honor MagicBook View 14
- 01/08/2022 v7 (old)
Florian Glaser
