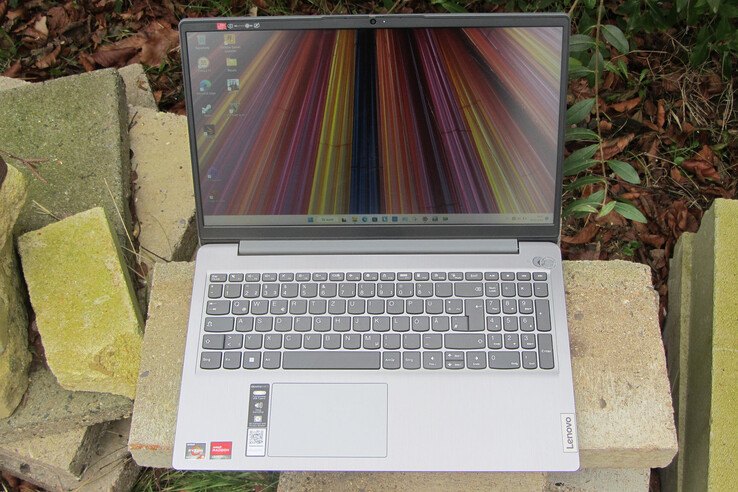

联想IdeaPad 3 15ABA7回顾。拥有强大的Ryzen APU的耐用办公笔记本
IdeaPad 3系列无疑是联想面包和主食业务的一部分：潜在客户在无数的设备系列（英特尔或AMD CPU，带/不带dGPU）和常见的显示格式（14，15.6或17.3英寸）中选择。我们的测试设备--15.6英寸规格的办公笔记本--采用的是Ryzen 5 5625UAPU（Barcelo），目前售价约为779美元。竞争的设备包括 戴尔 Inspiron 15 5515，以及 惠普ProBook 450 G9，以及 华硕Vivobook 15 OLED和 Acer Aspire 5 A515-56.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 82.1 % v7 (old) | 02 / 2023 | Lenovo IdeaPad 3 15ABA7 R5 5625U, Vega 7 | 1.6 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 84.7 % v7 (old) | 07 / 2022 | Dell Inspiron 15 5515-H8P8F R7 5700U, Vega 8 | 1.6 kg | 18 mm | 15.60" | 1920x1080 | |
| 81.4 % v7 (old) | 12 / 2020 | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 18 mm | 15.60" | 1920x1080 | |
| 85 % v7 (old) | 08 / 2022 | HP ProBook 450 G9 6A180EA i7-1255U, Iris Xe G7 96EUs | 1.7 kg | 19.9 mm | 15.60" | 1920x1080 | |
| 80.7 % v7 (old) | 04 / 2022 | Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8 | 1.8 kg | 18.6 mm | 15.60" | 1920x1080 |

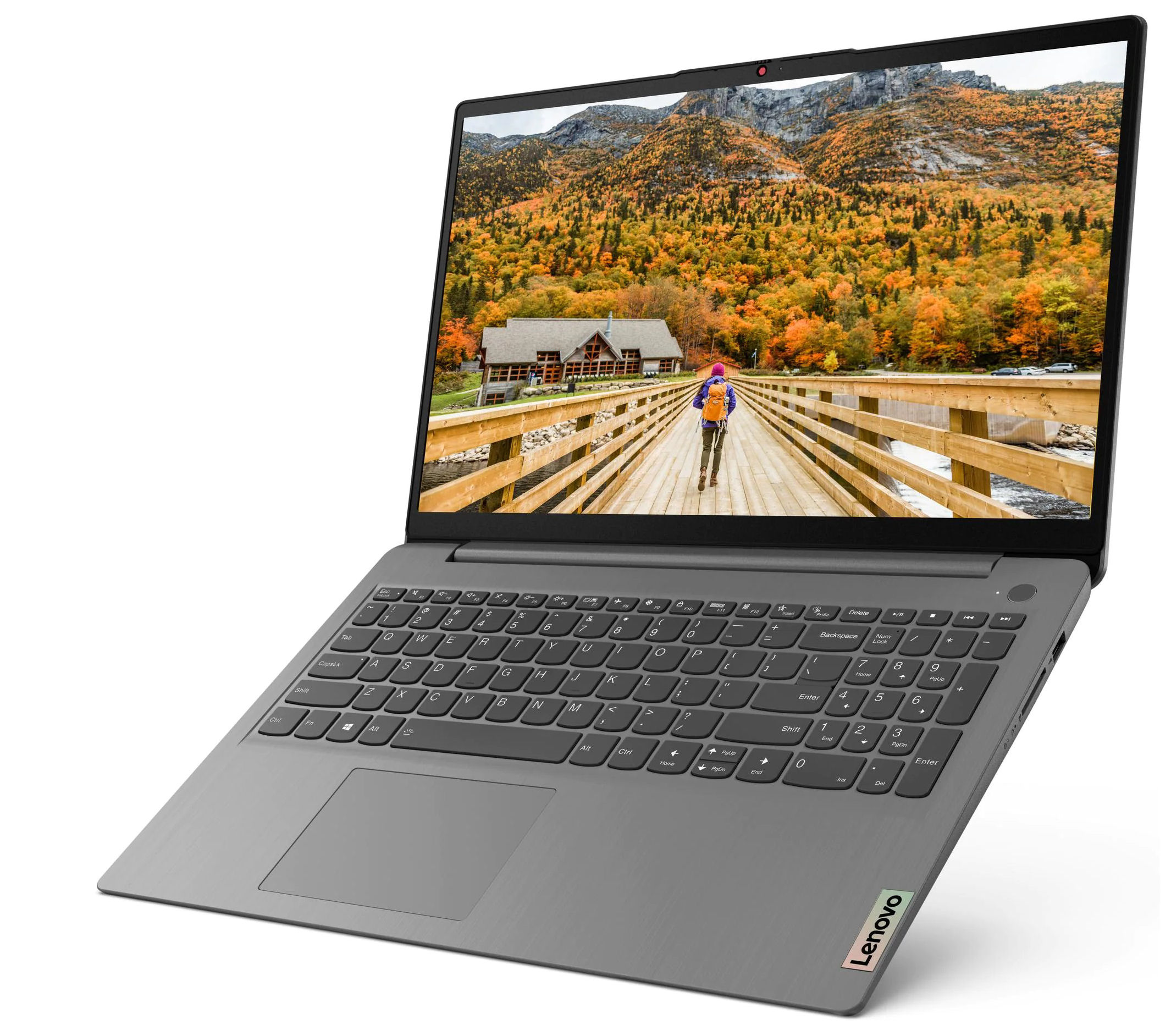

外壳 - IdeaPad有三种颜色可供选择

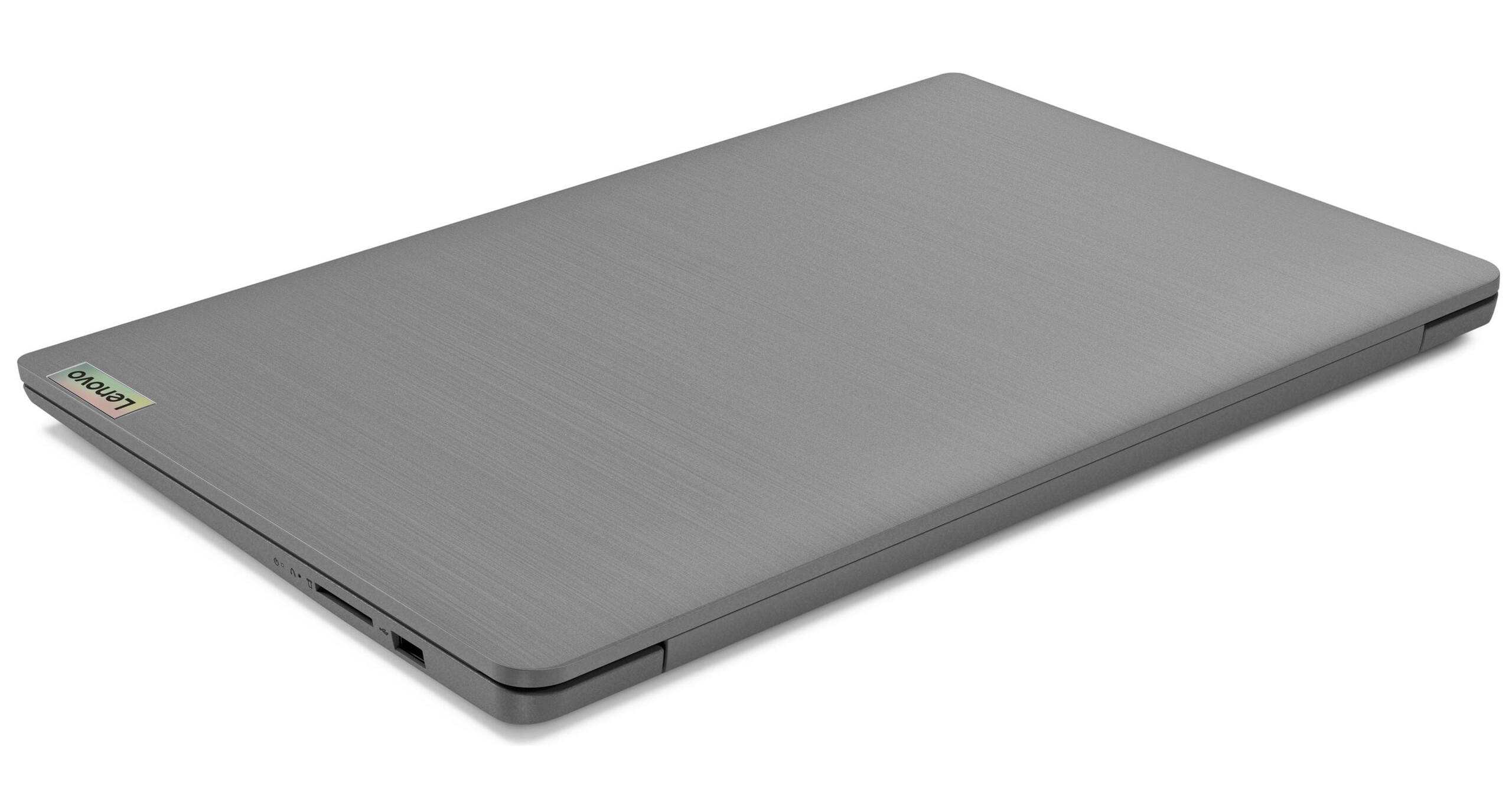

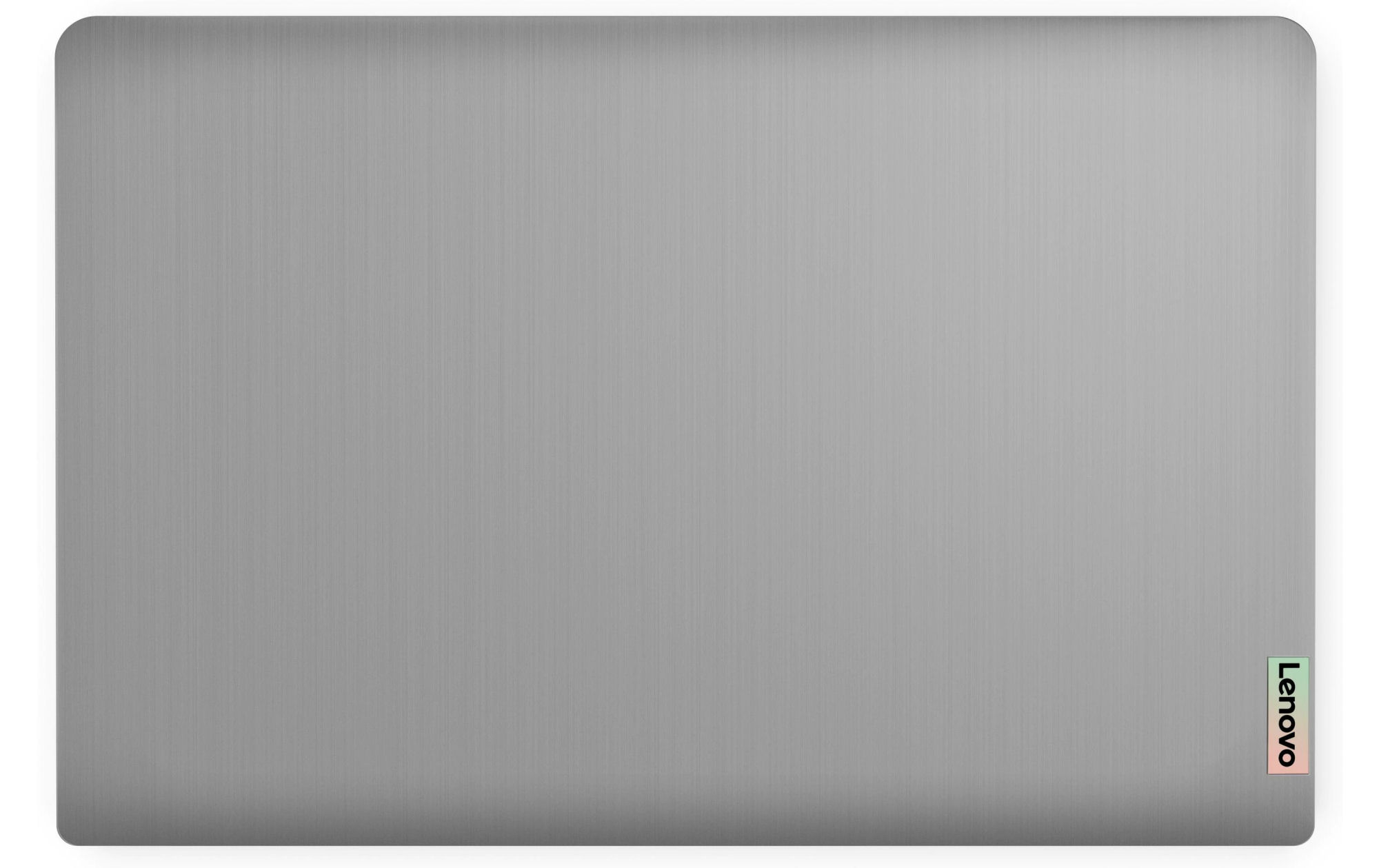

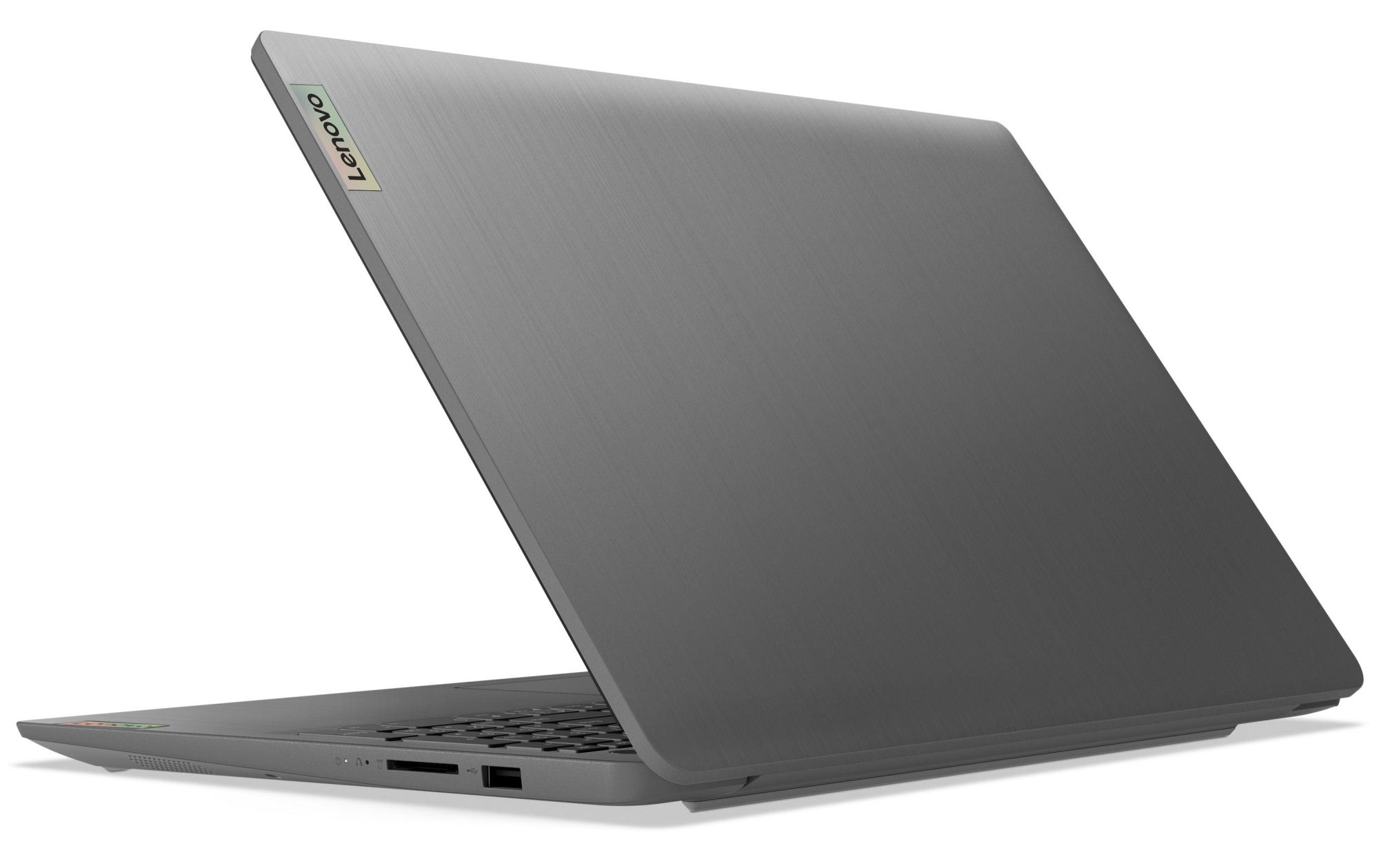

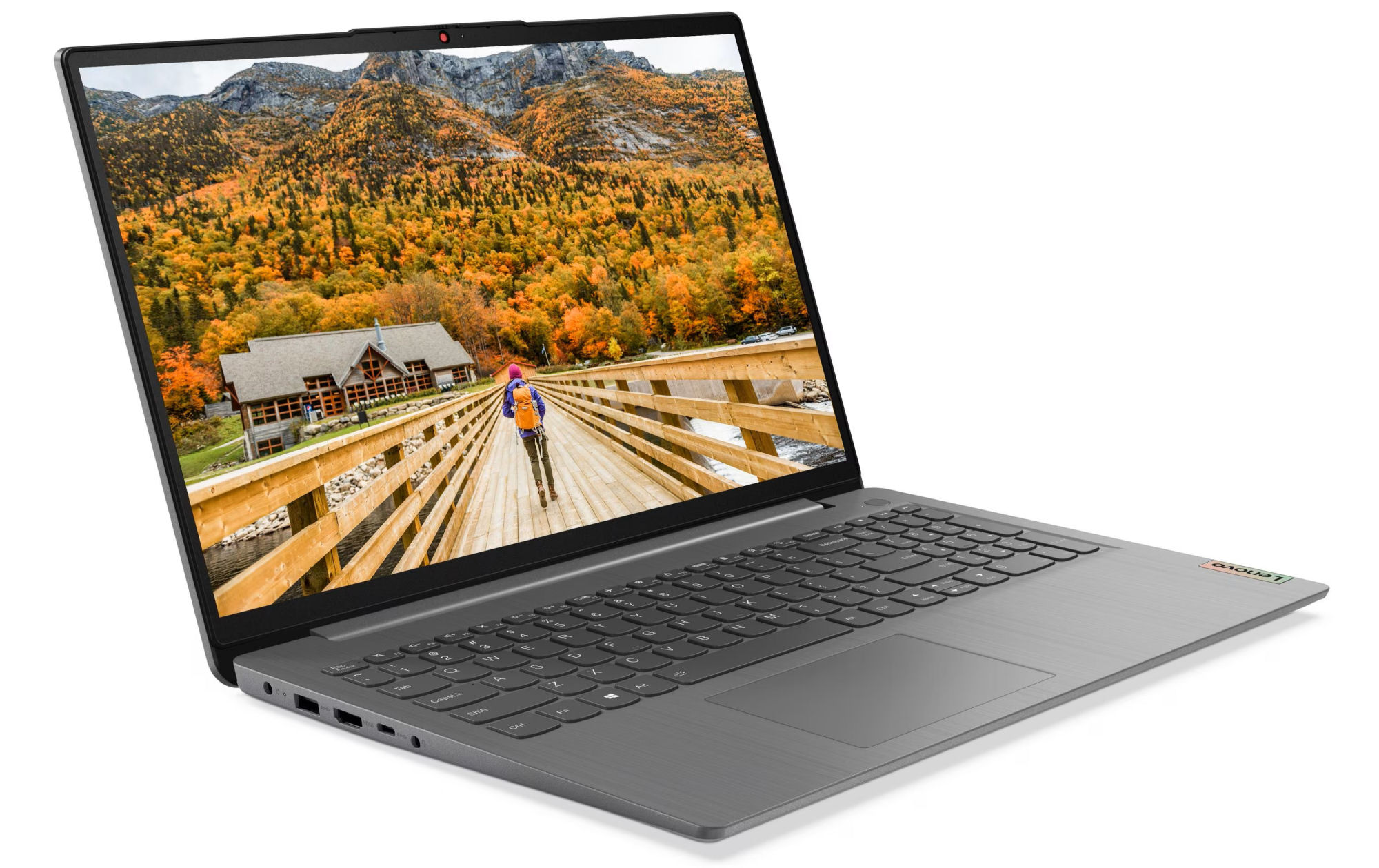

最新化身的IdeaPad再次被安置在塑料外壳中，有三种不同的颜色（深渊蓝、北极灰、迷雾蓝）--我们有一个银灰色的模型。与直接的前辈相比，外观和设计没有改变。基本单元的顶部和盖子的背面仍然有一个刷子外观的涂层。没有维护舱口。电池（用螺丝固定，不是用胶水）和内部组件在拆开底盖后可以接触到。
底座没有显示出加工方面的缺陷。然而，底座和盖子在扭转压力下扭动得有点厉害，证明缺乏刚度。铰链将盖子牢牢地固定在位置上，但当笔记本被移动时也会晃动。最大打开角度约为155度。单手打开盖子是可能的。
在尺寸和重量方面，对比设备没有太大差别。这台Inspiron是该领域中最紧凑和最轻的笔记本，而IdeaPad在重量方面与之相当。
特点 - IP3提供USB-C

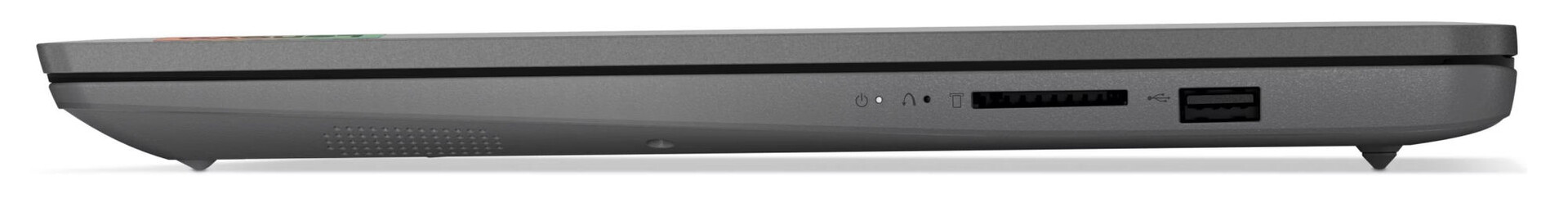

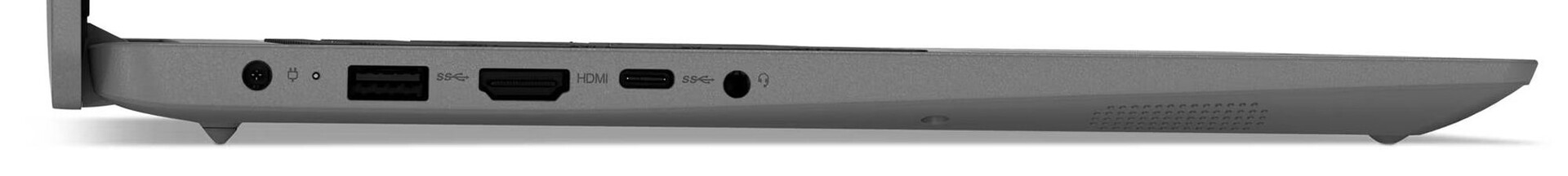

在连接方面，联想电脑提供了标准配置：两个USB-A端口（1个USB 3.2 Gen 1，1个USB 2.0）和一个USB-C插槽（USB 3.2 Gen 1）。后者通过USB-C支持Power Delivery和DisplayPort。与HDMI插槽一起，该笔记本有两个视频输出。一个组合音频插孔和一个专有电源插槽完善了笔记本的连接能力。
这些连接位于左侧和右侧的后部区域，因此掌托旁边的空间仍然没有电缆。
SD卡阅读器
SD存储卡读卡器（参考卡：AV Pro SD microSD 128 GB V60）以82.7 MB/s（传输250个每个5 MB的jpg图像文件）和87 MB/s（复制大数据块）的传输率跻身于中等速度的模型。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo IdeaPad 3 15ABA7 (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (22.7 - 198.5, n=35, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W (AV Pro SD microSD 128 GB V60) | |
| Dell Inspiron 15 5515-H8P8F (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Lenovo IdeaPad 3 15ABA7 (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (25 - 249, n=31, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W (AV Pro SD microSD 128 GB V60) | |
| Dell Inspiron 15 5515-H8P8F (AV Pro SD microSD 128 GB V60) | |
沟通
在最佳条件下（附近没有其他WLAN设备，笔记本和服务器PC之间距离较短）确定的WLAN传输率很好，但仍然有些低于WiFi芯片（Realtek RTL8852BE）的能力。板上没有以太网插槽。
| Networking | |
| iperf3 transmit AX12 | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| iperf3 receive AX12 | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| iperf3 receive AXE11000 6GHz | |
| Average of class Office (1065 - 1790, n=50, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| iperf3 receive AXE11000 | |
| Average of class Office (104.2 - 1775, n=89, last 2 years) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average Realtek RTL8852BE (455 - 984, n=43) | |
网络摄像头

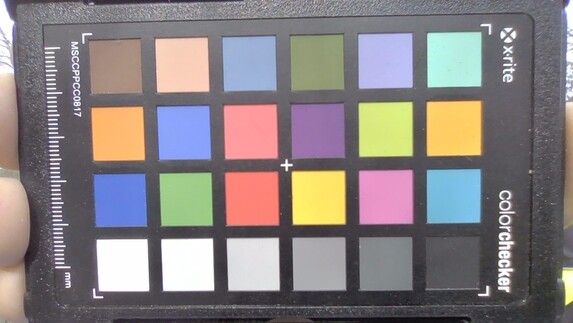

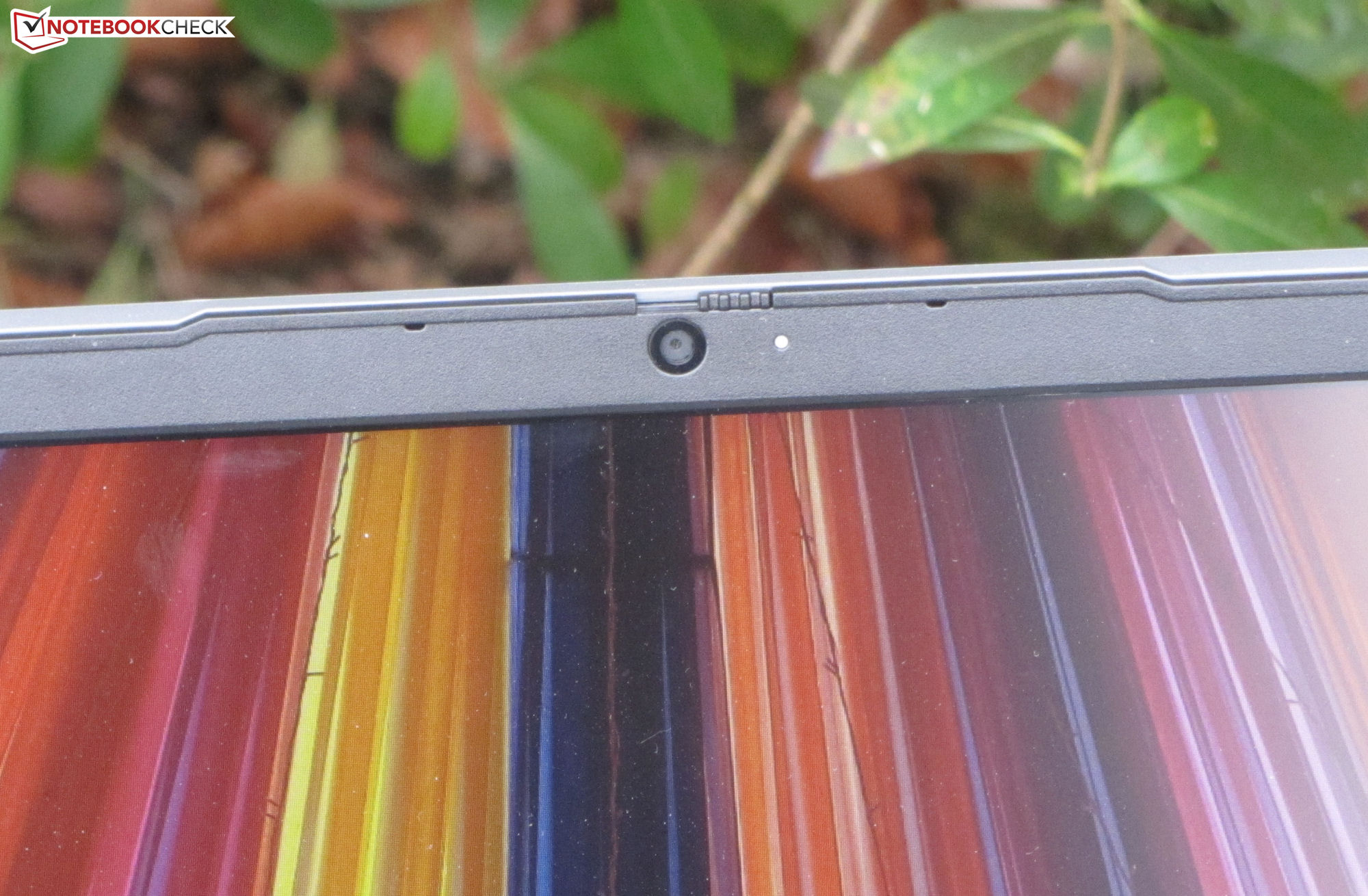

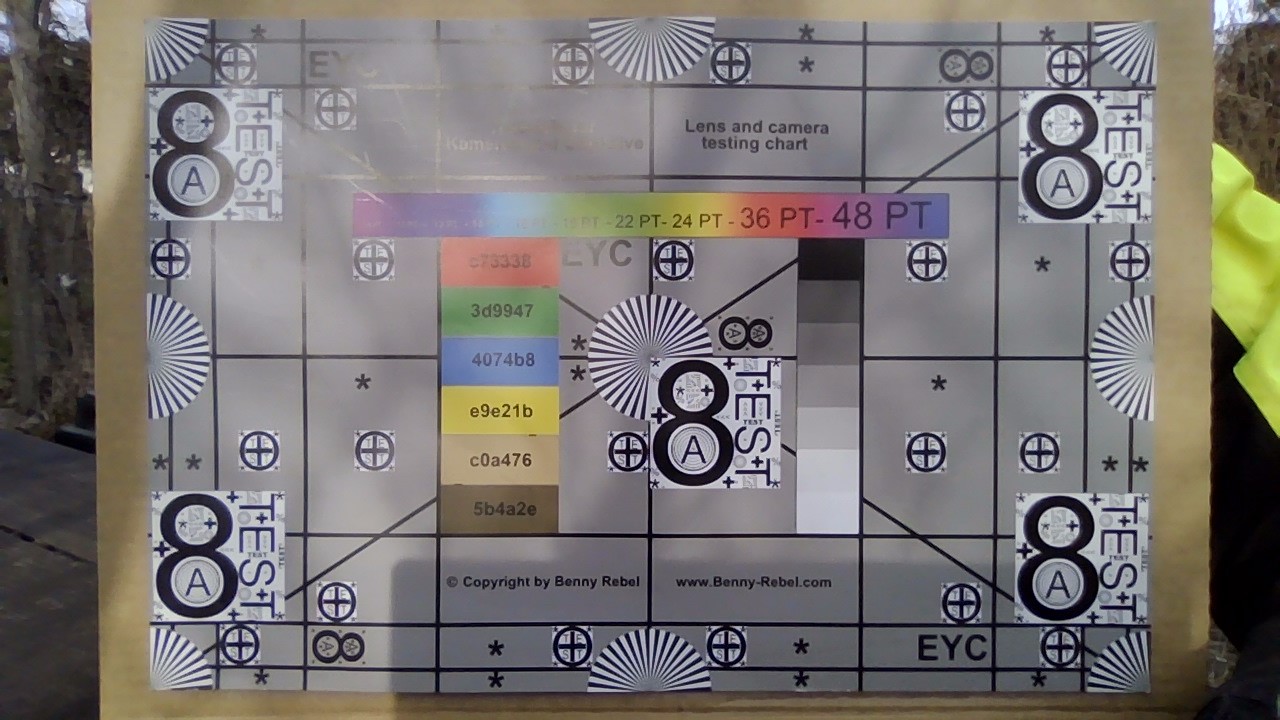

网络摄像头（0.9MP）产生的图像最大分辨率为1,280 x 720。有一个颜色准确性的问题：颜色与目标有很大偏差。在积极的一面，有一个机械快门。
配件
除了通常的文件（保修信息、快速启动传单）外，IP3没有包含其他附件。
维护

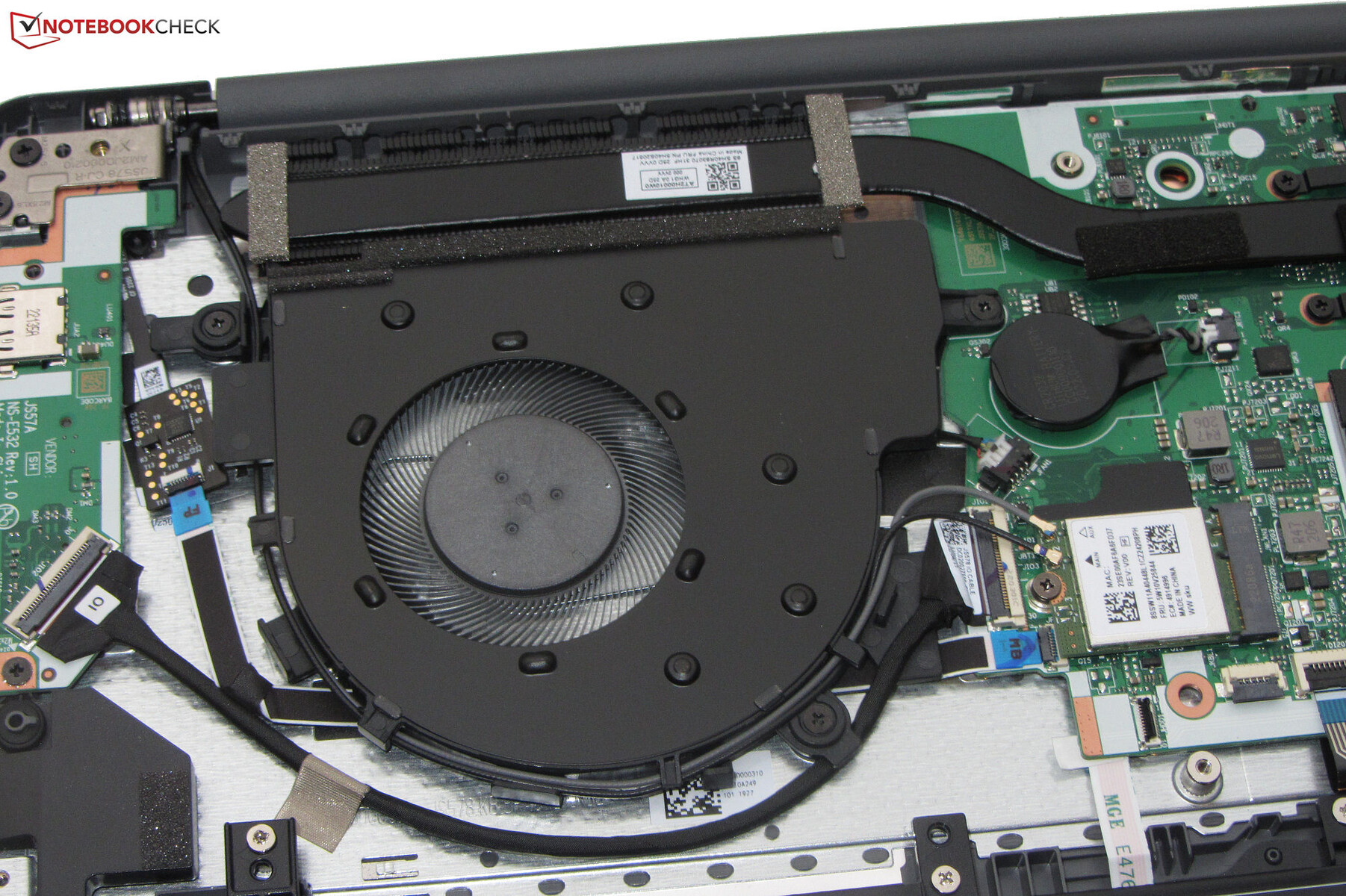

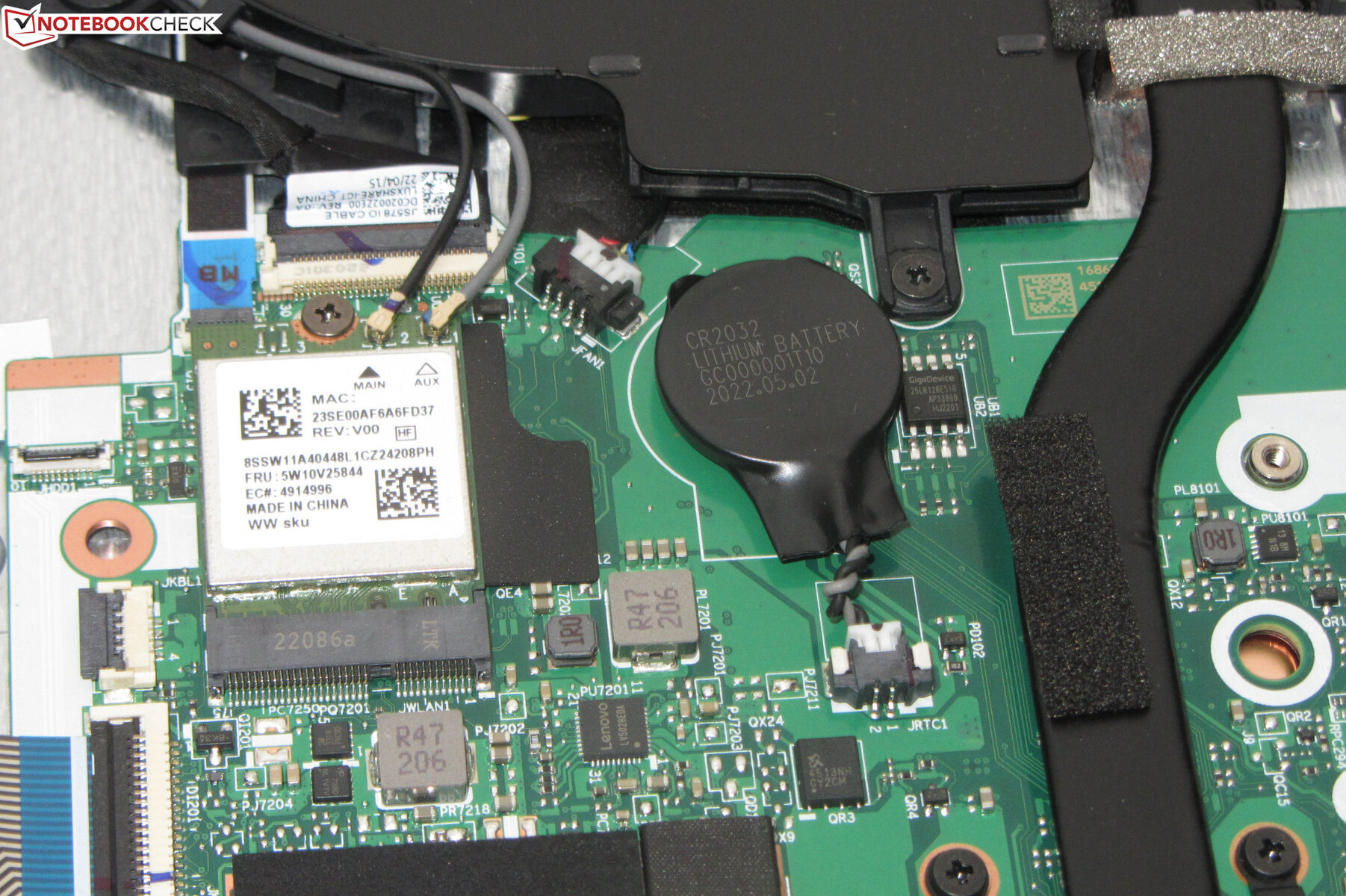

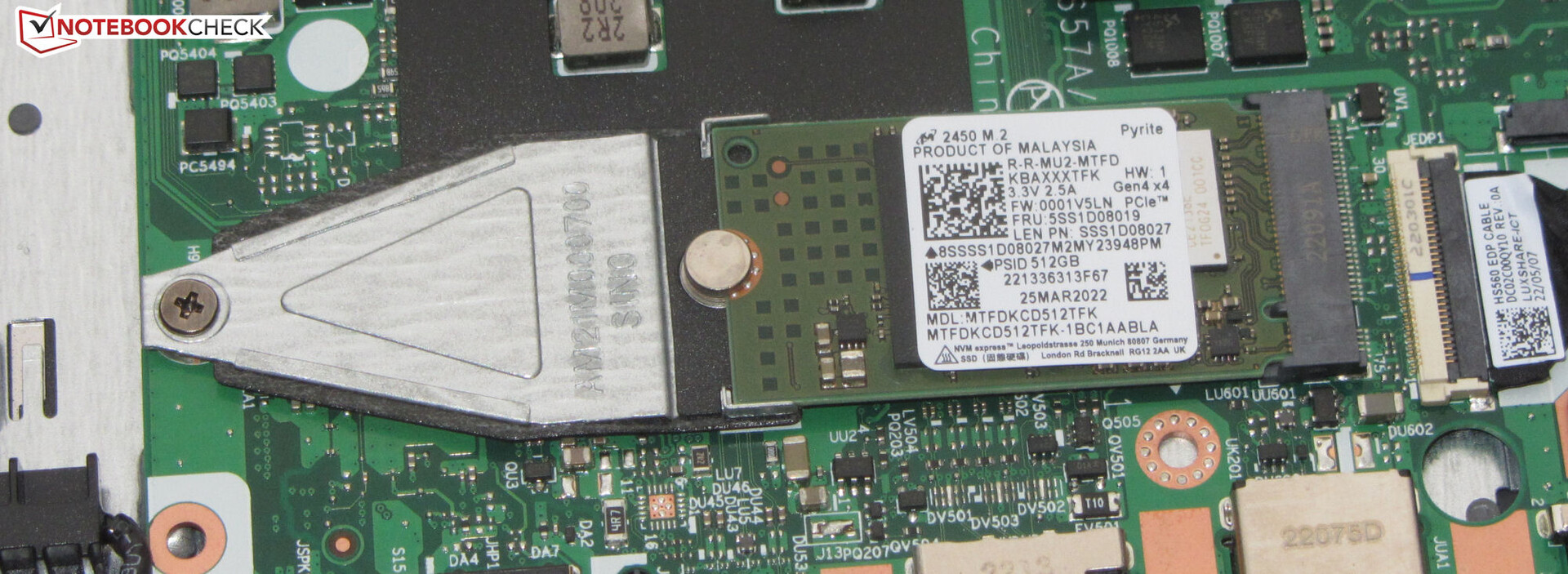

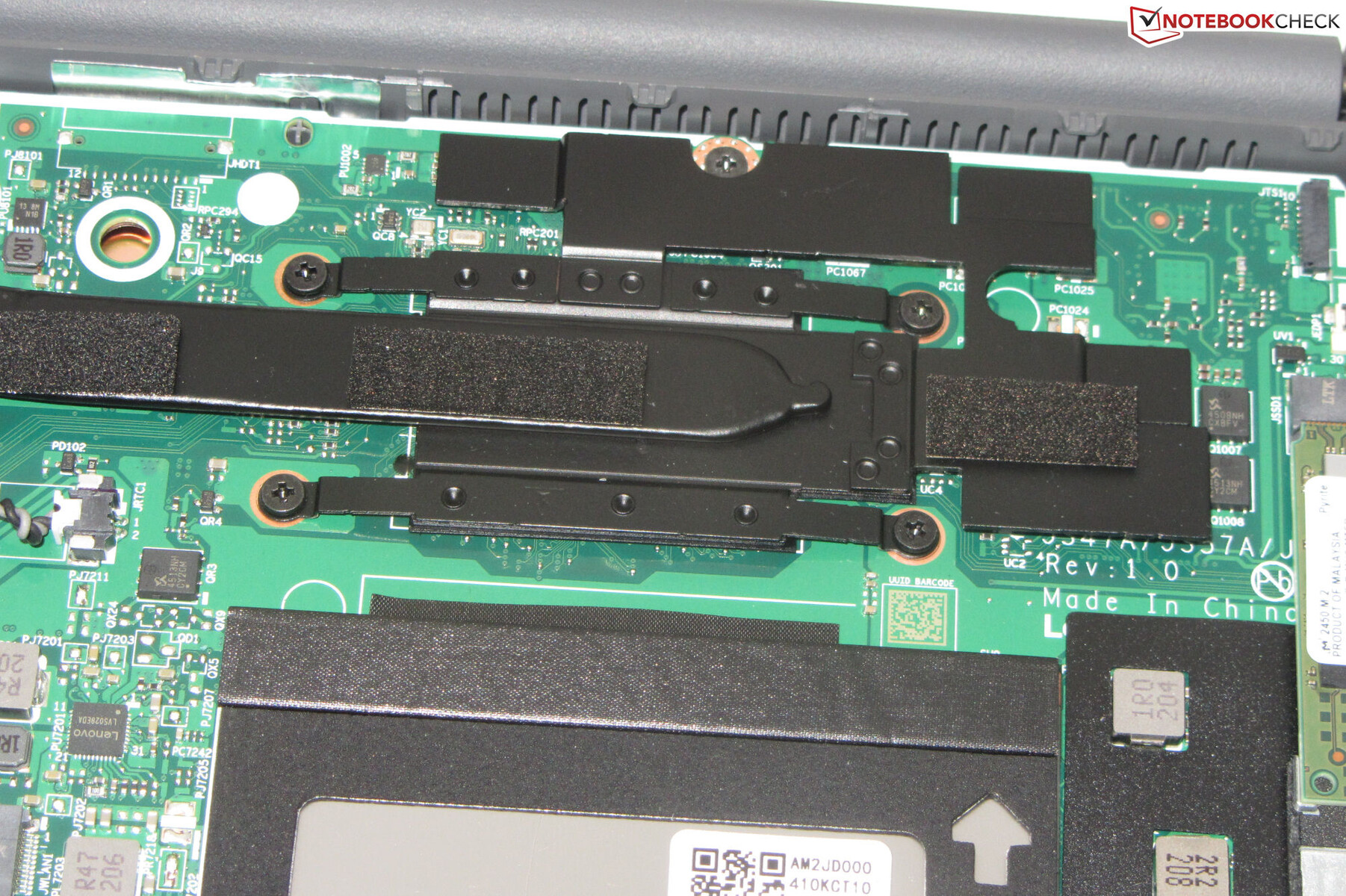

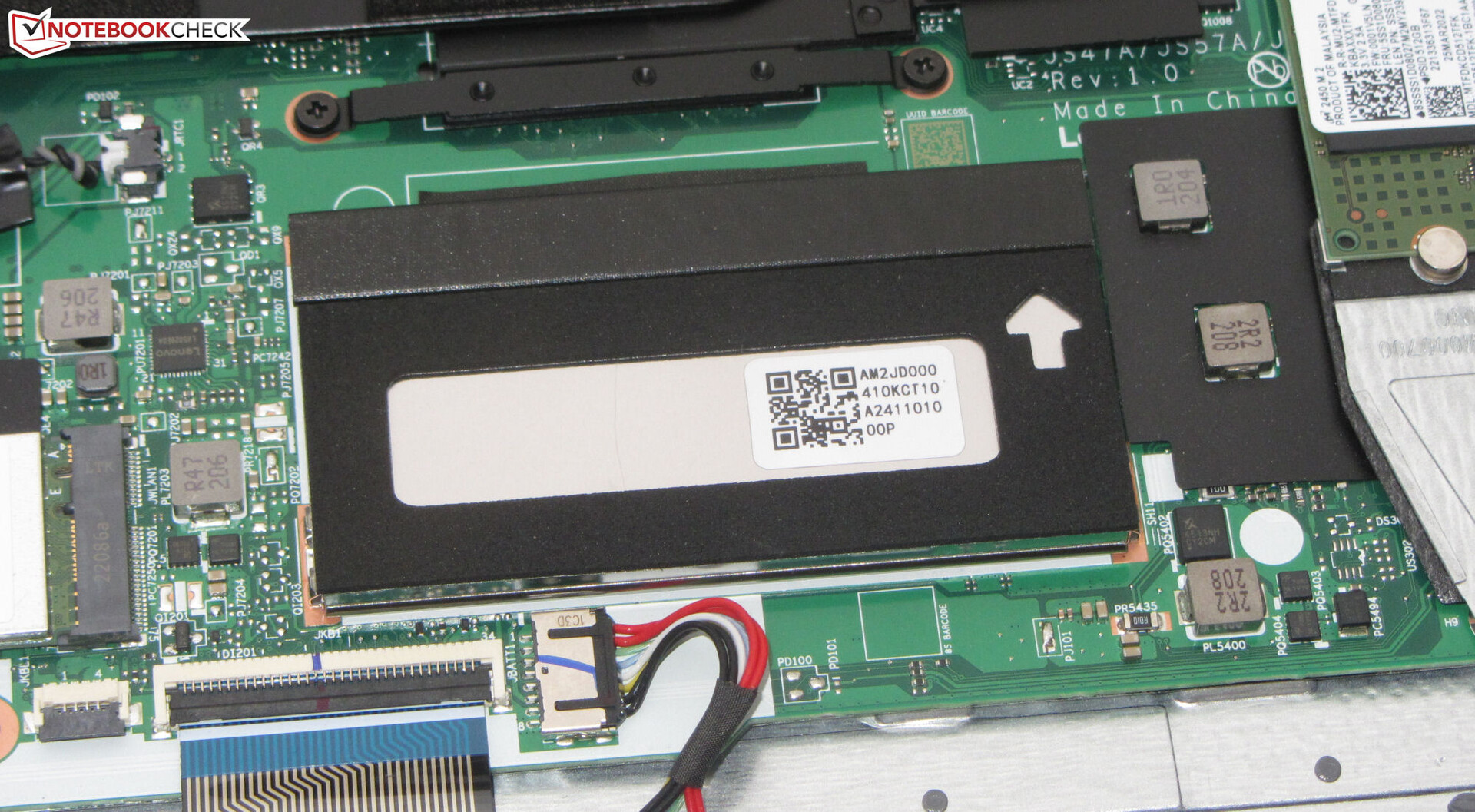

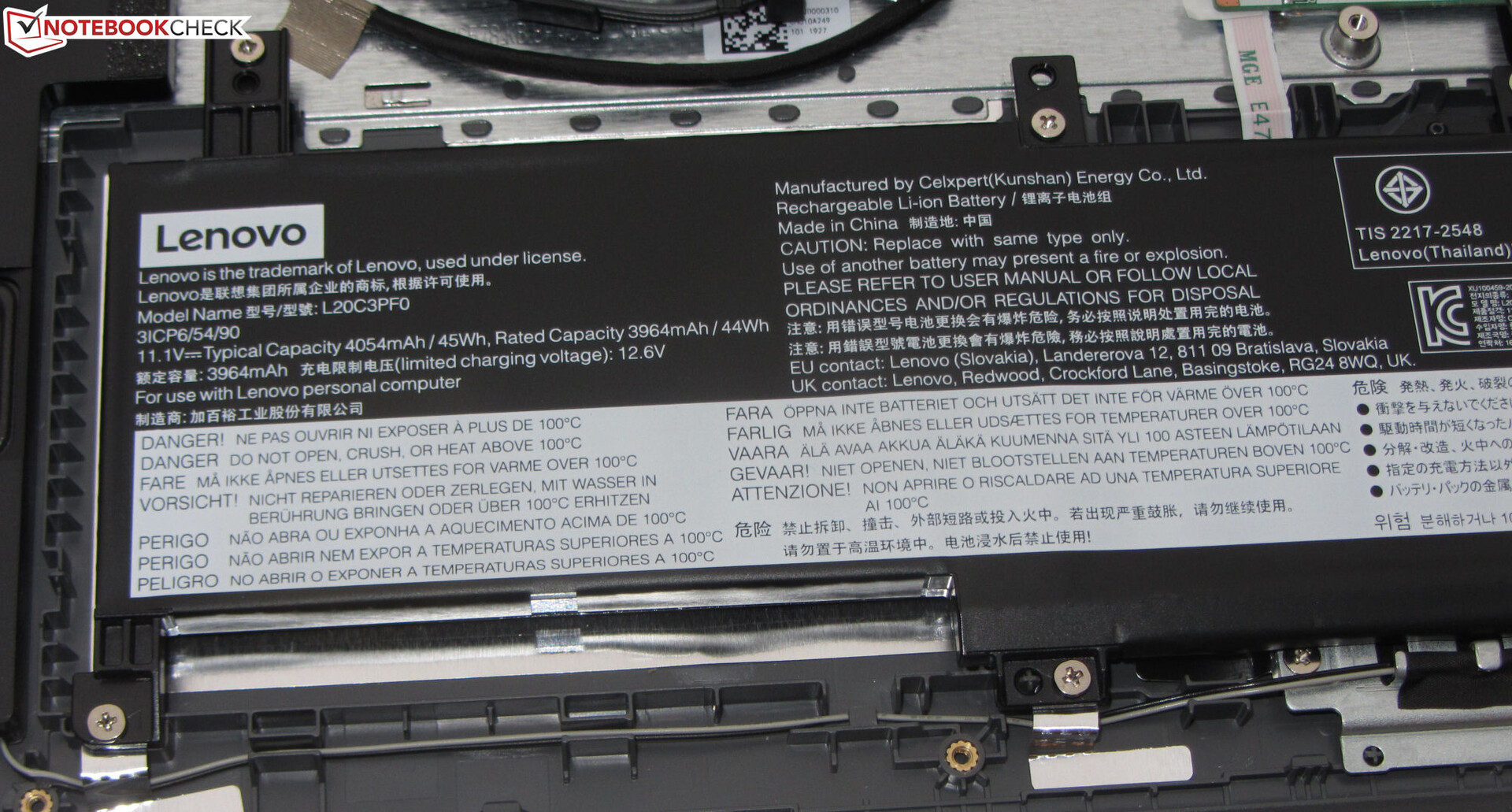

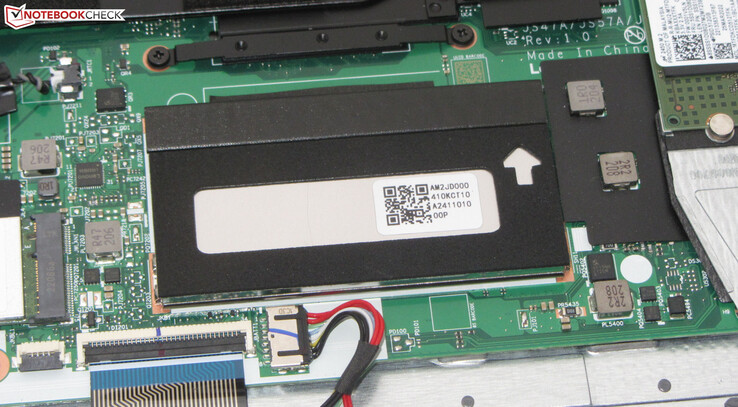

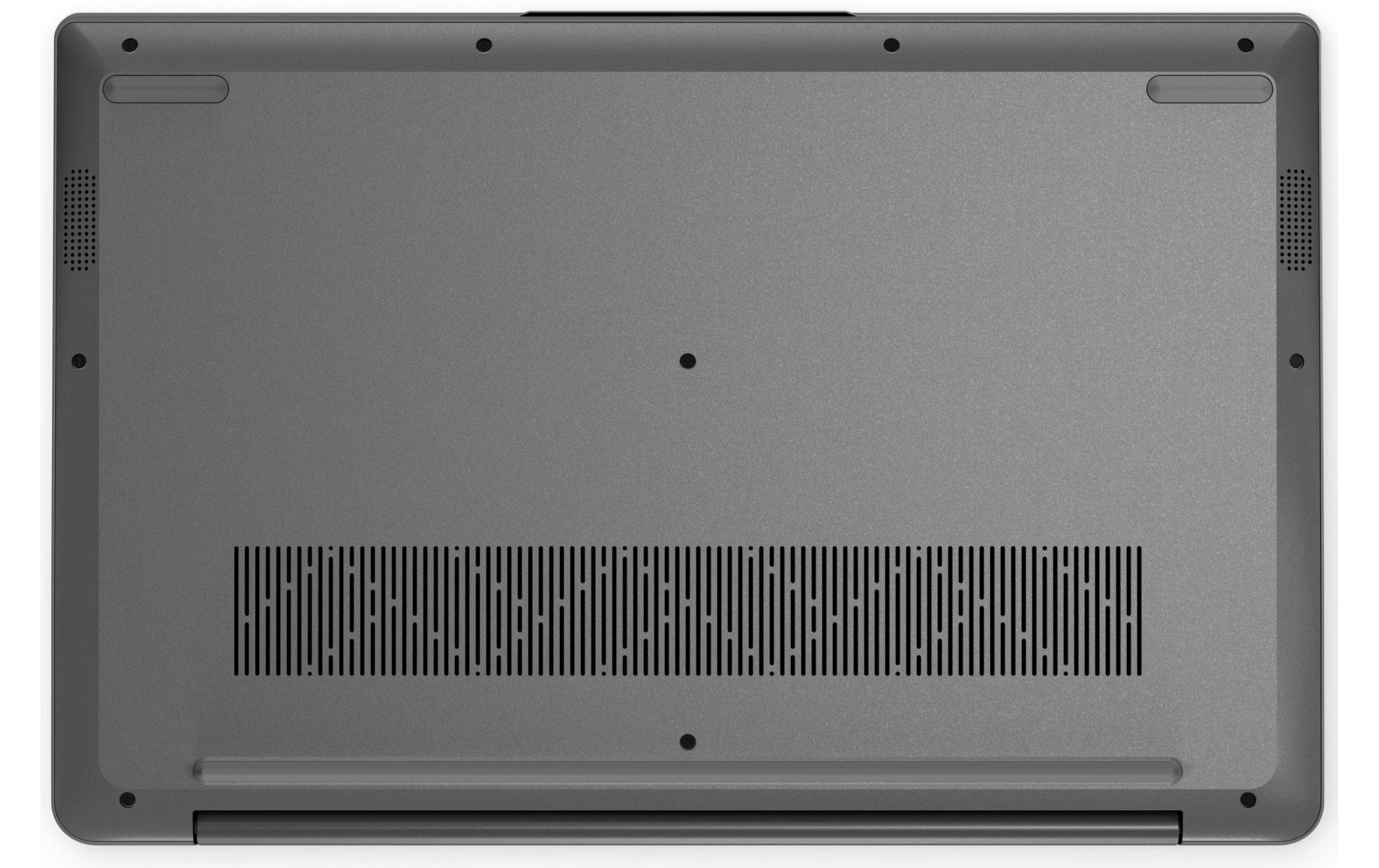

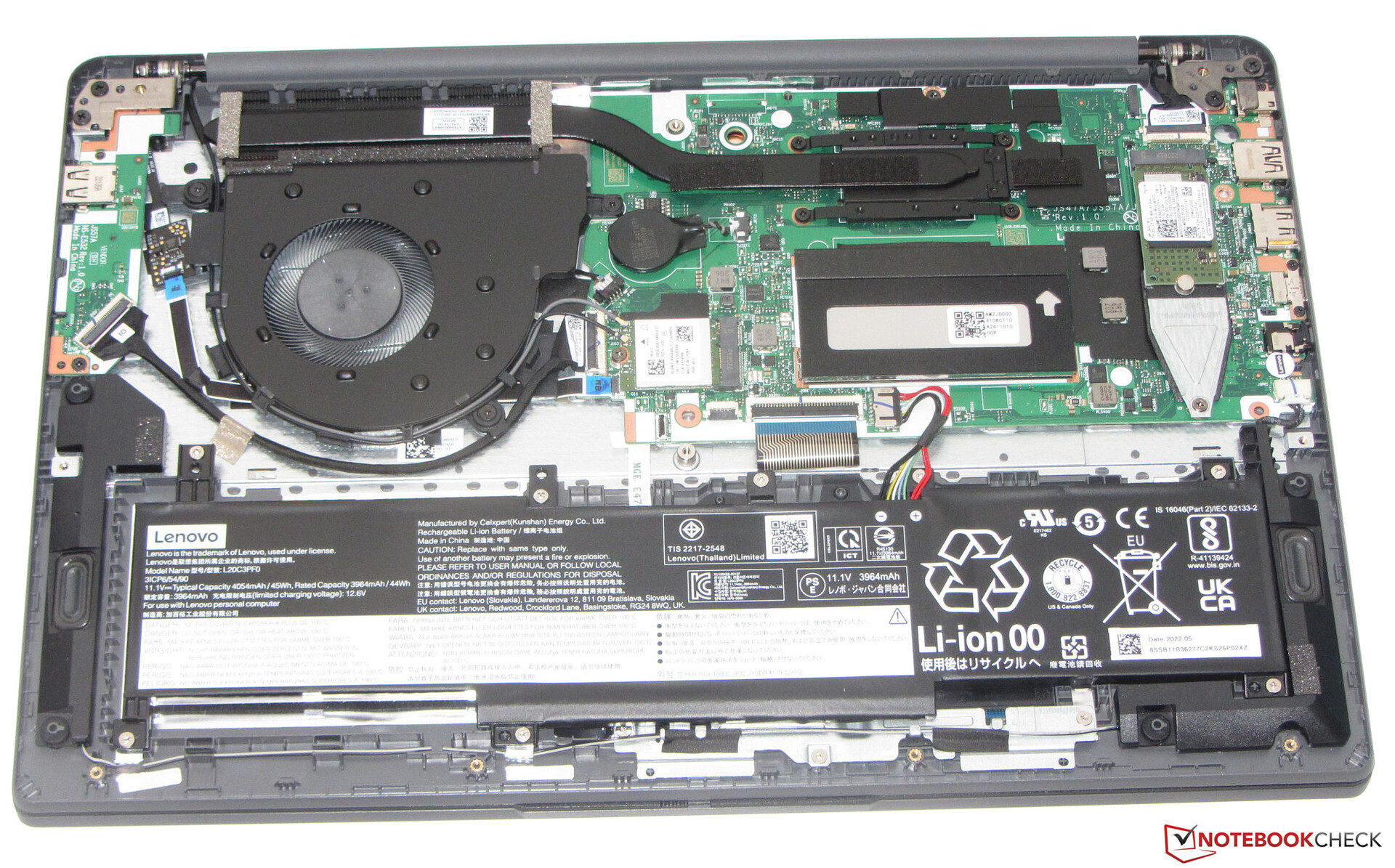

拆卸底层并不是什么大的挑战。卸下螺丝后，可以用一把平铲子将底部外壳拆开。然后，用户可以接触到PCIe 4固态硬盘（M.2-2242；也可以安装M.2 2280型号）、WLAN模块、风扇、BIOS电池、RAM、扬声器和电池。
担保
联想在德国为IdeaPad提供了两年的保修期。延长至三年的费用约为23欧元。对于三年的现场保修，你必须额外支付200欧元。
保修条款可能因国家而异，所以建议买家在购买前与卖家反复确认。
输入设备 - 联想笔记本没有按键照明
键盘

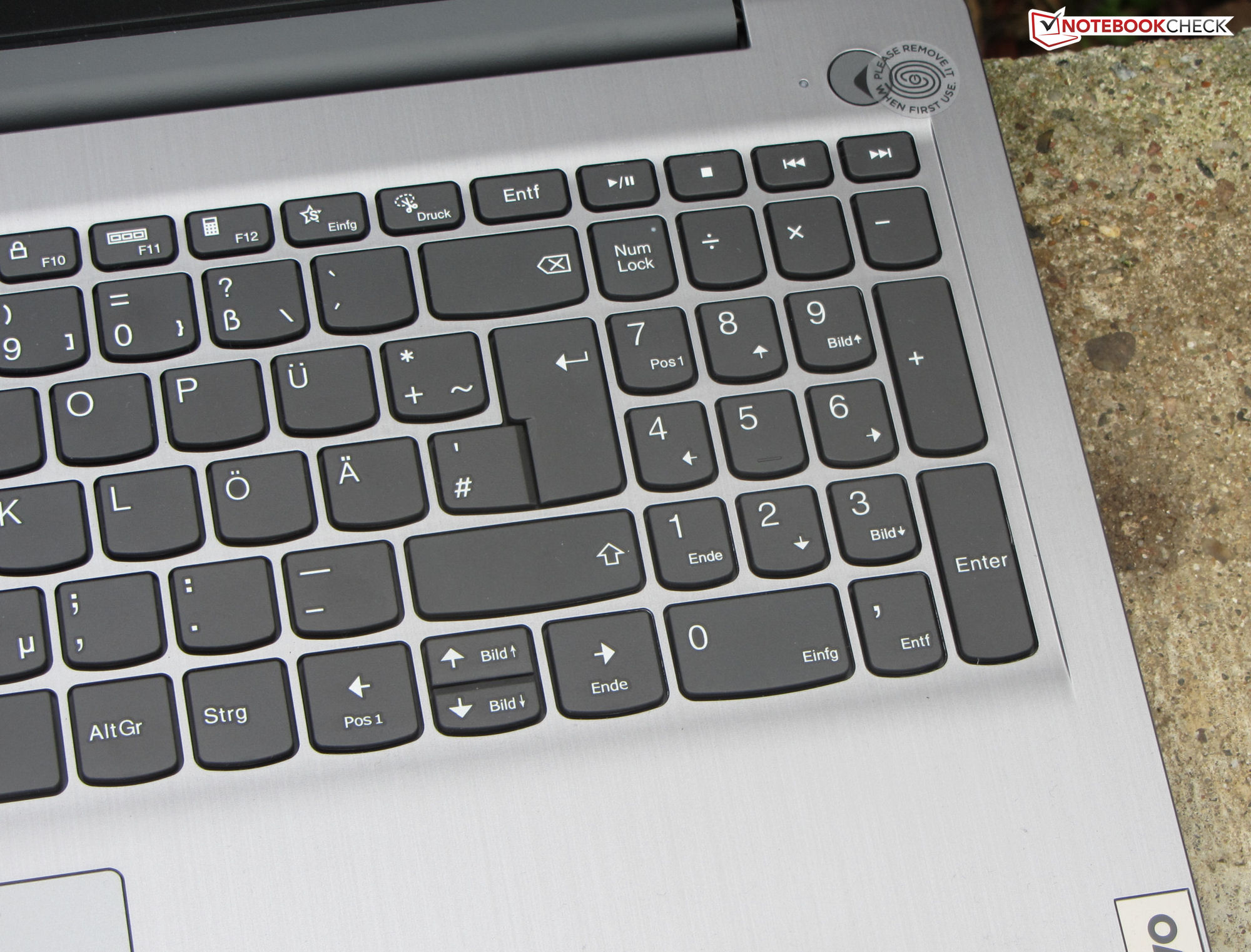

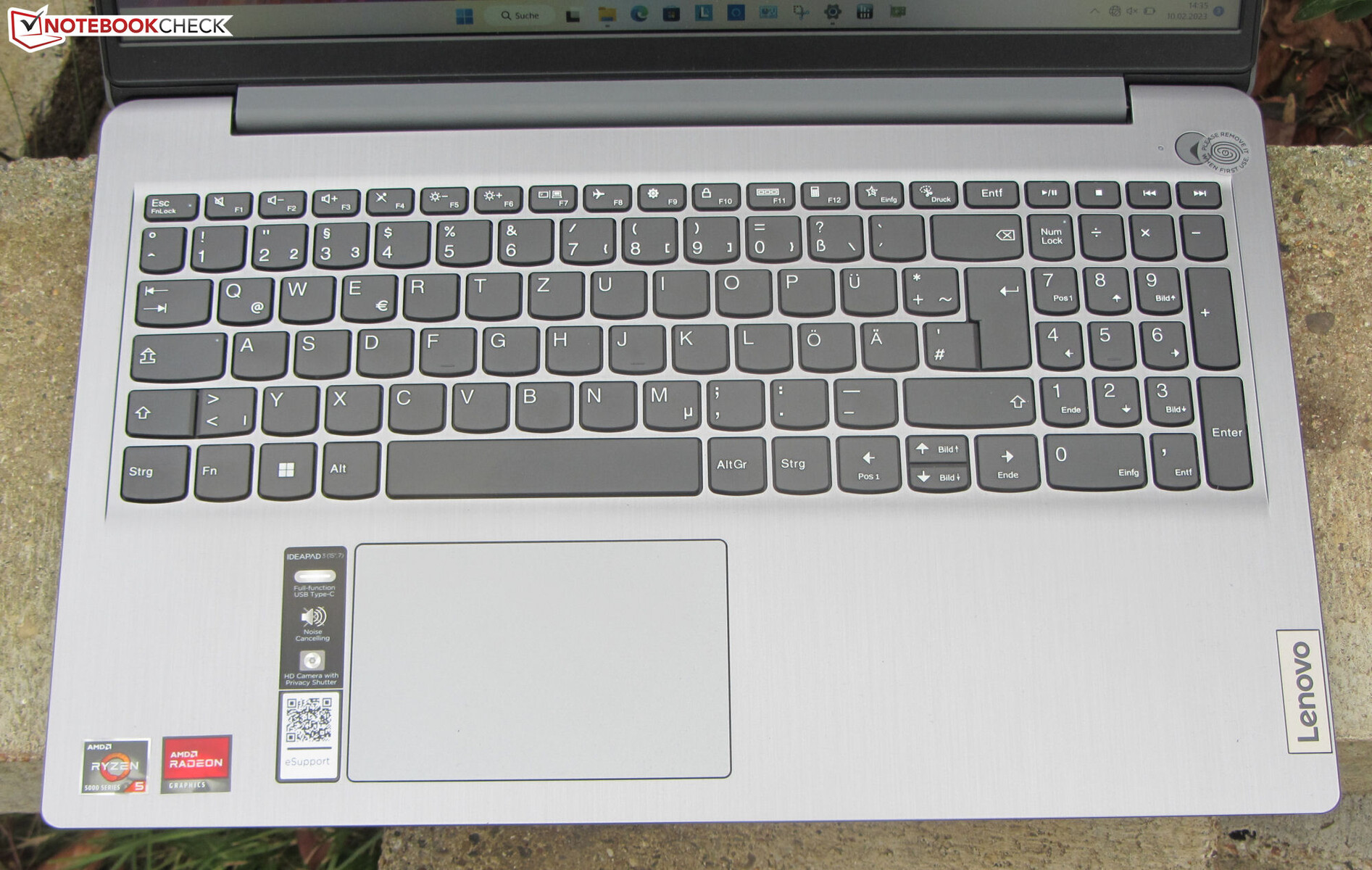

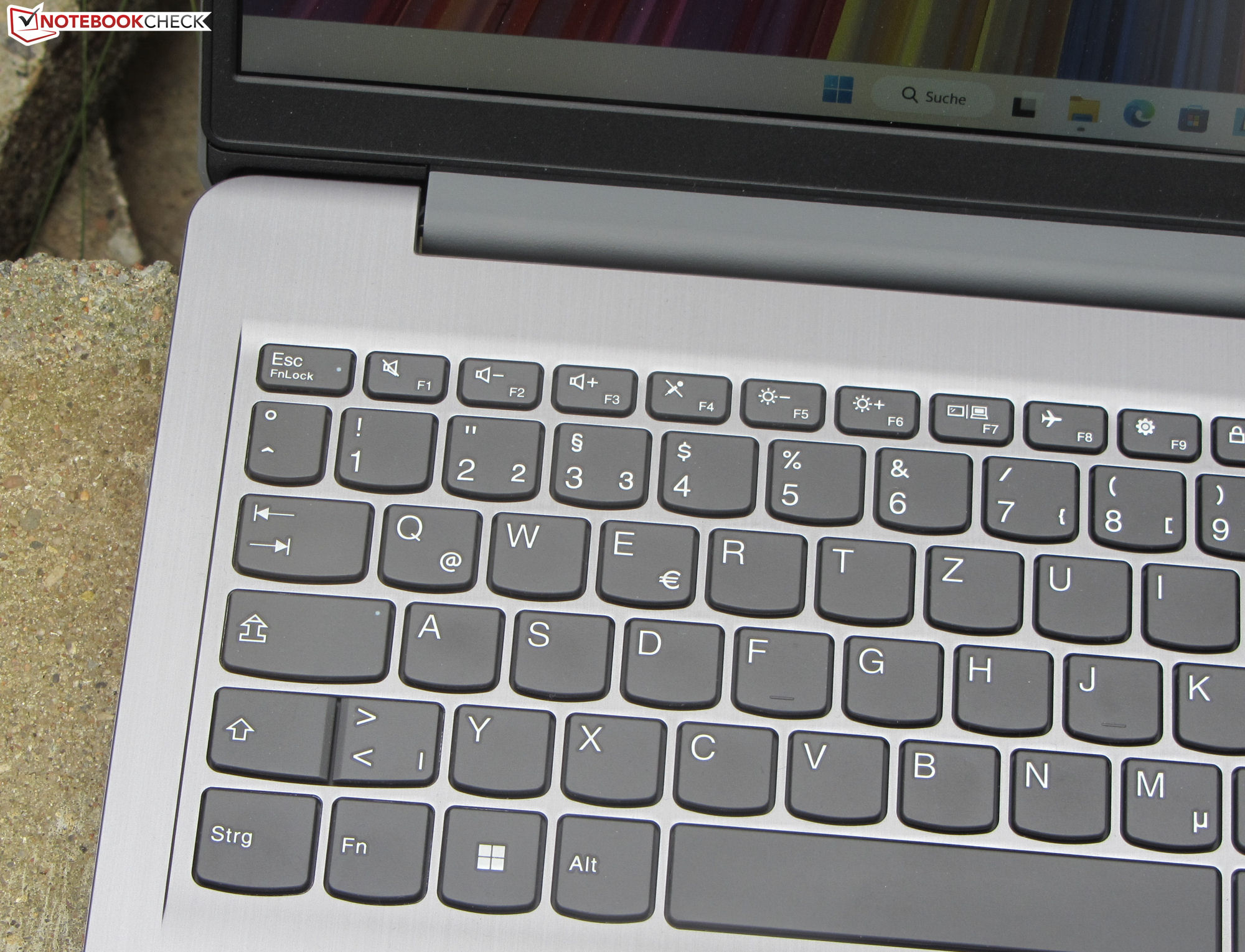

扁平的、略显粗糙的无灯小键盘的按键行程短，压力点清晰。按键阻力是可以接受的，而键盘在打字过程中会有轻微的弯曲，但这并不证明是令人讨厌的。总体而言，联想提供了一个适合日常使用的键盘。
触摸板

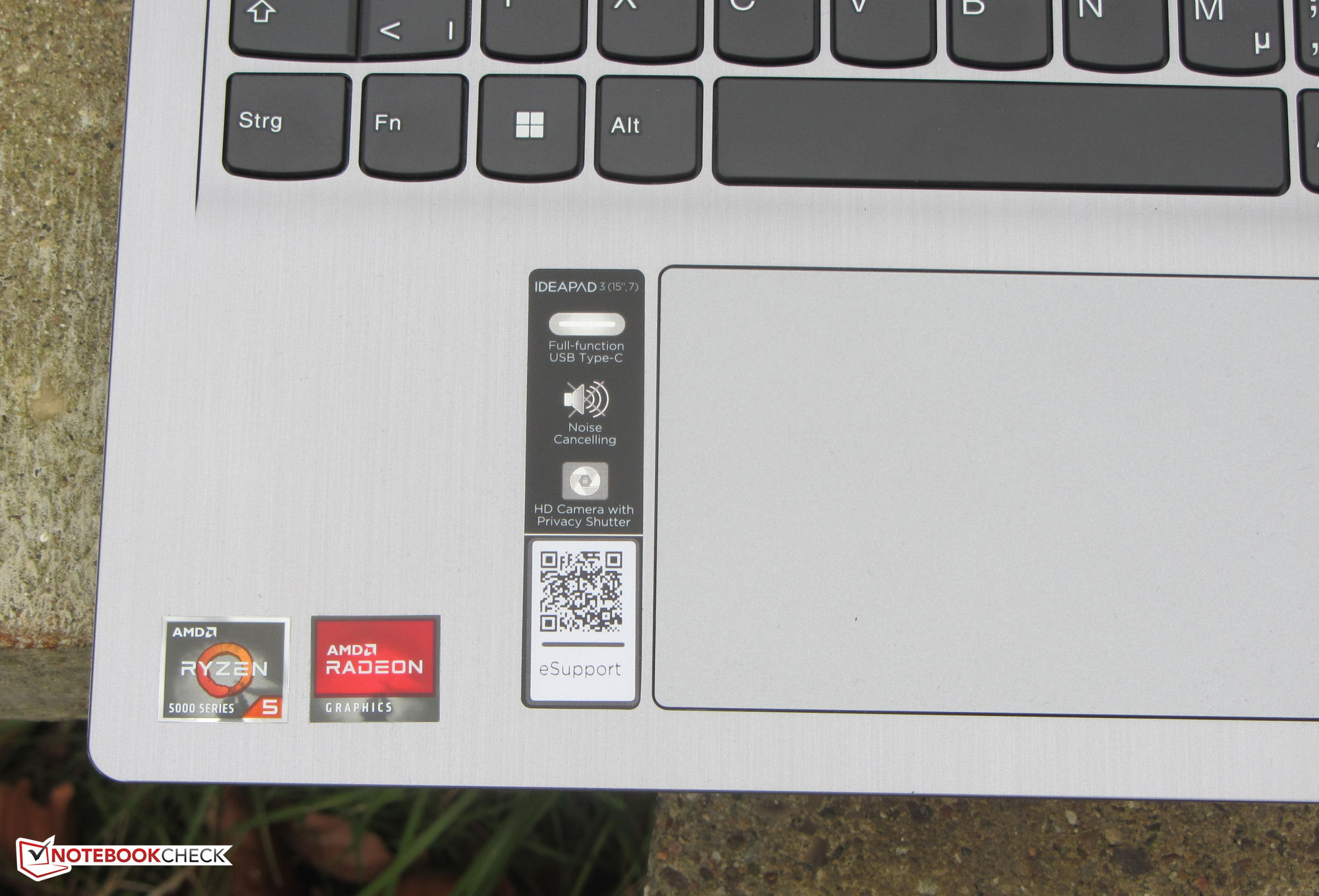

一个多点触摸点击板（约10.5 x 7厘米）可作为鼠标的替代品。其光滑的表面使手指容易滑动，并对角落里的输入作出反应。行程很短，压力点清晰。
显示屏--联想笔记本采用IPS面板

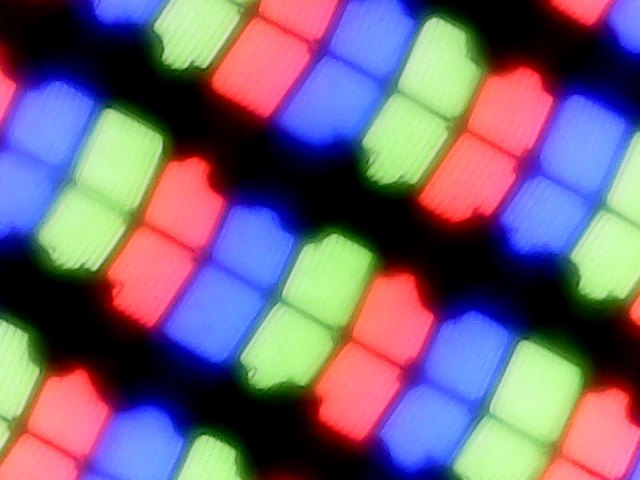

联想为IdeaPad配备了一个哑光的15.6英寸屏幕（1,920 x 1,080），在任何亮度设置下都不会出现PWM闪烁。面板的亮度（312.3 cd/m²）和对比度（1,074:1）符合各自的目标（>300 cd/m²和1,000:1）。
大多数竞争对手的屏幕在亮度方面无法跟上IdeaPad显示屏。该Vivobook是一个例外，它拥有一个OLED屏幕，它的亮度更高，而且作为OLED的典型代表，它的对比度和黑度明显更高。
| |||||||||||||||||||||||||
Brightness Distribution: 82 %
Center on Battery: 330 cd/m²
Contrast: 1074:1 (Black: 0.31 cd/m²)
ΔE Color 5.39 | 0.5-29.43 Ø4.91, calibrated: 4.77
ΔE Greyscale 3.56 | 0.5-98 Ø5.2
39.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.3% sRGB (Argyll 2.2.0 3D)
38.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.47
| Lenovo IdeaPad 3 15ABA7 Lenovo LEN156FHD, IPS, 1920x1080, 15.6" | Dell Inspiron 15 5515-H8P8F BOE NV15N4V, IPS, 1920x1080, 15.6" | Acer Aspire 5 A515-56-511A LG Philips LGD065A, IPS, 1920x1080, 15.6" | HP ProBook 450 G9 6A180EA Chi Mei CMN1512, , 1920x1080, 15.6" | Asus VivoBook 15 OLED M513UA-L1282W Samsung ATNA56YX03-0, OLED, 1920x1080, 15.6" | |
|---|---|---|---|---|---|
| Display | -4% | 0% | 12% | 128% | |
| Display P3 Coverage | 38.2 | 36.58 -4% | 38.32 0% | 42.76 12% | 99.9 162% |
| sRGB Coverage | 57.3 | 54.37 -5% | 57.5 0% | 63.9 12% | 100 75% |
| AdobeRGB 1998 Coverage | 39.5 | 37.79 -4% | 39.6 0% | 44.2 12% | 97.6 147% |
| Response Times | -101% | -76% | -29% | 89% | |
| Response Time Grey 50% / Grey 80% * | 27 ? | 44 ? -63% | 37 ? -37% | 28 ? -4% | 2 ? 93% |
| Response Time Black / White * | 13 ? | 31 ? -138% | 28 ? -115% | 20 ? -54% | 2 ? 85% |
| PWM Frequency | 1250 ? | ||||
| Screen | 8% | 9% | 2% | 412% | |
| Brightness middle | 333 | 251 -25% | 285 -14% | 234 -30% | 366 10% |
| Brightness | 312 | 241 -23% | 255 -18% | 218 -30% | 371 19% |
| Brightness Distribution | 82 | 87 6% | 84 2% | 85 4% | 96 17% |
| Black Level * | 0.31 | 0.23 26% | 0.325 -5% | 0.17 45% | 0.01 97% |
| Contrast | 1074 | 1091 2% | 877 -18% | 1376 28% | 36600 3308% |
| Colorchecker dE 2000 * | 5.39 | 5.14 5% | 4.23 22% | 5.04 6% | 1.9 65% |
| Colorchecker dE 2000 max. * | 19.18 | 18.41 4% | 7.94 59% | 18.04 6% | 4.26 78% |
| Colorchecker dE 2000 calibrated * | 4.77 | 3.75 21% | 4.13 13% | 2.3 52% | |
| Greyscale dE 2000 * | 3.56 | 1.08 70% | 2.51 29% | 4.43 -24% | 1.27 64% |
| Gamma | 2.47 89% | 2.43 91% | 2.57 86% | 2.41 91% | 2.44 90% |
| CCT | 6290 103% | 6534 99% | 6626 98% | 6350 102% | 6338 103% |
| Color Space (Percent of AdobeRGB 1998) | 37.79 | 36 | |||
| Color Space (Percent of sRGB) | 54.37 | 57 | |||
| Total Average (Program / Settings) | -32% /
-11% | -22% /
-5% | -5% /
-0% | 210% /
305% |
* ... smaller is better

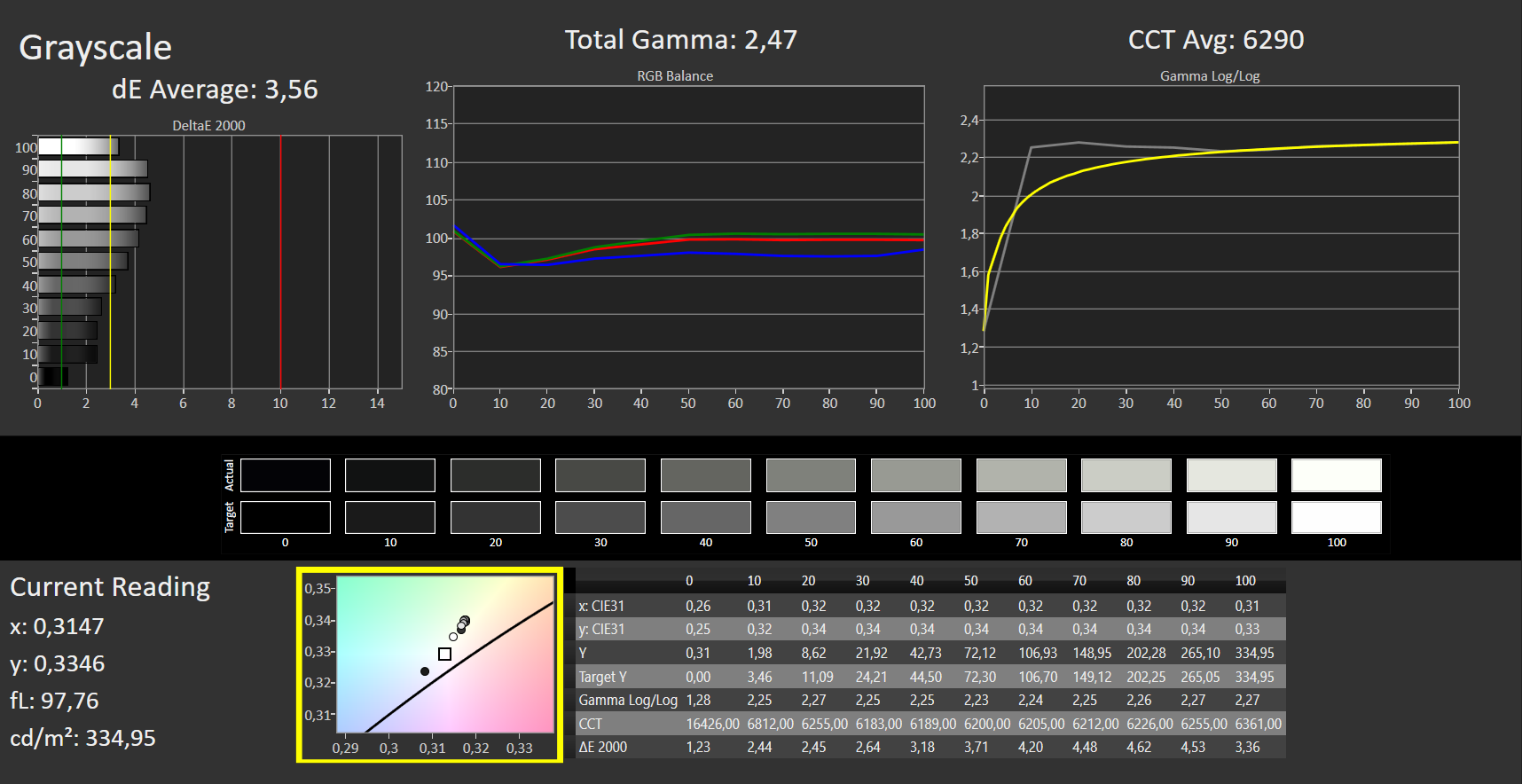

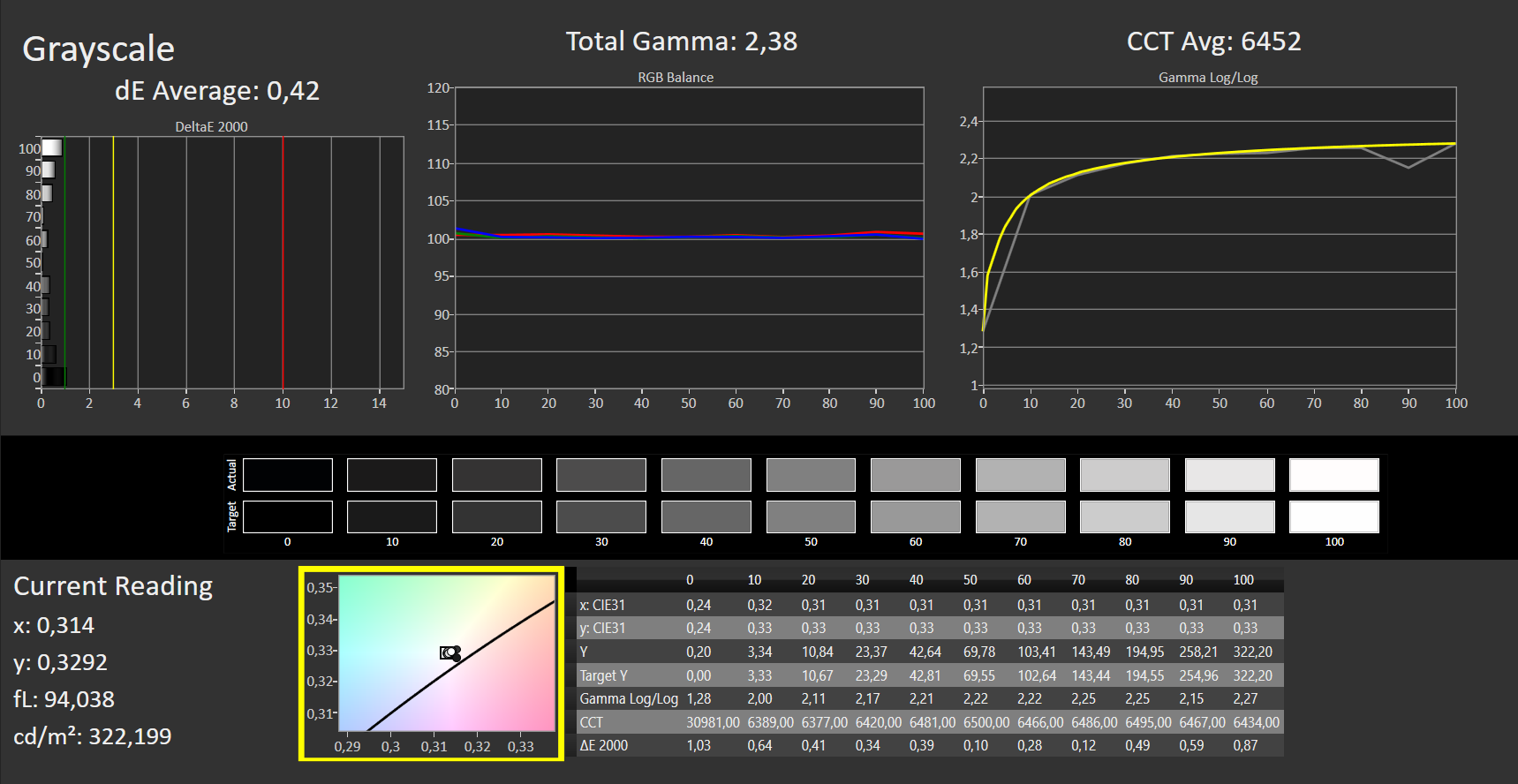

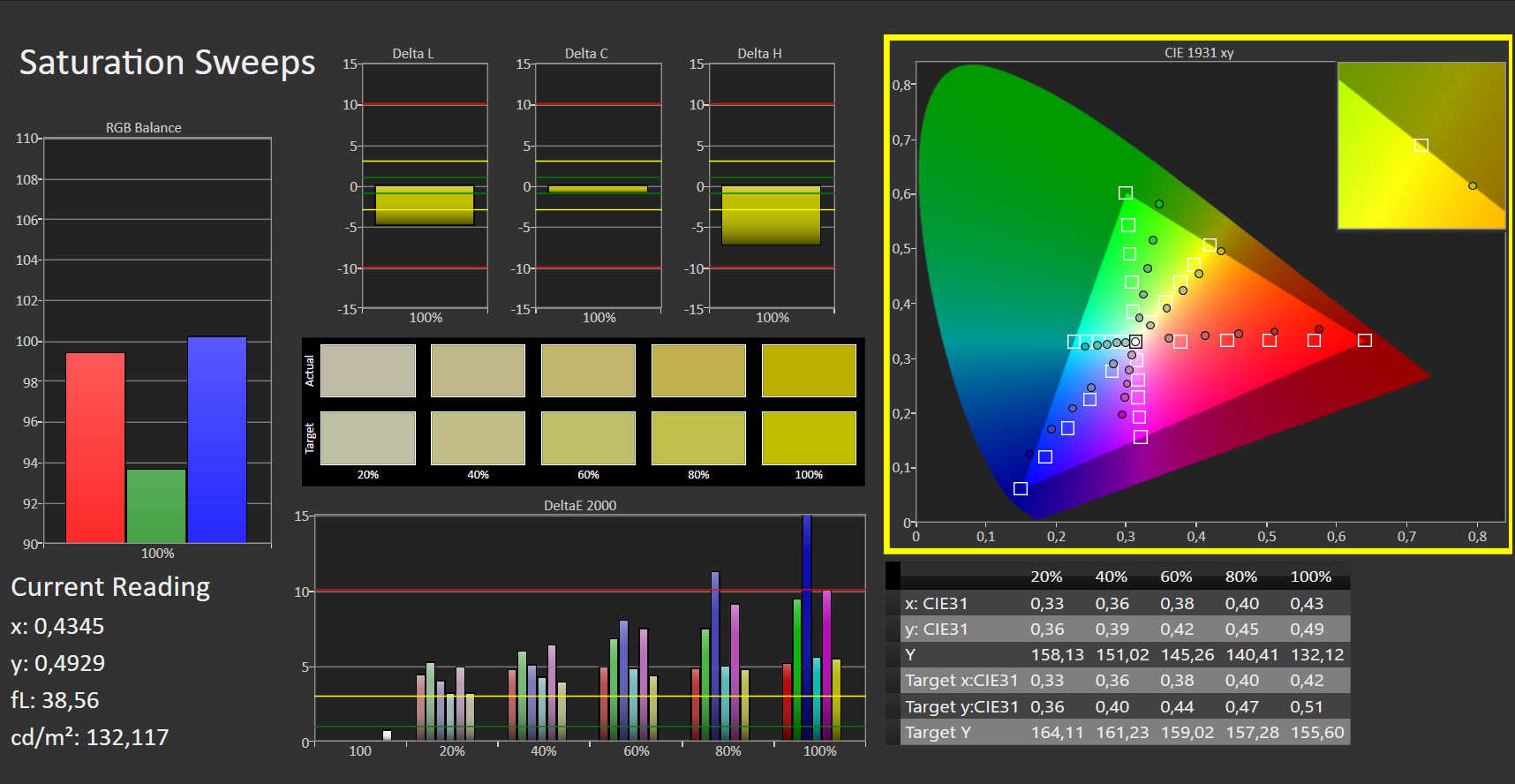

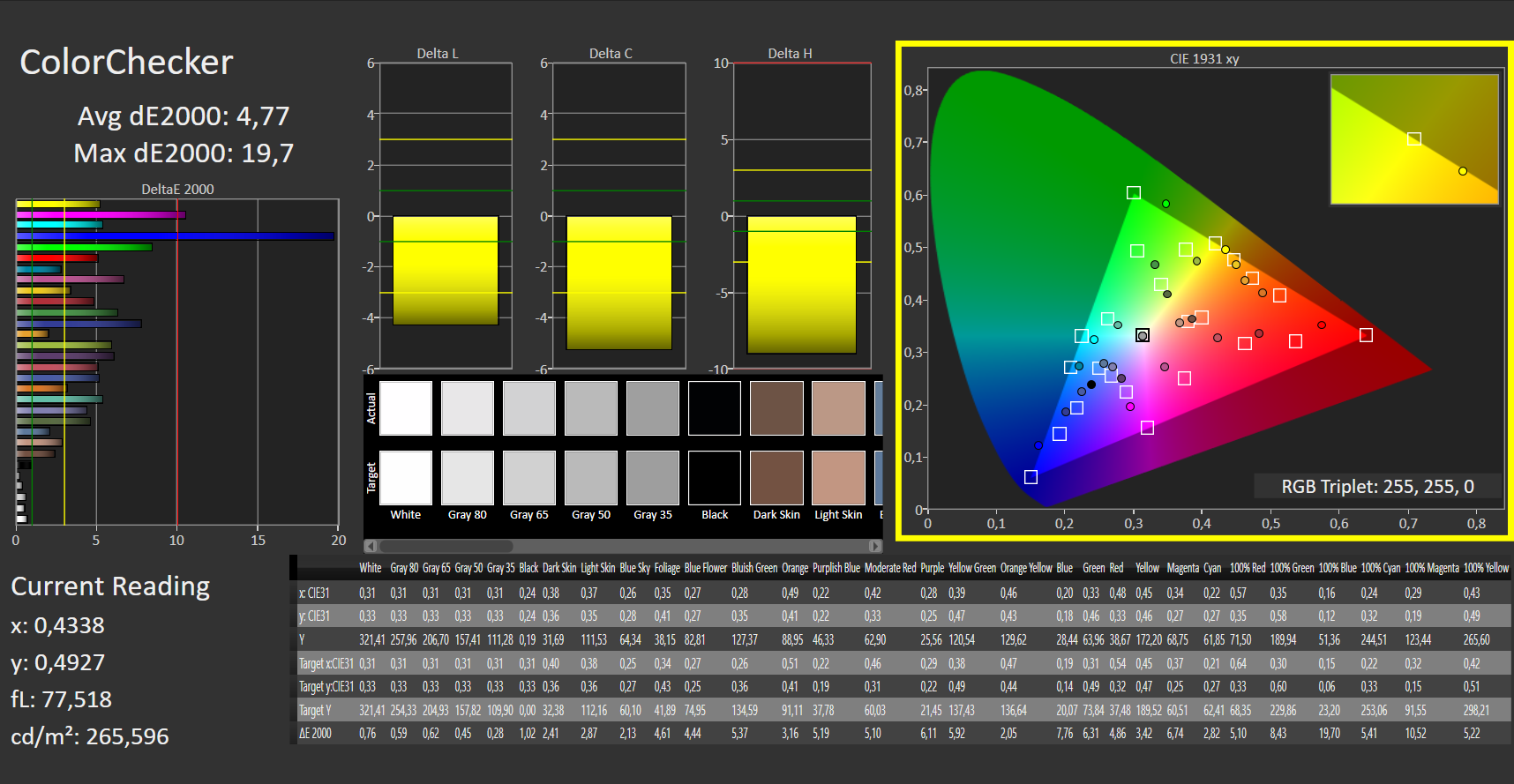

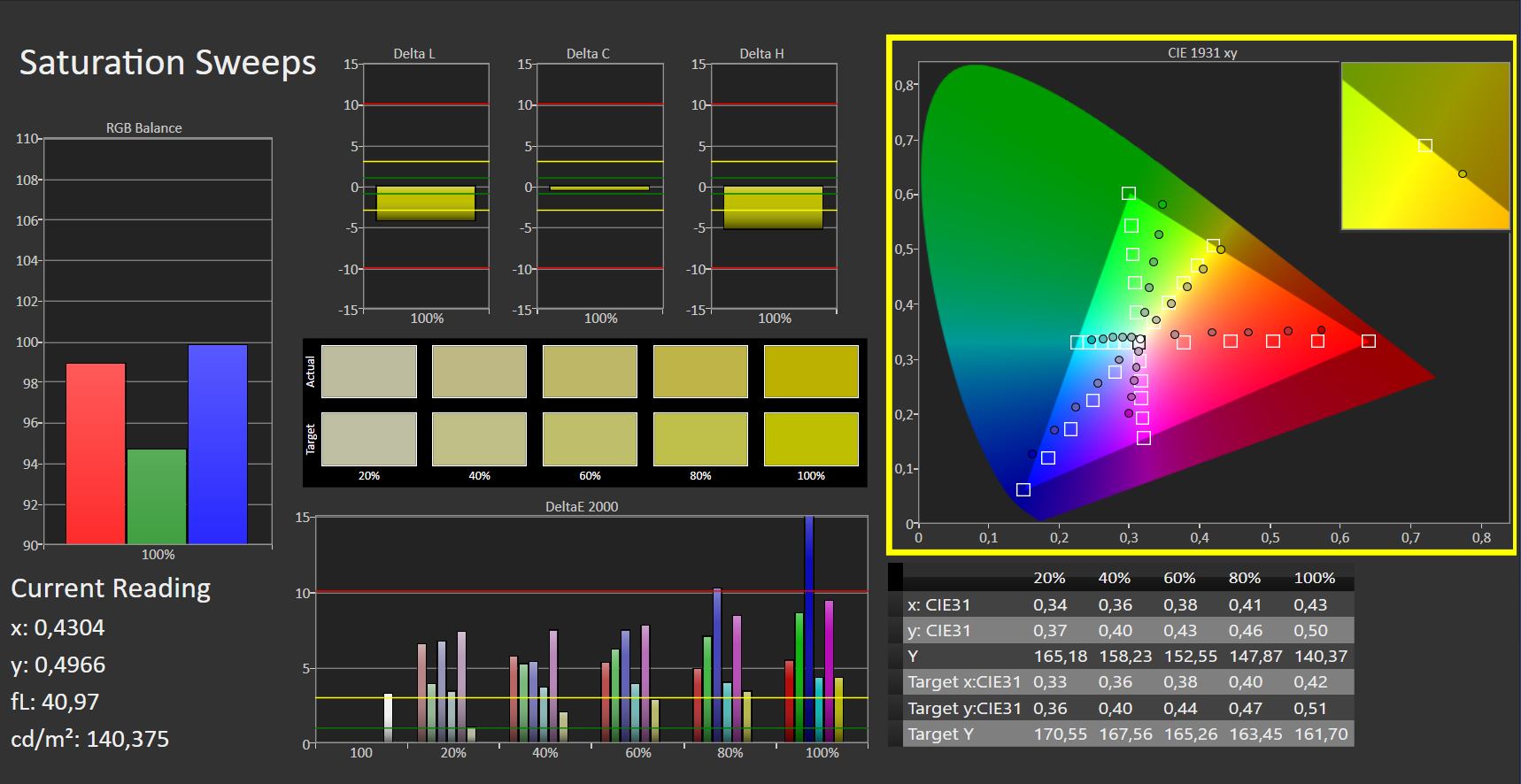

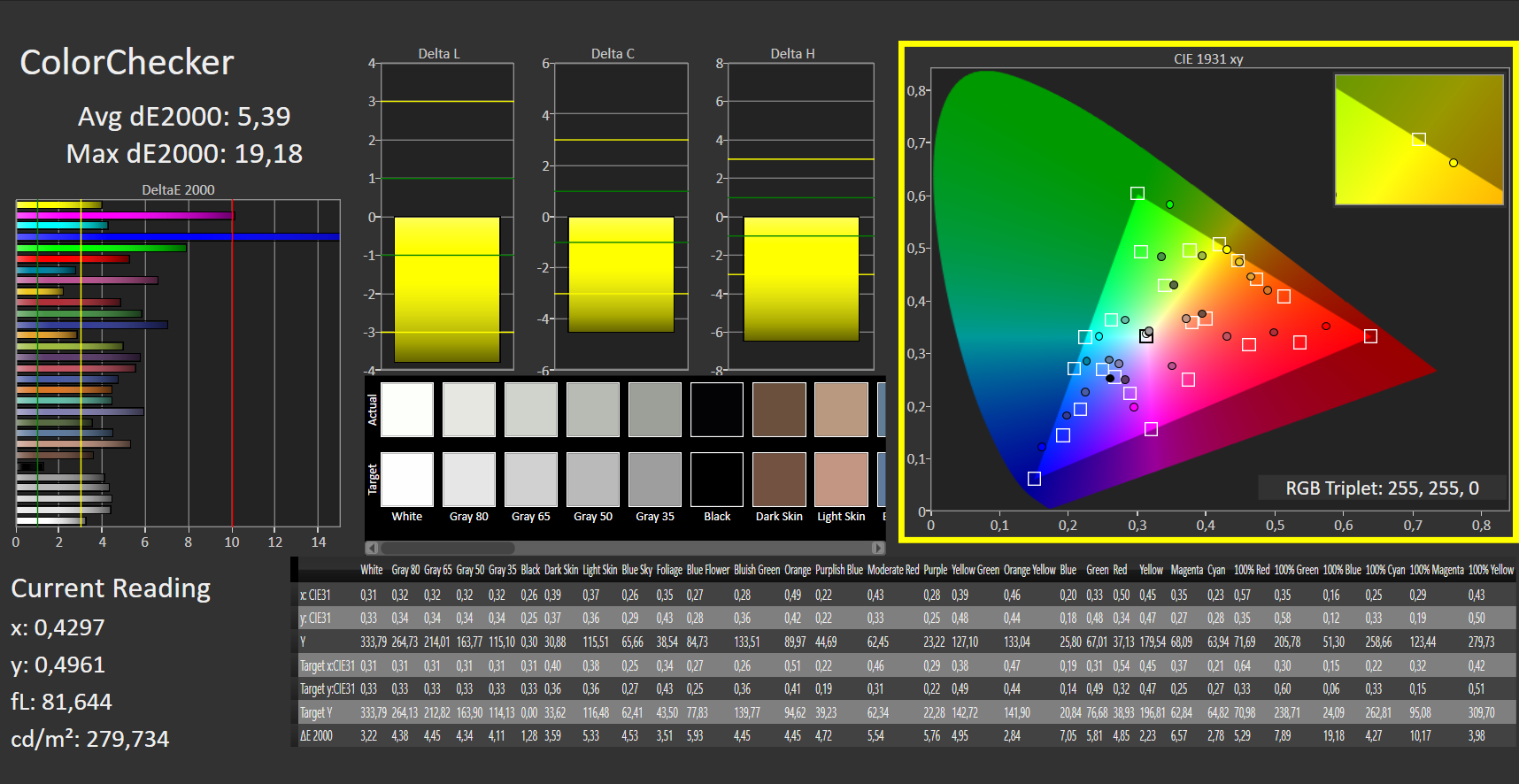

屏幕颜色的显示相当充分，但在偏差略低于5.4的情况下，目标（DeltaE<3）被错过。校准只稍微改善了色彩再现，但确保了更平衡的灰度。

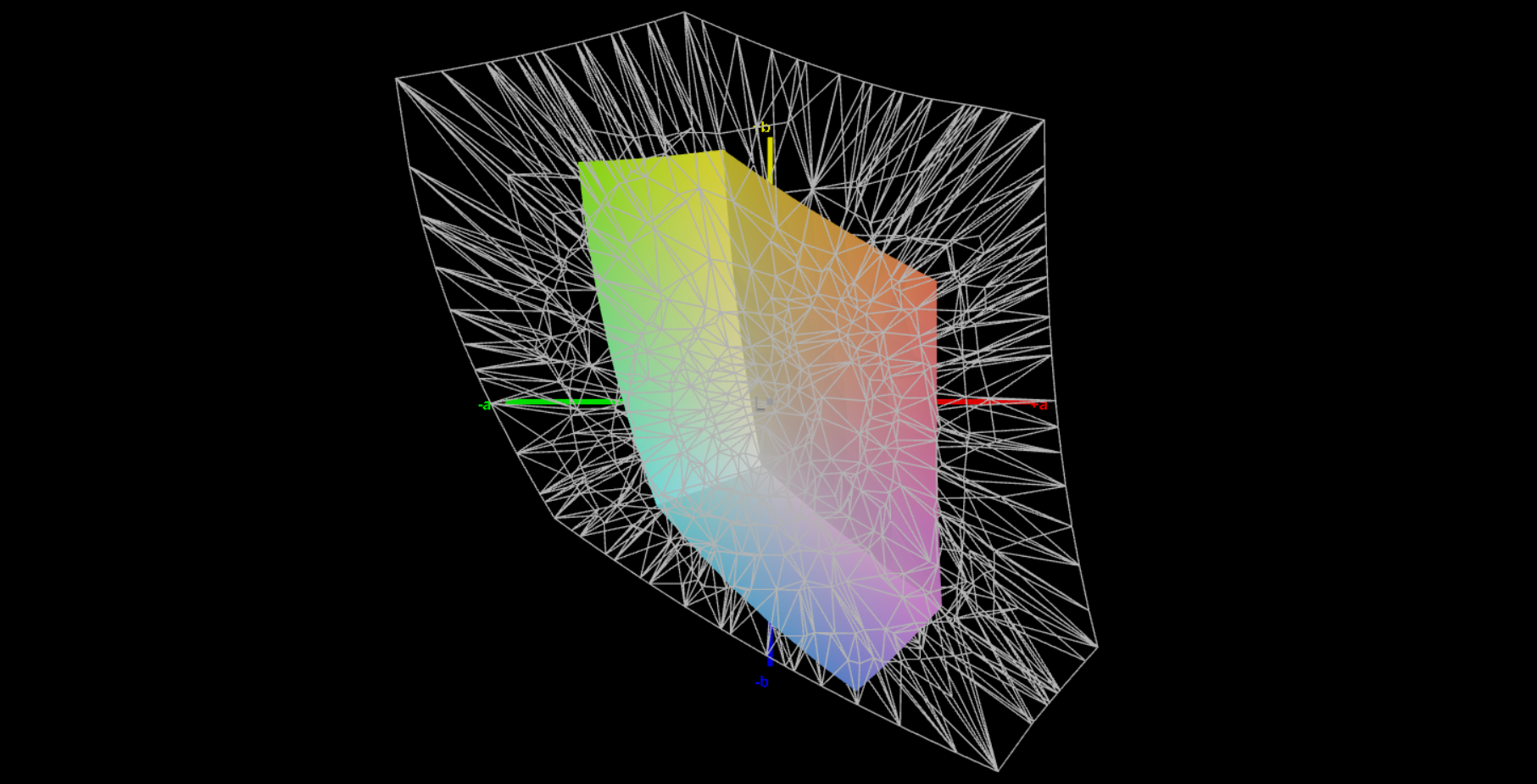

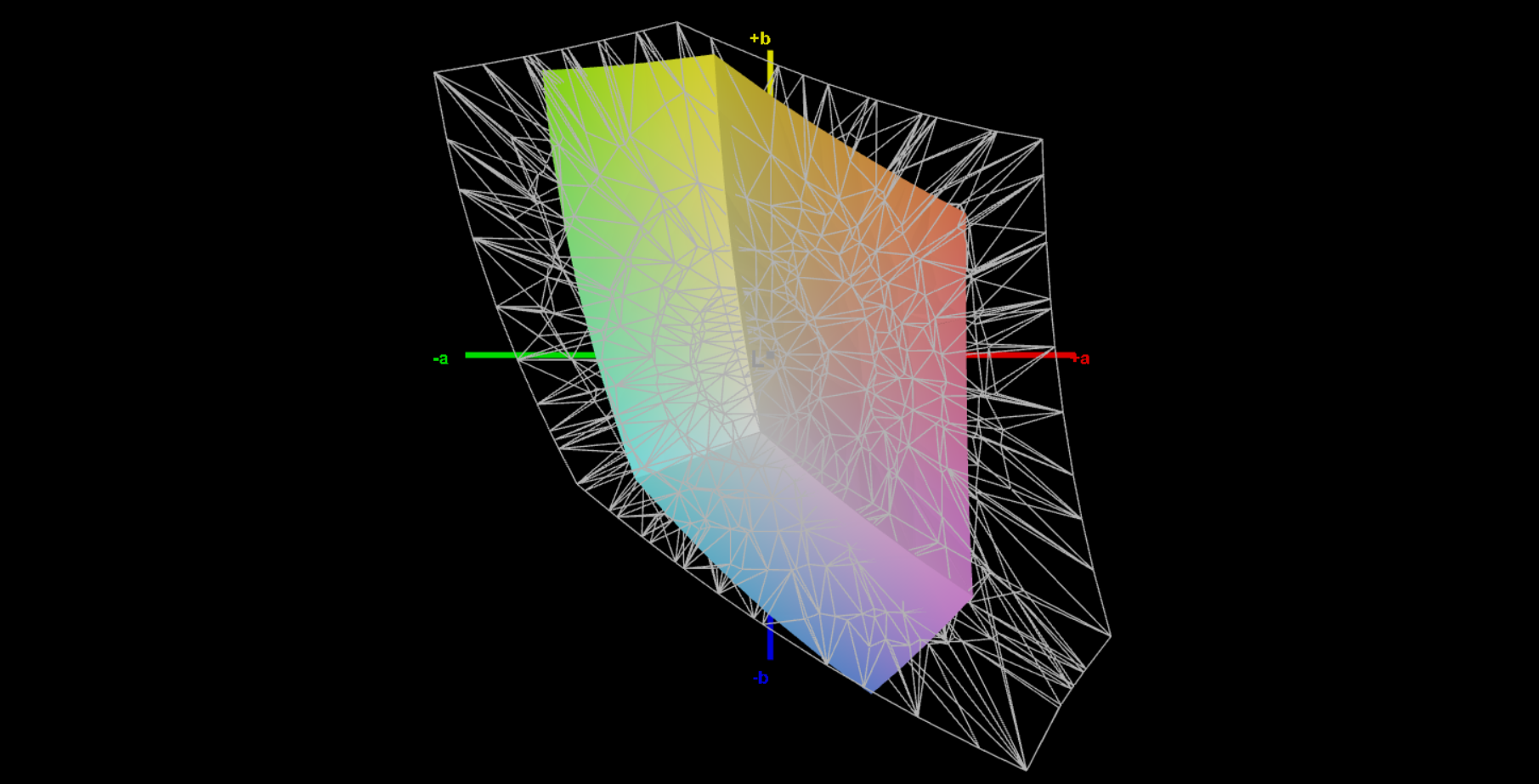

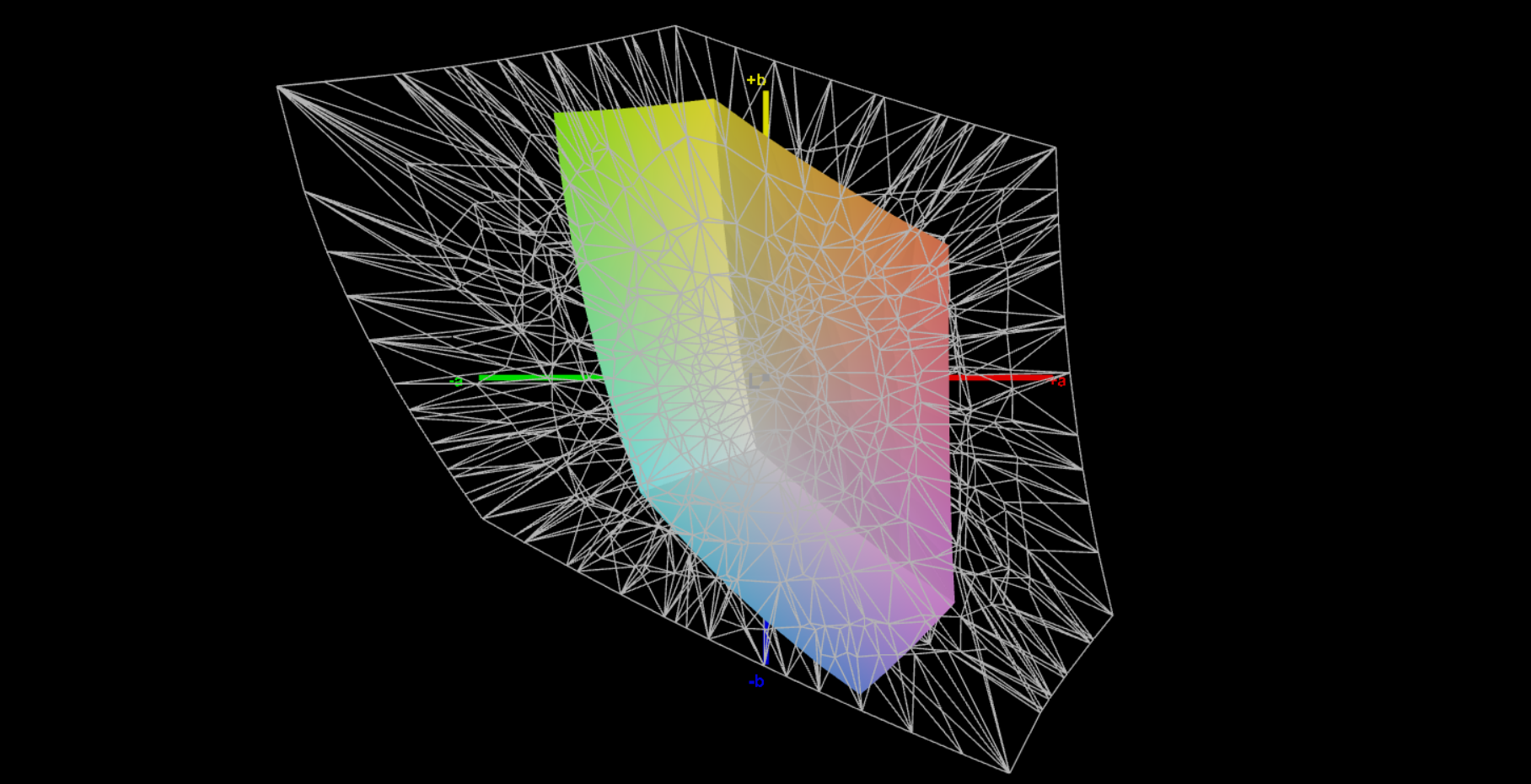

该显示器无法再现AdobeRGB（40%）、sRGB（57%）和DCI-P3（38%）色彩空间，因此不适合依赖色彩保真度的应用场景。另一方面，大多数竞争对手并没有真正表现得更好。只有Vivobook ，其显示屏提供完整的sRGB和DCI-P3覆盖。

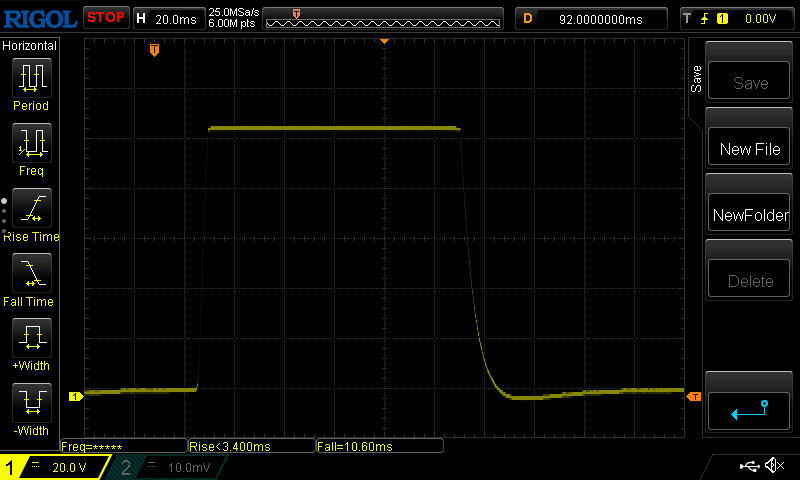

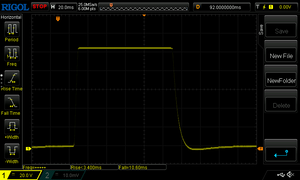

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 13 ms ... rise ↗ and fall ↘ combined | ↗ 3 ms rise |  |
| ↘ 10 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 30 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

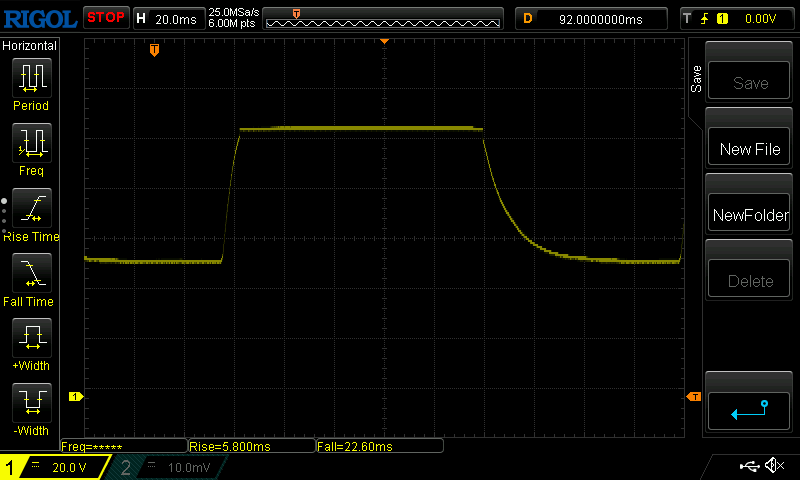

| ↔ Response Time 50% Grey to 80% Grey | ||
| 27 ms ... rise ↗ and fall ↘ combined | ↗ 5 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 33 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.8 ms). | ||

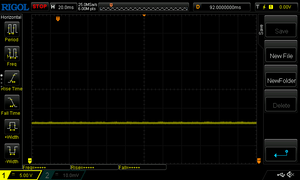

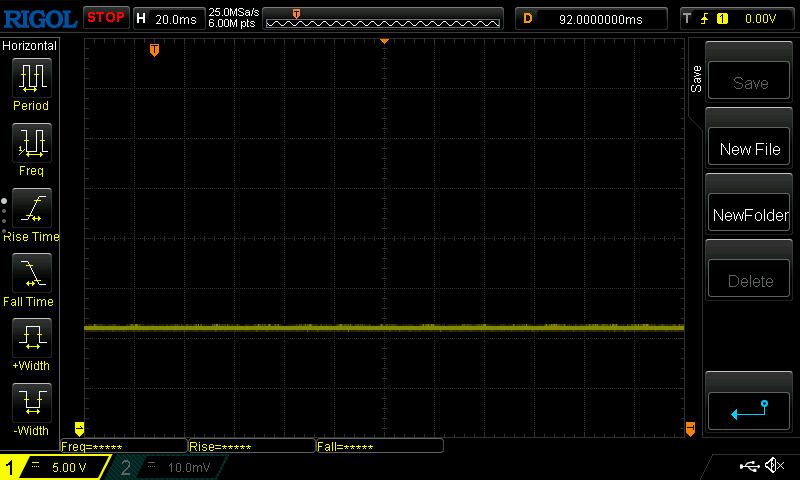

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

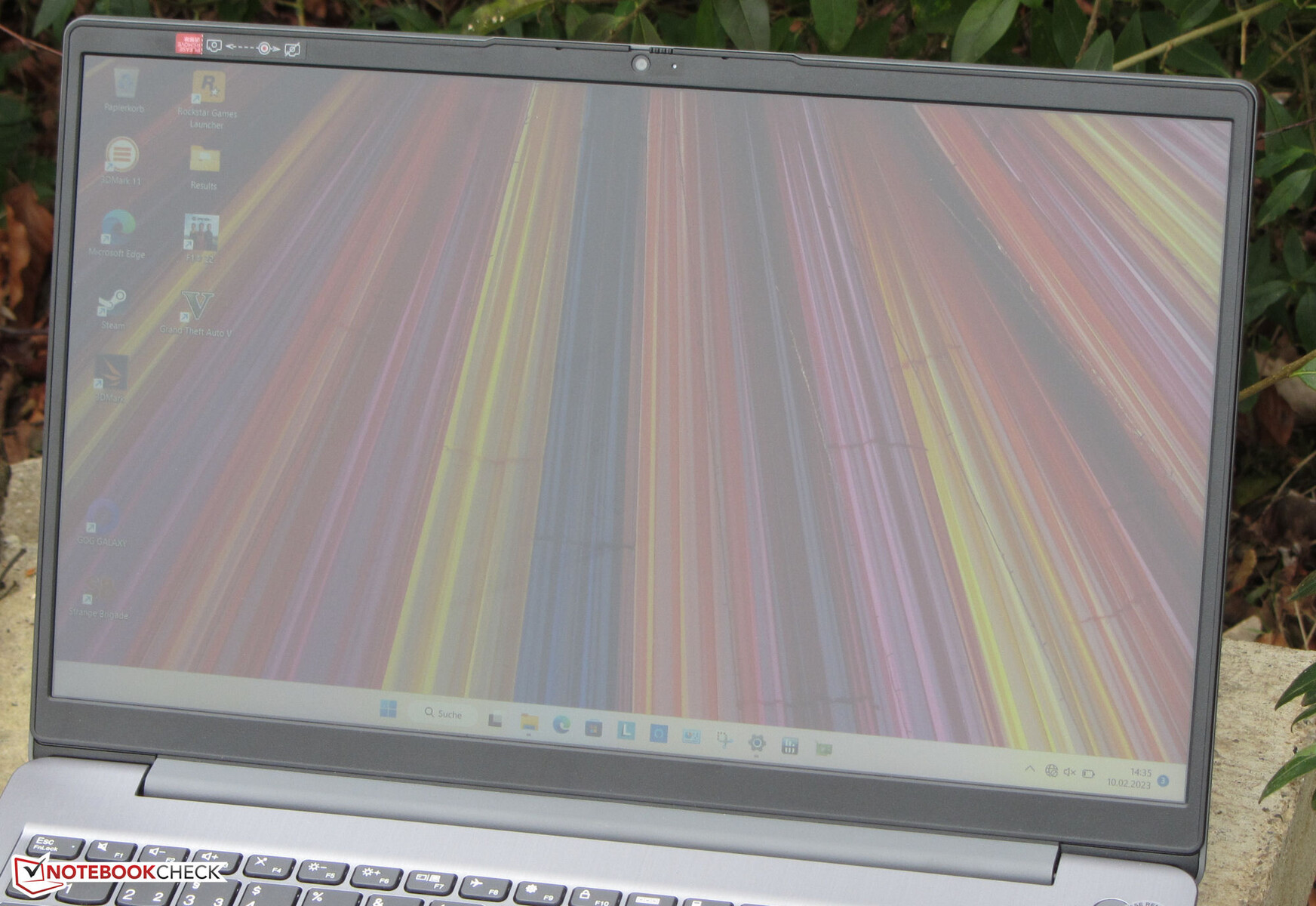

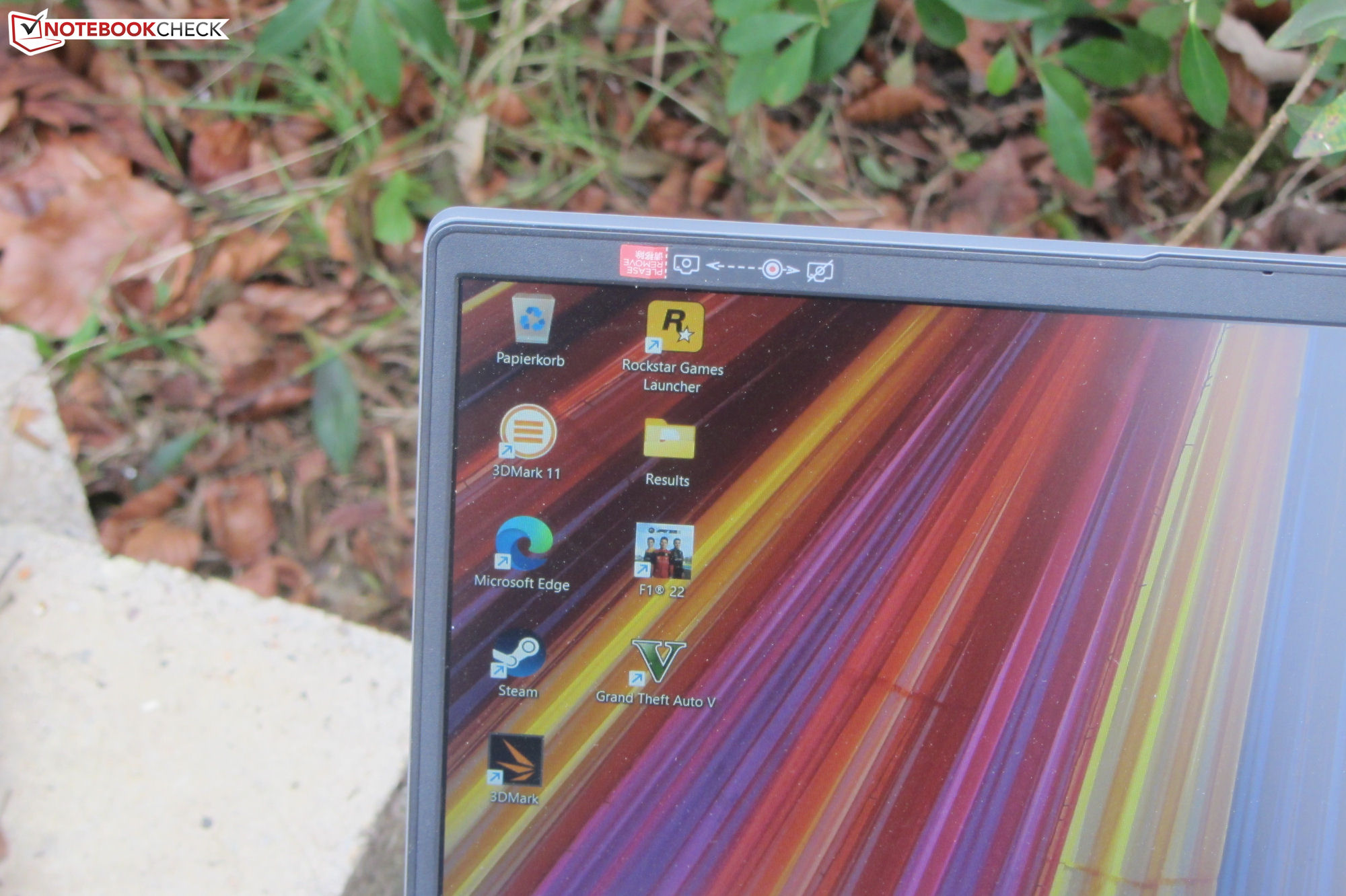

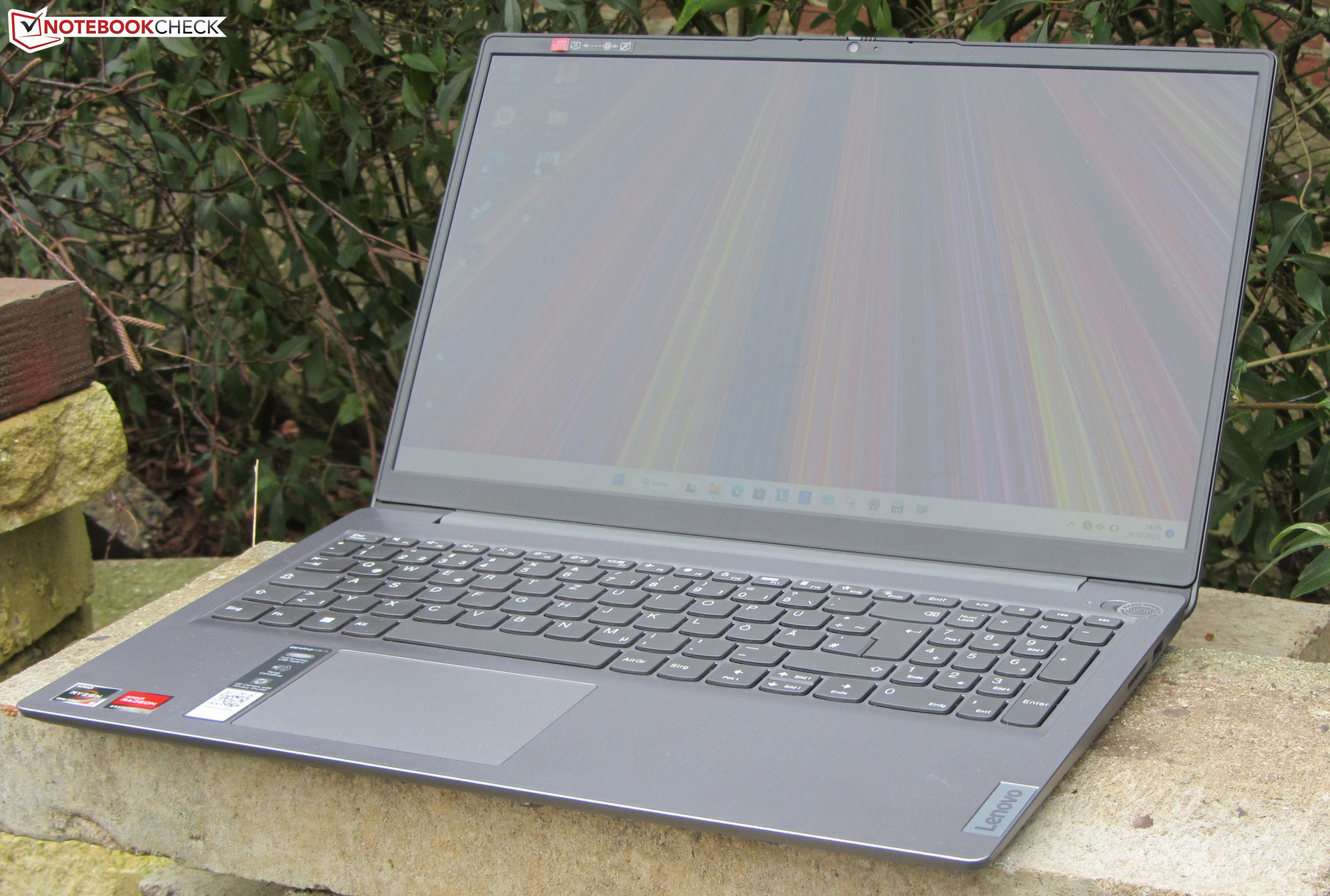

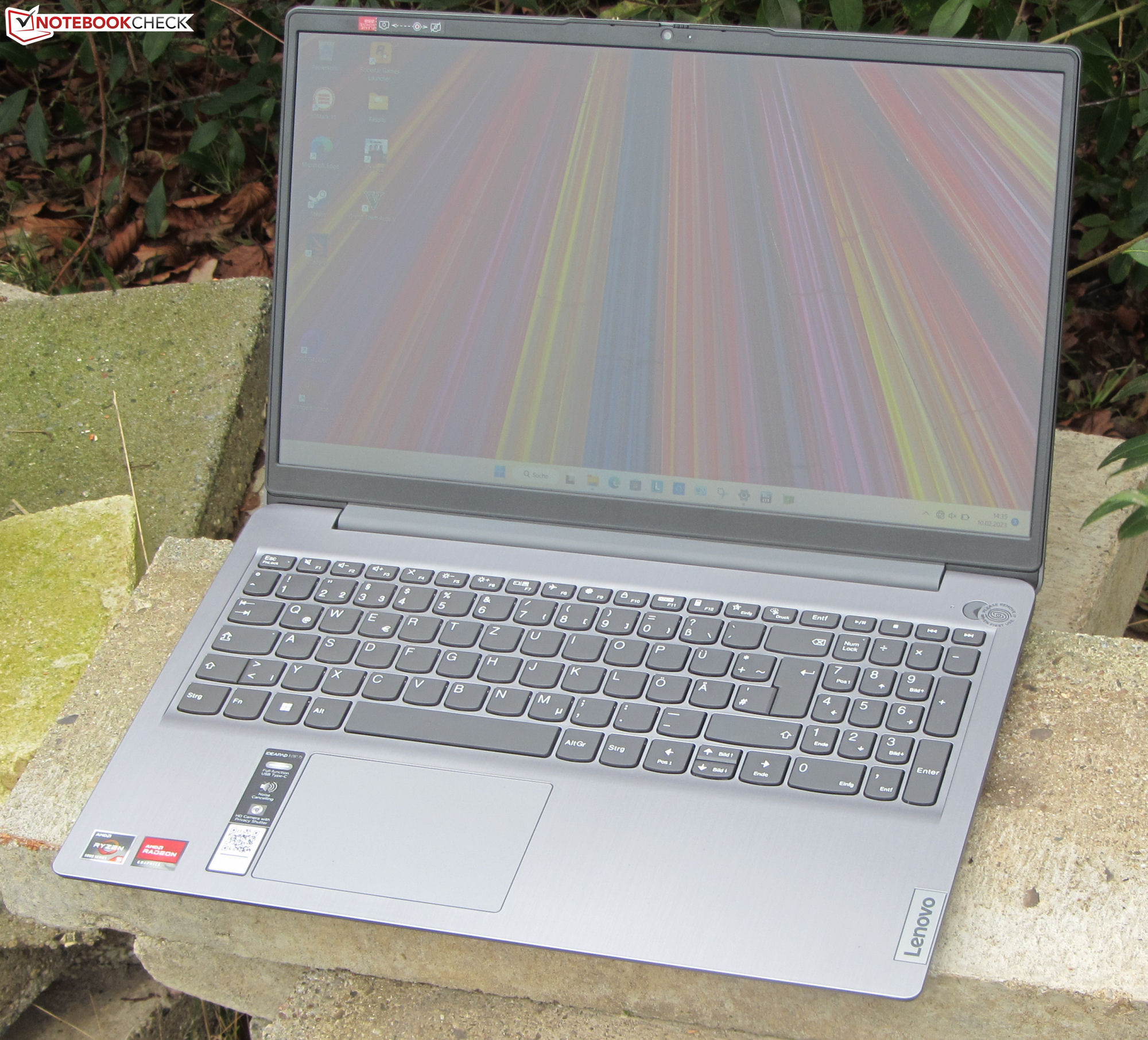

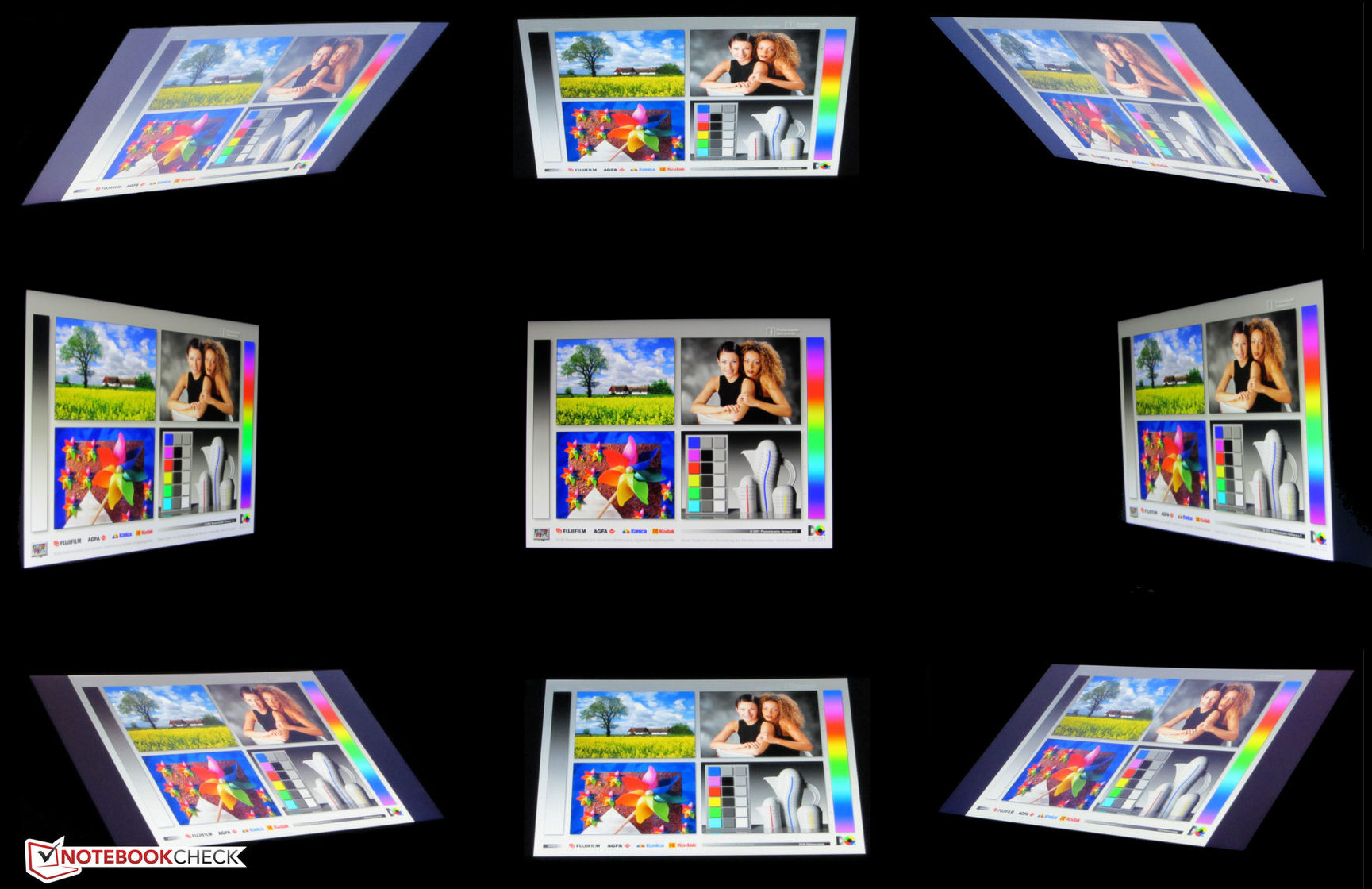

视角稳定的IPS面板可以从任何位置阅读。在户外，只要阳光不是太强，就可以阅读屏幕。
性能 - 15ABA7由快速的AMD APU驱动
通过IdeaPad 3 15ABA7，联想在其系列中拥有了一款办公笔记本，为办公和互联网应用以及轻型游戏提供了足够的计算能力。该系列中使用了巴塞洛一代的AMD APU（Ryzen 3至Ryzen 7）。在审查时，可用的模型价格在500-900美元之间。这个变体的价格是~779美元。
测试条件

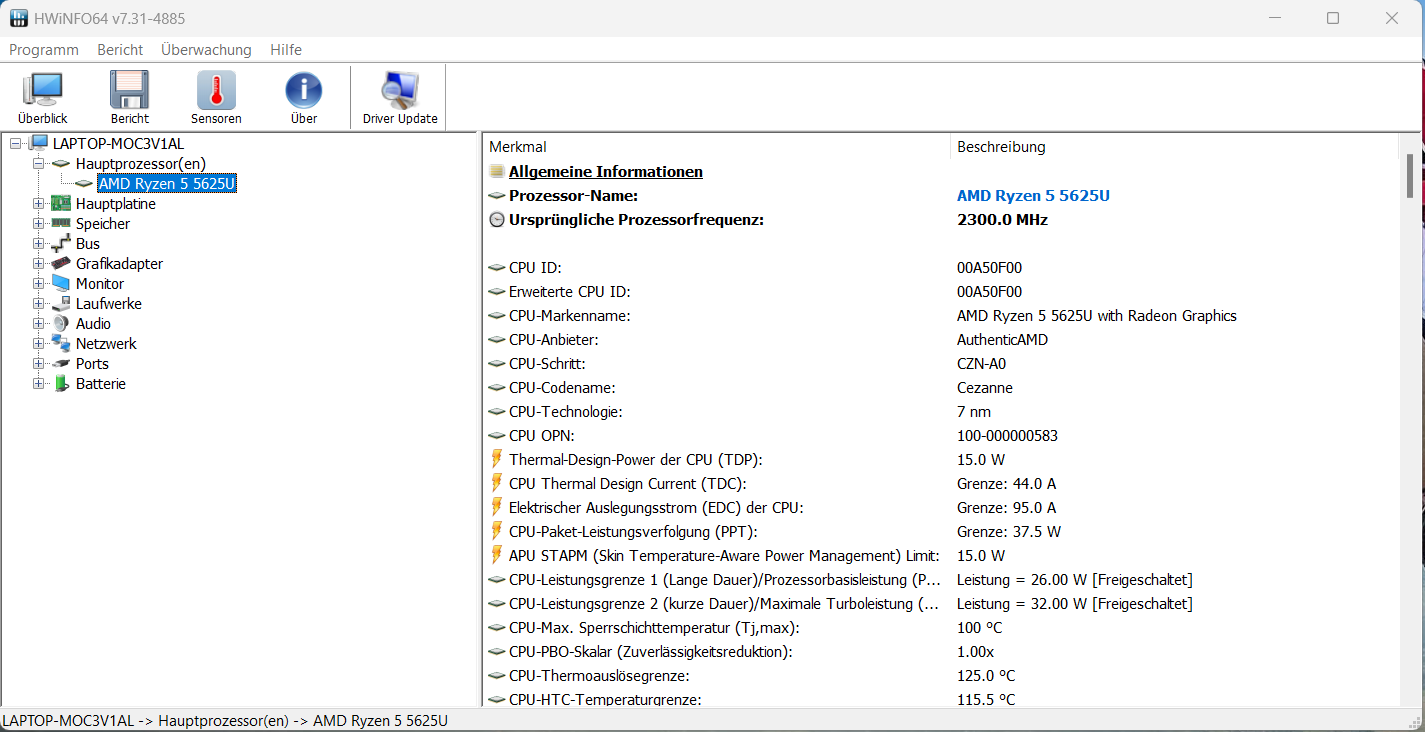

笔记本提供了三种制造商特定的风扇模式（见表），可以通过组合键 "Fn "+"Q "进行切换。使用了高性能（基准测试）和电池保护器 （电池测试）模式。
| 高性能 | 智能冷却 | 电池节约器 | |
|---|---|---|---|
| 功率限制1 | 26瓦 | 19瓦 | 13瓦 |
| 功率限制2 | 32瓦 | 25瓦 | 18瓦 |
处理器

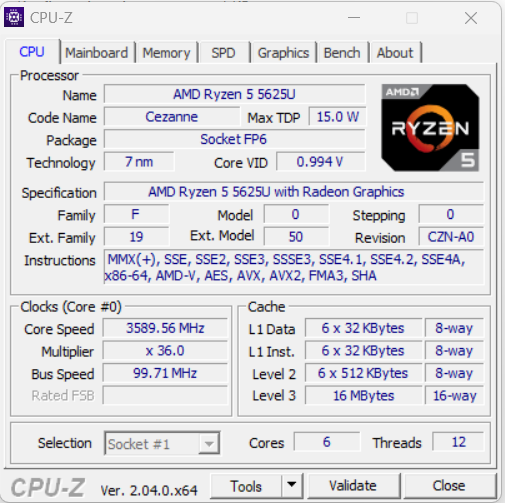

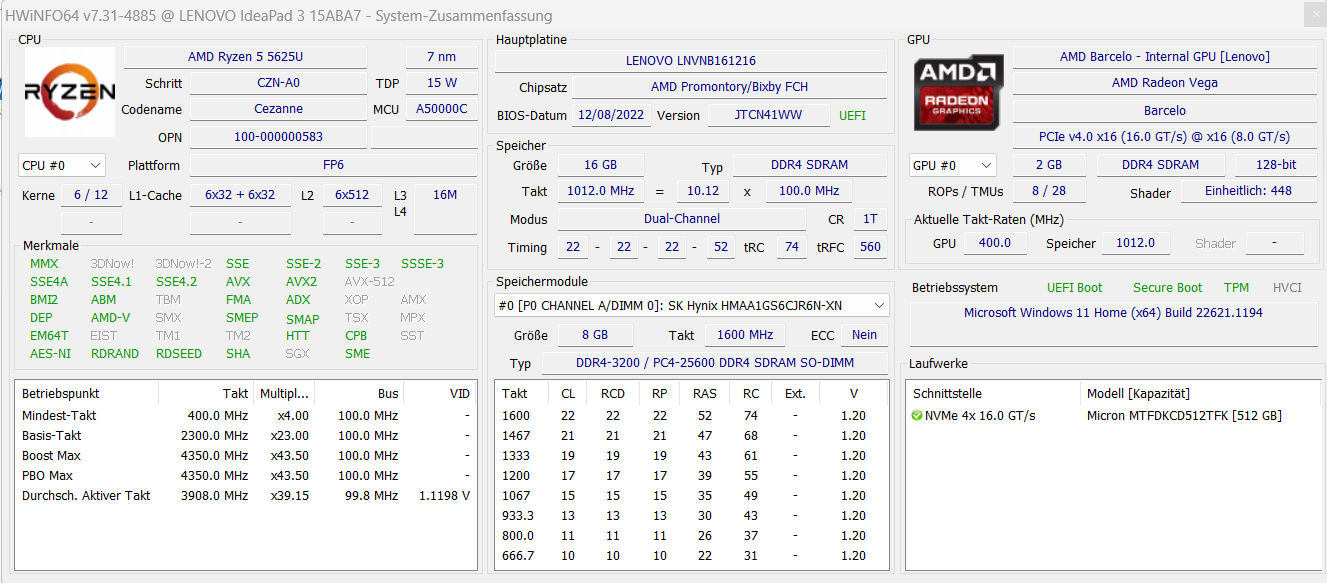

芯片 锐龙5 5625UAPU不属于AMD的最新一代APU。这里使用的Barcelo架构是2021年Cezanne架构的更新。尽管如此，该APU仍然可以在2023年轻松跟上。
CPU部分由一个六核处理器组成，工作的基本时钟为2.3GHz。通过涡轮增压可以提高到4.35GHz。支持同步多线程（每个核心两个线程）。基准测试结果略高于CPU的平均数值。

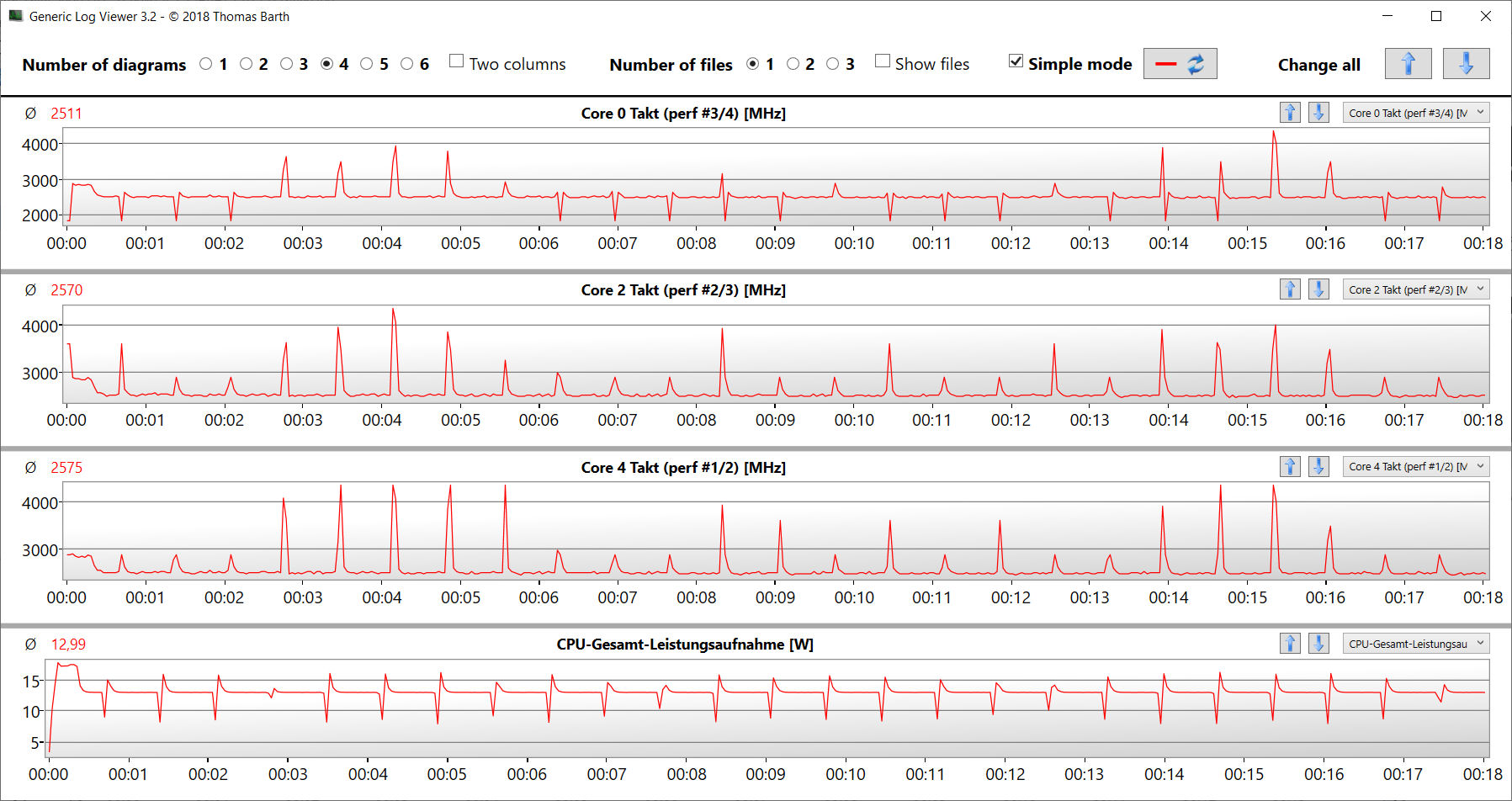

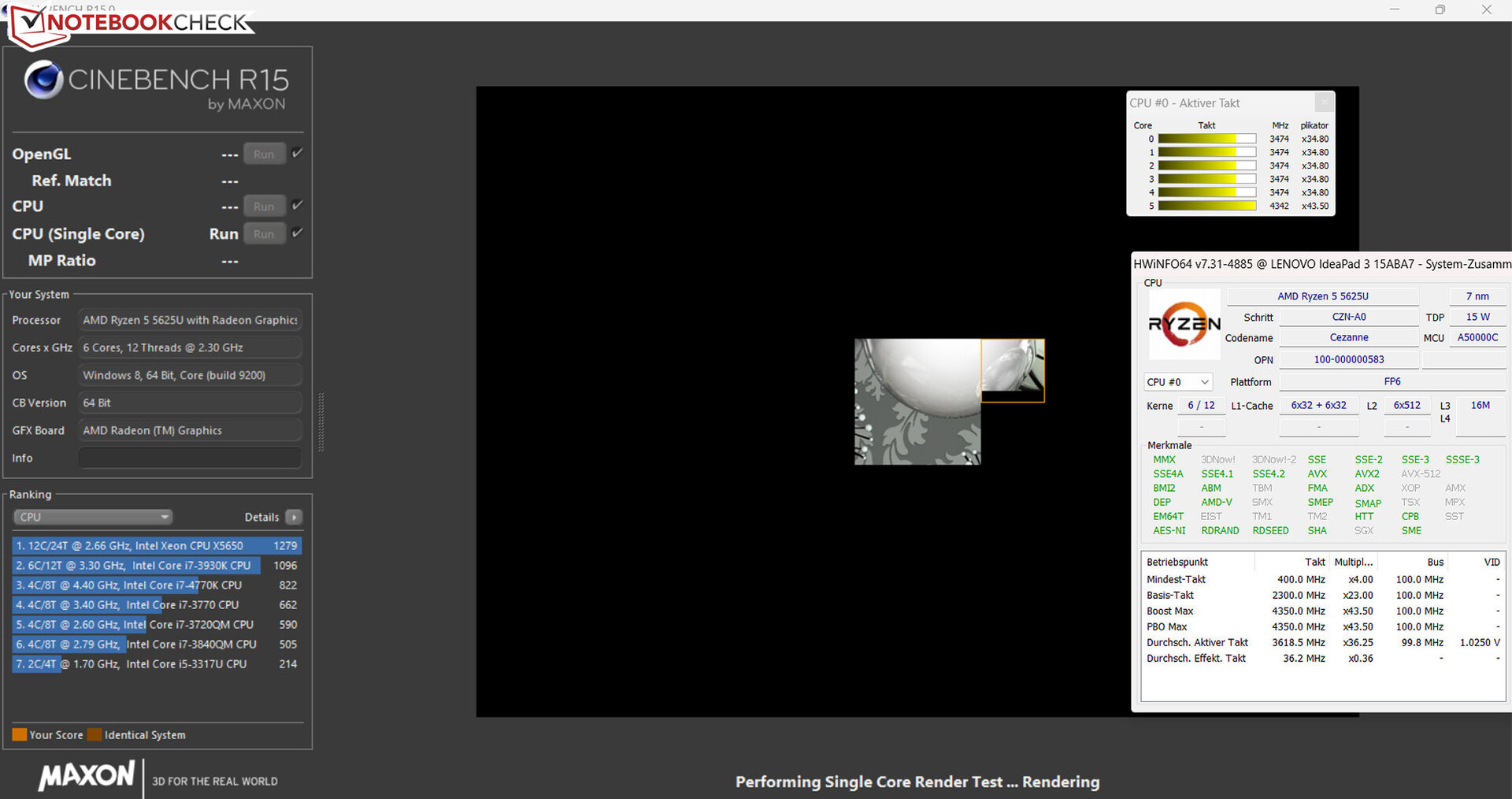

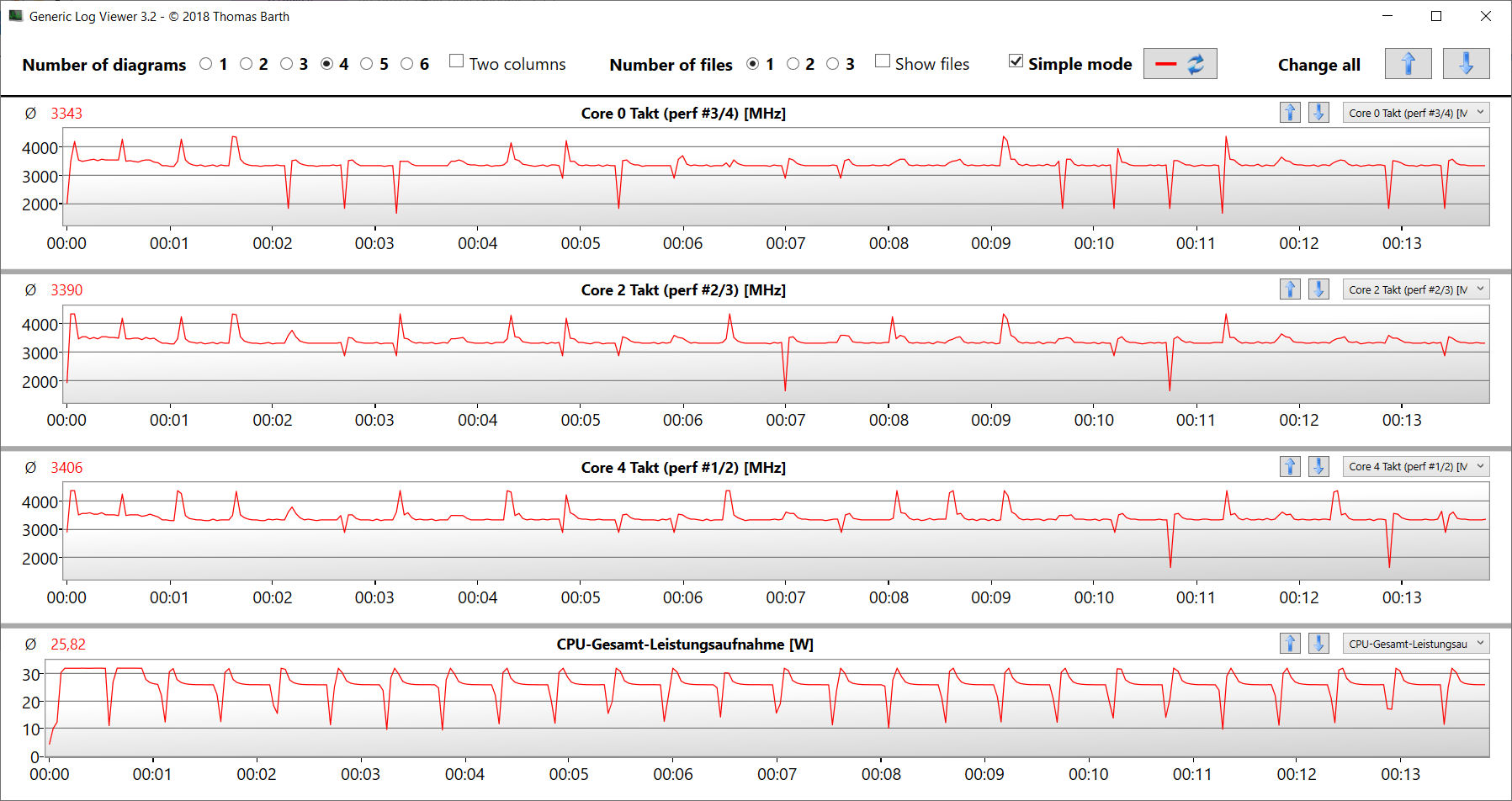

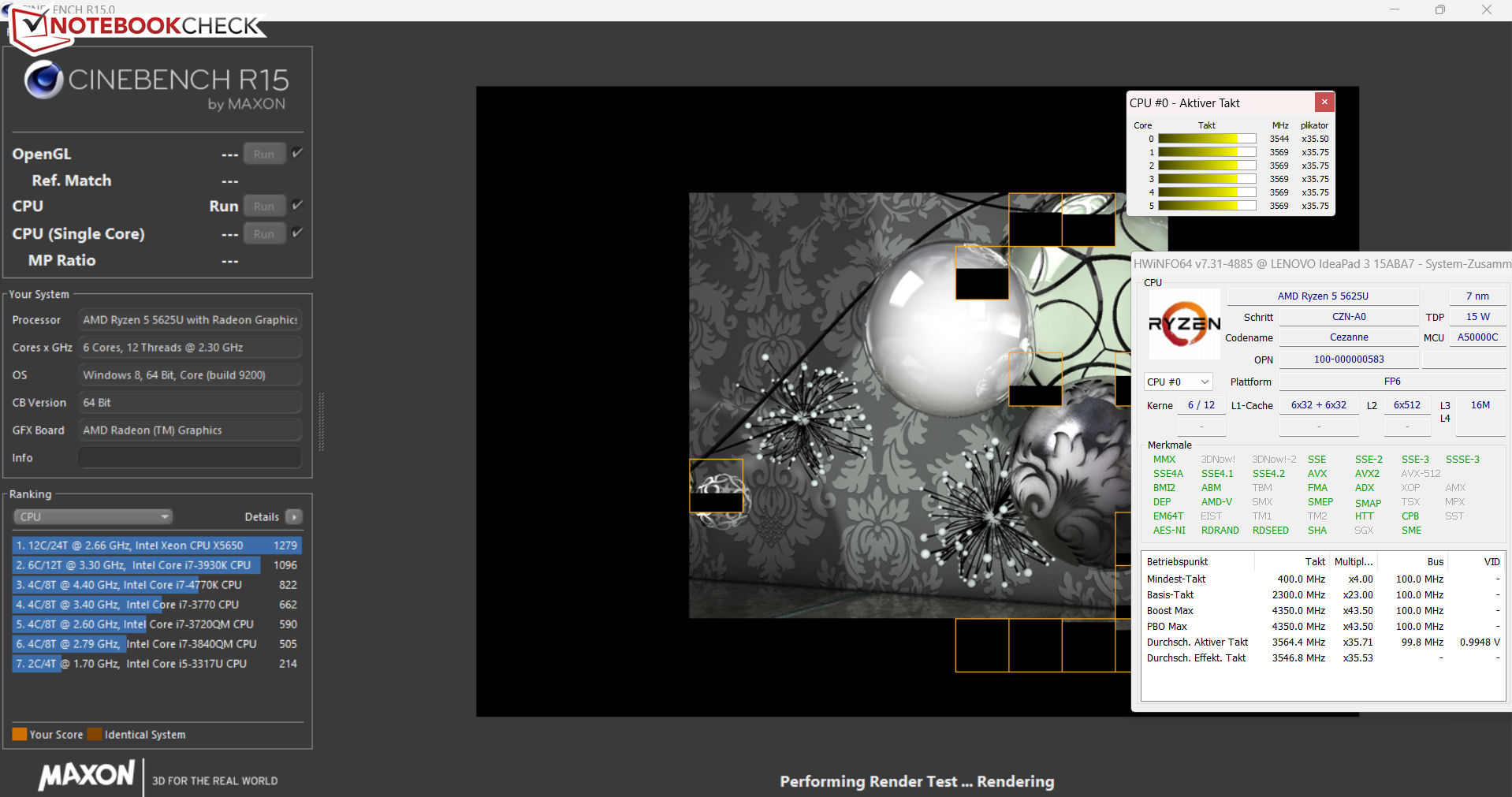

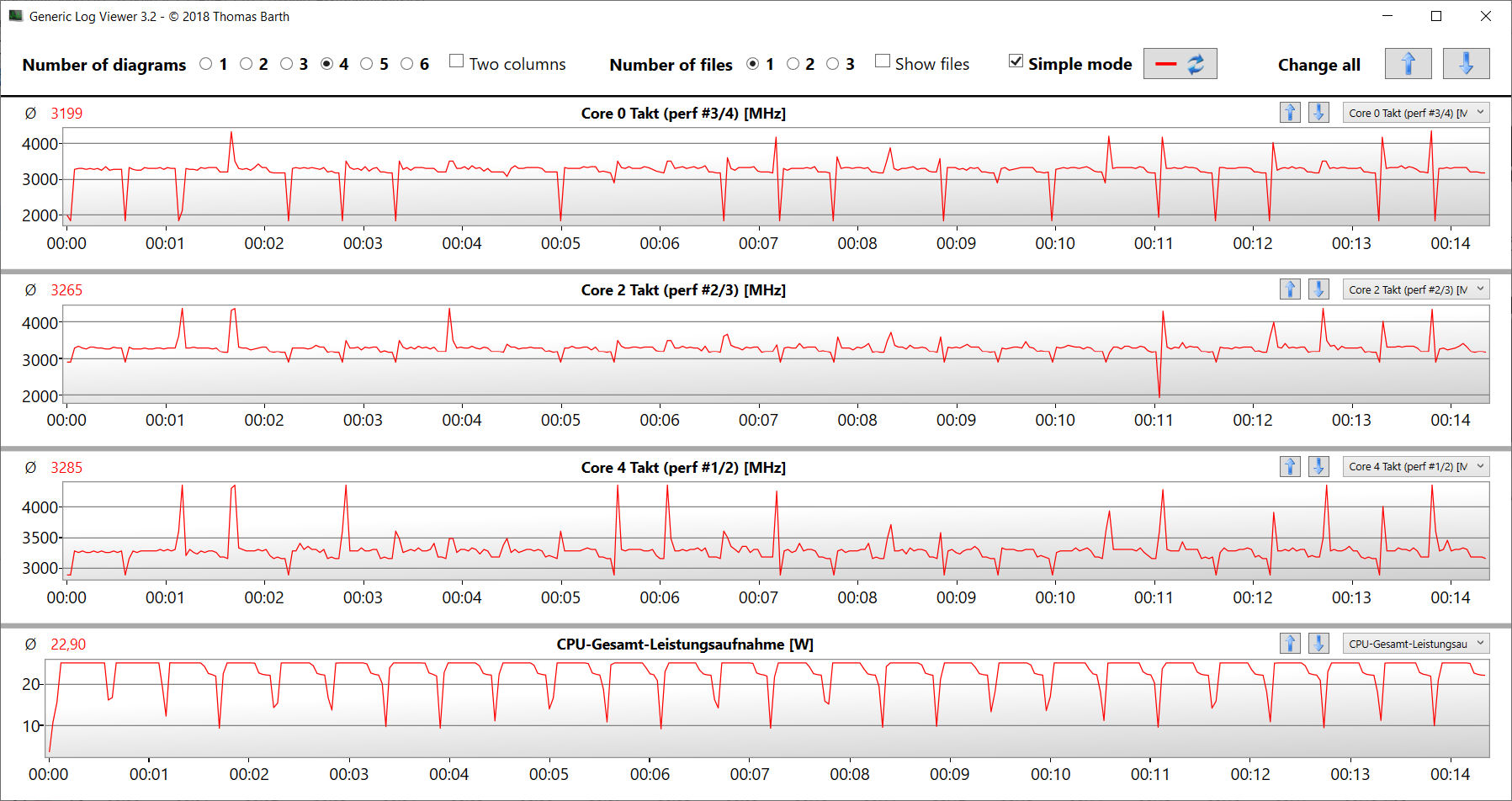

Cinebench R15基准的多线程测试在3.5至3.6GHz下进行，单线程测试在3.5至4.35GHz下进行。在电池模式下，CPU运行在2至3.2GHz（多线程）或1.4至3.4GHz（单线程）。
CB15循环测试证实了CPU涡轮增压在中高水平的持续使用--这适用于高性能 和智能冷却模式。电池保护模式 将涡轮降低到略高于基础时钟的数值。
Cinebench R15 Multi Sustained Load
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Lenovo IdeaPad 3 15ABA7 | |
| Dell Inspiron 15 5515-H8P8F | |
| Average of class Office | |
| Average AMD Ryzen 5 5625U | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FP32 Ray-Trace | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (763 - 24250, n=93, last 2 years) | |
| Average AMD Ryzen 5 5625U (8446 - 10645, n=7) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FPU Julia | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (54270 - 67729, n=7) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Average of class Office (4113 - 102228, n=93, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=93, last 2 years) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (1807 - 2314, n=7) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU Queen | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Average AMD Ryzen 5 5625U (67115 - 77047, n=7) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (8185 - 115197, n=93, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FPU SinJulia | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Average AMD Ryzen 5 5625U (8128 - 9146, n=7) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (404 - 14288, n=93, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FPU Mandel | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (29835 - 37072, n=7) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Average of class Office (2075 - 54365, n=93, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU AES | |
| Lenovo IdeaPad 3 15ABA7 | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Average AMD Ryzen 5 5625U (31782 - 91153, n=7) | |
| Average of class Office (7254 - 155900, n=93, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU ZLib | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Average of class Office (78 - 1018, n=93, last 2 years) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (481 - 592, n=7) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / FP64 Ray-Trace | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (432 - 12755, n=93, last 2 years) | |
| Average AMD Ryzen 5 5625U (4472 - 5653, n=7) | |
| HP ProBook 450 G9 6A180EA | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=93, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Lenovo IdeaPad 3 15ABA7 | |
| HP ProBook 450 G9 6A180EA | |
| Average AMD Ryzen 5 5625U (7138 - 14839, n=7) | |
| Dell Inspiron 15 5515-H8P8F | |
系统性能

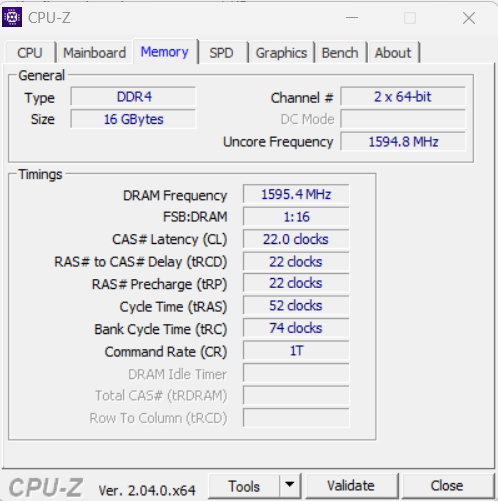

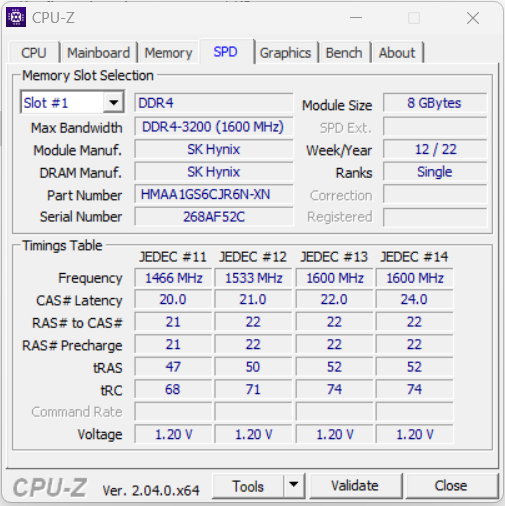

运行平稳的系统为办公和互联网应用以及低设置下的游戏提供了足够的性能。PCMark的结果非常好。对于DDR4-3200内存（16GB，双通道模式），内存的传输率处于正常水平。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (5573 - 6025, n=5) | |
| Average of class Office (2463 - 7344, n=86, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| HP ProBook 450 G9 6A180EA | |
| Acer Aspire 5 A515-56-511A | |
| PCMark 10 / Essentials | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (10033 - 10555, n=5) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (5575 - 20841, n=86, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Acer Aspire 5 A515-56-511A | |
| Dell Inspiron 15 5515-H8P8F | |
| PCMark 10 / Productivity | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (8931 - 9462, n=5) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Average of class Office (3041 - 10415, n=86, last 2 years) | |
| Dell Inspiron 15 5515-H8P8F | |
| HP ProBook 450 G9 6A180EA | |
| Acer Aspire 5 A515-56-511A | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2049 - 9773, n=86, last 2 years) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (4920 - 5944, n=5) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| HP ProBook 450 G9 6A180EA | |
| Acer Aspire 5 A515-56-511A | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=88, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1220 - 1330, n=5) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=88, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1305 - 1375, n=5) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=88, last 2 years) | |
| HP ProBook 450 G9 6A180EA | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1171 - 1358, n=5) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Dell Inspiron 15 5515-H8P8F | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=88, last 2 years) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Average AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 (1103 - 1170, n=5) | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| PCMark 8 Home Score Accelerated v2 | 4711 points | |
| PCMark 8 Work Score Accelerated v2 | 5526 points | |
| PCMark 10 Score | 5830 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=94, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (19943 - 34187, n=7) | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=94, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (22532 - 39612, n=7) | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=94, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Ryzen 5 5625U (21512 - 33048, n=7) | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| AIDA64 / Memory Latency | |
| Average AMD Ryzen 5 5625U (91.7 - 103, n=7) | |
| Dell Inspiron 15 5515-H8P8F | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (6.9 - 185.2, n=93, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| HP ProBook 450 G9 6A180EA | |
| Acer Aspire 5 A515-56-511A | |
* ... smaller is better

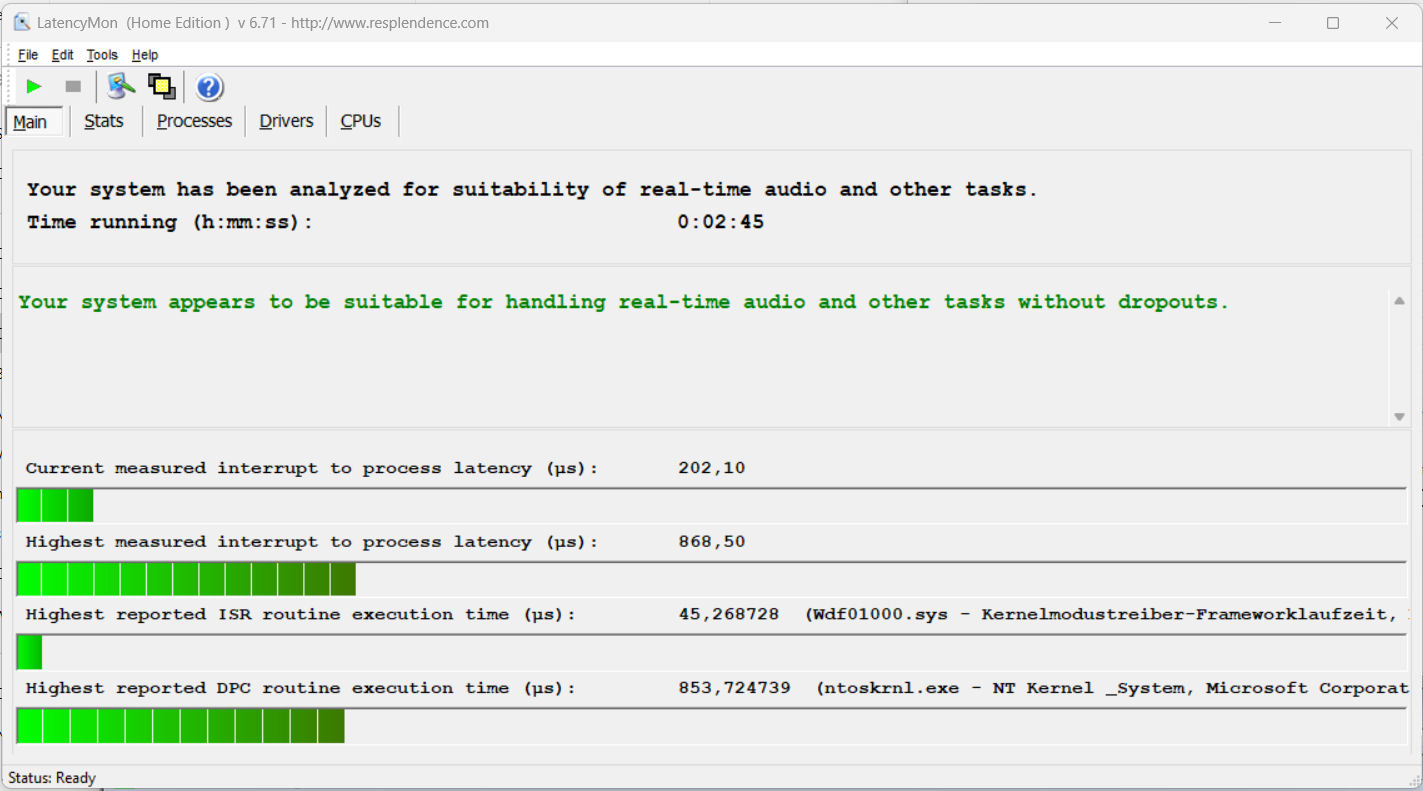

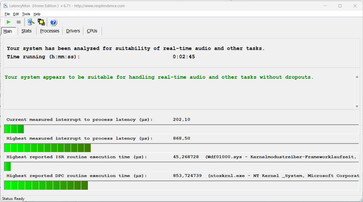

DPC延时

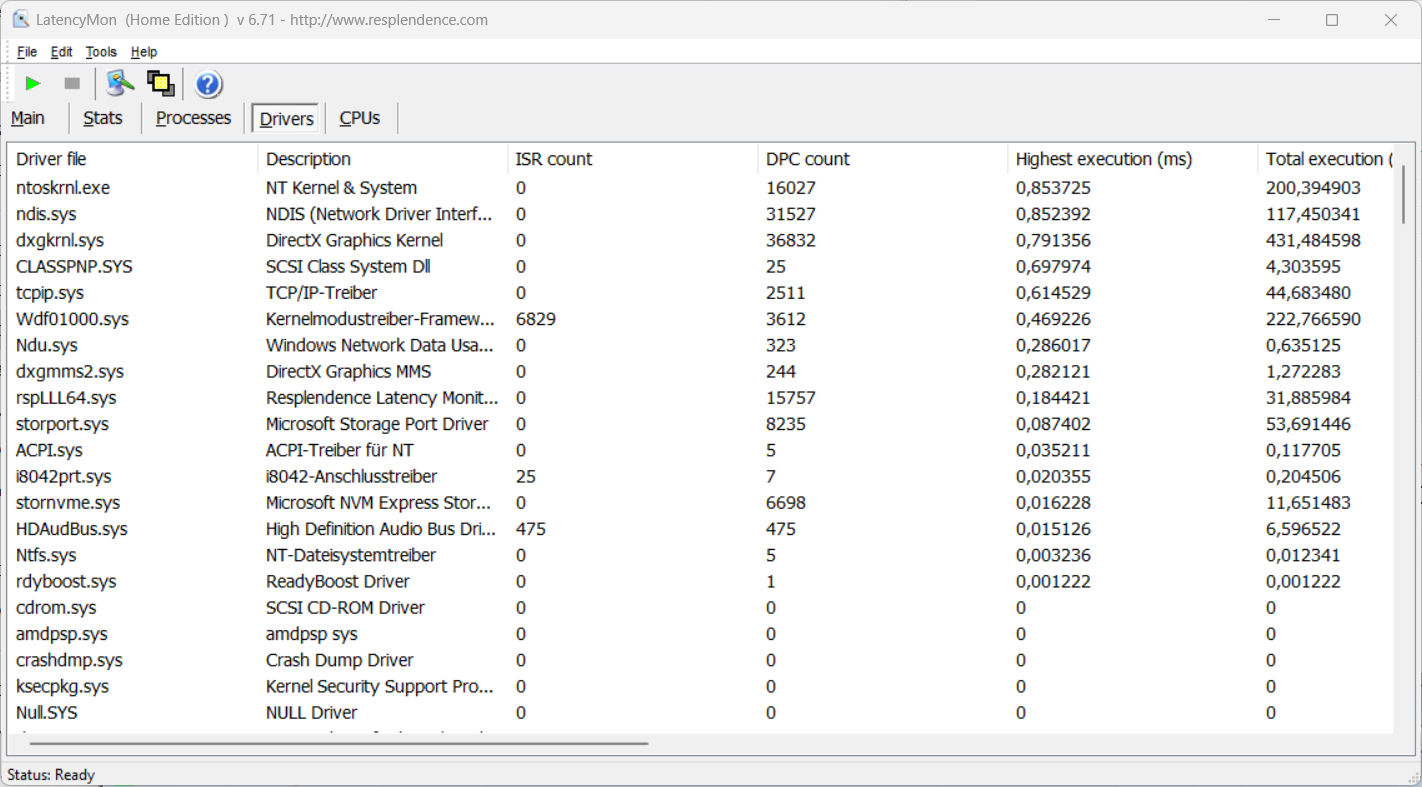

标准化的延迟监测测试（网络冲浪、4k视频播放、高负荷下的Prime95）没有发现任何异常情况。该系统似乎适用于实时视频和音频编辑。未来的软件更新可能会导致进一步的改善，甚至恶化。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 3 15ABA7 | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
* ... smaller is better
存储设备
IdeaPad配备了美光公司的PCIe 4固态硬盘（M.2 2242；M.2 2280型号也适合），其存储容量为512GB。传输速率很好，但它不是顶级SSD之一。由于热节流而导致的性能下降并没有发生。没有提供额外存储介质的空间。
* ... smaller is better
Sustained Read Performance: DiskSpd Read Loop, Queue Depth 8
图形卡

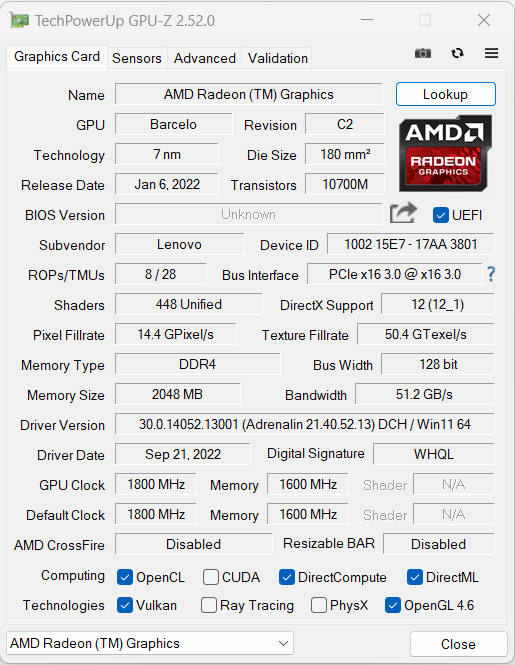

集成的 Vega 7iGPU属于AMD当前系列的中级产品。它提供448个着色器，支持DirectX 12，最大时钟达到1800MHz。正如Witcher 3 测试显示的那样，这一速度可以持续保持。然而，这只适用于高性能 或智能冷却 模式被激活时。3DMark的结果高于所安装的iGPU的平均水平。
| 3DMark 06 Standard Score | 22711 points | |
| 3DMark 11 Performance | 5528 points | |
| 3DMark Cloud Gate Standard Score | 21316 points | |

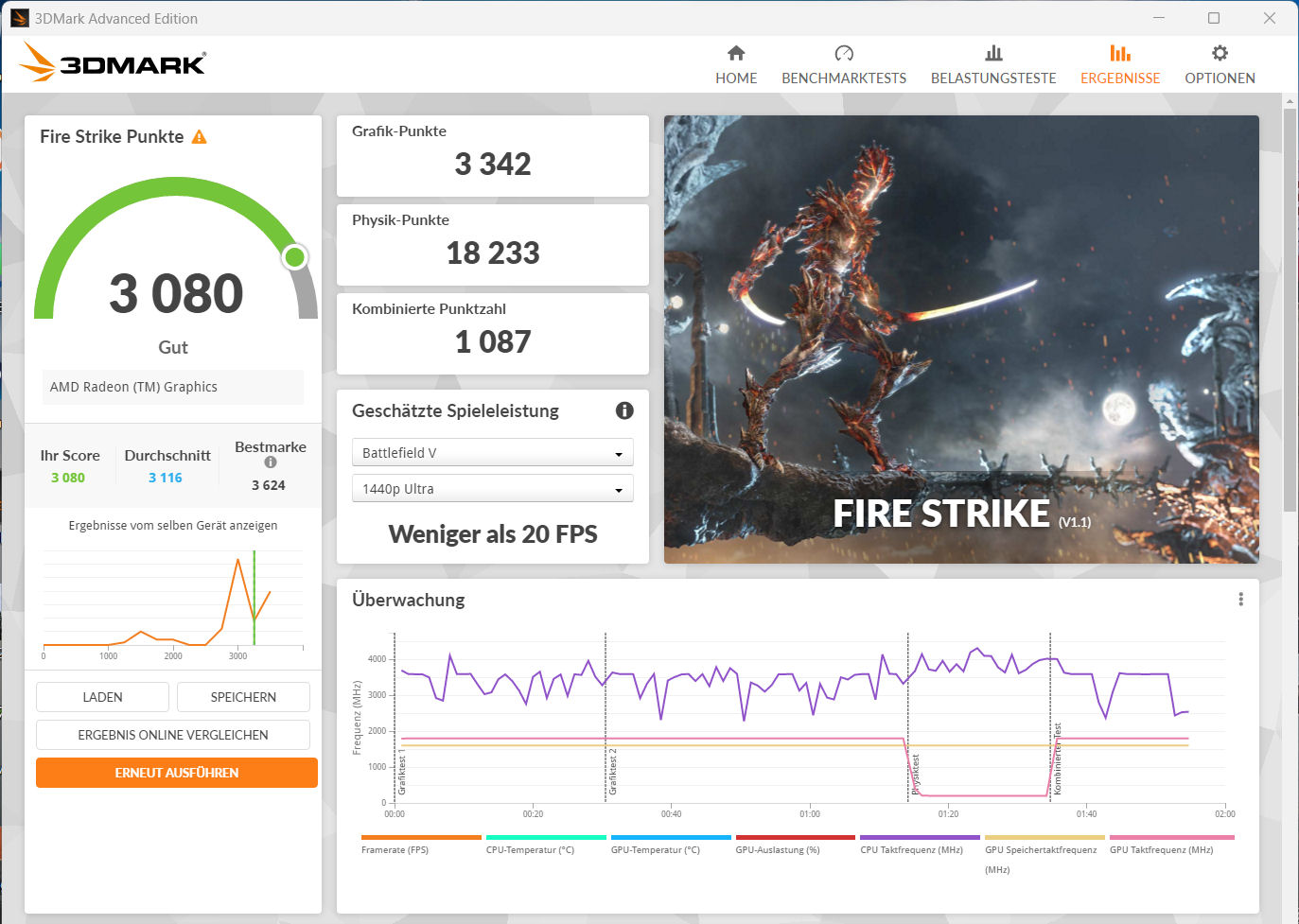

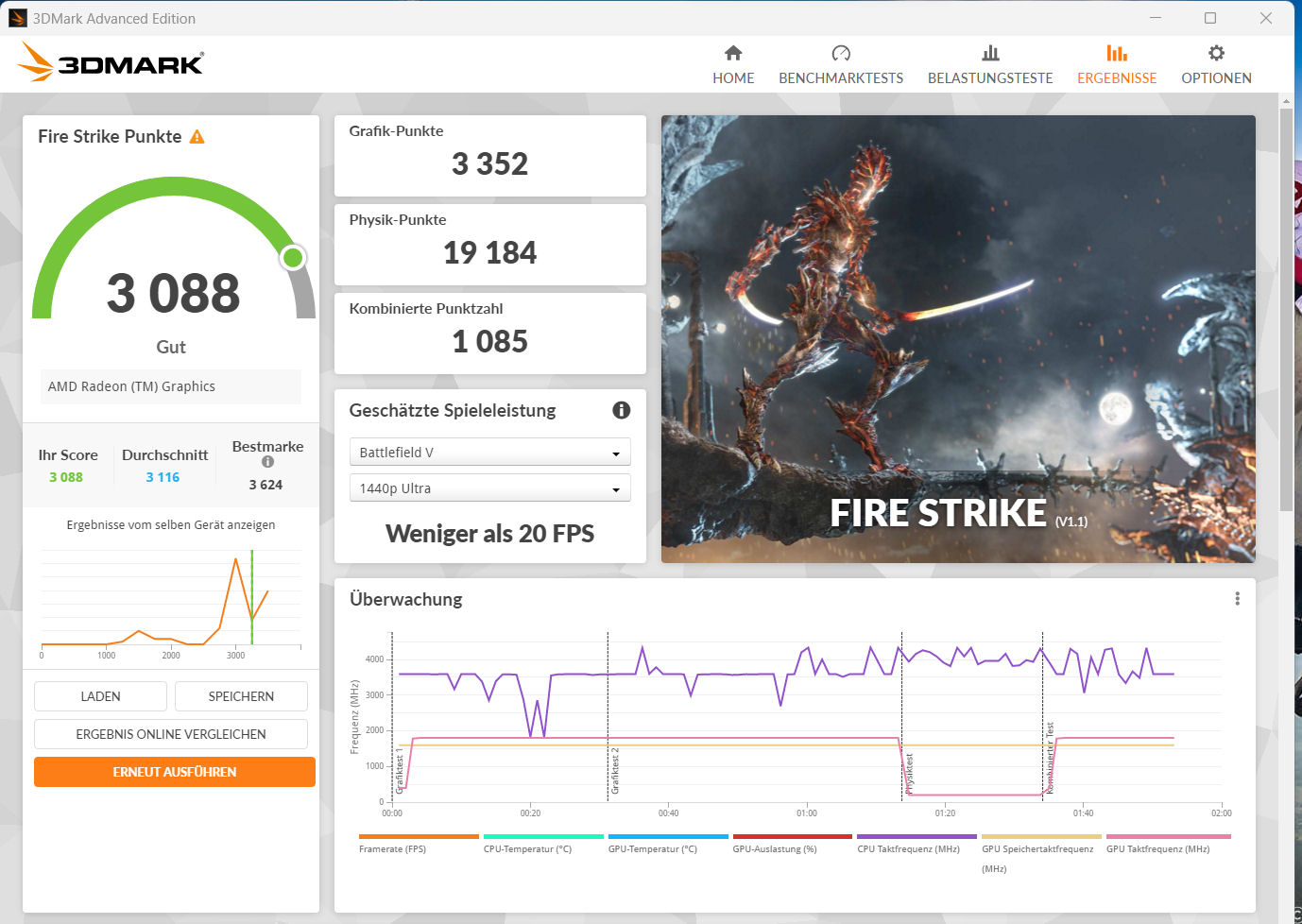

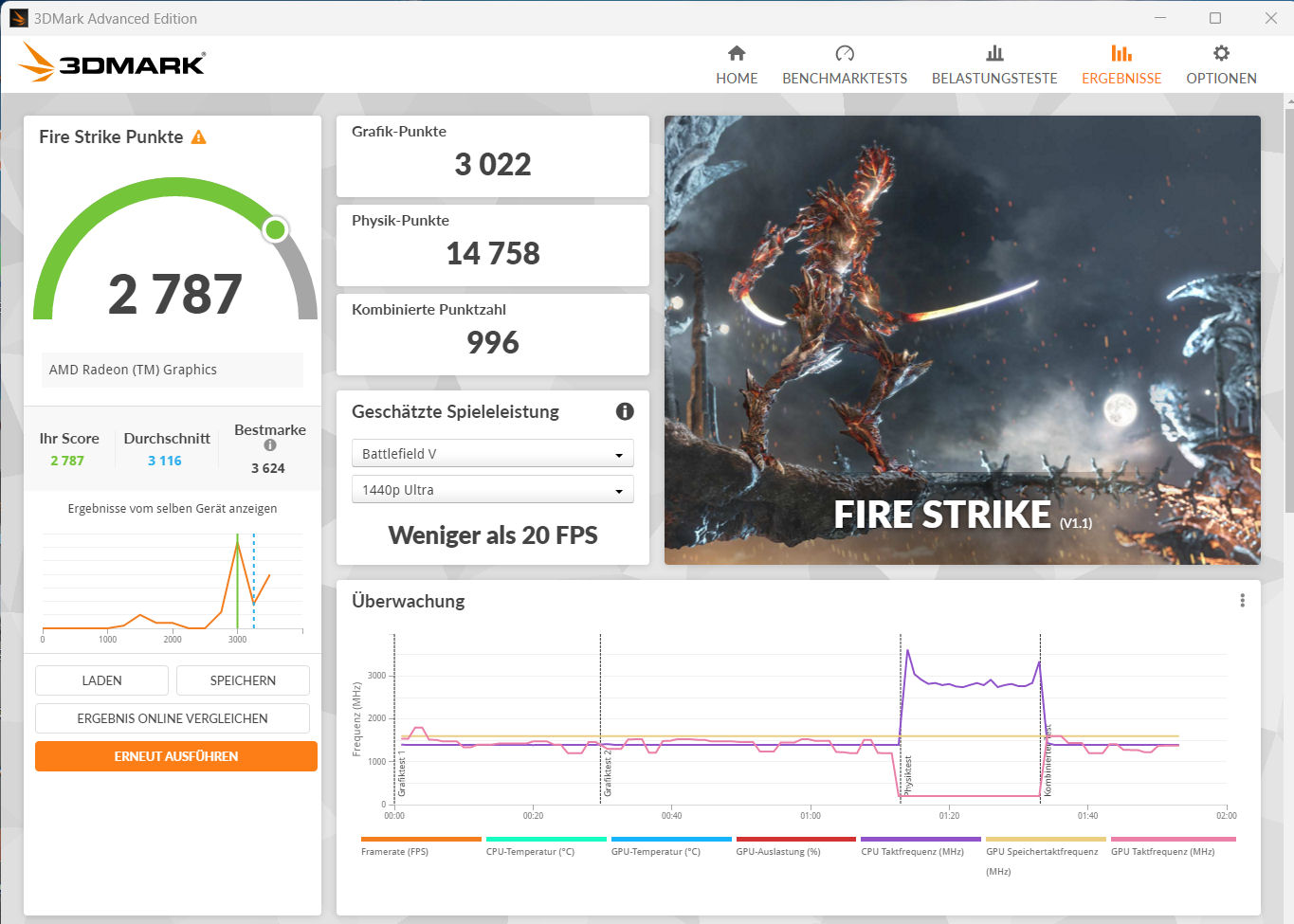

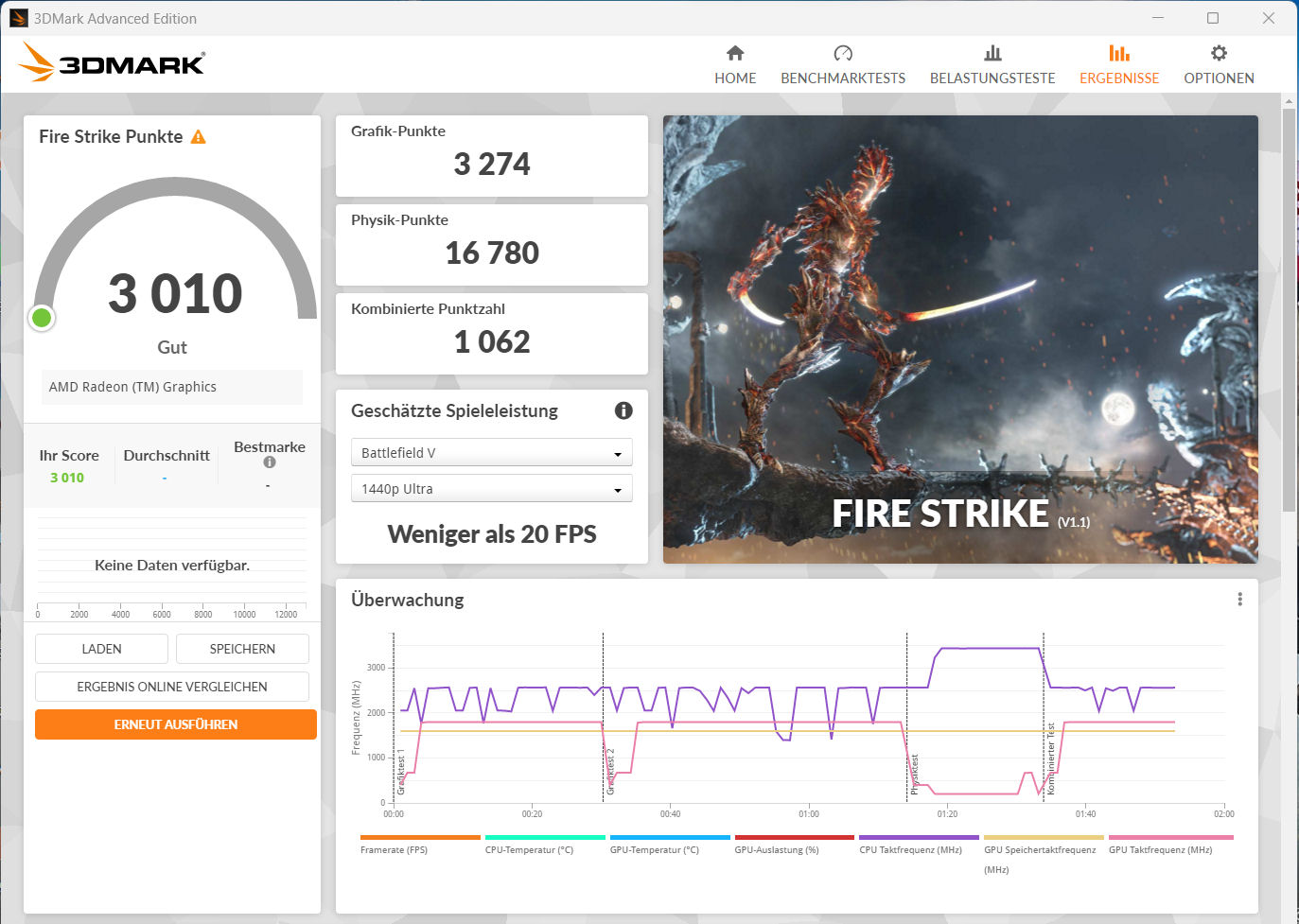

| 3DMark Fire Strike Score | 3088 points | |

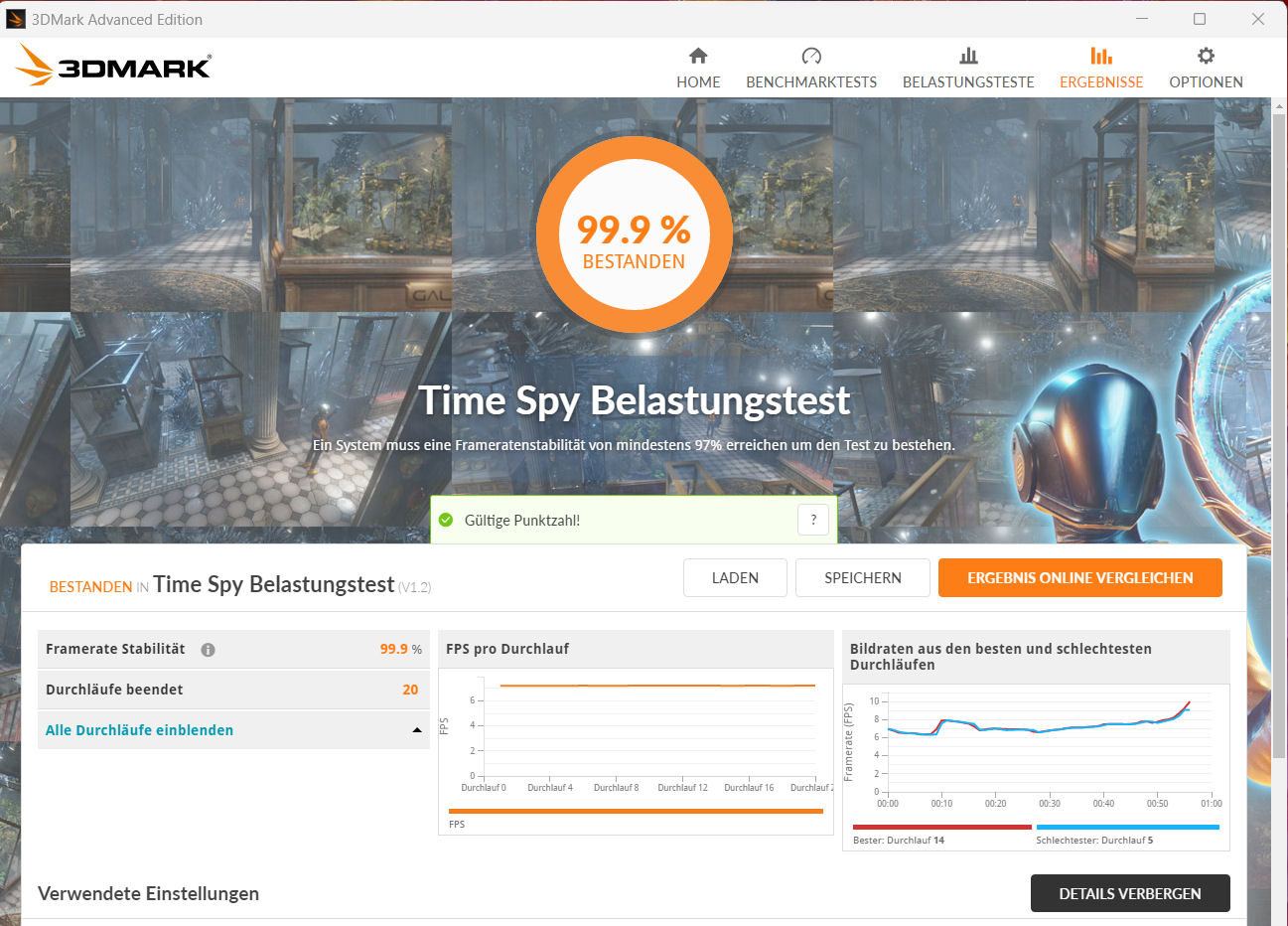

| 3DMark Time Spy Score | 1237 points | |
Help | ||
| GPUScore: Sacred Path - 2560x1440 Official | |
| Average of class Office (3.65 - 117.1, n=143, last 2 years) | |
| Average AMD Radeon RX Vega 7 (11 - 117.1, n=17) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Basemark GPU 1.2 | |
| 1920x1080 DX12 Medium Offscreen | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (50 - 226, n=17, last 2 years) | |
| Average AMD Radeon RX Vega 7 (50 - 124, n=4) | |
| 1280x720 DX12 Simple Offscreen | |
| Average of class Office (209 - 818, n=17, last 2 years) | |
| Average AMD Radeon RX Vega 7 (209 - 560, n=4) | |
| Lenovo IdeaPad 3 15ABA7 | |
| 1920x1080 Vulkan Medium Offscreen | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average of class Office (19 - 315, n=58, last 2 years) | |
| Average AMD Radeon RX Vega 7 (104.6 - 289, n=10) | |
| 1280x720 Vulkan Simple Offscreen | |
| Average of class Office (119.6 - 1705, n=18, last 2 years) | |
| Average AMD Radeon RX Vega 7 (199 - 466, n=4) | |
| Lenovo IdeaPad 3 15ABA7 | |
| 1920x1080 OpenGL Medium Offscreen | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Radeon RX Vega 7 () | |
| Average of class Office (20.7 - 119, n=2, last 2 years) | |
| 1280x720 OpenGL Simple Offscreen | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Radeon RX Vega 7 () | |
| Average of class Office (118.9 - 205, n=2, last 2 years) | |
* ... smaller is better
游戏性能
集成APU的处理能力足以在中低设置下流畅地运行一些轻度游戏--但15ABA7并不是一款游戏笔记本。刷新率高于集成iGPU的平均水平。
| The Witcher 3 - 1366x768 Medium Graphics & Postprocessing | |
| Average of class Office (12 - 106.3, n=64, last 2 years) | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Lenovo IdeaPad 3 15ABA7 | |
| Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37) | |
| HP ProBook 450 G9 6A180EA | |
| Dell Inspiron 15 5515-H8P8F | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=89, last 2 years) | |
| Lenovo IdeaPad 3 15ABA7 | |
| Asus VivoBook 15 OLED M513UA-L1282W | |
| Average AMD Radeon RX Vega 7 (17.1 - 41.1, n=40) | |
| Acer Aspire 5 A515-56-511A | |
| HP ProBook 450 G9 6A180EA | |

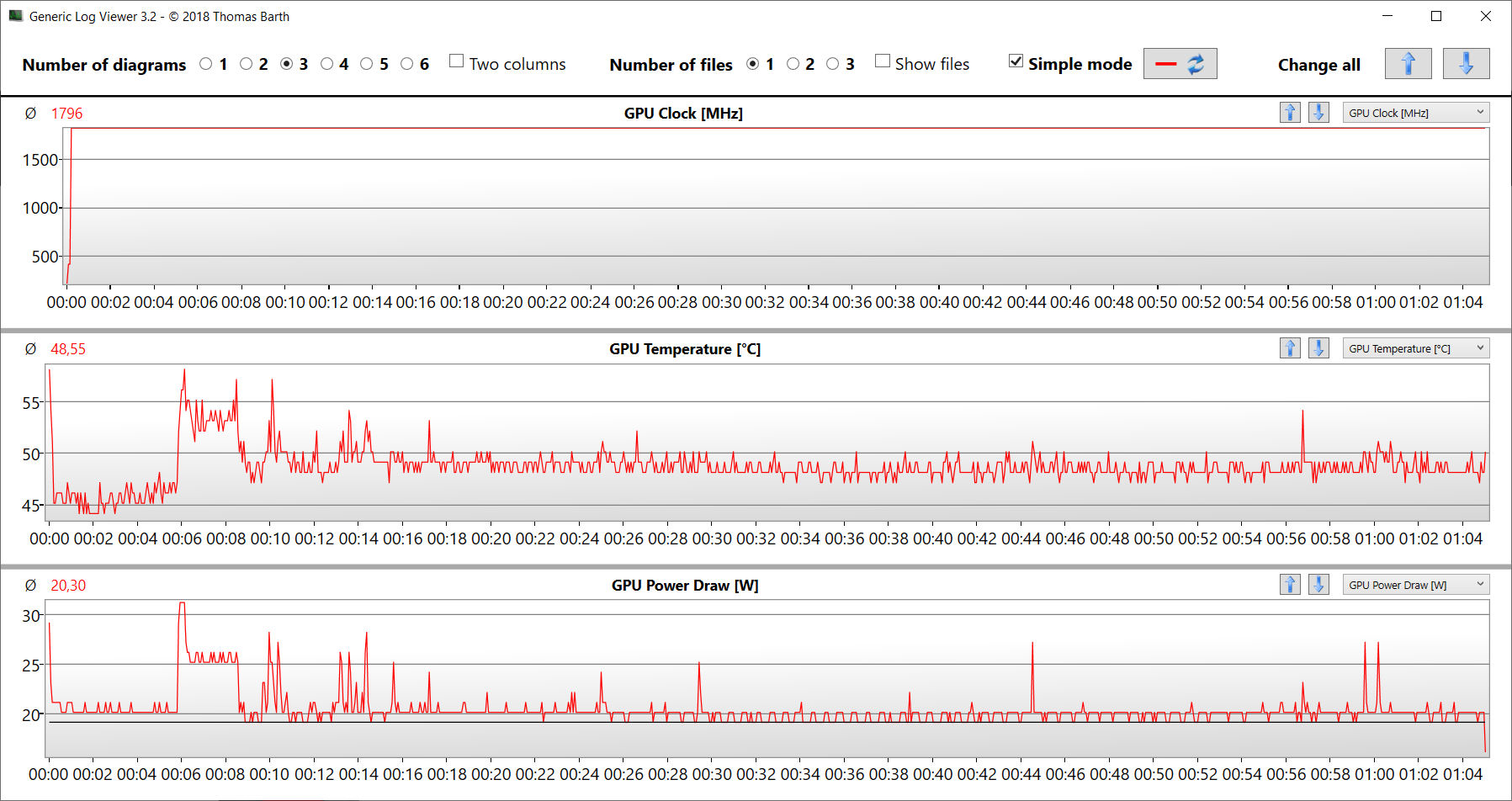

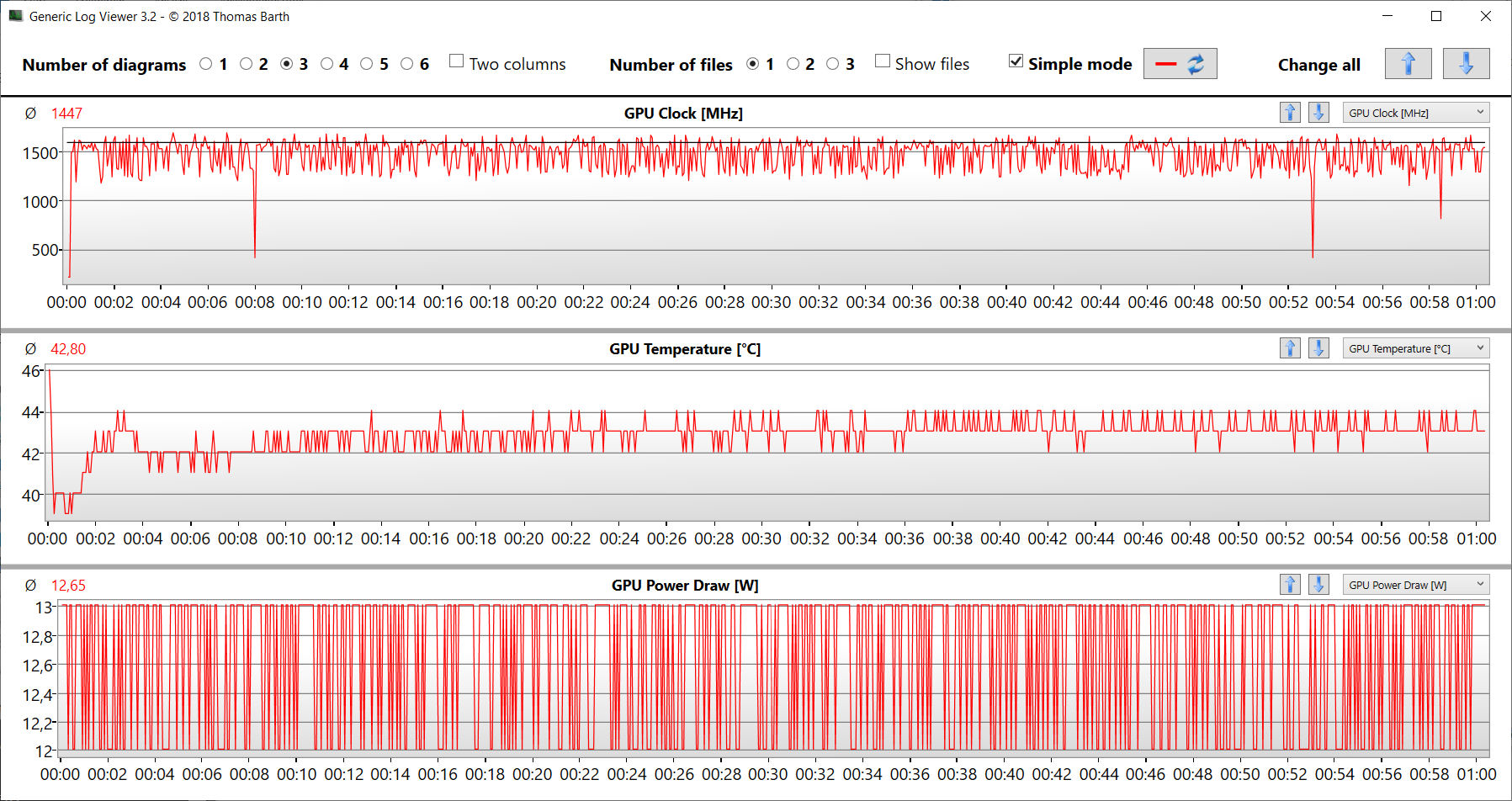

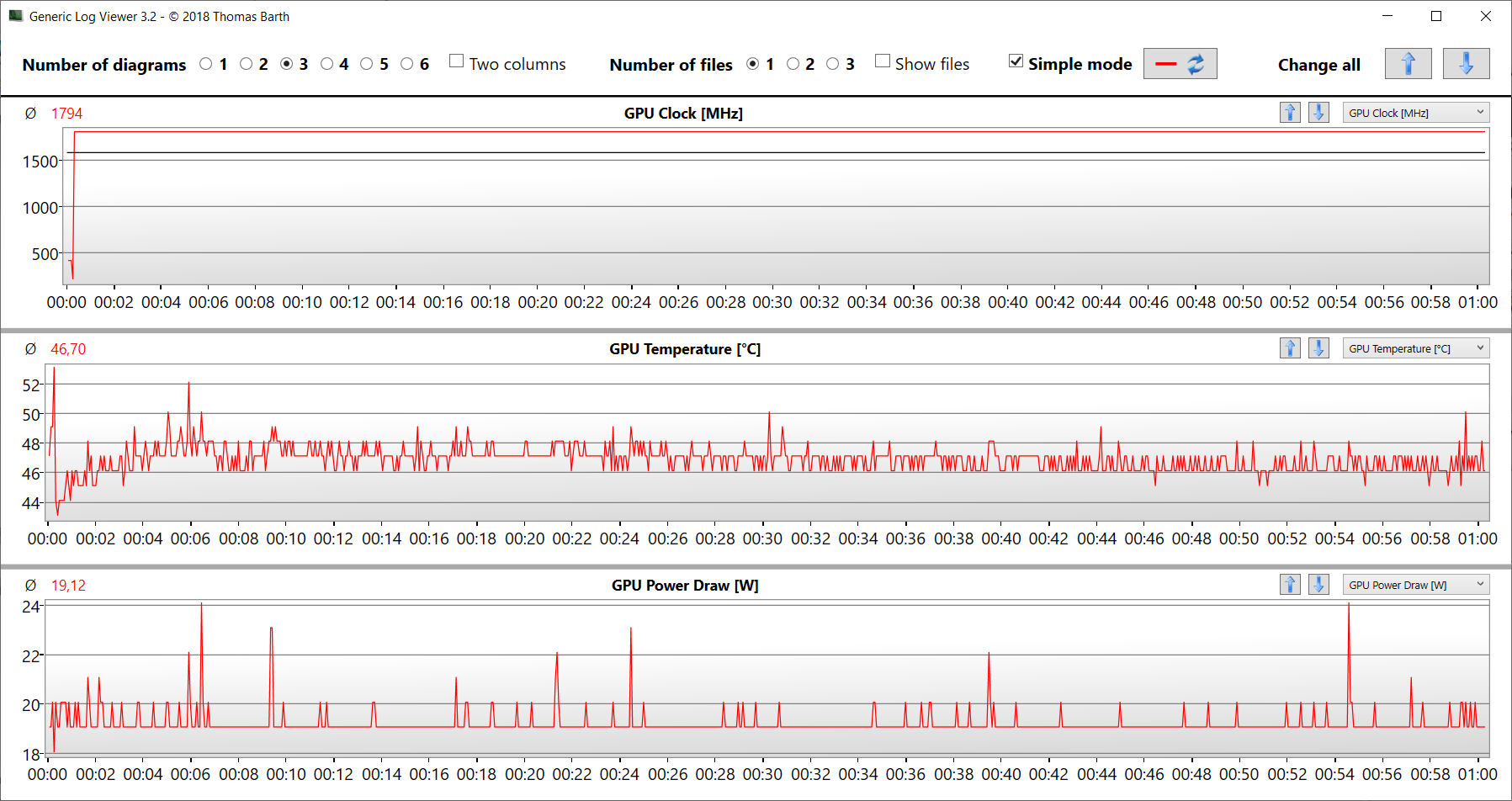

为了检查帧率是否在较长时间内保持基本稳定，我们在全高清分辨率和最高质量设置下运行了 "TheWitcher 3"约60分钟。游戏角色没有被移动。帧率没有明显的下降。
Witcher 3 FPS Chart
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 101 | 93 | 25.5 | 11.6 |
| The Witcher 3 (2015) | 60.7 | 38.3 | 19 | 12.6 |
| Dota 2 Reborn (2015) | 108.6 | 85.6 | 49.1 | 46 |
| Final Fantasy XV Benchmark (2018) | 33.6 | 16.9 | 12.2 | |
| X-Plane 11.11 (2018) | 47 | 35.5 | 31.8 | |
| Far Cry 5 (2018) | 44 | 21 | 19 | 18 |
| Strange Brigade (2018) | 79.9 | 29.6 | 24.8 | 21.2 |
| F1 22 (2022) | 33.7 | 30.2 | 23.4 | 16.7 |
| Spider-Man Miles Morales (2022) | 21.2 | 17.5 | 14.7 | 13.3 |
| The Callisto Protocol (2022) | 17.6 | 11.6 | 6.5 | 6.4 |
| Need for Speed Unbound (2022) | 21 | 17.2 | 13.7 | 11.8 |
| High On Life (2023) | 33.9 | 16.1 | 16 | 10.2 |
| The Witcher 3 v4.00 (2023) | 24.9 | 18 | 15.3 | 11.1 |
排放--办公桌上有较多或较少的废品
噪声
在闲置和日常使用中（办公室、互联网），风扇通常是安静的，没有噪音。在中高负荷下（压力测试，Witcher 3 测试），噪音水平可以上升到46或47.9分贝（A）。这些数值对于办公笔记本来说太高了。智能冷却 和电池保护模式确保风扇噪音水平普遍较低--以牺牲计算能力为代价。
Noise Level
| Idle |
| 26 / 26 / 26 dB(A) |
| Load |
| 46 / 47.9 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||
| Lenovo IdeaPad 3 15ABA7 Vega 7, R5 5625U, Micron 2450 512GB MTFDKCD512TFK | Dell Inspiron 15 5515-H8P8F Vega 8, R7 5700U, Toshiba KBG40ZNS512G NVMe | Acer Aspire 5 A515-56-511A Iris Xe G7 80EUs, i5-1135G7, Micron 2210 MTFDHBA1T0QFD | HP ProBook 450 G9 6A180EA Iris Xe G7 96EUs, i7-1255U, SK Hynix HFM512GD3JX013N | Asus VivoBook 15 OLED M513UA-L1282W Vega 8, R7 5700U, Intel SSD 670p SSDPEKNU512GZ | |
|---|---|---|---|---|---|
| Noise | 8% | 11% | 15% | 4% | |
| off / environment * | 26 | 25.4 2% | 24.5 6% | 25.5 2% | 26 -0% |
| Idle Minimum * | 26 | 25.4 2% | 24.5 6% | 25.5 2% | 26 -0% |
| Idle Average * | 26 | 25.4 2% | 24.5 6% | 25.5 2% | 26 -0% |
| Idle Maximum * | 26 | 25.4 2% | 26.4 -2% | 25.5 2% | 26.2 -1% |
| Load Average * | 46 | 34 26% | 32 30% | 28 39% | 41.4 10% |
| Load Maximum * | 47.9 | 40 16% | 39 19% | 27.7 42% | 41.4 14% |
* ... smaller is better

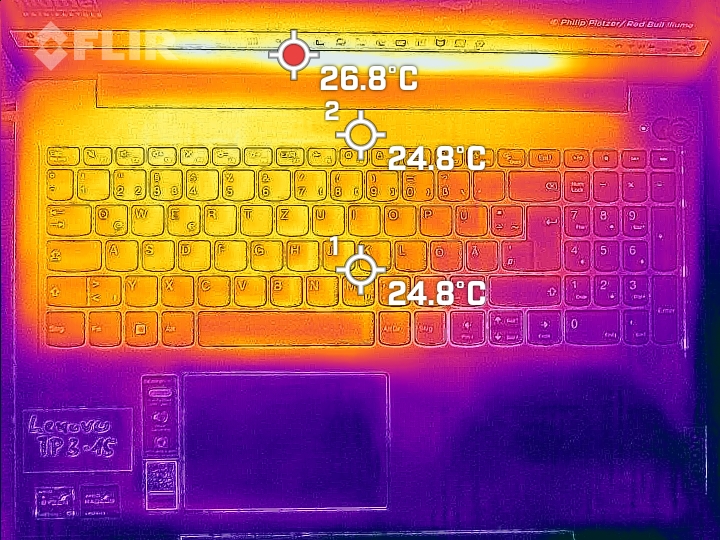

温度

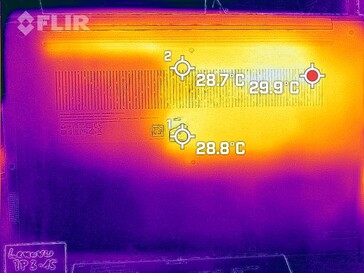

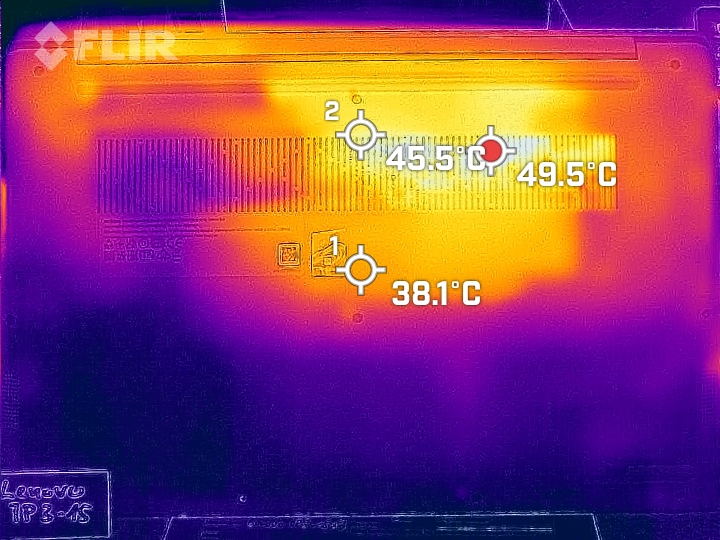

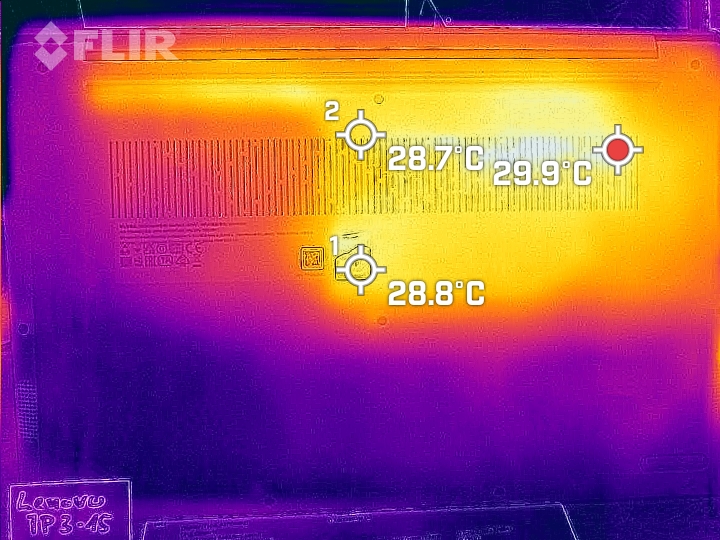

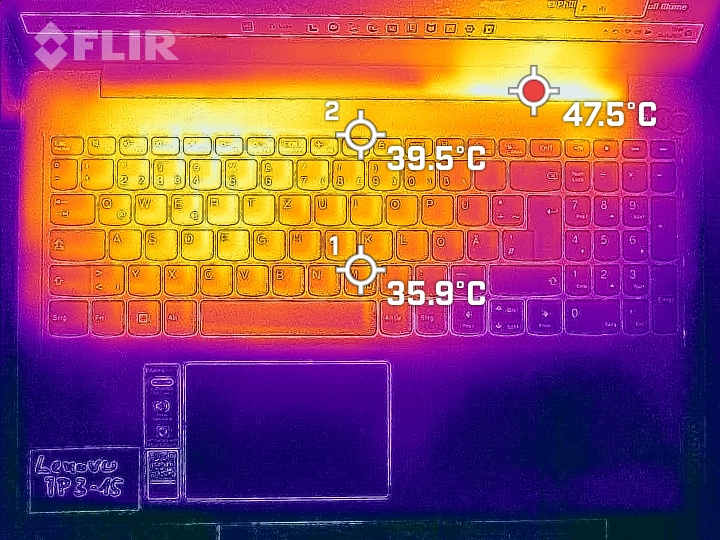

在日常使用中（办公室、互联网），机箱温度保持在绿色区域。在负载情况下（压力测试，Witcher 3 测试），笔记本适度发热：有三个点的温度刚刚超过40摄氏度。CPU的温度（约71摄氏度）不值得关注。
(±) The maximum temperature on the upper side is 41.1 °C / 106 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 23.9 °C / 75 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+3.7 °C / 6.7 F).
| Lenovo IdeaPad 3 15ABA7 AMD Ryzen 5 5625U, AMD Radeon RX Vega 7 | Dell Inspiron 15 5515-H8P8F AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | Acer Aspire 5 A515-56-511A Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | HP ProBook 450 G9 6A180EA Intel Core i7-1255U, Intel Iris Xe Graphics G7 96EUs | Asus VivoBook 15 OLED M513UA-L1282W AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) | |
|---|---|---|---|---|---|
| Heat | -13% | 15% | -14% | -10% | |
| Maximum Upper Side * | 41.1 | 39.4 4% | 33.6 18% | 40.5 1% | 39.6 4% |
| Maximum Bottom * | 42.3 | 45.4 -7% | 30.1 29% | 47.6 -13% | 48.4 -14% |
| Idle Upper Side * | 26.8 | 33.2 -24% | 25.5 5% | 32.6 -22% | 30.9 -15% |
| Idle Bottom * | 28.6 | 35.1 -23% | 26.1 9% | 34.2 -20% | 32.3 -13% |
* ... smaller is better

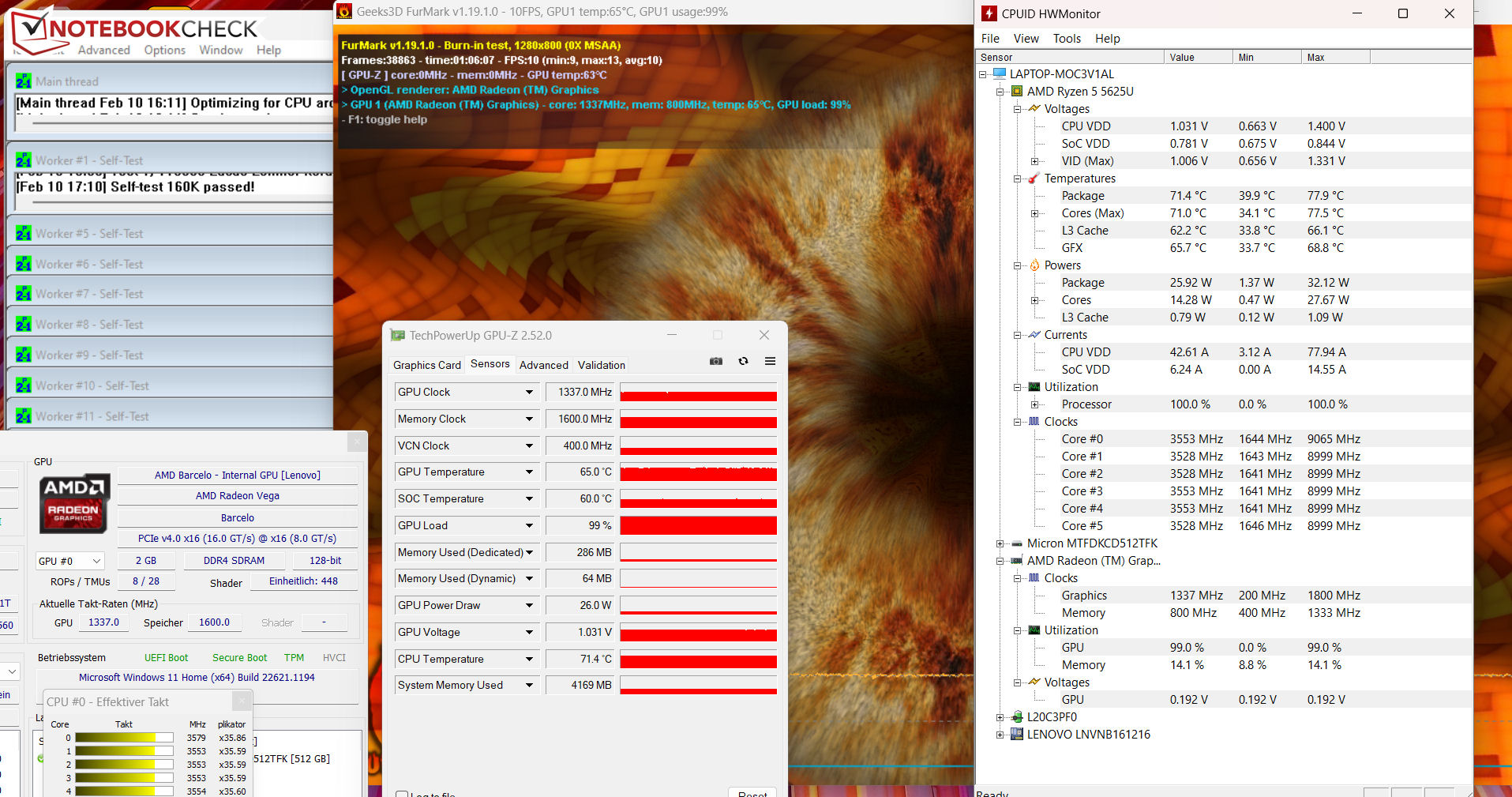

压力测试
压力测试（Prime95和Furmark连续运行）代表了在全负荷下测试系统稳定性的一个极端情况。测试开始时，CPU和GPU的时钟速度分别为3.8至3.9GHz和1,400至1,500MHz。随着测试的进行，这些数值略有下降。
发言人
立体声扬声器产生的声音可以接受，但几乎没有任何低音。为了获得更好的声音体验，建议使用耳机或外部扬声器。
Lenovo IdeaPad 3 15ABA7 audio analysis
(±) | speaker loudness is average but good (75 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.9% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.5% away from median
(±) | linearity of mids is average (9.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.9% difference to median)
Compared to same class
» 53% of all tested devices in this class were better, 9% similar, 38% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 59% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell Inspiron 15 5515-H8P8F audio analysis
(±) | speaker loudness is average but good (81.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.6% lower than median
(±) | linearity of bass is average (13.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (3.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7% higher than median
(+) | highs are linear (6.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18% difference to median)
Compared to same class
» 26% of all tested devices in this class were better, 7% similar, 67% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 34% of all tested devices were better, 8% similar, 58% worse
» The best had a delta of 4%, average was 25%, worst was 134%
电源管理 - IdeaPad提供强大的耐力值
消耗功率
对于这里安装的硬件来说，耗电量处于正常水平。虽然Witcher 3 测试是以恒定的功耗运行的，但在压力测试的过程中，需求略有下降。所提供的电源（65瓦）的大小足够了。
| Off / Standby | 0.38 / 0.75 Watt |
| Idle | 5 / 8.7 / 9.1 Watt |
| Load |
41 / 55.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo IdeaPad 3 15ABA7 R5 5625U, Vega 7, Micron 2450 512GB MTFDKCD512TFK, IPS, 1920x1080, 15.6" | Dell Inspiron 15 5515-H8P8F R7 5700U, Vega 8, Toshiba KBG40ZNS512G NVMe, IPS, 1920x1080, 15.6" | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs, Micron 2210 MTFDHBA1T0QFD, IPS, 1920x1080, 15.6" | HP ProBook 450 G9 6A180EA i7-1255U, Iris Xe G7 96EUs, SK Hynix HFM512GD3JX013N, , 1920x1080, 15.6" | Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8, Intel SSD 670p SSDPEKNU512GZ, OLED, 1920x1080, 15.6" | Average AMD Radeon RX Vega 7 | Average of class Office | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 17% | 17% | 16% | 23% | 7% | 3% | |
| Idle Minimum * | 5 | 3.8 24% | 3.3 34% | 4.5 10% | 4.1 18% | 4.66 ? 7% | 4.48 ? 10% |
| Idle Average * | 8.7 | 6.6 24% | 8.4 3% | 7.3 16% | 5 43% | 7.56 ? 13% | 7.43 ? 15% |
| Idle Maximum * | 9.1 | 8 12% | 8.9 2% | 8.1 11% | 4.8 47% | 8.95 ? 2% | 8.91 ? 2% |
| Load Average * | 41 | 33.4 19% | 30.1 27% | 32.8 20% | 38 7% | 38.7 ? 6% | 42 ? -2% |
| Witcher 3 ultra * | 41.9 | 33.6 20% | 32 24% | 34.8 17% | |||
| Load Maximum * | 55.7 | 54 3% | 45.4 18% | 47 16% | 52 7% | 51.9 ? 7% | 61.6 ? -11% |
* ... smaller is better
Power Consumption Witcher 3 / Stress Test
Power Consumption with an External Monitor
电池寿命
这款15.6英寸的笔记本在WLAN测试（使用脚本加载网站）和视频测试（短片Big Buck Bunny，H.264编码，FHD，循环播放）中分别取得了9:44小时和11:04小时的运行时间。在这两项测试中，笔记本的节能功能被关闭，显示屏亮度被设置为大约150cd/m²。在视频测试中，无线模块也被关闭。
总的来说，IdeaPad的电池运行时间非常好--就像Inspiron 15和ProBook 450 G9一样。15ABA7在实际的WLAN测试中落后于两个竞争对手的事实是由于电池容量较低。联想笔记本电脑在WLAN模式下提供了最好的每瓦时运行时间。
| Lenovo IdeaPad 3 15ABA7 R5 5625U, Vega 7, 45 Wh | Dell Inspiron 15 5515-H8P8F R7 5700U, Vega 8, 54 Wh | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs, 48.85 Wh | HP ProBook 450 G9 6A180EA i7-1255U, Iris Xe G7 96EUs, 51 Wh | Asus VivoBook 15 OLED M513UA-L1282W R7 5700U, Vega 8, 42 Wh | Average of class Office | |
|---|---|---|---|---|---|---|
| Battery Runtime | 54% | 45% | 127% | -34% | 29% | |
| Reader / Idle | 1302 | 1239 ? -5% | ||||
| H.264 | 664 | 645 -3% | 716 ? 8% | |||
| WiFi v1.3 | 584 | 627 7% | 416 -29% | 604 3% | 388 -34% | 608 ? 4% |
| Load | 56 | 144 157% | 122 118% | 196 250% | 117.4 ? 110% | |
| Witcher 3 ultra | 162 | 142 ? |
Pros
Cons
评语。一个大体上全能的办公笔记本
联想的办公全能型产品可以轻松处理办公和互联网应用以及适度的游戏--Ryzen 5 5625U。Ryzen 5 5625UAPU和16GB的内存使之成为可能。CPU和GPU可以在持续的高时钟率下工作。排放值还可以，但在中度至满负荷的情况下，噪音排放应该更低。
联想IdeaPad 3 15ABA7应该满足大多数用户的需求。
这款相对较轻的笔记本（约1.6公斤）实现了约10至11小时的实用电池运行时间。另一个积极的方面是，可以通过提供的联想专有电源适配器或通过通用USB-C充电器供电。
哑光的15.6英寸屏幕（FHD，IPS）没有暴露出严重的弱点，但提供的色彩空间覆盖面太小--一台约750美元的笔记本电脑应该在这里提供更多。这也适用于其他领域：对于这个价格，我们期待一个背光键盘。
IdeaPad的另一个选择是戴尔Inspiron 15 5515。这两款设备在很大程度上是相同的，但Inspiron的iGPU在名义上要强一些。另一个具有出色显示屏的选择是 华硕Vivobook 15它有一个明亮、高对比度的OLED屏幕，具有非常好的色彩空间覆盖。
价格和可用性

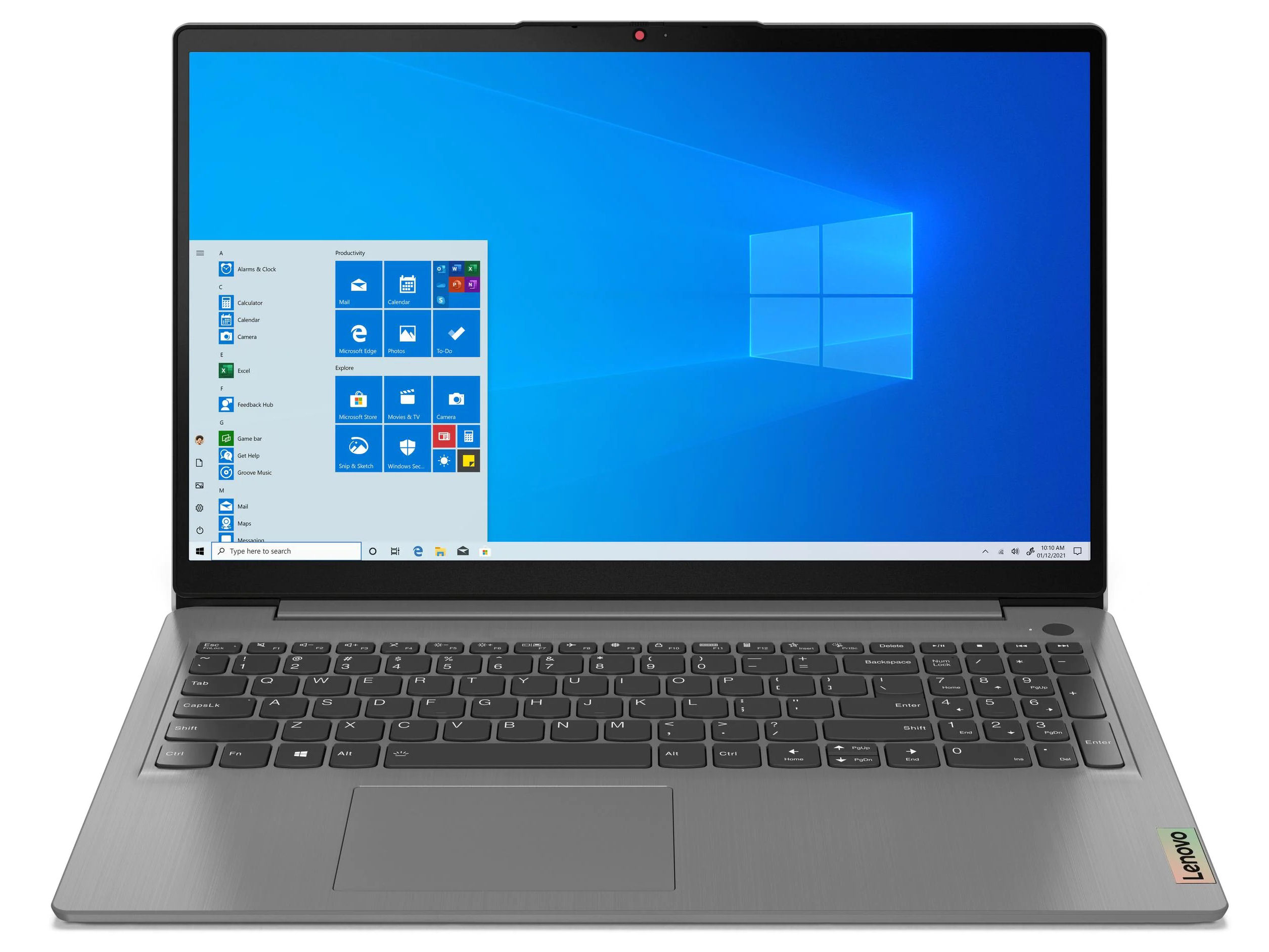

Lenovo IdeaPad 3 15ABA7
- 02/14/2023 v7 (old)
Sascha Mölck
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
