联想IdeaPad 5 15ALC05在审查。 15.6英寸的笔记本电脑让人信服并感到惊喜
联想IdeaPad 5 15ALC05配备了AMD Ryzen 5500U，包括AMD Radeon RX Vega 7GPU。此外，还有16GB的DDR4 SDRAM的双通道模式和512GB的SSD存储。因此，其配置在许多方面与14英寸IdeaPad 5 14ALC05相同。我们对IdeaPad 5 15ALC05的评测将阐明除显示屏对角线尺寸外的其余差异。
此外，审查样本必须与其他15.6英寸的对手竞争，如联想ThinkPad L15 G2 ，采用AMD Ryzen 5600U，以及 宏碁Aspire 5 A515-56-511A，采用Intel Core i5-1135G7。
Possible contenders in comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 83.5 % v7 (old) | 08 / 2021 | Lenovo IdeaPad 5 15ALC05 R5 5500U, Vega 7 | 1.7 kg | 19.1 mm | 15.60" | 1920x1080 | |
| 86.3 % v7 (old) | Lenovo IdeaPad 5 14ALC05 82LM005YGE R5 5500U, Vega 7 | 1.4 kg | 19.1 mm | 14.00" | 1920x1080 | ||
| 85.1 % v7 (old) | 08 / 2021 | Lenovo ThinkPad L15 G2 AMD R5 5600U, Vega 7 | 1.9 kg | 21 mm | 15.60" | 1920x1080 | |
| 82.1 % v7 (old) | Asus VivoBook S15 D533UA R7 5700U, Vega 8 | 1.8 kg | 16.1 mm | 15.60" | 1920x1080 | ||
| 83.6 % v7 (old) | 08 / 2021 | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs | 1.5 kg | 17 mm | 15.60" | 1920x1080 | |
| 81.4 % v7 (old) | 12 / 2020 | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs | 1.9 kg | 18 mm | 15.60" | 1920x1080 |
外壳。有品位且相对较轻的铝制笔记本电脑

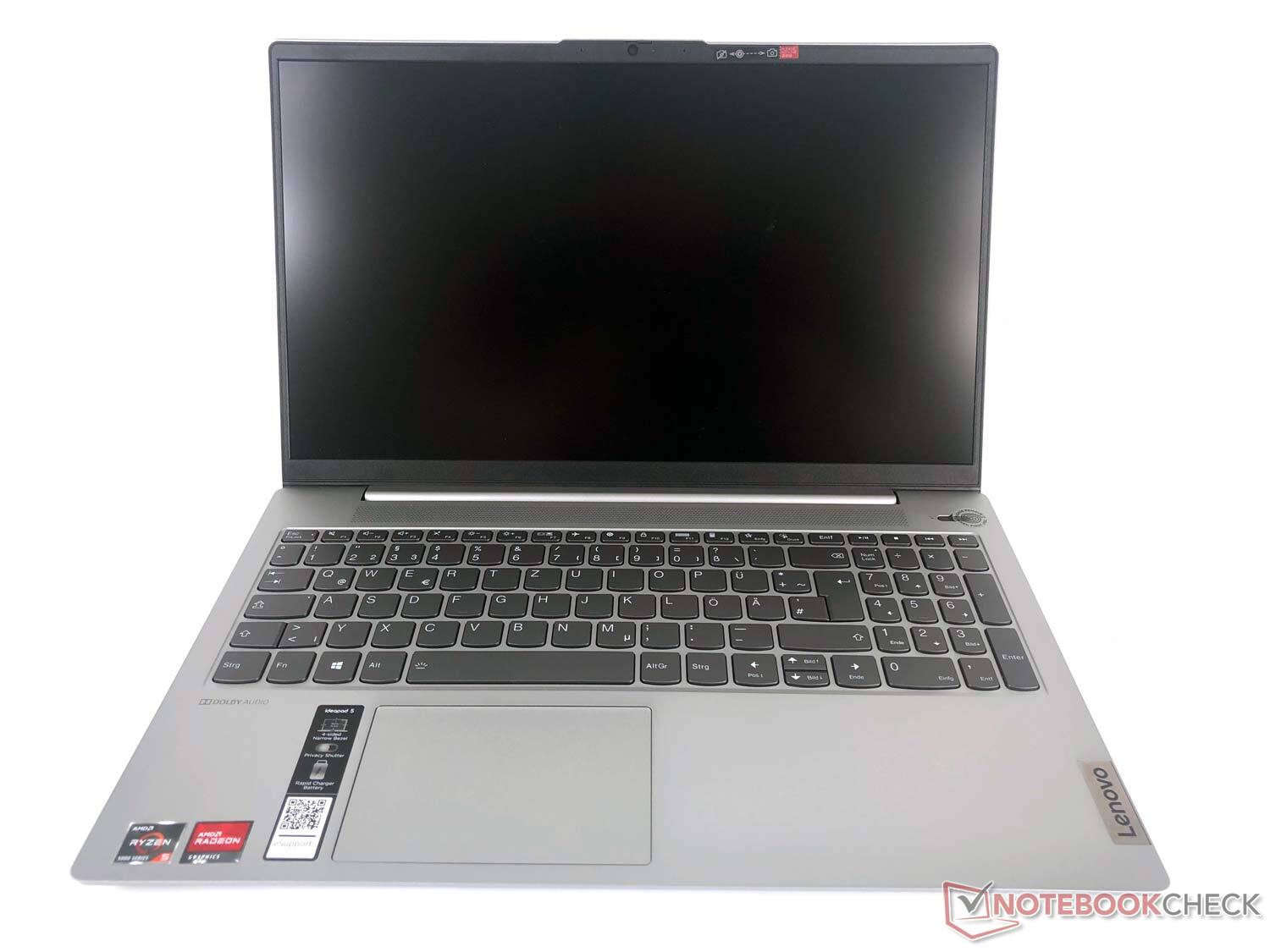

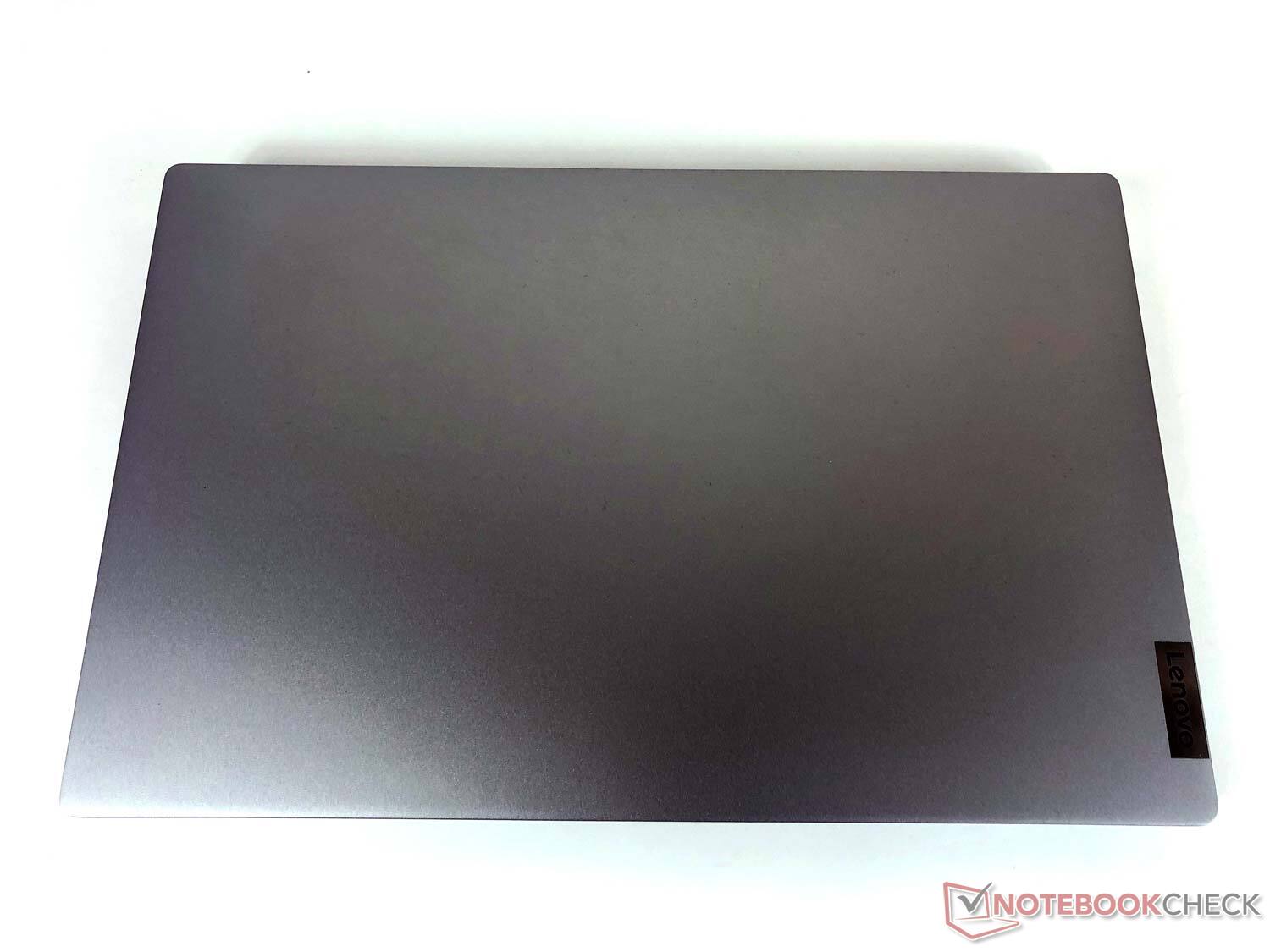

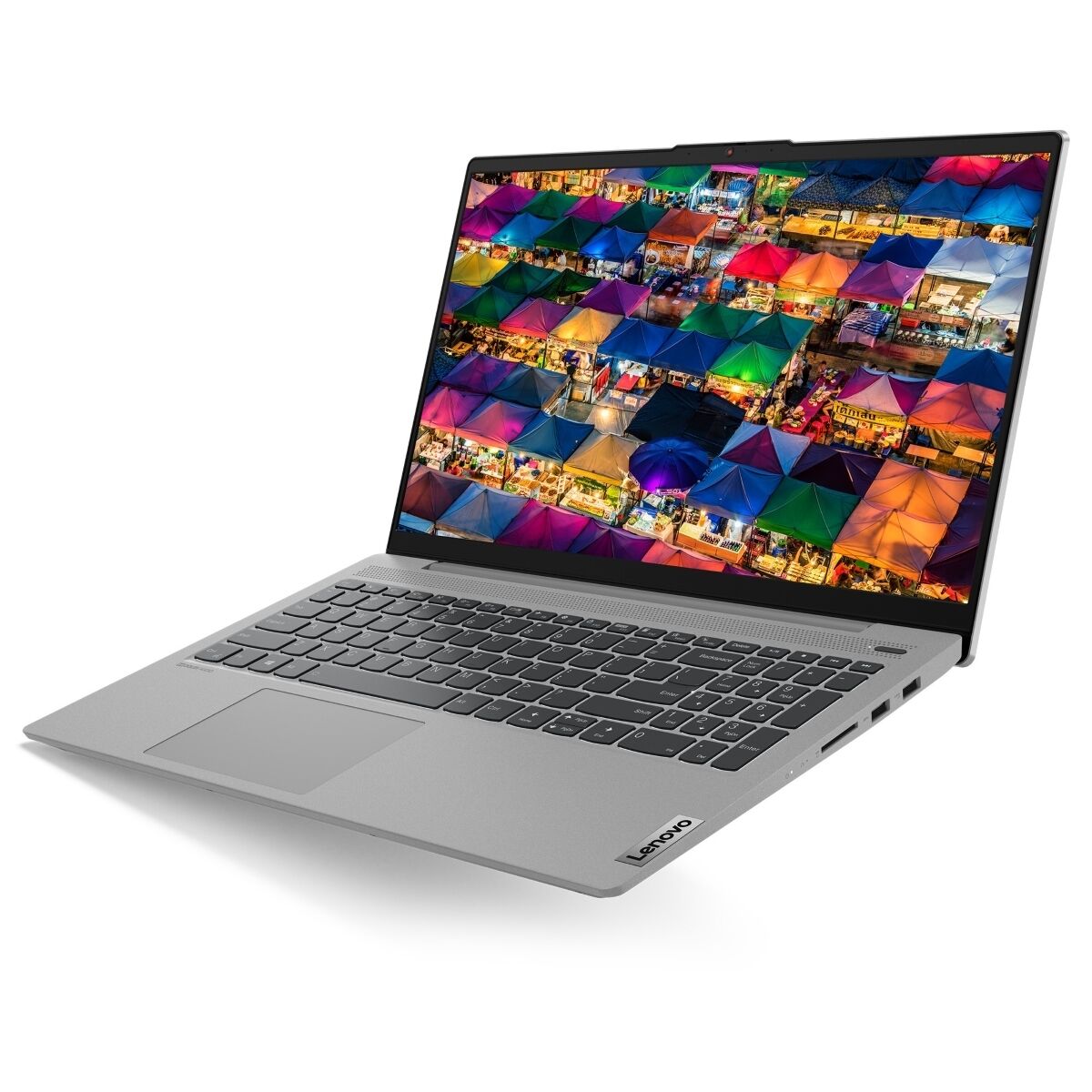

联想IdeaPad 5 15ALC05的设计是简单明了的。该设备采用灰银色的铝制外壳，仅在材料的选择上就给人留下了高质量的印象，这在手感上也可以得到证实。只有显示屏的黑色塑料边框有点破坏了画面。

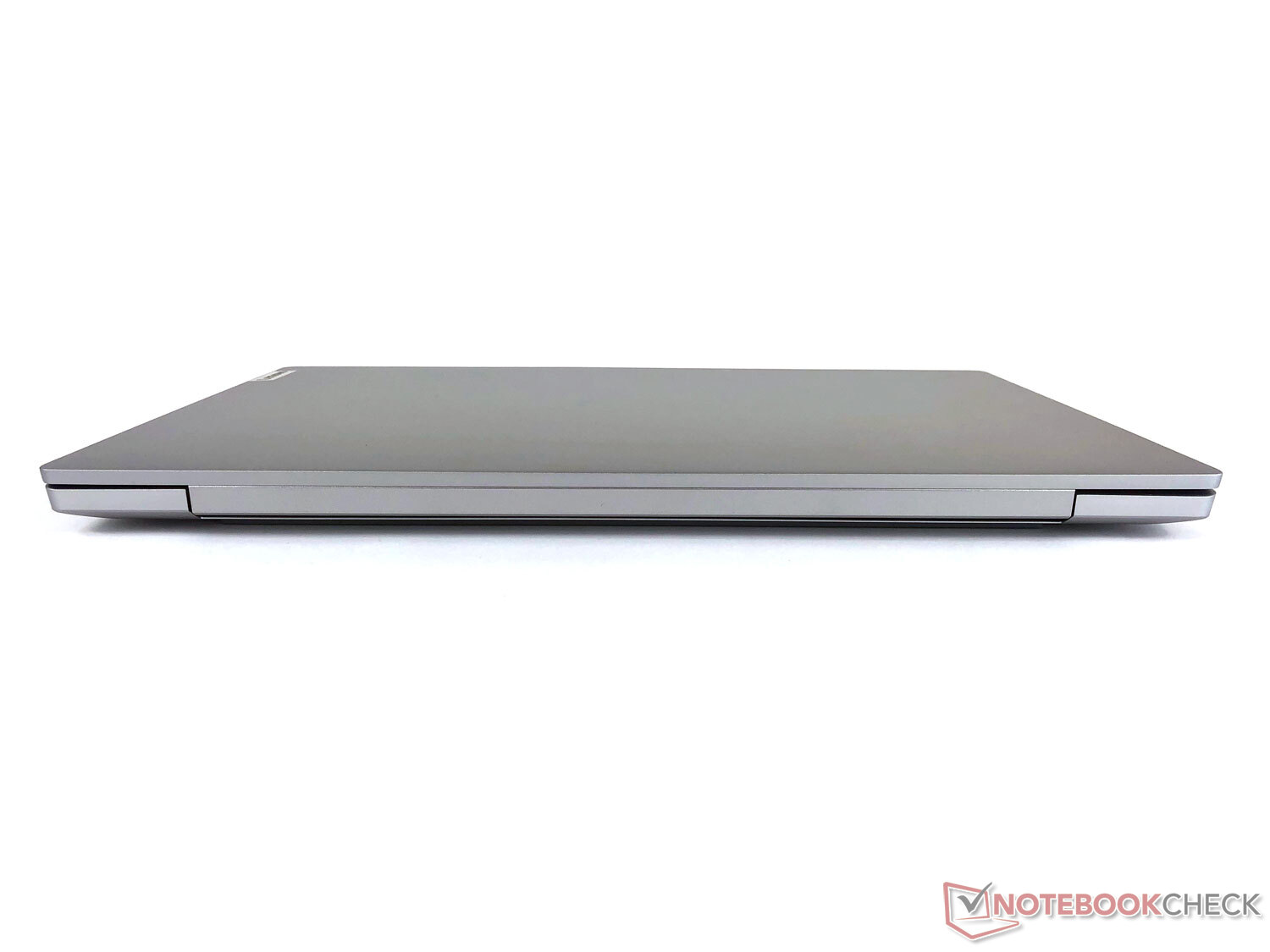

做工方面没有批评的余地；所有的缝隙尺寸都是你所期望的那样。非常宽的铰链在打开和关闭盖子时相对坚硬。然而，显示屏晃动了相当长的时间。
在尺寸方面，该设备也不必避开其竞争对手。只有14英寸，联想IdeaPad 5 14ALC05（如预期）明显较小。大多数15.6英寸机的尺寸是几毫米，有时甚至多出几厘米。
连接性。基本的东西都在船上

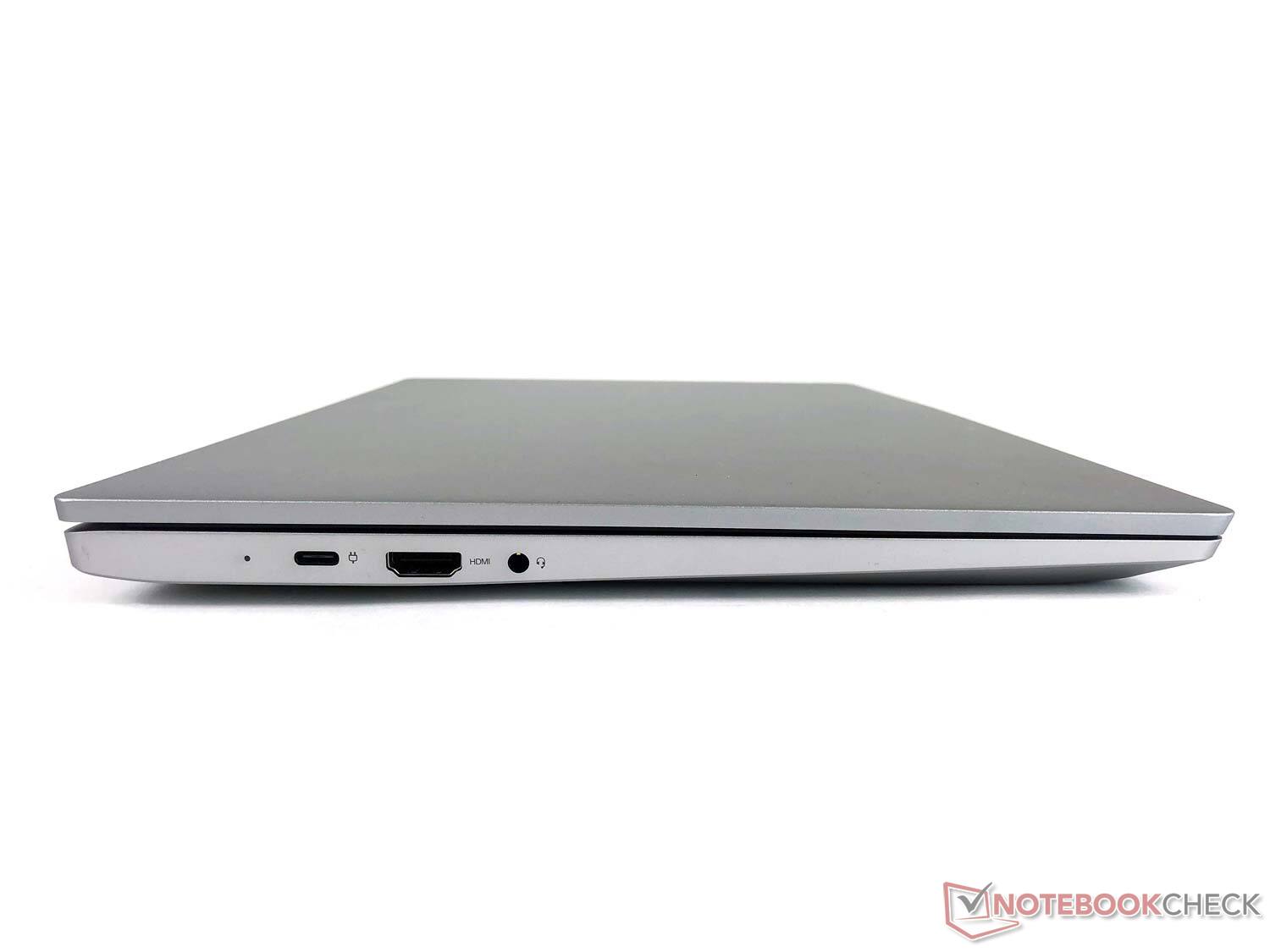

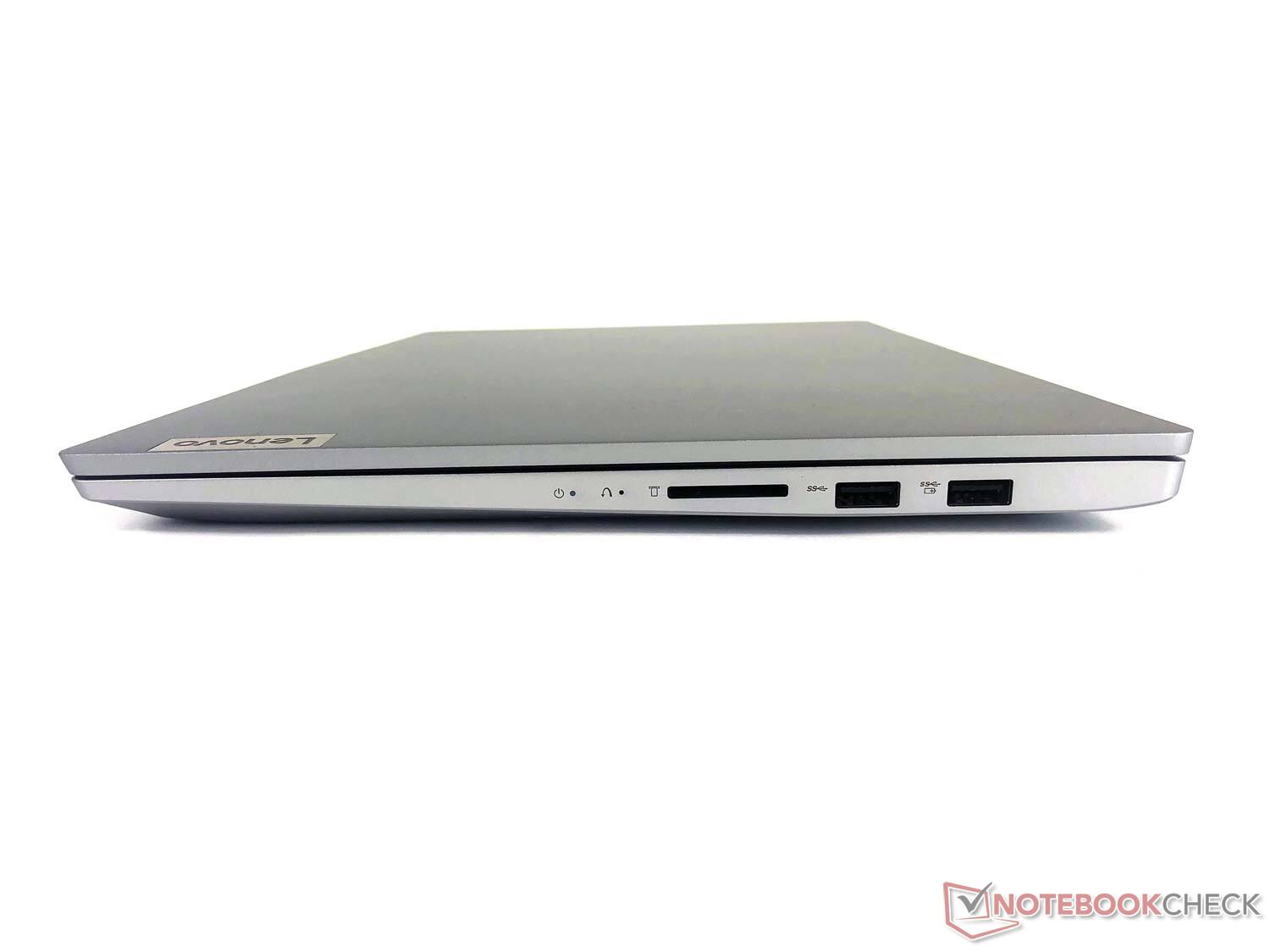

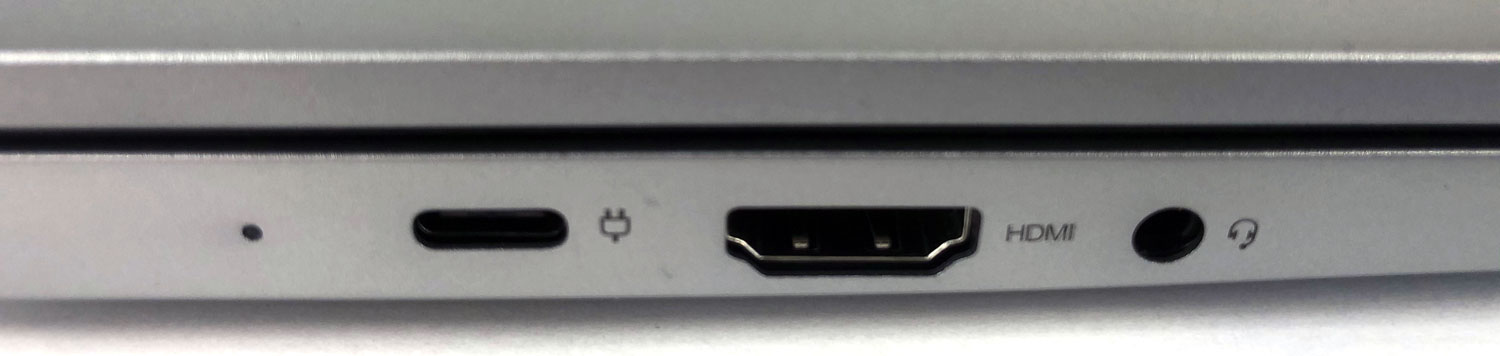

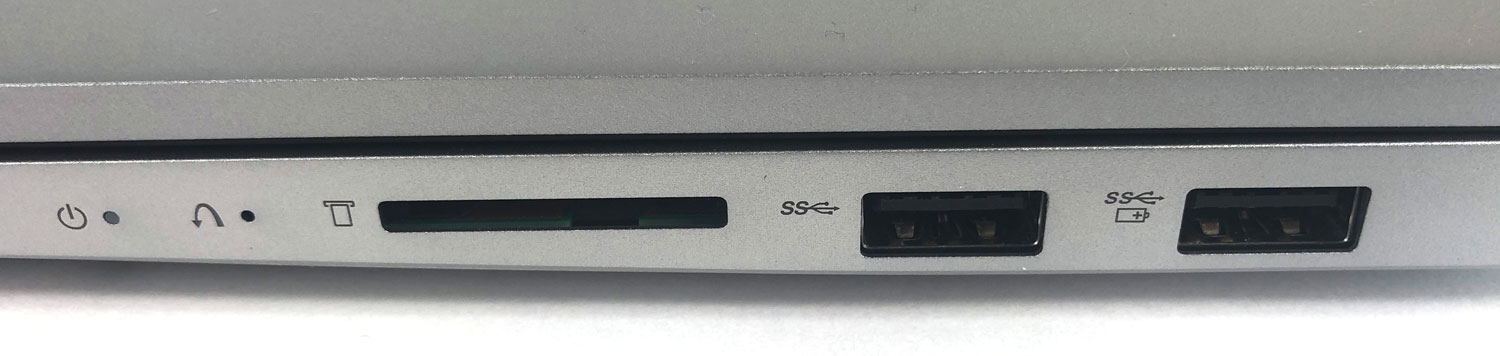

联想IdeaPad 5 15ALC05提供了在这个价格范围内你应该期待的基本连接。三个USB端口沿左右两侧分布。
有一个用于外部显示器的HDMI输出，以及通过单个USB-C端口的DisplayPort。这是批评的焦点之一，因为这个端口也被用于充电。换句话说，当笔记本电脑插入时，没有其他USB-C设备可以在不借助于附件的情况下连接。
LAN、Thunderbolt和Kensington都不包括在内。然而，有一个读卡器作为回报。由于彼此之间有足够的空间，所有端口都很容易到达。
SD卡阅读器
结合我们的64GB东芝Exceria Pro SDXC UHS-II参考存储卡，该读卡器几乎可以说是完全失败。它是测试领域中最慢的。这绝对是令人惊讶的，因为14英寸的姐妹机型连同相同的东芝卡在对比机型中达到了最好的速率，这表明东芝知道该如何做。该设备适合于传输一些照片。然而，在传输大量数据时，你应该准备好不必要的漫长等待时间。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Average of class Multimedia (18.4 - 201, n=60, last 2 years) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo ThinkPad L15 G2 AMD (AV Pro V60) | |
| Asus VivoBook S15 D533UA (AV PRO microSD 128 GB V60) | |
| Lenovo IdeaPad 5 15ALC05 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Average of class Multimedia (25.8 - 266, n=59, last 2 years) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo ThinkPad L15 G2 AMD (AV Pro V60) | |
| Asus VivoBook S15 D533UA (AV PRO microSD 128 GB V60) | |
| Lenovo IdeaPad 5 15ALC05 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
沟通
联想IdeaPad 5 15ALC05在我们的Wi-Fi评测中也没有真正切入细微的数据。它在这里的排名也远远落后，但至少它在发送数据时仍能达到比RealTek的内置Wi-Fi模块的平均水平更好的速率。像IdeaPad 5 14ALC05，也提供新的Wi-Fi 6 / WLAN轴的竞争对手，与英特尔Wi-Fi 6 AX200或AX201，在这里表现得更好。
| Networking | |
| iperf3 transmit AX12 | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average RealTek Semiconductor RTL8852AE (424 - 928, n=20) | |
| iperf3 receive AX12 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Average RealTek Semiconductor RTL8852AE (621 - 877, n=20) | |
| Lenovo IdeaPad 5 15ALC05 | |
网络摄像头

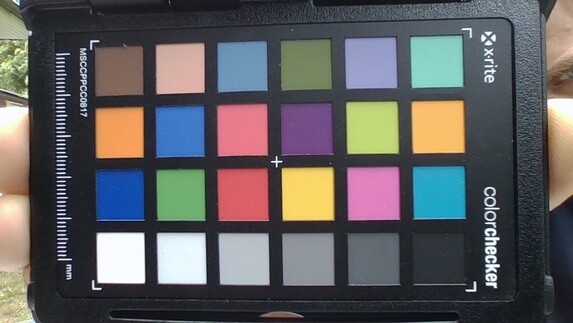

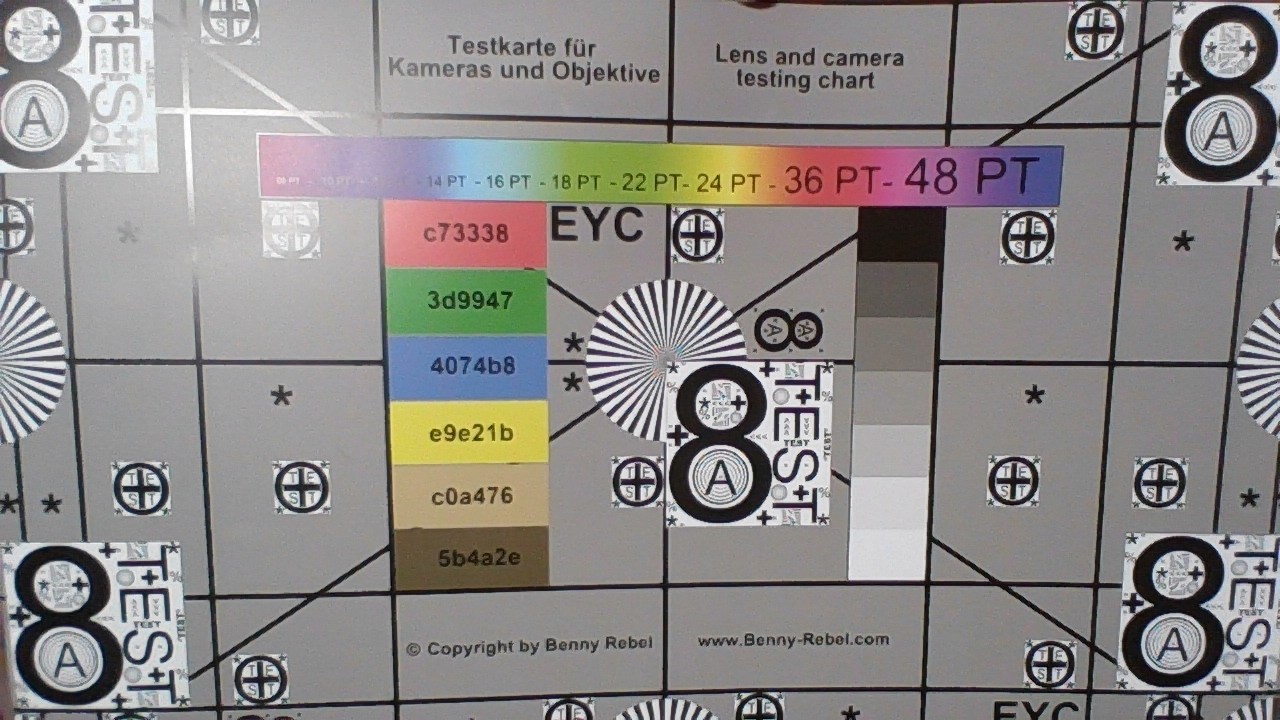

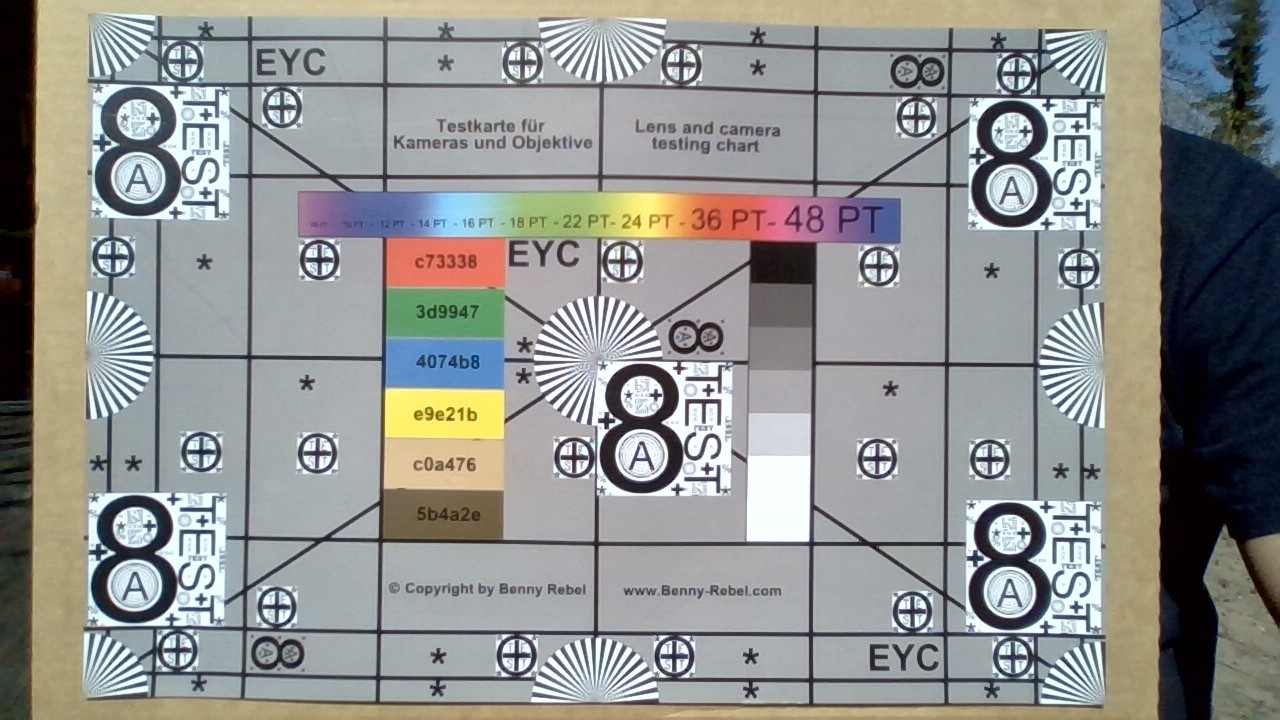

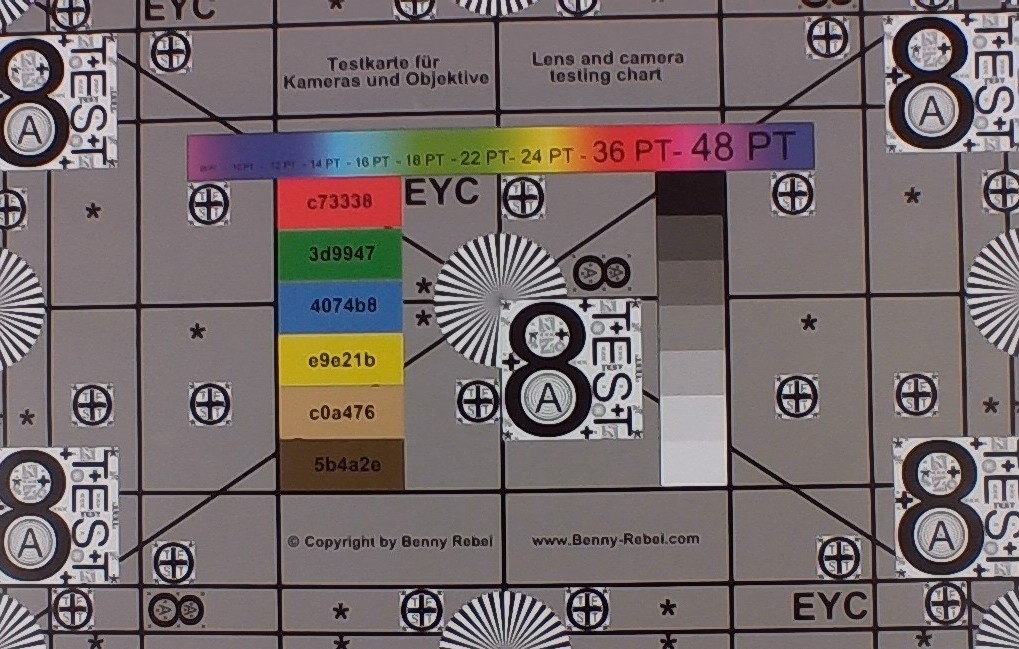

虽然网络摄像头只有通常的720p分辨率，但它在测试中给人的印象要好得多。它的平均ΔE值在比较领域中排名第二，仅次于Honor MagicBook 15 ，因此它的色彩捕捉效果相当好。从竞争情况来看，在高清摄像头方面也没有什么可抱怨的，所以没有什么能阻碍联想IdeaPad 5 15ALC05的视频通话之类的。

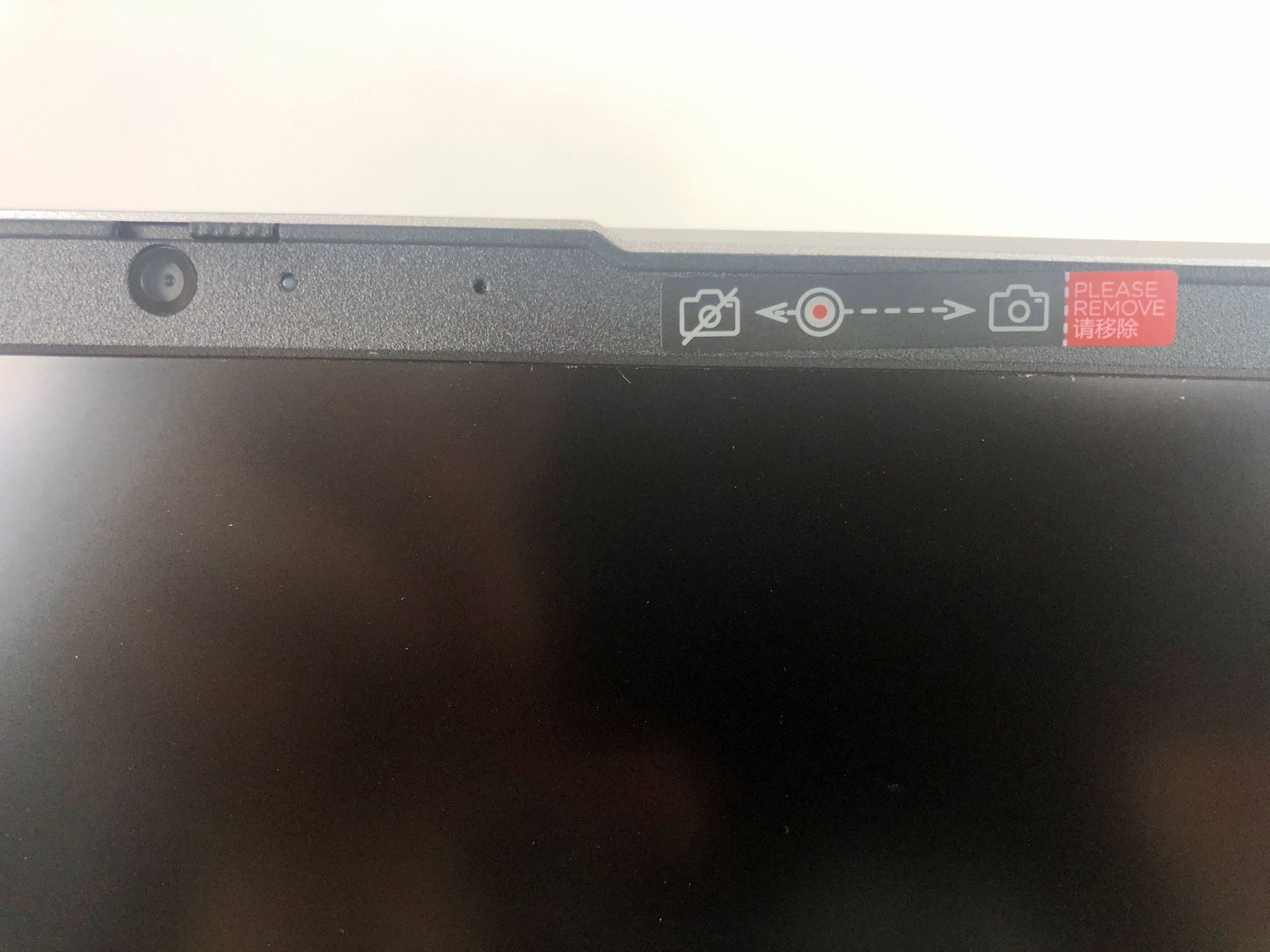

同样实用的是，摄像头可以用机械快门挡住。这应该为某些用户提供更好、更安全的感觉。
辅料
除了65瓦的电源适配器外，联想并没有为IdeaPad 5 15ALC05提供任何其他配件。制造商在其在线商店中提供可选配件，如扩展坞。这也可以帮助解决缺乏USB-C端口的问题。
维护

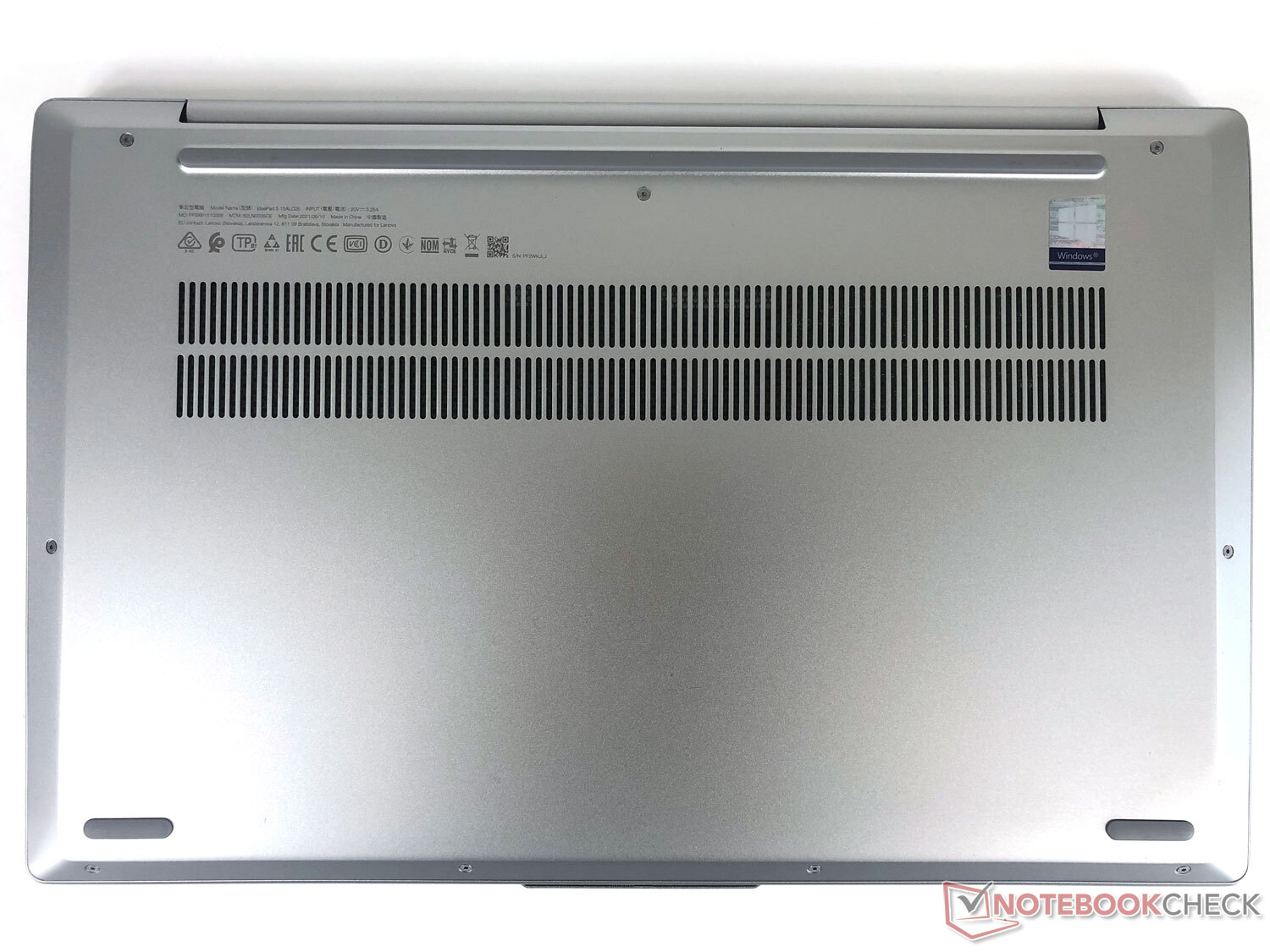

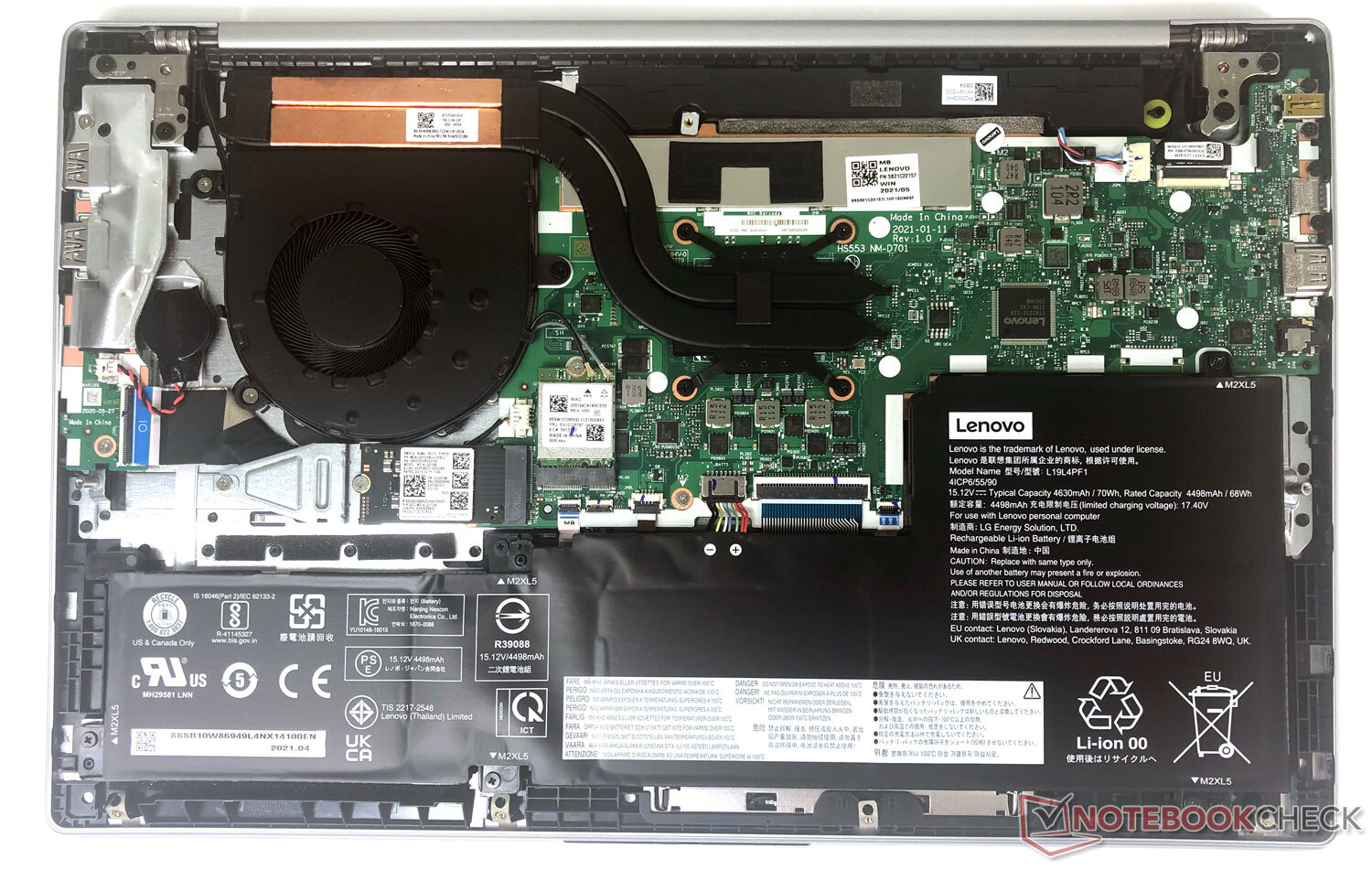

底部的九颗细小的Torx螺钉阻止了进入内部的通道。然而，由于是焊接的RAM，内部没有多少升级选项。
担保
联想在德国提供通常的24个月制造商保修。
输入设备。大的按键和窄的数字键盘
键盘

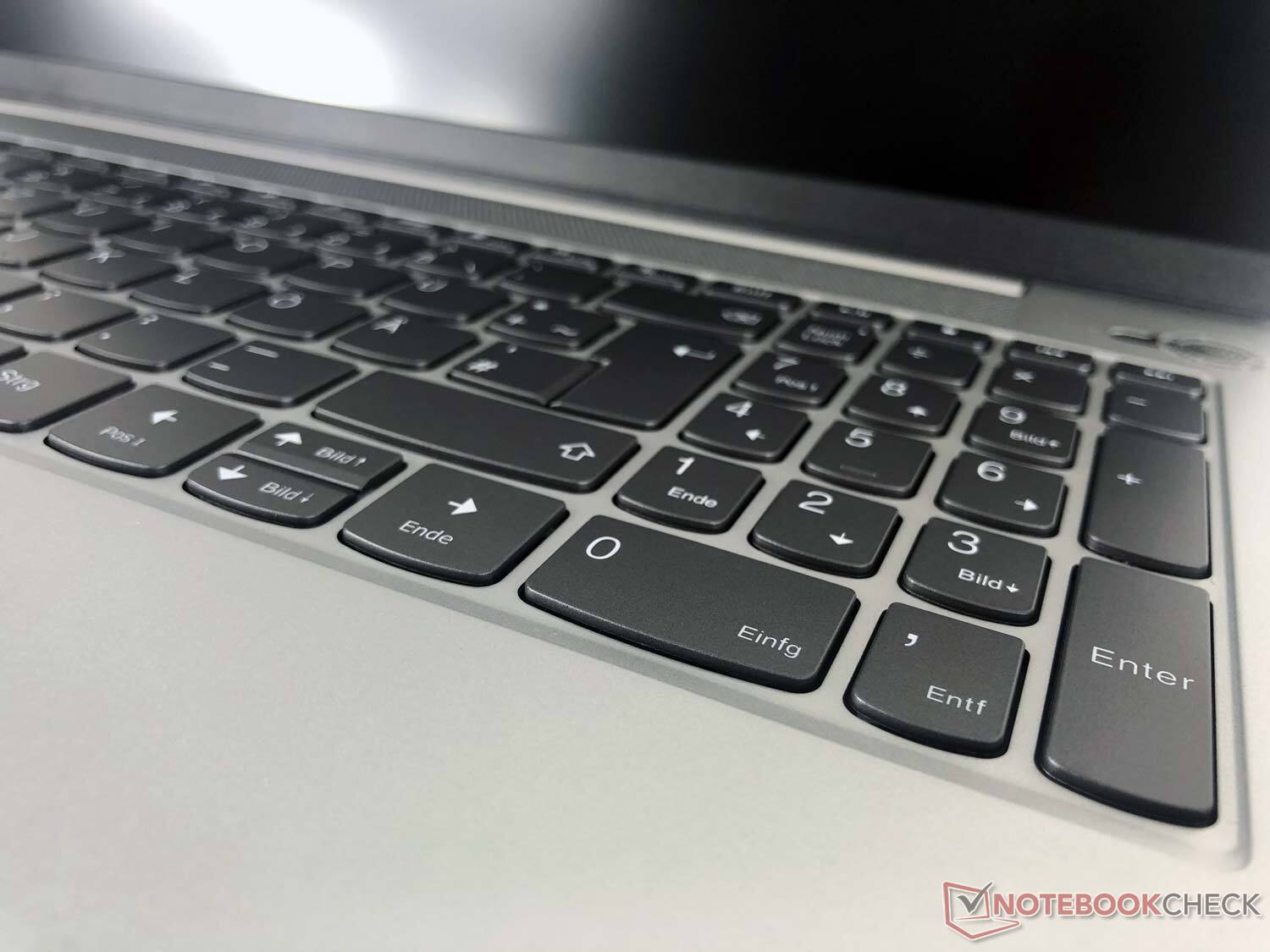

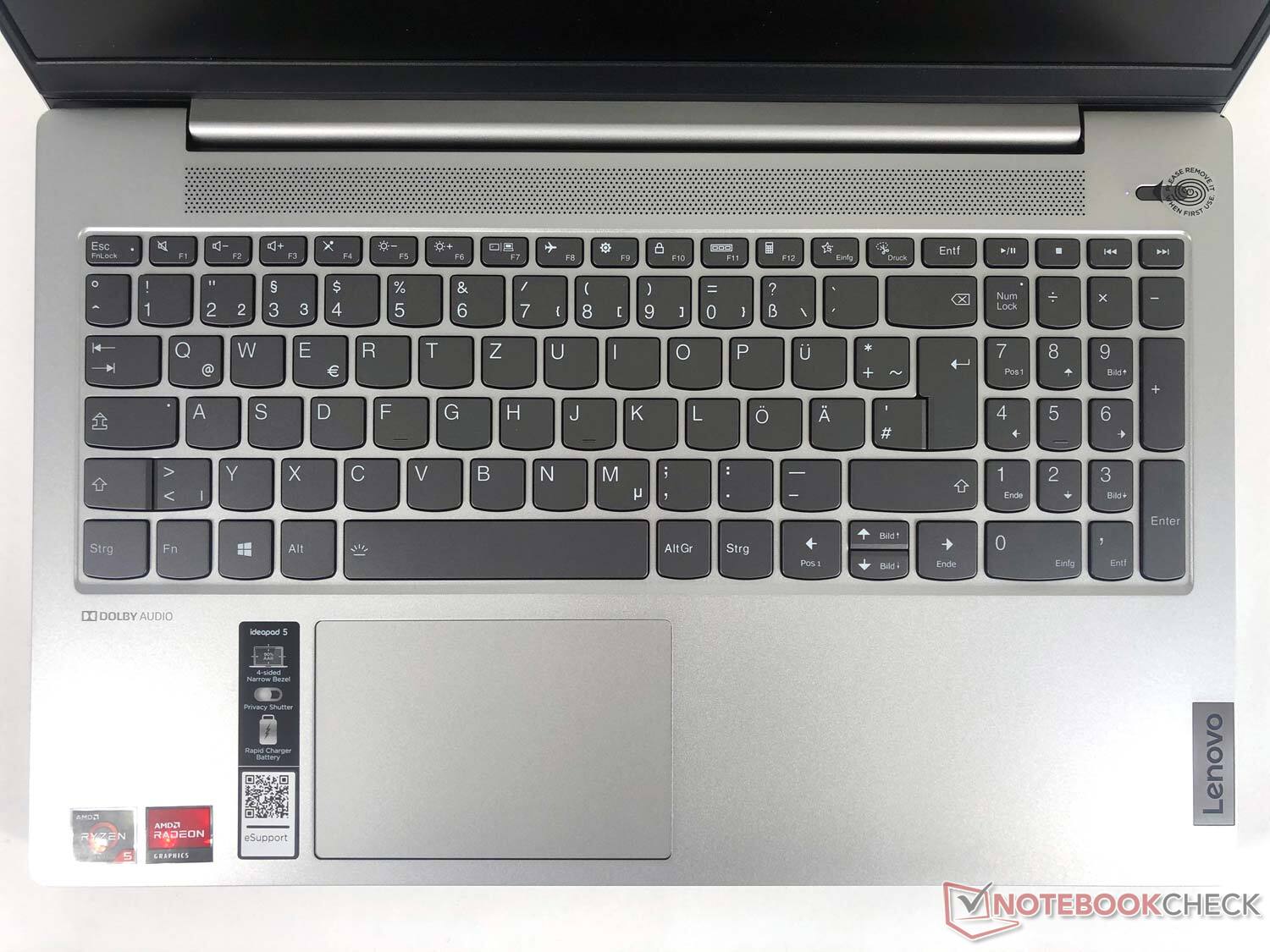

15.6英寸的显示屏对角线和基本单元左右仅约1.5厘米的边距为联想提供了足够的空间来容纳一个足够大的键盘和一个挤在旁边的数字键盘，尽管机箱相对紧凑。后者将该设备与其较小的同类产品区分开来，联想IdeaPad 5 14ALC05 。
单个字母键的尺寸约为16×16毫米，因此与标准PC键盘的尺寸差不多。F1至F12键有通常的双重任务，用于调整显示器亮度或音量，也用于启动计算器。此外，还有一个两段式背光，以及一个集成在数字键盘上方最右边的细长电源按钮中的指纹传感器。
总的来说，在我们的测试中，键盘很快就提供了良好和熟悉的打字体验。在打字过程中，噪音水平也被控制在一定范围内。即使是空格键，在许多笔记本电脑中也是相当响亮的，但在联想IdeaPad 5 15ALC05中，当你非常用力地敲击它时才会变得更响。
触摸板
触摸板的尺寸约为10.5 x 7厘米，大小适中；它位于空格键下方的中心位置，因此略微偏向机箱的左侧。它给人留下了坚实的印象。除了相当响亮的点击噪音，在底部区域发现的非分离式点击面的右侧有时会产生轻微的吱吱声。然而，这也可能是我们测试设备的问题。
显示揭示了测试中的弱点
联想在IdeaPad 5 15ALC05中安装了一个内部制造的15.6英寸IPS面板，分辨率为全高清（1920x1080像素）。该显示屏是不反光和哑光的，这一点我们将在下面详细讨论。
首先，我们要看一下我们在审查联想IdeaPad 5 15ALC05时确定的测量结果。

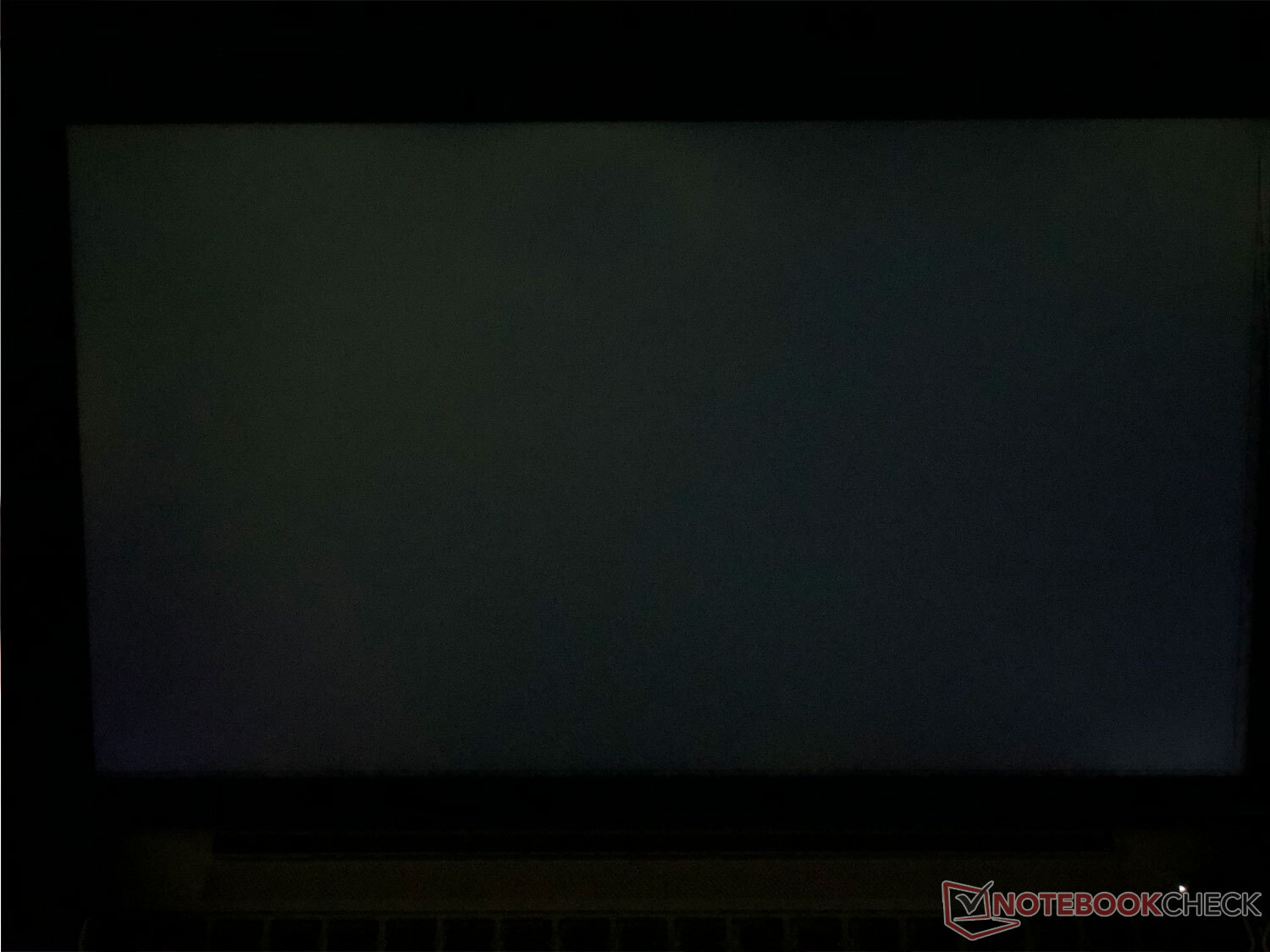

几乎没有屏幕渗漏。当涉及到响应时间时，该面板的得分比竞争对手要高。然而，这在 "非游戏笔记本电脑 "中并不那么具有决定性。否则，不幸的是，也有几个批评的地方。该显示器的色彩空间覆盖率很低，只有59%的sRGB和38%的AdobeRGB。这对于想要进行专业或半专业图形编辑或类似工作的用户来说是不够好的。
| |||||||||||||||||||||||||
Brightness Distribution: 78 %
Center on Battery: 373 cd/m²
Contrast: 570:1 (Black: 0.66 cd/m²)

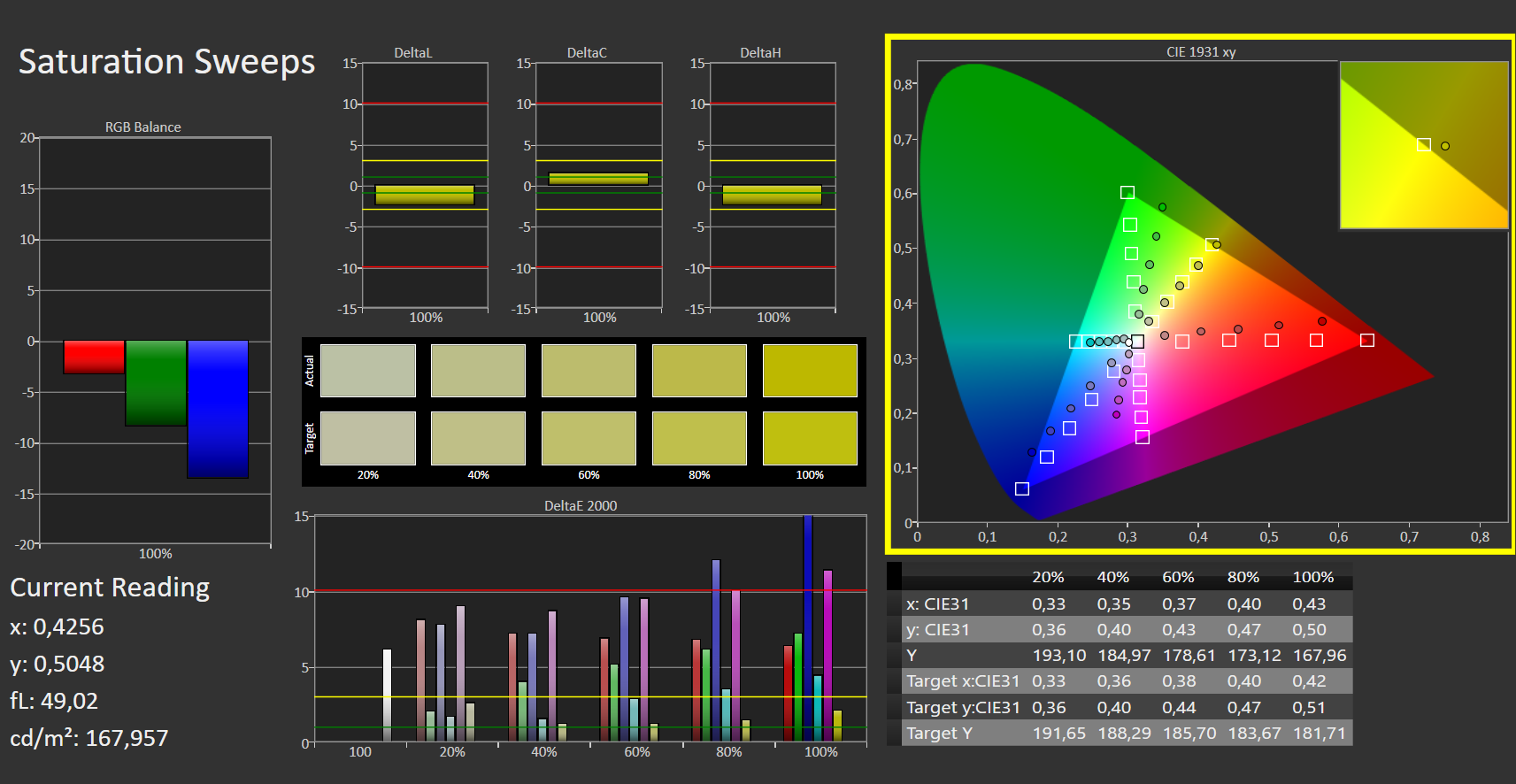

ΔE Color 6.4 | 0.5-29.43 Ø4.92

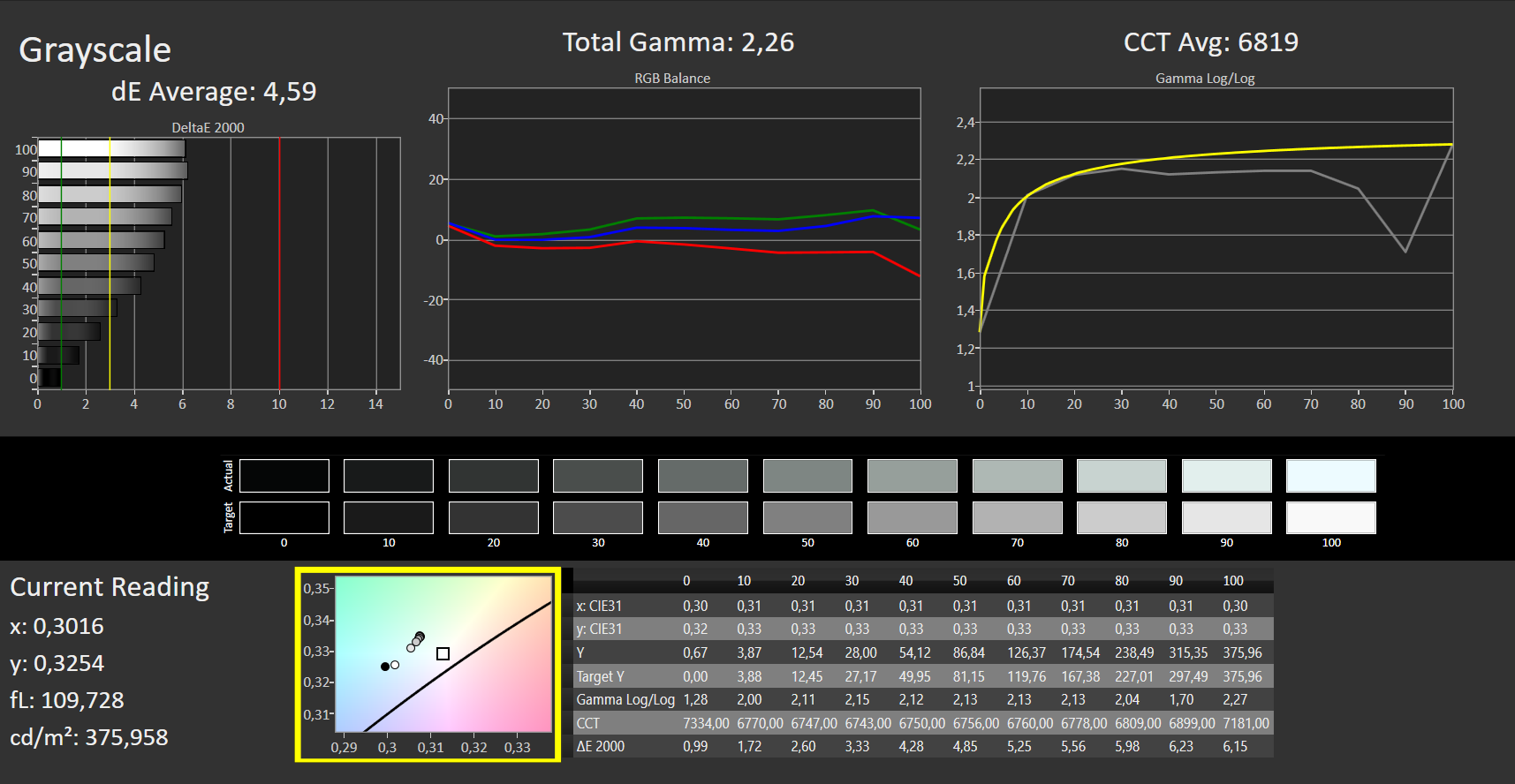

ΔE Greyscale 4.59 | 0.5-98 Ø5.2

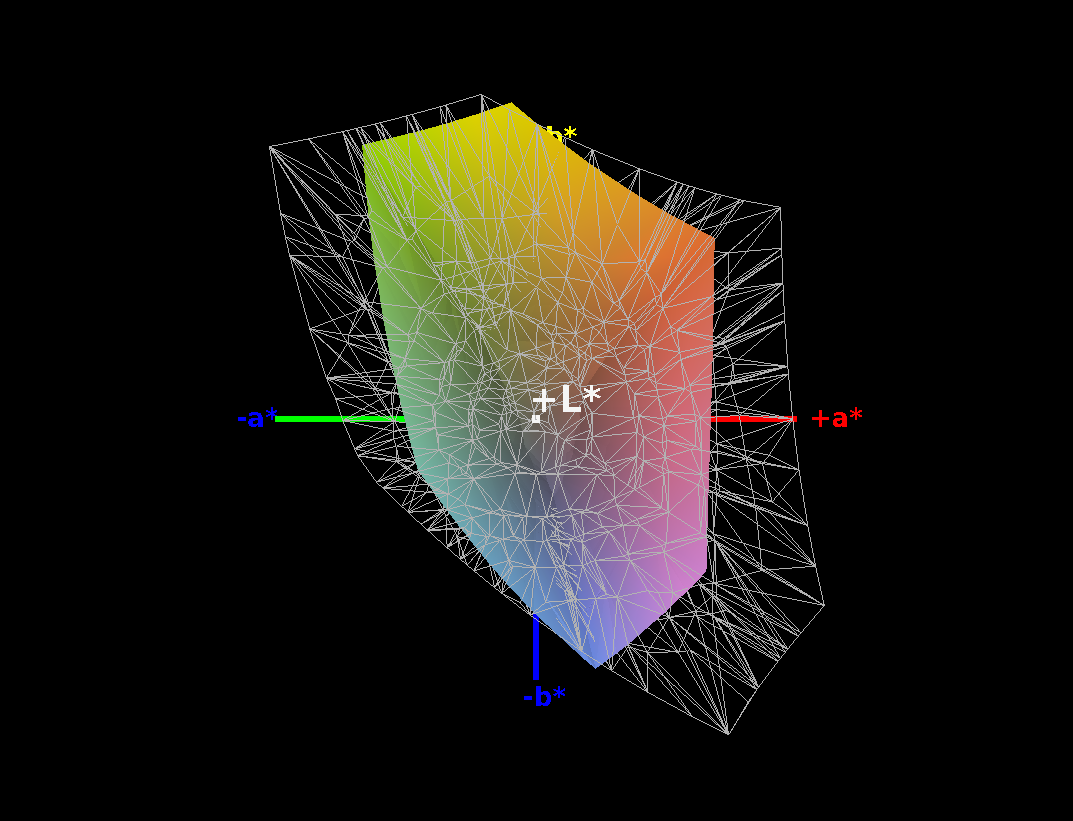

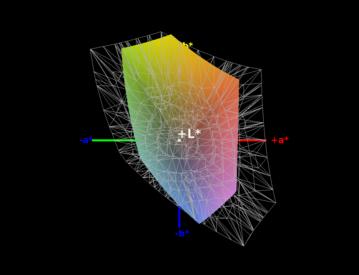

59% sRGB (Argyll 1.6.3 3D)

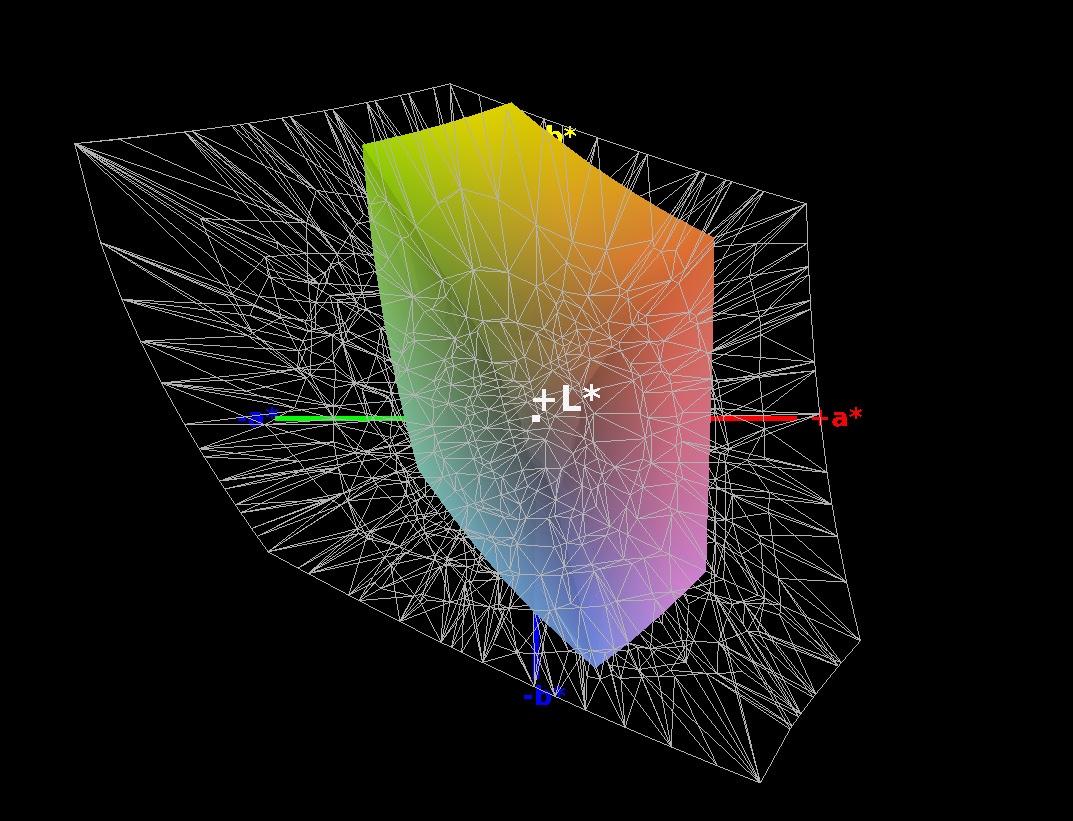

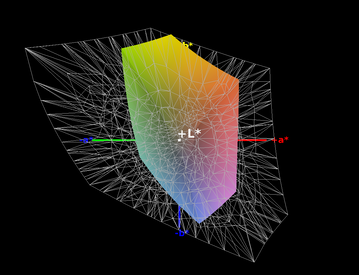

38% AdobeRGB 1998 (Argyll 1.6.3 3D)
38% AdobeRGB 1998 (Argyll 2.2.0 3D)
59% sRGB (Argyll 2.2.0 3D)
Gamma: 2.26
| Lenovo IdeaPad 5 15ALC05 Lenovo LEN156FHD, IPS, 1920x1080, 15.6" | Lenovo IdeaPad 5 14ALC05 82LM005YGE AU Optronics B140HAN04.E, IPS, 1920x1080, 14" | Lenovo ThinkPad L15 G2 AMD N156HCA-EAB, IPS LED, 1920x1080, 15.6" | Asus VivoBook S15 D533UA Chi Mei N156HCA-EAB, IPS, 1920x1080, 15.6" | Honor MagicBook 15 i5 1135G7 BOE TV156FHM-NH2, IPS, 1920x1080, 15.6" | Acer Aspire 5 A515-56-511A LG Philips LGD065A, IPS, 1920x1080, 15.6" | |
|---|---|---|---|---|---|---|
| Display | -2% | 15% | 15% | 71% | 1% | |
| Display P3 Coverage | 37.47 | 43.8 | 43.6 | 65.4 | 38.32 | |
| sRGB Coverage | 59 | 56 -5% | 65.7 11% | 65.2 11% | 96.3 63% | 57.5 -3% |
| AdobeRGB 1998 Coverage | 38 | 38.71 2% | 45.3 19% | 45 18% | 67.5 78% | 39.6 4% |
| Response Times | -49% | -53% | 16% | -31% | -42% | |
| Response Time Grey 50% / Grey 80% * | 29 ? | 41 ? -41% | 40 -38% | 18 ? 38% | 36 ? -24% | 37 ? -28% |
| Response Time Black / White * | 18 ? | 28 ? -56% | 30 -67% | 19 ? -6% | 24.8 ? -38% | 28 ? -56% |
| PWM Frequency | 29800 | |||||
| Screen | 18% | 33% | 12% | 33% | 20% | |
| Brightness middle | 376 | 357 -5% | 298 -21% | 289 -23% | 332 -12% | 285 -24% |
| Brightness | 341 | 315 -8% | 276 -19% | 267 -22% | 318 -7% | 255 -25% |
| Brightness Distribution | 78 | 82 5% | 86 10% | 85 9% | 87 12% | 84 8% |
| Black Level * | 0.66 | 0.455 31% | 0.26 61% | 0.56 15% | 0.27 59% | 0.325 51% |
| Contrast | 570 | 785 38% | 1146 101% | 516 -9% | 1230 116% | 877 54% |

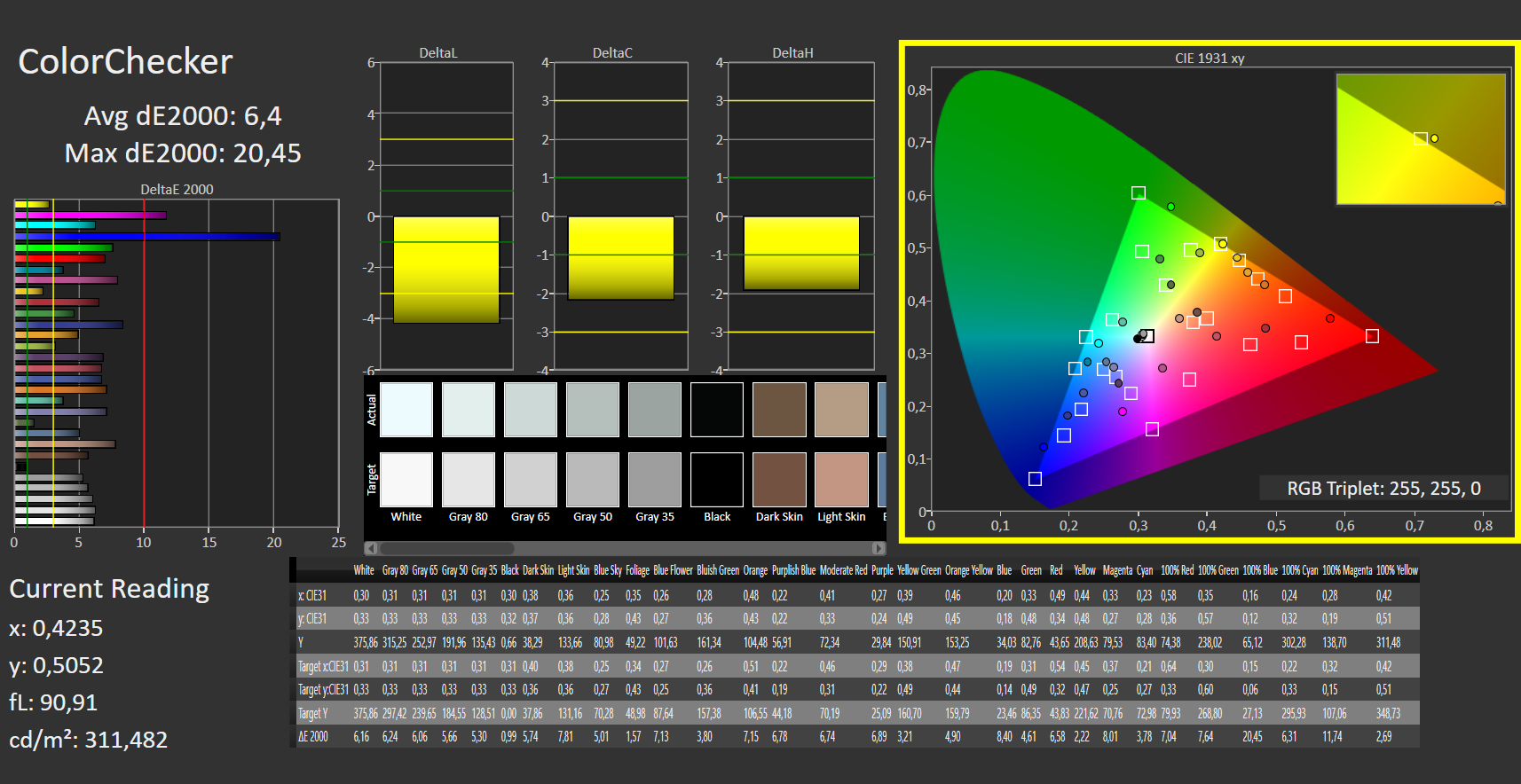

| Colorchecker dE 2000 * | 6.4 | 3.98 38% | 3.7 42% | 3.96 38% | 3.3 48% | 4.23 34% |
| Colorchecker dE 2000 max. * | 20.45 | 6.92 66% | 15 27% | 6.76 67% | 7.8 62% | 7.94 61% |
| Greyscale dE 2000 * | 4.59 | 3.33 27% | 1.7 63% | 3.43 25% | 5.2 -13% | 2.51 45% |
| Gamma | 2.26 97% | 2.47 89% | 2.21 100% | 2.28 96% | 2.07 106% | 2.57 86% |
| CCT | 6819 95% | 6138 106% | 6588 99% | 7191 90% | 7370 88% | 6626 98% |
| Color Space (Percent of AdobeRGB 1998) | 38 | 36 -5% | 42 11% | 36 -5% | ||
| Color Space (Percent of sRGB) | 59 | 56 -5% | 65 10% | 57 -3% | ||
| Colorchecker dE 2000 calibrated * | 3.5 | 1 | 3.75 | |||
| Total Average (Program / Settings) | -11% /
6% | -2% /
16% | 14% /
13% | 24% /
29% | -7% /
8% |
* ... smaller is better
显示器的亮度是可敬的，最大为376cd/m²。然而，它在边缘处明显下降，这导致了最差的亮度分布率。联想IdeaPad 5 15ALC05在黑色水平、对比度和色彩再现方面的测试和对比机型中也表现不佳。简而言之：联想IdeaPad 5 15ALC05在这里的竞争者中拥有最差的显示屏。

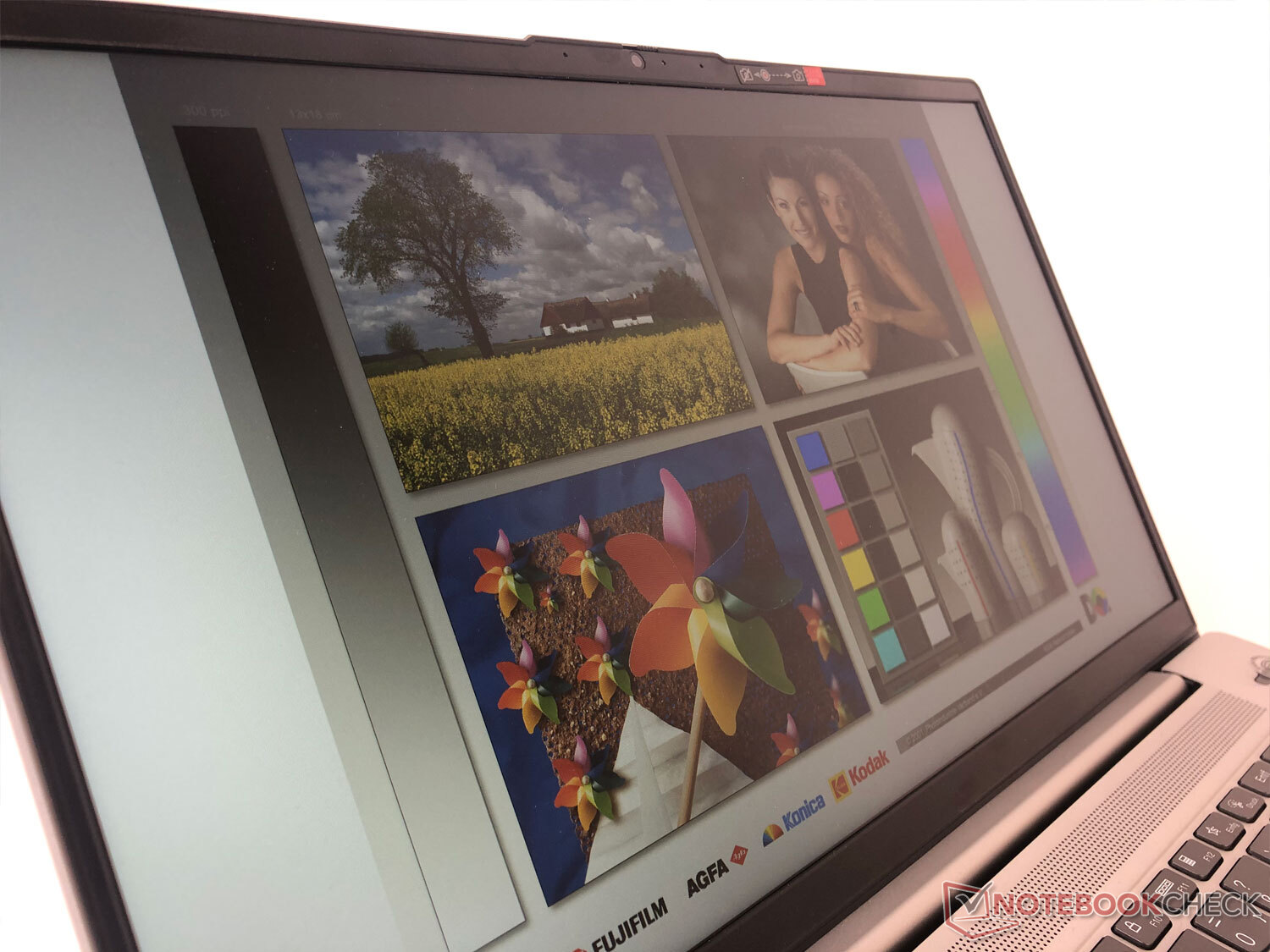

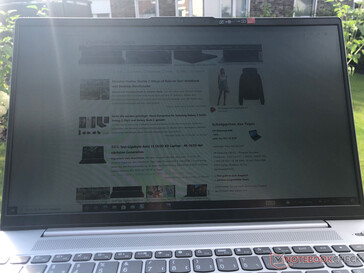

由于面板的亮度相当好，以及哑光显示，联想IdeaPad 5 15ALC05也是户外使用的一个好伙伴。由于采用了IPS面板，即使从非常倾斜的观察角度，也可以轻松地观看屏幕内容。
Display Response Times

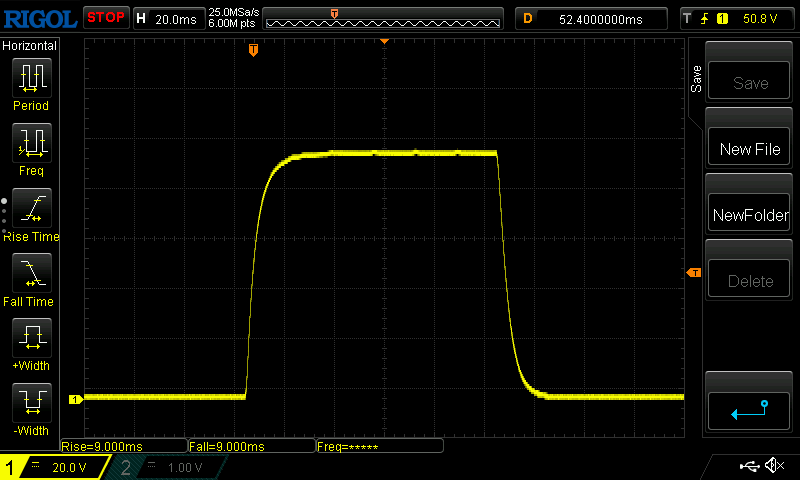

| ↔ Response Time Black to White | ||
|---|---|---|
| 18 ms ... rise ↗ and fall ↘ combined | ↗ 9 ms rise |  |
| ↘ 9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||

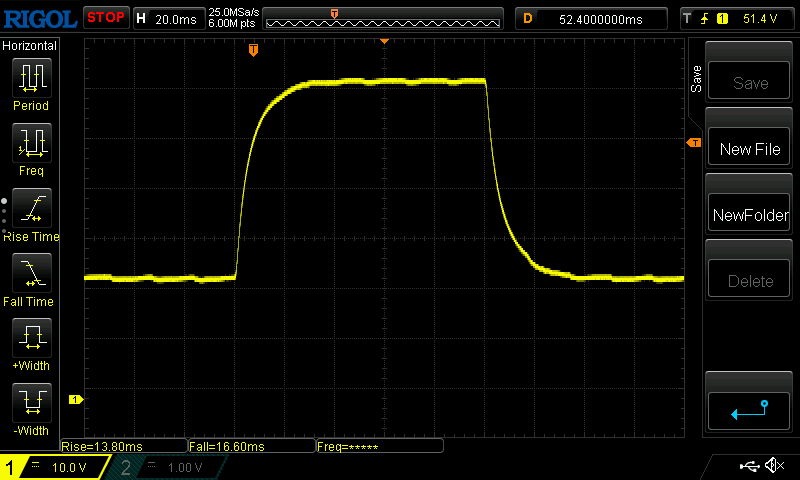

| ↔ Response Time 50% Grey to 80% Grey | ||
| 29 ms ... rise ↗ and fall ↘ combined | ↗ 13 ms rise |  |
| ↘ 16 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 35 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

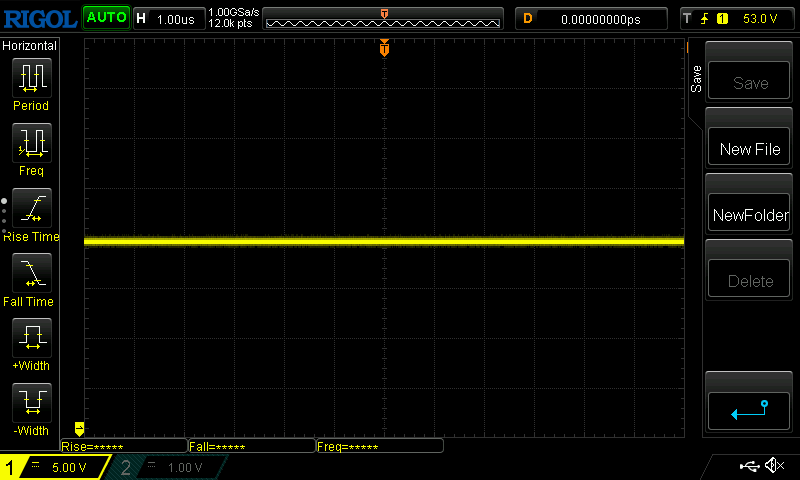

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能。笔记本电脑有足够的动力满足日常使用

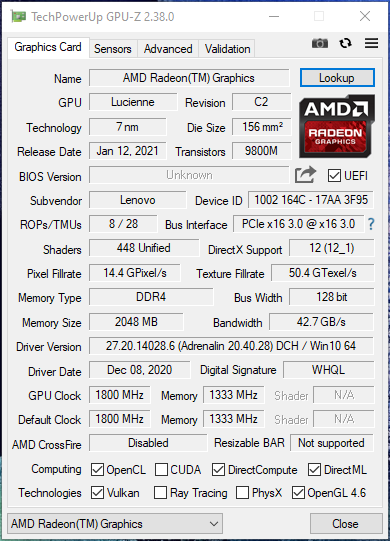

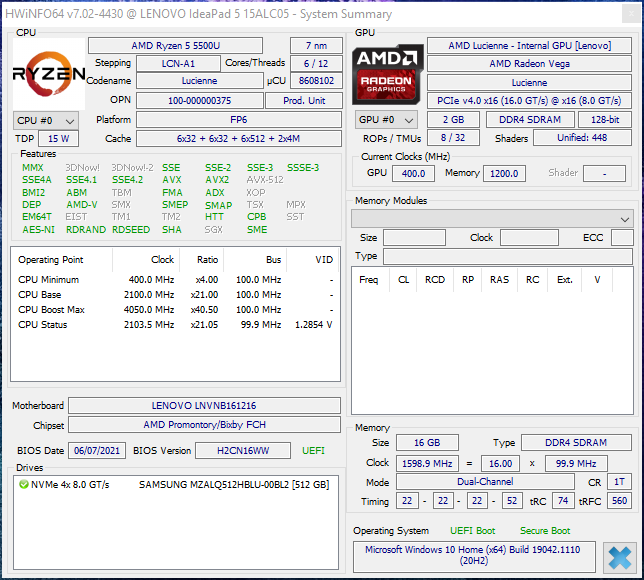

我们评测的联想IdeaPad 5 15ALC05的配置（82LN0035GE）配备了AMD Ryzen 5500U 和AMD Radeon RX Vega 7 图形单元，以及双通道模式的16 GB DDR4 SDRAM和512 GB SSD。另外，联想还提供IdeaPad 5的其他配置，如采用相同的CPU/GPU组合，只有8GB的内存（82LN0034GE），例如。
事先的简短信息。联想在其Vantage软件中提供了三种不同的能源配置文件。我们大多使用 "智能冷却 "模式进行基准测试。与 "高性能 "相比，在测量结果中没有发现明显差异。
处理器

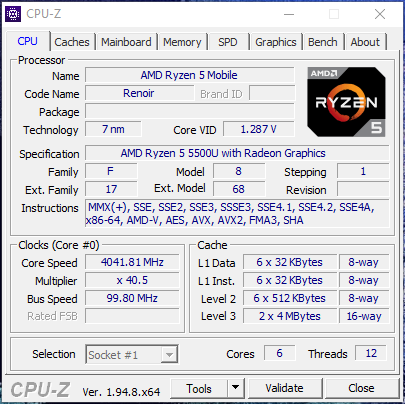

内置的AMD Ryzen 5 5500U是一个六核处理器。它的基本时钟速度是2.1GHz，通过Turbo可以运行到4GHz。该CPU支持SMT/超线程（12个线程），但它不像Ryzen 5600U那样基于新的、更快的Zen 3架构。相反，这两个APU都是基于Zen 2架构，这意味着除其他因素外，L3缓存较少。
正如预期，联想IdeaPad 5 15ALC05在我们的CPU基准测试中与配备相同处理器的联想IdeaPad 5 14ALC05。在单核基准测试中，它们以微弱的差距落后于测试领域。相比之下，Ryzen 5500U能够在多核基准测试中展示其性能，将配备英特尔酷睿i5-1135G7的对手大大甩在后面。

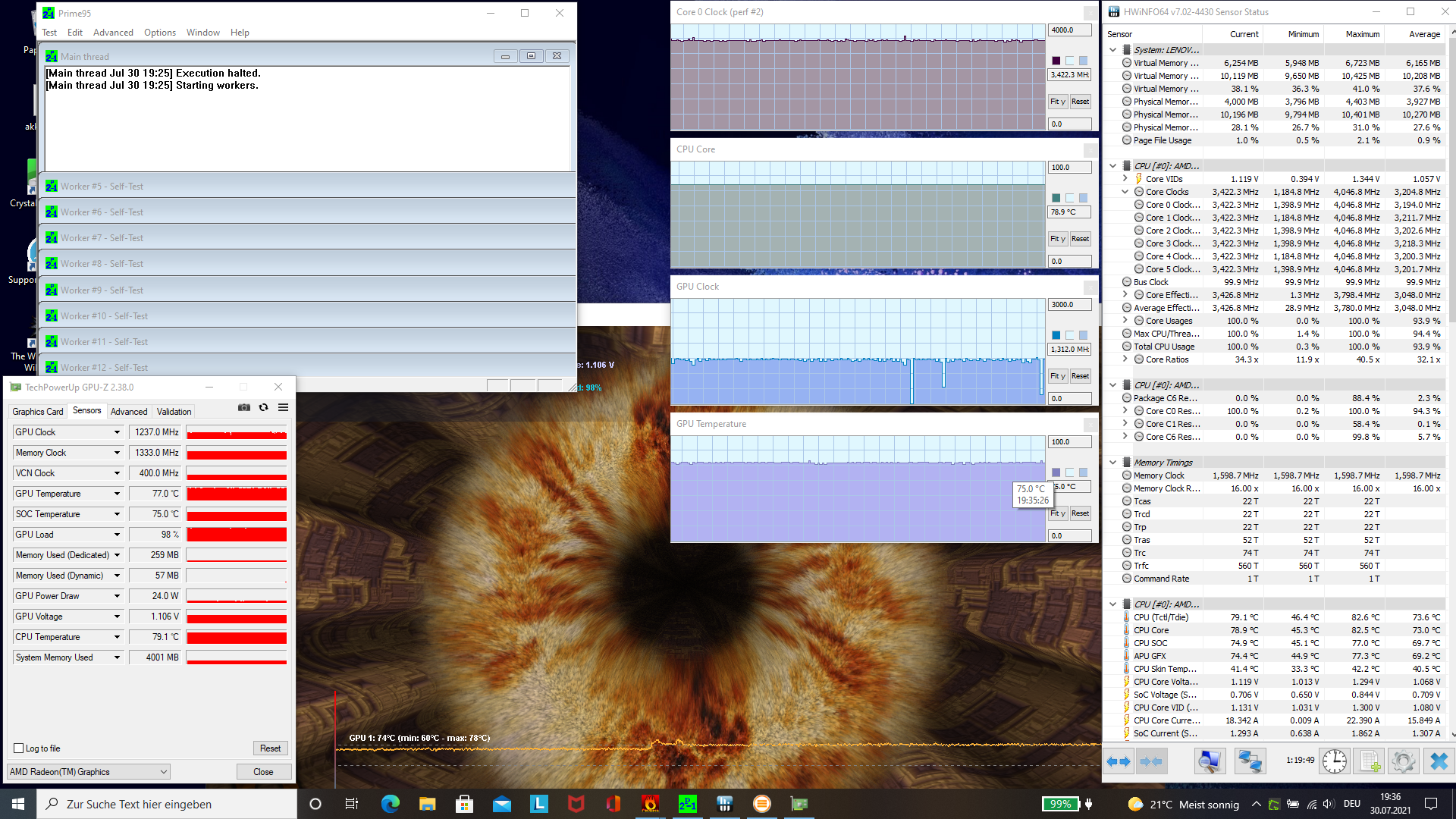

正如我们下面进一步的压力测试也显示，在Cinebench R15多耐力测试中，该CPU在最初的小幅下降后，随着时间的推移保持了非常稳定的处理速度，它只略微低于，联想ThinkPad L15 Gen 2，配备更强大的AMD Ryzen 5600U。
Cinebench R15 Multi endurance test
| Cinebench R23 | |
| Single Core | |
| Average of class Multimedia (878 - 2290, n=91, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U (1149 - 1183, n=18) | |
| Lenovo IdeaPad 5 15ALC05 | |
| Multi Core | |
| Average of class Multimedia (6936 - 30789, n=100, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| Average AMD Ryzen 5 5500U (6030 - 8565, n=19) | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Honor MagicBook 15 i5 1135G7 | |
| Cinebench R20 | |
| CPU (Single Core) | |
| Average of class Multimedia (341 - 853, n=86, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U (449 - 461, n=19) | |
| Lenovo IdeaPad 5 15ALC05 | |
| CPU (Multi Core) | |
| Average of class Multimedia (2681 - 11768, n=86, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| Average AMD Ryzen 5 5500U (2223 - 3316, n=20) | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| Cinebench R15 | |
| CPU Single 64Bit | |
| Average of class Multimedia (99.6 - 323, n=86, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (170 - 179, n=18) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| CPU Multi 64Bit | |
| Average of class Multimedia (1252 - 4774, n=90, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U (995 - 1412, n=20) | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Blender - v2.79 BMW27 CPU | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U (358 - 490, n=18) | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo ThinkPad L15 G2 AMD | |
| Asus VivoBook S15 D533UA | |
| Average of class Multimedia (107 - 502, n=84, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 -mmt1 | |
| Average of class Multimedia (3398 - 7545, n=79, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (4174 - 4378, n=19) | |
| Honor MagicBook 15 i5 1135G7 | |
| 7z b 4 | |
| Average of class Multimedia (30592 - 121228, n=79, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (29585 - 36896, n=18) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| Geekbench 5.5 | |
| Single-Core | |
| Average of class Multimedia (891 - 2342, n=86, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo ThinkPad L15 G2 AMD | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (1070 - 1126, n=20) | |
| Multi-Core | |
| Average of class Multimedia (4990 - 23059, n=86, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (4063 - 5917, n=20) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Multimedia (5.26 - 30.5, n=78, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| Average AMD Ryzen 5 5500U (6.7 - 9.74, n=20) | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| LibreOffice - 20 Documents To PDF | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (60 - 80.7, n=17) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Asus VivoBook S15 D533UA | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Average of class Multimedia (6.7 - 146.7, n=80, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| R Benchmark 2.5 - Overall mean | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U (0.607 - 0.67, n=19) | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| Average of class Multimedia (0.3604 - 0.947, n=79, last 2 years) | |
* ... smaller is better
系统性能
在PCMark 10系统基准测试中，我们的测试设备通常可以排在中上水平，并且总是高于CPU/GPU的平均水平。这台笔记本电脑的配置足以应付互联网浏览和通常的办公室工作，我们的测试印象证实了这一点。
| PCMark 10 / Score | |
| Average of class Multimedia (4542 - 8670, n=72, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4626 - 5301, n=13) | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| PCMark 10 / Essentials | |
| Average of class Multimedia (8480 - 12420, n=72, last 2 years) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Acer Aspire 5 A515-56-511A | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (8390 - 9789, n=13) | |
| PCMark 10 / Productivity | |
| Lenovo ThinkPad L15 G2 AMD | |
| Average of class Multimedia (6089 - 10742, n=72, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (6262 - 7958, n=13) | |
| Acer Aspire 5 A515-56-511A | |
| Honor MagicBook 15 i5 1135G7 | |
| PCMark 10 / Digital Content Creation | |
| Average of class Multimedia (3651 - 13548, n=72, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4513 - 5540, n=13) | |
| Lenovo ThinkPad L15 G2 AMD | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| PCMark 8 Home Score Accelerated v2 | 4444 points | |
| PCMark 8 Creative Score Accelerated v2 | 5888 points | |
| PCMark 8 Work Score Accelerated v2 | 5430 points | |
| PCMark 10 Score | 5218 points | |
Help | ||

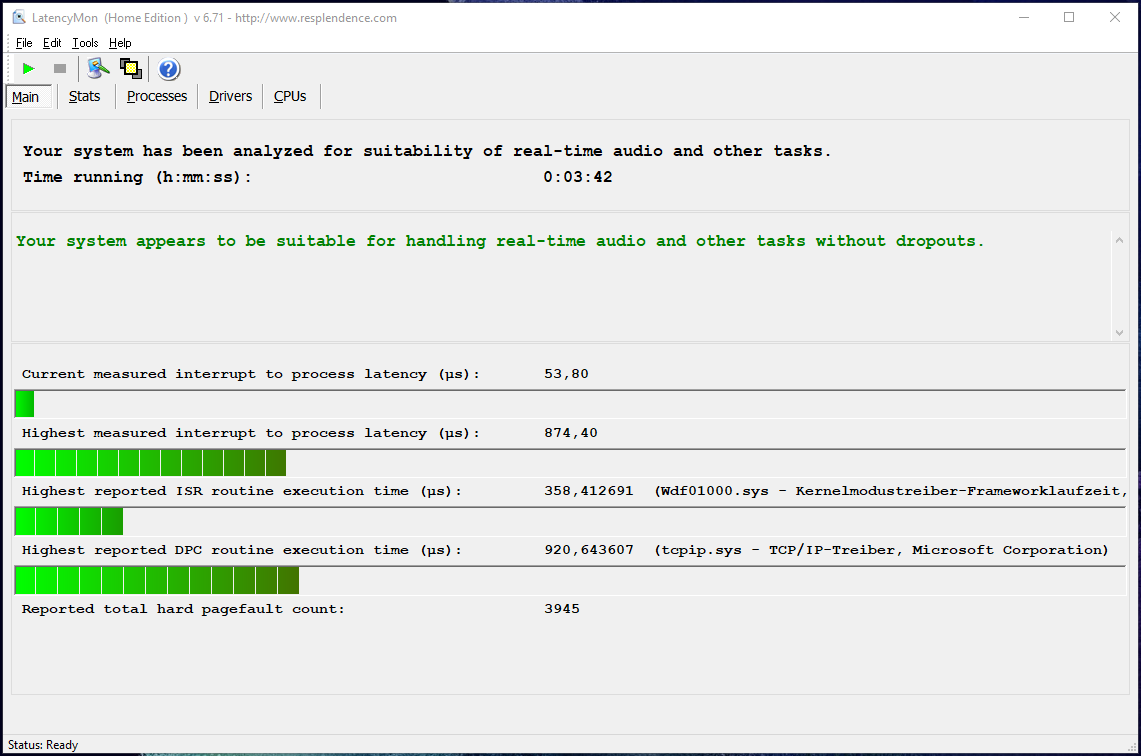

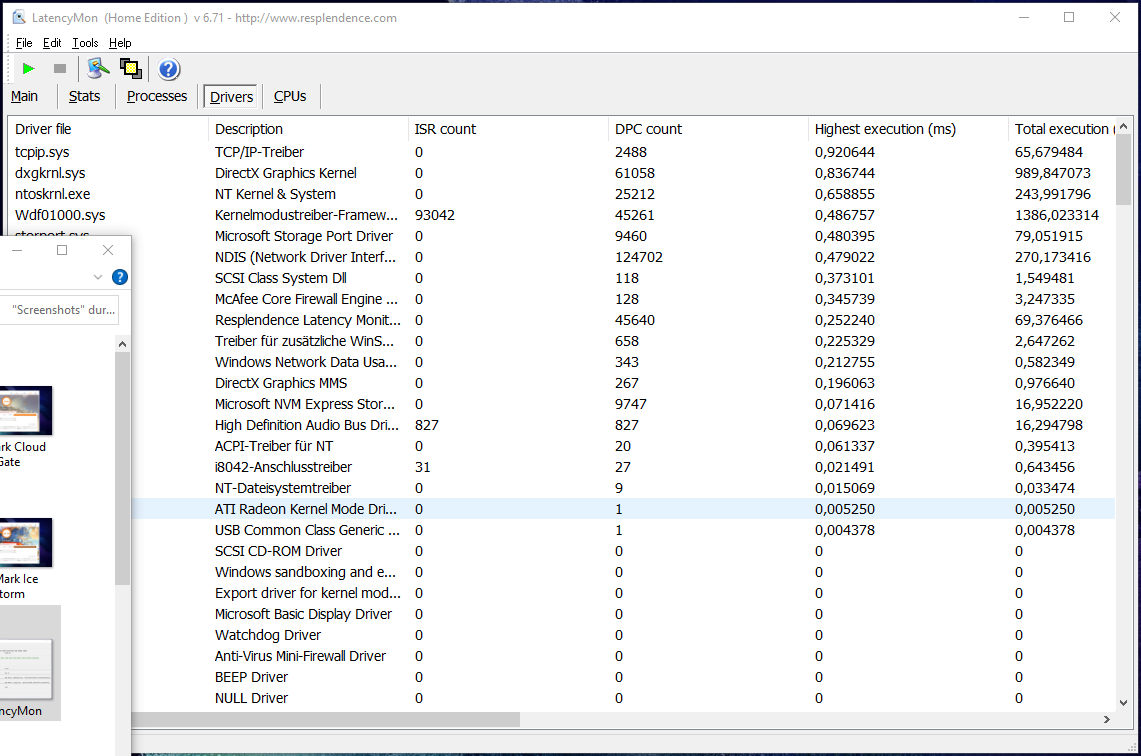

DPC延迟
审查样本在我们的标准化DPC延迟测试中表现稳健。因此，在实时音频等方面不应该有任何问题，即使测量结果自然总是只有瞬间的快照。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo ThinkPad L15 G2 AMD | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 5 15ALC05 | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
* ... smaller is better
储存
东芝选择三星的512GB M.2固态硬盘显然对自己没有好处。该装置与14英寸机型中的存储设备不同，显然不如它以及对比机型中的所有其他SSD。然而，这只是在日常使用中，最多在传输特别大量的数据时才会明显。
| Lenovo IdeaPad 5 15ALC05 | Lenovo IdeaPad 5 14ALC05 82LM005YGE Samsung SSD PM981a MZVLB512HBJQ | Lenovo ThinkPad L15 G2 AMD SK Hynix HFS512 GDE9X081N | Asus VivoBook S15 D533UA WDC PC SN530 SDBPNPZ-1T00 | Honor MagicBook 15 i5 1135G7 WDC PC SN730 SDBPNTY-512G | Acer Aspire 5 A515-56-511A Micron 2210 MTFDHBA1T0QFD | Global Average -3 | ||
|---|---|---|---|---|---|---|---|---|
| CrystalDiskMark 5.2 / 6 | 42% | 43% | 22% | 71% | 28% | 32% | ||
| Write 4K | 82.7 | 93.3 13% | 126.9 53% | 116.8 41% | 208.5 152% | 86.8 5% | 142.7 ? 73% | |
| Read 4K | 39.96 | 38.87 -3% | 59.2 48% | 43.92 10% | 51.6 29% | 66.4 66% | 54.4 ? 36% | |
| Write Seq | 1273 | 2834 123% | 2180 71% | 1990 56% | 2579 103% | 1851 45% | 1752 ? 38% | |
| Read Seq | 1601 | 2452 53% | 1792 12% | 1959 22% | 2476 55% | 1707 7% | 1893 ? 18% | |
| Write 4K Q32T1 | 360.4 | 386.6 7% | 540 50% | 373.3 4% | 602 67% | 542 50% | 397 ? 10% | |
| Read 4K Q32T1 | 410.4 | 495.5 21% | 399 -3% | 524 28% | 680 66% | 589 44% | 466 ? 14% | |
| Write Seq Q32T1 | 1589 | 2981 88% | 2778 75% | 1985 25% | 2706 70% | 1960 23% | 2305 ? 45% | |
| Read Seq Q32T1 | 2652 | 3566 34% | 3601 36% | 2456 -7% | 3392 28% | 2227 -16% | 3281 ? 24% | |
| AS SSD | 28% | 22% | 7% | 43% | 1% | -149% | ||
| Seq Read | 2549 | 2645 4% | 2721 7% | 2082 -18% | 2960 16% | 2023 -21% | 1947 ? -24% | |
| Seq Write | 1571 | 2627 67% | 1329 -15% | 1844 17% | 2371 51% | 1781 13% | 1311 ? -17% | |
| 4K Read | 41.92 | 55.2 32% | 51.5 23% | 44.33 6% | 46.48 11% | 61.9 48% | 42 ? 0% | |
| 4K Write | 110.3 | 119.4 8% | 132.5 20% | 157.5 43% | 143.6 30% | 128.7 17% | 112 ? 2% | |
| 4K-64 Read | 1086 | 1308 20% | 932 -14% | 1039 -4% | 1470 35% | 904 -17% | 815 ? -25% | |
| 4K-64 Write | 1083 | 1816 68% | 1856 71% | 1556 44% | 1806 67% | 976 -10% | 928 ? -14% | |
| Access Time Read * | 0.119 | 0.057 52% | 0.038 68% | 0.05 58% | 0.088 26% | 0.629 ? -429% | ||
| Access Time Write * | 0.034 | 0.031 9% | 0.028 18% | 0.065 -91% | 0.026 24% | 0.031 9% | 0.537 ? -1479% | |
| Score Read | 1383 | 1628 18% | 1256 -9% | 1292 -7% | 1812 31% | 1168 -16% | 1104 ? -20% | |
| Score Write | 1351 | 2198 63% | 2122 57% | 1898 40% | 2186 62% | 1283 -5% | 1233 ? -9% | |
| Score Total | 3398 | 4667 37% | 3961 17% | 3845 13% | 4899 44% | 3053 -10% | 2872 ? -15% | |
| Copy ISO MB/s | 1286 | 1476 15% | 1441 12% | 2520 96% | 1310 ? 2% | |||
| Copy Program MB/s | 574 | 538 -6% | 484.9 -16% | 790 38% | 419 ? -27% | |||
| Copy Game MB/s | 1133 | 1185 5% | 1098 -3% | 1879 66% | 864 ? -24% | |||
| Total Average (Program / Settings) | 35% /
33% | 33% /
31% | 15% /
12% | 57% /
53% | 15% /
13% | -59% /
-83% |
* ... smaller is better
Continuous load read: DiskSpd Read Loop, Queue Depth 8
图形卡
联想没有在IdeaPad 5 15ALC05中包括一个专门的图形解决方案，而是使用AMD Radeon RX Vega 7的图形性能。板载图形单元的最高工作频率为1,800 MHz；它配备了2 GB的图形内存，并支持DirectX 12。
当涉及到图形性能测试时，该测试设备排名在中场。然而，它的性能总是高于所有配备AMD Radeon RX Vega 7 的设备的平均水平，这意味着联想设法从GPU中获得了很多。此外，即使在负载下，GPU也能长期保持恒定的运行速度，尽管只有1300MHz左右。
当设备加载图形密集型计算时（如游戏），你甚至不需要在附近设置电源插座。毕竟，在电池供电的情况下运行3DMark 11时的总分是5080分，它的表现比插电时（5421分）差不到10%。
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Multimedia (3505 - 60250, n=77, last 2 years) | |
| Asus VivoBook S15 D533UA | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Acer Aspire 5 A515-56-511A | |
| Average AMD Radeon RX Vega 7 (3353 - 6249, n=58) | |
| Lenovo ThinkPad L15 G2 AMD | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Multimedia (14679 - 130614, n=38, last 2 years) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Radeon RX Vega 7 (13713 - 31437, n=43) | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo ThinkPad L15 G2 AMD | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Multimedia (1835 - 46022, n=80, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Average AMD Radeon RX Vega 7 (1772 - 4037, n=62) | |
| Lenovo ThinkPad L15 G2 AMD | |
| 2560x1440 Time Spy Graphics | |
| Average of class Multimedia (622 - 17620, n=81, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Acer Aspire 5 A515-56-511A | |
| Lenovo IdeaPad 5 15ALC05 | |
| Asus VivoBook S15 D533UA | |
| Average AMD Radeon RX Vega 7 (496 - 1249, n=57) | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo ThinkPad L15 G2 AMD | |
| 3DMark 11 Performance | 5421 points | |
| 3DMark Ice Storm Standard Score | 101159 points | |
| 3DMark Cloud Gate Standard Score | 19564 points | |
| 3DMark Fire Strike Score | 3110 points | |
| 3DMark Time Spy Score | 1200 points | |
Help | ||
游戏性能
尽管联想IdeaPad 5 15ALC05绝对不是一款游戏笔记本电脑，但它至少可以用于偶尔的游戏环节。唯一的条件是，用户在图形质量方面不要期望太高。这是因为所提供的性能只有在选择最低，或根据游戏，甚至是中等或高的图形设置时，才足以实现流畅的游戏。
| The Witcher 3 | |
| 1024x768 Low Graphics & Postprocessing | |
| Average of class Multimedia (36 - 428, n=47, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Radeon RX Vega 7 (25.5 - 105.8, n=50) | |
| Asus VivoBook S15 D533UA | |
| Lenovo ThinkPad L15 G2 AMD | |
| 1366x768 Medium Graphics & Postprocessing | |
| Average of class Multimedia (23 - 327, n=40, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 15ALC05 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Asus VivoBook S15 D533UA | |
| Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37) | |
| Lenovo ThinkPad L15 G2 AMD | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Average of class Multimedia (11.2 - 290, n=73, last 2 years) | |
| Honor MagicBook 15 i5 1135G7 | |
| Lenovo IdeaPad 5 14ALC05 82LM005YGE | |
| Asus VivoBook S15 D533UA | |
| Lenovo IdeaPad 5 15ALC05 | |
| Average AMD Radeon RX Vega 7 (8.96 - 26.2, n=49) | |
| Lenovo ThinkPad L15 G2 AMD | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 59.4 | 41.1 | 18.5 | 12.9 |
| Dota 2 Reborn (2015) | 98.2 | 77.1 | 48.9 | 45.5 |
| Rise of the Tomb Raider (2016) | 66.4 | 42.8 | 21.2 | 17 |
| X-Plane 11.11 (2018) | 40.8 | 33.1 | 29.5 | |
| Dirt 5 (2020) | 44.4 | 17.8 | ||
| Resident Evil Village (2021) | 42.5 | 21.3 |
排放。相对凉爽和安静
噪声排放
由于风扇的存在，联想IdeaPad 5 15ALC05很少真正的安静。然而，它在空闲使用时几乎听不到，只有26 dB(A)。即使在我们的压力测试中，虽然风扇持续高速运转，但它的噪音并不高，约为43 dB(A)，而且最重要的是，它的噪音水平是令人愉快的均匀。在我们的测试设备中，我们没有遇到任何其他不必要的噪音。联想IdeaPad 5 15ALC05并不是一台真正的安静的笔记本电脑，但它也远不是令人讨厌的。
Noise Level
| Idle |
| 26 / 26 / 26 dB(A) |
| Load |
| 42.6 / 37.4 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 26 dB(A) | ||

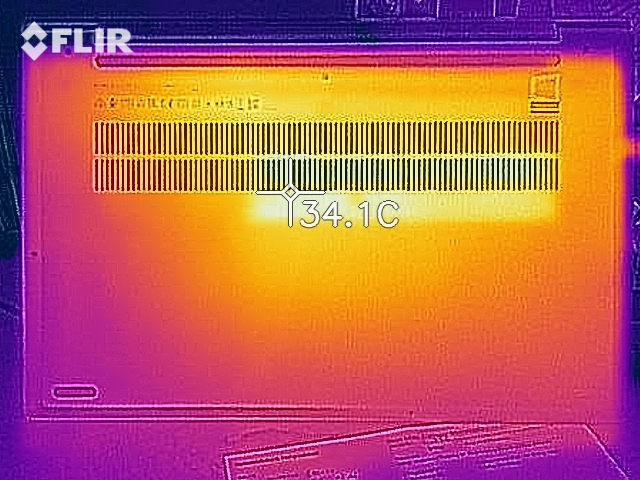

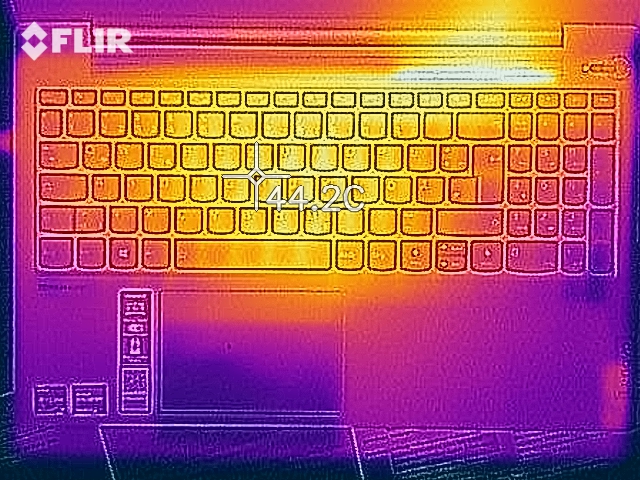

温度

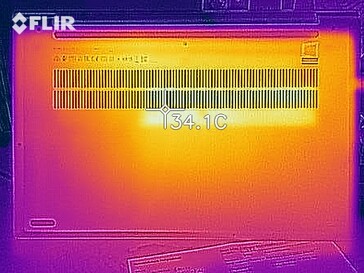

当联想IdeaPad 5 15ALC05处于低负荷时，它的温度几乎没有超过室温。相比之下，它在负载下达到的温度略高于40°C（约104°F）。我们在顶部测量了最高的温度，位于显示器前面的中心位置。这不应该是一个惊喜，因为热空气被风扇通过铰链区域的通风槽输送到外面。
因此，笔记本电脑不仅在压力下保持相对凉爽，而且在任何情况下都可以正常操作，没有烫伤的危险。
联想IdeaPad 5 15ALC05在压力测试中出奇的放松。CPU的时钟频率稳定在3,400 MHz，GPU的时钟频率略低于1,300 MHz。温度在这种性能下保持不变，略高于75℃（约167°F）。没有发现任何节流现象，这意味着与最高性能相比几乎没有任何性能损失，即使硬件处于长时间的负载之下。在压力测试后立即运行3DMark 11基准测试时，与冷启动相比，笔记本电脑实现了相同的速率。

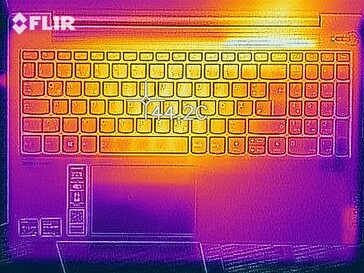

(±) The maximum temperature on the upper side is 40.5 °C / 105 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.

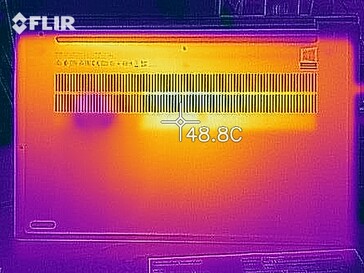

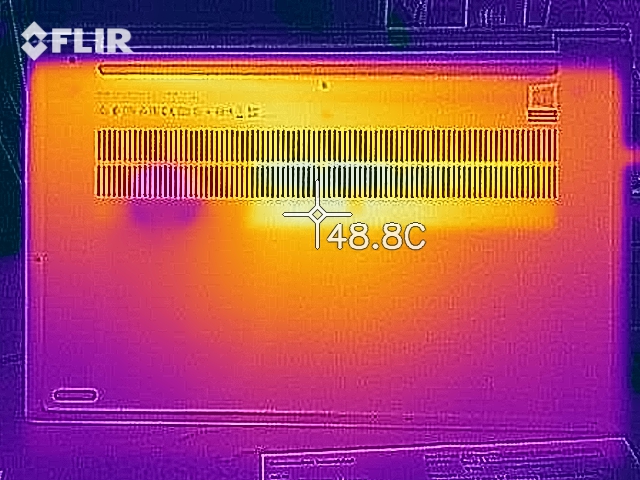

(±) The bottom heats up to a maximum of 42 °C / 108 F, compared to the average of 39.2 °C / 103 F

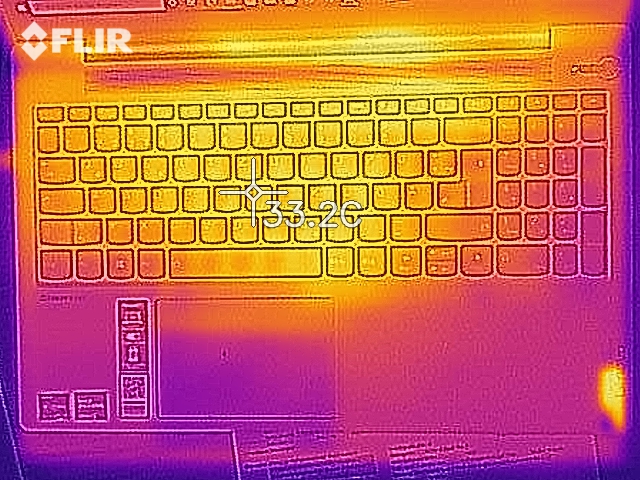

(+) In idle usage, the average temperature for the upper side is 24.9 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.1 °C / 84.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-0.3 °C / -0.6 F).
发言人
联想IdeaPad 5 15ALC05的内置立体声扬声器是一些最好的。诚然，像大多数其他笔记本电脑的扬声器一样，它们几乎没有任何低音，而且它们不会变得特别响。然而，它们以线性和相当平衡的方式再现了中音和高音。它们足以再现一些视频游戏的声音，流媒体电影，或在工作时听一些音乐。
Lenovo IdeaPad 5 15ALC05 audio analysis
(-) | not very loud speakers (65.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17.4% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.7% higher than median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.1% difference to median)
Compared to same class
» 59% of all tested devices in this class were better, 7% similar, 34% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 42% of all tested devices were better, 7% similar, 51% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理。IdeaPad 5 15ALC05是节俭和持久的。
能源消耗
令人惊讶的是，联想IdeaPad 5 15ALC05实际上比几乎装备相同的14英寸模型消耗更少的电力。这表明，该面板的能源效率要高得多。与其他竞争者相比，该测试设备位居中场。它的最大消耗量为52瓦，这意味着65瓦的电源适配器是绝对足够的。此外，由于快速充电，电池可以迅速充电。
| Off / Standby | 0.35 / 0.45 Watt |
| Idle | 3.7 / 7.9 / 9.3 Watt |
| Load |
41 / 52.2 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo IdeaPad 5 15ALC05 R5 5500U, Vega 7, , IPS, 1920x1080, 15.6" | Lenovo IdeaPad 5 14ALC05 82LM005YGE R5 5500U, Vega 7, Samsung SSD PM981a MZVLB512HBJQ, IPS, 1920x1080, 14" | Lenovo ThinkPad L15 G2 AMD R5 5600U, Vega 7, SK Hynix HFS512 GDE9X081N, IPS LED, 1920x1080, 15.6" | Asus VivoBook S15 D533UA R7 5700U, Vega 8, WDC PC SN530 SDBPNPZ-1T00, IPS, 1920x1080, 15.6" | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs, WDC PC SN730 SDBPNTY-512G, IPS, 1920x1080, 15.6" | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs, Micron 2210 MTFDHBA1T0QFD, IPS, 1920x1080, 15.6" | Average AMD Radeon RX Vega 7 | Average of class Multimedia | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -20% | 3% | -16% | 6% | 10% | -2% | -74% | |
| Idle Minimum * | 3.7 | 5.4 -46% | 4.57 -24% | 5 -35% | 3.4 8% | 3.3 11% | 4.66 ? -26% | 6.78 ? -83% |
| Idle Average * | 7.9 | 8.4 -6% | 8.2 -4% | 7.7 3% | 7.7 3% | 8.4 -6% | 7.56 ? 4% | 11.3 ? -43% |
| Idle Maximum * | 9.3 | 11.3 -22% | 9.3 -0% | 12.2 -31% | 8.3 11% | 8.9 4% | 8.95 ? 4% | 13.4 ? -44% |
| Load Average * | 41 | 45.3 -10% | 31.9 22% | 41 -0% | 32 22% | 30.1 27% | 38.7 ? 6% | 71.1 ? -73% |
| Witcher 3 ultra * | 41 | 46.6 -14% | 34.5 16% | 43 -5% | 33.9 17% | |||
| Load Maximum * | 52.2 | 63 -21% | 47.4 9% | 65 -25% | 65.2 -25% | 45.4 13% | 51.9 ? 1% | 117.3 ? -125% |
* ... smaller is better
Energy consumption during The Witcher 3 / stress test
电池寿命
由于低消耗和非常大的70Wh电池，联想IdeaPad 5 15ALC05是一个真正的耐力跑者。它不能完全跟上LG Gram 14Z90P ，它是该级别的领导者。然而，在我们的比较中，它肯定足以击败竞争的15.6英寸设备。在Wi-Fi测试中，它的持续时间有时是竞争对手的两倍。即使是它较小的14英寸对应产品，也会提前3个小时耗尽能量。
| Lenovo IdeaPad 5 15ALC05 R5 5500U, Vega 7, 70 Wh | Lenovo IdeaPad 5 14ALC05 82LM005YGE R5 5500U, Vega 7, 56.5 Wh | Lenovo ThinkPad L15 G2 AMD R5 5600U, Vega 7, 45 Wh | Asus VivoBook S15 D533UA R7 5700U, Vega 8, 50 Wh | Honor MagicBook 15 i5 1135G7 i5-1135G7, Iris Xe G7 80EUs, 42 Wh | Acer Aspire 5 A515-56-511A i5-1135G7, Iris Xe G7 80EUs, 48.85 Wh | Average of class Multimedia | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | -27% | -44% | -36% | -46% | -30% | -24% | |
| Reader / Idle | 1181 | 1168 ? | |||||
| H.264 | 925 | 762 -18% | 821 ? -11% | ||||
| WiFi v1.3 | 839 | 649 -23% | 469 -44% | 538 -36% | 451 -46% | 416 -50% | 625 ? -26% |
| Witcher 3 ultra | 110 | 76.3 ? -31% | |||||
| Load | 134 | 82 -39% | 122 -9% | 97.8 ? -27% |
Pros
Cons
结论：联想IdeaPad 5 15ALC05在测试中令人信服，特别是由于其长的电池寿命。
联想IdeaPad 5 15ALC05在我们的测试中基本上令人信服。
该设备的得分，特别是它的大电池和长电池运行时间与低消耗相结合。CPU和GPU在测试中的表现正如人们所期望的那样，并且符合人们从稍小的14英寸姐妹机型中熟悉的情况，联想IdeaPad 5 14ALC05 。
但令人惊讶的是，15英寸机型在某些方面的得分明显比14英寸机型差。根据我们的测量，它的固态硬盘速度较慢，显示屏较差，读卡器也较弱。这有点令人惊讶，它减少了联想IdeaPad 5 15ALC05在我们测试中的良好印象。
单一的USB-C端口是不方便的，因为它被电源适配器占据。然而，上述对手无论如何都无法做得更好。否则，联想IdeaPad 5 15ALC05在测试中只显示了一些弱点，并证明它是一个用于办公、流媒体、浏览等方面的比较坚实的笔记本电脑。在图形要求不是特别高的情况下，甚至偶尔的游戏也可以玩。
简而言之：一个良好的全能型产品，具有很强的续航能力，价格合理，不需要害怕来自Acer Aspire 5 A515-56-511A和的竞争。 华硕VivoBook S15 D533UA.较小的 联想IdeaPad 5 14ALC05以及两款15.6英寸的笔记本电脑，分别是 联想ThinkPad L15第二代和 Honor MagicBook 15，在我们的测试中只获得了稍好的成绩。
Lenovo IdeaPad 5 15ALC05
- 08/06/2021 v7 (old)
Marcus Schwarten
Price comparison
