KFA2GeForce RTX 4060 1-Click OC 2X 显卡评测：当前入门级 GPU 的功耗超出预期
随着基于 Ada Lovelace 架构的 RTX 4060 显卡的发布，人们对其寄予了厚望。但在对 Ti 型号进行首次测试后，我们很快就发现，与前代系列相比，你不能指望在性能上有多大的飞跃。基本上，KFA2GeForce RTX 4060 1-Click OC 2X 的情况也是如此，它必须在这项测试中与众多竞争对手竞争。稍后再详述。
但也不全是坏事，至少我们在这里看到了一款相当高效的机型，目前足以满足 1080p 游戏的需求。它配备了 8GB 的 VRAM，在这个性能级别中，超过这个容量就没有必要了。图形芯片采用了拥有 3,072 个着色器单元的 AD107。VRAM 通过 128 位存储接口连接，存储带宽为 272 GB/s。这明显低于 NvidiaGeForce RTX 3060。但你也应该明白，与搭载GeForce RTX 3060 的 GA104 相比，AD107 的二级缓存要大得多（24 MB 对 3 MB），允许图形芯片在内部处理更多数据，从而弥补了 PCI Express 带宽的不足。

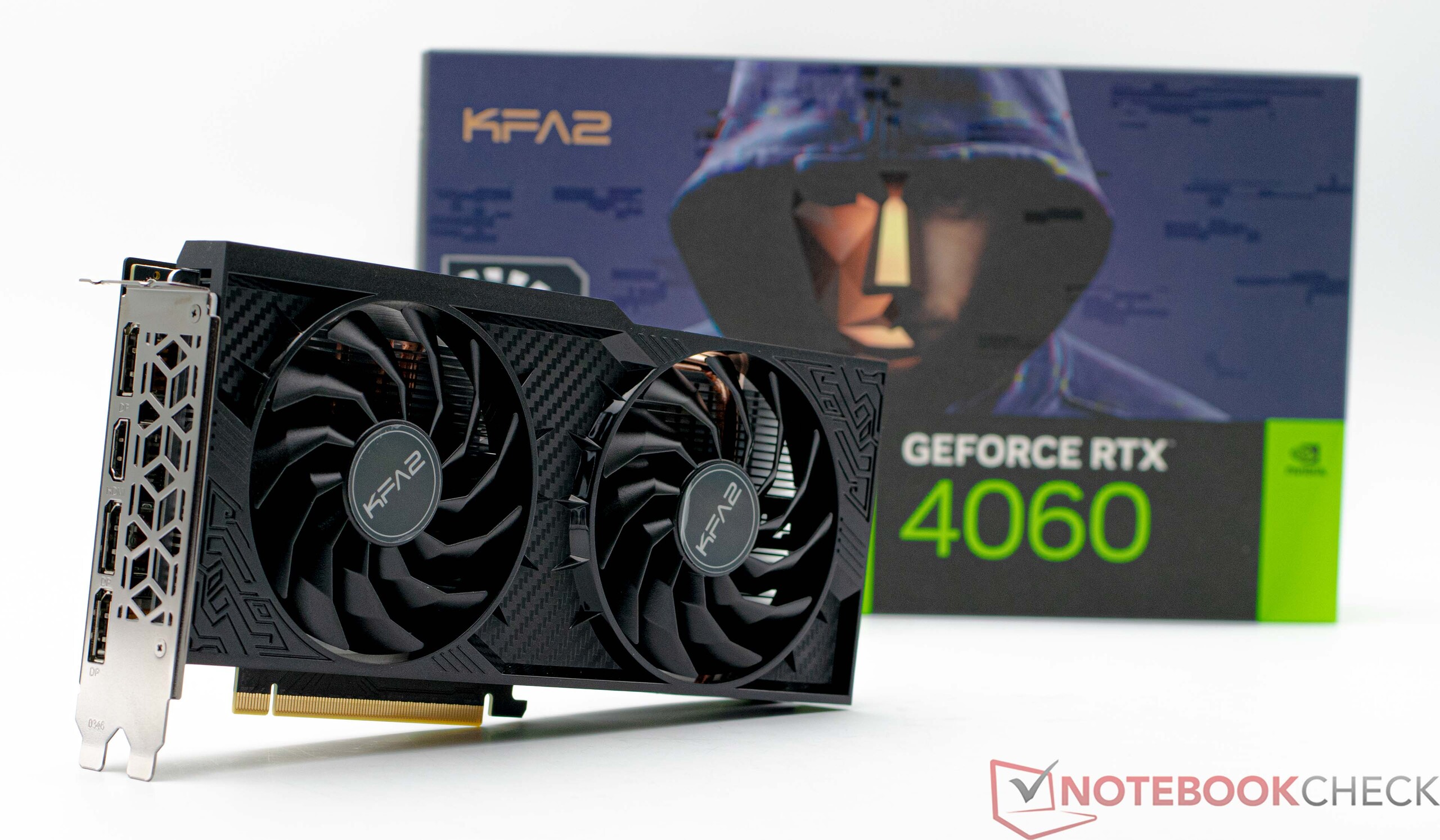

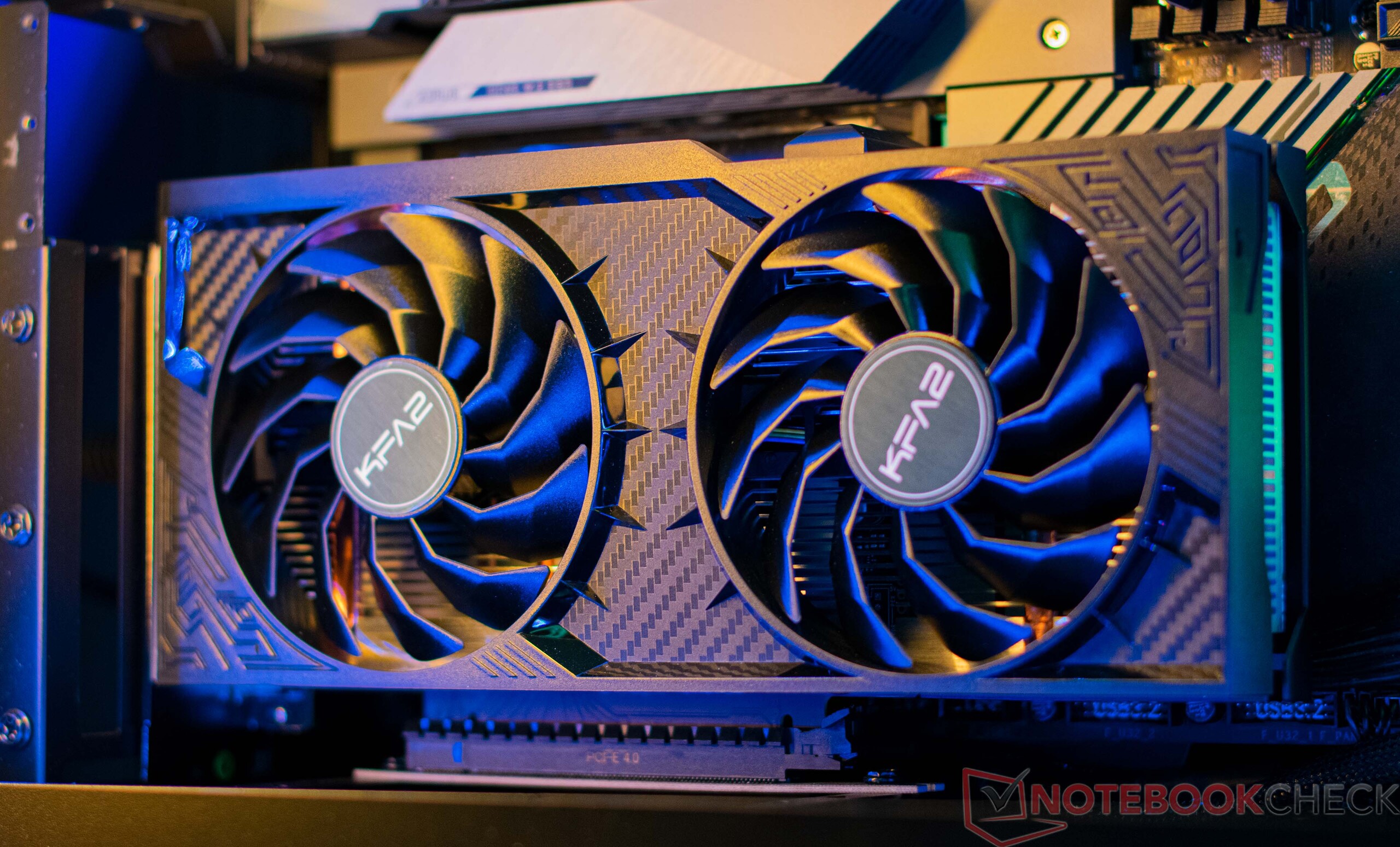

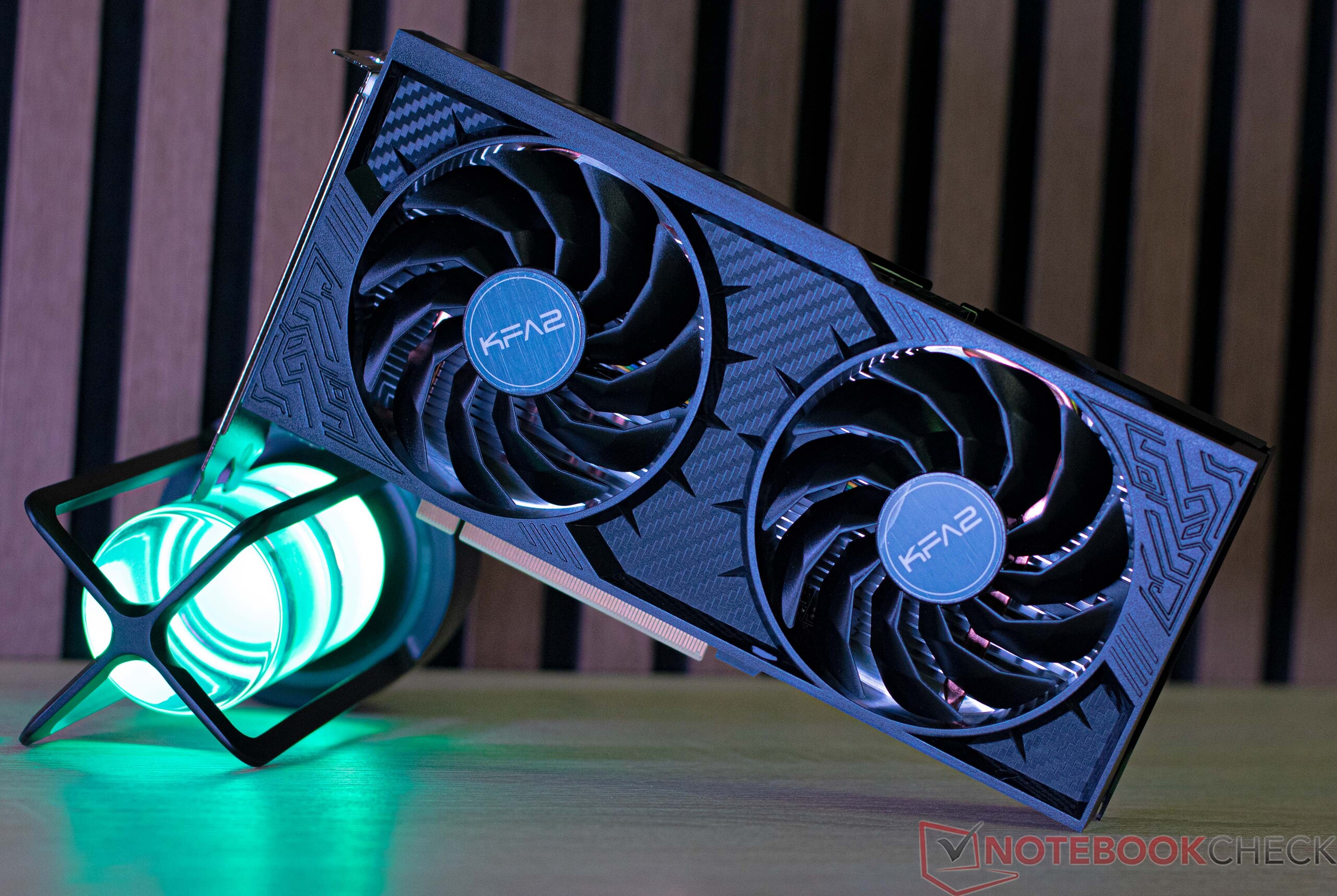

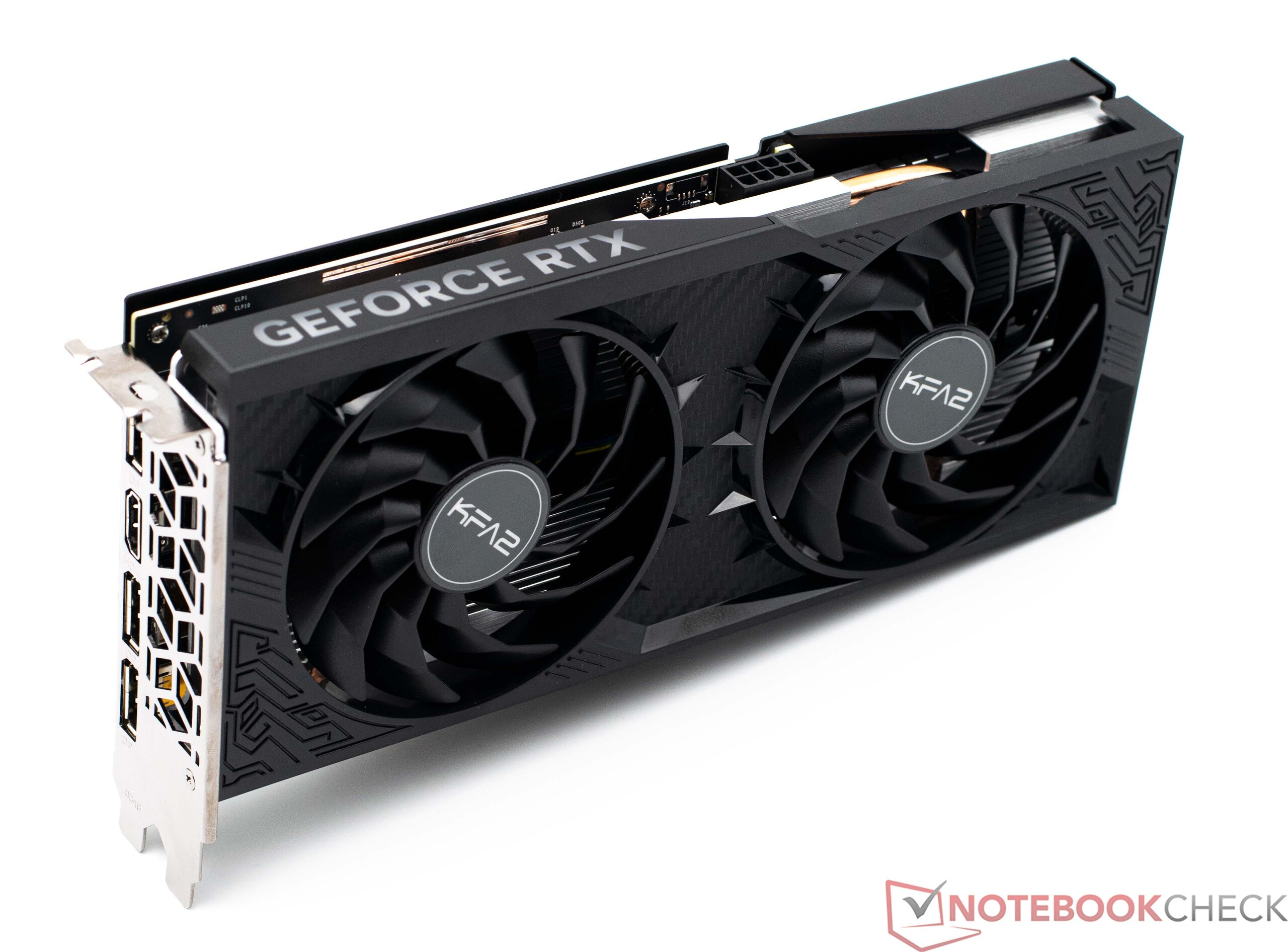

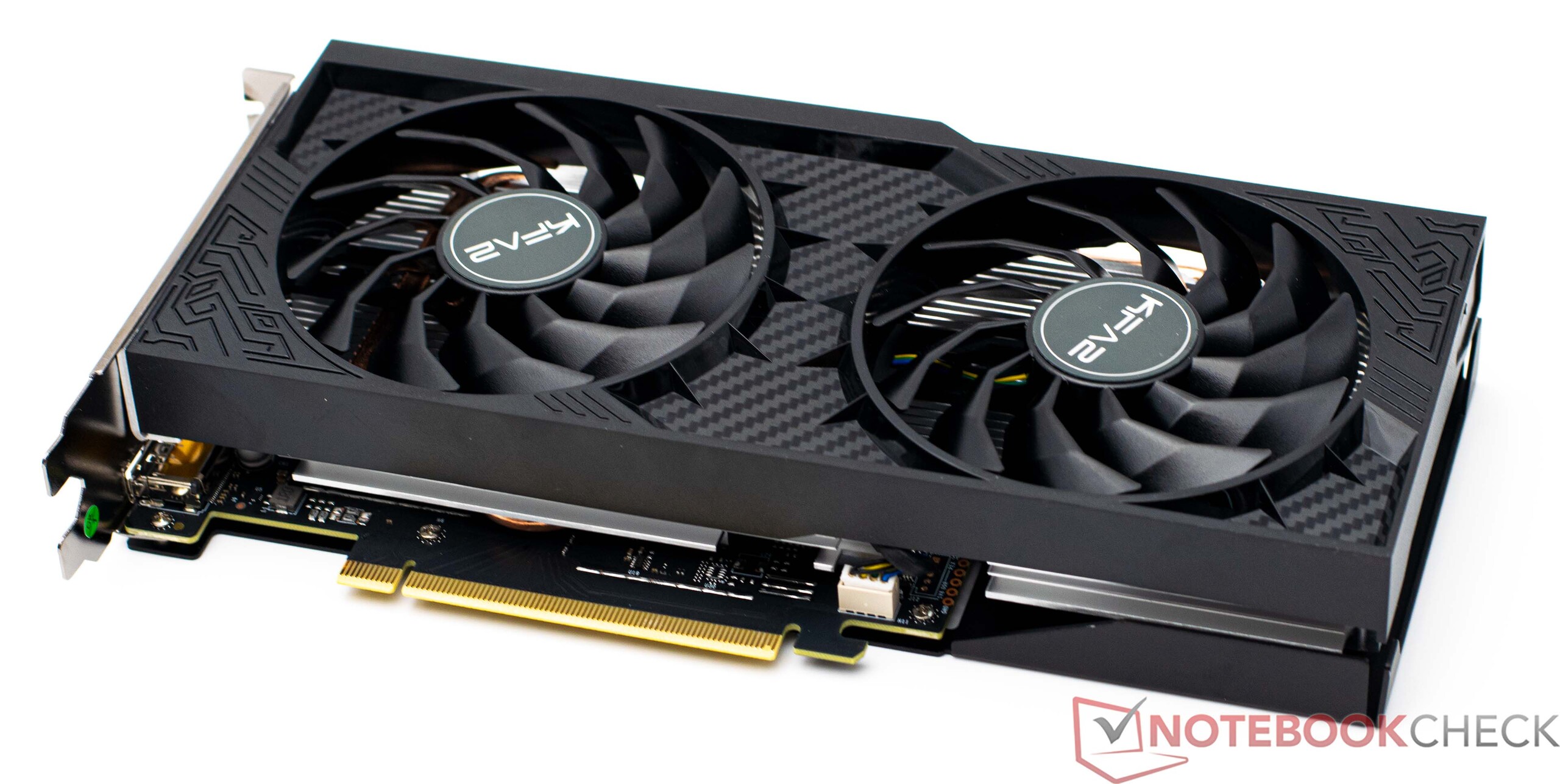

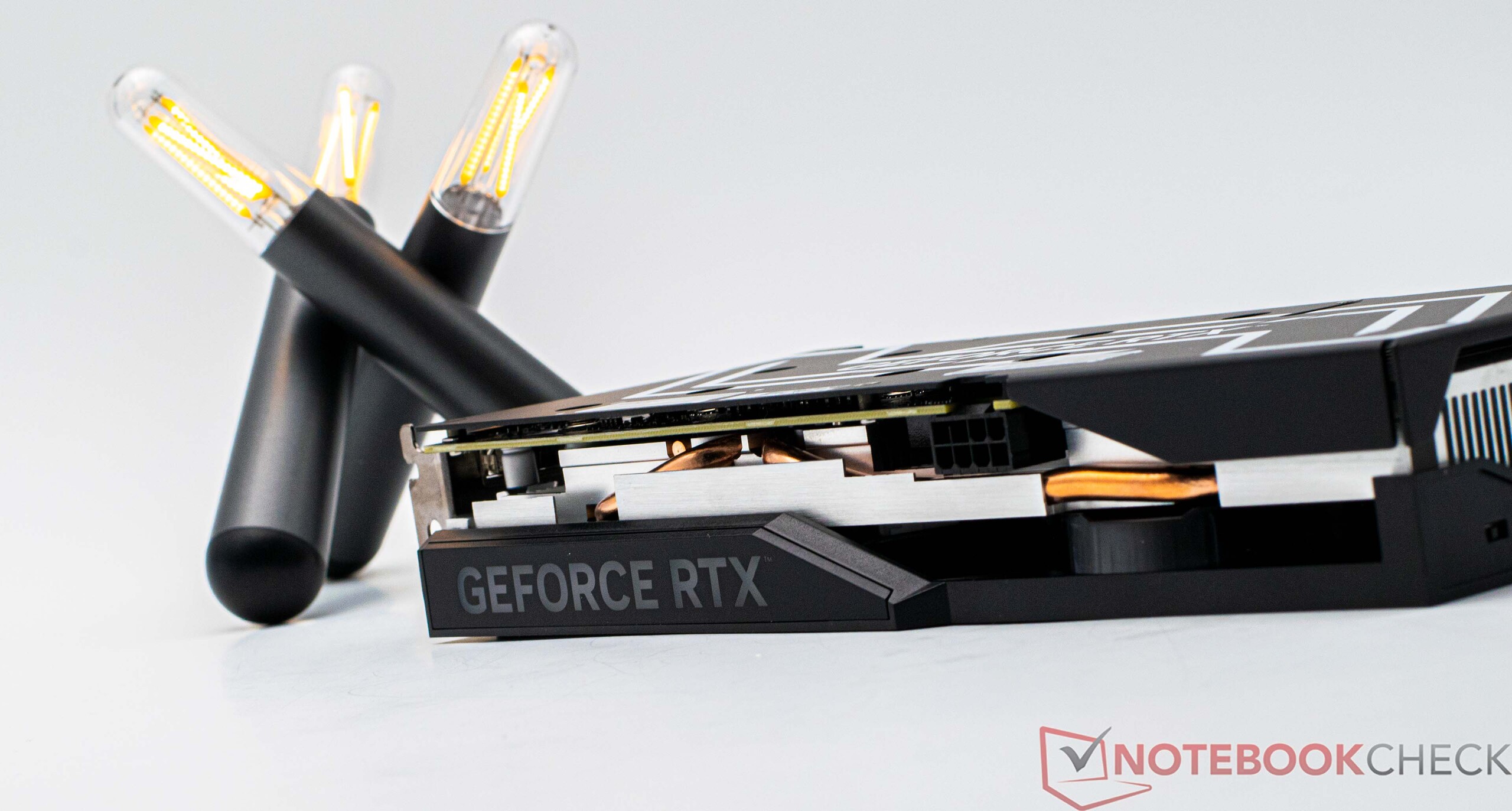

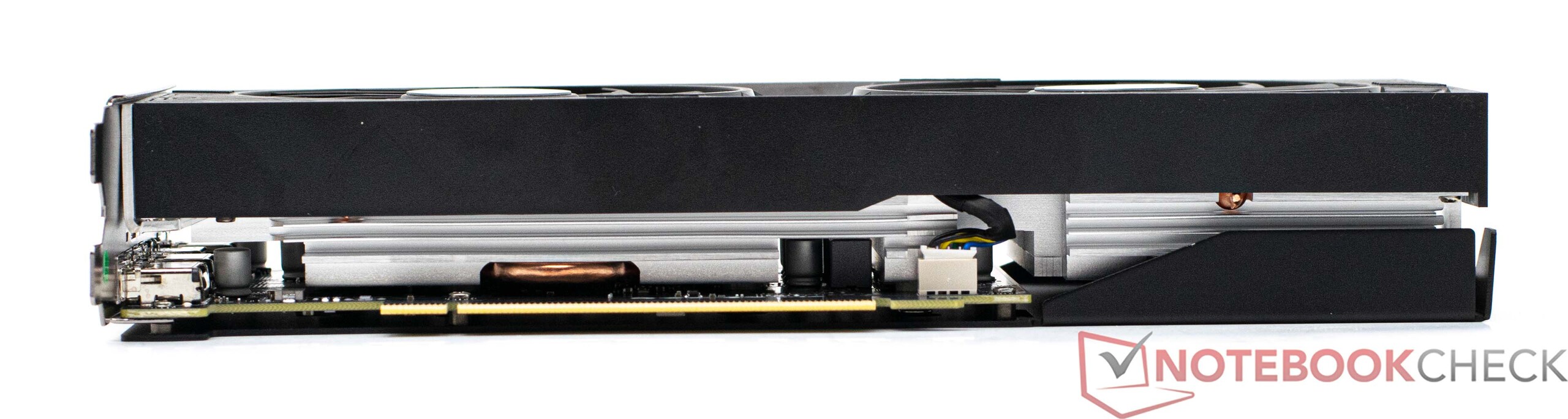

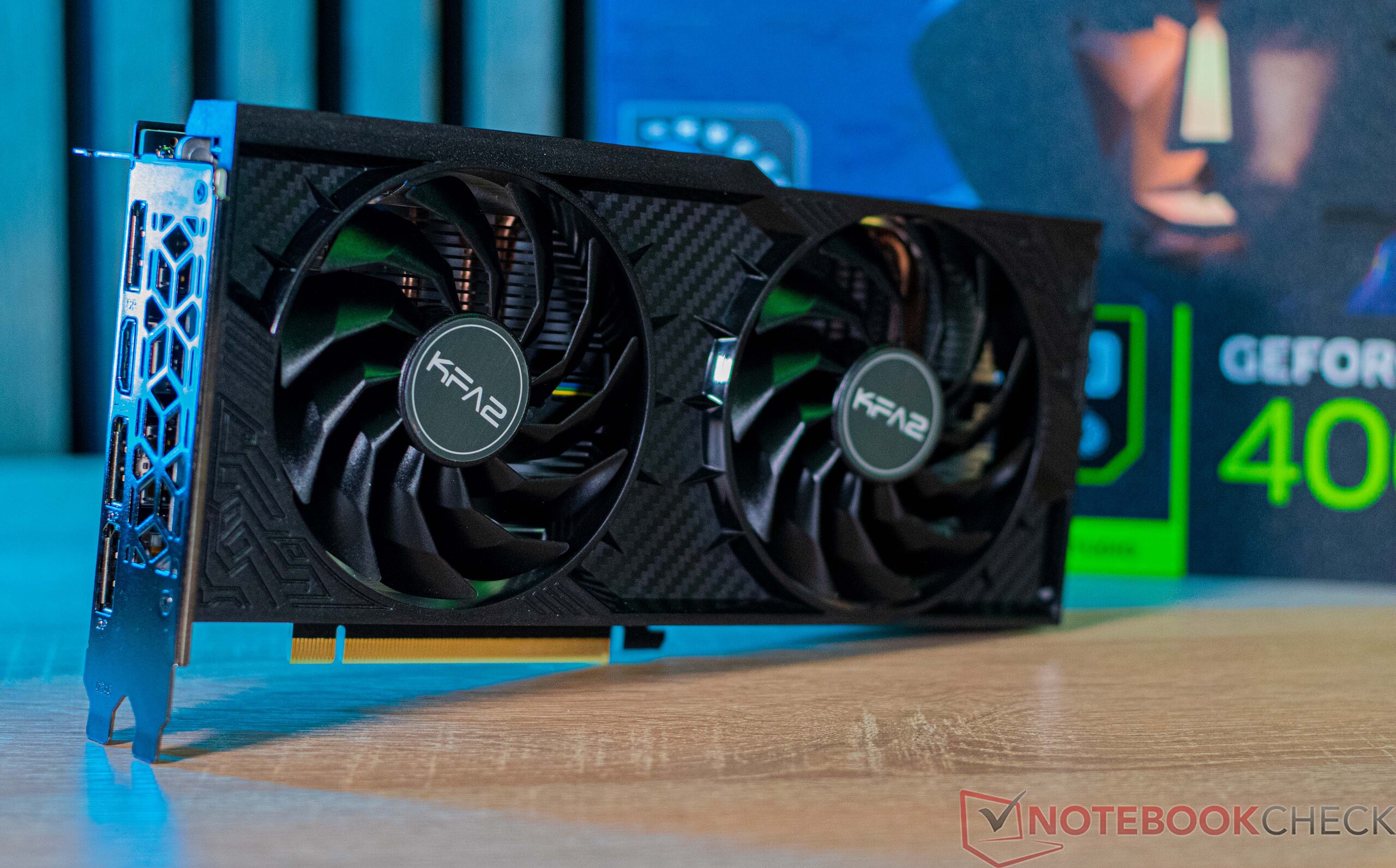

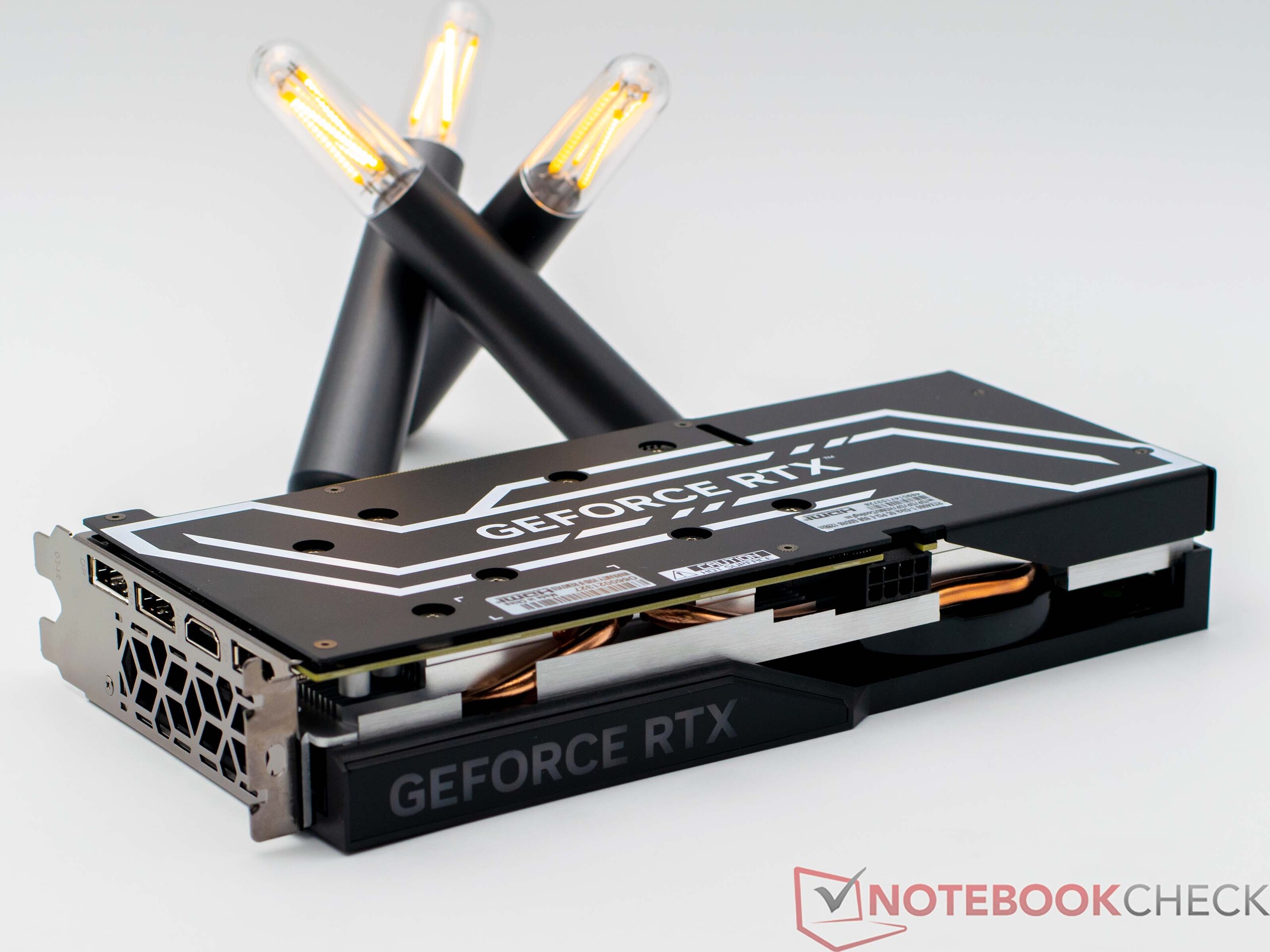

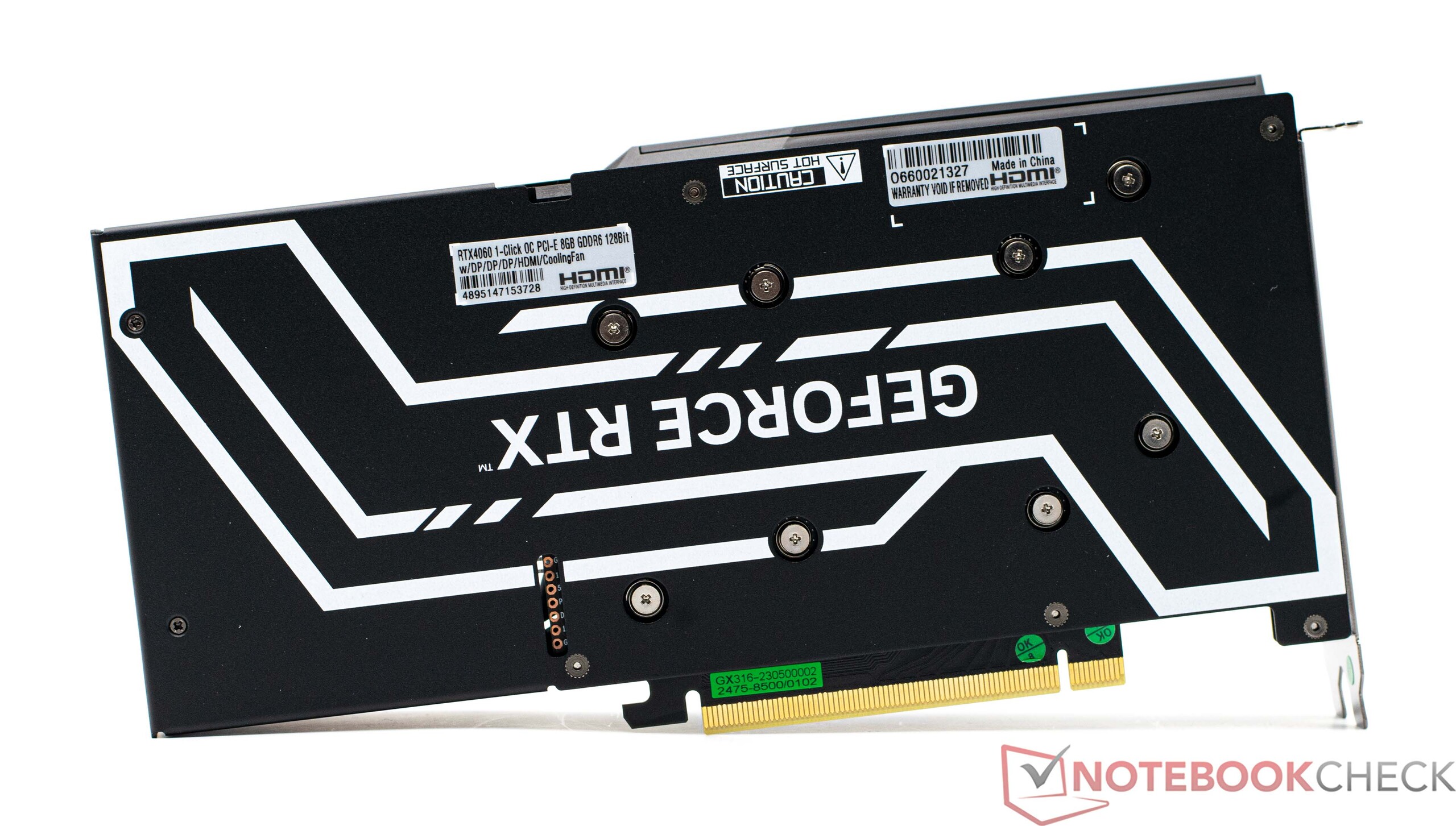

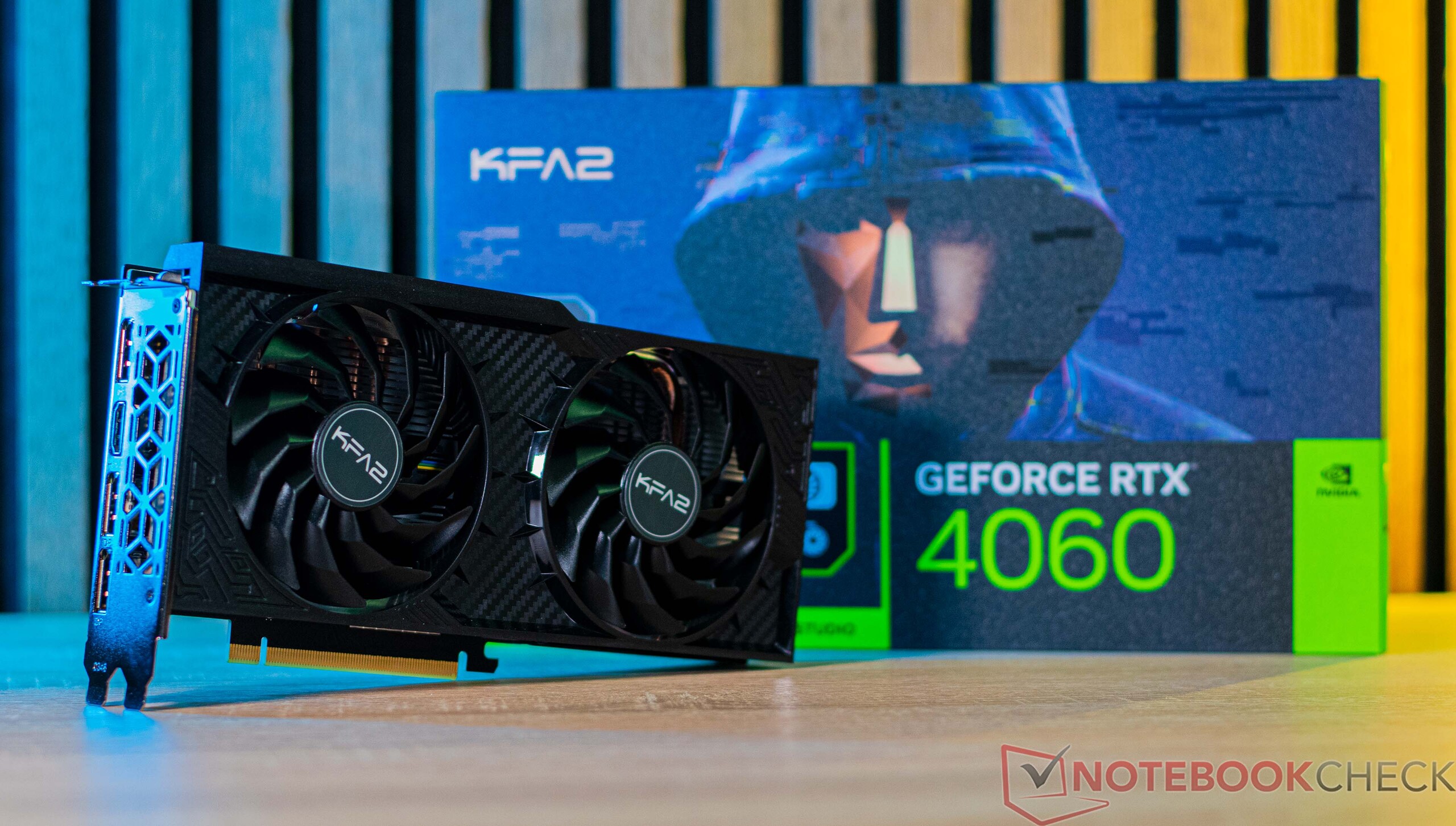

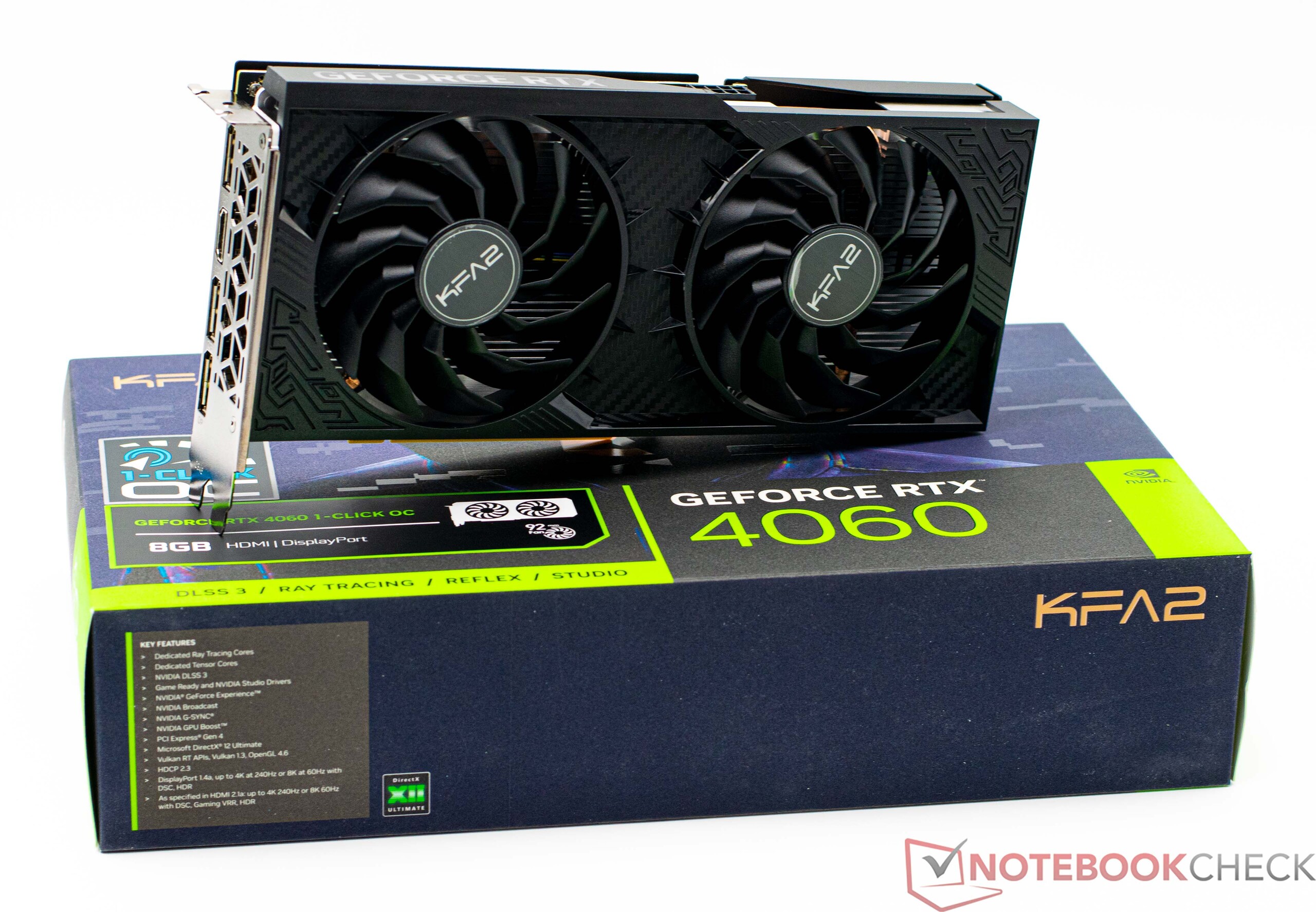

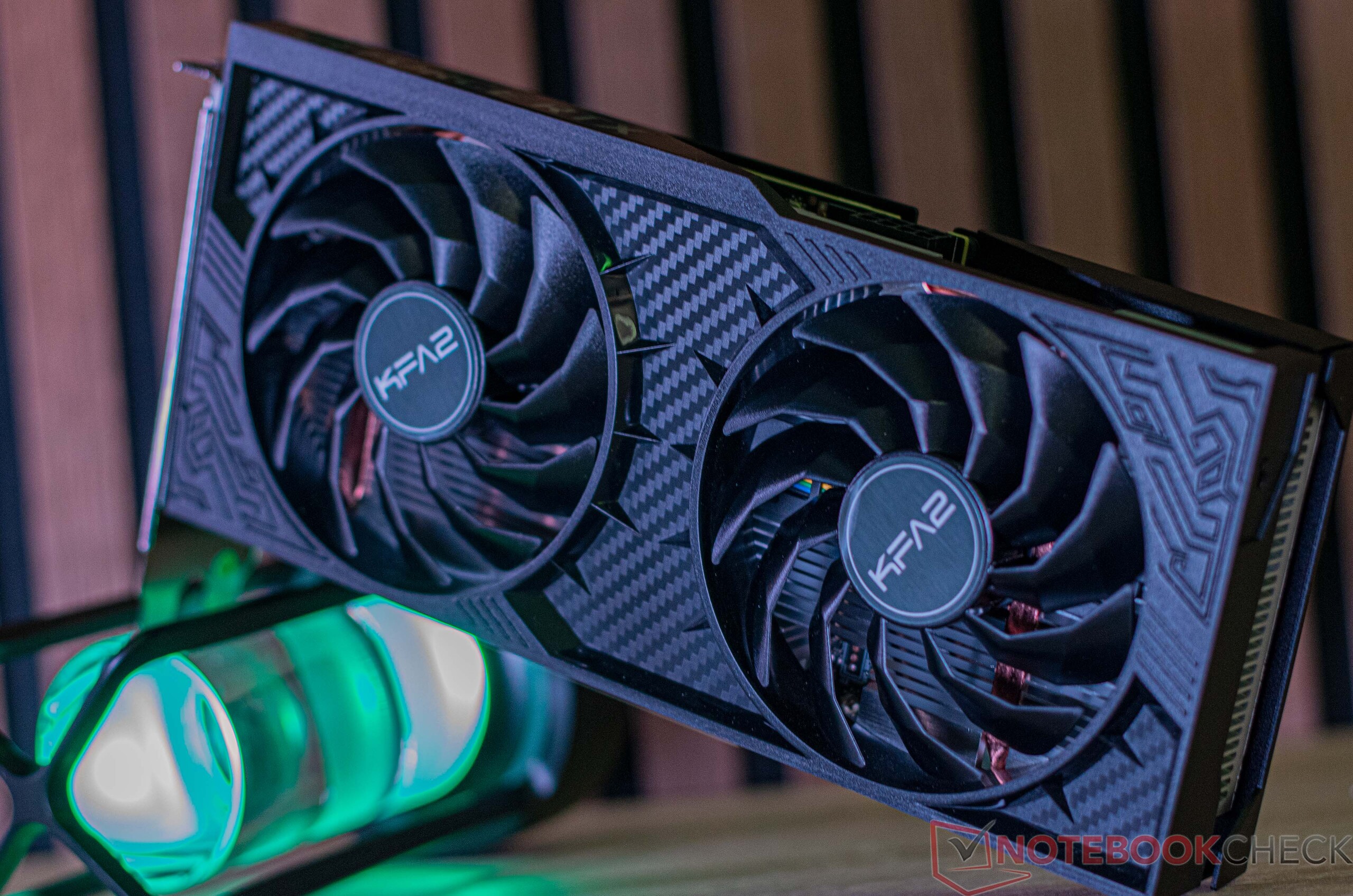

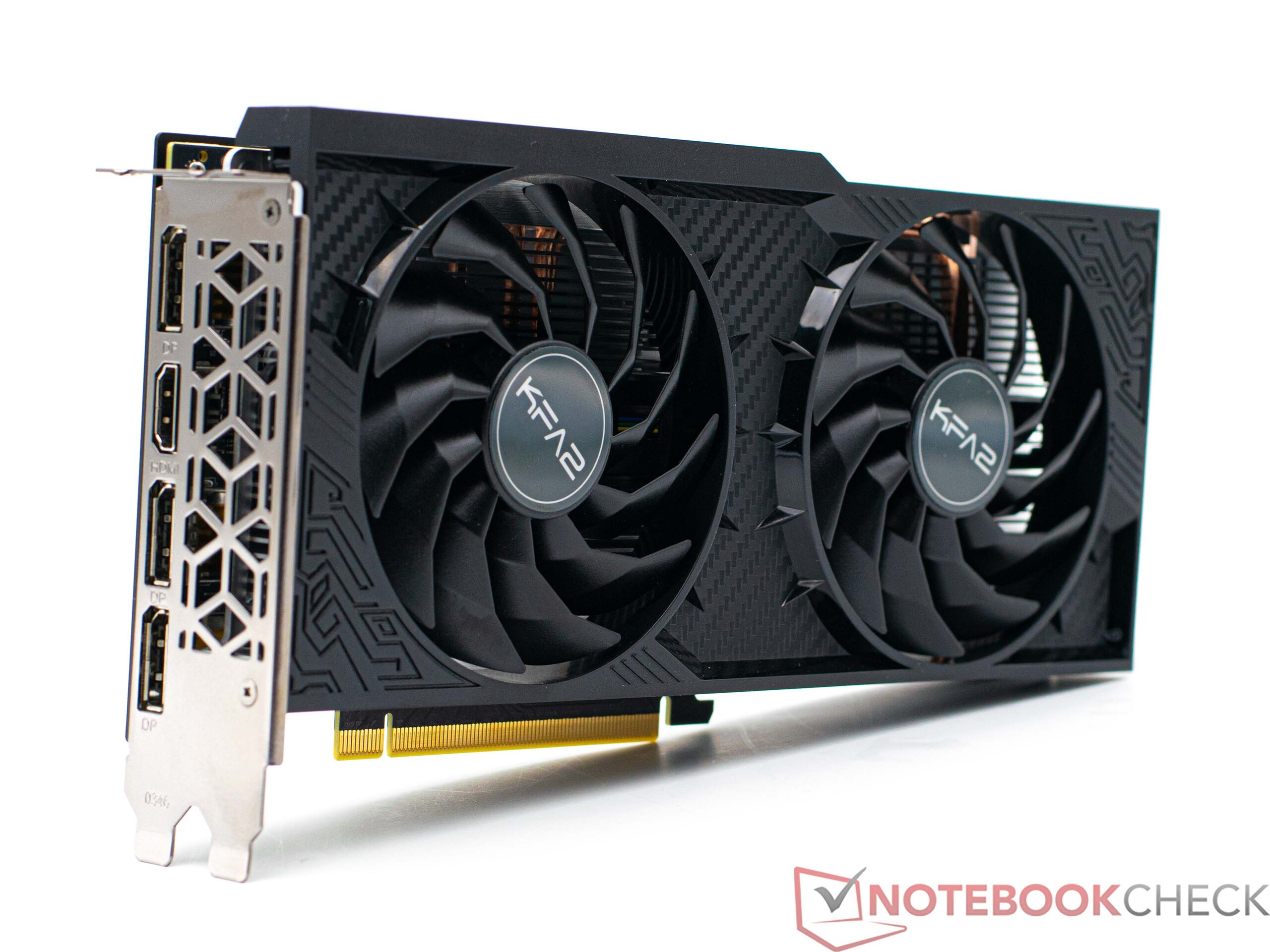

KFA2GeForce RTX 4060 1-Click OC 2X 是一款不起眼的显卡，几乎完全放弃了精心设计的 RGB 照明。喜欢更多照明的用户可以仔细看看 KFA2GeForce RTX 4060 EX (1-Click OC)。KFA2GeForce RTX 4060 1-Click OC 2X 的电源通过 6+2 pin PCIe 电源连接提供。

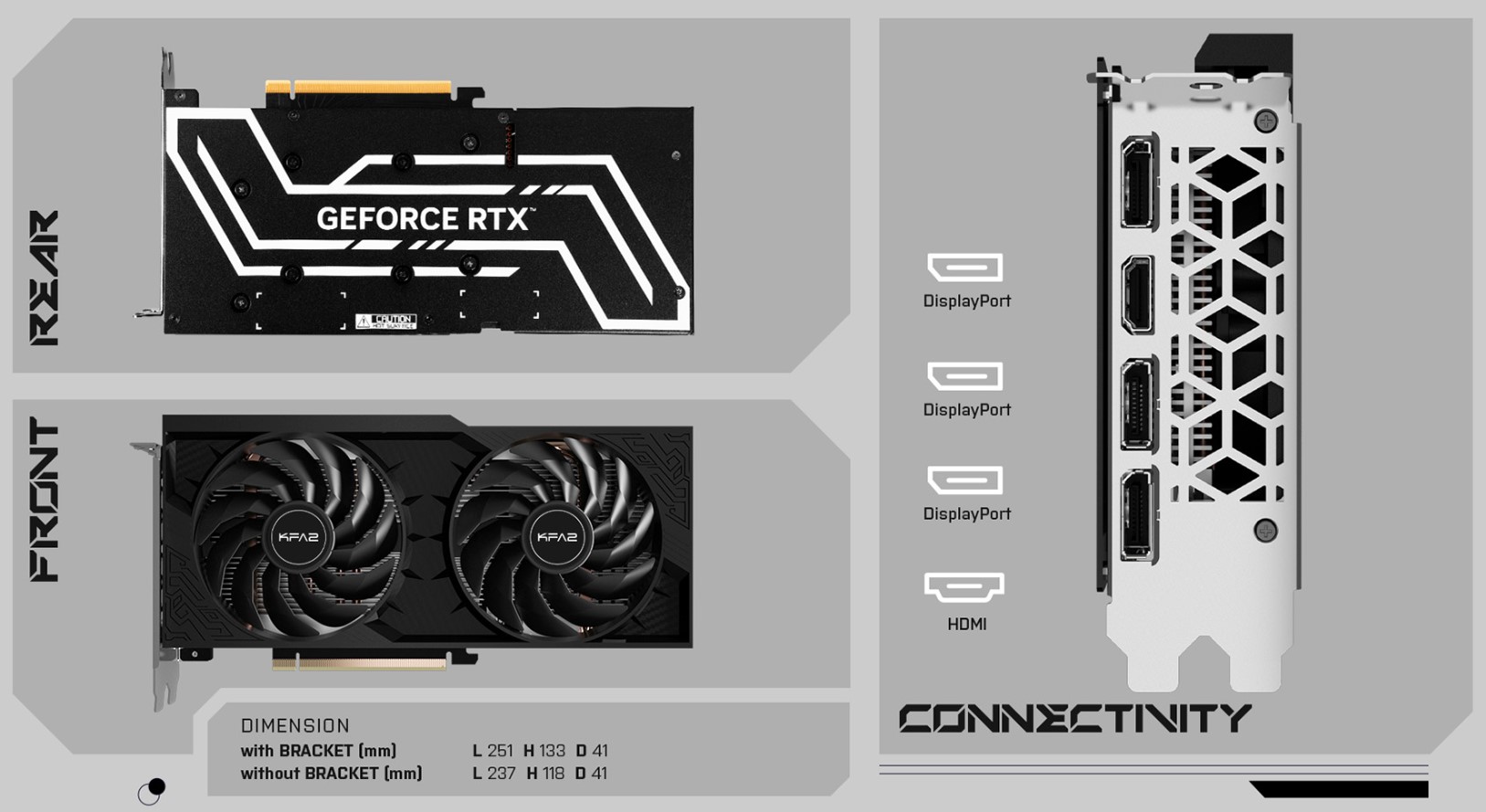

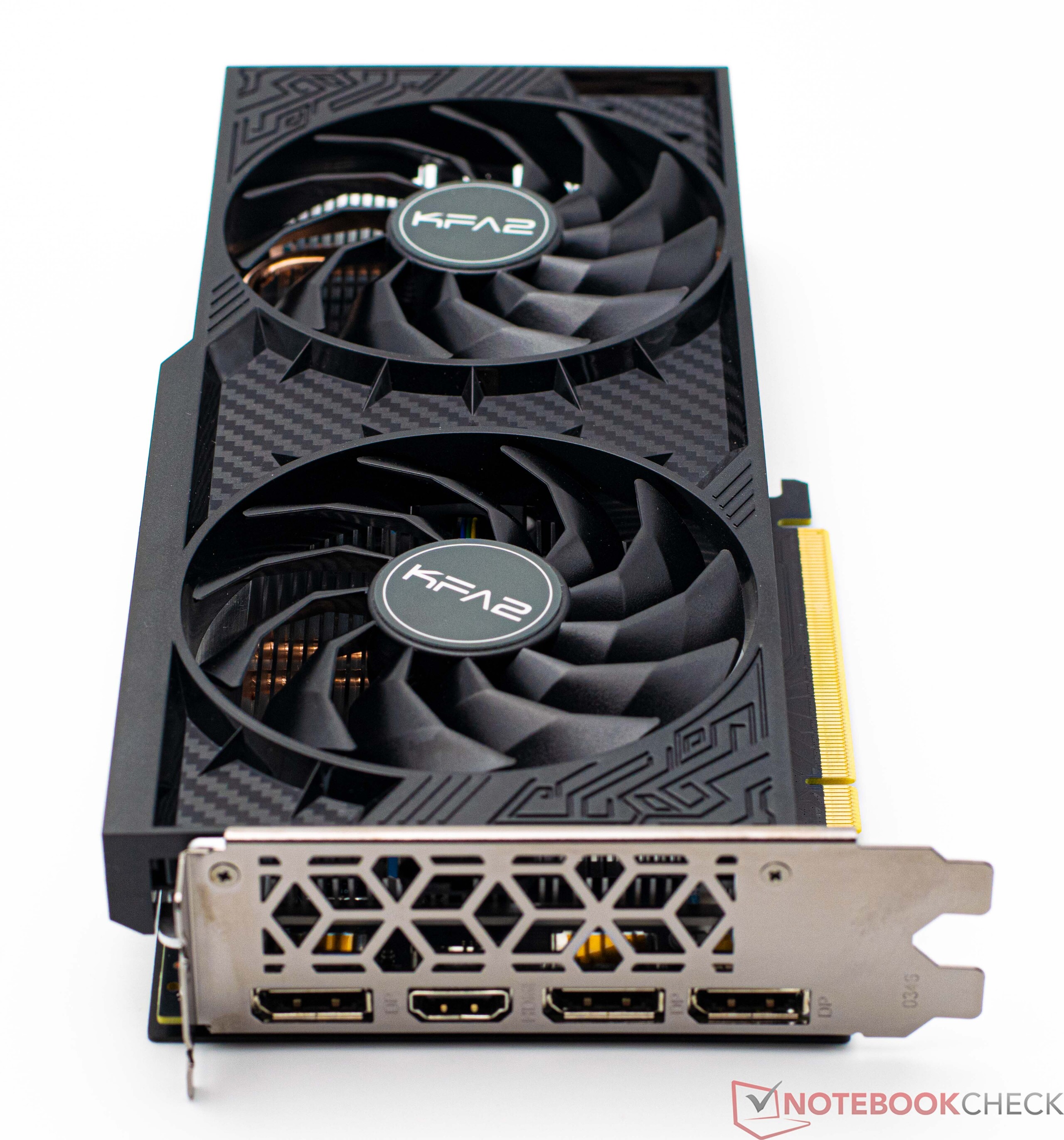

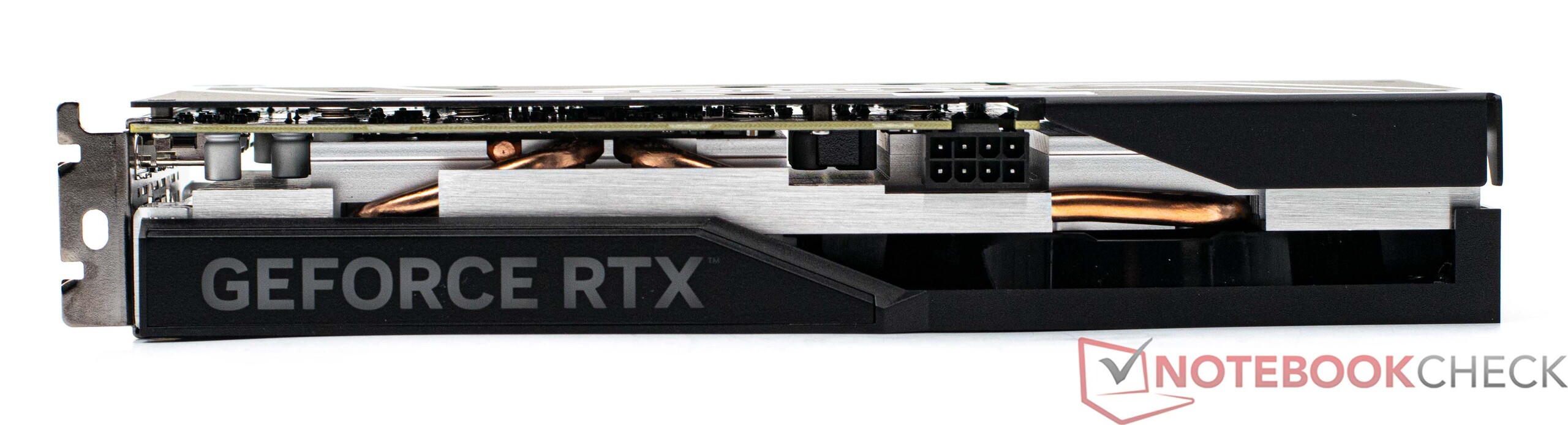

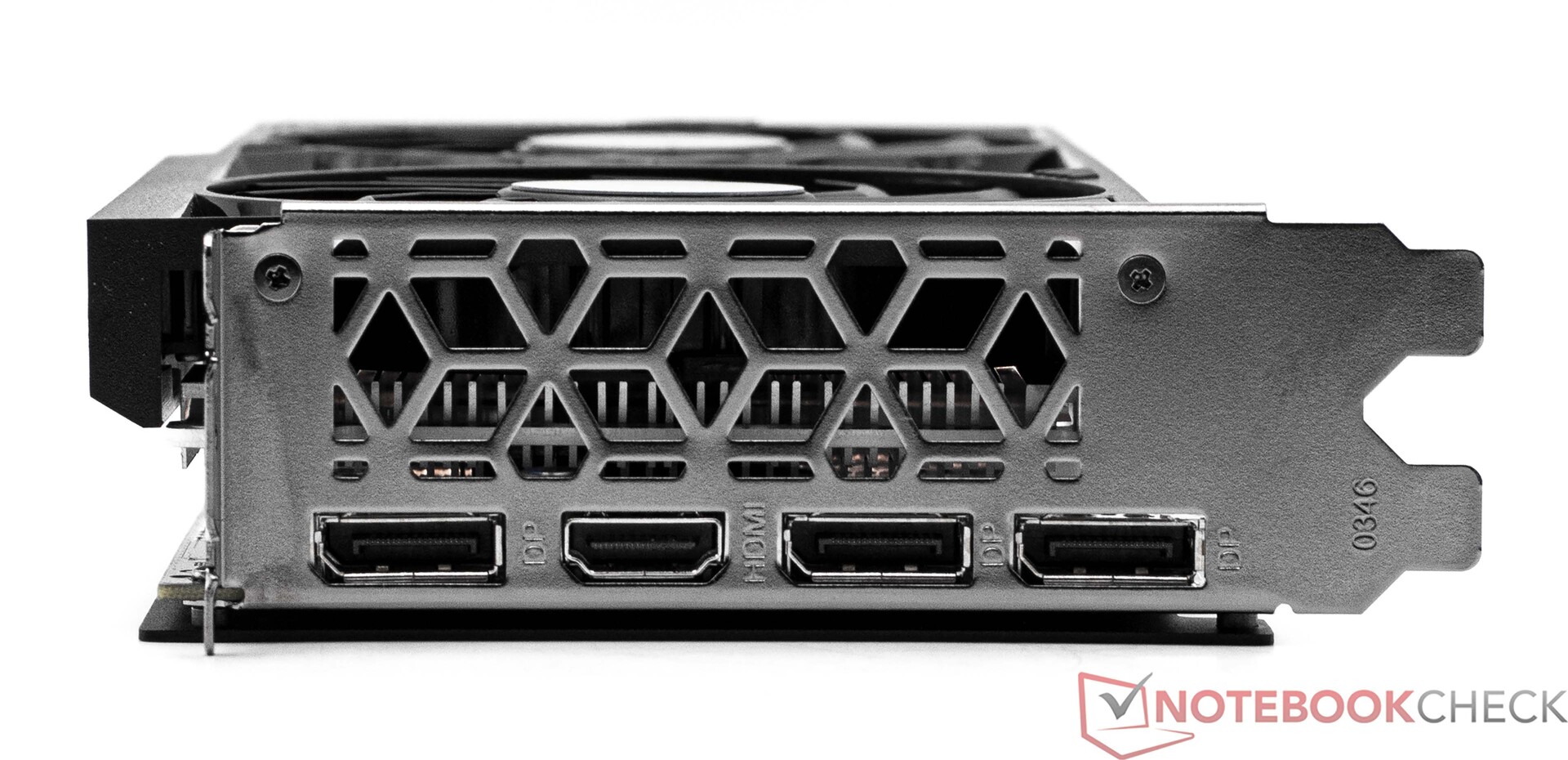

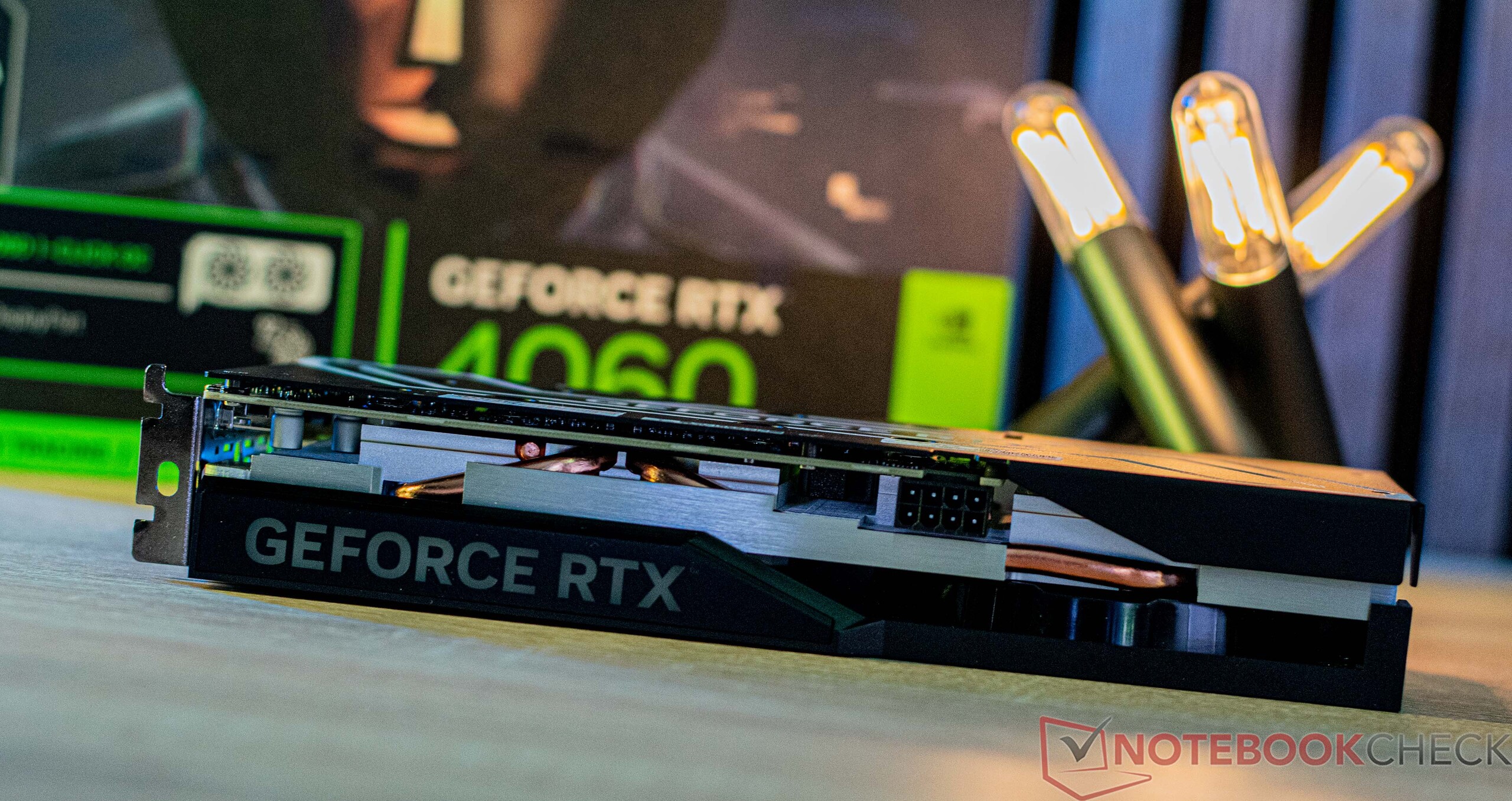

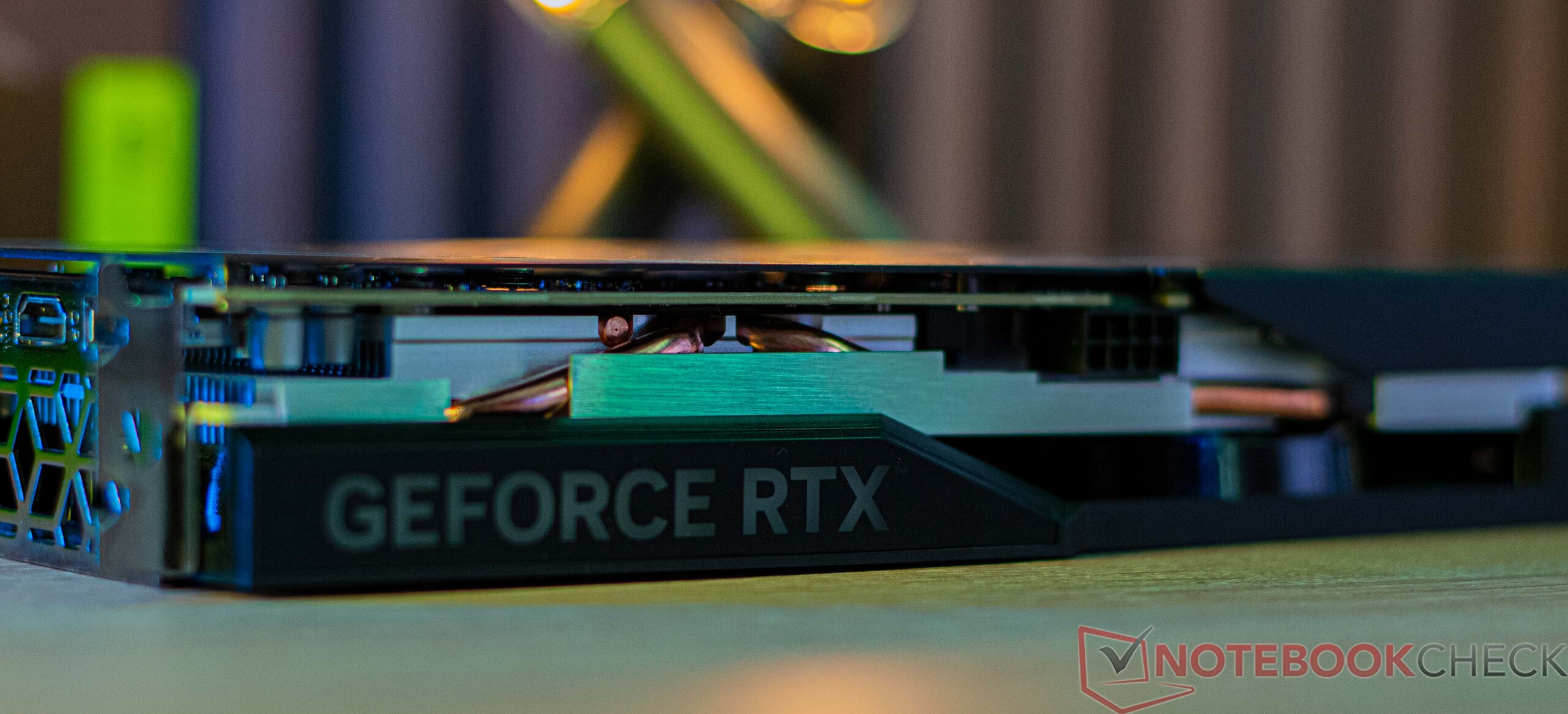

外部连接遵循常规标准。没有 DisplayPort 2.1 仍可使用，显示器可通过 HDMI 2.1a (1x) 和/或 DisplayPort 1.4a (3x) 连接。
KFA2GeForce RTX 4060 1-Click OC 2X 详解
GeForce 图形卡规格对比
| 设备 | RTX 4090 | RTX 4080 | RTX 4070 Ti | RTX 4070 | RTX 4060 Ti | RTX 4060 | RTX 3060 Ti | RTX 3060 |
| 芯片 | AD102 | AD103 | AD104 | AD104 | AD106 | AD107 | GA104 | GA104 |
| FinFET 工艺 | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | 8 纳米 | 8 纳米 |
| CUDA 内核 | 16,384 | 9,728 | 7,680 | 5,888 | 4,352 | 3,072 | 4,864 | 3,584 |
| 纹理单元 | 512 | 304 | 240 | 184 | 136 | 96 | 152 | 112 |
| 张量核 | 512 第 4 代 | 304 第 4 代 | 240 第 4 代 | 184 第 4 代 | 136 第 4 代 | 96第 4 代 | 152 第 3 代 | 112 第 3 代 |
| RT 内核 | 128 | 76 | 60 | 46 | 34 | 24 | 38 | 28 |
| GPU 基本时钟 | 2,235 MHz | 2,205 MHz | 2,310 MHz | 1,920 MHz | 2,310 MHz | 1,830MHz | 1,410 MHz | 1,320 MHz |
| GPU 提升时钟 | 2,520 MHz | 2,505 MHz | 2,610 MHz | 2,475 MHz | 2,535 MHz | 2,460MHz | 1,665 MHz | 1,777 MHz |
| 内存总线 | 384 位 | 256 位 | 192 位 | 192 位 | 128 位 | 128位 | 256 位 | 192 位 |
| 内存带宽 | 1,008 GB/s | 716.8 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s | 272GB/s | 448 GB/s | 360 GB/s |
| 显存 | 24 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6 | 12 GB GDDR6X | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 12 GB GDDR6 |
| 功耗 | 450 W | 320 W | 285 W | 215 W | 160 W | 115W | 200 W | 170 W |

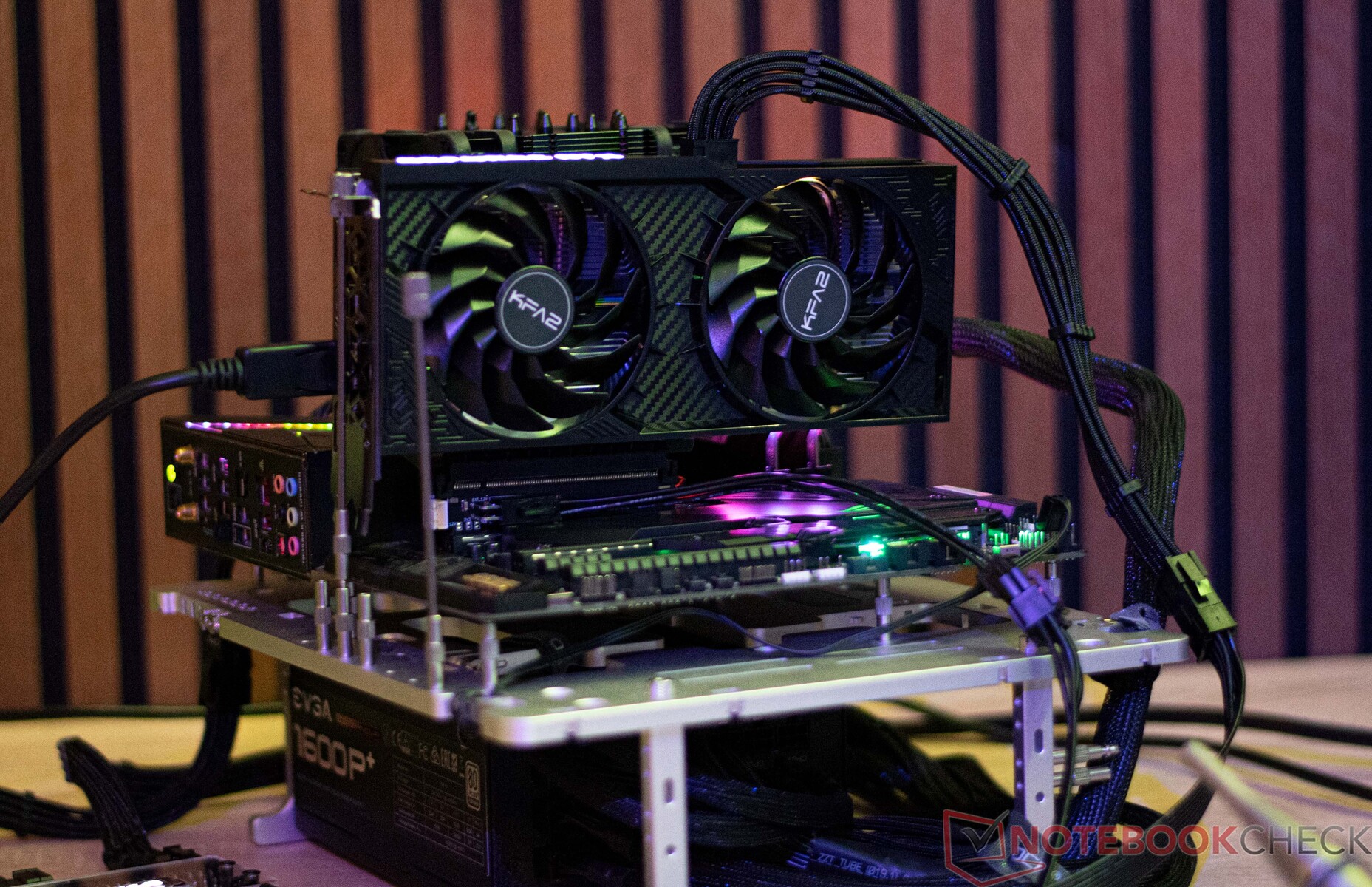

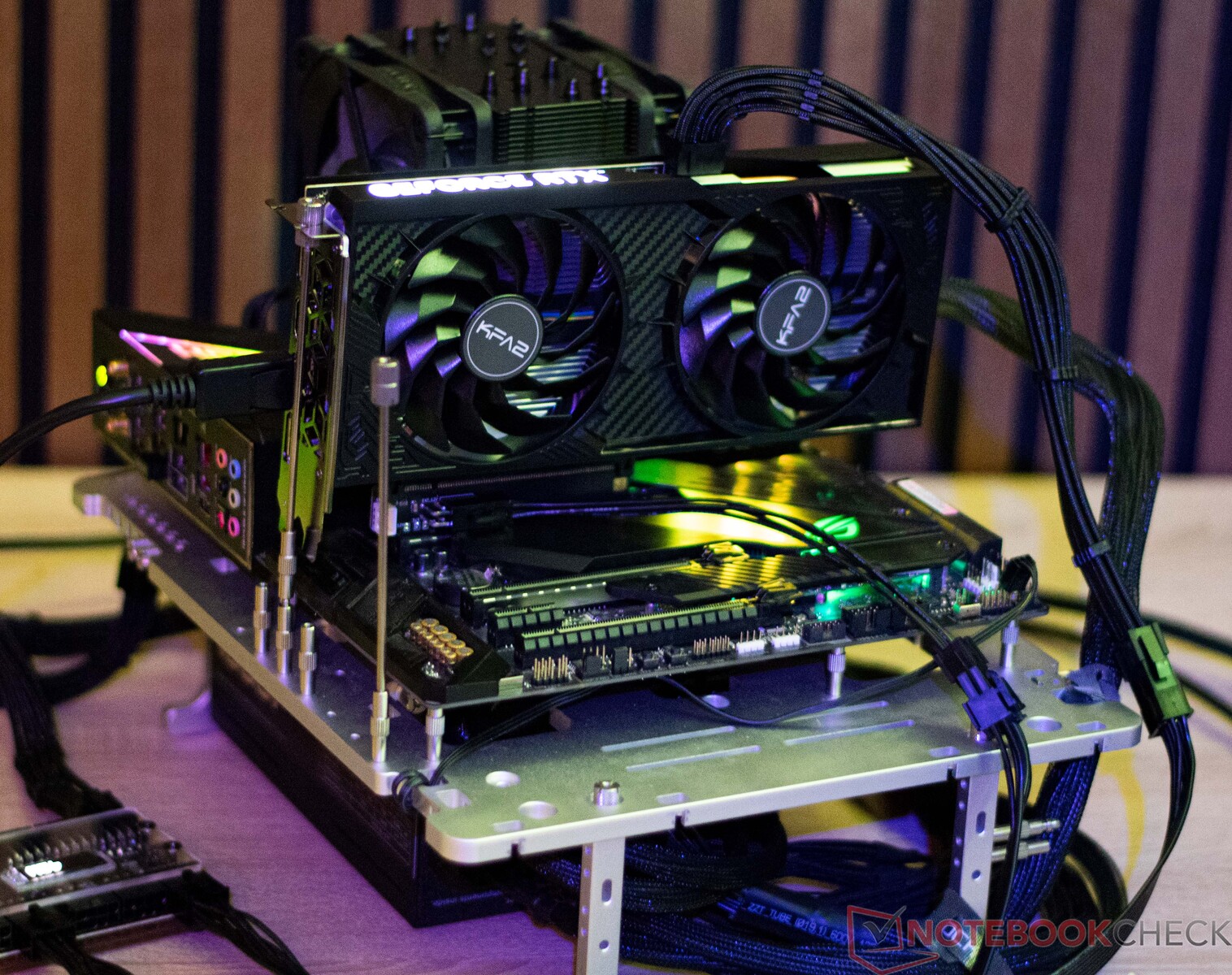

Information on our Test System
KFA2 GeForce RTX 4060 1-Click-OC 2X
Processor
AMD Ryzen 9 7950X 16 x 4.5 - 5.7 GHz, 230 W PL2 / Short Burst, 170 W PL1 / Sustained, Raphael (Zen 4)
Graphics adapter
NVIDIA GeForce RTX 4060 - 8 GB VRAM, Core: 2475 MHz, RAM: 2125 MHz ( including 115 W Dynamic Boost), GDDR6, Nvidia
Memory
32 GB
, DDR5-6000 (EXPO)
Display
32.00 inch 16:9, 3840 x 2160 pixel 138 PPI, Innolux (M315DCA-K7B), 144 Hz
Storage
Corsair MP600, 2048 GB
Weight
675 g, Power Supply: 0 g
Price
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
KFA2GeForce RTX 4060 1-Click OC 的详细信息
Nvidia 没有基于GeForce RTX 4060 的 Founders Edition，因此该显卡只能从华硕、微星、技嘉或 KFA2 等其他供应商处购买。我们的测试设备是 OC 机型，这也意味着时钟速度略高。与此同时，我们只看到了稍高的 Boost 速度，而这一速度几乎总能被超越。通过 "Extreme Tuner Plus "调校工具还可以激活 OC 配置文件，为显卡提供额外的 15 Hz（2,490 MHz Boost 速度）。不过，这在实际使用中并不会带来明显的性能提升。

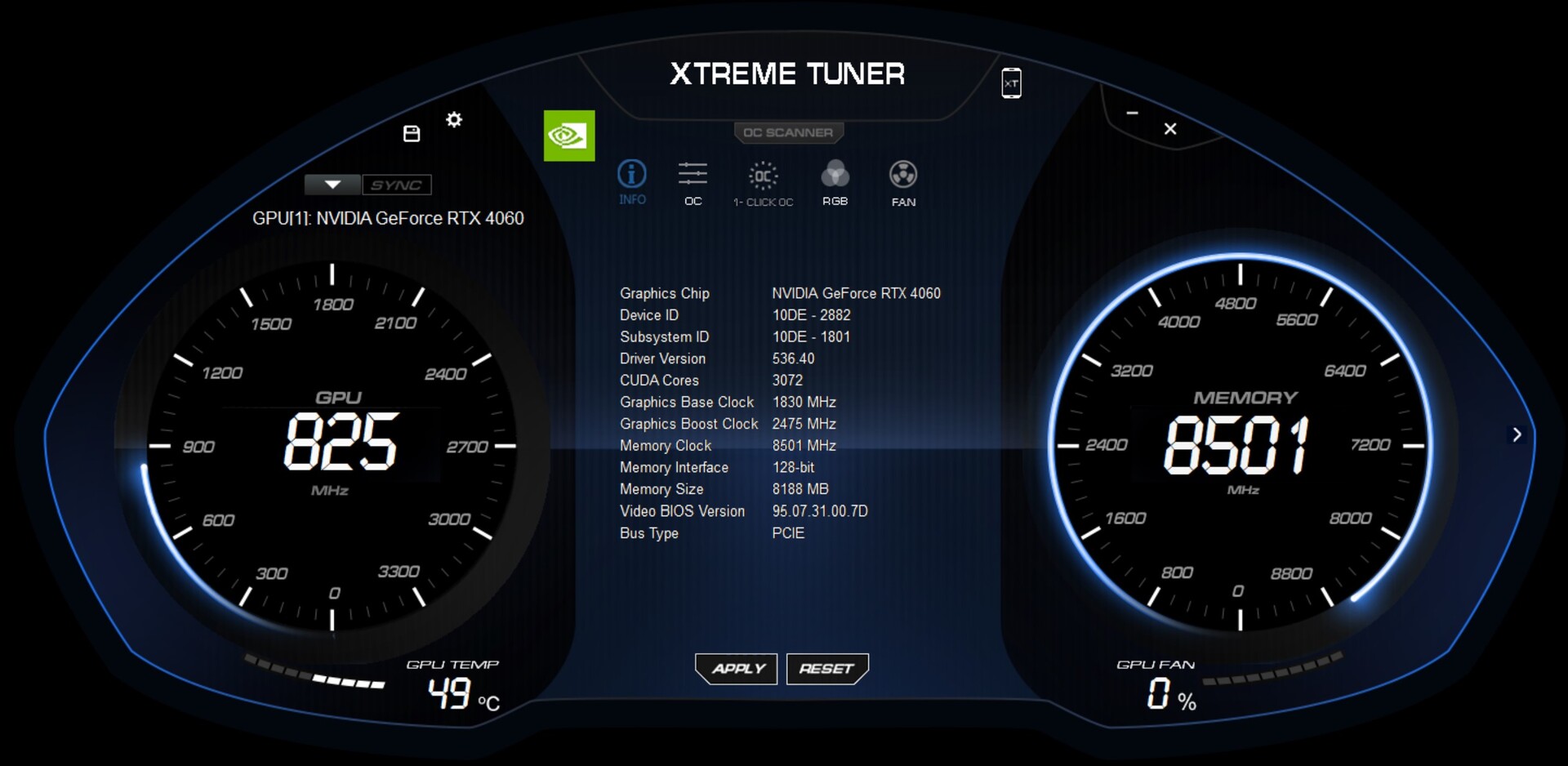

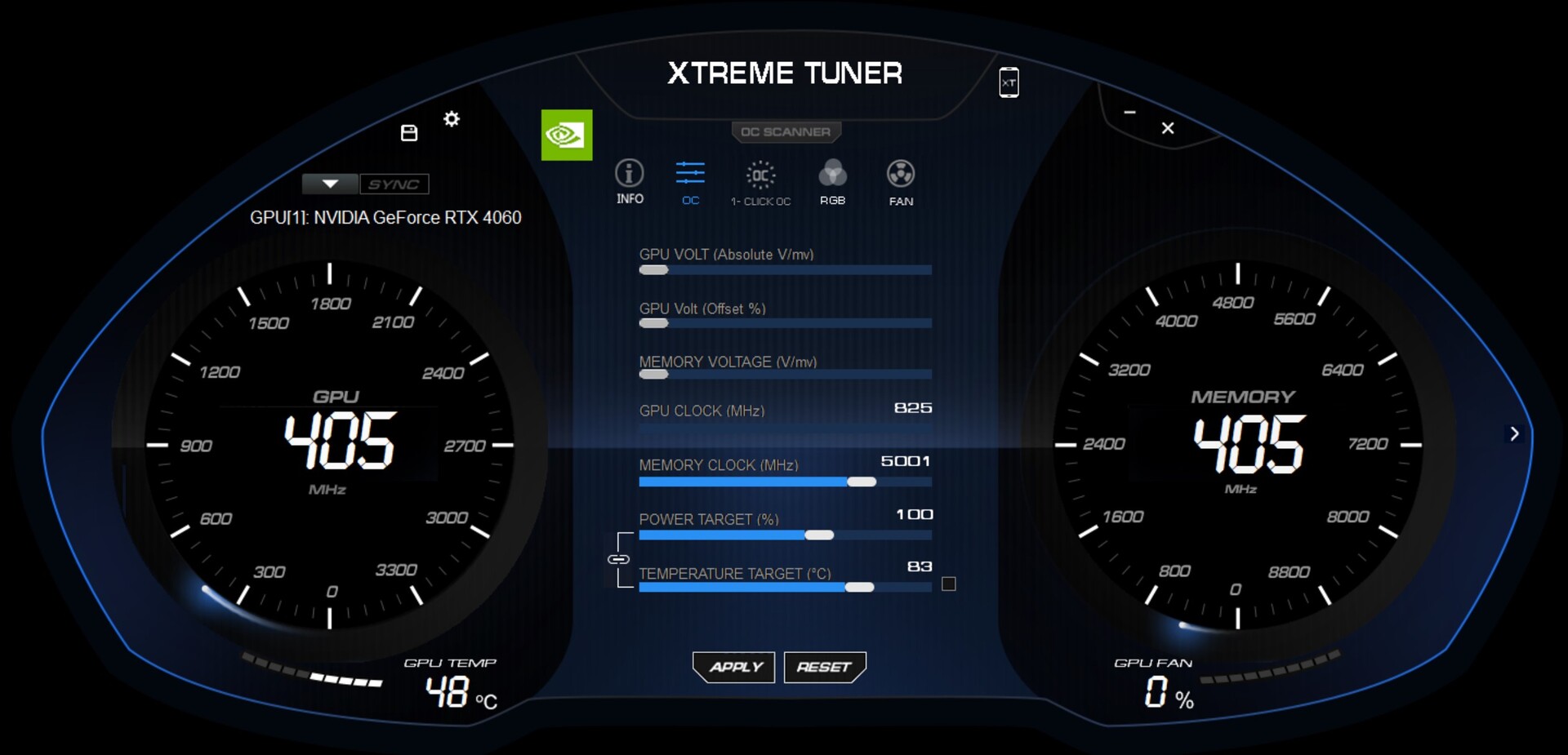

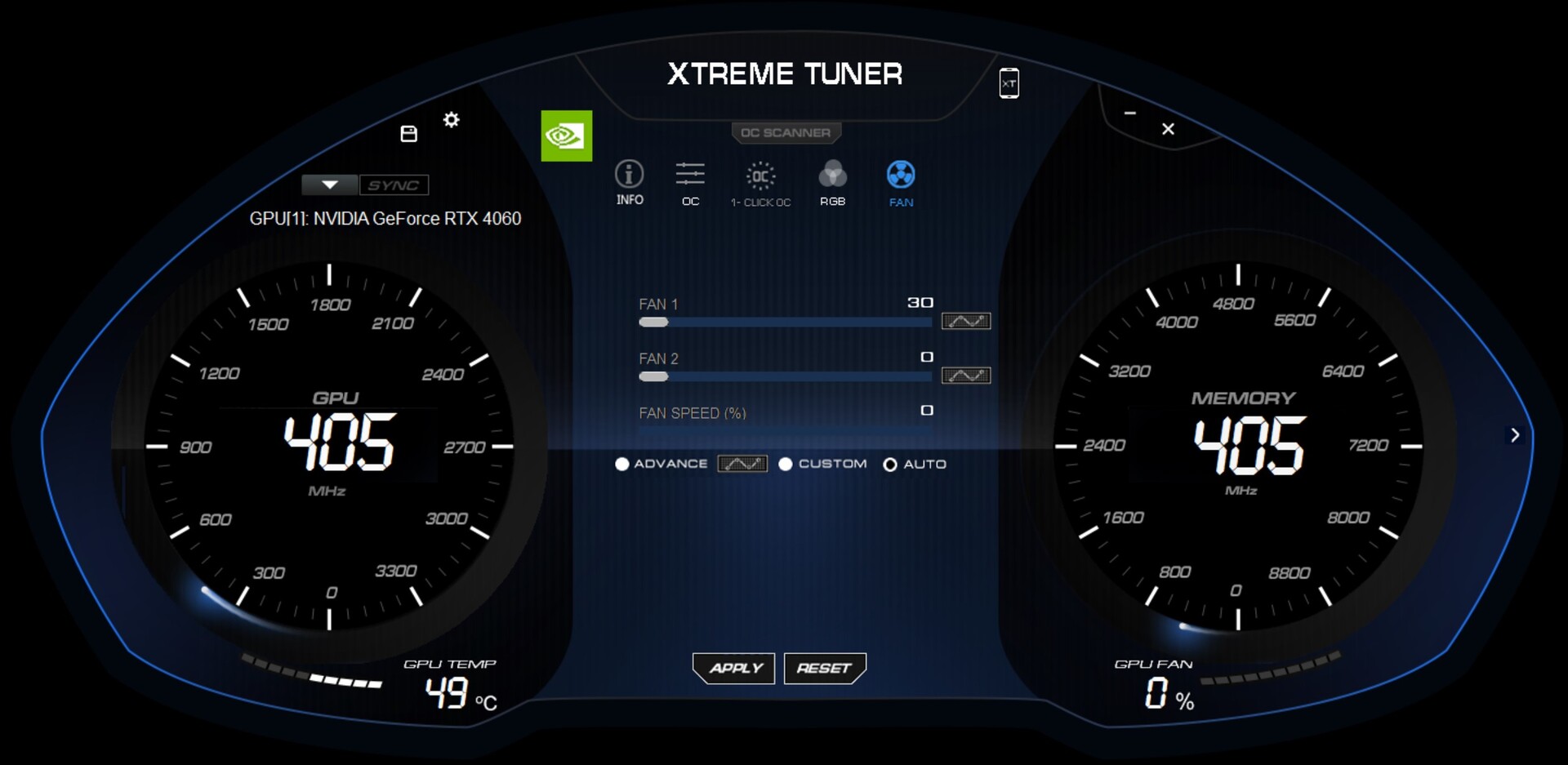

Xtreme Tuner Plus
按照 KFA2 的惯例，你可以使用内部的 Xtreme Tuner 工具了解显卡的一些信息。在 "照明 "部分，KFA2GeForce RTX 4060 1-Click OC 2X 并不提供照明功能，用户只能通过显卡上的滑动按钮直接关闭照明功能。
合成基准
在合成基准测试中，我们看到 KFA2GeForce RTX 4060 1-Click OC 2X 与 Nvidia RTX 2070 超级显卡的性能相当。NvidiaGeForce RTX 2070 Super.与 AMD 相比，我们的测试设备能够与 AMD Radeon RX 6650 XT.其性能还不足以击败 NvidiaGeForce RTX 3060 Ti在这方面，我们的测试设备略逊一筹，旧型号的速度要快 7%。
另一方面，下一个更快的 Ada Lovelace 代表机型只比它快约 15%。以 KFA2GeForce RTX 4060 1-Click OC 2X 在此展示的性能，要与价格更低廉的 AMD 型号竞争并非易事。如果您满足于AMD Radeon RX 6650 XT ，您可以节省近 50 欧元（约合 55 美元）
。那些不想错过GeForce 独家功能的用户则需要支付更高的价格。目前，NvidiaGeForce RTX 3060 Ti 的售价约为 300 欧元（约合 332 美元），但不提供 DLSS 3.0。此外，与GeForce RTX 4060 相比，GeForce RTX 3060 Ti 对电源的压力更大，这可能是决定购买的标准之一。作为升级选项，KFA2GeForce RTX 4060 1-Click OC 2X 只有在您目前仍使用NvidiaGeForce GTX 1060 或NvidiaGeForce GTX 1660 Super 的情况下才值得购买。
Performance Rating | 3DMark | Unigine Superposition | Unigine Heaven 4.0 | Unigine Valley 1.0 | 3DMark 11
| Performance Rating - Percent | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| ASUS ROG Strix GeForce GTX 1060 | |
LuxMark v2.0 64Bit | ComputeMark v2.1 | Photoshop PugetBench | Premiere Pro PugetBench | Affinity Photo 2 | Geekbench 5.0 | Geekbench 6.0 | V-Ray 5 Benchmark
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia Titan RTX | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| Geekbench 5.0 - OpenCL Score 5.0 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Geekbench 6.0 | |
| GPU Vulkan 6.0 | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPU OpenCL 6.0 | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| V-Ray 5 Benchmark - GPU RTX | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
专业应用
那些正在寻找用于生产任务的显卡的用户应该寻找能满足计划用途的特定型号。作为代表，我们将两款 Nvidia RTX A6000和英伟达泰坦 RTX两款显卡。AMD 的两款 Radeon RX 7900 XT和 Radeon RX 7900 XTX高端型号。
由于 3D 性能较低且 VRAM 容量相对较小，我们认为 KFA2GeForce RTX 4060 1-Click OC 2X 不适合专业用途。这不是问题，因为这不是这款显卡的用途。您可以将GeForce RTX 4060 用于家庭中的一些小型项目。
| NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 5950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 3080 12 GB R9 5900X | NVIDIA GeForce GTX 1660 (Desktop) R9 7950X | NVIDIA GeForce GTX 1660 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA Titan RTX R9 7950X | NVIDIA RTX A6000 TR Pro 3975WX | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 17% | -8% | 26% | 48% | 79% | 108% | 124% | 470% | 525% | 2% | -40% | -35% | -17% | -3% | 296% | 347% | 20% | |
| 1900x1060 3ds Max (3dsmax-05) | 251 | 287 14% | 252 0% | 330 31% | 382 52% | 436 74% | 502 100% | 571 127% | 502 100% | 553 120% | 334 33% | 153 -39% | 167 -33% | 220 -12% | 247 -2% | 315 25% | 336 34% | 192.3 ? -23% |
| 1900x1060 Catia (catia-04) | 113 | 128 13% | 109 -4% | 136 20% | 161 42% | 192 70% | 221 96% | 257 127% | 481 326% | 536 374% | 79.1 -30% | 65.1 -42% | 68 -40% | 84.5 -25% | 114 1% | 332 194% | 229 103% | 105.6 ? -7% |
| 1900x1060 Creo (creo-01) | 60.6 | 75.4 24% | 57.8 -5% | 72.6 20% | 89.1 47% | 99.4 64% | 110 82% | 115 90% | 176 190% | 187 209% | 74.4 23% | 46.1 -24% | 45.5 -25% | 58.8 -3% | 65.7 8% | 197 225% | 136 124% | 64.5 ? 6% |
| 1900x1060 Energy (energy-01) | 15.9 | 23 45% | 13.9 -13% | 18 13% | 31.7 99% | 48 202% | 58.8 270% | 54.7 244% | 72.4 355% | 85.2 436% | 17.2 8% | 6.31 -60% | 8.38 -47% | 11.6 -27% | 12.4 -22% | 28.8 81% | 39.8 150% | 15.2 ? -4% |
| 1900x1060 Maya (maya-04) | 233 | 254 9% | 197 -15% | 279 20% | 284 22% | 287 23% | 309 33% | 317 36% | 347 49% | 367 58% | 139 -40% | 131 -44% | 149 -36% | 200 -14% | 225 -3% | 260 12% | 144 -38% | 109.5 ? -53% |
| 1900x1060 Medical (medical-01) | 82.4 | 110 33% | 59.4 -28% | 106 29% | 132 60% | 157 91% | 171 108% | 119 44% | 288 250% | 347 321% | 40.3 -51% | 36 -56% | 38.2 -54% | 49.5 -40% | 55.9 -32% | 101 23% | 159 93% | 53.2 ? -35% |
| 1900x1060 Showcase (showcase-01) | 109 | 120 10% | 144 32% | 199 83% | 190 74% | 244 124% | 333 206% | 457 319% | 278 155% | 322 195% | 226 107% | 65 -40% | 85.2 -22% | 121 11% | 135 24% | 197 81% | 255 134% | 95.8 ? -12% |
| 1900x1060 Siemens NX (snx-02) | 14.2 | 14.7 4% | 12.3 -13% | 14.7 4% | 16.4 15% | 19 34% | 21.6 52% | 27.1 91% | 373 2527% | 400 2717% | 12 -15% | 9.41 -34% | 9.38 -34% | 10.1 -29% | 13.9 -2% | 283 1893% | 351 2372% | 58.6 ? 313% |
| 1900x1060 Solidworks (sw-03) | 91.2 | 95.7 5% | 71.1 -22% | 101 11% | 109 20% | 118 29% | 113 24% | 126 38% | 342 275% | 360 295% | 73.8 -19% | 69.3 -24% | 70.7 -22% | 79.7 -13% | 95.1 4% | 207 127% | 225 147% | 86.2 ? -5% |
| SPECviewperf 13 | 17% | -4% | 22% | 48% | 77% | 111% | 154% | 451% | 509% | 31% | -42% | -38% | -17% | -2% | 277% | 360% | 41% | |
| 3ds Max (3dsmax-06) | 252 | 289 15% | 252 0% | 330 31% | 381 51% | 433 72% | 497 97% | 563 123% | 506 101% | 564 124% | 334 33% | 153 -39% | 166 -34% | 218 -13% | 247 -2% | 321 27% | 338 34% | 184.9 ? -27% |
| Catia (catia-05) | 163 | 188 15% | 161 -1% | 201 23% | 241 48% | 290 78% | 340 109% | 402 147% | 728 347% | 825 406% | 206 26% | 90.3 -45% | 94.9 -42% | 119 -27% | 163 0% | 534 228% | 371 128% | 198.1 ? 22% |
| Creo (creo-02) | 230 | 299 30% | 225 -2% | 286 24% | 375 63% | 455 98% | 529 130% | 552 140% | 567 147% | 613 167% | 324 41% | 138 -40% | 141 -39% | 203 -12% | 240 4% | 386 68% | 366 59% | 203 ? -12% |
| Energy (energy-02) | 34.6 | 45.7 32% | 25.6 -26% | 30 -13% | 54.2 57% | 72.8 110% | 92.6 168% | 126 264% | 147 325% | 187 440% | 37.6 9% | 9.93 -71% | 11.3 -67% | 21.9 -37% | 23.8 -31% | 51.8 50% | 132 282% | 35.8 ? 3% |
| Maya (maya-05) | 343 | 396 15% | 344 0% | 437 27% | 510 49% | 591 72% | 678 98% | 715 108% | 670 95% | 735 114% | 460 34% | 194 -43% | 214 -38% | 291 -15% | 344 0% | 499 45% | 415 21% | 263 ? -23% |
| Medical (medical-02) | 76.5 | 92.9 21% | 72.2 -6% | 83.6 9% | 112 46% | 132 73% | 150 96% | 186 143% | 237 210% | 263 244% | 102 33% | 40.5 -47% | 40.7 -47% | 54.2 -29% | 63.7 -17% | 92 20% | 184 141% | 77.3 ? 1% |
| Showcase (showcase-02) | 108 | 120 11% | 145 34% | 198 83% | 191 77% | 244 126% | 334 209% | 455 321% | 279 158% | 323 199% | 228 111% | 64.9 -40% | 85.3 -21% | 122 13% | 135 25% | 198 83% | 255 136% | 117.9 ? 9% |
| Siemens NX (snx-03) | 25.6 | 26.4 3% | 22.3 -13% | 26.4 3% | 29.5 15% | 34.1 33% | 39 52% | 49.1 92% | 675 2537% | 725 2732% | 26.3 3% | 16.9 -34% | 16.9 -34% | 18.2 -29% | 25 -2% | 512 1900% | 638 2392% | 128.6 ? 402% |
| Solidworks (sw-04) | 127 | 137 8% | 99.6 -22% | 146 15% | 157 24% | 168 32% | 179 41% | 186 46% | 307 142% | 323 154% | 108 -15% | 102 -20% | 104 -18% | 119 -6% | 136 7% | 218 72% | 192 51% | 120.6 ? -5% |
| SPECviewperf 2020 | 17% | -7% | 29% | 54% | 85% | 119% | 186% | 483% | 552% | 39% | -43% | -40% | -18% | -7% | 338% | 425% | 69% | |
| 3840x2160 Siemens NX (snx-04) | 19.5 | 20.3 4% | 18.2 -7% | 22.2 14% | 23.9 23% | 27.5 41% | 31.9 64% | 41.3 112% | 476 2341% | 514 2536% | 21.8 12% | 12.7 -35% | 12.7 -35% | 14 -28% | 19.8 2% | 375 1823% | 481 2367% | 87.6 ? 349% |
| 3840x2160 Medical (medical-03) | 13.7 | 17.7 29% | 11.4 -17% | 16.3 19% | 22.2 62% | 26.9 96% | 32.2 135% | 45.9 235% | 53.9 293% | 62.3 355% | 18.8 37% | 7.48 -45% | 7.41 -46% | 10.3 -25% | 12 -12% | 16.5 20% | 37.9 177% | 20 ? 46% |
| 3840x2160 Maya (maya-06) | 196 | 226 15% | 215 10% | 290 48% | 305 56% | 372 90% | 447 128% | 498 154% | 401 105% | 481 145% | 314 60% | 106 -46% | 118 -40% | 162 -17% | 185 -6% | 274 40% | 329 68% | 202 ? 3% |
| 3840x2160 Energy (energy-03) | 33.2 | 44.9 35% | 14.5 -56% | 39.1 18% | 57.6 73% | 75.7 128% | 90.4 172% | 141 325% | 99.6 200% | 129 289% | 37.2 12% | 12.5 -62% | 13.7 -59% | 22.9 -31% | 17.8 -46% | 93.9 183% | 63 90% | 48.6 ? 46% |
| 3840x2160 Creo (creo-03) | 85.9 | 96.1 12% | 76.6 -11% | 99.3 16% | 112 30% | 121 41% | 128 49% | 133 55% | 173 101% | 187 118% | 90 5% | 55.2 -36% | 57.7 -33% | 77.2 -10% | 85.8 0% | 135 57% | 111 29% | 75.3 ? -12% |
| 3840x2160 CATIA (catia-06) | 34 | 39.2 15% | 37.9 11% | 48 41% | 51.6 52% | 61.2 80% | 75.5 122% | 95.3 180% | 113 232% | 127 274% | 53.7 58% | 19.2 -44% | 21 -38% | 30.5 -10% | 36.7 8% | 90.9 167% | 82.4 142% | 45.8 ? 35% |
| 3840x2160 3ds Max (3dsmax-07) | 67.4 | 74.5 11% | 80.1 19% | 99 47% | 122 81% | 147 118% | 179 166% | 228 238% | 143 112% | 167 148% | 128 90% | 45.5 -32% | 48.3 -28% | 63.1 -6% | 69.7 3% | 118 75% | 137 103% | 77.6 ? 15% |
| Total Average (Program / Settings) | 17% /
17% | -6% /
-6% | 26% /
25% | 50% /
50% | 80% /
80% | 113% /
112% | 155% /
152% | 468% /
467% | 529% /
527% | 24% /
23% | -42% /
-42% | -38% /
-37% | -17% /
-17% | -4% /
-4% | 304% /
301% | 377% /
374% | 43% /
41% |
游戏基准
在游戏测试中，KFA2GeForce RTX 4060 1-Click OC 2X 的表现与之前的合成测试类似。与 NvidiaGeForce RTX 2070 Super和 AMD Radeon RX 6650 XT我们发现我们的测试设备位于测试区域的中间。 NvidiaGeForce RTX 3060 Ti微星GeForce RTX 4060 Ti 明显领先 30%。
从主观角度来看，我们发现 KFA2GeForce RTX 4060 1-Click OC 2X 完全处于 1080p 区域。与往常一样，细节取决于各自的游戏。有时，建议将滑块控制在中高细节级别。如果 VRAM 供不应求，帧率会明显下降。GeForce RTX 4060 Ti 已经在这个问题上挣扎过，现在情况更加严重。基本上，我们并不认为GeForce RTX 4060 的 8 GB VRAM 是个问题，但你必须清楚这样的显卡能做什么。我们并不认为 KFA2GeForce RTX 4060 1-Click OC 2X 是一项面向未来的投资。不过，那些预算不高、仍在使用帕斯卡一代GeForce 的用户将在不消耗更多电能的情况下获得不错的性能升级。
The Witcher 3 | Metro Exodus | Far Cry 5 | Far Cry 6 | F1 22 | Cyberpunk 2077 1.6 | A Plague Tale Requiem | Spider-Man Miles Morales | Borderlands 3 | God of War | GTA V | The Quarry | Tiny Tina's Wonderlands | GRID Legends | Final Fantasy XV Benchmark | X-Plane 11.11
| F1 22 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (923662) | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| PNY GeForce GTX 1660 (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| AMD Radeon RX 7900 XT (939134) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| PNY GeForce GTX 1660 (928484) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| A Plague Tale Requiem | |
| 2560x1440 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| 1920x1080 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| Spider-Man Miles Morales | |
| 2560x1440 Very High Preset AA:T | |
| KFA2 GeForce RTX 4080 SG | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| 1920x1080 Very High Preset AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| GRID Legends | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| AMD Radeon RX 7900 XT (643827) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| Nvidia Titan RTX (591708) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| AMD Radeon RX 7900 XT (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| Nvidia Titan RTX (591708) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| Final Fantasy XV Benchmark | |
| 1920x1080 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| KFA2 GeForce RTX 3080 SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| 2560x1440 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| KFA2 GeForce RTX 3080 SG (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| low | med. | high | ultra | QHD | 4K DLSS | 4K | |
|---|---|---|---|---|---|---|---|
| GTA V (2015) | 187.9 | 187.7 | 187.2 | 127.8 | 90.3 | 88.9 | |
| The Witcher 3 (2015) | 593.9 | 385.4 | 214.9 | 111.6 | 67.5 | ||
| Dota 2 Reborn (2015) | 307.5 | 264.1 | 250.7 | 228 | 144.8 | ||
| Final Fantasy XV Benchmark (2018) | 234 | 156.5 | 109.3 | 79.3 | 43 | ||
| X-Plane 11.11 (2018) | 211 | 194.5 | 148.6 | 125.5 | |||
| Far Cry 5 (2018) | 244 | 185 | 172 | 162 | 110 | 55 | |
| Strange Brigade (2018) | 686 | 272 | 217 | 189.8 | 129.1 | 69.8 | |
| Shadow of the Tomb Raider (2018) | 326 | 183.3 | 163.6 | 148.1 | 96 | 46.4 | |
| Far Cry New Dawn (2019) | 201 | 165 | 156 | 139 | 111 | 58 | |
| Metro Exodus (2019) | 267 | 138.8 | 102.6 | 80.2 | 62.9 | 38.3 | |
| Control (2019) | 236 | 130.5 | 92.6 | 58.4 | 34.1 | 28.4 | |
| Borderlands 3 (2019) | 242 | 186.7 | 124.8 | 93.9 | 64.8 | 33.8 | |
| Far Cry 6 (2021) | 209 | 162.4 | 139.5 | 122.1 | 85.4 | 40.9 | |
| Guardians of the Galaxy (2021) | 225 | 162 | 162 | 154 | 104 | 55 | |
| God of War (2022) | 147.8 | 122.6 | 100.4 | 70 | 57.2 | 37.3 | |
| GRID Legends (2022) | 258 | 211 | 180.4 | 143.7 | 112.7 | 67.1 | |
| Cyberpunk 2077 1.6 (2022) | 139.3 | 107.4 | 90.2 | 79.9 | 47.7 | 20.4 | |
| Ghostwire Tokyo (2022) | 188.3 | 177.6 | 177.2 | 175.5 | 101.5 | 46.1 | |
| Tiny Tina's Wonderlands (2022) | 247 | 190.5 | 121.5 | 92.4 | 62.6 | 26.6 | |
| F1 22 (2022) | 313 | 215 | 285 | 66.9 | 42.8 | 20.7 | |
| The Quarry (2022) | 174 | 126 | 103 | 80.5 | 54.7 | 17.5 | |
| A Plague Tale Requiem (2022) | 121.7 | 91.2 | 66.9 | 50.8 | 36 | 39.5 | 19.7 |
| Uncharted Legacy of Thieves Collection (2022) | 98.5 | 95.1 | 88.6 | 84.9 | 61.5 | 26.5 | |
| Spider-Man Miles Morales (2022) | 141.9 | 130.4 | 119.6 | 111.7 | 80.1 | 43.9 | |
| The Callisto Protocol (2022) | 162.3 | 161.7 | 160.1 | 189.3 | 120.3 | 67 | |
| High On Life (2023) | 287 | 170.6 | 141.3 | 109 | 65.1 | 26.4 | |
| The Witcher 3 v4.00 (2023) | 225 | 177.6 | 149.1 | 117.4 | 79.7 | 44.2 | |
| Dead Space Remake (2023) | 94.6 | 91.4 | 77.8 | 77.2 | 49.5 | ||
| Hogwarts Legacy (2023) | 148.1 | 111.8 | 85.1 | 66.5 | 46.3 | 24.9 | |
| Returnal (2023) | 111 | 106 | 97 | 82 | 59 | 32 | |
| Atomic Heart (2023) | 213 | 159.3 | 93.5 | 70.9 | 53.1 | 30.1 | |
| Company of Heroes 3 (2023) | 238.8 | 199.6 | 145.8 | 145.1 | 102.9 | 56.4 | |
| Sons of the Forest (2023) | 107.1 | 92.3 | 88.4 | 86.8 | 65.5 | 38.2 | |
| Resident Evil 4 Remake (2023) | 154 | 109.1 | 99.6 | 74.2 | 53.2 | 28.9 | |
| The Last of Us (2023) | 117.3 | 95.4 | 81.3 | 68.2 | 39.9 | 30.8 | 18.6 |
| Dead Island 2 (2023) | 304 | 258 | 184.2 | 138 | 89.7 | 43.5 | |
| Star Wars Jedi Survivor (2023) | 85.1 | 74 | 69.3 | 65.4 | 40.8 | 19.3 | |
| Diablo 4 (2023) | 278 | 237 | 206 | 174 | 112.7 | 73.3 | 55.4 |
| F1 23 (2023) | 319 | 285 | 195.2 | 60.2 | 38 | 31.8 | 16.5 |
光线跟踪、DLSS 和 FG（帧生成）
幸运的是，Nvidia 并没有从 KFA2GeForce RTX 4060 1-Click OC 2X 中移除 RTX 4000 显卡的专属功能。不过，你仍然应该明白，激活光线追踪会导致帧率大幅下降。如果游戏提供该选项，我们建议将光线追踪和 DLSS 结合使用。目前，支持 DLSS 3 的游戏数量很少。您可以在此页面上找到相关列表。.
我们认为，购买 NvidiaGeForce RTX 4060 的决定不应基于光线追踪性能。那些追求游戏乐趣而不做任何妥协的用户必须为此付出更高的价格。
Spider-Man Miles Morales | Metro Exodus | Far Cry 6 | Cyberpunk 2077 1.6 | Guardians of the Galaxy | A Plague Tale Requiem | Control | The Last of Us | Returnal | Hogwarts Legacy | Diablo 4
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Cyberpunk 2077 1.6 | |
| 3840x2160 Ray Tracing Ultra Preset (DLSS off) | |
| Palit GeForce RTX 4090 GameRock OC (1.6) | |
| KFA2 GeForce RTX 4080 SG (1.61) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX (1.61) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT (1.61) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| Palit GeForce RTX 4090 GameRock OC (1.6) | |
| KFA2 GeForce RTX 4080 SG (1.61) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX (1.61) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT (1.61) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super (1.6) | |
| Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| A Plague Tale Requiem | |
| 3840x2160 Ultra DLSS Quality + Frame Generation | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| 3840x2160 Ultra DLSS Quality | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Control | |
| 1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 3840x2160 High Quality Preset & High Ray Tracing Preset (DX12) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| 3840x2160 High Quality, High Ray Tracing, DLSS | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| The Last of Us - 3840x2160 Ultra Preset + Quality DLSS | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Returnal | |
| 1920x1080 Epic Preset + Epic Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| 3840x2160 Epic Preset + Epic Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Hogwarts Legacy | |
| 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| 3840x2160 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Diablo 4 - 3840x2160 Ultra Preset + DLSS Quality + FG | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
KFA2GeForce RTX 4060 1-Click OC 2X 的排放量
噪音水平
为了测量 KFA2GeForce RTX 4060 1-Click OC 2X 产生的噪音水平，我们将显卡插入老式 AM4 系统的开放式框架中。在测量过程中，CPU 和电源的风扇被关闭，因此我们只能测量显卡的体积。
风扇在 2D 运行时仍处于关闭状态，同时也是静音运行。在低负载情况下，我们注意到噪音水平较低，为 30.3 分贝（A）。然而，在压力测试中，两个 92 毫米（约 3.6 英寸）的风扇转速明显加快。KFA2GeForce RTX 4060 1-Click OC 2X 的噪音为 43.5 dB(A)，清晰可闻。我们还注意到一些轻微的线圈啸叫，但并不令人讨厌。
Noise Level
| Idle |
| 25.9 / 25.9 / 25.9 dB(A) |
| Load |
| 30.3 / 43.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 25.8 dB(A) | ||
温度

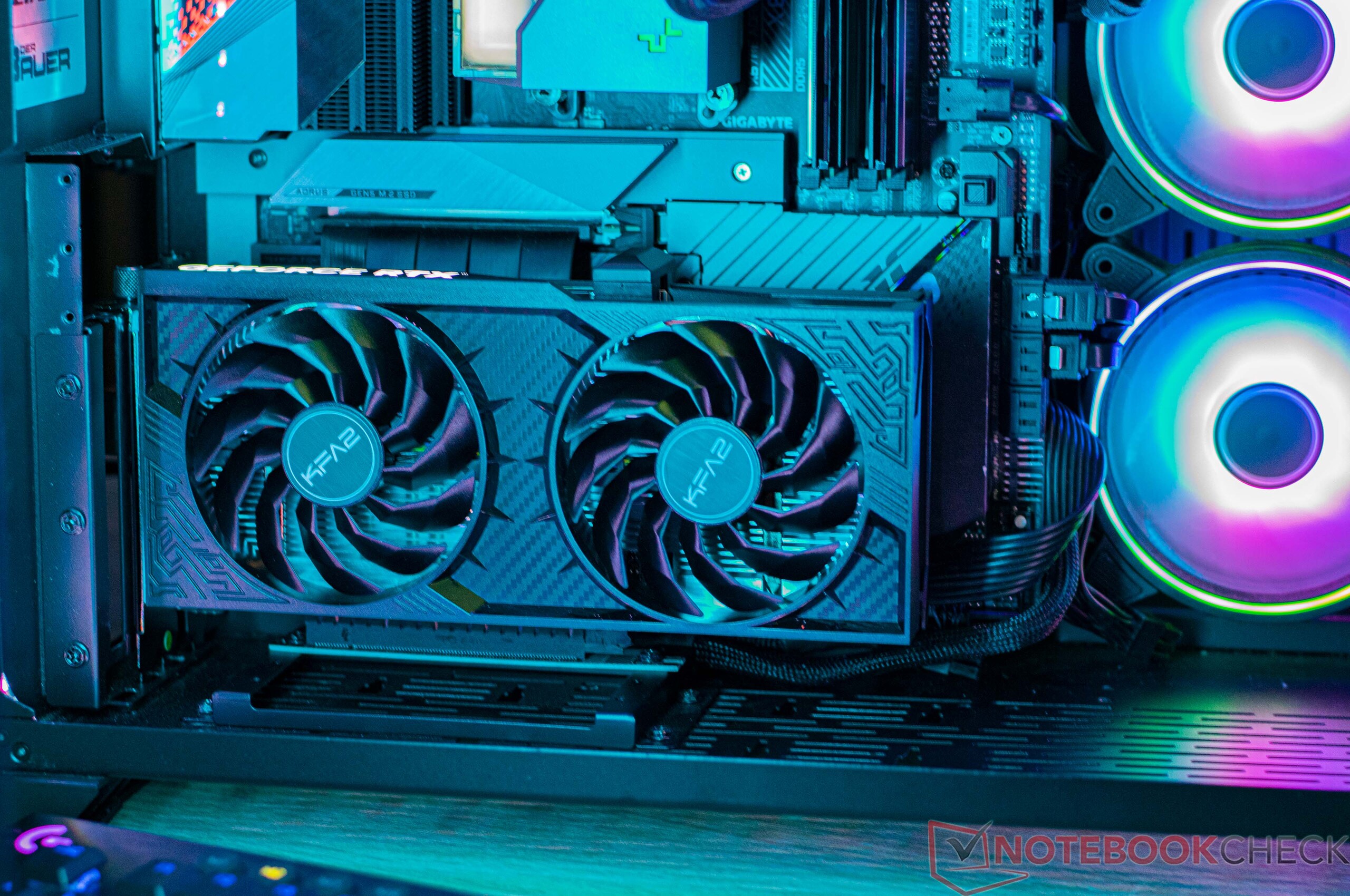

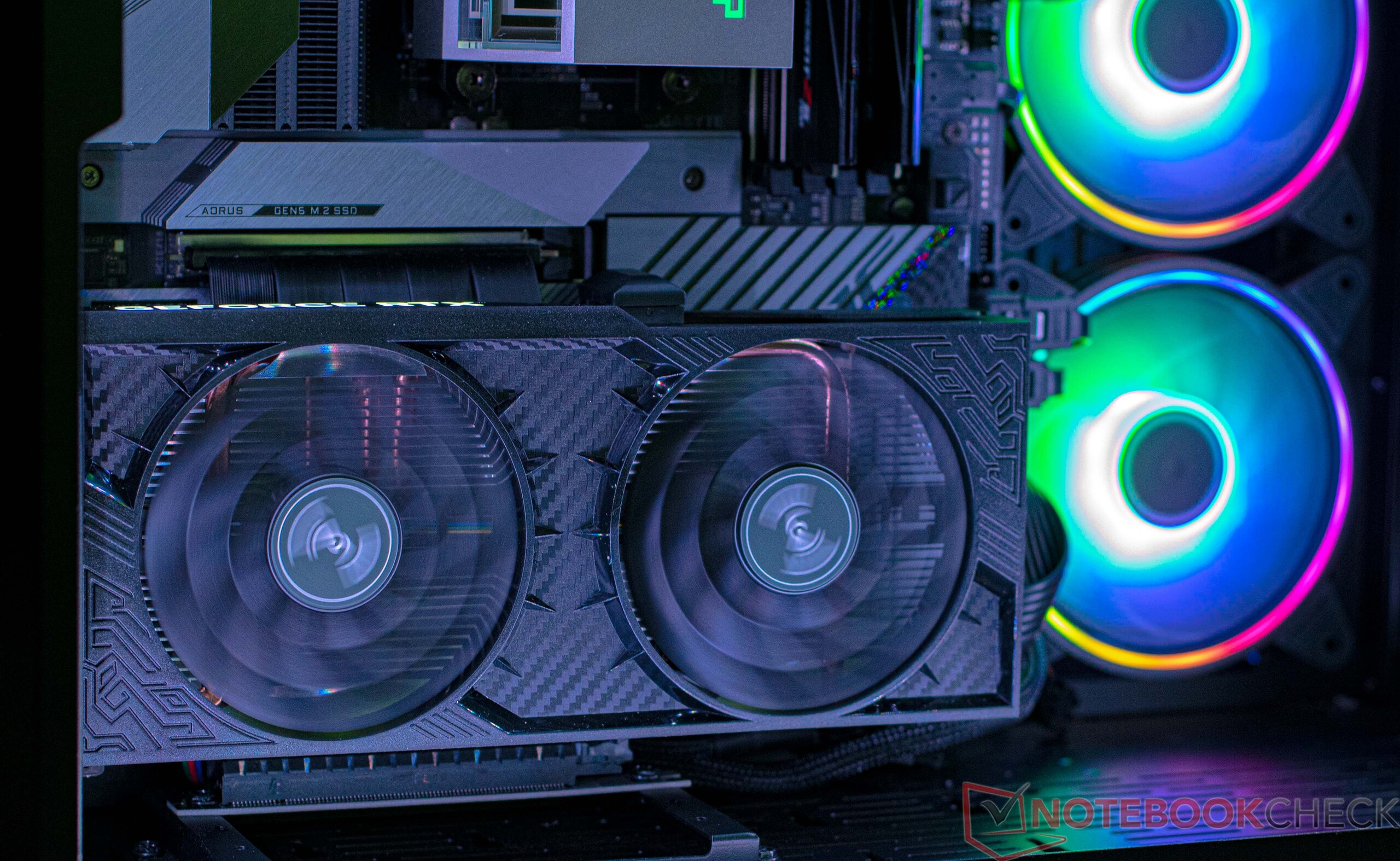

KFA2 为GeForce RTX 4060 1-Click OC 2X 配备了两个 92 毫米（约 3.6 英寸）轴流风扇。我们已经在其他 RTX 4000 显卡上看到的独特风扇设计也被用于这款新的入门级型号。

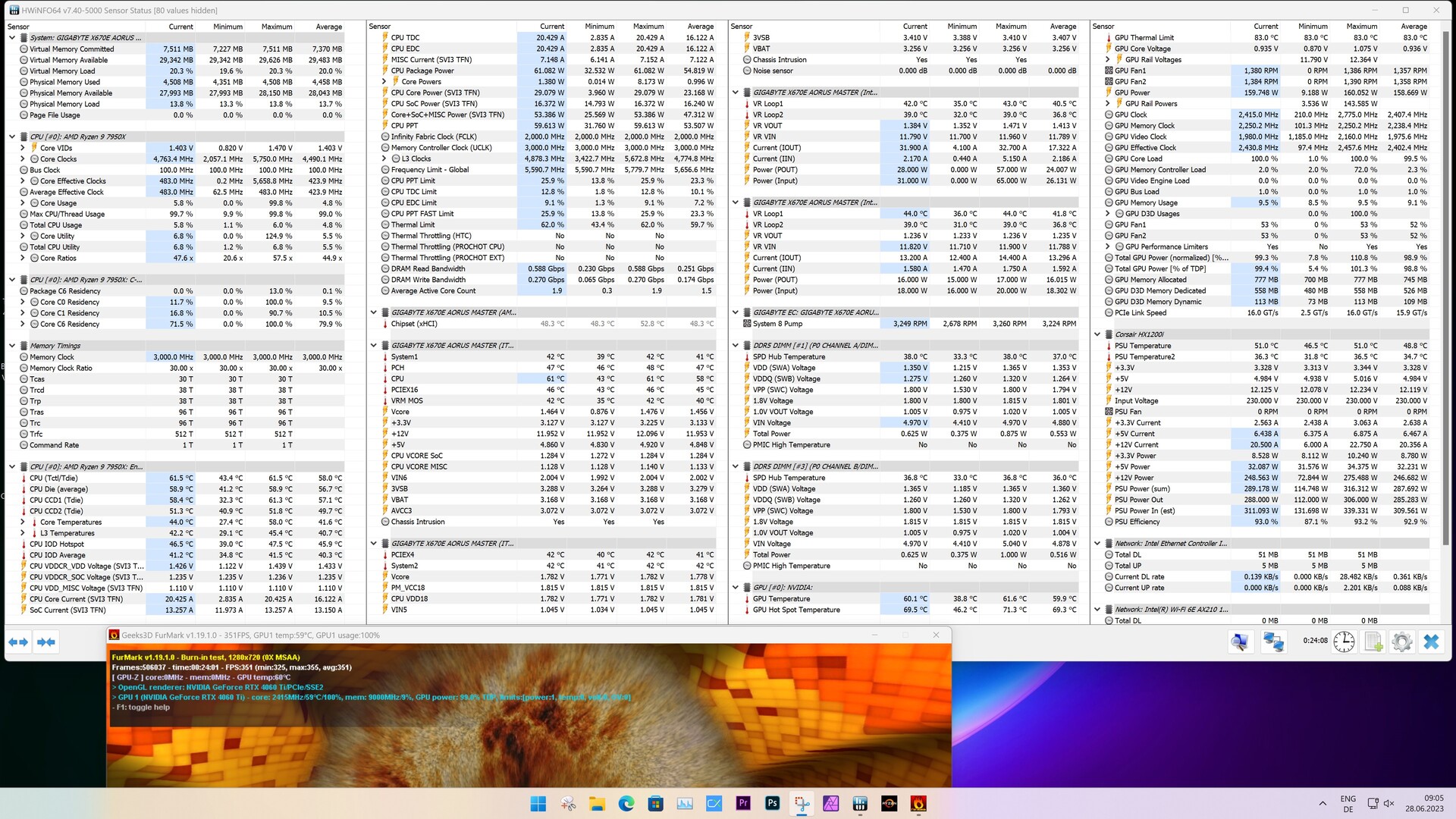

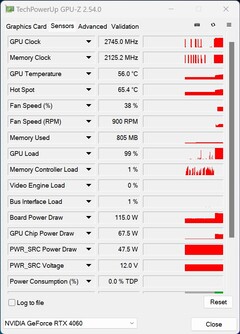

在噪音测量中已经提到，KFA2GeForce RTX 4060 1-Click OC 2X 提供了风扇停止模式，因此风扇只在负载情况下才开始运转。图形处理器的热极限温度为 83 °C（181 °F），任何时候都不会达到这个温度。 在压力测试中，我们测得的 GPU 温度为 61.6 °C（约 143 °F），相对较低。KFA2GeForce RTX 4060 1-Click OC 2X 的热点温度为 71.3 °C（约 160 °F），也没有任何问题。不过，这也意味着在噪音方面还有一定的改进空间。手动调节风扇曲线的用户也一定能让显卡保持更低的噪音。
耗电量
我们确定的是整个测试系统（不含显示器）的功耗。我们的测试系统配备了六个额外的 120 毫米（约 4.7 英寸）风扇。我们还关闭了额外的 RGB 照明。在我们的测量中，这种组合是最佳选择，这也得益于 KFA2GeForce RTX 4060 1-Click OC 2X 的低功耗。我们的测量设备显示，游戏时的功耗仅为 270 瓦，明显高于我们测试中的其他竞争对手。

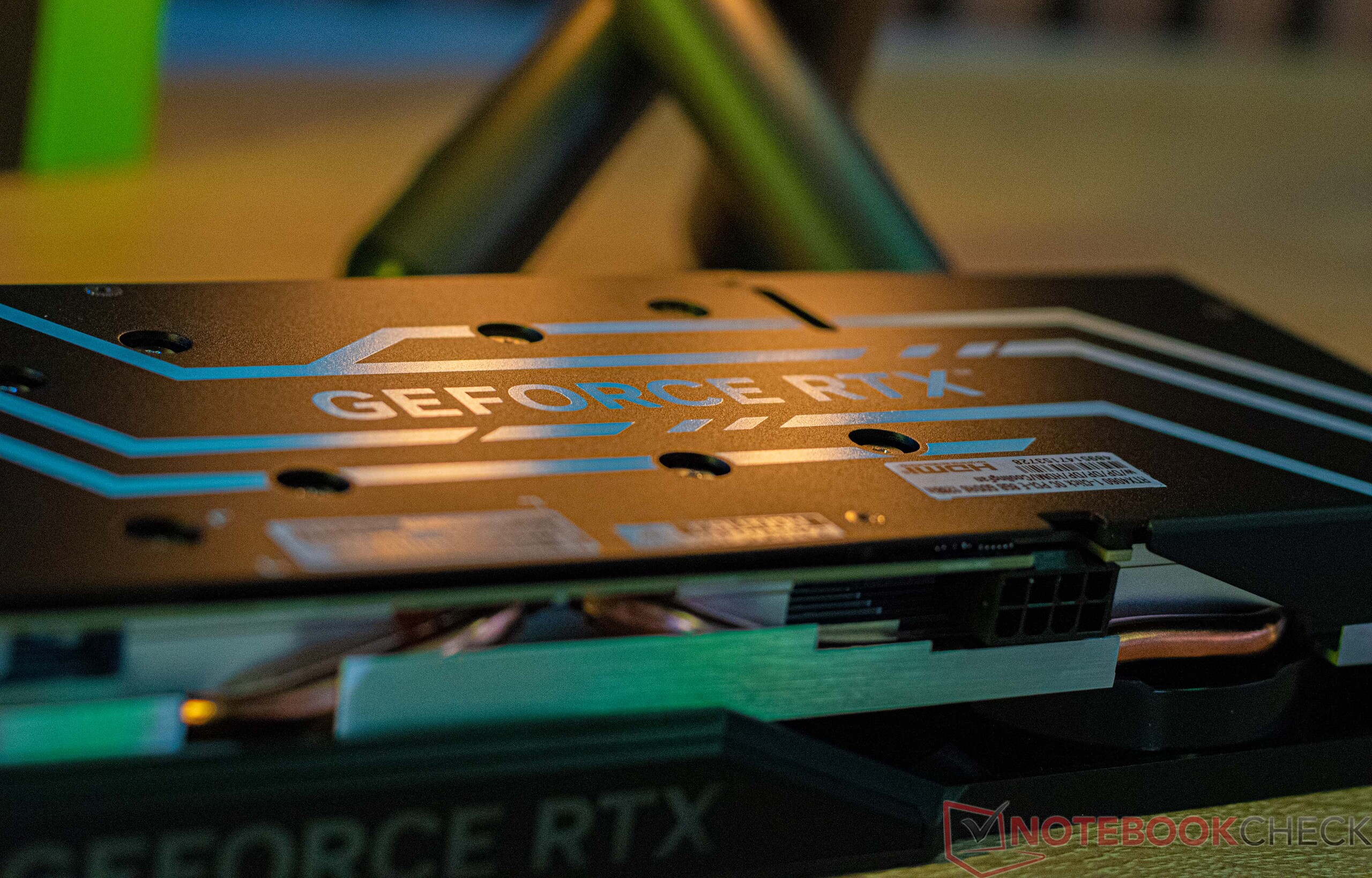

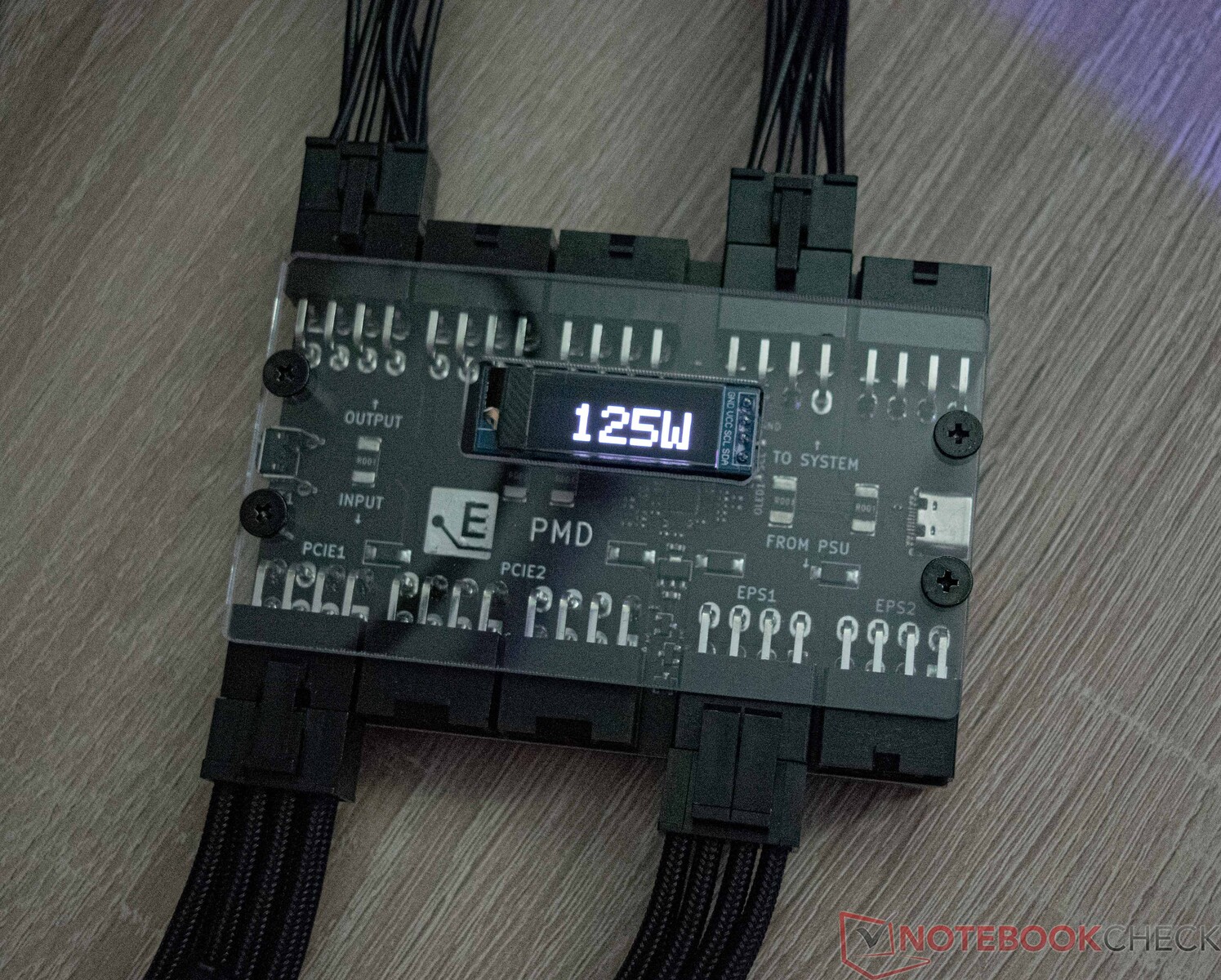

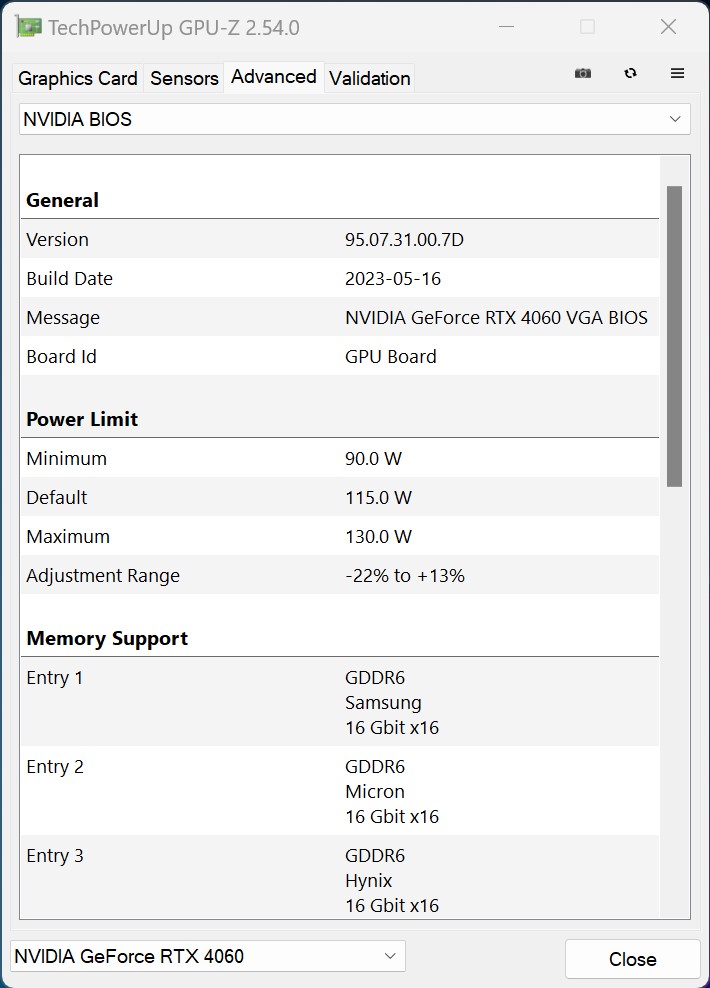

由于我们对 NvidiaGeForce RTX 4060 的正确功耗进行了严厉的批评，因此我们也对 KFA2GeForce RTX 4060 1-Click OC 2X 在这方面的表现进行了仔细的研究。我们评估了通过 6+2 针 PCIe 连接和 PCIe 插槽（12 伏轨道）实际消耗的直接功耗。我们的 KFA2 测试装置也毫无问题地超过了 Nvidia 规定的 115 瓦 TDP。在一张图片中，我们捕捉到了游戏时负载下的瞬间功耗，记录为 125 瓦。然而，HWiNFO 和其他各种测量工具仍然显示为 115 瓦。这是一种奇怪的行为，可能只是因为预算紧张。但你仍然可以在 6+2 针 PCIe 电源连接和 PCIe 插槽的规格范围内运行显卡，幸运的是，在这种情况下并没有超出规格。另一方面，你不应该被 115 瓦的规格所迷惑，因为 KFA2GeForce RTX 4060 1-Click OC 2X 在负载情况下的功耗接近 130 瓦。制造商建议使用 550 瓦的电源，您一定要坚持使用这一建议，以确保在负载情况下可靠运行。
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 3080 SG | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition | |
Power Consumption: 1920x1080 The Witcher 3 ultra (external Monitor) | 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | Witcher 3 ultra Efficiency (external Monitor)
* ... smaller is better
Power Consumption With External Monitor

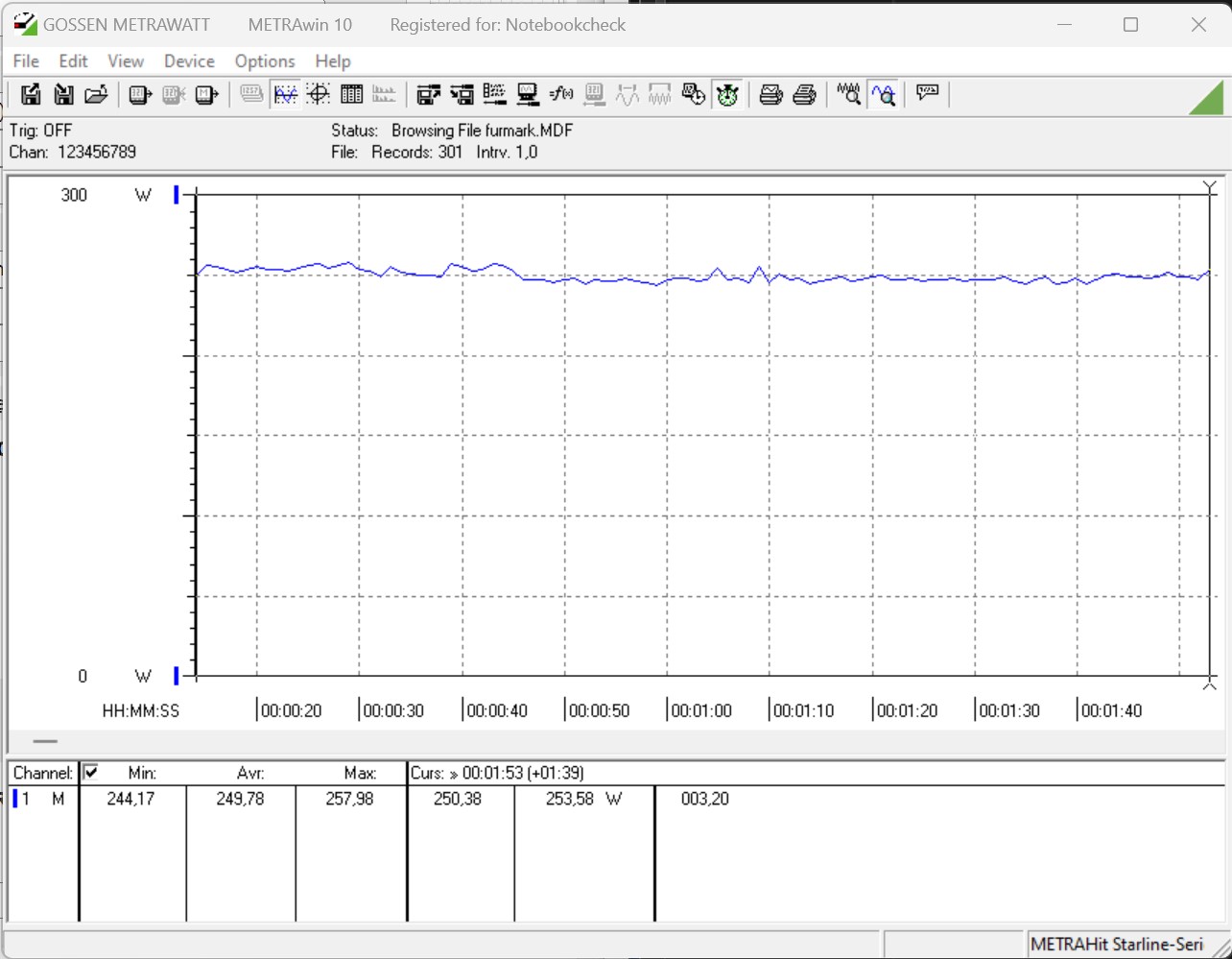

KFA2 GeForce RTX 4060 1-Click-OC 2X NVIDIA GeForce RTX 4060, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø251 (244-259)
KFA2 GeForce RTX 4060 Ti EX NVIDIA GeForce RTX 4060 Ti 8G, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø308 (303-318)
KFA2 GeForce RTX 4070 EX Gamer NVIDIA GeForce RTX 4070, R9 7950X, Corsair MP600; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø329 (257-337)

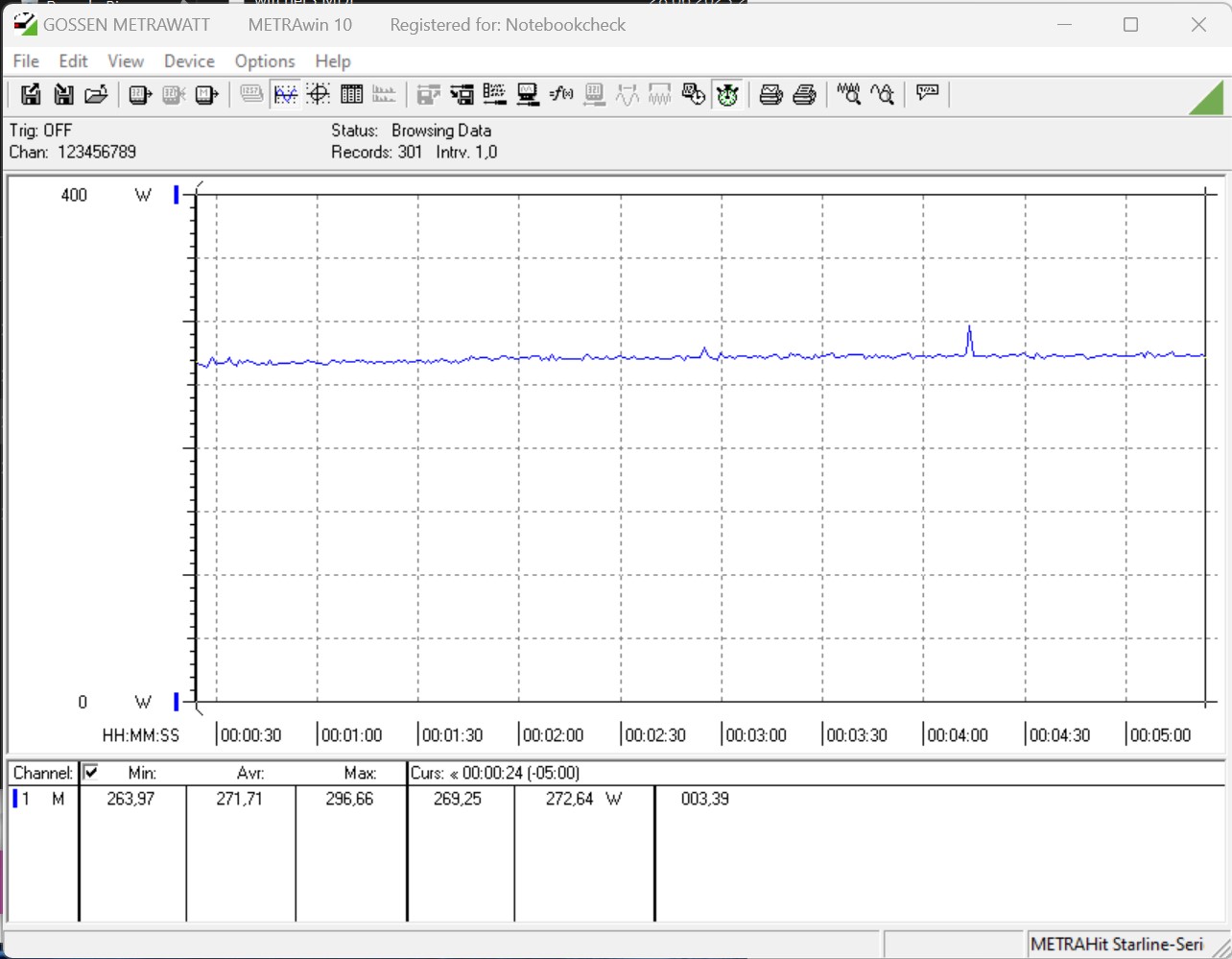

KFA2 GeForce RTX 4060 1-Click-OC 2X NVIDIA GeForce RTX 4060, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø272 (264-297)
KFA2 GeForce RTX 4060 Ti EX NVIDIA GeForce RTX 4060 Ti 8G, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø311 (300-329)
KFA2 GeForce RTX 4070 EX Gamer NVIDIA GeForce RTX 4070, R9 7950X, Corsair MP600; 1920x1080 The Witcher 3 ultra (external Monitor): Ø359 (356-375)

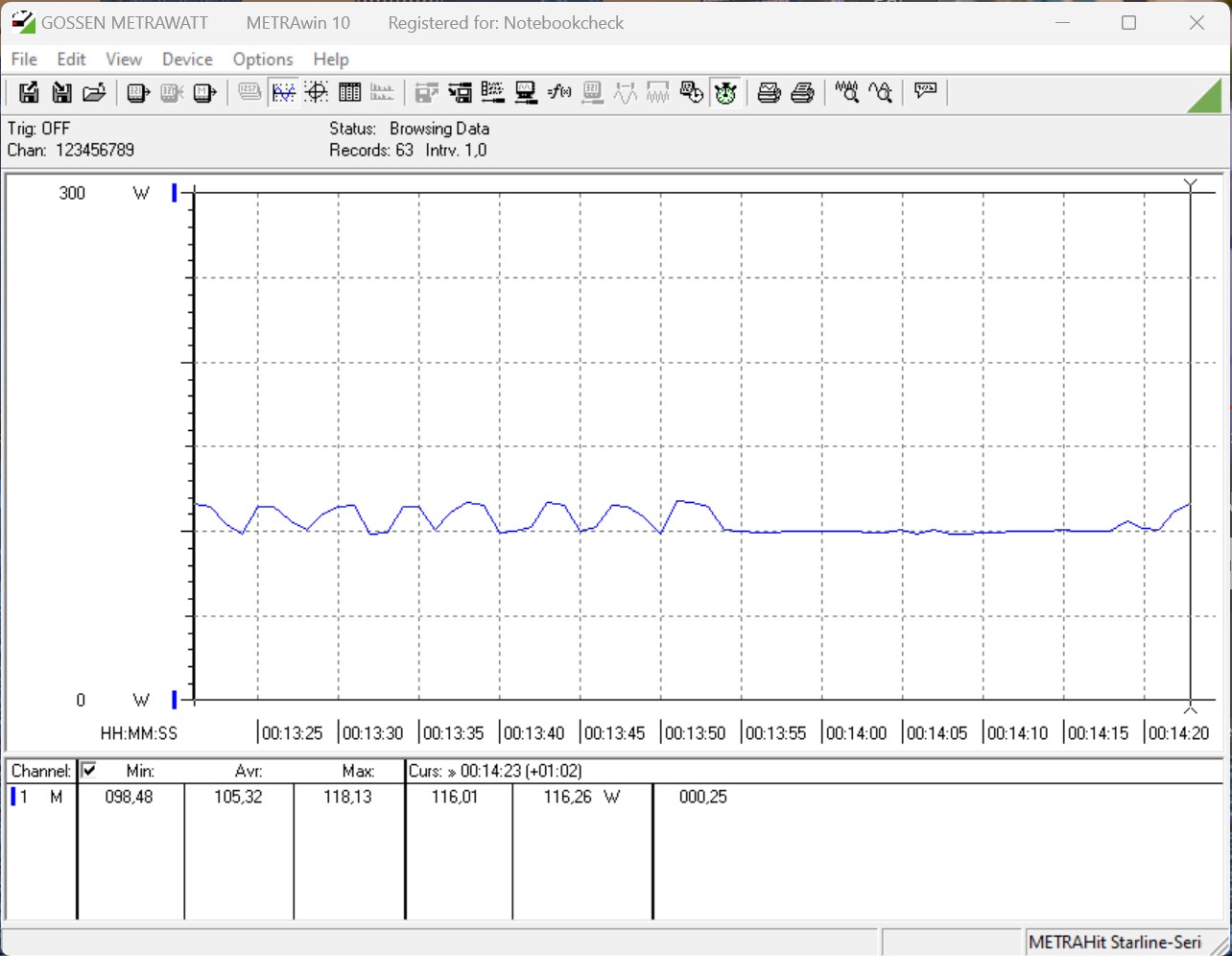

KFA2 GeForce RTX 4060 1-Click-OC 2X NVIDIA GeForce RTX 4060, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø105.5 (98.5-118.1)
KFA2 GeForce RTX 4060 Ti EX NVIDIA GeForce RTX 4060 Ti 8G, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø106.9 (98.9-118.4)
KFA2 GeForce RTX 4070 EX Gamer NVIDIA GeForce RTX 4070, R9 7950X, Corsair MP600; Idle 1min (external Monitor): Ø108.3 (102-118.9)
Pros
+ 高效率
+ DLSS 3 包括帧生成
+ 风扇停止模式
+ 已知的 6+2 针电源连接器
+ 现代 5 纳米架构
+ 紧凑型设计
Cons
- 与前代产品相比，性能仅有小幅提升
- 没有 DisplayPort 2.1
- 在负载情况下可听到声音
- 功耗高于规定值
结论 - 适用于经济型游戏 PC 的小型 1,080p 显卡
KFA2GeForce RTX 4060 1-Click OC 2X 提供了作为现代 1080p 游戏显卡的坚实装备。该显卡拥有 8GB VRAM，与同价位的竞争对手处于同一标准水平，这在过去并不常见。
KFA2GeForce RTX 4060 1-Click OC 2X 的性能足以在 1080p 分辨率下以中高细节级别玩几乎所有当前游戏。在最高细节下，这款新的入门级显卡有时会失去一些动力。同时，我们也对该显卡的未来发展前景表示怀疑。另一方面，我们不得不称赞 Nvidia 的低功耗。在我们的测试中，使用 KFA2GeForce RTX 4060 1-Click OC 2X 的配置是最高效的型号。不过，TDP 规格值得商榷。在我们的测量中，我们发现 130 瓦更为合适。与提供类似性能的竞争对手相比，这个数字仍然低得多。这意味着，入门级显卡的能效桂冠再次花落 Nvidia。
KFA2GeForce RTX 4060 1-Click OC 2X 是一款稳定高效的显卡。但在性价比方面，它还不足以摘得桂冠。
NvidiaGeForce RTX 4060 型号还可以使用光线追踪和 DLSS 等功能。这一点很好，可能是决定购买的决定性因素。但是，您不应该被五颜六色的营销标签诱惑太多，因为GeForce RTX 4060 也会很快被激活的光线追踪功能消耗殆尽。如果游戏不额外支持 DLSS，则应放弃光线追踪。
除了性能，决定购买的主要因素还有价格，而 KFA2 的价格相比之下还是非常实惠的。目前，KFA2GeForce RTX 4060 1-Click OC 2X 已经上架。不过，AMD 目前提供的 Radeon RX 6650 XT 整体性更好，只需 240 欧元（约合人民币 266 元）就能获得相同的性能。
价格和供应情况
KFA2GeForce RTX 4060 1-Click OC 2X 目前在德国NBB.com (notebooksbilliger.de) 有售，售价 299 欧元。
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
