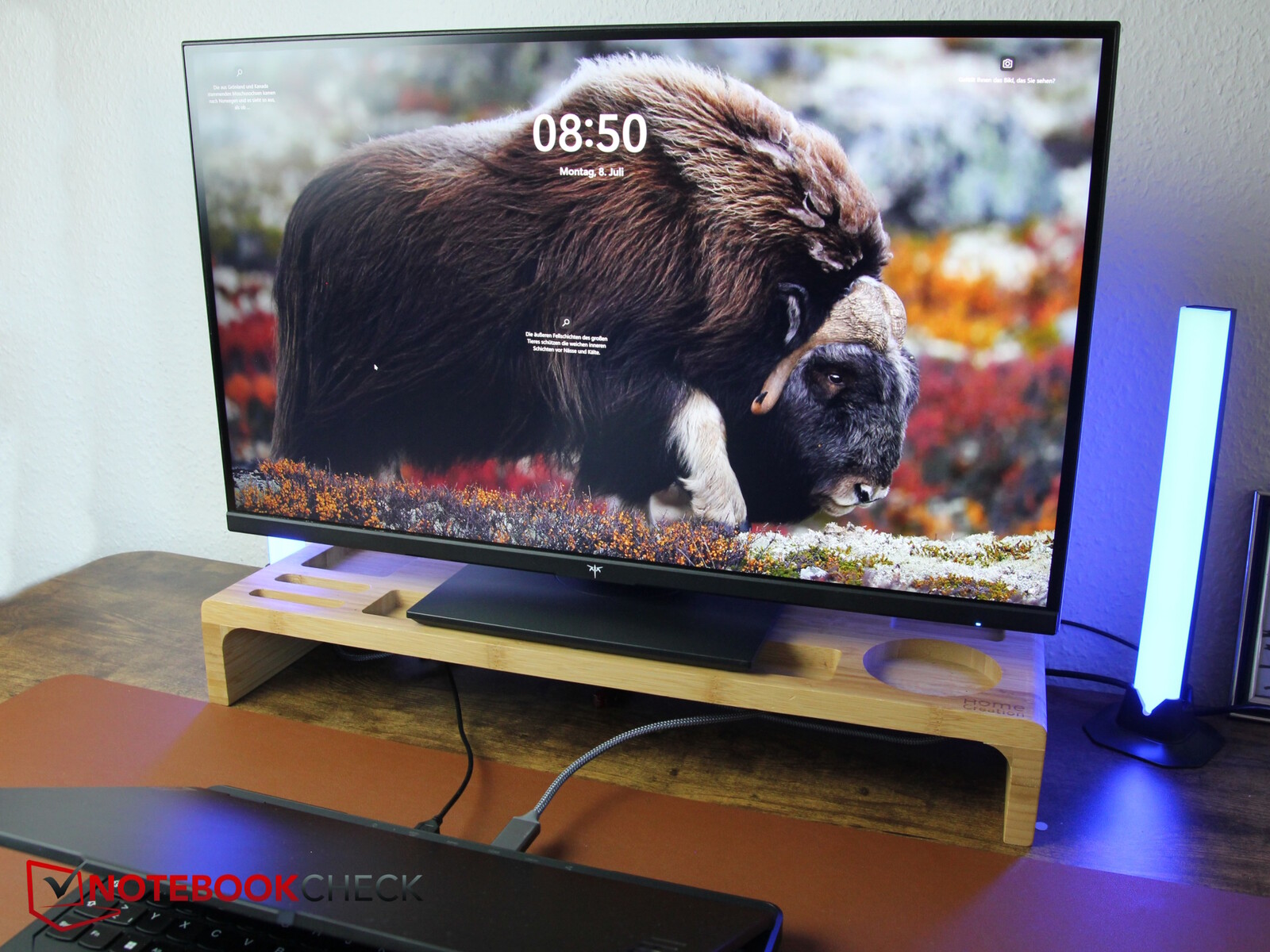

KTC H27P22S 游戏显示器评测:27英寸4K IPS显示器,售价不到399美元。
中国制造商 KTC("Key to Combat")在 Geekmaxi 和亚马逊等网站上以低价提供各种(游戏)显示器。最近,我们有 27 英寸 OLED 型号今天,我们有一款配备快速 IPS 显示屏的 27 英寸游戏显示器,价格便宜得多,仅为 399 欧元。不过,IPS 面板有一点优于 OLED 机型,那就是分辨率。OLED 显示器的分辨率 "只有 "1440p,而我们今天的测试机型则达到了 3840 × 2160 像素的 4K 分辨率。我们将测试对于预算较紧的游戏玩家来说是否值得购买。
注:原文作者指的是亚马逊网站上的价格。KTC H27P22S 游戏显示器在亚马逊网站上的售价为 399 美元(可使用 50 美元优惠券代码 KTCPLAY03)。
功能和规格 - 4K IPS,HDR 400 和 160 Hz
H27P22S 采用友达的快速 IPS 面板。据说响应时间为 1 毫秒,但在显示设置中有 4 种超频预设。该面板具有 4K 分辨率,提供经典的 16:9 宽高比,最大刷新率为 160 Hz。
遗憾的是,该屏幕没有使用 MiniLED,因此没有可调光区,考虑到其仅 399 美元的低价,这也就不足为奇了。另一方面,据说 ELED 背光能让画面亮度高达 400 尼特--室内亮度足够。在色彩空间方面,只有 sRGB 是完全覆盖的,但 DCI-P3 仍达到 96%。当然,我们将在下文中测试所有制造商规格的准确性。
功能 | KTC H27P22S |
---|---|
尺寸 | 27 英寸 |
面板 | AUO 7.0 快速 IPS |
背光 | ELED |
分辨率 | 3,840 × 2,160 @160Hz |
亮度 | 400 尼特 |
对比度 | 1,000 : 1 |
色彩深度 | 8 位 + Hi_FRC,10.7 亿色 |
色彩空间 | 83 % Adobe RGB CIE1976、92 % DCI-P3、100 % sRGB |
响应时间 | 1 毫秒(GTG) |
自适应同步 | 与 FreeSync 和 G-Sync 兼容 |
连接 | 2 x HDMI 2.1 (3,840 × 2,160 @ 160 Hz 8Bit) DSC、2 x DP1.4 (3,840 × 2160 @ 160 Hz) DSC、1 x USB 2.0(仅限升级)、1 x 耳机插孔 |
扬声器 | 无 |
HDR | HDR 400 |
KVM 切换器 | 无 |
VESA | 100 x 100 毫米 |
电源 | DC 19V / 3.42A |
功耗 | 类型:≤ 65 W,待机:≤ 0.5 W |
重量 | 6.1 千克(不含底座 4.1 千克) |
配件 | 1 x HDMI 线缆、1 x DP 线缆、1 x Type-C 线缆、1 x 电源线、1 x 适配器 |
价格 | 399 欧元 |
商店链接 | 亚马逊 |
» Notebookcheck多媒体笔记本电脑Top 10排名
» Notebookcheck游戏笔记本电脑Top 10排名
» Notebookcheck低价办公/商务笔记本电脑Top 10排名
» Notebookcheck高端办公/商务笔记本电脑Top 10排名
» Notebookcheck工作站笔记本电脑Top 10排名
» Notebookcheck亚笔记本电脑Top 10排名
» Notebookcheck超级本产品Top 10排名
» Notebookcheck变形本产品Top 10排名
» Notebookcheck平板电脑Top 10排名
» Notebookcheck智能手机Top 10排名
» Notebookcheck评测过最出色的笔记本电脑屏幕
» Notebookcheck售价500欧元以下笔记本电脑Top 10排名
» Notebookcheck售价300欧元以下笔记本电脑Top 10排名
组装:KTC - 通常简单且无需螺钉

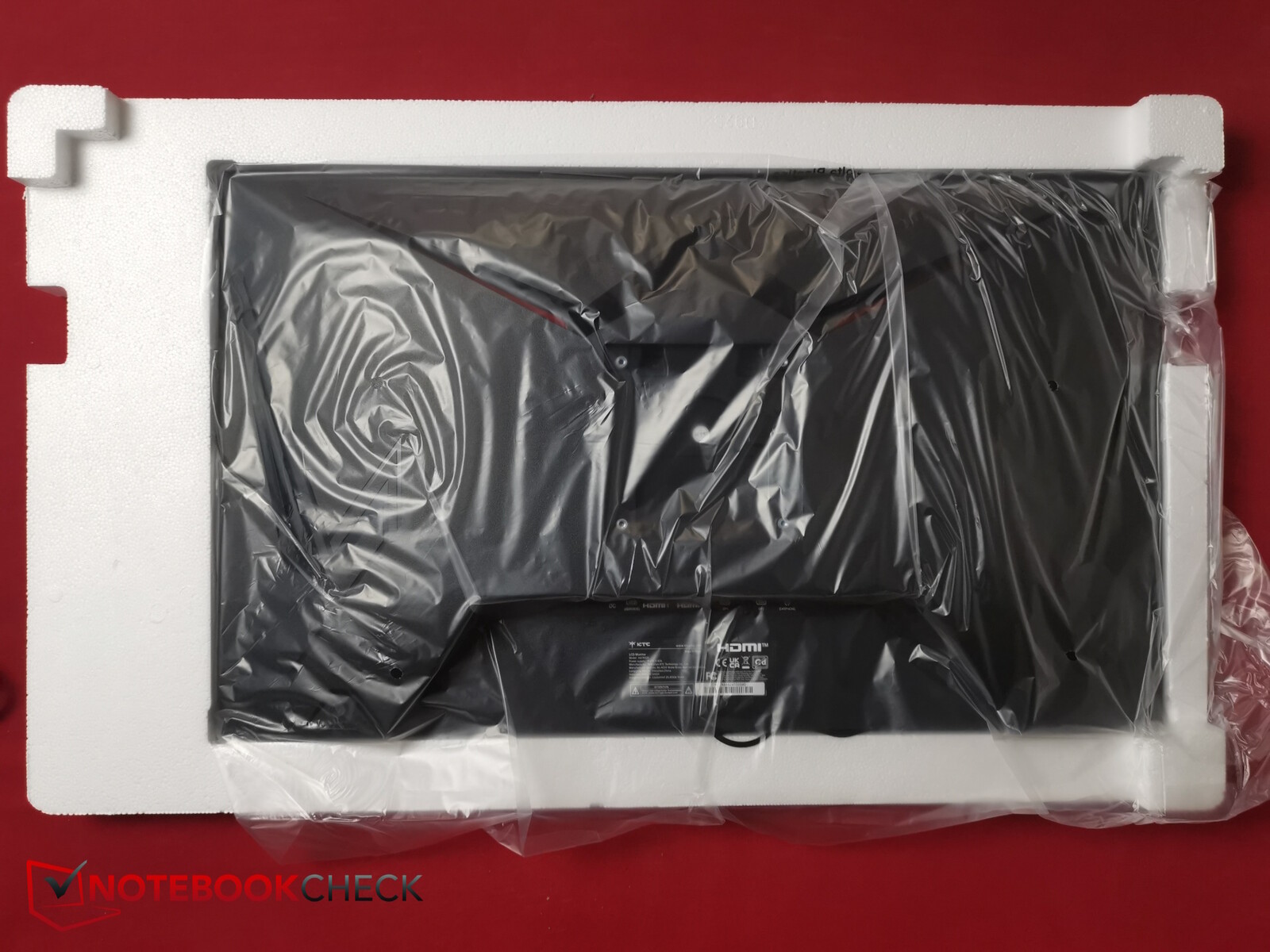

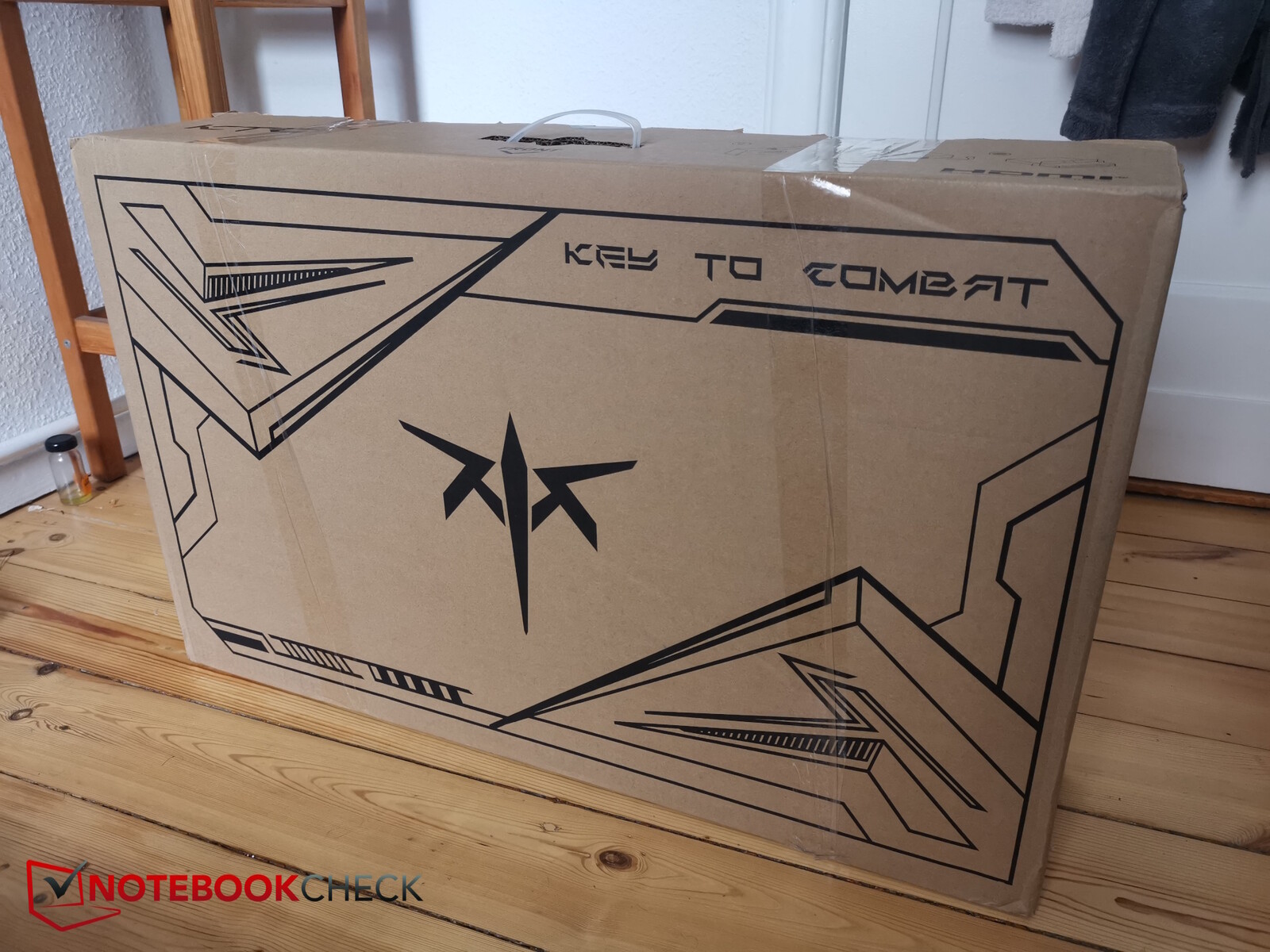

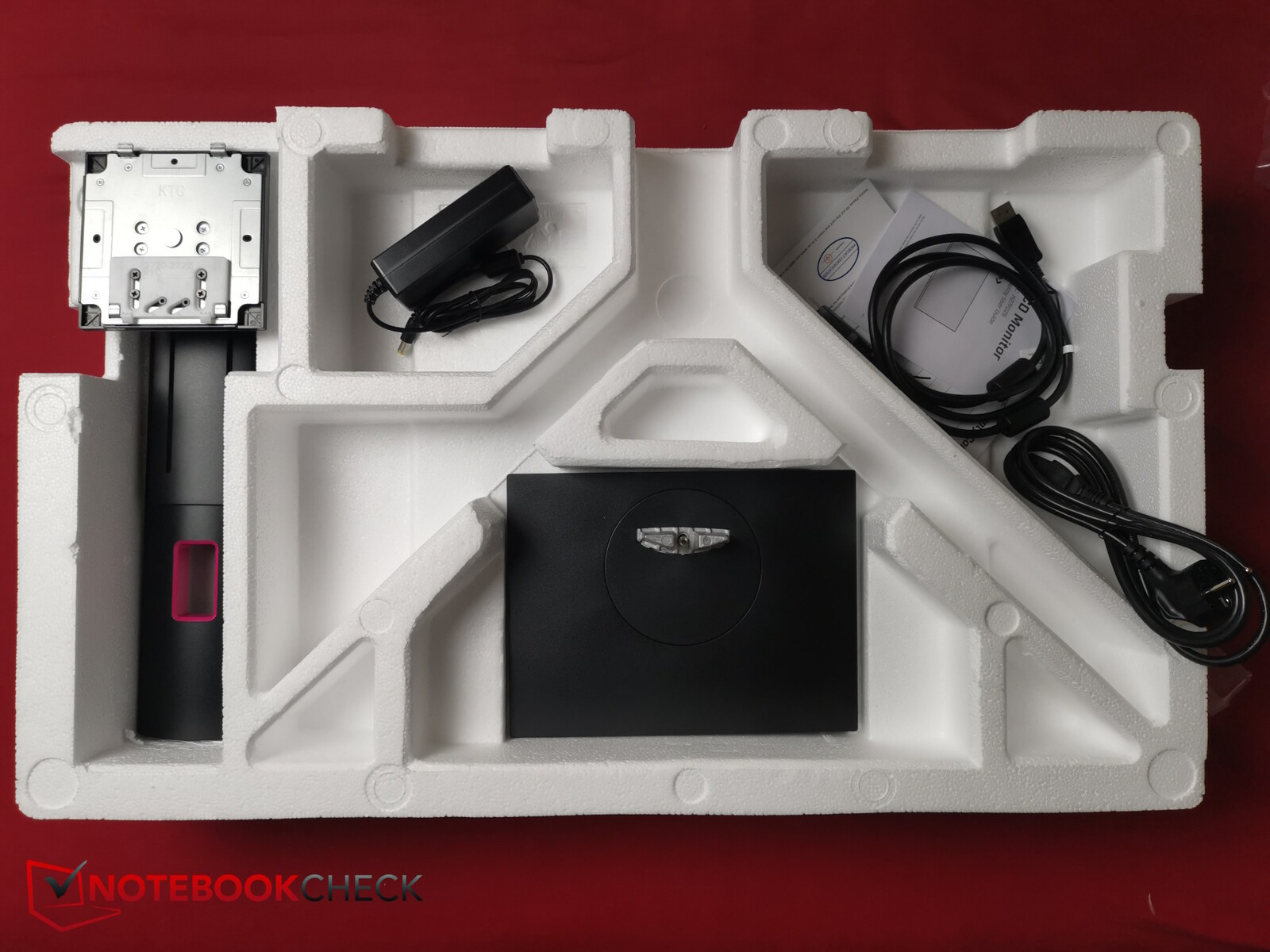

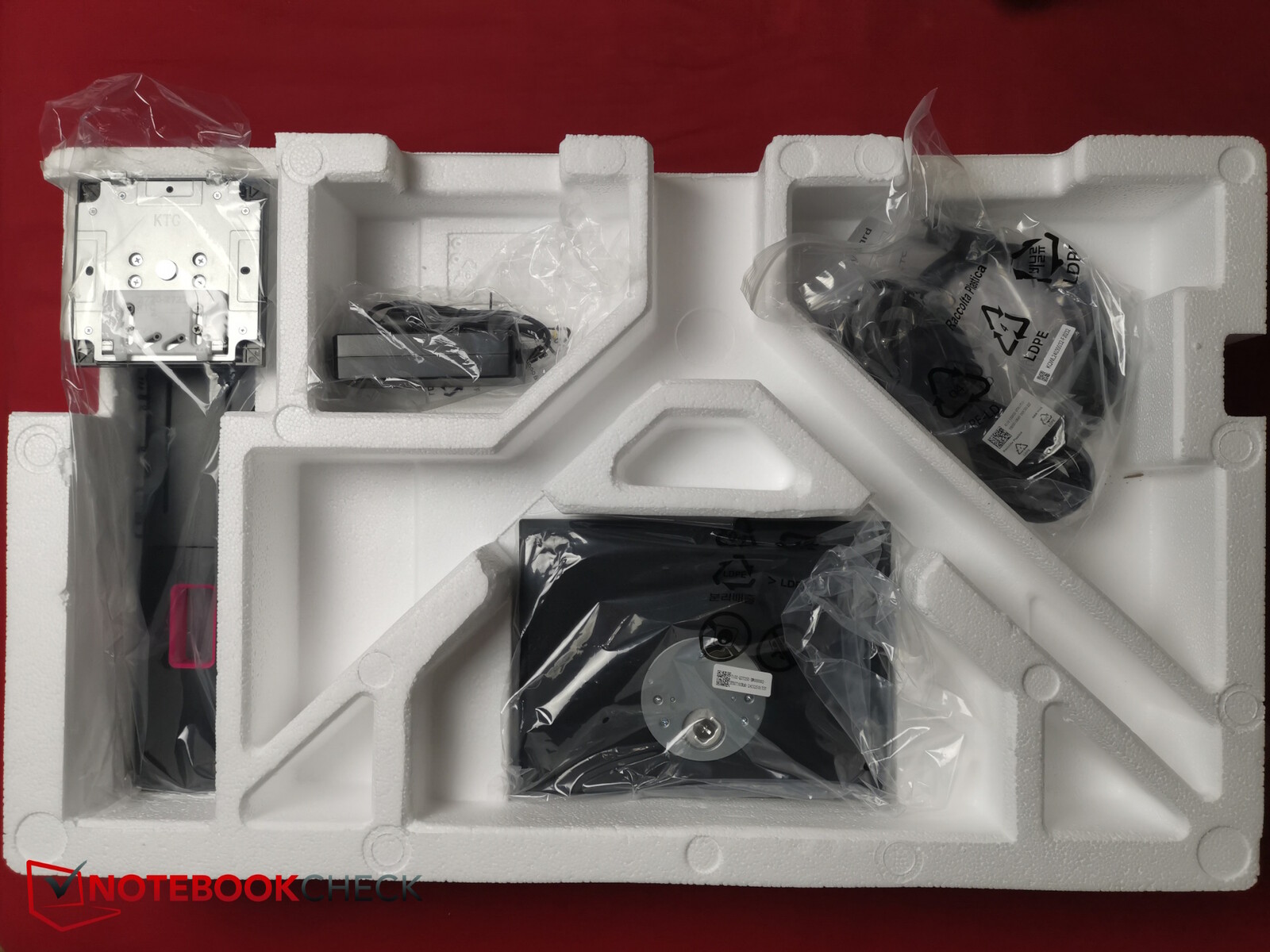

包装内容

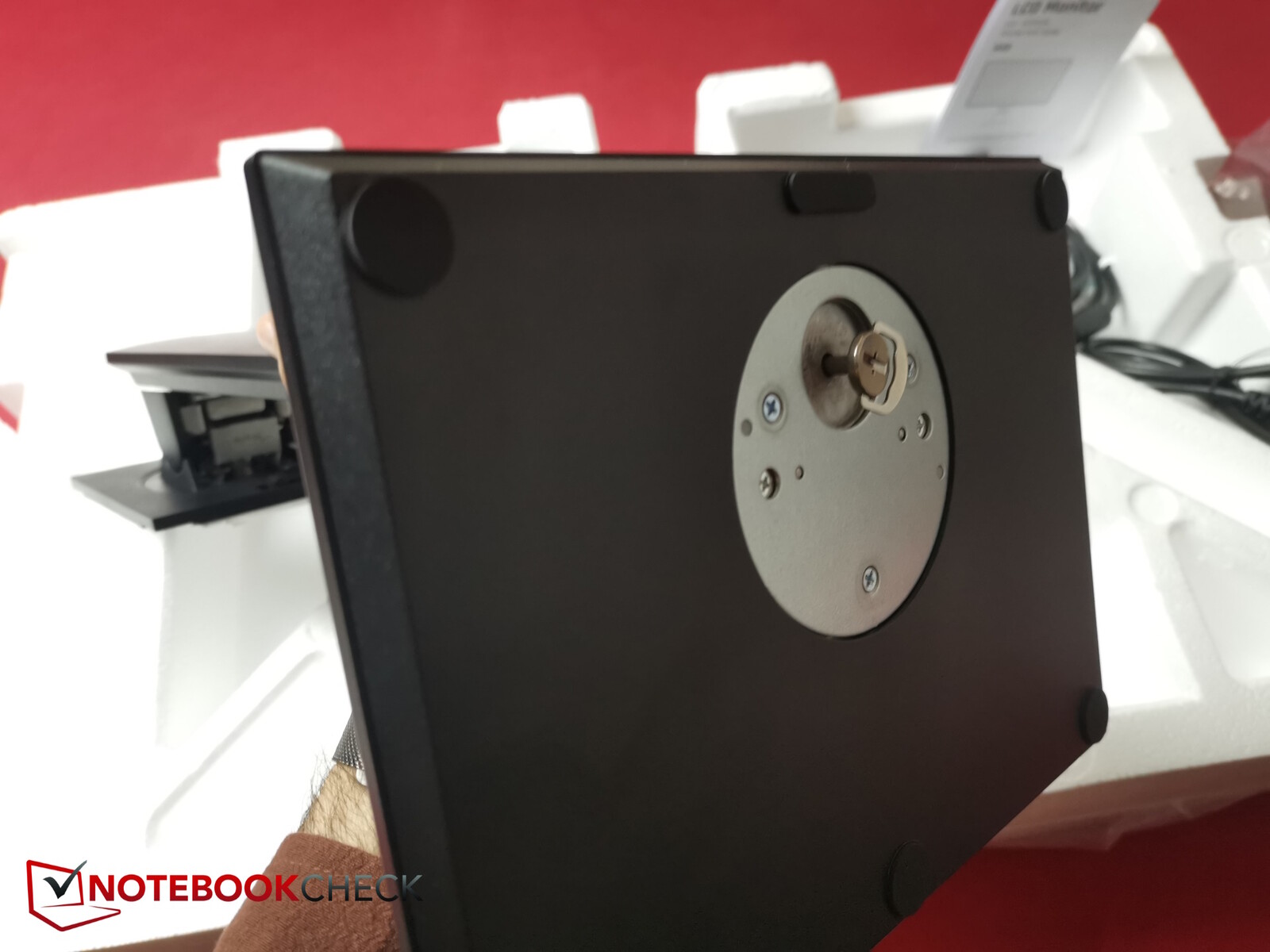

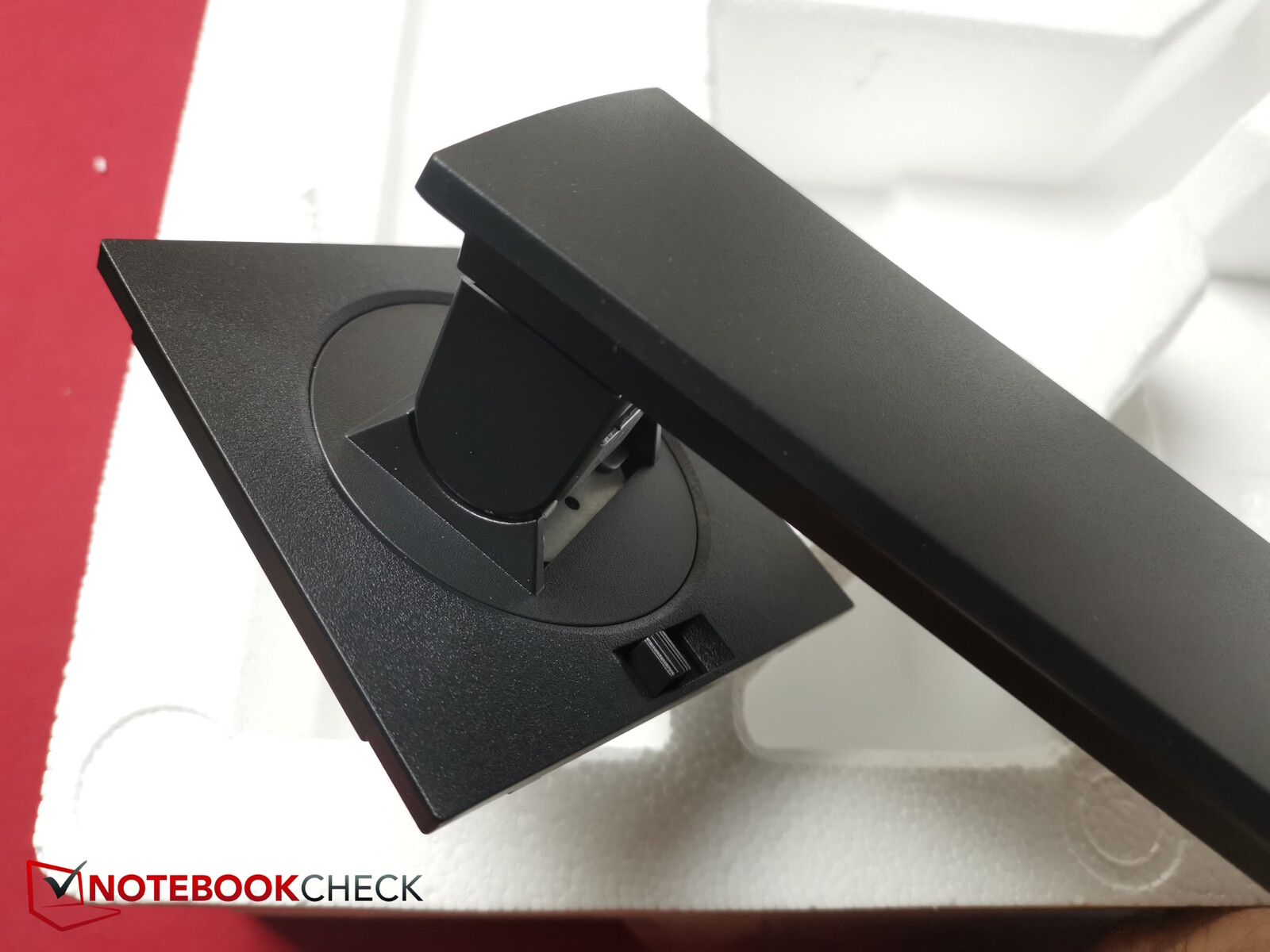

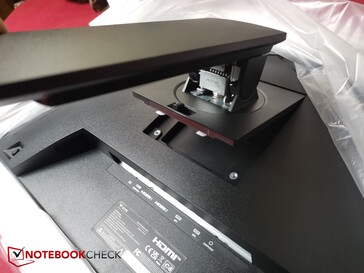

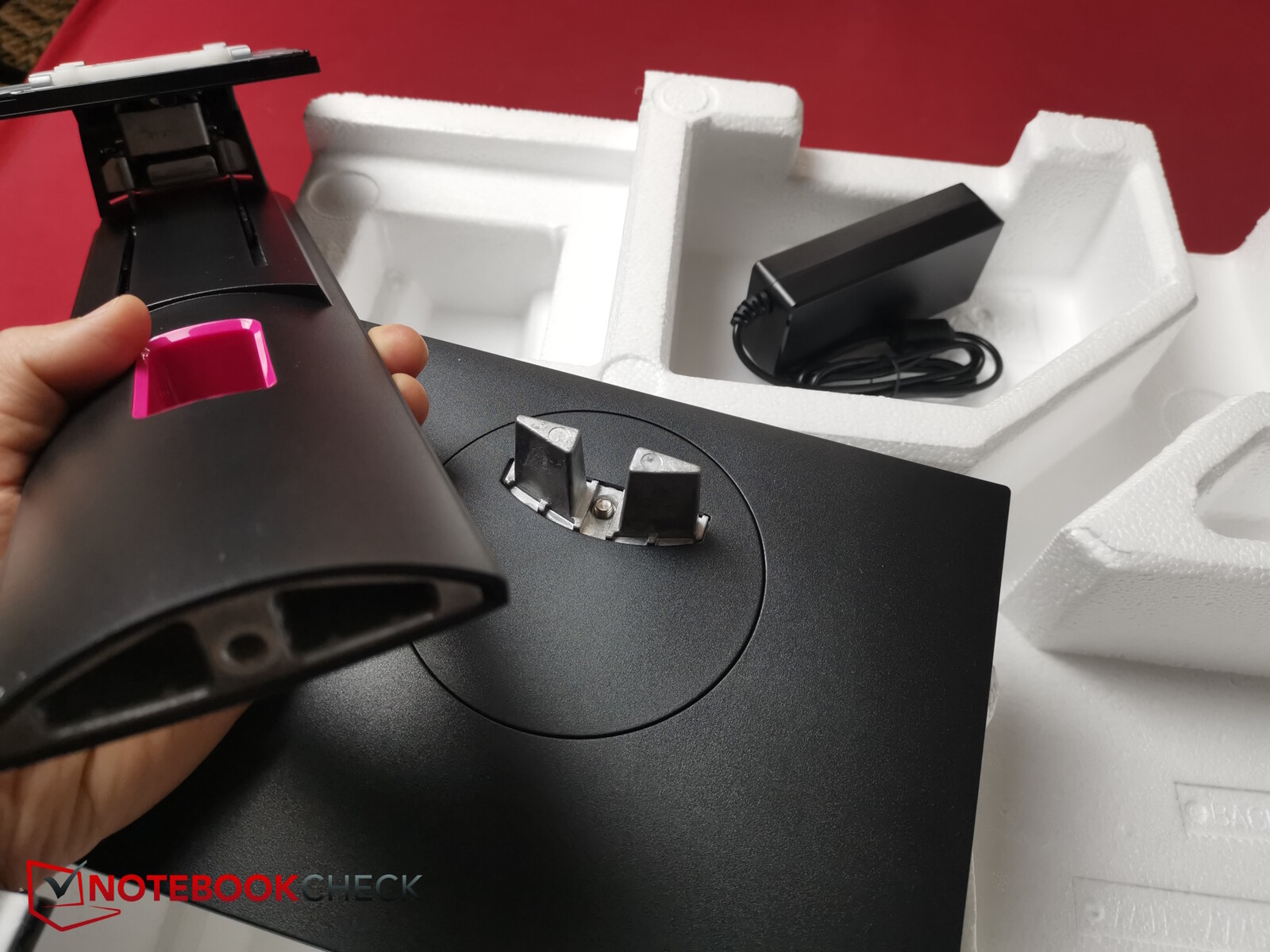

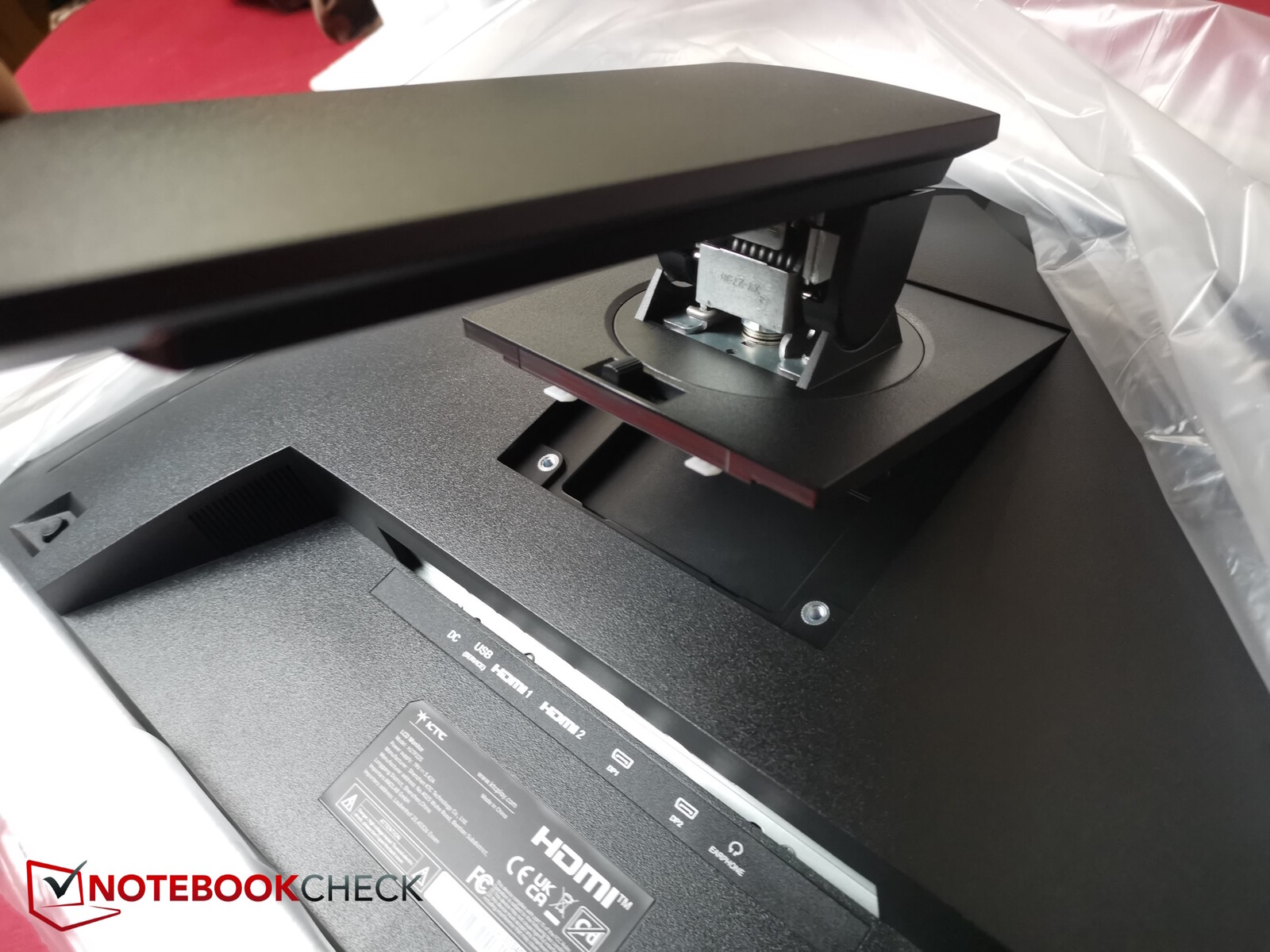

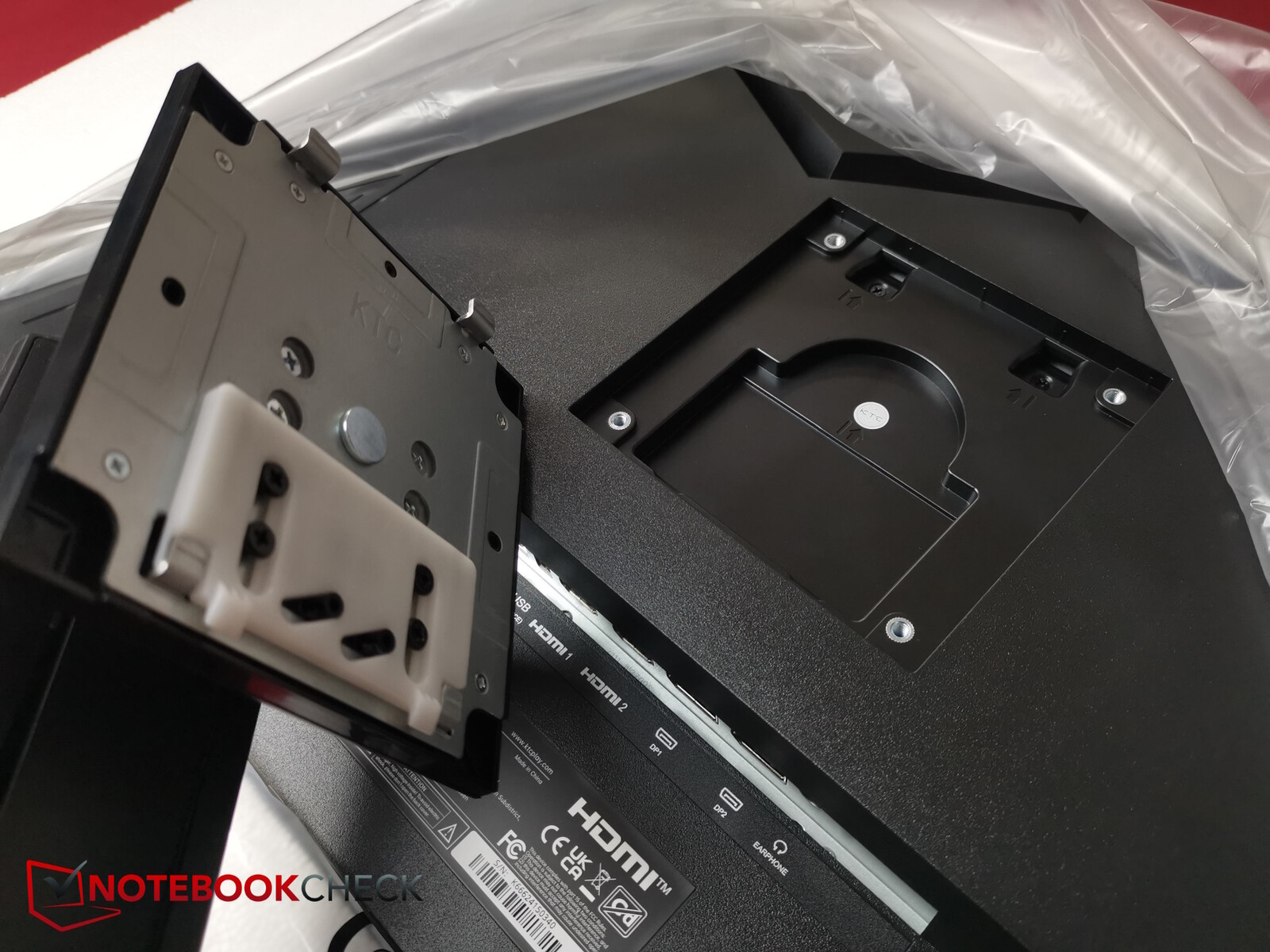

装配

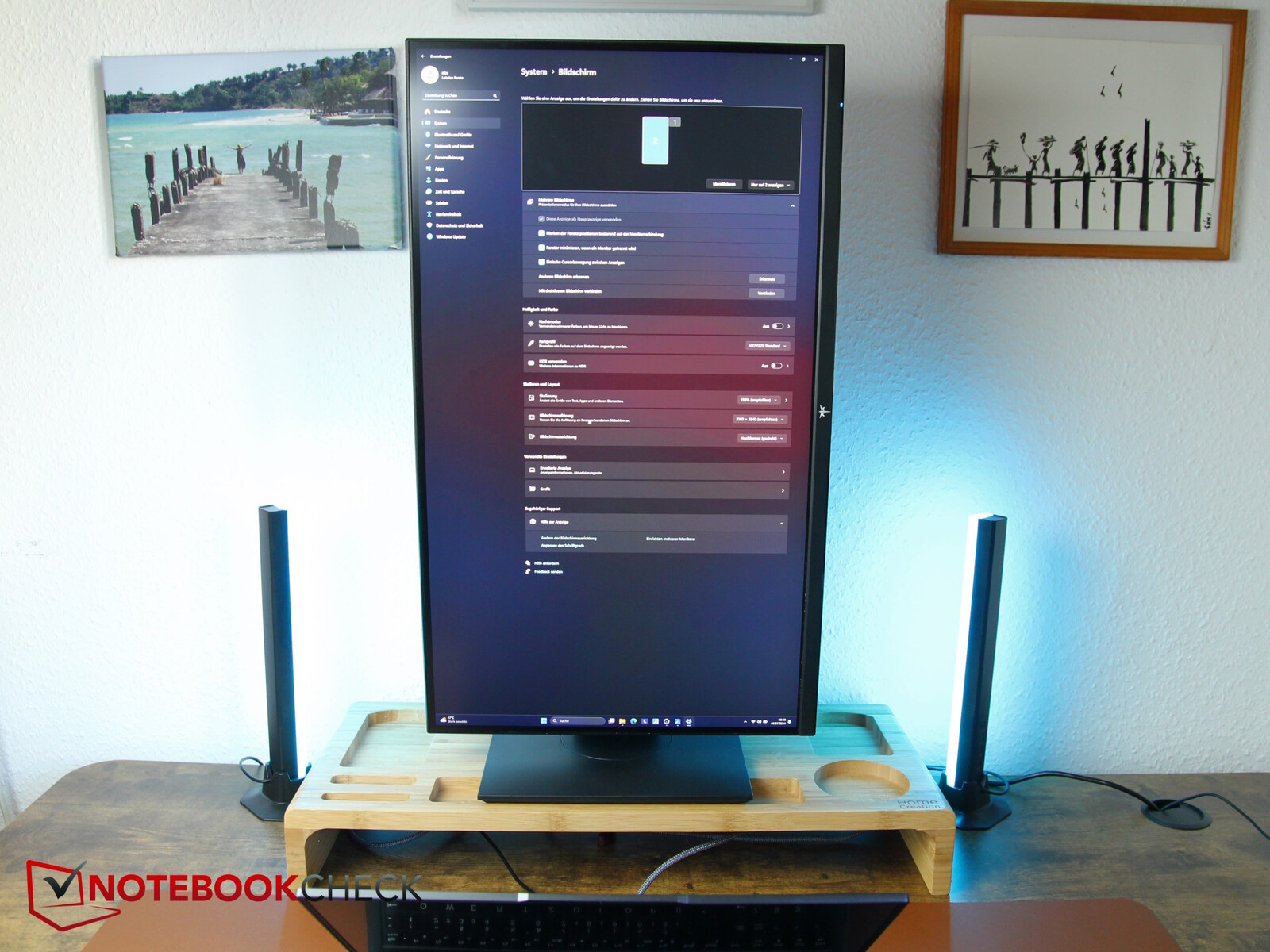

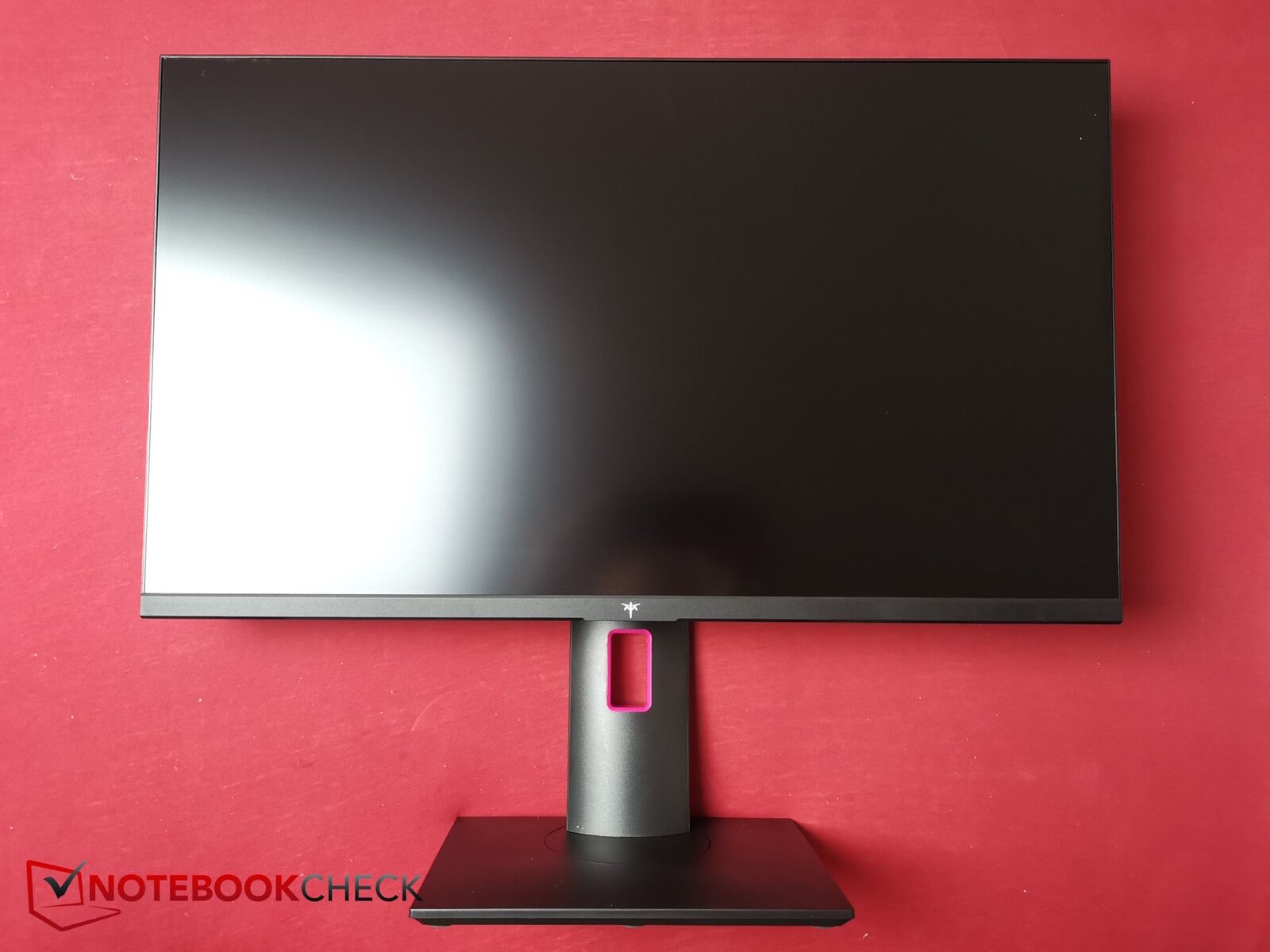

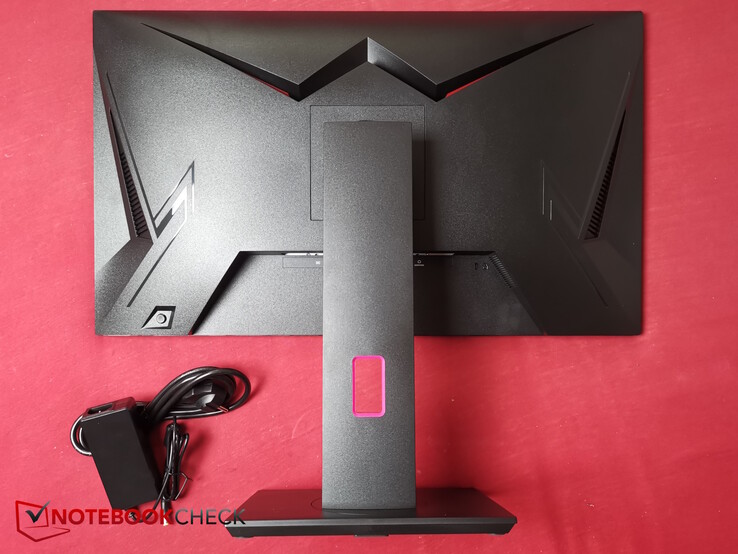

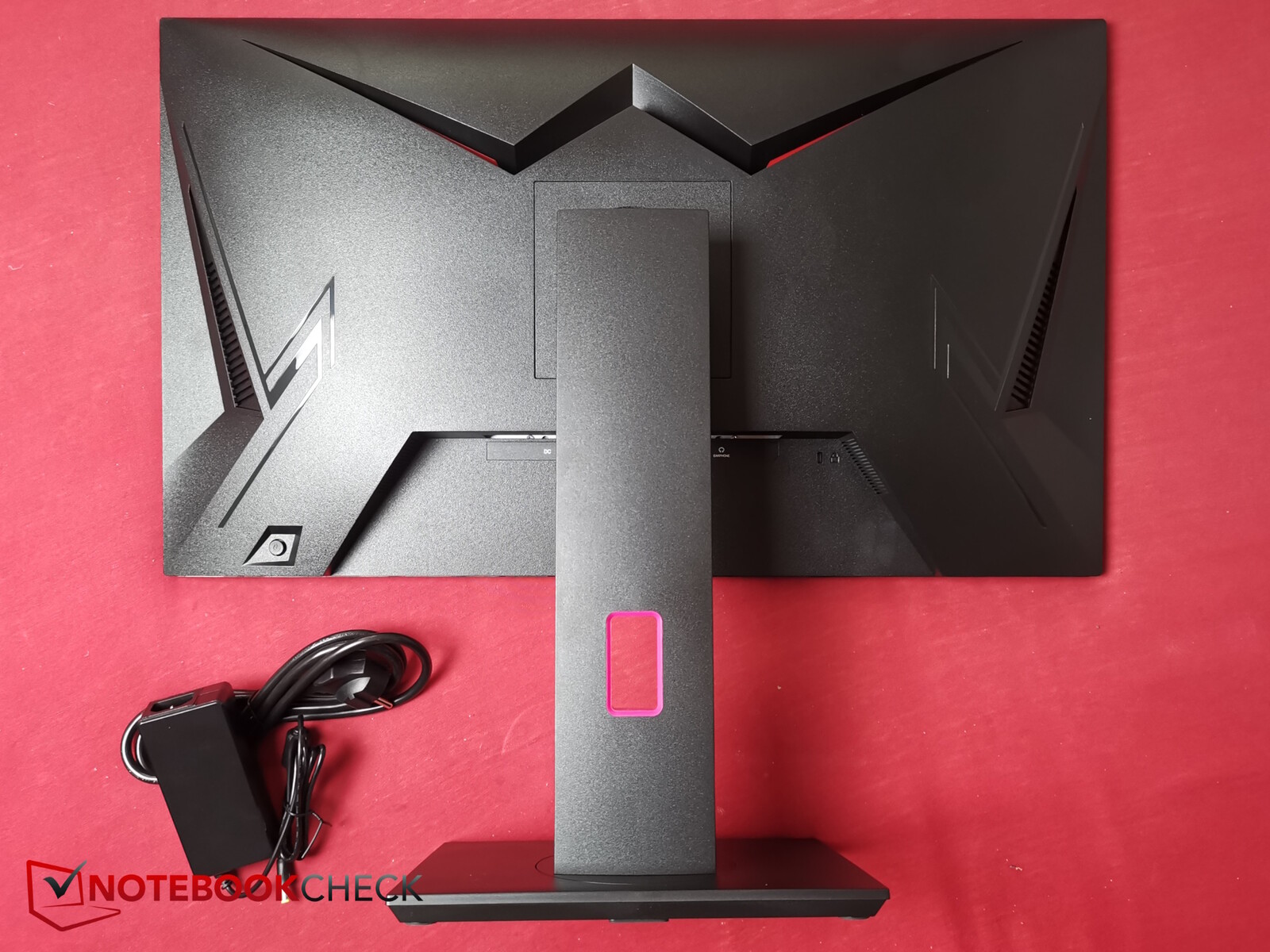

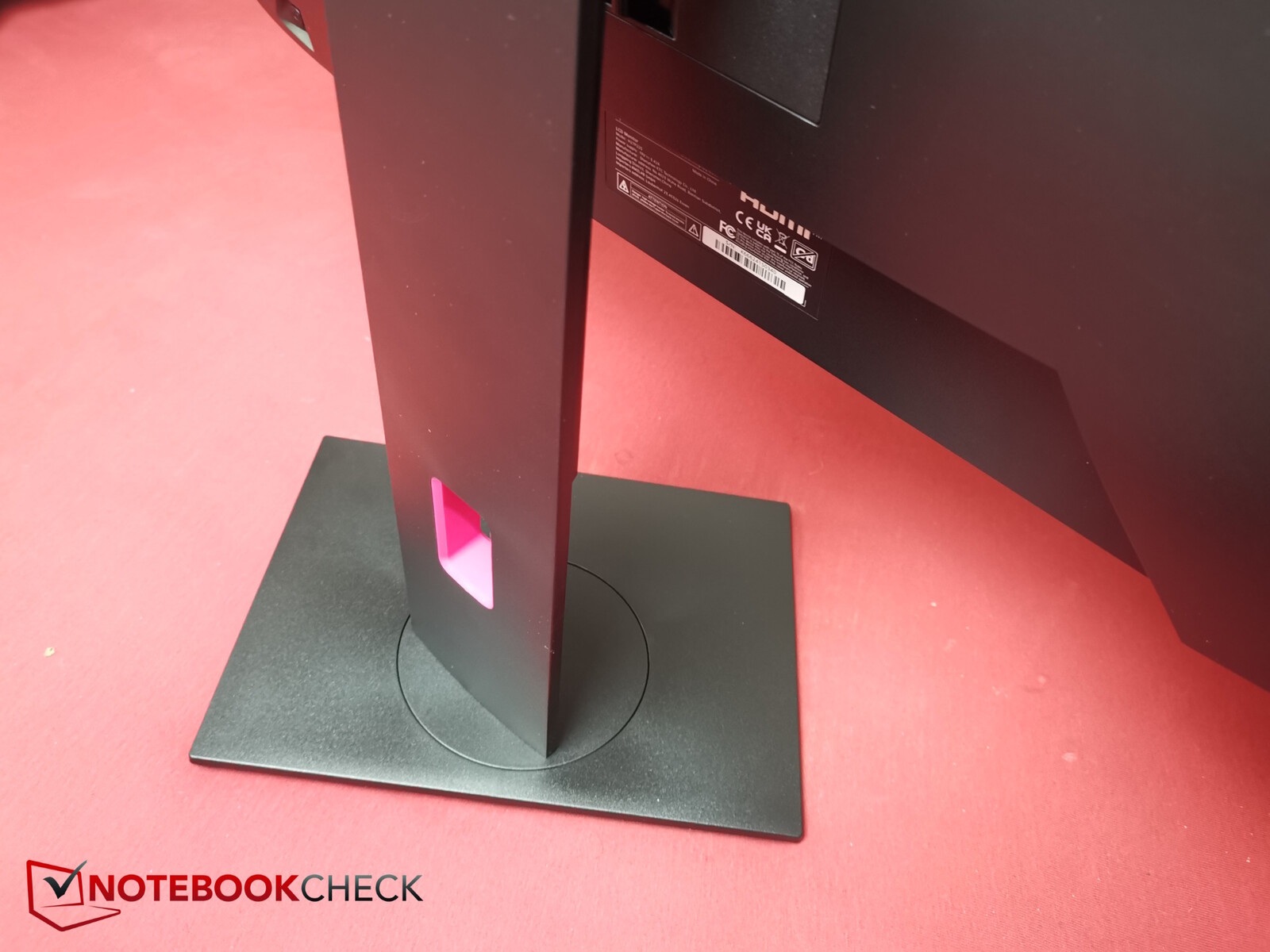

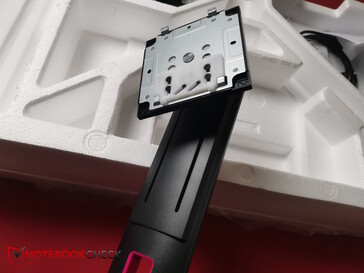

外壳和设计 - 黑色,塑料,多功能可调

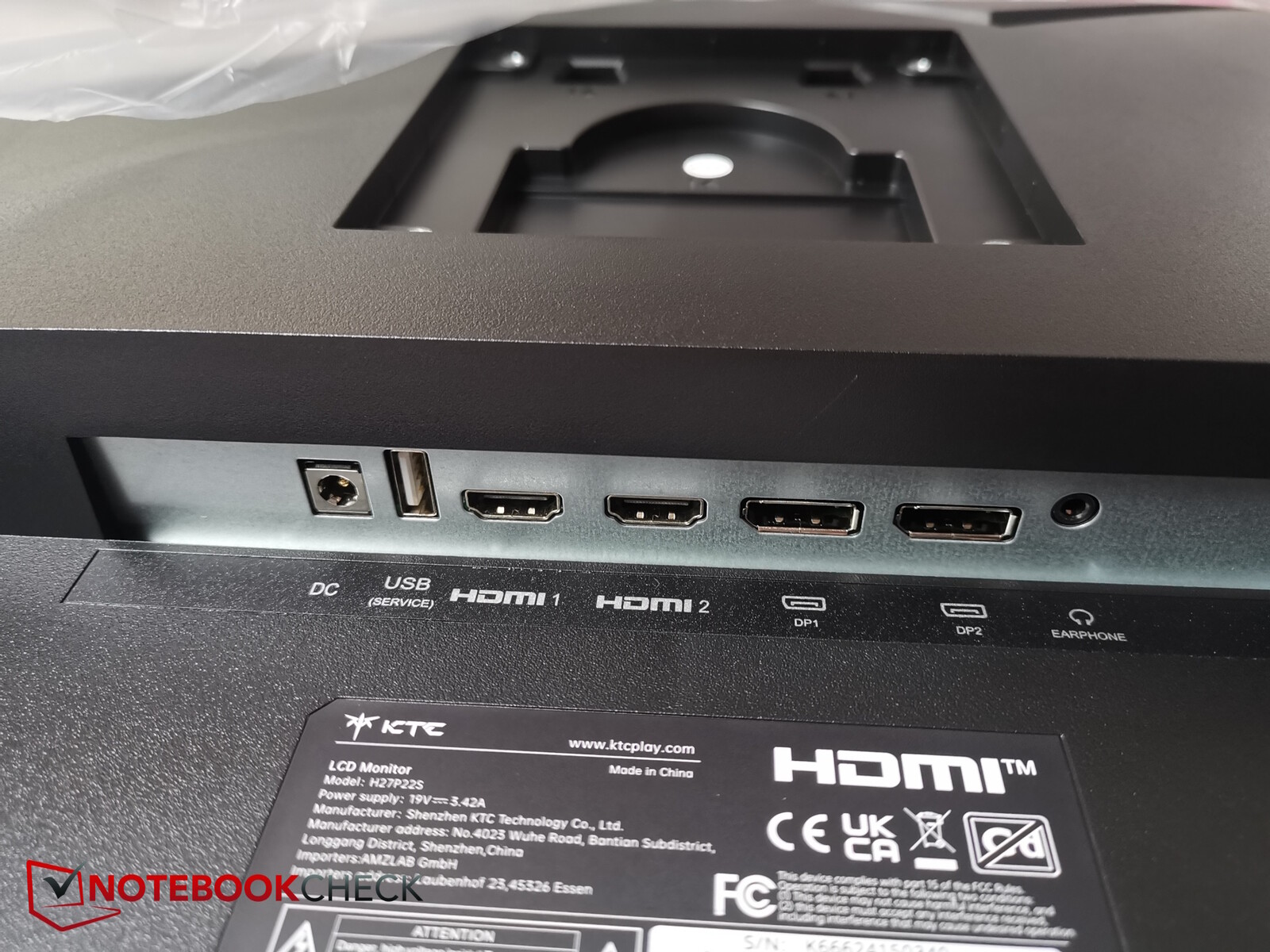

连接 - 4 个显示屏连接

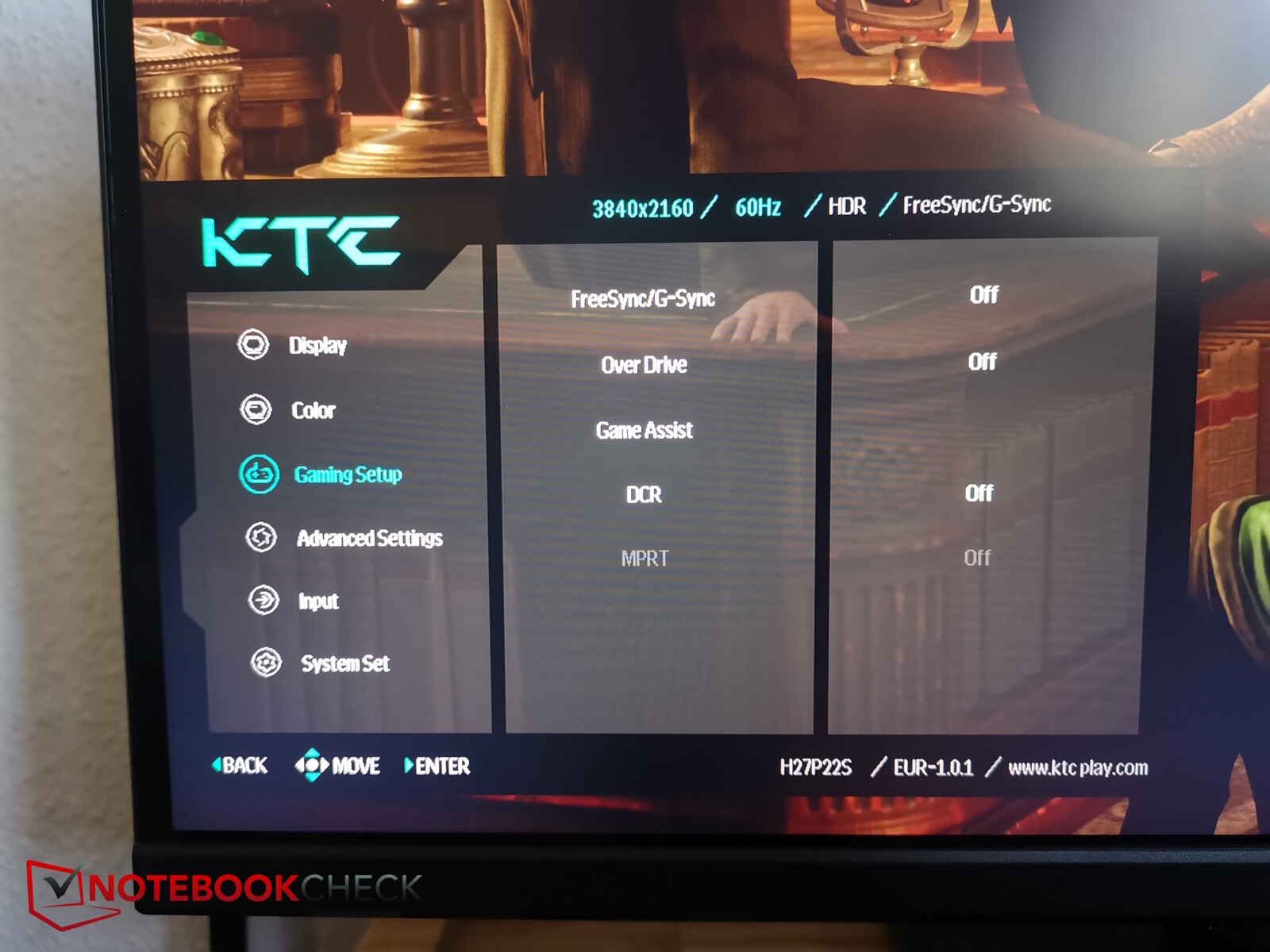

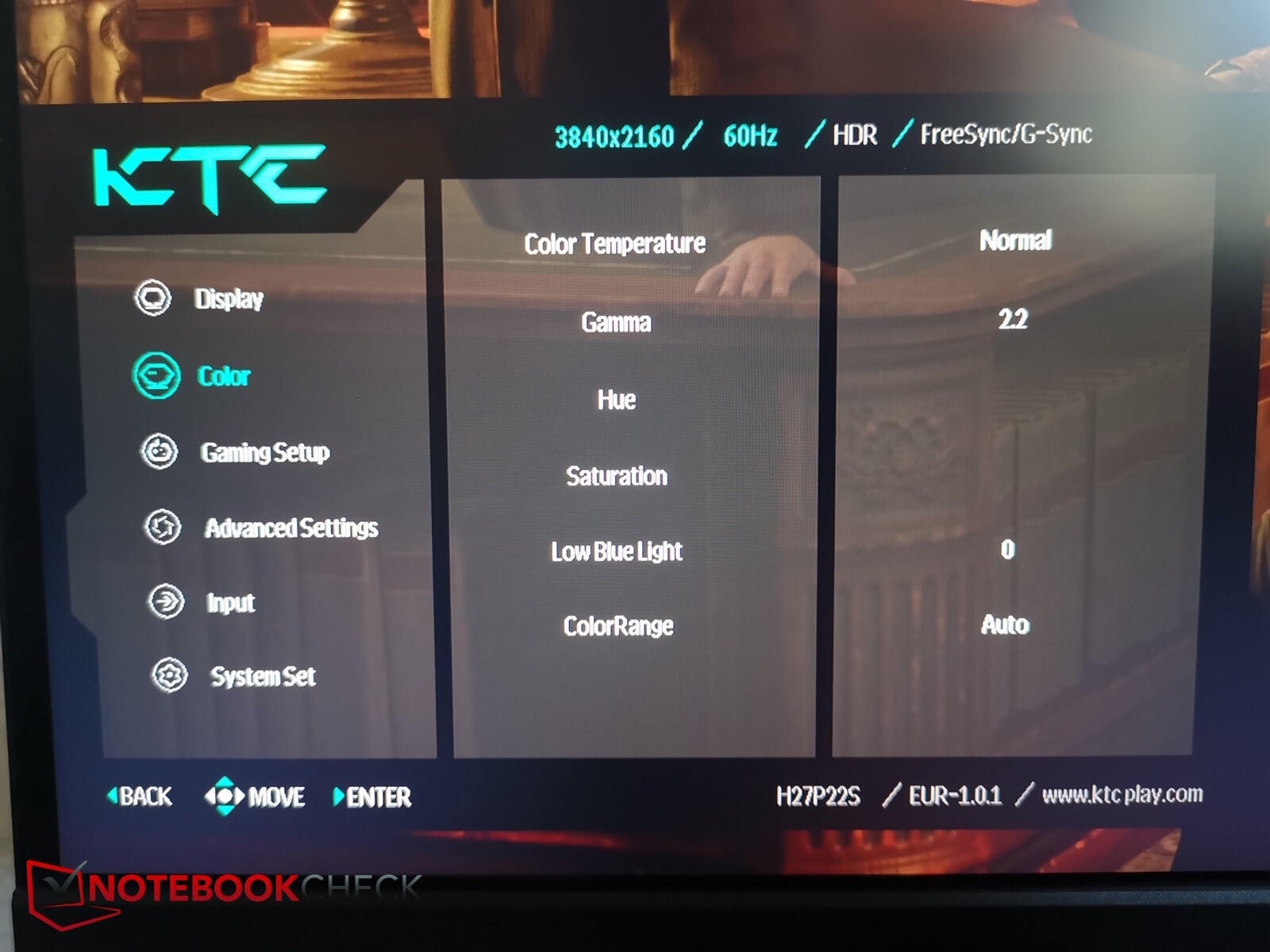

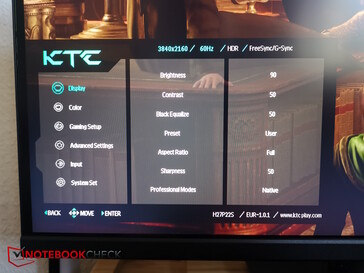

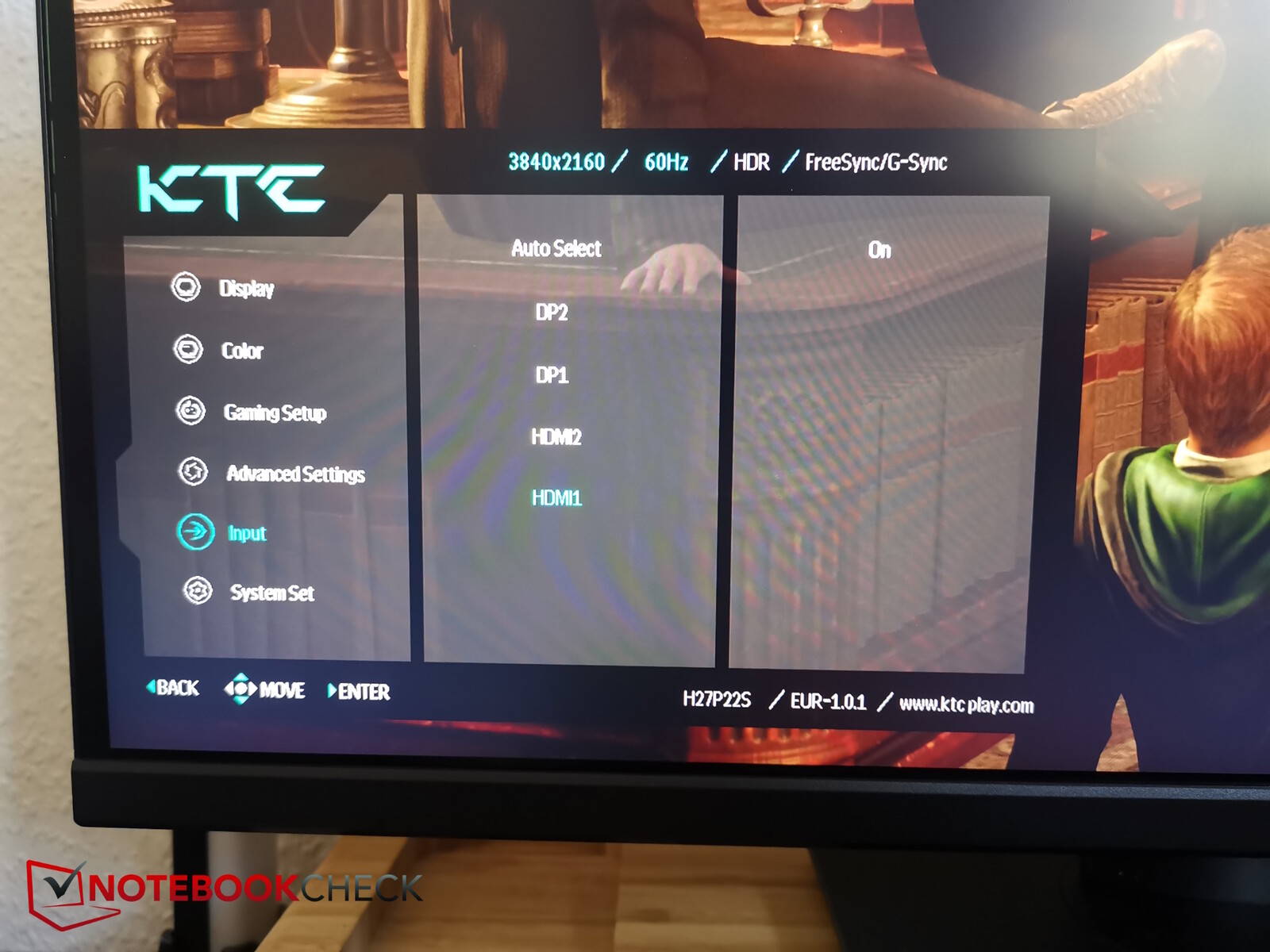

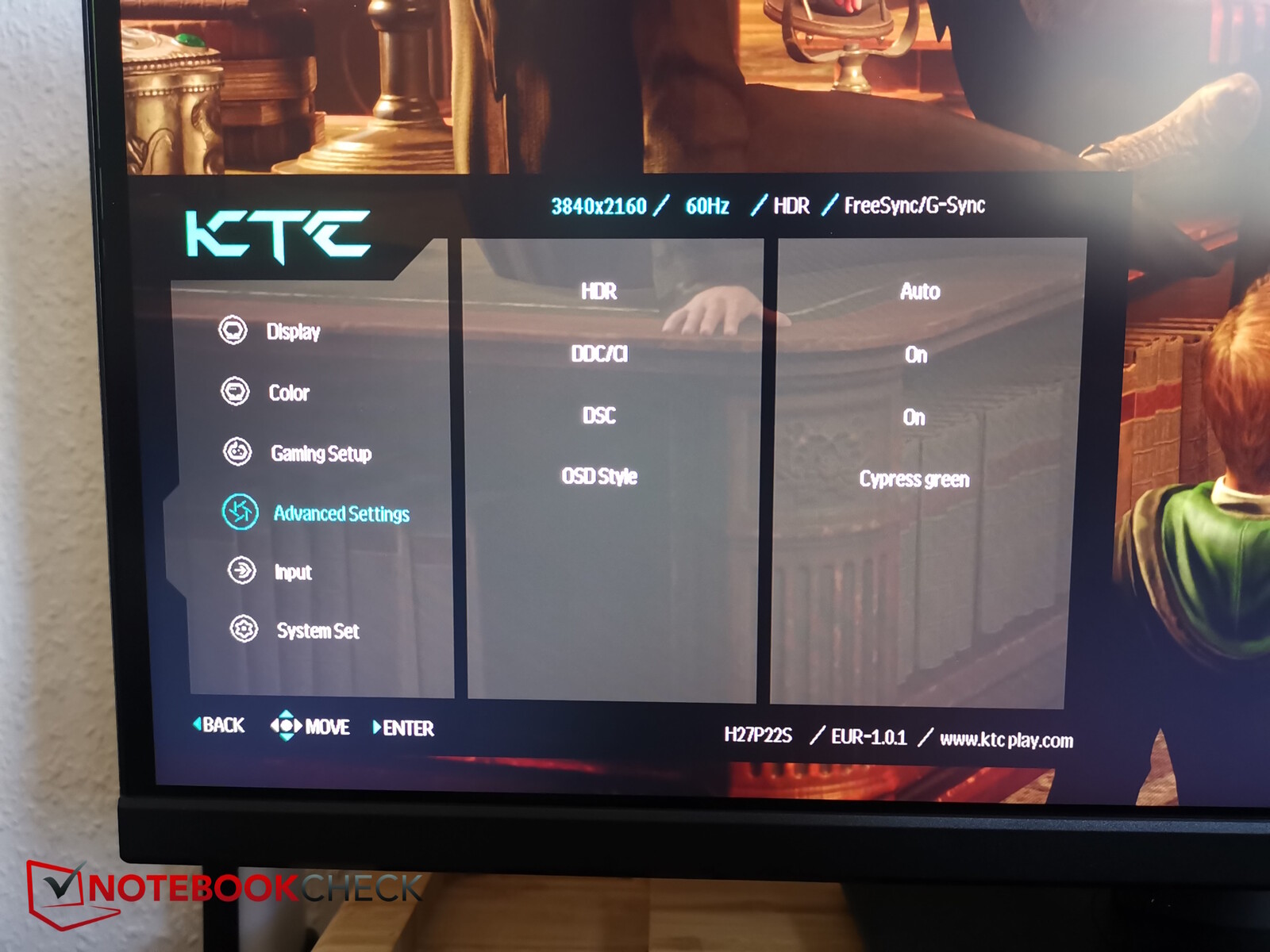

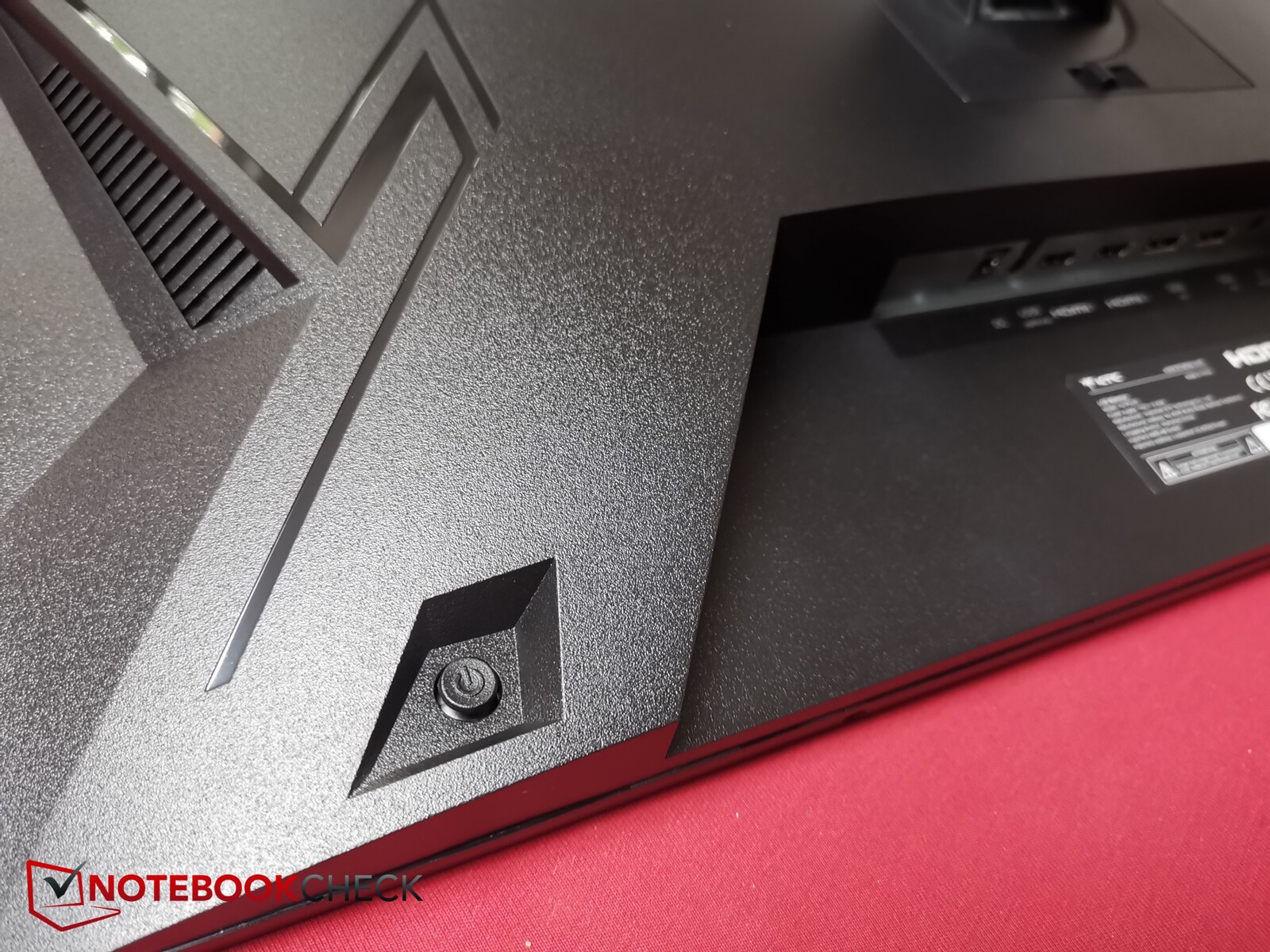

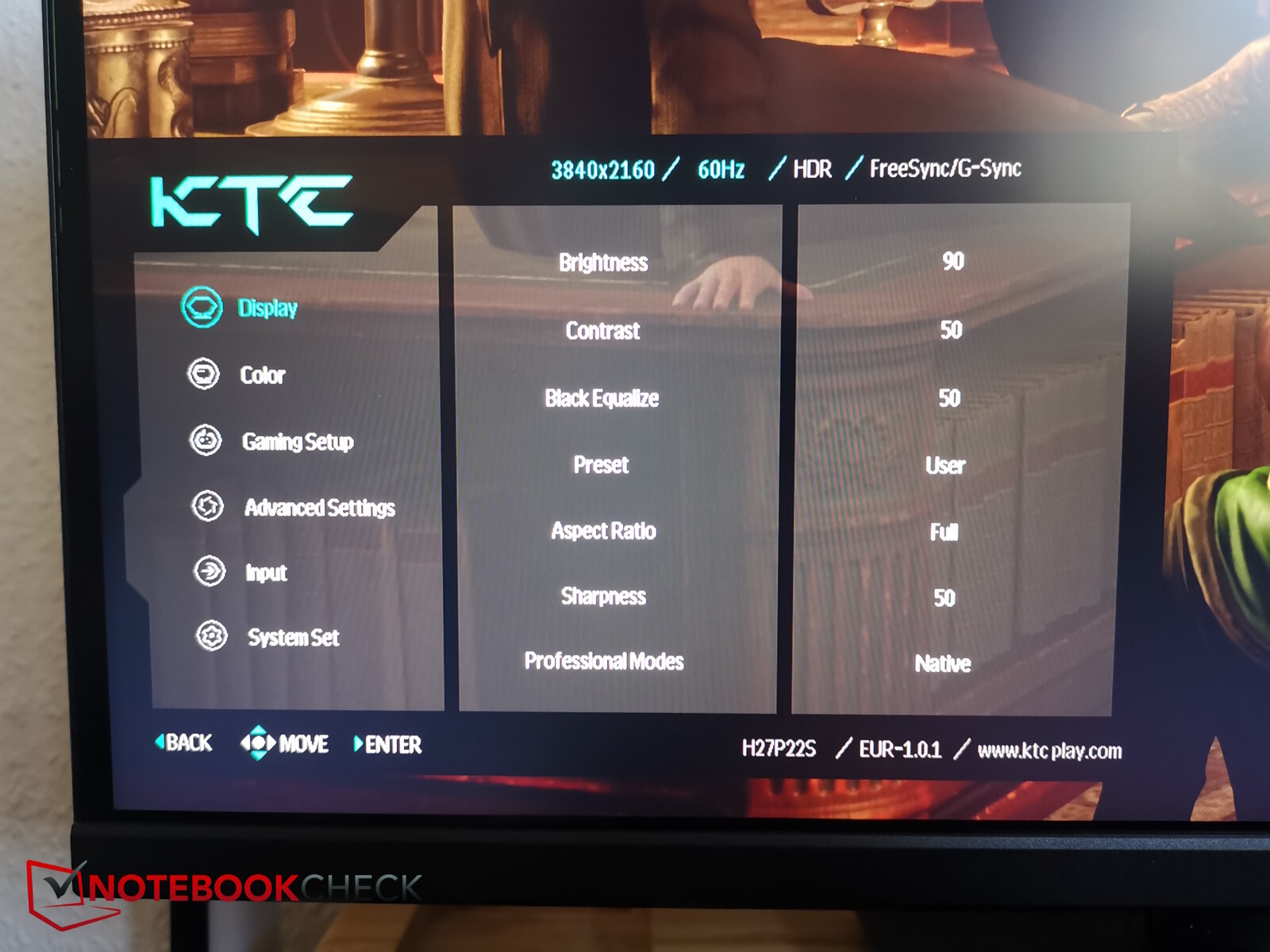

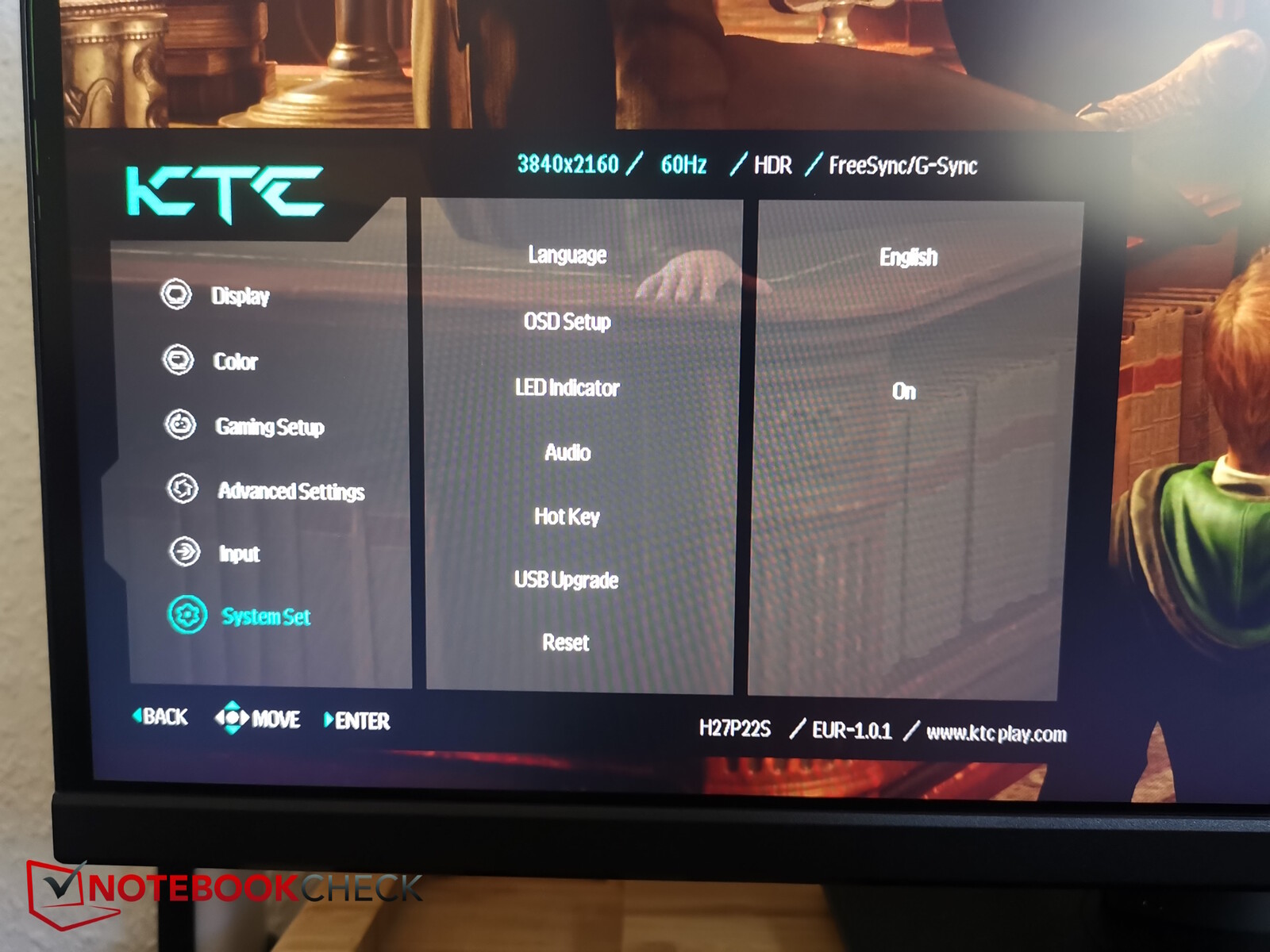

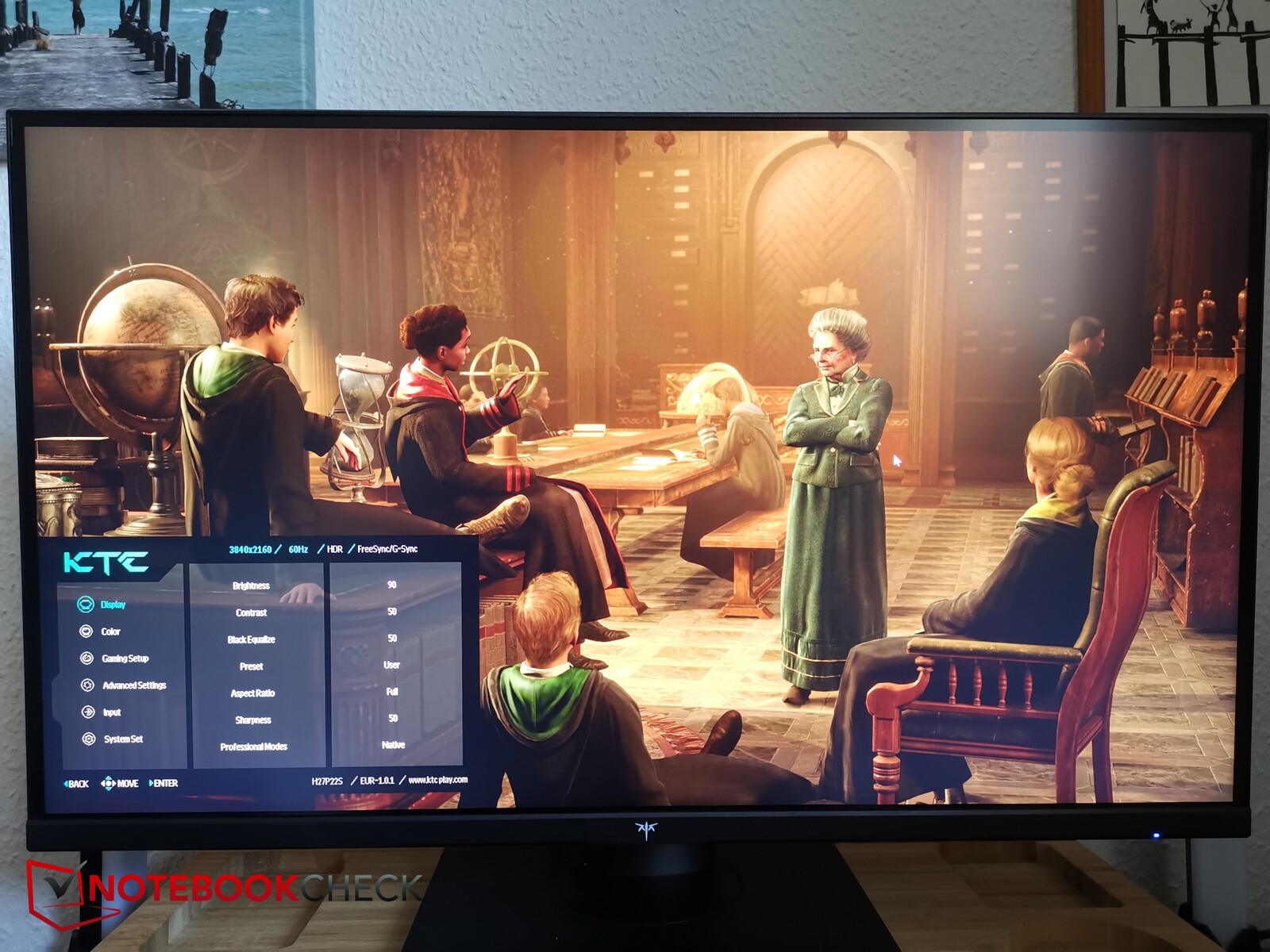

用户界面/OSD - 操作简便

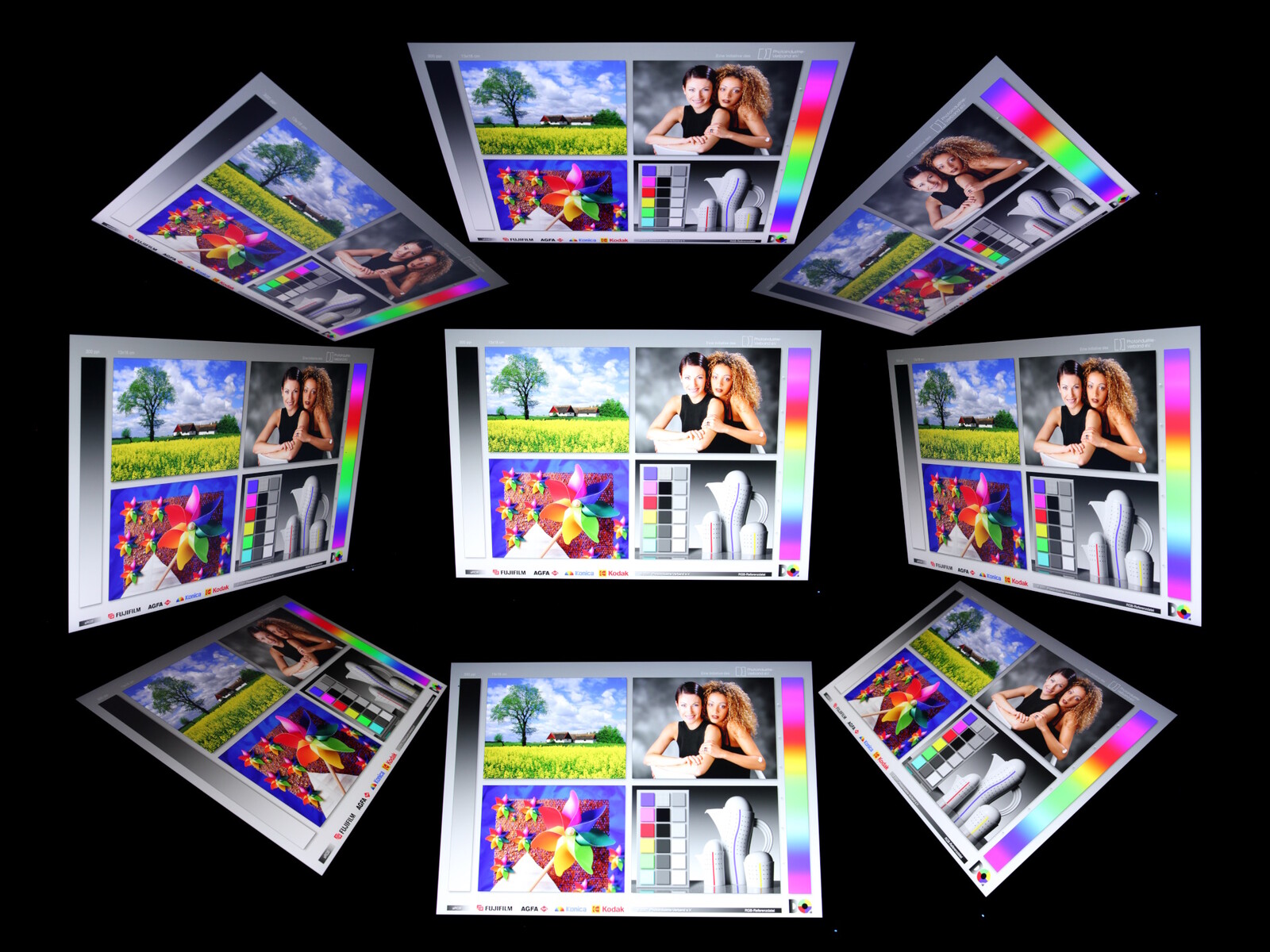

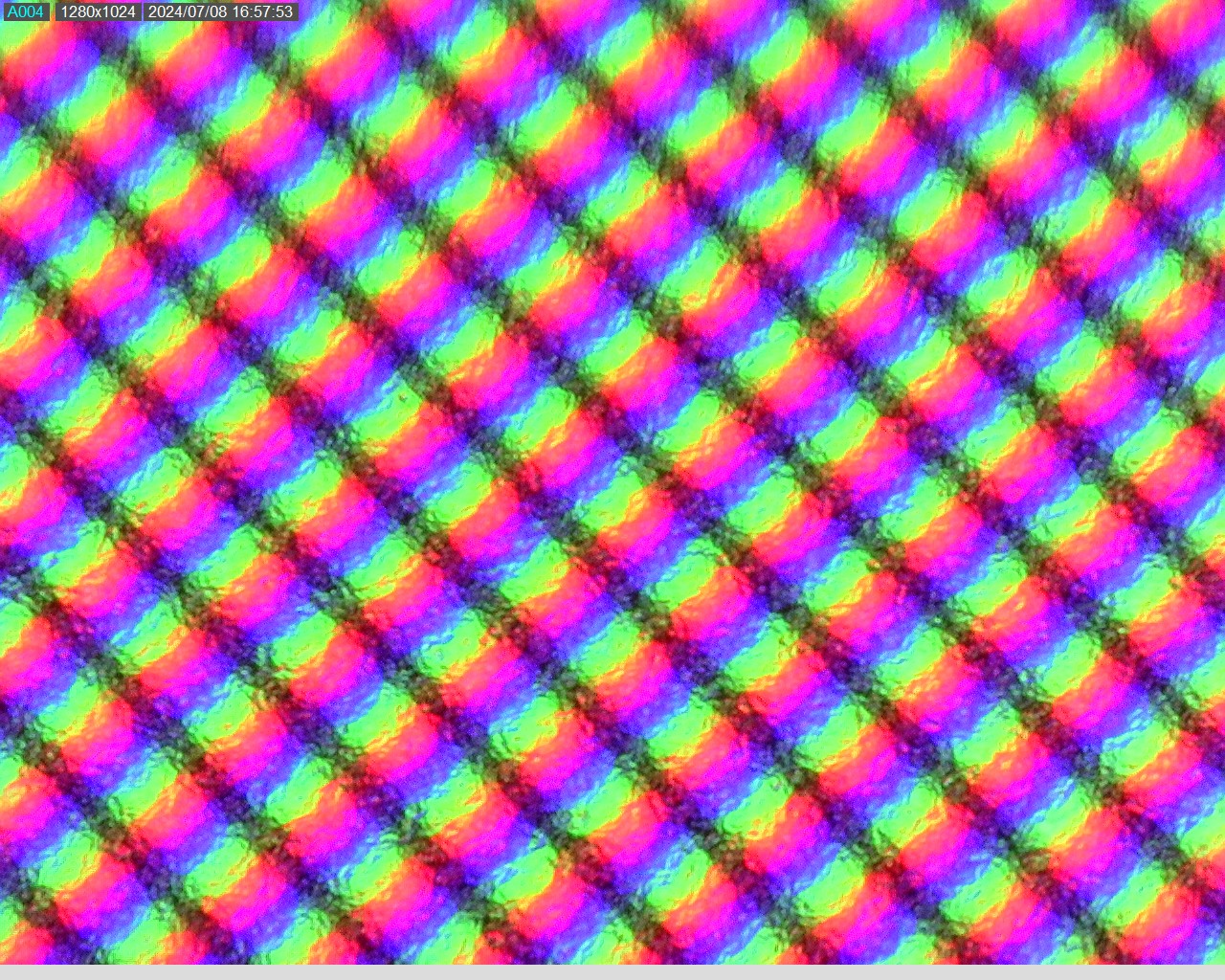

显示屏 - 明亮、快速的 KTC-IPS
|

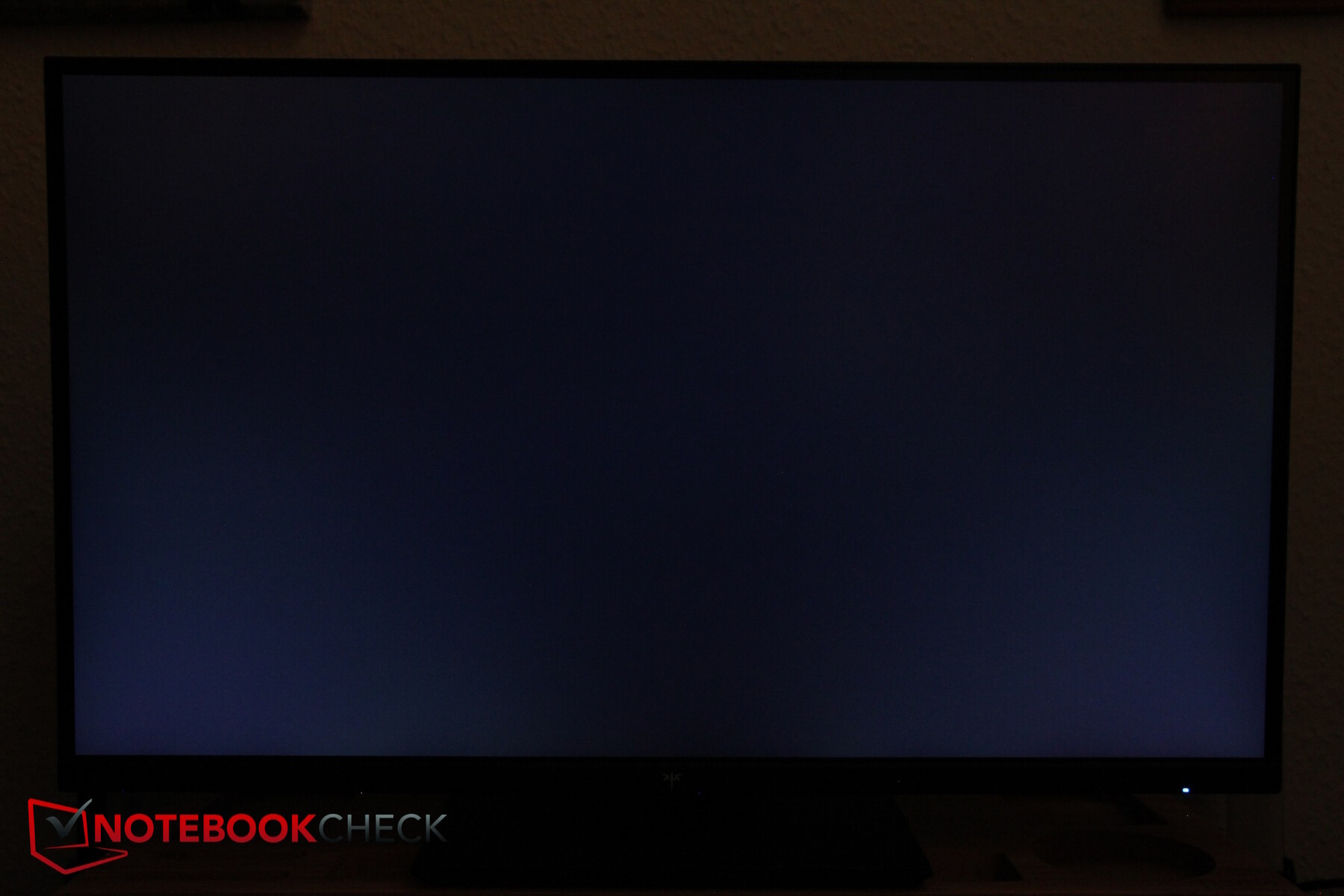

Brightness Distribution: 79 %
Contrast: 1107:1 (Black: 0.41 cd/m²)
ΔE Color 4.61 | 0.5-29.43 Ø4.88, calibrated: 2.57

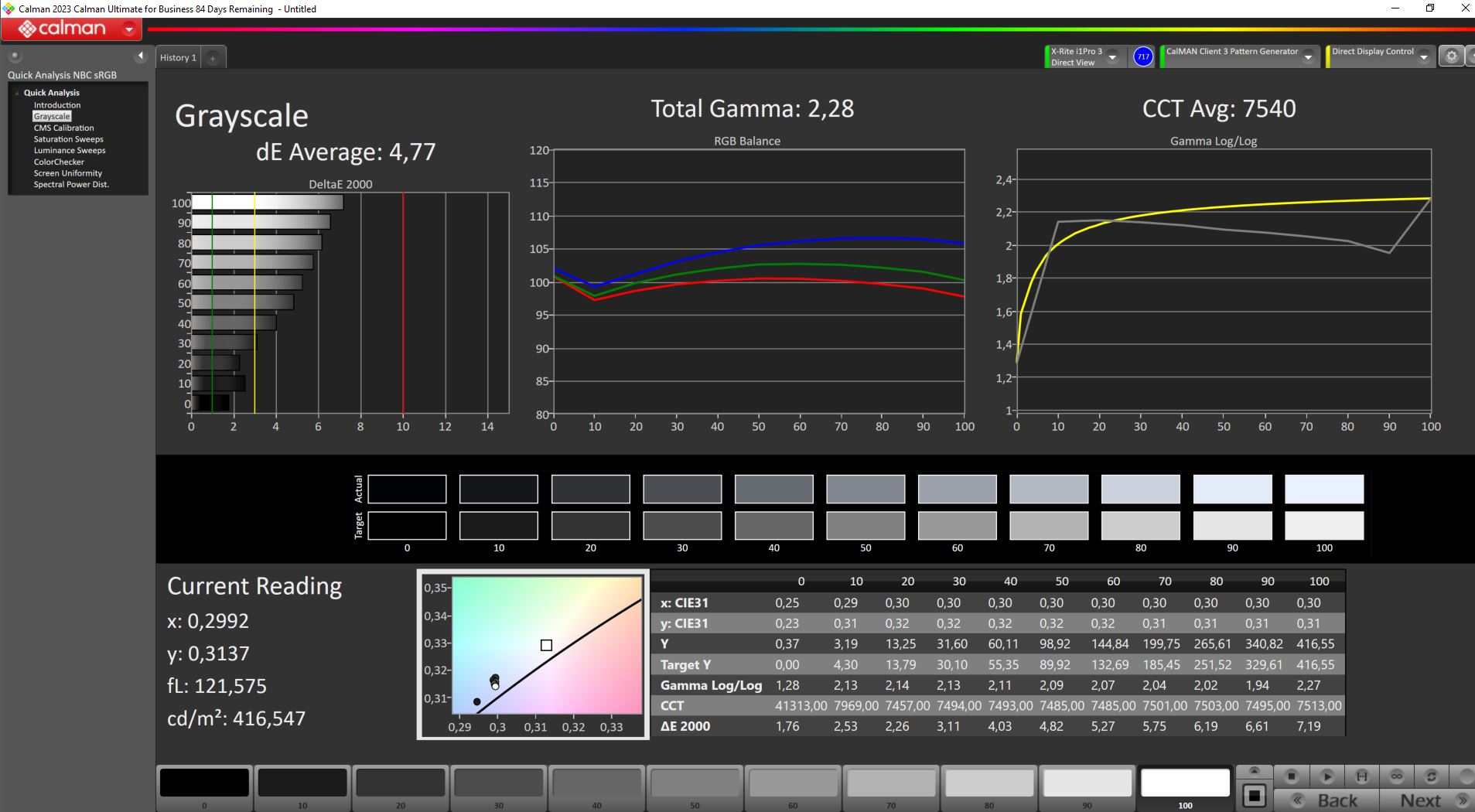

ΔE Greyscale 4.77 | 0.5-98 Ø5.1
81.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.8% sRGB (Argyll 2.2.0 3D)
86.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28
KTC H27P22s AUO 7.0, IPS, 3840x2160, 27" | MSI MAG 274UPF MAG 274UPF, IPS, 3840x2160, 27" | Samsung Odyssey Neo G7 VA, 3840x2160, 32" | MSI Optix MAG274QRX IPS, 2560x1400, 27" | |
---|---|---|---|---|
Display | 6% | 6% | ||
Display P3 Coverage | 86.9 | 92.47 6% | 87.5 1% | |
sRGB Coverage | 99.8 | 99.26 -1% | 99.9 0% | |
AdobeRGB 1998 Coverage | 81.6 | 92.6 13% | 96.3 18% | |
Response Times | 22% | 37% | ||
Response Time Grey 50% / Grey 80% * | 11.8 ? | 8.89 ? 25% | 6.23 ? 47% | |
Response Time Black / White * | 8 ? | 6.44 ? 19% | 5.83 ? 27% | |
PWM Frequency | ||||
Screen | -20% | 5% | -36% | |
Brightness middle | 454 | 393 -13% | 338.36 -25% | 351 -23% |
Brightness | 398 | 350 -12% | 336 -16% | 329 -17% |
Brightness Distribution | 79 | 81 3% | 89 13% | 89 13% |
Black Level * | 0.41 | 0.38 7% | 0.33 20% | |
Contrast | 1107 | 1034 -7% | 1064 -4% | |
Colorchecker dE 2000 * | 4.61 | 6.28 -36% | 3.8 18% | 7.28 -58% |
Colorchecker dE 2000 max. * | 8.04 | 10.29 -28% | 8.1 -1% | 16.15 -101% |
Colorchecker dE 2000 calibrated * | 2.57 | 3.7 -44% | 1.5 42% | 3.61 -40% |
Greyscale dE 2000 * | 4.77 | 7.3 -53% | 4.7 1% | 10.3 -116% |
Gamma | 2.28 96% | 2 110% | 2.43 91% | 2.15 102% |
CCT | 7540 86% | 7896 82% | 6583 99% | 9378 69% |
Total Average (Program / Settings) | 3% /
-9% | 5% /
5% | 2% /
-17% |
* ... smaller is better

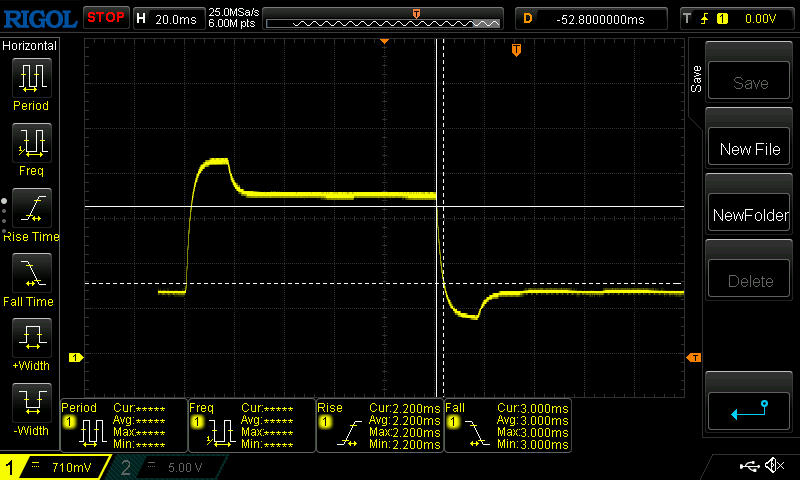

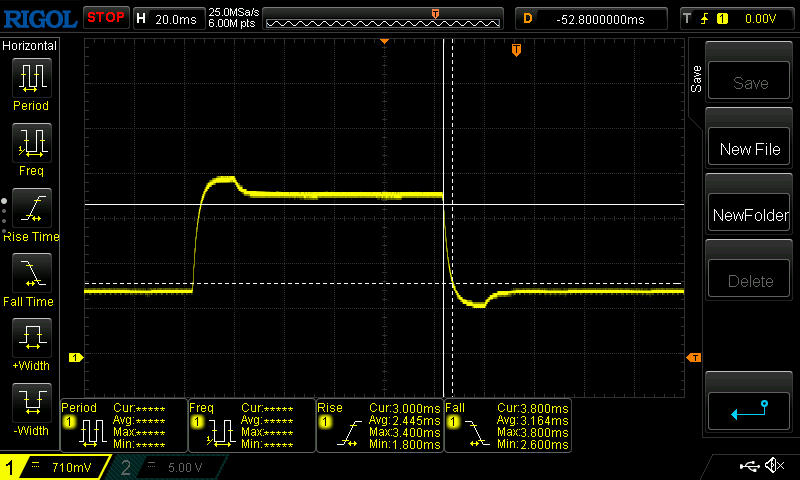

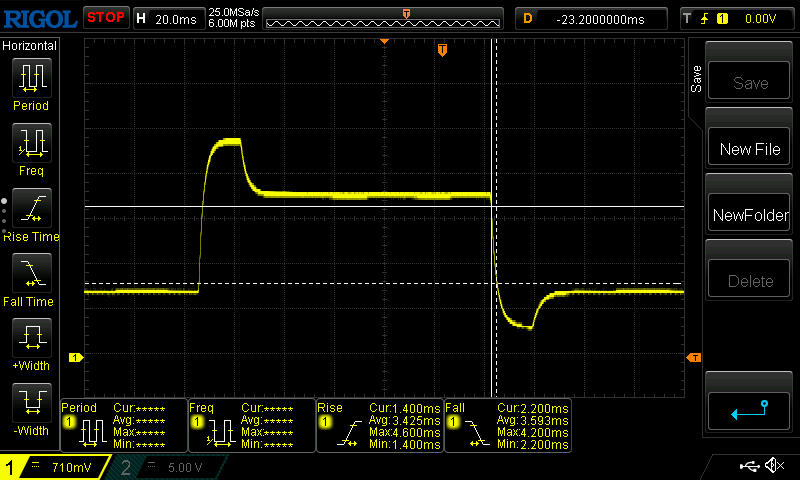

Display Response Times

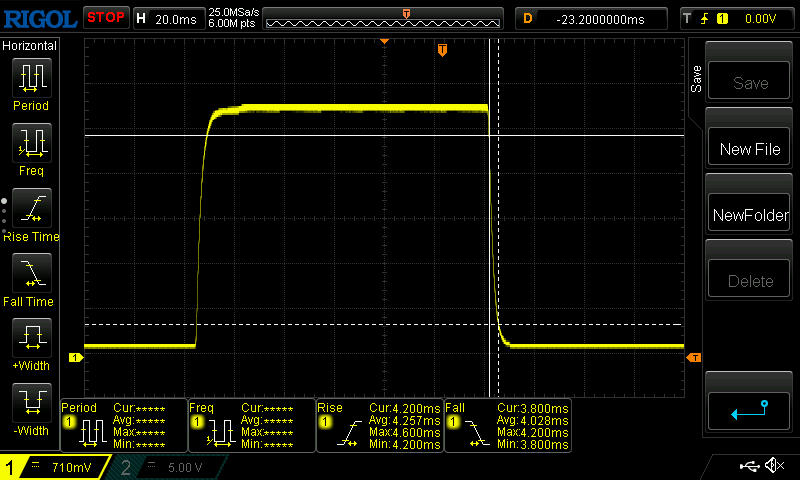

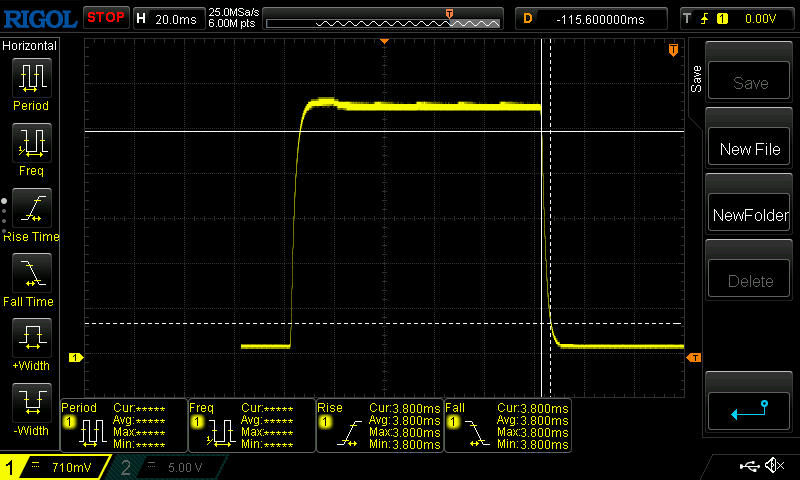

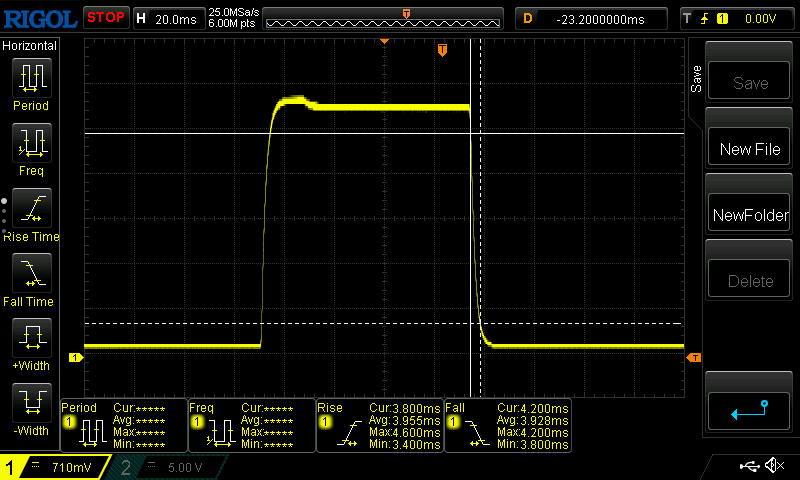

↔ Response Time Black to White | ||
---|---|---|
8 ms ... rise ↗ and fall ↘ combined | ↗ 4.2 ms rise | |
↘ 3.8 ms fall | ||
The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 19 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.8 ms). | ||

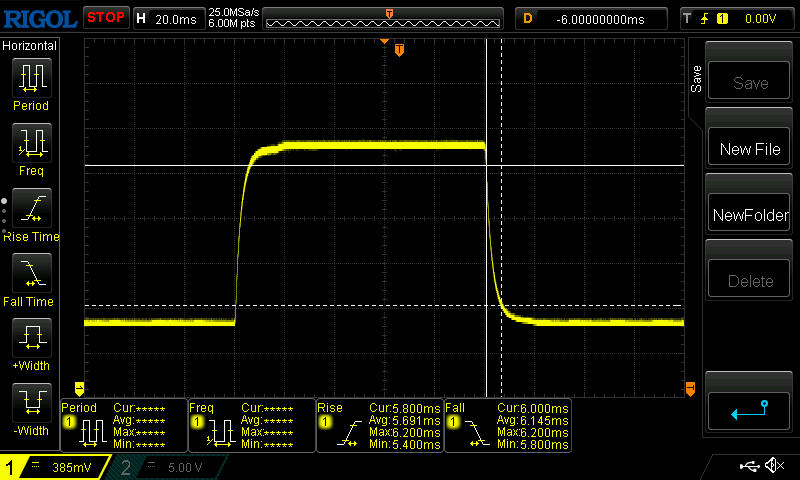

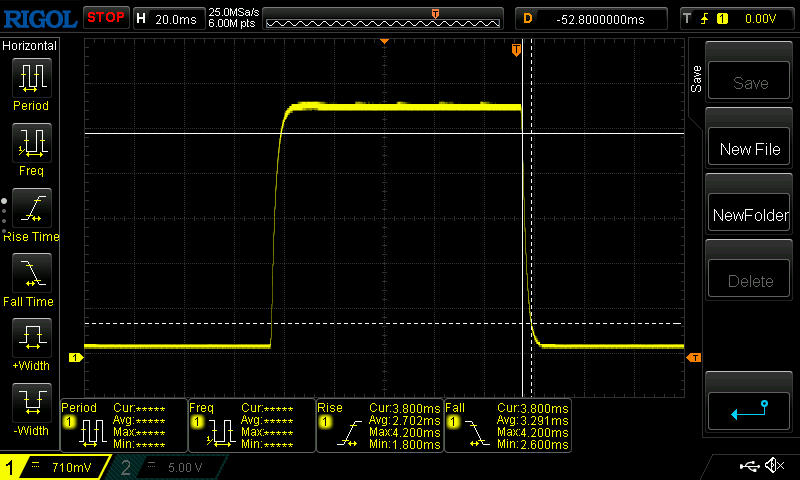

↔ Response Time 50% Grey to 80% Grey | ||
11.8 ms ... rise ↗ and fall ↘ combined | ↗ 5.8 ms rise | |
↘ 6 ms fall | ||
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 22 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.6 ms). |

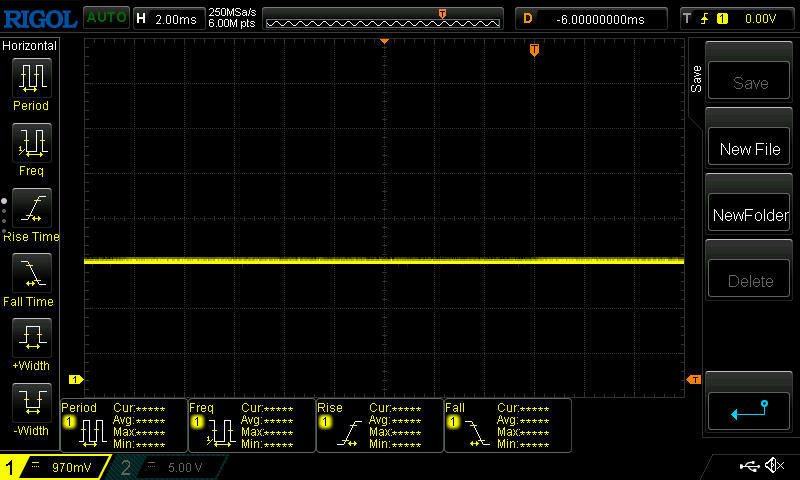

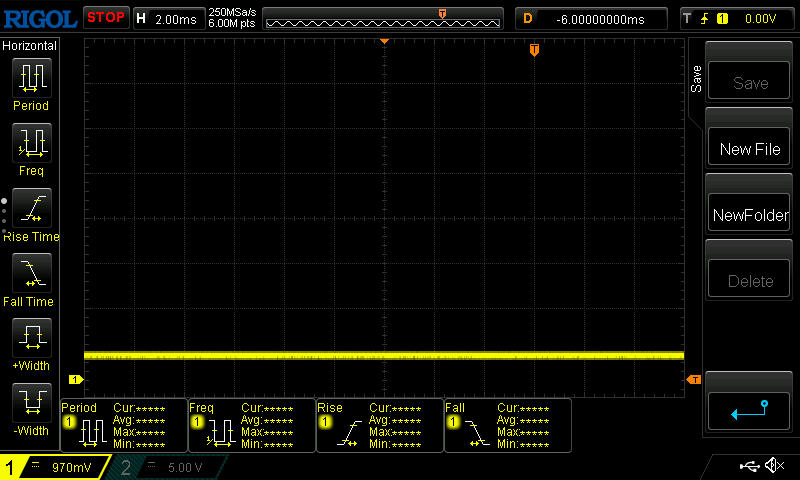

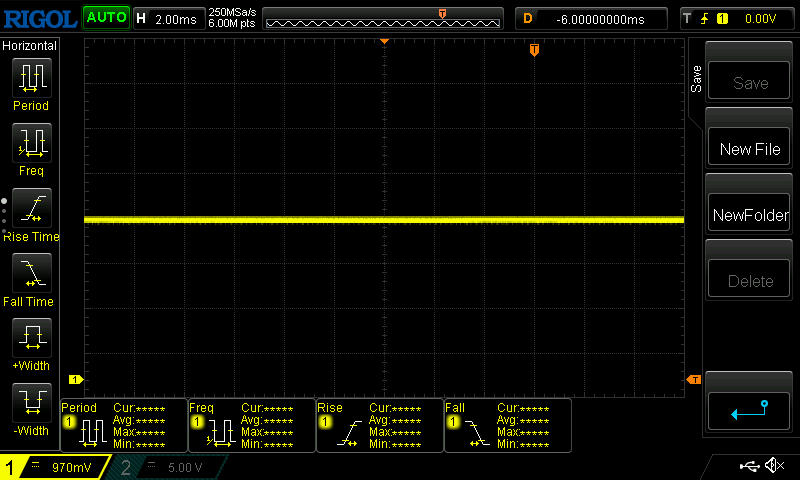

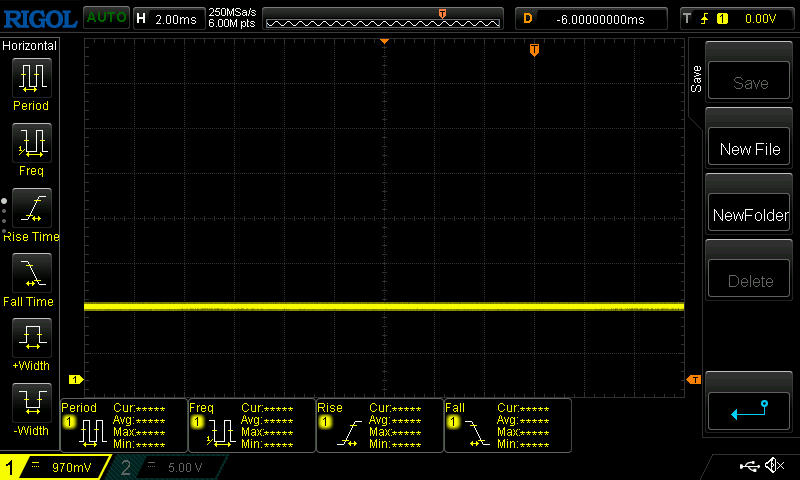

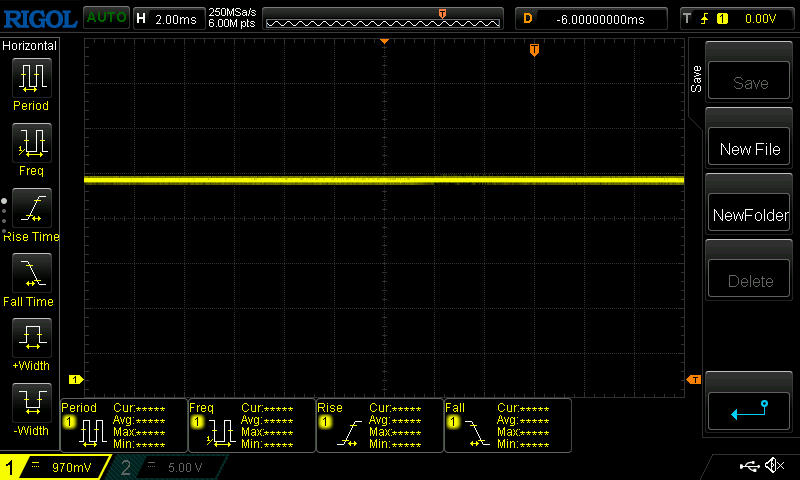

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | |||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8529 (minimum: 5 - maximum: 343500) Hz was measured. |

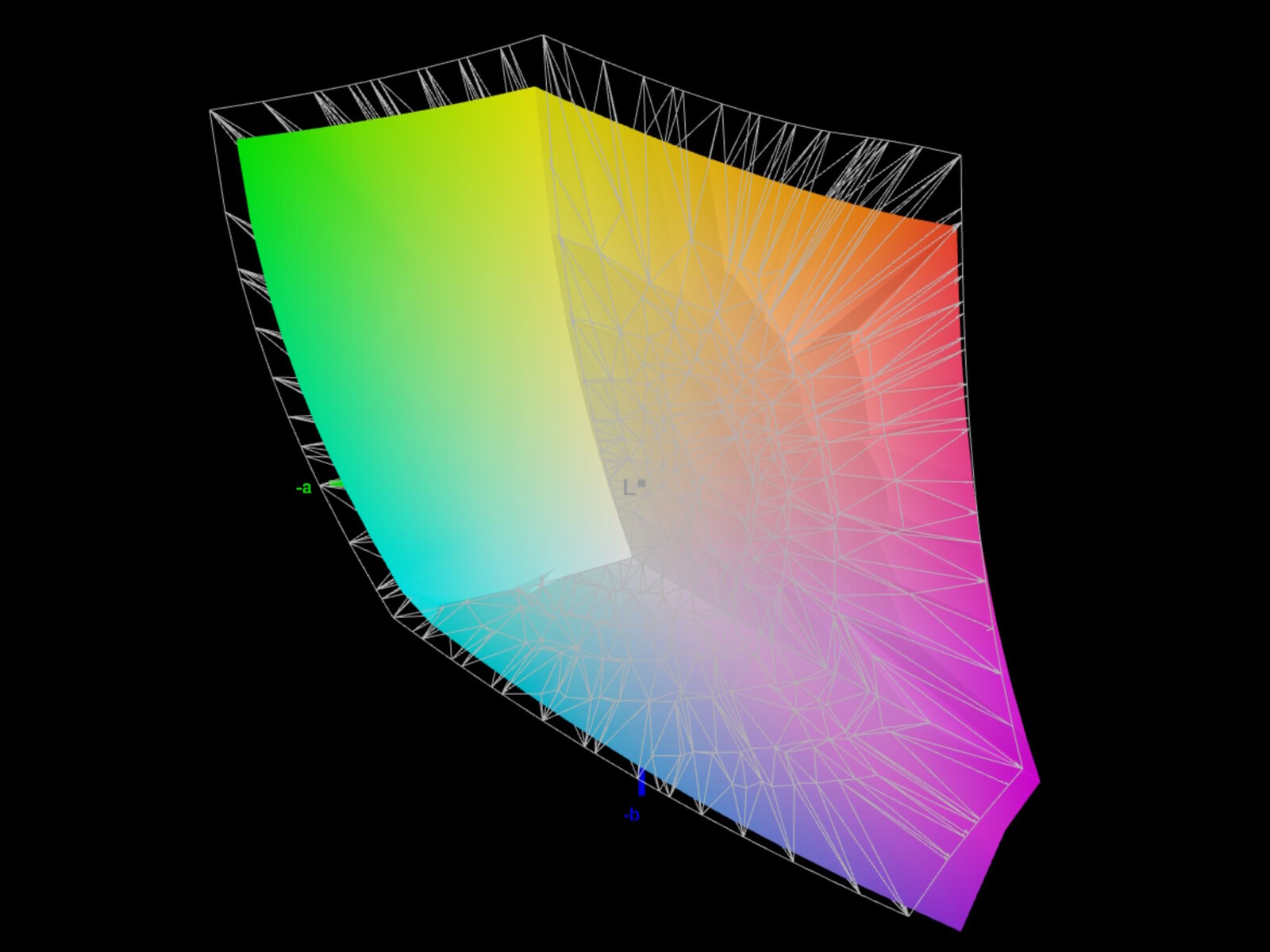

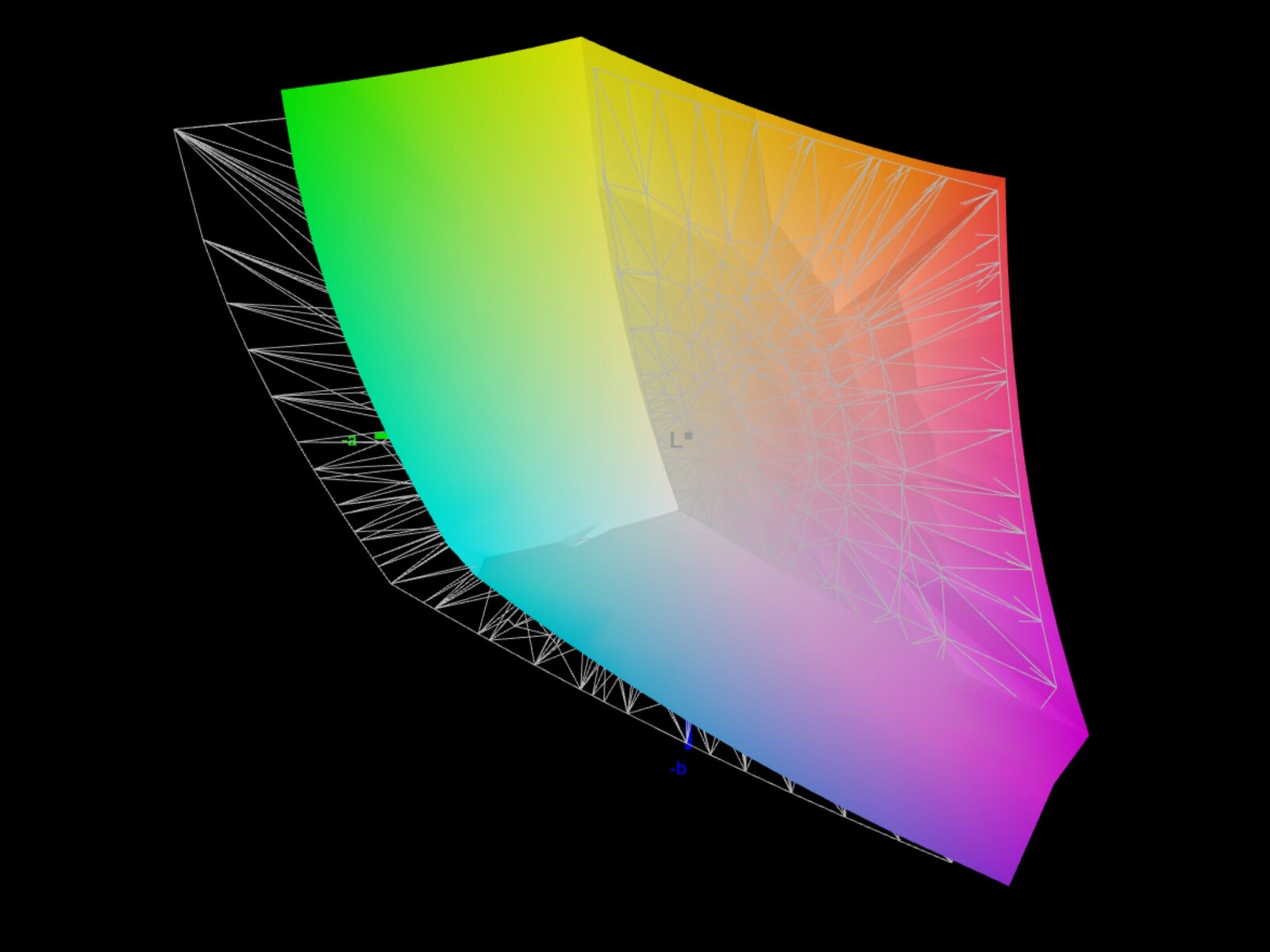

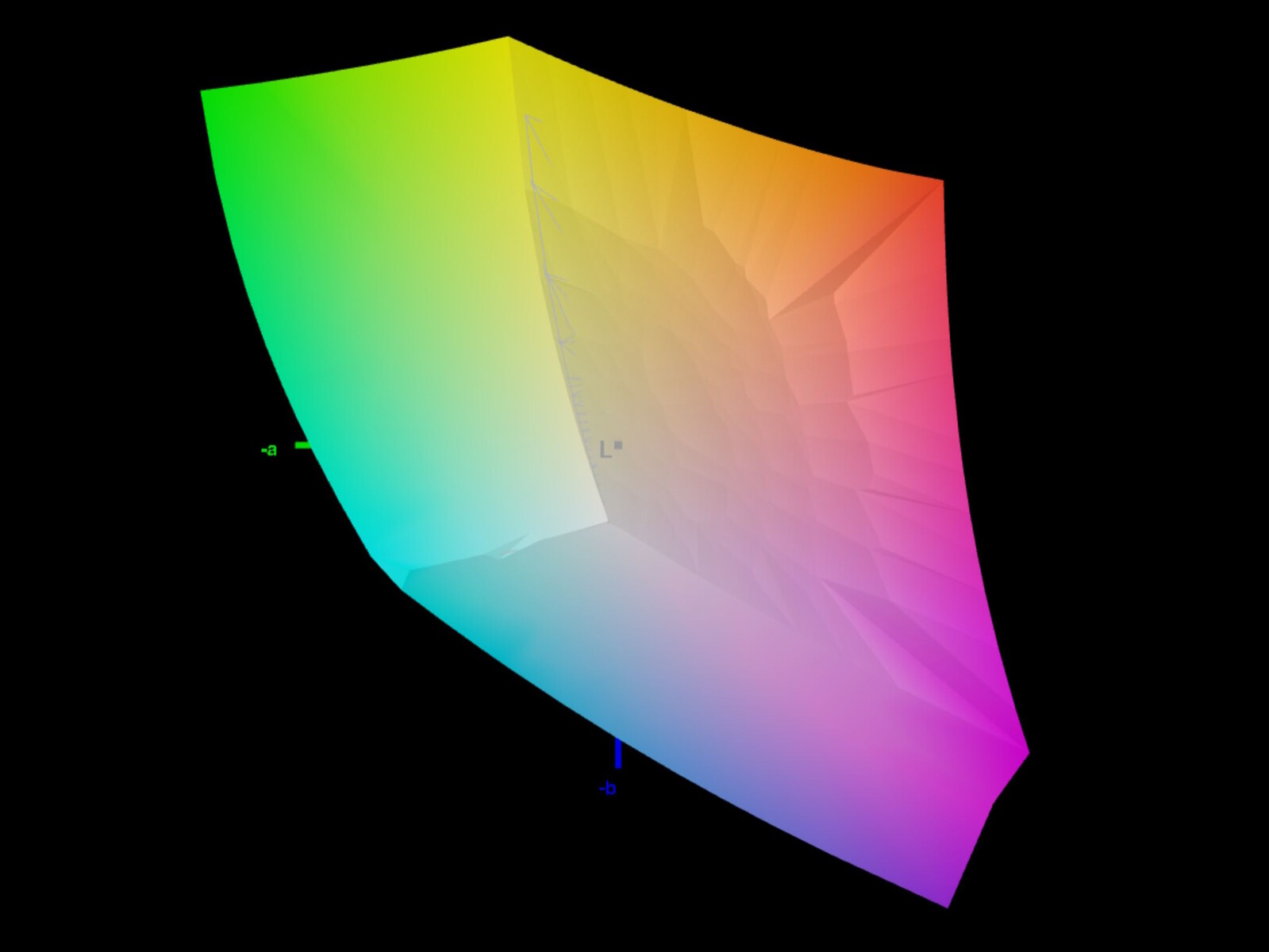

色彩空间

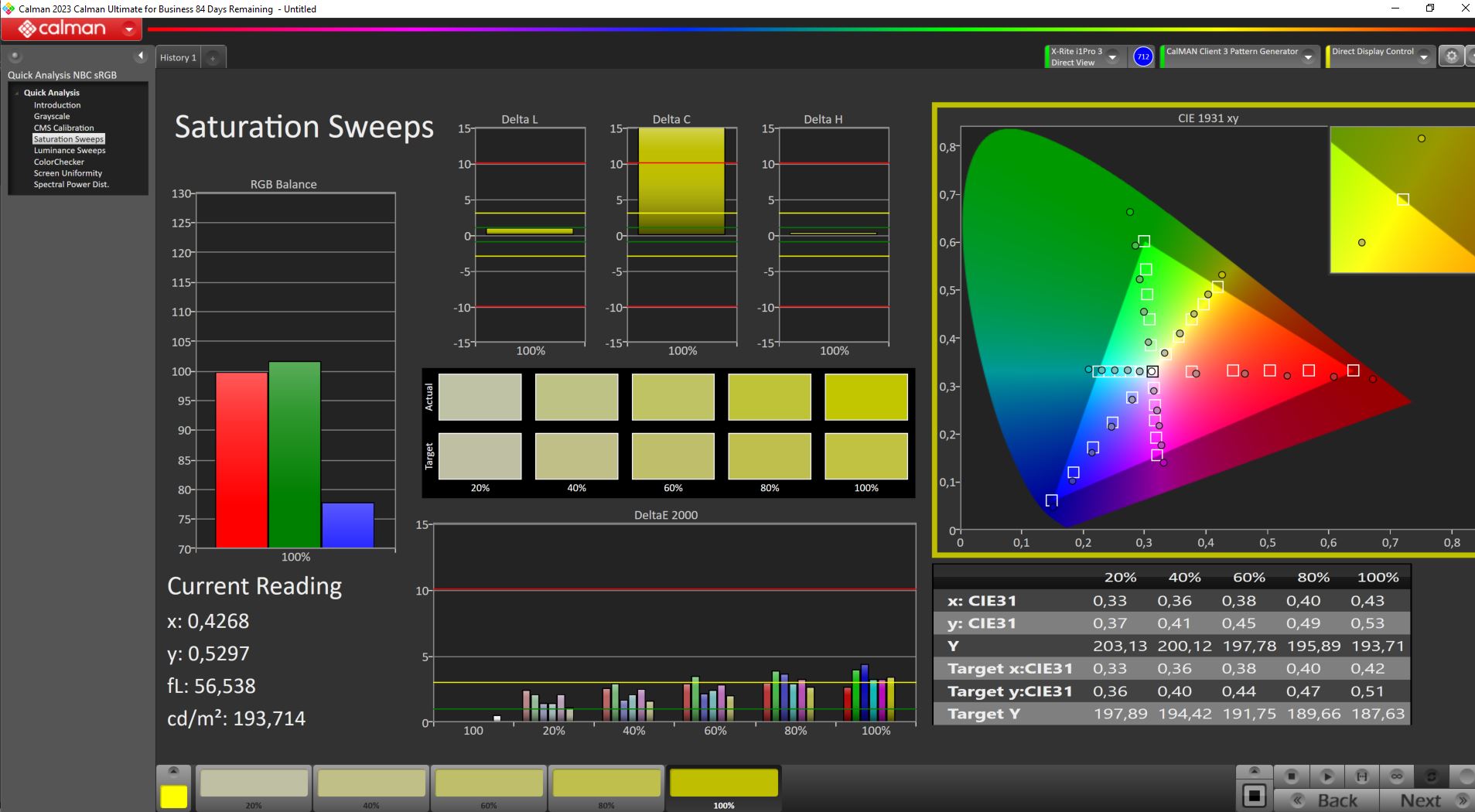

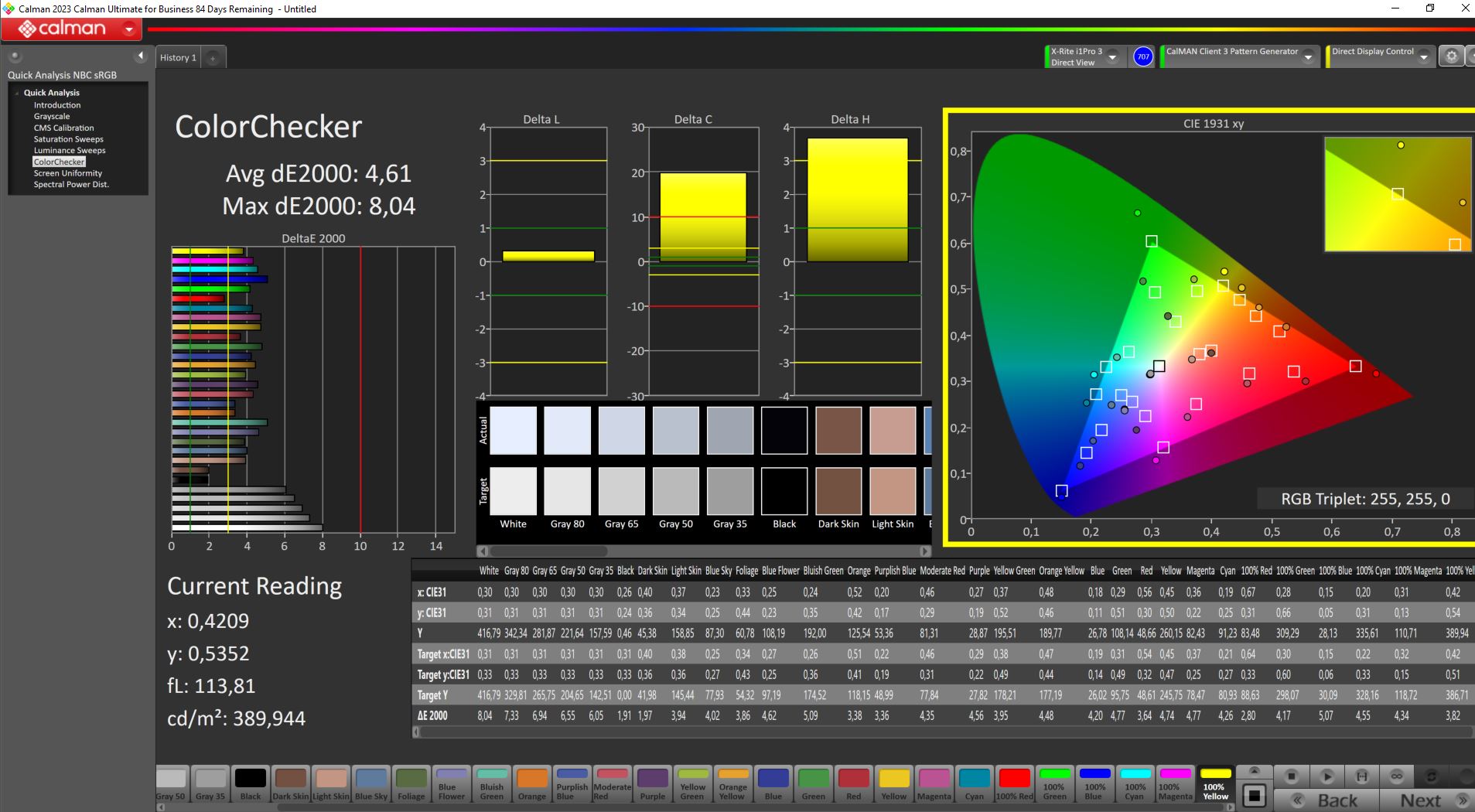

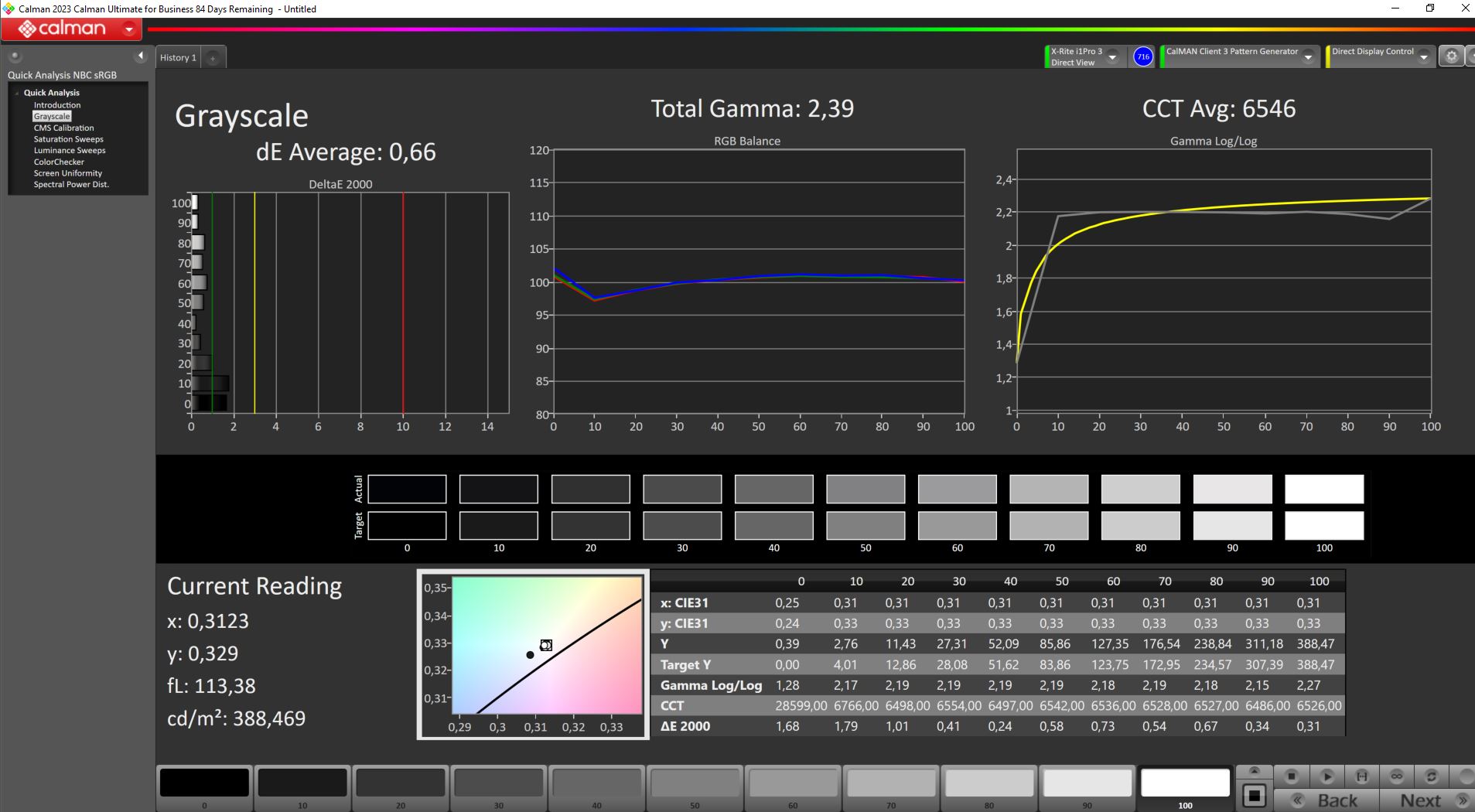

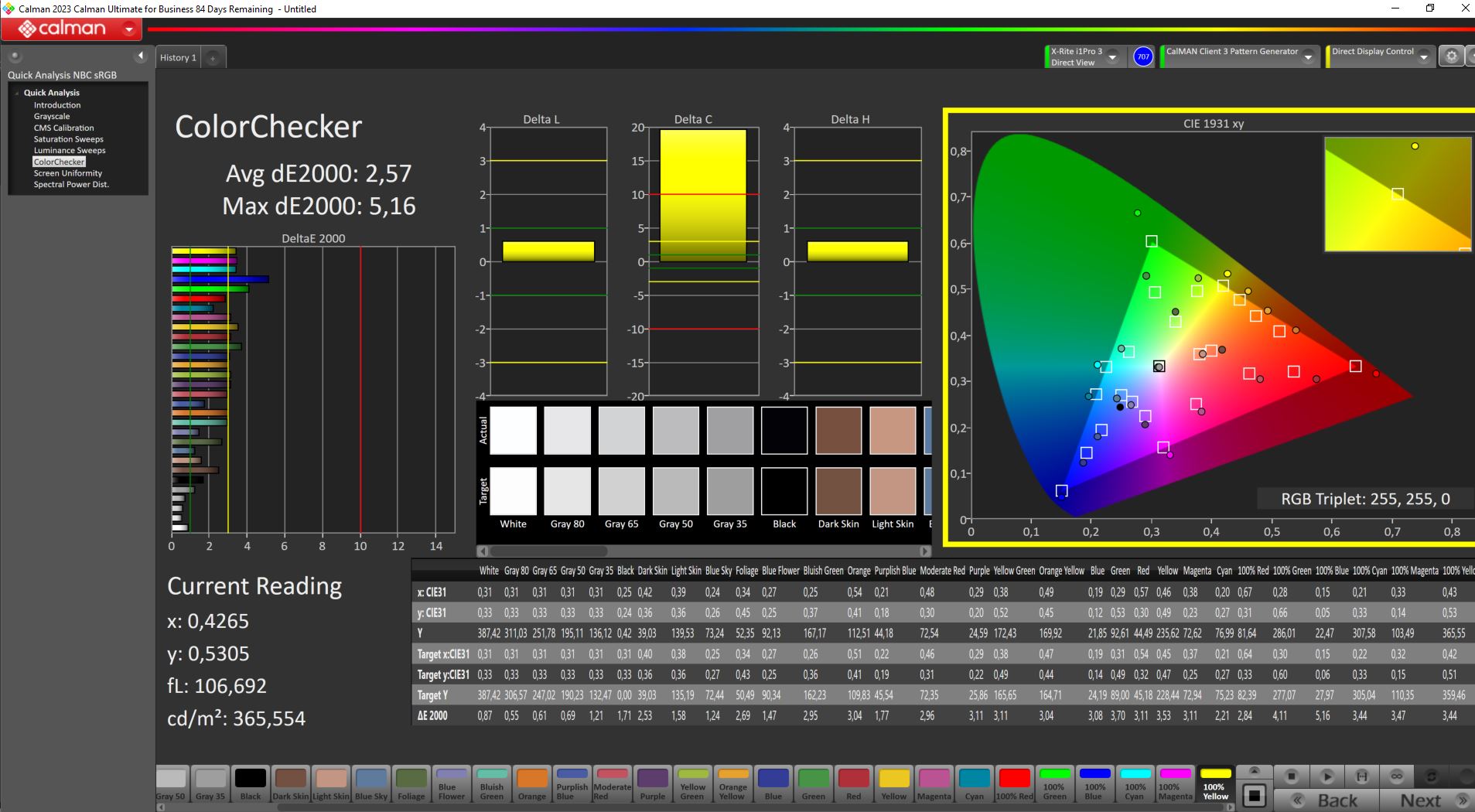

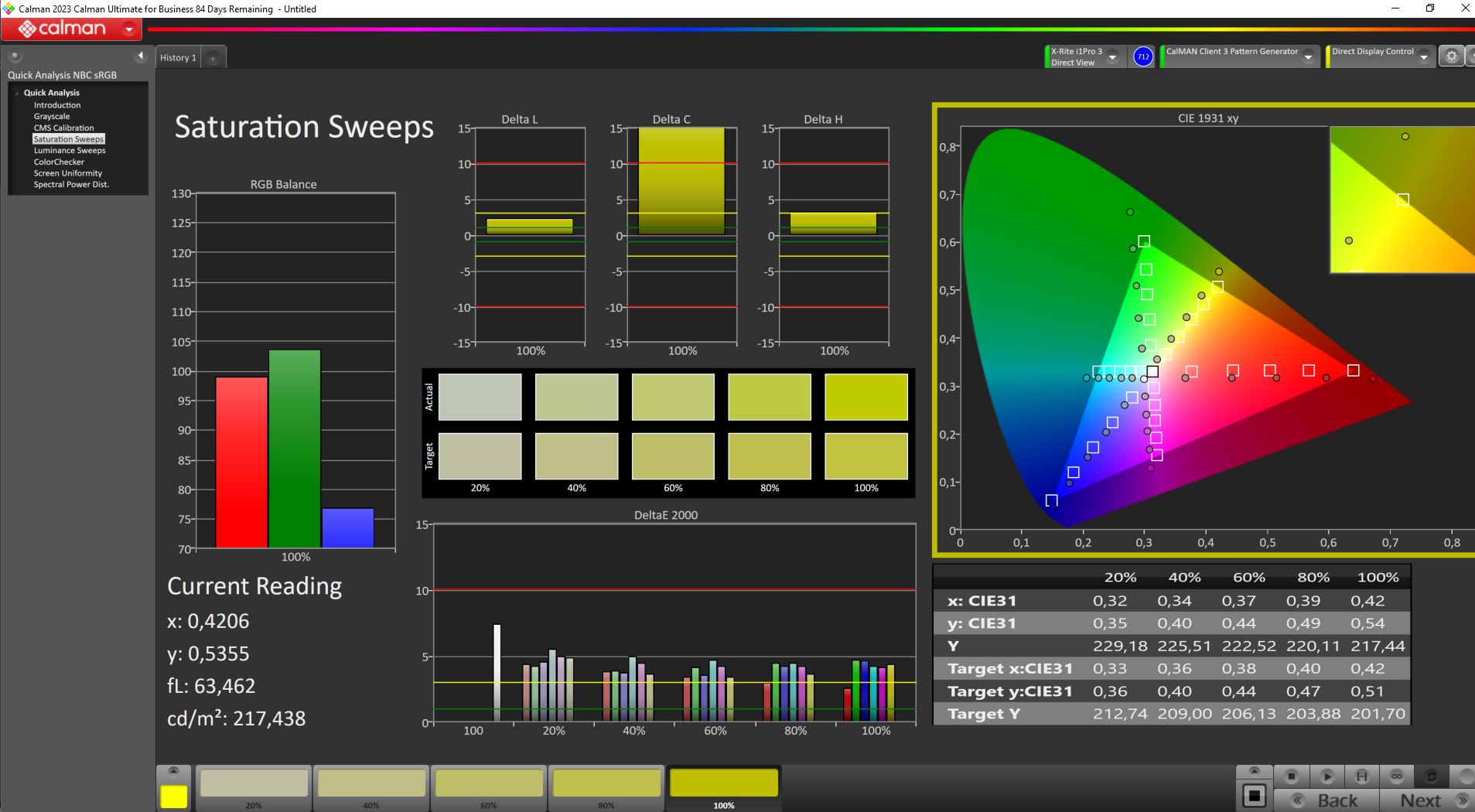

色彩精度

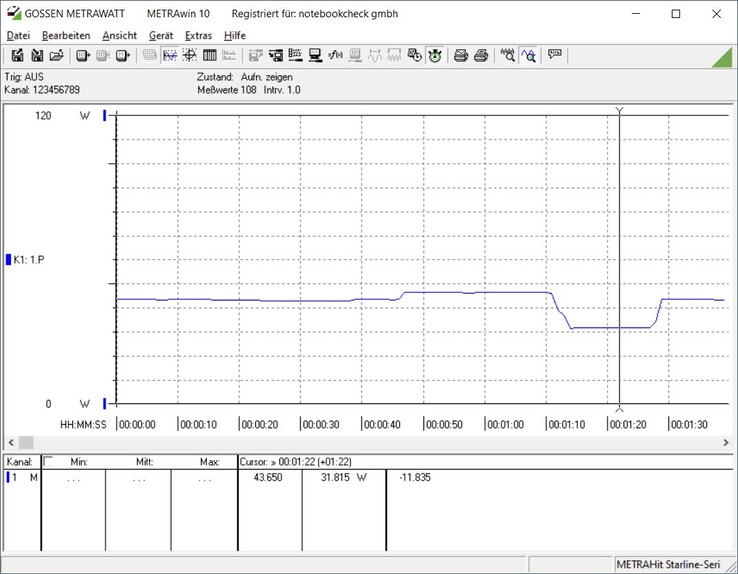

耗电量 - IPS 恒定耗电量,短电缆
Pros
Cons
评语--不折不扣的 IPS 游戏机
H27P22s 不提供 OLED 或 MiniLED,也不提供 KVM 开关等简单的附加功能。另一方面,这款 27 英寸的游戏显示器仅售 399 欧元,支持 4K,并采用了较为坚固的 IPS 面板,亮度不错,响应时间也足够快,最重要的是,主观上显示效果不错。

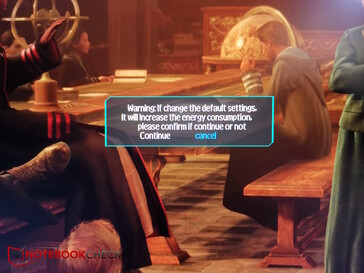

实际上,没有什么真正值得批评的地方。亮度可以更均匀一些,左侧亮度也会下降,但我们在实际使用中并没有注意到这一点。我们也没有注意到缺少扬声器的负面影响;通常的解决方案在声音方面并不十分令人信服,但我们通常会用耳机或外置扬声器来代替。KTC 唯一希望取消的是其所有显示器上恼人的电源警告。
KTC H27P22s 是一款价格低廉的 4K IPS 游戏显示器。作为回报,它没有更多的最新技术或功能。
价格和供应情况
KTC 的游戏显示器在亚马逊等普通零售商处的售价为 399 美元。
