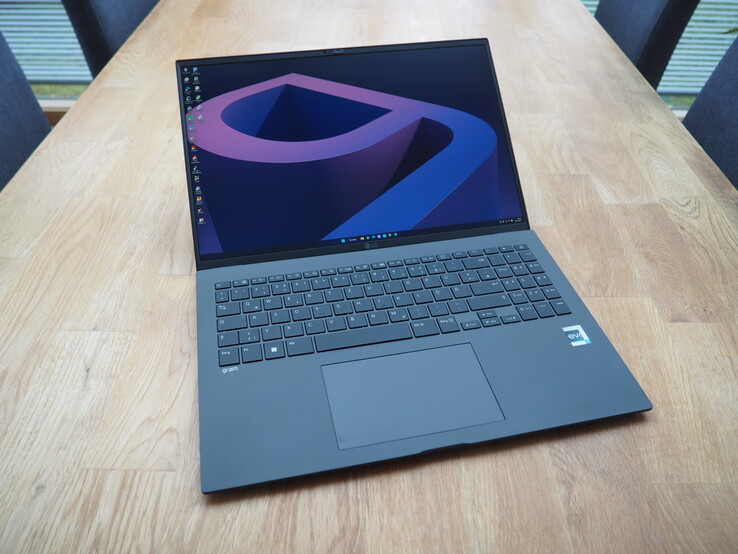

LG Gram 16 (2022) 笔记本电脑评论。具有稳定性问题的轻量级设备
我们测试的模型（16Z900）价格为1300欧元，当然不是你在办公室领域找到的最便宜的交易。该设备配备了一个酷睿i7-1260P英特尔桤木湖一代的Core i7-1260P，16GB焊接的DDR5内存（5200MHz）和M.2格式的1TB NVMe SSD。图像显示在一个16英寸16:10的IPS屏幕上，像素为1560 x 1600，据说覆盖了P3色彩空间的100%以下（与15英寸的MACD不同）。 15英寸的模型模型，我们最近测试过）。操作系统是Windows 11 Home 64位。
LG Gram 16的竞争对手（大部分都比较重）包括其他配备酷睿i7-1260P的16英寸笔记本，如 联想瑜伽7 16IAP7和戴尔 Inspiron 16 7620，尽管这些设备实际上是可转换/二合一笔记本。我们还包括 联想ThinkPad T16 G1配有酷睿i5-1240P的联想ThinkPad T16 G1也在比较之列。这个设备的iGPU只有80个而不是96个EU。
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 86.6 % v7 (old) | 01 / 2023 | LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs | 1.2 kg | 16.8 mm | 16.00" | 2560x1600 | |
| 86.3 % v7 (old) | 09 / 2021 | LG Gram 16 (2021) i7-1165G7, Iris Xe G7 96EUs | 1.2 kg | 16.8 mm | 16.00" | 2560x1600 | |
| 88.7 % v7 (old) | 08 / 2022 | Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs | 2 kg | 19.2 mm | 16.00" | 2560x1600 | |
| 85.7 % v7 (old) | 06 / 2022 | Dell Inspiron 16 7620 2-in-1 i7-1260P, Iris Xe G7 96EUs | 2.1 kg | 18.41 mm | 16.00" | 1920x1200 | |
| 89.3 % v7 (old) | 09 / 2022 | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs | 1.9 kg | 20.5 mm | 16.00" | 1920x1200 |
案例

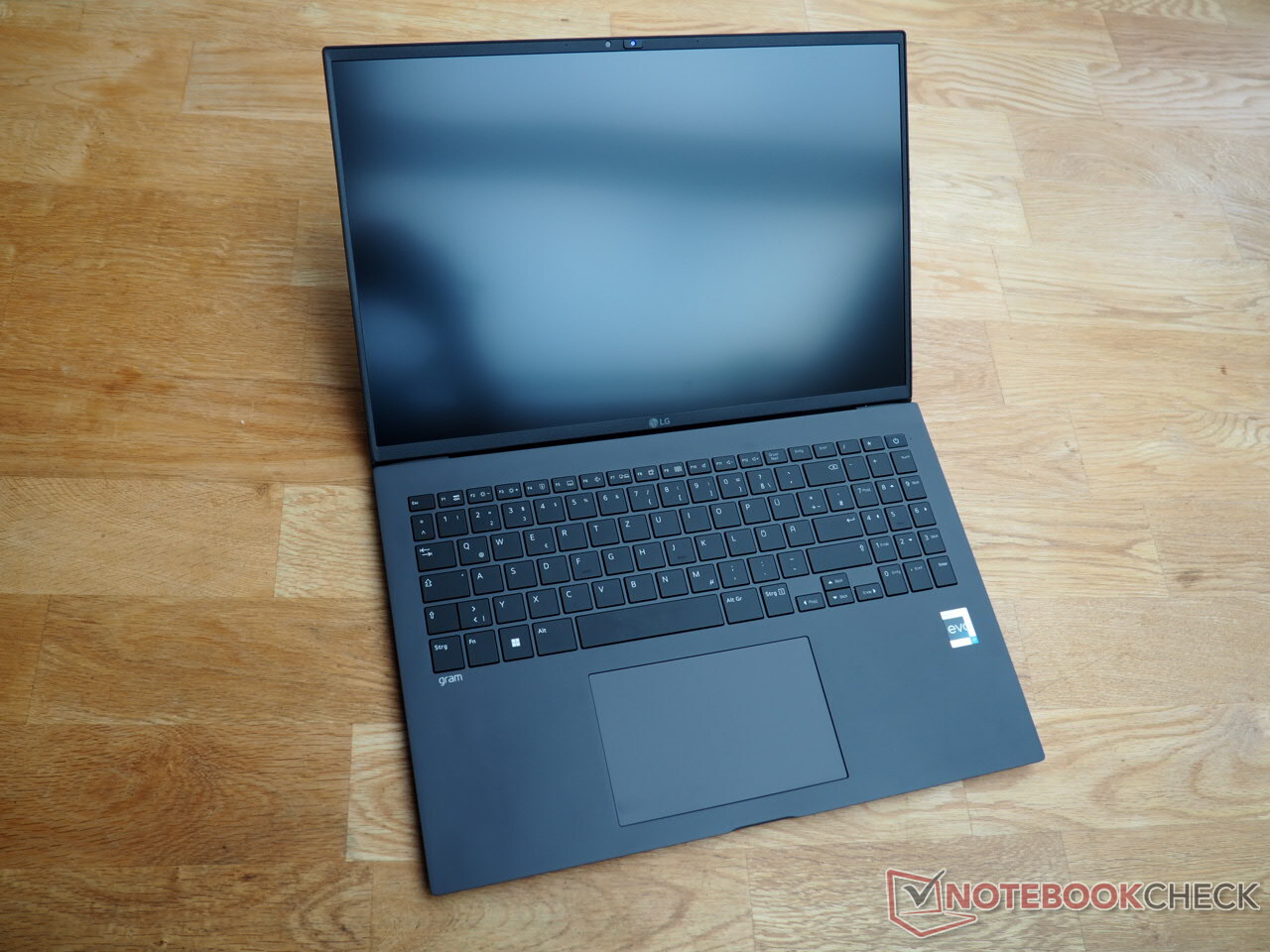

除了一些小的细节（摄像头的形状，关键的标签），这个箱子看起来和去年的版本完全一样。据LG称，它是由镁合金制成的，这在纸面上听起来不错。在实践中，我们对这种材料没有留下特别深刻的印象。它给我们的感觉和声音更像是塑料，而且--这是一个更大的问题--不是非常坚硬和稳定。特别是底座的中心对压力非常敏感，显示屏的盖子很容易变形。笔记本电脑可能会受益于稍厚（这也意味着更重）的材料。
没有任何设备能与Gram 16的低重量竞争。它只有1.2公斤，非常容易随身携带。竞争对手的重量要大得多，约为2.0公斤，尽管这也使他们更加稳定。我们对这款16英寸设备的外观非常满意。由于其窄边框和优雅而谨慎的设计（根据型号，Grams有白色、灰色或黑色可供选择），该笔记本在任何情况下都会很好看。做工令人满意，铰链也做得很好，尽管盖子在受到振动时往往会很快滑落。
连接性

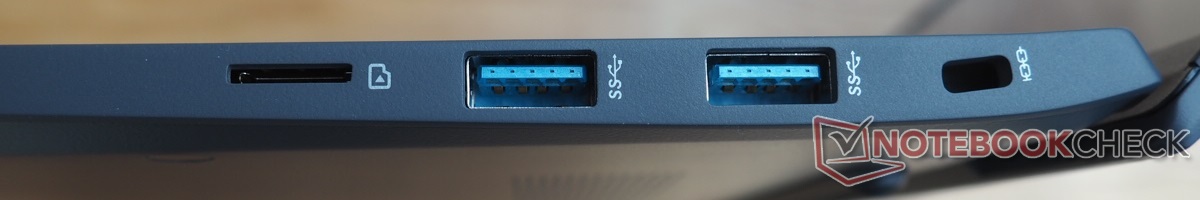

端口选择

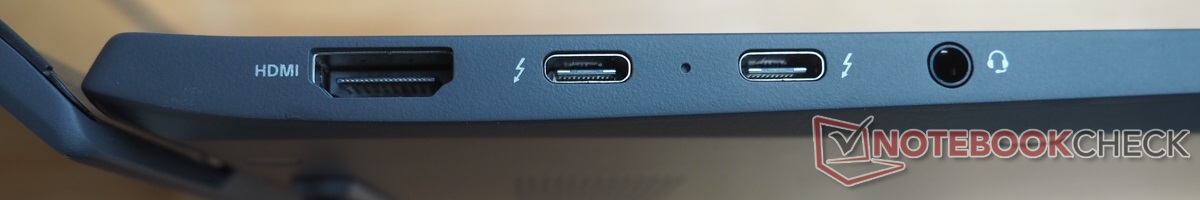

端口的选择与老款Gram 16相似。左侧有一个HDMI端口（没有进一步的规格）、一个音频插孔和两个支持Tunderbolt 4、DisplayPort和Power Delivery的现代USB 4端口，右侧有一个microSD读卡器、一个Kensington锁和两个经典的USB A端口（3.2 Gen2）。所有的端口都位于设备的背面，这使得用户在使用外部鼠标时有足够的空间。与其他Grams不同，该设备没有配备USB-to-LAN适配器。
SD卡阅读器
该读卡器的性能一般。它在连续读取时达到87MB/s的速度，用我们的参考SD卡传输照片时达到76MB/s。这些结果与联想Yoga 7的结果非常相似。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Lenovo Yoga 7 16IAP7 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| LG Gram 16 (2021) (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| LG Gram 16Z90Q (AV PRO microSD 128 GB V60) | |
| Average of class Office (22.7 - 198.5, n=33, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| maximum AS SSD Seq Read Test (1GB) | |
| LG Gram 16 (2021) (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| Lenovo Yoga 7 16IAP7 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| LG Gram 16Z90Q (AV PRO microSD 128 GB V60) | |
| Average of class Office (25 - 249, n=30, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
沟通
新款Gram在Wi-Fi速度方面有别于其前辈。LG已将该设备从英特尔Wi-FI AX201升级到Wi-Fi AX 211。在距离我们目前的参考路由器（华硕ROG Rapture AXE11000）1米处，这台16英寸的笔记本电脑在发送和接收时达到了约1600 Mbit/s。这是一个很好的结果。
| Networking | |
| iperf3 transmit AXE11000 | |
| LG Gram 16Z90Q | |
| Average Intel Wi-Fi 6E AX211 (464 - 1921, n=239) | |
| iperf3 receive AXE11000 | |
| LG Gram 16Z90Q | |
| Average Intel Wi-Fi 6E AX211 (582 - 1890, n=239) | |
| iperf3 transmit AX12 | |
| Average Intel Wi-Fi 6E AX211 (1003 - 1501, n=4) | |
| LG Gram 16 (2021) | |
| iperf3 receive AX12 | |
| Average Intel Wi-Fi 6E AX211 (1178 - 1623, n=4) | |
| LG Gram 16 (2021) | |
| iperf3 transmit AXE11000 6GHz | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average Intel Wi-Fi 6E AX211 (632 - 1851, n=211) | |
| Lenovo Yoga 7 16IAP7 | |
| iperf3 receive AXE11000 6GHz | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Average Intel Wi-Fi 6E AX211 (700 - 1857, n=210) | |
| Lenovo Yoga 7 16IAP7 | |
| Dell Inspiron 16 7620 2-in-1 | |

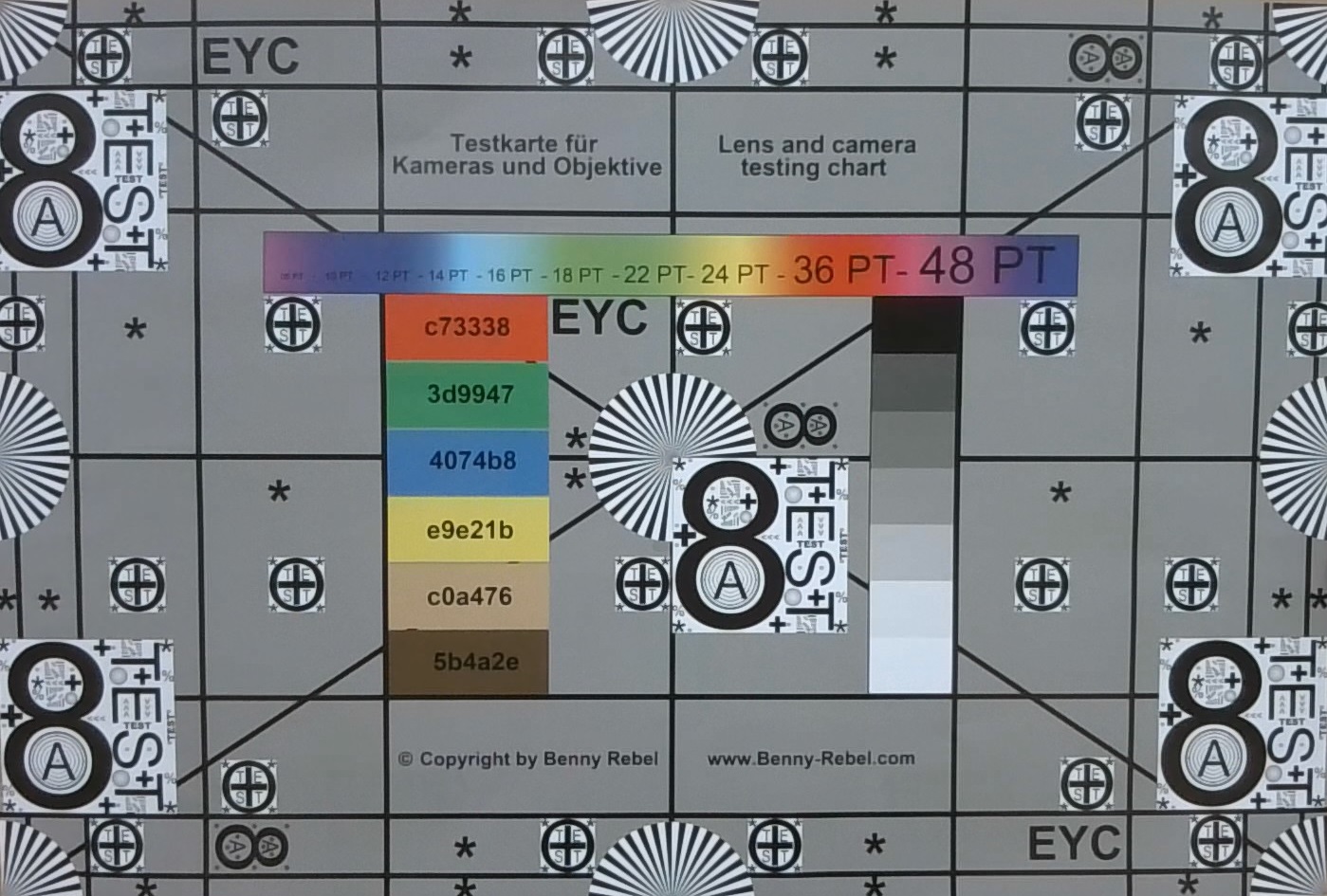

网络摄像头
虽然网络摄像头的分辨率略高（全高清），颜色也比大多数办公笔记本更准确，但你一定不要对Gram 16的网络摄像头期望太高。

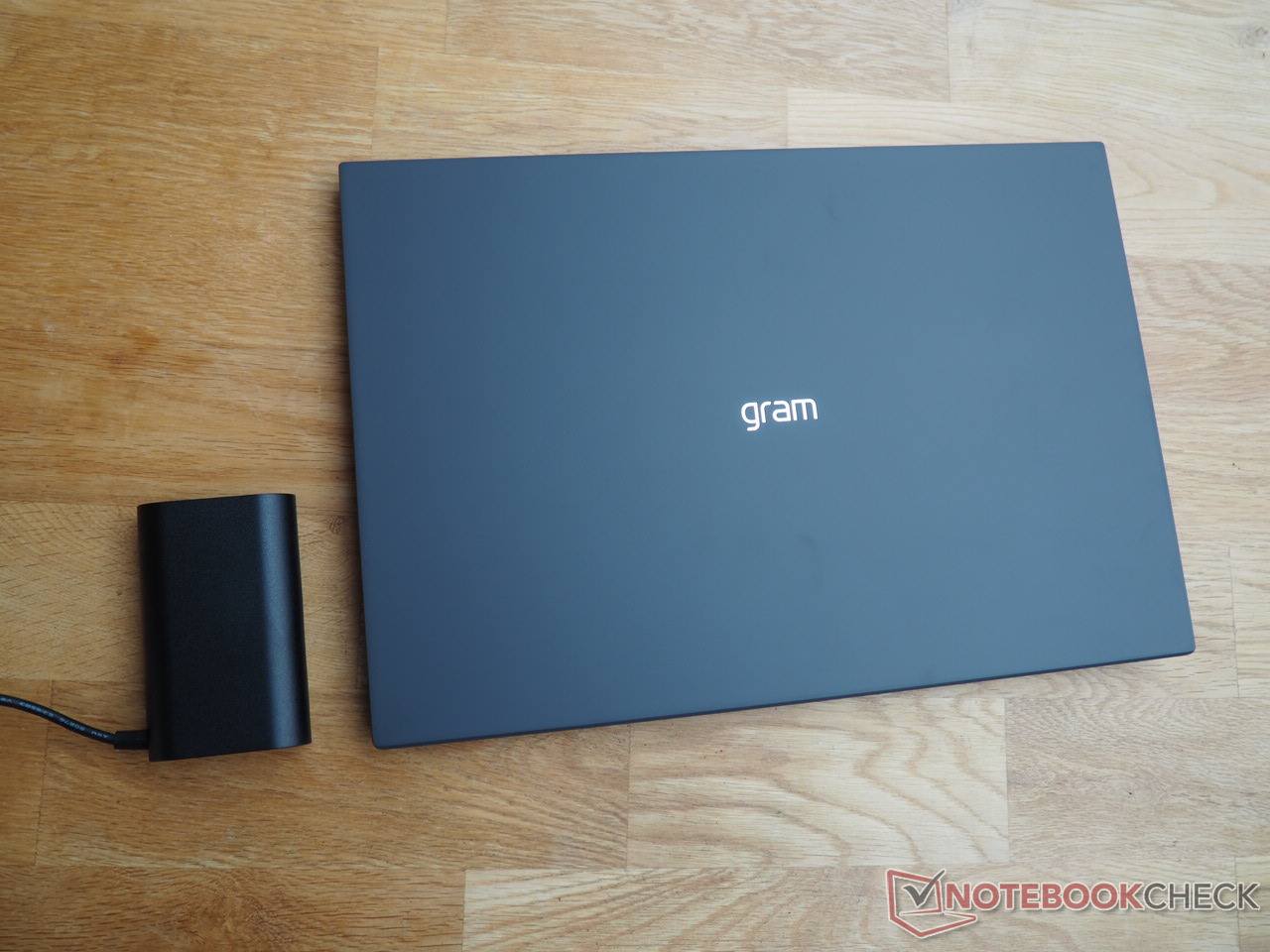

辅料
除了一个很好的轻巧的65瓦USB C电源适配器外，该设备只配备了一些小册子。
维护

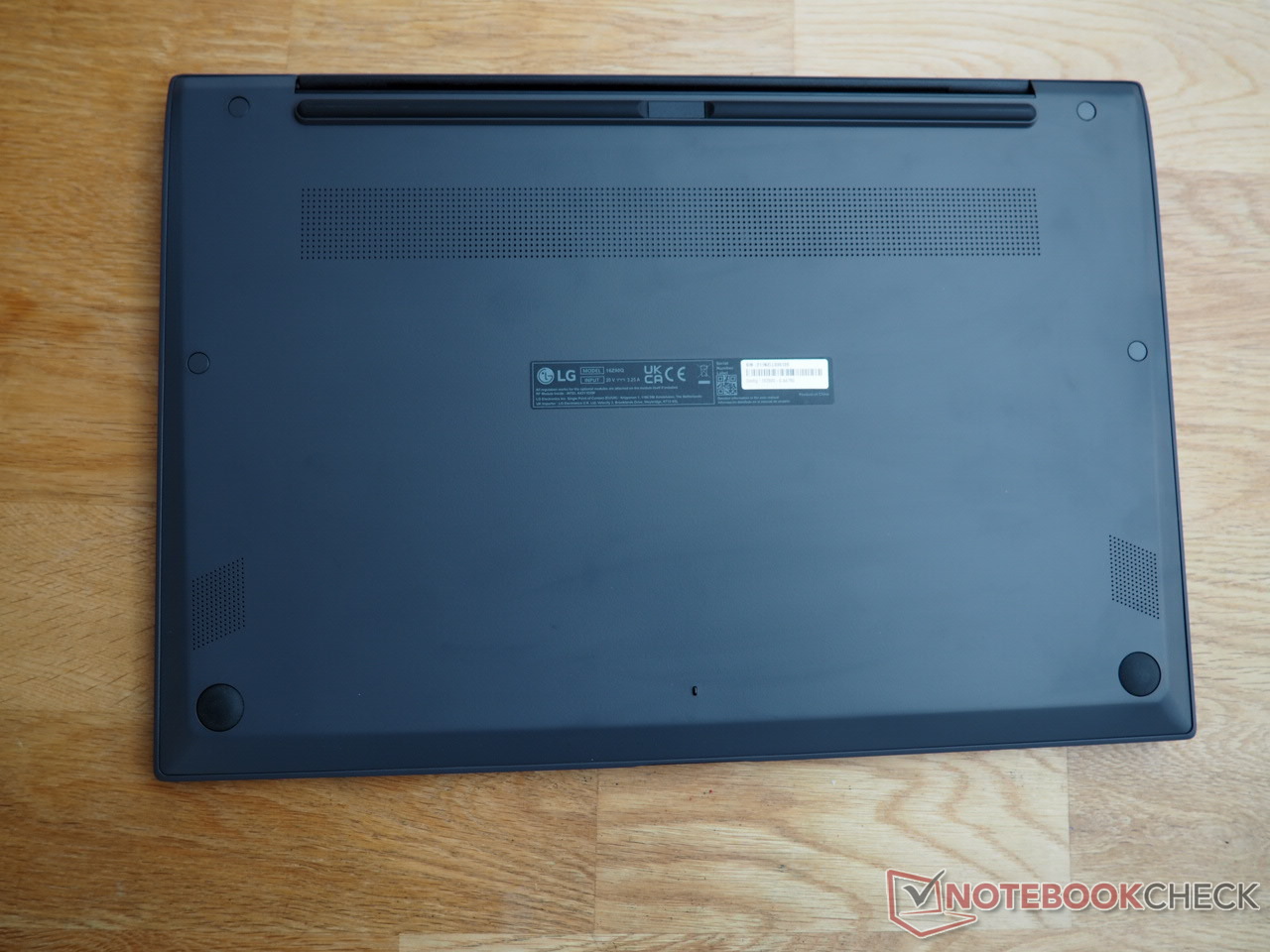

Gram 16的任何维护工作都会相当复杂，因为所有的螺丝都隐藏在橡胶盖下面。因为我们的测试设备是从网上商店而不是从制造商那里收到的，所以我们选择不打开机箱。
担保
该设备有24个月的保修期。
输入设备

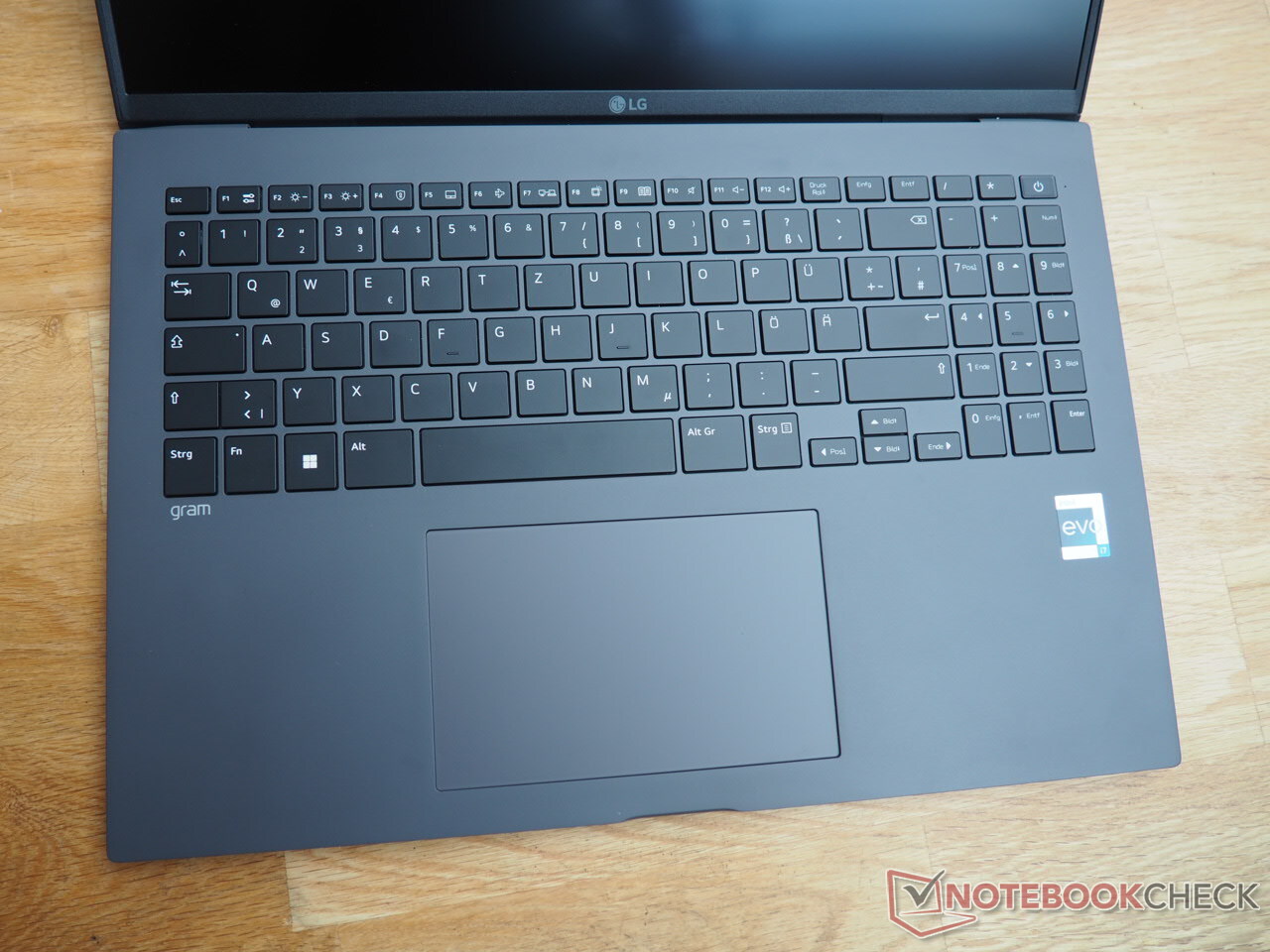

键盘

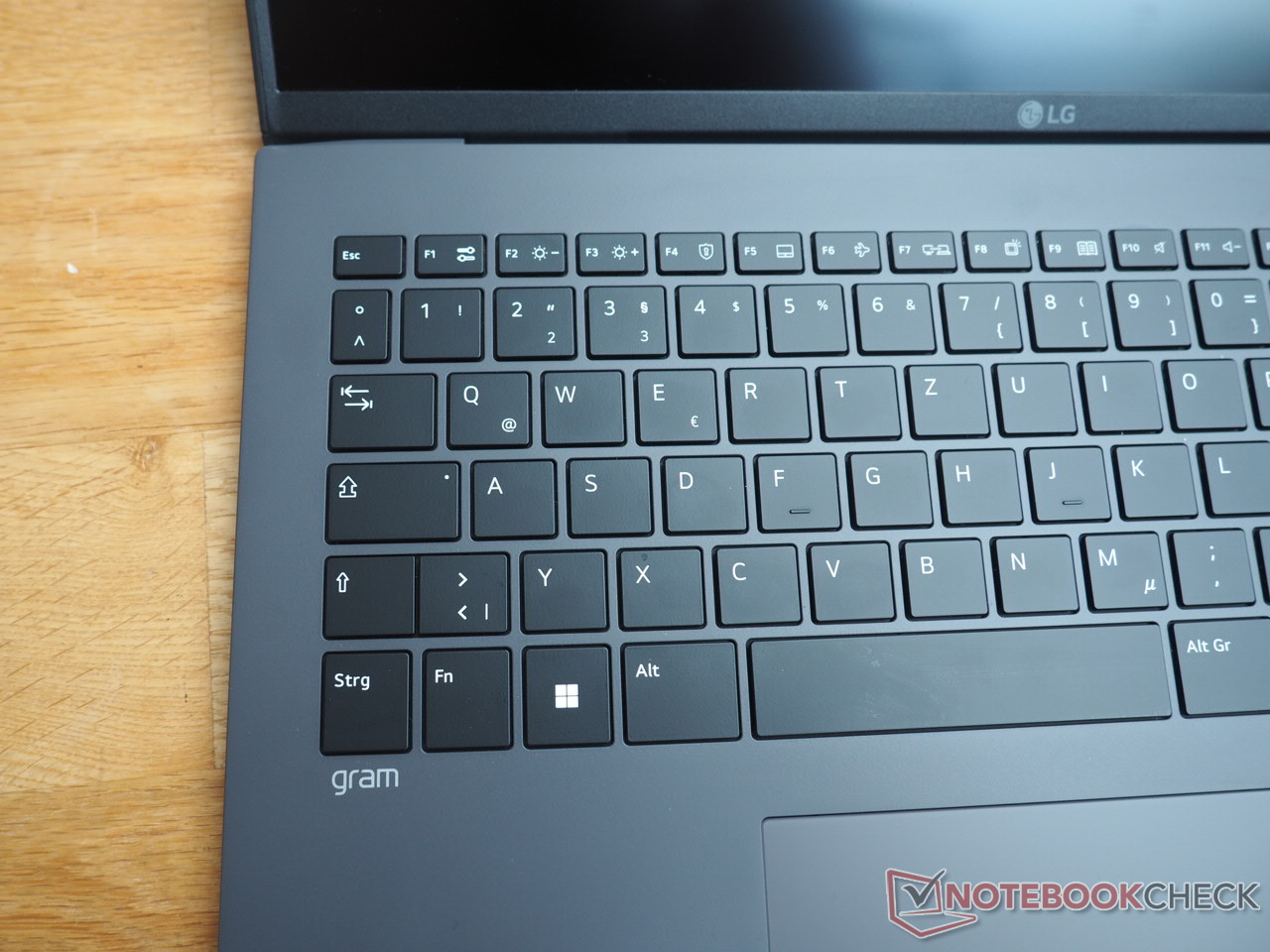

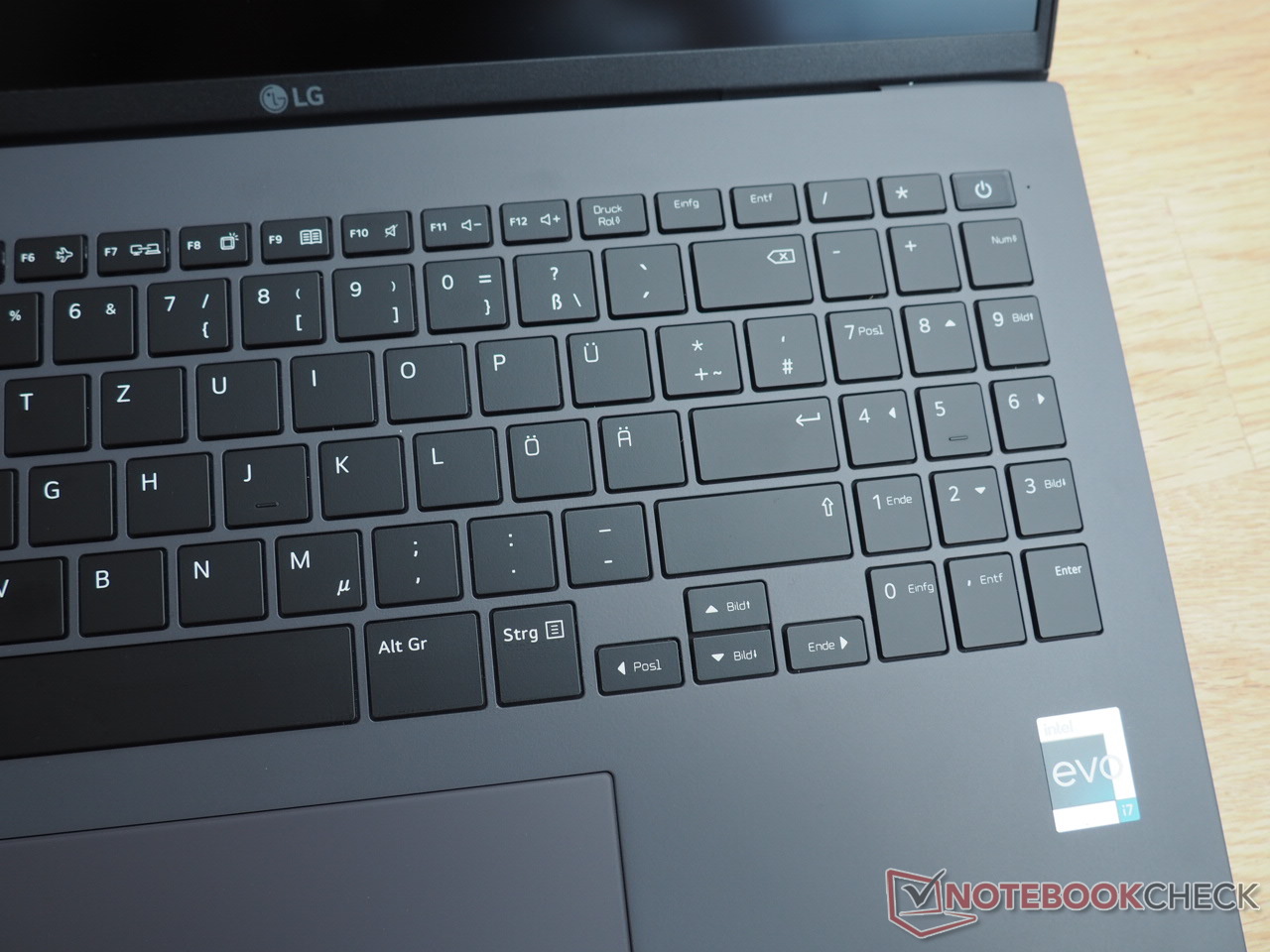

除了微不足道的稳定性之外，这款键盘给我们留下了良好的印象。虽然布局（德国版的小单排回车键、小方向键、三栏数字键盘......）和反馈/打字并不完美，但我们相信大多数买家应该对该键盘非常满意。正如预期的那样，该设备具有两级亮度的白色背光灯。

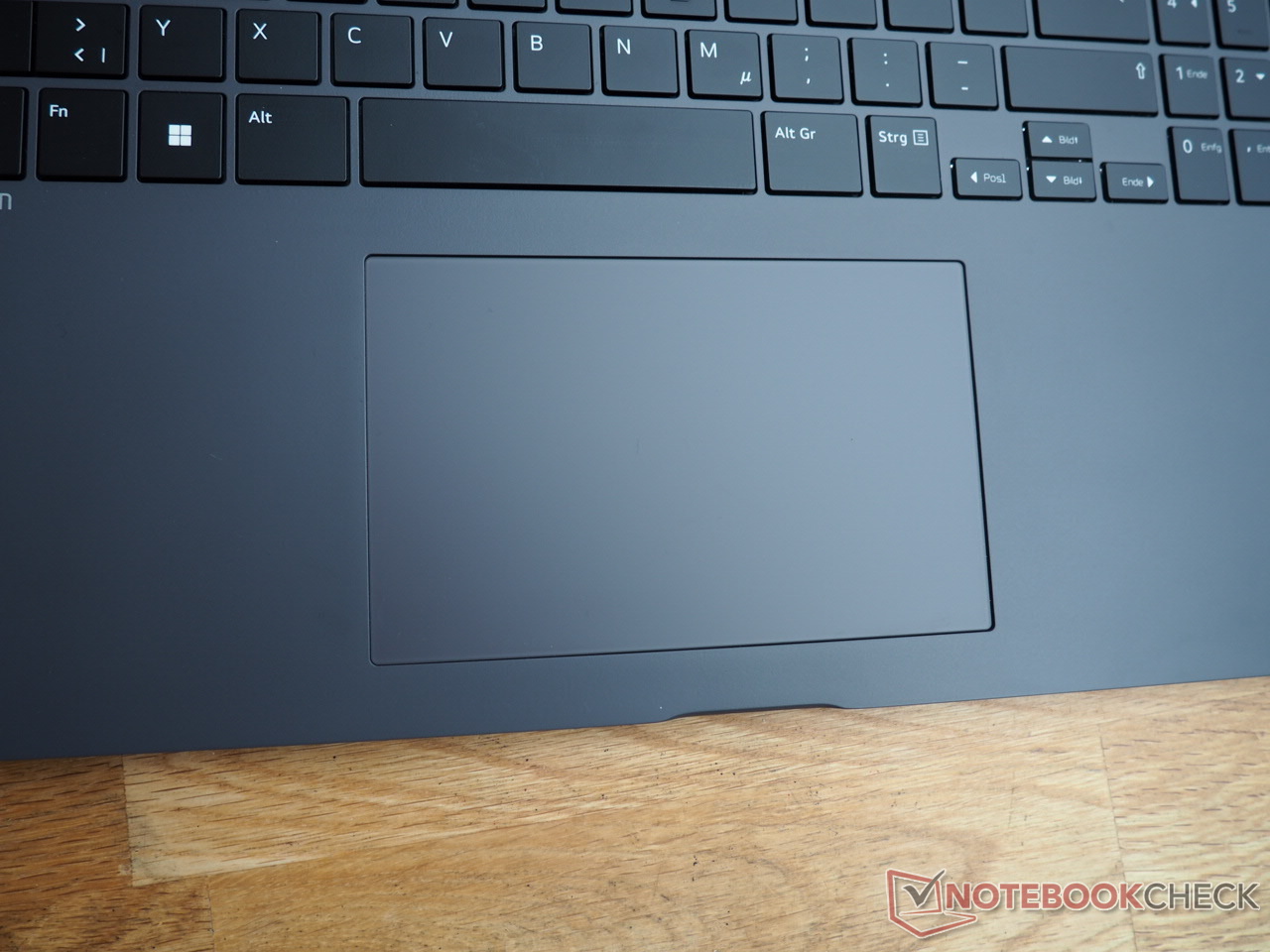

触摸板
触摸板大得令人满意，为13 x 8厘米。相对光滑的表面确保了良好的滑行性能，精确度和手势支持也令人满意。可点击的底部部分使用起来很舒适，但有些摇晃，这影响了感知质量。

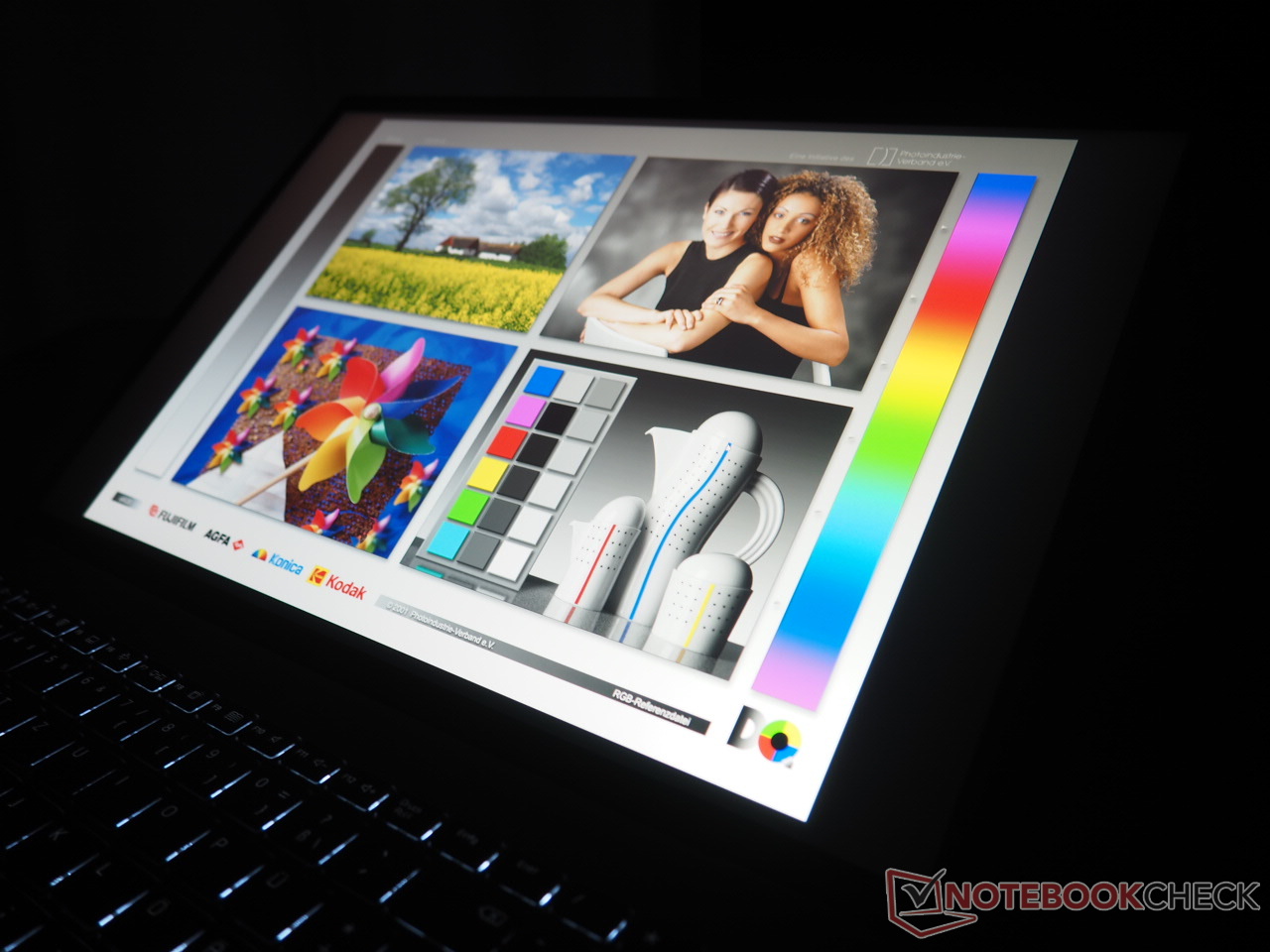

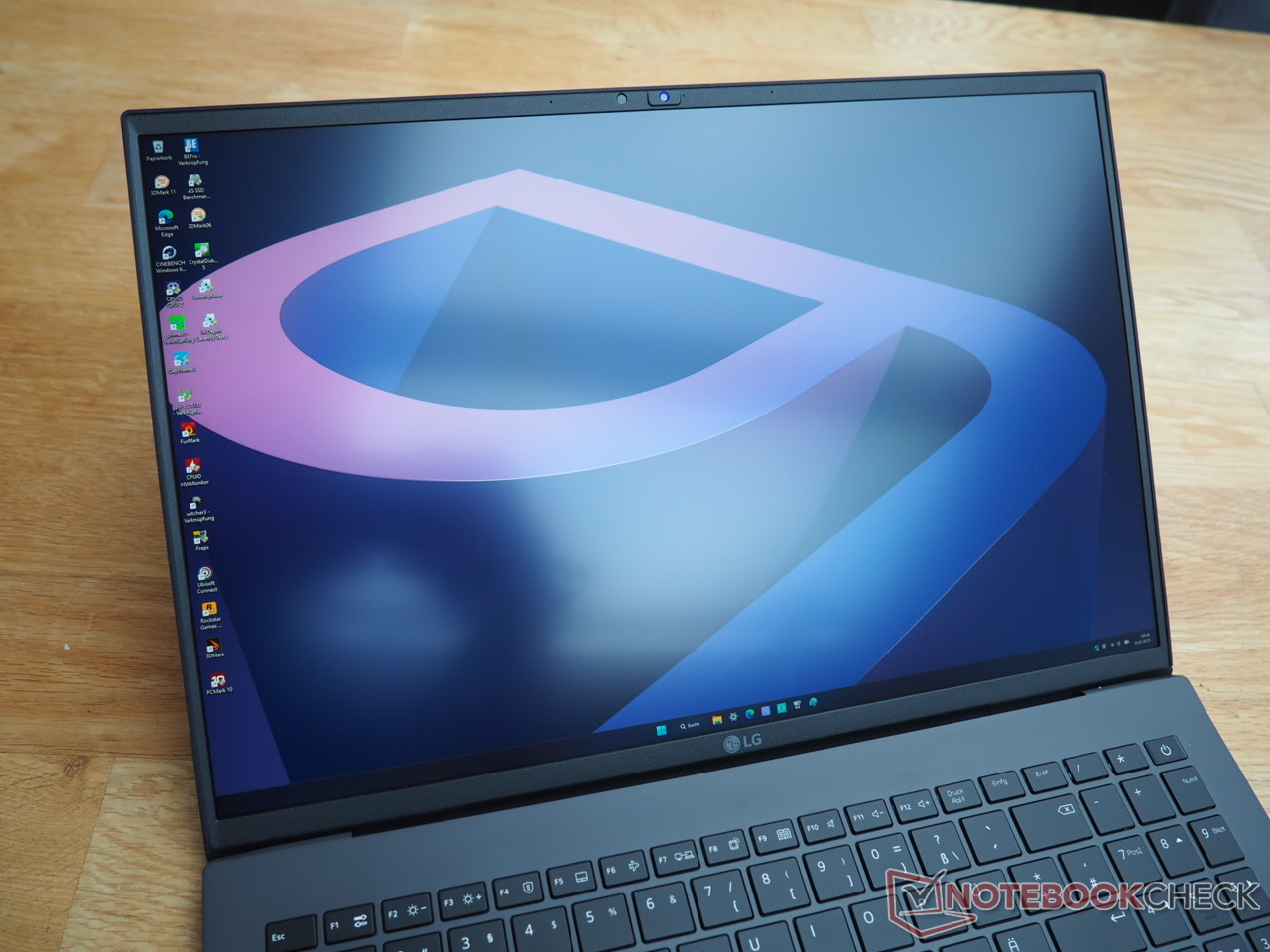

显示

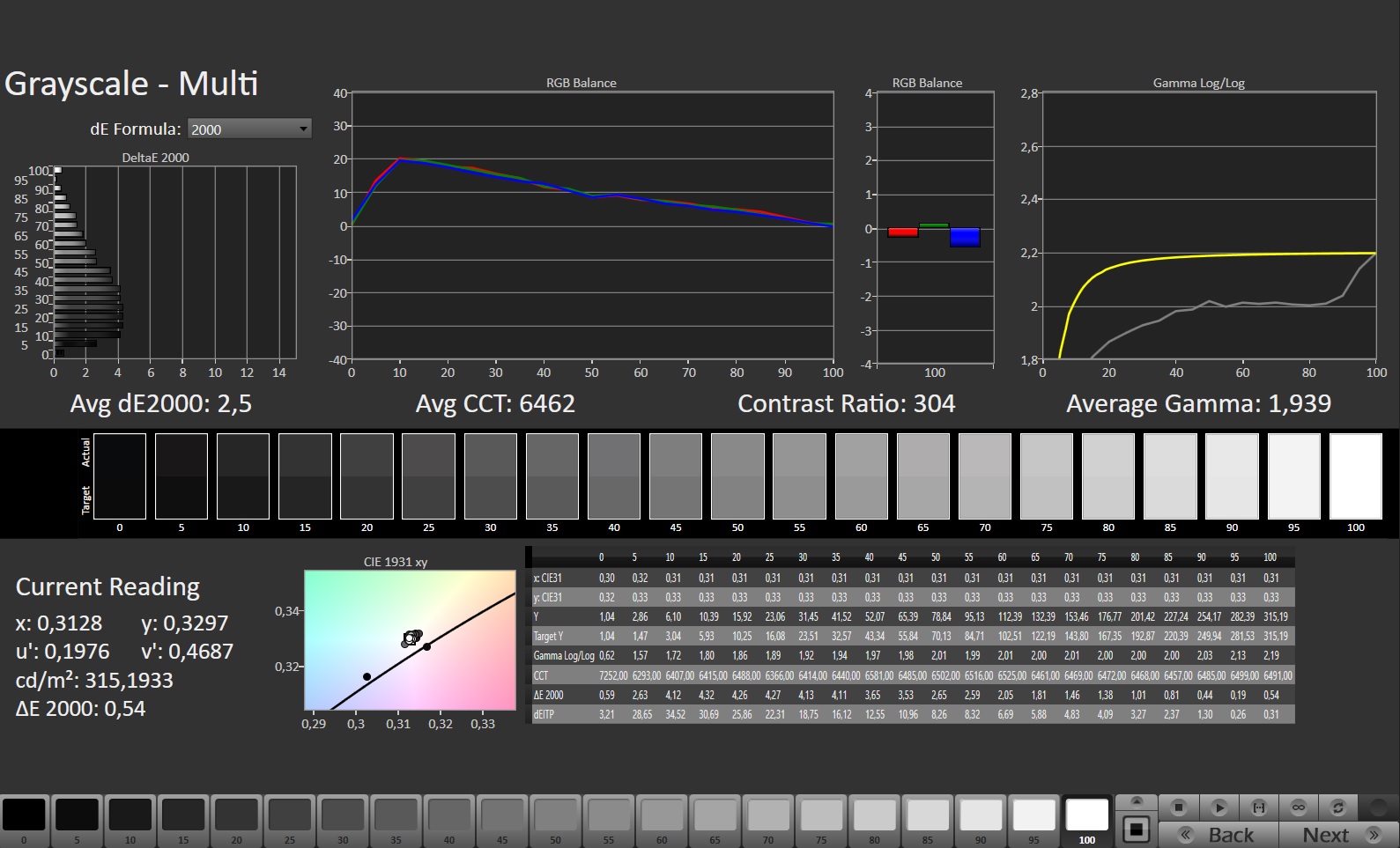

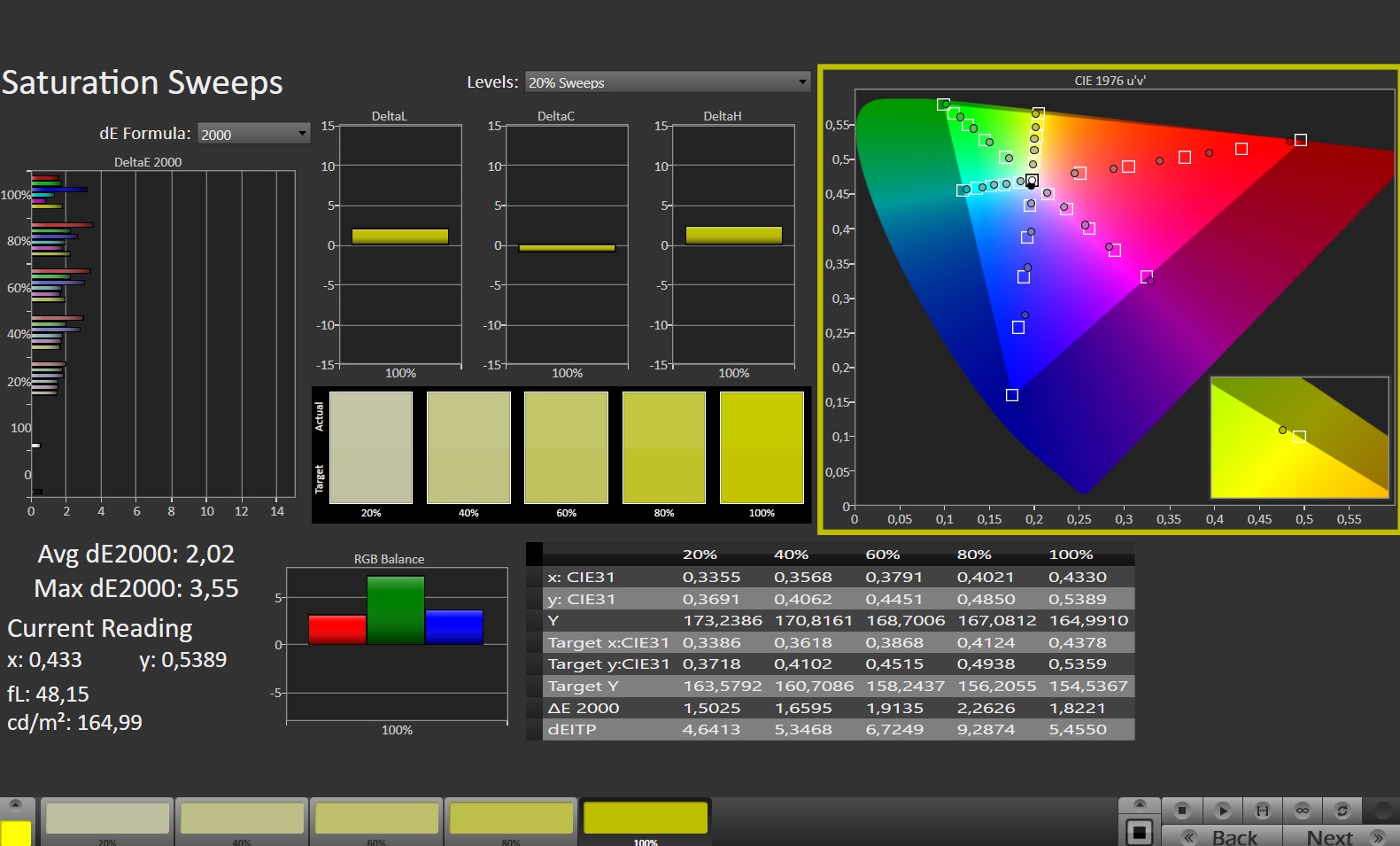

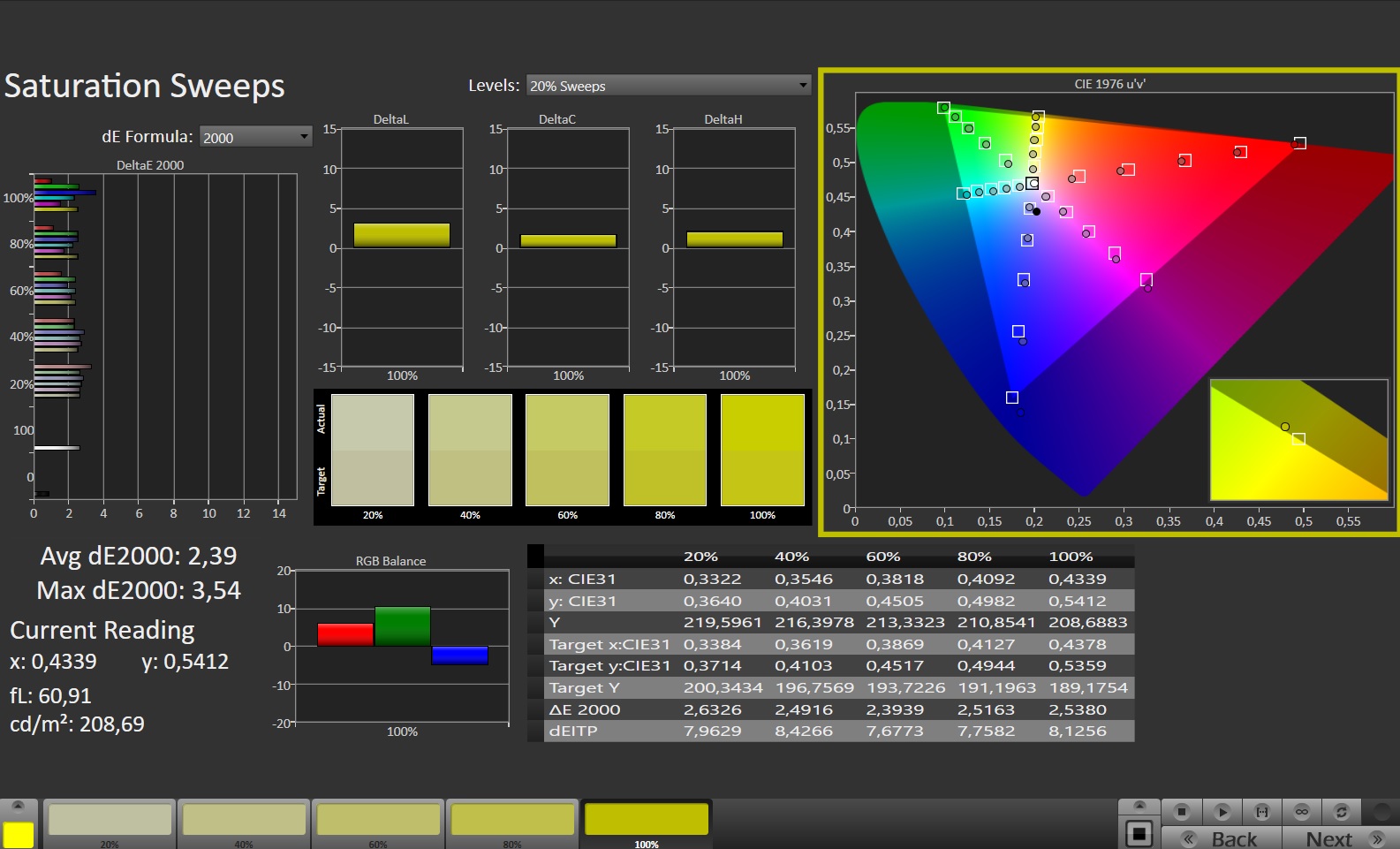

虽然新的屏幕由于黑值略高（0.32而不是0.22cd/²），对比度较低（1144:1而不是1505:1），但我们对哑光屏幕比前代的反射面板更满意。
| |||||||||||||||||||||||||
Brightness Distribution: 89 %
Center on Battery: 366 cd/m²
Contrast: 1144:1 (Black: 0.32 cd/m²)

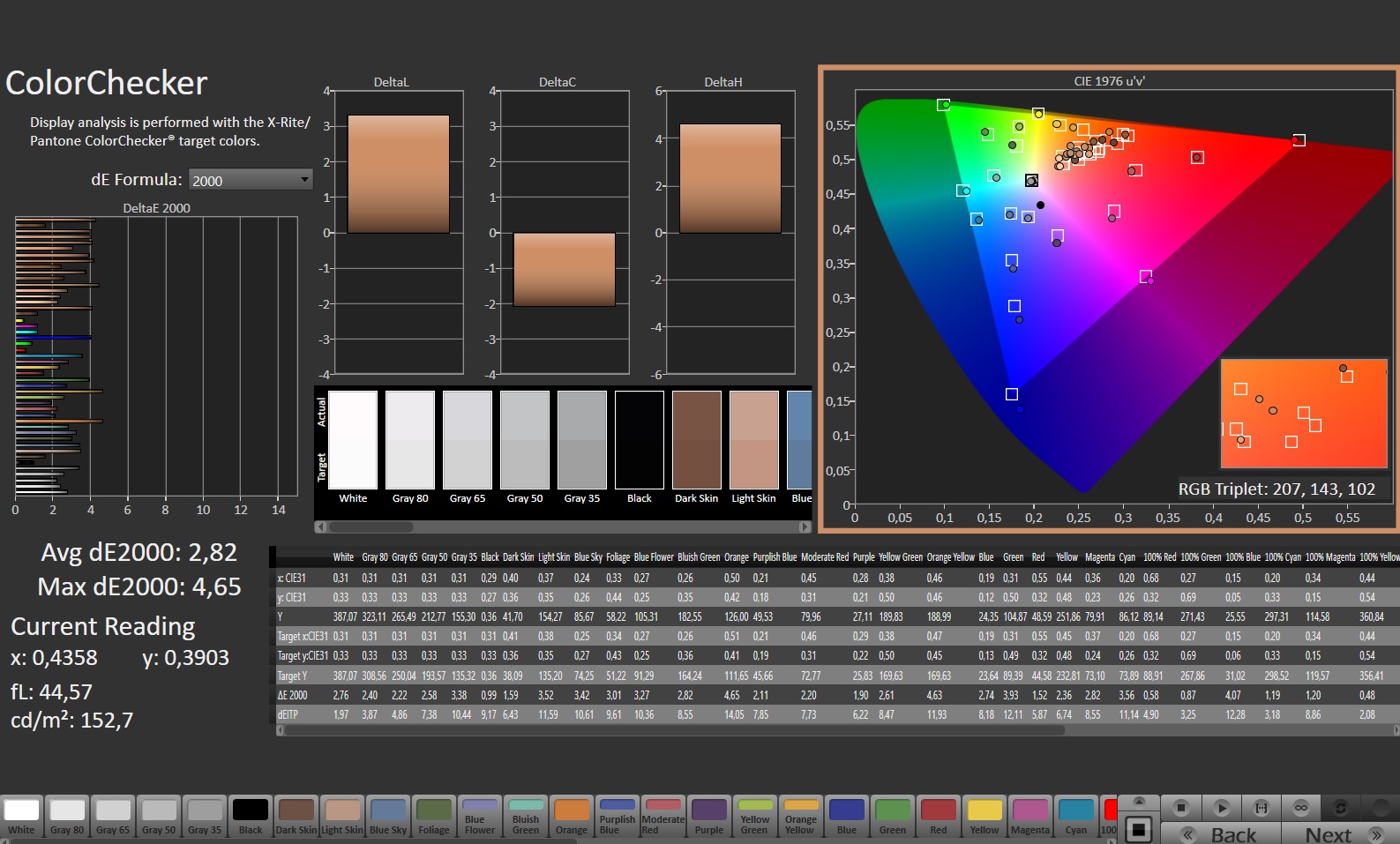

ΔE Color 2.82 | 0.5-29.43 Ø4.91, calibrated: 2.69

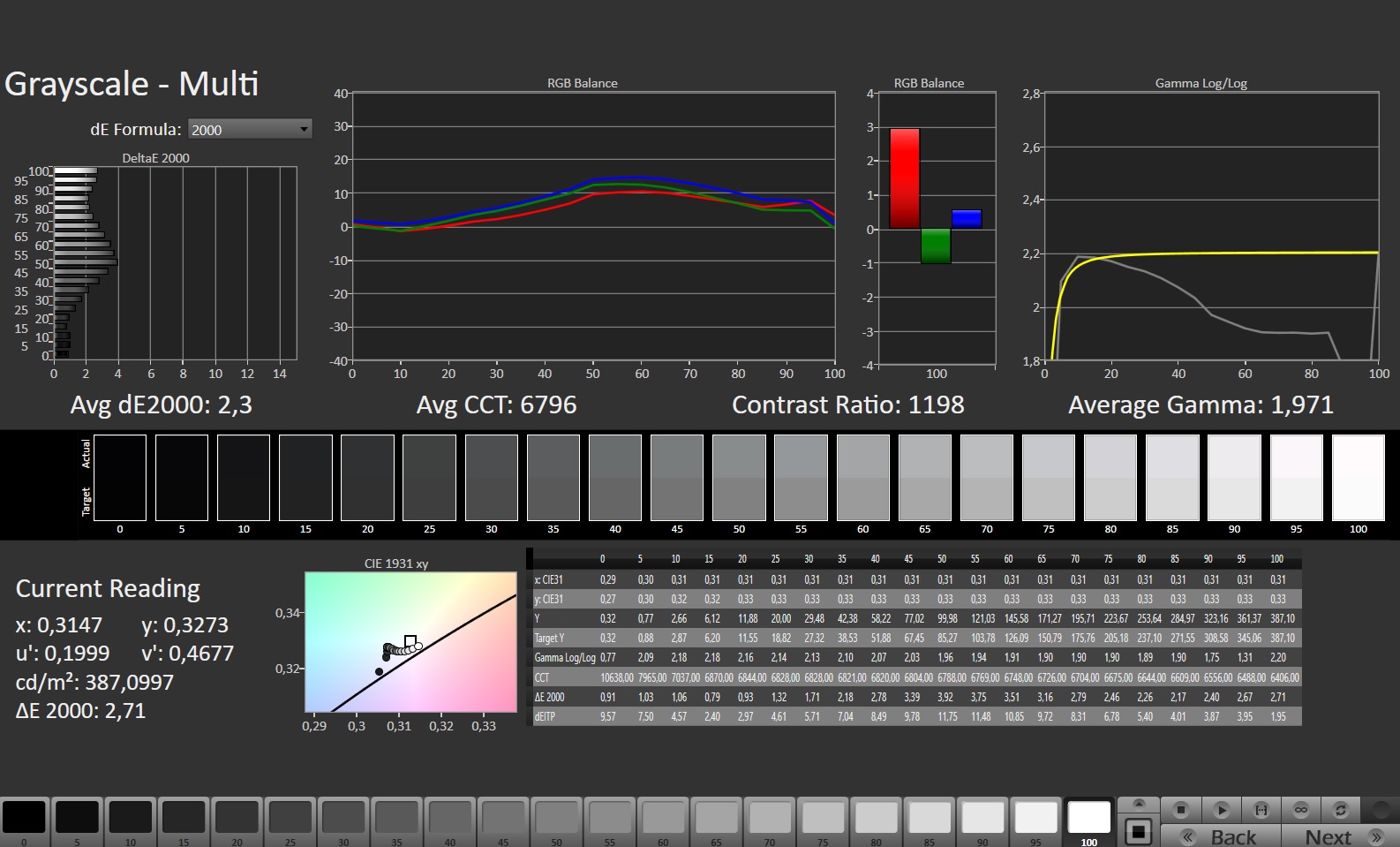

ΔE Greyscale 2.3 | 0.5-98 Ø5.2

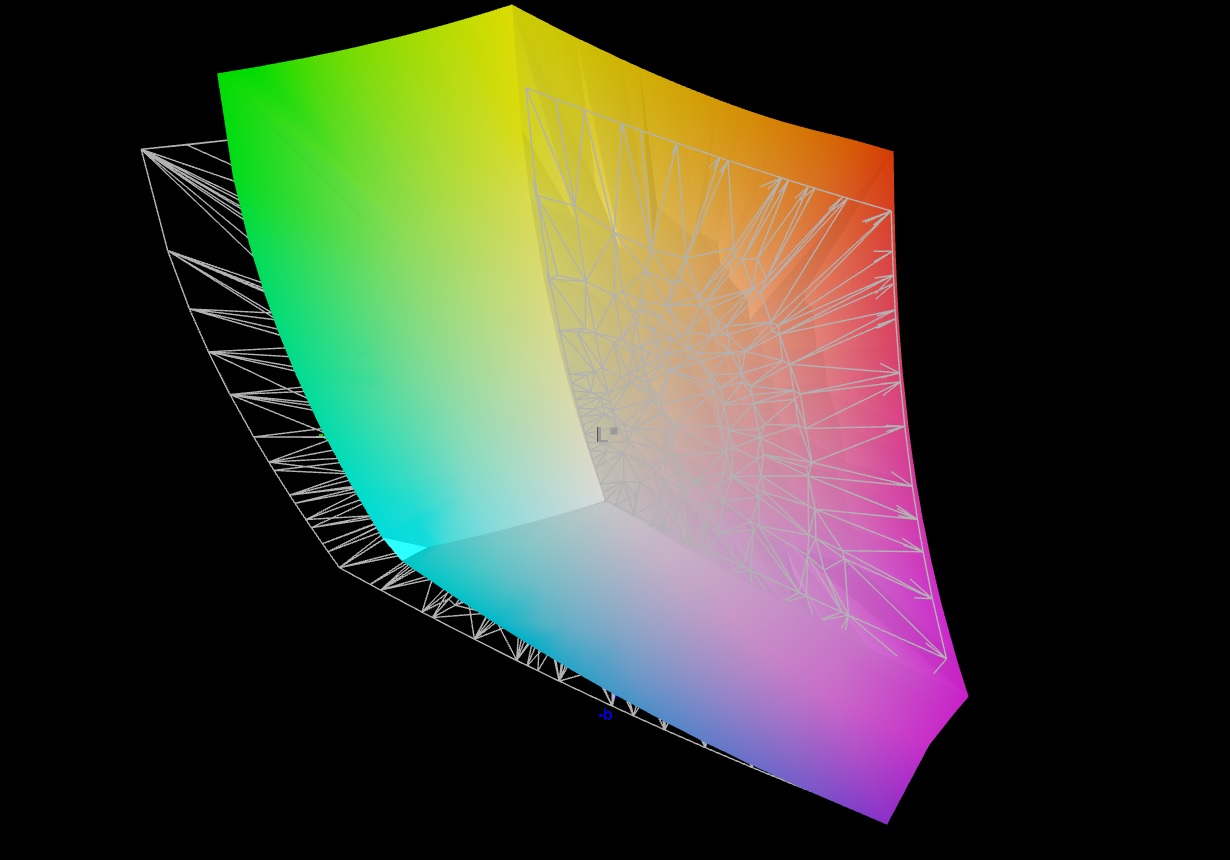

84.6% AdobeRGB 1998 (Argyll 2.2.0 3D)

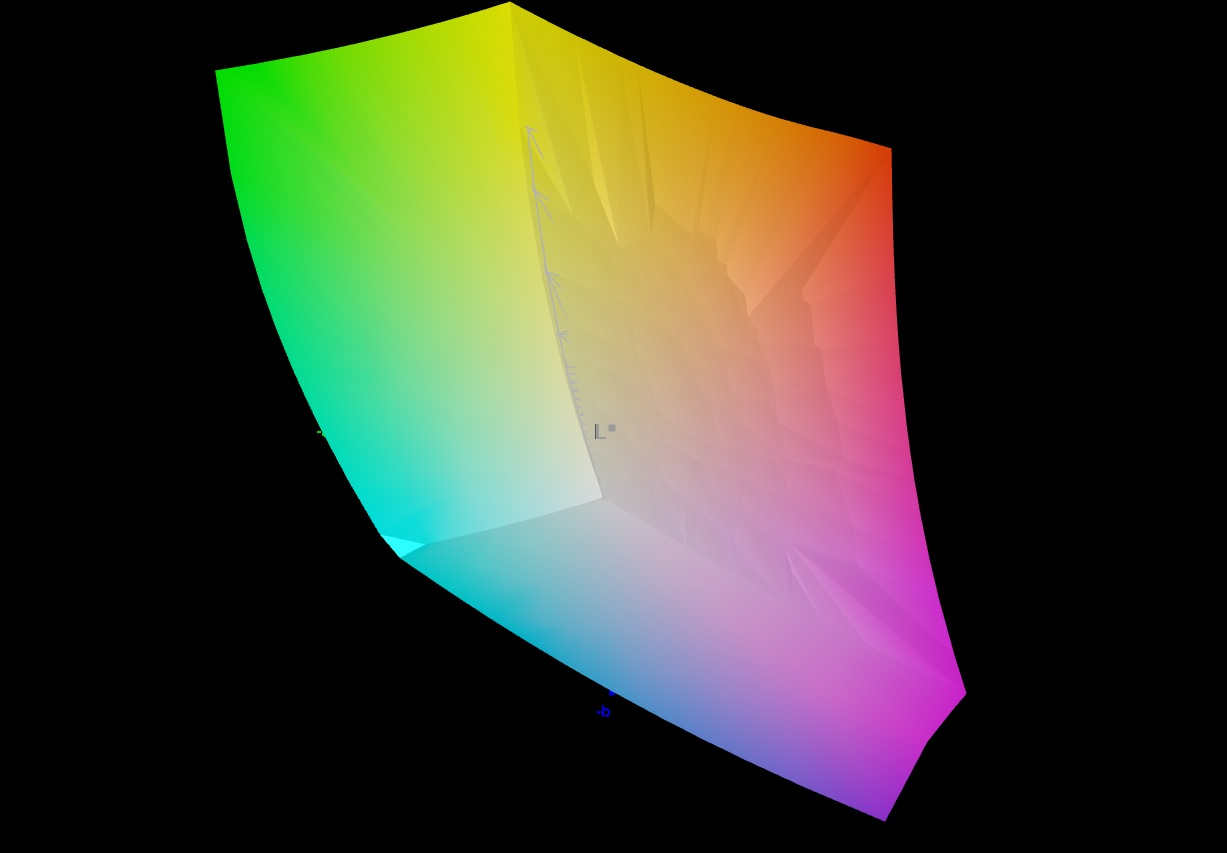

99.9% sRGB (Argyll 2.2.0 3D)
96.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.971
| LG Gram 16Z90Q LG LP160WQ1-SPB2 (LGD06EB), IPS, 2560x1600, 16" | LG Gram 16 (2021) LG Philips LP160WQ1-SPA1, IPS, 2560x1600, 16" | Lenovo Yoga 7 16IAP7 Lenovo LEN160WQXGA, IPS, 2560x1600, 16" | Dell Inspiron 16 7620 2-in-1 BOE NV16N45, IPS, 1920x1200, 16" | Lenovo ThinkPad T16 G1 21BWS00200 B160UAN01.K, IPS, 1920x1200, 16" | |
|---|---|---|---|---|---|
| Display | -1% | -18% | -18% | -7% | |
| Display P3 Coverage | 96.8 | 95.8 -1% | 67 -31% | 67 -31% | 80.1 -17% |
| sRGB Coverage | 99.9 | 99.8 0% | 95.7 -4% | 95.9 -4% | 100 0% |
| AdobeRGB 1998 Coverage | 84.6 | 83.8 -1% | 69.3 -18% | 69.3 -18% | 80.5 -5% |
| Response Times | 1% | -3% | 12% | 28% | |
| Response Time Grey 50% / Grey 80% * | 45.7 ? | 44 ? 4% | 36 ? 21% | 32 ? 30% | 27 ? 41% |
| Response Time Black / White * | 19.7 ? | 20 ? -2% | 24.8 ? -26% | 20.8 ? -6% | 17 ? 14% |
| PWM Frequency | |||||
| Screen | -39% | 9% | -32% | -19% | |
| Brightness middle | 366 | 331 -10% | 393.7 8% | 320.7 -12% | 404 10% |
| Brightness | 347 | 309 -11% | 367 6% | 309 -11% | 391 13% |
| Brightness Distribution | 89 | 88 -1% | 84 -6% | 90 1% | 80 -10% |
| Black Level * | 0.32 | 0.22 31% | 0.38 -19% | 0.36 -13% | 0.29 9% |
| Contrast | 1144 | 1505 32% | 1036 -9% | 891 -22% | 1393 22% |

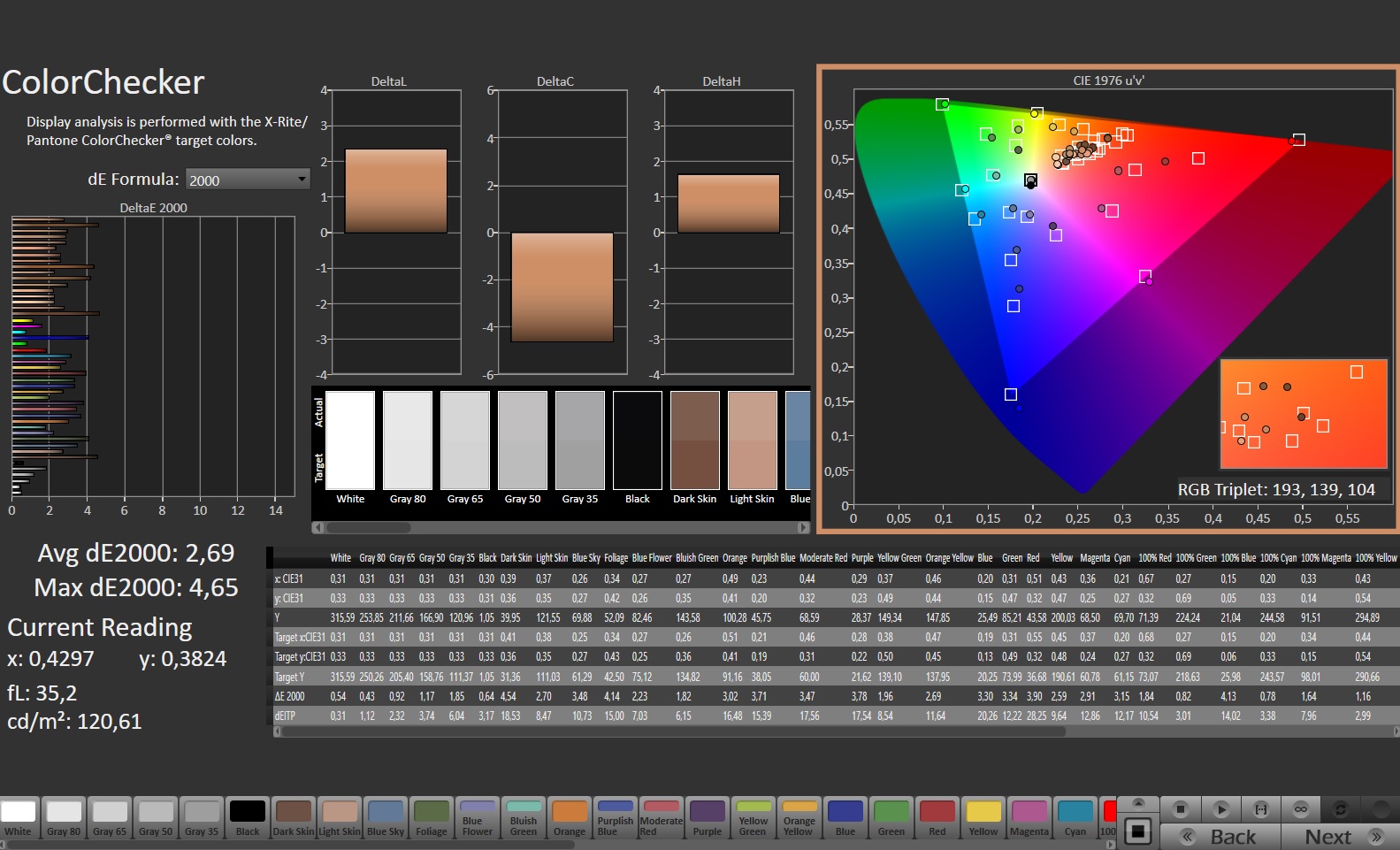

| Colorchecker dE 2000 * | 2.82 | 4.64 -65% | 1.97 30% | 4.18 -48% | 3.9 -38% |
| Colorchecker dE 2000 max. * | 4.65 | 9.82 -111% | 5.46 -17% | 8.48 -82% | 8.5 -83% |
| Colorchecker dE 2000 calibrated * | 2.69 | 3.16 -17% | 0.62 77% | 0.77 71% | 1.7 37% |
| Greyscale dE 2000 * | 2.3 | 6.9 -200% | 2.1 9% | 6.3 -174% | 5.4 -135% |
| Gamma | 1.971 112% | 2.34 94% | 2.1 105% | 2.21 100% | 2.21 100% |
| CCT | 6796 96% | 7904 82% | 6461 101% | 6258 104% | 6242 104% |
| Color Space (Percent of AdobeRGB 1998) | 75.1 | ||||
| Color Space (Percent of sRGB) | 100 | ||||
| Total Average (Program / Settings) | -13% /
-25% | -4% /
2% | -13% /
-23% | 1% /
-10% |
* ... smaller is better
光度略微提高了40cd/m²（347而不是309cd/m²），这使得Gram 16在明亮的环境中更容易工作，特别是在户外工作时（尽管仍有很大的改进余地）。与前一年的机型相比，色彩准确性也有所提高。即使在出厂时，Delta 2000的值也在3以下的理想范围内。

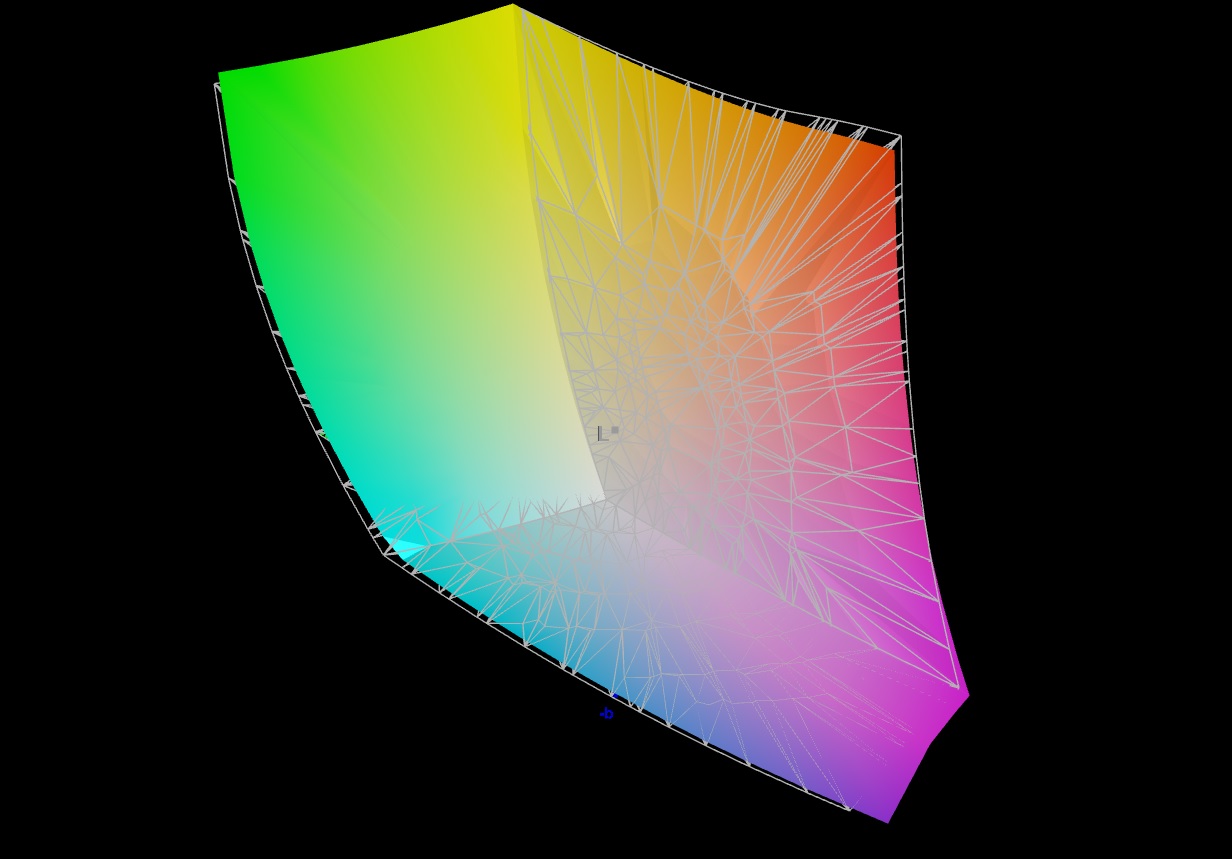

在响应率（仍然平平）和色彩空间覆盖率方面没有任何改进。后者在去年已经非常好，几乎100%覆盖了sRGB/P3色彩空间，85%覆盖了AdobeRGB。视角是你对IPS显示屏的期望。
我们希望下一个版本将配备更加明亮的显示屏，达到400甚至500尼特，并有更快的刷新率（144+而不是60赫兹）。

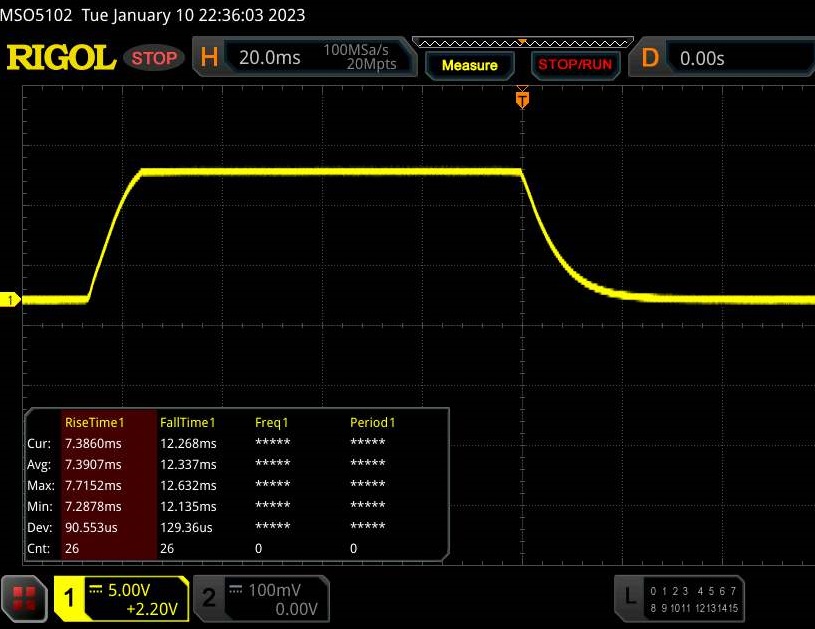

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 19.7 ms ... rise ↗ and fall ↘ combined | ↗ 7.4 ms rise |  |
| ↘ 12.3 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 39 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms). | ||

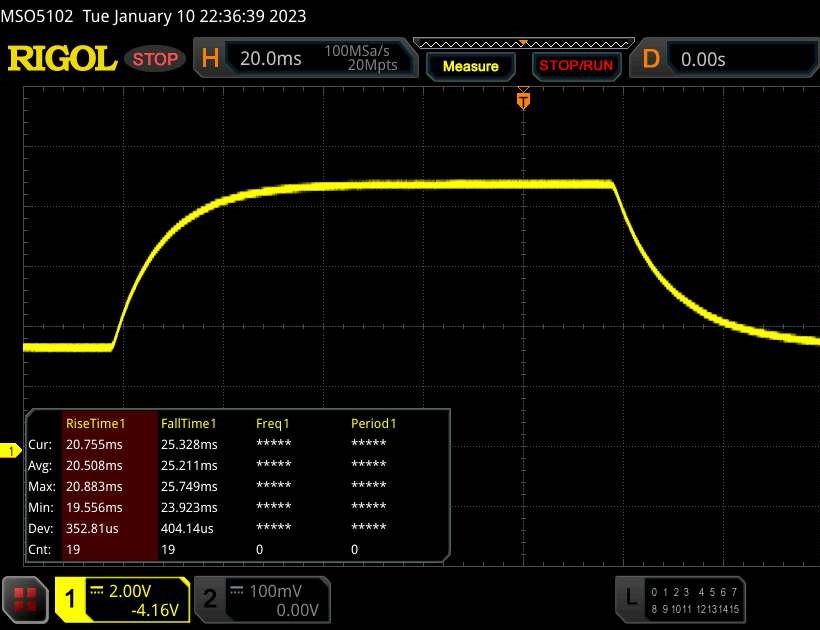

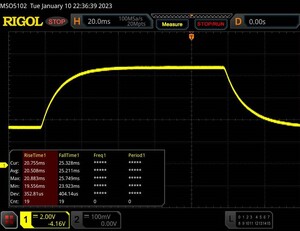

| ↔ Response Time 50% Grey to 80% Grey | ||
| 45.7 ms ... rise ↗ and fall ↘ combined | ↗ 20.5 ms rise |  |
| ↘ 25.2 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

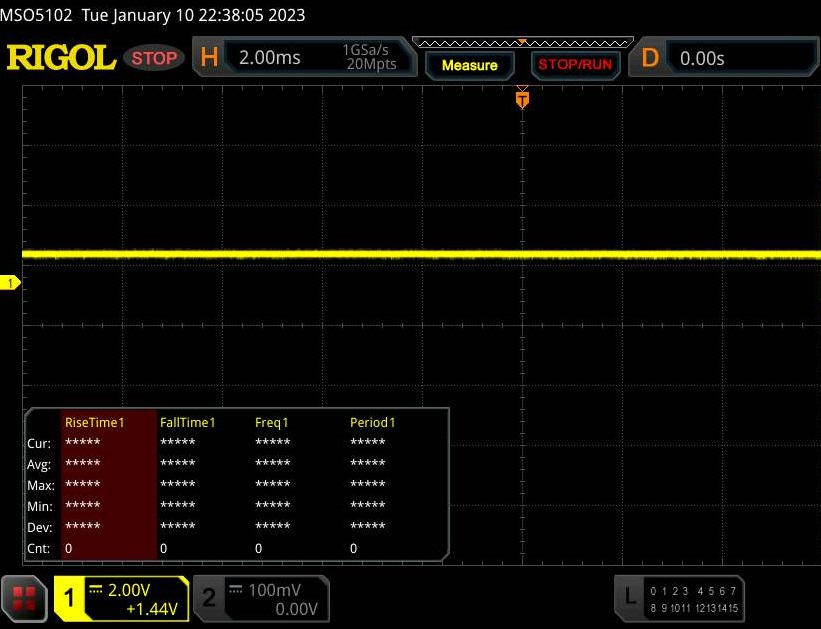

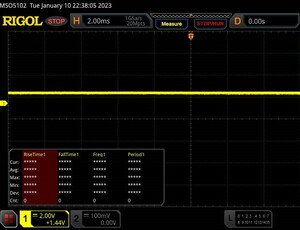

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
业绩

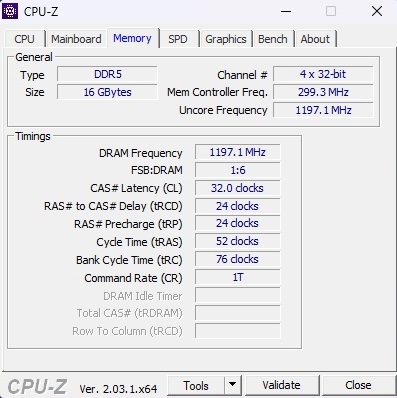

Gram 16的性能在办公笔记本中属于中等水平。16GB的内存和1TB的固态硬盘应该足以满足大多数用户未来一年的需要。
测试条件

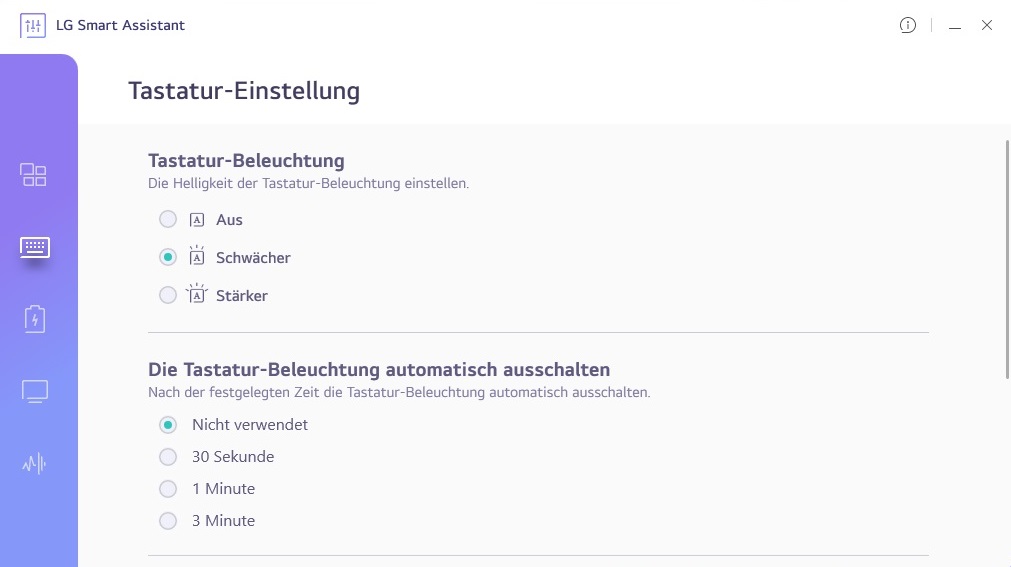

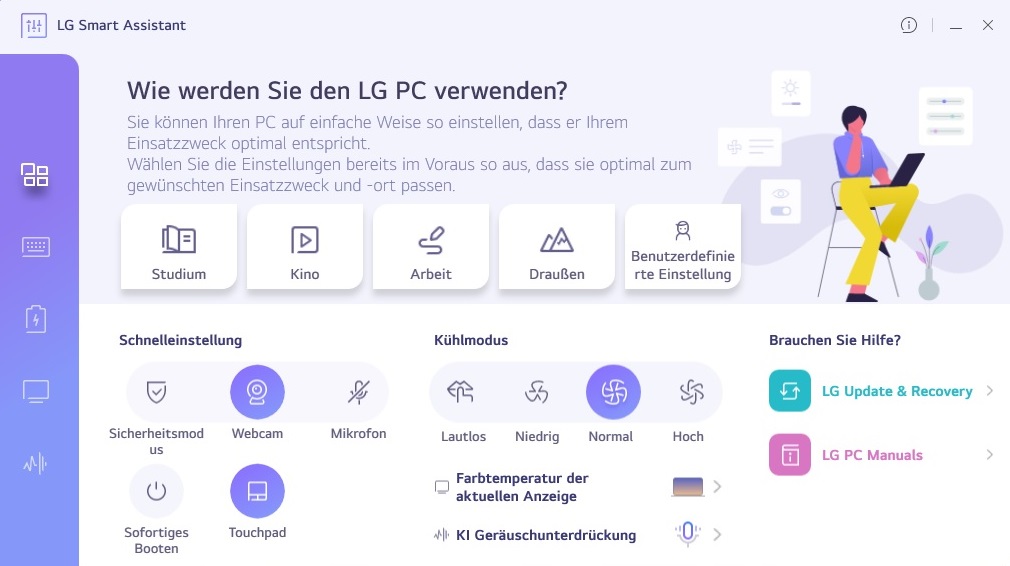

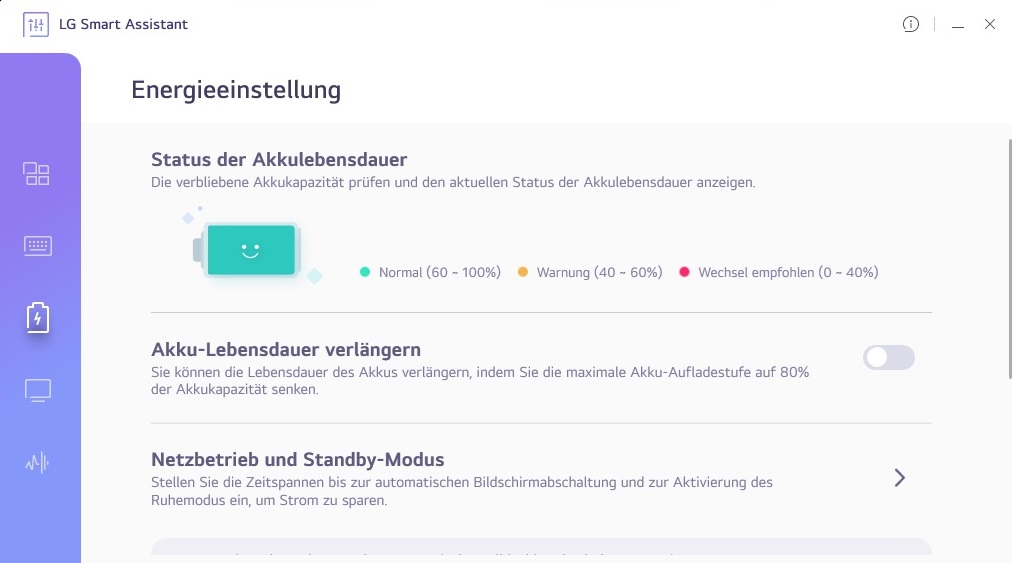

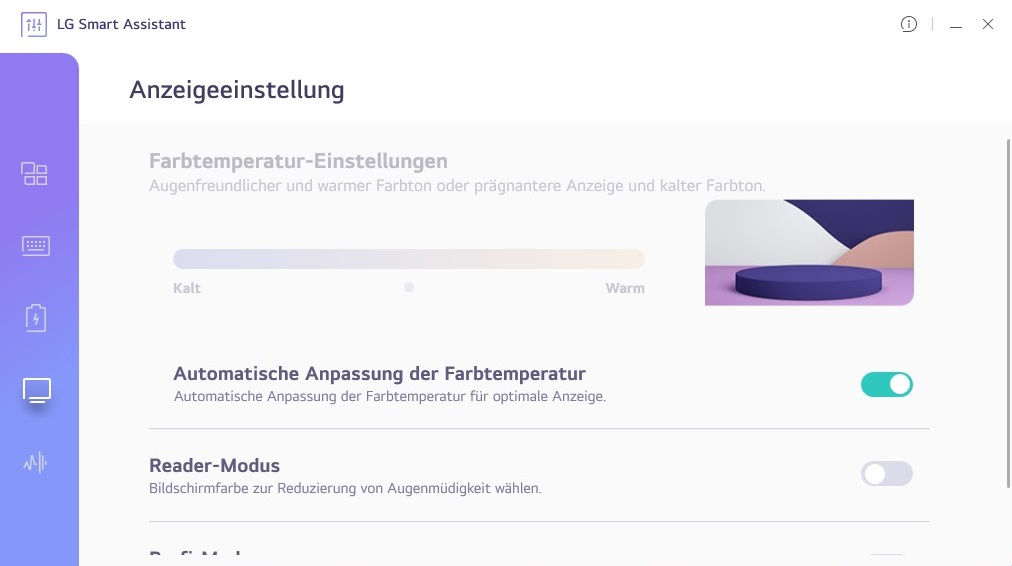

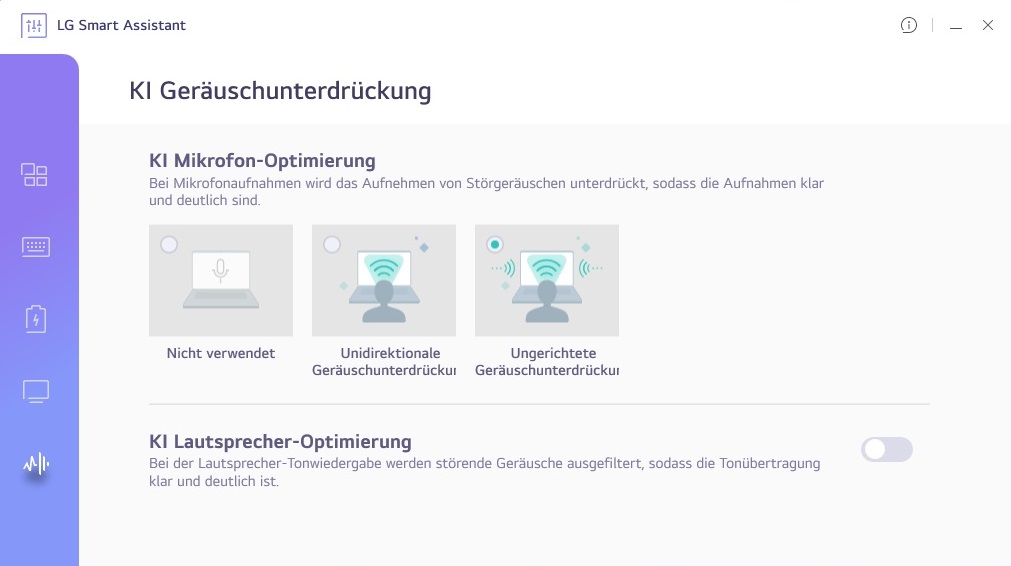

易于使用的LG智能助手让你从各种选项中选择冷却模式。除非另有说明，我们的测试都是在标准的 "正常 "设置下进行的。
处理器

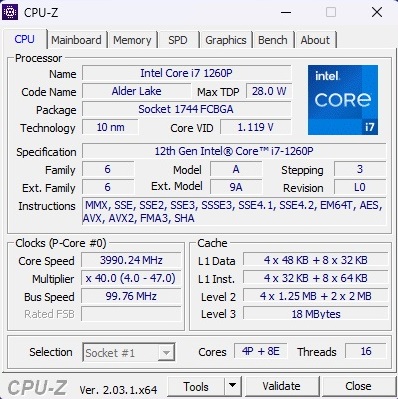

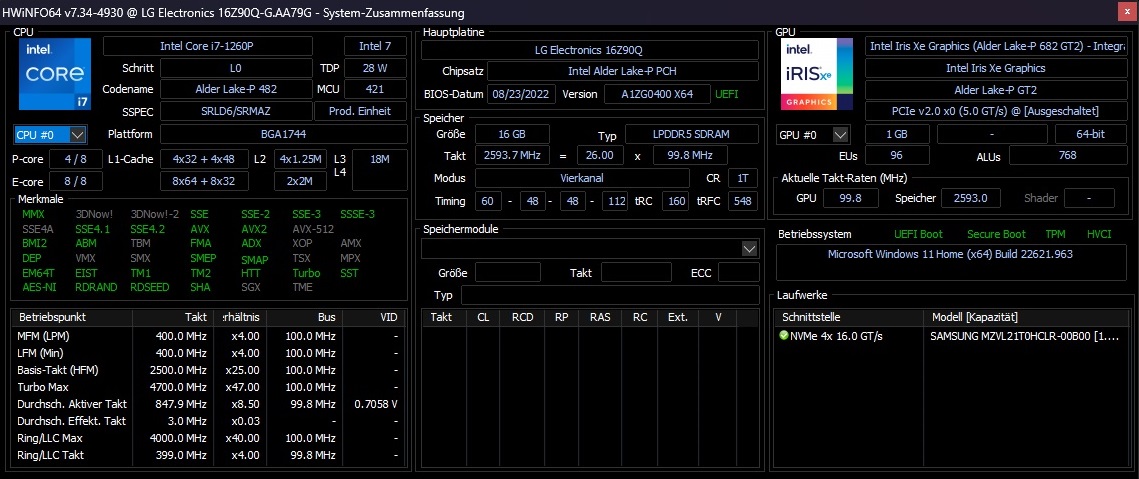

酷睿i7-1260P拥有四个支持超线程的性能核心和八个无超线程的效率核心。这意味着，该芯片总共可以并行工作16个线程。Gram 16在Cinebench循环中的表现不是特别好，Cinebench循环测量的是一段较长时期的性能。首先，因为它的性能从第二轮开始明显下降，其次，因为在整个测试过程中，结果波动很大。这对冷却或能源管理来说不是一个特别好的迹象。冷却模式 "高"（见图）避免了这个问题，但也使设备的声音明显增大。
Cinebench R15 Multi loop
| CPU Performance Rating - Percent | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average of class Office | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| LG Gram 16 (2021) | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| LG Gram 16 (2021) | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=97, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| LG Gram 16Z90Q | |
| Average Intel Core i7-1260P (2176 - 10898, n=26) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=97, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Average Intel Core i7-1260P (11015 - 56906, n=26) | |
| LG Gram 16Z90Q | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=97, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (669 - 2709, n=26) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| LG Gram 16 (2021) | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU Queen | |
| Lenovo Yoga 7 16IAP7 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| LG Gram 16Z90Q | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average Intel Core i7-1260P (42571 - 82493, n=26) | |
| Average of class Office (8185 - 115197, n=97, last 2 years) | |
| LG Gram 16 (2021) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=97, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Average Intel Core i7-1260P (2901 - 6975, n=26) | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16Z90Q | |
| LG Gram 16 (2021) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=97, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Average Intel Core i7-1260P (5950 - 26376, n=26) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU AES | |
| LG Gram 16 (2021) | |
| Average of class Office (7860 - 155900, n=97, last 2 years) | |
| Average Intel Core i7-1260P (16041 - 92356, n=26) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo Yoga 7 16IAP7 | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| AIDA64 / CPU ZLib | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P (259 - 771, n=26) | |
| Average of class Office (78 - 1018, n=97, last 2 years) | |
| LG Gram 16Z90Q | |
| LG Gram 16 (2021) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=97, last 2 years) | |
| Lenovo Yoga 7 16IAP7 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| LG Gram 16Z90Q | |
| Average Intel Core i7-1260P (1237 - 5858, n=26) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |
| AIDA64 / CPU PhotoWorxx | |
| LG Gram 16 (2021) | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16Z90Q | |
| Average Intel Core i7-1260P (13261 - 43652, n=26) | |
| Average of class Office (4814 - 54971, n=97, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
系统性能
尽管CPU有波动，但系统基准测试的结果相当好。该设备在PCMark 10中达到了5251分，这使它在我们的比较领域中位居第二。
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (2463 - 7344, n=89, last 2 years) | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (4796 - 6068, n=17) | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |
| PCMark 10 / Essentials | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (9260 - 11251, n=17) | |
| LG Gram 16 (2021) | |
| Average of class Office (5575 - 20841, n=89, last 2 years) | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 16 7620 2-in-1 | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10415, n=89, last 2 years) | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (6167 - 8629, n=17) | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16 (2021) | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 16 7620 2-in-1 | |
| PCMark 10 / Digital Content Creation | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (2126 - 9773, n=89, last 2 years) | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (5231 - 6908, n=17) | |
| LG Gram 16Z90Q | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| LG Gram 16 (2021) | |
| CrossMark / Overall | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1484 - 1811, n=16) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average of class Office (348 - 1891, n=91, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| CrossMark / Productivity | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1486 - 1755, n=16) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average of class Office (393 - 1870, n=91, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| CrossMark / Creativity | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1451 - 1872, n=16) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average of class Office (340 - 1982, n=91, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| CrossMark / Responsiveness | |
| Average Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs (1253 - 1807, n=16) | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (258 - 2017, n=91, last 2 years) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Dell Inspiron 16 7620 2-in-1 | |
| PCMark 10 Score | 5251 points | |
Help | ||
| AIDA64 / Memory Copy | |
| LG Gram 16Z90Q | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16 (2021) | |
| Average Intel Core i7-1260P (25125 - 71544, n=25) | |
| Average of class Office (7158 - 108783, n=98, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| AIDA64 / Memory Read | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16Z90Q | |
| LG Gram 16 (2021) | |
| Average Intel Core i7-1260P (24983 - 72065, n=25) | |
| Average of class Office (7325 - 127282, n=98, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| AIDA64 / Memory Write | |
| LG Gram 16 (2021) | |
| LG Gram 16Z90Q | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (7579 - 117935, n=98, last 2 years) | |
| Average Intel Core i7-1260P (23512 - 66799, n=25) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| AIDA64 / Memory Latency | |
| LG Gram 16Z90Q | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (6.9 - 185.2, n=97, last 2 years) | |
| LG Gram 16 (2021) | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Average Intel Core i7-1260P (77.9 - 118.4, n=21) | |
* ... smaller is better

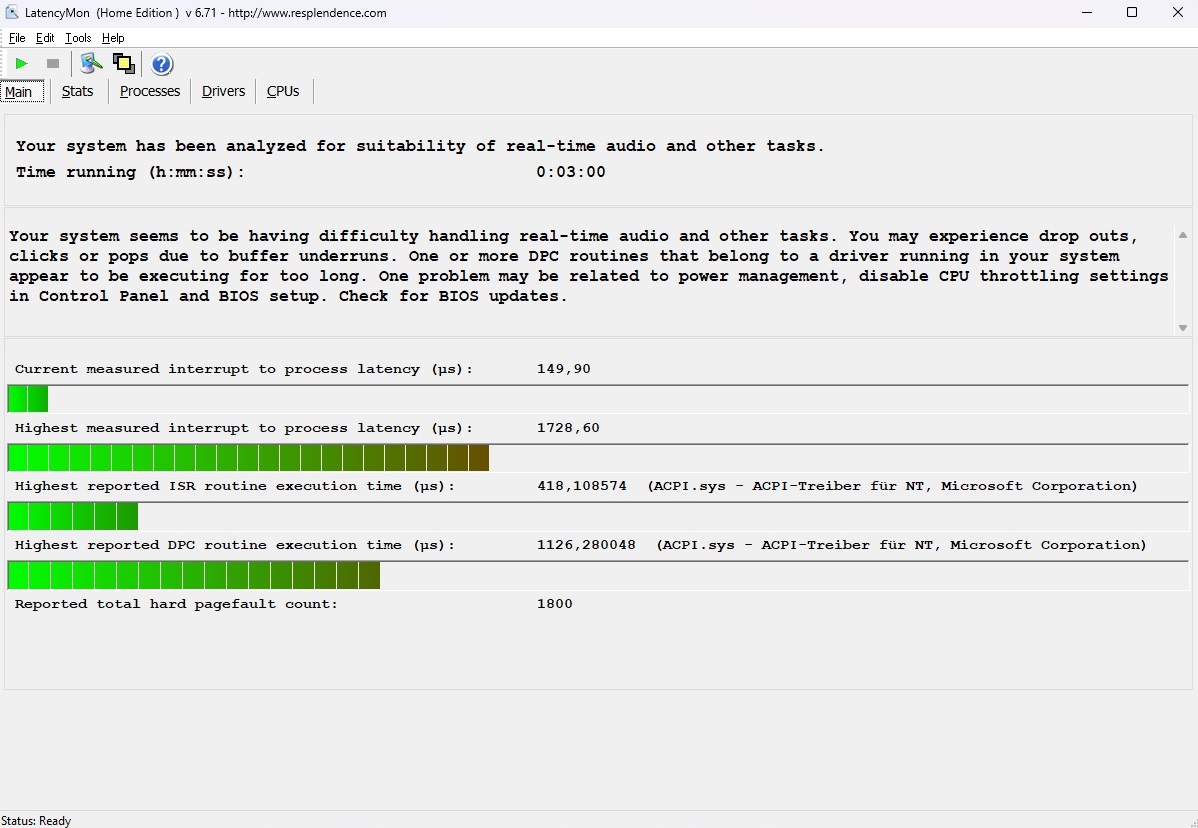

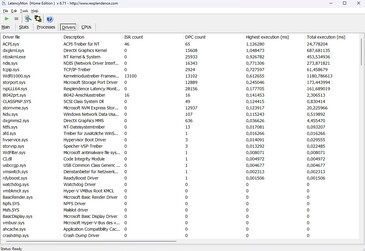

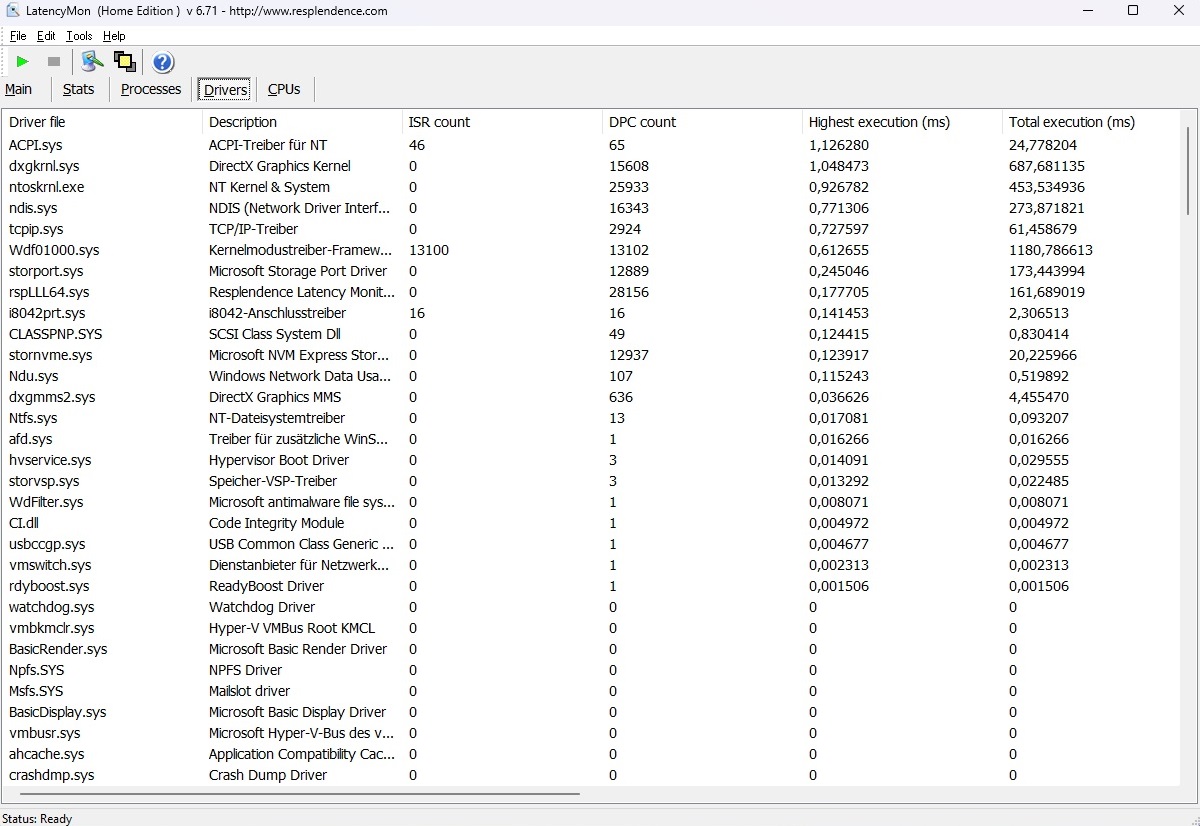

DPC延迟
在延迟方面，Gram 16带来了后面的问题。根据LatencyMon工具，16英寸设备在实时前工程的音频和视频处理方面有问题。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| LG Gram 16Z90Q | |
| Lenovo ThinkPad T16 G1 21BWS00200 | |
| Lenovo Yoga 7 16IAP7 | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |
* ... smaller is better
存储设备
固态硬盘遭受了与处理器类似的命运。它的速度在一段时间后开始出现明显的波动。在短时间内，Gram 16的三星硬盘实现了良好的性能，在AS SSD基准测试中超过4700 MB/s（连续读取）和2800 MB/s（连续写入）。
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8

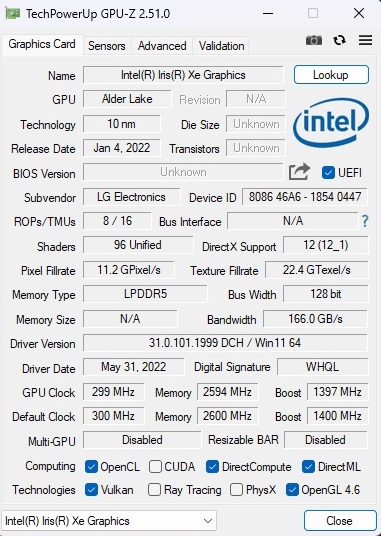

图形
目前英特尔的大多数笔记本CPU都配备了 Iris Xe Graphics G7.其性能不仅取决于TDP和冷却系统，也取决于计算单元的数量。例如，酷睿i7-1260P的iGPU配备了96个EUs，而同样受欢迎的酷睿i5-1240P只配备了80个EUs。不幸的是，Gram 16不能充分利用其96个EUs。3DMarks将LG笔记本定位在比较领域的中心，尽管明显高于80EU的版本。我们将在游戏基准测试部分看到3D性能是否保持稳定。
| 3DMark 11 Performance | 5649 points | |
| 3DMark Ice Storm Standard Score | 87993 points | |
| 3DMark Cloud Gate Standard Score | 19088 points | |
| 3DMark Fire Strike Score | 3907 points | |
| 3DMark Time Spy Score | 1626 points | |
Help | ||
游戏性能
Iris Xe Graphics G7 GPU往往更适合于中等分辨率和设置的老游戏。正如你可以在我们的 GPU页面在玩新的或要求更高的游戏时，iGPU往往无法与之竞争，通常甚至无法在全高清的低细节下流畅地显示游戏（更不用说在2560 x 1600的原始分辨率下）。
| Performance Rating - Percent | |
| Average of class Office | |
| LG Gram 16 (2021) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Iris Xe Graphics G7 96EUs | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| LG Gram 16 (2021) | |
| Average of class Office (3.8 - 34, n=79, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=179) | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16Z90Q | |
| Dell Inspiron 16 7620 2-in-1 | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Office (3.35 - 47.8, n=83, last 2 years) | |
| LG Gram 16 (2021) | |
| Average Intel Iris Xe Graphics G7 96EUs (4.13 - 22.9, n=151) | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16Z90Q | |
| Dell Inspiron 16 7620 2-in-1 | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| LG Gram 16 (2021) | |
| Average Intel Iris Xe Graphics G7 96EUs (8.15 - 27.8, n=172) | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (3.86 - 35.7, n=92, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (9.6 - 56.5, n=75, last 2 years) | |
| LG Gram 16 (2021) | |
| Average Intel Iris Xe Graphics G7 96EUs (13.2 - 31.7, n=163) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (13.4 - 121.2, n=99, last 2 years) | |
| Average Intel Iris Xe Graphics G7 96EUs (20.6 - 78.5, n=215) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| LG Gram 16 (2021) | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Average Intel Iris Xe Graphics G7 96EUs (11.1 - 59.8, n=212) | |
| Average of class Office (8.88 - 92.6, n=95, last 2 years) | |
| LG Gram 16Z90Q | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16 (2021) | |
| The Witcher 3 | |
| 1024x768 Low Graphics & Postprocessing | |
| LG Gram 16 (2021) | |
| Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186) | |
| Average of class Office (16 - 177, n=75, last 2 years) | |
| Dell Inspiron 16 7620 2-in-1 | |
| Lenovo Yoga 7 16IAP7 | |
| LG Gram 16Z90Q | |
| 1366x768 Medium Graphics & Postprocessing | |
| Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184) | |
| Lenovo Yoga 7 16IAP7 | |
| Average of class Office (12 - 106.3, n=68, last 2 years) | |
| LG Gram 16 (2021) | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16Z90Q | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Lenovo Yoga 7 16IAP7 | |
| Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=189) | |
| Average of class Office (7.6 - 59.1, n=76, last 2 years) | |
| LG Gram 16Z90Q | |
| Dell Inspiron 16 7620 2-in-1 | |
| LG Gram 16 (2021) | |

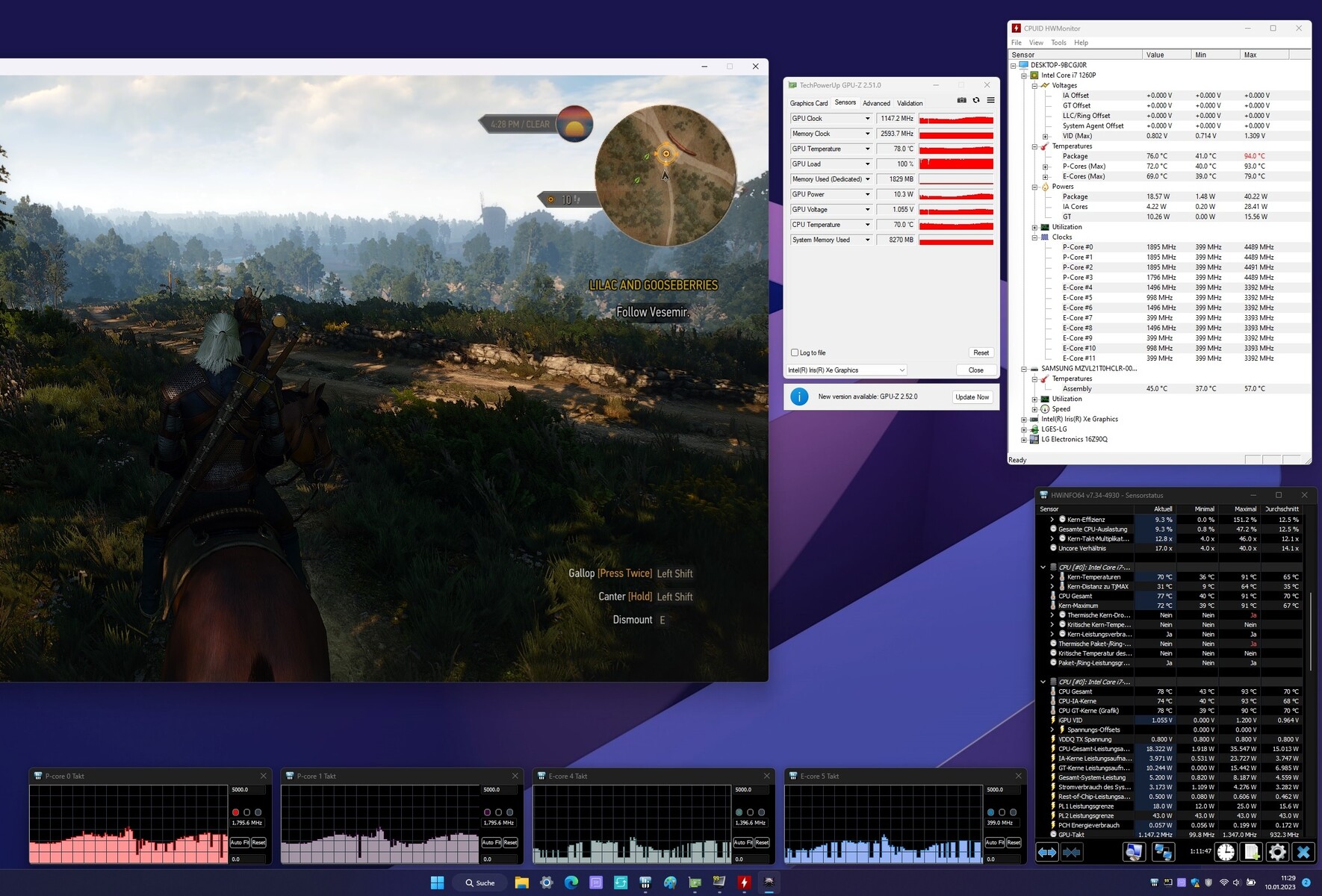

我们60分钟的威彻-3测试(FHD/Ultra）清楚地表明，iGPU的性能与CPU和SSD的性能一样不稳定。在这里，冷却模式 "高 "也能稳定和提高性能。
Witcher 3 FPS diagram
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 77.3 | 67.4 | 15.4 | 7.71 |
| The Witcher 3 (2015) | 65.9 | 35.7 | 25.5 | 13.2 |
| Dota 2 Reborn (2015) | 107.1 | 70.4 | 44.5 | 42.5 |
| Final Fantasy XV Benchmark (2018) | 25.1 | 16.3 | 11.9 | |
| X-Plane 11.11 (2018) | 39.6 | 38 | 29.2 | |
| Far Cry 5 (2018) | 43 | 20 | 17 | 14 |
| Strange Brigade (2018) | 86.7 | 28.2 | 21.9 | 17.4 |
排放
系统噪音
虽然新的Gram 16没有更好的GPU性能，但该设备在负载下的噪音比其前辈要大得多，尽管在3D操作中37-38而不是31 dB(A)仍然是非常可以接受的，比联想Yoga 7低。 在空转时，LG笔记本的噪音为26至28 dB(A)，令人舒适。并不是说风扇不能完全关闭。这需要使用静音模式，不幸的是，由于性能的极度下降（例如，YouTube视频和其他在线流变得生硬），这不是一个选项。
Noise Level
| Idle |
| 26 / 27 / 28 dB(A) |
| Load |
| 38 / 38 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs | LG Gram 16 (2021) i7-1165G7, Iris Xe G7 96EUs | Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs | Dell Inspiron 16 7620 2-in-1 i7-1260P, Iris Xe G7 96EUs | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs | |
|---|---|---|---|---|---|
| Noise | 7% | 4% | 10% | 15% | |
| off / environment * | 25 | 26 -4% | 23.6 6% | 23.2 7% | 23.3 7% |
| Idle Minimum * | 26 | 26 -0% | 23.6 9% | 23.5 10% | 23.3 10% |
| Idle Average * | 27 | 26 4% | 23.6 13% | 23.5 13% | 23.3 14% |
| Idle Maximum * | 28 | 26 7% | 23.6 16% | 23.5 16% | 23.3 17% |
| Load Average * | 38 | 30.8 19% | 37.7 1% | 29.4 23% | 25.1 34% |
| Witcher 3 ultra * | 37 | 40 -8% | 35.6 4% | 32.1 13% | |
| Load Maximum * | 38 | 31.1 18% | 40.2 -6% | 39.7 -4% | 34 11% |
* ... smaller is better

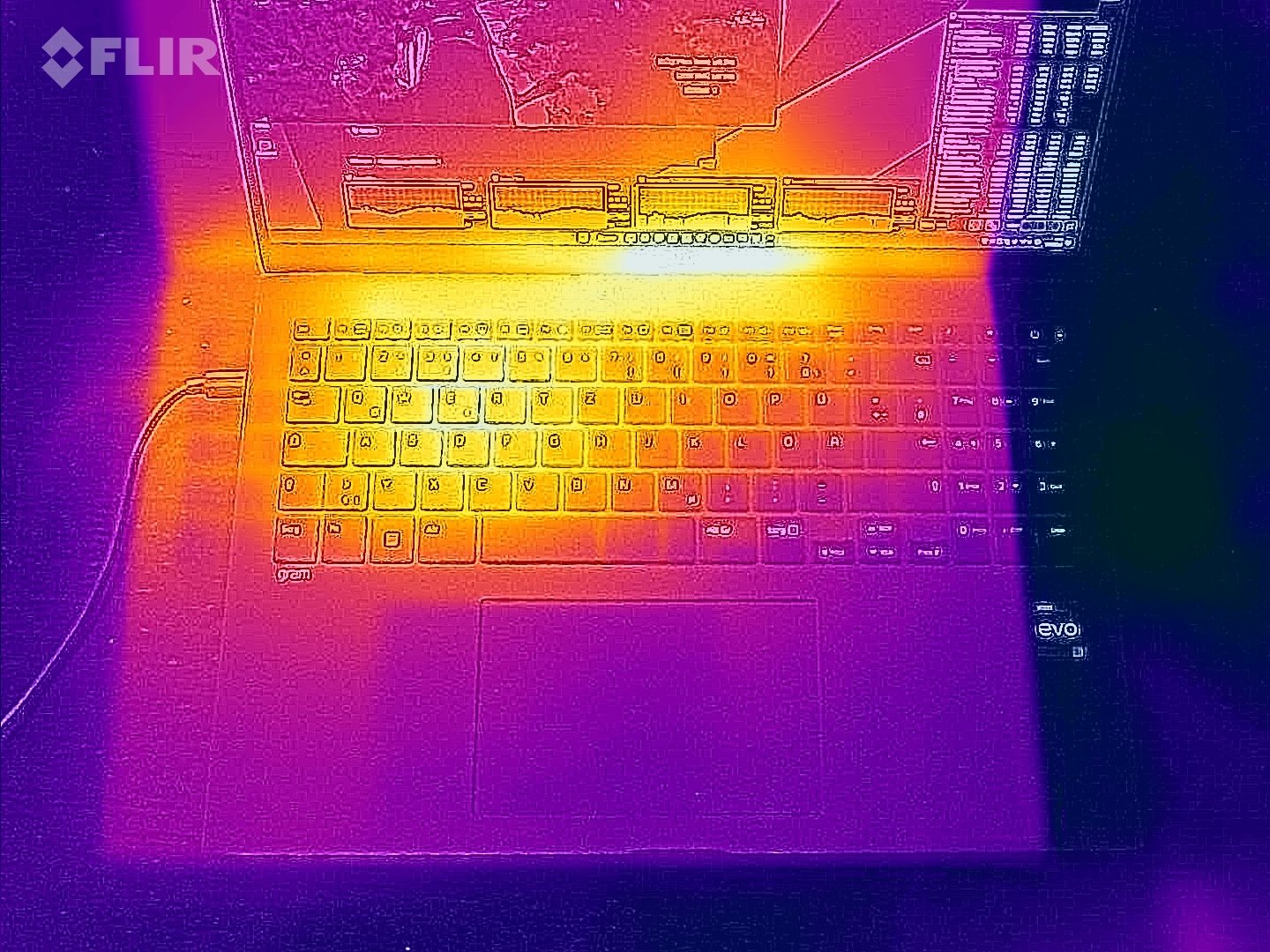

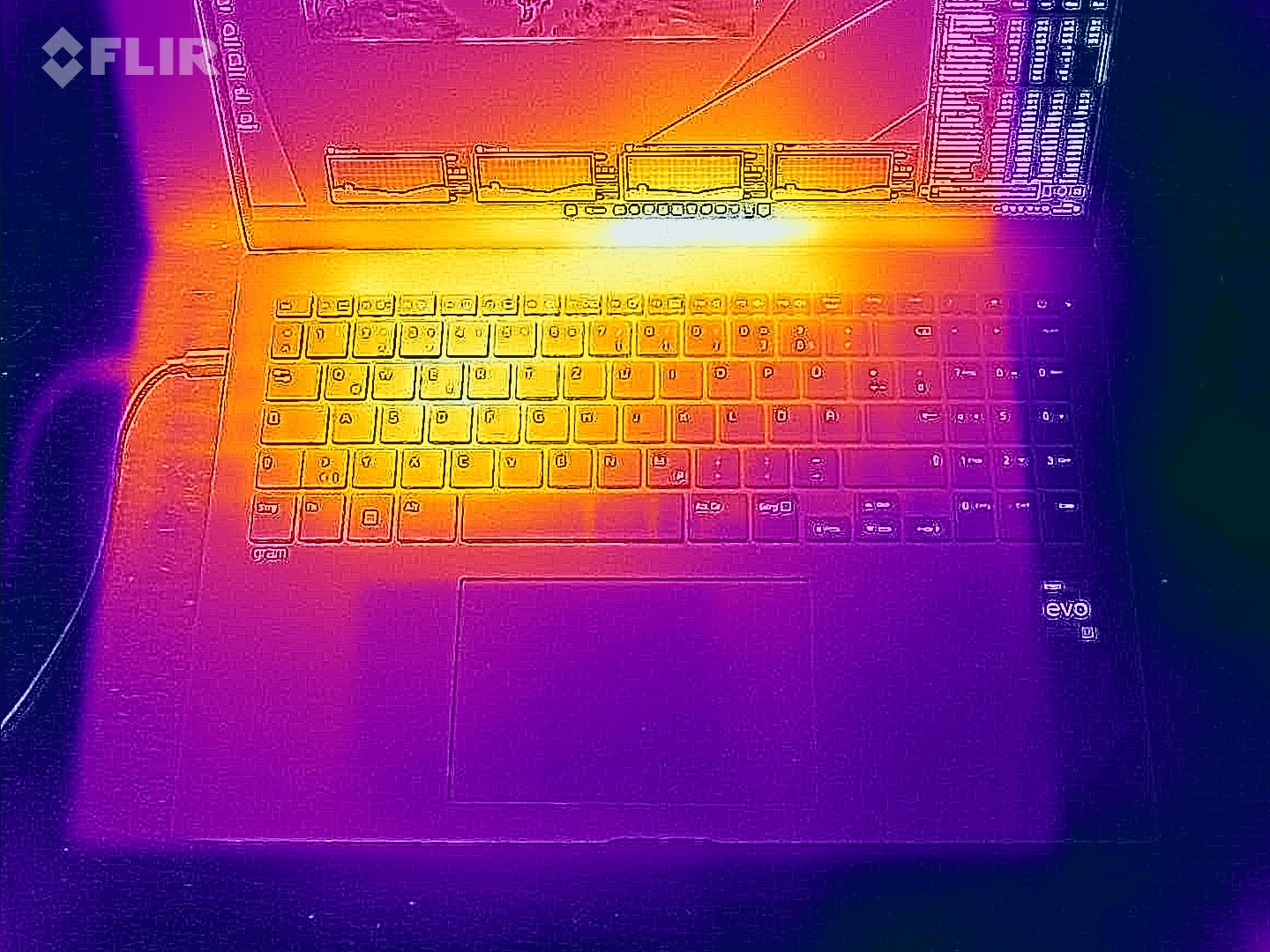

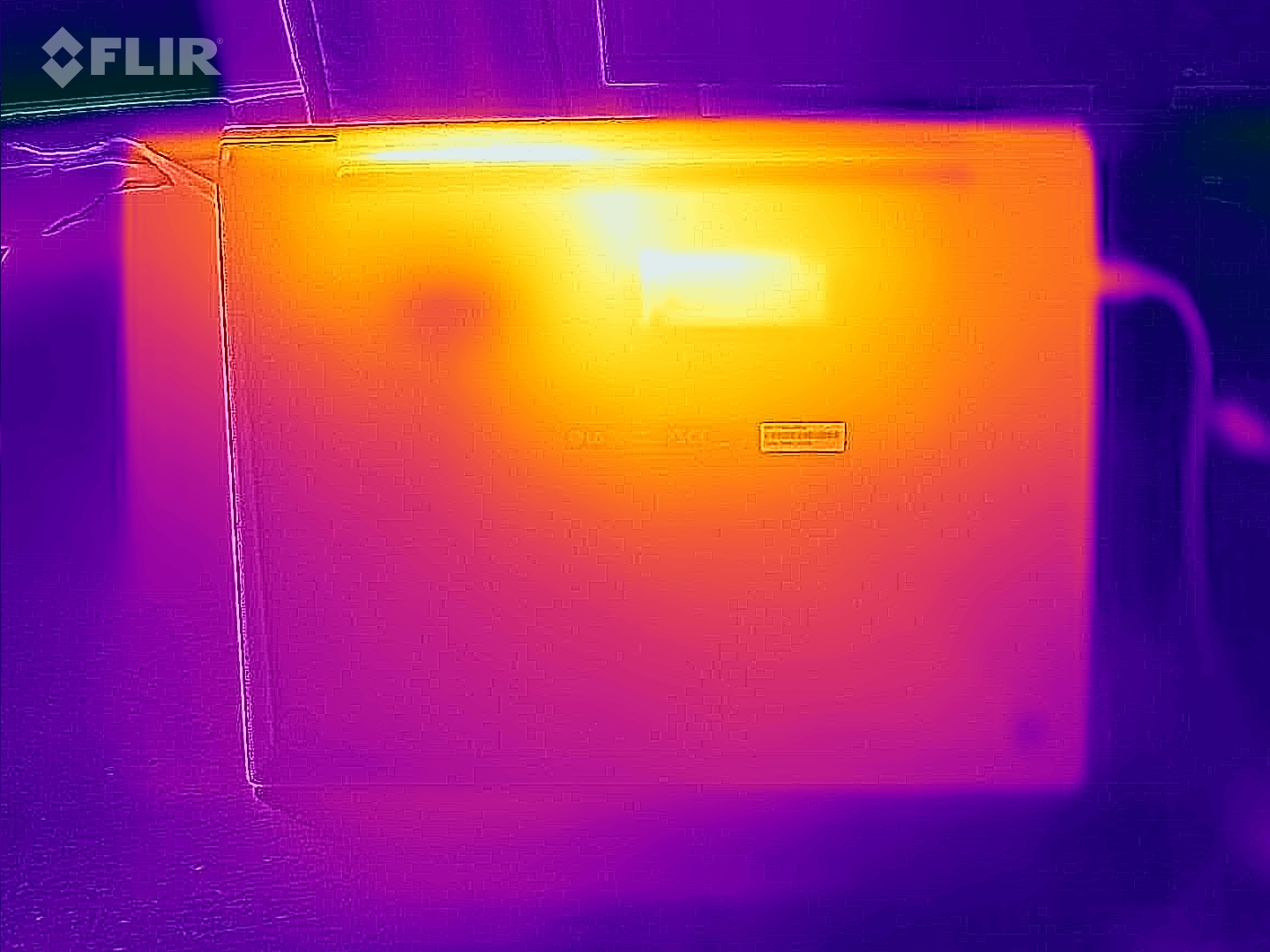

温度
温度的发展是不显著的。我们测量了空转时的平均温度为24℃，3D模式下的最高温度为45℃（顶部）和43℃（底部）。这对这类办公笔记本来说是非常典型的。
(±) The maximum temperature on the upper side is 45 °C / 113 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43 °C / 109 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24 °C / 75 F, compared to the device average of 29.5 °C / 85 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.8 °C / 96 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+1.6 °C / 2.9 F).
| LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs | LG Gram 16 (2021) i7-1165G7, Iris Xe G7 96EUs | Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs | Dell Inspiron 16 7620 2-in-1 i7-1260P, Iris Xe G7 96EUs | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs | |
|---|---|---|---|---|---|
| Heat | -1% | 17% | -14% | -14% | |
| Maximum Upper Side * | 45 | 46.9 -4% | 39 13% | 42.2 6% | 45 -0% |
| Maximum Bottom * | 43 | 45.1 -5% | 34.2 20% | 47.4 -10% | 42.8 -0% |
| Idle Upper Side * | 26 | 26.4 -2% | 21.2 18% | 32.2 -24% | 33 -27% |
| Idle Bottom * | 26 | 24.1 7% | 21.6 17% | 33.6 -29% | 33.6 -29% |
* ... smaller is better
压力测试
由于组件即使在正常条件下也开始节流，我们并不感到惊讶，在最大负荷下，性能非常不稳定，而且受到限制。非常清楚的是，LG在制造Gram 16时考虑到了最大的移动性，而性能所起的作用则不那么重要。
发言人
考虑到这台笔记本的尺寸和重量，考虑到低音较弱，扬声器的表现出乎意料的好。在质量和最大音量（84 dB(A)）方面，声音可以轻松地跟上其竞争对手。
LG Gram 16Z90Q audio analysis
(+) | speakers can play relatively loud (84 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(+) | mids are linear (3.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.4% away from median
(±) | linearity of highs is average (7.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (13.7% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 3% similar, 91% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 13% of all tested devices were better, 3% similar, 84% worse
» The best had a delta of 4%, average was 25%, worst was 134%
LG Gram 16 (2021) audio analysis
(±) | speaker loudness is average but good (76.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.8% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(+) | mids are linear (5.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.7% difference to median)
Compared to same class
» 9% of all tested devices in this class were better, 4% similar, 87% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 17% of all tested devices were better, 4% similar, 79% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
消耗功率
该设备在空转时平均消耗8瓦，这与前代产品非常相似。在3D操作期间，功耗增加到38-56瓦，而竞争对手在最大负荷下需要超过70瓦甚至80瓦（尽管它们在这种情况下也能提供更好、更稳定的性能）。
| Off / Standby | 0.4 / 1.2 Watt |
| Idle | 5 / 8 / 14 Watt |
| Load |
47 / 56 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs | LG Gram 16 (2021) i7-1165G7, Iris Xe G7 96EUs | Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs | Dell Inspiron 16 7620 2-in-1 i7-1260P, Iris Xe G7 96EUs | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs | Average of class Office | |
|---|---|---|---|---|---|---|
| Power Consumption | 15% | -17% | -6% | 17% | 10% | |
| Idle Minimum * | 5 | 3.8 24% | 6.6 -32% | 5.3 -6% | 2.9 42% | 4.5 ? 10% |
| Idle Average * | 8 | 9 -13% | 8.3 -4% | 8.3 -4% | 6 25% | 7.46 ? 7% |
| Idle Maximum * | 14 | 11.3 19% | 9.8 30% | 9.6 31% | 6.9 51% | 9.09 ? 35% |
| Load Average * | 47 | 35.2 25% | 66 -40% | 54.3 -16% | 27.3 42% | 42.8 ? 9% |
| Witcher 3 ultra * | 37.8 | 52 -38% | 43.9 -16% | 42.6 -13% | ||
| Load Maximum * | 56 | 43.5 22% | 67.1 -20% | 70 -25% | 81.53 -46% | 61.8 ? -10% |
* ... smaller is better
Power consumption Witcher 3 / stress test
Power consumption with external screen
电池寿命
即使电池寿命不能跟上旧的Gram 16，这个设备也非常适用于远离主电源的日子。我们测得在最低显示亮度的情况下，闲置时间最长为18小时，在150cd/m²的显示亮度下通过Wi-Fi上网时，约为10小时。这是令人印象深刻的。电池仍有80Wh。
| LG Gram 16Z90Q i7-1260P, Iris Xe G7 96EUs, 80 Wh | LG Gram 16 (2021) i7-1165G7, Iris Xe G7 96EUs, 80 Wh | Lenovo Yoga 7 16IAP7 i7-1260P, Iris Xe G7 96EUs, 71 Wh | Dell Inspiron 16 7620 2-in-1 i7-1260P, Iris Xe G7 96EUs, 87 Wh | Lenovo ThinkPad T16 G1 21BWS00200 i5-1240P, Iris Xe G7 80EUs, 86 Wh | Average of class Office | |
|---|---|---|---|---|---|---|
| Battery Runtime | 59% | -27% | 21% | 36% | -1% | |
| Reader / Idle | 1085 | 1713 58% | 734 -32% | 1020 -6% | 1300 ? 20% | |
| WiFi v1.3 | 606 | 943 56% | 475 -22% | 876 45% | 846 40% | 612 ? 1% |
| Load | 157 | 258 64% | 113 -28% | 193 23% | 208 32% | 117.8 ? -25% |
| H.264 | 1204 | 623 | 728 ? |
Pros
Cons
判决书
LG Gram 16Z90Q配备了一台酷睿i7-1260P是在考虑到便携性的情况下制作的，对性能有高要求的用户不太关注。
紧凑而轻巧的机身在你外出时特别实用。
该设备不仅舒适小巧，重量轻，而且还拥有出色的电池寿命。另一方面，当连接到主电源时，这台16英寸设备相当令人失望。标准的冷却模式导致CPU、SSD和iGPU性能的极端不稳定。机箱的微弱稳定性也可能使一些潜在的买家望而却步。
除此以外，我们真的找不到关于16英寸LG Gram 16的批评。它有一套现代的端口（2x USB 4），良好的输入设备和标准排放。声音和图像质量都很好，由于其2560 x 1600像素，哑光IPS屏幕具有良好的色彩和出色的分辨率。
的联想ThinkPad T16是一个很好的选择，尽管它有一个（甚至）更高的价格标签。
价格和可用性
LG Gram 16Z90O在一些网上商店的售价为1300美元（例如在BestBuy).

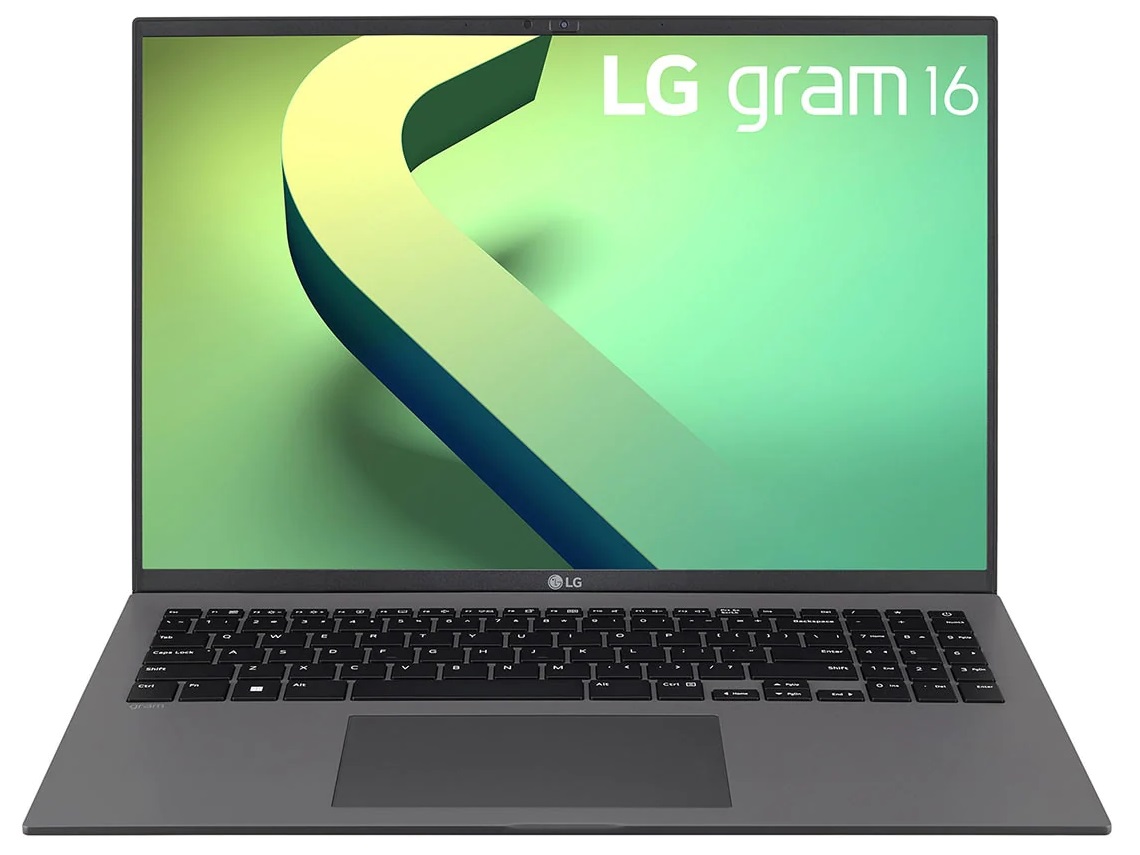

LG Gram 16Z90Q
- 01/13/2023 v7 (old)
Florian Glaser
Price comparison
