华为MateBook 14 2021年AMD笔记本评测--CPU降级的次笔记本

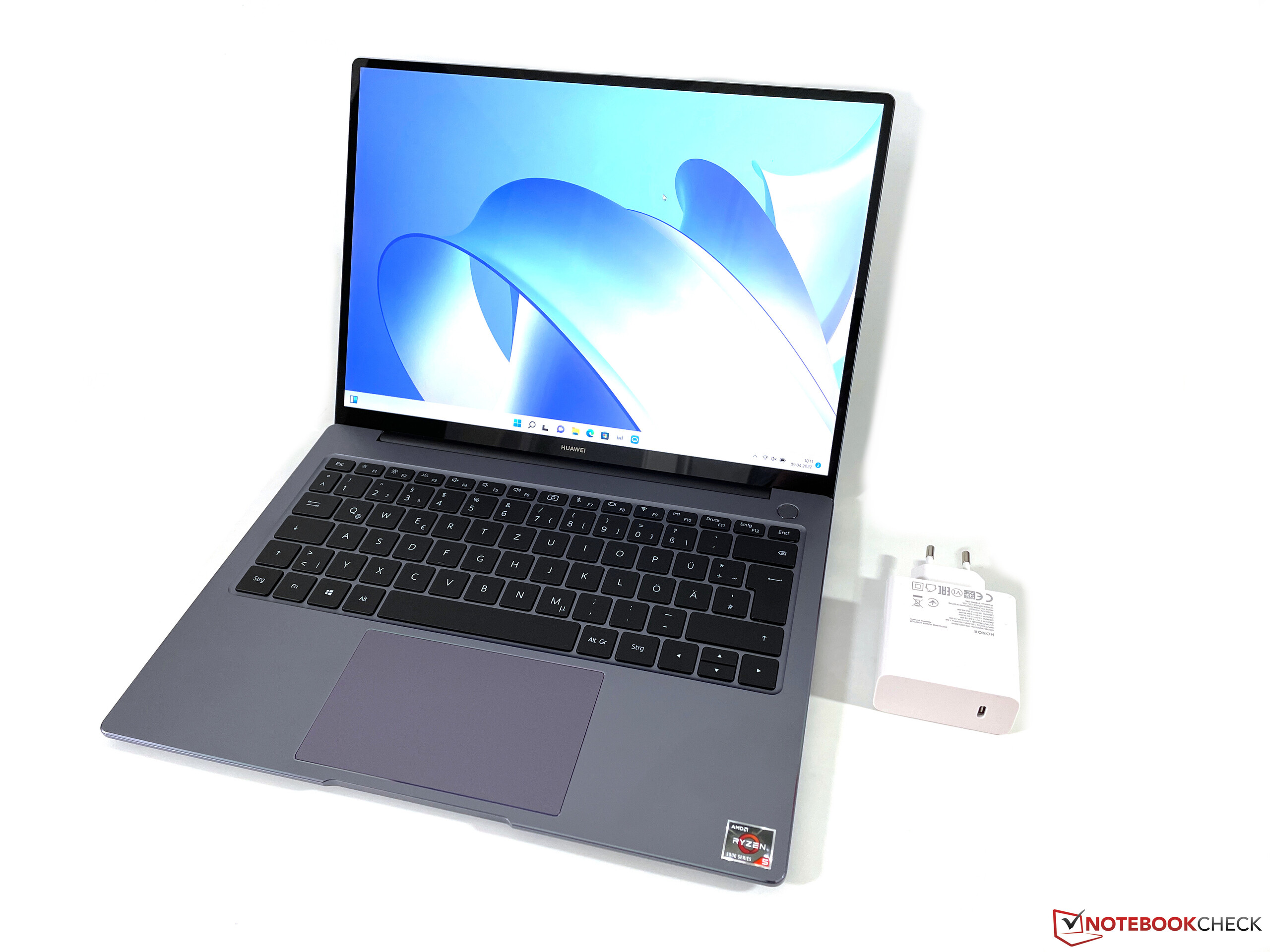

我们熟悉华为的MateBook 14已经有几年时间了，目前2021年的机型也可以使用AMD的Ryzen 5 5500U处理器。我们的评测单位是配备16GB内存、512GB PCIe SSD存储的版本，以及没有触摸功能的光面3：2 IPS屏幕。旧的设计在2022年还能用吗？AMD的型号与稍贵的（约1100欧元）英特尔Tiger Lake-U的版本相比，有什么优势？(目前也在审查中)
Huawei MateBook 14 2021 AMD (MateBook 14 Series)

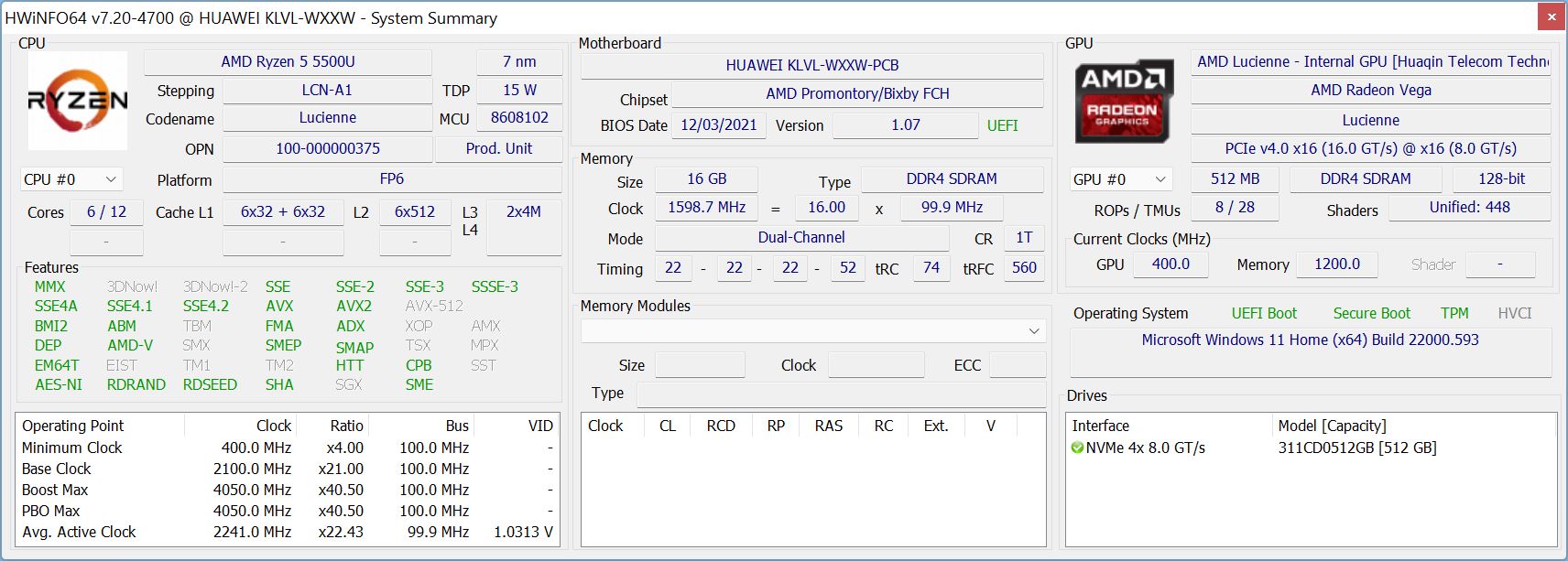

Processor
AMD Ryzen 5 5500U 6 x 2.1 - 4 GHz, 46 W PL2 / Short Burst, 37 W PL1 / Sustained, Lucienne-U (Zen 2)
Graphics adapter
AMD Radeon RX Vega 7, RAM: 1600 MHz

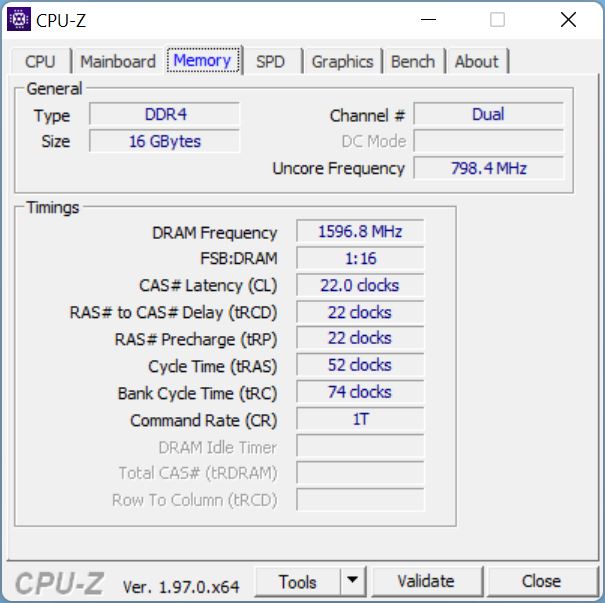

Memory
16 GB
, DDR4-3200, Dual-Channel, onboard
Display
14.00 inch 3:2, 2160 x 1440 pixel 185 PPI, TV140WTM-NH0, IPS, glossy: yes, 60 Hz
Mainboard
AMD Promontory/Bixby FCH

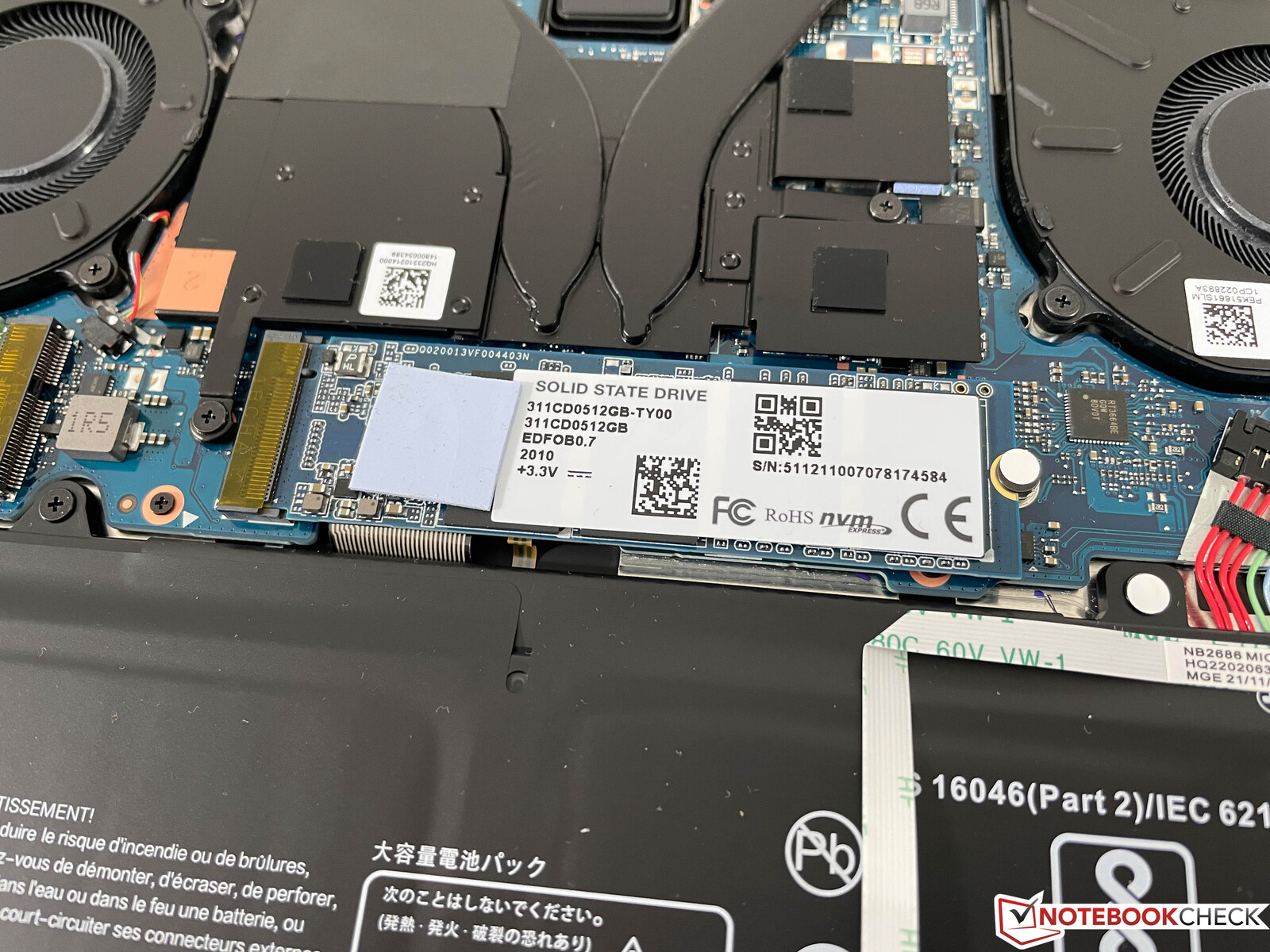

Storage
Phison PS5013 311CD0512GB, 512 GB
Weight
1.456 kg, Power Supply: 200 g
Price
1000 Euro
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 86.9 % v7 (old) | 04 / 2022 | Huawei MateBook 14 2021 AMD R5 5500U, Vega 7 | 1.5 kg | 15.9 mm | 14.00" | 2160x1440 | |
| 86 % v7 (old) | 03 / 2022 | Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7 | 1.3 kg | 16.5 mm | 14.00" | 1920x1080 | |
| 86.4 % v7 (old) | 04 / 2022 | Huawei MateBook 14 2021, i7-1165G7 i7-1165G7, Iris Xe G7 96EUs | 1.5 kg | 15.9 mm | 14.00" | 2160x1440 | |
| 85.5 % v7 (old) | 11 / 2021 | Lenovo IdeaPad 5 Pro 14ACN6 R5 5600U, Vega 7 | 1.5 kg | 17.9 mm | 14.00" | 2240x1400 | |
| 86.4 % v7 (old) | 10 / 2021 | Lenovo Yoga Slim 7 14ITL05 82A300CNGE i5-1135G7, Iris Xe G7 80EUs | 1.4 kg | 14.9 mm | 14.00" | 1920x1080 | |
| 88.6 % v7 (old) | 10 / 2021 | Huawei MateBook 14s i7 i7-11370H, Iris Xe G7 96EUs | 1.4 kg | 16.7 mm | 14.20" | 2520x1680 |
外壳和连接

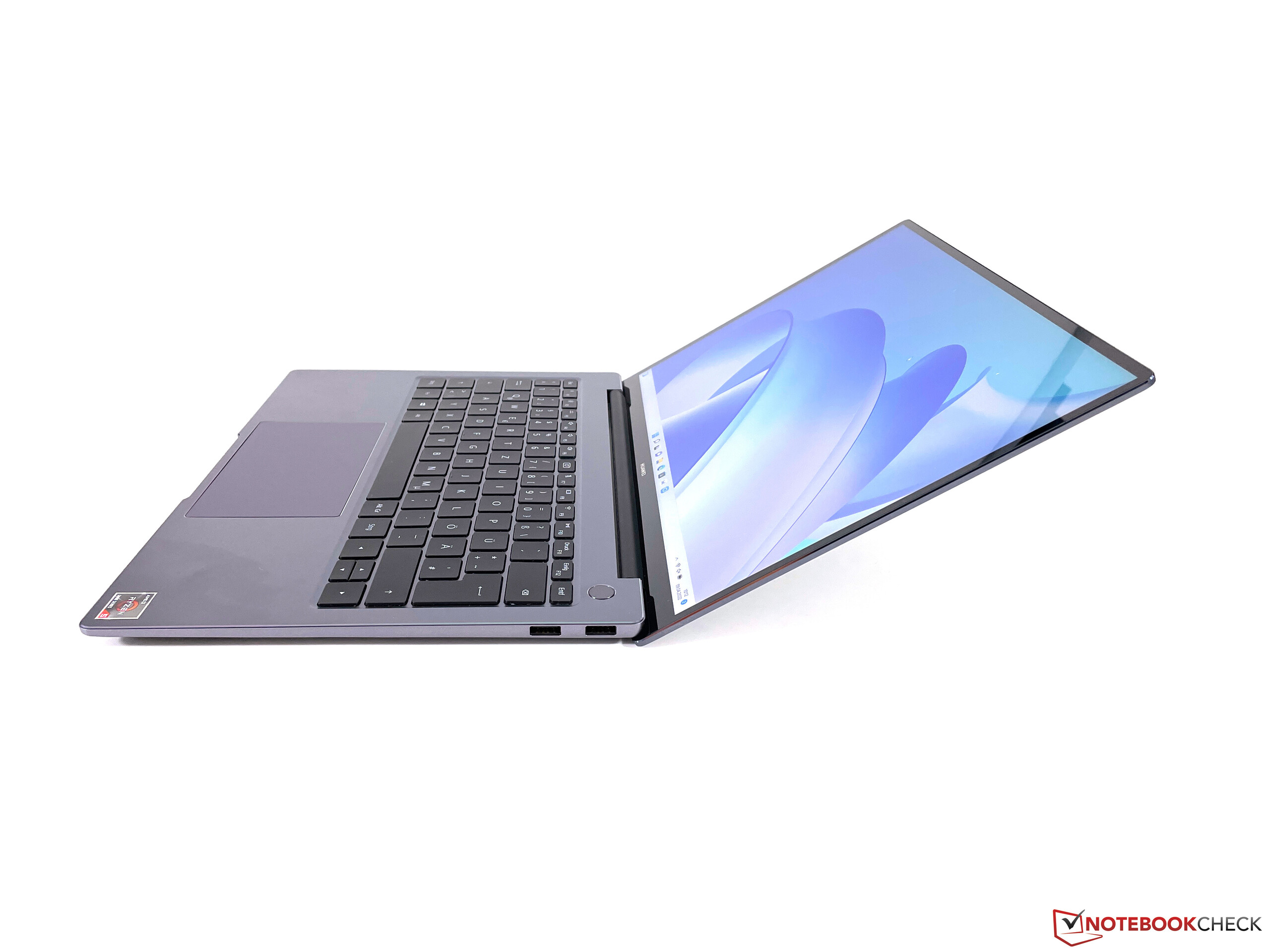

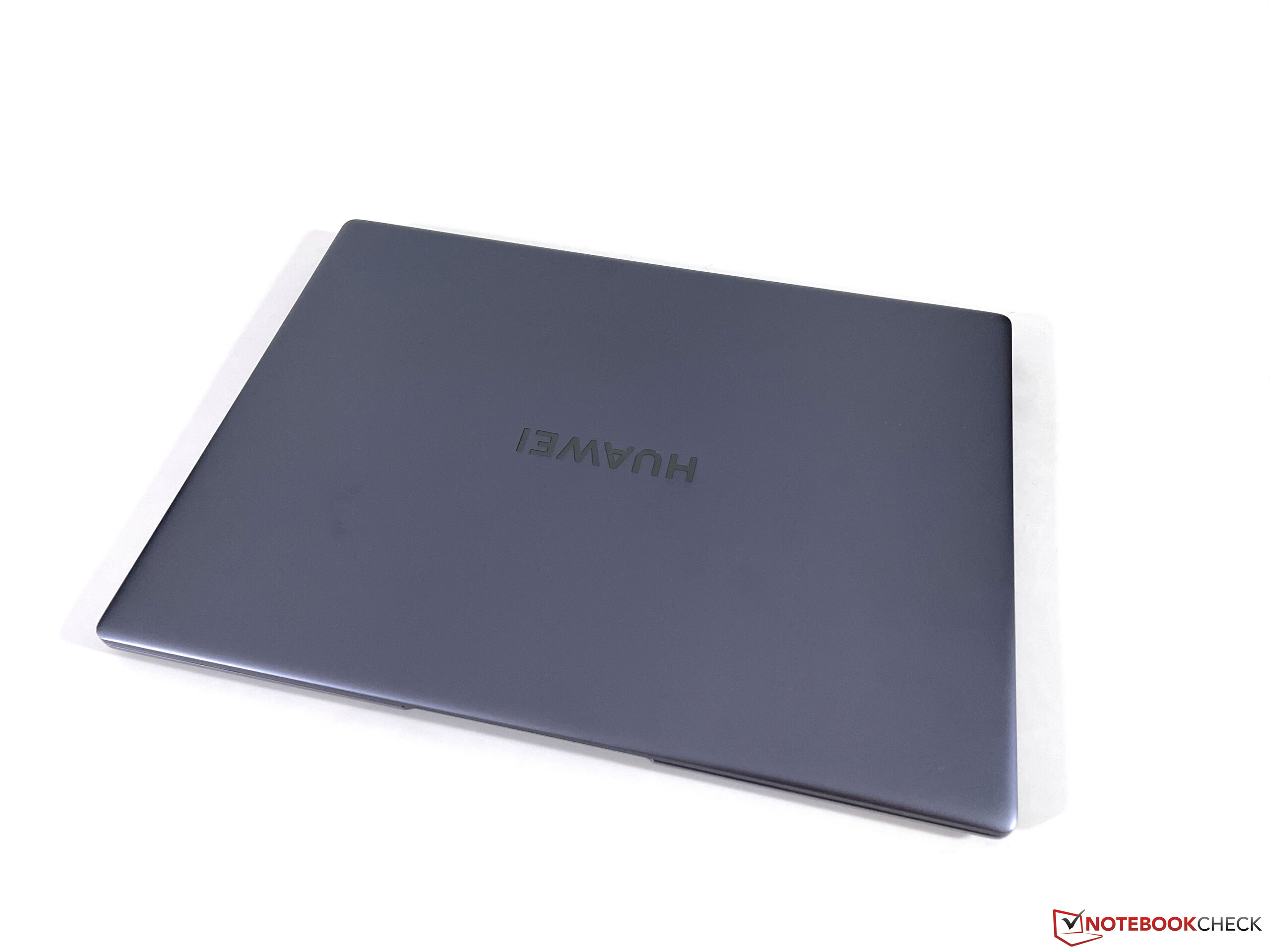

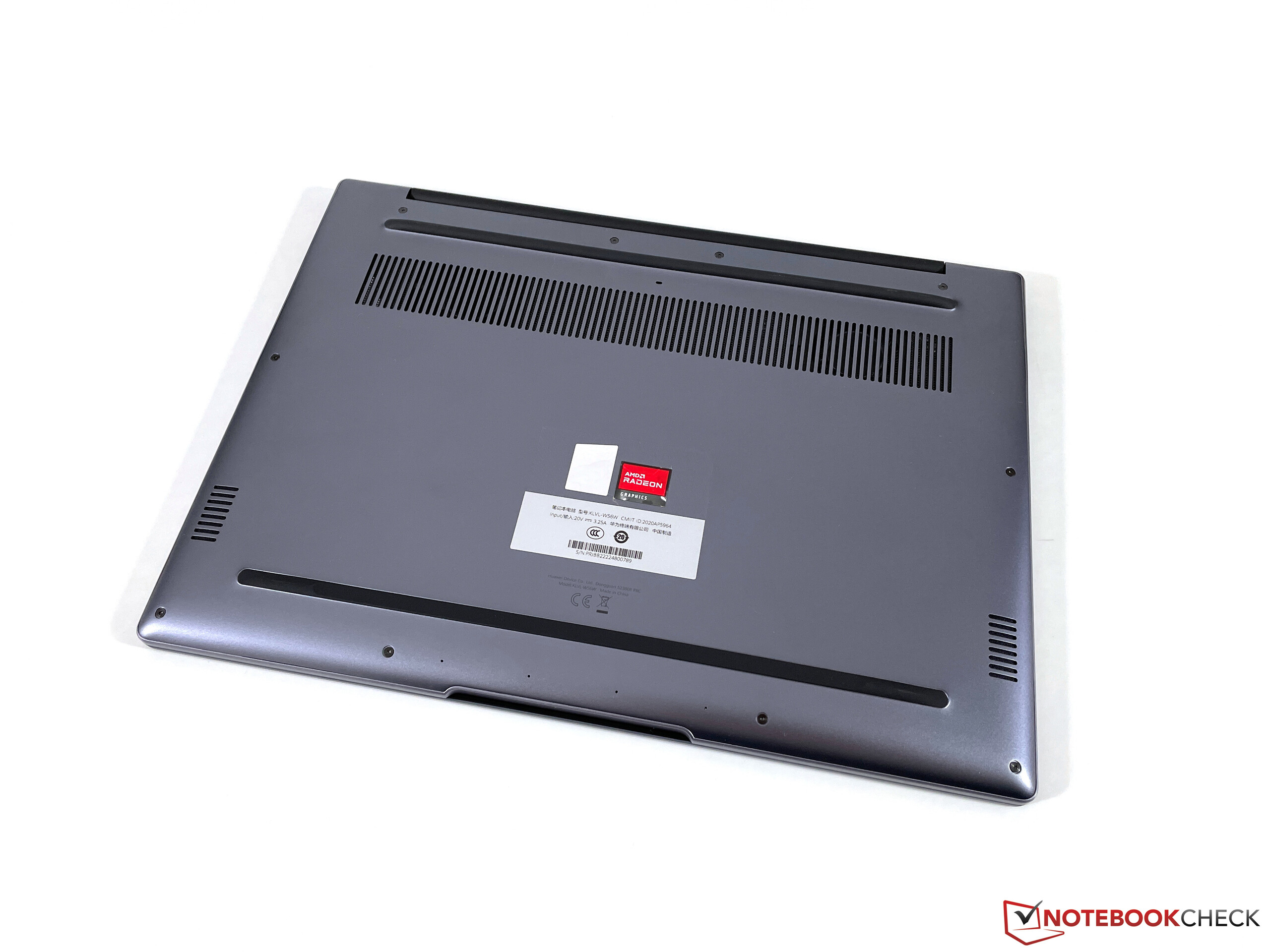

深灰色的铝制底盘与以前的型号相比没有变化。 以前的型号我们找不到任何变化。这仍然意味着你得到了良好的质量，与这个价格范围内的其他设备相比，肯定有优势。与更昂贵的华为笔记本电脑，如MateBook X Pro，其实并没有很大的区别。MateBook X Pro或较新的MateBook 14s，也是如此。稳定性也很好，由于边框很细，整体设计看起来仍然很现代。取下底盖（用T5螺丝固定）很容易，你可以接触到M.2-SSD、Wi-Fi模块以及风扇，以便清洁。

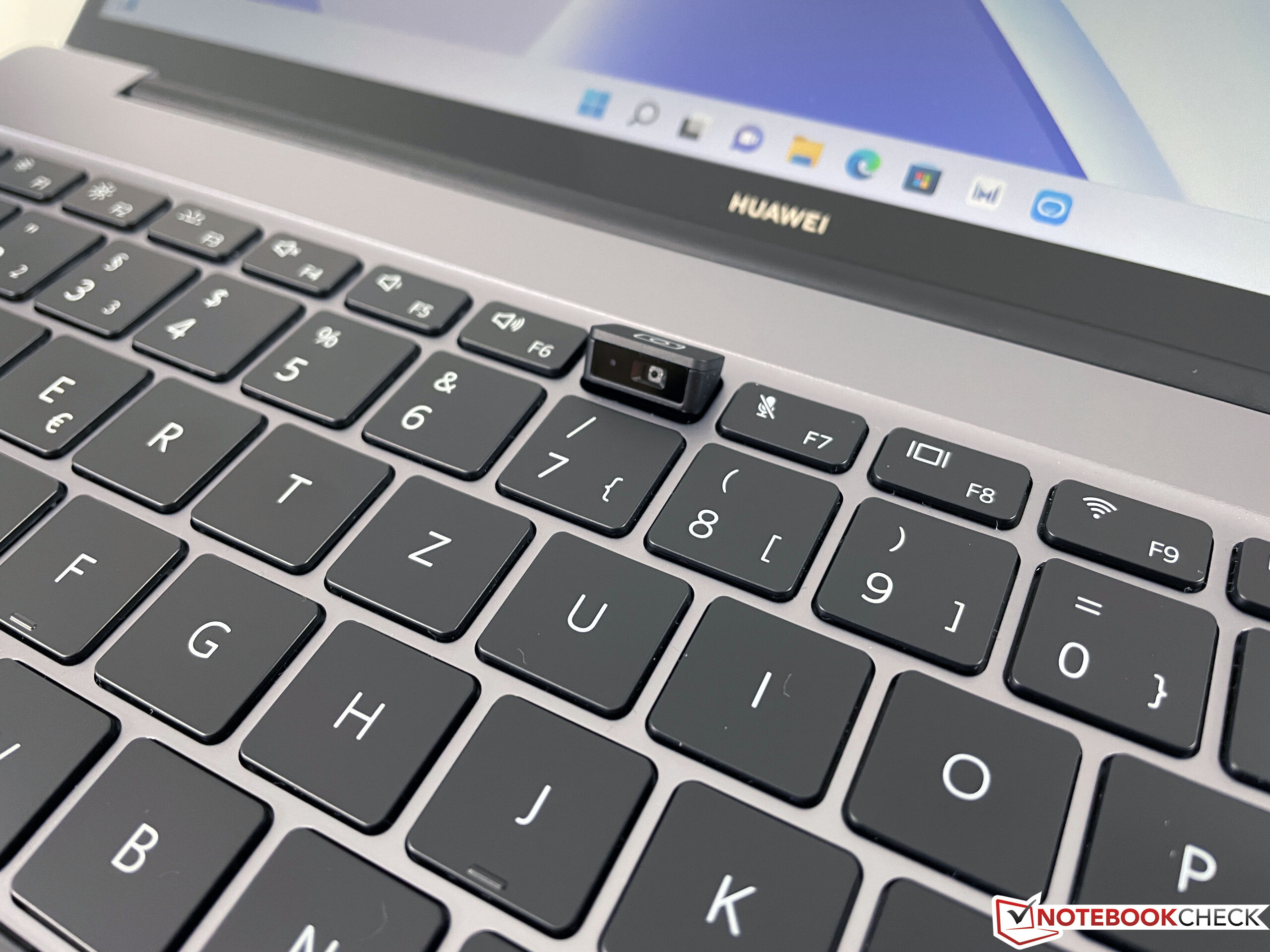

隐藏在键盘内的网络摄像头的位置清楚地表明它是一个 "老 "设计，而像MateBook 14s这样的较新机型的网络摄像头在屏幕上方。100万像素装置的质量不是很好，由于位置的原因，有明显的失真。从下面看，在会议中的角度也不是很有利。然而，这个解决方案对于隐私问题无疑是很好的。

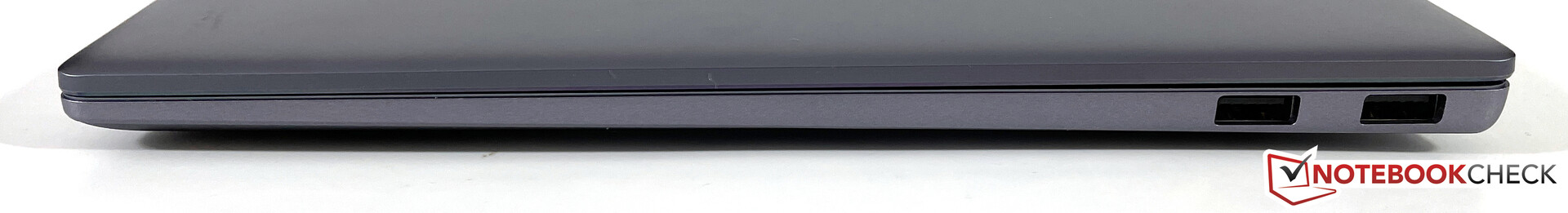

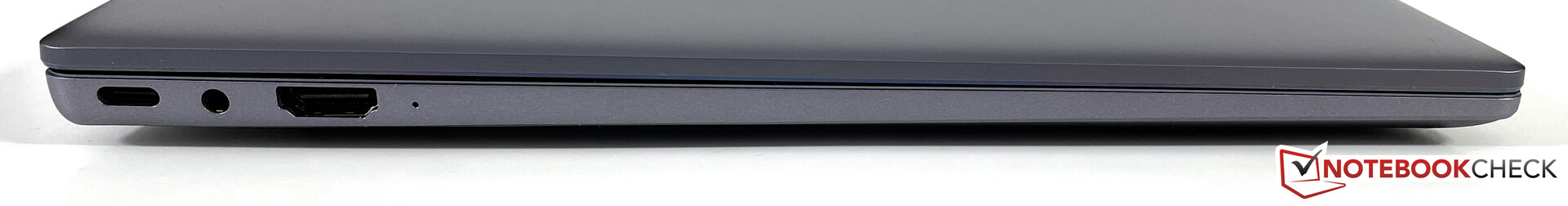

AMD以及英特尔的SKU在端口方面都只提供了1个USB-C（也用于充电）以及两个普通的USB-A端口的基本要素。外部屏幕可以通过HDMI连接，但没有SD卡读卡器。

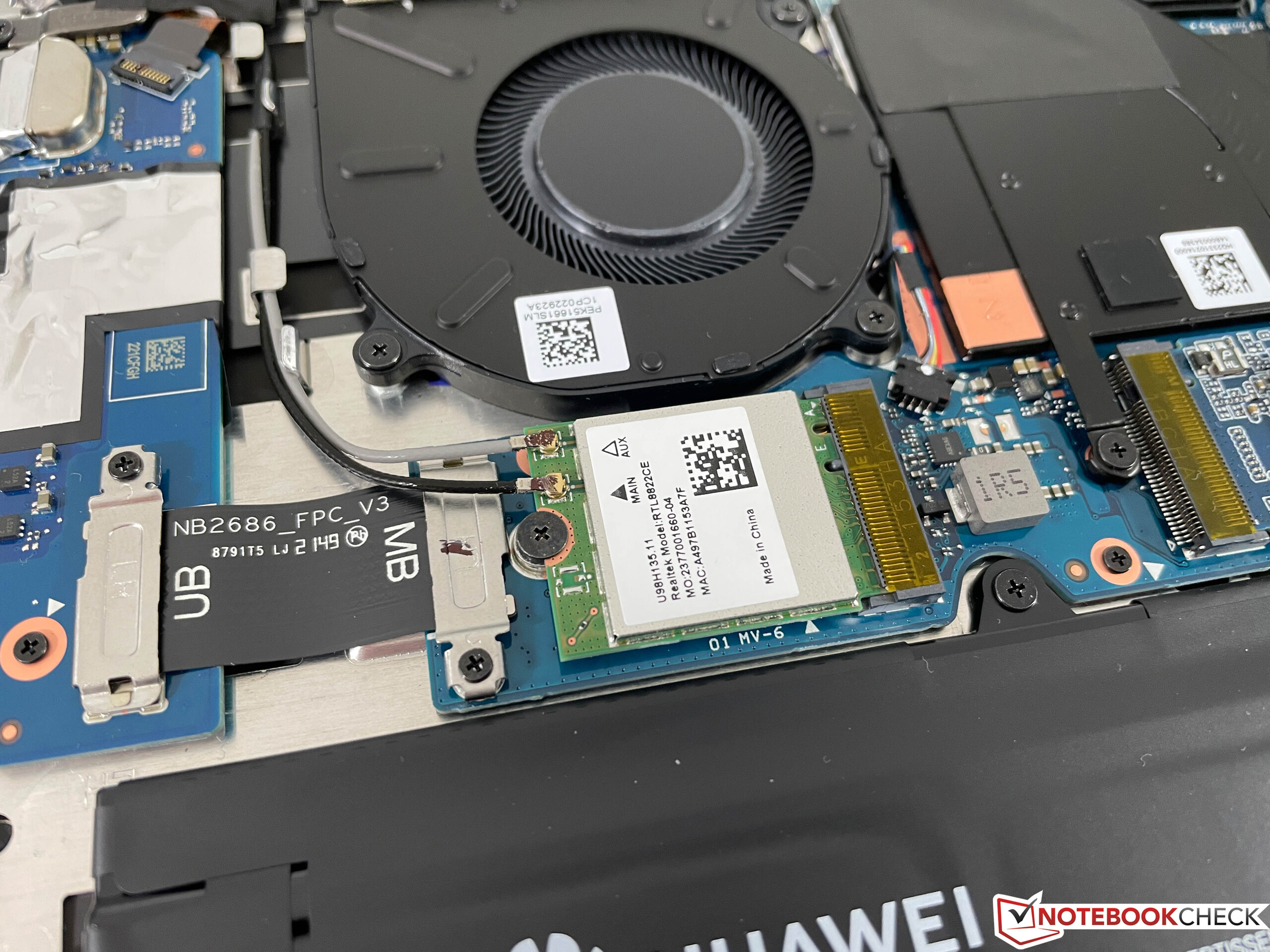

华为在Wi-Fi模块方面也节省了开支。虽然英特尔SKU使用现代Wi-Fi 6模块，但AMD版本只支持Wi-Fi 5。在我们与路由器Netgear Nighthawk AX12的标准化测试中，传输速率还可以，但竞争对手明显更快。
Huawei MateBook 14 2021 AMD; iperf3 receive AX12; iperf 3.1.3: Ø623 (524-648)
Huawei MateBook 14 2021 AMD; iperf3 transmit AX12; iperf 3.1.3: Ø596 (315-681)
16.1 ∆E
12.6 ∆E
14.6 ∆E
16 ∆E
15.6 ∆E
13.4 ∆E
15.5 ∆E
16.5 ∆E
16.9 ∆E
9.2 ∆E
12 ∆E
13 ∆E
24.1 ∆E
8.6 ∆E
15.5 ∆E
7.8 ∆E
14.8 ∆E
16.2 ∆E
1.9 ∆E
5.3 ∆E
4.9 ∆E
3.4 ∆E
3.1 ∆E
4 ∆E

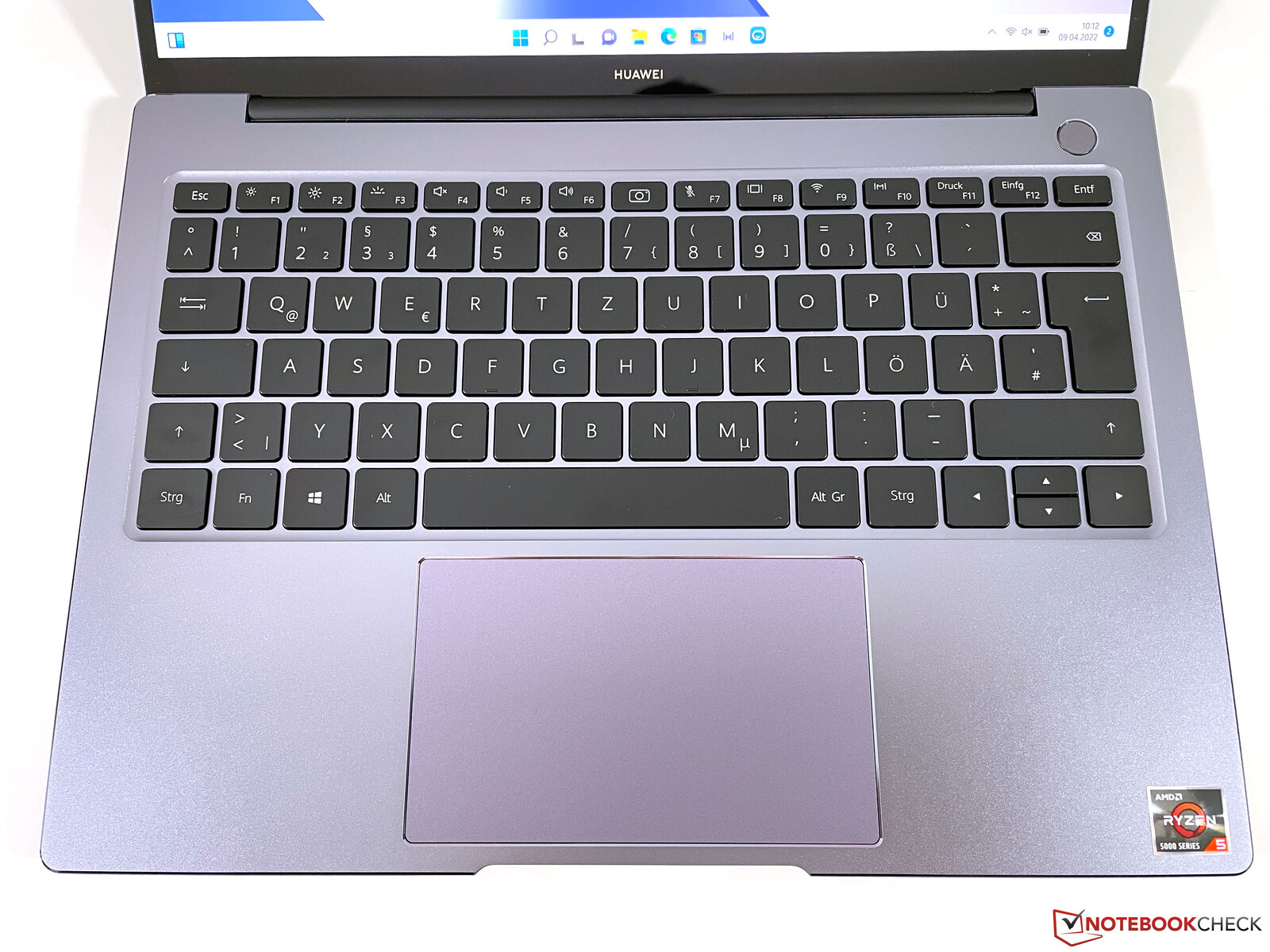

输入设备 - 带照明键盘的MateBook

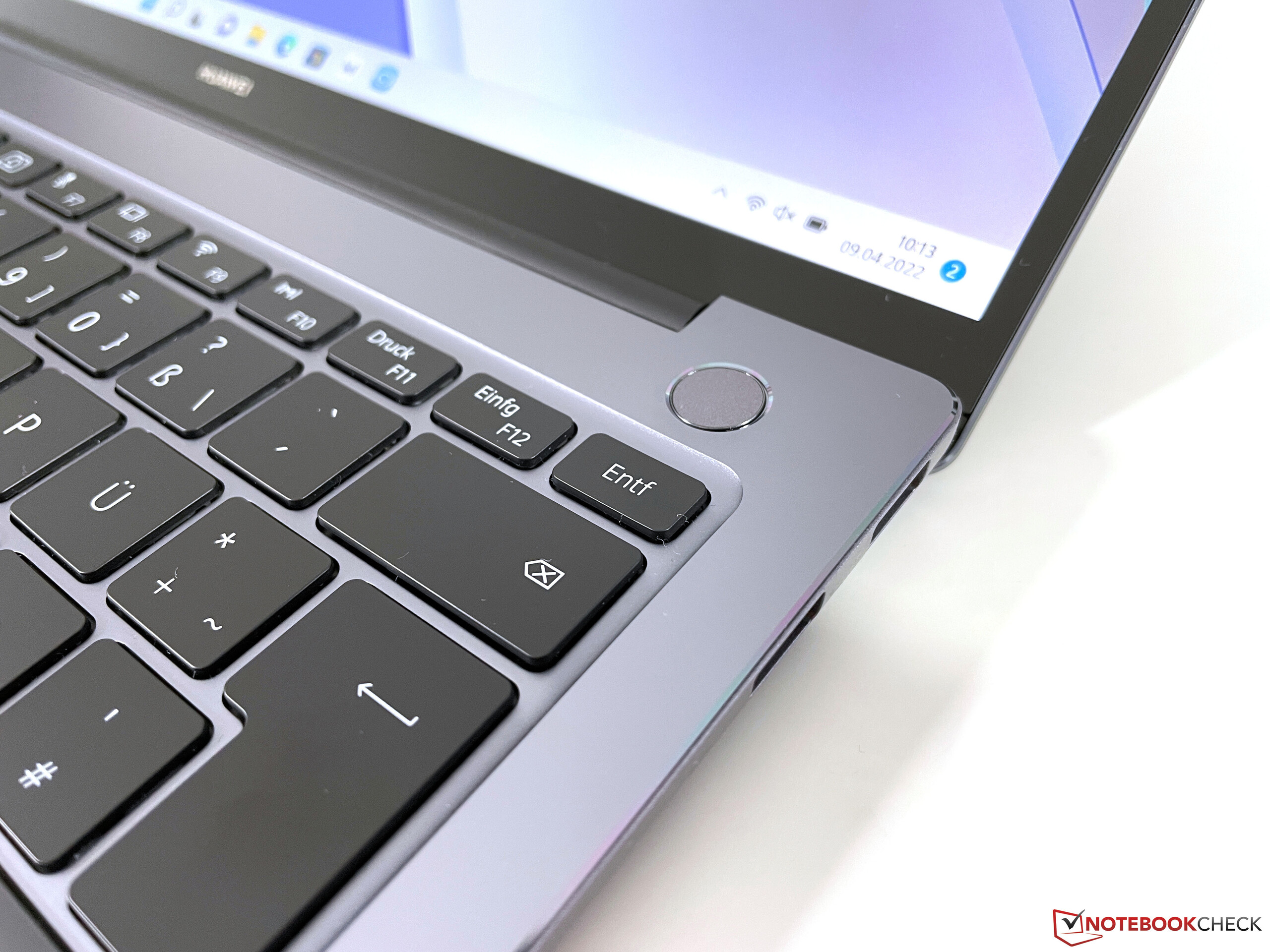

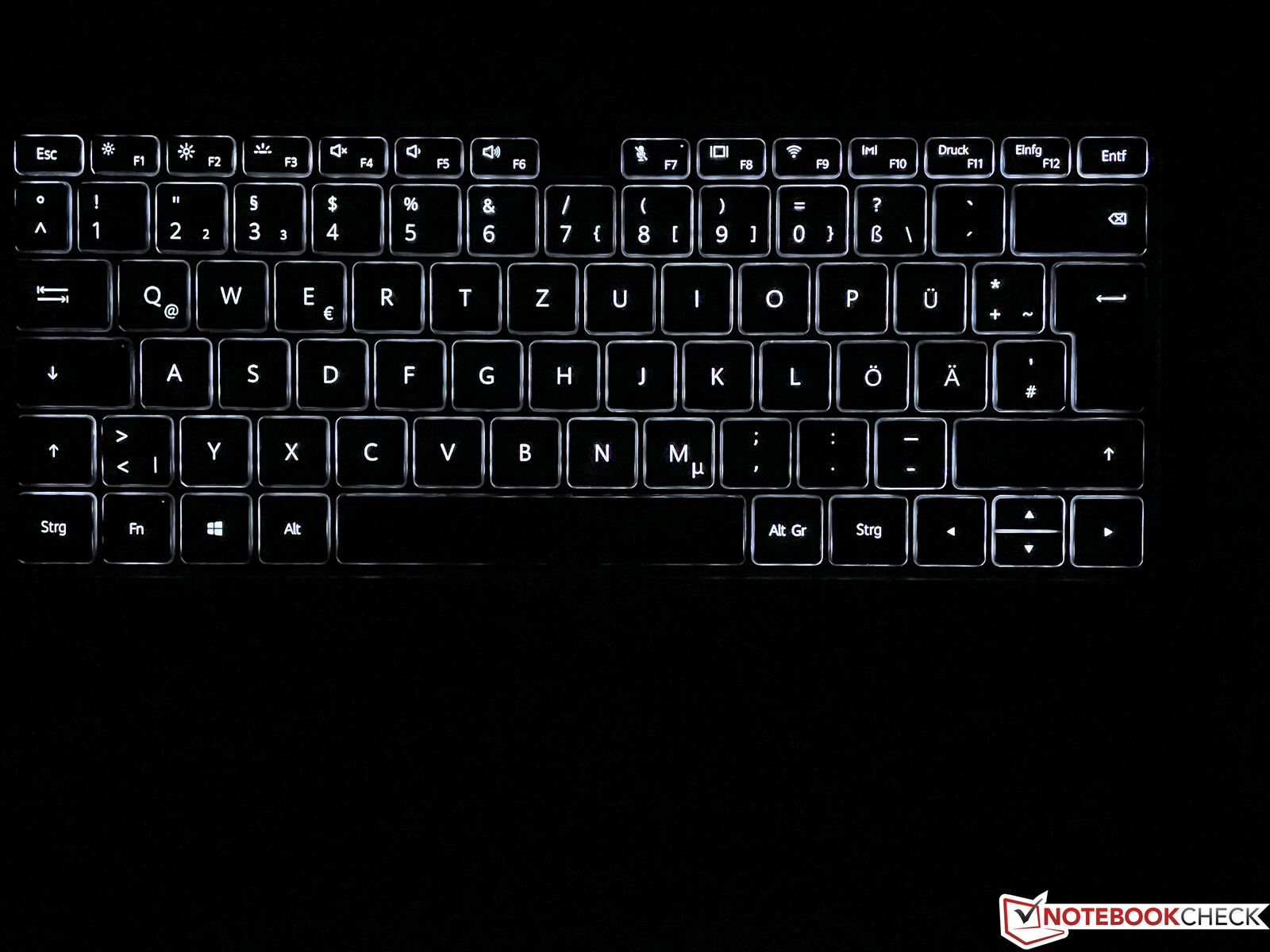

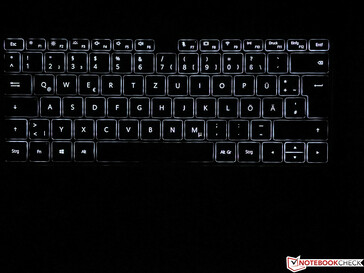

MateBook 14的黑色键盘也没有改变，仍然提供两段式白色照明。当你不使用键盘时，有一个自动停用的选项，可以通过华为的PC管理器舒适地调整。打字体验本身仍然是平均水平。键程很精确，但键程不是很宽松，略高于1毫米。外面有更好的键盘，但你仍然可以用MateBook 14来打长篇文字，没有任何限制。点击板很容易使用，甚至可以用四个手指做手势，效果非常好。
显示屏 - 华为采用了3:2的IPS显示屏，无需触摸

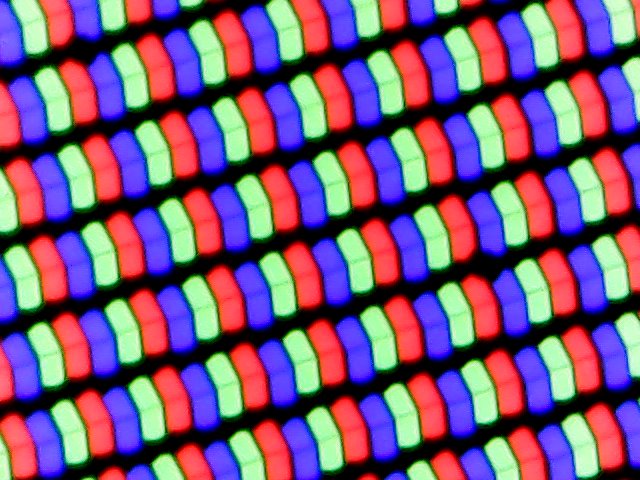

MateBook 14总是配备14英寸IPS屏幕，长宽比为3:2，但有支持和不支持触摸的型号。我们的评测单元不提供触摸屏，但表面仍然是光亮的。分辨率很高（2160 x 1440像素，185 ppi），整体画面印象非常好。

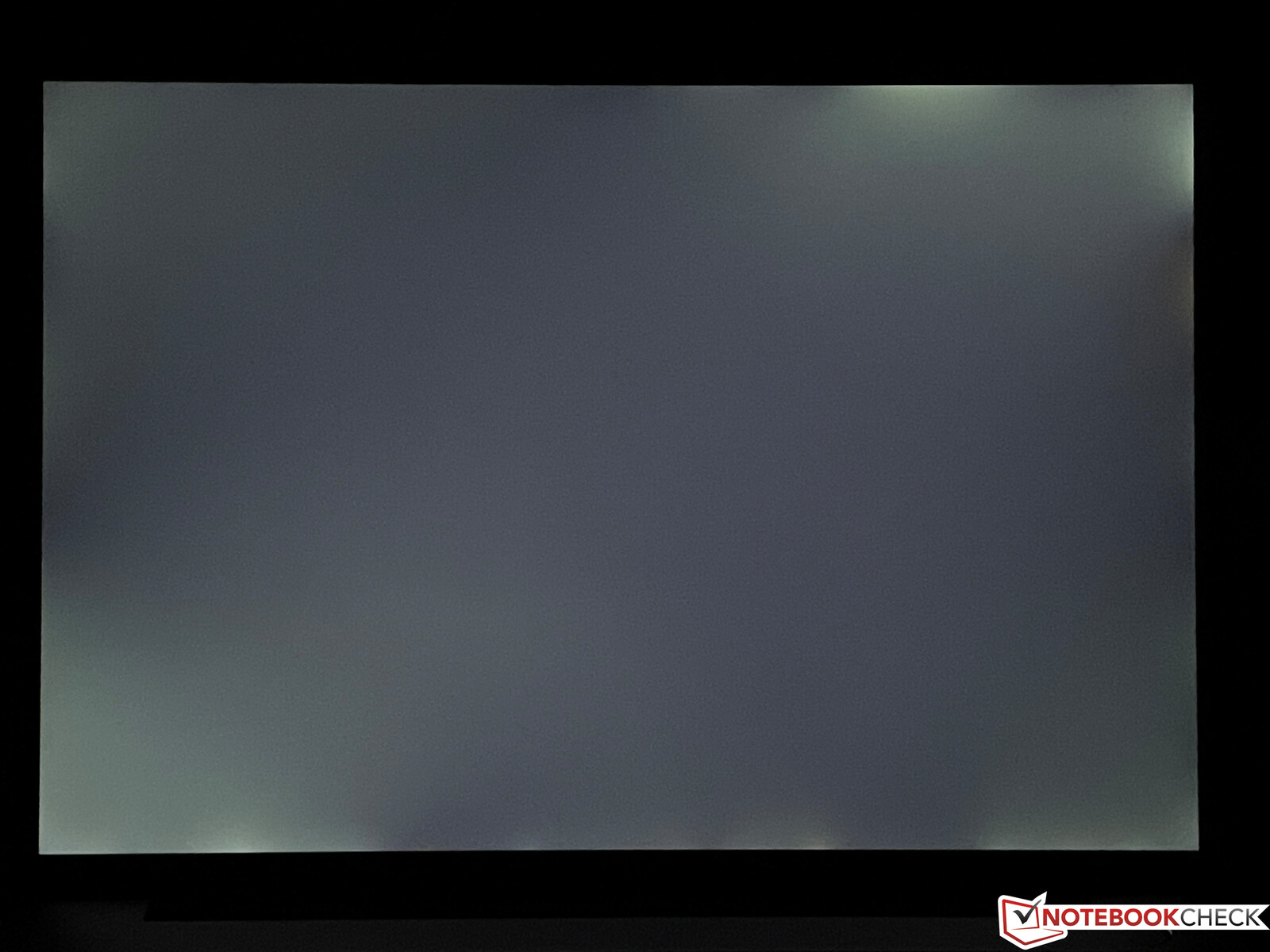

面板本身由京东方提供（触摸和非触摸的面板相同），但我们的非触摸模型的测量结果更好。我们确定平均亮度约为450尼特，结合0.26的低黑值，这导致了超过1700:1的优秀对比度。当面板亮度较高时，面板的边缘有一些背光渗出的问题，当你观看视频时，这一点也很明显（由于长宽比，黑条很常见）。没有PWM闪烁，响应时间也还可以。
| |||||||||||||||||||||||||
TV140WTM-NH0 tested with X-Rite i1Pro 2
Maximum: 470 cd/m² (Nits) Average: 451.1 cd/m² Minimum: 5 cd/m²Brightness Distribution: 93 %
Center on Battery: 458 cd/m²
Contrast: 1758:1 (Black: 0.26 cd/m²)
ΔE Color 1.9 | 0.5-29.43 Ø4.91
ΔE Greyscale 2.2 | 0.5-98 Ø5.2
68.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.8% sRGB (Argyll 2.2.0 3D)
65.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.14
| Huawei MateBook 14 2021 AMD TV140WTM-NH0, IPS, 2160x1440, 14" | Huawei MateBook 14 2021, i7-1165G7 BOE XS TV140WTM-NHH0, IPS, 2160x1440, 14" | Acer Swift 3 SF314-43-R8BP Chi Mei N140HCA EAC CMN, IPS, 1920x1080, 14" | Lenovo IdeaPad 5 Pro 14ACN6 LEN140WUXGA+, IPS, 2240x1400, 14" | Lenovo Yoga Slim 7 14ITL05 82A300CNGE AU Optronics B140HAN06.8, IPS, 1920x1080, 14" | Huawei MateBook 14s i7 CSOTT3 U17B MNE208ZA1-3, LTPS, 2520x1680, 14.2" | |
|---|---|---|---|---|---|---|
| Display | 1% | -33% | 9% | 2% | 4% | |
| Display P3 Coverage | 65.9 | 65.6 0% | 43 -35% | 72.2 10% | 66.3 1% | 67.8 3% |
| sRGB Coverage | 92.8 | 97.4 5% | 65 -30% | 99.5 7% | 97.4 5% | 98.3 6% |
| AdobeRGB 1998 Coverage | 68.2 | 67.5 -1% | 45 -34% | 74.3 9% | 68.1 0% | 70.1 3% |
| Response Times | 26% | 11% | -15% | -18% | 19% | |
| Response Time Grey 50% / Grey 80% * | 43.2 ? | 34 ? 21% | 37 ? 14% | 45.2 ? -5% | 52 ? -20% | 37.6 ? 13% |
| Response Time Black / White * | 28.4 ? | 20 ? 30% | 26 ? 8% | 35.2 ? -24% | 33 ? -16% | 21.6 ? 24% |
| PWM Frequency | 25000 ? | 143 ? | 27780 ? | |||
| Screen | -0% | -47% | -28% | -27% | -6% | |
| Brightness middle | 457 | 364 -20% | 259 -43% | 310.6 -32% | 344 -25% | 419 -8% |
| Brightness | 451 | 367 -19% | 229 -49% | 302 -33% | 340 -25% | 407 -10% |
| Brightness Distribution | 93 | 82 -12% | 78 -16% | 92 -1% | 88 -5% | 93 0% |
| Black Level * | 0.26 | 0.145 44% | 0.24 8% | 0.22 15% | 0.13 50% | 0.23 12% |
| Contrast | 1758 | 2510 43% | 1079 -39% | 1412 -20% | 2646 51% | 1822 4% |
| Colorchecker dE 2000 * | 1.9 | 1.92 -1% | 3.63 -91% | 2.67 -41% | 3.29 -73% | 1.9 -0% |
| Colorchecker dE 2000 max. * | 3.1 | 3.7 -19% | 6.53 -111% | 4.54 -46% | 7.48 -141% | 3.6 -16% |
| Greyscale dE 2000 * | 2.2 | 2.61 -19% | 2.89 -31% | 3.7 -68% | 3.25 -48% | 2.9 -32% |
| Gamma | 2.14 103% | 2.38 92% | 2.31 95% | 2.12 104% | 2.29 96% | 2.14 103% |
| CCT | 6921 94% | 7063 92% | 6759 96% | 6398 102% | 6358 102% | 6733 97% |
| Colorchecker dE 2000 calibrated * | 0.95 | 3.83 | 2.33 | 1.79 | 0.9 | |
| Total Average (Program / Settings) | 9% /
4% | -23% /
-35% | -11% /
-18% | -14% /
-19% | 6% /
-0% |
* ... smaller is better

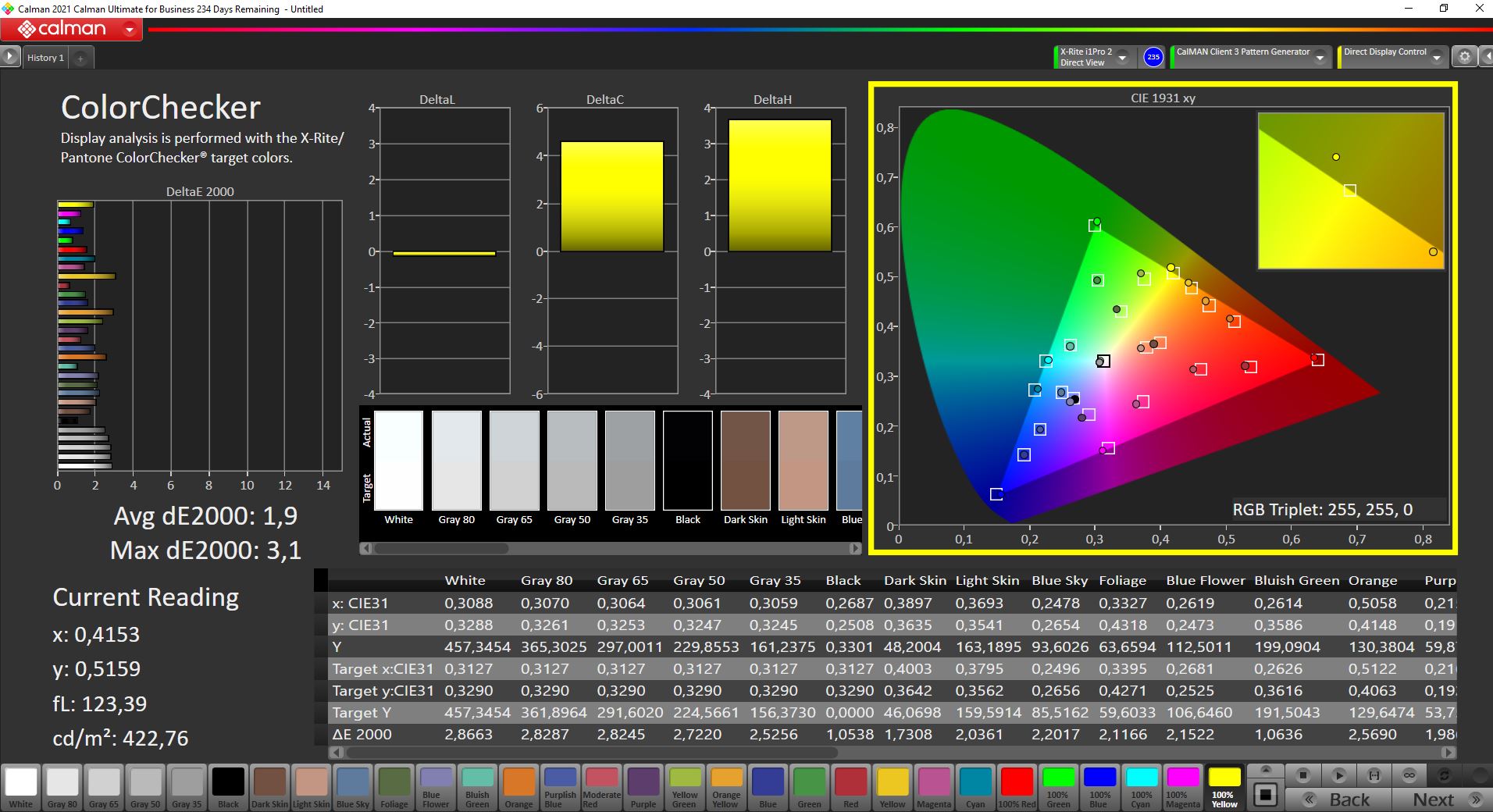

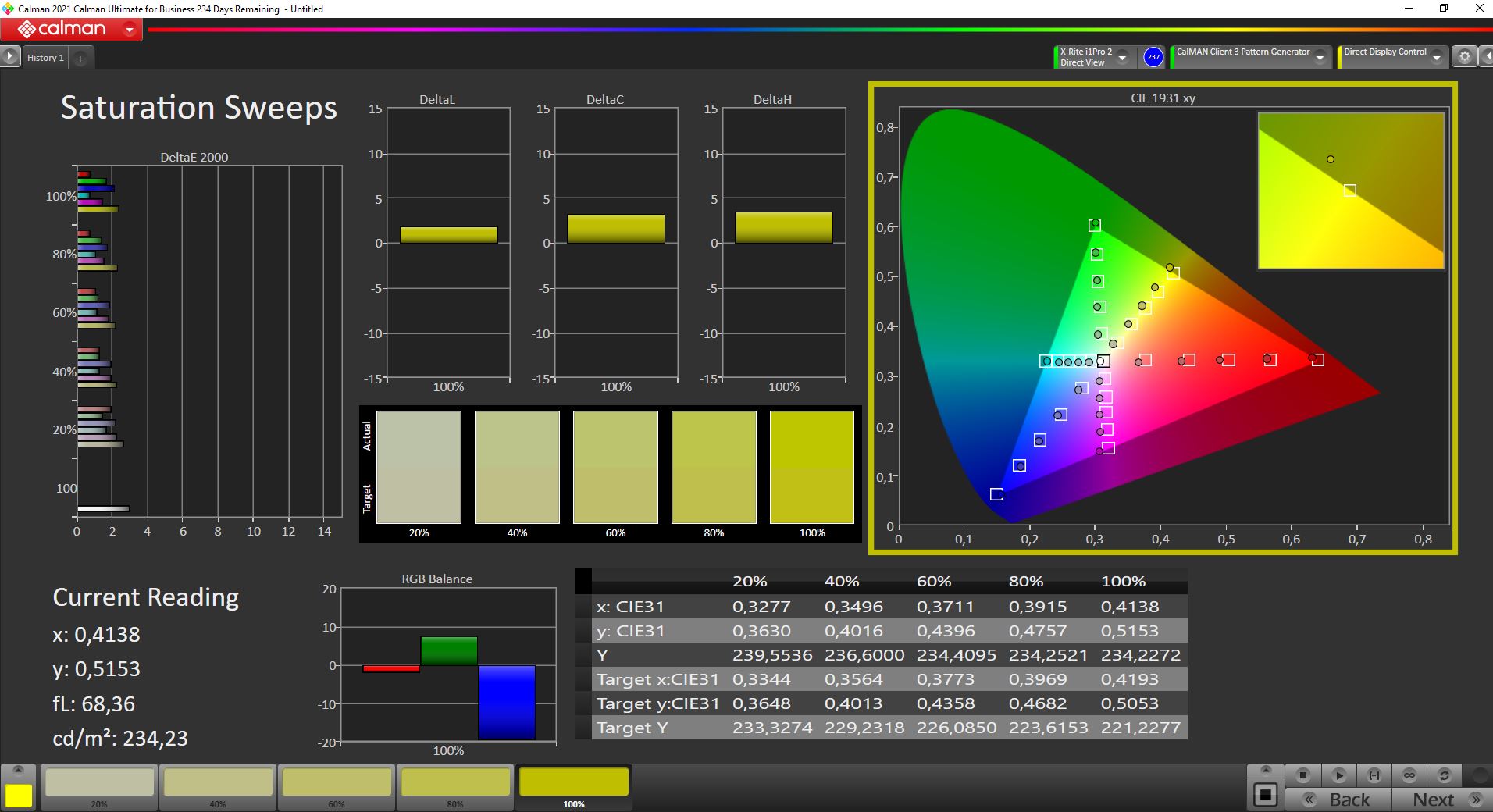

我们用专业的CalMAN软件（i1 Pro 2分光光度计）对显示器进行了分析，开箱后的画质已经非常好。灰度和色彩的DeltaE-2000偏差（与sRGB基准相比）都在目标范围内。在灰度中，有一个轻微的绿色/蓝色偏色，色温有点低，但用肉眼几乎看不到。我们多次尝试校准面板，但我们没有设法改善画质。小的sRGB色域几乎被完全覆盖。

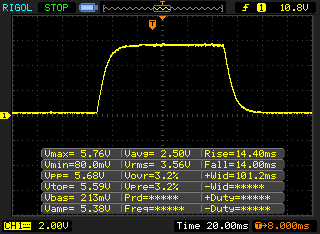

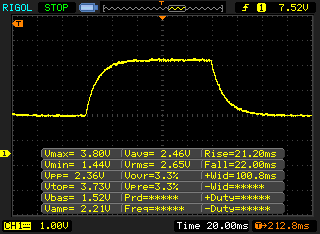

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 28.4 ms ... rise ↗ and fall ↘ combined | ↗ 14.4 ms rise |  |
| ↘ 14 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 73 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 43.2 ms ... rise ↗ and fall ↘ combined | ↗ 21.2 ms rise |  |
| ↘ 22 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 69 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

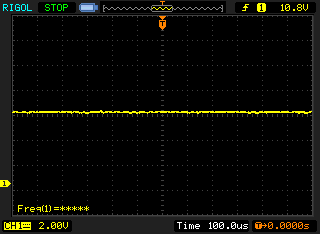

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||

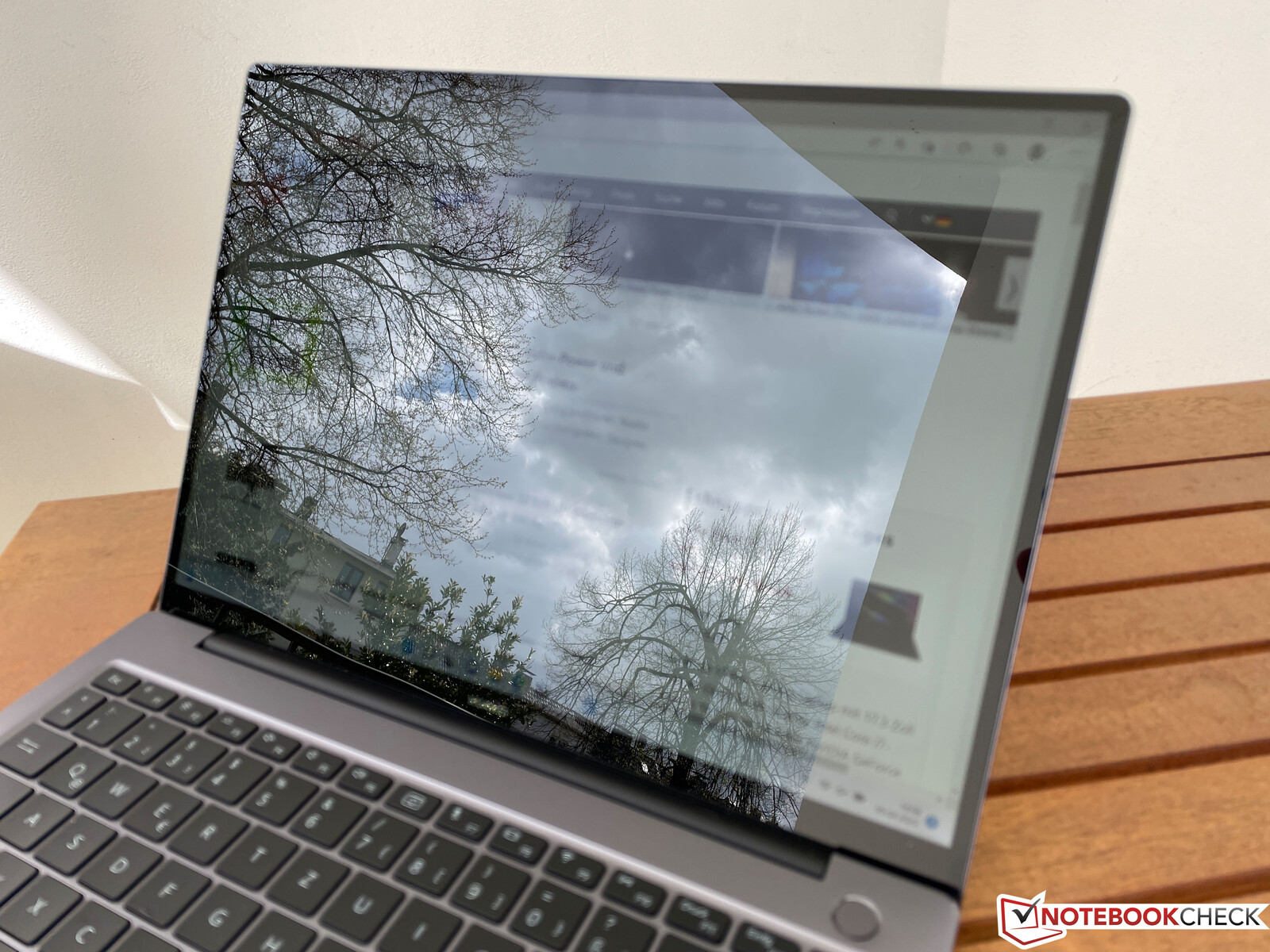

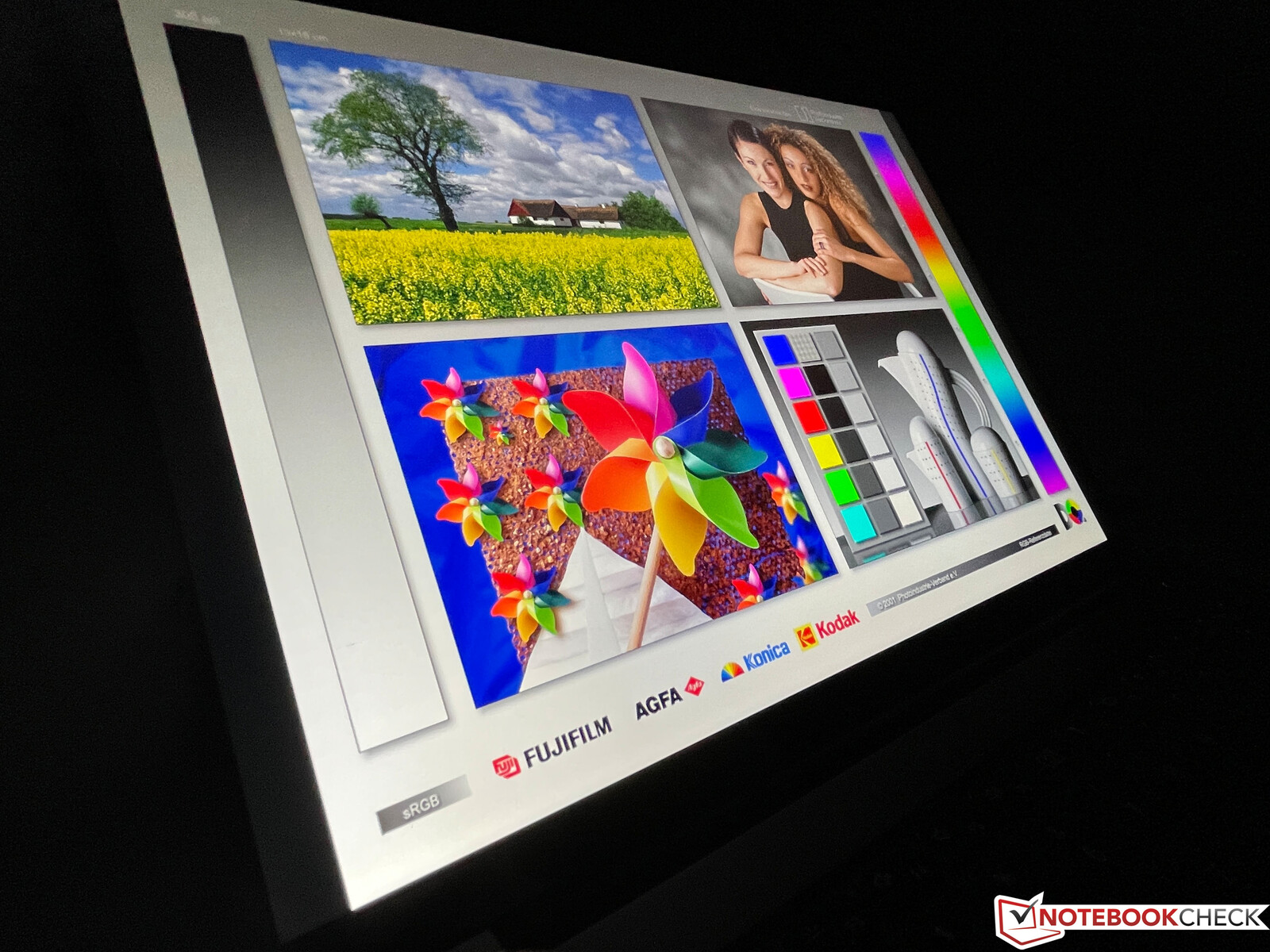

光面屏幕的反射率很高，这在户外可能是一个挑战，你肯定要找到一个好地方来避免反射。不过，对于IPS面板的视角稳定性没有任何批评意见。
性能 - 配备AMD Zen 2的MateBook
审查设置
华为的PC管理器提供了一个可选的性能 模式，但它并没有改变我们的AMD SKU的性能。它只是增加了负载下的最大风扇速度，以前的型号也是这种情况。下面的基准测试和测量是在平衡 模式和Windows设置的最佳性能下进行的。

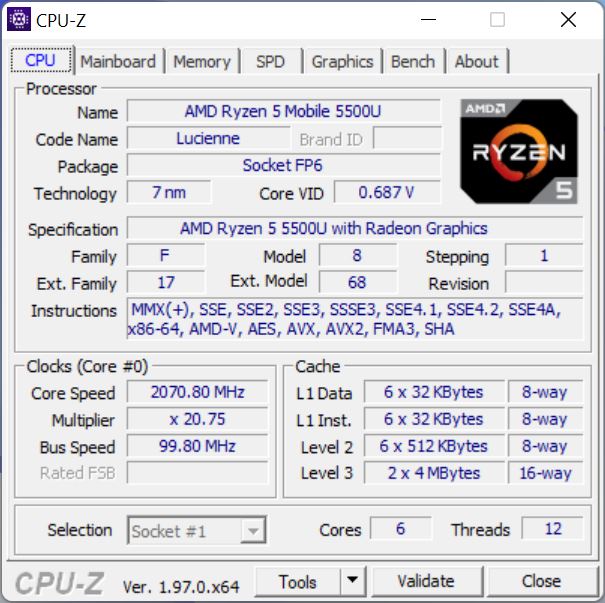

处理器 - Ryzen 5 5500U
华为现在使用的是AMD Ryzen 5000处理器，但是，虽然前代产品配备了 45W的H系列CPU，有8个内核，新的Ryzen 5 5500U是一个较慢的U系列模型，有6个核心。考虑到相同的冷却解决方案，这是令人惊讶的，基准测试也证实了相同的37W长期TDP。5500U也是基于旧的Zen 2核心（Lucienne），我们认为Ryzen 5 5600H(Zen 3)或Ryzen 7 5800H会是更好的选择。
这也是新机型在多核基准测试中比采用AMD H系列CPU的旧MateBook 14慢的原因。在单核测试中，Zen 2芯片比竞争对手慢一些，但这在日常情况下应该不是问题。新的MateBook 14比英特尔SKU的i7-1165G7要快得多。i7-1165G7当你可以利用所有的核心时，新的MateBook 14比英特尔SKU的i7-1165G7快得多，同样的情况也适用于酷睿i7-11370H中的MateBook 14s，它的四个核心也比较慢。

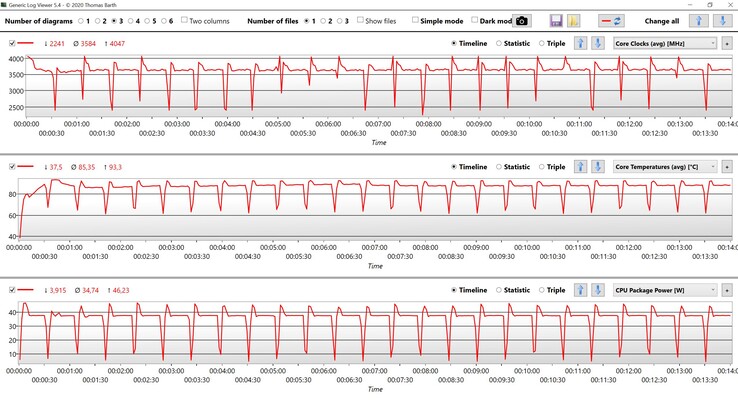

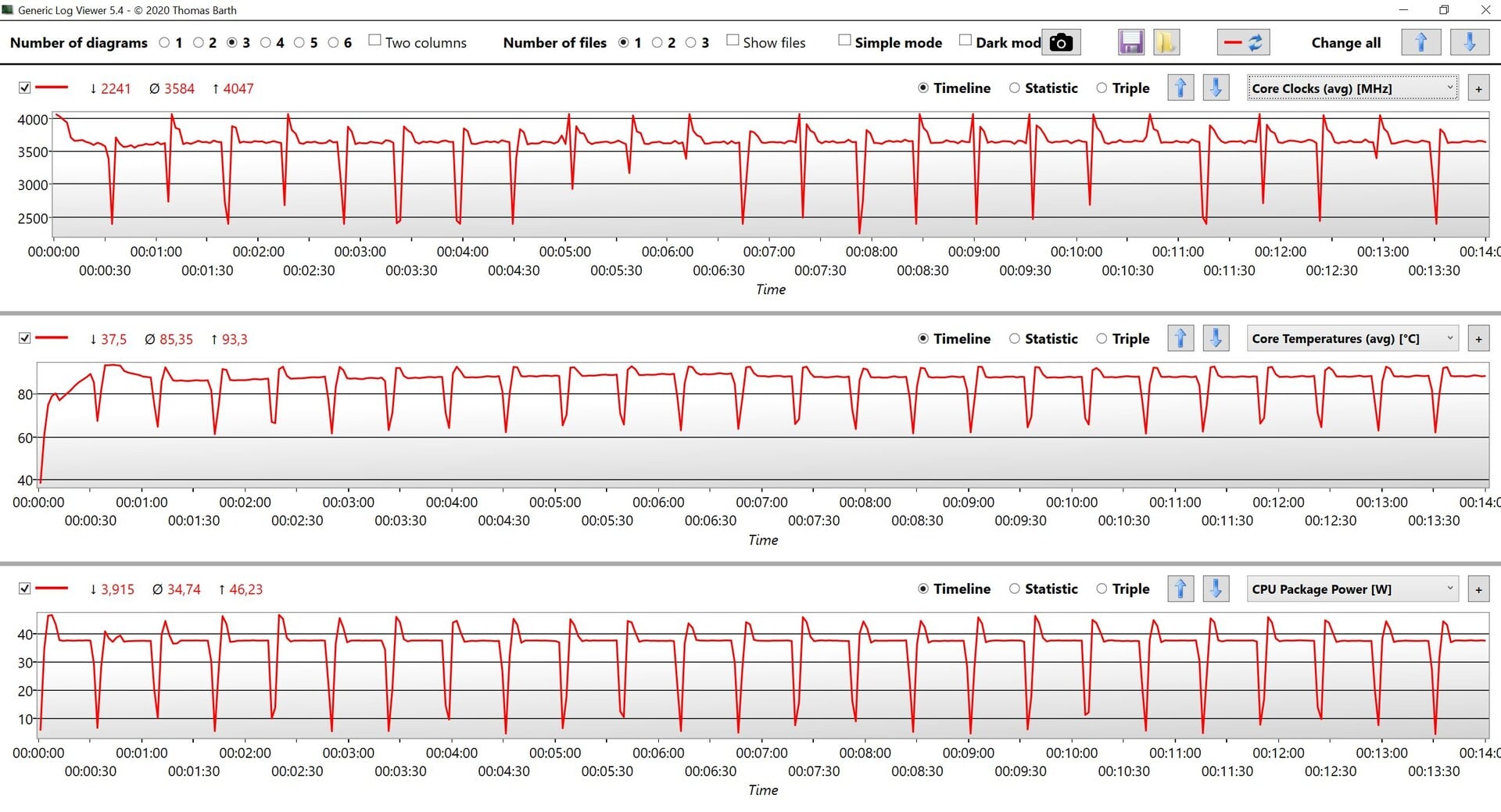

Cinebench R15 Multi Loop
Huawei MateBook 14 2021 AMD AMD Ryzen 5 5500U: Ø1323 (1312.03-1328.86)
Huawei MateBook 14 2021, i7-1165G7 Intel Core i7-1165G7: Ø855 (823.89-939.67)
Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U: Ø1157 (1150.91-1168.84)
Lenovo IdeaPad 5 Pro 14ACN6 AMD Ryzen 5 5600U: Ø1525 (1479.45-1545.71)
Lenovo Yoga Slim 7 14ITL05 82A300CNGE Intel Core i5-1135G7: Ø833 (818.78-920.41)
Huawei MateBook 14s i7 Intel Core i7-11370H: Ø1038 (1027.19-1054.52)
Huawei MateBook 14 2020 AMD AMD Ryzen 7 4800H: Ø1594 (1568.44-1674.13)

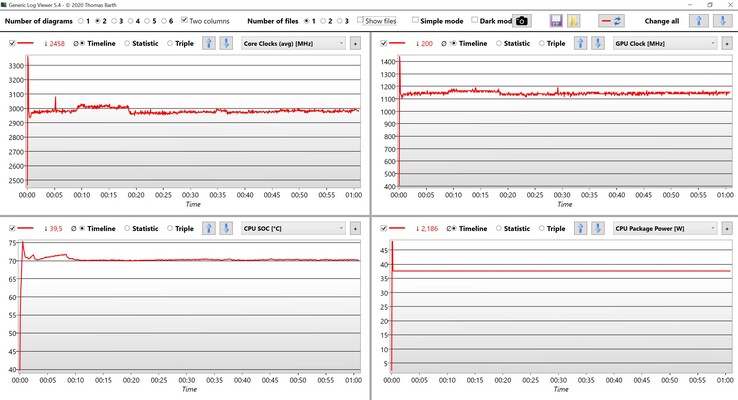

在持续工作负荷下，CPU的性能是完全稳定的。在电池供电的情况下，CPU的功耗被限制在30W以内，因此多核性能约低10%。更多的CPU基准测试可在 我们的技术部分.
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Subnotebook | |
| Lenovo IdeaPad 5 Pro 14ACN6 -2! | |
| Huawei MateBook 14 2020 AMD -2! | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021 AMD | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Average AMD Ryzen 5 5500U | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Cinebench R23 / Multi Core | |
| Average of class Subnotebook (1555 - 21812, n=63, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (6030 - 8565, n=19) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Cinebench R23 / Single Core | |
| Average of class Subnotebook (358 - 2001, n=63, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (1149 - 1183, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Subnotebook (579 - 8541, n=59, last 2 years) | |
| Huawei MateBook 14 2020 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (2223 - 3316, n=20) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Subnotebook (128 - 790, n=59, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14 2021 AMD | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (449 - 461, n=19) | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Subnotebook (327 - 3345, n=65, last 2 years) | |
| Huawei MateBook 14 2020 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (995 - 1412, n=20) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Subnotebook (72.4 - 307, n=60, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2020 AMD | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (170 - 179, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Blender / v2.79 BMW27 CPU | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14s i7 | |
| Average AMD Ryzen 5 5500U (358 - 490, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021 AMD | |
| Average of class Subnotebook (159 - 2271, n=63, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2020 AMD | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Subnotebook (11775 - 77867, n=56, last 2 years) | |
| Huawei MateBook 14 2020 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (29585 - 36896, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Subnotebook (2669 - 6403, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (4174 - 4378, n=19) | |
| Acer Swift 3 SF314-43-R8BP | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Subnotebook (2557 - 14728, n=58, last 2 years) | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14s i7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (4063 - 5917, n=20) | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Geekbench 5.5 / Single-Core | |
| Average of class Subnotebook (621 - 2350, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2020 AMD | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (1070 - 1126, n=20) | |
| Huawei MateBook 14 2021 AMD | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Subnotebook (0.97 - 25.1, n=58, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14 2021 AMD | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Average AMD Ryzen 5 5500U (6.7 - 9.74, n=20) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| LibreOffice / 20 Documents To PDF | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U (60 - 80.7, n=17) | |
| Huawei MateBook 14 2021 AMD | |
| Huawei MateBook 14 2020 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Subnotebook (38.5 - 220, n=57, last 2 years) | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14s i7 | |
| R Benchmark 2.5 / Overall mean | |
| Average AMD Ryzen 5 5500U (0.607 - 0.67, n=19) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021 AMD | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14s i7 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Subnotebook (0.413 - 1.456, n=58, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Subnotebook | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Subnotebook (1141 - 32888, n=58, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (7222 - 10680, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| AIDA64 / FPU Julia | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Subnotebook (6838 - 123315, n=58, last 2 years) | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (41815 - 58107, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| AIDA64 / CPU SHA3 | |
| Average of class Subnotebook (444 - 5287, n=58, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (1354 - 1907, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| AIDA64 / CPU Queen | |
| Average of class Subnotebook (11579 - 115682, n=58, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (68235 - 74033, n=18) | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| AIDA64 / FPU SinJulia | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (9007 - 10446, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Subnotebook (744 - 18418, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| AIDA64 / FPU Mandel | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average of class Subnotebook (3366 - 65433, n=58, last 2 years) | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (21894 - 30659, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| AIDA64 / CPU AES | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Average of class Subnotebook (638 - 161430, n=58, last 2 years) | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (31792 - 54455, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| AIDA64 / CPU ZLib | |
| Average of class Subnotebook (166.9 - 1379, n=58, last 2 years) | |
| Huawei MateBook 14 2021 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average AMD Ryzen 5 5500U (234 - 614, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Subnotebook (610 - 17495, n=58, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (3943 - 5717, n=18) | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Subnotebook (6569 - 54881, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U (7765 - 22932, n=18) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
系统性能
主观性能印象非常好，基准测试结果也在预期范围内。所有的输入都能快速执行，没有恼人的延迟。我们的测试机型在出厂时装有Windows 11。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Subnotebook (4993 - 7788, n=50, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4626 - 5301, n=13) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| PCMark 10 / Essentials | |
| Huawei MateBook 14s i7 | |
| Average of class Subnotebook (9476 - 11331, n=50, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (8390 - 9789, n=13) | |
| Acer Swift 3 SF314-43-R8BP | |
| PCMark 10 / Productivity | |
| Average of class Subnotebook (6440 - 10623, n=50, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2020 AMD | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (6262 - 7958, n=13) | |
| Huawei MateBook 14 2021 AMD | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Acer Swift 3 SF314-43-R8BP | |
| PCMark 10 / Digital Content Creation | |
| Average of class Subnotebook (5305 - 10983, n=50, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14 2021 AMD | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (4513 - 5540, n=13) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| CrossMark / Overall | |
| Average of class Subnotebook (365 - 1971, n=56, last 2 years) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (958 - 1103, n=6) | |
| CrossMark / Productivity | |
| Average of class Subnotebook (364 - 1875, n=56, last 2 years) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (1039 - 1153, n=6) | |
| Acer Swift 3 SF314-43-R8BP | |
| CrossMark / Creativity | |
| Average of class Subnotebook (385 - 2210, n=56, last 2 years) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (895 - 1054, n=6) | |
| CrossMark / Responsiveness | |
| Average of class Subnotebook (312 - 1899, n=56, last 2 years) | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 (918 - 1112, n=6) | |
| Acer Swift 3 SF314-43-R8BP | |
| PCMark 10 Score | 5193 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Subnotebook (14916 - 108756, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average AMD Ryzen 5 5500U (19083 - 40547, n=18) | |
| AIDA64 / Memory Read | |
| Average of class Subnotebook (15948 - 122210, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average AMD Ryzen 5 5500U (23005 - 47024, n=18) | |
| AIDA64 / Memory Write | |
| Average of class Subnotebook (16513 - 117898, n=58, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Average AMD Ryzen 5 5500U (20150 - 42337, n=18) | |
| Huawei MateBook 14 2021 AMD | |
| AIDA64 / Memory Latency | |
| Acer Swift 3 SF314-43-R8BP | |
| Average of class Subnotebook (7.2 - 187.8, n=58, last 2 years) | |
| Average AMD Ryzen 5 5500U (87.3 - 119, n=18) | |
| Huawei MateBook 14 2021 AMD | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
* ... smaller is better

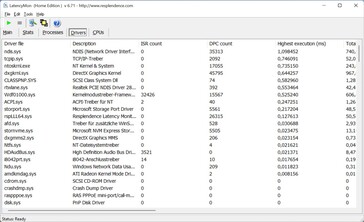

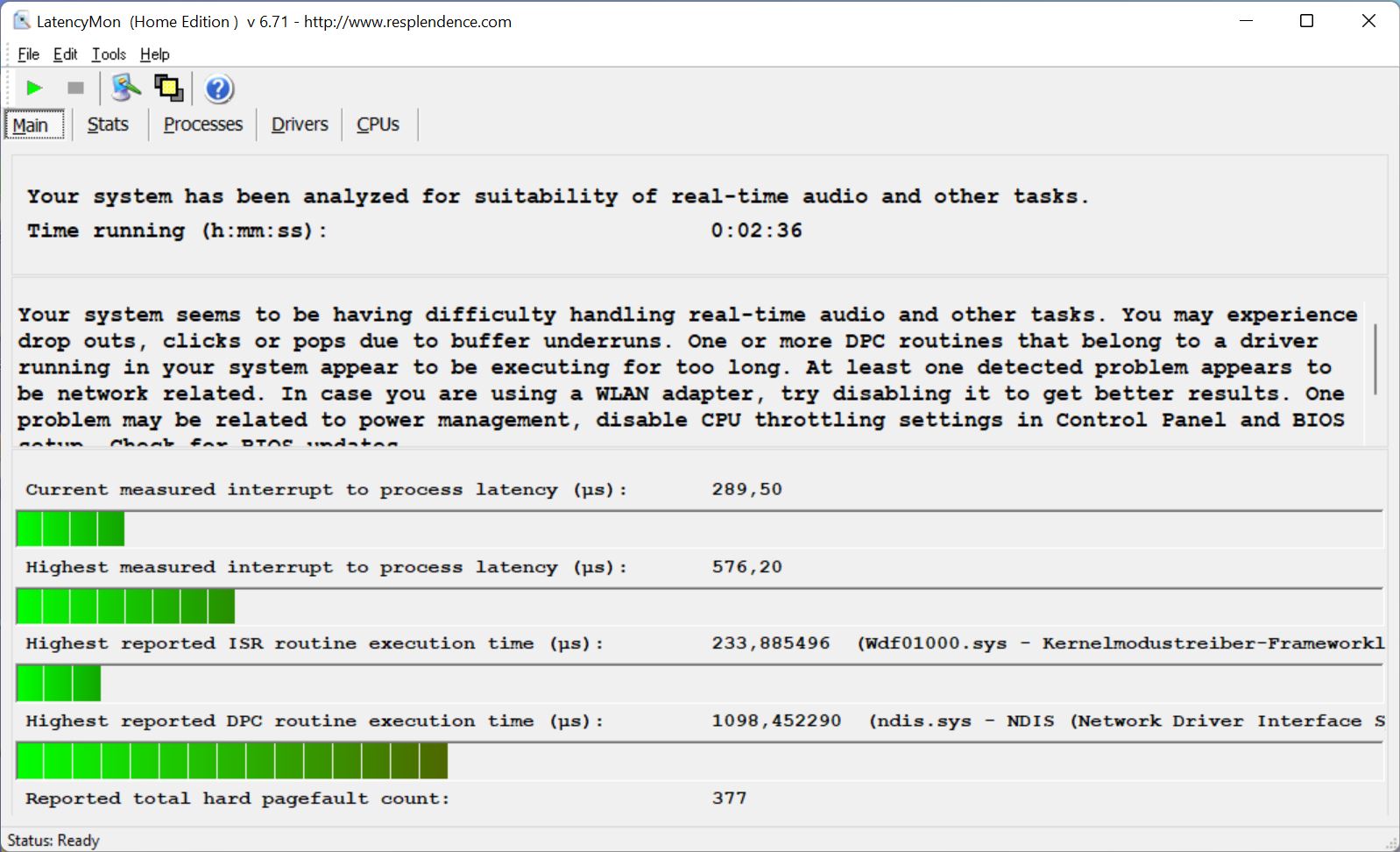

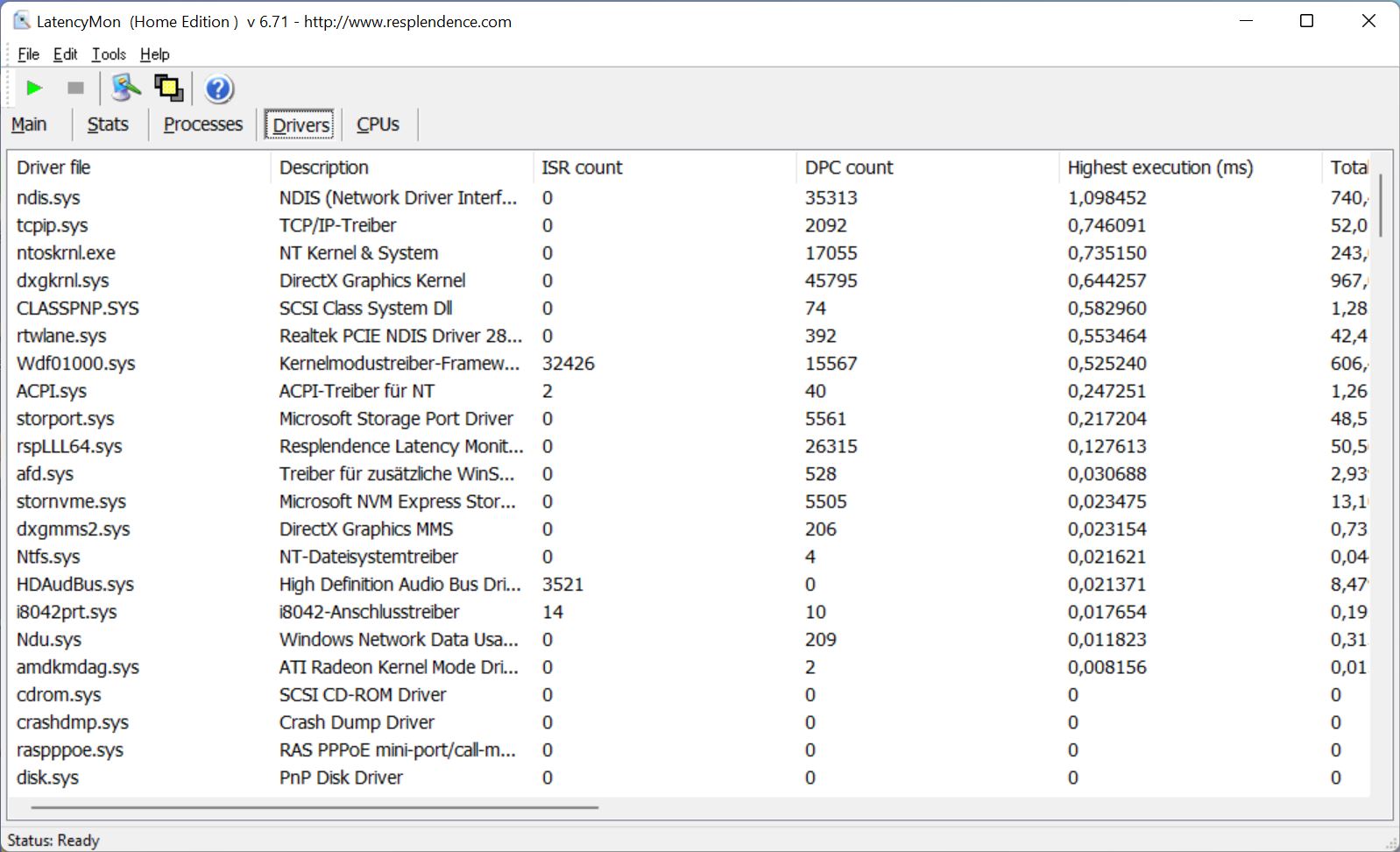

DPC延时
我们的标准化延迟测试并没有发现当前BIOS版本的任何重大问题，只有一个网络驱动有点突出。总而言之，MateBook 14适用于实时音频应用。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2020 AMD | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021 AMD | |
| Huawei MateBook 14 2021, i7-1165G7 | |
* ... smaller is better
存储设备
MateBook 14配备了一块M.2-2280固态硬盘，通过PCIe 3.0 x4接口连接。我们的测试装置中的512GB驱动器是由Phison提供的，可以管理体面的传输速率。有更快的驱动器可用，但更大的问题是再次出现了完全不必要的分区，这在所有华为笔记本电脑上都可以找到。在初始设置后，系统驱动器只提供了约70GB的自由容量，其余的都在D分区。更多的SSD基准测试列在 这里.
Phison PS5013 311CD0512GB
CDM 5/6 Read Seq Q32T1:
2461 MB/s
CDM 5/6 Write Seq Q32T1:
1943 MB/s
CDM 5/6 Read 4K Q32T1:
548 MB/s
CDM 5/6 Write 4K Q32T1:
394.4 MB/s
CDM 5/6 Read 4K:
41.22 MB/s
CDM 5/6 Write 4K:
112.7 MB/s
CDM 6 Write 4K Q8T8:
1326 MB/s
CDM 6 Read 4K Q8T8:
1209 MB/s
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Huawei MateBook 14 2021 AMD: Ø2498 (2345.95-2503.55)
GPU性能
所有的图形计算都由集成的芯片的Vega 7处理，它得益于双通道内存配置。其性能处于预期水平，略微落后于 英特尔的Iris Xe GPU，有96个EUs它被一些使用i7 CPU的对手所使用。该 80 EUs的Core i5 iGPU总而言之，这些差异在实践中并不那么重要，Vega 7将处理普通任务，包括播放高分辨率视频而不出汗。
另一方面，在大多数游戏中，游戏仅限于低分辨率和降低设置，但即使在较长的游戏过程中，性能至少是稳定的。在电池电量上，GPU的性能不会降低。请参阅 我们的技术部分了解更多GPU基准测试。
| 3DMark Cloud Gate Standard Score | 19802 points | |
| 3DMark Fire Strike Score | 3066 points | |
| 3DMark Time Spy Score | 1181 points | |
Help | ||
| The Witcher 3 | |
| 1366x768 Medium Graphics & Postprocessing | |
| Average of class Subnotebook (33 - 118, n=35, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Acer Swift 3 SF314-43-R8BP | |
| Average AMD Radeon RX Vega 7 (9.74 - 81.3, n=37) | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Average of class Subnotebook (11.2 - 71, n=50, last 2 years) | |
| Huawei MateBook 14s i7 | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14 2021, i7-1165G7 | |
| Huawei MateBook 14 2021 AMD | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
| Average AMD Radeon RX Vega 7 (8.96 - 26.2, n=49) | |
| Acer Swift 3 SF314-43-R8BP | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Subnotebook (8.5 - 43.7, n=52, last 2 years) | |
| Lenovo IdeaPad 5 Pro 14ACN6 | |
| Huawei MateBook 14s i7 | |
| Acer Swift 3 SF314-43-R8BP | |
| Huawei MateBook 14 2021 AMD | |
| Average AMD Radeon RX Vega 7 (6.5 - 15.8, n=42) | |
| Lenovo Yoga Slim 7 14ITL05 82A300CNGE | |
Witcher 3 FPS Chart
Huawei MateBook 14 2021 AMD R5 5500U, Vega 7: Ø12.7 (11-14)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 81 | 78 | 25.1 | 11 |
| The Witcher 3 (2015) | 61 | 20 | 12.7 | |
| Dota 2 Reborn (2015) | 95.9 | 76.2 | 46.6 | 43.9 |
| Final Fantasy XV Benchmark (2018) | 31.7 | 16 | 10.3 | |
| X-Plane 11.11 (2018) | 41.3 | 33.9 | 30.4 | |
| Strange Brigade (2018) | 74.7 | 28.9 | 24.4 | 20.9 |
| F1 2021 (2021) | 82.6 | 35 | 27.7 | 19.3 |
排放和能源
系统噪音
MateBook 14使用两个风扇，当你执行简单的任务时，通常是完全无声的。在负载情况下，你也不需要耳机，因为在玩游戏时只有安静的风扇杂音，大约为35 dB(A)，在我们的压力测试中高达38 dB(A)，考虑到稳定的性能，这是一个好结果。当你使用可选的性能 模式时，你可以期待高达41 dB(A)，但没有性能优势，所以真的没有理由使用它。我们没有听到任何其他电子声音。
Noise Level
| Idle |
| 24.1 / 24.1 / 24.1 dB(A) |
| Load |
| 31.8 / 38.1 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.1 dB(A) | ||
| Huawei MateBook 14 2021 AMD Vega 7, R5 5500U, Phison PS5013 311CD0512GB | Acer Swift 3 SF314-43-R8BP Vega 7, R5 5500U, Kingston OM8PDP3512B-AI1 | Huawei MateBook 14 2021, i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung PM991 MZVLQ512HALU | Lenovo IdeaPad 5 Pro 14ACN6 Vega 7, R5 5600U, WDC PC SN730 SDBPNTY-512G | Lenovo Yoga Slim 7 14ITL05 82A300CNGE Iris Xe G7 80EUs, i5-1135G7, WDC PC SN730 SDBPNTY-512G | Huawei MateBook 14s i7 Iris Xe G7 96EUs, i7-11370H, Toshiba XG6 KXG60ZNV512G | Huawei MateBook 14 2020 AMD Vega 7, R7 4800H, WDC PC SN730 SDBPNTY-512G | |
|---|---|---|---|---|---|---|---|
| Noise | -8% | -6% | -2% | -1% | -5% | -12% | |
| off / environment * | 24.1 | 26 -8% | 25 -4% | 24.6 -2% | 26 -8% | 24.3 -1% | 29.7 -23% |
| Idle Minimum * | 24.1 | 26 -8% | 25 -4% | 24.6 -2% | 26 -8% | 24.3 -1% | 29.7 -23% |
| Idle Average * | 24.1 | 26 -8% | 25 -4% | 24.6 -2% | 26 -8% | 24.3 -1% | 29.7 -23% |
| Idle Maximum * | 24.1 | 27.5 -14% | 25 -4% | 25.1 -4% | 26 -8% | 28.4 -18% | 30.4 -26% |
| Load Average * | 31.8 | 34 -7% | 35.4 -11% | 29.6 7% | 30.2 5% | 31.7 -0% | 31.5 1% |
| Witcher 3 ultra * | 34.6 | 31.9 8% | 31.7 8% | 33 5% | |||
| Load Maximum * | 38.1 | 38.2 -0% | 40.2 -6% | 45.5 -19% | 29 24% | 46.8 -23% | 36.5 4% |
* ... smaller is better
温度

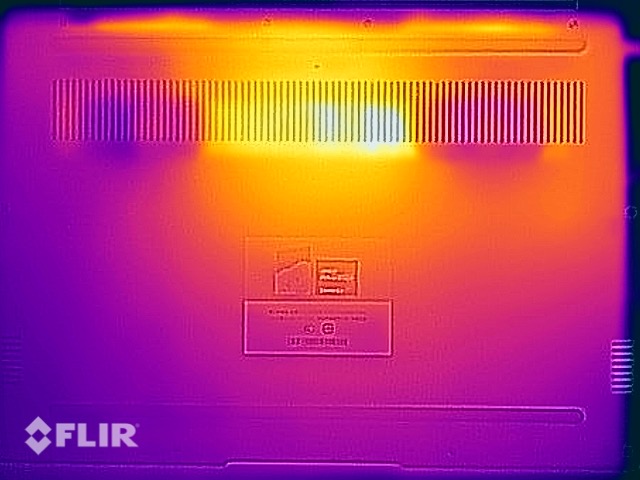

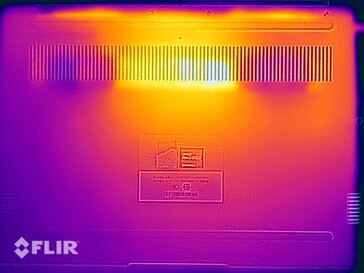

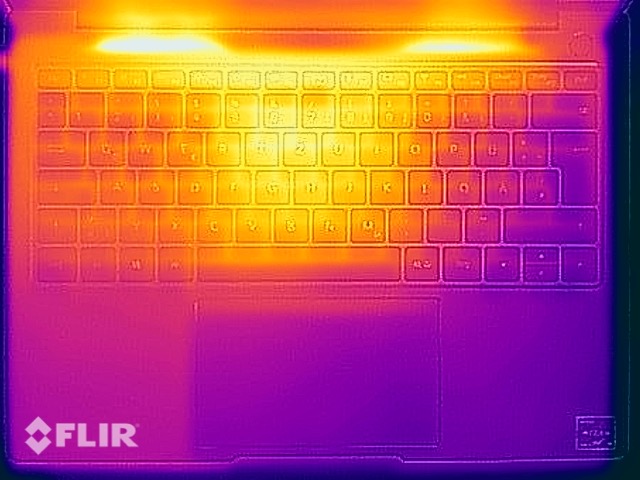

表面温度完全不挑剔，设备在轻度工作负荷下几乎没有升温。即使是我们的压力测试也只在后部中心区域的底板上发现了一个热点（~49°C），这离令人担忧还很远。在这种极端情况下，中央键盘区域也明显升温至~40℃，但没有任何限制。

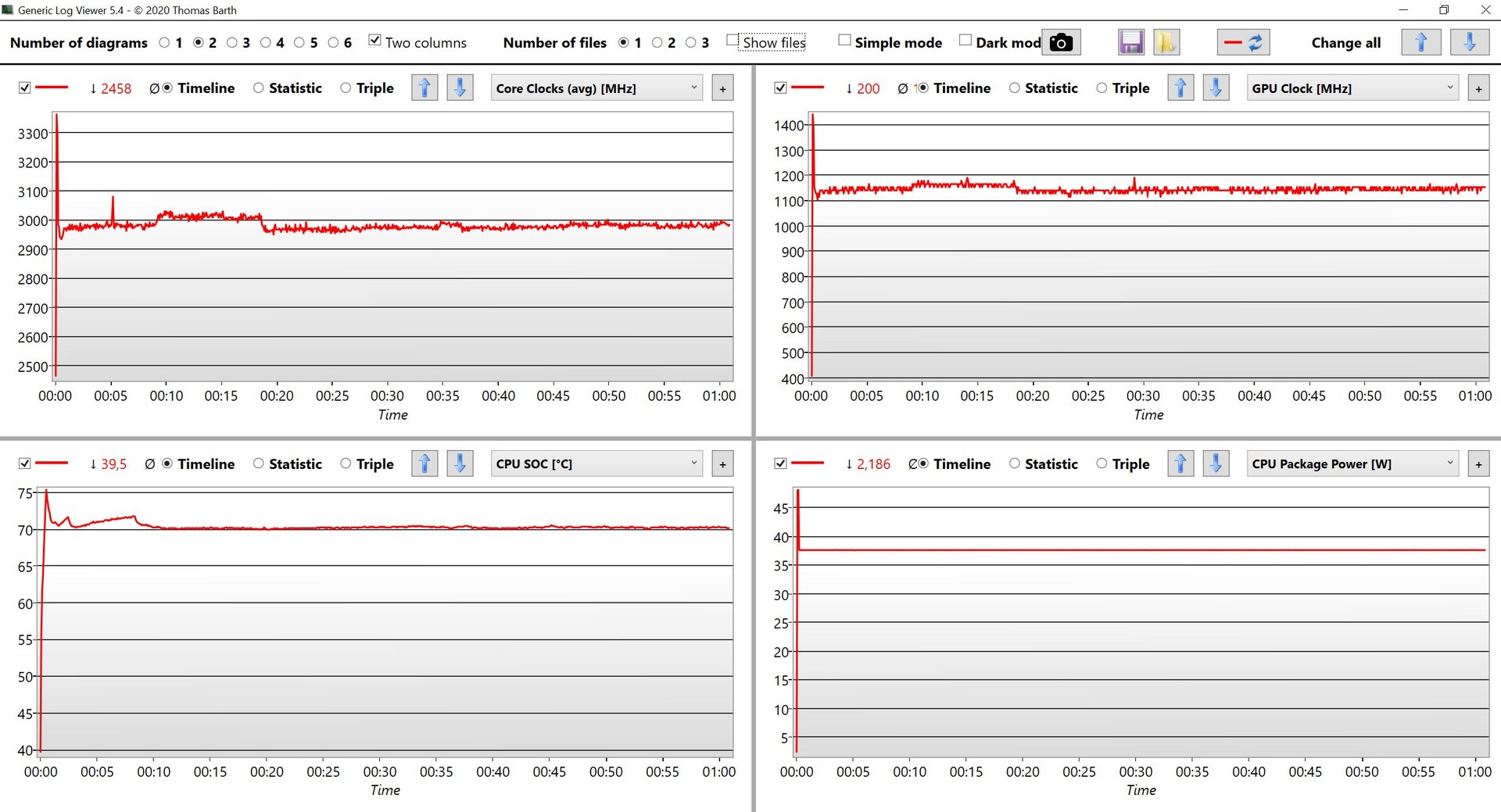

压力测试期间的性能完全稳定，压力测试后也没有立即出现性能下降。
(±) The average temperature for the upper side under maximal load is 36.4 °C / 98 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 48.8 °C / 120 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.9 °C / 93 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1.7 °C / -3.1 F).
(±) The maximum temperature on the upper side is 42.8 °C / 109 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 48.8 °C / 120 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33.9 °C / 93 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30 °C / 86 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-1.7 °C / -3.1 F).
| Huawei MateBook 14 2021 AMD AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Huawei MateBook 14 2021, i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs | Acer Swift 3 SF314-43-R8BP AMD Ryzen 5 5500U, AMD Radeon RX Vega 7 | Lenovo IdeaPad 5 Pro 14ACN6 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 | Lenovo Yoga Slim 7 14ITL05 82A300CNGE Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs | Huawei MateBook 14s i7 Intel Core i7-11370H, Intel Iris Xe Graphics G7 96EUs | Huawei MateBook 14 2020 AMD AMD Ryzen 7 4800H, AMD Radeon RX Vega 7 | |
|---|---|---|---|---|---|---|---|
| Heat | -3% | 11% | 7% | -3% | 2% | -1% | |
| Maximum Upper Side * | 42.8 | 40 7% | 36 16% | 35.8 16% | 40 7% | 41.1 4% | 45 -5% |
| Maximum Bottom * | 48.8 | 47.1 3% | 38 22% | 42.8 12% | 43.3 11% | 45.4 7% | 42 14% |
| Idle Upper Side * | 25.2 | 27.7 -10% | 24.1 4% | 25 1% | 28.4 -13% | 25.3 -0% | 27 -7% |
| Idle Bottom * | 25.9 | 28.7 -11% | 25.7 1% | 26.2 -1% | 30.4 -17% | 26.5 -2% | 27.7 -7% |
* ... smaller is better
发言人
立体声扬声器给人留下了良好的整体印象，但它们缺乏一些动力。不过，MateBook 14对于偶尔的音乐或视频播放来说还是不错的。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Huawei MateBook 14 2021 AMD audio analysis
(±) | speaker loudness is average but good (76.4 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.5% lower than median
(±) | linearity of bass is average (9.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.6% away from median
(+) | mids are linear (2.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.6% difference to median)
Compared to same class
» 11% of all tested devices in this class were better, 3% similar, 86% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 6% of all tested devices were better, 2% similar, 92% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Swift 3 SF314-43-R8BP audio analysis
(-) | not very loud speakers (71.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.3% lower than median
(±) | linearity of bass is average (12.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.9% higher than median
(±) | linearity of mids is average (8.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.2% away from median
(+) | highs are linear (4.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26% difference to median)
Compared to same class
» 85% of all tested devices in this class were better, 3% similar, 13% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 78% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
我们的空闲功耗测量结果显示，尽管MateBook 14具有较高的分辨率和面板亮度，但其结果还算不错。与大多数使用英特尔CPU的笔记本电脑相反（短期峰值消耗值很高），这里的性能并没有真正下降，总体上非常稳定。我们的压力测试结果是在几秒钟内高达67W，然后消费水平在62W左右。这意味着附带的65W电源适配器刚好够用，但当你给笔记本施加压力并想同时给电池充电时，就没有多少空间了。
Power Consumption
| Off / Standby | 0.39 / 0.65 Watt |
| Idle | 4.2 / 10.3 / 10.7 Watt |
| Load |
39.4 / 67.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power Consumption Witcher 3 / Stress test
Huawei MateBook 14 2021 AMD; Witcher 3 ultra: Ø38.7 (36.7-48.6)
Huawei MateBook 14 2021 AMD; 1280x720 Prime95 28.10 and Furmark 1.25: Ø61.6 (59.5-67.7)
Power Consumption external screen
Huawei MateBook 14 2021 AMD; Prime95 V2810 Stress (external Monitor): Ø54.7 (48.4-66.5)
Huawei MateBook 14 2021 AMD; Cinebench R15 Multi (external Monitor): Ø56.3 (49.9-67.4)
Huawei MateBook 14 2021 AMD; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35 (33.8-37.1)
Huawei MateBook 14 2021 AMD; 1920x1080 The Witcher 3 ultra (external Monitor): Ø34.6 (34.1-35.5)
电池运行时间
在Wi-Fi和视频测试中，56Wh的电池在调整了150尼特的显示亮度（占我们测试设备最大亮度的53%）的情况下，可以实现超过9小时的长运行时间。当我们使用最大显示亮度时，Wi-Fi测试中的运行时间降至6小时多一点，因此AMD SKU与英特尔版本基本持平。笔记本电脑开机后，完全充电需要105分钟，但没有快速充电功能。
| Huawei MateBook 14 2021 AMD R5 5500U, Vega 7, 56 Wh | Huawei MateBook 14 2021, i7-1165G7 i7-1165G7, Iris Xe G7 96EUs, 56 Wh | Acer Swift 3 SF314-43-R8BP R5 5500U, Vega 7, 48 Wh | Lenovo IdeaPad 5 Pro 14ACN6 R5 5600U, Vega 7, 57 Wh | Lenovo Yoga Slim 7 14ITL05 82A300CNGE i5-1135G7, Iris Xe G7 80EUs, 60.7 Wh | Huawei MateBook 14s i7 i7-11370H, Iris Xe G7 96EUs, 60 Wh | Huawei MateBook 14 2020 AMD R7 4800H, Vega 7, 56 Wh | Average of class Subnotebook | |
|---|---|---|---|---|---|---|---|---|
| Battery Runtime | -2% | -10% | -2% | 25% | 18% | -6% | 48% | |
| H.264 | 551 | 531 -4% | 693 26% | 576 5% | 917 ? 66% | |||
| WiFi v1.3 | 563 | 562 0% | 505 -10% | 550 -2% | 703 25% | 618 10% | 467 -17% | 729 ? 29% |
| Load | 111 | 104 | 60 | 95 | 65 | 116.5 ? | ||
| Reader / Idle | 1155 | 1298 | 1808 ? |
Pros
+ 高品质底盘
+ 良好的显示效果
+ 电池运行时间长
+ 良好的性能利用率
+ 运行安静
Cons
- 与前代产品相比，CPU性能较低
- 没有Wi-Fi 6
- 不必要的SSD分区
- 没有SD卡读卡器
结论 - MateBook 14的性能不如2020年的机型
目前2021年版本的MateBook 14再次是一个很好的子笔记本，但它缺乏真正的进步。我们的AMD版本在某些方面也显得有点过时（键盘内的旧网络摄像头，没有Wi-Fi 6），新的U系列CPU的性能实际上低于 2020年MateBook 14 AMD采用H系列的CPU，尽管有相同的冷却。与英特尔的同类产品相比，AMD Ryzen 5000处理器仍然留下了更好的印象，在多核CPU性能方面无法跟上。
比两年前的性能低。华为更新了处理器，但只使用了一个较慢的U系列型号。总而言之，MateBook 14仍然是一款不错的副笔记本，但目前的机型在2022年的某些方面显得有些过时。
MateBook 14是一款非常好的日常工作的副笔记本，并以其高质量的底盘、舒适的键盘、安静的操作和非常好的主观画质而令人信服。只有背光渗漏和非常反光的表面稍微影响了良好的印象。
考虑到价格优势，MateBook 14的AMD型号是比英特尔SKU更好的选择，一些零售商已经以850欧元的价格提供我们的测试型号。其他的竞争对手如联想IdeaPad 5 Pro 14或 Acer Swift 3都有较差的显示屏，但它们往往更便宜一些。如果你正在寻找一款好的副笔记本，你肯定应该把MateBook 14列入候选名单。
Huawei MateBook 14 2021 AMD
- 04/11/2022 v7 (old)
Andreas Osthoff
Subnotebook - Weighted Average
Price comparison
