英特尔NUC 13 Extreme Raptor Canyon迷你电脑与Core i9-13900K和GeForce RTX 3080 Ti在审查中

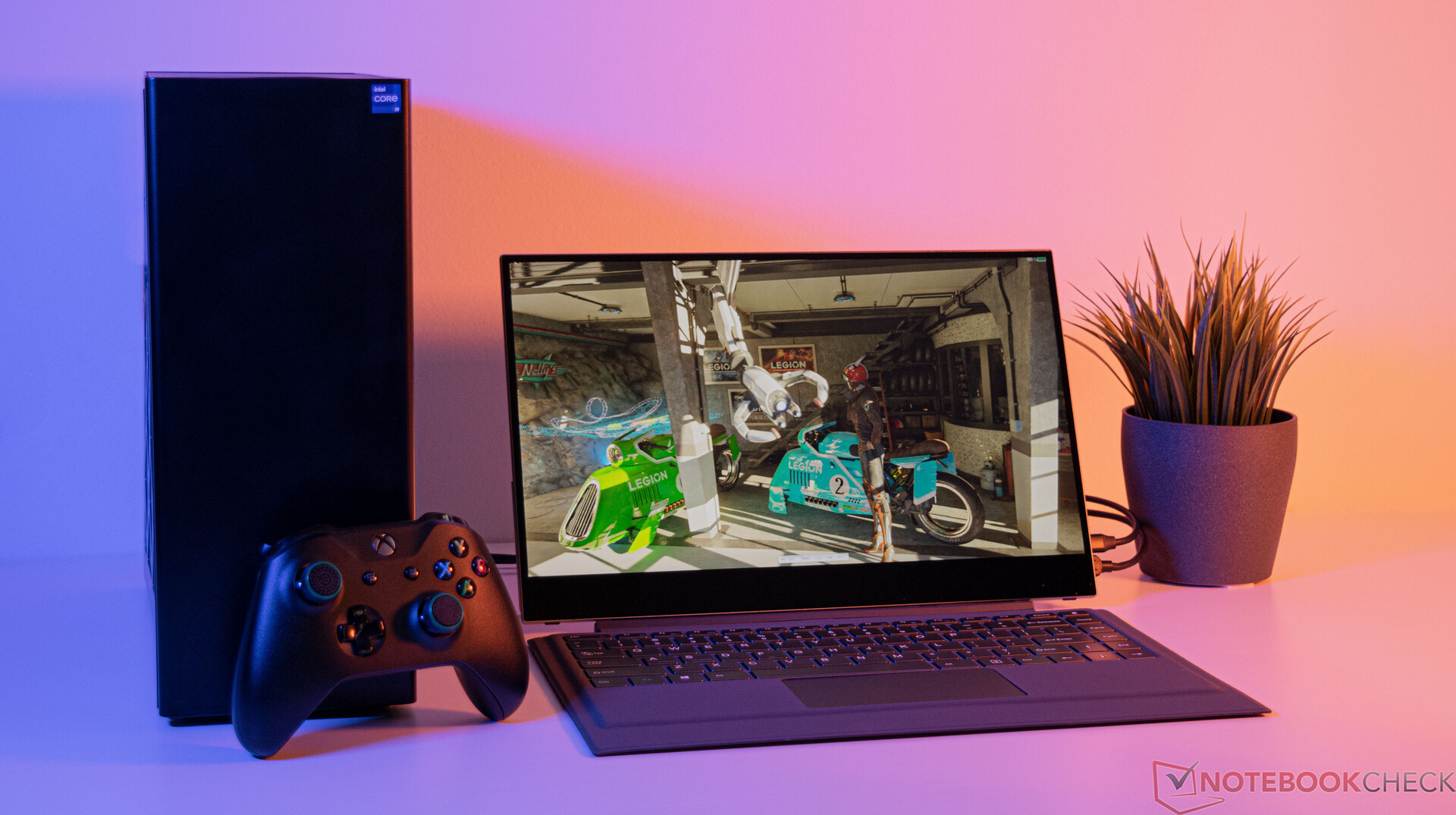

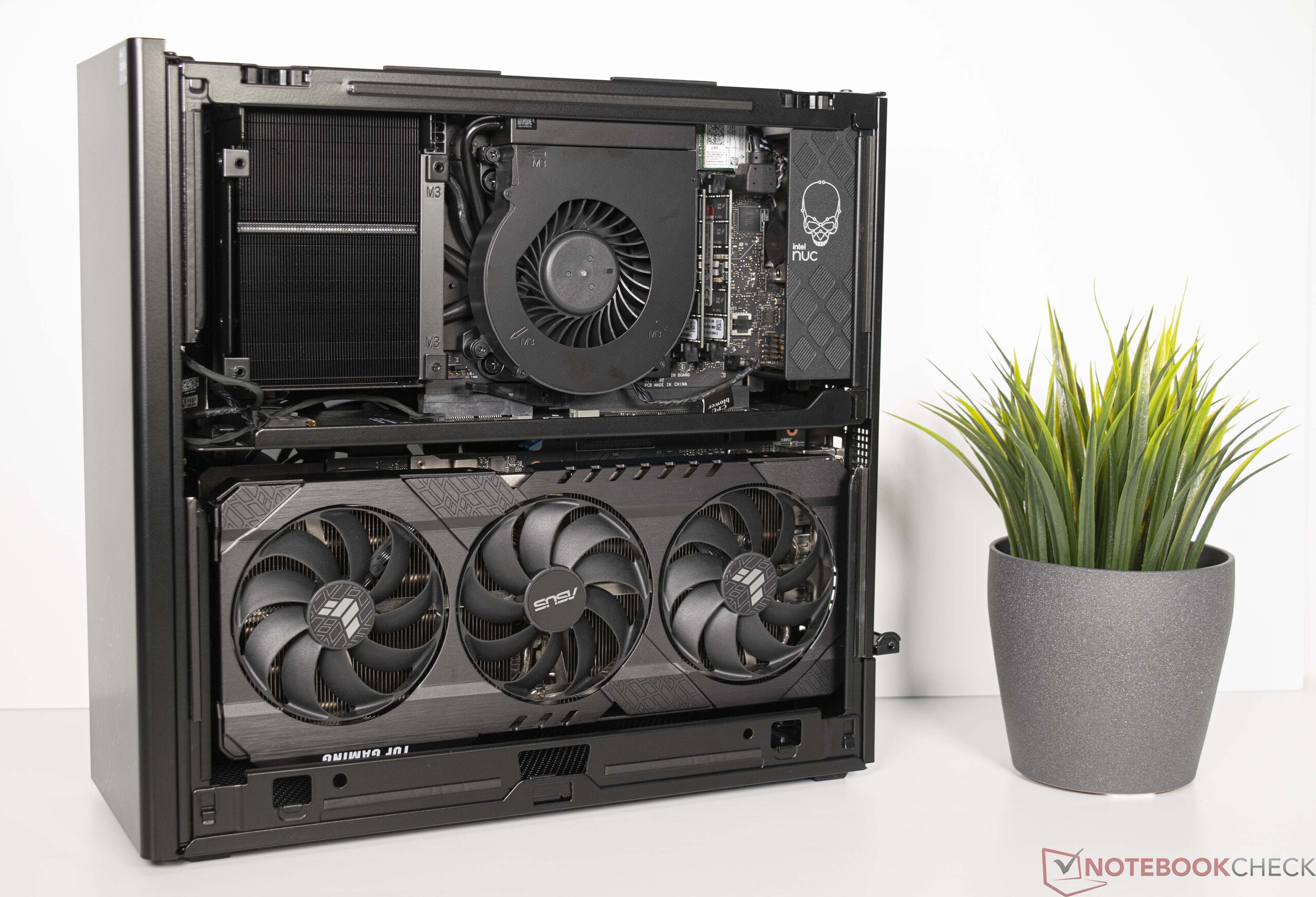

英特尔NUC 13 Extreme Raptor Canyon + Uperfect X Pro LapDock（不包括）。

继野兽峡谷和龙峡谷之后，英特尔最新的猛禽峡谷NUC极端套件大大偏离了其前辈的设计。然而，英特尔的目标仍然是打造一款非常紧凑的个人电脑，几乎没有任何需要改进的地方。此外，还可以安装一个全尺寸的显卡。在CPU方面，可以选择英特尔当前猛禽湖系列的型号。当然，用户也可以选择自己的CPU，因为处理器没有被焊接。在这次审查中，我们的NUC 13 Extreme Raptor Canyon使用了一个英特尔酷睿i9-13900K.此外，在 NvidiaGeForce RTX 3080 Ti提供了足够的3D性能，即使是要求苛刻的游戏玩家。

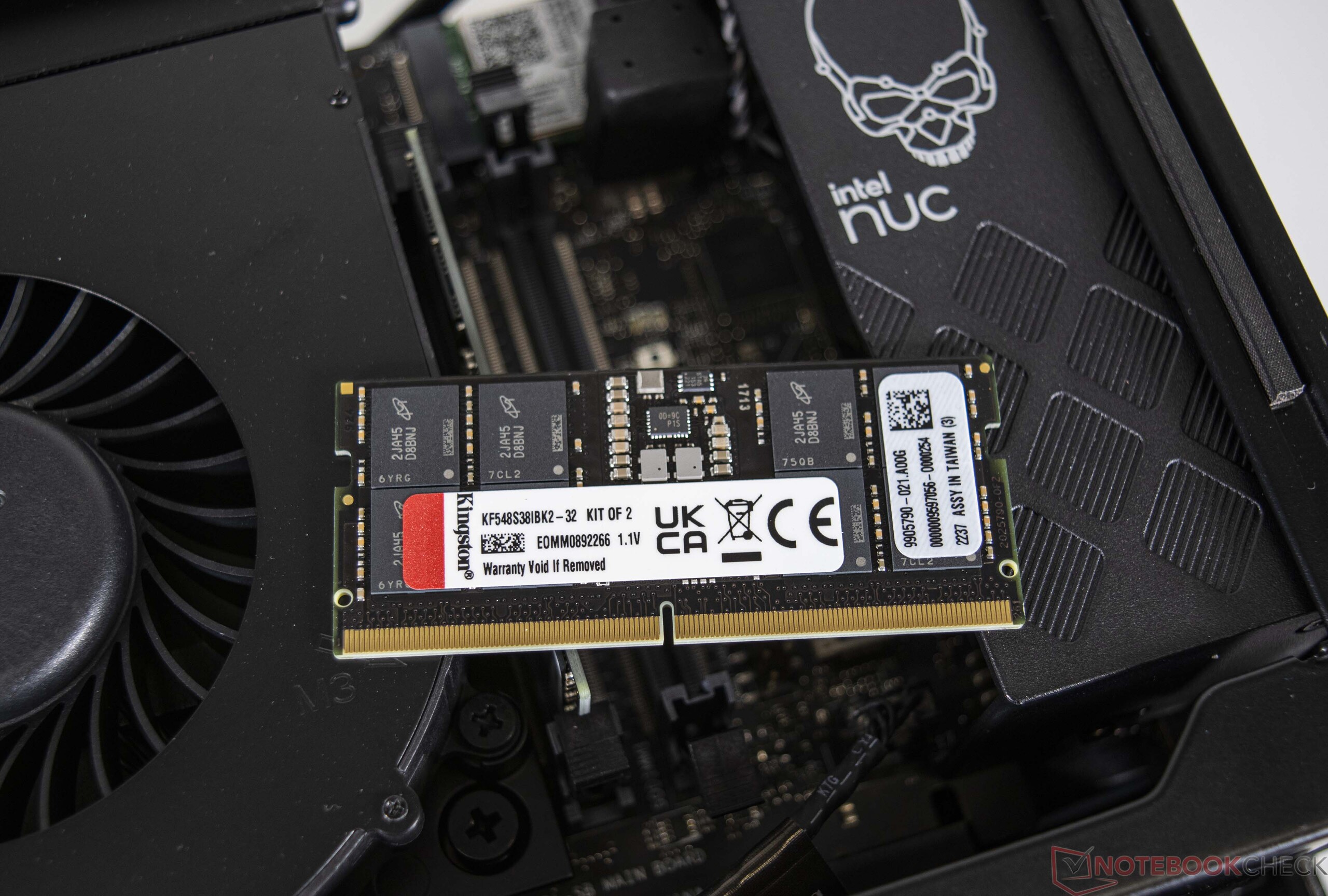

应该注意的是，英特尔NUC 13 Extreme Kit是一个裸机系统，没有固态硬盘、内存或显卡。价格取决于包含的CPU。基本型号为英特尔酷睿i5-13600K价格为1179美元，而最高端配置为1549美元。

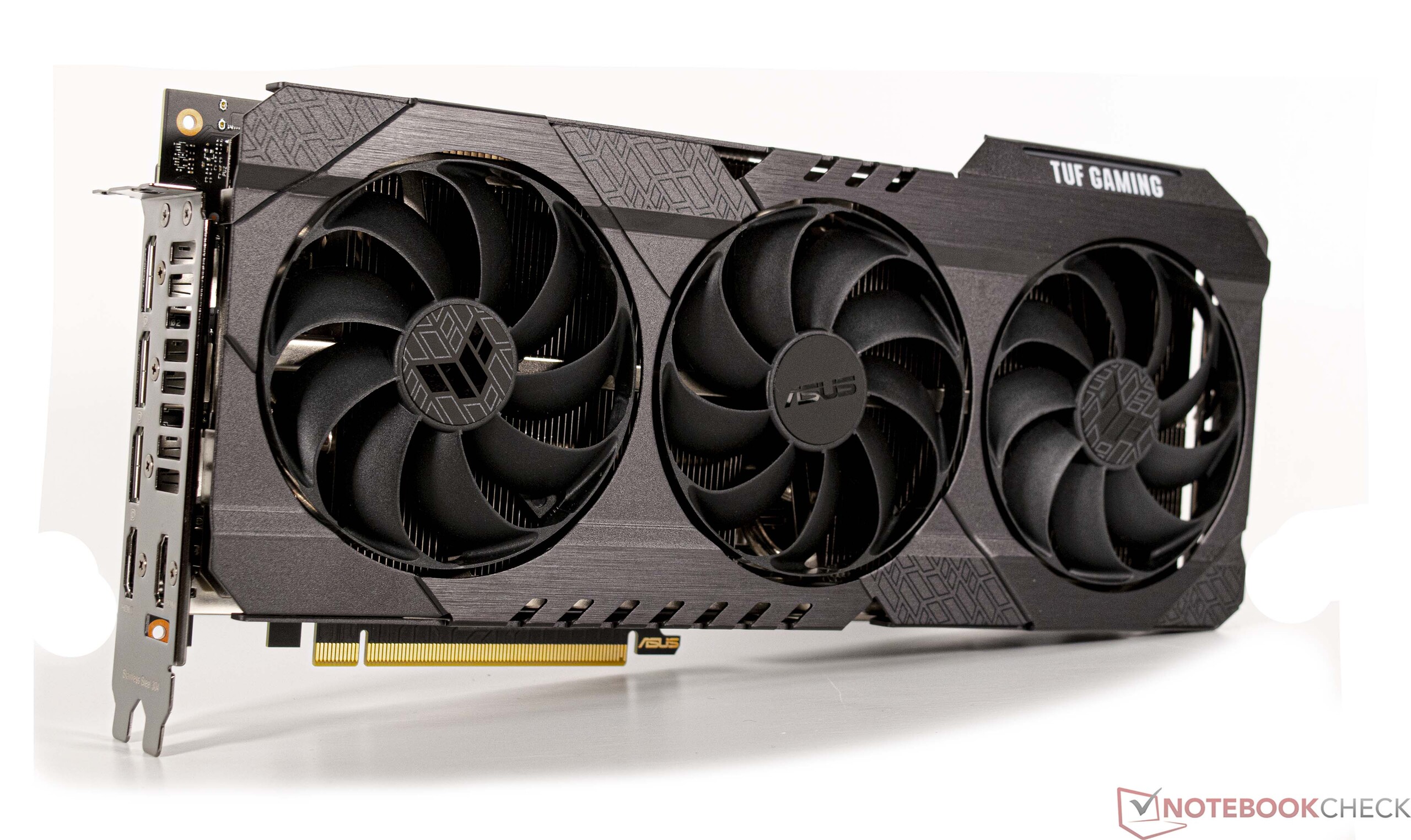

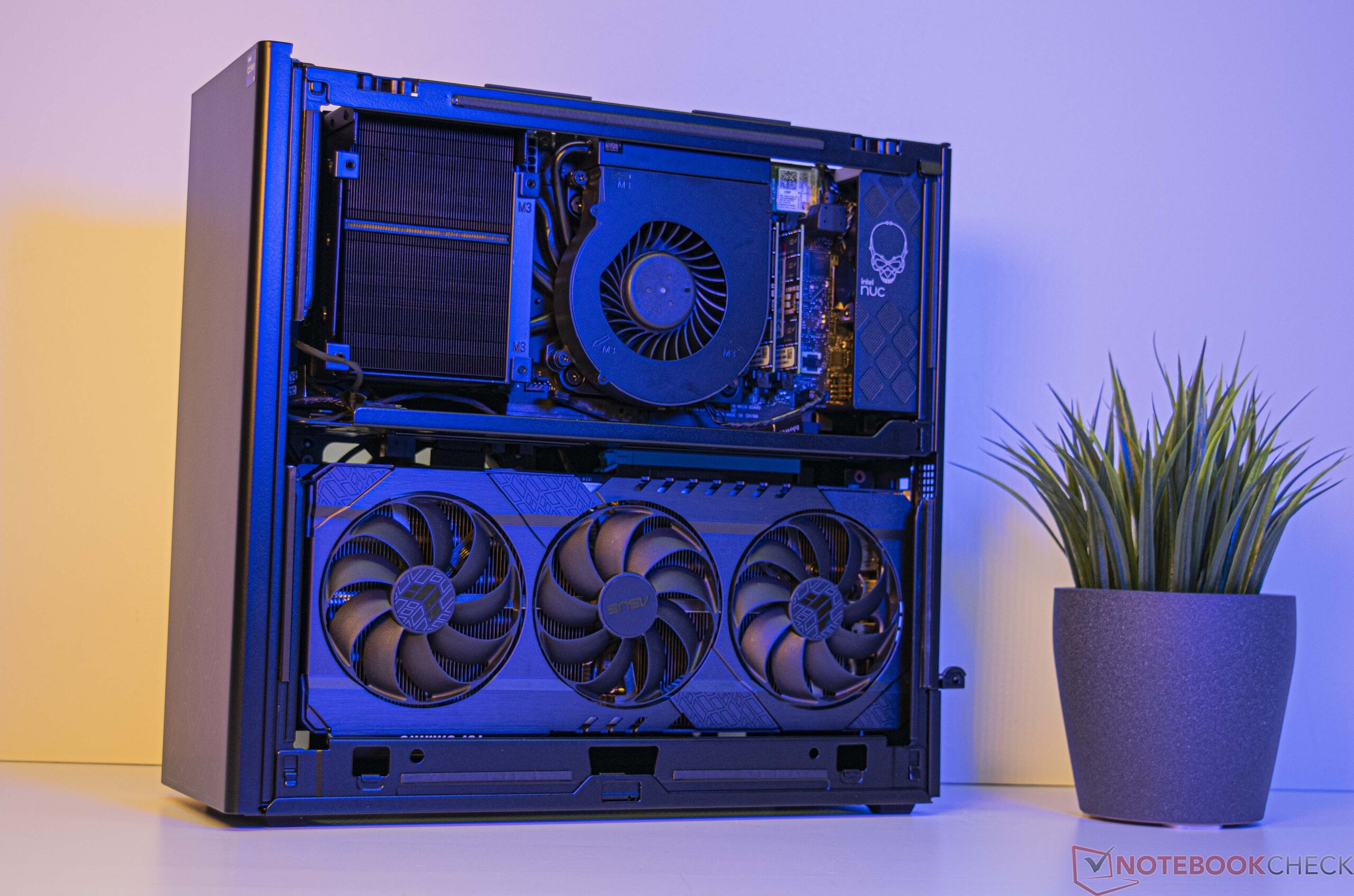

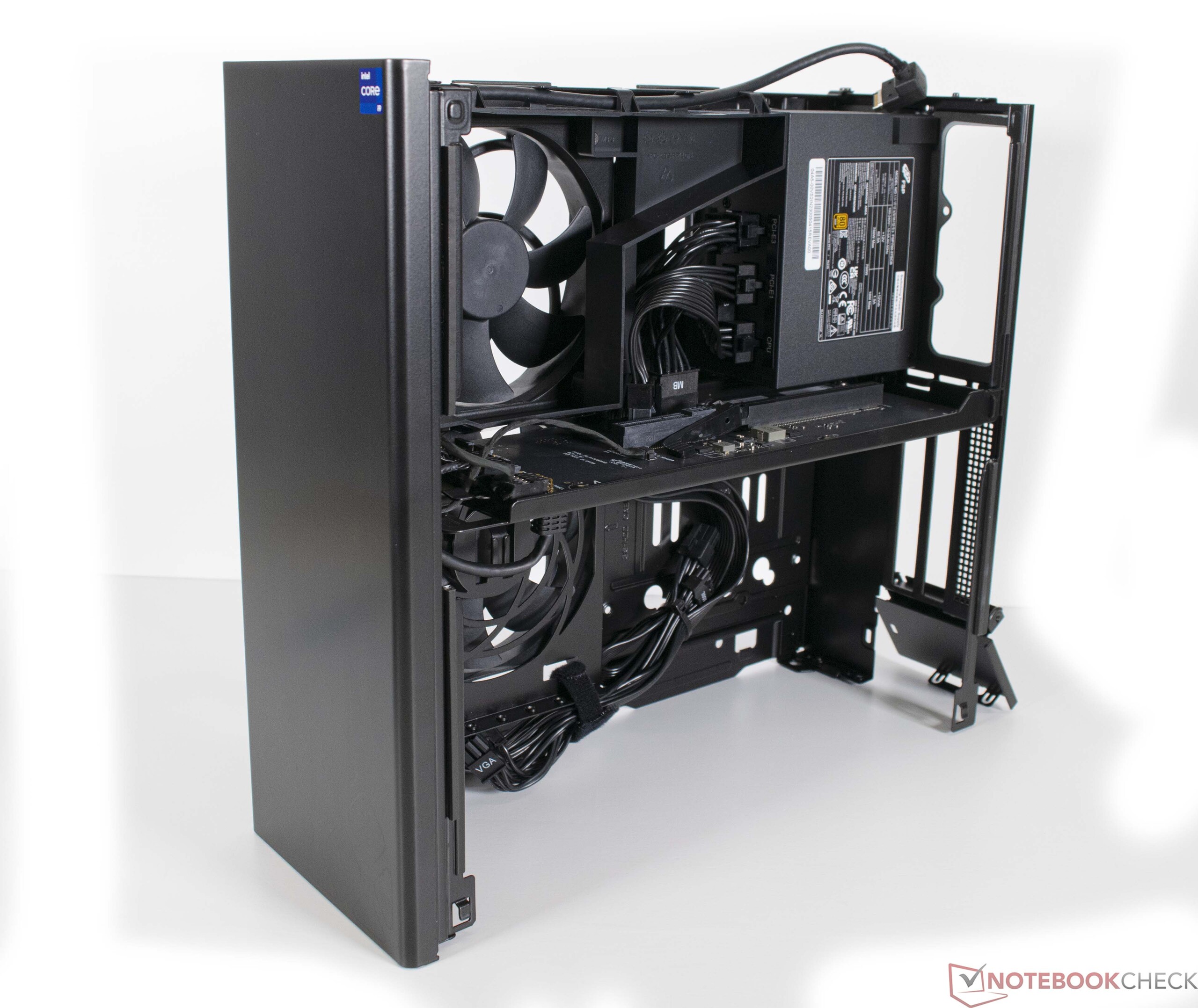

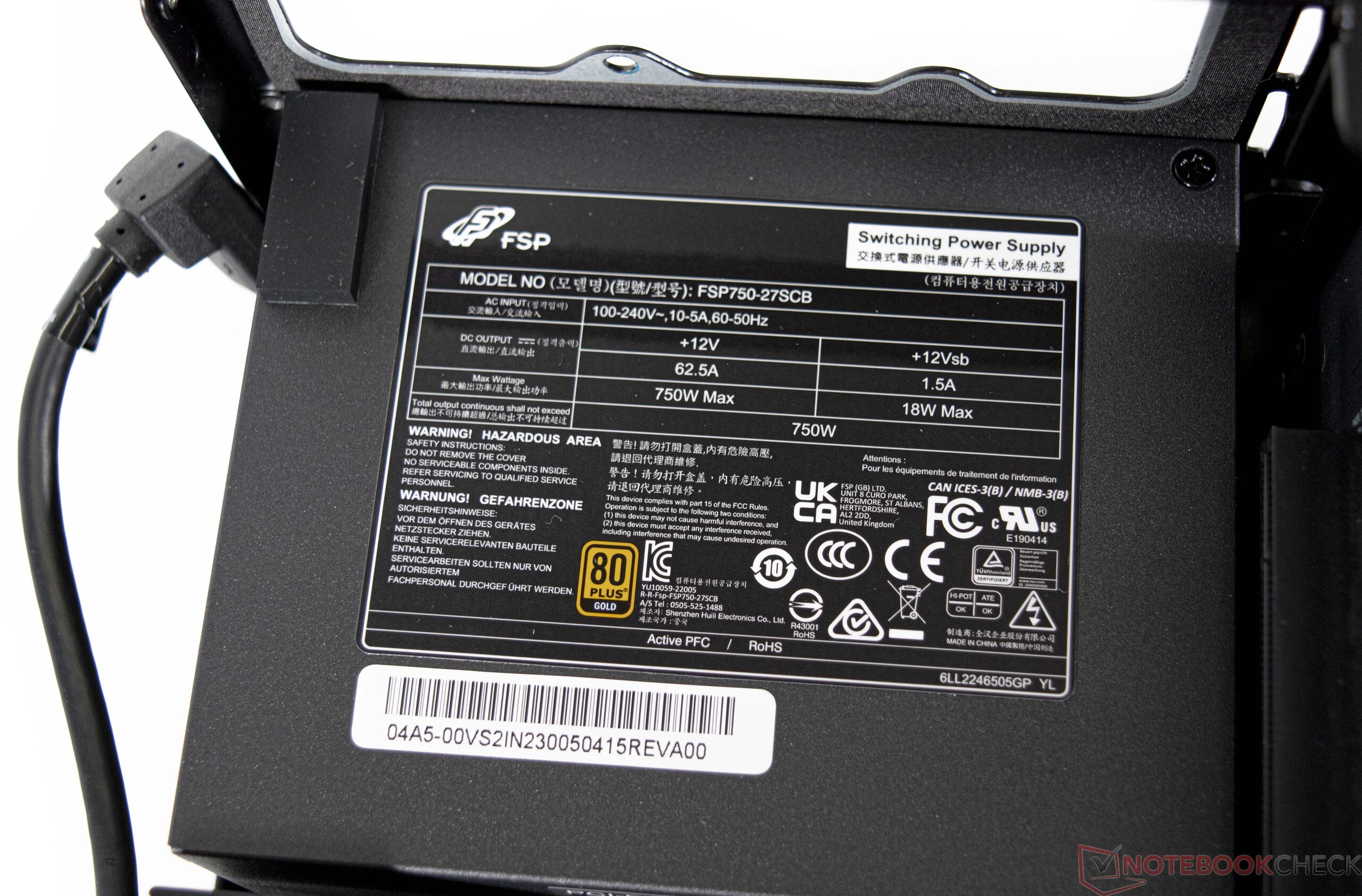

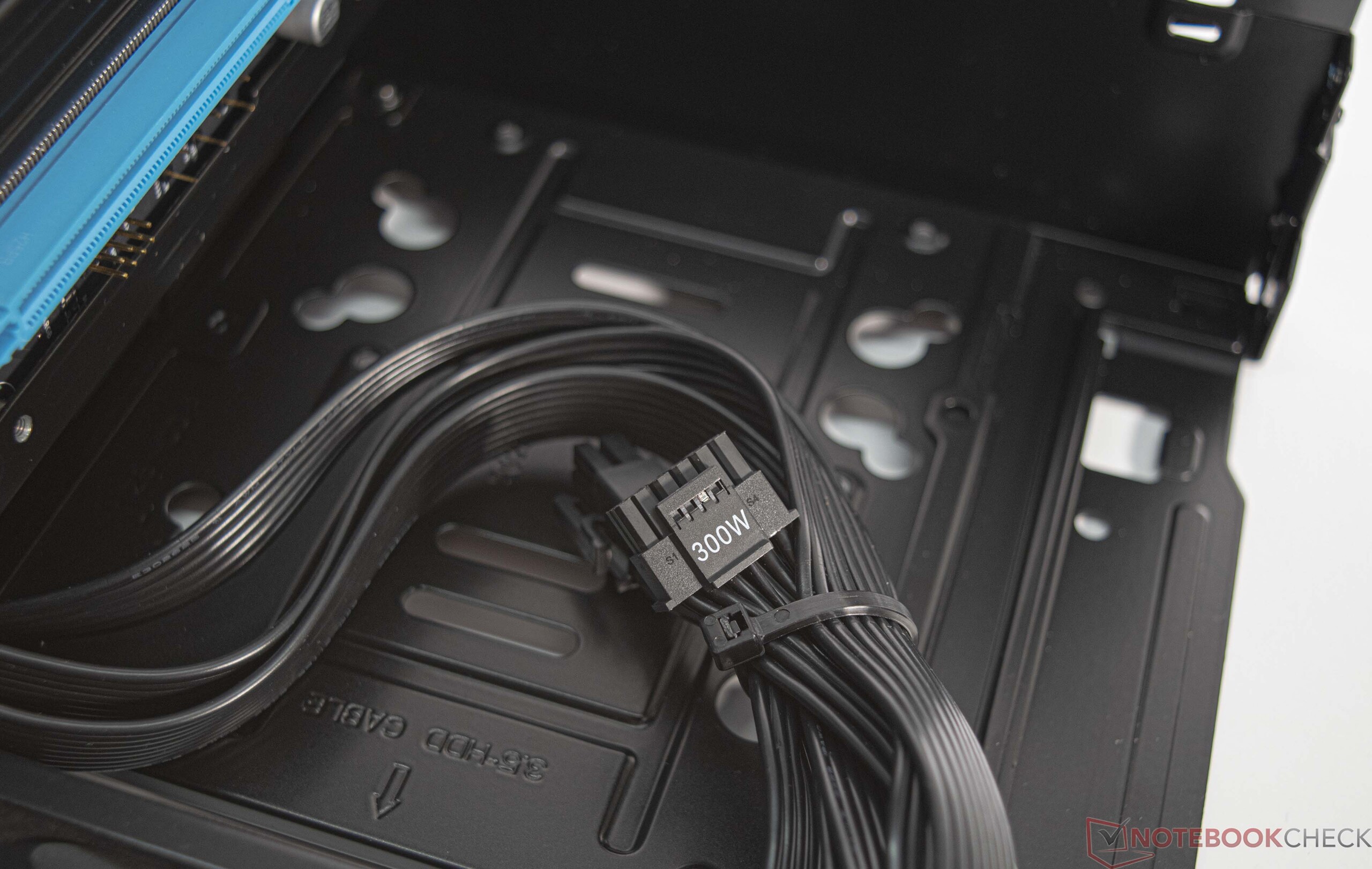

支持最大长度为31厘米（约12英寸）的专用图形解决方案。由于包括750瓦的SFX电源，即使是目前的高端GPU型号也可以使用。从理论上讲，甚至有可能将一台 NvidiaGeForce RTX 4090 FE.问题是12VHPWR电缆，它最多只能提供300瓦。由于电源只为GPU配备了三根6+2电缆，因此，无论如何，电源预算都被限制在450瓦。

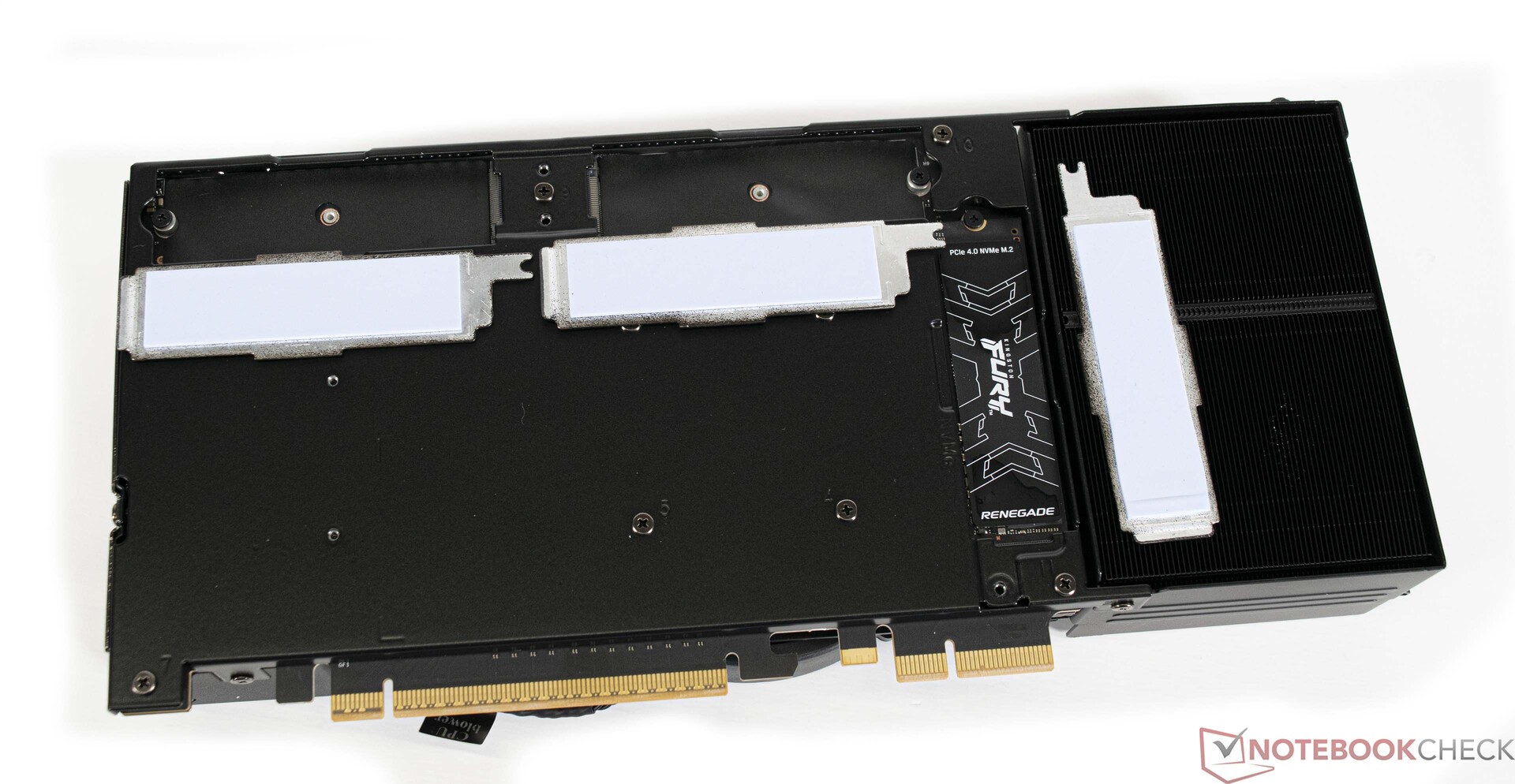

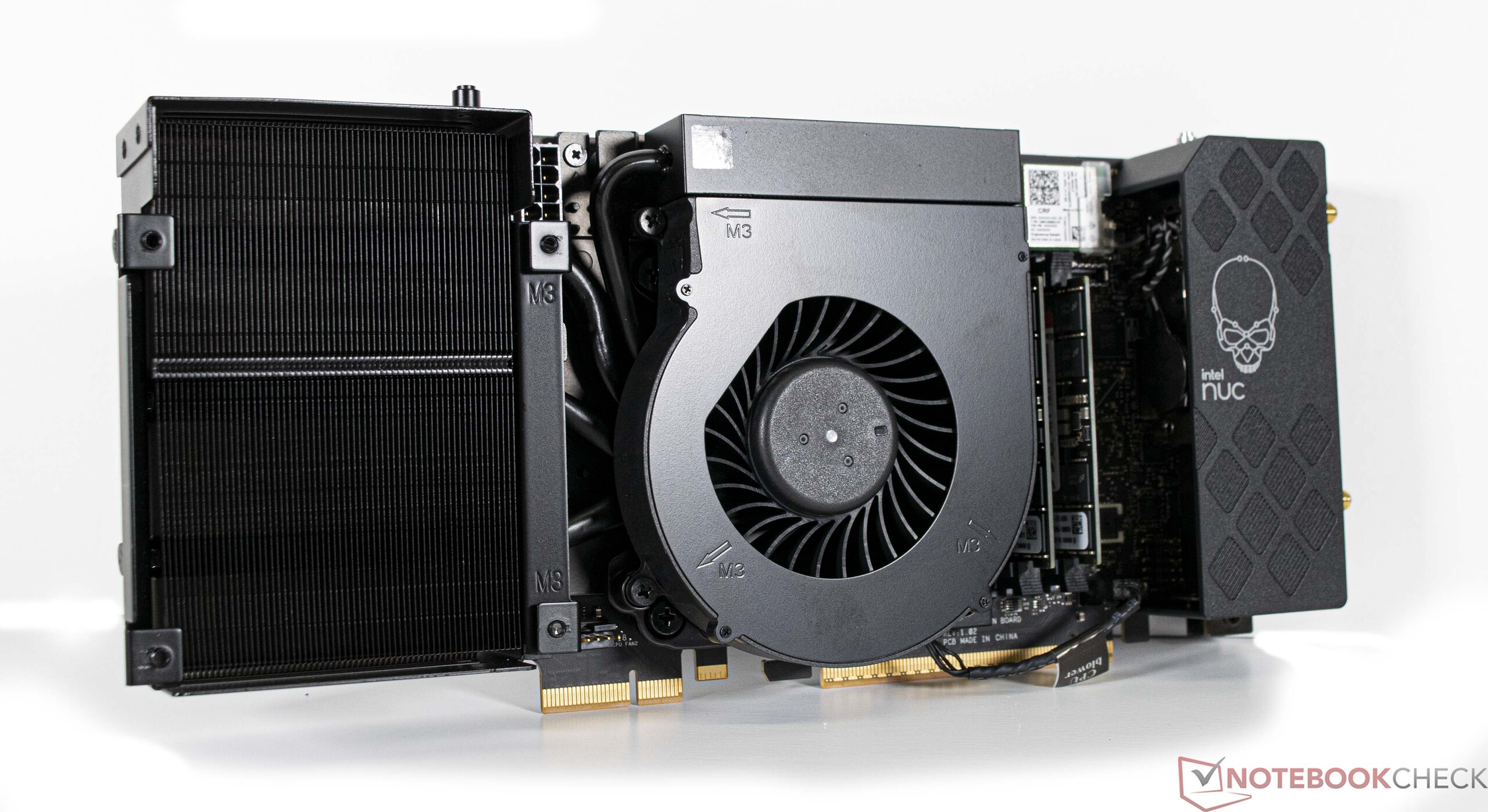

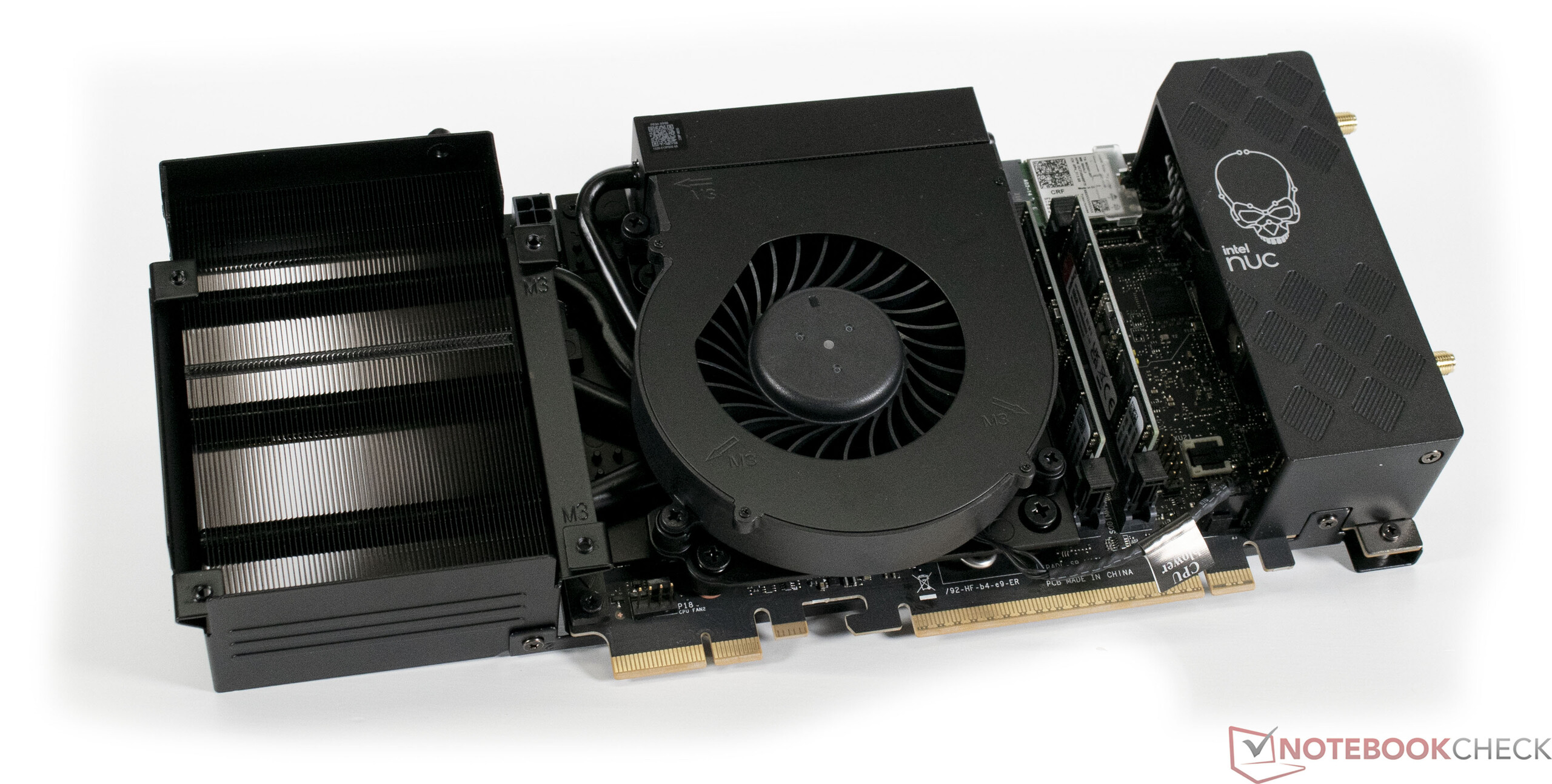

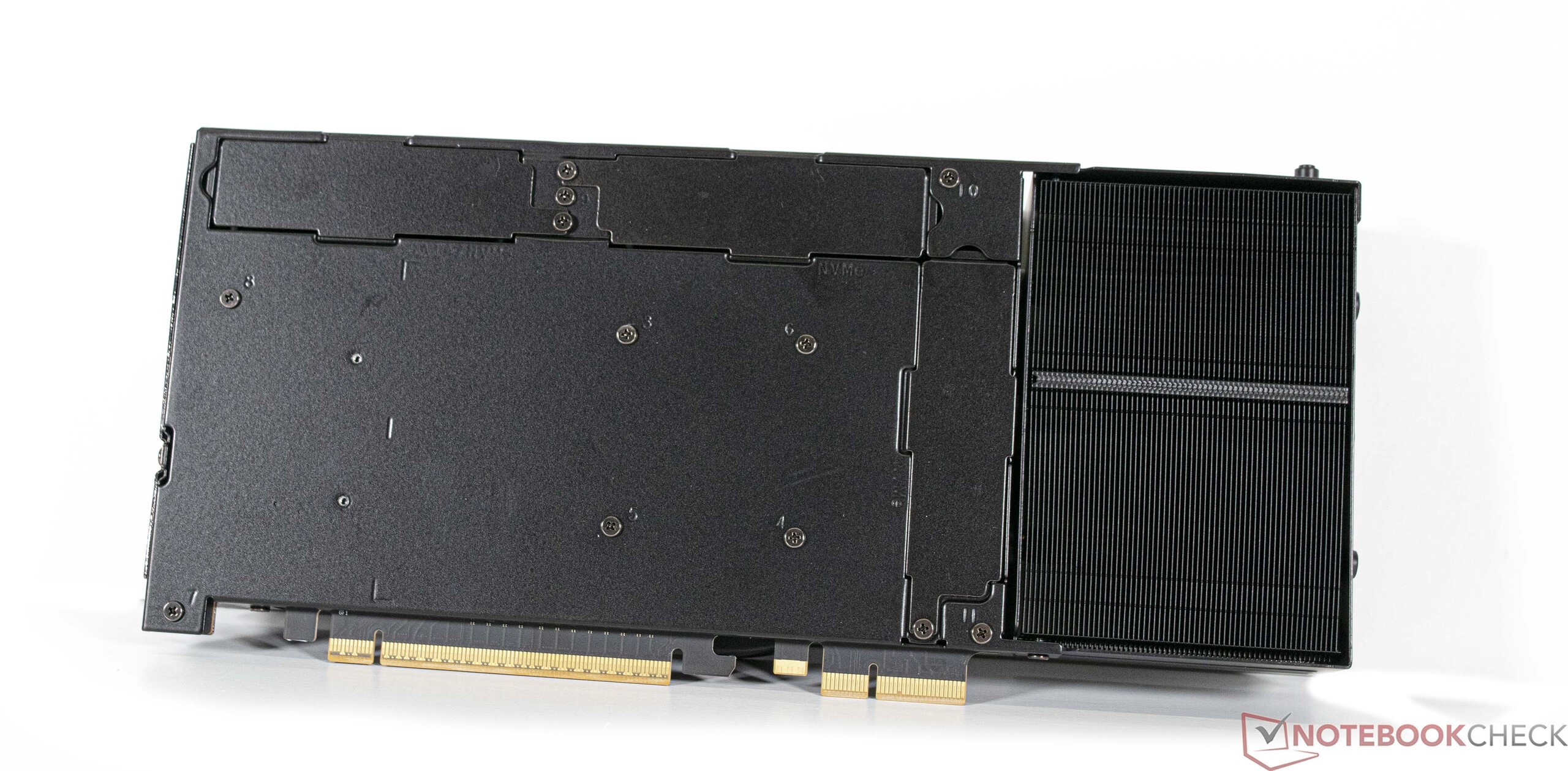

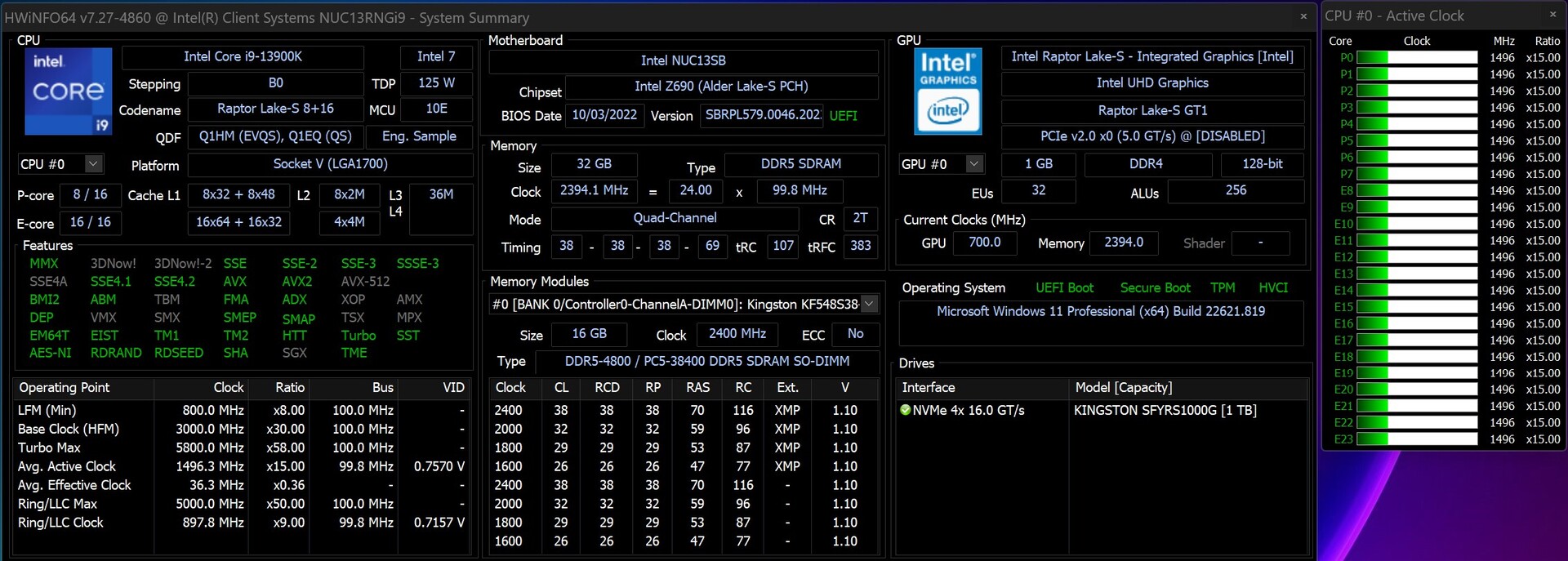

英特尔NUC 13极限计算元素的详细介绍

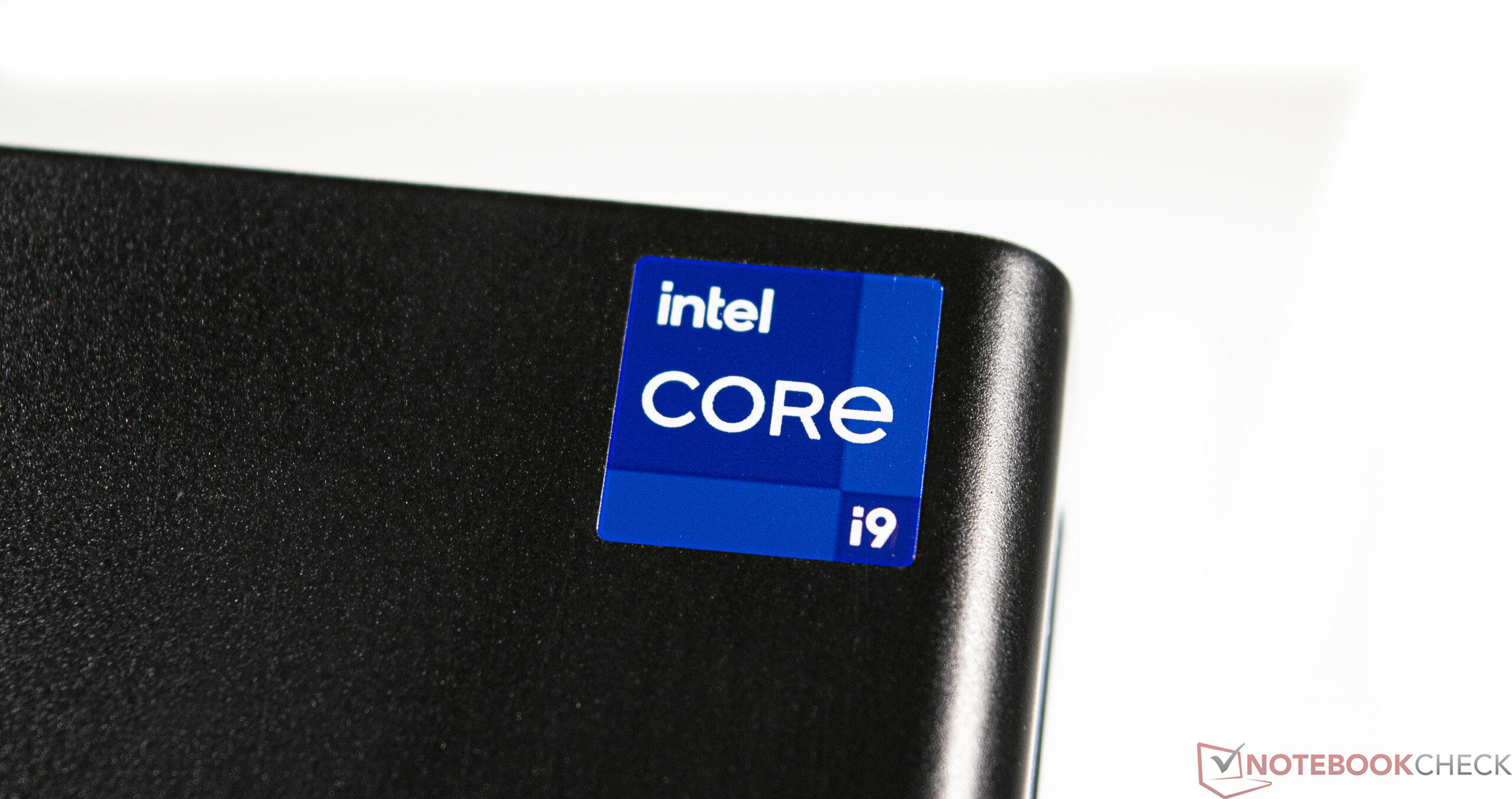

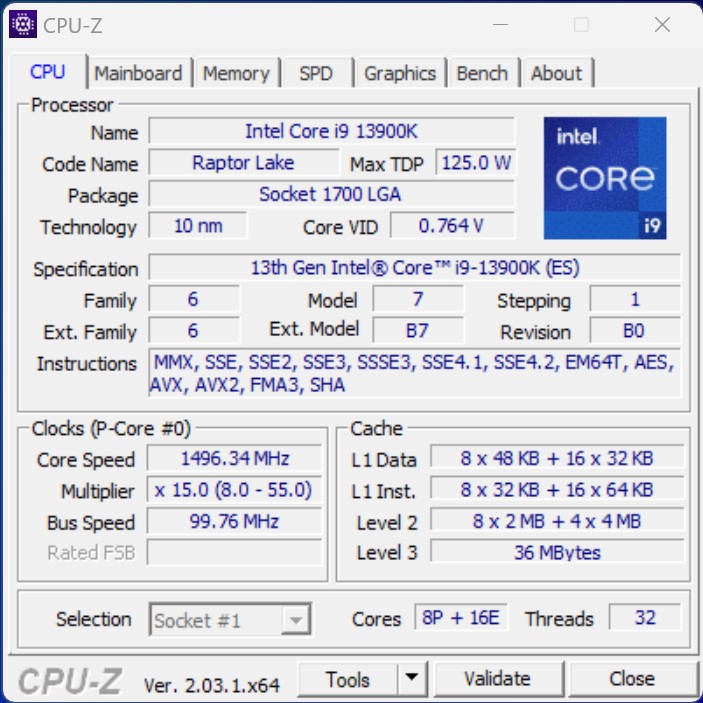

随着英特尔酷睿i9-13900K我们配置的英特尔NUC 13 Extreme配备了目前最快的游戏CPU。它总共有24个核心和32个线程。众所周知，猛禽湖一代的CPU采用了具有E和P核心的混合设计。与英特尔NUC 12 Extreme上一样，其前身也包括一个标准的桌面处理器。此外，计算元素配备了所有必要的端口。PCB底部有三个NVMe SSD插槽，侧面有所有外部接口。

Wi-Fi性能

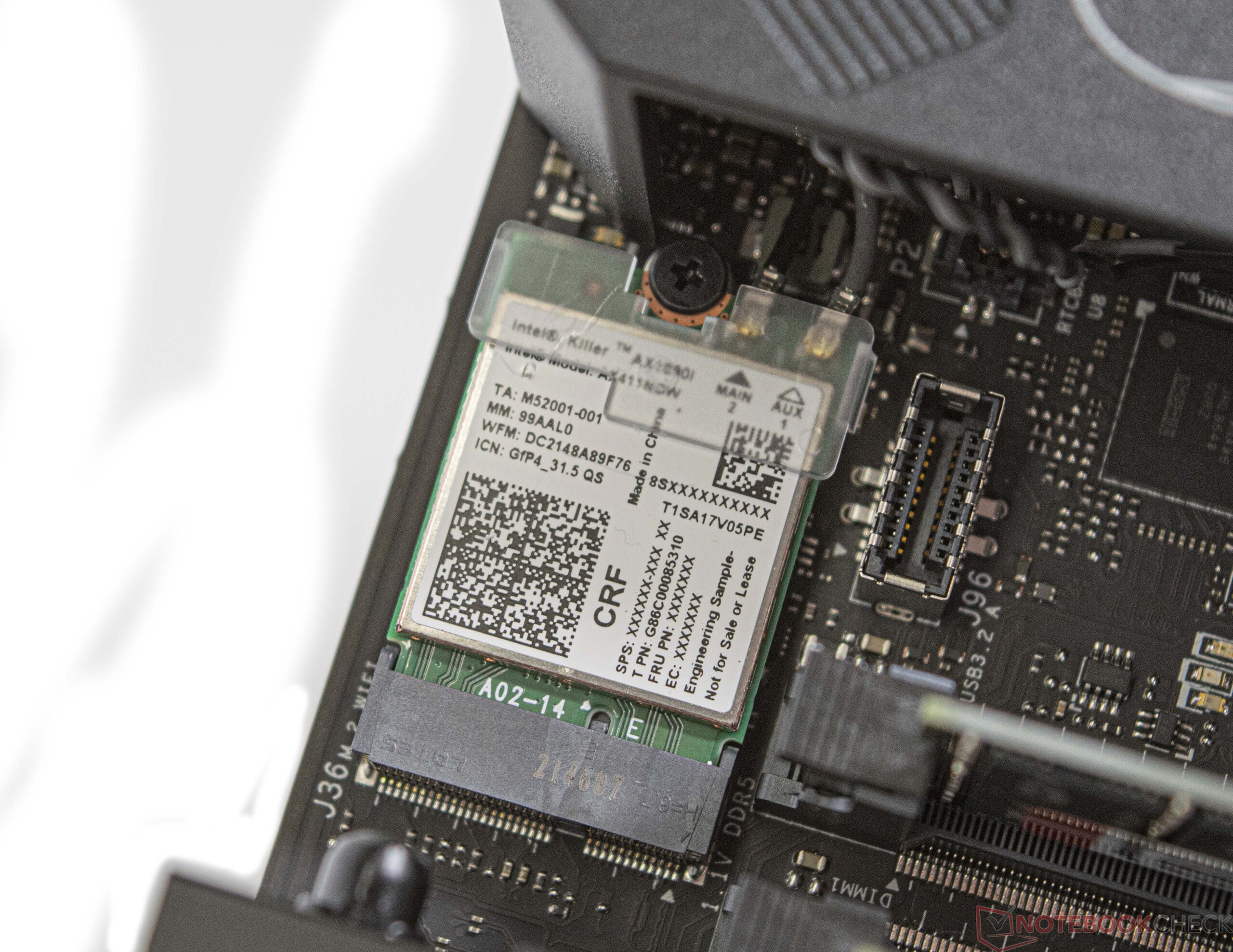

英特尔NUC 13 Extreme Raptor Canyon集成了杀手Wi-Fi 6E AX1690i Wi-Fi模块。与我们的华硕ROG Rapture GT-AXE11000参考路由器结合使用，我们测得了良好的上传和下载速度。Wi-Fi单元是计算单元上的一个模块，因此用户可以更换。对于有线通信，有一个10Gb/s和一个2.5Gb/s接口。

注意。

我们在测试设备上无法获得稳定的Wi-Fi 6G连接。用英特尔NUC 13 Extreme Raptor Canyon以及我们的测试路由器的最新驱动程序和固件更新组件，并没有改善情况。如果在接下来的几天内情况发生变化，在我们不得不退回设备之前，我们将修改这部分的评论。

Networking
iperf3 receive AXE11000
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1685 (841^min - 1722^max) MBit/s +84%
Average Killer Wi-Fi 6E AX1690i 160MHz (917 - 1727, n=9)	1418 MBit/s +55%
Average of class Desktop (801 - 1478, n=4, last 2 years)	1011 MBit/s +10%
Intel NUC13 Raptor Canyon Killer Wi-Fi 6E AX1690i 160MHz	917 (844^min - 932^max) MBit/s
Corsair Voyager a1600 Qualcomm WCN685x	852 (425^min - 931^max) MBit/s -7%
iperf3 transmit AXE11000
Corsair Voyager a1600 Qualcomm WCN685x	1780 (896^min - 1840^max) MBit/s +10%
Intel NUC13 Raptor Canyon Killer Wi-Fi 6E AX1690i 160MHz	1618 (1563^min - 1670^max) MBit/s
Average Killer Wi-Fi 6E AX1690i 160MHz (966 - 1650, n=8)	1407 MBit/s -13%
Average of class Desktop (629 - 1618, n=3, last 2 years)	1027 MBit/s -37%
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201	1011 (529^min - 1068^max) MBit/s -38%

Intel NUC13 Raptor Canyon; iperf3 receive AXE11000; iperf 3.1.3: Ø916 (844-932)

Intel NUC13 Raptor Canyon; iperf3 transmit AXE11000; iperf 3.1.3: Ø1618 (1563-1670)

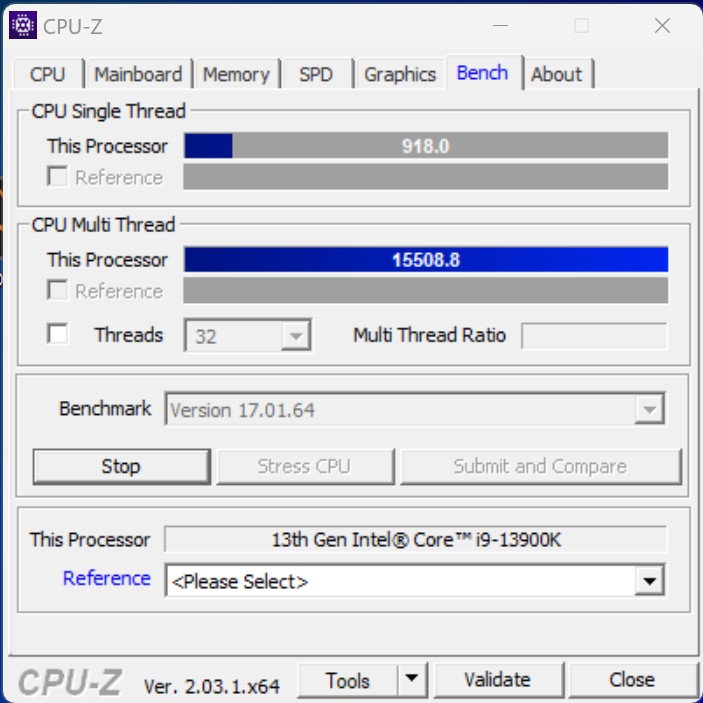

处理器基准测试

随着英特尔酷睿i9-13900K，英特尔NUC 13 Extreme Raptor Canyon使用英特尔最快的游戏CPU。因此，良好的基准测试结果符合我们的预期。尽管冷却解决方案相对较小，但与配备强大液体冷却器的不同台式系统相比，我们测得的性能差距只有7％。

在功率限制方面，有一些小的限制，150瓦的限制解释了小的差异。大多数应用不会利用完整的250瓦的功率。当把英特尔NUC 13 Extreme Raptor Canyon与性能较差的英特尔酷睿i5-13600K结合起来时，性能水平应该与我们对比表中的结果相符。较低的PL2（181瓦）可能会弥补全负荷下的部分不足。

更多的处理器基准测试可以在这里.

Performance Rating - Percent
Intel Core i9-13900K i9-13900K, 3000 MHz	77.5 pt
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	75.5 pt
Intel Core i9-13900K i9-13900K, 3000 MHz	72.5 pt
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	68.7 pt
Intel Core i9-12900K i9-12900K, 3200 MHz	64.9 pt
Intel Core i5-13600K i5-13600K, 3500 MHz	63.4 pt
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	57.9 pt
Intel Core i5-12600K i5-12600K, 2800 MHz	55.8 pt

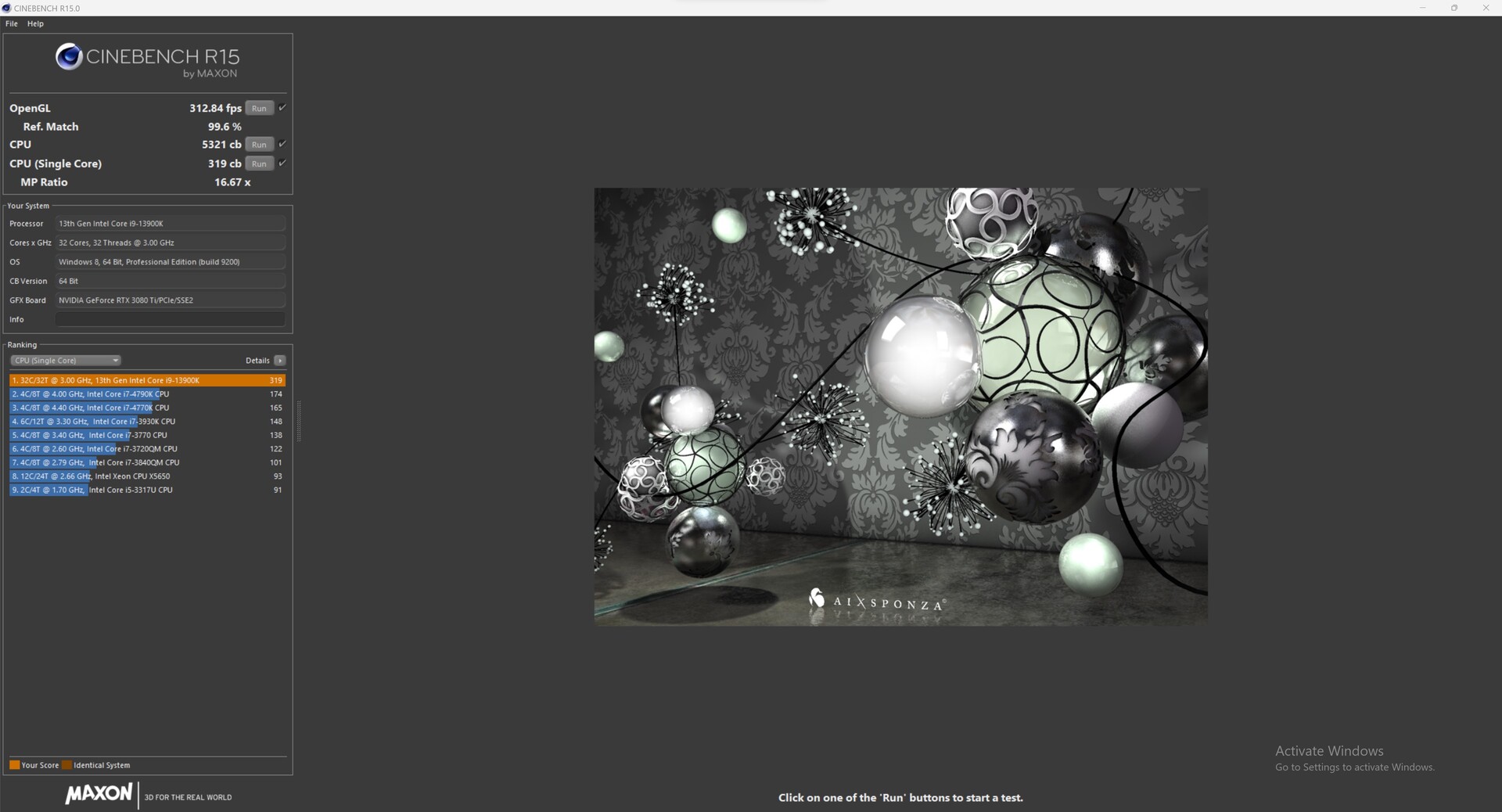

Cinebench R15
CPU Single 64Bit
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	328 Points +3%
Intel Core i9-13900K i9-13900K, 3000 MHz	327 Points +3%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	324 Points +2%
Intel Core i9-13900K i9-13900K, 3000 MHz	319 Points
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	315 Points -1%
Intel Core i5-13600K i5-13600K, 3500 MHz	289 Points -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	286 Points -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	275 Points -14%
CPU Multi 64Bit
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	6209 Points +17%
Intel Core i9-13900K i9-13900K, 3000 MHz	6191 Points +16%
Intel Core i9-13900K i9-13900K, 3000 MHz	5321 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	4856 Points -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	4057 Points -24%
Intel Core i5-13600K i5-13600K, 3500 MHz	3643 Points -32%
Intel Core i5-12600K i5-12600K, 2800 MHz	2555 Points -52%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2507 Points -53%

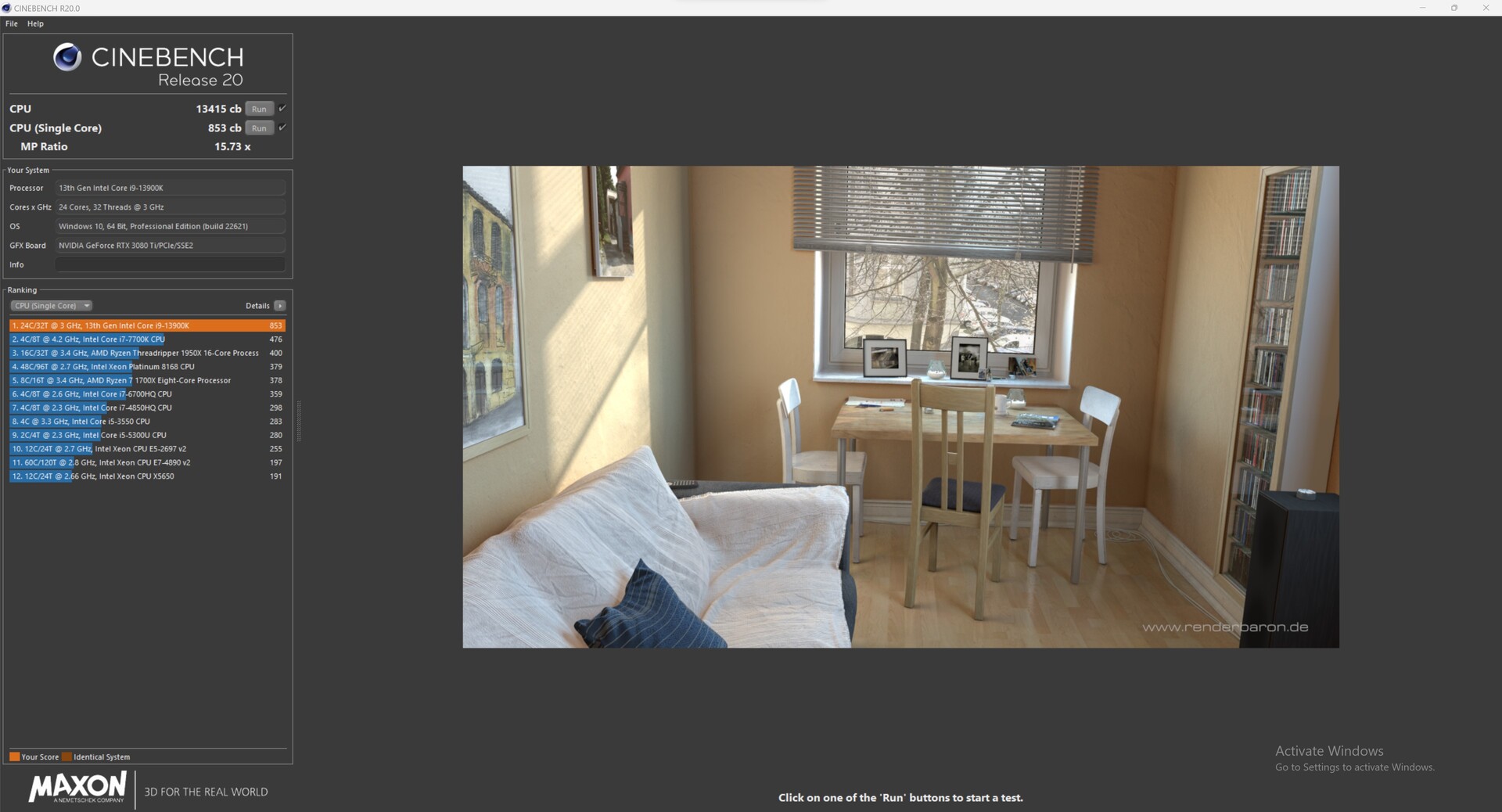

Cinebench R20
CPU (Single Core)
Intel Core i9-13900K i9-13900K, 3000 MHz	853 Points
Intel Core i9-13900K i9-13900K, 3000 MHz	828 Points -3%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	795 Points -7%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	786 Points -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	775 Points -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	766 Points -10%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	761 Points -11%
Intel Core i5-12600K i5-12600K, 2800 MHz	734 Points -14%
CPU (Multi Core)
Intel Core i9-13900K i9-13900K, 3000 MHz	15181 Points +13%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	14786 Points +10%
Intel Core i9-13900K i9-13900K, 3000 MHz	13415 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	11563 Points -14%
Intel Core i9-12900K i9-12900K, 3200 MHz	10240 Points -24%
Intel Core i5-13600K i5-13600K, 3500 MHz	9265 Points -31%
Intel Core i5-12600K i5-12600K, 2800 MHz	6692 Points -50%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	5985 Points -55%

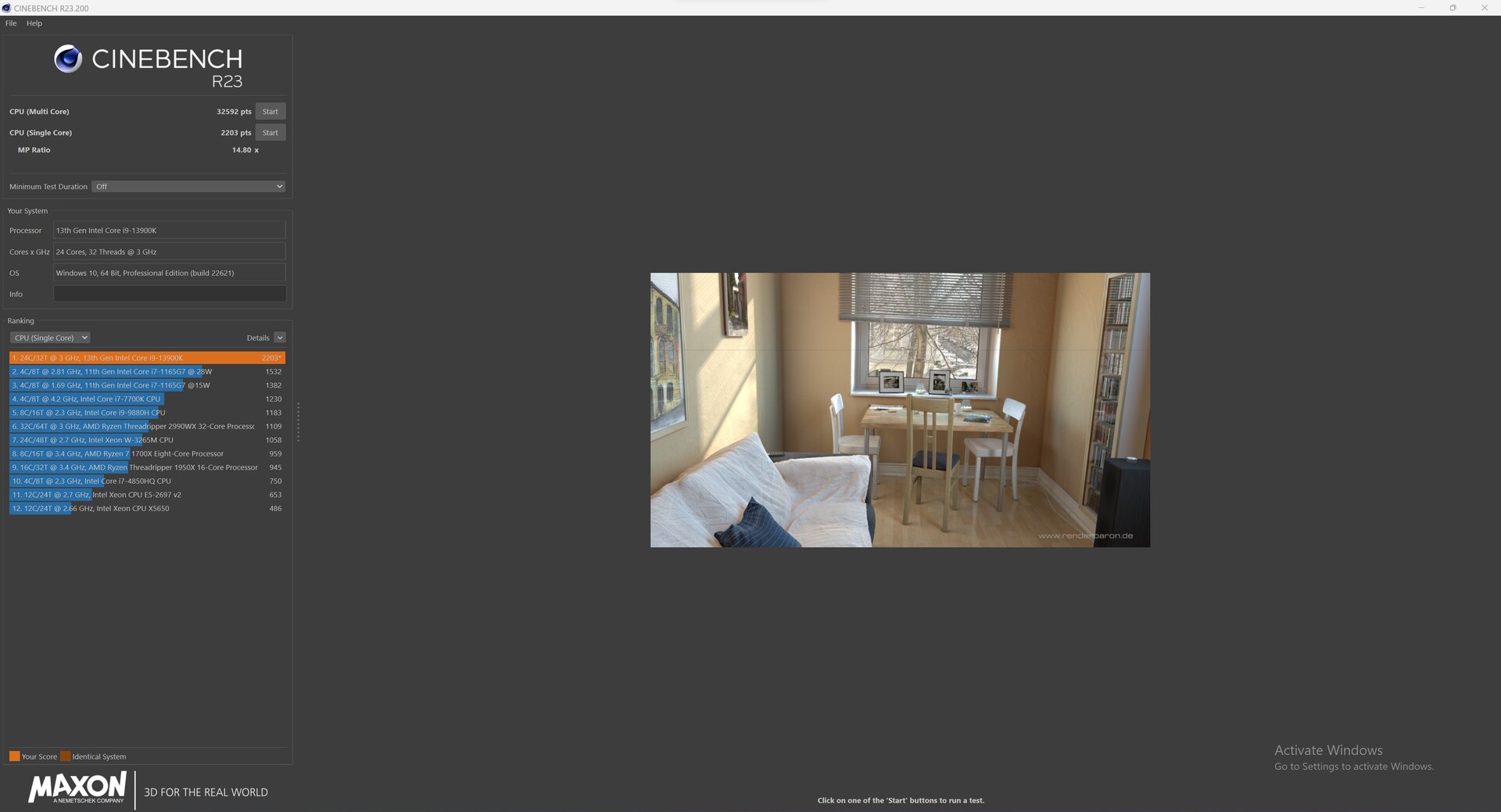

Cinebench R23
Single Core
Intel Core i9-13900K i9-13900K, 3000 MHz	2267 Points +3%
Intel Core i9-13900K i9-13900K, 3000 MHz	2203 Points
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2045 Points -7%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2039 Points -7%
Intel Core i5-13600K i5-13600K, 3500 MHz	2010 Points -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	1998 Points -9%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	1967 Points -11%
Intel Core i5-12600K i5-12600K, 2800 MHz	1907 Points -13%
Multi Core
Intel Core i9-13900K i9-13900K, 3000 MHz	40103 Points +23%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	37792 Points +16%
Intel Core i9-13900K i9-13900K, 3000 MHz	32592 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	29480 Points -10%
Intel Core i9-12900K i9-12900K, 3200 MHz	27005 Points -17%
Intel Core i5-13600K i5-13600K, 3500 MHz	24268 Points -26%
Intel Core i5-12600K i5-12600K, 2800 MHz	17491 Points -46%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	15322 Points -53%

Cinebench R11.5
CPU Single 64Bit
Intel Core i9-13900K i9-13900K, 3000 MHz	3.92 Points +3%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	3.86 Points +2%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	3.83 Points +1%
Intel Core i9-13900K i9-13900K, 3000 MHz	3.8 Points
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	3.72 Points -2%
Intel Core i9-12900K i9-12900K, 3200 MHz	3.49 Points -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	3.48 Points -8%
Intel Core i5-12600K i5-12600K, 2800 MHz	3.31 Points -13%
CPU Multi 64Bit
Intel Core i9-13900K i9-13900K, 3000 MHz	70.78 Points +14%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	68.61 Points +10%
Intel Core i9-13900K i9-13900K, 3000 MHz	62.2 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	54.51 Points -12%
Intel Core i9-12900K i9-12900K, 3200 MHz	47.06 Points -24%
Intel Core i5-13600K i5-13600K, 3500 MHz	42.38 Points -32%
Intel Core i5-12600K i5-12600K, 2800 MHz	30.01 Points -52%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	28.41 Points -54%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i9-13900K i9-13900K, 3000 MHz	18236 Points +3%
Intel Core i9-13900K i9-13900K, 3000 MHz	17761 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	16338 Points -8%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	16260 Points -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	16235 Points -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	16144 Points -9%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	16010 Points -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	15180 Points -15%
Rendering Multiple CPUs 64Bit
Intel Core i9-13900K i9-13900K, 3000 MHz	138969 Points
Intel Core i9-13900K i9-13900K, 3000 MHz	132000 Points -5%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	130289 Points -6%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	121250 Points -13%
Intel Core i9-12900K i9-12900K, 3200 MHz	112749 Points -19%
Intel Core i5-13600K i5-13600K, 3500 MHz	110412 Points -21%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	89641 Points -35%
Intel Core i5-12600K i5-12600K, 2800 MHz	89478 Points -36%

Blender - v2.79 BMW27 CPU
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	203 Seconds * -101%
Intel Core i5-12600K i5-12600K, 2800 MHz	189.5 Seconds * -88%
Intel Core i5-13600K i5-13600K, 3500 MHz	135 Seconds * -34%
Intel Core i9-12900K i9-12900K, 3200 MHz	121.1 Seconds * -20%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	106 Seconds * -5%
Intel Core i9-13900K i9-13900K, 3000 MHz	101 Seconds *
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	85 Seconds * +16%
Intel Core i9-13900K i9-13900K, 3000 MHz	80 Seconds * +21%

wPrime 2.10
32m
Intel Core i9-12900K i9-12900K, 3200 MHz	4.924 s * -150%
Intel Core i5-12600K i5-12600K, 2800 MHz	4.725 s * -140%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2.78 s * -41%
Intel Core i5-13600K i5-13600K, 3500 MHz	2.527 s * -28%
Intel Core i9-13900K i9-13900K, 3000 MHz	1.97 s *
Intel Core i9-13900K i9-13900K, 3000 MHz	1.818 s * +8%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	1.781 s * +10%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	1.669 s * +15%
1024m
Intel Core i5-12600K i5-12600K, 2800 MHz	202.7 s * -125%
Intel Core i9-12900K i9-12900K, 3200 MHz	190.6 s * -111%
Intel Core i5-13600K i5-13600K, 3500 MHz	177.592 s * -97%
Intel Core i9-13900K i9-13900K, 3000 MHz	90.13 s *
Intel Core i9-13900K i9-13900K, 3000 MHz	79.738 s * +12%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	74.491 s * +17%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	39.954 s * +56%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	30.811 s * +66%

X264 HD Benchmark 4.0
Pass 1
Intel Core i9-13900K i9-13900K, 3000 MHz	416.5 (414^min - 417^max) fps
Intel Core i9-13900K i9-13900K, 3000 MHz	412 (410^min - 417^max) fps -1%
Intel Core i5-13600K i5-13600K, 3500 MHz	388 (386^min - 388^max) fps -7%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	379.5 (378^min - 385^max) fps -9%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	376 (369^min - 378^max) fps -10%
Intel Core i9-12900K i9-12900K, 3200 MHz	368.5 (366^min - 369^max) fps -12%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	367 (363^min - 371^max) fps -12%
Intel Core i5-12600K i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps -20%
Pass 2
Intel Core i9-13900K i9-13900K, 3000 MHz	267 (266^min - 271^max) fps +8%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	266.5 (263^min - 267^max) fps +8%
Intel Core i9-13900K i9-13900K, 3000 MHz	247.5 (238^min - 251^max) fps
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	241 (240^min - 242^max) fps -3%
Intel Core i9-12900K i9-12900K, 3200 MHz	206 (206^min - 206^max) fps -17%
Intel Core i5-13600K i5-13600K, 3500 MHz	199 (198.5^min - 199.4^max) fps -20%
Intel Core i5-12600K i5-12600K, 2800 MHz	148 (147^min - 148^max) fps -40%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	147.8 (147.7^min - 147.9^max) fps -40%

WinRAR - Result
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	17225 KB/s +30%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	16351 KB/s +24%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	16178 KB/s +22%
Intel Core i9-13900K i9-13900K, 3000 MHz	14836 KB/s +12%
Intel Core i9-13900K i9-13900K, 3000 MHz	13210 KB/s
Intel Core i5-13600K i5-13600K, 3500 MHz	10937 KB/s -17%
Intel Core i9-12900K i9-12900K, 3200 MHz	10792 KB/s -18%
Intel Core i5-12600K i5-12600K, 2800 MHz	6239 KB/s -53%

TrueCrypt
AES Mean 100MB
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	30.7 GB/s +50%
Intel Core i9-13900K i9-13900K, 3000 MHz	27 GB/s +32%
Intel Core i9-13900K i9-13900K, 3000 MHz	20.5 GB/s
Intel Core i5-13600K i5-13600K, 3500 MHz	18.8 GB/s -8%
Intel Core i9-12900K i9-12900K, 3200 MHz	18.5 GB/s -10%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	14.8 GB/s -28%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	13.2 GB/s -36%
Intel Core i5-12600K i5-12600K, 2800 MHz	12.8 GB/s -38%
Twofish Mean 100MB
Intel Core i9-13900K i9-13900K, 3000 MHz	5.4 GB/s +4%
Intel Core i9-13900K i9-13900K, 3000 MHz	5.2 GB/s
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	4.5 GB/s -13%
Intel Core i9-12900K i9-12900K, 3200 MHz	3.7 GB/s -29%
Intel Core i5-13600K i5-13600K, 3500 MHz	3.1 GB/s -40%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2.8 GB/s -46%
Intel Core i5-12600K i5-12600K, 2800 MHz	2.2 GB/s -58%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	1.8 GB/s -65%
Serpent Mean 100MB
Intel Core i9-13900K i9-13900K, 3000 MHz	3 GB/s +15%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2.8 GB/s +8%
Intel Core i9-13900K i9-13900K, 3000 MHz	2.6 GB/s
Intel Core i9-12900K i9-12900K, 3200 MHz	1.9 GB/s -27%
Intel Core i5-13600K i5-13600K, 3500 MHz	1.7 GB/s -35%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	1.5 GB/s -42%
Intel Core i5-12600K i5-12600K, 2800 MHz	1.3 GB/s -50%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	1.1 GB/s -58%

Geekbench 5.5
Multi-Core
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	24625 Points +10%
Intel Core i9-13900K i9-13900K, 3000 MHz	24157 Points +8%
Intel Core i9-13900K i9-13900K, 3000 MHz	22448 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	19987 Points -11%
Intel Core i9-12900K i9-12900K, 3200 MHz	17854 Points -20%
Intel Core i5-13600K i5-13600K, 3500 MHz	16651 Points -26%
Intel Core i5-12600K i5-12600K, 2800 MHz	12797 Points -43%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	11917 Points -47%
Single-Core
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2311 Points +10%
Intel Core i9-13900K i9-13900K, 3000 MHz	2290 Points +9%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2274 Points +8%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2205 Points +5%
Intel Core i9-13900K i9-13900K, 3000 MHz	2106 Points
Intel Core i9-12900K i9-12900K, 3200 MHz	2042 Points -3%
Intel Core i5-13600K i5-13600K, 3500 MHz	1967 Points -7%
Intel Core i5-12600K i5-12600K, 2800 MHz	1904 Points -10%

Geekbench 5.0
5.0 Multi-Core
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	24479 Points +11%
Intel Core i9-13900K i9-13900K, 3000 MHz	24021 Points +9%
Intel Core i9-13900K i9-13900K, 3000 MHz	22024 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	19975 Points -9%
Intel Core i9-12900K i9-12900K, 3200 MHz	17959 Points -18%
Intel Core i5-13600K i5-13600K, 3500 MHz	16635 Points -24%
Intel Core i5-12600K i5-12600K, 2800 MHz	12746 Points -42%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	11880 Points -46%
5.0 Single-Core
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	2222 Points +3%
Intel Core i9-13900K i9-13900K, 3000 MHz	2214 Points +3%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	2194 Points +2%
Intel Core i9-13900K i9-13900K, 3000 MHz	2148 Points
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	2126 Points -1%
Intel Core i9-12900K i9-12900K, 3200 MHz	1968 Points -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	1931 Points -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	1821 Points -15%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i9-13900K i9-13900K, 3000 MHz	9598 Points +4%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	9322 Points +1%
Intel Core i9-13900K i9-13900K, 3000 MHz	9218 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	9193 Points 0%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	8926 Points -3%
Intel Core i9-12900K i9-12900K, 3200 MHz	8665 Points -6%
Intel Core i5-13600K i5-13600K, 3500 MHz	8618 Points -7%
Intel Core i5-12600K i5-12600K, 2800 MHz	8223 Points -11%
64 Bit Multi-Core Score
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	89678 Points +16%
Intel Core i9-13900K i9-13900K, 3000 MHz	86695 Points +12%
Intel Core i9-13900K i9-13900K, 3000 MHz	77347 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	74731 Points -3%
Intel Core i9-12900K i9-12900K, 3200 MHz	63583 Points -18%
Intel Core i5-13600K i5-13600K, 3500 MHz	60407 Points -22%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	47407 Points -39%
Intel Core i5-12600K i5-12600K, 2800 MHz	46557 Points -40%

3DMark 11 - 1280x720 Performance Physics
Intel Core i9-13900K i9-13900K, 3000 MHz	32273 Points +11%
Intel Core i5-13600K i5-13600K, 3500 MHz	30480 Points +5%
Intel Core i9-13900K i9-13900K, 3000 MHz	29023 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	28618 Points -1%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	28618 Points -1%
Intel Core i9-12900K i9-12900K, 3200 MHz	28211 Points -3%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	25396 Points -12%
Intel Core i5-12600K i5-12600K, 2800 MHz	25017 Points -14%

7-Zip 18.03
7z b 4
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	161724 MIPS +27%
Intel Core i9-13900K i9-13900K, 3000 MHz	147068 MIPS +16%
Intel Core i9-13900K i9-13900K, 3000 MHz	127201 MIPS
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	124975 MIPS -2%
Intel Core i9-12900K i9-12900K, 3200 MHz	97671 MIPS -23%
Intel Core i5-13600K i5-13600K, 3500 MHz	89647 MIPS -30%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	69291 MIPS -46%
Intel Core i5-12600K i5-12600K, 2800 MHz	64260 MIPS -49%
7z b 4 -mmt1
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	8365 MIPS +15%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	8282 MIPS +14%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	8063 MIPS +11%
Intel Core i9-13900K i9-13900K, 3000 MHz	7272 MIPS 0%
Intel Core i9-13900K i9-13900K, 3000 MHz	7255 MIPS
Intel Core i9-12900K i9-12900K, 3200 MHz	6571 MIPS -9%
Intel Core i5-13600K i5-13600K, 3500 MHz	6502 MIPS -10%
Intel Core i5-12600K i5-12600K, 2800 MHz	5944 MIPS -18%

HWBOT x265 Benchmark v2.2 - 4k Preset
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	44.4 fps +29%
Intel Core i9-13900K i9-13900K, 3000 MHz	42.6 fps +23%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	36.2 fps +5%
Intel Core i9-13900K i9-13900K, 3000 MHz	34.5 fps
Intel Core i5-12600K i5-12600K, 2800 MHz	30.1 fps -13%
Intel Core i9-12900K i9-12900K, 3200 MHz	30 fps -13%
Intel Core i5-13600K i5-13600K, 3500 MHz	27.6 fps -20%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	21.1 fps -39%

R Benchmark 2.5 - Overall mean
Intel Core i5-12600K i5-12600K, 2800 MHz	0.4456 sec * -14%
Intel Core i9-12900K i9-12900K, 3200 MHz	0.4216 sec * -8%
Intel Core i5-13600K i5-13600K, 3500 MHz	0.405 sec * -4%
Intel Core i9-13900K i9-13900K, 3000 MHz	0.3911 sec *
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	0.3749 sec * +4%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	0.3736 sec * +4%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	0.3682 sec * +6%
Intel Core i9-13900K i9-13900K, 3000 MHz	0.3539 sec * +10%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K i5-12600K, 2800 MHz	71.8 s * -73%
Intel Core i9-13900K i9-13900K, 3000 MHz	41.6 s *
Intel Core i9-12900K i9-12900K, 3200 MHz	40.6 s * +2%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	36.8 s * +12%
Intel Core i9-13900K i9-13900K, 3000 MHz	36.6 s * +12%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	35.5 s * +15%
Intel Core i5-13600K i5-13600K, 3500 MHz	35 s * +16%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	34.9 s * +16%

WebXPRT 3 - Overall
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	371 Points +10%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	366 Points +8%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	362 Points +7%
Intel Core i9-13900K i9-13900K, 3000 MHz	361 Points +7%
Intel Core i9-13900K i9-13900K, 3000 MHz	338 Points
Intel Core i5-13600K i5-13600K, 3500 MHz	333 Points -1%
Intel Core i9-12900K i9-12900K, 3200 MHz	320 Points -5%
Intel Core i5-12600K i5-12600K, 2800 MHz	293 Points -13%

Mozilla Kraken 1.1 - Total
Intel Core i5-12600K i5-12600K, 2800 MHz	511 ms * -17%
Intel Core i9-12900K i9-12900K, 3200 MHz	481 ms * -10%
Intel Core i5-13600K i5-13600K, 3500 MHz	469 ms * -7%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	441 ms * -1%
Intel Core i9-13900K i9-13900K, 3000 MHz	438 ms *
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	433 ms * +1%
Intel Core i9-13900K i9-13900K, 3000 MHz	432 ms * +1%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	431 ms * +2%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i9-13900K i9-13900K, 3000 MHz	54036 Points +17%
Intel Core i9-13900K i9-13900K, 3000 MHz	46030 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	42399 Points -8%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	42399 Points -8%
Intel Core i9-12900K i9-12900K, 3200 MHz	39462 Points -14%
Intel Core i5-13600K i5-13600K, 3500 MHz	36774 Points -20%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	30780 Points -33%
Intel Core i5-12600K i5-12600K, 2800 MHz	29443 Points -36%
1920x1080 Fire Strike Physics
Intel Core i9-13900K i9-13900K, 3000 MHz	53853 Points +17%
Intel Core i9-13900K i9-13900K, 3000 MHz	46013 Points
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	42682 Points -7%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	42682 Points -7%
Intel Core i9-12900K i9-12900K, 3200 MHz	39112 Points -15%
Intel Core i5-13600K i5-13600K, 3500 MHz	35386 Points -23%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	30691 Points -33%
Intel Core i5-12600K i5-12600K, 2800 MHz	29671 Points -36%
2560x1440 Time Spy CPU
Intel Core i9-13900K i9-13900K, 3000 MHz	19392 Points +19%
Intel Core i9-12900K i9-12900K, 3200 MHz	18431 Points +14%
Intel Core i5-13600K i5-13600K, 3500 MHz	17124 Points +5%
AMD Ryzen 9 7900X R9 7900X, 4700 MHz	16616 Points +2%
AMD Ryzen 9 7950X R9 7950X, 4500 MHz	16616 Points +2%
Intel Core i9-13900K i9-13900K, 3000 MHz	16236 Points
Intel Core i5-12600K i5-12600K, 2800 MHz	13869 Points -15%
AMD Ryzen 5 7600X R5 7600X, 4700 MHz	10458 Points -36%

* ... smaller is better

Performance Rating
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	98.8 pt
Intel Core i9-13900K Intel Core i9-13900K	78.7 pt
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	75 pt
Average of class Desktop	65.7 pt
Intel Core i9-13900K Intel NUC13 Raptor Canyon	61.7 pt
Intel Core i5-13600K Intel Core i5-13600K	52.5 pt
Intel Core i9-12900K Intel Core i9-12900K	44 pt
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	41.8 pt
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	37.4 pt
Intel Core i5-12600K Intel Core i5-12600K	32.5 pt
Intel Core i7-11800H Minisforum NUCX i7	31.6 pt

AIDA64 / FP32 Ray-Trace
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	61180 KRay/s +117%
Average of class Desktop (6011 - 83214, n=16, last 2 years)	38182 KRay/s +35%
Intel Core i9-13900K Intel Core i9-13900K	36939 KRay/s +31%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	33676 KRay/s +19%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	28226 KRay/s
Intel Core i5-13600K Intel Core i5-13600K	23446 KRay/s -17%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	17633 KRay/s -38%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	15334 KRay/s -46%
Intel Core i9-12900K Intel Core i9-12900K	13266 KRay/s -53%
Intel Core i7-11800H Minisforum NUCX i7	12788 KRay/s -55%
Intel Core i5-12600K Intel Core i5-12600K	8243 KRay/s -71%

AIDA64 / FPU Julia
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	234844 Points +66%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	201995 Points +43%
Intel Core i9-13900K Intel Core i9-13900K	183390 Points +30%
Average of class Desktop (27835 - 264044, n=16, last 2 years)	152736 Points +8%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	141111 Points
Intel Core i5-13600K Intel Core i5-13600K	111374 Points -21%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	103526 Points -27%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	99427 Points -30%
Intel Core i9-12900K Intel Core i9-12900K	59419 Points -58%
Intel Core i7-11800H Minisforum NUCX i7	54342 Points -61%
Intel Core i5-12600K Intel Core i5-12600K	37321 Points -74%

AIDA64 / CPU SHA3
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	10076 MB/s +48%
Intel Core i9-13900K Intel Core i9-13900K	9180 MB/s +35%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	7018 MB/s +3%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	6810 MB/s
Average of class Desktop (1909 - 10804, n=16, last 2 years)	6766 MB/s -1%
Intel Core i5-13600K Intel Core i5-13600K	5253 MB/s -23%
Intel Core i9-12900K Intel Core i9-12900K	4952 MB/s -27%
Intel Core i7-11800H Minisforum NUCX i7	3655 MB/s -46%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	3601 MB/s -47%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	3401 MB/s -50%
Intel Core i5-12600K Intel Core i5-12600K	3250 MB/s -52%

AIDA64 / CPU Queen
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	203324 Points +30%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	172637 Points +11%
Intel Core i9-13900K Intel Core i9-13900K	159676 Points +2%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	155930 Points
Average of class Desktop (46554 - 205588, n=16, last 2 years)	140082 Points -10%
Intel Core i5-13600K Intel Core i5-13600K	120485 Points -23%
Intel Core i9-12900K Intel Core i9-12900K	112694 Points -28%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	107954 Points -31%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	104437 Points -33%
Intel Core i7-11800H Minisforum NUCX i7	89290 Points -43%
Intel Core i5-12600K Intel Core i5-12600K	88337 Points -43%

AIDA64 / FPU SinJulia
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	32823 Points +89%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	24881 Points +43%
Intel Core i9-13900K Intel Core i9-13900K	19920 Points +14%
Average of class Desktop (4656 - 35251, n=16, last 2 years)	19213 Points +10%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	17400 Points
Intel Core i9-12900K Intel Core i9-12900K	14664 Points -16%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	12774 Points -27%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	12662 Points -27%
Intel Core i5-13600K Intel Core i5-13600K	12201 Points -30%
Intel Core i7-11800H Minisforum NUCX i7	9734 Points -44%
Intel Core i5-12600K Intel Core i5-12600K	9510 Points -45%

AIDA64 / FPU Mandel
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	118564 Points +68%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	106620 Points +51%
Intel Core i9-13900K Intel Core i9-13900K	91721 Points +30%
Average of class Desktop (16325 - 138291, n=16, last 2 years)	79708 Points +13%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	70668 Points
Intel Core i5-13600K Intel Core i5-13600K	57797 Points -18%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	54893 Points -22%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	54555 Points -23%
Intel Core i9-12900K Intel Core i9-12900K	38042 Points -46%
Intel Core i7-11800H Minisforum NUCX i7	32372 Points -54%
Intel Core i5-12600K Intel Core i5-12600K	24230 Points -66%

AIDA64 / CPU AES
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	377952 MB/s +183%
Intel Core i9-13900K Intel Core i9-13900K	297727 MB/s +123%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	279956 MB/s +110%
Average of class Desktop (66023 - 513073, n=16, last 2 years)	203596 MB/s +52%
Intel Core i5-13600K Intel Core i5-13600K	175556 MB/s +31%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	144365 MB/s +8%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	134031 MB/s 0%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	133509 MB/s
Intel Core i7-11800H Minisforum NUCX i7	128262 MB/s -4%
Intel Core i9-12900K Intel Core i9-12900K	94062 MB/s -30%
Intel Core i5-12600K Intel Core i5-12600K	58635 MB/s -56%

AIDA64 / CPU ZLib
Intel Core i9-13900K Intel Core i9-13900K	2490 MB/s +27%
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	2427 MB/s +24%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	1965 MB/s
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	1848 MB/s -6%
Average of class Desktop (347 - 2632, n=16, last 2 years)	1669 MB/s -15%
Intel Core i9-12900K Intel Core i9-12900K	1560 MB/s -21%
Intel Core i5-13600K Intel Core i5-13600K	1426 MB/s -27%
Intel Core i5-12600K Intel Core i5-12600K	988 MB/s -50%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	945 MB/s -52%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	859 MB/s -56%
Intel Core i7-11800H Minisforum NUCX i7	756 MB/s -62%

AIDA64 / FP64 Ray-Trace
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	32883 KRay/s +114%
Average of class Desktop (3442 - 44013, n=16, last 2 years)	20563 KRay/s +34%
Intel Core i9-13900K Intel Core i9-13900K	20298 KRay/s +32%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	18490 KRay/s +20%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	15363 KRay/s
Intel Core i5-13600K Intel Core i5-13600K	12806 KRay/s -17%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	9488 KRay/s -38%
Intel Core i9-12900K Intel Core i9-12900K	8078 KRay/s -47%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	8000 KRay/s -48%
Intel Core i7-11800H Minisforum NUCX i7	7109 KRay/s -54%
Intel Core i5-12600K Intel Core i5-12600K	5149 KRay/s -66%

AIDA64 / CPU PhotoWorxx
Intel Core i9-13900K Intel Core i9-13900K	48674 MPixel/s +8%
Intel Core i5-12600K Intel Core i5-12600K	48577 MPixel/s +8%
Intel Core i5-13600K Intel Core i5-13600K	48434 MPixel/s +8%
Intel Core i9-12900K Intel Core i9-12900K	48307 MPixel/s +7%
Intel Core i9-13900K Intel NUC13 Raptor Canyon	45051 MPixel/s
AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090 Founders Edition	43947 MPixel/s -2%
Average of class Desktop (25669 - 54680, n=16, last 2 years)	41278 MPixel/s -8%
AMD Ryzen 9 7900X AMD Ryzen 9 7900X	40893 MPixel/s -9%
AMD Ryzen 5 7600X AMD Ryzen 5 7600X	32202 MPixel/s -29%
Intel Core i7-11800H Minisforum NUCX i7	23758 MPixel/s -47%
AMD Ryzen 9 5900HX Minisforum Neptune Series HX90G	20422 MPixel/s -55%

英特尔NUC 13 Extreme套件。Cinebench R15多循环

我们的Cinebench R15多重循环显示，在第一次循环之后，性能明显下降。由于紧凑的冷却解决方案和功率限制，我们观察到的性能水平低于英特尔酷睿i9-13900K在另一个系统中使用英特尔酷睿i9-13900K在持续的CPU压力下。也就是说，4779分的结果仍然大大高于英特尔龙谷NUC的结果。

Intel NUC13 Raptor Canyon Intel Core i9-13900K, Intel Core i9-13900K: Ø4779 (4708.1-5265.93)

Intel Ghost Canyon NUC (RTX 2070) Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1463 (1410.79-1593.44)

Intel Beast Canyon NUC Intel Core i9-11900KB, Intel Core i9-11900KB: Ø1800 (1776.75-1859.25)

Intel Dragon Canyon NUC - RTX 3060 Intel Core i9-12900, Intel Core i9-12900: Ø2592 (2433.39-3346.44)

Intel Core i9-13900K Intel Core i9-13900K, Intel Core i9-13900K: Ø6182 (6045.95-6213.11)

Intel Core i9-12900K Intel Core i9-12900K, Intel Core i9-12900K: Ø3987 (3920.42-4037.55)

系统性能

当涉及到合成基准时，英特尔NUC 13 Extreme Raptor Canyon以非常快的系统性能大放异彩。在这里，英特尔酷睿i9-13900K具有更好的冷却效果，仍然有一个小的领先优势。然而，来自Minisforum的竞争者和NUC系列的直接前辈们并没有机会。从主观上讲，我们的测试系统非常快，反应灵敏，没有明显的延迟。

Performance Rating | PCMark 10

Performance Rating - Percent
AMD Ryzen 9 7900X, AMD Ryzen 9 7900X NVIDIA GeForce RTX 3090,	97.4 pt
NVIDIA GeForce RTX 3090 Founders Edition, AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090, Corsair MP600	97.4 pt
AMD Ryzen 5 7600X, AMD Ryzen 5 7600X NVIDIA GeForce RTX 3090,	96.9 pt
Intel Core i9-13900K, Intel Core i9-13900K NVIDIA GeForce RTX 3090, Corsair MP600	96.3 pt
Intel Core i5-13600K, Intel Core i5-13600K NVIDIA GeForce RTX 3090, Corsair MP600	94.1 pt
Intel NUC13 Raptor Canyon, Intel Core i9-13900K NVIDIA GeForce RTX 3080 Ti, Kingston Fury Renegade SFYRS1000G	89.8 pt
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	85.9 pt
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	84.4 pt
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S	83.1 pt
Intel Beast Canyon NUC, Intel Core i9-11900KB NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB	76.8 pt
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX AMD Radeon RX 6600M, ESO512GYLCT	76.6 pt
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	71.3 pt

PCMark 10
Score
AMD Ryzen 9 7900X, AMD Ryzen 9 7900X NVIDIA GeForce RTX 3090,	9911 Points +9%
NVIDIA GeForce RTX 3090 Founders Edition, AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090, Corsair MP600	9911 Points +9%
Intel Core i9-13900K, Intel Core i9-13900K NVIDIA GeForce RTX 3090, Corsair MP600	9788 Points +7%
AMD Ryzen 5 7600X, AMD Ryzen 5 7600X NVIDIA GeForce RTX 3090,	9470 Points +4%
Intel Core i5-13600K, Intel Core i5-13600K NVIDIA GeForce RTX 3090, Corsair MP600	9362 Points +3%
Intel NUC13 Raptor Canyon, Intel Core i9-13900K NVIDIA GeForce RTX 3080 Ti, Kingston Fury Renegade SFYRS1000G	9118 Points
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8604 Points -6%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8259 Points -9%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S	8083 Points -11%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX AMD Radeon RX 6600M, ESO512GYLCT	7341 Points -19%
Intel Beast Canyon NUC, Intel Core i9-11900KB NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB	7281 Points -20%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	6863 Points -25%
Essentials
Intel Core i9-13900K, Intel Core i9-13900K NVIDIA GeForce RTX 3090, Corsair MP600	12868 Points +11%
AMD Ryzen 9 7900X, AMD Ryzen 9 7900X NVIDIA GeForce RTX 3090,	12651 Points +9%
NVIDIA GeForce RTX 3090 Founders Edition, AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090, Corsair MP600	12651 Points +9%
Intel Core i5-13600K, Intel Core i5-13600K NVIDIA GeForce RTX 3090, Corsair MP600	12306 Points +6%
AMD Ryzen 5 7600X, AMD Ryzen 5 7600X NVIDIA GeForce RTX 3090,	12259 Points +6%
Intel NUC13 Raptor Canyon, Intel Core i9-13900K NVIDIA GeForce RTX 3080 Ti, Kingston Fury Renegade SFYRS1000G	11598 Points
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S	11171 Points -4%
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	11086 Points -4%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	10650 Points -8%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX AMD Radeon RX 6600M, ESO512GYLCT	10552 Points -9%
Intel Beast Canyon NUC, Intel Core i9-11900KB NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB	10422 Points -10%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	9865 Points -15%
Productivity
AMD Ryzen 5 7600X, AMD Ryzen 5 7600X NVIDIA GeForce RTX 3090,	12608 Points +15%
AMD Ryzen 9 7900X, AMD Ryzen 9 7900X NVIDIA GeForce RTX 3090,	11853 Points +8%
NVIDIA GeForce RTX 3090 Founders Edition, AMD Ryzen 9 7950X NVIDIA GeForce RTX 3090, Corsair MP600	11853 Points +8%
Intel Core i5-13600K, Intel Core i5-13600K NVIDIA GeForce RTX 3090, Corsair MP600	11630 Points +6%
Intel Core i9-13900K, Intel Core i9-13900K NVIDIA GeForce RTX 3090, Corsair MP600	11370 Points +3%
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	11001 Points 0%
Intel NUC13 Raptor Canyon, Intel Core i9-13900K NVIDIA GeForce RTX 3080 Ti, Kingston Fury Renegade SFYRS1000G	10988 Points
Intel Core i9-12900K, Intel Core i9-12900K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	10699 Points -3%
Intel Dragon Canyon NUC - RTX 3060, Intel Core i9-12900 NVIDIA GeForce RTX 3060, Transcend M.2 SSD 2200S TS512GMTE220S	10205 Points -7%
Intel Beast Canyon NUC, Intel Core i9-11900KB NVIDIA GeForce RTX 3060, Sabrent Rocket 4.0 500GB	9582 Points -13%
Minisforum Neptune Series HX90G, AMD Ryzen 9 5900HX AMD Radeon RX 6600M, ESO512GYLCT	9288 Points -15%
Minisforum NUCX i7, Intel Core i7-11800H NVIDIA GeForce RTX 3070 Laptop GPU,	8579 Points -22%

Performance Rating | PCMark 10

存储解决方案

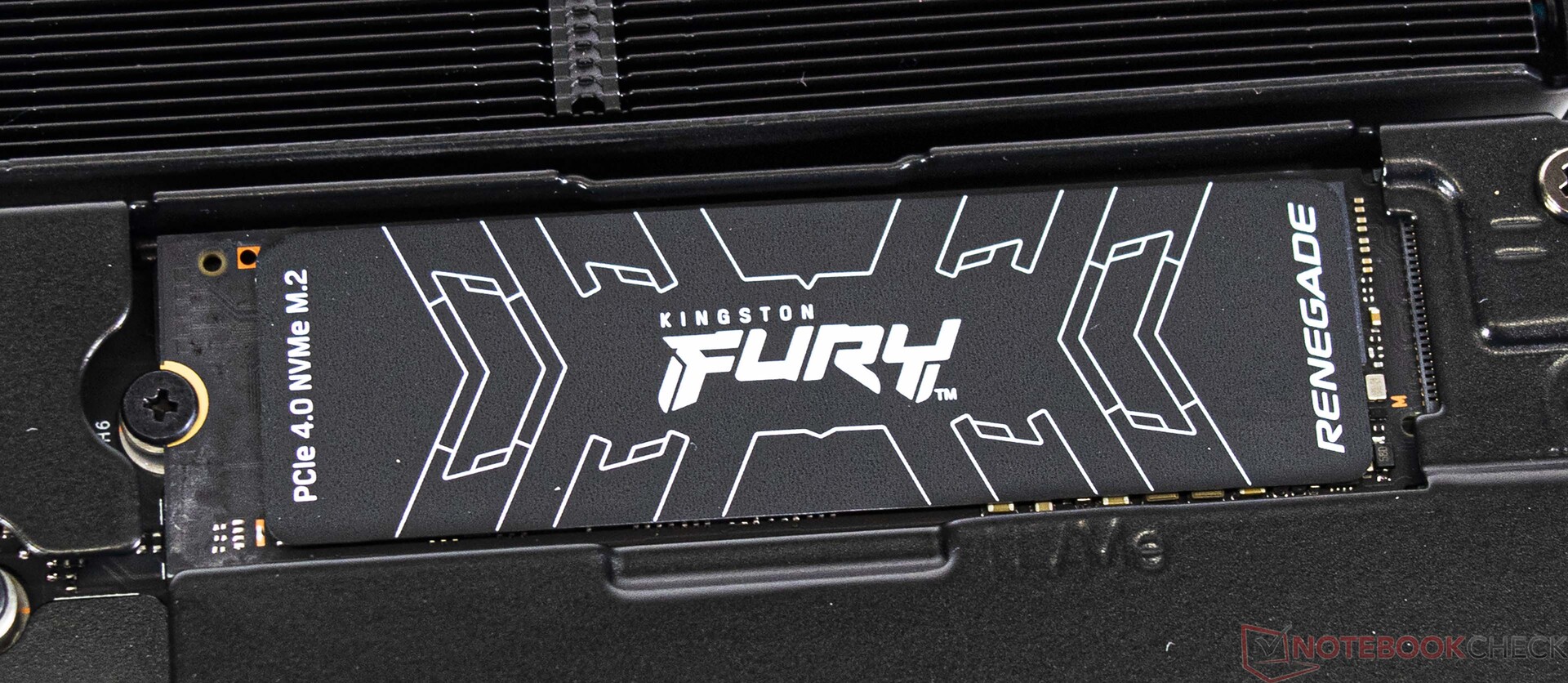

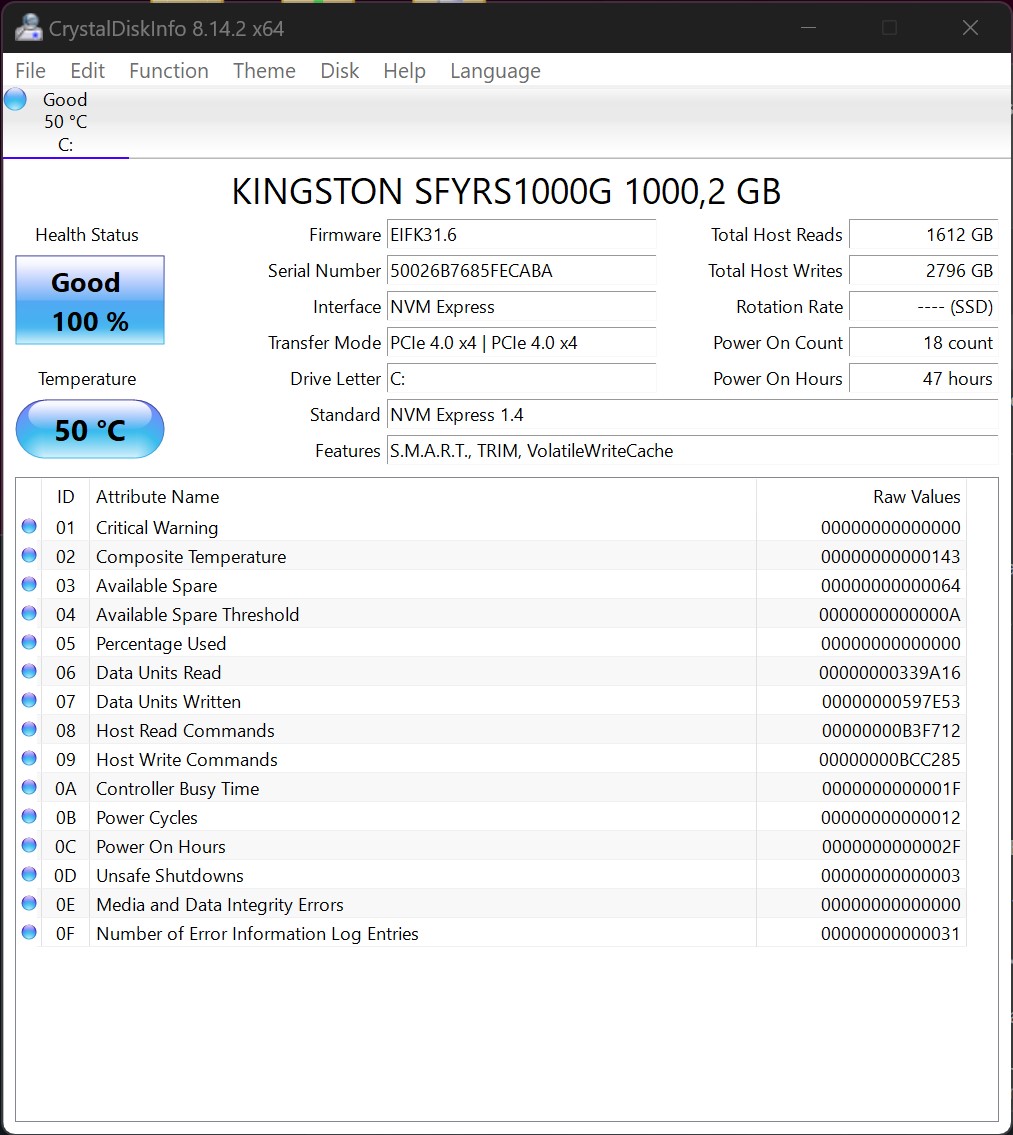

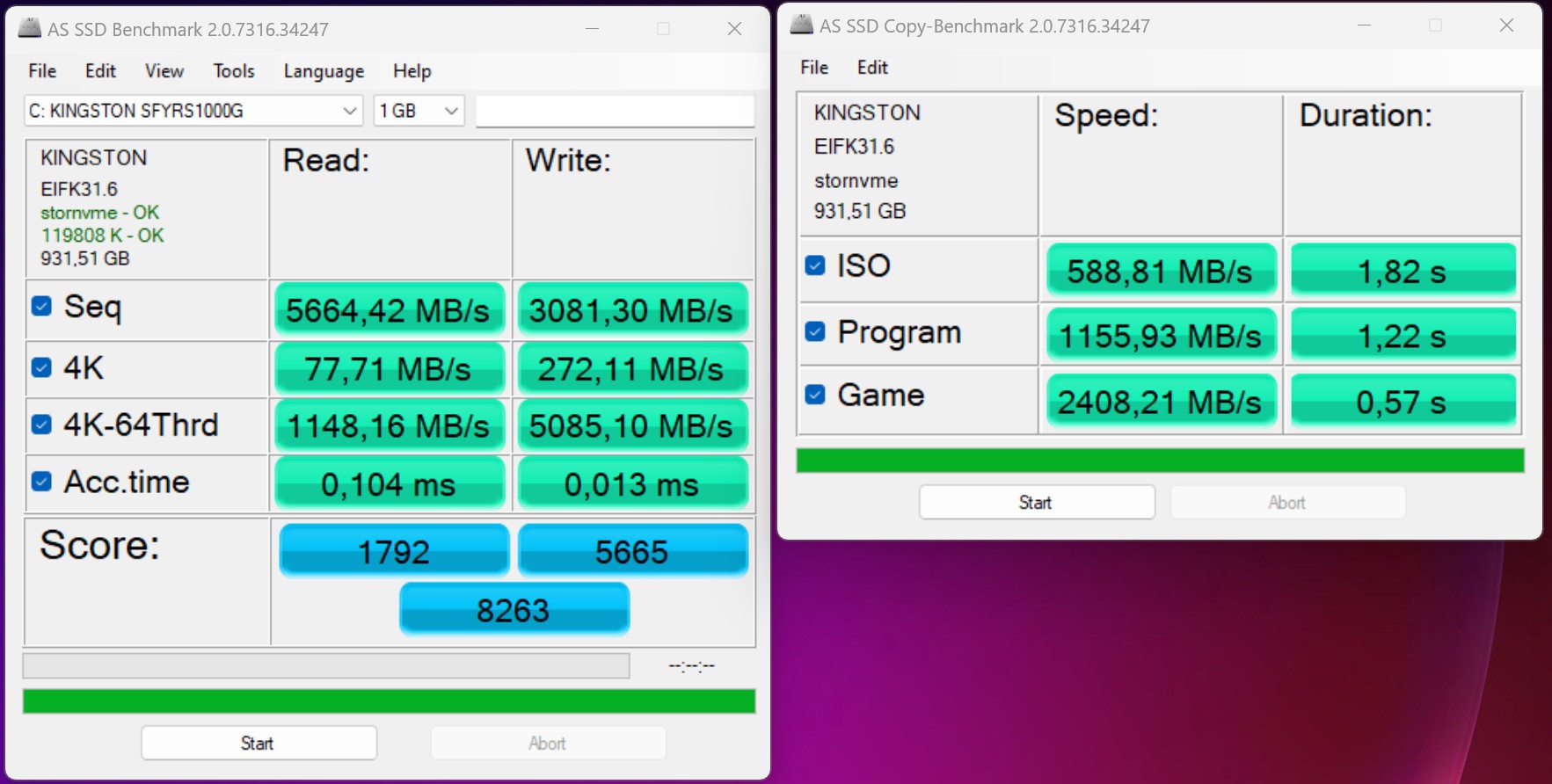

我们的测试样本使用一个非常快的金士顿NVMe固态硬盘作为系统驱动器。该模型表现非常好，在AS SSD和DiskSpd中都达到了极快的传输速度。由于英特尔NUC 13 Extreme Raptor Canyon是一个裸机系统，用户可以选择他们想要安装的SSD驱动器。计算元素总共支持多达三个M.2固态硬盘。安装固态硬盘有点麻烦，因为首先需要将计算元件从NUC 13上完全拆下来。

更多的比较和基准可以在我们的比较表.

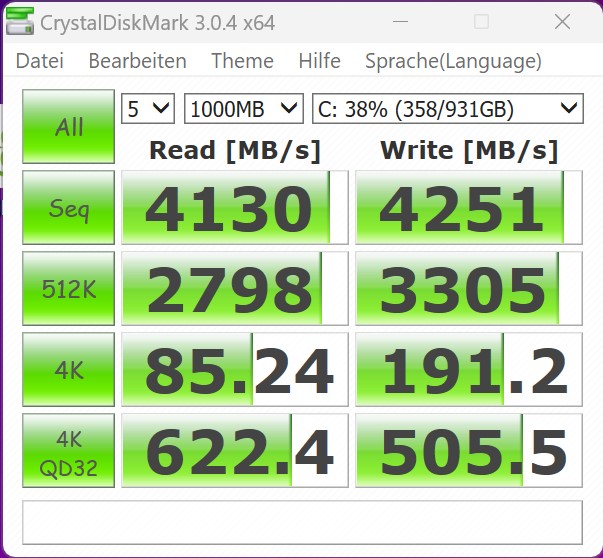

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston Fury Renegade SFYRS1000G

Sequential Read: 4130 MB/s

Sequential Write: 4251 MB/s

512K Read: 2798 MB/s

512K Write: 3305 MB/s

4K Read: 85.24 MB/s

4K Write: 191.2 MB/s

4K QD32 Read: 622.4 MB/s

4K QD32 Write: 505.5 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	80.8 pt
Average Kingston Fury Renegade SFYRS1000G	80.8 pt
Average of class Desktop	79.6 pt
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	67.9 pt
Intel Dragon Canyon NUC - RTX 3060 ^-11! Transcend M.2 SSD 2200S TS512GMTE220S	55.8 pt
Minisforum Neptune Series HX90G ESO512GYLCT	41 pt
Minisforum NUCX i7	35 pt

DiskSpd
seq read
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	3912 (3515.15^min - 3912.09^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	3912 MB/s 0%
Average of class Desktop (938 - 4547, n=9, last 2 years)	3098 MB/s -21%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	1936 (1755.26^min - 1936.41^max) MB/s -51%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	1936 (1755.26^min - 1936.41^max) MB/s -51%
Minisforum NUCX i7	1620 (1579.16^min - 1620.17^max) MB/s -59%
Minisforum Neptune Series HX90G ESO512GYLCT	1614 (1595.77^min - 1613.55^max) MB/s -59%
seq write
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	4256 (3822.69^min - 4255.75^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	4256 MB/s 0%
Average of class Desktop (945 - 6288, n=9, last 2 years)	3684 MB/s -13%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	1744 (525.75^min - 1743.78^max) MB/s -59%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	1744 (525.75^min - 1743.78^max) MB/s -59%
Minisforum NUCX i7	1707 (1684.21^min - 1706.66^max) MB/s -60%
Minisforum Neptune Series HX90G ESO512GYLCT	1681 (1674.37^min - 1681.28^max) MB/s -61%
seq q8 t1 read
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	7116 (6584.47^min - 7116.06^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	7116 MB/s 0%
Average of class Desktop (1745 - 7378, n=9, last 2 years)	5663 MB/s -20%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	4996 (4330.97^min - 4996.25^max) MB/s -30%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	4996 (4330.97^min - 4996.25^max) MB/s -30%
Minisforum Neptune Series HX90G ESO512GYLCT	2344 (2130.71^min - 2343.78^max) MB/s -67%
Minisforum NUCX i7	2308 (2036.12^min - 2307.5^max) MB/s -68%
seq q8 t1 write
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	6135 (6096.84^min - 6134.8^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	6135 MB/s 0%
Average of class Desktop (952 - 6920, n=9, last 2 years)	4810 MB/s -22%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	2524 (535.17^min - 2524.36^max) MB/s -59%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	2524 (535.17^min - 2524.36^max) MB/s -59%
Minisforum Neptune Series HX90G ESO512GYLCT	1849 (1833.02^min - 1849.14^max) MB/s -70%
Minisforum NUCX i7	1843 (1731.1^min - 1843.4^max) MB/s -70%
4k q1 t1 read
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	86.5 (82.21^min - 86.46^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	86.5 MB/s 0%
Average of class Desktop (38.7 - 91.9, n=9, last 2 years)	69.9 MB/s -19%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	45.7 (45.38^min - 45.71^max) MB/s -47%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	45.7 (45.38^min - 45.71^max) MB/s -47%
Minisforum NUCX i7	38.9 (38.65^min - 38.87^max) MB/s -55%
Minisforum Neptune Series HX90G ESO512GYLCT	37.9 (37.34^min - 37.87^max) MB/s -56%
4k q1 t1 write
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	320 (298.75^min - 319.53^max) MB/s +67%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	320 (298.75^min - 319.53^max) MB/s +67%
Average of class Desktop (160.7 - 364, n=9, last 2 years)	254 MB/s +32%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	192 (183.56^min - 191.99^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	192 MB/s 0%
Minisforum NUCX i7	187.4 (170.03^min - 187.4^max) MB/s -2%
Minisforum Neptune Series HX90G ESO512GYLCT	161.3 (150.7^min - 161.34^max) MB/s -16%
4k q32 t16 read
Average of class Desktop (345 - 4319, n=9, last 2 years)	2317 MB/s +97%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	1176 (1157.2^min - 1176.4^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	1176 MB/s 0%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	970 (966.45^min - 970.29^max) MB/s -18%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	970 (966.45^min - 970.29^max) MB/s -18%
Minisforum Neptune Series HX90G ESO512GYLCT	822 (773.05^min - 821.5^max) MB/s -30%
Minisforum NUCX i7	786 (734.36^min - 786.34^max) MB/s -33%
4k q32 t16 write
Average of class Desktop (446 - 5015, n=9, last 2 years)	2254 MB/s +319%
Minisforum Neptune Series HX90G ESO512GYLCT	1492 (333.99^min - 1492.35^max) MB/s +177%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	1119 (483.18^min - 1119.3^max) MB/s +108%
Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S	1119 (483.18^min - 1119.3^max) MB/s +108%
Minisforum NUCX i7	1032 (266.97^min - 1032.05^max) MB/s +92%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	538 (527.91^min - 538.21^max) MB/s
Average Kingston Fury Renegade SFYRS1000G ()	538 MB/s 0%

AS SSD
Score Total
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	8263 Points
Average Kingston Fury Renegade SFYRS1000G ()	8263 Points 0%
Average of class Desktop (1598 - 11756, n=6, last 2 years)	6964 Points -16%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	6467 Points -22%
Minisforum Neptune Series HX90G ESO512GYLCT	2988 Points -64%
Minisforum NUCX i7	1054.23 Points -87%
Score Read
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	2462 Points +37%
Average of class Desktop (522 - 3960, n=6, last 2 years)	2308 Points +29%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	1792 Points
Average Kingston Fury Renegade SFYRS1000G ()	1792 Points 0%
Minisforum Neptune Series HX90G ESO512GYLCT	1001 Points -44%
Minisforum NUCX i7	895 Points -50%
Score Write
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	5665 Points
Average Kingston Fury Renegade SFYRS1000G ()	5665 Points 0%
Average of class Desktop (810 - 5774, n=6, last 2 years)	3534 Points -38%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	2827 Points -50%
Minisforum NUCX i7	1556 Points -73%
Minisforum Neptune Series HX90G ESO512GYLCT	1482 Points -74%
Seq Read
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	5664 MB/s
Average Kingston Fury Renegade SFYRS1000G ()	5664 MB/s 0%
Average of class Desktop (1356 - 6331, n=6, last 2 years)	4689 MB/s -17%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	4274 MB/s -25%
Minisforum Neptune Series HX90G ESO512GYLCT	2215 MB/s -61%
Minisforum NUCX i7	1613 MB/s -72%
Seq Write
Average of class Desktop (854 - 6117, n=6, last 2 years)	3296 MB/s +7%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	3081 MB/s
Average Kingston Fury Renegade SFYRS1000G ()	3081 MB/s 0%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	2382 MB/s -23%
Minisforum Neptune Series HX90G ESO512GYLCT	1780 MB/s -42%
Minisforum NUCX i7	1468 MB/s -52%
4K Read
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	83.9 MB/s +8%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	77.71 MB/s
Average Kingston Fury Renegade SFYRS1000G ()	77.7 MB/s 0%
Average of class Desktop (59.7 - 98.1, n=6, last 2 years)	76.1 MB/s -2%
Minisforum NUCX i7	54.25 MB/s -30%
Minisforum Neptune Series HX90G ESO512GYLCT	53.18 MB/s -32%
4K Write
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	308.4 MB/s +13%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	272.11 MB/s
Average Kingston Fury Renegade SFYRS1000G ()	272 MB/s 0%
Average of class Desktop (191.8 - 272, n=6, last 2 years)	234 MB/s -14%
Minisforum Neptune Series HX90G ESO512GYLCT	157.2 MB/s -42%
Minisforum NUCX i7	129.81 MB/s -52%
4K-64 Read
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	1950 MB/s +70%
Average of class Desktop (325 - 3236, n=6, last 2 years)	1762 MB/s +53%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	1148.16 MB/s
Average Kingston Fury Renegade SFYRS1000G ()	1148 MB/s 0%
Minisforum Neptune Series HX90G ESO512GYLCT	725.98 MB/s -37%
Minisforum NUCX i7	679.23 MB/s -41%
4K-64 Write
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	5085.1 MB/s
Average Kingston Fury Renegade SFYRS1000G ()	5085 MB/s 0%
Average of class Desktop (533 - 5085, n=6, last 2 years)	2971 MB/s -42%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	2281 MB/s -55%
Minisforum NUCX i7	1279.71 MB/s -75%
Minisforum Neptune Series HX90G ESO512GYLCT	1146.83 MB/s -77%
Access Time Read
Minisforum Neptune Series HX90G ESO512GYLCT	0.117 ms * -13%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	0.104 ms *
Average Kingston Fury Renegade SFYRS1000G ()	0.104 ms * -0%
Minisforum NUCX i7	0.092 ms * +12%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	0.071 ms * +32%
Average of class Desktop (0.031 - 0.104, n=6, last 2 years)	0.0615 ms * +41%
Access Time Write
Minisforum NUCX i7	0.079 ms * -508%
Average of class Desktop (0.013 - 0.129, n=6, last 2 years)	0.04583 ms * -253%
Minisforum Neptune Series HX90G ESO512GYLCT	0.024 ms * -85%
Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G	0.013 ms *
Average Kingston Fury Renegade SFYRS1000G ()	0.013 ms * -0%
Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB	0.012 ms * +8%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Intel NUC13 Raptor Canyon Kingston Fury Renegade SFYRS1000G: Ø6568 (2645.61-7096.48)

Intel Beast Canyon NUC Sabrent Rocket 4.0 500GB: Ø3896 (225.06-5002.7)

Zotac ZBOX Magnus EN173070C Transcend M.2 SSD 2200S TS512GMTE220S: Ø2440 (1786.98-2501.9)

Intel Dragon Canyon NUC - RTX 3060 Transcend M.2 SSD 2200S TS512GMTE220S: Ø3896 (225.06-5002.7)

Minisforum NUCX i7 : Ø2309 (2137.76-2318.4)

Minisforum Neptune Series HX90G ESO512GYLCT: Ø1859 (996.67-1961.26)

GPU性能

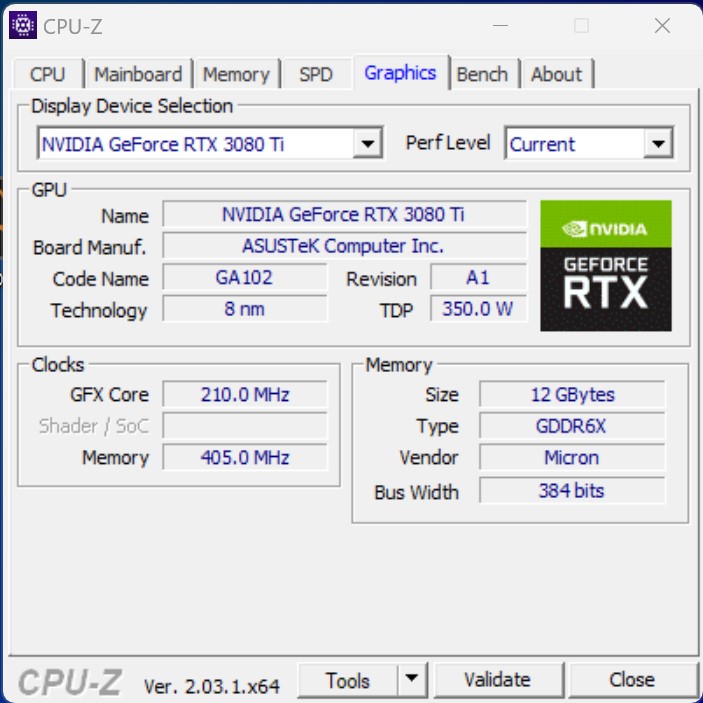

英特尔为我们的测试样品配备了一个 NvidiaGeForce RTX 3080 Ti.这款GPU提供了很好的性能，几乎可以媲美 NvidiaGeForce RTX 3090.虽然12GB的VRAM，它的VRAM是RTX 3090的一半，但这在大多数情况下仍然是足够的。在350瓦的情况下，安装的模型正在运行在我们认为合理的极限，我们不建议在紧凑型系统中使用更大的GPU。这只适用于电力消耗，因为该系统在物理上甚至支持 NvidiaGeForce RTX 4090.坚持使用GeForce-RTX-4000系列显卡的用户可能最好使用 NvidiaGeForce RTX 4080.它的TGP高达320瓦，比我们华硕的GeForce RTX 3080 Ti更经济，而且速度也大大加快。

更多的比较和基准测试可以在我们的 GPU页面.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, AMD Ryzen 9 7950X	100 pt
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, Intel Core i9-12900K	98 pt
Intel Core i9-13900K NVIDIA GeForce RTX 3090, Intel Core i9-13900K	97.6 pt
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, Intel Core i9-13900K	97 pt
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	50.6 pt
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	45.3 pt
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, Intel Core i9-12900	44.6 pt
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, Intel Core i9-11900KB	44.1 pt

3DMark 11 - 1280x720 Performance GPU
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, AMD Ryzen 9 7950X	62189 Points +4%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, Intel Core i9-12900K	60716 Points +2%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, Intel Core i9-13900K	59972 Points 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, Intel Core i9-13900K	59799 Points
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	34986 Points -41%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	31877 Points -47%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, Intel Core i9-12900	29172 Points -51%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, Intel Core i9-11900KB	28939 Points -52%

3DMark
1920x1080 Fire Strike Graphics
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, AMD Ryzen 9 7950X	48709 Points +5%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, Intel Core i9-12900K	47757 Points +3%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, Intel Core i9-13900K	47241 Points +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, Intel Core i9-13900K	46469 Points
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	24451 Points -47%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	22884 Points -51%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, Intel Core i9-12900	21984 Points -53%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, Intel Core i9-11900KB	21379 Points -54%
2560x1440 Time Spy Graphics
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, AMD Ryzen 9 7950X	19460 Points 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, Intel Core i9-13900K	19367 Points
Intel Core i9-13900K NVIDIA GeForce RTX 3090, Intel Core i9-13900K	19198 Points -1%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, Intel Core i9-12900K	19041 Points -2%
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	9205 Points -52%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, Intel Core i9-12900	8578 Points -56%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, Intel Core i9-11900KB	8525 Points -56%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	7685 Points -60%
Fire Strike Extreme Graphics
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, AMD Ryzen 9 7950X	24250 Points +3%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, Intel Core i9-13900K	23839 Points +2%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, Intel Core i9-12900K	23835 Points +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, Intel Core i9-13900K	23460 Points
Minisforum NUCX i7 NVIDIA GeForce RTX 3070 Laptop GPU, Intel Core i7-11800H	11757 Points -50%
Minisforum Neptune Series HX90G AMD Radeon RX 6600M, AMD Ryzen 9 5900HX	10545 Points -55%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, Intel Core i9-12900	10244 Points -56%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, Intel Core i9-11900KB	10181 Points -57%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition | ComputeMark v2.1

Performance Rating - Percent
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	99.4 pt
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	99.2 pt
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	98.3 pt
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	96.7 pt
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	48.6 pt
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	42.8 pt
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	42.2 pt
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	38.7 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	282.1 fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	279.3 fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	277.9 fps -1%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	271.9 fps -3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	139.4 fps -50%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	135.1 fps -52%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	124.9 fps -55%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	121 fps -57%
Extreme Preset DX11
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	311.6 fps +3%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	309.2 fps +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	302.6 fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	296.6 fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	152.9 fps -49%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	134.8 fps -55%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	130.8 fps -57%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	127.7 fps -58%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	245 fps +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	240.4 fps
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	237.3 fps -1%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	229.3 fps -5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	120.9 fps -50%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	108.3 fps -55%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	106.7 fps -56%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	93.3 fps -61%
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	210.8 fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	209.8 fps
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	208.8 fps 0%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	202.9 fps -3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.8 fps -50%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	96.1 fps -54%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	93.9 fps -55%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	91.6 fps -56%

Unigine Superposition
1920x1080 1080p High
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	26711 Points +2%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	26393 Points +1%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	26193 Points 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	26131 Points
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	12667 Points -52%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	11177 Points -57%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	11130 Points -57%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	10187 Points -61%
1920x1080 1080p Extreme
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	12347 Points +2%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	12100 Points 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	12071 Points
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	12069 Points 0%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	5847 Points -52%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	5008 Points -59%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	5006 Points -59%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	4274 Points -65%
3840x2160 4k Optimized
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	16412 Points +2%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	16322 Points +1%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	16124 Points 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	16108 Points
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	7574 Points -53%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	6733 Points -58%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	6694 Points -58%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	5478 Points -66%

ComputeMark v2.1 - 1024x600 Normal, Score
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	49118 Points +1%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	48892 Points 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	48749 Points
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	48047 Points -1%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	24877 Points -49%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	20805 Points -57%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	20322 Points -58%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	16123 Points -67%

游戏性能

虽然 NvidiaGeForce RTX 3080 Ti已不再是最新的显卡之一，但该模型肯定不是一个糟糕的选择。一个组合是英特尔酷睿i9-13900K和GeForce RTX 3080 Ti的组合仍然很有意义，因为它甚至能够在最大设置下流畅地显示最近的游戏。与速度更快的 NvidiaGeForce RTX 3090的性能差距是很小的。在一个基于AMD Ryzen 9 7950X的系统中，我们为比较目的而建立，同样的 NvidiaGeForce RTX 3080 Ti并没有实现重大的性能飞跃，因为当GPU接近满负荷时，处理器的性能变得不那么重要。

当涉及到选择显卡时，我们建议用户验证他们喜欢的型号的兼容性，因为支持的最大长度是有限的。图形解决方案不得超过31.3厘米（约12.32英寸）的最大长度。在厚度方面，该机箱最多允许有三个插槽。

GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	165.6 (9.1^min, 125^P1 - 349^max) fps +3%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	163.6 (8.63^min, 111.1^P1 - 329^max) fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	161.5 (2.84^min, 125^P1 - 280^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	149 (8.57^min, 100^P1 - 295^max) fps -8%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	106 (6.46^min, 76.9^P1 - 212^max) fps -34%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	104 (4.33^min, 71.4^P1 - 206^max) fps -36%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	104 (4.33^min, 71.4^P1 - 206^max) fps -36%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	86.6 (3.43^min, 58.8^P1 - 176^max) fps -46%
3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	182.6 (2.49^min, 125^P1 - 569^max) fps 0%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	182.5 (1.708^min, 142.9^P1 - 583^max) fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	182 (1.762^min, 125^P1 - 491^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	180 (2.49^min, 143^P1 - 329^max) fps -1%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	85.6 fps -53%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	82.3 (7.1^min, 58.8^P1 - 158^max) fps -55%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	82.3 (7.1^min, 58.8^P1 - 158^max) fps -55%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	57.9 (7.18^min, 41.7^P1 - 231^max) fps -68%

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	184.6 (67.2^min, 103.2^P0.1, 158^P1 - 493^max) fps +3%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	183 (62.1^min, 107^P0.1, 149^P1 - 431^max) fps +2%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	179.8 (98.3^min, 120.2^P0.1, 148.7^P1 - 458^max) fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	179.1 (88.3^min, 112.8^P0.1, 149.4^P1 - 475^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps -42%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	91.3 (52.3^min, 64.5^P0.1, 77.1^P1 - 310^max) fps -49%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps -51%
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	156.8 (29.3^min, 110.6^P0.1, 134.2^P1 - 617^max) fps
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	154.9 (54.5^min, 91.3^P0.1, 134.4^P1 - 636^max) fps -1%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	151.6 (24.7^min, 114.1^P0.1, 131.8^P1 - 659^max) fps -3%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	149 (41.5^min, 102^P0.1, 127^P1 - 584^max) fps -5%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps -54%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	62.5 (22^min, 41.4^P0.1, 54.9^P1 - 339^max) fps -60%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps -72%

Final Fantasy XV Benchmark
3840x2160 High Quality
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	88.5 fps +5%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	86.4 fps +3%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	84.2 fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	84 fps 0%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	45.6 fps -46%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	38 fps -55%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	38 fps -55%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	30.6 fps -64%
1920x1080 High Quality
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	188.9 fps +5%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	186.4 fps +3%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	180.6 fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	175 fps -3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	103.3 fps -43%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	88.6 fps -51%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	88.6 fps -51%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.4 fps -55%

X-Plane 11.11
3840x2160 high (fps_test=3)
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	128.4 fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	127.3 fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	118 fps -7%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	118 fps -7%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	88.5 fps -30%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	88.5 fps -30%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps -36%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps -77%
1920x1080 high (fps_test=3)
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	148.8 fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	148.4 fps 0%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	140.1 fps -6%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	135 fps -9%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	105 fps -29%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	105 fps -29%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	94.8 fps -36%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	47.1 fps -68%

Far Cry 5
1920x1080 Ultra Preset AA:T
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	205 (155^min - 278^max) fps +10%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	188 (137^min - 271^max) fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	186 (141^min - 254^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	175 (134^min - 238^max) fps -6%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	132 (114^min - 150^max) fps -29%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	122 (93^min - 151^max) fps -34%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	119 (90^min - 152^max) fps -36%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	110 (87^min - 142^max) fps -41%
3840x2160 Ultra Preset AA:T
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	110 (99^min - 129^max) fps +1%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	109 (98^min - 128^max) fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	109 (98^min - 129^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	108 (97^min - 128^max) fps -1%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	55 (48^min - 67^max) fps -50%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	49 (44^min - 60^max) fps -55%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	48 (43^min - 59^max) fps -56%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43 (36^min - 57^max) fps -61%

Far Cry New Dawn
1920x1080 Ultra Preset
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	166 (118^min - 265^max) fps +11%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	153 (104^min - 256^max) fps +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	150 (106^min - 242^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	141 (98^min - 229^max) fps -6%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	113 (86^min - 148^max) fps -25%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	102 (72^min - 145^max) fps -32%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	100 (71^min - 156^max) fps -33%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	90 (63^min - 144^max) fps -40%
3840x2160 Ultra Preset
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	111 (94^min - 132^max) fps +2%
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	110 (85^min - 131^max) fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	109 (93^min - 130^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	107 (85^min - 127^max) fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	58 (50^min - 71^max) fps -47%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	51 (42^min - 61^max) fps -53%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	50 (42^min - 60^max) fps -54%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	48 (38^min - 62^max) fps -56%

Far Cry 6
1920x1080 Ultra Graphics Quality + HD Textures AA:T
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	159.6 (123^min - 198^max) fps +32%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	159.1 (137^min - 188^max) fps +32%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	149 (125^min - 185^max) fps +23%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	120.7 (100^min - 164^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	102.3 (83^min - 118^max) fps -15%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	96 (83^min - 107^max) fps -20%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	90.8 (78^min - 103^max) fps -25%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	71.5 (51^min - 93^max) fps -41%
3840x2160 Ultra Graphics Quality + HD Textures AA:T
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	86.2 (79^min - 93^max) fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	86 (77^min - 93^max) fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	84.5 (76^min - 92^max) fps -2%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	81.6 (74^min - 88^max) fps -5%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	39.3 (34^min - 43^max) fps -54%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	38.8 (34^min - 42^max) fps -55%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	2.85 (2^min - 3^max) fps -97%

Metro Exodus
1920x1080 Ultra Quality AF:16x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	144.2 (71.71^min - 266.45^max) fps +8%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	141.3 (72.08^min - 276.09^max) fps +5%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	137 (66.86^min - 244.08^max) fps +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	134 (62.23^min - 264.55^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	74.6 (38.07^min - 133.07^max) fps -44%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	65.3 (34.71^min - 117.86^max) fps -51%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	59.8 (30.99^min - 119.9^max) fps -55%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	59.2 (34.14^min - 86.99^max) fps -56%
3840x2160 Ultra Quality AF:16x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	77.1 (48.66^min - 128.68^max) fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	76.5 (48.81^min - 120.82^max) fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	76.2 (48.9^min - 128.44^max) fps 0%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	75 (46.62^min - 125.88^max) fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	37.6 (22.55^min - 69.77^max) fps -51%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	32.2 (20.64^min - 49.49^max) fps -58%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	31.3 (19.73^min - 51.77^max) fps -59%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	27.3 (18.02^min - 35.61^max) fps -64%

Borderlands 3
3840x2160 Badass Overall Quality (DX11)
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	74 fps
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	73.8 fps 0%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	73.1 fps -1%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	72 fps -3%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	36.8 fps -50%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	34.8 fps -53%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	33.3 fps -55%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	23.7 fps -68%
1920x1080 Badass Overall Quality (DX11)
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	164.9 fps +3%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	163 fps +2%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	160 fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	152 fps -5%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	100 fps -37%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	84.7 fps -47%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps -47%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps -59%

F1 2020
1920x1080 Ultra High Preset AA:T AF:16x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	313 (254^min - 380^max) fps +1%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	310 (246^min - 379^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	298 (238^min - 364^max) fps -4%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	297 (238^min - 361^max) fps -4%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	166.2 (136^min - 198^max) fps -46%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	142 (114^min - 171^max) fps -54%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	142 (114^min - 171^max) fps -54%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	132.4 (98^min - 165^max) fps -57%
3840x2160 Ultra High Preset AA:T AF:16x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	145.9 (124^min - 173^max) fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	145.2 (122^min - 172^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	143 (122^min - 169^max) fps -2%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	142.4 (118^min - 168^max) fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	69.7 (59^min - 82^max) fps -52%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	60.2 (51^min - 71^max) fps -59%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	60.2 (51^min - 71^max) fps -59%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	52.6 (42^min - 63^max) fps -64%

F1 2021
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	234 (196^min, 186^P1 - 256^max) fps +4%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	225 (181^min, 182^P1 - 249^max) fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	224 (191^min, 182^P1 - 252^max) fps 0%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	219 fps -3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.1 (104^min, 93^P1 - 137^max) fps -45%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	96.9 (83^min, 83^P1 - 107^max) fps -57%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	96.9 (83^min, 83^P1 - 107^max) fps -57%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	95.8 (80^min, 80^P1 - 110^max) fps -57%
3840x2160 Ultra High Preset + Raytracing AA:T AF:16x
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	105.6 (91^min, 91^P1 - 117^max) fps +2%
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	103.4 (90^min, 89^P1 - 116^max) fps 0%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	103.2 (89^min, 89^P1 - 115^max) fps
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	101 (88^min, 87^P1 - 114^max) fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	51.1 (44^min, 43^P1 - 58^max) fps -50%
Intel Beast Canyon NUC NVIDIA GeForce RTX 3060, i9-11900KB, Sabrent Rocket 4.0 500GB	40.9 (35^min, 35^P1 - 46^max) fps -60%
Intel Dragon Canyon NUC - RTX 3060 NVIDIA GeForce RTX 3060, i9-12900, Transcend M.2 SSD 2200S TS512GMTE220S	40.9 (35^min, 35^P1 - 46^max) fps -60%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	31.6 (27^min, 26^P1 - 38^max) fps -69%

Forza Horizon 5
1920x1080 Extreme Preset
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	141 fps +9%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	129 fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	127 fps -2%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	126 fps -2%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81 fps -37%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	62 fps -52%
3840x2160 Extreme Preset
ASUS TUF Gaming GeForce RTX 3080 Ti OC NVIDIA GeForce RTX 3080 Ti, R9 7950X, Corsair MP600	90 fps +3%
Intel NUC13 Raptor Canyon NVIDIA GeForce RTX 3080 Ti, i9-13900K, Kingston Fury Renegade SFYRS1000G	87 fps
Intel Core i9-13900K NVIDIA GeForce RTX 3090, i9-13900K, Corsair MP600	85 fps -2%
Corsair One i300 NVIDIA GeForce RTX 3080 Ti, i9-12900K, Samsung PM9A1 MZVL22T0HBLB	84 fps -3%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	50 fps -43%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	30 fps -66%

	low	med.	high	ultra	QHD	4K
GTA V (2015)	187.6	187.4	187	161.5	152.8	182
The Witcher 3 (2015)	702	564	374	179.1		156.8
Dota 2 Reborn (2015)	278.9	242.4	234.1	216.6		211.1
Final Fantasy XV Benchmark (2018)	234	229	180.6		141	84.2
X-Plane 11.11 (2018)	232	202	148.8			127.3
Far Cry 5 (2018)	239	208	198	186	176	109
Strange Brigade (2018)	613	489	407	359	269	161
Far Cry New Dawn (2019)	200	174	167	150	144	109
Metro Exodus (2019)	241	200	165.8	134	115	76.5
Borderlands 3 (2019)	229	195.3	179.7	160	128.7	74
F1 2020 (2020)	520	448	419	310	240	145.2
F1 2021 (2021)	615	525	428	225	174.3	103.2
Far Cry 6 (2021)	211	180.4	160.6	120.7	136	86
Forza Horizon 5 (2021)	256	191	182	129	117	87
God of War (2022)	229	200	166.6	119.6	105.8	77.5
Tiny Tina's Wonderlands (2022)	355	291	211	168.5	123.1	70
F1 22 (2022)	367	342	321	128.8	85.6	43

排放

温度和系统噪音

英特尔NUC 13 Extreme Raptor Canyon在我们的压力测试中。

英特尔NUC 13 Extreme Raptor Canyon的机箱被分成两个腔室。顶部容纳计算元件，包括CPU、内存和SSD以及电源，而底部则完全保留给专用显卡。虽然这个概念在实践中效果很好，但英特尔酷睿i9-13900K的PL2 英特尔酷睿i9-13900K只能维持很短的时间。CPU在负载下不可避免地达到100℃。不过，尽管如此，CPU只在非常短的时间内达到这一温度。平均而言，CPU温度稳定在60至90℃之间，这取决于不同的情况。

当涉及到噪音排放时，我们配置的系统仍然相对安静。尽管在满负荷的情况下，系统的噪音为39dB(A)，但它仍然远远没有达到令人讨厌的程度。我们在游戏时测得的类似数值略高于38 dB(A)。因此，安装的显卡是负载下的主要噪音来源。用更安静的型号创造一个非常安静的系统是可能的。

Noise Level

Idle		32.1 / 32.1 / 32.1 dB(A)
Load		33.4 / 39 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.4 dB(A)

能源消耗

一个750瓦的SFX电源处理交流转换。由于我们在游戏时测得的最大功耗为499瓦，因此即使系统处于满负荷状态，用户也不必担心。我们在测试中还观察到544瓦的峰值，这并没有导致任何问题。显卡的功率为350瓦，在游戏时消耗了绝大部分的功率。我们建议不要使用具有更高TGP的GPU。新的21VHPWR电缆无论如何只能提供高达300瓦的功率--至少根据插头上的图例。总共有三条6+2-PCIe电缆。

	Intel NUC13 Raptor Canyon i9-13900K, NVIDIA GeForce RTX 3080 Ti	Minisforum Neptune Series HX90G R9 5900HX, Radeon RX 6600M	Minisforum NUCX i7 i7-11800H, GeForce RTX 3070 Laptop GPU	Average NVIDIA GeForce RTX 3080 Ti	Average of class Desktop
Power Consumption		51%	36%	0%	-10%
Idle Minimum *	39	17.8 54%	28.2 28%	39 ?() -0%	41.6 ?(7.2 - 78.5, n=3, last 2 years) -7%
Idle Average *	42	17.9 57%	29.9 29%	42 ?() -0%	61.1 ?(42 - 80.1, n=2, last 2 years) -45%
Idle Maximum *	52	18.1 65%	36.2 30%	52 ?() -0%	52.6 ?(9.2 - 96.7, n=3, last 2 years) -1%
Load Average *	228	82.1 64%	83.2 64%	228 ?() -0%	150.6 ?(63.5 - 228, n=3, last 2 years) 34%
Load Maximum *	308	262 15%	215.7 30%	308 ?() -0%	399 ?(111.5 - 778, n=3, last 2 years) -30%
Witcher 3 ultra *			167
Cyberpunk 2077 ultra external monitor *			177

* ... smaller is better

Power Consumption

Off / Standby	2.5 / 25 Watt
Idle	39 / 42 / 52 Watt
Load	228 / 308 Watt


Key: min: , med: , max: Metrahit Energy

结论 - 大量的改进和明显的性能提高

英特尔NUC 13 Extreme Raptor Canyon的评论，由英特尔德国提供。

英特尔NUC 13 Extreme Raptor Canyon在许多方面做得很好。对于目前的猛禽湖模型，制造商不仅更新了硬件，而且还对机箱进行了大修。它现在明显比以前大了很多。因此，我们不再认为这个系统是一个迷你PC，尽管英特尔可能不同意。在14升的体积中，英特尔NUC 13 Extreme Raptor Canyon的竞争者是 Corsair-One-i300系列的竞争，后者的体积略微紧凑，为12升。

我们的系统配置在2160p下有足够的性能满足所有最近的标题。由于NUC 13 Raptor Canyon的裸机性质，该设备可以根据用户的要求和喜好进行定制。该英特尔酷睿i9-13900K表现特别好，这是我们没有想到的。此外，该设备即使在负载下也保持相对安静。

英特尔NUC 13 Extreme Kit基于英特尔酷睿i9-13900K，提供非常快的性能。与适当的GPU相配，它可以成为一个伟大的游戏系统或高端工作站。

该系统，包括CPU，目前价格为1550美元。添加内存、固态硬盘和GPU可以迅速将价格推到惊人的高度。也就是说，竞争对手，如前面提到的Corsair One i300的价格也高达5000美元左右。

由于采用了优质材料，这款新机箱看起来很时尚，感觉很坚固。此外，它还采用了功能性设计，有利于冷却能力。不管怎么说，还是有一些缺点，比如难以触及的SSD和缺乏读卡器。去年的模型仍然包括后者，提供快速的UHS-II速度。

价格和可用性

在中国，英特尔NUC 13 Extreme Raptor Canyon将于2022年第四季度发布。随后将于2023年第一季度在全球发布。根据配置的不同，NUC 13 Extreme的价格在1179美元至1549美元之间，不含GPU、内存或SSD--这对NUC来说是正常的。计算元素也可单独提供，不含PC机箱，价格为760至1100美元。

在本次审查期间，英特尔为我们提供了英特尔NUC 13 Extreme Raptor Canyon。

3DMark 05 Standard		82816 points
3DMark 06 Standard Score		71555 points
3DMark Vantage P Result		118753 points
3DMark 11 Performance		46806 points
3DMark Ice Storm Standard Score		288716 points
3DMark Cloud Gate Standard Score		76027 points
3DMark Fire Strike Score		37178 points
3DMark Fire Strike Extreme Score		23232 points
3DMark Time Spy Score		18822 points
Help

英特尔NUC 13 Extreme Raptor Canyon迷你电脑与Core i9-13900K和GeForce RTX 3080 Ti在审查中

结构紧凑，速度快，用途广!
